Field-reentrant superconductivity close to a metamagnetic transition in the heavy-fermion superconductor UTe$_2$

TL;DR

This study investigates the behavior of superconductivity in UTe$_2$ under high magnetic fields, revealing reentrant superconductivity near a metamagnetic transition and its dependence on magnetic fluctuations and Fermi surface changes.

Contribution

It provides the first detailed analysis of the upper critical field in UTe$_2$ near a metamagnetic transition, highlighting the interplay between magnetic fluctuations and superconductivity.

Findings

Superconductivity persists up to the metamagnetic transition at ~35 T.

Superconductivity is suppressed above the metamagnetic transition.

Reentrant superconductivity occurs at higher temperatures under magnetic fields.

Abstract

We present a study of the upper critical field of the newly discovered heavy fermion superconductor UTe$_2$ by magnetoresistivity measurements in pulsed magnetic fields up to 60~T and static magnetic fields up to 35~T. We show that superconductivity survives up to the metamagnetic transition at $H_{\rm m} \approx 35$~T at low temperature. Above $H_{\rm m}$ superconductivity is suppressed. At higher temperature superconductivity is enhanced under magnetic field leading to reentrance of superconductivity or an almost temperature independent increase of $H_{\rm c2}$. By studying the angular dependence of the upper critical field close to the $b$ axis (hard magnetization axis) we show that the maximum of the reentrant superconductivity temperature is depinned from the metamagnetic field. A key ingredient for the field-reinforcement of superconductivity on approaching $H_{\rm m}$ appears to be an immediate interplay with magnetic fluctuations and a possible Fermi-surface reconstruction.

Figures

Full text

The discovery of coexistence of ferromagnetism and spin-triplet, equal-spin-pairing superconductivity (SC) in the orthorhombic uranium compounds UGe2 (under pressure),[1] URhGe[2] and UCoGe[3] (at ambient pressure) demonstrated directly that SC can be modified by tuning purposely the ferromagnetic fluctuations.[4, 5] Recent studies on these ferromagnetic superconductors have emphasized the interplay between ferromagnetic fluctuations and Fermi surface (FS) reconstructions associated with quantum phase transitions as a function of pressure $(p)$ or magnetic field $(H)$ (for a recent review see Ref. \citenAoki2019a). An illustrating example is URhGe: at $p=0$ ferromagnetic order occurs at $T_{\rm Curie}=9.5$ K with an Ising sublattice magnetization $M_{0}=0.4\mu_{\rm B}$ oriented along the $c$-axis of the orthorhombic crystal structure.[2] Applying a transverse magnetic field $H\parallel b$-axis leads to the suppression of $T_{\rm Curie}$ and to a spectacular reentrance of SC in the field range from 8 T to 13 T. [7] At $H_{\rm R}=12$ T, a metamagnetic transition (MMT) occurs ($\Delta M_{0}=0.1\mu_{\rm B}$) and the magnetic moments reorient from the $c$-axis ($H=0$) to the $b$-axis in the magnetic phase above $H_{\rm R}$. The enhancement of SC at $H_{\rm R}$ presumbly results from the combined effect of the enhancement of the ferromagnetic fluctuations [8, 9] and a Fermi-surface reconstruction.[10, 11].

Similarly, the enhancement of the superconducting pairing under a transverse magnetic field appears in UCoGe, where the superconducting critical field $H_{\rm c2}$ along the $b$-axis shows an “S”-shape driven by the collapse of $T_{\rm Curie}$.[12] However, the “S”-shape occurs in a field range far below the metamagnetic field $H_{\rm m}\approx 50$ T.[13] The complete unraveling of the interplay between ferromagnetic fluctuations and topological FS changes suffers from the difficulty to detect major parts of the FS. The discovery of new materials with similar properties is essential to trigger advances in the field.

Recently, SC has been reported in the paramagnetic heavy fermion compound UTe2.[14, 15] The superconducting transition temperature $T_{\rm sc}=1.6$ K is remarkably high and the upper critical field $H_{\rm c2}$, exceeding by far the Pauli limitation for all crystallographic directions, has a very large anisotropy with an almost diverging $H_{\rm c2}$ for $H\parallel b$-axis at $T\approx 1$ K. However, this upturn is found to be strongly sample dependent.[15] UTe2 has an orthorhombic crystal structure with $Immm$ space group. The easy magnetization axis is the $a$-axis, and the $c$-axis is initially the hard axis above 20 K. For $H\parallel b$, a peculiarity is the maximum of the magnetic susceptibility at $T_{\chi_{\rm max}}\approx 35$ K, so that at $T=2$ K the susceptibility is the lowest for the $b$-axis.[16] This maximum of the susceptibility is linked to a MMT at $H_{\rm m}\approx 35$ T which has been observed in recent high field magnetization[17] and resistivity experiments[18] (see also Ref. [19]).

In the present paper, we concentrate on the superconducting phase diagram of different UTe2 single crystals under high magnetic field along the $b$-axis. We show that SC is strongly enhanced on approaching the MMT at $H_{\rm m}\approx 35$ T. By turning the magnetic field away from the $b$-axis, the field-induced enhancement of SC is rapidly suppressed and a usual orbital limited upper critical field is observed at an angle of 8 deg from $b$ to $a$-axis.

Single crystals of UTe2 were grown by chemical vapor transport with iodine as transport agent. We investigated three different single crystals from the same batch. They have been characterized by specific heat measurements and they all show a sharp superconducting transition at $T_{\rm sc}=1.5$ K. The orientation of the crystals has been verified by Laue diffraction. The temperature dependence of $H_{\rm c2}$ has been first measured by resistivity in CEA Grenoble using a home-made dilution refrigerator with a base temperature of 100 mK and a superconducting magnet with field up to 16 T to measure from 1.5 K downwards. Two of the measured crystals (#16 and #12) were cut for high field measurements in Toulouse and Grenoble. In LNCMI-Toulouse we used a home-made dilution refrigerator at temperatures down to 200 mK in long duration (50 ms raise, 325 ms fall) pulsed magnetic field up to 58 T (samples #16B and #12A). In LNCMI Grenoble a top-loading dilution refrigerator with a Swedish rotator (with angular resolution of 0.1 deg) was operated down to 25 mK in magnetic fields up to 35 T (samples #16D and #12C). Sample #16D has been turned in the $b-a$ plane and sample #12C in the $b-c$ plane. The resistivity measurements have been performed using a standard four point lock-in technique with current along the $a$-axis. Furthermore, we performed dc resistivity measurements in LNCMI Grenoble using a 3He cryostat up to 29 T on sample #01.

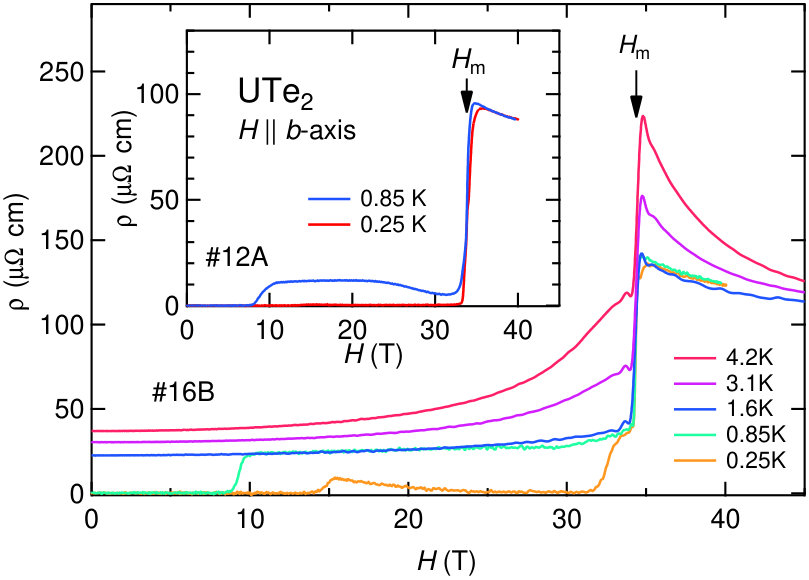

Figure 1 shows the magnetoresistivity of UTe2 as a function of pulsed magnetic field applied along the $b$-axis at different temperatures for samples #16B and #12A. We only show the field-down sweeps, where the influence of eddy currents on the sample temperature are smaller due to the larger fall-time of the pulse (325 ms). At the lowest temperature ($\approx 250$ mK), in sample #16B, $\rho=0$ up to 14.2 T. For higher fields the resistivity increases up to 37% of the normal state value, but decreases again above 16 T all the way up to 24.5 T, where $\rho=0$ is observed. At 32 T, below the field of the MMT at $H_{\rm m}=34.4$ T (defined by the maximum of the derivative $\partial\rho/\partial H$ from field sweep downwards), the $\rho(H)$ increases up to its normal state value. A huge step-like increase by a factor of four manifests the MMT with strong hysteresis (see Fig. S1, supplemental material). At 0.85 K shallow traces of this reentrant behavior of SC are still visible in the resistivity near 29 T. If we now look on sample #12A (inset of Fig. 1), a very similar behavior is observed. At the lowest temperature, the resistivity is zero up to 33 T. A step-like increase of the resistivity at $H_{\rm m}=33.9$ T indicates the MMT. At 0.85 K, the reentrance of SC shows up more strongly in the resistivity in this sample compared to sample #16B. But again, slightly below the metamagnetic transition SC disappears abruptly. Just above $T_{\rm sc}$ at $T=1.6$ K, the $\rho(H)$ increases monotonously up to the step-like anomaly at $H_{\rm m}$ and decreases for $H>H_{\rm m}$. The transition field $H_{\rm m}$ is almost temperature independent up to 4 K within our resolution, in agreement with a critical end point near $7-10$ K.[17, 18] The increase of $\rho(H)$ on both sides of $H_{\rm m}$ indicates a strong enhancement of the inelastic scattering term in the resistivity due to magnetic fluctuations and a possible underlying FS change. In Ref. \citenKnafo2019 we have shown that the $A$-coefficient of the Fermi-liquid resistivity $\rho(T)=\rho_{0}+AT^{2}$ is enhanced by a factor of 6 at $H_{\rm m}$ compared to the zero field value. Assuming the validity of the Kadowaki-Woods ratio, this would suggest an increase of the effective mass $m^{\star}$ by a factor of 2.5 at $H_{\rm m}$. This enhancement of $m^{\star}$ is in fairly good agreement with the derivation of $m^{\star}$ from magnetization measurements.[17] Importantly, no SC is observed above $H_{\rm m}$, possibly due to the new electronic state associated with a suddenly increased magnetization by a jump $\Delta M=0.6\,\mu_{\rm B}$ and probably a strong change in the carrier number.

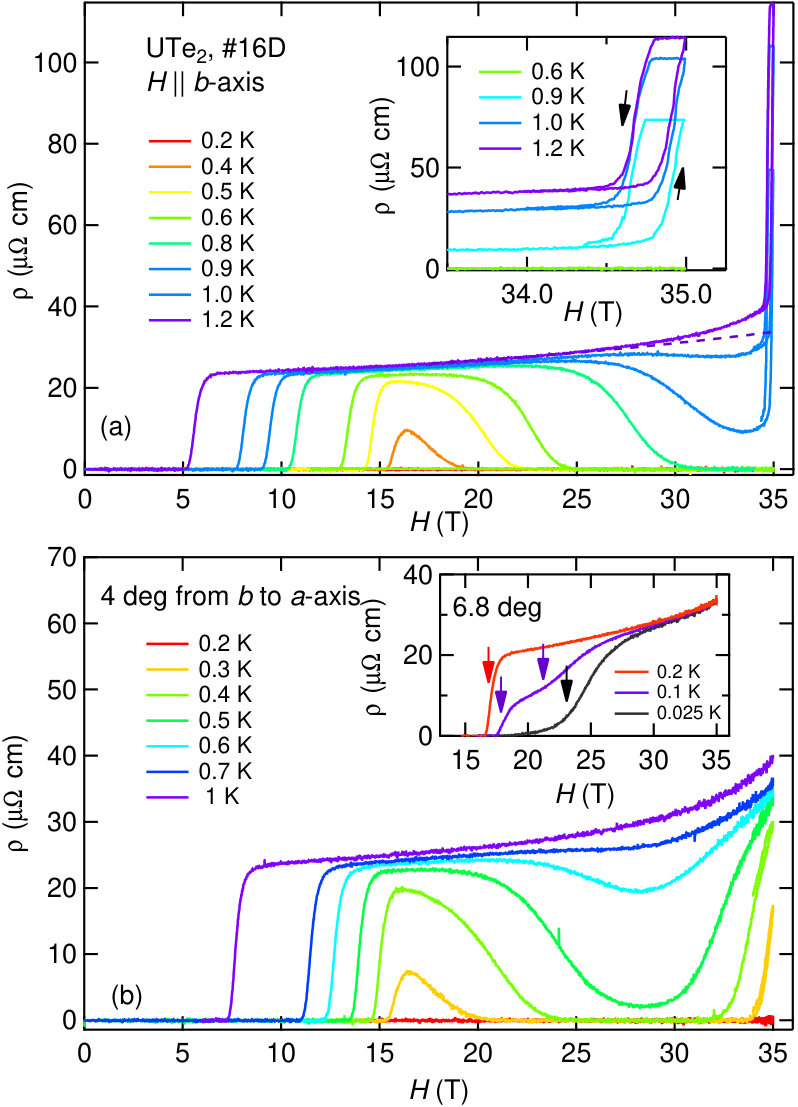

To get a more detailed understanding of the superconducting phase diagram we performed resistivity measurements using a resistive magnet allowing steady fields up to 35 T. We aligned accurately the crystal #16D along the $b$ axis by optimizing the sharp superconducting transition as a function of field at 0.6 K for different angles. The magnetoresistivity for $H\parallel b$-axis is shown in Fig. 2 (a) for different temperatures. At 0.2 K the sample is superconducting up to the highest field of 35 T. At 0.4 K, $\rho(H)$ increases between 15.4 T and 16.35 T up to a maximum value about 37 % of the normal state resisitivity at this field. Such an increase is similar to that in the pulsed field experiments on sample #16B at at 0.25 K (see Fig. 1). For higher fields $\rho(H)$ decreases again and vanishes above 19.5 T. For higher temperatures the critical field of the onset of non-zero resistivity decreases while the appearance of reentrant SC shifts to higher fields. Above 0.8 K the resistivity does not vanish completely in the reentrance superconducting regime. Only a small decrease of $\rho(H)$ near 34 T can be followed up to 1 K. At 1.2 K no trace of reentrant SC appears and the normal state resistivity can be well fitted by a $H^{2}$ dependence up to 26 T. For higher fields deviations from the $H^{2}$-dependence appear close to $H_{m}$ [see dashed line in Fig. 2(a)]. The stronger field dependence of the resistivity indicates the enhancement of critical scattering in agreement with the strong increase of the $A$-coefficient of the $T^{2}$ of the resistivity (see Fig. 1 and Ref. \citenKnafo2019).

The inset of Fig. 2(a) shows the field dependence close to the MMT in an expanded view. While at 0.6 K zero resistivity is observed up to 35 T, we observed at 0.9 K a strong increase of the resistivity above 34.8 T. From the size of the resistivity step in Fig. 1 we can conclude that the transition shown in the inset of Fig. 2(a) is not complete and thus the hysteresis is not fully developped. In the pulsed field data shown in Fig. 1, $H_{\rm m}\approx 34.35$ T was found from the down sweep. However, a clear indication of the first order nature of the transition is the hysteresis of 0.25 T between field sweeps up and down, which is by far larger than the experimental resolution. For increasing temperatures up to 1.2 K, the field and hysteresis of the MMT do not change.

In Fig. 2(b) we show $\rho(H)$ measured at an angle of 4 deg from the $b$ axis to the $a$-axis. Overall it is very similar to that for $H\parallel b$, but the superconducting critical field is slightly lower and the reentrant superconducting phase is shifted to lower fields. Already at 0.3 K we find the onset to the normal state, but the resistivity vanishes again at 20 T and stays zero up to 34 T, where it again starts to increase. We do not find any indication of the 1st order transition at $H_{\rm m}$, which we expect to be shifted to higher fields as we turn the field away from the $b$ axis. (The inset of Fig. S4 of Suppl. Material shows that the onset of the MMT is shifted by 0.1 T for 2 deg from the $b$-axis.) This seems different to the phase diagram of URhGe where the reentrant superconducting phase is initially pinned to the reorientation field of the magnetic moments and vanishes at a quantum critical end point at a field of 15 T at an angle of about 6 deg from the $b$ axis.[10, 20, 6] In the inset of Fig. 2(b) we show $\rho(H)$ for an angle of 6.8 deg from the $b$-axis. The reentrant SC has almost collapsed. At 0.1 K we only see a broad, two-step transition, while at 0.2 K a sharp transition at 16.6 T marks the onset of the normal state.

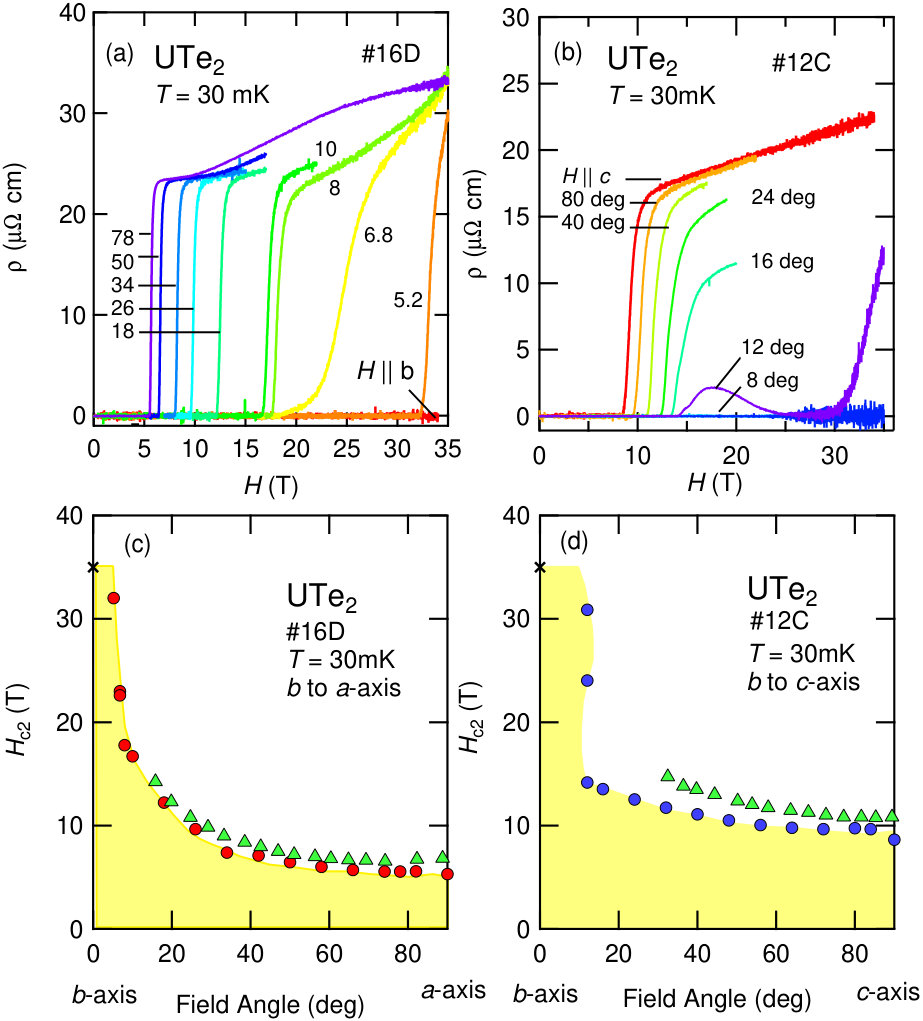

In Fig. 3(a) and (b) we show the angular dependence of $\rho(H)$ from $b$ to $a$-axis (sample #16D) and from $b$ to $c$ axis (sample #12C), respectively, at $T=30$ mK. The anisotropy of $H_{\rm c2}$ is shown in Fig. 3(c) and (d) for both planes and it is compared to data published in Ref. \citenAoki2019. In the $(a,b)$ plane, SC is observed up to the highest field of 35 T up to an angle of 4 deg from the $b$-axis. By turning from the $b$-axis to the $c$-axis, SC survives up to 35 T even for larger angles from the $b$-axis, in agreement with the anisotropy of the magnetic susceptibility ($\chi_{a}>\chi_{c}$). This very acute enhancement of $H_{\rm c2}$ near the $b$-axis cannot be explained by a conventional effective mass model assuming an ellipsoidal FS. This suggests that a more subtle mechanism is responsible for the enhancement of SC near the $b$-axis.

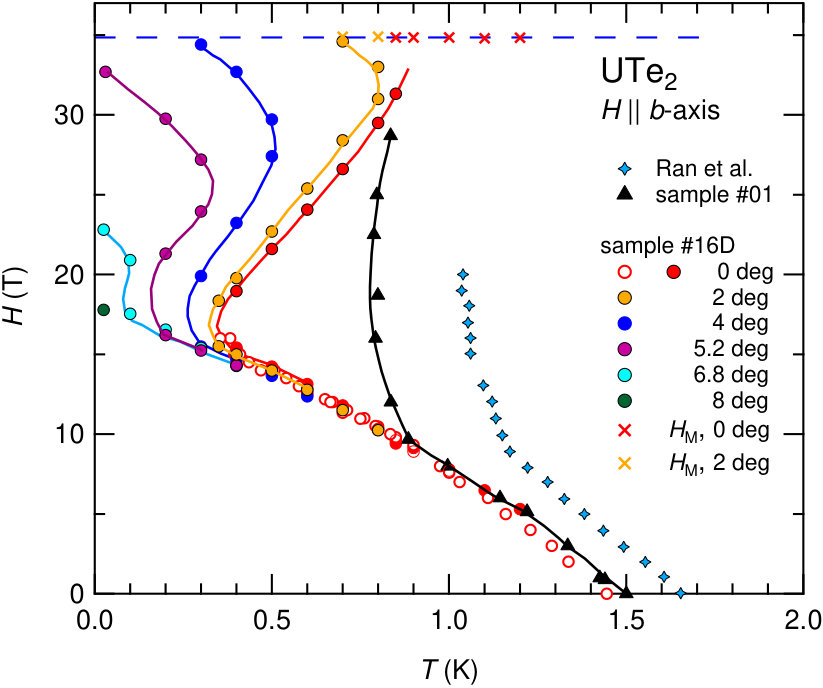

In Fig. 4 we show $H_{\rm c2}(T)$ of UTe2 in sample #16D (circles) for $H\parallel b$-axis and for angles up to 8 deg turned from the $b$-axis to the $a$-axis. For comparison, we also added $H_{\rm c2}$ of sample #01 and the data taken from Ref. \citenRan2018. The initial temperature dependence of $H_{\rm c2}$ at low field of the different samples is very similar below 10 T, only the value of $T_{\rm sc}$ at zero field is different. $H_{\rm c2}$ from sample #01 and and previous data in Ref. \citenRan2018 show a quasi-divergence above 10 T. On the contrary sample #16D shows an almost usual $H_{\rm c2}(T)$ down to 300 mK and up to 15 T. For fields higher than 15 T a reentrance of SC appears and $H_{\rm c2}(T)$ merges with that of sample #01 above 29 T. For all samples the reentrant superconducting phase collapses at the MMT for $H\parallel b$. If we rotate the field from the $b$- to the $a$-axis, the reentrant SC is suppressed and it vanishes near 17.8 T close to the orbital limited field for an angle of 8 deg. This result indicates that the superconducting pairing strength can be tuned by the magnetic field in UTe2. There may be a combined effect of magnetic fluctuations associated to the MMT[18, 17] with a huge jump $\Delta M\approx 0.6\,\mu_{\rm B}$ and a possible FS reconstruction at $H_{\rm m}$.

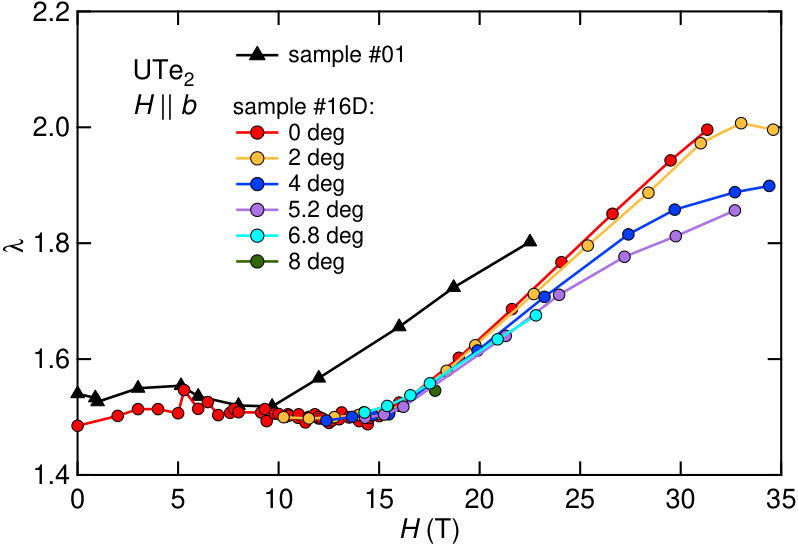

In Fig. 5 we show the field dependence of the strong coupling constant $\lambda(H)$ as extracted from calculations of $H_{\rm c2}$ for different (constant) values of $\lambda$, following what we did for UCoGe and URhGe.[5]. The band Fermi velocity $v_{\rm F,band}$ has also been renormalised by the factor $(1+\lambda(H))^{-1}$ and for the angular dependence, we corrected $v_{\rm F,band}$ of its anisotropy between the $b$- and the $a$-axis: we used an effective Fermi velocity $\langle v_{F}\rangle_{\theta}$ controlling $H_{c2}$ at an angle $\theta$ from the $b$-axis: $\langle v_{F}\rangle_{\theta}=\left(\langle\ v_{F}\rangle_{b}^{4}cos^{2}\theta+\langle\ v_{F}\rangle_{a}^{4}sin^{2}\theta\right)^{1/4}$, where $\langle\ v_{F}\rangle_{b}$ and $\langle v_{F}\rangle_{a}$ are extracted from the measured $H_{\rm c2}$ in these directions. The main difficulty – and also uncertainty – is the adjustment of $v_{\rm F,band}$. In Ref. \citenAoki2019 we had chosen a constant, isotropic $v_{F}$, following Ref. \citenRan2018, where $\langle v_{F}\rangle$ was determined from $H_{\rm c2}$ along $a$. This was implying a strong initial increase of $\lambda(H)$ for $H\parallel b$-axis, in order to reproduce the strong anisotropy of $H_{\rm c2}$ (a factor 3.2 at low fields in our samples). Here, we present another approach: we adjust $v_{\rm F,band}=15000$ m/s for $H\parallel b$-axis on the measured initial slope at $T_{\rm sc}(0)$. Again, $v_{F,band}$ has been supposed to be field independent up to $H_{\rm m}$. With such parameters we find that $\lambda(H)$ is almost constant up to the field where the upturn of $H_{\rm c2}$ occurs i.e. at 10 T and 15 T for samples #01 and #16D, respectively. This means that $H_{\rm c2}$ along b is well described by the orbital limit up to the upturn. For higher fields, $\lambda$ increases almost linearly from 1.5 to 2. At finite angles, the re-entrant phase is also described by a monotonous increase of $\lambda(H)$, and results solely from the tight competition between orbital limitation and field-increase of the coupling strength. We have chosen a larger value of $\lambda(0)=1.5$ than previously ($\lambda(0)=0.75$ in Ref. \citenRan2018,Aoki2019), because the field dependence of the $A$ coefficient or the $\gamma$ coefficient [18, 17] suggest a strong field-increase of $\lambda(H)$. Nevertheless, even with $\lambda(0)=1.5$, we could not reproduce the suggested strong enhancement close to $H_{\rm m}$. Clearly, we need more precise measurements of the field dependence of the Sommerfeld coefficient in order to cancel the arbitrariness of the choice of $v_{\rm F,band}$ and of $\lambda(0)$. The approach could be also over-simplified in the neighborhood of $H_{\rm m}$, where a significant evolution of $v_{\rm F,band}$ could take place.

Indeed, above $H_{\rm m}$ SC disappears abruptly, (see Fig.1). The very large resistivity jump at $H_{\rm m}$ [18] strongly suggest a loss of carrier numbers above $H_{\rm m}$, and so a strong decrease of the density of states, as well as a FS reconstruction. If correlation effects are also suppressed due to the band polarisation [17], we should also expect a large increase of $v_{F}$, hence, a drastic reduction of the orbital limit. All of these effects are expected to suppress SC above $H_{\rm m}$, but a FS evolution could already start to emerge before the MMT.

When the field direction is turned away from the $b$-axis, the MMT is expected to increase in field: this is naturally the case if, like in URhGe, it depends mainly on the projection of the induced magnetization along the $b$-axis. Similar to the case of URhGe, in UTe2 the critical end point of the $H_{\rm m}$ line may depends drastically on the angle from the $b$-axis and the enhancement of $m^{\star}$ and thus of $\lambda$ should be suppressed. In URhGe the reentrant SC is pinned to the reorientation of the magnetic moment, which is further supported by the uniaxial stress dependence of $H_{\rm m}$.[21] Here in UTe2, the misalignment with respect to the $b$-axis leads to a depinning of the $H_{\rm c2}$ from $H_{\rm m}$. The fact that we do not observe a marked enhancement of $\lambda(H)$ on approaching $H_{\rm m}$ is even more evident on the softening of the increase of $\lambda(H)$ with increasing angle from the $b$-axis, as shown in Fig. 5.

In heavy-fermion systems, a MMT is often accompanied by a FS instability.[22, 23] The large jump of the $b$-axis magnetization $\Delta M\approx 0.6\,\mu_{\rm B}$ must have some feedback on the FS. Indeed it,is almost comparable to the magnetization jump in UGe2 above $p_{\rm c}$ on entering in the weakly polarized phase FM1 under magnetic field.[24] Here, the crossings of phase boundary from paramagnetic to FM1 is associated to a FS reconstructions. [25, 26] In URhGe a Lifshitz transition is coupled to the field reorientation of the magnetic moment and the reentrant SC.[10, 11] It has been proposed that the multiband nature of this system may be responsible for the mass enhancement of one of the bands associated with the topological FS change.[27] Note that the field dependence of the specific heat at 0.4 K in UTe2 shows a rapid increase at low field, implying a multiband SC.[15] The main difference with URhGe (and other ferromagnetic superconductors) is that UTe2 is a paramagnet in the normal state, i.e. down to $T_{\rm sc}=1.6$ K. Up to now, no ferromagnetic component has been detected below $T_{\rm sc}$. However, a non-unitary superconducting state with pairing of only one spin state has been proposed.[14] In that case the superconducting transition would imply a secondary ferromagnetic order and a spontaneous spin splitting of the subbands which has not been established experimentally yet.

In conclusion we have studied the upper critical field in the heavy fermion superconductor UTe2 for magnetic field along the hard magnetization $b$-axis. We showed that SC extends at low temperature up to the MMT at $H_{\rm m}\approx 35$ T, with a reentrance of SC on approaching $H_{\rm m}$. Turning the magnetic field from the $b$-axis suppresses the reentrant superconducting phase, which is decoupled from $H_{\rm m}$. The temperature dependence of $H_{\rm c2}$ is explained by a balance between the orbital limiting field and the enhancement of SC due to the fluctuations associated with the MMT.

{acknowledgment}

Part of this work at the LNCMI was supported by Programme Investissements d’Avenir under the program ANR-11-IDEX-0002-02, reference ANR-10-LABX-0037-NEXT. We acknowledge the financial support of the Cross-Disciplinary Program on Instrumentation and Detection of CEA, the French Alternative Energies and Atomic Energy Commission, the ANR-DFG grant ”Fermi-NESt”, and KAKENHI (JP15H05882, JP15H05884, JP15K21732, JP16H04006, JP15H05745, JP19H00646).

1 Magnetoresistivity in pulsed field

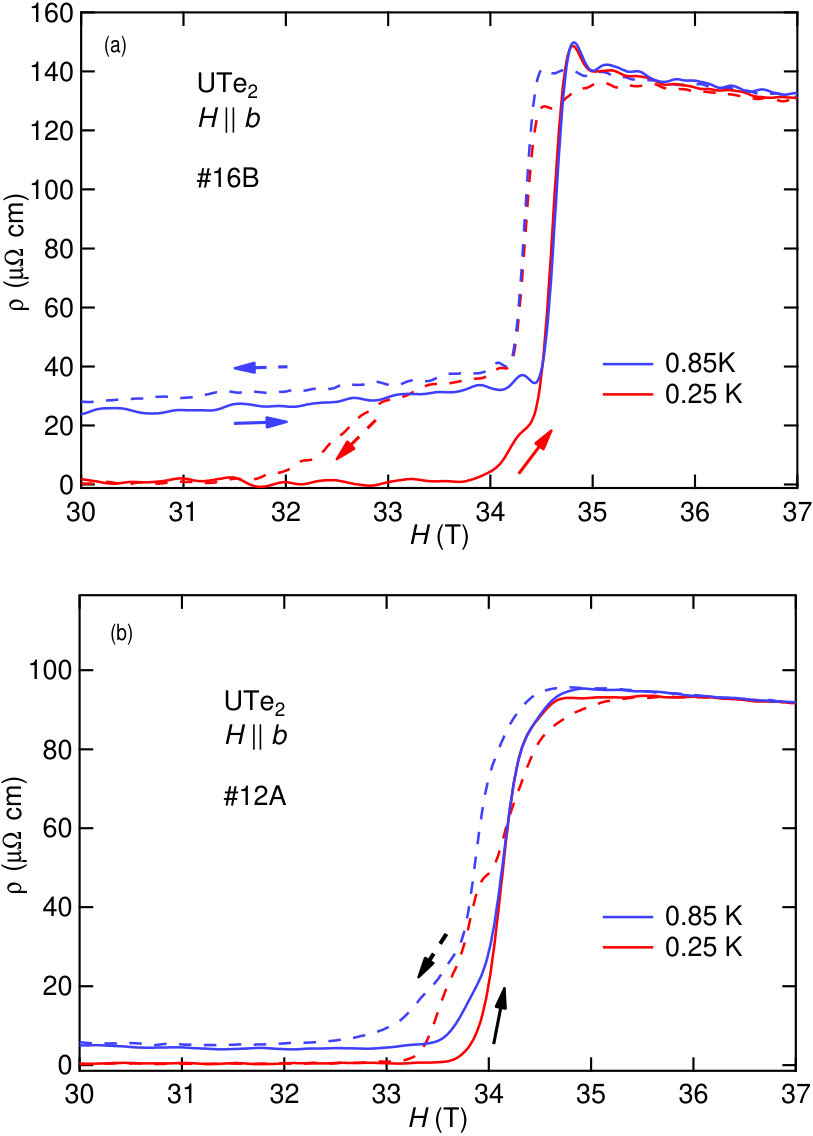

Figure S6 compares field-up and field-down data obtained for samples #16B and #12A in pulsed magnetic fields in the vicinity of $H_{\rm m}$. A similar hysteresis, of field width $\simeq 0.3$ T, is observed for both samples at the metamagnetic field $H_{\rm m}$. In sample #16B, a small misalignment from the $b$-axis may be responsible for the observed higher value of $H_{\rm m}$ and smaller value of $H_{\rm c2}$. We note that a hysteresis at $H_{\rm c2}$ is bigger than that at $H_{\rm m}$, possibly due to a deviation from non-isothermal conditions resulting from the use of pulsed magnetic fields (magnetocaloric and eddy currents effects).

2 Magnetoresistivity of sample #01

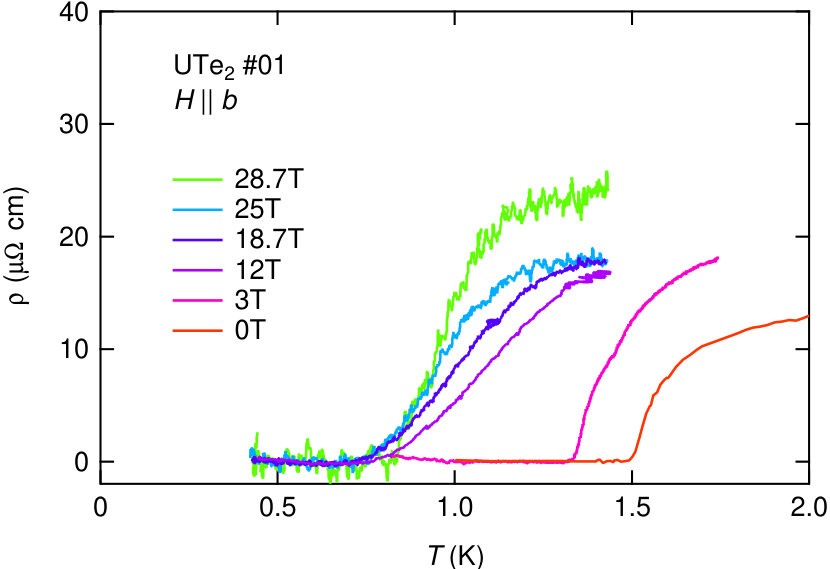

Previously, we have already recognized that the superconducting properties of UTe2 are strongly sample dependent, especially for a field applied along the $b$-axis.[15] Ran et al. [14] reported a strong upturn of $H_{\rm c2}$ to occur already for $T\approx 1$ K. In Fig. S7 we show the temperature dependence of the resistivity of sample #01 measured in static fields up to 28.7 T. Obviously, $H_{\rm c2}$, defined by $\rho=0$, is almost temperature independent for $H>12$ T up to 28.7 T and the behavior of this sample resembles very much to that reported in Ref. \citenRan2018. Interestingly the transition width decreases with increasing magnetic field indicating the strengthening of superconductivity on approaching $H_{\rm m}$. The varying behavior of different samples was suspected to depend on the initial $T_{\rm sc}(0)$.[15]

3 Angular dependence of the magnetoresistivity

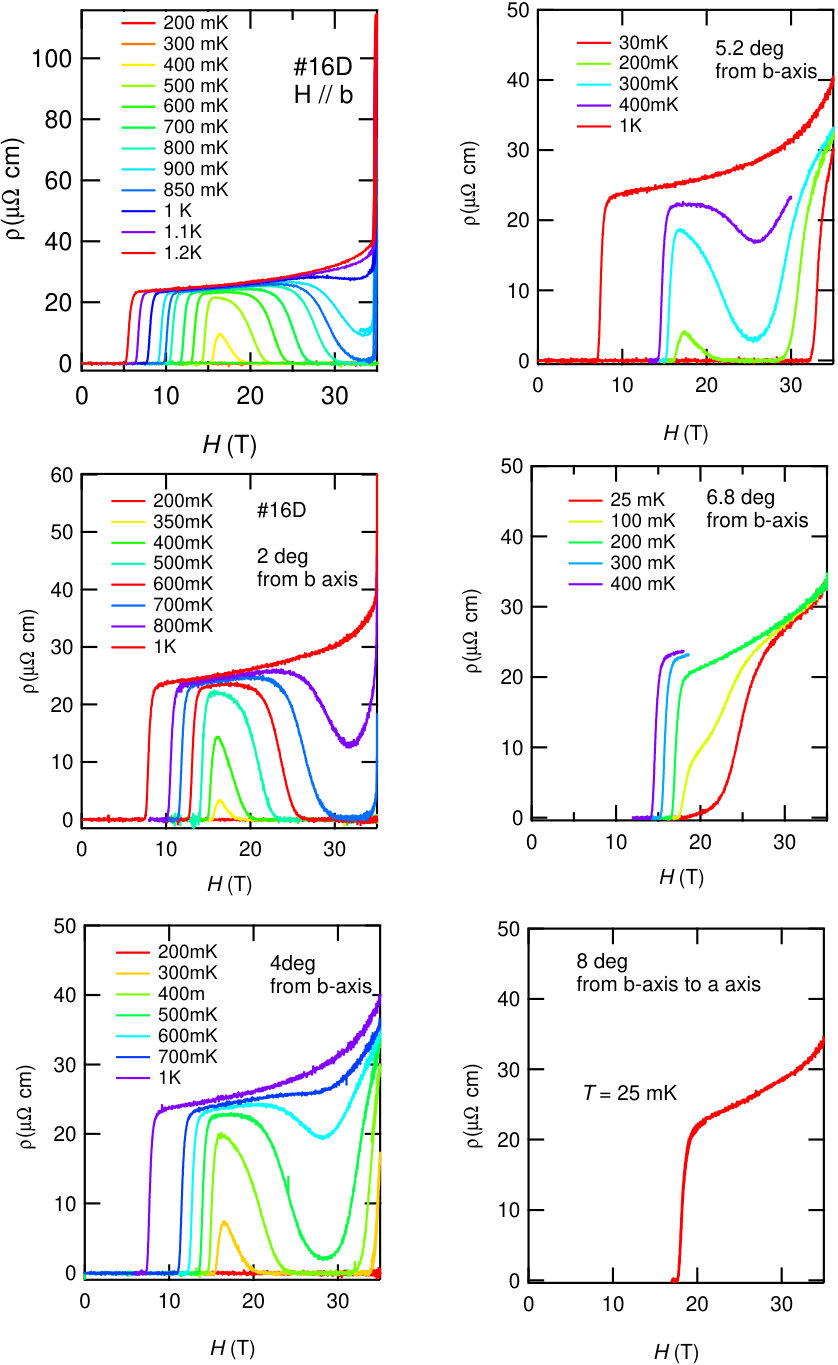

Figure S8 shows the magnetoresistivity vs. field of UTe2 at different temperature for various angles from the $b$-axis measured on sample #16D. The data clearly show that the reentrant superconductivity at $H\parallel b$ and at 2 deg collapses at the metamagnetic transition. For higher angles this transition shifts out of our accessible field window above 35 T (see inset of Fig. S9). However, it is obvious that the reentrant superconductivity is suppressed at lower fields for higher field angles. At 8 deg, the reentrant superconducting phase is fully suppressed.

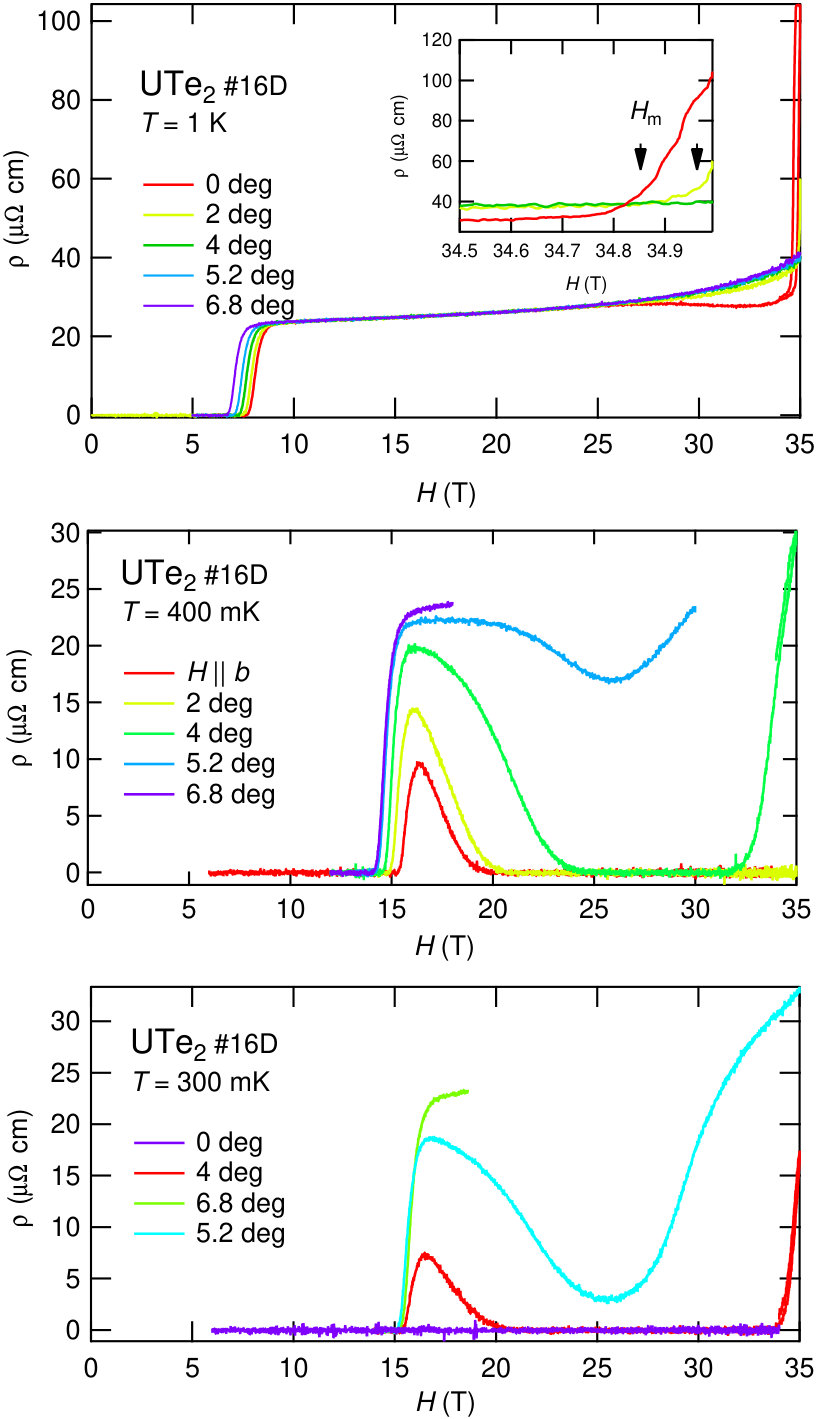

In Fig. S9 we show the magnetoresistivity vs. field of UTe2 at $T=1$ K (upper panel), $T=0.4$ K (middle panel) and $T=0.3$ K (lower panel). Obviously, with increasing angle the reentrant superconductivity detaches from the metamagnetic field, which can be followed only up to 2 deg from the $b$-axis in the field window up to 35 T as shown in the inset of Fig. S9. The shallow minimum for fields just below 35 T at $T=1$ K for $H\parallel b$ is due to the reentrant superconductivity. The field dependence of the magnetoresistivity at lower temperatures ($T=400$ mK and $T=300$ mK) supports that that the enhancement of superconductivity diminishes away from the $b$ axis.

4 Determination of the critical field

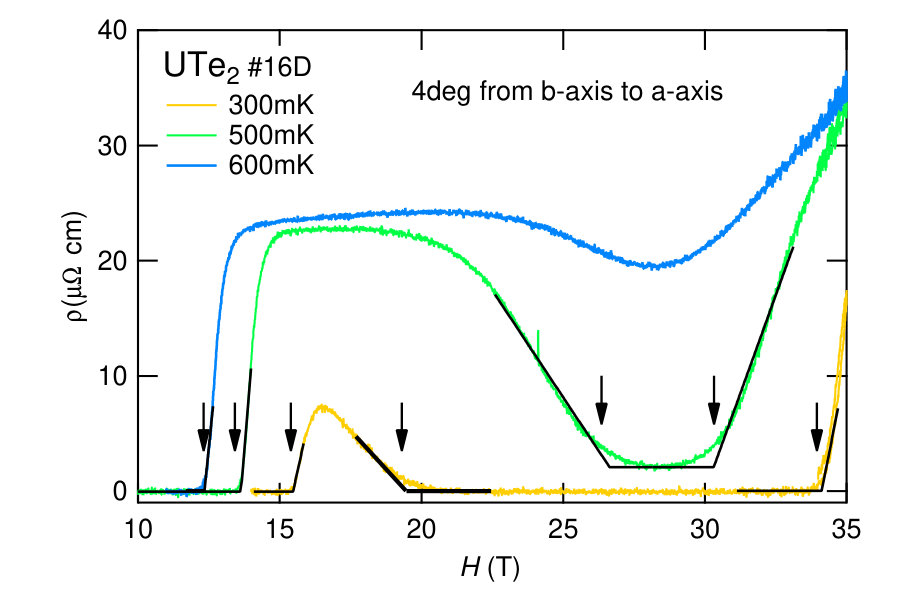

Figure S10 gives an example of the determination of the transition temperature reported in Fig. 4 of the main paper. The magnetoresistivity is shown for an angle of 4 deg from the $b$-axis to the $a$-axis for different temperatures. While $\rho(H)$ vanishes in the reentrant phase at 300 mK, the resistivity does not fall to zero in the field range fron 26 T to 30 T at 500 mK. However, in that range the lowest resitivity is less than 10% of the normal state resistivity at that field and we fitted the data as shown in Fig. S10. In difference, for $T=600$ mK, the drop of the resistivity is only down to 75% of the normal state value and thus we did not report these point in the phase diagram of Fig. 4 of the main paper. We choose the criteria that $\rho$ should at least be less than 30% of the normal state resisitivity. critical fields have been determined by fitting two straight lines to the data as shown in the figure.

5 Determination of $\lambda(H)$

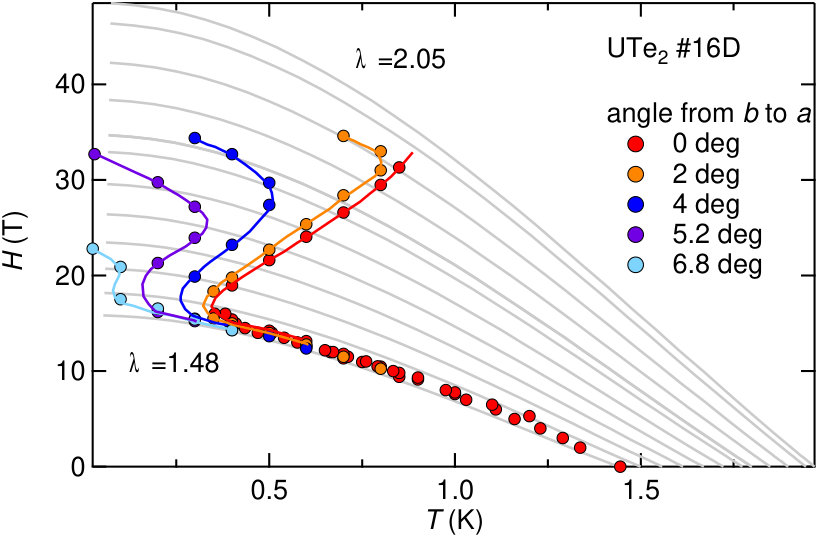

Figure S11 shows, how $\lambda(H)$ has been determined. Details of the calculations are explained in Ref. \citenWu2017. Gray lines show calculations of $H_{\rm c2}$ for $\lambda$ varied between 1.48 and 2.05 by steps of 0.06.
