CHANG-ES XX. High Resolution Radio Continuum Images of Edge-on Galaxies and their AGNs -- Data Release 3

TL;DR

This paper presents high-resolution radio continuum images and spectral index maps of 35 edge-on galaxies, revealing new features and AGN activity, and provides a data release for community use.

Contribution

It offers the third data release of high-resolution radio images and spectral index maps, uncovering hidden structures and AGNs in edge-on galaxies, with implications for understanding galactic nuclei and disk emission.

Findings

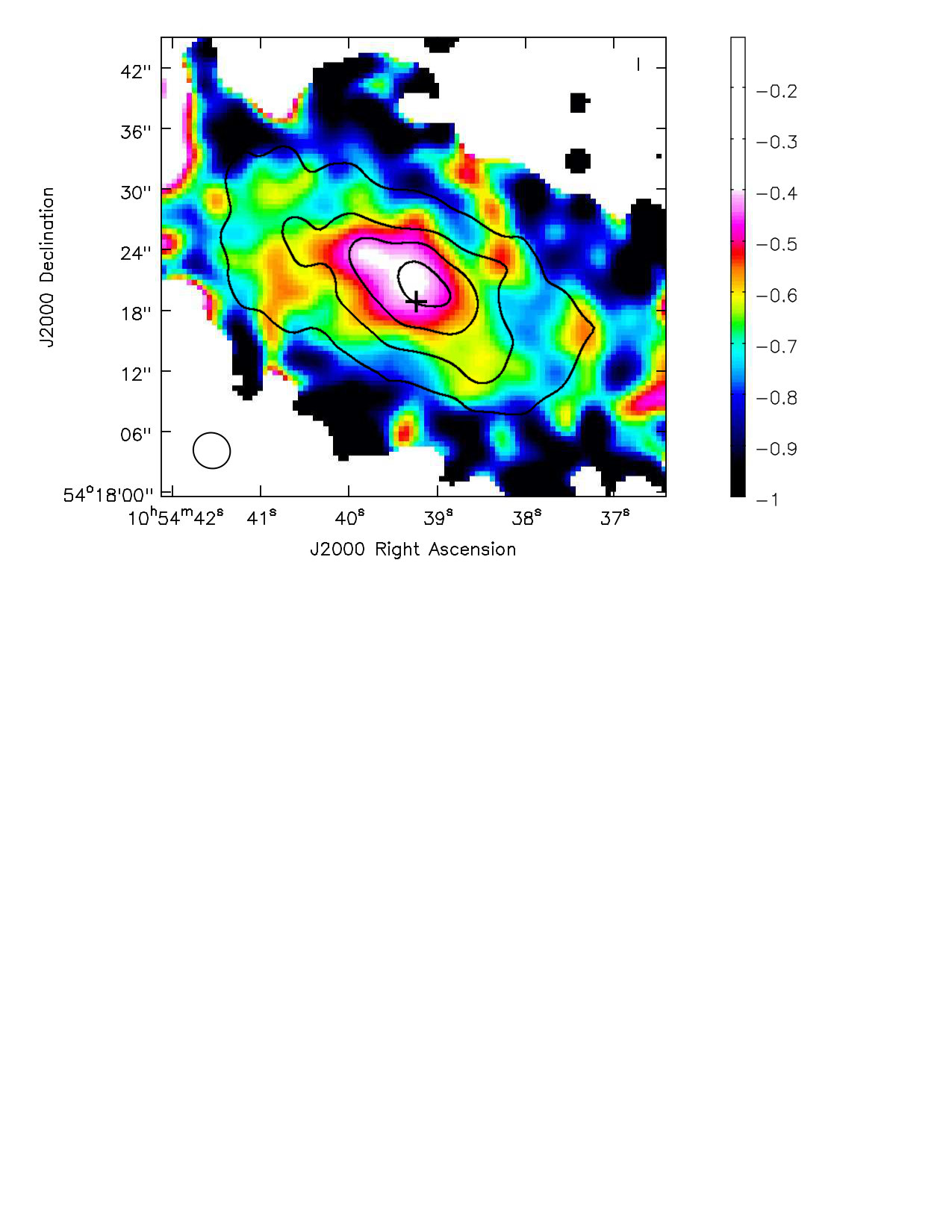

Detected hidden spiral arms in NGC 3448.

Identified two new radio lobes near NGC 3628's nucleus.

Found a 55% AGN detection rate based on radio criteria.

Abstract

The CHANG-ES galaxy sample consists of 35 nearby edge-on galaxies that have been observed using the VLA at 1.6 GHz and 6.0 GHz. Here we present the 3rd data release of our sample, namely the B-configuration 1.6 GHz sample. In addition, we make available the {\it band-to-band} spectral index maps between 1.6 GHz and 6.0 GHz, the latter taken in the matching resolution C-configuration. The images can be downloaded from https://www.queensu.ca/changes. These are our highest resolution images ($\approx$ 3 arcsec) and we examine the possible presence of low luminosity active galactic nuclei in the sample as well as some in-disk structure. New features can be seen in the spectral index maps that are masked in the total intensity emission, including hidden spiral arms in NGC~3448 and two previously unknown radio lobes on either side of the nucleus of NGC~3628. Our AGN detection rate, using only radio criteria, is 55\% which we take as a lower limit because some weaker embedded AGNs are likely present which could be revealed at higher resolution. Archival XMM-Newton data were used to search for further fingerprints of the AGNs in the studied sample. In galaxy disks, discrete regions of flat spectral index are seen, likely due to a thermal emission fraction that is higher than the global average.

Figures

Tables

Table 1. Table 1: L-band B-Configuration Observations

Galaxy	RA	DEC	Distancea	Dateb	SB ID	Prim. Cal.c	Zero Pol. Cal.c	Sec. Cal.
	(h m s)	(∘ ′ ′′)	(Mpc)
N 660	01 43 02.40	+13 38 42.2	12.3	24-Jun-12	9833270	3C48	3C84	J0204+1514
N 891	02 22 33.41	+42 20 56.9	9.1	24-Jun-12	9833270	3C48	3C84	J0230+4032
N 2613	08 33 22.84	-22 58 25.2	23.4	21-Mar-11	3699677	3C286	OQ208	J0846-2610
N 2683	08 52 41.35	+33 25 18.5	6.27	16-Jun-12	10459911	3C286	OQ208	J0837+2454
N 2820	09 21 45.58	+64 15 28.6	26.5	24-Jun-12	9872780	3C286	OQ208	J0921+6215
N 2992	09 45 42.00	-14 19 35.0	34	21-Mar-11	3699677	3C286	OQ208	J0943-0819
N 3003	09 48 36.05	+33 25 17.4	25.4	16-Jun-12	10459911	3C286	OQ208	J0956+2515
N 3044	09 53 40.88	+01 34 46.7	20.3	21-Mar-11	3699677	3C286	OQ208	J1007-0207
N 3079	10 01 57.80	+55 40 47.3	20.6	24-Jun-12	9878453	3C286	OQ208	J1035+5628
N 3432	10 52 31.13	+36 37 07.6	9.42	24-Jun-12	9872780	3C286	OQ208	J1130+3815
N 3448	10 54 39.24	+54 18 18.8	24.5	23-Jun-12	9878453	3C286	OQ208	J1035+5628
N 3556	11 11 30.97	+55 40 26.8	14.09	23-Jun-12	9878453	3C286	OQ208	J1035+5628
N 3628	11 20 17.01	+13 35 22.9	8.5	30-Jun-12	3746030	3C286	OQ208	J1120+1420
N 3735	11 35 57.30	+70 32 08.1	42	09-Jun-12	9872780	3C286	OQ208	J1313+6735
N 3877	11 46 07.80	+47 29 41.2	17.7	17-Jun-12	3752357	3C286	OQ208	J1219+4829
				04-Jul-12
N 4013	11 58 31.38	+43 56 47.7	16	11-Aug-12	9888001	3C286	OQ208	J1146+3958
N 4096	12 06 01.13	+47 28 42.4	10.32	11-Aug-12	9888001	3C286	OQ208	J1331+3030
N 4157	12 11 04.37	+50 29 04.8	15.6	17-Jun-12	3752357	3C286	OQ208	J1219+4829
				04-Jul-12
N 4192	12 13 48.29	+14 54 01.2	13.55V	24-Jun-12	3746030	3C286	OQ208	J1254+1141
N 4217	12 15 50.90	+47 05 30.4	20.6	11-Aug-12	9888001	3C286	OQ208	J1331+3030
N 4244	12 17 29.66	+37 48 25.6	4.4	09-Jun-12	9889954	3C286	OQ208	J1227+3635
N 4302	12 21 42.48	+14 35 53.9	19.41V	29-Jul-12	9892023	3C286	OQ208	J1254+1141
N 4388	12 25 46.75	+12 39 43.5	16.6V	29-Jul-12	9892023	3C286	OQ208	J1254+1141
N 4438	12 27 45.59	+13 00 31.8	10.39V	29-Jul-12	9892023	3C286	OQ208	J1254+1141
N 4565	12 36 20.78	+25 59 15.6	11.9	02-Jun-12	9893234	3C286	OQ208	J1221+2813
N 4594	12 39 59.43	-11 37 23.0	12.7	17-Mar-11	3693390	3C286	OQ208	J1248-1959
N 4631	12 42 08.01	+32 32 29.4	7.4	03-Jun-12	9893234	3C286	OQ208	J1221+2813
N 4666	12 45 08.59	-00 27 42.8	27.5	10-Jun-12	9893236	3C286	OQ208	J1246-0730
N 4845	12 58 01.19	+01 34 33.0	16.98V	10-Jun-12	9893236	3C286	OQ208	J1246-0730
N 5084	13 20 16.92	-21 49 39.3	23.4	17-Mar-11	3693390	3C286	OQ208	J1248-1959
N 5297	13 46 23.68	+43 52 20.5	40.4	09-Jun-12	9889954	3C286	OQ208	J1327+4326
N 5775	14 53 57.60	+03 32 40.0	28.9	05-Apr-11	3681627	3C286	OQ208	J1445+0958
N 5792	14 58 22.71	-01 05 27.9	31.7	05-Apr-11	3681627	3C286	OQ208	J1505+0326
N 5907	15 15 53.77	+56 19 43.6	16.8	08-Mar-11	3070258	3C286	OQ208	J1438+6211
U10288	16 14 24.80	-00 12 27.1	34.1	05-Apr-11	3681627	3C286	OQ208	J1557-0001

Table 2. Table 2: L-band Imaging parameters

Galaxy	weightingaaDistances are from Wiegert et al. (2015). ‘V’ designates a Virgo Cluster galaxy.	Beam sizebb‘Date’ refers to the UT start date.	rmsIccAlternate names for primary and zero polarization calibrators: 3C286=J1331+3030, 3C84=J0319+4130, OQ208 = QSO B1404+2841 or J1407+2827.	ImaxddPeak specific intensity of the total intensity images, as measured on the galaxy itself, after primary beam correction (Sect. 3.2).	rmsQ,Ueerms map noise of Stokes Q and U images prior to primary beam correction. Values in parentheses indicate the factor by which the rms should be multiplied when considering values to the source.	$P_{max}$ffPeak linearly polarized specific intensity on the galaxy itself after primary beam correction (Sect. 3.3).	$P$ commentsggComments on polarization for cases in which $P_{max}$ is $>5{\sigma }_{Q,U}$ (Sect. 3.3).
		(arcsec, arcsec, deg)	($\mu$Jy/beam)	(mJy/beam)	($\mu$Jy/beam)	($\mu$Jy/beam)	(%)
N 660	rob 0	3.39, 3.27, 44.4	24 (1.5$\times$)	245	18.2	134
	uvtap 16	6.14, 5.79, 76.1	28 (1.5$\times$)	299	21.0	132
N 891	rob 0	3.15, 2.90, 54.2	16.0	4.91	18.0	89.3
	uvtap 17	5.69, 5.33, 53.2	17.0	9.91	18.0	87.1
N 2613	rob 0	5.18, 3.02, -179.7	19.6	0.39	18.5	85.3
	uvtap 16	7.03, 6.05, -3.2	19.4	0.58	16.7	67.8
N 2683	rob 0	3.06, 2.98, 57.8	14.5	1.06	14.6	65.7
	uvtap 16	5.86, 5.77, 52.5	15.8	1.43	15.4	66.4
N 2820	rob 0	3.23, 3.17, 52.8	16.3	0.87	16.8	73.4
	uvtap 16	5.95, 5.92, 27.4	18.5	2.16	16.9	60.8
N 2992	rob 0	4.87, 3.57, 16.4	16.5 (1.2$\times$)	84.3	16.7	78.8
	uvtap 16	6.53, 6.33, -70.3	16.5 (1.3$\times$)	118	15.9	61.9
N 3003	rob 0	3.11, 3.00, 70.1	14.0	0.77	15.1	67.2
	uvtap 16	5.89, 5.76, 59.2	15.0	1.48	15.5	52.2
N 3044	rob 0	3.67, 3.39, 68.8	15.0	3.36	14.7	71.8
	uvtap 16	6.54, 5.54, 86.9	16.0	6.26	14.7	67.1
N 3079	rob 0	3.14, 3.00, 58.4	18.0 (3$\times$)	123	16.4 (2$\times$)	436	$P_{max}/I=3.8\%$
	uvtap 16	6.01, 5.80, 47.5	25.0 (5$\times$)	172	17.3 (3$\times$)	607	$P_{max}/I=1.8\%$
N 3432	rob 0	3.20, 3.12, 82.8	21.0	0.46	21.9	96.8
	uvtap 16	5.95, 5.75, -23.8	24.0	0.84	22.5	97.8
N 3448	rob 0	3.16, 2.98, 63.9	17.0	2.92	16.3	67.1
	uvtap 17.5	5.59, 5.32, 52.9	18.0	5.94	17.0	60.8
N 3556	rob 0	3.12, 2.98, 58.2	16.0	2.05	16.0	73.9
	uvtap 17.5	5.56, 5.36, 49.5	16.5	3.47	16.5	75.8
N 3628	rob 0	3.21, 3.13, 3.7	14.5 (1.6$\times$)	79.9	12.5	59.1
	uvtap 16	6.01, 5.70, 86.2	20.0 (2$\times$)	134	13.9	68.2
N 3735	rob 0	3.24, 3.11, 33.8	16.0	2.08	16.3	77.1
	uvtap 16	6.01, 5.92, 27.5	16.5	4.08	15.7	88.3	$P_{max}>\mathrm{\hspace{0.17em}5}{\sigma }_{Q,U}$
N 3877	rob 0	3.01, 2.87, 22.4	11.5	1.26	11.4	50.2
	uvtap 16	5.99, 5.86, 36.0	11.5	2.10	11.3	44.3
N 4013	rob 0	3.01, 2.90, -84.2	14.0	4.14	13.7	64.4
	uvtap 16	5.83, 5.79, 81.9	16.0	6.93	14.5	58.0
N 4096	rob 0	3.06, 2.94, -84.9	14.5	0.24	14.8	70.6
	uvtap 16	5.86 x 5.79, 70.6	14.5	0.55	15.8	76.7
N 4157	rob 0	3.02, 2.84, 29.5	11.7 (2$\times$)	0.57	12.0	52.6
	uvtap 16	5.98, 5.86, 37.3	12.0 (3$\times$)	1.75	11.5	52.2
N 4192	rob 0	3.21, 3.07, -7.5	14.5 (1.2$\times$)	3.52	14.1	59.5
	uvtap 16	6.00, 5.68, 83.6	22.0 (1.2$\times$)	6.25	14.2	65.5
N 4217	rob 0	3.07, 2.94, -85.5	14.5	2.21	14.0	58.1
	uvtap 16	5.86, 5.80, 76.7	15.1	3.94	15.0	57.0
N 4244	rob 0	3.09, 3.00, 45.0	14.4	0.79	22.5	121.4	noise peak
	uvtap 16	5.86, 5.82, 40.0	15.2	1.27	22.5	120.3	noise peak
N 4302j	rob 0	3.50, 3.13, -8.4	13.5	1.13	12.6	52.7
N 4388j	rob 0	3.57, 3.22, -2.1	16.0 (4$\times$)	25.2	12.3	59.0
N 4438j,k	rob 0	3.32, 2.91, -6.3	25.0 (1.6$\times$)	35.7	26.0 (1.6$\times$)	306	$P_{max}/I=1.1\%$
N 4565	rob 0	3.31, 3.01, 45.5	15.0	1.61	14.0	68.0
	uvtap 17	5.87, 5.36, 50.9	15.0	1.81	14.0	59.1
N 4594	rob 0	4.36, 3.25, -14.0	17.5	70.2	15.6	60.3
	uvtap 16	6.09, 5.85, 87.7	17.5	71.0	14.4	52.7
N 4631	rob 0	3.40, 3.05, 63.4	16.0	7.56	16.3	81.5
	uvtap 16	6.08, 5.85, 57.1	20.0	11.2	15.6	68.9
N 4666j	rob 0	3.80, 3.48, 39.6	15.0 (1.5$\times$)	4.97	14.0	66.1
N 4845	rob 0	3.51, 3.33, 22.7	18.0 (1.4$\times$)	209	15.0	382
N 5084	rob 0	5.63, 2.95, -11.8	17.0 (1.15$\times$)	28.2	17.1	68.9
	uvtap 16	6.87, 5.86, -8.9	16.0 (1.25$\times$)	30.4	14.8	67.8
N 5297	rob 0	3.13, 2.99, 52.8	13.6	0.15	22.5	87.5
	uvtap 16	5.92, 5.82, 54.0	15.8	0.29	22.9	75.6
N 5775	rob 0	3.65, 3.44, 64.3	14.0	2.14	13.9	62.6
	uvtap 16	6.47, 5.70, 84.7	18.0	4.94	14.2	67.9
N 5792	rob 0	3.89, 3.42, 48.6	15.0 (1.25$\times$)	4.89	14.3	48.9
	uvtap 16	6.55, 5.74, 78.6	15.0 (1.25$\times$)	8.95	14.5	47.0
N 5907	rob 0	3.35, 2.79, -4.6	13.5	20.8l	12.5	53.8l
	uvtap 16	5.94, 5.72, 2.1	15.7	24.6l	10.8	48.6l
U 10288	rob 0	3.80, 3.58, 66.2	14.0 (1.2$\times$)	0.55m	12.7	52.0m

Table 3. Table 3: XMM-Newton X-ray observations of the selected galaxies

Galaxy	ObsID	Obs. date	column density	Total/cleanb	Total/clean
			$N_H^a$	MOS time${}^c$ (ks)	pn time (ks)
N 660	0093641001	2001-01-07	4.64	22/22	7/7
	0671430101	2011-07-18		37/3	n/a
N 2613	0149160101	2003-04-23	6.01	19/8	12/1
	0149160201	2003-05-20		59/54	28/22
N 2683	0671430201	2011-05-05	2.51	42/22	22/6
N 2992	0147920301	2003-05-19	4.87	55/47	26/22
N 3079	0110930201	2001-04-13	0.89	49/21	20/5
	0147760101	2003-10-14		82/66	39/14
N 3628	0110980101	2000-11-27	1.97	109/98	50/30
	0306060301	2005-11-15		34/34	15/14
N 4388	0110930701	2002-12-12	2.58	23/23	8/7
N 4594	0084030101	2001-12-28	3.70	85/85	n/a
N 4666	0110980201	2002-06-27	1.73	116/116	54/54
N 4845	0658400601	2011-01-22	1.44	42/41	19/12

Table 4. Table 4: Model type and reduced χ red 2 superscript subscript 𝜒 red 2 \chi_{\rm red}^{2} .

Galaxy	model	${\chi }_{\mathrm{red}}^2$
NGC660	wabs(mekal+wabs*powerlaw)	1.19
NGC2613	wabs(mekal+powerlaw+wabs*powerlaw)	1.13
NGC2683	wabs(powerlaw+wabs*powerlaw)	1.57
NGC2992	wabs(powerlaw+wabs*powerlaw)	1.21
NGC3079	wabs(mekal+mekal+powerlaw)	1.40
NGC3628	wabs(mekal+wabs*powerlaw)	1.16
NGC4388	wabs(mekal+powerlaw+wabs(powerlaw+gauss))	1.31
NGC4594	wabs*wabs*powerlaw	0.94
NGC4666	wabs(mekal+mekal+wabs(powerlaw+gauss))	1.35
NGC4845	wabs*wabs*powerlaw	1.23

Table 5. Table 5: Photon indices and luminosities of the central sources in the studied galaxies.

Region	Photon	Luminosity
	Indexa	(1040 erg/s)
NGC660	2.45${}_{-0.63}{}^{}{}_{}{}^{+0.81}$	0.47${}_{-0.20}{}^{}{}_{}{}^{+1.09}$
NGC2613	1.89${}_{-0.86}{}^{}{}_{}{}^{+1.71}$	1.84${}_{-1.73}{}^{}{}_{}{}^{+347}$
NGC2683	1.69${}_{-0.92}{}^{}{}_{}{}^{+1.05}$	0.92${}_{-0.83}{}^{}{}_{}{}^{+27.5}$
NGC2992	1.66$\pm$0.05	764${}_{-50.8}{}^{}{}_{}{}^{+57.6}$
NGC3079	1.46${}_{-0.12}{}^{}{}_{}{}^{+0.10}$	0.88${}_{-0.19}{}^{}{}_{}{}^{+0.26}$
NGC3628	1.46${}_{-0.06}{}^{}{}_{}{}^{+0.07}$	0.73${}_{-0.11}{}^{}{}_{}{}^{+0.13}$
NGC4388	1.41${}_{-0.11}{}^{}{}_{}{}^{+0.12}$	230${}_{-72.8}{}^{}{}_{}{}^{+111}$
NGC4594	1.76$\pm$0.05	3.26${}_{-0.31}{}^{}{}_{}{}^{+0.36}$
NGC4666	1.77${}_{-0.16}{}^{}{}_{}{}^{+0.17}$	2.55${}_{-0.99}{}^{}{}_{}{}^{+1.23}$
NGC4845	2.09$\pm$0.03	539${}_{-35.9}{}^{}{}_{}{}^{+39.2}$

Table 6. Table 6: Smoothed BL and CC map parameters as input for Band-to-Band spectral index maps

Galaxy	Robust 0 maps					Uvtapered maps
	BL rms	CC rms	bmaj	bmin	bpa	BL rms	CC rms	bmaj	bmin	bpa
	($\mu$Jy/beam)	($\mu$Jy/beam)	(arcsec)	(arcsec)	(deg)	($\mu$Jy/beam)	($\mu$Jy/beam)	(arcsec)	(arcsec)	(deg)
N 660	20.6	3.85	4.0	3.5	-5	28.6	5.06	6.8	6.2	10
N 891	16.2	2.81	3.8	3.3	70	19.5	3.61	6.2	6.0	60
N 2613	18.1	32.3	7.5	5.5	-100	19.3	3.56	7.6	6.6	-7
N 2683	14.1	4.64	3.4	3.3	13	17.7	5.62	6.5	6.3	12
N 2820	15.6	2.58	3.6	3.5	21	17.5	2.97	6.3	6.3	56
N 2992	16.3	3.16	5.3	3.9	4	17.0	3.73	6.9	6.6	-40
N 3003	13.9	15.2	3.8	3.4	0	15.8	2.87	6.3	6.25	0
N 3044	15.5	3.57	4.1	3.9	15	18.1	4.34	7.5	6.6	3
N 3079	18.7	2.73	3.9	3.8	-15	30.0	3.73	6.8	6.4	-12
N 3432	20.7	2.97	3.4	3.4	2	22.6	4.45	6.5	6.3	-5
N 3448	15.5	2.57	3.7	3.5	62	17.5	3.06	6.1	6.0	1
N 3556	15.8	2.62	3.5	3.3	49	16.8	3.03	6.1	6.0	0.5
N 3628	14.6	4.28	4.2	3.8	-37	21.9	5.80	6.8	6.4	45
N 3735	15.7	2.49	3.6	3.5	29	18.8	3.64	6.5	6.4	-16
N 3877	10.3	2.79	3.6	3.3	-27	11.6	3.44	6.5	6.4	67
N 4013	13.7	2.39	3.6	3.3	-85	18.1	2.97	6.4	6.2	11
N 4096	14.3	2.83	3.4	3.3	-80	16.1	3.07	6.4	6.3	80
N 4157	11.1	2.88	3.3	3.1	-27	11.8	3.44	6.4	6.3	-20
N 4192	14.3	3.01	3.5	3.3	-37	19.7	3.75	6.4	6.1	84
N 4217	14.0	2.65	3.4	3.2	-82	15.6	3.06	6.2	6.1	0
N 4244	13.7	2.41	3.4	3.3	-18	15.3	2.56	6.3	6.2	20
N 4302	13.2	2.96	3.9	3.7	-38
N 4388	17.6	2.93	4.0	3.7	-6
N 4438	378	29.1	3.6	3.4	-4
N 4565	14.6	2.62	3.6	3.3	-9	14.7	3.88	6.3	6.0	61
N 4594	17.0	2.69	4.8	3.7	-9	21.3	63.8	6.5	6.4	34
N 4631	16.0	2.77	3.7	3.5	-7
N 4666	16.9	3.38	4.1	3.8	7
N 4845	19.2	3.64	3.8	3.6	6
N 5084	17.0	2.34	5.9	3.3	-8	18.2	2.78	7.8	6.8	39
N 5297	14.1	2.60	3.4	3.3	-10	16.7	2.83	6.3	6.2	-2
N 5775	13.4	2.80	4.0	3.8	29
N 5792	14.7	2.89	4.2	3.8	21	16.1	3.83	7.5	6.7	-3
N 5907	12.2	2.53	3.7	3.2	40	11.8	3.58	6.3	6.2	-37
U 10288	13.5	2.88	4.2	3.9	28

Table 7. Table 7: Galaxies with Point-Cores

Galaxy	RAa	DECa	Sνb	Avg. FWHMc	$L_{\nu }$d	No.SNRe
	(h m s)	(∘ ′ ′′)	(mJy)	(pc)	${10}^{19}$ W Hz-1
N 660∗	01 43 02.320	+13 38 44.88	296$\pm$ 5	176	536	1786
N 2613	08 33 22.772	-22 58 24.81	0.37$\pm$0.02	398	2.42	8
N 2683	08 52 41.31	+33 25 18.79	1.13$\pm$0.03	81	0.531	2
N 3079	10 01 57.793	+55 40 47.27	152$\pm$5	272	772	2572
N 3735	11 35 57.204	+70 32 07.77	1.9$\pm$0.2	572	40.1	134
N 4388∗	12 25 46.747	+12 39 41.69	31.5$\pm$0.9	242	104	346
N 4438∗	12 27 45.548	+13 00 32.98	57$\pm$3	139	73.6	245
N 4565	12 36 20.771	+25 59 15.68	1.57$\pm$0.01	161	2.66	9
N 4594	12 39 59.433	-11 37 23.02	70.50$\pm$0.06	205	136	453
N 4666∗	12 45 08.632	-00 27 42.99	4.2$\pm$0.2	430	38.0	127
N 4845∗	12 58 01.196	+01 34 32.42	210.8$\pm$0.6	250	727	2424
N 5084∗	13 20 16.831	-21 49 38.29	30.4$\pm$0.3	410	199	664
N 5297	13 46 23.673	+43 52 20.22	0.21$\pm$ 0.02	530	4.10	14

Table 8. Table 8: Galaxies without Point-Cores

Galaxy	RAa	DECa	Sνb	Avg. FWHMc	$L_{\nu }$d	No.SNRe
	(h m s)	(∘ ′ ′′)	(mJy)	(pc)	(${10}^{19}$ W Hz-1)
N 891	02 22 33.22	+42 20 57.6	10.2$\pm$ 0.6	132	10.0	33
N 2820	09 21 45.97	+64 15 28.0	3.1$\pm$ 0.2	733	26.9	90
N 2992	09 45 41.95	-14 19 35.8	195$\pm$5	650	2700	8990
N 3003	09 48 35.68	+33 25 17.9	1.08$\pm$0.04	300	8.34	28
N 3044	09 53 40.87	+01 34 46.7	4.1$\pm$ 0.2	263	20.2	67
N 3432	10 52 30.94	+36 37 08.2	0.80$\pm$0.09	239	0.85	3
N 3448	10 54 39.17	+54 18 20.5	6.8$\pm$0.3	441	48.8	163
N 3556f	—	—	—	—	—	—
N 3628	11 20 16.99	+13 35 20.2	175$\pm$4	115	150	501
N 3877	11 46 07.71	+47 29 40.0	2.4$\pm$0.1	204	9.03	30
N 4013	11 58 31.38	+43 56 51.0	7.7$\pm$0.4	192	23.6	79
N 4096	12 06 01.23	+47 28 41.5	0.16$\pm$0.04	111	0.20	1
N 4157f	—	—	—	—	—	—
N 4192	12 13 48.28	+14 54 02.3	4.8$\pm$0.7	155	10.5	35
N 4217	12 15 50.95	+47 05 29.2	4.1$\pm$0.3	271	20.8	69
N 4244g	—	—	—	—	—	—
N 4302	12 21 42.31	+14 35 52.4	1.70$\pm$0.04	212	7.64	25
N 4631	12 42 07.87	+32 32 34.9	7.3$\pm$0.3	151	4.78	16
N 5775h	14 53 57.50	+03 32 41.3	7.7$\pm$0.5	1078	76.9	256
N 5792f	—	—	—	—	—	—
N 5907f	—	—	—	—	—	—
U 10288	16 14 24.83	-00 12 27.7	0.19$\pm$0.03	399	2.60	9

Table 9. Table 9: Flattest Spectral Index Closest to the Galaxy’s Center

Galaxy	RAaaWeighting applied in the uv plane: rob 0 = Robust zero, uvtap = Robust zero plus an outer Gaussian uvtaper, where the number specifies the size in klambda units (see Sect. 2.1).Column density in (1020 cm-2) weighted average value after LAB Survey of Galactic HI Kalberla et al. (2005).Energy spectral index of photon counts (0.3 - 12 keV).Fitted center of the core. Uncertainties are $\approx$ 0.2 arcsec in both coordinates. Fitted center of the core. Uncertainties are $\approx$ 0.2 arcsec in both coordinates.	DECaaRA and DEC of the location of a flattest spectral index feature near the nucleus unless otherwise indicated. Note that this is not necessarily at the NED center of the galaxy or at the peak in total intensity (see Sect. 5.1.4).	${\alpha }_{BL-CC}$bbSynthesized beam parameters of the total intensity images: Major axis, Minor axis, Position Angle. Values for Stokes Q and U are the same or negligibly different.Filtered for high background radiation.Flux density of the fitted Gaussian component.Flux density of the fitted Gaussian component.	Avg. FWHMccrms map noise of the total intensity images prior to primary beam correction. Values in parentheses indicate the factor by which the rms should be multiplied when considering values close to the source (Sect. 3.1).MOS1+MOS2.Average linear size of the major and minor axes of the total intensity maps.Average linear size of the major and minor axes of the Gaussian fit, after deconcolving from the synthesized beam.
	(h m s)	(∘ ′ ′′ )		(pc)
N 660	01 43 02.33	+13 38 44.7	+0.527$\pm$0.003	198
N 891	02 22 33.29	+42 20 57.9	-0.446$\pm$0.002	138
N 2613g	08 33 22.76	-22 58 25.0	-0.102$\pm$0.140	646
N 2683	08 52 41.31	+33 25 18.0	-0.070$\pm$0.016	90.2
N 2820	09 21 46.04	+64 15 27.6	-0.450$\pm$0.015	404
N 2992	09 45 41.89	-14 19 33.5	-0.653$\pm$0.001	664
N 3003	09 48 35.62	+33 25 17.3	-0.363$\pm$0.030	392
N 3044	09 53 40.78	+01 34 47.2	-0.448$\pm$0.004	349
N 3079	10 01 57.86	+55 40 47.3	+0.116$\pm$0.005	341
N 3432d	10 52 31.13	+36 37 07.6	-0.125$\pm$0.110	138
N 3448	10 54 39.33	+54 18 21.90	-0.389$\pm$0.005	379
N 3556	11 11 31.50	+55 40 29.3	-0.079$\pm$0.008	206
N 3628	11 20 16.97	+13 35 15.4	-0.341$\pm$0.003	146
N 3735	11 35 57.19	+70 32 08.1	-0.505$\pm$0.006	641
N 3877g	11 46 07.69	+47 29 39.6	-0.342$\pm$0.007	262
N 4013	11 58 31.38	+43 56 50.7	-0.515$\pm$0.003	237
N 4096d	12 06 01.13	+47 28 42.4	-0.327$\pm$0.083	149
N 4157	12 11 04.57	+50 29 03.3	-0.477$\pm$0.031	214
N 4192d	12 13 48.29	+14 54 01.2	-0.663$\pm$0.004	198
N 4217g	12 15 50.90	+47 05 29.3	-0.614$\pm$0.006	292
N 4244e	—	—	—	—
N 4302f	12 21 41.99	+14 35 44.2	-0.345$\pm$0.130	317
N 4388	12 25 46.68	+12 39 46.0	-0.158$\pm$0.005	274
N 4438	12 27 46.11	+13 00 29.7	-0.674$\pm$0.012	156
N 4565	12 36 20.9	+25 59 15.0	-0.527$\pm$0.016	176
N 4594g	12 39 59.43	-11 37 23.0	+0.432$\pm$0.005	230
N 4631	12 42 07.80	+32 32 34.9	-0.388$\pm$0.020	114
N 4666d	12 45 08.59	-00 27 42.8	-0.672$\pm$0.004	466
N 4845g	12 58 01.19	+01 34 32.5	+0.376$\pm$0.005	270
N 5084g	13 20 16.83	-21 49 38.5	+0.077$\pm$0.009	444
N 5297g	13 46 23.7	+43 52 20.5	-0.638$\pm$0.100	581
N 5775f	14 53 57.57	+03 32 30.6	-0.487$\pm$0.010	484
N 5792d	14 58 22.71	-01 05 27.9	-0.606$\pm$0.003	544
N 5907g	15 15 53.50	+56 19 43.5	-0.624$\pm$0.033	248
U 10288e	—	—	—	—

Table 10. Table 10: AGN Candidates

Galaxy	NED typea	XMMb	Flat ${\alpha }_{BL-CC}^c$	Point Cored	High $L_{\nu }^e$	Lobe(s)f	CPg	AGNh
N 660	SB(s)a pec; HII,LINER	N	Y	Y	Y	Y	Y	Y
N 891	SA(s)b? sp; HII	N						N
N 2613	SA(s)b; HII	Y	Y	Y				Y
N 2683	SA(rs)b; LINER,Sy2	Y	Y	Y				Y
N 2820	SB(s)c pec sp	—						N
N 2992	Sa pec; Sy1.9	Y			Y	Y		Y
N 3003	SBbc	—						Y
N 3044	SB(s)c? sp; HII	—						N
N 3079	SB(s)c; LINER,Sy2	N	Y	Y	Y	Y	Y	Y
N 3432	SB(s)m; LINER,HII	—	Y					Y
N 3448	I0	—						N
N 3556	SB(s)cd; HII	—	Y			Y?		Y
N 3628	SAb pec sp; HII,LINER	Y			Y	Y	Y	Y
N 3735	SAc: sp; Sy2	—		Y	Y			Y
N 3877	Sc; HII	—						N
N 4013	SAb; HII,LINER	N						N
N 4096	SAB(rs)c; HII	—						N
N 4157	SAB(s)b? sp; HII	N						N
N 4192	SAB(s)ab; HII,Sy,LINER	—						N
N 4217	SAb sp; HII	—						N
N 4244i	SA(s)cd: sp; HII	—	—	—	—	—	—	—
N 4302	Sc: sp; Sy,LINER	N						N
N 4388	SA(s)b: sp; Sy2,Sy1.9	Y	Y	Y	Y	Y	Y	Y
N 4438	SA(s)0/a pec:; LINER	N		Y	Y	Y		Y
N 4565	SA(s)b? sp; Sy3,Sy1.9	N		Y				Y
N 4594	SA(s)a; LINER,Sy1.9	Y		Y	Y			Y
N 4631	SB(s)d; HII	N						N
N 4666	SABc:; HII,LINER	Y		Y	Y			Y
N 4845	SA(s)ab sp; HII,LINER	Y		Y	Y		Y	Y
N 5084	S0; poss. LINER	—	Y	Y	Y	Y		Y
N 5297	SAB(s)c: sp	—		Y		Y?		Y
N 5775	Sb(f)	N						N
N 5792	SB(rs)b; HII	—						N
N 5907	SA(s)c: sp; HII	N						N
U 10288j	Sc	—	—	—	—	—	—	—

Equations

$$P_{lin}$$

$$\chi$$

$$I_{\nu }\propto {\nu }^{\alpha }$$

$${\sigma }_{\alpha }=\frac{1}{ln\left(\frac{{\nu }_L}{{\nu }_C}\right)}\sqrt{{\left(\frac{{\sigma }_L}{I_L}\right)}^2+{\left(\frac{{\sigma }_C}{I_C}\right)}^2}$$

$$I_{{\nu }_{obs}}$$

$$=$$

$${\tau }_{{\nu }_{TH}}=8.24\times 10^{-2}{\left[\frac{T_e}{\mathrm{K}}\right]}^{-1.35}{\left[\frac{\nu }{\mathrm{GHz}}\right]}^{-2.1}\left[\frac{\mathrm{EM}}{{\mathrm{pc}\mathrm{cm}}^{-6}}\right]$$

$${{\sigma }_{\alpha }}_{corr}=\frac{1}{ln\left(\frac{{\nu }_L}{{\nu }_C}\right)}\sqrt{{\left(\frac{{\sigma }_L}{P{B}_L(r)I_L}\right)}^2+{\left(\frac{{\sigma }_C}{P{B}_C(r)I_C}\right)}^2}$$

$${{\sigma }_{\alpha }}_{corr}=\frac{{\sigma }_L}{I_{L}ln\left(\frac{{\nu }_L}{{\nu }_C}\right)}\sqrt{\frac{1}{{\left(P{B}_L(r)\right)}^2}+\frac{1}{{\left(P{B}_C(r)\right)}^2}{\left(\frac{{\sigma }_C}{{\sigma }_L}\right)}^2{\left(\frac{{\nu }_L}{{\nu }_C}\right)}^{2\alpha }}$$

$$P{B}_L(r)=e^{\left(-\frac{1}{2}{\left(\frac{r}{10.8}\right)}^2\right)}P{B}_C(r)=e^{\left(-\frac{1}{2}{\left(\frac{r}{2.98}\right)}^2\right)}$$

$$f(r)=\frac{{{\sigma }_{\alpha }}_{corr}}{{\sigma }_{\alpha }}=\sqrt{\frac{\frac{1}{{\left(P{B}_L(r)\right)}^2}+\frac{1}{{\left(P{B}_C(r)\right)}^2}{\left(\frac{{\sigma }_C}{{\sigma }_L}\right)}^2{\left(0.26\right)}^{2\alpha }}{1+{\left(\frac{{\sigma }_C}{{\sigma }_L}\right)}^2{\left(0.26\right)}^{2\alpha }}}$$

Full text

radio continuum: galaxies — galaxies: surveys

††slugcomment: To be submitted to Astronomical Journal

1 Introduction

This paper presents the third data release from the Continuum Halos in Nearby Galaxies – an EVLA Survey (CHANG-ES) program. The Expanded Very Large Array (EVLA) is now known as the Karl G. Jansky Very Large Array (hereafter, the VLA). CHANG-ES is a large program that has observed 35 nearby edge-on galaxies in B, C, and D configurations of the VLA at two radio frequencies: 6 GHz (hereafter C-band) and 1.6 GHz (hereafter L-band). Both frequencies were observed in C and D configurations and only L-band was observed in B configuration.

The scientific goals of the project are outlined in Irwin et al. (2012a) and cover a range of topics, including investigating the physical conditions and origin of halos, characterizing cosmic-ray transport and wind speed, measuring Faraday rotation and mapping the magnetic field, probing the in-disk and extraplanar far-infrared/radio-continuum relation, and exploring the prevalence of active galactic nuclei (AGNs) in nearby spiral galaxies.

Our first data release (Wiegert et al., 2015) provided D configuration images, including total intensity images at two different uv-plane weightings, linear polarization (polarization angle and polarized intensity) images, and in-band spectral index maps111In-band spectral index maps are formed from the slope of the intensity across a single spectral band. with their error maps. The data release details are outlined in Wiegert et al. (2015) and images in FITS (Flexible Image Transport System) format can be downloaded from https://www.queensu.ca/changes. The second data release (Vargas et al., 2019) provides FITS files of the H$\alpha$ images that were used in the thermal/non-thermal separation as described in Vargas et al. (2018). The fourth CHANG-ES data release (in prep.) will include images from our C configuration data at both frequencies (Walterbos et al., 2019).

This third data release presents the B configuration L-band images (hereafter BL). In addition, we include band-to-band spectral index maps between matching resolution C configuration C-band data (hereafter CC) and the BL data.

Since these data sets represent the highest resolution observations from the CHANG-ES complement ($\approx$ 3 arcsec), they are ideally suited to investigating compact, well-defined regions in the disk such as star forming regions, or active galactic nuclei (AGN). In this paper, we focus mainly on AGNs, providing an estimate of the AGN frequency in our sample; we also discuss an example of radio emission from a compact region in a galaxy disk.

The galaxies and their positions with adopted distances are given in Table 1.

In Sect. 2.1, we describe the data acquisition and reductions for the radio and some supplementary X-ray data. Sect. 3 outlines the images and data products. Sect. 4 presents some general results from the images. Sect. 5 lists our criteria for determining the presence of AGNs and compares these results to what has been previously known. Sect. 6 discusses the galaxy disks and possible contamination from background sources and Sect. 7 presents a summary and conclusions.

2 Observations and Data Reductions

2.1 CHANG-ES VLA Data

Table 1 provides observational details for our sample. The observational set-up has previously been described in Wiegert et al. (2015) and earlier CHANG-ES papers. The B-configuration L-band setup was consistent with L-band observations in the other VLA configurations. The frequency was centered at 1.575 GHz, with a bandwidth of 512 MHz. The band was split into two sections, the first from 1.247 to 1.503 GHz and the second from 1.647 to 1.903 GHz, with the central gap set to avoid known interference. For all galaxies except NGC 4438, the central frequency was therefore $\sim$ 1.58 GHz222Very small variations in the central frequency of the resulting images may occur because of the flagging of radio-frequency-interference (RFI); the FITS header reveals the exact value.. For NGC 4438, only the upper half of the frequency band was useable, hence its central frequency was 1.77 GHz.

The total 512 MHz bandwidth was divided into 32 spectral windows (spws), each with 64 channels for a total of 2048 spectral channels. The high spectral resolution allowed us to identify and flag interference and was also adopted so that rotation measure (RM) analysis could be carried out at a later date, should the data warrant such an analysis. The spectral resolution also facilitated multi-frequency synthesis(e.g. Sault & Conway, 1999) and permitted the fitting of an in-band spectral index.

Approximately 2 hours of observing time were allocated for each galaxy. Every galaxy was observed in a ‘scheduling block’ (SB) that included other galaxies so that the total time on each galaxy could be spread out over a wide uv plane range, typically before and after transit. The primary phase and amplitude calibrators (hereafter, the primary calibrators) are sources of known flux density for each baseline and frequency, and the secondary phase and amplitude calibrators (hereafter, the secondary calibrators) are sources that are closer than 10 degrees from the galaxy in the sky. The secondary calibrator was observed before and after each scan on the target galaxy and the primary calibrator was observed once per SB. A zero polarization calibrator was also observed once during a SB for the linear polarization calibration (see below). A list of calibrators is given in Table 1.

The VLA uses right (R) and left (L) handed circular feeds. Total intensity images (Stokes $I$) are formed from correlation of the parallel hands (RR and LL) and linear polarization images are formed from the correlation of the cross hands (RL and LR). A summary of the relation between the observed correlations and Stokes parameters is given in Irwin et al. (2018). Each correlation was calibrated separately.

Data reductions were carried out using the Common Astronomy Software Applications package, CASA333See casa.nrao.edu.. Irwin et al. (2012b) and Irwin et al. (2013) describe the CHANG-ES data reduction process in detail. Briefly, calibration involved first Hanning smoothing the data in frequency and correcting for antenna-based delays. The flux density scale was then set using the primary calibrator and the bandpass response was also corrected using the primary calibrator. Complex gains (amplitudes and phases) were then determined as a function of time using the secondary calibrator. At each step, the data were flagged for interference, as needed, and the process was iterative such that the calibration was redone after each flagging episode. In forming each new correction table, previously-determined tables were applied on the fly.

The polarization calibration required, in addition, determining the absolute position angle of the linearly polarized flux based on the known angle of the primary calibrator, determining any residual antenna-based delays for the cross-hands as well as solving for polarization leakage terms using the zero-polarization calibrator, according to standard practice444See https://evlaguides.nrao.edu/index.php?title=Category:Polarimetry..

Imaging parameters are provided in Table 2.

Maps of Stokes $I$, $Q$, and $U$ were made as follows (for information on Stokes $V$, see Irwin et al., 2018).

The multi-scale/multi-frequency synthesis (ms-mfs) algorithm (Rau & Cornwell, 2011) was applied, including w-projection (Cornwell et al., 2008) and the Cotton-Schwab clean (Schwab, 1984). A very wide field image was initally made to identify background sources whose sidelobes could cause cleaning problems. In most cases, depending on the field, at least one full primary beam was finally imaged and sometimes much more. Two maps were made: one using Briggs robust 0 uv weighting as implemented in CASA (Briggs, 1995) (hereafter referred to as ‘rob 0’ maps) and one using robust 0 weighting with an additional outer Gaussian uv taper (hereafter ‘uvtap’ maps or ‘uvtap’ followed by the taper size). The uv taper size was adopted so that the uvtap synthesized beam was roughly twice the diameter of the non-tapered map. Almost all images used a cell size of 0.5 arcsec, hence the synthesized beam was well-sampled. In a few cases, image results and/or efficiency were improved by using 0.75 or 1 arcsec cells.

We attempted self-calibration for most of the galaxies according to the prescription given in Wiegert et al. (2015). For many galaxies, however, the emission was too weak for effective self-calibration. In the end, fifteen galaxies were effectively self-calibrated, either phase-only or amplitude and phase together.

During imaging/cleaning, a spectral index is fit across the band, producing maps of the in-band spectral index and associated error maps. A fit of the form, $I_{\nu}\,\propto\,\nu^{\alpha}$ is performed, hence a straight-line in log space is fit across the 512 MHz L-band bandwidth. A $5\sigma$ cutoff was applied when making the in-band spectral index maps, where $\sigma$ is the rms noise of the total intensity image. Since B configuration emission is generally weak, however, we are not releasing the in-band spectral index maps and instead are releasing band-to-band, BL to CC spectral index maps (Sect. 3.4). Users who wish to obtain the in-band spectral index maps for brighter sources should email the first author of this paper. See also Sect. 3.4.3 of Wiegert et al. (2015) for more detailed discussion of in-band spectral index errors.

For polarization imaging, we form the linearly polarized intensity, $P_{lin}$, and polarization angle, $\chi$, images from the Stokes $Q$ and $U$ maps according to,

[TABLE]

where $\sigma_{Q,U}$ is the rms noise of maps $Q$ and $U$; no significant difference was found between the $Q$ and $U$ noise. The latter term in Eqn. 1 makes a zeroth-order correction for the fact that $P$ images are positively biased (e.g. Simmons & Stewart, 1985; Everett & Weisberg, 2001; Vaillancourt, 2006) and is the only correction that is currently implemented in CASA. For maps of $\chi$, we formed two different maps, one using a $3\sigma_{Q,U}$ cut off and one with a $5\sigma_{Q,U}$ cut off, for each uv weighting.

Finally, we corrected all maps, including in-band spectral index maps, for the new primary beam (PB) following Perley (2016), whose full-width at half-maximum (FWHM) at our central frequency is 25.8 arcmin.

In this paper, we show total intensity images that are uncorrected for the PB (uniform noise) but make measurements from the images that have been corrected for the PB (corrected flux). Both are downloadable from our website.

2.2 XMM Data

To supplement our data and provide additional information about possible AGNs in the sample, we used XMM-Newton archive data and obtained spectra for 19 of our galaxies555Twenty-four galaxies were observed but good spectra could not be extracted for five of them.. All data were processed with the SAS 15.0.0 package (Gabriel et al., 2004). For each observation the event lists for two EPIC-MOS cameras (Turner et al., 2001) and the EPIC-pn camera (Stüder et al., 2001) were filtered for periods of intense background radiation and therefore prepared for the spectral analysis. The background spectra were obtained using blank sky event lists (see Carter & Read, 2007), filtered using the same procedures as for the source event lists. For each spectrum, response matrices and effective area files were produced, and for a good sampling of the PSF of the instrument, a region size of 12″  in radius was used.

The resulting spectra were merged using the SAS task $epicspeccombine$ into a final background subtracted source spectrum and then fitted using XSPEC 12 (Arnaud, 1996). Due to a limited resolution of the XMM-Newton it was impossible to extract the spectra in close vicinity to a central source. Therefore, for the spectral analysis of the emission from the galactic core regions we used a model consisting of a gaseous component represented by a mekal model (Mewe et al., 1985; Kaastra, 1992), and a power-law model (absorbed, if needed) to account for the emission of the hot gas and the central source(s), respectively. Finally, in two galaxies, NGC 4388 and NGC 4666, where the iron Fe-K$\alpha$ line was clearly visible in the extracted spectrum, the power-law component was accompanied by a simple Gaussian to fit this line.

As we are interested in supplementary evidence for AGNs in the CHANG-ES sample, we focus only on those galaxies that show evidence for an AGN from the XMM data of which there are eight galaxies. Observational details for these galaxies are presented in Table 3, the fitted models are in Table 4, and the derived photon indices and luminosities of the central sources in given in Table 5. Note that all fluxes and luminosities derived from X-ray spectra refer to the energy range, 0.3 - 12 keV. A more thorough analysis of XMM data will be presented in a separate paper. Other examples of XMM analyses for the galaxies NGC 4666 and NGC 4013 can be found in Stein et al. (2019a) and Stein et al. (2019b).

3 Images and Data products

For the BL data release, we have regridded all images to the same pixel size (0.5 arcsec square) and trimmed to the same field size: 2000 x 2000 pixels, or 16.7 arcmin on a side. Panels and a description of these data products are given in Appendix B and a sample image is in Fig. 1. An explanation is provided below.

3.1 Noise Measurements

The rms noise values, measured prior to PB-correction, are given in Table 2. The rms values show some variation with position on the image, depending on the locations and strengths of the sources in the field. For consistency between maps and also consistent with the approach taken in Wiegert et al. (2015), we quote rms values in Table 2 that are far from the center. Because most sources are quite weak in B-configuration, residual sidelobes from cleaning were usually not excessive and the quoted rms noise variations over the map were typically \,\hbox{\raise 2.15277pt\hbox{<}\kern-7.70004pt\lower 2.15277pt\hbox{\sim},}\,10\%.

Exceptions are also present, though. For example, sources whose peak brightness exceeded $70$ mJy/beam contained some residual sidelobes that remained after cleaning. Sources which were near other bright background sources in the sky, or sources in more crowded fields in general had rms noise values that were larger closer to the target galaxy than in regions more distant from the center. Sources that fell into these categories have their rms values followed by an approximate factor by which the rms increases near the source itself.

Finally, the sources sometimes are found in a ‘negative bowl’ which is expected when broad scale flux is missing ($>$ 2 arcmin in L-band at B configuration), as is the case for many of our galaxies.

Aside from the above-mentioned variations, the rms noise values on maps have been listed with an accuracy that reflects measurements on the maps themselves. Stokes Q and U maps, for example, show rms noise values that are very ‘clean’ with little relative variation from location to location on any given map. In such cases, it is possible to measure the rms to a fraction of a $\mu$Jy/beam. The reader is reminded, however, that the absolute flux calibration scale at the VLA for the primary calibrator, 3C 286, is $\approx$ 1% (Perley & Butler, 2013). Individuals who download the images may wish to make their own measurements according to their scientific goals.

3.2 Total Intensity Images

The total intensity images (Stokes $I$) are shown in panels in the first row of Appendix B and Fig. 1. The corresponding rms values and peak brightnesses ($I_{max}$) are given in Table 2. Note that the peak value on a map could occur in an off-galaxy background source, so measurements of $I_{max}$ were restricted to the region of the galaxy, itself.

At the high resolution achieved for B configuration, though, and given the fact that steep-spectrum background sources will usually be brighter at L-band than at C-band, it is entirely possible that a discrete source seen in the region of the disk of a galaxy could in fact be a background source. We explore this possibility further in Sect. 6.2.

In several cases, uvtapered images were not included because of poorer image quality; generally this was because of residual sidelobes either from the source itself or from an interfering background source.

3.3 Linear Polarization Images

In almost all cases, the linearly polarized images are nothing more than noise maps. As with the total intensity images, we measured the peak polarization, $P_{max}$, from the PB-corrected maps in the region of the galaxy itself. A scan down this column of Table 2 shows that almost every galaxy displays no emission above 5$\sigma_{Q,U}$. Those galaxies that show higher values of $P_{max}$ have comments in the last column as discussed next.

If there is emission above 5$\sigma_{Q,U}$ but the peak values for rob 0 and uvtapered images are at different locations, then they are labelled as ‘noise peaks’, such as is the case for NGC 4244. For this galaxy, these peaks are unresolved points and have the appearance of random noise. The total intensity values at these peaks also show only noise.

If there is emission above 5$\sigma_{Q,U}$ in one uv weighting but below 5$\sigma_{Q,U}$ in the other weighting, then the emission is also not considered to be real. Such is the case for NGC 3735.

If higher emission is seen at both weightings, we then calculate the ratio, $P_{max}/I$ (%) at the location of $P_{max}$. Since the polarization calibration is not considered to be reliable below about 0.5% (Irwin et al., 2015), signals that fall below this limit are also not considered to be real. This is the case for NGC 660 and NGC 4845, for example.

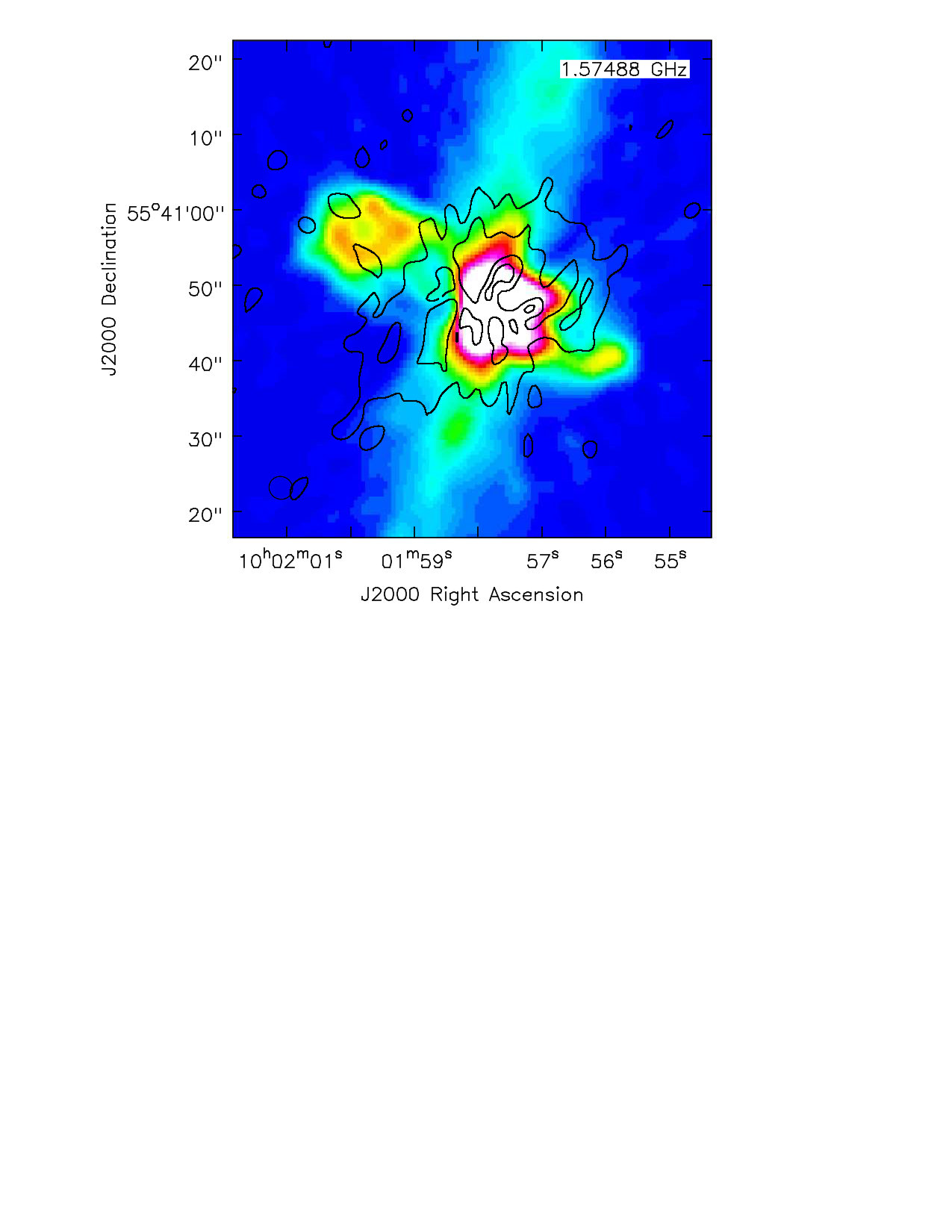

We are finally left with only two galaxies that could have real linearly polarized BL emission, these being NGC 3079 and NGC 4438, both of which are displayed in Fig. 2. These galaxies are known to have strong nuclear activity.

In summary, given how little believable linear polarization is seen in the BL data, we do not release any polarization images. By contrast, the matching resolution CC data show quite significant polarization for most galaxies (Walterbos et al., 2019), so it is clear that the lower frequency L-band emission suffers from Faraday de-polarization. It is possible that some L-band linear polarization could be reclaimed via a rotation measure synthesis analysis (e.g. Damas-Segovia et al., 2016). Further such analysis is, however, beyond the scope of the current paper.

3.4 BL to CC (Band-to-Band) Spectral Index Maps

Spectral indices, $\alpha$, are defined according to

[TABLE]

Because of the weakness of most of the sources in B-configuration, in-band spectral indices were noisier than desired for most galaxies. An example of a BL in-band spectral index map for one of our stronger sources, however, can be seen in Irwin et al. (2015).

We therefore made band-to-band spectral index maps from the BL central frequency of $\nu_{L}\,=\,1.58$ GHz) to the similar resolution CC central frequency of $\nu_{C}\,=\,6.00$ GHz (the latter data have a 2 GHz bandwidth). The resulting spectral index maps ($\alpha$ maps) have a higher signal-to-noise (S/N), but no variation in $\alpha$ between the bands can be recovered, should such variations be present.

Although the BL and CC data sets were very close in resolution and pixel size, some minor processing was required. The non-PB-corrected images were first regridded so that both had the same (smaller) pixel size. Then minor smoothing ($<$ 2 arcsec) was carried out so that the two images had exactly the same (larger) spatial resolution. New rms values ($\sigma$ in the following discussion) were then measured for the BL and CC data sets. These rms values and adjusted beam sizes are listed in Table 6.

This process was then repeated for the PB-corrected images from which the spectral index maps were actually made. A 3$\sigma$ cutoff was then applied to each of the BL and CC images prior to making band-to-band spectral index maps. This cutoff was adopted because tests showed that a higher 5$\sigma$ cutoff removed some real features. Moreover, since noise peaks higher than 3$\sigma$ are usually in different locations at the two frequencies, the 3$\sigma$ cutoff produced the best results.

It should be pointed out that there are still artifacts in a few spectral index maps. This is because PB-corrected images have increasing noise with distance from the map center and some residual sidelobes remained for sources with strong emission. Examples are NGC 660 and NGC 3079 in Appendix B.

The final band-to-band spectral index maps shown in the Second row of Appendix B apply from 1.6 to 6.0 GHz.

3.4.1 Uncertainties in Spectral Index Maps

Spectral index error maps were formed using

[TABLE]

where the subscripts refer to the band and $I$ represents the specific intensity at a given location. Note that, since the rms values are measured from the maps, they include thermal noise as well as any residual sidelobes that extend throughout the map. Uncertainties due to the deconvolution itself, as is the case for any imaging process, are typically not included.

Although the $\alpha$ maps have correctly taken the PB response at the two frequencies into account, the $\alpha$-error maps, as given in Eqn. 4, have not. If higher accuracy is desired for $\sigma_{\alpha}$, then the increasing noise with distance from the map center can be accounted for by multiplying the error maps by a position-dependent factor, $f(r)$, as given in Eqn. A4 of Appendix A.

To estimate the maximum correction factor that is required in our BL-CC $\alpha$-error maps, we examine our largest angular-size spectral index map, which is the uvtapered $\alpha$ map of NGC 5907 in Appendix B. At the farthest NW edge on the galaxy a distance at $r\,=\,4.5$ arcmin from the center, $\alpha\,\approx\,-0.3$ in which case $f(r)\,=\,1.6$. The given error at this point from Eqn. 4 is $\sigma_{\alpha}\,\approx\,0.3$ so the corrected error is ${\sigma_{\alpha}}_{corr}\,=\,0.46$. As can be seen from the error maps in the panels (frames e and f) and the sample calculation in Appendix A, typical corrections to the error maps are much lower than this.

3.4.2 Thermal contribution to $\alpha_{BL-CC}$

The band-to-band spectral index maps have not been corrected for possible contributions from thermal emission. Vargas et al. (2018) have done extensive work on estimating the spatially resolved thermal/non-thermal fraction in CHANG-ES galaxies at $\approx$ 15 arcsec resolution. To estimate the thermal contribution, these authors have used H$\alpha$ maps which require a significant correction for extinction using additional 22 $\mu$m images. We do not pursue such a correction for our BL or CC images since appropriate infrared images are not available at equivalently high spatial resolution. At the centers of the galaxies (of particular interest for understanding AGN fractions), the adopted electron temperature ($10^{4}$ K) could also introduce some uncertanties in the thermal fractions.

A reasonable global estimate of an L-band thermal fraction is 8% and a C-band thermal fraction is 20% (Vargas et al., 2018). Adopting these values, the non-thermal spectral index, $\alpha_{BL-CC}\,(NT)$ would be steeper than the observed spectral index, $\alpha_{BL-CC}$, by only 0.1.

In the following discussion, then, we interpret our B-configuration L-band data to be globally dominated by non-thermal emission and this conclusion is confirmed by surveying the spectral index values shown in Appendix B (see colour scales) which are, on average, all steeper than $\alpha_{TH}\,=\,-0.1$ (the value expected for thermal emission alone). The galaxy with the flattest spectral index averaged globally, NGC 4594 ($\overline{\alpha_{BL-CC}}=-0.20~{}\pm~{}0.12$), whose value is numerically consistent with thermal emission, is straightforwardly explained by non-thermal emission from a central compact AGN (Sect. 5.3).

Since the B-configuration data have such high resolution, however, there could be discrete regions in the disk, specificaly HII region complexes, for which the thermal fraction departs from this general result. We provide one example in Sect. 6.1.

4 The Images and High Resolution Structures

The first row of the Panels in Appendix B show a wide variety of emission in these high resolution images. In total intensity, we see compact cores of varying strength (e.g. NGC 2613, NGC 4845 and others), numerous compact regions in the disk – likely HII region complexes (e.g. NGC 3432, NGC 4244 and others) and vertical diffuse emission away from the plane (e.g. NGC 3044, NGC 4666, and again others).

Particularly interesting is the complex structure that can be seen in many spectral index maps (second row) that may be masked in the total intensity images. The fact that more structure/information can be available from spectral index maps than from total intensity maps has been noted in the past (e.g. Lee et al., 2001) but several remarkable examples are seen in the CHANG-ES sample.

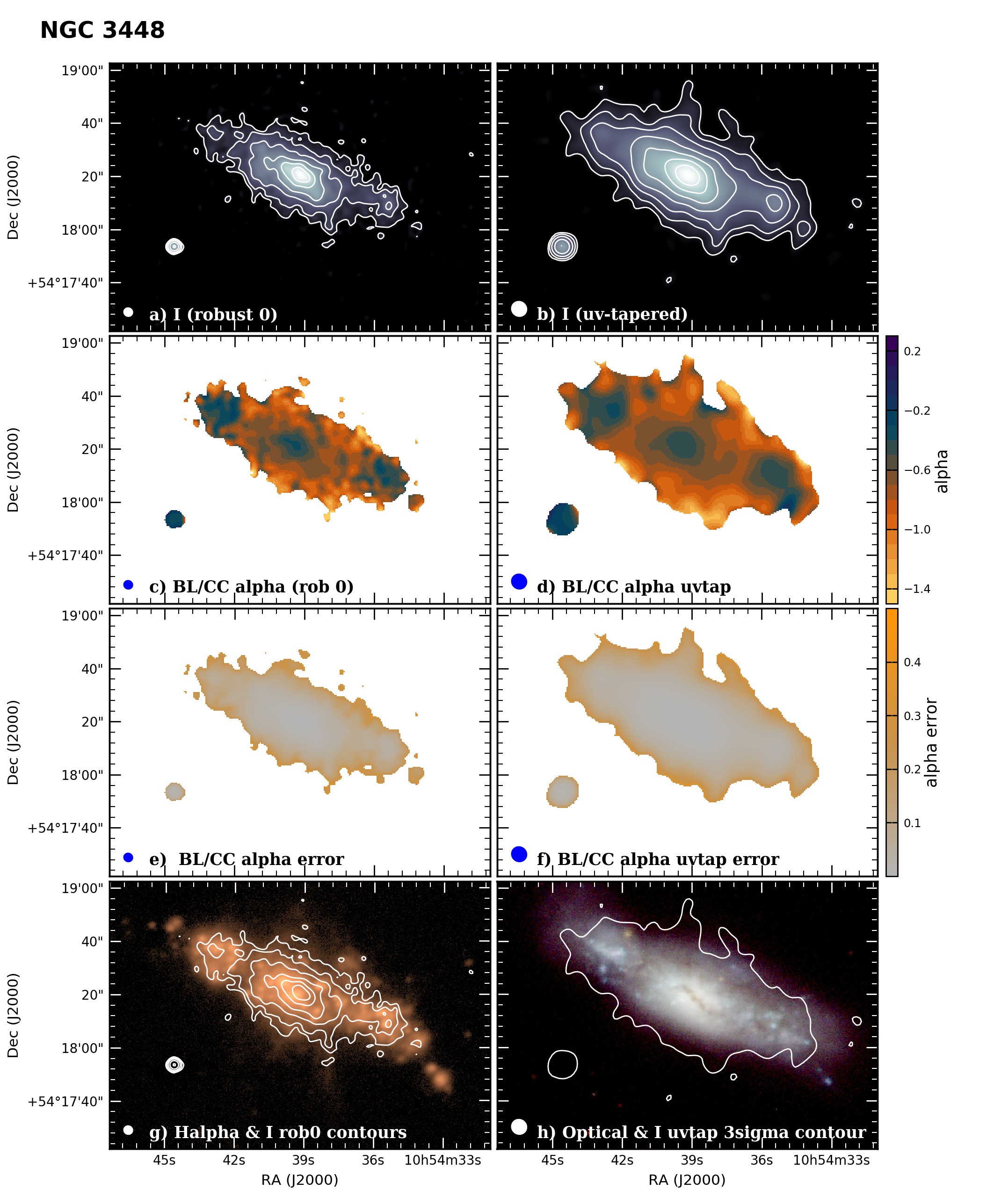

An example is NGC 3448 (Fig. 3 top). In the spectral index map (colours) we see evidence for a spiral arm curving from RA $\approx$ 10 54 38, DEC $\approx$ 54 18 23 to RA $\approx$ 10 54 39, DEC $\approx$ 54 18 33. The arm is delineated by three spectral index peaks that are somewhat flatter than their surroundings ($\approx-0.53$) and typical of multiple young supernova remnants (SNRs). Yet no such structure is visible in the L-band total intensity image alone. Only three contours are shown in Fig. 3 but an inspection of the image as a whole (see the N 3448 image in Appendix B) shows no such feature. The C-band image structure (Walterbos et al., 2019) of course will differ from the L-band image, hence leading to the structure in spectral index, but such a feature is again not obvious at all at C-band. It is really the spectral index map that clearly reveals this structure, otherwise masked in total intensity. A possible arm may also be present on the opposite side of the nucleus centered at RA $\approx$ 10 54 41, DEC $\approx$ 54 18 20.

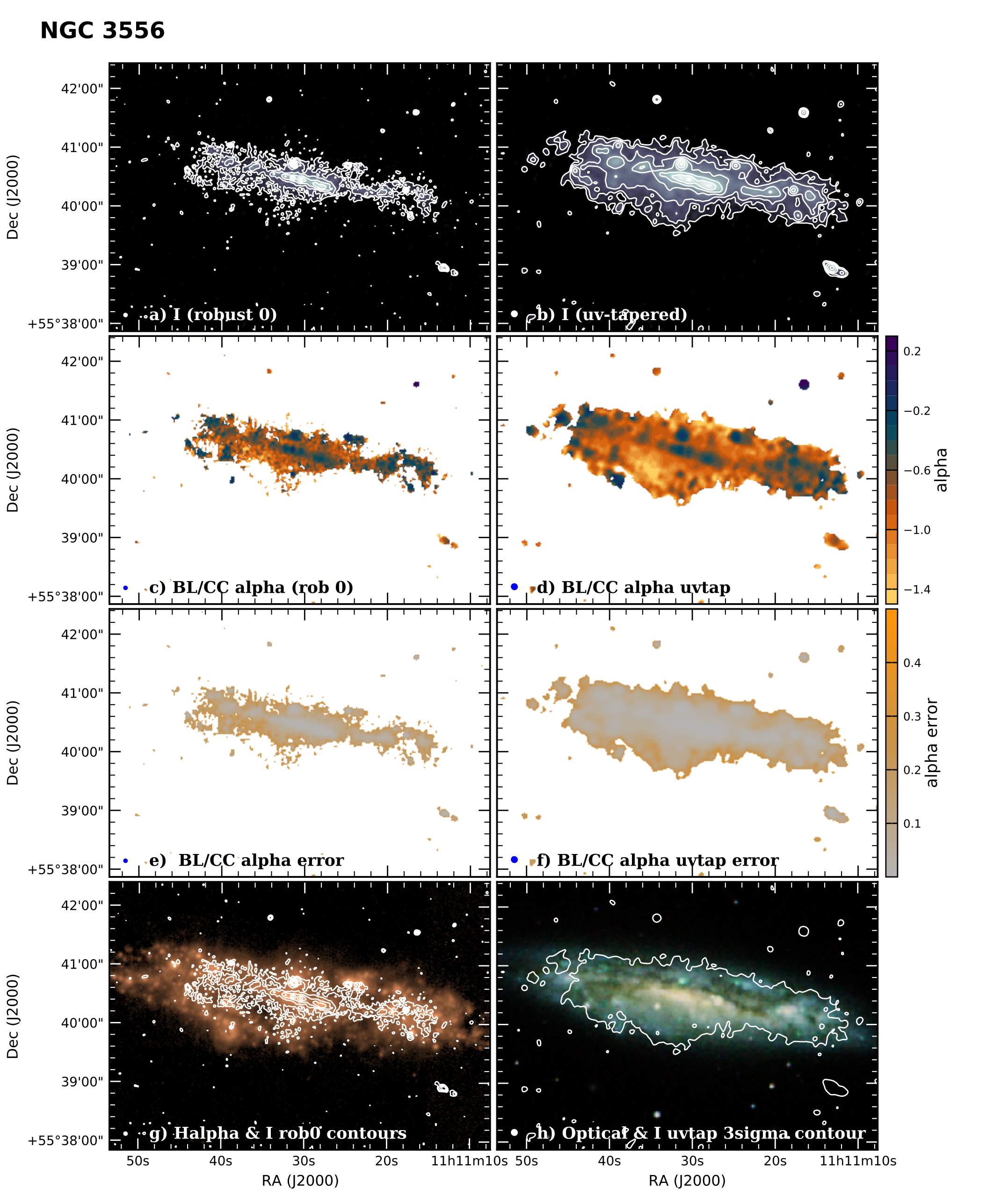

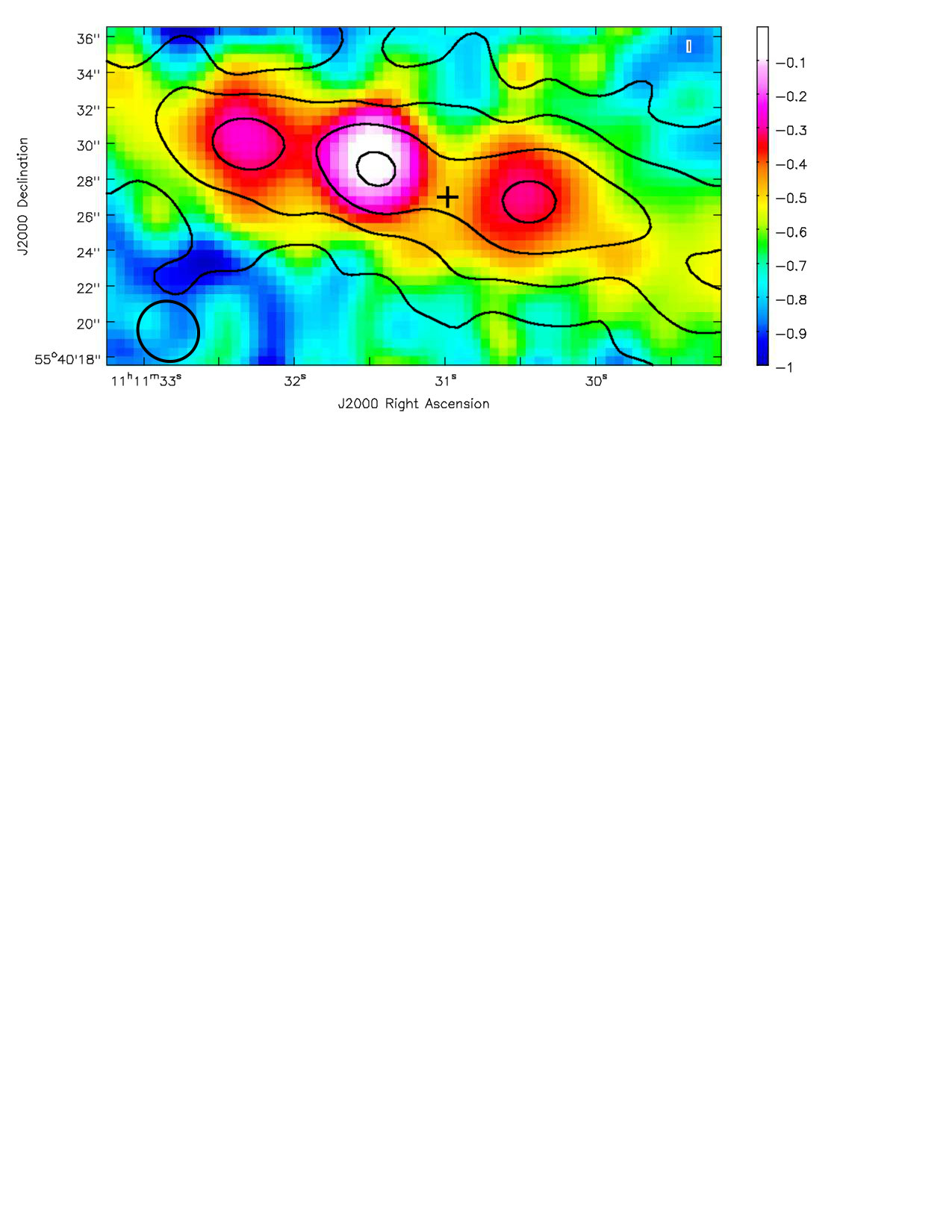

Another example is NGC 3556 (Fig. 3 bottom) which shows three distinct peaks in the spectral index map that are present, but not so strongly obvious, in the total intensity image. The peaks are suggestive of radio lobes. For example, if the white, flattest spectral index peak actually represents the galaxy center (offset from the NED center that is marked with a cross), then it is possible that the two other peaks on either side of it represent young radio lobes a distance $\approx$ 530 pc from the center. However, since these features are in the disk in projection, it is possible that they are instead associated with other in-disk features, such as edge-on spiral arms or rings.

We provide another remarkable example in Sect. 5.1.3.

5 AGNs in the CHANG-ES Sample

The fact that radio emission does not suffer from extinction is a strong incentive for using our high resolution BL images for determining whether or not an AGN is present. For edge-on galaxies, such incentive is even stronger.

In the past, it has been difficult to disentangle AGNs from nuclear starbursts in spiral galaxies. The search for weak or hidden AGNs has been of particular interest, especially given the possibility that lower mass AGNs in galaxy nuclei could be on the same fundamental plane (i.e. the plane of black-hole accretion relating radio emission, X-ray emission, and mass of an accreting black hole) as supermassive black holes and stellar mass black holes (e.g. Gültekin et al., 2014).

It has long been recognized that excessive luminosities within galaxy nuclei can indicate the presence of an AGN (e.g. Sect. 5.1.2. However, ‘dwarf’ AGNs, or ‘Low Luminosity AGNs’ (LLAGNs), i.e. those with H$\alpha$ luminosities lower than $10^{40}$ erg s*-1* (Ho et al., 1997) or with X-ray luminosities below $10^{42}$ erg s*-1* (Ho, 2009) may also be present yet hidden amongst other camouflaging emission.

In the CHANG-ES sample, there is already previous evidence for the presence of many AGNs or LLAGNs, for example, a Seyfert (Sy) categorization, or the presence of a low ionization nuclear emission region (LINER) for LLAGNs (Maoz, 2008). We identify these via their NED (NASA/IPAC Extragalactic Database) type which we list in Table 10. A study by Nagar et al. (2005) also identified $\approx$ 200 LLAGNs within which 8 CHANG-ES galaxies appear, although they do not reveal any new LLAGNs other than those already identified in Table 10.

5.1 Radio Criteria for Determining the Presence of an AGN

Our goal is to determine criteria for an AGN from the radio emission alone and then compare our results to what has been previously known. In addition, we supplement our data with X-ray data for a subset of the galaxies (Sect. 2.2).

Radio criteria that provide evidence of an AGN are: 1) the presence of an unresolved point-like core, 2) a luminosity that is too high to be accounted for from a collection of SNe alone, 3) the presence of radio jets or lobes, 4) the presence of a relatively flat or positive spectral index at the nucleus, 5) a brightness temperature, $T_{B}$ that is too high to be accounted for by thermal gas, 6) variability, and 7) the presence of circular polarization. We will consider each of these in turn.

Our brightest source is NGC 660 which has a peak specific intensity of 245 mJy beam*-1* at the highest resolution. This corresponds to a brightness temperature of $T_{B}\,\approx\,10^{4}$ K, which does not put meaningful constraints on this value; in other words, the beam size is too large for any embedded AGN to distinguish itself, should it have a high brightness temperature (Point #5).

Variability (Point #6) is a clear indicator of an AGN. Even a weak AGN, such as the LLAGN at the Galactic center, is variable on timescales of weeks to months (Contini, 2011), and CHANG-ES data sets are separated by months (e.g. Table 1). We do find variability of a central AGN by careful comparison and fitting of the central source brightness over all CHANG-ES data sets for the galaxy, NGC 4845 (Irwin et al., 2015). However, this source was rather extraordinary, displaying a Tidal Disruption Event (TDE). For the remaining galaxies, a comparison was made between the flux densities of the B-configuration L-band images and the C-configuration L-band images (the former smoothed to the resolution of the latter) but no convincing variability was found beyond minor differences that could be attributed to differences in uv coverage. Similar analysis to NGC 4845, which will be feasible only for the stronger sources, is beyond the scope of this paper.

Circular polarization in the cores of the galaxies (Point #7) has been examined thoroughly for the BL data in Irwin et al. (2018). This paper outlines the uncertainties involved in this process and adopts conservative criteria for concluding that circular polarization exists. The conclusion is that five galaxies show evidence for circular polarization and these are indicated in Table 10.

This leaves us with Points 1 through 4, which will be explored below.

5.1.1 Point-like Cores

Table 7 lists the galaxies that have point-like cores. We determine this by fitting a Gaussian to the centers of each galaxy and listing only those galaxies for which the FWHM of the source, after deconvolving from the synthesized beam, is less than the synthesized beam FWHM in both the major and minor axis directions. This criterion picks out strong candidates for a LLAGN but allows for minor contributions from other emission components that may also be centrally concentrated.

Thirteen galaxies fall into this category. Of these galaxies, to our knowledge, five show a radio point core for the first time from the CHANG-ES sample. These galaxies are: NGC 2613, NGC 4845 (Irwin et al., 2015), NGC 4666 (Stein et al., 2019a), NGC 5084, and NGC 5297. Moreover, for the galaxy, NGC 2613, the radio point core provides the first evidence for a possible AGN in any band (see also Desouza, 2017).

The fitted positions of these cores are also listed in Table 7. We have compared these positions to the suggested position of the source centers in NED. Six of the thirteen sources have positional differences greater than the error with four of those sources having positional offsets greater than three times the error. These six galaxies are marked with an astrisk in Table 7. We argue that these radio core positions likely designate the true centers of these galaxies (except N 4438, see Sect. 5.1.3).

We stress that this criterion alone is not a definitive argument for an AGN. For example, it is possible that a starburst could be so compact in the nuclear region of the galaxy (sizes typically several hundred pc, Table 7) that a number of SNe might also appear point-like. Alternatively, a weak AGN could still be present but masked (and missed) if other broader scale emission simply swamps that of a LLAGN. Higher resolution data, e.g. Very Long Baseline Interferometry (VLBI) detections, should further reveal AGN activity (e.g. Nagar et al., 2005, and references therein).

5.1.2 Radio Luminosities

It is well known that an AGN could (but need not) have a high luminosity in comparison to a collection of SNRs from a star forming (SF) region in a given area.

The best known and well-studied extragalactic SF region is in the ‘starburst galaxy’, M 82, which shows $\approx$ 40 supernova remnants (SNRs) at 5 GHz (Muxlow et al., 1994) and 20 SNRs at 408 MHz (Wills et al., 1997) in a region $\approx$ 600 pc in diameter. The average spectral luminosity of the nuclear SNRs in M 82 at 20 cm is $L_{\nu}\,=\,3\,\times\,10^{18}$ W Hz*-1* (data from Allen & Kronberg, 1998), with a standard deviation of the same order of magnitude. The star formation rate (SFR) of M 82 is 3.6 M⊙ yr*-1* (Grimm et al., 2003) which exceeds all but two of the CHANG-ES sample (Wiegert et al., 2015).

Although such a comparison is not absolutely definitive, it is still useful to ask how many M 82-mean-SNRs could be accounted for by the measured luminosities in the cores of the galaxies of Table 7. The last column gives this result and the fifth column gives the size of the region to which it applies. All galaxies except NGC 2613, NGC 2683, NGC4565, and NGC 5297 have luminosities that exceed what is seen in the starburst galaxy, M 82. This suggests that the remaining nine galaxies likely harbour relatively active AGNs, with NGC 3079 being the most powerful.

For the galaxies that do not have point-like cores (Table 8) or at least have a deconvolved Gaussian size that is wider than the synthesized beam in at least one direction, we repeat this exercise. From this list, NGC 2992, by far ‘outshines’ all other galaxies. Here, almost 9000 M 82-mean-SNRs would be required to reproduce the observed luminosity in a region that is about the same as the M 82 nuclear starburst. From this result, NGC 2992 clearly has an AGN and, in fact, has been found to have polarized radio jets that have been explored in detail in Irwin et al. (2017).

A second galaxy that stands out is NGC 3628, requiring $\approx$ 500 SNe within 115 pc to explain its luminosity. This galaxy also has circularly polarized emission (Irwin et al., 2018) and radio lobes (next section).

5.1.3 Jets/Lobes

Determining whether a jet or lobe is present from radio data is somewhat more subjective than the previous criteria since it relies on morphology; such structures may be embedded in other emission, especially since these features might not (yet) have emerged from the disk. Here, if we see bipolar structure, we interpret this as a jet or lobe. Such a result does not preclude the possibility of additional winds from starbursts, but a bipolar feature seen in non-thermal radio emission is most likely explained by an AGN. In the following, we refer to such structures as lobes, rather than jets, since our spatial resolution is insufficient to detect narrow jets that would be connected to the nucleus.

Several galaxies show clear radio lobes that have previously been known. Examples are NGC 4388 (e.g. Hummel & Saikia, 1991; Damas-Segovia et al., 2016, among others) and NGC 3079 (Hummel, Van Gorkom, & Kotanyi, 1984, and others) and these are also seen in the panels of Appendix B. Fig. 8 of Irwin et al. (2017) also reveals how the lobes in NGC 3079 are more distinctly seen in linear polarization compared to total intensity.

In Fig. 4 (top), we show a CHANG-ES example of a previously known radio lobe, i.e. the inner region of NGC 4438 with total intensity contours revealing the NW-SE outflow direction. The spectral index, moreover, also clearly reveals the same structure. The mean spectral index within the 1 mJy beam*-1* total intensity contour (second contour) is $\alpha_{BL-CC}$ = -0.757$\pm$0.005. This is an example of a steep spectrum that is typically observed for radio lobes. The position of the core from higher spatial resolution radio images suggest that its likely location is near the NED center marked in the figure (J2000: 12h27m45.67s, +13d00m31.54s, Hota et al., 2007). The core is presumably a flatter spectrum source whose emission is too weak to perturb the spectral index of the lobe, as seen in the image.

A new and very interesting result, however, is that radio lobes could be revealed only in the spectral index (hidden lobes) and not in the total intensity image; again, the weak lobes are masked by other sources of emission in total intensity as previously described in Sect. 4. Presumably, the spectral index map can reveal the radio lobes because the energy spectral dependence of cosmic ray electrons will be different in the outflow than in the surrounding regions.

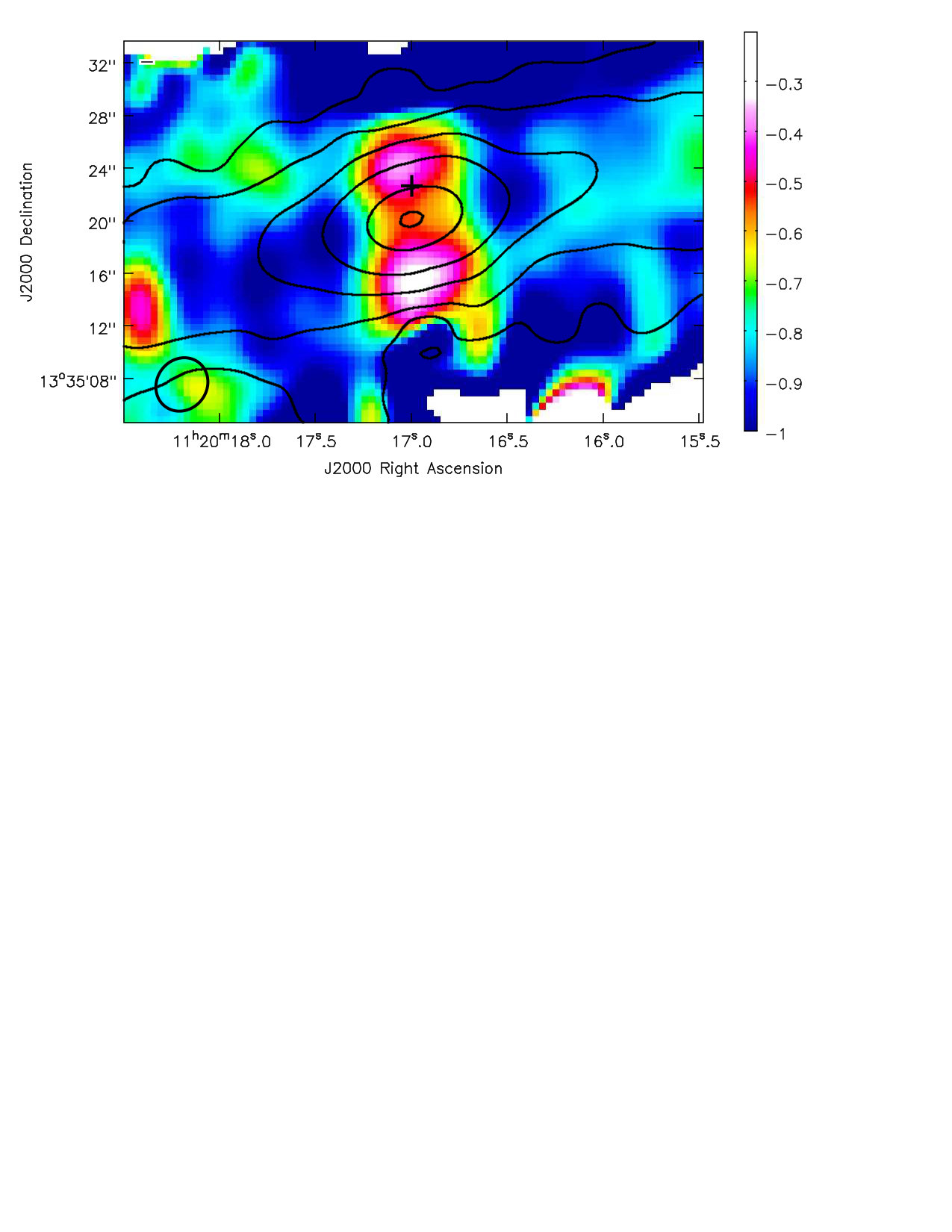

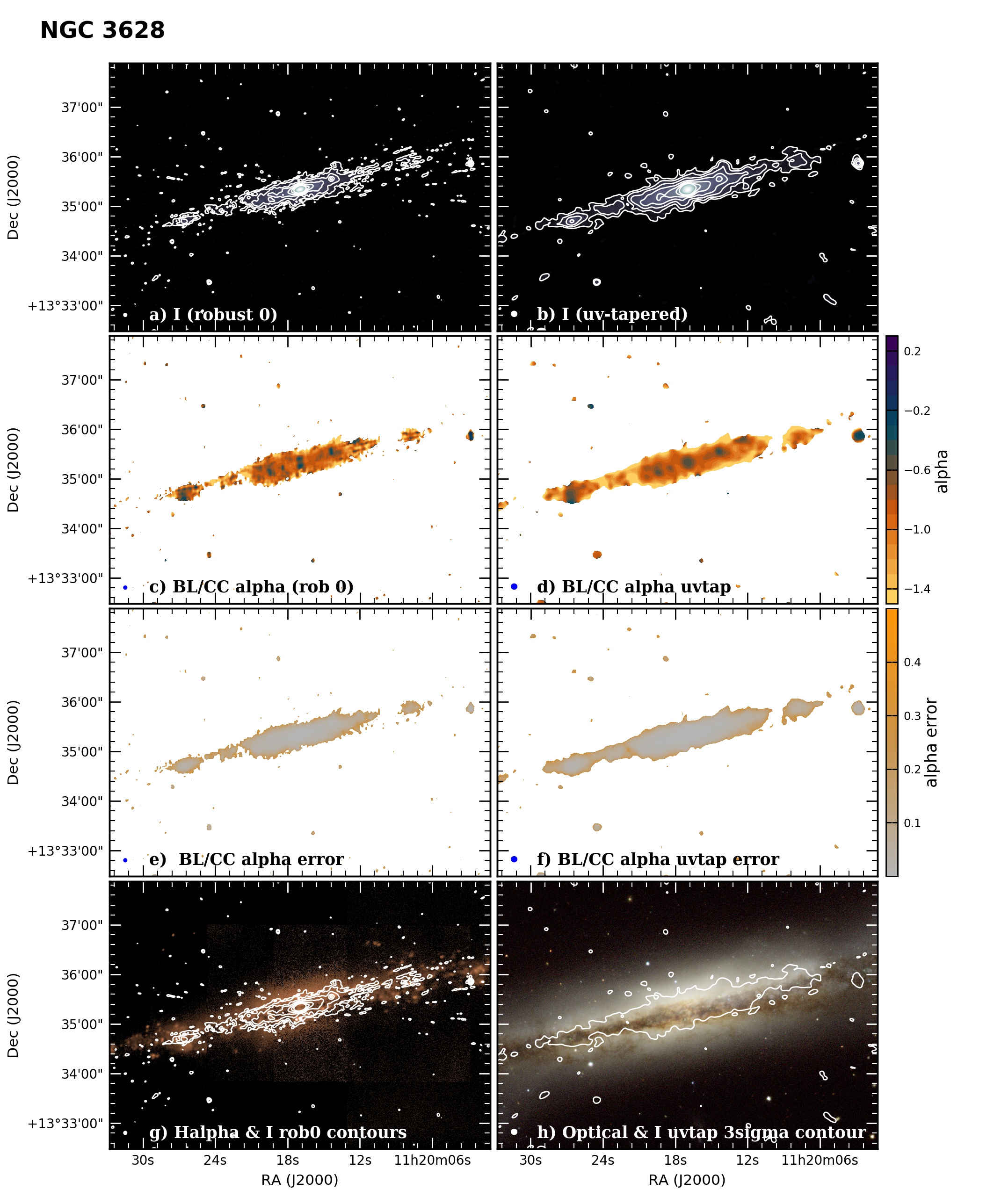

A good example of this is in NGC 3628 (Fig. 4, center). Here we see the total intensity emission (contours) smoothly increasing to a peak at the center of the galaxy. Above and below the nucleus are two regions of relatively flat spectral index, $\approx-0.34$ for the south peak (Table 9) and $\approx-0.43$ for the north peak. The center of the galaxy must be located at the position of the total intensity radio continuum peak, i.e. RA = 11 20 17.01, DEC = 13 35 20.1. This center is 2.6 arcsec below the NED peak which is marked with a ’+’ in the figure. The NED position was adopted from CHANDRA X-ray data (Evans et al., 2010). Notice that the spectral index is flatter than that of the radio outflow for NGC 4438. This suggests that the outflow in NGC 3628 could be young in comparison.

In Table 10 we list galaxies that appear to show radio lobes. The two galaxies with question marks are NGC 3556 which has three peaks along the disk in both total intensity and spectral index (Fig. 3 bottom) and NGC 5297 (Fig. 4 bottom) which has two very weak features on either side of the nucleus, the westmost ‘lobe’ having a spectral index of -0.23.

In summary, we have searched through the BL data for evidence of new radio lobes (beyond what has been previously known) and find evidence for lobes in NGC 3628, and possibly NGC 3556 and NGC 5297; these features are revealed in the spectral index maps, rather than total intensity.

5.1.4 ‘Flat’ Spectral Indices in Nuclei

With non-thermal emission dominating (Sect. 3.4.2) we expect flatter spectral indices for AGNs as opposed to a group of SN remnants (SNRs). It is well known, for example, that AGNs can have very flat and sometimes positive spectra due to the fact that AGNS are compact, can consist of multiple components, and can show self-absorbed synchrotron spectra.

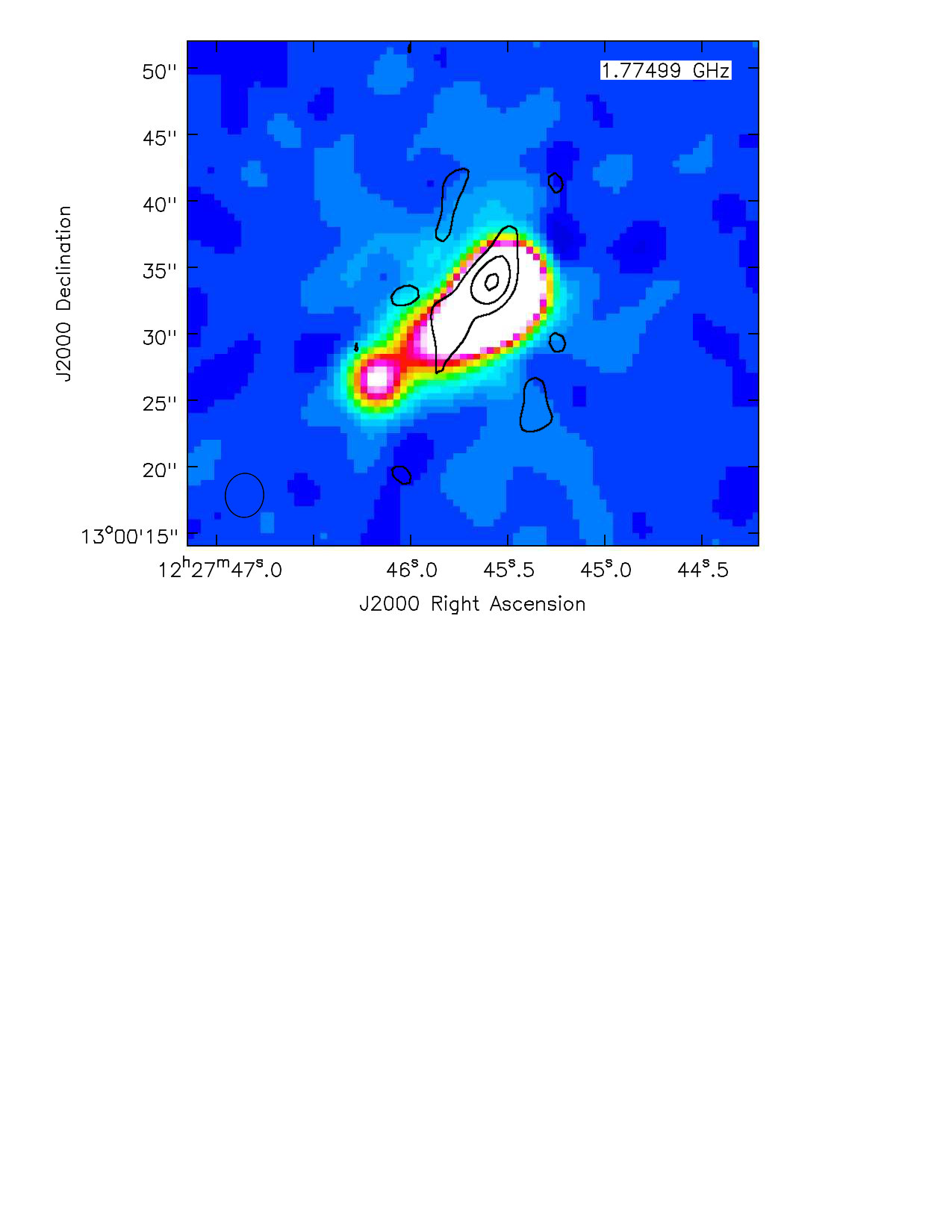

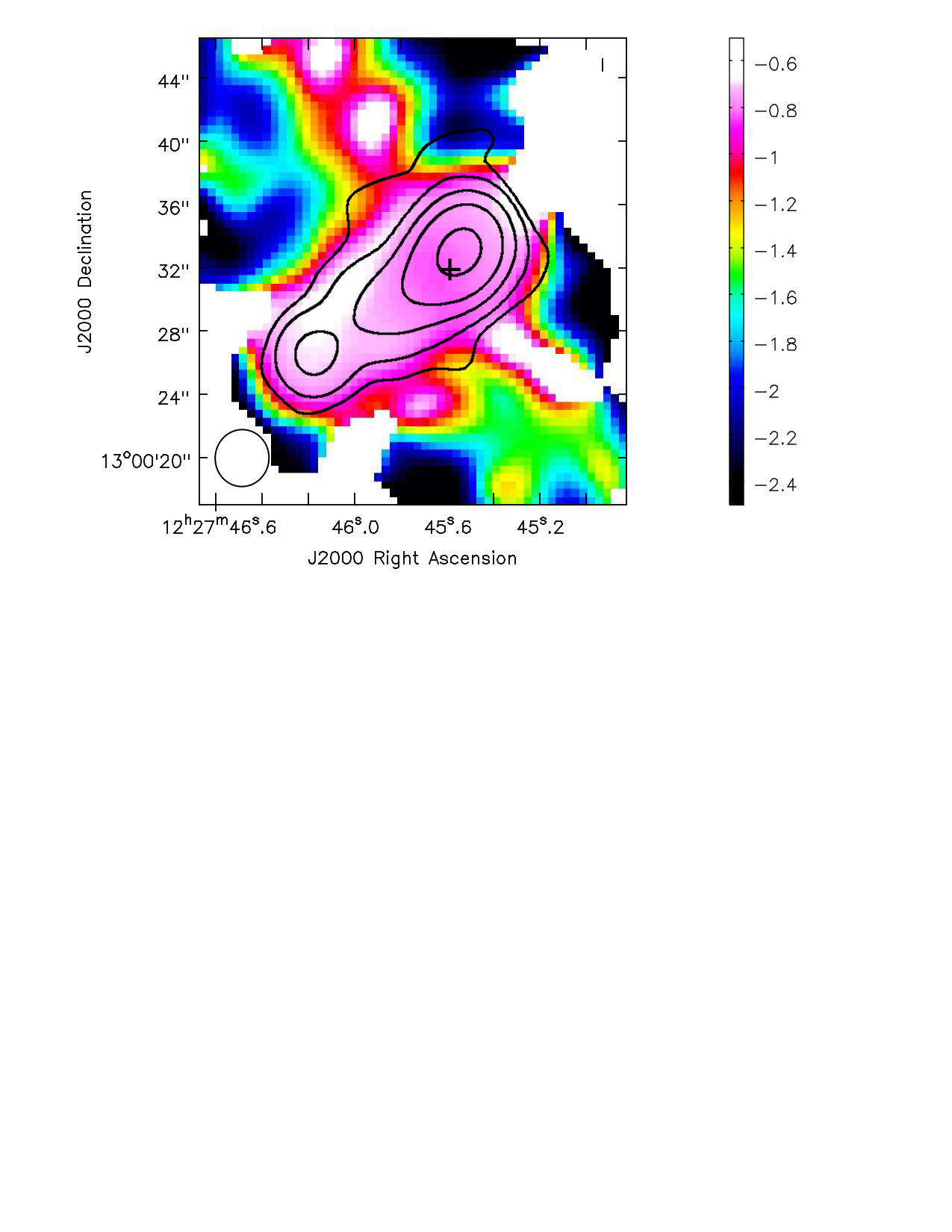

As pointed out in the previous section (e.g. NGC 4438), the core of an AGN could be blended with steeper spectrum outflows so this criterion will only select a subset of AGNs. It is important, however, to ask whether a collection of SNRs (also non-thermal emission) at a galaxy’s nucleus could produce a flat spectral index and masquerade as an AGN.

For SNRs the theoretical value derived from diffusive shock acceleration (DSA) is $\alpha\,=\,-0.5$ and 20% of all SNRs have measured values consistent with this value. Observationally, even young SNRs have steep spectral indices, typically of about -0.7 (Uros̆ević, 2014) prior to significant cosmic ray electron (CRE) aging and spectral steepening. The youngest known SNR in our galaxy (about 100 years), for example, has a spectral index of -0.65 at 1 GHz (Reynolds et al., 2008). A sampling of Galactic and extragalactic SNRs by Bell et al. (2011) shows spectral indices ranging from -0.4 to -1.1.

So-called ‘flat spectrum’ SNRs have spectral indices in the range, $-0.2\,>\,\alpha\,>\,-0.5$ (Uros̆ević, 2014). Theoretically, such flat spectral indices can occur intrinsically (eg. see chapter 21 of Longair, 1994, for second-order Fermi acceleration) and have been observed for individual SNRs in the Galaxy (Uros̆ević, 2014). A collection of SNRs in the nuclear region of a galaxy, however, is unlikely to show intrinsically flat spectral indices at L-band.

Non-intrinsic flattening of the spectral index could occur from the presence of a strong thermal Bremsstrahlung component. Thermal absorption is unlikely for a collection of SNRs at L-band (Sect. 6.1), but flattening due to thermal emission (for which $I_{\nu}\,\propto\,\nu^{-0.1}$) is sometimes observed for individual Galactic SNRs when they are embedded in molecular clouds (Onić et al., 2012).

A good example of emission that is primarily from a sample of supernovae in the nuclear region of a galaxy is, again, M 82. Various authors find low frequency spectral turnovers in individual SNRs in M 82 due to thermal absorption, implying emission measures (EMs) of typically $10^{6}$ cm*-6* pc (Wills et al., 1997; Kronberg & Wilkinson, 1975; Carlstrom & Kronberg, 1991), consistent with radio recombination line EM results (Seaquist et al., 1985), although a few $10^{7-8}$ cm*-6* pc have also been cited from very high resolution observations (i.e. 1.6 pc, McDonald et al., 2002). However, the mean spectral index from this collection of SNRs is still quite steep, on average: $-0.6\,\pm\,0.2$ (Wills et al., 1997) at 408 MHz $-0.4\,\pm\,0.3$ at 5 GHz (Kronberg & Sramek, 1992), in a region $\approx$ 600 pc in diameter which is similar in size (to order of magnitude) to the CHANG-ES galaxies (Tables 7 and 8). Between 74 MHz and 23 GHz, 19 out of 26 compact sources in M 82 have $\alpha\,<\,-0.49$. For more up-to-date data on M 82, see, e.g. Adebahr et al. (2013) and Varenius et al. (2015).

In summary, we would not expect a collection of SNRs in the nuclear region of an external galaxy to show a mean spectral index flatter than $\alpha\,\approx\,-0.3$ unless thermal emission from gas with extremely high EMs ($>>10^{6}$ cm*-6* pc) is present throughout the region. We therefore adopt $\alpha\,\geq\,-0.3$ at the nucleus as evidence for an AGN.

In Table 9 we provide spectral index measurements near the nucleus of each CHANG-ES galaxy. Since the NED nucleus does not always indicate the true center of the galaxy (e.g. NGC 3628, Fig. 4, center), we make measurements at the location of the flattest spectral index that is closest to the NED center. These locations (RA and DEC) are specified in the table. Note also that not every galaxy shows a distinctly flatter spectral index anywhere near the nucleus; see notes to the table for further clarity. Measurements close to where the emission was cut off (blanked) were also avoided because of spurious spectral index values at the boundaries.

In Table 9, we also provide the linear size corresponding to the average beam size of the synthesized spectral index maps as well as the number of SNRs that would have to be present in this region, should those SNRs have the average spectral power of the SNRs in the well-known starburst galaxy, M 82.

Using the flat spectral index criterion, we find that eight galaxies show evidence for AGNs. These are denoted in Table 10.

5.2 XMM Spectra

As noted in Sect. 2.2, we have obtained new XMM data for 19 CHANG-ES galaxies. Of these galaxies, eight show evidence from their X-ray emission as having an AGN (see Fig. 5). The 19 galaxies are designated ‘Y’ or ‘N’ in Table 10.

XMM data may simply not have the capability (sensitivity and resolution) to clearly detect the AGN in some ‘N’ galaxies. A scan through Table 10 illustrates that a number of galaxies which show evidence for a radio AGN don’t always show an AGN from the XMM data. For example, the ‘N’ galaxy, NGC 660 clearly harbours an AGN (Argo et al., 2015; Saikia et al., 2018, and CHANG-ES data) as does NGC 3079 and others in this list.

Spectra of two galaxies, NGC 4388 and NGC 4666, as mentioned in Sect. 2.2, show an iron Fe-K$\alpha$ line around 6.4 keV, which is a direct argument for the existence of an AGN (eg. Guainazzi et al., 2005, and the references therein).

In two more galaxies, NGC 2683 and NGC 2992, a hint for such a line is visible in their spectra, although no reliable model fit of this line could be performed. Nevertheless, for these two galaxies, as for several other objects, a significant level of hard emission (above 2 keV) can be observed (see Fig. 5), suggesting strong non-thermal source(s) of X-ray radiation in the galactic core. Although the resolution of the observations does not allow us to clearly determine that this emission comes from a single central source, we can still assume that it contributes significantly to the observed hard X-ray emission. This seems to be justified because typically we expect AGN luminosities of the order of 1040 erg s*-1* or more, while galactic X-ray binaries show only moderate hard emission and have luminosities of 1038–1039 erg s*-1* (see eg. Weżgowiec et al., 2016). Therefore, luminosities derived by us and presented in Table 5 are a reliable estimate for each galaxy, most likely agreeing with the real AGN luminosity within the presented uncertainty.

For the galaxies, NGC 2613, and NGC 2683, the poor quality of the extracted spectrum, resulting from short observations and lower apparent brightness, caused large uncertainties of the derived luminosity values (Table 5). Nevertheless, the overall spectral distribution of the X-ray emission with the significant part in the hard range, suggests that these might indeed be luminous AGN-type sources. For a clear confirmation, more sensitive data are certainly needed, especially since in the spectrum of NGC 2683 a hint for an iron Fe-K$\alpha$ line can be seen, as mentioned above.

We note here, that the candidate AGNs presented in Fig. 5 have the highest X-ray luminosities (see Table 5) of the studied galaxy sample.

5.3 The Incidence of AGNs in the CHANG-ES Sample

Table 10 summarizes the evidence for AGNs in the CHANG-ES sample. A‘Y’ in the final column refers to galaxies for which the radio criteria point to an AGN.

Galaxies for which only a single radio criterion suggests AGN activity are NGC 3432 and NGC 4565 and therefore these could be considered to be the weaker cases. However, both of these galaxies have been optically identified as either LINERS or Seyferts strengthening the case for an AGN for these galaxies.

The galaxies which have a single ‘Y’ plus a question mark in the ‘Lobe(s)’ column are NGC 3556 and NGC 5297. For NGC 3556, Satyapal et al. (2008) find no optical evidence for an AGN, but Wang et al. (2003) have identified a possible AGN candidate from X-ray observations. As for NGC 5297, we know of no independent evidence for an AGN nor is there a NED nuclear classification for this galaxy. These two galaxies are new AGN candidates, i.e. galaxies that have previously been specified as having only an HII-type nuclear spectrum.

The remaining new detection is NGC 2613, which has a point-core with a flat spectrum. Even though only a few SNRs could account for the luminosity of the emission (Table 7), the very flat spectrum ($\alpha\,=\,-0.1$, Table 9) is unlikely to result from a collection of SNRs. The spectrum is consistent with thermal emission alone, but we would then require a collection of HII regions right at the galaxy’s nucleus without SNRs. Finally, the XMM data show a hard spectrum, confirming our conclusion from the radio criteria.

It is interesting that all galaxies for which the X-ray data suggest an AGN (Fig. 5) have also been identified as having an AGN via our radio criteria. The converse, however, is not true. This could be because of the resolution of the XMM data, but given the fact that these data are capable of identifying AGNs in many of our other sources, the mismatch could be because of outburst timescales; for example, an X-ray decline could occur in advance of a radio decline.

Several galaxies with known or suspected nuclear activity have been missed using our criteria, namely NGC 4013 and NGC 4192, and NGC 4302. All three galaxies have very strong centrally concentrated radio emission (see Appendix B) which, nevertheless, is somewhat resolved (see also Stein et al., 2019b, for details of N 4013). They also have steep nuclear spectral indices. The same is true for the corresponding CC data at similar resolution. These three galaxies may have been missed because of our strict AGN requirement for an unresolved nuclear radio source. It is likely that a radio AGN is indeed embedded in other emission and the steep spectral indices are the result of masking by the other emission, similar to what was found for NGC 4438 (Sect. 5.1.3 and Fig. 4). Higher resolution radio observations are recommended for these galaxies.

Our detection rate (excluding the three galaxies noted in the above paragraph) is 18/33 or 55%. We take this as a lower limit to the AGN detection rate in our sample based on radio criteria alone. Note that the selection criteria for CHANG-ES galaxies (Irwin et al., 2012a) did not include any reference to galaxies with AGNs nor did it favour the inclusion of AGNs. If we include the three galaxies for which independent evidence exists for an AGN, then the detection rate of AGNs amongst ‘normal’ nearby spiral galaxies is 64%.

Chandra observations by She (2017a) and She (2017b) suggest that the incidence of AGNs in nearby galaxies ranges from 60% in elliptical galaxies to 20% in Sc and later types, and they find 314 AGN candidates that had previously only been designated as HII region-type nuclear spectra. Although we have many fewer galaxies, our detection rate is roughly consistent with She (2017b) (see their Table 1) in which they find about 50% in S0 to 39% in Sc and later types for nearby galaxies.

She et al. identify AGN candidates by finding those galaxies that have an X-ray point source at the location of the galaxy center. Their AGN candidates include the CHANG-ES galaxies NGC 891, NGC 3877, NGC 4217, and NGC 5775, for which we find no evidence for a radio AGN. It is possible that their list may have been overestimated (for example, see Hodges-Kluck, Bregman, & Li, 2018, for NGC 891). However, an intriguing notion is that a radio AGN with sufficiently high luminosity for detection has yet to emerge after an X-ray detection. A detailed investigation of the radio/X-ray connection in AGNs for the CHANG-ES sample is beyond the scope of this paper, but the association between radio and X-ray emission in AGN (e.g. Panessa et al., 2014) as well as low luminosity AGNs (LLAGNs) (Su et al., 2017) is well established.

6 High Resolution In-Disk Emission in CHANG-ES Galaxies

An abundance of information is available from the high resolution BL data and to help in understanding the origin of the discrete radio emission, we provide overlays of radio emission on H$\alpha$ maps obtained by Vargas et al. (2019) (Appendix B, Frame g). The H$\alpha$ maps, in standard FITS format have been presented in Data Release 2. In this section, we examine only two issues of relevance to high resolution in-disk emission.

6.1 Flat Spectral Indices in the Disks of CHANG-ES Galaxies

In Sect. 3.4.2, we noted that the thermal component is typicaly about 8% of the total emission at L-band. However, since the resolution of our BL data is of order a few hundred parsecs (Tables 7, and 8), specific HII regions or HII region complexes in the disk could be resolved as discrete objects. In such regions, non-thermal emission from SNRs can still be important, but the thermal contribution could also be significant. In fact, various CHANG-ES galaxies show many regions of flat spectral index in the disk far from the nucleus. Such regions in the disk obviously cannot be attributed to AGNs.

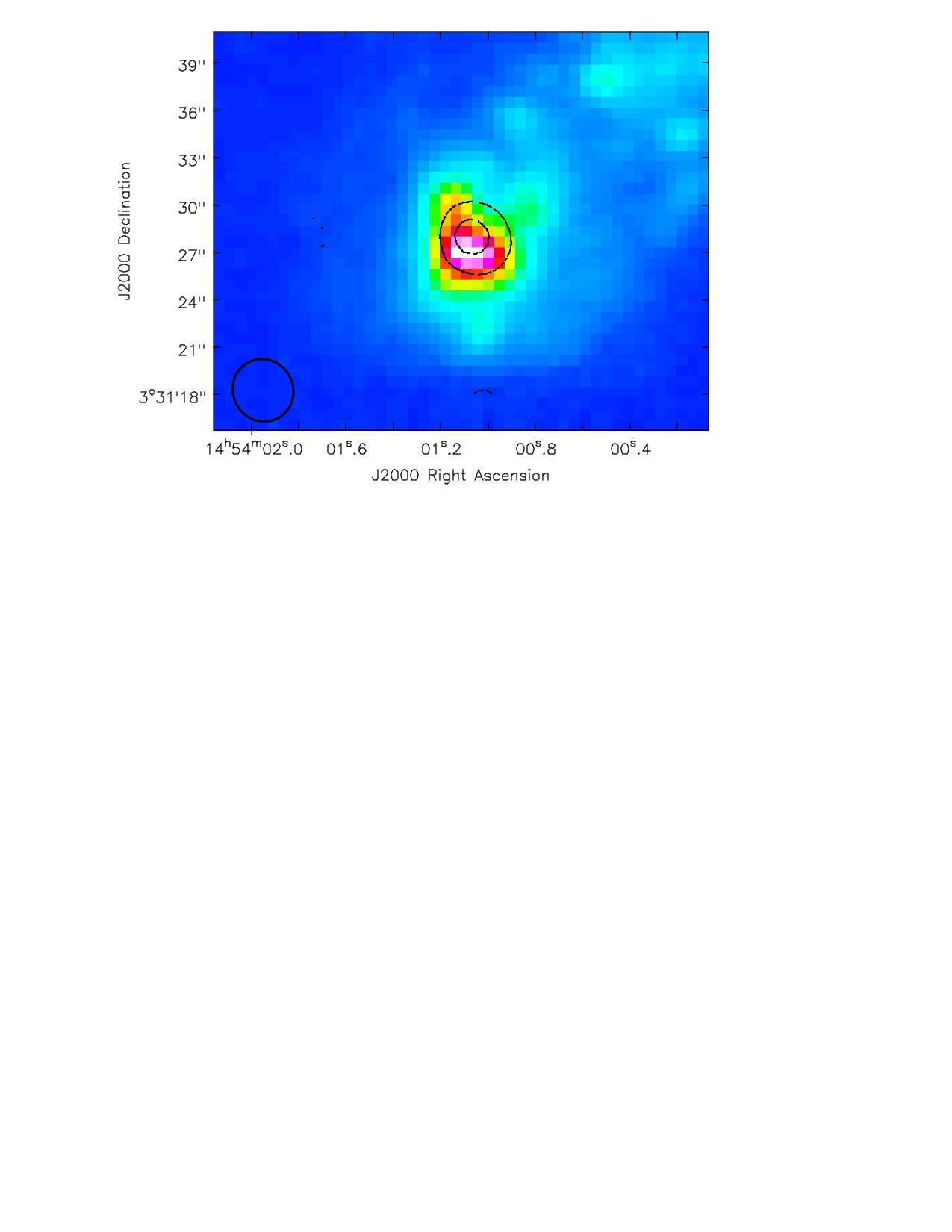

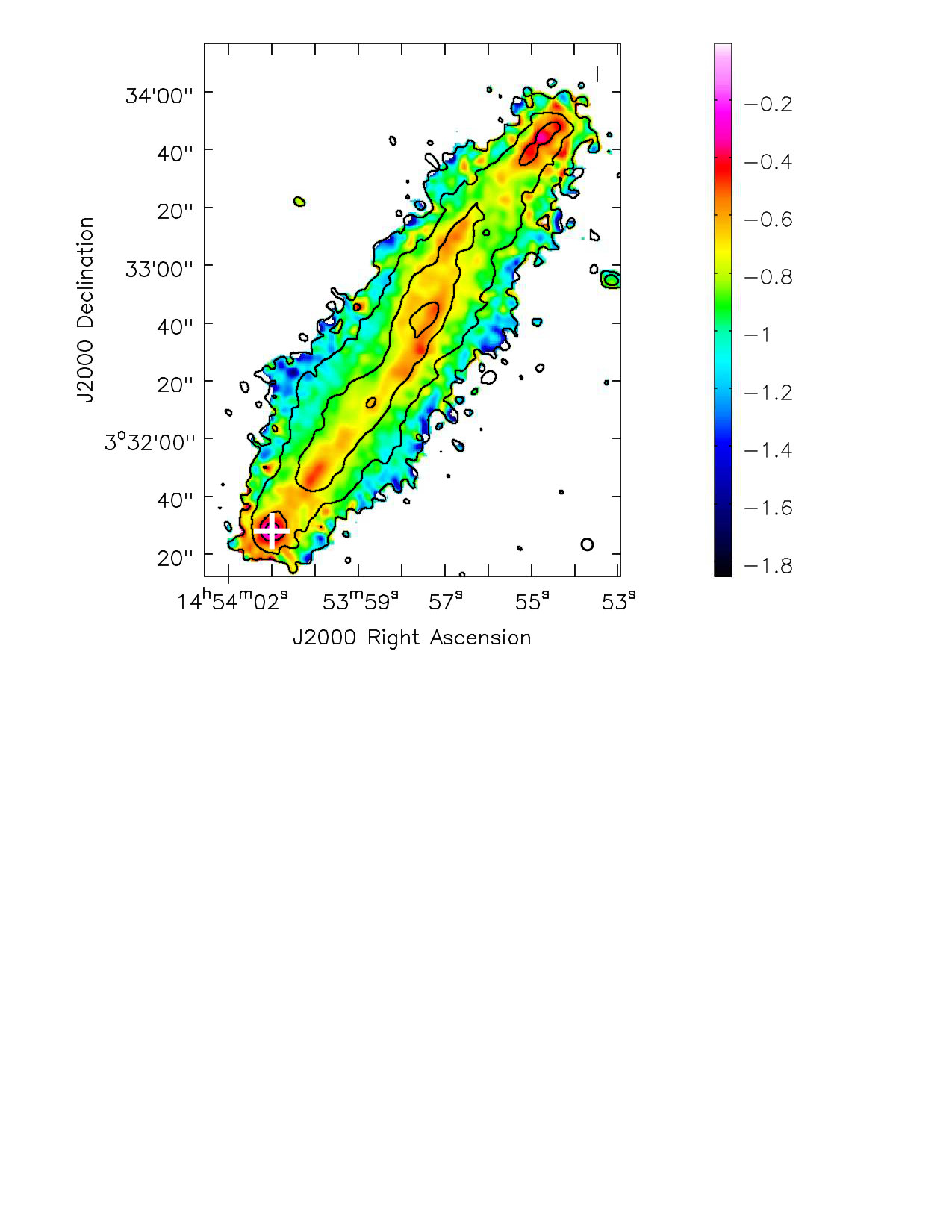

We consider only one example, the galaxy, NGC 5775, and examine a region of relatively flat spectral index far out in its disk, marked with a ‘plus’ sign in Fig. 6 (top: total intensity BL contours over $\alpha_{BL-CC}$ in colour). A blow-up of this region is displayed in the same figure (bottom: $\alpha_{BL-CC}$ contours over an H$\alpha$ image in colour). Here, the mean spectral index in a region of $\approx\,546$ pc in diameter (FWHM beam size) is $\alpha_{BL-CC}=-0.26\,\pm\,0.01$, where the error is also an average over the beam applying the (in this case negligible) corrections of Appendix A. Emission from purely thermal gas should give a flatter spectral index ($I_{\nu}\,\propto\,\nu^{-0.1}$) and emission from purely non-thermal gas (e.g. a collection of SNRs) should give steeper spectral indices, on average ($\alpha\,\approx\,-0.7$, see Sect. 5.1.4 for examples). We consider possible explanations below. In the following, we designate the observed $\alpha_{BL-CC}$ as simply $\alpha$.

6.1.1 Flattening of the Spectral Index due to Foreground Thermal Absorption

Here we consider non-thermal emission whose spectral index is flattened by thermal absorption from a foreground screen of thermal gas.

Free-free absorption requires an EM of $5\,\times\,10^{7}$ pc cm*-6* for a thermal optical depth, $\tau_{\nu_{TH}}\,=\,1$, at 3.8 GHz with electron temperature, $T_{e}\,=\,10^{4}$ K (Eqn. 7 below). The corresponding electron density would have to be $n_{e}\,\approx\,300$ cm*-3* throughout a line-of-sight equal to the diameter of the region (546 pc). However, we require thermal absorption from a foreground in which case the line-of-sight should be reduced and the density correspondingly increased (e.g. a factor of 2 decrease in distance corresponds to a factor of $\sqrt{2}$ increase in density). These are extreme values for the far ‘edge’ of a disk although other exceptional extragalactic HII regions do exist. For example, 30 Doradus shows a wide range of densities in complex structures (e.g. Scowen et al., 1998; Tsamis & Péquignot, 2005) with typical values of $\approx\,100$ cm*-3* and much higher densities in smaller filaments (Pellegrini et al., 2010).

A lower but significant optical depth could also flatten the spectral index. For example, for otherwise the same parameters but $n_{e}\,=\,150$ cm*-3* ($\tau\,=\,0.25$), if the non-thermal spectral index were $\alpha_{NT}\,=\,-0.76$, the observed spectral index would be flattened to the observed value of $\alpha\,=\,-0.26$ (see Irwin et al., 2015, their Eqn. 56).

However, we have stronger constraints available on the spectral index from the observed in-band spectral indices at L-band (over a 512 MHz bandwidth) and at C-band (2 GHz bandwidth). Although these in-band spectral indices have a lower S/N, they are still sufficiently accurate for comparison (e.g. the BL signal-to-noise at this location is $>100/1$). We find that the observed $\alpha$ at both L-band and C-band agree with the band-to-band value within errors. That is, the observed spectral index is constant from L-band through C-band.

We can now ask what the non-thermal spectral index would be at each frequency if $n_{e}\,=\,150$ cm*-3* so that the observed spectral index remains constant at -0.26. We find that we require $\alpha_{NT}\,=-3.4$ within L-band, $\alpha_{NT}\,=-0.75$ band-to-band (as calculated above) and $\alpha_{NT}\,=-0.45$ within C-band. In other words, $\alpha_{NT}$ would have to be strongly varying with frequency in order for the observed value to remain constant. This scenario seems highly unlikely and we therefore rule out thermal absorption as the cause of a relatively flat spectral index at the location of the SE HII region in NGC 5775.

6.1.2 Flattening of the Spectral Index due to a Thermal Contribution

Here, we consider that $\alpha$ has been flattened due to an optically thin thermal emission fraction that is higher than the estimated global values of 8% at L-band and 20% at C-band (Sect. 3.4.2).

Then, with $NT$, and $TH$ referring to non-thermal and thermal quantities, respectively, and $I$ being the specific intensity, the standard equations are,

[TABLE]

where $K$ and $C$ are constants, and $k$ and $c$ are Boltzmann’s constant and the speed of light, respectively, and we have employed the Rayleigh-Jeans relation in Eqn. 6. We have two sets of equations, one for each of BL and CC data at matching resolutions. The thermal optical depth is well known, i.e.

[TABLE]

For an adopted value of EM (assuming $T_{e}\,=\,10^{4}$ K), $I_{\nu_{TH}}$ is easily calculated, and $I_{\nu_{NT}}$ is obtained from Eqn. 5, from which the thermal fraction, $f_{\nu_{TH}}=I_{\nu_{TH}}/I_{\nu_{obs}}$ follows for each band. With $I_{\nu_{NT}}$ at both bands, the non-thermal spectral index, $\alpha_{NT}$ is found along with the difference, $\Delta\,\alpha\,=\,\alpha-\alpha_{{NT}}$. This latter quantity indicates how much the spectrum has been flattened by the addition of thermal emission.

Fig. 7 shows the thermal fraction at L-band and $\Delta\,\alpha$ at 3.8 GHz (corresponding to the mid-point between the L-band and C-band observations) for a variety of values of EM. As the contribution of thermal gas increases, so does $\Delta\alpha$. For example, if $\alpha_{NT}\,=\,-0.72$ at 3.8 GHz, then $\Delta\,\alpha\,=\,0.46$, $EM\,=\,3.62\,\times\,10^{4}$ pc cm*-6*, $f_{th}\,=\,0.7$ at L-band and $f_{th}\,=\,0.8$ at C-band. The thermal gas is highly optically thin at both frequencies. The average electron density over the line of sight would be $n_{e}\,=\,8$ cm*-3*. Unlike the case for thermal absorption (Sect. 6.1.1) the non-thermal spectral index does not vary with frequency and we can clearly see that the required electron density is a more moderate value.

We finally can compare the emission measure with the observed value of 2958 cm*-6* pc obtained from the H$\alpha$ image (Collins et al., 2000). Fig. 7 shows that such a low value of EM would produce only a negligible amount of spectral flattening. Thus, either $\alpha_{NT}$ is quite flat to begin with, or the optically measured EM is heavily extincted by dust. We suspect the latter and suggest that further analysis of this region to determine the dust contribution would provide such verification.

In summary, flat spectral indices in discrete regions in the disks of the CHANG-ES galaxies are most likely due to a higher-than-average contribution from thermal emission.

6.2 Background Sources

At L-band, there are many background sources in the various fields. We note that, since 35 fields at each of two different UV weightings are available, the BL images can provide an independent measurement set for source count studies. With rms values typically of order 20 $\mu$Jy beam*-1* (Table  2), the CHANG-ES data can provide source count estimates to very low levels (though subject to PB weighting). In addition, our matching resolution CC data set (Walterbos et al., 2019) has rms values that are typically much less than 10 $\mu$Jy beam*-1*. In this section we consider only the possibility that background sources may be seen through the disks of our galaxies.

Numerous studies have examined radio source counts historically, and more recently to increasingly lower flux levels, especially in anticipation of the full power of the SKA666Square Kilometre Array. Unfortunately, considerable scatter is seen in the differential source counts at the lowest flux levels. For example, the 1.4 GHz normalized differential source counts vary by a factor of $\approx\,6$ at a level of 100 $\mu$Jy (De Zotti et al., 2010; Prandoni et al., 2018), underscoring the need for good deep surveys.

More relevant to an analysis of the edge-on galaxies is how many background sources might be shining through the galaxy disks. Such sources may need to be removed before detailed analysis of the galaxies can be carried out.

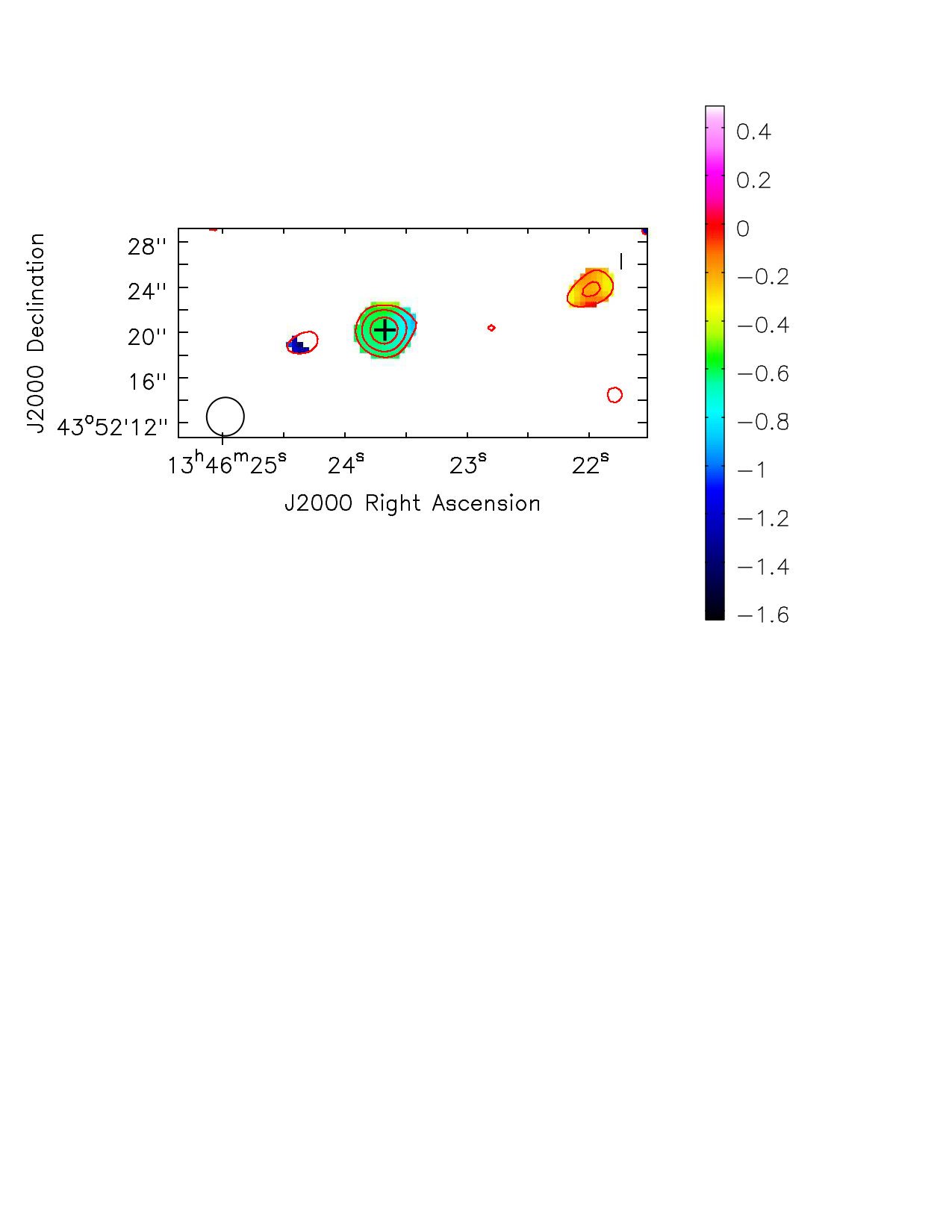

We have several clear examples of known background sources seen through the disk. An example is NGC 5907 which has a very strong double-lobed radio source behind the far SE tip of the major axis (Dumke et al., 2000) as can clearly be seen in Appendix B). In this case, the extragalactic nature of the source is obvious and its spectral index is also discordant compared to the galaxy’s disk. Another example is UGC 10288 (Appendix B) whose radio emission is actually dominated by the background double-lobed radio source as described in detail in Irwin et al. (2013).

However, sources such as the point source at RA = 12 13 47.1, DEC = 14 54 49.2 apparently in the disk of NGC 4192 (Appendix B) with a peak specific intensity of 0.60 mJy beam*-1* may or may not be a background source.

Bearing in mind the uncertainties noted above, one can make a rough estimate of the number of sources that might be seen through the disk of such a galaxy. Following Rahman (2016), who employed the simulations of Wilman et al. (2008), we would expect $\approx$ 108 background sources to be present in any 1000 arcsec x 1000 arcsec field above a typical $3\sigma$ threshold of $60~{}\mu$Jy beam*-1*. For the specific NGC 4192 field (rob0), taking an ellipse for the galaxy area, of major x minor axis size, 250 arcsec x 45 arcsec, and adopting a more stringent $5\sigma$ limit of $87~{}\mu$Jy beam*-1* for that field, then we expect 0.6 background sources to be shining through the disk. For NGC 4192, then, the point source noted above could indeed be a background source. Higher resolution observations are really required to confirm this.

7 Summary and Conclusions

We have now presented the third data release of the CHANG-ES galaxy sample of 35 edge-on nearby galaxies. This data release consists of FITS images at 1.58 GHz taken in the B-configuration (BL data) of the VLA with a spatial resolution of $\approx$ 3 arcsec. For most galaxies, uvtapered images with resolution of $\approx$ 6 arcsec were also made and are in the data release. In addition to these images, we include band-to-band spectral index maps made from BL and C-configuration 6.00 GHz data (CC data) at matching spatial resolutions.

In-band spectral indices (over 512 MHz L-band bandwidth and 2 GHz bandwidht at C-band) have been made but are not released, given the relatively low S/N for many galaxies. Polarization at L-band is not detected except for two galaxies: NGC 3079 and NGC 4388 (Fig. 2) because of Faraday depolarization at L-band; consequently, polarization images are also not included in the data release. Non-release images for this configuration can be requested from the first author, if required. Otherwise, release data can be downloaded from https://www.queensu.ca/changes.

Panels displaying the data products are provide in Appendix B for all galaxies. The C configuration data from which the spectral index maps were made will be released separately (Walterbos et al., 2019) and the H$\alpha$ images that are displayed in the panels can already been found at our data-release website (see Vargas et al., 2019).

Several new and unique results have been identified. We see structures in the spectral index maps that are not observed in total intensity, presumably because the structure is swamped by other emission in total intensity. An example is apparent spiral arms in NGC 3448 and two radio lobes on either side of the nucleus in NGC 3628. Thus, high resolution spectral index maps are essential for revealing otherwise hidden features and show us how the energy spectral index of cosmic ray electrons varies with position.

We have looked for radio-only criteria for identifying AGNs in these galaxies, including unresolved point-like cores, high radio luminosities, radio lobes, and relatively flat spectra in the cores. Other criteria, such as time variability, circular polarization and high brightness temperatures have been examined elsewhere or are not applicable to this data set (Sect. 5.1). We find a lower limit to the incidence of radio AGNs of 55% in nearby spiral galaxies. This incidence increases to 64% if we include galaxies that have strongly peaked emission in the core but that emission is still slightly resolved.

All galaxies for which available X-ray data suggest the presence of an AGN, are also radio AGN. However, some other galaxies (e.g. NGC 660 and NGC 3079) clearly have radio AGN but show only little evidence for an X-ray AGN. This could be because of timescales, with the X-ray emission fading before the radio, or could be related to the resolution and sensitivity of the XMM data.

An examination of discrete emission in galaxy disks reveals some regions of quite flat spectral index which can reasonably be explained by a contribution from free-free thermal emission that is higher than the global average. We suggest that one such HII region in the outer disk of NGC 5775 could have a thermal fraction of as much as 70% at L-band. A careful comparison between the H$\alpha$ images and the radio continuum will likely prove to be of importance for other discrete regions, provided dust obscuration is also considered carefully.

The L-band fields contain many background sources, some of which may be shining through the disks of the nearby galaxies.

The first author would like to thank the Natural Sciences and Engineering Research Council of Canada for a Discovery Grant. The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc. This research has made use of the NASA/IPAC Extragalactic Database (NED) which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration. Facilities: VLA.

Appendix A Corrections to the Spectral Index Error Maps

For highest accuracy, the spectral index error maps should take into account the fact that the rms noise increases with distance from the field (pointing) center. The corrected uncertainty is

[TABLE]

where $PB_{L}(r)$ and $PB_{C}(r)$ are the primary beam responses at L-band and C-band, respectively, and $r$ is the distance from the field center. Rearranging this equation and using Eqn. 3 to eliminate $I_{L}$ and $I_{C}$ we find

[TABLE]

The primary beam shape, $PB(r)$ is given in Perley (2016) as a 6th order polynomial. However, for the regions shown in our spectral index maps, the polynomial is well fitted by a normalized Gaussian, where the half-width at half maximum, HWHM = 12.76 arcmin at 1.57 GHz and HWHM = 3.51 arcmin at 6.00 GHz, i.e.

[TABLE]

where $r$ is in units of arcmin and the standard deviation, $\sigma\,=\,10.8$ for a HWHM of 12.76, and $\sigma\,=\,2.98$ for a HWHM of 3.51 in the same units.

Thus, given an input spectral index map, $\alpha$, Eqn. A2 together with Eqns. A3 can be used to determine a corrected value of the error in the spectral index. The quantities, $\sigma_{L}$ and $\sigma_{C}$ are taken as constant for a given map and are read from Table 6, whereas $\alpha$ varies with position and the PBs are functions of $r$.

Alternatively, the given error maps can be corrected by multiplying by a factor

[TABLE]

where $\sigma_{\alpha}$ is given by Eqn. 4 and we have explicitly evaluated the frequency ratio for CHANG-ES.

For example, let $r\,=\,3$ arcmin, $\alpha\,=\,-0.8$, $\sigma_{L}\,=\,16$ $\mu$Jy beam*-1* and $\sigma_{C}\,=\,3$ $\mu$Jy beam*-1*. Then $PB_{L}(r)\,=\,0.96$, $PB_{C}(r)\,=\,0.60$, and $f(r)\,=\,1.2$. At the adopted position, the error map value would be increased by this factor.

Appendix B Galaxy Panels

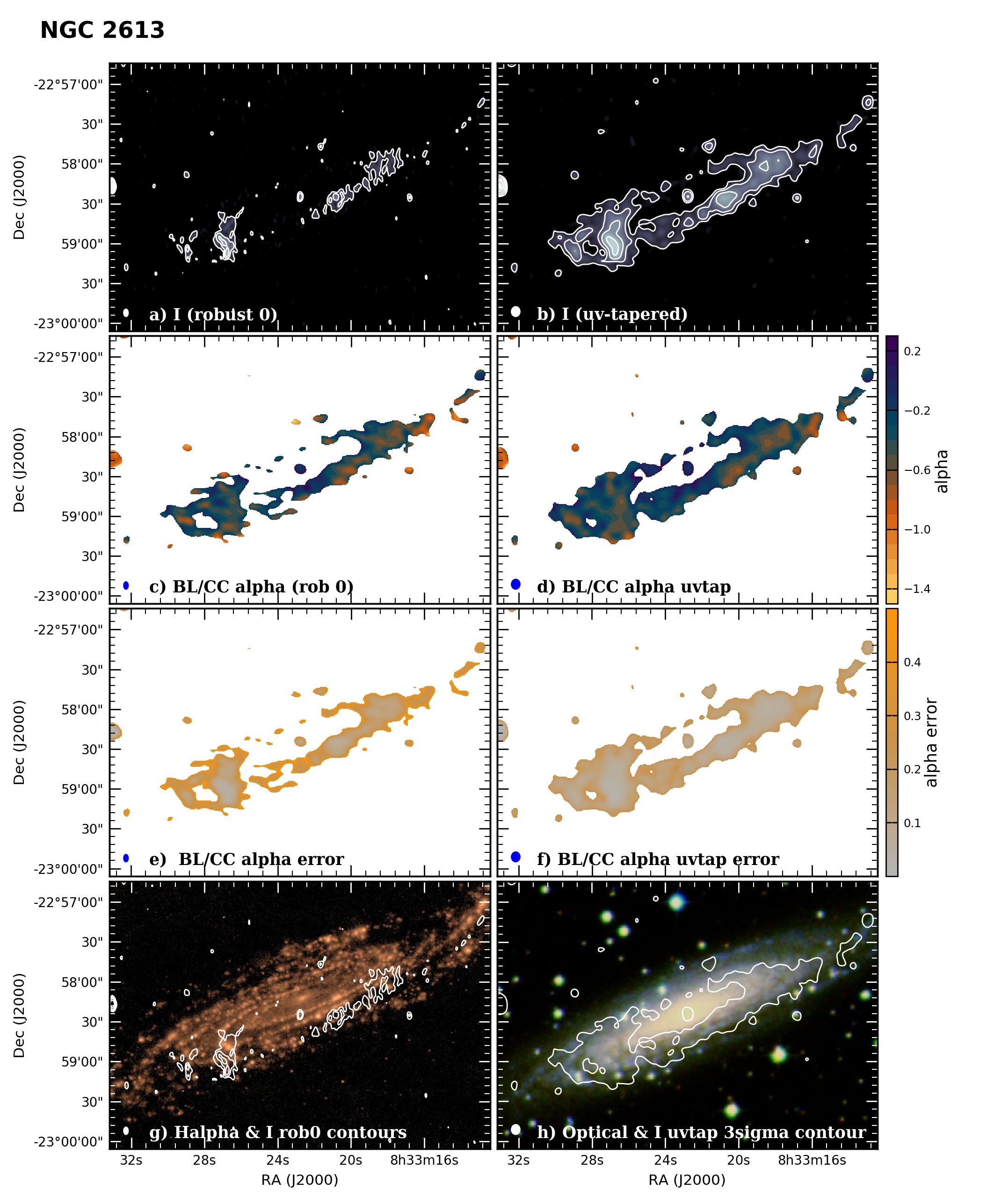

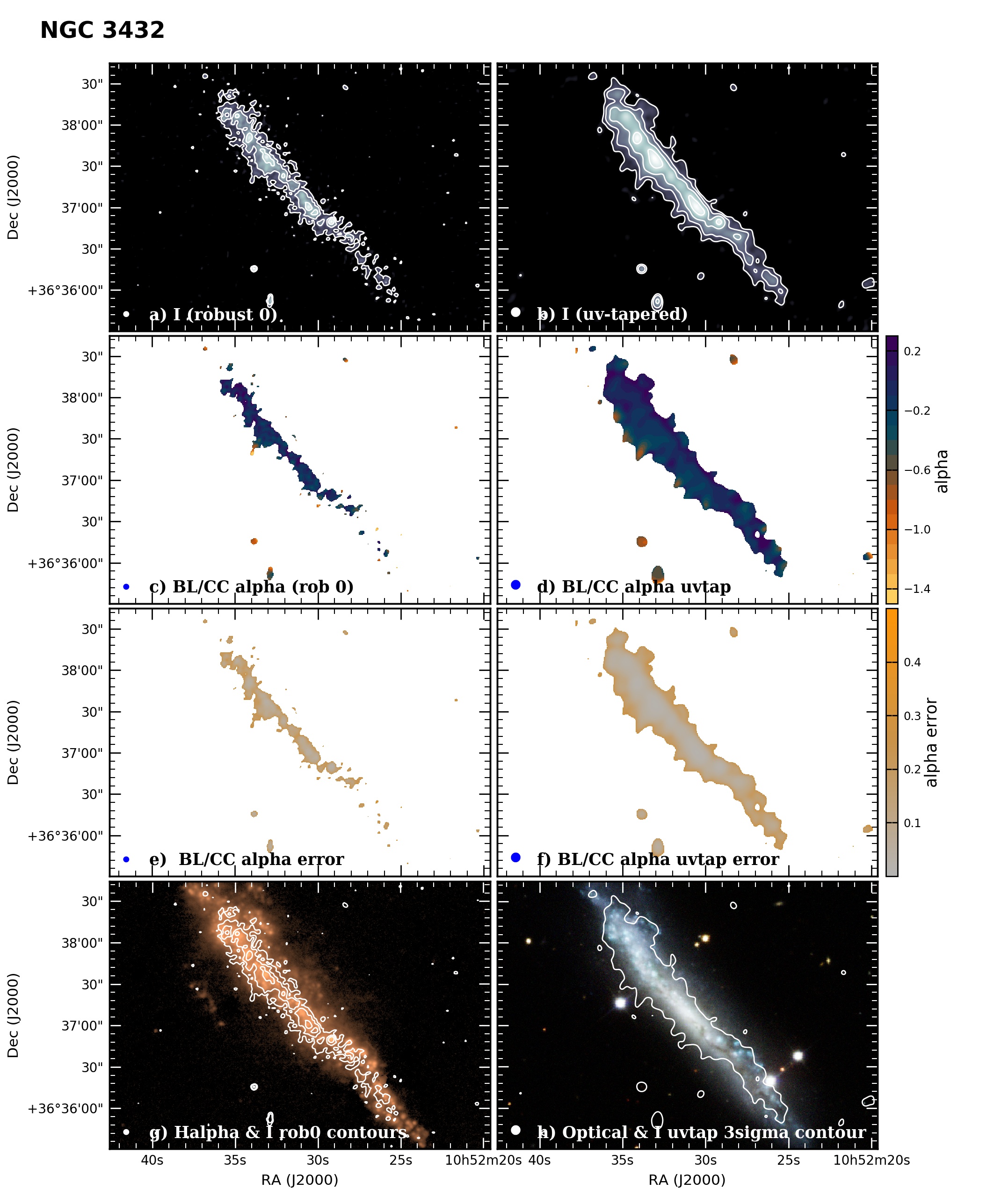

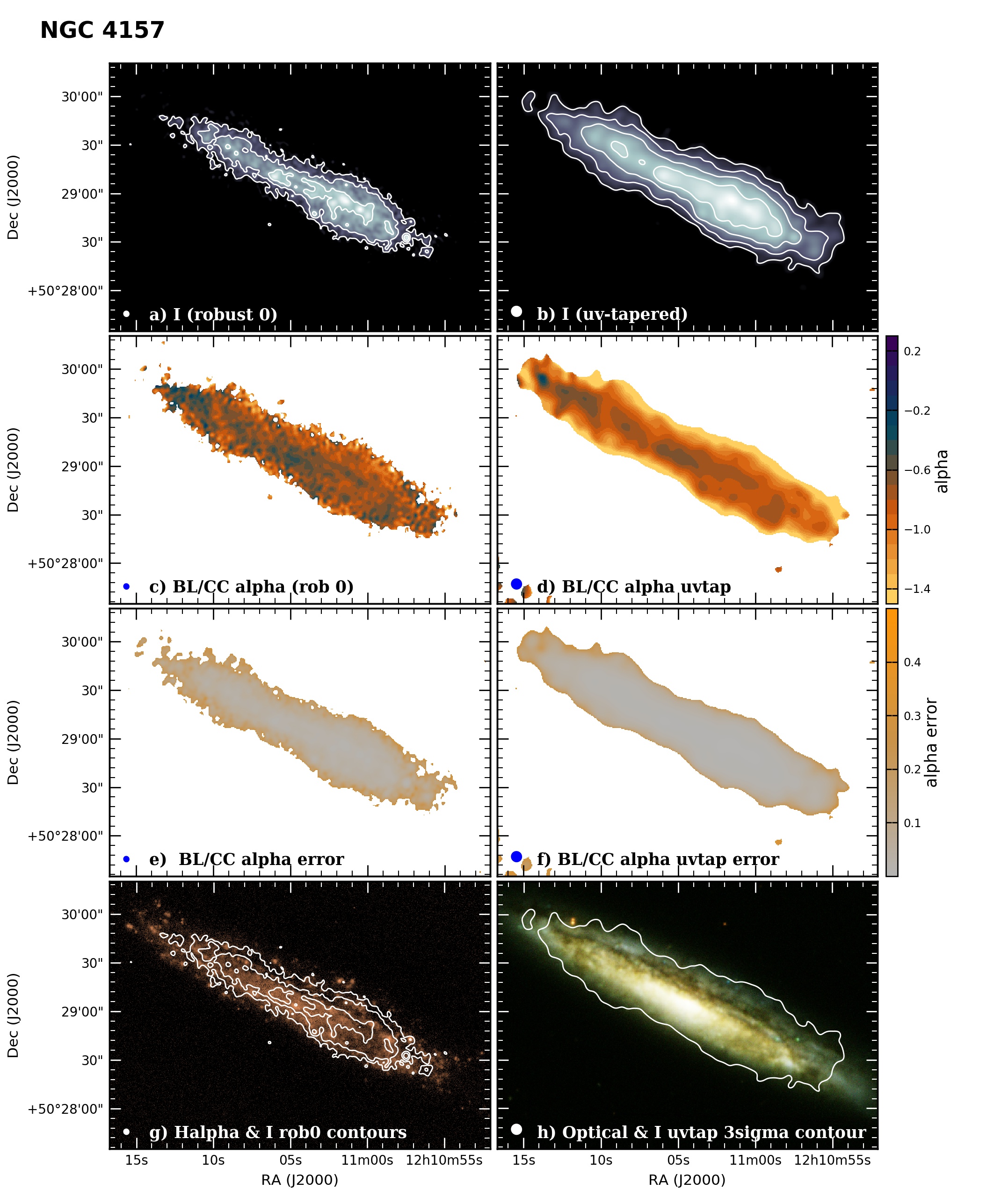

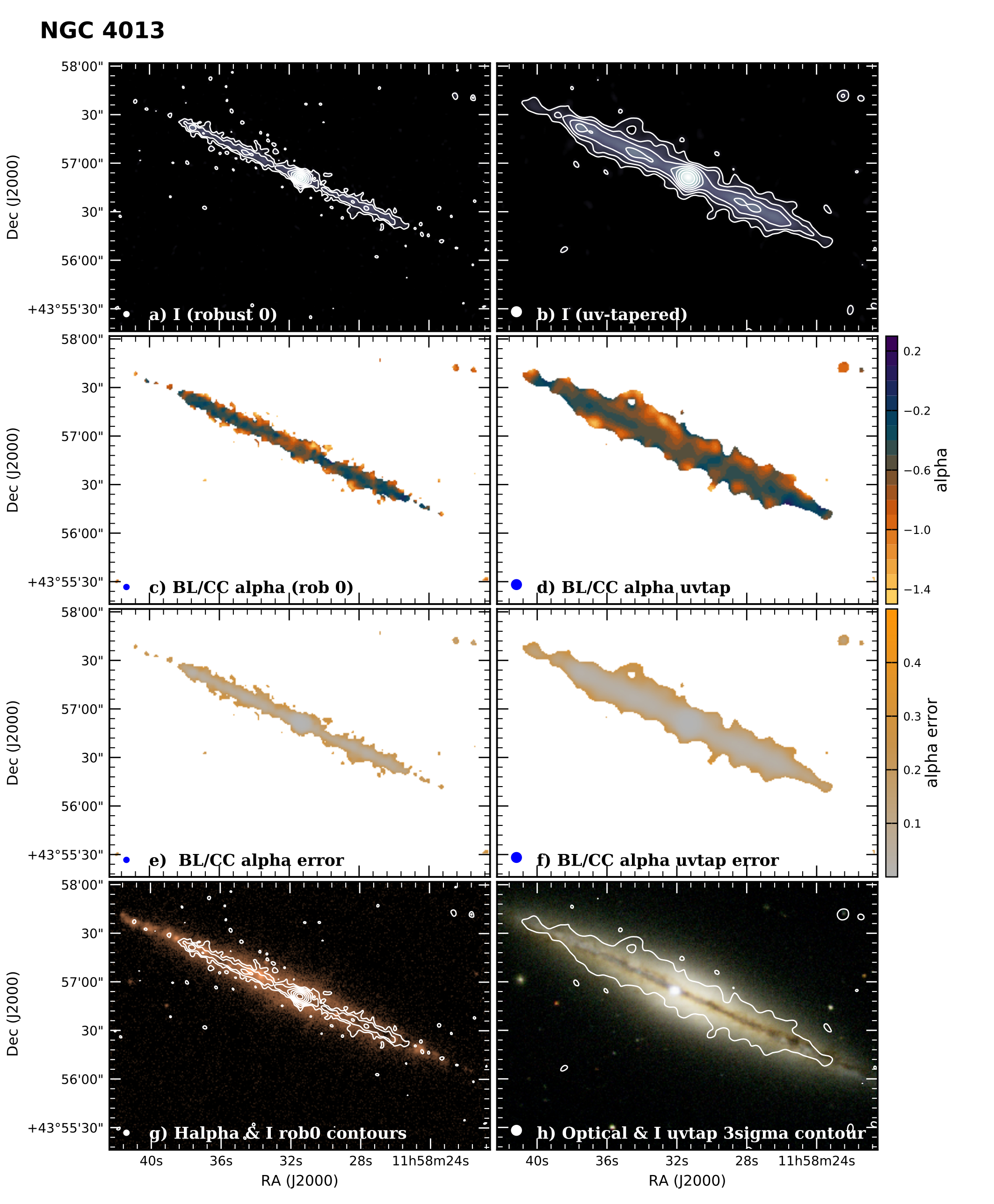

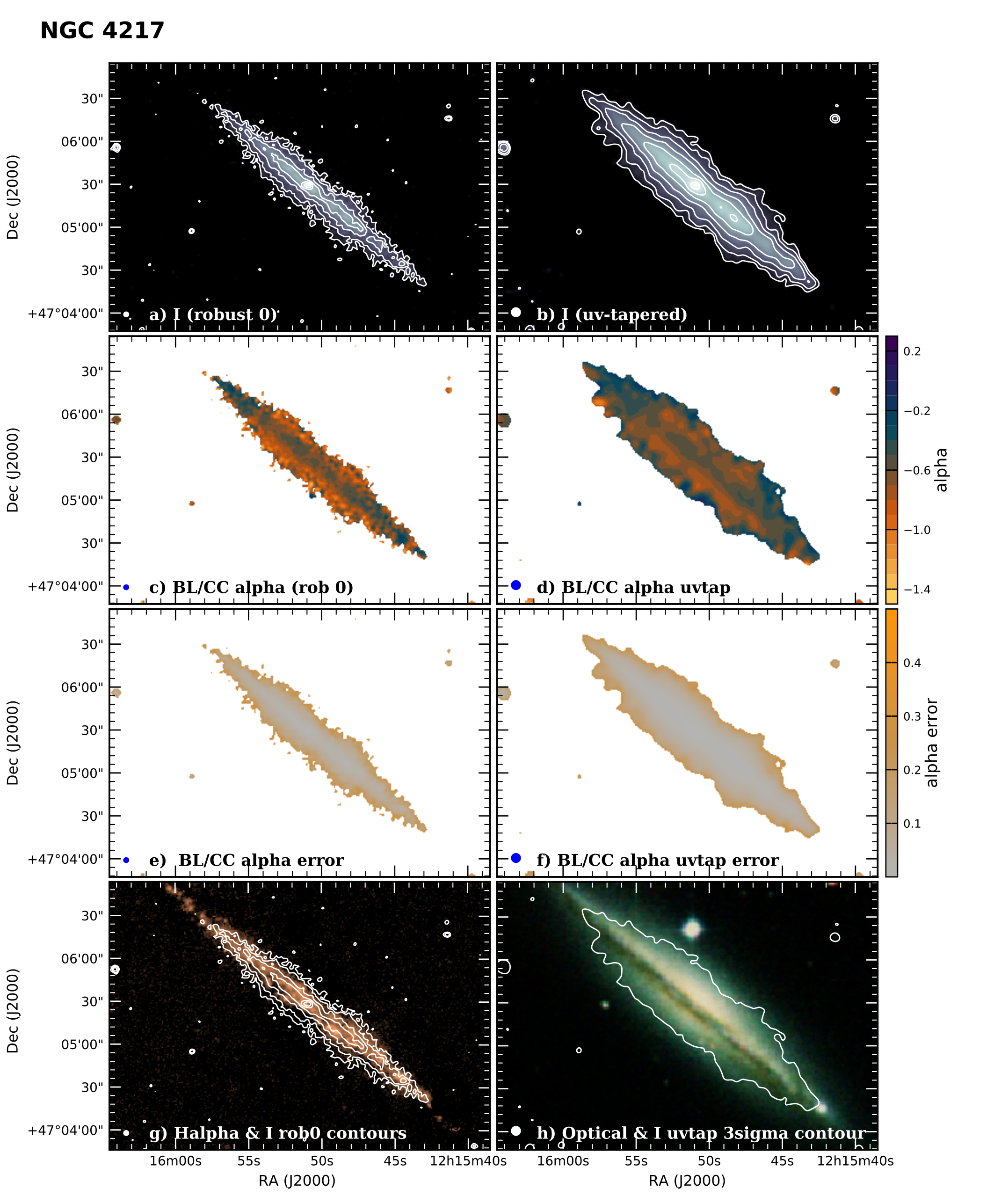

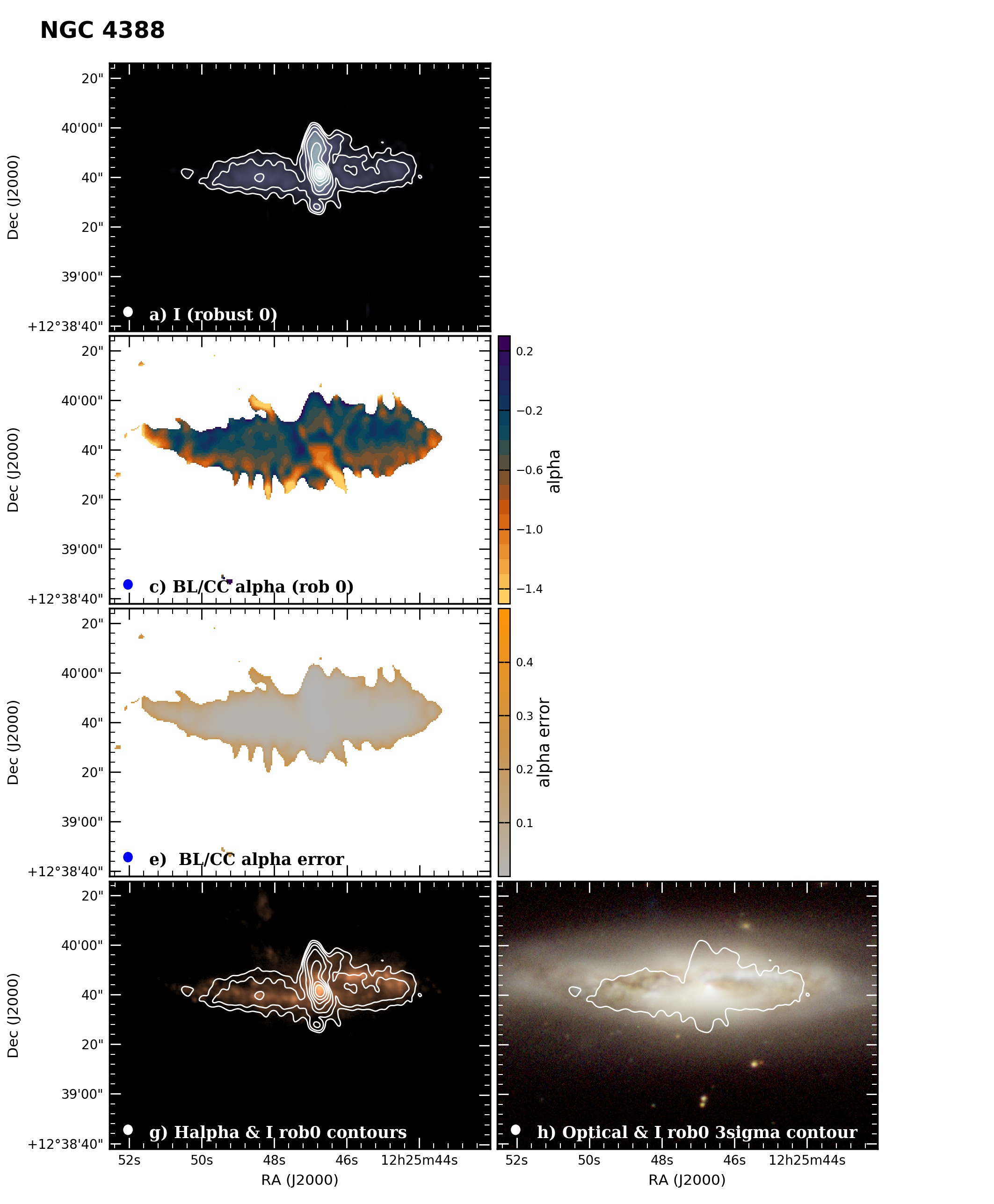

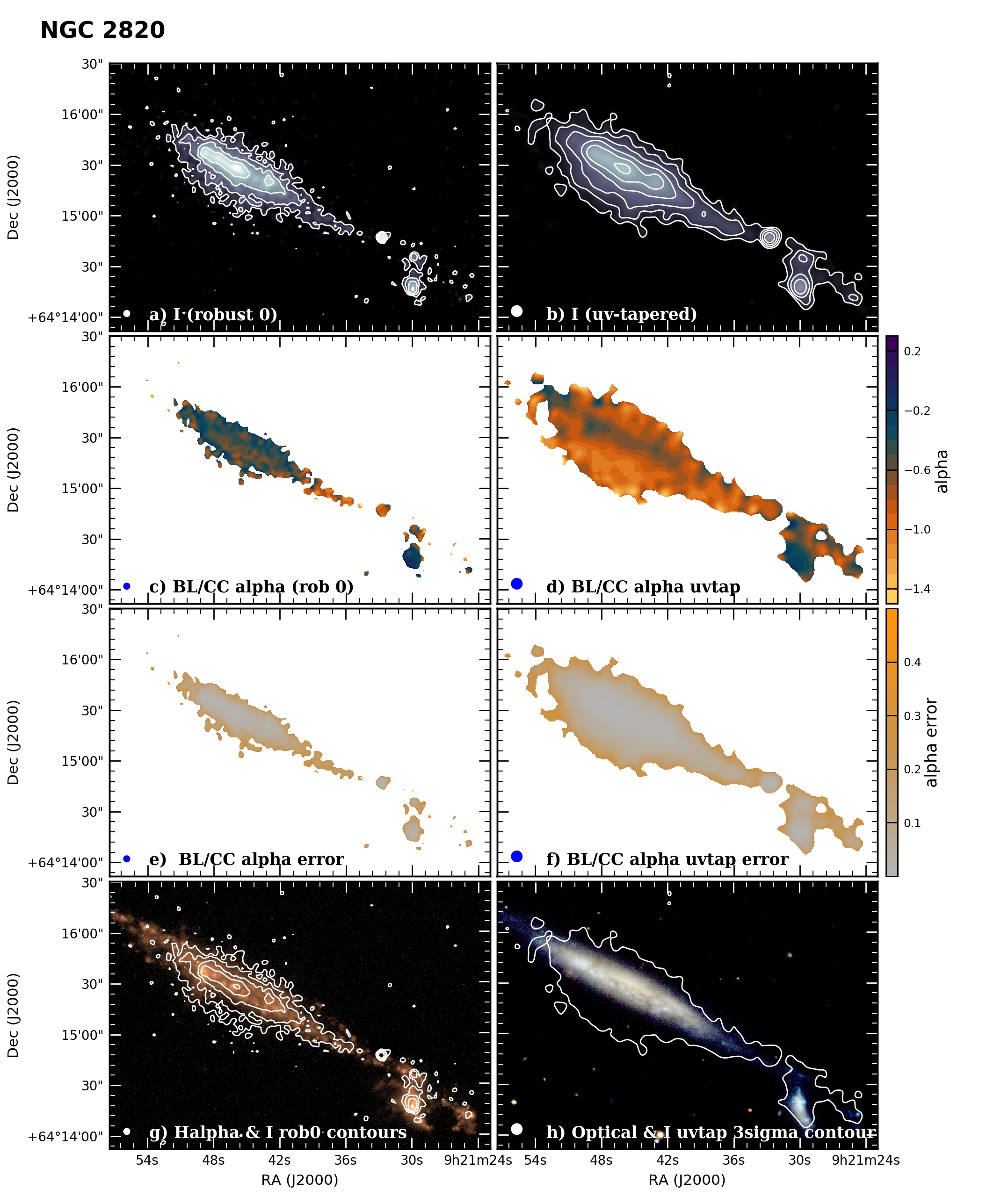

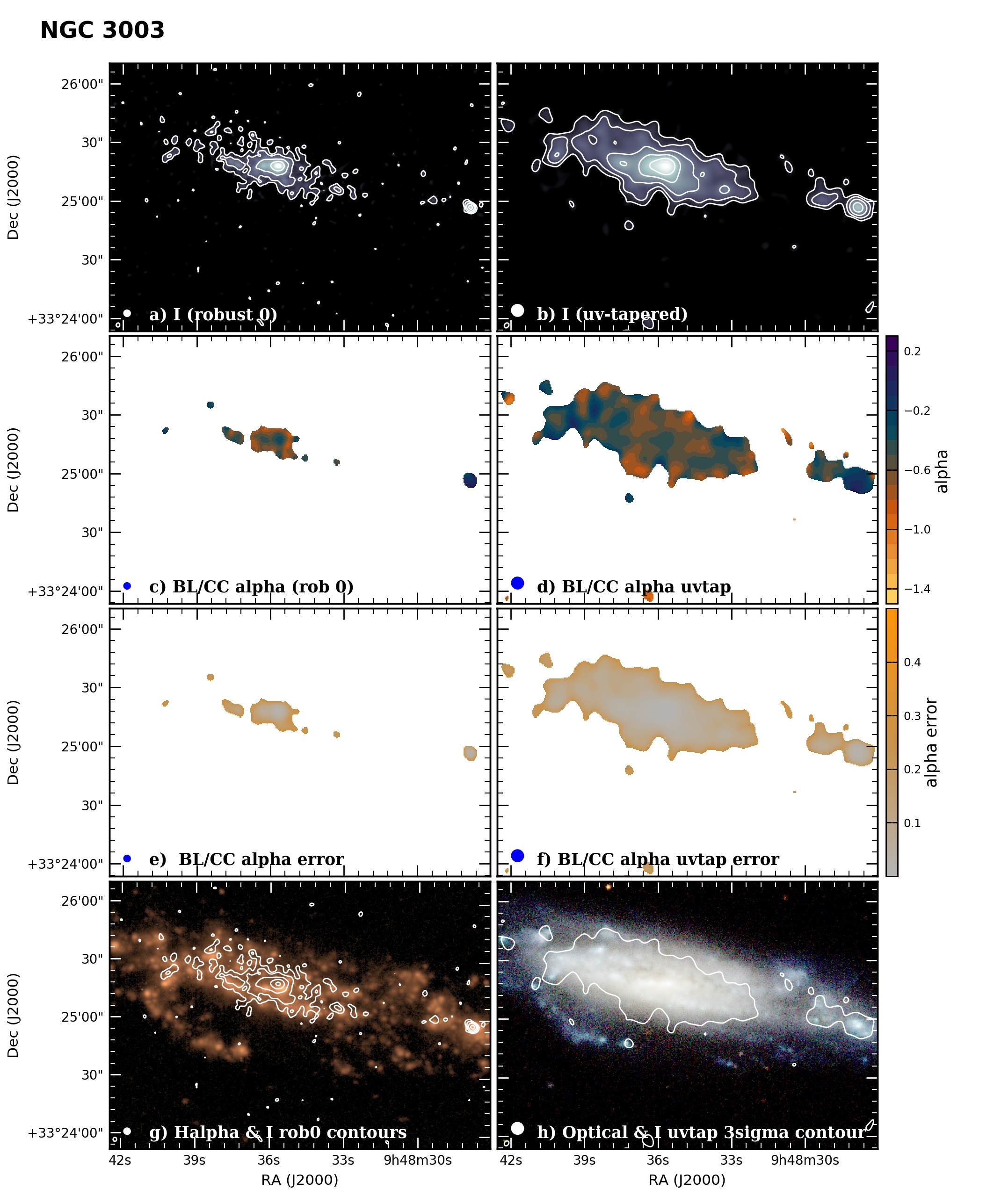

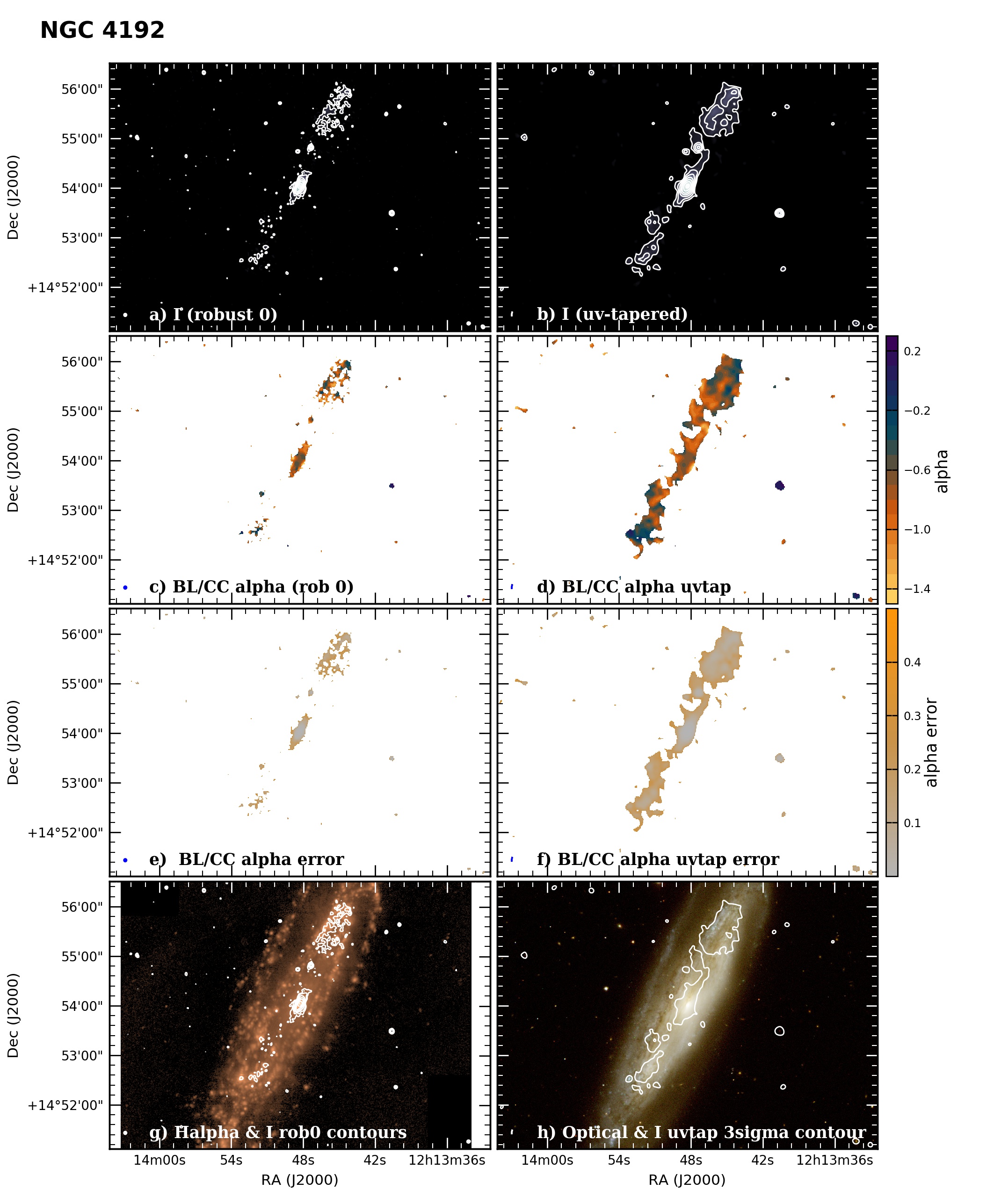

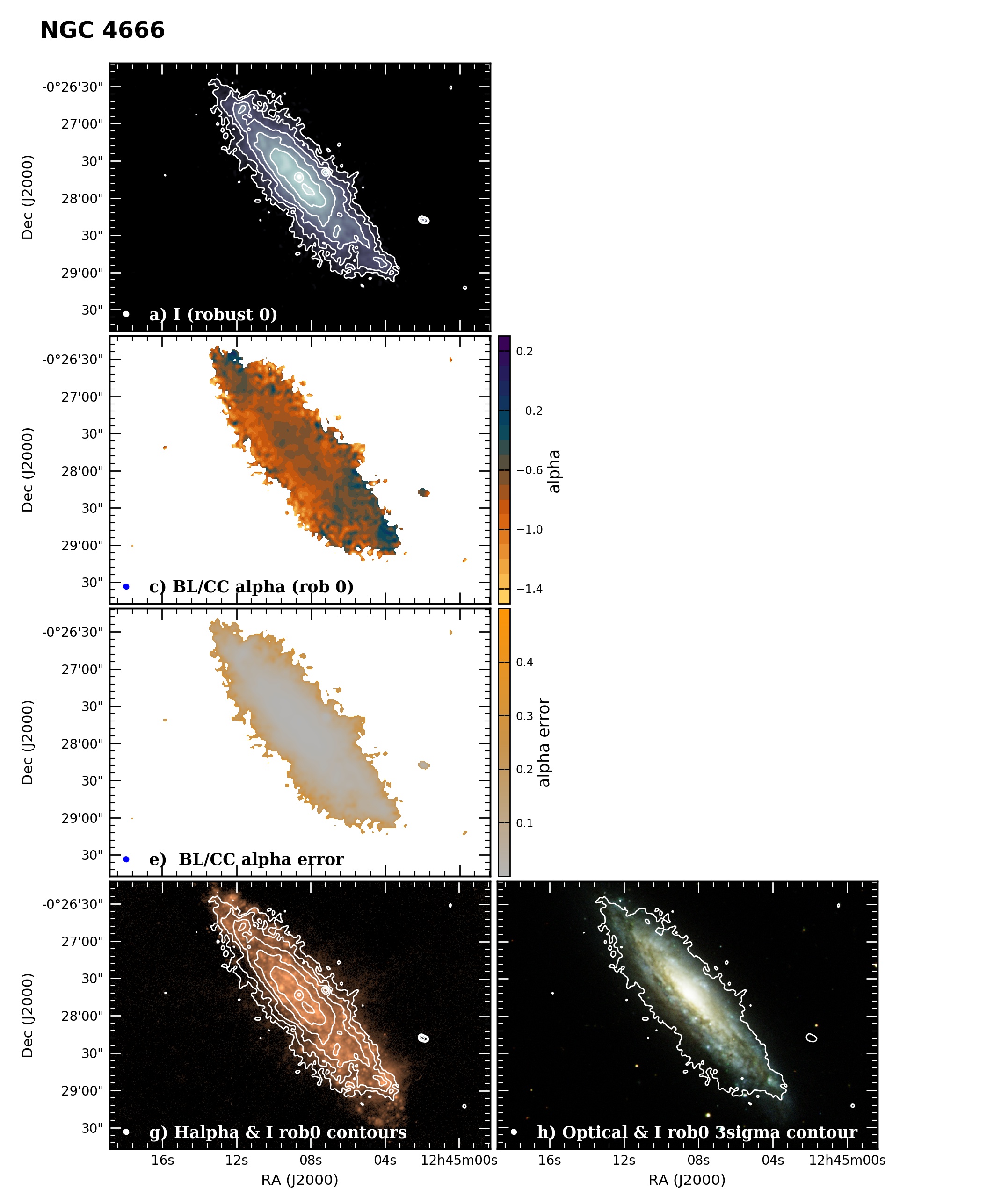

The figures in this Appendix display images of the data products in Data Release 3 of the CHANG-ES project, described below. Each field of view is the same for any given galaxy. Missing panels may occur if images were not satisfactorily made (e.g. uvtapered).

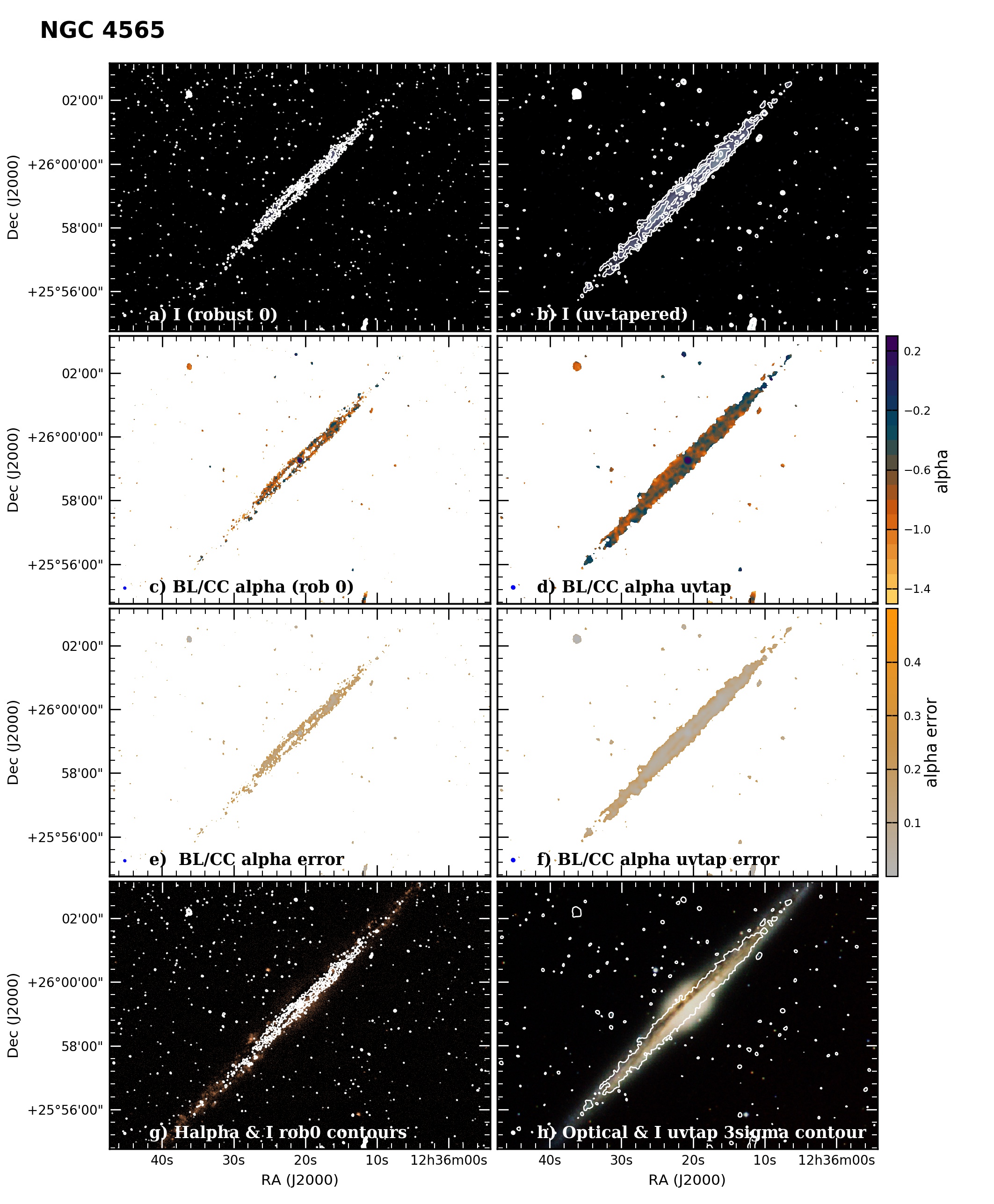

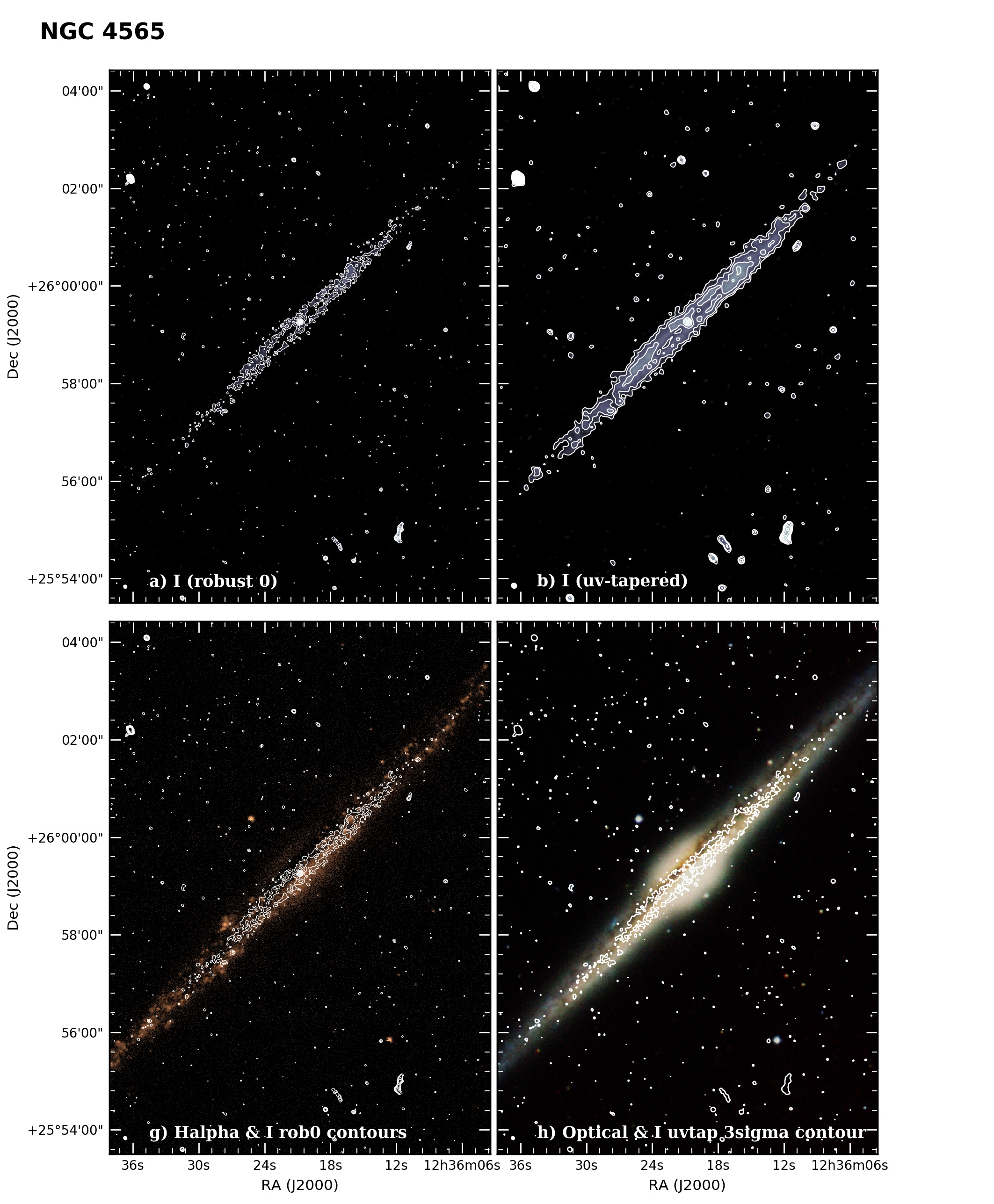

For the large galaxies, NGC 891, NGC 4565, and NGC 5907, in addition to the complete panels, we include blow-ups of panels (a), (b), (g) and (h) as described below.

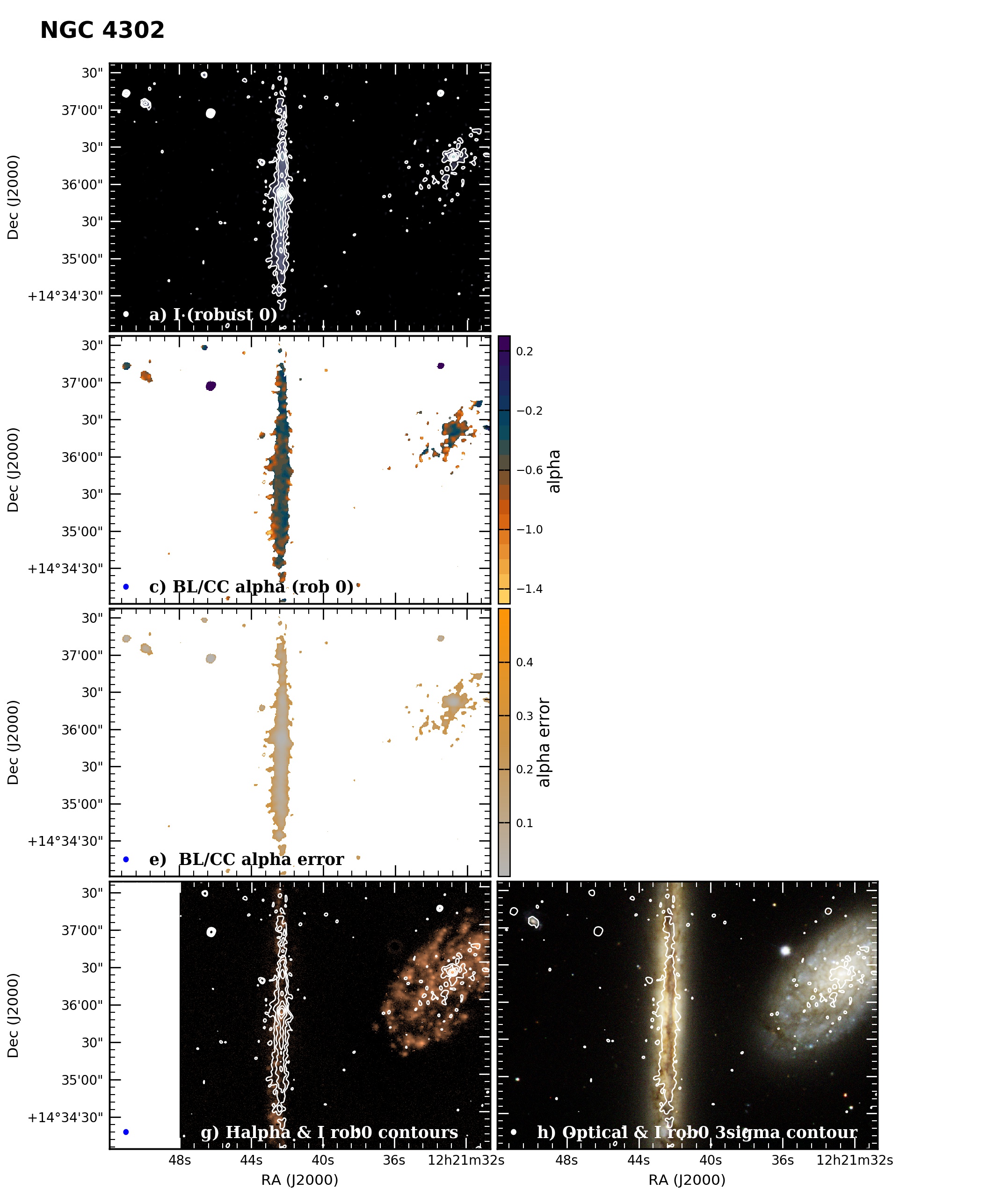

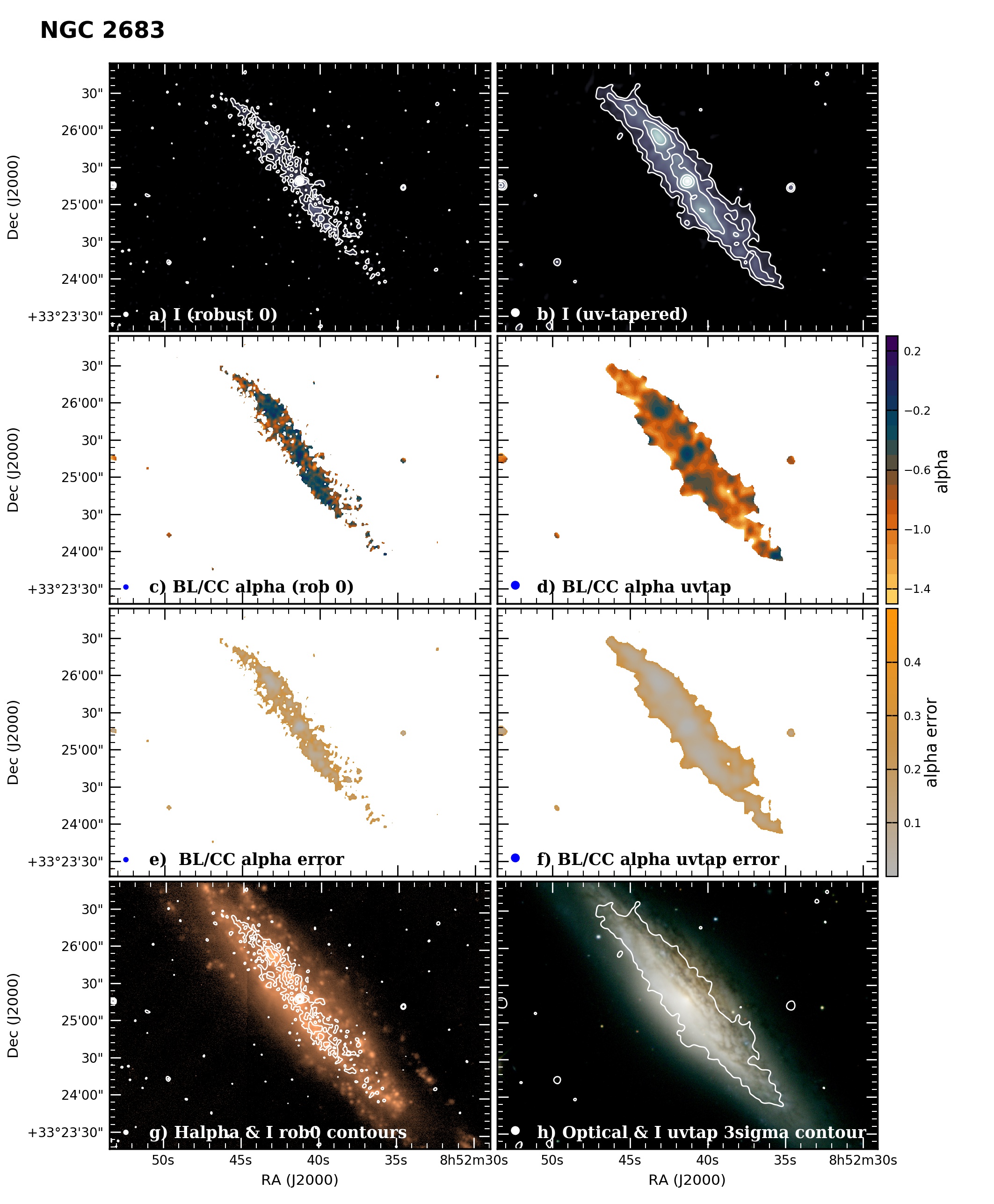

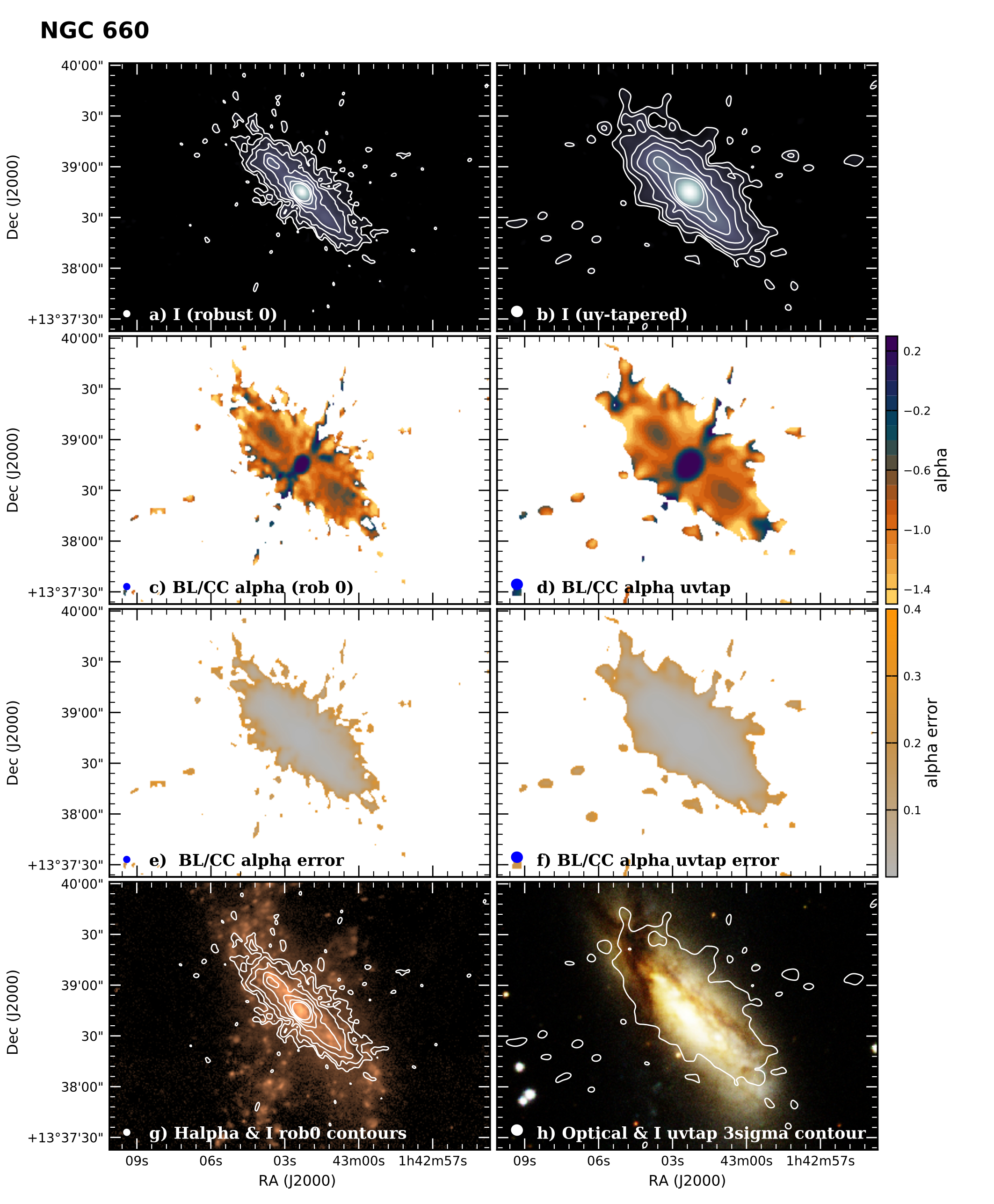

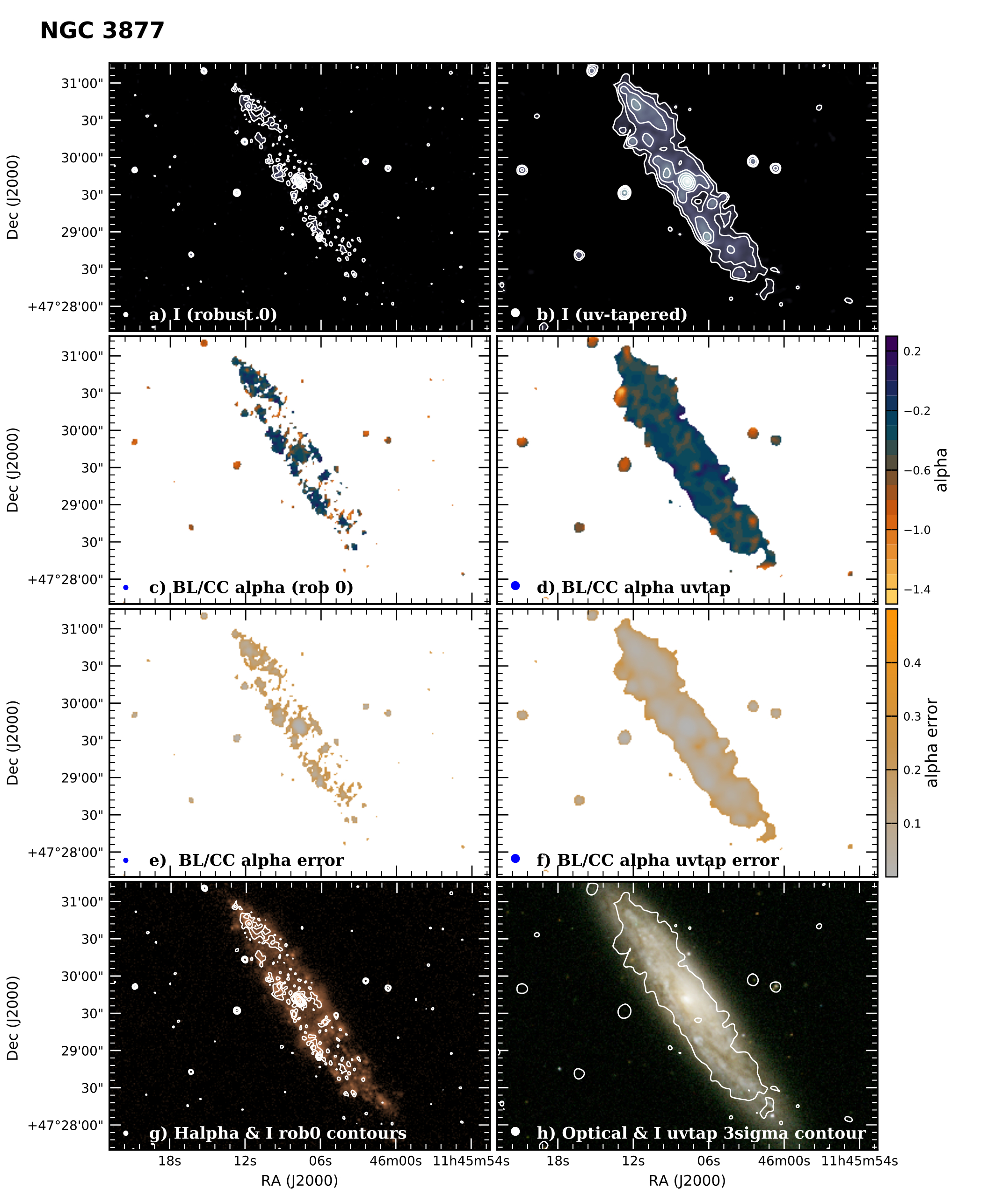

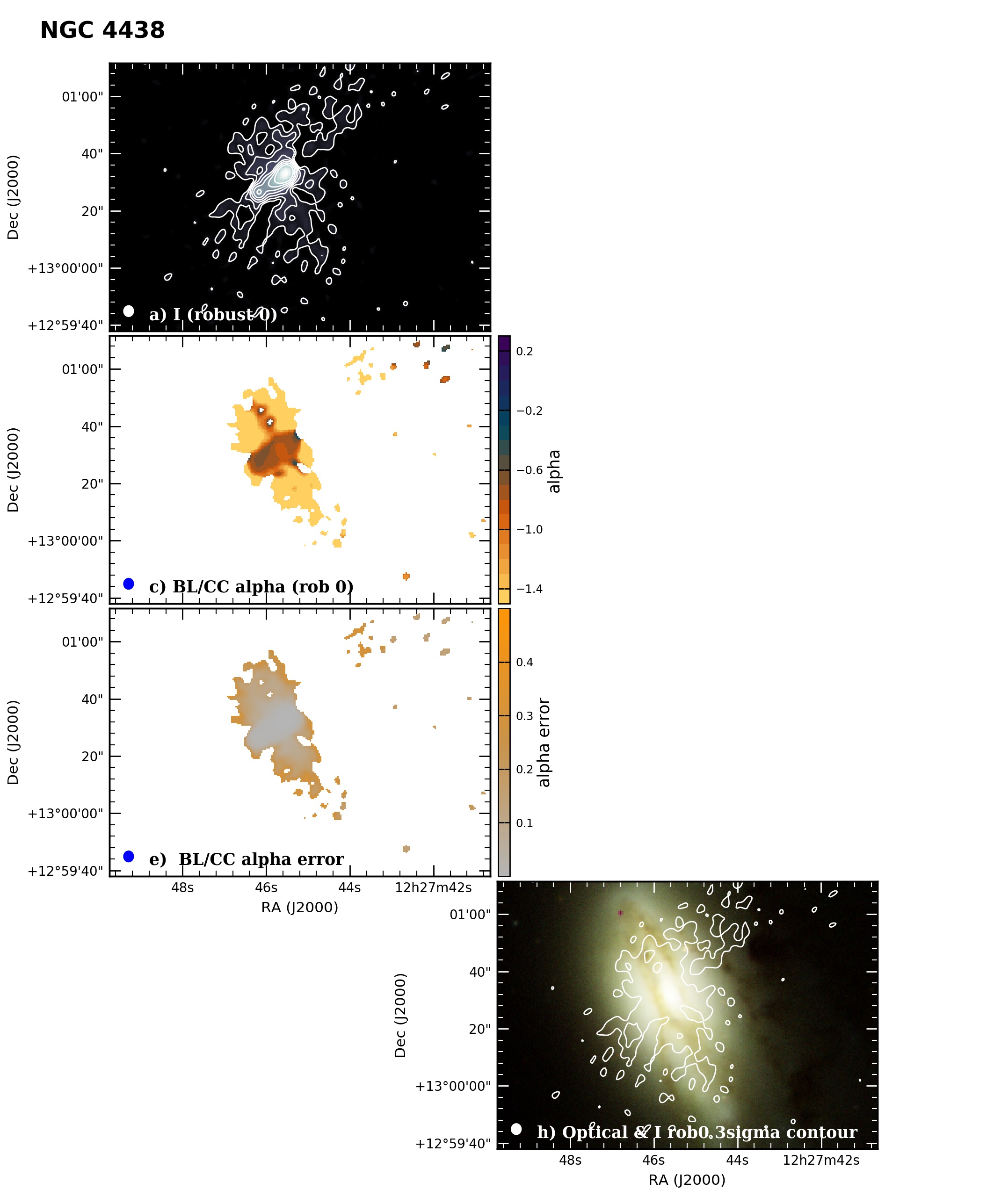

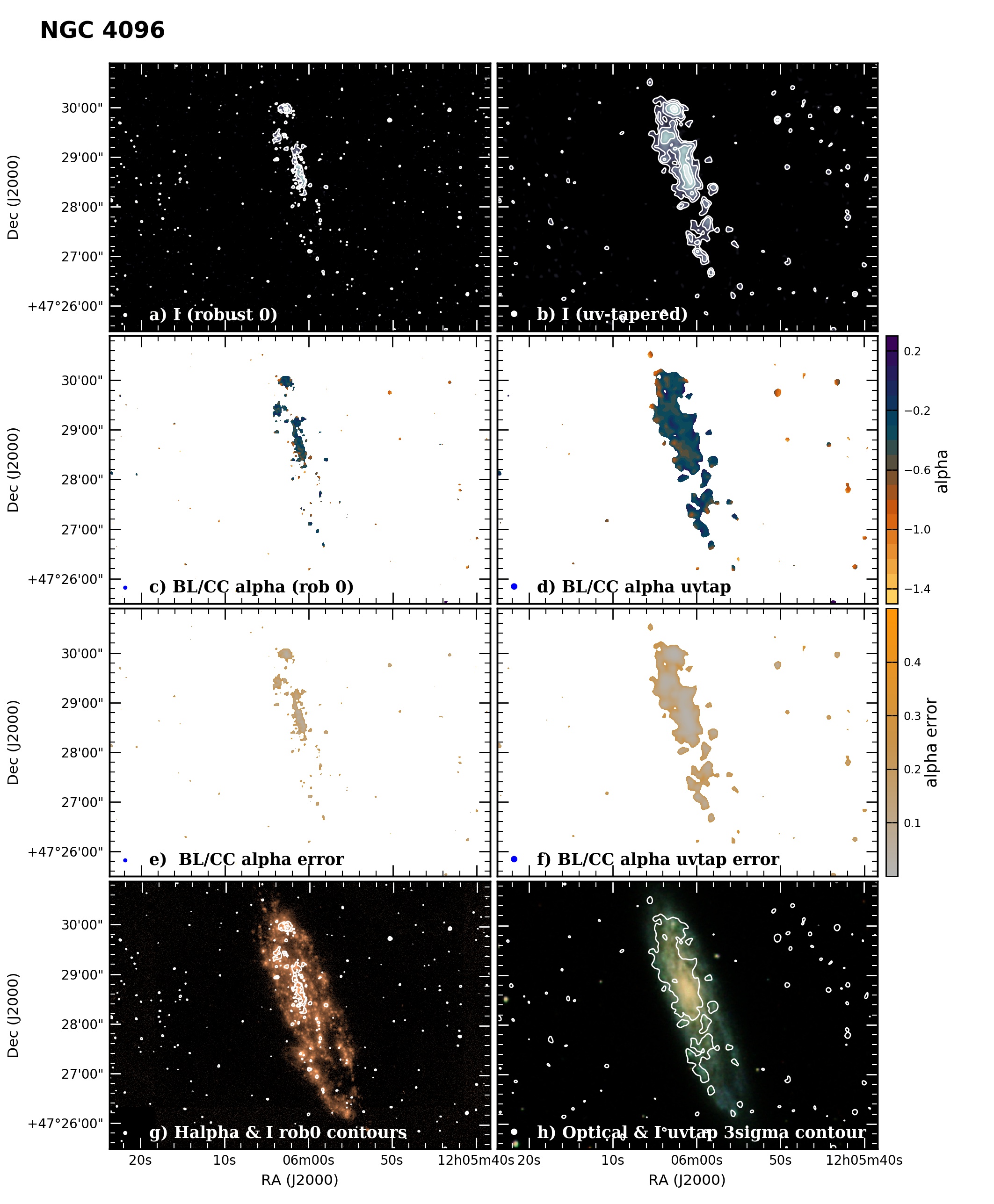

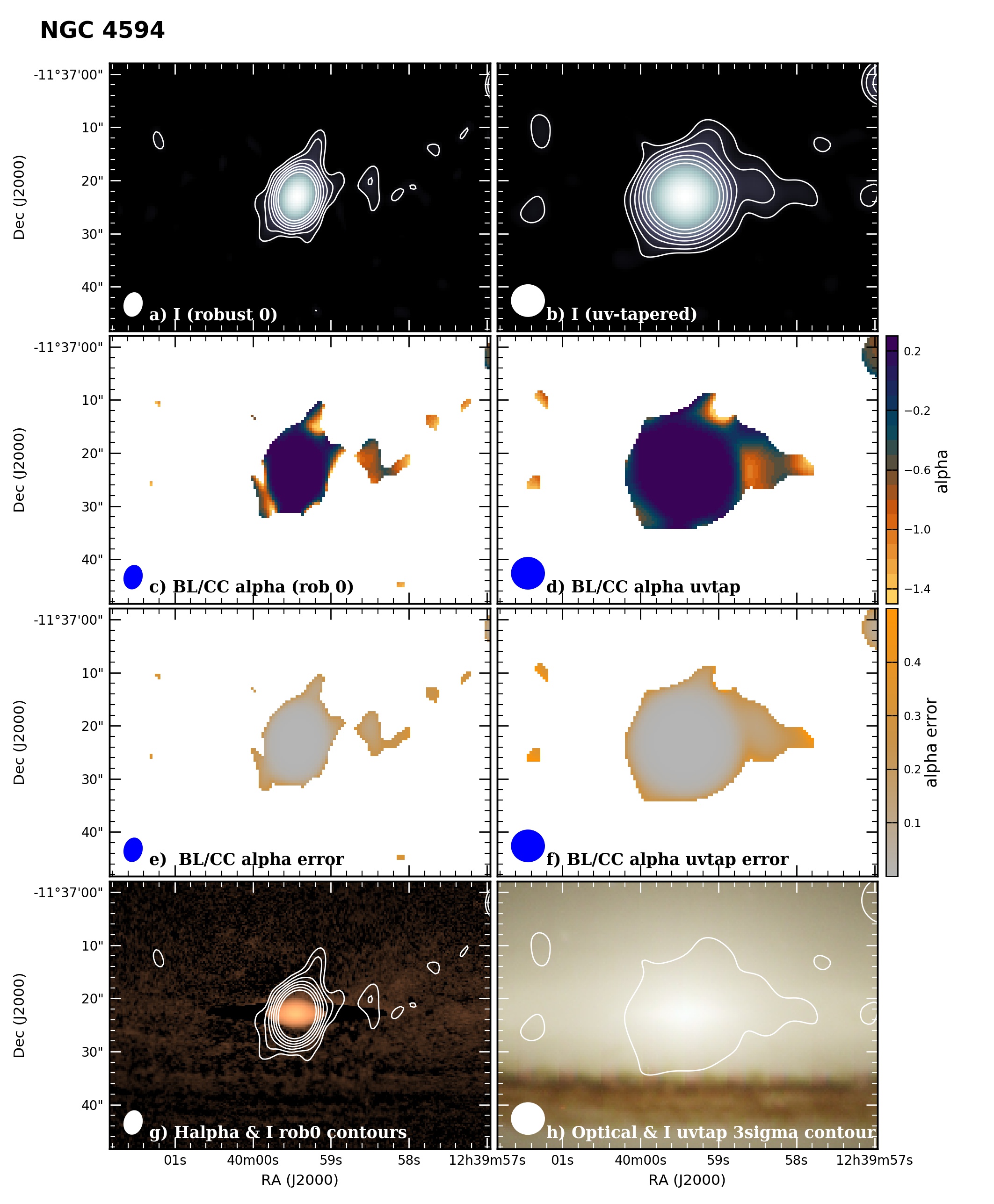

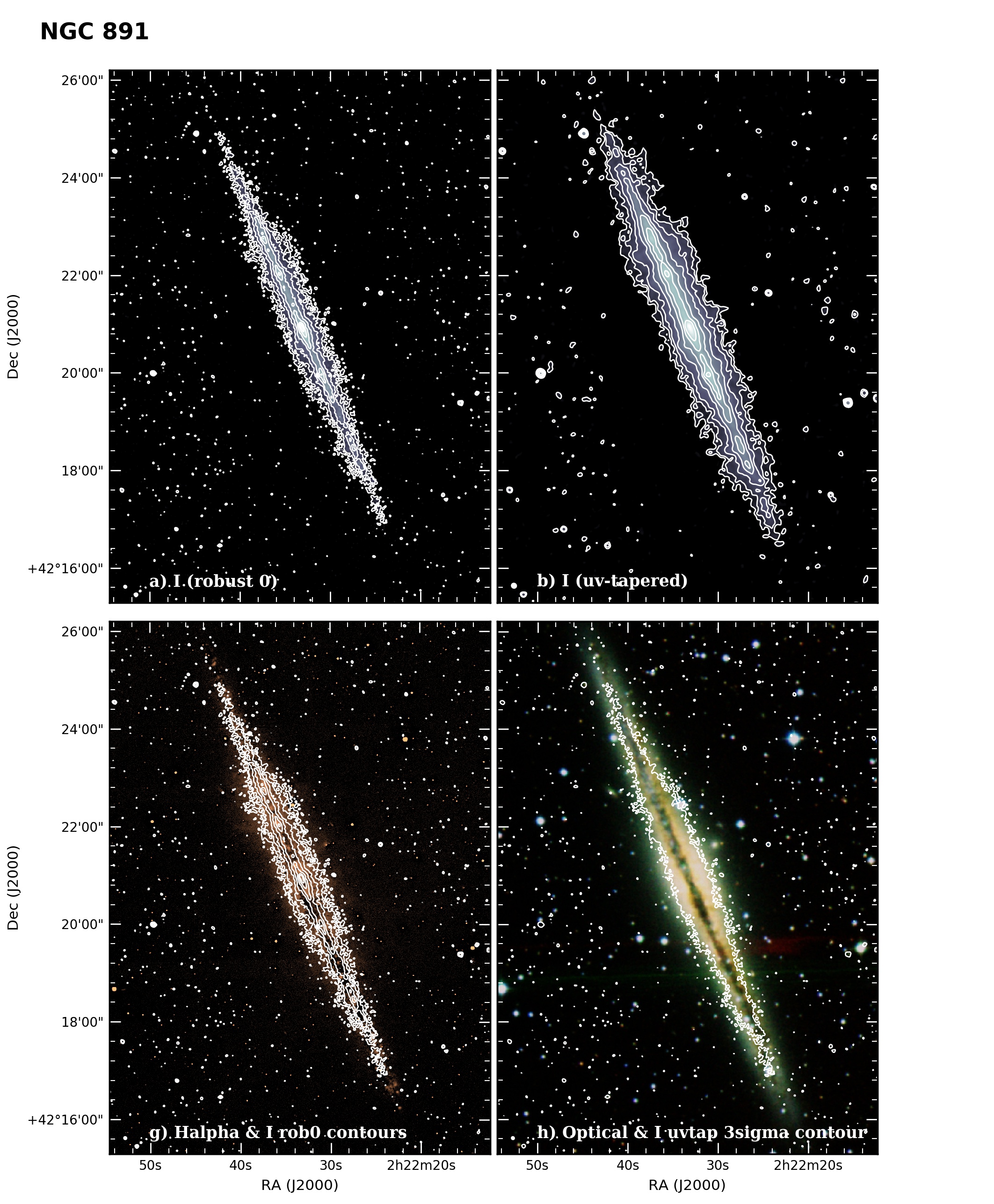

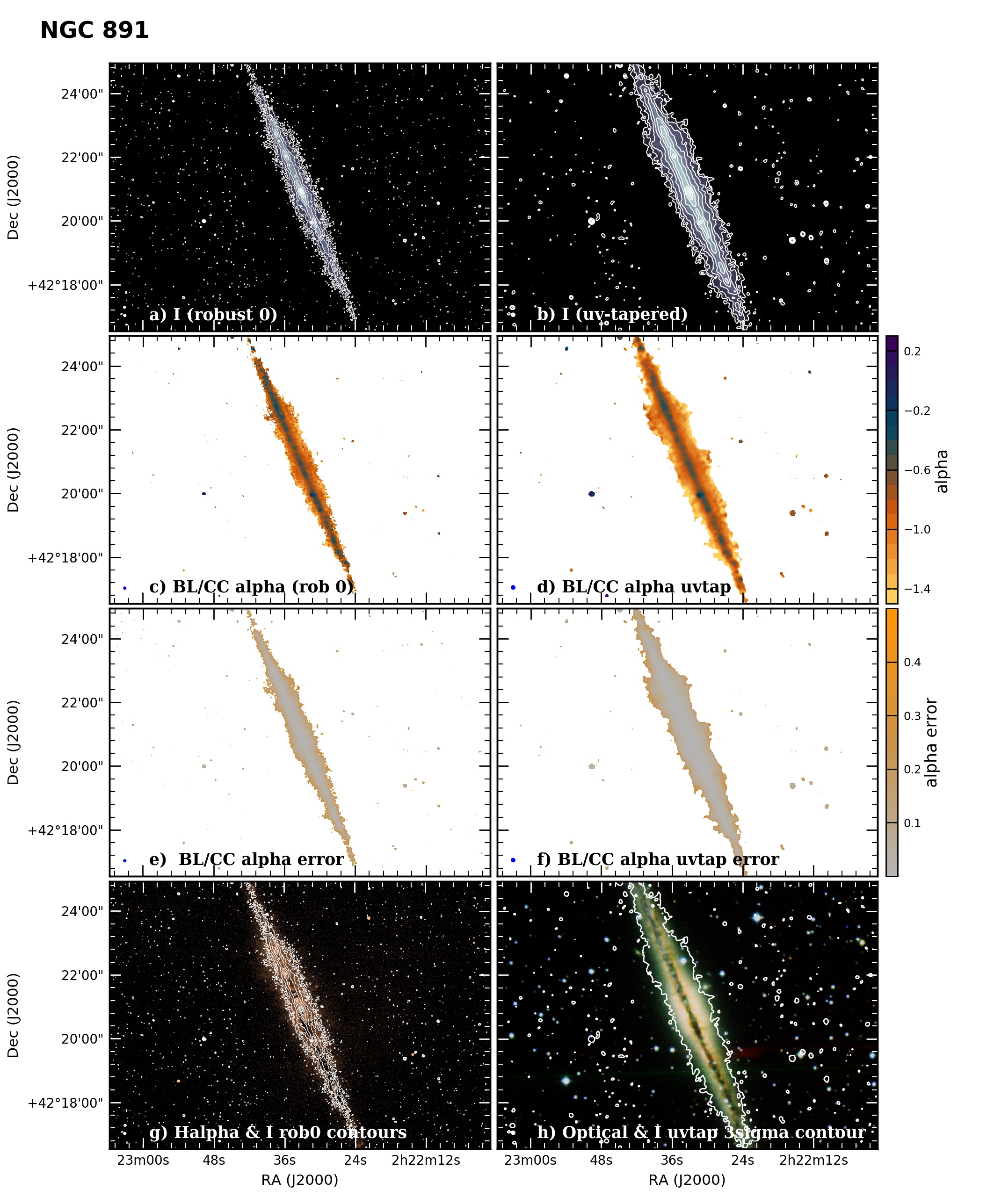

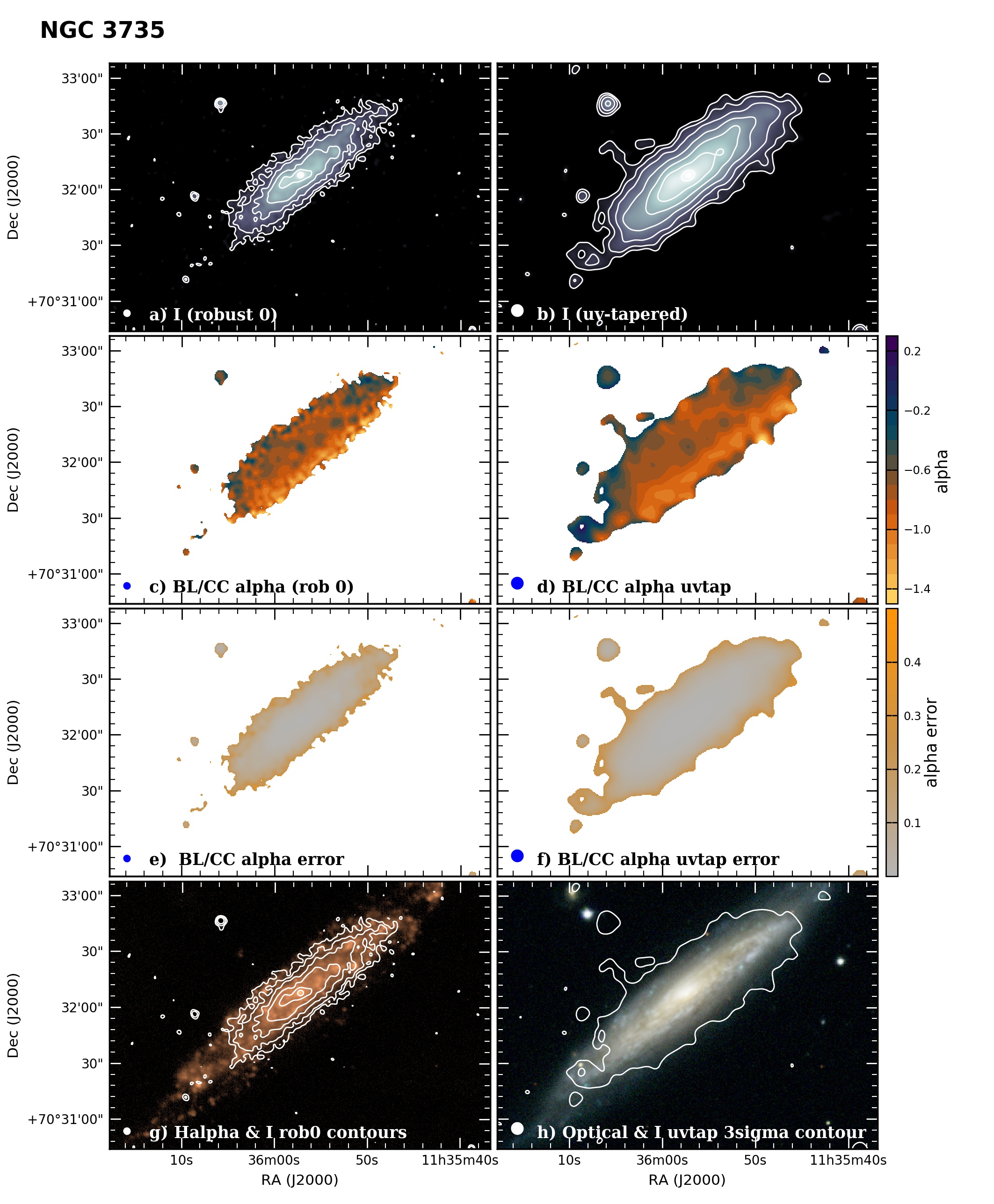

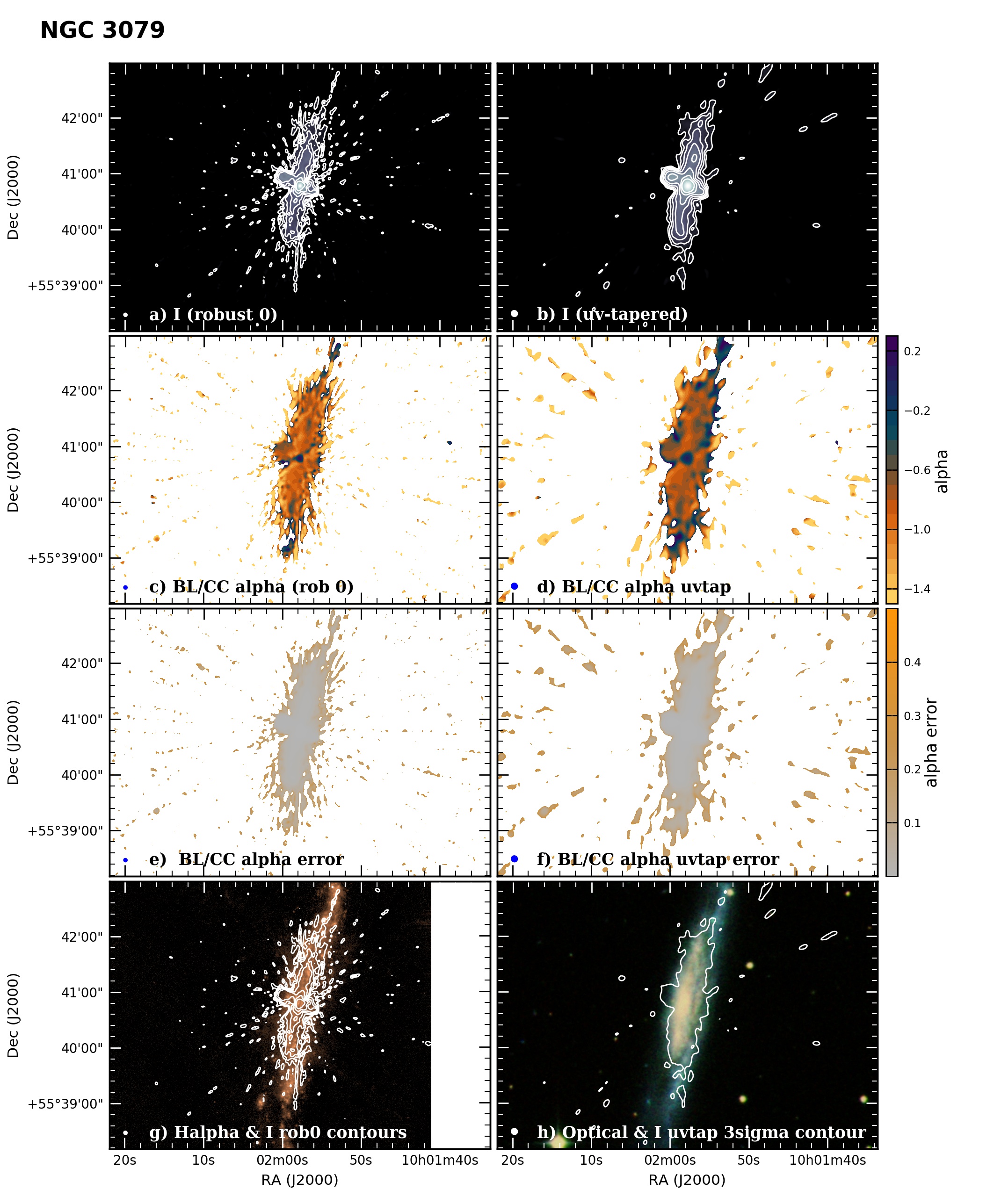

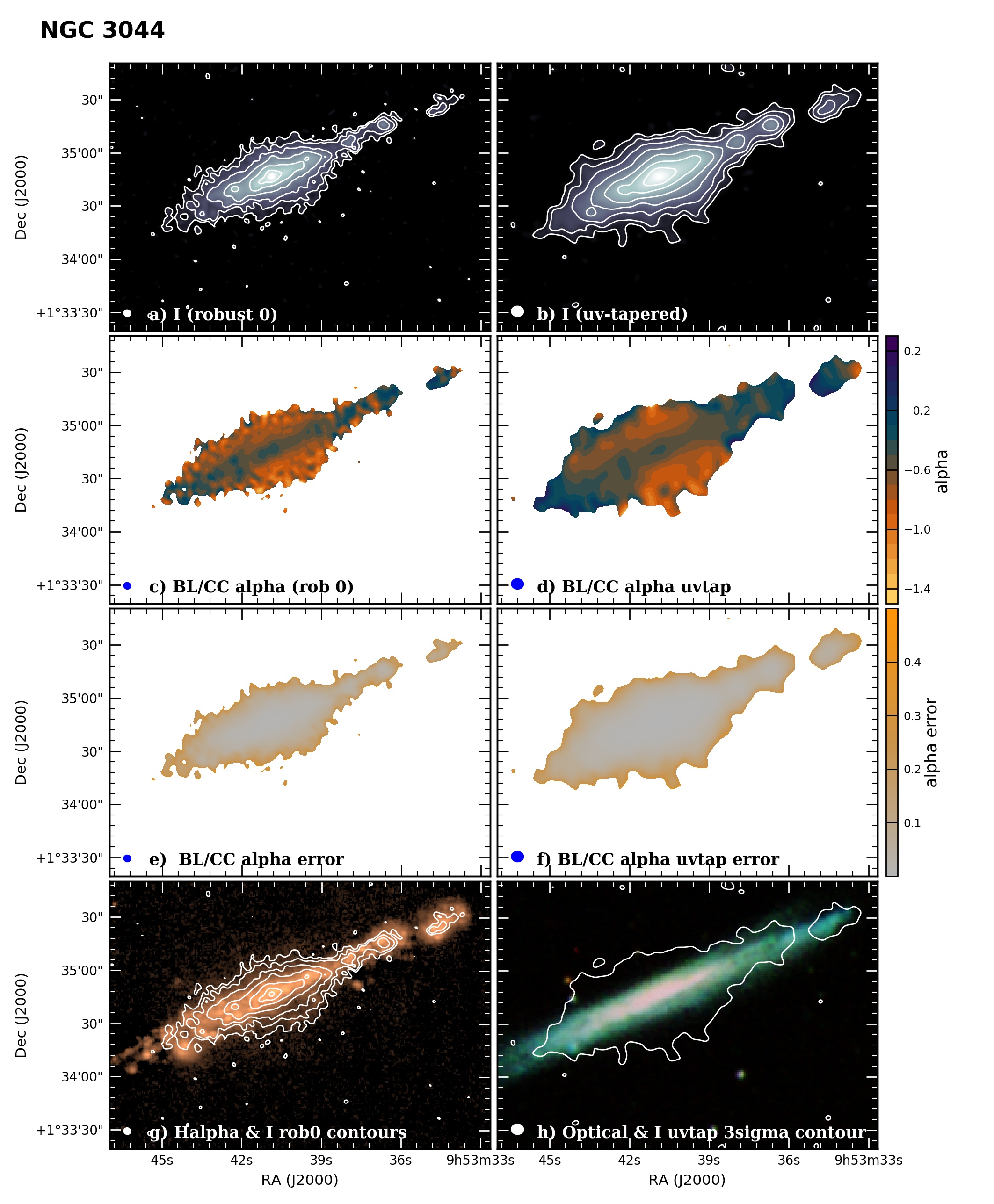

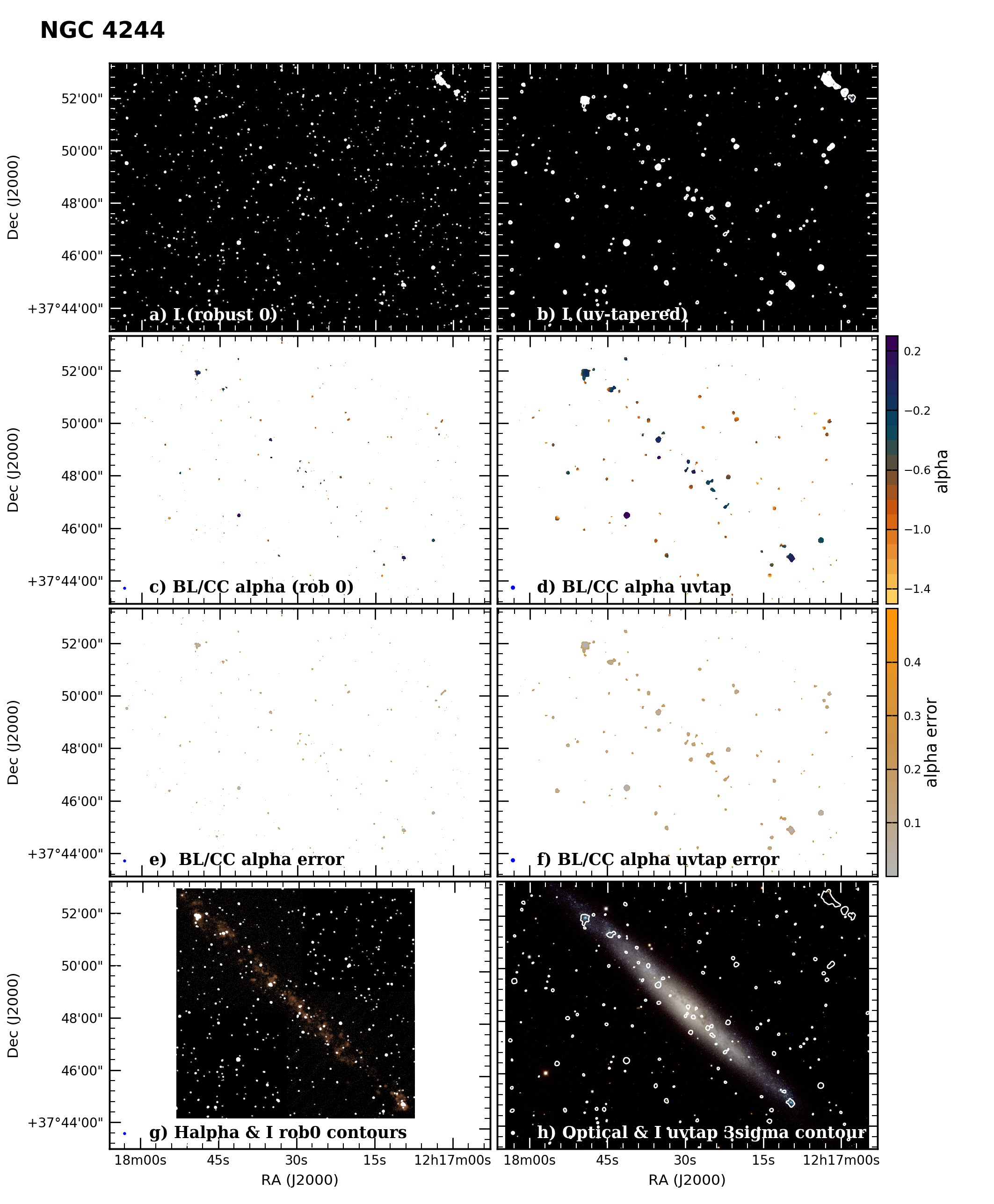

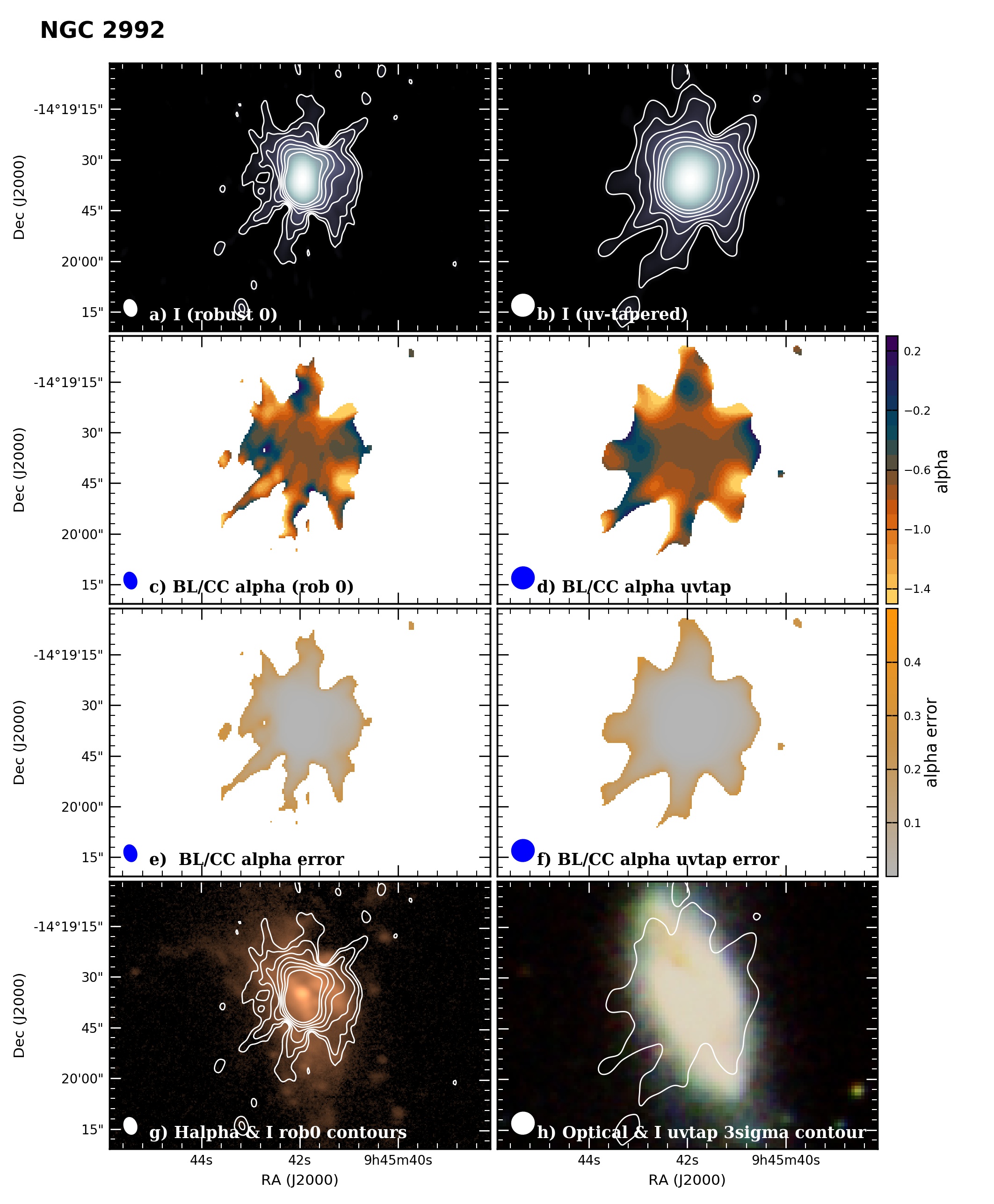

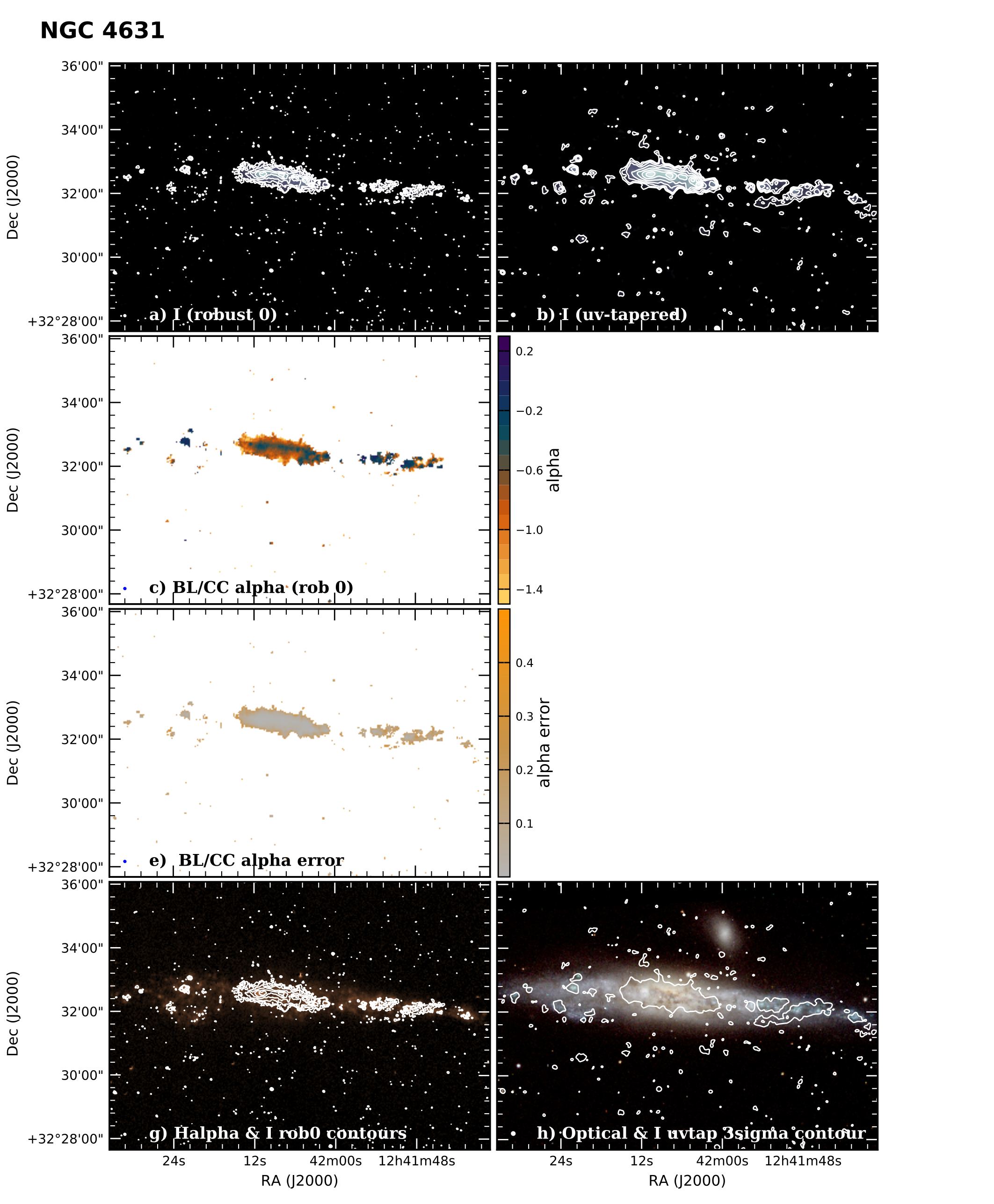

First row:

a. Contours and a colour scale (logarithmically stretched from background (2$\sigma$) to peak emission) for total intensity images with a Briggs robust=0 (rob 0) uv weighting. The I contours are at 3, 6, 12, 24, 48, 96 and 192 times the rms value. The rms values are taken from Table 2 where the higher value near the galaxy has been used in cases where there is strong variation.

b. Same as (a) except that these maps are total intensity images with a uv taper applied onto the rob 0 weighting (Sect. 2.1 and Table 2).

Second row:

c. Band-to-band (BL to CC) spectral index maps for rob 0 weighting. A cut-off of 3 times the rms value has been applied to each map (both BL and CC) as described in Sect. 3.4. In this case, the rms values for each band are listed in Table 6. The colour scheme is displayed to the right of Panel d. These maps tend to look noisier than the others because the PB correction for each band results in an increasing rms with distance from the map center (Sect. 3.4). Note that no correction for thermal emission has been made (Sect. 3.4.2).

Note that care has been taken for the colour scheme. We show flatter spectral indices as dark blue-purple and steeper spectral indices appear orange-yellow. Thus flatter regions, such as those containing AGNs (synchrotron-dominated) or discrete HII regions (thermal dominated), may be identified by their blue-purple colour. Regions in which diffuse synchrotron emission dominates will appear orange or even yellow if the spectral index is very steep.

d. Same as Panel c but for the rob 0 maps with a uv taper.

Third row:

e. Spectral index uncertainty map corresponding to Panel c. The colour scheme is displayed to the right of Panel f. See Sect. 3.4.1 for a discussion of the uncertainties and Appendix A for corrections with distance from the center.

f. Same as Panel e but for the rob 0 maps with a uv taper.

Fourth row:

g. Same contours as in (a) over a colour H$\alpha$ image from Vargas et al. (2019) (log stretch from background to peak emission). H$\alpha$ FITS images are available on our data release web site (see Sect. 6).

h. The 3 $\sigma$ contour from (b) over an optical image of the galaxy. When panel (b) is unavailable, we use the 3$\sigma$ contour from panel (a) instead. The optical images were created using a combination of Sloan Digital Sky Survey (SDSS) g, r, and i bands or Digitized Sky Survey 2 (DSS2) blue, red, and infrared bands, for the galaxies not available in SDSS.
