Multi-View Multiple Clustering

TL;DR

This paper introduces a novel multi-view multiple clustering (MVMC) algorithm that leverages both individual and shared information in multi-view data to generate diverse, high-quality clusterings, outperforming existing methods.

Contribution

The paper proposes a new MVMC algorithm that combines multi-view self-representation learning, HSIC-based redundancy reduction, and matrix factorization to improve clustering diversity and quality.

Findings

MVMC generates diverse high-quality clusterings.

MVMC outperforms state-of-the-art methods in empirical tests.

Extension to multi-view co-clustering (MVMCC) enhances clustering performance.

Abstract

Multiple clustering aims at exploring alternative clusterings to organize the data into meaningful groups from different perspectives. Existing multiple clustering algorithms are designed for single-view data. We assume that the individuality and commonality of multi-view data can be leveraged to generate high-quality and diverse clusterings. To this end, we propose a novel multi-view multiple clustering (MVMC) algorithm. MVMC first adapts multi-view self-representation learning to explore the individuality encoding matrices and the shared commonality matrix of multi-view data. It additionally reduces the redundancy (i.e., enhancing the individuality) among the matrices using the Hilbert-Schmidt Independence Criterion (HSIC), and collects shared information by forcing the shared matrix to be smooth across all views. It then uses matrix factorization on the individual matrices, along with the shared matrix, to generate diverse clusterings of high-quality. We further extend multiple co-clustering on multi-view data and propose a solution called multi-view multiple co-clustering (MVMCC). Our empirical study shows that MVMC (MVMCC) can exploit multi-view data to generate multiple high-quality and diverse clusterings (co-clusterings), with superior performance to the state-of-the-art methods.

Figures

Tables

Table 1. Table 1: Characteristics of multi-view datasets. n 𝑛 n is the number of samples, d v subscript 𝑑 𝑣 d_{v} is the dimensionality of samples, ’classes’ is the number of ground-truth clusters, and m 𝑚 m is the number of views.

Datasets	$n$	$d_v$	classes	$m$
Caltech-7	1474	[40,48,254,1984,512,928]	7	6
Caltech-20	2386	[40,48,254,1984,512,928]	20	6
Mul-fea digits	2000	[76,216,64,240,47,6]	10	6
Wiki article	2866	[128,10]	10	2
Corel	5000	[9,18,9]	50	3
Mirflickr	16738	[150,500]	24	2

Table 2. Table 2: Quality and Diversity of the various competing methods on finding multiple clusterings. ↑ ↑ \uparrow ( ↓ ↓ \downarrow ) indicates the direction of preferred values for the corresponding measure. ∙ ⁣ / ⁣ ∘ ∙ \bullet/\circ indicates whether MVMC is statistically (according to pairwise t 𝑡 t -test at 95% significance level) superior/inferior to the other method.

		Dec-kmeans	ISAAC	MISC	MNMF	mSC	OSC	MVMC
Caltech-7	SC$\uparrow$	0.049$\pm$0.002$\bullet$	0.235$\pm$0.011$\circ$	0.201$\pm$0.002$\circ$	0.234$\pm$0.001$\circ$	0.163$\pm$0.008$\circ$	0.261$\pm$0.004$\circ$	0.140$\pm$0.002
	DI$\uparrow$	0.044$\pm$0.000$\bullet$	0.034$\pm$0.001$\bullet$	0.048$\pm$0.000$\bullet$	0.034$\pm$0.000$\bullet$	0.056$\pm$0.000$\bullet$	0.066$\pm$0.000	0.062$\pm$0.000
	NMI$\downarrow$	0.024$\pm$0.000$\bullet$	0.485$\pm$0.023$\bullet$	0.513$\pm$0.016$\bullet$	0.022$\pm$0.000$\bullet$	0.152$\pm$0.002$\bullet$	0.693$\pm$0.015$\bullet$	0.006 $\pm$ 0.000
	JC$\downarrow$	0.126$\pm$0.001$\bullet$	0.363$\pm$0.008$\bullet$	0.349$\pm$0.001$\bullet$	0.094$\pm$0.000$\bullet$	0.136$\pm$0.001$\bullet$	0.522$\pm$0.046$\bullet$	0.076 $\pm$ 0.000
Caltech-20	SC$\uparrow$	-0.124 $\pm$ 0.001$\bullet$	0.085 $\pm$ 0.000$\circ$	0.036 $\pm$ 0.000$\circ$	-0.169 $\pm$ 0.000$\bullet$	-0.172 $\pm$ 0.006$\bullet$	0.196 $\pm$ 0.001$\circ$	0.004 $\pm$ 0.000
	DI$\uparrow$	0.026 $\pm$ 0.000$\bullet$	0.035 $\pm$ 0.000$\bullet$	0.033 $\pm$ 0.000$\bullet$	0.009 $\pm$ 0.000$\bullet$	0.028 $\pm$ 0.000$\bullet$	0.056 $\pm$ 0.000$\bullet$	0.183 $\pm$ 0.000
	NMI$\downarrow$	0.056 $\pm$ 0.000$\bullet$	0.475 $\pm$ 0.011$\bullet$	0.489 $\pm$ 0.013$\bullet$	0.052 $\pm$ 0.002$\bullet$	0.240 $\pm$ 0.003$\bullet$	0.715 $\pm$ 0.025$\bullet$	0.027 $\pm$ 0.000
	JC$\downarrow$	0.050 $\pm$ 0.001$\bullet$	0.222 $\pm$ 0.002$\bullet$	0.198 $\pm$ 0.002$\bullet$	0.033 $\pm$ 0.001$\bullet$	0.074 $\pm$ 0.001$\bullet$	0.444 $\pm$ 0.004$\bullet$	0.023 $\pm$ 0.000
Corel	SC$\uparrow$	0.112 $\pm$ 0.014$\circ$	-0.052 $\pm$ 0.000$\bullet$	-0.070 $\pm$ 0.000$\bullet$	-0.277 $\pm$ 0.000$\bullet$	-0.128 $\pm$ 0.000$\bullet$	0.238 $\pm$ 0.002$\circ$	-0.016 $\pm$ 0.000
	DI$\uparrow$	0.031 $\pm$ 0.001$\bullet$	0.032 $\pm$ 0.000$\bullet$	0.020 $\pm$ 0.000$\bullet$	0.015 $\pm$ 0.000$\bullet$	0.019 $\pm$ 0.000$\bullet$	0.032 $\pm$ 0.000$\bullet$	0.354 $\pm$ 0.000
	NMI$\downarrow$	0.643 $\pm$ 0.035$\bullet$	0.204 $\pm$ 0.002$\bullet$	0.209 $\pm$ 0.002$\bullet$	0.092 $\pm$ 0.001$\bullet$	0.394 $\pm$ 0.006$\bullet$	0.762 $\pm$ 0.018$\bullet$	0.070 $\pm$ 0.000
	JC$\downarrow$	0.219 $\pm$ 0.004$\bullet$	0.031 $\pm$ 0.001$\bullet$	0.029 $\pm$ 0.001$\bullet$	0.013 $\pm$ 0.000	0.072 $\pm$ 0.001$\bullet$	0.410 $\pm$ 0.013$\bullet$	0.010 $\pm$ 0.000
Digits	SC$\uparrow$	-0.133 $\pm$ 0.022$\bullet$	-0.001 $\pm$ 0.000$\bullet$	0.061 $\pm$ 0.000	-0.076 $\pm$ 0.000$\bullet$	-0.117 $\pm$ 0.000$\bullet$	0.471 $\pm$ 0.013$\circ$	0.064 $\pm$ 0.000
	DI$\uparrow$	0.016 $\pm$ 0.000$\bullet$	0.016 $\pm$ 0.000$\bullet$	0.018 $\pm$ 0.001$\bullet$	0.008 $\pm$ 0.000$\bullet$	0.016 $\pm$ 0.001$\bullet$	0.062 $\pm$ 0.000$\bullet$	0.087 $\pm$ 0.000
	NMI$\downarrow$	0.078 $\pm$ 0.000$\bullet$	0.364 $\pm$ 0.012$\bullet$	0.399 $\pm$ 0.008$\bullet$	0.011 $\pm$ 0.000	0.515 $\pm$ 0.022$\bullet$	0.822 $\pm$ 0.028$\bullet$	0.008 $\pm$ 0.000
	JC$\downarrow$	0.076 $\pm$ 0.000$\bullet$	0.279 $\pm$ 0.003$\bullet$	0.298 $\pm$ 0.000$\bullet$	0.053 $\pm$ 0.000	0.279 $\pm$ 0.004$\bullet$	0.656 $\pm$ 0.015$\bullet$	0.052 $\pm$ 0.000
Wiki article	SC$\uparrow$	0.447 $\pm$ 0.016$\circ$	-0.024 $\pm$ 0.000$\bullet$	-0.031 $\pm$ 0.000$\bullet$	-0.029 $\pm$ 0.000$\bullet$	0.108 $\pm$ 0.002$\circ$	0.418 $\pm$ 0.012$\circ$	0.066 $\pm$ 0.000
	DI$\uparrow$	0.124 $\pm$ 0.000	0.085 $\pm$ 0.000$\bullet$	0.085 $\pm$ 0.001$\bullet$	0.083 $\pm$ 0.000$\bullet$	0.095 $\pm$ 0.001$\bullet$	0.135 $\pm$ 0.001$\circ$	0.122 $\pm$ 0.000
	NMI$\downarrow$	0.803 $\pm$ 0.019$\bullet$	0.042 $\pm$ 0.000$\bullet$	0.041 $\pm$ 0.000$\bullet$	0.006 $\pm$ 0.000	0.212 $\pm$ 0.001$\bullet$	0.783 $\pm$ 0.052$\bullet$	0.006 $\pm$ 0.000
	JC$\downarrow$	0.593 $\pm$ 0.006$\bullet$	0.078 $\pm$ 0.001$\bullet$	0.078 $\pm$ 0.000$\bullet$	0.056 $\pm$ 0.001	0.113 $\pm$ 0.002$\bullet$	0.535 $\pm$ 0.014$\bullet$	0.052 $\pm$ 0.000
Mirflickr	SC$\uparrow$	-0.004 $\pm$ 0.000$\circ$	-0.092 $\pm$ 0.000$\bullet$	-0.028 $\pm$ 0.000$\circ$	-0.058 $\pm$ 0.000$\bullet$	-0.093 $\pm$ 0.000$\bullet$	0.017 $\pm$ 0.000$\circ$	-0.038 $\pm$ 0.000
	DI$\uparrow$	0.061 $\pm$ 0.002$\bullet$	0.062 $\pm$ 0.005$\bullet$	0.071 $\pm$ 0.000$\bullet$	0.053 $\pm$ 0.001$\bullet$	0.064 $\pm$ 0.001$\bullet$	0.059 $\pm$ 0.002$\bullet$	0.173 $\pm$ 0.005
	NMI$\downarrow$	0.427 $\pm$ 0.012$\bullet$	0.016 $\pm$ 0.000$\bullet$	0.021 $\pm$ 0.000$\bullet$	0.014 $\pm$ 0.000$\bullet$	0.216 $\pm$ 0.006$\bullet$	0.575 $\pm$ 0.011$\bullet$	0.005 $\pm$ 0.000
	JC$\downarrow$	0.878 $\pm$ 0.022$\bullet$	0.047 $\pm$ 0.000$\bullet$	0.037 $\pm$ 0.000$\bullet$	0.023 $\pm$ 0.000	0.073 $\pm$ 0.000$\bullet$	0.368 $\pm$ 0.011$\bullet$	0.022 $\pm$ 0.000

Table 3. Table 3: Quality and Diversity of the various competing methods on finding multiple co-clusterings. ∙ ⁣ / ⁣ ∘ ∙ \bullet/\circ indicates whether MVMCC is statistically (according to pairwise t 𝑡 t -test at 95% significance level) superior/inferior to the other method.

		MCC-NBMM	MultiCC	MVMCC
Caltech-7	SC$\uparrow$	-0.100 $\pm$ 0.002$\bullet$	-0.103 $\pm$ 0.006$\bullet$	0.198 $\pm$ 0.004
	DI$\uparrow$	0.034 $\pm$ 0.000$\bullet$	0.011 $\pm$ 0.000$\bullet$	0.047 $\pm$ 0.000
	NMI$\downarrow$	0.376 $\pm$ 0.014$\bullet$	0.005 $\pm$ 0.000	0.005 $\pm$ 0.000
	JC$\downarrow$	0.185 $\pm$ 0.003$\bullet$	0.087 $\pm$ 0.000	0.083 $\pm$ 0.000
Caltech-20	SC$\uparrow$	-0.134 $\pm$ 0.000$\bullet$	-0.229 $\pm$ 0.012$\bullet$	0.080 $\pm$ 0.000
	DI$\uparrow$	0.026 $\pm$ 0.000$\bullet$	0.011 $\pm$ 0.000$\bullet$	0.156 $\pm$ 0.008
	NMI$\downarrow$	0.325 $\pm$ 0.010$\bullet$	0.021 $\pm$ 0.000	0.026 $\pm$ 0.000
	JC$\downarrow$	0.150 $\pm$ 0.002$\bullet$	0.056 $\pm$ 0.000$\bullet$	0.029 $\pm$ 0.000
Corel	SC$\uparrow$	-0.087 $\pm$ 0.002$\bullet$	-0.172 $\pm$ 0.012$\bullet$	-0.017 $\pm$ 0.000
	DI$\uparrow$	0.024 $\pm$ 0.000$\bullet$	0.015 $\pm$ 0.000$\bullet$	0.152 $\pm$ 0.002
	NMI$\downarrow$	0.377 $\pm$ 0.013$\bullet$	0.164 $\pm$ 0.002$\bullet$	0.070 $\pm$ 0.000
	JC$\downarrow$	0.176 $\pm$ 0.004$\bullet$	0.044 $\pm$ 0.000$\bullet$	0.010 $\pm$ 0.000
Digits	SC$\uparrow$	-0.243 $\pm$ 0.024$\bullet$	-0.214 $\pm$ 0.013$\bullet$	0.144 $\pm$ 0.002
	DI$\uparrow$	0.014 $\pm$ 0.000	0.003 $\pm$ 0.000$\bullet$	0.018 $\pm$ 0.000
	NMI$\downarrow$	0.286 $\pm$ 0.006$\bullet$	0.010 $\pm$ 0.000$\circ$	0.207 $\pm$ 0.003
	JC$\downarrow$	0.166 $\pm$ 0.001$\bullet$	0.060 $\pm$ 0.000$\circ$	0.115 $\pm$ 0.000
Wiki article	SC$\uparrow$	-0.0694 $\pm$ 0.000$\bullet$	-0.058 $\pm$ 0.000$\bullet$	0.064 $\pm$ 0.000
	DI$\uparrow$	0.079 $\pm$ 0.000	0.041 $\pm$ 0.001$\bullet$	0.078 $\pm$ 0.000
	NMI$\downarrow$	0.287 $\pm$ 0.005$\bullet$	0.007 $\pm$ 0.000	0.006 $\pm$ 0.000
	JC$\downarrow$	0.127 $\pm$ 0.002$\bullet$	0.054 $\pm$ 0.000	0.052 $\pm$ 0.000
Mirflickr	SC$\uparrow$	-0.095 $\pm$ 0.000$\bullet$	-0.194 $\pm$ 0.002$\bullet$	0.064 $\pm$ 0.000
	DI$\uparrow$	0.052 $\pm$ 0.000$\bullet$	0.065 $\pm$ 0.000$\bullet$	0.151 $\pm$ 0.003
	NMI$\downarrow$	0.017 $\pm$ 0.000$\bullet$	0.081 $\pm$ 0.000$\bullet$	0.005 $\pm$ 0.000
	JC$\downarrow$	0.052 $\pm$ 0.000$\bullet$	0.052 $\pm$ 0.000$\bullet$	0.022 $\pm$ 0.000

Table 4. Table 4: Comparison results with/without the shared information matrix 𝐔 𝐔 \mathbf{U} for discovering multiple clusterings.

		SC$\uparrow$	DI$\uparrow$	NMI$\downarrow$	JC$\downarrow$
Digits	MVMC(nU)	0.061	0.076	0.008	0.050
	MVMC	0.064	0.087	0.008	0.052
Wiki article	MVMC(nU)	0.059	0.088	0.005	0.051
	MVMC	0.066	0.122	0.006	0.052

Table 5. Table 5: Runtimes of comparing methods (in seconds).

	Caltech7	Caltech20	Corel	Digits	Wiki	Mirflickr	Total
Dec-kmeans	112	273	433	39	14	361	1232
ISAAC	1432	2232	1822	1223	656	10012	17074
MISC	1336	2156	1956	1278	638	21168	28532
MNMF	105	1257	614	356	220	1577	4129
mSC	864	1564	1269	690	527	2631	7545
OSC	4	10	1	1	2	217	235
MVMC	332	585	790	234	490	9564	11995

Equations

$$\text{centering}\begin{array}{rl}{J}_D(\{{\mathbf{D}}^k{\}}_{k=1}^h,\mathbf{U})& =\sum _{k=1}^h\frac{1}{m}\sum _{v=1}^m\parallel {\mathbf{X}}^v-{\mathbf{X}}^v(\mathbf{U}+{\mathbf{D}}^k){\Vert }_F^2\\ & +{\lambda }_1{\Phi }_1(\{{\mathbf{D}}^k{\}}_{k=1}^h)+{\lambda }_2{\Phi }_2(\mathbf{U})\end{array}\text{@add@centering}$$

$$HSIC({\mathbf{D}}^k,{\mathbf{D}}^{k^{\prime }})=(n-1{)}^{-2}tr({\mathbf{K}}^k\mathbf{H}{\mathbf{K}}^{k^{\prime }}\mathbf{H})$$

$$\text{centering}\begin{array}{rl}{\Phi }_1(\{{\mathbf{D}}^k{\}}_{k=1}^h)& =\sum _{k=1,k\ne k^{\prime }}^{h}HSIC({\mathbf{D}}^k,{\mathbf{D}}^{k^{\prime }})\\ & =\sum _{k=1,k\ne k^{\prime }}^m(n-1{)}^{-2}tr({\mathbf{D}}^k\mathbf{H}{\mathbf{K}}^{k^{\prime }}\mathbf{H}({\mathbf{D}}^k{)}^T)\\ & =\sum _{k=1}^{h}tr({\mathbf{D}}^k{\tilde{\mathbf{K}}}^k({\mathbf{D}}^k{)}^T)\end{array}\text{@add@centering}$$

$$\text{centering}{\Phi }_2(\mathbf{U})=\sum _{v=1}^V\sum _{i,j=1}^n\parallel {\mathbf{u}}_i-{\mathbf{u}}_j{\parallel }_2^2{\mathbf{W}}_{ij}^v=tr(\mathbf{U}\tilde{\mathbf{L}}{\mathbf{U}}^T)\text{@add@centering}$$

$$\mathbf{U}+{\mathbf{D}}^k={\mathbf{B}}^k({\mathbf{R}}^k{)}^T$$

$$\begin{array}{rl}& J_{MC}(\{{\mathbf{D}}^k{\}}_{k=1}^h,\{{\mathbf{R}}^k{\}}_{k=1}^h,\mathbf{U})\\ & =\frac{1}{h}\sum _{k=1}^h\parallel (\mathbf{U}+{\mathbf{D}}^k)-{\mathbf{B}}^k({\mathbf{R}}^k{)}^T{\parallel }_F^2\\ & +{\lambda }_{1}tr({\mathbf{D}}^k{\tilde{\mathbf{K}}}^k({\mathbf{D}}^k{)}^T)+{\lambda }_{2}tr(\mathbf{U}\tilde{\mathbf{L}}{\mathbf{U}}^T)\\ & s.t.{\mathbf{X}}^v={\mathbf{X}}^v(\mathbf{U}+{\mathbf{D}}^k),v\in \{1,2,\cdots ,m\}\end{array}$$

$$\begin{array}{rl}& J_{MCC}(\{{\mathbf{D}}^v{\}}_{v=1}^m,\{{\mathbf{R}}^v{\}}_{v=1}^m,\{{\mathbf{C}}^v{\}}_{v=1}^m,\mathbf{U})\\ & =\frac{1}{m}\sum _{v=1}^m\parallel {\mathbf{X}}^v(\mathbf{U}+{\mathbf{D}}^v)-{\mathbf{C}}^v{\mathbf{S}}^v({\mathbf{R}}^v{)}^T{\parallel }_F^2\\ & +{\lambda }_{1}tr({\mathbf{D}}^v\mathbf{K}({\mathbf{D}}^v{)}^T)+{\lambda }_{2}tr(\mathbf{U}\tilde{\mathbf{L}}{\mathbf{U}}^T)\\ & s.t.{\mathbf{X}}^v={\mathbf{X}}^v(\mathbf{U}+{\mathbf{D}}^v),{\mathbf{C}}^v\ge 0,{\mathbf{R}}^v\ge 0\end{array}$$

Full text

1 Introduction

The goal of clustering is to partition samples into disjoint groups to facilitate the discovery of hidden patterns in the data. Traditional clustering algorithms are designed for single-view data. With the diffusion of the internet of things and of big data, samples can be easily collected from different sources, or observed from different views. For example, a video can be characterized using image signals and audio signals, and a given news can be reported in different languages. Objects with diverse feature views are typically called multi-view data. It’s recognized that the integration of information contained in multiple views can achieve consolidated data clustering Chao et al. (2017). Many multi-view clustering methods have been developed to extract comprehensive information from multiple feature views; examples are co-training based Kumar and Daumé (2011), multiple kernel learning Gönen and Alpaydın (2011), and subspace learning based Cao et al. (2015); Luo et al. (2018). However, the aforementioned clustering methods typically provide a single clustering, which may fail to reveal the high-quality but all diverse alternative clusterings of the same data.

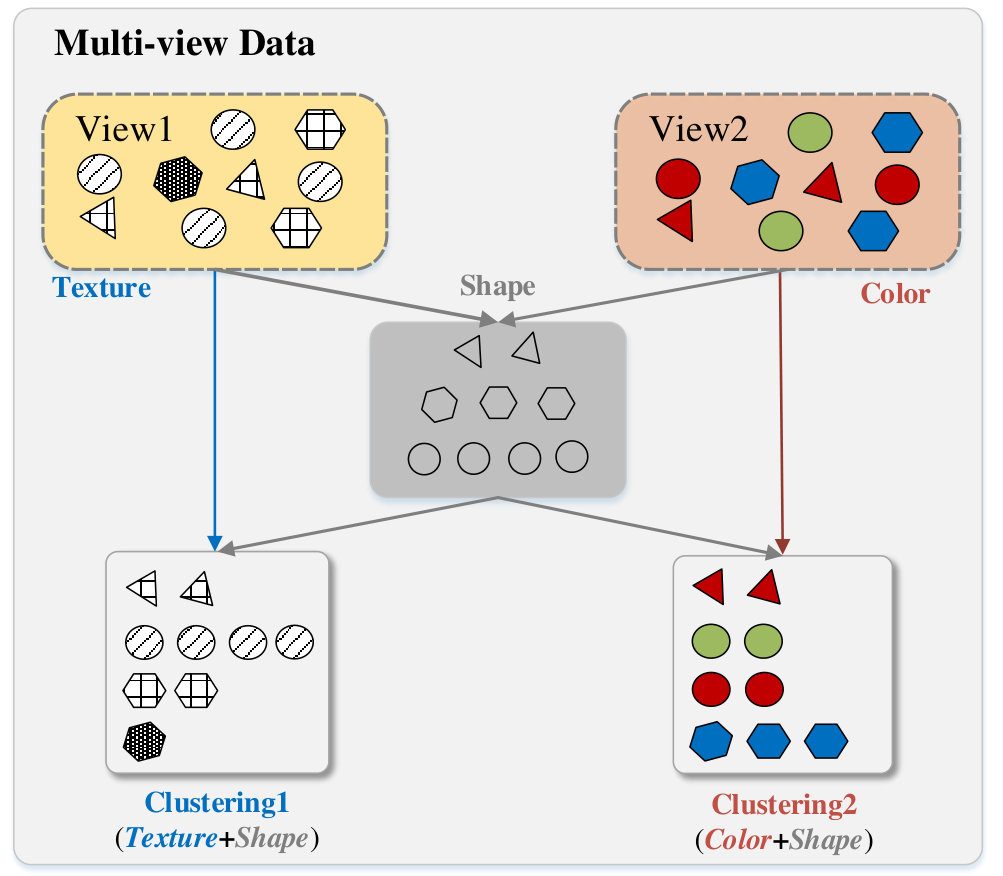

For example, in Figure 1, we have a collection of objects represented by a texture view and a color view. We can group the objects based on their shared shapes. By leveraging the commonality and the individuality of these multi-view objects, we can obtain two alternative clusterings (texture+shape and color+shape), as shown in the bottom of the figure. From this example, we can see that multi-view data include not only the commonality information for generating high-quality clustering (as multi-view clustering does), but also the individual (or specific) information for generating diverse clusterings (as multiple clustering aims to achieve) Bailey (2013).

To explore different clusterings of the given data, multiple clustering has emerged as a new branch of clustering in recent years. Some approaches seek diverse clusterings in alternative to those already explored, by enforcing the new ones to be different Bae and Bailey (2006); Davidson and Qi (2008); Yang and Zhang (2017); other solutions simultaneously seek multiple clusterings by reducing their correlation Caruana et al. (2006); Jain et al. (2008); Dang and Bailey (2010); Wang et al. (2018), or by seeking orthogonal (or independent) subspaces and clusterings therein Niu et al. (2010); Ye et al. (2016); Mautz et al. (2018); Wang et al. (2019). However, these multiple clustering methods are designed for single-view data.

Based on the discussed example in Figure 1, we leverage the individuality and the commonality of multi-view data to generate high-quality and diverse clusterings, and we propose an approach called multi-view multiple clustering (MVMC) to achieve this goal. To the best of our knowledge, MVMC is the first attempt to encompass both multiple clusterings and multi-view clustering, where the former focuses on generating diverse clusterings from a single data view, and the latter focuses on a single consensus clustering by summarizing the information from different views. MVMC first extends multi-view self-representation learning Luo et al. (2018) to explore the individuality information encoding matrices and the commonality information matrix shared across views. To obtain more credible commonality information from multiple views, we force the commonality information matrix to be smooth across all views. In addition, we use the Hilbert-Schmidt Independence Criterion (HISC)Gretton et al. (2005) to enhance the individuality between matrices, and consequently increase the diversity between clusterings. We then use matrix factorization to jointly factorize each individuality matrix (for diversity) and the commonality matrix (for quality) into a clustering indicator matrix and a basis matrix. To simultaneously seek the individual and common data matrices, and diverse clusterings therein, we use an alternating optimization technique to solve the unified objective. In addition, we extend multiple co-clustering Tokuda et al. (2017); Wang et al. (2018) to the multi-view scenario, and term the extended approach as multi-view multiple co-clustering (MVMCC).

The main contributions of our work are summarized as follows:

• •

We study how to generate multiple clusterings from multi-view data, which is an interesting and challenging problem, but largely overlooked. The problem we address is different from existing multi-view clustering, which generates a single clustering by leveraging multiple views, and also different from multiple clustering, which produces alternative clusterings from single-view data.

• •

We introduce a unified objective function to simultaneously seek multiple individuality information encoding matrices, and the commonality information encoding matrix. This unified function can leverage the individuality to generate diverse clusterings, and the commonality to boost the quality of the generated clusterings. We further adopt an alternative optimization technique to solve the unified objective.

• •

Extensive experimental results show that MVMC (MVMCC) performs considerably better than existing multiple clustering (co-clustering) algorithms Cui et al. (2007); Jain et al. (2008); Niu et al. (2010); Ye et al. (2016); Yang and Zhang (2017); Tokuda et al. (2017); Wang et al. (2018, 2019) in exploring multiple clusterings and co-clusterings.

2 The Proposed Methods

2.1 Multi-View Multiple Clustering

Suppose $\mathbf{X}^{v}\in\mathbb{R}^{d_{v}\times n}$ denotes the feature data matrix of the $v$-th view, $v\in\{1,2,\cdots,m\}$, for $n$ objects in the $d_{v}$ dimensional space. We aim to generate $h$ (provided by the user) different clusterings from $\{\mathbf{X}^{v}\}_{v=1}^{m}$ using the shared and individual information embedded in the data matrices. Most multi-view clustering approaches in essence focus on the shared and complementary information of multiple data views to generate a consolidated clustering Chao et al. (2017). By viewing each subspace as a feature view, an intuitive solution to explore multiple clusterings on multi-view data is to first concatenate different feature views, and then apply subspace-based multiple clustering methods on the concatenated feature vectors Niu et al. (2010); Ye et al. (2016); Wang et al. (2019).

To find high-quality and diverse multiple clusterings, we should make concrete use of the individuality and commonality of multi-view data. The individuality helps to explore diverse clusterings, while the commonality coordinates the diverse clusterings to capture the common knowledge of multi-view data. To explore the individuality and commonality of multi-view data, we extend the multi-view self-representation learning Cao et al. (2015); Luo et al. (2018) as follows:

[TABLE]

where $\mathbf{U}\in\mathbb{R}^{n\times n}$ is specified to encode the commonality of the data matrices $\{\mathbf{X}^{v}\}_{v=1}^{m}$, and $\mathbf{D}^{k}\in\mathbb{R}^{n\times n}$ is used to encode the individuality of the $k$-th ($k\in\{1,2,,\cdots,h\}$) group of views. $\Phi_{1}(\{\mathbf{D}^{k}\}_{k=1}^{h})$ and $\Phi_{2}(\mathbf{U})$ (defined later) are two constraints used to enhance the individuality and commonality. The multi-view self-representation learning in Cao et al. (2015); Luo et al. (2018) requires $h=m$. In contrast, Eq. (1) does not have this requirement. As a result, the group-wise individuality and diversity are jointly considered, and the number of alternative clusterings can be adjusted by the user. The assumption for the linear representation in Eq. (1) is that a data sample can be expressed as a linear combination of other samples in the subspace. This assumption is widely-used in sparse representation Wright et al. (2010) and low-rank representation learning Liu et al. (2013).

Luo et al. (2018) recently combined $\mathbf{U}$ and $\{\mathbf{D}^{k}\}_{k=1}^{m}$ into an integrated co-association matrix of samples, and then applied spectral clustering to seek a consistent clustering. Their empirical study shows that the individual information encoded by $\mathbf{D}^{k}$ helps producing a robust clustering. However, since $\mathbf{X}^{v}$ and $\mathbf{X}^{v^{\prime}}(v^{\prime}\neq v)$ describe the same objects using different types of features, the matrix $\mathbf{D}^{k}$ resulting from Eq. (1) may still have a large information overlap with $\mathbf{D}^{k^{\prime}}$. As a result, the expected individuality of $\mathbf{D}^{k}$ and $\mathbf{D}^{k^{\prime}}$ cannot be guaranteed. This overlapping of information is not necessarily an issue for multi-view clustering, which aims at finding a single clustering, but it is for our problem, where multiple clusterings of both high-quality and diversity are expected.

To enhance the diversity between individuality encoding (representation) matrices $\{\mathbf{D}^{k}\}_{k=1}^{h}$, we approximately quantify the diversity based on the dependency between these matrices. The smaller the dependency between data matrices is, the larger their diversity is, since the matrices are less correlated. Various measurements can be used to evaluate the dependence between variables. Here, we adopt the Hilbert-Schmidt Independence Criterion (HSIC) Gretton et al. (2005), for its simplicity, solid theoretical foundation, and capability in measuring both linear and nonlinear dependence between variables. HSIC computes the squared norm of the cross-covariance operator over $\mathbf{D}^{k}$ and $\mathbf{D}^{k^{\prime}}$ in Hilbert Space to estimate the dependency. The empirical HISC does not have to explicitly compute the joint distribution of $\mathbf{D}^{k}$ and $\mathbf{D}^{k^{\prime}}$, it is give by:

[TABLE]

where $\mathbf{K}^{k},\mathbf{K}^{k^{\prime}},\mathbf{H}\in\mathbb{R}^{n\times n}$, $\mathbf{K}^{k}$ and $\mathbf{K}^{k^{\prime}}$ are used to measure the kernel induced similarity between vectors of $\mathbf{D}^{k}$ and $\mathbf{D}^{k^{\prime}}$, respectively. $\mathbf{H}=\delta_{ij}-1/n$, $\delta_{ij}=1$ if $i=j$, $\delta_{ij}=0$ otherwise. In this paper, we adopt the inner product kernel to specify $\mathbf{K}^{k}=(\mathbf{D}^{k})^{T}\mathbf{D}^{k}$ $\forall k\in\{1,2,\cdots,h\}$. Then we minimize the overall HISC on $h$ individuality matrices to reduce the redundancy between them and specify $\Phi_{1}(\mathbf{D}^{k})$ as follows:

[TABLE]

where $\widetilde{\mathbf{K}}^{k}=(n-1)^{-2}\sum_{k^{\prime}=1,k^{\prime}\neq k}^{m}\mathbf{H}\mathbf{K}^{k^{\prime}}\mathbf{H}$.

Inspired by subspace-based multi-view learning Gao et al. (2015); Chao et al. (2017) and manifold regularization Belkin et al. (2006), we specify $\Phi_{2}(\mathbf{U})$ in Eq. (1) to collect more shared information from multiple data views as follows:

[TABLE]

where $\mathbf{W}^{v}_{ij}$ is the feature similarity between $\mathbf{x}_{i}^{v}$ and $\mathbf{x}_{j}^{v}$. To compute $\mathbf{W}^{v}$, we simply adopt an $\epsilon=5$ nearest neighborhood graph and use the Gaussian heat kernel (with kernel width as the standard deviation of the distance between samples) to quantify the similarity between neighborhood samples. $\widetilde{\mathbf{L}}=\sum_{v=1}^{m}(\mathbf{\Lambda}^{v}-\mathbf{W}^{v})$ and $\mathbf{\Lambda}^{v}$ is a diagonal matrix with $\mathbf{\Lambda}^{v}_{ii}=\sum_{j=1}^{n}\mathbf{W}^{v}_{ij}$. Minimizing $\Phi_{2}(\mathbf{U})$ can guide $\mathbf{U}$ to encode consistent and complementary information shared across views. In this way, the quality of diverse clusterings can be boosted using enhanced shared information.

Given the equivalence between matrix factorization based clustering and spectral clustering (or $k$-means clustering), we adopt the widely used semi-nonnegative matrix factorization Ding et al. (2010) to explore the $k$-th clustering on $\mathbf{U}+\mathbf{D}^{k}$ as follows:

[TABLE]

where $\mathbf{R}^{k}\in\mathbb{R}^{n\times r_{k}}$ and $\mathbf{B}^{k}\in\mathbb{R}^{n\times r_{k}}$ ($r_{k}$ is the number of sample clusters) are the clustering indicator matrix and the basis matrix, respectively. Here, the $k$-th clustering is generated not only with respect to $\mathbf{D}^{k}$, but also to $\mathbf{U}$, which encodes the shared information of multi-view data. As such, the explored $k$-th clustering (encoded by $\mathbf{R}^{k}$) not only reflects the individuality of views in the $k$-th group, but also captures the commonality of all data views. As a consequence, a high-quality, and yet diverse clustering can be generated.

The above process first explores the individual information matrices and the shared information matrix, and then generates diverse clusterings on the data matrices. A sub-optimal solution may be obtained as a result because the two steps are performed separately. To avoid this, we advocate to simultaneously optimize $\{\mathbf{D}^{k}\}_{k=1}^{h}$ and the diverse clusterings $\{\mathbf{R}^{k}\}_{k=1}^{h}$ therein, and formulate a unified objective function for MVMC as follows:

[TABLE]

By solving Eq. (6), we can simultaneously obtain multiple diverse clusterings of quality by leveraging the commonality and individuality information of multiple views. Our experiments confirm that MVMC can generate multiple clusterings with enhanced diversity and quality. In addition, it outperforms the counterpart algorithms Cui et al. (2007); Jain et al. (2008); Niu et al. (2010); Ye et al. (2016); Wang et al. (2019), which concatenate multiple data views into a composite view, and then explore multiple clusterings in the subspaces of the composite view.

Binary matrices $\{\mathbf{R}^{k}\}_{k=1}^{h}$ are hard to directly optimize. As such, we relax the entries of $\{\mathbf{R}^{k}\}_{k=1}^{h}$ to nonnegative numeric values. Since Eq. (6) is not jointly convex for $\{\mathbf{D}^{k}\}_{k=1}^{h}$, $\mathbf{U}$ and $\{\mathbf{R}^{k}\}_{k=1}^{h}$, it is unrealistic to find the global optimal values for all the variables. Here, we solve Eq. (6) via the alternating optimization method, which alternatively optimizes one variable, while fixing the other variables. The detailed optimization process can be viewed in the supplementary file due to the limitation of space.

2.2 Multiple Views Multiple Co-Clusterings

Multiple co-clustering algorithms recently have also been suggested to explore alternative co-clusterings from the same data Tokuda et al. (2017); Wang et al. (2018). Multiple co-clustering methods aim at exploring multiple two-way clusterings, where both samples are features are clustered. In contrast, multiple clustering techniques only explore diverse one-way clusterings, where only samples (or only features) are clustered. Based on the merits of matrix tri-factorization in exploring co-clusters Wang et al. (2011, 2018), we can seek multiple co-clusterings on multiple views by optimizing an objective function as follows:

[TABLE]

where $\mathbf{C}^{v}\in\mathbb{R}^{d_{v}\times c_{v}}$ and $\mathbf{R}^{v}\in\mathbb{R}^{n\times r_{k}}$ correspond to the row-cluster (grouping features) and column-cluster (grouping samples) indicator matrices of the $h$-th co-clustering. $\mathbf{S}^{k}\in\mathbb{R}^{c_{v}\times r_{v}}$ plays the role of absorbing the different scaling factors of $\mathbf{R}^{v}$ and $\mathbf{C}^{v}$ to minimize the squared error. Here we fix $h=m$ for MVMCC, since different feature views have different numbers of features. Eq. (7) can be optimized following the similar procedure for optimizing Eq. (6), which is provided in the supplementary file due to page limit.

3 Experimental Results and Analysis

3.1 Experimental Setup

In this section, we evaluate our proposed MVMC and MVMCC on five widely-used multi-view datasets Li et al. (2015); Tao et al. (2018), which are described in Table 1. The datasets have different number of views and are from different domains. Caltech-7111https://github.com/yeqinglee/mvdata and Caltech-20 Li et al. (2015) are two subsets of Caltech-101, which contains only 7 and 20 classes, respectively. The creation of these subsets is due to the unbalance of the number of data in each class of Caltech-101. Each sample is made of 6 views on the same image. Mul-fea digits222https://archive.ics.uci.edu/ml/datasets/Multiple+Features is comprised of 2,000 data points from 0 to 9 digit classes, with 200 data points for each class. There are six public features available: 76 Fourier coefficients of the character shapes, 216 profile correlations, 64 Karhunenlove coefficients, 240 pixel averages in $2\times 3$ windows, 47 Zernike moments, and 6 morphological features. Wiki article333http://www.svcl.ucsd.edu/projects/crossmodal/ contains selected sections from the Wikipedia’s featured articles collection. We considered only the 10 most populated categories. It contains two views: text and image. Corel444http://www.cais.ntu.edu.sg/˜chhoi/SVMBMAL/ Tao et al. (2018) consists of 5000 images from 50 different categories. Each category has 100 images. The features are color histogram (9), edge direction histogram (18), and WT (9). Mirflickr555http://press.liacs.nl/mirflickr/mirdownload.html contains 25,000 instances collected from Flicker. Each instance consists of an image and its associated textual tags. To avoid noise, here we remove textual tags that appear less than 20 times in the dataset, and then delete instances without textual tags or semantic labels. This process gives us 16,738 instances.

Multiple clusterings need to quantify the quality and diversity of alternative clusterings. To measure quality, we use the widely-adopted Silhouette Coefficient (SC) and Dunn Index (DI) as the internal index. Large values of SC and DI indicate a high quality clustering. To quantify the redundancy between alternative clusterings, we use Normalized Mutual Information(NMI) and Jaccard Coefficient(JC) as external indices. Smaller values of NMI and JC indicate smaller redundancy between alternative clusterings. All these metrics have been used in the multiple clustering literature Bailey (2013). The formal definitions of these metrics, omitted here to save space, can be found in Bailey (2013); Yang and Zhang (2017).

3.2 Discovering multiple one-way clusterings and multiple co-clusterings

We compare the one-way multiple clusterings found by MVMC against Dec-kmeans Jain et al. (2008), MNMF Yang and Zhang (2017), OSC Cui et al. (2007), mSC Niu et al. (2010), ISAAC Ye et al. (2016), and MISC Wang et al. (2019). We also compare the multiple co-clusterings found by MVMCC against MultiCC Wang et al. (2018) and MCC-NBMM Tokuda et al. (2017). The input parameters of the comparing methods are set as the authors suggested in their papers or shared code. The parameter values of MVMC and MVMCC are $\lambda_{1}=10$, $\lambda_{2}=100$ and $h=2$ for multiple one-way clusterings, and $h=m$ for multiple co-clusterings. None of existing multiple clusterings algorithms can work on multiple view data, we concatenate the feature vectors of multiple view data and then run these comparing methods on the concatenated vectors to seek alternative clusterings. Our MVMC and MCMCC directly run on the multiple view data, without such feature concatenation.

We use $k$-means to generate the reference clustering for MNMF, and then use their respective solutions to generate two alternative clustering ($\mathcal{C}_{1}$, $\mathcal{C}_{2}$). We downloaded the source code of MNMF, ISAAC, MultiCC, MISC, and MCC-NBMM, and implemented the other methods (Dec-kmeans, mSC, and OSC) following the respective original papers. Input parameters of the comparing methods were fixed or optimized as suggested by the authors. Following the experimental protocol adopted by these methods, we quantify the average clustering quality on $\mathcal{C}_{1}$ and $\mathcal{C}_{2}$, and measure the diversity between $\mathcal{C}_{1}$ and $\mathcal{C}_{2}$. We fix the number of row-clusters $r_{k}$ for each clustering as the respective number of classes of each dataset, as listed in Table 1. For co-clustering, we adopt a widely used technique Monti et al. (2003) to determine the number of column clusters $c_{k}$. Detailed parameter values can be viewed in the supplementary file.

Table 2 reports the average results (of ten independent runs) and standard deviations of these comparing methods on exploring two alternative one-way clusterings with $h=2$. From Table 2, we can find MVMC often performs better than these comparing methods across different multi-view datasets, which proves the effectiveness of MVMC on exploring alternative clusterings on multi-view data. MVMC always has the best results on the diversity metrics (NMI and JC). This fact suggests it can find two alternative clusterings with high diversity. MVMC occasionally has a lower value on quality metrics (SC and DI) than some of these comparing methods. That is explainable, since it is a widely-recognized dilemma to obtain alternative clusterings with high-diversity and high-quality, and MVMC has a much larger diversity than these comparing methods. Although these comparing methods employ different techniques to explore alternative clusterings in the subspaces or by reducing the redundancy between the clusterings, they almost always lose to MVMC. The cause is that the concatenated long feature vectors override the intrinsic structures of different views. It also explains why these comparing methods have lower values on diversity metrics (NMI and JC). In practice, because of the long concatenated feature vectors, these comparing methods generally suffer from a long runtime and cannot be applied on multi-view datasets with high-dimensional feature views. In contrast, our MVMC is rather efficient, it does not need to concatenate features and is directly applicable on each view.

Table 3 reports the results of MVMCC, MultiCC and MCC-NBMM in exploring multiple co-clusterings, whose number is equal to the number of views $h=m$ (unlike $h=2$ for Table 2), because of the feature view heterogeneity. For this evaluation, we report the average quality and diversity values of all pairwise alternative co-clusterings of $h$ clusterings. We can see MVMCC significantly outperforms these two state-of-the-art multiple co-clustering methods across different evaluation metrics and datasets. MultiCC sometimes obtains a better diversity than MVMCC. That is because it directly optimizes the diversity on the sample-cluster and feature-cluster matrices, while our MVMCC indirectly optimizes the diversity and mainly from the sample-cluster matrices. These results prove the effectiveness of our solution on exploring multiple co-clusterings on multi-view data.

Following the experimental setup in Table 2, we conduct additional experiments to investigate the contribution of shared matrix $\mathbf{U}$ on improving the quality of multiple clusterings. For this investigation, we introduce a variant of MVMC(nU), which only uses ${\{{\mathbf{D}^{k}}\}}_{k=1}^{h}$ to generate multiple clusterings and disregards the shared information matrix $\mathbf{U}$. From the reported results on Digits and Wikipeda datasets in Table 4, we can find the diversity (NMI and JC) of two alternative clusterings keeps almost the same when the shared information matrix $\mathbf{U}$ is excluded. However, the quality (SC and DI) is clearly reduced when $\mathbf{U}$ is excluded. This contrast proves that $\mathbf{U}$ indeed improves the quality of multiple clusterings, and justifies our motivation to seek $\mathbf{U}$ across views and leverage it with individuality information matrix $\mathbf{D}^{v}$ for multiple clusterings.

In summary, we can conclude that the diversity information matrix helps to generate diverse clusterings, and the commonality information matrix evacuated from multi-view data can respectively improve the quality of these clusterings. These experimental results also confirm our assumption that the diversity and commonality of multi-view data can be leveraged to generate diverse clusterings with high-quality.

3.3 Parameter analysis

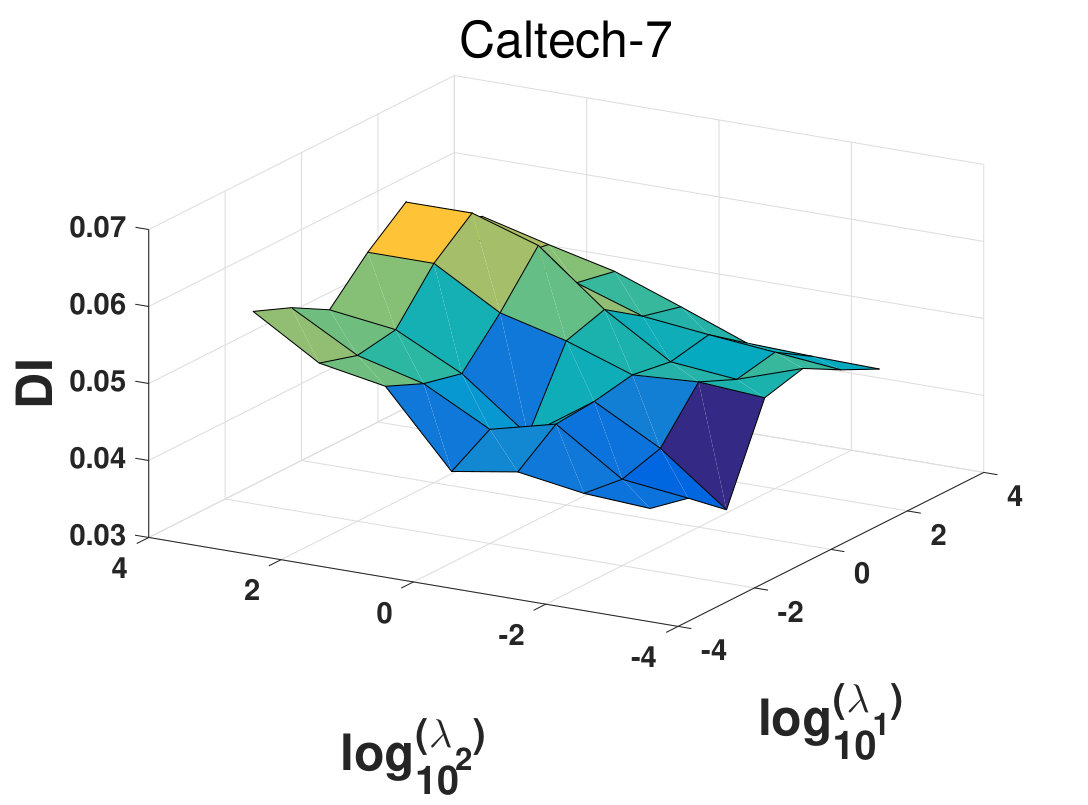

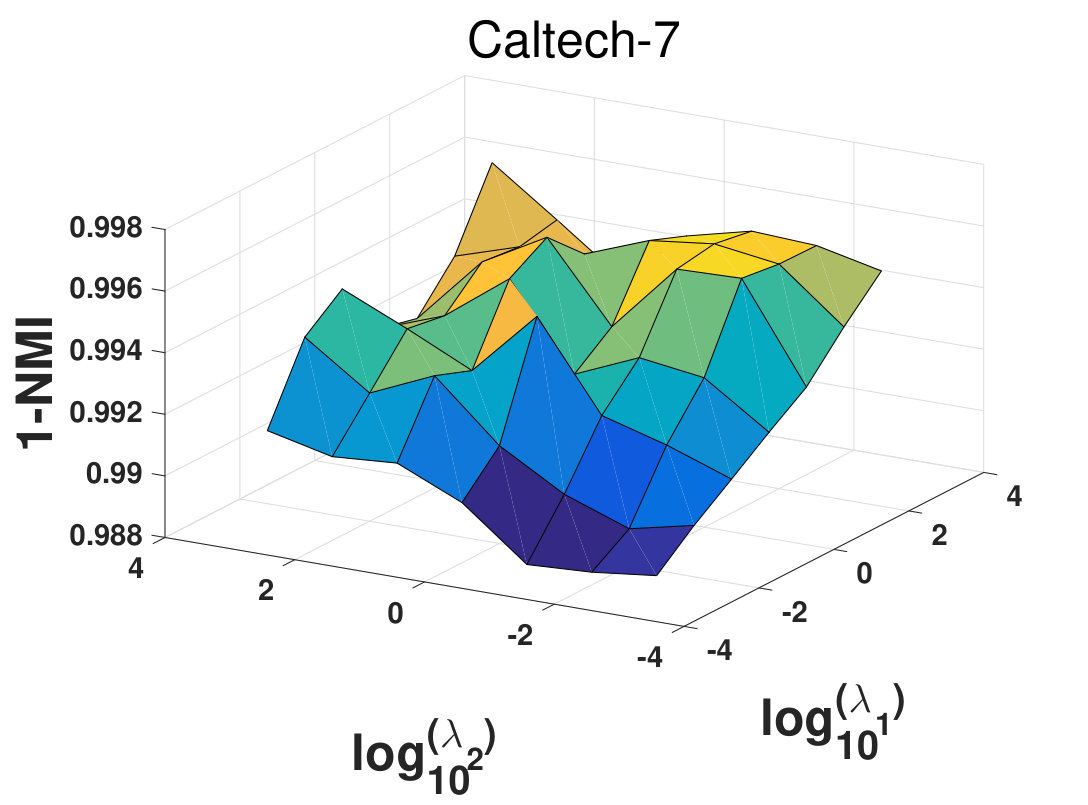

$\lambda_{1}$ and $\lambda_{2}$ are two important input parameters of MVMC (MCMCC) for seeking the individuality and commonality information of multi-view data, which consequently affect the quality and diversity of multiple clusterings. We investigate the sensitivity of MVMC to these parameters by varying $\lambda_{1}$ (it controls diversity) and $\lambda_{2}$ (it controls quality) in the range $[10^{-3},10^{-2},\cdots,10^{3}]$. Figure 2 reports the Quality (DI) and Diversity (1-NMI, the larger the better) of MVMC on the Caltech-7 dataset. We have several interesting observations: (i) diversity (1-NMI) increases as $\lambda_{1}$ increases, but not as much as with the increase of $\lambda_{2}$ (see Figure 2(b)); quality (DI) increases as $\lambda_{2}$ increases, but not as much as with the increase of $\lambda_{1}$. (ii) The synchronous increase of $\lambda_{1}$ and $\lambda_{2}$ does not necessarily give the highest results in quality and diversity. (iii) When both $\lambda_{1}$ and $\lambda_{2}$ are fixed to a small value, both quality and diversity are reduced. This fact suggests that both diversity and commonality information of multi-view data should be used for the exploration of alternative clusterings. These observations again confirm the known dilemma between diversity and quality of multiple clusterings. The values $\lambda_{1}=10$ and $\lambda_{2}=100$ often provide the best balance between quality and diversity.

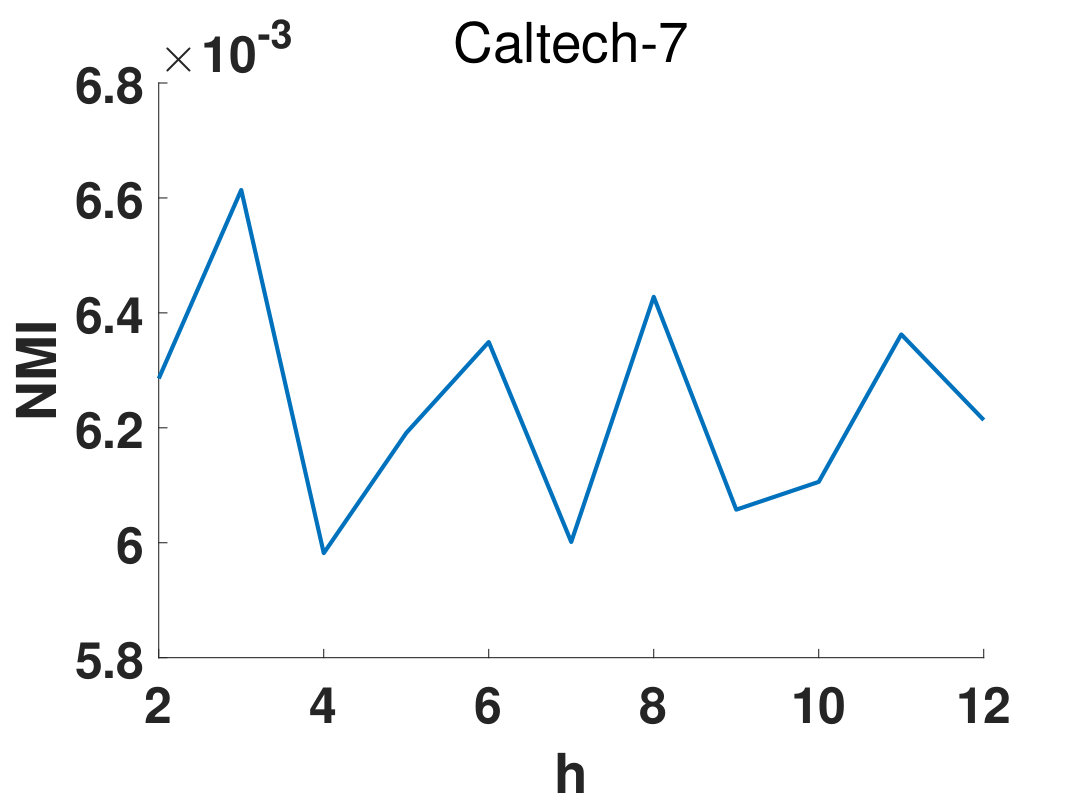

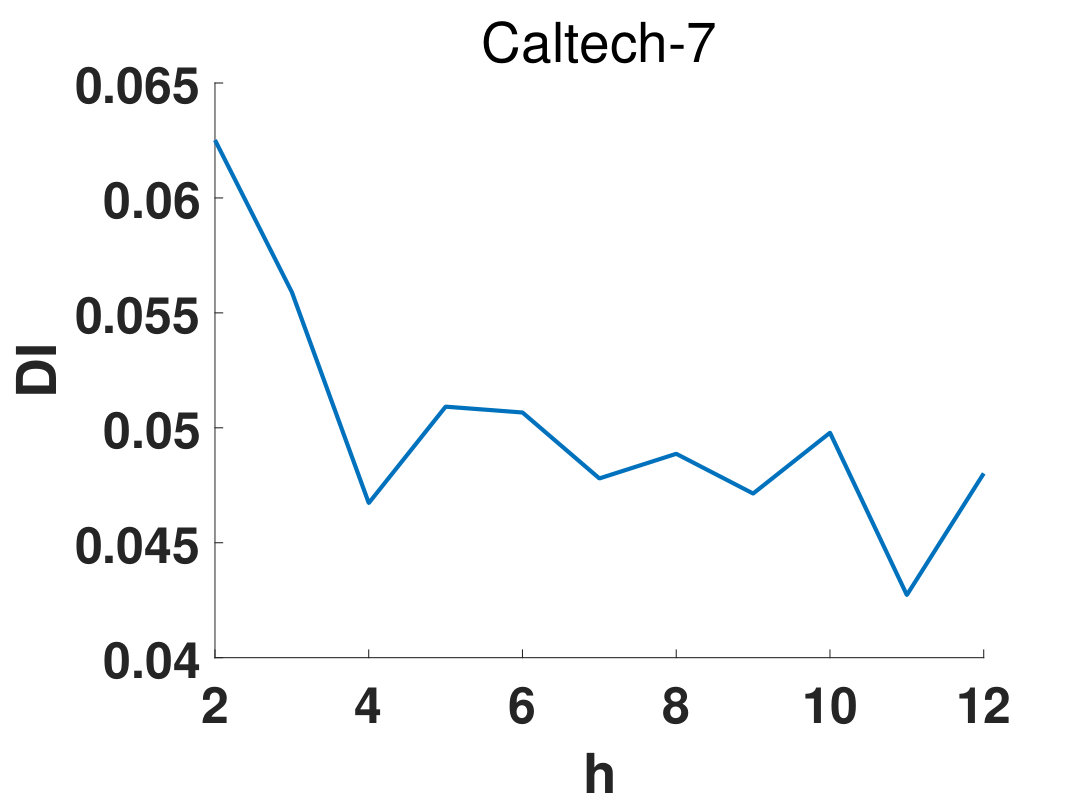

We vary $h$ from 2 to $2*m$ on Caltech-7 dataset to explore the variation of average quality and diversity of multiple clusterings generated by MVMC. In Figure 3, as the increase of $h$, the average quality of multiple clusterings decreases gradually with small fluctuations, and the average diversity fluctuates in a small range. These patterns are accountable from the dilemma of quality and diversity of multiple clusterings. More alternative clusterings with diversity scarify the quality of themselves. Overall, we can find that our MVMC can explore $h\geq 2$ alternative clusterings with quality and diversity.

3.4 Runtime Analysis

Table 5 gives the runtimes of all methods. The time complexity of our MVMC is $O(tn^{2}d(h^{2}v+2hv+2h))$, where $t$ is the number of iterations for optimization, $v$ is the number of views, $n$ is the number of samples, $d$ is the number of features, $h$ is the number of clusterings. The experiments are conducted on a server with Ubuntu 16.04, Intel Xeon8163 with 1TB RAM; all methods are implemented in Matlab2014a. OSC is the fastest and Dec-kmeans is the second. OSC finds multiple clusterings by iteratively reducing dimension and applying $k$-means. Dec-kmeans jointly seeks two different clusterings by minimizing a $k$-means sum squared error objective for the two clustering solutions, and the correlation between them. Because $k$-means has a low time complexity, these two $k$-means based methods are much faster than the other techniques. MVMC and MNMF have similar runtimes, since they are both based on nonnegative matrix factorization, which has a large complexity than $k$-means. MVMC is more efficient than other comparing methods (except OSC and Dec-kmeans), since it does not need to concatenate features and is directly applicable on each view. In summary, MVMC not only performs better than the state-of-the-art methods in exploring multiple clusterings, but also holds a comparable runtime with the efficient counterparts.

4 Conclusion

In this paper, we proposed an approach to generate multiple clusterings (co-clusterings) from multi-view data, which is an interesting but largely overlooked clustering topic which encompasses multi-view clustering and multiple clusterings. Our approach leverages the diversity and commonality of multi-view data to generate multiple clusterings, and outperforms state-of-the-art multiple clustering solutions. Our study confirms the existence of individuality and commonality of multi-view data, and their contribution for generating diverse clusterings with quality. We plan to find a principal way to automatically determine the number of alternative clusterings for our proposed approach.
