An Updated Study of Potential Targets for Ariel

TL;DR

This study evaluates Ariel's potential to observe and characterize a diverse range of exoplanets, including smaller Earth-sized planets, using simulations to optimize target selection for the mission's primary objectives.

Contribution

It introduces a comprehensive simulation-based assessment of Ariel's observational capabilities and proposes a dynamic target list optimization strategy for the mission.

Findings

Approximately 2000 known and predicted exoplanets could be characterized by Ariel.

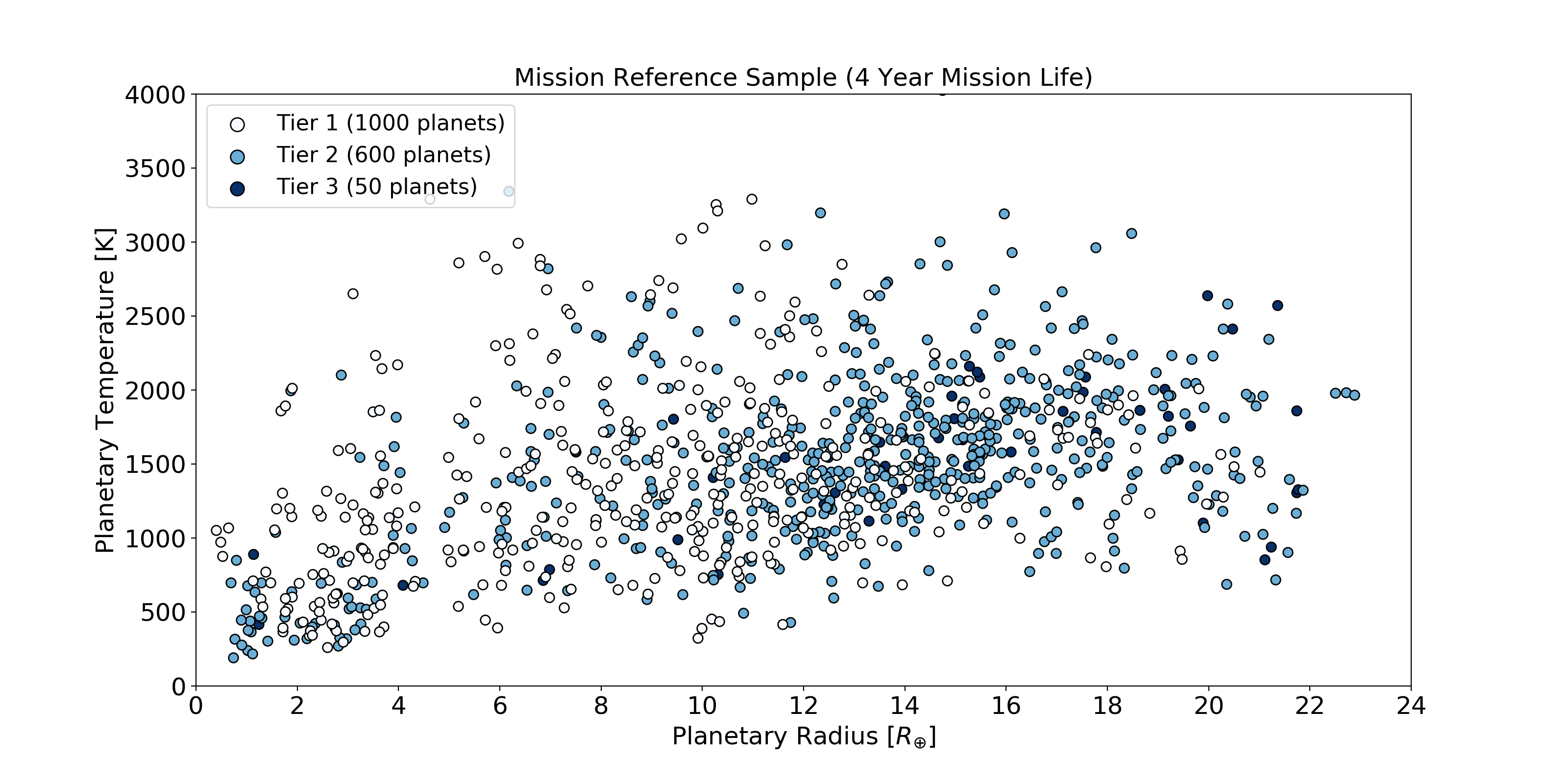

A diverse Mission Reference Sample of 1000 planets is feasible within the mission duration.

Ariel can perform in-depth observations of smaller, Earth-sized, and Super-Earth planets despite challenges.

Abstract

Ariel has been selected as ESA's M4 mission for launch in 2028 and is designed for the characterisation of a large and diverse population of exoplanetary atmospheres to provide insights into planetary formation and evolution within our Galaxy. Here we present a study of Ariel's capability to observe currently-known exoplanets and predicted TESS discoveries. We use the Ariel Radiometric model (ArielRad) to simulate the instrument performance and find that ~2000 of these planets have atmospheric signals which could be characterised by Ariel. This list of potential planets contains a diverse range of planetary and stellar parameters. From these we select an example Mission Reference Sample (MRS), comprised of 1000 diverse planets to be completed within the primary mission life, which is consistent with previous studies. We also explore the mission capability to perform an in-depth survey into the atmospheres of smaller planets, which may be enriched or secondary. Earth-sized planets and Super-Earths with atmospheres heavier than H/He will be more challenging to observe spectroscopically. However, by studying the time required to observe ~110 Earth-sized/Super-Earths, we find that Ariel could have substantial capability for providing in-depth observations of smaller planets. Trade-offs between the number and type of planets observed will form a key part of the selection process and this list of planets will continually evolve with new exoplanet discoveries replacing predicted detections. The Ariel target list will be constantly updated and the MRS re-selected to ensure maximum diversity in the population of planets studied during the primary mission life.

Figures

Tables

Table 1. Table 1: Wavelength ranges and spectral resolutions of Ariel’s instrumentation

Instrument Name	Wavelength Range [$\mu$m]	Resolution
VISPhot	0.5 - 0.6
FGS 1	0.6 - 0.81	Photometric Bands
FGS 2	0.81 - 1.1
NIRSpec	1.1 - 1.95	20
AIRS Ch0	1.95 - 3.9	100
AIRS Ch1	3.9 - 7.8	30

Table 2. Table 2: Resolution of final dataset across each instrument in each tier

Instrument Name	Tier 1	Tier 2	Tier 3
NIRSpec	R$\sim$1	R$\sim$10	R$\sim$20
AIRS Ch0	R$\sim$3	R$\sim$50	R$\sim$100
AIRS Ch1	R$\sim$1	R$\sim$10	R$\sim$30

Table 3. Table 3: Bounds used to classify potential planets to ensure a varied population of planets within the Mission Reference. Sample

Parameter	Class	Bounds
Stellar Effective Temperature	M	Ts <3955K
	K	3955K <Ts <5330K
	G	5330K<Ts <6070K
	F	6070K <Ts <7200K
Planetary Radius	Earth/Super-Earth	Rp <1.8 R⊕
	Sub-Neptune	1.8R⊕ <Rp <3.5R⊕
	Neptune	3.5R⊕ <Rp <6R⊕
	Jupiter	6R⊕ <Rp <16R⊕
	Massive Jupiter	Rp >16R⊕
Planetary Equilibrium Temperature	Temperate/Warm	Tp <500K
	Very Warm	500K <Tp <1000K
	Hot	1000K <Tp <1500K
	Very Hot	1500K <Tp <2500K
	Ultra Hot	Tp >2500K

Table 4. Table 4: Mission time required to achieve different observation goals. The total science time over the 4 year primary life is ∼ similar-to \sim 24,800 hours. Note that for some bright targets (e.g. HD 209458 b), Tier 2 or 3 resolutions would be reached in a single observation.

Number of Planets	Observation Requirement	Required Science Time [hours]
1000	Achieve Tier 1 resolutions	$\sim$10,600
400	Increase resolution from Tier 1 to Tier 2	$\sim$3,100
500		$\sim$6,000
600		$\sim$10,500
200	Achieve Tier 1 resolutions in second method	$\sim$1,400
300		$\sim$2,500
400		$\sim$4,200
50	Tier 3 (5 repeated observations per planet)	$\sim$1,700
-	Tier 4 (additional science time)	$\sim$2,300

Table 5. Table 5: Mission time required to achieve Tier 1 resolutions (at SNR >7) for the 113 small planets in the example MRS assuming different mean molecular weights. The total science time over the 4 year primary life is ∼ similar-to \sim 24,800 hours. t 0 is the time spent observing small planets in Tier 1 of the standard MRS.

Atmospheric Mean Molecular Weight	Number of Planets	Required Science Time [hours]
2.3	All	$\sim$1,000 (t0)
5	50	t0 + $\sim$360
	All	t0 + $\sim$3000
8	50	t0 + $\sim$1,100
	All	t0 + $\sim$9,200
10	50	t0 + $\sim$1,900
15	50	t0 + $\sim$4,400
18	25	t0 + $\sim$1,700
	50	t0 + $\sim$6,400
28	25	t0 + $\sim$4,300
	50	t0 + $\sim$15,600

Table 6. Table 6: Currently-known exoplanets which are considered here to be potential targets for Ariel. This list will continue to evolve as surveys discover more planets.

	Star Properties		Planet Properties		Maximum	Preferred
Planet Name	Eff Temp [K]	K Magnitude	Radius [R⊕]	Equil Temp [K]	Tier	Method
55Cnce	5196	4.01	1.87	1997	2	Transit
CoRoT-10b	5075	11.78	10.64	685	1	Transit
CoRoT-11b	6440	11.25	15.69	1771	2	Eclipse
CoRoT-19b	6090	11.84	14.16	1697	2	Eclipse
CoRoT-2b	5625	10.31	16.09	1582	3	Eclipse
CoRoT-23b	5900	12.36	11.52	1679	2	Eclipse
CoRoT-28b	5150	11.03	10.48	1395	1	Eclipse
CoRoT-3b	6740	11.62	11.08	1737	1	Eclipse
EPIC211945201b	6069	8.84	5.64	913	1	Transit
EPIC246851721b	6202	9.89	11.53	1434	2	Transit
GJ1132b	3270	8.32	1.16	636	2	Transit
GJ1214b	3026	8.78	2.79	627	3	Transit
GJ3470b	3600	7.99	4.48	698	2	Transit
GJ436b	3475	6.07	4.08	681	3	Transit
GJ9827b	4269	7.19	1.59	1198	1	Transit
GJ9827d	4269	7.19	2.03	695	1	Transit
HAT-P-1b	5980	8.86	14.47	1353	3	Eclipse
HAT-P-11b	4780	7.01	4.27	848	2	Transit
HAT-P-12b	4650	10.11	10.52	979	2	Transit
HAT-P-13b	5653	8.98	13.96	1685	2	Eclipse
HAT-P-14b	6600	8.85	15.58	1601	2	Eclipse
HAT-P-15b	5568	9.64	11.63	917	2	Eclipse
HAT-P-16b	6158	9.55	14.14	1664	3	Eclipse
HAT-P-17b	5246	8.54	11.52	793	2	Transit
HAT-P-18b	4803	10.23	10.92	867	2	Transit
HAT-P-19b	4990	10.55	12.42	1032	2	Transit
HAT-P-20b	4595	8.6	9.51	990	3	Transit
HAT-P-21b	5588	10.11	12.18	1303	2	Transit
HAT-P-22b	5302	7.84	12.62	1307	3	Eclipse
HAT-P-23b	5905	10.79	11.96	2094	2	Eclipse
HAT-P-24b	6373	10.54	14.27	1672	2	Eclipse
HAT-P-25b	5519	10.82	12.45	1209	2	Eclipse
HAT-P-26b	5079	9.58	6.91	1013	2	Transit
HAT-P-27b	5300	10.11	11.19	1236	2	Eclipse
HAT-P-28b	5680	11.1	13.3	1412	2	Eclipse
HAT-P-29b	6087	10.3	12.84	1285	2	Eclipse
HAT-P-3b	5185	9.45	10.31	1184	2	Eclipse
HAT-P-30b	6304	9.15	15.8	1675	3	Eclipse
HAT-P-31b	6065	10.08	11.96	1408	2	Transit
HAT-P-32b	6207	9.99	19.2	1823	3	Eclipse
HAT-P-33b	6446	10	20.3	1816	3	Eclipse
HAT-P-34b	6442	9.25	14.81	1333	2	Eclipse
HAT-P-36b	5560	10.6	12.62	1858	2	Eclipse
HAT-P-37b	5500	11.67	12.93	1306	2	Eclipse
HAT-P-38b	5330	10.5	9.05	1101	1	Transit
HAT-P-39b	6430	11.16	17.24	1789	2	Eclipse
HAT-P-4b	5860	9.77	13.98	1472	2	Eclipse
HAT-P-40b	6080	10.01	16.68	1805	2	Eclipse
HAT-P-41b	6390	9.73	22.5	1981	3	Eclipse
HAT-P-42b	5743	10.63	14.05	1460	2	Eclipse
HAT-P-43b	5645	11.76	14.06	1386	2	Eclipse
HAT-P-44b	5295	11.28	13.63	1130	2	Transit
HAT-P-45b	6330	10.2	15.65	1686	2	Eclipse
HAT-P-46b	6120	9.92	14.09	1488	2	Eclipse
HAT-P-49b	6820	9.35	17.45	2171	3	Eclipse
HAT-P-5b	5960	10.48	13.28	1569	2	Eclipse
HAT-P-50b	6280	10.5	14.13	1897	2	Eclipse
HAT-P-51b	5449	11.61	14.19	1216	2	Transit
HAT-P-52b	5131	11.62	11.07	1241	2	Eclipse
HAT-P-53b	5956	12.1	14.46	1818	2	Eclipse
HAT-P-54b	4390	10.33	10.36	839	2	Eclipse
HAT-P-55b	5808	11.63	12.97	1342	2	Eclipse
HAT-P-56b	6566	9.83	16.57	1880	2	Eclipse
HAT-P-57b	6330	9.43	19.09	1895	3	Eclipse
HAT-P-6b	6570	9.31	16.24	1706	3	Eclipse
HAT-P-65b	5835	11.53	20.74	1974	2	Eclipse
HAT-P-66b	6002	11.68	17.45	1944	2	Eclipse
HAT-P-67b	6406	8.9	22.88	1967	3	Transit
HAT-P-7b	6389	9.33	16.57	2272	3	Eclipse
HAT-P-8b	6200	8.95	15.36	1809	3	Eclipse
HAT-P-9b	6350	11.02	15.36	1565	2	Eclipse
HATS-1b	5870	10.58	14.29	1399	2	Eclipse
HATS-10b	5880	11.51	10.63	1435	1	Eclipse
HATS-11b	6563	12.24	17.66	1783	2	Eclipse
HATS-12b	6357	11.39	7.59	1614	1	Transit
HATS-13b	5523	11.98	13.3	1276	2	Eclipse
HATS-17b	5846	10.7	8.53	832	1	Transit
HATS-2b	5227	11.39	12.82	1614	2	Eclipse
HATS-22b	4803	10.94	10.46	877	2	Transit
HATS-24b	6346	11.38	16.32	2121	2	Eclipse
HATS-25b	5715	11.42	13.83	1307	2	Eclipse
HATS-26b	6071	11.44	19.2	1964	2	Eclipse
HATS-27b	6438	11.55	16.46	1693	2	Eclipse
HATS-29b	5670	10.88	13.73	1236	2	Eclipse
HATS-3b	6351	10.69	15.15	1682	2	Eclipse
HATS-30b	5943	10.79	12.89	1446	2	Eclipse
HATS-31b	6050	11.57	18	1867	2	Eclipse
HATS-33b	5659	10.29	13.5	1460	2	Eclipse
HATS-35b	6300	11.12	16.06	2076	2	Eclipse
HATS-39b	6572	11.52	17.23	1683	2	Eclipse
HATS-4b	5403	11.61	11.19	1350	2	Eclipse
HATS-40b	6460	12.15	17.34	2142	2	Eclipse
HATS-41b	6424	11.5	14.59	1716	1	Eclipse
HATS-43b	5099	11.56	12.95	1017	2	Transit
HATS-45b	6450	12.14	14.11	1551	1	Eclipse
HATS-46b	5495	11.96	9.91	1078	2	Transit
HATS-5b	5304	10.7	10.01	1047	2	Transit
HATS-51b	5758	10.87	15.47	1581	2	Eclipse
HATS-52b	6010	12.11	15.17	1922	2	Eclipse
HATS-6b	3724	11.22	10.95	729	2	Transit
HATS-60b	5688	10.99	12.65	1561	2	Eclipse
HATS-61b	5542	11.48	13.11	1252	1	Eclipse
HATS-64b	6554	11.7	18.42	1833	2	Eclipse
HATS-65b	6277	11.1	16.47	1670	2	Eclipse
HATS-67b	6594	12.33	18.49	2240	2	Eclipse
HATS-68b	6147	10.95	13.52	1781	2	Eclipse
HATS-7b	4985	10.98	6.18	1104	1	Transit
HATS-9b	5599	11.48	13.56	1953	2	Eclipse
HD106315c	6277	7.85	4.22	898	2	Transit
HD149026b	6179	6.82	8.12	1715	2	Eclipse
HD17156b	6040	6.76	12.07	904	2	Transit
HD189733b	5052	5.54	12.4	1230	3	Transit
HD209458b	6091	6.31	15.25	1487	3	Transit
HD219134b	4699	3.26	1.57	1040	2	Transit
HD3167b	5528	7.07	1.67	1861	1	Transit
HD3167c	5528	7.07	2.8	630	2	Transit
HD80606b	5561	7.32	11.74	432	2	Transit
HD89345b	5576	7.72	7.24	1114	2	Transit
HD97658b	5175	5.73	2.3	756	2	Transit
HIP41378e	6199	7.72	5.4	530	2	Transit
HIP41378f	6199	7.72	9.99	392	2	Transit
K2-100b	6168	9.18	3.51	1954	1	Transit
K2-107b	6061	11.21	15.65	1845	2	Eclipse
K2-113b	5660	11.95	11.88	1227	1	Transit
K2-115b	5657	11.72	11.81	692	1	Transit
K2-121b	4551	10.62	7.34	807	2	Transit
K2-129b	3459	8.85	1.02	457	1	Transit
K2-132b	4840	9.54	14.27	1578	1	Eclipse
K2-136c	4499	8.37	2.85	558	1	Transit
K2-139b	5370	9.66	8.92	624	2	Transit
K2-140b	5705	11	11.99	1068	2	Transit
K2-141c	4599	8.4	6.85	715	3	Transit
K2-155c	4258	9.5	2.55	544	1	Transit
K2-18b	3457	8.9	2.33	307	1	Transit
K2-19b	5430	11.16	7.58	901	1	Transit
K2-198b	5262	9.23	4.03	698	1	Transit
K2-199c	4648	9.62	2.72	731	1	Transit
K2-232b	6154	8.43	10.97	1015	2	Transit
K2-233d	4950	8.38	2.59	572	1	Transit
K2-237b	6257	10.22	18.11	1952	3	Eclipse
K2-238b	5630	12.03	14.27	1649	2	Eclipse
K2-24b	5625	9.18	5.29	767	1	Transit
K2-24c	5625	9.18	7.34	645	2	Transit
K2-25b	3180	10.44	3.36	521	2	Transit
K2-260b	6367	11.09	17.03	2001	2	Eclipse
K2-261b	5537	8.89	9.33	1089	2	Transit
K2-266b	4285	8.9	3.23	1545	2	Transit
K2-266d	4285	8.9	2.86	584	1	Transit
K2-280b	5742	10.76	7.51	830	1	Transit
K2-287b	5695	9.19	9.29	836	2	Transit
K2-289b	5529	10.64	8.91	841	1	Transit
K2-29b	5358	10.06	13.06	1193	2	Eclipse
K2-3b	3896	8.56	2.13	552	1	Transit
K2-30b	5425	11.09	11.4	1114	2	Eclipse
K2-31b	5280	8.87	11.63	1547	3	Eclipse
K2-32b	5275	9.82	5.03	840	2	Transit
K2-33b	3540	10.03	4.94	801	1	Transit
K2-34b	6071	10.19	13.66	1740	2	Eclipse
K2-52b	7147	11.85	17.62	2242	2	Eclipse
K2-55b	4456	10.47	3.74	933	1	Transit
K2-99b	6217	9.72	11.48	1244	1	Transit
KELT-1b	6518	9.44	12.18	2482	3	Eclipse
KELT-10b	5948	9.34	15.35	1408	3	Eclipse
KELT-11b	5375	6.12	14.81	1741	3	Transit
KELT-12b	6279	9.36	19.53	1840	3	Eclipse
KELT-14b	5720	9.42	19.13	2005	3	Eclipse
KELT-15b	6003	9.85	19.09	1676	3	Eclipse
KELT-16b	6236	10.64	15.53	2509	3	Eclipse
KELT-18b	6670	9.21	17.23	2132	3	Eclipse
KELT-2Ab	6327	7.35	14.81	1799	3	Eclipse
KELT-3b	6304	8.66	17.12	1859	3	Eclipse
KELT-4Ab	6206	8.69	18.64	1863	3	Eclipse
KELT-6b	6102	9.08	14.27	1343	2	Eclipse
KELT-7b	6768	7.54	17.56	2088	3	Eclipse
KELT-8b	5754	9.18	17.78	1714	3	Eclipse
KOI-12b	6820	10.23	16.9	1101	2	Eclipse
KOI-94d	6182	10.93	11.03	915	1	Transit
KPS-1b	5165	10.93	11.3	1482	2	Eclipse
Kepler-12b	5947	12.07	19.25	1512	2	Transit
Kepler-138b	3841	9.51	0.52	490	1	Transit
Kepler-138d	3841	9.51	1.19	374	1	Transit
Kepler-1514b	6251	10.69	11.58	417	1	Transit
Kepler-16b	4450	9	8.27	234	2	Transit
Kepler-18d	5345	11.76	6.84	811	1	Transit
Kepler-396c	5384	10.28	5.19	505	1	Transit
Kepler-422b	5972	12.04	12.62	1150	1	Transit
Kepler-444b	5046	6.7	0.4	1052	1	Transit
Kepler-444c	5046	6.7	0.48	973	2	Transit
Kepler-444d	5046	6.7	0.52	878	1	Transit
Kepler-444e	5046	6.7	0.54	815	1	Transit
Kepler-447b	5493	10.81	18.11	1001	2	Eclipse
Kepler-5b	6297	11.77	15.65	1847	2	Eclipse
Kepler-6b	5647	11.63	14.31	1537	2	Eclipse
Kepler-7b	5933	11.54	17.8	1643	2	Eclipse
Kepler-76b	6409	12.09	14.92	2178	2	Eclipse
Kepler-854b	6179	12.05	16.37	1854	2	Eclipse
Kepler-91b	4550	10.14	15	2089	1	Eclipse
LHS1140b	3216	8.82	1.69	253	1	Transit
LHS1140c	3216	8.82	1.25	473	2	Transit
NGTS-2b	6478	9.8	17.5	1659	2	Eclipse
PH2b	5629	11.12	9.91	325	1	Transit
Qatar-1b	5013	10.41	12.54	1447	2	Eclipse
Qatar-2b	4645	10.62	13.76	1380	3	Eclipse
Qatar-3b	6007	11.22	12.03	1716	1	Eclipse
Qatar-4b	5215	11.52	12.45	1416	2	Eclipse
Qatar-5b	5747	10.96	12.15	1450	2	Eclipse
TRAPPIST-1b	2559	10.3	1.06	442	2	Transit
TRAPPIST-1c	2559	10.3	1.03	377	2	Transit
TRAPPIST-1d	2559	10.3	0.76	318	2	Transit
TRAPPIST-1e	2559	10.3	0.9	277	2	Transit
TRAPPIST-1f	2559	10.3	1.02	242	2	Transit
TRAPPIST-1g	2559	10.3	1.11	219	2	Transit
TRAPPIST-1h	2559	10.3	0.74	191	2	Transit
TrES-1b	5230	9.82	12.4	1167	2	Eclipse
TrES-2b	5850	9.85	14.92	1533	2	Eclipse
TrES-3b	5650	10.61	14.66	1680	3	Eclipse
TrES-4b	6200	10.33	17.67	1821	2	Eclipse
TrES-5b	5171	11.59	13.1	1517	2	Eclipse
WASP-1b	6304	10.28	16.27	1910	2	Eclipse
WASP-10b	4675	9.98	11.85	993	3	Transit
WASP-100b	6900	9.67	14.59	2245	3	Eclipse
WASP-101b	6380	9.07	15.69	1588	3	Eclipse
WASP-103b	6110	10.77	16.77	2565	3	Eclipse
WASP-104b	5475	9.88	12.48	1547	3	Eclipse
WASP-106b	6055	10.16	11.19	1176	2	Eclipse
WASP-107b	4430	8.64	10.31	754	3	Transit
WASP-11b	4800	9.42	12.18	971	2	Eclipse
WASP-113b	5890	10.31	15.46	1519	2	Eclipse
WASP-114b	5940	13.17	14.69	2074	2	Eclipse
WASP-117b	6040	8.78	11.63	1045	2	Transit
WASP-118b	6410	9.79	15.8	1765	2	Eclipse
WASP-119b	5650	10.54	15.36	1602	2	Eclipse
WASP-12b	6300	10.19	19.97	2638	3	Eclipse
WASP-120b	6450	9.88	16.16	1918	2	Eclipse
WASP-121b	6459	9.37	20.47	2413	3	Eclipse
WASP-123b	5740	10.71	14.46	1550	3	Eclipse
WASP-124b	6050	11.31	13.61	1420	2	Eclipse
WASP-126b	5800	9.6	10.53	1520	2	Eclipse
WASP-127b	5620	8.64	15.03	1431	3	Transit
WASP-129b	5900	10.41	10.21	1101	2	Eclipse
WASP-13b	5950	9.12	13.39	1588	3	Transit
WASP-130b	5625	9.46	9.77	854	1	Eclipse
WASP-131b	6030	8.57	13.39	1491	2	Transit
WASP-132b	4775	9.67	9.55	781	2	Transit
WASP-133b	5700	11.18	13.28	1815	2	Eclipse
WASP-135b	5675	11.04	14.27	1757	2	Eclipse
WASP-136b	6260	8.8	15.14	1786	3	Eclipse
WASP-138b	6272	10.49	11.96	1622	2	Eclipse
WASP-139b	5310	10.47	8.78	938	2	Transit
WASP-14b	6475	8.62	15.14	1903	3	Eclipse
WASP-140b	5260	9.16	15.8	1346	3	Eclipse
WASP-141b	5900	11.19	13.28	1573	2	Eclipse
WASP-142b	6010	11.44	16.79	2035	2	Eclipse
WASP-144b	5200	10.9	9.33	1298	1	Eclipse
WASP-145Ab	4900	9.19	9.88	1233	2	Eclipse
WASP-147b	5702	10.86	12.24	1435	2	Transit
WASP-15b	6300	9.69	15.47	1691	2	Eclipse
WASP-151b	5871	11.19	12.4	1318	2	Transit
WASP-153b	5914	11.05	17.01	1748	2	Eclipse
WASP-156b	4910	9.34	5.6	992	1	Transit
WASP-157b	5772	10.76	10.95	1336	2	Transit
WASP-158b	6350	10.88	11.74	1623	2	Eclipse
WASP-159b	6120	11.02	15.14	1889	2	Eclipse
WASP-16b	5700	9.59	13.39	1334	2	Eclipse
WASP-160Bb	5298	11.06	11.96	1145	2	Transit
WASP-162b	5300	10.47	10.97	933	2	Transit
WASP-164b	5806	10.96	12.38	1643	2	Eclipse
WASP-165b	5599	11.02	13.83	1662	2	Eclipse
WASP-167b	7000	9.76	17.34	2416	3	Eclipse
WASP-168b	6000	10.44	16.46	1374	2	Transit
WASP-17b	6550	10.22	20.52	1583	2	Eclipse
WASP-172b	6900	10.13	17.23	1784	2	Eclipse
WASP-173Ab	5800	10	13.17	1916	3	Eclipse
WASP-174b	6400	10.58	14.27	1528	2	Eclipse
WASP-18b	6431	8.13	13.17	2466	3	Transit
WASP-19b	5568	10.48	15.27	2161	3	Eclipse
WASP-2b	5200	9.63	11.75	1326	2	Eclipse
WASP-20b	5940	9.39	16.04	1410	3	Transit
WASP-21b	5800	9.98	11.74	1366	2	Eclipse
WASP-22b	6000	10.32	13.5	1452	2	Eclipse
WASP-23b	5150	10.45	10.56	1158	2	Eclipse
WASP-24b	6075	10.15	15.14	1810	2	Eclipse
WASP-25b	5750	10.17	11.74	1246	2	Eclipse
WASP-26b	6034	9.69	13.28	1718	2	Eclipse
WASP-28b	6150	10.73	13.31	1499	2	Eclipse
WASP-29b	4800	8.78	8.45	996	2	Transit
WASP-3b	6140	9.36	15.58	1717	3	Eclipse
WASP-31b	6302	10.65	17	1610	2	Eclipse
WASP-32b	6140	10.16	10.53	1596	2	Eclipse
WASP-34b	5700	8.79	10.97	1185	2	Eclipse
WASP-35b	5990	9.52	14.27	1483	3	Eclipse
WASP-36b	5959	11.29	14.56	1778	2	Eclipse
WASP-37b	5800	11.09	12.73	1353	2	Eclipse
WASP-38b	6180	8	13.5	1285	3	Transit
WASP-39b	5400	10.2	13.94	1146	2	Transit
WASP-4b	5500	10.75	14.59	1708	3	Eclipse
WASP-41b	5545	9.68	12.07	1271	2	Eclipse
WASP-42b	5315	10.03	12.31	1044	2	Eclipse
WASP-43b	4400	9.27	10.21	1409	3	Eclipse
WASP-44b	5410	11.34	12.51	1381	2	Eclipse
WASP-45b	5140	10.29	12.51	1224	2	Eclipse
WASP-46b	5600	11.4	12.88	1676	2	Eclipse
WASP-47b	5552	10.19	12.37	1291	2	Eclipse
WASP-48b	5920	10.37	16.46	2078	2	Eclipse
WASP-49b	5600	9.75	12.18	1401	2	Eclipse
WASP-5b	5700	10.6	11.93	1745	2	Eclipse
WASP-50b	5400	9.97	13.39	1422	2	Eclipse
WASP-52b	5000	10.09	13.94	1330	3	Eclipse
WASP-53b	4953	10.39	11.79	1079	2	Eclipse
WASP-54b	6100	9.04	17.34	1822	3	Eclipse
WASP-55b	5900	10.4	14.59	1296	2	Eclipse
WASP-56b	5600	10.53	10.31	1230	2	Eclipse
WASP-57b	5600	11.24	11.52	1371	2	Eclipse
WASP-58b	5800	10.28	15.69	1306	2	Eclipse
WASP-6b	5450	10.32	11.3	1210	2	Eclipse
WASP-60b	5900	10.58	9.66	1343	1	Eclipse
WASP-61b	6250	11.01	15.47	1583	2	Eclipse
WASP-62b	6230	8.94	14.48	1459	3	Eclipse
WASP-63b	5550	9.39	15.47	1565	2	Eclipse
WASP-64b	5400	10.96	13.95	1685	2	Eclipse
WASP-65b	5600	10.35	12.2	1518	2	Eclipse
WASP-66b	6600	10.45	15.36	1841	2	Eclipse
WASP-67b	5200	10.13	12.62	1049	2	Eclipse
WASP-68b	5910	8.95	14.48	1516	2	Eclipse
WASP-69b	4700	7.46	12.18	982	3	Transit
WASP-7b	6400	8.4	14.59	1518	3	Eclipse
WASP-70Ab	5763	9.58	12.77	1424	2	Eclipse
WASP-71b	6050	9.32	12.95	2111	2	Eclipse
WASP-72b	6250	9.62	14.16	2104	2	Eclipse
WASP-73b	6030	9.03	15.58	1820	2	Eclipse
WASP-74b	5990	8.22	14.92	1959	3	Eclipse
WASP-75b	6100	10.06	13.94	1743	2	Eclipse
WASP-76b	6250	8.24	20.08	2232	3	Transit
WASP-77Ab	5365	8.4	15.14	1667	3	Eclipse
WASP-78b	6100	11.01	21.18	2345	3	Eclipse
WASP-79b	6600	9.06	18.33	1798	3	Eclipse
WASP-8b	5600	8.09	12.4	948	3	Transit
WASP-80b	4143	8.35	10.96	845	2	Eclipse
WASP-81b	5870	10.89	15.68	1656	2	Eclipse
WASP-82b	6480	8.76	17.78	2225	3	Eclipse
WASP-83b	5510	10.39	11.41	1146	2	Transit
WASP-84b	5314	8.86	10.34	817	2	Eclipse
WASP-85Ab	6112	8.73	13.61	1487	3	Eclipse
WASP-88b	6430	10.32	16.02	1802	2	Eclipse
WASP-89b	5130	11	11.41	1149	2	Transit
WASP-90b	6430	10.25	17.89	1881	2	Eclipse
WASP-92b	6280	11.52	16.03	1921	2	Eclipse
WASP-93b	6700	9.94	17.52	1986	3	Eclipse
WASP-94Ab	6170	8.87	17.34	1536	3	Eclipse
WASP-95b	5830	8.56	13.5	1649	3	Eclipse
WASP-96b	5540	10.91	13.17	1314	2	Eclipse
WASP-97b	5640	9.03	12.51	1576	3	Eclipse
WASP-98b	5473	11.28	12.55	1197	2	Eclipse
WASP-99b	6150	8.09	11.19	1501	2	Transit
Wolf503b	4716	7.62	1.99	808	1	Transit
XO-1b	5750	9.53	12.51	1229	2	Eclipse
XO-2Nb	5762	9.31	10.9	1474	2	Eclipse
XO-3b	6429	8.79	15.47	2091	3	Eclipse
XO-4b	6397	9.41	13.72	1666	2	Eclipse
XO-5b	5430	10.34	12.51	1254	2	Eclipse
XO-6b	6720	9.25	22.71	1983	3	Eclipse

Table 7. Table 7: Planets in the NASA Exoplanet Archive that have been detected by TESS, all of which are found to be suitable for study with Ariel.

	Star Properties		Planet Properties		Maximum	Preferred
Planet Name	Eff Temp [K]	K Magnitude	Radius [R⊕]	Equil Temp [K]	Tier	Method
GJ 143 b	4975	5.375	6.05	508	3	Transit
HD 1397 b	5521	5.988	11.26	1258	2	Eclipse
HD 202772 A b	6272	7.149	16.95	2181	3	Eclipse
HD 219666 b	5527	8.158	4.61	1101	2	Transit
HD 23472 b	4900	7.207	4.39	633	2	Transit
HD 23472 c	4900	7.207	4.27	533	2	Transit
LHS 3844 b	3036	9.145	1.27	827	2	Transit
TOI 172 b	5645	9.722	10.59	1229	2	Transit
pi Men c	6037	4.241	2.00	1193	2	Transit

Equations

$$b=\frac{acos(i)}{R_{\ast }}$$

$$T_p=T_{\ast }{\left(\frac{\sqrt[]{1-A}{R}_{\ast }}{2aϵ}\right)}^{1/2}$$

Full text

We use the Ariel Radiometric model (ArielRad) to simulate the instrument performance and find that $\sim$2000 of these planets have atmospheric signals which could be characterised by Ariel. This list of potential planets contains a diverse range of planetary and stellar parameters. From these we select an example Mission Reference Sample (MRS), comprised of 1000 diverse planets to be completed within the primary mission life, which is consistent with previous studies.

We also explore the mission capability to perform an in-depth survey into the atmospheres of smaller planets, which may be enriched or secondary. Earth-sized planets and Super-Earths with atmospheres heavier than H/He will be more challenging to observe spectroscopically. However, by studying the time required to observe $\sim$110 Earth-sized/Super-Earths, we find that Ariel could have substantial capability for providing in-depth observations of smaller planets.

Trade-offs between the number and type of planets observed will form a key part of the selection process and this list of planets will continually evolve with new exoplanet discoveries replacing predicted detections. The Ariel target list will be constantly updated and the MRS re-selected to ensure maximum diversity in the population of planets studied during the primary mission life.

††journal: ApJ

1 Introduction

As of March 2019, nearly 4000 exoplanets have been discovered (around 3000 of which transit their stars) as well as 2900 Kepler and K2 candidates yet to be confirmed as planets. On top of this, in the next few years Gaia is anticipated to discover up to ten thousand Jupiter-sized planets (Sozzetti, 2010; Perryman et al., 2014) while the Transiting Exoplanet Survey (TESS, Ricker et al. (2014)) is expected to detect thousands of transiting planets of Earth size or larger (Sullivan et al., 2015; Barclay et al., 2018; Huang et al., 2018). Additionally, space surveys CHEOPS (CHaracterising ExOPlanet Satellite, Broeg et al. (2013)) and PLATO (PLAnetary Transits and Oscillations of stars, Rauer et al. (2016)), along with ground-based surveys like NGTS (Next-Generation Transit Survey, Wheatley et al. (2013)), WASP (Wide Angle Search for Planets, Pollacco et al. (2006)), HATNet (Hungarian-made Automated Telescope Network, Bakos et al. (2004)), HATSouth (Hungarian-made Automated Telescope Network-South, Bakos et al. (2013)), MEarth (Nutzman et al., 2009), TRAPPIST (Transiting Planets and Planetesimals Small Telescope, Jehin et al. (2013)) and KPS (Kourovka Planet Search, Burdanov et al. (2016)), will lead to many more transiting exoplanet detections as well as further characterisation of planetary parameters.

Although many planets have been detected and it is thought that planets are common in our Galaxy (e.g. Howard (2013); Batalha et al. (2013); Cassan et al. (2012); Dressing & Charbonneau (2013); Wright et al. (2012)), our current knowledge of their atmospheric, thermal and compositional characteristics is still very limited. Space telescopes such as Hubble and Spitzer, as well as some ground-based observatories, have provided constraints on these properties for a limited number of targets and, in some cases, have identified the key molecules present in their atmospheres whilst also detecting the presence of clouds and probing the thermal structure (e.g. Brogi et al. (2012); Majeau et al. (2012); Stevenson et al. (2014); Sing et al. (2016); Fu et al. (2017); Tsiaras et al. (2018); Zhang et al. (2018); Pinhas et al. (2019)). However, currently available space-based datasets have been achieved with instruments that are not specifically designed for exoplanet science. Therefore, the data obtained is inhibited due to a narrow wavelength coverage and, where observations are taken over a wider spectral range, these observations are usually not simultaneous, potentially injecting an extra source of systematic noise. Additionally, being general observatories, the time allocated to exoplanet science does not fully meet the need of the community. Additionally, the current observatories are not dedicated missions and thus the time allocated to exoplanet science is limited. Hence, the breadth and quality of currently available data is limited by the absence of a dedicated space-based exoplanet spectroscopy mission and thus progress in this area has been slower than desired. A dedicated mission would also provide a heterogeneous dataset, with a consistent pipeline and an well-defined target selection strategy, maximising the scientific yield.

Ariel has been selected as the next ESA medium-class science mission and is due for launch in 2028. During its 4-year mission, Ariel aims to observe $\sim$1000 exoplanets ranging from Jupiters and Neptunes down to Super-Earth size in the visible and the infrared with its meter-class telescope. The analysis of Ariel spectra and photometric data will deliver a homogeneous catalogue of planetary spectra which will allow for the extraction of the chemical fingerprints of gases and condensates in the planets’ atmospheres, including the elemental composition for the most favourable targets. It will also enable the study of thermal and scattering properties of the atmosphere as the planet orbits around the star. A basic summary of the Ariel’s instrumentation is given in Table 1. For more detail on the Ariel design see (Tinetti et al., 2018).

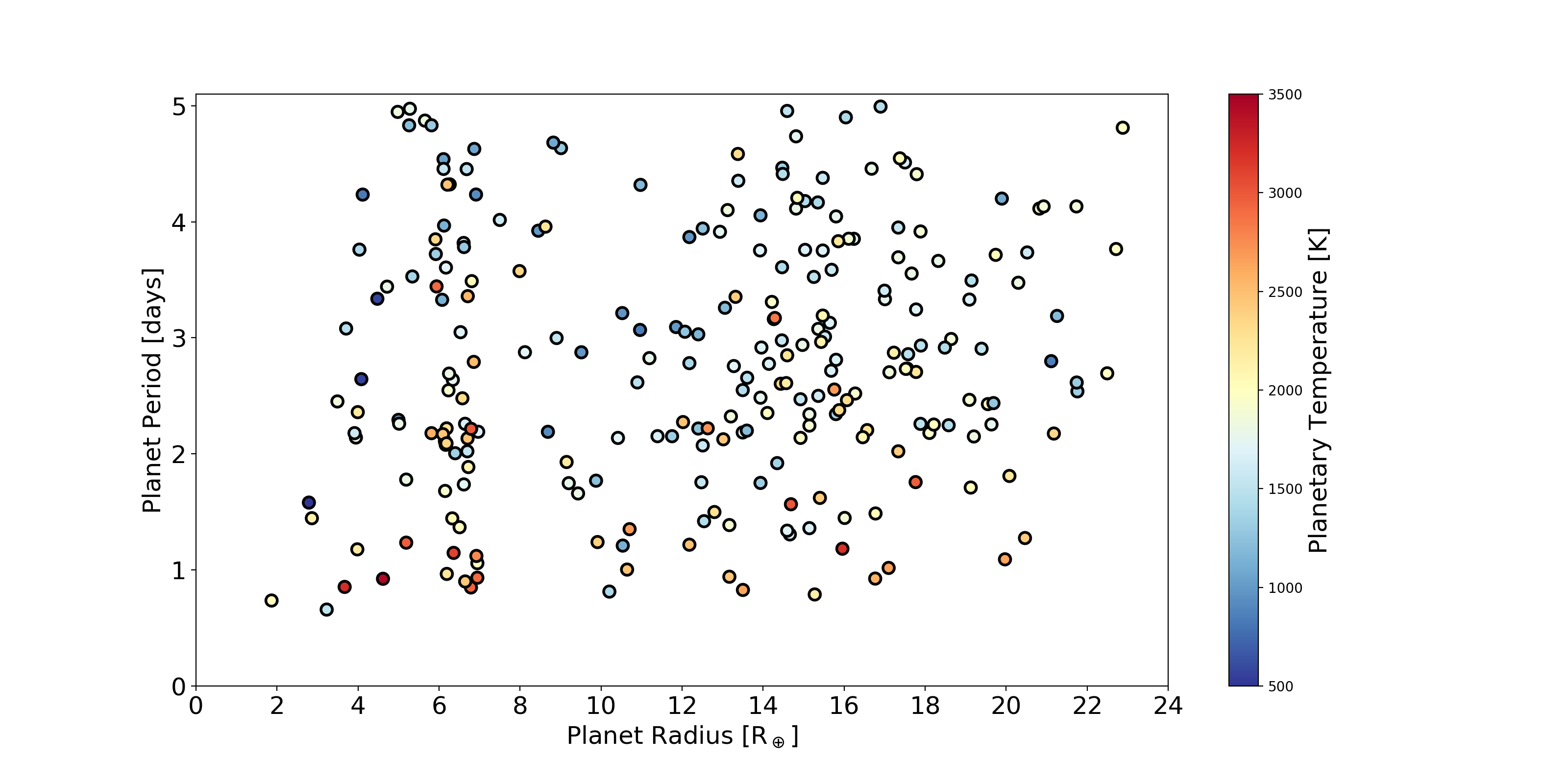

Ariel will enable the simultaneous study of exoplanets at multiple wavelengths through transit, eclipse and phase-curve observations (see e.g. Tinetti et al. (2013) for an overview of the information content of these techniques). During transit, stellar light can be observed passing through the terminator region of the planet (transmission spectroscopy). Similarly, when the star eclipses the planet (i.e. the planet passes behind its host star in our line of sight) the flux difference resulting from the planet’s day-side emission or reflection (emission or reflection spectroscopy) can be measured. Phase-curves are observed by monitoring the star-planet system over a large portion of the planet’s orbit. Here, we focus on transit and eclipse observations as these will be the main science observations. Additional science time to be dedicated to phase-curves is currently under study.

During Phase A, a study of Ariel’s capabilities to observe known and predicted planets was conducted and a Mission Reference Sample (i.e a list of exoplanets to be observed during the primary mission life) of $\sim$1000 potential targets was created (Zingales et al., 2018). Here an updated review of the performance of Ariel’s instrumentation to observe currently-known planets and potential future detections by TESS is undertaken. According to a recent study by Barclay et al. (2018), TESS is anticipated to detect over 4500 planets around bright stars and nearly 10,000 giant planets around fainter stars. The predicted TESS discoveries are incorporated into our analysis to test Ariel’s capabilities. The list of known and predicted exoplanets are analysed using ArielRad (Mugnai et al., 2020), a new Ariel simulator which is more suitable to capture the details and updates of the Ariel’s design as considered in Phase B (see Section 3.2). ArielRad includes greater margins on the instrument noise and an additional noise floor of 20ppm than the previously used ESA radiometric model (Puig et al., 2015). This exercise will be regularly repeated to incorporate new discoveries and validate that the mission’s science goals can be achieved as the instrumentation evolves in Phase B.

Finally we focus part of our simulations and discussion on smaller planets, to refine some of the science objectives considered in Phase A for the mission and address new science questions emerging from the recent discoveries, e.g. the “Fulton gap” (Fulton & Petigura, 2018).

2 Creation of a Catalogue of Exoplanets

2.1 Known Exoplanets

Exoplanetary data was downloaded from NASA’s Exoplanet Archive in order to account for all confirmed planets before being filtered such that only transiting planets were considered. The database was last accessed on 26th February 2019. However, the major exoplanet catalogues are sometimes incomplete and thus an effort has been made here to combine them (for a review of the current state of exoplanet catalogues see Christiansen (2018)).

Hence, the data was verified, and in some cases gaps filled, utilising the Open Exoplanet Catalogue (Rein, 2012), exoplanet.eu (Schneider et al., 2011) and TEPCat (Southworth, 2011). Planets not included in the NASA Exoplanet Archive were not added to the analysis to ensure that only confirmed planets were utilised. As of March 2019, 3022 planets within the NASA Exoplanet Archive were sufficiently characterised for inclusion in this analysis.

Unknown parameters were inferred based on the following assumptions:

• •

If the inclination is known, the impact parameter is calculated from:

[TABLE]

• •

Else, it was assumed that b = 0.5 (i.e. the midpoint of the equator and limb of the star)

• •

Planetary effective temperature (Tp) is estimated from:

[TABLE]

where a greenhouse effect of $\epsilon=0.8$ and a planetary albedo of A = 0.3 (TP $<$ 700K) or A = 0.1 (Tp $>$ 700K) are assumed (Tessenyi et al., 2012; Seager & Mallén-Ornelas, 2003)

• •

Planetary mass (Mp) was estimated utilising Forecaster (Chen & Kipping, 2017).

• •

Atmospheric molecular mass was assumed to be 2.3

2.2 Future Planet Discoveries

TESS and other surveys are predicted to discover thousands of planets around bright stars. In the first two years of operation, TESS is anticipated to detect over 4500 planets around bright stars and more than 10,000 giant planets around fainter stars (Barclay et al., 2018). Here, these predicted TESS discoveries around brighter stars are incorporated into the analysis to highlight Ariel’s capabilities to study anticipated future discoveries. The MAST archive111https://archive.stsci.edu has been utilised to obtain stellar parameters for these planets by cross-referencing the Gaia catalogue. The first planets from TESS have begun to be discovered (e.g. Huang et al. (2018)) but these have not been included in this work to avoid overlap with the predicted yield. The known and predicted exoplanets were compiled into a single dataset ($\sim$7000 planets) which has been used to analyse Ariel’s capabilities and provide an indicative look at the number and type of planets Ariel could observe.

Potential discoveries by other surveys (PLATO, SPECULOOS etc.) have not been included in this analysis as thus far predictions for these surveys just resulted in an estimate of the number of expected detections, but no specific target coordinates and characteristics have been released. When such information becomes available, predicted/real detections from these surveys will be incorporated into this analysis. In any case, these surveys are expected to find thousands of planets which could be suitable for study with Ariel, enhancing the population of planets from which the final target list (Mission Reference Sample) is selected. Hence, although these predicted yields have not been included, planets found by these surveys will be added to the sample as they are detected.

3 Creating a List of Potential Targets

3.1 ESA Radiometric Model

During Phase A, the ESA radiometric model (Puig et al., 2015) was utilised to assess the duration and type of observations needed to meet the mission requirements. Although the NIRSpec instrument will also be used for spectroscopy, the mission requirements are baselined on the AIRS channels, as these bands are typically the most demanding. The ESA Radiometric Model calculates the signal and noise contributions for exoplanet spectroscopic observations (Puig et al., 2015; Sarkar et al., 2017). This model simulates observational and instrumentation effects, utilising target characteristics to assess whether emission or transmission spectroscopy is preferable and to estimate the required number of observations to achieve a desired resolving power and signal to noise ratio (SNR). The ESA radiometric model requires the host star temperature to be in the range 3070-7200K. The Mission Reference Sample during Phase A was obtained using this model (Zingales et al., 2018).

3.2 Ariel Radiometric Model

The ESA radiometric model assumes the systematic noise does not vary from target to target. The Ariel Radiometric model (ArielRad, Mugnai et al. (2020)) has been developed to provide a comprehensive model of the instrument performance. While the ESA radiometric model assumes a constant instrument noise, ArielRad provides systematic noise on a case by case basis. The Ariel team has validated ArielRad against the ESA radiometric model and ExoSim (Sarkar et al., 2017) by running the simulators with the same instrument noise characteristics. ArielRad includes greater margins on the instrument noise and a noise floor of 20ppm.

We use the ArielRad simulator to provide realistic noise models for all planets within the catalogue described in Section 2. These noise models are used to create a new list of potential targets, based on the expected performance from ArielRad. The FGS signal requirements for accurate pointing are now accounted for as these are not included in the ESA radiometric model but are key for target selection. In the ESA radiometric model, simulations were restricted to planets orbiting stars with temperatures in the range 3070-7200K due to the stellar spectral energy distributions (SEDs) used. For ArielRad, this range is expanded to include early type stars and M-dwarfs such as Trappist-1 by using a broader range of SEDs from the Phoenix atmospheric models increasing the diversity of input catalogue.

3.3 The 3 Tier Approach

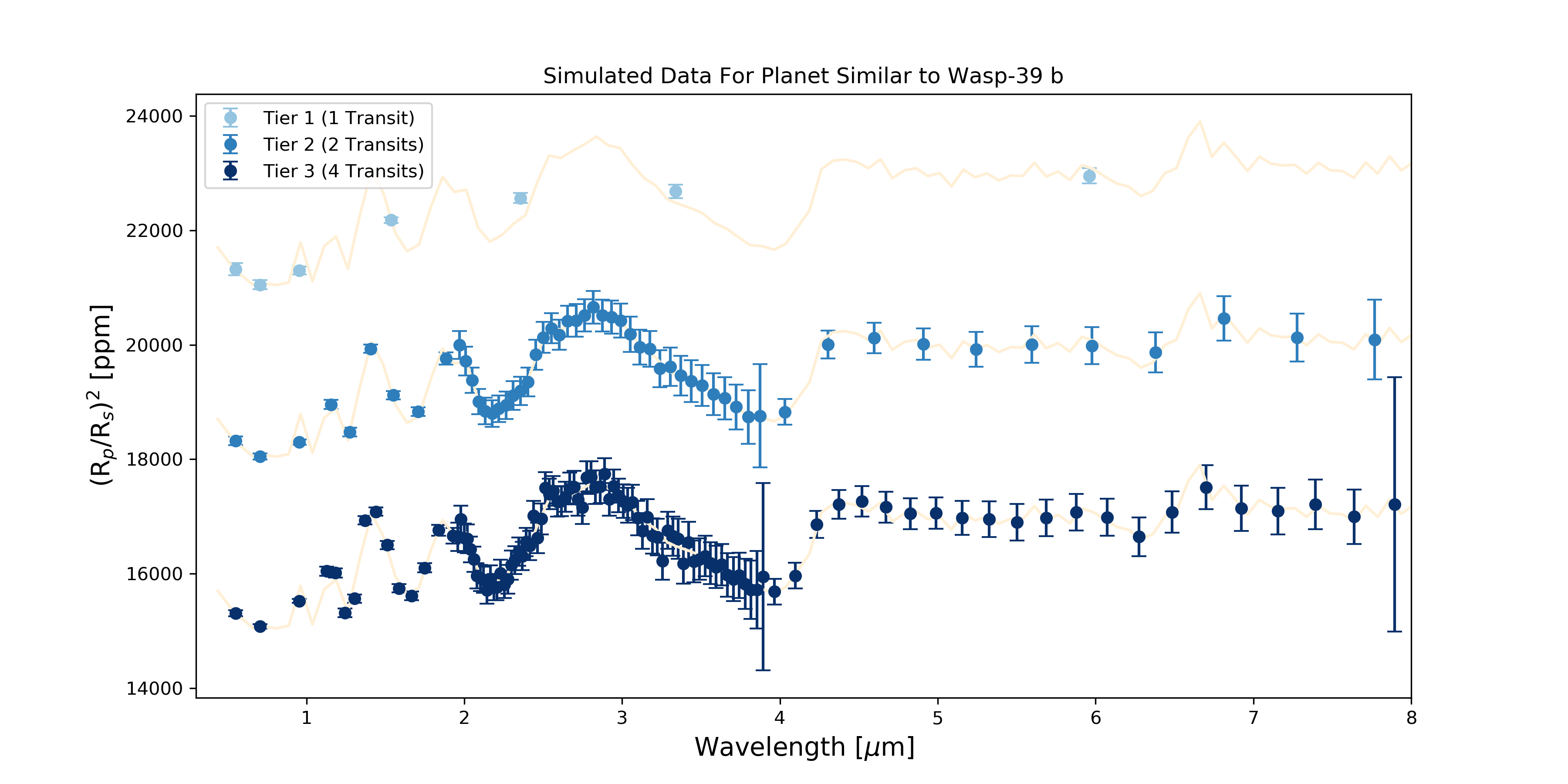

Planning of observations with Ariel is based around a tiered approach and Table 2 describes the requirements on each tier. As envisaged in Phase A, a survey tier aims to observe 1000 planets with low resolution spectroscopy to produce a statistically viable dataset of a diverse range of exoplanetary atmospheres. Tier 1 observations will help refine orbital and planetary parameters and constrain (or remove) degeneracies in the interpretation of mass-radius diagrams. Additionally, it will offer the opportunity to generate colour/colour and colour/magnitude diagrams and investigate what fraction of planets have a transparent atmosphere, are partially clouded or are completely overcast.

From this initial survey of planets, around half will be selected for spectroscopic follow-up: Tier 2 spectroscopic measurements are crucial for uncovering atmospheric structure and composition. Additionally, Tier 2 observations are critical to search for potential correlations between atmospheric chemistry and basic parameters such as planetary size, density, temperature, stellar type and metallicity. Tier 3 will consist of repeated observations of select group of benchmark planets ($\sim$50-100) around bright stars which can be observed at high resolution within a small number of transits or eclipses to provide a very detailed knowledge of the planetary chemistry and dynamics (see Tinetti et al. (2018) for an in-depth description of the tiering system and the mission science questions and requirements). Figure 1 shows simulated observations in each tier for a planet with parameters similar to Wasp-39 b. The addition of a Tier 4 – including phase-curves and an ad-hoc observational strategy for targets of interest which do not fit into the tier system – has been recently discussed in the Ariel team.

3.4 A List of Potential Targets for Ariel

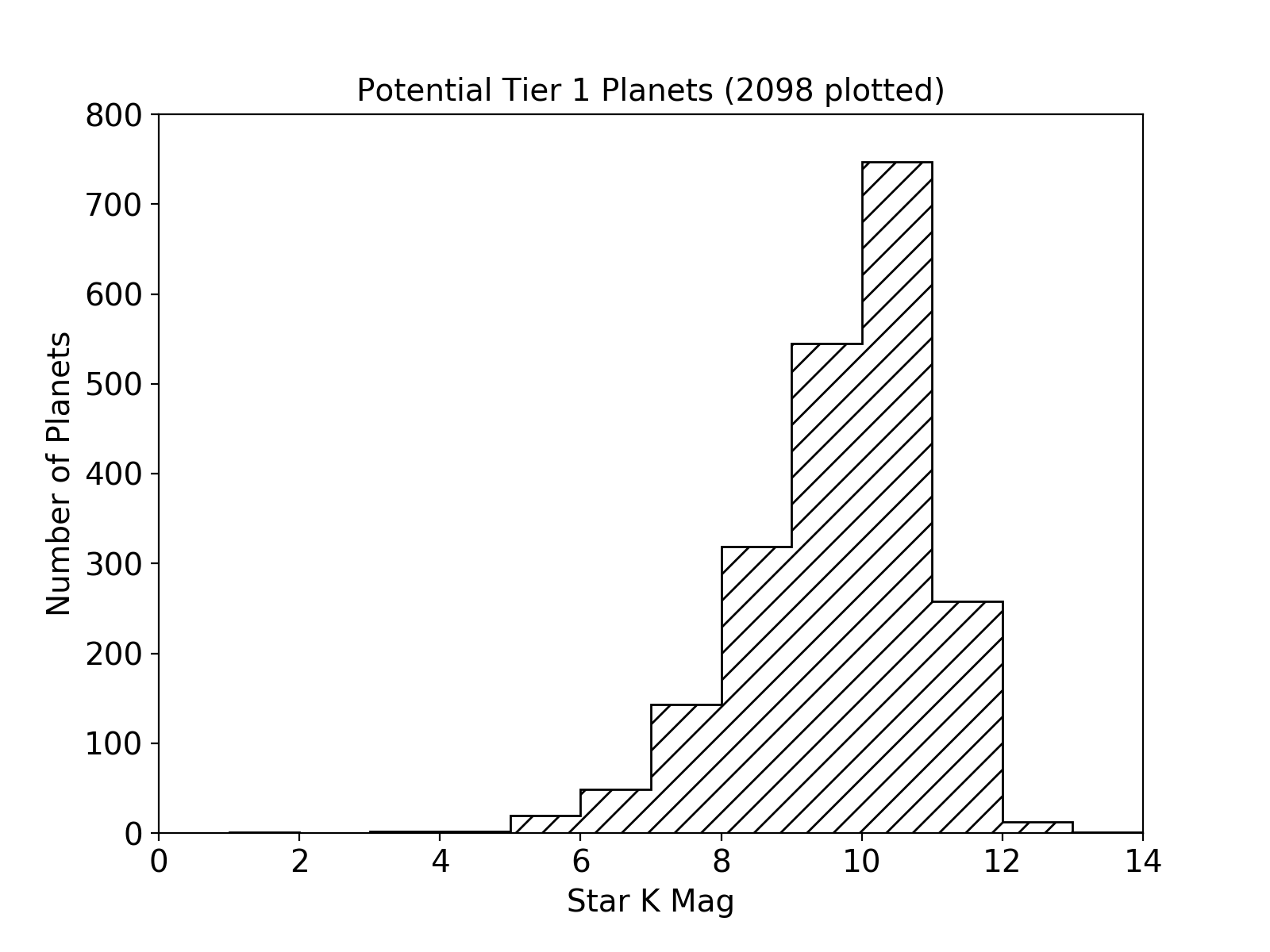

From the noise models created by ArielRad, the catalogue of known and predicted planets was cut down to those for which an SNR $\geq$ 7 could be achieved on the atmosphere within a reasonable number of transits or eclipses. For Tier 1, there are over 2000 potential planets for which the science requirements can be reached with 5 observations or less, far more than the 1000 that will make up the MRS. Being over-saturated in the number of possible targets is useful as it allows for redundancy in the scheduling of observations and it means there is a large catalogue of planets to draw from to allow for a diverse sample to be observed. The distribution of various stellar and planetary parameters for these potential Tier 1 targets is shown in Figures 2 and 3. These show that (i) to achieve a sample of $\sim$1000 planets, Ariel does not need to observe faint stars (except for special targets of interest) (ii) there is a large diversity in planet temperature and radius (iii) the stellar type of planet hosting stars is varied although FG stars are more dominant (iv) the majority of potential targets are located within a few hundred parsecs (v) most potential targets are close to their stars and have orbits of under 20 days (vi) although the metallicities of many of the host stars is unknown, there is a wide range of values included in the sample.

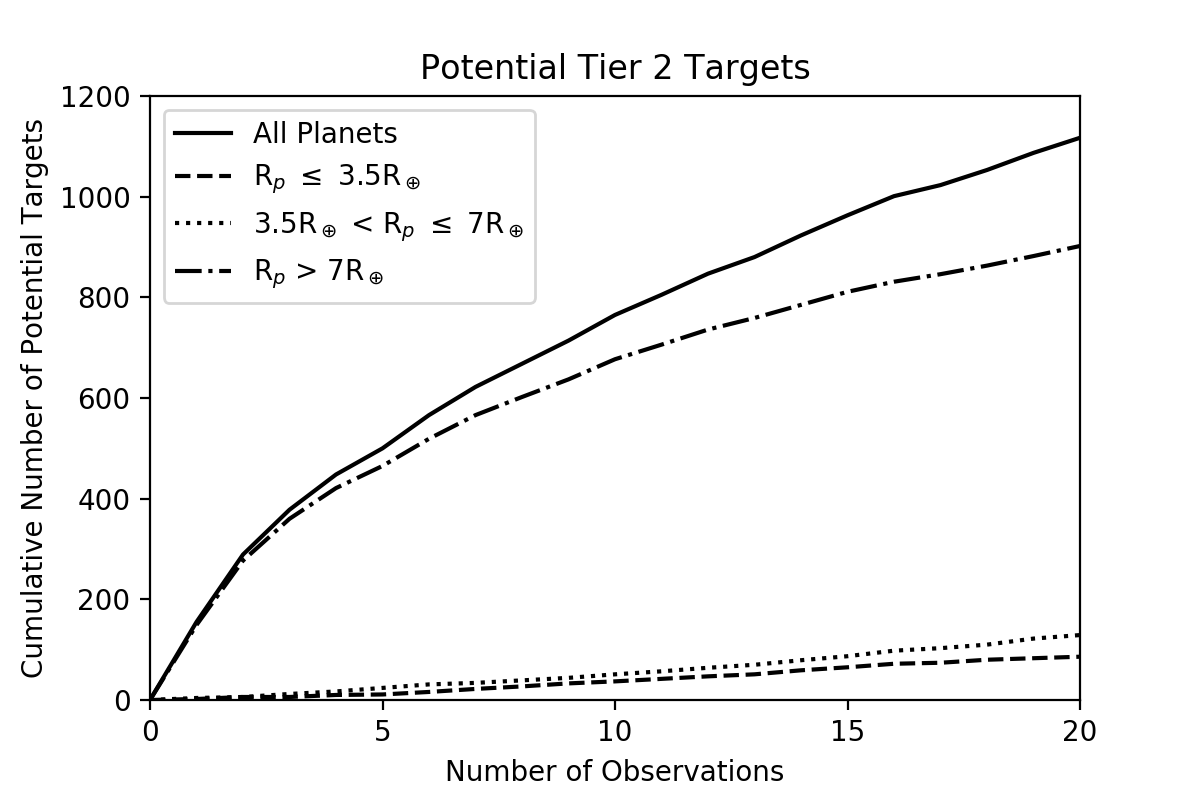

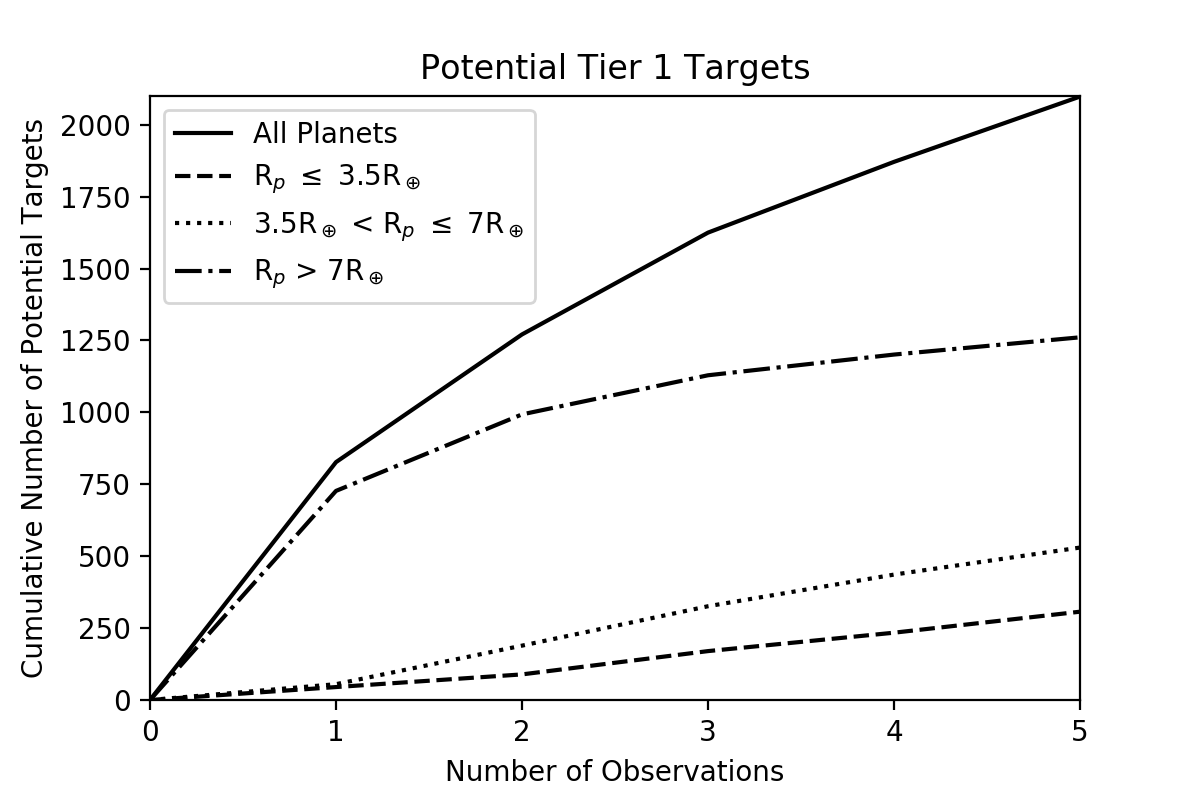

Additionally, $\sim$1000 planets are found to be potentially observable in Tier 2 and Figure 4 details the distribution of the number of observations required for these planets as well as those in Tier 1. We find that the number of observable Jupiters (Rp $>$ 7R⊕) is approaching saturation at 5 observations while the number of suitable smaller planets are rising with increased observations. Ariel will have constant visibility of the ecliptic poles with a partial visibility of the whole sky at lower latitudes. The sky location of possible planets for study in each tier with Ariel is shown in Figure 5 and they are found to be well distributed across the sky but with a noticeable gap close to the ecliptic due to a lack of TESS coverage in its primary mission. A table of the currently-known exoplanets which are suitable for study with Ariel is included in the Appendix.

3.5 Creation of an Example Mission Reference Sample

Ariel has a nominal life of 4 years (extendable to 6) including a 6-month commissioning and calibration phase. Additionally, scheduling constraints, such as telescope housekeeping, slewing between targets and data down-link, reduce the available science time. Ariel will therefore have $\sim$3 years of usable science time during its nominal life. Having established that there will be a large number of planetary atmospheres that are suitable for characterisation with Ariel we explore the number that could be observed over the mission lifetime.

The approach adopted during Phase A consisted of choosing a very diverse, and as complete as possible, combination of star/planet parameters while minimising the number of repeated observations by selecting the planets around the brightest stars. Here, we chose three main parameters to classify the potential targets by: stellar effective temperature, planetary radius and planetary equilibrium temperature. Each parameter is split into a number of classes and Table 3 summarises these distinctions. We bin the planets by these 3 parameters, and where possible, ensure that at least 2 planets within each bin are contained within the Mission Reference Sample. Future selections will also classify planets by their density and the metallicity of the host star. These five basic characteristics are thought to have a large impact on the chemistry and thus choosing planets with a broad range in these parameters should yield a multifarious exoplanet population for study.

Adopting this strategy we obtain a distribution of planets by radius and temperature as displayed in Figure 6. Planets selected for Tier 3 are also included in Tier 2 and, in turn, Tier 1 planets incorporate all those studied in Tier 2. Although not considered in-depth here, 10% of mission time is reserved for Tier 4 and we highlight potential targets for phase-curves in Figure 7. For larger planets, these are those which can easily be observed at Tier 2 resolutions in both transit and eclipse while for smaller planets, it is those that can be studied at Tier 1 resolutions in both methods. Phase-curve targets are also required to be on relatively short orbits and thus are generally found to be hot (or very-hot).

Different observing strategies have been discussed within the Ariel team including acquiring data in both transit and eclipse for some Tier 2 planets. Such observations would increase our ability to characterise the atmospheres of these targets but would reduce the total number of planets studied. Table 4 highlights the science time (i.e. time on target) required to achieve different observations. These discussions are ongoing and further studies will be undertaken but it can be seen that acquiring data in the secondary method (i.e. the method which gives a lower SNR) for some of the best planets will not require significant mission time. However, the total number of Tier 2 planets may have to be sacrificed to achieve this.

Hence, ArielRad simulations combined with the TESS yield suggested by Barclay et al. (2018) predict that Ariel will be able to observe 1000 planets within the primary mission (e.g. Figure 6). The number of planets within this updated version of Mission Reference Sample is similar to that of the Phase A study although we find an increase in the number of Tier 2 planets compared to the results of Zingales et al. (2018) on top of the 10% mission lifetime dedicated to Tier 4 planets. Therefore, from the input catalogue of currently-known and predicted planets, ArielRad simulations suggest Ariel should be more than capable of achieving the science requirement of characterising the atmospheres of hundreds of diverse extra-solar planets.

4 Characterisation of Small Planets

Section 3.2 shows that from the catalogue of known planets and predicted TESS detections ArielRad produces a Mission Reference Sample consistent with that created in Phase A with the ESA radiometric model and predicted targets by Zingales et al. (2018). Choosing the Mission Reference Sample in this way, naturally leads to a proportionally larger number of gaseous planets being selected for observation. However, warm and hot Super-Earths (and Earth-sized planets) are well within Ariel’s capabilities, especially given that they are expected to be more numerous around bright stars.

Smaller planets, particularly those which could be rocky, are an intriguing population of bodies, especially since the discovery of the “Fulton gap” at $\sim$1.8R*⊕* by the California-Kepler Survey (CKS) (Fulton & Petigura, 2018). This distribution seemingly indicates two populations of small planets: those which have retained a volatile dominated atmosphere and those which are expected to have lost this more primordial envelope (e.g. Owen & Wu (2017)) or never had one. Characterising the atmospheres of planets with radii smaller than 3.5 $R_{\oplus}$, and in particular those within the transition region from rocky to gaseous, is fundamental in uncovering the nature of this population and would be very informative for planetary formation and evolution theories. More specifically, understanding whether the atmosphere is still primordial (i.e. H/He rich, possibly thick) or more evolved (i.e. richer in heavier elements, thin or completely absent) may constrain formation (formed in situ or remnants of more massive bodies which have migrated to closer orbits) and evolution scenarios (e.g. hydrogen escaped, a secondary atmosphere which might hint at the interior composition).

Here we explore a different option for the Ariel MRS, with more emphasis on the interpretation of the nature of smaller planets, by specifically devoting mission lifetime to studying this dichotomy of small worlds.

In the Mission Reference Sample studied in Section 3.2, $\sim$110 planets with a radius less than 3.5 Earth radii were selected for study over around 600 observations ($\sim$2100 hours of science time) in all three tiers. These planets are located on both sides of the “Fulton gap”. A key goal of Tier 1 is to discover the fraction of small planets with hydrogen/helium envelopes. For this reason, the number of required observations to detect an atmosphere is estimated assuming a low mean molecular weight so that if a planetary atmosphere has a primordial composition, this atmosphere should be detected with high confidence. Additionally, the atmospheric trace gases should be accurately constrained if the planet is observed in Tier 2 or 3. If no detection is made, the planet either has (i) an atmosphere with a higher molecular weight or (ii) opaque clouds across all wavelengths or (iii) no atmosphere at all.

In all likelihood, some fraction of these planets will have far heavier atmospheres (higher mean molecular weight) and thus will be harder to characterise, requiring more observations to obtain the observational requirements in each tier. In particular, additionally to the H/He atmospheric content, the fraction of H2O present in an atmosphere is also very important to constrain formation/evolution scenarios and the delivery of volatiles to the inner part of the planetary system. “Water worlds”, i.e. planets with a significant amount of H2O on their surface or in the subsurface (e.g. Léger et al. (2004)), or magma ocean planets with a steam atmosphere (e.g. Hamano et al. (2015)), are expected to have atmospheres with a large fraction of H2O.

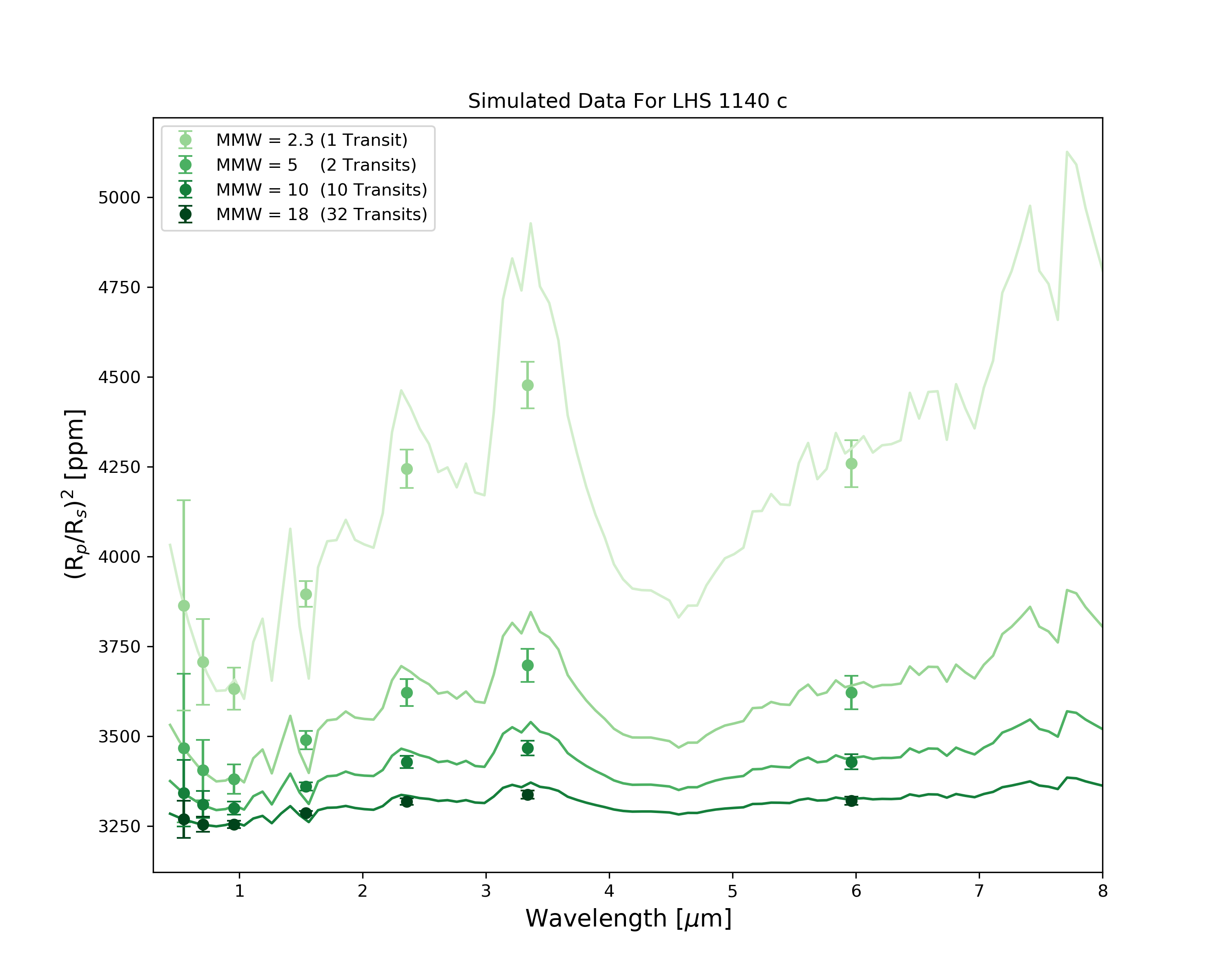

However, the characteristics of a planet’s atmosphere (if present) cannot be known before observations are undertaken, unless these targets are observed previously with other facilities from space or the ground. To quantify the fraction of lifetime needed to characterise the atmospheric composition of small planets with an atmosphere heavier than H/He, we select the small planets (Rp $<$ 3.5$R_{\oplus}$) from the example MRS for further study. The science time required to achieve Tier 1 resolutions (with SNR $>$ 7) for different atmospheric compositions is determined and compared to the Tier 1 time assumed in Section 3 (Table 5).

As expected, the required number of observations (and thus science time) rises with the increasing atmospheric weight. While the atmospheres of smaller planets will be easily probed if H/He dominated, heavier atmospheres would require significant mission time to observe. Distinguishing between primary and secondary atmospheres should be possible for all small planets studied here within a reasonable science time. However, the assumed noise floor of 20ppm limits the characterisation at very high mean molecular weights where the signals become increasingly small. Smaller, cooler planets may also have a nitrogen based atmosphere and we find that, for the Earth-sized planets below 500K in this chosen sample, 25-130 transits would be required to achieve Tier 1 resolutions if the atmospheres had a molecular weight of 28. Figure 8 shows simulated data for one such planet, LHS 1140 c (Ment et al., 2019), for various atmospheric weights. The dampening in the spectra due to a heavier atmosphere can clearly be seen. Generally, the best targets could be easily characterised regardless of their atmospheric composition while for others achieving the required signal uncertainty will be difficult if the atmosphere is dense. We note that the impact of clouds is expected to be well captured in the simulations for higher mean molecular weight, where signals are up to fourteen times smaller than the ones for atmospheres which are cloud-free and H/He-rich. Additional observations of the planet at different phases may provide further constraints on the cloud types and distribution (e.g. Charnay et al. (2015)). Observations of smaller planets could be undertaken in a tiering style system where the data is analysed after several visits with decisions made on continuing the observations based on the results seen. Science goals for such an observing strategy could include the determination of whether an atmosphere is primary, secondary or not present.

From this preliminary study, we appreciate that providing significant time to observe smaller planets would be valuable for their more in-depth chemical/cloud characterisation after an initial survey. Here we have presented a possible option including the in-depth analysis of $\sim$110 small planets, but of course different combinations of strategies could and will be considered in this and future mission Phases to optimise the breadth and depth of the Ariel sample during its mission lifetime and prioritise its science objectives. If much of the primary mission is dedicated to an in-depth survey of smaller planets, the total number of planets observed by Ariel would be reduced. Hence, some of the more speculative questions could be left for a potential extended mission. This study shows that Ariel has the potential to characterise the atmospheres of planets of all sizes. Data from such a multifarious population would be invaluable for our knowledge of planetary formation and evolution.

5 Discussion

5.1 Dependence of Predicted Yields on the Accuracy of Planetary Occurrence Statistics

Here, expected TESS detections have been used to estimate the number, and type, of exoplanets that could be potential targets for ARIEL. Predicted yields for future missions are, of course, speculative in natural and highly dependent on the assumptions of the study. In Barclay et al. (2018) the planetary occurrence statistics for AFGK stars were taken from Fressin et al. (2013) and from Dressing & Charbonneau (2013) for M dwarfs. More recent studies may suggest higher occurrence rates for some classes of small planets (e.g. Mulders (2018); Fulton & Petigura (2018)) and the differences between these could affect the yield of TESS. The NASA Exoplanet catalogue currently contains 9 confirmed TESS planets and many more are yet to be added. Comparing these first detections to the expected yield does not result in any large discrepancies and all these current TESS planets are found to be excellent targets for study with Ariel (see Table 7). However, with only a handful of confirmed detections it is too early to speculate on the accuracy of the predicted yield. Further constraints on the occurrence of planets on short periods is likely to be a key outcome of the TESS mission, particularly for M dwarfs. In any case, the primary mission of TESS is due to finish in 2020 and thus the yield from this mission will be known long before Ariel launches.

5.2 Scheduling of Observations

Here, the scheduling of observations has not been considered although studies in the Ariel consortium are being undertaken which will utilise the Mission Reference Sample (Garcia-Piquer et al., 2015; Morales et al., 2015). Such studies will provide a greater understanding of the impact of scheduling constraints (telescope housekeeping, slewing between targets etc.) and a key issue may be observation overlaps (i.e. two planets transiting at the same time). Having additional, back-up targets is likely to be useful for scheduling purposes and this study shows that there should be an over-saturation of suitable planets for characterisation. The list of potential targets constructed here will be used as an input for such efforts.

5.3 Tiering System for Smaller Planets

The ambiguity in the atmospheric composition of smaller planets results causes complexities when planning via the originally proposed three tier observing structure. Additionally, the major constituents of an atmosphere could be recovered at resolutions below that of Tier 2. Therefore, a separate tiering system for smaller planets which is based around confirming the presence (or absence) of a clear atmosphere of a given mean molecular weight may be required. Once the catalogue of potential planets is completely formed of known planets, additional considerations in the selection of smaller planets such as photo-evaporation and isolation flux (e.g. Owen & Wu (2017); Swain et al. (2018)) will need to be taken into account to ensure a diverse population of planets are studied.

5.4 Next Steps and Final Selection of the Mission Reference Sample

The Mission Reference Sample presented here is merely one example of a population of planets that Ariel could observe. The selection of the final list of targets will require far more discussion and input from scientists from across the exoplanet community, particularly as the predicted planets from this list are replaced with actual detections. In the coming years, observations with current ground and space-based facilities (e.g. VLT, Hubble, Spitzer) and future observatories (e.g. E-ELT (Brandl et al., 2018), JWST (Greene et al., 2016), Twinkle (Edwards et al., 2018)) will further characterise the atmospheres of the known exoplanet population. These studies will increase our knowledge of these distant worlds and may begin to highlight trends in atmospheric chemistry. Such insights will inevitably be used to optimise the Ariel Mission Reference Sample, maximising the synergies between different facilities, and to this end a website has been created to host the list of potentially observable planets 222https://arielmission.space/target-list/. This open-access site will contain all available datasets on these planets, highlighting planetary systems for which further characterisation would be beneficial (e.g. refinement of ephemerides or stellar parameters) and providing the chance for the entire community to contribute to the Ariel target selection. Therefore, Ariel will embrace the exoplanet community by offering open involvement in the observation planning process as well as providing regular timely public releases of high quality data products at various processing levels throughout the mission. Additionally, targets within the list are being used as the basis for simulated data in several data challenges organised to engage the exoplanet community in Ariel333https://ariel-datachallenge.azurewebsites.net. These efforts, particularly the continuous dialogue with the wider community, will ensure that the Ariel observation strategy facilitates the maximum possible science yield for the entire exoplanet field.

6 Conclusions

An updated analysis of the currently-known planets and predicted TESS discoveries, as well as Ariel predicted performances, supports and improves the conclusions of the previous Mission Reference Sample (MRS) study from Phase A: Ariel will be capable of characterising 1000 exoplanet atmospheres during the primary mission life. The total number of potential planets to choose this MRS from is found to be over 2000 meaning there is a surplus of targets. Within this list of planets there is a large range of planetary and stellar parameters, ensuring that the MRS is diverse; a key requirement for meeting Ariel’s mission objectives. The example MRS selected here allows for 1000 planets to be studied, with high-quality spectroscopic data being obtained for 600 of these during the 4 year primary mission life. The selection also reserves mission time for other observation strategies (Tier 4). These could include phase-curves, non-transiting planets or targets of interest which are not captured by the current tier system.

Additionally we have explored the mission capability to perform an in depth analysis of small planets’ atmospheres, which are expected to be more diverse compared to the gaseous ones. Given the increased observational difficulty to probe atmospheres heavier than H/He, significant mission time may have to be allocated to this task. Trade-offs between studying more planets, observing fewer targets but in greater detail, and/or choosing interesting planets which require more observational time, will form a key part in the selection of the final Mission Reference Sample. Generating an optimal catalogue of potential candidates is key in these efforts and this list of targets will be constantly updated with new planet discoveries.

Acknowledgements

The authors wish to thank the members of the European Space Agency Ariel SAT and the Ariel consortium for useful comments and suggestions. This research has made use of the NASA Exoplanet Archive, which is operated by the California Institute of Technology, under contract with the National Aeronautics and Space Administration under the Exoplanet Exploration Program. Additionally, the Open Exoplanet Catalogue, TEPCat and exoplanet.eu have been utilised as supplementary data sources. This work has been funded through the ERC Consolidator grant ExoLights (GA 617119) and the STFC grants ST/P000282/1, ST/P002153/1 and ST/S002634/1.

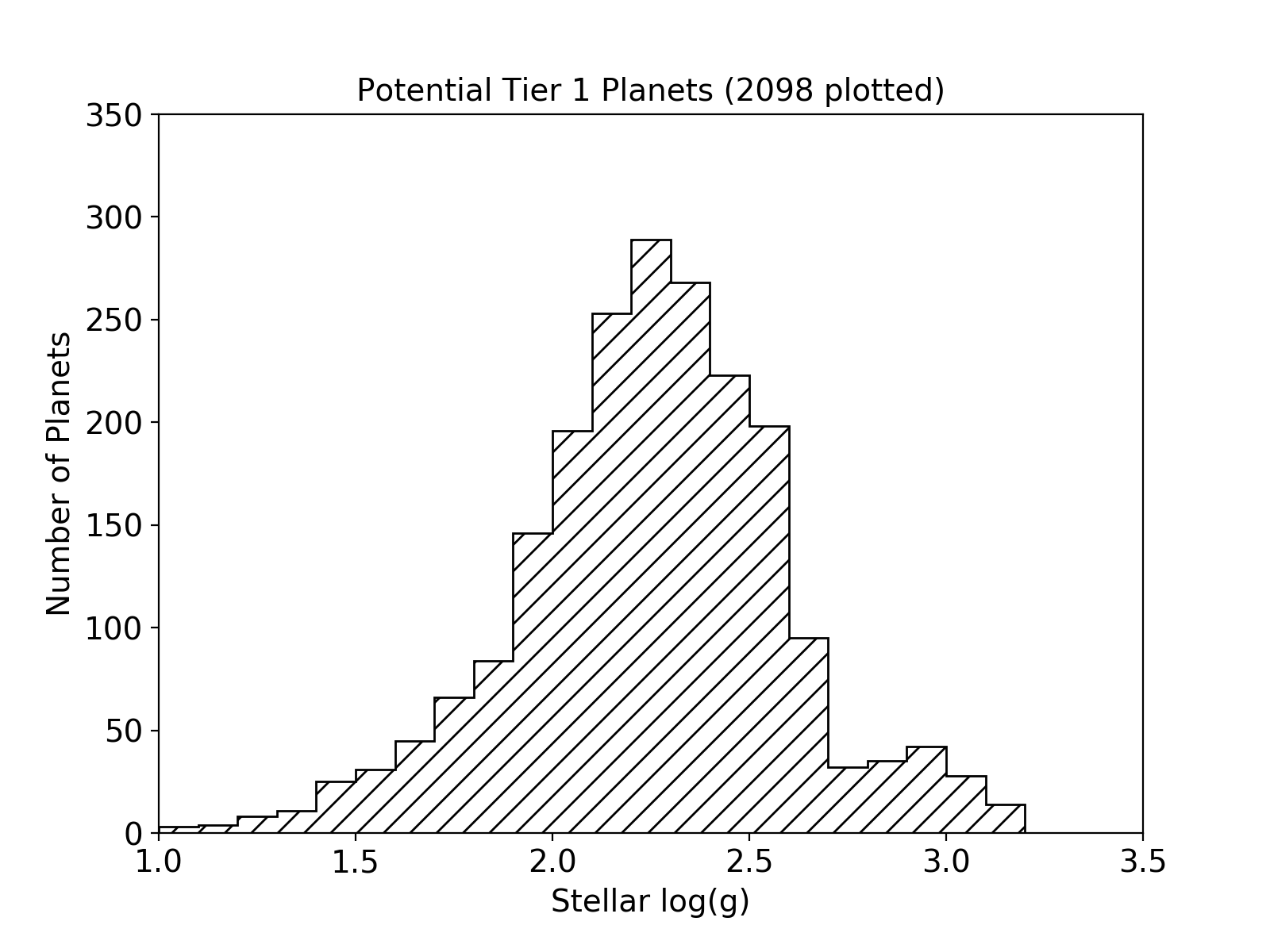

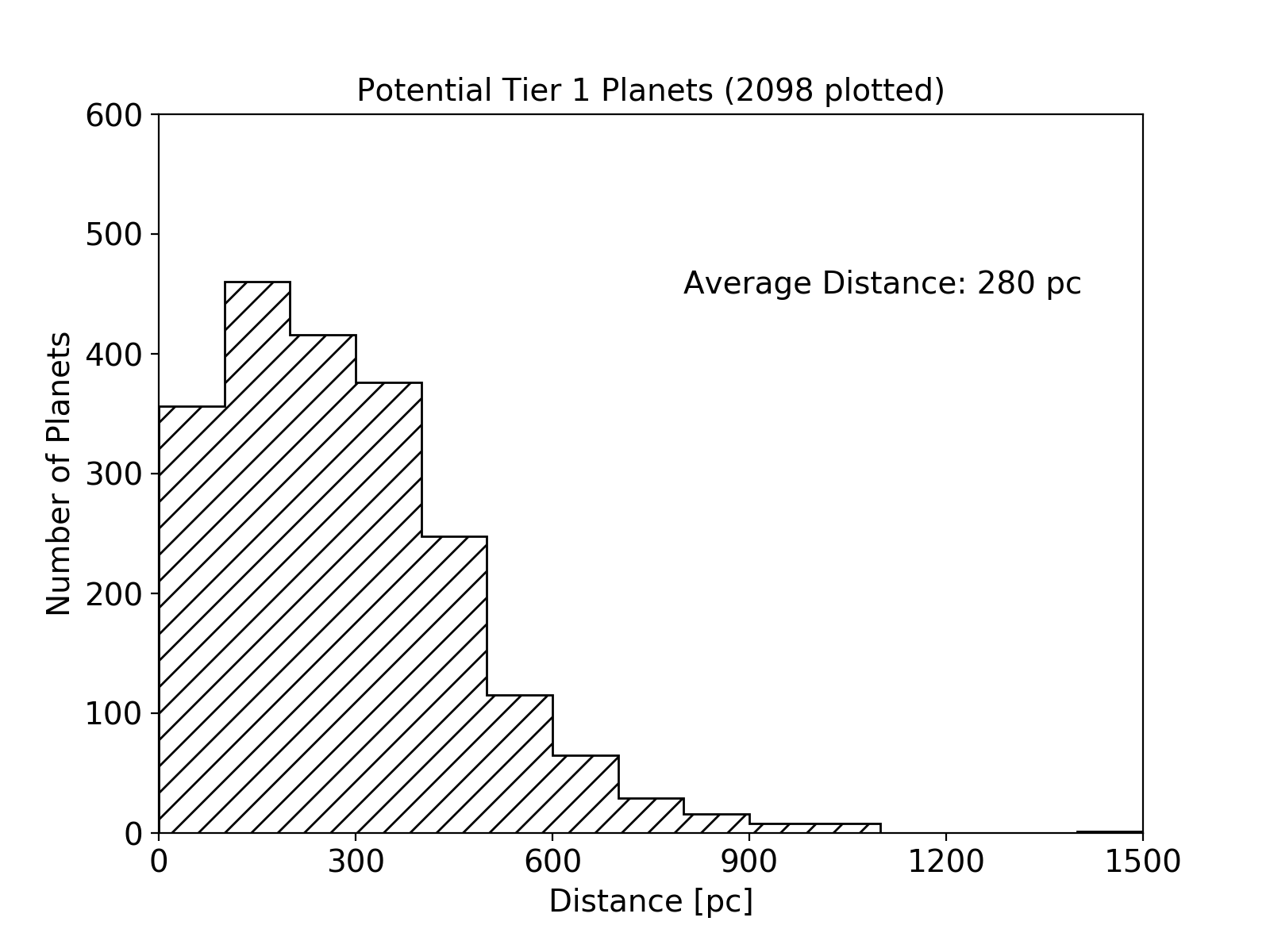

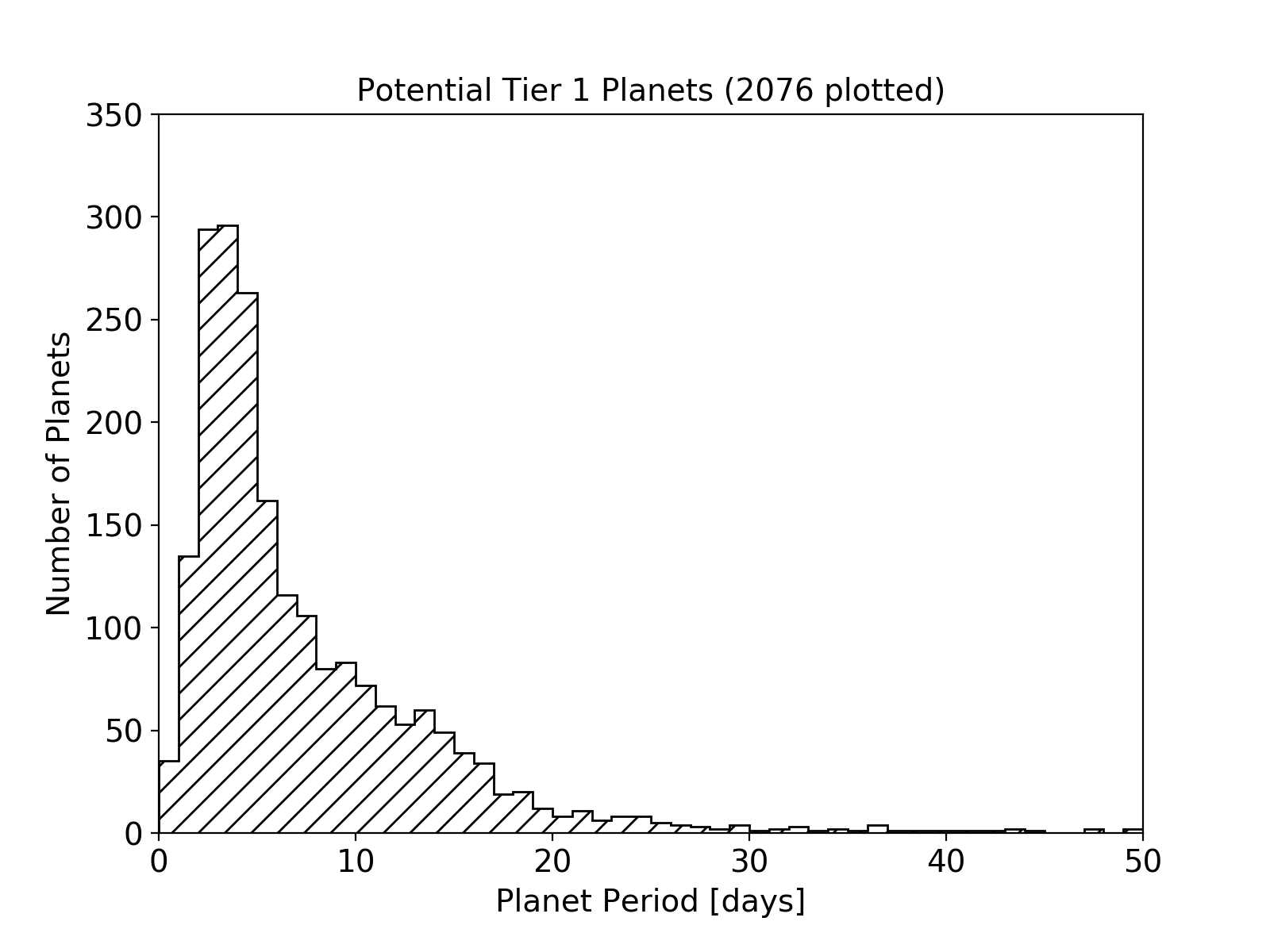

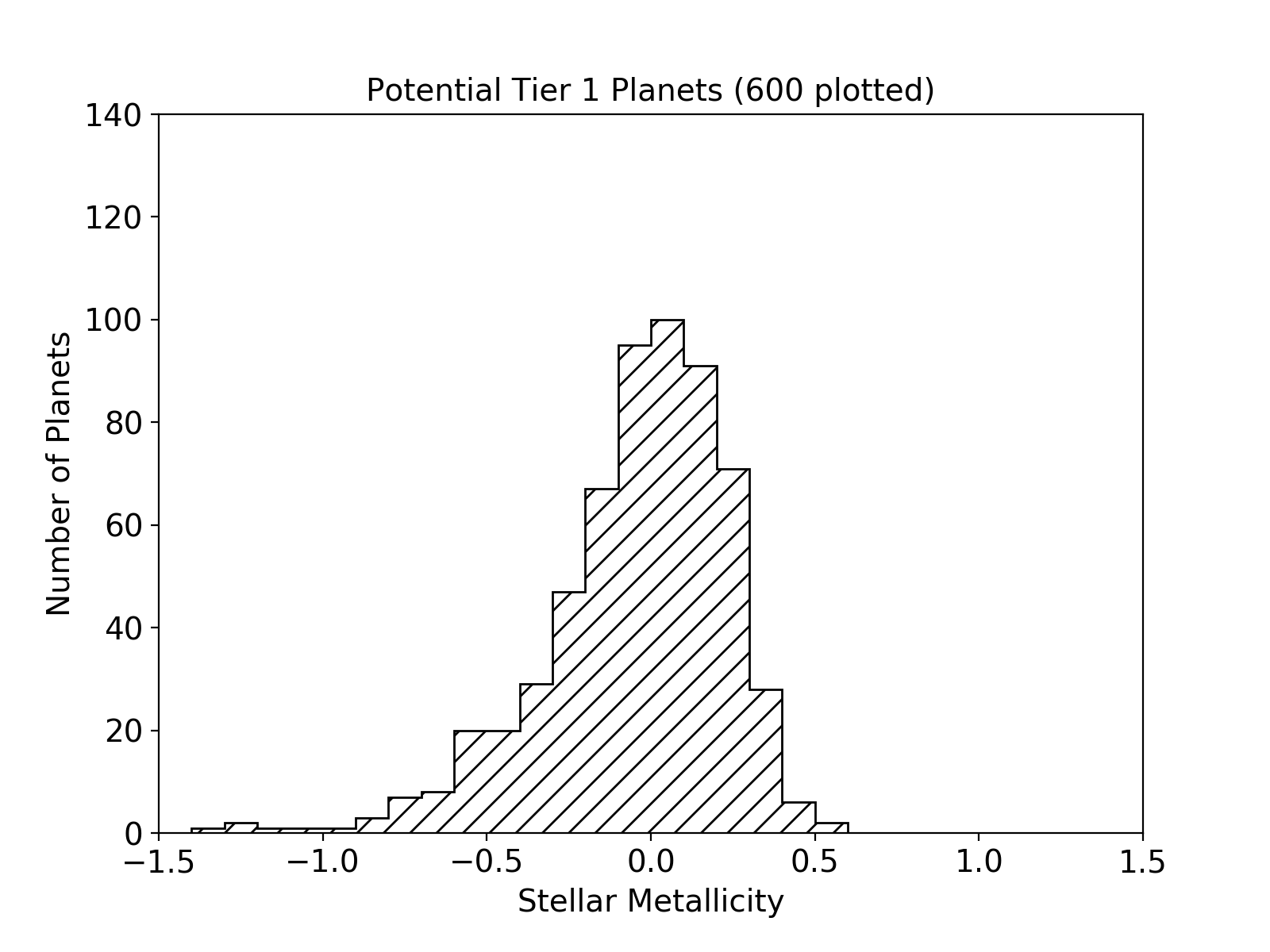

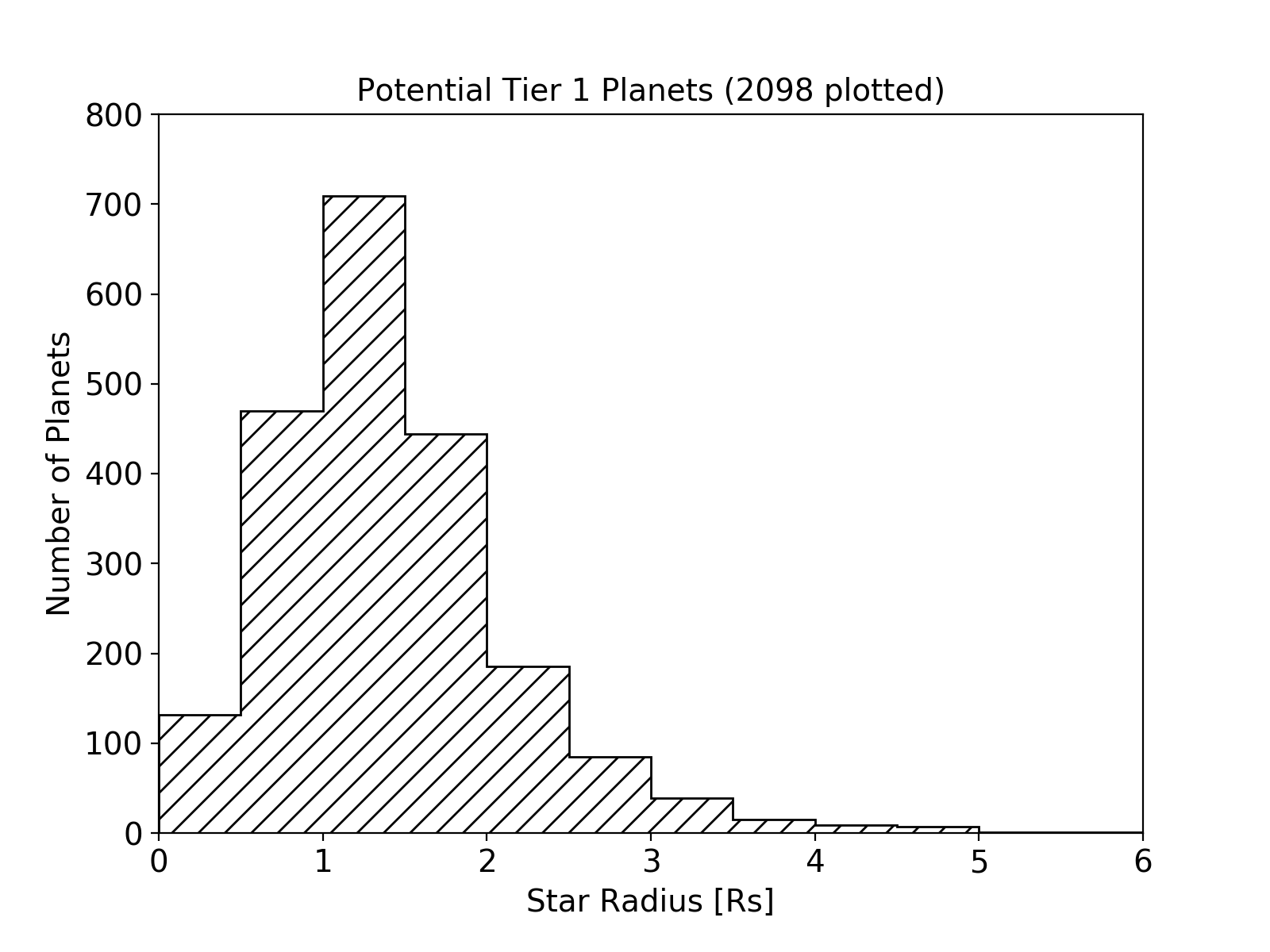

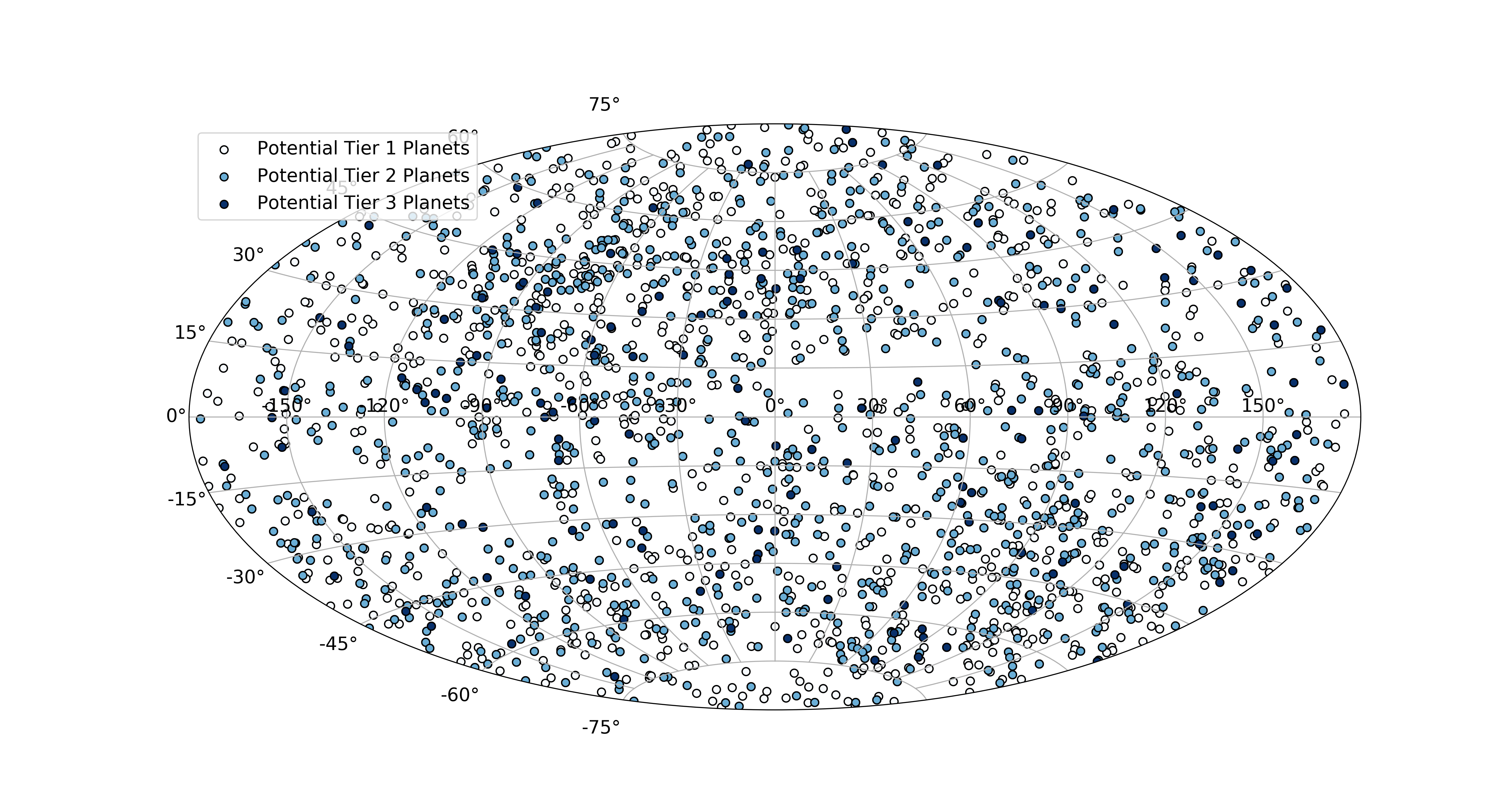

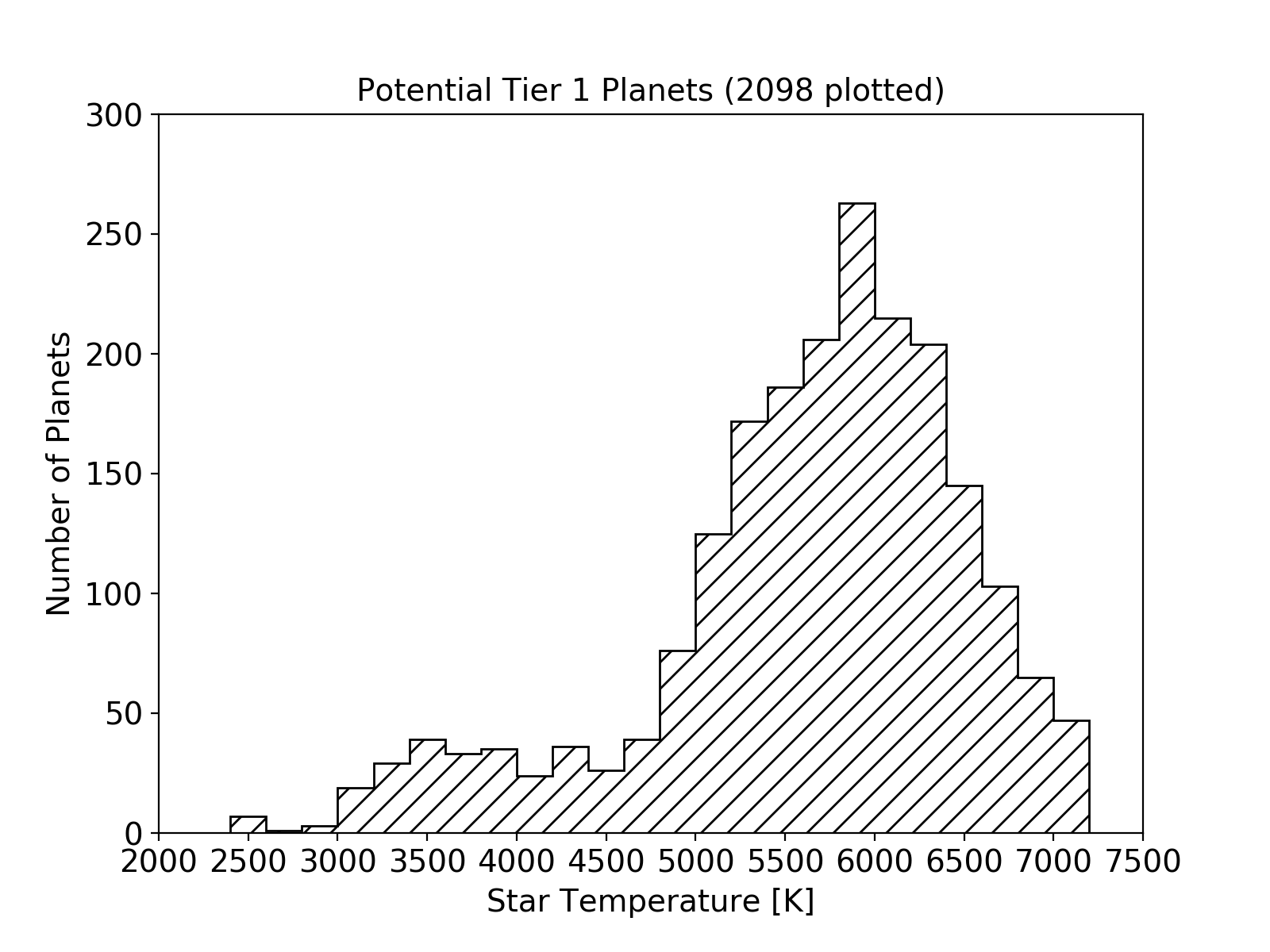

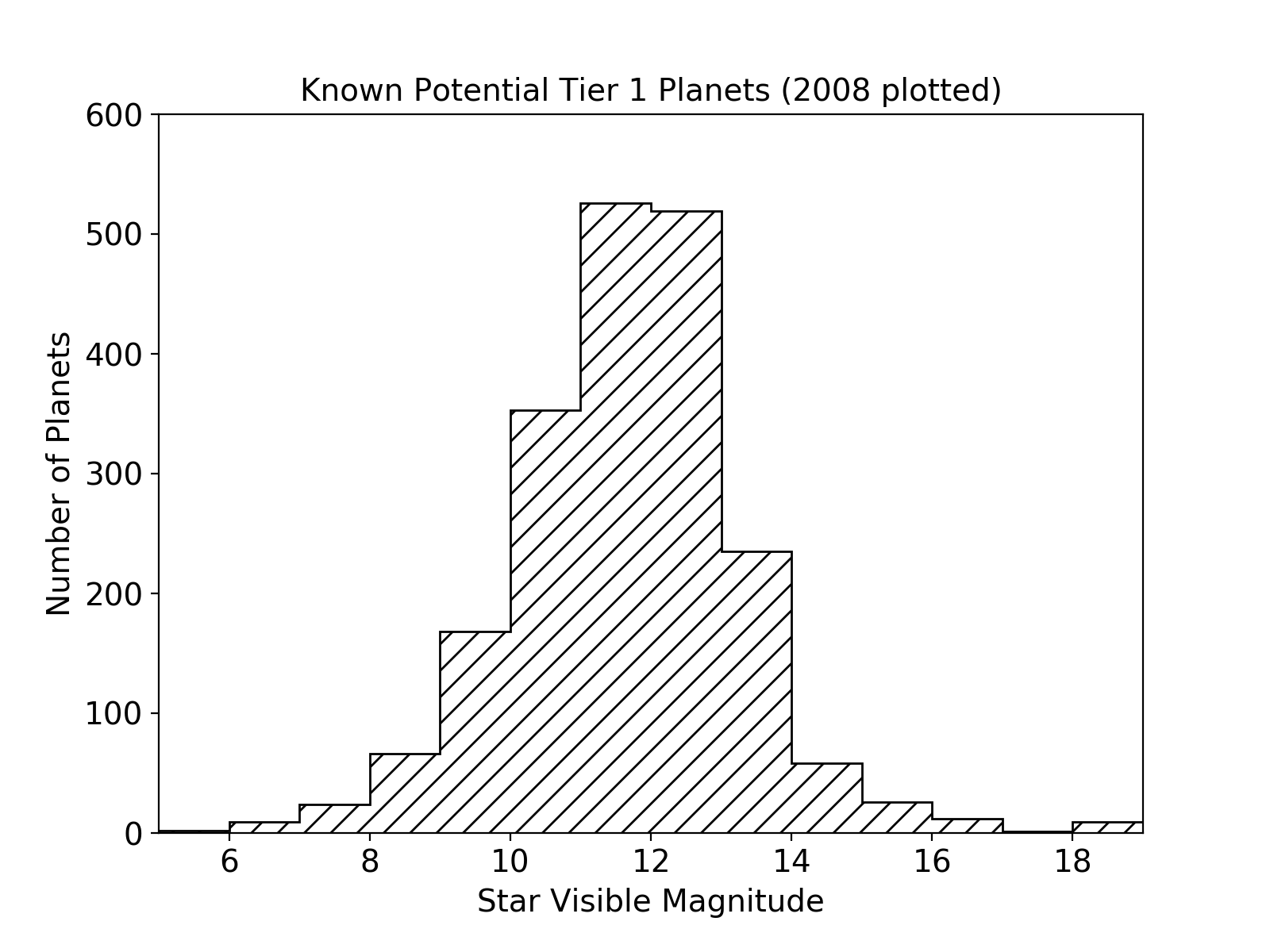

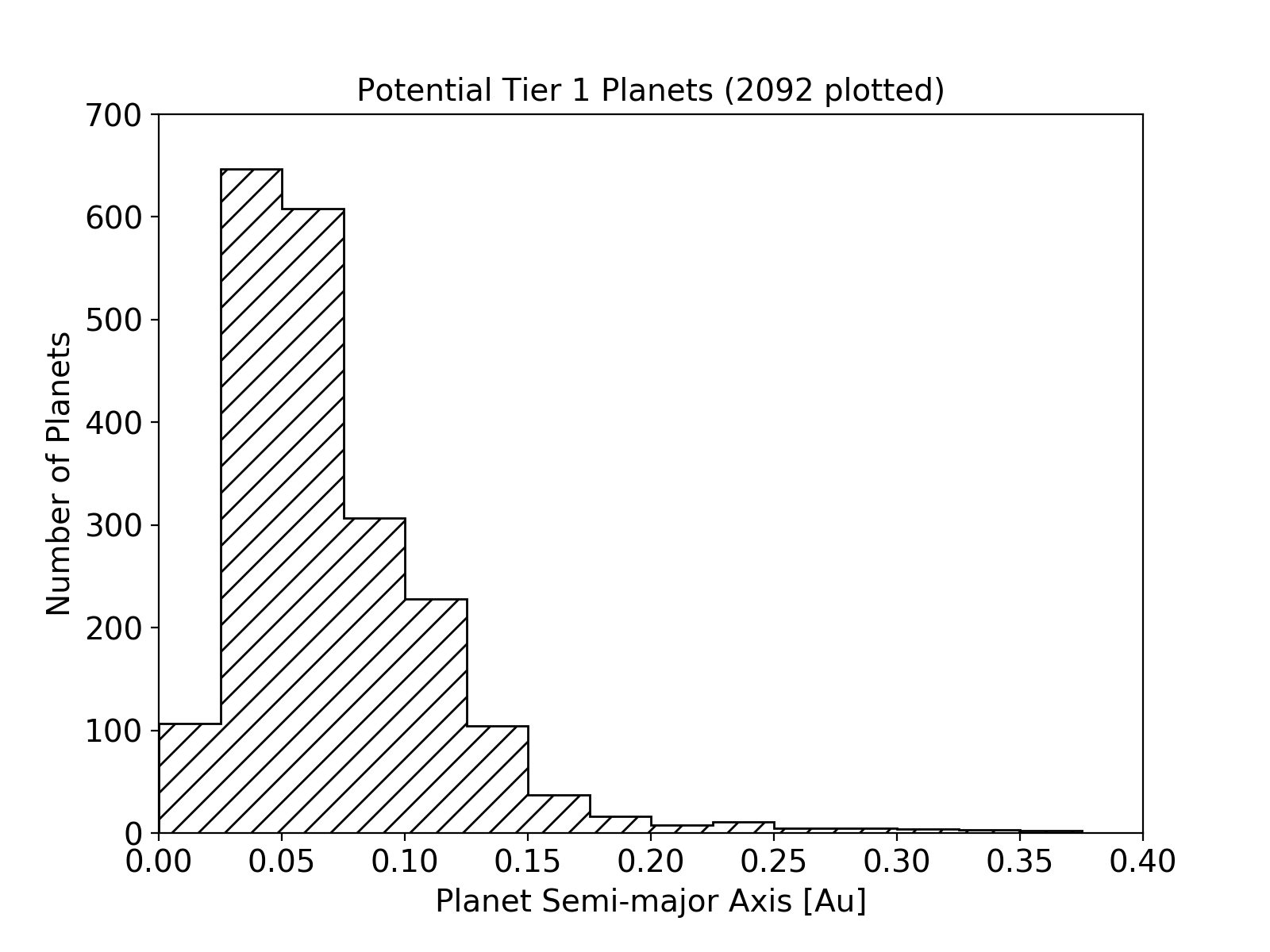

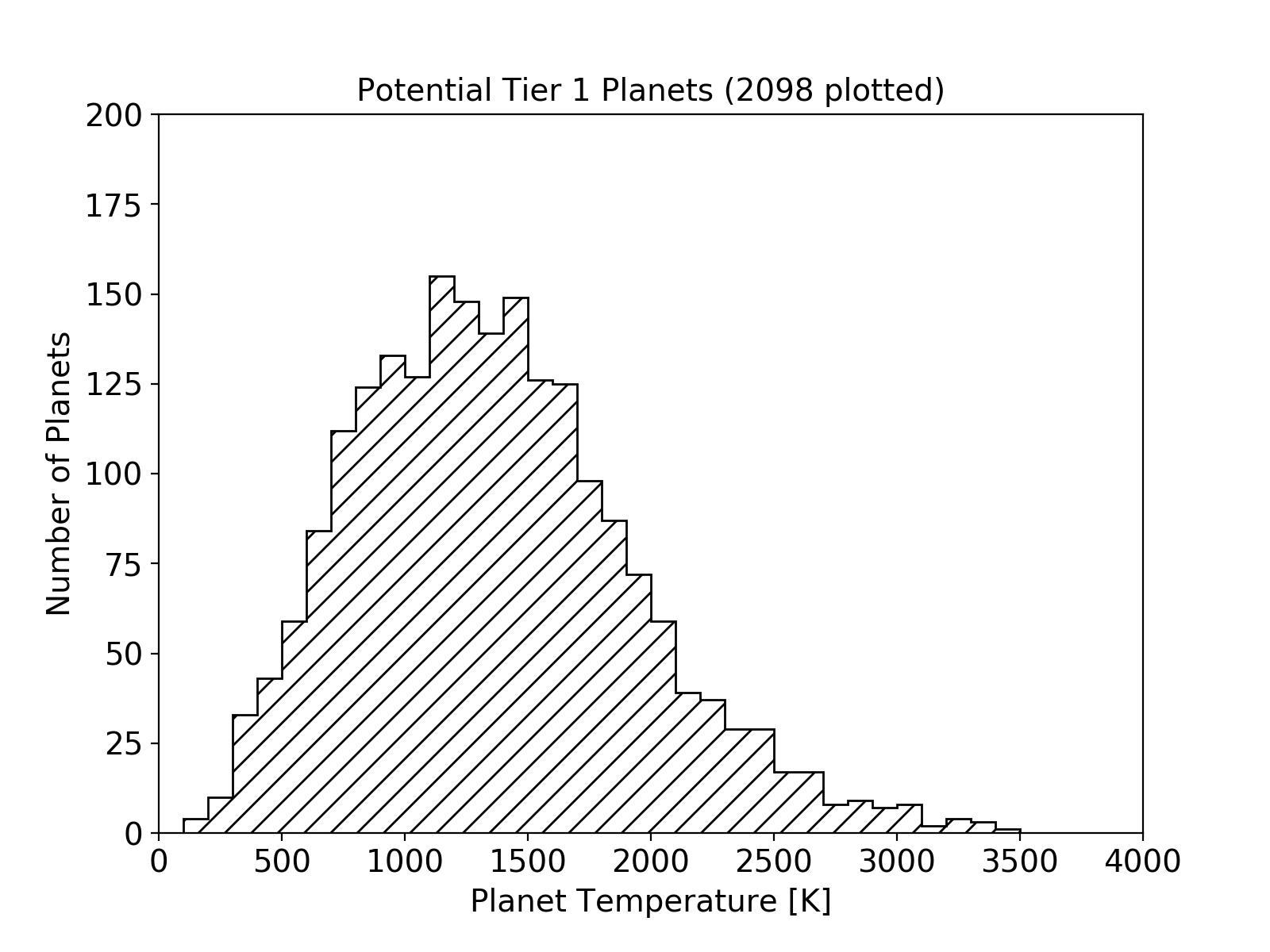

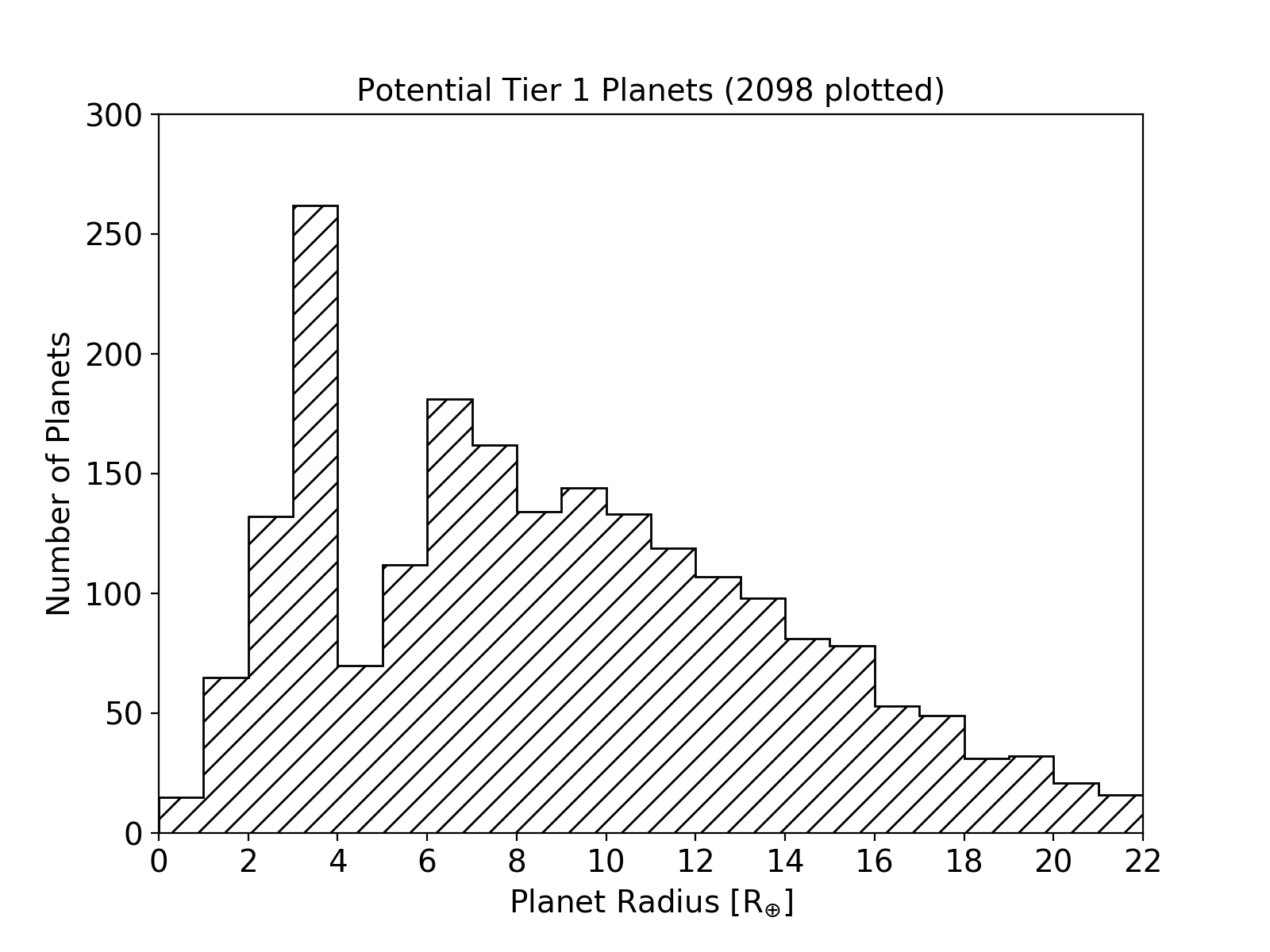

7 Appendix
