An Auxiliary-Field Quantum Monte Carlo Perspective on the Ground State   of the Dense Uniform Electron Gas: An Investigation with Hartree-Fock Trial   Wavefunctions

Joonho Lee; Fionn D. Malone; Miguel A. Morales

arXiv:1905.04361·physics.chem-ph·August 20, 2019

An Auxiliary-Field Quantum Monte Carlo Perspective on the Ground State of the Dense Uniform Electron Gas: An Investigation with Hartree-Fock Trial Wavefunctions

Joonho Lee, Fionn D. Malone, Miguel A. Morales

PDF

TL;DR

This paper evaluates the effectiveness of Hartree-Fock trial wavefunctions in phaseless auxiliary-field quantum Monte Carlo for the uniform electron gas, demonstrating high accuracy for dense systems and highlighting challenges at lower densities.

Contribution

It introduces and benchmarks the use of Hartree-Fock trial wavefunctions in ph-AFQMC for the uniform electron gas, providing new high-accuracy data and insights into their performance.

Findings

01

RHF+ph-AFQMC is highly accurate for systems with $r_s \,\le\ 2.0$

02

RHF+ph-AFQMC outperforms certain coupled-cluster methods for $r_s \,\le\ 3.0$

03

Challenges remain for $r_s = 5.0$, indicating the need for better trial wavefunctions.

Abstract

We assess the utility of Hartree-Fock (HF) trial wavefunctions in performing phaseless auxiliary-field quantum Monte Carlo (ph-AFQMC) on the uniform electron gas (UEG) model. The combination of ph-AFQMC with spin-restricted HF (RHF+ph-AFQMC), was found to be highly accurate and efficient for systems containing up to 114 electrons in 2109 orbitals, particularly for $r_{s}$ $\leq$ 2.0. Compared to spin-restricted coupled-cluster (RCC) methods, we found that RHF+ph-AFQMC performs better than CC with singles, doubles, and triples (RCCSDT) and similarly to or slightly worse than CC with singles, doubles, triples, and quadruples (RCCSDTQ) for $r_{s}$ $\leq$ 3.0 in the 14-electron UEG model. With the 54-electron, we found RHF+ph-AFQMC to be nearly exact for $r_{s}$ $\leq$ 2.0 and pointed out potential biases in existing benchmarks. Encouraged by these, we performed RHF+ph-AFQMC on the 114-electron UEG…

Figures6

Click any figure to enlarge with its caption.

Tables6

Table 1. Table 1: The range for the critical Wigner-Seitz radius, r s c superscript subscript 𝑟 𝑠 𝑐 r_{s}^{c} , for the 14-, 54-, and 114-electron UEG models. Above r s c superscript subscript 𝑟 𝑠 𝑐 r_{s}^{c} , the R to U instability occurs and thus UHF solutions appear.

$N$	Range
14	$r_{s}^{c} \in (3.5, 4.0]$
54	$r_{s}^{c} \in (4.5, 5.0]$
114	$r_{s}^{c} \in (2.5, 3.0]$

Table 2. Table 2: The correlation energy comparison between ph-AFQMC, i 𝑖 i -FCIQMC, RCCSD, and RCCSDT for the 14-electron UEG model at r s = 0.5 subscript 𝑟 𝑠 0.5 r_{s}=0.5 . The i 𝑖 i -FCIQMC numbers were taken from Ref. 61 and CC numbers were taken from Ref. 66 . N/A means that the data is not available. These calculations were performed using the PAUXY package. Error bars were estimated using reblocking (Flyvbjerg and Petersen, 1989 ) as implemented in the pyblock package ( pyb, ) .

$M$	ph-AFQMC	$i$ -FCIQMC	RCCSD	RCCSDT
57	-0.5173(1)	-0.5169(1)	N/A	N/A
93	-0.5592(2)	-0.5589(1)	N/A	N/A
179	-0.5794(2)	-0.5797(3)	-0.57365(1)	-0.57971(3)
389	-0.5881(2)	-0.5893(3)	N/A	N/A
925	-0.5920(8)	-0.5936(3)	-0.58626(4)	-0.5923(1)
1189	-0.5921(2)	-0.5939(4)	N/A	N/A
1213	-0.5926(8)	N/A	N/A	N/A
1419	-0.5925(4)	N/A	-0.5872(1)	-0.5930(2)
2109	-0.5931(6)	N/A	-0.5875(1)	-0.5938(1)

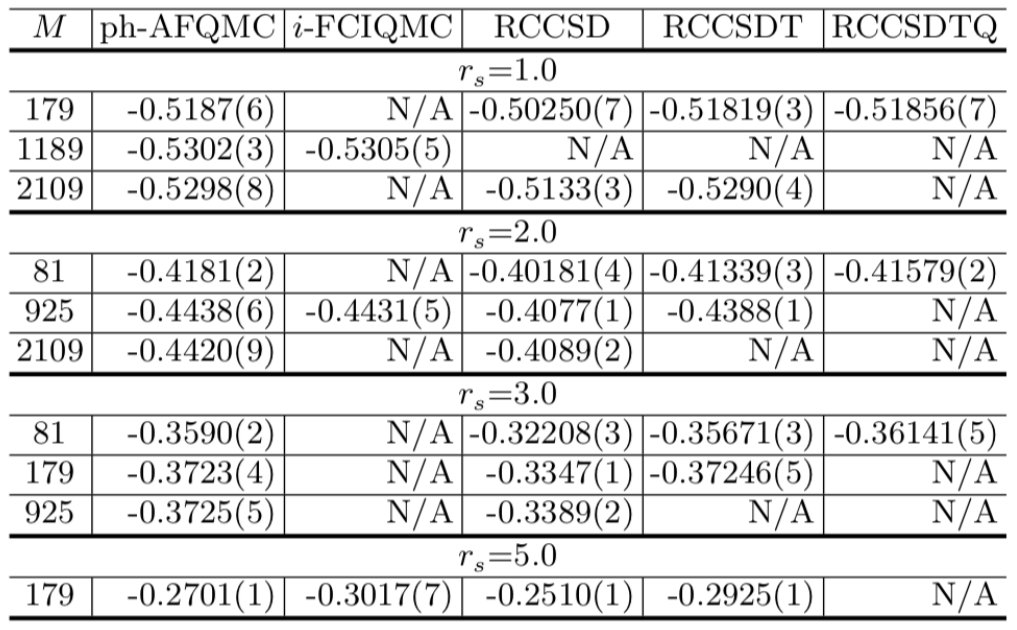

Table 3. Table 3: The correlation energy comparison between ph-AFQMC, i 𝑖 i -FCIQMC, RCCSD, and RCCSDT for the 14-electron UEG model at r s = 1.0 , 2.0 , 3.0 subscript 𝑟 𝑠 1.0 2.0 3.0 r_{s}=1.0,2.0,3.0 and 5.0 5.0 5.0 . The i 𝑖 i -FCIQMC numbers were taken from Ref. 62 and CC numbers were taken from Ref. 66 . N/A means that the data is not available.

$M$	ph-AFQMC	$i$ -FCIQMC	RCCSD	RCCSDT	RCCSDTQ
$r_{s}$ =1.0
179	-0.5187(6)	N/A	-0.50250(7)	-0.51819(3)	-0.51856(7)
1189	-0.5302(3)	-0.5305(5)	N/A	N/A	N/A
2109	-0.5298(8)	N/A	-0.5133(3)	-0.5290(4)	N/A
$r_{s}$ =2.0
81	-0.4181(2)	N/A	-0.40181(4)	-0.41339(3)	-0.41579(2)
925	-0.4438(6)	-0.4431(5)	-0.4077(1)	-0.4388(1)	N/A
2109	-0.4420(9)	N/A	-0.4089(2)	N/A	N/A
$r_{s}$ =3.0
81	-0.3590(2)	N/A	-0.32208(3)	-0.35671(3)	-0.36141(5)
179	-0.3723(4)	N/A	-0.3347(1)	-0.37246(5)	N/A
925	-0.3725(5)	N/A	-0.3389(2)	N/A	N/A
$r_{s}$ =5.0
179	-0.2701(1)	-0.3017(7)	-0.2510(1)	-0.2925(1)	N/A

Table 4. Table 4: Comparison between ph-AFQMC correlation energies using a RHF , a UHF and ten determinant NOMSD trial wavefunction at r s = 5.0 subscript 𝑟 𝑠 5.0 r_{s}=5.0 . Correlation energies are measured relative to the RHF total energy. i 𝑖 i -FCIQMC energies were taken from Ref. 62 . ph-AFQMC calculations were performed using the development version of QMCPACK. Note that the M = 389 𝑀 389 M=389 RHF+ph-AFQMC energy is above the M = 179 𝑀 179 M=179 RHF+ph-AFQMC energy in Table 3 and this is an artifact of the breakdown of the RHF trial wavefunction.

$M$	RHF	UHF	NOMSD	$i$ -FCIQMC
57	-0.2422(8)	-0.24371(9)	-0.2511(3)	-0.2645(3)
93	-0.2677(5)	-0.26837(8)	-0.2786(2)	-0.2928(4)
389	-0.2674(6)	-0.2654(2)	-0.2794(4)	-0.304(1)

Table 5. Table 5: The total energy per electron ( E h subscript 𝐸 ℎ E_{h} /e) comparison between ph-AFQMC, i 𝑖 i -FCIQMC, FN-DMC with a Slater-Jastrow (SJ) trial wavefunction, and DMC with a backflow (BF) trial wavefunction for the 54-electron UEG model at r s = 0.5 , 1.0 , 2.0 , 5.0 subscript 𝑟 𝑠 0.5 1.0 2.0 5.0 r_{s}=0.5,1.0,2.0,5.0 . Both ph-AFQMC and i 𝑖 i -FCIQMC numbers are obtained from M = 1419 𝑀 1419 M=1419 . The i 𝑖 i -FCIQMC numbers were taken from Ref. 61 and DMC numbers were taken from Ref. 121 . N/A means that the data is not available.

$r_{s}$	ph-AFQMC	$i$ -FCIQMC	FN-DMC-SJ	FN-DMC-BF
0.5	3.22087(2)	3.22086(2)	3.22245(9)	3.22112(4)
1	0.52967(2)	0.53073(4)	0.53089(9)	0.52989(4)
2	-0.01429(3)	N/A	-0.01311(2)	-0.013966(9)
5	-0.07589(5)	N/A	-0.078649(7)	-0.079036(3)

Table 6. Table 6: The total energy per electron ( E h subscript 𝐸 ℎ E_{h} /e) of ph-AFQMC for the 114-electron UEG model at r s = 0.5 , 1.0 , 2.0 subscript 𝑟 𝑠 0.5 1.0 2.0 r_{s}=0.5,1.0,2.0 . All results were obtained with M = 2109 𝑀 2109 M=2109 . The VMC (Slater-Jastrow) energy at r s = 1.0 subscript 𝑟 𝑠 1.0 r_{s}=1.0 is 0.60395(25) E h subscript 𝐸 ℎ E_{h} /e. Kwon et al. ( 1998 )

$r_{s}$	ph-AFQMC
0.5	3.48453(8)
1.0	0.59877(6)
2.0	0.00487(6)

Equations87

∣ Ψ_{0} ⟩ \propto τ \to \infty lim exp (- τ \hat{H}) ∣ Φ_{0} ⟩ = τ \to \infty lim ∣Ψ (τ)⟩,

∣ Ψ_{0} ⟩ \propto τ \to \infty lim exp (- τ \hat{H}) ∣ Φ_{0} ⟩ = τ \to \infty lim ∣Ψ (τ)⟩,

\hat{H}_{2} = - \frac{1}{2} α \sum N_{α} \overset{v}{^}_{α}^{2} .

\hat{H}_{2} = - \frac{1}{2} α \sum N_{α} \overset{v}{^}_{α}^{2} .

exp (- Δ τ \hat{H}) = \int d x p (x) \hat{B} (Δ τ, x),

exp (- Δ τ \hat{H}) = \int d x p (x) \hat{B} (Δ τ, x),

\hat{B} (Δ τ, x) = e^{- \frac{Δ τ}{2} \hat{H}_{1}} e^{- Δ τ x \cdot \hat{v}} e^{- \frac{Δ τ}{2} \hat{H}_{1}} .

\hat{B} (Δ τ, x) = e^{- \frac{Δ τ}{2} \hat{H}_{1}} e^{- Δ τ x \cdot \hat{v}} e^{- \frac{Δ τ}{2} \hat{H}_{1}} .

w_{n} (τ + Δ τ) ∣ ψ_{n} (τ + Δ τ)⟩ =

w_{n} (τ + Δ τ) ∣ ψ_{n} (τ + Δ τ)⟩ =

[I (x_{n}, \overset{ˉ}{x}_{n}, τ, Δ τ) \hat{B} (Δ τ, x_{n} - \overset{ˉ}{x}_{n})] w_{n} (τ) ∣ ψ_{n} (τ)⟩,

I (x_{n}, \overset{ˉ}{x}_{n}, τ, Δ τ) = S_{n} (τ, Δ τ) e^{x_{n} \cdot \overset{ˉ}{x}_{n} - \overset{ˉ}{x}_{n} \cdot \overset{ˉ}{x}_{n} /2},

I (x_{n}, \overset{ˉ}{x}_{n}, τ, Δ τ) = S_{n} (τ, Δ τ) e^{x_{n} \cdot \overset{ˉ}{x}_{n} - \overset{ˉ}{x}_{n} \cdot \overset{ˉ}{x}_{n} /2},

S_{n} (τ, Δ τ) = \frac{⟨ Ψ _{T} ∣ B ^ ( Δ τ , x _{n} - x ˉ _{n} ) ∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩},

S_{n} (τ, Δ τ) = \frac{⟨ Ψ _{T} ∣ B ^ ( Δ τ , x _{n} - x ˉ _{n} ) ∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩},

\overset{ˉ}{x}_{n} (Δ τ, τ) = - Δ τ \frac{⟨ Ψ _{T} ∣ v ^ ^{'} ∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩} .

\overset{ˉ}{x}_{n} (Δ τ, τ) = - Δ τ \frac{⟨ Ψ _{T} ∣ v ^ ^{'} ∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩} .

I_{p h} (x_{n}, \overset{ˉ}{x}_{n}, τ, Δ τ) = ∣ I (x_{n}, \overset{ˉ}{x}_{n}, τ, Δ τ) ∣ \times max (0, cos (θ_{n} (τ)))

I_{p h} (x_{n}, \overset{ˉ}{x}_{n}, τ, Δ τ) = ∣ I (x_{n}, \overset{ˉ}{x}_{n}, τ, Δ τ) ∣ \times max (0, cos (θ_{n} (τ)))

θ_{n} (τ) = arg (S_{n} (τ, Δ τ)) .

θ_{n} (τ) = arg (S_{n} (τ, Δ τ)) .

w_{n} (τ + Δ τ)

w_{n} (τ + Δ τ)

∣ ψ_{n} (τ + Δ τ)⟩

P_{pq} = \frac{⟨ Ψ _{T} ∣ a ^ _{p}^{†} a ^ _{q} ∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩} = (C_{ψ_{n}} (C_{Ψ_{T}}^{†} C_{ψ_{n}})^{- 1} C_{Ψ_{T}}^{†})_{q p}

P_{pq} = \frac{⟨ Ψ _{T} ∣ a ^ _{p}^{†} a ^ _{q} ∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩} = (C_{ψ_{n}} (C_{Ψ_{T}}^{†} C_{ψ_{n}})^{- 1} C_{Ψ_{T}}^{†})_{q p}

∣Ψ (τ)⟩ = n \sum w_{n} (τ) \frac{∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩},

∣Ψ (τ)⟩ = n \sum w_{n} (τ) \frac{∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩},

E (τ) = \frac{⟨ Ψ _{T} ∣ H ^ ∣Ψ ( τ )⟩}{⟨ Ψ _{T} ∣Ψ ( τ )⟩} = \frac{\sum _{n} w _{n} ( τ ) ϵ _{n} ( τ )}{\sum _{n} w _{n} ( τ )},

E (τ) = \frac{⟨ Ψ _{T} ∣ H ^ ∣Ψ ( τ )⟩}{⟨ Ψ _{T} ∣Ψ ( τ )⟩} = \frac{\sum _{n} w _{n} ( τ ) ϵ _{n} ( τ )}{\sum _{n} w _{n} ( τ )},

ϵ_{n} (τ) = \frac{⟨ Ψ _{T} ∣ H ^ ∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩} .

ϵ_{n} (τ) = \frac{⟨ Ψ _{T} ∣ H ^ ∣ ψ _{n} ( τ )⟩}{⟨ Ψ _{T} ∣ ψ _{n} ( τ )⟩} .

exp (- Δ τ \hat{H}_{A B}) = exp (- Δ τ \hat{H}_{A}) exp (- Δ τ \hat{H}_{B})

exp (- Δ τ \hat{H}_{A B}) = exp (- Δ τ \hat{H}_{A}) exp (- Δ τ \hat{H}_{B})

S_{n}^{A B} = \frac{⟨ Ψ _{T}^{A} ∣ B ^ _{A} ∣ ψ _{n}^{A} ⟩}{⟨ Ψ _{T}^{A} ∣ ψ _{n}^{A} ⟩} \frac{⟨ Ψ _{T}^{B} ∣ B ^ _{B} ∣ ψ _{n}^{B} ⟩}{⟨ Ψ _{T}^{B} ∣ ψ _{n}^{B} ⟩} = S_{n}^{A} S_{n}^{B}

S_{n}^{A B} = \frac{⟨ Ψ _{T}^{A} ∣ B ^ _{A} ∣ ψ _{n}^{A} ⟩}{⟨ Ψ _{T}^{A} ∣ ψ _{n}^{A} ⟩} \frac{⟨ Ψ _{T}^{B} ∣ B ^ _{B} ∣ ψ _{n}^{B} ⟩}{⟨ Ψ _{T}^{B} ∣ ψ _{n}^{B} ⟩} = S_{n}^{A} S_{n}^{B}

\hat{H} = \hat{T} + \hat{V}_{ee} + E_{M} .

\hat{H} = \hat{T} + \hat{V}_{ee} + E_{M} .

\hat{T} = G \sum \frac{∣ G ∣ ^{2}}{2} a_{G}^{†} a_{G},

\hat{T} = G \sum \frac{∣ G ∣ ^{2}}{2} a_{G}^{†} a_{G},

\hat{V}_{ee} = \frac{1}{2Ω} Q \neq = 0, G_{1}, G_{2} \sum \frac{4 π}{∣ Q ∣ ^{2}} a_{G_{1} + Q}^{†} a_{G_{2} - Q}^{†} a_{G_{2}} a_{G_{1}},

\hat{V}_{ee} = \frac{1}{2Ω} Q \neq = 0, G_{1}, G_{2} \sum \frac{4 π}{∣ Q ∣ ^{2}} a_{G_{1} + Q}^{†} a_{G_{2} - Q}^{†} a_{G_{2}} a_{G_{1}},

E_{M} \approx - 2.837297 \times (\frac{3}{4 π})^{1/3} N^{2/3} r_{s}^{- 1},

E_{M} \approx - 2.837297 \times (\frac{3}{4 π})^{1/3} N^{2/3} r_{s}^{- 1},

ϵ_{n} (τ)

ϵ_{n} (τ)

+ \frac{1}{2Ω} Q \neq = 0 \sum \frac{4 π}{∣ Q ∣ ^{2}} (Γ_{Q} - Λ_{Q}),

Γ_{Q} = (G_{1} \sum P_{G_{1} + Q, G_{1}}) (G_{2} \sum P_{G_{2} - Q, G_{2}})

Γ_{Q} = (G_{1} \sum P_{G_{1} + Q, G_{1}}) (G_{2} \sum P_{G_{2} - Q, G_{2}})

Λ_{Q} = G_{1} G_{2} \sum P_{G_{1} + Q, G_{2}} P_{G_{2} - Q, G_{1}}

Λ_{Q} = G_{1} G_{2} \sum P_{G_{1} + Q, G_{2}} P_{G_{2} - Q, G_{1}}

\hat{V}_{ee} = \frac{1}{4} Q \neq = 0 \sum [\hat{A}^{2} (Q) + \hat{B}^{2} (Q)],

\hat{V}_{ee} = \frac{1}{4} Q \neq = 0 \sum [\hat{A}^{2} (Q) + \hat{B}^{2} (Q)],

\hat{A} (Q) = \frac{2 π}{Ω∣ Q ∣ ^{2}} (\overset{ρ}{^} (Q) + \overset{ρ}{^}^{†} (Q)),

\hat{A} (Q) = \frac{2 π}{Ω∣ Q ∣ ^{2}} (\overset{ρ}{^} (Q) + \overset{ρ}{^}^{†} (Q)),

\hat{B} (Q) = i \frac{2 π}{Ω∣ Q ∣ ^{2}}, (\overset{ρ}{^} (Q) - \overset{ρ}{^}^{†} (Q)),

\hat{B} (Q) = i \frac{2 π}{Ω∣ Q ∣ ^{2}}, (\overset{ρ}{^} (Q) - \overset{ρ}{^}^{†} (Q)),

\overset{ρ}{^} (Q) = G \sum a_{G + Q}^{†} a_{G} Θ (E_{cut} - \frac{∣ G + Q ∣ ^{2}}{2}),

\overset{ρ}{^} (Q) = G \sum a_{G + Q}^{†} a_{G} Θ (E_{cut} - \frac{∣ G + Q ∣ ^{2}}{2}),

F = \frac{\partial E}{\partial D}

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

An Auxiliary-Field Quantum Monte Carlo Perspective on the Ground State of the Dense Uniform Electron Gas: An

Investigation with Hartree-Fock Trial Wavefunctions

Joonho Lee

[email protected]

College of Chemistry, University of California, Berkeley, California 94720, USA.

Fionn D. Malone

[email protected]

Quantum Simulations Group, Lawrence Livermore National Laboratory, 7000 East Avenue, Livermore, CA, 94551 USA.

Miguel A. Morales

[email protected]

Quantum Simulations Group, Lawrence Livermore National Laboratory, 7000 East Avenue, Livermore, CA, 94551 USA.

Abstract

We assess the utility of Hartree-Fock (HF) trial wavefunctions in performing phaseless auxiliary-field quantum Monte Carlo (ph-AFQMC) on the uniform electron gas (UEG) model. The combination of ph-AFQMC with spin-restricted HF (RHF+ph-AFQMC), was found to be highly accurate and efficient for systems containing up to 114 electrons in 2109 orbitals, particularly for $r_{s}\leq 2.0$ . Compared to spin-restricted coupled-cluster (RCC) methods, we found that RHF+ph-AFQMC performs better than CC with singles, doubles, and triples (RCCSDT) and similarly to or slightly worse than CC with singles, doubles, triples, and quadruples (RCCSDTQ) for $r_{s}\leq 3.0$ in the 14-electron UEG model. With the 54-electron, we found RHF+ph-AFQMC to be nearly exact for $r_{s}\leq 2.0$ and pointed out potential biases in existing benchmarks. Encouraged by these, we performed RHF+ph-AFQMC on the 114-electron UEG model for $r_{s}\leq 2.0$ and provided new benchmark data for future method development. We found that the UEG models with $r_{s}=5.0$ remain to be challenging for RHF+ph-AFQMC. Employing non-orthogonal configuration expansions or unrestricted HF states as trial wavefunctions was also found to be ineffective in the case of the 14-electron UEG model with $r_{s}=5.0$ . We emphasize the need for a better trial wavefunction for ph-AFQMC in simulating strongly correlated systems. With the 54-electron and 114-electron UEG models, we stress the potential utility of RHF+ph-AFQMC for simulating dense solids.

I Introduction

Describing electron correlation in a scalable way that can handle hundreds of electrons is a grand challenge in quantum chemistry and condensed matter physics. State-of-the-art methods include coupled-cluster (CC) methods(Huntington and Nooijen, 2010; Bartlett and Musiał, 2007; Small and Head-Gordon, 2012; Kats and Manby, 2013; Small et al., 2014; Lee et al., 2017, 2018), density matrix renormalization group (DMRG) methods(White and Martin, 1999; Chan and Sharma, 2011), and quantum Monte Carlo (QMC) approaches(Foulkes et al., 2001; Zhang and Krakauer, 2003; Booth et al., 2009). Each method exhibits different weaknesses and strengths and therefore they have been applied to solve a different class of problems in chemistry and condensed matter physics.

In this work, we will focus on a projector QMC method, namely, the auxiliary-field QMC (AFQMC) approach(Zhang et al., 1997; Zhang and Krakauer, 2003). Projector Monte Carlo methods, while formally exact, typically impose a constraint in the imaginary time propagation in order to overcome the fermion sign problem and achieve a polynomial scaling algorithm. Both, diffusion Monte Carlo (DMC)(Foulkes et al., 2001) and AFQMC enforce this constraint using a trial wavefunction, which can in principle be systematically improved towards the exact result. These constraints lead to the phaseless-AFQMC (ph-AFQMC) and fixed-node (FN-DMC) algorithms both of which scale like $\mathcal{O}(N^{3})-\mathcal{O}(N^{4})$ with the number of electrons $N$ .

Although the formalism of DMC and AFQMC are very similar, there are some key differences between the two. First, AFQMC works in the second-quantized framework common to most quantum chemical methods, and introduces a finite basis set. Therefore, AFQMC energies need to be extrapolated to the complete basis set (CBS) limit in order to compare directly with experiments. This is in contrast with DMC which works in real space and directly in the CBS limit. Second, incorporating widely used Jastrow factors (JFs) into AFQMC is quite challenging. JFs are economical ways to incorporate residual electron correlation by enforcing cusp conditions either between electrons and nuclei or among electrons. Lastly, unlike FN-DMC, ph-AFQMC is not variational(Carlson et al., 1999).

Despite these issues, AFQMC offers a number of promising advantages precisely because it works directly in an orbital-based basis. In particular, all-electron, frozen core and non-local pseudopotential calculations can be performed with no additional approximations. Furthermore, as most quantum chemistry methods are performed with a finite basis set, many tricks used in quantum chemistry can be used to improve AFQMC as well. For instance, tensor hyper contraction approaches(Hohenstein et al., 2012a; Parrish et al., 2012; Hohenstein et al., 2012b; Lu and Ying, 2015; Hu et al., 2017; Dong et al., 2018) have recently been employed to reduce the memory requirement of AFQMC(Malone et al., 2019; Motta et al., 2018). Employing explicitly correlated basis functions (similar in spirit to JFs for DMC) should also be possible to reduce the basis set incompleteness error of AFQMC(Hättig et al., 2012). In addition to this, computing properties other than the total energy, which has historically been a challenge for projector QMC methods, can be more straightforwardly achieved in AFQMC(Motta and Zhang, 2017). Recent examples include one- and two-particle reduced density matrices(Motta and Zhang, 2017), imaginary time correlation functions(Motta et al., 2014, 2015; Vitali et al., 2016) as well as forces(Motta and Zhang, 2018a).

AFQMC has been successfully applied in recent years to a number of challenging problems in both quantum chemistry(Motta and Zhang, 2018b; Zhang, 2013; Purwanto et al., 2009a; Borda et al., 2019; Shee et al., 2019) and solid state physics(Purwanto et al., 2011; Ma et al., 2013; Zhang et al., 2018). However, the broad applicability of the method is not as well understood as more traditional quantum chemistry approaches which have seen decades worth of sustained development and benchmarking. The primary limiting factor of AFQMC is the choice of trial wavefunction. Single-determinant trial wavefunctions from Hartree–Fock (HF) or density functional theory calculations have shown remarkable accuracy for a broad range of applications including the two-dimensional Hubbard model(LeBlanc et al., 2015), dipole-bound anions(Hao et al., 2018) and solid state applications(Suewattana et al., 2007; Ma et al., 2017, 2015; Purwanto et al., 2013), with total energies often approaching the accuracy of coupled cluster singles and doubles with perturbative triples CCSD(T)(Motta et al., 2018). However, for more strongly correlated systems such as transition metal containing complexes single determinant trial wavefunctions are not sufficiently accurate and multi determinant trial wavefunctions become necessary(Purwanto et al., 2015; Shi and Zhang, 2013; Shi et al., 2014; Chang and Morales, 2017; Borda et al., 2019; Shee et al., 2019).

Often short determinantal expansions from complete active space self-consistent field (CASSCF) wavefunctions(Purwanto et al., 2009a; Shee et al., 2019) or non-orthogonal multi-Slater deteraminant trial wavefunction(Borda et al., 2019) can help to restore the accuracy of the method. However, since multi-determinant wavefunctions scale exponentially with system size, this approach to improving the trial wavefunction is ultimately limited, particularly for large scale applications. The search for more economical and accurate trial wavefunctions for AFQMC (and also FN-DMC) is an active area of research and no single approach can achieve both polynomial scaling and broadly consistent accuracy at the same time.

Our goal is to assess the quality of HF trial wavefunctions for the Uniform Electron Gas (UEG) model(Giuliani and Vignale, 2005). HF wavefunctions are the simplest possible reference states to perform subsequent correlation calculations in quantum chemistry. Often, artificial symmetry breaking caused by HF wavefunctions causes confusion in understanding electron correlation.Jiménez-Hoyos et al. (2014); Lee and Head-Gordon (2019a)

It is artificial because the symmetry breaking occurs due to the lack of treatment for weak correlation, not strong correlation. Artificial symmetry breaking affects the performance of subsequent correlation calculations greatly (especially for weakly correlated systems)Jackels and Davidson (1976); Davidson and Borden (1983); Andrews et al. (1991); Ayala and Schlegel (1998); McLean et al. (1985); Sherrill et al. (1999); Crawford and Stanton (2000); Paldus and Thiamová (2007). In such cases, it is preferred to use spin-restricted HF (RHF) orbitals as opposed to variationally preferred broken symmetry HF orbitals. Therefore, one has to be cautious when choosing a proper HF state for correlation calculations. Nonetheless, HF is not only the simplest but also scalable to hundreds of electrons. With HF trials (which we name as HF+ph-AFQMC), AFQMC scales strictly as $\mathcal{O}(N^{3})-\mathcal{O}(N^{4})$ for a fixed statistical accuracy. Therefore, it is crucial to assess the accuracy of HF+ph-AFQMC and understand the scope of it in simulating large-scale chemical and solid-state systems. After all, the gold-standard quantum chemistry method, CCSD(T)Raghavachari et al. (1989) is performed on top of HF states.

In the context of this paper, the UEG model provides us with a simplified version of the full ab-initio Hamiltonian for a solid, essentially omitting the electron-ion interaction term and all of the material complications it entails. One can tune the magnitude of dynamic and static correlation at the Hamiltonian level using a single parameter (for a fixed number of electrons) through the dimensionless Wigner-Seitz radius $r_{s}$ .

For low $r_{s}$ values, the electron density is high, the distance between electrons is short, and electrons are all paired. In this regime, diagrammatic resummation techniques such as random phase approximation (RPA) and low-order perturbation theory based on RHF references are highly accurate Ma and Brueckner (1968). We call this regime “weakly correlated”. On the other hand, for high $r_{s}$ values, electrons are unpaired and spatially well-separated and closed-shell RHF references provide qualitatively wrong picture (i.e., it does not describe the open-shell nature of the system). In this case, RPA or other low-order perturbation theory based on RHF references fails. Furthermore, the use of broken symmetry HF references does not provide accurate description either due to spin contamination. We call this regime “strongly correlated”. This tunability allows for a unambiguous comparison between the strengths and weaknesses of various methods. Moreover, there exist a number of benchmark results both for intermediate system sizes within the reach of traditional quantum chemistry approaches, as well as results for much larger system sizes, and also results extrapolated to the thermodynamic limit.

Recently, the formally exact full configuration interaction quantum Monte Carlo method(Booth et al., 2009; Cleland et al., 2010) (FCIQMC) provided benchmark results for a range of densities for a 14- and 54-electron system(Shepherd et al., 2012a, b). These FCIQMC studies also motivated recent coupled-cluster Monte Carlo(Thom, 2010; Spencer and Thom, 2016; Franklin et al., 2016) studies on the 14-electron UEG model by Neufeld and Thom where they provided CCSD, CCSD and triples (CCSDT), CCSDT and quadruples (CCSDTQ) with RHF references results for a wide range of $r_{s}$ and basis sets(Neufeld and Thom, 2017). As the scope of truncated spin-restricted CC (RCC) approaches is relatively well understood, comparing HF+ph-AFQMC against these results will lead us to a better understanding of the scope of HF+ph-AFQMC. Although the ph-AFQMC has been applied to 3D UEG before to construct the KZK functional(Kwee et al., 2008; Ma et al., 2011) and to small 2D UEG models(Motta et al., 2014, 2015), we believe this is the first published extensive benchmarking study of the 3D UEG using ph-AFQMC.

This paper is organized as follows: (1) we briefly review the formalism of ph-AFQMC and the UEG model, (2) we analyze the basis set convergence of AFQMC in the 14-electron UEG model and compare its result against FCIQMC and CCMC , and (3) we study larger systems (54-electron and 114-electron) and discuss the AFQMC perspectives on simulating the ground state of solids.

II Methods

In this section we briefly summarize the basics of the AFQMC method and the phaseless approximation which leads to the phaseless AFQMC algorithm (ph-AFQMC).

We use $n_{\text{occ}}$ to denote the number of occupied molecular orbitals (MOs) and $n_{\text{vir}}$ to denote the number of unoccupied MOs.

II.1 AFQMC

II.1.1 Free-Projection AFQMC

The zero-temperature AFQMC algorithm is a stochastic realization of power methods that target the lowest root of the Hamiltonian $\hat{H}$ . The algorithm is based on the following identity:

[TABLE]

where $|\Psi_{0}\rangle$ is the exact ground state and $|\Phi_{0}\rangle$ is an initial starting wavefunction satisfying $\langle\Phi_{0}|\Psi_{0}\rangle\neq 0$ . Although the initial wavefunction $|\Psi_{0}\rangle$ can differ from the trial wavefunction $|\Psi_{T}\rangle$ , for the purpose of this work we will assume $|\Psi_{0}\rangle=|\Phi_{T}\rangle$ unless mentioned otherwise. Eq. (1) is implemented stochastically by repeatedly applying a propagator, $\exp(-\Delta\tau\hat{H})$ , to a set of random walkers until the ground state is reached. Each walker is comprised of a Slater determinant, $|\psi_{n}(\tau)\rangle$ , and a weight $w_{n}(\tau)$ such that the statistical representation of the wavefunction is given by $|\Psi(\tau)\rangle=\sum_{n}w_{n}(\tau)|\psi_{n}(\tau)\rangle$ .

In order to practically realize the projection, we first split the Hamiltonian into one-body and two-body operators (i.e., $\hat{H}=\hat{H}_{1}+\hat{H}_{2}$ ). For the two-body terms, we write them in the sum of squared operators,

[TABLE]

Then, we apply the Hubbard-Stratonovich(Hubbard, 1959) transformation to rewrite the imaginary-time propagator in terms of only one-body operators. With the symmetric Trotter decomposition, the propagator reads

[TABLE]

where $p(\mathbf{x})$ is the standard normal distribution, $\mathbf{x}$ is a vector of $N_{\alpha}$ auxiliary fields and $\hat{B}$ is defined as

[TABLE]

At each time step, each walker draws Gaussian random numbers to sample one instance of $\mathbf{x}$ and provides a sample to the HS transformation in Eq. (3). The application of a one-body operator such as Eq. 4 to a Slater determinant yields yet another single Slater determinant(Thouless, 1960, 1961).

For a generic ab-initio Hamiltonian the propagators appearing in Eq. 4 will in general be complex and the weights of the walkers will acquire a phase that will be distributed uniformly in the complex plane in the long imaginary time limit(Zhang, 2013). This ‘phase problem’ is analogous to the notorious fermion sign problem encountered in DMC and has no known solution in general. The phase problem can be somewhat mitigated through mean-field subtraction(Al-Saidi et al., 2006) (i.e., redefining $\hat{v}_{\alpha}^{\prime}=\hat{v}_{\alpha}-\langle\hat{v}_{\alpha}\rangle_{0}$ ) in Eq. (4), but the statistics will be eventually swamped by the phase problem. Note that mean field subtraction is essentially identical to normal-ordering $\hat{v}_{\alpha}$ which ensures $\hat{v}_{\alpha}^{\prime}|\Phi_{0}\rangle=0$ for all $\alpha$ .

II.1.2 Phaseless AFQMC

It is possible to eliminate this phase problem entirely at the sake of introducing biases into the results using the so-called phaseless approximation(Zhang and Krakauer, 2003). This is achieved by first performing an importance sampling transformation to the propagator such that walkers now undergo the modified propagation:

[TABLE]

where the importance function (in hybrid form) is defined as

[TABLE]

$S_{n}$ is the overlap ratio of the $n$ -th walker

[TABLE]

and $\mathbf{\bar{x}}_{n}$ is an “optimal” force bias which is a shift to the Gaussian distribution, given as

[TABLE]

The phaseless approximation (ph) is then defined as a modification to this importance function

[TABLE]

where the phase $\theta_{n}(\tau)$ is given by

[TABLE]

The walker weights and Slater determinants are then updated as

[TABLE]

Evidently, the phaseless approximation ensures that the walker weights remain real and non-negative throughout the simulation and therefore removes the phase problem completely.

The mixed estimate for the local energy estimator can be computed with the generalized Green’s function (or one-particle reduced density matrix) $\mathbf{P}$ ,

[TABLE]

where $\mathbf{C}_{\psi_{n}}$ is the occupied MO coefficient of $|\psi_{n}(\tau)\rangle$ and $\mathbf{C}_{\Psi_{T}}$ the occupied MO coefficient of $|\Psi_{T}\rangle$ . Once the simulation has equilibrated, we will have a statistical representation of the ground state wavefunction given by

[TABLE]

from which we can compute the mixed estimator for the energy as

[TABLE]

where $\epsilon_{n}(\tau)$ is the local energy of a walker,

[TABLE]

We will see how the local energy evaluation is done specifically for the UEG model later.

II.1.3 Size-consistency of ph-AFQMC

Size-consistency is a property of a wavefunction for isolated systems $A$ and $B$ that asserts the product separability of a supersystem wavefunction ( $|\Psi_{AB}\rangle=|\Psi_{A}\rangle|\Psi_{B}\rangle$ ) and also the additive separability of energy ( $E_{AB}=E_{A}+E_{B}$ ). Configuration interaction (CI) based quantum chemistry methods are in general not size-consistent.Bartlett and Shavitt (1977) In particular, the only size-consistent CI methods are CI with singles (CIS) and FCI. On the other hand, single-reference CC methods are size-consistent as long as the form of wavefunction is parametrized by an exponential of the cluster operator.

To reliably obtain the thermodynamic limit of large systems, size-consistency is necessary. At the thermodynamic limit, size-inconsistent methods approach just mean-field total energy and estimate no correlation energy. Therefore, CC methods, due to size-consistency, have stood out as a unique tool for simulating bulk systems Gruber et al. (2018).

We will show that ph-AFQMC is also size-consistent as long as the trial wavefunction is product separable. For isolated systems $A$ and $B$ , the supersystem Hamiltonian separates into $\hat{H}_{A}$ and $\hat{H}_{B}$ . Furthermore, these two operators commute since these systems are isolated. Therefore, the propagator is also product separable,

[TABLE]

The HS transformation can be performed on $\exp(-\Delta\tau\hat{H}_{A})$ and $\exp(-\Delta\tau\hat{H}_{B})$ separately so that we have $\hat{B}_{AB}=\hat{B}_{A}\hat{B}_{B}.$ This proves the size-consistency of free-projection AFQMC.

It can be also shown that the phaseless constraint is product separable. The overlap function in Eq. (7) can be written as

[TABLE]

where the only assumptions we are making are (1) the product separability of the trial wavefunction: $|\Psi_{T}^{AB}\rangle=|\Psi_{T}^{A}\rangle|\Psi_{T}^{B}\rangle$ and (2) the product separability of the slater determinant of $n$ -th walker: $|\psi_{n}^{AB}\rangle=|\psi_{n}^{A}\rangle|\psi_{n}^{B}\rangle$ . The assumption (2) can be satisfied as long as we start from a product separable wavefunction since the propagator is product separable. With this overlap function, one can show that the importance function also obeys the product separability and therefore we conclude that ph-AFQMC is size-consistent.

II.2 Uniform Electron Gas

The Hamiltonian for the uniform electron gas (UEG) is given simply as the sum of the kinetic energy and electron-electron interaction operator (up to a constant):

[TABLE]

We will work with a basis of planewave spin orbitals $\langle\mathbf{r}\sigma|\mathbf{G}_{i}\sigma_{i}\rangle=\frac{1}{L^{3/2}}e^{i\mathbf{G}_{i}\cdot\mathbf{r}}\delta_{\sigma,\sigma_{i}}$ , where $L$ is the length of the simulation cell, $\mathbf{G}_{i}=\frac{2\pi}{L}\mathbf{n}_{i}$ for $\mathbf{n}_{i}$ a vector of integers and $\sigma_{i}$ is a spin index (either $\alpha$ or $\beta$ ). We impose a kinetic energy cutoff $E_{\text{cut}}$ and work with a finite basis of $2M$ spin orbitals. In this basis the kinetic energy is written as

[TABLE]

and the electron-electron interaction operator is given by

[TABLE]

where $\Omega=L^{3}$ is the simulation cell volume, $\mathbf{Q}$ is a momentum transfer vector that lives in an enlarged basis of size $4E_{\text{cut}}$ and we have dropped the subscript index on $\mathbf{G}$ for simplicity. Lastly, the Madelung energy $E_{M}$ is included to account for the self-interaction of the Ewald sum under periodic boundary conditions(Fraser et al., 1996). For simplicity we use the formula proposed by Schoof and co-workers(Schoof et al., 2015)

[TABLE]

where $N$ is the number of electrons in the simulation cell cell and $r_{s}=\left(\frac{3L^{3}}{4\pi N}\right)^{1/3}$ is the dimensionless Wigner-Seitz radius.

The local energy $\epsilon_{n}(\tau)$ for the UEG then reads

[TABLE]

where the Coulomb two-body density matrix $\Gamma_{\mathbf{Q}}$ is

[TABLE]

and the exchange two-body density matrix $\Lambda_{\mathbf{Q}}$ is

[TABLE]

The formation of $\Gamma_{\mathbf{Q}}$ costs $\mathcal{O}(M^{2})$ whereas the formation of $\Lambda_{\mathbf{Q}}$ takes $\mathcal{O}(M^{3})$ amount of work. Therefore, the evaluation of the exchange contribution is the bottleneck in the local energy evaluation. As noted in Ref. 39 the evaluation of the energy (and propagation) can be accelerated using fast Fourier transforms, however we did not use this optimization here.

The two-body Hamiltonian $\hat{V}_{\text{ee}}$ needs to be rewritten as a sum of squares to employ the AFQMC algorithm. It was shown in Ref. 39 that

[TABLE]

where

[TABLE]

and

[TABLE]

with the momentum transfer operator $\hat{\rho}$ defined as

[TABLE]

where $\Theta$ is the Heaviside step function. The Hubbard-Stratonovich operators $\hat{\mathbf{v}}$ are now $\hat{A}(\mathbf{Q})$ and $\hat{B}(\mathbf{Q})$ , and the rest of the AFQMC algorithm follows straightforwardly.

II.3 Hartree-Fock Trial Wavefunctions

In ph-AFQMC, the main source of error is the bias introduced by the phaseless constraint. The magnitude of this bias is heavily dependent on the quality of trial wavefunctions. Although there are advanced options available for these such as multideterminantal trials and self-consistently determined single-determinantal trials(Qin et al., 2016), we will employ a simple single determinant RHF trial wavefunction in most cases. In the UEG model, this is an $M\times N$ matrix (where $N$ is the number of electrons and $M$ is the number of planewaves) with 1’s on the diagonal entries.

Typically, for strongly correlated systems it is useful to exploit essential symmetry breaking with HF wavefunctions. It is essential (as opposed to artificial) in the sense that the property of a single determinant wavefunction is qualitatively wrong without it. An attempt to exploit essential symmetry breaking typically leads to either spin-unrestricted HF (UHF) or spin-generalized HF (GHF) trial wavefunctions which have a lower energy than RHF. Indeed, such essential symmetry breaking was shown to be powerful when applying ph-AFQMC to bond dissociation of F2 Purwanto et al. (2008).

An example of artificial symmetry breaking is buckminsterfullerene (C60), a stable, electron paramagnetic resonance silent (EPR-silent) molecule Paul et al. (2002). There is a complex, GHF (cGHF) solution Jiménez-Hoyos et al. (2014) for C60 which was characterized to be an artifact due to the lack of treatment for weak correlation at the HF level Lee and Head-Gordon (2019a). In other words, orbital optimization in the presence of weak correlation such as the second-order Møller-Plesset theory would restore artificial symmetry breaking. Since both experiments Beckhaus et al. (1992); Tomita et al. (2003) and computationsLee and Head-Gordon (2019a) suggest that C60 is a stable closed-shell molecule, the RHF state is more qualitatively correct than other broken-symmetry HF states. A detailed study of artificial versus essential symmetry breaking in ph-AFQMC will be published in our forthcoming paper.

The instability of RHF solutions is expected at all $r_{s}$ values of the UEG model at the thermodynamic limit as proven by Overhauser.Overhauser (1960, 1962, 1968) As mentioned in Ref.85, however, the R to U spin-symmetry breaking may not occur in the UEG model with a finite number of electrons. Instead, there is a critical Wigner-Seitz radius ( $r_{s}^{c}$ ) below which no UHF solution exists. This is not surprising in the context of quantum chemistry since this is the same concept as “Coulson-Fischer points”Coulson and Fischer (1949) in molecules. Namely, when dissociating molecules there exists a critical bond length where the R to U instability occurs. At bond distances closer than this, there is no genuine UHF solution.

In order to perform HF calculations, one must compute the effective one-body operator called the “Fock” operator defined as

[TABLE]

where $\mathbf{D}=\mathbf{C}_{\text{occ}}\mathbf{C}_{\text{occ}}^{\dagger}$ with $\mathbf{C}_{\text{occ}}$ being the occupied MO coefficient matrix. After some straightforward algebra, we find

[TABLE]

where the kinetic energy matrix, $\mathbf{T}$ , reads

[TABLE]

the Coulomb matrix, $\mathbf{J}$ , is

[TABLE]

with

[TABLE]

and the exchange matrix is given by

[TABLE]

with

[TABLE]

A similar derivation can be found in Ref. 85.

With the above Fock matrix, one can perform an HF calculation by optimizing the HF energy expression with respect to the orbital rotation parameter $\Theta_{\text{vo}}$ (a matrix of $n_{\text{vir}}$ -by- $n_{\text{occ}}$ ) which relates two different MO coefficients via a unitary transformation,

[TABLE]

where the antihermition matrix $\Delta$ , which is parametrized by $\Theta_{vo}$ ,

[TABLE]

The subscript of each matrix block denotes the dimension of the corresponding block, $o=n_{\text{nocc}}$ and $v=n_{\text{nvir}}$ . An HF solution is defined as a stationary point that satisfies

[TABLE]

where

[TABLE]

The local stability of a given stationary point can then be tested by diagonalizing the orbital Hessian, $\mathbf{M}$ ,

[TABLE]

We will see whether there is essential symmetry breaking in the low $r_{s}$ regime in the UEG model and try to utilize this essential symmetry breaking when appropriate.

III Computational Details

Unless otherwise noted, the AFQMC calculations in this work were performed by a development version of QMCPACK(Kim et al., 2018). PAUXY(pau, ) was also used in the initial testing stages. Unless noted otherwise, AFQMC results below are obtained using QMCPACK. HANDE(Spencer et al., 2015, 2019) was used to crosscheck our numbers for small systems that are not presented in this work. We used 0.005 a.u. for the time step $\Delta\tau$ throughout the paper. This was found to be enough for systems we considered here. A total of 2880 walkers were used and the population bias from this was found to be negligible in the results reported here. The comb(Booth and Gubernatis, 2009) and pair branching(Wagner et al., 2009) population control algorithms are used in PAUXY and QMCPACK respectively. The demonstration of the convergence of these parameters is available in the Supplementary Materials.

All broken symmetry HF calculations were performed with a development version of Q-Chem Shao et al. (2015) and the details for the implementation can be found in refs. 94; 49; 95. The optimizer used for those HF calculations is geometry direct minimization (GDM) developed by Van Voorhis and Head-Gordon Van Voorhis and Head-Gordon (2002). The internal stability analysis was performed for all HF solutions to ensure the local stability of each solution Seeger and Pople (1977) where we used a finite-difference orbital Hessian using analytic orbital gradient Sharada et al. (2015). All calculations were performed with periodic boundary conditions; no twist averaging was performed.

IV Results

The UEG model has been explored by multiple methods at $T=0$ and an extensive amount of benchmark data are already available. We compare our ph-AFQMC results against other methods and discuss whether the use of RHF trial wavefunction is reliable for $r_{s}\leq 5.0$ . It is expected that the quality of an RHF wavefunction degrades as $r_{s}$ increases (approaching the atomic limit) since electrons tend to localize. $r_{s}=5.0$ is a commonly investigated intermediate Wigner-Seitz radius so it will be interesting to see how ph-AFQMC performs without employing more sophisticated trial wavefunctions.

For simplicity, we will refer ph-AFQMC with an RHF trial wavefunction (RHF+ph-AFQMC) to as ph-AFQMC unless mentioned otherwise.

IV.1 Broken-Symmetry HF States

We summarize some interesting aspects in the HF solutions of the UEG model due to its simple form of Hamiltonian:

The MO coefficient matrix of an RHF solution is an identity matrix. This makes obtaining an UHF solution from solving an eigenvalue equation for $\mathbf{F}$ difficult in the following sense. $\mathbf{C}$ from diagonalizing $\mathbf{F}$ is always unitary and the subsequent density matrix $\mathbf{D}$ is therefore identity. Since $\mathbf{D}$ is identical to the density matrix of RHF, one obtains an RHF solution immediately after one single diagonalization of $\mathbf{F}$ . A direct energy minimization Van Voorhis and Head-Gordon (2002) or the use of the HF projector Zhang and Ceperley (2008) is necessary to obtain broken-symmetry HF states. 2. 2.

The RHF energy does not depend on the basis set size. However, broken-symmetry solutions depend on the basis set size. It is important to converge their energies with respect to $M$ when discussing their existence. 3. 3.

Both Coulomb and kinetic energies are minimized in an RHF solution. In particular, the Coulomb energy is always zero in RHF. 4. 4.

The R to U symmetry breaking is driven by the lowering of exchange energy which compensates the increase in the Coulomb and kinetic energies.

We are interested in the paramagnetic phase of the UEG. As $r_{s}$ increases, the ferromagnetic (i.e., spin-polarized) phase becomes the ground stateZong et al. (2002). The GHF solution can appear in the transition between these two phases at quite high $r_{s}$ values. Other than this transition, a genuine GHF solution does not appear and therefore we study only the UHF solutions for the purpose of this study.

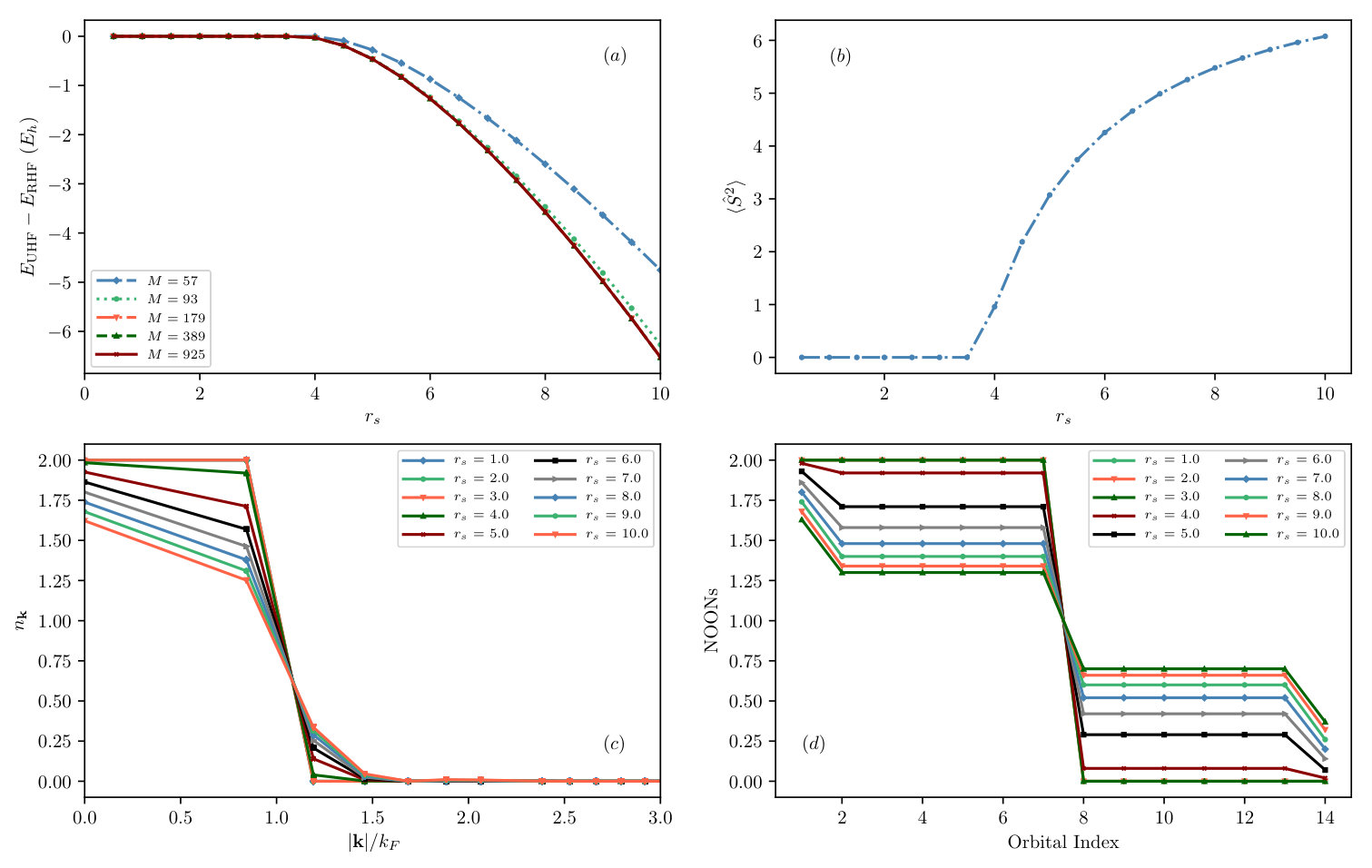

We discuss the UHF solutions in the 14-electron UEG model. In Fig. 1 (a), we show the basis set convergence behavior of UHF. Unlike RHF, the UHF energy does depend on the basis set size. For the 14-electron UEG model, it is sufficient to converge the UHF energies over $r_{s}\leq 10.0$ with $M=925$ . Based on Fig. 1 (a), we see that the energy lowering from RHF to UHF starts to appear for $r_{s}>3.5$ . The critical Wigner-Seitz radius for the 14-electron model is $r_{s}^{c}\in(3.5,4.0]$ . This is more obvious from looking at the $\langle\hat{S}^{2}\rangle$ value of the UHF solutions for $M=943$ as a function of $r_{s}$ as shown in Fig. 1 (b). Non-zero $\langle\hat{S}^{2}\rangle$ indicates the appearance of a UHF solution. It is clear that the RHF solution becomes unstable above $r_{s}=3.5$ . The emergent strong correlation as increasing $r_{s}$ is most obvious from looking at the momentum distribution (MD) (Fig. 1 (c)) and natural orbital occupation numbers (NOONs) (Fig. 1 (d)). The MD is defined as the diagonal elements of a one-particle reduced density matrix,

[TABLE]

The MD for the UEG model was throughly studied in Ref. 100. NOONs are the eigenvalues of a one-particle density matrix which is closely related to the MD. Both MD and NOONs show the increasing number of open-shell electrons as increasing the $r_{s}$ values. The open-shell electrons appear for $r_{s}>3.5$ which is consistent with Fig. 1 (a) and (b).

We also studied larger UEG models, 54-electron and 114-electron, using UHF. As expected, there are many more local minima than the 14-electron model. This makes locating the global minimum even more challenging. These multiple minima lead to ambiguity in the subsequent ph-AFQMC calculations since there are many UHF solutions that can be used as trial wavefunctions. Thorough studies of the UHF solutions in the UEG model were presented in Ref. 85. For the purpose of this work, instead of trying to locate the global minimum, we investigated the critical Wigner-Seitz radius to determine whether one can employ UHF trial wavefunctions for simulating dense UEG models. We summarize the range for the critical radius for each UEG model studied in this work in Table 1.

Given Table 1, it is necessary to employ RHF trial wavefunctions for the 14-electron model at $r_{s}\leq 3.5$ , the 54-electron model at $r_{s}\leq 4.5$ , and the 114-electron model at $r_{s}\leq 2.5$ . We will study the 14-electron model at $r_{s}=0.5,1.0,2.0,3.0,5.0$ and investigate the utility of various trial wavefunctions including RHF and UHF at $r_{s}=5.0$ . We will focus on using RHF trial wavefunctions for the 54- and 114-electron models at $r_{s}=0.5,1.0,2.0$ where there is no R to U instability. For the 54-electron model at $r_{s}=5.0$ , there is a UHF solution with $\langle\hat{S}^{2}\rangle=0.94$ which exhibits marginal symmetry breaking.

IV.2 The 14-Electron UEG Model

We begin by studying the 14-electron UEG which was studied in detail by Shepherd and co-workers in Ref. 62. This small benchmark system is helpful as it is accessible to most quantum chemistry methods, whilst still exhibiting the typical challenges one faces when simulating real solids, namely basis set incompleteness error, and strong correlation (when $r_{s}$ is large). In addition, it has of late emerged as a standard benchmark system for the UEG(Neufeld and Thom, 2017).

IV.2.1 Basis Set Convergence

The basis set convergence of wavefunction based quantum chemistry methods for the UEG has been explored a number of times by various methods(Shepherd et al., 2012a, c; Shepherd and Grüneis, 2013) and we will only briefly comment on it here. For our purposes, it is sufficient to note that the convergence to the CBS limit is slowest at high densities (low $r_{s}$ ) and thus it is sufficient to converge the basis set error here. This slower convergence can be understood simply because the electron-electron cusp is more pronounced at high densities (the electron are more likely to coalesce). This is seen in Fig. 2 and Table 2 where on the order of 2000 PWs are necessary to converge the total energy to within 1 mHa in absolute energy (not per electron). Similar to previous studies we observe a more or less linear relationship between $E_{c}$ and $1/M$ for $M$ greater than 925(Shepherd et al., 2012a; Neufeld and Thom, 2017). The linear extrapolation to the CBS limit when using PWs was thoroughly studied and understood by Shepherd and co-workers in Ref. 101. We point out that the use of transcorrelated approaches in AFQMC could greatly accelerate the convergence to the CBS limit(Luo and Alavi, 2018).

FCIQMC with the initiator approximation ( $i$ -FCIQMC) is a formally exact approach as long as there is no initiator bias. Therefore, comparing ph-AFQMC with $i$ -FCIQMC is a good way to assess the accuracy of ph-AFQMC. We see that ph-AFQMC agrees well with $i$ -FCIQMC within the error bar up to $M=179$ and it starts to deviate from $i$ -FCIQMC beyond that. However, $i$ -FCIQMC numbers for the larger $M$ values should be taken cautiously as it has been noted elsewhere that the bias from the initiator approximation was not completely removed(Neufeld and Thom, 2017) and that the $i$ -FCIQMC results for $r_{s}=0.5$ may be too low by approximately 1 m $E_{h}$ .

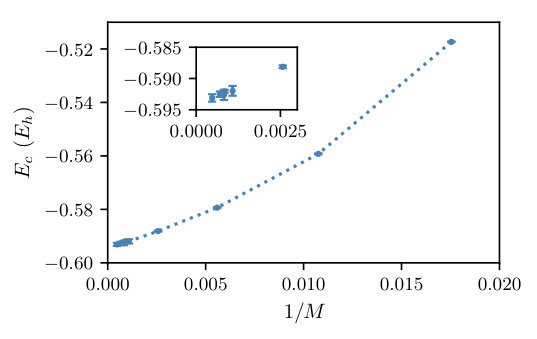

Comparing ph-AFQMC and CC methods is perhaps more relevant for the purpose of this paper. The UEG model $r_{s}=0.5$ is relatively weakly correlated and thus CC methods on top of an RHF reference work very well. Neufeld and Thom found that for $r_{s}=0.5$ , CCSDT is enough to converge the correlation energy with respect to the excitation levels(Neufeld and Thom, 2017). Therefore, the CCSDT numbers in Table 2 should be considered to be exact for a given basis set. As it is clear from Table 2, the CCSD correlation energies are all above those of ph-AFQMC and ph-AFQMC agrees with CCSDT up to sub millihartree.

These results are particularly encouraging for the following reasons. This dense UEG model may be analogous to a weakly correlated molecular system, in the sense that for a finite number of electrons it is relatively well described by HF theory. In such a system, CCSDT (or CCSD(T)) should be more or less exact. Even if their absolute energies were not exact, the relative energies such as barrier heights and interaction energies should be close to exact. The results here suggest that ph-AFQMC is a potentially powerful tool to handle such weakly correlated systems. For the rest of this section, we will assess the accuracy of ph-AFQMC for higher $r_{s}$ where there can be a good mixture of weak and strong correlation. Furthermore, the quality of the RHF trial wavefunction will start to degrade so we will show how this affects ph-AFQMC.

IV.2.2 Assessment for lower densities

In Table 3, we present the comparison of ph-AFQMC, $i$ -FCIQMC, RCCSD, RCCSDT, and RCCSDTQ for selected basis sets. All of our ph-AFQMC is available in the Supplementary Materials. At $r_{s}=1.0$ , ph-AFQMC agrees with $i$ -FCIQMC within the error bar of each result when $M=1189$ . Small basis set ( $M=179$ ) results suggest that from RCCSDT to RCCSDTQ only small correlation energy is gained. Therefore, we consider RCCSDT to be near-exact for larger basis sets. Near the CBS limit ( $M=2109$ ), we found that the ph-AFQMC energy is 15-16 m $E_{h}$ lower than RCCSD and is within the error bar of RCCSDT.

At $r_{s}=2.0$ ph-AFQMC agrees with $i$ -FCIQMC within each error bar. However, RCCSDT struggles to obtain quantitatively accurate results for $M=925$ . RCCSD is about 36 m $E_{h}$ above and RCCSDT is about 5 m $E_{h}$ above the $i$ -FCIQMC (and ph-AFQMC) correlation energies. Like usual strongly correlated systems, the effect of quadruples is not negligible here and it accounts for about 2 m $E_{h}$ correlation energy in a small basis ( $M=81$ ). As shown in Table 3, ph-AFQMC provides a lower correlation energy than even RCCSDTQ in the $M=81$ basis set. Since neither ph-AFQMC nor RCCSDTQ is variational, such correlation energy comparisons should be taken with caution. Nevertheless, since ph-AFQMC and $i$ -FCIQMC agree for $M=925$ we expect ph-AFQMC to be accurate (i.e., near-exact) for $M=81$ . This result highlights the utility of RHF+ph-AFQMC. Namely, it can provide quantitatively accurate results when the role of quadruples is not negligible and yet still small enough for the RHF trial wavefunction to behave well.

Although at $r_{s}=0.5,1.0,2.0$ ph-AFQMC provides more or less exact correlation energies, as the density is lowered further we find that the RHF trial wavefunctions performance degrades significantly. Not only does the ph-AFQMC correlation energy become above RCCSDTQ by about 2 m $E_{h}$ at $r_{s}=3.0$ , but the stability of the simulations suffers noticeably. Nevertheless, at $r_{s}=3.0$ we observe that ph-AFQMC is comparable to RCCSDT and is able to reach the CBS limit reliably.

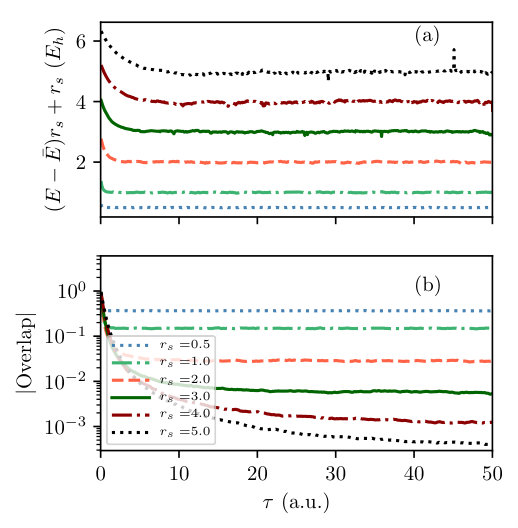

However, $r_{s}=5.0$ is much more difficult to handle with an RHF trial wavefunction. This is typically evidenced by an increase in the number of rare event population fluctuation. These rare events are well understood, and arise due a divergent importance function which occurs when $\langle\Psi_{T}|\phi\rangle$ approaches zero. Although these rare events can be effectively controlled by the use of bounds on the local (and/or hybrid energy)(Purwanto et al., 2009b) they nevertheless signify a worsening in the quality of trial wavefunction for a fixed system size. To demonstrate this, in Fig. 3 we plot the convergence of the ph-AFQMC energy with projection time for a range of densities with $M=93$ as well as an estimate for the overlap $\sum_{n}w_{n}|\langle\Psi_{T}|\phi_{n}\rangle|/\sum_{n}w_{n}$ . We see from Fig. 3 (a) that as $r_{s}$ increases the projection time necessary to converge to the ground state increases as well as the frequency of rare events. This is correlated with a decrease in the magnitude in the overlap as is seen from Fig. 3 (b).

Indeed, at $r_{s}=5.0$ we found that the ph-AFQMC energy did not converge monotonically with increasing basis set size past $M=389$ . Rather, the ph-AFQMC correlation energy decreases in magnitude with increasing basis set size. This signals a complete breakdown of the phaseless constraint with this trial wavefunction. We note that a similar effect can be observed in $i$ -FCIQMC when the initiator error is not fully converged for increased basis set sizes, where one finds that the correlation energy begins to plateau as a function of basis set. This suggests that an improved trial wavefunction is necessary to attain sensible results for this system.

It is noteworthy to point out that this unusual behavior of ph-AFQMC energy with respect to the basis set size could indicate the “non-variational” failure of ph-AFQMC. ph-AFQMC is formally non-variational in the sense that a variational energy estimator of a given ph-AFQMC wavefunction can be above the mixed energy estimator in Eq. (15).Carlson et al. (1999) Similarly, CC methods are also formally non-variational due to their projective nature. With an RHF reference, it has shown catastrophic non-variationality for strongly correlated systems.Van Voorhis and Head-Gordon (2000a); Cooper and Knowles (2010); Lee et al. (2017) It is possible that RCCSD (and even RCCSDT) is also exhibiting non-variationality for this $r_{s}$ value. This can be confirmed with more sophisticated CC methods.Van Voorhis and Head-Gordon (2000b); Robinson and Knowles (2011) The investigation of the non-variationality of ph-AFQMC and CC methods in the context of strong correlation will be an interesting subject for future study.

As discussed in Section IV.1, above $r_{s}=3.5$ , UHF solutions appear and they can be often powerful trial wavefunctions for ph-AFQMC Purwanto et al. (2008). As in Ref. 78, we employ the spin-projection technique to remove the spin-contamination completely. That is, we use the RHF wavefunction as the initial wavefunction while using the UHF wavefunction for the constraints. As shown in Section II.1.3, because both RHF and UHF are size-consistent the resulting UHF+ph-AFQMC performed with an RHF initial wavefunction must be also size-consistent. In Table 4, we present the correlation energies from UHF+ph-AFQMC. Given its substantial symmetry breaking at $r_{s}=5.0$ shown in Fig. 1, it is surprising that it does not provide much improvement over RHF+ph-AFQMC. The UHF+ph-AFQMC energies are about 1 mH lower than the RHF+ph-AFQMC energies and they are still far away from more accurate $i$ -FCIQMC benchmark energies.

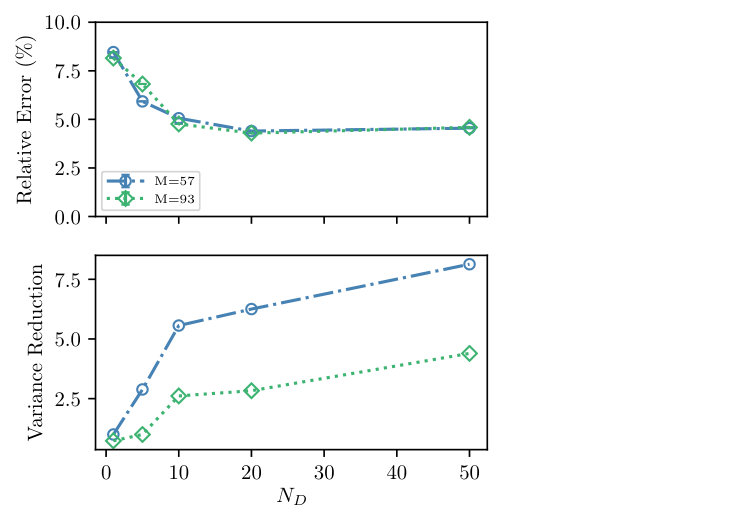

To investigate the ph-AFQMC results at $r_{s}=5.0$ further, we explored the use of non-orthogonal multi-Slater determinant expansions (NOMSD) as trial wavefunctions generated using a version of the projected Hartree–Fock (PHF) algorithm developed by Scuseria and co-workers(Jiménez-Hoyos et al., 2012, 2013; Schutski et al., 2014). Interested readers are referred to Ref.32 for further details. In Fig. 4, We find an initial rapid decrease in the error of the ph-AFQMC correlation energy and correspondingly a reduction in the ph-AFQMC statistical variance in the local energy estimator.

The statistical variance in the estimator should not be confused with the wavefunction variance in variational MC. Therefore, it is possible to observe some improvement in the statistical error bar while the energy estimator does not improve noticeably as observed beforeBorda et al. (2019).

This long tail in the convergence of the ph-AFQMC energy is indicative that the system is strongly correlated. We note that the FCI space for $M=57$ contains on the order of $10^{16}$ determinants and therefore the improvement in the trial wavefunction via determinantal expansions is eventually limited by the exponential wall. We find similar behavior for larger basis sets.

Table 4 summarizes our ph-AFQMC results using a 10 determinant expansion. Note that the $M=93$ and $M=389$ values are roughly within error bars of each other, despite the $i$ -FCIQMC correlation energy decreasing by approximately 10 m $E_{h}$ . We found that for even larger basis sets the RHF+ph-AFQMC correlation energies lay above those at $M=93$ . Nevertheless we see that by improving the trial wavefunction the ph-AFQMC correlation energies begin to slowly approach those of $i$ -FCIQMC values. The slow convergence is evidence of the limitation of using multi Slater determinant trial wavefunctions in strongly correlated systems.

IV.3 Larger Supercells

As explained in Section II.1.3, ph-AFQMC is size-consistent and thus can reliably reach the thermodynamic limit using larger super cells along combined with finite size corrections and twist averaging(Chiesa et al., 2006; Kwee et al., 2008; Ma et al., 2011; Drummond et al., 2008; Holzmann et al., 2016; Lin et al., 2001). As the total energy of the UEG model in the thermodynamic limit is already well understood for solid state densities(Ceperley and Alder, 1980) here we instead just study finite-sized UEG models and compare with other available methods when applicable.

Following the sequence of “magic numbers” in the UEG model, we study larger supercells (54 electrons and 114 electrons) with ph-AFQMC for $r_{s}=0.5,1.0,2.0$ . In the 14-electron UEG model, we obtained energies with error bars of the order of 1 m $E_{h}$ . This is important for molecular applications where we aim for energy differences between two finite systems. On the other hand, the cost of achieving the same statistical error for larger systems adds an extra $\mathcal{O}(N)$ to the computational cost of ph-AFQMC. This extra cost for sampling may be avoided by the correlated sampling technique(Shee et al., 2017, 2018), but here we instead compare the total energy per electron. This metric is well-suited for ab-initio solids (or extended systems) in general.

High-quality DMC numbers are available for the 54-electron UEG model and we compare ph-AFQMC against this. For the 114-electron UEG model, there are only variational MC (VMC) results available so we will compare against these.

IV.3.1 The 54-Electron UEG Model

We found that from $M=1419$ to $M=2109$ the change in $E_{\text{tot}}/N$ at $r_{s}=0.5$ is only of the order of 0.1 m $E_{h}$ . We therefore do not perform the CBS extrapolation for the comparison between ph-AFQMC and DMC. The reported ph-AFQMC numbers are obtained from $M=1419$ which enables a direct comparison between ph-AFQMC and $i$ -FCIQMC at $r_{s}=0.5$ and $r_{s}=1.0$ . The ph-AFQMC results for $M=2109$ at $r_{s}=0.5,1.0,2.0$ are available in the Supplementary Materials.

In Table 5, we summarize the comparison between ph-AFQMC, $i$ -FCIQMC, and DMC for the 54-electron UEG model. At $r_{s}=0.5$ , ph-AFQMC and $i$ -FCIQMC agree with each other within the error bar. Shepherd and co-workers found that the DMC-BF energy is somewhat higher than $i$ -FCIQMC and suggested that the fixed-node error with the backflow (BF) trial wavefunction may not be small. Indeed, we reach the same conclusion with ph-AFQMC. As explained in Section I, the difference between DMC and AFQMC is mainly the discretization (or basis set) we work with. It is interesting that the fixed-node error in FN-DMC can be non-negligible even with more sophisticated trial wavefunctions such as Slater-Jastrow (SJ) and BF. It is encouraging that we can achieve near-exact accuracy with ph-AFQMC at $r_{s}=0.5$ with this simplest possible RHF trial wavefunction.

At $r_{s}=1.0$ , ph-AFQMC is in a better agreement (the difference is about 0.2 m $E_{h}$ /e) with FN-DMC-BF than $i$ -FCIQMC is. In this case, $i$ -FCIQMC suffers from the initiator bias and results into about 1 m $E_{h}$ /e above the FN-DMC-BF energy. In fact, the ph-AFQMC energy is lower than that of FN-DMC-BF, which may indicate non-negligible fixed-node errors even in FN-DMC-BF. Since ph-AFQMC is not variational while FN-DMC-BF is, more careful calibration is highly desirable to see if there are indeed fixed-node errors in FN-DMC-BF. ph-AFQMC agrees better with FN-DMC-BF than does FN-DMC-SJ by 1 m $E_{h}$ /e similarly to the $r_{s}=0.5$ case.

No $i$ -FCIQMC results at $r_{s}=2.0$ due to the severity of the sign problem so we instead must compare only to FN-DMC. We find that the ph-AFQMC energy is 1.1 m $E_{h}$ /e below the FN-DMC-SJ energy and 0.3 m $E_{h}$ /e below the FN-DMC-BF energy. With a larger basis set $M=2109$ , the ph-AFQMC energy lies 0.4 m $E_{h}$ /e below the FN-DMC-BF energy as shown in the Supplementary Materials. Further increasing $r_{s}$ to 5.0, we observe that ph-AFQMC is no longer comparable to FN-DMC-SJ and FN-DMC-BF as expected. As the use of UHF and NOMSD trials was found to be ineffective in the 14-electron model at $r_{s}=5.0$ , we did not perform such calculations here.

In summary, for the 54-electron UEG model at $r_{s}=0.5,1.0,2.0$ , we observe that ph-AFQMC can obtain nearly exact $E_{\text{tot}}/N$ . In particular, its accuracy is comparable to other state-of-the-art methods such as $i$ -FCIQMC and FN-DMC-BF. The general conclusions are similar to the 14-electron UEG model: ph-AFQMC is particularly well-suited for $r_{s}$ values smaller than 5 where there exists moderate strong correlation. It is encouraging that ph-AFQMC achieved these highly accurate results using the simplest trial wavefunction, RHF.

IV.3.2 The 114-Electron UEG Model

Encouraged by the near-exact accuracy of ph-AFQMC for low $r_{s}$ values in the 14- and 54-electron UEG models, we used ph-AFQMC to provide benchmark numbers for the 114-electron UEG model for future method development. The 114-electron UEG model has been relatively less explored. For determinant-based algorithms like $i$ -FCIQMC the sign problem is likely to preclude its application except for very high densities. On the other hand, for ph-AFQMC this does not pose a significant challenge especially when considering $r_{s}\leq 2.0$ .

At $r_{s}=0.5$ , the total energy per electron changes by 0.5 m $E_{h}$ /e when increasing $M$ from 1419 to 2109. For higher $r_{s}$ values, we expect this energy change to be smaller. We will present the ph-AFQMC energies at $r_{s}=0.5,1.0,2.0$ all obtained with $M=2109$ . We expect that our ph-AFQMC energies reported here have the basis set incompleteness error of the order of 0.5 m $E_{h}$ /e per electron. Therefore, the numbers reported here may be considered as an upper bound to the ph-AFQMC energies at the CBS limit.

The ph-AFQMC results are presented in Table 6. The only data available in literature is $r_{s}=1.0$ with a VMC approach with a Slater-Jastrow wavefunction. The VMC energy is 0.60395(25) $E_{h}$ /e Kwon et al. (1998) which is at least 5 m $E_{h}$ /e higher than our ph-AFQMC energies. Comparing ph-AFQMC energies in Table 5 and Table 6, we note that the finite-size effect is still very large. Namely, the energy per electron is far from the convergence with respect to the system size. It will be interesting to investigate finite-size effects with ph-AFQMC in more realistic systems in the future. Although further comparisons are not possible due to the lack of benchmark data, we believe that the ph-AFQMC numbers in Table 6 are close to the exact energies and the correlation energy error is smaller than 1 m $E_{h}$ per electron given the results for the 54-electron model.

V Conclusions

In this paper, we examined the performance of phaseless auxiliary-field quantum Monte Carlo (ph-AFQMC) with the spin-restricted Hartree-Fock (RHF) trial wavefunction (i.e., RHF+ph-AFQMC) on the uniform electron gas (UEG) problem. We considered the 14-electron, 54-electron, and 114-electron UEG model. Through these studies, we found the following conclusions:

In the 14-electron case, we compared RHF+ph-AFQMC with spin-restricted coupled-cluster (RCC) methods. Compared to RCC with singles and doubles (RCCSD) and CC with singles, doubles, and triples (RCCSDT), RHF+ph-AFQMC performs better than RCCSDT and similarly to or slightly worse than RCCSDTQ for $r_{s}\leq 3.0$ . 2. 2.

For the 14-electron problem at $r_{s}=5.0$ where CCSDT is inadequate, RHF+ph-AFQMC exhibits rare fluctuations in the energy estimator, which makes the phaseless approximation difficult to use. We found that using a small multi-determinant trial wavefunction is effective in stabilizing the simulations but still ineffective in obtaining highly accurate results in such cases. 3. 3.

In the case of the 54-electron UEG model, the comparison with initiator full configuration interaction QMC ( $i$ -FCIQMC) and fixed-node diffusion MC (FN-DMC) suggested that RHF+ph-AFQMC is a promising tool for simulating dense solids. Such connections between dense solids and the UEG model were previously made in Ref. 123; 124; 125. RHF+ph-AFQMC confirmed that the fixed-node error in FN-DMC for $r_{s}=0.5$ as noted before in an $i$ -FCIQMC study. Moreover, RHF+ph-AFQMC revealed that the initiator bias in $i$ -FCIQMC for $r_{s}=1.0$ is large (about 1 m $E_{h}$ per electron) and the fixed-node error in FN-DMC with a back flow trial wavefunction (FN-DMC-BF) may not be negligible (0.3 m $E_{h}$ per electron). A smilar trend was observed in the case of $r_{s}=2.0$ . Lastly, $r_{s}=5.0$ was found to be challenging for RHF+ph-AFQMC to tackle and the ph-AFQMC correlation energy was simply inadequate compared to FN-DMC-BF for this case. Overall, RHF+ph-AFQMC was found to be as accurate as or potentially more accurate than FN-DMC-BF wavefunction for $r_{s}$ up to 2.0. 4. 4.

We produced RHF+ph-AFQMC energies of the 114-electron problem for $r_{s}\leq 2.0$ where not many benchmark data are available. Given its performance for the 54-electron case, we expect the RHF+ph-AFQMC correlation energy error to be less than 1 m $E_{h}$ per electron.

It is the central message of this paper that even with the simplest trial wavefunction (RHF) ph-AFQMC is a powerful tool for simulating molecules and solids where there is no noticeable strong correlation between electrons. In particular, its scope lies between CCSD and CCSDT. Given its low scaling ( $\mathcal{O}(N^{3})-\mathcal{O}(N^{4})$ ), RHF+ph-AFQMC remains a promising tool.

The future study should include a more extensive benchmark of RHF+ph-AFQMC on more chemically relevant systems such as the W4-11(Karton et al., 2011) set as well as designing better and yet compact trial wavefunctions for AFQMC. Using dynamically correlated orbitals such as those from orbital-optimized Møller-Plesset perturbation theory can be an economical way to go beyond HF trial wavefunctions.Lee and Head-Gordon (2018, 2019a, 2019b) Some essential symmetry breaking in the HF trial wavefunction can potentially improve the performance of ph-AFQMC greatly such as using complex, restricted HF orbitals.Small et al. (2015); Lee et al. (2019) Lastly, the finite-temperature extension of ph-AFQMC has been well established(Zhang, 1999; Rubenstein et al., 2012; Liu et al., 2018). The assessment of ph-AFQMC for the warm dense UEG model(Dornheim et al., 2018a), which has been the subject of intense research of late(Brown et al., 2013; Schoof et al., 2015; Malone et al., 2016; Dornheim et al., 2017, 2018b) is currently work in progress.

VI Acknowledgement

The work of J.L. was partly supported by the CCMS summer internship in 2018 at the Lawrence Livermore National Lab. J.L. thanks Martin Head-Gordon and Soojin Lee for consistent encouragement. We would like to thank Carlos Jimenez-Hoyos for providing us access to the PHF code used to generate NOMSD expansions. The PHF code used in this work was developed in the Scuseria group at Rice University (Jiménez-Hoyos et al., 2012, 2013; Schutski et al., 2014). This work was performed under the auspices of the U.S. Department of Energy (DOE) by LLNL under Contract No. DE-AC52-07NA27344. Funding support was from the U.S. DOE, Office of Science, Basic Energy Sciences, Materials Sciences and Engineering Division, as part of the Computational Materials Sciences Program and Center for Predictive Simulation of Functional Materials (CPSFM). Computer time was provided by the Livermore Computing Facilities.

Bibliography136

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1Huntington and Nooijen (2010) L. M. Huntington and M. Nooijen, J. Chem. Phys. 133 , 184109 (2010).
2Bartlett and Musiał (2007) R. J. Bartlett and M. Musiał, Rev. Mod. Phys. 79 , 291 (2007) . · doi ↗
3Small and Head-Gordon (2012) D. W. Small and M. Head-Gordon, J. Chem. Phys. 137 , 114103 (2012).
4Kats and Manby (2013) D. Kats and F. R. Manby, J. Chem. Phys. 139 , 021102 (2013) . · doi ↗
5Small et al. (2014) D. W. Small, K. V. Lawler, and M. Head-Gordon, J. Chem. Theory Comput. 10 , 2027 (2014).
6Lee et al. (2017) J. Lee, D. W. Small, E. Epifanovsky, and M. Head-Gordon, J. Chem. Theory Comput. 13 , 602 (2017).
7Lee et al. (2018) J. Lee, D. W. Small, and M. Head-Gordon, J. Chem. Phys. 149 , 244121 (2018).
8White and Martin (1999) S. R. White and R. L. Martin, J. Chem. Phys. 110 , 4127 (1999) . · doi ↗
