FastDraw: Addressing the Long Tail of Lane Detection by Adapting a Sequential Prediction Network

TL;DR

FastDraw introduces a novel convolutional lane detection model that directly decodes lane structures, handles multiple lanes, estimates uncertainty, and adapts to new environments using style transfer, achieving high accuracy and real-time performance.

Contribution

The paper presents a fully convolutional lane detection model that directly predicts lane structures without post-processing and incorporates style transfer for environment adaptation.

Findings

Achieves competitive accuracy on multiple datasets.

Runs at 90 FPS in real-time.

Effectively adapts to different weather and lighting conditions.

Abstract

The search for predictive models that generalize to the long tail of sensor inputs is the central difficulty when developing data-driven models for autonomous vehicles. In this paper, we use lane detection to study modeling and training techniques that yield better performance on real world test drives. On the modeling side, we introduce a novel fully convolutional model of lane detection that learns to decode lane structures instead of delegating structure inference to post-processing. In contrast to previous works, our convolutional decoder is able to represent an arbitrary number of lanes per image, preserves the polyline representation of lanes without reducing lanes to polynomials, and draws lanes iteratively without requiring the computational and temporal complexity of recurrent neural networks. Because our model includes an estimate of the joint distribution of neighboring pixels belonging to the same lane, our formulation includes a natural and computationally cheap definition of uncertainty. On the training side, we demonstrate a simple yet effective approach to adapt the model to new environments using unsupervised style transfer. By training FastDraw to make predictions of lane structure that are invariant to low-level stylistic differences between images, we achieve strong performance at test time in weather and lighting conditions that deviate substantially from those of the annotated datasets that are publicly available. We quantitatively evaluate our approach on the CVPR 2017 Tusimple lane marking challenge, difficult CULane datasets, and a small labeled dataset of our own and achieve competitive accuracy while running at 90 FPS.

Figures

Tables

Table 1. Table 1: We use Tusimple evaluation metrics to compare quantitatively with EL-GAN [ 12 ] . FastDraw achieves comparable performance to EL-GAN with fewer layers. We note that while the accuracy of adapted FastDraw achieves high accuracy, it also has the highest false positive rate. We reason that the network learns a stronger prior over lane shape from D ′ superscript 𝐷 ′ D^{\prime} , but the style segmentation does not always preserve the full number of lanes which results in the side of the road being falsely labeled a lane in the D ′ superscript 𝐷 ′ D^{\prime} dataset.

Method	Acc (%)	FP	FN
EL-GAN (basic)	93.3	0.061	0.104
EL-GAN (basic++)	94.9	0.059	0.067
FastDraw Resnet18	94.9	0.061	0.047
FastDraw Resnet50	94.9	0.059	0.052
FastDraw Resnet50 (adapted)	95.2	0.076	0.045

Table 2. Table 2: Because FastDraw requires little to no post-processing, the runtime is dominated by the forward pass of the CNN backbone which can be heavily optimized.

Model	Frames-Per-Second
Ours	90.31
H-Net [20]	52.6
CULane [21]	17.5
PolyLine-RNN [9]	5.7
EL-GAN [7]	<10

Table 3. Table 3: For a series of decoded polylines, we calculate the distance between the pixel with maximum likelihood p h ± 1 , w , 0 subscript 𝑝 plus-or-minus ℎ 1 𝑤 0 p_{h\pm 1,w,0} in the row above { h , w } ℎ 𝑤 \{h,w\} with the chosen argmax ​ p h , w , ± 1 argmax subscript 𝑝 ℎ 𝑤 plus-or-minus 1 \text{argmax}p_{h,w,\pm 1} . We report the percent of the time that the distance is less than one, three, and five pixels. We find that the network is in general predicting values which agree with the p h , w , 0 subscript 𝑝 ℎ 𝑤 0 p_{h,w,0} predictions. Deviation from the naive decoder explains why the network still performs is able to perform well when the segmentation mask is noisy.

$\left|p_{h,w,1}-\text{argmax}{p}_{h+1,w+\Delta w,0}\right|$	%
	12.6
	58.2
	87.1

Table 4. Table 4: We compare FastDraw trained on CULane dataset to Resnet-50 on the CULane test set. We do not filter the lane predictions from FastDraw and achieve competitive results. While these scores are lower than those of SCNN [ 29 ] , we emphasize that architectural improvements such as those introduced in [ 29 ] are complementary to the performance of the FastDraw decoder.

	ResNet-50 [29]	FastDraw Resnet50
Normal	87.4	85.9
Crowded	64.1	63.6
Night	60.6	57.8
No line	38.1	40.6
Shadow	60.7	59.9
Arrow	79.0	79.4
Dazzle	54.1	57.0
Curve	59.8	65.2
Crossroad	2505	7013

Equations

$$p(\text{y}|\text{x})=p(y_1|\text{x})\prod _{i=1}^{n-1}p(y_{i+1}|y_1,...,y_i,\text{x}).$$

$$p(\text{y}|\text{x})\approx p(y_1|\text{x})\prod _{i=1}^{n-1}p(y_{i+1}|y_i,\text{x}).$$

$$p(y_{i+1}|y_i,\text{x})$$

$$\Delta w_i$$

$$\text{y}(h_0)$$

$$\text{y}(h+d)$$

$$\Delta w^d$$

$$L_{mask}(\theta )$$

$$\begin{array}{rl}{L}_{sequence}(\theta )& =\\ -\sum _{d\in \{-1,1\}}& \sum _{i=1}^n\log (p(\Delta w_i^d|f_{\theta }(\text{x})))\end{array}$$

$$L(\theta )$$

$$\begin{array}{rl}L(\theta )=& \frac{1}{{\sigma }_{mask}^2}{L}_{mask}(\theta )+\frac{1}{{\sigma }_{sequence}^2}{L}_{sequence}(\theta )\\ & +\log {\sigma }_{mask}^2{\sigma }_{sequence}^2.\end{array}$$

$$s$$

$$w_i^{\prime }$$

$$\Delta w_i^d$$

$$\mathbf{x},\mathbf{y}$$

$${\text{x}}^{\prime }$$

$${\text{y}}^{\prime }$$

$$w_i^{\ast }=m{w}_i+b$$

Full text

1 Introduction

Previous models of lane detection generally follow the following three-step template. First, the likelihood that each pixel is part of a lane is estimated. Second, pixels that clear a certain threshold probability $p_{min}$ of being part of a lane are collected. Lastly, these pixels are clustered, for instance with RANSAC, into individual lanes.

Because the second and third steps in which road structure is inferred from a point cloud of candidate pixels are in general not differentiable, the performance of models of lane detection that follow this template is limited by the performance of the initial segmentation. We propose a new approach to lane detection in which the network performs the bulk of the decoding, thereby eliminating the need for hyper-parameters in post-processing. Our model “draws” lanes in the sense that the network is trained to predict the local lane shape at each pixel. At test time, we decode the global lane by following the local contours as predicted by the CNN.

A variety of applications benefit from robust lane detection algorithms that can perform in the wild. If the detector is iterative, the detector can be used as an interactive annotation tool which can be used to decrease the cost of building high definition maps [16, 1]. For level 5 systems that depend on high definition maps, online lane detection is a useful localization signal. Level 2 systems that are not equipped to handle the computational load required of high definition maps depend on models of lane detection equipped with principled methods of determining when to notify the driver that the lane detection is uncertain. In pursuit of solutions for these applications, we identify three characteristics that a lane detection module should possess.

First, the lane detection algorithm must be able to represent any number of lanes of any length. Whereas variability in the number of instances of an object in an image is an aspect of any kind detection problem, variability in the dimensionality of a single instance is a more unique to the lane detection problem; unlike bounding boxes which have a precise encoding of fixed dimensionality, lane segments can be arbitrary length. Solutions that reduce lanes to a constant dimensionality - such as by fitting them with polynomials - lose accuracy on tight curves where accurate lane detection or localization is important for safe driving.

Second, the detection algorithm must run in real-time. Therefore, although there is variability in the number and size of lanes in an image, whatever recursion used to identify and draw these lanes must be fast. Solutions to the variable dimensionality problem that involve recurrent cells [15] or attention [35] are therefore a last resort.

Finally, the detection algorithm must be able to adapt quickly to new scenes. Sensors such as cameras and lidar that are used in self-driving carry with them a long tail in the distribution of their outputs. A lane detection algorithm should be able to adapt to new domains in a scalable way.

We present an approach which addresses these problems and is competitive with other contemporary lane detection algorithms. Our contributions are

• •

A lane detection model that integrates the decoding step directly into the network. Our network is autoregressive and therefore comes equipped with a natural definition of uncertainty. Because decoding is largely carried out by the convolutional backbone, we are able to optimize the network to run at 90 frames per second on a GTX 1080. The convolutional nature of FastDraw makes it ideal for multi-task learning [20] or as an auxiliary loss [6].

• •

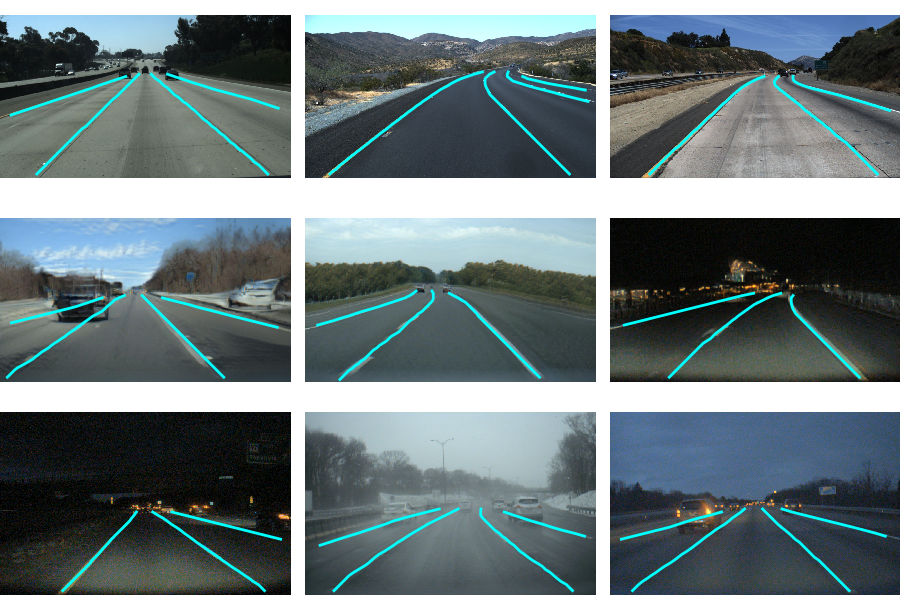

A simple but effective approach to adapt our model to handle images that are far from the distribution of images for which we have public annotations. Qualititative results are shown in Figure 1 and Figure 6. While style transfer has been used extensively to adapt the output distribution of simulators to better match reality [10], we use style transfer to adapt the distribution of images from publicly available annotated datasets to better match corner case weather and environmental conditions.

2 Related Work

Lane Detection Models of lane detection generally involve extracting lane marking features from input images followed by clustering for post-processing. On well-maintained roads, algorithms using hand-crafted features work well [2, 19]. Recent approaches such as those that achieve top scores on the 2017 Tusimple Lane Detection Challenge seek to learn these hand-crafted features in a more end-to-end manner using convolutional neural networks. To avoid clustering, treating left-left lane, left lane, right lane, and right-right lane as channels of the segmentation has been explored [29]. Projecting pixels onto a ground plane via a learned homography is a strong approach for regularizing the curve fitting of individual lanes [28]. Research into improving the initial segmentation has been successful although results are sensitive to the heuristics used during post-processing [12]. Recent work has improved segmentation by incorporating a history of images instead of exclusively conditioning on the current frame [39].

Lane detection is not isolated to dashcam imagery. Models that detect lanes in dashcams can in general be adapted to detect lanes in lidar point-clouds, open street maps, and satellite imagery [16, 23, 4]. The success of semantic segmentation based approaches to lane detection has benefited tremendously from rapid growth in architectures that empirically perform well on dense segmentation tasks [5, 26, 25]. Implicitly, some end-to-end driving systems have been shown to develop a representation of lanes without the need for annotated data [21, 7].

Style Transfer Adversarial loss has enabled rapid improvements in a wide range of supervised and unsupervised tasks. Pix2Pix [18] was the first to demonstrate success in style translation tasks on images. Unsupervised style transfer for images [27, 38] and unsupervised machine translation [24, 3] use back-translation as a proxy for supervision. While models of image-to-image translation have largely been deterministic [27, 38], MUNIT [17] extends these models to generate a distribution of possible image translations. In this work, we incorporate images generated by MUNIT translated from a public dataset to match the style of our own cameras. We choose MUNIT for this purpose because it is unsupervised and generative. Previous work has used data from GTA-V to train object detectors that operate on lidar point clouds [37]. Parallel work has shown that synthetic images stylized by MUNIT can improve object detection and semantic segmentation [10]. We seek to leverage human annotated datasets instead of simulators as seeds for generating pseudo training examples of difficult environmental conditions.

Drawing We take inspiration from work in other domains where targets are less structured than bounding boxes such as human pose estimation [8] and automated object annotation [1]. In human pose estimation, the problem of clustering joints into human poses has been solved by inferring slope fields between body parts that belong to the same human [8]. Similarly, we construct a decoder which predicts which pixels are part of the same lane in addition to a segmentation of lanes. In Polygon-RNN [9] and Sketch-RNN [13], outlines of objects are inferred by iteratively drawing bounding polygons. We follow a similar model of learned decoding while simplifying the recurrence due to the relative simplicity of the lane detection task and need for realtime performance.

3 Model

Our model maximizes the likelihood of polylines instead of purely predicting per-pixel likelihoods. In doing so, we avoid the need for heuristic-based clustering post-processing steps [2]. In this section, we describe how we derive our loss, how we decode lanes from the model, and how we train the network to be robust to its own errors when conditioning on its own predictions at test time.

3.1 Lane Representation

In the most general case, lane annotations are curves $\gamma:[0,1]\rightarrow\mathbb{R}^{2}$. In order to control the orientation of the lanes, we assume that lane annotations can be written as a function of the vertical axis of the image. A lane annotation y therefore is represented by a sequence of $\{height,width\}$ pixel coordinates $\textbf{y}=\{y_{1},...,y_{n}\}=\{\{h_{1},w_{1}\},...,\{h_{n},w_{n}\}\}$ where $h_{i+1}-h_{i}=1$.

Given an image $\textbf{x}\in\mathbb{R}^{3\times H\times W}$, the joint probability $p(\textbf{y}|\textbf{x})$ can be factored

[TABLE]

One choice to predict $p(y_{i+1}|y_{1},...,y_{i},\textbf{x})$ would be to use a recurrent neural network [16, 36]. Do decode quickly, we assume most of the dependency can be captured by conditioning only on the previous decoded coordinate

[TABLE]

Because we assume $h_{i+1}-h_{i}=1$, we can simplify

[TABLE]

Lane detection is then reduced to predicting a distribution over $dw/dh$ at every pixel in addition to the standard per-pixel likelihood. Decoding proceeds by choosing an initial pixel coordinate and integrating.

To represent the distribution $p(\Delta w_{i}|y_{i},\textbf{x})$, we could use a normal distribution and perform regression. However, in cases where the true distribution is multi-modal such as when lanes split, a regression output would cause the network to take the mean of the two paths instead of capturing the multimodality. Inspired by WaveNet [34], we choose to make no assumptions about the shape of $p(\Delta w_{i}|y_{i},\mathbf{x})$ and represent the pairwise distributions using categorical distributions with support $\Delta w\in\{i\in\mathbb{Z}|-L\leq i\leq L\}\cup\{\texttt{end}\}$ where $L$ is chosen large enough to be able to cover nearly-horizontal lanes and end is a stop token signaling the end of the lane. At each pixel $\{h,w\}$, our network predicts

• •

$p_{h,w,0}:=p(y_{h,w}=1|\textbf{x})$ - the probability that pixel $\{h,w\}$ is part of a lane.

• •

$p_{h,w,1}:=p(\Delta w^{+1}|y_{h,w}=1,\textbf{x})$ - the categorical distribution over pixels in the row above pixel $\{h,w\}$ within a distance $L$ that pixel $\{h+1,w+\Delta w^{+1}\}$ is part of the same lane as pixel $\{h,w\}$ or that pixel $\{h,w\}$ is the top pixel in the lane it is a part of.

• •

$p_{h,w,-1}:=p(\Delta w^{-1}|y_{h,w}=1,\textbf{x})$ - the categorical distribution over pixels in the row below pixel $\{h,w\}$ within a distance $L$ that pixel $\{h-1,w+\Delta w^{-1}\}$ is part of the same lane as pixel $\{h,w\}$ or that pixel $\{h,w\}$ is the bottom pixel in the lane it is a part of.

Given these distributions, we can quickly decode a full lane segment given any initial point on the lane. Given some initial position $h_{0},w_{0}$ on lane y, we follow the greedy recursion

[TABLE]

where $d\in\{-1,1\}$ during the downwards and upwards drawing stages. Note that we can choose any $y_{i}\in\textbf{y}$ as $h_{0},w_{0}$ as long as we concatenate the results from the upwards and downwards trajectories. We stop decoding when argmax returns the end token.

3.2 Architecture

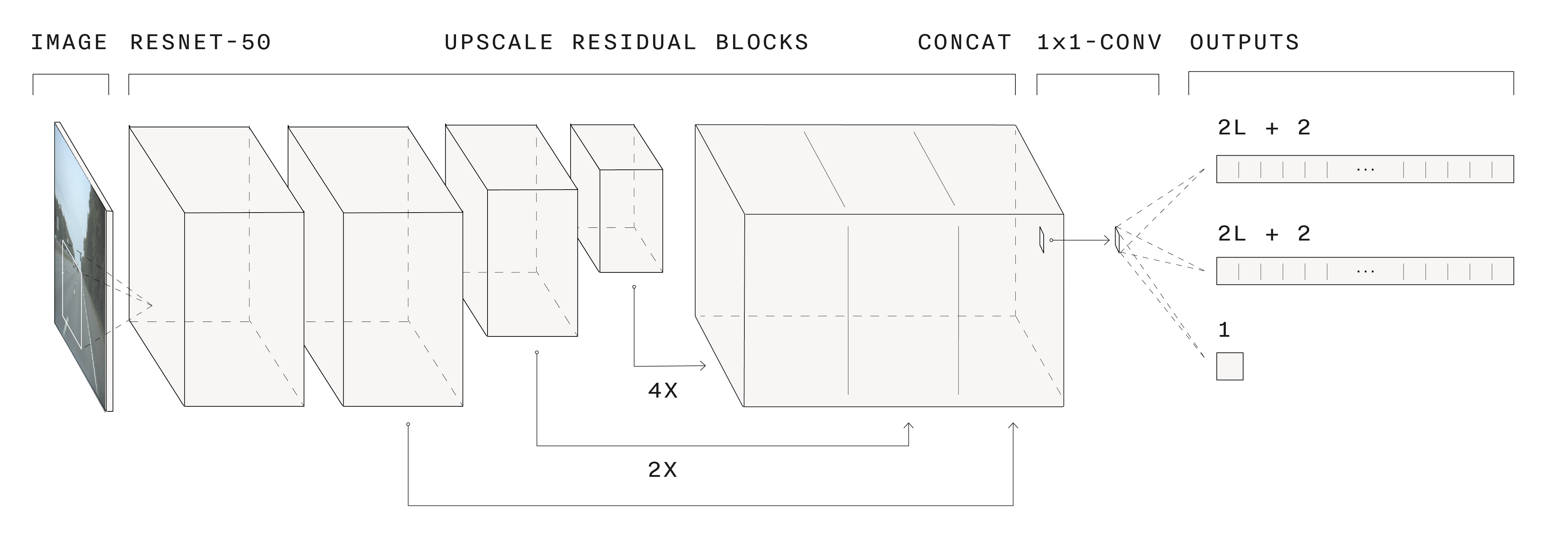

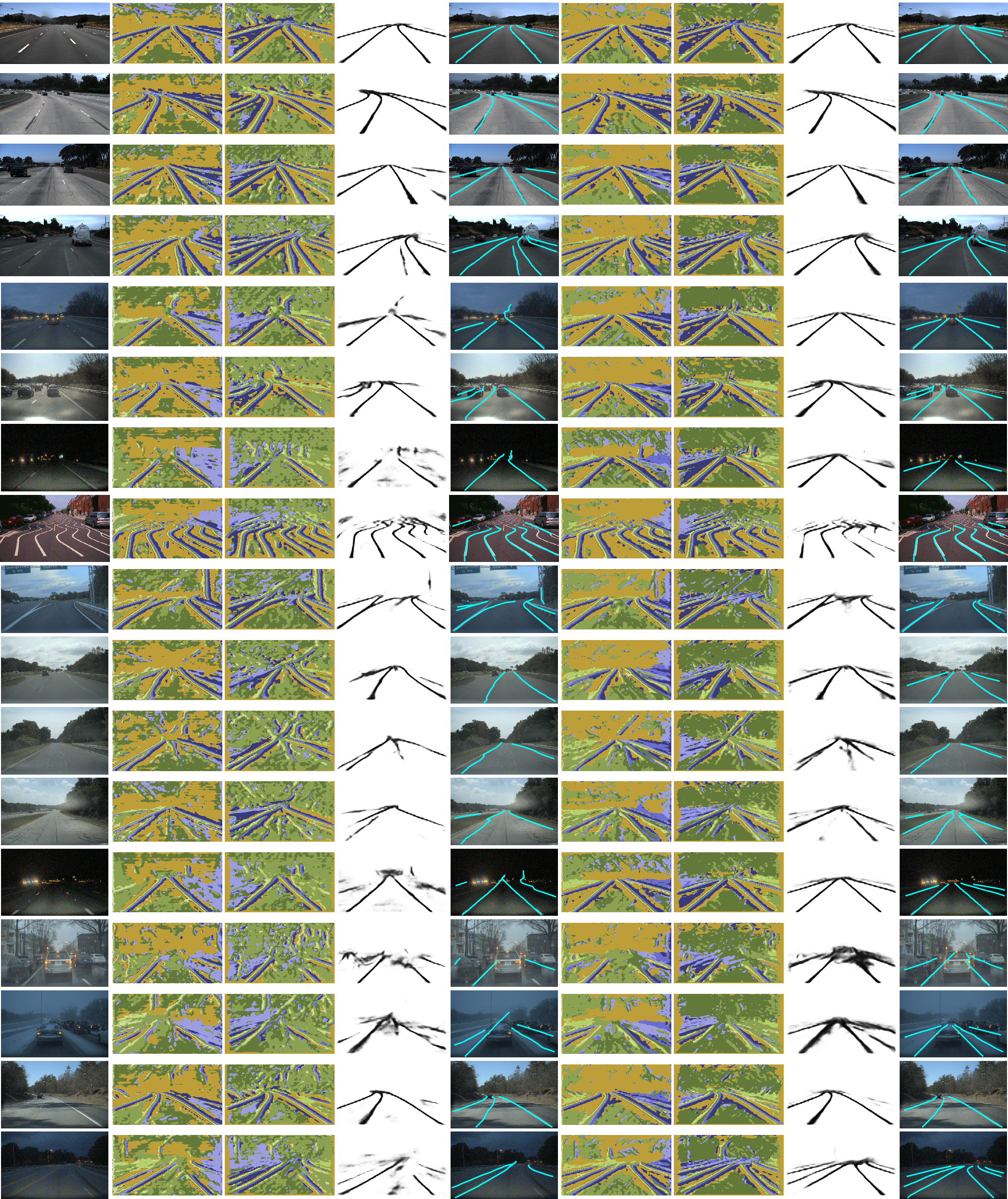

To extract a semantic representation of the input image, we repurpose Resnet50/18 [14] for semantic segmentation. The architecture is shown in Figure 2. We use two skip connections to upscale and concatenate features at a variety of scales. All three network heads are parameterized by two layer CNNs with kernel size 3. In all experiments, we initialize with Resnets pretrained on Imagenet [30].

3.3 Loss

We minimize the negative log likelihood given by (2). Let $\theta$ represent the weights of our network, $\mathbf{x}\in\mathbb{R}^{3,H,W}$ an input image, $\mathbf{y}=\{\{h_{1},w_{1}\},...,\{h_{n},w_{n}\}\}$ a ground truth lane annotation such that $h_{i}-h_{i-1}=1$ and $\mathbf{y_{m}}\in\mathbb{R}^{1,H,W}$ a ground truth segmentation mask of the lane. The loss $L(\theta)$ is defined by

[TABLE]

Because the the task of binary segmentation and pairwise prediction have different uncertainties and scales, we dynamically weight these two objectives [20]. We incorporate a learned temperature $\sigma$ which is task specific to weigh our loss:

[TABLE]

During training, we substitute $W=\log\sigma^{2}$ into (11) for numerical stability. Experiments in which we fixed $W$ resulted in similar performance to allowing $W$ to be learnable. However, we maintain the dynamically weighed loss for all results reported below to avoid tuning hyperparameters.

3.4 Exposure Bias

Because our model is autoregressive, training $p_{h,w,\pm 1}$ by conditioning exclusively on ground truth annotations leads to drifting at test time [32]. One way to combat this issue is to allow the network to act on its own proposed decoding and use reinforcement learning to train. The authors of [1] take this approach using self-critical sequence training [33] and achieve good results.

Although we experiment with reinforcement learning, we find that training the network to denoise lane annotations — also known as augmenting datasets with “synthesized perturbations” [6] — is significantly more sample efficient. This technique is visualized in Figure 3. To each ground truth annotation y we add gaussian noise and train the network to predict the same target as the pixels in y. We therefore generate training examples

[TABLE]

where $d\in\{-1,1\}$. We tune $\sigma$ as a hyperparameter which is dependent on dataset and image size. We clamp all $\Delta w$ between $-L$ and $L$ and clamp all $w^{\prime}$ between 0 and the width of the image.

3.5 Adaptation

The downside of data-driven approaches is that we have weak guarantees on performance once we evaluate the model on images far from the distribution of images that it trained on. For this purpose, we leverage the MUNIT framework [17] to translate images from public datasets with ground truth annotations into a distribution of images we acquire by driving through Massachusetts in a variety of weather and lighting conditions.

To perform style transfer on the images in unordered datasets $D$ and $D^{\prime}$, the CycleGAN framework [38] trains an encoder-generator pair $E,G$ for each dataset $D$ and $D^{\prime}$ such that $G(E(\mathbf{x}))\approx\mathbf{x}$ for $\mathbf{x}\sim D$ and difference between the distributions $y\sim G^{\prime}(E(\mathbf{x}))$ and $y\sim D^{\prime}$ is minimized, with analogous statements for $D^{\prime}$. The MUNIT framework generalizes this model to include a style vector $s\sim\mathcal{N}(0,\mathbf{I})$ as input to the encoder $E$. Style translations are therefore distributions that can be sampled from instead of deterministic predictions.

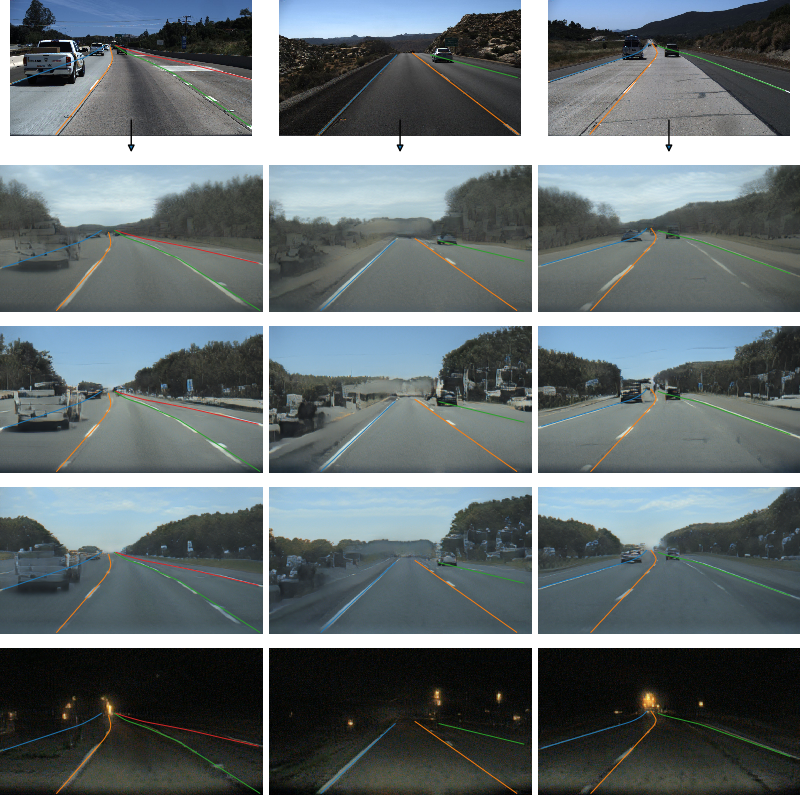

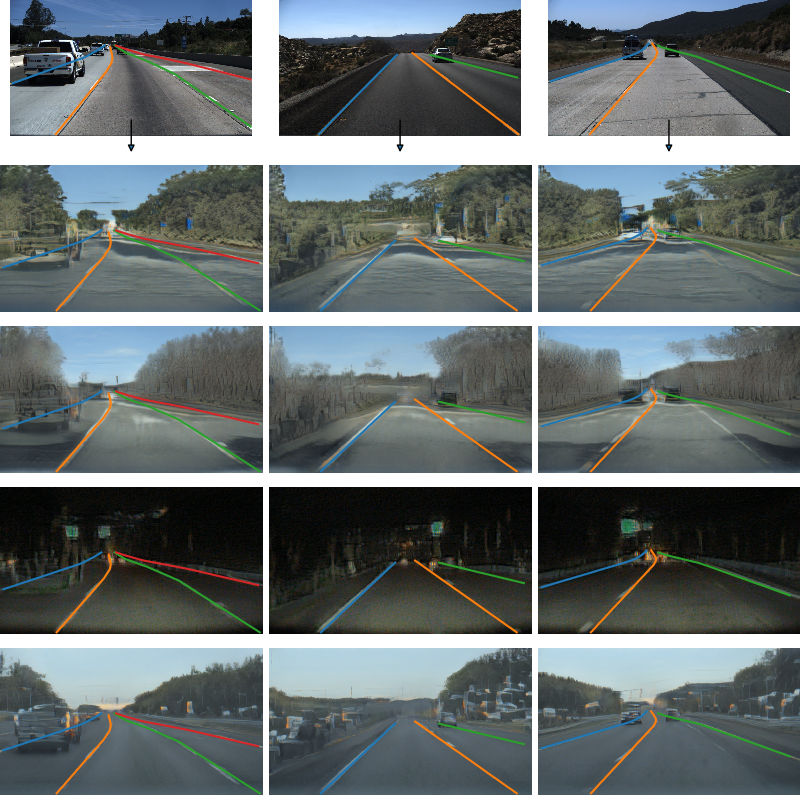

As shown in Figure 4, we use MUNIT to augment our labeled training set with difficult training examples. Let $D=\{\mathbf{x_{i}},\mathbf{y_{i}}\}$ be a dataset of images $\mathbf{x}_{i}$ and lane annotations $\mathbf{y}_{i}$ and $D^{\prime}=\{\mathbf{x}_{i}\}$ a corpus of images without labels. Empirically, we find that style transfer preserves the geometric content of input images. We can therefore generate new training examples $\{\mathbf{x}^{\prime},\mathbf{y}^{\prime}\}$ by sampling from the distribution $D^{\prime}\sim\{\mathbf{x}^{\prime},\mathbf{y}^{\prime}\}$ defined by

[TABLE]

Although representation of lanes around the world are location dependent, we theorize that the distribution of lane geometries is constant. Unsupervised style transfer allows us to adjust to different styles and weather conditions without the need for additional human annotation.

4 Experiments

We evaluate our lane detection model on the Tusimple Lane Marking Challenge and the CULane datasets [29]. The Tusimple dataset consists of 3626 annotated 1280x720 images taken from a dash camera as a car drives on California highways. The weather is exclusively overcast or sunny. We use the same training and validation split as EL-GAN [12]. In the absence of a working public leaderboard, we report results exclusively on the validation set. We use the publicly available evaluation script to compute accuracy, false positive rate, and true positive rate.

Second, we adopt the same hyperparameters determined while training on Tusimple and train our network on the challenging CULane dataset. CULane consists of 88880 training images, 9675 validation images, and 34680 test images in a diversity of weather conditions scenes. The test set includes environmental metadata about images such as if the image is crowded, does not have lane lines, or is tightly curved. We report evaluation metrics on each of these cases as is done by CULane [29].

Finally, to evaluate the effectiveness of our model to adapt to new scenes, we drive in Massachusetts in a diversity of weather conditions and record 10000 images of dash cam data. Using publicly available source code, we train MUNIT to translate between footage from the Tusimple training set and our own imagery, then sample 10000 images from the generator. We note that upon evaluating qualitatively the extent to which the original annotations match the generated images, the frame of the camera is transformed. We therefore scale and bias the height coordinates of the original annotations with a single scale and bias across all images to develop $D^{\prime}$.

[TABLE]

Samples from the pseudo training example generator are shown in Figure 4. A speed comparison of FastDraw to other published models is shown in Table 2. For models trained on images of size $128\times 256$ we use $L=6$ pixels and $\sigma=2$ pixels. For models trained on images of size $352\times 640$ we use $L=16$ pixels and $\sigma=5$ pixels.

5 Results

5.1 Tusimple

We train FastDraw on the Tusimple dataset. We train for $7$ epochs in all experiments with batch size 4 using the Adam optimizer [22]. We initialize learning rate to 1.0e-4 and halve the learning rate every other epoch. To generate the candidates for initial points of lanes, we mask the center of the image and use DBSCAN from scikit-learn [31] with $\epsilon=5$ pixels to cluster. Given these initial positions, we follow the predictions of FastDraw to draw the lane upwards and downwards.

We compare our algorithm quantitatively against EL-GAN [12]. EL-GAN improves lane detection over traditional binary segmentation by adding an additional adversarial loss to the output segmentation. The segmentations therefore approximate the distribution of possible labels. However, this approach still requires a heuristic decoder to convert the segmentation into structured lane objects. FastDraw is competitive with EL-GAN by all Tusimple metrics as shown in Table 1.

5.2 Uncertainty

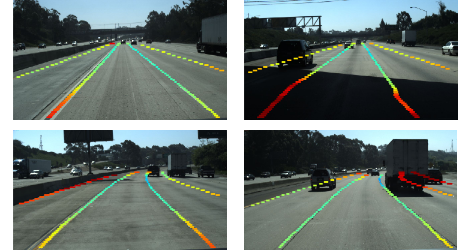

Because our network predicts a categorical distribution at each pixel with suppoert $\Delta w\in\{i\in\mathbb{Z}|-L\leq i\leq L\}\cup\{\texttt{end}\}$, we can quickly compute the standard deviation of this distribution conditioned on $\Delta w\neq\texttt{end}$ and interpret the result as errorbars in the width dimension. We find that the uncertainty in the network increases in occluded and shadowy conditions. Example images are shown in Figure 5. These estimates can be propagated through the self-driving stack to prevent reckless driving in high-uncertainty situations.

5.3 Is the learned decoder different from a simple heuristic decoder?

A simple way to decode binary lane segmentations is to start at an initial pixel, then choose the pixel in the row above the initial pixel with the highest probability of belonging to a lane. To show that our network is not following this decoding process, we calculate the frequency at which the network chooses pixels that agree with this simple heuristic based approach. The results are shown in Table 3. We find that although the output of the two decoders are correlated, the learned decoder is in general distinct from the heuristic decoder.

5.4 CULane

We train FastDraw on the full CULane training dataset [29]. We use identical hyperparameters to those determined on Tusimple with an exponential learning rate schedule with period $1000$ gradient steps and multiplier 0.95. FastDraw find the model achieves competitive performance with the CULane Resnet-50 baseline. IoU at an overlap of 0.5 as calculated by the open source evaluation provided by CULane is shown in Table 4. Of note is that FastDraw outperforms the baseline on curves by a wide margin as expected given that CULane assumes lanes will be well represented by cubic polynomials while FastDraw preserves the polyline representation of lanes.

5.5 Massachusetts

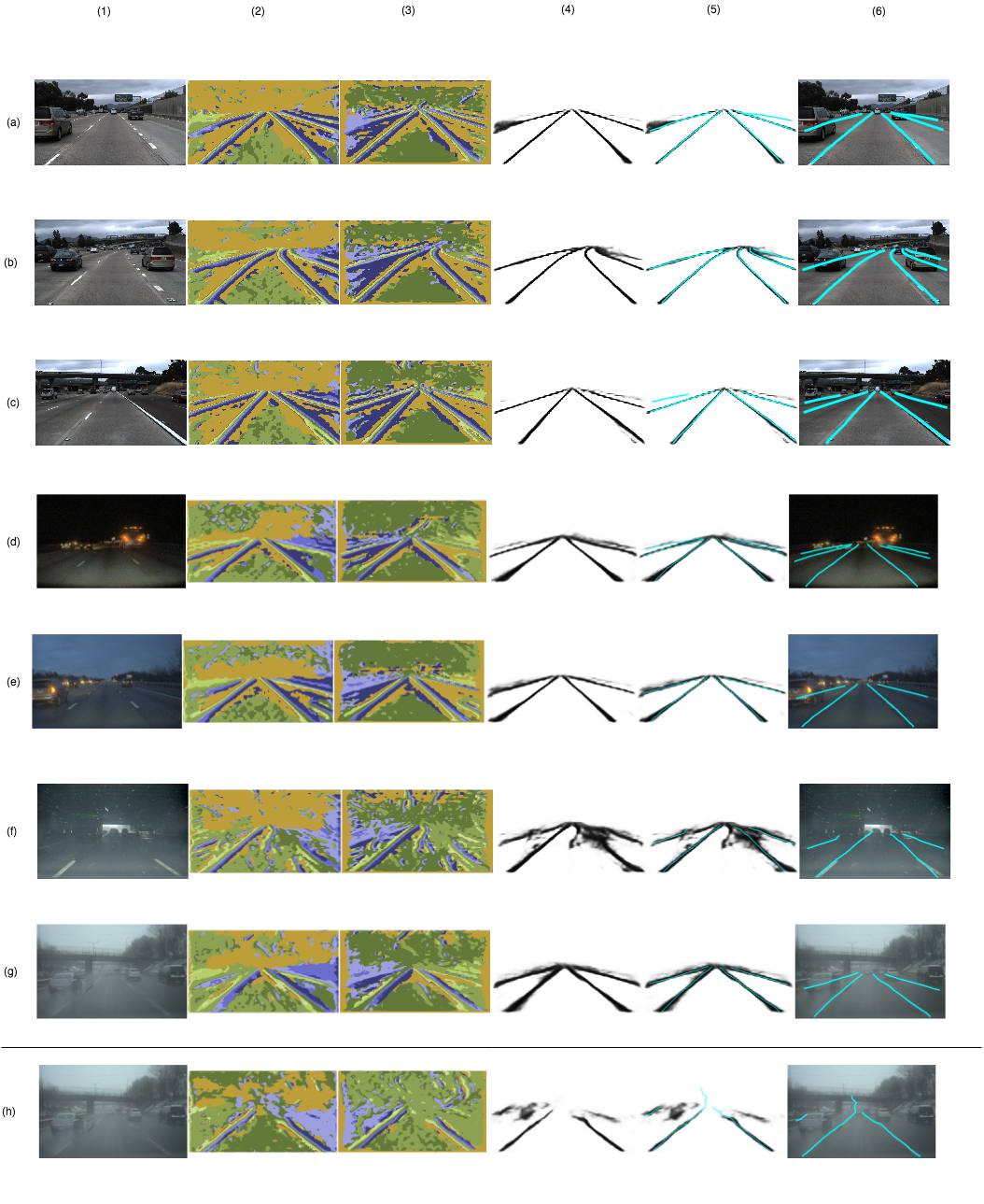

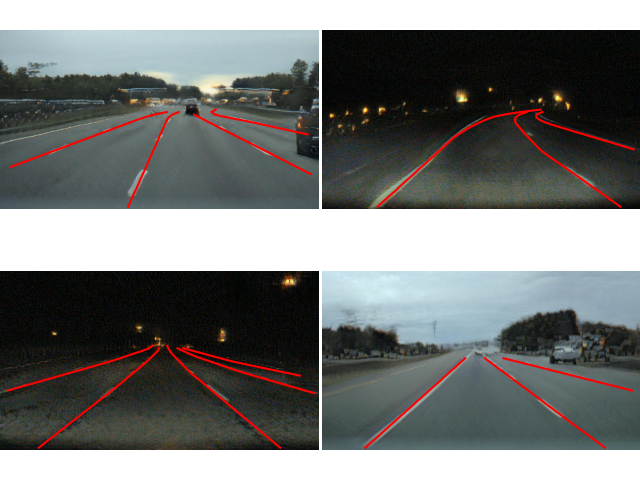

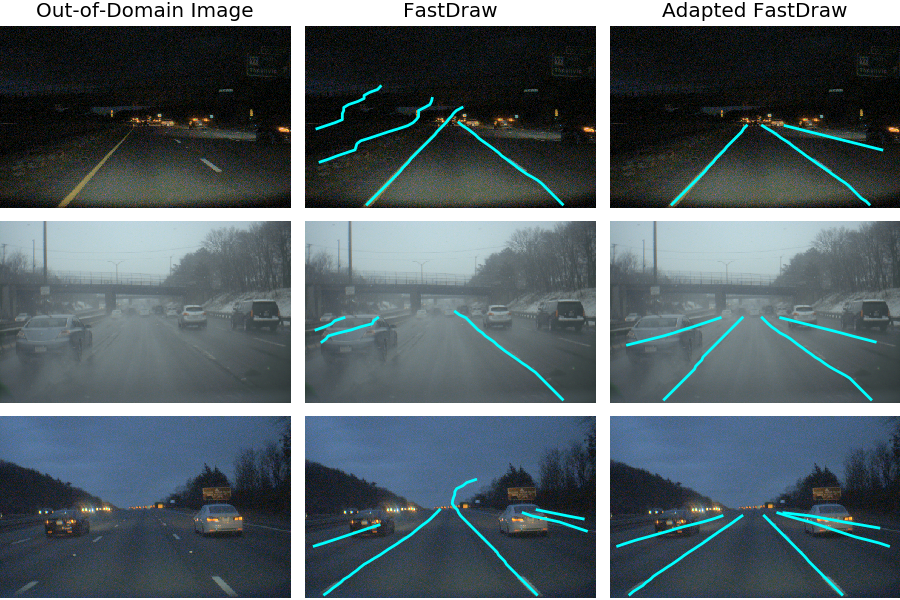

We evaluate the ability of FastDraw to generalize to new scenes. In Figure 6 we demonstrate qualitatively that the network trained on style transferred training examples in addition to the Tusimple training examples can generalize well to night scenes, evening scenes, and rainy scenes. We emphasize that no additional human annotation was required to train FastDraw to be robust to these difficult environments.

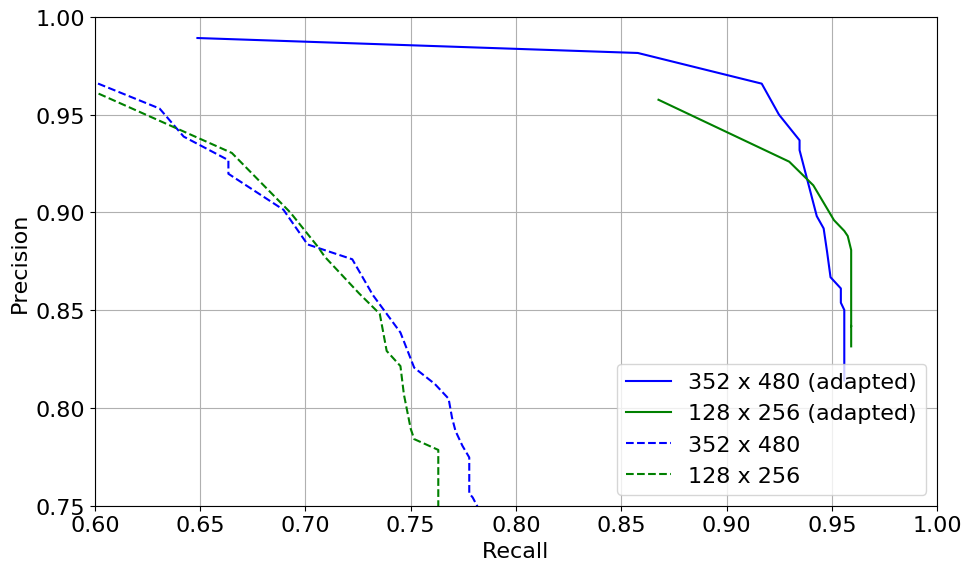

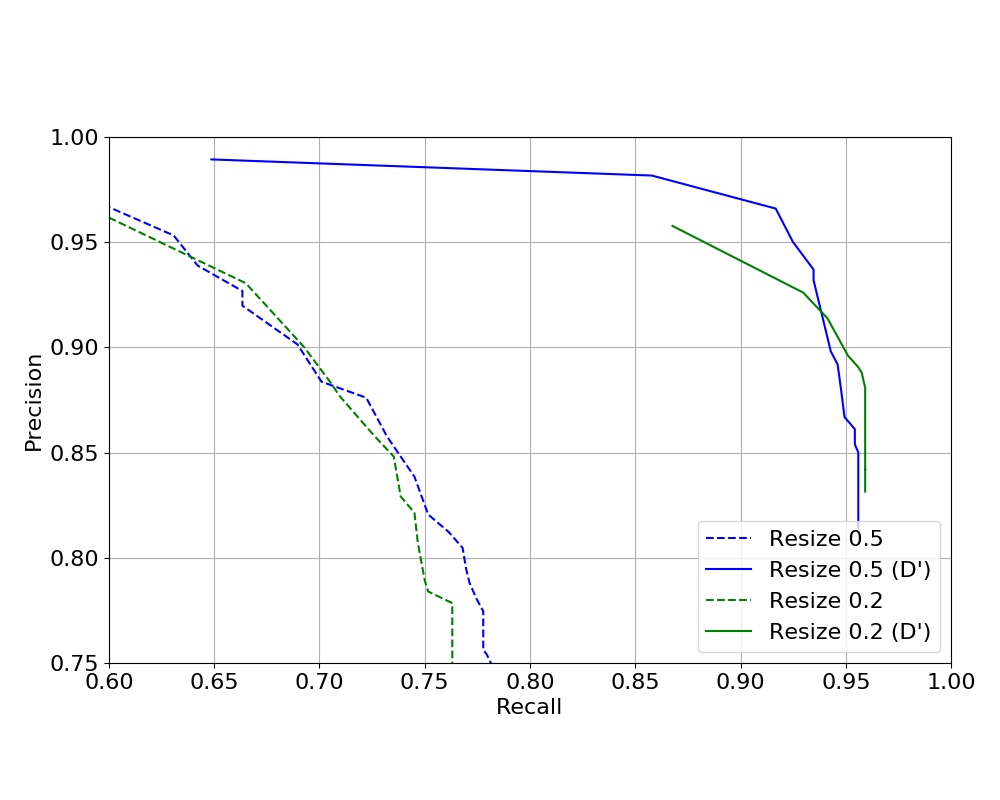

Additionally, we plot the precision/recall trade-off of FastDraw models trained with and without adaptation in Figure 7. We use the same definition of false positive and false negative as used in the Tusimple evaluation. The augmentation compiles models that are markedly more robust to scene changes. We believe that these results echo recent findings that networks trained to do simple tasks on simple datasets learn low-level discriminative features that do not generalize [11]. Unsupervised style transfer for data augmentation is offered as a naive but effective regularization of this phenomenon.

6 Conclusion

We demonstrate that it is possible to build an accurate model of lane detection that can adapt to difficult environments without requiring additional human annotation. The primary assumptions of our model is that lanes are curve segments that are functions of the height axis of an image and that a lane can be drawn iteratively by conditioning exclusively on the previous pixel that was determined to be part of the lane. With these assumptions, we achieve high accuracies on the lane detection task in standard and difficult environmental conditions.
