Alice string in Non-Hermitian Systems

TL;DR

This paper introduces the concept of Alice strings in non-Hermitian systems, showing how band-structure nodes can act as topological defects that alter Chern numbers, with implications for topological phases and surface states.

Contribution

It generalizes Alice strings to momentum space in non-Hermitian media, revealing their role in topological charge changes and braiding phenomena in crystalline systems.

Findings

Band-structure nodes act as Alice strings in non-Hermitian systems.

Alice strings can flip the Chern number of Weyl points and exceptional rings.

Signatures include non-trivial braiding and surface state features.

Abstract

Alice string is a topological defect with a very peculiar feature. When a defect with a monopole charge encircles an Alice string, the monopole charge changes sign. In this work, we generalize this notion to momentum space of periodic media with loss and gain. In particular, we find that the generic band-structure node for a three-dimensional non-Hermitian crystalline system acts as an Alice string, which can flip the Chern number charge carried by Weyl points and by exceptional-line rings. We discuss signatures of this topological structure for a lattice model with one tuning parameter, including non-trivial braiding of bulk band nodes, and the spectroscopic features of both the bulk and the surface states. We also explore how an Alice string affects the validity of the Nielsen-Ninomiya theorem, and present a mathematical description of the braiding phenomenon.

Figures

Equations

$$\begin{split}\mathcal{H}(\boldsymbol{k};\alpha)&=\!\Big{[}2(k_{+}+e^{-\mathrm{i}\alpha})(k_{-}+e^{-\mathrm{i}\alpha})+1\Big{]}\sigma_{+}\\ &\!\!+\!\Big{[}2(k_{+}+e^{\mathrm{i}\alpha})(k_{-}+e^{\mathrm{i}\alpha})+1\Big{]}k_{+}\sigma_{-}+k_{z}\sigma_{z},\end{split}$$

$${\sigma }_{\pm }=\frac{1}{2}({\sigma }_x\pm \mathrm{i}{\sigma }_y)\text{and}{k}_{\pm }=k_x\pm \mathrm{i}{k}_y$$

$$\mathcal{H}(\mathbf{k};\lambda ,m)=k_x{\sigma }_x+k_y{\sigma }_y+(k_z+\mathrm{i}m)(k_z^2+\lambda ){\sigma }_z$$

$$\mathcal{H}(\mathbf{k};m)={\mathrm{e}}^{\mathrm{i}{k}_z/2}{H}_0(\mathbf{k};m)$$

$$\begin{array}{rl}{H}_0(\mathbf{k};m)& ={\mathrm{e}}^{+\mathrm{i}\frac{k_x-k_z}{2}}[a(\mathbf{k};m)+\mathrm{i}b(\mathbf{k})]{\sigma }_{+}+\\ & {\mathrm{e}}^{-\mathrm{i}\frac{k_x-k_z}{2}}[a(\mathbf{k};m)-\mathrm{i}b(\mathbf{k})]{\sigma }_{-}+h_z(\mathbf{k}){\sigma }_z\end{array}$$

$$\begin{array}{rl}& a(\mathbf{k};m)=\left[\frac{m}{2}+\cos k_y\left(1+\frac{\cos k_z}{2}\right)\right]\cos \frac{k_x}{2},\\ & b(\mathbf{k})=\sin \frac{k_x}{2}\text{and}{h}_z(\mathbf{k})=\sin k_y\cos \frac{k_z}{2}.\end{array}$$

$$E_{\pm }(\mathbf{k};m)=\pm {\mathrm{e}}^{\mathrm{i}\frac{k_z}{2}}\sqrt{a(\mathbf{k};m{)}^2+b(\mathbf{k}{)}^2+h_z(\mathbf{k}{)}^2}.$$

$$\mathcal{H}=V^{-1}\cdot ({\mathrm{e}}^{\mathrm{i}\pi t}{\sigma }_z)\cdot V,$$

$$T_n(z):(V,t)\mapsto (R(z)\cdot V,t+n)(\text{n even})$$

$$T_n(z):(V,t)\mapsto (\mathrm{i}{\sigma }_y\cdot R(z)\cdot V,t+n)(\text{n odd}).$$

$$T_{n_1}(z_1)\circ T_{n_2}(z_2)\circ T_{n_1}(z_1{)}^{-1}=T_{n_2}\left(c{z}_2^{P(n_1)}\right),$$

$$T_{n_1}(1)\circ T_{n_2}(z_2)\circ T_{n_1}(1{)}^{-1}=T_{n_2}(z_2)\text{(n1 even)},$$

$$\begin{array}{rl}& i{\sigma }_y\cdot R(z_2)=R(1/z_2)\cdot i{\sigma }_y\\ & i{\sigma }_y\cdot (i{\sigma }_y\cdot R(z_2))=(i{\sigma }_y\cdot R(1/z_2))\cdot i{\sigma }_y\end{array}$$

$$T_{n_1}(1)\circ T_{n_2}(z_2)=T_{n_2}(1/z_2)\circ T_{n_1}(1)\text{(n1 odd)}.$$

$$T_{n_1}(1)\circ T_{n_2}(z_2)\circ T_{n_1}(1{)}^{-1}=T_{n_2}(1/z_2)\text{(n1 odd)}.$$

$$T_{n_1}(1)\circ T_{n_2}(z_2)\circ T_{n_1}(1{)}^{-1}=T_{n_2}\left(z_2^{P(n_1)}\right),$$

$$T_{n_1}(z_1)\circ T_{n_2}(z_2)\circ T_{n_1}(z_1{)}^{-1}=T_{n_2}(z_2).$$

$$T_{n_1}(z_1)\circ T_{n_2}(z_2)\circ T_{n_1}(z_1{)}^{-1}=T_{n_2}(z_2/z_1^2).$$

$$T_{n_1}(z_1)\circ T_{n_2}(z_2)\circ T_{n_1}(z_1{)}^{-1}=T_{n_2}(1/z_2).$$

$$T_{n_1}(z_1)\circ T_{n_2}(z_2)\circ T_{n_1}(z_1{)}^{-1}=T_{n_2}(z_1^2/z_2).$$

$$\mathcal{H}(\mathbf{h})=h_x{\sigma }_x+h_y{\sigma }_y-\mathrm{i}{h}_z\sigma$$

$$X=\text{mathbbold}{R}^3\backslash \{\mathbf{h}\in \text{mathbbold}{R}^3|h_x^2+h_y^2=h_z^2\}.$$

$$X^{\pm }$$

$$\text{and}{X}^0$$

$${\pi }_2(M,X^{+})=\text{mathbbold}Z$$

$$k_x{\sigma }_x+k_y{\sigma }_y=k_{+}{\sigma }_{-}+k_{-}{\sigma }_{+}.$$

$$\{\mathrm{i},k_z,{\sigma }_z,(k_{+}{\sigma }_{-}-k_{-}{\sigma }_{+}),\mathrm{i}(k_{+}{\sigma }_{-}+k_{-}{\sigma }_{+})\}$$

$$\mathcal{H}(\mathbf{k})$$

Full text

I Introduction

Alice string Schwarz (1982); Volovik (2003) is a topological defect with a very peculiar feature. When a defect with a monopole charge encircles an Alice string, the monopole charge changes sign. In the high-energy physics context, including the Alice string leads to a highly non-trivial Alice electrodynamics Bucher et al. (1992), where the charge cannot be globally defined. The mathematical structure underlying this phenomenon is the topological interaction between the homotopy invariants characterizing the Alice string and the monopole charge Alford et al. (1990). Alice strings can also emerge as topological defects in various ordered phases, notably as disclination lines in nematic liquids and as vortex lines of non-chiral Bose-Einsten condensates Leonhardt and Volovik (2000); Volovik and Mineev (1976); Benson and Imbo (2004), which are also described by homotopy groups Mermin (1979). However, although homotopic methods have been exploited to also describe nodes of energy bands in momentum space of crystalline media Bzdušek and Sigrist (2017); Fang et al. (2015); Sun et al. (2018a), nodal lines facilitating the Alice string effect have never been reported within the extensive literature on topological band theory in Hermitian systems.

Recently, non-Hermitian systems have attracted growing interest Zhou et al. (2018); Lu et al. (2015); Chen et al. (2016); Noh et al. (2017); Cerjan et al. (2018a); Wang et al. (2017); Zhen et al. (2015); Kozii and Fu (2017); Shen and Fu (2018); Wang et al. (2019); Budich et al. (2019); Yang and Hu (2019); Carlström and Bergholtz (2018); Okugawa and Yokoyama (2019); Moors et al. (2019); Zyuzin and Zyuzin (2018); Yoshida et al. (2019); Zhou and Lee (2019); Zeuner et al. (2015); Xiao et al. (2017); Hu et al. (2017); Poli et al. (2015); Weimann et al. (2016); Zhan et al. (2017); Choi et al. (2010); Papaj et al. (2018); Zhong et al. (2018); Borgnia et al. (2019); Xu et al. (2017); Cerjan et al. (2018b); Carlström et al. (2019); Bergholtz and Budich (2019); McClarty and Rau (2019); Kawabata et al. (2019); Lee et al. (2018); Lee and Thomale (2019); Zhou and Lee (2019); Bergholtz et al. (2019); Yoshida et al. (2020) due to their rich topological structures. These systems, usually with loss and gain, are frequently modelled by non-Hermitian Hamitonians. Most of the existing studies on the topology of non-Hermitian Hamiltonians consitute perturbative corrections to Hermitian Hamiltonians. Such a treatment provides natural generalizations of concepts known from Hermitian band theory, including topological insulators and Chern numbers. In contrast, here we report an intrinsically non-perturbative property of non-Hermitian periodic media. Namely, while the Alice string phenomenon is non-existent in the stable band topology of Hermitian systems, it naturally arises in three-dimensional non-Hermitian systems.

We find that the Alice string phenomenon in non-Hermitian systems is manifested by non-trivial braiding of band nodes in momentum space. Recall that in three-dimensional Hermitian systems, the generic band node is a Weyl point Murakami (2007); Wan et al. (2011). Upon adding a non-Hermitian perturbation, a Weyl point generically inflates into an exceptional ring Cerjan et al. (2018b); Xu et al. (2017); Carlström et al. (2019), with the $\mathbbold{Z}$-valued Chern number of the original Weyl point (defined on spheres) still meaningful Shen et al. (2018); Yao et al. (2018); Gong et al. (2018); Song et al. (2019a). Importantly, the exceptional ring is further stabilized by an additional $\mathbbold{Z}$-valued winding number (defined on loops) Ghatak and Das (2019). These two invariants correspond to the line-gap vs. the point-gap topological classification of Ref. Kawabata et al. (2018), respectively. Here, we rederive these topological charges from homotopy theory, and we show that they interact non-trivially, with exceptional line playing the role of an Alice string: the Chern number of an exceptional ring flips sign when the ring is braided around another exceptional line. As a consequence, a pair of nodes carrying the same Chern number can annihilate if they are brought together along a trajectory enclosing an exceptional line. This property makes it impossible to define the Chern number globally. These results open a new viewpoint on the non-perturbative aspect of band topology in non-Hermitian systems.

The manuscript is organized as follows. First, in Sec. II we discuss the ambiguity of Chern number in non-Hermitian models with exceptional lines. This is first motivated on theoretical grounds by considering the Riemann-sheet structure of energy bands near exceptional lines in Sec. II.1, while the subsequent Secs. II.2 and II.3 present explicit continuum models which reveal manifestations of the Alice string effect in reciprocal braiding of band nodes. In Sec. III we consider spectroscopic signatures of the Alice string effect in lattice models, which might potentially be emulated in experiments. On the one hand, we consider in Sec. III.1 the bulk band dispersion, and show that the Alice-string effect leads to bouncing of Weyl points that have been formed through a pair creation process. On the other hand, we complement this discussion in Sec. III.2 by studying the properties of surface Fermi arcs of the same model. We also briefly comment here on the manifest violation of the Nielsen-Ninomiya theorem by non-Hermitian lattice Hamiltonians. Finally, in Sec. IV we present the rigorous mathematical description of the Alice string phenomenon. We achieve this by first summarizing the construction of Abe homotopy in Sec. IV.1. We then explicitly apply the presented homotopic methods to non-Hermitian Bloch Hamiltonians in Sec. IV.2, where we rederive the Chern number and the winding number while explicitly extracting their topological interaction. In Sec. V we include some concluding remarks, contrasting our results to Hermitian systems, and outlining the generalization of our arguments to non-Hermitian band insulators. Note that throughout the manuscript, by closing the energy gap we mean the formation of a band degeneracy, i.e. a situation where two complex band energies agree both in their real and imaginary parts.

II Ambiguity of Chern number

II.1 Alice string effect of exceptional lines

Before we present an explicit model that manifests the Alice string effect, we provide an intuitive understanding of this phenomenon from general considerations. For simplicity, we first consider here a special case where the non-Hermitian effects do not inflate Weyl points into exceptional rings. The presented arguments readily generalize to exceptional rings with a Chern number.

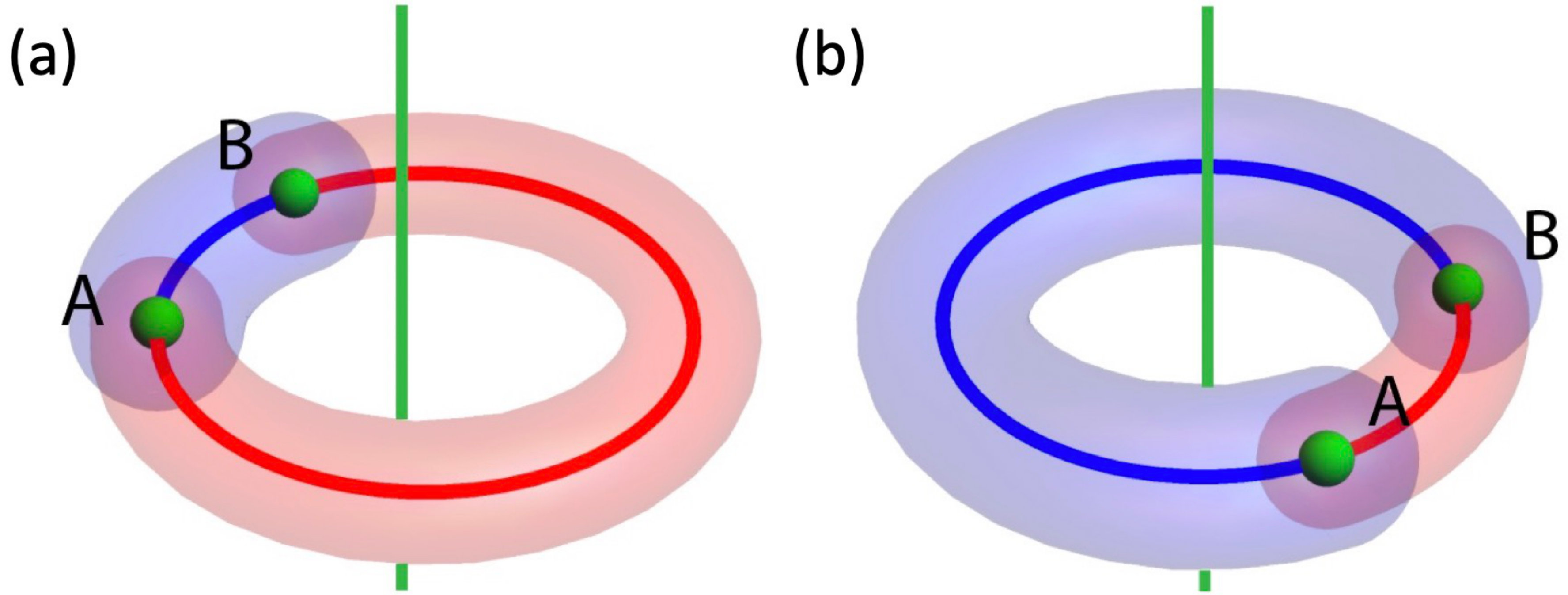

We draw in Fig. 1(a–b) two Weyl points (green dots) near an exceptional line (vertical green line). To compute the total charge of the two Weyl points, we have two topologically distinct ways of enclosing them with a two-dimensional surface, represented by the red vs. the blue “sausage” in Fig. 1(a–b). Note that an identical figure could also illustrate a Hermitian systems with a crystalline symmetry that simultaneously enables both Weyl points and nodal lines – in which case the green line represents a nodal line. In Hermitian systems, the two ways of computing the total Chern number of the two Weyl points give identical results. However, from topological principles, there is no guarantee for this to hold true in general, because the blue surface cannot be continuously deformed into the red surface without crossing a band node. Indeed, we find that non-Hermitian Hamiltonians provide an example where the two surfaces exhibit different total charges.

From the physics point of view, the ordering of energy eigenvalues is crucial to define Chern numbers Sun et al. (2018b). However, in non-Hermitian systems the energy eigenvalues are complex-valued, hence there is no canonical choice of ordering. In fact, around an exceptional line, the band dispersion has a Riemann-sheet structure Xu et al. (2016); Doppler et al. (2016); Berry (2004), which flips the ordering of the two bands as one circumnavigates the exceptional line. Therefore, if we define an ordering of the two bands near Weyl point A and we apply the same ordering to other momenta by continuation, we can choose one of two inequivalent paths [red vs. blue in Fig. 1(a–b)] to reach Weyl point B. Since the union of these two paths encloses the exceptional line (covering one half of the Riemann sheet), the two ways of continuation give opposite ordering of the two bands near Weyl point B, which results in opposite values of its Chern number. Especially, if the total Chern number of the Weyl points on the blue surface (enclosing the blue path) is $1\!+\!1\!=\!2$, then the Chern number on the red surface is $1\!-\!1\!=\!0$. This suggests that the Weyl points annihilate when brought together along the red trajectory, while avoiding annihilation if collided along the blue trajectory.

Note that the Riemann-sheet structure is also relevant for non-Hermitian band insulators. If we interpret the torus (combination of the red and of the blue sausage) as the Brillouin zone (BZ) of a 2D non-Hermitian lattice system, then the non-Hermitian Hamiltonian is periodic on the torus. Nevertheless, the Chern number on the torus is ill-defined. This is because the electron wave function are not continuous function of momentum unless we consider a double cover of the BZ torus. We discuss the consequences for the classification of non-Hermitian topological band insulators in the separate work of Ref. Wojcik et al. (2020).

II.2 Continuum model for braided Weyl nodes

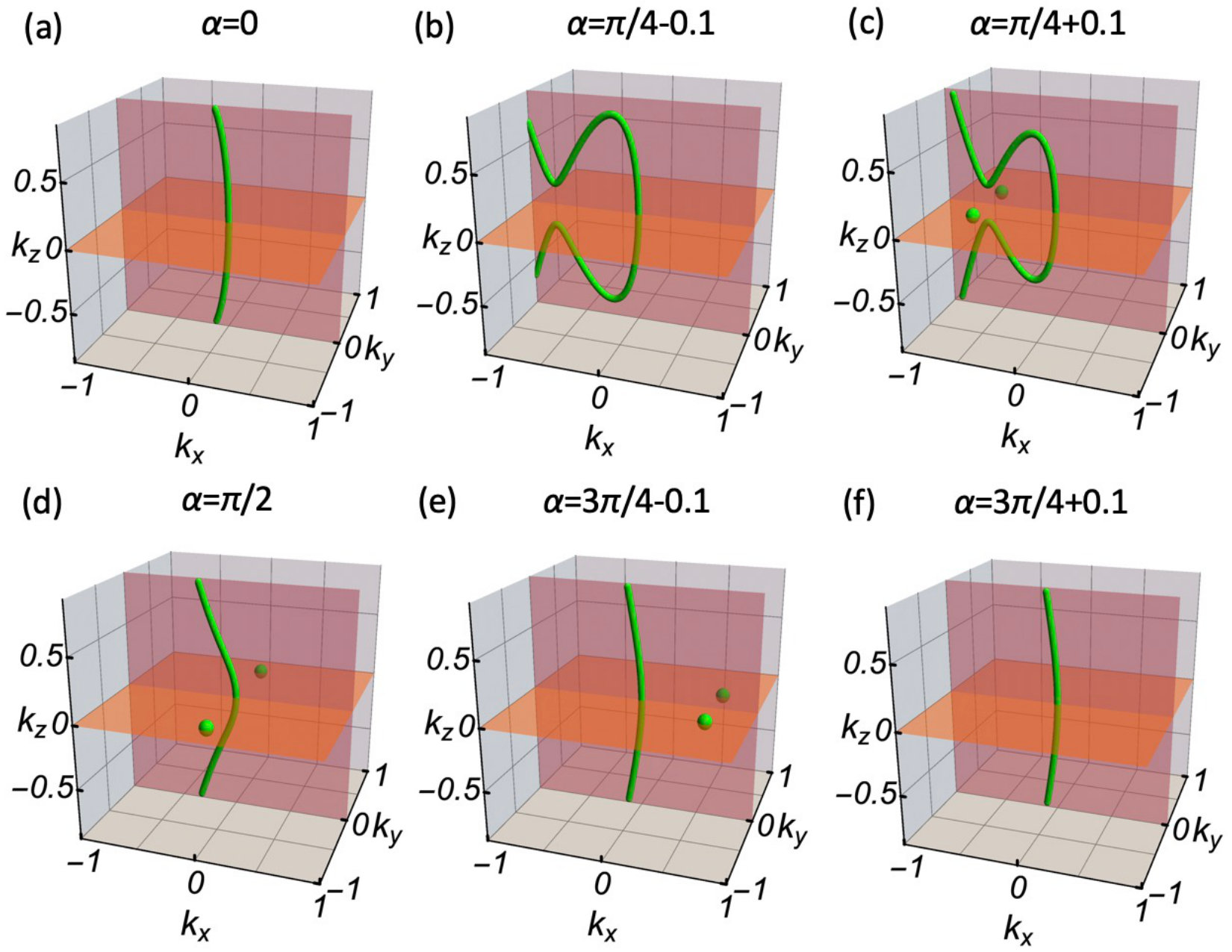

To illustrate the situation from Fig. 1 on an explicit model, we consider

[TABLE]

where we defined

[TABLE]

for Pauli matrices resp. for momentum coordinates, and where $\alpha$ is a tunable parameter. We use the k.p model in Eq. (1) to gain an elementary intuition abound the band node braiding, and postpone the discussion of a more realistic lattice model until Sec. III.A. The evolution of band nodes of the model in Eq. (1) as parameter $\alpha$ is tuned is summarized by Fig. 2(a–f). First, at $\alpha\!=\!0$ there is one exceptional line passing through the $k_{z}\!=\!0$ plane at $k_{x}\!=\!k_{y}\!=\!0$. As we increase $\alpha$ to $\pi/4$, the exceptional line ejects two Weyl points of the same chirality. As one further increases $\alpha$, the Weyl points orbit around the exceptional line in opposite directions inside the $k_{z}\!=\!0$ plane, until they meet on the other side of the exceptional line at $\alpha\!=\!3\pi/4$. Upon further increment of $\alpha$, the two Weyl points annihilate.

To see that the two Weyl points ejected at $\alpha\!=\!\pi/4$ locally have the same chirality, we compute the Chern number on the blue surface displayed in Fig. 3(a). This is achieved by plotting in Fig. 3(b) the Wilson-loop eigenvalues 111The definition of the Wilson loop operator and the corresponding Berry phase depends on the normalization of the states in non-Hermitian systems. The convention of this paper corresponds to the left-right Berry curvature in Ref. Shen et al. (2018) for paths that sweep along the surface Gresch et al. (2017). The observed winding indicates that the total Chern number on the blue surface containing the two Weyl points just after their conception is $+2$. Meanwhile, since the two Weyl points annihilate for $\alpha\!=\!3\pi/4$ on the other side of the exceptional line, the total Chern number on the red surface in Fig. 3(a) must be zero. This is confirmed by plotting the corresponding Wilson-loop eigenvalues in Fig. 3(c). We conclude that the Chern number of Weyl points in non-Hermitian systems exhibits an ambiguity: we are able to flip the Chern number of a Weyl point by moving it around an exceptional line, exactly as anticipated in the Alice string phenomenon.

In general, the stability of a line defect (here exceptional lines) is captured by a topological charged derived from first homotopy group of a classifying space of Hamiltonians, while the stability of a monopole charge (Weyl points in the above argument) follows a topological charge derived from second homotopy group Bzdušek and Sigrist (2017). The observed interaction between the two invariants, corresponding to the Alice string effect Schwarz (1982), can be described by Abe homotopy Abe (1940). Abe’s approach encompasses both the first and the second homotopy group within a single construction on a cylinder, and therefore it allows for a natural description of their interaction. We provide a brief summary of this mathematical theory in Sec. IV.1, and we discuss the explicit application of these methods to non-Hermitian Bloch Hamiltonians in Sec. IV.2 near the end of the manuscript.

II.3 Braiding through an inflated Weyl node

Before we discuss in next sections the spectroscopic signatures and the underlying mathematical description of the Alice string phenomenon, we consider here one more instance of non-trivially braided band nodes. In this example, the Chern number of a nodal-line ring becomes ambiguous due to the presence of Weyl points elsewhere in $\boldsymbol{k}$-space. This is a natural counterpart to the ambiguous chirality of Weyl points that are moving around an exceptional line, demonstrated by the model in Eq. (1).

To make our point, we consider the model

[TABLE]

where $\lambda$ and $m$ are tunable parameters. 222One can change this $\boldsymbol{k}\cdot\boldsymbol{p}$ model into a lattice model through the usual substitution $k_{i}\mapsto\sin k_{i}$ and $k_{i}^{2}\mapsto 2(1-\cos k_{i})$, which may however result in many copies of the band nodes at other high-symmetry momenta. However, the non-Hermiticity of the system allows for an alternative substitution $k_{i}\mapsto 2\sin\tfrac{k_{i}}{2}\exp{(\mathrm{i}k_{i}/2)}$ and $k_{i}^{2}\mapsto 2(1-\cos k_{i})$ that results in fewer band nodes elsewhere in the Brillouin zone. The Hamiltonian in Eq. (3) is invariant under antiuniary symmetry $C_{2z}\mathcal{T}:k_{z}\mapsto-k_{z}$ (composition of time-reversal with $\pi$-rotation around $z$-axis), represented by $\sigma_{x}\mathcal{K}$. We study how the nodal structure of the Hamiltonian evolves as parameters $\lambda$ and $m$ are tuned along the following path.

• •

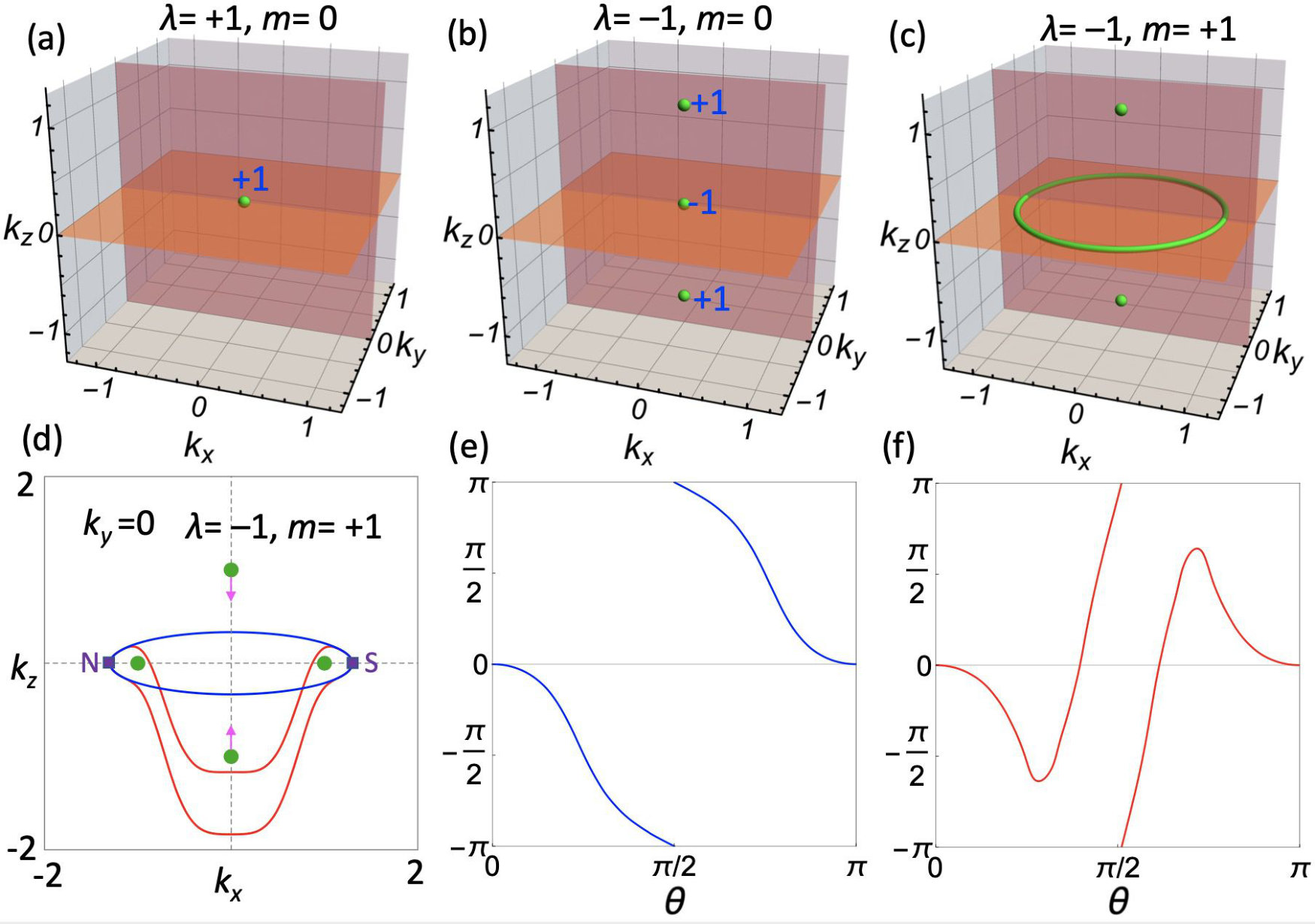

First, we set $\lambda\!=\!+1$ and $m\!=\!0$. This corresponds to a Hermitian Hamiltonian with a single Weyl point with chirality $\chi\!=\!+1$ at $\boldsymbol{k}\!=\!\boldsymbol{0}$, as shown in Fig. 4(a).

• •

Keeping $m\!=\!0$, we lower the other parameter to $\lambda\!=\!-1$. This preserves the Hermiticity of the model, but a phase transition occurs at $\lambda\!=\!0$, in which the Weyl point at $\boldsymbol{k}\!=\!0$ flips chirality to $\chi\!=\!-1$ while ejecting two Weyl points with chirality $\chi\!=\!+1$ Sun et al. (2018a). These additional Weyl points are related to each other by $C_{2z}\mathcal{T}$, and at $\lambda\!=\!-1$ they are located at $\boldsymbol{k}\!=\!(0,0,\pm 1)$, see Fig. 4(b).

• •

Then, while preserving $\lambda\!=\!-1$, we turn on a non-Hermitian perturbation by setting $m\!=\!+1$. This keeps the two outer Weyl points fixed, but inflates the Weyl point at $\boldsymbol{k}\!=\!\boldsymbol{0}$ into an exceptional ring at $k_{z}\!=\!0$ and $k_{x}^{2}+k_{y}^{2}\!=\!1$, as plotted in Fig. 4(c).

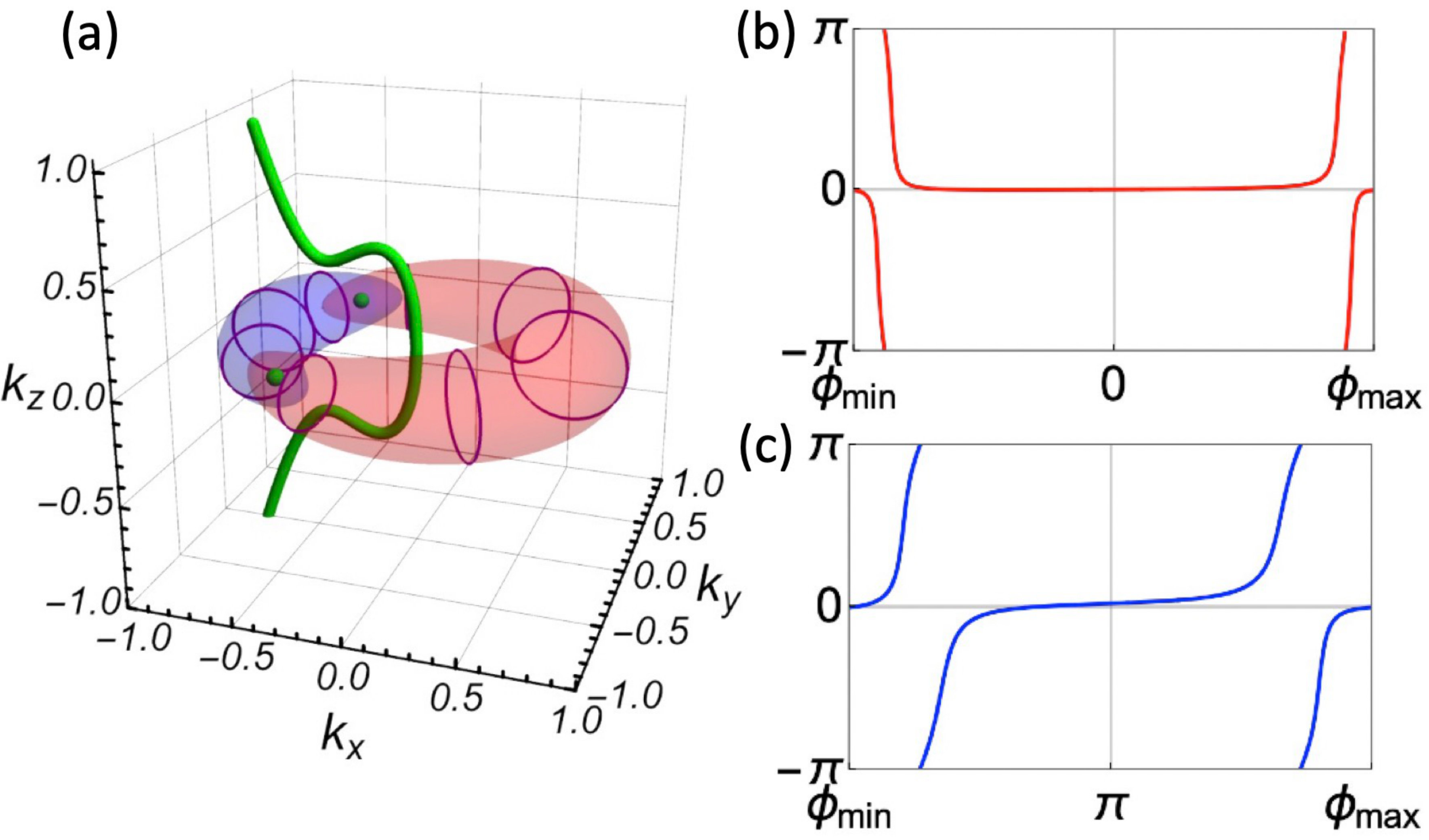

We already learned in Sec. II.2 that the chirality of Weyl points becomes ambiguous in non-Hermitian models with exceptional lines. In the present case, the two outer Weyl points in Fig. 4(c) can be brought together and annihilate at $\boldsymbol{k}\!=\!\boldsymbol{0}$ inside the exceptional ring if moved along the magenta arrows in Fig. 4(d), even though in the original Hermitian model they have carried the same (positive) chirality, cf. Fig. 4(b). The exceptional ring can finally be contracted to a Weyl point again while making the resulting Hamiltonian Hermitian (not illustrated in Fig. 4). These last two steps require breaking of the $C_{2z}\mathcal{T}$ symmetry and go beyond the simple Hamiltonian provided by Eq. (3), but such a process is in principle possible. We will discuss the details of this process in Appendix B.

The evolution of band nodes outlined in the previous paragraph seems contradictory. Note that we have departed from a Hermitian model with a single Weyl point with positive chirality in Fig. 4(a), and we end up with a Hermitian model that contains a single Weyl point – namely one obtained from the negative chirality Weyl point in Fig. 4(b). The resolution to this paradox lies in the words “obtained from”. While the (negative) chirality of the central Weyl point in Fig. 4(b) is carried by the blue “ellipsoid” surface in Fig. 4(d), the (actually positive) chirality of the Weyl point in the final Hermitian model is carried by the red “bowl” surface in Fig. 4(d). This is because annihilation of the two outer Weyl points inside the exceptional ring implies closing of the energy gap on the ellipsoid but not on the bowl surface. Although both surfaces enclose the same exceptional ring, the presence of the intermediate Weyl point makes it impossible to deform one surface onto the other without closing the energy gap. As a consequence, the two surfaces may carry a different Chern number, akin to the situation in Fig. 3. Our suspicion is indeed confirmed by the Wilson-loop data for the ellipsoid and for the bowl surface, plotted respectively in Fig. 4(e) and (f). We thus observe that moving the Weyl point through the exceptional ring reverses the monopole charge of the ring. More generally, one can show that moving a monopole charge $n$ through an exceptional ring changes the monopole charge of the ring by $-2n$.

The observed evolution of band nodes and of their computed topological charges for the models given by Eqs. (1) and (3) convincingly demonstrate that Chern number becomes ambiguous in non-Hermitian models, confirming that exceptional line acts as an Alice string. While in Hermitian models the Chern number on a surface $\partial\mathcal{D}$ can be obtained by integrating inside region $\mathcal{D}$ a local density, namely the divergence of Berry curvature $\frac{1}{2\pi}\boldsymbol{\nabla}\cdot\boldsymbol{F}=\sum_{i}\chi_{i}\delta(\boldsymbol{k}-\boldsymbol{k}_{i})$, no such a local-density formulation exists for Chern number in non-Hermitian systems. Following the terminology of Ref. Alford et al. (1990), Chern number in non-Hermitian systems becomes a “Cheshire charge”.

III Spectroscopic signatures

III.1 Bulk signatures

Due to the high controllability and tunability, there have been experimental studies of both Weyl points and exceptional lines in photonic systems Lu et al. (2015); Chen et al. (2016); Noh et al. (2017); Cerjan et al. (2018a). In fact, the existing experimental techniques readily allow for inferring the topological charges of both exceptional nodes Zhou et al. (2018) and Weyl points Wang et al. (2017) in such systems. However, these techniques are rather indirect. Here we present one way of demonstrating the Alice string effect with a simple signature, namely by observing the spectral evolution upon continuously changing the Hamiltonian parameters.

As a proof-of-principle thought experiment, we consider the non-Hermitian Hamiltonian on a lattice

[TABLE]

The Hamiltonian $\mathcal{H}(\boldsymbol{k};m)$ defined by Eqs. (4) has period $2\pi$ in all momentum components $(k_{x},k_{y},k_{z})$, and it can be realized on a cubic lattice. In contrast, the matrix $H_{0}$ does not respect the $2\pi$-periodicity in the $k_{z}$-direction, but instead it exhibits a doubled $4\pi$ period. The eigenvalues of the non-Hermitian Hamiltonian in Eq. (4) are

[TABLE]

As a function of $k_{z}$, the two energy eigenvalues exchange from $k_{z}=0$ to $k_{z}=2\pi$, reminiscent of the Riemann-sheet structure near an exceptional line. In fact, the Hamiltonian carries a non-trivial value of the winding number defined from the first homotopy group. Conceptually, the exceptional line is enclosed by the $k_{z}$-circle of the 3D Brillouin zone (BZ) torus.

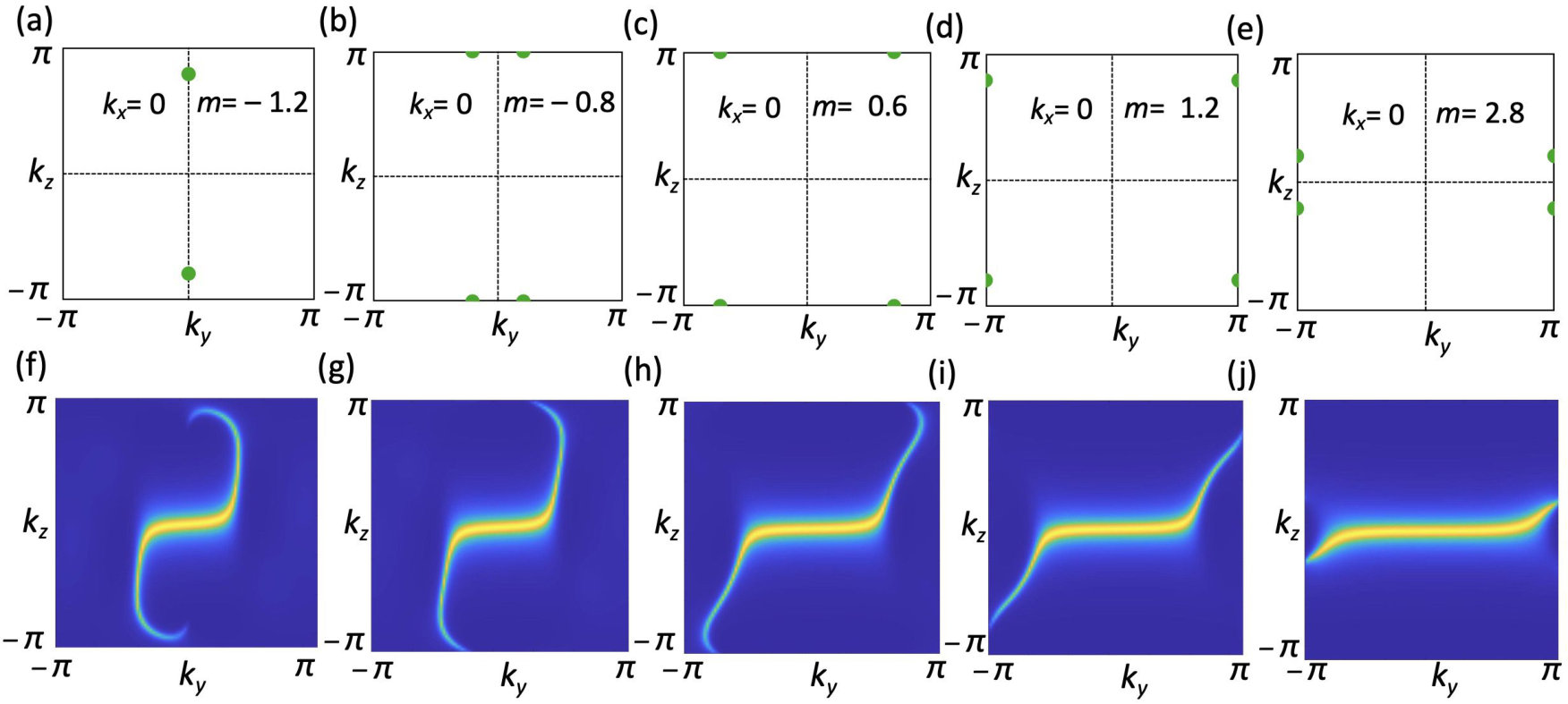

Importantly, the model in Eq. (4) supports a pair of Weyl points for $\left|{m}\right|\!<\!3$, which move non-trivially inside the $k_{x}\!=\!0$ plane as illustrated in Fig. 5(a–e). On this plane, upon increasing the value of $m$, we first create a pair of Weyl points with opposite chirality at $(k_{y},k_{z})=(0,0)$, which then depart in opposite directions along the $k_{z}$-axis. The Weyl points meet at $(k_{y},k_{z})=(0,\pi)$ for $m=-1$, after circumnavigating the $k_{z}$-circle of the BZ torus. Since the trajectory of the two Weyl points has enclosed one branch of the Riemann sheet (the “exceptional line” wrapped by the BZ torus), the relative chirality of the Weyl points has been flipped and they cannot annihilate. Instead, they bounce in the opposite directions along the $k_{y}$-axis, as illustrated in Fig. 5(a,b). As an experimental signature, we can identify the path-dependent capability of Weyl points to annihilate (i.e. to open a spectral gap) solely from spectrum measurements upon changing the parameter $m$, i.e. without accessing the topological invariant carried by the band nodes.

Further increasing the parameter to $m\!=\!+1$ leads to another collision of the Weyl points at $(k_{y},k_{z})=(\pi,\pi)$, after moving around the $k_{y}$-circle of the BZ torus. Since this direction is not associated with a non-trivial winding number, the relative chirality of the Weyl points is not modified since their previous encounter, and they bounce in opposite directions along the $k_{z}$-axis, see Fig. 5(c,d). Finally, at $m\!=\!+3$, the Weyl meet at $(k_{y},k_{z})=(\pi,0)$ after moving around the non-trivial $k_{z}$-direction of the BZ torus for the second time. This flips their relative chirality, allowing them to annihiliate, leaving behind a band insulator for $m\!>\!3$. Since the Weyl points exhibited a net motion along the $k_{y}$-direction, the resulting model at $m\!>\!3$ is a weak Chern insulator.

We also point out the manifest violation of the Nielsen-Ninomiya (NN) no-go theorem by the lattice model in Eq. (4). The NN theorem Nielsen and Ninomiya (1981) states that the total chirality of Weyl nodes exhibited by a lattice model with local hoppings has to be zero. In constrast, our model for $m\!=\!-1$ (for $m\!=\!+1$) exhibits one double Weyl point at $\boldsymbol{k}=(0,0,\pi)$ [at $\boldsymbol{k}=(0,\pi,\pi)$] with no counterpart elsewhere in the BZ. The violation is possible, because the proof of the NN theorem assumes that one can uniquely order the energy bands from lowest to highest. Such an ordering becomes ambiguous in non-Hermitian due to the complex-valued nature of the energy bands, especially if the winding number (the first-homotopy invariant) becomes non-zero on some closed path. The observed violation of the NN theorem is analogous to the loophole reported for Floquet systems (the periodic nature of quasienergy) Sun et al. (2018b); Higashikawa et al. (2019), and is fundamentally different from the strategy of Ref. Yu et al. (2019) for static Hermitian models (inflating one of the Weyl points into a nodal surface covering the BZ boundary).

III.2 Surface signatures

For a photonic crystal, apart from the spectroscopic signatures of the bulk, the surface signatures can also be probed Yang et al. (2018); Guo et al. (2019). In principle, one can obtain the energy spectra of the surface states by studying the photon scattering on a surface termination of the crystal. Recent research shows that for a general non-Hermitian Hamiltonian one must consider a non-Bloch bulk-boundary correspondence Yao et al. (2018); Yao and Wang (2018); Yokomizo and Murakami (2019). Importantly, in cases where a non-Hermitian skin effect occurs Lee (2016); Song et al. (2019a, b), it is crucial to define a Brillouin zone and the corresponding bulk states from an open boundary calculation Yao et al. (2018); Yao and Wang (2018); Yokomizo and Murakami (2019). In our case, however, the model in Eq. (4) is set up to respect the regular bulk-boundary correspondence familiar from Hermitian models for open boundaries in the $x$ resp. the $y$ direction. This is because our lattice Hamiltonian is obtained as a Hermitian matrix $H_{0}(\boldsymbol{k};m)$ multiplied by a phase factor $\mathrm{e}^{\mathrm{i}k_{z}/2}$. As a consequence, the Hermitian and the skew-Hermitian component of the lattice version of $\mathcal{H}(\boldsymbol{k};m)$ commute for open boundaries in the $x$ and in the $y$ directions, implying the absence of the non-Hermitian skin effect on these boundaries Bergholtz et al. (2019).

We therefore simplify the computation of the surface states for the model in Eq. (4) as follows. For a surface termination in the $x$ direction, the momenta along $y$ and $z$ directions are conserved, allowing us to define a surface Brillouin zone parametrized by $k_{y,z}\in[-\pi,\pi]$. However, instead of directly modelling the non-Hermitian Hamiltonian, we implement the Hermitian matrix $H_{0}(\boldsymbol{k};m)$. The surface spectra for the non-Hermitian model in Eq. (4) can then be obtained by multiplying the computed Hermitian spectra by a phase factor $\mathrm{e}^{\mathrm{i}k_{z}/2}$, which produces a simple half-twist in the complex plane as one traverses the surface Brillouin zone in the $k_{z}$ direction.

Since the imprint of the phase factor on the surface density of states may be rather non-trivial, we visualize here the surface Fermi arcs by plotting the surface density of states of the Hermitian model $H_{0}(\boldsymbol{k};m)$ at zero energy. The result is shown for five values of parameter $m$ in Fig. 5(f–j). We remark that modelling the surface spectra is associated with some amount of freedom associated with boundary terms in the Hamiltonian. In our modelling, we add an extra term $H_{\textrm{boundary}}=\tfrac{1}{10}\sin\tfrac{k_{z}}{2}\sigma_{z}$ to the outermost layer of sites in the Hermitian model, in order to break the symmetry $C_{2y}\mathcal{T}:k_{y}\mapsto-k_{y}$ represented by $\sigma_{x}\mathcal{K}$. While the symmetry is respected by the bulk Hamiltonian in Eq. (4), it is explicitly broken by the open boundary in the $x$ direction. The inclusion of this term simplifies the form of the computed Fermi arcs, unpinning them from high-symmetry lines. Note that a surface band dispersing in the $k_{z}$ direction remains in the spectrum for $m\!>\!3$, cf. Fig. 5(j). This band is topologically protected by the weak Chern parity Wojcik et al. (2020) in the $(k_{x},k_{y})$-plane, cf. Sec. III.1.

IV Mathematical description

IV.1 Abe homotopy

We describe topological charges of band nodes using homotopy groups Bzdušek and Sigrist (2017); Fang et al. (2015); Sun et al. (2018a), and we use $M$ to indicate the classifying space of Hamiltonians Kitaev (2009). The $p^{\textrm{th}}$ based homotopy group $\pi_{p}(M,\mathfrak{m})$ represents equivalence classes of continuous maps from a $p$-dimensional cube $I^{p}$ to $M$, such that the boundary $\partial I^{p}$ is mapped to a fixed base-point $\mathfrak{m}\!\in\!M$ Hatcher (2002). The equivalence $f_{1}\!\sim\!f_{2}$ means that $f_{1}$ can be changed into $f_{2}$ by a continuous deformation that respects the boundary condition. When the boundary condition is relaxed such that $\partial I^{p}$ is mapped to a freely moving point $\mathfrak{m}$ in $M$, one speaks of a free homotopy $\pi_{p}(M)$. Requiring that the whole boundary $\partial I^{p}$ is mapped onto a single point effectively transforms $I^{p}$ into a $p$-sphere, $S^{p}$. Since band nodes of dimensions $d$ in a $D$-dimensional momentum space are naturally enclosed by spheres of dimension $D\!-\!d$, their topological charge is captured by homotopy group $\pi_{D-d}(M)$ Bzdušek and Sigrist (2017).

The mathematical object that governs the observed non-commutative properties of monopole charges near exceptional lines is known as the action of $\pi_{1}(M)$ on $\pi_{2}(M)$ Tiwari and Bzdušek (2020). Returning back to the momentum-space picture in Fig. 1, one can imagine continuously transforming the blue surface into two balloons, each containing only one Weyl point. The red surface is obtained by gluing the two balloons on the other side of the line defect (green). Carrying one of the balloons around the line induces an action of $\pi_{1}(M)$ (characterizing the closed path) on $\pi_{2}(M)$ (characterizing the transported balloon). The Alice string phenomenon corresponds to an action where odd elements of $\pi_{1}$ (corresponding e.g. to a single line defect) reverses the sign of the elements in $\pi_{2}$. For example, in the case of uniaxial nematics Volovik and Mineev (1977), the $\pi$-rotation of the order parameter on paths encircling a disclination line inverts the hedgehog configuration on the balloon Alexander et al. (2012), thus manifesting the Alice nature of the disclination line Volovik and Mineev (1976). The Alice string phenomenon can only arise if there is a difference between the free homotopy and the based homotopy Arkowitz (2011).

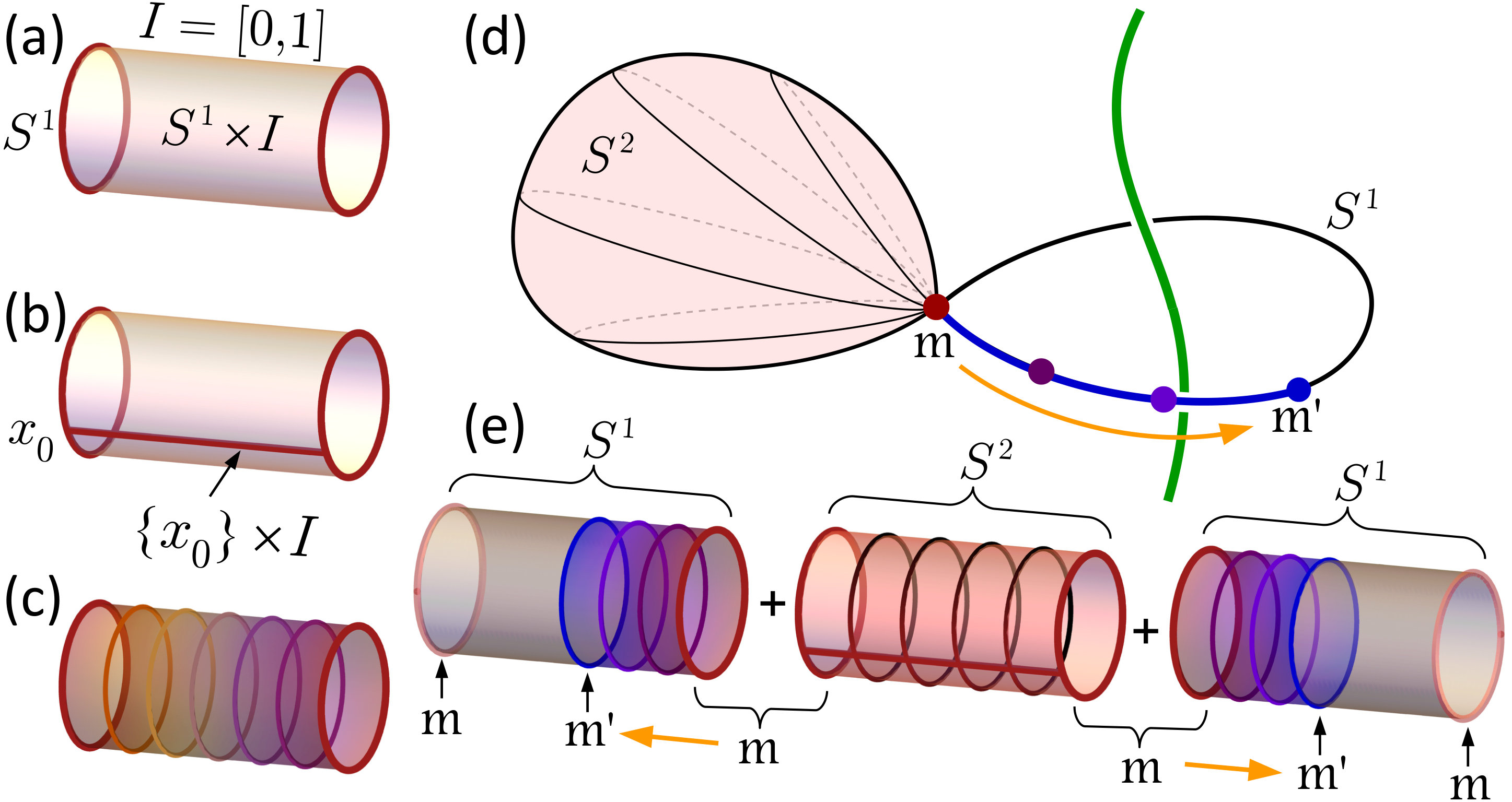

The action of $\pi_{1}$ on $\pi_{2}$ can be geometrically visualized and mathematically analyzed using the construction of Abe Abe (1940), who considered equivalence classes of maps from a cylinder $S^{1}\!\times\![0,1]$ to the target space $M$, such that the boundary $S^{1}\!\times\!\{0\}\,\cup\,S^{1}\!\times\!\{1\}$ is mapped to the base-point $\mathfrak{m}\!\in\!M$ [Fig. 6(a)]. By further requiring a segment $\{x\}\!\times\![0,1]$ with a fixed $x\!\in\!S^{1}$ to be mapped to the base-point too, one reproduces the based homotopy group $\pi_{2}(M,\mathfrak{m})$ [Fig. 6(b)]. On the other hand, by limiting attention to “stratified” maps that only depend on the position $[0,1]$ along the cylinder, one reproduces the based $\pi_{1}(M,\mathfrak{m})$ [Fig. 6(c)]. By stacking cylinders, we are able to combine elements of $\pi_{1}(M,\mathfrak{m})$ with elements of $\pi_{2}(M,\mathfrak{m})$ [Fig. 6(e)]. Especially, one can consider the effect of moving the base-point along a closed path in $M$, which corresponds to conjugating an element of $\pi_{2}(M,\mathfrak{m})$ with an element of $\pi_{1}(M,\mathfrak{m})$ [Fig. 6(d)]. The conjugation induces a map $\triangleright\!:\!\pi_{1}(M,\mathfrak{m})\!\to\!\textrm{Aut}[\pi_{2}(M,\mathfrak{m})]$, i.e. each element $g\!\in\!\pi_{1}(M,\mathfrak{m})$ is represented by an automorphism $\triangleright_{g}\!:\!\pi_{2}(M,\mathfrak{m})\!\to\!\pi_{2}(M,\mathfrak{m})$ 333The compatibility further requires $\triangleright_{g}\!\circ\!\triangleright_{h}\!=\!\triangleright_{g\circ h}$. The collection $[\pi_{1}(M),\pi_{2}(M),\triangleright]$, together with an additional piece of data called the Postnikov class, form a mathematical structure called the fundamental 2-group of $M$ Baez and Lauda (2004); Ang and Prakash (2018)., which is the sought action of $\pi_{1}$ on $\pi_{2}$. In the next section, we compute the action $\triangleright$ for non-Hermitian two-band models with no global symmetries (symmetry class A of Ref. Kawabata et al. (2018)) to explain the Alice nature of exceptional lines.

IV.2 Topological charges revisited

To explain the non-commutative properties of topological charges observed in Sec. II, we identify the space $M$ of non-Hermitian two-band Hamiltonians, and we compute its based homotopy groups $\pi_{1}(M,\mathfrak{m})$, $\pi_{2}(M,\mathfrak{m})$ as well as the action $\triangleright$. Away from band nodes, the Hamiltonian exhibits two different eigenvalues. We therefore perform spectral flattening by making the Hamiltonian traceless (drop the term proportional to the identity matrix), and by normalizing the eigenvalues to absolute value $1$. This amounts to continuous deformations, i.e. the procedure does not affect the band topology. To obtain homotopy groups, it is convenient 444Our follow-up work in Ref. Wojcik et al. (2020) adopts a different strategy, and expresses the same space as $M=S^{2}\times S^{1}/\mathbbold{Z}_{2}$, where the quotient identifies antipodal points $(x,y)\sim(-x,-y)$ in $S^{2}\times S^{1}$. to express $M$ as a coset space $\mathsf{G}/\mathsf{H}$ with $\mathsf{G}$ a simply connected group Mermin (1979). Then a mathematical theorem guarantees 555This follows from the long exact sequence of relative homotopy groups for pair $(\mathsf{G},\mathsf{H})$ Sun et al. (2018a); Hatcher (2002). that $\pi_{2}(M,\mathfrak{m})=\pi_{1}(\mathsf{H})$ and $\pi_{1}(M,\mathfrak{m})=\pi_{0}(\mathsf{H})$.

To obtain the coset expression, we begin with the spectral decomposition of a generic two-band Hamiltonian $\mathcal{H}\in M$. Adopting the biorthogonal normalization of left and right eigenvectors Brody (2013); Kunst et al. (2018); Yao and Wang (2018); Martinez Alvarez et al. (2018), we obtain

[TABLE]

where $\mathrm{e}^{\mathrm{i}\pi t}\sigma_{z}$ is a diagonal matrix containing the normalized eigenvalues, and $V$ is the matrix of the left eigenvectors of $\mathcal{H}$. Here, as a convention, we always rescale the eigenvectors such that $\det V\!=\!1$, implying $V\!\in\!\mathsf{SL}(2,\mathbbold{C})$. Therefore, the Hamiltonian can be encoded using two pieces of data, $(V,t)\!\in\!\mathsf{SL}(2,\mathbbold{C})\!\times\!\mathbbold{R}\!\equiv\!\mathsf{G}$, which constitute a simply connected group Procesi (2003) with composition rule $(V_{1},t_{1})\!\circ\!(V_{2},t_{2})\!=\!(V_{1}\!\cdot\!V_{2},t_{1}\!+\!t_{2})$. However, the decomposition of a non-Hermitian Hamiltonian into $(V,t)$ is not unique. On the one hand, the matrix $\mathcal{H}$ in Eq. (6) is invariant under rescaling the two eigenvectors separately by $(z,z^{-1})$ with $z\in\mathbbold{C}^{\times}$ (the complex plane without zero), as well as under shifting $t$ by an even integer. This represents transformations

[TABLE]

Eqs. (7) represent left action on $\mathsf{G}$ by elements $T_{n}(z)$ [defined as $(R(z),n)$ for $n$ even, and as $(\mathrm{i}\sigma_{y}\!\cdot\!R(z),n)$ for $n$ odd], which constitute a subgroup $\mathsf{H}\!<\!\mathsf{G}$. Therefore, the collection of all unique non-Hermitian two-band Hamiltonians is the coset space $\mathsf{G}/\mathsf{H}$.

As a topological space, $\mathsf{H}$ is a disjoint union of many copies of $\mathbbold{C}^{\times}$ (one copy for each $n\!\in\!\mathbbold{Z}$). It follows from Eqs. (7) that $T_{n_{1}}(z_{1})\!\circ\!T_{n_{2}}(z_{2})\!=\!T_{n_{1}+n_{2}}(z)$ for some $z\!\in\!\mathbbold{C}^{\times}$, implying that connected components of $\mathsf{H}$ have a natural $\mathbbold{Z}$-group structure. Therefore, $\pi_{1}(M)\!=\!\pi_{0}(\mathsf{H})\!=\!\mathbbold{Z}$, which corresponds to the winding number. Furthermore, each disjoint component supports “looping” of $z$ around the origin of $\mathbbold{C}^{\times}$. Therefore, $\pi_{2}(M)\!=\!\pi_{1}(\mathsf{H})\!=\!\mathbbold{Z}$, which corresponds to the Chern number. The details of the argument are discussed more carefully in Appendix A.

We are finally ready to compute the action of $\pi_{1}(M)$ on $\pi_{2}(M)$. According to Fig. 6(d), we should study the conjugation of elements in $\pi_{2}(M)$ [looping of the argument of $T_{n}(z)$] by elements in $\pi_{1}(M)$ [subscript of $T_{n}(z)$]. By considering all combinations of the parity of integers $n_{1}$ and $n_{2}$, we derive in Appendix A that

[TABLE]

where $P(n_{1})\!=\!\pm 1$ is the parity of $n_{1}$, and $c\in\mathbbold{C}^{\times}$ is an unimportant factor that depends on $z_{1}$ and $n_{1,2}$. Since $z_{2}^{-1}$ loops around the origin of $\mathbbold{C}^{\times}$ opposite to $z_{2}$, we conclude that the Chern number flips sign if it is carried along a path with odd winding number. This is exactly what is anticipated for an Alice string. We emphasize that a path with a non-trivial winding number may exist even in the absence of exceptional lines, namely when the winding number along some direction of the BZ torus is odd, cf. the model in Eq. (4). The result in Eq. (8) thus provides a mathematical underpinning of the Chern number transformations observed for all the models discussed in Sec. II and III.

V Conclusions and outlooks

We have shown that band nodes with a Chern number braid non-trivially around exceptional lines in non-Hermitian systems, and that this interplay is naturally explained as an Alice string effect. While we have explicitly considered only two-band models, both the $\mathbbold{Z}$-valued Chern number and the $\mathbbold{Z}$-valued winding number are stable topological invariants Kawabata et al. (2018), therefore the non-trivial braiding of band nodes discussed here persists upon adding more bands. In fact, many-band models provide even richer possibilities. By traversing the Riemann-sheet band-structure near exceptional lines (which may now connect various pairs of bands), we can arbitrarily permute the ordering of the bands, and thus also of their Chern numbers. Especially, this allows us to move a Weyl point in-between a different pair of bands. This observation leads to a more general topological structure than the one considered in Ref. Kawabata et al. (2018), which we develop in the work of Ref. Wojcik et al. (2020). That work also considers the implications of the Alice string effect to the classification of topological band insulators.

We emphasize that a non-trivial action of $\pi_{1}(M)$ on $\pi_{2}(M)$ cannot arise for nodes in the stable limit of Hermitian systems. The observation from Ref. Bzdušek and Sigrist (2017) is that if both of these homotopy groups are non-trivial, then $\pi_{2}(M)\!=\!\mathbbold{Z}_{2}$, which does not support non-trivial automorphisms. There are only handful few-band Hermitian classes of Hamiltonians, very recently studied in Ref. Tiwari and Bzdušek (2020), that enable a non-trivial braiding of monopole charges around line nodes Fang et al. (2015); Ahn et al. (2018a). However, those examples are unstable against the inclusion of additional bands. Similarly, the non-Abelian reciprocal braiding of band nodes in Hermitian models discussed in recent Refs. Wu et al. (2019); Ahn et al. (2018b); Bouhon et al. (2019) follows from a non-Abelian first homotopy group of the classifying space, rather than from a non-trivial action of $\pi_{1}$ and $\pi_{2}$, and its appearance also requires a subtle gap condition to arise. Therefore, the non-trivial braiding of band nodes in the stable limit constitutes a novel non-perturbative phenomenon enabled by non-Hermitian effects.

Finally, we develop simple two-band lattice model to demonstrate the consequences of the topological structure. In particular, a pair of Weyl points in the band structure can be created and loop around the Brillouin zone torus by tuning one parameter. The pair cannot annihilate after this process. This will lead to bulk spectroscopic signature once the model is implemented in various possible platforms, such as acoustic meta-material or photonic crystals.

Acknowledgements.

We thank E. Bergholtz, A. Tiwari and M. Xiao for helpful discussions, and R.-J. Slager for providing comments on an early version of our draft. X.-Q. S. was supported by the DOE Office of Science, Office of High Energy Physics, the grant DE-SC0019380, and in part by the Simons foundation. T. B. was supported by the Gordon and Betty Moore Foundations EPiQS Initiative, Grant GBMF4302, and by the Ambizione Program of the Swiss National Science Foundation, Grant No. 185806. C. C. W. and S. F. were supported by a Vannevar Bush Faculty Fellowship (Grant No. N00014-17-1-3030) from the U.S. Department of Defense.

Appendix A Derivation of Eq. (8)

In this appendix, we complete the derivation of the action $\triangleright$ of $\pi_{1}$ on $\pi_{2}$, which we omitted in Sec. IV.2. Recall that $M$ is the space of $2\times 2$ Hamiltonians that are traceless and that have spectrum normalized to absolute value $1$. Following the decomposition Eq. (6), we identified any Hamiltonian in $M$ using $(V,t)\in\mathsf{SL}(2,\mathbbold{C})\times\mathbbold{R}\equiv\mathsf{G}$. Furthermore, we argued that the stabilizer group $\mathsf{H}$ consists of the following elements in $\mathsf{G}$: $(R(z),n)$ for even $n$, and $(i\sigma_{y}\cdot R(z),n)$ for odd $n$, where $R(z)=\text{diag}(z,1/z)$ with $z$ being any complex number except of zero (which we indicate as $\mathbbold{C}/\{0\}\equiv\mathbbold{C}^{\times}$). We used a mathematical theorem from Ref. Mermin (1979) to argue that $\pi_{2}(M,\mathfrak{m})=\pi_{1}(\mathsf{H})=\mathbbold{Z}$ [i.e. the Chern number on a 2-sphere corresponds to “looping” of the argument of $R(z)$ around the origin of $\mathbbold{C}^{\times}$], and that $\pi_{1}(M,\mathfrak{m})=\pi_{0}(\mathsf{H})=\mathbbold{Z}$ [i.e. the winding number on a 1-sphere corresponds to the connected component $n$ of the stabilizer $\mathsf{H}$].

The reduction of the information about the Hamiltonian from the coset space $\mathsf{G}/\mathsf{H}$ to the stabilizer (“gauge”) group $\mathsf{H}$ can be understood as follows. Given a circle or a $2$-sphere in $\boldsymbol{k}$-space, we represent it using the Abe cylinder as shown in Fig. 6(b) resp. (c), with the corresponding points mapped to the base point $\mathfrak{m}$. The individual points of the cylinder are mapped into the space $\mathsf{G}$, with a non-uniqueness (i.e. gauge) captured by the group $\mathsf{H}$. Since the exact image of the $p$-sphere (we assume $p\in\{1,2\}$) inside $\mathsf{G}$ is arbitrary up to the gauge transformations with $\mathsf{H}$, we need to study equivalence classes of maps to $\mathsf{G}/\mathsf{H}$, which are captured by the relative homotopy group $\pi_{p}(\mathsf{G},\mathsf{H},\mathfrak{m})$ Hatcher (2002). It follows from the simple connectedness of $\mathsf{G}$ and from a long exact sequence of homotopy groups Mermin (1979) that the relative homotopy group is exactly equal to $\pi_{p-1}(\mathsf{H})$. This implies that the homotopy class of the Hamiltonian on the $p$-sphere is fully reproduced using an information inside the gauge group. More precisely, the topological information about the Hamiltonian on a $2$-sphere is encoded by a closed path in $\mathsf{H}$, and the topological information about the Hamiltonian on a circle is preserved by specifying a connected component of $\mathsf{H}$. Note also that a general element of the Abe homotopy [Fig. 6(a)] may produce paths in $\mathsf{H}$ with arbitrary value of $n_{2}$, while elements that correspond to based second homotopy group [Fig. 6(b)] correspond to paths with $n_{2}\!=\!0$ due to the constraint imposed at $\{x\}\!\times\![0,1]$.

According to Fig. 6(d), the action of $\pi_{1}$ on $\pi_{2}$ is found by studying the conjugation of elements in $\pi_{2}(M,\mathfrak{m})$ by elements in $\pi_{1}(M,\mathfrak{m})$. Following the reduction from $\mathsf{G}/\mathsf{H}$ to $\mathsf{H}$, the various equivalence classes of Hamiltonians in $\pi_{2}(M)$ are represented as topologically distinct loops inside $\mathsf{H}$, i.e. as a function that assigns to every point of $S^{1}$ some element $T_{n_{2}}(z_{2})\in\mathsf{H}$ [namely some $(R(z_{2}),n_{2})$ for even $n_{2}$ and some $(i\sigma_{y}\cdot R(z_{2}),n)$ for odd $n_{2}$.] On the other hand, the elements in $\pi_{1}(M)$ are represented as points in the space of $\mathsf{H}$, i.e. as some element $T_{n_{1}}(z_{1})$. Without loss of generality, we set $z_{1}=1$ in our arguments below (we comment on the case of general $z_{1}$ at the very end). This identification allows us to explicitly compute $T_{n_{1}}(1)\circ T_{n_{2}}(z_{2})\circ T_{n_{1}}(1)^{-1}$, which contains the information about the action $\triangleright$ of $\pi_{1}$ on $\pi_{2}$.

Recall that the group $\mathsf{G}$ is a direct product of an Abelian group $\mathbbold{R}$ with addition as the group operation, and of a non-Abelian part $\mathsf{SL}(2,\mathbbold{C})$. The Abelian part of $T_{n_{2}}(z_{2})$ does not change upon conjugation by $T_{n_{1}}(1)$. Therefore, we only need to calculate the non-Abelian part of $T_{n_{1}}(1)\circ T_{n_{2}}(z_{2})\circ T_{n_{1}}(1)^{-1}$. The calculation has to be split into several cases, corresponding to different parities of $n_{1}$ and $n_{2}$. First, for even $n_{1}$, $T_{n_{1}}(1)=(I_{2\times 2},n)$ commutes with $T_{n_{2}}(z_{2})$, therefore

[TABLE]

On the other hand, for odd $n_{1}$, we can use the commutation relations

[TABLE]

to derive that for any $n_{2}$, we have

[TABLE]

It follows that

[TABLE]

The results in Eqs. (9) and (12) can be compactly unified into a single equation

[TABLE]

where $P(n_{1})=\pm 1$ is the parity of $n_{1}$. Note that $1/z_{2}$ has opposite “looping” around the origin of $\mathbbold{C}^{\times}$ than $z_{2}$. It follows that for odd $n_{1}$ [odd elements of $\pi_{1}(M,\mathfrak{m})$], the conjugation flips the sign of the $\pi_{2}(M)$ charge.

For a general choice of $z_{1}$, one can explicitly compute for the four different combinations of parities of $n_{1}$ and $n_{2}$ the following results:

• •

If $n_{1}$ is even and $n_{2}$ is even, then

[TABLE]

• •

If $n_{1}$ is even and $n_{2}$ is odd, then

[TABLE]

• •

If $n_{1}$ is odd and $n_{2}$ is even, then

[TABLE]

• •

If $n_{1}$ is odd and $n_{2}$ is odd, then

[TABLE]

The three equations are compactly summarized by Eq. (8) of Sec. IV.2. The derived action of $\pi_{1}$ on $\pi_{2}$ is compatible with a non-trivial Alice string phenomenon.

Appendix B

Annihilating the Weyl points in Fig. 4(c)

B.1 Overview

While the total Chern number of the two Weyl points in Fig. 4(c) is trivial, annihilating them at $\boldsymbol{k}=\boldsymbol{0}$ by appropriately amending the model in Eq. (3) is rather difficult. The underlying reason is the existence of an additional topological obstruction protected by the $C_{2}\mathcal{T}$ symmetry. This obstruction is subtle, because it corresponds to a relative-homotopy invariant on a hemisphere Sun et al. (2018a). In this appendix, we first analyze the relative-homotopy invariants relevant to the model in Eq. (3). Afterwards, we formulate a relaxed symmetry setting for which the Weyl points should be able to annihilate. Finally, we present an explicit continuous deformation of the Hamiltonian which annihilates the two Weyl points.

B.2 The $C_{2}\mathcal{T}$ relative topology

First, let us analyze the space of Hamiltonians inside the $C_{2}\mathcal{T}$-invariant plane $k_{z}=0$. These are $2\times 2$ matrices that commute with the representation $\sigma_{x}\mathcal{K}$ of the symmetry. Dropping the term proportional to unit matrix, we find that $C_{2}\mathcal{T}$-symmetric Hamiltonians are

[TABLE]

with $h_{x,y,z}\in\mathbbold{R}$. We define the space $X$ to be non-degenerate Hamiltonians of this form, and find that

[TABLE]

The condition on no degeneracy partitions the space $X$ into three disjoint components, namely

[TABLE]

The Hamiltonians inside the exceptional ring of Fig, 4(c) lie in the component $X^{+}$. Note that this component (the inside of a cone) is contractible to a point (i.e. null-homotopic), therefore $\pi_{n}(X^{+})=\mathbbold{0}$ for all $n\geq 1$.

We study topological obstruction on a hemisphere (i.e. a deformed disc) with boundary lying inside the exceptional ring in the $k_{z}\!=\!0$ plane. This obstruction is captured by the second relative homotopy group $\pi_{2}(M,X^{+})$ Sun et al. (2018a) where $M$ is the space of of all traceless two-band Hamiltonians with non-degenerate spectrum, i.e. the space considered in Sec. IV.2. It follows from the long exact sequence of homotopy groups Hatcher (2002) and from the null-homotopy of $X^{+}$ that $\pi_{2}(M,X^{+})\cong\pi_{2}(M)$ are isomorphic. Since $\pi_{2}(M)=\mathbbold{Z}$ (the Chern number), it follows that one can define an integer topological invariant on the hemisphere. We argue below that the hemisphere containing the Weyl point at $k_{z}=\sqrt{-\lambda}$ carries a non-trivial value of this invariant, which prevents the annihilation of the $C_{2}\mathcal{T}$-related Weyl points upon collision.

The relative homotopy invariant

[TABLE]

on the hemisphere should be closely related to the Chern number. This may appear confusing at first, since the hemisphere is not a closed surface. Nevertheless, the same finding was previously made by Ref. Sun et al. (2018a) for two-band mirror-symmetric Hermitian Hamiltonians. In that case, a pair of mirror-ralated Weyl points (carrying opposite chirality) exhibit a non-trivial value of an analogous relative homotopy invariant, which was shown to induce a conversion of a pair of mirror-related Weyl points into a nodal-line ring (rather then their annihilation). However, in the case of Ref. Sun et al. (2018a) the Hamiltonian on the boundary of the hemisphere is essentially constant, which implies a quantized flow of Berry curvature (i.e. an integer Chern number) through the hemisphere. In contrast, this is not true for the non-Hermitian Hamiltonian in Eq. (18) which has three free parameters.

Nevertheless, the triviality $\pi_{1}(X^{+})=\mathbbold{0}$ implies that the Hamiltonian on the boundary of the hemisphere for the non-Hermitian $C_{2}\mathcal{T}$-model can be continuously deformed into a constant without forming a band degeneracy along the way. Importantly, all such deformations to a constant are topologically equivalent. For the specific case of Fig. 4(c), we can shrink the boundary of the hemisphere to a point in the middle of the exceptional ring. This transforms the hemisphere into a closed surface exhibiting a quantized Chern number, which is the integer invariant corresponding to Eq. (21). Importantly, this invariant is manifestly non-trivial for the situation in Fig. 4(c), because the resulting closed surface contains one Weyl point. Therefore, annihilation of the two Weyl points in the figure requires the breaking of the $C_{2}\mathcal{T}$ symmetry.

B.3 Relaxing the symmetry setting

The model in Eq. (3) exhibits more symmetry than just $C_{2}\mathcal{T}$. Especially, the model is symmetric under time-reversal $\mathcal{T}=\sigma_{y}\mathcal{K}$, and under $\pi$-rotation around the $z$-axis $C_{2z}=-\mathrm{i}\sigma_{z}$. In fact, the model respects the much stronger $\mathsf{SO}(2)$ rotation symmetry around the $z$-axis, which significantly simplifies the spectrum, and which we would therefore like to preserve. We therefore opt to remove $C_{2}\mathcal{T}$ symmetry by breaking $\mathcal{T}$.

The $\mathsf{SO}(2)$ symmetry makes it particularly elegant to define the Hamiltonian using operators in Eq. (2) which carry a well-defined angular momentum. Since the Hamiltonian should transform according to the trivial representation of $\mathsf{SO}(2)$, we only admit terms that have the same number of “$+$” and “$-$” constituents. For example, the first two terms in Eq. (3) are

[TABLE]

More generally, we admit for complex linear combinations of terms $(k_{+}k_{-})^{a}k_{z}^{b}\mathrm{s}$ where $a,b$ are non-negative integers and $\mathrm{s}\in\{k_{+}\sigma_{-},k_{-}\sigma_{+},\sigma_{z}\}$. The terms that break $\mathcal{T}$ correspond to combinations of an odd number of terms in the list

[TABLE]

multiplied by real coefficients.

B.4 Model for annihilating the Weyl points

We amend the model in Eq. (3) as

[TABLE]

where $\alpha,\beta,\gamma,\delta$ are four additional real coefficients. Note that only the term proportional to $\gamma$ breaks $C_{2}\mathcal{T}$. The situation in Fig. 4(c) corresponds to $\lambda=-1$, $m=+1$, $\alpha=+1$ and $\beta=\gamma=\delta=0$.

We now deform the Hamiltonian in five steps:

Decrease $\alpha$ from $+1$ to [math]. This preserves the nodal structure plotted in Fig. 4(c). 2. 2.

Increase $\beta$ from [math] to $+1$. This expands the radius of the exceptional ring at $k_{z}=0$ from $1$ to $\approx 1.4656$, but otherwise it preserves the nodal structure. 3. 3.

Increase $\lambda$ from $-1$ to [math]. This has two effects. First, it brings the two Weyl points at $\boldsymbol{k}_{\pm}=(0,0,\pm 1)$ together at $\boldsymbol{k}=\boldsymbol{0}$. Second, it shrinks the radius of the exceptional ring at $k_{z}=0$ back to $1$. 4. 4.

We break $C_{2}\mathcal{T}$ by increasing $\gamma$ from [math] to $+1$. This keeps the band touching at $\boldsymbol{k}=\boldsymbol{0}$, and it increases the radius of the exceptional ring from $1$ to $\approx 1.2720$. 5. 5.

Finally, we increase $\delta$ from [math] to a small positive value. This opens a gap at $\boldsymbol{k}=\boldsymbol{0}$ (i.e. it annihilates the two Weyl points), while the exceptional ring at $k_{z}=0$ slightly shrinks. Setting $\delta$ specifically to $+1$ sets its radius to $1$.

The only band degeneracy after the final step is the exceptional ring at $k_{z}=0$.

The exceptional ring can be shrunk to a single a Weyl point at $\boldsymbol{k}=\boldsymbol{0}$ by tuning the parameters as follows:

• •

Increase $\lambda$ from [math] to $+1$.

• •

Decrease $m$ from $+1$ to [math].

• •

Decrease $\beta$ from $+1$ to [math].

• •

Decrease $\gamma$ from $+1$ to [math].

• •

Increase $\alpha$ from [math] to $+1$.

• •

Decrease $\delta$ from $+1$ to [math].

The final set of parameters match Fig. 4(a). We have thus gone a full cycle, converting the negative-chirality Weyl point of Fig. 4(b) through continuous deformation (and an intermediate non-Hermitian phase) into the positive-chirality Weyl point of Fig. 4(a).
