Lensing anomaly and oscillations in the primordial power spectrum

TL;DR

This paper explores whether oscillatory features in the primordial power spectrum, especially sharp sound speed variations, can explain the extra smoothing observed in Planck CMB data, offering a potential alternative to standard models.

Contribution

It demonstrates that sharp features in sound speed can produce oscillations that mimic observed CMB smoothing, unlike background modulations which are less effective.

Findings

Sharp sound speed features induce observable oscillations.

Oscillations from background modulations are difficult to produce.

The scenario can be tested with combined CMB and BAO data.

Abstract

The latest analysis of the cosmic microwave background by the Planck team finds more smoothing of the acoustic peaks in the temperature power spectrum than predicted by $\Lambda$CDM. Here we investigate whether this additional smoothing can be mimicked by an oscillatory feature, generated during inflation, that is similar to the acoustic peaks but out of phase. We consider oscillations generated by oscillating modulations of the background -- e.g., due to heavy fields or modulated potentials -- and by sharp features. We show that it is difficult to induce oscillations that are linear (or almost linear) in $k$ by oscillatory modulations of the background. We find, however, that a sharp bumpy feature in the sound speed of perturbations is able to produce the desired oscillations. The scenario can be tested by combining CMB and BAO data.

Figures

Equations

$$\frac{\Delta P_{\mathcal{R}}}{P_{\mathcal{R},0}}=A{\left(\frac{k}{k_{\ast }}\right)}^{n_A}\sin \left[\omega {\left(\frac{k}{k_{\ast }}\right)}^{n_o}+\phi \right]$$

$$\frac{\Delta C_{\ell }}{C_{\ell ,0}}=A{\left(\frac{\ell }{{\ell }_{\ast }}\right)}^{n_A}\sin \left[\omega {\left(\frac{\ell }{{\ell }_{\ast }}\right)}^{n_o}+\phi \right],$$

$$P(k)=P_{\mathcal{R},0}(k)+\Delta P_{\mathcal{R}}(k)\times \left(1+\tanh \left[\beta \log (k/k_c)\right]\right)/2,$$

$$u_k^{\prime \prime }+\left(c_s^2{k}^2-\frac{z^{\prime \prime }}{z}\right)u_k=0,$$

$$v_k\equiv \sqrt{2k{c}_s}{u}_k\mathrm{and}f\equiv 2\pi z{c}_s^{1/2}\xi$$

$$\frac{d{v}_k}{d\xi }+\left(k^2-\frac{2}{{\xi }^2}\right)v_k=\frac{1}{{\xi }^{2}f}\left(\frac{d^{2}f}{d\ln {\xi }^2}-3\frac{df}{d\ln \xi }\right)v_k.$$

$$\frac{\Delta P_{\mathcal{R}}(k)}{P_{\mathcal{R},0}}={\int }_{-\infty }^{\infty }d\ln \xi W(k\xi )\left(\frac{2}{3}\frac{d^2\ln f}{d\ln {\xi }^2}-2\frac{d\ln f}{d\ln \xi }\right)$$

$$P_{\mathcal{R}}(k)\equiv \frac{k^3}{2{\pi }^2}|v_k{|}^2\mathrm{where}{P}_{\mathcal{R},0}(k)\equiv \frac{1}{8{\pi }^2}\frac{H^2}{ϵc_s{M}_{\mathrm{pl}}^2},$$

$$W(k\xi )\equiv \frac{3}{2}\left[\frac{\sin 2k\xi }{(k\xi {)}^3}-\frac{2\cos 2k\xi }{(k\xi {)}^2}-\frac{\sin 2k\xi }{k\xi }\right].$$

$$\frac{\Delta P_{\mathcal{R}}(k)}{P_{\mathcal{R},0}}=\frac{2}{3}{\int }_{-\infty }^{\infty }d\ln \tau W(k\tau )\frac{\Delta \left(\tau \right)}{H^2}$$

$$\frac{\Delta (\tau )}{H^2}\equiv \frac{d^2\ln f}{d\ln {\tau }^2}=-C(\tau )\cos \left[\Omega (\tau )+\phi \right],$$

$$C(\tau )=C_r{\left(\frac{a}{a_r}\right)}^{{\delta }_C}\mathrm{and}\Omega (\tau )={\Omega }_r{\left(\frac{a}{a_r}\right)}^{{\delta }_{\Omega }},$$

$$\frac{\Delta P_{\mathcal{R}}(k)}{P_{\mathcal{R},0}}\approx \sqrt{2\pi }\frac{C_r{\left(\left|{\delta }_{\Omega }\right|{\Omega }_r\right)}^{-3/2}}{\sqrt{|1-{\delta }_{\Omega }|}}{\left(\frac{k}{k_r}\right)}^{\frac{{\delta }_C-3{\delta }_{\Omega }/2}{1+{\delta }_{\Omega }}}\sin \left[{\Omega }_r\left(1+{\delta }_{\Omega }\right){\left(\frac{k}{k_r}\right)}^{\frac{{\delta }_{\Omega }}{1+{\delta }_{\Omega }}}+\tilde{\phi }\right]$$

$${\Omega }_r=\omega \left|1-n_o\right|{\left(\frac{k_r}{k_{\ast }}\right)}^{n_o},{\delta }_{\Omega }=\frac{n_o}{1-n_o},$$

$$C_r=\frac{A}{\sqrt{2\pi }}{\left(\omega n_o\right)}^{3/2}{\left(\frac{k_r}{k_{\ast }}\right)}^{3n_o/2}\sqrt{\left|\frac{1-2n_o}{1-n_o}\right|},{\delta }_C=\frac{n_A+3n_o/2}{1-n_o}.$$

$${\delta }_{\Omega }{\Omega }_r=n_o\omega {\left(\frac{k_r}{k_{\ast }}\right)}^{n_o}\approx 1.7\times 10^{-1}\frac{n_o\omega }{16.6}{\left(\frac{k_r}{10^{-2}{k}_{\ast }}\right)}^{n_o},$$

$$\delta N=\frac{\partial N}{\partial \varphi }\delta \varphi +...$$

$$P_{\mathcal{R}}={\left(\frac{\partial N}{\partial \varphi }\right)}^2⟨\delta \varphi \delta \varphi ⟩=\frac{1}{8{\pi }^2}\frac{H^2}{ϵc_s{M}_{\mathrm{pl}}^2}.$$

$$ϵ={ϵ}_0\left(1-B(\tau )\sin \left[\Omega (\tau )+\phi \right]\right).$$

$$B(\tau )=B_r{\left(\frac{a}{a_r}\right)}^{{\delta }_B}\mathrm{and}\Omega (\tau )={\Omega }_r{\left(\frac{a}{a_r}\right)}^{{\delta }_{\Omega }},$$

$$\frac{\Delta P_{\mathcal{R}}(k)}{P_{\mathcal{R},0}}\approx B_r{\left(\frac{k}{k_r}\right)}^{{\delta }_B}\sin \left[{\Omega }_r{\left(\frac{k}{k_r}\right)}^{{\delta }_{\Omega }}+\phi \right].$$

$${\Omega }_r=\omega \frac{k_r}{k_{\ast }},{\delta }_{\Omega }=n_o,B_r=A\mathrm{and}{\delta }_B=n_A.$$

$$\frac{\Delta P_{\mathcal{R}}(k)}{P_{\mathcal{R},0}}=-2{\int }_{-\infty }^{\infty }d\ln \xi \left(W(k\xi )+\frac{1}{3}\frac{dW(k\xi )}{d\ln \xi }\right)\frac{d\ln f}{d\ln \xi }.$$

$$c_s^2=1+B{\mathrm{e}}^{-{\beta }_s^2{\log }^2\left[\tau /{\tau }_f\right]}.$$

$$\frac{\Delta P_{\mathcal{R}}(k)}{P_{\mathcal{R},0}}=B\sqrt{\pi }\frac{k{\tau }_f}{{\beta }_s}{\mathrm{e}}^{-\frac{k^2{\tau }_f^2}{{\beta }_s^2}}\left\{\sin (2k{\tau }_f)+\frac{\cos (2k{\tau }_f)}{k{\tau }_f}-\frac{1}{2}\frac{\sin (2k{\tau }_f)}{(k{\tau }_f{)}^2}\right\},$$

$$f_{NL}^{\mathrm{eq}}\approx -0.27B{\beta }_s^2.$$

$$g_{NL}^{\mathrm{eq}}\approx -0.1B{\beta }_s^4.$$

$$\displaystyle S=\int\mathop{d^{4}x}\sqrt{-g}\Bigg{\{}\frac{M_{\rm pl}^{2}}{2}R-\frac{1}{2}\left(1+\frac{\sigma}{\Lambda}\right)^{2}g^{\mu\nu}\partial_{\mu}\phi\partial_{\nu}\phi-\frac{1}{2}f^{2}(\phi)g^{\mu\nu}\partial_{\mu}\sigma\partial_{\nu}\sigma-V(\phi)-\frac{1}{2}m(\phi)^{2}\sigma^{2}\,.\Bigg{\}}\,.$$

$$\displaystyle\Delta\sigma=\Delta\sigma_{r}\left(\frac{a}{a_{r}}\right)^{-3/2}\frac{f_{r}}{f}\sqrt{\frac{m_{\rm eff,r}}{m_{\rm eff}}}\Big{\{}\cos\left(\int_{t_{r}}^{t}m_{\rm eff}\,dt\right)+O(1/\mu)\Big{\}}$$

$$\frac{\Delta (\tau )}{H^2}=\frac{\ddot{\sigma }}{H^2\Lambda }$$

Full text

I Introduction

As cosmic microwave background (CMB) photons travel towards us, their trajectories are deflected by the gravitational potentials generated by the matter distribution. This weak lensing of the CMB has an impact on the CMB temperature power spectrum Seljak (1996); Lewis and Challinor (2006). The lensing magnifies the angular size of the primordial fluctuations in some places on the sky and de-magnifies others. The observed peak structure in the temperature power spectrum, when measured over the entire sky, are therefore blurred Hanson et al. (2010): the acoustic peaks are reduced slightly, and the troughs between them filled in.

Interestingly, when the theoretical prediction for this smoothing is compared with the Planck data, it is found that the lensing smoothing is larger than expected by roughly $10\%$ Aghanim et al. (2018). The so-called $A_{L}$ anomaly111$A_{L}$ parametrizes a rescaling of the lensing power spectrum such that $A_{L}=1$ for $\Lambda$CDM Calabrese et al. (2008). is persistent and recently slightly more statistically significant, with a value $A_{L}=1.149\pm 0.072$ ($68\%$ confidence), that constitutes a $2\sigma$ tension with $\Lambda$CDM cosmology Aghanim et al. (2018). Moreover, the residuals between the signal and the theoretical prediction yield an oscillatory pattern whose frequency is roughly linear in the multipole number $\ell$ and similar in shape to the acoustic peaks.

If the tension persists with higher statistical significance, it might be explained by some new physics that mimicks the smoothing effect of lensing. One possibility discussed by the Planck collaboration Aghanim et al. (2018) is that there might be a component of cold dark matter isocurvature (CDI) perturbation with a blue tilt. Since the acoustic peaks of the CDI will have the opposite phase, this will effectively smooth out the photon acoustic peaks. A similar mechanism was also studied in Refs. Muñoz et al. (2016); Smith et al. (2017) where the isocurvature perturbations of dark matter and baryons compensate each other. However, these models are tightly constraint by their effects on the trispectrum Smith et al. (2017). Another possibility is that there are oscillations in the primordial power spectrum which have the same frequency but opposite phase with the acoustic peaks Aghanim et al. (2018). However, in an analysis where the oscillatory feature in the power spectrum has a $k$ independent amplitude and a frequency linear in $k$, no correlation between the amplitude of the oscillations and $A_{L}$ is found Akrami et al. (2018). Moreover, one reaches similar conclusions when reconstructing the power spectrum from raw data Hazra et al. (2014a, 2019). In particular, it was already pointed out in Ref. Hazra et al. (2014a) that there is a degeneracy between the effects of lensing and oscillating features in the primordial power spectrum. On the theoretical side, though, it is not clear whether physical models that might induce wiggles in the primordial power spectrum are required to do so with a scale-independent amplitude, nor with a precisely linear dependence on $k$. Previous fits to the residuals of the temperature power spectrum were pursued in Refs. Achucarro et al. (2014); Chen and Namjoo (2014); Hazra et al. (2014b, 2016, 2018) but a mimicking of the lensing effect from an inflationary model was not studied. Note that the reconstruction of the primordial power spectrum taking into account lensing also yields an oscillating feature Hazra et al. (2019). However, it is not clear what kind of inflationary model would give rise to such specific wiggle Hazra et al. (2019).

Here we explore inflationary models that might give rise to oscillatory features in the primordial power spectrum that might account for the $A_{L}$ anomaly. Oscillatory features generated during inflation usually have an oscillation frequency which has a logarithmic or linear dependence on $k$ (see Ref. Chluba et al. (2015) for a review). On one hand, the logarithmic dependence could be either because there is an oscillating modulation in the Lagrangian that depends linearly on the inflaton which is slowly rolling Pahud et al. (2009); Flauger et al. (2010) or because an extra massive field is oscillating around its minimum in which case it oscillates with a constant frequency and linearly in the cosmic time Chen (2012); Chen et al. (2015, 2016a). Also, successive turns in the multi-field inflationary trajectory yield a logarithmic dependence in $k$ Gao et al. (2013). On the other hand, a frequency linear in $k$ is typical from sharp transitions, e.g. steps in the potential or sudden turns in the field space, with a damped amplitude depending on the sharpness of the transition Starobinsky (1992); Kamionkowski and Liddle (2000); Gong and Stewart (2001); Stewart (2002); Adams et al. (2001); Kaloper and Kaplinghat (2003); Choe et al. (2004); Dvorkin and Hu (2010); Achucarro et al. (2011a); Adshead et al. (2012); Shiu and Xu (2011); Cespedes et al. (2012); Gao et al. (2013); Bartolo et al. (2013); Achucarro et al. (2014). Note that sharp transitions can be understood in terms of Bogoliubov transformations Kaloper and Kaplinghat (2003), since the negative frequency mode has been excited by the turn or step. It is also interesting to note that both logarithmic and linear $k$ dependences of the frequency may be related to a trans-planckian modulation Easther et al. (2005). There is another interesting case where the frequency goes as a power-law of $k$ Huang and Pi (2018); Domènech et al. (2019); this may occur, e.g., when there is a background oscillation with a time dependent frequency. See Refs. Chen (2012); Chen et al. (2018) for a power-law dependence in $k$ in alternatives scenarios to inflation.

This paper is organized as follows. In Sec. II we review the $A_{L}$ anomaly and the requirement for the oscillatory patterns in the power spectrum to mimick the lensing smoothing. In Sec. III, we study which features could potentially yield such oscillatory patterns and we conclude in Sec. IV. We discuss possible models in App. A and present details of the calculations in Apps. B and C.

II $A_{L}\,$ anomaly

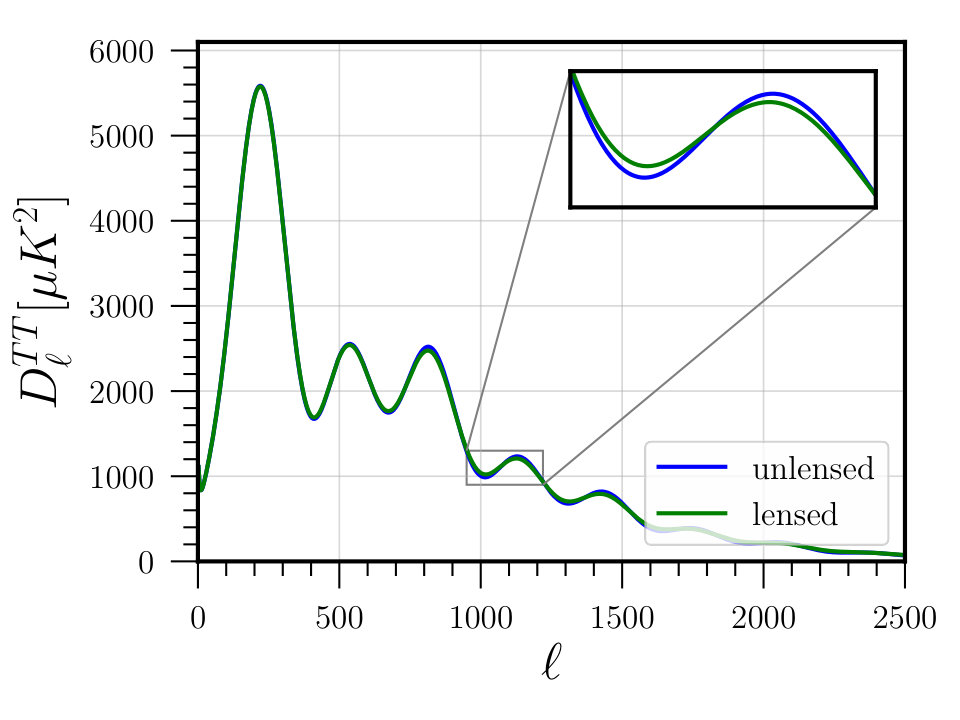

The effect of weak lensing onto the CMB power spectrum is to smooth out the acoustic peaks by blurring the acoustic-peak structure in $\ell$ space (see Fig. 1). Using the modelled unlensed CMB power spectrum and the lensing potential,222The lensing power spectrum can also be reconstructed from the CMB temperature and polarization power spectra data alone Carron et al. (2017) and the result is compatible with $A_{L}=1$ (see Fig. 3 of Aghanim et al. (2018)). This further motivates us to look for an extra effect in the primordial power spectrum which mimicks the smoothing effect of lensing. one can estimate the magnitude of the smoothing effect of lensing $A_{L}$ Lewis and Challinor (2006); Calabrese et al. (2008). However, if nothing more than a power-law inflationary spectrum of adiabatic perturbations and $\Lambda$CDM are assumed, then the observed power spectrum has been lensed $10\%$ more than expected Aghanim et al. (2018).

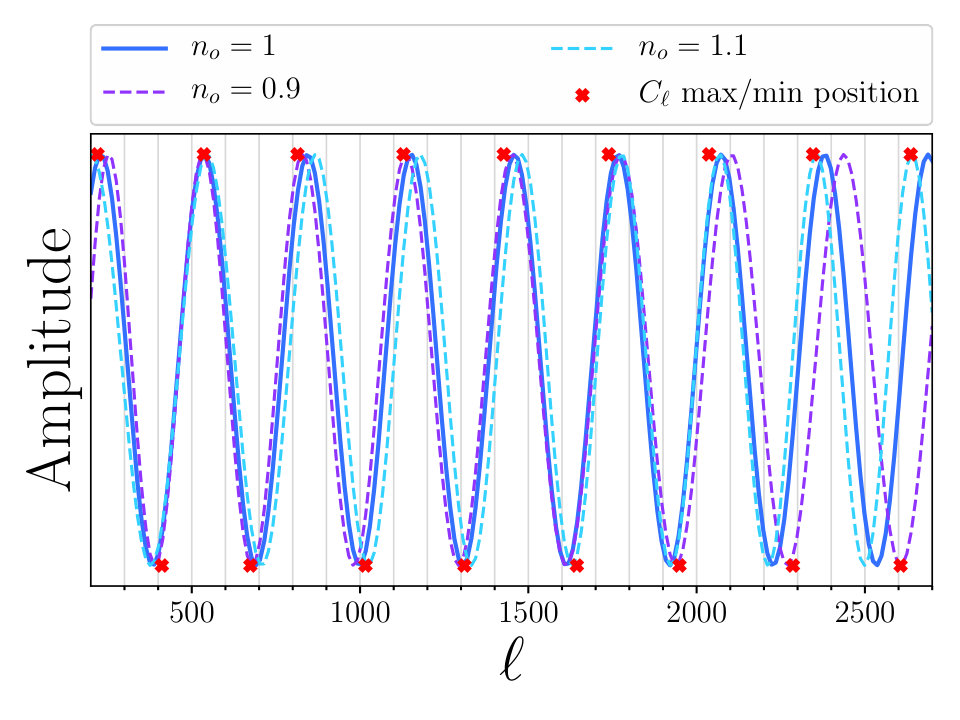

This tension could conceivably by explained by an oscillatory modulation of the inflationary power spectrum which is out of phase with the acoustic peaks. To illustrate this, we introduce the following fitting to the inflationary power spectrum Chen (2012); Huang and Pi (2018); Domènech et al. (2019); Aghanim et al. (2018):

[TABLE]

where the constants $A$, $k_{*}$, $\omega$, $\varphi$, $n_{A}$ and $n_{o}$ respectively are the amplitude, the pivot scale, the frequency, the phase and the power indexes of the $k$ in amplitude and frequency of the oscillation. These constants are ultimately related to parameters of a theoretical model. For example, the fitting form Eq. (1) appears in sudden transitions Starobinsky (1992); Kamionkowski and Liddle (2000); Gong and Stewart (2001); Stewart (2002); Adams et al. (2001); Choe et al. (2004); Dvorkin and Hu (2010); Achucarro et al. (2011a); Adshead et al. (2012); Shiu and Xu (2011); Cespedes et al. (2012); Gao et al. (2013); Bartolo et al. (2013); Achucarro et al. (2014), oscillating heavy fields Chen (2012); Huang and Pi (2018); Domènech et al. (2019) and trans-planckian modulations Easther et al. (2005) during inflation. Now, we translate it to the multipole number for a rough comparison as

[TABLE]

where $C_{{\ell},0}$ is the unlensed power spectrum, we used the relation $\ell\sim kD_{A}$ ($D_{A}\approx 13846\,{\rm Mpc}$ is the comoving angular distance to the CMB) and as a pivot scale we chose the position of the third peak $\ell_{*}\sim 814$ which corresponds to $k_{*}\sim 0.0588\,{\rm Mpc}^{-1}$. To provide a rough fit to the acoustic peaks, we first focus on the frequency of the oscillations and normalize the amplitude to unity. Then we will fit the frequency and phase by eye as we are only interested in the general behaviour. A best fit using CMB data will be studied elsewhere. Since the maxima and minima do not exactly match a sinusoidal function linear in $\ell$ ($n_{o}=1$), we explore two more possibilities: the power-law index of the frequency $n_{o}$ is either $n_{o}>1$ (fits the maxima) or $n_{o}<1$ (fits the minima). See Fig. 2 for a plot of the fits and Table 2 for the numerical parameters used. This flexibility in $n_{o}$ will be important in Sec. III when we discuss the possible models as not all models are able to reproduce an exact linear behavior, that is $n_{o}=1$. We limit ourselves to the case of $n_{o}=1$ (constant frequency) or very close to it. We leave for future studies different values of $n_{o}$ in which the oscillation may only fit few consecutive peaks.

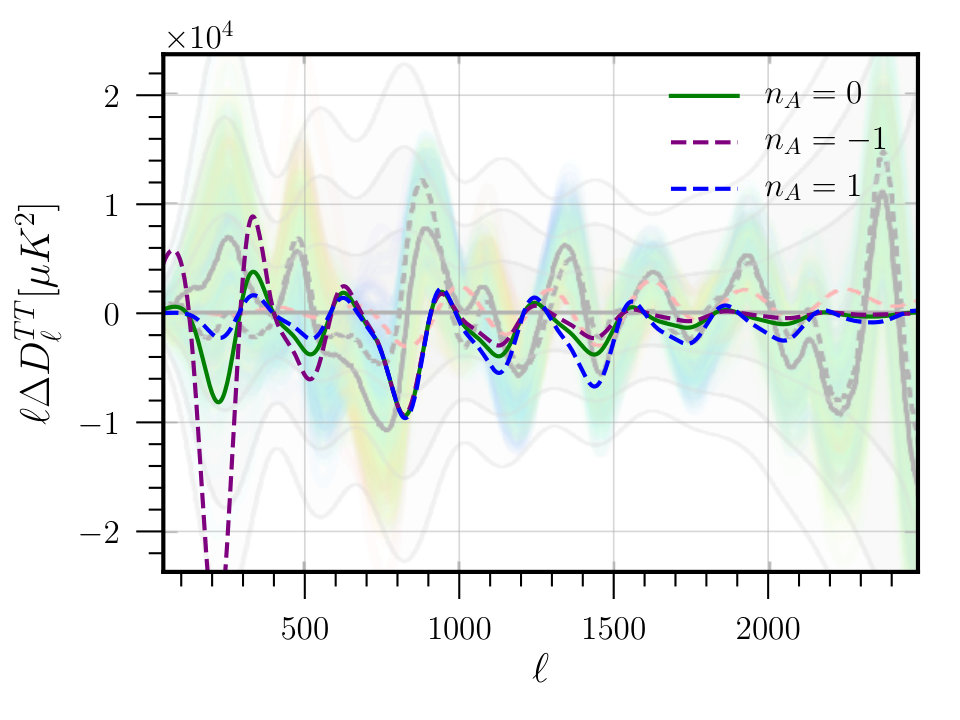

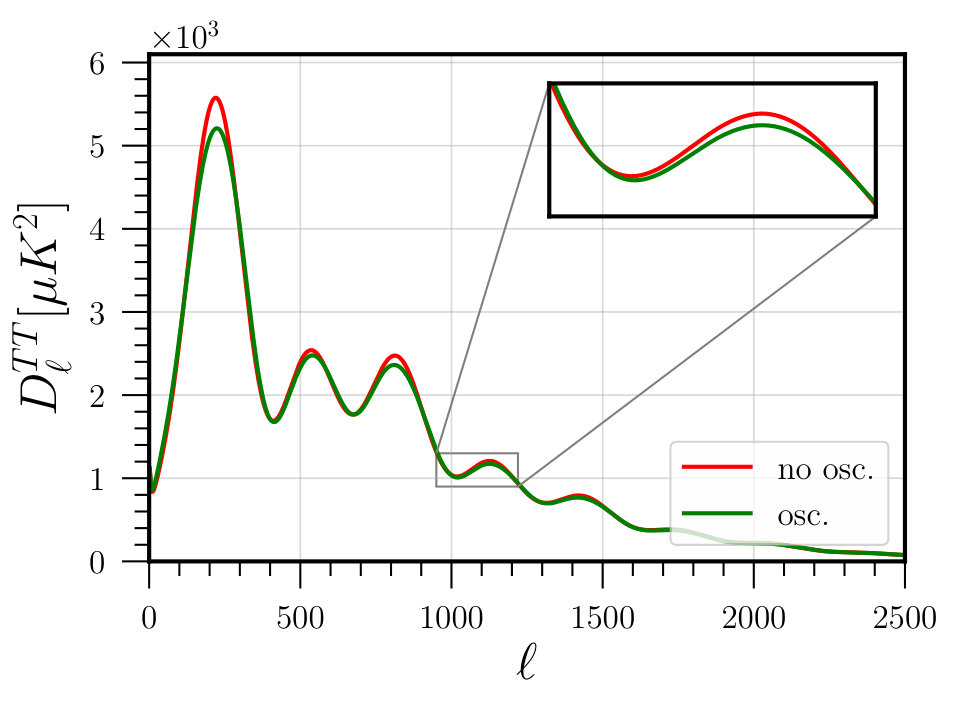

We computed the effect of the feature (1) in the primordial power spectrum onto the lensed CMB temperature power spectrum using CLASS Lesgourgues (2011); Blas et al. (2011). We chose $H=100\,h{\rm km/s/Mpc}$, $h=0.67556$, $T_{\rm CMB}=2.7255{\rm K}$, $\Omega_{\rm b}h^{2}=0.02$, $\Omega_{\rm CDM}h^{2}=0.12$, $N_{\rm eff}=3.046$, $\Omega_{K}=0$, $\Omega_{\Lambda}=0.69$ and $A_{L}=1$. For the main power spectrum we took a power-law spectrum $P_{{\cal R},0}(k)=A_{s}\left(k/k_{\rm pivot}\right)^{n_{s}-1}$ with $A_{s}=2.2\cdot 10^{-9}$, $n_{s}=0.962$ and $k_{\rm pivot}=0.05{\rm Mpc}^{-1}$. For the oscillating feature we use the template (1) with the values presented in Table 2. In order to numerically implement a scale dependent amplitude with CLASS we have introduced an artificial cut-off at $k_{c}$ in the power spectrum, otherwise the spectrum eventually blows up for $n_{A}\neq 0$, so that our power-spectrum reads

[TABLE]

and we respectively used $k_{c}=0.001\,{\rm Mpc}^{-1}$ ($\ell\sim 14$) and $\beta=10$ for $n_{A}<0$ and $k_{c}=1{\rm Mpc}^{-1}$ and $\beta=-10$ for $n_{A}>0$. For the oscillations in $k$, we further chose $n_{o}=1$, $\omega=16.6$ and $A=0.01$, except for the illustrative case where we considered $A=0.1$. It should be noted that this artificial cut-off introduced in this section will not be necessary when we study concrete inflationary models. The results can be seen in Fig. 3. On the left, we plotted an illustrative case with $A=0.1$ and we see that the oscillations do not exactly mimick the effect of smoothing (compare with Fig. 1) but it could be enough at the level of the residuals. On the right, we plotted the residuals between the lensed temperature power specturm with and without the oscillation for three different cases: $n_{A}=\{-1,0,1\}$. As one can see the residuals for $n_{A}=1$ are the ones that best resemble the residuals from the Planck 2018 analysis Aghanim et al. (2018), in particular for $\ell>814$. From the data, it seems that $n_{A}>0$ will be preferred but it is unclear how one could generate a growing feature, rather a decaying feature is expected from inflationary dynamics as we shall see in the next section. It should be noted that the apparent power loss in Fig. 3 is due to the enhancement of the contribution of density peaks (corresponding to peaks in the power spectrum) relative to velocity (Doppler) peaks (corresponding to troughs in the power spectrum) to temperature fluctuations Hu (1995). Thus, for the same initial conditions, the peaks in the power spectrum have a larger contribution from the oscillatory feature than the troughs.

III Features during inflation

In this section, we review the computation of the primordial power spectrum when there is a feature, e.g., sharp transition or oscillations, in the background evolution. In fact, such features are rather common in extensions of the simplest models of inflation. For example, it could be due to wiggles in the inflaton potential, inspired from axion monodromy in string theory Silverstein and Westphal (2008); Flauger et al. (2010), or sudden turns in the trajectory in field space in multi-field inflation Gao et al. (2013), which would excite the heavy modes. These features will affect the background dynamics during inflation and the effects will be imprinted in modifications of the slow-roll parameters and/or the sound speed of perturbations. Now, for simplicity, we take an effective single field approach Achucarro et al. (2011b); Shiu and Xu (2011); Achucarro et al. (2012); Bartolo et al. (2013); Palma (2015) and we study the resulting oscillatory modulation of the power spectrum. Our starting point is then the Mukhanov-Sasaki equation for the canonically normalized curvature perturbation Kodama and Sasaki (1984); Mukhanov et al. (1992):

[TABLE]

where $z^{2}\equiv 2a^{2}\epsilon M_{\rm pl}^{2}/c_{s}^{2}$, $a$ is the scale factor, $\epsilon\equiv-\dot{H}/H^{2}$, $H\equiv\dot{a}/a$, $c_{s}^{2}$ is the sound speed of propagation, $\dot{\,}\,\equiv d/dt$ where $t$ is the cosmic time, ${}^{\prime}\,\,\equiv d/d\tau$ where $d\tau=dt/a$ is the conformal time and $u\equiv z{\cal R}$ with ${\cal R}$ being the comoving curvature perturbation. We then consider the effect of a deviation in a de-Sitter inflationary background by introducing Achucarro et al. (2014)

[TABLE]

where $d\xi=c_{s}d\tau$. With these redefinitions, Eq. (4) becomes Achucarro et al. (2014)

[TABLE]

Treating the right hand side as a perturbation one can solve the differential equation by the Green’s function method at leading order in $f$ by Gong and Stewart (2001); Joy et al. (2005); Gong (2005); Bartolo et al. (2013); Achucarro et al. (2014)

[TABLE]

where we already used the dS approximation, i.e. $v_{k}=\left(1-\frac{i}{k\xi}\right){\rm e}^{-ik\xi}$, we defined

[TABLE]

and

[TABLE]

This will be our starting point in the following discussions. Any feature during inflation will be contained in the function $f(\xi)$. Thus, once we know the type of feature we can compute its effect in the power spectrum by using Eq. (7) through modifications of the slow-roll parameters or the propagation speed. Interestingly, one can invert this relation and find the feature given a power-spectrum modulation as in Ref. Joy et al. (2005) (also see Ref. Durakovic et al. (2019) for a more recent approach). At this point, we could find the change in the background that would lead to the desired feature in the power spectrum. However, we will be more interested in the physical model behind. We will analytically compute three different regimes: $(i)$ fast oscillating features, $(ii)$ slow oscillating features and $(iii)$ sharp features. Here we do not seek to join any of these three regimes, rather we are interested to see if the desired oscillations in the power spectrum fall in any of these three categories.

III.1 Fast Oscillating feature

We begin to review the effects of an oscillating modulation of the background where its frequency is higher than the expansion rate. This could be either induced by an oscillatory modulation of the inflaton’s potential or by the oscillations of an extra massive field. For the moment, we will assume that the oscillations vary in amplitude and frequency and that $c_{s}=1$. Thus, in practice we have that

[TABLE]

where we assumed that the frequency of the oscillation, say $\Omega$, in the function $f$ is $\dot{\Omega}/H=\delta_{\Omega}\Omega\gg 1$ then only the highest time derivative dominates and so

[TABLE]

with $\varphi$ being an arbitrary phase. For simplicity, we will further assume that

[TABLE]

where $a_{r}$ is the scale factor at onset of the resonance, $C_{r}$, $\Omega_{r}$, $\delta_{C}$, $\delta_{\Omega}$ are constants and we require $\dot{\Omega}/H=\delta_{\Omega}\Omega\gg 1$. Then, we can use the saddle point approximation for subhorizon scales ($k\tau\gg 1$) in Eq. (10) at $k=\delta_{\Omega}aH\Omega$ to find that the correction to the power-spectrum is given by

[TABLE]

where $k_{r}=\delta_{\Omega}\Omega_{r}a_{r}H_{r}$ and $\tilde{\varphi}=\varphi\mp\frac{3\pi}{4}$ where $-$ is for $\delta_{\Omega}>1$ and $+$ for $\delta_{\Omega}<1$.

In order to compare with the data, we rewrite the parameters in Eq. (13) in terms of the template Eq. (1). Comparing them at a scale $k=k_{*}$ we find that for the frequency we have

[TABLE]

and for the amplitude

[TABLE]

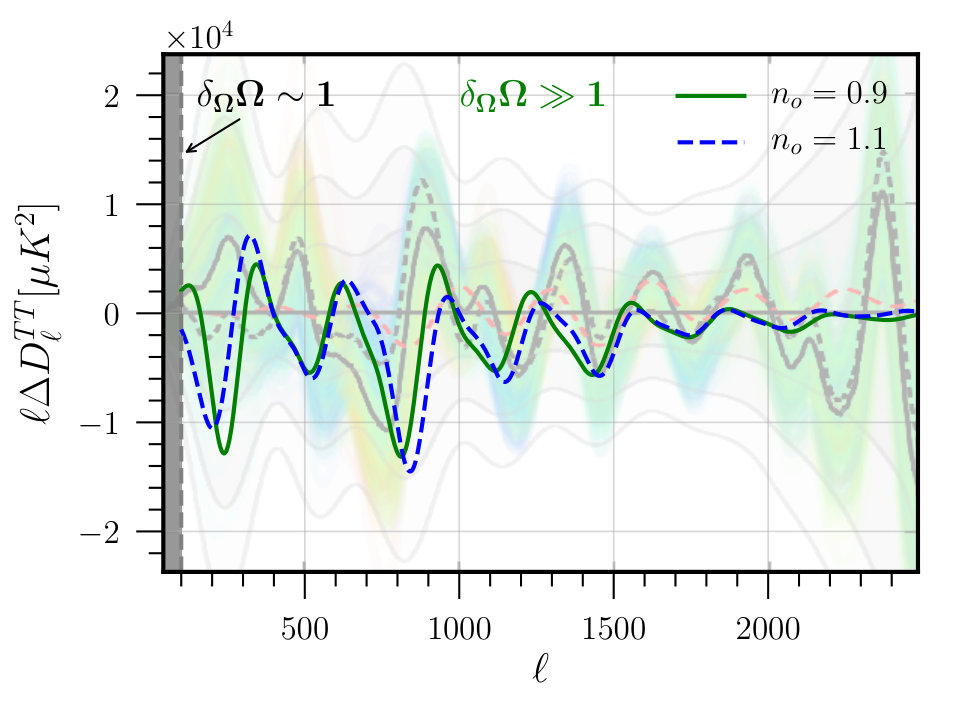

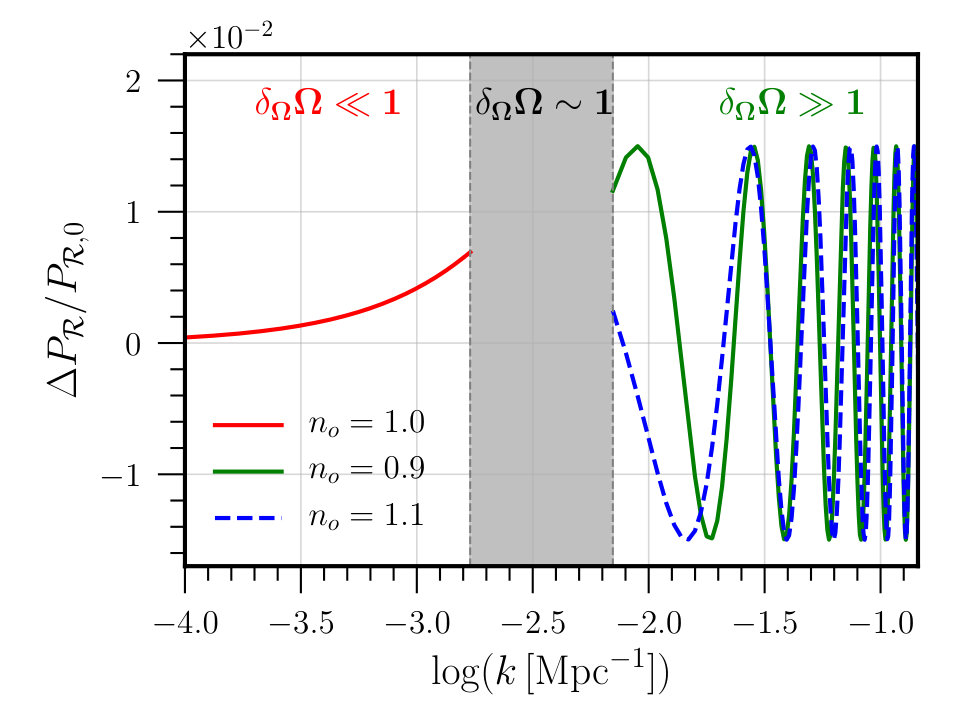

First of all, we see that an exact linear dependence in $k$ for the frequency, as needed to fit all the acoustic peaks, is not possible: as $n_{o}\to 1$ we have that $\delta_{\Omega}\to\pm\infty$. This is because one would need that the resonance with every mode function, which has a frequency of $2k\xi$, occurred at the same time for all the modes, i.e. at $\xi=\xi_{r}$. Nevertheless, the best one can do without considering a sharp feature is that the oscillating source term oscillates so fast that the resonances occur almost at the same time. For this reason, we may consider that $n_{o}=\{0.9,1.1\}$ and the fit is still reasonable, see Fig. 4. However, while they might be give feasible residuals to mimick the smoothing effect of lensing, they are unsatisfactory from a theoretical point of view.

First of all, it must be seen whether the assumption $\delta_{\Omega}\Omega\gg 1$ holds for the range of interest. Plugging in some numbers (see Tab. 2), we find that

[TABLE]

where we used the fact that $n_{o}\approx 1$. We see that, using the values of the frequencies in Tab. 2, the condition $\delta_{\Omega}\Omega\gg 1$ breaks down at around $k\sim 0.0035$ ($\ell\sim 49$) and so this kind of resonance could explain the anomaly down to small $\ell$. However, to be able to predict what occurs for $\ell<49$, as it enters the observational window, we need a full detailed model. For instance, it would difficult to imagine a model where the modulation suddenly started at $k\sim 0.0035$ since it would be accompanied by a sharp feature which usually has an amplitude higher relative to the fast oscillating regime and quite model dependent Chen et al. (2015).

Second and most important, we need to see if it is theoretically viable. To be close to a constant frequency we chose $n_{o}=\{0.9,1.1\}$ in Eq. (1) which correspond to $\delta_{\Omega}=\{9,-11\}$ in Eq. (13). This implies that the value of the frequency respectively increases or decreases 4 orders of magnitude in $1$ e-fold. In this respect, it is difficult to conceive what kind of model could sustain such growth or decay for more than the $3$ e-folds required. For example, in models where the feature is generated by an extra oscillating massive field like in Refs. Chen (2012); Huang and Pi (2018); Domènech et al. (2019), the frequency of the oscillation is associated to the mass of the field. In this case, either the energy density of the field increases too fast with the mass ($\delta_{\Omega}=9$) or it decreases so fast ($\delta_{\Omega}=-11$) that initially it should have had an astoundingly big mass and energy density. See App. A for a detailed comparison with such models. It should be noted that perhaps it may be possible to build such a model but we consider the amount of fine tuning required to be unreasonable. For these reasons, we will explore other simpler cases.

We thus disregard the fast oscillating case as a theoretically viable explanation for the $A_{L}$ anomaly. Nevertheless, it must be seen whether relaxing the assumption that the frequency be almost constant helps finding a viable model which resembles the lensing effect in a narrower multipole number range.

III.2 Slow Oscillating feature

In this subsection, we study the opposite case where the oscillating modulation is slowly varying. Thus, this feature will simply act as a modulation of the background and we can estimate its effects onto the power spectrum using the $\delta N$ formalism333Since we are interested in the super-horizon limit, it could also be estimated from Eq. (4) or (6) with the approximation that $z$ is almost constant and then matching the solution at horizon crossing Hu (2011). This means that (7) is unnecessary for the slow oscillating feature; $\Delta P_{\cal R}$ is defined as difference between $P_{{\cal R},0}$ with and without oscillation. Starobinsky (1985); Salopek and Bond (1990); Sasaki and Stewart (1996). We have

[TABLE]

where $\frac{\partial N}{\partial\phi}=-\frac{H}{\dot{\phi}}$ is to be evaluated at horizon crossing. In general one has that $\langle\delta\phi\delta\phi\rangle=H/(2\pi c_{s})$ and so the power spectrum is given by

[TABLE]

The effect of any slow varying modulation of the background can be computed in this way, evaluated at horizon crossing $k=aH$. Now, let us assume that the modulation of the background results in a modulation of the slow-roll parameter given by

[TABLE]

Assuming for simplicity that

[TABLE]

where $B_{r}$, $\Omega_{r}$, $\delta_{B}$ and $\delta_{\Omega}$ are constants, together with the requirement that $\delta_{\Omega}\Omega\ll 1$, we find that the modulation of the power-spectrum reads

[TABLE]

Comparing this result with the template (1) we find

[TABLE]

This time, we have that for $\delta_{\Omega}=n_{o}=1$ at $k_{r}=10^{-2}k_{*}$, the oscillations are slowly varying, i.e. $\delta_{\Omega}\Omega_{r}\approx 1.7\times 10^{-1}$. However, since the frequency is increasing with time as a power-law of $a$, the approximation of $\delta_{\Omega}\Omega\ll 1$ will break down at around $\ell\sim 49$. This is clearly not enough to explain the lensing anomaly at $\ell\sim 1000-2000$. We will not attempt to join the slow and fast regimes of Sec. III.1, as it is not clear how to go from $\delta_{\Omega}\Omega\ll 1$ to $\delta_{\Omega}\Omega\gg 1$ smoothly and, furthermore, numerical computations would be needed.

III.3 Sharp feature

When one considers a sharp feature, the exact shape of the modulation is very model dependent Starobinsky (1992); Adams et al. (2001); Choe et al. (2004); Gong (2005); Dvorkin and Hu (2010); Achucarro et al. (2011a); Adshead et al. (2012); Shiu and Xu (2011); Gao et al. (2013); Bartolo et al. (2013); Palma (2015). Nevertheless, let us consider the simplest example where the sharp feature is a discontinuity, e.g. a step in the slope of the potential, which will result in a Dirac delta $\delta(\xi-\xi_{f})$ in Eq. (7), as the slow roll parameter $\epsilon$ in $f(\xi)$ is proportional to the first derivative of the potential. In that case, the frequency of the resulting oscillation will be proportional to $2k\xi_{f}$ Gong and Stewart (2001); Joy et al. (2005); Gong (2005). A quick exercise tells us that if we require $\omega=16.6$ the transition happened at $k_{*}\xi_{r}\approx 8.3$, that is the transition happened $2$ e-folds before our pivot scale at around $k_{f}\approx 0.007{\rm Mpc}^{-1}$ or $\ell_{r}\approx 98$. Furthermore, the phase of the oscillation depends on whether the step around $\xi=\xi_{f}$ is odd (e.g. a hyperbolic tangent) Starobinsky (1992); Choe et al. (2004); Gong (2005); Bartolo et al. (2013) or even (e.g. a gaussian bump) Achucarro et al. (2014). To understand that it is useful to integrate by parts Eq. (7) arriving at

[TABLE]

If the step is sharp enough only the neighborhood of the transition will contribute to the integral. If the step is odd around $\xi=\xi_{f}$, its derivative is even and so the even function $\cos(2k\xi_{f})$ survives asymptotically in $k$. Instead, if the step is even around $\xi=\xi_{f}$, then its derivative is odd and the odd function $\sin(2k\xi_{f})$ remains.

We present now a concrete example. The simplest case is a bump in the sound speed at $\tau=\tau_{f}$ with height $B$ and sharpness $\beta_{s}$ given by Achucarro et al. (2014)

[TABLE]

Note that if $B>0$ the sound speed of scalar perturbations is slightly superluminal.444In Ref. Achucarro et al. (2014) it is assumed that $B<0$ throughout the paper but for our purposes we shall consider $B>0$ as well. Although it does not pose any causality problems Babichev et al. (2008), it may obstruct the UV completion of a quantum Lorentz-invariant theory Adams et al. (2006). Nevertheless, the superluminality could be compensated by introducing a $c^{2}_{s,0}$ as a common factor in Eq. (24) with $(1+B)c^{2}_{s,0}\leq 1$. Now, integrating Eq. (23) under the assumption that the step is sharp ($\beta_{s}\gg 1$) yields Achucarro et al. (2014) (see also App. B)

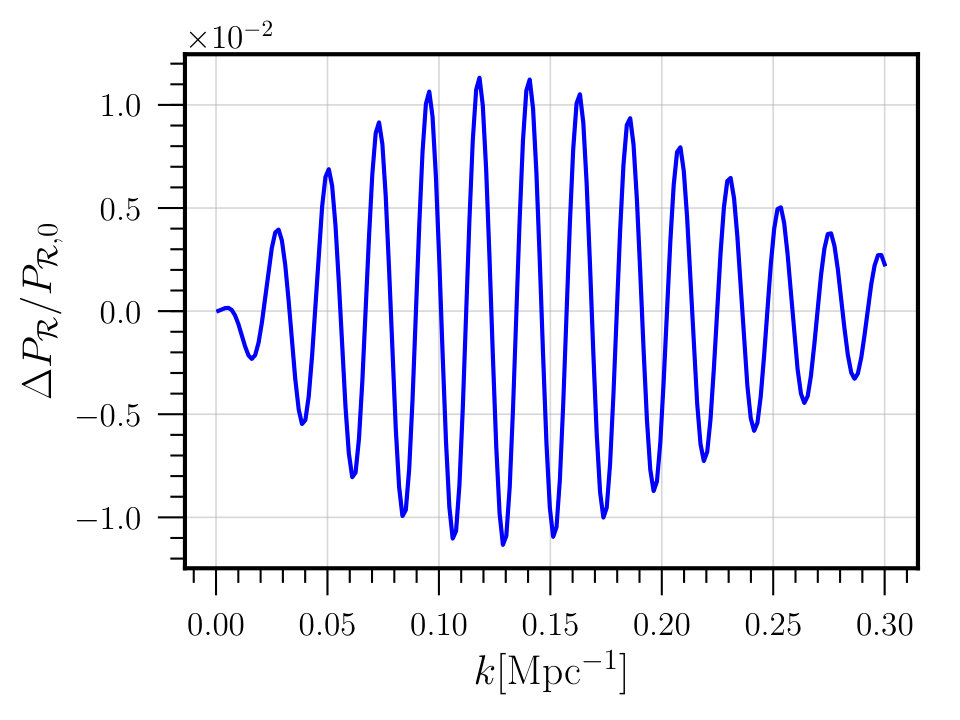

[TABLE]

where we neglected terms $O(\beta_{s}^{-2})$ and note that $\Delta P_{\cal R}\to 0$ when $k\to 0$ so that there are no spurious super-horizon modes. To estimate the magnitude of the feature, note that the gaussian modulation has a maximum at $k\tau_{f}=\beta_{s}/\sqrt{2}$ and so to have an amplitude of $10\%$ one needs $|B|\approx 0.013$. It should be noted that the tensor-to-scalar ratio , which is proportional to $c_{s}$ Mukhanov and Vikman (2006), is barely affected as the sound speed only changes by $10\%$. Furthermore, the adiabatic condition $s\equiv\dot{c}_{s}/Hc_{s}$ is always satisfied and its maximum value is $|s|=|B|\beta_{s}/\sqrt{2e}\approx 0.16$ (for $|B|=0.015$ and $\beta_{s}=25$). We have plotted the oscillatory feature in the primordial power spectrum and the residuals of the lensed power spectrum in Fig. 5. Note how the frequency of the resulting oscillatory pattern follows that of Planck Aghanim et al. (2018) in the range $\ell\sim 1200-2000$, although the residuals from Planck are slightly shifted upwards.

Regarding the non-gaussianities we can borrow the results from Ref. Achucarro et al. (2014) (see also App. C) at the equilateral limit and find that the equilateral non-gaussianity peaks at $K\tau_{f}=\sqrt{6}\beta_{s}$ with amplitude

[TABLE]

A similar calculation for the trispectrum evaluated at its peak ($K\tau_{f}=\sqrt{10}\beta_{s}$) in the equilateral configuration (see App. C) yields

[TABLE]

The Planck results on non-gaussianities Ade et al. (2016) yield that $f_{NL}^{\rm eq}=-4\pm 43$. Thus, if $|B|\sim 10^{-2}$ we see that we need $\beta_{s}<60$ to fall within the bounds. Regarding local (squeezed shape) non-gaussianity its magnitude is at least suppressed by $1/\beta_{s}$ with respect to $f_{NL}^{\rm eq}$ Achúcarro et al. (2013); Mooij et al. (2016) and therefore we easily fall within Planck constraints, i.e. $f_{NL}^{\rm loc}=0.8\pm 5.0$.555For instance, using the results from Achúcarro et al. (2013) we have that $f^{\rm loc}_{NL}=-\frac{5}{12}\frac{d}{d\ln k}\frac{\Delta P_{\cal R}}{P_{{\cal R},0}}\approx-\frac{5}{6}\beta_{s}\frac{\Delta P_{\cal R}}{P_{{\cal R},0}}$ and plugging in the same numbers, i.e. $|B|\sim 10^{-2}$ and $\beta_{s}<60$ we have that $|f^{\rm loc}_{NL}|\lesssim 0.5$. Note that these constraints are looser if one allows for a scale dependence in the non-gaussianity Ade et al. (2016). Furthermore, the constraints on the trispectrum are roughly Ade et al. (2016) $g_{NL}<10^{5}-10^{6}$ and for $|B|\sim 10^{-2}$ it is sufficient that $\beta_{s}<100$. Thus, as we can see in Fig. 5 a bump in $c_{s}^{2}$ with $B=-0.015$ and $\beta_{s}=25$ reproduces quite well the residuals in the Planck analysis Aghanim et al. (2018) and is well within the bispectrum and trispectrum bounds. The development of a specific model that can produce such a bump in $c_{s}^{2}$ is left for future work, although it seems possible to build such a model using a spectator scalar field Nakashima et al. (2011). Before ending this section, it is worth saying that no trans-planckian modulation Easther et al. (2005) could mimick the smoothing effect of lensing. This is due to the fact that the value of the frequency for trans-planckian modulations depends on the initial conditions but the frequency required to explain the anomaly correspond to a scale in the last few e-folds of inflation.

IV Conclusions

The latest analysis of the cosmic microwave background by the Planck team Aghanim et al. (2018) suggests that at the $2\sigma$ confidence level there is $10\%$ more lensing than predicted by $\Lambda$CDM. If not a statistical fluke, one suggested explanation for the extra lensing is that there is new physics that mimicks the smoothing effect of lensing Akrami et al. (2018). Here we studied what could have generated these oscillations in the power spectrum during inflation. We first considered an effective single field approach, where the effects of a sharp transition or an oscillatory modulation in the background can be studied phenomenologically Shiu and Xu (2011); Achucarro et al. (2012); Bartolo et al. (2013); Palma (2015). In this way, we divided the analysis between rapid/slow (compared to the expansion rate) oscillatory modulations and sharp transitions.

We have found that for rapid oscillatory modulations Chen (2012); Huang and Pi (2018); Domènech et al. (2019), it is not possible to obtain an exact linear $k$ dependence in the frequency of the power-spectrum’s oscillations since the modulation should oscillate infinitely fast or be a sharp feature. Nevertheless, an almost linear dependence can be obtained for very fast oscillatory modulations. Unfortunately, when compared with the data one needs a frequency which is slowly varying for large scales ($\ell<50$) and rapidly varying for $\ell>50$. We also showed that if the oscillations were caused by an oscillating heavy field, then the mass of the field would have been smaller than Hubble at some point in the range of interest. Thus, this sort of feature cannot explain an oscillation over the whole range of $\ell$ covered by the Planck data. We discussed that the possibility of starting the oscillation at $\ell>50$ is not feasible since it would be accompanied by a sharp feature which is normally larger than the oscillatory feature.

On the other hand, we have analyzed the case of slowly oscillating modulations of the background and we have found that it is possible to find a model where the frequency of the oscillatory feature is linear in $k$. In this case, there is no resonance occurring and so the frequency must evolve inversely proportional to the conformal time so that at horizon crossing ($-k\tau\approx 1$) yields a linear dependence in $k$. However, when compared with the data and in agreement with the results of fast oscillatory modulations, this feature could only explain a linear oscillation for $\ell<50$ which is not of interest for our work.

Motivated by our results, we have studied sharp transitions within an effective single field theory for sharp features Shiu and Xu (2011); Achucarro et al. (2012); Bartolo et al. (2013); Palma (2015). When the feature is sharp all the modes are excited at the same time (say $\tau=\tau_{f}$) and so the resulting oscillatory feature has a frequency of $2k\tau_{f}$. If that is the case, we needed that the sharp feature occurred at scales inside the observational window, around $\ell\sim 98$. Although sharp features are very model dependent Starobinsky (1992); Adams et al. (2001); Choe et al. (2004); Gong (2005); Dvorkin and Hu (2010); Achucarro et al. (2011a); Adshead et al. (2012); Shiu and Xu (2011); Gao et al. (2013); Bartolo et al. (2013); Palma (2015), we see that in general terms when the sharp feature is even Achucarro et al. (2014), e.g. a bump, the oscillations with the right frequency are in phase with the acoustic peaks. We have presented an example capable of reproducing the desired oscillatory modulation of the primordial power spectrum times a damping function (25). This example consists of a bump in the sound speed given by Eq. (24). Moreover, we have shown that this model can satisfy the bounds to the bispectrum and trispectrum.

We thus conclude, on one hand, that the $A_{L}$ anomaly in the CMB temperature power spectrum could potentially be explained by a bump in the sound speed of scalar perturbations, although a detailed comparison with the data would be needed. We presented the residuals in Fig. 5 and they are similar in frequency to the results presented in Ref. Aghanim et al. (2018). In the future, measurements of baryon acoustic oscillations might be employed in combination with the CMB Zeng et al. (2019) to test this explanation. In the standard scenario, the Fourier wavenumbers for the peaks in the late-time matter power spectrum are shifted relative to those for peaks in the radiation density at CMB decoupling Eisenstein and Hu (1998), a result of the fact that the late-time growing mode maps at early times to a combination of the growing and decaying modes. The relative phases of the acoustic and primordial oscillations will thus be different in the baryon acoustic oscillations (BAO) than they are in the CMB. It will be interesting do this analysis with high precision polarization data such as CMB-S4. Furthermore, another probe of this model would be to look for correlated features in the primordial spectra Achúcarro et al. (2013); Gong et al. (2014); Chen et al. (2016b); Finelli et al. (2018); Ballardini et al. (2016, 2018); Palma et al. (2018); Gong et al. (2017). On the other hand, we have shown also that it is difficult that oscillating features in the power spectrum which are linear in $k$ (or almost linear) are generated during inflation from an oscillatory modulation of the background and that could explain the $A_{L}$ anomaly at the same time. However, it has to be seen if there is any possibility for general multi-field inflationary trajectories as in Ref. Gao et al. (2013).

Acknowledgments

We would like to thank J-O. Gong, E. Kovetz, J. Muñoz, R. Saito, P. Shi, J. Takeda and T. Tenkanen for very useful discussions and comments on the draft. This work was partially supported by DFG Collaborative Research center SFB 1225 (ISOQUANT)(G.D.). G.D. acknowledges support from the Balzan Center for Cosmological Studies Program during his stay at the Johns Hopkins University. G.D. also thanks the Johns Hopkins University cosmology and gravity groups for their hospitality.

Appendix A Model building

In this section we give the phenomenological parameters in Sec. III in terms of particular models. We will first consider a two-field model in which the heavy field is excited and oscillates around the minimum of its potential. This could be a particular realization of the case studied in Sec. III.1 as the heavier the field the faster the oscillations. In the second example, we will consider that the inflaton’s potential has an oscillatory modulation superimposed. This could be an example for either fast or slow oscillations depending on the model parameters and could be used in Secs. III.1 and III.2.

A.1 Non-standard clock signal

Here we review the model studied in Domènech et al. (2019) which is a generalized version of the standard clock model proposed in Ref. Chen (2012). The action is given by

[TABLE]

Assuming that the $\sigma$ field is massive, does not spoil slow-roll inflation and does not backreact on the equations of motion for $\phi$ we have that $\sigma$ oscillates around the minimum of the effective potential given by the centrifugal force by

[TABLE]

where $m_{\rm eff}^{2}={m^{2}}/{f^{2}}-{\ddot{f}}/{f}-3H{\dot{f}}/{f}$ and we will assume that the time derivatives of $f$ are negligible in front of $m$. All these conditions can be satisfied, at least momentarily, if the energy fraction of the massive field is smaller than the slow-roll parameter $\epsilon\equiv-\dot{H}/H^{2}$. Then, the leading interacting term is given by

[TABLE]

which yields

[TABLE]

where $\mu_{r}\equiv\frac{m_{{\rm eff},r}}{H_{r}}$,

[TABLE]

We have defined

[TABLE]

where $dN=Hdt$.

For the values used in the main text (see Tab. 2) we have that the effective dimensionless mass and the amplitude of the field oscillation at the pivot scale respectively are

[TABLE]

Thus, at the pivot scale the values are reasonable. However, we also require $|\delta_{\Omega}|\sim 10$ and this implies $\delta_{m},\delta_{f}\sim 10$. This model has a growth (or decay) of the mass and/or the coefficient of the kinetic term of 4 order of magnitude per e-fold. We conclude that either there is much fine-tuning in the potential or kinetic term or the extra field will backreact in few e-folds.

A.2 Oscillating potential

Let us consider that the inflaton potential has an oscillating modulation of the form

[TABLE]

In order not to spoil slow-roll, i.e. $\eta\equiv\frac{\dot{\epsilon}}{H\epsilon}\ll 1$ we need that $W\dot{\Omega}^{2}<1$. This can be tuned by an appropriate form of $W(\phi)$. Comparing with the results of Sec. III we find

[TABLE]

and so

[TABLE]

which yields

[TABLE]

We have defined

[TABLE]

Appendix B Estimation of the power spectrum

Here we give a brief review of the estimation for the power spectrum. The starting point is Eq.(7), which using the fact that $f\propto z\,c_{s}^{1/2}\propto c_{s}^{-1/2}$ and that $s\equiv\dot{c}_{s}/Hc_{s}$ reads

[TABLE]

Now, using that

[TABLE]

and that $s=\frac{B\beta_{s}}{2}\frac{dF}{dx}$, where $x\equiv-\beta_{s}\ln\left(\tau/\tau_{f}\right)$, we can write at leading order in $x/\beta_{s}$

[TABLE]

where used that $\xi\approx\tau$ and we expanded the mode functions as

[TABLE]

since $\tau\approx\tau_{f}\left(1-\frac{x}{\beta_{s}}\right)$.

Appendix C Estimation of the bispectrum and trispectrum

Here we briefly derive the estimate for the magnitude of the bispectrum and trispectrum. We work in the effective field theory of inflation approach Cheung et al. (2008); Bartolo et al. (2013); Achucarro et al. (2014) and expand the action up to fourth order. By picking up the terms that only involve the speed of sound $c_{s}$ and its derivatives at leading order in slow roll we find

[TABLE]

and

[TABLE]

We will use the approximation for sharp features which consists of expanding around the transition time Adshead et al. (2011, 2012); Bartolo et al. (2013); Achucarro et al. (2014).

C.1 Bispectrum

For the bispectrum we use the in-in formalism Maldacena (2003); Wang (2014),

[TABLE]

where $H_{I,3}=-{\cal L}_{3}$. As usual we use the de-Sitter mode function:

[TABLE]

Now, picking up the highest contribution in terms of $\beta_{s}$ and evaluating the integral near the sharp feature and in the equilateral configuration ($k_{1}=k_{2}=k_{3}=k$ and $\mathbf{k_{1}}\cdot\mathbf{k_{2}}=-k^{2}/2$) we have

[TABLE]

where $K=k_{1}+k_{2}+k_{3}$ and $P_{{\cal R},0}=\frac{H^{2}}{8\pi^{2}\epsilon c_{s}M_{\rm pl}^{2}}$. With this result we find that

[TABLE]

where we used that

[TABLE]

C.2 Trispectrum

Again, for the trispectrum we will use the in-in formalism. However, this time we have the possibility of a scalar exchange Arroja and Koyama (2008); Chen et al. (2009); Wang (2014), i.e.

[TABLE]

and a contact interaction Chen et al. (2009), that is

[TABLE]

However, a quick inspection of the scalar exchange contribution tells us that the contribution of the scalar exchange is proportional to $f_{NL}^{2}\approx B^{2}\beta_{s}^{4}$ since, at most, there are two cubic vertex proportional to $B\beta_{s}^{2}$. As we will now see, this contribution is suppressed by a factor $B$ with respect to the leading contribution of the contact interaction which is proportional to $B\beta_{s}^{4}$ – e.g. look at the term $\dot{s}$ in $S_{4}$ which will bring twice $\beta_{s}^{2}$ down.

Now, to simplify the computation of the interaction Hamiltonian we will assume that only the terms which are proportional to $(1-c_{s}^{2})$ contribute to the third order Lagrangian and, thus, the third order Lagrangian is only proportional to $B$. This means that the terms in the fourth order interaction Hamiltonian that come from ${\cal L}_{3}$ are always squared and so proportional to $B^{2}$. In this way, we can neglect the terms coming from ${\cal L}_{3}$ and ${\cal L}_{2}$ and the interaction Hamiltonian is, for our purposes, given by

[TABLE]

We again select the highest contribution in terms of $\beta_{s}$ and evaluate the integral near the sharp feature and in the regular tetrahedron configuration ($k_{1}=k_{2}=k_{3}=k_{4}=k$ and $|\mathbf{k_{1}}+\mathbf{k_{3}}|=|\mathbf{k_{2}}+\mathbf{k_{4}}|=k$). Then we find

[TABLE]

where now $K=k_{1}+k_{2}+k_{3}+k_{4}$ and $P_{{\cal R},0}=\frac{H^{2}}{8\pi^{2}\epsilon c_{s}M_{\rm pl}^{2}}$. So we have

[TABLE]

where we used the normalization of Smith et al. (2015) in order to compare with Ade et al. (2016), that is

[TABLE]
