Muon spin rotation study of type-I superconductivity: elemental $\beta-$Sn

TL;DR

This study uses muon-spin rotation to precisely measure the critical magnetic field and phase diagram of elemental beta-tin, a classic type-I superconductor, revealing detailed thermodynamic and microscopic properties.

Contribution

It demonstrates the application of $bc$SR technique to accurately determine critical fields and thermodynamic parameters in type-I superconductors, providing detailed phase diagrams and microscopic insights.

Findings

Determined $B_c(0)=30.578(6)$ mT and $T_c=3.717(3)$ K for beta-tin.

Reconstructed the full $B-T$ phase diagram of beta-tin.

Obtained superconducting gap $b4=0.59(1)$ meV and heat capacity jump ratio 1.55(2).

Abstract

The application of the muon-spin rotation/relaxation ($\mu$SR) technique for studying type-I superconductivity is discussed. In the intermediate state, i.e. when a type-I superconducting sample with non-zero demagnetization factor $N$ is separated into normal state and Meissner state (superconducting) domains, the $\mu$SR technique allows to determine with very high precision the value of the thermodynamic critical field $B_{\rm c}$, as well as the volume of the sample in the normal and the superconducting state. Due to the microscopic nature of $\mu$SR technique, the $B_{\rm c}$ values are determined directly via measurements of the internal field inside the normal state domains. No assumptions or introduction of any type of measurement criteria are needed. Experiments performed on a 'classical' type-I superconductor, a cylindrically shaped $\beta-$Sn sample, allowed to reconstruct the full $B-T$ phase diagram. The zero-temperature value of the thermodynamic critical field $B_{\rm c}(0)=30.578(6)$ mT and the transition temperature $T_{\rm c}=3.717(3)$ K were determined and found to be in a good agreement with the literature data. An experimentally obtained demagnetization factor is in very good agreement with theoretical calculations of the demagnetization factor of a finite cylinder. The analysis of $B_{\rm c}(T)$ dependence within the framework of the phenomenological $\alpha-$model allow to obtain the value of the superconducting energy gap $\Delta=0.59(1)$ meV, of the electronic specific heat $\gamma_e=1.781(3)$ ${\rm mJ}/{\rm mol}\; {\rm K}^2$ and of the jump in the heat capacity ${\Delta C(T_c)}/{\gamma T_{\rm c}}=1.55(2)$.

Figures

Tables

Table 1. Table 1: Experimentally obtained and calculated material parameters for β − limit-from 𝛽 \beta- Sn. T c subscript 𝑇 c T_{\rm c} is the superconducting transition temperature, B c ​ ( 0 ) subscript 𝐵 c 0 B_{\rm c}(0) is the zero-temperature value of the thermodynamic critical field, Δ Δ \Delta is the zero-temperature value of the superconducting energy gap, 2 ​ Δ / k B ​ T c 2 Δ subscript 𝑘 B subscript 𝑇 c 2\Delta/k_{\rm B}T_{\rm c} is the coupling strength, γ e subscript 𝛾 e \gamma_{\rm e} is the normal state electronic specific heat coefficient, and Δ ​ C ​ ( T c ) / γ e ​ T c Δ 𝐶 subscript 𝑇 c subscript 𝛾 𝑒 subscript 𝑇 c \Delta C(T_{\rm c})/\gamma_{e}T_{\rm c} is the specific heat jump at T c subscript 𝑇 c T_{\rm c} .

$T_c$	$B_c\left(0\right)$	$\Delta$	$2\Delta /k_B{T}_c$	${\gamma }_e$	$\Delta C\left(T_c\right)/{\gamma }_e{T}_c$	References
(K)	(mT)	(meV)		($\mathrm{mJ}{\mathrm{molK}}^{-2}$)
3.717(3)	30.578(6)	–	–	–	–	This work (experiment)
3.710(4)	30.616(3)	0.589(7)	3.684(6)	1.713(3)	1.555(4)	This work ($\alpha -$model, free energy)
3.728(2)	30.571(2)	0.590(6)	3.676(4)	1.781(3)	1.548(3)	This work ($\alpha -$model, entropy)
3.701–3.722	30.3–30.6	0.55–0.61	3.46–3.71	1.74–1.80	1.50–1.68	Refs.  Matthias_RMP_1963,; Carbotte_RMP_1990,; Padamsee_JLTP_1973,; Finnemore_PR_1965,; Bryant_PRL_1960,; Corak_PRB_1956,; Giaever_PR_1962,; Richards_PR_1960,; ONeal_PhysRev_1965,; Douglass_PhysRev_1964,; Walmsley_CanJPhys_1967,; Townsend_Phys_Rev_1962,

Equations

$${\omega }_{\mu }={\gamma }_{\mu }{B}_{\mathrm{loc}}.$$

$$(1-N)B_{\mathrm{c}}<B_{\mathrm{ap}}<B_{\mathrm{c}}.$$

$$B_{\mathrm{N}}=B_{\mathrm{c}}$$

$$N_{\mathrm{F}(\mathrm{B})}(t)=N_0\exp [-t/{\tau }_{\mu }]\cdot [1+(-)A_{0}P(t)],$$

$$A(t)=A_{0}P(t)=\frac{N_{\mathrm{F}}(t)-a{N}_{\mathrm{B}}(t)}{N_{\mathrm{F}}(t)+a{N}_{\mathrm{B}}(t)}.$$

$$A_{0}P(t)=A_{\mathrm{s}}{P}_{\mathrm{s}}(t)+A_{\mathrm{bg}}{P}_{\mathrm{bg}}(t).$$

$$P_{\mathrm{bg}}(t)=e^{-{\lambda }_{\mathrm{bg}}t}\cos ({\gamma }_{\mu }{B}_{\mathrm{ap}}t+\varphi ),$$

$$P_{\mathrm{s}}(t)$$

$$\frac{1}{N_{\mathrm{th}}}=2+\frac{1}{\sqrt{2}}\frac{d}{l},$$

$$f_{\mathrm{N}}(b,t=t_1)=\frac{b-b_1}{b_2-b_1}$$

$$f_{\mathrm{N}}(t,b=b_1)=\frac{t^2-t_1^2}{t_2^2-t_1^2}.$$

$$f_{\mathrm{N}}(b,t=t_1)=\frac{b}{b_c(t_1)}\frac{1}{N}-\frac{1-N}{N}$$

$$f_{\mathrm{N}}(t,b=b_1)=\frac{1-t^2}{t_c(b_1{)}^2-1}\frac{1-N}{N}+\frac{1}{N}.$$

$$\delta (T)=\frac{\Delta (T)}{\Delta }=\frac{{\Delta }_{\mathrm{BCS}}(T)}{{\Delta }_{\mathrm{BCS}}},$$

$$\frac{B_{\mathrm{c}}^2(t)}{8\pi }=F_N(t)-F_{\mathrm{S}}(t),$$

$$\frac{F_{\mathrm{N}}(t)}{{\gamma }_{\mathrm{e}}{T}_{\mathrm{c}}^2}=-\frac{t^2}{2}$$

$$\frac{F_{\mathrm{S}}}{{\gamma }_e{T}_{\mathrm{c}}^2}=-\frac{3{\alpha }^2}{{\pi }^2}\left[\frac{\delta (t{)}^2}{4}+{\int }_0^{\infty }f(\alpha ,E,t)\frac{2{\epsilon }^2+\delta (t{)}^2}{E}d\epsilon \right].$$

$$\frac{B_{\mathrm{c}}^2}{8\pi }=T_{\mathrm{c}}{\int }_t^1\left[S_{\mathrm{N}}(t^{\prime })-S_{\mathrm{S}}(t^{\prime })\right]d{t}^{\prime }$$

$$\frac{S_{\mathrm{N}}(t)}{{\gamma }_e{T}_c}=t$$

$$\frac{S_{\mathrm{S}}(t^{\prime })}{{\gamma }_e{T}_{\mathrm{c}}}=\frac{6{\alpha }^2}{{\pi }^{2}t}{\int }_0^{\infty }f(\alpha ,E,t)\left(E+\frac{{\epsilon }^2}{E}\right)d\epsilon .$$

$$\frac{\Delta C(T_{\mathrm{c}})}{{\gamma }_{\mathrm{e}}{T}_{\mathrm{c}}}=-\left(\frac{3{\alpha }^2}{2{\pi }^2}\right){\frac{d\delta (t{)}^2}{dt}|}_{t=1}\simeq 1.426{\left(\frac{\alpha }{{\alpha }_{\mathrm{BCS}}}\right)}^2.$$

Full text

Experiments performed on a ’classical’ type-I superconductor, a cylindrically shaped $\beta-$Sn sample, allowed to reconstruct the full $B-T$ phase diagram. The zero-temperature value of the thermodynamic critical field $B_{\rm c}(0)=30.578(6)$ mT and the transition temperature $T_{\rm c}=3.717(3)$ K were determined and found to be in a good agreement with the literature data. An experimentally obtained demagnetization factor is in very good agreement with theoretical calculations of the demagnetization factor of a finite cylinder. The analysis of $B_{\rm c}(T)$ dependence within the framework of the phenomenological $\alpha-$model allow to obtain the value of the superconducting energy gap $\Delta=0.59(1)$ meV, of the electronic specific heat $\gamma_{e}=1.781(3)$ ${\rm mJ}/{\rm mol}\;{\rm K}^{2}$ and of the jump in the heat capacity ${\Delta C(T_{c})}/{\gamma T_{\rm c}}=1.55(2)$.

I Introduction

Muon-spin rotation/relaxation ($\mu$SR) is a fast developing and widely used technique which is extremely sensitive to various types of magnetism.Schenk_Book_1985 ; Cox_JPC_1987 ; Dalmas_JPCM_9_1997 ; Yaouanc_book_2011 ; Blundell_ConPhys_1999 ; Sonier_RMP_2000 ; Uemura_book_2015 Compared to most other microscopic techniques by nuclear probes, a $\mu$SR experiment is relatively straightforward since the sample does not need to contain any specific nuclei. In addition, a relatively complicated sample environment can be used as illustrated, e.g. by the large number of measurements performed down to 10 mK in temperature, up to 9.5 T in magnetic field, and up to 2.8 GPa under pressure etc. (see e.g. Refs. Schenk_Book_1985, ; Cox_JPC_1987, ; Dalmas_JPCM_9_1997, ; Yaouanc_book_2011, ; Blundell_ConPhys_1999, ; Sonier_RMP_2000, ; Uemura_book_2015, ; Khasanov_PRB_2008_MoSb, ; Khasanov_HPR_2016, ; Khasanov_PRB_2018_Bi-III, ; Khasanov_PRB_2018_FeSe, ; Grinenko_PRB_2018, and references therein).

A positive muon, which is a spin-$1/2$ particle, stops in a specific place within the crystal lattice. The spin of the muon precesses around the local field $B_{\rm loc}$ at the stopping position. The precession frequency is directly related to $B_{\rm loc}$ via the muon gyromagnetic ratio $\gamma_{\mu}=2\pi\times 135.5342$ MHz/T as:

[TABLE]

In the case of magnets, the field at the muon stopping site is determined by the surrounding magnetic moments (electronic and/or nuclear in origin) and by the spin density at the muon site. Since the periodicity of the magnetic structure follows, in general, the crystallographic one, resolving the type of the magnetic moment arrangement requires the knowledge of the muon stopping position, which is by itself not a trivial task.Schenk_Book_1985 ; Yaouanc_book_2011 ; Maeter_PRB_2009 ; Bendele_PRB_2012 ; Moller_PRB_2013 ; Moller_PhyScr_2013 ; Amato_PRB_2014 ; Mallett_EPL_2015 ; Khasanov_PRB_MnP_2016 ; Bonfa_JPSJ_2016 ; Khasanov_JPCM_2017 ; Onuorah_PRB_2018 ; Khasanov_PRB_2017_FeSe ; Liborio_JCP_2018 In the case of type-I and type-II superconductors the knowledge of the muon stopping site is not required. The reason is that the periodicity of various structures arising in superconductors under the applied magnetic field (as e.g. the flux-line lattice, the Meissner state, as well as various types of coexistence states) do not match the periodicity of the crystal lattice.

The character of the magnetic response, probed by means of $\mu$SR in superconducting materials, depends on the value of the externally applied field ($B_{\rm ap}$) and on the type of superconductivity. In the Meissner state, the magnetic field is expelled completely from the sample volume except from a thin layer near the surface, where it decreases exponentially on a characteristic distance $\lambda$ ($\lambda$ is the magnetic penetration depth).Tinkham_75 The Meissner state is formed in a magnetic field lower than the first critical field ($B_{\rm c1}$) for the type-II superconductor and the thermodynamic critical field ($B_{\rm c}$) for the type-I superconductor, respectively. The exponential field decrease in the Meissner state was directly probed by muons with low and tunable energy by means of Low-Energy $\mu$SR.Morenzoni2004 ; Jackson_PRL_2000 ; Khasanov_PRL_2004 ; Suter_PRL_2004 ; Kiefl_PRB_2010

The vortex state forms in type-II superconductors in magnetic fields exceeding $B_{\rm c1}$. In such a case, the field penetrates the superconductor in the form of quantized flux lines (vortices) forming a regular flux-line lattice (FLL).Abrikosov_JETP_1957 Considering the FLL to be a quasi two-dimensional object (vortices, in general, are aligned along the applied field), $\mu$SR experiments in the vortex state are performed by using muons with constant implantation energy (see e.g. Refs. Yaouanc_book_2011, ; Blundell_ConPhys_1999, ; Sonier_RMP_2000, for a review, and Refs. Schwarz_HypInt_1986, ; Herlach_HypInt_1990, reporting the first FLL measurements by means of $\mu$SR)

In addition to the pure Meissner and FLL states, the combination of them can be formed in superconductors with a non-zero demagnetization factor $N$. With the applied field $(1-N)B_{\rm c1}<B_{\rm ap}<B_{\rm c1}$, a type-II superconducting sample separates on the Meissner state and FLL domains, thus leading to the formation of the so called ’intermediate-mixed’ state.Tinkham_75 A type-I superconductors forms the so called ’intermediate state’ by splitting itself into non-superconducting (normal state) and superconducting (Meissner state) domains for fields in the range:Tinkham_75 ; Poole_Book_2014

[TABLE]

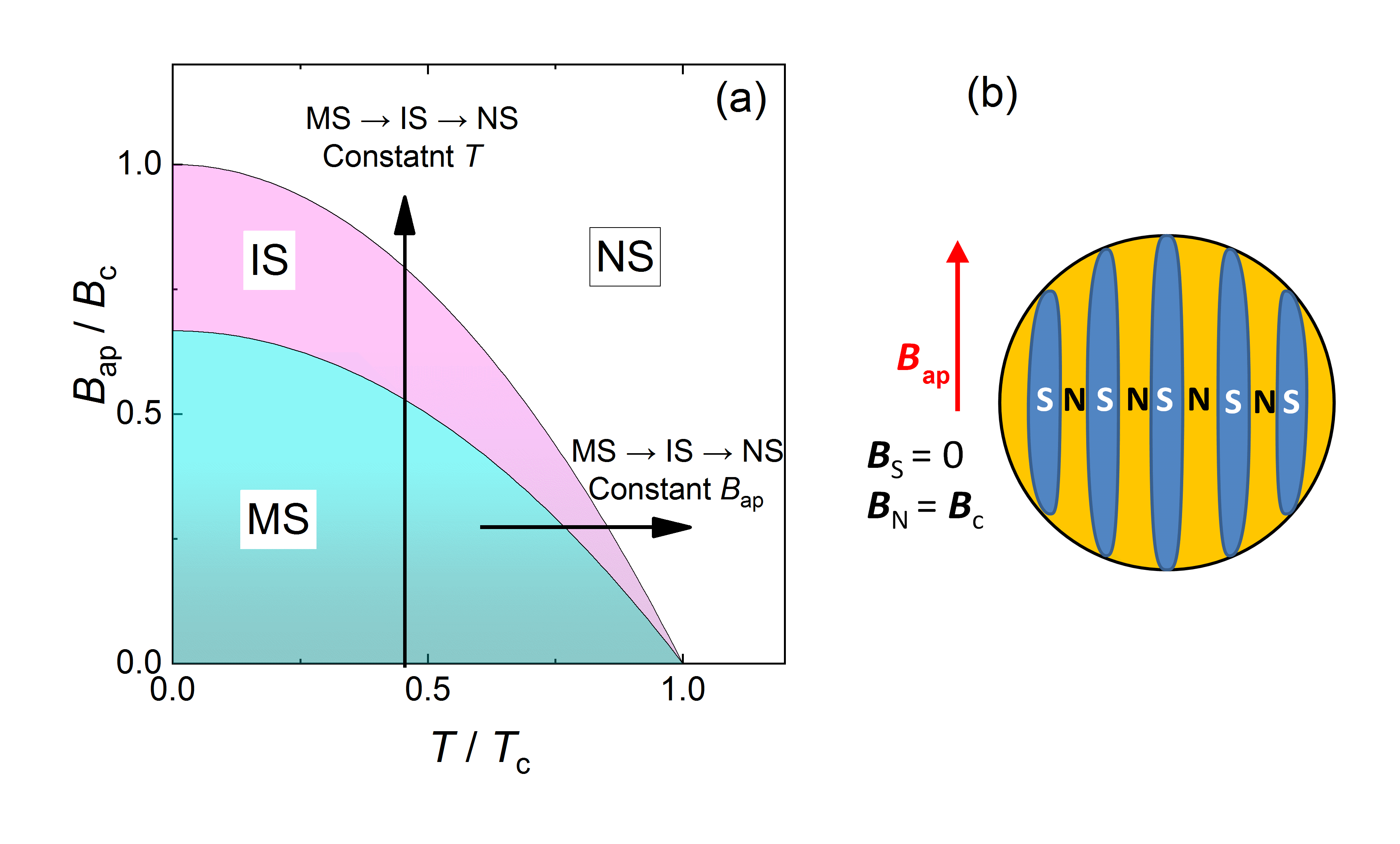

As an example, Figure 1 a shows the $B-T$ phase diagram of a spherical type-I superconducing sample ($N=1/3$). Figure 1 b gives the schematic representation of the separation of the sample in normal state (N) and superconducting (S) domains. Note that for bulk samples (with linear dimensions much bigger than the coherence length $\xi$) and for fields not too close to $B_{\rm c}$ and $(1-N)B_{\rm c}$ the field inside the normal state domains is practically equal to the thermodynamic critical field:Tinkham_75 ; Poole_Book_2014 ; Egorov_PRB_2001

[TABLE]

So far, the vast majority of $\mu$SR experiments on superconducting materials were performed on type-II superconductors in the vortex state (see e.g. Refs. Schenk_Book_1985, ; Dalmas_JPCM_9_1997, ; Yaouanc_book_2011, ; Blundell_ConPhys_1999, ; Sonier_RMP_2000, ; Uemura_book_2015, ; Khasanov_PRB_2008_MoSb, ; Khasanov_HPR_2016, ; Khasanov_PRB_2018_Bi-III, ; Khasanov_PRB_2018_FeSe, ; Schwarz_HypInt_1986, ; Herlach_HypInt_1990, and references therein). Much less work was devoted to $\mu$SR studies of the Meissner state in type-I and type-II superconductors.Jackson_PRL_2000 ; Khasanov_PRL_2004 ; Suter_PRL_2004 ; Kiefl_PRB_2010 Very few studies were made for type-I superconductors in the intermediate state,Gladisch_HypInt_1979 ; Grebinnik_JETP_1980 ; Egorov_PhysB_2000 ; Egorov_PRB_2001 ; Kozhevnikov_Arxiv_2018 ; Singh_Arxiv_2019 ; Beare_Arxiv_2019 ; Khasanov_Arxiv_2018 and, to the best of our knowledge, no $\mu$SR experiments in the intermediate-mixed state of type-II superconductors were reported so far. The present paper discusses the application of the muon-spin rotation/relaxation technique for studying type-I superconductors in the intermediate state, i.e. when the sample with a non-zero demagnetization factor $N$ is separated into the normal state (nonsuperconducting) and the Meissner state (superconducting) domains. We show, that due to its microscopic nature, the $\mu$SR technique allows to determine precisely the value of the thermodynamic critical field $B_{\rm c}$ as well as the volume of the sample remaining in the normal and the superconducting (Meissner) state. In order to check the capabilities of the technique, a full $B-T$ phase diagram of a ’classical’ type-I superconductor, a cylindrically shaped $\beta-$Sn sample, is reconstructed.

The paper is organized as follows. Section II gives the description of the transverse-field $\mu$SR technique. In Section III the experimental setup (Sec. III.1), the sample (Sec. III.2), different types of measurement approaches (field-scans, temperature-scans and $B-T$-scan, Sec. III.3) and the data analysis procedure (Sec. III.4) are discussed. Section IV presents the results obtained in field-scan (Sec. IV.1), temperature-scan (Sec. IV.2) and $B-T$-scan (Sec. IV.3) sets of experiments. Effects of the magnetic history on the internal field distribution are discussed in Sec. IV.4. The discussion of the experimental data is given in Sec. V: the V.1 part of this section is devoted to the determination of the demagnetization factor $N$; Sec. V.2 describes the analysis of the $B_{\rm c}(T)$ dependence within the framework of the phenomenological $\alpha-$model; the comparison of physical quantities obtained in the present study with those reported in the literature is given in Sec. V.3. Conclusions follow in Sec. VI.

II Transverse-field $\mu$SR technique

The $\mu$SR method is based on the observation of the time evolution of the muon spin polarization $P(t)$ of muons that are implanted into a sample. Basic principles of transverse-field (TF) $\mu$SR experiment are illustrated in Fig. 2. A transverse-field geometry means that the magnetic field is applied to the sample perpendicularly to the initial muon-spin polarization. At the time of the muon implantation into the sample, an electronic clock triggered by the muon detector ($\mu^{+}$ detector in Fig. 2) is started. After a very rapid thermalization, the spin of the muon precesses with the Larmor frequency (Eq. 1) in the local magnetic field $B_{\rm loc}$ until the muon decays with an average lifetime of $\tau_{\mu}\simeq 2.2\,\mu$s. A positron ($e^{+}$) is emitted preferentially in the direction of the muon spin at the time of its decay and it is then detected by one of the positron detectors ($e^{+}$ detectors in Fig. 2) which stops the clock. As a result, a histogram as a function of time is generated for the forward [$N_{\rm F}(t)$, F denotes forward with respect to the initial spin] and the backward [$N_{\rm B}(t)$] detectors:

[TABLE]

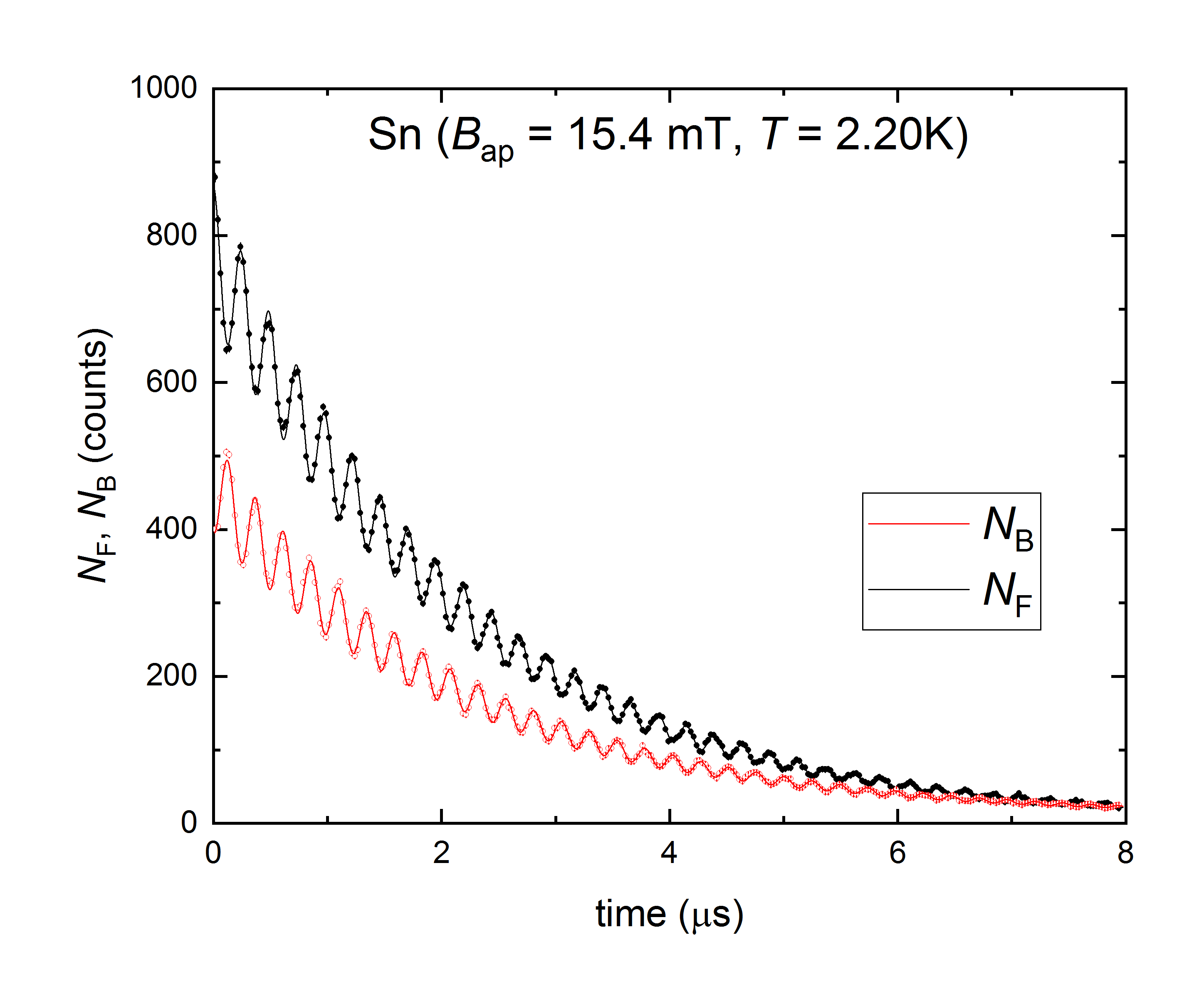

(see Fig. 3). Here $P(t)$ is the muon-spin polarization function and $A_{0}$ is the maximum precession amplitude at $t=0$. Note here that a time-independent background is also present in the histograms presented in Fig. 3.

The time evolution of the muon polarization is further obtained either by substraction of the exponential decay component due to the muon decay, or by using the so called asymmetry function:

[TABLE]

The parameter $a$ takes into account the different solid angles and efficiencies of the positron detectors and it is determined by a calibration experiment. The maximum precession asymmetry $A_{0}$ depends on different experimental factors, such as the detector solid angle, the detector efficiency, the absorption, and the scattering of the positrons in the material. The values of $A_{0}$ typically lie between 0.25 and 0.3.

III Experimental part

In this Section, the experimental setup, the various measurement approaches and the data analysis procedure are discussed.

III.1 Muon-spin rotation experiments

TF-$\mu$SR experiments were carried out at the $\mu$E1 beam-line by using the dedicated GPD (General Purpose Decay) spectrometer (Paul Scherrer Institute, Switzerland).Khasanov_HPR_2016 Muons with a momentum $\simeq 98$ MeV/c were used. The sample was cooled down by using an Oxford Sorption Pumped 3He Cryostat (base temperature $\simeq 0.25$ K). The typical counting statistics was $\sim 10^{7}$ positron events for each data point. The experimental data were analyzed using the MUSRFIT package.Suter_MUSRFIT_2012

III.2 Sn sample

A commercial Sn sample available with $99.999\%$ purity was used as a probe. The sample was a cylinder with a diameter and a height of 20 and 100 mm, respectively. In order to avoid the transformation of the Sn sample from the superconducting $\beta-$ into the non-superconducting $\alpha-$modification, the sample was cooled down quickly (within $\sim 1.5$ hour time-period) from 300 K to $\sim 10$ K.

III.3 Measurement procedure

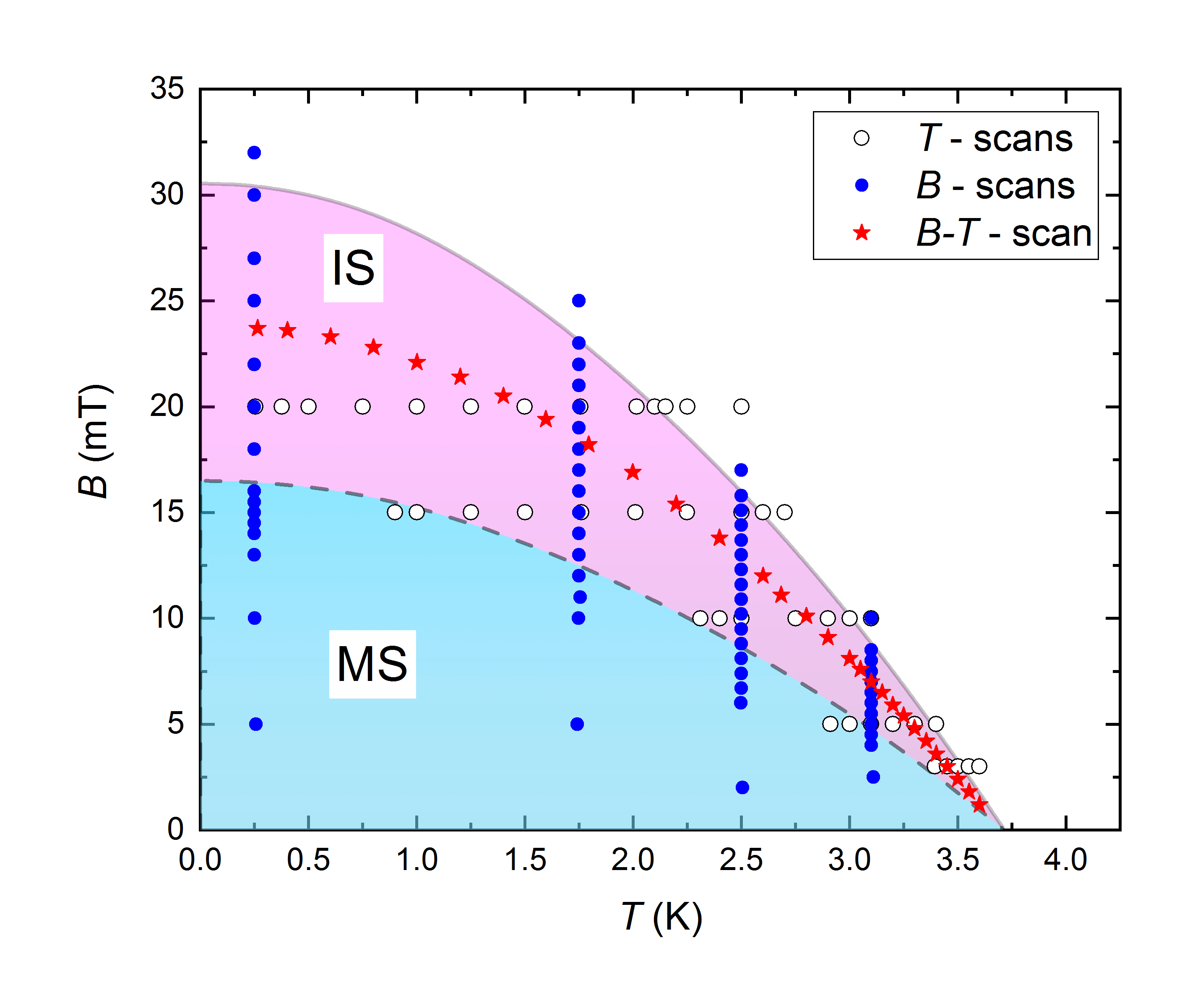

Three measurement schemes were implemented to investigate the $\beta-$Sn sample (see Fig. 4). The first scheme ($T$-scans) involved the application of a fixed magnetic field to the sample while scanning different temperatures (corresponding to the ’constant $B_{\rm ap}$’ path in Fig. 1 a). The starting $B-T$ phase point was approached by a field-cooling procedure from $T$ above $T_{\rm c}$ ($T\gtrsim 4$ K). Measurements were performed at $B_{\rm ap}=3.0$, 5.0, 10.0, 15.0 and 20.0 mT by raising the temperature and they are denoted by open points in Fig. 4. The second scheme ($B$-scans) followed a ’constant $T$’ approach shown in Fig. 1 a. The sample was first cooled down in zero applied field. After adjusting the temperature, the magnetic field was increased and $\mu$SR measurements were performed following the blue points shown in Fig. 4. The $B$-scans were performed at $T=0.25$, 1.75, 2.50, and 3.10 K. The third scheme ($B-T$-scan) corresponds to the case when both the applied field and the temperature were changed simultaneously. The idea was to follow the $B-T$ path of Sn’s phase diagram (red stars in Fig. 4) allowing to keep the volume parts of the sample equally occupied by the normal state and the Meissner state domains ($f_{\rm N}\simeq f_{\rm S}$, $f$ denotes the volume fraction). For doing so, the $B-T$ points were taken exactly in between the $(1-N)B_{\rm c}(T)$ and $B_{\rm c}(T)$ curves which, according to Fig. 1 a and Eq. 2, determine the lower and the upper border of the intermediate state of a type-I superconductor.

III.4 Data analysis procedure

The experimental data were analyzed by separating the TF-$\mu$SR response of the sample (s) and the background (bg) contributions:

[TABLE]

Here $A_{0}$ is the initial asymmetry of the muon-spin ensemble. $A_{\rm s}$ ($A_{\rm bg}$) and $P_{\rm s}(t)$ [$P_{\rm bg}(t)$] are the asymmetry and the time evolution of the muon spin polarization of the sample (background), respectively. The background part accounts for the muons stopped outside the sample (e.g. in the sample holder or/and in the cryostat’s radiation shields). Within the full set of experiments the background asymmetry $A_{\rm bg}$ did not exceed $\simeq 8\%$ of the initial asymmetry $A_{0}$.

The background contribution was described as:

[TABLE]

where $\lambda_{\rm bg}$ is the exponential relaxation rate, $B_{\rm ap}$ is the applied field, and $\phi$ is the initial phase of the muon-spin ensemble.

The sample contribution was described by assuming a separation between normal state (N) and superconducting (S) domains:

[TABLE]

Here, the first term in the right-hand site of the equation corresponds to the sample’s normal state response: $f_{\rm N}$ is the normal state volume fraction ($f_{\rm N}=1$ for $T\geq T_{\rm c}$), $\lambda_{\rm N}$ is the exponential relaxation rate and $B_{\rm N}$ is the internal field [$B_{\rm N}=B_{\rm c}$ for $T<T_{\rm c}(B_{\rm ap})$ and $B_{\rm N}=B_{\rm ap}$ for $T\geq T_{\rm c}(B_{\rm ap})$, respectively]. The second term describes the contribution of the superconducting part of the sample remaining in the Meissner state ($B_{\rm S}=0$). It is approximated by the Gaussian Kubo-Toyabe function with the relaxation rate $\sigma_{\rm GKT}$, which is generally used to describe the nuclear magnetic moment contribution in zero-field experiments (see e.g. Ref. Yaouanc_book_2011, and references therein).

The fit of Eq. 6 to the data was performed globally. The $\mu$SR time spectra obtained within each individual $T$-scan experiment were fitted simultaneously with $A_{\rm s}$, $A_{\rm bg}$, $B_{\rm ap}$, $\sigma_{\rm GKT}$, and $\lambda_{\rm N}$ as common parameters, and $f_{\rm N}$, $B_{\rm N}$, and $\lambda_{\rm bg}$ as individual parameters for each particular data set. In the $B$- and $B-T$-scan experiments $A_{\rm s}$, $A_{\rm bg}$, $\sigma_{\rm GKT}$, and $\lambda_{\rm N}$ were fitted globally, and $B_{\rm ap}$, $f_{\rm N}$, $B_{\rm N}$, and $\lambda_{\rm bg}$ were fitted individually for each particular point.

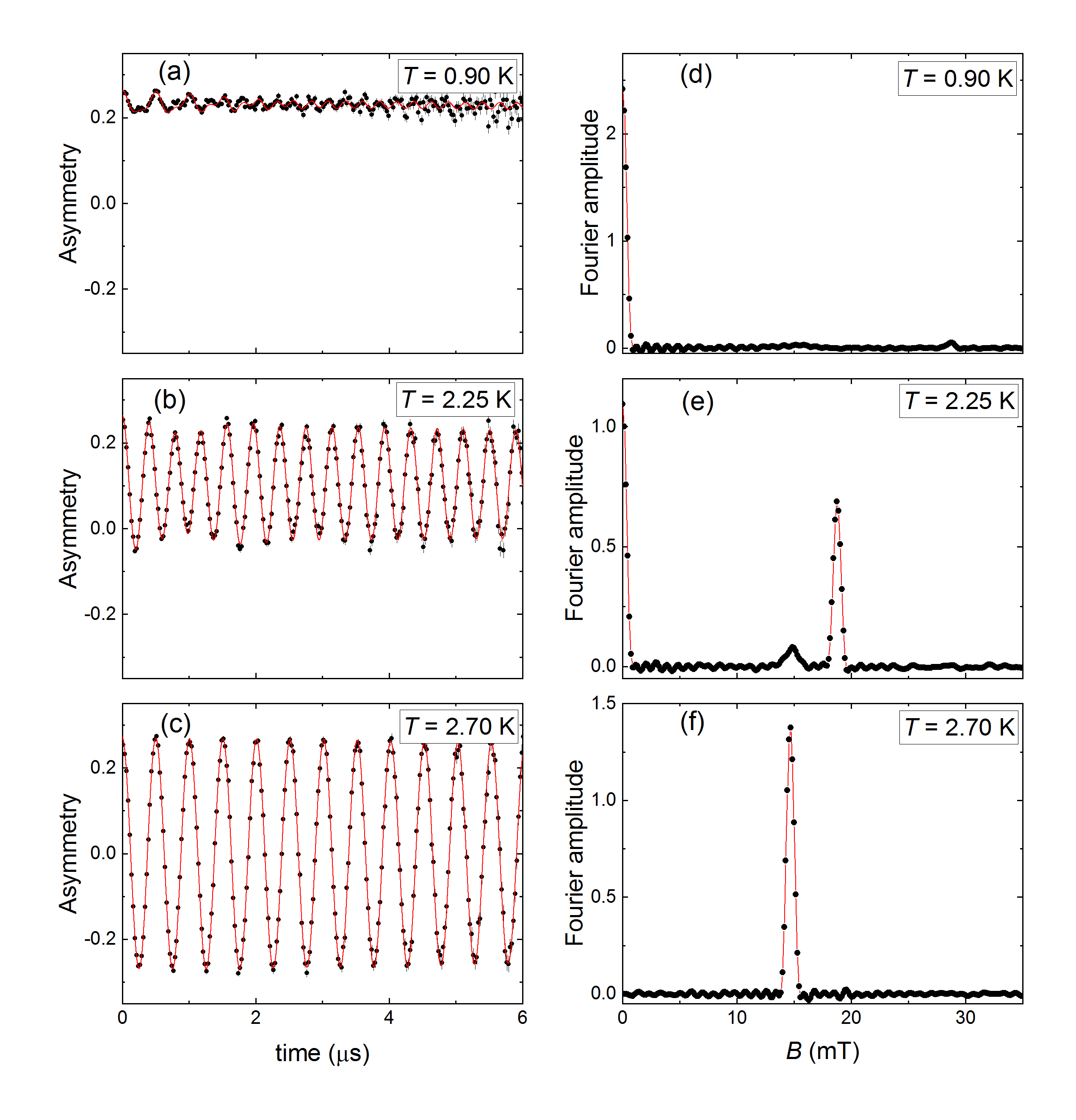

Figures 5 a–c show TF-$\mu$SR time spectra taken at $T\simeq 0.90$ K (panel a), 2.25 K (panel b) and 2.70 K (panel c) at an applied magnetic field $B_{\rm ap}=15$ mT. The solid red lines are fits of Eq. 6 to the asymmetry spectra, with the background and the sample contributions described by Eqs. 7 and 8. The corresponding magnetic field distributions obtained via Fourier transformation of TF-$\mu$SR time spectra are presented in Figs. 5 d–f.

Obviously, the behavior observed at $T=0.90$ K (panels a and d of Fig. 5) corresponds to the response of the $\beta-$Sn sample remaining in the Meissner state (see also Fig. 4). Indeed, the field inside the vast majority of the sample volume is equal to zero, while only a small amount of the sample remains in the intermediate state (see the high-intensity sharp peak at $B=0$ and the weak peak at $B\simeq 29$ mT, Fig. 5 d). Fit of Eq. 6 to the data results in $f_{\rm N}\simeq 0.0346(2)$ and $B_{\rm N}=28.69(4)$ mT. At $T=2.25$ K (panels b and e of Fig. 5) the Sn sample is clearly separated into the normal state and the superconducting domains. The fit results in $f_{\rm N}=0.562(2)$, thus suggesting that the normal state domains occupy more than half of the sample volume, and $B_{\rm N}=B_{\rm c}=18.76(2)$ mT. At $T=2.70$ K (panels c and f of Fig. 5) the field inside the sample coincides with the applied field $B_{\rm N}=B_{\rm ap}$ and no peak at $B=0$ is anymore present. This indicates that at $T=2.70$ K and $B_{\rm ap}\simeq 15$ mT the Sn sample is already in the normal state (see also Fig. 4).

At the end of this Section we would mention that the $\mu$SR technique has no spatial resolution, so the exact domain structure in the intermediate state of type-I superconductor cannot be resolved. Only the ’integrated’ quantities, as the value of fields inside the normal state and the superconducting domains, as well as relative volume fractions of various domains can be obtained.

IV Experimental results

This Section presents the experimental data obtained by following the three measurement procedures described previously.

IV.1 Field scans

In this set of experiments the applied field $B_{\rm ap}$ was scanned while the temperature was kept fixed. Experiments were performed at $T=0.25$, 1.75, 2.50, and 3.10 K. The measurement points are denoted by blue closed dots in Fig. 4.

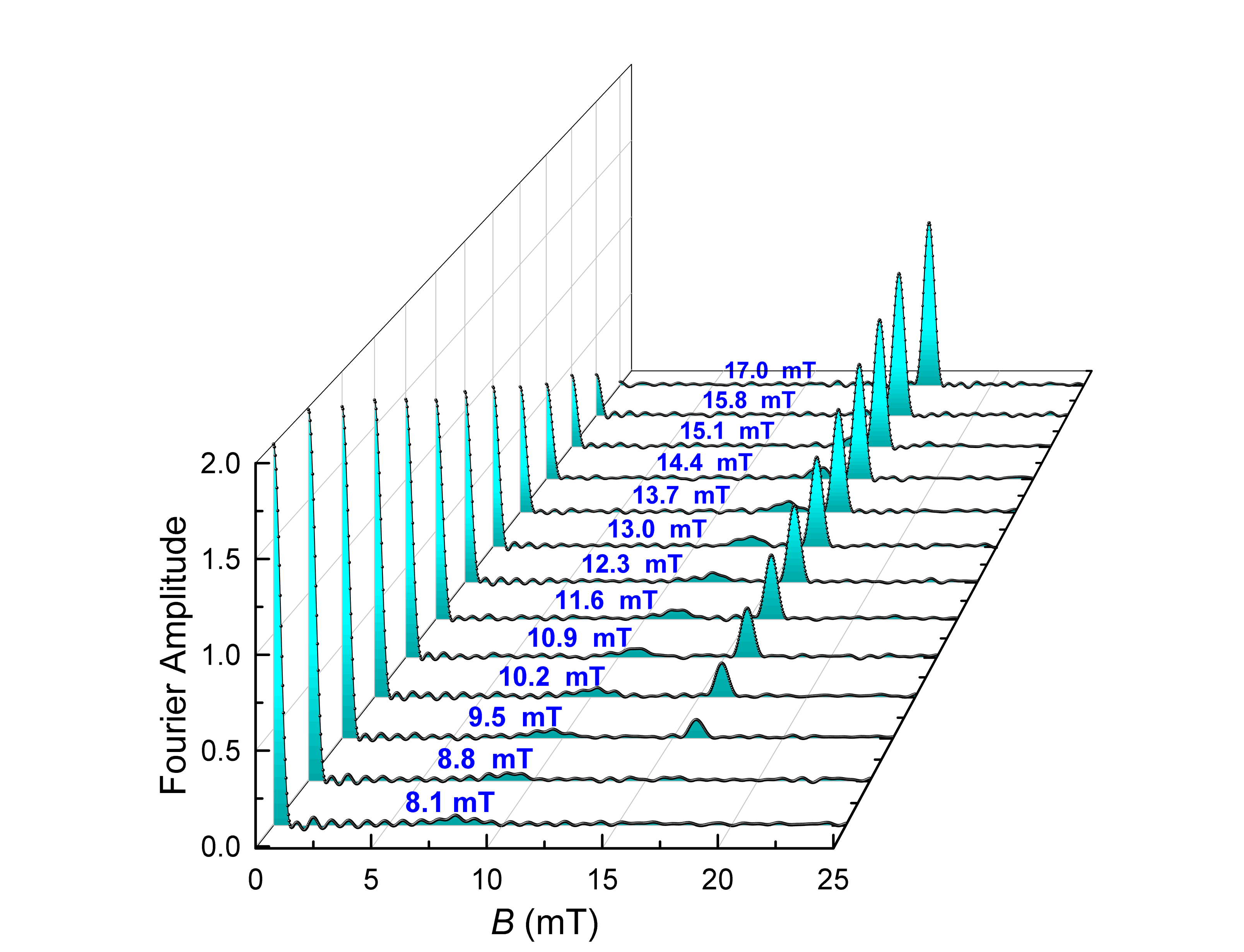

The magnetic field distributions in the $\beta-$Sn sample measured at $T=2.50$ K are shown in Fig. 6. For fields $B_{\rm ap}\lesssim 9$ mT the sample is in the Meissner state. The magnetic field distribution consists of a sharp peak at $B=0$ and a broad low-intensity peak at $B=B_{\rm ap}$ which is attributed to the background contribution. By further increasing the field, a clear peak at $B=B_{\rm c}>B_{\rm ap}$ appeared thus suggesting the separation of the sample on the normal state and the superconducting domains. The intensity of the $B>B_{\rm ap}$ and the $B=0$ peaks shows opposite tendency: while the intensity of the first one increases, the intensity of $B=0$ peak decreases until it disappears for fields exceeding $\simeq 16$ mT.

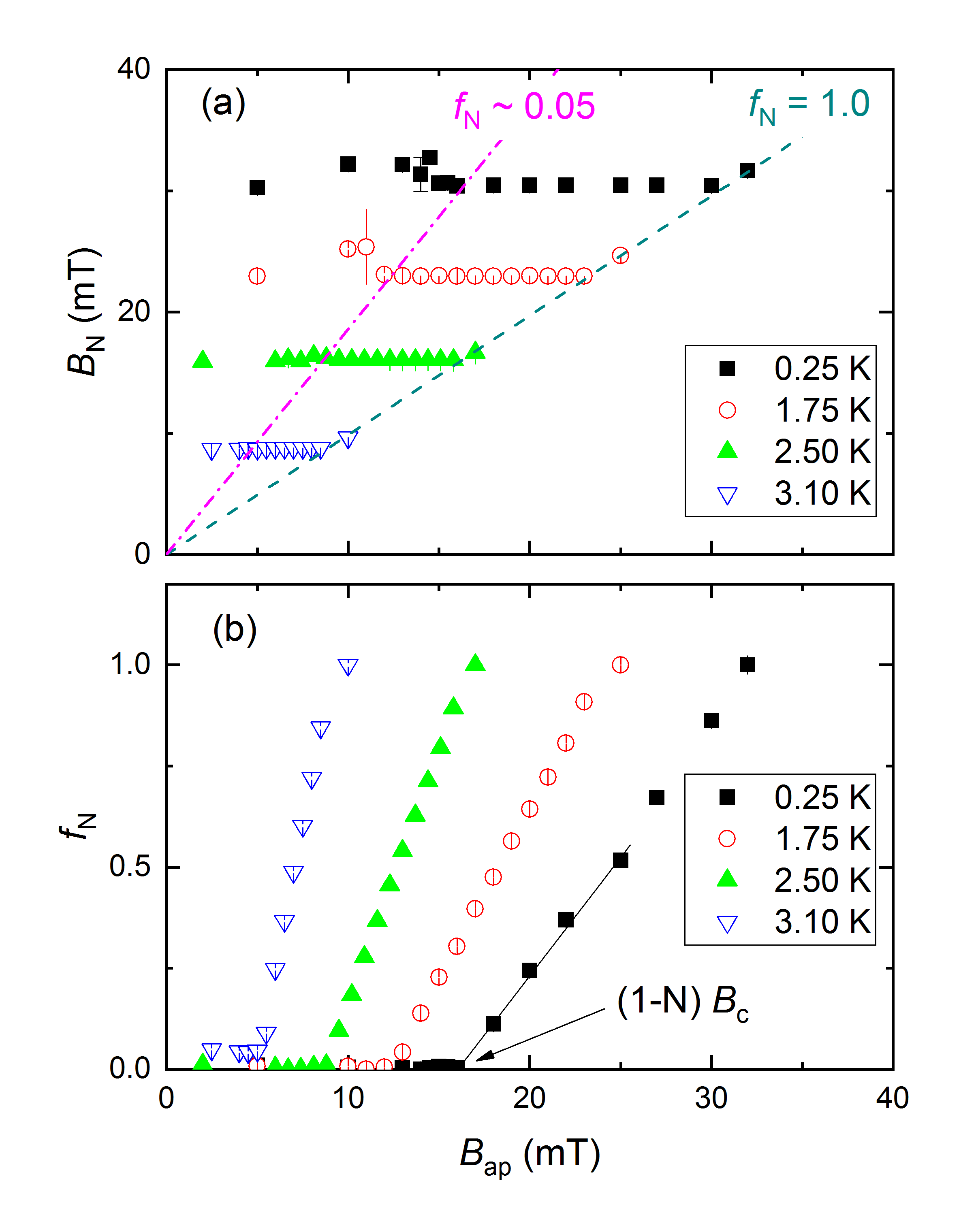

Figure 7 shows the dependence of the fit parameters (internal field $B_{\rm N}$ and volume fraction $f_{\rm N}$ of the normal state domains) on the applied field obtained from the field-scan set of experiments. The dashed and dash-dotted lines in panel a, labelled as $f_{\rm N}=1.0$ and $f_{\rm N}\sim 0.05$, determine the region of existence of the intermediate state in the cylindrical Sn sample. Obviously, the internal field in the normal state domains (Fig. 7 a) stays constant in the intermediate state region and follows the applied field ($B_{\rm N}=B_{\rm ap}$) as soon as $f_{\rm N}$ reaches unity (i.e. when the sample completely transforms into the normal state). Considering that the field within the normal state domains in the intermediate state of type-I superconductor is equal to the thermodynamic critical field $B_{\rm c}$ (see Eq. 3), $B_{\rm c}$ at any particular temperature was obtained by averaging $B_{\rm N}$ values measured between $f_{\rm N}=1.0$ and $f_{\rm N}\sim 0.05$ curves. The analysis gives $B_{\rm c}(0.25{\rm~{}K})=30.422(11)$ mT, $B_{\rm c}(1.75{\rm~{}K})=22.976(7)$ mT, $B_{\rm c}(2.50{\rm~{}K})=16.075(8)$ mT, and $B_{\rm c}(3.10{\rm~{}K})=8.786(5)$ mT.

At the end of this Section, we want to mention an unexpected feature of field-scan results taken at $T=3.10$ K. The volume fraction of the normal state domains $f_{\rm N}$ measured at $T=3.10$ K never reaches the zero value, in contrast to the behavior observed at $T=0.25$, 1.75, and 2.50 K (see Fig. 7 b). This implies that a pure Meissner state does not set in at 3.10 K, unlike the case at lower temperatures. The reasons for such an effect are still not clear and require further investigations.

IV.2 Temperature scans

In the $T$-scan set of measurements, the temperature was scanned by keeping the applied field $B_{\rm ap}$ fixed. Experiments were performed at $B_{\rm ap}=3.0$, 5.0, 10.0, 15.0 and 20.0 mT. The measurement points are denoted by open black symbols in Fig. 4.

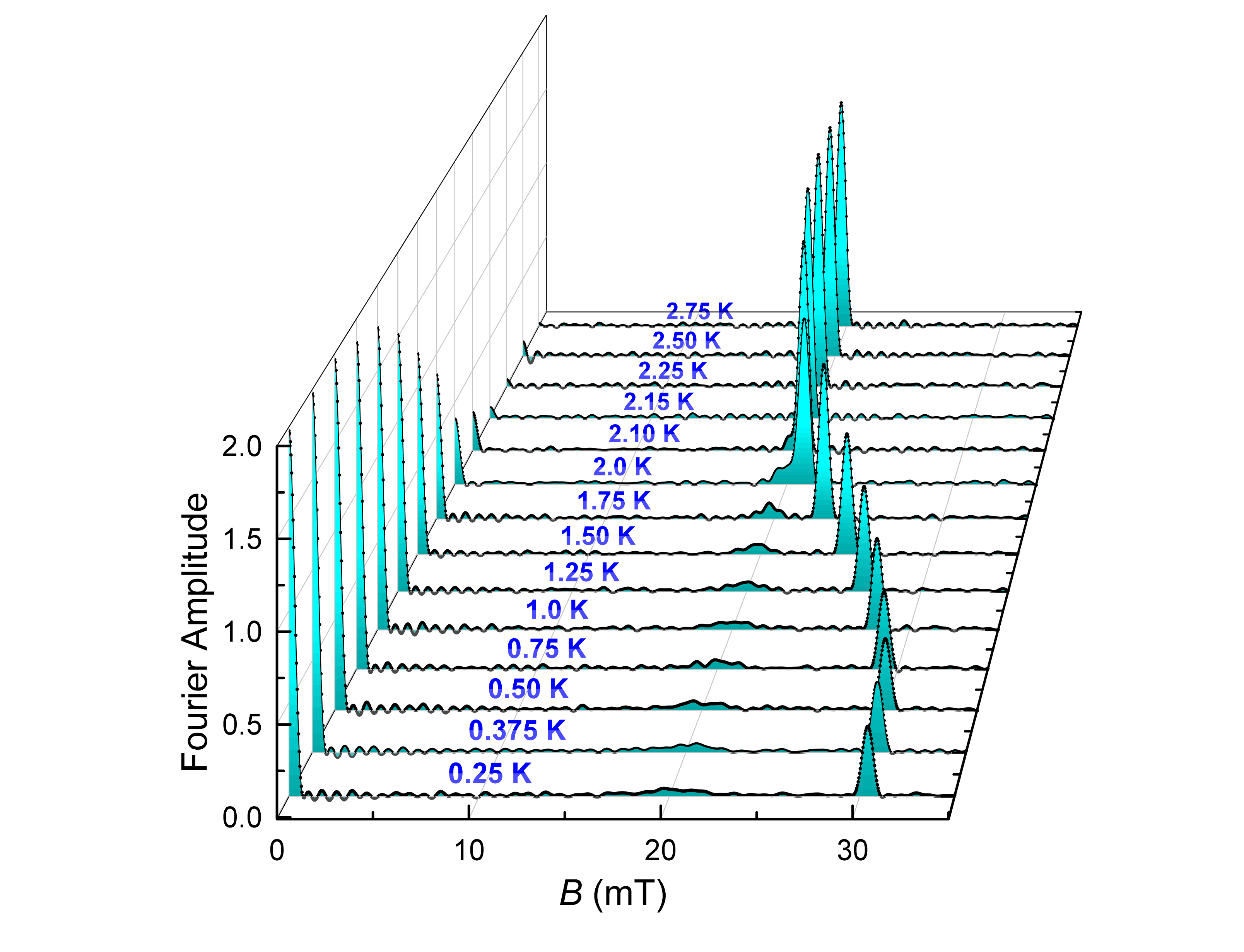

The magnetic field distributions in the $\beta-$Sn sample measured at $B_{\rm ap}=20.0$ mT are presented in Fig. 8. It is obvious that even at the lowest temperature ($T=0.25$ K) the cylindrical Sn sample stays in the intermediate state. Upon increasing the temperature from 0.25 to 2.1 K, two tendencies are clearly visible: (i) The intensities of the $B>B_{\rm ap}$ and $B=0$ peaks behave in an opposite way. The increase of the $B>B_{\rm ap}$ peak intensity is reflected by a corresponding decrease of the $B=0$ peak intensity. (ii) By increasing the temperature, the $B>B_{\rm ap}$ peak shifts towards $B_{\rm ap}$. Bearing in mind that the field in the normal state domains in the intermediate state of type-I superconductors is equal to the thermodynamic critical field (see Eq. 3), the $T-$dependence of $B>B_{\rm ap}$ peaks represents the temperature evolution of $B_{\rm c}$. At higher temperatures only a single peak at $B=B_{\rm ap}$ is visible thus indicating that for $T\gtrsim 2.15$ K the Sn sample stays in the normal state.

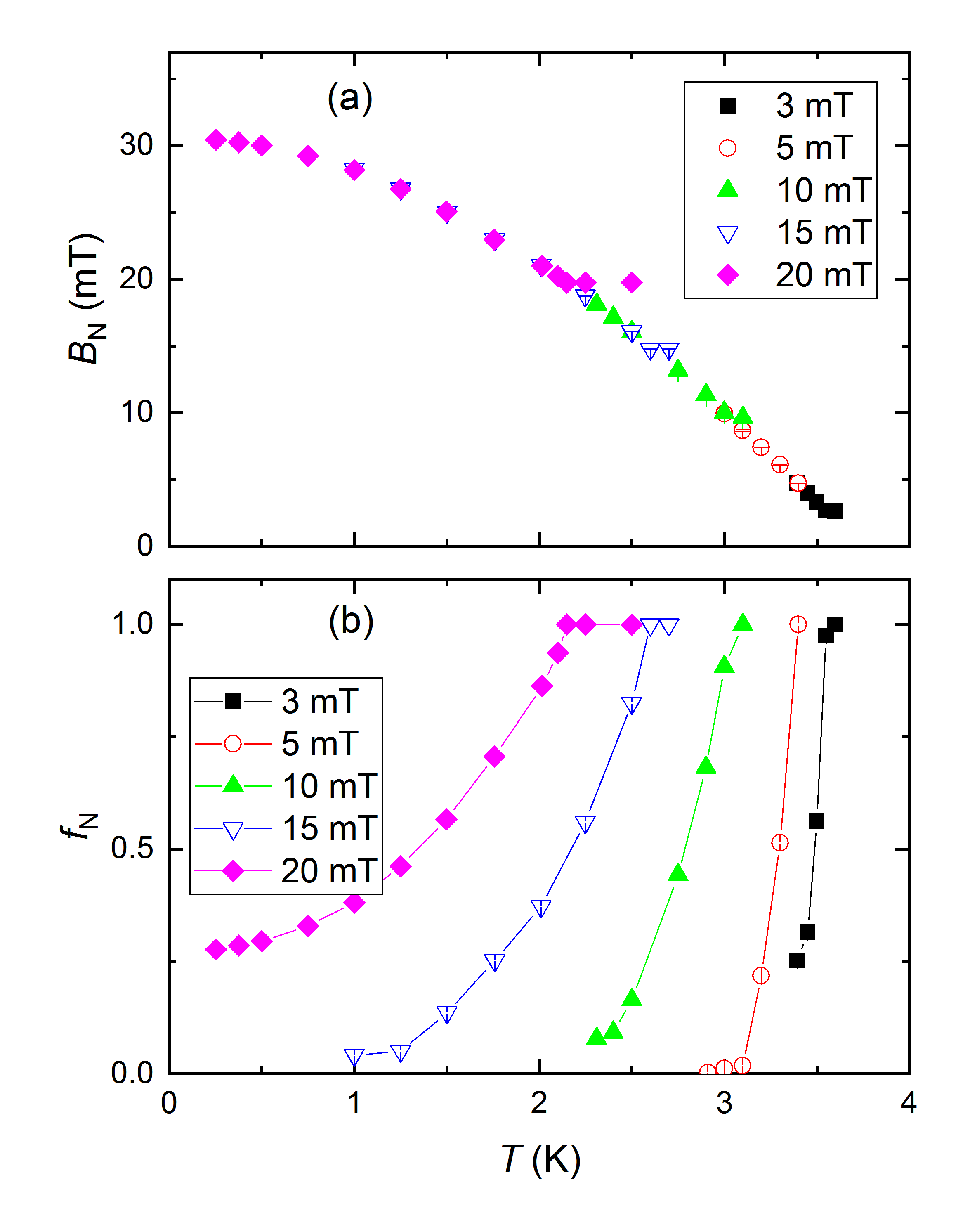

Figure 9 shows the dependence of the fit parameters $B_{\rm N}$ and $f_{\rm N}$ on temperature. For $0<f_{\rm N}<1.0$ the dependence of $B_{\rm N}$ on $T$ reflects the temperature evolution of the thermodynamic critical field $B_{\rm c}$. In the normal state ($f_{\rm N}=1$) $B_{\rm N}$ is equal to the applied field $B_{\rm N}=B_{\rm ap}$.

It is interesting to note, that similar $B_{\rm c}(T)$ values can be obtained at different applied fields (see the overlapping points in Fig. 9 a). The reason for such overlapping is that the intermediate state formation condition, as is defined by Eq. 2, is fulfilled for different $B_{\rm ap}$’s. This directly confirms that the internal field in the normal state domains of type-I superconductors in the intermediate state (at least inside bulk samples as the one studied here) is independent on the relative volumes occupied by the normal state ($f_{\rm N}$) and the superconducting ($1-f_{\rm N}$) domains. To the best of our knowledge, this is the first direct confirmation of such a statement.

The independence of $B_{\rm c}$ on $f_{\rm N}$ at constant temperature also follows from the results of the $B$-scan experiments (Sec. IV.1 and Fig. 7). All together, the results of Secs. IV.1 and IV.2 confirm the calculations presented in Refs. Tinkham_75, ; Egorov_PRB_2001, ; deGennes_Book_1966, revealing that the maximum difference between $B_{\rm N}$ and $B_{\rm c}$ (which is observed close to the Meissner state to the intermediate state transition and vanishes by approaching the normal state border) does not exceed $B_{\rm c}\cdot 2\delta_{\rm d}/d$. Here $\delta_{\rm d}=\xi-\lambda$ is the difference between coherence length $\xi$ and magnetic penetration depth $\lambda$, and $d=20$ mm is the sample diameter. For $\beta-$Sn with $\xi=230$ nm, $\lambda=34$ nm,Kittel_Book_1996 one gets $B_{\rm c}-B_{\rm N}\lesssim 3\cdot 10^{-4}$ mT, which is at least one order of magnitude smaller than the accuracy of the $B_{\rm loc}$ determination in our $\mu$SR studies (see e.g. $B_{\rm c}$’s obtained in the field-scan experiments, Sec. IV.1).

IV.3 $B-T$-scan

In this set of experiments both the applied field and the temperature were changed simultaneously along the path where the volumes occupied by the normal state and the Meissner state (superconducting) domains are equal: $f_{\rm N}\simeq f_{\rm S}\sim 0.5$. The measurement points of the $B-T$-scan experiment are presented by red stars in Fig. 4.

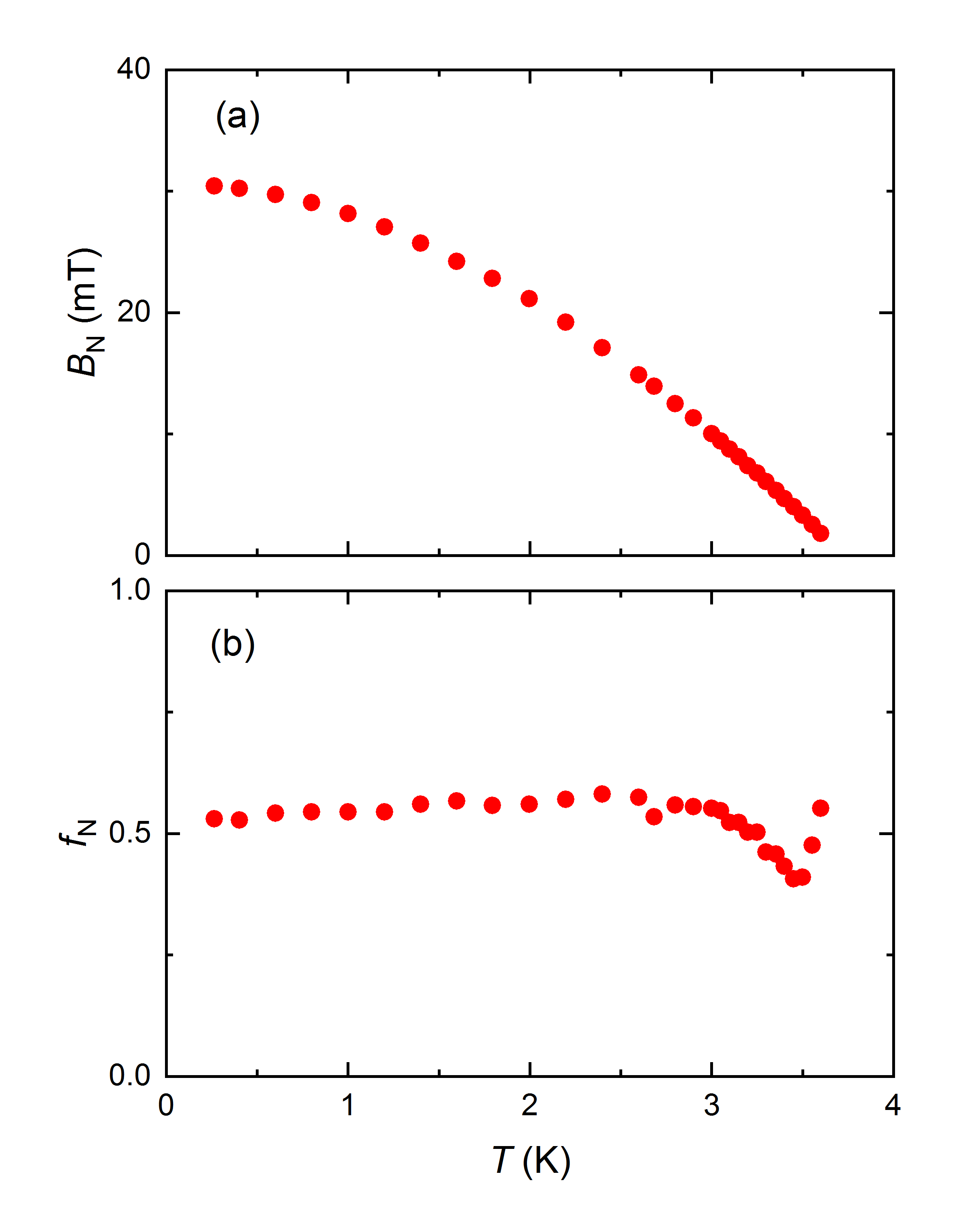

Figure 10 shows the dependence of the fit parameters $B_{\rm N}$ and $f_{\rm N}$ on temperature as obtained in the $B-T$-scans. Following previous discussions, $B_{\rm N}(T)$ (Fig. 10 a) represent the temperature evolution of the thermodynamic critical field $B_{\rm c}$.

The non-monotonic behavior of $f_{\rm N}$ (Fig. 10 b) requires further comments. Note that prior of the $B-T$-scan experiments, the measurement points $(B_{\rm ap},T)$ (red stars in Fig. 4) were calculated to obtain equal volume fractions of the normal state and the superconducting domains ($f_{\rm N}=f_{\rm S}=0.5$). This works, however, only up to $T\simeq 3.0$ K (see Fig. 10 b). Above this temperature, $f_{\rm N}$ first decreases down to $\sim 0.35$ and then increases up to $f_{\rm N}\sim 0.6$ by approaching $T_{\rm c}(B=0)\simeq 3.72$ K. It is currently unclear if this effect has the similar origin as the absence of a purely Meissner state in $T=3.10$ K field-scan experiments (Sec. IV.1 and Fig. 7 b), or it stems from uncertainties of our $(B_{\rm ap},T)$ point calculations.

IV.4 Magnetic history effects

The domain structure of type-I superconductors was found to depend on the magnetic history. In series of papers Prozorov et al.Prozorov_PRL_2007 ; Prozorov_NatPhys_2008 ; Prozorov_JPCS_2009 have shown that based on the way of how the final $B-T$ point is reached, different types of domain structures might be realized. In order to check the influence of the magnetic history on the TF-$\mu$SR response, several $B-T$ points approached by different measurement schemes were examined.

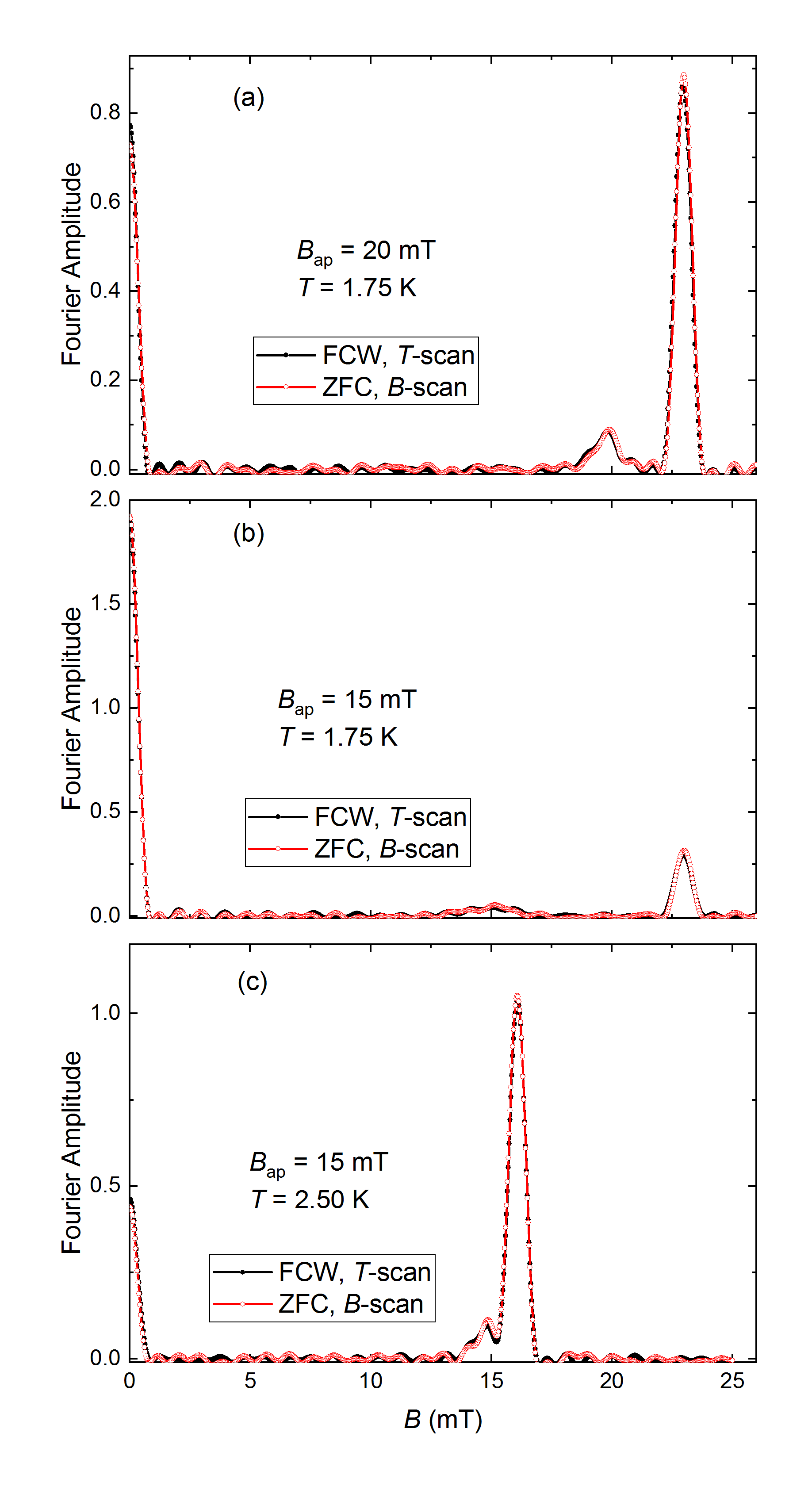

Figure 11 shows the distribution of magnetic fields in the cylindrical $\beta-$Sn sample obtained in $B$-scan and $T$-scan measurements. Three data sets taken at $B_{\rm ap}=20.0$ mT and $T=1.75$ K (panel a); $B_{\rm ap}=15.0$ mT, $T=1.75$ K (panel b); and $B_{\rm ap}=15.0$ mT, $T=2.50$ K (panel c) are presented. According to the measurement process description (Sec. III.3), in the $B$-scan experiments, the $B-T$ points are reached by following the zero-field cooling (ZFC) path: the sample was first cooled down in zero applied field and then, by keeping the temperature constant, $B_{\rm ap}$ was continuously increased until the sample transformed into the normal state. In $T$-scan experiments the sample was first cooled down to 0.25 K in constant field and then, without changing the applied field, the temperature was increased up to the measuring one. Such process corresponds to the field-cooling warming (FCW) path.

Figure 11 shows that both ZFC and FCW pathes result in similar field distributions. The parameters obtained from the fit of TF-$\mu$SR spectra are found to be the same within the experimental uncertainty. This indicates that if even the distribution and/or the shape of the domains are history dependent,Prozorov_PRL_2007 ; Prozorov_NatPhys_2008 ; Prozorov_JPCS_2009 the internal field inside the normal state domains as well as the relative sample volumes occupied by the normal and the Meissner state domains remain unchanged.

V Discussions

In this Section the results reported in Sec. III are discussed. A particular attention is paid to the physical quantities which can be obtained from TF-$\mu$SR studies of type-I superconductor.

V.1 Demagnetization effects

The intermediate state in type-I superconductors may only be formed in a sample with a non-zero demagnetization factor $N$. Following Ref. Prozorov_PRAppl_2018, , the theoretical demagnetization factor value ($N_{\rm th}$) for a finite cylinder in a magnetic field applied perpendicular to the cylinder axis is given by:

[TABLE]

where $d$ and $l$ are the diameter and the length of the cylinder, respectively. For the cylindrical $\beta-$Sn sample studied here ($d=20$ mm and $l=100$ mm, Sec. III.2) Eq. 9 results in $N_{\rm th}=0.467$.

The experimental value of the demagnetization factor can be estimated in two ways: from $f_{\rm N}(B_{\rm ap})$ dependencies obtained in field-scan studies and by scaling the $f_{\rm N}(B_{\rm ap})$ and $f_{\rm N}(T)$ curves as reported in the field-scan and temperature-scan experiments.

It is important to note here that the exact value of the demagnetization factor is found only for the sample of ellipsoidal shape. The cylindrically shaped Sn sample studied here is not ellipsoidal and, strictly speaking, the demagnetization factor becomes a function of position inside the sample.Prozorov_PRAppl_2018 In such a case one should refer to the so-called effective demagnetization factor. The demagnetization factors discussed in the forthcoming Sections V.1.1 and V.1.2, as well as their theoretical value described by Eq. 9 correspond to the effective demagnetization factor.

V.1.1 Determination of the demagnetization factor from field-scan experiments

The value of the applied field at which $f_{\rm N}$ approaches zero (i.e. when the intermediate state disappears and a pure Meissner state sets in) corresponds to $B=(1-N)B_{\rm c}$ (Eq. 2). Linear fits of $f_{\rm N}(B_{\rm ap})$ data in the region of $0.1\lesssim f_{\rm N}\lesssim 0.5$ (Fig. 7 b) result in $(1-N)B_{\rm c}=15.9(5)$, 12.4(4), 8.7(3), and 5.1(3) mT for $T=0.25$, 1.75, 2.50, and 3.10 K, respectively. With the corresponding $B_{\rm c}$’s reported in Sec. IV.1, the demagnetization factors are found to be $N(0.25{\rm~{}K})=0.48(2)$, $N(1.75{\rm~{}K})=0.46(2)$, $N(2.50{\rm~{}K})=0.46(3)$, and $N(3.10{\rm~{}K})=0.42(3)$. Note that the values of $N$ at $T=0.25$, 1.75, and 2.50 K are in perfect agreement with the theoretical value $N_{\rm th}=0.467$ of Eq. 9. The small difference between $N(3.10{\rm~{}K})$ and $N_{\rm th}$ is probably related to the absence of a pure Meissner state at $T=3.10$ K as reported above.

V.1.2 Determination of the demagnetization factor from the scaled $f_{\rm N}(B_{\rm ap})$ and $f_{\rm N}(T)$ data

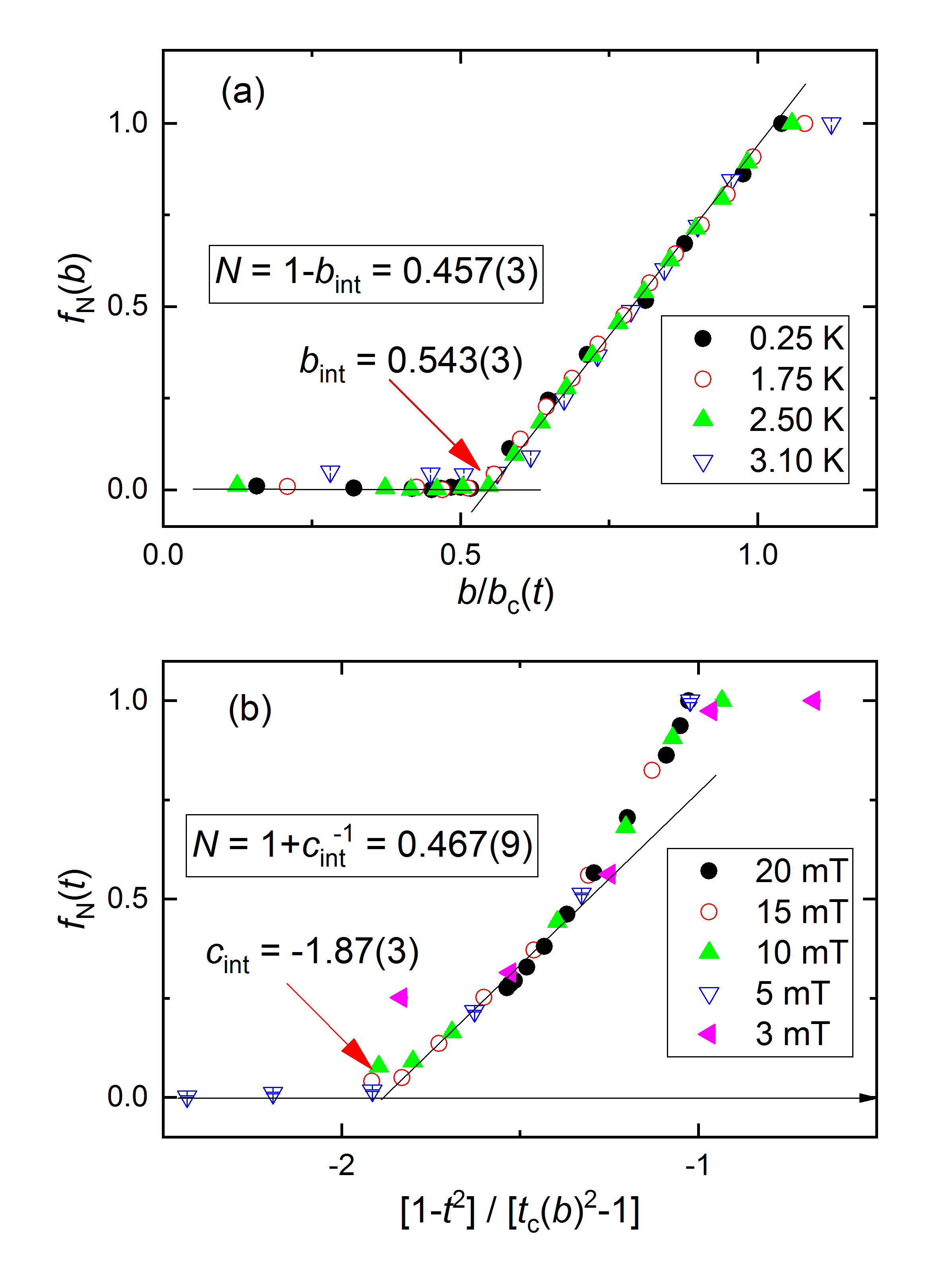

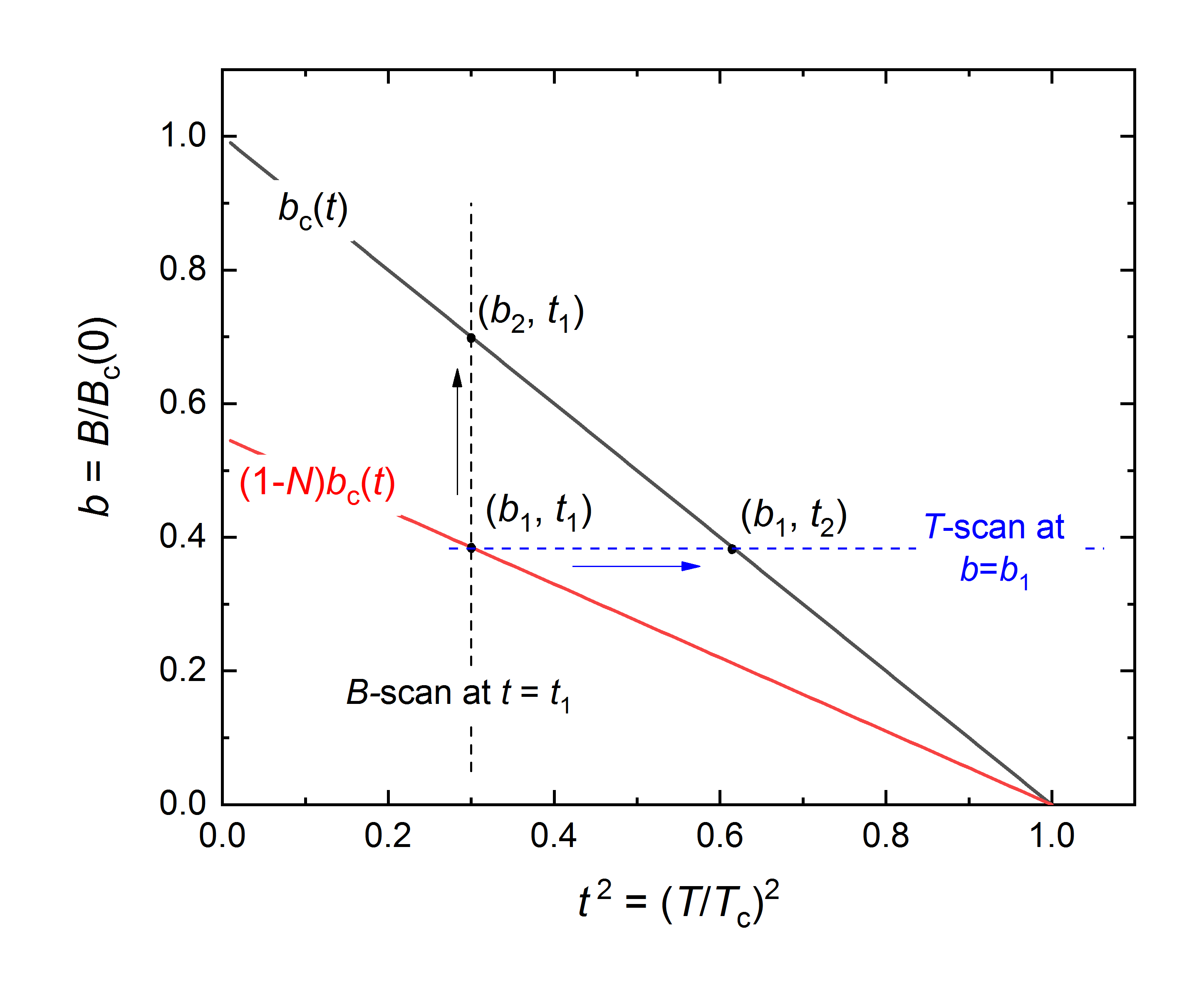

The $f_{\rm N}(B_{\rm ap})$ and $f_{\rm N}(T)$ dependencies, as obtained in field-scan and temperature-scan measurements, can be scaled to single curves by using the procedure described in the following. Figure 12 shows schematically the generic $B-T$ phase diagram of a type-I superconductor plotted in reduced field [$b=B_{\rm ap}/B_{\rm c}(T=0)]$) and reduced temperature[($t=T/T_{\rm c}(B_{\rm ap}=0)$] units. The reduced thermodynamic critical field $b_{\rm c}=B_{\rm c}(T)/B_{\rm c}(T=0)$ is assumed to be described as $b_{\rm c}(t)=1-t^{2}$. Note that in type-I superconductors $B_{\rm c}$ was found to follow closely the parabolic law: $B_{\rm c}(T)=B_{\rm c}(0)[1-(T/T_{\rm c})^{2}]$.Tinkham_75 ; Poole_Book_2014 A field- and a temperature-scan are denoted by the black and the blue arrow, respectively. The normal state volume fraction $f_{\rm N}$ is equal to ’0’ at $(b_{1},t_{1})$ and increases to ’1’ by approaching the $(b_{2},t_{1})$ or $(b_{1},t_{2})$ phase points. Assuming that $f_{\rm N}$ changes linearly between $b_{1}$ and $b_{2}$ in a field-scan and that it follows a $1-t^{2}$ behavior in a temperature-scan one gets:

[TABLE]

and

[TABLE]

Taking into account that $b_{2}=b_{c}(t_{1})$, $b_{1}=(1-N)b_{c}(t_{1})$, and $t_{2}=t_{c}(b_{1})$, simple mathematics gives:

[TABLE]

and

[TABLE]

Equation 10 implies that $f_{\rm N}(B_{\rm ap})$ dependencies measured at different temperatures (Fig. 7 b) scale to a single curve by normalizing them to the corresponding $B_{\rm c}(T)$ values. This is indeed the case as is seen from the data presented in Fig. 13 a. The value of the demagnetization factor can be obtained from the intersection of the linear fit of $f_{\rm N}(b)$ data with the $f_{\rm N}=0$ line (Fig. 13 a) resulting in $b_{\rm int}=0.543(3)$. Following Eq. 10, the demagnetization factor in field-scan experiments is found to be: $N=1-b_{\rm int}=0.457(3)$.

On the other hand the $f_{\rm N}(T)$ dependencies can be scaled by plotting them as a function of $[1-t^{2}]/[t_{c}(b)^{2}-1]$ (see Eq. 11 and Fig. 13 b). The value of the demagnetization factor obtained from the intersection point $c_{\rm int}=-1.87(3)$ results in: $N=1+c^{-1}=0.467(9)$. It should be noted here that, in contrast to $f_{\rm N}(b)$ curves, the $f_{\rm N}(t)$ ones do not increase linearly in the region of $0<f_{\rm N}<1$ (Fig. 13 b). This suggests that our assumption of a $1-t^{2}$ behavior of $f_{\rm N}$ in $T$-scan experiments, which has been used to derive Eq. 11, may not be fully correct.

The conclusions from the results presented in Sec. V.1 are twofold:

(i) The values of the demagnetization factor $N$, as estimated from the $B_{\rm ap}$ and $T$ dependencies of the normal state domains volume fraction $f_{\rm N}$, are in good agreement with the value $N_{\rm th}=0.467$ based on the theoretical results of Ref. Prozorov_PRAppl_2018, .

(ii) The agreement between the theory and the experiment suggests that TF-$\mu$SR measurements can be used for studies of different materials in more complex geometries. A Sn probe or any other type-I superconductor of the same geometry as the sample under investigation, could be used as a reference for an experimental determination of the demagnetization factor.

V.2 Temperature dependence of the thermodynamic critical field

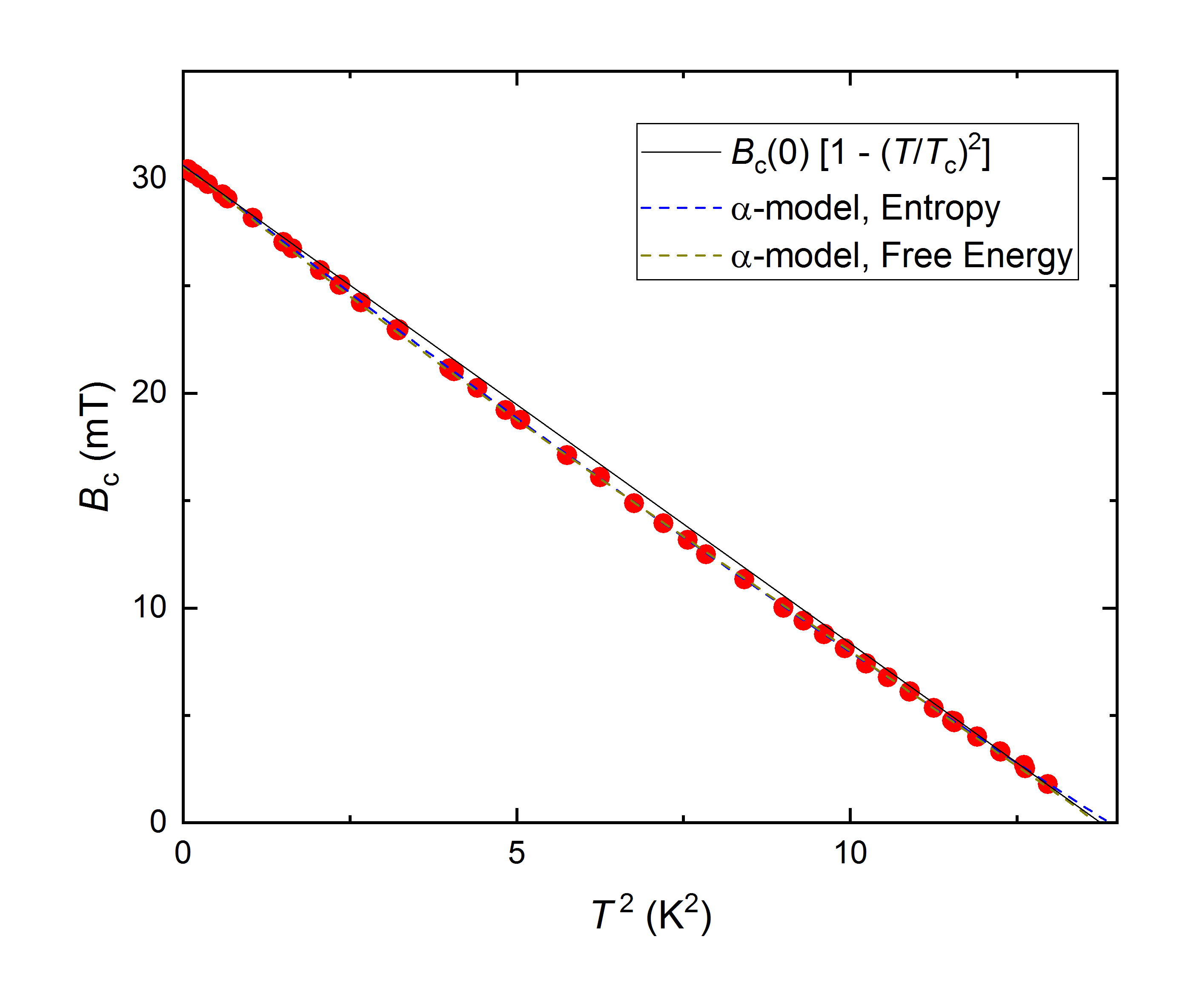

Figure 14 shows the thermodynamic critical field $B_{\rm c}$ as a function of $T^{2}$. Points obtained in $B$-scans (Sec. IV.1), $T$-scans (Sec. IV.2), and $B-T$-scans (Sec. IV.3) mesurements are plotted together. The experimental $B_{\rm c}(T^{2})$ points follow rather well the parabolic behavior (black solid line), which is generally expected for type-I superconductors.Tinkham_75 ; Poole_Book_2014 The deviation of $B_{\rm c}(T^{2})$ from $B_{\rm c}(0)[1-(T/T_{\rm c})^{2}]$ was further investigated to estimate various thermodynamic quantities of the superconducting $\beta-$Sn within the framework of the phenomenological $\alpha-$model.

V.2.1 $\alpha-$model

Originally, the $\alpha$-model was adapted from the single-band Bardeen-Cooper-Schrieffer (BCS) theory of superconductivity in order to explain deviations of the temperature behavior of the electronic heat capacity and the thermodynamic critical field from the weak-coupled BCS prediction. The model assumes that the temperature dependence of the normalized superconducting energy gap:

[TABLE]

($\Delta$ is the zero-temperature value of the gap) is the same as in the BCS theory,Muehlschlegel_ZPhys_1959 and it is calculated for the BCS value $\alpha_{\rm BCS}=\Delta_{\rm BCS}/k_{\rm B}T_{\rm c}\simeq 1.764$ ($k_{\rm B}$ is Boltzmann’s constant). On the other hand, to calculate the temperature evolution of the electronic free energy, the entropy, the heat capacity and the thermodynamic critical field, the $\alpha-$model allows $\alpha=\Delta/k_{\rm B}T_{\rm c}$ to be an adjustable parameter.

The single-band $\alpha-$model was originally developed by Padamasee et al.Padamsee_JLTP_1973 A detailed description of the single-band $\alpha-$model was recently given by Johnston in Ref. Johnston_SST_2013, . The two-band version of the $\alpha-$model is widely used to analyze the specific heat and the superfluid density data in compounds where more then one band are supposed to be involved in the superconducing mechanism.Bouquet_EPL_2001 ; Carrington_2003 ; Guritanu_PRB_2004 ; Prozorov_SST_2006 ; Khasanov_PRL_2007 ; Khasanov_JSNM_2008 ; Khasanov_PRB_2014 ; Khasanov_Arxiv_2018_1144

The thermodynamic critical field, which is directly related to the condensation energy of the Cooper pairs $B_{\rm c}^{2}/8\pi$, can be obtained by using the difference in free energy as well as in entropy between normal and superconducting state (see Ref. Johnston_SST_2013, ).

V.2.2 $B_{\rm c}(T)$: free energy approach

Within the free energy picture:

[TABLE]

with the normal state ($F_{\rm N}$) and the superconducting state ($F_{\rm S}$) free energy given by:Johnston_SST_2013

[TABLE]

and

[TABLE]

Here, $f(\alpha,E,t)=[\exp(\alpha E/t)+1]^{-1}$ is the Fermi function, $E=E(\varepsilon,\delta(t))=\sqrt{\varepsilon^{2}+\delta(t)^{2}}$ the quasiparticle energy, and $\gamma_{e}$ is the normal state electronic specific heat coefficient. The temperature dependence of the normalized gap, tabulated by Mühlschlegel in Ref. Muehlschlegel_ZPhys_1959, can be parameterized as $\delta(t)=\tanh\{1.82[1.018(1/t-1)]^{0.51}\}$.Carrington_2003 Note that the Eq. 13 and the forthcoming Eq. 14 are expressed in cgs units in analogy with Johnston.Johnston_SST_2013 The fit of Eq. 13 to the $B_{\rm c}(T)$ data is shown by the dashed dark-yellow line in Fig. 14. The fit values for elemental $\beta-$Sn are: $T_{\rm c}=3.710(4)$ K, $B_{\rm c}(0)=30.616(3)$ mT and $\alpha=1.842(3)$.

V.2.3 $B_{\rm c}(T)$: entropy approach

The temperature evolution of $B_{\rm c}$ can be also determined from the difference between the normal state and the superconducting state entropies $S_{\rm N}-S_{\rm S}$ via:Padamsee_JLTP_1973 ; Johnston_SST_2013

[TABLE]

with

[TABLE]

and

[TABLE]

The fit of Eq. 14 to the $B_{\rm c}(T)$ data is shown by the dashed black line in Fig. 14. In this case the following fit values are obtained: $T_{\rm c}=3.728(2)$ K, $B_{\rm c}(0)=30.571(1)$ mT and $\alpha=1.838(2)$.

V.2.4 Comparison between the entropy and free energy approaches

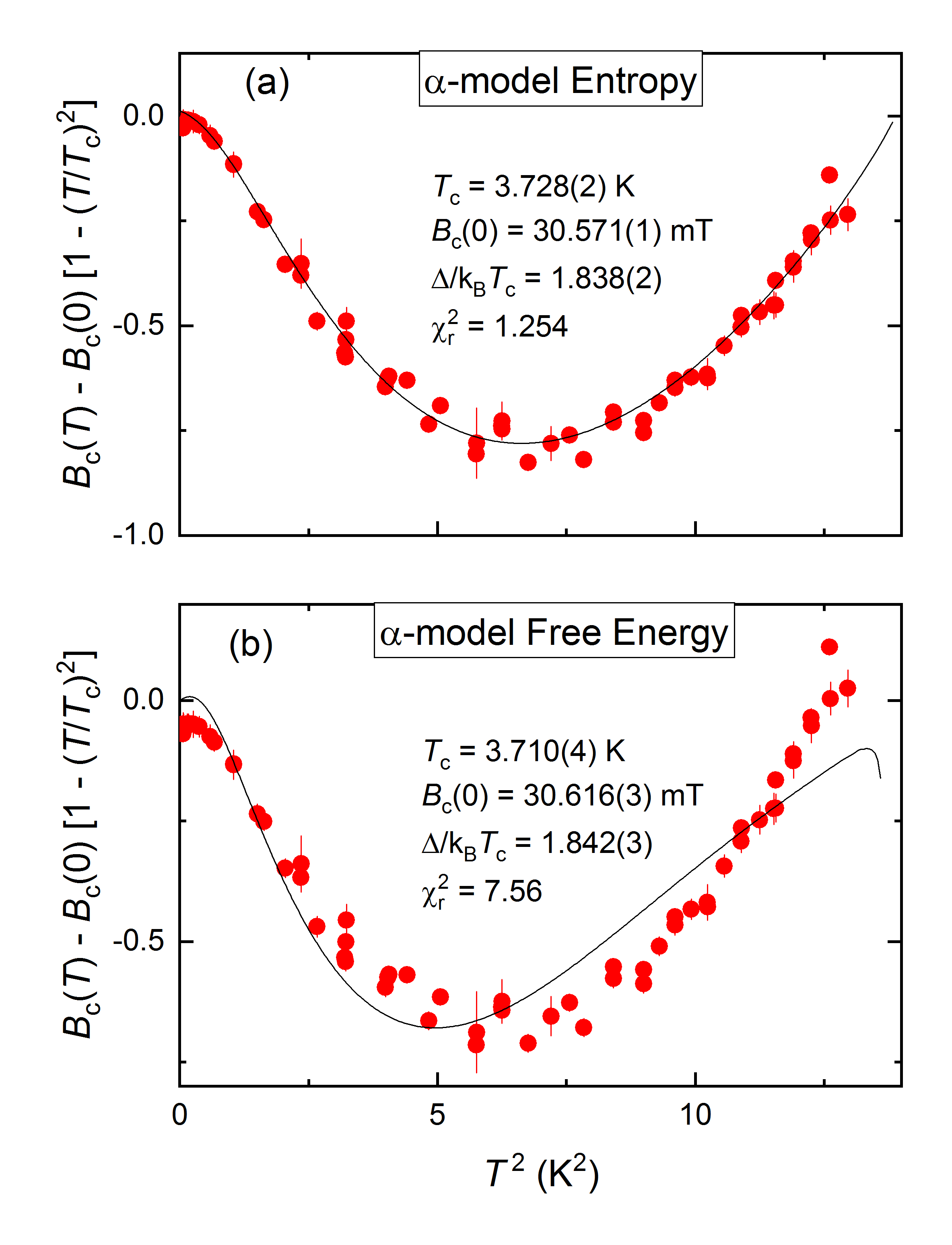

From Fig. 14 it is not possible at first sight to establish which one of the two above discussed approaches better describes the $B_{\rm c}(T)$ behavior. A better comparison can be made by plotting the deviation of $B_{\rm c}(T)$ from the parabolic function: $D(T)=B_{\rm c}(T)-B_{\rm c}(0)[1-(T/T_{\rm c})^{2}]$, with the parameters $T_{\rm c}$ and $B_{\rm c}(0)$ obtained from the fits of Eqs. 13 and 14 to the experimental data. Figure 15 shows the $D(T^{2})$ deviation functions for both, entropy (panel a) and free energy (panel b) approaches. Obviously, the entropy expression gives a much better agreement with the experimental data. The reduced $\chi^{2}_{\rm r}$ (chi-square/number of degrees of freedom minus one) is in this case $\chi^{2}_{\rm r}\simeq 1.254$ whereas for the free energy approach we obtain $\chi^{2}_{\rm r}\simeq 7.56$.

The disagreement between the two methods is quite surprising, since one would expect that both methods are consistent. Such a discrepancy was already noticed by Padamsee et al.Padamsee_JLTP_1973 in their original paper, where the phenomenological $\alpha-$model was introduced for the first time. The reason is that under the assumption of a BCS like temperature evolution of the superconducting energy gap, $\Delta(T)/\Delta\equiv\Delta_{\rm BCS}(T)/\Delta_{\rm BCS}$, Eqs. 13 and 14 are not equivalent to each other for any $\alpha$ values except for $\alpha\equiv\alpha_{\rm BCS}=1.764$. Our numerical simulations of the $D(t)$ curves for various $\alpha$ values confirms this. Padamsee et al.Padamsee_JLTP_1973 have also shown that the analysis of the specific heat and the $B_{\rm c}(T)$ data of metallic Indium within the framework of the free energy calculations result in $\alpha$ values which are more than $30\%$ different from each other.

Our $\mu$SR measurement on $\beta-$Sn provides, therefore, a further example of inconsistency between these two applications of $\alpha-$model and points towards the validity of the use of the entropy expression for the determination of the thermodynamical critical field. We should emphasize, however, that the detailed reason why the entropy approach gives better results than the free energy one is not clear and further theoretical work is necessary to understand this point.

V.3 Comparison of physical quantities obtained from TF-$\mu$SR experiments with the literature data

Table 1 summarizes the physical quantities obtained in the present study and compares them with those reported in the literature. The ’experimental’ values of $T_{\rm c}$ and $B_{\rm c}(0)$ were obtained from the intersection of linear fits of $B_{\rm c}(T^{2})$ curve in the vicinity of $T\sim 0$ and $T\sim T_{\rm c}$ with the $T^{2}=0$ and $B_{\rm c}=0$ lines. The electronic specific heat $\gamma_{\rm e}$ was obtained from Eqs. 13 and 14 in the limit of $T\rightarrow 0$. The specific heat jump at the transition temperature $\Delta C(T_{\rm c})/\gamma_{\rm e}T_{\rm c}$, was calculated by using:Johnston_SST_2013

[TABLE]

Table 1 shows that the physical quantities derived for elemental $\beta-$Sn in TF-$\mu$SR experiments are in agreement with the literature data. The only exception is $\gamma_{\rm e}=1.713(3)$, which was obtained by using the free energy approach. This again points to inadequacies of a ’free energy’ based $\alpha-$model.

VI Conclusions

The type-I superconductivity of a high-quality cylindrically shaped $\beta-$Sn sample was studied by means of the transverse-field muon-spin rotation/relaxation technique. In the intermediate state, i.e. when the type-I superconducting sample with non-zero demagnetization factor $N$ is separated into the normal state and the Meissner state domains, the $\mu$SR technique allows to determine with very high precision the value of the thermodynamic critical field $B_{\rm c}$, as well as the relative sample volumes occupied by various types of domains. Due to the microscopic nature of the technique the $B_{\rm c}$ values are determined directly via measurements of the internal field inside the normal state domains. No assumptions or introduction of any type of measurement analysis are needed.

The main results of the paper are summarized as follows:

(i) The full $B-T$ phase diagram of a cylindrical $\beta-$Sn sample was reconstructed. The transition temperature $T_{\rm c}=3.717(3)$ mT and the zero-temperature value of the thermodynamic critical filed $B_{\rm c}(0)=30.578(6)$ mT are found to be in full accordance with the literature data.

(ii) Measurements at various $(B,T)$ points within the phase diagram of $\beta-$Sn reveal that the local field inside the normal state domains ($B_{\rm N}$) is independent, within our experimental accuracy, on the relative sample volumes occupied by the normal state and superconducting domains, thus confirming the calculations presented in Refs. Tinkham_75, ; Egorov_PRB_2001, ; deGennes_Book_1966, .

(iii) Magnetic history effects caused by different paths in the $B-T$ phase space do not lead to measurable changes of the magnetic field distributions probed by means of $\mu$SR. This implies that even if the distribution and/or the shape of the domains are history dependent,Prozorov_PRL_2007 ; Prozorov_NatPhys_2008 ; Prozorov_JPCS_2009 the internal field inside the normal state domains, as well as the relative sample volumes occupied by the normal state and the Meissner state domains remain unaltered.

(iv) The values of the demagnetization factor $N$, as estimated from the $B_{\rm ap}$ and $T$ dependencies of the normal state domain’s volume fraction $f_{\rm N}$, are in good agreement with the theoretical values $N_{\rm th}=0.467$ of Ref. Prozorov_PRAppl_2018, . The agreement between the theory and the experiment suggests that TF-$\mu$SR measurements can be used for studies of different materials in more complex geometries. A Sn probe, or any other type-I superconductor, of same geometry as a sample under investigation, can be used as a reference for the experimental determination of demagnetization factors.

(v) Analysis of the $B_{\rm c}(T)$ dependence within the framework of phenomenological $\alpha-$model allows to obtain the value of the superconducting energy gap $\Delta=0.59(1)$ meV, the electronic specific heat $\gamma_{e}=1.781(3)$ ${\rm mJ}/{\rm mol}\;{\rm K}^{2}$ and the jump in the heat capacity ${\Delta C(T_{c})}/{\gamma T_{\rm c}}=1.55(2)$. All these quantities are found in good agreement with the literature values.

(vi) Analysis of the experimental data by means of the $\alpha-$model within a ’free energy’ and ’entropy’ scenario reveals that the ’free energy’ approach does not describe satisfyingly the experimental data. This confirms the conclusion of Ref. Padamsee_JLTP_1973, about inconsistency of these two types of $\alpha-$model application and points to the validity of the ’entropy’ approach.
