A surprising observation on the quarter-plane diffraction problem

TL;DR

This paper revisits Radlow's approach to quarter-plane wave diffraction, revealing that despite an incorrect ansatz, it yields surprisingly accurate far-field results, especially for the spherical diffraction coefficient.

Contribution

It demonstrates that Radlow's flawed ansatz still produces accurate far-field diffraction results, validated by comparison with recent modified Smyshlyaev formulas.

Findings

Radlow's ansatz is erroneous but effective in far-field predictions.

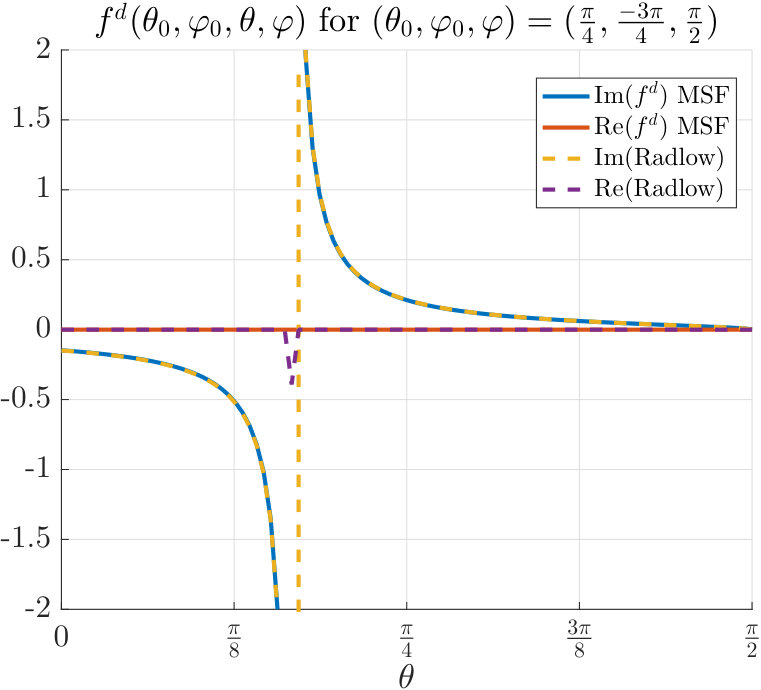

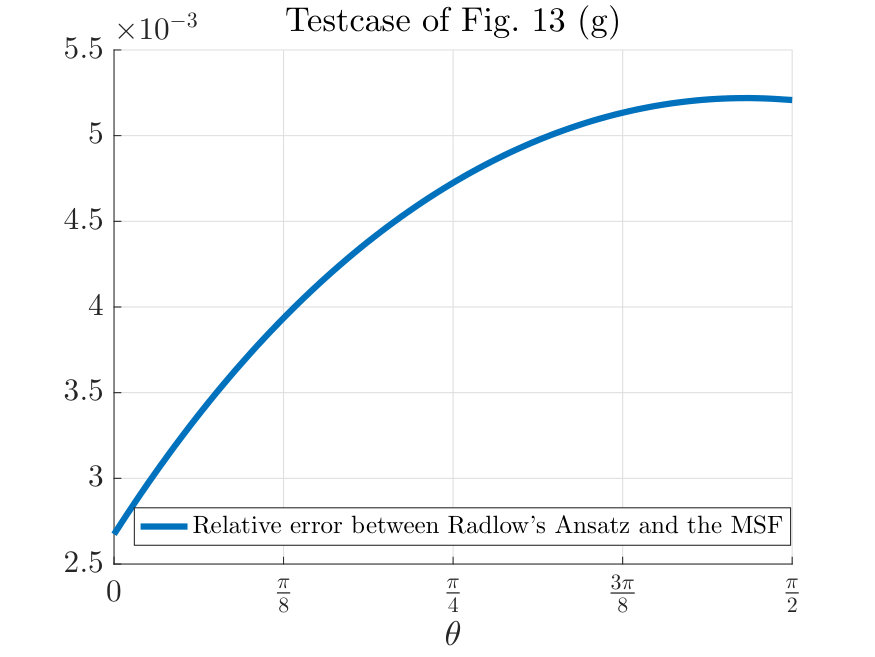

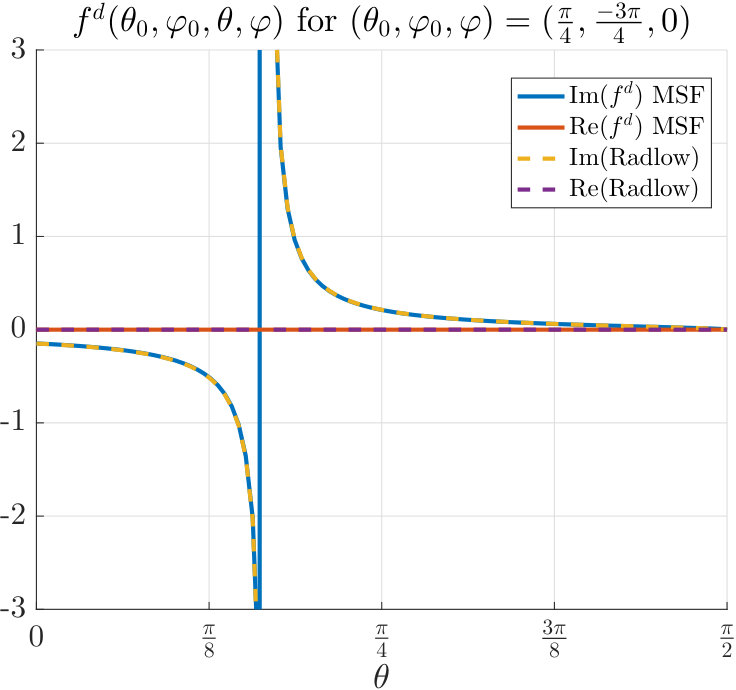

Comparison shows good agreement with modified Smyshlyaev results.

The approach simplifies the diffraction problem while maintaining accuracy.

Abstract

In this paper, we revisit Radlow's highly original attempt at a double Wiener-Hopf solution to the canonical problem of wave diffraction by a quarter-plane. Using a constructive approach, we reduce the problem to two equations, one containing his somewhat controversial ansatz, and an additional compatibility equation. We then show that despite Radlow's ansatz being erroneous, it gives surprisingly accurate results in the far-field, in particular for the spherical diffraction coefficient. This unexpectedly good result is established by comparing it to results obtained by the recently established modified Smyshlyaev formulae.

Figures

Equations

$$\mathrm{QP}$$

$$\frac{{\partial }^2{\mathfrak{u}}_{\mathrm{tot}}}{\partial t^2}=c^2\Delta {\mathfrak{u}}_{\mathrm{tot}}$$

$$\Delta u+k^{2}u=0$$

$$u_{\mathrm{tot}}=0$$

$$u_{\mathrm{in}}(\mathbf{x})=e^{i\mathbf{k}\cdot \mathbf{x}}=e^{-ik{\mathbf{\omega }}_0\cdot \mathbf{x}}=e^{-i(a_1{x}_1+a_2{x}_2+a_3{x}_3)},$$

$$f(x_1,x_2)={\left[\frac{\partial u}{\partial x_3}\right]}_{x_3=0^{-}}^{x_3=0^{+}}=\frac{\partial u}{\partial x_3}(x_1,x_2,0^{+})-\frac{\partial u}{\partial x_3}(x_1,x_2,0^{-}).$$

$$f(x_1,x_2)$$

$$u_{\mathrm{tot}}(\mathbf{x})=u_{\mathrm{in}}(\mathbf{x})+u(\mathbf{x}),$$

$$\Delta u+k^{2}u=0\text{ on }{\mathbb{R}}^3\backslash \text{QP},$$

$$f(x_1,x_2)$$

$$Q_1=\left\{(x_1,x_2),x_1⩾0\text{ and }{x}_2⩾0\right\},$$

$$Q_3=\left\{(x_1,x_2),x_1⩽0\text{ and }{x}_2⩽0\right\},$$

$$\kappa (\mathfrak{K},z)$$

$$K({\alpha }_1,{\alpha }_2)$$

$$(K(\mathbf{\alpha }){)}^2=\frac{1}{(\kappa (\kappa (k,{\alpha }_2),{\alpha }_1){)}^2}=\frac{1}{(\kappa (k,{\alpha }_2){)}^2-{\alpha }_1^2}=\frac{1}{k^2-{\alpha }_2^2-{\alpha }_1^2}$$

$$\gamma (\mathbf{\alpha })=-i/K(\mathbf{\alpha })$$

$$U({\alpha }_1,{\alpha }_2,x_3)$$

$$u(x_1,x_2,x_3)$$

$$\frac{{\partial }^{2}U}{\partial x_3^2}-{\gamma }^2(\mathbf{\alpha })U=0,$$

$$U(\mathbf{\alpha },x_3)$$

$$u(\mathbf{x})$$

$$f(x_1,x_2)=2\frac{\partial u}{\partial x_3}(x_1,x_2,0^{+})=\frac{-2}{(2\pi {)}^2}{\int }_{{\mathcal{A}}_1}{\int }_{{\mathcal{A}}_2}\gamma (\mathbf{\alpha })G(\mathbf{\alpha })e^{-i({\alpha }_1{x}_1+{\alpha }_2{x}_2)}\mathrm{d}{\alpha }_2\mathrm{d}{\alpha }_1$$

$$F(\mathbf{\alpha })$$

$$f(x_1,x_2)$$

$$F({\alpha }_1,{\alpha }_2)$$

$$G(\mathbf{\alpha })$$

$$u(\mathbf{x})$$

$${\delta }_1=\text{Im}(k)|\cos ({\phi }_0)|,$$

$$F({\alpha }_1,{\alpha }_2)$$

$$\Phi ({\alpha }_1,{\alpha }_2)$$

$${\mathrm{LHP}}_1=\left\{{\alpha }_1\in \mathbb{C},\text{ s.t. }{\alpha }_1\text{ lies below }{\mathcal{A}}_1\right\},$$

$${\mathrm{UHP}}_1=\left\{{\alpha }_1\in \mathbb{C},\text{ s.t. }{\alpha }_1\text{ lies above }{\mathcal{A}}_1\right\},$$

Full text

1 Introduction

Since the middle of the twentieth century, the intrinsically three-dimensional canonical problem of wave diffraction by a quarter-plane has attracted a great deal of attention, with many different mathematical techniques employed in seeking useful solutions.

This diffraction problem, a natural extension to Sommerfeld’s famous half-plane problem [34, 35], represents one of the building blocks of the geometrical theory of diffraction (GTD, [18]). Its far-field behaviour is very rich, including a set of primary and secondary edge-diffracted waves as well as a spherical wave emanating from the corner of the quarter-plane. The primary and secondary edge waves can be described analytically using the GTD, see for example [7]. Other techniques such as ray asymptotic theory on a surface of a sphere [31] or a Sommerfeld-Malyuzhinets integral approach [21, 22] also lead to the same results. However, the spherical wave is more problematic. In particular, one of the remaining challenges is to obtain a simple (easy to evaluate) closed-form expression for its diffraction coefficient.

By considering the quarter-plane as a degenerated elliptic cone, the field can be expressed as a spherical wave multipole series involving Lamé functions [19, 28, 17]. However these series are poorly convergent in the far-field and as such cannot lead to the sought-after diffraction coefficient. A review of this approach and attempts to accelerate the series convergence are described in [13].

A different and more recent way of considering this problem, based on the use of spherical Green’s functions, has been introduced in [32, 33, 10] and led to an integral formula for the spherical diffraction coefficient. However, this solution is not valid for all incidence/observation directions and requires a numerical treatment and some regularisation of Abel-Poisson type in order for it to be evaluated [11].

Building on this type of approach, a hybrid numerical-analytical method, which partially solves the acoustic quarter-plane problem in the Dirichlet case has been introduced in [30, 29]. The main advantage of this method compared to the one mentioned previously is that in this case the formulae giving the diffraction coefficient, known as the Modified Smyshlyaev Formulae (MSF), are ‘naturally convergent’ in the sense that they do not require any special treatment to regularise or accelerate convergence. The method is based on planar and spherical edge Green’s functions and on the theory of embedding formulae, introduced in [38] and further developed in [16] for example. This method has been extensively described, adapted to the Neumann case and implemented in [6]. We will use this method as a benchmark in the present paper; its implementation relies on an a priori knowledge of the eigenvalues of the Laplace-Beltrami operator on a sphere with a slit. A detailed spectral analysis of this operator is given in [8]. In particular, it gives a rapid way of evaluating the diffraction coefficient for a wide range of incident wave and observer directions, but is not valid for all such directions. As discussed in [7], a reason behind the limits of the MSF validity is the existence of secondary edge-diffracted waves.

Another attempt, crucial to the present work, was published by Radlow in two successive papers [26, 27]. The method is based on a Wiener–Hopf [25, 20] approach in two complex variables, and the author obtains a closed-form solution in Fourier space. In the latter paper, an ansatz for the solution is proposed and a non-constructive intricate proof of its validity is given. This ansatz has long been known to be erroneous (see e.g. [24]), since it is shown to give the wrong tip behaviour. The correct tip behaviour should include an eigenvalue of the Laplace-Beltrami operator (see [15] for example). The technical reason as to why Radlow’s proof is incorrect has been given fairly recently in [3], in particular the field corresponding to his ansatz does not satisfy the correct boundary condition. For a more extensive literature review on the use of functions of two complex variables in diffraction theory, the reader can be referred to the introduction of [9].

In the present work, we revisit Radlow’s approach and offer a formally exact solution from which we show that his ansatz appears constructively in a natural way. However, there is an extra term, which proves that Radlow’s ansatz cannot be the true solution. The extra term is complicated, and contains integrals of as-yet unknown functions. The calculation/approximation of this term will be the subject of future work. However, while doing this work, we came across what we can refer to as a surprising observation. Serendipity made us compare the spherical diffraction coefficient calculated with Radlow’s ansatz, i.e. setting the additional term to zero, to the one calculated using the MSF approach. It turns out, as we will show, that the two are very close (at least in the Dirichlet case). Some hints can be found in the literature regarding the accuracy of Radlow’s ansatz compared to full numerical computations [4, 36], though, never before were the diffraction coefficients compared like for like.

In Section 2, the problem is formulated, and symmetries are exploited. In Section 3, the machinery required to work in Fourier space for two complex variables is introduced, the Wiener-Hopf functional equation is derived, and the inverse transform form of the solution is written down. Throughout this work, and starting from this section, we will use the phase portrait technique (see [37]) to visualise functions of a complex variable. This visualisation technique will play an important role in our reasoning. In Section 4, we present a way of factorising the Wiener-Hopf kernel into four factors with known analyticity properties. We write each factor as a modified Cauchy integral, in the form that allows easy implementation and fast evaluation. In Section 5, two successive Wiener-Hopf procedures are performed, leading to the theoretical core of the present work: the two equations (5.17)–(5.18) linking the main unknowns of the problem. The first equation involves Radlow’s ansatz and an additional term, while the second equation, which we call the compatibility equation, may provide a way to find the unknown additional term. The diffraction coefficient is related to the solution of the Wiener-Hopf problem. Finally, in Section 6, we compare the diffraction coefficient obtained by the MSF technique to that obtained assuming that Radlow’s ansatz is correct. As we shall show, the two are surprisingly in very close agreement.

2 Formulation

2.1 Geometry, governing equation and incident wave

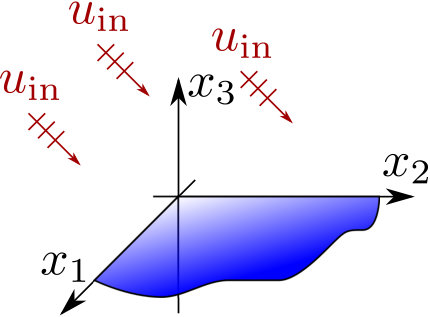

Let us consider the three-dimensional $(x_{1},x_{2},x_{3})$ space, and the quarter plane $\operatorname{QP}$ defined by

[TABLE]

and illustrated in Figure 1. We aim to solve the three-dimensional wave equation

[TABLE]

in $\mathbb{R}^{3}\backslash\operatorname{QP}$ for the total velocity potential $\mathfrak{u}_{\operatorname{tot}}$ and the scattered velocity potential $\mathfrak{u}$, when the quarter-plane is subject to an incident plane wave $\mathfrak{u}_{\operatorname{in}}=e^{i(\boldsymbol{k}\cdot\boldsymbol{x}-\Omega t)}$, so that we can write $\mathfrak{u}_{\operatorname{tot}}=\mathfrak{u}_{\operatorname{in}}+\mathfrak{u}$. $\Omega$ represents the radian frequency of the incident wave, $c$ is the speed of sound and $\boldsymbol{k}$ is the incident wavevector, such that the wavenumber $k=|\boldsymbol{k}|$ is given by $k=\Omega/c$. To be consistent with Radlow, we take the total field to satisfy the Dirichlet (soft) boundary condition $\mathfrak{u}_{\operatorname{tot}}=0$ on $\operatorname{QP}$. As is usual in scattering problems, let us make the hypothesis of time-harmonicity, assuming that all time-dependent quantities involved have a time-dependency consisting solely in a multiplicative factor $e^{-i\Omega t}$. We can then introduce the quantities $u_{\operatorname{tot}}(\boldsymbol{x})$, $u_{\operatorname{in}}(\boldsymbol{x})$ and $u(\boldsymbol{x})$, defined by $\mathfrak{u}_{\operatorname{tot}}(\boldsymbol{x},t)=\text{Re}(u_{\operatorname{tot}}(\boldsymbol{x})e^{-i\Omega t})$, $\mathfrak{u}_{\operatorname{in}}(\boldsymbol{x},t)=\text{Re}(u_{\operatorname{in}}(\boldsymbol{x})e^{-i\Omega t})$ and $\mathfrak{u}(\boldsymbol{x},t)=\text{Re}(u(\boldsymbol{x})e^{-i\Omega t})$ respectively. As a consequence, the total field $u_{\operatorname{tot}}(\boldsymbol{x})$ and the scattered field $u$ should satisfy the Helmholtz equation

[TABLE]

and $u_{\operatorname{tot}}$ should satisfy the Dirichlet boundary condition

[TABLE]

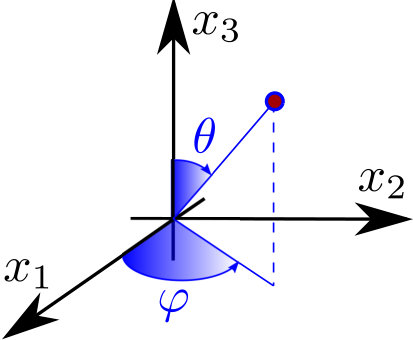

The wavevector $\boldsymbol{k}$ is oriented in the incident direction towards the vertex of the quarter-plane (also the origin of our three-dimensional space) and as such, we can write $\boldsymbol{k}=-k\boldsymbol{\omega}_{0}$, where $\boldsymbol{\omega}_{0}$ represents the point of the unit sphere determining the incident direction. Using the spherical coordinates $(r,\theta,\varphi)$, as illustrated in Figure 1, we can introduce $\theta_{0}$ and $\varphi_{0}$, such that $\boldsymbol{\omega}_{0}$ corresponds to the point with spherical coordinates $(1,\theta_{0},\varphi_{0})$ and hence $\boldsymbol{\omega}_{0}$ can be represented in Cartesian coordinates by $(\sin(\theta_{0})\cos(\varphi_{0}),\sin(\theta_{0})\sin(\varphi_{0}),\cos(\theta_{0}))$.

The incident wave can hence be rewritten as

[TABLE]

where $a_{1}=k\sin(\theta_{0})\cos(\varphi_{0})$, $a_{2}=k\sin(\theta_{0})\sin(\varphi_{0})$ and $a_{3}=k\cos(\theta_{0})$.

2.2 Edge, vertex and radiation conditions

In order for the problem to be well-posed, some other conditions need to be satisfied. These have been dealt with in detail in [8] for example, and so we will be brief. We impose the edge and vertex conditions: the energy of the field should remain bounded as we approach the edges and the vertex (i.e. no sources should be located on these), and the radiation condition: the scattered field $u$ should be outgoing in the far-field (i.e. no sources other than the incident wave at infinity).

2.3 Symmetries of the problem

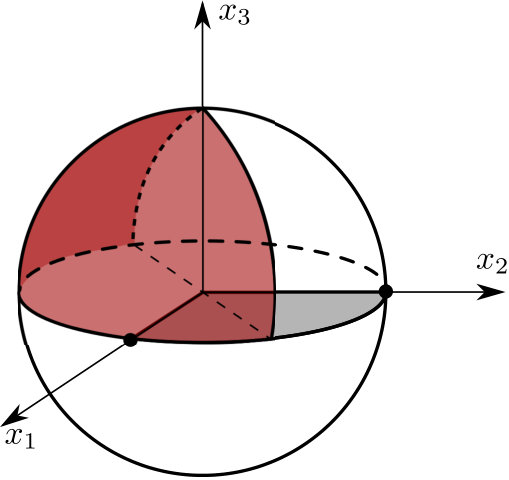

Let us now exploit the symmetry of the problem in order to reduce the range of the incident wave. First of all, due to the obvious “vertical symmetry” of the quarter-plane, it is enough to restrict the problem to incident waves coming from above the quarter-plane; this means that $\theta_{0}$ lies within $[0,\pi/2]$. Moreover, in the $(x_{1},x_{2})$-plane, our domain is symmetric with respect to the bisector separating the quarter-plane into two plane sector with internal angle $\pi/4$; i.e. it is possible to restrict $\varphi_{0}$ to belong to $[-3\pi/4,\pi/4]$, corresponding to the restricted zone of incidence depicted in Figure 1.

Finally, it is well-known that the scattered field $u$ is symmetric (this can be seen by decomposing the field into its symmetric and antisymmetric parts), i.e., we have $u(x_{1},x_{2},x_{3})=u(x_{1},x_{2},-x_{3})$. Note that this automatically implies that $\partial u/\partial x_{3}$ is an antisymmetric function. Therefore we can also restrict the observer region to $x_{3}\geqslant 0$, i.e. $\theta\in[0,\pi/2]$.

2.4 Jump in normal derivative across the quarter-plane

Let us consider the quantity

[TABLE]

It is clear that in the part of the $x_{3}=0$ plane that does not contain $\operatorname{QP}$, this quantity should be zero, since $u$ and its normal derivative are continuous. So we have that $f(x_{1}\char 60\relax 0,x_{2})=f(x_{1},x_{2}\char 60\relax 0)=0$.

On QP, the far-field will be of the form $u=u_{\operatorname{re}}+u_{\operatorname{diff}}$ on the (top) illuminated face, while it will be of the form $u=-u_{\operatorname{in}}+u_{\operatorname{diff}}$ on the bottom face. Here $u_{\operatorname{re}}$ represents the reflected wave and is given by $u_{\operatorname{re}}(x_{1},x_{2},x_{3})=-e^{-i(a_{1}x_{1}+a_{2}x_{2}-a_{3}x_{3})}$, and $u_{\operatorname{diff}}$ encompasses all the different diffracted fields (primary and secondary edge diffraction plus corner diffraction), which decay at least like $1/\sqrt{k\rho}$, where $\rho$ is the distance to the closest edge. Hence as both $x_{1}$ and $x_{2}$ tend to $+\infty$, we will have $u\sim u_{\operatorname{re}}$ on the illuminated face and $u\sim-u_{\operatorname{in}}$ on the bottom face. Hence we have

[TABLE]

2.5 Formulation summary

To summarise, the scattering problem we wish to solve is the following:

[TABLE]

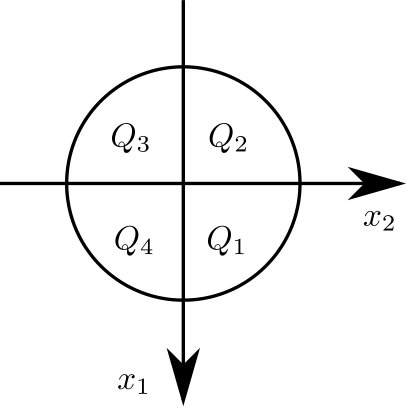

subject to the vertex, edge and radiation conditions. The $Q_{i}$ are the different quadrants of the equatorial $(x_{1},x_{2})$-plane, illustrated in Figure 2, and defined by

[TABLE]

It is convenient at this point to defer the solution of this boundary value problem to Sections 5 and 6. In the following Sections, 3 and 4, it will be helpful to the general reader to first introduce the mathematical machinery to be employed later. This will, of necessity, be rather tedious; hence, a more experienced reader may choose to start with Section 5 and refer back to the earlier sections as required.

3 Transformation in Fourier space

3.1 Some useful functions

In order to be able to define precisely quantities of interest in the following section, we need to introduce a few intermediate functions, as well as some useful notations. Let $\log(z)$ and $\sqrt{z}$ be the default complex logarithm and square root used by most mathematical software (e.g. Mathematica, Matlab, etc.). They correspond to the usual principal value of the logarithm and square root on the positive real axis and have a branch cut on the negative real axis. Let us now define a slightly different version of the logarithm: the function $\overset{\swarrow}{\log}$, that will be used first in Section 4.2.2, defined by $\overset{\swarrow}{\log}(z)=\log\left(e^{-\frac{i\pi}{4}}z\right)+\frac{i\pi}{4}$, so that this is a logarithm in the sense that $\exp(\overset{\swarrow}{\log}(z))=z$, it coincides with the usual real logarithm on the positive real axis, and has a branch cut extending diagonally down from the branch point $z=0$, as illustrated in Figure 2.

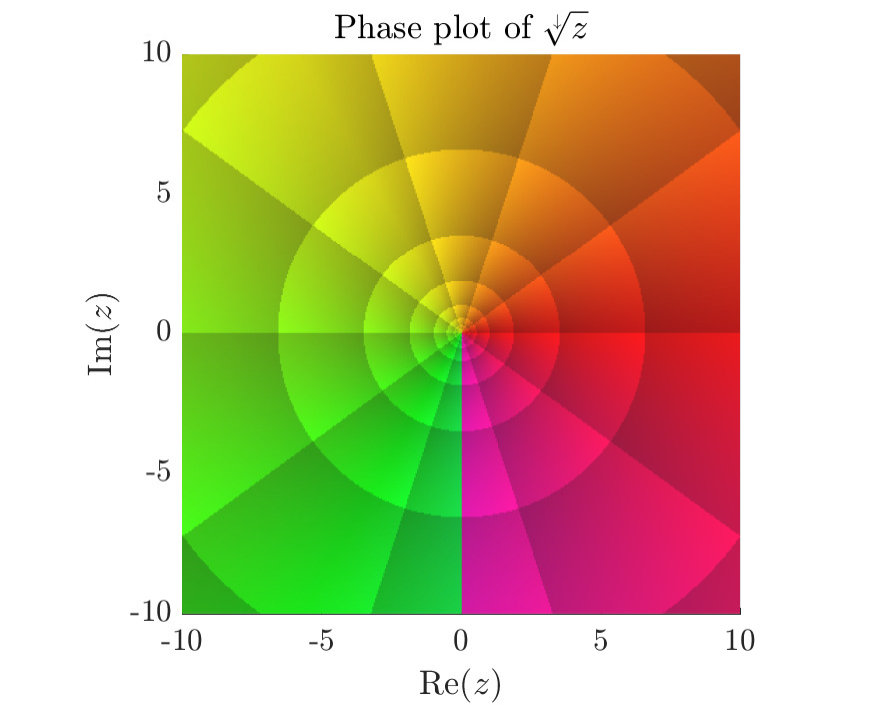

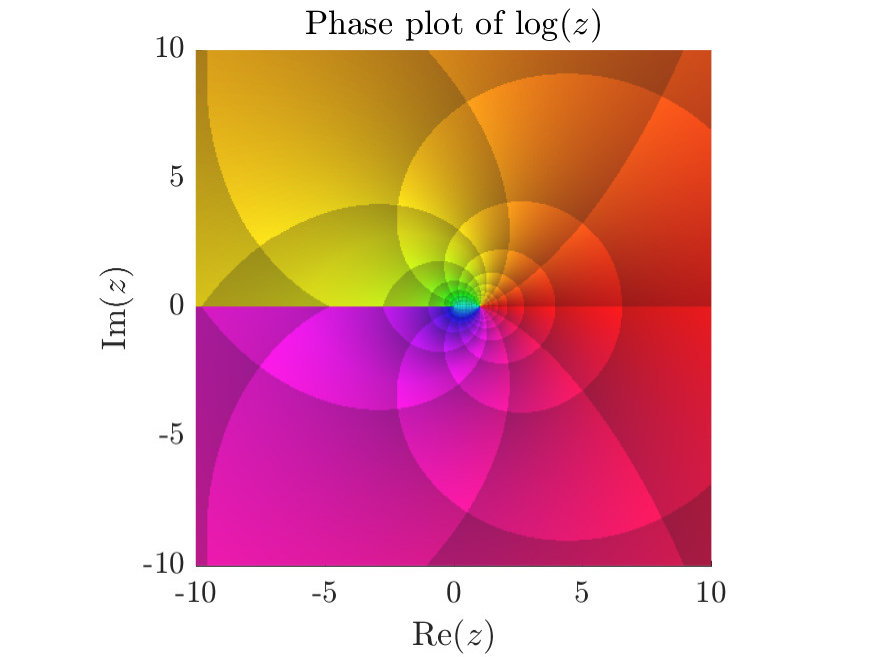

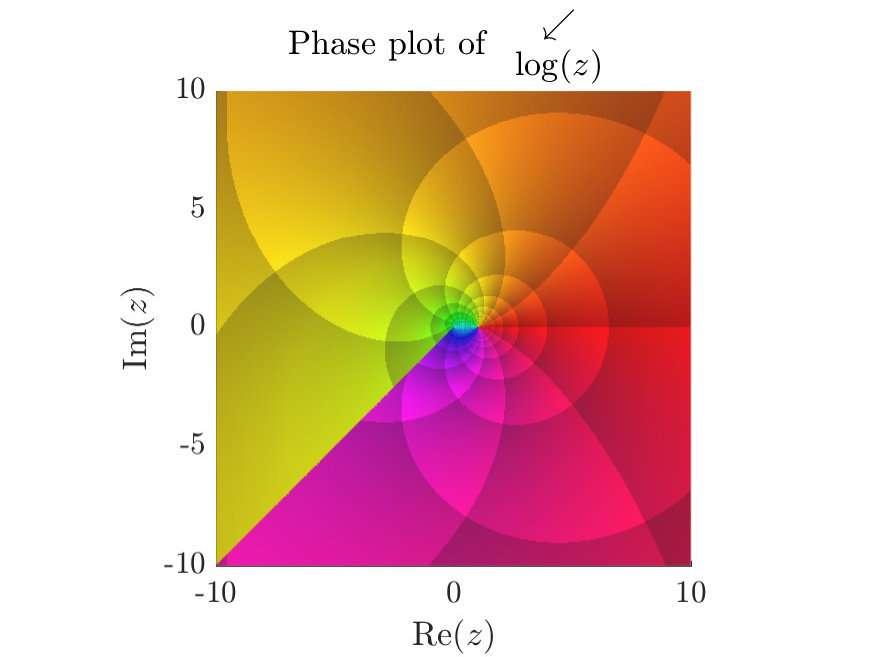

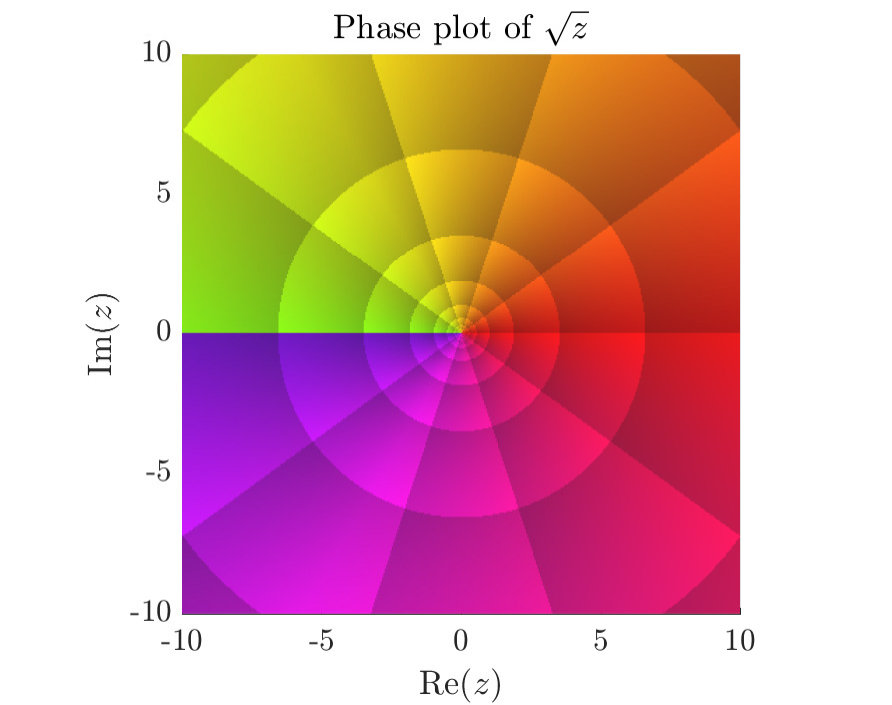

Let us now define the function $\sqrt[\downarrow]{z}$, that will be used extensively throughout this work, by $\sqrt[\downarrow]{z}=e^{i\frac{\pi}{4}}\sqrt{-iz}$ so that this is a square root in the sense that $\left(\sqrt[\downarrow]{z}\right)^{2}=z$, it coincides with the usual real square root on the positive real axis, and has a branch cut on the negative imaginary axis, as shown in Figure 3. Building on this, we can define the function $\kappa(\mathfrak{K},z)$ for any $\mathfrak{K}$ such that $\text{Im}(\mathfrak{K})\geqslant 0$ and $\text{Re}(\mathfrak{K})\char 62\relax 0$ by

[TABLE]

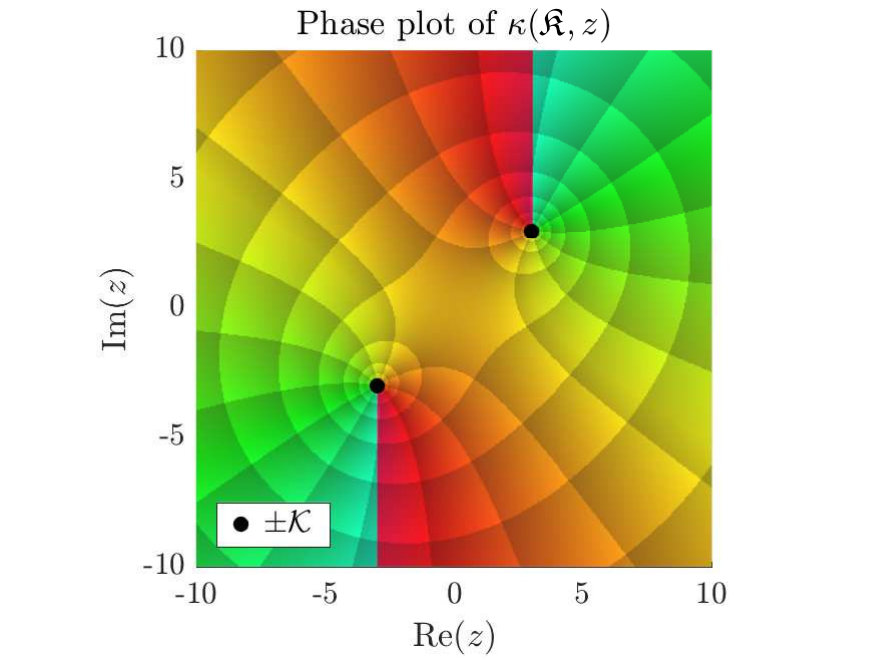

The function $\kappa$ satisfies $(\kappa(\mathfrak{K},z))^{2}=\mathfrak{K}^{2}-z^{2}$ with the principal Riemann sheet chosen such that $\kappa(\mathfrak{K},0)=\mathfrak{K}$. It has two branch cuts in the complex $z$ plane, one starting at the branch point $z=\mathfrak{K}$ and extending vertically upwards, and one starting at the branch point $z=-\mathfrak{K}$ and extending vertically downwards111The arrow notations used throughout this paper have the main objective of giving the reader an easy way to implement this work on a computer. One should also note that even if $\kappa$ is defined with two down-arrow functions, one of its branches is vertical upwards. This is due to the fact that the argument within one of the down-arrow function is $-z$. as can be visualised in Figure 3.

In the rest of the paper, we will sometimes use the bold notation $\boldsymbol{\alpha}$ to represent the two variables $(\alpha_{1},\alpha_{2})$. Let us now define the function $K(\boldsymbol{\alpha})$ as follows:

[TABLE]

such that we have

[TABLE]

and define the function $\gamma(\boldsymbol{\alpha})$ as

[TABLE]

Note that, by definition of $\kappa$, we have $1/K(0,0)=k$ and $\gamma(0,0)=-ik$.

3.2 Double Fourier transform representation

Let us now apply the double Fourier transform (denoted by the operator $\mathfrak{F}$) in the ($x_{1},x_{2}$) directions. Let us call $U(\alpha_{1},\alpha_{2},x_{3})$ the double Fourier transform of $u(x_{1},x_{2},x_{3})$, such that we have

[TABLE]

The contours of integration $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ in the inverse transform will in general not completely lie on the real line, but will start at $-\infty$ and end at $+\infty$. An exact description will be given in Section 3.3.1. Under this double Fourier transformation, the Helmholtz equation is changed into $(-\alpha_{1}^{2}-\alpha_{2}^{2})U+\frac{\partial^{2}U}{\partial x_{3}^{2}}+k^{2}U=0$, which can be rewritten as

[TABLE]

The contours $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ will be chosen later such that $\text{Re}(\gamma(\boldsymbol{\alpha}))\geqslant 0$ when $\boldsymbol{\alpha}\in\mathcal{A}_{1}\times\mathcal{A}_{2}$. Hence in order not to have exponential growth as $x_{3}$ tends to infinity, and because $x_{3}\geqslant 0$, we must have

[TABLE]

Hence, we can write $u(\boldsymbol{x})$ using the inverse Fourier representation

[TABLE]

We can write $f(x_{1},x_{2})$ in a similar fashion, using the symmetry of the solution (see Section 2.3):

[TABLE]

Hence, upon introducing $F(\boldsymbol{\alpha})$ defined by

[TABLE]

the equation (3.7) becomes

[TABLE]

which means that the function $F$ introduced in (3.8) is in fact the double Fourier transform of $f$, i.e.

[TABLE]

In what follows, it will be convenient to use $K$ instead of $\gamma$ and rewrite (3.8) as

[TABLE]

which is the most important functional equation222An alternative derivation, based on Green’s identity, is given in [9]. of the problem. It relates the Fourier transform of $u$ and $\tfrac{\partial u}{\partial x_{3}}$ at $x_{3}=0^{+}$ and will be exploited to obtain the main result of the paper: equations (5.17)–(5.18). Using (3.10) in (3.8) the wave field $u$ is given by

[TABLE]

3.3 A small departure from the usual approach

As is usually the case when using the Wiener-Hopf technique, we could start by assuming that $k$ has a small positive imaginary part. Following this approach, it is possible to show that there exist four real numbers $b_{1},\delta_{1},b_{2}$ and $\delta_{2}$, with $b_{1}\char 60\relax\delta_{1}$ and $b_{2}\char 60\relax\delta_{2}$, such that the function of interest $F(\boldsymbol{\alpha})K(\boldsymbol{\alpha})$ is analytic on the tubular domain $\mathcal{D}^{\star}\subset\mathbb{C}^{2}$ defined by $\mathcal{D}^{\star}(b_{1},b_{2},\delta_{1},\delta_{2})=\mathcal{S}(b_{1},\delta_{1})\times\mathcal{S}(b_{2},\delta_{2})$, where for two real numbers $b\char 60\relax\delta$, the strip $\mathcal{S}(b,\delta)\subset\mathbb{C}$ is defined by $\mathcal{S}(b,\delta)=\{z\in\mathbb{C},b\char 60\relax\text{Im}(z)\char 60\relax\delta\}$. In fact, it is possible to get an explicit expression for $\delta_{1,2}$ and $b_{1,2}$:

[TABLE]

However, if we want the solution for real $k$, the strips shrink to the real axes, and indented contours are needed in order to evaluate the inverse Fourier transforms. Our approach here, in the spirit of [1], will be to start directly from such indented contours and avoid the limiting procedure discussion that would be required with the usual approach. We want to choose two contours $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ in the $\alpha_{1}$ and $\alpha_{2}$ complex planes such that:

• (i)

For any $\alpha^{\star}_{1}\in\mathcal{A}_{1}$, the functions $F(\alpha_{1}^{\star},\cdot)$ and $K(\alpha_{1}^{\star},\cdot)$ are analytic on $\mathcal{A}_{2}$.

• (ii)

For any $\alpha^{\star}_{2}\in\mathcal{A}_{2}$, the functions $F(\cdot,\alpha_{2}^{\star})$ and $K(\cdot,\alpha_{2}^{\star})$ are analytic on $\mathcal{A}_{1}$.

• (iii)

$\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ are smooth contours starting at $-\infty$ and finishing at $+\infty$.

• (iv)

For simplicity we would prefer that $\mathcal{A}_{1}$ be independent of $\alpha_{2}$ and $\mathcal{A}_{2}$ be independent of $\alpha_{1}$.

• (v)

For any $\boldsymbol{\alpha}\in\mathcal{A}_{1}\times\mathcal{A}_{2}$, $\text{Re}(\gamma(\boldsymbol{\alpha}))=\text{Im}(1/K(\boldsymbol{\alpha}))\geqslant 0$.

3.3.1 On fulfilling the requirements (i)–(v) for $K(\boldsymbol{\alpha})$

In this subsection, we will show that there exist contours $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ that fulfil all the previous requirements (i)–(v) relative to the function $K(\boldsymbol{\alpha})$. Remember that $K(\boldsymbol{\alpha})$ is defined by $1/\kappa(\kappa(k,\alpha_{2}),\alpha_{1})$, and that by this definition (which breaks the symmetry between $\alpha_{1}$ and $\alpha_{2}$), $K$ does not behave in the same way in the $\alpha_{1}$ plane and in the $\alpha_{2}$ plane. In other words, even if by definition we have $K^{2}(\alpha_{1},\alpha_{2})\equiv K^{2}(\alpha_{2},\alpha_{1})$, we will not necessarily have $K(\alpha_{1},\alpha_{2})=K(\alpha_{2},\alpha_{1})$ for every $(\alpha_{1},\alpha_{2})\in\mathbb{C}^{2}$.

To be more precise, for a fixed $\alpha_{2}^{\star}$ such that $\operatorname{Im}(\kappa(k,\alpha_{2}^{\star}))\geqslant 0$, we expect the function $K(\alpha_{1},\alpha_{2}^{\star})$ to simply have two branch points at $\pm\kappa(k,\alpha_{2}^{\star})$, with branch cuts extending vertically up and down, respectively, in the $\alpha_{1}$ complex plane, see Figure 4 (left). Hence, a suitable contour $\mathcal{A}_{1}$ would lie on the real line indented above $-\kappa(k,\alpha_{2}^{\star})$ and below $\kappa(k,\alpha_{2}^{\star})$ for any $\alpha_{2}^{\star}\in\mathcal{A}_{2}$.

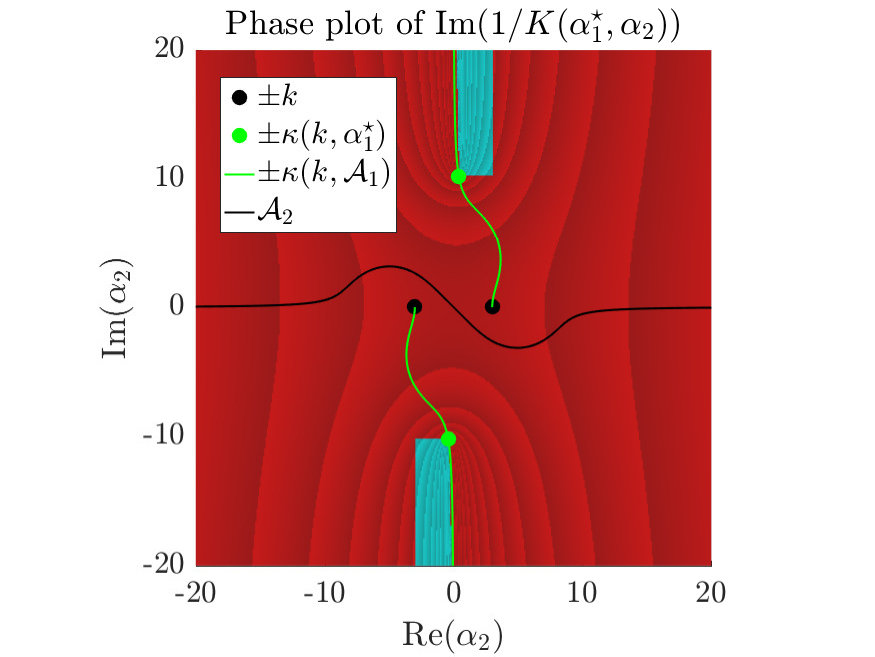

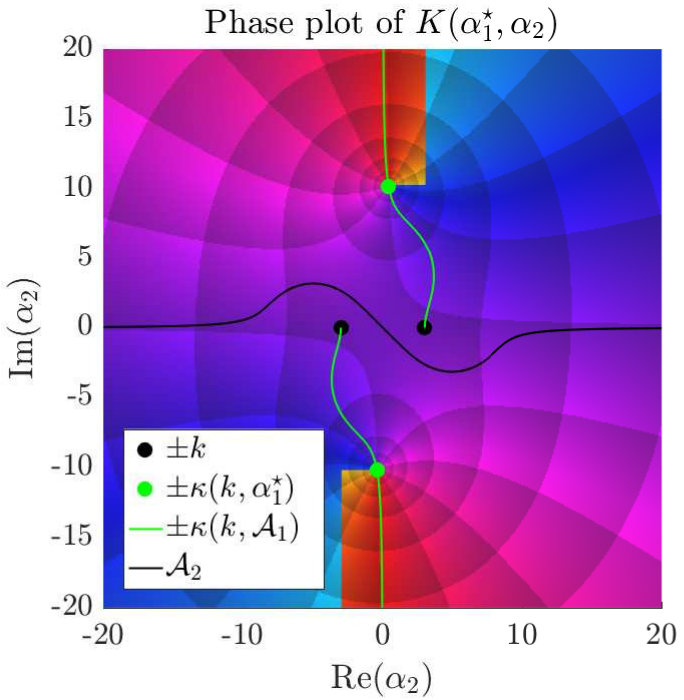

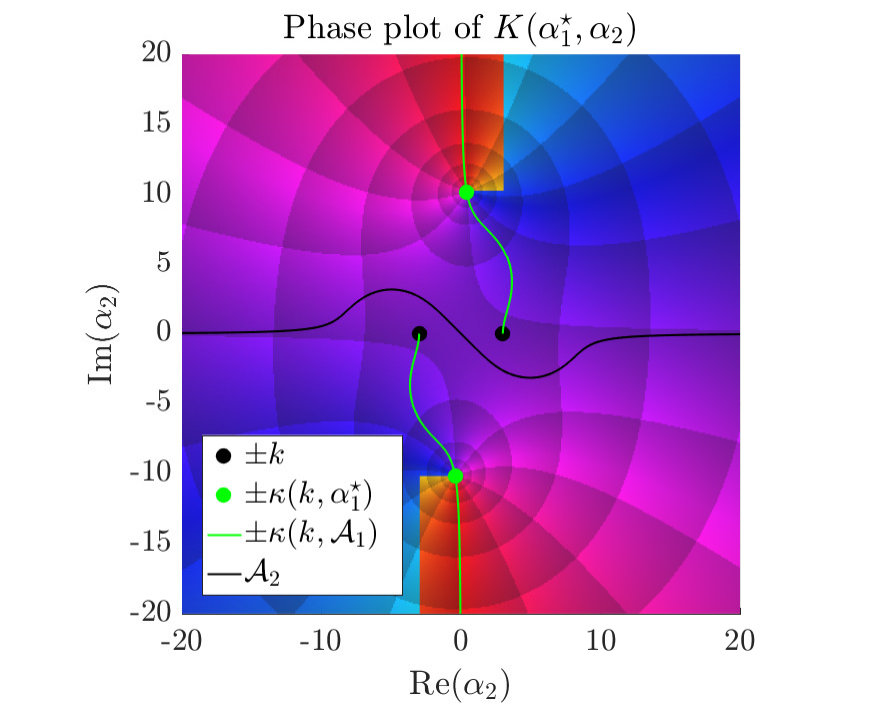

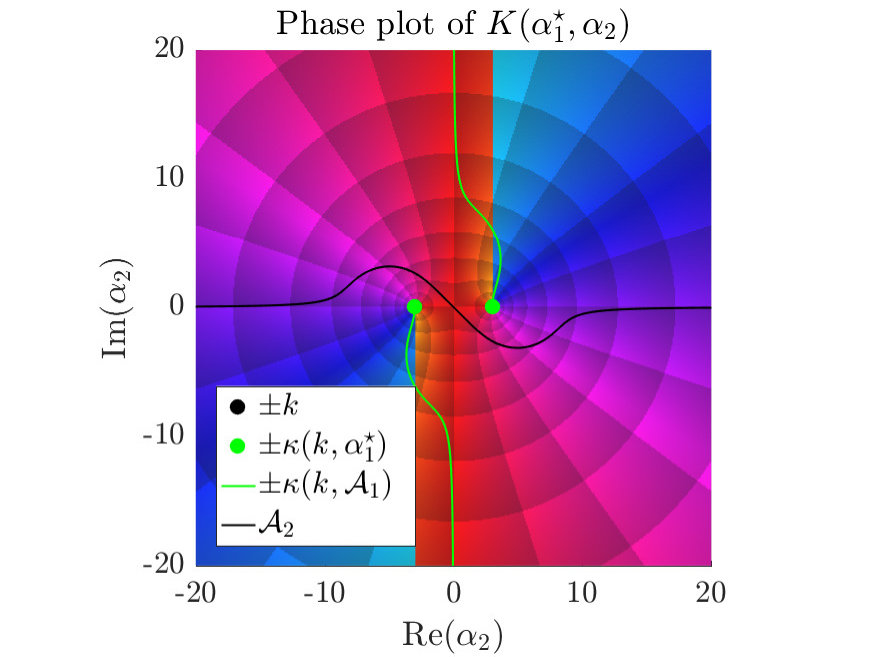

If we now fix an $\alpha_{1}^{\star}$ and consider the function $K(\alpha_{1}^{\star},\alpha_{2})$, we expect the analyticity structure to be a bit more complicated in the $\alpha_{2}$ plane. In particular, we expect to have potential problems at $\alpha_{2}=\pm k$ due to the term $\kappa(k,\alpha_{2})$, perhaps leading to a branch cut extending vertically upwards from $\pm k$. However, we also expect to have branch points where $\kappa(k,\alpha_{2})=\pm\alpha_{1}^{\star}$, i.e., points where $\alpha_{2}=\pm\kappa(k,\alpha_{1}^{\star})$, see Figure 4 (right). Hence, a suitable contour $\mathcal{A}_{2}$ would pass above $-k$ and $-\kappa(k,\alpha_{1}^{\star})$ and below $k$ and $\kappa(k,\alpha_{1}^{\star})$ for any $\alpha_{1}^{\star}\in\mathcal{A}_{1}$.

If, as mentioned previously, it is possible to prove rigorously that some contours are valid in the case when $k$ has a small positive imaginary part, it is much harder to do so for real $k$. Instead, we will provide a visual proof that a given choice of $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ is suitable. Let us then consider the contours $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ to be smoothly passing above $-k$ and below $k$ and also passing through the origins of their respective complex planes. A practical realisation of such contours can be obtained by the parametrisation $\mathcal{A}_{1}(s_{1})=s_{1}+\frac{s_{1}}{a(s_{1}^{4}+c)}$ and $\mathcal{A}_{2}(s_{2})=s_{2}+\frac{s_{2}}{a(s_{2}^{4}+c)}$, for $s_{1,2}\in\mathbb{R}$ and some complex constants $a$ and $c$. As such $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ satisfy (iii)-(iv).

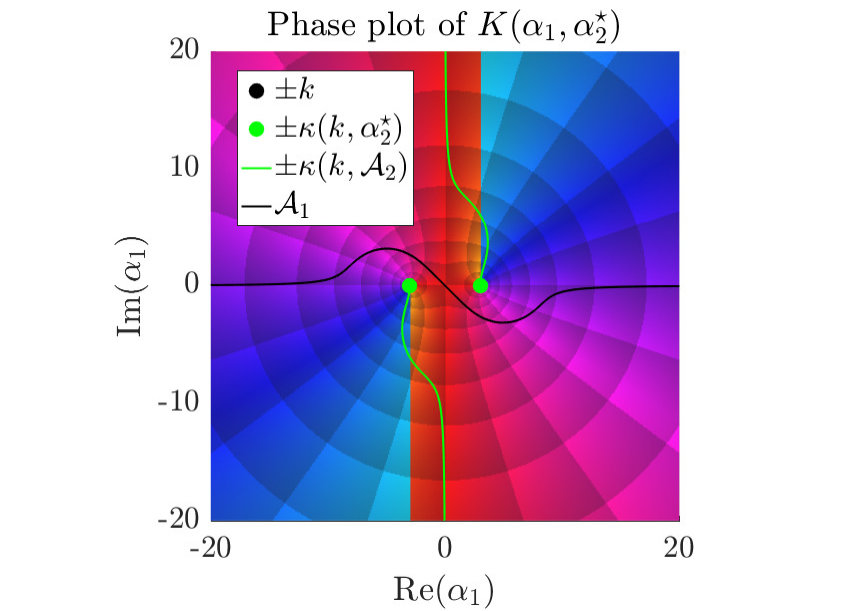

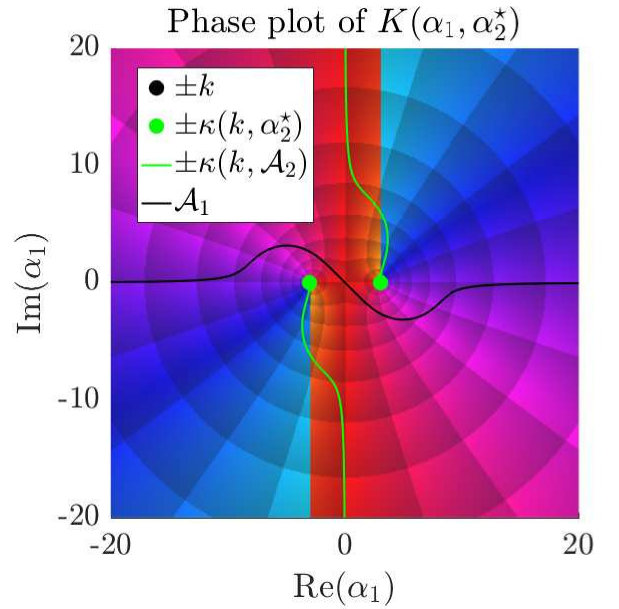

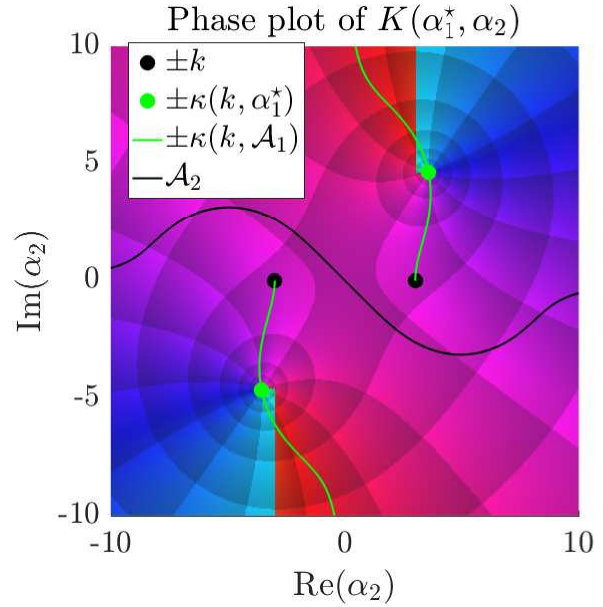

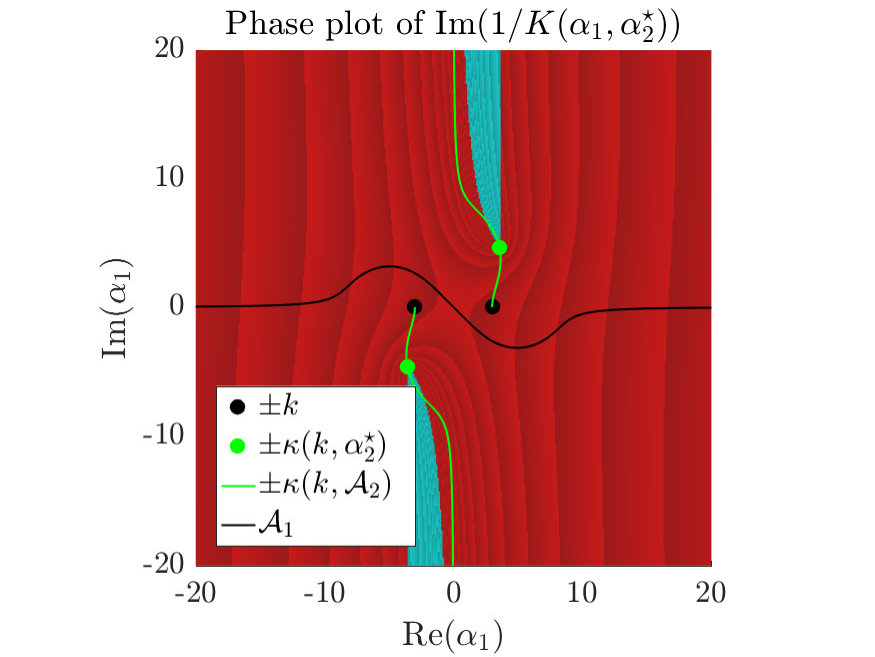

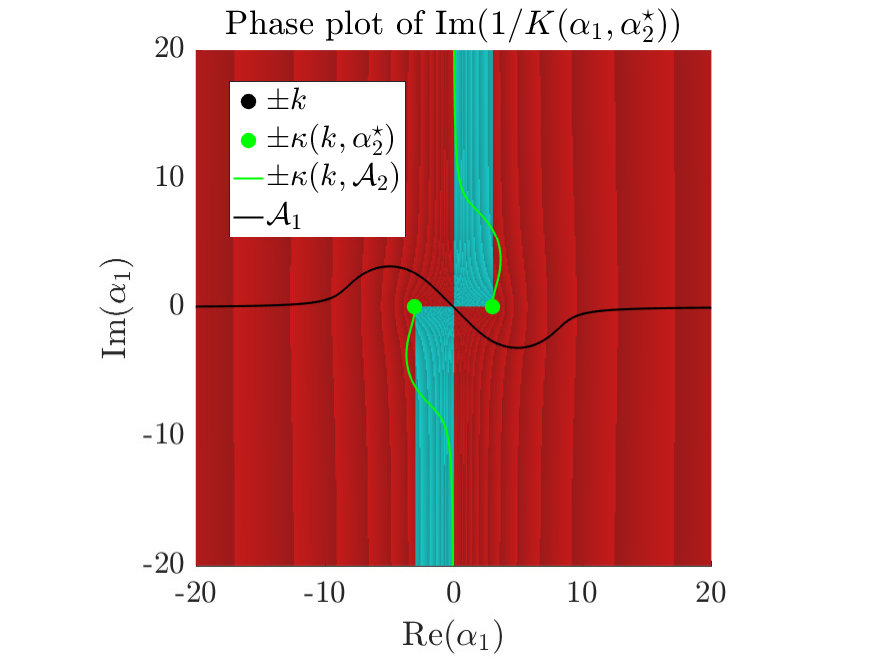

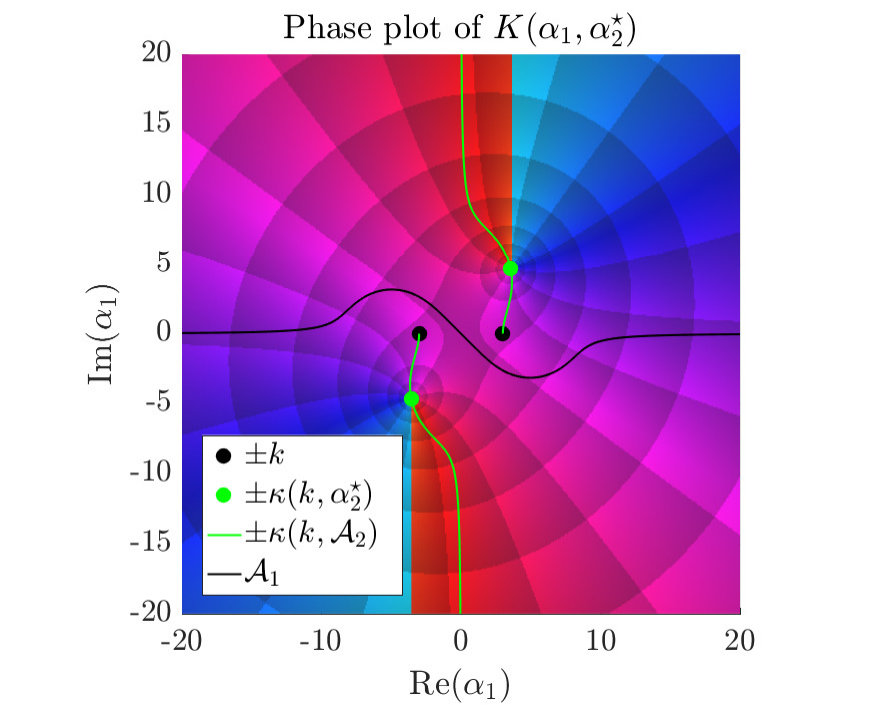

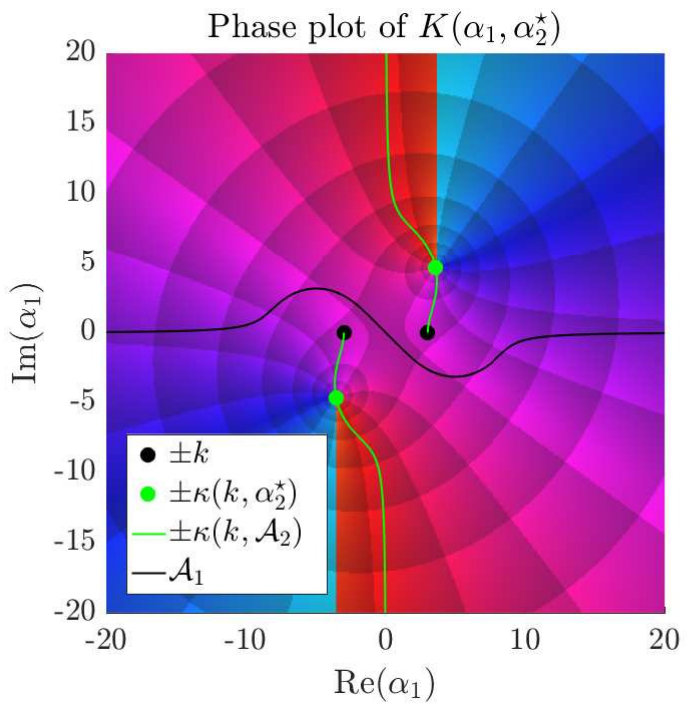

Given such a choice, it is possible to plot the loci of points $\pm\kappa(k,\mathcal{A}_{2})$ in the $\alpha_{1}$ plane and the loci $\pm\kappa(k,\mathcal{A}_{1})$ in the $\alpha_{2}$ plane. As long as our contours do not intersect these curves and do not intersect any resultant branch cuts, they should be valid. In fact, this can be seen in Figure 4, where the phase plots of $K(\alpha_{1},\alpha_{2}^{\star})$ and $K(\alpha_{1}^{\star},\alpha_{2})$ are shown for different values of $\alpha_{1}^{\star}\in\mathcal{A}_{1}$ and $\alpha_{2}^{\star}\in\mathcal{A}_{2}$, together with the loci mentioned above.

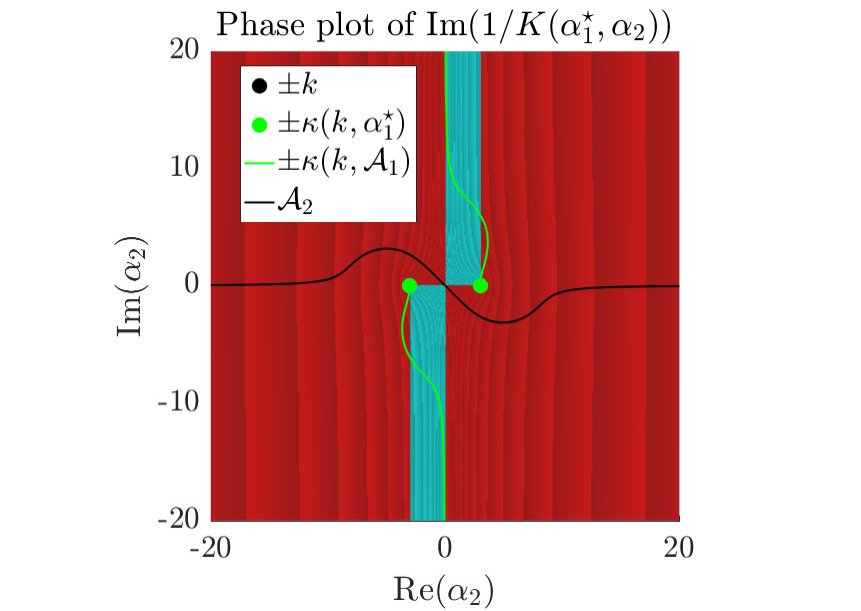

As one can infer from Figure 4, the contours $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$, chosen suitably, avoid the singularities of $K$. In other words, for any $\alpha_{2}^{\star}\in\mathcal{A}_{2}$, the function $K(\alpha_{1},\alpha_{2}^{\star})$ is analytic on $\mathcal{A}_{1}$, while for any $\alpha_{1}^{\star}\in\mathcal{A}_{1}$, the function $K(\alpha_{1}^{\star},\alpha_{2})$ is analytic on $\mathcal{A}_{2}$. Hence, as far as $K$ is concerned, this choice satisfies the conditions (i)–(iv). We still need to check that the condition (v) is satisfied. Again, here we will use a visual approach. The phase portrait of $\operatorname{Im}(1/K(\alpha_{1},\alpha_{2}^{\star}))$ and $\operatorname{Im}(1/K(\alpha_{1}^{\star},\alpha_{2}))$ for different values of $\alpha_{1}^{\star}\in\mathcal{A}_{1}$ and $\alpha_{2}^{\star}\in\mathcal{A}_{2}$ are displayed in Figure 5. The regions where $\operatorname{Im}(1/K)\char 62\relax 0$ appear in red, while those where $\operatorname{Im}(1/K)\char 60\relax 0$ appear in blue.

As one can infer from Figure 5, for any $\boldsymbol{\alpha}\in\mathcal{A}_{1}\times\mathcal{A}_{2}$, we have $\operatorname{Im}(1/K(\boldsymbol{\alpha}))\geqslant 0$, as required in order for (v) to be satisfied. Note also that it only becomes zero when both $\alpha_{1}$ and $\alpha_{2}$ are zero. It also shows that if $\mathcal{A}_{1}$ is chosen as above, $\mathcal{A}_{2}$ is forced to pass through the origin, and vice-versa.

3.3.2 On fulfilling the requirements (i)–(ii) for $F(\boldsymbol{\alpha})$

Remember that $F$ is defined in (3.9), and so using the condition (2.8), it reduces to

[TABLE]

In order to understand the analyticity property of $F$, we need to use the following lemma.

Lemma 3.1

Let $\phi(x_{1},x_{2})$ be a function of the two real variables $x_{1}$ and $x_{2}$ and let $\gamma_{1},\gamma_{2}\in\mathbb{R}$ be such that $|\phi(x_{1},x_{2})|\leqslant A_{1}\exp(\gamma_{1}x_{1}+\gamma_{2}x_{2})$ as $|x_{1}|\rightarrow\infty$ and $|x_{2}|\rightarrow\infty$ and $(x_{1},x_{2})\in Q_{1}$. Then the function $\Phi(\alpha_{1},\alpha_{2})$ defined by

[TABLE]

can be interpreted as a function of the complex variable $\boldsymbol{\alpha}\in\mathbb{C}^{2}$, and as such, it is analytic in $\operatorname{UHP}(\gamma_{1})\times\operatorname{UHP}(\gamma_{2})$ considered an open subset of $\mathbb{C}^{2}$, where the upper-half plane $\operatorname{UHP}(\gamma_{1,2})$ is the region in the $\alpha_{1,2}$ complex plane lying above the horizontal line $\operatorname{Im}(\alpha_{1,2})=\gamma_{1,2}$.

In our case, because of the estimate (2.6), we can show that there exists $M\char 62\relax 0$, such that $|f(x_{1},x_{2})|\leqslant M\exp(\text{Im}(a_{1})x_{1}+\text{Im}(a_{2})x_{2})$ as $x_{1},x_{2}\rightarrow\infty$ within $Q_{1}$, where $a_{1,2}$ are related to the incident wave direction as defined below (2.5). Moreover, since $k$ is considered real, $\operatorname{Im}(a_{1,2})=0$. Hence, in the notation of Lemma 3.1, we have $\gamma_{1,2}=0$ and we can conclude that $F$ is analytic on $\operatorname{UHP}(0)\times\operatorname{UHP}(0)$, i.e, for $\operatorname{Im}(\alpha_{1,2})\char 62\relax 0$.

However, this does not mean that $F$ cannot be analytically continued onto a bigger domain. This realisation is important since the contours $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ defined in Section 3.3.1 do not lie within $\operatorname{UHP}(0)\times\operatorname{UHP}(0)$ since they both drop under their respective real axes.

Hence, let us try to infer a priori333Note that this particular aspect is studied more rigorously in [9]. a bit more about the behaviour of $F$ outside $\operatorname{UHP}(0)\times\operatorname{UHP}(0)$. First of all, the estimate (2.6), giving the behaviour of $f(x_{1},x_{2})$ at infinity gives us some information about the behaviour of $F(\boldsymbol{\alpha})$ within a finite part of the complex planes. Namely, we can expect that $F(\alpha_{1},\alpha_{2})$ will have a simple pole in the $\alpha_{1}$ plane at $\alpha_{1}=a_{1}$ and a simple pole in the $\alpha_{2}$ plane at $\alpha_{2}=a_{2}$. It also seems reasonable to expect that other possible singular behaviours would occur in the lower-half planes, e.g. branch points at $-k$ and maybe also on $-\kappa(k,\mathcal{A}_{1,2})$ and at $-\kappa(k,a_{1,2})$, once $\mathcal{A}_{1,2}$ have been specified.

Therefore, if $a_{1}$ and $a_{2}$ are negative, the contours $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ will be appropriate, since they are passing above the poles and the possible singular parts of $F$.

Remark 3.1

The situation is different if $a_{1,2}$ is positive, as then the contours $\mathcal{A}_{1,2}$ shown in Figure 4 will pass below the pole. A simple way to overcome what is a technical difficulty is to allow $a_{1,2}$ to have a small imaginary part $\epsilon\char 60\relax 0$ say, when $\text{Re}(a_{1,2})\char 62\relax 0$. Then one can choose the contour $\mathcal{A}_{1,2}$ to lie sufficiently close to the real line that it passes above the pole, and the pole itself is located so that its residue will yield the correct behaviour for (3.5). Once the solution has been obtained, by continuity it should remain valid as $\epsilon\rightarrow 0$.

In what follows, in particular when drawing explanatory diagrams, unless stated otherwise, we will assume that $a_{1}$ and $a_{2}$ are both negative. We will make sure to provide accurate ways of dealing with the case $a_{1,2}\char 62\relax 0$ when necessary.

3.4 Set notations

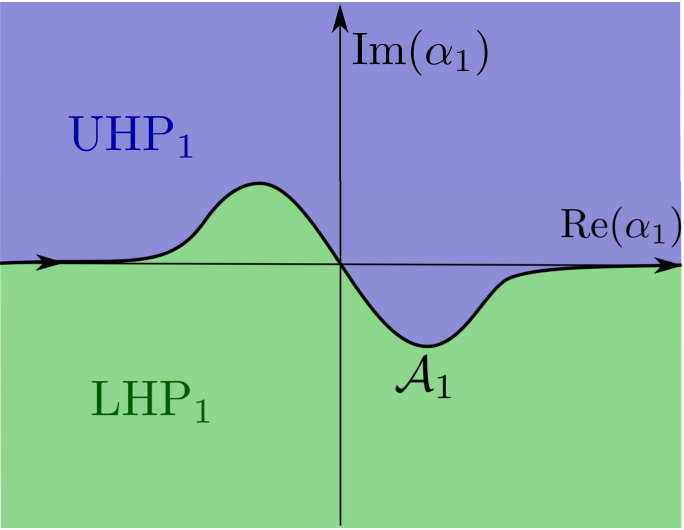

Let us start by introducing notations to describe useful sets in the $\alpha_{1}$ and $\alpha_{2}$ planes. We define the lower-half planes $\operatorname{LHP}_{1}$ and $\operatorname{LHP}_{2}$ and upper-half planes $\operatorname{UHP}_{1}$ and $\operatorname{UHP}_{2}$ as follows:

[TABLE]

Note that these sets are defined to be inclusive of the contour $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ in the sense that $\mathcal{A}_{1}=\operatorname{LHP}_{1}\cap\operatorname{UHP}_{1}$ and $\mathcal{A}_{2}=\operatorname{LHP}_{2}\cap\operatorname{UHP}_{2}$. The four types of sets introduced so far are illustrated in Figure 6.

Let us now define a few different $\mathbb{C}^{2}$ sets derived from various products of the $\mathbb{C}$ spaces described above. We start with the set $\mathcal{D}=\mathcal{A}_{1}\times\mathcal{A}_{2}$ where all of the functions we will deal with are well-behaved. It is also useful to define the $\mathbb{C}^{2}$ sets $\mathcal{D}_{++}=\operatorname{UHP}_{1}\times\operatorname{UHP}_{2}$, $\mathcal{D}_{-+}=\operatorname{LHP}_{1}\times\operatorname{UHP}_{2}$, $\mathcal{D}_{--}=\operatorname{LHP}_{1}\times\operatorname{LHP}_{2}$ and $\mathcal{D}_{+-}=\operatorname{UHP}_{1}\times\operatorname{LHP}_{2}$. Finally, let us introduce the sets $\mathcal{D}_{+\circ}=\mathcal{D}_{++}\cap\mathcal{D}_{+-}=\operatorname{UHP}_{1}\times\mathcal{A}_{2}$ and $\mathcal{D}_{-\circ}=\mathcal{D}_{--}\cap\mathcal{D}_{-+}=\operatorname{LHP}_{1}\times\mathcal{A}_{2}$.

With the above points regarding analyticity now clarified, we can return to $F(\boldsymbol{\alpha})$ given in (3.13) at the beginning of this subsection. It is clear that $F$ is analytic on $\mathcal{D}_{++}$ and hence we can rewrite it as

[TABLE]

4 On the four-part factorisation of $K$

Let us consider again the function $K(\boldsymbol{\alpha})$ defined by (3.2). We have shown in Section 3.3.1 that $K(\boldsymbol{\alpha})$ is analytic on the product of contours $\mathcal{D}=\mathcal{A}_{1}\times\mathcal{A}_{2}$. In this section, our aim is to show that there exist four functions $K_{++}(\boldsymbol{\alpha})$, $K_{+-}(\boldsymbol{\alpha})$, $K_{-+}(\boldsymbol{\alpha})$ and $K_{--}(\boldsymbol{\alpha})$, analytic on $\mathcal{D}_{++}$, $\mathcal{D}_{+-}$, $\mathcal{D}_{-+}$ and $\mathcal{D}_{--}$ respectively, such that for $\boldsymbol{\alpha}\in\mathcal{D}$, we have

[TABLE]

4.1 Factorisation in the $\alpha_{1}$-plane

Because of the definitions (3.1) and (3.2) of $\kappa$ and $K$, we have:

[TABLE]

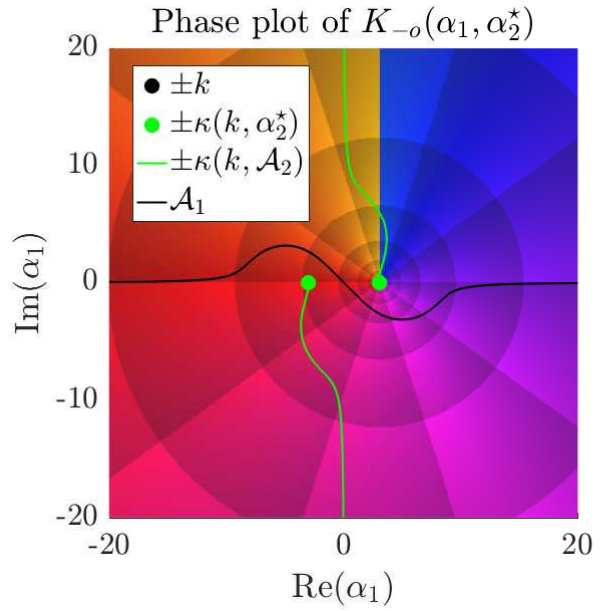

and one can see that for any $\boldsymbol{\alpha}\in\mathcal{D}$, it is possible to write

[TABLE]

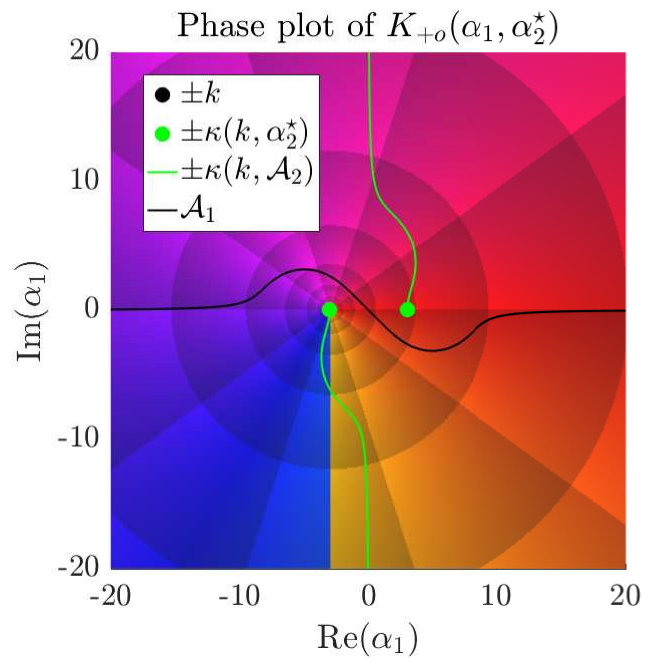

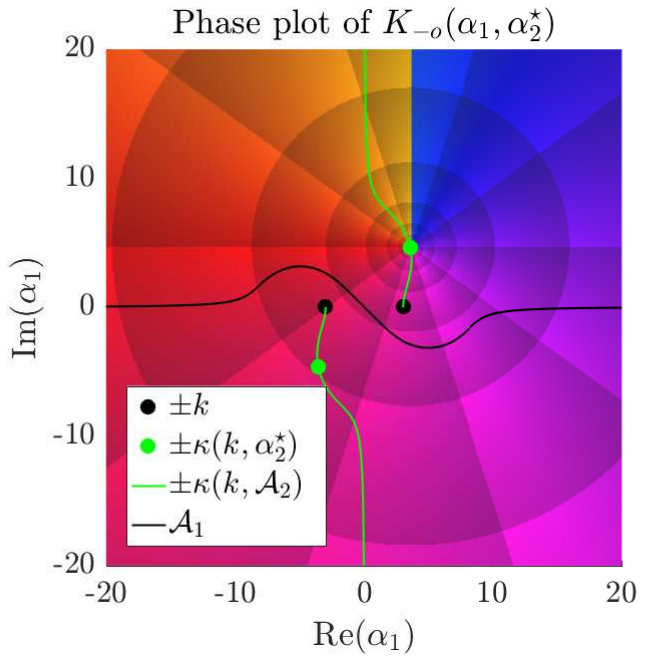

such that for a given $\alpha_{2}\in\mathcal{A}_{2}$, $K_{-\circ}(\alpha_{1},\alpha_{2})$ is analytic (as a function of $\alpha_{1}$) in $\operatorname{LHP}_{1}$ and $K_{+\circ}(\alpha_{1},\alpha_{2})$ is analytic (as a function of $\alpha_{1}$) in $\operatorname{UHP}_{1}$. Exact expressions for $K_{-\circ}$ and $K_{+\circ}$ follow from (4.1):

[TABLE]

Indeed, for a given $\alpha_{2}\in\mathcal{A}_{2}$, the only branch point of $K_{-\circ}(\boldsymbol{\alpha})$ is at $\alpha_{1}=\kappa(k,\alpha_{2})$, which is strictly within $\operatorname{UHP}_{1}$ so that $K_{-\circ}(\boldsymbol{\alpha})$ is a minus function when considered as a function of $\alpha_{1}$, i.e., it is analytic in $\operatorname{LHP}_{1}$. Similarly, the only branch point of $K_{+\circ}(\boldsymbol{\alpha})$ is at $\alpha_{1}=-\kappa(k,\alpha_{2})$, which is strictly within $\operatorname{LHP}_{1}$ so that $K_{+\circ}(\boldsymbol{\alpha})$ is a plus function when considered as a function of $\alpha_{1}$, i.e. it is analytic in $\operatorname{UHP}_{1}$. This factorisation is illustrated in Figure 7.

It must be stressed that these functions do not have any useful analyticity properties when viewed as functions of $\alpha_{2}$, with branch cuts passing through both $\operatorname{UHP}_{2}$ and $\operatorname{LHP}_{2}$ as $\alpha_{1}$ moves along $\mathcal{A}_{1}$. This can be seen in Figure 8.

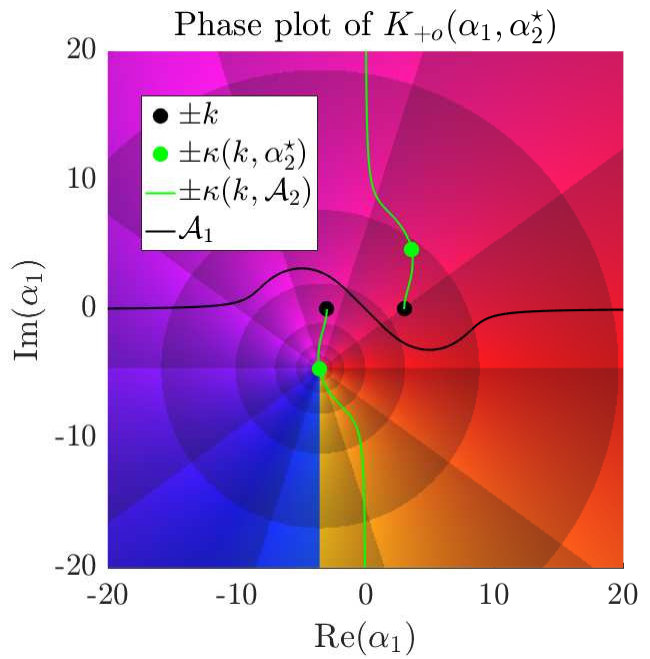

It is also possible to introduce the functions $K_{\circ-}$ and $K_{\circ+}$ defined as follows:

[TABLE]

which will prove useful in Section 4.2.2.

4.2 Factorisation in the $\alpha_{2}$-plane

4.2.1 Cauchy’s formula and its application to factorisation problems

Let us state two useful results in complex analysis, that we will need in this section. The results are classic, and hence, the proofs are omitted. Please refer to e.g. [25] for more details. Note that these are valid for a generic complex plane, and since in what we have done so far $\mathcal{A}_{1}$ and $\mathcal{A}_{2}$ are the same, we will just denote it by $\mathcal{A}$ in what follows. Similarly, we will use UHP and LHP without subscript.

Lemma 4.1

[Cauchy’s formula and sum-split]* Let $\Phi$ be a function analytic on a (potentially curved) strip $\mathcal{S}\subset\mathbb{C}$ containing $\mathcal{A}$, such that we have $\Phi(\alpha)=\Phi_{+}(\alpha)+\Phi_{-}(\alpha)$ on $\mathcal{A}$ with $\Phi_{+}$ analytic on $\operatorname{UHP}$ and $\Phi_{-}$ analytic on $\operatorname{LHP}$. Consider $\mathcal{A}^{b}_{\varepsilon}$ and $\mathcal{A}^{a}_{\varepsilon}$ to be the contours oriented from left to right defined by $\mathcal{A}^{b}_{\varepsilon}=\mathcal{A}-i\varepsilon$ and $\mathcal{A}^{a}_{\varepsilon}=\mathcal{A}+i\varepsilon$, where $\varepsilon\char 62\relax 0$ is any number such that these contours lie within $\mathcal{S}$ and the superscripts $a$ and $b$ stand for “above” and “below” respectively, as illustrated in Figure 9. Let $\alpha\in\mathcal{A}$, then, provided that $\Phi(z)=\mathcal{O}(1/|z|^{\lambda})$ for some $\lambda\char 62\relax 0$ as $|z|\rightarrow\infty$ within $\mathcal{S}$, the following formulae hold*

[TABLE]

and can be used to analytically continue $\Phi_{+}$ ($\Phi_{-}$) from $\mathcal{A}$ onto $\operatorname{UHP}$ ($\operatorname{LHP}$).

Corollary 4.1

[Cauchy’s formula and factorisation]* Let $\Psi$ be a function analytic on a (potentially curved) strip $\mathcal{S}\subset\mathbb{C}$ containing $\mathcal{A}$, such that we have $\Psi(\alpha)=\Psi_{+}(\alpha)\Psi_{-}(\alpha)$ on $\mathcal{A}$ with $\Psi_{+}$ analytic on $\operatorname{UHP}$ and $\Psi_{-}$ analytic on $\operatorname{LHP}$. Let $\alpha\in\mathcal{A}$, then, provided that $\Psi(z)\rightarrow 1$ as $|z|\rightarrow\infty$ within $\mathcal{S}$, the following formulae hold*

[TABLE]

where $\mathcal{A}_{\varepsilon}^{a,b}$ are defined as in Lemma 4.1, and can be used to analytically continue $\Psi_{+}$ from $\mathcal{A}$ onto $\operatorname{UHP}$ and $\Psi_{-}$ from $\mathcal{A}$ onto $\operatorname{LHP}$.

4.2.2 Factorisation of $K_{-\circ}$ and $K_{+\circ}$

It does not seem possible to find an explicit factorisation of these functions. Nevertheless, a direct application of Cauchy’s formulae does lead to a formal factorisation of $K_{-\circ}$ and $K_{+\circ}$ in the $\alpha_{2}$ plane. However, the resulting expressions can be quite slow to evaluate numerically. In Appendix A, we perform some manipulations of the integrals in order to obtain forms that are rapid to compute; these are employed in (4.4)-(4.7). $K_{-\circ}$ can be factorised as $K_{-\circ}(\boldsymbol{\alpha})=K_{-+}(\boldsymbol{\alpha})K_{--}(\boldsymbol{\alpha})$, and $K_{+\circ}$ can be factorised as $K_{+\circ}(\boldsymbol{\alpha})=K_{++}(\boldsymbol{\alpha})K_{+-}(\boldsymbol{\alpha})$, where we have

[TABLE]

These formulae allow for a fast evaluation of the four components of the factorisation of $K$, allowing us to gain a good visual understanding of the singularity structure of $K_{-+}$, $K_{--}$, $K_{++}$ and $K_{+-}$, as illustrated in Figures 10 and 11. To give an idea of the speed, for each plot we need to evaluate the functions 160,000 times and it takes about 14 seconds to run on a standard laptop.

Another method (see e.g. [4]), involving the Dilog function, has also been used to evaluate these factors. Both methods are very fast to evaluate, though, upon implementing them both in Matlab, it transpires that ours leads to a faster evaluation of $K_{++}$ say. Moreover, our formula (4.6) giving $K_{++}$ is more compact than that involving the Dilog function.

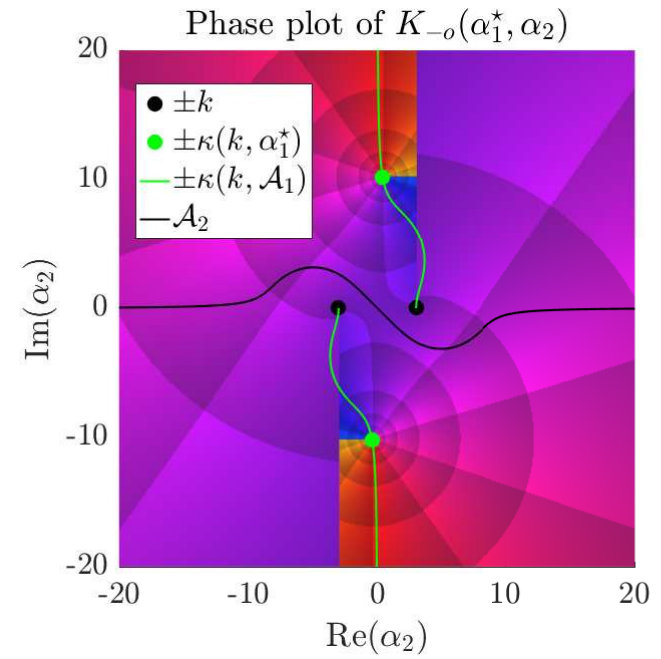

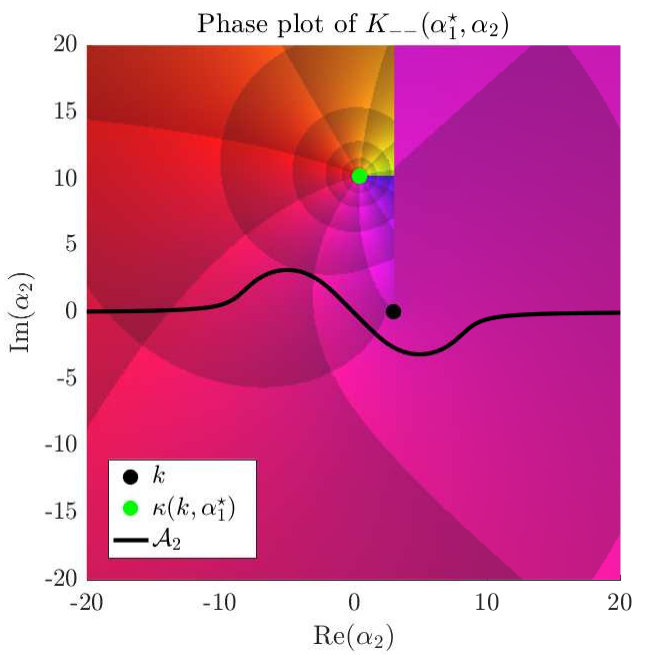

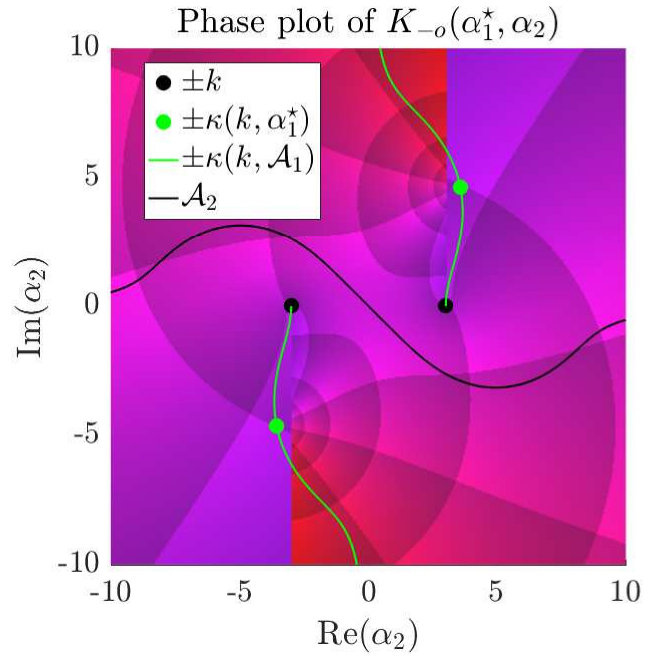

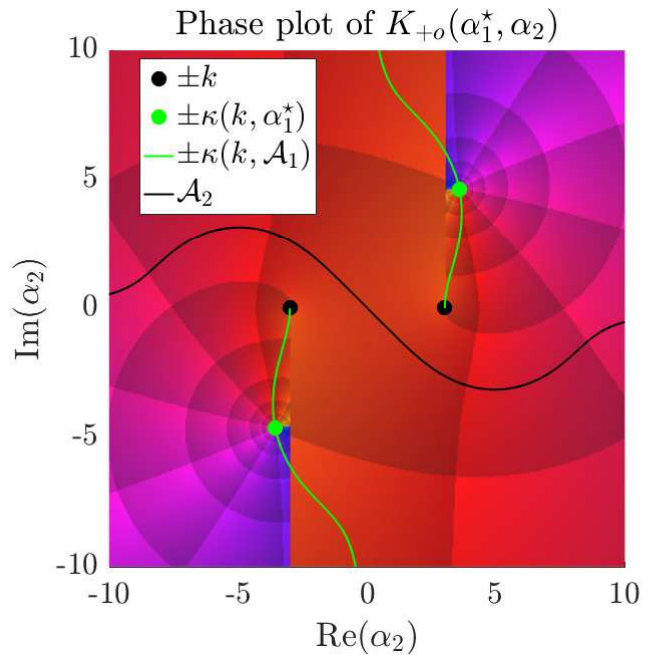

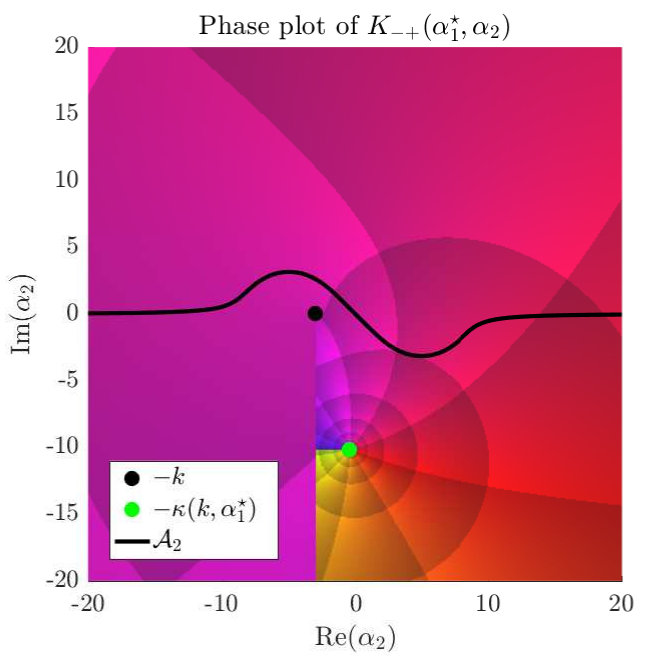

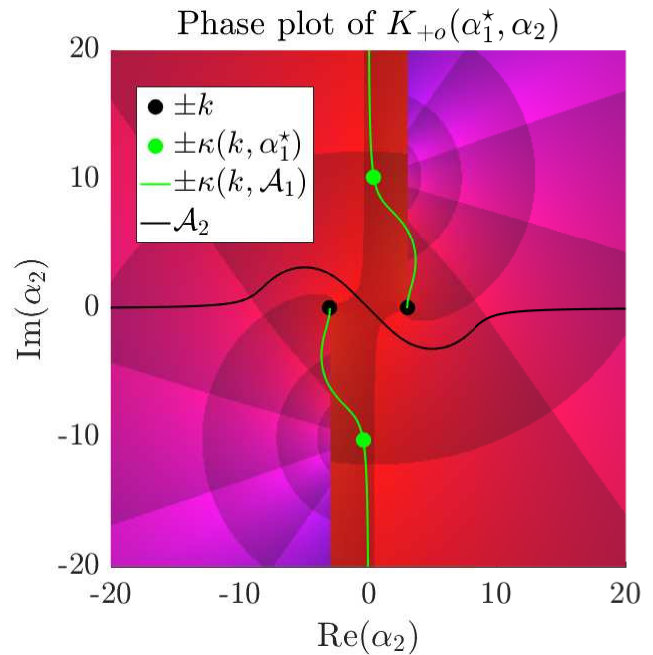

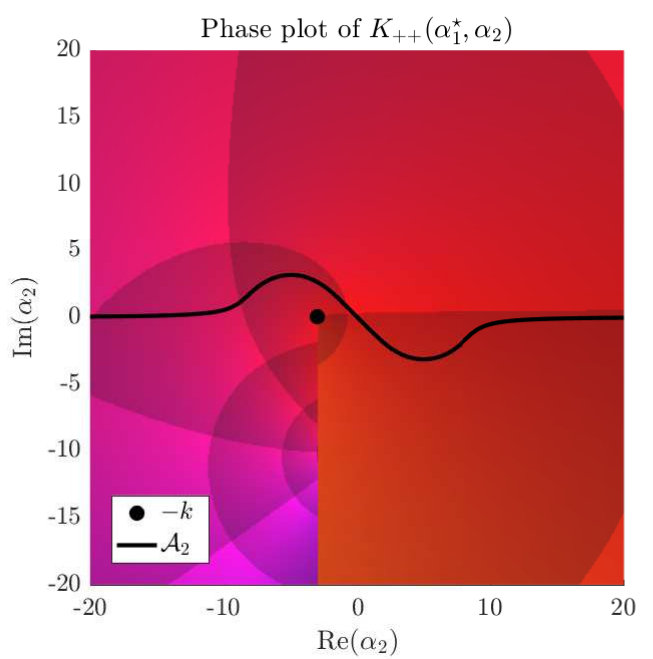

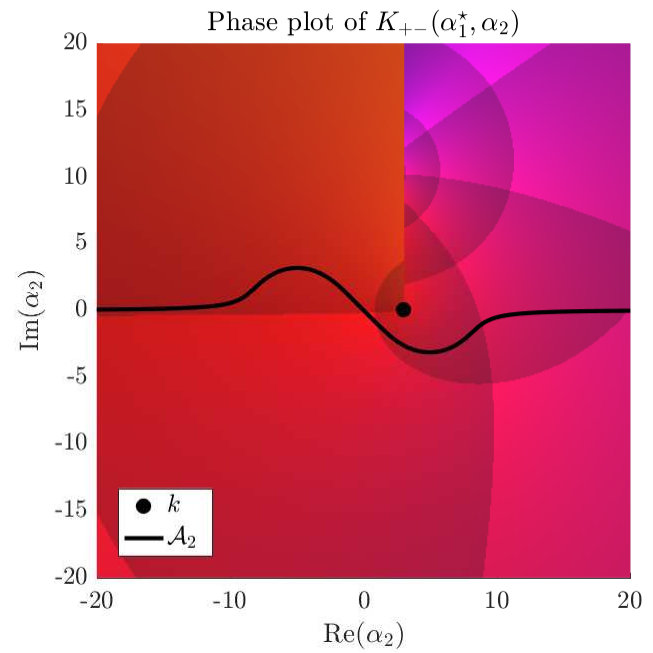

On Figures 10 and 11, $\alpha_{1}^{\star}$ has been chosen on $\mathcal{A}_{1}$ for illustration purpose, but it could have been chosen anywhere in $\text{LHP}_{1}$ for Figure 10 and anywhere in $\text{UHP}_{1}$ for Figure 11. We chose to visualise this factorisation in the $\alpha_{2}$ plane, but it is also possible to visualise it in the $\alpha_{1}$ plane for a given $\alpha_{2}^{\star}$ on $\mathcal{A}_{2}$. In this case, in order to analytically continue the factors past their natural domain of analyticity, one should use the functions $K_{\circ\pm}$ introduced in (4.3).

5 The (generic) Wiener-Hopf system in

$\mathbb{C}^{2}$

5.1 Quadruple sum-split

Using the function $F_{++}$ defined in (3.14), the functional equation (3.10) can be rewritten $G(\boldsymbol{\alpha})=F_{++}(\boldsymbol{\alpha})K(\boldsymbol{\alpha})$ and, as seen in Section 3, $G$ is analytic on $\mathcal{D}=\mathcal{A}_{1}\times\mathcal{A}_{2}$. Hence, we can444A more rigorous approach to obtain this would be to refer to Bochner’s theorem [14]. write its additive decomposition

[TABLE]

where $G_{++}(\boldsymbol{\alpha})$, $G_{-+}(\boldsymbol{\alpha})$, $G_{--}(\boldsymbol{\alpha})$ and $G_{+-}(\boldsymbol{\alpha})$ are analytic on $\mathcal{D}_{++}$, $\mathcal{D}_{-+}$, $\mathcal{D}_{--}$ and $\mathcal{D}_{+-}$ respectively. Note that by definition of $G(\boldsymbol{\alpha})$, see (3.5), we have $G(\boldsymbol{\alpha})=\mathfrak{F}[u(x_{1},x_{2},0)](\boldsymbol{\alpha})$, where $\mathfrak{F}$ is the double Fourier transform operator as defined in Section 3.2. Therefore, upon defining the functions $u_{j}$, $j=1\ldots 4$, by

[TABLE]

it is then possible to define the additive terms as quarter-range Fourier transforms:

[TABLE]

We can also define the auxiliary functions $G_{+\circ}=G_{++}+G_{+-}$ and $G_{-\circ}=G_{-+}+G_{--}$ that are analytic on $\mathcal{D}_{+\circ}$ and $\mathcal{D}_{-\circ}$ respectively.

5.2 On the function $G_{++}$

Because we impose the Dirichlet condition (2.4), it follows that we have

[TABLE]

and so, since $G_{++}$ is defined on $\mathcal{D}_{++}$ by $G_{++}(\boldsymbol{\alpha})=\mathfrak{F}[u_{1}(x_{1},x_{2})](\boldsymbol{\alpha})$, we obtain

[TABLE]

Note that each pole must lie in its respective lower-half plane whether $a_{1,2}$ is positive or negative in order to ensure that $G_{++}$ is analytic in $\mathcal{D}_{++}$. As discussed in Remark 3.1, when $a_{1,2}$ is positive, we allow it to have a small imaginary part, $\epsilon\char 60\relax 0$, which places it below $\mathcal{A}_{1,2}$, and then later allow $\epsilon\rightarrow 0$.

Hence, at the moment, we have four unknown functions, namely $F_{++}$, $G_{+-}$, $G_{-+}$ and $G_{--}$. In the following two subsections, we will show how (5.1) can be reduced to four equations, involving our four unknowns.

5.3 A first split, in the $\alpha_{1}$ plane

Let us start by rewriting555For brevity we will only specify the argument of the functions involved if it is not $\boldsymbol{\alpha}$. (5.1) as follows:

[TABLE]

Upon dividing by $K_{-\circ}$, we obtain

[TABLE]

Now, formally, using for example Lemma 4.1, it is possible to perform a sum-split in the $\alpha_{1}$-plane of the terms $G_{++}/K_{-\circ}$ and $G_{+-}/K_{-\circ}$ by writing

[TABLE]

where the operators $\left[\ \right]_{-\circ}$ and $\left[\ \right]_{+\circ}$ represent respectively the $\alpha_{1}$-minus part and $\alpha_{1}$-plus part of a given function that is analytic on $\mathcal{A}_{1}$ when considered a function of $\alpha_{1}$. With this split, (5.5) may be rearranged as

[TABLE]

Because of the simplicity of $G_{++}$ (see (5.4)), the sum-split of $G_{++}/K_{-\circ}$ can be achieved explicitly via the pole removal technique:

[TABLE]

Now, by construction, the left-hand side (LHS) of (5.6) is analytic in $\mathcal{D}_{+\circ}$, while the right-hand side (RHS) of (5.6) is analytic in $\mathcal{D}_{-\circ}$. Hence it is possible to use (5.6) to construct a function $E_{1\circ}$ that is analytic on $\mathbb{C}\times\mathcal{A}_{2}$ and defined by

[TABLE]

Moreover, it can be shown that it tends to zero as $|\alpha_{1}|\rightarrow\infty$ (see Appendix B.2), and so we can apply Liouville’s theorem in the $\alpha_{1}$ plane to get $E_{1\circ}\equiv 0$; hence

[TABLE]

5.4 A second split, in the $\alpha_{2}$

plane

Upon multiplying equation (5.10) by $K_{-+}(a_{1},\alpha_{2})/K_{+-}$, it becomes

[TABLE]

The LHS is a $++$ function, and, once again, formally, using Lemma 4.1, each of the two terms on the RHS of (5.12) has a sum-split decomposition in the $\alpha_{2}$ plane (the associated operators being denoted $\left[\ \right]_{\circ-}$ and $\left[\ \right]_{\circ+}$), such that we can rewrite (5.12) as

[TABLE]

Again, because of the form of $G_{++}$, the related split can be performed explicitly by pole removal to get

[TABLE]

Now, by inspection, it is clear that the LHS of (5.13) is analytic on $\mathcal{D}_{++}$, while its RHS is analytic on $\mathcal{D}_{+-}$. Hence, it is possible to construct a function $E_{+2}$ that is analytic on $\operatorname{UHP}_{1}\times\mathbb{C}$ and defined by

[TABLE]

One of the aims of this work is to provide a constructive path towards Radlow’s ansatz. In order to do so, we wish to apply Liouville’s theorem in the $\alpha_{2}$ plane and, for this, we need to examine the right-hand sides of (5.16) as $|\alpha_{2}|\rightarrow\infty$ in their respective half-planes of analyticity. Using the proof given in Appendix B.3, we can show that $E_{+2}\equiv 0$ and hence obtain the two main equations of the paper:

[TABLE]

Remember that in order to recover the physical field everywhere via (3.11), the unknown of interest is the function $F_{++}(\boldsymbol{\alpha})$. We can at this stage make two important remarks regarding (5.17). Firstly, provided that we know the function $G_{+-}$, then $F_{++}$ can in theory be recovered. Secondly, it is important to note that the first term on the RHS of (5.17) is exactly Radlow’s ansatz published in [27]. The main issue with Radlow’s solution was that the resulting physical field did not behave as expected near the tip of the quarter-plane (Radlow’s ansatz predicts a behaviour of $\mathcal{O}(r^{1/4})$, while the correct behaviour is $\mathcal{O}(r^{\nu_{1}-1/2})$, where $\nu_{1}$ is related to the first eigenvalue of the Laplace-Beltrami operator). As such the benefit of this equation is dual. On the one hand, it is clear that (5.17) indicates the error in Radlow’s analysis, since a term is missing from his ansatz. On the other hand, we provide here a constructive procedure showing how this ansatz is obtained, which can be enlightening in view of the fact that no derivation was provided in Radlow’s original work. Indeed, it was the fact that Radlow merely stated a solution in [27], that has partially led to difficulties in establishing and quantifying the error to-date.

In addition, we also know that the correct physical behaviour of the solution should be enforced by the term involving $G_{+-}$. Equation (5.18), that we will refer to as a compatibility equation, is very interesting in that respect. Firstly, it does not appear in Radlow’s work, nor in any subsequent work to our knowledge. Secondly, if it can somehow be inverted (which in practice is a very difficult thing to do), it provides a way to obtain $G_{+-}$. Even though it is not possible to do this exactly (as the authors believe is the case), it provides a way of testing any approximation to $G_{+-}$. Hence, we believe that the compatibility equation (5.18) is key to solving the problem at hand. We will not go through this route in this paper, but it will be the basis of a future article.

Before going further, note also that (5.11) has not been used so far. It is possible to employ it to obtain two more equations involving $G_{--}$, $G_{+-}$ and $G_{-+}$, by introducing similarly a function $E_{-2}$ entire in the $\alpha_{2}$ complex plane (which is again zero by application of Liouville’s theorem). However, we do not believe that these will provide further information on the solution, and so are extraneous. Moreover, nowhere in this section did we use the definition of $\mathcal{A}_{1,2}$ explicitly; hence the results obtained remain valid when $a_{1}$ or $a_{2}$ are positive.

To summarise, in order to solve our problem and find $F_{++}$, we need to gain some information about $G_{+-}$ and find an approximation that will be compatible both with the physics of the problem and with the compatibility equation (5.18). A possible approximation scheme for $G_{+-}$, involving and explicit canonical integral, is suggested in [5]. However, for the purpose of this paper, let us assume that we know $F_{++}$ and let us try to find out what can be inferred about the diffraction coefficient.

5.5 Link with diffraction coefficient

Classically, (see e.g. [6, 7]) the Dirichlet corner diffraction coefficient $f^{d}(\theta,\varphi,\theta_{0},\varphi_{0})$ is defined by

[TABLE]

where $u_{\operatorname{sph}}$ represents the spherical wave emanating from the tip. Assuming that $F_{++}$ is known, using complexified spherical coordinates, one can apply a double steepest-descent analysis as $kr\rightarrow\infty$ [12, 2] to obtain the following relationship between the diffraction coefficient and $F_{++}$:

[TABLE]

We believe that this formula should remain valid everywhere. We may of course get other far-field contributions (edge-diffracted waves, reflected wave, etc.) that will result from crossing poles when deforming the various contours to their steepest-descent paths. However, the $1/kr$ component can only be the one given in (5.20). In particular, it should have the same singular regions as those obtained (explicitly) with the embedding procedure, but most importantly, this formula should be valid in the regions that the embedding formulae cannot (yet) reach. We can easily observe that the polar singularity structure is similar. In fact we have seen in [6] that if we write $\xi=\cos(\varphi)\sin(\theta)$, $\xi_{0}=\cos(\varphi_{0})\sin(\theta_{0})$, $\eta=\sin(\varphi)\sin(\theta)$ and $\eta_{0}=\sin(\varphi_{0})\sin(\theta_{0})$, the diffraction coefficient had simple poles when $\xi=-\xi_{0}$ and $\eta=-\eta_{0}$. Upon noticing that in (5.20) we evaluate $F_{++}$ at $(\alpha_{1},\alpha_{2})=(-k\xi,-k\eta)$, realising that $(a_{1},a_{2})=(k\xi_{0},k\eta_{0})$, and remembering that $F_{++}$ has poles at $\alpha_{1,2}=a_{1,2}$, we recover the expected polar singularities.

Note666The authors are most grateful to the anonymous reviewer for this and many other suggestions, which have significantly improved the clarity and focus of the article. that (5.20) implies that the diffraction coefficient does not depend on $k$. To see this, let $v(\boldsymbol{x})$ be the scattered field of the Dirichlet quarter-plane problem for $k=1$. One can show directly that, for $k\char 62\relax 0$, the solution $u$ of our problem summarised in Section 2.5 is given by $u(\boldsymbol{x})=v(k\boldsymbol{x})$. Using the basic definition of the double Fourier transform, and the fact that $\tfrac{\partial u}{\partial x_{3}}(x_{1},x_{2},0^{+})=0$ on $Q_{2}\cup Q_{3}\cup Q_{4}$, we can show that $ikF_{++}(k\boldsymbol{\alpha})=\mathfrak{F}[\tfrac{\partial v}{\partial x_{3}}(x_{1},x_{2},0^{+})](\boldsymbol{\alpha})$, which is clearly independent of $k$.

Another interesting feature to be considered is that we know [6] that the diffraction coefficient should in fact be purely imaginary (at least where the MSF are valid). However, it is not obvious that the RHS of (5.20) is indeed purely imaginary.

One issue with the formula (5.20) is that the function $F_{++}$ is evaluated on the real interval $(-k,k)$ in both complex planes. However, it is clear from the above analysis that the segment $(-k,0)$ does not lie in $\operatorname{UHP}_{1}$ or $\operatorname{UHP}_{2}$. Hence, we are forced to evaluate a $++$ function outside $\mathcal{D}_{++}$. This problem can be dealt with by means of analytically continuing $F_{++}$ within that region.

6 Comparison between Radlow’s ansatz and MSF

In this section, we compare the diffraction coefficient obtained by the MSF to that obtained by using Radlow’s erroneous ansatz. The MSF is now an established method known to be correct within a certain domain of the observer space. The idea of comparing both methods is mainly due to serendipity. Whilst testing a method to evaluate the effect of $G_{+-}$ on the diffraction coefficient, we once accidentally set $G_{+-}=0$, which is equivalent to using Radlow’s ansatz exactly. To our surprise, this led to a very good agreement with the MSF results, where these formulae were valid. We decided to explore the incidence space, and so far we could not find any incident angle leading to an obvious disagreement between the two methods. Here we present four distinct incidences (we keep $\theta_{0}=\pi/4$, and choose four different $\varphi_{0}$), corresponding to different signs for $a_{1,2}$. The chosen incidences are summarised in Figure 12.

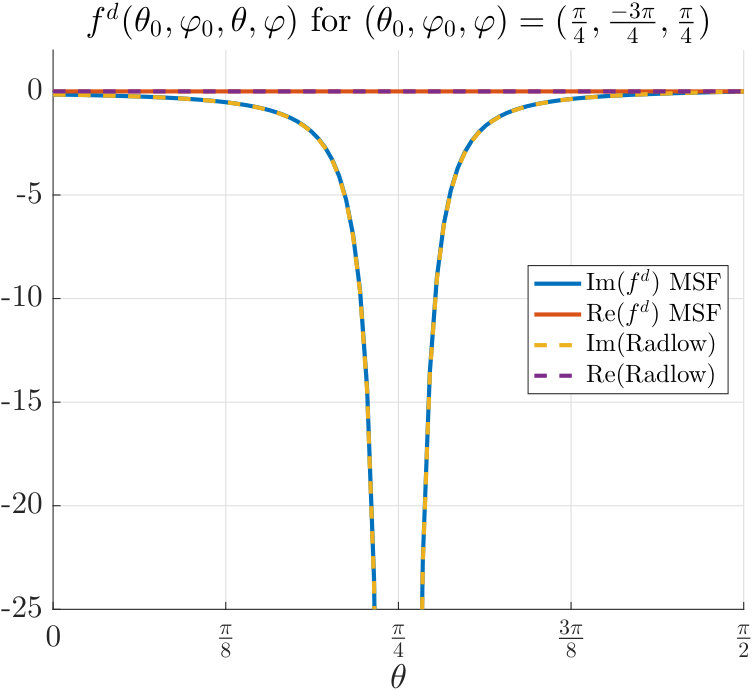

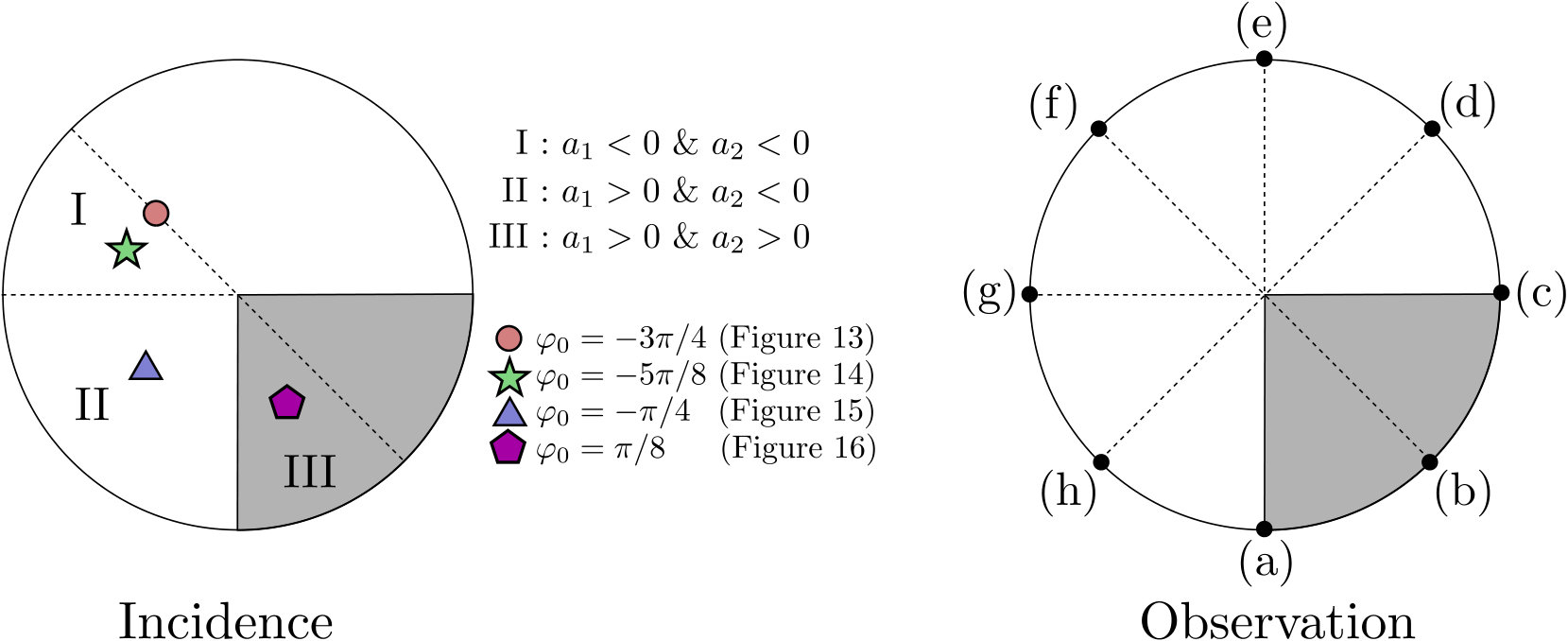

For each incidence, we pick 8 arcs surrounding the quarter-plane on which we evaluate the diffraction coefficient. That is we pick 8 values of $\varphi$ between 0 and $2\pi$, and for each value of $\varphi$, we evaluate the coefficient for $\theta\in[0,\pi/2]$. The results are presented in Figures 13–16, showing very good agreement between the two methods. When the diffraction coefficient does not have any singularities, as in Figures 13(e)(f)(g), 14(e)(f)(g), 15(a)(g)(h) and 16(b), it means that the only far-field component in the observation region is the spherical wave emanating from the tip, this is the so-called oasis zone. The diffraction coefficient becomes singular at the boundaries of existence of the edge-diffracted fields. Another important point to mention is the validity of this ansatz in the region where the MSF are not valid (see [6] for discussion) due to double diffraction of the field (Figures 15(c) and 16(a)(c)). Passing the limit of validity, we notice that the diffraction coefficient given by Radlow’s ansatz, which is purely imaginary everywhere else, becomes purely real. Mathematically this corresponds to saddle points going through a branch point during the steepest-descent procedure. Having no data to compare to in this region, it remains to be seen if this yields the correct physical solution.

The fact that Radlow’s ansatz produces extremely accurate results for the diffraction coefficient is indeed surprising, but such possibility was not ruled out in Albani’s work [3]. Indeed Albani’s approach to showing that Radlow’s ansatz (let us call it $F^{\operatorname{Ra}}_{++}(\boldsymbol{\alpha})$) was incorrect was to demonstrate that the resulting physical field, $u^{\operatorname{Ra}}(x_{1},x_{2},x_{3})$ did not satisfy the boundary condition, i.e. was not equal to $-e^{-i(a_{1}x_{1}+a_{2}x_{2})}$ on the quarter-plane $x_{1,2}\char 62\relax 0$. An interesting point, however, was that he showed that as both $x_{1}$ and $x_{2}$ tend to infinity simultaneously, we have

[TABLE]

implying that in a way, the boundary conditions are asymptotically satisfied away from the vertex and the edges. The rapidity of the decay (one over the cube of the distance to the vertex) being much higher than the decay of the spherical wave (one over this distance) may be the beginning of an explanation as to why Radlow’s ansatz performs so well in that case. It has to be said however that the agreement between the two methods cannot be perfect. Indeed, if it were to be, then $F_{++}$ and $F_{++}^{Ra}$ would have to be exactly the same on a non-isolated region, and hence, due to the theory of analytic functions, they will have to be the same everywhere, which as we showed would violate the compatibility condition. There must hence exist a numerical discrepancy between the two methods. In order to find it, we made sure that the MSF and the Radlow’s ansatz where accurately evaluated up to a relative error of the order $\mathcal{O}(10^{-5})$ and looked at the pointwise difference between the two methods for the particular testcase of Figure 13(g). The results are displayed in Figure 17, and one can see that the relative error is of the order $\mathcal{O}(10^{-3})$, two orders of magnitude higher than the precision with which both methods were computed. We can hence conclude that this is an actual discrepancy between the two methods, and not a numerical artefact.

7 Conclusion

In this paper, we revisited Radlow’s double Wiener-Hopf approach for the Dirichlet quarter-plane problem. We have tried to add more clarity and precision to his innovative approach, with an aim to obtain a constructive method of solution of this canonical boundary value problem. The inverse Fourier transform (3.11), gives the solution in terms of an unknown function $F_{++}$, that depends on two complex variables. We reduced the problem to two equations, one, (5.17), expresses $F_{++}$ as the sum of two terms, one containing the unknown function $G_{+-}$ and the other being Radlow’s ansatz. This, on the one hand, gives a constructive way of obtaining the ansatz, and on the other hand, offers yet another reason why this ansatz cannot be the true solution. The second equation, (5.18), called the compatibility equation, involves solely the unknown function $G_{+-}$ and could be key to determining this crucial unknown function.

Finally, following a steepest-descent analysis, we have related $F_{++}$ to the diffraction coefficient $f^{d}$. Numerical results show that when choosing $F_{++}$ as per Radlow’s ansatz, we obtain surprisingly accurate results for the diffraction coefficient. In fact, the results seem to agree very well with those obtained by the established Modified Smyshlyaev Formulae, where this method is valid. Theoretically, it is however impossible for this agreement to be perfect, and we have shown that there exists a small discrepancy between the two methods, with a relative error of order $\mathcal{O}(10^{-3})$. It should be noted that the MSF is a very quick way of evaluating the diffraction coefficient; however, Radlow’s ansatz, and the factorisation formulae provided herein, is even faster (computing the Radlow result for each graph of Section 6 takes about 1s on a standard laptop). This observation naturally opens some interesting questions:

• •

is the diffraction coefficient arising from Radlow’s ansatz a very good far-field approximation, even in the region inaccessible by the MSF;

• •

why does the near-field have seemingly no influence on the far-field behaviour;

• •

can we find a constructive method for determining the function $G_{+-}$, and hence a unique formulation reconciling near-field and far-field;

• •

can we take a similar approach in the Neumann case?

We hope to be able to answer these points in our future work, several of which could have profound consequences on how we approach diffraction problems in general.

Appendix A Factorisation of $K_{-\circ}$ and $K_{+\circ}$

Let us show how the factorisation of $K_{-\circ}$ is obtained. The factorisation of $K_{+\circ}$ is obtained in a very similar way. Introduce the auxiliary function $\mathfrak{K}_{-\circ}$ as

[TABLE]

Naturally, for a given $\alpha_{2}$ in $\mathcal{A}_{2}$, $\mathfrak{K}_{-\circ}(\boldsymbol{\alpha})$ remains a minus function when seen as a function of $\alpha_{1}$. Plots of the auxiliary function $\mathfrak{K}_{-\circ}(\boldsymbol{\alpha})$ are provided in Figure 18.

Note that for $\mathfrak{K}_{-\circ}(\alpha_{1},\alpha_{2}^{\star})$ (Figure 18, left) the point $\alpha_{1}=\kappa(k,\alpha_{2}^{\star})$ is not a branch point anymore, but just a simple pole. For $\mathfrak{K}_{-\circ}(\alpha_{1}^{\star},\alpha_{2})$ (Figure 18, right), as expected, $\alpha_{2}=\pm k$ are branch points, while $\alpha_{2}=\pm\kappa(k,\alpha_{1}^{\star})$ now correspond to two simple poles.

Let us now set $\alpha_{1}\in\operatorname{LHP}_{1}$. Now for a given $\alpha_{2}$ in $\mathcal{A}_{2}$ (where $\mathfrak{K}_{-\circ}(\boldsymbol{\alpha})$ is analytic when considered as a function of $\alpha_{2}$), we can make use of Corollary 4.1 to write $\mathfrak{K}_{-\circ}(\boldsymbol{\alpha})=\mathfrak{K}_{--}(\boldsymbol{\alpha})\mathfrak{K}_{-+}(\boldsymbol{\alpha})$, the equality being valid on $\mathcal{D}_{-\circ}$, where $\mathfrak{K}_{--}(\boldsymbol{\alpha})$ is analytic in $\operatorname{LHP}_{2}$ and $\mathfrak{K}_{-+}(\boldsymbol{\alpha})$ is analytic in $\operatorname{UHP}_{2}$ when both are considered as functions of $\alpha_{2}$. And, these are given by

[TABLE]

where $\overset{\swarrow}{\log}$ was defined in Section 3.1. The choice of this particular logarithm is in fact extremely important in order to avoid crossings between branch cuts and the contour of integration. Using the exact expression of $\mathfrak{K}_{-\circ}(\boldsymbol{\alpha})$, this can be simplified to

[TABLE]

Going back to $K_{-\circ}(\boldsymbol{\alpha})$, we have

[TABLE]

Note that $\sqrt[\downarrow]{k+\alpha_{2}}$ is a plus function in the $\alpha_{2}$-plane (branch point at $\alpha_{2}=-k$) and $\sqrt[\downarrow]{k-\alpha_{2}}$ is a minus function in the $\alpha_{2}$-plane (branch point at $\alpha_{2}=+k$). Hence the function $\mathfrak{K}_{-+}/\sqrt[\downarrow]{k+\alpha_{2}}$ is a plus function and the function $\mathfrak{K}_{--}/\sqrt[\downarrow]{k-\alpha_{2}}$ is a minus function. We can then write $K_{-\circ}(\boldsymbol{\alpha})=K_{--}(\boldsymbol{\alpha})K_{-+}(\boldsymbol{\alpha})$, where $K_{--}(\boldsymbol{\alpha})$ is analytic in $\operatorname{LHP}_{1}\times\operatorname{LHP}_{2}$ and $K_{-+}(\boldsymbol{\alpha})$ is analytic in $\operatorname{LHP}_{1}\times\operatorname{UHP}_{2}$ when both are considered as functions of $\alpha_{2}$ and given by

[TABLE]

and

[TABLE]

recovering (4.4) and (4.5). This choice of realising the square root of the numerator by solely halving the inside of the exponential ensures that no spurious branch cuts occur. This would have been the case if instead we chose to take $\sqrt{\phantom{k}}$ or even $\sqrt[\downarrow]{\phantom{k}}$ of the numerator. The second square root of the denominator does not affect its branch cut structure. These functions are very fast to evaluate since the integrand now decays like $x^{-2}$ along $\mathcal{A}_{\varepsilon}^{a}(x)$ as $x\rightarrow\pm\infty$.

Appendix B On the application of Liouville’s theorem

B.1 A useful result

The following lemma is establishing a link between the decay of a function $\Phi(\alpha)$ and the decay of its respective plus and minus sum-split parts $\Phi_{+}(\alpha)$ and $\Phi_{-}(\alpha)$.

Lemma B.1

Let $\Phi(\alpha)$ be a function analytic on some strip. And consider its sum-split $\Phi(\alpha)=\Phi_{+}(\alpha)+\Phi_{-}(\alpha)$, where $\Phi_{+}$ and $\Phi_{-}$ are analytic in the UHP and LHP respectively.

1. a)

If $\Phi(\alpha)=\mathcal{O}(1/|\alpha|^{{\lambda}})$ as $|\alpha|\rightarrow\infty$ within the strip, with ${\lambda}\char 62\relax 1$, then $\Phi_{\pm}(\alpha)$ are decaying at least like $1/|\alpha|$ as $|\alpha|\rightarrow\infty$ within their respective half-planes. 2. b)

If $\Phi(\alpha)=\mathcal{O}(1/|\alpha|)$ as $|\alpha|\rightarrow\infty$ within the strip, then $\Phi_{\pm}(\alpha)$ are decaying at least like $\ln|\alpha|/|\alpha|$ as $|\alpha|\rightarrow\infty$ within their respective half-planes. 3. c)

*If $\Phi(\alpha)=\mathcal{O}(1/|\alpha|^{{\lambda}})$ as $|\alpha|\rightarrow\infty$ within the strip, with $0\char 60\relax{\lambda}\char 60\relax 1$, then $\Phi_{\pm}(\alpha)$ are decaying at least like *$1/|\alpha|^{{\lambda}}$as $|\alpha|\rightarrow\infty$ within their respective half-planes.

These results are classic. The leading order results (as presented here) can be found for example in [40], while full asymptotic expansions are given in [23] and [39].

B.2 For the $\alpha_{1}$ plane factorisation

Let us show that the top (resp. bottom) line of (5.9) tends to zero as $|\alpha_{1}|\rightarrow\infty$ within $\operatorname{UHP}_{1}$ (resp. $\operatorname{LHP}_{1}$), while $\alpha_{2}\in\mathcal{A}_{2}$ is fixed. First of all, due to (5.4), it is clear that

[TABLE]

The condition on the $(x_{1}\!=\!0,x_{2}\!\char 62\relax\!0)$ edge implies that for a fixed $x_{2}\char 62\relax 0$, for $x_{3}=0^{+}$, we have $\tfrac{\partial u}{\partial x_{3}}=\mathcal{O}(x_{1}^{-1/2})$ as $x_{1}\to 0^{+}$, while $u=\mathcal{O}((-x_{1})^{1/2})$ as $x_{1}\to 0^{-}$. Because $F_{++}\propto\mathfrak{F}[\tfrac{\partial u}{\partial x_{3}}]$ and $G_{-+}=\mathfrak{F}[u_{2}]$ (see (5.3)), the Abelian theorems [25] imply that

[TABLE]

For a fixed $x_{2}\char 60\relax 0$ and $x_{3}=0^{+}$, the field is well-behaved as $x_{1}\to 0$, hence $u=\mathcal{O}(1)$. Since $G_{--}=\mathfrak{F}[u_{3}]$ and $G_{+-}=\mathfrak{F}[u_{4}]$, the Abelian theorems imply that

[TABLE]

Moreover we have

[TABLE]

Hence, using (B.1), (B.2) and (B.3), we know that

[TABLE]

Finally, using the Lemma B.1c) in the $\alpha_{1}$ plane, we conclude that we have (at least)

[TABLE]

This shows that the terms of the top (resp. bottom) line of (5.9) go to zero as $|\alpha_{1}|\rightarrow\infty$ within $\operatorname{UHP}_{1}$ (resp. $\operatorname{LHP}_{1}$). Hence, Liouville’s theorem can safely be applied.

B.3 For the $\alpha_{2}$ plane factorisation

Here we wish to show that $E_{+2}$ tends to zero when $\alpha_{1}$ is fixed in $\text{UHP}_{1}$ and $|\alpha_{2}|\to\infty$.

B.3.1 The terms without brackets

Let us show that the terms without brackets in the top line777We can show in a very similarly fashion (omitted for brevity) that the terms without brackets in the bottom line of (5.16) do also tend to zero for fixed $\alpha_{1}\in\text{UHP}_{1}$ and $|\alpha_{2}|\to\infty$ within $\text{LHP}_{2}$. of (5.16) tend to zero as $\alpha_{1}$ is fixed in $\text{UHP}_{1}$ and $|\alpha_{2}|\rightarrow\infty$ within $\text{UHP}_{2}$. First of all, using the expression (5.4) for $G_{++}$, it is straightforward to see that

[TABLE]

Moreover, using the definition of $K_{++}$ and $K_{-+}$, we can see that

[TABLE]

The $(x_{1}\char 62\relax 0,x_{2}=0)$ edge condition implies that for $x_{3}=0^{+}$ and a fixed $x_{1}\char 62\relax 0$, $\tfrac{\partial u}{\partial x_{3}}=\mathcal{O}(x_{2}^{-1/2})$ as $x_{2}\to 0^{+}$, which, by the Abelian theorems, requires that $F_{++}(\alpha_{1},\alpha_{2})=\mathcal{O}(1/|\alpha_{2}|^{1/2})$ for $\alpha_{1}\in\text{UHP}_{1}$ as $|\alpha_{2}|\to\infty$ within $\text{UHP}_{2}$. This leads to

[TABLE]

B.3.2 The terms with brackets

Because of Lemma B.1, in order to prove that the last term on the top (resp. bottom) line of (5.16) tends to zero as $|\alpha_{2}|\to\infty$ within $\text{UHP}_{2}$ (resp. $\text{LHP}_{2}$), it is sufficient to show that $\tfrac{K_{-+}(a_{1},\alpha_{2})}{K_{+-}}[\tfrac{G_{+-}}{K_{-\circ}}]_{+\circ}$ tends to zero as a power of $|\alpha_{2}|$ as $|\alpha_{2}|\rightarrow\infty$ while on $\mathcal{A}_{2}$. In order to show this888Thank you to the anonymous reviewer for this suggestion!, rewrite (5.12), which is valid for $\alpha_{2}\in\mathcal{A}_{2}$, as

[TABLE]

The first estimate on the RHS is already given in the paper in (B.5), whilst the second comes naturally from the asymptotic behaviours

[TABLE]

The first of these results is obvious given the exact expression (5.4) for $G_{++}$, whilst the second and third come directly from the integral representations (4.5) and (4.7). Hence, we have proved that the sufficient condition is satisfied and that, consequently, Liouville’s theorem can safely be applied to obtain $E_{+2}\equiv 0$.
