A Tight Lower Bound for Comparison-Based Quantile Summaries

TL;DR

This paper establishes a matching lower bound for the space complexity of comparison-based quantile summaries, proving that the best known deterministic algorithms are asymptotically optimal.

Contribution

It proves a tight lower bound matching the upper bound of the Greenwald-Khanna algorithm, showing no deterministic comparison-based summary can use less space.

Findings

Optimal space bound for deterministic quantile summaries proven

Lower bound matches the best known upper bound

Implications for biased quantiles and related tasks

Abstract

Quantiles, such as the median or percentiles, provide concise and useful information about the distribution of a collection of items, drawn from a totally ordered universe. We study data structures, called quantile summaries, which keep track of all quantiles, up to an error of at most $\varepsilon$. That is, an $\varepsilon$-approximate quantile summary first processes a stream of items and then, given any quantile query $0\le \phi\le 1$, returns an item from the stream, which is a $\phi'$-quantile for some $\phi' = \phi \pm \varepsilon$. We focus on comparison-based quantile summaries that can only compare two items and are otherwise completely oblivious of the universe. The best such deterministic quantile summary to date, due to Greenwald and Khanna (SIGMOD '01), stores at most $O(\frac{1}{\varepsilon}\cdot \log \varepsilon N)$ items, where $N$ is the number of items in the stream. We prove that this space bound is optimal by showing a matching lower bound. Our result thus rules out the possibility of constructing a deterministic comparison-based quantile summary in space $f(\varepsilon)\cdot o(\log N)$, for any function $f$ that does not depend on $N$. As a corollary, we improve the lower bound for biased quantiles, which provide a stronger, relative-error guarantee of $(1\pm \varepsilon)\cdot \phi$, and for other related computational tasks.

Figures

Equations

$$\displaystyle\operatorname{gap}(\pi,\varrho)=\max_{1\leq i<|I_{\pi}|}\,\max\big{(}\,$$

$$\mathrm{gap}(\pi ,\varrho )=\underset{i}{\max }{\mathrm{rank}}_{\varrho }(I_{\varrho }[i+1])-{\mathrm{rank}}_{\pi }(I_{\pi }[i]).$$

$${\mathrm{rank}}_{\varrho }(I_{\varrho }[i+1])-{\mathrm{rank}}_{\pi }(I_{\pi }[i])\ge {\mathrm{rank}}_{\pi }(I_{\pi }[i+1])-{\mathrm{rank}}_{\pi }(I_{\pi }[i]).$$

$$\phi\cdot N=\frac{1}{2}\big{(}\operatorname{rank}_{\varrho}(I_{\varrho}[i+1])+\operatorname{rank}_{\pi}(I_{\pi}[i])\big{)},$$

$$S(k,\pi ,\varrho ,({\ell }_{\pi },r_{\pi }),({\ell }_{\varrho },r_{\varrho })):=\left|I_{{\pi }^{\prime \prime }}^{({\ell }_{\pi },r_{\pi })}\right|,$$

$$\operatorname{gap}\big{(}{\sigma},{\tau},(\ell_{\sigma},r_{\sigma}),(\ell_{\tau},r_{\tau})\big{)}=\max_{1\leq i<|I^{\prime}_{\tau}|}\operatorname{rank}_{\overline{\tau}}(I^{\prime}_{\tau}[i+1])-\operatorname{rank}_{\overline{\sigma}}(I^{\prime}_{\sigma}[i])\,.$$

$$\displaystyle S_{k}=S(k,\pi,\varrho,(\ell_{\pi},r_{\pi}),(\ell_{\varrho},r_{\varrho}))\geq\frac{N_{k}}{\operatorname{gap}\big{(}\pi^{\prime\prime},\pi^{\prime\prime},(\ell_{\pi},r_{\pi}),(\ell_{\pi},r_{\pi})\big{)}}\geq\frac{N_{k}}{\operatorname{gap}\big{(}\pi^{\prime\prime},\varrho^{\prime\prime},(\ell_{\pi},r_{\pi}),(\ell_{\varrho},r_{\varrho})\big{)}}\,,$$

$$S_k\ge c\cdot ({\log }_{2}g+1)\cdot \left(\frac{N_k}{g}-\frac{1}{4\epsilon }\right).$$

$$S_k\ge c\cdot ({\log }_{2}g+1)\cdot \left(\frac{N_k}{g}-\frac{1}{4\epsilon }\right)\ge c\cdot ({\log }_{2}2\epsilon N_k+1)\cdot \left(\frac{1}{2\epsilon }-\frac{1}{4\epsilon }\right)=\Omega \left(\frac{1}{\epsilon }\cdot \log \epsilon N_k\right).$$

$${\mathrm{rank}}_{{\varrho }_k}(b^{\prime })-{\mathrm{rank}}_{{\pi }_k}(a^{\prime })\ge g^{\prime }+g^{\prime \prime }-1,$$

$$g^{\prime \prime }={\mathrm{rank}}_{{\varrho }_{k-1}^{\prime \prime }}(b)-{\mathrm{rank}}_{{\pi }_{k-1}^{\prime \prime }}(a)\le {\mathrm{rank}}_{{\varrho }_{k-1}^{\prime \prime }}(b^{\prime })-{\mathrm{rank}}_{{\pi }_{k-1}^{\prime \prime }}(a^{\prime }),$$

$${\mathrm{rank}}_{{\varrho }_{k-1}^{\prime \prime }}(b^{\prime })-{\mathrm{rank}}_{{\pi }_{k-1}^{\prime \prime }}(a^{\prime })={\mathrm{rank}}_{{\varrho }_k}(b^{\prime })-{\mathrm{rank}}_{{\pi }_k}(a^{\prime })-(g^{\prime }-1),$$

$$c\cdot ({\log }_2{g}^{\prime }+1)\cdot \left(\frac{N_{k-1}}{g^{\prime }}-\frac{1}{4\epsilon }\right)\ge c\cdot ({\log }_{2}g+1)\cdot \left(\frac{N_k}{g}-\frac{1}{4\epsilon }\right).$$

$$S_k\ge S_{k-1}^{\prime }\ge c\cdot ({\log }_2{g}^{\prime }+1)\cdot \left(\frac{N_{k-1}}{g^{\prime }}-\frac{1}{4\epsilon }\right)\ge c\cdot ({\log }_{2}g+1)\cdot \left(\frac{N_k}{g}-\frac{1}{4\epsilon }\right).$$

$$g^{\prime \prime }<\frac{1}{2}\cdot g\cdot \frac{{\log }_{2}g+4}{{\log }_{2}g+1}.$$

$$c\cdot ({\log }_2{g}^{\prime }+1)\cdot \left(\frac{N_{k-1}}{g^{\prime }}-\frac{1}{4\epsilon }\right)<c\cdot ({\log }_{2}g+1)\cdot \left(\frac{N_k}{g}-\frac{1}{4\epsilon }\right).$$

$$c\cdot ({\log }_2{g}^{\prime }+1)\cdot \frac{N_{k-1}}{g^{\prime }}<c\cdot ({\log }_{2}g+1)\cdot \frac{N_k}{g}.$$

$$\frac{{\log }_2{g}^{\prime }+1}{2g^{\prime }}<\frac{{\log }_{2}g+1}{g}.$$

$$g^{\prime }>\frac{g}{2}\cdot \frac{{\log }_2{g}^{\prime }+1}{{\log }_{2}g+1}.$$

$$g^{\prime }>\frac{g}{2}\cdot \frac{{\log }_{2}g-1}{{\log }_{2}g+1}.$$

$$g^{\prime \prime }$$

$$=\frac{1}{2}\cdot g\cdot \left(2-\frac{{\log }_{2}g-1}{{\log }_{2}g+1}+\frac{2}{g}\right)$$

$$<\frac{1}{2}\cdot g\cdot \left(2-\frac{{\log }_{2}g-1}{{\log }_{2}g+1}+\frac{1}{{\log }_{2}g+1}\right)$$

$$=\frac{1}{2}\cdot g\cdot \frac{2\cdot ({\log }_{2}g+1)-({\log }_{2}g-1)+1}{{\log }_{2}g+1}=\frac{1}{2}\cdot g\cdot \frac{{\log }_{2}g+4}{{\log }_{2}g+1},$$

$$S_{k-1}^{\prime \prime }\ge c\cdot \left({\log }_2\left(\frac{1}{2}\cdot g\cdot \frac{{\log }_{2}g+4}{{\log }_{2}g+1}\right)+1\right)\cdot \left(\frac{N_{k-1}}{\frac{1}{2}\cdot g\cdot \frac{{\log }_{2}g+4}{{\log }_{2}g+1}}-\frac{1}{4\epsilon }\right).$$

$${\log }_2\left(\frac{1}{2}\cdot g\cdot \frac{{\log }_{2}g+4}{{\log }_{2}g+1}\right)+1\ge {\log }_2\left(\frac{1}{2}\cdot g\right)+1={\log }_{2}g.$$

$$S_{k-1}^{\prime \prime }\ge c\cdot {\log }_{2}g\cdot \left(\frac{\frac{1}{2}{N}_k}{\frac{1}{2}\cdot g\cdot \frac{{\log }_{2}g+4}{{\log }_{2}g+1}}-\frac{1}{4\epsilon }\right)=\frac{c\cdot {\log }_{2}g\cdot N_k}{g\cdot \frac{{\log }_{2}g+4}{{\log }_{2}g+1}}-\frac{c\cdot {\log }_{2}g}{4\epsilon }.$$

$$\frac{N_{k-1}-2g}{g}=\frac{N_k-4g}{2g}\ge \frac{N_k-16\epsilon N_k}{2g},$$

$$\frac{c\cdot {\log }_{2}g\cdot N_k}{g\cdot \frac{{\log }_{2}g+4}{{\log }_{2}g+1}}$$

$$\frac{{\log }_{2}g}{\frac{{\log }_{2}g+4}{{\log }_{2}g+1}}+\frac{1-16\epsilon }{2c}\ge {\log }_{2}g+1.$$

Full text

The best such deterministic quantile summary to date, due to Greenwald and Khanna [6], stores at most $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ items, where $N$ is the number of items in the stream. We prove that this space bound is optimal by showing a matching lower bound. Our result thus rules out the possibility of constructing a deterministic comparison-based quantile summary in space $f(\varepsilon)\cdot o(\log N)$, for any function $f$ that does not depend on $N$. As a corollary, we improve the lower bound for biased quantiles, which provide a stronger, relative-error guarantee of $(1\pm\varepsilon)\cdot\phi$, and for other related computational tasks.

1 Introduction

The streaming model of computation is a useful abstraction to understand the complexity of working with large volumes of data, too large to conveniently store. Efficient algorithms are known for many basic functions, such as finding frequent items, computing the number of distinct items, and measuring the empirical entropy of the data. Typically, in the streaming model we allow just one pass over the data and a small amount of memory, i.e., sublinear in the data size. While computing sums, averages, or counts is trivial with a constant memory, finding the median, quartiles, percentiles and their generalizations, quantiles, presents a challenging task. Indeed, four decades ago, Munro and Paterson [17] showed that finding the exact median in $p$ passes over the data requires $\Omega(N^{1/p})$ memory, where $N$ is the number of items in the stream. They also provide a $p$-pass algorithm for selecting the $k$-th smallest item in space $N^{1/p}\cdot\operatorname{polylog}(N)$, and a $\operatorname{polylog}(N)$-pass algorithm running in space $\operatorname{polylog}(N)$.

Thus, either large space, or a large number of passes is necessary for finding the exact median. For this reason, subsequent research has mostly been concerned with the computation of approximate quantiles, which are often sufficient for applications. Namely, for a given precision guarantee $\varepsilon>0$ and a query $\phi\in[0,1]$, instead of finding the $\phi$-quantile, i.e., the $\lfloor\phi N\rfloor$-th smallest item, we allow the algorithm to return a $\phi^{\prime}$-quantile for $\phi^{\prime}\in[\phi-\varepsilon,\phi+\varepsilon]$. In other words, when queried for the $k$-th smallest item (where $k=\lfloor\phi N\rfloor$), the algorithm may return the $k^{\prime}$-th smallest item for some $k^{\prime}\in[k-\varepsilon N,k+\varepsilon N]$. Such an item is called an $\varepsilon$-approximate $\phi$-quantile.

More precisely, we are interested in a data structure, called an $\varepsilon$-approximate quantile summary, that processes a stream of items from a totally ordered universe in a single pass. Then, it returns an $\varepsilon$-approximate $\phi$-quantile for any query $\phi\in[0,1]$. We optimize the space used by the quantile summary, measured in words, where a word can store any item or an integer with $\mathcal{O}(\log N)$ bits (that is, counters, pointers, etc.).111 Hence, if instead $b$ bits are needed to store an item, then the space complexity in bits is at most $\max(b,\mathcal{O}(\log N))$ times the space complexity in words. We do not assume that items are drawn from a particular distribution, but rather focus on data independent solutions with worst-case guarantees. Quantile summaries are a valuable tool, since they immediately provide solutions for a range of related problems: estimating the cumulative distribution function; answering rank queries; constructing equi-depth histograms (where the number of items in each bucket must be approximately equal); performing Kolmogorov-Smirnov statistical tests [12]; and balancing parallel computations [19].

Note that offline, with random access to the whole data set, we can design an $\varepsilon$-approximate quantile summary with storage cost just $\left\lceil\frac{1}{2\varepsilon}\right\rceil$. We simply select the $\varepsilon$-quantile, the $3\varepsilon$-quantile, the $5\varepsilon$-quantile, and so on, and arrange them in a sorted array. Queries can be answered by returning the $\phi$-quantile of this summary data set. Moreover, this is optimal, since there cannot be an interval $I\subset[0,1]$ of size more than $2\varepsilon$ such that there is no $\phi$-quantile for any $\phi\in I$ in the quantile summary.

Building on the work of Munro and Paterson [17], Manku, Rajagopalan, and Lindsay [14] designed a (streaming) quantile summary which uses space $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log^{2}\varepsilon N)$, although it relies on the advance knowledge of the stream length $N$. Then, shaving off one log factor, Greenwald and Khanna [6] gave an $\varepsilon$-approximate quantile summary, which needs just $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ words and does not require any advance information about the stream. Both of these deterministic algorithms work for any universe with a total ordering as they just need to do comparisons of the items. We call such an algorithm comparison-based.

The question of whether one can design a 1-pass deterministic algorithm that runs in a constant space for a constant $\varepsilon$ has been open for a long time, as highlighted by the first author in 2006 [1]. Following the above discussion, there is a trivial lower bound of $\Omega(\frac{1}{\varepsilon})$ that holds even offline. This was the best known lower bound until 2010 when Hung and Ting [10] proved that a deterministic comparison-based algorithm needs space $\Omega(\frac{1}{\varepsilon}\cdot\log\frac{1}{\varepsilon})$.

We significantly improve upon that result by showing that any deterministic comparison-based data structure providing $\varepsilon$-approximate quantiles needs to use $\Omega(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ memory on the worst-case input stream. Our lower bound thus matches the Greenwald and Khanna’s result, up to a constant factor, and in particular, it rules out an algorithm running in space $f(\varepsilon)\cdot o(\log N)$, for any function $f$ that does not depend on $N$. It also follows that a comparison-based data structure with $o(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ memory must fail to provide a $\phi$-quantile for some $\phi\in[0,1]$. Using a standard reduction (appending more items to the end of the stream), this implies that there is no deterministic comparison-based streaming algorithm that returns an $\varepsilon$-approximate median and uses $o(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ memory. Applying a different reduction, this yields a lower bound of $\Omega(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\delta})$ for any randomized comparison-based algorithm. We refer to Section 6 for a discussion of this and other corollaries of our result.

1.1 Overview and Comparison to Prior Bounds

Let $\mathcal{D}$ be a deterministic comparison-based quantile summary. From a high-level point of view, we prove the space lower bound for $\mathcal{D}$ by constructing two streams $\pi$ and $\varrho$ satisfying two opposing constraints: On one hand, the behavior of $\mathcal{D}$ on these streams is the same, implying that the memory states after processing $\pi$ and $\varrho$ are the same, up to an order-preserving renaming of the stored items. For this reason, $\pi$ and $\varrho$ are called indistinguishable. On the other hand, the adversary introduces as much uncertainty as possible. Namely, it makes the difference between the rank of a stored item with respect to (w.r.t.) $\pi$ and the rank of the next stored item w.r.t. $\varrho$ as large as possible, where the rank of an item w.r.t. stream $\sigma$ is its position in the ordering of $\sigma$. If this difference, which we call the “gap”, is too large, then $\mathcal{D}$ fails to provide an $\varepsilon$-approximate $\phi$-quantile for some $\phi\in[0,1]$. The crucial part of our lower bound proof is to construct the two streams in a way that yields a good trade-off between the number of items stored by the algorithm and the largest gap introduced.

While the previous lower bound of $\Omega(\frac{1}{\varepsilon}\cdot\log\frac{1}{\varepsilon})$ [10] is in the same computational model, and also works by creating indistinguishable streams with as much uncertainty as possible, our approach is substantially different. Mainly, the construction by Hung and Ting [10] is inherently sequential as it works in $m\approx\frac{1}{\varepsilon}\log\frac{1}{\varepsilon}$ iterations and appends $\mathcal{O}(m)$ items in each iteration to the streams constructed (and moreover, up to $\mathcal{O}(m)$ new streams are created from each former stream in each iteration). Thus, their construction produces (a large number of) indistinguishable streams of length $\Theta\left(\left(\frac{1}{\varepsilon}\log\frac{1}{\varepsilon}\right)^{2}\right)$. Furthermore, having the number of iterations equal to the number of items appended during each iteration (up to a constant factor) is crucial for the analysis in [10].

In contrast, our construction is naturally specified in a recursive way, and it produces just two indistinguishable streams of length $N$ for any $N=\Omega(\frac{1}{\varepsilon})$. For $N\approx\left(\frac{1}{\varepsilon}\right)^{2}$, our lower bound of $\Omega(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ implies the previous one of $\Omega(\frac{1}{\varepsilon}\cdot\log\frac{1}{\varepsilon})$, and hence for higher $N$, our lower bound is strictly stronger than the previous one.

The value in using a recursive construction is as follows: The construction produces two indistinguishable streams of length $\frac{1}{\varepsilon}\cdot 2^{k}$ for an integer $k\geq 1$, and we need to prove that the quantile summary $\mathcal{D}$ must store at least $c\cdot\frac{1}{\varepsilon}\cdot k$ items while processing one of these streams, for a constant $c>0$. The first half of the streams is constructed recursively, so $\mathcal{D}$ needs to store at least $c\cdot\frac{1}{\varepsilon}\cdot(k-1)$ items while processing the first half of either of these two streams (using an induction on $k$). If it actually stores already at least $c\cdot\frac{1}{\varepsilon}\cdot k$ items on the first half, then we are done. Otherwise, our inductive argument yields that there must a substantial uncertainty introduced while processing the first half, which we use in the recursive construction of the second half of the streams. Then our aim will be to show that, while processing the second half, $\mathcal{D}$ needs to store $c\cdot\frac{1}{\varepsilon}\cdot(k-1)$ items from the second half, by induction, and $c\cdot\frac{1}{\varepsilon}$ items from the first half, by a simple bound. Hence, it stores $c\cdot\frac{1}{\varepsilon}\cdot k$ items overall. However, using the inductive argument on the second half brings some technical difficulties, since the streams already contain items from the first half. Our analysis shows a space lower bound, called the “space-gap inequality”, that depends on the uncertainty introduced on a particular part of the stream, and this inequality is amenable to a proof by induction.

Organization of the paper. In Section 2, we start by describing the formal computational model in which our lower bound holds and formally stating our result. In Section 3, we introduce indistinguishable streams, and in Section 4 we describe our construction. Then, in Section 5 we inductively prove the crucial inequality between the space and the largest gap (the uncertainty), which implies the lower bound. Finally, in Section 6 we give corollaries of the construction and discuss related open problems.

1.2 Related Work

The Greenwald-Khanna algorithm [6] is generally regarded as the best deterministic quantile summary. The space bound of $O(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ follows from a somewhat involved proof, and it has been questioned whether this approach could be simplified or improved. Our work answers this second question in the negative. For a known universe $U$ of bounded size, Shrivastava et al. [18] designed a quantile summary q-digest using $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log|U|)$ words. Note that their algorithm is not comparison-based and so the result is incomparable to the upper bound of $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$. We are not aware of any lower bound which holds for a known universe of bounded size, apart from the trivial bound $\Omega(\frac{1}{\varepsilon})$.

If we tolerate randomization and relax the requirement for worst-case error guarantees, it is possible to design quantile summaries with space close to $\frac{1}{\varepsilon}$. After a sequence of improvements [15, 2, 13, 5], Karnin, Lang, and Liberty [11] designed a randomized comparison-based quantile summary with space bounded by $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\varepsilon\delta})$, where $\delta$ is the probability of not returning an $\varepsilon$-approximate $\phi$-quantile for some $\phi$. They also provide a reduction to transform the deterministic $\Omega(\frac{1}{\varepsilon}\cdot\log\frac{1}{\varepsilon})$ lower bound into a randomized lower bound of $\Omega(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\delta})$, implying optimality of their approach in the comparison-based model. We discuss further how the deterministic and randomized lower bounds relate in Section 6.

Luo et al. [13] compared quantile summaries experimentally and also provided a simple randomized algorithm with a good practical performance. This paper studies not only streaming algorithms for insertion-only streams (i.e., the cash register model), but also for turnstile streams, in which items may depart. Note that any algorithm for turnstile streams inherently relies on the bounded size of the universe. We refer the interested reader to the survey of Greenwald and Khanna [7] for a description of both deterministic and randomized algorithms, together with algorithms for turnstile streams, the sliding window model, and distributed algorithms.

Other results arise when relaxing the requirement for correctness under adversarial order to assuming that the input arrives in a random order. For random-order streams, Guha and McGregor [8] studied algorithms for exact and approximate selection of quantiles. Among other things, they gave an algorithm for finding the exact $\phi$-quantile in space $\operatorname{polylog}(N)$ using $\mathcal{O}(\log\log N)$ passes over a random-order stream, while with $\operatorname{polylog}(N)$ memory we need to do $\Omega(\log N/\log\log N)$ passes on the worst-case stream. The Shifting Sands algorithm [16] reduces the magnitude of the error from $O(n^{1/2})$ to $O(n^{1/3})$. Since our lower bound relies on carefully constructing an adversarial input sequence, it does not apply to this random order model.

2 Computational Model

We present our lower bounds in a comparison-based model of computation, in line with prior work, most notably that of Hung and Ting [10]. We assume that the items forming the input stream are drawn from a totally ordered universe $U$, about which the algorithm has no further information. The only allowed operations on items are to perform an equality test and a comparison of two given items. This restriction specifically rules out manipulations which try to combine multiple items into a single storage location, or replace a group of items with an “average” representative. We assume that the universe is unbounded and continuous in the sense that any non-empty open interval contains an unbounded number of items. This fact is relied on in our proof to be able to draw new elements falling between any previously observed pair. An example of such a universe is a large enough set of long incompressible strings, ordered lexicographically (where the continuous assumption may be achieved by making the strings even longer).

Let $\mathcal{D}$ be a deterministic data structure for processing a stream of items, i.e., a sequence of items arriving one by one. We make the following assumptions about the memory contents of $\mathcal{D}$. The memory used by $\mathcal{D}$ will contain some items from the stream, each considered to occupy one memory cell, and some other information which could include lower and upper bounds on the ranks of stored items, counters, etc. However, we assume that the memory does not contain the result of any function $f$ applied on any $k\geq 1$ items from the stream, apart from a comparison, the equality test and the trivial function $f(x)=x$ (as other functions are prohibited by our model). Thus, we can partition the memory state into a pair $M=(I,G)$, where $I$ is the item array for storing items from the input, indexed from $1$, and there are no items stored in the general memory $G$.

We give our lower bound on the memory size only in terms of $|I|$, the number of items stored, and ignore the size of $G$. For simplicity, we assume without loss of generality that the contents of $I$ are sorted non-decreasingly, i.e., $I[1]\leq I[2]\leq\cdots$. If this were not case, we could equivalently apply an in-place sorting algorithm after processing each item, while the information potentially encoded in the former ordering of $I$ can be retained in $G$ whose size we do not measure. Moreover, we assume that $|I|$ never decreases over time, i.e., once some memory is allocated to the item array, it is not released later (otherwise, we would need to take the maximum size of $|I|$ during the computation of $\mathcal{D}$). Finally, we can assume that the minimum and maximum elements of the input stream are always maintained, with at most a constant additional storage space.

Summarizing, we have the following definition.

Definition 1**.**

We say that a quantile summary $\mathcal{D}$ is comparison-based if the following holds:

1. (i)

$\mathcal{D}$* does not perform any operation on items from the stream, apart from a comparison and the equality test.* 2. (ii)

The memory of $\mathcal{D}$ is divided into the item array $I$, which stores only items that have already occurred in the stream (sorted non-decreasingly), and general memory $G$, which does not contain any item identifier. Furthermore, once an item is removed from $I$, it cannot be added back to $I$, unless it appears in the stream again. 3. (iii)

Given the $i$-th item $a_{i}$ from the input stream, the computation of $\mathcal{D}$ is determined solely by the results of comparisons between $a_{i}$ and $I[j]$, for $j=1,\dots,|I|$, the number $|I|$ of items stored, and the contents of the general memory $G$. 4. (iv)

Given a quantile query $0\leq\phi\leq 1$, its computation is determined solely by the number of items stored ($|I|$), and the contents of the general memory $G$. Moreover, $\mathcal{D}$ can only return one of the items stored in $I$.

We are now ready to state our main result formally.

Theorem 2**.**

For any $0<\varepsilon<\frac{1}{16}$, there is no deterministic comparison-based $\varepsilon$-approximate quantile summary which stores $o(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ items on any input stream of length $N$.

Fix the approximation guarantee $0<\varepsilon<\frac{1}{16}$ and assume for simplicity that $\frac{1}{\varepsilon}$ is an integer. Let $\mathcal{D}$ be a fixed deterministic comparison-based $\varepsilon$-approximate quantile summary. We show that for any integer $k\geq 1$, data structure $\mathcal{D}$ needs to store at least $\Omega(\frac{1}{\varepsilon}\cdot k)$ items from some input stream of length $N_{k}:=\frac{1}{\varepsilon}\cdot 2^{k}$ (thus, we have $\log_{2}\varepsilon N_{k}=k$).

Notation and conventions. We assume that $\mathcal{D}$ starts with an empty memory state $M_{\emptyset}=(I_{\emptyset},G_{\emptyset})$ with $|I_{\emptyset}|=0$. For an item $a$, let $\mathcal{D}(M,a)$ be the resulting memory state after processing item $a$ if the memory state was $M$ before processing $a$. Moreover, for a stream $\sigma=a_{1},\dots,a_{N}$, let $\mathcal{D}(M,\sigma)=\mathcal{D}(\dots\mathcal{D}(\mathcal{D}(M,a_{1}),a_{2}),\dots,a_{N})$ be the memory state after processing stream $\sigma$. For brevity, we use $(I_{\sigma},G_{\sigma})=\mathcal{D}(M_{\emptyset},\sigma)$, or just $I_{\sigma}$ for the item array after processing stream $\sigma$.

When referring to the order of a set of items, we always mean the non-decreasing order. For an item $a$ in stream $\sigma$, let $\operatorname{rank}_{\sigma}(a)$ be the rank of $a$ in the order of $\sigma$, i.e., the position of $a$ in the ordering of $\sigma$. In our construction, all items in each of the streams will be distinct, thus $\operatorname{rank}_{\sigma}(a)$ is well-defined and equal to one more than the number of items that are strictly smaller than $a$.

3 Indistinguishable Streams

We start by defining an equivalence of memory states of the fixed summary $\mathcal{D}$, which captures their equality up to renaming stored items. Then, we give the definition of indistinguishable streams.

Definition 3**.**

Two memory states $(I_{1},G_{1})$ and $(I_{2},G_{2})$ are said to be equivalent if (i) $|I_{1}|=|I_{2}|$, i.e., the number of items stored is the same, and (ii) $G_{1}=G_{2}$.

Definition 4**.**

We say that two streams $\pi=a_{1}a_{2}\dots a_{N}$ and $\varrho=b_{1}b_{2}\dots b_{N}$ of length $N$ are indistinguishable for $\mathcal{D}$ if (1) the final memory states $(I_{\pi},G_{\pi})$ and $(I_{\varrho},G_{\varrho})$ are equivalent, and (2) for any $1\leq i\leq|I_{\pi}|=|I_{\varrho}|$, there exists $1\leq j\leq N$ such that both $I_{\pi}[i]=a_{j}$ and $I_{\varrho}[i]=b_{j}$.

We remark that condition (2) is implied by (1) if the positions of stored items in the stream are retained in the general memory, but we make this property explicit as we shall use it later. In the following, let $\pi$ and $\varrho$ be two indistinguishable streams with $N$ items. Note that, after $\mathcal{D}$ processes one of $\pi$ and $\varrho$ and receives a quantile query $0\leq\phi\leq 1$, $\mathcal{D}$ must return the $i$-th item of array $I$ for some $i$, regardless of whether the stream was $\pi$ or $\varrho$. This follows, since $\mathcal{D}$ can make its decisions based on the values in $G$, which are identical in both cases, and operations on values in $I$, which are indistinguishable under the comparison-based model.

For any $k\geq 1$, our general approach is to recursively construct two streams $\pi_{k}$ and $\varrho_{k}$ of length $N_{k}$ that satisfy two constraints set in opposition to each other: They are indistinguishable for $\mathcal{D}$, but at the same time, for some $j$, the rank of $I_{\pi}[j]$ in stream $\pi$ and the rank of $I_{\varrho}[j+1]$ in stream $\varrho$ are as different as possible — we call this difference the “gap”. The latter constraint is captured by the following definition.

Definition 5**.**

We define the largest gap between indistinguishable streams $\pi$ and $\varrho$ (for $\mathcal{D}$) as

[TABLE]

As we assume that $I$ is sorted, $I_{\pi}[i+1]$ is the next stored item after $I_{\pi}[i]$ in the ordering of $I_{\pi}$. In the construction in Section 4, we will also ensure that $\operatorname{rank}_{\pi}(I_{\pi}[i])\leq\operatorname{rank}_{\varrho}(I_{\varrho}[i])$ for any $1\leq i\leq|I_{\pi}|$. Hence, we can simplify to

[TABLE]

We also have that $\operatorname{gap}(\pi,\varrho)\geq\operatorname{gap}(\pi,\pi)$, which follows, since for any $i$ it holds by construction that

[TABLE]

Lemma 6**.**

If $\mathcal{D}$ is an $\varepsilon$-approximate quantile summary, then $\operatorname{gap}(\pi,\varrho)\leq 2\varepsilon N$.

Proof.

Suppose that $\operatorname{gap}(\pi,\varrho)>2\varepsilon N$. We show that $\mathcal{D}$ fails to provide an $\varepsilon$-approximate $\phi$-quantile for some $0\leq\phi\leq 1$, which is a contradiction. Namely, because $\operatorname{gap}(\pi,\varrho)>2\varepsilon N$, there is $1\leq i<|I_{\pi}|=|I_{\varrho}|$ such that $\operatorname{rank}_{\varrho}(I_{\varrho}[i+1])-\operatorname{rank}_{\pi}(I_{\pi}[i])>2\varepsilon N$. Let $\phi$ be such that

[TABLE]

i.e., $\phi\cdot N$ is in the middle of the “gap”. Since streams $\pi$ and $\varrho$ are indistinguishable and $\mathcal{D}$ is comparison-based, given query $\phi$, $\mathcal{D}$ must return the $j$-th item of item array $I$ for some $j$, regardless of whether the stream is $\pi$ or $\varrho$. Observe that if $j\leq i$ and the input stream is $\pi$, item $I_{\pi}[j]$ does not meet the requirements to be an $\varepsilon$-approximate $\phi$-quantile of items in $\pi$. Otherwise, when $j>i$, then item $I_{\varrho}[j]$ is not an $\varepsilon$-approximate $\phi$-quantile of stream $\varrho$. In either case, we get a contradiction. ∎

As the minimum and maximum elements of stream $\pi$ are in $I_{\pi}$, it holds that $\operatorname{gap}(\pi,\pi)\geq N/|I_{\pi}|$, thus the number of stored items is at least $N/\operatorname{gap}(\pi,\pi)\geq N/\operatorname{gap}(\pi,\varrho)\geq\frac{1}{2\varepsilon}$, where the last inequality is by Lemma 6. This gives an initial lower bound of $\Omega(\frac{1}{\varepsilon})$ space. Our construction of adversarial inputs for $\mathcal{D}$ in the next section increases this bound.

4 Recursive Construction of Indistinguishable Streams

Intuition.

We will define our construction of the two streams $\pi$ and $\varrho$ using a recursive adversarial procedure for generating items into the two streams. This procedure tries to make the gap as large as possible, but ensures that they are indistinguishable. It helps to consider the recursion tree. This tree is a full binary tree with $k$ levels, with the root at level $1$ and thus with $2^{k-1}$ leaves at level $k$. In each leaf, $2/\varepsilon$ items are appended to the stream, while the adversary generates no items in internal (i.e., non-leaf) nodes. The construction performs the in-order traversal of the recursion tree.

One of the key concepts needed is the maintenance of two open intervals during the construction, one for stream $\pi$, denoted $(\ell_{\pi},r_{\pi})$, and the other for stream $\varrho$, denoted $(\ell_{\varrho},r_{\varrho})$. Initially, these intervals cover the whole universe, but they are refined in each internal node of the recursion tree. More precisely, consider the execution in an internal node $v$ at level $i$ of the recursion tree. We first execute the left subtree, which generates $\frac{1}{\varepsilon}\cdot 2^{i-1}$ items into the streams inside the current intervals. We then identify the largest gap inside the current intervals w.r.t. item arrays of $\mathcal{D}$ after processing streams $\pi$ and $\varrho$ (more precisely, after $\mathcal{D}$ has completed processing the prefixes of $\pi$ and $\varrho$ constructed so far). Having the largest gap, we identify new open intervals for $\pi$ and $\varrho$ in “extreme regions” of this gap, so that they do not contain any item so far. We explain this subroutine in greater detail when describing procedure RefineIntervals. We choose these intervals so that indistinguishability of the streams is preserved, while the rank difference between the two streams (the uncertainty) is maximized. The execution of the procedure in node $v$ ends by executing the right subtree of $v$, which generates a further $\frac{1}{\varepsilon}\cdot 2^{i-1}$ items into the new, refined intervals of the two streams. Recall that we consider the universe of items to be continuous, namely, that we can always generate sufficiently many items within both of the new intervals.

Notation.

For an item $a$ in stream $\sigma$, let $\operatorname{next}(\sigma,a)$ be the next item in the ordering of $\sigma$, i.e., the smallest item in $\sigma$ that is larger than $a$ (we never invoke $\operatorname{next}(\sigma,a)$ when $a$ is the largest item in $\sigma$). Similarly, for an item $b$ in stream $\sigma$, let $\operatorname{prev}(\sigma,b)$ be the previous item in the ordering of $\sigma$ (left undefined for the smallest item in $\sigma$). Note that $\operatorname{next}(\sigma,a)$ or $\operatorname{prev}(\sigma,b)$ may well not be stored by $\mathcal{D}$.

For an interval $(\ell,r)$ of items and an array $I$ of items, we use $I^{(\ell,r)}$ to denote the restriction of $I$ to $(\ell,r)$, enclosed by $\ell$ and $r$. That is, $I^{(\ell,r)}$ is the array of items $\ell,I[i],I[i+1],\dots,I[j],r$, where $i$ and $j$ are the minimal and maximal indexes of an item in $I$ that falls within the interval $(\ell,r)$, respectively. Items in $I^{(\ell,r)}$ are taken to be sorted and indexed from 1. Recall also that by our convention, $I_{\sigma}$ is the item array after processing some stream $\sigma$.

4.1 Procedure RefineIntervals

We next describe our procedure to find the largest gap and refine the intervals, defined in Pseudocode 1. It takes as input indistinguishable streams $\pi$ and $\sigma$ and two open intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$ of the universe, such that intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$ contain only the last $N^{\prime}$ items from $\pi$ and $\varrho$, respectively, for some $N^{\prime}\geq 2$. Note that $I^{\prime}_{\pi}$ and $I^{\prime}_{\varrho}$ are the item arrays of $\mathcal{D}$ for $\pi$ and $\varrho$ restricted to the intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$, respectively, as defined above. In these restricted arrays we find the largest gap (in line 4), which is determined by the largest rank difference of consecutive items in the two arrays. Finally, in lines 5 and 6, we define new, refined intervals in the extreme regions of the gap. To be precise, the new open interval for $\pi$ is between item $I^{\prime}_{\pi}[i]$ (whose rank is used to determine the largest gap) and the next item after $I^{\prime}_{\pi}[i]$ in the ordering of $\pi$, i.e., $\operatorname{next}(\pi,I^{\prime}_{\pi}[i])$. The new open interval for $\varrho$ is defined in a similar way: It is between item $I^{\prime}_{\varrho}[i+1]$ (used to determine the largest gap) and the item that precedes it in the ordering of $\varrho$, i.e., $\operatorname{prev}(\varrho,I^{\prime}_{\varrho}[i+1])$.

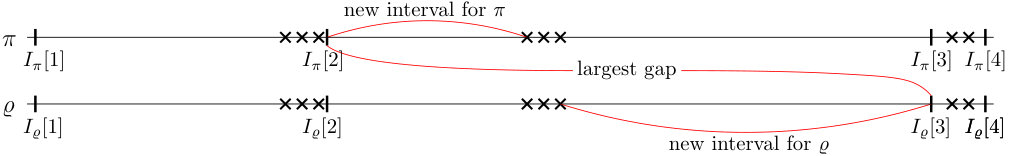

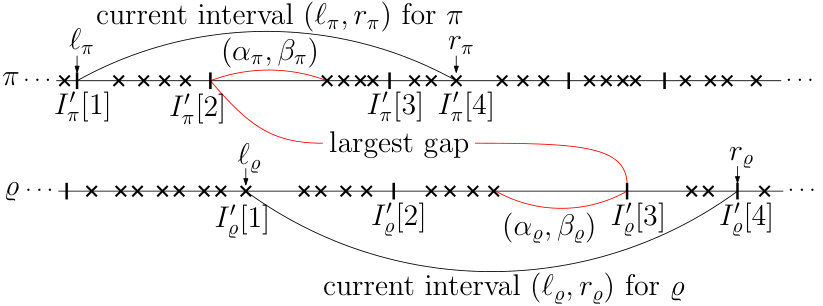

In Figure 1 we give an illustration. In this figure, the items in the streams are real numbers and we depict them on the real line, the top one for $\pi$ and the bottom one for $\varrho$. Each item is represented either by a short line segment if it is stored in the item array, or by a cross otherwise (indicating that it has been “forgotten” by $\mathcal{D}$). The procedure looks for the largest gap only within the current intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$. The ranks of items in the restricted item arrays (i.e., disregarding items outside the current intervals) can be verified to be $1,6,11,$ and $14$ w.r.t. both streams. (Note that $r_{\pi}$ is the last item in the restricted item array $I^{\prime}_{\pi}$, even though it was discarded from the whole item array $I_{\pi}$ by the algorithm, and similarly for $\ell_{\varrho}$ and $I^{\prime}_{\varrho}$.) Thus the largest gap size is $5$ items, and is found between the second item in the restricted item array $I^{\prime}_{\pi}$ and the third item in $I^{\prime}_{\varrho}$, as highlighted in the figure. In this example, there is another, equal sized, gap between the first and second item in these arrays. Ties can be broken arbitrarily. The new intervals in the extreme regions of the largest gap are depicted as well. ∎

We claim that in the RefineIntervals procedure $|I^{\prime}_{\pi}|=|I^{\prime}_{\varrho}|$, which implies that the largest gap in line 4 is well-defined. Let $\pi=a_{1}\dots a_{N}$ and $\varrho=b_{1}\dots b_{N}$ be the items in streams $\pi$ and $\varrho$, respectively. Since streams $\pi$ and $\varrho$ are indistinguishable, condition (2) in Definition 4 implies that for any $1\leq i\leq|I_{\pi}|=|I_{\varrho}|$ (where $I_{\pi}$ and $I_{\varrho}$ are the full item arrays), there exists $1\leq j\leq N$ such that both $I_{\pi}[i]=a_{j}$ and $I_{\varrho}[i]=b_{j}$. As only the last $N^{\prime}$ items of $\pi$ and of $\sigma$ are from intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$, respectively, we obtain that the restricted item arrays $I^{\prime}_{\pi}=I^{(\ell_{\pi},r_{\pi})}_{\pi}$ and $I^{\prime}_{\varrho}=I^{(\ell_{\varrho},r_{\varrho})}_{\varrho}$ must have the same size, proving the claim.

Finally, we show two properties that will be useful later and follow directly from the definition of the new intervals.

Observation 1**.**

For intervals $(\alpha_{\pi},\beta_{\pi})$ and $(\alpha_{\varrho},\beta_{\varrho})$ returned by $\textsc{RefineIntervals}\,(\pi,\varrho,(\ell_{\pi},r_{\pi}),(\ell_{\varrho},r_{\varrho}))$, it holds that

1. (i)

$\pi$* contains no item in the interval $(\alpha_{\pi},\beta_{\pi})$ and $\varrho$ contains no item in the interval $(\alpha_{\varrho},\beta_{\varrho})$; and* 2. (ii)

for any $a\in(\alpha_{\pi},\beta_{\pi})$ and $b\in(\alpha_{\varrho},\beta_{\varrho})$ we have that $\min\{i|a\leq I_{\pi}[i]\}=\min\{i|b\leq I_{\varrho}[i]\}$.

4.2 Recursive Adversarial Strategy

Pseudocode 2 gives the formal description of the recursive adversarial strategy. The procedure AdvStrategy takes as input the level of recursion $k$ and the indistinguishable streams $\pi$ and $\varrho$ constructed so far. It also takes two open intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$ of the universe such that so far there is no item from interval $(\ell_{\pi},r_{\pi})$ in stream $\pi$ and similarly, $\varrho$ contains no item from $(\ell_{\varrho},r_{\varrho})$.

The initial call of the strategy for some integer $k$ is AdvStrategy $(k,\emptyset,$ $\emptyset,(-\infty,\infty),$ $(-\infty,\infty))$, where $\emptyset$ stands for the empty stream and $-\infty$ and $\infty$ represent the minimum and maximum items in $U$, respectively. Note that the assumptions on the input for the initial call are satisfied. The strategy for $k=1$ is trivial: We just append arbitrary $2/\varepsilon$ items from $(\ell_{\pi},r_{\pi})$ to $\pi$ and any $2/\varepsilon$ items from $(\ell_{\varrho},r_{\varrho})$ to $\varrho$, in the same order for both streams. For $k>1$, we first use AdvStrategy recursively for level $k-1$. Then, we apply procedure RefineIntervals on the streams constructed after the first recursive call, and we get two new intervals on the extreme regions of the largest gap inside the current intervals. Finally, we use AdvStrategy recursively for $k-1$ in these new intervals. Below, we prove that the assumptions on input for these two recursive calls and for RefineIntervals are satisfied.

4.3 Example of the Adversarial Strategy

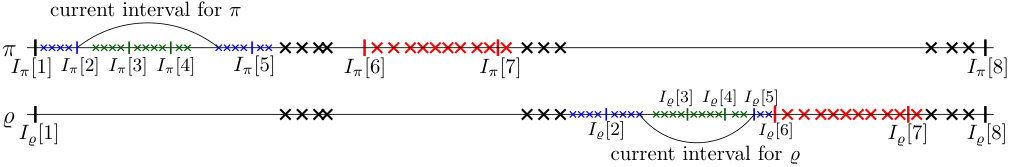

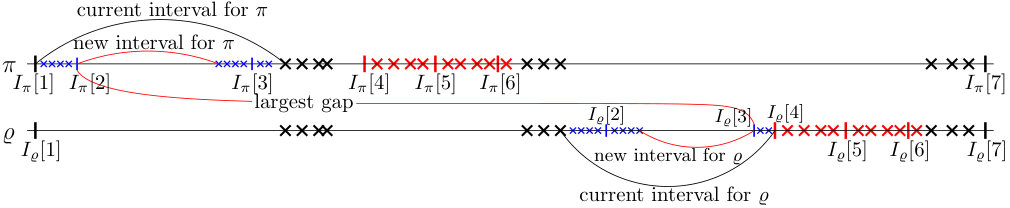

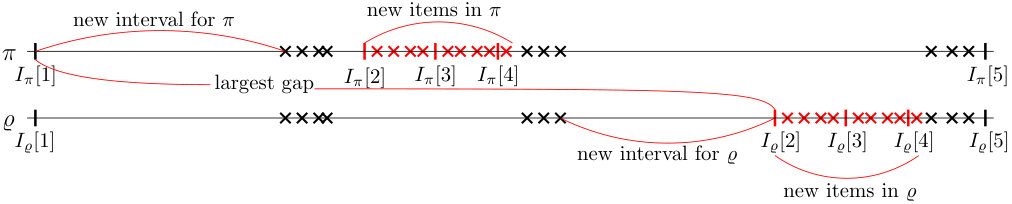

We now give an example of the construction with $k=3$ in Figure 2. The universe is $U=\Re$, which we depict by the real line. For simplicity, we set $\varepsilon=\frac{1}{6}$ (although recall that we require $\varepsilon<\frac{1}{16}$ for our analysis in Section 5 to hold).

The adversarial construction starts by calling AdvStrategy $(3,\emptyset,$ $\emptyset,$ $(-\infty,\infty),$ $(-\infty,\infty))$. The procedure then recursively calls itself twice and in the base case $k=1$, the two streams $\pi$ and $\varrho$ are initialized by $\frac{2}{\varepsilon}=12$ items (we can assume the same items are added to the two streams). The quantile summary under consideration ($\mathcal{D}$) chooses to store some of them, but as $2\varepsilon N_{1}=4$, it cannot forget four consecutive items.

At this point, we are in the execution of AdvStrategy $(2,\emptyset,$ $\emptyset,(-\infty,\infty),$ $(-\infty,\infty))$, having finished the recursive call in line 8. Figure 2(a) shows the first $12$ items sent to streams $\pi$ and $\varrho$, depicted on the real line for each stream. A short line segment represents an item that is stored in item array $I$, while a cross depicts an item not stored by $\mathcal{D}$. Note that the largest gap is between the second and the third stored item, i.e., $i=2$ in line 4 of AdvStrategy. This is because $\operatorname{rank}_{\pi}(I_{\pi}[2])=5$ and $\operatorname{rank}_{\varrho}(I_{\varrho}[3])=9$ (the gap of the same size is also between the first and the second item). Next, the procedure RefineIntervals finds the largest gap and identifies new intervals $(\alpha_{\pi},\beta_{\pi})$ and $(\alpha_{\varrho},\beta_{\varrho})$ for the second recursive call.

In the execution of $\textsc{AdvStrategy}(1,\pi^{\prime},\varrho^{\prime},(\alpha_{\pi},\beta_{\pi}),(\alpha_{\varrho},\beta_{\varrho}))$, there are $\frac{2}{\varepsilon}=12$ items appended to the streams and the largest gap can be of size at most $2\varepsilon N_{2}=8$. In Figure 2(b), we show the last $12$ items, appended in the second leaf of the recursion tree, highlighted in red. Note that fewer of the first $12$ items in the streams are now stored and that among the $12$ newly appended items, the first, the sixth, and the eleventh are stored for both streams. The execution returns to the root node of the recursion tree and the adversary finds the largest gap together with new intervals. One of the largest gaps is now between the first and the second stored item (in this example, all gaps have the same size of $8$).

The execution then goes to the third leaf, where $12$ items are appended for the third time. Figure 2(c) illustrates this, with the most recent $12$ items shown smaller and in blue. In the execution of AdvStrategy for $k=2$, the largest gap is found — note that we look for it only in the current intervals, and that its size can be at most $2\varepsilon\cdot 3\cdot\frac{2}{\varepsilon}=12$ items. One of the two largest gaps is between the second and the third item in the restricted item arrays; these are also the second and the third item in the whole item arrays (the other gap of the same size is between the first and the second stored item). Again, new intervals are identified for the execution of the last leaf of the recursion tree.

Finally, the last $12$ items are appended to the streams, which completes the construction. Figure 2(d) shows the final state, with these last $12$ items added in green. The current intervals are with respect to the last leaf of the recursion tree. ∎

4.4 Properties of the Adversarial Strategy

We first give some observations. Note that the recursion tree of an execution of AdvStrategy($k$) indeed has $2^{k-1}$ leaves which each corresponding to calling the strategy for $k=1$, and that the items are appended to streams only in the leaves, namely, $\frac{2}{\varepsilon}$ items to each stream in each leaf. It follows that the number of items appended is $N_{k}=\frac{1}{\varepsilon}\cdot 2^{k}$. Observe that for a general recursive call of AdvStrategy, the input streams $\pi$ and $\varrho$ may already contain some items. Also, the behavior of comparison-based quantile summary $\mathcal{D}$ may be different when processing items appended during the recursive call in line 8 and when processing items from the call in line 10. The reason is that the computation of $\mathcal{D}$ is also influenced by items outside the intervals, i.e., by items in streams $\pi$ and $\varrho$ that are from other branches of the recursion tree. We remark that items in each of $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$ are distinct within the streams (but the two streams may share some items, which does not affect our analysis).

We now prove that the streams constructed are indistinguishable and that we do not violate any assumption on input for any recursive call. We use the following lemma derived from [10] (which is a simple consequence of the facts that $\mathcal{D}$ is comparison-based and the memory states $(I_{\pi},G_{\pi})$ and $(I_{\varrho},G_{\varrho})$ are equivalent).

Lemma 7** (Implied by Lemma 2 in [10]).**

Suppose that streams $\pi$ and $\varrho$ are indistinguishable for $\mathcal{D}$ and let $I_{\pi}$ and $I_{\varrho}$ be the corresponding item arrays after processing $\pi$ and $\varrho$, respectively. Let $a,b$ be any two items such that $\min\{i|a\leq I_{\pi}[i]\}=\min\{i|b\leq I_{\varrho}[i]\}$. Then the streams $\pi a$ and $\varrho b$ are indistinguishable.

Lemma 8**.**

Consider an execution of \textsc{AdvStrategy}\big{(}k,\pi,\varrho, $(\ell_{\pi},r_{\pi}),$ (\ell_{\varrho},r_{\varrho})\big{)} for $k\geq 1$ and let $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$ be the returned streams. Suppose that streams $\pi$ and $\varrho$ and intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$ satisfy the assumptions on the input of AdvStrategy. Then, for $k>1$, the assumptions on input for the recursive calls in lines 8 and 10 and for the call of RefineIntervals in line 9 are satisfied, and, for any $k\geq 1$, the streams $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$ are indistinguishable.

Proof.

The proof is by induction on $k$. In the base case $k=1$, we use the fact that the $\frac{2}{\varepsilon}$ items from the corresponding intervals are appended in their order and that $\min\{i|a\leq I_{\pi}[i]\}=\min\{i|b\leq I_{\varrho}[i]\}$ for any $a\in(\ell_{\pi},r_{\pi})$ and $b\in(\ell_{\varrho},r_{\varrho})$ by assumption (iii) on the input of AdvStrategy. Thus, applying Lemma 7 for each pair of appended items, we get that $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$ are indistinguishable.

Now consider $k>1$. Note that assumptions (i)-(iii) of the first recursive call (in line 8) are satisfied by the assumptions of the considered execution. So, by applying the inductive hypothesis for the first recursive call, streams $\pi^{\prime}$ and $\varrho^{\prime}$ are indistinguishable.

Next, the assumptions of procedure RefineIntervals, called in line 9, are satisfied, since streams $\pi^{\prime}$ and $\varrho^{\prime}$ are indistinguishable, $\pi$ contains no item from $(\ell_{\pi},r_{\pi})$, $\varrho$ contains no item from $(\ell_{\varrho},r_{\varrho})$, and the first recursive call in line 8 generates $N^{\prime}=\frac{1}{\varepsilon}\cdot 2^{k-1}$ items from $(\ell_{\pi},r_{\pi})$ into $\pi^{\prime}$ and $N^{\prime}$ items from $(\ell_{\varrho},r_{\varrho})$ into $\varrho^{\prime}$.

Then, assumption (i) of the second recursive call in line 10 holds, since $\pi^{\prime}$ and $\varrho^{\prime}$ are indistinguishable, and assumptions (ii) and (iii) are satisfied by applying Observation 1. Finally, we use the inductive hypothesis for the recursive call in line 10 and get that streams $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$ are indistinguishable. ∎

Our final observation is that for any $1\leq i\leq|I_{\pi^{\prime\prime}}|$, we have that $\operatorname{rank}_{\pi^{\prime\prime}}(I_{\pi^{\prime\prime}}[i])\leq\operatorname{rank}_{\varrho^{\prime\prime}}(I_{\varrho^{\prime\prime}}[i])$. The proof follows by the induction on $k$ (similarly to Lemma 8) and by the definition of the new intervals in lines 4-6 of procedure RefineIntervals, namely, since the new interval for $\pi$ is in the leftmost region of the largest gap, while the new interval for $\varrho$ is in the rightmost region.

5 Space-Gap Inequality

5.1 Intuition for the Inequality

In this section, we analyze the space required by data structure $\mathcal{D}$. Recall that our general goal is to prove that $\mathcal{D}$ needs to store $c\cdot\frac{1}{\varepsilon}$ items from the first half of the whole stream $\pi$ (or, equivalently, from $\varrho$) and $c\cdot\frac{1}{\varepsilon}\cdot(k-1)$ items from the second half (by using induction on the second half), where $c>0$ is a constant. Note also that if $\mathcal{D}$ stores $c\cdot\frac{1}{\varepsilon}\cdot k$ items from the first half of the stream, the second half of the argument is not even needed.

However, we actually need to prove a similar result for any internal node of the recursion tree, where the bounds as stated above may not hold. For instance, $\mathcal{D}$ may use nearly no space for some part of the stream, which implies a lot of uncertainty there, but still may be able to provide any $\varepsilon$-approximate $\phi$-quantile, since the largest gap introduced earlier is very low. We thus give a space lower bound for an execution of AdvStrategy that depends on the largest gap size, denoted $g$, which is introduced in this execution. Roughly, the space lower bound is $c\cdot(\log g)\cdot N_{k}/g$ for a constant $c>0$, so by setting $g=2\varepsilon N_{k}$ we get the desired result. (For technical reasons, the actual bound stated below as (2) is a bit more complicated.)

The crucial claim is that, for $k>1$, the largest gap size $g$ is, in essence, the sum of the largest gap sizes $g^{\prime}$ and $g^{\prime\prime}$ introduced in the first and the second recursive call, respectively. This claim allows us to distinguish two cases: Either the gap $g^{\prime}$ from the first recursive call is small (less than approximately half of $g$) and thus $\mathcal{D}$ uses a lot of space for items from the first recursive call, or $g^{\prime}\gtrsim\frac{1}{2}g$, so $g^{\prime\prime}\lesssim\frac{1}{2}g$ and we use induction on the second recursive call, together with a straightforward space lower bound for items from the first half of the stream.

5.2 Stating the Space-Gap Inequality

We continue with formal analysis by induction. We define

[TABLE]

where $(\pi^{\prime\prime},\varrho^{\prime\prime})=\textsc{AdvStrategy}(k,\pi,\varrho,(\ell_{\pi},r_{\pi}),(\ell_{\varrho},r_{\varrho}))$. In words, it is the size of the item array restricted to $(\ell_{\pi},r_{\pi})$ after the execution of $\mathcal{D}$ on stream $\pi^{\prime\prime}$ (or, equivalently, with $\varrho$ instead of $\pi$). For simplicity, we write $S_{k}=S(k,\pi,\varrho,(\ell_{\pi},r_{\pi}),(\ell_{\varrho},r_{\varrho}))$.

We prove a lower bound for $S_{k}$ that depends on the largest gap between the restricted item arrays for $\pi$ and for $\varrho$. We enhance the definition of the gap to take the intervals restriction into account.

Definition 9**.**

For indistinguishable streams $\sigma$ and $\tau$ and intervals $(\ell_{\sigma},r_{\sigma})$ and $(\ell_{\tau},r_{\tau})$, let $\overline{\sigma}$ and $\overline{\tau}$ be the substreams of $\sigma$ and $\tau$ consisting only of items from intervals $(\ell_{\sigma},r_{\sigma})$ and $(\ell_{\tau},r_{\tau})$, respectively. Moreover, let $I^{\prime}_{\sigma}=I^{(\ell_{\sigma},r_{\sigma})}_{\sigma}$ and $I^{\prime}_{\tau}=I^{(\ell_{\tau},r_{\tau})}_{\tau}$ be the restricted item arrays after processing ${\sigma}$ and ${\tau}$, respectively. We define the largest gap between $I^{\prime}_{\sigma}$ and $I^{\prime}_{\tau}$ in intervals $(\ell_{\sigma},r_{\sigma})$ and $(\ell_{\tau},r_{\tau})$ as

[TABLE]

Note that the ranks are with respect to substreams $\overline{\sigma}$ and $\overline{\tau}$, and that the largest gap is always at least one, supposing that the ranks of stored items are not smaller for $\tau$ than for $\sigma$. We again have \operatorname{gap}\big{(}\sigma,\tau,(\ell_{\sigma},r_{\sigma}),(\ell_{\tau},r_{\tau})\big{)}\geq\operatorname{gap}\big{(}\sigma,\sigma,(\ell_{\sigma},r_{\sigma}),(\ell_{\sigma},r_{\sigma})\big{)}. Also, as the restricted item arrays are enclosed by interval boundaries, the following simple bound holds:

[TABLE]

where $(\pi^{\prime\prime},\varrho^{\prime\prime})=\textsc{AdvStrategy}(k,\pi,\varrho,(\ell_{\pi},r_{\pi}),(\ell_{\varrho},r_{\varrho}))$ and $N_{k}=\frac{1}{\varepsilon}\cdot 2^{k}$. The following lemma (proved below) shows a stronger inequality between the space and the largest gap.

Lemma 10** (Space-gap inequality).**

Consider an execution of $\textsc{AdvStrategy}(k,\pi,\varrho,(\ell_{\pi},r_{\pi}),$ $(\ell_{\varrho},r_{\varrho}))$. Let $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$ be the returned streams, and let g:=\operatorname{gap}\big{(}\pi^{\prime\prime},\varrho^{\prime\prime}, $(\ell_{\pi},r_{\pi}),$ (\ell_{\varrho},r_{\varrho})\big{)}. Then, for $S_{k}=S(k,\pi,\varrho,$ $(\ell_{\pi},r_{\pi}),$ $(\ell_{\varrho},r_{\varrho}))$, the following space-gap inequality holds with $c=\frac{1}{8}-2\varepsilon$:

[TABLE]

We remark that we do not optimize the constant $c$. Note that the right-hand side (RHS) of (2) is non-increasing for integer $g\geq 1$, as $(\log_{2}g+1)/g$ is decreasing for $g\geq 2$ and equals $1$ for $g\in\{1,2\}$.

First, observe that Theorem 2 directly follows from Lemma 10, and so our subsequent work will be in proving this space-gap inequality. Indeed, consider any integer $k\geq 1$ and let $(\pi,\varrho)=\textsc{AdvStrategy}(k,$ $\emptyset,\emptyset,$ $(-\infty,\infty),(-\infty,\infty))$ be the constructed streams of length $N_{k}$. Let g=\operatorname{gap}\big{(}\pi,\varrho, $(-\infty,\infty),$ (-\infty,\infty)\big{)}=\operatorname{gap}(\pi,\varrho). Since $\pi$ and $\varrho$ are indistinguishable by Lemma 8, we have $g\leq 2\varepsilon N_{k}$ by Lemma 6. Since the RHS of (2) is decreasing for $g\geq 2$ and $2\varepsilon N_{k}\geq 2$, it becomes the smallest for $g=2\varepsilon N_{k}$. Thus, by Lemma 10, the memory used is at least

[TABLE]

5.3 Preliminaries for the Proof of Lemma 10

The proof is by induction on $k$. First, observe that (2) holds almost immediately if $g\leq 2^{7}$. Here, we have $\log_{2}g+1\leq 8\leq\frac{1}{c}$, and so by the bound in (1), $S_{k}>N_{k}/g\geq c\cdot(\log_{2}g+1)\cdot\left(\frac{N_{k}}{g}-\frac{1}{4\varepsilon}\right)$. Similarly, if $g\geq 4\varepsilon N_{k}$, then (2) holds, since the RHS of (2) is at most [math] and $S_{k}\geq 0$.333 Note, however, that we cannot use Lemma 6 to show $g\leq 2\varepsilon N_{k}$, since the largest gap has size bounded by $2\varepsilon$ times the length of $\pi^{\prime\prime}$ or $\varrho^{\prime\prime}$, which can be much larger than $N_{k}$ (due to items from other branches of the recursion tree). We thus assume that $g\in(2^{7},4\varepsilon N_{k})$, which immediately implies the base case $k=1$ of the induction, since $4\varepsilon N_{1}=8<2^{7}$ because $N_{1}=\frac{2}{\varepsilon}$.

We now consider $k>1$. We refer to streams $\pi,\varrho,\pi^{\prime},\varrho^{\prime},\pi^{\prime\prime},\varrho^{\prime\prime}$, intervals $(\alpha_{\pi},\beta_{\pi})$ and $(\alpha_{\varrho},\beta_{\varrho})$ with the same meaning as in Pseudocode 2. Let $I^{\prime}_{\pi^{\prime}}=I^{(\ell_{\pi},r_{\pi})}_{\pi^{\prime}}$ and $I^{\prime}_{\varrho^{\prime}}=I^{(\ell_{\varrho},r_{\varrho})}_{\varrho^{\prime}}$ be the restricted item arrays, as in Pseudocode 1. We make use of the following notation:

• •

Let $\pi^{\prime}_{k-1},\varrho^{\prime}_{k-1}$ be the substreams constructed during the recursive call in line 8. Let $S^{\prime}_{k-1}$ be the size of $I^{\prime}_{\pi^{\prime}}$ (or, equivalently, of $I^{\prime}_{\varrho^{\prime}}$), and let g^{\prime}=\operatorname{gap}\big{(}\pi^{\prime},\varrho^{\prime},(\ell_{\pi},r_{\pi}),(\ell_{\varrho},r_{\varrho})\big{)} be the largest gap in the input intervals after $\mathcal{D}$ processes one of streams $\pi^{\prime}$ and $\varrho^{\prime}$.

• •

Let $I^{\prime\prime}_{\pi^{\prime\prime}}=I^{(\alpha_{\pi},\beta_{\pi})}_{\pi^{\prime\prime}}$ and $I^{\prime\prime}_{\varrho^{\prime\prime}}=I^{(\alpha_{\varrho},\beta_{\varrho})}_{\varrho^{\prime\prime}}$ be the item arrays restricted to the new intervals after $\mathcal{D}$ processes streams $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$, respectively. Let $S^{\prime\prime}_{k-1}$ be the size of $I^{\prime\prime}_{\pi^{\prime\prime}}$, and let g^{\prime\prime}=\operatorname{gap}\big{(}\pi^{\prime\prime},\varrho^{\prime\prime}, $(\alpha_{\pi},\beta_{\pi}),$ (\alpha_{\varrho},\beta_{\varrho})\big{)} be the largest gap in the new intervals. Let $\pi^{\prime\prime}_{k-1}$ and $\varrho^{\prime\prime}_{k-1}$ be the substreams constructed during the recursive call in line 10.

• •

Let $I^{\prime}_{\pi^{\prime\prime}}=I^{(\ell_{\pi},r_{\pi})}_{\pi^{\prime\prime}}$ and $I^{\prime}_{\varrho^{\prime\prime}}=I^{(\ell_{\varrho},r_{\varrho})}_{\varrho^{\prime\prime}}$ be the item arrays restricted to the input intervals after $\mathcal{D}$ processes streams $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$, respectively.

• •

Finally, let $\pi_{k}$ and $\varrho_{k}$ be the substreams of $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$, restricted to $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$, respectively (i.e., $\pi_{k}$ and $\varrho_{k}$ consist of the items appended by the considered execution).

We remark that notation $I^{\prime}$ abbreviates the restriction to intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$ (depending on the stream), while notation $I^{\prime\prime}$ implicitly denotes the restriction to the new intervals $(\alpha_{\pi},\beta_{\pi})$ and $(\alpha_{\varrho},\beta_{\varrho})$. Note that $\pi^{\prime}=\pi\pi^{\prime}_{k-1}$, and $\pi^{\prime\prime}=\pi^{\prime}\pi^{\prime\prime}_{k-1}=\pi\pi_{k}$, and $\pi_{k}=\pi^{\prime}_{k-1}\pi^{\prime\prime}_{k-1}$, and similarly for streams $\varrho^{\prime}$, $\varrho^{\prime\prime}$, and $\varrho_{k}$.

We now show a crucial relation between the gaps.

Claim 1**.**

$g\geq g^{\prime}+g^{\prime\prime}-1$**

Proof.

Define $i$ to be $i:=\operatorname{arg\,max}_{1\leq i^{\prime}<|I^{\prime\prime}_{\pi^{\prime\prime}}|}\,\operatorname{rank}_{\varrho^{\prime\prime}_{k-1}}(I^{\prime\prime}_{\varrho^{\prime\prime}}[i^{\prime}+1])-\operatorname{rank}_{\pi^{\prime\prime}_{k-1}}(I^{\prime\prime}_{\pi^{\prime\prime}}[i^{\prime}])$, i.e., the position of the largest gap in the arrays $I^{\prime\prime}_{\pi^{\prime\prime}}$ and $I^{\prime\prime}_{\varrho^{\prime\prime}}$. Let $a:=I^{\prime\prime}_{\pi^{\prime\prime}}[i]$ and $b:=I^{\prime\prime}_{\varrho^{\prime\prime}}[i+1]$ be the two items whose rank difference determines the largest gap size. Note that, while $\mathcal{D}$ stores $a$ and $b$ in $I^{\prime\prime}_{\pi^{\prime\prime}}$ and $I^{\prime\prime}_{\varrho^{\prime\prime}}$, these two items does not necessarily need to be stored in $I^{\prime}_{\pi^{\prime\prime}}$ and $I^{\prime}_{\varrho^{\prime\prime}}$, respectively. This may happen for $a$ only in case $a=\alpha_{\pi}$ and thus $i=1$, and similarly, for $b$ only in case $b=\beta_{\varrho}$ and $i=|I^{\prime\prime}_{\pi^{\prime\prime}}|-1$. Indeed, for $i>1$, item $a=I^{\prime\prime}_{\pi^{\prime\prime}}[i]$ must be in the whole item array $I_{\pi^{\prime\prime}}$ and thus also in $I^{\prime}_{\pi^{\prime\prime}}$, and similarly, if $i<|I^{\prime\prime}_{\pi^{\prime\prime}}|-1$, item $b=I^{\prime\prime}_{\varrho^{\prime\prime}}[i+1]$ must be in $I_{\varrho^{\prime\prime}}$ and thus in $I^{\prime}_{\varrho^{\prime\prime}}$. (In the special case $|I^{\prime\prime}_{\pi^{\prime\prime}}|=2$, both $a$ and $b$ may not be in $I^{\prime}_{\pi^{\prime\prime}}$ and in $I^{\prime}_{\varrho^{\prime\prime}}$, respectively, while if $|I^{\prime\prime}_{\pi^{\prime\prime}}|>2$, at least one of $a$ or $b$ is actually stored.)

Let $j$ be the largest integer such that $I^{\prime}_{\pi^{\prime\prime}}[j]\leq a$, and let $a^{\prime}:=I^{\prime}_{\pi^{\prime\prime}}[j]$; by the above observations, $a^{\prime}=a$ unless $i=1$ and $a\notin I^{\prime}_{\pi^{\prime\prime}}$. Let $b^{\prime}:=I^{\prime}_{\varrho^{\prime\prime}}[j+1]$. We now show that $b^{\prime}\geq b$. Indeed, this clearly holds if $b^{\prime}=b$, so suppose $b^{\prime}\neq b$. This may only happen if $b=\beta_{\varrho}$ is not in $I^{\prime}_{\varrho^{\prime\prime}}$ and $i=|I^{\prime\prime}_{\pi^{\prime\prime}}|-1$. We consider two cases:

Case 1: If $a^{\prime}=I^{\prime}_{\pi^{\prime\prime}}[j]\in(\alpha_{\pi},\beta_{\pi})$, then $I^{\prime}_{\varrho^{\prime\prime}}[j]\in(\alpha_{\varrho},\beta_{\varrho})$ as $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$ are indistinguishable and only the last $N_{k-1}$ items are from these intervals. Moreover, as $i=|I^{\prime\prime}_{\pi^{\prime\prime}}|-1$, index $j$ is the largest such that $I^{\prime}_{\varrho^{\prime\prime}}[j]\in(\alpha_{\varrho},\beta_{\varrho})$, thus $b^{\prime}=I^{\prime}_{\varrho^{\prime\prime}}[j+1]\geq\beta_{\varrho}=b$.

Case 2: Otherwise, $a^{\prime}\leq a=\alpha_{\pi}$, which may only happen when $i=1$. As also $i=|I^{\prime\prime}_{\pi^{\prime\prime}}|-1$, we have $|I^{\prime\prime}_{\pi^{\prime\prime}}|=2$, i.e., no items from $(\alpha_{\pi},\beta_{\pi})$ and from $(\alpha_{\varrho},\beta_{\varrho})$ are stored in $I^{\prime}_{\pi^{\prime\prime}}$ and in $I^{\prime}_{\varrho^{\prime\prime}}$, respectively. Then we have $I^{\prime}_{\pi^{\prime\prime}}[j+1]\geq\beta_{\pi}$, by the definition of $j$. Before the second recursive call, it holds that $\alpha_{\pi}=I^{\prime}_{\pi^{\prime}}[\ell]$ and $\beta_{\varrho}=I^{\prime}_{\varrho^{\prime}}[\ell+1]$ for some index $\ell$, i.e., there are $\ell$ items stored in $I^{\prime}_{\pi^{\prime}}$ and in $I^{\prime}_{\varrho^{\prime}}$ which are not larger than $\alpha_{\pi}$ and $\alpha_{\varrho}$, respectively. By $a^{\prime}=I^{\prime}_{\pi^{\prime\prime}}[j]\leq\alpha_{\pi}$ and by the definition of $j$, there are $j\leq\ell$ items in $I^{\prime}_{\pi^{\prime\prime}}$ no larger than $\alpha_{\pi}$, and hence, by indistinguishability of $\pi^{\prime\prime}$ and $\varrho^{\prime\prime}$, there are $j$ items in $I^{\prime}_{\varrho^{\prime\prime}}$ no larger than $\alpha_{\varrho}$. Since no item in $(\alpha_{\varrho},\beta_{\varrho})$ is stored in $I^{\prime}_{\varrho^{\prime\prime}}$, we conclude that $b^{\prime}=I^{\prime}_{\varrho^{\prime\prime}}[j+1]\geq\beta_{\varrho}=b$ holds.

To prove the claim, it is sufficient to show

[TABLE]

as the difference on the LHS is taken into account in the definition of $g$. We have

[TABLE]

since $b^{\prime}\geq b$ and $a^{\prime}\leq a$. This rank difference is w.r.t. substreams $\pi^{\prime\prime}_{k-1}$ and $\varrho^{\prime\prime}_{k-1}$, and we now show that when considering $\pi_{k}$ and $\varrho_{k}$, the difference increases by $g^{\prime}-1$. Indeed, as $a^{\prime}<\beta_{\pi}$ and $b^{\prime}>\alpha_{\varrho}$, it holds that

[TABLE]

using the definitions of $g^{\prime}$ and of the new intervals in lines 4—6 of procedure RefineIntervals (Pseudocode 1). Summarizing, we have $g^{\prime\prime}\leq\operatorname{rank}_{\varrho^{\prime\prime}_{k-1}}(b^{\prime})-\operatorname{rank}_{\pi^{\prime\prime}_{k-1}}(a^{\prime})=\operatorname{rank}_{\varrho_{k}}(b^{\prime})-\operatorname{rank}_{\pi_{k}}(a^{\prime})-(g^{\prime}-1)$, which shows (3) by rearrangement. ∎

5.4 Completing the Proof of Lemma 10

In the inductive proof of (2) for $k>1$, we consider two main cases, according to whether or not $g^{\prime}$ is relatively small (compared to $g$). Recall that we still assume that $g\in(2^{7},4\varepsilon N_{k})$.

Case 1: Suppose that the following inequality holds

[TABLE]

We claim that this inequality is sufficient for (2). Indeed, first observe that $S_{k}\geq S^{\prime}_{k-1}$. This follows from the assumption that the size of the (whole) item array does not decrease and that all items that are appended to the streams in the considered execution of AdvStrategy are within the current intervals $(\ell_{\pi},r_{\pi})$ and $(\ell_{\varrho},r_{\varrho})$, so the number of stored items from $\pi^{\prime\prime}$ that are outside $(\ell_{\pi},r_{\pi})$ cannot increase while $\mathcal{D}$ processes items from the considered execution. Then we use the induction hypothesis from (2) to get $S^{\prime}_{k-1}\geq c\cdot(\log_{2}g^{\prime}+1)\cdot\left(\frac{N_{k-1}}{g^{\prime}}-\frac{1}{4\varepsilon}\right)$, and finally, (2) follows from (4), since we have

[TABLE]

Case 2: In the remainder of the analysis, assume that (4) does not hold. We first show that $g^{\prime\prime}$ is substantially smaller than $g$, by a factor a bit larger than $\frac{1}{2}$. Namely, we prove the following:

Lemma 11**.**

Assuming $g>2^{7}$ and that (4) does not hold we have

[TABLE]

Proof.

To show (5), since (4) does not hold, we have

[TABLE]

By Claim 1, it holds that $g\geq g^{\prime}+g^{\prime\prime}-1\geq g^{\prime}$ as $g^{\prime\prime}\geq 1$, which allows us to simplify (6) to

[TABLE]

After dividing this inequality by $c\cdot N_{k}=c\cdot 2N_{k-1}$, we obtain

[TABLE]

Rearranging, we get

[TABLE]

Next, we claim that $\log_{2}g^{\prime}\geq\log_{2}g-2$. Suppose for a contradiction that $\log_{2}g^{\prime}<\log_{2}g-2$, i.e., $g^{\prime}<\frac{1}{4}g$. Using that $\frac{\log_{2}g^{\prime}+1}{2g^{\prime}}$ is decreasing for $g^{\prime}\geq 2$ and equal to $\frac{1}{2}$ for $g^{\prime}\in\{0,1\}$, we substitute $g^{\prime}=\frac{1}{4}g$ into (7) and get $2\cdot\frac{\log_{2}g-1}{g}<\frac{\log_{2}g+1}{g}$. After rearranging we have $\log_{2}g<3$, which is a contradiction with our assumption that $g>2^{7}$.

Thus, (8) and the above claim imply

[TABLE]

Using Claim 1 together with (9), we obtain $g>\frac{g}{2}\cdot\frac{\log_{2}g-1}{\log_{2}g+1}+g^{\prime\prime}-1$, and by rearranging, we get

[TABLE]

where in the third line we use $\log_{2}g+1<\frac{1}{2}g$ for $g>2^{7}$. This concludes the proof of the lemma. ∎

We continue in the proof of (2) in Case 2. We now take the second recursive call (in line 10) into account. By induction, the space used for items from the second recursive call, which equals to $|I^{\prime\prime}_{\pi^{\prime\prime}}|=|I^{\prime\prime}_{\varrho^{\prime\prime}}|$, is at least $S^{\prime\prime}_{k-1}\geq c\cdot(\log_{2}g^{\prime\prime}+1)\cdot\left(\frac{N_{k-1}}{g^{\prime\prime}}-\frac{1}{4\varepsilon}\right)$. Using (5) and the monotonicity of the RHS of (2), we get

[TABLE]

The second factor on the RHS of (10) is at least $\log_{2}g$, since

[TABLE]

Using also $N_{k-1}=\frac{1}{2}N_{k}$, we get

[TABLE]

Consider the $N_{k-1}$ items from $\pi^{\prime}_{k-1}$, which are the items from the first recursive call (in line 8). For them, we just use a simple bound (1): Since the largest gap in $I^{\prime}_{\pi^{\prime\prime}}$ is at most $g$ and since there can be two gaps around stored items from $\pi^{\prime\prime}_{k-1}$ (i.e., those in $I^{\prime\prime}_{\pi^{\prime\prime}}$), the number of items from $\pi^{\prime}_{k-1}$ stored in $I^{\prime}_{\pi^{\prime\prime}}$ is at least

[TABLE]

using the assumption that $g\leq 4\varepsilon N_{k}$.

Summarizing, (11) gives a lower bound on $|I^{\prime\prime}_{\pi^{\prime\prime}}|$, i.e., the number of stored items from $\pi^{\prime\prime}_{k-1}$, and (12) a lower bound on the number of items in $I^{\prime}_{\pi^{\prime\prime}}$ that are not in $I^{\prime\prime}_{\pi^{\prime\prime}}$. Thus, our aim is to show that

[TABLE]

which implies (2) as $S_{k}\geq|I^{\prime}_{\pi^{\prime\prime}}|$ and $|I^{\prime}_{\pi^{\prime\prime}}|$ is lower bounded by the LHS of (13). To show (13), first note that $-\frac{c\cdot\log_{2}g}{4\varepsilon}\geq-\frac{c\cdot(\log_{2}g+1)}{4\varepsilon}$, we thus ignore these expressions. Next, we multiply both sides of (13) by $g/(c\cdot N_{k})$ and get that it suffices to show

[TABLE]

After multiplying both sides of (14) by $\frac{\log_{2}g+4}{\log_{2}g+1}\geq 1$ (the second fraction on the LHS is not multiplied, for simplicity), we obtain $\log_{2}g+\frac{1-16\varepsilon}{2c}\geq\log_{2}g+4$, which holds for $c\leq\frac{1}{8}-2\varepsilon$. This completes the proof of Lemma 10, and so the space bound follows.

6 Corollaries and Conclusions

Our construction closes the asymptotic gap in the space bounds for deterministic comparison-based quantile summaries and yields the optimality of the Greenwald and Khanna’s quantile summary [6]. A drawback of their quantile summary is that it carries out an intricate merging of stored tuples, where each tuple consists of a stored item together with lower and upper bounds on its rank. A simplified (greedy) version, which merges stored tuples whenever it is possible, was suggested already in [6], and according to experiments reported in Luo et al. [13], it performs better in practice than the intricate algorithm analyzed in [6]. It is an interesting open problem whether or not the upper bound of $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ holds for some simpler variant of the Greenwald and Khanna’s algorithm.

6.1 Finding an Approximate Median

One of the direct consequences of our result is that finding an $\varepsilon$-approximate median requires roughly the same space as constructing a quantile summary. (This can be done similarly for any other $\phi$-quantile as long as $\varepsilon\ll\phi\ll 1-\varepsilon$.)

Theorem 12**.**

For any $\varepsilon>0$ small enough, there is no deterministic comparison-based streaming algorithm that finds an $\varepsilon$-approximate median in the stream and runs in space $o(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ on any stream of length $N$.

Proof sketch..

Consider the streams $\pi$ and $\varrho$ constructed by the adversarial procedure from Section 4, i.e., $(\pi,\varrho)=\textsc{AdvStrategy}$ $(k,$ $\emptyset,\emptyset,$ $(-\infty,\infty),$ $(-\infty,\infty))$. Let $g=\operatorname{gap}(\pi,\varrho)$. If $g\leq 4\varepsilon N_{k}$, then the analysis in Section 5, with an appropriately adjusted space-gap inequality, shows that the algorithm uses space $\Omega(\frac{1}{\varepsilon}\cdot\log\varepsilon N_{k})$. Thus, consider the case $g>4\varepsilon N_{k}$, which implies that there exists $\phi^{\prime}\in(0,1)$ such that the item array does not store a $2\varepsilon$-approximate $\phi^{\prime}$-quantile. If $\phi^{\prime}<0.5$, we append $(1-2\phi^{\prime})\cdot N_{k}\leq N_{k}$ items to streams $\pi$ and $\varrho$ that are smaller than any item appended so far, and after that the algorithm cannot return an $\varepsilon$-approximate median. Otherwise, $\phi^{\prime}\geq 0.5$ and we append $(2\phi^{\prime}-1)\cdot N_{k}\leq N_{k}$ items to streams $\pi$ and $\varrho$ that are larger than any item appended so far. Thus, in this case also an $\varepsilon$-approximate median is not stored. ∎

6.2 Estimating Rank

We now consider data structures for the following Estimating Rank problem, which is closely related to computing $\varepsilon$-approximate quantiles: The input arrives as a stream of $N$ items from a totally ordered universe $U$, and the goal is to design a data structure with small space cost which is able to provide an $\varepsilon$-approximate rank for any query $q\in U$, i.e., the number of items in the stream which are not larger than $q$, up to an additive error of $\pm\varepsilon N$. Our construction directly implies a space lower bound for comparison-based data structures, which are defined similarly as in Definition 1.444 We only need to replace item (iv) of Definition 1 by (iv) Given a query $q\in U$, the computation of $\mathcal{D}$ is determined solely by the results of comparisons between $q$ and $I[j]$, for $j=1,\dots,|I|$, the number of items stored, and the contents of $G$.

Theorem 13**.**

For any $0<\varepsilon<\frac{1}{16}$, there is no deterministic comparison-based data structure for Estimating Rank which stores $o(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ items on any input stream of length $N$.

Proof sketch..

Let $\mathcal{D}$ be a deterministic comparison-based data structure for Estimating Rank. Consider again the pair of streams $(\pi,\varrho)=\textsc{AdvStrategy}(k,\emptyset,\emptyset,(-\infty,\infty),(-\infty,\infty))$. Let $g=\operatorname{gap}(\pi,\varrho)$. The space-gap inequality (Lemma 10) holds, using the same proof. As shown at the beginning of Section 5, if $g\leq 2\varepsilon N_{k}+2$, then $\mathcal{D}$ needs to store $\Omega(\frac{1}{\varepsilon}\cdot\log\varepsilon N_{k})$ items (the $+2$ makes no effective difference in the calculation). It remains to observe that if $\mathcal{D}$ provides an $\varepsilon$-approximate rank of any query $q\in U$, then $g\leq 2\varepsilon N_{k}+2$.

Indeed, suppose for a contradiction that $g>2\varepsilon N_{k}+2$, which implies that there is $1\leq i<|I_{\pi}|=|I_{\varrho}|$ such that $\operatorname{rank}_{\varrho}(I_{\varrho}[i+1])-\operatorname{rank}_{\pi}(I_{\pi}[i])>2\varepsilon N_{k}+2$. Let $q_{\pi}$ be an item which lies in $(I_{\pi}[i],\operatorname{next}(\pi,I_{\pi}[i]))$, that is, just after $I_{\pi}[i]$ in $U$ ($q_{\pi}$ exists by our continuity assumption). Similarly, let $q_{\varrho}$ be an item in $(\operatorname{prev}(\varrho,I_{\varrho}[i+1]),I_{\varrho}[i+1])$. Let $r$ be the rank returned by $\mathcal{D}$ when run on query $q_{\pi}$ after processing stream $\pi$. Observe that $\mathcal{D}$ returns $r$ also on query $q_{\varrho}$ after processing stream $\varrho$, since $\pi$ and $\varrho$ are indistinguishable, $\mathcal{D}$ is comparison-based, and the results of comparisons with stored items are the same in both cases. However, the true ranks satisfy $\operatorname{rank}_{\pi}(q_{\pi})=\operatorname{rank}_{\pi}(I_{\pi}[i])+1$ and $\operatorname{rank}_{\varrho}(q_{\varrho})=\operatorname{rank}_{\varrho}(I_{\varrho}[i+1])-1$, thus $\operatorname{rank}_{\varrho}(q_{\varrho})-\operatorname{rank}_{\pi}(q_{\pi})>2\varepsilon N_{k}$. It follows that $r$ differs from $\operatorname{rank}_{\pi}(q_{\pi})$ or from $\operatorname{rank}_{\varrho}(q_{\varrho})$ by more than $\varepsilon N_{k}$, which is a contradiction. ∎

6.3 Randomized Algorithms

We now turn our attention to randomized quantile summaries, which may fail to provide an $\varepsilon$-approximate $\phi$-quantile, for some $\phi$, with probability bounded by a parameter $\delta$. Karnin et al. [11] designed a randomized comparison-based quantile summary with storage cost $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\varepsilon\delta})$. They also proved the matching lower bound, which however holds only for a certain stream length (depending on $\varepsilon$) and for $\delta$ exponentially close to [math]. We state it more precisely as follows.

Theorem 14** (Theorem 6 in [11]).**

There is no randomized comparison-based $\varepsilon$-approximate quantile summary with failure probability less than $\delta=1/N!$, which stores $o(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\delta})$ items on any input stream of length $N=\Theta\left(\frac{1}{\varepsilon^{2}}\cdot\log^{2}\frac{1}{\varepsilon}\right)$.

The proof follows from reducing the randomized case to the deterministic case and using the lower bound of $\Omega(\frac{1}{\varepsilon}\cdot\log\frac{1}{\varepsilon})$ [10], which holds for streams of length $N=\Theta\left(\frac{1}{\varepsilon^{2}}\cdot\log^{2}\frac{1}{\varepsilon}\right)$. Suppose for a contradiction that there exists a comparison-based $\varepsilon$-approximate quantile summary which stores $o(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\delta})$ items for $\delta=1/N!$. Note that if failure probability is below $1/N!$, a randomized comparison-based quantile summary succeeds simultaneously for all streams of length $N$ with probability $>0$ (by the union bound). More precisely, it succeeds for all permutations of a certain set of $N$ distinct items, which is sufficient in the comparison-based model. Thus, there exists a choice of random bits which provides a correct result for all streams of length $N$. Hard-coding these bits, we obtain a deterministic algorithm running in space $o(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\delta})=o(\frac{1}{\varepsilon}\cdot\log\log e^{N\log N})=o(\frac{1}{\varepsilon}\cdot\log N)=o(\frac{1}{\varepsilon}\cdot\log\frac{1}{\varepsilon})$, which contradicts the lower bound in [10]. We remark that the lower bound holds even for finding the median.

Using our lower bound of $\Omega(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$ for deterministic quantile summaries, we strengthen the randomized lower bound so that it holds for any stream length $N$, which in turn gives a higher space bound. Hence, using the same proof, we obtain:

Theorem 15**.**

There is no randomized comparison-based $\varepsilon$-approximate quantile summary with failure probability less than $\delta=1/N!$, which stores $o(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\delta})$ items on any input stream of length $N$.

Note that the lower bound of $\Omega(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\delta})$ for randomized quantile summaries trivially holds if $\delta>0$ is a fixed constant (say, $\delta=0.01$), since any quantile summary needs to store $\Omega(\frac{1}{\varepsilon})$ items. It remains an open problem whether or not the lower bound of $\Omega(\frac{1}{\varepsilon}\cdot\log\log\frac{1}{\delta})$ holds for $\delta=1/\operatorname{poly}(N)$ or for $\delta=1/\operatorname{polylog}(N)$.

6.4 Biased Quantiles

Note that the quantiles problem studied in this paper gives an error guarantee of $\varepsilon N$ for any quantile $\phi\in[0,1]$. A stronger, relative-error guarantee of $\varepsilon\phi N$ was proposed by Cormode et al. [3], under the name of biased quantiles.555 Strictly speaking, the definition in [3] is weaker, requiring only to approximate items at ranks $\phi^{j}\cdot N$ with error at most $\varepsilon\cdot\phi^{j}\cdot N$ for $j=0,\dots,\lfloor\log_{1/\phi}N\rfloor$ and some parameter $\phi\in(0,1)$ known in advance. They showed that any summary for biased quantiles, even constructed offline, requires space of $\Omega(\frac{1}{\varepsilon}\cdot\log\varepsilon N)$, which is the best lower bound proved so far. This follows by observing that any summary needs to store $\frac{1}{\varepsilon}$ smallest items, among next $\frac{1}{\varepsilon}$ items every other one, and more generally, it needs to store $\Omega(\frac{1}{\varepsilon})$ items among those with ranks between $\frac{2^{i}}{\varepsilon}$ and $\frac{2^{i+1}}{\varepsilon}$ for any $i=0,\dots,\log\varepsilon N$. The state-of-the-art upper bounds on space are $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log^{3}\varepsilon N)$, using a deterministic comparison-based “merge & prune” strategy [21], and $\mathcal{O}(\frac{1}{\varepsilon}\cdot\log\varepsilon N\cdot\log|U|)$ for a fixed universe $U$ [4], using a modification of q-digest from [18]. The randomized algorithm in [20] achieves expected space of $\mathcal{O}\left(\frac{1}{\varepsilon}\cdot\log(\frac{1}{\varepsilon}\log\frac{1}{\delta})\cdot\frac{\log^{2+\alpha}\varepsilon N}{1-2^{-\alpha}}\right)$ (for $\alpha>0$), while requiring $\mathcal{O}(\frac{1}{\varepsilon^{2}}\cdot\log\frac{1}{\delta}\cdot\log^{2}\varepsilon N)$ in the worst case. A simpler, sampling-based approach uses space $\operatorname{poly}(\frac{1}{\varepsilon},\log N)$ [9].

We show that our construction from Section 4 can be used to improve the lower bound for $\varepsilon$-approximate biased quantile summaries by a further $\log\varepsilon N$ factor. Note that Definition 1 of comparison-based summaries translates to this setting as well as Definitions 3 and 4 of equivalent memory states and indistinguishable streams.

Theorem 16**.**

For any $0<\varepsilon<\frac{1}{16}$, there is no deterministic comparison-based $\varepsilon$-approximate biased quantile summary which stores $o(\frac{1}{\varepsilon}\cdot\log^{2}\varepsilon N)$ items on any input stream of length $N$.

Proof sketch..

For an integer $k$, we show that any deterministic comparison-based $\varepsilon$-approximate biased quantile summary needs to use $\Omega(\frac{1}{\varepsilon}\cdot k^{2})$ space on some stream of length $\mathcal{O}(\frac{1}{\varepsilon}\cdot 2^{k})$, so that $k=\Omega(\log\varepsilon N)$. We have $k$ phases, executed from phase 1 to phase $k$. In phase $i$, we use the construction from Section 4 to generate $N_{i}=\frac{1}{\varepsilon}\cdot 2^{i}$ new items that are larger than all items from previous phases $j<i$. That is, in phase $i$ we execute $(\pi_{i},\varrho_{i})=\textsc{AdvStrategy}(i,\pi_{i-1},\varrho_{i-1},(\max(\pi_{i-1}),\infty),(\max(\varrho_{i-1}),\infty))$, where $\pi_{i-1}$ and $\varrho_{i-1}$ are the streams from the previous phase (and $\pi_{0}=\varrho_{0}=\emptyset$) and $\max(\sigma)$ is the largest item in stream $\sigma$ (so $\sigma$ contains no item from $(\max(\sigma),\infty)$). The streams $\pi_{i}$ and $\varrho_{i}$ are indistinguishable for any $i$, by an iterative application of Lemma 8.

A similar proof as in Lemma 6 shows that the largest gap among items sent in phase $i$ is $\mathcal{O}(\varepsilon N_{i})$ with respect to the relative-error guarantee. This uses the fact that $\Theta(N_{i})$ items were sent in previous phases and thus the relative-error guarantee for items from phase $i$ is $\Theta(\varepsilon N_{i})$. We can thus apply the analysis in Section 5, in particular the space-gap inequality (2). We remark that even though the streams already contain some items before phase $i$, this does not affect the analysis. Indeed, the space-gap inequality works for any execution in the recursion tree of AdvStrategy, and the streams may already contain many items before this execution.

Thus, the summary needs to store $\Omega(\frac{1}{\varepsilon}\cdot i)$ items from phase $i$. Note that this includes also the minimum and maximum items from phase $i$. With constant additional storage per phase, we may suppose that the minimum and maximum items from each phase are stored all the time after they arrive, and that we know their exact ranks (as the number of items in each phase is fixed). Consequently, different phases can be treated independently.

The final observation is that the largest gap among items from phase $i$ remains $\mathcal{O}(\varepsilon N_{i})$ even after items from subsequent phases arrive. This follows from the relative-error guarantee, since all subsequent items in the streams are larger than items from phase $i$. Hence, the algorithm cannot remove items from phase $i$ from the memory when processing items from subsequent phases, except for items that can be removed when last item from phase $i$ arrives. To conclude, the algorithm stores $\Omega(\frac{1}{\varepsilon}\cdot i)$ items from phase $i$ at the end, and summing over all $k$ phases gives the result. ∎

For randomized algorithms that provide all biased quantiles with probability more than $1-\delta$ for $\delta=1/N!$, the same reduction as for the quantiles problem in Section 6.3 (with uniform error) shows that there is no comparison-based randomized biased quantile summary running in space $o(\frac{1}{\varepsilon}\cdot\log\varepsilon N\cdot\log\log\frac{1}{\delta})$. Closing the gaps for (deterministic or randomized) biased quantiles remains open.

Acknowledgments. The work is supported by European Research Council grant ERC-2014-CoG 647557.
