Dark Matter Signatures of Supermassive Black Hole Binaries

TL;DR

This paper explores how supermassive black hole binaries can create dense dark matter clumps near SMBHs through gravitational interactions, potentially detectable via gravitational waves and electromagnetic signals.

Contribution

It introduces a novel mechanism linking SMBH binaries to dense dark matter clumps and their observable signatures.

Findings

Dark matter density can be significantly enhanced near SMBHs due to binary interactions.

The resulting dark matter clumps may produce detectable gravitational waves with LISA.

Dark matter annihilation in these clumps could generate observable electromagnetic signals.

Abstract

A natural consequence of the galaxy formation paradigm is the existence of supermassive black hole (SMBH) binaries. Gravitational perturbations from a far-away SMBH companion can induce high orbital eccentricities on dark matter particles orbiting the primary SMBH via the eccentric Kozai-Lidov mechanism. This process yields an influx of dark matter particles into the primary SMBH ergosphere, where test particles linger for long timescales. This influx results in high self-gravitating densities, forming a dark matter clump that is extremely close to the SMBH. In such a situation, the gravitational wave emission between the dark matter clump and the SMBH is potentially detectable by LISA. If dark matter self-annihilates, the high densities of the clump will result in a unique co-detection of gravitational wave emission and high energy electromagnetic signatures.

Figures

Equations

$$R_t\sim {\left(\frac{3M_{\bullet }}{4\pi {\rho }_{\mathrm{cl}}}\right)}^{1/3},$$

$$R_{\min }=\frac{2G{M}_{\bullet }}{c^2},$$

$${\rho }_{\mathrm{SG}}=\frac{3}{32\pi }\frac{c^6}{G^3{M}_{\bullet }^2}.$$

$${\rho }_{\mathrm{cl}}to0.0pt\text{lower}4.0pt\sim \text{hss}\text{raise}1.0pt<\frac{m_{\chi }}{⟨\sigma v⟩t},$$

$$t_D=\sqrt{\frac{3}{4\pi G{\rho }_{\mathrm{cl}}}}.$$

$${\rho }_{\mathrm{cl},\max }to0.0pt\text{lower}4.0pt\sim \text{hss}\text{raise}1.0pt<\frac{4\pi G}{3}{\left(\frac{m_{\chi }}{⟨\sigma v⟩}\right)}^2.$$

$$M_{\bullet ,\lim }\sim \frac{3}{8\sqrt{2}\pi }\frac{c^3}{G^2}\frac{⟨\sigma v⟩}{m_{\chi }}.$$

$$t_{\mathrm{EKL},\min }\sim \sqrt{\frac{a_{\mathrm{p}}^3}{M_{\mathrm{p}}G}}\sqrt{\frac{M_{\bullet }}{M_{\mathrm{p}}}}{\left(\frac{e_{\mathrm{p}}}{ϵ}\right)}^{3/2}\sim 10^3\mathrm{yr}\times$$

$$\rho_{DM}=\left\{\begin{array}[]{lc}0&r\leq{2GM_{\bullet}}/{c^{2}}\ ,\\ \rho_{\rm sat}&{2GM_{\bullet}}/{c^{2}}<r\leq R_{\rm sat}\ ,\\ \rho_{\rm sat}\left(\frac{r}{R_{\rm sat}}\right)^{-\gamma}&R_{\rm sat}<r\leq R_{\rm spike}\ ,\end{array}\right.$$

$$M_{\mathrm{clump}}\sim f_{\mathrm{whirl}}\times f_{\mathrm{acc}}\times f_{\mathrm{EKL}}(t)\times M_{\mathrm{available},\mathrm{DM}},$$

$$t_{\mathrm{ann}}\sim \frac{m_{\chi }}{{\rho }_{\mathrm{SG}}⟨\sigma v⟩},$$

$$h_c(a,f)=2h_0(a,f)f{T}_{\mathrm{obs}},$$

$$h_0(a)=\sqrt{\frac{32}{5}}\frac{G^2}{c^4}\frac{M_{\bullet }{M}_{\mathrm{clump}}}{D_{l}a},$$

Full text

1. Introduction

The hierarchical nature of the galaxy formation paradigm suggests that major galaxy mergers may result in the formation of supermassive black hole (SMBH) binaries (Di Matteo et al., 2005; Hopkins et al., 2006; Robertson et al., 2006; Callegari et al., 2009). While observations of SMBH binaries are challenging, there are several observed binary precursors with sub-parsec to tens to hundreds of parsec separations (e.g., Sillanpaa et al., 1988; Rodriguez et al., 2006; Komossa et al., 2008; Bogdanović et al., 2009; Boroson & Lauer, 2009; Dotti et al., 2009; Deane et al., 2014; Liu et al., 2016; Bansal et al., 2017; Kharb et al., 2017; Runnoe et al., 2017; Pesce et al., 2018; Guo et al., 2019). Furthermore, several observations of active galactic nuclei pairs with kpc-scale separations have been suggested as SMBH binary precursors (e.g., Komossa et al., 2003; Bianchi et al., 2008; Comerford et al., 2009; Liu et al., 2010; Green et al., 2010; Smith et al., 2010; Comerford et al., 2018). Numerical simulations for spheroidal gas-poor galaxies suggest that these binaries can reach parsec separation and may stall there (e.g., Begelman et al., 1980; Milosavljević & Merritt, 2001; Yu, 2002).

While the Dark Matter (DM) distribution in galaxies has been studied extensively in the literature, the DM profile for sub-kpc scales is largely unknown. In Naoz & Silk (2014), we suggested that gravitational perturbations in SMBH binaries can have important implications for the DM distribution around the less massive member of the binary. The requirement that the perturbing SMBH will be more massive than the primary arises from the need to overcome general relativistic precession of the DM particle orbits (Naoz et al., 2013). Gravitational perturbations from a far-away SMBH, on a DM particle orbiting around the primary SMBH can result in extremely high eccentricities due to a physical process known as the “Eccentric Kozai-Lidov” (EKL) mechanism (Naoz, 2016). The eccentricities can reach extreme values (Li et al., 2014b) such that the pericenter passage of the DM particle reaches the SMBH ergosphere (or even the event horizon) (Naoz & Silk, 2014). This process results in a DM torus-like configuration around the less massive SMBH (Naoz & Silk, 2014). These torus particles were initially in a less favorable EKL regime of the parameter space, compared to those that reached high eccentricities.

The low-energy, low angular momentum orbit of a test particle around a spinning black hole has been addressed in the literature up to 4th order in the post-Newtonian approximation (Will & Maitra, 2017), and may yield an increase of the DM density around a rotating SMBH (Ferrer et al., 2017). The EKL mechanism in SMBH binary systems results in extremely low angular momentum orbits of the DM particles (Naoz & Silk, 2014). These particles spend a significant part of their orbit zooming around the ergosphere, before continuing with their orbit (e.g., Schnittman, 2015, and see below for more details).

Here we show that even the temporary accumulation of DM in the ergosphere of an SMBH, as a result of zoom-whirl orbits, can reach such high densities as to allow for formation of self-gravitating DM clumps. Such a clump then emits gravitational waves (GW), potentially detectable by LISA, while possibly undergoing self-annihilation. This process may yield a unique co-signal of GW emission and high energy electromagnetic signature arising from the self-annihilation process of DM (see Fig. 1).

2. Self-Gravitating DM Clumps

DM is expected to be inhomogeneous and clumpy (e.g., Silk & Stebbins, 1993; Berezinsky et al., 2010, 2014). This clumpy nature can be explained as a simple extrapolation to very small scales of the primordial power spectrum, and in large parts of the Universe these clumps are expected to be free from gas (e.g., Naoz & Narayan, 2014; Popa et al., 2016; Chiou et al., 2018, 2019). Furthermore, some DM clumps may have formed shortly after or during radiation-matter equality due to phase transitions, topological defects, or collapse into primordial perturbations (e.g., Kolb & Tkachev, 1994; Starobinskij, 1992; Berezinsky et al., 2010). Moreover, these clumps may have formed at earlier epochs due to accretion onto primordial black holes (e.g., Bertschinger, 1985; Ricotti, 2009; Lacki & Beacom, 2010; Eroshenko, 2016; Ali-Haïmoud & Kamionkowski, 2017). Regardless of their formation mechanism, these clumps need to be self-gravitating in order to resist disruption from other objects in the Universe.

In the vicinity of a SMBH with mass $M_{\bullet},$ we define the tidal radius, at which the gravitational tidal field of the SMBH overcomes the DM clump self-gravity111New work by Gafton & Rosswog (2019) showed that the radius of marginal disruption ($R_{t}$) does not change much under Kerr geometry. :

[TABLE]

where $\rho_{\rm cl}$ is the density of the DM clump. In Naoz & Silk, we showed that gravitational perturbations from a distant SMBH can cause high eccentricity excitations to the DM particle orbits reaching all the way to the ergosphere radius. The ergosphere represents a special location for a spinning SMBH. Here, test particles, such as DM, cannot stay stationary with respect to an outside observer (Misner et al., 1973), and tend to linger for long time-scales (Schnittman, 2015). We note that the analysis of this section is agnostic to any mechanism that produces an over-density at the ergosphere and simply describes the requirement for such a clump to exist.

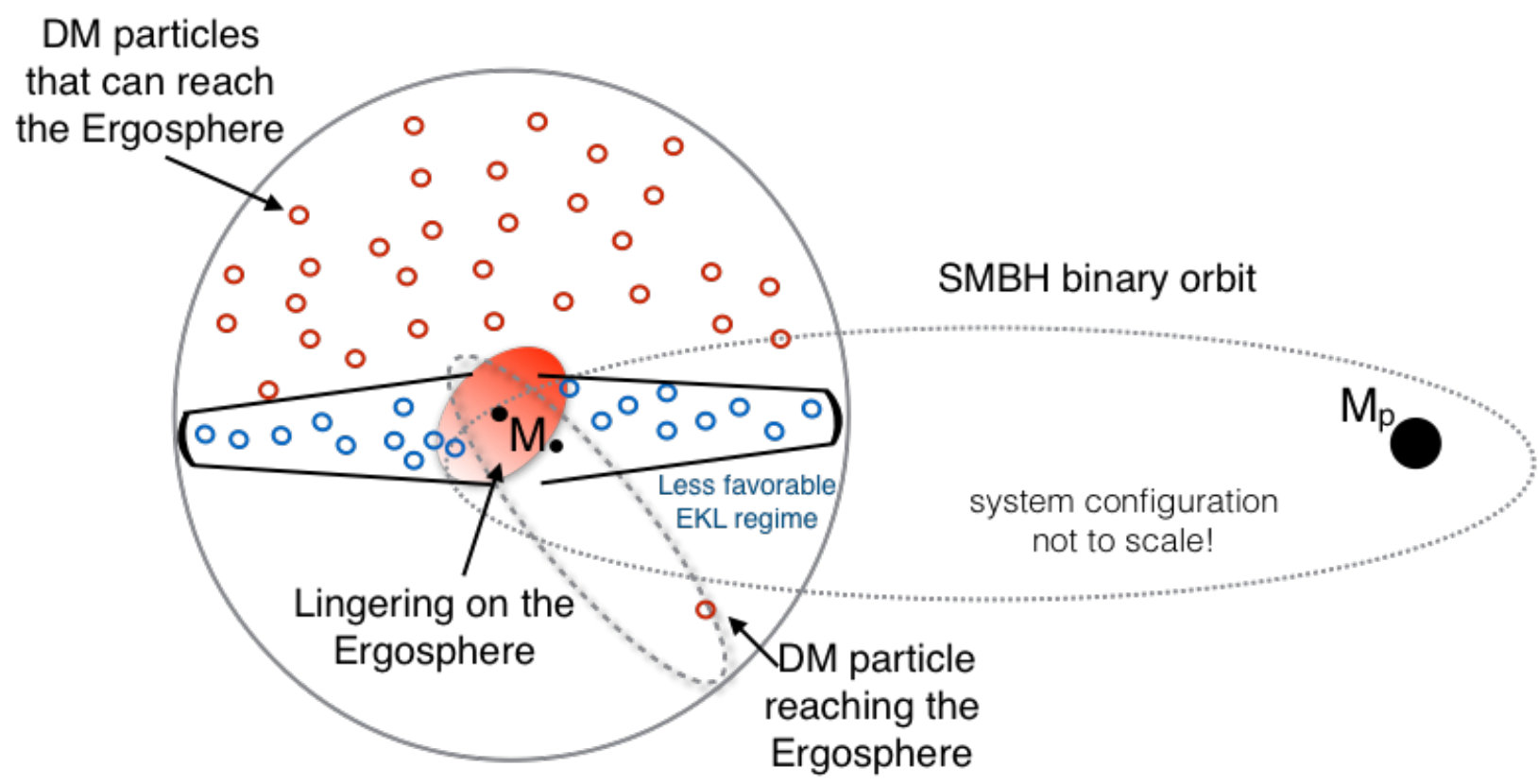

The ergosphere radius is (depicted in Figure 2):

[TABLE]

where $c$ is the speed of light and $G$ is the gravitational constant. We find the critical density for a self-gravitating clump to remain bound at the ergosphere by setting $R_{\rm min}=R_{t}$. In other words,

[TABLE]

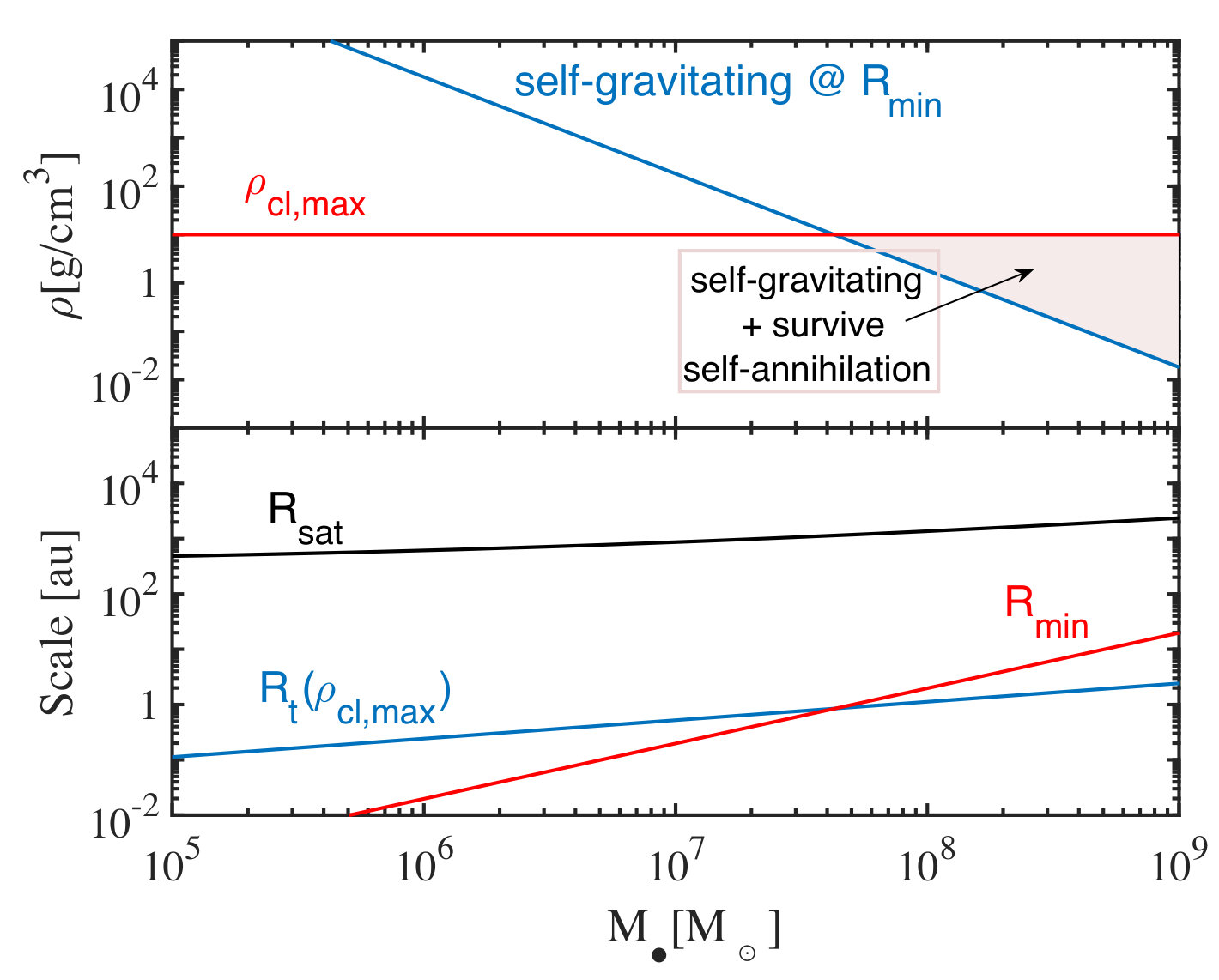

This critical density is depicted in Figure 2.

DM self-annihilations place an upper limit on the DM density of a clump by requiring that the clump does not self-annihilate within a given time $t$. In other words:

[TABLE]

where $\langle\sigma v\rangle$ is the thermal velocity-averaged annihilation cross-section times the particle velocity, $m_{\chi}$ is the mass of the DM particle. Considering the DM distribution in galaxies, the relevant time-scale is typically the age of the system, which results in a saturated core density, $\rho_{\rm sat}$, at the center of a galaxy (Gondolo & Silk, 1999; Lacroix et al., 2014; Lacroix & Silk, 2018). Here, however, we adopt the dynamical timescale, $t_{D}$, of the self-gravitating clump (Ali-Haïmoud et al., 2016), that describes a significant change to the clump due to its own gravity

[TABLE]

We note that the Hubble timescale is irrelevant here, because there is no need to require that the clump, or the binary, will survive for a Hubble time. Thus, setting the time in Equation (4) to be the above dynamical time, we can obtain an upper limit on the clump’s density, for self-annihilating, self-gravitating clumps

[TABLE]

In Figure 2, we show this upper limit for $m_{\chi}=100$ Gev DM particles and adopting the canonical velocity-averaged annihilation cross-section times velocity $\langle\sigma v\rangle=3\times 10^{-26}$ cm3 s*-1* (Jungman et al., 1996).

From the comparison between $\rho_{\rm SG}$ and $\rho_{\rm cl,max}$, we find a minimum SMBH mass that can allow formation of a self-gravitating spherical clump:

[TABLE]

For $m_{\chi}=100$ Gev DM particles, we find $M_{\bullet,{\rm lim}}\sim 4.3\times 10^{7}$ M⊙. This is the mass at the crossing point between $\rho_{\rm SG}$ and $\rho_{\rm cl,max}$, depicted in Figure 2. Larger DM mass particles will result in smaller limiting masses.

3. Clump Masses and Annihilation of DM

Test particles, such as DM particles, on eccentric orbits that plunge into the ergosphere, whirl around in the ergosphere a few times, then travel back out to apocenter [coined “zoom–whirl” orbits, because it involves several revolutions around the pericenter (Glampedakis & Kennefick, 2002; Healy et al., 2009; Tsupko, 2014)]. This behavior, of long-lived stable orbits, results in a density peak of DM inside $4G/c^{2}$ (as shown numerically by Schnittman, 2015). In Figure 3, we show the fraction of the orbit that a particle will spend zooming in the ergosphere compared to the Newtonian orbit (top) and as a function of the total orbit (bottom).

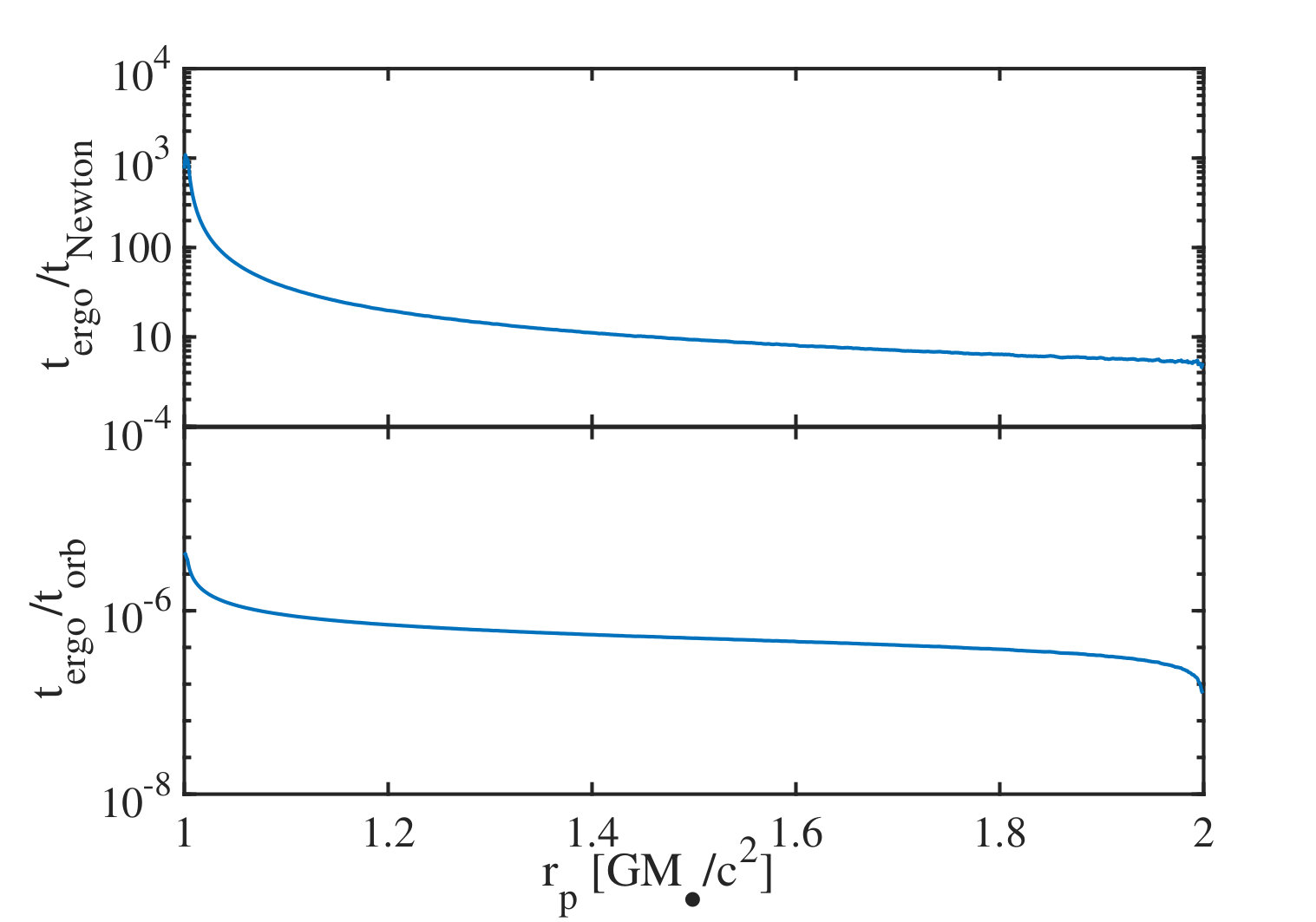

To calculate the time spent in the ergosphere (Figure 3), we launch test particles on highly eccentric orbits with apocenter at $r=40,000M$, and pericenter ranging from $r=1M$ (the horizon) out to $r=2M$ (the outer surface of the ergosphere), where $M=GM_{\bullet}/c^{2}$. Along these Kerr geodesic trajectories, we simply integrate the coordinate time spent inside the ergosphere for each particle, and compare that to the total coordinate time of the orbit, and also the amount of time that would be spent inside of $r=2M$ with a Newtonian, non-relativistic orbit. From these, we see that the frame-dragging effects of the Kerr black hole lead to longer dwell times very close to the black hole, roughly a factor of $\sim 10-1000$ times longer than a Newtonian orbit.

We note that in EKL systems, such as the one considered here, gravitational perturbations from the far-away companion excite the DM particles’ eccentricity to extreme values, for large range of inclinations and other orbital parameters (Li et al., 2014a, b; Naoz & Silk, 2014). The eccentricity of these test particles continues to increase until they reach the horizon, and thus they pass through the entire ergosphere. Thus, Figure 3, depicts a typical behavior for particles that eventually will reach the ergosphere.

Naoz & Silk (2014) pointed out that DM particles can reach extreme eccentricity, from grazing the ergosphere’s outer surface all the way in to the inner surface of the ergosphere. These high eccentricity orbits result from the gravitational perturbations from a companion that is far away from the primary SMBH, via the aforementioned EKL mechanism. The system is scalable and was shown to consistently result in nearly radial orbits (e.g., Naoz et al., 2012; Li et al., 2014b, 2015). We note that even with systems for which the secular, double-averaged method222The double-averaged method, averages over each of the orbits, and thus effectively the three-body system is reduced to two orbits, interacting with each other (see for more details: Naoz, 2016). breaks down, even larger eccentricities are expected (e.g., Katz & Dong, 2012; Antognini et al., 2014; Luo et al., 2016; Hamers, 2018). Since the evolution is gradual, particles have their pericenters evolve from the outer to the inner surface of the ergosphere. In other words, at any given time particles uniformly occupy the full extent of the ergosphere.

DM particles around an SMBH are on a stable orbit as long as $\epsilon=a_{\rm DM}e_{\rm p}/(a_{\rm p}(1-e_{\rm p}^{2}))<0.1$ (Naoz, 2016), where $a_{\rm DM}$ is the DM particle semi-major axis around $M_{\bullet}$, and $a_{\rm p}$ and $e_{\rm p}$, are the semi-major axis and the eccentricity of the perturber SMBH, respectively. An eccentric SMBH perturber with $M_{\rm p}>M_{\bullet}$ will excite the eccentricity of DM particles that are around $M_{\bullet}$ (Naoz & Silk, 2014). As a proof-of-concept, we set $a_{\rm p}$ to be roughly the sphere of influence, thus allowing for long-term surviving SMBH binaries. The shortest EKL timescale at which particles can reach $R_{\rm min}$ is proportional to (Naoz, 2016)

[TABLE]

DM particles develop large eccentricities as time goes by until they reach such high eccentricities that they are consumed by the SMBH. We can thus scale Naoz & Silk’s nominal simulations, and estimate the time-scale at which ergosphere pericenter passages are expected. The time-scale has a similar time dependency for different SMBH mass primaries using the scaling relation in Eq. (3). We adopt this proof-of-concept time dependence for an assumed DM distribution within the SMBH sphere of influence.

To estimate the mass that is temporarily accumulated on the ergosphere as a function of time we begin by calculating the DM density around the SMBH. Gondolo & Silk (1999) showed that the distribution of DM can be enhanced around the centers of galaxies, at a radius which is at the order of the SMBH sphere of influence. We adopt the DM density profile inwards of the sphere of influence:

[TABLE]

where we assume a NFW profile for $r>R_{\rm spike}$, and $R_{\rm spike}$, the radius at which DM density spikes, is equal to the sphere of influence. The latter can be then computed for different SMBH masses via the $m-\sigma$ relation333The $m-\sigma$ relation describes an observed correlation between the mass of the supermassive black hole at the centers of galaxies and the velocity dispersion $\sigma$ of the galaxy bulge. (Tremaine et al., 2002). From Eq. (4), the saturated density is $\rho_{\rm sat}={m_{\chi}}/({\langle\sigma v\rangle t_{\bullet}})$, where we adopt $t_{\bullet}=10^{10}$ yr as the age of the SMBH (Gondolo & Silk, 1999; Lacroix et al., 2014; Lacroix & Silk, 2018). The power-law index $\gamma$ is expected to be between $2.25-2.5$ (Bœhm & Lavalle, 2009), and in what follows we adopt $\gamma=7/3$ 444We note that we have tested a larger value as well, which slightly changed the total clump mass but did not affect the overall, qualitative conclusion. . Demanding continuation between the different profile segments, we find the spike radius, $R_{\rm spike}$, and the saturated radius of the DM density, due to self-annihilation, $R_{\rm sat}$, (shown in bottom panel of Figure 2).

With the DM density profile at hand, we can now roughly estimate the mass of a self-gravitating clump. Using the results depicted in Figure 3, we find that particles that reach the inner region of the ergosphere spend about $f_{\rm whirl}\sim 0.01\%$ of their orbital time near the ergosphere. Thus, without loss of generality, we focus on these particles; as they develop their eccentricity over time, they swipe through the outer surface as well. Following Naoz & Silk (2014) we assume that about $f_{\rm acc}\sim 30\%$ of all particles can reach the ergosphere555Note that this value can be as low as $15\%$ and as high as $50\%$. The former is a result of high eccentric particles that are captured by the massive SMBH perturber (Li et al., 2015) and the latter is a result of having the perturber SMBH grow in mass (Naoz & Silk, 2014). . Note that since these particles, by definition, reached the ergosphere and eventually the event horizon, they will reach the closest approach that corresponds to the $f_{\rm whirl}$ value we adopt from Figure 3. Given different initial orbital configurations, different particles reach the required minimum pericenter at different times (e.g., Naoz & Silk, 2014, figure 9), since the eccentricity keeps on growing, the particles eventually are eaten by the SMBH. We scale this time dependency for different SMBH masses defining the fraction of particles with pericenter reaching the ergosphere inner surfaces as a function of time $f_{\rm EKL}(t)$ we can estimate the temporary clump mass as a function of time

[TABLE]

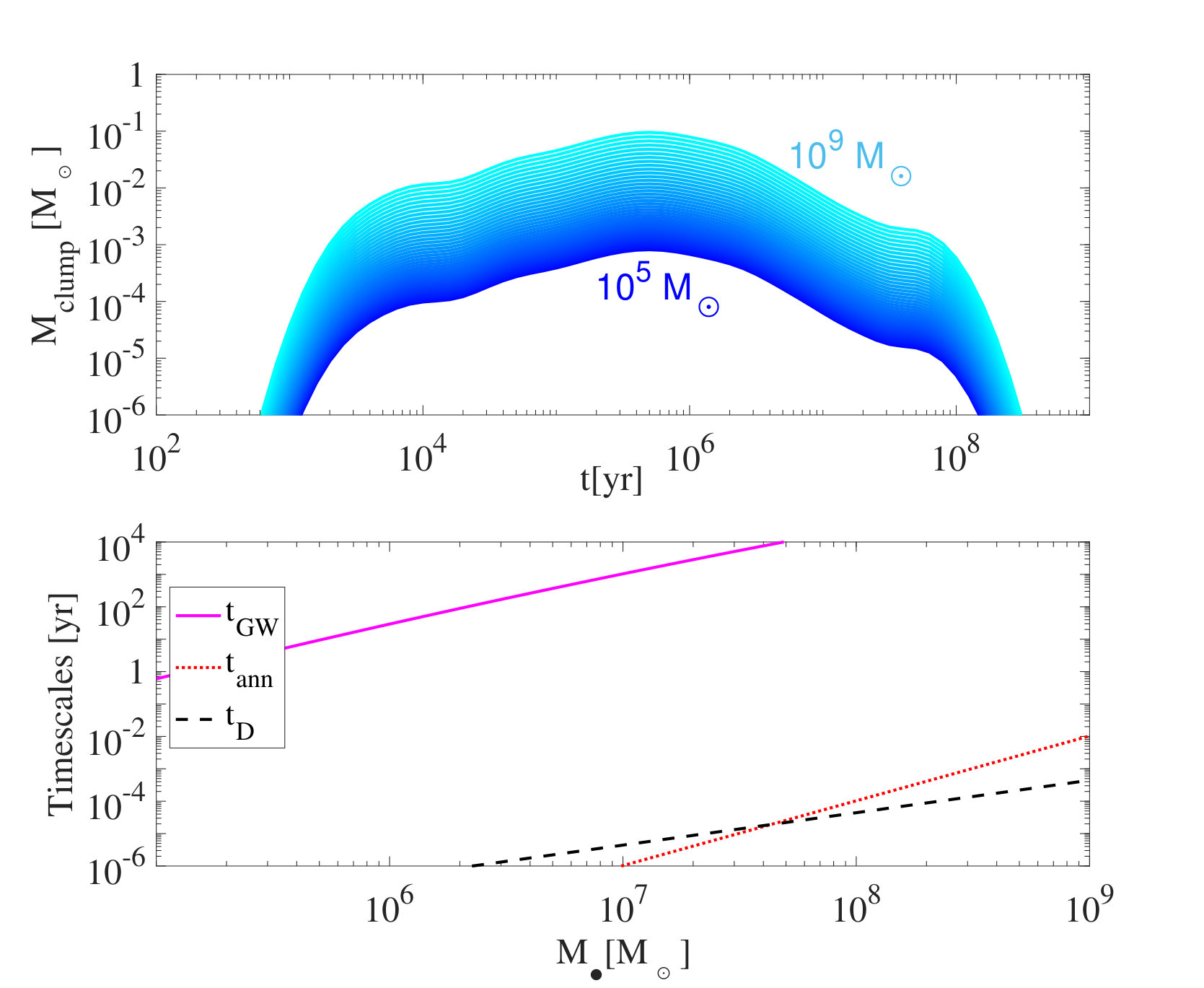

where $M_{\rm available,DM}$ is the available mass of the DM particles estimated within the stable regime using the DM density profile from Eq. (9). We show this mass as a function of time in the top panel of Figure 4. The mass is decreasing after about $100$ Myr as particles either annihilate or are captured by the SMBH.

For annihilating DM particles, these high densities will undergo rapid annihilation. The annihilation time-scale is estimated as

[TABLE]

shown as dotted lines in the bottom panel of Figure 4. We note that we use $\rho_{\rm SG}$ rather then $\rho_{\rm cl,max}$, because the former represents the minimum density at which the clump self-gravity will overcome the SMBH tidal forces, irrespectively of self-annihilation. However, the strong gravitational field of the SMBH may affect the dynamics, and thus Equation (11) overestimates the annihilation time-scale for masses below $M_{\bullet,{\rm lim}}$. As the clump self-annihilates, more particles can reach the ergosphere on high eccentric orbits via the EKL mechanism (as depicted on Figure 4, top panel), thus forming a new clump, and the process rejuvenates.

4. Gravitational Wave emission signal

The orbit of a self-gravitating clump will shrink due to gravitational wave (GW) emission. We estimate the merger timescale (Peters, 1964), although we note that the clump is not a point mass, on the other-hand, due to the EKL, it does not exhibit radial symmetry either. We adopt the maximum clump mass estimated from Figure 4, thus having a lower limit on the merger timescale between the clump and the SMBH (and the largest GW signal). As depicted in Figure 4, bottom panel, the merger time-scale via GW emission is much longer than the annihilation time-scale. Thus, while the clump undergoes self-annihilation, it emits a GW signal. In this example, the density around the SMBH will be replenished for about $10^{8}$ yr, yielding continued GW and electromagnetic signals.

We note that the spin axis of the SMBH orientation can have an arbitrary direction compared to the SMBH binary orbital plane. The DM particles clump in the ergosphere in an asymmetric configuration, and follow highly eccentric geodesic trajectories through the ergosphere (Schnittman, 2015). Thus, the actual waveform of such a signal is rather complicated and depends on the orbital dynamics of a test particle in a strong gravitational field (Will & Maitra, 2017). We therefore estimate the dimensionless characteristic strain for a circular orbit, which represents the order-of-magnitude of the expected signal (Barausse et al., 2014). Moreover, most of the GW power is emitted near pericenter, so indeed the circular orbit approximation is a valid estimate (e.g., Enoki & Nagashima, 2007; Tessmer & Gopakumar, 2008).

The GW frequency $f$ of a circular orbit is twice the orbital frequency, and the dimensionless characteristic strain is (Robson et al., 2018)

[TABLE]

where $T_{\rm obs}$ is the observation time window and $h_{0}(a,f)$ is defined as

[TABLE]

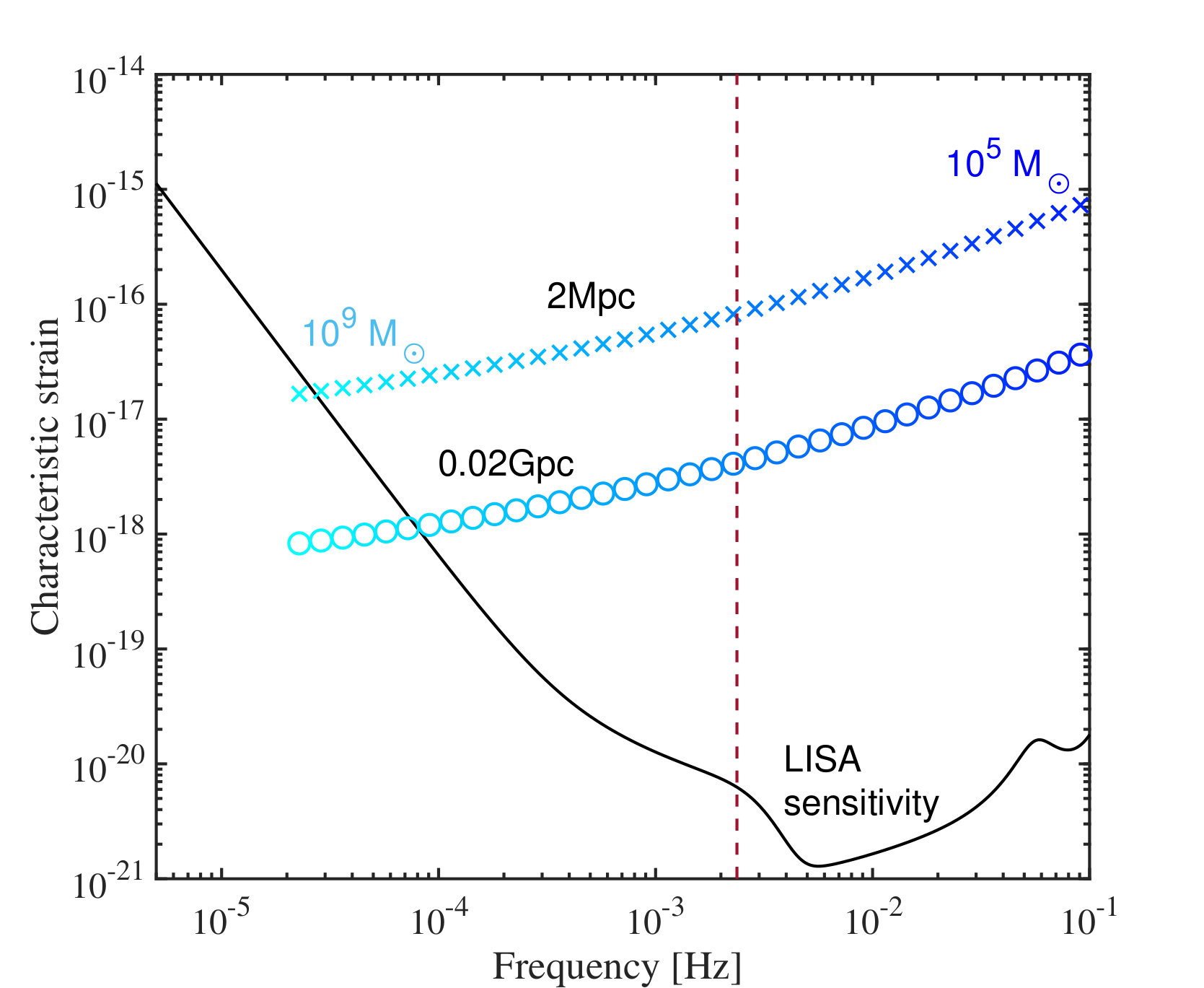

where $D_{l}$ is the luminosity distance and $a$ is the semi-major axis of the two objects. Below we adopt $a=R_{\rm min}$. Note that while these calculations do not include the spin of the SMBH, they are order-of-magnitude consistent with the latest implementation of the analytical model of Extreme Mass-Ratio Inspirals (EMRI) that does include the spin of a SMBH for point mass inspiral (Chua & Gair, 2015; Chua et al., 2017). We further emphasize that the strain calculation should be considered as strictly an order of magnitude, as orbits interior to the last stable orbit (such in our case) cannot orbit on circular orbits.

Since the EKL mechanism yields an influx of DM particles on long timescales (e.g., Figure 4), as a clump become self-gravitating and self-annihilates, additional DM particles may reach high eccentricites. Thus, we can consider a long observational window with LISA. Figure 5 depicts the GW signal for two example sources observed for $T_{\rm obs}=4$ yr. The first is located $2$ Mpc away and the other located $0.02$ Gpc from us. We consider a range of SMBH masses (from $10^{5}$ M⊙, to the right, to $10^{9}$ M⊙ to the left). As can be seen in the Figure, LISA will be sensitive to a large range of the SMBH mass parameter space.

One may consider an observational window proportional to the annihilation time-scale. This time-scale covers a large range, from about a few days ($\sim 4$ d, for $10^{9}$ M⊙) to less than a minute for the low mass SMBHs. This short time-scale is still within the LISA sensitivity window. It is unclear how LISA will handle very short observational windows. However, as mentioned above, we expect a continuous formation of self-gravitating clumps of DM in the ergosphere, thus short time-scales, which may be associated with burst-like signals, are less probable.

5. Discussion

We have shown that, thanks to the EKL mechanism in SMBH binaries, a self-gravitating DM clump may exist near the ergosphere of a spinning SMBH. DM may reach high eccentricities, spending considerable time there (see Figure 3), over long time-scales allowing for replenishing the possibly self-annihilating DM particles (see Figure 4). The mass of the clump can be high enough to allow for a GW signal, detectable by LISA (as depicted in Figure 5). Our results suggest that this GW signal could be accompanied with a high energy electromagnetic signal from DM self-annihilation processes, and locked in phase to the GW signal, similar to the chirps predicted from neutron star-BH mergers (Schnittman et al., 2018).

Note that if the DM does not self-annihilate into particles with detectable signatures, as is the case for gravitinos, we expect continuous formation of a massive clump around the SMBH. Unlike the assumptions made in Figure 4, where particles either self-annihilate or are captured by the SMBH, if all the particles survive, the mass of the clump may increase over time. Some of the DM particles may accrete onto the SMBH, however, the massive clump around the SMBH may result in, for example, gravitino decay products (Grefe, 2012). Moreover, the GW signal in such a case may be even stronger, as the clump mass may increase. However, in the case with no electromagnetic counterpart we are unlikely to be able to distinguish between this GW merger and a stellar-mass extreme mass ratio inspiral. We note that we have assumed a gas-poor environment around SMBHs. Because the DM cusp dominates the density, and more so, as a clump becomes self-gravitating, we do not expect that interaction with the baryons will significantly alter the results.

SMBH binaries are a natural consequence of galaxy formation, consistent with observations (Barrows et al., 2018). We therefore expect that not only the torus-like DM distribution will be a generic outcome of SMBH binaries (Naoz & Silk, 2014), but also have a GW signal from self-gravitating DM that collects in the close vicinity of the SMBH. If DM self-annihilates, we predict that the GW signal will also be accompanied by a high-energy signal.

SN and JS thank the UCLA Bhaumik Institute for Theoretical Physics for the hospitality that enabled the completion of this project. We thank the anonymous referees for useful comments that helped strengthen the paper. We also thank Emanuele Berti, Bence Kocsis and Bao-Minh Hoang for useful discussions. SN acknowledges the partial support of NASA grant No. 80NSSC19K0321, and also thanks Howard and Astrid Preston for their generous support. JS acknowledges discussions with Enrico Barausse. JDS acknowledges support from NASA grant 17-TCAN17-0018.
