Spurious pressure in Scott-Vogelius elements

TL;DR

This paper investigates the causes of spurious pressure modes in Scott-Vogelius finite elements at singular vertices and proposes a postprocessing method to eliminate these inaccuracies in Stokes equation solutions.

Contribution

The paper identifies the origin of spurious pressures in Scott-Vogelius elements and introduces a simple postprocessing technique to improve solution accuracy.

Findings

Spurious pressures are linked to singular vertices in Scott-Vogelius elements.

A postprocessing method effectively removes these spurious pressures.

Improved pressure accuracy in Stokes solutions using the proposed technique.

Abstract

We will analyze the characteristics of Scott-Vogelius finite elements on singular vertices, which cause spurious pressures on solving Stokes equations. A simple postprocessing will be suggested to remove those spurious pressures.

Figures

Tables

Table 1. Table 1: Error table for meshes with quasi singular vertices as in Figure 14

mesh	${\left|𝐮-{𝐮}_h\right|}_1$	order	${\Vert p-p_h\Vert }_0$	order	${\Vert p-{\tilde{p}}_h\Vert }_0$	order
4 x 4 x 4	8.5504E-3		2.2102E+1		5.7023E-2
8 x 8 x 4	5.4471E-4	3.9724	8.3012E-1	4.7347	2.6680E-3	4.4177
16 x 16 x 4	3.3925E-5	4.0051	2.6856E-2	4.9500	1.6624E-4	4.0044
32 x 32 x 4	2.1182E-6	4.0014	9.8863E-4	4.7637	1.0380E-5	4.0014

Table 2. Table 2: Error table for meshes with no quasi singular vertex as in Figure 18

mesh	${\left|𝐮-{𝐮}_h\right|}_1$	order	${\Vert p-p_h\Vert }_0$	order	${\Vert p-{\tilde{p}}_h\Vert }_0$	order
4 x 4 x 4	1.3539E-2		9.8341E-2		6.9479E-2
8 x 8 x 4	8.7627E-4	3.9496	5.6435E-3	4.1231	3.4819E-3	4.3186
16 x 16 x 4	5.4353E-5	4.0109	3.4576E-4	4.0287	2.1298E-4	4.0311
32 x 32 x 4	3.3688E-6	4.0120	2.1285E-5	4.0218	1.3114E-5	4.0216

Equations

$${\rm Y}({\mathbf{V}}_1)={\rm Y}({\mathbf{V}}_2)={\rm Y}({\mathbf{V}}_3)=\{\pi \},{\rm Y}({\mathbf{V}}_4)=\varnothing .$$

$$\vartheta =\inf \{\theta |\theta \text{mbox}isanangleofatriangleK\in {\mathcal{T}}_h,h>0\}.$$

$${\vartheta }_{\sigma }=\min (\vartheta ,\pi /6),$$

$${\vartheta }_{\sigma }\le \theta \le \pi -2{\vartheta }_{\sigma }.$$

$${\mathcal{S}}_h=\{\mathbf{V}\in {\mathcal{V}}_h:|\Theta -\pi |<{\vartheta }_{\sigma }\text{mbox}forall\Theta \in {\rm Y}(\mathbf{V})\}.$$

$$\Theta =\min \{{\theta }_1+{\theta }_2,{\theta }_2+{\theta }_3,\cdots ,{\theta }_N+{\theta }_1\}.$$

$$N\Theta \le 2\sum _{i=1}^N{\theta }_i=4\pi .$$

$$\pi -{\vartheta }_{\sigma }<\Theta \le \frac{4}{5}\pi .$$

$${\theta }_1+{\theta }_2=2\pi -{\theta }_3\ge 2\pi -(\pi -2{\vartheta }_{\sigma })=\pi +2{\vartheta }_{\sigma }.$$

$$\pi -{\theta }_j<{\vartheta }_{\sigma },\text{mbox}ifj=1,2,{\vartheta }_{\sigma }\le {\theta }_j,\text{mbox}ifj=3,4.$$

$$2\pi <{\theta }_1+{\theta }_2+{\theta }_3+{\theta }_4=2\pi .$$

$${\mathcal{P}}_{k,h}(\Omega )=\{v_h\in L^2(\Omega ):v_h{|}_K\in P^k\text{mbox}foralltrianglesK\in {\mathcal{T}}_h\},k\ge 0.$$

$$X_h^k=[{\mathcal{P}}_{k,h}(\Omega )\cap H_0^1(\Omega ){]}^2,M_h^{k-1}={\mathcal{P}}_{k-1,h}(\Omega )\cap L_0^2(\Omega ),k\ge 4,$$

$$X_h=[{\mathcal{P}}_{4,h}(\Omega )\cap H_0^1(\Omega ){]}^2,M_h={\mathcal{P}}_{3,h}(\Omega )\cap L_0^2(\Omega )).$$

$$(\nabla \mathbf{u},\nabla \mathbf{v})+(p,\mathrm{div}\mathbf{v})+(q,\mathrm{div}\mathbf{u})=(\mathbf{f},\mathbf{v})\text{mbox}forall(\mathbf{v},q)\in [H_0^1(\Omega ){]}^2\times L_0^2(\Omega ),$$

$$(\nabla {\mathbf{u}}_h,\nabla {\mathbf{v}}_h)+(p_h,\mathrm{div}{\mathbf{v}}_h)+(q_h,\mathrm{div}{\mathbf{u}}_h)=(\mathbf{f},{\mathbf{v}}_h)\text{mbox}forall({\mathbf{v}}_h,q_h)\in X_h\times M_h.$$

$$M_h^S=\{s_h\in M_h|(s_h,\mathrm{div}{\mathbf{v}}_h)=0\text{mbox}forall{\mathbf{v}}_h\in X_h\}.$$

$${\Theta }_{\min }=\underset{\mathbf{V}\in {\mathcal{V}}_h}{\min }\underset{\Theta \in {{\rm Y}}^{\prime }(\mathbf{V})}{\max }|\sin \Theta |.$$

$${\Theta }_{\min }\beta \Vert q_h{\Vert }_0\le \underset{{\mathbf{v}}_h\in X_h\setminus \{0\}}{\sup }\frac{(q_h,\mathrm{div}{\mathbf{v}}_h)}{|{\mathbf{v}}_h{|}_1},\forall q_h\in M_h.$$

$$|\mathbf{u}-{\mathbf{u}}_h{|}_1\le C{h}^4|\mathbf{u}{|}_5.$$

$$|\varphi -{\varphi }_h{|}_2\le C{h}^4|\varphi {|}_6.$$

$$|\mathbf{u}-{\Pi }_h\mathbf{u}{|}_1\le C{h}^4|\mathbf{u}{|}_5.$$

$$V_h=\{{\mathbf{v}}_h\in X_h|(q_h,\mathrm{div}{\mathbf{v}}_h)=0\text{mbox}forall{q}_h\in M_h\}.$$

$$(\nabla \mathbf{u}-\nabla {\Pi }_h\mathbf{u},\nabla {\mathbf{v}}_h)=(\nabla {\mathbf{u}}_h-\nabla {\Pi }_h\mathbf{u},\nabla {\mathbf{v}}_h)\text{mbox}forall{\mathbf{v}}_h\in V_h.$$

$$|{\mathbf{u}}_h-{\Pi }_h\mathbf{u}{|}_1^2\le |\mathbf{u}-{\Pi }_h\mathbf{u}{|}_1|{\mathbf{u}}_h-{\Pi }_h\mathbf{u}{|}_1.$$

$$\lambda (\mathbf{x})=(-\mathbf{n})\cdot (\mathbf{x}-\mathbf{M}),$$

$$\text{mathpzc}e(t)=\frac{1}{10}(56t^3-63t^2+18t-1),$$

$$s_{E\mathbf{V}}(\mathbf{x})=\mathpzc{e}\Big{(}\frac{\lambda(\mathbf{x})}{H}\Big{)},$$

$${\int }_K{s}_{E\mathbf{V}}qdA=\frac{|K|}{100}q(\mathbf{V}).$$

$$s_{E\mathbf{V}}(x,y)=\frac{1}{10}(56y^3-63y^2+18y-1).$$

Full text

1 Introduction

The Scott-Vogelius element is the typical high order finite element space which can be applied to solve Stokes problems. Its inf-sup condition was proved in several ways, only when the triangulation has no singular vertex [5, 6, 9]. While it struggles with singular vertices, the inf-sup constant $\beta$ is not proper even in case of nearly singular vertices.

In practice, when the mesh has a nearly singular vertex, the discrete solution in pressure shows an error which is improper at a glance as in Figure 15 in the numerical test section. In this paper, we will call it spurious and analyze its causes.

The punchline of the paper is splitting of the error in stable and unstable parts on nearly singular vertices. We will suggest a simple postprocessing to remove the unstable parts from the discrete pressure obtained by the standard finite element methods. The suggested postprocessing could improve the error even in case of regular vertices.

In our analysis, a cubic polynomial depicted in Figure 4 plays a key role with its interesting quadrature rule. Spurious pressures consist of those polynomials at singular or nearly singular vertices. Although, in this paper, we deal with only the Scott-Vogelius elements of the lowest order in two dimensional domains, we might start its extension to general order if we find such a polynomial there.

For three dimensional Scott-Vogelius elements, the general extension identifying singular vertices and edges is still on its way, in spite of some results on it [8, 10, 11].

The paper is organized as follows. In the next two sections, the quasi singular vertices and Scott-Vogelius elements will be introduced. In section 4, we will show that the discrete Stokes problem is singular due to the presence of spurious pressures, if the mesh has exactly singular vertices. In case of quasi singular vertices, the spurious component of the error in pressure will be identified in section 6 utilizing a new basis of pressure designed in section 5. Then, we will devote section 7 to removing the spurious error from the discrete pressure. Finally, some numerical tests will be presented in the last section.

Throughout the paper, $|\mathbf{x}|$ denotes an area or length if $\mathbf{x}$ is a triangle, edge or vector and $\#S$ does the cardinality of a set $S$.

2 Quasi singular vertex

Let $\Omega$ be a connected polygonal domain in $\mathbb{R}^{2}$ and $\{\mathcal{T}_{h}\}_{h>0}$ a regular family of triangulations of $\Omega$ with a shape regularity parameter $\sigma>0$. Denote by $\mathcal{V}_{h},\mathcal{E}_{h}$, the sets of all vertices and edges in $\mathcal{T}_{h}$, respectively. If a vertex $\mathbf{V}\in\mathcal{V}_{h}$ belongs to $\partial\Omega$, we call it a boundary vertex, otherwise, an interior vertex. Similarly, an edge $E\in\mathcal{E}_{h}$ is called a boundary edge if $E\subset\partial\Omega$, otherwise, an interior edge.

A vertex $\mathbf{V}\in\mathcal{V}_{h}$ is called singular or exactly singular if two lines are enough to cover all edges sharing $\mathbf{V}$ as in Figure 1.

For each vertex $\mathbf{V}$, denote by $\Upsilon(\mathbf{V})$, the set of all sums of two adjacent angles of $\mathbf{V}$ in two back-to back triangles in $\mathcal{T}_{h}$. Then $\Upsilon(\mathbf{V})=\{\pi\}\mbox{ or }\emptyset$ if and only if $\mathbf{V}$ is singular. For examples, in Figure 1,

[TABLE]

Since $\{\mathcal{T}_{h}\}_{h>0}$ is regular, there exists $\vartheta>0$ such that

[TABLE]

Set

[TABLE]

then $\vartheta_{\sigma}$ depends on the shape regularity parameter $\sigma$ of $\{\mathcal{T}_{h}\}_{h>0}$. From (1), we note that every angles $\theta$ of a triangle $K$ in $\mathcal{T}_{h}$ satisfies that

[TABLE]

We will call a vertex $\mathbf{V}\in\mathcal{V}_{h}$ quasi singular if it is singular or nearly singular. For quantification, define a set

[TABLE]

Then, we call a vertex $\mathbf{V}$ quasi singular if $\mathbf{V}\in\SS_{h}$, otherwise regular. In Figure 2, examples of quasi but not exactly singular vertices are depicted. Interior quasi singular vertices are slight perturbations of exactly singular ones. It results in the following lemma:

Lemma 2.1**.**

If $\mathbf{V}$ is an interior quasi singular vertex, then the number of all triangles sharing $\mathbf{V}$ is $4$.

Proof.

Let $N$ be the number of all triangles sharing $\mathbf{V}$ and $\theta_{1},\theta_{2},\cdots,\theta_{N}$ back-to-back angles of $\mathbf{V}$. Set

[TABLE]

Then,

[TABLE]

If $N\geq 5$, then (3) and (4) makes the following contradiction to $\vartheta_{\sigma}\leq\pi/6$ in (1):

[TABLE]

If $N=3$, we have from (2),

[TABLE]

It contradicts to $\mathbf{V}\in\SS_{h}$. ∎

Each interior quasi singular vertex in $\SS_{h}$ is isolated from others in $\SS_{h}$ in the sense of the following lemma.

Lemma 2.2**.**

There is no interior edge connecting two quasi singular vertices in $\SS_{h}$.

Proof.

Let $E$ be an interior edge whose two endpoints $\mathbf{V}_{1},\mathbf{V}_{2}$ are quasi singular in $\SS_{h}$. Then, there exist two triangles sharing $E,\mathbf{V}_{1},\mathbf{V}_{2}$ as in Figure 3.

Consider the quadrilateral $Q$ whose vertices are $\mathbf{V}_{1},\mathbf{V}_{4},\mathbf{V}_{2},\mathbf{V}_{3}$ and one of its diagonals is $E$. Denote the angle of $\mathbf{V}_{i}$ in $Q$ by $\theta_{i}$, $i=1,2,3,4$. Then, from (2) and the definition of $\SS_{h}$, we have

[TABLE]

It meets with the following contradiction:

[TABLE]

∎

3 Scott-Vogelius elements

Let’s define the discrete polynomial spaces $\mathcal{P}_{k,h}(\Omega)$ as

[TABLE]

Then the Scott-Vogelius finite element space is the pair of $X_{h}^{k},M_{h}^{k-1}$ such that

[TABLE]

where $L_{0}^{2}(\Omega)$ is the space of square integrable functions whose means vanish. In this paper, we deal with only the Scott-Vogelius finite element space of the lowest order:

[TABLE]

The incompressible Stokes problem is to find $(\mathbf{u},p)\in[H_{0}^{1}(\Omega)]^{2}\times L_{0}^{2}(\Omega)$ such that

[TABLE]

for a given source function $\mathbf{f}\in[L_{0}^{2}(\Omega)]^{2}$. We will consider the discrete Stokes problem for (5) to find $(\mathbf{u}_{h},p_{h})\in X_{h}\times M_{h}$ such that

[TABLE]

3.1 Error in velocity

Let $M_{h}^{S}$ is the space of spurious pressures such that

[TABLE]

Unfortunately, $M_{h}^{S}$ is not null, if $\mathcal{T}_{h}$ has an exact singular vertex as will be discussed in subsection 4.3 below. The discrete problem (6), however, has at least one solution, even if $M_{h}^{S}\neq\{0\}$.

Lemma 3.1**.**

There exists $(\mathbf{u}_{h},p_{h})\in X_{h}\times M_{h}$ satisfying (6). In addition, $\mathbf{u}_{h}$ is unique.

Proof.

Let $M_{h}=M_{h}^{S}\bigoplus\hat{M_{h}}$ for some subspace $\hat{M_{h}}$. Then there exists a unique $(\mathbf{u}_{h},\hat{p_{h}})\in X_{h}\times\hat{M_{h}}$ satisfying (6), since the discrete problem is not singular on $X_{h}\times\hat{M_{h}}$. ∎

Let $\Upsilon^{\prime}(\mathbf{V})=\Upsilon(\mathbf{V})\cup\{0\}$ and define a parameter $\Theta_{\min}$ of the triangulation $\mathcal{T}_{h}$ as

[TABLE]

The following inf-sup condition is well known [6]:

[TABLE]

If $\mathcal{T}_{h}$ has a quasi singular vertex in $\SS_{h}$, $\Theta_{\min}$ is zero or might be quite small. It could spoil the discrete pressure $p_{h}$ as in Figure 15. Although the inf-sup condition in (8) depends on $\Theta_{\min}$, the error in velocity is stable independently of $\Theta_{\min}$.

Throughout inequalities in the paper, a generic notation $C$ denotes a constant which depends only on $\Omega$ and the shape regularity parameter $\sigma$.

Theorem 3.2**.**

Let $(\mathbf{u},p)\in[H_{0}^{1}(\Omega)]^{2}\times L_{0}^{2}(\Omega)$ and $(\mathbf{u}_{h},p_{h})\in X_{h}\times M_{h}$ satisfy (5), (6), respectively. Then, if $\mathbf{u}\in[H^{5}(\Omega)]^{2}$, we have

[TABLE]

Proof.

Since $\mathrm{div}\hskip 1.42262pt\mathbf{u}=0$, there exists a stream function $\phi\in H^{6}(\Omega)$ of $\mathbf{u}$ which is constant on each component of $\partial\Omega$. Let $\phi_{h}$ be the projection of $\phi$ into the space of $C^{1}$-Argyris triangle elements which are locally $P^{5}$ [2, 3, 4]. Then, $\nabla\phi_{h}$ is continuous in $\Omega$ and vanishes on $\partial\Omega$ and $\phi_{h}$ satisfies that

[TABLE]

Thus, if we define $\Pi_{h}\mathbf{u}=\mathbf{curl}\hskip 1.42262pt\phi_{h}$, we have $\Pi_{h}\mathbf{u}\in X_{h}$ and

[TABLE]

Let

[TABLE]

Note $\mathrm{div}\hskip 1.42262pt\mathbf{v}_{h}=0$, if $\mathbf{v}_{h}\in V_{h}$. Then, from (5), (6), $\mathbf{u}$ and $\mathbf{u}_{h}$ satisfy that

[TABLE]

Since $\mathbf{u}_{h},\Pi_{h}\mathbf{u}_{h}\in V_{h}$, we have, for $\mathbf{v}_{h}=\mathbf{u}_{h}-\Pi_{h}\mathbf{u}\in V_{h}$ in (10),

[TABLE]

It completes the proof with (9). ∎

4 Spurious pressure

4.1 Sting functions

Let $K$ be a triangle in $\mathcal{T}_{h}$ which has an edge $E$ and its opposite vertex $\mathbf{V}$ as in Figure 8-(b). Denote by $\lambda(\mathbf{x})$, a barycentric coordinate of $\mathbf{x}$ vanishing on $E$ such that

[TABLE]

where $\mathbf{n}$ is the unit outward normal vector of $K$ on $E$ and $\mathbf{M}$ is the center of $E$.

With a specific function $\mathpzc{e}$:

[TABLE]

define a cubic polynomial $s_{E\mathbf{V}}\in P^{3}(K)$ determined by the edge $E$ and its opposite vertex $\mathbf{V}$:

[TABLE]

where $H$ is the distance between $E$ and $\mathbf{V}$. A graph of $s_{E\mathbf{V}}$ is depicted in Figure 4 in the reference triangle $\widehat{K}$. We would name $s_{E\mathbf{V}}$ a sting function after its look.

In the remaining of the paper, a local function such as $s_{E\mathbf{V}}$ defined on $K$ is identified with its trivial extension on $\Omega$ vanishing outside $K$. We also use a notation $C_{\sigma}$ for a generic constant which depends only on the shape regularity parameter $\sigma$.

4.2 Quadrature rules

The choice of $\mathpzc{e}$ in (11) makes the sting function $s_{E\mathbf{V}}$ satisfy the following two quadrature rules which play key roles in our error analysis for pressure.

Lemma 4.1**.**

Let $E$ be an edge of a triangle $K$ and $\mathbf{V}$ its opposite vertex. Then, for each polynomial $q\in P^{3}(K)$, we have

[TABLE]

Proof.

In the reference triangle $\widehat{K}$ with its vertices $(0,0),(1,0),(0,1)$, let $E=\{(x,0)\hskip 1.0pt:\hskip 1.0pt0\leq x\leq 1\}$ with its opposite vertex $\mathbf{V}=(0,1)$. By an affine map $\widehat{K}\rightarrow K$, sting functions on $K$ are pulled back to $s_{E\mathbf{V}}$ on $\widehat{K}$. Thus, it is sufficient to prove (13) for $s_{E\mathbf{V}}$ and a cubic polynomial $q$ in $\widehat{K}$.

By definition in (12), we have

[TABLE]

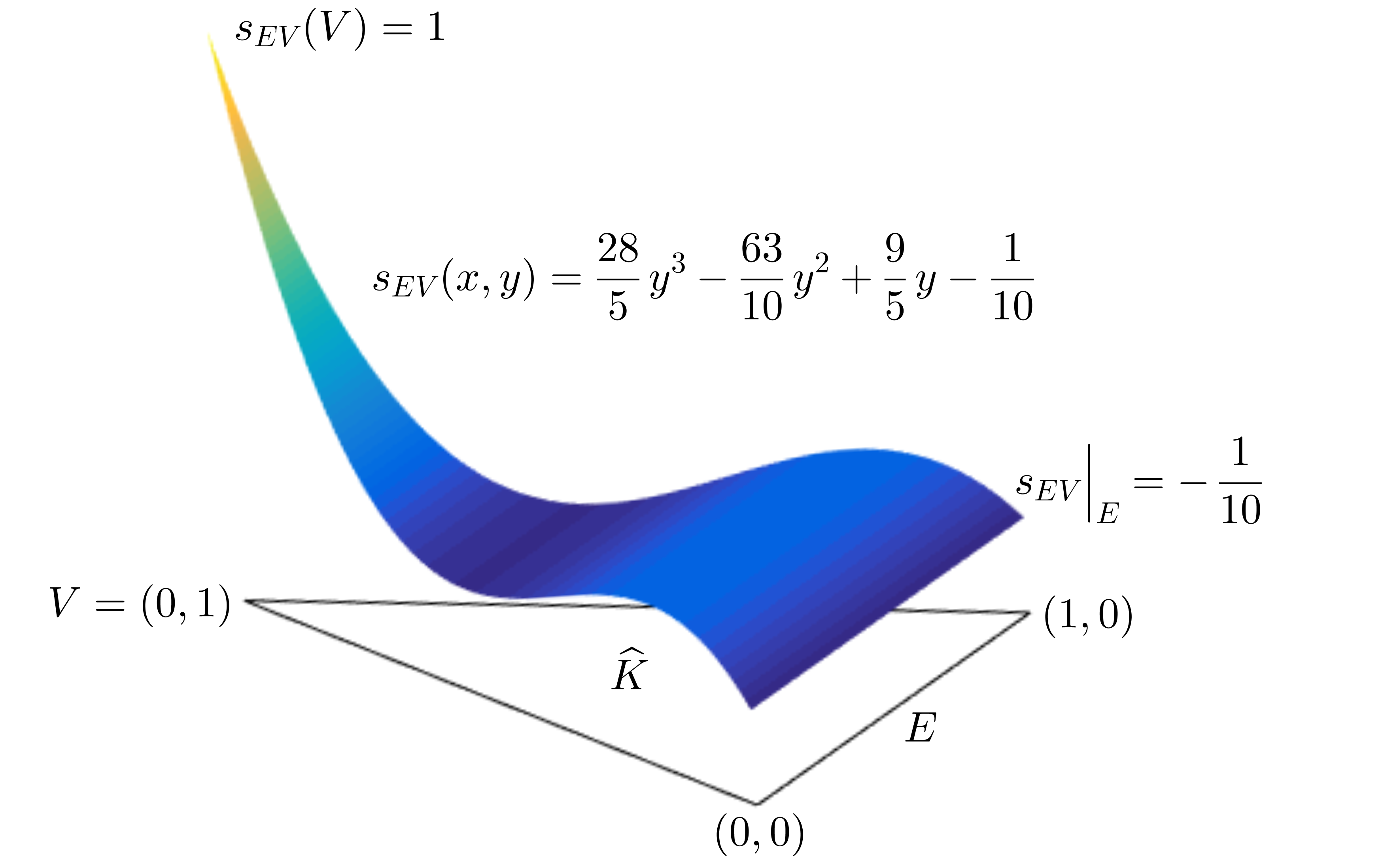

The graph of $s_{E\mathbf{V}}$ is depicted in Figure 4.

By simple calculation, we have

[TABLE]

We also note

[TABLE]

Let $q=(1-y)^{m}x^{n}$ be a polynomial for nonnegative integers $m,n$ such that $m+n\leq 3$. From (14)-(16), we can expand that

[TABLE]

∎

Lemma 4.2**.**

Let $E$ be an edge of a triangle $K$ and $\mathbf{V}$ its opposite vertex. Denote by $\boldsymbol{\tau}_{1},\boldsymbol{\tau}_{2}$, the counterclockwisely numbered unit vectors directed to other vertices $\mathbf{V}_{1},\mathbf{V}_{2}$ from $\mathbf{V}$ as in Figure 5. Then for all $\mathbf{v}_{h}\in X_{h}$, we have

[TABLE]

where $E_{1},E_{2}$ are the edges sharing $\mathbf{V}$ and $\boldsymbol{\tau}_{i}^{\perp}$ is the 90-degree counterclockwise rotation of $\boldsymbol{\tau}_{i},i=1,2$.

Proof.

For $\mathbf{v}_{h}=(v_{1},v_{2})$, we write $\displaystyle\frac{\partial\mathbf{v}_{h}}{\partial\boldsymbol{\tau}_{1}},\frac{\partial\mathbf{v}_{h}}{\partial\boldsymbol{\tau}_{2}}$ at $\mathbf{V}$ in the matrix form:

[TABLE]

where all vectors are presented in column forms. Then we expand that

[TABLE]

where $\theta$ is the angle between $\boldsymbol{\tau}_{1}$ and $\boldsymbol{\tau}_{2}$. Since $|K|=\frac{1}{2}|E_{1}||E_{2}|\sin\theta$, we obtain (4.2) with the aid of (17) and Lemma 4.1. ∎

4.3 Spurious pressure

If $\mathcal{T}_{h}$ has an exact singular vertex, a spurious pressure in $M_{h}^{S}$ defined in (7) appears. For a simple example, let $\mathbf{V}$ be a boundary singular vertex which meets only one triangle $K$ in $\mathcal{T}_{h}$ and has its opposite edge $E$ as $\mathbf{V}_{4}$ in Figure 1. Then, by Lemma 4.1, we obtain

[TABLE]

since $\nabla\mathbf{v}_{h}$ vanishes at $\mathbf{V}$. Thus, $s_{E\mathbf{V}}-c$ is a spurious pressure in $M_{h}^{S}$ for a constant function $c$ on $\Omega$ such that $s_{E\mathbf{V}}-c\in L_{0}^{2}(\Omega)$.

For an another example, let $\mathbf{V}$ be an interior singular vertex which meets with 4 triangles $K_{1},K_{2},K_{3},K_{4}$ counterclockwisely numbered as in figure 6. The vertex $\mathbf{V}$ has 4 opposite edges $E_{i}\subset K_{i},i=1,2,3,4$. Denote by $\boldsymbol{\tau}_{1},\boldsymbol{\tau}_{2}$, the counterclockwisely numbered unit vectors at $\mathbf{V}$ directed other vertices in $K_{1}$ and by $\ell_{1},\ell_{2},\ell_{3},\ell_{4}$, the lengths of edges corresponding to $\boldsymbol{\tau}_{1},\boldsymbol{\tau}_{2},-\boldsymbol{\tau}_{1},-\boldsymbol{\tau}_{2}$, respectively.

Now, we calculate the followings by Lemma 4.2:

[TABLE]

Let $q_{h}\in M_{h}$ be an alternating sum of $s_{E_{i}\mathbf{V}},i=1,2,3,4$ such that

[TABLE]

Then, since $\mathbf{v}_{h}$ is continuous on edges, we have from (18),

[TABLE]

5 A basis of $P^{3}$ over $K$

We will suggest a new basis of $P^{3}$ over a triangle $K$ which includes sting functions $s_{E\mathbf{V}}$.

5.1 16-point Lyness quadrature rule

The following 16-point Lyness quadrature rule [7] is exact over a triangle $K$ for any polynomial $p$ of degree up to 6:

[TABLE]

The 16 quadrature points in (20) include the gravity center $\mathbf{G}$ of $K$ and the center $\mathbf{G}_{i}$ of the segment connecting the vertex $\mathbf{V}_{i}$ and the midpoint $\mathbf{M}_{i}$ of the opposite edge of $\mathbf{V}_{i}$, $i=1,2,3$ as in Figure 7. The other 12 points lie on the boundary of $K$.

In the reference triangle $\hat{K}$ with vertices $(0,0),(1,0),(0,1)$, the 16 quadrature points and their corresponding weights are listed:

[TABLE]

where $a=(3-\sqrt{6})/6,\ b=1-a$.

5.2 Basis functions with interior Lyness points

Let $\mathbf{V}$ be a vertex of a triangle $K$ and $\mathbf{G}$ the gravity center of $K$. Denote by $\mathbf{i}_{\mathbf{V}}$, the unit vector from $\mathbf{V}$ to $\mathbf{G}$ as in Figure 8-(a), that is

[TABLE]

and by ${\mathbf{i}_{\mathbf{V}}}^{\perp}$, the 90-degree counterclockwise rotation of $\mathbf{i}_{\mathbf{V}}$, and by $\mu$, a linear function which vanishes at the line passing $\mathbf{V},\mathbf{G}$ such that

[TABLE]

lastly, by $d$, the common distance from two other vertices of $K$ to the line $\mu(\mathbf{x})=0$ as in Figure 8-(a).

Define two basis cubic polynomial $g_{\mathbf{V}}^{+},g_{\mathbf{V}}^{-}\in P^{3}(K)$ determined by $\mathbf{V},\mathbf{G}$:

[TABLE]

with two auxiliary cubic functions $\iota^{+},\iota^{-}$:

[TABLE]

We have chosen $\iota^{\pm}$ so that $\nabla g^{\pm}_{\mathbf{V}}$ vanishes at 3 points among 4 interior Lyness points $\mathbf{G},\mathbf{G}_{1},\mathbf{G}_{2},\mathbf{G}_{3}$ of $K$ as in the following lemma.

Lemma 5.1**.**

Let $\mathbf{V}$ be a vertex of a triangle $K$ and $\mathbf{P}$ be among four 16-Lyness quadrature points inside $K$. Then, we have

[TABLE]

Proof.

Let $\mathbf{V}^{+},\mathbf{V}^{-}$ be two vertices of triangle $K$ other than $\mathbf{V}$ such that

[TABLE]

The four 16-Lyness quadrature points inside $K$ are the gravity center $\mathbf{G}$ and

[TABLE]

The two points $\mathbf{G},\mathbf{G}_{0}$ lie on the line $l=\{\mathbf{x}:\mu(\mathbf{x})=0\}$ and we simply calculate the common distance between $l$ and $\mathbf{G}^{\pm}$ is a quarter of $d$ between $l$ and $\mathbf{V}^{\pm}$. Thus we have

[TABLE]

From the definition of $\mu,g_{\mathbf{V}}^{+}$ in (22),(23), we have

[TABLE]

We prove (24) for $\nabla g_{\mathbf{V}}^{+}$ by (25), (26), since ${\iota^{+}}^{\prime}(0)={\iota^{+}}^{\prime}(-1/4)=0,\ {\iota^{+}}^{\prime}(1/4)=3$. We can repeat the same argument for $\nabla g_{\mathbf{V}}^{-}$ in (24). ∎

Now, we form a new basis of $P^{3}$ over $K$ in the following lemma.

Lemma 5.2**.**

Let $K$ be a triangle with vertices $\mathbf{V}_{1},\mathbf{V}_{2},\mathbf{V}_{3}$ and their respective opposite edges $E_{1},E_{2},E_{3}$. Then, we have

[TABLE]

Proof.

Assume a linear combination $q$ of 10 functions in (27) vanishes, that is,

[TABLE]

for some scalars $c_{1},c_{2},\cdots,c_{10}$.

As in Figure 7, let $\mathbf{G}_{i}$ be the interior 16-Lyness points corresponding to $\mathbf{V}_{i}$, $i=1,2,3$. We can choose a quartic polynomial $v$ vanishing on $\partial K$ and satisfying

[TABLE]

For two scalars $\alpha,\beta$, define

[TABLE]

We note from the quadrature rule in Lemma 4.1,

[TABLE]

Thus, by 16-Lyness quadrature rule in (20), (21) and the property of $\nabla g_{\mathbf{V}_{i}}^{\pm},i=1,2,3$ in Lemma 5.1, we expand

[TABLE]

for some nonzero scalars $\gamma_{1},\gamma_{2}$.

If we choose $(\alpha,\beta)={\mathbf{i}_{\mathbf{V}_{2}}}$ in (29), we conclude $c_{2}=0$ and sequentially $c_{5}=0$, since $\mathbf{i}_{\mathbf{V}_{1}},\mathbf{i}_{\mathbf{V}_{2}}$ are not parallel. By similar argument, we have $c_{3}=c_{4}=c_{6}=c_{7}=0$.

Now choose a cubic polynomial $p$ such that its mean over $K$ vanishes and

[TABLE]

Then, by quadrature rule in Lemma 4.1, we have

[TABLE]

Thus, $c_{8}=0$ and similarly, $c_{9}=c_{10}=0$. It completes the proof, since $\dim P^{3}=10$. ∎

6 Error in pressure

Let $(\mathbf{u},p)\in[H_{0}^{1}(\Omega)]^{2}\times L_{0}^{2}(\Omega)$ and $(\mathbf{u}_{h},p_{h})\in X_{h}\times M_{h}$ be the solutions for the continuous and discrete Stokes problems (5), (6), respectively. There exists a standard projection $\Pi_{h}p\in M_{h}$ of $p$ which is continuous in $\Omega$. Denoting the error in pressure by

[TABLE]

we will analyze that $e_{h}$ is stable except the spurious component of $e_{h}$ caused by quasi singular vertices.

By Theorem 3.2, we note that, if $\mathbf{u}\in[H^{5}(\Omega)]^{2}$ and $p\in H^{4}(\Omega)$, then

[TABLE]

since $e_{h}$ satisfies

[TABLE]

We will split $e_{h}$ into the interior error $e_{h}^{G}$ and sting error $e_{h}^{S}$:

[TABLE]

where

[TABLE]

for each $K\in\mathcal{T}_{h}$ with vertices $\mathbf{V}_{1},\mathbf{V}_{2},\mathbf{V}_{3}$ and their respective opposite edges $E_{1},E_{2},E_{3}$.

For each vertex $\mathbf{V}$, let $\mathcal{E}_{\mathbf{V}}$ be a set of all opposite edges of $\mathbf{V}$. Then, we can cluster the sting error $e_{h}^{S}$ by vertices as

[TABLE]

where

[TABLE]

for all opposite edges $E_{j}\in\mathcal{E}_{\mathbf{V}},\ j=1,2,\cdots,J=\#\mathcal{E}_{\mathbf{V}}.$

In the remaining of this section, we will show the error $e_{h}$ is stable except the sting error $e_{h}^{\mathbf{V}}$ for quasi singular vertices $\mathbf{V}$.

6.1 Inequalities for $e_{h}^{\mathbf{V}}$ in back-to-back triangles

We first estimate $\nabla e_{h}^{G}$ by choosing a proper test function $\mathbf{v}_{h}\in X_{h}$ in (32).

Lemma 6.1**.**

Let $h$ be the diameter of a triangle $K$ in $\mathcal{T}_{h}$. Then we have

[TABLE]

Proof.

With the same notations in Lemma 5.2, we represent

[TABLE]

for some constants $c_{1},c_{2},\cdots,c_{7}$. Denote by $\mathbf{G}_{i}$, the interior 16-Lyness points corresponding to $\mathbf{V}_{i}$, $i=1,2,3$ as in Figure 7. Then, there exists a unique quartic function $v\in P^{4}$ vanishing on $\partial K$ and $v(\mathbf{G}_{1})=v(\mathbf{G}_{2})=0,v(\mathbf{G}_{3})=1$. We note that

[TABLE]

Choose a test function $\mathbf{v}_{h}\in X_{h}$ such that $\mathbf{v}_{h}|_{K}=v\mathbf{i}_{\mathbf{V}_{2}}$ and vanishes outside $K$. Then, we have from (28) and Lemma 4.1, 5.1,

[TABLE]

where $d$ is the distance from $\mathbf{V}_{2}$ to the line connecting $\mathbf{V}_{1}$ and the gravity center $\mathbf{G}$.

Now, by (32), (35), (36), we estimate

[TABLE]

It completes the proof, by repeating the same arguments for $c_{3},c_{4},\cdots,c_{7}$. ∎

Let $K$ be a triangle in $\mathcal{T}_{h}$ and $E$ an edge of $K$ between two vertices $\mathbf{V}_{1},\mathbf{V}_{2}$ of $K$. Denote by $\boldsymbol{\tau}$, the unit tangent vector of $E$, that is,

[TABLE]

We need an elementary test function $v$ in the following lemma to estimate the sting error $e_{h}^{S}$.

Lemma 6.2**.**

There exists a quartic polynomial $v\in P^{4}$ such that $v$ vanishes on $\partial K\setminus E$ and

[TABLE]

Proof.

In the reference triangle $\widehat{K}$ with vertices $(0,0),(1,0),(0,1)$, let

[TABLE]

Then a quartic polynomial $\widehat{v}=x(x+y-1)^{2}(-5/2x+1)$ satisfies

[TABLE]

Define $v=|E|\ \hskip 1.0pt\widehat{v}\circ F^{-1}$ for an affine map $F:\widehat{K}\longrightarrow K$ such that $F(\widehat{\mathbf{V}}_{i})=\mathbf{V}_{i},i=1,2$. Then, from the definition of $\widehat{v}$ and (38), $v$ vanishes on $\partial K\setminus E$ and satisfies (37). ∎

The sting error $e_{h}^{\mathbf{V}}$ has an interesting characteristic for each pair of two back-to-back triangles sharing $\mathbf{V}$ in the following lemma.

Lemma 6.3**.**

Let two triangles $K_{1},K_{2}$ share a vertex $\mathbf{V}$ and an edge $E$ as in Figure 9. Assume two scalars $\alpha_{1},\alpha_{2}$ make that

[TABLE]

for two opposite edges $E_{1},E_{2}$ of $\mathbf{V}$ in $K_{1},K_{2}$, respectively. Then for any unit vector $\boldsymbol{\xi}$, we have

[TABLE]

where $\mathbf{V}_{1},\mathbf{V}_{2}$ are the respective opposite vertices of $E$ in $K_{1},K_{2}$.

Proof.

Let $\mathbf{V}_{0}$ be the vertex of $E$ other than $\mathbf{V}$ and $\boldsymbol{\tau}$ unit vector such that

[TABLE]

From Lemma 6.2, there exists a quartic function $v_{i}$ on $K_{i},i=1,2$ such that $v_{i}$ vanishes on $\partial K_{i}\setminus E$ and

[TABLE]

We note $v_{1}$ and $v_{2}$ coincide on $E$, since quartic functions have 5 degrees of freedom on $E$.

Given unit vector $\boldsymbol{\xi}$, denote by $\boldsymbol{\xi}^{\perp}$, the 90-degree counterclockwisely rotation of $\boldsymbol{\xi}$ and choose a test function $\mathbf{v}_{h}\in X_{h}$ which vanishes outside $K_{1}\cup K_{2}$ and

[TABLE]

Then, from the quadrature rule in Lemma 4.1, we have

[TABLE]

First, from (32) and (40), we obtain

[TABLE]

Second, let $\mathpzc{m}_{i}$ be the mean of $e_{h}^{G}$ over $K_{i}$ and $h_{i}$ the diameter of $K_{i}$, $i=1,2$. Then, by Lemma 6.1, we estimate for $i=1,2$,

[TABLE]

To the last, by (40),(41) and Lemma 4.2, we have

[TABLE]

It implies that

[TABLE]

We combine (42) - (45) to get (39). ∎

We will choose a suitable $\boldsymbol{\xi}$ in (39) to get some inequalities resulted in the following two lemmas. They are useful in estimating the sting error $e_{h}^{\mathbf{V}}$ and postprocessing to remove the spurious error $e_{h}^{\mathbf{V}}$ for quasi singular vertices $\mathbf{V}$.

Lemma 6.4**.**

Under the same assumption with Lemma 6.3, let $\Theta$ be the angle between $\overrightarrow{\mathbf{V}\mathbf{V}_{1}}$ and $\overrightarrow{\mathbf{V}\mathbf{V}_{2}}$ as in Figure 9. Then,

[TABLE]

Proof.

Choose a unit vector $\boldsymbol{\xi}$ such that

[TABLE]

Then

[TABLE]

From (39), (47), (48), we have (46) for $i=1$. The same argument is repeated for $i=2$. ∎

Lemma 6.5**.**

Under the same assumption with Lemma 6.3, we have

[TABLE]

Proof.

Let $\Theta$ be the sum of two angles of $\mathbf{V}$ in $K_{1},K_{2}$ as in Figure 9 and $0\leq{\theta}\leq\pi$ the angle between $\overrightarrow{\mathbf{V}\mathbf{V}_{1}}$ and $-\overrightarrow{\mathbf{V}\mathbf{V}_{2}}$. We note that, if $\Theta\leq\pi$, then $\Theta+{\theta}=\pi$, otherwise, $\Theta-{\theta}=\pi$.

By shape regularity of $\mathcal{T}_{h}$ in (1), (2), $\Theta$ is bounded as

[TABLE]

Thus, in both cases of $\Theta\leq\pi$ or $\Theta>\pi$, we have

[TABLE]

It means

[TABLE]

Choose a unit vector $\boldsymbol{\xi}$ so that $\boldsymbol{\xi}$ forms the same acute angle ${\theta}/2$ with $\overrightarrow{\mathbf{V}\mathbf{V}_{1}}$ and $-\overrightarrow{\mathbf{V}\mathbf{V}_{2}}$. Then, from (39), (50), we have

[TABLE]

∎

6.2 Stable components and spurious error in $e_{h}$

For each vertex $\mathbf{V}$, define the basin $\mathcal{B}(\mathbf{V})$ of $\mathbf{V}$ as the union of all triangles in $\mathcal{T}_{h}$ sharing their common vertex $\mathbf{V}$. For the convenience, we extend the notation as

[TABLE]

The sting error $e_{h}^{\mathbf{V}}$ has a similar property as $e_{h}$ in (31) in the following lemma.

Lemma 6.6**.**

Let $\mathbf{V}$ be a vertex and $\mathbf{v}_{h}\in X_{h}$. We have

[TABLE]

Proof.

Let $K_{1},K_{2},\cdots,K_{m}$ be $m$ triangles in $\mathcal{T}_{h}$ counterclockwisely numbered such that

[TABLE]

and $\mathbf{V}_{i}\in K_{i},i=1,2,\cdots,m$ be consecutive vertices on $\partial\mathcal{B}(\mathbf{V})$ as in Figure 10. In case of $\mathbf{V}\in\partial\Omega$, there exists one more vertex $\mathbf{V}_{m+1}\in K_{m}$ on $\partial\mathcal{B}(\mathbf{V})$. If $m=1$, $\mathbf{V}$ belongs to $\partial\Omega$ and as in subsection 4.3,

[TABLE]

Let $m\geq 2$ and $\ell_{i}=|\overline{\mathbf{V}\mathbf{V}_{i}}|$ and $\boldsymbol{\tau}_{i}=\overrightarrow{\mathbf{V}\mathbf{V}_{i}}/|\overrightarrow{\mathbf{V}\mathbf{V}_{i}}|,\ i=1,2,\cdots,m$. Denoting by $E_{i}$, the opposite edge of $\mathbf{V}$ in $K_{i},i=1,2,\cdots,m$, there exist $m$ constants $\alpha_{1},\alpha_{2},\cdots,\alpha_{m}$ which represent

[TABLE]

Then, from the quadrature rule in Lemma 4.2, we have

[TABLE]

where all indexes are modulo $m$, if $\mathbf{V}$ is an interior vertex.

We note that

[TABLE]

Thus, the representation in (53) establishes (51) with (54) and Lemma 6.3. ∎

If a vertex $\mathbf{V}$ is not quasi singular, then we estimate $\nabla e_{h}^{\mathbf{V}}$ in the following lemma.

Lemma 6.7**.**

Let $\mathbf{V}\notin\SS_{h}$ be a regular vertex and $h$ the diameter of the basin $\mathcal{B}(\mathbf{V})$. Then we have

[TABLE]

Proof.

Under the same notations in the proof of Lemma 6.6, from the definition of $\SS_{h}$ in (3), there exist two back-to-back triangles $K_{j},K_{j+1}$ such that the sum $\Theta$ of their angles of $\mathbf{V}$ satisfies

[TABLE]

Then, from (49), (56), we have $|\sin\vartheta_{\sigma}|\leq|\sin\Theta|$. Thus, by Lemma 6.4, $|\alpha_{j}|$ in (52) is bounded by

[TABLE]

and sequentially so are all $|\alpha_{i}|,i=1,2,\cdots,m$ in (52) by Lemma 6.5. It implies (55), since

[TABLE]

∎

Split the sting error $e_{h}^{S}$ into two components by regular and quasi singular vertices:

[TABLE]

where

[TABLE]

Then the components $e_{h}^{G},e_{h}^{SR}$ in $e_{h}=e_{h}^{G}+e_{h}^{SR}+e_{h}^{SS}$ is stable as in the following theorem.

Theorem 6.8**.**

Let $\mathpzc{m}$ be the mean of $e_{h}^{G}+e_{h}^{SR}$ over $\Omega$. Then, if $\mathbf{u}\in[H^{5}(\Omega)]^{2},p\in H^{4}(\Omega)$, we have

[TABLE]

Proof.

Denote $e_{h}^{G}+e_{h}^{SR}-\mathpzc{m}$ by $e_{h}^{GR\mathpzc{m}}$. Let $\Pi_{h}e_{h}^{GR\mathpzc{m}}$ be the projection of $e_{h}^{GR\mathpzc{m}}\in L_{0}^{2}(\Omega)$ into $\mathcal{P}_{0,h}(\Omega)$. Then, from the stability of $P^{2}-P^{0}$ [1], there exists $\mathbf{v}_{h}\in X_{h}$ such that

[TABLE]

We note, by Theorem 3.2 and Lemma 6.1, 6.7,

[TABLE]

Then, Lemma 6.6 helps us to estimate (58) with (31), (59), (60) in the following expansion:

[TABLE]

∎

If $\mathcal{T}_{h}$ has no quasi singular vertex, Theorem 6.8 asserts that $p_{h}-p$ has an error decay of optimal order as expected from the inf-sup condition in (8).

The presence of quasi singular vertices, however, the sting error $e_{h}^{SS}$ could appear as large as spoiling the discrete pressure $p_{h}$ as in Figure 15 in the last section. In the next section, we are going to postprocess $p_{h}$ to remove $e_{h}^{SS}$ which is called spurious error.

7 Remove spurious error $e_{h}^{SS}$

We will postprocess $p_{h}$ to remove the undesired error $e_{h}^{\mathbf{V}}$ in the following order:

$e_{h}^{\mathbf{V}}$ for interior quasi singular vertices $\mathbf{V}$ using the jump of $p_{h}$ at $\mathbf{V}$, 2. 2.

$e_{h}^{\mathbf{V}}$ for boundary quasi singular vertices $\mathbf{V}$ away from corners using the jump at $\mathbf{V}$, 3. 3.

$e_{h}^{\mathbf{V}}$ for boundary quasi singular corners $\mathbf{V}$ using the jump at the opposite edge.

Dividing quasi singular vertices by interior and boundary into

[TABLE]

we split the spurious error $e_{h}^{SS}$ into

[TABLE]

where

[TABLE]

7.1 Remove interior spurious error $e_{h}^{SSi}$

Let $\mathbf{V}\in\SS_{h}^{i}$ be an interior quasi singular vertex, then the basin $\mathcal{B}(\mathbf{V})$ of $\mathbf{V}$ consists of 4 triangles $K_{1},K_{2},K_{3},K_{4}$ by Lemma 2.1. In this subsection, we adopt the notations in Figure 10-(a). Note that 4 unknown constants $\alpha_{1},\alpha_{2},\alpha_{3},\alpha_{4}$ represent $e_{h}^{\mathbf{V}}$ as

[TABLE]

By Lemma 6.5, $\alpha_{1},\alpha_{2}$ satisfy

[TABLE]

Note that e_{h}^{SS}\big{|}_{\mathcal{B}(\mathbf{V})}=e_{h}^{\mathbf{V}}, since $\mathbf{V}$ is the only quasi singular vertex in $\mathcal{B}(\mathbf{V})$ by Lemma 2.2. Thus, from (33), (57), (62), we have

[TABLE]

Define a jump of a function $f$ at $\mathbf{V}$ as

[TABLE]

Then, since $\Pi_{h}p$ has no jump at $\mathbf{V}$ and $s_{E_{1}\mathbf{V}}(\mathbf{V})=s_{E_{2}\mathbf{V}}(\mathbf{V})=1$, (64) makes

[TABLE]

Roughly speaking, (63) and (65) help us to get $\alpha_{1},\alpha_{2}$ with $[[p_{h}]]_{\mathbf{V}}$ which we can calculate.

Choose two constants $\gamma_{1},\gamma_{2}$ so that

[TABLE]

Then, the differences $\alpha_{1}-\gamma_{1},\alpha_{2}-\gamma_{2}$ are estimated in the following lemma.

Lemma 7.1**.**

Let $\mathpzc{m}$ be the mean of $e_{h}^{G}+e_{h}^{SR}$ over $\Omega$. Then we have, for $i=1,2$,

[TABLE]

Proof.

By (63), (65), (66), the differences $d_{1}=\alpha_{1}-\gamma_{1},d_{2}=\alpha_{2}-\gamma_{2}$ satisfy

[TABLE]

The equation in (68) induces that

[TABLE]

since

[TABLE]

Note that

[TABLE]

Then, combining (68)-(70), the estimation (67) comes from the following identities:

[TABLE]

∎

For another pair of two triangles $K_{3},K_{4}$, we can choose $\gamma_{3},\gamma_{4}$ in the similar way of $\gamma_{1},\gamma_{2}$.

Now, for each interior quasi singular vertex $\mathbf{V}\in\SS_{h}^{i}$, calculate such $\gamma_{1},\gamma_{2},\gamma_{3},\gamma_{4}$ and define

[TABLE]

and

[TABLE]

Then, from Theorem 3.2, 6.8 and Lemma 7.1, we establish the following lemma.

Lemma 7.2**.**

If $\mathbf{u}\in[H^{5}(\Omega)]^{2},p\in H^{4}(\Omega)$, we have

[TABLE]

7.2 Remove boundary spurious error $e_{h}^{SSb}$

We have known $p_{h}$ and $s_{h}^{i}$ such that

[TABLE]

In this subsection, we will deal with the error $e_{h}^{SSb}$ in (73) for boundary quasi singular vertices.

Denote by $\mathcal{R}_{h}$, the set all regular vertices, that is $\mathcal{R}_{h}=\mathcal{V}_{h}\setminus\SS_{h}$. Let $\partial\Omega\setminus\mathcal{R}_{h}$ consist of $J$ components $\mathpzc{s}_{1},\mathpzc{s}_{2},_{3},\cdots,\mathpzc{s}_{J}$ and define quasi singular chains as

[TABLE]

Note $\mathpzc{Q}_{1},\mathpzc{Q}_{2},\cdots,\mathpzc{Q}_{J}$ are sets of consecutive boundary quasi singular vertices separated by regular vertices. We will first remove spurious error for all quasi singular chains which do not contain any corner of $\partial\Omega$ in subsubsection 7.2.1 below. Then we will go to the remaining quasi singular chains having a corner in subsubsection 7.2.2.

Let $\SS_{h}^{br}$ be the union of all quasi singular chains not having any corner and $\SS_{h}^{bc}=\SS_{h}^{b}\setminus\SS_{h}^{br}$. Then, split $e_{h}^{SSb}$ into

[TABLE]

where

[TABLE]

In the remaining analysis, we will use the notations in this paragraph. Let $\mathpzc{S}$ be a set of $m+2$ consecutive vertices on a line segment of $\partial\Omega$ such that

[TABLE]

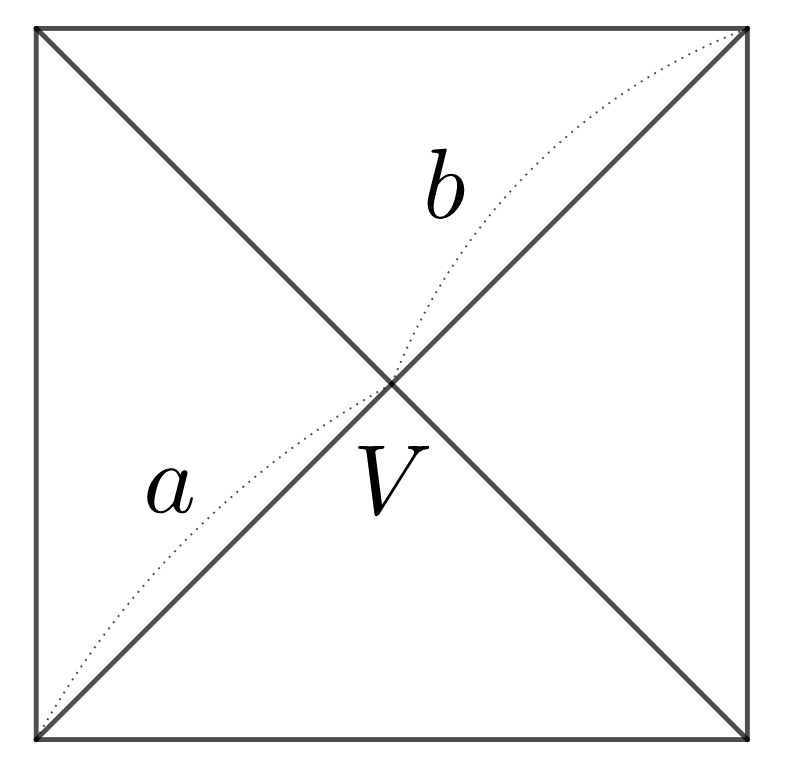

as in Figure 11. Assume $\mathbf{V}_{1},\mathbf{V}_{2},\cdots,\mathbf{V}_{m}$ are quasi singular, actually exact singular. Then, there exists a vertex $\mathbf{W}$ such that, for each $k\in\{0,1,2,\cdots,m+1\}$, there is an edge $E_{k}$ which connects $\mathbf{W}$ and $\mathbf{V}_{k}$. Let $K_{k}$ be the triangle with vertices $\mathbf{V}_{k-1},\mathbf{V}_{k},\mathbf{W}$ and $\ell_{k}=|\mathbf{V}_{k-1}\mathbf{V}_{k}|,\ k=1,2,\cdots,m+1.$

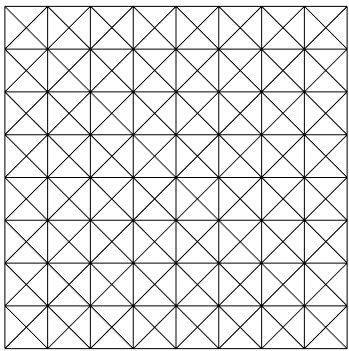

To avoid pathological meshes as the examples in Figure 12, we assume the following on the triangulation $\mathcal{T}_{h}$:

Assumption 7.1**.**

Each line segment of $\partial\Omega$ connecting two corner of $\partial\Omega$ has at least two regular vertices. 2. 2.

Each quasi singular vertex which is a corner of $\partial\Omega$ has no interior edge connecting it to other boundary vertex.

7.2.1 Quasi singular chain not having any corner

Let $\mathpzc{Q}$ be a quasi singular chain which does not have any corner. We can set in (75) that

[TABLE]

and $\mathbf{V}_{0},\mathbf{V}_{m+1}$ are regular vertices.

Then, we note that $\mathbf{W}$ is also regular. It is clear by Lemma 2.2 if $\mathbf{W}$ is an interior vertex. In case of $\mathbf{W}\in\partial\Omega$, $\mathbf{W}$ is not a corner as in Figure 12-(b) by Assumption 7.1. Thus, $\mathbf{W}$ is regular on a line segment of $\partial\Omega$ since $m\geq 1$.

We can represent $e_{h}^{\mathbf{V}_{k}}$ with unknown constants $\alpha_{k},\beta_{k}$ as

[TABLE]

Then, by Lemma 6.5, we have, for $k=1,2,\cdots,m$,

[TABLE]

We note that $\mathbf{V}_{1},\mathbf{V}_{2},\cdots,\mathbf{V}_{m}$ are the only quasi singular vertices in $\mathcal{B}(\mathbf{V}_{1},\mathbf{V}_{2},\cdots,\mathbf{V}_{m})$ since $\mathbf{V}_{0},\mathbf{V}_{m+1},\mathbf{W}$ are regular. Thus, from (33), (57), (76), we have

[TABLE]

Define a jump of a function $f$ at $\mathbf{V}_{k}$ as

[TABLE]

Then, from (78), we have, for $k=1,2,\cdots,m$,

[TABLE]

with the definition of sting functions in (12). In (79), $\beta_{0}=\alpha_{m+1}=0$.

We can find $2m$ scalars $\widetilde{\alpha}_{1},\widetilde{\beta}_{1},\widetilde{\alpha}_{2},\widetilde{\beta}_{2},\cdots,\widetilde{\alpha}_{m},\widetilde{\beta}_{m}$ such that

[TABLE]

where $\widetilde{\beta}_{0}=\widetilde{\alpha}_{m+1}=0$. Note that the conditions in (80) are similar to those in (77), (79). The existence of $\widetilde{\alpha}_{k},\widetilde{\beta}_{k}$ is guaranteed by the argument in the proof of Lemma 7.3 below.

Define discrete pressures $s_{h}^{\mathbf{V}_{k}}$ as

[TABLE]

Then, the difference $e_{h}^{\mathbf{V}_{k}}-s_{h}^{\mathbf{V}_{k}}$ is estimated in the following lemma.

Lemma 7.3**.**

Let $\mathpzc{m}$ be the mean of $e_{h}^{G}+e_{h}^{SR}$ over $\Omega$ Then, we have, for $k=1,2,\cdots,m$,

[TABLE]

Proof.

Let $\hat{\alpha}_{k}=\alpha_{k}-\widetilde{\alpha}_{k},\ \hat{\beta}_{k}=\beta_{k}-\widetilde{\beta}_{k},\ k=1,2,\cdots,m$ and $\hat{\beta}_{0}=\hat{\alpha}_{m+1}=0$. Then from (77)-(80), we have

[TABLE]

Set $a_{m+1}=0$ and for $k=1,2,\cdots,m$,

[TABLE]

Then, eliminating $\hat{\alpha}_{1},\hat{\alpha}_{2},\cdots,\hat{\alpha}_{m+1}$ in (84), we have $m$ equations for $\hat{\beta}_{1},\hat{\beta}_{2},\cdots,\hat{\beta}_{m}$,

[TABLE]

where $\hat{\beta}_{0}=\hat{\beta}_{m+1}=r_{m+1}=0$.

Rewrite (85) with a matrix $A\in\mathbb{R}^{m\times m}$ in the form:

[TABLE]

For an example when $m=4$, since $\hat{\beta}_{0}=\hat{\beta}_{5}=0$, (85) is written in

[TABLE]

Note that $A$ is invertible since the transpose $A^{t}$ is strictly diagonally dominant. Thus, we have

[TABLE]

since $m$ and $r_{1},r_{2},\cdots,r_{m}$ are bounded by $C_{\sigma}$. From (76), (81), (83), (84), (86), (88), we obtain (82) with $a_{k}=(\hat{\alpha}_{k}\ell_{k}+\hat{\beta}_{k}\ell_{k+1})/\ell_{k},\ k=1,2,\cdots,m.$ ∎

Now, for each $\mathbf{V}\in\SS_{h}^{br}$, we can calculate $s_{h}^{\mathbf{V}}$ similarly in (80), (81) and define

[TABLE]

Then, from Theorem 3.2, 6.8 and Lemma 7.3, we establish the following lemma.

Lemma 7.4**.**

If $\mathbf{u}\in[H^{5}(\Omega)]^{2},p\in H^{4}(\Omega)$, we have

[TABLE]

7.2.2 Quasi singular chain having a corner

Let $\widehat{p}_{h}=p_{h}-s_{h}^{i}-s_{h}^{br}$ and define

[TABLE]

The remaining spurious error $e_{h}^{SSbc}$ in (91) is our last target to be removed.

Let $\mathpzc{Q}$ be a quasi singular chain containing a corner $\mathbf{C}$ of two line segments $\Gamma,\Gamma_{1}$ of $\partial\Omega$ such that

[TABLE]

We can set in (75) that

[TABLE]

and $\mathbf{V}_{0}$ is the quasi singular corner $\mathbf{C}$ and $\mathbf{V}_{m+1}$ is a regular vertex $\mathbf{R}$.

Then, by Assumption 7.1, $\mathbf{V}_{m+1}$ is not a corner. Thus, there exists a triangle $K_{m+2}$ in $\mathcal{T}_{h}$ which has the edge $E_{m+1}$ and a vertex $X$ different to $\mathbf{V}_{m}$ as in Figure 13.

We remind that $\SS_{h}^{bc}$ is the set of all boundary quasi singular vertices consecutive from quasi singular corners. If $\mathbf{W}\in\SS_{h}^{bc}$, then $\mathbf{W}$ is quasi singular in $\mathpzc{Q}\cap\Gamma_{1}$ and $m=0$. It contradicts to (92). Thus $\mathbf{W}\notin\SS_{h}^{bc}$.

For the vertex $\mathbf{X}$, if $\mathbf{X}\in\SS_{h}^{bc}$, then $\mathbf{W},\mathbf{X}$ lie on $\Gamma_{1}$ as in Figure 13-(a), since $\mathbf{X}$ must be on a boundary line segment and $\mathbf{W},\mathbf{R}$ can not be corners by Assumption 7.1. While $\mathbf{W}\notin\SS_{h}^{bc}$ is regular, there exists one more regular vertex on $\Gamma_{1}$ by Assumption 7.1, presented as $\mathbf{R}_{1}$ in Figure 13-(a). It conflicts with $\mathbf{X}\in\SS_{h}^{bc}$. Thus, we have $\mathbf{X}\notin\SS_{h}^{bc}$, too.

With $2m+1$ unknown constants $\beta_{0},\alpha_{1},\beta_{1},\alpha_{2},\beta_{2},\cdots,\alpha_{m},\beta_{m}$, we can represent that

[TABLE]

We note that e_{h}^{SSbc}\big{|}_{K_{m+2}}=0 since $\mathbf{R},\mathbf{W},\mathbf{X}\notin\SS_{h}^{bc}$. Thus, from (91), (93), we have

[TABLE]

and for $k=1,2,\cdots,m$,

[TABLE]

Denote by $\mathbf{M}$, the midpoint of the edge $\overline{\mathbf{R}\mathbf{W}}$ and define a jump of a function $f$ at $\mathbf{M}$ as

[TABLE]

Then, from (94), we have

[TABLE]

and for $k=1,2,\cdots,m$ and $\alpha_{m+1}=0$, we have

[TABLE]

As the unknowns satisfy (77), (95), (96), we find $2m+1$ scalars $\widetilde{\beta}_{0},\widetilde{\alpha}_{1},\widetilde{\beta}_{1},\widetilde{\alpha}_{2},\widetilde{\beta}_{2},\cdots,\widetilde{\alpha}_{m},\widetilde{\beta}_{m}$ such that

[TABLE]

with $\widetilde{\alpha}_{m+1}=0$ and $k=1,2,\cdots,m$. We can solve (97) by simple back substitution from $\widetilde{\beta}_{m}$.

Let $\mathpzc{m}$ is the mean of $e_{h}^{G}+e_{h}^{SR}$ over $\Omega$ and denote

[TABLE]

We can copy the notations and arguments in the proof of Lemma 7.3 with removing $\hat{\beta}_{0}=0$ and adding a equation for $\hat{\beta}_{m}$ from (95), (97). Then, we meet a triangular system of $m+1$ linear equations for $\hat{\beta}_{0},\hat{\beta}_{1},\cdots,\hat{\beta}_{m}$ whose diagonal entries are all $1/10$. Thus, if we define discrete pressures $s_{h}^{\mathbf{V}_{1}},s_{h}^{\mathbf{V}_{2}},\cdots,s_{h}^{\mathbf{V}_{m}}$ as in (81), the differences $e_{h}^{\mathbf{V}_{k}}-s_{h}^{\mathbf{V}_{k}},k=1,2,\cdots,m$ satisfy

[TABLE]

In addition, we have

[TABLE]

Now, applying Lemma 6.5 and (100) with $\widetilde{\beta}_{0}$ for every two back-to-back triangles in $\mathcal{B}(\mathbf{C})$ in order starting at $K_{1}$, we can find $s_{h}^{\mathbf{C}}$ consisting of sting functions such that

[TABLE]

Then for remaining vertices in $\mathpzc{Q}\cap\Gamma_{1}\setminus\{\mathbf{C}\}=\{\mathbf{Y}_{1},\mathbf{Y}_{2},\cdots,\mathbf{Y}_{n}\}$ for $n\geq 0$, utilizing similar jumps, we can find $s_{h}^{\mathbf{Y}_{i}}$ consisting of sting functions, $i=1,2,\cdots,n$ such that

[TABLE]

where $\mathcal{B}(\mathpzc{Q})=\mathcal{B}(\mathbf{W},\mathbf{C},\mathbf{Y}_{1},\mathbf{Y}_{2},\cdots,\mathbf{Y}_{n})$.

After we have done this postprocess corner by corner of $\Omega$, we can define

[TABLE]

Then, combining (98), (99), (101), (102) with Theorem 3.2, 6.8 and Lemma 7.2, 7.4, we estimate that if $\mathbf{u}\in[H^{5}(\Omega)]^{2},p\in H^{4}(\Omega)$,

[TABLE]

Now, we have calculated spurious pressures $s_{h}^{i},s_{h}^{br},s_{h}^{bc}$ in (71), (89), (103). Summing up them as

[TABLE]

and define $\widetilde{p}_{h}\in M_{h}$ with the mean $\overline{s_{h}}$ of $s_{h}$ over $\Omega$ as

[TABLE]

Then, we reach at our final goal in the following theorem.

Theorem 7.5**.**

If $\mathbf{u}\in[H^{5}(\Omega)]^{2},p\in H^{4}(\Omega)$, we have

[TABLE]

Proof.

From (30), (33), (57), (61), (74), (105), (106), we have

[TABLE]

Let $\mathpzc{m}_{1},\mathpzc{m}_{2},\mathpzc{m}_{3},\mathpzc{m}_{4}$ be means of $e_{h}^{G}+e_{h}^{SR},e_{h}^{SSi}-s_{h}^{i},e_{h}^{SSbr}-s_{h}^{br},e_{h}^{SSbc}-s_{h}^{bc}$ over $\Omega$, respectively. Then, since the mean of $\widetilde{p}_{h}-\Pi_{h}p\in M_{h}$ over $\Omega$ vanishes, we have $\mathpzc{m}_{1}+\mathpzc{m}_{2}+\mathpzc{m}_{3}+\mathpzc{m}_{4}+\overline{s_{h}}=0$.

Thus, we can rewrite (108) into

[TABLE]

which establishes (107) by (72), (90), (104) and Theorem 6.8. ∎

8 Numerical results

We did numerical experiments in $\Omega=[0,1]^{2}$ with the velocity $\mathbf{u}$ and pressure $p$ such that

[TABLE]

where $s(t)=(t^{2}-t)\sin(2\pi t)$.

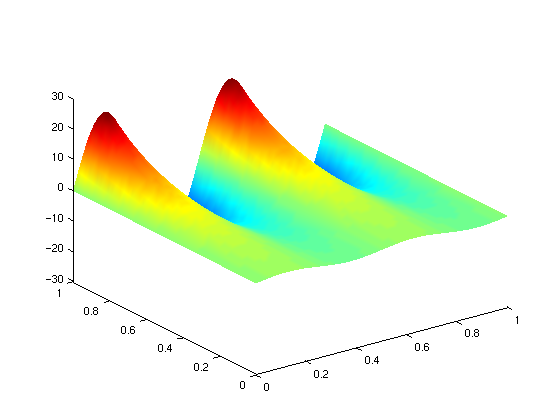

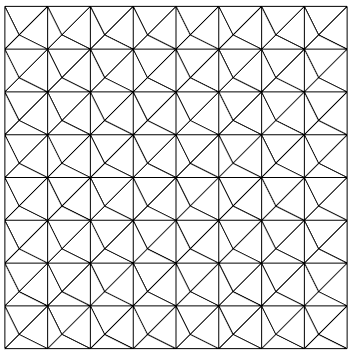

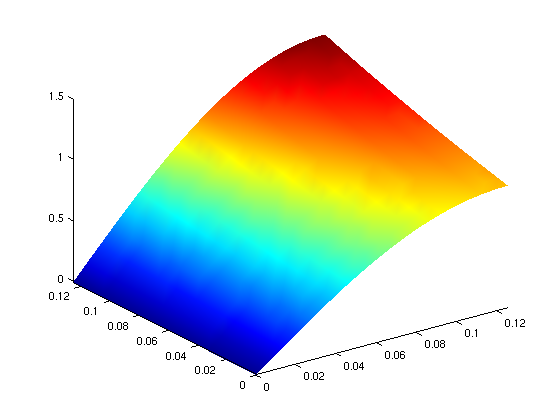

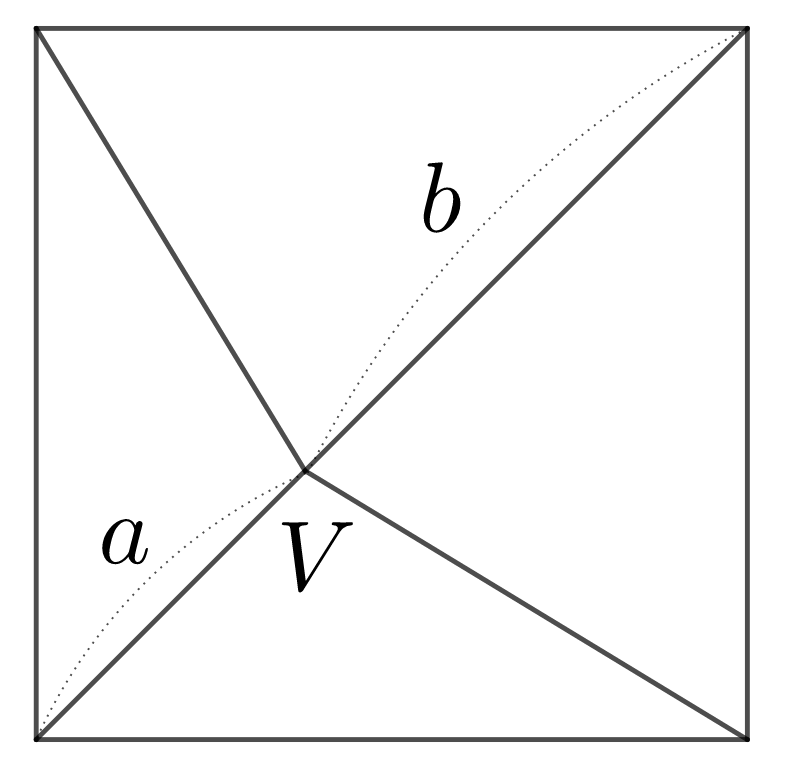

For triangulations with quasi singular vertices, we first formed the meshes of $\Omega$ with uniform squares and added a quasi singular vertex $\mathbf{V}$ in every squares so that $\mathbf{V}$ divides the diagonal of positive slope with ratio $1.0005:1$ as in Figure 14-(b). An example of $8\times 8\times 4$ mesh is depicted in Figure 14-(a).

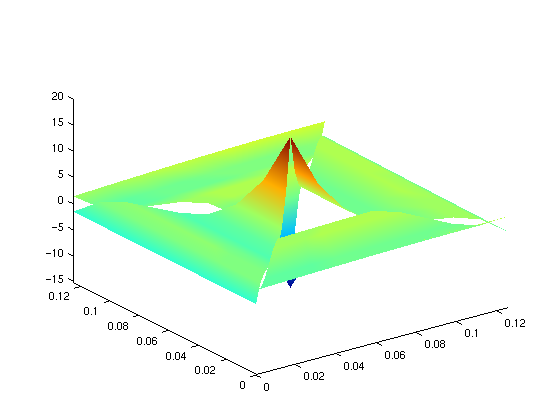

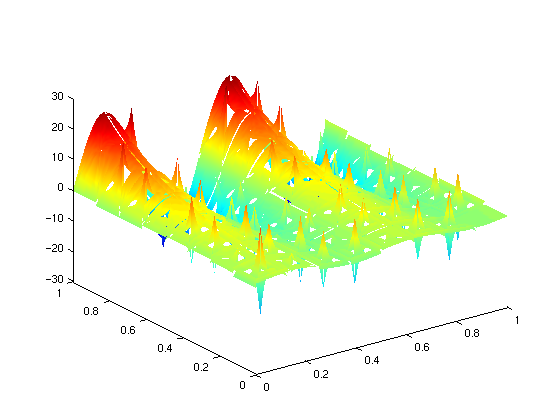

A direct linear solver in LAPACK was used on solving the discrete Stokes problem (6). Then, as in Figure 15, the discrete pressure $p_{h}$ is spoiled by spurious error at a glance. A closer look over 4 triangles in Figure 16 shows the alternating characteristic of spurious error, as predicted in (19).

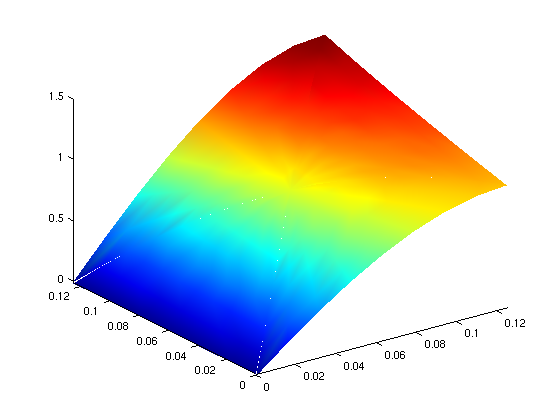

The postprocessed $\widetilde{p}_{h}$ from $p_{h}$ shows that the spurious error in $p_{h}$ is removed as in Figure 17. The errors in $\widetilde{p}_{h}$ are also much less than those in $p_{h}$ as listed in Table 1. Even in case of regular vertices as in Figure 18, the postprocessed $\widetilde{p}_{h}$ improved the error in pressure as in Table 2.

Acknowledgments

This paper was supported by Konkuk University in 2015.
