J-PLUS: Discovery and characterisation of ultracool dwarfs using Virtual Observatory tools

TL;DR

This study uses Virtual Observatory tools to efficiently discover and characterize ultracool dwarfs in the J-PLUS survey, significantly increasing known UCDs and validating a methodology for future wide-field surveys.

Contribution

The paper introduces and validates a VO-based methodology for discovering and characterizing ultracool dwarfs, increasing known UCDs by about 50% in the studied region.

Findings

Identified 559 UCDs, including 187 new candidates.

Validated the VO methodology for UCD discovery.

Estimated 3,000-3,500 new UCDs to be discovered in future surveys.

Abstract

Ultracool dwarfs (UCDs) are objects with spectral types equal or later than M7. Most of them have been discovered using wide-field imaging surveys. The Virtual Observatory (VO) has proven to be of great utility to efficiently exploit these astronomical resources. We aim to validate a VO methodology designed to discover and characterize UCDs in the J-PLUS photometric survey. J-PLUS is a multiband survey carried out with the wide angle T80Cam optical camera mounted on the 0.83-m telescope JAST/T80 in the Observatorio Astrof\'isico de Javalambre. In this work we make use of the Internal Data Release (IDR) covering 528 deg$^2$. We complement J-PLUS photometry with other catalogues in the optical and IR using VOSA, a VO tool that estimates physical parameters from the spectral energy distribution fitting to collections of theoretical models. Objects identified as UCDs are distinguished from background M giants and highly reddened stars using parallaxes and proper motions from Gaia DR2. We identify 559 UCDs, ranging from i=16.2 to 22.4 mag, of which 187 are candidate UCDs not previously reported in the literature. This represents an increase in the number of known UCDs of about 50% in the studied region of the sky, particularly at the faint end of our sensitivity, which is interesting as reference for future wide and deep surveys such as Euclid. Three candidates constitute interesting targets for exoplanet surveys because of their proximity (<40 pc). We also analyze the kinematics of UCDs in our catalogue and find evidence that it is consistent with a Galactic thin-disk population, except for 6 objects that might be members of the thick disk. The results obtained validate the proposed methodology, which will be used in future J-PLUS and J-PAS releases. Considering the region of the sky covered by the IDR used, we foresee to discover 3,000-3,500 new UCDs at the end of the J-PLUS project.

Figures

Tables

Table 1. Table 1: Number of M dwarfs in West et al. ( 2011 ) with i 𝑖 i , z 𝑧 z photometry in J-PLUS.

Spectral type	Number of objects
M0 V	111
M1 V	79
M2 V	131
M3 V	136
M4 V	119
M5 V	92
M6 V	298
M7 V	239
M8 V	39
M9 V	13

Table 2. Table 2: Mean effective temperatures calculated using VOSA and BTSettl-CIFITS models as a function of the spectral type given by West et al. ( 2011 ) .

Spectral	Number of	$T_{\mathrm{eff}}$
type	objects	[K]
M5 V	3 901	3 210$\pm$210
M6 V	5 645	3 060$\pm$110
M7 V	5 824	2 960$\pm$150
M8 V	1 682	2 710$\pm$160
M9 V	891	2 600$\pm$160

Table 3. Table 3: New candidate ultracool dwarfs.

$\alpha$	$\delta$	$T_{\mathrm{eff}}$	G	$\varpi$	${\mu }_{\alpha }\cos \delta$	${\mu }_{\delta }$	Search	$i$	$z$
(ICRS, deg)	(ICRS, deg)	[K]	[mag]	[mas]	[mas/yr]	[mas/yr]		[mag]	[mag]
21.70712	33.44938	2600	20.94	11.18	7.36	-51.33	P	20.19	18.69
22.16372	33.30222	2600	18.44	18.93	77.34	-99.44	P	17.81	16.33
23.15882	39.59608	2800	20.58	3.41	-54.42	-21.40	K
27.63937	33.73132	2900	19.84	3.79	2.44	-39.94	P	19.34	18.11
28.13097	33.83401	2600	19.69	11.93	58.33	-46.75	P	19.11	17.67
…

Table 4. Table 4: Newly identified nearby ( d 𝑑 d < < 40 pc) candidate UCDs. Coordinates are from Gaia DR2. We adopted the step of the BT-Settl CIFITS grid of models (100 K) as the error in effective temperatures.

Gaia ID	$\alpha$	$\delta$	$G$	$T_{\mathrm{eff}}$	${\mu }_{\alpha }\cos \delta$	${\mu }_{\delta }$	$d$
DR2	(deg)	(deg)	[mag]	[K]	[mas/yr]	[mas/yr]	[pc]
1902388491693623680	338.44505	33.99409	17.57	2900	254.44$\pm$ 0.25	104.42$\pm$0.26	32.45$\pm$0.15
2109889524381399040	274.94447	41.03144	17.89	2700	21.30$\pm$0.23	-250.82$\pm$0.24	39.60$\pm$0.19
1596590634148306944	236.27034	52.23673	17.16	2900	57.26$\pm$0.18	86.54$\pm$0.18	39.98$\pm$0.15

Equations

$$M_G=G+5\log \varpi +5,$$

$$H_G=G+5\log \mu +5$$

Full text

*Aims. *We aim to validate a Virtual Observatory methodology designed to discover and characterize ultracool dwarfs in the J-PLUS photometric survey. J-PLUS is a multiband survey carried out with the wide angle T80Cam optical camera mounted on the 0.83-m telescope JAST/T80 in the Observatorio Astrofísico de Javalambre. In this work we make use of the Internal Data Release covering 528 deg2.

*Methods. *We complement J-PLUS photometry with other catalogues in the optical and infrared using VOSA, a Virtual Observatory tool that estimates physical parameters from the spectral energy distribution fitting to collections of theoretical models. Objects identified as ultracool dwarfs are distinguished from background M giants and highly reddened stars using parallaxes and proper motions from Gaia DR2.

*Results. *We identify 559 ultracool dwarfs, ranging from $i$=16.2 mag to $i$=22.4 mag, of which 187 are candidate ultracool dwarfs not previously reported in the literature. This represents an increase in the number of known ultracool dwarfs of about 50% in the studied region of the sky, particularly at the faint end of our sensitivity, which is interesting as reference for future wide and deep surveys such as Euclid. Three candidates constitute interesting targets for exoplanet surveys because of their proximity (distances less than 40 pc). We also analyze the kinematics of ultracool dwarfs in our catalogue and find evidence that it is consistent with a Galactic thin-disk population, except for six objects that might be members of the thick disk.

*Conclusions. *The results obtained in this paper validate the proposed methodology, which will be used in future J-PLUS and J-PAS releases. Considering the region of the sky covered by the Internal Data Release used in this work, we foresee to discover 3 000-3 500 new ultracool dwarfs at the end of the J-PLUS project.

1 Introduction

Ultracool dwarfs (UCDs) are defined as objects with spectral types equal or later than M7 V. They comprise both the lowest mass hydrogen-fusing stars and brown dwarfs (substellar objects not massive enough to sustain steady hydrogen fusion). The M7 V spectral type marks the beginning of a variety of changes with decreasing effective temperature, in particular the appearance of dust clouds, which makes an increasingly important contribution to the atmospheric chemistry (e.g., Jones & Tsuji 1997; Helling et al. 2008). UCDs represent about 15% of the stellar population in the solar neighborhood (e.g., Henry et al. 2006; Gillon et al. 2016)

While the ages of UCDs favor studies of Galactic kinematics, they also play a relevant role in two other types of research lines. On one hand, their low masses and small radii facilitate the discovery of Earth-size planets orbiting around them at separations at which surface water could be liquid. Moreover, their proximity to the Sun (UCDs are intrinsically faint objects that cannot be detected at long distances) opens the door to the detection and characterization of habitable planets in the solar neighbourhood. Proxima Centauri (Anglada-Escudé et al. 2016), TRAPPIST -1 (Gillon et al. 2017), and Barnard’s star (Ribas et al. 2018) are excellent examples of this type of research. Given that there are approximately three times as many M dwarfs as FGK dwarfs in the Milky Way (Kroupa 2001; Chabrier 2003), and small planets appear to surround M dwarfs three to five times more frequently than Sun-like stars (Dressing & Charbonneau 2015), they could well represent the most common Earth-size planets in our Galaxy.

On the other hand, some of the youngest ($t$ $\leq$ $100$ Myr) UCDs in the field may have masses close to or even below the deuterium burning limit (10 - 13 MJup; Chabrier & Baraffe 2000; Zhang et al. 2019), which makes them exoplanet analogues. Since these objects are nearby, isolated, and not affected by the glare of the host star, they are ideal laboratories for detailed studies of the cool, low-gravity and dusty atmospheres typical of exoplanets (Faherty et al. 2013; Caballero 2018).

The major sources of UCD discoveries, which now include over 2 000 L and T dwarfs and several thousands of late-M dwarfs (Smart et al. 2017), have been wide-field, optical and infrared imaging surveys such as the Deep Near Infrared Survey of the Southern Sky (Epchtein et al. 1999), the Sloan Digital Sky Survey (York et al. 2000), the Two Micron All Sky Survey (Skrutskie et al. 2006), the UKIRT Infrared Deep Sky Survey (Lawrence et al. 2007), the Wide-Field Infrared Survey Explorer (Wright et al. 2010), and the Visible and Infrared Survey Telescope for Astronomy (Cross et al. 2012). In the near future, a major source of UCD identifications is expected to be the Euclid surveys (Deacon 2018).

In this context, we plan to search for UCDs in J-PLUS111https://www.j-plus.es/ (Javalambre Photometric Local Universe Survey) and J-PAS222http://www.j-pas.org/ (Javalambre Physics of the Accelerating Universe Astrophysical Survey) taking advantage of the Virtual Observatory333http://www.ivoa.net (VO) capabilities. VO has proven to be an excellent methodology to identify and characterize cool objects (e.g., Aberasturi et al. 2011; Martín et al. 2013; Aberasturi et al. 2014; Gálvez-Ortiz et al. 2017; Lodieu et al. 2017). In this paper we present the first search using the J-PLUS Internal Data Release catalogue which covered 528 deg2 ($\sim$ 1% of the total sky area) in the blue and red optical bands.

The main advantage of J-PLUS compared to the previously cited surveys is its larger number of filters, which provide a denser sampling of the spectral energy distribution (SED) and allows a more accurate estimation of the effective temperature, a key parameter to classify an object as a UCD. The fact that all photometric information comes from the same survey also minimizes the risk of mismatching among surveys conducted at different epochs, in particular for the most interesting, high proper motion, nearby sources.

This paper is organized as follows. In Sect. 2 we describe the J-PLUS survey. Sect. 3 is devoted to explain the methodology that we have used to identify candidate ultracool dwarfs. In Sect. 4, we present some properties of our candidates. Finally, we summarize our work and present our conclusions in Sect. 5.

2 J-PLUS

J-PLUS is an ongoing multi-filter survey carried out with the Javalambre Auxiliary Survey Telescope (JAST/T80), a 0.83 m telescope installed at the Observatorio Astrofísico de Javalambre (OAJ) in Teruel, Spain. The survey uses the panoramic camera T80Cam that provides a large field of view of 1.4 $\times$ 1.4 deg2 with a pixel scale of 0.55 arcsec/pixel. J-PLUS was primarily conceived to perform the calibration tasks for the main J-PAS survey, observing the same regions of the sky ($\approx$ 8 500 deg2). J-PAS (Benítez et al. 2014), is a photometric sky survey in 59 colours that will allow, for the first time, to map not only the positions of hundreds of millions of galaxies in the sky but also their individual distances, providing the first complete 3D map of the Universe.

The J-PLUS filter system is composed of four broad- ($g$, $r$, $i$, and $z$), two intermediate- ($u$ and $J0861$), and six narrow-band ($J0378$, $J0395$, $J0410$, $J0430$, $J0515$, and $J0660$) filters optimized to provide an adequate sampling of the target SED in the optical range. The transmission curves, as well as additional properties of the set of filters, can be found at the Filter Profile Service maintained by the Spanish Virtual Observatory444https://bit.ly/2OXuwNs. The expected limiting magnitude (3$\sigma$  in 3 arcsec aperture) is $\sim$ 21 mag, with $g$ and $r$ reaching $\sim$ 22 mag. J-PLUS magnitudes are given in the AB system.

The final survey parameters, scientific goals and the technical requirements of the filter set are described in Cenarro et al. (2019). J-PLUS data have already been used in different research fields, such as the study of the Coma cluster (Jiménez-Teja et al. 2019), the analysis of the H$\alpha$ emission in the nearby Universe (Logroño-García et al. 2019), the study of the M15 globular cluster (Bonatto et al. 2019), the identification of new members in a galaxy cluster (Molino et al. 2019), the study of the stellar populations of several local galaxies (San Roman et al. 2019), or the study of the star/galaxy morphological classification (López-Sanjuan et al. 2019).

3 Analysis

We queried the J-PLUS archive555https://archive.cefca.es/catalogues, in particular the Internal Data Release (IDR201709), using the VO Asynchronous Queries option. IDR201709 comprises 264 J-PLUS pointings observed in the 12 optical bands described in Sect. 2 amounting to 528 deg2 (Fig. 1). These pointings, available for the J-PLUS collaboration in September 2017, are a subset of the 511 pointings that comprise the first J-PLUS data release, DR1666https://www.j-plus.es/datareleases/data*-*release*-*dr1, presented by Cenarro et al. (2019). Differences at 0.1 mag level in the photometry of the same source between IDR201709 and DR1 can exist due to improvements in the reduction and the calibration processes made after September 2017. IDR201709 includes two types of catalogues: single catalogues, where the source detection and photometry were done on each band independently, and dual catalogues, where the detection and photometry were done using the $r$-band image as a reference. As UCDs emit most of their flux at longer wavelengths, we decided not to be linked to the $r$ band and use the single catalogues in our analysis, instead. For this, we crossmatched the sources extracted from the images at different bands assuming that sources separated less than 1 arcsec are, actually, the same source.

3.1 Photometric search

We restricted our query to stellar sources. This was done using the class_star parameter of SExtractor (Bertin & Arnouts 1996). Sources having class_star $>$ 0.5 in the $r$-band image are considered “stars” in the J-PLUS archive. In order to minimize the contamination by non-stellar sources we were more restrictive and imposed class_star $>$ 0.8. We also required good photometric conditions (flag=0). An example of a typical query looks like this:

SELECT * FROM jplus.CalibratedMagABSingleObj,jplus.Filter WHERE jplus.Filter.FILTER_ID = jplus.CalibratedMagABSingleObj.FILTER_ID AND ALPHA_J2000 BETWEEN 145.0 AND 146.0 AND DELTA_J2000 BETWEEN 30.0 AND 33.0 AND CalibratedMagABSingleObj.FLAGS=0 A AND CalibratedMagABSingleObj.CLASS_STAR>0.8

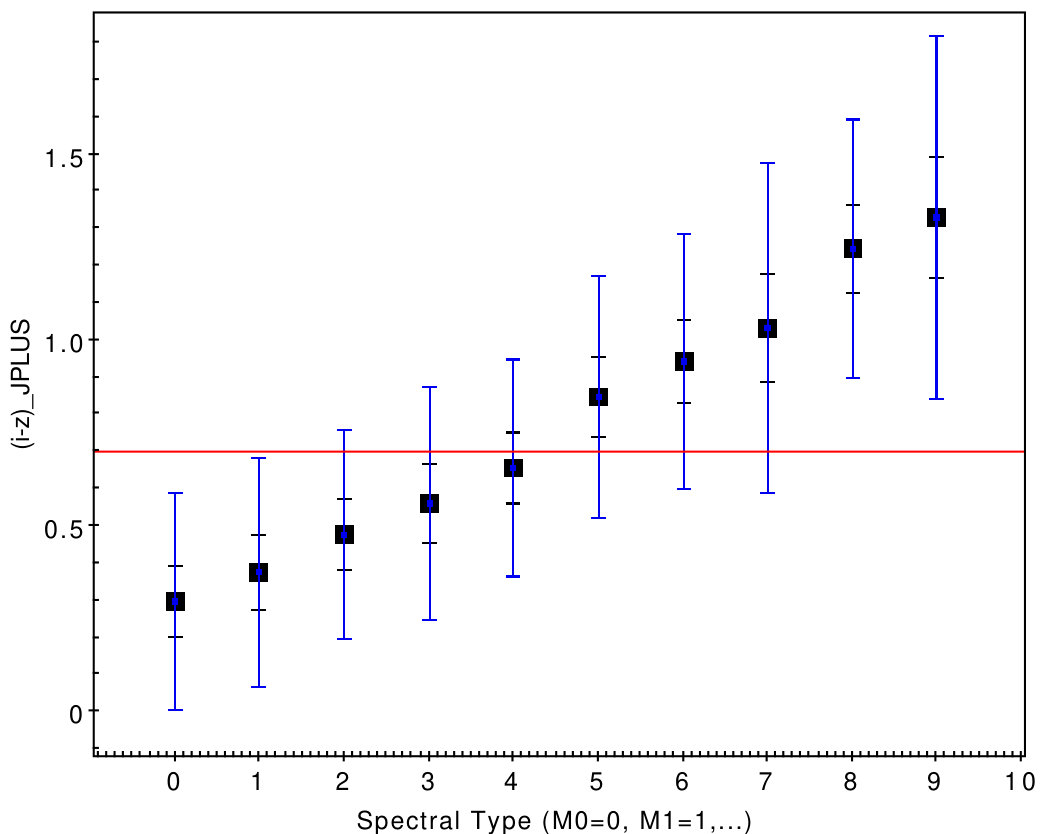

Figure 2 shows the distribution of the $i-z$ J-PLUS colours for the list of spectroscopically confirmed M dwarfs given by West et al. (2011) and included in IDR201709. A list of 1257 stars was obtained from this crossmatch (Table 1). For this subset, $i-z$ colour ranges from a mean value of $i-z$ $\sim$ 0.3 mag at subtype M0 V to $i-z$ $\sim$ 1.3 mag at subtype M9 V. We adopted a colour-cut of $i-z$ $>$ 0.7 mag as a criterion to identify new UCDs. It includes almost all stars of subtype M7 V and later, at the expense of some contamination from earlier subtypes (M2–6 V). To minimize this contamination as much as possible, we used VOSA777http://svo2.cab.inta-csic.es/theory/vosa/ (VO Sed Analyser; Bayo et al. 2008) to derive the effective temperature of the photometrically selected candidate UCDs (i.e. objects with $i-z$ $>$ 0.7 mag). VOSA is a tool developed by the Spanish Virtual Observatory designed to estimate physical parameters from the comparison of the observed target SED to different collections of theoretical models (see an illustrative example in Fig. 3).

Observational SEDs covering the optical and infrared range were built using the photometric catalogues available in VOSA. Then, SEDs were compared to the grid of BT-Settl CIFITS model atmospheres (Baraffe et al. 2015) to estimate effective temperatures. We assumed $\log{g}$ $\geq$ 4.5 and solar metallicity. GALEX photometry was not included in the SED as, for M dwarfs, most of the flux in the GALEX bandpasses does not have a photospheric origin but chromospheric (Shkolnik et al. 2011). Consequently, the flux observed at GALEX bands is systematically higher than the flux estimated from the photospheric models, which would have a clear impact on the SED fitting.

Extinction can play an important role in shaping the SED and thus, in the estimation of physical parameters. To account for this effect, we decided to leave extinction as a free parameter in the SED fitting process with values ranging from $A_{V}$= 0.0 mag to 0.7 mag.

Using the 70 840 spectroscopically confirmed M dwarfs available in West et al. (2011), we derived a relationship between spectral types and effective temperatures calculated using VOSA and Baraffe et al. (2015) models (Table 2). According to this, we adopted for UCDs a conservative value of $T_{\mathrm{eff}}$ $\leq$ 2900 K. With this criterion we may loose a small fraction of hotter UCDs but, at the same time, we avoid contamination from a significant number of M5–6 dwarfs.

SEDs of the photometrically selected ultracool candidates with $T_{\mathrm{eff}}$ $\leq$ 2900 K were visually inspected to remove bad photometric points (i.e. points that clearly deviate from the theoretical SED) that could be affecting the quality of the SED fitting and, thus, the estimation of the effective temperature. Moreover, we used Aladin (Bonnarel et al. 2000) to inspect the associated images and discard any problem related to blending or contamination by nearby sources.

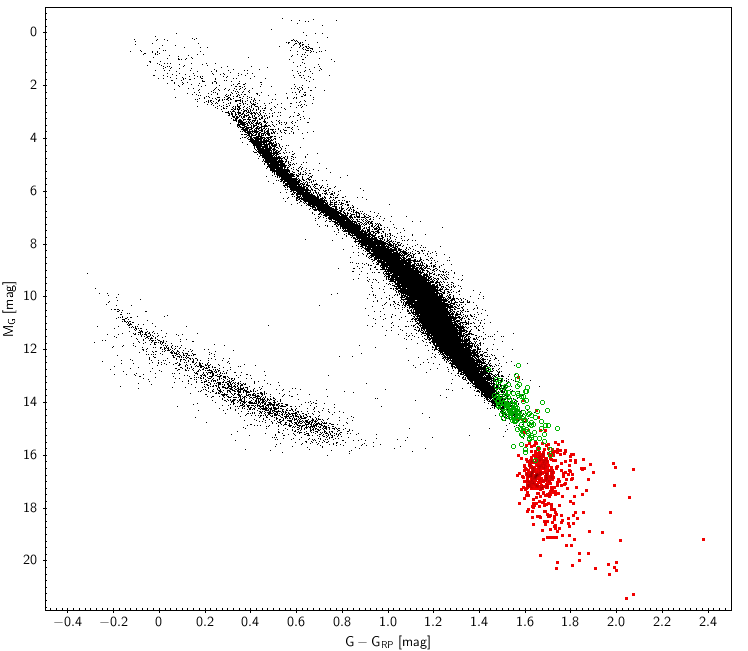

The next step was to place our photometrically selected candidate UCDs in a colour-magnitude diagram. To do so, we reproduced the diagram shown in Fig. 6 of Babusiaux et al. (2018) with all the Gaia DR2 objects at less than 100 pc. Among our candidates, we kept only those with relative errors of less than 10% in $G$ and GRP and less than 20% in parallax. The absolute Gaia magnitude in the $G$ band for individual stars was estimated using

[TABLE]

where $\varpi$ is the parallax in arcseconds. In our case, the inverse of the parallax is a reliable distance estimator as we are keeping only sources with relative errors in parallax lower than 20% (Luri et al. 2018).

We also forced that all Gaia counterparts have a value of visibility*-periods-*used ¿ 6, which is the minimum value to accept a five-parameter astrometric solution for Gaia sources (Lindegren et al. 2018). This keyword indicates the number of groups of observations separated from other groups by a gap of at least four days (Babusiaux et al. 2018). After all this filtering process, we ended up with 127 new potential candidate UCDs not previously reported in the literature. Figure 4 shows the position of these sources in the CMD diagram. It confirms the dwarf and cool nature of all our candidates.

3.2 Kinematic search

Proper motions have been widely used in the literature to distinguish M dwarfs from other objects with similar colours but different kinematics, such as M giants, quasars, or distant red luminous galaxies (e.g., Theissen et al. 2017, 2016; Caballero et al. 2008). Moreover, proper motions are very useful to identify ultracool dwarfs with atypical colours due to anomalous values of gravity (Schmidt et al. 2010a) or metallicity (Bochanski et al. 2013; Zhang et al. 2018) that would be missed by colour cuts used in photometry-only searches.

The J-PLUS limiting magnitudes in the $i$- and $z$-band, together with the UCD colour-distance relationship provided in Theissen et al. (2017), gives a maximum distance of about 400 pc to find UCDs in the J-PLUS survey. This implies that UCDs seen by J-PLUS are at distances where proper motions are significant.

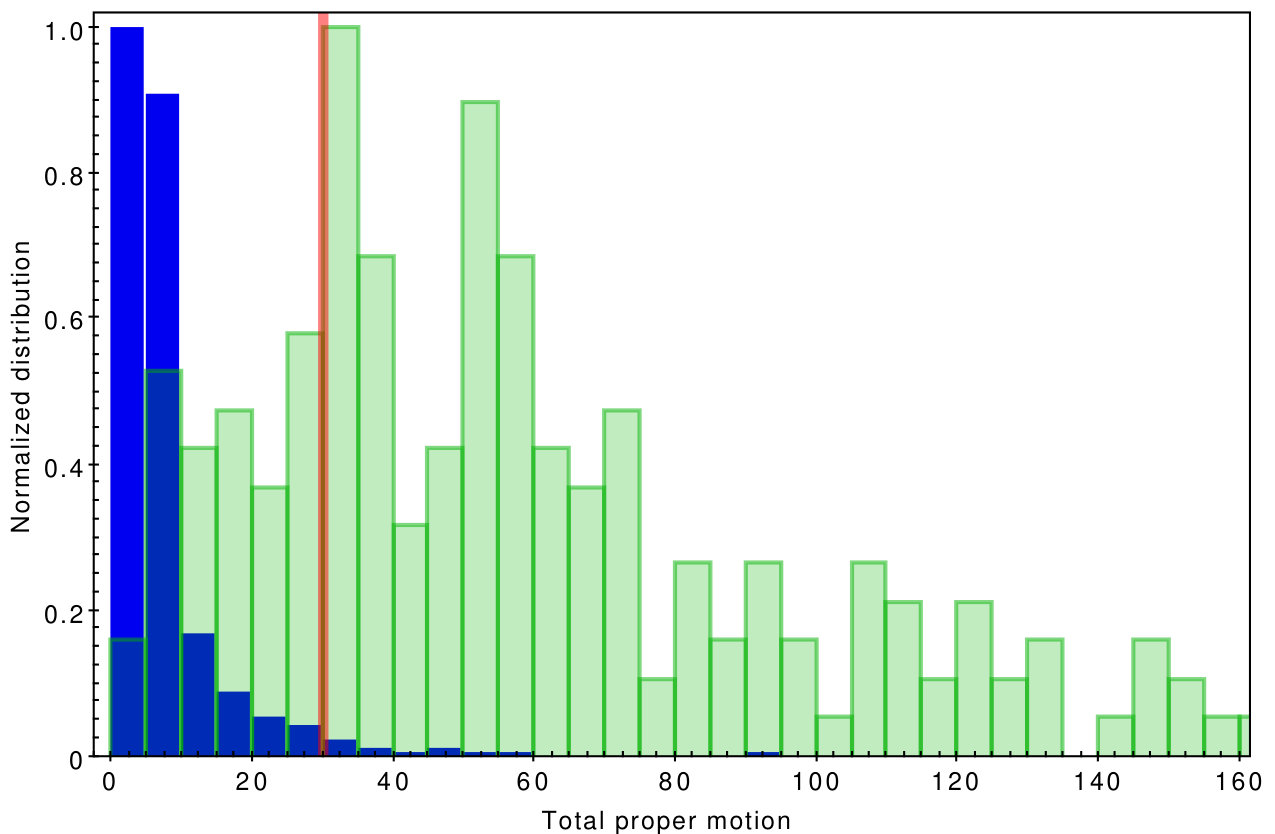

To define the proper motion cut between M dwarfs and M subgiants/giants, we took all objects classified in SIMBAD888http://simbad.u-strasbg.fr/simbad/ (Wenger et al. 2000) as M subgiant/giant (luminosity classes IV, IV/III, and III) and with spectral type later than M5 (1 093 objects), and looked for their proper motions in Gaia DR2. Their normalized total proper motion distribution is compared in Fig. 5 with that of the 127 candidate UCDs identified in Sect. 3.1. A proper motion cut at 30 mas/yr represents a good balance between giant contamination and dwarf completeness.

In the kinematic search we limited our query in J-PLUS to class_star $\geq$ 0.5. Compared to the photometric search we have relaxed this condition from 0.8 to 0.5 based on two reasons. First, it increases the number of objects to be studied. Second, the contamination of non-stellar objects wrongly flagged with class_star $>$ 0.5 can be easily removed using the proper motion information as extragalactic objects have negligible spatial motions. Sources fulfilling this condition were crossmatched with the Gaia DR2 catalogue to get the information on proper motions. A search radius of 10 arcsec was used. If more than one counterpart exist in that radius we took the nearest one. Of the 2 620 881 J-PLUS sources with Gaia DR2 counterparts, 64 134 have total proper motions larger than 30 mas/yr.

To remove hotter objects (spectral types earlier than M7) with high proper motions, we estimated effective temperatures for the 64 134 objects using VOSA following a procedure similar to that described in Sect. 3.1. Also, objects with Gaia counterparts having visibility*-periods-used ¡ 6 and astrometric-excess-noise ¿ 1 were removed. The latter is a Gaia parameter that quantifies the scatter of residuals in the astrometric solution. According to Lindegren et al. (2018), values above 1 will, most likely, correspond to artefacts. After this filtering, 60 new UCDs candidate were kept. These objects were not identified in the photometric search mainly because of two reasons: J-PLUS class-*star $\leq$ 0.8 or bad photometry in the J-PLUS $i$-, $z$-bands.The distribution of effective temperatures of our candidate UCDs (identified both using photometry and proper motions) are given in Fig. 6.

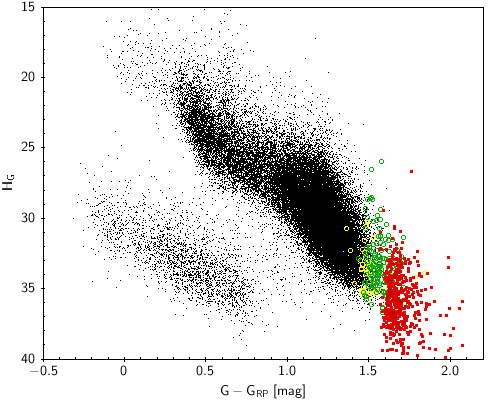

Figure 7 shows the position of the 60 kinematically-selected candidate UCDs in a reduced proper motion diagram:

[TABLE]

where $G$ is the Gaia magnitude and $\mu$ is the total proper motion in mas yr*-1*. In this type of diagrams, proper motion is used as a proxy for distance assuming that nearby objects will have larger proper motions. Just as in a Hertzsprung-Russell diagram, reduced proper motion diagrams have demonstrated to be excellent tools to segregate the various stellar populations (Dhital et al. 2010; Jiménez-Esteban et al. 2011, 2012; Zhang et al. 2013; Smart et al. 2017). All our candidates lie in the expected locus for ultracool dwarfs.

The approach adopted in this work for the kinematic search has two main limitations. First, we keep only objects having a minimum total proper motion $\mu$ $>$ 30 mas/yr, which may exclude a non-negligible amount of nearby objects. This can be seen in Fig. 5, where we favour low degree of contamination to completeness. Second, our procedure is based on Gaia proper motions. Gaia operates at optical wavelengths with a limiting magnitude $G$ $\sim$ 21.4 mag, which makes it incomplete for UCDs, in particular for the reddest objects, as they emit predominantly in the infrared and are very faint in the Gaia bands (e.g., Smart et al. 2017). An alternative to this approach would be the estimation of proper motions from the positions in optical and infrared surveys taken at different epochs, a methodology that is beyond the scope of this exploratory paper. Moreover, using tangential velocities, where information on distances and proper motions is combined, could be an alternative approach to separate dwarfs from giants. However, the number of Gaia DR2 parallaxes accurate enough to provide unbiased estimations of distances is significantly lower than the number of accurate proper motions (i.e., relative errors below 10% in both components). Using tangential velocities would result in the loss of 20-25% of our kinematically selected candidates which led us not to use them in our kinematic search of UCDs.

A sample of the photometrically (127) and kinematically (60) selected candidate UCDs is given in Table 3, while the full list of candidates is available online at the SVO-JPLUS archive of ultracool dwarfs (see Appendix A). This service will be updated and maintained in the framework of the Spanish Virtual Observatory999http://svo.cab.inta-csic.es. According to VOSA criteria, based on the slope of the SED and the flux difference between the observed and theoretical SEDs (see the VOSA help101010https://bit.ly/2yzwyIF for a detailed description on how VOSA handles the infrared excess), none of the candidate UCDs show excess in the infrared that could be ascribed to circumstellar material or to the presence of a close ultracool companion. This result is in agreement with the ratio of M dwarfs with infrared excess given by Theissen & West (2014), estimated in one object every about 400 stars.

3.3 Known ultracool dwarfs

In this section we assess the fraction of known UCDs that have been recovered using our methodology. In particular we looked for UCDs in two catalogues: SIMBAD and Smart et al. (2017).

Using the SIMBAD TAP service121212http://simbad.u-strasbg.fr:80/simbad/sim-tap, we chose among the more than 9 million available objects those having M7V, M8V, M9V, and L spectral types. A total of 9 894 objects fulfilled these conditions.

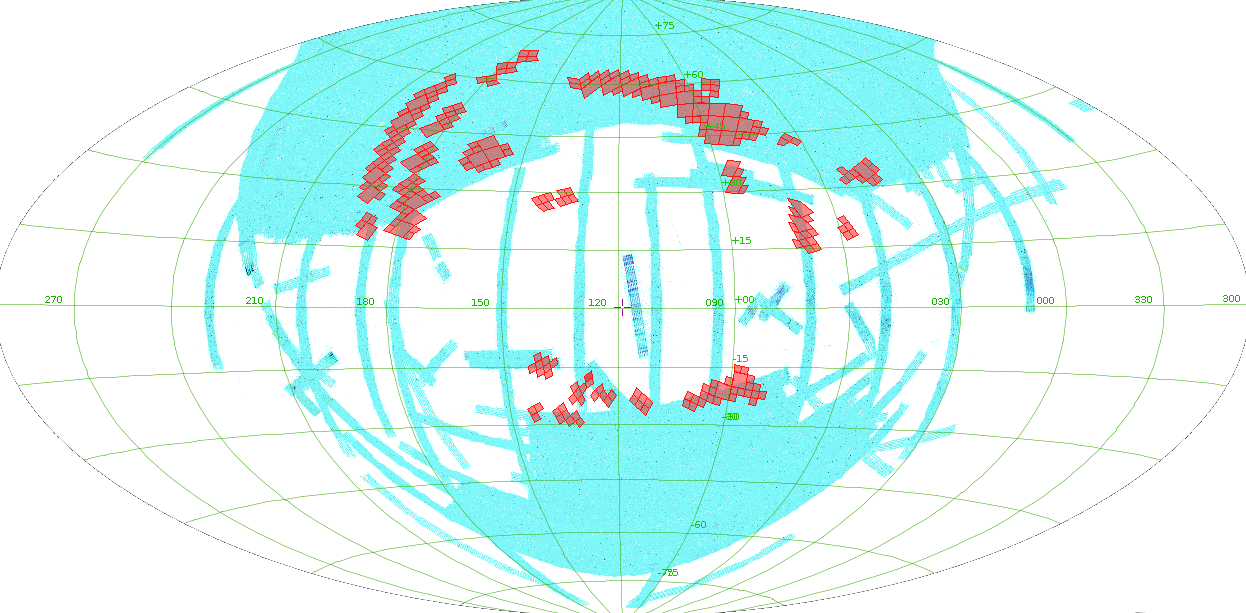

To know how many of them lie in the region of the sky covered by IDR201709, we took advantage of the Multi-Object Coverage131313http://ivoa.net/documents/MOC/index.html VO standard and Aladin. A total of 588 objects lie in the region of the sky observed in IDR201709. A query to the archive for these 588 objects returned 368 objects with J-PLUS data. We repeated the same methodology for Smart et al. (2017). Only 53 out of the 1885 objects included in the catalogue lie in the J-PLUS field, 7 of them with observations in the J-PLUS archive. The scarcity of J-PLUS counterparts can be explained by the intrinsic faintness of these objects, typically beyond the IDR201709 limiting magnitude.

The efficiency of our search was estimated using the false negative rate (number of known UCDs that were not rediscovered in our search). All SIMBAD sources (368) were found while only four of the seven objects included in Smart et al. (2017) with J-PLUS observations were recovered, the remaining three having a bad SED fitting that prevented us from deriving their effective temperatures. These 372 (368 + 4) objects were not included in our list of 187 (127 + 60) objects as they have already been reported in the literature. This gives a total of 559 UCDs identified in this paper. The 187 new candidate UCDs compared to the 9 894 UCDs already included in SIMBAD represents a 2% of new discoveries. However, if we restrict our analysis to the area of the sky covered by J-PLUS DR1 (528 deg2), the increase in the number of known UCDs is about 50% (187/372). This ratio of new discoveries is not evenly distributed with spectral types, being higher ($\sim$ 5%) for the cooler (¿ M8) objects. Extrapolating these results to the foreseen sky coverage at the end of the J-PLUS survey (8 500 deg2) we would expect to discover $\sim$ 3 000–3 500 new UCDs, which represents one third of the UCDs presently included in SIMBAD.

These results confirm the robustness of our methodology to discover ultracool dwarfs.

4 Results and discussion

4.1 Distances

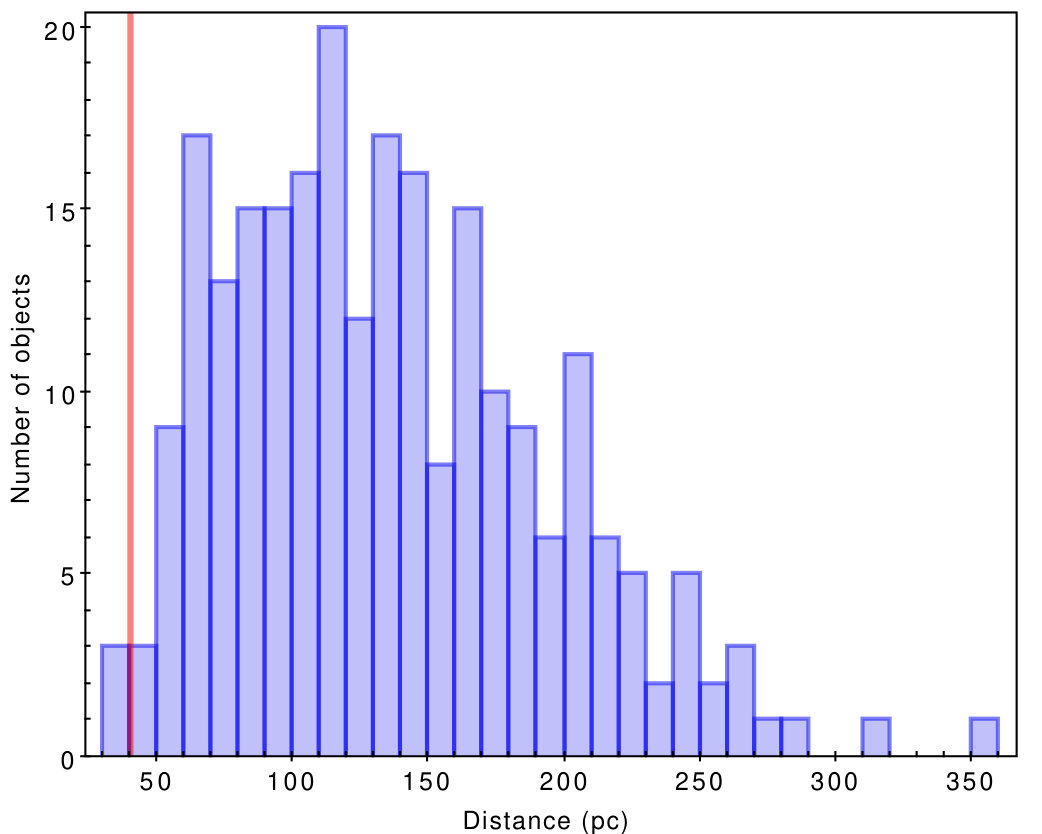

To avoid biases due to large errors in parallax (Astraatmadja & Bailer-Jones 2016), distances were estimated only if the relative error in parallax was less than 20%. As in Sect. 3.1, we used the inverse of the parallaxes given in Gaia DR2. The distribution of distances for our candidate UCDs is shown in Fig. 8.

Due to the comprehensive search done in the past for nearby UCDs, the great majority of the new candidate UCDs presented in this paper are at distances greater than 40 pc, which is interesting as reference for future wide and deep surveys such as Euclid (Racca et al. 2018). However, there are three objects at less than 40 pc that escaped from previous searches, which indicates that there is still room to discover new nearby UCDs even with small telescopes such as JAST/T80. We list the details of these three objects in Table 4. Based on the effective temperatures calculated with VOSA and the $T_{\mathrm{eff}}$– spectral type relationship given in (Table 2), we estimated a photometric spectral types of M7 for $T_{\mathrm{eff}}$  $\sim$ 2900 K and M8 for $T_{\mathrm{eff}}$  $\sim$ 2700 K.

Ultracool dwarfs may escape from photometric surveys because their unusual $J-K_{s}$ colours for their spectral types. Red $J-K_{s}$ outliers often exhibit distinctive low-gravity features, indicating that these objects are young and still collapsing. On the other hand, blue outliers show strong H2O and weak CO features in their infrared spectra, possibly associated to high gravity and old age (Burgasser et al. 2008; Schmidt et al. 2010b; Zhang et al. 2017). A paradigmatic example of these outliers is SDSS J141624.09+134826.7, an exceptionally blue L dwarf within 10 pc of the Sun (Bowler et al. 2010; Schmidt et al. 2010a). Nevertheless, as shown in Fig. 9, this was not the case of our three candidate UCDs, which lie in the region of typical colours.

4.2 Tangential velocities

Kinematics is a good proxy to get information on the ages of UCDs as old stars belong to the thick disk and, thus, have larger velocities than young stars, which belong to the thin disk (Montes et al. 2001; Zuckerman & Song 2004).

The lack of radial velocities for our ultracool candidates prevents from making a three dimensional kinematic analysis. Instead, by combining Gaia DR2 proper motions and distances, we used tangential velocities, defined as Vtan = 4.74 $\mu$ $d$, where Vtan is given in km s*-1*, $\mu$ is the total proper motion in arcsec yr*-1* and $d$ is the distance in pc.

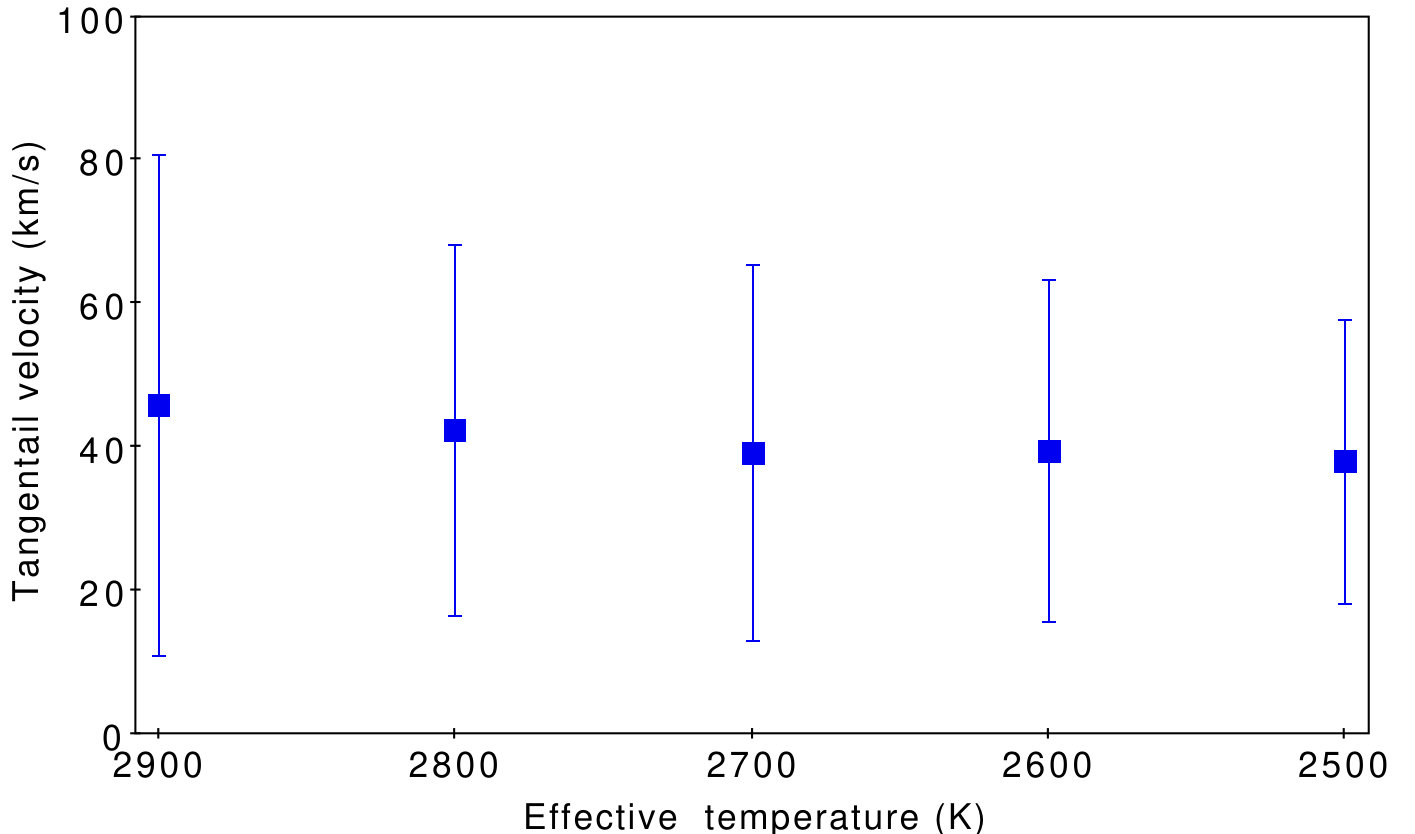

Figure 10 shows the distribution of the mean tangential velocities with the effective temperature. The discretization seen in the values of $T_{\mathrm{eff}}$ is a consequence of the step adopted in the CIFITS grid of models. The lack of correlation between tangential velocities and effective temperature indicates that our candidates represent a single kinematic population irrespective of the spectral type.

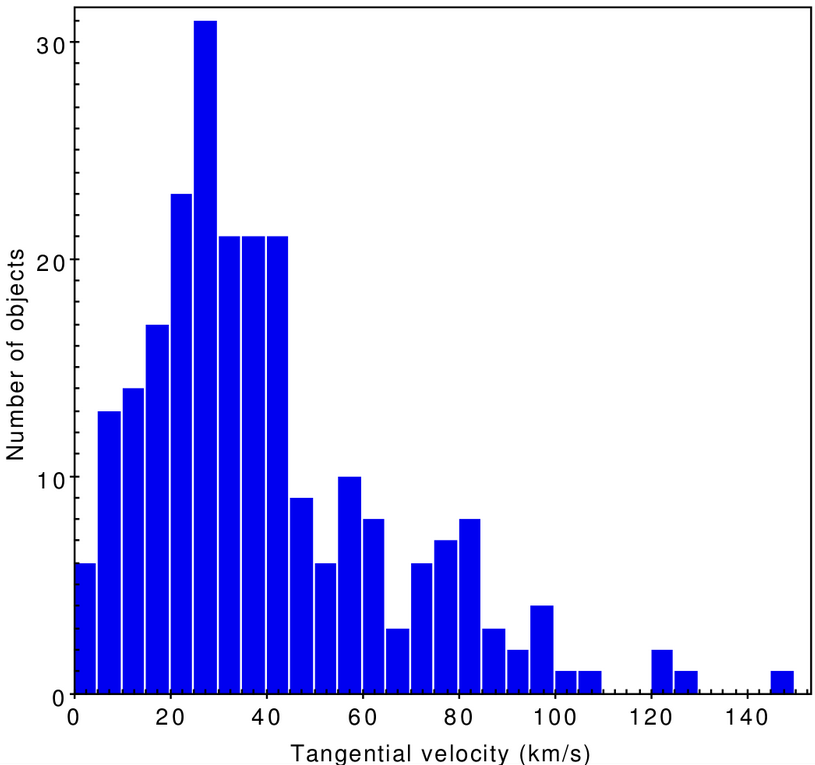

Figure 11 shows the distribution of tangential velocities. There are six objects with $V_{\mathrm{tan}}$¿ 100 km s*-1*. Even considering these objects we obtain a median value of $V_{\mathrm{tan}}$= 34 km s*-1* and a dispersion of $\sigma$ = 26 km s*-1*, which coincides very well with previous determinations for ultracool dwarfs (Faherty et al. 2009).

These six high-velocity objects do not show unusual colours for their spectral type (Fig. 9). Adopting $V_{\mathrm{tan}}$= 180 km s*-1* as the boundary between disk and halo objects (Sesar et al. 2008), we conclude that all our UCD candidates correspond to thin disk objects, with the six high-velocity objects being potential members of the thick disk.

5 Conclusions

Using a Virtual Observatory methodology we have produced a catalogue of 187 new candidate ultracool dwarfs using J-PLUS IDR201709. Our goal was not to construct a complete catalogue. Rather, we attempted to build a catalogue of bona fide UCDs and to test a search methodology that could be used for new J-PLUS releases and, what is more interesting, for the deeper J-PAS survey with first light happening in 2019. J-PAS, with its contiguous system of 54 narrow-band filters, will provide an unprecedented photometric coverage in the optical range, allowing more accurate determinations of the effective temperatures and, probably, a direct confirmation of the true UCD nature of our objects without the need for external spectroscopic follow-up.

The use of a dual methodology based on photometry and proper motions tends to minimize the drawbacks and biases associated to the search of ultracool objects: photometric-only selected samples may leave out peculiar UCDs not following the canonical trend in colour-colour diagrams, while proper motion searches may ignore objects with small values of projected velocity in the plane of the sky. The high success ratio recovering known UCDs ($>95\%$) demonstrates the robustness of our procedure.

With the help of the VOSA Virtual Observatory tool we estimated effective temperatures for our candidate UCDs. They range from M7 V to L0 V with the great majority of the objects having M7–8 V spectral types. Distances were computed using Gaia parallaxes with relative errors less than 20%. A mean value of 130 pc was obtained, with the closest and farthest objects at 32 pc and 352 pc, respectively. We also identified three new systems with distances $d<$ 40 pc.

Analysis on tangential velocities concluded that our candidate UCDs are consistent with the Galactic thin-disk population. However, there are six objects that lie at the tail end of the velocity distribution and are likely part of an older Galactic population.

Acknowledgements.

We thank our referee, Dr. Zenghua Zhang, for his constructive suggestions. We deeply thank J-PLUS collaboration, in particular, S. Akras, A. Alvarez, P. Coelho, and V. Placco for constructive comments that helped to improve the presentation of the results. We acknowledge use of the ADS bibliographic services. This research has made use of the Aladin sky atlas developed at CDS, Strasbourg Observatory, France. This publication makes use of VOSA, developed under the Spanish Virtual Observatory project supported from the Spanish MINECO through grant AyA2017-84089. This work has made use of data from the European Space Agency (ESA) mission Gaia141414https://www.cosmos.esa.int/gaia, processed by the Gaia Data Processing and Analysis Consortium (DPAC)151515https://www.cosmos.esa.int/web/gaia/dpac/consortium. We also extensively made use of the Vizier and SIMBAD services, both operated at CDS, Strasbourg, France. Funding for the J-PLUS Project has been provided by the Governments of Spain and Aragón through the Fondo de Inversiones de Teruel, the Spanish Ministry of Economy and Competitiveness (MINECO; under grants AYA2015-66211-C2-1-P, AYA2015-66211-C2-2, AyA2012-30789 and ICTS-2009-14), and European FEDER funding (FCDD10-4E-867, FCDD13-4E-2685). The Brazilian agencies FAPERJ and FAPESP as well as the National Observatory of Brazil have also contributed to this project. RAD acknowledges support from CNPq through BP grant 312307/2015-2, CSIC through grant COOPB20263, FINEP grants REF. R 1217/13 - 01.13.0279.00 and REF 0859/10 - 01.10.0663.00 for hardware support for the J-PLUS project through the National Observatory of Brazil. E. L. Martín acknowledges support from project AYA2015-69350-C3-1-P. J. A. Hernandez-Jimenez thanks to Brazilian institution CNPq (project 150237/2017-0) and Chilean institution CONICYT through Programa de Astronomía, Fondo ALMA-CONICYT 2017 (project 31170038). R. Lopes was partially supported by the Brazilian agency CNPq (PQ 302037/2015-2 and PDE 200289/2017-9). F. J. E. acknowledges financial support from the ASTERICS project (ID:653477, H2020-EU.1.4.1.1. Developing new world-class research infrastructures). This work is based on observations made with the JAST/ T80 telescope at the Observatorio Astrofísico de Javalambre (OAJ) in Teruel, owned, managed and operated by the Centro de Estudios de Física del Cosmos de Aragón. We thank the OAJ Data Processing and Archiving Unit (UPAD) for reducing and calibrating the OAJ data used in this work.

Appendix A Virtual Observatory compliant, online catalogue

In order to help the astronomical community on using our catalogue of candidate UCDs, we developed an archive system that can be accessed from a webpage161616http://svo2.cab.inta-csic.es/vocats/v3/ucd_jplus/index.php or through a Virtual Observatory ConeSearch171717(e.g. https://bit.ly/2PuqlJ5).

The archive system implements a very simple search interface that allows queries by coordinates and radius as well as by other parameters of interest. The user can also select the maximum number of sources (with values from 10 to unlimited) and the number of columns to return (minimum, default, or maximum verbosity). The result of the query is a HTML table with all the sources found in the archive fulfilling the search criteria. The result can also be downloaded as a VOTable or a CSV file. Detailed information on the output fields can be obtained placing the mouse over the question mark located close to the name of the column. The archive also implements the SAMP181818http://www.ivoa.net/documents/SAMP (Simple Application Messaging) Virtual Observatory protocol. SAMP allows Virtual Observatory applications to communicate with each other in a seamless and transparent manner for the user. This way, the results of a query can be easily transferred to other VO applications, such as, for instance, Topcat.
