A symplectic dynamics proof of the degree-genus formula

TL;DR

This paper provides a symplectic dynamics proof of the degree-genus formula for complex projective curves, utilizing global surfaces of section and an elementary degeneration process inspired by symplectic field theory.

Contribution

It introduces a novel symplectic dynamics approach to prove the degree-genus formula, connecting Reeb flows, global surfaces of section, and holomorphic degeneration techniques.

Findings

Classification of global surfaces of section for Reeb flows on the 3-sphere

Elementary degeneration process for complex projective curves

Proof of the degree-genus formula using symplectic methods

Abstract

We classify global surfaces of section for the Reeb flow of the standard contact form on the 3-sphere, defining the Hopf fibration. As an application, we prove the degree-genus formula for complex projective curves, using an elementary degeneration process inspired by the language of holomorphic buildings in symplectic field theory.

Figures

Equations

$${\Psi }_t:(z_1,z_2)⟼({\mathrm{e}}^{\mathrm{i}t}{z}_1,{\mathrm{e}}^{\mathrm{i}t}{z}_2),t\in \mathbb{R},$$

$$g=\frac{1}{2}(d-1)(d-2).$$

$$\alpha_{\mathrm{st}}=\bigl{(}x_{1}\,\mathrm{d}y_{1}-y_{1}\,\mathrm{d}x_{1}+x_{2}\,\mathrm{d}y_{2}-y_{2}\,\mathrm{d}x_{2}\bigr{)}|_{TS^{3}}.$$

$$R_{\mathrm{st}}=x_1{\partial }_{y_1}-y_1{\partial }_{x_1}+x_2{\partial }_{y_2}-y_2{\partial }_{x_2},$$

$$V_{1}=\Bigl{\{}\bigl{(}z,\sqrt{1-|z|^{2}}\,\mathrm{e}^{\mathrm{i}\theta}\bigr{)}\colon\thinspace|z|\leq\sqrt{2}/2,\,\theta\in\mathbb{R}/2\pi\mathbb{Z}\Bigr{\}}.$$

$$C_{1}=\bigl{\{}(0,\mathrm{e}^{\mathrm{i}\theta})\colon\thinspace\theta\in\mathbb{R}/2\pi\mathbb{Z}\bigr{\}},$$

$$\mu_{1}=\biggl{\{}\Bigl{(}\frac{\sqrt{2}}{2}\mathrm{e}^{\mathrm{i}\theta},\frac{\sqrt{2}}{2}\Bigr{)}\colon\thinspace\theta\in\mathbb{R}/2\pi\mathbb{Z}\biggr{\}}=\lambda_{2}$$

$$\lambda_{1}=\biggl{\{}\Bigl{(}\frac{\sqrt{2}}{2},\frac{\sqrt{2}}{2}\mathrm{e}^{\mathrm{i}\theta}\Bigr{)}\colon\thinspace\theta\in\mathbb{R}/2\pi\mathbb{Z}\biggr{\}}=\mu_{2}.$$

$$T^{2}_{r}=\bigl{\{}(z_{1},z_{2})\in S^{3}\colon\thinspace|z_{1}|=r\bigr{\}},\;\;r\in]0,1[,$$

$$\Bigl{\{}\bigl{(}\sqrt{1-r^{2}},r\mathrm{e}^{\mathrm{i}\theta}\bigr{)}\colon\thinspace r\in[0,1],\;\theta\in\mathbb{R}/2\pi\mathbb{Z}\Bigr{\}}\subset S^{3}$$

$$h-2{\mu }_1={\lambda }_1-{\mu }_1=-({\lambda }_2-{\mu }_2)=-(h-2{\mu }_2),$$

$$V_{1}=S^{1}\times D^{2}\supset\operatorname{Int}(A)\ni\bigl{(}a(p),p\bigr{)}\longmapsto\bigl{(}|p|\cdot a(p),p\bigl{)}\in D^{2}\times D^{2},$$

$$M\bigl{(}0;(1,1),(1,1),(1,-1)\bigr{)},$$

$$-\partial P={\sigma }_1\bigsqcup {\sigma }_2\bigsqcup {\sigma }_3.$$

$${\mu }_i={\sigma }_i+{\beta }_{i}h,h=h,$$

$$-{\sigma }_2=-{\mu }_2+h\text{and}-{\sigma }_3=-{\mu }_3-h$$

$$(z_1,z_2)⟼({\mathrm{e}}^{2\pi \mathrm{i}/p}{z}_1,{\mathrm{e}}^{2\pi \mathrm{i}q/p}{z}_2).$$

$$M\bigl{(}0;\underbrace{(1,1),\ldots,(1,1)}_{d+k},\underbrace{(1,-1),\ldots(1,-1)}_{k}\bigl{)}$$

$$-\partial {\Sigma }_0=S_0^1\bigsqcup \dots \bigsqcup S_{d+2k}^1.$$

$$(2,-1)\bullet (1,1)=3.$$

$$2-2g=\chi(\Sigma_{g})=d\bigl{(}\chi(S^{2})-d\bigr{)}+d=3d-d^{2},$$

$$g=\frac{1}{2}\bigl{(}(d-1)^{2}-(d-1)\bigr{)}=\frac{1}{2}(d-1)(d-2).$$

$$P_{a,b}:=\bigl{\{}(az,bz)\colon\thinspace z\in\mathbb{C}^{*}\bigr{\}}$$

$$\bigl{\{}r\mathrm{e}^{\mathrm{i}t}(a,b)\colon\thinspace r\in\mathbb{R}^{+}\bigr{\}}.$$

$$X=\frac{1}{2}(x_1{\partial }_{x_1}+y_1{\partial }_{y_1}+x_2{\partial }_{x_2}+y_2{\partial }_{y_2})$$

$$F(z_0,z_1,z_2)=f(z_1,z_2)-z_0^d,$$

$$C_{\mathrm{aff}}=\biggl{\{}(z_{1},z_{2})\in\mathbb{C}^{2}\colon\thinspace f(z_{1},z_{2})=1\biggr{\}}$$

$$f(a,b)z^d=1.$$

$$\frac{\partial F}{\partial z_0}=-d{z}_0^{d-1},\frac{\partial F}{\partial z_1}=\frac{\partial f}{\partial z_1},\text{and}\frac{\partial F}{\partial z_2}=\frac{\partial f}{\partial z_2}.$$

$$\mathbb{C}\mathrm{P}_{\infty}^{1}=\bigl{\{}[z_{0}:z_{1}:z_{2}]\in\mathbb{C}\mathrm{P}^{2}\colon\thinspace z_{0}=0\bigr{\}}.$$

Full text

This research is part of a project in the SFB/TRR 191 ‘Symplectic Structures in Geometry, Algebra and Dynamics’, funded by the DFG

1. Introduction

A global surface of section for the flow of a non-singular vector field $X$ on a three-manifold $M$ is an embedded compact surface $\Sigma\subset M$ such that

1. (i)

the boundary $\partial\Sigma$ is a union of orbits; 2. (ii)

the interior $\operatorname{Int}(\Sigma)$ is transverse to $X$; 3. (iii)

the orbit of $X$ through any point in $M\setminus\partial\Sigma$ intersects $\operatorname{Int}(\Sigma)$ in forward and backward time.

If one can find such a global surface of section, understanding the dynamics of $X$ essentially reduces to studying the Poincaré return map $\operatorname{Int}(\Sigma)\rightarrow\operatorname{Int}(\Sigma)$, which sends each point $p\in\operatorname{Int}(\Sigma)$ to the first intersection point of the $X$-orbit through $p$ with $\operatorname{Int}(\Sigma)$ in forward time.

In symplectic dynamics, where $X$ is a Hamiltonian or Reeb vector field, there are a number of results on the existence or non-existence of global surfaces of section, e.g. [11, 12, 13, 14, 15, 19]. Conversely, one can ask for the existence of flows with a given surface of section and return map. For instance, in [2] we describe a construction of Reeb flows on the $3$-sphere $S^{3}$ with a disc-like global surface of section, where the return map is a pseudorotation; see also [1, 16].

For Reeb flows on the $3$-sphere coming from contact forms that define the standard tight contact structure, the following are the main facts known about the existence of global surfaces of section. Hofer, Wysocki and Zehnder [11, Theorem 1.3] give a sufficient criterion (dynamical convexity) for the existence of a disc-like global surface of section. Hryniewicz and Salomão [14, Theorem 1.3] describe a necessary and sufficient condition for a periodic Reeb orbit of a non-degenerate contact form to bound a disc-like global surface of section. A Reeb flow without a disc-like global surface of section has been constructed by van Koert [19]. It is not known if there is a Reeb flow (in the described class) without any global surface of section.

This motivates the question whether one can give a complete classification of global surfaces of section for a given flow. In the present paper, we consider the Hopf flow on the $3$-sphere $S^{3}\subset\mathbb{C}^{2}$, that is, the flow

[TABLE]

defining the Hopf fibration $S^{3}\rightarrow S^{2}$, as well as the induced flows on the lens space quotients $L(d,1)$ of $S^{3}$. Our first main result, which is purely topological, gives a classification, up to isotopy, of the surfaces that can arise as global surfaces of section for these flows.

The second main result is a symplectic dynamics proof of the classical degree-genus formula for complex projective curves. This formula says that a non-singular complex algebraic curve of degree $d$ in the projective plane $\mathbb{C}\mathrm{P}^{2}$ is topologically a connected, closed, oriented surface of genus

[TABLE]

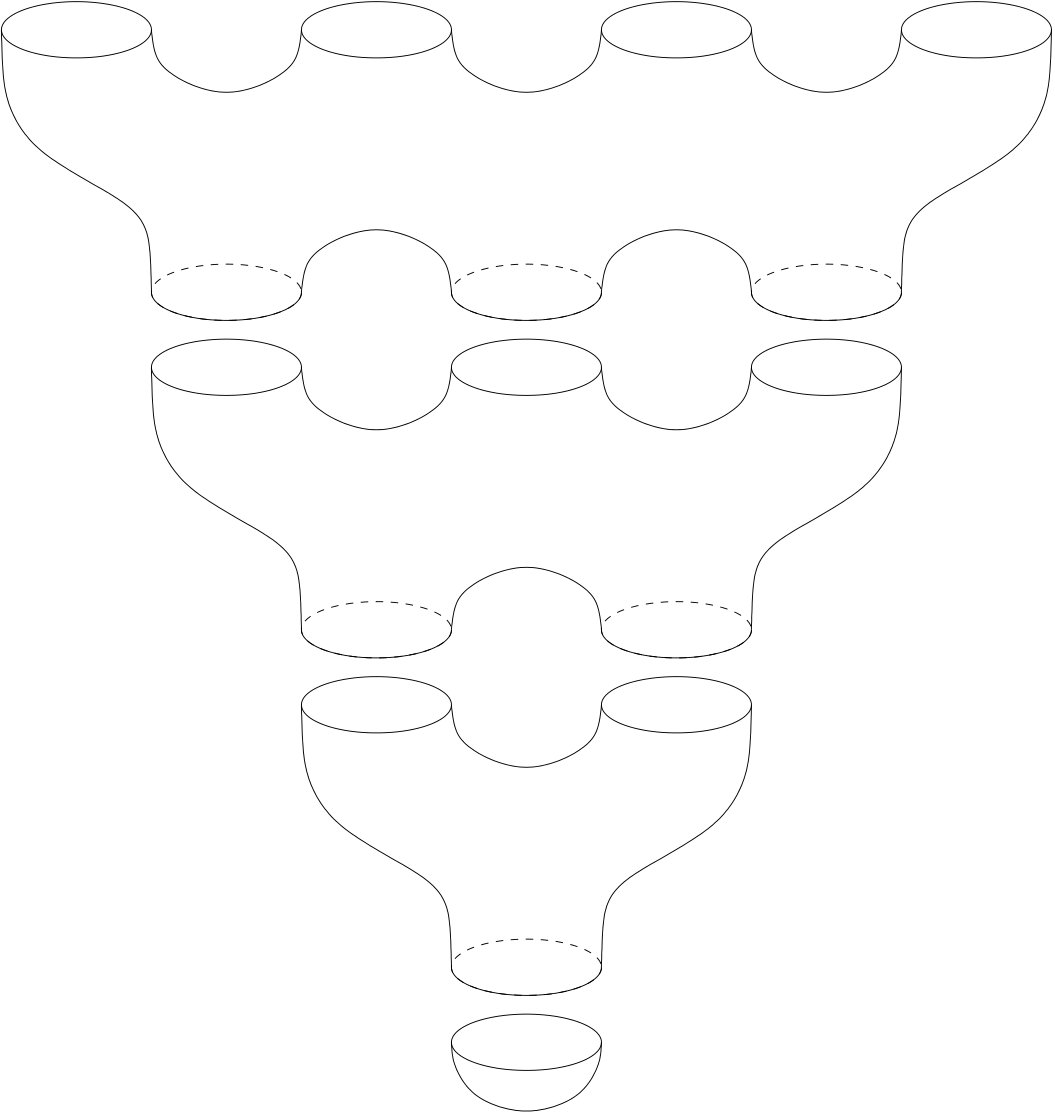

Our proof uses degenerations of complex projective curves in the spirit of Symplectic Field Theory (SFT). Perhaps surprisingly, the SFT point of view elucidates why (2) should be read as a sum $\sum_{k=1}^{d-2}k$. For a given non-singular complex projective curve of degree $d$, we describe a $1$-dimensional family of curves starting at the given one and converging to a holomorphic building of height $d$ in the sense of [3]. Each level in this holomorphic building has genus [math], and the gluing of level $k+2$ to level $k+1$ contributes $k$ to the genus, $k=1,\ldots,d-2$ (see Figure 11). This may be regarded as a motivating example for the degenerations studied in SFT. We ought to point out that we do not use any actual results from SFT.

The ‘standard’ proof of the degree-genus formula, using branched coverings and the Riemann–Hurwitz formula, can be found in [18, Chapter 4]; see also [20, §21] and [8, p. 219].

Here is an outline of the paper. In Section 2 we construct some examples of surfaces of section for the Hopf flow. We show how certain equivalences between Seifert invariants can be interpreted as modifications of such surfaces.

In Section 3 we relate global surfaces of section for the Hopf flow on $S^{3}$ to those for the induced flow (which likewise defines an $S^{1}$-fibration) on the lens space quotients $L(d,1)$. We then classify $1$-sections in $L(d,1)$, i.e. global surfaces of section that intersect each fibre exactly once. The classification of $d$-sections (Definition 2.1) for the Hopf flow on $S^{3}$ with all boundary orbits traversed positively is achieved in Section 4.

In Section 5 we discuss a number of examples how algebraic curves in $\mathbb{C}\mathrm{P}^{2}$ give rise to global surfaces of section for the Hopf flow. This allows one to determine the genus of these particular curves.

Finally, in Section 6 we prove the degree-genus formula, using genericity properties of algebraic curves. We give one proof directly from the classification of global surfaces of section for the Hopf flow. The second, more instructive proof, uses SFT type degenerations to interpret the degree-genus formula as as a sum $\sum_{k=1}^{d-2}k$. Technical details of the SFT type convergence are relegated to Section 7.

2. The Hopf flow

Our aim is to describe surfaces of section for the Hopf flow (1) on the $3$-sphere $S^{3}$. Thinking of $S^{3}$ as the unit sphere in $\mathbb{R}^{4}$, we can define a $1$-form $\alpha_{\mathrm{st}}$ on $S^{3}$ by

[TABLE]

This $1$-form is a contact form, in the sense that $\alpha_{\mathrm{st}}\wedge\mathrm{d}\alpha_{\mathrm{st}}$ is a volume form; $\alpha_{\mathrm{st}}$ is called the standard contact form on $S^{3}$. The Reeb vector field $R_{\mathrm{st}}$ of this contact form is defined by $i_{R_{\mathrm{st}}}\mathrm{d}\alpha_{\mathrm{st}}=0$ and $\alpha_{\mathrm{st}}(R_{\mathrm{st}})=1$. Here this means that

[TABLE]

which is the vector field giving rise to the Hopf flow.

From this interpretation of the Hopf flow as a Reeb flow, and the contact condition $\alpha_{\mathrm{st}}\wedge\mathrm{d}\alpha_{\mathrm{st}}\neq 0$, we see that the $2$-form $\mathrm{d}\alpha_{\mathrm{st}}$ defines an exact area form transverse to the flow of $R_{\mathrm{st}}$, so any surface of section must have non-empty boundary.

For more on the basic notions of contact geometry see [4].

2.1. $d$-Sections

Let $\Sigma\subset S^{3}$ be a surface of section for the Hopf flow. Then $\partial\Sigma$ is a collection of fibres of the Hopf fibration $S^{3}\rightarrow S^{2}$ over a finite number of points $p_{1},\ldots,p_{k}\in S^{2}$. The interior of $\Sigma$ projects surjectively to the connected set $S^{2}\setminus\{p_{1},\ldots,p_{k}\}$. It follows that each fibre over this set intersects $\operatorname{Int}(\Sigma)$ in the same number of points, and $\Sigma$ is a $d$-section for some $d\in\mathbb{N}$, in the following sense.

Definition 2.1**.**

We call an embedded surface $\Sigma\subset S^{3}$ a $d$-section for the flow of $R_{\mathrm{st}}$ if every simple orbit of $R_{\mathrm{st}}$ (i.e. every Hopf fibre) intersects $\operatorname{Int}(\Sigma)$ in exactly $d$ points or is a component of $\partial\Sigma$; the latter will be referred to as boundary fibres. We shall always orient $\Sigma$ such that the $R_{\mathrm{st}}$-flow intersects $\Sigma$ positively. The $d$-section is said to be positive if the boundary orientation of $\partial\Sigma$ coincides with the $R_{\mathrm{st}}$-direction.

In some examples we shall construct such $d$-sections by starting from an honest multi-section of the Hopf fibration over $S^{2}$ with a certain number of discs removed, and then extending it to become tangent to the fibres over the centres of these discs, by gluing in helicoidal surfaces.

2.2. Examples of $d$-sections

We think of $S^{3}$ as being obtained by gluing two copies $V_{1},V_{2}$ of the solid torus $S^{1}\times D^{2}$. Write $\mu_{i}$ for the meridian and $\lambda_{i}=S^{1}\times\{*\}$, with $*\in\partial D^{2}$, for the standard longitude on $\partial V_{i}$. We shall use those same symbols for any curve on $\partial V_{i}$ in the same isotopy class. The gluing described by $\mu_{1}=\lambda_{2}$, $\lambda_{1}=\mu_{2}$ yields $S^{3}$.

More intrinsically, if one thinks of $S^{3}$ as the unit sphere in $\mathbb{C}^{2}$, we can define $V_{i}$ as the solid torus given by $\{|z_{i}|\leq\sqrt{2}/2\}$. The identification of $V_{1}$ with $S^{1}\times D^{2}$ is given by

[TABLE]

The soul of $V_{1}$ is

[TABLE]

corresponding to $S^{1}\times\{0\}\subset S^{1}\times D^{2}$. The solid torus $V_{2}$ and its soul $C_{2}$ are defined analogously. The $\mu_{i}$ and $\lambda_{i}$ are

[TABLE]

and

[TABLE]

The two souls $C_{1},C_{2}$ form a positive Hopf link, i.e. the two unknots have linking number $+1$. The Hopf tori

[TABLE]

foliate the complement of $C_{1},C_{2}$ in $S^{3}$.

In these coordinates, the Hopf flow is simply the flow of $\partial_{\varphi_{1}}+\partial_{\varphi_{2}}$, where $\varphi_{i}$ is the angular coordinate in the $z_{i}$-plane. The Hopf fibration is then made up of the souls $C_{i}=S^{1}\times\{0\}$ of the two solid tori and the $(1,1)$-curves on the Hopf tori, i.e. curves in the class $h:=\mu_{1}+\lambda_{1}=\mu_{2}+\lambda_{2}$.

2.2.1. A disc-like $1$-section

The disc

[TABLE]

bounded by $C_{1}$ is a positive $1$-section for the Hopf flow.

Alternatively, we may identify $V_{1},V_{2}$ with solid tori such that the Hopf fibres correspond to the $S^{1}$-fibres in $S^{1}\times D^{2}$, so that the fibre class is now represented by $h=S^{1}\times\{*\}$; this change in identification amounts to a Dehn twist of the solid torus along a meridional disc.

The meridional disc in $V_{2}$ defines a $1$-section for the Hopf flow in that solid torus. The boundary $\mu_{2}$ of this disc is identified with $\lambda_{1}=h-\mu_{1}$ in $\partial V_{1}$. In $V_{1}$ we have a helicoidal surface $A$ with oriented boundary $C_{1}\sqcup-(h-\mu_{1})$, see Figure 1. This annulus $A$ glues with the meridional disc in $V_{2}$ to form a positive $1$-section for the Hopf flow.

2.2.2. An annular $2$-section

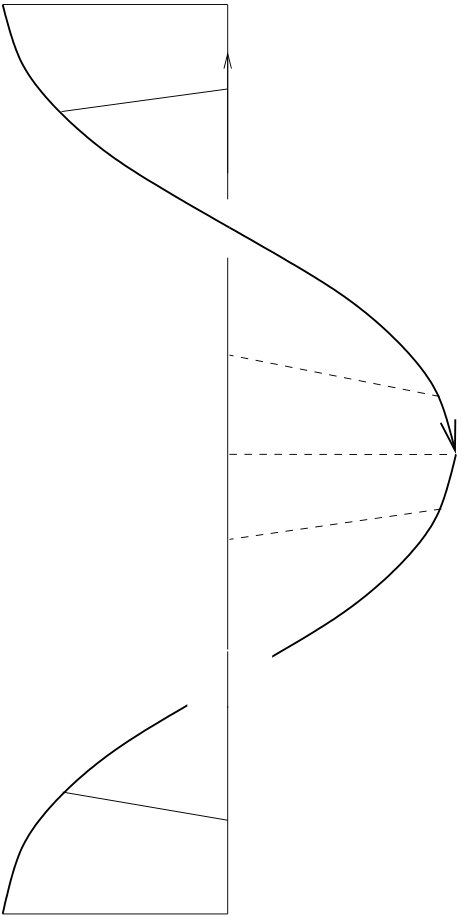

In $V_{1}$ we find a helicoidal annulus $A_{1}$ with boundary $\partial A_{1}=C_{1}\sqcup-(h-2\mu_{1})$, with $\operatorname{Int}(A_{1})$ intersecting each Hopf fibre positively in two points. Likewise, we have such an annulus $A_{2}$ in $V_{2}$ with $\partial A_{2}=C_{2}-(h-2\mu_{2})$. Since

[TABLE]

$A_{1}$ and $A_{2}$ glue to form a positive annular $2$-section for the Hopf flow.

2.3. The Euler number

For the existence of positive $d$-sections, the sign of the Euler number of the Hopf fibration is crucial.

Lemma 2.2**.**

The Hopf fibration, regarded as an $S^{1}$-bundle over $S^{2}$, has Euler number $e=-1$.

Proof.

We think of $V_{1}$ as in Section 2.2.1 as a solid torus $S^{1}\times D^{2}$ with the Hopf fibres given by $S^{1}\times\{*\}$. The helicoidal surface $A\subset V_{1}$ described in Section 2.2.1 and Figure 1, together with the meridional disc in $V_{2}$, can be turned into a section of the disc bundle associated with the Hopf bundle by scaling in the fibre direction,

[TABLE]

and extending to a section with a single zero at $p=0$. Since $\partial A\cap\partial V_{1}=\mu_{1}-h$ makes one negative twist in the fibre direction as we go once along the boundary $\mu_{1}$ of the base disc (i.e. the second $D^{2}$-factor), this rescaled section, seen as a vector field on $D^{2}$, has an index $-1$ singularity, which means that it cuts the zero section in a single negative point. ∎

2.4. The Hopf fibration as a Seifert fibration

In Sections 2.5 and 3.2 we are going to show how different descriptions of the Hopf fibration as a Seifert fibration give rise to global surfaces of section with different numbers of boundary components. Here we give a bare bones introduction to Seifert invariants. All necessary background on Seifert fibrations can be found in [6, Section 2]; for a comprehensive treatment see [17].

Consider again $S^{3}$ as being obtained by gluing two solid tori $V_{1},V_{2}$. In terms of meridians $\mu_{1},\mu_{2}$ and longitudes $h$ (on both solid tori), the identification of $\partial V_{1}$ with $\partial V_{2}$ is given by $\mu_{1}=\lambda_{2}=-\mu_{2}+h$ and $h=h$. The curve $-\mu_{2}$ is the negative boundary of the section in $V_{2}$ given by a meridional disc. Following the standard conventions for Seifert invariants, see [6], the gluing of the neighbourhoods of the distinguished fibres in a Seifert manifold should indeed be described with respect to the negative boundary of the section away from the distinguished fibres (which, in the general Seifert setting, include all multiple fibres). This means that the described gluing corresponds to writing $S^{3}$ as the Seifert manifold $S^{3}=M(0;(1,1))$. Here [math] is the genus of the base $S^{2}$, and $(1,1)$ are the coefficients of $-\mu_{2}$ and $h$ in the expression for $\mu_{1}$.

For a Seifert manifold M\bigl{(}g;(\alpha_{1},\beta_{1}),\ldots,(\alpha_{k},\beta_{k})\bigr{)}, the Euler number is defined as $-\sum_{i}\alpha_{i}/\beta_{i}$, see [17]. This is consistent with our calculation of the Euler number of the Hopf fibration.

Given such a Seifert manifold M\bigl{(}g;(\alpha_{1},\beta_{1}),\ldots,(\alpha_{k},\beta_{k})\bigr{)}, one can obtain equivalent descriptions by adding or deleting any pair $(\alpha,\beta)=(1,0)$, or by replacing each $(\alpha_{i},\beta_{i})$ by $(\alpha_{i},\beta_{i}+n_{i}\alpha_{i})$, where $\sum_{i}n_{i}=0$. For instance, the Hopf fibration can alternatively be described as

[TABLE]

by first adding two pairs $(1,0)$, and then replacing them by $(1,1)$ and $(1,-1)$.

2.5. A pair of pants $1$-section

We now want to show that the description (4) of the Hopf fibration as a Seifert fibration with three distinguished fibres (albeit of multiplicity $1$) gives rise to a pair of pants $1$-section with one negative and two positive boundary components, i.e. one component where the boundary orientation is the opposite of the direction of the Hopf flow, and two components where the orientations coincide. An alternative construction illustrates the equivalences between Seifert invariants in terms of a modification of the surface of section. We also describe a third construction that we shall take up again in Section 3.4.2.

(i) The description (4) means that we start with a $2$-sphere with three open discs removed, i.e. a pair of pants $P$. Over $P$ the Hopf bundle is the trivial bundle $S^{1}\times P$, and we take a constant section there (which we identify with $P$). Write the negatively oriented boundary $-\partial P$ of $P$ as

[TABLE]

We now glue three solid tori $V_{1},V_{2},V_{3}$ to $S^{1}\times P$ with gluing map

[TABLE]

where $\beta_{1}=\beta_{2}=1$ and $\beta_{3}=-1$. In $V_{i}$ we find a helicoidal annulus $A_{i}$ with oriented boundary $\partial A_{i}=\beta_{i}C_{i}\sqcup\sigma_{i}$, where $C_{i}$ is the soul of $V_{i}$. These three annuli can be glued to $P$ along the $\sigma_{i}$ to yield the desired $1$-section.

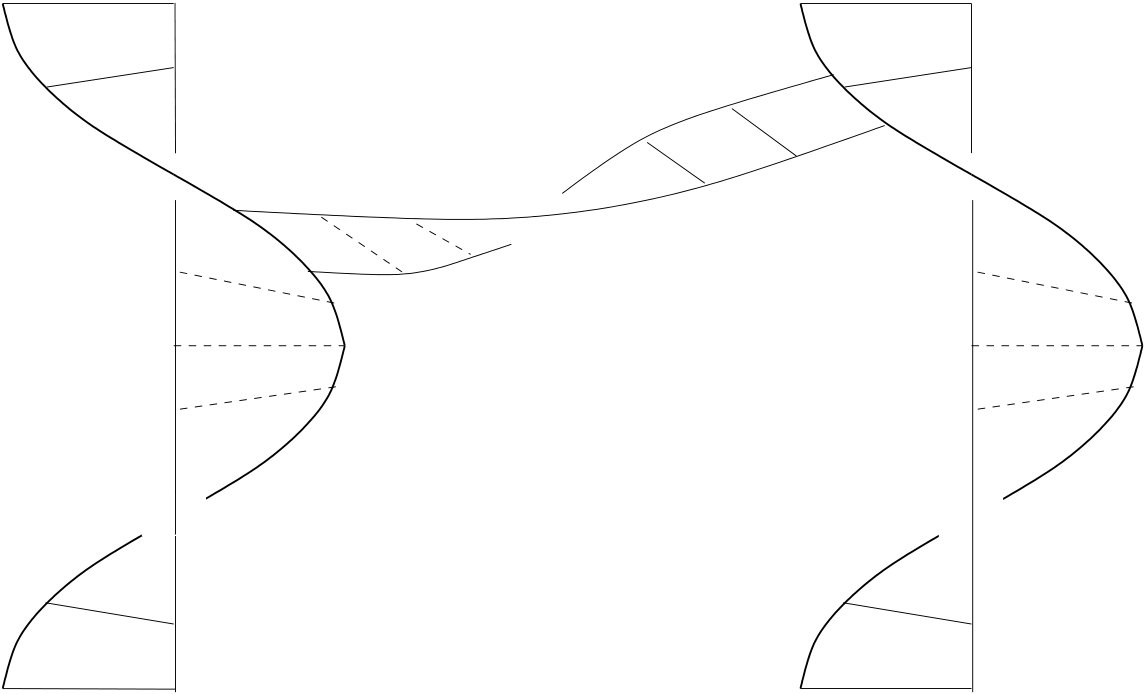

(ii) Alternatively, we can start with a disc-like positive $1$-section $\Sigma$ for the Hopf flow and modify it as follows. Choose a disc $D^{2}_{0}\subset\operatorname{Int}(\Sigma)$. The Hopf fibres passing through $D^{2}_{0}$ define a trivial bundle $S^{1}\times D^{2}_{0}\rightarrow D^{2}_{0}$. Remove the interior of two disjoint discs $D^{2}_{2}$ and $D^{2}_{3}$ from the interior of $D^{2}_{0}$, leaving us with a product bundle over a pair of pants $P$. In $S^{1}\times P$ we find a vertical annulus $A$ with oriented boundary equal to a positive fibre in $S^{1}\times\partial D^{2}_{2}$ and a negative fibre in $S^{1}\times\partial D^{2}_{3}$. This annulus can be assumed to intersect the constant section $P$ in a simple curve $\gamma$ joining $\partial D^{2}_{2}$ with $\partial D^{2}_{3}$.

By slicing open both $P$ and $A$ along $\gamma$ and regluing them as illustrated (in a cross section) in Figure 2, one obtains a $1$-section with helicoidal boundary curves

[TABLE]

on $S^{1}\times\partial D^{2}_{2}$ and $S^{1}\times\partial D^{2}_{3}$, respectively. This $1$-section projects diffeomorphically onto $P$ (away from the boundary curves), so it is still a pair of pants.

By gluing in helicoidal annuli $A_{i}$ in $S^{1}\times D^{2}_{i}$ with boundary $\partial A_{2}=C_{2}\sqcup\sigma_{2}$ and $\partial A_{3}=-C_{3}\sqcup\sigma_{3}$, where $C_{i}=S^{1}\times\{0\}$ is the central fibre of $S^{1}\times D^{2}_{i}$, we obtain again the desired $1$-section. This second construction actually explains the equivalences of Seifert invariants that led from the description of the Hopf fibration as M\bigl{(}0;(1,1)\bigr{)} to that in (4).

(iii) Here is a third method of construction, which will be useful later on. This time we think of $S^{3}$, as at the beginning of Section 2.2, as a gluing of two solid tori $V_{1},V_{2}$ with the identification $\mu_{1}=\lambda_{2}$, $\lambda_{1}=\mu_{2}$. The Hopf fibration is given by the two souls $C_{1},C_{2}$ and the $(1,1)$-curves on the Hopf tori parallel to $\partial V_{1}=\partial V_{2}$.

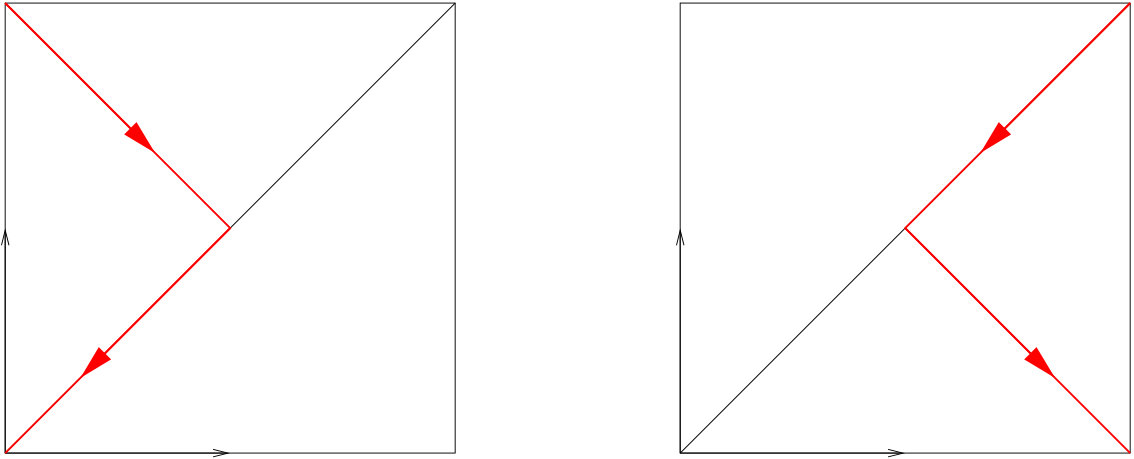

The simple closed curve $a_{1}+h_{1}$ on $\partial V_{1}$, shown in Figure 3, is homotopic to $-\lambda_{1}$. This allows us to find an annulus $A_{1}$ in $V_{1}$ with boundary $\partial A_{1}=C_{1}\sqcup(a_{1}+h_{1})$. Likewise, we find an annulus $A_{2}$ in $V_{2}$ with boundary $\partial A_{2}=C_{2}\sqcup(h_{2}+a_{2})$. With the chosen orientations, the $A_{i}$ intersect each Hopf fibre in $\operatorname{Int}(V_{i})\setminus C_{i}$ once and positively.

Under the identification of $\partial V_{1}$ with $\partial V_{2}$, the segment $a_{1}$ is mapped to $-a_{2}$. This allows us to glue $A_{1}$ and $A_{2}$ along these boundary segments to obtain an oriented pair of pants $P$ with boundary $\partial P=C_{1}\sqcup C_{2}\sqcup(h_{1}+h_{2})$. Since $h_{1}+h_{2}$ is a negative Hopf fibre, we have again a $1$-section with one negative and two positive boundary components.

Near the boundary component $h_{1}+h_{2}$ in $\partial V_{1}=\partial V_{2}$, this surface $P$ looks as in Figure 4. This is a piecewise smooth surface that can be smoothened rel boundary fibre into a helicoidal surface, see Figure 5. From Figure 4 we also see that this helicoidal surface is a $1$-section, for the Hopf fibres near $-(h_{1}+h_{2})$ are parallel curves with respect to the surface framing given by the $2$-torus $\partial V_{1}=\partial V_{2}$. Notice that in Figure 4 this $2$-torus (near the fibre $-(h_{1}+h_{2})$) is given by the vertical plane determined by that fibre and the line segments $a_{1}=-a_{2}$; the solid torus $V_{2}$ sits to the left of this plane, $V_{1}$ sits to the right.

3. Lens spaces

The lens space $L(p,q)$, for $p\in\mathbb{N}$ and $q$ an integer coprime with $p$, is the oriented three-manifold defined as the quotient of $S^{3}$ (with its natural orientation as boundary of the $4$-ball in $\mathbb{C}^{2}$) under the $\mathbb{Z}_{p}$-action generated by

[TABLE]

Since this action commutes with the Hopf flow, the flow descends to the quotient. However, the $S^{1}$-action on the quotient defined by the Hopf flow will not, in general, be free, so it only defines a Seifert fibration on $L(p,q)$. For a classification of the Seifert fibrations on lens spaces see [6].

3.1. The lens spaces $L(d,1)$

The $\mathbb{Z}_{d}$-action on $S^{3}$ that yields $L(d,1)$ as the quotient is the one generated by $\Psi_{2\pi/d}$, where $\Psi_{t}$ is the Hopf flow from (1). Here the $\mathbb{Z}_{d}$-action is along the Hopf fibres, so the Hopf fibration descends to the quotient to give $L(d,1)$ the structure of an $S^{1}$-bundle over $S^{2}$ of Euler number $-d$. This is consistent with the description of $L(d,1)$ as the manifold obtained from $S^{3}$ by surgery along an unknot with framing $-d$, see [7, p. 158].

This $S^{1}$-fibration on $L(d,1)$ corresponds to writing it as the Seifert manifold L(d,1)=M\bigl{(}0;(1,d)\bigr{)}. Indeed, the gluing $\mu_{1}=-\mu_{2}+h$, which gave us $S^{3}$ in Section 2.4, becomes $\mu_{1}=-\mu_{2}+dh^{\prime}$ with respect to the shortened fibre $h^{\prime}$.

3.2. The classification of $1$-sections

The $S^{1}$-fibration of the lens space $L(d,1)$, including $S^{3}=L(1,1)$, coming from the Hopf fibration can be written as

[TABLE]

with any $k\in\mathbb{N}_{0}$. This description gives rise to a $1$-section with $k$ negative and $d+k$ positive boundaries. Indeed, let $\Sigma_{0}$ be the $2$-sphere $S^{2}$ with $d+2k$ open discs removed. Write the boundary of $\Sigma_{0}$ with the opposite of its natural orientation as

[TABLE]

The Seifert bundle (5) is then obtained by gluing $d+2k$ solid tori $V_{i}=S^{1}\times D^{2}$ to the trivial $S^{1}$-bundle $S^{1}\times\Sigma_{0}$ by gluing fibres to fibres (which in the $V_{i}$ are given by the $S^{1}$-factor), and the meridian $\mu_{i}$ of $V_{i}$ to $S^{1}_{i}\pm h$, where $h$ denotes the fibre class, and the sign is positive for $i=1,\ldots,d+k$, negative for $i=d+k+1,\ldots,d+2k$. This means that $S_{i}=\mu_{i}\mp h$.

Write $C_{i}=S^{1}\times\{0\}$ for the soul of the solid torus $V_{i}$. In $V_{i}$ we have a helicoidal surface with boundary $\pm C_{i}\sqcup(\mu_{i}\mp h)$. These helicoidal surfaces glue with $\Sigma_{0}$ to form a $1$-section for the Hopf flow on $L(d,1)$.

Proposition 3.1**.**

Any $1$-section for the Hopf flow on $L(d,1)$ is isotopic to one of those genus [math] surfaces just described.

Proof.

Let $\Sigma$ be a $1$-section with $k_{+}$ positive and $k_{-}$ negative ends. Remove solid tori $V_{i}$ around the boundary fibres. In $V_{i}$, the $1$-section $\Sigma$ has to look like a helicoidal surface with boundary $\pm C_{i}\sqcup(\mu_{i}\mp h)$; this is a consequence of one boundary of $\Sigma\cap V_{i}$ being $\pm C_{i}$, and the fact that $\Sigma$ is a $1$-section (cf. Figure 1).

The part $\Sigma_{0}$ of $\Sigma$ lying outside the interiors of the $V_{i}$ defines a trivialisation of the $S^{1}$-bundle there, so we can write $L(d,1)\setminus\cup\operatorname{Int}(V_{i})$ as $S^{1}\times\Sigma_{0}$. The identification of the boundary components of $\Sigma_{0}$ (with orientation reversed) with the $\mu_{i}\mp h$ completely determines the gluing of $S^{1}\times\Sigma_{0}$ with the $V_{i}$. Each such gluing contributes $\pm 1$ to the Euler number, so we must have $k_{+}=d+k_{-}$. It follows that $\Sigma$ is, up to diffeomorphism, one of the surfaces we described above.

Given two such $1$-sections with $d+k$ positive and $k$ negative boundaries, we can first isotope them so as to make the boundaries coincide, since any finite set of distinct points on $S^{2}$ can be isotoped to any other set of the same cardinality. Near a positive (resp. negative) boundary, the $1$-sections look like left-handed (resp. right-handed) helicoidal surfaces making one full turn; any two such surfaces are isotopic.

As before, use one of the two $1$-sections to trivialise the complement of open solid tori around the boundary components. In this trivialised complement $S^{1}\times\Sigma_{0}$, the boundary of the other $1$-section $\Sigma_{0}^{\prime}$ coincides with that of $\Sigma_{0}$, which implies that $\Sigma_{0}$ and $\Sigma_{0}^{\prime}$ are isotopic rel boundary. ∎

3.3. $d$-Sections in $S^{3}$ descend to $L(d,1)$

The following statement will allow us to analyse $d$-sections for the Hopf flow on $S^{3}$ via their induced $1$-sections in $L(d,1)$.

Proposition 3.2**.**

Any $d$-section for the Hopf flow $\Psi_{t}$ on $S^{3}$ is isotopic to one that is invariant under the $\mathbb{Z}_{d}$-action generated by $\Psi_{2\pi/d}$ and hence descends to a $1$-section in $L(d,1)$.

Proof.

Near its boundary circles, a $d$-section looks like a helicoidal surface making $d$ full turns about the central fibre given by the boundary curve. Any such surface is isotopic to a $\mathbb{Z}_{d}$-invariant helicoid. The remaining part of the $d$-section is a $d$-fold covering of a punctured sphere $\Sigma_{0}$, embedded transversely to the fibres in $S^{1}\times\Sigma_{0}$. By isotoping (rel boundary) along the fibres we can ensure that any two adjacent intersections along a fibre occur at a distance $2\pi/d$. ∎

Corollary 3.3**.**

Any positive $d$-section for the Hopf flow on $S^{3}$ is a surface with $d$ boundary components.

Proof.

By Proposition 3.2, any positive $d$-section descends to a positive $1$-section in $L(d,1)$. The latter has $d$ boundary components by the classification of $1$-sections in Proposition 3.1. ∎

3.4. Examples of invariant $d$-sections

Before we classify the $d$-sections for the Hopf fibration, we look at two examples.

3.4.1. A positive $2$-section

The annular $2$-section described in Section 2.2.2 is composed of two helicoidal pieces about the boundary fibres $C_{1}$ and $C_{2}$, glued along their other boundary curves with the identification $h-2\mu_{1}=2\mu_{2}-h$. As we pass to the $\mathbb{Z}_{2}$-quotient, the two solid tori $V_{1}$, $V_{2}$ become solid tori with fibre $h^{\prime}$ of half the length of $h$. The gluing curves descend to $h^{\prime}-\mu_{1}=\mu_{2}-h^{\prime}$, or $\mu_{1}=-\mu_{2}+2h^{\prime}$. This, as explained in Section 2.4, corresponds to the Seifert fibration M\bigl{(}0;(1,2)\bigr{)}, which is the $S^{1}$-bundle over $S^{2}$ of Euler class $-2$, i.e. $L(2,1)$.

3.4.2. A positive $3$-section

We now want to exhibit a positive $3$-section of genus $1$ with three boundary components.

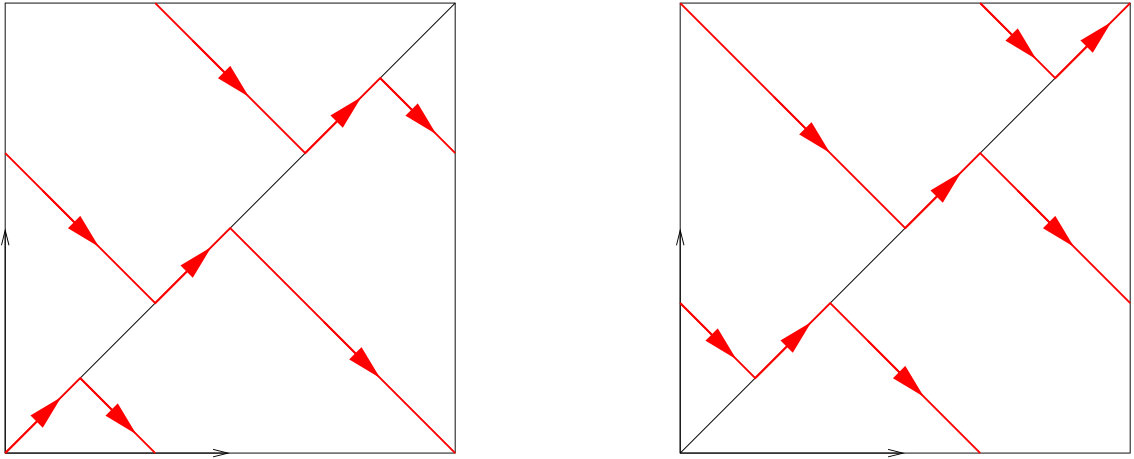

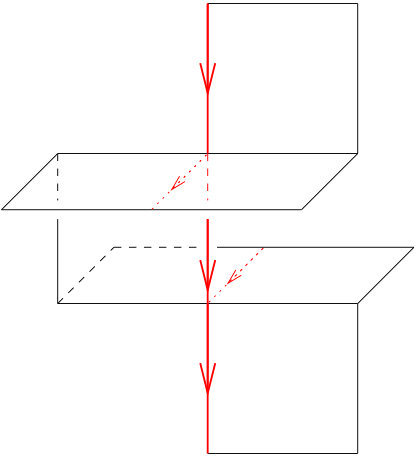

(i) We first use a description as in Section 2.5 (iii), see Figure 6. We think of $S^{3}$ as being obtained by gluing two solid tori $V_{1}$, $V_{2}$ with the identification $\mu_{1}=\lambda_{2}$, $\lambda_{1}=\mu_{2}$. The Hopf fibration is given by the two souls $C_{1},C_{2}$ and the $(1,1)$-curves on the Hopf tori.

Write $\sigma_{1}$ for the curve on $\partial V_{1}$ made up of the straight line segments $h_{1}^{1}$, $a_{1}$, $h_{1}^{3}$, $b_{1}$, $h_{1}^{2}$, $c_{1}$. Similarly, the curve $\sigma_{2}$ on $\partial V_{2}$ is made up of $a_{2}$, $h_{2}^{1}$, $b_{2}$, $h_{2}^{3}$, $c_{2}$, $h_{2}^{2}$. Notice that $\sigma_{i}$ is a $(2,-1)$-curve on $\partial V_{i}$ with respect to the basis $(\mu_{i},\lambda_{i})$. In $V_{1}$ we have a helicoidal annulus $A_{1}$ with boundary $\partial A_{1}=C_{1}\sqcup\sigma_{1}$; in $V_{2}$, an annulus $A_{2}$ with $\partial A_{2}=C_{2}\sqcup\sigma_{2}$.

Under the identification of $\partial V_{1}$ with $\partial V_{2}$, the segments $a_{1}$, $b_{1}$, $c_{1}$ are mapped to $-a_{2}$, $-b_{2}$, $-c_{2}$. This allows us to glue $A_{1}$ and $A_{2}$ along these segments to obtain a surface $\Sigma$ with boundary consisting of three positive fibres: $C_{1}$, $C_{2}$ and the one made up of the segments $h_{i}^{j}$. Near this third fibre, $\Sigma$ can be smoothened as in Figure 5.

The surface $\Sigma$ is a positive $3$-section. Indeed, $\Sigma$ intersects the Hopf tori in $(2,-1)$-curves; the intersection number of these curves with the Hopf fibres, which are $(1,1)$-curves, is

[TABLE]

From $2\mu_{i}-\lambda_{i}=3\mu_{i}-h$ we see that near $C_{i}$ the surface $\Sigma$ looks like a left-handed helicoid making three full turns along the fibre, as it should. The same is true for the third component of $\partial\Sigma$, as can bee seen from the explicit gluing construction in Figure 6 and a comparison with Figure 4.

The surface $\Sigma$ is invariant under the $\mathbb{Z}_{3}$-action generated by $\Psi_{2\pi/3}$, and hence descends to a $1$-section in $L(3,1)$ with three positive boundaries, i.e. a pair of pants.

This $3$-section $\Sigma$ is topologically a surface of genus $1$. There are many ways to see this. One is to observe that $\Sigma$ is obtained by gluing two annuli along three segments in one boundary component of each annulus. This is the same as joining the annuli by one-handles. Joining the two annuli with a single one-handle is the same as attaching two one-handles to a two-disc so as to create a pair of pants. We then attach two further one-handles to the two-disc such that the ‘outer’ boundary stays connected (since this is the boundary of the helicoidal surface about the fibre made up of the $h_{i}^{j}$) and the surface is orientable. This is a $2$-torus with three discs removed, see Figure 7 or the discussion in [5].

Alternatively, we can appeal to the Riemann–Hurwitz formula. We formulate the relevant result in full generality for positive $d$-sections.

Proposition 3.4**.**

Let $\Sigma_{g,d}$ be the connected, closed, orientable surface of genus $g$ with $d$ open discs removed, and $S^{2}_{d}$ the $2$-sphere with $d$ open discs removed. There is a $d$-fold unbranched covering $\Sigma_{g,d}\rightarrow S^{2}_{d}$ if and only if $g=(d-1)(d-2)/2$.

Proof.

The ‘if’ part will follow from the construction of a positive $d$-section below. For the ‘only if’ part, we extend the unbranched covering $\Sigma_{g,d}\rightarrow S^{2}_{d}$ to a branched covering $\Sigma_{g}\rightarrow S^{2}$ with $d$ branch points upstairs, each of branching index $d$. Then, by the Riemann–Hurwitz formula, the Euler characteristic of $\Sigma_{g}$ is

[TABLE]

and hence $g=(d-1)(d-2)/2$. ∎

Remark 3.5**.**

In Section 4 we give a proof not only of the ‘if’ part of Proposition 3.4, but also of the ‘only if’ part, directly from the classification of positive $d$-sections, which does not use the Riemann–Hurwitz formula.

(ii) Here is an alternative construction of the positive $3$-section $\Sigma$ as a lift of the positive $1$-section $\overline{\Sigma}$ in $L(3,1)$. This construction has the advantage of generalising to all $d$, while in (i) we made essential use of the fact that there was only one boundary fibre apart from $C_{1},C_{2}$, which we could place on the Hopf torus $\partial V_{1}=\partial V_{2}$.

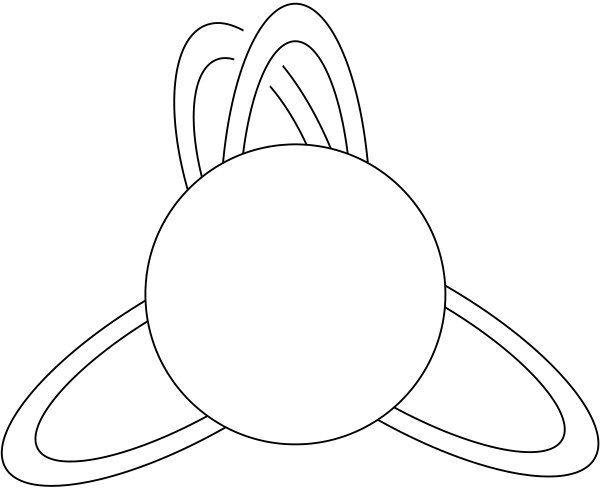

Recall from Proposition 3.1 that $\overline{\Sigma}$ is a surface of genus [math] with three boundary components, i.e. a pair of pants. Near any of these boundary components, $\overline{\Sigma}$ looks like a left-handed helicoid making one full turn along the fibre, see Figure 8.

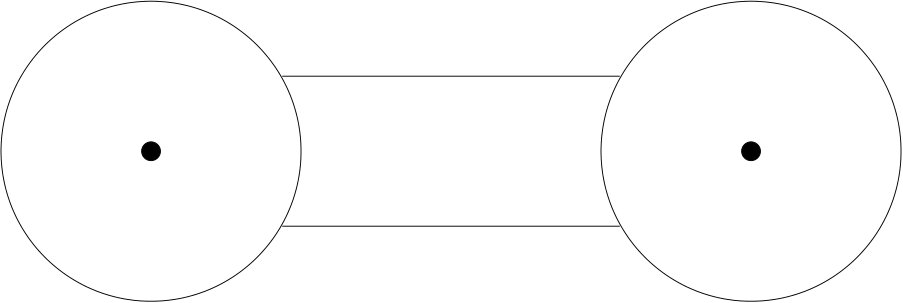

Consider two of these three helicoids. They project to discs in $S^{2}$. Join these discs by a band as shown in Figure 9. Over this part of $S^{2}$ the bundle $L(3,1)\rightarrow S^{2}$ is trivial, and the two helicoids can be joined by a band to form a $1$-section.

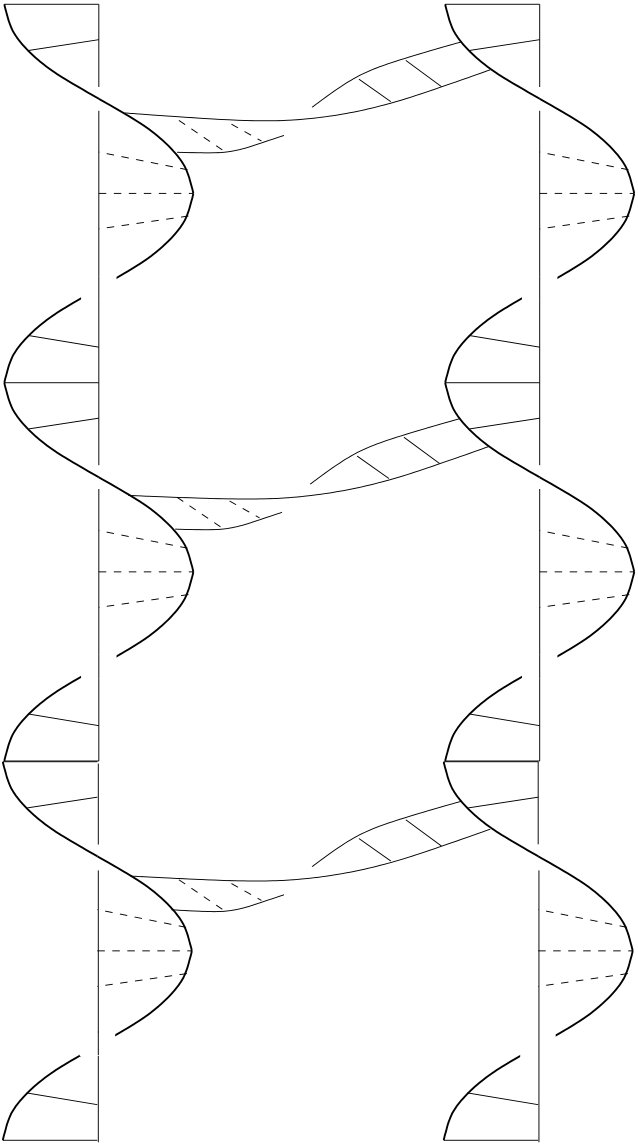

The lift of this part of $\overline{\Sigma}$ to $S^{3}$ is shown in Figure 10. Observe that this surface in $S^{3}$ has three boundary components: the two special fibres and one further connected component.

If we write $\mu_{0}$ for the boundary of the disc in $S^{2}$ shown in Figure $7$ (oriented positively, i.e. counter-clockwise), and $h$ for the Hopf fibre in $S^{3}$, then this third boundary component represents the class $3\mu_{0}-2h$ in the $2$-torus in $S^{3}$ sitting over $\mu_{0}$.

Now consider a small disc around the base point in $S^{2}$ of the third boundary fibre of $\overline{\Sigma}$. We denote the boundary of this disc by $\mu_{3}$. Over this disc, $\overline{\Sigma}$ forms a left-handed helicoid making one full turn; its lift $\Sigma$ to $S^{3}$ makes three full turns. Thus, the boundary of this helicoid on the $2$-torus in $S^{3}$ sitting over $\mu_{3}$ is the curve $3\mu_{3}-h$.

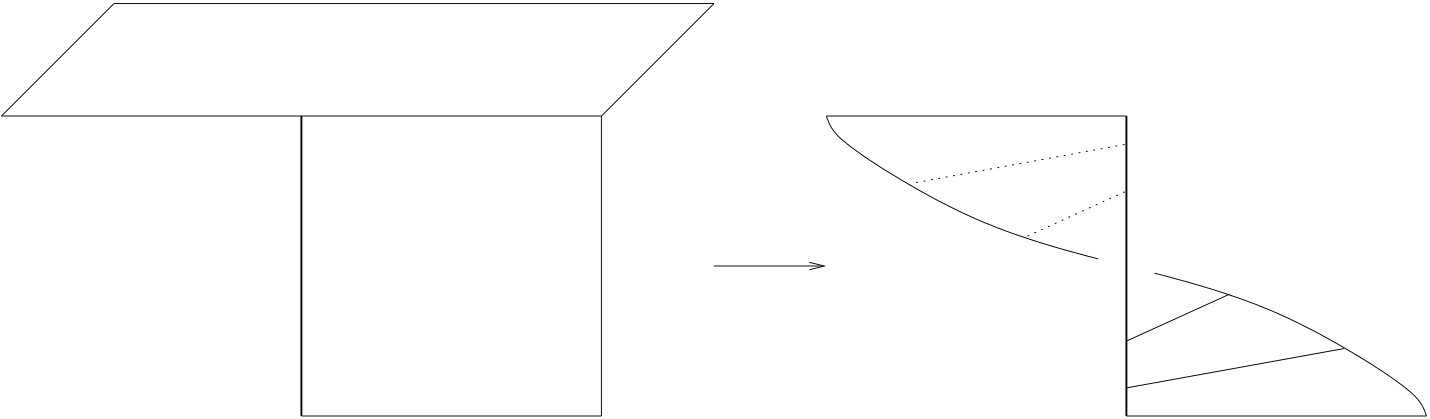

In order to obtain the $3$-section $\Sigma$ in $S^{3}$ we need to glue the part shown in Figure 10 with this third helicoid by identifying $3\mu_{0}-2h$ with $-(3\mu_{3}-h)$. This amounts to the same as gluing $\mu_{0}$ with $-\mu_{3}+h$, which — as discussed in Section 2.4 — corresponds to the description of $S^{3}$ as M\bigl{(}0;(1,1)\bigr{)}, so we have indeed found a positive $3$-section in $S^{3}$.

4. Positive $d$-sections

We now want to extend the examples from Section 3.4 to all natural numbers $d$, and then give a classification of these $d$-sections.

4.1. Construction of a positive $d$-section

In order to obtain a positive $d$-section for the Hopf flow, we need to replace the two $3$-helicoids in Figure 10 by $d-1$ left-handed helicoids making $d$ full twists, joined in sequence by $d$ bands between any two successive helicoids.

First of all, we want to observe that the boundary of this oriented surface consists of one connected component besides the $d-1$ boundary fibres where the helicoids are attached. Start at a boundary point at the top right of Figure 10 (generalised to $d$). Each time we walk along the boundary of a horizontal band and continue along the boundary of the next helicoid to the left, we move down one level on these helicoids. After having reached the left-most helicoid, we move back to the right along horizontal bands, staying on the same level. When we have returned to the right-most helicoid, we move down one more level until we arrive again at a band going to the left. In the base, this path projects to one full passage along the outer boundary of $\overline{\Sigma}$.

Thus, with each such turn, we have moved down $d-1$ levels. After completing $d$ full turns in the base, the lifted path has covered the whole boundary upstairs. So this boundary upstairs is connected, and it represents the class $d\mu_{0}-(d-1)h$ on the boundary of the solid torus sitting over $\overline{\Sigma}$. As at the end of the preceding section, we see that this accords with the description of the Hopf fibration as M\bigl{(}0;(1,1)\bigr{)}.

After joining the $d-1$ helicoids in sequence by a single band between any two successive helicoids, we have a surface consisting of $d-1$ one-handles attached to a single two-disc. We then add a further $(d-1)(d-2)$ one-handles, ending up with an oriented surface with $d$ boundary components. Thus, the genus of this surface is

[TABLE]

This proves the ‘if’ part of Proposition 3.4.

4.2. The classification of positive $d$-sections

By considering the choices in the above construction, we arrive at the following classification result. In particular, this reproves the ‘only if’ part of Proposition 3.4.

Theorem 4.1**.**

For each $d\in\mathbb{N}$ there is, up to isotopy, a unique positive $d$-section for the Hopf flow on $S^{3}$. It is a connected, orientable surface of genus $(d-1)(d-2)/2$ with $d$ boundary components.

Proof.

Let $\Sigma$ be a positive $d$-section. Given two distinct points $x,y\in\Sigma$, consider their images $\overline{x},\overline{y}\in S^{2}$ under the Hopf projection $S^{3}\rightarrow S^{2}$. Join either of $\overline{x}$ and $\overline{y}$ by a path in $S^{2}$ to the base point $\overline{z}$ of a boundary fibre of $\Sigma$ (such a boundary exists, as observed at the beginning of Section 2). These paths lift to paths in $\Sigma$ joining both $x$ and $y$ with the component of $\partial\Sigma$ over $\overline{z}$. This proves that $\Sigma$ is connected.

An example of a positive $d$-section with the claimed topological properties was exhibited above, so it only remains to prove uniqueness up to isotopy. Given two positive $d$-sections, by Proposition 3.1 we may assume, after an isotopy, that they project to the same $1$-section in $L(d,1)$. In particular, the $d$ boundary fibres of the two surfaces sit over the same $d$ points in $S^{2}$. Therefore it suffices to show that there are no choices, up to isotopy, in the construction of a positive $d$-section we described.

The $d$ lifted $d$-helicoids near the boundary fibres are determined by $1$-helicoids of the $1$-section in $L(d,1)$. The $d-2$ bands connecting $d-1$ of these helicoids in $L(d,1)$ into a chain lift uniquely to $d$ times $d-2$ bands in $S^{3}$ as in Figure 10: start with a helicoid at the end of the chain and look at the $d$ lifted bands to the neighbouring helicoid. Shifting this helicoid along the fibre by a suitable multiple of $2\pi/d$ will make the bands ‘horizontal’, so we obtain the standard picture as shown in Figure 10.

In the remaining construction we join this partial $d$-section by an annulus with the helicoid around the last boundary fibre. Again, there are no choices up to isotopy. ∎

5. Complex projective curves

In this section we study how algebraic curves $C\subset\mathbb{C}\mathrm{P}^{2}$ give rise to surfaces of section $\Sigma\subset S^{3}$ for the Hopf flow. The surface $\Sigma$ is obtained, under suitable assumptions on $C$, by radially projecting the affine part $C_{\mathrm{aff}}:=C\cap\mathbb{C}^{2}$ of the algebraic curve, with the origin $(0,0)\in\mathbb{C}^{2}$ removed if it happens to lie on $C_{\mathrm{aff}}$, onto the unit sphere $S^{3}\subset\mathbb{C}^{2}$.

Intersection points of $C$ with the complex projective line at infinity will correspond to positive boundary components of $\Sigma$. If $C_{\mathrm{aff}}$ avoids the origin in $\mathbb{C}^{2}$, there will be no negative boundaries; if $(0,0)\in C_{\mathrm{aff}}$, this will give rise to negative boundaries.

5.1. Projecting to $S^{3}$

For $(a,b)\in S^{3}\subset\mathbb{C}^{2}$, the Hopf circle $\Psi_{t}(a,b)$, $t\in\mathbb{R}/2\pi\mathbb{Z}$, in $S^{3}$ is the image of the punctured radial complex plane

[TABLE]

under the radial projection $\mathbb{C}^{2}\setminus\{(0,0)\}\rightarrow S^{3}$. Thus, in order to show that the projection of an algebraic curve $C_{\mathrm{aff}}\subset\mathbb{C}^{2}\setminus\{(0,0)\}$ to $S^{3}$ intersects a Hopf circle in $d$ distinct points, we need to show that $C_{\mathrm{aff}}$ intersects the corresponding plane $P_{a,b}$ in $d$ distinct points, no two of which lie on the same real ray

[TABLE]

Any complex plane $P$ through the origin in $\mathbb{C}^{2}$ determines a point $P_{\infty}$ in the complex projective line $\mathbb{C}\mathrm{P}_{\infty}^{1}$ at infinity and vice versa. In order to show that the projection of $C_{\mathrm{aff}}$ to $S^{3}$ is a positive $d$-section for the Hopf flow, we need to verify that the projected surface in $S^{3}$ becomes asymptotic to the Hopf circles $P\cap S^{3}$ corresponding to the intersection points $P_{\infty}\in C\cap\mathbb{C}\mathrm{P}_{\infty}^{1}$ (and there should be no intersection points of $P$ with $C_{\mathrm{aff}}$ in this case). The positivity of the $d$-section is ensured by the positivity of complex intersections.

In order to understand the asymptotic behaviour of (not necessarily positive) surfaces of section near their boundary, it will be useful not to look at the projection of $C_{\mathrm{aff}}\setminus\{(0,0)\}$ to $S^{3}$, but rather to regard $C_{\mathrm{aff}}\setminus\{(0,0)\}$ as a surface in $\mathbb{R}\times S^{3}$ under the identification of $\mathbb{C}^{2}\setminus\{(0,0)\}$ with the symplectisation \bigl{(}\mathbb{R}\times S^{3},\mathrm{d}(\mathrm{e}^{2s}\alpha_{\mathrm{st}})\bigr{)} of $(S^{3},\alpha_{\mathrm{st}})$, with $\alpha_{\mathrm{st}}$ as in (3). This identification is given by sending the flow lines of the radial vector field

[TABLE]

on $\mathbb{C}^{2}$ to those of $\partial_{s}/2$. The vector field $X$ is a Liouville vector field for the standard symplectic form $\omega_{\mathrm{st}}=\mathrm{d}x_{1}\wedge\mathrm{d}y_{1}+\mathrm{d}x_{2}\wedge\mathrm{d}y_{2}$ on $\mathbb{C}^{2}$, that is, $L_{X}\omega_{\mathrm{st}}=\omega_{\mathrm{st}}$, and it is homothetic for the standard metric. Therefore, the described identification of $\mathbb{C}^{2}\setminus\{(0,0)\}$ with $\mathbb{R}\times S^{3}$ sends the complex structure on $\mathbb{C}^{2}$ to the standard almost complex structure $J$ on the symplectisation. This $J$ preserves the contact structure $\ker\alpha_{\mathrm{st}}$ and, with $R_{\mathrm{st}}$ denoting the Reeb vector field of $\alpha_{\mathrm{st}}$, it satisfies $J\partial_{s}=R_{\mathrm{st}}$, since $\mathrm{i}X=R_{\mathrm{st}}/2$ along $S^{3}\subset\mathbb{C}^{2}$.

5.2. Homogeneous affine polynomials

We begin with the simple situation that the affine curve $C_{\mathrm{aff}}=C\cap\mathbb{C}^{2}$ is described by a homogeneous polynomial of degree $d$. We write $[z_{0}:z_{1}:z_{2}]$ for the homogeneous coordinates on $\mathbb{C}\mathrm{P}^{2}$.

Proposition 5.1**.**

The complex projective curve $C=\{F=0\}\subset\mathbb{C}\mathrm{P}^{2}$, where $F$ is a complex polynomial of the form

[TABLE]

with $f\neq 0$ a homogeneous polynomial of degree $d$, defines a positive $d$-section for the Hopf flow on $S^{3}$ if and only if $F$ is non-singular.

Proof.

We first determine the intersection points of the affine part

[TABLE]

(which does not contain the origin $(0,0)\in\mathbb{C}^{2}$) with the radial planes $P_{a,b}$ in $\mathbb{C}^{2}$. These intersection points are given by the equation

[TABLE]

If $f(a,b)\neq 0$, this equation has $d$ solutions $z$, related by multiplication by a power of the $d^{\mathrm{th}}$ root of unity. Otherwise, there are no solutions.

The partial derivatives of $F$ are given by

[TABLE]

For $z_{0}\neq 0$ we have $\partial F/\partial z_{0}\neq 0$, so the affine part is always non-singular.

We now look at the points of $C$ in

[TABLE]

Solutions of $F=0$ of the form $[0:a:b]$ are determined by the equation $f(a,b)=0$. In other words, a point at infinity lies on $C$ precisely when $C$ does not intersect the radial plane in $\mathbb{C}^{2}$ determined by that point.

Now, the projection of $C_{\mathrm{aff}}$ to $S^{3}$ extends to a positive $d$-section precisely when it is asymptotic to $d$ distinct Hopf orbits. This amounts to saying that the equation $f(a,b)=0$ should have $d$ distinct solutions $[a:b]\in\mathbb{C}\mathrm{P}^{1}$, which is equivalent to $f$ being non-singular. This, in turn, is equivalent to $F$ being non-singular.

It remains to check that $C_{\mathrm{aff}}$ has the correct asymptotic behaviour near these $d$ Hopf orbits. Let $[a_{1}:b_{1}]\in\mathbb{C}\mathrm{P}^{1}$ be a solution of $f(a,b)=0$. We may assume without loss of generality that $a_{1}\neq 0$. For a small $\varepsilon>0$ the curve

[TABLE]

describes a circle in $\mathbb{C}\mathrm{P}^{1}$ around the point $[a_{1}:b_{1}]$.

The points of $C_{\mathrm{aff}}$ (projected to $S^{3}$) in the Hopf fibre over $[a_{\theta}:b_{\theta}]$ are given by the solutions $w_{\theta}$ of the equation $f(a_{\theta},b_{\theta})w_{\theta}^{d}=1$, and then radially projecting the points $(a_{\theta}w_{\theta},b_{\theta}w_{\theta})$ to $S^{3}$. As $\theta$ makes one full turn in $S^{1}$, the function \arg\bigl{(}f(a_{\theta},b_{\theta})\bigr{)} likewise makes one complete turn, provided $\varepsilon>0$ is sufficiently small. This can be seen by factorising $f$ as

[TABLE]

with the $a_{j},b_{j}$ describing $d$ distinct points $[a_{j}:b_{j}]\in\mathbb{C}\mathrm{P}^{1}$.

Thus, if we choose a solution $w_{0}$ and then define $w_{\theta}$, $\theta\in\mathbb{R}$, continuously in $\theta$, we have $w_{\theta+2\pi}=\mathrm{e}^{-2\pi\mathrm{i}/d}w_{\theta}$. This guarantees that the projection of $C_{\mathrm{aff}}$ to $S^{3}$ does indeed look like a left-handed $d$-fold helicoid about a Hopf fibre near each of its $d$ boundary components. ∎

In particular, for $d=1$ the polynomial $F$ describes a projective line $L\neq\mathbb{C}\mathrm{P}^{1}_{\infty}$, since $f\neq 0$. This line has a single point at infinity, and the projection of the affine part $L_{\mathrm{a}}=L\cap\mathbb{C}^{2}$ to $S^{3}$ defines a disc-like $1$-section for the Hopf flow.

Remark 5.2**.**

For the final part of the proof of Proposition 5.1, the asymptotic behaviour near the boundary components, one may also look at the behaviour of $C_{\mathrm{aff}}$ near $s=\infty$ under the identification of $\mathbb{C}^{2}\setminus\{(0,0)\}$ with $\mathbb{R}\times S^{3}$ described in Section 5.1. The tangent spaces of $C_{\mathrm{aff}}$ contain vectors getting closer and closer to $\partial_{s}$ as we approach $s=\infty$, and hence also tangent vectors close to the Reeb vector field $R_{\mathrm{st}}=J\partial_{s}$. This suffices to see that $C_{\mathrm{aff}}$ becomes asymptotic to a Reeb orbit, but it does not guarantee, as our ad hoc argument does, that this orbit will only be simply covered.

5.3. Algebraic curves giving rise to $1$-sections

We next want to describe a class of homogeneous polynomials $F(z_{0},z_{1},z_{2})$ of degree $d$ that give rise to $1$-sections for the Hopf flow with $d$ positive and $d-1$ negative boundary components.

Write $f_{k}(z_{1},z_{2})$ for a non-zero homogeneous polynomial of degree $k$. As in the previous section, we can factorise this as

[TABLE]

with $c_{k}\in\mathbb{R}^{+}$ and $(a_{j}^{k},b_{j}^{k})\neq(0,0)$. The factor $c_{k}$ in this expression allows us to assume without loss of generality that the $(a_{j}^{k},b_{j}^{k})$ lie in $S^{3}\subset\mathbb{C}^{2}$.

The following is easy to see.

Lemma 5.3**.**

Let $C=\{F=0\}\subset\mathbb{C}\mathrm{P}^{2}$ be the algebraic curve defined by

[TABLE]

With notation as above, we assume that the $[a_{j}^{d}:b_{j}^{d}]\in\mathbb{C}\mathrm{P}^{1}$ are pairwise distinct for $j=1,\ldots,d$. Then $C_{\mathrm{aff}}\setminus\{(0,0)\}\subset\mathbb{R}\times S^{3}$ defines a collection of $d$ cylinders $\mathbb{R}\times\gamma$ over the Hopf fibres $\gamma$ through the points $(a_{j}^{d},b_{j}^{d})\in S^{3}$. ∎

Next we look at polynomials defined by a pair $f_{d},f_{d-1}$.

Proposition 5.4**.**

Let $F$ be a homogeneous complex polynomial of degree $d$ of the form

[TABLE]

and $C=\{F=0\}\subset\mathbb{C}\mathrm{P}^{2}$. With notation as above, we assume that the $[a_{j}^{k}:b_{j}^{k}]\in\mathbb{C}\mathrm{P}^{1}$ are pairwise distinct for $k\in\{d-1,d\}$ and $1\leq j\leq k$. Then the projection of $C_{\mathrm{aff}}\setminus\{(0,0)\}$ to $S^{3}$ defines a $1$-section for the Hopf flow with $d$ positive and $d-1$ negative boundary components, given by the Hopf fibres through the points $(a_{j}^{d},b_{j}^{d})$ and $(a_{j}^{d-1},b_{j}^{d-1})$, respectively.

Proof.

Observe that $C$ is non-singular, since a common zero $[z_{0}:z_{1}:z_{2}]$ of $F$ and $\partial F/\partial z_{0}=f_{d-1}$ would also have to be a zero of $f_{d}$, which our assumptions rule out.

The case $d=1$ is covered by Proposition 5.1, so we assume $d\geq 2$ from now on.

There are $d$ distinct points at infinity on the curve $C$, as $C\cap\mathbb{C}\mathrm{P}^{1}_{\infty}$ is given by the equation $f_{d}=0$. The intersection of $C_{\mathrm{aff}}$ with a (punctured) radial plane $P_{a,b}$ is described by the equation

[TABLE]

There are no solutions if $f_{d}(a,b)=0$, since this would force a common zero with $f_{d-1}$. Likewise, there is no solution if $f_{d-1}(a,b)=0$. For $f_{d}(a,b),f_{d-1}(a,b)\neq 0$, there is a unique intersection point of $C_{\mathrm{aff}}$ with $P_{a,b}$. This proves that $C_{\mathrm{aff}}\setminus\{(0,0)\}$ projects to a $1$-section for the Hopf flow away from the Hopf fibres over the points $[a_{j}^{k}:b_{j}^{k}]$.

For the asymptotic behaviour near these fibres, we consider a small circle $\theta\mapsto[a_{\theta}:b_{\theta}]\in\mathbb{C}\mathrm{P}^{1}$ around a solution $[a:b]$ of $f_{d}=0$ or $f_{d-1}=0$, as in the proof of Proposition 5.1. The point of the $1$-section in the Hopf fibre over $[a_{\theta}:b_{\theta}]$ is given by radially projecting the point $(a_{\theta}w_{\theta},b_{\theta}w_{\theta})$ to $S^{3}$, with $w_{\theta}$ determined by

[TABLE]

As we encircle a zero of $f_{d}$, the argument of $w_{\theta}$ makes one negative rotation; around a zero of $f_{d-1}$, a positive one. Thus, near these fibres the $1$-section looks like a left-handed resp. right-handed helicoid. ∎

Remark 5.5**.**

(1) By Proposition 3.1, the $1$-sections found in Proposition 5.4 are of genus [math].

(2) For the asymptotic behaviour of $C_{\mathrm{aff}}\setminus\{(0,0)\}\subset R\times S^{3}$ near $s=-\infty$ we may alternatively observe that as $C_{\mathrm{aff}}\ni(z_{1},z_{2})\rightarrow(0,0)$, the surface becomes asymptotic to the surface given by $f_{d-1}=0$, which by Lemma 5.3 is a cylinder over a Hopf fibre. The same caveat as in Remark 5.2 applies.

6. Holomorphic buildings and the degree-genus formula

In this section we present two proofs of the degree-genus formula.

Theorem 6.1**.**

Any non-singular algebraic curve $C\subset\mathbb{C}\mathrm{P}^{2}$ of degree $d$ is homeomorphic to a closed, connected orientable surface of genus $g=(d-1)(d-2)/2$.

One proof only uses the classification of $d$-sections for the Hopf flow. The second proof uses degenerations of complex algebraic curves into holomorphic buildings in the sense of symplectic field theory. This second proof yields an explanation of the degree-genus formula as a sum $\sum_{k=1}^{d-2}k$. Either proof relies on the fact that, as a consequence of Bertini’s theorem [9, Lecture 17], the general (in the sense of [9, p. 53]) algebraic curve of degree $d$ in $\mathbb{C}\mathrm{P}^{2}$ is non-singular.

The projective space of homogeneous polynomials $F(z_{0},z_{1},z_{2})$ of degree $d$ is of dimension $N=(d^{2}+3d)/2$, since there are $(d+2)(d+1)/2$ monomials of degree $d$ in three variables. There is an embedding $\mathbb{C}\mathrm{P}^{2}\rightarrow\mathbb{C}\mathrm{P}^{N}$ given by sending the point $[z_{0}:z_{1}:z_{2}]$ to $[...:z^{I}:...]$, where $z^{I}$ ranges over all monomials of degree $d$ in three variables. The image of this embedding is the Veronese variety [9, p. 23], which is a smooth variety.

The algebraic curves of degree $d$ in $\mathbb{C}\mathrm{P}^{2}$ are exactly the hyperplane sections of the Veronese variety. To this description of algebraic curves one can apply Bertini’s theorem on the smoothness of hyperplane sections to conclude that the subset of non-singular algebraic curves in the space of all algebraic curves of degree $d$ is open, dense, and connected. Under deformations through non-singular curves, the topological genus is invariant.

A slightly more direct (and more sophisticated) argument can be based on the version of Bertini’s theorem proved in [10, Corollary III.10.9]. The projective space of degree $d$ homogeneous polynomials in three variables (or the set of divisors made up of the curves defined by these polynomials) is a linear system (see also [8, Section 1.1] for a discussion of linear systems more accessible to non-algebraic geometers). This linear system is without base points, i.e. for every point in $\mathbb{C}\mathrm{P}^{2}$ there is an algebraic curve of degree $d$ not containing the given point. Then Bertini’s theorem says that almost every element of this linear system, that is, every element outside a lower-dimensional subvariety, is non-singular.

First proof of Theorem 6.1.

The algebraic curves $C$ of degree $d$ in Proposition 5.1 have $d$ distinct points at infinity, and their affine part $C_{\mathrm{aff}}$ does not contain the origin. The projection of $C_{\mathrm{aff}}$ to $S^{3}$ defines a positive $d$-section. By Theorem 4.1 this means that, when viewed in $\mathbb{R}\times S^{3}$, the complex curve $C_{\mathrm{aff}}$ is topologically a connected, orientable surface of genus $g=(d-1)(d-2)/2$ with $d$ ends asymptotic to cylinders over Hopf fibres. The algebraic curve $C$ is obtained topologically by capping off these ends with discs.

This proves the degree-genus formula for the algebraic curves described in Proposition 5.1. For the general case, it suffices to appeal to the connectedness of the space of non-singular curves of degree $d$. ∎

Our second proofs illustrates the degeneration phenomena in symplectic field theory.

Second proof of Theorem 6.1.

After a projective transformation of $\mathbb{C}\mathrm{P}^{2}$ we may assume that $[1:0:0]\not\in C$. Then $C$ can be written as $\{F=0\}$ with $F$ of the form

[TABLE]

By a small perturbation of $F$ we may assume that each $f_{k}$ has $k$ distinct zeros, and no adjacent pair $f_{k},f_{k-1}$ has zeros in common. In particular, the intersection $C\cap\mathbb{C}\mathrm{P}^{1}_{\infty}$ then consists of $d$ non-singular points, and we shall focus our attention on the affine part $C_{\mathrm{aff}}$. As before, topologically the closed surface $C$ is obtained by capping off the $d$ ends of $C_{\mathrm{aff}}$ with discs. Since the subspace of singular curves is of real codimension $2$ by Bertini’s theorem, we may further assume that the whole family

[TABLE]

where the power of $\lambda$ multiplying $f_{d-k}$ is $\sum_{j=0}^{k}j$, consists of non-singular polynomials. Notice that none of these curves $C^{\lambda}=\{f^{\lambda}=0\}$ contains the origin in $\mathbb{C}^{2}$, so we may think of this as a family of curves $C^{\lambda}\subset\mathbb{R}\times S^{3}$.

Our aim is to determine the topological genus of the affine curve $\{f^{1}=0\}$, which is a curve with $d$ boundary components. In the naive limit $\lambda\rightarrow 0$ we lose all topological information, since by Lemma 5.3 the curve $\{f_{d}=0\}\setminus\{(0,0)\}$ is simply a collection of $d$ cylinders, for as $\lambda\rightarrow 0$, the topology of $C^{\lambda}$ disappears towards $-\infty$ in $\mathbb{R}\times S^{3}$.

In the spirit of SFT [3], we now rescale the curve in different ways during this limit process $\lambda\rightarrow 0$, which amounts to zooming in at different parts of the curve to see its topology. We first present the heuristic argument; details of the convergence process will be discussed in Section 7.

For the rescaling, we replace $(z_{1},z_{2})$ by $c_{\lambda}(z_{1},z_{2})$, with judicious choices of the scaling factor $c_{\lambda}$. The rescaling leads to the family of polynomials

[TABLE]

We now choose $c_{\lambda}=\lambda^{k}$ for some $1\leq k\leq d$. Then the polynomials $f_{d-k+1}$ and $f_{d-k}$ are multiplied by the same power

[TABLE]

of $\lambda$, whereas all other summands contain a larger power of $\lambda$. Hence, as $\lambda\rightarrow 0$ the rescaled polynomial

[TABLE]

converges to $f_{d-k+1}+f_{d-k}$, which for $k=d$ has to be read as $f_{1}+1$. By Remark 5.5 (1), this defines a surface of genus [math] with $d-k+1$ positive and $d-k$ negative boundaries at $\pm\infty$, respectively, in $\mathbb{R}\times S^{3}$.

As shown in Proposition 5.4, the curve $\{f_{d-k+1}+f_{d-k}=0\}\setminus\{(0,0)\}$ is asymptotic to the Hopf fibres determined by the zeros of $f_{d-k+1}$ and $f_{d-k}$ at $+\infty$ and $-\infty$, respectively. Hence, these limits for the different choices of rescaling $c_{\lambda}$ fit together into a holomorphic building in the sense of SFT as shown in Figure 11.

Observe that intermediate rescalings only lead to trivial cylinders over the boundary orbits and hence do not carry any additional topology. For instance, if we choose $c_{\lambda}=\lambda^{3/2}$, then

[TABLE]

and after rescaling only the polynomial $f_{d-1}$ will survive in the limit. Then refer to Lemma 5.3.

Thus, the genus of $C$ can be read off the holomorphic building we obtain in this SFT limit. The individual levels carry no genus, and the gluing of two adjacent levels adds $\#(\text{limit orbits})-1$ to the genus. We conclude that the genus of the curve $C$ of degree $d$ is given by $\sum_{k=1}^{d-2}k=(d-1)(d-2)/2$. ∎

Example 6.2**.**

Here is a concrete example that illustrates the essential aspects in the following discussion of convergence. Suppose we would like to understand the topology of the Fermat curve of degree $3$,

[TABLE]

We consider the affine part

[TABLE]

We now introduce terms of lower order and a family parameter $\lambda$:

[TABLE]

When we evaluate $f^{\lambda}$ at $(\lambda z_{1},\lambda z_{2})$, we obtain

[TABLE]

rescaling with $\lambda^{2}$ yields

[TABLE]

the third rescaling to consider is

[TABLE]

After dividing these polynomials by $\lambda^{3},\lambda^{5}$ and $\lambda^{6}$, respectively, we see that in the limit $\lambda\rightarrow 0$ we obtain the respective polynomials

[TABLE]

7. SFT convergence

In this section we fill in the technical details of the second proof of Theorem 6.1.

7.1. Convergence of submanifolds

In order to understand the convergence of submanifolds defined by equations, we consider the following general situation. Let $M\subset\mathbb{R}^{n}$ be a compact submanifold of codimension $k$ defined globally by $k$ smooth functions $h_{1},\ldots,h_{k}\colon\thinspace\mathbb{R}^{n}\rightarrow\mathbb{R}$. This means that

[TABLE]

with the gradient vector fields $\nabla h_{1},\ldots,\nabla h_{k}$ pointwise linearly independent along the common zero set $M$ of the $h_{i}$. In particular, the normal bundle of $M$ is trivial, and we find a tubular neighbourhood $\nu M$ of $M\subset\mathbb{R}^{n}$ diffeomorphic to $M\times D^{k}$ such that at each point of $M\times D^{k}$ the orthogonal complement to the span of $\nabla h_{1},\ldots,\nabla h_{k}$ is transverse to the $D^{k}$-factor.

We may assume that there is an $\varepsilon>0$ such that at any point outside the tubular neighbourhood $\nu M$, at least one of the functions $|h_{i}|$ takes a value larger than $\varepsilon$. Now let $d_{1},\ldots,d_{k}\colon\thinspace\mathbb{R}^{n}\rightarrow[-1,1]$ be smooth functions. Then, for $|\lambda|<\varepsilon$, the common zero set of the functions $h_{i}+\lambda d_{i}$ lies inside $\nu M$. By shrinking $\nu M$ and $\varepsilon$ we can ensure that the gradient vector fields $\nabla h_{i}+\lambda\nabla d_{i}$ are pointwise linearly independent on $\nu M$ for any $|\lambda|<\varepsilon$, and the orthogonal complement to their span is transverse to the $D^{k}$-factor.

Under these assumptions, the common zero set

[TABLE]

will be a submanifold contained in $\nu M=M\times D^{k}$ for $|\lambda|<\varepsilon$, given as the graph of a map $M\rightarrow D^{k}$. In particular, $M_{\lambda}$ will be an isotopic copy of $M$.

7.2. Degeneration of algebraic curves

We now return to the specific situation of Section 6. We write $(z_{1},z_{2})=\mathrm{e}^{t}q$ with $t\in\mathbb{R}$ and $q\in S^{3}\subset\mathbb{C}^{2}$. Set

[TABLE]

where $f_{0}=1$. Then

[TABLE]

The rescaling of $(z_{1},z_{2})$ by a constant factor amounts to a shift in the $t$-coordinate, so we set

[TABLE]

The choice $\mu=k$ corresponds to $f^{\lambda}_{*}$ with $c_{\lambda}=\lambda^{k}$ in the second proof of Theorem 6.1.

7.3. Convergence to a holomorphic building

With this choice $\mu=k$ we want to get a quantitative understanding of the convergence of the rescaled function

[TABLE]

to

[TABLE]

for $\lambda\rightarrow 0$. Notice that the summands in (6) that vanish in the limit are of the form

[TABLE]

with $m\geq n>0$. On any compact interval $t\in[-N,N]$, these summands go uniformly to zero for $\lambda\rightarrow 0$, but we can do a little better than that.

For large positive $t$, the first summand in (7) dominates, so we consider the rescaled function

[TABLE]

for $t<0$ with $|t|$ large, we look at

[TABLE]

Lemma 7.1**.**

On $[0,-\frac{3}{4}\log\lambda]\times S^{3}$, the rescaled function

[TABLE]

converges uniformly to $G^{+}_{k}(t,q)$ for $\lambda\rightarrow 0$.

On $[\frac{3}{4}\log\lambda,0]\times S^{3}$, the rescaled function

[TABLE]

converges uniformly to $G^{-}_{k}(t,q)$ for $\lambda\rightarrow 0$.

Proof.

For $t\in[0,-\frac{3}{4}\log\lambda]$ and $m\geq n>0$ as above, we have

[TABLE]

for $\lambda\rightarrow 0$. The other case is analogous. ∎

Remark 7.2**.**

Notice that the domain of convergence increases as $\lambda$ gets smaller. By uniform convergence we mean that for any $\varepsilon>0$ there is a $\lambda_{0}=\lambda_{0}(\varepsilon)$ such that for any $\lambda<\lambda_{0}$ the function (8) is $\varepsilon$-close to $G_{k}^{+}(t,q)$ for all $(t,q)\in[0,-\frac{3}{4}\log\lambda]\times S^{3}$, similarly for the other case. This statement remains true for any finite number of derivatives, with a smaller $\lambda_{0}(\varepsilon)$.

The considerations of Section 7.1 now imply that for $\lambda$ sufficiently close to [math], the curve

[TABLE]

has the topology of \bigl{\{}f_{d-k+1}+f_{d-k}=0\bigr{\}}. The intervals $[k+\frac{3}{4}\log\lambda,k-\frac{3}{4}\log\lambda]$ overlap for adjacent $k$, and similar considerations show that in the region of overlap the topology of $C^{\lambda}$ is that of a collection of cylinders over Reeb orbits.

This concludes the convergence argument in the second proof of Theorem 6.1.

Acknowledgements**.**

This paper was initiated during an enjoyable stay at Schloß Rauischholzhausen, the conference centre of JLU Gießen. We thank the castle staff for creating an inspiring research environment. We are grateful to Stefan Kebekus for useful correspondence on algebraic curves, and to Jean Gutt for comments on a draft version of this paper.
