Determination of universal critical exponents using Lee-Yang theory

TL;DR

This paper introduces a novel method to determine universal critical exponents from measurements of Lee-Yang zeros, enabling analysis of phase transitions without crossing the critical point, applicable even in challenging experimental conditions.

Contribution

The authors develop a direct approach linking partition function zeros to critical exponents, demonstrated on the 2D and 3D Ising models, bypassing traditional crossing methods.

Findings

Critical exponents can be extracted from energy and magnetization fluctuations.

Method works even when system is away from the phase transition.

No need to drive the system across the phase transition.

Abstract

Lee-Yang zeros are points in the complex plane of an external control parameter at which the partition function vanishes for a many-body system of finite size. In the thermodynamic limit, the Lee-Yang zeros approach the critical value on the real-axis, where a phase transition occurs. Partition function zeros have for many years been considered a purely theoretical concept, however, the situation is changing now as Lee-Yang zeros have been determined in several recent experiments. Motivated by these developments, we here devise a direct pathway from measurements of partition function zeros to the determination of critical points and universal critical exponents of continuous phase transitions. To illustrate the feasibility of our approach, we extract the critical exponents of the Ising model in two and three dimensions from the fluctuations of the total energy and the magnetization in lattices of finite size. Importantly, the critical exponents can be determined even if the system is away from the phase transition. Moreover, in contrast to standard methods based on Binder cumulants, it is not necessary to drive the system across the phase transition. As such, our method provides an intriguing perspective for investigations of phase transitions that may be hard to reach experimentally, for instance at very low temperatures or at very high pressures.

Figures

Equations

$$U(\mathbf{\sigma })=-J\sum _{⟨i,j⟩}{\sigma }_i{\sigma }_j-h\sum _i{\sigma }_i,$$

$$Z(\beta ,h)=\sum _{\mathbf{\sigma }}{e}^{-\beta U(\mathbf{\sigma })},$$

$$⟨⟨U^n⟩⟩=L^{n/\nu }{u}_n,$$

$$Z(\beta ,h)=Z(0,h)e^{\beta c}\prod _k\left(1-\beta /{\beta }_k\right),$$

$$⟨⟨U^n⟩⟩=(-1{)}^{(n-1)}\sum _k\frac{(n-1)!}{({\beta }_k-\beta {)}^n},n>1,$$

$$|{\beta }_{\mathrm{o}}-{\beta }_c|\propto L^{-1/\nu }$$

$$\mathrm{Im}[{\beta }_{\mathrm{o}}]\propto L^{-1/\nu },$$

$$\left[\begin{array}{c}-2\mathrm{Re}[{\beta }_{\mathrm{o}}-\beta ]\\ |{\beta }_{\mathrm{o}}-\beta {|}^2\end{array}\right]={\left[\begin{array}{cc}1& -\frac{{\kappa }_n^{(+)}}{n}\\ 1& -\frac{{\kappa }_{n+1}^{(+)}}{n+1}\end{array}\right]}^{-1}\left[\begin{array}{c}(n-1){\kappa }_n^{(-)}\\ n{\kappa }_{n+1}^{(-)}\end{array}\right]$$

$$|h_{\mathrm{o}}-h_c|\propto L^{\frac{\mathcal{B}}{\nu }-d}$$

$$|\mathrm{Im}(h_{\mathrm{o}})|\propto L^{\frac{\mathcal{B}}{\nu }-d},$$

$$M_4(L)=1-\frac{⟨M^4⟩}{3⟨M^2{⟩}^2},$$

$$M_4(L)=\tilde{M}\left(L^{1/\nu }\left(\beta -{\beta }_c\right)\right),$$

Full text

I Introduction

Phase transitions are characterized by the abrupt change of a many-body system from one state of matter to another as an external control parameter is varied Kardar (2007); McCoy (2009); Domb et al. (1984). In their seminal works, Lee and Yang developed a rigorous theory of phase transitions based on the zeros of the partition function in the complex plane of the control parameter, for instance the fugacity or an external magnetic field Yang and Lee (1952); Lee and Yang (1952); Blythe and Evans (2003); Bena et al. (2005). The crucial insight of Lee and Yang was that the partition function zeros with increasing system size will approach the real value of the control parameter for which a phase transition occurs. These ideas are now considered a theoretical cornerstone of statistical physics, and they have found applications across a wide range of topics, including protein folding Lee (2013a, b), percolation Arndt et al. (2001); Dammer et al. ; Krasnytska et al. (2015, 2016), and Bose-Einstein condensation Mülken et al. (2001); van Dijk et al. (2015).

Despite these developments, partition function zeros were for a long time considered a purely theoretical concept. This situation is changing now as Lee-Yang zeros have been determined in several experiments Binek (1998); Wei and Liu (2012); Wei et al. (2014); Peng et al. (2015); Flindt and Garrahan (2013); Brandner et al. (2017); Deger et al. (2018); Fläschner et al. (2017). Recently, partition function zeros were measured using carefully engineered nano-structures involving the precession of interacting molecular spins Wei and Liu (2012); Wei et al. (2014); Peng et al. (2015), Cooper pair tunneling in superconducting devices Flindt and Garrahan (2013); Brandner et al. (2017); Deger et al. (2018), or fermionic atoms in driven optical lattices Fläschner et al. (2017). In parallel with these experiments, several theoretical proposals have been put forward for the detection of partition function zeros Gnatenko et al. (2017); Wei (2017); Gnatenko et al. (2018); Kuzmak and Tkachuk (2019); Krishnan et al. . These advances motivate further investigations of the information that can be extracted from the determination of Lee-Yang zeros in systems of finite size and how future experiments on scalable many-body systems may improve our understanding of phase transitions.

In this work, we present a direct pathway from the detection of partition function zeros by measuring or simulating fluctuating observables in systems of finite size to the determination of critical points and universal critical exponents of continuous phase transitions Kardar (2007); McCoy (2009); Domb et al. (1984). Our method combines ideas and concepts from finite-size scaling analysis Bruce (1981); Binder (1981a, b, 1997) with the Lee-Yang formalism Yang and Lee (1952); Lee and Yang (1952); Blythe and Evans (2003); Bena et al. (2005) and theories of high cumulants Dingle (1973); Berry (2005); Flindt et al. (2009, 2010), and it can be applied in experiments on a variety of phase transitions including non-equilibrium situations such as space-time phase transitions in glass formers Garrahan et al. (2007); Hedges et al. (2009) and dynamical phase transitions in quantum many-body systems after a quench Heyl et al. (2013); Zvyagin (2016); Heyl (2017). Specifically, we determine the partition function zeros from fluctuations of thermodynamic observables and find the critical exponents from the approach of the zeros to the critical value on the real-axis. As a paradigmatic application, we determine the critical points and the universal critical exponents of the Ising model from the fluctuations of energy and magnetization in small lattices. Unlike most conventional methods, based for instance on Binder cumulants Binder (1981a, b, 1997), which require the control parameter to be tuned across the phase transition, we can determine the critical exponents even if the system is away from the phase transition, for example at a fixed high temperature. (In the Appendices, we discuss the statistical aspects of our method, and we compare it with the use of Binder cumulants.) As such, our method provides an intriguing perspective for investigations of phase transitions that may be hard to reach experimentally, for instance at very low temperatures or at very high pressures Wigner and Huntington (1935); Dias and Silvera (2017). Moreover, our method opens an avenue for bottom-up experiments on phase transitions, in which nano-scale structures are carefully assembled, for example by adding single spins to an atomic chain on a surface Choi et al. or by loading individual atoms into an optical lattice one at a time Eckardt (2017), to increase the system size in a controllable manner.

II Ising lattice and criticality

Figure 1a illustrates the Ising lattice that we consider in this work. The lattice has $N=L^{d}$ sites, where $L$ is the linear size and $d=2,3$ denotes the spatial dimension. Each site hosts a classical spin which can take on the values $\sigma_{i}=\pm 1$. An external magnetic field of magnitude $h$ can be applied, and neighboring spins are coupled via a ferromagnetic interaction of strength $J>0$. The total energy corresponding to a specific spin configuration $\bm{\sigma}=\{\sigma_{i}\}$ is then

[TABLE]

where the brackets $\langle i,\!j\rangle$ denote summation over nearest-neighbor spins. The thermodynamic properties of the lattice are fully encoded in the partition function

[TABLE]

where $\beta=1/(k_{B}T)$ is the inverse temperature. Phase transitions are signalled by values of the control parameters for which the scaled free energy $f(\beta,h)=-[\ln Z(\beta,h)]/(N\beta)$ becomes non-analytic in the thermodynamic limit of large lattices Kardar (2007); McCoy (2009); Domb et al. (1984). The partition function also captures fluctuations of thermodynamic observables. For instance, energy fluctuations can be characterized by the moments $\langle U^{n}\rangle=[\partial_{-\beta}^{n}Z(\beta,h)]/Z(\beta,h)$ or cumulants $\langle\!\langle U^{n}\rangle\!\rangle=\partial_{-\beta}^{n}\ln Z(\beta,h)$, which follow upon differentiation with respect to the conjugate variable, here the inverse temperature. The moments and cumulants of the magnetization are given in a similar manner by differentiation with respect to the magnetic field strength.

The Ising model exhibits a continuous phase transition, which close to the critical inverse temperature $\beta\simeq\beta_{c}$ can be completely characterized by a few critical exponents that are independent of microscopic details and are determined solely by general features such as the dimensionality of the problem and its universality class Kardar (2007); McCoy (2009); Domb et al. (1984). As such, the determination of critical exponents is of key importance in statistical mechanics. In the vicinity of the critical point, we may assume that the probability distribution for the total energy obeys the scaling relation $P_{L}(U)=L^{-1/\nu}f_{\infty}(UL^{-1/\nu})$, where $f_{\infty}$ is a scaling function and the critical exponent $\nu$ describes the divergence of the correlation length as we approach the critical temperature Bruce (1981); Binder (1981a, b, 1997). After some algebra, we then obtain scaling relations for the cumulants of the form

[TABLE]

where the $u_{n}$’s depend only weakly on the system size. As we will see, these relations carry over to the partition function zeros and their approach to the critical point.

III Partition function zeros and finite-size scaling

Following the seminal ideas of Lee and Yang, we consider the zeros of the partition function in the complex plane of the control parameter Yang and Lee (1952); Lee and Yang (1952); Blythe and Evans (2003); Bena et al. (2005). For finite-size lattices, the partition function is analytic and it can be factorized as

[TABLE]

where $\beta_{k}$ are the zeros in the complex plane of the inverse temperature and $c$ is a constant. The zeros come in complex conjugate pairs, since the partition function is real for real values of $\beta$. Often these zeros are referred to as Fisher zeros, while zeros for complex external fields are known as Lee-Yang zeros. With increasing system size, the partition function zeros approach the real value of the control parameter for which a phase transition occurs in the thermodynamic limit. From the definition of the cumulants, we now obtain the relation Flindt and Garrahan (2013); Brandner et al. (2017); Deger et al. (2018)

[TABLE]

between the cumulants and the partition function zeros. We then see that the high cumulants are mainly determined by the pair of Fisher zeros, $\beta_{\rm o}$ and $\beta_{\rm o}^{*}$, that are closest to the actual inverse temperature $\beta$ on the real-axis. The contributions from other zeros are suppressed with the distance to $\beta$ and the cumulant order $n$ Dingle (1973); Berry (2005); Flindt et al. (2009, 2010). Moreover, close to criticality, we expect the scaling relations (3) to hold and thus that the leading zeros must approach the critical inverse temperature as Itzykson et al. (1983); Janke and Kenna (2001, 2002)

[TABLE]

and

[TABLE]

since the critical inverse temperature is real. These relations are important as they allow us to obtain the critical exponent $\nu$ from the partition function zeros.

IV Fisher zeros and critical exponents

Partition function zeros have recently been experimentally determined Binek (1998); Wei and Liu (2012); Wei et al. (2014); Peng et al. (2015); Flindt and Garrahan (2013); Brandner et al. (2017); Deger et al. (2018); Fläschner et al. (2017). Lee-Yang zeros have been determined by measuring the quantum coherence of a probe spin coupled to an Ising-type spin bath Wei and Liu (2012); Wei et al. (2014); Peng et al. (2015), and Fisher zeros have been extracted for a dynamical phase transition involving fermionic atoms in a driven optical lattice Fläschner et al. (2017). Partition function zeros have also been obtained from the fluctuations of the number of transferred particles in an experiment on full counting statistics of Cooper pair tunneling Flindt and Garrahan (2013); Brandner et al. (2017); Deger et al. (2018). Here, we first determine the Fisher zeros of the Ising lattice from fluctuations of the energy, since the energy is conjugate to the inverse temperature. To this end, Eq. (5) can be solved for high orders, $n\gg 1$, to yield the expression

[TABLE]

for the position of the leading partition function zeros, $\beta_{\rm o}$ and $\beta_{\rm o}^{*}$, in terms of the ratios $\mathsf{\kappa}_{n}^{(\pm)}\equiv\langle\!\langle U^{n\pm 1}\rangle\!\rangle/\langle\!\langle U^{n}\rangle\!\rangle$ of cumulants of subsequent orders. We stress that the energy fluctuations can be measured (or simulated) at a single fixed temperature, and the Fisher zeros can then be determined using Eq. (8).

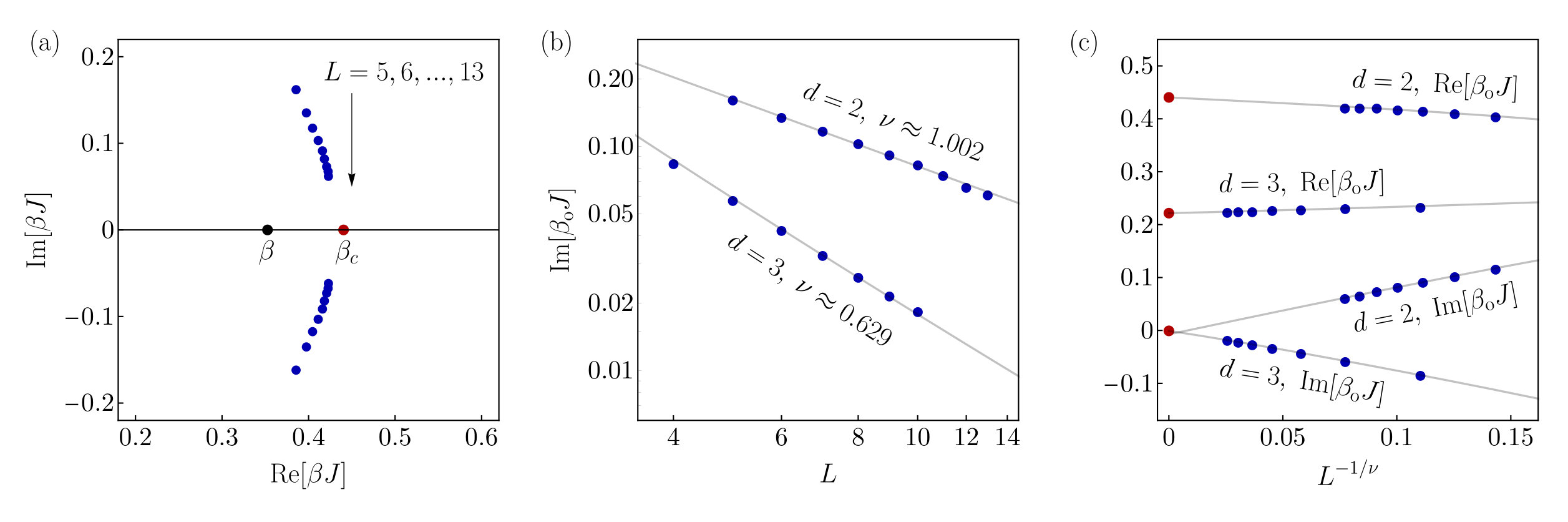

To mimic an experiment, we perform Monte-Carlo simulations based on the standard Metropolis algorithm Note (1); Newman and Barkema (1999). We thereby evaluate the high cumulants of the energy and subsequently obtain the leading Fisher zeros from Eq. (8) with increasing system size. The results of this procedure are shown in Fig. 2a and Fig. 1b for the Ising lattice in two and three dimensions. Already for small lattices of linear size $L\lesssim 10$, we clearly see that the Fisher zeros approach the critical inverse temperature on the real-axis. A quantitative analysis is provided in Fig. 2b, where we investigate the finite-size scaling of the imaginary part and extract the critical exponent $\nu$ based on Eq. (7) 111Here we include corrections of the form $\mathrm{Im}[\beta_{\rm o}]\propto L^{-1/\nu}(1+L^{-w})$ as in standard scaling analysis Itzykson et al. (1983).. Remarkably, the extracted critical exponents are close to the best-known values for the Ising model in two and three dimensions Kos et al. (2016), even if obtained for very small lattices. Moreover, in contrast to conventional methods Binder (1981a, b, 1997), which typically require that the control parameter be tuned across the phase transition, we are here able to determine the critical exponents from the energy fluctuations at a fixed temperature above the phase transition. Having determined the critical exponents, we can also find the critical inverse temperature by extrapolating the position of the leading Fisher zeros to the thermodynamic limit in Fig. 2c. The imaginary part of the Fisher zeros vanishes in the thermodynamic limit, while the real part comes close to the best-known values for the Ising model.

V Lee-Yang zeros and critical exponents

Our method can be applied to a variety of phase transitions, not only in equilibrium settings, but also in non-equilibrium situations such as space-time phase transitions in glass formers Garrahan et al. (2007); Hedges et al. (2009) and dynamical phase transitions in many-body systems after a quench Heyl et al. (2013); Zvyagin (2016); Heyl (2017). (In these cases, the role of the partition function is played by a moment generating function or a return amplitude, which deliver the moments of the fluctuating observable upon differentiation with respect to the appropriate conjugate field.) For example, for the Ising model we may also consider the partition function zeros in the complex plane of the magnetic field. These Lee-Yang zeros can be obtained from the fluctuations of the magnetization similar to how the Fisher zeros are determined using Eq. (8). At the critical temperature, the magnetization is assumed to obey the scaling relation $P_{L}(M)=L^{\frac{\mathcal{B}}{\nu}-d}g_{\infty}(ML^{\frac{\mathcal{B}}{\nu}-d})$, where $g_{\infty}$ is a scaling function for the total magnetization and the critical exponent $\mathcal{B}$ describes how the average magnetization vanishes as the critical temperature is approached from below Lamacraft and Fendley (2008); Karzig and von Oppen (2010); Yin, Huang, Lo and Chen (2017); Zhai, Wang and Yin (2018). This scaling hypothesis translates into scaling relations for the Lee-Yang zeros of the form

[TABLE]

and

[TABLE]

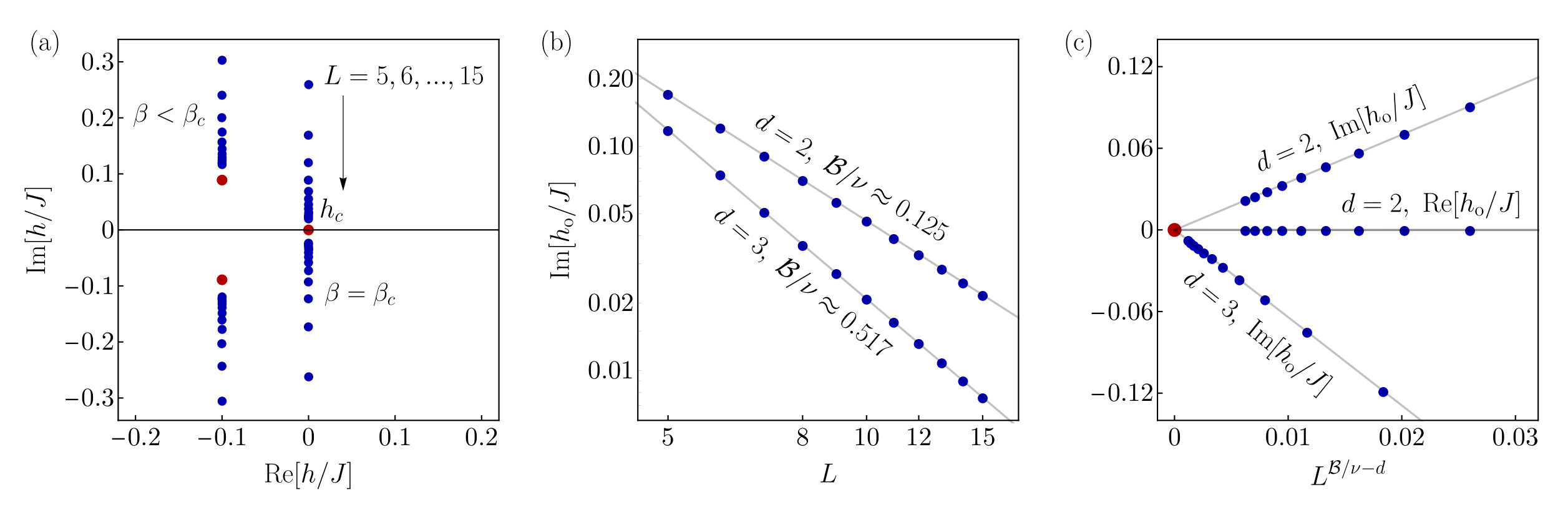

where $h_{c}$ is the magnetic field strength at which the phase transition occurs. We can now determine the Lee-Yang zeros from the simulated fluctuations of the magnetization. The results of this procedure for the Ising lattice with $d=2$ are shown in Fig. 3a. Above the critical temperature, the Lee-Yang zeros remain complex in the thermodynamic limit, since there is no phase transition. By contrast, at the critical temperature (and also below; not shown), the Lee-Yang zeros reach the real-axis, and we can proceed with the finite-size scaling analysis in Fig. 3b for $d=2$ and $d=3$. Using Eq. (10), we then extract the ratio $\mathcal{B}/\nu$ of the critical exponents, also known as the scaling dimension, and again find good agreement with existing estimates. We note that from two independent critical exponents we can obtain all other exponents using the hyperscaling relations derived in renormalization group theory Pelissetto and Vicari (2002). Finally, in Fig. 3c, we show how both the real and imaginary parts of the leading Lee-Yang zeros vanish in the thermodynamic limit, signaling that a phase transition occurs at zero magnetic field.

VI Conclusions

We have presented a method that makes it possible to identify critical points and determine critical exponents by measuring fluctuations of thermodynamic observables in finize-size systems kept at fixed external control parameters. Our method can not only be applied to equilibrium situations but also non-equilibrium phase transitions, including space-time phase transitions in glass formers and dynamical phase transitions in many-body systems after a quench. We have illustrated the feasibility of our approach using the Ising model for which the critical behavior depends on the dimensionality of the problem as confirmed by our results. Importantly, we can determine the critical points and critical exponents without having to drive the system across the phase transition, which is typically required by other methods. As such, our method paves the way for investigations of phase transitions that may be hard to reach experimentally, for instance at low temperatures. Extending these ideas to the quantum realm constitutes an exciting theoretical challenge for future work.

VII Acknowledgements

We thank K. Brandner, F. Essler, J. P. Garrahan, and A. Lamacraft for insightful discussions. We acknowledge the computational resources provided by the Aalto Science-IT project. Both authors are associated with Centre for Quantum Engineering at Aalto University. The work was supported by the Academy of Finland (projects No. 308515 and 312299). During the final preparations of our manuscript, we became aware of a recent preprint that also investigates partition function zeros for continuous phase transitions Majumdar and Bhattacharjee .

Appendix A Monte-Carlo simulations and error estimates

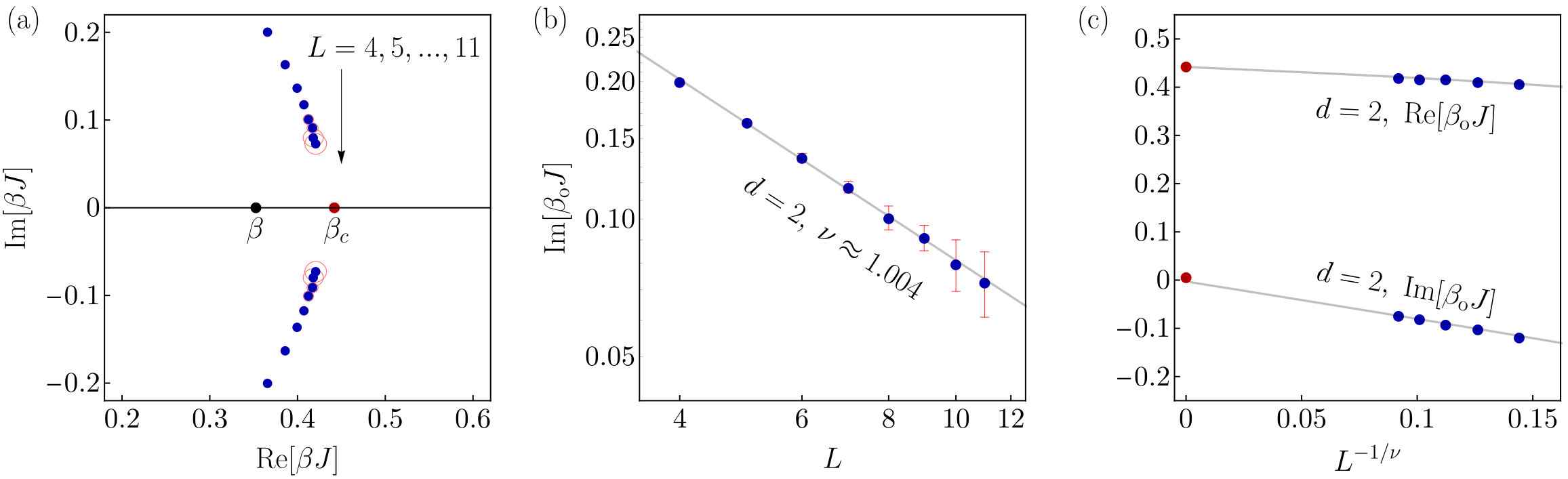

Here we further discuss the use of our method on the Ising model in $d=2$ dimensions. As shown in the main text, we can identify the critical points and determine the universal critical exponents by analyzing fluctuating observables for different lattice sizes $N=L^{d}$ at a single fixed temperature above (or below) the critical point. As such, our method can be applied to a variety of phase transitions in finite-size systems that are away from the critical temperature. To further analyze the feasibility of our approach, we here discuss the statistical aspects of our method including an error analysis. To this end, we have collected statistics from $m=10$ Monte-Carlo simulations with $10^{5}$ measurements on an $N$-site Ising lattice using a total of $10^{5}\times N$ Monte Carlo steps each. This is two orders of magnitude smaller than for the results presented in the main text. We then determine the leading partition function zeros in the complex plane of the inverse temperature from the cumulants of the energy. The standard errors are calculated as a measure of the precision of the sample means and expressed as $\sigma/\sqrt{m}$, where $\sigma$ denotes the standard deviation. The mean values of $10$ measurements of the partition function zeros are indicated with blue circles and the standard errors are shown by red ellipses in Fig. 4(a) and vertical error bars in Fig. 4(b). We stress that our method only requires measurements of the energy at a single fixed temperature, which is indicated by a black circle at $\beta=0.8\beta_{c}$ in Fig. 4(a).

Appendix B Comparison with Binder cumulants

We now compare our method to the use of Binder cumulants, which are often used to determine critical points and critical exponents of phase transitions Binder (1981a, b, 1997). The Binder parameter $M_{4}$ is a modified fourth-order cumulant of the order parameter, which for Ising models is the magnetization $M$, and it is defined as

[TABLE]

where $\langle M^{2}\rangle$ and $\langle M^{4}\rangle$ denote the second and fourth order moments of the magnetization. In the thermodynamic limit, the Binder parameter approaches a nontrivial value that depends on the boundary conditions and the lattice structure Bruce (1985); Kamieniarz and Blote (1993); Selke and Shchur (2005). The method exploits that $M_{4}$ depends only weakly on the lattice size exactly at the critical point. Therefore, the crossing point of the Binder parameter for systems of different sizes as a function of the (inverse) temperature yields the critical temperature, where the system undergoes a phase transition in the thermodynamic limit. Based on the scaling behavior of the Binder parameter, one may identify the universality class of the phase transitions by estimating the critical exponent $\nu$ of the correlation length,

[TABLE]

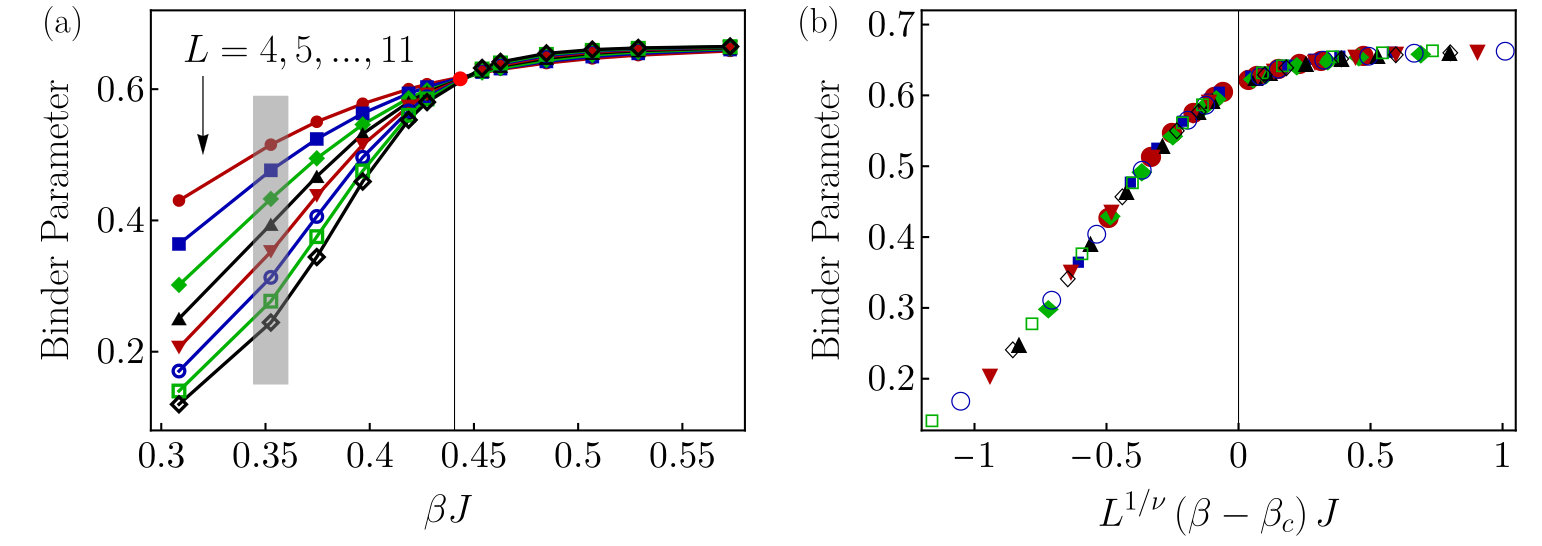

where $\widetilde{M}$ is a scaling function. Substituting the critical temperature $\beta_{c}$, which is obtained from the intersection of the Binder parameters, into this equation causes all curves, corresponding to different system sizes, to collapse onto the same functional form for the correct value of the critical exponent $\nu$. We note that estimating the precise location of the phase transition and the critical exponent requires a detailed study of the finite-size scaling and the use of specialized algorithms, which is beyond the scope of this work. Figure 5 shows the Binder parameter as a function of the temperature and for different system sizes. We note that, in contrast to our method, to make use of Binder cumulants, one must collect statistics of the magnetization at a number of different temperatures and tune the system across the critical point. From an experimental point of view, it may be a great advantage to work with fixed parameters as we do, for instance if the phase transition takes place at a low temperature, which is hard to reach.
