Pseudogap, van Hove Singularity, Maximum in Entropy and Specific Heat for Hole-Doped Mott Insulators

TL;DR

This paper investigates the pseudogap phenomenon in hole-doped Mott insulators, linking it to a finite-doping Mott transition, supported by theoretical modeling and experimental comparisons.

Contribution

It demonstrates that the pseudogap temperature aligns with a doping-dependent Mott transition, providing a unified theoretical framework supported by experimental data.

Findings

Pseudogap temperature $T^*( ext{d})$ matches phase transition temperature $T^*_ ext{phase}( ext{d})$

Quantum critical behavior observed in electronic specific heat

Supports pseudogap as a finite-doping Mott transition extension

Abstract

The first indication of a pseudogap in cuprates came from a sudden decrease of NMR Knight shift at a doping-dependent temperature $T^*(\delta)$. Since then, experiments have found phase transitions at a lower $T^*_\text{phase}(\delta)$. Using plaquette cellular dynamical mean-field for the square-lattice Hubbard model at high temperature, where the results are reliable, we show that $T^*(\delta)$ shares many features of $T^*_\text{phase}(\delta)$. The remarkable agreement with several experiments, including quantum critical behavior of the electronic specific heat, supports the view that the pseudogap is controlled by a finite-doping extension of the Mott transition. We propose further experimental tests.

Figures

Equations

$${\delta }_{\text{phase}}^{\ast }\le {\delta }_{\text{VH}}$$

Full text

I Introduction

Below a doping-dependent temperature $T^{*}$, early studies of cuprate high temperature superconductors found a decrease in NMR Knight shift Alloul et al. (1989); Berthier, C. et al. (1996); Curro et al. (1997); Timusk and Statt (1999); Kawasaki et al. (2010). This freezing of uniform spin fluctuations, a thermodynamic quantity, became the first signature of what is widely referred to as the pseudogap, one of the remaining challenges for theory. With time, another definition of the pseudogap became more popular. Polarized neutron diffraction Fauqué et al. (2006); Mook et al. (2008); Mangin-Thro et al. (2015), Nernst effect measurements Daou et al. (2010), ultrasound measurements Shekhter et al. (2013), terahertz polarimetry Lubashevsky et al. (2014) and optical anisotropy measurements Zhao et al. (2017) report that the prototypical YBa2Cu3Oy undergoes a thermodynamic phase transition that breaks time-reversal, spatial inversion, two-fold rotational, four-fold rotational and mirror symmetries below a doping-dependent temperature $T^{*}_{\text{phase}}$ that is distinctly lower than $T^{*}$ at low doping. This suggests that phase transitions are a consequence of the pseudogap first observed in NMR, not the cause Parker et al. (2010); Sordi et al. (2012a).

In this paper, we address the nature of the pseudogap that was first found in NMR. We focus mostly on thermodynamic signatures at high temperature, where cluster generalizations of dynamical mean-field theory provide a reliable theoretical tool 111An 8 site DCA calculation of the Knight shift Chen et al. (2017); Wu et al. (2018) for a smaller value of $U$ than that considered here, nevertheless gives a temperature dependence of the $T^{*}$ line quite comparable to ours.. The remarkable agreement that we find with several experiments supports the view that the high-temperature physics of the pseudogap is controlled by a finite-doping extension of the Mott transition that includes superexchange effects Sordi et al. (2010). We propose further experimental tests to investigate that hypothesis. The connection between Mott transition and pseudogap was also suggested by calculations in smaller clusters Stanescu and Phillips (2003).

Although recent experimental results usually relate to the lower-temperature $T^{*}_{\text{phase}}(\delta)$ line, where $\delta$ denotes hole doping, the $T^{*}_{\text{phase}}(\delta)$ and $T^{*}(\delta)$ lines are almost parallel, which suggests that they are related. Experimental results for $T^{*}_{\text{phase}}(\delta)$ can be classified into two families.

The first family of results identifies the main features of the $T^{*}_{\text{phase}}$ line. Recent Hall measurements on YBa2Cu3Oy (YBCO), La2-xSrxCuO4 (LSCO) and La1.6-xNd0.4SrxCuO4 (Nd-LSCO) highlighted a sharp jump in carrier density with increasing hole doping $\delta$ across a material-dependent critical doping $\delta^{*}_{\text{phase}}$ at which the $T^{*}_{\text{phase}}$ line suddenly drops Badoux et al. (2016); Laliberte et al. (2016); Collignon et al. (2017). This drop, also observed in Raman scattering experiments on Bi2Sr2CaCu2O8+δ (Bi2212) Loret et al. (2017), occurs between a low-doping antiferromagnetic Mott insulating regime Ando et al. (2004) and a high-doping metallic regime Mackenzie et al. (1996). Moreover, the specific heat divided by temperature $C/T$ scales logarithmically as a function of temperature around this sharp transition in LSCO, Nd-LSCO and La1.8-xEu0.2SrxCuO4 (Eu-LSCO) Michon et al. (2019), which strengthens its interpretation as a finite temperature extension of an underlying quantum critical point.

The second family of results regarding the $T^{*}_{\text{phase}}$ line identifies how its main features vary across different materials under external parameters, and how they relate to the rest of the phase diagram. The Nernst effect measurements of Ref. Cyr-Choinière et al. (2018) establish that while both the $T^{*}_{\text{phase}}$ line’s slope and the position of $\delta^{*}_{\text{phase}}$ differ between different parent compounds (YBCO and LSCO), only the position of $\delta^{*}_{\text{phase}}$ changes with chemical pressure within the same family of compounds (LSCO, Nd-LSCO and Eu-LSCO). Furthermore, it has been shown in Ref. Doiron-Leyraud et al. (2017) that $\delta^{*}_{\text{phase}}$ shifts towards lower doping in Nd-LSCO under applied pressure. This unexpected shift seems to be driven by a corresponding shift in $\delta_{\text{VH}}$, the doping at which a van Hove singularity appears in the local density of states. Since this Lifshitz transition in cuprates translates into a change of the Fermi surface from hole-like to electron-like with increasing doping, as determined by angle-resolved photoemission spectroscopy (ARPES) Kondo et al. (2004); Chang et al. (2008); Yoshida et al. (2009); Matt et al. (2015), this suggests that the pseudogap cannot open on an electron-like Fermi surface, so that the condition

[TABLE]

should always be satisfied. For instance, Ref. Loret et al. (2017) reports $\delta^{*}_{\text{phase}}\simeq\delta_{\text{VH}}$ in Bi2212. Apart from the van Hove singularity, experiments performed on calcium-doped YBCO and Bi2212 report a vertical regime of maximum electronic entropy in the phase diagram close to $\delta^{*}_{\text{phase}}$ Tallon and Loram (2001); Tallon et al. (2004); Storey et al. (2007); Tallon . This observation is consistent with the behavior of thermopower when interpreted in terms of entropy Chakraborty et al. (2010); Garg et al. (2011). Finally, the critical regime around $\delta^{*}_{\text{phase}}$ also corresponds to the zone in the phase diagram where superconductivity is most resilient to strong magnetic fields Grissonnanche et al. (2014), hinting that it may actually nurture superconductivity. This link between both phases of matter has been the subject of many past studies Sordi et al. (2012b); Chen et al. (2013); Gull et al. (2013); Cyr-Choinière et al. (2018).

While much is already known about the $T^{*}_{\text{phase}}$ line, much less is known regarding the fate of the NMR $T^{*}$ line with increasing doping, except for the fact that raw data for LSCO is consistent with a sudden drop of $T^{*}$ at a doping $\delta^{*}$ close to $\delta^{*}_{\text{phase}}$ where $T^{*}_{\text{phase}}$ also drops Nakano et al. (1994).

However, most theoretical works study the $T^{*}$ line, focusing on the two-dimensional single-band Hubbard model on a square lattice Gutzwiller (1963); Hubbard (1963); Kanamori (1963). In addition, cluster extensions of dynamical mean-field theory (DMFT), such as cellular dynamical mean-field theory (CDMFT) and the dynamical cluster approximation (DCA) Maier et al. (2005); Kotliar et al. (2006); Tremblay et al. (2006) using various quantum impurity solvers Hirsch and Fye (1986); Rubtsov et al. (2005); Gull et al. (2011); Werner and Millis (2006); Werner et al. (2006); Haule (2007); Gull et al. (2007, 2008), have shown that the Hubbard model captures many features of the superconductivity and pseudogap of cuprate compounds Lichtenstein and Katsnelson (2000); Jarrell et al. (2001); Civelli et al. (2005); Tremblay et al. (2006); Macridin et al. (2006); Kyung et al. (2006); Haule and Kotliar (2007); Ferrero et al. (2009); Gull et al. (2009); Sakai et al. (2009); Werner et al. (2009); Gull et al. (2010, 2013); Gunnarsson et al. (2015). The same applies to its strong-interaction limit when correlated hopping is neglected: the $t$-$J$ model Haule et al. (2002, 2003); Bittner et al. (2018). DCA studies Mikelsons et al. (2009); Vidhyadhiraja et al. (2009) found a maximum in entropy and a critical logarithmic scaling for the specific heat $C(T)$ at a critical doping. Moreover, Refs. Gunnarsson et al. (2015); Maier et al. (2016); Chen et al. (2017) established that pseudogap formation and superconducting pairing are both linked through short-ranged spin physics Scalapino et al. (1986); Maier et al. (2008); Dahm et al. (2009); Kyung et al. (2009); Scalapino (2012); Nishiyama et al. (2013); Sénéchal et al. (2013); Reymbaut et al. (2016). Closer to aforementioned experiments, Refs. Wu et al. (2018); Bragança et al. (2018) found an unambiguous link between pseudogap formation and Fermi surface topology through the pole-like feature of the electronic self-energy, conjecturing that Eq. (1) for $\delta^{*}_{\text{phase}}$ should also hold for $\delta^{*}$.

Finally, a set of CDMFT studies spanning almost a decade has highlighted the existence of a finite-doping phase transition, here dubbed the “Sordi transition”Sordi et al. (2010, 2011), that acts as an organizing principle for the $T$-$\delta$ phase diagram of cuprates Sordi et al. (2012a); Fratino et al. (2016a). This transition is a finite-doping extension of the first-order Mott transition found at half-filling, separating pseudogap and correlated metallic phases in the normal-state phase diagram (where superconductivity is not allowed) Sordi et al. (2010, 2011). In this normal-state phase diagram, the Sordi transition ends at finite $T$ at a second-order critical point above which it extends as a Widom line Xu et al. (2005) in the high-temperature crossover regime. Even if the low-temperature normal-state phase diagram is usually metastable, hidden by more ordered states, the associated high-temperature crossover regime can be observed in a doped organic compound thanks to magnetic frustration Oike et al. (2015). More specifically, in both doped Mott insulators Sordi et al. (2012a, 2013); Fratino et al. (2016a) and doped charge-transfer insulators Fratino et al. (2016b), the Knight shift pseudogap $T^{*}$ line is parallel to the Widom line and appears as a high-temperature precursor of this crossover line. $T^{*}(\delta)$ drops to zero precipitously at $\delta^{*}$ in the vicinity of the Sordi transition. In addition, these CDMFT studies retrieve the aforementioned maximum in entropy close to $\delta^{*}$ Sordi et al. (2011) and a van Hove-like singularity at higher doping Sordi et al. (2012a).

II Methods

Here we study the two-dimensional Hubbard model on a square lattice with $t$ the nearest-neighbour hopping, $t^{\prime}$ the next-nearest-neighbour hopping and $U$ the on-site Coulomb repulsion. The hopping $t=1$ serves as the energy unit, $k_{B}\equiv 1$ and $\hbar\equiv 1$. This model is implemented with CDMFT, where a 2$\times$2 cluster of sites Kotliar et al. (2001); Haule and Kotliar (2007) is dynamically coupled to a bath of non-interacting electrons by a frequency-dependent hybridization function. The quantum impurity problem is solved with continuous-time quantum Monte Carlo in the hybridization expansion Werner and Millis (2006); Werner et al. (2006); Haule (2007); Gull et al. (2007). Note that close to half-filling, where finite-size effects are expected to be largest because of antiferromagnetism, systematic studies up to 5% doping at $T=0.06\ t$ show that 2$\times$2 clusters give accurate results Sakai et al. (2012). All details regarding our various physical criteria can be found in the Supplemental Material 222In the Supplemental Material we explain how we find $T^{*}(\delta)$ and $\delta^{*}$ from the magnetic susceptibility, how we do analytic continuation to find the van Hove line $T_{\text{VH}}(\delta)$, how we use a Maxwell relation to find the location of the maximum of entropy and how we find the specific heat. We also explain how error bars are estimated..

III Results

III.1 NMR $T^{*}$, van Hove singularity and maximum of the entropy

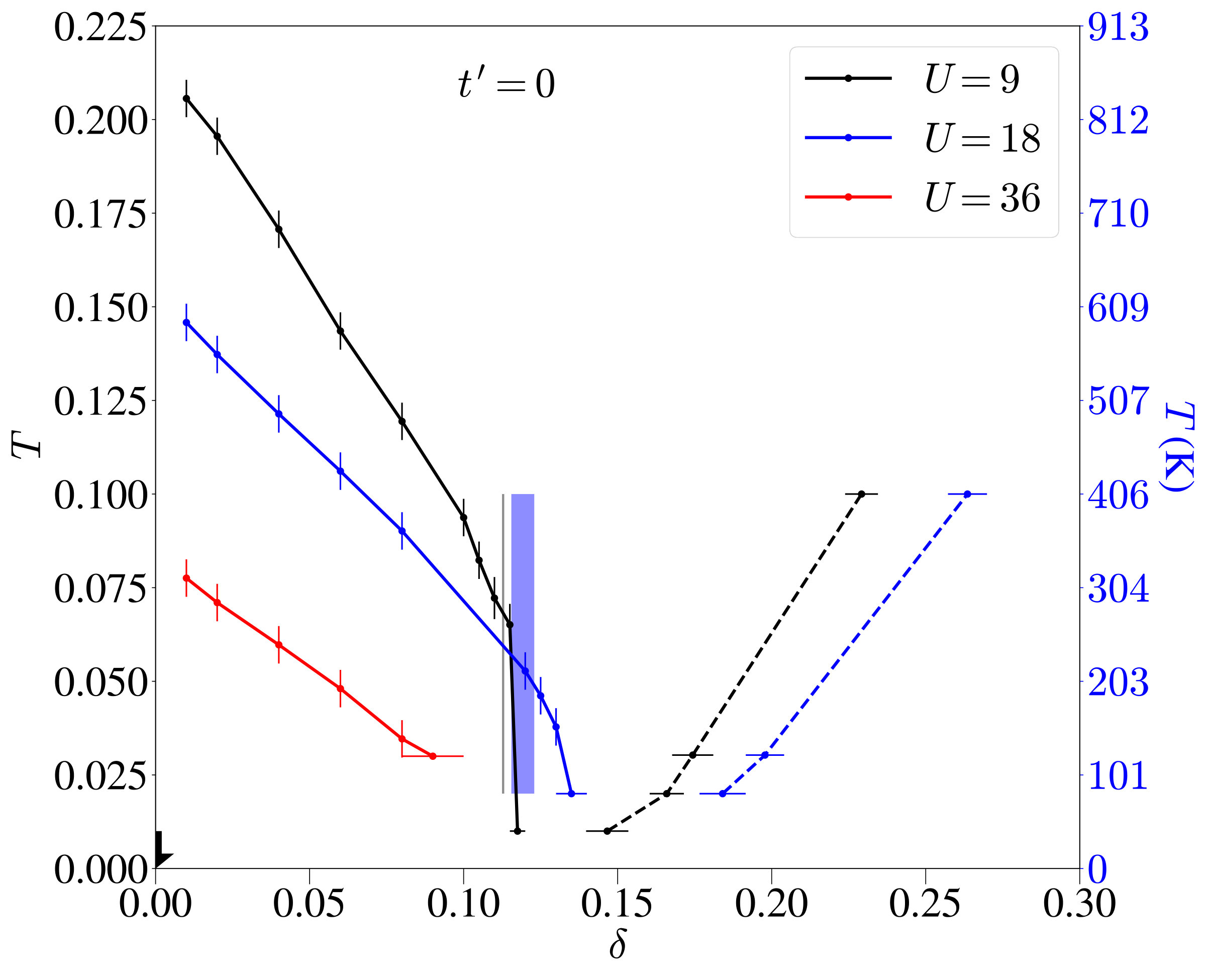

Fig. 1 (left) shows the normal-state phase diagram at $t^{\prime}=0$ for $U=9$, $18$ and $36$. Note that our values of $T^{*}$ for a 2$\times$2 cluster match the ones found in larger cluster studies with comparable $U$ Maier and Scalapino (2018). The case $U=36$ suffered from severe sign problems but is still useful to capture the evolution of $T^{*}(\delta\to 0)$ as a function of $U$. Within the Hubbard model, pseudogap formation arises from singlet formation due to superexchange, which we retrieve in this figure Haule and Kotliar (2007); Sordi et al. (2012a). Indeed, these correlations are well described by the $t$-$J$ limit of the Hubbard model at strong interaction and low doping, with superexchange $J=4t^{2}/U$. Going from $U=9$ to $U=18$, $T^{*}(\delta\to 0)$ does not actually decrease by a factor of $2$, because the interaction strength is not large enough for the $t$-$J$ limit to be valid. However, $T^{*}(\delta\to 0)$ does decrease by a factor of $2$ between $U=18$ and $U=36$. In other words, $T^{*}(\delta\to 0)$ scales with $J$ Haule et al. (2002, 2003); Stanescu and Phillips (2003) for large values of $U$, confirming short-range correlations due to superexchange as the origin of the pseudogap. Furthermore, the order of magnitude of $T^{*}(\delta\to 0)$ at $U=9$ agrees with the experimental values reported in Refs. Johnston (1989); Nakano et al. (1994); Curro et al. (1997) for YBCO and LSCO. If we assume that the value of the Néel temperature is a measure of $J$, this is consistent with the experimental slope of the $T^{*}_{\text{phase}}$ lines of YBCO and LSCO cited in Ref. Cyr-Choinière et al. (2018). Putting $U=36$ aside in Fig. 1 (left), since sign problems appear at low temperature, we find at intermediate doping that the $T^{*}$ line drops suddenly at a critical doping $\delta^{*}$: the smaller the value of $U$, the larger the drop of $T^{*}$. The increase of $\delta^{*}$ with $U$ follows the trend found for the location of the Sordi transition Fratino et al. (2016a).

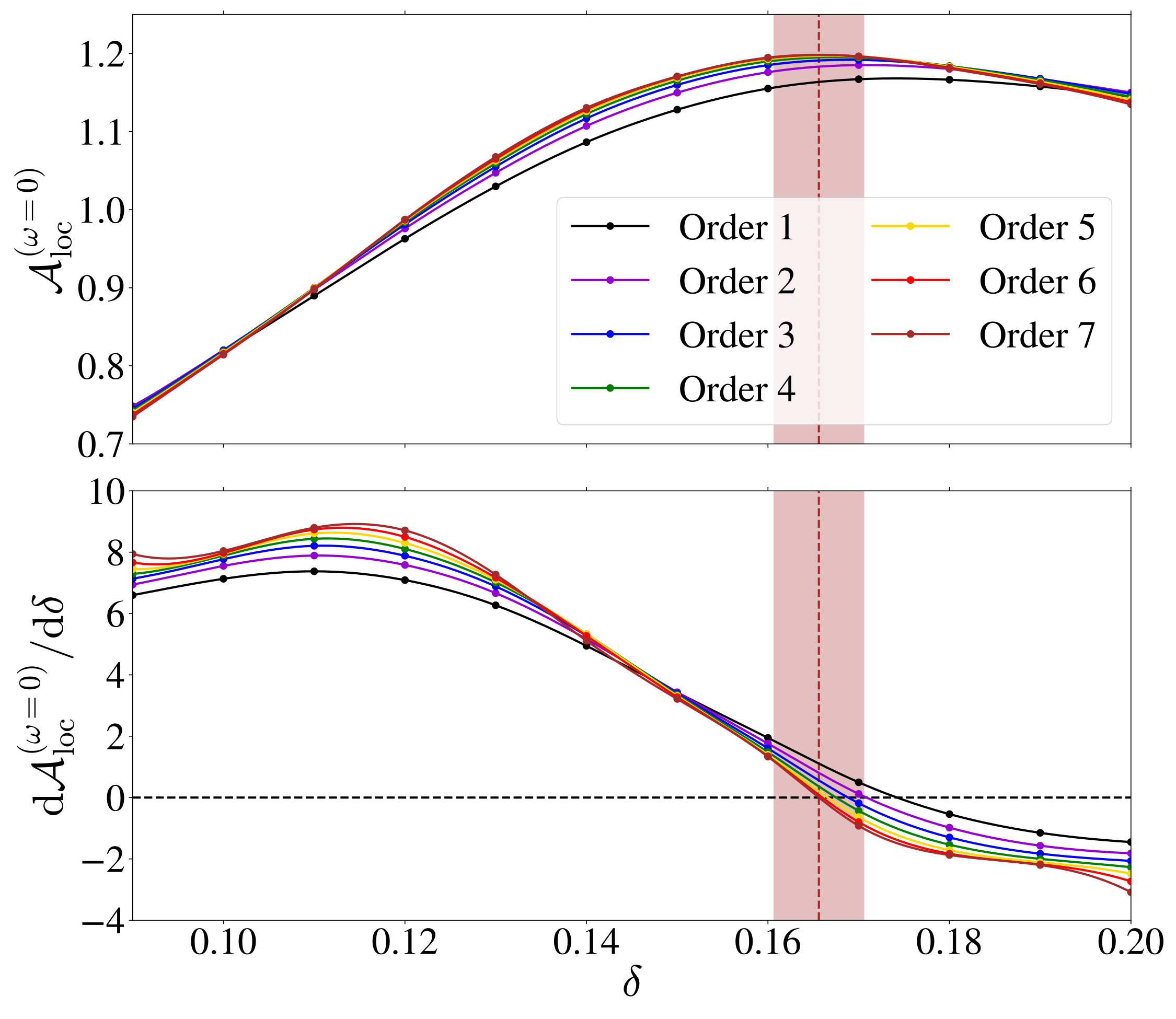

At finite temperature in the presence of interactions, Fig. 1 also shows dashed lines in the $T$-$\delta$ plane that indicate the maximum of the single-particle local density of states at the Fermi level. This is not the usual non-interacting van Hove singularity, but it is adiabatically connected to it. We see on the figure that the dashed lines (the van Hove lines $T_{\text{VH}}(\delta)$) are pushed to higher doping compared to the location of the van Hove singularity in the non-interacting case (arrows). Consequently, the experimental conjecture Eq. (1) for $\delta^{*}_{\text{phase}}$ seems, in our calculations, to extend to $\delta^{*}$ since $\delta^{*}\leq\delta_{\text{VH}}$.

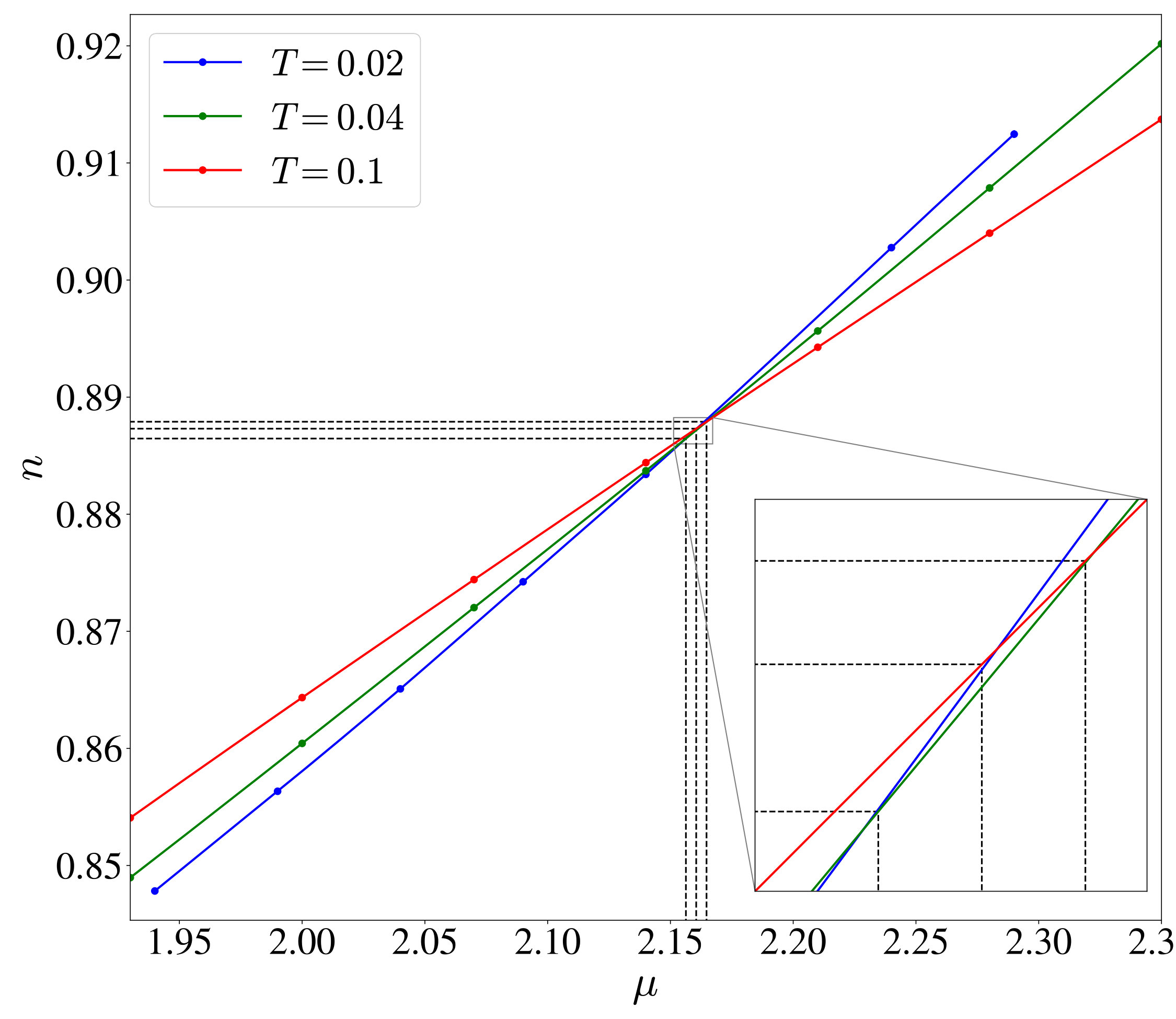

The location of the zone of maximum of entropy in the $T$-$\delta$ plane, represented by a colored rectangle, is also pushed by interactions to higher doping. The displacement of the zone of maximum entropy towards higher doping $\delta$ with increasing $U$ would be consistent with its coincidence with the end of the coexistence region of the Sordi transition Sordi et al. (2011), whose $\delta$ also increases with $U$. This coindence has however been proven only for $U=6.2$.

It seems paradoxical that with increasing $U$ the $T^{*}$ line extends to higher doping but appears at lower temperatures. This comes from antagonistic effects of $U$ on singlet formation. On the one hand, local magnetic moments increase with $U$, leading to better-defined singlets at low temperature. On the other hand, the decrease of $J$ with increasing $U$ makes these singlets less resilient to thermal fluctuations.

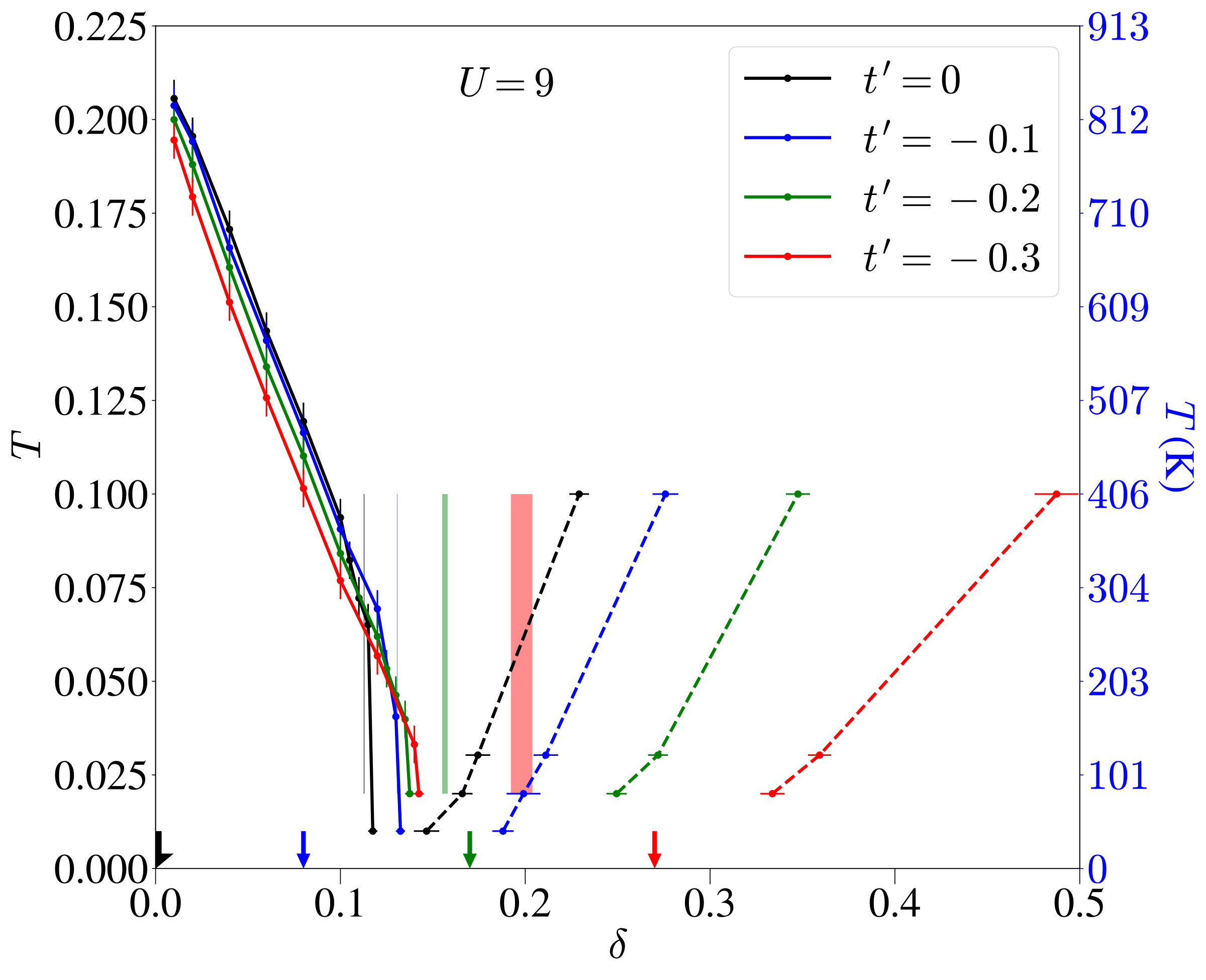

Fig. 1 (right) shows the normal-state phase diagram at $U=9$ for $t^{\prime}=0$, $-0.1$, $-0.2$ and $-0.3$. The dependence on $t^{\prime}$ of $\delta^{*}$ follows the trend found for the location of the Sordi transition (see Supplemental Material of Ref. Fratino et al. (2016a)). Remarkably, two main experimental observations regarding $\delta^{*}_{\text{phase}}$ and $T^{*}_{\text{phase}}(\delta)$ are also found for $\delta^{*}$ and $T^{*}(\delta)$ in this figure. Indeed, one experiment Cyr-Choinière et al. (2018) finds that changing the value of $t^{\prime}$ through chemical pressure does not affect the initial slope of the $T^{*}_{\text{phase}}$ line at low doping but $\delta^{*}_{\text{phase}}$ monotonically moves towards higher doping with increasing values of $|t^{\prime}|$. Moreover, another experiment Doiron-Leyraud et al. (2017) shows that applied pressure pushes $\delta^{*}_{\text{phase}}$ to lower doping while calculations in the same paper Doiron-Leyraud et al. (2017) find a concomitant decrease of $|t^{\prime}|$.

Interactions push the van Hove line $T_{\text{VH}}(\delta)$ to higher doping than the non-interacting van Hove singularity, as in the $t^{\prime}=0$ case. The effect of $t^{\prime}$ at fixed $U$ agrees with Ref. Wu et al. (2018): the larger $|t^{\prime}|$, the less $U$ pushes the van Hove line away from the non interacting case (colored arrows in Fig. 1). This is consistent with the decreasing influence of interactions at large doping. Besides, the experimental conjecture Eq. (1) for $\delta^{*}_{\text{phase}}$ extends once again to $\delta^{*}$ as $\delta^{*}\leq\delta_{\text{VH}}$. Finally, the zone of maximum entropy also moves towards higher doping with increasing $|t^{\prime}|$. More importantly, it is farther and farther away from both the Widom and the van Hove lines, as suggested in yet unpublished work Sordi .

III.2 Critical scaling of the specific heat

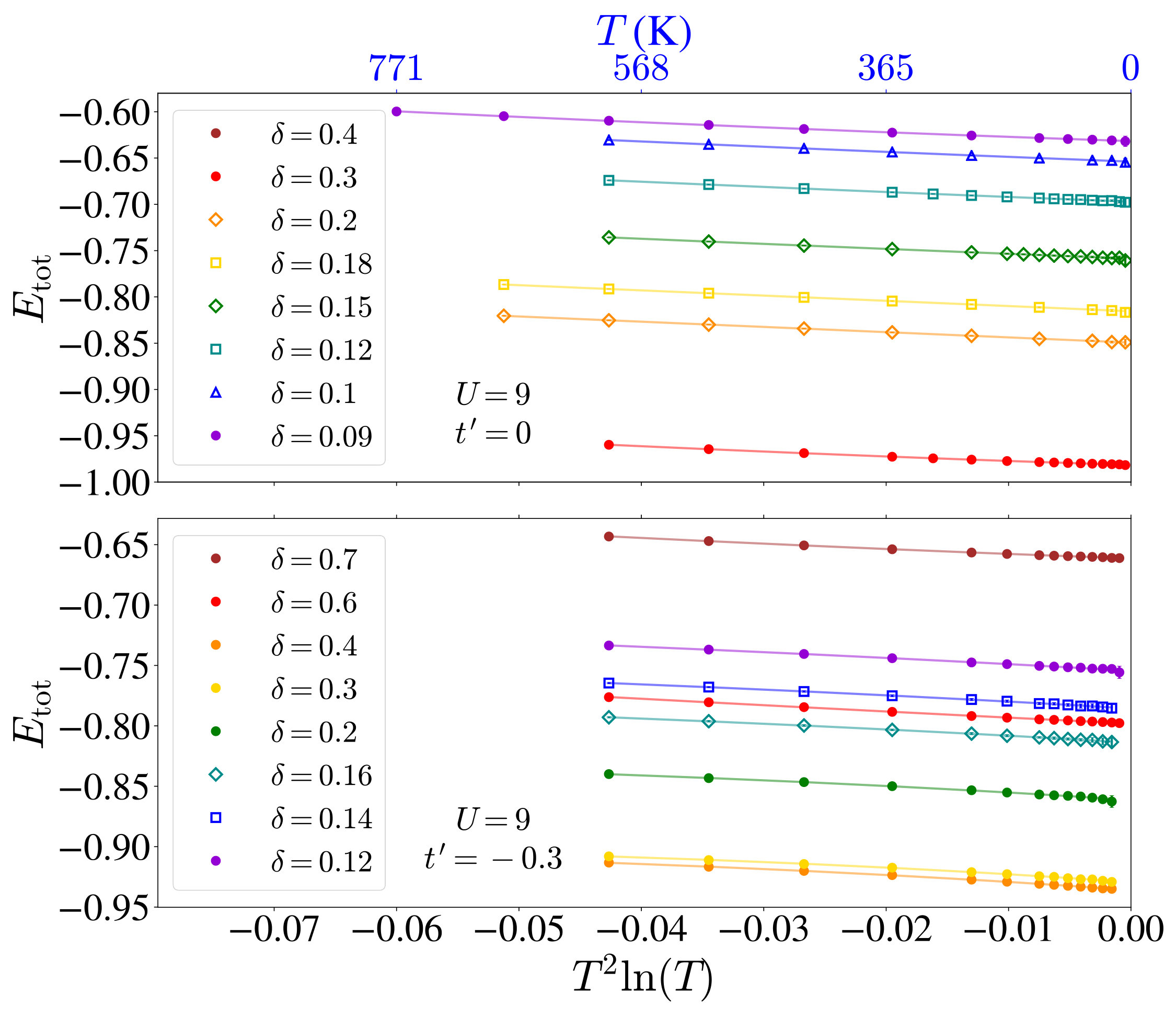

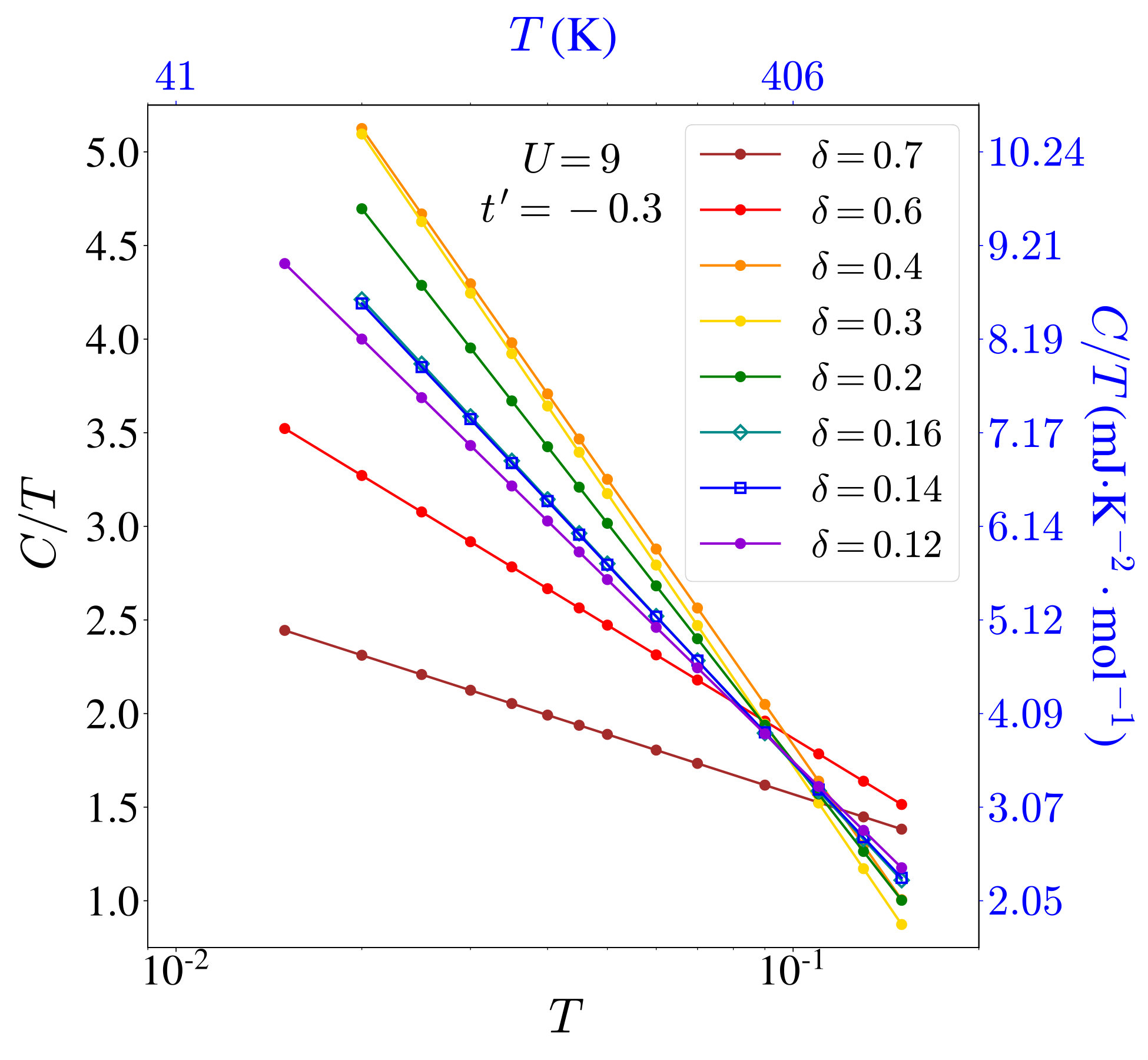

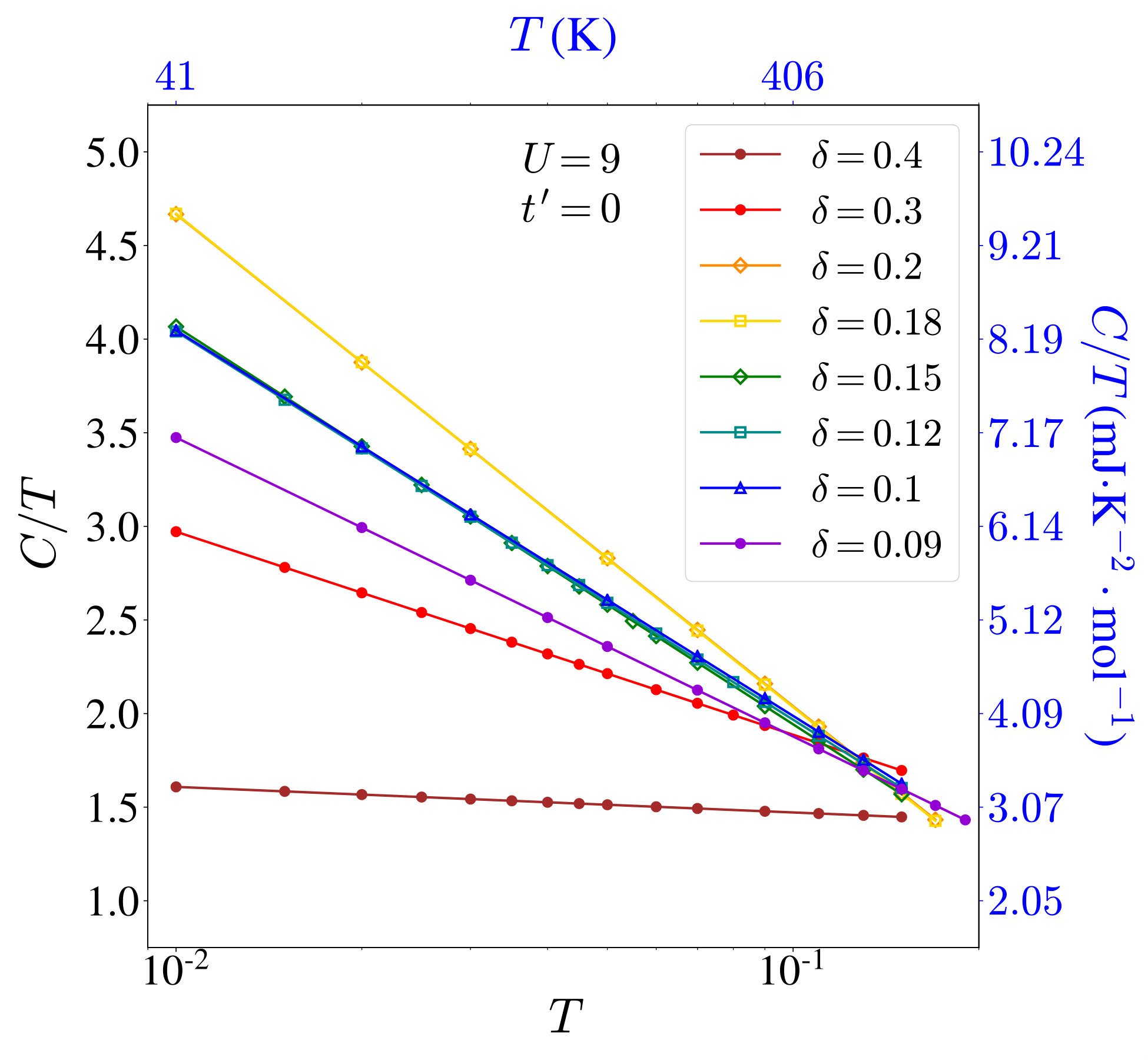

Let us finally discuss critical scaling of the specific heat. We computed the total energy Fratino et al. (2016a) and fitted it with $E_{\text{tot}}=a+bT^{2}\ln T+cT^{2}$. The specific heat is the derivative of the fitted total energy with respect to temperature, yielding $C/T=2b\ln T+(b+2c)$, presented on a semi-log plot in Fig. 2 for $U=9$, $t^{\prime}=0$ (left) and for $U=9$, $t^{\prime}=-0.3$ (right). Since the goodness of the energy fit holds over a wide range of dopings, as shown in the Supplemental Material Note (1), so does the critical scaling of $C/T$. A typical cuprate hopping amplitude of $t\simeq 350$ meV converts $C/T$ to a value that is of the same order as that found experimentally Michon et al. (2019). However, our lowest temperature $T=0.01\,t$ is about $40$ K. This minimal temperature is much higher than the experimental range $0.5$ K to $10$ K in Ref. Michon et al. (2019) where a critical fan with a sharp peak in the doping dependence of $C/T$ at fixed $T$ appears. Instead, we find that at higher temperature the value of $C/T$ is essentially the same for a wide range of parameters around the critical point $\delta^{*}\sim 0.12$ for $t^{\prime}=0$ and $\delta^{*}\sim 0.15$ for $t^{\prime}=-0.3$ that we determined from $T^{*}$.

This observation can be understood by taking experimental studies in heavy fermions von Löhneysen (1996); Löhneysen et al. (2007) as typical examples of what is expected for the quantum critical behavior of $C/T$. Heavy fermions exhibit an extremely low effective Fermi energy so that the high-temperature limit of the electronic specific heat is accessible without phonon contamination. It is found that at high temperature $C/T$ is indeed logarithmic and very weakly dependent on parameters. The equivalence established in Ref. Doiron-Leyraud et al. (2017) between applying pressure in experiments and decreasing $|t^{\prime}|$ in calculations enables us to establish another analogy with Refs. von Löhneysen (1996); Löhneysen et al. (2007): at a given doping, the slope of $C/T$ as a function of temperature on the semi-log plot becomes flatter with decreasing $|t^{\prime}|$, like we find by comparing the two plots in Fig. 2. 333Logarithmic temperature dependence of $C/T$ is also found in the two-impurity Kondo problem Affleck and Ludwig (1992) where long-wavelength spin fluctuations are unimportant. The singlets that are found in the pseudogap phase of plaquette CDMFT calculations Sordi et al. (2012a); Haule and Kotliar (2007) may lead to similar behavior. When doping increases beyond the critical doping, $C/T$ again becomes insensitive to doping for a small doping range, reflecting the presence of the van Hove line $T_{\text{VH}}(\delta)$. Upon increasing doping sufficiently, $C/T$ gradually becomes temperature independent, as expected in a Fermi liquid.

IV Conclusion

In summary, consistent with most earlier theoretical studies, we find that the NMR pseudogap $T^{*}$ line 444In Bi2201, the NMR $T^{*}$ Kawasaki et al. (2010) seems to coincide with $T^{*}_{\text{phase}}$ as determined from ARPES and resistivity. shares many features of the experimental $T^{*}_{\text{phase}}$ line Loret et al. (2017); Michon et al. (2019); Cyr-Choinière et al. (2018); Doiron-Leyraud et al. (2017); Tallon and Loram (2001); Tallon et al. (2004); Storey et al. (2007); Tallon : a) $T^{*}$ drops precipitously to zero at a doping $\delta^{*}$; b) $T^{*}$ near half-filling scales like superexchange $J=4t^{2}/U$ at large $U$; c) Changes in the band structure modify primarly the value of $\delta^{*}$ and it is possible to see this effect experimentally by applying pressure; d) The doping where the van Hove line extrapolates at low temperature, $\delta_{\text{VH}}(T\to 0)$, seems to satisfy the inequality Eq. (1) in the $T=0$ limit; e) The high-temperature specific heat is consistent with expectations for high-temperature quantum critical behavior; f) The doping where entropy is maximum is almost independent of $T$.

Our contribution for theory is that quantum critical behavior of the electronic specific heat is connected to doped Mott-insulating behavior. Indeed, the extrapolated position of the quantum critical point seems to have the same dependence on $t^{\prime}$ as the Sordi transition, which is continuously connected to the Mott transition at half-filling. The critical-point temperature for the Sordi transition is known to decrease rapidly with increasing $U$ and should be investigated further.

Additional experiments on the NMR $T^{*}$ are called for to verify our observation that the $T^{*}$ line is a necessary condition for the appearance of the experimental $T^{*}_{\text{phase}}$ line. That $T^{*}_{\text{phase}}$ line occurs at lower temperature and is thus more sensitive to details of the Hamiltonian. Another prediction for experiment is that the doping where entropy is maximum depends strongly on band parameters, an effect that could be measured with combined specific-heat and pressure experiments.
