Time dependent spectral modeling of Markarian 421 during a violent outburst in 2010

TL;DR

This study models the spectral energy distribution of blazar Mrk 421 during a 2010 outburst, revealing how physical parameters like particle energy, magnetic field, and bulk motion evolve during the flare.

Contribution

It introduces a time-dependent multi-zone leptonic jet model with radiation feedback to explain spectral evolution during a blazar outburst.

Findings

Spectral hardening correlates with increased flux in X-ray and VHE gamma-ray bands.

The model successfully reproduces the observed spectral states and light curves.

Higher bulk kinetic energy and harder particle populations are associated with high-flux states.

Abstract

We present the results of extensive modeling of the spectral energy distributions (SEDs) of the closest blazar (z=0.031) Markarian 421 (Mrk 421) during a giant outburst in February 2010. The source underwent rapid flux variations in both X-rays and very high energy (VHE) gamma-rays as it evolved from a low-flux state on 2010 February 13-15 to a high-flux state on 2010 February 17. During this period, the source exhibited significant spectral hardening from X-rays to VHE gamma-rays while exhibiting a "harder when brighter" behavior in these energy bands. We reproduce the broadband SED using a time-dependent multi-zone leptonic jet model with radiation feedback. We find that an injection of the leptonic particle population with a single power-law energy distribution at shock fronts followed by energy losses in an inhomogeneous emission region is suitable for explaining the evolution of Mrk 421 from low- to high-flux state in February 2010. The spectral states are successfully reproduced by a combination of a few key physical parameters, such as the maximum $\&$ minimum cutoffs and power-law slope of the electron injection energies, magnetic field strength, and bulk Lorentz factor of the emission region. The simulated light curves and spectral evolution of Mrk 421 during this period imply an almost linear correlation between X-ray flux at 1-10 keV energies and VHE gamma-ray flux above 200 GeV, as has been previously exhibited by this source. Through this study, a general trend that has emerged for the role of physical parameters is that, as the flare evolves from a low- to a high-flux state, higher bulk kinetic energy is injected into the system with a harder particle population and a lower magnetic field strength.

Figures

Tables

Table 1. Table 1: Data collected from different instruments. The optical V-band data from Steward observatory and UV data from Swift -UVOT (using three filters UVW2, UVM2, UVW1) have been used. The Fermi -LAT data has been analyzed using latest Fermi tools (see texts for details). The X-ray data for different days has been used from Shukla et al. 2012 . For intermediate- and high-flux states the TeV data from TACTIC ( Singh et al. 2015 ) and VERITAS ( Galante & VERITAS Collaboration 2011 ) have been used, respectively. In addition, we have used the available VHE data from HAGAR ( Shukla et al. 2012 ) for different states to approximate the flux level at those energies and not for performing SED data-fitting.

Day (MJD)	Optical	X-ray	$\gamma$-ray	VHE $\gamma$-ray
2010 February 13-15	Steward-Observatory,	Swift-XRT, -BAT	Fermi-LAT	HAGAR
(55240 to 55242)	Swift-UVOT
2010 February 16	Steward-Observatory,	Swift-XRT, -BAT	Fermi-LAT	HAGAR, TACTIC
(55243)	Swift-UVOT
2010 February 17	Steward-Observatory,	Swift-XRT, -BAT	Fermi-LAT	HAGAR, VERITAS
(55244)	Swift-UVOT

Table 2. Table 2: The list of initial input model parameters for different states. Different initial model parameters: Δ c ​ y ​ l ′ subscript superscript Δ ′ 𝑐 𝑦 𝑙 \Delta^{\prime}_{cyl} , R c ​ y ​ l ′ subscript superscript 𝑅 ′ 𝑐 𝑦 𝑙 R^{\prime}_{cyl} , q ′ superscript 𝑞 ′ q^{\prime} , B ′ superscript 𝐵 ′ B^{\prime} , γ m ​ i ​ n subscript 𝛾 𝑚 𝑖 𝑛 \gamma_{min} , and γ m ​ a ​ x subscript 𝛾 𝑚 𝑎 𝑥 \gamma_{max} are estimated from the data for different flux states, using a variability timescale of 1-day and a Doppler factor of 40, based on the prescription described in Böttcher et al. 2003 . Here, we have used the optical to X-ray spectral index of Mrk 421 for various spectral states to estimate the injection index for our electron distribution. The magnetic field and electron energy density values have been estimated according to the prescription given in Tavecchio et al. 1998 and Finke et al. 2008 , respectively.

Parameter	Symbol	Steady state	Low-flux state	Intermediate-flux state	High-flux state
Doppler factor	$D$	40	40	40	40
Slice/Jet Radius(cm)	$R_{cyl}^{\prime }$	$1.0\times {10}^{17}$	$1.0\times {10}^{17}$	$1.0\times {10}^{17}$	$1.0\times {10}^{17}$
Shell Width(cm)	${\Delta }_{cyl}^{\prime }$	$1.4\times {10}^{17}$	$1.4\times {10}^{17}$	$1.4\times {10}^{17}$	$1.4\times {10}^{17}$
Equipartition parameter (${10}^3$)	$e_B^{\prime }$	0.004	0.01	0.045	1.0
Particle Injection Index	$q^{\prime }$	2.65	2.6	2.35	2.15
Magnetic field (mG)	$B^{\prime }$	13	8	4	2
Minimum energy of an electron	${\gamma }_{min}^{\prime }$	$2.5\times {10}^5$	$3.5\times {10}^5$	$1.5\times {10}^6$	$2.0\times {10}^6$
Maximum energy of an electron	${\gamma }_{max}^{\prime }$	$1.3\times {10}^7$	$3.2\times {10}^7$	$9.0\times {10}^7$	$1.1\times {10}^8$
Variability timescale (s)	$t_{var}^{\ast }$	1-day	1-day	1-day	1-day

Table 3. Table 3: The successful model parameters for different days of the flaring episode. A detailed descripton of the comparisons is presented in §4.

Parameter	Symbol	Steady state	Low-flux state	Intermediate-flux state	High-flux State
Kinetic Luminosity (erg/s)	$L_w$	$2.6\times {10}^{45}$	$4.2\times {10}^{45}$	$9.5\times {10}^{45}$	$9.8\times {10}^{45}$
Doppler Factor	$D$	40	40	40	44.0
Bulk Lorentz Factor	${\Gamma }_{sh}^{\prime }$	28	28	28	40.0
Magnetic Field (mG)	$B^{\prime }$	89	64	60	26
Total shell Width (in cm)	${\Delta }_{cyl}^{\prime }$	$1.1\times {10}^{17}$	$1.1\times {10}^{17}$	$1.1\times {10}^{17}$	$1.1\times {10}^{17}$
Equipartition parameter (${10}^3$)	$e_B^{\prime }$	0.18	0.28	1	5.6
Fraction of accelerated electrons (${10}^{-3}$)	${\zeta }_e^{\prime }$	37	4.5	4.5	3.7
Min. energy of an electron	${\gamma }_{min}^{\prime }$	$4.4\times {10}^2$	$1.2\times {10}^3$	$1.1\times {10}^3$	$1.2\times {10}^3$
Max. energy of an electron	${\gamma }_{max}^{\prime }$	$3.1\times {10}^5$	$4.0\times {10}^5$	$7.1\times {10}^5$	$9.5\times {10}^5$
Particle Injection Index	$q^{\prime }$	2.1	2.01	1.86	1.75
Zone(/Jet) Radius (in cm)	$R_{cyl}^{\prime }$	$1.25\times {10}^{17}$	$1.25\times {10}^{17}$	$1.25\times {10}^{17}$	$1.25\times {10}^{17}$
Observing Angle(deg)	${\theta }_{obs}^{\ast }$	1.3	1.3	1.3	1.3

Equations

$$\gamma_{min(/max)}^{new}=\gamma_{min(/max)}^{old}-{\dot{\gamma}}\big{|}_{min(/max)}dt$$

$$\frac{\partial n_{e}(\gamma,t)}{\partial t}=-\frac{\partial}{\partial t}\bigg{[}{\bigg{(}{\derivative{Q}{t}}\bigg{)}}_{loss}n_{e}(\gamma,t)\bigg{]}+Q_{e}(\gamma,t)-\dfrac{n_{e}(\gamma,t)}{t_{e,esc}}$$

$$\frac{\partial n_{ph}(ϵ,t)}{\partial t}={\dot{n}}_{ph,em}(ϵ,t)-{\dot{n}}_{ph,abs}(ϵ,t)-\frac{n_{ph}(ϵ,t)}{t_{ph,esc}}$$

Full text

††pagerange: Time dependent spectral modeling of Markarian 421 during a violent outburst in 2010–LABEL:lastpage

1 Introduction

Blazars are considered as among the most violently variable objects in the entire electromagnetic spectrum in the universe, explained by emission beamed along the line of sight by relativistic jets of high-energy plasma (Blandford & Königl 1979). Variability, on time scales of months to hours (and in some cases down to minutes), is a common phenomenon for these objects, and is pervasive throughout the electromagnetic spectrum. The spectral energy distribution (SED) of a blazar shows a double hump structure. Based on the position of the peak of the first hump, these objects are characterized into four different classes: LBL (low-frequency peaked BL Lacertae (BL Lac) object) peaking in the infrared to optical regime, IBL (intermediate-frequency peaked BL Lac objects) peaking at optical- near-UV frequencies, HBL (high-frequency peaked BL Lac objects) peaking at X-ray energies, and FSRQs (flat-spectrum radio quasars) peaking in the infrared regime and exhibiting strong emission lines in their optical spectrum (Padovani & Giommi 1995; Sambruna et al. 1996; Marscher 1980; Konigl 1981; Ghisellini et al. 1985; Boettcher 2012).

The origin of the double hump structure of the SED of blazars can be explained by leptonic and/or hadronic models. According to these models, the first hump is a result of synchrotron radiation of primary electrons accelerated to relativistic energies in the emission region. On the other hand, the production of the second hump changes, depending on the model that is being used to explain its origin. In the case of a hadronic model, if relativistic protons are present in the jet of a blazar and have energies above the interaction threshold, then the second hump is a result of interactions between accelerated protons & electron-positron pair cascades and synchrotron photons responsible for the low-energy hump (Mücke & Protheroe 2001; Mücke et al. 2003a; Boettcher 2010). However, under a leptonic scenario, the high-energy hump is a result of inverse Compton (IC) scattering of an internal and/or external photon field by primary electrons. If the internal photon field, which is the synchrotron radiation in the emission region, is involved in IC scattering, then the resultant emission is known as synchrotron self-Compton (SSC) (e.g., Bloom & Marscher 1996). On the other hand, if an external photon field is involved, then the corresponding emission is called external Compton (EC). The sources of this external photon field could be the photons from the accretion disk (Dermer et al. 1992; Dermer & Schlickeiser 1993), or the broad line region (BLR) and/or the dusty torus (Ghisellini et al. 1998; Joshi et al. 2014; Sikora et al. 1994).

Mrk 421 is among the best studied BL Lac objects at all wavelengths. Rapid flux variations ($\sim$ minutes to hours) have been detected from the source by a number of instruments (see Gaidos et al. 1996). The broad-band SED of the source has been measured in great detail by most of the current generation instruments at a number of epochs. At TeV energies, the source has displayed many high-flux states (Acciari et al. 2014). It was detected in a flaring state by the Whipple telescope in 1995 (Macomb et al. 1995). These authors reported the first ever quasi-simultaneous multi-waveband observations of this source. The event was characterized by a quiescent or a steady flux at optical and 100 MeV-GeV regimes while the source varied strongly at X-ray and TeV energies. In 1997, another flaring event was observed, where the highest flux state was detected by Whipple telescope to be around ten times that of the Crab Nebula above 500 GeV (McEnery et al. 1997; Zweerink et al. 1997). An outburst with a flux level of 13 Crab units (above 380 GeV) and high variability of the source was reported in 2001 by Whipple (Krennrich et al. 2002), where the flux state remained high from January to May 2001. Another big flaring event was reported by Whipple ($>$ 400 GeV) (Swordy 2008) and VERITAS ($>$ 300 GeV) (Acciari et al. 2011) in a 2003-2004 campaign, where the flux reached 10 Crab units. Similarly, in X-rays the source has displayed many outbursts. An orphan flaring event (X-ray flares with no VHE counterpart) was reported in 2003-2004 campaign by Fraija et al. 2015. The source showed another violent outburst in 2006 in X-rays, where the measured flux reached $\sim$ 85 milli-Crab (mCrab) in the energy range of 2-10 keV (Tramacere 2009; Ushio et al. 2009). The peak of the synchrotron hump appeared beyond 10 keV for this flaring event. Super-AGILE, operational in the hard X-rays, reported a flare on 2008 June 10 (Pittori et al. 2008). However, the strongest hard X-ray flare reported by MAXI (Monitor of ALL-sky X-ray Image) was in February 2010, where the flux went up to $\sim$ 164 $\pm$ 17 mCrab (Isobe et al. 2010; Isobe et al. 2015). This is the largest X-ray flare ever reported for this source (Niinuma et al. 2012). In addition, it was followed by very bright VHE $\gamma$-ray emission ($\sim$ 10 Crab) (Ong, R. A. 2010, ATel, 2443, 1).

In this paper, we focus on analyzing the spectral states of Mrk 421 that were observed in February 2010, during which the blazar was found to be in one of the brightest states in both X-ray and TeV energies (Galante & VERITAS Collaboration 2011; Shukla et al. 2012; Singh et al. 2015; Bartoli et al. 2016; Tluczykont 2011). Such flaring events offer a unique possibility of understanding the role of particle acceleration along with the temporal evolution of the source from a low- to a high-flux state. A similar but low magnitude ($\sim$ 2 Crab flux above 200 GeV) flare was detected with unprecedented multi-wavelength (MWL) data coverage during March 2010 (Aleksić et al. 2015a). Through this study, we aim to constrain the role of intrinsic parameters and understand the physical processes in Mrk 421 responsible for producing different flux states during the giant outburst of February 2010. We reproduce a total of three spectral states observed over a period of five consecutive days, from 13-17 February 2010, using a multi-zone time-dependent leptonic jet model with radiation feedback (Joshi & Böttcher 2011). These days include a representative (a) low-flux state (from 2010 February 13-15), (b) intermediate-flux state (2010 February 16), and (c) high-flux state (2010 February 17). In order to establish a baseline for the nature of relevant physical parameters for the source and facilitate the comparison of parameters between the three spectral states, we also reproduce an averaged emission state of Mrk 421. This emission, which we term as the steady state (SS), is reported in Abdo et al. 2011 and has been obtained by averaging the flux of Mrk 421 over a period of 4.5 months when the source was found in a relatively quiescent state.

We have used a cosmology with $\Omega_{m}$ = 0.3, $\Omega_{\Lambda}$ = 0.7, and $H_{0}$ = 70 $km$ $s^{-1}$ $Mpc^{-1}$. In this cosmology, for a redshift of $z$ = 0.031, the luminosity distance of Mrk 421 is $dL$ = 136 $Mpc$.

The paper is organized as follows: we discuss our data collection and source activity during this period in §2. We describe the model in §3. The key findings are discussed in §4 . Finally, we summarize the results and discuss future possibilities for probing the physics of Mrk 421 in §5.

2 Data collection:

Several collaborations like VERITAS (Galante & VERITAS Collaboration 2011), TACTIC (Singh et al. 2015; Chandra et al. 2012), HAGAR (Shukla et al. 2012, ARGO-YBJ (Bartoli et al. 2016), and H.E.S.S. (Tluczykont 2011) reported that Mrk 421 underwent a huge flare in TeV and X-ray energies in February 2010, exhibiting rapid changes in flux and spectral index from 2010 February 13 (MJD 55240) to 17 (MJD 55244). Figure 1 shows the SEDs for the three spectral states under consideration, along with the SS data of Mrk 421 (Abdo et al. 2011). As discussed below, the low-flux state uses X-ray data from Shukla et al. 2012, which is 3-day averaged data from 2010 February 13-15. Since Mrk 421 did not show any significant variation in X-rays over this time period, we consider this averaged emission to be representative of a low-flux state over a 24-hour period. As can be seen from Figure 1, the low-flux state is different from SS in its flux and spectral hardness for both X-ray and $\gamma$-ray bands. This implies that the low-flux state represents the beginning of the flare in Mrk 421 that culminated in a high-flux state on 2010 February 17 in those bands. In addition, the source exhibited significant spectral variability in both X-ray and TeV regimes during intermediate- and high-flux states. However, the same level of variability was not observed at optical and GeV energies during that time. The source was reported to be found in the highest flux and hardest spectral state on 2010 February 17 by both VERITAS and HAGAR in the VHE band (Galante & VERITAS Collaboration 2011; Shukla et al. 2012), and the flaring activity was also prominent in soft and hard X-rays (Shukla et al. 2012). In this section, we summarize our multi-wavelength data collection.

2.1 Optical and Ultraviolet data:

We have used the optical data for Mrk 421 from Steward observatory. The data was collected in V band using 2.3 m Bok telescope on Kitt Peak, Arizona. The data was reduced based on the procedure described in Smith et al. 2009. In addition, we have collected the optical and ultraviolet (UV) data for Mrk 421 from the UVOT telescope (Roming et al. 2005) on board Swift observatory. Details on data reduction procedure are provided in Williamson et al. 2014. The UVOT data used for 2010 February 15 and 16 are from V-band, Swift-UVW1, -UVW2, and -UVM2 filters. Data used for SED construction on 2010 February 17 are from V-band, UVW2, and UVM2 filters. As described in Williamson et al. 2014, all our data has been corrected for dereddening and host galaxy contribution. The dereddened magnitudes for Swift and ground-based observations have been converted to fluxes based on the details given in the paper.

2.2 X-ray Data:

MAXI (operational in 2 to 20 KeV), Swift-XRT (operational in 0.3 to 10 KeV) and Swift-BAT (operational in 20 to 60 KeV) observed this giant flaring activity in the soft and hard X-rays (Shukla et al. 2012; Singh et al. 2015). Both papers reported that the flux measured by the four instruments (RXTE-ASM [1.5-12 keV], -PCA [2-20 keV]; & Swift-XRT [0.5-2 KeV], -BAT [15-50 keV]) showed an increase by at least a factor of 4 within a period of two days as the source evolved from a low-flux to a high-flux state. The activity in the hard X-ray band can be seen in light curves (LCs) presented in Shukla et al. 2012 from MAXI and Swift-BAT, which makes this event exceptional. The corresponding evolution of the synchrotron peak position in the observed SEDs can be seen in the inset of Figure 1. As the peak position of the synchrotron component evolves from the low to the high-flux state, the slope of the line joining the optical to X-ray data changes, indicating spectral hardening in the X-ray regime during that time period. The inset of Figure 1 shows the change in slope of the line joining the optical and X-ray data for different flux states.

2.3 High Energy $\gamma$-ray data from Fermi-LAT:

Fermi-LAT (Atwood et al. 2009) is a pair conversion telescope, with a field of view (FoV) of above 2 sr, operating in the energy range from 20 MeV to 300 GeV. It is the most sensitive instrument available in this energy range (Ackermann et al. 2012). A few months after the launch in June 2008, Fermi-LAT started to operate in all sky survey mode. The telescope scans the whole sky in 3 hours (Atwood et al. 2009). For this paper we have analyzed the Pass8111https://fermi.gsfc.nasa.gov/ssc/data/analysis/documentation

/Pass8_usage.html data from 2010 February 13 to 17. We analyzed the data for Mrk 421 using the latest Fermi Science Tool222 https://fermi.gsfc.nasa.gov/ssc/data/analysis/software/ software package version v10r0p5. In order to determine the flux and the spectrum of the source, maximum likelihood optimization has been used (Abdo et al. 2009). The data selection and quality checks have been made using the gtselect tool333https://fermi.gsfc.nasa.gov/ssc/data/analysis/scitools

/likelihood_tutorial.html. Since the telescope is sensitive to $\gamma$-rays from the interactions of cosmic rays with the ambient matter, we set our maximum zenith angle at 105 degrees to remove the background $\gamma$-ray events from Earth’s limb. The analysis included all photons from a circular region of 10 degrees around Mrk 421, which we call the region of interest (ROI). Only photons of energy above 100 MeV were considered for further analysis. The latest LAT instrument response function (IRF) “P8R2_SOURCE_V6” has been used. The third Fermi-LAT catalog (3FGL catalog: Acero et al. 2015) has been used to include the contributions of sources inside the ROI. The spectral model of the source has been considered as a simple power law of the form $dN(E)/dE=N_{0}(E/E_{0})^{-\Gamma_{ph}}$, where $N_{0}$ is called the prefactor, $\Gamma_{ph}$ is the index, and $E_{0}$ is the scale in energy. The spectral parameters of the sources including Mrk 421 inside the ROI are kept free, whereas the spectral parameters of the sources beyond 10 degrees from Mrk 421 are kept fixed to the values according to the 3FGL catalog. The unbinned likelihood444https://fermi.gsfc.nasa.gov/ssc/data/analysis/scitools

/likelihood_tutorial.html method has been used in order to estimate the detection significance of the sources. The test statistics parameter determined from the aforementioned method is given by $TS=2\Delta log(L)$, where L denotes the likelihood function between the model with the source and without the source. According to the definition TS=9 corresponds to a detection significance of $\sim 3\sigma$ (Mattox et al. 1996). All the sources with TS < 9 are excluded from the likelihood analysis. In order to model the spectrum of sources we used the latest Galactic diffuse emission model “gll_iem_v06” and the isotropic background model “iso_P8R2_SOURCE_V6_v06”. We estimated the corresponding butterfly plots for the source using the methods mentioned in the Fermi-LAT webpage555https://fermi.gsfc.nasa.gov/ssc/data/analysis/scitools

/python_tutorial.html. VERITAS observed the high-flux state of Mrk 421 for $\sim$ 6 hours. In order to obtain quasi-simultaneous data with VERITAS, we also analyzed the Fermi-LAT data for this state by taking 12 hours around the VERITAS observation period. In Figure 2(d), we show the butterfly plots for both 24 & 12 hours by closed butterfly (gray) and open butterfly with cross at the edges (blue), respectively, for the high-flux state.

2.4 Very High Energy (VHE) gamma-ray data:

Mrk 421 was detected during the flare, exhibiting different flux states above 250 GeV from 2010 February 13-17 by the HAGAR telescope array located at Hanle, India (Shukla et al. 2012). Activity of the source for these days was also reported by the TACTIC telescope (in operation at Mount Abu in Western India) above 1 TeV (Singh et al. 2015; Chandra et al. 2012). Both HAGAR and TACTIC observed Mrk 421 on 2010 February 16 and reported an enhancement in flux compared to previous days. The flux above 1 TeV observed by TACTIC on 2010 February 16 (MJD 55243.77758-55243.98686) (Singh et al. 2015) was (2.5$\pm$0.4) $\times 10^{−11}$ ${ph}$ ${cm}^{−2}$ $s^{−1}$. The brightest flux state of Mrk 421 was observed by VERITAS on 2010 February 17 (55244.3-55244.5) above 100 GeV (see Figure 1 for details). The observed flux was 8 times that of the Crab. On the same night HAGAR also reported the detection of Mrk 421 in the brightest state, showing a flux of 6-7 times that of the Crab above 250 GeV. However, TACTIC (Chandra et al. 2012) reported a lower flux on 2010 February 17 as compared to VERITAS (Galante & VERITAS Collaboration 2011) . From the MJDs quoted above it is clear that the observations were not strictly simultaneous, and hence it is highly probable that on 2010 February 17, TACTIC caught only the decaying part of the flare. For our analysis, we have corrected for attenuation of the VHE spectrum by the extragalactic background light (EBL) using the model of Domínguez et al. 2011.

2.5 Summary of MWL data:

It can be seen from the above discussion that Mrk 421 had undergone a change in flux and spectral hardness from a low-soft state to a high-hard state in a matter of 5 days from 2010 February 13-17 in X-rays, GeV and TeV $\gamma$-rays. However, in the optical band there was no significant change in flux during that time. The inset plot of Figure 1 shows that the slopes of the lines joining the optical and the X-ray spectrum in the SEDs became steeper as the flare set in during the low-flux state. This implies that the X-ray spectrum, in the 2-10 keV energy range, became harder and the synchrotron peak shifted to higher energies in the hard X-rays as the flare progressed to the high-flux state. During this progression, a quasi-linearity was also observed between 1-10 keV X-rays and $\gamma$-rays above 100 GeV (Shukla et al. 2012; Singh et al. 2015). Such strong variations in both X-ray and $\gamma$-rays and the quasi-linear correlation between the two suggests that the flare has a leptonic origin rather than a hadronic one, as no correlation between X-ray and TeV variabilities is expected under a hadronic scenario (Aharonian 2000; Mücke et al. 2003b). The details of the data used for this work are listed in Table 1. As can be seen from the inset plot in Figure 1, the synchrotron curvature decreased as the flux increased and the synchrotron peak shifted to higher energies. This variation in the shape of the synchrotron peak could be associated with statistical or stochastic acceleration mechanisms (Donnarumma & AGILE Team 2012). As discussed in §4, the prevalence of these acceleration mechanisms during the flare is further supported by the value of electron energy indices that were obtained as best fit values for reproducing the three spectral states.

3 Model description:

We have used the MUlti-ZOne with Radiation Feedback (MUZORF) model of Joshi & Böttcher 2011 to individually reproduce the three flux states and the SS of Mrk 421, as presented in §2.5, in a time-dependent manner. The model assumes a background thermal plasma of non-relativistic electrons, positrons, and protons in the jet. Two shells of plasma with different mass and velocity are assumed to be injected into the jet from the central engine that consists of a super-massive black hole (SMBH) and an accretion disk. A merged shell is formed when a faster moving inner shell ejected at a later time catches up with a slower moving outer shell ejected at an earlier time. This merged shell serves as an emission region inside which two internal shocks, a reverse shock (RS) and a forward shock (FS), are produced. In the frame of the shocked fluids, the shocks (FS/RS) travel in opposite directions from each other and the corresponding emission regions are called the forward and reverse emission regions (Joshi & Böttcher 2011). As the shocks propagate through their respective emission regions, a fraction of the internal kinetic energy of the shocked fluid that is stored in the baryons, is transferred to electrons and positrons. The particles in these regions subsequently get accelerated to relativistic and non-thermal energies due to this transfer. The fraction of the bulk kinetic energy density of the shocked fluid that gets converted into magnetic and particle energy density is quantified by their respective partition parameters, $\varepsilon^{\prime}_{B}$ and $\varepsilon^{\prime}_{e}$. The ratio of these parameters provides a first-order estimate of the equipartition parameter, $e_{B}^{\prime}$, of the model. We consider this as first-order because the time-dependence of our model makes the particle energy density evolve with time. Consequently, the equipartition parameter of our model is time-dependent. Hence, the above-mentioned ratio provides only an initial value of the equipartition parameter resulting from the model. The observed emission from the jet is a result of the energy lost by highly accelerated particles in the shocked medium. As the shocks move into their first radiating zone, they accelerate a fraction of its particle population, which subsequently loses energy via the synchrotron and SSC mechanisms and produce the observed radiation. The model takes into account Klein-Nishina effects for calculating inverse Compton emission. Throughout the paper, we consider primed quantities representing co-moving or shocked plasma frame values, starred quantities stand for the observer’s frame, and unprimed variables denote the rest frame of the host galaxy (lab frame). The cylindrical emission region is considered to have a co-moving radius $R^{\prime}_{cyl}$ with a width $\Delta^{\prime}_{cyl}$. The radiation mechanism inside the entire cylindrical emission region is mainly governed by a randomly oriented magnetic field ($B^{\prime}$) and the injected electron energy distribution (EED). The injected EED follows a simple power law ($N(E)=N_{0}E^{-q^{\prime}}$) with a single index $q^{\prime}$ and minimum and maximum electron energy distribution cutoffs represented by their corresponding Lorentz factors $\gamma^{\prime}_{min}$ $\&$ $\gamma^{\prime}_{max}$, respectively. The fraction of electrons, $\zeta^{\prime}_{e}$, that get accelerated behind the shock fronts into a power-law distribution along with $\varepsilon_{e}^{\prime}$ govern the initial value of $\gamma^{\prime}_{min}$ of the injected electron distribution. Once the shocks exit their respective zones, $\gamma^{\prime}_{min}$ $\&$ $\gamma^{\prime}_{max}$ of those zones are made to evolve with time according to the formalism:

[TABLE]

, where

$dt$ is the time step of the simulation.

The following two equations govern the dynamics of particle and photon populations inside the emission regions in a time-dependent manner (Joshi & Böttcher 2011).

[TABLE]

$\&$

[TABLE]

, where

$n_{e}(\gamma,t)$ is the lepton density inside the system

\big{(}\derivative{Q}{t}\big{)}_{loss} is the loss rate of particles

$Q_{e}(\gamma,t)$ is the sum of injection of leptons and $\gamma-\gamma$ electron-positron pair production rate .

$t_{e,esc}$ is the electron escape time scale.

${\dot{n}_{ph,em}(\epsilon,t)},{\dot{n}_{ph,abs}(\epsilon,t)}$ is the photon emission and absorption rates, respectively.

$\epsilon={h\nu}/{m_{e}c^{2}}$ is the dimensionless photon energy.

$t_{ph,esc}$ is the angle and volume averaged photon escape time scale for a cylindrical emission region.

The model addresses inhomogeneity in photon and electron density inside the emission region by dividing the emission regions into multiple zones and considering radiative transfer within each zone and in between the zones. The emission region has been split into multiple zones only along the width of the cylinder. A fraction of the resulting volume and angle averaged photon density from a zone is fed subsequently to the zones on its adjacent sides. The feedback is essentially the angle and volume averaged photon density escaping (in forward, backward and sideways directions) from a cylindrical emission region. The total photon output from a zone consists of three components: synchrotron, SSC, and forward (feed-up) & backward (feed-down) feedback received from adjacent zones. The radiation feedback scheme also lets us calculate the SSC emission accurately as compared to models with homogeneous one-zone emission regions. This is especially important for appropriately reproducing the high-energy component of TeV blazars (such as Mrk 421), in which SSC is likely an important, or even dominant, process for producing high-energy photons (Joshi & Böttcher 2011).

The cylindrical emission region is divided into 100 zones, with 50 in the forward and 50 in the reverse emission region. The steps to solve the above two equations in order to get the time averaged photon spectrum are discussed in detail in the paper mentioned above. The frequency range of $7.5\times 10^{6}$ Hz to $7.5\times 10^{29}$ Hz has been selected for carrying out the simulations. The chosen range of the EED is from 1.01 to $10^{7}$ for each simulation. Both ranges are divided into 150 grid points.

4 Results and Discussion:

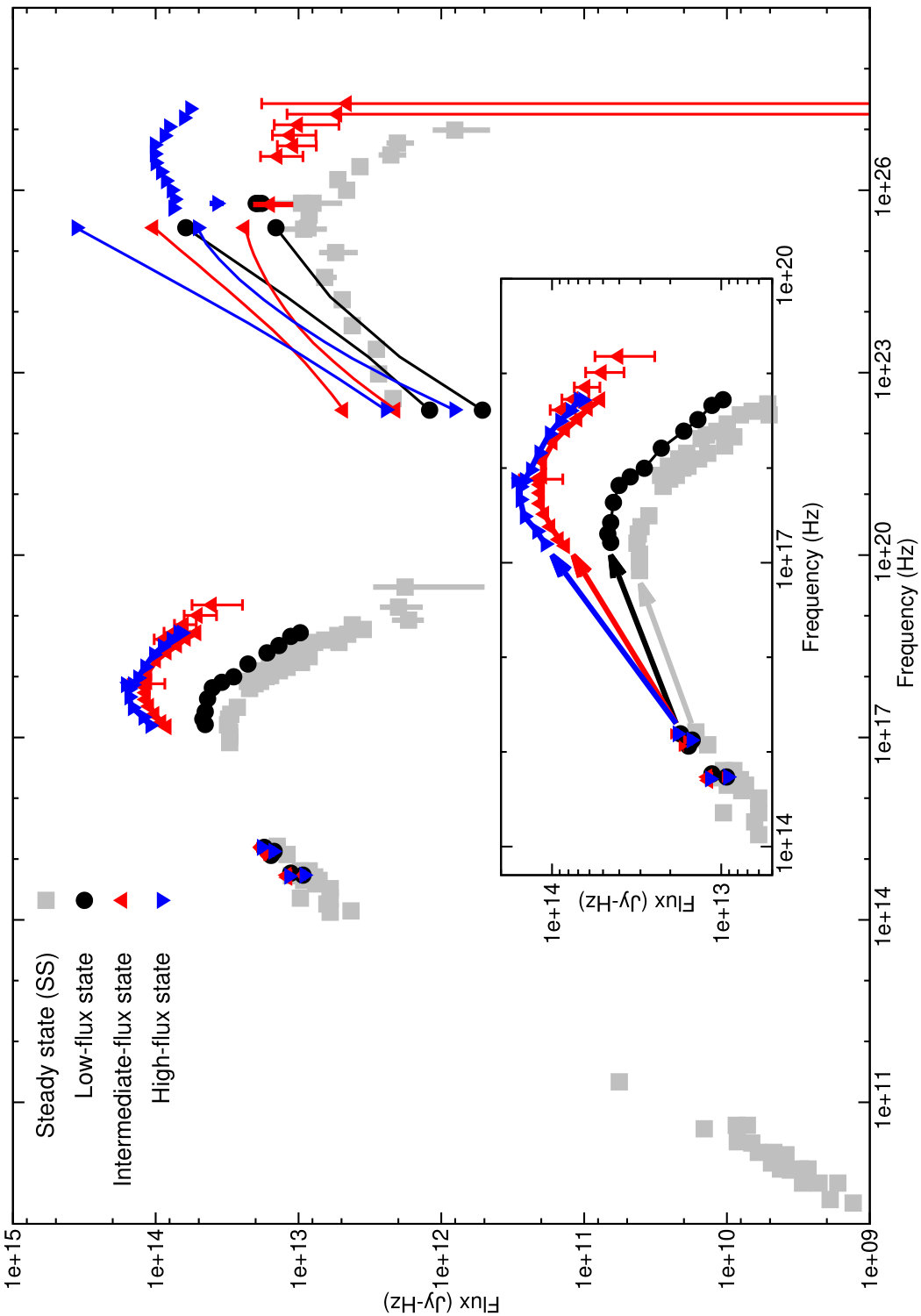

The SEDs presented in Figure 1 represent the temporal evolution of Mrk 421 over a period of 5 days from a low- to high-flux state in February 2010. In addition, a typical state of the source has been presented in the form of SS for carrying out a comparison of key physical parameters between flaring and non-flaring states and how they contribute toward the evolution of a flare in a source like Mrk 421. As can be seen from the figure, the low-flux state is different in its spectral hardness and flux level in X-rays and $\gamma$-rays as compared to that of the SS. Hence, it can be identified with an initial phase, where the flare is beginning to build up. During the course of the flaring event the source underwent significant changes in flux and spectral hardness across X-ray and $\gamma$-ray wavebands. Such a behavior allows us to study the daily evolution of the source at different energies. In order to explore the physical phenomena occurring inside the jet, we have used MUZORF to constrain the role of key physical parameters, such as the bulk kinetic luminosity, nature of the particle population, and magnetic field strength present in the system. We reproduced the SED of each of the four spectral states individually, in a time-dependent manner. The model reproduces observational signatures of blazars: instantaneous SEDs that are used to understand the dynamical evolution of radiation components and LCs that are used for deriving the time-averaged SED based on a selected time window from these variability profiles (Joshi & Böttcher 2011). It is the time-averaged SED that is used for carrying out data-fitting for each spectral state by varying key physical parameter values for that state through an iterative process. For our analysis, the parameters of the successful fit for a particular spectral state served as guiding points for carrying out fitting efforts for the next state. The model, however, is not designed to carry forward the information of physical parameters from the previous state to the next in a self-consistent manner.

In order to execute our data-fitting method, we first estimated some model-independent parameters for each spectral state using the data from their respective SEDs (Böttcher et al. 2003; Tavecchio et al. 1998). We have considered a minimum variability timescale ($t^{*}_{var}$) of the order of 1 day. This is justified because a flux doubling time scale of $\sim 1$ day can be seen at GeV, X-ray, and TeV energies from the multi-wavelength LCs for this time period (Shukla et al. 2012). The variability timescale of the blazar allows us to put a constraint on the length of the cylindrical emission region. This gives us, $\Delta^{\prime}_{cyl}$ = $c$ $D$ $t^{*}_{var}$/(1 + z). We can estimate the radius of the cylindrical emission region by assuming it to have the same volume as a spherical emission region of radius $\Delta^{\prime}_{cyl}$. In that case, $(4/3)$ $\pi$ $\Delta^{\prime 3}_{cyl}$ = $\pi$ $R^{\prime 2}$ $\Delta^{\prime}_{cyl}$. The value of $R^{\prime}$ can be estimated as, $(2/\sqrt{3})$ $\Delta^{\prime}_{cyl}$. Considering $t_{var}$ as 1-day and Doppler factor as 40, the values for the width of the emission region and radius of the emission region turns out to be $\sim$ $1.4\times 10^{17}cm$ & $\sim$ $1.0\times 10^{17}cm$, respectively. We note that our chosen value of Doppler factor is higher than the typical value of $\sim$ 21 that is used for Mrk 421 (Abdo et al. 2011) but is not uncommon for what has been previously used for this source to satisfactorily reproduce its TeV data (Chen et al. 2011). A lower value of Doppler factor results in a SSC peak at lower energies and a softer TeV spectrum that is not in accordance with our observed data for the three states. Hence, we initialize the Doppler factor to a slightly higher value of 40. The derived set of model-independent parameters is presented in Table 2. These parameters served as initial input parameters for simulating the spectral states and were modified to obtain the successful fits for each of the states. These parameters were estimated based on the identification of the peak flux and frequencies of the two SED bumps, spectral indices below and above the synchrotron peak, variability timescale of the observations, and the Doppler factor of the source (Tavecchio et al. 1998). Since the observed data may not always allow a precise determination of these observables, the subsequent model-independent parameter estimates may not be that accurate and may not necessarily provide a good spectral fit. Nevertheless, for modeling efforts they can still be used as reasonable starting points and the values of key physical parameters can be adjusted in subsequent runs to obtain a satisfactory spectral fit of a given spectral state.

Close to one-thousand simulations were carried out in which we changed the value of key parameters iteratively. We obtained a set of suitable parameters through this iterative process and chose successful models by visual inspection. As can be seen from Figure 2, this set of suitable parameters reproduces the observed data quite successfully. The parameters that have been varied are the following: kinetic luminosity ($L_{w}$); inner and outer shell bulk Lorentz factors (BLF : $\Gamma^{\prime}_{i(0)}$); inner and outer shell widths ($\Delta^{\prime}_{i(o)}$); electron energy distribution parameter ($\varepsilon^{\prime}_{e}$); magnetic field ($B^{\prime}$); fraction of accelerated electrons ($\zeta^{\prime}_{e}$); electron injection index ($q^{\prime}$); zone(/jet) radius ($R^{\prime}_{cyl}$). Among all the other parameters listed above, the kinetic luminosity ($L_{w}$), width ($\Delta^{\prime}_{cyl}$) & radius ($R_{cyl}^{\prime}$) of the emission region, and the electron injection index ($q^{\prime}$) have the maximum impact on the values of the magnetic field ($B^{\prime}$), $\gamma_{min}^{\prime}$, and $\gamma_{max}^{\prime}$.

We consider the mass of the SMBH to be $M=2\times 10^{8}$ $M_{\odot}$ (Abdo et al. 2011; $M_{\odot}$: 1 solar mass) which predicts the Eddington luminosity as $2.6\times 10^{46}$ erg/s. The values for the kinetic luminosity obtained from the model fit (see Table 3) for all the spectral states are lower than the value mentioned above, implying that the states are sub-Eddington. Figure 2 shows the result of our SED modeling for the four states considered here. The low-flux, intermediate, and high-flux states are shown in panels (a), (c) and (d) respectively. In panel (b), we show a comparison of the SED of the low-flux state with the SS of the source. As can be seen from various panels in the figure, the resultant time-averaged SEDs reproduce these spectral states satisfactorily.

The successful model parameters for all spectral states are presented in Table 3. As can be seen from Table 2, the values of the initial input parameter set do not match the values obtained from successful fits of the four spectral states. However, the pattern of the values of the magnetic field strength, the equipartition parameter, and the particle injection does so. The values of these parameters in Table 3 hint toward the existence of a general trend in the role of key physical parameters during the evolution of the flare over a period of three days. As the flare sets into the system during the low-flux state and then evolves into the high-flux state, the kinetic luminosity that is injected into the system increases while the magnetic field strength and the fraction of accelerated electrons decrease. This happens because as the flare evolves and higher energy bands become brighter and harder, the corresponding synchrotron component needs to be suppressed sufficiently for the SSC component to rise up and attain its highest flux level in the high-flux state. This is further supported by an increased bulk speed of the emission region for the high-flux state and a more energetic population of particles with a harder distribution.

We note that the values of beaming parameters obtained in Table 3 are fully consistent with the results of an independent study, not based on SED modeling, performed on probing the X-ray signature of recollimation shocks in Hervet et al. 2019. The authors found the width of the emitting region (in the plasma frame) to lie within $0.43-19\times 10^{17}$ cm, which is also in agreement with the value of total shell width listed in Table 3.

The successful fits for the four spectral states result in a particle injection index value that varies from $q\textquoteright$ = 2.2 to 1.8. In general, relativistic shocks (with their shock normal parallel to the jet axis) are expected to produce a particle distribution with 2.2 < $q\textquoteright$ < 2.3 (Achterberg et al. 2001; Gallant & Achterberg 1999) through the Fermi first-order acceleration mechanism. On the other hand, indices with $q\textquoteright$ < 2.0 could be produced from stochastic acceleration in resonance with plasma wave turbulence behind the relativistic shock front (Vainio et al. 2004; Virtanen & Vainio 2005). This implies that typically it is Fermi first order that is prevalent as the dominant acceleration mechanism in Mrk 421. However during the onset of a flare and course of its evolution, the dominant acceleration mechanism, within the shock model, changes from Fermi first to second order or stochastic acceleration. From Table 3, one can also see that successful model parameters indicate a departure from equipartition for all spectral states and a matter-dominated jet. This kind of a departure has previously been seen for Mrk 421 (Sinha et al. 2016; Shukla et al. 2012). For our case, this implies that the shocks are mediated by the acceleration of particles and resulting in the energy density of the particles to be much higher than that of the field.

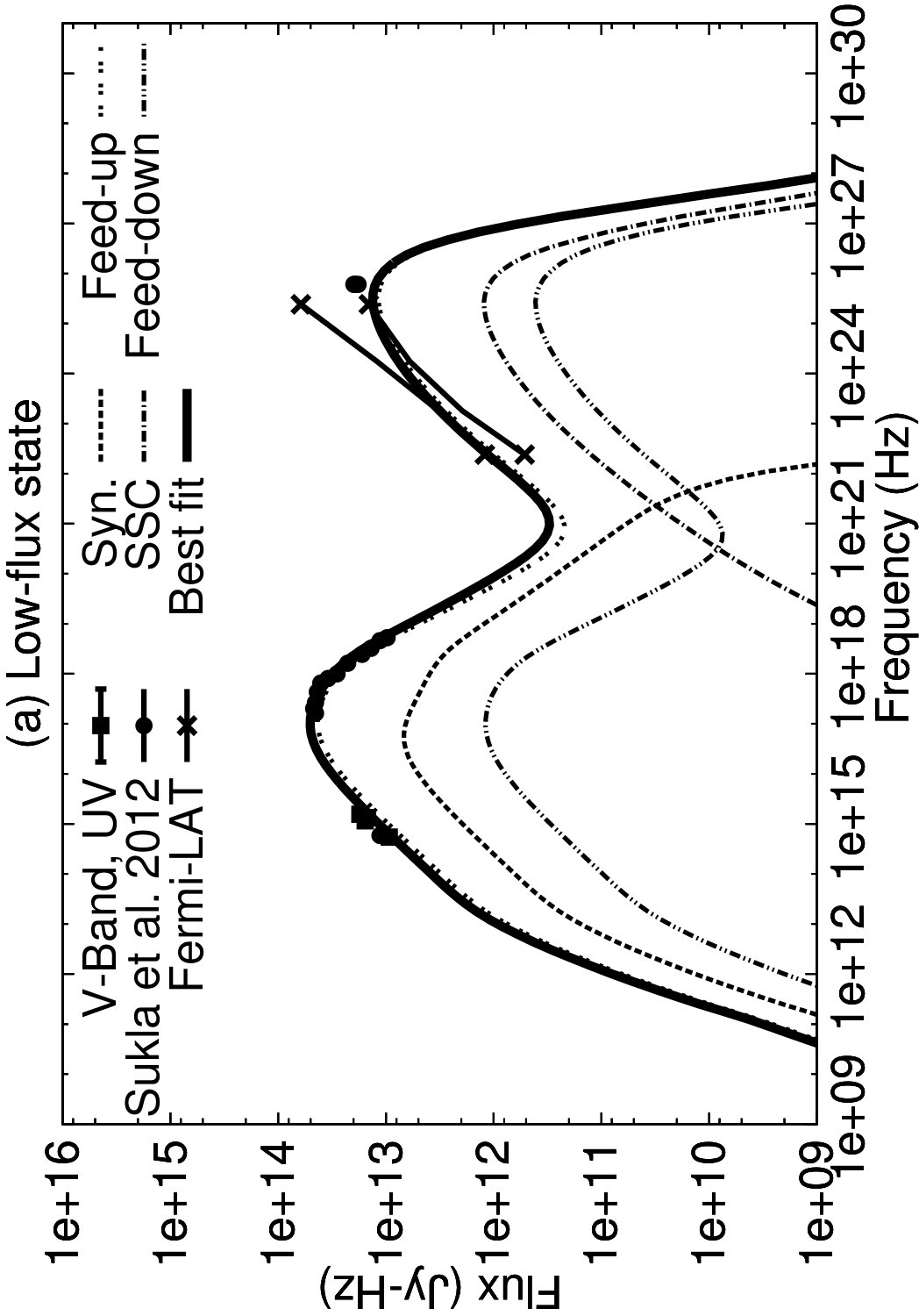

In the resultant time-averaged SED (Figure 2(a)) for the low-flux state, the synchrotron hump peaks in the soft X-ray at $\nu^{*}_{syn}$ = $1\times 10^{17}$ Hz. The frequency at which we observe the SSC peak is at $\nu^{*}_{SSC}$= $1.5\times 10^{25}Hz$. The spectral upturn can be seen at around $\nu^{*}_{turn}=3.5\times 10^{20}$ Hz. This is the frequency above which the spectrum becomes SSC dominated. The position of the spectral upturn indicates that the synchrotron photons extend into hard X-rays. Figure 2(a) shows that the optical R-band and 1 keV photons are purely synchrotron dominated while the radiation at 10 keV is mostly produced due to synchrotron emission with small contributions from SSC. On the other hand, photons at energies 1 GeV, 500 GeV, and 2 TeV are purely SSC-dominated. The Compton dominance factor (CD), defined as the ratio of the peak flux of SSC hump ($\nu F_{\nu}^{*SSC,peak}$) to that of the synchrotron hump ($\nu F_{\nu}^{*Syn.,peak})$ for this simulation is ($\nu F_{\nu}^{*SSC,peak}$/$\nu F_{\nu}^{*Syn.,peak}$=) 0.29. Figure 2(b) shows a comparison between the models for SS and the low-flux state. As can be seen from the figure, the synchrotron and SSC peaks for the SS appear at almost the same frequencies as that of the low-flux state. However, the overall flux level is slightly less compared to the low-flux state (see Figure 2(b)). In order to reproduce a lower SSC contribution in the SED of SS, a slightly higher value of $B^{{}^{\prime}}$ is required in accordance with the general trend of key parameters.

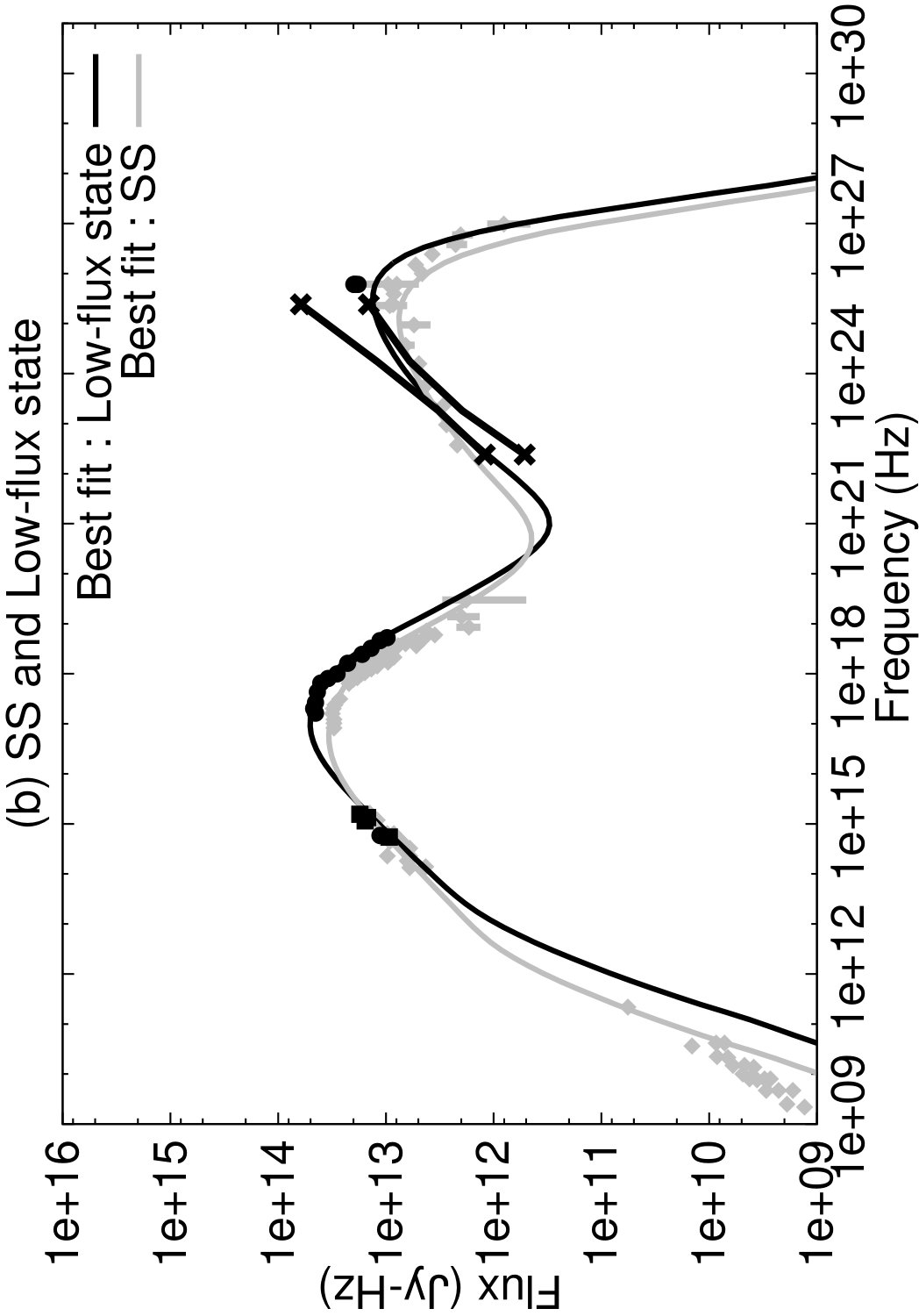

The model parameters (shown in Table 3) for the successful SEDs for SS and the low-flux state support our assumption that the low-flux state carries signatures of the initial phase of the flare.

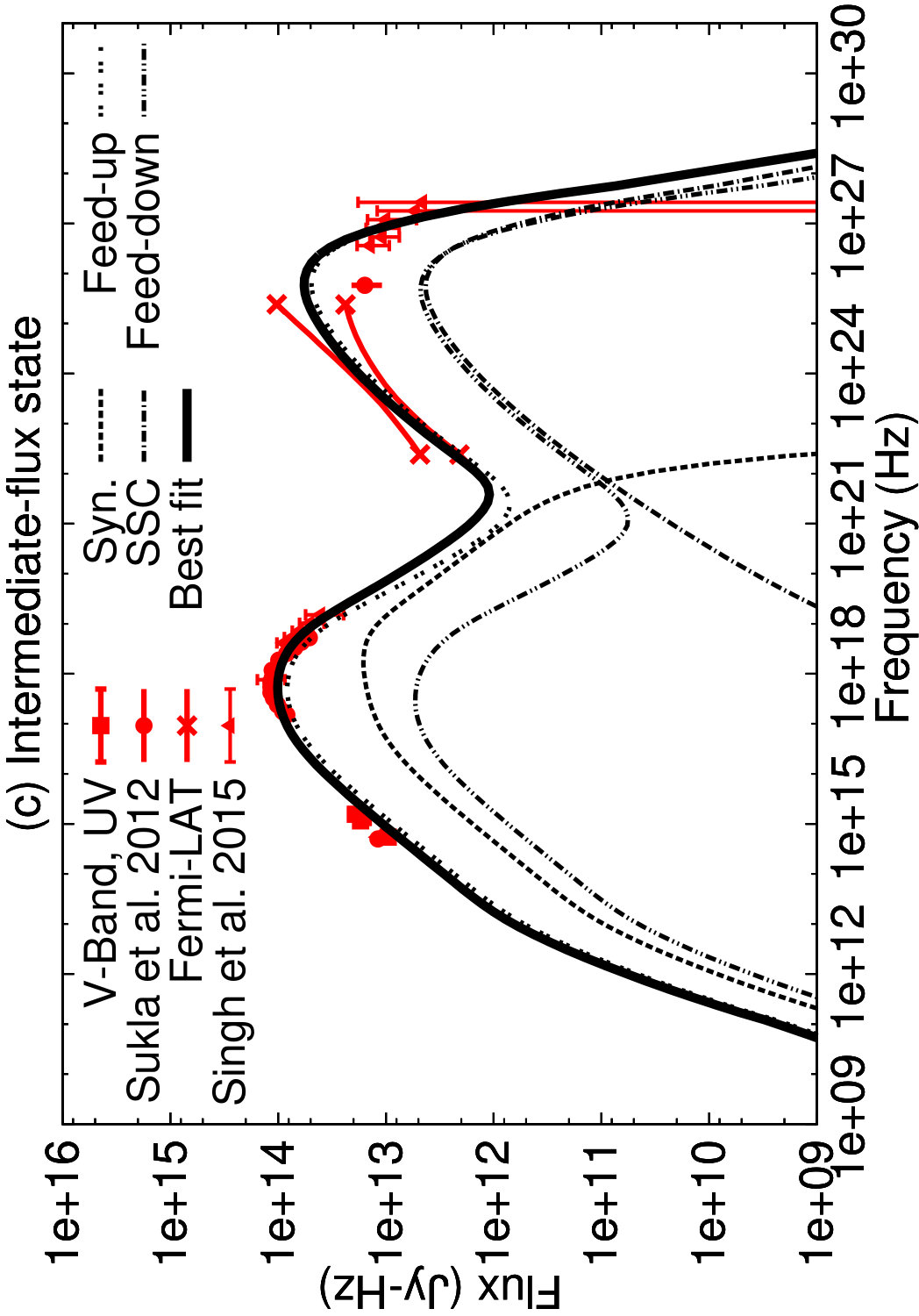

The SED that closely fits the data of the intermediate-flux state is shown in Figure 2(c) and the corresponding model parameters are given in Table 3. In order to fit the SED corresponding to this spectral state, we decreased the value of $B^{\prime}$, which increased $\gamma^{\prime}_{max}$ and the Compton dominance of the system. In order to correct for this effect on the overall SED, we increased the value of $L_{w}$ and also decreased the value of $q^{\prime}$, which resulted in bringing the flux of both synchrotron and SSC components to the right level. We note that our model for the intermediate- and high-flux states overproduce the HAGAR data points located at $\sim$ 250 GeV. In the absence of any data from imaging telescopes, HAGAR data point was used as a guide to approximate the flux level at those gamma-ray energies and was not meant to be used for performing data fitting. This is because HAGAR uses wave-front sampling technique666http://www.tifr.res.in/$\sim$hagar/telescopes$\_$details.html that is known to have systematic uncertainties in the estimation of flux much larger than that of the imaging telescopes operating at TeV energies, such as VERITAS and TACTIC.

The source was observed in the brightest state with highest $\gamma$-ray flux on 2010 February 17. The successful model for this SED is shown in Figure 2(d) and values of the corresponding key physical parameters are listed in Table 3. For this day the SSC component peaked at around 2 TeV. This SSC peak position is at a relatively higher energy as compared to other days and is indicative of spectral hardening of the source in this energy regime. The CD for the high-flux state is 0.85, indicating an increase in the peak of the SSC component as compared to the low-flux state. The magnetic field value has been decreased further to 26 mG in order to obtain a particle population with a slightly higher $\gamma_{max}^{\prime}$ in comparison to its low-flux state counterpart. In addition, a higher value of $\Gamma^{\prime}_{sh}$ and therefore $D$ shift the SED toward higher energies. An even harder value of $q^{\prime}$ = 1.75 has been used to obtain the successful model for this state as compared to other states under consideration. The recession of $q^{\prime}$ to lower values, as the source evolves from a low-flux state to the brightest state, imply an interplay of Fermi first- and second-order acceleration mechanisms. Such an interplay along with contribution from shear acceleration has been suggested to energize particles to higher energies (Rieger & Duffy 2004).

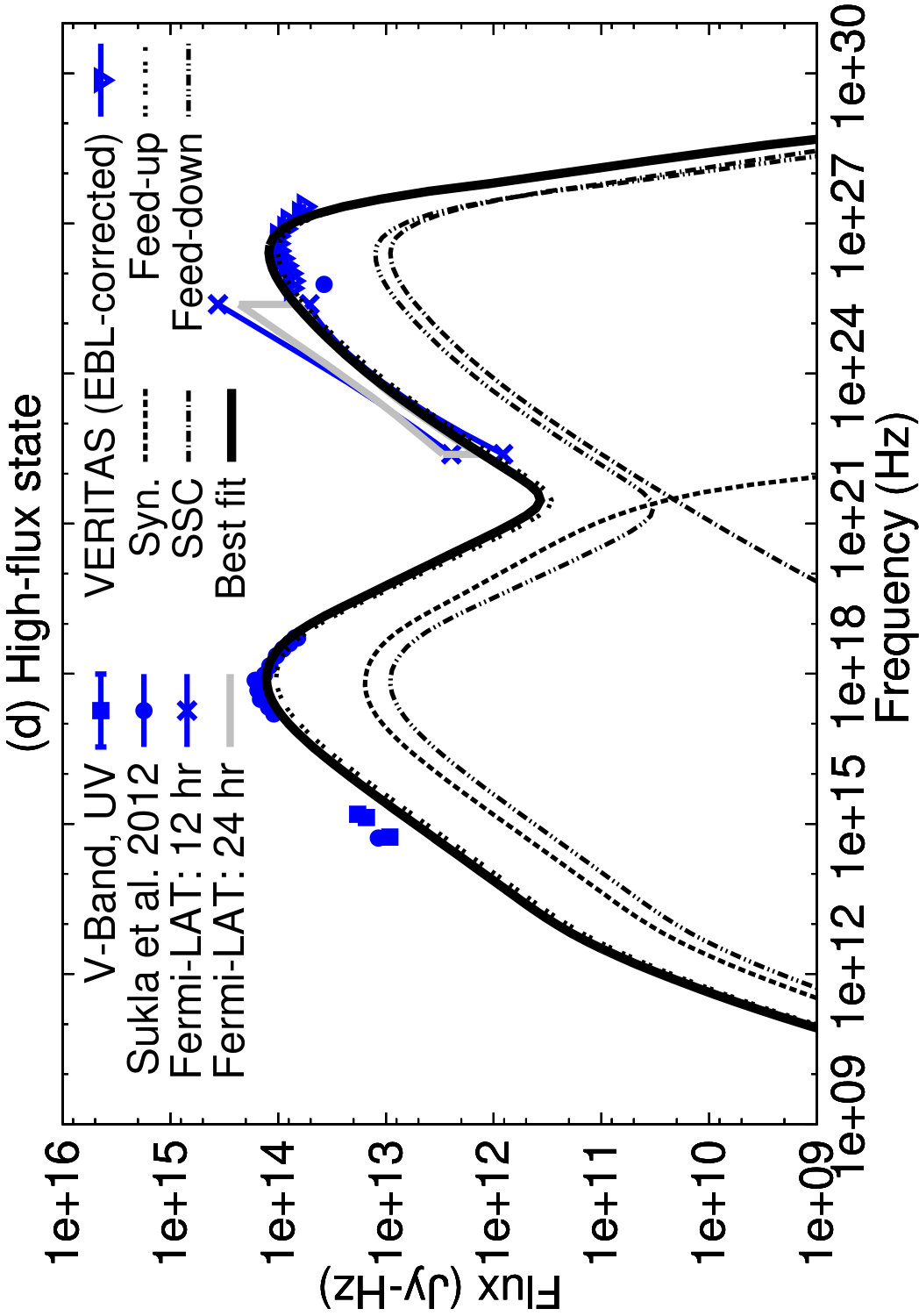

As can be seen from Figure 2(d), the overall optical flux for the high-flux state is slightly under-produced. This is mainly because as we go from low- to high-flux state, we need lower magnetic field in order to fit the observed SSC component. A low magnetic field results in low synchrotron output, which is reflected in the optical region of the SED. Besides, the high-flux state is mostly devoid of low-energy electrons, as the corresponding particle population is much harder and more energetic compared to the other two states. As a result, it is not possible to reproduce optical emission for that day successfully. In addition, the source did not exhibit any variability in the optical energies over the course of this flaring event. Since the emission at optical and GeV-TeV energies are not correlated at all, it is possible that the optical emission for the high-flux state originates from a slightly larger emitting volume than what has been considered for this day.

Figure 3 shows the LC profiles of the low-flux state for six different wavebands corresponding to the successful fit shown in Figure 2(a). The LC profiles for all days have been evaluated at frequencies: R-Band [$4.68\times 10^{14}$ Hz]; 1 keV [$2.42\times 10^{16}$ Hz]; 10 keV [$2.42\times 10^{17}$ Hz]; 1 GeV [$2.42\times 10^{23}$ Hz]; 500 GeV [$1.21\times 10^{26}$ Hz] and 2 TeV [$4.84\times 10^{26}$ Hz]. We calculated LCs at these energies because most of the current generation telescopes are most sensitive in these energy bands. These are also the representative LCs for synchrotron (optical and 1 keV LCs) and SSC (2 TeV LC) components for typical HBLs, such as Mrk 421. All the different LCs are characterized by different flux rise times (time scale associated with flux reaching the peak value) and flux decay times (time scale associated with flux decaying from the peak value). In order to calculate time-averaged SEDs for various spectral states appropriately, we used the corresponding simulated LCs and selected the time window of $\sim$ 90 ks in such a way that both the rising and decaying components of the LCs are properly taken into consideration (see Figure 4). The fact that the peak of the SSC component appears at $\sim$ 2 TeV for the high-flux state and a harder population of electrons is required to reproduce this feature implies that the pulse at 2 TeV now receives contribution from relatively lower energy electrons as compared to its counterparts for the other three states. As a result, the pulse decays slowly and lasts in the system for a much longer duration. In order to cover the entire flare, we have considered a time-window from 60 ks to 160 ks for the low and intermediate-flux state, whereas, for the high flux state a time-window of 65 ks to 195 ks has been selected.

As shown in the figure, the flare at 10 keV is the first to peak because it is a result of synchrotron emission from high-energy electrons. The peak positions of synchrotron-dominated flares (1 keV & R-Band) shift to later times depending on the energy of electrons responsible for producing them. The SSC-dominated flares are expected to lag behind their synchrotron counterparts. Hence, all $\gamma$-ray flares peak later. However, depending on the energy of electrons responsible for producing SSC emission at these wavebands, the high-energy SSC flares (2 TeV & 500 GeV) would peak sooner than the low-energy ones (1 GeV). This gradation in peaking times due to the difference in cooling times of high- and low-energy electrons can be easily seen in the LC profiles of the low-flux state in Figure 3. The profiles also show a strong correlation between the synchrotron-dominated R-band flare and SSC-dominated 1 GeV flare. The optical flare is a result of synchrotron emission from low-energy electrons compared to those responsible for the synchrotron emission in the X-rays. Hence, the corresponding flare peaks at a later time and lasts in the system for a longer time. In addition, a fraction of these R-band photons is also responsible for producing 1 GeV photons via the SSC mechanism through low-energy electrons. Hence, the corresponding flare is strongly correlated with the optical one. On the other hand, the 500 GeV SSC-dominated flare gets contributions from both X-ray and low-energy photons. As a result, it exhibits a mild correlation with the X-ray flare.

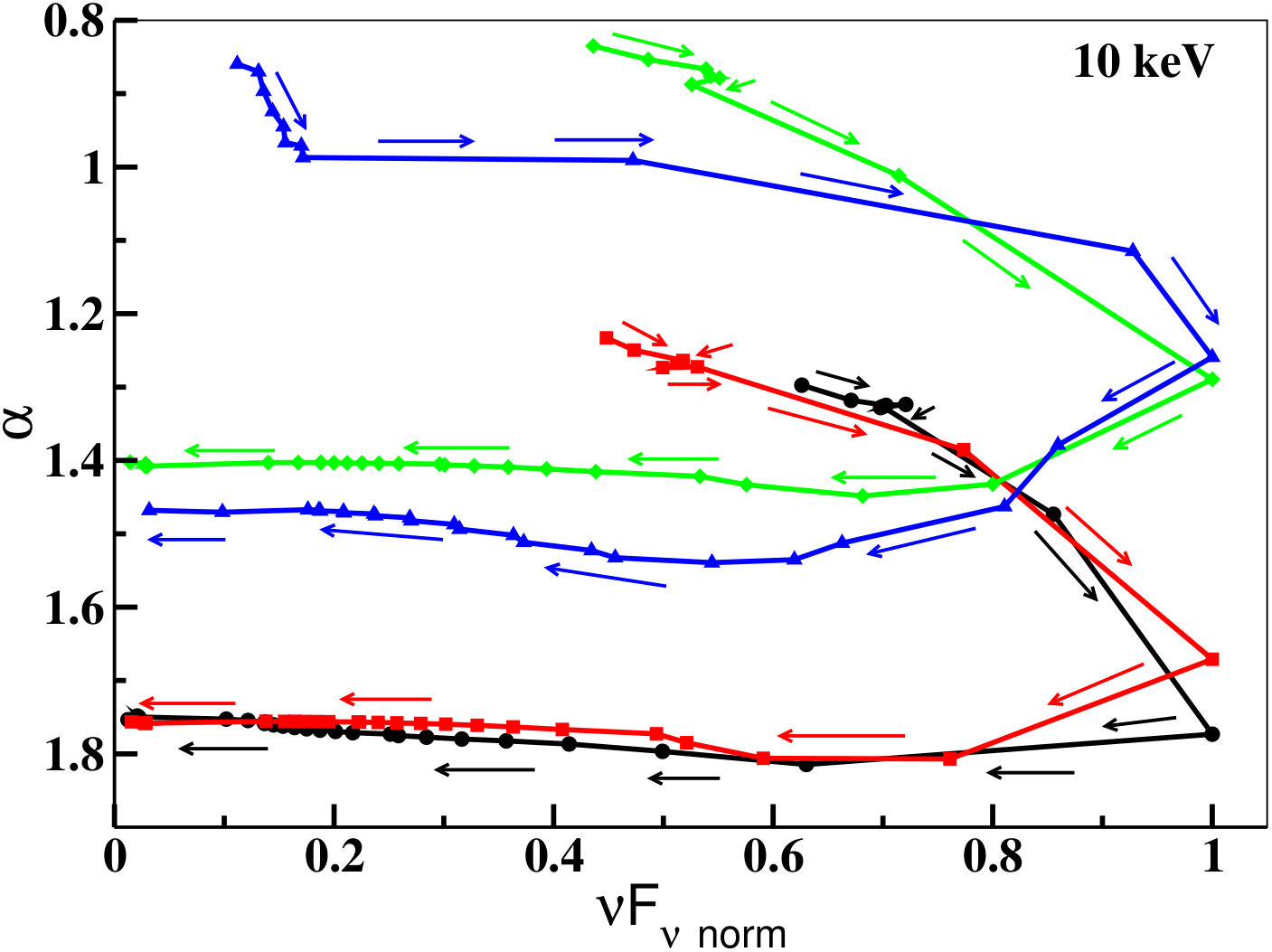

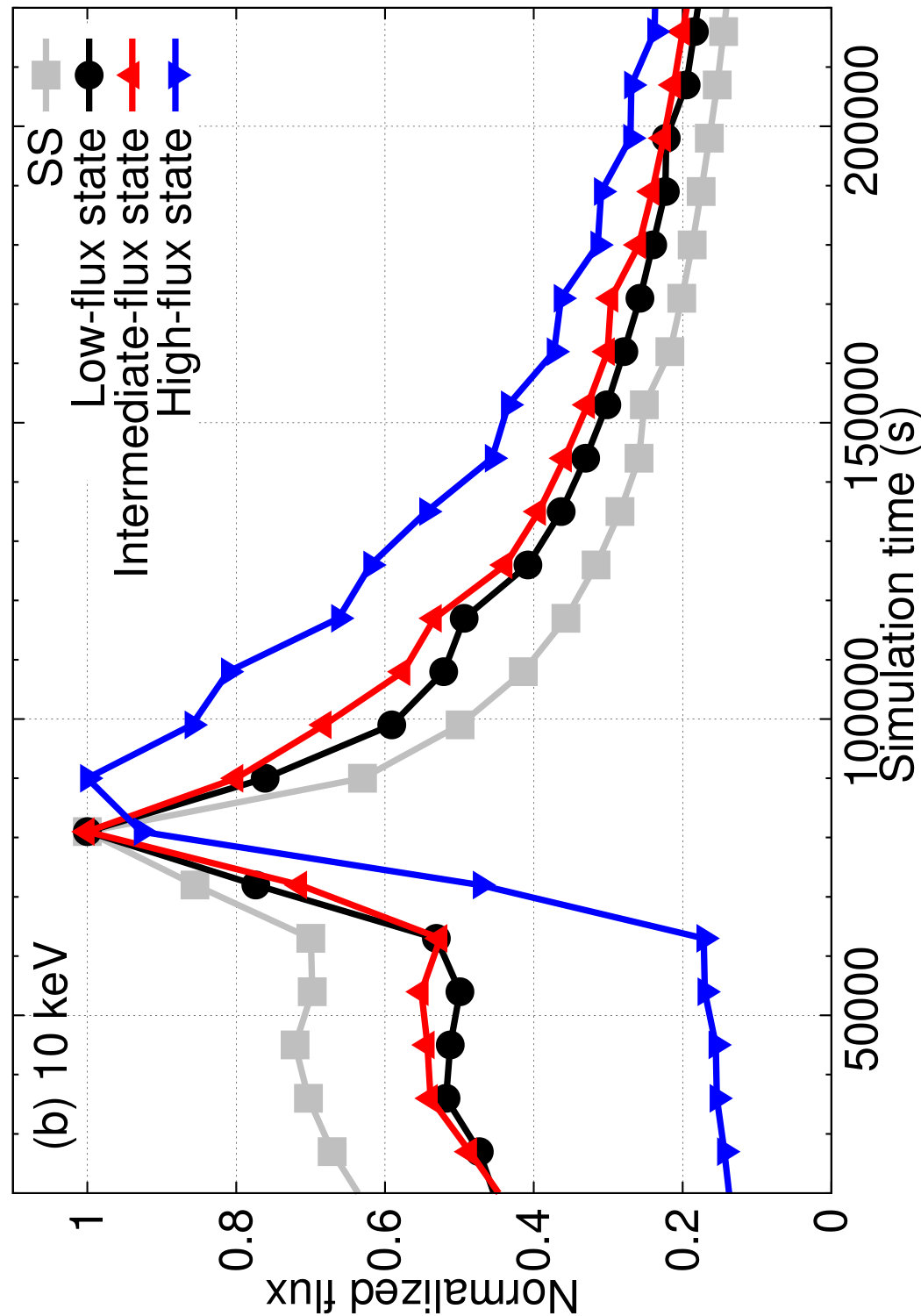

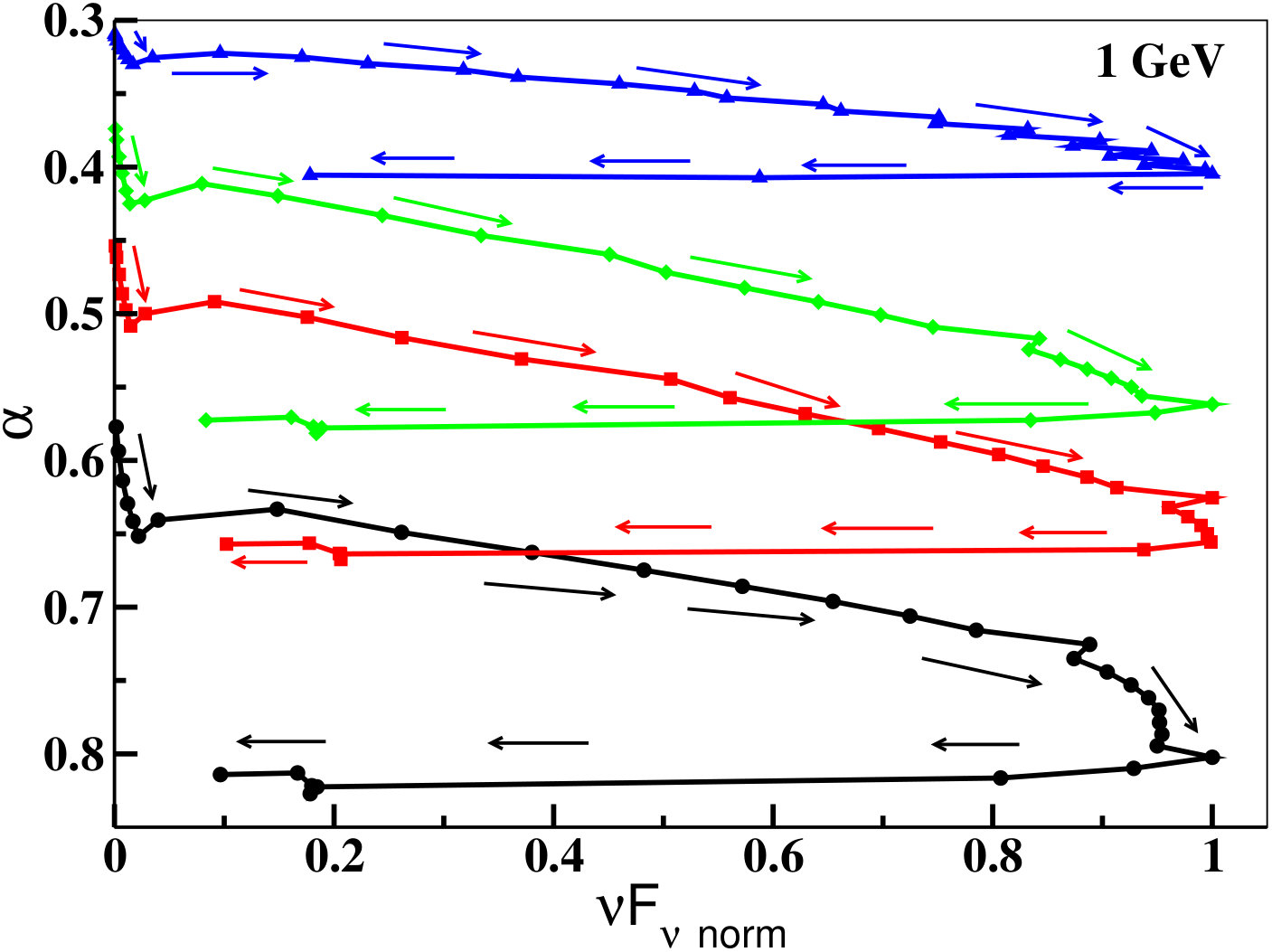

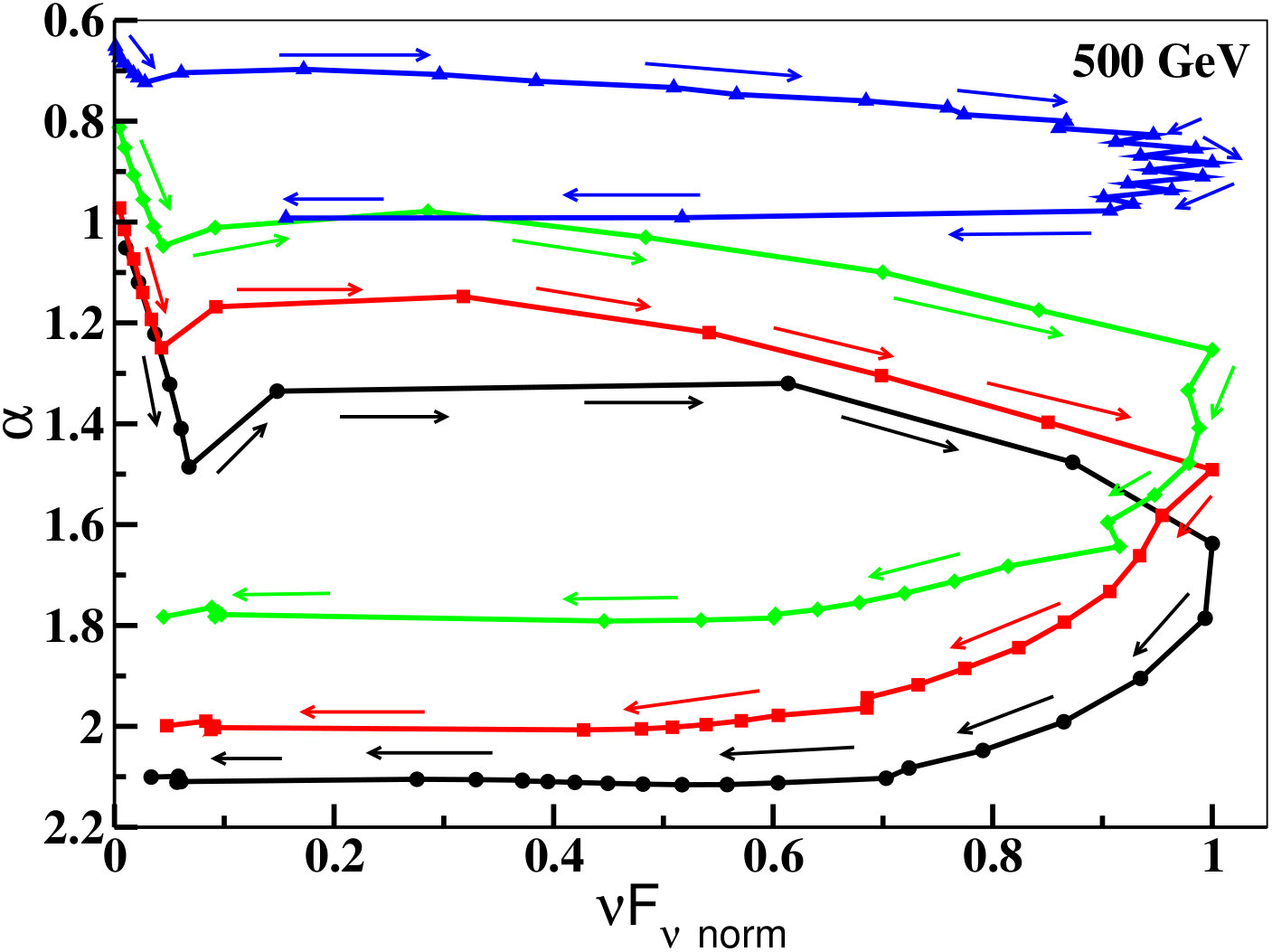

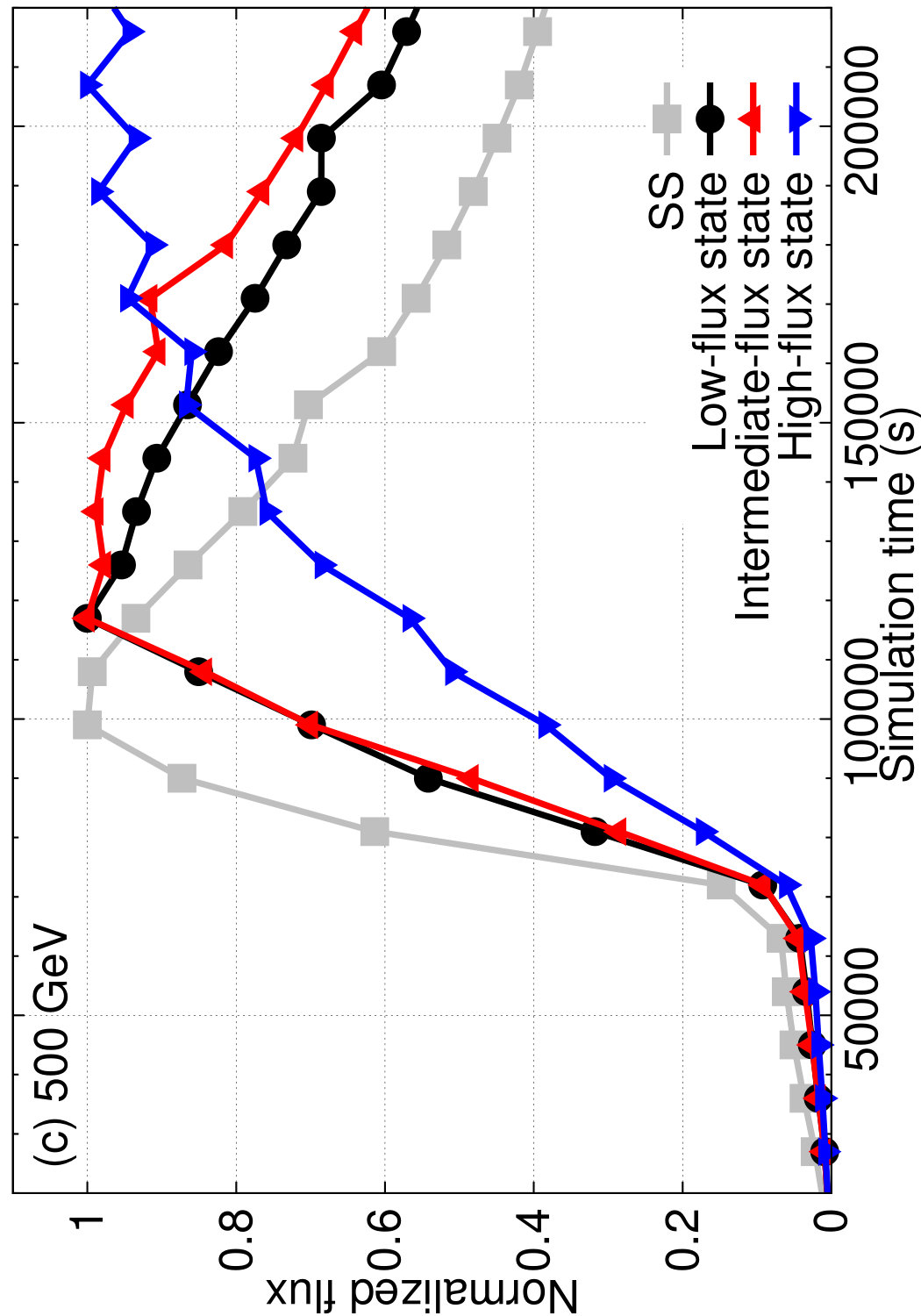

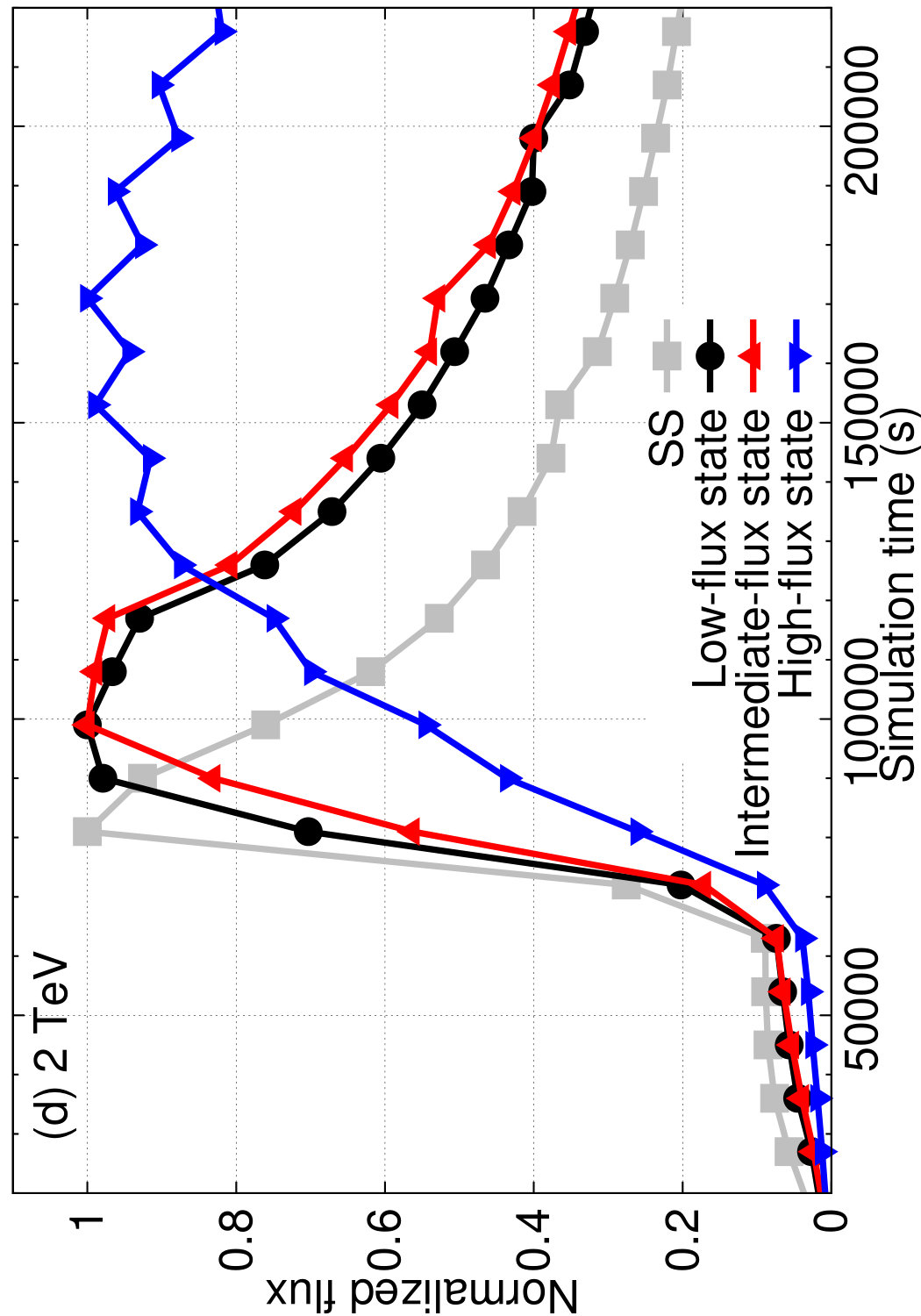

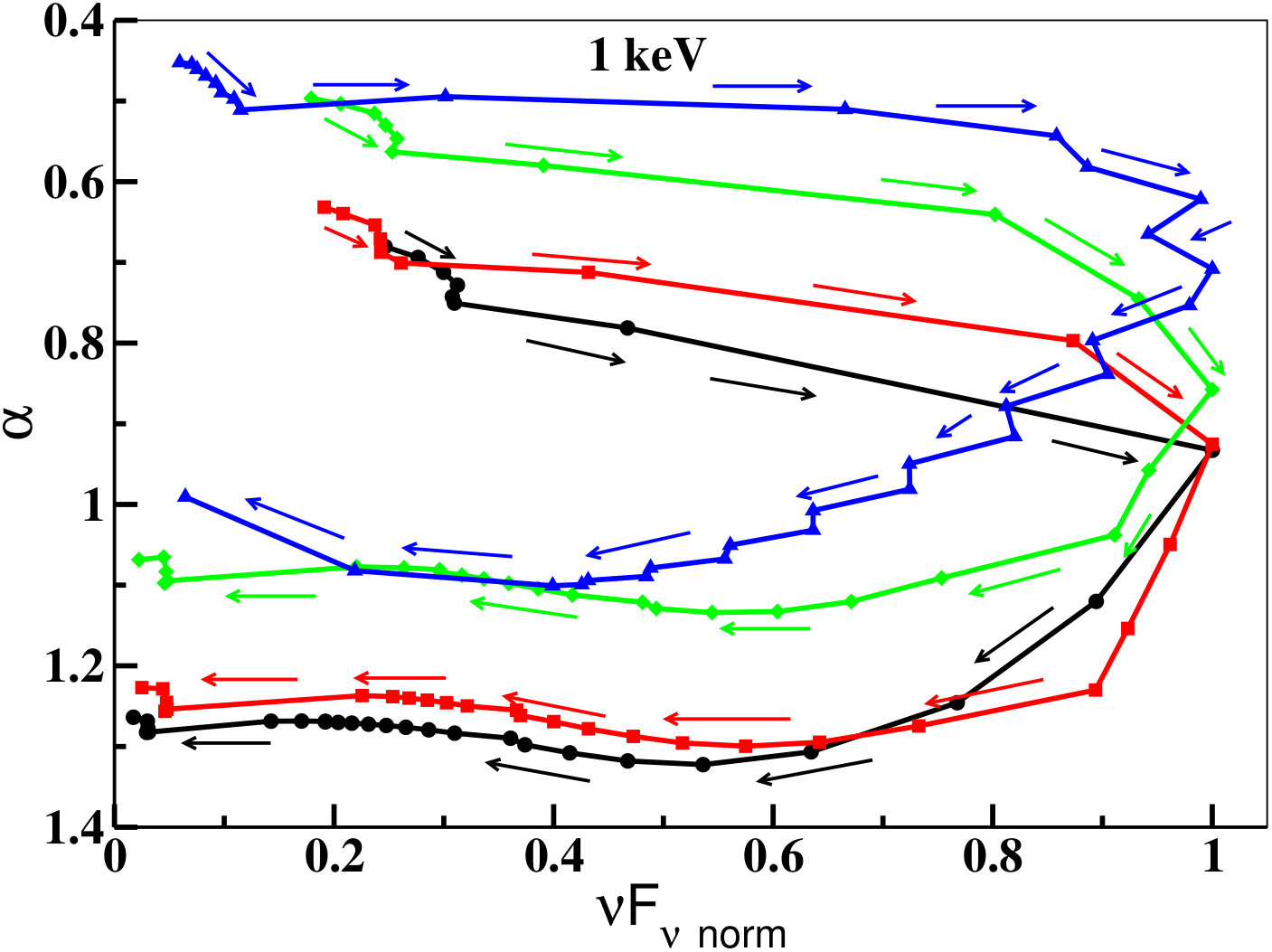

The above-mentioned behavior of flares at various energy bands was present for all days under consideration and is typical of what has been previously seen in Mrk 421. Panels a, b, c, & d of Figure 4 show a comparison of the LCs, normalized to their highest flux values, as predicted by successful models for those days at 1 keV, 10 keV, 500 GeV, & 2 TeV, respectively. The LCs at optical and 1 GeV are excluded from the figure, as these bands did not show any significant variation in their profiles during the evolution of the flare. This is also consistent with the Mrk 421 optical LC presented in Shukla et al. 2012 for this time period. Table 3 shows that the successful model for intermediate-flux state requires a higher kinetic luminosity, lower magnetic field and harder injection index as compared to that for the low-flux state. This resulted in a larger Larmor radius and a higher $\gamma_{max}\textquoteright$ for the electron population, which led to a slightly longer decay time scale for corresponding pulses at all energy bands (see Figure 4). For the high-flux state of Mrk 421, the LC profiles are characterized by an even longer rise and decay time for pulses at all energies. In this case, the best fit SED was obtained using a higher value of $\Gamma^{{}^{\prime}}_{sh}$ and a much harder spectral index compared to that of the low- and intermediate-flux states. Hence, the location of synchrotron and SSC peak frequencies shifted to higher values at 1 keV and 2 TeV, respectively. Since a relatively harder population of electrons is involved in producing the emission at 2 TeV compared to the other two days, the flare at 2 TeV lasts for a longer time and decays very gradually, as shown in Figure 4(d). Figure 5 shows the spectral evolution of the source with flux for various spectral states during the evolution of the flare. As can be seen, for all spectral states the source exhibits a clockwise pattern. This implies a soft lag and rapid variability at higher frequencies than at lower ones. It happens because higher energy electrons cool faster than the lower energy ones and the information about particle injection propagates from higher to lower energies through the electron population. This results in a characteristic clockwise loop because the injection is faster than the cooling. The loop depicts the manner in which the information on particle injection travels through the electron population at certain frequencies (Kirk et al. 1998). Such clockwise patterns have previously been observed in Mrk 421 (Tramacere et al. 2009; Takahashi et al. 1996), and other sources, such as OJ 287 (Gear et al. 1986), and PKS 2155-304 (Sembay et al. 1993). This also implies that the evolution of the radiating particles is cooling dominated, as can be seen from the LCs in Figure 4 and has been previously reported by Singh et al. 2012, for this time period. However, the spectral evolution at 10 keV for SS, low-flux, and intermediate-flux states exhibits a brief counter-clockwise pattern before returning back to the clockwise pattern. This indicates a brief instant of acceleration and cooling timescales of particles becoming almost equal while producing 10 keV photons. As a result, there is a momentary decrease in the flux at 10 keV accompanied by spectral softening before the pulse at 10 keV returns to its original clockwise behavior.

5 Conclusions:

In this work, we carried out extensive simulations to study the spectral energy distributions of Mrk 421 during an outburst in mid-February 2010. During this period the source showed intense flux variations as it underwent a change from the low-flux state (2010 February 13-15) to an intermediate-flux state (observed on 2010 February 16) to a high-flux state (observed on 2010 February 17). In order to perform this study, we analyzed the optical/UV and GeV data and collected X-ray and TeV data from the literature for this period. Neecessary steps have been taken to correct for dereddening and host galaxy contribution for optical-UV data. In addition, we compared the data for the low-flux state with a steady state of the source, which is an average of the emission over a period of 4.5 months. We used a time-dependent leptonic jet model in the internal shock scenario (MUZORF) to reproduce the above mentioned spectral states of Mrk 421. This allowed us to study the origin of variability on a daily basis and the role of intrinsic parameters in shaping the spectral states of the source. We note that the successful models are not unique reproductions of the observed data. Nevertheless, they provide a well-constrained parameter space for the values of key physical parameters, which was extracted using nearly simultaneous data from optical to VHE $\gamma$-rays using ground- and space-based facilities. Our findings can be summarized as following:

(i) The key physical parameters that govern the flaring activity in Mrk 421 for the time period under consideration are the kinetic luminosity injected into the system that increases as the flare rises up, magnetic field strength that decreases during this evolution while the source departs progressively from equipartition, energy index of the particle population that becomes harder, and the energy cutoffs of the particle population that increase with the rising of the flare. This type of a trend in the evolution of certain parameters could be taken as the general recipe of driving a multi-waveband flare in SSC-dominated sources. In addition, a change of particle acceleration mechanism, within the shock model scenario, from Fermi first order to stochastic during the evolution of the flare might be required for driving such events in TeV blazars. However, we note that Fermi first-order mechanism under relativistic magnetic reconnection scenario has been suggested to produce flat electron energy spectra (Guo et al. 2014).

(ii) The low-flux state exhibited slightly different spectral features compared to SS and was identified with the onset of the flare. As the source evolved from a low- to a high-flux state it exhibited a "harder when brighter" behavior, which is common for Mrk 421.

(iii) A leptonic time-dependent synchrotron-SSC model with multi-slice scheme successfully reproduces all the above-mentioned spectral states of Mrk 421. As also pointed out in Macomb et al. 1995, the hadronic model falls short of explaining the variability behavior (strong variability in X-ray & TeV energy regimes but absence of that in the optical and MeV- few-Gev regimes) observed in Mrk 421 during this time period. On the other hand, MUZORF successfully explains this behavior, as also demonstrated in simulated LCs of the source (see Figure 4), without invoking high-energy budget requirements associated with accelerating relativistic hadrons. However, it does not carry forward the information of one spectral state to the next and reproduces each of the states individually.

(iv) A simple power-law and an inhomogeneous emission region has been used to reproduce the spectral states during this flaring event. This is in contrast to some previous studies of this source, which mostly used a broken power-law and either a single homogeneous emission region or two disjointed emitting volumes in the jet (Shukla et al. 2012; Singh et al. 2015; Abdo et al. 2011; Aleksić et al. 2015b; Bartoli et al. 2016; Carnerero et al. 2017). This could imply that inhomogeneous emission regions give a better agreement with the observed data without invoking complicated distributions of particle population. However, we note that a particle population following a log-parabolic distribution gives an even better agreement with the broadband SED of Mrk 421 for such flaring events. This is because such distributions are a natural consequence of stochastic particle acceleration and reproduce the behavior of particle populations more accurately than a simple power-law distribution (Massaro et al. 2006; Kardashev 1962; Dermer et al. 2014).

(v) The successful model for the high-flux state is characterized by a harder electron energy index with electron population distributed at higher frequencies, higher Doppler factor, and low magnetic field values. A low magnetic field takes care of the required high-flux level of the SSC component observed that day and at the same time suppresses the synchrotron component. The successful model indicates that such "harder when brighter" spectral states are successfully reproduced by a set of parameters instead of a single physical parameter.

(vi) As shown in Figure 1, the observed data exhibits no variability in the optical, mild variability in the Fermi-GeV regime, and significant variability at X-rays and TeV energies for this time period. This is supported by the LC realizations of our successful models of different spectral states (see Figure 4). The LC profiles of both optical and GeV energies peak later compared to X-ray and TeV flares for all days because relatively low-energy electrons are involved in their production via synchrotron and SSC processes, respectively. Hence, these flares peak later and decay gradually compared to their X-ray and TeV counterparts.

(vii) The flare at 2 TeV is produced via the SSC mechanism. As a result, it peaks later compared to its synchrotron-dominated X-ray flares and decays gradually. However, for the high-flux state the flare exhibits a further spectral hardening and a shifting of the peak of the SSC component to the 2 TeV energy regime. As a result, the flare lasts for longer and decays much more gradually compared to 2 TeV flares at other days.

(viii) Due to the fact that the flaring episode could not be observed with high temporal resolution, the simulated LCs can not be validated with the observed LCs. A night-long simultaneous data set (like the campaign described in Baloković et al. 2016) with variability signatures might provide further scope to validate the model predictions.
