Contrasting the magnetism in La$_{2-x}$Sr$_x$FeCoO$_6$ ($x$ = 0, 1, 2) double perovskites: the role of electronic and cationic disorder

TL;DR

This study compares the magnetic properties of La$_{2-x}$Sr$_x$FeCoO$_6$ double perovskites, revealing how electronic and cationic disorder influence the transition from long-range antiferromagnetism to short-range glassy magnetism.

Contribution

It provides a comprehensive experimental and computational analysis of how disorder and electronic structure affect magnetism in La$_{2-x}$Sr$_x$FeCoO$_6$ compounds, highlighting the role of electronic degrees of freedom.

Findings

La$_2$FeCoO$_6$ is a long-range ordered antiferromagnet with a transition at 270 K.

Replacing La with Sr induces a transition to short-range glassy magnetism.

Density functional theory shows La$_2$FeCoO$_6$ is insulating, while Sr-doped variants are metallic.

Abstract

The magnetism of the double perovskite compounds \SLFCOx\ ($x$ = 0, 1, 2) are contrasted using magnetization, neutron diffraction and electron paramagnetic resonance with the support from density functional theory calculations. \LFCO\ is identified as a long-range ordered antiferromagnet displaying a near-room temperature transition at $T_N$ = 270~K, accompanied by a low temperature structural phase transition at $T_S$ = 200~K. The structural phase transformation at $T_S$ occurs from $R\overline{3}c$ at 300~K to $Pnma$ at 200~K. The density functional theory calculations support an insulating non-compensated AFM structure. The long-range ordered magnetism of \LFCO\ transforms to short-range glassy magnetism as La is replaced with Sr in the other two compounds. The magnetism of \LFCO\ is differentiated from the non-equilibrium glassy features of \SFCO\ and \SLFCO\ using the {\em cooling-and-heating-in-unequal-fields} (CHUF) magnetization protocols. This contransting magnetism in the \SLFCOx\ series is evidenced in electron paramegnetic resonance studies. The electronic density-of-states estimated using the density functional theory calculations contrast the insulating feature of \LFCO\ from the metallic nature of \SFCO. From the present suite of experimental and computational results on \SLFCOx, it emerges that the electronic degrees of freedom, along with antisite disorder, play an important role in controlling the magnetism observed in double perovskites.

Figures

Tables

Table 1. Table 1: The atomic coordinates and lattice parameters of La 2 FeCoO 6  at 300 K and 1.5 K in R ​ 3 ¯ ​ c 𝑅 ¯ 3 𝑐 R\overline{3}c and P ​ n ​ m ​ a 𝑃 𝑛 𝑚 𝑎 Pnma space groups respectively. The structural phase transition to P ​ n ​ m ​ a 𝑃 𝑛 𝑚 𝑎 Pnma occurs at T S ≈ subscript 𝑇 𝑆 absent T_{S}\approx 200 K. The lattice parameters at 300 K (for R ​ 3 ¯ ​ c 𝑅 ¯ 3 𝑐 R\overline{3}c ) are a 𝑎 a = 5.4935(2) (Å), c 𝑐 c = 13.2343(2) (Å) and at 1.5 K (for P ​ n ​ m ​ a 𝑃 𝑛 𝑚 𝑎 Pnma ) are a 𝑎 a = 5.4379(5) (Å), b 𝑏 b = 7.7055(6) (Å) and c 𝑐 c = 5.4886(3) (Å). W 𝑊 W stands for Wyckoff position. The goodness-of-fit are χ 2 superscript 𝜒 2 \chi^{2} (300 K) = 2.1 and χ 2 superscript 𝜒 2 \chi^{2} (1.5 K) = 2.

300 K	$W.$	$x$	$y$	$z$
La	$6a$	0	0	0.25
Fe	$6b$	0	0	0
Co	$6b$	0	0	0
O	$18e$	0	0.4461(2)	0.25
1.5 K	$W.$	$x$	$y$	$z$
La	$4c$	0.0170(9)	0	0.25
Fe	$4b$	0	0	0.5
Co	$4b$	0	0	0.5
O1	$4c$	0.4935(6)	0.25	0.0631(7)
O2	$8d$	0.2697(6)	0.0385(3)	0.7304(2)
	300 K	1.5 K
Co-Oap	1.9541(12)	1.9577(2)
Co-Oeq		1.961(4)
Fe-Oap	1.9541(12)	1.9577(2)
Fe-Oeq		1.961(4)
$⟨$ Fe-Oap-Co $⟩$		159.30(3)
$⟨$ Fe-Oeq-Co $⟩$		160.41(12)

Table 2. Table 2: The gyromagnetic ratio, g 𝑔 g , and the linewidth, Δ ​ H pp Δ subscript 𝐻 pp \Delta H_{\mathrm{pp}} at different temperatures for La 2 FeCoO 6  (LFCO) compared with the values for the disordered counterparts, Sr 2 FeCoO 6  (SFCO) and SrLaFeCoO 6  (SLFCO).

$T$ (K)	SFCO	LFCO	SLFCO
	$g,\Delta H_{\mathrm{pp}}$ (G)	$g,\Delta H_{\mathrm{pp}}$ (G)	$g,\Delta H_{\mathrm{pp}}$ (G)
60	1.90, 4306(2)	16.07, 552(1)	2.70, 4110(4)
40	2.02, 4053(2)	20.41, –	2.65, 3741(2)
20	2.03, 4111(2)	22.02, –	2.75, 3952(2)

Full text

I Introduction

Double perovskites Sr${}_{2}BB^{\prime}$O6, where $B/B^{\prime}$ are transition metal elements, attracted attention due to the observation of large magnetoresistance in the case of $B/B^{\prime}$ = Fe/Mo Kobayashi et al. (1998); Sarma et al. (2000); Sarma (2001). The cation-ordered Sr2FeMoO6 was reported to show room temperature, low-field magnetoresistance (MR) with the striking feature of scaling of MR with the square of spin-polarization of carriers, $(M/M_{s})^{2}$, where $M_{s}$ is the saturation magnetization Kobayashi et al. (1998). This suggested the potential for spintronics and giant magnetoresistance applications in an ideally ferromagnetic double perovskite lattice, which motivated experimental studies connected to the low-field MR in Sr2FeMoO6 Sarma et al. (2000); Navarro et al. (2001). However, double perovskites prepared at high temperatures in laboratories suffer from antisite disorder on the $B/B^{\prime}$ site. This leads to the disruption of the $B^{2+}\textendash$ O $\textendash B^{\prime 4+}$ magnetic exchange paths and consequent weakening of ferromagnetism predicted by the Goodenough-Kanamori rules for an ordered cation arrangement of cations Kanamori (1959); Goodenough (1955). Antisite disorder has a strong bearing on the magnetic and the transport behaviour of the double perovskites. Significant differences in MR at low temperature (4.2 K) was reported in the case of ordered (degree of Fe/Mo ordering = 91$\%$), versus the disordered (degree of Fe/Mo ordering = 31$\%$) Sr2FeMoO6. Though the Fe/Mo-based Sr${}_{2}BB^{\prime}$O6 was studied in detail for its magnetoresistive properties, less attention was paid to the Fe/Co based Sr${}_{2}BB^{\prime}$O6 compounds which offer the possibility of tuning the structural, valence and spin-state parameters connected to the magnetic behaviour. This is particularly possible due to the presence of Co, which can adopt low-spin (LS), high-spin (HS) or intermediate-spin (IS) states depending on the valence that is stabilized in a particular double perovskite structure. The orbital degrees of freedom and consequently the spin-orbit coupling effects attain importance in this case.

It is, hence, understood that the crystallographic antisite disorder has a significant impact on the magnetism of double perovskites. Another important structural detail that has a significant bearing is the distortions of the metal-oxygen octahedra that constitute the perovskite. The ideal perovskite $AMX_{3}$ structure adopts highly symmetric cubic space group $Pm\overline{3}m$ where the $A$ cation is surrounded by 12 $X$ anions and the $M$ cation by 6 $X$ anions. The three-dimensional view of the perovskite structure is that of a corner-sharing $MX_{6}$ octahedra. Distortions, tilting or cation displacements in the octahedra lead to a deviation from the ideal cubic structure and can lead to low symmetry space groups like $P2_{1}/n$ or $I4/m$. A convenient classification of how the tilts in the perovskite structure leads to different space groups symmetries is provided by Glazer Glazer (1972). Using this system, a tilt in the octahedra is described by specifying the rotations of the octahedra about each of the three cartesian axes. The $Pm\overline{3}m$ space group belongs to the tilt system $a^{0}a^{0}a^{0}$ and the rhomboehedral space group $R\overline{3}c$, $a^{-}a^{-}a^{-}$. The rotation pattern of the orthorhombic $Pnma$ space group is determined by two tilts which are $a^{0}a^{0}a^{+}$ and $a^{-}a^{-}a^{0}$. The octahedral tilts and rotations are extremely important to single and layered perovskite compounds in bringing about novel type of ferroelectricity Benedek et al. (2012). The double perovskite compounds are generally found to the adopt random, rock salt or layered structure types depending on the degree of $B$ cation arrangement Anderson et al. (1993). Space groups $Pm\overline{3}m$ and $Pnma$ (random), $Fm\overline{3}m$, $P2_{1}/n$ (rock salt) and $P2_{1}/m$ (layered) were predicted based on this Anderson et al. (1993).

The role of cation disorder in the crystal structure and magnetism of the Sr${}_{2}BB^{\prime}$O6 compound Sr2FeCoO6 (SFCO) was investigated by some of us Pradheesh et al. (2012a). SFCO was seen to adopt the tetragonal space group $I4/m$ with the lattice parameters, $a$ = 5.4609(2) Å and $c$ = 7.7113(7) Å; which is about 2$\%$ reduced in the $a$ and $b$ compared to those of Sr2FeMoO6. The magnetic ground state is identified as a canonical spin glass with a spin freezing temperature, $T_{g}\approx$ 75 K, Pradheesh et al. (2012a) which is quite different from the ferrimagnetic ground state of Sr2FeMoO6 with a $T_{c}$ in the range 410 $\textendash$ 450 K Patterson et al. (1963). Albeit the differences in the magnetic ground state and the lattice parameters, SFCO displays large magnetoresistance of 63$\%$ at 14 K in 12 T Pradheesh et al. (2012b). Strong antisite disorder was observed in SFCO along with the presence of mixed valence states for Co. The disorder effect and mixed valence in SFCO gave rise to not only the spin glass magnetism, but also to large magnetoresistance derived from the spin scattering of the carriers localized by the magnetic moments in the spin glass state. Additionally, it also lead to the development of exchange bias Pradheesh et al. (2012c). Upon replacement of Sr with La in the case of SrLaFeCoO6(SLFCO), features of a magnetic glass were observed Pradheesh et al. (2017). The magnetization of SLFCO showed an anomaly at $T_{\mathrm{a1}}\approx$ 75 K. Despite the non-equilibrium metastable magnetic state, significant magnetoresistance of about 47$\%$ was observed in SLFCO at 5 K in 8 T Pradheesh et al. (2012b). With the addition of La, a significant change in the crystal structure was the stabilization of monoclinic space group $P2_{1}/n$. Although the monoclinic structure is amenable to perfect ordering of Fe and Co in two different Wyckoff positions $2c$ and $2d$, a high degree of disorder ($\approx$ 90$\%$) was observed in SLFCO.

The present paper extends the work on SFCO and SLFCO to the crystal structure and magnetism of La2FeCoO6 (LFCO). Using the experimental tools of magnetization, neutron diffraction and electron paramagnetic resonance (EPR) we study the structure and magnetism in LFCO and compare it with that of SFCO and SLFCO. Density functional theory (DFT) calculations on all the three compounds support our experimental findings. It is seen that LFCO develops magnetic long-range order at significantly high temperatures ($\approx$ 270 K) and subsequently undergoes a structural phase transition at 200 K. The magnetism in LFCO is opposed to that of SFCO and SLFCO, which are seen to be magnetically disordered below $\approx$ 75 K.

II Methods

II.1 Experimental techniques

Polycrystalline samples of La2FeCoO6 were prepared following sol-gel method as described in Reference [Pradheesh et al., 2012a], which explains the preparation of SFCO. For the present work, LFCO and SLFCO were prepared using a similar synthesis method. The synthesized compounds were first analyzed using powder X-ray diffraction to check phase purity and crystal structure. Magnetic measurements were carried out on pressed pellets in a Magnetic Property Measurement system SQUID Vibrating Sample Magnetometer (MPMS-SVSM) in the temperature range, 5 $\textendash$ 350 K and magnetic field $\pm$7 T. Zero field cooling (ZFC), field-cooled warming (FCW) and field cooled cooling (FCC) protocols were used to measure dc magnetization. Neutron powder diffraction experiments on LFCO and SLFCO were performed at WISH (Rutherford Appleton Laboratory, UK) Chapon et al. (2011). Roughly 8 g of well-characterized powder sample was used for each neutron experiment. The diffraction data was analyzed using Fullprof Suite of programs Rodriguez-Carvajal (2017) for Rietveld refinements and the software SARA$h$ Wills (2000) was used for the analysis of magnetic structure using representation analysis. EPR data were recorded on a Bruker EMX Plus X-band ($\approx$ 9.43 GHz) spectrometer, equipped with a high sensitivity probe head. A ColdEdgeTM ER 4112HV In-Cavity Cryo-Free VT system connected with an Oxford temperature controller was used for low temperature measurements.

II.2 Computational methods

We first present the results of the parameter-free first-principles density functional theory computations Hohenberg and Kohn (1964); Kohn and Sham (1965) to elucidate the structure and magnetism in the series of three compounds Sr2FeCoO6, SrLaFeCoO6 and La2FeCoO6. Our calculations take into account the experimental low temperature crystal structure details and hence are more reliable than the previous reports. All computations were performed for the relevant low temperature structures, obtained from our neutron experiments. All computations were performed for fixed lattice and positions. We determined electronic and magnetic properties for SFCO, SLFCO and LFCO, for fixed structure, neglecting relaxation effects of any crystallographically allowed degrees of freedom. All computations were performed with the 3D planewave software package VASP Kresse and Hafner (1993); Kresse and Furthmüller (1996a, b) with the projector-augmented wave method Blöchl (1994); Kresse and Joubert (1999) with the PBE-GGA exchange correlation functional Perdew et al. (1996) and included on-site Coulomb interactions (DFT + U) Dudarev et al. (1998). U = 5.0 eV for Fe and Co, $E_{\mathrm{cut}}$ = 400 eV and a $k$-point spacing of 0.25 were used for all computations, similar to the previous work on LFCO Fuh et al. (2015) and related compounds Wu et al. (2011); Pruneda et al. (2008); Yang et al. (1999). The $k$-point density ensured that it was sampled homogeneously across different crystal structures, facilitating a comparison of computed properties. For Sr, La, Fe, Co, and O, we considered explicitly 5$s^{2}$4$p^{6}$4$s^{2}$, 5$d^{1}$6$s^{2}$5$p^{6}$5$s^{2}$, 3$d^{6}$4$s^{1}$, 3$d^{7}$4$s^{2}$, and 2$s^{2}$2$p^{4}$ as shells in our computations, respectively. In order to explore the effect of spin-lattice coupling and the robustness of the electronic structure in the vicinity of the Fermi energy, we included spin-orbit coupling in the most stable configurations and in order to resolve better the small effects of spin-orbit coupling we used a denser $\Gamma\textendash$centered $k\textendash$point grid with a spacing of 0.15.

III Results

III.1 Density functional theory of La2-xSrxFeCoO6

III.1.1 La2FeCoO6

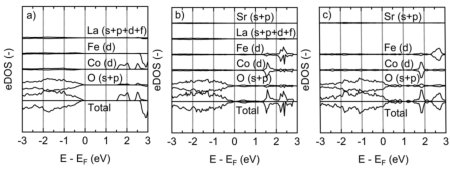

he electronic density of states (eDOS) for all the three compositions of La2-xSrxFeCoO6are presented in Fig 1. We tested the oxidation states of all three compounds with different cation distributions denoted as A, C, and G, adopting the labeling of magnetic structures in perovskites Wollan and Koehler (1955). If the two Fe ions are in the same plane perpendicular to the long axis, we refer to an A-structured arrangement (4 Fe and 2 Co nearest neighbors); if the two Fe ions are on a line parallel to the long axis, they form a C-structured arrangement (2 Fe and 4 Co nearest neighbors); if all nearest-neighbors are of opposite type, they are labeled as G-structured arrangement (0 equal and 6 non-equal neighbors).

In the case of La2FeCoO6, total energy differences between A, C, and G transition metal arrangements are less than 9.0 meV/5 atoms, consistent with strong (Fe,Co) antisite disorder. This is approximately an order of magnitude smaller in energy than computed for BaxSr1-xCoyFe1-yO3-δ, where a single (Fe,Co) exchange requires 80 meV Kuklja et al. (2012). The ground state is G-structure and insulating. The computed magnetic structure corresponds to non-compensated AFM with site projected magnetic moments of +4.2, +4.2, -3.1, -3.1 $\mu_{\mathrm{B}}$, for Fe and Co (Fig. 1 (a)). The magnetic moments are consistent with Fe2+(HS) and Co4+(IS) charge assignments, as reported before Fuh et al. (2015), except that our magnetic ground state is not FM, but non-compensated AFM as described recently Wang et al. (2018). All structure/oxidation states/magnetic moment arrangements converged to the same oxidation state, described above. Thus, no valence disorder is required to explain the magnetic ground state of LFCO. Similarly, A-, and C- structured transition metal arrays form excited states. They are AFM with magnetic moments of +4.2, -4.2, -3.1, +3.1 $\mu_{\mathrm{B}}$, and 9 meV/5 atoms and 3 meV/5 atoms higher than the predicted to be non-compensated AFM. This near-degeneracy of states may explain the small hysteresis in the magnetization curve of LFCO (Fig. 2 (b)). A-, C-, G-plaquettes are randomly generated at the high synthesis temperature ($T>$ 1000∘ C) and form the structural template for LFCO. If so, the magnetic state is likely a superposition of non-compensated AFM and AFM structure at low temperature. Moreover, CHUF2 observations (presented in Section III.4) suggest unsaturated magnetic moments, in general agreement with our computed results. The small energy differences do suggest that spin-orbit coupling may influence the magnetic structure. Our results show that energy differences between different spin orientations are 1 meV/5 atoms. We find that spins sub-parallel to the [001] direction are energetically most favorable, followed by [010] and [111] magnetization directions. The orbital and spin moments for the most stable [001] magnetic structure are parallel for Fe, as expected from Hund’s rules for less than half-filled electron shells (3$d^{4}$). Interestingly, we find an orbital moment for Co, suggesting that Co4+ is not in a high-spin state (3$d^{5}$). However, the orbital moments are at least two orders of magnitude smaller than the spin magnetic moments, but support a small canting confined to the $bc$-plane, consistent with our neutron scattering data (Section III.3).

III.1.2 SrLaFeCoO6

In the case of SLFCO, the DFT ground state is AFM with a G-type transition and a C-type Sr, La arrangement and site-projected magnetic moments of +3.9, -3.9, -2.8, +2.8 $\mu_{\mathrm{B}}$, and semi-metallic electronic structure (Fig. 1 (b)). In an ionic picture $q$ (Fe) + $q$ (Co) = 7. The magnetic moments are consistent with Fe2+ (HS) and Fe4+ (HS), leaving Co in a +5 or +3 charge state, with even magnetic moments, in contrast to the computed moment. This discrepancy may be attributed to charge ordering, and the coexistence of Co5+ (HS) and Co3+ (IS) states suggesting the presence of mixed valence states Pradheesh et al. (2012a). Moreover, we find that the second most stable phase is FM with the same cation arrangement as the ground state, but $\sim$1.5 meV/5 atoms less stable. The site projected magnetic moments are +4.0, +4.0, +2.0, +3.0 $\mu_{\mathrm{B}}$, for Fe, and Co, respectively. The magnetic moments of one of the Co atoms is predicted to decrease by $\sim$1 $\mu_{\mathrm{B}}$, as compared to the ground state, and consistent with a charge assignment of Co3+(IS), and Co5+(IS). The existence of a low lying FM state is in excellent agreement with the interpretation of our magnetometry (Section III.4) and our EPR results (Section III.5).

III.1.3 Sr2FeCoO6

For SFCO, the DFT computations show that the ground state is an antiferromagnetic metal (Fig 1 (c)), with G-type transition metal ion and spin arrangement. The cell magnetic moment (20 atoms) is zero and the site projected magnetic moments are +3.7 $\mu_{\mathrm{B}}$, -3.7 $\mu_{\mathrm{B}}$, -2.9 $\mu_{\mathrm{B}}$, +2.9 $\mu_{\mathrm{B}}$ for Fe and Co respectively, in overall agreement with our experimental observations. The second most stable state predicted is ferromagnetic with C-type arrangement, and  4 meV/5 atoms less stable than the antiferromagnetic ground state, and a magnetic moment is  10.6 $\mu_{\mathrm{B}}$/20 atoms. Given the small energy difference it is to be expected that G-type and C-type structural plaquettes can coexist at the high synthesis temperatures. More importantly, we note that the magnitude of the site-projected magnetic moments are 3.8 $\mu_{\mathrm{B}}$, 4.0 $\mu_{\mathrm{B}}$, 2.8 $\mu_{\mathrm{B}}$, and 2.9 $\mu_{\mathrm{B}}$, for the two Fe and Co atoms, respectively. Regardless of the initialized multiplet in the computations, the magnitude of the final spins was always within  0.3 $\mu_{\mathrm{B}}$ of the ground state, supporting a common oxidation state. A consistent set of oxidation states is Fe4+ (HS) and Co4+ (IS), and similar to LFCO, the DFT results do not require valence state mixing for SFCO. Therefore, the DFT computations suggest that magnetic multiplets are energetically close and can coexist at low temperatures, leading to a broadened EPR signal, and enabling a complex magnetic state. With this backdrop of the structure, electronic density-of-states and the magnetic structures determined, we now take a look at the magnetism of the three La2-xSrxFeCoO6 compounds reflected in experiments.

III.2 La2FeCoO6: Magnetization

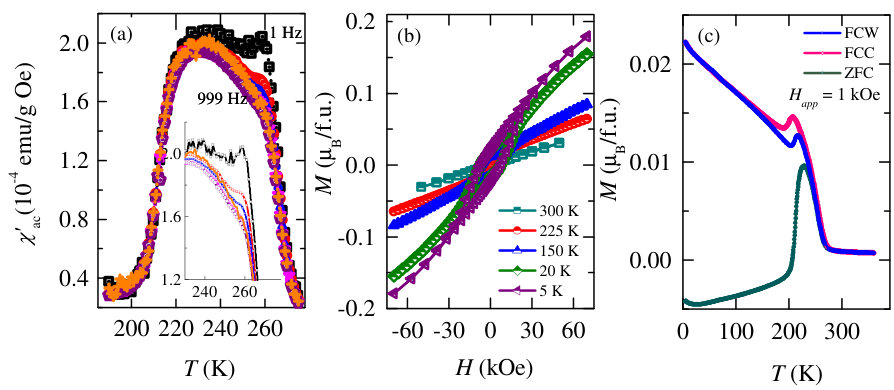

Macroscopic magnetization of La2FeCoO6 measured using ac and dc magnetometry are presented in Fig 2. The ac susceptibility, $\chi(T)$, in the frequency range 1 Hz to 999 Hz and temperature range 200 K$\textendash$300 K is shown in the panel (a). A magnetic phase transition at $T_{N}\approx$ 270 K is clearly seen in Fig 2 (a). A weak frequency dependence of susceptibility is observed at $T_{N}$. In Fig 2 (a), a significant reduction in the magnetization is observed at $T\approx$ 200 K. The features in magnetization correlates with the structural phase transition in LFCO from $R\overline{3}c$ to $Pnma$ which is described in detail in the next subsection. The isothermal magnetization curves at 5 K, 20 K, 150 K, 225 K and 300 K are shown in Fig 2 (b). The magnetization isotherms in (b) show hysteresis at low temperatures, especially at 20 K and 5 K. However, the maximum magnetic moment attained at 5 K with the application of 7 T is $\mu_{\mathrm{max}}\approx$ 0.2 $\mu_{\mathrm{B}}/$f.u. We note that our DFT computations described above are consistent with the macroscopic magnetization measurements if the magnetic domains are randomly oriented. The dc magnetization measurements shown in (c) support the magnetic transition at $T_{N}$. A large irreversibility between the ZFC and FCW curves of magnetization is observed. Additionally, a strong thermal hysteresis of the FCC and FCW curves is seen around 200 K. It is revealed later in the next section that it is a structural transition that causes the thermal hysteresis and the large irreversibility. The magnetic phase transition in the present case occurs close to 300 K while our measurement capability was limited upto 350 K thereby not permitting a Curie-Weiss analysis in a large paramagnetic range.

III.3 La2FeCoO6: Neutron diffraction

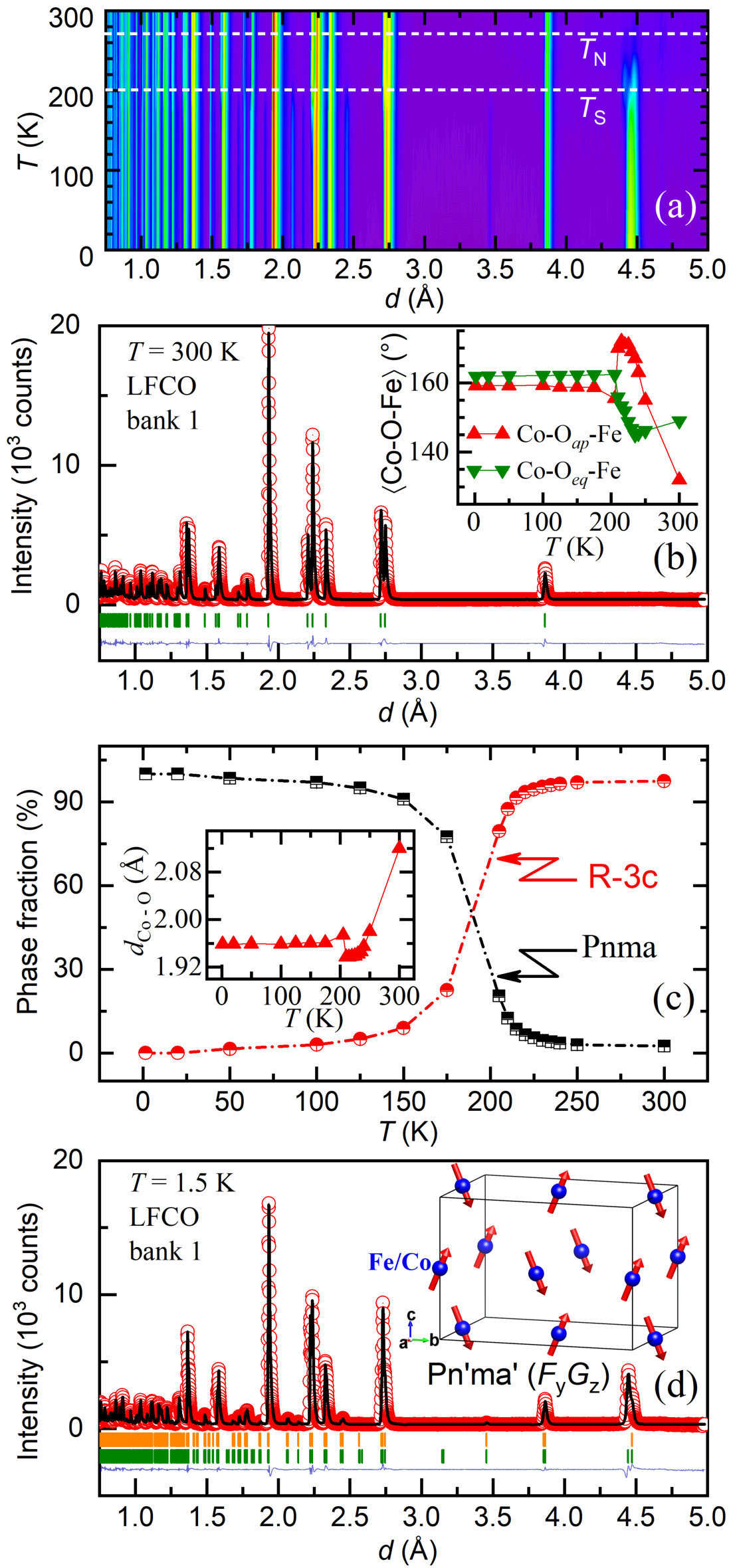

In order to understand the magnetic structure of La2FeCoO6 that would explain the magnetization features observed in Fig 2, we performed neutron diffraction experiments. The results are presented in Fig 3. A magnetic anomaly at $T_{N}\approx$ 270 K can be discerned from (a) where the development of an additional Bragg peak at $d\approx$ 4.5 Å occurs. This feature relates to the (011) and (110) Bragg peaks which is indicative of an AFM magnetic structure of the G type. The Rietveld refinement of the diffraction pattern at 300 K is shown in panel (b) where the experimental intensity is plotted in red circles and the calculated as black solid line. The crystal structure of LFCO at 300 K is refined in the rhombohedral space group, $R\overline{3}c$ with the lattice parameters $a$ = 5.4935(2) (Å) and $c$ = 13.2343(2) (Å). A structural phase transition is observed in LFCO at $T_{S}\approx$ 200 K where the crystal structure transforms from $R\overline{3}c$ to orthorhombic $Pnma$. Presented in Fig 3 (c) is a plot of the percentage phase fraction of the two structural phases as a function of temperature. In the intermediate temperature region centered around 200 K, mixed structural phases exist. In the inset of Fig 3 (b), the bond angle $\langle$Co$\textendash$O$\textendash$Fe$\rangle$ and in the inset of (c), the bond distance $d_{\mathrm{Fe/Co-O}}$ in La2FeCoO6 are shown. Both the bond angles and the bond distances reflect strong anomalies around $T_{S}$ where the structural phase transition occurs. The thermal hysteresis in magnetization and the large bifurcation if the ZFC/FC curves in LFCO is due to the coexistence of mixed $R\overline{3}c$ and $Pnma$ phases over a large temperature range, having different magnetization responses to an external magnetic field.

As the temperature is reduced to 1.5 K, the magnetic Bragg peaks (011) and (110) are enhanced in the diffraction pattern, see Fig 3 (d). This corresponds to the Bragg intensity that develops at $d$ = 4.5 Å at the $T_{N}$, Fig 3 (a). The nuclear structure of LFCO at 1.5 K retains the $Pnma$ symmetry. The magnetic structure of LFCO was solved after determining the propagation vector through a profile fit to the low temperature magnetic peaks ((011) and (110)), thus obtaining $\mathrm{k}$ (0 0 0). The $\mathrm{k}$-search utility within the FullProf Suite was used for this purpose. Using this propagation vector, the symmetry-allowed magnetic representations for LFCO were determined using SARA$h$ Wills (2000). The crystal structure was assumed to be a pure phase of $Pnma$ in this case and the magnetic moments of Fe and Co were assumed to be same since they occupy the same crystallographic position within the unit cell. The best description to the observed diffraction data was obtained with the $\Gamma_{5}$ representation ($Pn^{\prime}ma^{\prime}$, BNS label 62.448). A schematic of the arrangement of the magnetic moments in the unit cell in $\Gamma_{5}$ representation is shown in the inset of Fig 3 (d), which shows the $F_{y}G_{z}$ AFM structure. During the course of refinement, magnetic moment components were allowed to vary along all crystallographic directions, however, a negligible value was obtained for the $x$-component of the magnetic moment. Absence of a spin re-orientation transition at high temperatures was confirmed and subsequently, the magnetic moments were restricted to be in the $y$ and $z$ directions only in agreement with the DFT calculations. After refining the magnetic moments at 4 K, we obtained ordered moment of 1.89(7)$\mu_{\mathrm{B}}/$(Fe,Co) atoms. The structural parameters extracted from the Rietveld refinement of neutron diffraction patterns at 300 K and 1.5 K are presented in Table 1.

III.4 CHUF magnetization of La2-xSrxFeCoO6

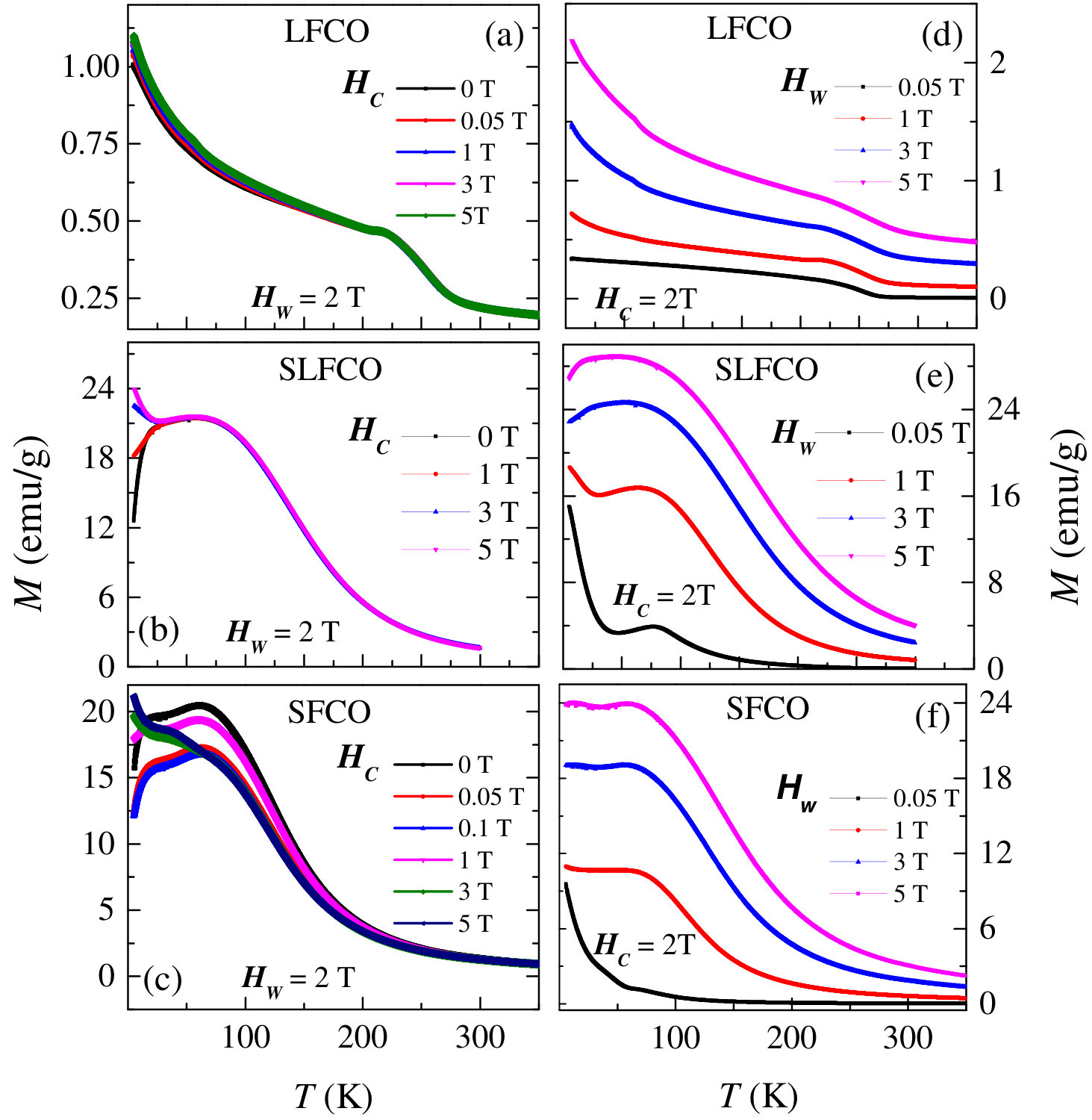

From the above sections it is clear that the magnetism of La2FeCoO6 is different from the disordered magnetism found in Sr2FeCoO6 and SrLaFeCoO6Pradheesh et al. (2012a); Pradheesh et al. (2017). In order to contrast the magnetism in the three compounds, we performed detailed protocol-based magnetization measurements. Cooling-and-heating-in-unequal-fields (CHUF) protocol is a useful magnetization protocol which can be used to record magnetization curves as a function of temperature in order to differentiate the non-equilibrium nature of the glass-like magnetic features from that of an equilibrium response Kushwaha et al. (2009); Banerjee et al. (2009); Roy and Chattopadhyay (2009). In what we term as CHUF1 protocol, the sample is cooled across the transition temperature in a certain applied magnetic field $H_{C}$. At the lowest temperature, $H_{C}$ is isothermally changed to a different value of measuring field and the magnetization is measured while warming the sample. The result of this measurement protocol for LFCO, SLFCO and SFCO are presented in (a), (b) and (c) respectively in Fig 4. The magnetic field used to measure the magnetization in the warming cycle is notated as $H_{W}$ in the figure. Several values of external magnetic fields 0 T, 0.05 T, 0.1 T, 1 T, 3 T and 5 T were used as $H_{C}$ to cool the samples (see, (a), (b), (c)). In all the three cases, $H_{W}$ = 2 T was used to measure the magnetization while warming. In a second protocol, CHUF2, the cooling field $H_{C}$ was kept constant at 2 T during the time the sample was cooled down to low temperature and, subsequently, different fields of $H_{W}$ were used in the warming cycle to measure the magnetization. The results of this protocol are presented in (d), (e) and (f) of Fig 4 for LFCO, SLFCO and SFCO, respectively. In the case of LFCO which orders long-range at high temperature, no signature of magnetic relaxation or non-equilibrium dynamics is seen in the CHUF1 measurement in (a).

Note that a $H_{C}$ upto 5 T and a warming field of 2 T does not affect the magnetization features. However, apart from a discontinuity in the magnetization at $T_{N}\approx$ 270 K, a second anomaly is discernible at $T_{S}\approx$ 200 K in LFCO, coinciding with the structural transformation between $R\overline{3}c$ and $Pnma$ phases. The CHUF measurement reveals that LFCO behaves in the same way for the $H_{C}>H_{W}$ and $H_{C}<H_{W}$ regimes and hence a magnetic glass-like state can be ruled out. In the case of CHUF2 protocol, we see that the magnetization increases with higher value of measuring fields for $H_{W}$. The anomalies at 270 K and 200 K are still present however, with the application of 3 T and 5 T for $H_{W}$, the magnetization at low temperature is enhanced. In the case of SLFCO, the CHUF1 protocol shows contrasting effects for the two cases, $H_{C}>H_{W}$ and $H_{C}<H_{W}$, as seen in (b). When the cooling field is larger than the measuring field, i.e., when $H_{C}>H_{W}$, the magnetization below the anomalous temperature $T_{a1}\approx$ 75 K is significantly increased. This observation is consistent with a kinetically arrested ferromagnetic state of SLFCO. When SLFCO is warmed up, this glass-like arrested ferromagnetic phase reverts to the equilibrium antiferromagnetic phase. In the CHUF2 protocol for SLFCO shown in the figure panel (e), we can see that the magnetization tends to increase in magnitude with higher values of $H_{W}$. Note that there is a drastic difference in the magnetization profile below $T_{a1}$ when the CHUF1 and CHUF2 curves of SLFCO are compared. From Fig 4 (e) it is clear that when $H_{W}>H_{C}$, the weak anomaly seen below $T_{a1}$ vanishes and a higher magnetization is resulted. The features seen in (b) and (e) confirm that SLFCO has a glass-like mixed phase where a large volume fraction of the ferromagnetic phase devitrifies. In the case of SFCO, the CHUF1 and the CHUF2 data presented in the figures (c) and (f) respectively show signs of magnetic relaxation similar to that of SLFCO albeit weaker in magnitude. The CHUF1 protocol in (c) do indicate that the magnetization for $H_{C}>H_{W}$ shows an enhanced magnitude below the $T_{g}$.

III.5 Electron paramagnetic resonance of La2-xSrxFeCoO6

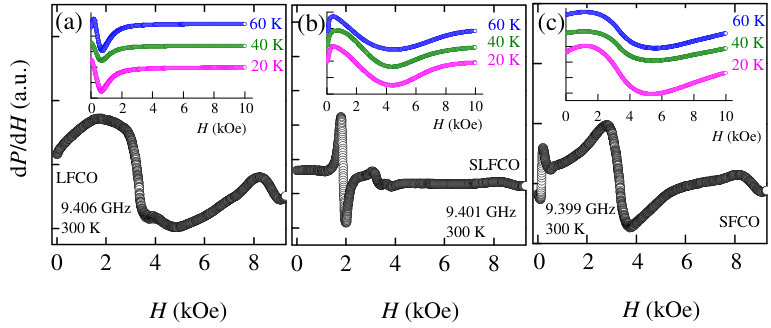

As another experimental tool to contrast the magnetism in the three compounds, we use electron paramagnetic resonance (EPR). The differing features of the magnetic ground states of SFCO, SLFCO and LFCO are consistent with the EPR observations presented in Fig 5 (a-c), where the EPR signals at 20 K, 40 K, 60 K, and at 300 K are plotted. The EPR spectra showed a dramatic dependence on La and Sr composition in the present series of compounds, consistent with magnetization and neutron diffraction results. Figure 5 (a) plots the temperature evolution of EPR spectrum measured at 20 K, 40 K, 60 K and 300 K for LFCO. For LFCO at 300 K, we observe two distinct EPR signals. The first signal at $g$ = 2.05(6) (the central field, $H_{0}$ = 3266 G) associated with the peak-to-peak line width ($\Delta H_{\mathrm{pp}}$) of 3266 G, and the second signal appears at $g$ = 0.76(9) ($H_{0}$ = 8728 G). We believe that the former signal is due to the strongly exchange coupled Fe3+ and Co2+ spins, whereas the latter one was found to originate from the cavity background, and hence is discarded from further discussion. Because of the presence of the two signals, a broad Lorentzian curve does not completely account for the EPR linshape of LFCO at 300 K as can be understood from Fig 5 (a). It can be immediately noticed that as we lower the sample temperature from 300 K, a dramatic shift in the EPR signal toward the low field region occurs. At 60 K, we detected a complete signal associated with $g$ value of 16.07 ($H_{0}$ = 418 G), characterized by $\Delta H_{\mathrm{pp}}$ of 552 G. These are the benchmark signatures of an ordered antiferromagnetic phase.

As we started to replace Sr in place of La in LFCO, the EPR signal broadens and shifts to the high field region, which becomes particularly noticeable at low temperatures (b and c panels). Furthermore, the disordered magnetic phase increases in abundance upon increasing the Sr content. For all the samples, as the temperature increases, the EPR signal gets sharper due to motional narrowing effect. Both (b) SLFCO and (c) SFCO appear to contain at least two magnetic phases that can give rise to spin glass-like behavior, which is consistent with our magnetometry results Pradheesh et al. (2012a); Pradheesh et al. (2017). The DFT computations also suggested that magnetic multiplets are energetically close in these compounds and can coexist at low temperatures and also at elevated magnetic fields, thereby leading to a broadened EPR signal, enabling a complex magnetic state.

It can be noted that the EPR response of the La2-xSrxFeCoO6 compounds are qualitatively different from that of Sr2FeMoO6 in which strong evidence of localized Fe3+ cores and itinerant Mo5+ electrons are found Niebieskikwiat et al. (2000); Tovar et al. (2002) consistent with our DFT results that suggest Fe4+. The $g$ values and the $H_{pp}$ values estimated from the EPR curves are shown in Table 2. We have attempted to fit (not shown) the experimental EPR signal to a broad Lorentzian function of the form, $\frac{dP}{dH}$ = $A\frac{d}{dH}[\Delta H/(4(H−H_{0})^{2}+\Delta H^{2}+\Delta H/(4(H+H_{0}^{2})+\Delta H^{2}]$, where $\Delta H$ is the full-width-at-half-maximum which when divided by $\sqrt{3}$ gives the peak-to-peak linewidth $\Delta H_{pp}$, and $A$ is proportional to the area under the curve. Since the fits were not of high quality due to the presence of more than one lineshape terms in the data and also because the lineshapes were seen shifted more towards the negative field values as in the case of LFCO, they are not presented here.

IV Discussion and conclusions

In this section we want to discuss the present results in the light of the recent insight we obtained from high-resolution inelastic neutron scattering experiments to study the hyperfine interactions in SFCO, SLFCO and LFCO Chatterji et al. (2018). It was shown that the inelastic signals observed in the two structurally and magnetically disordered compounds, SFCO and SLFCO were very broad, suggesting a distribution of hyperfine fields in these two materials whereas, no inelastic signal was observed in the case of LFCO. This suggested no or very weak hyperfine field at the Co nucleus due to the Co electronic moment. The inelastic spectra of SFCO were observed to be significantly narrow which could be attributed to a weaker hyperfine local field at the Co nucleus. An assumption of heterogeneous local fields at the Co nucleus due to the antisite disorder is consistent with SFCO which is a spin glass. The results from inelastic studies are in conformity with this picture and the model fits to the inelastic spectra suggests a finite energy splitting of $\approx$ 1 $\mu$eV (for details of the fits, please see Ref [Chatterji et al., 2018]).

The case of SLFCO appeared interesting as indications of electronic spin fluctuations in nano-second time scales were observed in the low-$Q$ region, visible in the quasi-elastic channel, confirming magnetic short-range order and electronic spin freezing below 80 K. From the perspective of inelastic neutron scattering, the most surprising result was the absence of inelastic signal in the ordered state of La2FeCoO6 down to 1.8 K. This implies that the hyperfine field at the Co nucleus for this material is extremely weak to measure and that the Co moments may not be frozen at very low temperatures. Thus we surmise that the observed magnetic properties of SFCO, SLFCO and LFCO are not easily explained solely based on the presence of antisite disorder. It is clear that the valence state disorder also plays an important role as we observe quasi-elastic scattering near the spin freezing temperatures which suggest fluctuations in the nanosecond time scale. With the addition of Sr in La2FeCoO6, the spin fluctuations slow down and lead to glassy dynamics which is observed through magnetometry. While it is beyond our computations to address antisite disorder directly, our results do suggest that C- and G-structured transition metal arrangements are likely to coexist.

An interesting progression of magnetic ground states is observed in La2-xSrxFeCoO6 as a function of the degree of disorder and with the replacement of La with Sr. La2FeCoO6 has a high temperature magnetic transition at $T_{N}\approx$ 270 K and also a structural phase transition at $T_{\mathrm{S}}\approx$ 200 K where the compound transforms from $R\overline{3}c$ to $Pnma$. LFCO forms the only magnetically long-range ordered member in the series, whereas SFCO and SLFCO are magnetically disordered and form respectively, a spin glass and a magnetic glass with a spin freezing temperature, $T_{\mathrm{g}}\approx$ 75 K. The structural sensitivity at $\approx$ 200 K in LFCO is reflected in the other two compounds SLFCO and SFCO as a weak anomaly in the temperature dependence of lattice parameters and the magnetization. Our neutron diffraction results provide ample evidence of magnetic diffuse scattering persisting in SLFCO upto 300 K. From the CHUF magnetization protocols, electron paramagnetic resonance and neutron diffraction experiments, we mark SLFCO as a magnetic glass where nano scale spin fluctuations are evidenced through our recent inelastic neutron scattering work. Density functional theory calculations performed by adopting the crystal structure from the neutron diffraction predicts a AFiM/AFM ground state which is consistent with the antiferromagnetic state arrived at for LFCO through neutron scattering analysis. The magnitude of the magnetic moments remained the same as in LFCO, however, charge neutrality suggests the presence of mixed valence states, in contrast to LFCO and SFCO. These results align well with the overall picture obtained from our experiments for the three compounds from recent inelastic scattering experiments where the hyperfine fields of Co was modeled in detail. Our present work points toward the importance of competing valence state and spin state disorder in realizing different magnetic ground states in La2-xSrxFeCoO6 double perovskites. Even though our simulation cell (20 atoms) is not large enough to address the spin-glass state directly, it provides several insights, that distinguish LFCO from SLFCO. Both compositions show strong antisite disorder that can support different magnetic signatures. While the DFT findings do not provide conclusive evidence for a spin-glass state in SFCO and SLFCO, they do suggest that the mechanism for spin-glass formation in SLFCO may be facilitated by valence state mixing, while in SFCO, it may be attributed to coexisting transition metal arrangements and antisite disorder.
