Jet fragmentation as a tool to explore double parton scattering using Z-boson + jets processes at the LHC

TL;DR

This study investigates jet fragmentation properties in simulated Z-boson + jets events to distinguish double parton scattering from single scattering, achieving a 40-50% increase in identifying double scattering events at the LHC.

Contribution

The paper introduces a novel approach using jet fragmentation characteristics to enhance the detection of double parton scattering in Z + jets processes.

Findings

Jet fragmentation properties can significantly suppress single parton scattering background.

Discrimination based on fragmentation yields 40-50% gain in double parton scattering detection.

Different hadronization models influence the discrimination effectiveness.

Abstract

The Large Hadron Collider witnesses the highest ever production cross-section of double parton scattering processes. The production of a Z-boson along with two jets from double parton scattering provides a unique opportunity to explore the kinematics of double parton scattering processes and their dependence on the scale of the second interaction. The experimental measurement of this process is largely contaminated by Z + jets production from single parton scattering. In this paper, fragmentation properties of a jet are explored to check their sensitivity towards double parton scattering. The present study is performed using simulated Z + jets events, produced with \textsc{madgraph} and \textsc{powheg} Monte-Carlo event generators, hadronized and parton showered using \textsc{pythia}8. The effect of different hadronization model on the discrimination based on the fragmentation properties of a jet is also investigated by using events simulated with \textsc{herwig}++. It is observed that discrimination based on the fragmentation properties of a jet can significantly suppress the background from single parton scattering, which results into 40--50\% gain in the contribution of double parton scattering.

Figures

Tables

Table 1. Table 1: Conditions on observables for selection of gluon-initiated jets in cut-based analysis

Observable	condition
${\sigma }_1^{\mathrm{jet}}$	$>$ 0.04
${\sigma }_2^{\mathrm{jet}}$	$>$ 0.02
$N_p^{\mathrm{jet}}$	$>$ 12.0
$p_T^{\mathrm{jet}}D$	0.49

Equations

$$\Delta R=\sqrt{({\eta }_{\mathrm{jet}}-{\eta }_{\mathrm{parton}}{)}^2+({\varphi }_{\mathrm{jet}}-{\varphi }_{\mathrm{parton}}{)}^2}.$$

$$p_{\mathrm{T}}^{\mathrm{jet}}D=\frac{\sqrt{{\sum }_i{p}_{\mathrm{T},\mathrm{i}}^2}}{{\sum }_i{p}_{\mathrm{T},\mathrm{i}}},$$

Full text

I Introduction

The large collision energy and involved parton densities in a proton-proton (pp) collision at Large Hadron Collider (LHC) lead to significant increase in probability of more than one parton-parton scattering in the same pp collision. The additional scatterings, along with primary hard parton-parton scattering, are called multiple parton interactions (MPI) Sjöstrand and Van Zijl (1987). Usually, MPI produce particles with relatively small transverse momenta ($p_{\rm T}$), but there is a possibility of producing particles with large $p_{\rm T}$ or mass, such as jets and/or vector (W/Z) bosons. The production of such particles from at least two parton-parton scatterings is referred to as double parton scattering (DPS). The study of DPS provides vital information on the parton-parton correlations and parton distributions in a hadron Diehl et al. (2012). In addition, DPS also constitutes as a background to new physics searches Hussein (2007); Chatrchyan et al. (2011). A broad range of measurements is available for DPS processes at different collision energies, performed using different final states, $e.g.$, W/Z + jets, photon + jets, 4-jets, diboson processes Alitti et al. (1991); Akesson et al. (1987); Abazov et al. (2010); Abe et al. (1997, 1993); Chatrchyan et al. (2014); Aad et al. (2013); Chatrchyan et al. (2015a); Sirunyan et al. (2018); Aaboud et al. (2016), $etc$.

The production of Z + 2-jets from DPS is important because of large production cross-section and it also provides the opportunity to study the dependence on the scale of the second hard interaction, as predicted by theoretical quantum chromodynamics (QCD) models Blok and Strikman (2018); Snigirev (2010). The experimental measurements of these DPS processes are dominated by production of Z + jets from single parton scattering (SPS). In order to increase DPS sensitivity and study its kinematic properties, it is essential to devise methods to control SPS background with minimal effect on the DPS. In the existing experimental as well as theoretical studies, DPS and SPS processes are distinguished using the kinematical and correlation properties of Z-boson and jets Blok and Gunnellini (2016); Maina (2011); Cao et al. (2018); Chatrchyan et al. (2014); Aad et al. (2013). This paper presents the studies, using Z + jets process, to demonstrate that fragmentation properties of a jet can be effective in suppressing the SPS background.

The outline of the paper is as follows. The simulation of the Z + jets events and selection criteria is discussed in Section II. In Section III, fragmentation properties of a jet and related variables are discussed. The results of the present study are discussed in the Section IV and finally Section V summarizes the paper.

II Event generation and selection criteria

II.1 Event generation

The present study requires events simulated with Monte-Carlo event generators, which are able to produce sufficient number of jets in association with Z-boson. The event generators madgraph Alwall et al. (2011); Maltoni and Stelzer (2003) and powheg Frixione et al. (2007); Campbell et al. (2013a) are used to simulate Z + jets events in the present study. madgraph is a tree-level matrix element event generator, which is able to produce up to 4 jets as per matrix element leading order (LO) calculations. The distributions of Z + jets, produced by LHC, are well described by madgraph Khachatryan et al. (2017). powheg produces Z + 2-jets events up to next-to-leading order (NLO) using ‘Multi-scale improved NLO” (MiNLO) method Hamilton et al. (2012); Campbell et al. (2013b), which is also capable to describe well the jets production associated with Z-boson. These events are further hadronized and parton showered with pythia8 Sjöstrand et al. (2008). MPI are included while parton showering with pythia8 Corke (2009).

The production of Z + 2-jets events from DPS processes is simulated with pythia8 event generator, which is configurable to specify process involved and interaction scale independently for the two parton-parton scatterings. In the present analysis, first parton-parton scattering is configured to produce Z-boson, whereas two jets are produced from the second parton-parton scattering.

All these processes are produced in pp collisions assuming a center-of-mass energy of 13 TeV and using ATLAS A14 tune Aad et al. (2012) with NNPDF2.3LO set of parton distribution functions (PDF) for the simulation of MPI model. This version of MPI tune is derived by fitting the underlying event data collected at the LHC.

Dijet QCD events are simulated using pythia8 with A14 tune. These processes are also simulated using herwig++ (version 2.7.0) Bahr et al. (2008) and CUETHppS1 tune Chatrchyan et al. (2015b).

II.2 Event selection

In these simulated events, Z-boson candidates are identified using four-momenta of the muons coming from the decay of Z-boson. An event is considered to have a Z-candidate if it satisfies the following conditions:

• •

presence of two muons with $p_{\rm T}$ larger than 20 GeV/$c$ and absolute pseudorapidity ($\eta$) less than 2.5.

• •

Invariant mass of the two selected muons is required to be in range of 60$-$120 GeV/${c^{\rm 2}}$.

This selection criteria is motivated from the trigger and the background constraints for the measurements involving Z-boson at the LHC experiments. These events, having a Z candidate, are required to have at least two jets with a minimal $p_{\rm T}$ of 20 GeV/$c$ and $|\eta|<$ 2.5. The jets are clustered using the anti-$k_{T}$ algorithm Cacciari et al. (2008) with the radius parameter equal to 0.5 using the FastJet software package Cacciari et al. (2012).

III Methodology

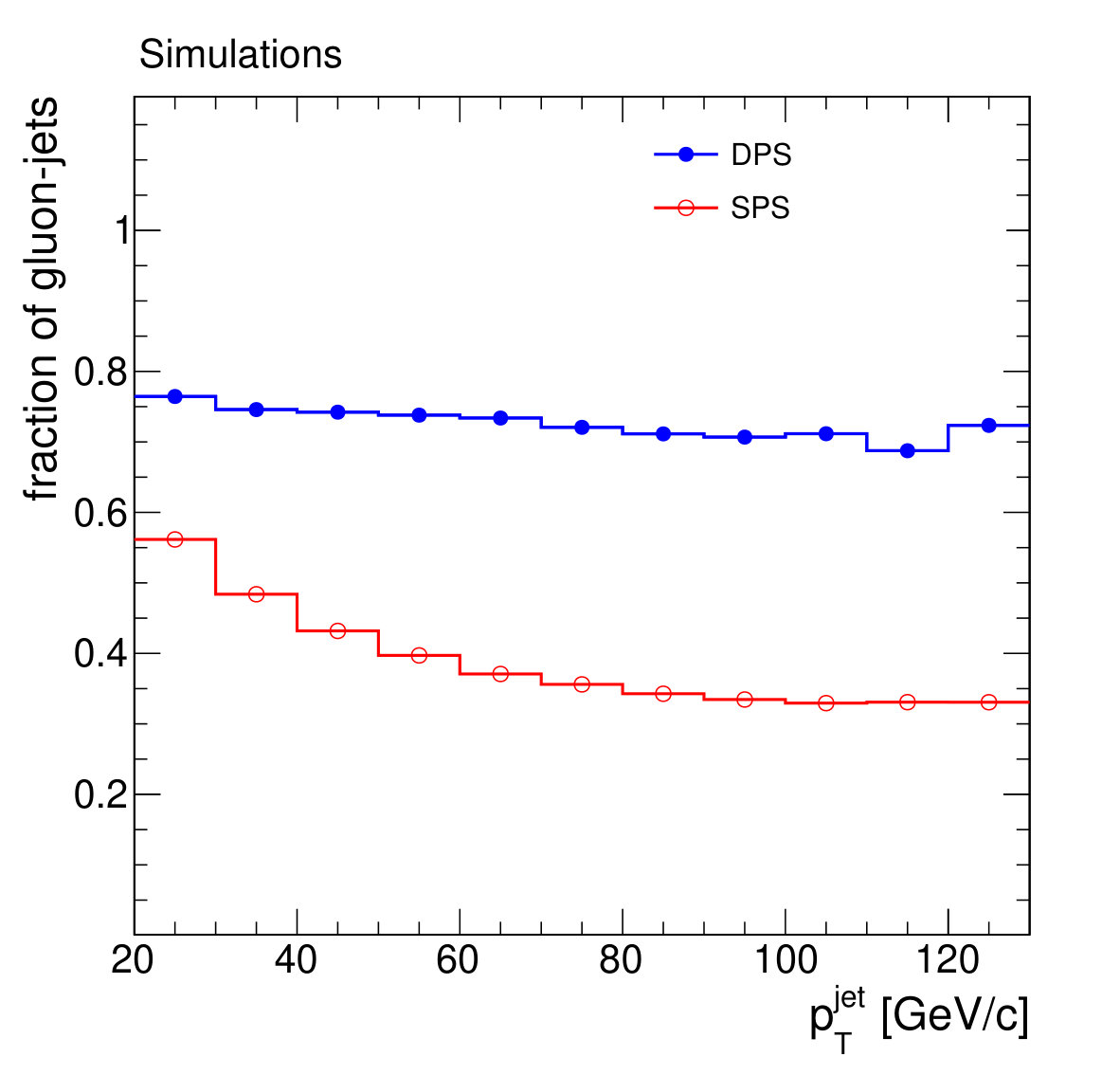

The production of Z + jets events from DPS includes 2-jets production from the second interaction, which is dominated with the jets initiated by gluons. Whereas, the jets produced in association with Z-boson via SPS are expected to be predominately initiated by quarks. Figure 1 shows the fraction of gluon-initiated jets, in Z + jets events produced via DPS and SPS, as a function of the jet $p_{\rm T}$. A jet is tagged as gluon-initiated or quark-initiated by matching the jet with partons in $\eta\times\phi$ space. A distance parameter $\Delta\rm R$ is defined as:

[TABLE]

A pair of jet-parton is considered to be matched if $\Delta\rm R$ is smaller than 0.3. It is observed that $\approx$ 75% of jets in the DPS sample are gluon-initiated whereas in SPS sample the fraction of gluon-initiated jets is relatively small ($\approx$ 45%). Thus, contribution of DPS events can be increased if flavor of a jet can be identified and only events with gluon-initiated jets are considered.

It is well established that the fragmentation properties of the quarks and the gluons are different from each other Collaboration (1993); Akers et al. (1995); Abreu et al. (1996); Buskulic et al. (1996); Gallicchio and Schwartz (2011); Aad et al. (2014); Chatrchyan et al. (2013). In particular, the jets initiated by the gluons show significantly different behavior with respect to those initiated by light-flavor quarks (u, d, s). There are number of observables Gallicchio and Schwartz (2011); Aad et al. (2014); Chatrchyan et al. (2013); Cornelis (2014) which can be constructed using intrinsic properties of a jet. The study presented in this article is aimed to emphasize on use of intrinsic properties of jets for SPS background suppression rather than to construct the best quark-gluon discriminator. Therefore, only a certain number of observables are considered in the analysis as discussed below:

• •

Jet size ($\sigma^{\rm jet}$): A jet, with conical structure, is approximated by an ellipse when projected in $\eta\times\phi$ space. Two principal axes of the ellipse are used which are represented as major axis ($\sigma_{1}^{\rm jet}$) and minor axis ($\sigma_{2}^{\rm jet}$) of the jet cone.

• •

Jet constituents multiplicity ($N_{p}^{\rm jet}$), which is the total number of particles (charged or neutral) within the jet.

• •

Jet fragmentation function ($p_{\rm T}^{\rm jet}{D}$), which represents the $p_{\rm T}$-distribution among the constituents of a jet. It is defined as:

[TABLE]

where sum extends over the jet constituents and $p_{\rm T,i}$ represents the $p_{\rm T}$ of $i^{th}$ constituent. The value of $p_{\rm T}^{\rm jet}{D}$ for a jet will be equal to one if there is only one constituent for that particular jet. The jets with infinite number of jet constituents will have value of $p_{\rm T}^{\rm jet}{D}$ approaching towards zero.

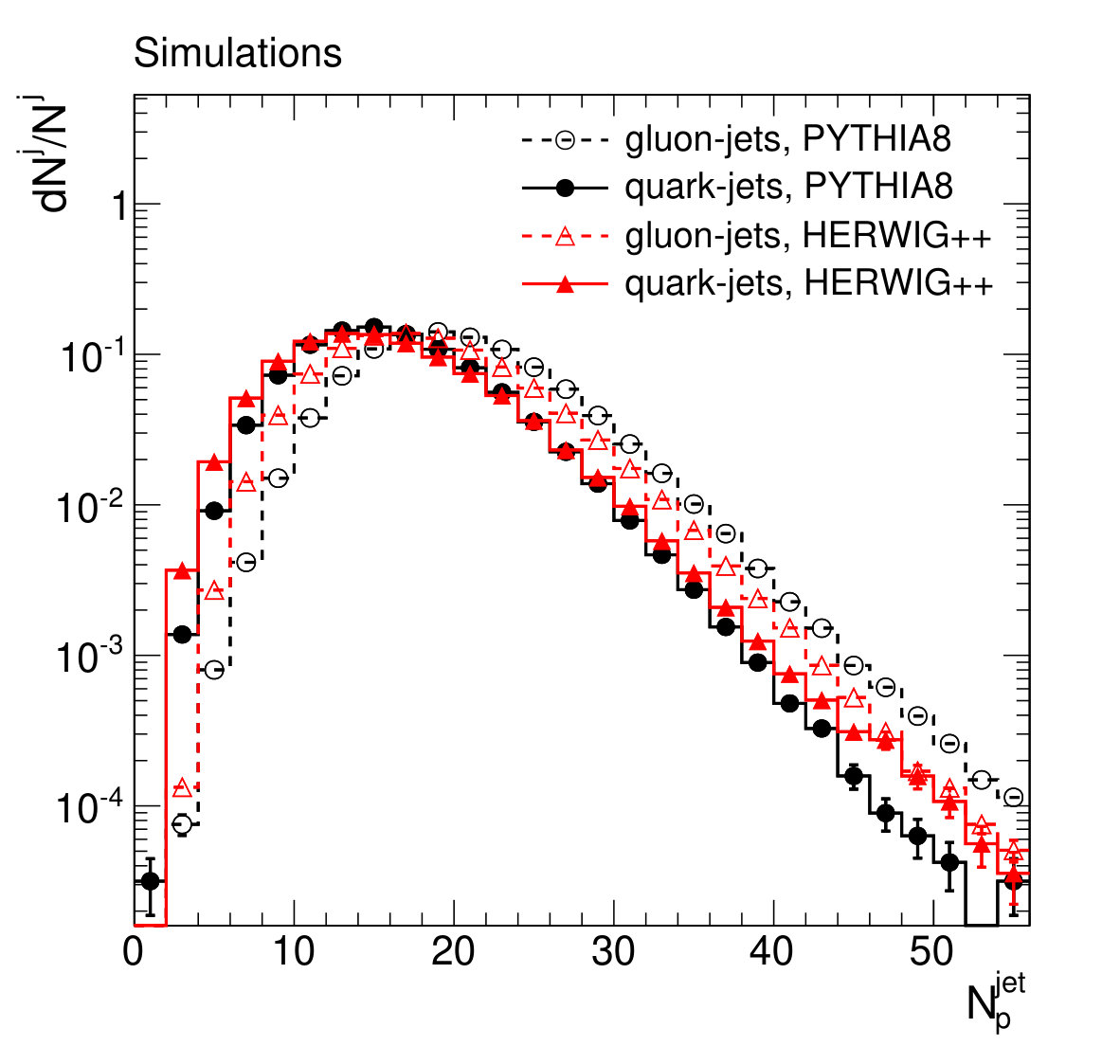

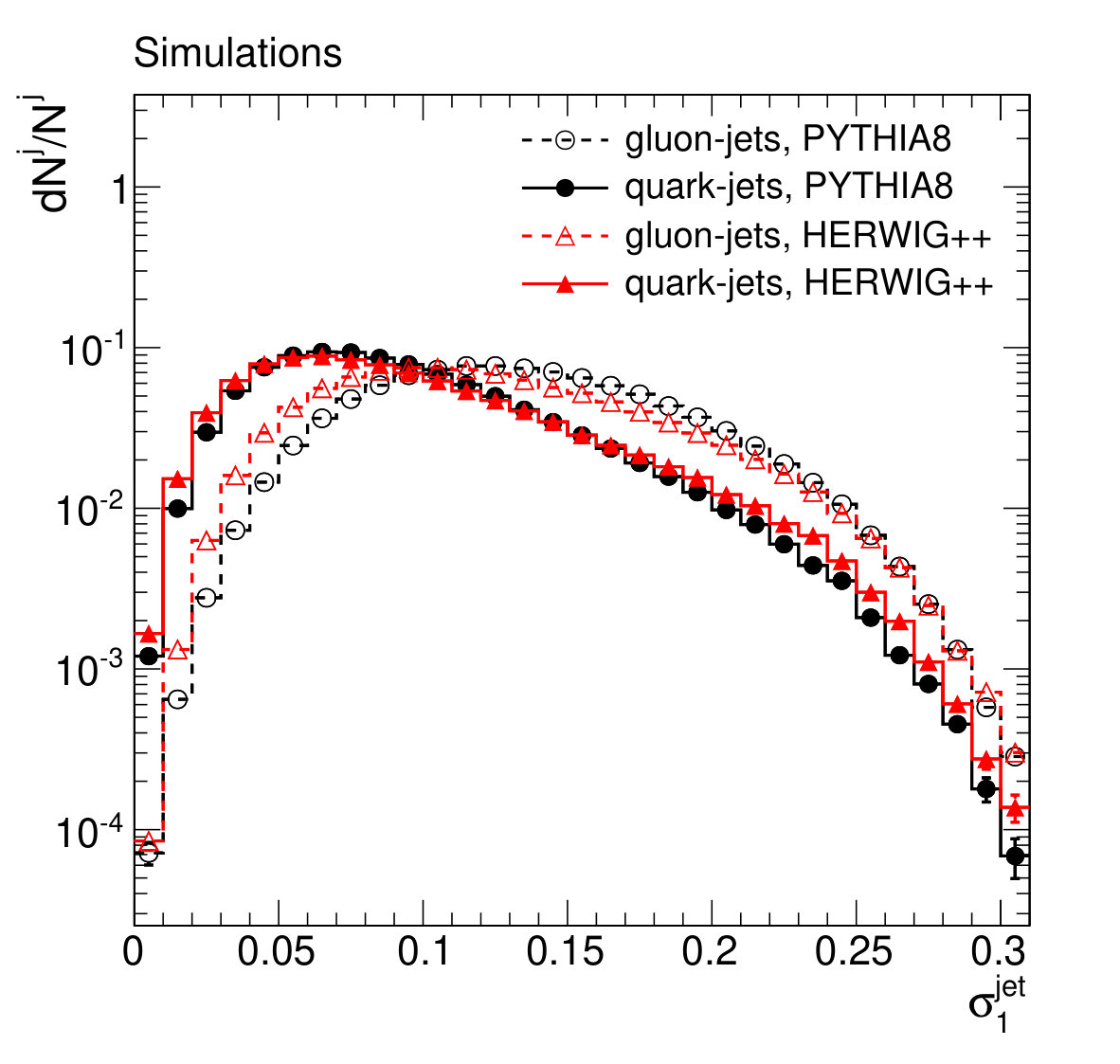

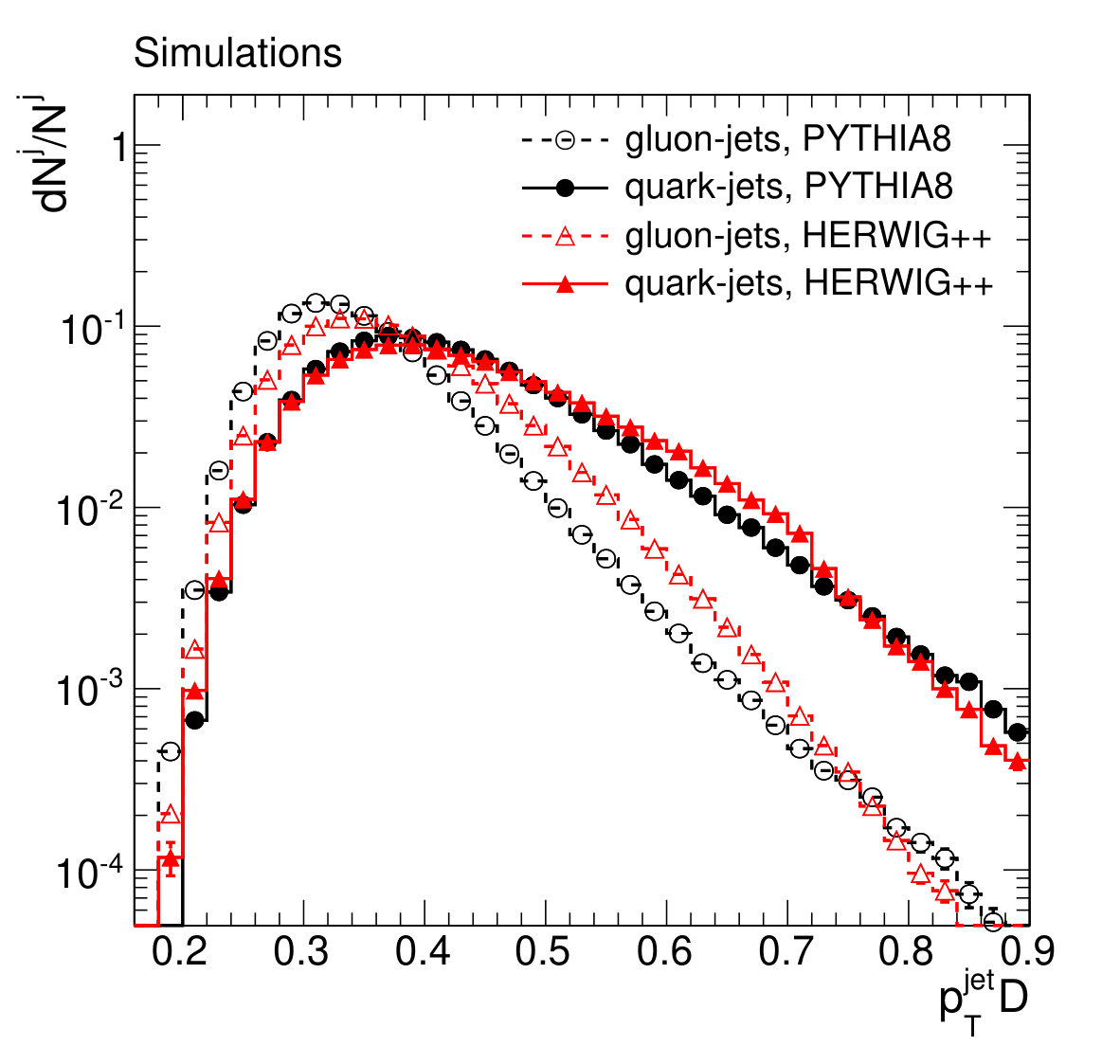

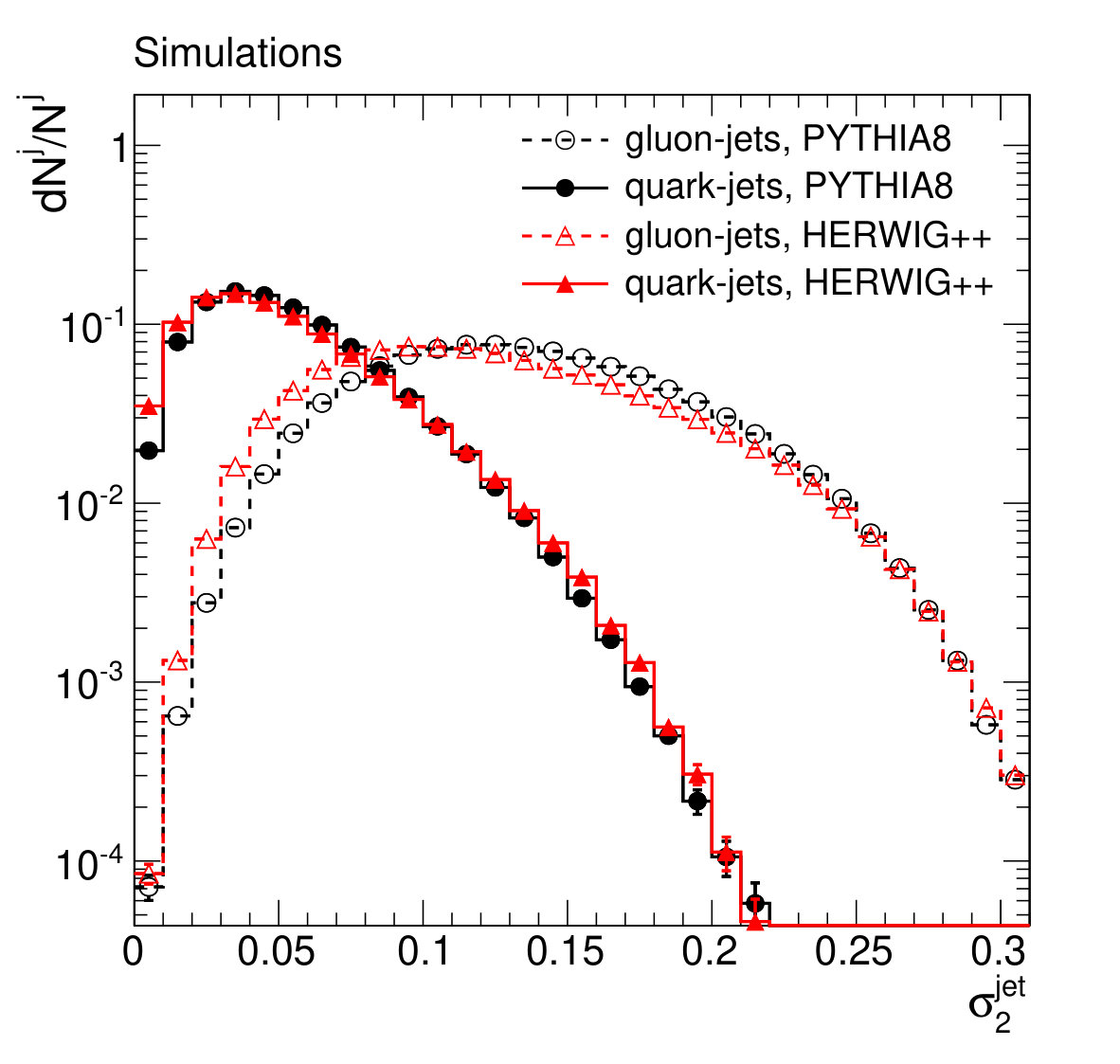

More details of these observables can be found in Ref. Chatrchyan et al. (2013); Cornelis (2014). The distributions of these discriminating variables for gluon-initiated jets and quark-initiated jets are shown in Fig. 2. These distributions are constructed using dijet events simulated with pythia8 and as well as using herwig++. The gluon-initiated and quark-initiated jets are identified with jet-parton matching in $\eta\times\phi$ space as described earlier. It is clear from these distributions that gluon-initiated jets are broader than quark-initiated jets and have larger number of particles. The constituents of the quark-initiated jets are hard as compared to the constituents of the gluon-initiated jets. Therefore, the quark-initiated jets have a harder fragmentation function as compared to gluon-initiated ones. Thus, for these observables a clear distinction between gluon- and quark-initiated jets is visible. The effectiveness of the usage of these variables is investigated with cut-based and multivariate analysis (MVA) methods.

IV Results and Discussions

In Z + jets events simulated with madgraph + pythia8, two jets are required along with a Z-boson as per the kinematic selection criteria mentioned in Section II. The selected Z + 2-jets events contains the contribution from DPS as well as SPS processes. A selected event is considered to be produced by DPS, if there are two MPI partons present within the acceptance, otherwise event is considered as SPS background Chatrchyan et al. (2014). The fraction of DPS processes contributing in selected Z + 2-jets sample is about 0.075 which is consistent with the previous studies Chatrchyan et al. (2014). The effect of the observables mentioned in Section III, which are sensitive to quark-gluon discrimination, is evaluated by calculating the gain in DPS fraction after requiring selected two jets to be gluon-initiated.

In cut-based method, the jets are considered to be gluon-initiated if two selected jets satisfy the conditions listed in Table 1. These cuts are optimized by maximizing the figure of merit defined as $S/\sqrt{S+B}$, where $S$ represents gluon-initiated jets and $B$ represents quark-initiated jets. This set of selection criteria selects $\approx$ 82% of gluon-initiated jets with 54% rejection of quark-initiated jets. When both of the jets are required to be gluon initiated, DPS fraction comes out to be 0.106 which is 41% larger as compared to selection when fragmentation properties of the jets were not used.

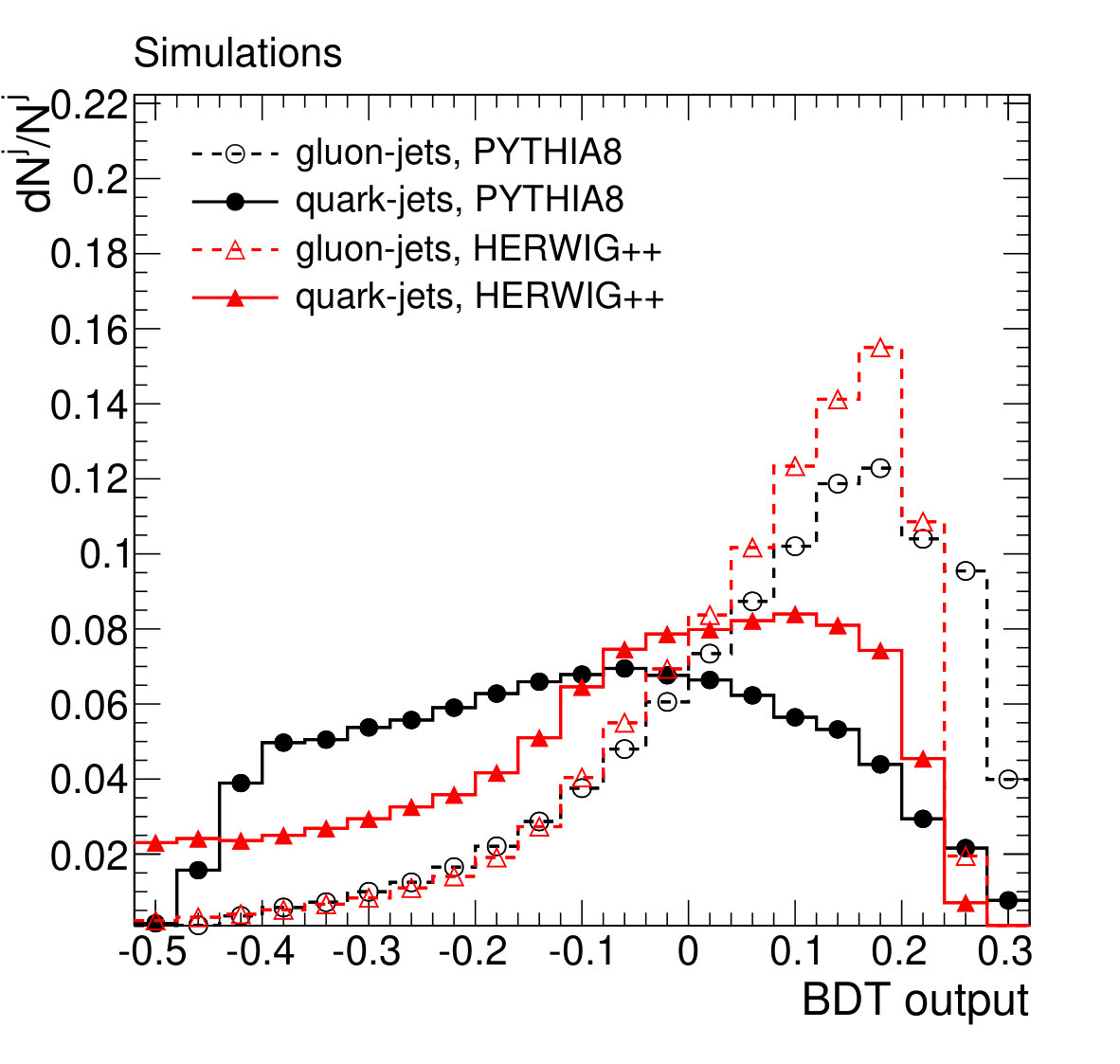

To further enhance the sensitivity and to consider the possible correlations between observables, MVA method is used. This method is based on boosted decision trees (BDT) implemented in the TMVA framework Hoecker et al. (2007). The discriminating observables along with the $p_{\rm T}$ and $\eta$ of jets are provided as an input to the BDT. For MVA training, these observables are constructed using dijet events simulated with pythia8. To minimize the statistical bias, independent event samples of gluon- and quark-initiated jets are used for the training and testing of the MVA. The distribution of the BDT discriminant for gluon- and quark-initiated jets is shown in Fig. 3, which gives a clear distinction between two flavors of jets. The MVA output is used to tag a jet either as quark-initiated or gluon-initiated. The selected jets are tagged as gluon-initiated jets with requirement of BDT value greater than -0.105, otherwise considered as initiated by quarks. This criteria selects $\approx$ 90% of gluon-initiated jets with 50% rejection of quark-initiated jets. This trained MVA is used to select gluon-initiated jets in the Z + 2-jets events. If both jets in the selected Z + 2-jets events are required to be initiated by gluons, SPS contribution got reduced by 48% while keeping 72% of the DPS events. In other words, DPS fraction in Z + 2-jets sample is now about 0.113 which is 20% larger as compared to the cut-based analysis.

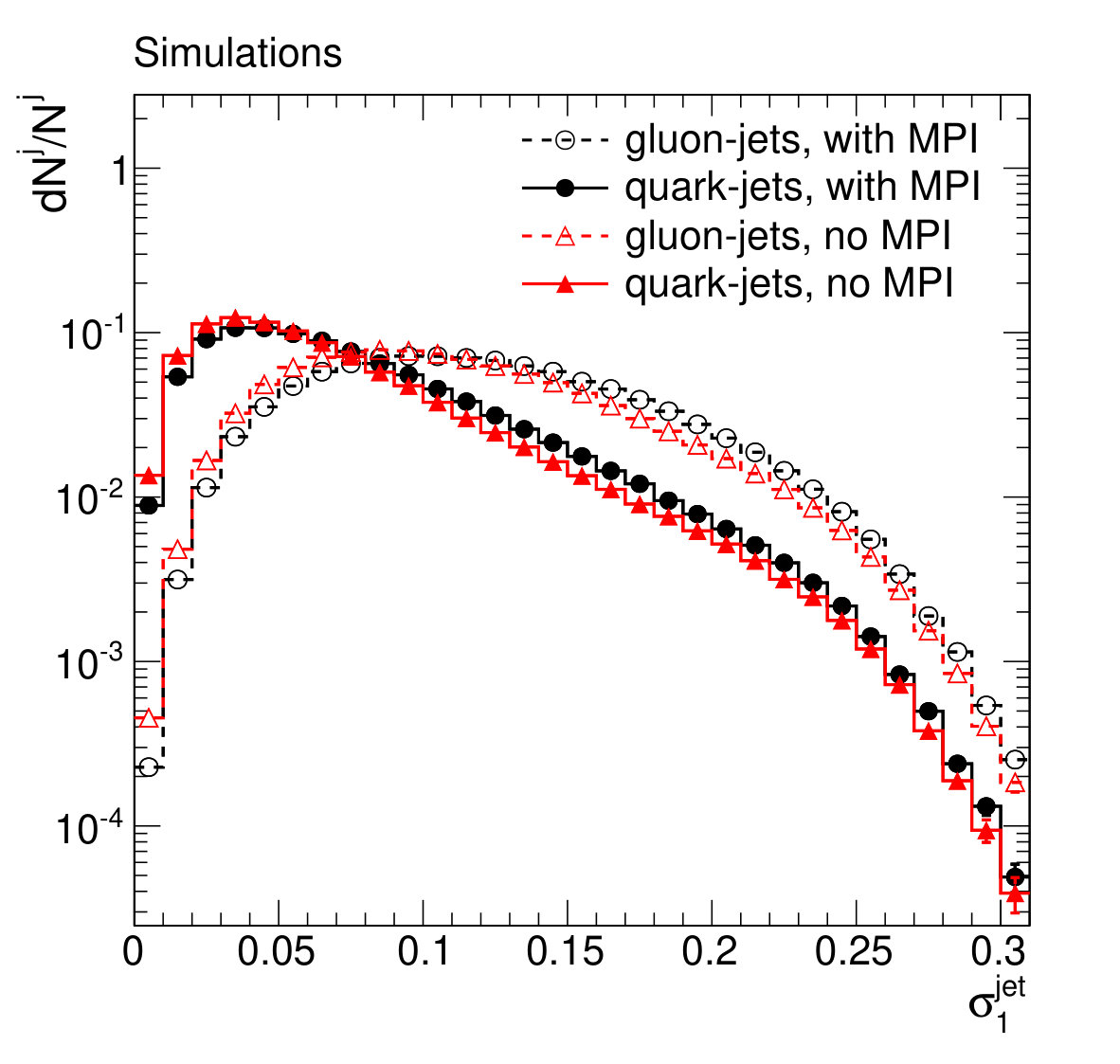

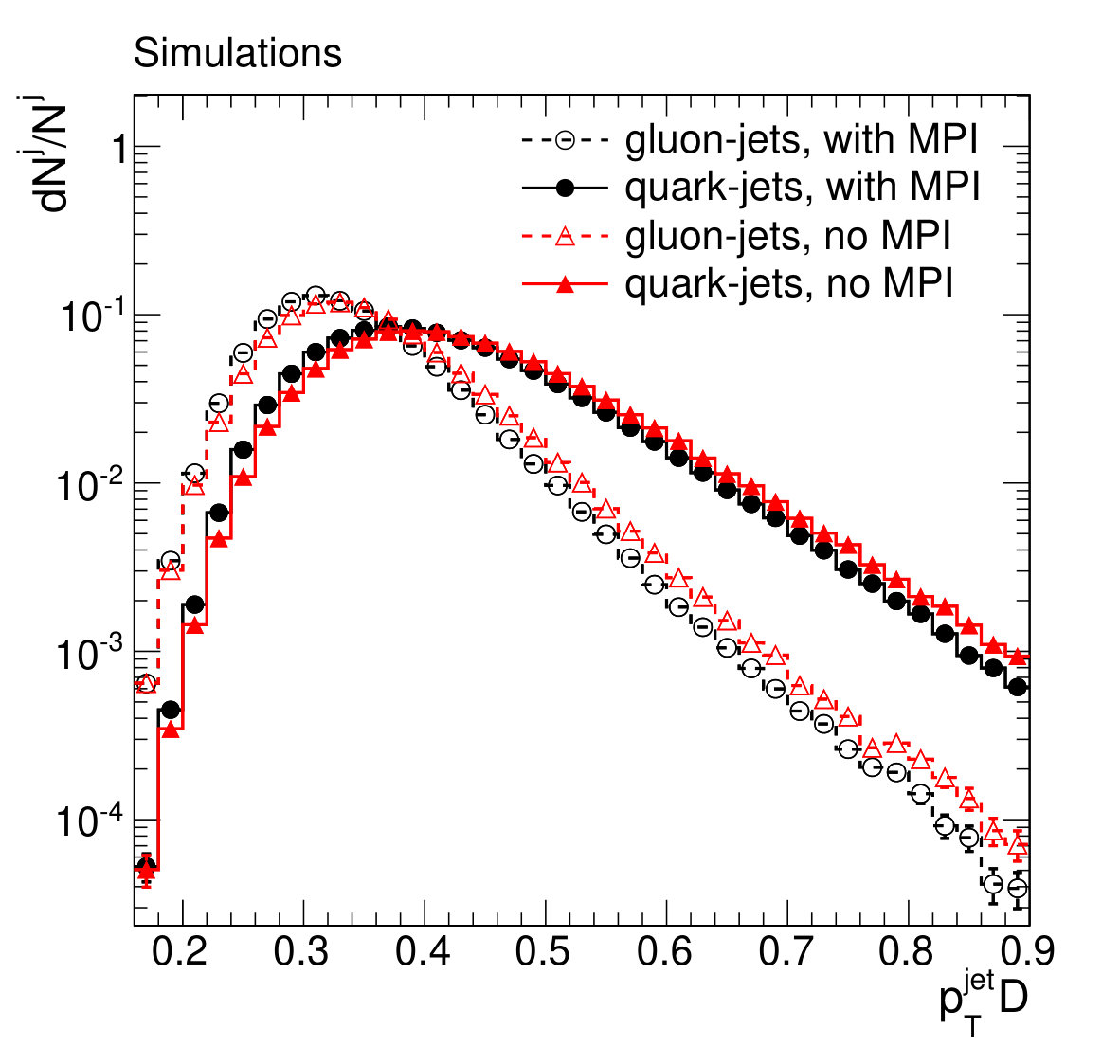

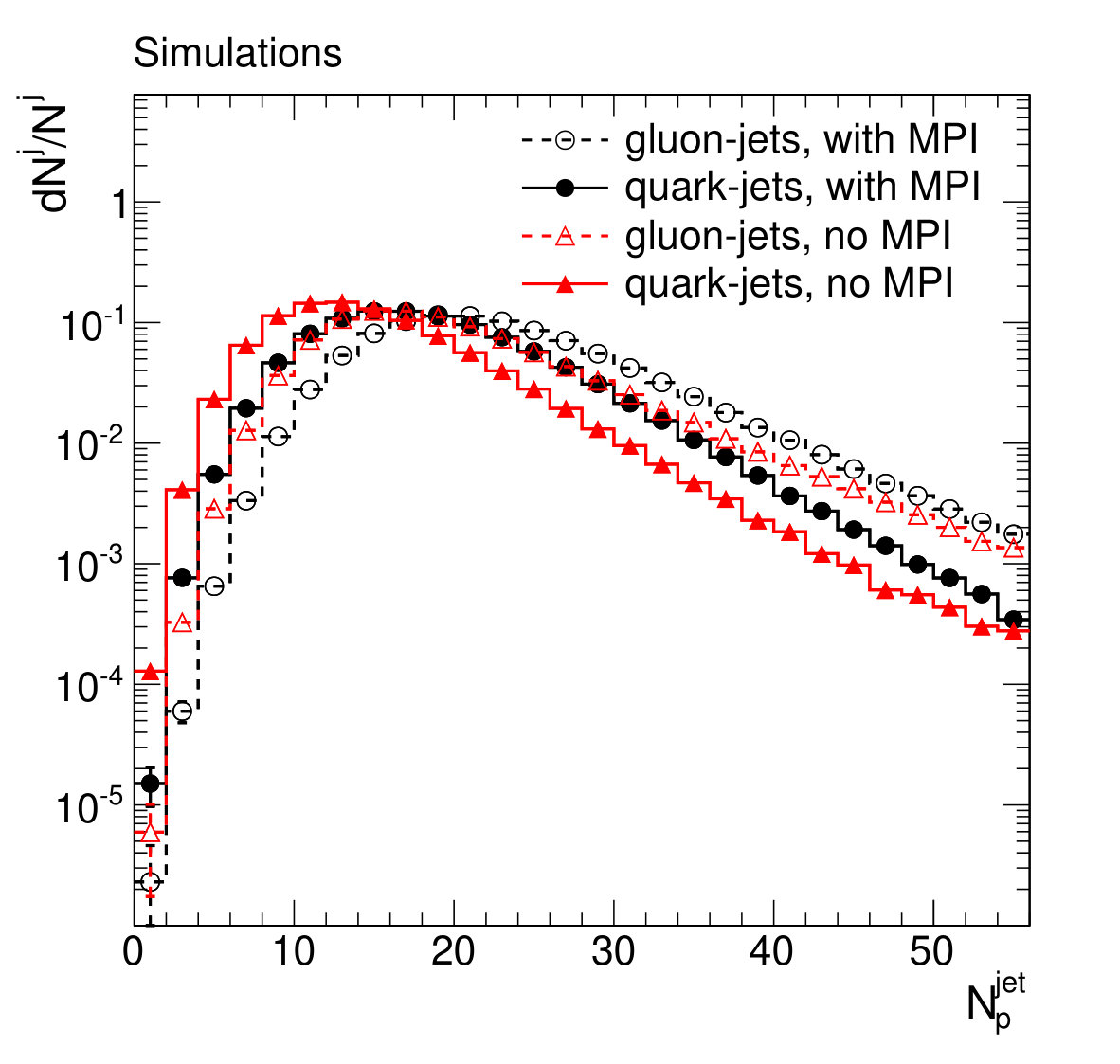

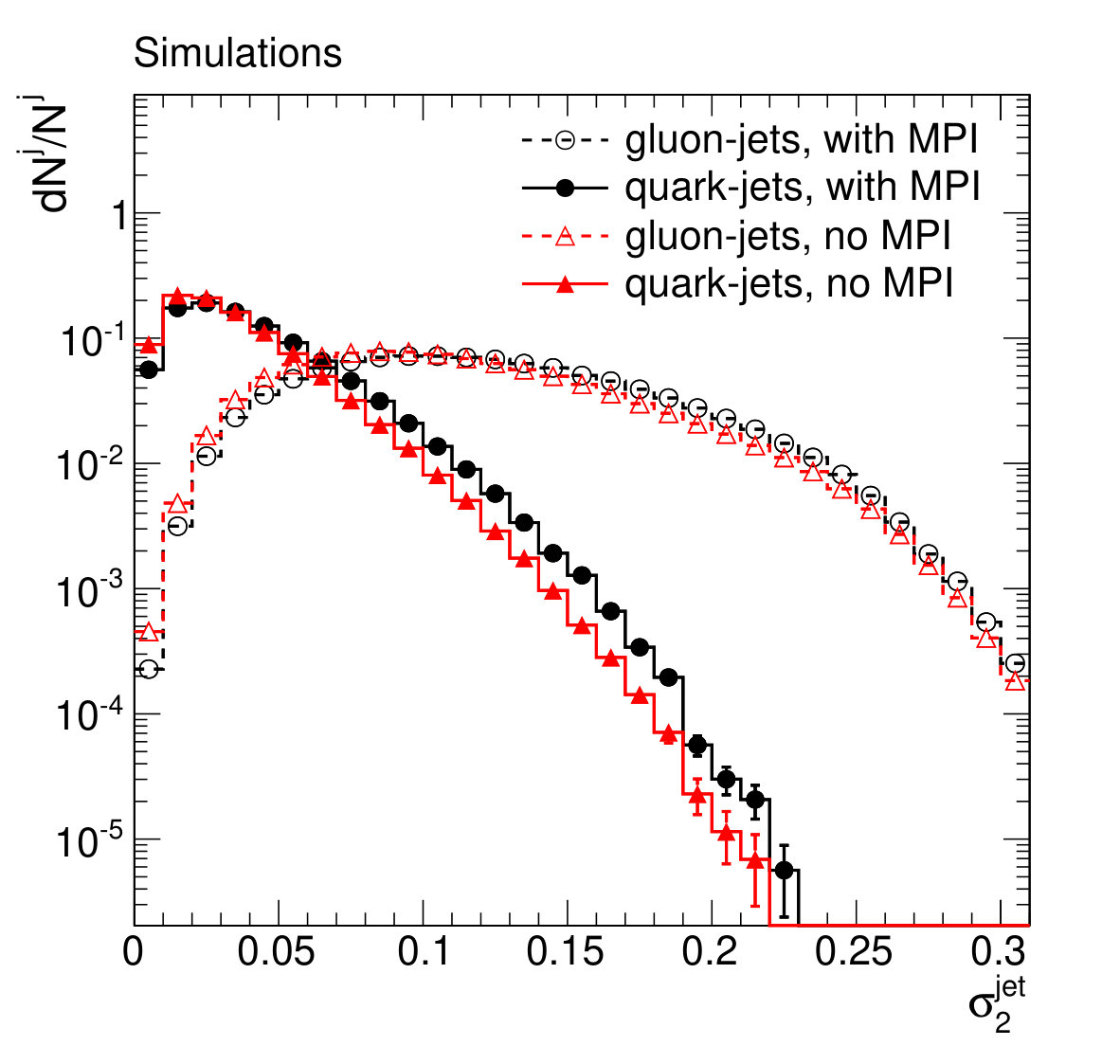

The presence of MPI adds soft particles which can affect the intrinsic properties of a jet. It is observed that for the same quark-jet efficiency, the selection efficiency for gluon-initiated jets is about 92% if MPI is switched off during event generation. The effect of MPI on the input variables is shown in Fig. 4. Different hadronization models can also affect the discrimination based on fragmentation properties of a jet. As shown in Fig. 2, there are significant differences in shape of input variables for pythia8 and herwig++. To investigate the possible effects of different hadronization models on the DPS fraction, the BDT discriminator is trained using events parton showered and hadronized with herwig++. It is observed that for same efficiency of quark-initiated jets, the selection efficiency for gluon-initiated jets is 15% lower if herwig++ is used in place of pythia8 for the training of BDT. This difference in hadronization properties results in reduction of DPS fraction to 0.107, but still there is a gain of 43% as compared to selection when fragmentation properties of the jets were not used.

To further corroborate effectiveness of the method, the Z + jets events are generated using powheg, which are hadronized and parton showered using pythia8. With this simulation, there is a similar rejection of SPS background, which results in 36% gain in the DPS fraction for inclusive Z + 2-jets sample. The differences in the SPS rejection for powheg and madgraph is expected due to the differences in treatment of the LO and NLO effects which also change relative fraction of quark- and gluon-initiated jets.

There are studies which show that SPS background can be suppressed by restricting the boost of Z-boson Kumar et al. (2016). The SPS background is suppressed with an upper cut on dilepton $p_{\rm T}$ less than 10 GeV/$c$ with DPS fraction of 0.32 in the selected events Z + 2-jets events. The effect of jet-tagging is checked on top of the cut on the boost of Z-boson. Using jet fragmentation properties, in addition to Z-boost cut, as discriminator DPS fraction comes out to be 0.42. Now, gain in DPS fraction with jet fragmentation is relatively smaller as compared to no condition on the dilepton $p_{\rm T}$. This behavior is expected because after restricting the boost of Z-boson, most of the remaining jets will be coming from initial- or final-state radiation and hence, will be dominated by gluons.

The quark-gluon discriminator can be optimized for better discrimination between gluon- and quark-initiated jets with consideration of additional infrared and collinear (IRC) safe observables Gallicchio and Schwartz (2011); Aad et al. (2014); Chatrchyan et al. (2013); Cornelis (2014). To study the effect of inclusion of IRC safe observables on the results, jet mass, jet shape and girth are considered in addition to the observables mentioned in Section III to construct the discriminator. Qualitatively, the suppression of SPS background is still there and DPS fraction in selected Z + jets events increases to 0.119 , which is equivalent to a gain of 59% as compared to selection when fragmentation properties of the jets were not used.

It is conclusive from these studies that intrinsic properties of jets can be used to enhance the sensitivity to DPS, where two jets are produced from second interaction. The different hadronization models have varying discrimination which can be considered as a part of the systematic uncertainty during the measurements. The jets initiated by heavy quarks (in particular, b-quarks) show fragmentation properties similar to gluon-initiated jets. Therefore, it is required to veto these jets for effective separation between quark- and gluon-tagged jets. These jets, from b-quarks, can be efficiently identified with the use of available b-tagging algorithms Aad et al. (2016); Chatrchyan et al. (2016). The acceptance and pileup conditions in the LHC experiments can affect the above sensitivity and need to be studied with the actual experimental environment.

V Summary

This paper presents a feasibility study of the Z + jets events to explore the possibility to enhance DPS sensitivity by suppressing SPS background with the use of differences in the fragmentation properties of jets initiated by quarks and gluons. The Z + jets events are simulated with madgraph and powheg Monte-Carlo event generators, followed by hadronization and showering with pythia8. A number of observables, defining the fragmentation behavior of a jet, are used as input for the multivariate analysis and subsequently used to tag a jet as gluon-initiated or quark-initiated. It is observed that with the discrimination of gluon- and quark-initiated jet, it is possible to suppress SPS background up to 52% resulting in a 40–50% gain in Z + 2-jets events produced by DPS. The effect of different hadronization model on the discrimination is also investigated by using events simulated with herwig++. As expected, herwig++ gives different sensitivity but SPS suppression is still there. It will be interesting to study the impact of these variables on the DPS measurements in actual experimental conditions, $i.e.$, pileup, detector acceptance, at the LHC.
