Realization of Ordered Magnetic Skyrmions in Thin Films at Ambient Conditions

TL;DR

This paper demonstrates the stabilization of magnetic skyrmions in amorphous Fe/Gd thin films at room temperature and zero magnetic field, using dipolar interactions, enabling potential ambient-condition skyrmion devices.

Contribution

It introduces a method to stabilize hybrid skyrmions in amorphous thin films at ambient conditions without Dzyaloshinskii-Moriya interactions, expanding skyrmion application possibilities.

Findings

Skyrmions stable over wide temperature and field ranges including room temperature.

Hybrid Bloch- and Néel-type skyrmions stabilized by dipolar interactions.

Multi-scale imaging confirms local and long-range skyrmion order.

Abstract

Magnetic skyrmions present interesting physics due to their topological nature and hold significant promise for future information technologies. A key barrier to realizing skyrmion devices has been stabilizing these spin structures under ambient conditions. In this manuscript, we exploit the tunable magnetic properties of amorphous Fe/Gd mulitlayers to realize skyrmion lattices which are stable over a large temperature and magnetic field parameter space, including room temperature and zero magnetic field. These hybrid skyrmions have both Bloch-type and N\'eel-type character and are stabilized by dipolar interactions rather than Dzyaloshinskii-Moriya interactions, which are typically considered required for the generation of skyrmions. Small angle neutron scattering (SANS) was used in combination with soft X-ray microscopy to provide a unique, multi-scale probe of the local and long-range order of these structures. These results identify a pathway to engineer controllable skyrmion phases in thin film geometries which are stable at ambient conditions.

Figures

Full text

Introduction

Skyrmions have emerged as one of the most promising approaches to realize next-generation, ultra-low power memory and logic devicesFert et al. (2013); Woo et al. (2016); Zhang et al. (2015); Jiang et al. (2017). The small spatial size of these magnetic structures (down to the near atomic levelHeinze et al. (2011)) coupled with their relative ease of current induced mobilityJonietz et al. (2010) and topologically enhanced stability,Fert et al. (2013) make these chiral spin textures among the most exciting emerging spintronic technologies. The ability to stabilize skyrmion structures in environments relevant to consumer technologies remains a challenging barrier to realizing skyrmion-based devices today. Specifically, until recently, skyrmions were only ever demonstrated in temperature windows well below room temperature,Nagaosa and Tokura (2013); Jiang et al. (2017) and always in finite magnetic fieldsKarube et al. (2017); Tokunaga et al. (2015). Advances, particularly in interfacial Dzyaloshinskii-Moriya (DM) interactions,Moreau-Luchaire et al. (2016) have largely overcome the challenges associated with room-temperature stability.Jiang et al. (2017, 2016) Few approaches have been demonstrated that can stabilize skyrmions at zero applied magnetic field, but include rapid quenching,Karube et al. (2016, 2017) pulsed electrical currents,He et al. (2017) geometric confinement,Zheng et al. (2017); Boulle et al. (2016) or pinning the skyrmions with nanostructuresSun et al. (2013); Gilbert et al. (2015). These approaches place restrictions on the skyrmion system, limiting both fundamental research and eventual device architectures. Removing the requisite magnetic field, especially at room temperature, in systems relevant to eventual skyrmion devices is crucial to integrating skyrmions into spintronic architecturesDieny et al. (1991).

We demonstrate the realization of an ordered magnetic skyrmion lattice in amorphous multilayer thin-films without DM interactions. These skyrmions have been suggested to be stabilized by dipole-dipole interactions,Montoya et al. (2017a, b) but recent works have suggested a random anisotropy (RA) specific to amorphous and nanocrystalline systems may also contribute to skyrmion formationChudnovsky and Garanin (2018). Utilizing a straight forward magnetic field sequence (presented in Supplemental Fig. S1), the labyrinthine domains typically present at remanence are ordered into artificial stripe domains, analogous to traditional B20-structured skyrmion materials. The skyrmion regime is accessed by increasing the magnetic field from the stripe state, breaking up the stripes and precipitating arrays of long-range ordered skyrmions. Once generated, these dipole-stabilized skyrmionsMontoya et al. (2017a, b) are stable over a field range from 200 mT to -55 mT, including zero magnetic field, and a temperature range from 10 K to 320 K, demonstrating good alignment with the parameter space of consumer technologies.

Unlike traditional skyrmion systems which are stabilized by DM interactions, these dipole-stabilized skyrmions possess no symmetry breaking in the in-plane circularity and thus both chiralities can be realized. However, this is not the case at the surfaces of the skyrmion columns. Specifically, these dipole-stabilized skyrmions possess flux-closure domains at the top and bottom surfaces, which have a structure analogous to Néel-type skyrmions. The chirality of these Néel-type surfaces (i.e. caps) is determined directly by the dipole field emanating from the core of the skyrmion and is thus uniform for all of the skyrmions with a common core orientation. Further the chirality of the top surface is opposite to the chirality of the closure domains of the bottom surface. Between the Néel caps, away from the top and bottom surface of the film, the moments wrap into Bloch-type structures with random chirality developing a hybrid skyrmion structure with an ordered lattice stabilized by the mutual repulsion of these caps (presented in Supplemental Fig. S1c). The dipole-stabilized skyrmions in our Fe/Gd system open up a new rich playground of physical phenomena as well as to explore for emergent technologiesJiang et al. (2017).

Methods

The Fe/Gd multilayer films were deposited on 1 cm2 Si substrates by DC magnetron sputtering. Deposition was performed at room temperature in an ultrahigh vacuum with a 3 mTorr (1 Torr = 133 Pa) argon environmentMontoya et al. (2017a, b). The multilayer films were grown by depositing alternating layers of Fe and Gd until the desired number of layers was achieved. In all cases, 5 nm tantalum seed and capping (to prevent oxidation) layers were used. This is illustrated in Fig. S2a. A picture of the sample in the magnet bore is shown in Fig. S2b.

Two-dimensional small angle neutron scattering (2D SANS) experiments were performed at the GP-SANS beamline at Oak Ridge National Laboratory’s (ORNL) High Flux Isotope Reactor (HFIR)Heller et al. (2018); Wignall et al. (2012). These experiments were performed at room temperature and varying the magnetic field using a 5 T horizontal open bore dry cryogenic superconducting magnet, with the magnetic field aligned parallel to the neutron beam (Supplemental Fig. S2c). The SANS instrument was configured to use 16 Å neutrons ($\Delta\lambda/\lambda$ = 0.13) with a detector distance of 19.2 m on a co-linear aligned stack of multiple (12 for the [(Fe(3.6 Å) / Gd(4.0 Å)] $\times 120$ and 10 for the [(Fe(3.4 Å) / Gd(3.8 Å)] $\times 120$) films. This sample holder ensures that the films remain aligned co-linearly and restricts any in-plane rotation/slipping of the film stack. An 8 mm diameter aperture was used to fully illuminate the films in the beam. The temperature dependence 2D SANS measurements were performed on the Very Small Angle Neutron Scattering (VSANS) beamline at the National Institute for Standards and Technology (NIST) using 14 Å neutrons, a water cooled wire-wrap electromagnet, and a closed-cycle refrigeration system.

The artificially aligned stripe domains were stabilized by rotating the sample about the x-axis (Supplemental Fig. S1b, out of the figure plane in Supplemental Fig. S2c) by $\sim$45*∘* and applying a saturating field of $\mu_{0}H=$ 500 mT. Reducing the field from saturation would typically nucleate randomly oriented labyrinth domains, however, by tilting the sample, the in-plane projection of the field breaks the symmetry, and orders the domains as stripes domains along the in-plane field direction (stripes aligned parallel to the field direction). After removing the magnetic field, the sample was rotated to its original configuration, with the field along the film normal, (Supplemental Fig. S2c) for the SANS measurements.

X-ray microscopy images were captured on BL 6.3.2 at the Advanced Light Source. Images were taken using the Fe $L_{2}$ edge, measuring the transmission with clockwise and counter-clockwise circularly polarized X-rays. Taking the difference between the two polarizations generates the magnetic contrast by the X-ray magnetic dichroism. To achieve transmission, the samples were grown on SiN membrane windows.

Micromagnetic simulations were performed using the Object Oriented Micromagnetic Framework (OOMMF) using a saturation magnetization of 800 emu/cm3 (1 emu/cm3 = 103 A/m), Exchange stiffness of 1$\times 10^{-11}$ J/m, and uniaxial anisotropy of $200\times 10^{3}$ J/m3; dipole interactions were included but no DM interaction were included. Stability simulations were performed at $H=0$. The skyrmion size accurately reproduced the experimental results, with diameters of $\approx$200 nm.

Results and Discussion

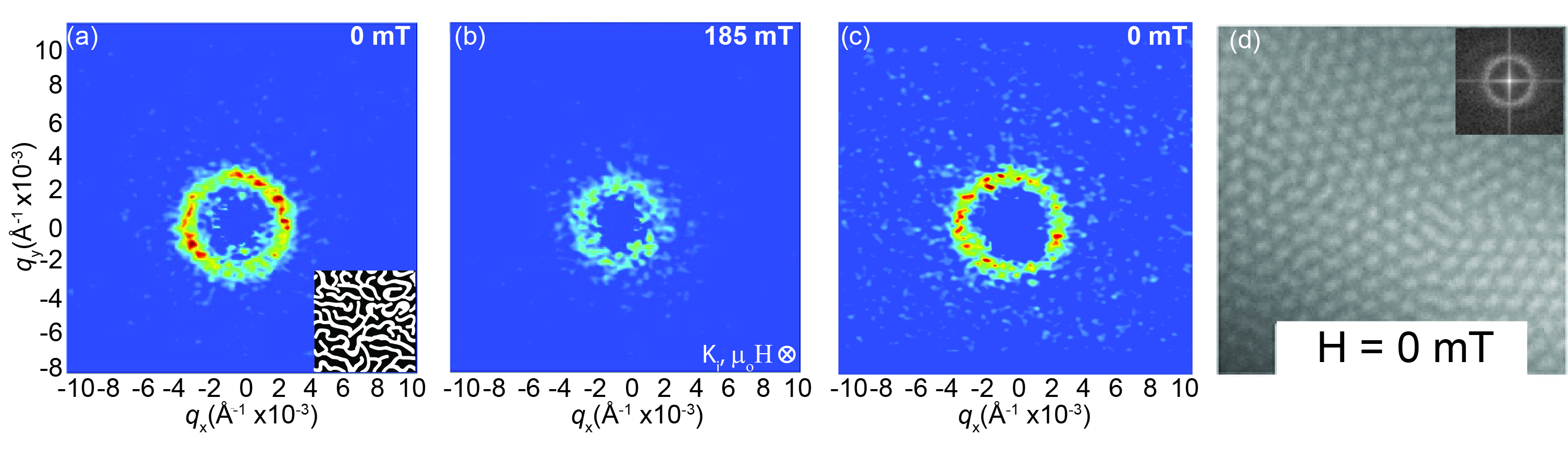

Measurements were performed on multilayer thin-films of [(Fe(3.6 Å) / Gd(3.8 Å)]$\times$120 and [(Fe(3.4 Å) / Gd(4.0 Å)]$\times$120 oriented perpendicular to the incoming neutron beam and external magnetic field. At remanence, the domains coalesced into long interwoven ’worm-like’ structures (labyrinthine) with similar widths (illustrated in the inset of Figure 1a)Montoya et al. (2017a, b). The Fourier transform of these disordered domains defines the small angle neutron scattering (SANS) pattern,Milde et al. (2013) and was observed to be a ring (Figure 1a), as expected. When approaching saturation, the disordered labyrinthine domains break apart to form domains of magnetic skyrmions with local hexagonal ordering, but no long range orientation of the hexagonal latticeMontoya et al. (2017b). The existence of ordered skyrmion lattices is not expected in the RA model,Chudnovsky and Garanin (2018) but would be present in the dipole model - due to their repulsive interactions - which further suggests that dipole interactions are the dominant factor in these skyrmions. Each of the individual textures resulting from the dissolution of the labyrinthine domains possess a continuous, closed loop boundary and antiparallel core and perimeter, characteristic of a Bloch skyrmion. The integrated solid angle of these structures - defining their topological charge - can indeed be unity, making them homotopically equivalent to skyrmions observed in traditional B20 materialsNagaosa and Tokura (2013) or 3d-5d multilayersMoreau-Luchaire et al. (2016). One distinction of these skyrmions is that they are not stabilized by the DM interaction. The likely stabilizing mechanism is dipole interactions between the skyrmion core and the surrounding (antiparallel) matrix; the RA mechanism is expected to play a small role here due to the absence of orbital momentum in the gadolinium,Hellman et al. (1998) which results in minimal magnetocrystalline anisotropy. Neither of these mechanisms have a geometric symmetry-breaking, as the DM interaction does, and thus there is no net chirality in the lattice; the two chiral states are energetically degenerate and thus ’writing’ to the chirality for e.g. data storage applications could be achieved. The skyrmions realized by applying the magnetic field strictly along the film normal are form locally ordered domains with no long-range orientation, and the SANS pattern from all the domains collectively contribute to a broad ring feature in the SANS pattern, indicating the approximate equidistant spacing of the skyrmions. Increasing the magnetic field from the labyrinth phase at $\mu_{0}H$ = 0 to $\mu_{0}H$ = 185 mT, forming skyrmions, the SANS pattern evolves as described, Figure 1b. One may notice that both the labyrinth and skyrmion phases (Figure 1a-b) form a ring feature, indicating each possesses long-range periodicity but no orientation and are indistinguishable by SANS. Returning the sample to remanence without going through saturation does not affect the ring structure in SANS but using soft X-ray microscopy(Figure 1d) one can see the skyrmions are present at zero applied field. Calculating the Fourier transform of the X-ray image, Figure 1d inset, shows a ring - the observed banding is an artifact of the image processing and does not correspond to any experimental feature. Soft X-ray microscopy provides a local, real-space image to distinguish between the disordered skyrmion state and labyrinth states that look the same with SANS. SANS is an ensemble average and is related to the Fourier transform of the X-ray data. More X-ray images are presented in the Supplemental Materials in Figure S3 which show the field evolution of the skyrmions in the disordered state.

Comparing the skyrmions and labyrinthine domain structure here to traditional skyrmion materials,Nagaosa and Tokura (2013) the skyrmion phase in B20 materials is bounded by chiral stripe phases at lower fields and temperaturesMühlbauer et al. (2009). We propose that by promoting order within the labyrinth structure, an artificial stripe phase can be realized which mimics the stripe phase in the traditional materials and the resultant skyrmions may form with long-range coherent order. Ordering of the domains was accomplished by first rotating the sample’s surface normal by $\approx 45^{\circ}$ relative to the magnetic field (Supplemental Fig. S1b) after which a saturating field (500 mT) was applied, then the field was reduced to remanence. Saturation of the sample in the rotated geometry induces an in-plane field projection which breaks the symmetry and orders the labyrinthine domains into oriented stripe domains, see inset of Figure 2a. The sample was then rotated back to its original orientation - with the surface normal parallel to the neutrons and magnetic field - and the SANS pattern was measured. The SANS measurement shows two bright peaks along the axis of the film’s rotation (Fig. 2a), indicating that the labyrinthine domains are ordered, with stripes forming parallel to the in-plane field projection during the saturation sequence.

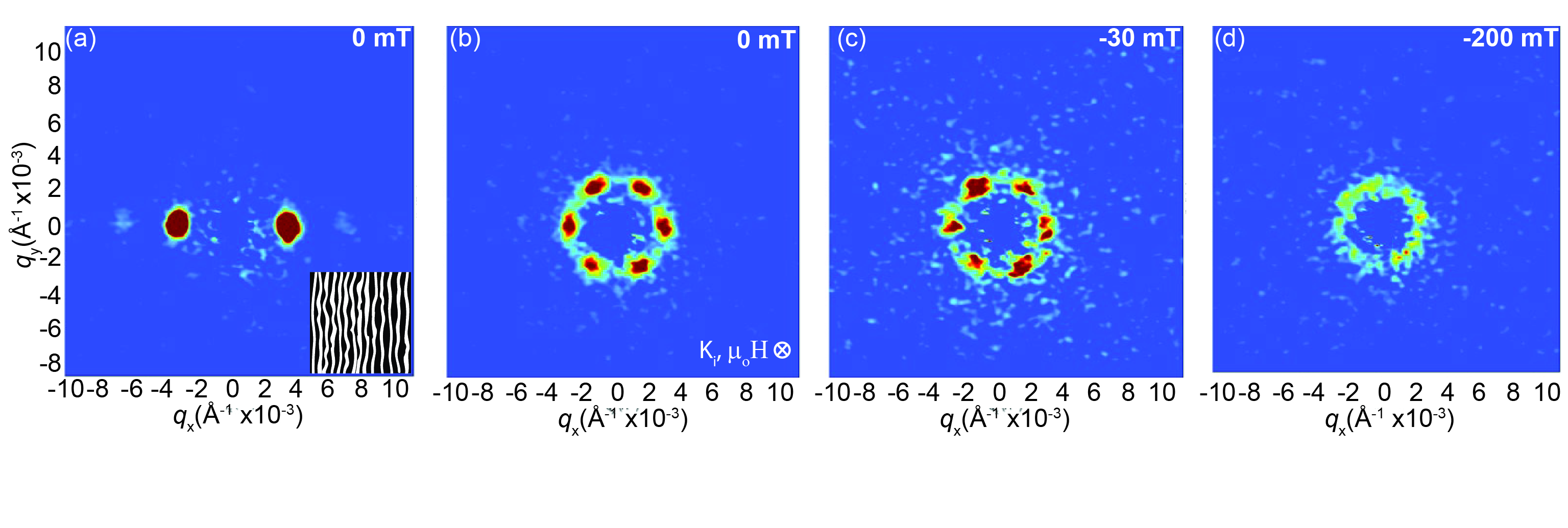

Increasing the magnetic field from remanence to $\mu_{0}H=$ 185 mT, applied along the film’s surface normal, the SANS pattern evolves from two peaks located on the horizontal ($Q_{x}$) axis (which also was the axis of rotation) to six peaks located at 60*∘* increments. Reducing the magnetic field to $\mu_{0}H$ = 0 mT, the hexagonal pattern is unchanged (Figure 2b). The 6-fold pattern is widely associated with the skyrmion phase and, compared to the ring pattern in Figure 1b and c, indicates that the skyrmions form hexagonally packed arrays with long range order and orientation. This ordering is expected to occur by setting one of the nearest neighbor axes of the emergent hexagonal skyrmion lattice with the stripe domain orientation, while the other two axes coordinate to minimize the skyrmion-skyrmion repulsive interaction.

At $\mu_{0}H=0$ the SANS feature appears at $|Q|$ = 0.0025(8) Å*-1*, indicating a skyrmion center-to-center separation of 230 nm; this value gives the upper limit to the skyrmion diameter. The lattice’s field stability was determined by reducing the out-of-plane magnetic field towards negative saturation (Figure 2b-d). As the magnetic field is reduced from remanence ($H=0$) to -30 mT (Fig. 2c), two peaks become significantly stronger, indicating the re-emergence of a co-existing stripe domain phase, in agreement with X-ray microscopy images (see Supplemental Fig. S3). The new stripe phase is rotated by 60∘ relative to the initial orientation in Figure 2c. The difference in orientation may be due to a slight misalignment of the sample with respect the field in the y-axis which would give a small in-plane component in that direction, or subtle texturing within the film. Approaching saturation, the SANS pattern becomes a broad ring of scattering, shown in Figure 2d, suggesting a nearly complete loss of orientation. After achieving magnetic saturation, the SANS pattern collapses to $Q=0$, i.e. no features were observed in the measurements (not shown). Similar results were observed for the [(Fe(3.6 Å) / Gd(3.8 Å)]$\times$120 stack of films (Supplemental Fig. S2). This further emphasizes the long-range order which is achieved after conditioning in the tilted geometry. These results validate the tilted field geometry conditioning as an effective way to transform the disordered labyrinth domains and resultant sea of skyrmions into an ordered skyrmion lattice. All previous results of these systems were done on disordered skyrmionsMontoya et al. (2017a, b). This approach presents a simple procedure to manipulate and order skyrmions which, in this system, remain ordered and stable over an extended temperature and field range.

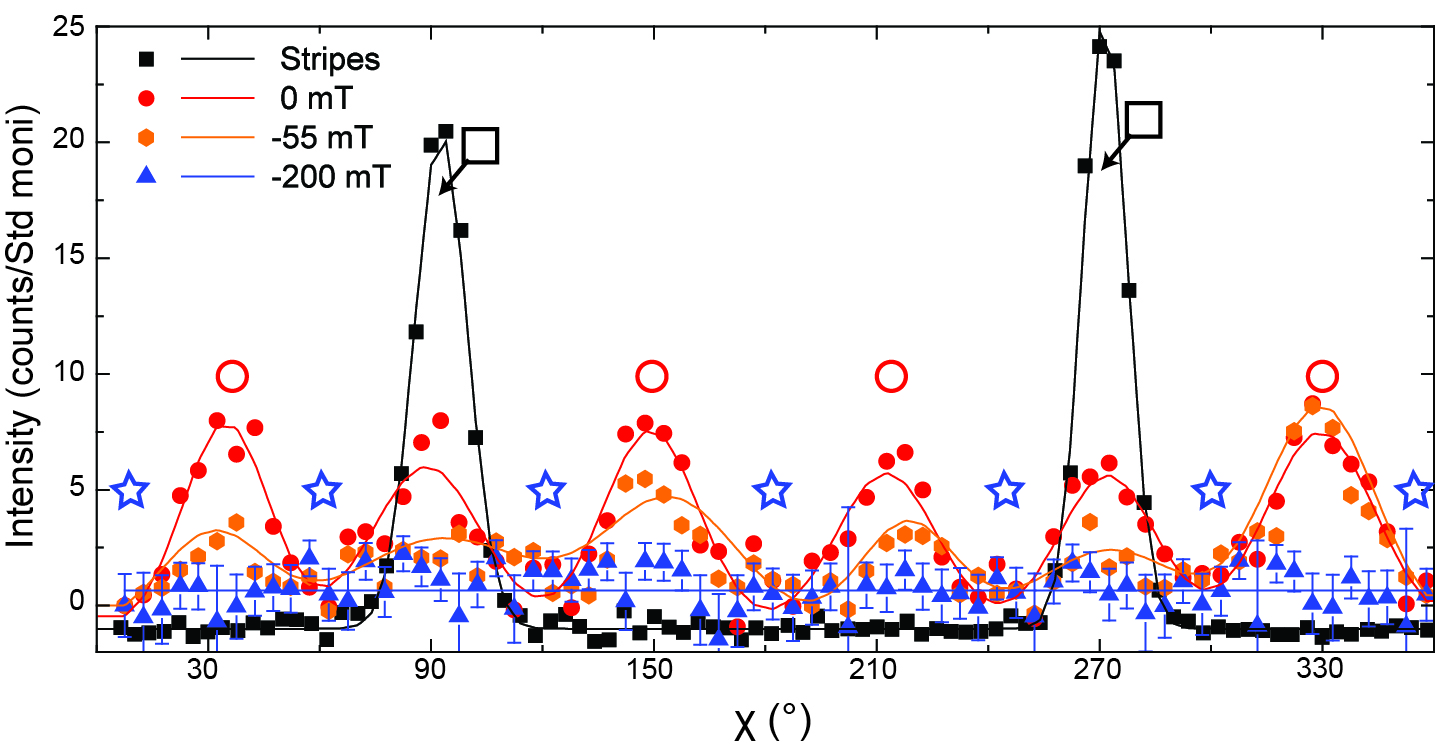

To further investigate the domain transitions, a projection of the intensity as a function of azimuthal angle, $\chi$ (defined in Supplemental Fig. S2d), was taken at the peak intensity ($|Q|$ = 0.0025 Å*-1*). Representative plots for each of the main phases are presented in Figure 3. The transition from the artificial striped domain (solid black squares) to the skyrmion lattice phase (solid red circles) is readily identifiable by the change in the azimuthal pattern from two peaks to the six-peaks. We note also that these peaks are separated by 180*∘* and 60*∘, respectively, identifying the two-fold and regular six-fold patterns in the 2D SANS measurements in Figures 2c-d. The coexistence phase (solid orange hexagons), which is highlighted at $\mu_{0}H=$ -30 mT, (Figure 2c) has a six-fold symmetry with additional intensity at $\chi$ = 150∘* and 330*∘*; the increase in intensity at these two peaks is consistent with the re-emergence of stripe domains. Approaching magnetic saturation the coexistence phase loses long-range structure, resulting in a collapse in the SANS features into a broad ring, corresponding to an approximately constant intensity at all angles (solid blue triangles).

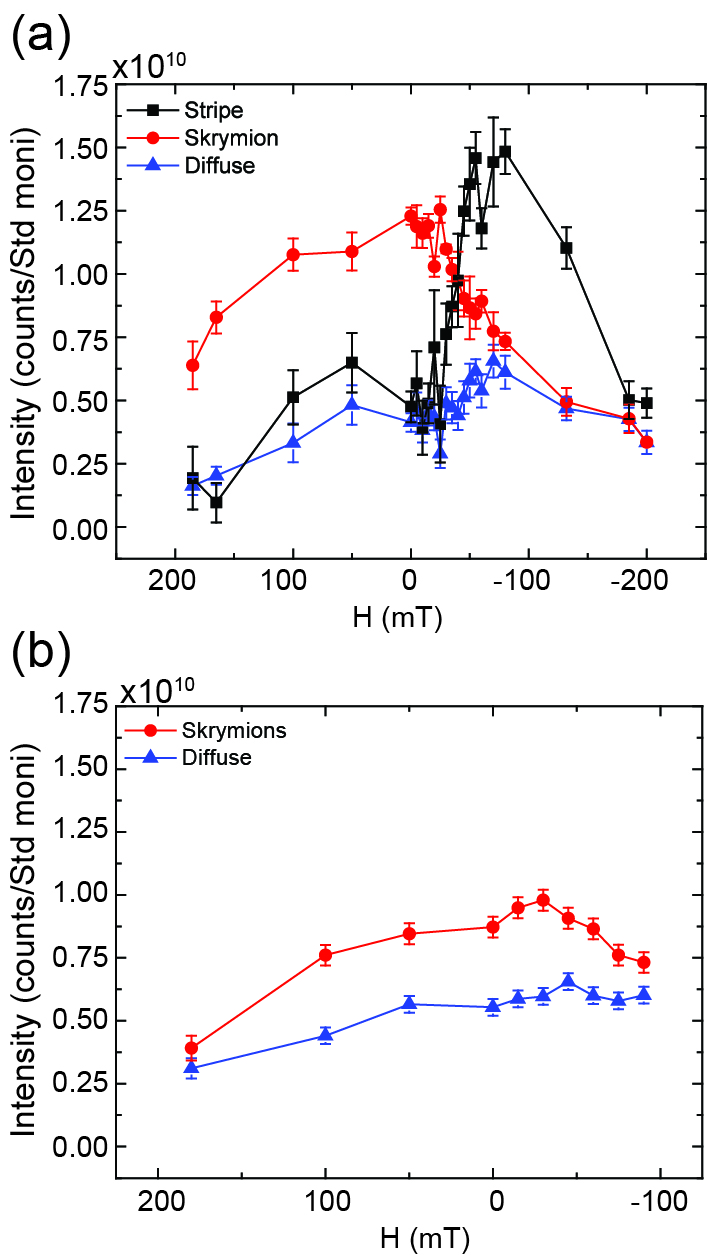

The azimuthal projections show that there are regions in the SANS pattern which can be associated with each of the magnetic configurations. Tracking the intensities of these special regions, identified explicitly as circles, stars, and squares, in Figure 3 and Supplemental Figure S2d, allows us to follow the transitions between the magnetically ordered phases. The field dependence of the scattering intensity from the identified regions, for the [(Fe(3.4 Å)/Gd(4.0 Å)]$\times$120 film stack, is shown in Figure 4a and follows the same field sequence as described above (saturated in a rotated configuration, return to remanence, rotate to a normal geometry, increase the magnetic field to $\mu_{0}H=$ 185 mT, then measure under a decreasing magnetic field). The plotted intensity for the ring-like background and skyrmions are as-measured; the intensity of the stripe phase is defined as the measured intensity, minus the skyrmion intensity, plus the background. The calculated stripe phase intensity subtracts the overlapping skyrmion signal, which includes the ring-like background, then reintroduces the background to allow accurate comparisons to the skyrmion intensity. Tracing the feature associated with the skyrmion phase confirms its stability is robust over a wide range of applied fields, between $\mu_{0}H=$ 185 mT and $\mu_{0}H=$ -30 mT; temperature scans performed at $\mu_{0}H=$ 0 mT once established at 300 K; also confirms a temperature stability from 10 K to $>$320 K. Passing through remanence the intensity of the skyrmion phase decreases, coinciding with the increase of the stripe phase intensity. The initial increase in intensity of the skyrmion phase closely tracks the increasing intensity of the ring-like background. As noted above, the ring feature corresponds to phases with a common periodicity but no orientation. A likely origin of this feature is therefore the nucleation of labyrinthine domains, perhaps in regions between skyrmion domains, or in regions of skyrmion-lattice defects.

Performing similar analysis on the [(Fe(3.6 Å) / Gd(3.8 Å)]$\times$120 sample (Figure 4b) identifies similar qualitative trends for the skyrmion lattice. However, in this sample no co-existing stripe phase was seen as we approached saturation (Supplemental Fig. S4). A slight change in compositions is expected to have a large effect on the skrymion size and correspondingly the intensity of the diffraction pattern of the skyrmion lattice.

One key result of the experimentally-observed hexagonal ordering is that these skyrmions possess a mutual repulsive interaction. For Bloch-type skyrmions with random chiralities, and azimuthal-only character, the interaction is not strictly repulsive and skyrmions with the opposite chiralities can condense to form biskyrmions which would not form hexagonal arraysLee et al. (2016). We propose that distortions of the skyrmion structure, in the form of surface-bound flux-closure domains,Montoya et al. (2017a) result in a feature that supports the mutual repulsion required to promote lattice ordering. Specifically, in the flux-closure structure, small in-plane domains form at the domain wall/film surface boundary to reduce the stray magnetic fields, shown in Figure 5. The orientation of the domains follow the dipole fields; for a skyrmion with an upward facing core, for example, the dipole fields orient radially outward (away from the core) on the top surface, and radially inward (toward the core) on the bottom surface. This proposed structure is similar to a Néel skyrmion structure, but with opposite chiralities on the top and bottom, giving it a net topological charge of zero. However, Lorentz transmission electron microscopy (TEM) results have previously shown that skyrmions in these systems are Bloch-type,Montoya et al. (2017b) with moments oriented in the azimuthal direction, seemingly at odds with the flux-closure structure. In the flux-closure structure, azimuthally-oriented moments would be located at the barrel of the skyrmion between the flux-closure domains; TEM measurements would be predominantly sensitive to these azimuthal moments, while the radial moments on the top and bottom would contribute oppositely to the image and thus would tend to cancel out in the transmission geometry, leaving only the Bloch walls. This new hybrid skyrmion construction would possess a net topological charge of unity, with no net contribution from the Néel-type flux-closure caps, and unity from the Bloch-type azimuthally wound moments along the barrel.

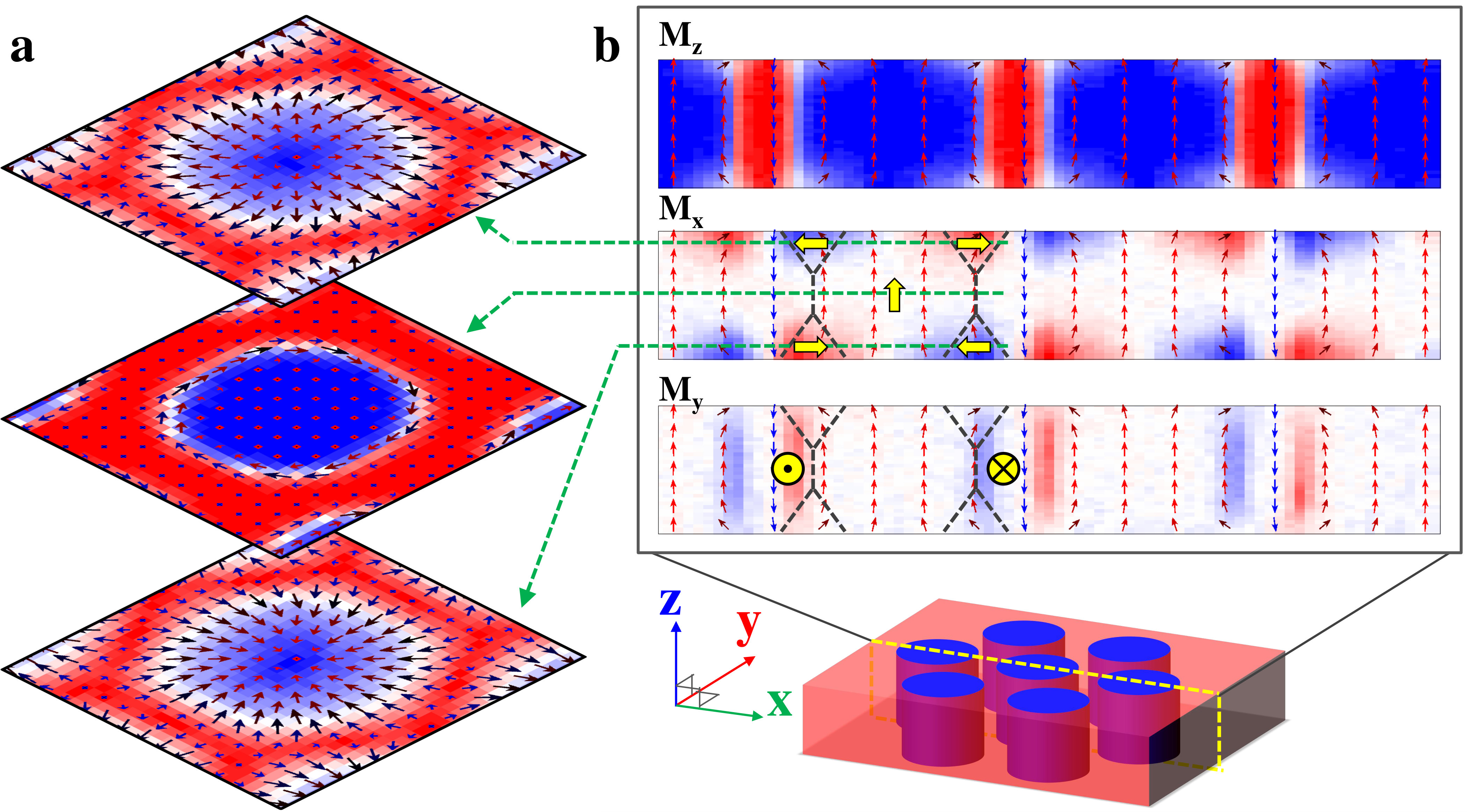

To investigate the stability of the described flux closure skyrmion structure inferred from our data, micromagnetic simulations performed using OOMMFDonahue (1999) shown in Figure 5. Indeed, the proposed structure was confirmed to be stable at zero field and at simulated temperatures of 300 K. The top-down view of the skyrmions, Figure 5a shows the moments oriented radially on the top and bottom surfaces, with opposite directions relative to the core, following the dipole fields. At the equatorial belt of the skyrmion, the moments are aligned in the azimuthal direction, consistent with the proposed structure and the TEM results. The cross-section of the skyrmions, Figure 5b shows that the magnetization follows the proposed flux closure structure, with small surface domains oriented in-plane away from the skyrmion core on the top, and towards the core on the bottom. The magnetization along the y-direction bisects the azimuthal ring, and thus is into the plane on the right, and out of the plane on the left (for the demonstrated counter-clockwise chirality). This specific structure is crucial for the formation of the hexagonal ordering of the skyrmion lattice and has been observed recently in Pt/Co/Ir and Pt/Co/AlOx trilayersLegrand et al. (2018). These simulations did not include a random anisotropy, and hence demonstrate stability is possible with only dipolar considerations, consistent with previous worksBüttner et al. (2018).

Conclusion

We have experimentally demonstrated an approach to generate lattices of hybrid Néel-Bloch skyrmions with long-range order, stable at room temperature and zero applied magnetic field, in amorphous multilayer thin films of Fe/Gd. These unique structures were achieved by saturating the film with a tilted magnetic field, facilitating the construction of an ordered stripe phase. This field sequence gives rise to a well ordered state of the skyrmion lattice over a wide range of positive and negative fields ($\approx 200$ mT), previously unreported, along with a broad range of temperatures (10 K to $>$320 K). This range of stability is crucial for the realization of devices stable against stray fields. Additionally, these hybrid Néel-Bloch skyrmions lack the in-plane chiral symmetry breaking present in traditional skyrmions stabilized by DM interactions. As a result, both chiralites can exist in these films and can be uniquely controlled, providing additional avenues of manipulation for recording tertiary data-bits, for example. Alternatively, long-range chirality control may be realized within the system by adding additional exchange-coupled layers which possess traditional DM interactions. The ability to stabilize skyrmions at ambient conditions as well as a broad range of fields makes Fe/Gd multilayered thin films ideal candidates for integration into spintronic devices.
