On the convergence of the normal form transformation in discrete Rossby and drift wave turbulence

TL;DR

This paper investigates the convergence of the normal form transformation in discrete Rossby and drift wave turbulence, revealing that it cannot fully explain finite-amplitude phenomena like precession resonance, indicating the need for a more general theory.

Contribution

It numerically analyzes the convergence of normal form transformations in a reduced wave turbulence model, linking divergence to finite-amplitude effects like precession resonance.

Findings

Normal form transformation diverges near precession resonance amplitudes.

Divergence of the transformation correlates with strong energy transfers.

Standard normal form methods are insufficient for intermediate nonlinearities.

Abstract

We study numerically the region of convergence of the normal form transformation for the case of the Charney-Hasagawa-Mima (CHM) equation to investigate whether certain finite amplitude effects can be described in normal coordinates. We do this by taking a Galerkin truncation of four Fourier modes making part of two triads: one resonant and one non-resonant, joined together by two common modes. We calculate the normal form transformation directly from the equations of motion of our reduced model, successively applying the algorithm to calculate the transformation up to $7^\textrm{th}$ order to eliminate all non-resonant terms, and keeping up to $8$-wave resonances. We find that the amplitudes at which the normal form transformation diverge very closely match with the amplitudes at which a finite-amplitude phenomenon called $precession$ $resonance$ (Bustamante $et$ $al.$ 2014) occurs, characterised by strong energy transfers. This implies that the precession resonance mechanism cannot be explained using the usual methods of normal forms in wave turbulence theory, so a more general theory for intermediate nonlinearity is required.

Figures

Equations

$$({\nabla }^2-F)\frac{\partial \psi }{\partial t}+\beta \frac{\partial \psi }{\partial x}+\frac{\partial \psi }{\partial x}\frac{\partial {\nabla }^2\psi }{\partial y}-\frac{\partial \psi }{\partial y}\frac{\partial {\nabla }^2\psi }{\partial x}=0$$

$${\dot{A}}_{\mathbf{k}}+i{\omega }_{\mathbf{k}}{A}_{\mathbf{k}}=\frac{1}{2}\sum _{{\mathbf{k}}_1{\mathbf{k}}_2\in \mathbb{Z}}{Z}_{{\mathbf{k}}_1{\mathbf{k}}_2}^{\mathbf{k}}{\delta }_{{\mathbf{k}}_1+{\mathbf{k}}_2-\mathbf{k}}{A}_{{\mathbf{k}}_1}{A}_{{\mathbf{k}}_2},\mathbf{k}\in {\mathbb{Z}}^2,$$

$$\begin{array}{rl}{Z}_{{\mathbf{k}}_1{\mathbf{k}}_2}^{\mathbf{k}}& =\frac{(k_{1x}{k}_{2y}-k_{1y}{k}_{2x})(|{\mathbf{k}}_1{|}^2-|{\mathbf{k}}_2{|}^2)}{|\mathbf{k}{|}^2+F},{\omega }_{\mathbf{k}}=\frac{-\beta k_x}{|\mathbf{k}{|}^2+F}.\end{array}$$

$${\dot{a}}_{\text{k}}=\frac{1}{2}\sum _{{\text{k}}_1,{\text{k}}_2\in {\mathbb{Z}}^2}{Z}_{{\text{k}}_1{\text{k}}_2}^{\text{k}}{\delta }_{{\text{k}}_1+{\text{k}}_2-\text{k}}{a}_{{\text{k}}_1}{a}_{{\text{k}}_2}{e}^{-i{\omega }_{{\mathbf{k}}_1{\mathbf{k}}_2}^{\mathbf{k}}t}.$$

$$A_{\mathbf{k}}=n_{\mathbf{k}}{e}^{i{\varphi }_{\mathbf{k}}}$$

$${\dot{n}}_{\mathbf{k}}$$

$${\dot{\phi }}_{{\mathbf{k}}_1{\mathbf{k}}_2}^{{\mathbf{k}}_3}$$

$$\begin{array}{rl}{\dot{A}}_1& =-i{\omega }_1{A}_1+z_1{A}_2^{\ast }{A}_3\\ {\dot{A}}_2& =-i{\omega }_2{A}_2+z_2{A}_1^{\ast }{A}_3+ϵs_2{A}_3^{\ast }{A}_4\\ {\dot{A}}_3& =-i{\omega }_3{A}_3+z_3{A}_1{A}_2+ϵs_3{A}_2^{\ast }{A}_4\\ {\dot{A}}_4& =-i{\omega }_4{A}_4+ϵs_4{A}_2{A}_3\\ {\omega }_3& ={\omega }_1+{\omega }_2\text{,}{\omega }_4\ne {\omega }_2+{\omega }_3,\end{array}$$

$$A_1(0)=(0.0245+0.001i)\alpha ,A_2(0)=(0.01+0.01i)\alpha ,A_3(0)=0.02236\alpha ,A_4(0)=0,$$

$$\begin{array}{rl}E=& \sum _{i=1}^4(|{\mathbf{k}}_i{|}^2+F)|A_i{|}^2\\ \mathcal{E}=& \sum _{i=1}^4|{\mathbf{k}}_i{|}^2(|{\mathbf{k}}_i{|}^2+F)|A_i{|}^2\end{array}$$

$$\dot{\mathbf{A}}=J\mathbf{A}+F(\mathbf{A})$$

$$F(\mathbf{A})=F^{(2)}(\mathbf{A})+F^{(3)}(\mathbf{A})+\dots$$

$$\mathbf{A}=\mathbf{B}+h^{(2)}(\mathbf{B})$$

$$\dot{\mathbf{B}}=J\mathbf{B}+J{h}^{(2)}(\mathbf{B})-\nabla h^{(2)}(\mathbf{B})J\mathbf{B}+F^{(2)}(\mathbf{B})+{\tilde{F}}^{(3)}(\mathbf{B})+\dots$$

$$F^{(2)}(\mathbf{B})=\nabla h^{(2)}(\mathbf{B})J\mathbf{B}-J{h}^{(2)}(\mathbf{B})$$

$$J{h}^{(2)}(\mathbf{B})-\nabla h^{(2)}(\mathbf{B})J\mathbf{B}+F^{(2)}(\mathbf{B})=R^{(2)}(\mathbf{B})$$

$$\dot{\mathbf{B}}=J\mathbf{B}+R^{(2)}(\mathbf{B})+{\tilde{F}}^{(3)}(\mathbf{B})+\dots$$

$$\mathbf{B}=\mathbf{C}+h^{(3)}(\mathbf{C})+\dots$$

$$\dot{\mathbf{C}}=J\mathbf{C}+R^{(2)}(\mathbf{C})+R^{(3)}(\mathbf{C})+\dots .$$

$$\begin{array}{rl}{A}_1& =B_1\\ A_2& =B_2-\frac{i{s}_2{B}_3^{\ast }{B}_4}{{\omega }_2+{\omega }_3-{\omega }_4}\\ A_3& =B_3-\frac{i{s}_3{B}_2^{\ast }{B}_4}{{\omega }_2+{\omega }_3-{\omega }_4}\\ A_4& =B_4+\frac{i{s}_4{B}_2{B}_3}{{\omega }_2+{\omega }_3-{\omega }_4}\end{array}$$

$$\begin{array}{rl}{\dot{B}}_1& =-i{\omega }_1{B}_1+z_1{B}_2^{\ast }{B}_3+\mathcal{O}(|\mathbf{B}{|}^3)\\ {\dot{B}}_2& =-i{\omega }_2{B}_2+z_2{B}_1^{\ast }{B}_3+\mathcal{O}(|\mathbf{B}{|}^3)\\ {\dot{B}}_3& =-i{\omega }_3{B}_3+z_3{B}_1{B}_2+\mathcal{O}(|\mathbf{B}{|}^3)\\ {\dot{B}}_4& =-i{\omega }_4{B}_4+\mathcal{O}(|\mathbf{B}{|}^3)\end{array}$$

$$\begin{array}[]{l}B_{1}=C_{1}-\dfrac{z_{1}\left(C_{4}C_{-2}^{2}s_{3}+C_{-4}C_{3}^{2}s_{2}\right)}{\left(\omega_{2}+\omega_{3}-\omega_{4}\right){}^{2}}\\ B_{2}=C_{2}+\dfrac{C_{-2}C_{-1}C_{4}\left(s_{2}z_{3}-s_{3}z_{2}\right)}{\left(\omega_{2}+\omega_{3}-\omega_{4}\right){}^{2}}\\ B_{3}=C_{3}+\dfrac{C_{-3}C_{1}C_{4}\left(s_{3}z_{2}-s_{2}z_{3}\right)}{\left(\omega_{2}+\omega_{3}-\omega_{4}\right){}^{2}}\\ B_{4}=C_{4}+\dfrac{s_{4}\left(C_{1}C_{2}^{2}z_{3}+C_{-1}C_{3}^{2}z_{2}\right)}{\left(\omega_{2}+\omega_{3}-\omega_{4}\right){}^{2}}\\ \end{array}$$

$$\begin{array}[]{l}\dot{C}_{1}=-i\omega_{1}C_{1}+z_{1}C_{2}^{*}C_{3}+\mathcal{O}(|\mathbf{C}|^{4})\\ \dot{C}_{2}=-i\omega_{2}C_{2}+z_{2}C_{1}^{*}C_{3}+\dfrac{is_{2}C_{2}}{\omega_{2}+\omega_{3}-\omega_{4}}\left(-s_{4}|C_{3}|^{2}+s_{3}|C_{4}|^{2}\right)+\mathcal{O}(|\mathbf{C}|^{4})\\ \dot{C}_{3}=-i\omega_{3}C_{3}+z_{3}C_{1}C_{2}+\dfrac{is_{3}C_{3}}{\omega_{2}+\omega_{3}-\omega_{4}}\left(-s_{4}|C_{2}|^{2}+s_{2}|C_{4}|^{2}\right)+\mathcal{O}(|\mathbf{C}|^{4})\\ \dot{C}_{4}=-i\omega_{4}C_{4}+\dfrac{is_{4}C_{4}}{\omega_{2}+\omega_{3}-\omega_{4}}\left(s_{3}|C_{2}|^{2}+s_{2}|C_{3}|^{2}\right)+\mathcal{O}(|\mathbf{C}|^{4})\\ \end{array}$$

$${\dot{c}}_1$$

$${\dot{c}}_2$$

$${\dot{c}}_3$$

$${\dot{c}}_4$$

$$\begin{array}[]{l}I_{2}=z_{1}|c_{2}|^{2}-z_{2}|c_{1}|^{2}\,,\\ I_{3}=z_{1}|c_{3}|^{2}-z_{3}|c_{1}|^{2}\,.\\ \end{array}$$

$$I_4=\Im (c_1{c}_2{c}_3^{\ast })+\frac{s_4}{4{\omega }_{23}^4}\left(\frac{s_3}{z_2}|c_2{|}^4-\frac{s_2}{z_3}|c_3{|}^4\right).$$

$$x(t)=|c_1{|}^2.$$

$$\frac{\mathrm{d}x}{\mathrm{d}t}$$

$$⟹{\left(\frac{\mathrm{d}x}{\mathrm{d}t}\right)}^2$$

$${\left(\frac{\mathrm{d}x}{\mathrm{d}t}\right)}^2$$

Full text

1 Introduction

Many real-life systems of engineering and physical interest are governed by nonlinear wave equations: nonlinear circuits, nonlinear optics, ocean surface waves, planetary waves in the atmosphere, etc. (Rewienski & White, 2003; Kibler et al., 2010; Kraichnan, 1967; Lynch, 2009) One of the hallmarks of nonlinear dynamics is the strong transfer of energy across scales, so modelling and understanding energy transfer in nonlinear systems is key to predicting and harnessing extreme events in these physical systems. One such system, the Charney-Hasagawa-Mima (CHM) equation (which will be the focus of this paper) is a nonlinear dispersive partial differential equation which can be used to describe Rossby waves in the atmosphere and drift waves in plasmas.

One approach to understanding how nonlinear systems behave is model reduction, where one simplifies the system to a point that is easier to study mathematically, while leaving enough complexity in the system so that the phenomena under scrutiny remain in the reduced model. A common method is spectral truncation, where one considers only a small set of interacting modes in Fourier space. Often these reduced models are studied from a dynamical systems point of view where interesting feedback mechanisms have been proposed (Waleffe, 1997): as more complex models are considered, these mechanisms have survived in the form of periodic orbits. Other dynamical systems approaches in fluid mechanics include studying shell models (Biferale, 2003; Mailybaev, 2013), and the search and classification of unstable periodic orbits (UPOs) in higher dimensional systems (Kawahara & Kida, 2001; Lucas & Kerswell, 2015, 2017). A useful method for analysing models that are based on dynamical systems of any dimension is the method of normal forms. The normal form transformation of a dynamical system is often described as a nonlinear transformation of coordinates in which the dynamical system takes its “simplest” form (Wiggins, 2003). There is a certain amount of freedom one can take with the form of the transformation, however its usual manifestation involves eliminating as many non-resonant terms as possible from the evolution equations. This method dates back to Poincaré, and was developed for the $N$-body problem in celestial mechanics. Analytic study of convergence of these normal form transformations is quite difficult and often concerns with whether the series will converge at all (Bruno et al., 2011). Very little work has been done on studying the region of convergence of these transformations. For example, in the FPUT system the normal form transformation is important to proving integrability at small amplitudes and to establishing the applicability of Kolmogorov-Arnold-Moser theorem, however as explained by Rink (2006) no study of convergence has been performed to date.

Despite the lack of rigorous convergence results, one of the most fruitful approaches to studying nonlinear wave equations has been the theory of wave turbulence (Nazarenko, 2011), which uses normal form transformations to eliminate non-resonant interactions from the system. In the usual formulation of wave turbulence, the limits of both small amplitudes and large domain are considered. The small amplitudes allow for the non-resonant terms to be eliminated as the non-zero linear frequencies of oscillation in the system are much faster than the nonlinear frequencies, and the large box limit allows for a continuum of wave numbers in the system. For some systems these limits are a good approximation. An example of this is gravity water waves, where the steepness of the waves is typically small and a large domain (compared to the relevant wavelengths) makes physical sense. Normal form transformations have been very effective in this case: these transformations were originally calculated by Zakharov and Dyachenko (Dyachenko et al., 1995) in a formal (i.e. non-rigourous) way, but recently these transformations were shown to be rigorously correct, leading to integrability up to fourth order along with long-time existence results (Berti et al., 2018).

However, all physical systems have finite amplitude and all numerical simulations must be performed on a finite domain, and moreover there are many nonlinear wave systems where the large-box or weak-amplitude approximations are not good assumptions, so studying the behaviour of systems when these two assumptions are relaxed is important. Once finite amplitudes are introduced it is necessary to understand how and where the normal form transformation converges.

In this paper we wish to study the region of convergence of the normal form transformation for a truncated system that does not necessarily follow from a Hamiltonian principle. In Section 2 we describe the CHM equation and how at intermediate Fourier amplitudes the so-called precession resonance (Bustamante et al., 2014) can be observed. We then take a low-dimensional Galerkin truncation that demonstrates precession resonance and investigate how the resonance manifests itself in state space. In Section 3 we define the normal form transformation and detail how it is developed out of the evolution equations of our truncated system. The usual wave turbulence approach involves calculating the normal form transformation from a Hamiltonian; however in the case of the CHM equation it is more natural to compute it directly from the evolution equations. From there we calculate the transformation eliminating up to non-resonant 4-wave interactions and study the system analytically. In Section 4 we continue calculating the transformation to higher orders, eliminating up to non-resonant 8-wave interactions and then calculate the rate of convergence of the transformation by performing linear regression on the size of the terms with increasing order. From here we numerically find the amplitude at which the transformation begins to diverge. We compare this with the amplitude where precession resonance occurs and we find that there is a strong connection between the divergence of the transformation and precession resonance. Finally, we provide concluding remarks in Section 5.

2 Precession Resonance in the CHM equation

The CHM equation and the weakly nonlinear limit

Consider the Charney Hasagawa Mima (CHM) equation, a PDE model for Rossby waves in the atmosphere as well as drift waves in plasmas:

[TABLE]

where $\psi$ is the streamfunction of a geophysical flow and $F\geq 0$ is the Rossby deformation radius. Assuming periodic boundary conditions $\mathbf{x}\in[0,2\pi)^{2}$, we can decompose the equation into its Fourier components $A_{\mathbf{k}}$ defined by $\psi(\mathbf{x},t)=\sum_{\mathbf{k}\in\mathbb{Z}^{2}}A_{\mathbf{k}}(t)e^{i\mathbf{k\cdot x}}+\text{c.c.}$, which leads to

[TABLE]

where

[TABLE]

Due to the Kronecker delta on the right hand side of equation (2), we can see that the only nonlinear contributions to mode $A_{\mathbf{k}}$ come from modes $A_{\mathbf{k}_{1}}$ and $A_{\mathbf{k}_{2}}$ whenever $\mathbf{k}=\mathbf{k}_{1}+\mathbf{k}_{2}$. These kinds of interactions are known as triad interactions (Kraichnan, 1967).

In the limit of small amplitudes, the evolution of $A_{\mathbf{k}}$ in equation (2) is dominated by the linear dispersion relation $\omega_{\mathbf{k}}$. These waves are known as Rossby waves. To see how the nonlinear term contributes to the dynamics we perform a change of variable $a_{\mathbf{k}}(t)=e^{i\omega_{\mathbf{k}}t}A_{\mathbf{k}}(t)$ to obtain our equations in the so-called interaction representation:

[TABLE]

where $\omega^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}=\omega_{\mathbf{k}}-\omega_{\mathbf{k}_{1}}-\omega_{\mathbf{k}_{2}}$.

Inspecting equation (3) we can see that when the amplitudes $a_{\mathbf{k}}$ are small (so-called weakly nonlinear limit) they become slow as well. This implies that the fast oscillations of $e^{-i\omega^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}t}$ average out to zero for $\omega^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}\neq 0$, meaning that the only meaningful triad interactions occur when $\omega_{\mathbf{k}}=\omega_{\mathbf{k}_{1}}+\omega_{\mathbf{k}_{2}}$, the so-called resonant condition. Thus in the weakly nonlinear limit the non-resonant triad interactions (defined by the inequality $\omega^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}\neq 0$) do not contribute to the long-time dynamics of the system. In the classical theory of wave turbulence a nonlinear near-identity change of coordinates is preformed to eliminate these non-resonant interactions from the equations, in what is often referred to as a normal form transformation (Nazarenko, 2011).

Precession resonance

To understand precession resonance we must first consider the equations in phase-amplitude form, where

[TABLE]

where $n_{\mathbf{k}}\in[0,\infty)$ and $\phi_{\mathbf{k}}\in[0,2\pi).$ To allow for phase precessions (Bustamante et al., 2014) (also known as phase-slips (Gandhi et al., 2015)) we will consider $\phi_{\mathbf{k}}\in(-\infty,\infty)$. Upon transforming our evolution equations to phase-amplitude form we will see that due to the triad interactions the Fourier phases do not appear isolated. Rather, they appear in triad combinations $\varphi^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}=\phi_{\mathbf{k}_{1}}+\phi_{\mathbf{k}_{2}}-\phi_{\mathbf{k}}$ known as Fourier triad phases, where $\mathbf{k}_{1}+\mathbf{k}_{2}=\mathbf{k}$. Our equations take the form

[TABLE]

The term $\text{NNTT}^{\mathbf{k}_{3}}_{\mathbf{k}_{1}\mathbf{k}_{2}}$ are the nearest neighbouring triad terms connected to the triad $\mathbf{k}_{1}+\mathbf{k}_{2}=\mathbf{k}_{3}$. This term can be seen in full in (Bustamante et al., 2014).

We define precession frequency as $\Omega^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}\equiv\lim_{t\to\infty}(1/t)\int_{0}^{t}\dot{\varphi}^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}(t^{\prime})\mathrm{d}t^{\prime}$. Geometrically this corresponds to the frequency at which $\varphi^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}$ winds around the origin. In the weakly nonlinear case this precession frequency is dominated by the linear term, but if we extend our system beyond the weakly nonlinear limit and start taking into account finite amplitudes, the nonlinear terms begin to contribute to the dynamics and in particular to the precession frequency.

Looking at the right hand side of equation (4), we can see that if the characteristic nonlinear freqency of $n_{\mathbf{k}_{1}}n_{\mathbf{k}_{2}}$ is commensurate with the precession frequency $\Omega^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}$ we then get a zero mode in the evolution equation of $n_{\mathbf{k}}$ which leads to sustained growth. The strongest manifestation of this is the zero harmonic resonance, where $\Omega^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}=0.$ It is clear from equation (4) that if this condition is satisfied then we obtain strong growth in mode $A_{\mathbf{k}}$. One of the remarkable things about precession resonance is that we can always trigger this resonance simply by rescaling the initial conditions by a constant $\alpha$. As we increase $\alpha$, the nonlinear contributions to equation (5) can become of the order of the linear part $\omega^{\mathbf{k}_{3}}_{\mathbf{k}_{1}\mathbf{k}_{2}}$ and cancel, resulting in $\Omega^{\mathbf{k}}_{\mathbf{k}_{1}\mathbf{k}_{2}}=0.$

Model reduction

The simplest manifestation of precession resonance for the CHM model occurs in a Galerkin truncation to four Fourier modes. Our system is composed of a resonant triad joined to a fourth mode by two modes via a non-resonant triad (see figure 1). Putting a small parameter $\epsilon$ in front of the second triad interaction coefficients allows us to match our results with the reduced model in (Bustamante et al., 2014). It also allows us to focus our attention on the effect of precession resonance on the energy transfers to one particular mode, which we choose to be $A_{4}$.

Our equations are:

[TABLE]

our parameters being $F=1$, $\beta=10$, $\epsilon=0.01$, $\mathbf{k}_{1}=(1,-4)$, $\mathbf{k}_{2}=(1,2)$, $\mathbf{k}_{3}=(2,-2)$, and $\mathbf{k}_{4}=(3,0)$, $\omega^{\mathbf{k}_{3}}_{\mathbf{k}_{1}\mathbf{k}_{2}}=0$ and $\omega^{\mathbf{k}_{4}}_{\mathbf{k}_{2}\mathbf{k}_{3}}=-8/9$.

In order to search for precession resonance we will explore a set of initial conditions for our variables $A_{j},\,\,j=1,\ldots,4$, of the form

[TABLE]

where, except for $A_{4}(0)$, the numerical coefficients were randomly chosen, and $\alpha$ is our real scaling parameter. The size of the numerical coefficients was chosen so that the linear terms in the equations dominate over the nonlinear terms when $|\alpha|\ll 1$.

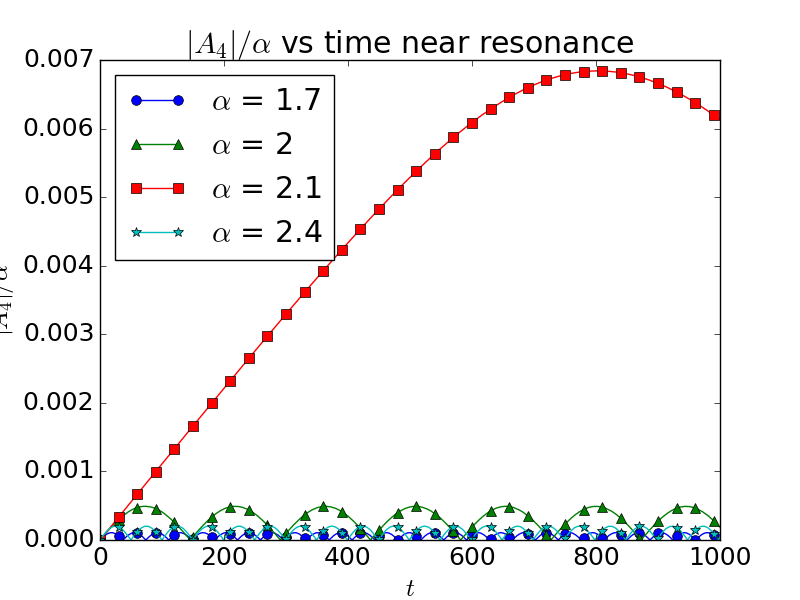

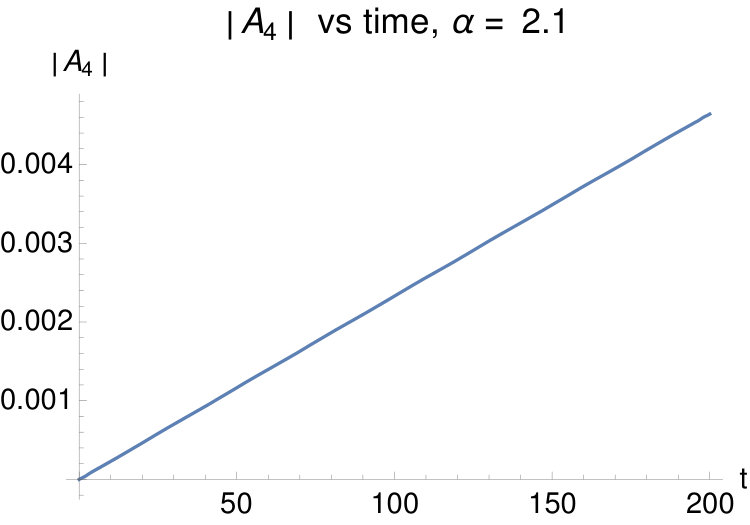

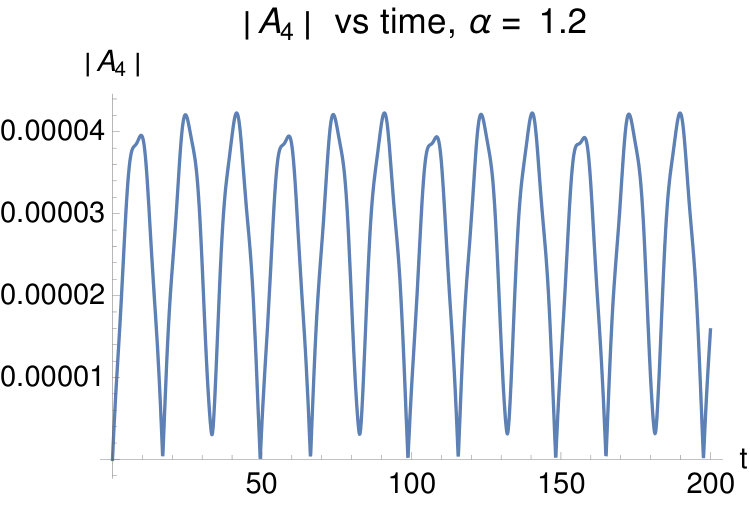

In figure 1 on the right we observe that as we get close to the exact scaling value ($\alpha_{r}\approx 2.11$) for the initial condition (7) which leads to precession resonance, our energy transfer to mode $A_{4}$ greatly increases. As we scale past that value, the energy transfer efficiency becomes weak again.

The choice of initial conditions with $A_{4}(0)=0$ is for visualisation purposes as well as for maximising the effect of precession resonance to this mode. Precession resonance can occur for any arbitrary initial condition (see the study shown on the left panel of figure 4). However, a particularly interesting facet of precession resonance is the prospect of energy leaking to modes which start off with no energy and are not part of any resonant triads.

This phenomenon was described and studied in (Bustamante et al., 2014). In this document we wish to study the resonance in normal-form coordinates used in wave turbulence theory to see if the resonance can manifest itself in the dynamics for the normal-form coordinates. We also wish to better understand the geometric structure of the resonance in state space.

Invariant Manifolds

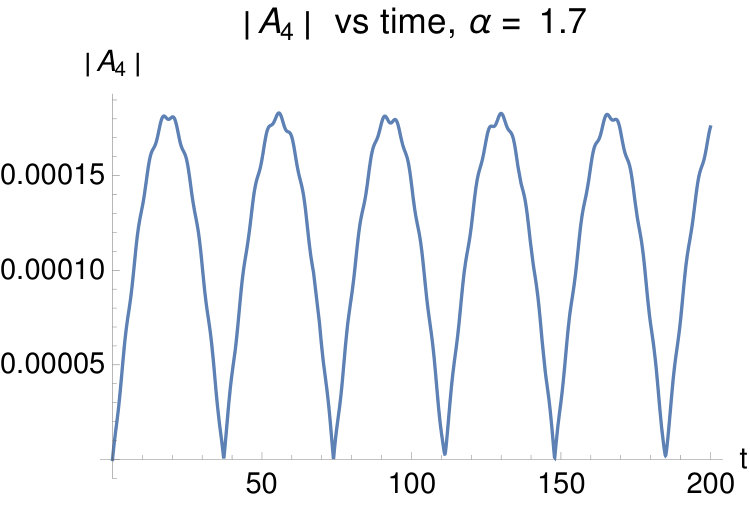

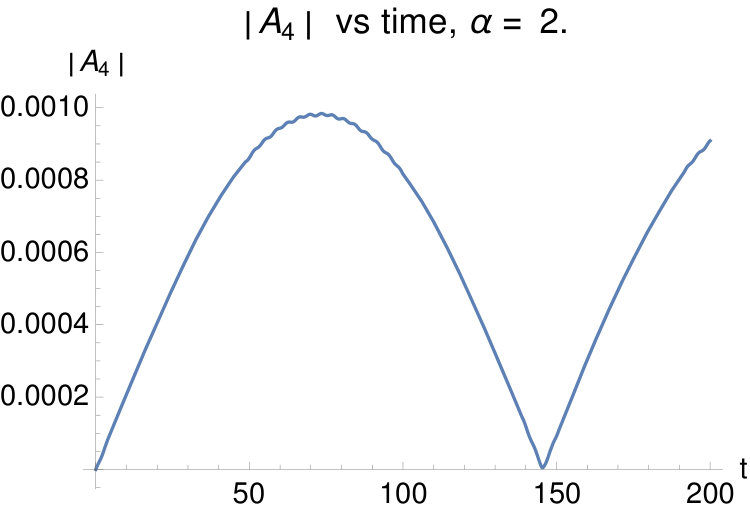

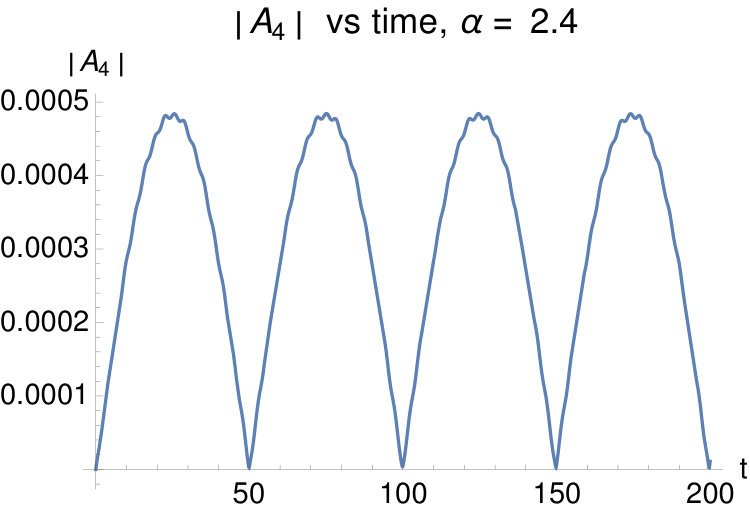

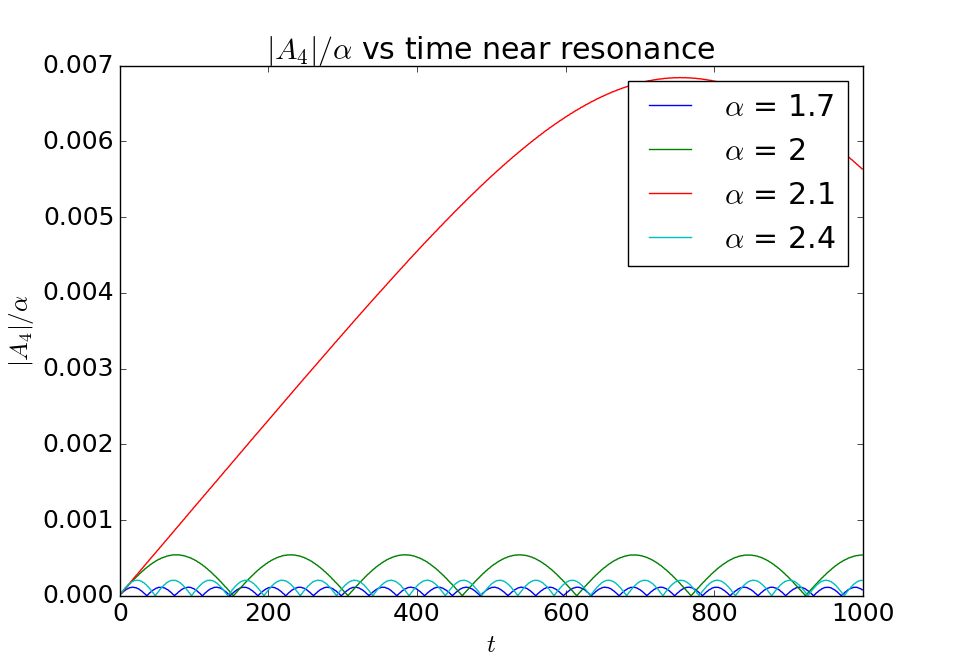

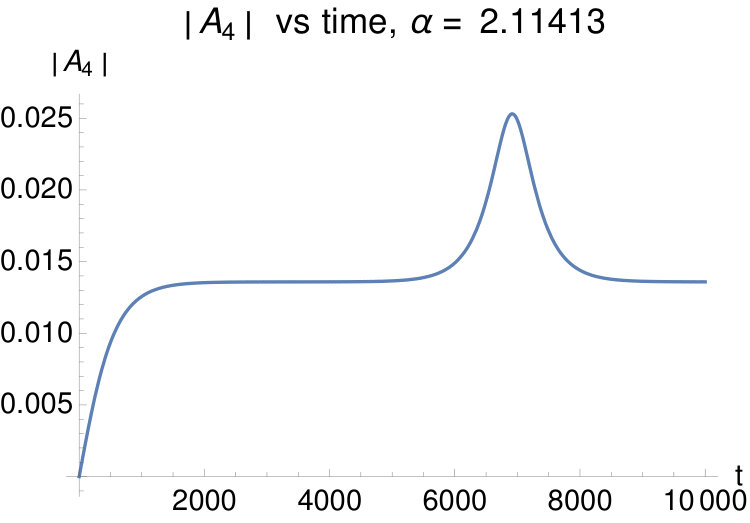

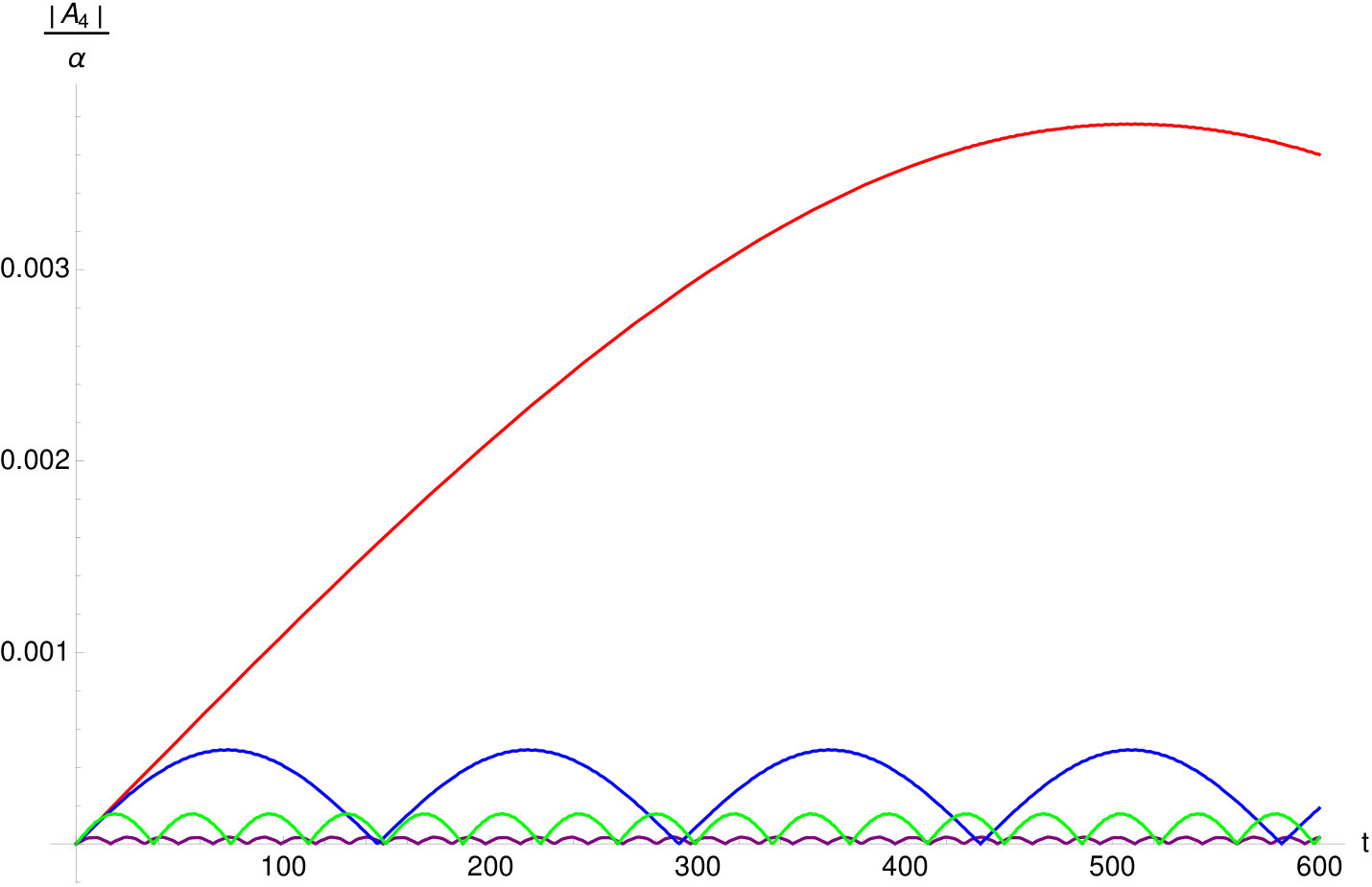

For near resonant values of our scaling parameter $\alpha$, figure 2 shows saddle-node-like behaviour. This suggests a dynamical systems point of view whereby resonant trajectories in the reduced model could correspond to invariant manifolds such as critical points or periodic orbits in state space.

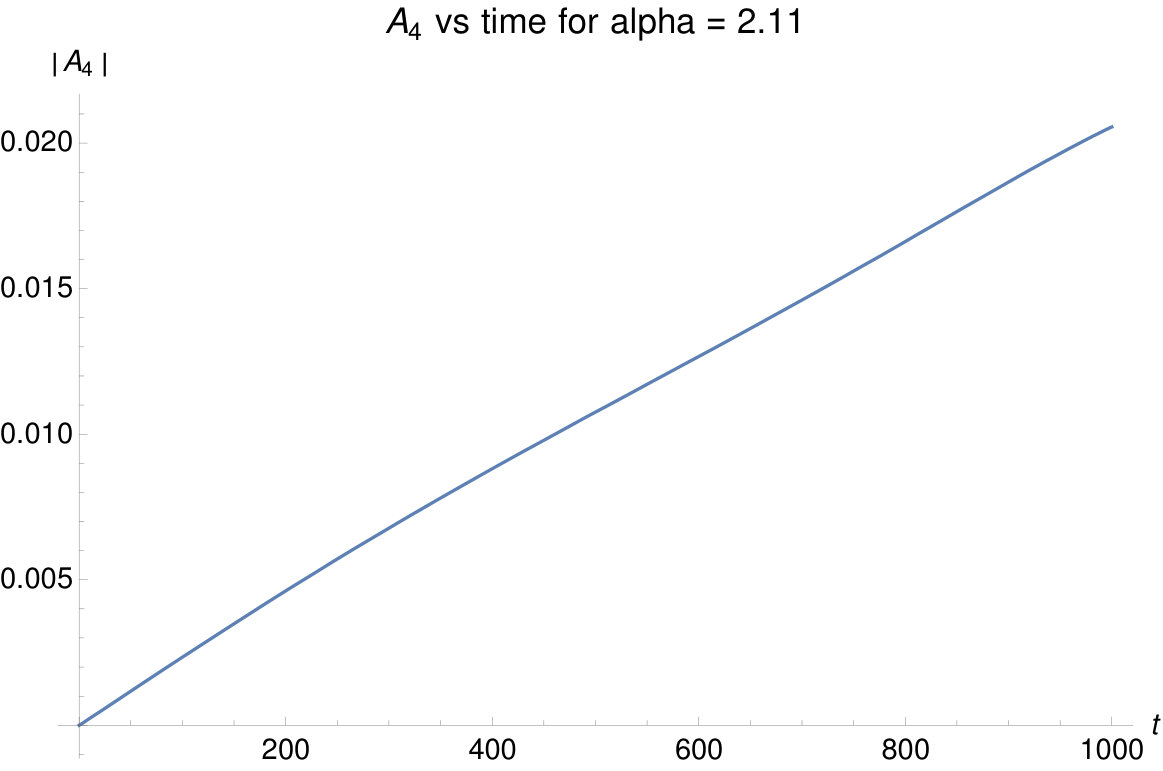

Figure 3 shows that, letting this system evolve for a long time, the resonance corresponds to a trajectory that gets close to a periodic orbit in state space and remains close for a while to then separate from it.

To gain more insight into the geometric structure of this resonance, we consider how these manifolds manifest themselves in the state space. First, let us count the number of degrees of freedom. Equations (6) represent 4 complex equations for 4 complex variables. However, in terms of amplitude-phase representation, the phases appear only in two triad combinations so we can reduce the state space to 6 dynamical variables. Second, we have two conserved quantities: energy and enstrophy, defined as:

[TABLE]

which further reduces the dimension of the system by 2 units, leading to an effective 4-dimensional system.

In the previous Section we searched for resonances by re-scaling the initial conditions by a constant. While this shows how simple it is to find these resonances, it doesn’t shed any light on the structure of the periodic orbits in state space. This prompts us to search for resonances contained in the invariant manifolds corresponding to fixed energy and enstrophy.

To perform this search of resonances constrained to fixed energy and enstrophy, we first proceed using the same re-scaling technique as before with $\alpha$ until we trigger a resonance. For the same initial conditions we used in Section 2 we found that resonance occured at $\alpha_{r}\approx 2.114$ giving resonant initial conditions to be $\mathbf{A}\approx(0.0518+0.0021i,\,0.0211+0.0211i,\,0.0472,\,0)^{T}$.

From these initial values we can now calculate the values for energy $E=0.0738$ and enstrophy $\mathcal{E}=1.0097$ from equation (8). We will fix these values and perform a systematic search for resonances within the intersection of the manifolds $E=0.0738$ and $\mathcal{E}=1.0097$. To start, choose as initial condition $|A_{4\,\text{new}}|=|A_{4\,\text{old}}|+\delta$ where $\delta$ is a small positive number. We now vary the initial $|A_{1}|$, solving for $|A_{2}|$ and $|A_{3}|$ to make sure $E$ and $\mathcal{E}$ are unchanged, until a new resonance point is found. Throughout these searches we keep the initial complex phases unchanged. It was found that changing the complex phases still lead to a periodic orbit that could already be found using our current method, it would just shift the initial condition to another location along the orbit. As for the phase of the initial $A_{4}$, although our first initial value was $A_{4}=0$ and so $\arg(A_{4})$ was undefined, we have picked an arbitrary value for $\arg(A_{4})$ when $A_{4}\neq 0$ (in our case we chose $\arg(A_{4})=0$). The systematic search produces a continuous curve representing the points of resonance as can be seen in figure 4, left panel.

Figure 4 (right panel) shows the periodic orbits corresponding to some resonance points chosen along the curve in Figure 4 (left panel). So the resonant curve corresponds to a one-parameter family of periodic orbits. It is evident that two directions in state space have zero Lyapunov exponent: the direction along the periodic-orbit time evolution and the direction that connects the different periodic orbits. Since our system has 4 degrees of freedom and we already need to have a stable and an unstable manifold to reach the periodic orbits, we conclude that we can determine the structure and dimensions of all relevant manifolds in state space. We have a one-dimensional stable manifold, a one-dimensional unstable manifold, and two neutral directions induced by the one-dimensional time evolution along the periodic orbits and the one-dimensional direction along which the periodic orbits are ordered. Moreover, from the fact that the original system is volume-preserving, the Lyapunov exponents of the stable and unstable manifolds are $-\Lambda$ and $\Lambda$, respectively, with $\Lambda>0$.

This gives us a clearer picture of precession resonance from a dynamical systems point of view for this 4-mode model. Precession resonance occurs when our initial condition is close to the stable manifold of a periodic orbit far from the origin.

3 The Normal Form Transformation

We have seen in our 4-mode system that precession resonance can be understood as a resonance between the linear and nonlinear oscillations of the system.In classical wave turbulence theory a scale separation is assumed between linear and nonlinear timescales so that non-resonant terms are eliminated from the equations through normal form transformations. This raises the questions: Can precession resonance manifest itself in normal-form coordinates? If yes, how does it do it? For Hamiltonian wave systems, a canonical transformation for eliminating non-resonant $n$-wave interactions has been well described in (Krasitskii, 1990) and (Dyachenko et al., 1995). However, as the Hamiltonian structure of the CHM equation requires both a non-canonical Poisson bracket and a non-local transformation of coordinates (Weinstein, 1983), it is both easier and more illustrative to calculate the normal form out of the evolution equations directly.

We will use the method described in (Wiggins, 2003). We start with a system of the form

[TABLE]

where $J$ is a matrix with constant valued elements and

[TABLE]

where $F^{(n)}(\mathbf{A})$ is a vector valued homogeneous polynomial of degree $n$. To eliminate the second order nonlinearities, we perform a near identity transformation of the form

[TABLE]

where $h^{(2)}$ is an unknown function quadratic in components of $\mathbf{B}$. Subbing this into the original equation we get

[TABLE]

In an ideal situation we would choose our $h^{(2)}$ such that

[TABLE]

however with the inclusion of resonant terms we cannot make such a choice. We can however choose $h^{(2)}(\mathbf{B})$ such that

[TABLE]

leaving just the resonant terms and eliminating all other terms of that order, leaving higher order corrections.

This leaves us with a new system of equations for $\mathbf{B}$ of the form:

[TABLE]

where $R^{(n)}(\mathbf{B})$ are the resonant terms of order $n$ (i.e. $(n+1)$-wave resonant interactions). We can continue this transformation and eliminate higher order interactions via

[TABLE]

leading to

[TABLE]

Analogously to the small-amplitude, continuum formulation of wave turbulence, we now transform equation (6) using our method in order to eliminate the non-resonant nonlinearities, leaving corrections at the next order.

As a preliminary step we can just eliminate the non-resonant triads. The required transformation is

[TABLE]

and the corresponding equations of motion for the new variables are:

[TABLE]

If we substitute $B_{j}$ in terms of the interaction representation, $b_{j}=B_{j}e^{i\omega_{j}t},\,\,j=1,\ldots,4$, we see that the equations reduce to the isolated resonant triad for $b_{1}$, $b_{2}$ and $b_{3}$, with $b_{4}$ decoupled from these. We can clearly see that there is no resonant behaviour in mode $b_{4}$.

We now transform the system to the next order by eliminating non-resonant quartets. The transformation is

[TABLE]

and the new equations of motion are:

[TABLE]

If we change to interaction representation variables via $c_{j}=C_{j}e^{i\omega_{j}t},\,\,j=1,\ldots,4$, we obtain the system

[TABLE]

Discarding the error terms in the above equations of motion, we easily see that $|c_{4}|$ is constant for all $t$. Also, the evolution of modes $c_{1}$, $c_{2}$, and $c_{3}$ does not depend on the phase of $c_{4}$. Therefore $c_{4}$ does not contribute to the dynamics of the system, and can be found by quadrature a posteriori. Because of this we can reduce the dimension of the above dynamical system to 4 variables: $c_{1}$, $c_{2}$, $c_{3}$ and $\arg(c_{1}c_{2}c_{3}^{*})$. If we can find three independent first integrals of motion, we can then integrate the system.

As we know, the isolated triad is integrable. We have reduced our system to the isolated triad with quadratic nonlinear corrections to the frequencies corresponding to the modes $c_{2}$ and $c_{3}$. These corrections do not change the energies of the individual modes $c_{2}$ and $c_{3}$. Therefore, we would expect to find constants of motion that depend quadratically on the amplitudes, similar to the known “Manley-Rowe” invariants for the isolated triad. In fact, by direct inspection we obtain two quadratic invariants:

[TABLE]

The third and final constant of motion is more difficult to find. After basing our guess on the Hamiltonian of the isolated triad and some trial and error, the final integral was found to be:

[TABLE]

Thus our system is integrable. We can reduce our system into a one dimensional potential equation. Define the variable

[TABLE]

Then,

[TABLE]

[TABLE]

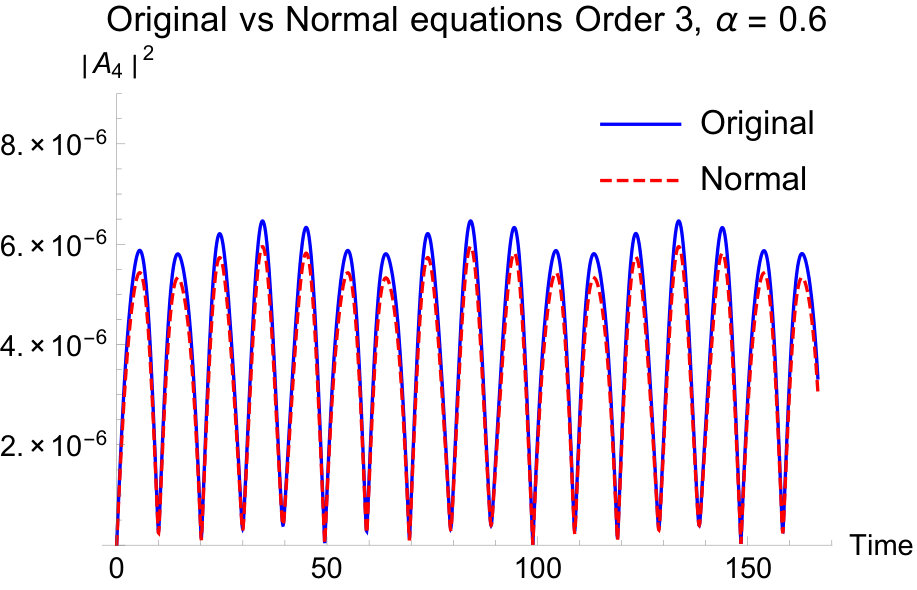

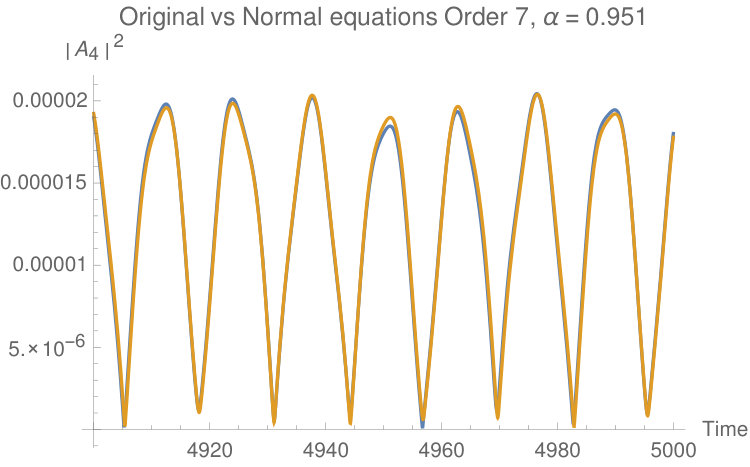

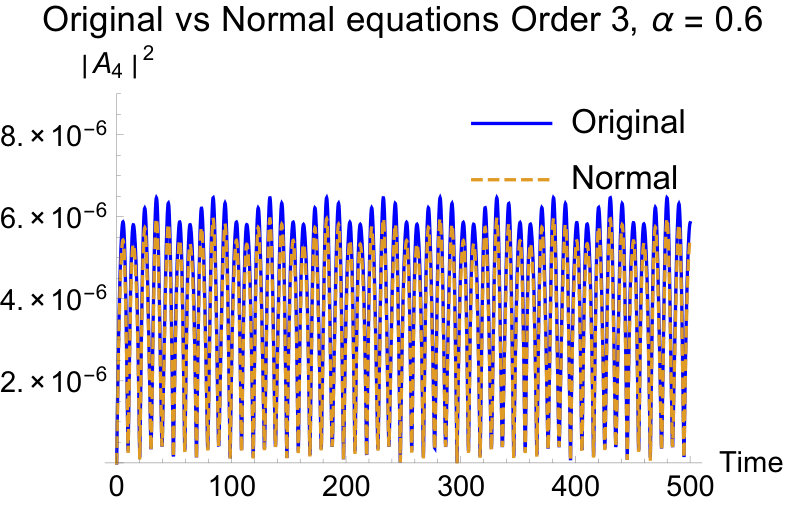

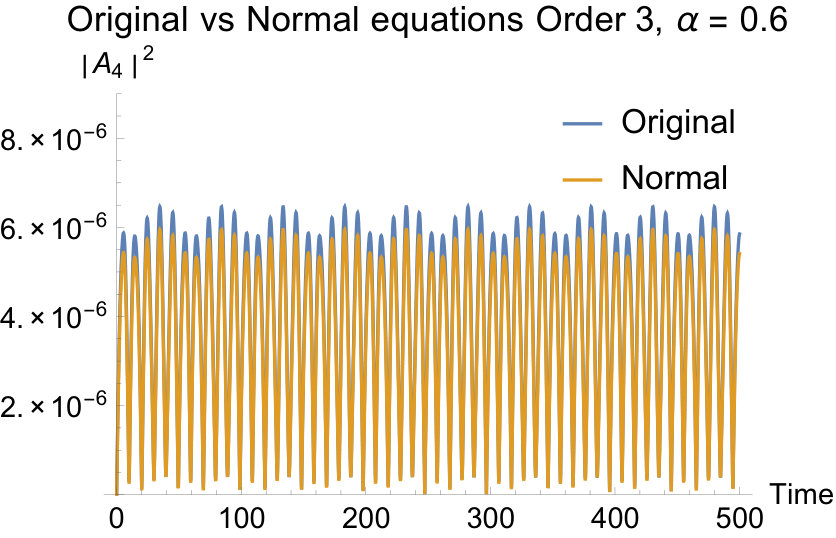

Comparing the solution of the resonant quartet normal equations transformed back to our original variables shows wildly different behaviour to the numerical solution to the original equations near the point of resonance as can be seen in figure 5. As our transformation is a power series, this suggests that there is an issue of convergence with the transformation around the point of resonance.

4 Convergence of the transformation

In classical wave turbulence theory a weakly nonlinear regime with infinitesimal amplitudes is considered so the system should be well inside the region of convergence. However in order to trigger the zero-th harmonic of precession resonance we require the linear timescale to be comparable with the nonlinear timescale, so consideration of the convergence and applicability of the transformation is required. To study the convergence we look at the relative sizes of the terms in the expansion. We can express the normal form transformation as:

[TABLE]

where $\mathbf{A}=(A_{1},A_{2},A_{3},A_{4})^{T}$, $\mathbf{B}=(B_{1},B_{2},B_{3},B_{4})^{T}$ and $\mathbf{G}^{(n)}(\mathbf{A})$ is a vector whose components are monomials of degree $n$ of the components of $\mathbf{A}$.

To quantify the rate of convergence of the power series we first need to consider how small our terms become with increasing order within the domain of convergence. As the normal form transformation is a power series, we expect that in the domain of convergence the size of $\mathbf{G}^{(n)}$ decreases exponentially with respect to increasing order, i.e.

[TABLE]

where $\lambda$ is our rate of convergence and $\|\cdot\|$ denotes an appropriately defined norm. As our $\mathbf{G}^{(n)}$’s are vector valued functions, there is a certain amount of arbitrariness to how we choose our norm to determine the size of our terms. As our reduced system is based on a physical system, it makes sense to use a norm based on a physical quantity. In our case we choose to base our norm in terms of the energy of the system, $E=\sum_{i=1}^{4}(|\mathbf{k}_{i}|^{2}+F)|A_{i}|^{2}$, i.e. $\|\mathbf{x}\|^{2}=\sum_{i=1}^{4}(|\mathbf{k}_{i}|^{2}+F)|x_{i}|^{2}.$

Within the domain of convergence $\lambda$ should be negative. We wish to study the convergence of the normal form transformation at a set of initial conditions and along a trajectory for specific initial conditions. We use the ratio test to determine whether the series converges or not. We do this numerically by performing a linear regression on $\log\left(\|{\mathbf{G}^{(n)}}\|\right)$ as a function of $n$. We choose to look at $\log\left(\|{\mathbf{G}^{(n)}}\|\right)$ because our terms decrease in size exponentially as a function of $n$ in the region of convergence. The slope of our regression line corresponds to $\lambda$, our rate of convergence.

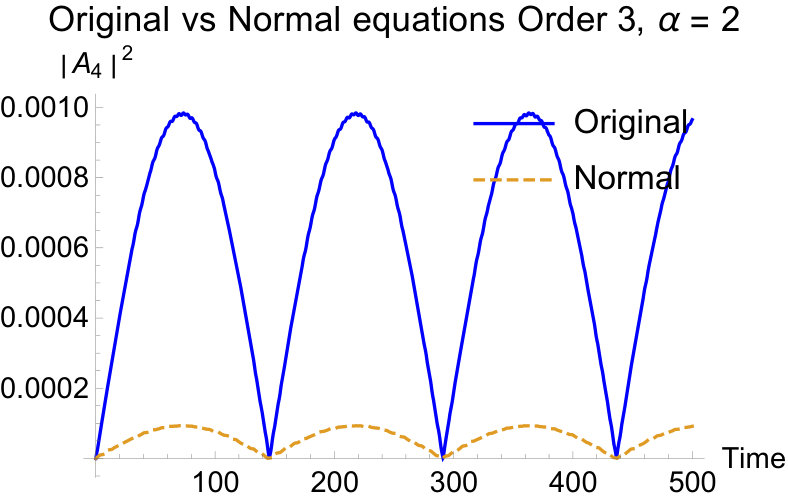

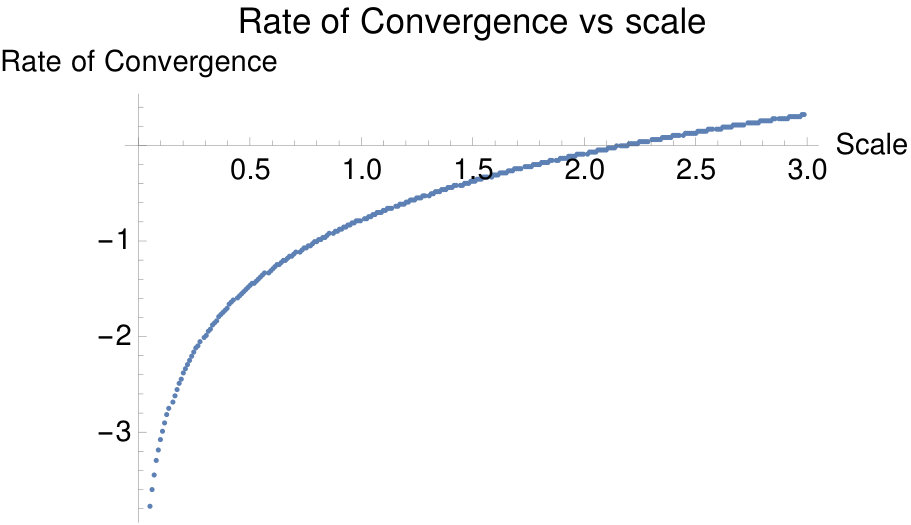

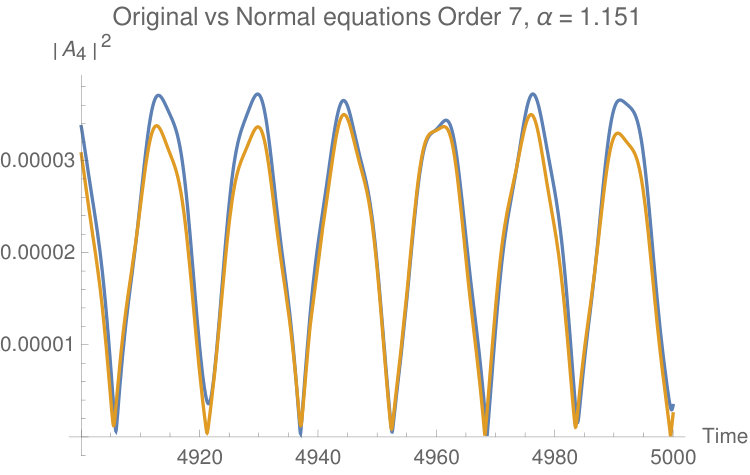

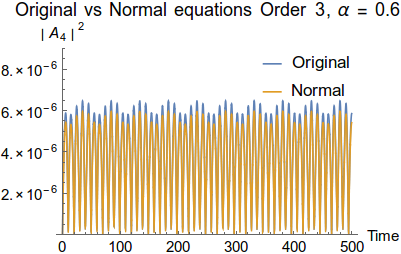

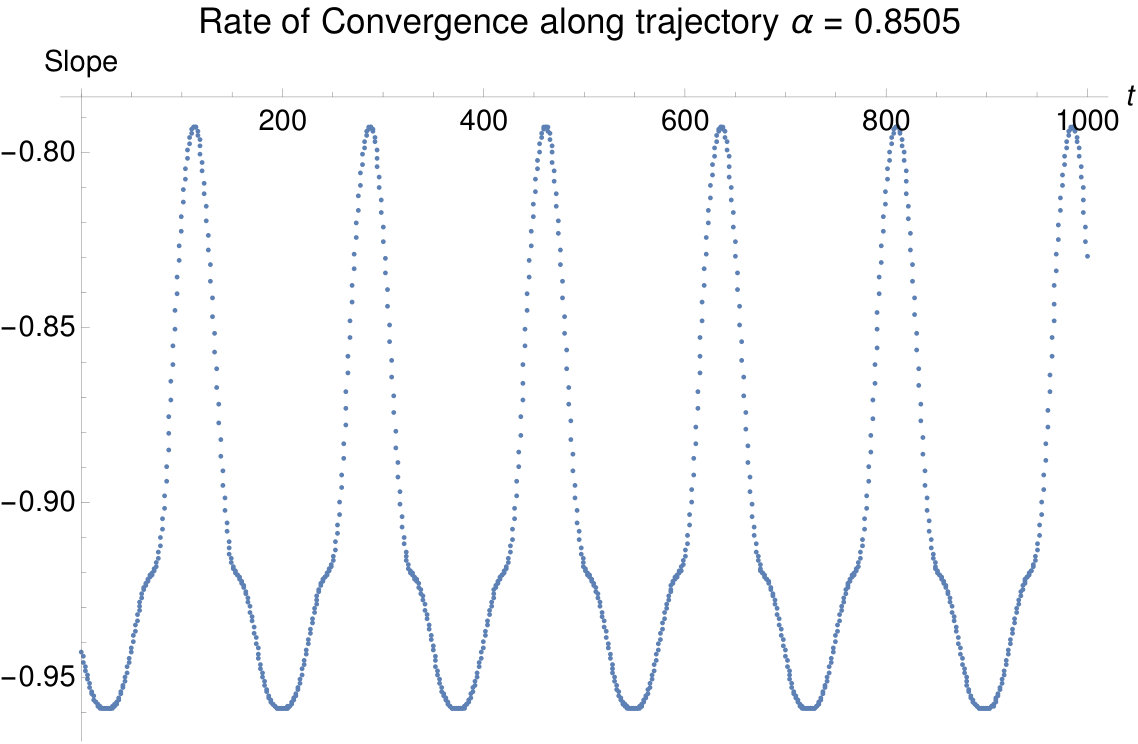

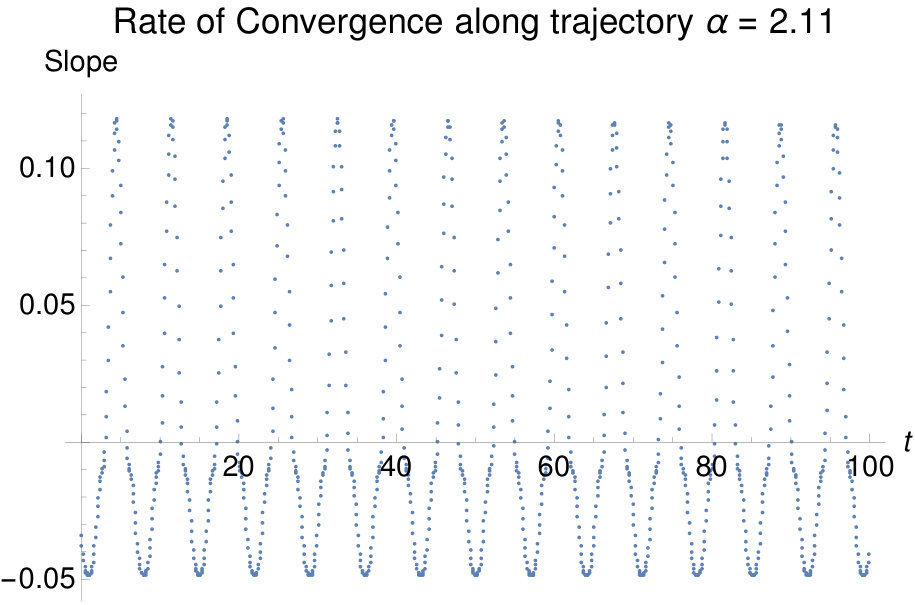

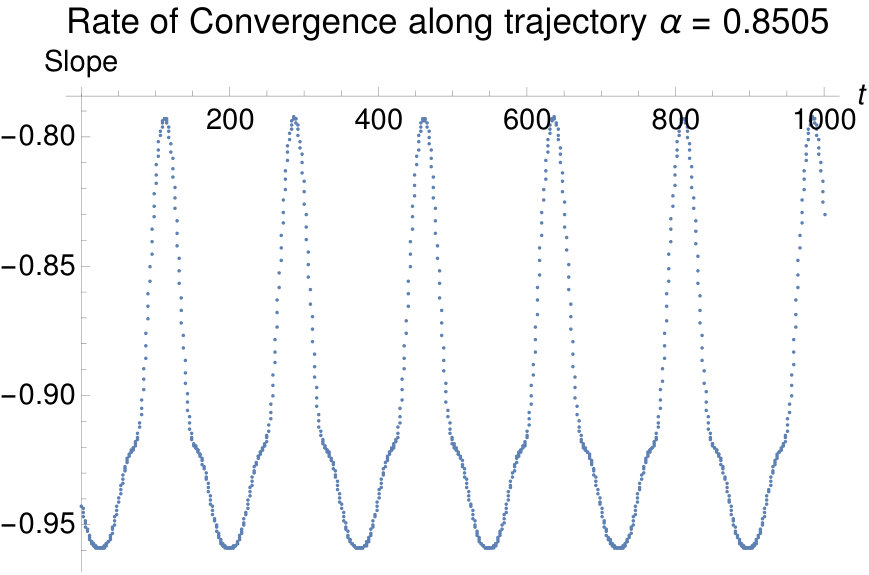

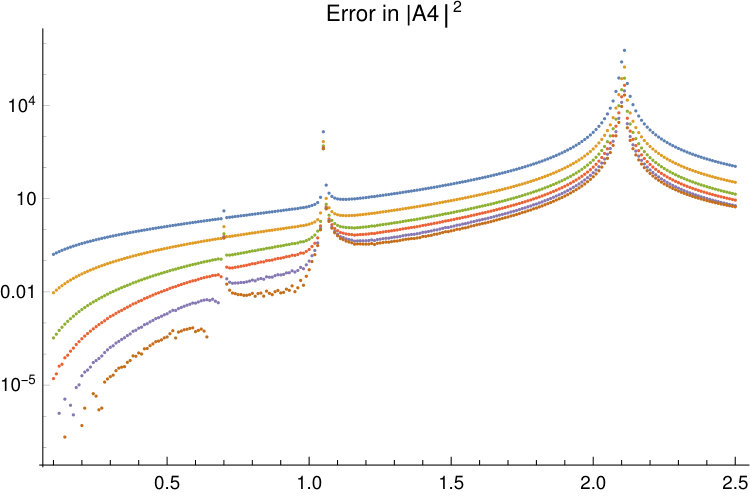

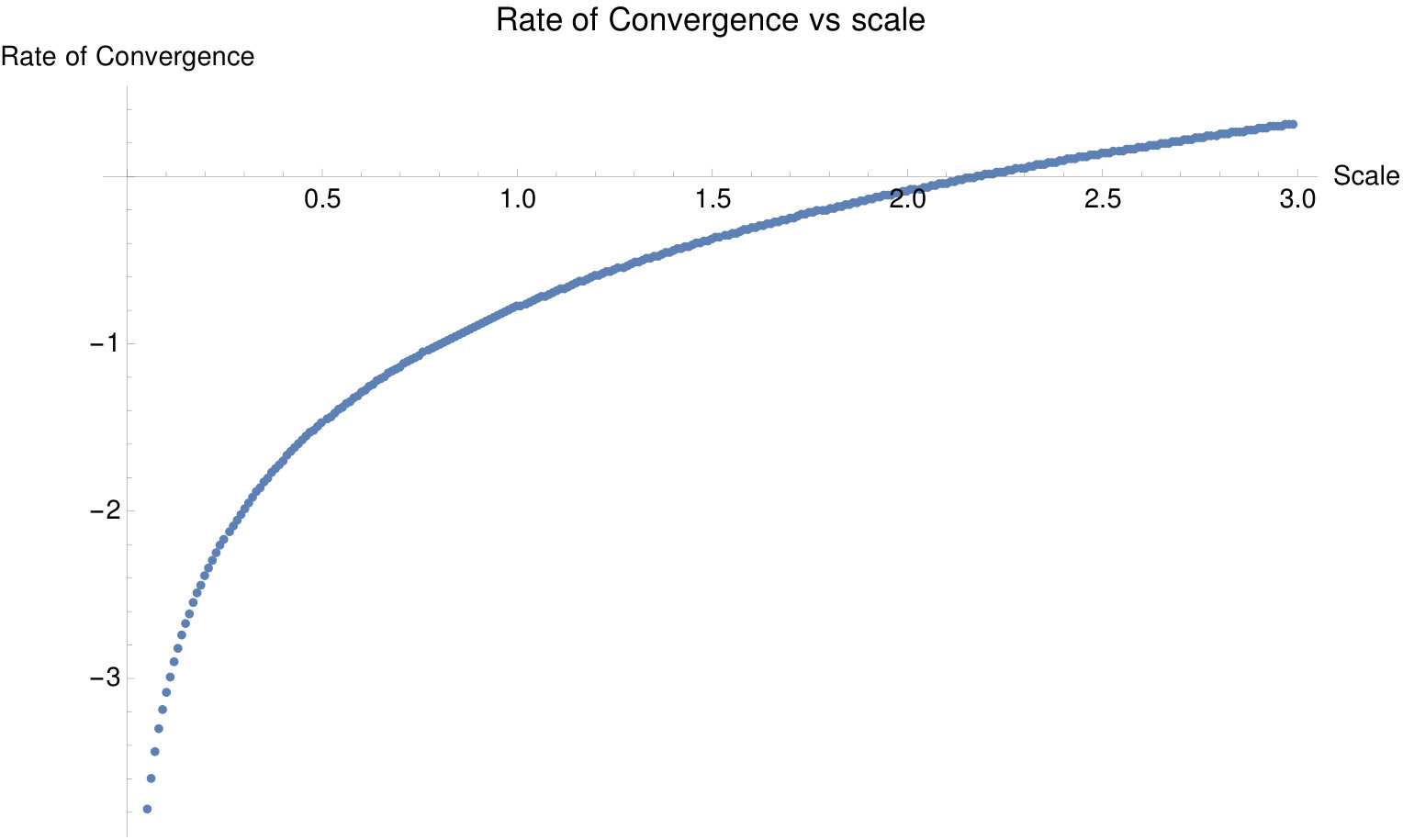

In figure 6 we can see that by increasing the scaling factor $\alpha$ in front of our amplitudes, taken from equation (7), our rate of exponential convergence becomes slower and slower until at $\alpha\approx 2.18$ the transformation begins to diverge. This is very close to the scaling value required for precession resonance we found in Section 1. On the right we can see that, along the trajectory obtained from the initial condition given by equation (7) with $\alpha=0.8505$, the calculated rate of convergence oscillates, although it does not change drastically over the course of the whole run. This will undoubtedly introduce some uncertainty in calculating our value for the rate of convergence for a given trajectory, however for what we want to say it is only necessary to have an approximate idea of the region of convergence, so using the calculated rate of convergence at our chosen initial condition is sufficient.

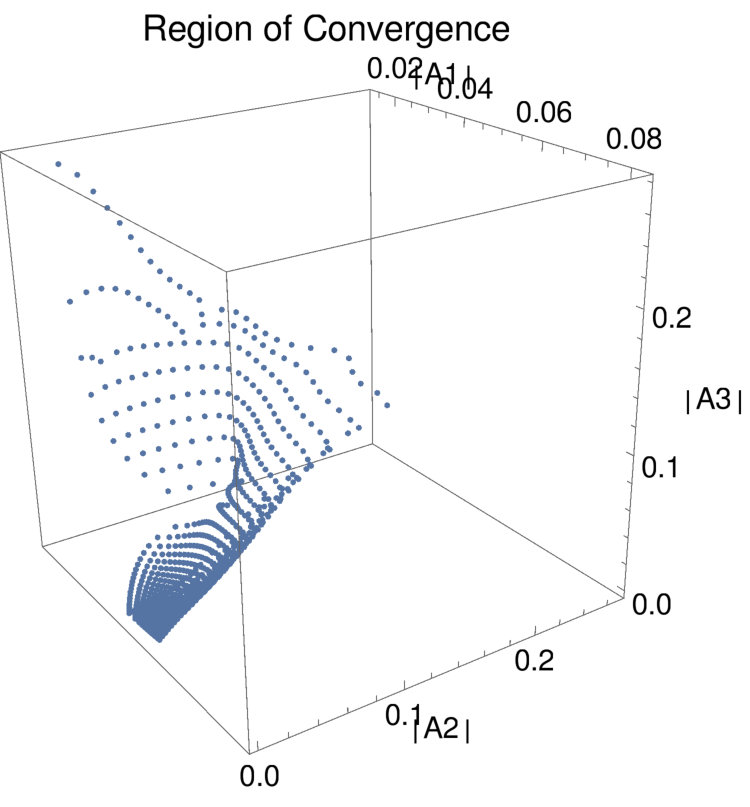

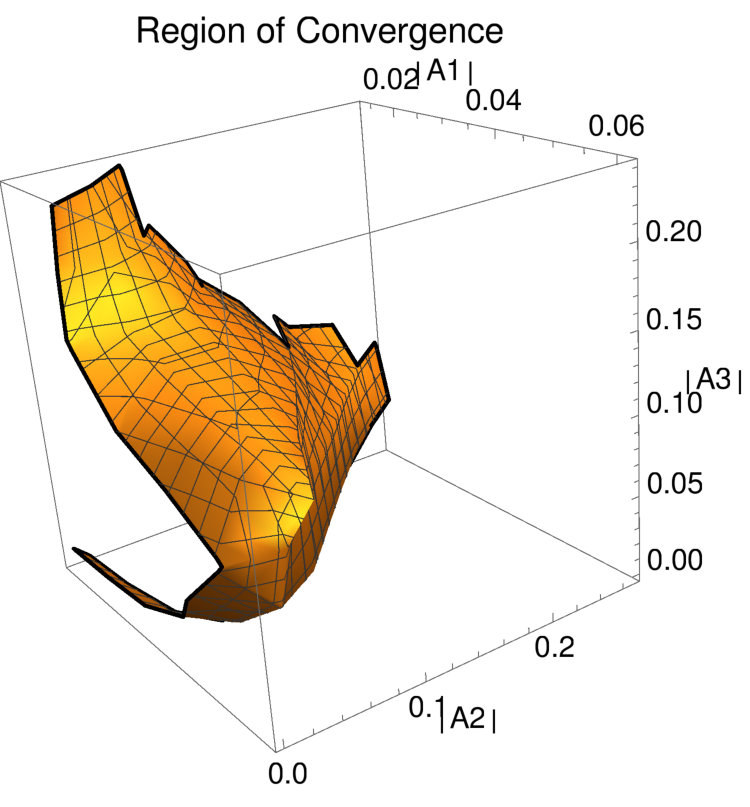

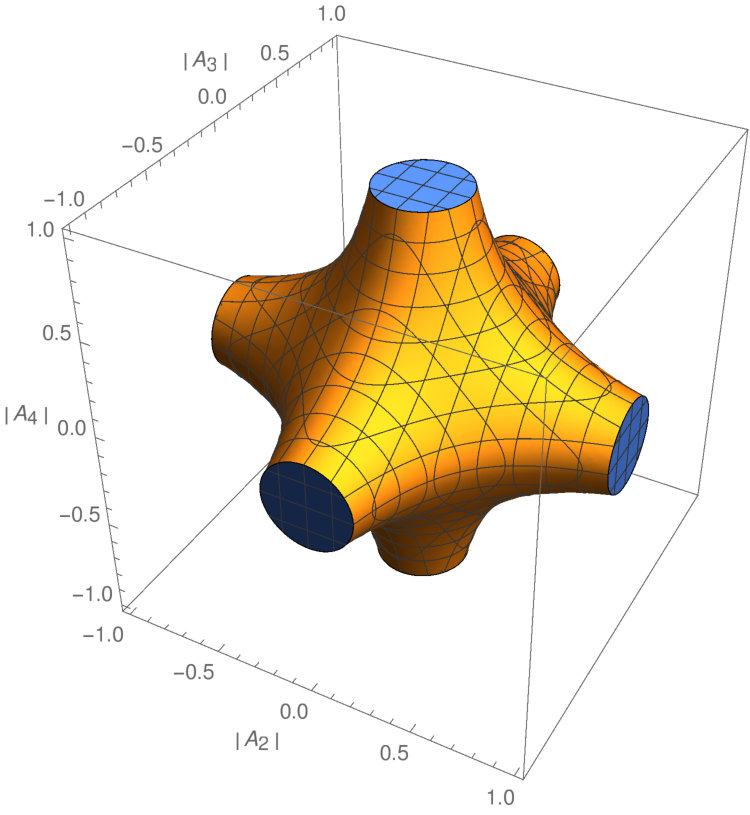

Extending this to more general initial conditions, or more specifically to more general points in state space, we wish to compare the region of state space where the normal form transformation diverges, with the set of points where precession resonance occurs, by varying $|A_{1}|$, $|A_{2}|$ and $|A_{3}|$ while keeping $|A_{4}(0)|=0$ and keeping the same phases as calculated from equation (7). Since we are investigating precession resonance to $A_{4}$, we perform a search over the state-space region where $|A_{1}|>|A_{2}|$ and $|A_{1}|>|A_{3}|$ so that the energy transfer from $A_{1}$ to $A_{4}$ is favoured. The search for precession resonance is done along rays in the $|A_{1}|,|A_{2}|,|A_{3}|$ space, i.e. we take a representative point on the ray as initial condition and then rescale uniformly this initial condition until a precession resonance is found, which allows us to calculate the initial condition along the ray which leads to precession resonance. We then compare this to the point along the ray at which the rate of convergence becomes zero. The result is shown in figure 7: in the left panel, the green meshed surface marks the boundary between the region of convergence and divergence and the red semi-transparent surface shows the set of initial conditions that lead to precession resonance in the original dynamical system. At a first glance it seems that these two surfaces are qualitatively different; however, the important fact to note is that they are quite close, and at many points precession resonance occurs within the region of divergence. On the right panel of the figure we show the histogram of the relative difference between the scaling for divergence of the normal form transformation and the scaling for precession resonance. There is a strong peak around 0 with a standard deviation of $\sigma=0.05$, suggesting a strong correlation between precession resonance and the divergence of the transformation.

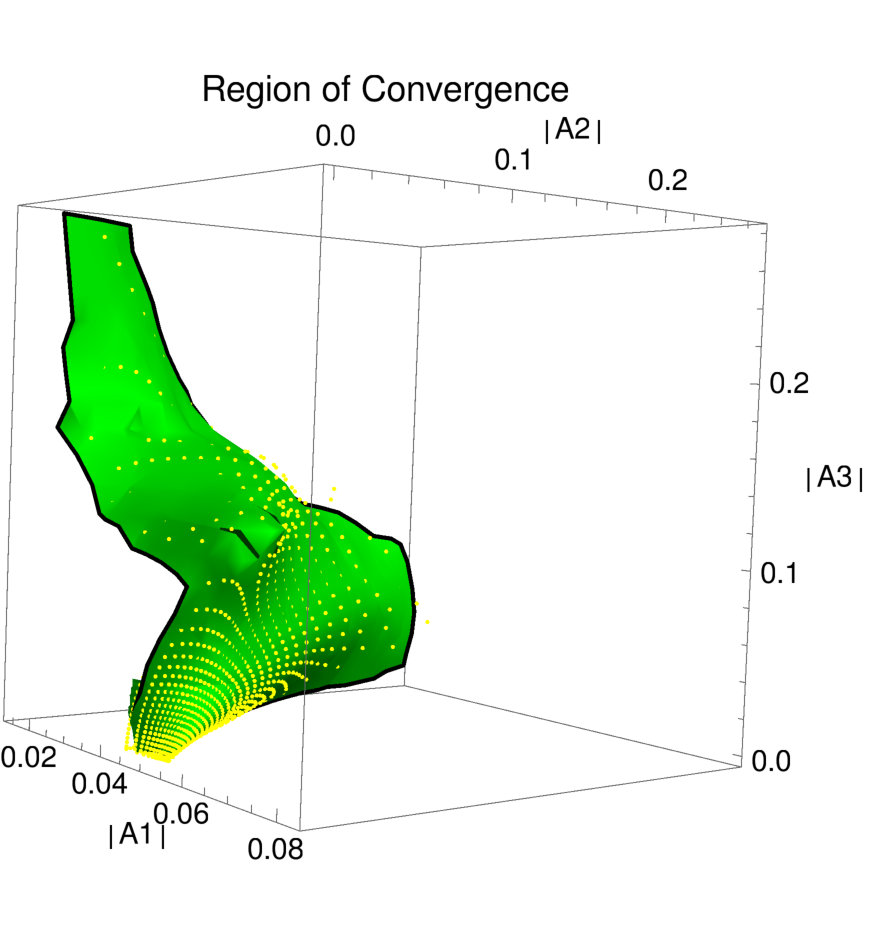

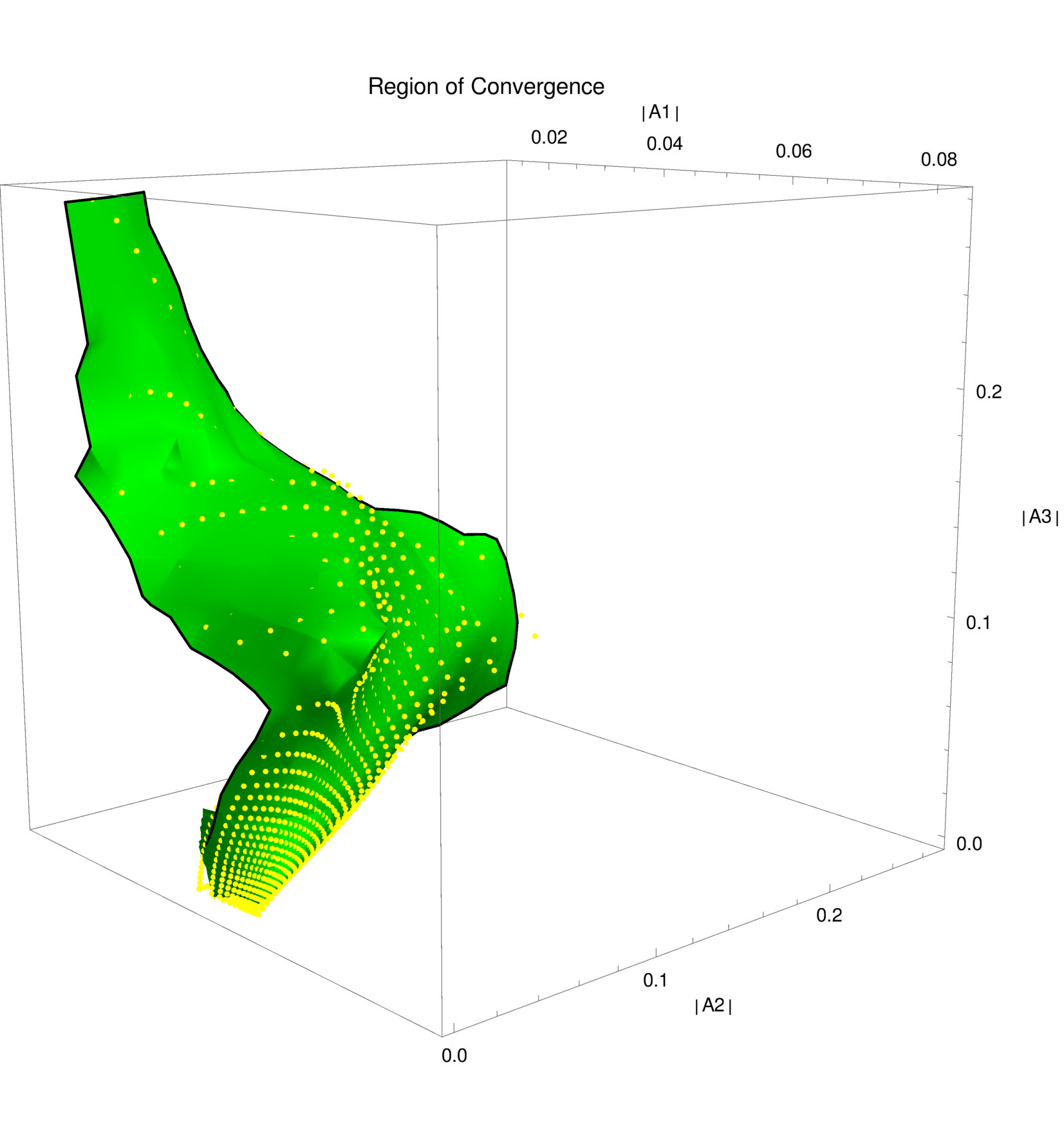

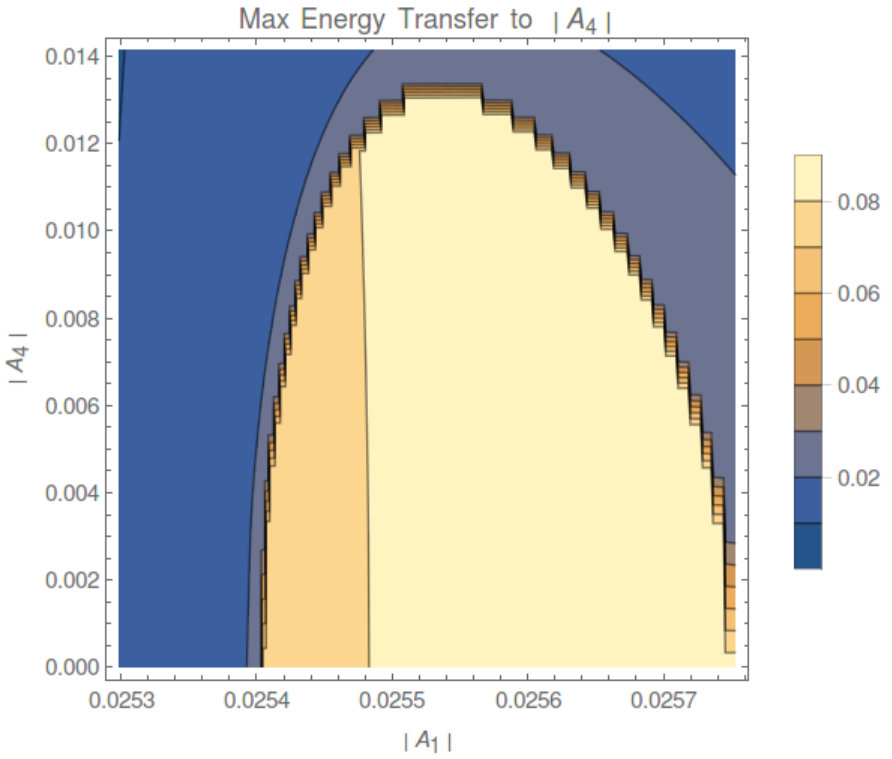

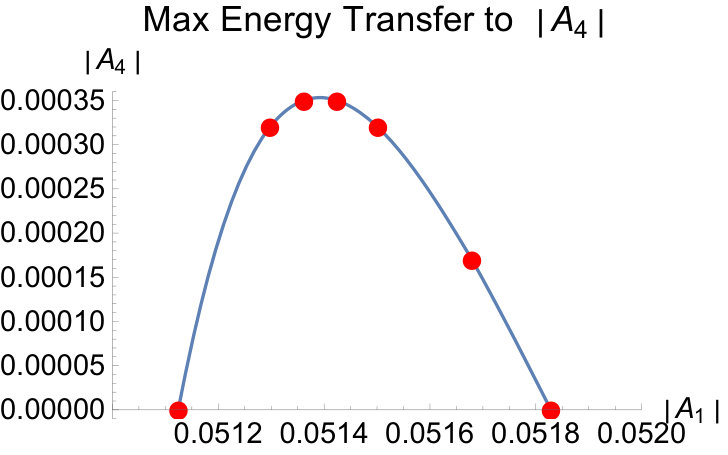

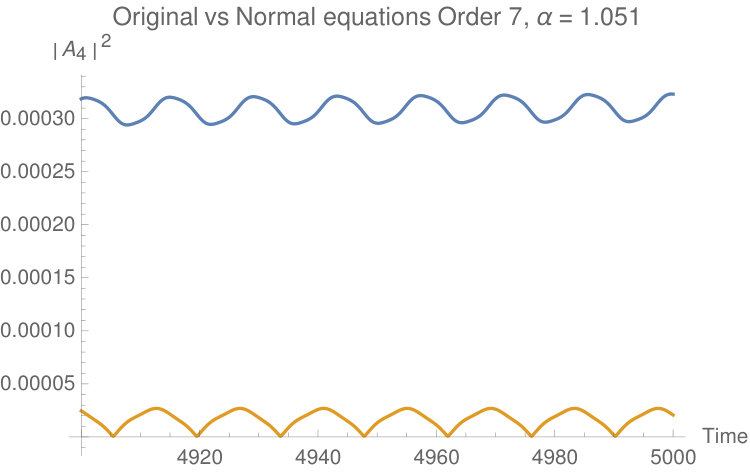

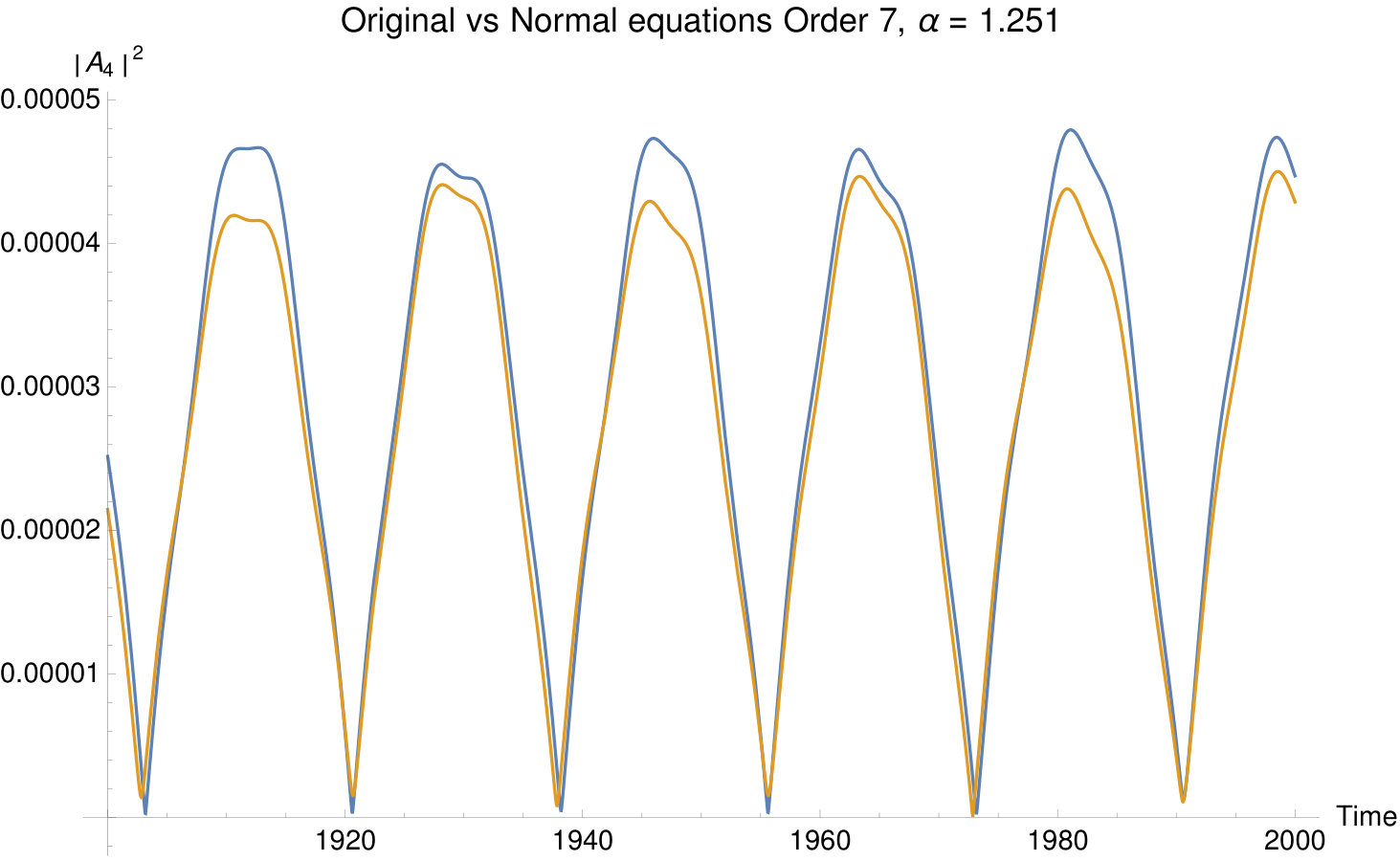

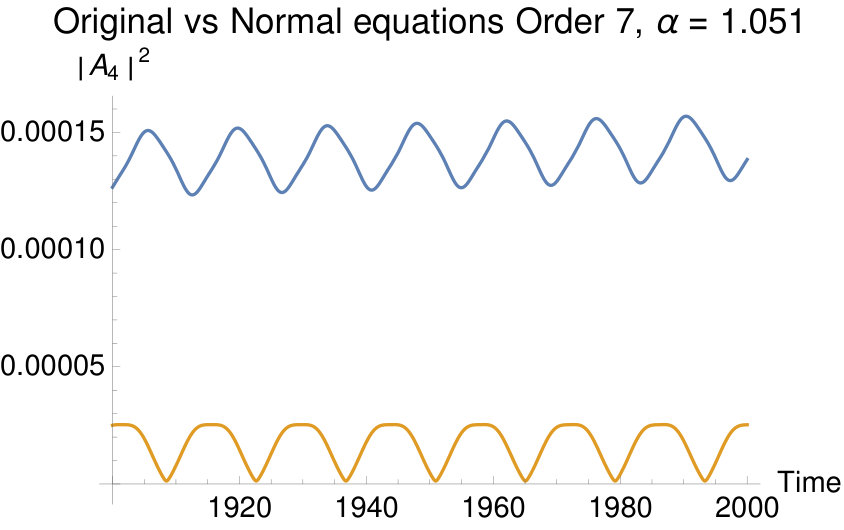

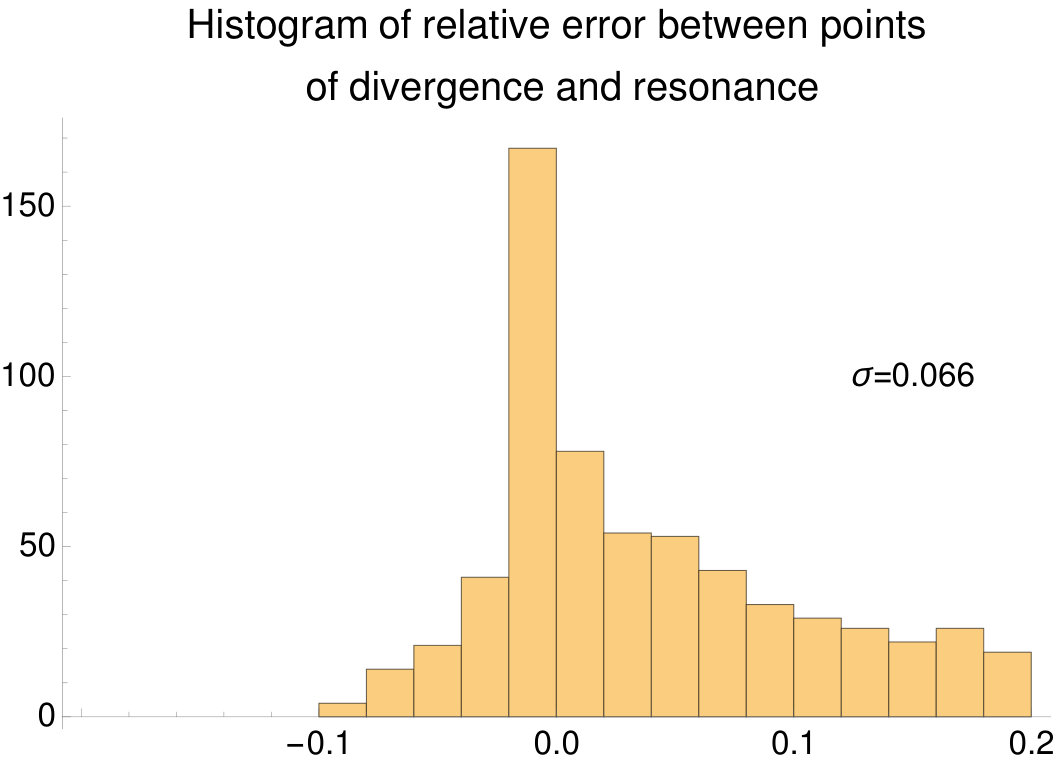

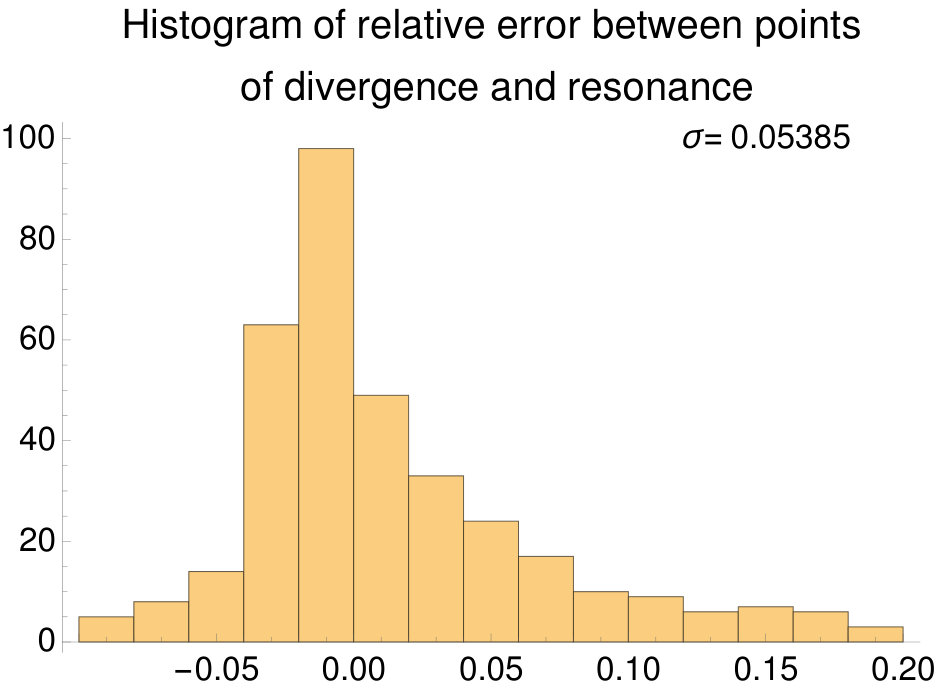

Seeing that precession resonance occurs quite often at or outside the boundary of convergence of the normal form transformation, we can infer that the resonance cannot be captured by the transformation at these points. However consideration is needed for the points on the manifold of resonance which are inside the region of convergence. Firstly as we have seen from figure 6 our calculated rate of convergence varies somewhat over the trajectory. If we take our initial conditions from Section 1 we can seen that precession resonance occurs within our calculated region of convergence from figure 8 for these particular initial conditions. However the rate of convergence at this initial value is very slow, and at points of the trajectory the transformation becomes divergent. So if this initial condition which leads to precession resonance is in the region of convergence of the transformation, it would require many terms to be accurately described. The fastest convergence we have on this trajectory is $\lambda=-0.05$, which would require computing the transformation to order $n\approx 46$ for our error to be $10\%$. To check the feasibility of calculating the normal form transformation up to order $n=46$, we count the number of terms that on the right hand side of the evolution equations at each order and then perform linear regression on the $\log$ of the number of terms. We found that the number of terms at order $n$ $\sim e^{1.01n}$ , which would imply that $n=46$ would have of the order of $10^{20}$ terms, which would be unfeasable to calculate. Because it is computationally difficult to compute the transformation for orders higher than $4$ for a full system, it would be impossible for precession resonance to manifest itself in normal coordinates in the usual theory.

5 Conclusions

In this paper we study the relationship between on the one hand the normal form transformations used in the classical theory of wave turbulence, and on the other hand precession resonance, a finite-amplitude phenomenon characterised by strong energy transfers first introduced in (Bustamante et al., 2014). It is already known that the normal form transformation is well behaved in regimes where the nonlinear frequencies are far smaller than the linear frequencies, but this study allows us to understand how and when the normal form transformation breaks down as the amplitudes are set beyond the weakly nonlinear limit. We made this study more tractable by classifying the manifolds associated with precession resonance in a 4-mode reduced model of the CHM equation. In our reduced model, there appears to be a strong relationship between the amplitudes at which precession resonance occurs and the points at which the normal form transformation diverges. Although the rate of convergence varying over a trajectory means there will be a certain amount of uncertainty in choosing the exact scaling which causes divergence in the transformation, in fact it is not fully necessary to pinpoint exactly the region of convergence of the transformation in order to conclude that the scales at which precession resonance occurs are too large to be captured in the transformation. This notion makes intuitive sense, as precession resonance occurs when the linear timescales become commensurate with the characteristic nonlinear timescales of the system, which would suggest that the nonlinear terms in the evolution equations would become commensurate with the linear terms, thus suggesting that a power series in these variables would diverge. From a dynamical systems point of view, our work shows that the region of convergence of the normal form transformation is strongly related to the stable manifold associated with precession resonance. For more general systems in higher dimensions, knowledge of the transformation could allow us to know approximate initial conditions which lead to precession resonance a priori and without needing to use the amplitude scaling search done in this paper and in (Bustamante et al., 2014). The results of this paper shed some light on the dynamics at intermediate nonlinearity, and provide a step further to bridge the gap between strong and weak nonlinearity.
