Hybrid Breathers in Nonlinear $\mathcal{PT}$-Symmetric Metamaterials

TL;DR

This paper investigates hybrid breather solutions in a nonlinear $ ext{PT}$-symmetric magnetic metamaterial, revealing stable oscillations that combine localized breathers and plane waves, supported by analytical and numerical methods.

Contribution

It introduces the concept of hybrid breathers in $ ext{PT}$-symmetric metamaterials and provides an analytical framework for understanding these complex oscillations.

Findings

Existence of stable hybrid breather solutions.

Hybrid breathers are superpositions of breathers and plane waves.

Numerical and analytical methods confirm the stability of these solutions.

Abstract

On a two-dimensional planar parity-time-($\mathcal{PT}$-)symmetric nonlinear magnetic metamaterial, consisting of split-ring dimers with balanced gain and loss, discrete breather solutions can be found. We extend these studies and by numerical calculations reveal the existence of further stable, long-lived oscillations, with certain frequencies, in the breather spectrum. We describe these oscillations in terms of an analytical breather theory, and show that they can be interpreted as superpositions of a breather oscillation and a plane wave. We coin the term `hybrid breather' solutions for these solutions.

Figures

Equations

$$\begin{array}{rl}& {\lambda }_M^{\prime }{\ddot{q}}_{2l,2k+1}+{\hat{\lambda }}_M{\ddot{q}}_{2l+1,2k}+{\ddot{q}}_{2l+1,2k+1}\\ +& {\lambda }_M{\ddot{q}}_{2l+2,2k+1}+{\hat{\lambda }}_M{\ddot{q}}_{2l+1,2k+2}+q_{2l+1,2k+1}\\ +& F(q_{2l+1,2k+1})+\gamma {\dot{q}}_{2l+1,2k+1}=0,\end{array}$$

$$\begin{array}{rl}& {\lambda }_M{\ddot{q}}_{2l-1,2k+1}+{\hat{\lambda }}_M{\ddot{q}}_{2l,2k}+{\ddot{q}}_{2l,2k+1}\\ +& {\lambda }_M^{\prime }{\ddot{q}}_{2l+1,2k+1}+{\hat{\lambda }}_M{\ddot{q}}_{2l,2k+2}+q_{2l,2k+1}\\ +& F(q_{2l,2k+1})-\gamma {\dot{q}}_{2l,2k+1}=0,\end{array}$$

$$\begin{array}{rl}& {\lambda }_M^{\prime }{\ddot{q}}_{2l,2k}+{\hat{\lambda }}_M{\ddot{q}}_{2l+1,2k-1}+{\ddot{q}}_{2l+1,2k}\\ +& {\lambda }_M{\ddot{q}}_{2l+2,2k}+{\hat{\lambda }}_M{\ddot{q}}_{2l+1,2k+1}+q_{2l+1,2k}\\ +& F(q_{2l+1,2k})-\gamma {\dot{q}}_{2l+1,2k}=0,\end{array}$$

$$\begin{array}{rl}& {\lambda }_M{\ddot{q}}_{2l-1,2k}+{\hat{\lambda }}_M{\ddot{q}}_{2l,2k-1}+{\ddot{q}}_{2l,2k}\\ +& {\lambda }_M^{\prime }{\ddot{q}}_{2l+1,2k}+{\hat{\lambda }}_M{\ddot{q}}_{2l,2k+1}+q_{2l,2k}\\ +& F(q_{2l,2k})+\gamma {\dot{q}}_{2l,2k}=0\end{array}$$

$$\begin{array}{rl}{q}_{2x,2y+1}=& A{e}^{2x{\kappa }_X+i((2y+1){\kappa }_Y-\Omega \tau )},\\ q_{2x+1,2y+1}=& B{e}^{(2x+1){\kappa }_X+i((2y+1){\kappa }_Y-\Omega \tau )},\\ q_{2x,2y}=& C{e}^{2x{\kappa }_X+i(2y{\kappa }_Y-\Omega \tau )},\\ q_{2x+1,2y}=& D{e}^{(2x+1){\kappa }_X+i(2y{\kappa }_Y-\Omega \tau )}\end{array}$$

$${\Omega }_{\gamma ;\pm }={\Omega }^4{\left(\sqrt{{\lambda }_{\mu }}\pm {\hat{\mu }}_k\right)}^2,$$

$${\Omega }_{b;\vec{\kappa };\pm ,\pm }=\sqrt{\frac{1-\frac{{\gamma }^2}{2}\pm \sqrt{\frac{{\gamma }^4}{4}-{\gamma }^2+(\sqrt{{\lambda }_{\mu }}\pm {\hat{\mu }}_k{)}^2}}{[1-(\sqrt{{\lambda }_{\mu }}\pm {\hat{\mu }}_k{)}^2]}}.$$

$$\begin{array}{rl}{\mu }_l=& 2{\lambda }_M\cosh ({\kappa }_l),{\mu }_l^{\prime }=2{\lambda }_M^{\prime }\cosh ({\kappa }_l),\\ {\hat{\mu }}_k=& 2{\hat{\lambda }}_M\cos ({\kappa }_k),\end{array}$$

$$\begin{array}{rl}{\mu }_l=& 2{\lambda }_M\cos ({\kappa }_l),{\mu }_l^{\prime }=2{\lambda }_M^{\prime }\cos ({\kappa }_l),\\ {\hat{\mu }}_k=& 2{\hat{\lambda }}_M\cosh ({\kappa }_k).\end{array}$$

$${\Omega }_b\ne {\Omega }_{\text{plane wave}},$$

Full text

I Introduction

Metamaterials are artificially created lattice structures which can exhibit non-intuitive properties, such as negative refractive indices or unidirectional transparency Chen et al. (2006); Yu and Capasso (2014); Shelby et al. (2001); Shalaev (2007); Lin et al. (2011); Schurig et al. (2006). They can be described by multiple electronic circuits, the so-called split-ring resonators which are coupled electro-magnetically to each other Sydoruk et al. (2006); Hesmer et al. (2007); Sersic et al. (2009). The properties of these metamaterials can be tuned by varying the dielectric material in the different split-ring resonators of the lattice or spacings between the resonators Lazarides et al. (2006). Due to the possibility of custom tailoring the basic properties of metamaterials, they can even be used to realize discrete parity-time-($\mathcal{PT}$)-symmetric nonlinear metamaterials with balanced gain and loss Schindler et al. (2011); Lazarides and Tsironis (2013).

The concept of $\mathcal{PT}$ symmetry was introduced two decades ago Bender and Boettcher (1998) and ever since has attracted increasing attention, both theoretically and experimentally (see, e.g., the recent book by Bender Bender (2018) and references therein). $\mathcal{P}T$ symmetry has been realized experimentally, e.g., in optics Rüter et al. (2010).

Every material unavoidably has loss. However, with a compensating equal amount of gain stationary behavior still can be maintained, and thus balanced gain and loss is a very common possibility to realize $\mathcal{PT}$ symmetry.

In systems governed by nonlinear wave equations highly localized and stable oscillations, so-called breather solutions, have been found. Examples are the Akhmediev breather as a solution of the Gross-Piteavskii equation Akhmediev et al. (1987), the Kuznetsov-Ma breather as a solution of the Sine-Gordon equation Kuznetsov (1977), or discrete breathers on nonlinear lattices Ohtsu and Yatsui (2014); Sievers and Takeno (1988). These breather solutions represent states of excitation that can only occur in nonlinear systems. Among other things they allow for the observation of different properties of the materials Lazarides et al. (2011), which is a useful application of breather oscillations. On discrete lattices breather oscillations are usually referred to as discrete breathers, or intrinsic localized modes. They have been investigated on a variety of lattices Ohtsu and Yatsui (2014); Sievers and Takeno (1988); Flach and Gorbach (2008), and, in particular, in a one-dimensional $\mathcal{PT}$-symmetric nonlinear metamaterial Lazarides and Tsironis (2013).

The purpose of this work is to extend these studies to two-dimensional $\mathcal{PT}$-symmetric nonlinear metasurfaces with balanced gain and loss. By numerically solving the equations governing the planar array of coupled split-ring resonators we find another type of localized oscillations, which we call hybrid breather oscillations. In Sec. II we set up the equations of the $\mathcal{PT}$-symmetric two-dimensional metamaterial system and solve these numerically. We demonstrate that both breather and hybrid breather solutions exist in this system. In Sec. III we present an analytical model which helps to explain the appearance of hybrid breather solutions. These turn out to be superpositions of breathers and plane waves, in such a way that they are localized in one dimension and are extended in the other dimension. A short summary will be given in Sec. IV.

II System and Numerical Results

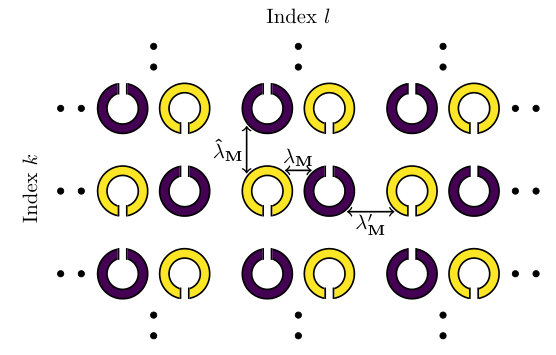

We consider a two-dimensional array of dimers, each comprising two nonlinear split-ring resonators, one with loss and the other with an equal amount of gain (Fig. 1).

Evidently this is the two-dimensional extension of the one-dimensional chain discussed in Ref. Lazarides and Tsironis (2013). As in that reference, the split-ring resonators are coupled magnetically through dipole-dipole forces, and are regarded as $RLC$ circuits. The split-ring resonators are arranged in an alternating fashion on the two-dimensional lattice, in such a way that each split-ring resonator with absorption (loss) is only surrounded by split-ring resonators with amplification (gain), and vice versa. Within each dimer, the split-ring resonators are coupled via $\lambda_{M}$, and the coupling between neighboring dimers is given by $\lambda_{M}^{\prime}$ in the horizontal and by $\hat{\lambda}_{M}$ in the vertical direction. Without loss of generality we choose $|\lambda_{M}|>|\lambda_{M}^{\prime}|$. Note that the electrical coupling between the split-ring resonators can be neglected due to the relative orientations of the different split-ring resonators Hesmer et al. (2007). No external driving voltage is applied to the metamaterial.

The equations of motion for the dynamics of the charge $q_{l,k}$ in the capacitor at lattice site $(l,k)$ can be derived in analogy with the one-dimensional case Lazarides and Tsironis (2013). The starting point is the equivalent circuit model picture, where nearest-neighbor couplings as marked in Fig. 1 are taken into account. A detailed derivation of the one-dimensional case can be found in Ref. Lazarides et al. (2006). In addition to this case the couplings via the constants $\hat{\lambda}_{M}$ are added in the two-dimensional plane. This results in the coupled differential equations

[TABLE]

for each site in a $2\times 2$ unit cell. Here, $l\in\mathbb{N}$ counts the resonators in the horizontal metachains (rows), and $k\in\mathbb{N}$ in the vertical metachains (columns). The quantity $\gamma$ is the gain and loss parameter for the individual split-ring resonators, and the function $F$ describes the non-linearity. We work in dimensionless units. The equations are normalized to the eigenfrequency of one linear split-ring resonator.

Amplification can be realized by an injection of energy through a tunneling (Esaki) diode Esaki (1958), which features a negative ohmic resistance. The nonlinearity of each individual split-ring resonator can be realized by a nonlinear dielectric which is introduced into the capacitance of each split-ring resonator. For the numerical calculations a typical nonlinearity for a diode is chosen, $F(q_{x,y})=\alpha q_{x,y}^{2}+\beta q_{x,y}^{3}$ with $\alpha=-0.4$, $\beta=0.08$ Lazarides et al. (2011). As the gain and loss can influence the stability of the nonlinear system Haag et al. (2014) we choose a moderate, but yet significantly different from zero, value of $\gamma=\pm 0.002$.

Note that because of the different couplings $\lambda_{M}$ and $\hat{\lambda}_{M}$, the array is not fully $\mathcal{PT}$ symmetric in two dimensions, but only along each row, and along each column. Thus, the parity operator can be represented either by the spatial reflection at the center of a row or of a column. In both cases the time reversal operator is given by a complex conjugation. This is an example of different $\mathcal{PT}$ symmetries in two dimensions, as discussed, e.g., in Ref. Castro-Alvaredo and Fring (2009) for a non-Hermitian XXZ spin chain. The solutions of the two-dimensional split ring array have to obey both $\mathcal{PT}$ symmetries to ensure balanced gain and loss.

Equations (1) are solved numerically by setting $q_{l,k}\propto\exp[i(l\kappa_{l}+k\kappa_{k}-\Omega\tau)]$ (with 4 different constants of proportionality), assuming a $1/\cosh$-type initial charge distribution around the central row, and performing a root search.

We find two-dimensional nonlinear localized, stable breather solutions. An example with frequency $\Omega_{b}=0.8666$ is shown in Fig. 2.

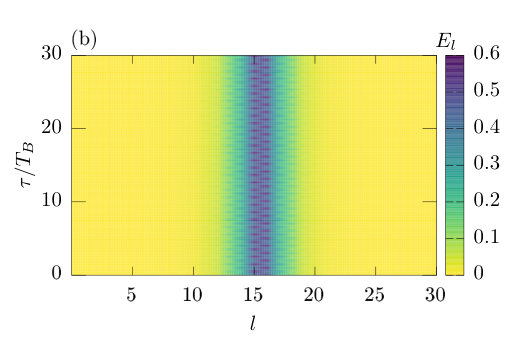

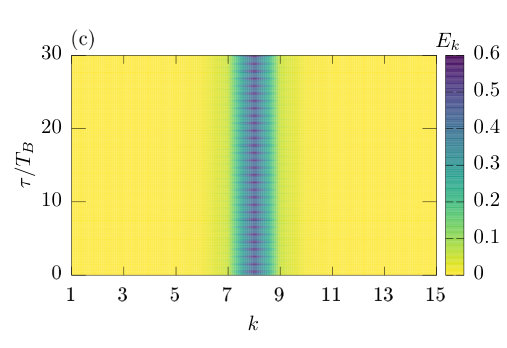

Figure 2(a) shows the breather profile, which is strongly localized in the center of the metamaterial and exponentially decaying towards its borders. The energy distribution of the central column $k=8$, depicted in Fig. 2(b), and the energy of the central row $l=15$, Fig. 2(c), clearly exhibit the oscillating behavior of the central split-ring resonators over 30 periods of the solution. It can be seen that in both cases the energy oscillates in a stable fashion and does not disperse along either the central column or the central row.

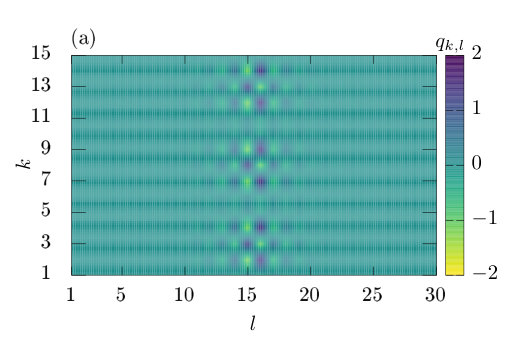

While numerically calculating breather solutions on this metamaterial (1), we also detected other types of solutions such as the one shown in Fig. 3.

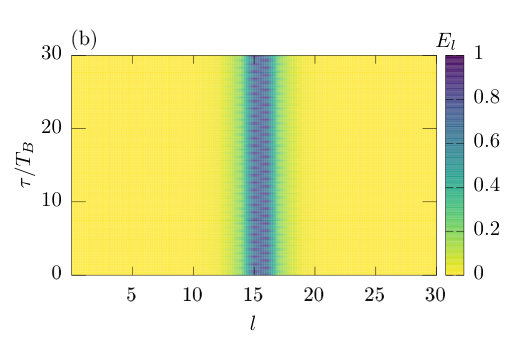

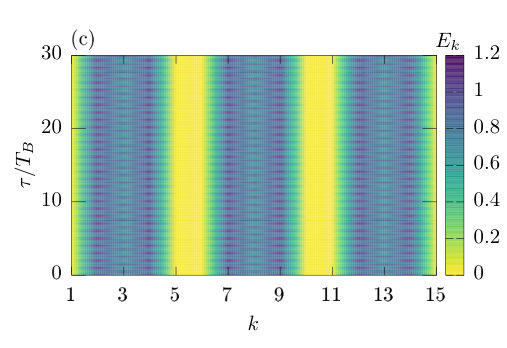

Here, a sinusoidal initial charge distribution in the $k$ direction and a localized shape around the middle of the $l$ direction was chosen. We find again a breather type oscillation of the central column $k=8$, Fig. 3(b), but, on the other, several oscillations around the central row $l=15$, Fig. 3(c). It can be seen that in both cases the energy oscillates in a stable manner, with no dispersion of the energy distributions. The stability of this type of solution corresponds to that of the two-dimensional breather solution shown in Fig. 2.

These oscillations have strong resemblance to a breather solution, however, it is definitely not a two-dimensional breather. To understand the behavior of this special type of breather oscillation, which we call hybrid breather, we will consider an analytical model which starts from the superposition of a breather solution and a plane wave solution in the next section.

III Analytical Results

The breather spectrum of a system can be calculated analytically with the usual approximation of dividing the breather oscillation into two major parts Ohtsu and Yatsui (2014), the nonlinear central part, also called the breather core, and the linearized part at the borders, called breather tails. At the borders the linearized coupled differential equations of the system are solved with the breather tails ansatz. This separation approximation for the analytical breather solution can be chosen because we are looking for spatially decaying solutions on a lattice, which have the characteristic that after a certain lattice site the amplitude of the onsite oscillations is small enough to neglect the nonlinear interactions.

To obtain the spectrum of a hybrid breather solution an ansatz

[TABLE]

with the normalized wave vectors $\kappa_{X,Y}\in\mathbb{R}$, is inserted into the linearized coupled differential equations of the system (1), which is similar to a main breather frequency ansatz in one dimension denoted by $X$ and a plane wave ansatz in the other dimension called $Y$. The arbitrary coordinates $X$ and $Y$ for the hybrid breather solution are chosen to show the independence of the existence of hybrid breather solutions from the direction of the breather or the plane wave part.

By requiring nontrivial solutions for the resulting stationary problem one obtains

[TABLE]

where $\lambda_{\mu}=(\lambda_{M}-\lambda_{M}^{\prime})^{2}+\mu_{l}\mu_{l}^{\prime}$, $\Omega_{\gamma}=(1-\Omega^{2})^{2}+\gamma^{2}\Omega^{2}$. Solving the equation with respect to $\Omega$ yields four frequencies, and because of the $\mathcal{PT}$ symmetry just positive frequency solutions are considered,

[TABLE]

For a hybrid breather solution, with a breather shape along the dimer chains in $l$-direction, the substituted variables are

[TABLE]

and with a breather shape orthogonal to the dimer chains in $k$-direction

[TABLE]

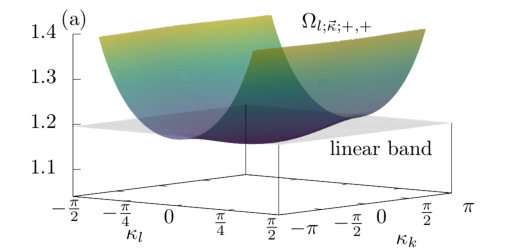

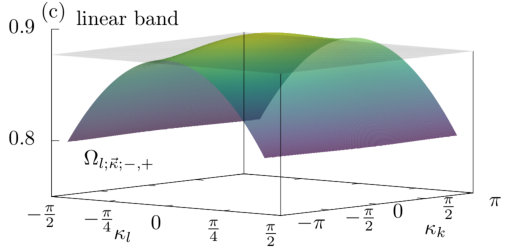

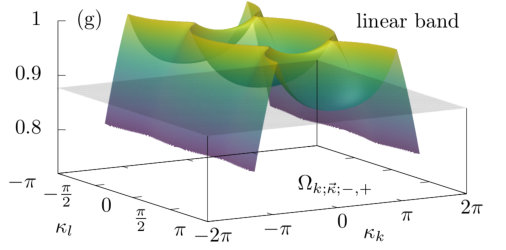

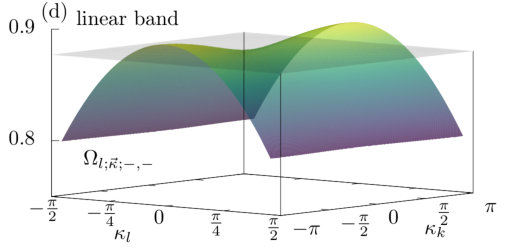

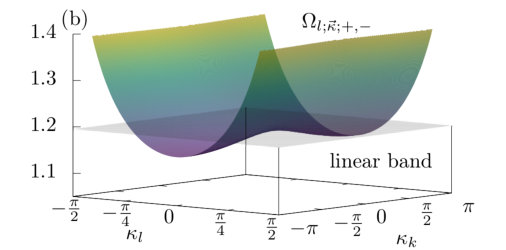

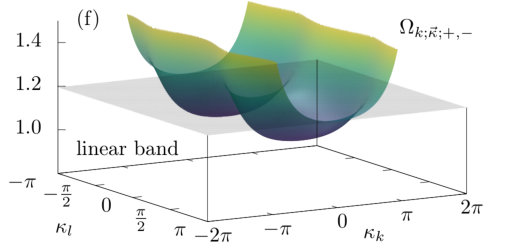

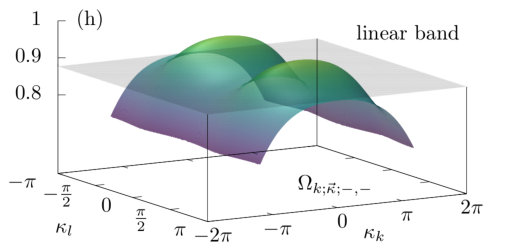

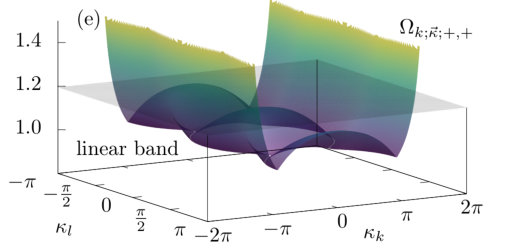

These four analytically calculated solutions are displayed in Fig. 4

for the same parameters as used in the numerically calculated solution (Fig. 3), and for both cases of the substituted variables given in Eqs. (5) and (6). In Figs. 4(a)-(d) the four solutions are displayed for a breather shape along the dimer chains in $l$-direction. It can be seen that the solutions $\Omega_{b;\vec{\kappa};+,+}$ in Fig. 4(a) and $\Omega_{b;\vec{\kappa};+,-}$ in Fig. 4(b) as well as $\Omega_{b;\vec{\kappa};-,+}$ in Fig. 4(c) and $\Omega_{b;\vec{\kappa};-,-}$ in Fig. 4(d) are similar to each other and can be transformed into one another by a shift of $\Delta\kappa_{k}=\pi$. In Figs. 4(e)-(h) the four solutions are displayed for a breather shape orthogonal to the dimer chains in $k$-direction. With Eqs. (4) and (6) it can be seen that the solutions $\Omega_{b;\vec{\kappa};+,+}$ in Fig. 4(e) and $\Omega_{b;\vec{\kappa};+,-}$ in Fig. 4(f) as well as $\Omega_{b;\vec{\kappa};-,+}$ in Fig. 4(g) and $\Omega_{b;\vec{\kappa};-,-}$ in Fig. 4(h) are the same for $\kappa_{k}=0$. A closer look at these pairs of solutions reveals that for small values of $\kappa_{k}$ the solutions differ from each other but merge again into each other for higher values of $\kappa_{k}$.

To obtain a true hybrid breather solution these four solutions with the pseudo wave vector $\kappa=\left(\kappa_{l},\,\kappa_{k}\right)^{T}$ have also to fulfill the breather condition that their frequencies must not lie in the (allowed) frequency band of plane wave solutions Flach and Gorbach (2008)

[TABLE]

which is obtained by solving the linearized system equations. For the parameters considered here the lower edge of the band is found to be $\Omega=0.8771$ and the upper edge $\Omega=1.1952$. The breather condition (7) is requisite to guarantee the existence of a stable breather core of the hybrid breather oscillation. Out of this condition not every pseudo wave vector of all four analytically calculated solutions belongs to a frequency in the allowed domain. It can be seen in Fig. 4 that for the solutions $\Omega_{b;\vec{\kappa};+,+}$ and $\Omega_{b;\vec{\kappa};+,-}$ only hybrid breather solutions with a frequency above the upper edge of the allowed frequency band ($\Omega=1.1952$) are found. Analogously this can be applied to $\Omega_{b;\vec{\kappa};-,+}$ and $\Omega_{b;\vec{\kappa};-,-}$, where the pseudo vector needs to belong to a frequency under the lower edge of the allowed frequency band ($\Omega=0.8771$).

For the analytical breather solution with a breather shape along the $k$-direction two favorable solutions $\Omega_{b;\vec{\kappa};+,-}$ and $\Omega_{b;\vec{\kappa};-,-}$ exist. They have a much smaller range of pseudo wave vectors which belong to frequencies inside the linear band structure. Thus, these solutions can describe true hybrid breather solutions for more pseudo wave vectors than the other two analytical solutions. On the other hand the analytical breather solutions with a breather shape along the $l$-direction do not have any favorable solutions, because each solution has the same amount of pseudo wave vectors belonging to frequencies inside the linear band structure.

It is interesting to note that if the analytical $\Omega_{b;\vec{\kappa};+,+}$ hybrid breather solution fulfills the breather condition for a certain pseudo wave vector $\kappa$, then also $\Omega_{b;\vec{\kappa};-,+}$ fulfills the condition for the same pseudo wave vector, and vice versa. The same can be observed for $\Omega_{b;\vec{\kappa};+,-}$ and $\Omega_{b;\vec{\kappa};-,-}$, which is shown in Fig. 4.

The analytical model was calculated using the linearization approximation for the breather tails. It covers all solutions that contain exponentially dropping tails. This is independent from the nonlinearity chosen since we only look at those parts of the tails which have an amplitude small enough for the nonlinearities to be insignificant. Therefore this model describes every possible hybrid breather excitation caused by some nonlinearity in the breather core. However, the numerically observable hybrid breather oscillations depend strongly on the nonlinearity chosen for the system and the shape of the breather core. Analogously to the normal breather oscillations the hybrid breather oscillations have to obey $\mathcal{PT}$ symmetry to obtain long lived oscillations. The nonlinearities chosen in this paper represent a typical diode Lazarides and Tsironis (2013).

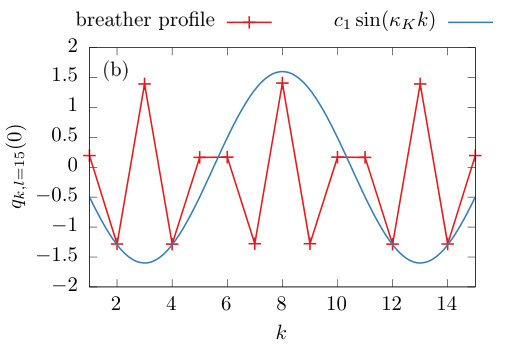

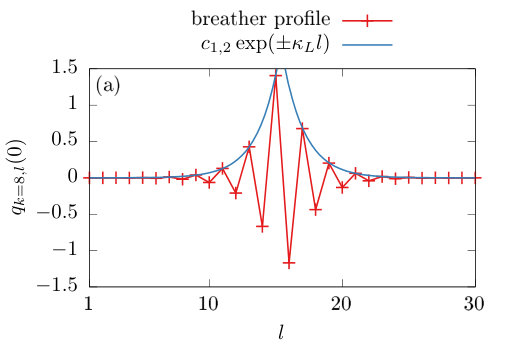

The results of the analytical theory can now be compared with the numerically observed hybrid breather oscillation, shown in Fig. 3, with a standing plane wave form along the $k$-direction. In Fig. 5(a)

we compare the breather profile along the central column: the breather part for the numerically calculated hybrid breather solution (red lines with crosses), and the analytical exponential functions (blue solid lines). As can be seen in the diagram the analytical model describes the numerical values perfectly. Through this a value of $\kappa_{l}=0.6$ was determined for the numerical solution. In Fig. 5(b) we compare the breather profile along the central row for the numerically calculated hybrid breather solution, the standing plane wave part (red lines with crosses) with an analytical sine function (blue solid lines). As can be seen in the diagram the sine function generally describes the numerical values quite well. Discrepancies between the numerical and the analytical solution occur because we are numerically calculating a nonlinear system with charges $|q_{k,l}(\tau/T_{B})|>1$ in which case also the nonlinearity of the split-ring resonators would have to be taken into account. This nonlinearity of the split-ring resonators was neglected in the analytical calculation due to the linearization approximation of the breather tails. From the comparison a value of $\kappa_{k}=\pi/5$ is deduced for the numerical solution. Inserting the numerical parameters into Eq. (4) yields the four frequency values $\Omega_{+,+}=1.1890$, $\Omega_{+,-}=1.2321$, $\Omega_{-,+}=0.8795$, $\Omega_{-,-}=0.8635$. By comparing these values with the numerical ones it can be seen that the frequency $\Omega_{-,-}=0.8635$ and the numerical ones are equivalent. For this reason the analytical approximation describes the hybrid breather solutions quite well for plane wave parts slightly in the nonlinear regime.

In the analytical approximation also hybrid breather solutions with a plane wave part along the $l$-direction and hybrid breather solutions with a plane wave part along the $k$-direction and a frequency above the linear band structure are predicted. However such hybrid breather solutions do not appear in the numerical calculation.

An explanation for this can be found in the analytical model. To obtain a stable breather oscillation a nonlinear breather core is needed which oscillates with the breather frequency and has an according shape to induce the oscillation in the linearized breather tails. The formulated analytical model only supports nonlinear breather cores which are similar to linear plane waves, because the nonlinear breather core excites an oscillation outside of the linear band structure which then will spatially decay in the linearized breather tails. This leads to the fact that the described analytical model can only be used for not too large nonlinear hybrid breather cores. As a consequence we cannot find hybrid breather solutions with a plane wave part along the $l$-direction and a frequency above the linear band structure in our numerical calculations. One way to find the other solutions would be to extend our analytical model to nonlinear plane waves. Another way would be the use of a metamaterial with a different nonlinearity and other breather cores.

The breather cores that can be found strongly depend on the nonlinearity of the metamaterial. By contrast the breather tails are totally independent of the nonlinearity of the metamaterial. Therefore it is possible that similar metamaterials with slightly differing nonlinearities can exhibit quite different breather and hybrid breather solutions. This is also the reason why we evaluated all hybrid breather solutions $\Omega_{b;\vec{\kappa};\pm,\pm}$, because for every possible hybrid breather solution there could exist a nonlinear metamaterial with an appropriate nonlinearity with which it is possible to excite this hybrid breather oscillation.

IV Summary

The main result of our work is that for $\mathcal{PT}$-symmetric nonlinear metamaterials with balanced gain and loss in dimensions $d>1$ mixed types of breather oscillations can exist, in addition to usual breathers.

We have shown this by numerically solving the equations of motion describing the dynamics of the charges in the individual split-ring capacitors of a $\mathcal{PT}$-symmetric nonlinear metasurface. These, as we call them, ‘hybrid breather’ solutions could be explained by an analytical model, in which the breather was divided into a nonlinear central part and a linearized outer part, and by allowing a linear plane wave shape in one direction.
