Direct $CP$ violation for $\bar{B}_s^0 \to \phi {\pi^+}{\pi^-}$ in Perturbative QCD

TL;DR

This paper investigates direct CP violation in the decay of B_s^0 to  ho(omega) phi with \u007fpi^+pi^-, highlighting how  ho-omega mixing enhances CP asymmetry near the omega resonance.

Contribution

The study introduces a mechanism involving  ho-omega mixing to significantly enhance CP violation in B_s^0 decay processes.

Findings

Maximum CP violation of 5.98% in B_s^0 decay.

CP violation is enhanced near the omega resonance.

Detection prospects for CP violation are discussed.

Abstract

In perturbative QCD approach, we study the direct $CP$ violation in the decay of $\bar{B}_s^0\to\rho(\omega )\phi\to {\pi^+}{\pi^-}\phi$ via isospin symmetry breaking. An interesting mechanism involving the charge symmetry violating between $\rho$ and $\omega$ is applied to enlarge the $CP$ violating asymmetry. We find that the $CP$ violation can be enhanced by the $\rho-\omega$ mixing mechanism when the invariant masses of the $\pi^+\pi^-$ pairs are in the vicinity of the $\omega$ resonance. For the decay process of $\bar{B}^0_{s}\to\rho(\omega )\phi\to{\pi^+}{\pi^-}\phi$, the maximum $CP$ violation can reach $5.98\%$. The possibility of detecting the $CP$ violation is also presented.

Figures

Tables

Table 1. Table 1: Input parameters

Parameters	Input data	References
Fermi constant (in ${\mathrm{GeV}}^{-2}$)	$G_F=1.16638\times {10}^{-5}.$	Tanabashi:2018oca
	$m_{B_s^0}=5366.89,{\tau }_{B_s^0}=1.509\times {10}^{-12}s,$
	$m_{{\rho }^0\left(770\right)}=775.26,{\Gamma }_{{\rho }^0\left(770\right)}=149.1,$
Masses and decay widths (in MeV)	$m_{\omega \left(782\right)}=782.65,{\Gamma }_{\omega \left(782\right)}=8.49,$	Tanabashi:2018oca
	$m_{\pi }=139.57,m_{\varphi }=1019.461.$
	$f_{\rho }=215.6\pm 5.9,f_{\rho }^T=165\pm 9,$
Decay constants (in MeV)	$f_{\omega }=196.5\pm 4.8,f_{\omega }^T=145\pm 10,$	Straub:2015ica ; Liu:2016rqu
	$f_{\varphi }=231\pm 4,f_{\varphi }^T=200\pm 10.$

Equations

$$\displaystyle\mbox{Amplitude}\sim\int\!\!d^{4}k_{1}d^{4}k_{2}d^{4}k_{3}\ \mathrm{Tr}\bigl{[}C(t)\phi_{B_{s}}(k_{1})\phi_{M2}(k_{2})\phi_{M3}(k_{3})T_{H}(k_{1},k_{2},k_{3},t)\bigr{]},$$

$${\mathcal{H}}_{eff}$$

$$O_1^u$$

$$O_2^u$$

$$O_3$$

$$O_4$$

$$O_5$$

$$O_6$$

$$O_7$$

$$O_8$$

$$O_9$$

$$O_{10}$$

$$C_1$$

$$C_3$$

$$C_5$$

$$C_7$$

$$C_9$$

$$a_1$$

$$a_3$$

$$a_5$$

$$a_7$$

$$a_9$$

$$P_B$$

$$k_1$$

$${ϵ}_2(L)=\frac{P_2}{M_{\rho (\omega )}}-\frac{M_{\rho (\omega )}}{P_2\cdot n_{-}}{n}_{-},{ϵ}_3(L)=\frac{P_3}{M_{\varphi }}-\frac{M_{\varphi }}{P_3\cdot n_{+}}{n}_{+},$$

$${ϵ}_2(T)=\left(0,0,1_T\right),{ϵ}_3(T)=\left(0,0,1_T\right).$$

$${\varphi }_{B_s}=\frac{i}{\sqrt{6}}(/P_{B_s}+M_{B_s}){\gamma }_5{\varphi }_{B_s}(k_1),$$

$${\varphi }_{B_s}(x,b)=N_{B_s}{x}^2(1-x{)}^2\exp \left[-\frac{M_{B_s}^2{x}^2}{2{\omega }_b^2}-\frac{1}{2}({\omega }_{b}b{)}^2\right].$$

$${\varphi }_{\rho }(x)$$

$${\varphi }_{\omega }(x)$$

$${\varphi }_{\varphi }(x)$$

$${\varphi }_V^T(x)$$

$${\varphi }_V^t(x)$$

$${\varphi }_V^s(x)$$

$${\varphi }_V^v(x)$$

$${\varphi }_V^a(x)$$

$$\Gamma =\frac{P_c}{8\pi M_{B_s}^2}\sum _{\sigma =L,T}{A}^{(\sigma )†}{A}^{(\sigma )},$$

$$A^{(\sigma )}=M_{B_s}^2{A}_L+M_{B_s}^2{A}_N{ϵ}_2^{\ast }(\sigma =T)\cdot {ϵ}_3^{\ast }(\sigma =T)+i{A}_T{ϵ}^{\alpha \beta \gamma \rho }{ϵ}_{2\alpha }^{\ast }(\sigma ){ϵ}_{3\beta }^{\ast }(\sigma )P_{2\gamma }{P}_{3\rho },$$

$$M_{B_s}^2{A}_L$$

$$M_{B_s}^2{A}_N$$

$$A_T$$

$$H_0$$

$$H_{\pm }$$

$$\sum _{\sigma =L,R}{A}^{(\sigma )†}{A}^{(\sigma )}=|H_0{|}^2+|H_{+}{|}^2+|H_{-}{|}^2.$$

Full text

I Introduction

$CP$ violation has obtained extensive attention even since its first discovery in the Neutral kaon systems Christenson:1964fg . Within the standard model (SM), $CP$ violation originates from a non-zero weak phase angle from the complex Cabibbo-Kobayashi-Maskawa (CKM) matrix, which describes the mixing of weak interaction and mass eigenstates of the quarks Cabibbo:1963yz ; Kobayashi:1973fv . Although the source of $CP$ violation has not been well understood up to now, physicists are striving to increase their knowledge of the mechanism for the $CP$ violation. Many theoretical studies Carter:1980hr ; Carter:1980tk ; Bigi:1981qs (within and beyond the SM) and experimental investigations have been conducted since 1964. According to theoretical predictions, large $CP$ violation may be expected in $B$ meson decay process due to the large mass of b quark. In recent years, the LHCb Collaboration observed the large $CP$ violation in the three-body decay channels of $B^{\pm}\rightarrow\pi^{\pm}\pi^{+}\pi^{-}$ and $B^{\pm}\rightarrow K^{\pm}\pi^{+}\pi^{-}$ Aaij:2013bla ; Aaij:2014iva ; Aaij:2013sfa . Hence, the non-leptonic $B$ meson three-body decays channels have been focused more attention in searching for $CP$ violation.

Direct $CP$ violation in $B$ meson decays process occurs through the interference of at least two amplitudes with different weak phase $\phi$ and strong phase $\delta$. The weak phase difference $\phi$ is determined by the CKM matrix elements, while the strong phase can be produced by the hadronic matrix elements and interference between the intermediate states. However, one can know that the strong phase $\delta$ is not still well determined from the theoretical approach. The non-leptonic weak decay amplitudes of $B$ meson involve the hadronic matrix elements of $\left\langle{{M_{1}}{M_{2}}}\right|{O_{i}}\left|B\right\rangle$, which can be calculated from the different factorization methods. However, the different methods may present different strong phases so as to affect the value of the $CP$ violation. Currently, there are three popular theoretical approaches to study the dynamics of the two-body hadronic decays, which are the naive factorization approach Fakirov:1977ta ; Cabibbo:1977zv ; Wirbel:1985ji ; Bauer:1986bm , the QCD factorization (QCDF) Beneke:1999br ; Beneke:2000ry ; Sachrajda:2001uv ; Beneke:2001ev ; Beneke:2003zv , perturbative QCD (pQCD) Lu:2000em ; Keum:2000ph ; Keum:2000wi , and soft-collinear effective theory (SCET) Bauer:2000yr ; Bauer:2001cu ; Bauer:2001yt . Based on the power expansion in $1/m_{b}$ ($m_{b}$ is the b-quark mass), all of the theories of factorization are shown to deal with the hadronic matrix elements in the leading power of $1/m_{b}$. However, these methods pertain to whether one takes into account the collinear degrees of freedom or the transverse momenta. Meanwhile, in order to have a large signal of $CP$ violation, we need appeal to some phenomenological mechanism to obtain a large strong phase $\delta$. $\rho-\omega$ mixing has been used for this purpose in the past few years and focuses on the naive factorization and QCD factorization approaches Enomoto:1996cv ; Guo:1998eg ; Guo:2000uc ; Leitner:2002xh ; Lu:2010vb ; Lu:2011zzf . Recently, L$\rm{\ddot{u}}$ et al. attempted to generalize the pQCD approach to the three-body non-leptonic decay via $\rho-\omega$ mixing in ${B^{0,\pm}}\to{\pi^{0,\pm}}{\pi^{+}}{\pi^{-}}$ and $B_{c}\rightarrow D_{(s)}^{+}\pi^{+}\pi^{-}$ decays Lu:2013jma ; Lu:2016lgc . In this paper, we will focus on the $CP$ violation of the decay process $\bar{B}^{0}_{s}\to\rho(\omega)\phi\to{\pi^{+}}{\pi^{-}}\phi$ via $\rho-\omega$ mixing in the pQCD approach.

Isospin symmetry breaking plays a significant role in the $\rho-\omega$ mixing mechanism. The mixing between the $u$ and $d$ flavors leads to the breaking of isospin symmetry for the $\rho-\omega$ system Fritzsch:2000pg ; Fritzsch:2001aj . In Refs. Gardner:1997ie ; OConnell:1995nse , the authors studied the $\rho-\omega$ mixing and the pion form factor in the time-like region, where $\rho-\omega$ mixing was used to obtain the (effective) mixing matrix element $\widetilde{\Pi}_{\rho\omega}(s)$, which consists of two part contributions: one from the direct coupling of $\omega\to 2\pi$ and the other from $\omega\to\rho\to 2\pi$ mixing Bernicha:1994re ; Maltman:1996kj ; OConnell:1997ggd . The magnitude has been determined by the pion form factor through the data for the cross section of ${e^{+}}{e^{-}}\to{\pi^{+}}{\pi^{-}}$ in the $\rho$ and $\omega$ resonance region OConnell:1995nse ; OConnell:1996amv ; OConnell:1997ggd ; Wolfe:2009ts ; Wolfe:2010gf . Recently, isospin symmetry breaking was discussed by incorporating the vector meson dominance (VMD) model in the weak decay process of the meson Gardner:1997yx ; Guo:1999ip ; Guo:2000uc ; Lu:2016lgc ; Lu:2014uja . However, one can find that $\rho-\omega$ mixing produces the large $CP$ violation from the effect of isospin symmetry breaking in the three and four bodies decay process. Hence, in this paper, we shall follow the method of Refs. Gardner:1997yx ; Guo:1999ip ; Guo:2000uc ; Lu:2016lgc ; Lu:2014uja to investigate the decay process of $\bar{B}^{0}_{s}\to\rho(\omega)\phi\to{\pi^{+}}{\pi^{-}}\phi$ via isospin symmetry breaking.

The remainder of this paper is organized as follows. In Sec. II we will briefly introduce the pQCD framework and present the form of the effective Hamiltonian and wave functions. In Sec. III we give the calculating formalism and details of the $CP$ violation from $\rho-\omega$ mixing in the decay process $\bar{B}_{s}^{0}\to\rho(\omega)\phi\to{\pi^{+}}{\pi^{-}}\phi$. In Sec. IV we show the input parameters. We present the numerical results in Sec. V. Summary and discussion are included in Sec. VI. The related function defined in the text are given in Appendix.

II The FrameWork

For the decay process of $\bar{B}_{s}\to{M_{2}}{M_{3}}$, integrated over the longitudinal and the transverse momenta, the emitted or annihilated particle $M_{2}$ can be factored out. The rest of the amplitude can be expressed as the convolution of the wave functions $\phi_{B_{s}}$, $\phi_{M_{3}}$ and the hard scattering kernel $T_{H}$. The pQCD factorization theorem has been developed for non-leptonic heavy meson decays, based on the formalism of Lepage, Brodsky, Botts and Sterman Chang:1996dw ; Yeh:1997rq ; Lepage:1980fj ; Botts:1989kf . The basic idea of the pQCD approach is that it takes into account the transverse momentum of the valence quarks in the hadrons which results in the Sudakov factor in the decay amplitude. Then, it is conceptually written as the following:

[TABLE]

where $k_{i}(i=1,2,3)$ are momenta of light quarks in the mesons. $\mathrm{Tr}$ denotes the trace over Dirac and color indices. $C(t)$ is Wilson coefficient which comes from the radiative corrections at short distance. $\phi_{M}(m=2,3)$ is wave function which describes non-perturbative contribution during the hadronization of mesons, which should be universal and channel independent. The hard part $T_{H}$ is rather process-dependent.

With the operator product expansion, the effective weak Hamiltonian in bottom hadron decays is Buchalla:1995vs

[TABLE]

where $G_{F}$ is the Fermi constant, $C_{i}(\mu)$ (i=1,…,10) are the Wilson coefficients, $V_{q_{1}q_{2}}$ ($q_{1}$ and $q_{2}$ represent quarks) is the CKM matrix element. The operators $O_{i}$ have the following forms:

[TABLE]

where $\alpha$ and $\beta$ are color indices, the sum index $q^{\prime}$ runs over the ”active” flavors quarks at the scale $m_{b}$, and $e_{q^{\prime}}$ is the electric charge of the quark $q^{\prime}$($q^{\prime}=u,d,s,c$ or $b$ quarks). In Eq. (3) $O_{1}^{u}$ and $O_{2}^{u}$ are tree operators, $O_{3}$–$O_{6}$ are QCD penguin operators and $O_{7}$–$O_{10}$ are the operators associated with electroweak penguin diagrams.

The Wilson coefficients, $C_{i}(\mu)$, represent the power contributions from scales higher than $\mu$ (which refer to the long-distance contributions) Buras:1998raa . Since the QCD has the property of asymptotic freedom, they can be calculated in perturbation theory. The Wilson coefficients include the contributions of all heavy particles, such as the top quark, the $W^{\pm}$ bosons, and so on. Usually, the scale $\mu$ is chosen to be of order ${\cal O}(m_{b})$ for $B$ meson decays. Since we work in the leading order of perturbative QCD ($O(\alpha_{s})$), it is consistent to use the leading order Wilson coefficients. So, we use numerical values of $C_{i}(m_{b})$ as follow Keum:2000wi ; Lu:2000em :

[TABLE]

The Wilson coefficients $a_{1}$–$a_{10}$ are defined as usual Ali:1998eb ; Ali:1998gb ; Keum:2000ms ; Lu:2000hj :

[TABLE]

For the decay channel of $\bar{B}_{s}^{0}\to M_{2}M_{3}$, we denote the emitted meson as $M_{2}$ while the recoiling meson is $M_{3}$. The $M_{2}$ ($\rho$ or $\omega$) and the final-state $M_{3}$ ($\phi$) move along the direction of $n_{+}=(1,0,{\bf{0}}_{T})$ and $n_{-}=(0,1,{\bf{0}}_{T})$ in the light-cone coordinates, respectively. We denote the ratios ${r_{\phi}}=\frac{{{M_{\phi}}}}{{{M_{{B_{s}}}}}}$, ${r_{\rho}}=\frac{{{M_{\rho}}}}{{{M_{{B_{s}}}}}}$ and ${r_{\omega}}=\frac{{M_{\omega}}}{{M_{{B_{s}}}}}$. In the limit ${M_{\phi}}$, ${M_{\rho}}$, ${M_{\omega}}$ $\to 0$, one can drop the terms of proportional to $r_{\phi}^{2}$, $r_{\rho}^{2}$, $r_{\omega}^{2}$ safely. The symbols $P_{B}$, $P_{2}$ and $P_{3}$ refer to the $\bar{B}_{s}$ meson momentum, the $\rho(\omega)$ meson momentum, and the final-state $\phi$ momentum, respectively. Under the above approximation, the momenta can be written as:

[TABLE]

One can denote the light (anti-)quark momenta $k_{1}$, $k_{2}$ and $k_{3}$ for the mesons $B_{s}$, $\rho(\omega)$ and $\phi$, respectively. We can write:

[TABLE]

where $x_{1}$, $x_{2}$ and $x_{3}$ are the momentum fraction. ${\bf k}_{1\perp}$, ${\bf k}_{2\perp}$ and ${\bf k}_{3\perp}$ refer to the transverse momentum of the quark, respectively. The longitudinal polarization vectors of the $\rho(\omega)$ and $\phi$ are given as

[TABLE]

which satisfy the orthogonality relationship of $\epsilon_{2}(L)\cdot P_{2}=\epsilon_{3}(L)\cdot P_{3}=0$, and the normalization of $\epsilon_{2}^{2}(L)=\epsilon_{3}^{2}(L)=-1$. The transverse polarization vectors can be adopted diredtly as

[TABLE]

The wave function of $B_{s}$ meson can be expressed as

[TABLE]

where the distribution amplitude $\phi_{B_{s}}$ is shown in Refs. Ali:2007ff ; Li:2004ep ; Wang:2014mua :

[TABLE]

The shape parameter $\omega_{b}$ is a free parameter. Based on lattice QCD and the light-cone sum rule Li:2003yj , we take $\omega_{b}=0.50~{}\mathrm{GeV}$ for the $B_{s}$ meson. The normalization factor $N_{B_{s}}$ depends on the values of $\omega_{b}$ and the decay constant $f_{B_{s}}$, which is defined through the normalization relation $\int_{0}^{1}{dx{\phi_{{B_{s}}}}\left({x,0}\right)}={f_{{B_{s}}}}/(2\sqrt{6})$.

The distribution amplitudes of vector meson(V=$\rho$, $\omega$ or $\phi$), $\phi_{V}$, $\phi_{V}^{T}$, $\phi^{t}_{V}$, $\phi^{s}_{V}$, $\phi^{v}_{V}$, and $\phi^{a}_{V}$, are calculated using light-cone QCD sum rule Ball:1998ff ; Ball:2004rg :

[TABLE]

where $t=2x-1$. Here $f_{V}$ is the decay constant of the vector meson with longitudinal polarization. The Gegenbauer polynomials $C^{\nu}_{n}(t)$ can be found easily in Refs. Fan:2012kn ; Huang:2005if .

III $CP$ violation in $\bar{B}_{s}^{0}\to\rho(\omega)\phi\to{\pi^{+}}{\pi^{-}}\phi$ decay process

III.1 Formalism

The hadronic decay rare for the process of $\bar{B}_{s}^{0}\to\rho(\omega)\phi$ is written as

[TABLE]

where $P_{c}=|P_{2z}|=|P_{3z}|$ is the momentum of the vector meson. The superscript $\sigma$ denotes the helicity states of the two vector mesons with the longitudinal (transverse) components L(T). The amplitude $A^{(\sigma)}$ is decomposed into Li:2004ti ; Huang:2005if ; Lu:2005be

[TABLE]

with the convention $\epsilon^{0123}=1$. The amplitude $A_{i}$ ($i$ refer to the three kind of polarizations, longitudinal (L), normal (N) and transverse (T)) can be written as

[TABLE]

where $a$, $b$ and $c$ are the Lorentz-invariant amplitudes. $M_{2}$, $M_{3}$ refer to the masses of the vector mesons $\rho(\omega)$ and $\phi$, respectively.

The longitudinal $H_{0}$, transverse $H_{\pm}$ of helicity amplitudes can be expressed

[TABLE]

where $H_{0}$, $H_{+}$ and $H_{-}$ are the tree-level and penguin-level helicity amplitudes of the decay process $\bar{B}_{s}^{0}\to\rho(\omega)\phi\to{\pi^{+}}{\pi^{-}}\phi$ from the three kind of polarizations, respectively. The helicity summation satisfy the relation,

[TABLE]

In the VMD model Nambu:1997vw ; Sakurai:1969zz , the vacuum polarisation of the photons are assumed to be coupled through the vector meson ($\rho$ meson). Based on the same mechanism, $\rho-\omega$ mixing was proposed and later gradually applied to $B$ meson physics. The formalism for the $CP$ violation in $B$ hadronic decays can be generalized to $B_{s}$ in a straightforward manner Enomoto:1996cv ; Gardner:1997yx ; Guo:2000uc . According to the effective Hamiltonian, the amplitude $A$ ($\bar{A}$) for the decay process of $\bar{B}_{s}^{0}\to{\pi^{+}}{\pi^{-}}\phi$ ($B_{s}^{0}\to{\pi^{+}}{\pi^{-}}\bar{\phi}$) can be written as Gardner:1997yx :

[TABLE]

where $H^{T}$ and $H^{P}$ are the Hamiltonian for the tree and penguin operators, respectively.

The relative magnitude and phases between the tree and penguin operator contribution are defined as follows:

[TABLE]

where $\delta$ and $\phi$ are strong and weak phases, respectively. The weak phase difference $\phi$ can be expressed as a combination of the CKM matrix elements, and it is $\phi=\arg[(V_{tb}V_{ts}^{*})/(V_{ub}V_{us}^{*})]$ for the $b\to s$ transition. The parameter $r$ is the absolute value of the ratio of tree and penguin amplitudes:

[TABLE]

The parameter of $CP$ violating asymmetry, $A_{CP}$, can be written as

[TABLE]

where $T_{i}(i=0,+,-)$ are the tree-level helicity amplitudes of the decay process $\bar{B}_{s}^{0}\to{\pi^{+}}{\pi^{-}}\phi$ from $H_{0}$, $H_{+}$ and $H_{-}$ of the Eq. (23), respectively. $r_{j}(j=0,+,-)$ refer to the absolute value of the ratio of tree and penguin amplitude for the three kind of polarizations, respectively. $\delta_{k}(k=0,+,-)$ represent the relative strong phases between the tree and penguin operator contributions from three kind of helicity amplitudes. We can see explicitly from Eq. (30) that both weak and strong phase differences are responsible for $CP$ violation. In order to obtain a large signal for direct CP violation, we need some mechanism to change either $\sin\delta$ or $r$. With this mechanism, working at the first order of isospin violation, we have the following results when the invariant mass of $\pi^{+}\pi^{-}$ is near the $\omega$ resonance mass Gardner:1997yx ; Guo:1998eg :

[TABLE]

where $t_{\rho}^{i}(p_{\rho}^{i})$ and $t_{\omega}^{i}(p_{\omega}^{i})$ are the tree (penguin)-level helicity amplitudes for $\bar{B}_{s}\rightarrow\rho^{0}\phi$ and $\bar{B}_{s}\rightarrow\omega\phi$, respectively.The amplitudes $t_{\rho}^{i}$, $p_{\rho}^{i}$, $t_{\omega}^{i}$ and $p_{\omega}^{i}$ can be found in Sec. III.2. $g_{\rho}$ is the coupling for $\rho^{0}\rightarrow\pi^{+}\pi^{-}$. $\widetilde{\Pi}_{\rho\omega}$ is the effective $\rho-\omega$ mixing amplitude which also effectively includes the direct coupling $\omega\rightarrow\pi^{+}\pi^{-}$ OConnell:1997ggd . $s_{V}$, $m_{V}$ and $\Gamma_{V}$($V$=$\rho$ or $\omega$) is the inverse propagator, mass and decay rate of the vector meson $V$, respectively. $s_{V}$ can be expressed as

[TABLE]

with $\sqrt{s}$ being the invariant masses of the $\pi^{+}\pi^{-}$ pairs. The numerical values for the $\rho-\omega$ mixing parameter $\widetilde{\Pi}_{\rho\omega}(s)={\rm{Re}}\widetilde{\Pi}_{\rho\omega}(m_{\omega}^{2})+{\rm{Im}}\widetilde{\Pi}_{\rho\omega}(m_{\omega}^{2})$ are Lu:2018fqe

[TABLE]

From Eqs. (25), (27), (31) and (32) one has

[TABLE]

Defining Enomoto:1996cv ; Enomoto:1997bq

[TABLE]

where $\delta^{i}_{\alpha}$, $\delta^{i}_{\beta}$ and $\delta^{i}_{q}$ are strong phases form the three kind of polarizations, respectively. One finds the following expression from Eqs. (35) and (36):

[TABLE]

$\alpha e^{i\delta^{i}_{\alpha}}$, $\beta e^{i\delta^{i}_{\beta}}$, and $r^{\prime}e^{i\delta^{i}_{q}}$ will be calculated later. In order to obtain the $CP$ violating asymmetry in Eq. (30), $A_{cp}$, sin$\phi$ and cos$\phi$ are needed, where $\phi$ is determined by the CKM matrix elements. In the Wolfenstein parametrization Wolfenstein:1964ks , the weak phase $\phi$ comes from $[{V_{tb}}V_{ts}^{*}/{V_{ub}}V_{us}^{*}]$. One has

[TABLE]

where the same result has been used for $b\to s$ transition from Ref. Guo:1999ip .

III.2 Calculation details

We can decompose the decay amplitude for the decay process $\bar{B}_{s}^{0}\rightarrow\rho^{0}(\omega)\phi$ in terms of tree-level and penguin-level contributions depending on the CKM matrix elements of $V_{ub}V^{*}_{us}$ and $V_{tb}V^{*}_{ts}$. From Eqs. (30), (35) and (36), in order to obtain the formulas of the $CP$ violation, we need calculate the amplitudes $t_{\rho}$, $t_{\omega}$, $p_{\rho}$ and $p_{\omega}$ in perturbative QCD approach. The $F$ and $M$ function can be found in the Appendix from the perturbative QCD approach.

There are four types of Feynman diagrams contributing to $\bar{B}_{s}^{0}\rightarrow\rho^{0}(\omega)\phi$ emission decay mode. The leading order diagrams in pQCD approach are shown in Fig.1. The first two diagrams in Fig.1 (a)(b) are called factorizable diagrams and the last two diagrams in Fig.1 (c)(d) are called non-factorizable diagrams Zhu:2005rx ; Chen:2002pz . The relevant decay amplitudes can be easily obtained by these hard gluon exchange diagrams and the Lorenz structures of the mesons wave functions. Through calculating these diagrams, the formulas of $\bar{B}_{s}^{0}\to\rho\phi$ or $\bar{B}_{s}^{0}\to\omega\phi$ are similar to those of $B\to\phi K^{*}$ and $B_{s}\to K^{*-}K^{*+}$ Chen:2002pz ; Zou:2015iwa . We just need to replace some corresponding wave functions, Wilson coefficients and corresponding parameters.

With the Hamiltonian Eq. (2), depending on CKM matrix elements of $V_{ub}V^{*}_{us}$ and $V_{tb}V^{*}_{ts}$, the electroweak penguin dominant decay amplitudes $A^{(i)}$ for $\bar{B}_{s}^{0}\rightarrow\rho^{0}\phi$ in pQCD can be written as

[TABLE]

where the superscript $i$ denote different helicity amplitudes $L,N$ and $T$. The longitudinal $t_{\rho(\omega)}^{0}$, transverse $t_{\rho(\omega)}^{\pm}$ of helicity amplitudes satisfy relationship of $t_{\rho(\omega)}^{0}=t_{\rho(\omega)}^{L}$ and $t_{\rho(\omega)}^{\pm}=({{t_{\rho(\omega)}^{N}\mp t_{\rho(\omega)}^{T}}})/({{\sqrt{2}}})$. The amplitudes from tree and penguin diagrams can be written as $T_{\rho}^{i}=t_{\rho}^{i}/{V_{ub}}V_{us}^{*}$ and $P_{\rho}^{i}=p_{\rho}^{i}/{V_{tb}}V_{ts}^{*}$, respectively. The formula for the tree level amplitude is

[TABLE]

where $f_{\rho}$ refers to the decay constant of $\rho$ meson. The penguin level amplitude are expressed in the following

[TABLE]

The QCD penguin dominant decay amplitude for $\bar{B}_{s}^{0}\to\omega\phi$ can be written as

[TABLE]

where $T_{\omega}^{i}=t_{\omega}^{i}/{V_{ub}}V_{us}^{*}$ and $P_{\omega}^{i}=p_{\omega}^{i}/{V_{tb}}V_{ts}^{*}$ which refer to the tree and penguin amplitude, respectively. We can give the tree level contribution in the following

[TABLE]

where $f_{\omega}$ refers to the decay constant of $\omega$ meson. The penguin level contribution are given as following

[TABLE]

Based on the definition of Eq. (36), we can get

[TABLE]

where

[TABLE]

From above equations, the new strong phases ${\delta^{i}_{\alpha}}$, $\delta^{i}_{\beta}$ and $\delta^{i}_{q}$ are obtained from tree and penguin diagram contributions by the $\rho-\omega$ interference. The total strong phase $\delta_{i}$ are obtained by the Eqs. (36) and (37) in the framework of pQCD.

IV Input parameters

The CKM matrix, which elements are determined from experiments, can be expressed in terms of the Wolfenstein parameters $A$, $\rho$, $\lambda$ and $\eta$ Wolfenstein:1964ks ; Tanabashi:2018oca :

[TABLE]

where $\mathcal{O}(\lambda^{4})$ corrections are neglected. The latest values for the parameters in the CKM matrix are Tanabashi:2018oca :

[TABLE]

where

[TABLE]

From Eqs. (50) and (51) we have

[TABLE]

The other parameters and the corresponding references are listed in Table 1.

V The numerical results of $CP$ violation in $\bar{B}^{0}_{s}\rightarrow\rho^{0}(\omega)\phi\rightarrow\pi^{+}\pi^{-}\phi$

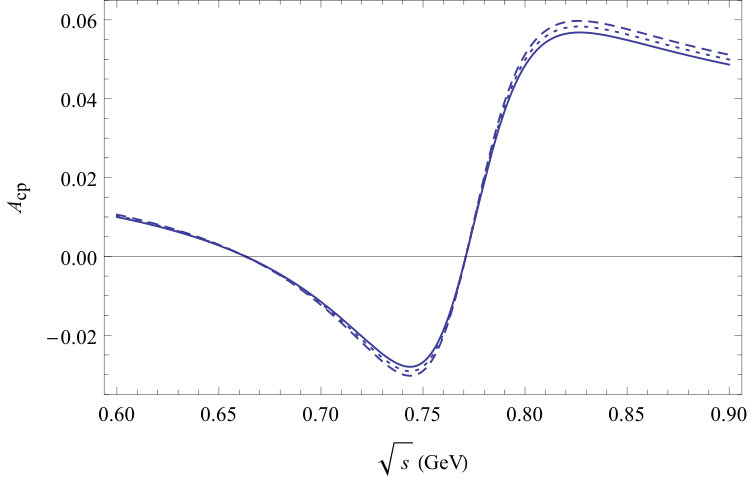

We have investigated the $CP$ violating asymmetry, $A_{CP}$, for the $\bar{B}^{0}_{s}\rightarrow\rho^{0}(\omega)\phi\rightarrow\pi^{+}\pi^{-}\phi$ decay process. The numerical results of the $CP$ violating asymmetry are shown for the decay process in Fig. 2. It is found that the $CP$ violation can be enhanced via $\rho-\omega$ mixing for the decay channel $\bar{B}^{0}_{s}\rightarrow\rho^{0}(\omega)\phi\rightarrow\pi^{+}\pi^{-}\phi$ when the invariant mass of $\pi^{+}\pi^{-}$ is in the vicinity of the $\omega$ resonance within perturbative QCD scheme.

The $CP$ violation depends on the weak phase difference from CKM matrix elements and the strong phase difference. The CKM matrix elements, which relate to $\rho$, $\eta$ and $\lambda$, are given in Eq. (50). The uncertainties due to the CKM matrix elements are mostly from $\rho$ and $\eta$ since $\lambda$ is well determined. Hence we take the central value of $\lambda=0.224$ in Eq. (52). In our numerical calculations, we let $\rho$, $\eta$ and $\lambda=0.224$ vary among the limiting values. The numerical results are shown from Fig. 2 to Fig. 4 with the different parameter values of CKM matrix elements. The dash line, dot line and solid line corresponds to the maximum, middle, and minimum CKM matrix element for the decay channel of $\bar{B}^{0}_{s}\rightarrow\rho^{0}(\omega)\phi\rightarrow\pi^{+}\pi^{-}\phi$, respectively. We find the $CP$ violation is not sensitive to the CKM matrix elements for the different values of $\rho$ and $\eta$. In Fig. 2, we give the plot of $CP$ violating asymmetry as a function of $\sqrt{s}$. From the Fig. 2, one can see the $CP$ violation parameter is dependent on $\sqrt{s}$ and changes rapidly due to $\rho-\omega$ mixing when the invariant mass of $\pi^{+}\pi^{-}$ is in the vicinity of the $\omega$ resonance. From the numerical results, it is found that the maximum $CP$ violating parameter reaches $5.98\%$ for the decay channel of $\bar{B}^{0}_{s}\rightarrow\pi^{+}\pi^{-}\phi$ in the case of ($\rho_{max}$, $\eta_{max}$).

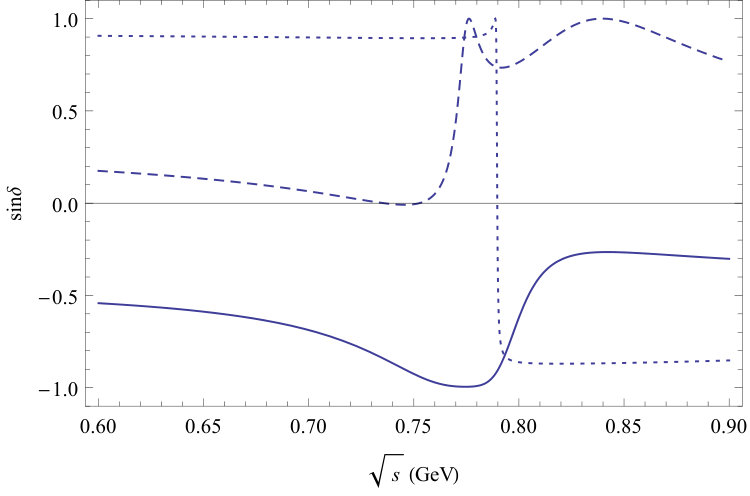

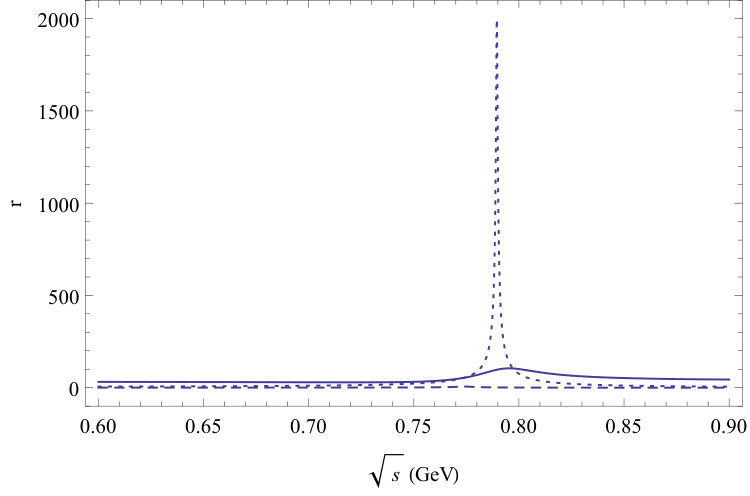

From Eq. (30), one can see that the $CP$ violating parameter is related to sin$\delta$ and $r$. The plots of $\sin\delta_{0}$ ($\sin\delta_{+}$ and $\sin\delta_{-}$) and $r_{0}$ ($r_{+}$ and $r_{-}$) as a function of $\sqrt{s}$ are shown in Fig. 3 and Fig. 4. We can see that the $\rho-\omega$ mixing mechanism produces a large $\sin\delta_{0}$ ($\sin\delta_{+}$ and $\sin\delta_{-}$) at the $\omega$ resonance. As can be seen from Fig. 3, the plots vary sharply in the cases of $\sin\delta_{0}$, $\sin\delta_{+}$ and $\sin\delta_{-}$. Meanwhile, $\sin\delta_{0}$ and $\sin\delta_{-}$ change weakly compared with the $\sin\delta_{+}$. It can be seen from Fig. 4 that $r_{+}$ change more rapidly than $r_{0}$ and $r_{-}$ when the $\pi^{+}\pi^{-}$ pairs in the vicinity of the $\omega$ resonance.

The Large Hadron Collider (LHC) is a proton-proton collider which has currently started at the European Organization for Nuclear Research (CERN). In order to achieve the required energy and luminosity, the technology and equipment has been upgraded many times. The LHC Run I first data-taking period lasted from 2010 to 2013 Aaij:2014jba . In the next few years, there are two major detector (ATLAS and CMS) upgrades happening after Run II and Run III. With a series of upgrades and modifications, the LHC provides a TeV-level high energy frontier and an opportunity to further improve conformance testing of the CKM matrix. The production rates for heavy quark flavors will be much at the LHC, and the $b\bar{b}$ production cross section will be of the order of 0.5 mb, providing about $10^{12}$ bottom quark events per year Aaij:2014jba ; Schopper:2006he . The heavy flavour physics experiment is one of the main projects of LHC experiments. Especially, LHCb is a specialized B-physics experiment, designed primarily to precisly measure the parameters of new physics in $CP$ violation and rare decays in the interactions of beauty and charm hadrons systems. Such studies can help to explain the Matter-Antimatter asymmetry of the Universe. Recently, the LHCb collaboration found clear evidence for direct $CP$ violation in some three-body decay channels in charmless decays of $B$ meson. Meanwhile, large $CP$ violation is obtained in $B^{\pm}\rightarrow\pi^{\pm}\pi^{+}\pi^{-}$ in the region $0.6$ GeV2$<m^{2}_{\pi^{+}\pi^{-}low}<0.8$ GeV2 and $m^{2}_{\pi^{+}\pi^{-}high}>14$ GeV2 Aaij:2014iva ; dosReis:2016ayt . A zoom of the $\pi^{+}\pi^{-}$ invariant mass from the $B^{\pm}\rightarrow\pi^{\pm}\pi^{+}\pi^{-}$ decay process is shown the region $0.6$ GeV2$<m^{2}_{\pi^{+}\pi^{-}low}<0.8$ GeV2 zone in the Figure 8 of the Ref. dosReis:2016ayt . In addition, the branching fractions is probed in the $\pi^{+}\pi^{-}$ invariant mass range $400<m({\pi^{+}}{\pi^{-}})<1600$ MeV/$\rm{c^{2}}$ for $\bar{B}^{0}_{s}\rightarrow\pi^{+}\pi^{-}\phi$ Aaij:2016qnm . In the next years, we expect the LHCb Collaboration to focus our prediction of $CP$ violation from the $\bar{B}^{0}_{s}\rightarrow\rho^{0}(\omega)\phi\rightarrow\pi^{+}\pi^{-}\phi$ decay process when the invariant mass of $\pi^{+}\pi^{-}$ is in the vicinity of the $\rho$ resonance Aaij:2016qnm . Theoretically, in order to achieve the current experiments on $b$-hadrons, which can only provide about $10^{7}$ $B\bar{B}$ pairs Guo:2008zzh . Therefore, it is very convenient to observe the $CP$ violation for $\bar{B}^{0}_{s}\rightarrow\rho^{0}(\omega)\phi\rightarrow\pi^{+}\pi^{-}\phi$ when the invariant masses of $\pi^{+}\pi^{-}$ pairs are in the vicinity of the $\omega$ resonance at the LHC experiments.

VI Summary and conclusion

In this paper, we study the $CP$ violation for the decay process of $\bar{B}^{0}_{s}\rightarrow\rho^{0}(\omega)\phi\rightarrow\pi^{+}\pi^{-}\phi$ due to the interference of $\rho$-$\omega$ mixing in perturbative QCD. It has been found that the $CP$ violation can be enhanced at the area of $\rho-\omega$ resonance. There is the resonance effect via $\rho$-$\omega$ mixing which can produce large strong phase in this decay process. As a result, one can find that the maximum $CP$ violation can reach $5.98\%$ when the invariant mass of the $\pi^{+}\pi^{-}$ pair is in the vicinity of the $\omega$ resonance.

In the calculation, we need the renormalization scheme independent Wilson coefficients for the tree and penguin operators at the scale $m_{b}$. The major uncertainties is from the input parameters. In particular, these include the CKM matrix element parameters, the perturbative QCD approach and the hadronic parameters (the shape parameters, decay constants, the wave function and etc). We expect that our predictions will provide useful guidance for future investigations in $B_{s}$ decays.

Acknowledgements

This work was supported by National Natural Science Foundation of China (Project Numbers 11605041), and the Research Foundation of the young core teacher from Henan province.

Appendix: Related functions defined in the text

In this appendix we present explicit expressions of the factorizable and non-factorizable amplitudes in Perturbative QCD Ali:2007ff ; Keum:2000ph ; Keum:2000wi ; Lu:2000em . The factorizable amplitudes $F_{B_{s}\to\phi}^{LL,i}(a_{i})$ (i=L,N,T) are written as

[TABLE]

[TABLE]

[TABLE]

with the color factor ${C_{F}}=3/4$, $f_{M_{2}}$, $f_{B_{s}}$ refer to the decay constant of $M_{2}$ ($\rho$ or $\omega)$ and $\bar{B}_{s}$ mesons and $a_{i}$ represents the corresponding Wilson coefficients for emission decay channels. In the above functions, $r_{2}(r_{3})=m_{V_{2}}(m_{V_{3}})/m_{B_{s}}$ and $\phi_{2}(\phi_{3})=\phi_{\rho/\omega}(\phi_{\phi})$, with $m_{B_{s}}$ and $m_{V_{2}}(m_{V_{3}})$ being the masses of the initial and final states.

The non-factorizable amplitudes $M_{B_{s}\to{\phi}}^{LL,i}(a_{i})$, and $M_{B_{s}\to{\phi}}^{SP,i}(a_{i})$ (i=L,N,T) are written as

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

The hard scale t are chosen as the maximum of the virtuality of the internal momentum transition in the hard amplitudes, including $1/b_{i}$:

[TABLE]

The function h, coming from the Fourier transform of hard part H, are written as Li:2001ay ,

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

where $J_{0}$ and ${Y}_{0}$ are the Bessel function with $H_{0}^{(1)}(z)=\mathrm{J}_{0}(z)+i\,\mathrm{Y}_{0}(z)$.

The threshold re-sums factor $S_{t}$ follows the parameterized Kurimoto:2001zj

[TABLE]

where the parameter $c=0.4$. In the non-factorizable contributions, $S_{t}(x)$ gives a very small numerical effect to the amplitude Li:2002mi . Therefore, we drop $S_{t}(x)$ in $h_{n}$ and $h_{na}$.

The evolution factors $E^{(\prime)}_{e}$ and $E^{(\prime)}_{a}$ entering in the expressions for the matrix elements are given by

[TABLE]

in which the Sudakov exponents are defined as

[TABLE]

where $\gamma_{q}=-\alpha_{s}/\pi$ is the anomalous dimension of the quark. The explicit form for the function $s(Q,b)$ is:

[TABLE]

where the variables are defined by

[TABLE]

and the coefficients $A^{(i)}$ and $\beta_{i}$ are

[TABLE]

with $n_{f}$ is the number of the quark flavors and $\gamma_{E}$ is the Euler constant. We will use the one-loop expression of the running coupling constant.
