Imitating non-equilibrium steady states using time-varying equilibrium force in many-body diffusive systems

TL;DR

This paper establishes a theoretical link between non-equilibrium steady states and stochastic pumps in many-body diffusive systems, showing how time-varying forces can mimic steady states and revealing a connection to traffic wave phenomena.

Contribution

It proves the entropy production rate in NESS exceeds that in stochastic pumps under certain conditions and uncovers a novel relation between traffic waves and particle density propagation.

Findings

Entropy production in NESS is greater than in stochastic pumps.

Time-averaged stochastic pump can imitate NESS particle density and current.

High density traffic waves propagate against particle current direction.

Abstract

An equivalence between non equilibrium steady states (NESS) driven by a time-independent force and stochastic pumps (SP) stirred by a time-varying conservative force is studied for general many-body diffusive systems. When the particle density and current of NESS are imitated by SP time-averaged counterparts, we prove that the entropy production rate in NESS is always greater than that of SP, provided that the conductivity of the particle current is concave as a function of the particle density. Searching for a SP protocol that saturates the entropy production bound reveals an unexpected connection with traffic waves, where a high density region propagates against the direction of the particle current.

Figures

Equations

$${\partial }_t\rho (x,t)$$

$$j(x,t)$$

$$2D/\sigma =f^{\prime \prime }(\rho ),$$

$$\Sigma =2\int dxj(x,t)F(x,t)=2\int dx\frac{j^2(x,t)}{\sigma (\rho (x,t))},$$

$$F(x)=E-\frac{\partial U_{\mathrm{ss}}(x)}{\partial x},$$

$$F(x,t)=-\frac{\partial U_{\mathrm{sp}}(x,t)}{\partial x},$$

$$\int dx\frac{j_{\mathrm{sp}}}{\sigma ({\rho }_{\mathrm{sp}})}=0\forall t.$$

$$\overline{{\rho }_{\mathrm{sp}}}(x)=\frac{1}{T}{\int }_0^{T}dt{\rho }_{\mathrm{sp}},\overline{j_{\mathrm{sp}}}(x)$$

$$\overline{{\Sigma }_{\mathrm{sp}}}={\int }_0^{T}dt{\Sigma }_{\mathrm{sp}}.$$

$$\overline{{\rho }_{\mathrm{sp}}}={\rho }_{\mathrm{ss}}$$

$$\overline{{\Sigma }_{\mathrm{sp}}}>{\Sigma }_{\mathrm{ss}}.$$

$$\overline{{\rho }_{\mathrm{sp}}^{\lambda }}={\rho }_{\mathrm{ss}},$$

$${\rho }_{\mathrm{sp}}(x,t)={\rho }_{\mathrm{ss}}+H_{\lambda }(x-tv),$$

$$R=\frac{2}{T}\int dxdt{\sigma }_{sp}{\left(\frac{j_{sp}}{{\sigma }_{sp}}-\frac{j_{ss}}{{\sigma }_{ss}}\right)}^2.$$

$$\int dx\frac{j_{sp}}{{\sigma }_{sp}}=0,$$

$$\overline{{\rho }_{\mathrm{sp}}^{\lambda }}={\rho }_{\mathrm{ss}},\overline{j_{\mathrm{sp}}^{\lambda }}=j_{\mathrm{ss}}$$

$$\underset{{\lambda }_i\to 0,\forall i}{\lim }\overline{{\Sigma }_{\mathrm{sp}}^{\lambda }}={\Sigma }_{\mathrm{ss}}.$$

$$0\le R=\Delta \Sigma -2\int dx\frac{j_{ss}^2}{{\sigma }_{ss}^2}d(x)$$

$$\Delta \Sigma \ge G\int dxd(x)\ge 0,$$

$$H_{x_{0},\epsilon}(x)=\left\{\begin{array}[]{ll}1-\rho_{ss}-\epsilon&0\leq x\leq x_{0}\\ C&x_{0}\leq x<1,\end{array}\right.$$

$$j_{sp}(x,t)$$

$${\alpha }_k^{-1}$$

$$v=\frac{\overline{j_{\mathrm{sp}}}}{{\rho }_{\mathrm{ss}}-{\alpha }_0/{\alpha }_1},$$

$$\overline{{\Sigma }_{\mathrm{sp}}}={\Sigma }_{\mathrm{sp}}$$

$$\sigma_{sp}\approx\left\{\begin{array}[]{ll}\sigma(1-\epsilon)&0\leq x-vt\leq x_{0}\\ \sigma_{ss}&x_{0}\leq x-vt<1,\end{array}\right.$$

$$\overline{j_{\mathrm{sp}}}$$

$$\overline{{\Sigma }_{\mathrm{sp}}}$$

$${\partial }_t\rho (x,t)$$

$$j(x,t)$$

$$J(\rho )$$

$$P(\{\rho ,j\})\sim \exp -L\int dxdt\frac{(j-J(\rho ){)}^2}{2\sigma },$$

$$\mathbb{S}(\{\rho ,j\})=\log \frac{P(\{\rho ,j\})}{P(\{\theta \rho ,\theta j\})},$$

$$\mathbb{S}(\{j,\rho \})=-L\int dxdt\frac{2j}{\sigma }(D{\partial }_x\rho -\sigma F).$$

Full text

I Introduction

Long lasting non-equilibrium behaviour can be the result of many different physical scenarios, ranging from quenches Calabrese and Cardy (2016); Derrida and Gerschenfeld (2009); Smith and Meerson (2018), to rugged energy landscape Ritort and Sollich (2003); Berthier and Biroli (2011); Aarts and Korst (1988) and even active systems (Marchetti et al., 2013; Prost et al., 2015; Cates and Tailleur, 2015). Among these, presumably the simplest non-equilibrium class is the non-equilibrium steady state (NESS). A NESS can be created by subjecting a physical system to a time-independent driving force, such as a chemical and electric potential, pressure or temperature gradient. Theoretical understanding of simple NESS systems, strongly motivated by the application to biological systems, has greatly advanced in the last decade shedding light on the nature of fluctuations (Barato and Seifert, 2015; Cates and Tailleur, 2015), non-equilibrium phase transitions Vicsek et al. (1995); Grégoire and Chaté (2004); Szabó et al. (2006) and even large deviations (Touchette, 2009; Bertini et al., 2015; Derrida, 2007).

A different class of non-equilibrium behavior is observed when the system is subjected to a periodically time-varying force. These forces are often assumed to be the gradient of a potential, which ensures that while the system is out of equilibrium, freezing out the potential at any arbitrary time allows the system to relax to equilibrium (Rahav et al., 2008; Chernyak and Sinitsyn, 2008; Maes et al., 2010; Asban and Rahav, 2014; Rahav, 2017). In the context of molecular motors, the study of time-periodic forcing has been inspired by experiments, aiming at creating artificial molecular machines Leigh et al. (2003); Erbas-Cakmak et al. (2015); Coskun et al. (2012), known as stochastic pumps (SPs) (Astumian, 2018). While many molecular motors in nature prefer having NESS dynamics, SPs have an advantage over NESS when designing artificial molecular machines 111For example, varying the temperature in time is much more realistic than coupling a micro-size system to two different thermal baths.. Towards the goal of building efficient molecular machines, it is important to study what are the limitations of SPs when designed to imitate a NESS machine.

Driven by this question, Raz et al. studied an equivalence class between NESS and SPs in a master equation on a discrete-space Raz et al. (2016). They proved that the fundamental properties of the NESS system, defined as the steady state current, probability distribution and entropy production rate 222The triplet probability, current and entropy production rate completely defines the master matrix (Raz et al., 2016). In that sense, they are fundamental. , can be exactly mimicked by the corresponding time-averaged quantities of a SP protocol. A similar question has been addressed in a continuous-space system limited to the dynamics of a single Brownian particle subjected to an external force confined on a ring. However, contrary to the master equation description, a complete mimicking has failed. Instead, they found an inequality between the entropy production rates of NESS and SPs when the rest of the fundamental properties are exactly mimicked (Busiello et al., 2018): SPs entropy production rate is always greater than the NESS counterpart. Furthermore, they also found that this inequality can be asymptotically saturated by using a protocol that entails approximating a delta-function traveling wave. The bound and the protocol work for any forcing of the Brownian particle, but the dynamics beyond the single particle picture has not yet been addressed.

In this paper, we consider a class of many-body diffusive dynamics confined on a ring, and we extend the inequality and the saturating protocol obtained in Busiello et al. (2018) to these systems. To this goal, we first show that for diffusive systems, the entropy production bound exists as long as the (density-dependent) conductivity is concave. We then argue that the universal protocol found in Busiello et al. (2018), is generally limited to non-interacting particles (or the single particle picture). To overcome this difficulty, a different scheme is devised to saturate the bound for concave conductivity models in the case of a constant NESS force. Surprisingly, the protocol is strongly linked with counter propagating jams (traffic waves), commonly found in traffic models Nagel and Schreckenberg (1992); Kerner (2004).

II Model and main results

Let us first introduce the model under study in Sec. II.1, followed by summarizing the main results of this work in Section II.2.

II.1 Model and setup

Consider a one-dimensional diffusive many-body systems confined on a ring, whose circumference is set to one. We denote by $\rho(x,t)$, $j(x,t)$ the density and current of particles at position $x\in\left[0,1\right)$ and time $t\geq 0$. The density profile and current satisfy the following hydrodynamics equations (Spohn, 1992; Bertini et al., 2015):

[TABLE]

where $D(\rho)$ and $\sigma(\rho)$ are the diffusion constant and the conductivity of the particles, determined from microscopic details of the system. $F(x,t)$ is an external force that specifies whether the system is has a NESS or is a SP (precise definitions are given below). This hydrodynamic description holds for a general class of models, for which mathematically rigorous methods have been developed (Kipnis and Landim, 2013). Note that $D(\rho)$ and $\sigma(\rho)$ are connected through the Einstein relation (Derrida, 2007)

[TABLE]

where $f(\rho)$ is the free energy per unit length. Throughout this paper we set the Boltzmann constant and the temperature to unity. The entropy production rate (Bertini et al., 2015; Seifert, 2005; Busiello et al., 2018) is given by

[TABLE]

which measures “how far” the system is from equilibrium, as demonstrated in Appendix A.

II.1.1 NESS

We consider a class of systems where the force is time-independent ($F(x,t)=F(x)$), and is composed of both conservative and non-conservative forces:

[TABLE]

with a constant driving force $E$ and a time-independent potential $U_{\rm ss}(x)$. The system relaxes to a unique steady state (NESS), where the steady state density profile and the corresponding current are denoted by $\rho_{ss}(x)$ and $j_{ss}$. Note that the steady state current is spatially independent due to the conservation of particles. The entropy production rate in this steady state, $\Sigma_{\rm ss}$, is given in (3), where $\{j,\rho\}$ is replaced by $\{j_{\rm ss},\rho_{\rm ss}\}$. In what follows, we name $\rho_{ss}(x)$, $j_{ss}$, and $\Sigma_{\rm ss}$ the fundamental properties of the system and investigate if these properties can be “imitated” by another class of systems, SPs.

II.1.2 SP

For a SP on a ring, the force $F(x,t)$ is defined as the gradient of a potential that is periodic in both space (period 1) and time (period $T$). Namely,

[TABLE]

where $U_{\rm sp}(x+1,t)=U_{\rm sp}(x,t)$ and $U_{\rm sp}(x,t+T)=U_{\rm sp}(x,t)$ for any $x,t$. After a few cycles (but not independent of the initial conditions), the density $\rho(x,t)$ and the current $j(x,t)$ converge to time-periodic states (Floquet states) $\rho_{\rm sp}(x,t),j_{\rm sp}(x,t)$ with period $T$. Using (1) and (2), one can show that the definition of the SP force (5) is equivalent to the integral relation

[TABLE]

In the present article, we name this relation the equilibrium force condition 333Using the master equation approach, the “detailed balance” term for (6) is more natural. See (Raz et al., 2016).

The entropy production rate in a SP is denoted by $\Sigma_{\rm sp}$, defined as (3) with replacing $\rho,j$ by $\rho_{\rm sp}$, $j_{\rm sp}$. Note that $\rho_{\rm sp}$, $j_{\rm sp}$ and $\Sigma_{\rm sp}$ depend on time. To compare these quantities with the fundamental properties in NESS, we thus introduce time averaging over one cycle in this time-periodic state:

[TABLE]

II.2 Results

Here we present the limitations of designing a SP protocol to imitate the fundamental properties of a NESS system. The derivation of the results follows in the next section.

II.2.1 Entropy production bound

First, we generalize the limitations on the entropy production rate found in (Busiello et al., 2018) for a single Brownian particle. Consider a NESS given by $\rho_{ss}(x),j_{ss}$ with a concave conductivity, i.e. $\sigma^{\prime\prime}(\rho)\leq 0$. In this case, all the SP protocols with the same $D,\sigma$ that imitate the current and density profile of the NESS system, i.e.,

[TABLE]

result in higher entropy production rate than that of the NESS system,

[TABLE]

Note that many models lead to concave conductivity, e.g. non-interacting random walkers with $D=1,\sigma=2\rho$ (Busiello et al., 2018) and the simple exclusion process (SEP) with $D=1,\sigma=2\rho(1-\rho)$ Mallick (2015).

II.2.2 Saturation of the bound

The saturation of the bound (9) is only possible asymptotically as the inequality is strict. For models with strictly concave conductivity, we obtain a necessary condition for this asymptotic saturation. Assume that the protocol depends on control parameter $\lambda$, denoted by $\rho^{\lambda}_{\rm sp},j^{\lambda}_{\rm sp}$, with constraints

[TABLE]

If the inequality is saturated in a certain limit (e.g., $\overline{\Sigma^{\lambda}_{\rm sp}}\rightarrow\Sigma_{\rm ss}$ as $\lambda\rightarrow 0$), we then show that the protocol density $\rho^{\lambda}_{\rm sp}$ needs to converge to the NESS density $\rho_{\rm ss}$ in the same limit, almost everywhere. This necessary condition severely restricts the degrees of freedom we need to explore when designing the saturating protocol.

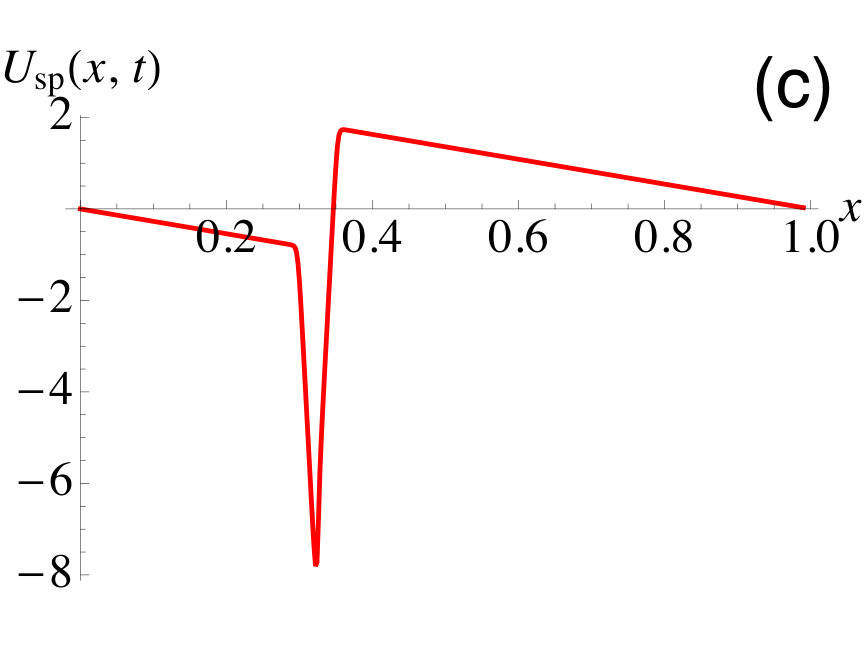

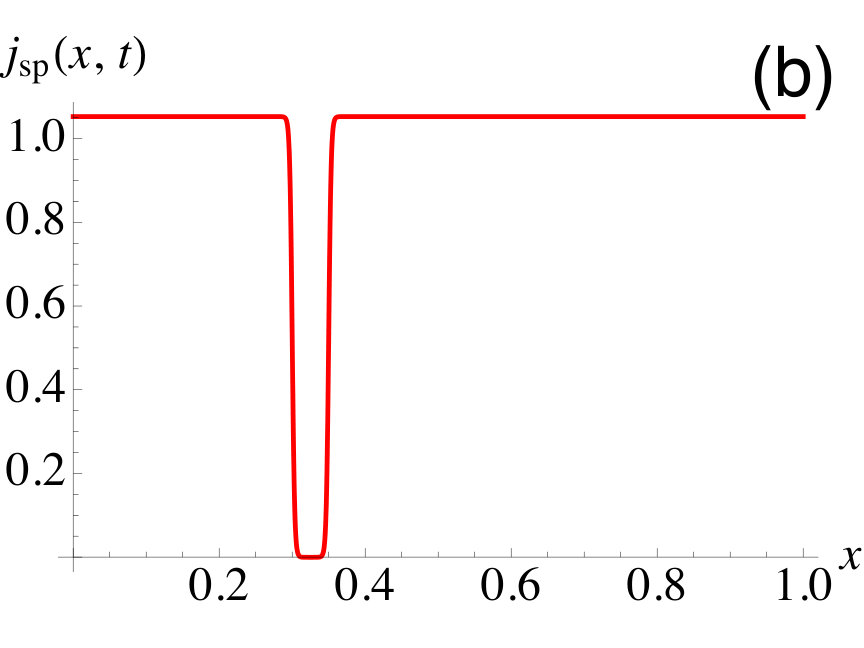

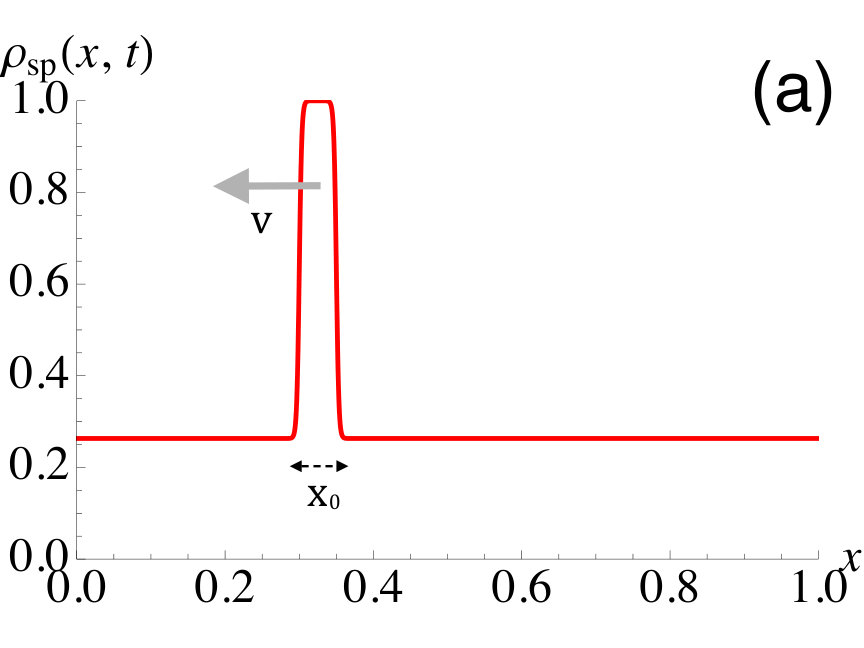

Let us consider homogeneous NESS driving – $U_{\rm ss}(x)=0$, as well as processes with bounded density, i.e., $\rho\in\left[0,\rho_{\rm max}\right)$ that satisfies $\sigma(\rho_{\rm max})=0$. In this case we can then design a universal saturating protocol, independent of the exact shape of $D(\rho)$ and $\sigma(\rho)$. The protocol constitutes of a travelling wave of a jammed region that moves to the opposite direction of the particle current

[TABLE]

where $v=1/T$ and $H_{\lambda}(x)$ is a step function that describes a jammed region (whose precise definitions are given as (18) or (32)). The width of the jammed region $x_{0}$ is a control parameter of our SP protocol and the small $x_{0}$ limit results in saturating the bound. A numerical example of the SP density, current and potential is given in Figure 1.

Note that a different protocol to saturate the bound (9) was proposed in (Busiello et al., 2018) for non-interacting particles ($\sigma=2\rho$). However this protocol cannot be applied to interacting particles with bounded density. See Appendix. D for more details.

III Derivation

In this section, we formally derive the results reported in the previous section. In Section III.1, we prove the entropy production rate bound (9), and in Section III.2 we derive the protocol proposed in (11) to saturate the bound. In what follows, the shorthand notation $\sigma_{X}=\sigma(\rho_{\rm X})$ for $X=\{ss,sp\}$ is used.

III.1 Derivation of the bound

Consider a NESS and a SP systems with the same diffusive dynamics $D,\sigma$. Suppose that the SP is designed to follow (8). Let us define

[TABLE]

When the conductivity $\sigma$ is concave, expanding (12) and using (8) reveals that $R\leq\Delta\Sigma\equiv\overline{\Sigma_{sp}}-\Sigma_{ss}$. We thus conclude $\Delta\Sigma\geq 0$. Note that an equality $\Delta\Sigma=0$ can only be achieved for $\frac{j_{sp}}{\sigma_{sp}}=\frac{j_{ss}}{\sigma_{ss}}$ $\forall x,t$. However, the equilibrium force condition (6) implies that this cannot be possible for a NESS system as

[TABLE]

Thus we have verified (9) for $\sigma$ concave models. This result implies that any SP protocol designed to have the same time-averaged density and current will always generate a higher (time-averaged) entropy production rate than the NESS process. Note that for processes with non-concave $\sigma$, there is no such entropy production rate bound (9). See the appendix D for an example.

III.2 Saturating protocol

We consider protocols $\rho_{\rm sp}^{\lambda}$ that depend on the set of parameters $\lambda=(\lambda_{1},\lambda_{2},...)$ where we assume

[TABLE]

Among these protocols, we search for one that saturates the bound as all the $\lambda_{i}$’s tend to vanish, i.e.

[TABLE]

From here on out, we focus only on concave $\sigma$ models with a bounded density.

III.2.1 No go protocols

Before we present how to design a SP protocol that imitates the NESS system, it is important to learn which protocols cannot. For this purpose, let us study in detail the source of the entropy production bound (9). For strictly concave $\sigma$, $d(x)\equiv\sigma_{ss}-\overline{\sigma_{sp}}$ is greater than zero except for the case where $\rho_{sp}(x,t)=\rho_{ss}(x)$ for any $t$. Then, since

[TABLE]

by definition, we find

[TABLE]

for $j_{ss}\neq 0$, where $G=\min_{x}\frac{j^{2}_{ss}}{\sigma^{2}_{ss}}>0$. The entropy production rate bound can be saturated only if $\int dx\,d(x)\rightarrow 0$ as $\lambda\rightarrow 0$. This means that our protocols need to satisfy $d(x)\rightarrow 0$ (and hence $\rho^{\lambda}_{sp}(x,t)\rightarrow\rho_{ss}(x)$) as $\lambda\rightarrow 0$ almost everywhere on the ring. Demanding $d(x)\rightarrow 0$ everywhere leads to breaking the equilibrium force condition (6), as shown in Appendix C. The only possibility for our protocols is thus to force out $\rho^{\lambda}_{sp}\rightarrow\rho_{ss}$ as $\lambda\rightarrow 0$, but only almost everywhere.

Let us denote the spatial region where $\rho^{\lambda}_{sp}\rightarrow\rho_{ss}$ by $\Omega^{\lambda}\subset[0,1]$ and its complement on the ring by $\Omega^{\lambda,\perp}$. To satisfy the equilibrium force condition (6), we need to balance the two parts of the integral, namely, $\int_{\Omega^{\lambda}}j^{\lambda}_{sp}/\sigma^{\lambda}_{sp}$ and $-\int_{\Omega^{\lambda,\perp}}j^{\lambda}_{sp}/\sigma^{\lambda}_{sp}$. At the small $\lambda$ limit, $\Omega^{\lambda}\rightarrow[0,1]$ and $\Omega^{\lambda,\perp}$ becomes vanishingly small. Therefore, $|j^{\lambda}_{sp}/\sigma^{\lambda}_{sp}|$ must diverge in $\Omega^{\lambda,\perp}$ for $\lambda\rightarrow 0$ for the two integrals to be balanced. A possible scenario for such a divergence is for $\sigma^{\lambda}_{sp}\rightarrow 0$ in $\Omega^{\lambda,\perp}$. In concave models with a bounded density $\rho_{\rm max}$, the conductivity vanishes as $\rho\rightarrow 0,\rho_{\rm max}$ 444Note that we may also try to force the current to diverge at the limit.. Here, we will consider having $\rho\rightarrow\rho_{\rm max}$ in the small domain $\Omega^{\lambda,\perp}$ to saturate the bound. This implies that the protocol creates a jammed region that propagates to the opposite direction of the current (see Figure 1). This can be inferred by an old argument by Stokes using the continuity equation (1). See Sec.3.2.1. of (Kerner, 2004).

III.2.2 Saturation of the bound

So far we have discussed necessary conditions for a protocol to saturate the bound (9). One possibility for the protocol is to generate a small jammed region counter propagating to the direction of the particle current. Here we detail how to precisely design this protocol and show the saturation of the bound in a special case. Recall we consider systems with bounded density $\rho_{\rm max}$, i.e., $\sigma(\rho_{\rm max})=0$, (below we set $\rho_{\rm max}=1$ without loss of generality). We consider the NESS system that is driven by a uniform force $F(x)=E$, leading to a homogeneous steady state density profile $\rho_{\rm ss}$ and current $j_{\rm ss}$. To imitate that, we consider the travelling wave protocol (11), where $H(x)$ is a periodic function with period 1, defined as

[TABLE]

where $x_{0}$ ($0<x_{0}<1$) is the width of the step function introduced in the previous section and $\epsilon>0$ is an additional parameter to avoid a complete jam of particles at the higher density region. This latter parameter is technically required to avoid a fictitious divergence in the equilibrium force condition (6) and we always assume $\epsilon\ll x_{0}$ below. The constant $C$ is determined so as to satisfy the matching condition of the densities $\overline{\rho_{\rm sp}}=\rho_{\rm ss}$: $C=-\frac{x_{0}}{1-x_{0}}(1-\rho_{ss}-\epsilon)$. For convenience of notations, let us also drop the dependence of $j_{\rm sp},\rho_{\rm sp}$ in $\lambda=(x_{0},\epsilon)$. As for the current, the form (11), together with the continuity equation (1) and the equilibrium force condition (6) determine the SP current

[TABLE]

with time-independent constants

[TABLE]

The time-averaged SP current can then match $j_{\rm ss}$ by setting the velocity (equivalently the cycle time $T=1/v$) of the travelling wave to

[TABLE]

which can be derived from (19). In these settings, the saturation of the bound can be proven as follows: the entropy production rate in the SP is

[TABLE]

On the other hand, the entropy production rate in the NESS is $\Sigma_{ss}=2j^{2}_{ss}/\sigma_{ss}$. To compare these two entropy production rates we use

[TABLE]

up to $O(\epsilon,x_{0})$ corrections. We further expand $\sigma(1-\epsilon)\approx-\sigma^{\prime}(1)\epsilon+O(\epsilon^{2})$ using $\sigma(1)=0$. These expansions allow us to evaluate $\overline{j_{\rm sp}}$ and $\overline{\Sigma_{\rm sp}}$ analytically,

[TABLE]

with constants $C_{0}$ and $C_{1}$. This implies that taking first $\epsilon\rightarrow 0$ and then $x_{0}\rightarrow 0$ saturates the bound: $\overline{\Sigma_{\rm sp}}\rightarrow 2\overline{j_{sp}}^{2}/\sigma_{ss}=\Sigma_{\rm ss}$.

IV Discussion

A bound for the entropy production rate exists for SP protocols (9) when trying to mimic the density profile and current of a NESS system (8), provided that the conductivity of the model has a concave form. For homogeneous NESS driving, this bound can be saturated using a special protocol in which a travelling wave propagates against the direction of the particle current (Figure 1). These are non-trivial extensions of the known results obtained in (Busiello et al., 2018) for a single Brownian particle system to many-body systems. We stress that (i) the concavity for the bound has not been discussed in (Busiello et al., 2018) as it does not play any important role for their single particle case and (ii) their proposed saturating protocol approximating the Dirac $\delta$ function (Busiello et al., 2018) cannot be applied to arbitrary many-body systems. In Appendix D, we show how different NESS settings for a convex concavity model can lead also to $\Sigma_{\rm ss}\geq\overline{\Sigma_{\rm sp}}$ and how the $\delta$ function protocol is unfeasible for models with bounded density, e.g. exclusion processes.

The bound for entropy production rates is specific to the concave conductivity models on a continuous space. In the discrete space master equation approach, the corresponding bound does not exist (Raz et al., 2016). In this case, there exists a protocol that always imitates the SP fundamental properties to the NESS ones. We point out two major differences between the discrete and the continuous cases. First, in the discrete case, the NESS master equation is uniquely determined by the currents, steady state probabilities and entropy production rates between each two sites. However, for the diffusive continuous case, the probability and entropy production rate are dominated by the steady state current and steady state density profile. Corrections due to fluctuations in the system are exponentially suppressed. Therefore, we have in principle less degrees of freedom. Determining the current and probability determines the entropy production uniquely. Secondly, we restricted the SP system imitating the NESS system with similar $D,\sigma$. Namely, in the continuous description, we kept in tact the inter-particle interactions. In the discrete case, complete freedom was allowed for changing the transition rates in the SP case, provided that they satisfy the equilibrium force condition. Allowing different $D,\sigma$ in the SP completely nullifies the existence of the entropy production rate bound.

Designing a protocol for inhomogeneously driven NESS systems is left as a future challenge. The arguments of Sec. III.2.1 suggest that if such a protocol exists, it is likely to have a similar counter propagating jam-like form. It is possible that for higher dimensional systems as well as systems with different boundary conditions similar ideas allow to design a saturating protocol. It will be interesting also to generalize the above results in the case of non-diffusive systems.

The unexpected role that propagating traffic jams play in minimizing the entropy production rate in a SP is worth further exploration. Traffic waves are ubiquitous in the study of highway traffic Kerner (2012). It is interesting to understand whether one can explain the formation of traffic waves using a minimum entropy production rate principle (Nagel and Schreckenberg, 1992; Appert-Rolland et al., 2011). The usual definition of entropy production rate relies on the non-zero probability for any time-reversed trajectory (see Appendix A). However, many traffic models do not respect this assumption as cars tend not to move backwards on highways. With this regard, a technique that replaces second derivatives in time-evolution equations by convective derivatives Aw and Rascle (2000) could be useful. Furthermore, we could rely on a recent publication (Busiello et al., 2019) that shows how the definition of entropy production rates can be extended to the cases where time-reversed trajectories may be prohibited.

Finally, we note that molecular machines face many challenges, where minimizing their entropy production rate may not be a primary concern. For example, in small systems, the typical and mean behaviour is not always the same. Then, it becomes relevant to focus on the dominant fluctuations and not only the mean as we have done here. It would be interesting to compare NESS and SP where other constraints arise and see whether similar universal bounds are at play. Note that we have used the hydrodynamic approach to uncover the entropy production rate bound. The hydrodynamic approach, assuming large systems, seems at first glance ill-equipped to handle systems with large fluctuations. However, as we have seen in this work, it is common that the clean approach of the hydrodynamic equations allow to notice such universal bounds, where microscopic approaches did not.

Acknowledgements.

The authors acknowledge fruitful discussions with Cécile Appert-Rolland, Bernard Derrida, Henk Hilhorst, Patrick Pietzonka and Oren Raz.

Appendix A The entropy production rate expression

In this Appendix, we derive the standard expression for the entropy production rate in diffusive systems (Bertini et al., 2006).

The time-evolution equations (1) of the diffusive density profile are derived in a hydrodynamic (coarse graining) limit from microscopic models. These equations are deterministic and describe the most likely evolution. Small fluctuations from the most likely evolution exist in macroscopic regimes and they can be described by fluctuating hydrodynamics (Bertini et al., 2015; Shpielberg and Akkermans, 2016), given in terms of the Langevin-like equation

[TABLE]

where $L$ denotes the (large) system size defined in the microscopic model and $\xi(x,t)$ is a Gaussian white noise with zero mean. One can use a Martin-Siggia-Rose procedure 555The small noise allows to disregard Ito vs. Stratonovich questions Aron et al. (2016); Itami and Sasa (2017). to evaluate the probability of observing a trajectory $\{\rho(x,t),j(x,t)\}$ at the time window $t\in[0,T]$ and for $x\in[0,1]$. The probability is given by

[TABLE]

where sub-exponential contributions are discarded 666In principle the probability expression is usually accompanied by the quasi-potential accounting for the the probability to find the system in a given initial state (Bertini et al., 2015). The entropy production rate will not be affected by the subtraction of the quasi-potential when the periodic boundary conditions are considered. .

The entropy production between $t=0$ and $t=T$ for a given trajectory $\{\rho(x,t),j(x,t)\}$, denoted by $\mathbb{S}(\{\rho,j\})$, compares the probability of the trajectory and its time reversed trajectory. Namely,

[TABLE]

where $\theta$ is the time-reversal operator. It gives according to the macroscopic theory

[TABLE]

The entropy production rate is given by averaging over all the trajectories. Namely

[TABLE]

The probability is dominated by a single trajectory that satisfies $j=J(\rho)$ together with the continuity equation. This implies

[TABLE]

that corresponds to the expression (3) in the main text.

Appendix B Hyperbolic tangent function for rounded step function

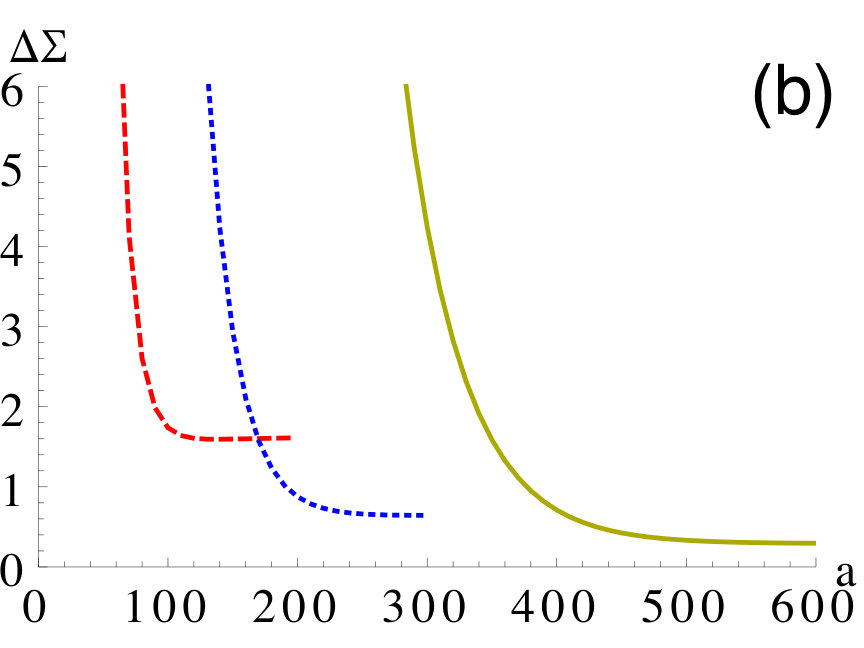

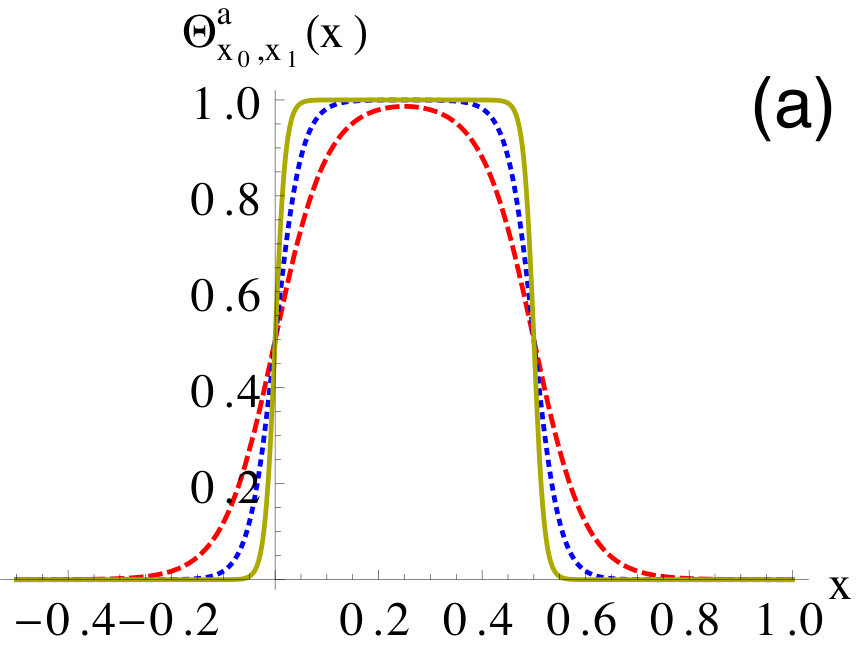

In this Appendix, we introduce a rounded step function used in Figure 1 to express a travelling wave $H_{\lambda}$ of (11). Different from the other travelling function defined as (18), this step function is continuously differentiable, so that we can take its derivative to obtain the corresponding SP potential shown in Figure 1.

First, we introduce the following combinations of hyperbolic tangent functions with parameters $x_{0},x_{1},a$,

[TABLE]

which converge to a step function from $x_{0}$ to $x_{1}$ in the large $a$ limit (Figure 2). We then define the rounded periodic step function

[TABLE]

As this function is continuously differentiable, the SP potential $U_{\rm sp}$ can be calculated from the hydrodynamic equation (1)

[TABLE]

where $\rho_{\rm sp}$ and $j_{\rm sp}$ are given in (11) and (19). These three functions, $\rho_{\rm sp}$, $j_{\rm sp}$ and $U_{\rm sp}$ are evaluated for the homogeneously driven SEP with $a=300$ and plotted in Figure 1. In the same model, we also compare the SP entropy production rate $\Sigma_{\rm sp}$, (22), with the NESS entropy production rate, $\Sigma_{\rm ss}=2j_{\rm ss}^{2}/\sigma_{\rm ss}$. In Figure 2, we plot $\Delta\Sigma\equiv\Sigma_{\rm sp}-\Sigma_{\rm ss}$ as a function of $a$ for several values of $x_{0}$. The bound is saturated as both $x_{0}$ and $1/a$ decrease. Note that the parameter $1/a$ in this protocol and the parameter $\epsilon$ in the protocol corresponding to (18) play a similar role. Both parameters govern the shapes of the travelling waves, which converge to the same step function by decreasing these parameters to zero. In both cases, we first take these limits and then decrease the width of the travelling wave $x_{0}$ in order to saturate the bound.

Appendix C No equilibrium force for $d(x)\to 0$

Here we provide a proof for Section III.2.1. We show that demanding $d(x)\to 0$ for all $x$ necessarily violates the equilibrium force condition (6).

Let us assume that $\rho^{\lambda}_{sp}(x,t)\rightarrow\rho_{ss}(x)$ for any $x,t$ as $\lambda\rightarrow 0$. This implies that we can set

[TABLE]

where we use freely the notation $O(\lambda)$ to indicate a function that converges to zero as $\lambda\rightarrow 0$. We further assume $\rho^{\lambda}_{\rm sp}-\rho_{\rm ss}$ is smooth in the limit $\lambda\rightarrow 0$ for a reasonable SP generated density profile. The continuity equation suggests that

[TABLE]

where $C(t)$ is a time-dependent function. A perturbative analysis in $\lambda$ implies that

[TABLE]

The equilibrium force condition (6) suggests that $C(t)$ must identically vanish. In this case, we find that $j_{\rm ss}=\overline{j^{\lambda}_{sp}}=O(\lambda)$. This makes $j_{ss}$ either $\lambda$ dependent or zero in contradiction to (10). Therefore, we cannot have (10) and $\rho_{sp}$ becoming arbitrarily close to $\rho_{ss}$ everywhere in $x$ at the limit without violating the equilibrium force condition.

Appendix D The $\delta$ wave protocol applied to general diffusive systems

Designing a saturating protocol for non-interacting particles was already achieved in (Busiello et al., 2018) using a Fokker-Planck approach for a single particle. Here, we recap the relevant points of this approach in the hydrodynamic framework. Then we analyze the entropy production rate differences between the NESS and SP systems using the $\delta$ wave protocol for two relevant models – non-interacting diffusing particles and the KMP diffusive heat transport model (Kipnis et al., 1982). We demonstrate that the $\delta$ wave protocol generally does not lead to $\overline{\Sigma_{\rm sp}}\rightarrow\Sigma_{\rm ss}$.

D.1 The $\delta$ wave protocol

Restricting the discussion to a ring system allows to define the globally conserved mass $Q$. Namely,

[TABLE]

According to (Busiello et al., 2018), the protocol dictates a travelling wave solution for the density profile of the SP, $\rho_{sp}(x,t)=f(x-\hat{x}(t))$. The function $f(x)$ is a periodic function with period $1$, specifying the shape of the travelling wave and $\hat{x}(t)$ dictates the propagation velocity. One can show that choosing

[TABLE]

where $\rho_{ss,n},f_{n}$ are the $n$-th components of the Fourier decomposition of $\rho_{ss}(x),f(x)$, allows to satisfy $\overline{\rho_{sp}(x,t)}=\rho_{ss}(x)$. The continuity equation implies that

[TABLE]

Together with the equilibrium force condition (6), we find

[TABLE]

where

[TABLE]

This allows to evaluate the entropy production rate as $\Sigma_{sp}(t)=2\dot{\hat{x}}^{2}(\frac{1}{\alpha_{2}}-\frac{\alpha_{0}}{\alpha^{2}_{1}})$.

We then choose to converge $f(x)\rightarrow Q\delta(x)$ by taking $f(x)=Q\frac{1}{\sqrt{4\pi\epsilon}}e^{-x^{2}/4\epsilon}$ as $\epsilon\rightarrow 0^{+}$. A qualitative point of view in terms of the potential reveals a deep well, capturing all the particles. The well moves with a certain velocity defined by $\dot{\hat{x}}_{0}$. Then, the price to pay for reducing the entropy production rate are sharp gradients in the potential. Taking the $\delta$ limit leads to

[TABLE]

Time averaging over a cycle reveals that

[TABLE]

The $\alpha_{k}$ values depend on the process at question (specifically at $\sigma$). An important remark is that the $\delta$ wave protocol makes no sense for lattice gas models as they have a bounded density. These processes have a non-convex $\sigma$. Therefore, while a bound on the mean entropy production rate of the stochastic pump system exists only for concave processes, it typically cannot be saturated using the $\delta$ wave protocol. The non-interacting case is an exception. Note that the non-interacting case, with $\sigma=2\rho$ is trivially concave, but not strictly concave. Therefore, the argument of Sec. III.2.1 need not apply. Indeed, in this case, $\alpha_{0}\to 0,\alpha_{1}\to 2,\alpha_{2}\to 2/Q$ in the $\epsilon\rightarrow 0^{+}$ limit. This implies that the $\delta$ wave protocol optimizes the entropy production rate as $j_{ss}=Q/T$ and $\overline{\Sigma_{sp}}\rightarrow\Sigma_{ss}$.

D.2 The KMP process

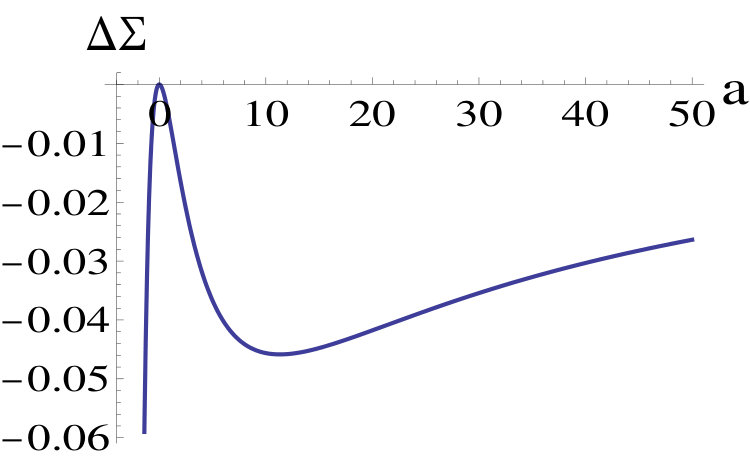

For processes with non-concave $\sigma$, there is no entropy production rate bound. Therefore, one should not expect that the $\delta$ wave protocol generally leads to $\overline{\Sigma_{sp}}\rightarrow\Sigma_{ss}$. To show that, we consider a (macroscopically) simple dynamics with $D=1,\sigma=2\rho^{2}$ corresponding to the KMP process. The rest of the appendix is devoted to showing that applying the $\delta$ wave protocol to the KMP leads to $\Delta\Sigma\leq 0$.

Using the exponential representation of the $\delta$ function, the KMP dynamics lead to $\frac{\alpha_{0}}{\alpha_{1}}\to 0,\frac{\alpha_{0}}{\alpha^{2}_{1}}\to 0,\alpha_{2}\to 2$ in the limit. This implies that $\overline{\Sigma_{sp}}=\frac{Q}{T^{2}}\int dx\,\frac{1}{\rho_{ss}(x)}$, whereas $\Sigma_{ss}=\frac{Q^{2}}{T^{2}}\int dx\,\frac{1}{\rho^{2}_{ss}(x)}$. Generally these two do not match. For a periodic system with a constant driving field $E$, we find that the entropy production rate indeed matches as $\rho_{ss}(x)=Q$. As an illustrative example, let us consider the density profile $\rho_{ss}(x)=1+ax(1-x)$ with the current $j_{ss}=1$. In this case, one can calculate the entropy production rate difference $\Delta\Sigma$ as a function of $a$ explicitly (See Figure 3). We find that $\Delta\Sigma\leq 0$ in this case, contrary to the concave case. Moreover, the $\Delta\Sigma\rightarrow 0$ only as $a\rightarrow 0,\infty$ where the system has a constant density profile (which is general for the KMP and probably many other processes) or at the other extreme, where the density gradient is large.
