Collective quantum memory activated by a driven central spin

TL;DR

This paper proposes a method to use strain-enabled nuclear spin waves in a driven quantum dot as a high-fidelity quantum memory, achieving up to 90% fidelity with moderate nuclear polarization.

Contribution

It introduces a microscopic theory for electron-nuclear spin dynamics under strain and demonstrates the feasibility of using nuclear spin waves for quantum memory.

Findings

Fidelities up to 90% can be achieved.

Nuclear polarization of 50% is sufficient.

Strain-enabled nuclear spin waves are suitable for quantum memory.

Abstract

Coupling a qubit coherently to an ensemble is the basis for collective quantum memories. A driven quantum dot can deterministically excite low-energy collective modes of a nuclear spin ensemble in the presence of lattice strain. We propose to gate a quantum state transfer between this central electron and these low-energy excitations -- spin waves -- in the presence of a strong magnetic field, where the nuclear coherence time is long. We develop a microscopic theory capable of calculating the exact time evolution of the strained electron-nuclear system. With this, we evaluate the operation of quantum state storage and show that fidelities up to 90% can be reached with a modest nuclear polarisation of only 50%. These findings demonstrate that strain-enabled nuclear spin waves are a highly suitable candidate for quantum memory.

Figures

Equations

$$H_{\mathrm{Q}}=\sum _{j=1}^N{B}_{\mathrm{Q}}[(I_x^j{)}^2{\sin }^2\theta +\frac{1}{2}(I_x^j{I}_z^j+I_z^j{I}_x^j)\sin 2\theta +(I_z^j{)}^2{\cos }^2\theta ],$$

$${\Phi }_1^{+}$$

$${\mathcal{H}}_I={\mathcal{A}}_{\zeta }^{\prime }({\Phi }_{\zeta }^{+}{S}_{-}+{\Phi }_{\zeta }^{-}{S}_{+}),$$

$$|\psi (t)⟩=\alpha \text{quantity}[\cos g_{\zeta }t|\uparrow ⟩\otimes |0⟩-i\sin g_{\zeta }t|\downarrow ⟩\otimes |1⟩]+\beta |\downarrow ⟩\otimes |0⟩,$$

$$\begin{array}{rl}\text{matrixelement}\ast {\hat{M}}_{+}^{(2n\pm 1)}{\Phi }_{\zeta }^{+}{\hat{M}}_{+}^{(2n)}& =\text{matrixelement}\ast {\hat{M}}_{-}^{(2n)}{\Phi }_{\zeta }^{+}{\hat{M}}_{-}^{(2n\mp 1)}={\mathcal{G}}_{\pm }/{\mathcal{A}}_{\zeta }^{\prime }\\ \text{matrixelement}\ast {\hat{M}}_{+}^{(2n)}{\Phi }_{\zeta }^{-}{\hat{M}}_{+}^{(2n\pm 1)}& =\text{matrixelement}\ast {\hat{M}}_{-}^{(2n\mp 1)}{\Phi }_{\zeta }^{-}{\hat{M}}_{-}^{(2n)}={\mathcal{G}}_{\pm }/{\mathcal{A}}_{\zeta }^{\prime }.\end{array}$$

$$H_{\mathrm{Q}}=\sum _j{B}_{\mathrm{Q}}^j\text{quantity}[(I_x^j{)}^2{\sin }^2{\theta }^j+\frac{1}{2}(I_x^j{I}_z^j+I_z^j{I}_x^j)\sin 2{\theta }^j+(I_z^j{)}^2{\cos }^2{\theta }^j],$$

$$H={\omega }_{\mathrm{Z}}^e{S}_z+{\omega }_{\mathrm{Z}}^{\mathrm{n}}\sum _j{I}_z^j+H_{\mathrm{Q}}+H_{\mathrm{hf}},$$

$$\begin{array}{rl}{H}_{\mathrm{Q}}^0& =\sum _j{B}_{\mathrm{Q}}^j\text{quantity}\frac{1}{2}\text{quantity}[(I_x^j{)}^2+(I_y^j{)}^2]{\sin }^2{\theta }^j+(I_z^j{)}^2{\cos }^2{\theta }^j\\ V_{\mathrm{Q}}& =\sum _j\frac{1}{2}{B}_{\mathrm{Q}}^j\text{quantity}[(I_x^j{)}^2-(I_y{)}^2]{\sin }^2{\theta }^j+[I_x^j{I}_z^j+I_z^j{I}_x^j]\sin 2{\theta }^j\end{array}$$

$$F=i\sum _j\frac{B_{\mathrm{Q}}^j}{2{\omega }_Z^{\mathrm{n}}}\text{quantity}\frac{1}{2}(I_x^j{I}_y^j+I_y^j{I}_x^j){\sin }^2{\theta }^j+(I_y^j{I}_z^j+I_z^j{I}_y^j)\sin 2{\theta }^j.$$

$$H_{\mathrm{n}}^{\prime }$$

$$V_{\mathrm{Q}}^{\prime }-$$

$${\rho }_e(\mathbf{r})=\prod _{\alpha =x,y,z}\frac{e^{-r_{\alpha }^2/(2L_{\alpha }^2)}}{\sqrt{2\pi L_{\alpha }^2}},$$

$$y_{\pi /2}\frac{\tau /4}{}{x}_{-\pi }\frac{\tau /4}{}{y}_{\pi /2}{x}_{\pi /2}\frac{\tau /4}{}{y}_{\pi }\frac{\tau /4}{}{x}_{\pi /2},$$

$$U_{\mathcal{C}}=e^{-i\frac{\pi }{2}{S}_x}{U}_0\text{quantity}(\frac{\tau }{4})e^{-i\pi S_y}{U}_0\text{quantity}(\frac{\tau }{4})e^{-i\frac{\pi }{2}{S}_x}{e}^{-i\frac{\pi }{2}{S}_y}{U}_0\text{quantity}(\frac{\tau }{4})e^{+i\pi S_x}{U}_0\text{quantity}(\frac{\tau }{4})e^{-i\frac{\pi }{2}{S}_y},$$

$$h_x(t)=\{\begin{array}{ll}0,& t\in [0,\tau /2[\\ -1,& t\in [\tau /2,3\tau /4[\\ +1,& t\in [3\tau /4,\tau [\\ 0,& t\in [\tau ,3\tau /2[\\ +1,& t\in [3\tau /2,7\tau /4[\\ -1,& t\in [7\tau /4,2\tau [\end{array}$$

$$h_{\alpha }(t)=\sum _{\ell =0}^{\infty }{P}_{\ell }^{(\alpha )}\cos ({\omega }_{\ell }t)+Q_{\ell }^{(\alpha )}\sin ({\omega }_{\ell }t),$$

$$\begin{array}{rl}{P}_{\ell }^{(\alpha )}& =\frac{1}{\tau }{\int }_0^{2\tau }{h}_{\alpha }(t)\cos ({\omega }_{\ell }t)\\ Q_{\ell }^{(\alpha )}& =\frac{1}{\tau }{\int }_0^{2\tau }{h}_{\alpha }(t)\sin ({\omega }_{\ell }t),\end{array}$$

$$P_3^{(x)}=-Q_3^{(x)}=-\frac{2+2\sqrt{2}}{3\pi }\simeq -0.51$$

$${\mathcal{H}}_0={\omega }_Z^{\mathrm{n}}\sum _j{I}_z^j,{\mathcal{H}}_I(t)=-[h_x(t)S_x+h_y(t)S_y]\text{quantity}\sum _j{A}^j{I}_z^j+{\mathcal{A}}_1({\Phi }_1^{+}+{\Phi }_1^{-})+{\mathcal{A}}_2({\Phi }_2^{+}+{\Phi }_2^{-}),$$

$${\Phi }_1^{-}:=\sum _j{a}_{1,j}\text{quantity}(I_{-}^j{I}_z^j+I_z^j{I}_{-}),$$

$${\Phi }_2^{-}:=\sum _j{a}_{2,j}(I_{-}^j{)}^2,$$

$${\hat{\mathcal{H}}}_I(t)=e^{i{\mathcal{H}}_{0}t}{\mathcal{H}}_I(t)e^{-i{\mathcal{H}}_{0}t}=-[h_x(t)S_x+h_y(t)S_y]\text{quantity}\sum _j{A}^j{I}_z^j+{\mathcal{A}}_1(e^{+i{\omega }_Z^{\mathrm{n}}t}{\Phi }_1^{+}+e^{-i{\omega }_Z^{\mathrm{n}}t}{\Phi }_1^{-})+{\mathcal{A}}_2(e^{+2i{\omega }_Z^{\mathrm{n}}t}{\Phi }_2^{+}+e^{-2i{\omega }_Z^{\mathrm{n}}t}{\Phi }_2^{-}).$$

$$\begin{array}{rl}{\hat{\mathcal{H}}}_I(t)& =-\sum _{\ell =1}^{\infty }\text{quantity}\text{quantity}[P_{\ell }^{(x)}\cos ({\omega }_{\ell }t)+Q_{\ell }^{(x)}\sin ({\omega }_{\ell }t)]S_x+\text{quantity}[P_{\ell }^{(x)}\cos ({\omega }_{\ell }t)-Q_{\ell }^{(x)}\sin ({\omega }_{\ell }t)]S_y]\\ & \times \text{quantity}\sum _j{A}^j{I}_z^j+{\mathcal{A}}_1(e^{+i{\omega }_Z^{\mathrm{n}}t}{\Phi }_1^{+}+e^{-i{\omega }_Z^{\mathrm{n}}t}{\Phi }_1^{-})+{\mathcal{A}}_2(e^{+2i{\omega }_Z^{\mathrm{n}}t}{\Phi }_2^{+}+e^{-2i{\omega }_Z^{\mathrm{n}}t}{\Phi }_2^{-}).\end{array}$$

$${\hat{\mathcal{H}}}_I(t)\simeq -{\mathcal{A}}_{\zeta }\frac{1}{2}{\Phi }_{\zeta }^{+}\text{quantity}[P_{{\ell }^{\ast }}^{(x)}(S_x+S_y)+i{Q}_{{\ell }^{\ast }}^{(x)}(S_x-S_y)]+{\mathcal{A}}_{\zeta }\frac{1}{2}{\Phi }_{\zeta }^{-}\text{quantity}[P_{{\ell }^{\ast }}^{(x)}(S_x+S_y)-i{Q}_{{\ell }^{\ast }}^{(x)}(S_x-S_y)].$$

$${\hat{\mathcal{H}}}_I\simeq \frac{\sqrt{2}+2}{3\pi }{\mathcal{A}}_{\zeta }({\Phi }_{\zeta }^{+}{S}_{-}+{\Phi }_{\zeta }^{-}{S}_{+}).$$

$$\begin{array}{rl}\mathcal{U}(t)& =e^{-i{\hat{\mathcal{H}}}_{I}t}=\mathbb{I}+\text{quantity}(\frac{-i{\mathcal{A}}_{\zeta }t}{2}{)}^2({\Phi }_{\zeta }^{+}{S}_{-}+{\Phi }_{\zeta }^{-}{S}_{+})+\frac{1}{2!}\text{quantity}(\frac{-i{\mathcal{A}}_{\zeta }t}{2}{)}^2({\Phi }_{\zeta }^{-}{\Phi }_{\zeta }^{+}{S}_{+}{S}_{-}+{\Phi }_{\zeta }^{+}{\Phi }_{\zeta }^{-}{S}_{-}{S}_{+})\\ & +\frac{1}{3!}\text{quantity}(\frac{-i{\mathcal{A}}_{\zeta }t}{2}{)}^3({\Phi }_{\zeta }^{+}{\Phi }_{\zeta }^{-}{\Phi }_{\zeta }^{+}{S}_{-}{S}_{+}{S}_{-}+{\Phi }_{\zeta }^{-}{\Phi }_{\zeta }^{+}{\Phi }_{\zeta }^{-}{S}_{+}{S}_{-}{S}_{+})+\cdots \\ & =\sum _{k=0}^{\infty }\frac{1}{(2k)!}\text{quantity}(\frac{-i{\mathcal{A}}_{\zeta }t}{2}{)}^{2k}\text{quantity}({\Phi }_{\zeta }^{+}{\Phi }_{\zeta }^{-}{)}^k(S_{-}{S}_{+}{)}^k+({\Phi }_{\zeta }^{-}{\Phi }_{\zeta }^{+}{)}^k(S_{+}{S}_{-}{)}^k\\ & +\sum _{k=0}^{\infty }\frac{1}{(2k+1)!}\text{quantity}(\frac{-i{\mathcal{A}}_{\zeta }t}{2}{)}^{2k+1}\text{quantity}{\Phi }_{\zeta }^{-}({\Phi }_{\zeta }^{+}{\Phi }_{\zeta }^{-}{)}^k{S}_{+}(S_{-}{S}_{+}{)}^k+{\Phi }_{\zeta }^{+}({\Phi }_{\zeta }^{-}{\Phi }_{\zeta }^{+}{)}^k{S}_{-}(S_{+}{S}_{-}{)}^k\end{array}$$

$${\mathcal{S}}_{\pm }(k^{\ast }):=\{({\Phi }_{\zeta }^{\mp }{\Phi }_{\zeta }^{\pm }{)}^k|M⟩,{\Phi }_{\zeta }^{\pm }({\Phi }_{\zeta }^{\mp }{\Phi }_{\zeta }^{\pm }{)}^k|M⟩|k\le k^{\ast }\},$$

$$|\ast ⟩M_{\pm }^{(k)};\zeta =\{\begin{array}{ll}\frac{({\Phi }_{\zeta }^{\mp }{\Phi }_{\zeta }^{\pm }{)}^k|M⟩}{\sqrt{\text{matrixelement}M({\Phi }_{\zeta }^{\mp }{\Phi }_{\zeta }^{\pm }{)}^{2k}M}},& k\mathrm{even}\\ & \\ \frac{{\Phi }_{\zeta }^{\pm }({\Phi }_{\zeta }^{\mp }{\Phi }_{\zeta }^{\pm }{)}^{k-1}|M⟩}{\sqrt{\text{matrixelement}M({\Phi }_{\zeta }^{\mp }{\Phi }_{\zeta }^{\pm }{)}^{2k-1}M}},& k\mathrm{odd},\end{array}$$

$$|\ast ⟩{\hat{M}}_{\pm }^{(1)};\zeta$$

$$|\ast ⟩{\hat{M}}_{\pm }^{(k)};\zeta$$

$$|M;(\Delta ,j),({\Delta }^{\prime },j^{\prime }),\cdots ⟩:=|m_1,\cdots ,(m_j+\Delta ),\cdots ,(m_{j^{\prime }}+{\Delta }^{\prime }),\cdots ,m_{\mathrm{n}}⟩,$$

$$\begin{array}{rl}{P}_{\pm }^{(1)}(m)& =(2m\pm 1)\sqrt{I(I+1)-m(m\pm 1)}\\ P_{\pm }^{(2)}(m)& =\sqrt{I(I+1)-m(m\pm 1)}\sqrt{I(I+1)-(m\pm 1)(m\pm 2)},\end{array}$$

Full text

Introduction —

Quantum memory working in conjunction with a computational qubit is a central element in fault-tolerant quantum computing and communication strategies Briegel et al. (1998); Kimble (2008). To name a few prominent examples, quantum memories have been demonstrated using collective states of atomic ensembles to store a photonic qubit Kozhekin et al. (2000); Julsgaard et al. (2004); Choi et al. (2010); Hedges et al. (2010); Zhao et al. (2009), cold ions, where the decoherence-free subspace of a local ion pair acts as memory for a single ion qubit Kielpinski et al. (2001); Langer et al. (2005) and nitrogen vacancy centres in diamond, where the electronic spin state can be written into a single proximal nuclear spin Dutt et al. (2007); Fuchs et al. (2011); Taminiau et al. (2014). For semiconductor quantum dots, the mesoscopic spin environment comprising $\sim 10^{4}-10^{5}$ nuclei is a candidate for a collective quantum memory that can store the electronic spin state Taylor et al. (2003a, b); Kurucz et al. (2009), with the promise of coherence times reaching milliseconds Chekhovich et al. (2015). A strategy for electron–nuclear state transfer is based on flip-flops generated by the collinear hyperfine interaction Taylor et al. (2003a). A consequence of this interaction scheme brings about opposing requirements: Vanishing electron spin splitting during the state transfer versus large electron spin splitting to polarise and stabilise the nuclear coherence Wüst et al. (2016). An alternative approach is to use collective nuclear spin wave excitations that have recently been observed under a strong magnetic field in the form of a coherently distributed single nuclear spin excitation Gangloff et al. (2019) through an effective non-collinear hyperfine interaction Högele et al. (2012). In this paper, we propose a protocol for quantum memory based on this interaction, which in equilibrium is suppressed by a strong static magnetic field, but can be controllably switched on for a finite time by driving the qubit out of equilibrium.

The non-collinear hyperfine interaction responsible for qubit-controlled spin wave excitation originates from strain. In a strained lattice (cf. Figure 1a), the induced electric field gradient couples to the quadrupole moment of the nuclei, thereby tilting the nuclear spin quantisation axis away from that dictated by the magnetic field (defining the $z$-axis). This strain-induced mixing of the Zeeman eigenstates allows otherwise forbidden nuclear transitions that can be accessed by the electron through the hyperfine interaction, $H_{\mathrm{hf}}=\sum_{j}2A^{j}I_{z}^{j}S_{z}$ ($S_{z}$ and $I_{z}^{j}$ are electronic and $j$th nuclear spin-$z$ operators). The transitions are activated when the electron spin is driven – magnetically or optically – to bridge the excitation energy gap corresponding to the nuclear Zeeman energy, $\omega_{\mathrm{Z}}^{\mathrm{n}}$.

Equipped with an interaction mechanism that can be switched on and off, information can be controllably transferred from the electron to the nuclei by letting the two subsystems interact for a finite duration. This can be realised in multiple ways; for the current proposal, we consider a Hamiltonian engineering approach based electron spin rotations on the Bloch sphere with a sequence of fast pulses Schwartz et al. (2018), which selectively enhances the collective electron–nuclear transitions and simultaneously cancels out slow noise from the nuclear Overhauser field. The electron spin rotations in the pulse sequence can be carried out using an all-optical Raman drive to obtain phase-controlled manipulation at Rabi frequencies far exceeding the nuclear Zeeman splitting and hyperfine fluctuations of the electron Zeeman energy Bodey et al. (2019). The nuclear coherence time can be extended up to milliseconds by removing the electron from the quantum dot Wüst et al. (2016) or alternatively by decoupling of the Knight field through a simple electron spin echo sequence Yao et al. (2006). Read-out of the nuclear memory is effectuated by once again driving the electron to turn on the interaction.

Electron–nuclear exchange mechanism —

The Hamiltonian describing the quadrupolar coupling of the $N$ nuclear spins ($I>1/2$) is

[TABLE]

where $I_{\alpha}^{j},\;\alpha=x,y,z$ are the spin operators of the $j$’th nucleus, $\theta$ is the tilt angle of the quadrupolar axis away from $z$ and $B_{\mathrm{Q}}$ is the quadrupolar interaction strength. The low-energy excitations of the system are obtained through a Schrieffer-Wolff transformation perturbative in $B_{\mathrm{Q}}/\omega_{\mathrm{Z}}^{\mathrm{n}}$, which replaces $H_{\mathrm{Q}}$ by $H_{\mathrm{Q}}^{0}+V_{\mathrm{Q}}^{\prime}$. $H_{\mathrm{Q}}^{0}$ commutes with $I_{z}^{j}$ and $V_{\mathrm{Q}}^{\prime}=S_{z}[\mathcal{A}_{1}(\Phi_{1}^{+}+\Phi_{1}^{-})+\mathcal{A}_{2}(\Phi_{2}^{+}+\Phi_{2}^{-})]$ is a non-collinear hyperfine interaction Gangloff et al. (2019); sup . Here, $\Phi_{\zeta}^{+}\;(\zeta=1,2)$ denotes the nuclear spin wave operators

[TABLE]

with $\Phi_{\zeta}^{-}=(\Phi_{\zeta}^{+})^{\dagger}$; thus $\Phi_{\zeta}\pm$ changes the net nuclear spin by $\pm\zeta$ as shown in Figure 1b-c. The overall strength of the interaction is given by $\mathcal{A}_{1}=\frac{1}{2}\sum_{j}A^{j}B_{\mathrm{Q}}\sin 2\theta/\omega_{\mathrm{Z}}^{\mathrm{n}}$ and $\mathcal{A}_{2}=\frac{1}{2}\sum_{j}A^{j}B_{\mathrm{Q}}\sin^{2}\theta/\omega_{\mathrm{Z}}^{\mathrm{n}}$, and $a_{j}=A^{j}/\sum_{j^{\prime}}A^{j^{\prime}}$ are the normalised hyperfine coefficients. Due to the collective nature of the nuclear spin waves, the typical coupling rates seen in the dynamics of the system are not the bare $\mathcal{A}_{\zeta}$, but rather the collectively enhanced rates, $\sim\mathcal{A}_{\zeta}\sqrt{N}$. A quadrupolar coupling strength of $B_{\mathrm{Q}}=1.5\mathrm{\;MHz}$, which is typical of naturally occuring strain Bulutay (2012) or which can be engineering in situ Yuan et al. (2018); Flisinski et al. (2010) will be considered here.

A nuclear spin transition corresponding to the action of $\Phi_{\zeta}^{\pm}$ costs an energy of $\zeta\omega_{\mathrm{Z}}^{\mathrm{n}}$, which in a strong magnetic field is considerably larger than $\mathcal{A}_{\zeta}\sqrt{N}$. Consequently, these processes are far off-resonance in equilibrium. To switch the interaction on, we follow Ref. Schwartz et al. (2018) and consider the action of a pulse sequence on the electron spin, driving it with a set of short $S_{x}$ and $S_{y}$ pulses separated by a time interval, $\tau/4$. By setting $\tau=\ell\pi/(\zeta\omega_{\mathrm{Z}}^{\mathrm{n}})$, where $\ell$ is an odd integer, the coupling between the electron and the $\Phi_{\zeta}$-mode is resonantly enhanced, and the system will evolve under an effective flip-flop Hamiltonian sup

[TABLE]

where $S_{\pm}=S_{x}\pm iS_{y}$ are the electron spin-flip operators and $\mathcal{A}_{\zeta}^{\prime}$ is a rescaled coupling rate taking its maximal value for $\ell=3$, where $\mathcal{A}_{\zeta}^{\prime}=(2+\sqrt{2})/(3\pi)\mathcal{A}_{\zeta}$. When the nuclei are initialised in a fully polarised state, this Hamiltonian will create a nuclear spin wave and flip the electron spin conditionally on the electron spin state (see Figure 1d), thus forming the basis of information transfer between the electron and nuclear ensemble.

To see how this protocol turns nuclear spins into a quantum memory, we first consider a perfectly polarised nuclear bath (see Figure 2a). We write this nuclear state as $\ket{\mathbf{0}}=\ket{-I,\cdots,-I}$, and take the electron to be initialised in the state $\ket{\phi}=\alpha\ket{\uparrow}+\beta\ket{\downarrow}$, which we want to transfer to the nuclei. Because the nuclei are initialised in the ground state, no downwards transition are possible and $\Phi_{\zeta}^{-}\ket{\mathbf{0}}=0$. The excited nuclear state $\ket{\mathbf{1}}\propto\Phi_{\zeta}^{+}\ket{\mathbf{0}}$ is a distributed superposition of nuclear excitations (indicated by blue dots in Figure 2a), $\sum_{j}a_{j}\ket*{-I,\cdots,(-I+\zeta)_{j},\cdots,-I}$. Crucially, when de-exciting the spin wave, the only downwards nuclear transitions available are those that were excited from the ground state, and thus $\Phi_{\zeta}^{-}\ket{\mathbf{1}}\propto\ket{\mathbf{0}}$. With these properties, it is straightforward to show that the system evolves within a three dimensional subspace as

[TABLE]

$g_{\zeta}=F_{\zeta}\mathcal{A}_{\zeta}^{\prime}\sqrt{\sum_{j}a_{j}^{2}}$ (scaling as $\sqrt{N}$) is a collectively enhanced non-collinear coupling rate, where $F_{1}=(1-2I)\sqrt{2I},\;F_{2}=2\sqrt{I(2I-1)}$. At time $t=\pi/(2g_{\zeta})$ the electron–nuclear wavefunction separates, $\ket*{\psi(\pi/2g_{\zeta})}=\ket{\downarrow}\otimes(-i\alpha\ket{\mathbf{0}}+\beta\ket{\mathbf{1}})$, and the electron state is identically transferred to the collective state of the nuclei to be stored.

Operation at partial nuclear polarisation —

A realistic implementation will initialise the nuclei in a partially polarised state Chekhovich et al. (2017), $\ket{M}=\ket{m_{1},\cdots,m_{N}}$, such that there is a small number of lower energy states to scatter into, and thus $\Phi_{\zeta}^{-}\ket{M}\neq 0$ (see Figure 2b). Accordingly, the downwards transition $\ket{M}\rightarrow\Phi_{\zeta}^{-}\ket{M}$ is no longer forbidden as in the perfectly polarised case, but will take place with a rate, $\mathcal{G}_{-}$, which is slower than the upwards coupling rate, $\mathcal{G}_{+}$. Similarly, the downwards transition $\Phi_{\zeta}^{-}$ from the excited state $\Phi_{\zeta}^{+}\ket{M}$ does not lead back to $\ket{M}$ but mixes with other states generated by de-excitation of the initially unpolarised nuclei. This leads to dephasing of the spin wave mode serving as quantum memory. Nonetheless, the asymmetry of the coupling rates ($\mathcal{G}_{+}>\mathcal{G}_{-}$) makes it possible to operate the quantum memory at finite polarisations.

To calculate the electron–nuclear dynamics during the pulse sequence, we developed a numerically exact technique that maps the nuclear many-body state onto two one-dimensional chains of states, $\hat{\mathcal{S}}_{\pm}=\{\ket*{\hat{M}^{(k)}_{\pm}}|k=0,\cdots,N\}$. Here, the initial state $\ket*{\hat{M}_{+}^{(0)}}=\ket*{\hat{M}^{(0)}_{-}}=\ket{M}$ appears as the first link in both chains. The set $\hat{\mathcal{S}}_{+}$ ($\hat{\mathcal{S}}_{-}$) represents the set of states tied with the evolution of a positive (negative) spin wave. The coupling structure of $\mathcal{H}_{I}$, taking the electron spin into account as well, is illustrated in Figure 2c, where a coupling rate of $\mathcal{G}_{+}$ between two neighbouring states is depicted with a double line and $\mathcal{G}_{-}$ with a single line. This one-dimensional structure is largely attributed to the secular form of the interaction Hamiltonian, Eq. (1): when the evolved state $U_{I}(t)\ket{\phi}\otimes\ket{M}$ is written out explicitly, all terms containing the products $S_{+}S_{+}$ or $S_{-}S_{-}$ vanish identically. In the Supplemental Material, we derive the form of the basis sets, $\hat{\mathcal{S}}_{\pm}$ and show that only neighbouring nuclear states are coupled by the spin wave operators entering $\mathcal{H}_{I}$,

[TABLE]

The asymmetry in rates is parametrised by a leakage factor, $\mathcal{G}_{-}/\mathcal{G}_{+}$, which indicates the extent to which the nuclear phase space is explored in the evolution. In the fully polarised case, where the initial state is $\ket*{M}=\ket*{\mathbf{0}}$ (and $\ket*{\hat{M}_{+}^{(1)}}=\ket{\mathbf{1}}$), we find $\mathcal{G}_{+}=g_{\zeta},\;\mathcal{G}_{-}=0$ (no leakage), meaning that the three states $\ket*{\uparrow}\otimes\ket{M},\ket{\downarrow}\otimes\ket*{\hat{M}^{(1)}_{+}},\ket*{\downarrow}\otimes\ket*{M}$ are identically decoupled from the residual part of the two chains (which in Figure 2c is signified by $\mathcal{R}$), recovering the ideal state transfer dynamics of Eq. (2). For finite initial nuclear polarisation, we generally have $\mathcal{G}_{+}<g_{\zeta}$ and $\mathcal{G}_{-}>0$ (finite leakage), and thus the three states couple to the residual chains, $\mathcal{R}$. Figure 2d-e shows the electron and nuclear dynamics as the leakage factor $\mathcal{G}_{-}/\mathcal{G}_{+}$ is gradually changed from the ideal case of 0 (solid lines) to $30\%$ in linear steps (decreasing opacity). As $\mathcal{G}_{-}$ is increased, the system is more rapidly delocalised along the chain, leading to unwanted and uncontrollable electron–nuclear correlations that can be seen as damped oscillations in the nuclear and electronic populations. When calculating the dynamics, it is necessary to truncate the nuclear chains of states to a certain $k$-index, $k^{*}$. As long as the occupation of the states $\ket*{\hat{M}_{\pm}^{(k^{*})}}$ is appreciably small, the truncation remains a valid approximation. The necessary value of $k^{*}$ needed for convergence depends on the evolution time and the leakage factor $\mathcal{G}_{-}/\mathcal{G}_{+}$, which together determine how far into $\mathcal{R}$ the state will diffuse.

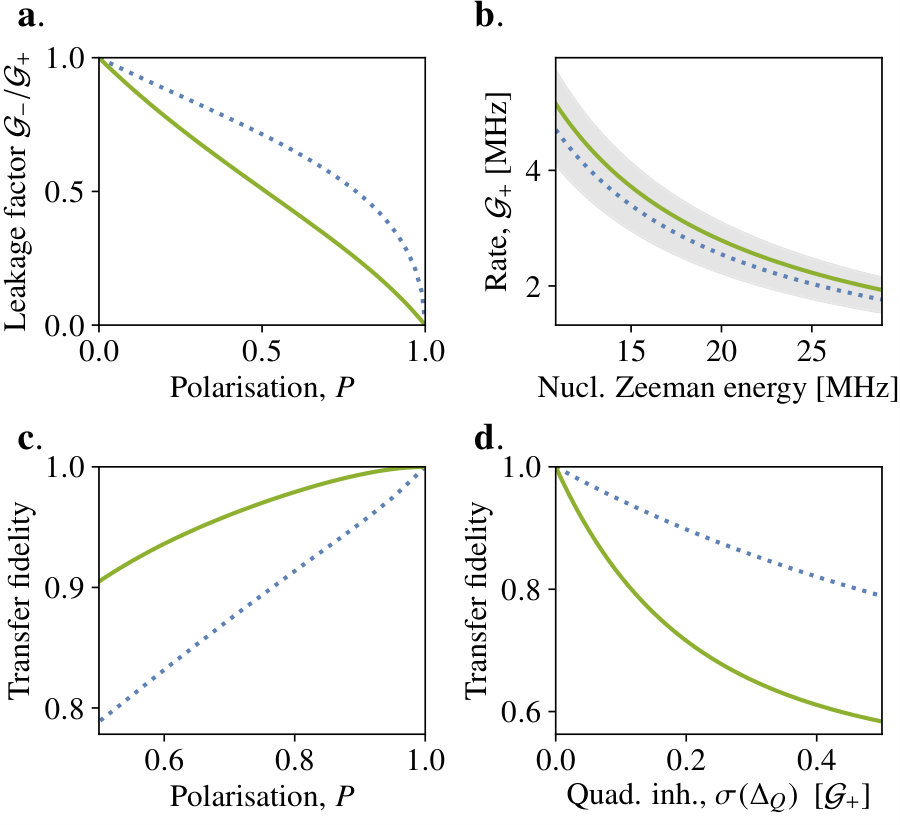

Figure 3a shows the ratio $\mathcal{G}_{-}/\mathcal{G}_{+}$ as a function of nuclear polarisation, averaged over the nuclear initial state distribution, $p(M)$, which we have taken thermal, with $I=3/2$ and $N\simeq 5\times 10^{4}$ (see Figure 3a). The relative ensemble standard deviations (not shown) are negligible, $\sim 10^{-3}$. An important conclusion drawn from Figure 3a is that the $\zeta=2$ mode is more robust to imperfect polarisation, owing to the different dependence of the leakage factor $\mathcal{G}_{-}/\mathcal{G}_{+}$ on polarisation for $\zeta=1$ and $\zeta=2$. The $\Phi^{-}_{2}$-transition becomes dark when the levels $m=+3/2,\;m=+1/2$ are depleted, whereas for $\Phi_{1}^{-}$, the level $m=-1/2$ needs to be depleted for this to happen. Indeed, the lower levels of a single spin manifold (Figure 1b) will be populated first, as the polarisation is decreased, thus enabling the $\Phi^{-}_{1}$ transition before the $\Phi_{2}^{-}$ transition.

Figure 3b shows the calculated values of $\mathcal{G}_{+}$ as a function of nuclear Zeeman splitting, where the lines indicate a polarisation of 50% and the shaded area shows the variation as the polarisation is sweeped from unity (maximum values) to 0 (minimum values). The coupling rate $\mathcal{G}_{+}$ is proportional to $\sin(2\theta)$ for the $\zeta=1$ mode and to $\sin^{2}\theta$ for $\zeta=2$. These angular prefactors have been assumed to be unity to maximinise the rates shown in Figure 3b, which can be converted to rates for any quadrupolar angle by multiplying them with these prefactors.

State transfer fidelity —

The state transfer fidelity is defined as the overlap between the initial electron state and the electron state after a full write–read cycle. We initialise the system in the state $\ket{\psi(0)}=\ket{\phi}\otimes\ket{M}$ and let the system evolve under the pulse sequence for a time $t_{1}$ to write the electron state into the nuclei, thus generating the state $\ket*{\psi(t_{1})}$. After this, we trace out the electron to obtain the reduced nuclear state $\rho_{\mathrm{n}}(t_{1})=\Tr_{\mathrm{e}}[\outerproduct*{\psi(t_{1})}{\psi(t_{1})}]$. To read the nuclear state back into the electron spin, we re-initialise the density operator in the state $\rho(t_{1};0)=\outerproduct*{\downarrow}{\downarrow}\otimes\rho_{n}(t_{1})$ and let the system evolve under the pulse sequence for a time $t_{2}$, where the total density operator is $\rho(t_{1};t_{2})$. We then evaluate the overlap of the electron spin state (and tracing out the nuclei) with respect to the input state to assess the fidelity, $\mathcal{F}(t_{1},t_{2})=\Tr_{\mathrm{n}}[\matrixelement{\phi^{\prime}}{\rho(t_{1};t_{2})}{\phi^{\prime}}]$, where $\ket{\phi^{\prime}}=\alpha\ket{\uparrow}-\beta\ket{\downarrow}$. The fidelity, averaged over the six states $(\alpha,\beta)=(1,0),(0,1),\>\frac{1}{\sqrt{2}}(1,\pm 1),\>\frac{1}{\sqrt{2}}(1,\pm i)$, is presented in Figure 3c, for optimised values of $t_{1}$ and $t_{2}$. In the fully polarised case, the optimal $t_{1}$ and $t_{2}$ are simply $\pi/(2\mathcal{G}_{+})$, but as the polarisation is decreased, coupling to $\mathcal{R}$ renormalises the effective coupling rate and therefore necessitates slightly (¡ 20%) longer transfer times. As predicted, Figure 3c shows that the state transfer fidelity follows the polarisation dependence of the leakage factor, $\mathcal{G}_{-}/\mathcal{G}_{+}$, and accordingly that the fidelity is generally higher for the $\zeta=2$ mode if the polarisation is finite. In particular, for $\zeta=2$, the fidelity remains above 90% throughout the polarisation range $50-100\%$.

Adjusting to quadrupolar energy shifts —

The $I_{z}^{j}$-commuting contribution to the quadrupolar Hamiltonian can be written as $H_{\mathrm{Q}}^{0}=\sum_{j}\Delta_{\mathrm{Q}}(I_{z}^{j})^{2}$, with $\Delta_{\mathrm{Q}}=B_{\mathrm{Q}}(\frac{1}{2}\sin^{2}\theta-\cos^{2}\theta)$. In general, $\Delta_{\mathrm{Q}}$ varies over the ensemble, and the individual spin components in the spin wave $\ket{\mathbf{1}}$ evolve with a phase factor $e^{-i\Delta_{\mathrm{Q}}^{j}t}$, building up a relative phase among the components on a time scale set by the ensemble variation of $\Delta_{\mathrm{Q}}^{j}$, denoted by $\sigma(\Delta_{\mathrm{Q}})$. As a result, $\ket{\mathbf{1}}$ rotates into a dark subspace, $\{\ket*{1_{p}}\}$, such that $\Phi_{-}\ket*{1_{p}}=0$ with a rate of $\gamma=1/(\zeta^{2}\sigma(\Delta_{\mathrm{Q}}))$ sup . In Figure 3d, we show how the transfer fidelity at full nuclear polarisation depends on this inhomogeneity. As indicated, the energy scale of the inhomogeneity, $\sigma(\Delta_{\mathrm{Q}})$ must be compared to the coupling rate, $\mathcal{G}_{+}$, to assess its impact. Thus, with a realistic value of $\mathcal{G}_{+}$ in the $\mathrm{MHz}$ range, a quadrupolar inhomogeneity below $\sim 100\mathrm{\;kHz}$ does not degrade the transfer fidelity appreciably. Importantly, decoherence due to rotation into the dark subspace is only of concern during the transfer process: after the state has been transferred, the quadrupolar precession can be cancelled out by refocusing the $\{m=-I,m=-I+\zeta\}$ subspace using an NMR echo pulse Chekhovich et al. (2015). In the case of a non-zero mean value of $\Delta_{\mathrm{Q}}$, the $m=-I$ to $m=-I+\zeta$ transition is shifted by $\delta=(\zeta^{2}-2I\zeta)\Delta_{\mathrm{Q}}$. The memory transfer is then simply effectuated by setting the pulse time delay to $\tau=\ell\pi/(\zeta\omega_{\mathrm{Z}}^{\mathrm{n}}+\delta)$.

During storage, we expect the dominant nuclear dephasing mechanism that determines the coherence time of the memory to be the electron–mediated nuclear dipole-dipole interaction, which scales inversely with the electron Zeeman splitting Wüst et al. (2016). In the presence of this dephasing mechanism, the coherence time of the nuclear memory is tens of microseconds. If, however, the electron is removed from the quantum dot after its state is transferred to the nuclei, the only dephasing mechanism is the intrinsic neighbour dipole-dipole interaction, and the coherence time can be well into the millisecond regime Chekhovich (2017). Importantly, the nuclei should be polarised as to increase the electron Zeeman splitting. This way, polarisation of the nuclei leads not only to increased fidelity in the transfer process, but also to further prolonged coherence time of the collective nuclear state.

Conclusion —

For realistic experimental parameters, we have found that state transfer fidelities for a full read-write cycle as high as 90% can be reached with a modest nuclear polarisation of 50%. In addition, the theoretical and experimental techniques we have presented open new possibilities for further exploration and manipulation of the collective nuclear degrees of freedom, for example the generation of nuclear cat states, squeezed states and condensates.

Acknowledgements —

We thank E. Chekhovich for helpful discussions. This work was supported by the ERC PHOENICS grant (617985) and the EPSRC Quantum Technology Hub NQIT (EP/M013243/1). D.A.G. acknowledges support from St John’s College Title A Fellowship. E.V.D. and J.M. acknowledge funding from the Danish Council for Independent Research (Grant No. DFF- 4181-00416). C.L.G. acknowledges support from a Royal Society Dorothy Hodgkin Fellowship.

I Effective low-energy Hamiltonian for electron and nuclei in the presence of lattice strain

As the starting point of the analysis, we shall consider a singly charged quantum dot subject to a magnetic field of strength $B$, perpendicular to the growth axis. We define the $z$-direction as the direction of the field and denote the Cartesian electron spin operators in this reference frame by $S_{\alpha},\;\alpha=x,y,z$. Along with the electron, the quantum dot contains $N$ nuclei, each with the spin operators $I_{\alpha}^{j}$, $\alpha=x,y,z;\;j=1,\cdots,N$. In the presence of uniaxial material strain, the quadrupole moment of the nuclear spins will couple to the electric field gradient of the strained lattice, as described by the Hamiltonian Bulutay (2012); Urbaszek et al. (2013)

[TABLE]

where $\theta$ is the angle between the quadrupolar axis and the magnetic field and $B_{\mathrm{Q}}$ is the strength of the quadrupolar interaction. Furthermore, the electron and nuclei interact via the hyperfine interaction, $H_{\mathrm{hf}}=\sum_{j}2A^{j}[S_{z}I_{z}^{j}+S_{x}I_{x}^{j}+S_{y}I_{y}^{j}]$. For appreciable external magnetic field strength, the last two terms in $H_{\mathrm{hf}}$ describe electron–nucleus flip-flop processes that are perturbatively suppressed a factor of $A^{j}/(\omega_{Z}^{\mathrm{e}}-\omega_{Z}^{\mathrm{n}})\ll 1$, for which reason these terms are typically neglected. In our case, this is well justified by the fact that the leading order perturbative processes governing the electron–nuclear energy exchange occur at a much higher rate, as we shall see. For these reasons, we take $H_{\mathrm{hf}}=\sum_{j}2A^{j}S_{z}I_{z}^{j}$. The total Hamiltonian for the electron and nuclear bath is then

[TABLE]

with $\omega_{\mathrm{Z}}^{\mathrm{e}}$ and $\omega_{\mathrm{Z}}^{\mathrm{n}}$ the electron and nuclear Zeeman energies, respectively.

From the quadrupolar interaction, $H_{\mathrm{Q}}$, we now extract the contribution that commutes with $I_{z}^{j}$ and thus does not couple different nuclear Zeeman eigenstates, which we denote by $H_{\mathrm{Q}}^{0}$. The remainder, $V_{\mathrm{Q}}:=H_{\mathrm{Q}}-H_{\mathrm{Q}}^{0}$ is then entirely off-diagonal in the nuclear Zeeman eigenbasis. Specifically, we have Gangloff et al. (2019)

[TABLE]

In strong field conditions where $\omega_{Z}^{\mathrm{n}}\gg B_{\mathrm{Q}}^{j}$, transitions between nuclear Zeeman eigenstates caused by $V_{\mathrm{Q}}$ are not energetically allowed to first order. To eliminate $V_{\mathrm{Q}}$ from $\hat{H}$ and replace it with the appropriate corrections describing energetically allowed processes, we use a Schrieffer-Wolff transformation with generator

[TABLE]

Up to second order in the perturbation parameters $B_{\mathrm{Q}}^{j}/\omega_{Z}^{\mathrm{n}}$ and $A^{j}/\omega_{Z}^{\mathrm{n}}$, we find the transformed Hamiltonian $H^{\prime}=e^{F}\hat{H}e^{-F}\simeq\hat{H}_{\mathrm{e}}+H_{\mathrm{n}}^{\prime}+H_{\mathrm{hf}}+V_{\mathrm{Q}}^{\prime}$, where Gangloff et al. (2019)

[TABLE]

Note that $H_{\mathrm{n}}^{\prime}$ commutes with $I_{z}^{j}$ and only leads to an anharmonic energy shift of the single-nucleus spin ladders, such that the Zeeman eigenstates of the $j$’th nucleus, $\ket{m}_{j}$, have the energies $m\omega_{Z}^{\mathrm{n}}+m^{2}\Delta_{\mathrm{Q}}^{j}$, where $\Delta_{\mathrm{Q}}^{j}=B_{\mathrm{Q}}^{j}\quantity(\frac{1}{2}\sin^{2}\theta^{j}-\cos^{2}\theta^{j})$. In contrast, $V_{\mathrm{Q}}^{\prime}$ describes a quadrupolar dressing of the hyperfine interaction that generates a noncollinear collective interaction between the electronic and nuclear spins.

I.1 Hyperfine coupling distribution

The hyperfine coupling distribution, $A^{j}$, is highly non-uniform due to the inhomogeneous form of the electron wavefunction. For all practical purposes when calculating properties of the system, we obtain the hyperfine distribution numerically by taking the electron density Gaussian,

[TABLE]

and evaluating $\rho_{e}$ in the points of a cubic lattice of size $L_{x}\times L_{y}\times L_{z}$. We have taken parameters for arsenic nuclei in GaAs and a quantum dot with $L_{x}=L_{y}=10\mathrm{\;nm},\;L_{z}=1\mathrm{\;nm}$, consistent with e.g. Ref. Huo et al. (2014).

II Pulse sequence

By rotating the electron spin with a series of short pulses in conjunction with the free evolution of the system, it is possible to engineer the dynamics of the electron–nuclear system by enhancing and quenching various terms in the Hamiltonian controllably. Here, we adapt a pulse sequence developed for a central spin coupled a nuclear environment with a few, energetically separated spins Schwartz et al. (2018) to our case of a mesoscopic bath with an energetically dense spectrum. The pulse sequence is described in detail in Ref. Schwartz et al. (2018), but for completeness we present the central features here before showing how the sequence acts on the system studied in this work. The pulse cycle of the sequence can be written as

[TABLE]

where $q_{\phi}$ ($q=x,y$) denotes a fast coherent rotation of the electron spin corresponding to the unitary operation $e^{-i\phi S_{q}}$ and $\frac{\tau/4}{\hskip 22.76228pt}$ denotes free evolution of the system during the time interval $\tau/4$. The unitary evolution operator for a cycle of the sequence can then be expressed as

[TABLE]

where $U_{0}(t)=e^{-iH^{\prime}t}$ is the free evolution operator of the system. From Eq. (S9) it can be shown that the time evolution operator over two consecutive cycles can be written as the dynamics generated by a time dependent Hamiltonian, $\mathcal{H}(t)$, such that $U_{\mathcal{C}}^{2}=\mathcal{T}e^{-i\int_{0}^{2\tau}\differential s\mathcal{H}(s)}$, where $\mathcal{T}$ is the chronological time-ordering operator. The pulse sequence Hamiltonian, $\mathcal{H}(t)$, is obtained as $H^{\prime}$ under the substitution $S_{z}\rightarrow h_{x}(t)S_{x}+h_{y}(t)S_{y}$, with the piecewise constant functions, which in the interval $t\in[0,2\tau]$ take the values

[TABLE]

with $h_{y}(t)=h_{x}(t+\tau/2)$. The time-dependent functions feature the periodic property $h_{x}(t+2\tau\ell)=h_{x}(t),\;h_{y}(t+2\tau\ell)=h_{y}(t)$, where $\ell=0,1,\cdots$. Due to this periodicity, we can write the $h_{\alpha}$-functions in terms of their discrete Fourier series as

[TABLE]

with $\omega_{\ell}=\pi\ell/\tau$. The Fourier components are calculated from $h_{\alpha}$ as

[TABLE]

which due to the relation between $h_{x}$ and $h_{y}$ satisfy $P_{\ell}^{(x)}=P_{\ell}^{(y)},\;Q_{\ell}^{(x)}=-Q_{\ell}^{(y)}$. Furthermore, the coefficients are only nonzero for odd $\ell$. These coefficients are plotted in Fig. S1, which shows that the $\ell=3$ coefficients are largest. For these maximal coefficients, we have

[TABLE]

We now assume that the quadrupolar energy shift contained in $H_{\mathrm{n}}^{\prime}$ is negligible compared to $\omega_{Z}^{\mathrm{n}}$, which can be ensured if the angle of the strain axis relative to the magnetic field is close to $\theta_{0}=\arctan(1/\sqrt{2})$. We can then write the pulse sequence Hamiltonian as $\mathcal{H}(t)\simeq\mathcal{H}_{0}+\mathcal{H}_{I}(t)$,

[TABLE]

where $\Phi_{\zeta}^{+}=(\Phi_{\zeta}^{-})^{\dagger}$ and

[TABLE]

such that $\sum_{j}a_{\zeta,j}=1$. Note that in the free evolution between the Raman pulses, the drives are absent and the rotating frame can be defined with respect to an arbitrary frequency, which we set to $\omega_{Z}^{\mathrm{e}}$, leading to $\Delta=0$. Moving into the interaction picture set by $\mathcal{H}_{0}$, the interaction Hamiltonian is

[TABLE]

At this point, we express $h_{\alpha}(t)$ in terms of their Fourier expansions,

[TABLE]

Furthermore, we assume that the delay time of the pulse sequence, $\tau$, is chosen such that one of the of the discrete Fourier frequencies, $\omega_{\ell}$, is close to either $\omega_{Z}^{\mathrm{n}}$ or $2\omega_{Z}^{\mathrm{n}}$. We shall denote this particular $\ell$-index by $\ell^{*}$ and say that $\omega_{\ell^{*}}=\zeta\omega_{Z}^{\mathrm{n}}$, where $\zeta$ is either 1 or 2. This resonance of the pulse sequence is obtained by setting $\tau=\pi\ell^{*}/(\zeta\omega_{Z}^{\mathrm{n}})$. As a result, the Fourier frequencies, $\omega_{\ell}$, are separated by $\Delta\omega=\zeta\omega_{Z}^{\mathrm{n}}/\ell^{*}$. Provided that $\ell^{*}$ is of order unity, all terms in $\hat{\mathcal{H}}_{I}(t)$ that are not resonant with $\zeta\omega_{Z}^{\mathrm{n}}$ will average to zero in the dynamical evolution of the system. In particular, there does not exist a pair of odd indices $(\ell_{1},\ell_{2})$ such that $\ell_{1}\Delta\omega=\omega_{Z}^{\mathrm{n}}$ and $\ell_{2}\Delta\omega=2\omega_{Z}^{\mathrm{n}}$. Since the Fourier coefficients $P_{\ell}^{(\alpha)}$ and $Q_{\ell}^{(\alpha)}$ are only nonzero for odd $\ell$, this means that the pulse sequence will never be resonant with both collective nuclear transitions simultaneously. Removing all rapidly rotating terms from Eq. (S18) leaves us with

[TABLE]

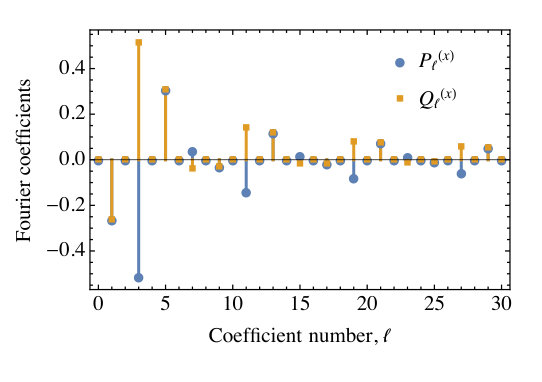

At this point, we choose $\ell^{*}=3$ which we found to have the largest Fourier component. Further, we rotate the electron spin coordinates by an angle of $\pi/4$ in the $xy$-plane, such that $S_{x}\rightarrow(S_{x}+S_{y})/\sqrt{2},\;S_{y}\rightarrow(S_{x}-S_{y})/\sqrt{2}$, leading to

[TABLE]

III Nuclear chain of states under pulse sequence dynamics

The pulse sequence interaction Hamiltonian, $\hat{\mathcal{H}}_{I}$, in Eq. (S20) describes the interaction between the electron and the nuclear spin bath. Due to its secular form, many of the terms in the expansion of the time evolution operator, $\mathcal{U}$, become zero, because $S_{+}^{2}=S_{-}^{2}=0$. As a result, we can write $\mathcal{U}$ as

[TABLE]

At this point, we consider the initial nuclear state to be a classical mixture of product states. Denoting a general nuclear product state by $\ket{M}=\ket{m_{1},\cdots,m_{\mathrm{n}}}$, the initial nuclear density operator can be written as $\rho_{\mathrm{n}}(0)=\sum_{M}p(M)\outerproduct{M}{M}$, which does not need to be internuclear factorisable, but can generally contain classical correlations, i.e. generally $\rho_{\mathrm{n}}(0)\neq\bigotimes\rho_{j}$. For practical purposes, we can then calculate the dynamics for a given state $\ket{M}$ and subsequently average over the distribution $p(M)$. From Eq. (S21), we see that with $\ket{M}$ as the initial nuclear state, the evolution of the system will gradually populate the states $\Phi_{\zeta}^{\pm}\ket{M},\;\Phi_{\zeta}^{\mp}\Phi_{\zeta}^{\pm}\ket{M},\Phi_{\zeta}^{\pm}\Phi_{\zeta}^{\mp}\Phi_{\zeta}^{\pm}\ket{M}$ and so forth. Our strategy for calculating the dynamics of the electron–nuclear system is to orthonormalise the set

[TABLE]

containing states generated by the evolution $\mathcal{U}$ up to a certain truncation index, $k^{*}$. Note that by $\mathcal{S}_{+}(k^{*})$ and $\mathcal{S}_{-}(k^{*})$, we understand two distinct sets, which we wish to orthonormalise separately. We shall define the normalised state $\ket*{M^{(k)}_{\pm};\zeta}$ as

[TABLE]

such that $\bar{\mathcal{S}}_{\pm}(k^{*}):=\{\ket*{M^{(k)}_{\pm};\zeta}|k\leq k^{*}\}$ is simply the normalised form of $\mathcal{S}_{\pm}(k^{*})$. The goal is now to perform Gram-Schmidt orthonormalisation to $\bar{\mathcal{S}}_{\pm}(k^{*})$ in order to derive the orthonormal set $\hat{\mathcal{S}}_{\pm}(k^{*})$, whose elements we shall denote by $\ket*{\hat{M}^{(k)}_{\pm};\zeta}$. First, we see that $\ket*{M}=\ket*{M^{(0)}_{\pm};\zeta}$ and define $\ket*{\hat{M}^{(0)}_{\pm};\zeta}:=\ket{M}$. The Gram-Schmidt orthonormalisation strategy now gives the recursive relation

[TABLE]

The structure of the orthonormal set $\hat{\mathcal{S}}(k^{*})$ becomes clear when writing the states out explicitly. To do so, we first introduce the convenient shorthand notation

[TABLE]

and the prefactors (not to be confused with the Fourier coefficients in Sec. II)

[TABLE]

such that $\Phi_{\zeta}^{\pm}\ket{M}=\sum_{j}a_{\zeta,j}P_{\pm}^{(\zeta)}(m_{j})\ket{M,(\pm\zeta,j)}$. Note that the prefactor $P^{(\zeta)}_{\pm}(m)$ automatically becomes zero if the transition $m\rightarrow m\pm\zeta$ is not allowed. The first four states in $\hat{\mathcal{S}}_{+}(k^{*})$ and $\hat{\mathcal{S}}_{-}(k^{*})$ can then be written as

[TABLE]

where $\mathcal{N}_{\pm}^{(k)}(M;\zeta)$ is a normalisation factor and $\sum_{\langle j_{1}\cdots j_{n}\rangle}$ denotes a summation over the $n$ indices (each running from $1$ to $N$) that only includes terms where no pair of indices are equal. Extending this sequence of states to higher values of $k$ is a tedious, but straightforward task. For the special case of $I=3/2$, the situation vastly simplifies due to the identity $P_{\pm}^{(\zeta)}(m)P_{\pm}^{(\zeta)}(m\pm 1)=0$, thus eliminating the possibility of multiple noncollinear excitations of the same nuclear spin. As a result, for $I=3/2$, we can write any state in $\hat{\mathcal{S}}(k^{*})$ in a general form as

[TABLE]

where $\lambda_{k}=(-1)^{k+1}$. In general, we find that for all even values of $k$, $\ket*{\hat{M}_{+}^{(k)};\zeta}=\ket*{\hat{M}_{-}^{(k)};\zeta}$, and we might thus drop the $\pm$-index on $\ket*{\hat{M}_{\pm}^{(k)};\zeta}$ for even $k$.

For the purpose of calculating the dynamics, we are generally interested in knowing how the interaction Hamiltonian, $\hat{\mathcal{H}}_{I}$, couples the diffenent states in $\hat{\mathcal{S}}_{\pm}(k^{*})$. The general structure of $\hat{\mathcal{S}}(k^{*})$ as presented in Eqs. (S27) and (S28), leads to the selection rule

[TABLE]

meaning that we only need to evaluate transition matrix elements between neighbouring states in $\hat{\mathcal{S}}_{\pm}(k^{*})$. For general $I$, we find the elements between the states in Eq. (S27)

[TABLE]

Because $\Phi^{-}=(\Phi^{+})^{\dagger}$, we only need to find the matrix elements for one of the two operators, since the elements of the other will be given thereby. Here we find the elements of $\Phi^{+}$.

For $N\gg 1$ and $k\ll N$, we find the approximation

[TABLE]

For the realistic situations studied in the present work, the relative error of this approximation is below $10^{-4}$. Under the approxmation (S31), the matrix elements can be generalised as

[TABLE]

The interaction Hamiltonian can then be expanded on the derived basis in the form

[TABLE]

where the coupling rates are given by $\mathcal{G}_{\pm}:=\frac{2+\sqrt{2}}{3\pi}\mathcal{A}_{\zeta}\Omega_{\pm}$, suppressing explicit dependence of $\Omega_{\pm}$ on $M$ and $\zeta$.

IV Quadrupolar inhomogeneities

In the presence of quadrupolar inhomogeneities, the term $H_{\mathrm{Q}}^{0}=\sum_{j}\Delta_{\mathrm{Q}}^{j}(I_{z}^{j})^{2}$ in Eq. (S5) will be non-zero, and the quadrupolar shift, $\Delta_{\mathrm{Q}}^{j}$ will be described by a statistical distribution over all the nuclei. This term will be carried onto the interaction Hamiltonian in Eq. (S20), which then becomes $\hat{\mathcal{H}}_{I}^{\prime}=\hat{\mathcal{H}}_{I}+H_{Q}^{0}$. To study the effect of this, we consider a fully polarised initial nuclear state, such that the dynamics in the absence of inhomogeneities is spanned by the nuclear states $\ket*{\mathbf{0}}$ and $\ket*{\mathbf{1}}:=\ket*{\hat{\mathbf{0}}_{+}^{(1)};\zeta}$. The ground state, $\ket{\mathbf{0}}$ is an eigenstate of $H_{\mathrm{Q}}^{0}$, but the collective excitation $\ket{\mathbf{1}}$ is not. The effect of $H_{\mathrm{Q}}^{0}$ is then to rotate $\ket*{\mathbf{1}}$ into a set of orthogonal collective excitations, which do not interact with the electron through $\mathcal{H}_{I}$. To demonstrate this, we define an orthonormal basis for $\mathbb{C}^{N}$, $\{\nu_{\alpha}|\alpha=1,\cdots,N\}$, such that $\sum_{j}\nu_{\alpha,j}^{*}\nu_{\beta,j}=\delta_{\alpha\beta}$. We choose the first vector to be $\nu_{1,j}=a_{j}/\sqrt{\sum_{j}a_{j}^{2}}$. These vectors can then be mapped onto a complete basis of spin waves with Zeeman energy $\zeta\omega_{\mathrm{Z}}^{n}$,

[TABLE]

such that $\ket{\mathbf{1}}$ corresponds to $\ket{\alpha=1}$. Of all these spin waves, only $\ket{\mathbf{1}}$ is coupled to $\ket{\mathbf{0}}$ via $\mathcal{H}_{I}$:

[TABLE]

and $\matrixelement{\mathbf{0}}{\Phi_{\zeta}^{+}}{\alpha}=\matrixelement{\mathbf{\beta}}{\Phi_{\zeta}^{\pm}}{\alpha}=0$. The diffusion rate from $\ket{\mathbf{1}}$ into this dark subspace, $\gamma$, is approximated by calculating the time evolution of $\ket{\mathbf{1}}$ under $H_{\mathrm{Q}}^{0}$ and projecting back onto $\ket{\mathbf{1}}$:

[TABLE]

Assuming statistical independence of $a_{j}$ and $\Delta_{\mathrm{Q}}^{j}$ and taking the ensemble distribution of $\Delta_{\mathrm{Q}}^{j}$ as the normal distribution $p(\Delta_{\mathrm{Q}})=e^{-\Delta_{\mathrm{Q}}/(2\sigma^{2})}/\sqrt{2\pi\sigma^{2}}$, we find

[TABLE]

such that the $1/e$ decay time for the population, $\absolutevalue*{\matrixelement{\mathbf{1}}{e^{-iH_{\mathrm{Q}}^{0}t}}{\mathbf{1}}}^{2}$, is $\gamma=1/(\zeta^{2}\sigma)$.

To include this effect in the dynamical evolution when assessing the read/write error, we note that the electron-nuclear state $\ket{\phi}\ket{\alpha}$ with $\ket{\alpha}\neq\ket{\mathbf{1}}$ is an eigenstate of the transfer-generating interaction, $\hat{\mathcal{H}}_{I}$ and thus fully equivalent to $\ket{\phi}\ket{\mathbf{0}}$ when studying the retrieved state of the electron Kurucz et al. (2009).
