Chemokinetic scattering, trapping, and avoidance of active Brownian particles

TL;DR

This paper develops a theoretical framework for chemokinetic search agents that adjust their movement based on proximity to a target, revealing how different response strategies affect search success.

Contribution

It introduces a novel theory of chemokinetic search behavior, analyzing how dynamic scattering influences target-finding efficiency in active particles.

Findings

Scattering reduces penetration into high-fluctuation regions, decreasing search success.

Agents with internal states can exploit scattering to improve target detection.

Analytic results are derived beyond traditional noise approximations.

Abstract

We present a theory of chemokinetic search agents that regulate directional fluctuations according to distance from a target. A dynamic scattering effect reduces the probability to penetrate regions with high fluctuations and thus search success for agents that respond instantaneously to positional cues. In contrast, agents with internal states that initially suppress chemokinesis can exploit scattering to increase their probability to find the target. Using matched asymptotics between the case of diffusive and ballistic search, we obtain analytic results beyond Fox' colored noise approximation.

Figures

Equations

$$\dot{R}$$

$$\dot{\psi }$$

$$D_{\mathrm{rot}}(R)=\{\begin{array}{ll}{D}_1& \text{for }R<R_1\text{ (zone 1)}\\ D_2& \text{for }R\ge R_1\text{ (zone 2)}\end{array}.$$

$$p(R_0|R_2)\approx \sum _{k=0}^{\infty }{p}_2[(1-p_1)p_{\mathrm{ret}}{]}^k{p}_1.$$

$$p_i^{\infty }=\underset{D_i\to 0}{\lim }{p}_i={\left(\frac{R_{i-1}}{R_i}\right)}^2,i=1,2.$$

$$p_{\mathrm{ret}}\approx {\left(1+\alpha {\lambda }_2{R}_2/R_1\right)}^{-1},\alpha =4/3.$$

$$\frac{\partial }{\partial R}p(R_0|R)=-2\frac{p}{R}-D_{\mathrm{rot}}(R)\frac{3}{2}\frac{p^2}{v}.$$

$$\mathrm{(S)}\begin{array}[]{rlll}\dot{\mathbf{R}}&=v\,\mathbf{h}_{3},&&\\ \quad\dot{\mathbf{h}}_{3}&=-\xi_{1}\,\mathbf{h}_{2}&+\xi_{2}\,\mathbf{h}_{1},&\\ \dot{\mathbf{h}}_{1}&=&-\xi_{2}\,\mathbf{h}_{3}&+\xi_{3}\,\mathbf{h}_{2},\\ \dot{\mathbf{h}}_{2}&=\phantom{-}\xi_{1}\,\mathbf{h}_{3}&&-\xi_{3}\,\mathbf{h}_{1},\end{array}$$

$$\begin{array}{rl}{\mathbf{e}}_R& =(\cos \eta ,\sin \eta \cos \zeta ,\sin \eta \sin \zeta ),\\ {\mathbf{e}}_{\eta }& =(-\sin \eta ,\cos \eta \cos \zeta ,\cos \eta \sin \zeta ),\\ {\mathbf{e}}_{\zeta }& =(0,-\sin \zeta ,\cos \zeta ).\end{array}$$

$$\begin{array}[]{rlll}\mathbf{R}&=-R\,\mathbf{e}_{R},&&\\ \mathbf{h}_{3}&=\phantom{-}\cos\psi\,\mathbf{e}_{R}+\sin\psi\left(\cos\theta\,\mathbf{e}_{\eta}+\sin\theta\,\mathbf{e}_{\zeta}\right),\\ \mathbf{h}_{1}&=\phantom{-}\cos\varphi\,\mathbf{s}_{1}+\sin\varphi\,\mathbf{s}_{2},\\ \mathbf{h}_{2}&=-\sin\varphi\,\mathbf{s}_{1}+\cos\varphi\,\mathbf{s}_{2}=\mathbf{h}_{3}\times\mathbf{h}_{1},\\ \end{array}$$

$${\mathbf{s}}_1$$

$$=-\sin \psi {\mathbf{e}}_R+\cos \psi (\cos \theta {\mathbf{e}}_{\eta }+\sin \theta {\mathbf{e}}_{\zeta }),$$

$${\mathbf{s}}_2$$

$$=-\sin \theta {\mathbf{e}}_{\eta }+\cos \theta {\mathbf{e}}_{\zeta }.$$

$$\mathrm{(S)}\begin{array}[]{rlll}\dot{\mathbf{e}}_{R}&=\phantom{-}\dot{\eta}\,\mathbf{e}_{\eta}&+\dot{\zeta}\,\sin\eta\,\mathbf{e}_{\zeta},&\\ \dot{\mathbf{e}}_{\eta}&=-\dot{\eta}\,\mathbf{e}_{R}&&+\dot{\zeta}\,\cos\eta\,\mathbf{e}_{\zeta},\\ \dot{\mathbf{e}}_{\zeta}&=&-\dot{\zeta}\,\sin\eta\,\mathbf{e}_{R}&-\dot{\zeta}\,\cos\eta\,\mathbf{e}_{\eta},\\ \end{array}$$

$$\mathrm{(S)}\begin{array}[]{rl}\dot{\mathbf{s}}_{1}&=-\dot{\psi}\,\mathbf{h}_{3}+\dot{\theta}\cos\psi\,\mathbf{s}_{2}\\ &\quad-\sin\psi\,\dot{\mathbf{e}}_{R}+\cos\psi\,(\cos\theta\,\dot{\mathbf{e}}_{\eta}+\sin\theta\,\dot{\mathbf{e}}_{\zeta}),\\ \dot{\mathbf{s}}_{2}&=-\dot{\theta}\,(\sin\psi\,\mathbf{h}_{3}+\cos\psi\,\mathbf{s}_{1})\\ &\quad-\sin\theta\,\dot{\mathbf{e}}_{\eta}+\cos\theta\,\dot{\mathbf{e}}_{\zeta}.\end{array}$$

$$\mathrm{(S)}\begin{array}[]{rl}\dot{\mathbf{R}}\cdot\mathbf{e}_{R}&=-\dot{R},\\ \dot{\mathbf{R}}\cdot\mathbf{e}_{\eta}&=-R\,\dot{\eta},\\ \dot{\mathbf{R}}\cdot\mathbf{e}_{\zeta}&=-R\,\dot{\zeta}\,\sin\eta,\end{array}$$

$$\mathrm{(S)}\begin{array}[]{rl}\dot{\mathbf{h}}_{3}\cdot\mathbf{e}_{R}&=-\sin\psi\,(\dot{\psi}+\dot{\eta}\,\cos\theta+\dot{\zeta}\,\sin\theta\sin\eta),\\ \dot{\mathbf{h}}_{3}\cdot\mathbf{e}_{\eta}&=\cos\psi\,(\dot{\eta}+\dot{\psi}\,\cos\theta)-\sin\psi\sin\theta\,(\dot{\theta}-\dot{\zeta}\,\cos\eta),\\ \dot{\mathbf{h}}_{1}\cdot\mathbf{h}_{2}&=\dot{\varphi}+\dot{\mathbf{s}}_{1}\cdot\mathbf{s}_{2}\\ &=\dot{\varphi}+\dot{\theta}\,\cos\psi+\dot{\eta}\,\sin\psi\sin\theta\\ &\quad-\dot{\zeta}\,(\sin\psi\sin\eta\cos\theta-\cos\psi\cos\eta).\end{array}$$

$$\mathrm{(S)}\begin{array}[]{rl}\dot{\mathbf{R}}\cdot\mathbf{e}_{R}&=v\cos\psi,\\ \dot{\mathbf{R}}\cdot\mathbf{e}_{\eta}&=v\sin\psi\cos\theta,\\ \dot{\mathbf{R}}\cdot\mathbf{e}_{\zeta}&=v\sin\psi\sin\theta,\end{array}$$

$$\mathrm{(S)}\begin{array}[]{rl}\dot{\mathbf{h}}_{3}\cdot\mathbf{e}_{R}&=-\Xi_{1}\,\sin\psi,\\ \dot{\mathbf{h}}_{3}\cdot\mathbf{e}_{\eta}&=\phantom{-}\Xi_{1}\,\cos\psi\cos\theta+\Xi_{2}\,\sin\theta,\\ \dot{\mathbf{h}}_{1}\cdot\mathbf{h}_{2}&=\xi_{3},\end{array}$$

$${\Xi }_1$$

$${\Xi }_2$$

$$\mathrm{(S)}\begin{array}[]{rl}\dot{R}=&-v\,\cos\psi,\\ \dot{\eta}=&-\frac{v}{R}\sin\psi\cos\theta,\\ \dot{\zeta}=&-\frac{v}{R}\sin\psi\sin\theta/\sin\eta,\\ \dot{\psi}=&\phantom{-}\frac{v}{R}\sin\psi+\Xi_{1},\\ \dot{\theta}=&-\frac{v}{R}\sin\psi\cos\theta-\Xi_{2}/\sin\psi,\\ \dot{\varphi}=&\xi_{3}+\Xi_{2}\,\cot\psi\\ &\quad+\frac{v}{R}\sin\psi\,(\cos\theta\cos\psi-\sin\theta\cos\psi\cot\eta).\end{array}$$

$$(\mathrm{I})\dot{\psi }$$

$$\boxed{\dot{\psi }=\frac{v}{R}\sin \psi +\xi +D_{\mathrm{rot}}\cot \psi .}$$

$$\dot{P}(R,\psi )=$$

$$-\frac{\partial }{\partial \psi }\left[\left(\frac{v}{R}\sin \psi +D_{\mathrm{rot}}\cot \psi \right)P\right]$$

$$+\frac{{\partial }^2}{{\partial }^2\psi }{D}_{\mathrm{rot}}P(R,\psi ).$$

$$\boxed{P^{\ast }(R,\psi )\sim 4\pi R^2\frac{\sin \psi }{2}\frac{1}{v},}$$

$$p({\psi }_i)=\frac{1}{2}\frac{{\gamma }^2}{1-\sqrt{1-{\gamma }^2}}\frac{\sin (2{\psi }_i)}{\sqrt{1-{\gamma }^2{\sin }^2{\psi }_i}}$$

$${\int }_0^{{\psi }_{\max }}d\psi p(\psi )=(R_1/R_2{)}^2.$$

$$⟨x(t)⟩={\int }_0^{d_2}dxxp(x,t)/Q(t),$$

$$⟨\mathbf{t}(t)\cdot \mathbf{n}⟩$$

$$=⟨a_1⟩⟨\mathbf{t}(t)\cdot {\mathbf{e}}_1⟩+⟨a_2⟩⟨\mathbf{t}(t)\cdot {\mathbf{e}}_2⟩$$

Full text

Many motile cells can navigate in concentration gradients of signaling molecules in a process termed chemotaxis Fraenkel and Gunn (1961), which guides foraging bacteria to food patches, immune cells to inflammation sites, or sperm cells to the egg. Both chemotaxis close to targets and random search in the absence of guidance cues have each been intensively studied, see Bénichou et al. (2011); Viswanathan et al. (2011); Alvarez et al. (2014) for reviews. Yet, navigation at intermediate distances from a target, where chemical cues provide no directional information but only indicate the proximity of a target, have attained less attention. The regulation of speed and persistence of motion as function of absolute concentration of signaling molecules is known as chemokinesis Fraenkel and Gunn (1961). Chemokinesis offers a promising navigation strategy for artificial microrobots with minimal information processing capabilities Mijalkov et al. (2016); Nava et al. (2018).

In biological cells, chemotaxis and chemokinesis usually occur together, making it difficult to disentangle their effects. At the microscopic scale of cells, molecular shot noise compromises cellular concentration measurements, rendering cellular steering responses stochastic at low chemoattractant concentrations Berg and Purcell (1977). We can decompose stochastic steering responses as a superposition of directed steering and position-dependent directional fluctuations.

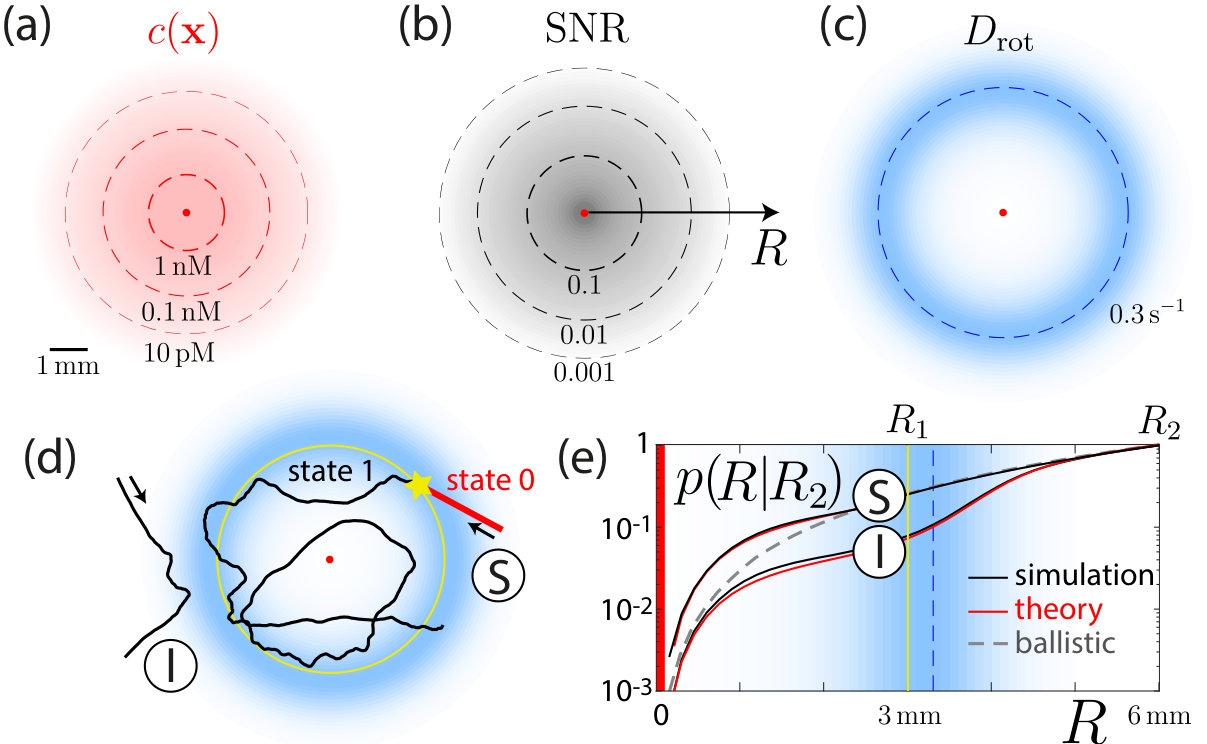

As illustration, we consider a typical chemotaxis scenario, sperm cells of marine invertebrates Jikeli et al. (2015). There, the egg releases a chemoattractant, which establishes a radial concentration field $c(\mathbf{x})$ by diffusion Kromer et al. (2018), see Fig. 1(a). Sperm cells can estimate the direction of the local concentration gradient $\nabla c$, yet the signal-to-noise ratio $\mathrm{SNR}\sim|\nabla c|^{2}/c$ of gradient-sensing decreases as function of radial distance $R=|\mathbf{x}|$, see Fig. 1(b). A previous, generic model of chemotaxis in the presence of sensing noise predicts stochastic steering responses with position-dependent directional fluctuations characterized by an effective rotational diffusion coefficient $D_{\mathrm{rot}}(\mathbf{x})$ Kromer et al. (2018), see Fig. 1(c). Remarkably, $D_{\mathrm{rot}}\sim c/(c+c_{b})^{2}$ becomes maximal at a characteristic distance from the target

($D_{\mathrm{rot}}\approx 0.3\,\mathrm{s}^{-1}$ at $R\approx 3.3\,\mathrm{mm}$),

marking a ‘noise zone’ that incoming cells have to cross Hein et al. (2016); Kromer et al. (2018). At this distance, absolute chemoattractant concentrations are above the threshold \color[rgb]{0,0,0}c_{b}\sim 10\,\mathrm{pM} for sensory adaptation, yet $\mathrm{SNR}\ll 1$ [for details, see Kromer et al. (2018) or Supplemental Material (SM)].

Motivated by this example, we pose the question whether position-dependent directional fluctuations are beneficial or disadvantageous to find a target. This question is general: Spatial modulations of speed or directional fluctuations occur also in spatially inhomogeneous activity fields that influence the active motion of artificial microswimmers Merlitz et al. (2017), or from the presence of obstacles Chepizhko and Peruani (2013); Wang et al. (2017). Recent studies suggest an intriguing effect of position-dependent motility parameters on search success Schwarz et al. (2016a); Merlitz et al. (2017), termed ‘pseudochemotaxis’ Schnitzer (1993) in Ghosh et al. (2013); Vuijk et al. (2018).

We emphasize that regulation of speed $v=v(\mathbf{x})$ as function of position $\mathbf{x}$ (termed orthokinesis Fraenkel and Gunn (1961); considered previously in Ghosh et al. (2013); Vuijk et al. (2018)), and regulation of effective rotational diffusion coefficient $D_{\mathrm{rot}}=D_{\mathrm{rot}}(\mathbf{x})$ (klinokinesis Fraenkel and Gunn (1961); considered here) are equivalent: We can map orthokinesis on klinokinesis and vice versa, by a position-dependent time reparametrization of trajectories proportional to $v(\mathbf{x})^{-1}$. Such reparametrization changes conditional mean first passage times, but not the probability to find a target.

In this letter, we develop a theory of chemokinetic search agents that regulate the level of directional fluctuations as function of distance from a target. Our model generalizes active Brownian particles (ABP), frequently used as minimal model for cell motility, e.g. of biological or artificial microswimmers Romanczuk et al. (2012); Bechinger et al. (2016); Friedrich (2008). We characterize a dynamic scattering effect that reduces the probability to penetrate regions with high fluctuations. Using matched asymptotics between the limit cases of ballistic and diffusive motion, we develop an analytical theory of this scattering effect. Scattering always reduces the probability to find a target compared to pure ballistic search for agents that respond instantaneously to positional cues. Yet, scattering substantially increases search success for agents with internal states that are able to suppress chemokinesis until they came close to the target for a first time, allowing these agents to realize multiple attempts to hit the target. The statistical physics of agents with instantaneous response and those with internal states is fundamentally different: while the former display a homogeneous mean residence time, this property is violated in the presence of internal states.

Adaptive Active Brownian Particles (ABP).

We consider an ABP moving along a trajectory $\textbf{R}(t)$ in three-dimensional space with speed $v$ and rotational diffusion coefficient $D_{\mathrm{rot}}$. Rotational diffusion causes its tangent $\mathbf{t}=\dot{\mathbf{R}}/v$ to decorrelate on a time-scale $\tau_{p}=l_{p}/v$ set by the persistence length $l_{p}=v/(2D_{\mathrm{rot}})$, where dots denote time derivatives. Hence, $\langle\mathbf{t}(t_{0})\cdot\mathbf{t}(t_{0}+t)\rangle=\exp(-|t|/\tau_{p})$ Daniels (1952). As minimal model of chemokinesis with instantaneous regulation of motility, we consider ABP that adjust speed and rotational diffusion coefficient as function of position $\mathbf{x}$, $v=v(\mathbf{x})$ and $D_{\mathrm{rot}}=D_{\mathrm{rot}}(\mathbf{x})$. The steady-state density distribution for an ensemble of ABP is independent of $D_{\mathrm{rot}}$ and inversely proportional to $v$ (i.e., agents spend proportionally more time in locations, where they move slower), with isotropically distributed tangent directions.

Let a single spherical target of radius $R_{0}$ be located at $\mathbf{R}{=}0$, and $v=v(|\mathbf{x}|)$, $D_{\mathrm{rot}}=D_{\mathrm{rot}}(|\mathbf{x}|)$. Due to spherical symmetry, the time-dependent distance $R(t)=|\mathbf{R}(t)|$ of the ABP from the origin, and the time-dependent angle $\psi(t)$ enclosed by the tangent $\mathbf{t}$ and the radial direction $\mathbf{e}_{R}=-\mathbf{R}/R$, decouple from other coordinates, see SM

[TABLE]

Here, $\xi(t)$ is Gaussian white noise with $\langle\xi(t)\rangle=0$ and $\langle\xi(t)\xi(t^{\prime})\rangle=\delta(t-t^{\prime})$.

Example: directional fluctuations of chemotaxis.

We consider an adaptive ABP with constant speed $v$ and position-dependent $D_{\mathrm{rot}}(\mathbf{x})$ as depicted in Fig. 1(c). We assume $R(t=0)=R_{2}$ and random initial directions with direction angle $\psi$ distributed according $p(\psi)=\sin(2\psi)$ for $0\leq\psi\leq\pi/2$, corresponding to the steady-state influx of ABP at $R_{2}$ for random initial conditions outside $R_{2}$, see SM.

In Fig. 1(d), the trajectory labeled (I) is scattered back as soon as it encounters an elevated $D_{\mathrm{rot}}$. Indeed, the penetration probability $p(R|R_{2})$ for such ABP starting at distance $R_{2}$ to reach $R$ before returning to $R_{2}$ is substantially lower than for ballistic motion with $D_{\mathrm{rot}}=0$, see Fig. 1(e). For this case of instantaneous chemokinesis, directional fluctuations reduce the probability $p(R_{0}|R_{2})$ to find the target.

In contrast, we may consider an ABP with two internal states [labeled (S) in Fig. 1(d)], which initially moves ballistically with $D_{\mathrm{rot}}=0$ (state 0), and only upon crossing a boundary at $R_{1}$ switches on chemokinesis with $D_{\mathrm{rot}}=D_{\mathrm{rot}}(\mathbf{x})$ as in case (I) (state 1). For this two-state chemokinesis, directional fluctuations increase the probability to find a target, see Fig. 1(e). Next, we consider minimal models to explain this phenomenon.

Spatial inhomogeneous directional fluctuations cause dynamic scattering of ABP.

We first consider a minimal model with constant speed $v$ and rotational diffusion coefficient $D_{\mathrm{rot}}(R)$ that is piecewise constant in zones concentric with the target, see Fig. 2(a)

[TABLE]

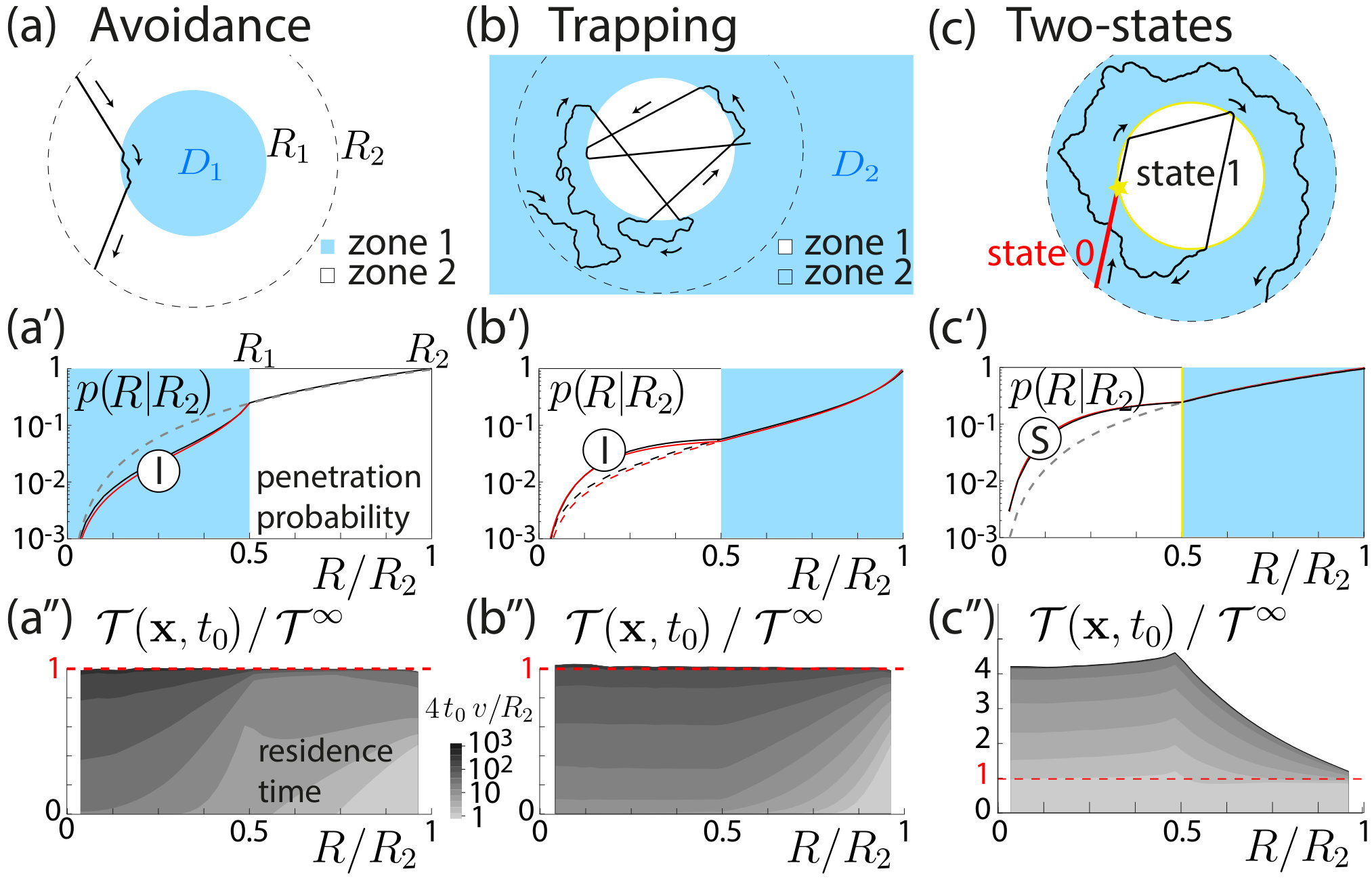

We illustrate the effect of spatially inhomogeneous rotational diffusion coefficient in two special cases, termed avoidance and trapping Fraenkel and Gunn (1961), see Fig. 2(a,b). ABPs start at $R{=}R_{2}$ with random inward pointing initial direction angles $\psi$ and terminate once they reach $R_{2}$ again.

If the ABP increases $D_{\mathrm{rot}}$ upon entering zone 1, most trajectories that enter zone 1 promptly return to zone 2, being scattered back due to the decrease in directional persistence, see Fig. 2(a).

Again, the penetration probability $p(R|R_{2})$ for this case is lower than for ballistic motion, see Fig. 2(a*′*): most ABP avoid zone 1. However, the ensemble-averaged residence time $\mathcal{T}(\mathbf{x})$ at each position $\mathbf{x}$ (with units time-per-volume) is spatially homogeneous, and equals the value $\mathcal{T}^{\infty}$ for ballistic motion. This is a direct corollary of the fact that the steady-state probability density for Eqs. (1,2) is independent of $D_{\mathrm{rot}}$. Elementary geometry gives $\mathcal{T}^{\infty}=4/(vS)$ with $S{=}4\pi R_{2}^{2}$ Case and Zweifel (1967).

Thus, the mean residence time of inhomogeneous persistent random walks is the same as the mean residence time for ballistic motion. This extends a prominent result for homogeneous stochastic motion Blanco and Fournier (2003); Bénichou et al. (2005), also known as mean-chord-length property, which found applications for wave scattering Pierrat et al. (2014) and modeling of neutron transport Zoia et al. (2019). The original proof can be adapted to inhomogeneous stochastic motion, asserted in Blanco and Fournier (2006). Related results were discussed for position-dependent translational diffusion Schnitzer (1993); Lau and Lubensky (2007); Nava et al. (2018).

Intuitively, although most trajectories are reflected away from zone 1, a small fraction of trajectories will penetrate into zone 1 and dwell there an extended period of time before leaving eventually. Fig. 2(a*′′*) shows a time-bounded residence time $\mathcal{T}(\mathbf{x},t_{0})$ to find an ABP at position $\mathbf{x}$ at distance $R$ before time $t_{0}$ [with $\lim_{t_{0}\rightarrow\infty}\mathcal{T}(\mathbf{x},t_{0})=\mathcal{T}(\mathbf{x})$].

If the ABP instead increases $D_{\mathrm{rot}}$ when leaving zone 1, trajectories that have just left zone 1 may be scattered back, see Fig. 2(b). ABPs are “trapped” in zone 1. Concomitantly, $p(R|R_{2})$ is higher than for spatially homogeneous persistent random walks with $D_{1}=D_{2}>0$, see Fig. 2(b*′). Again, $\mathcal{T}(\mathbf{x})=\mathcal{T}^{\infty}$, see Fig. 2(b′′*). Intuitively, although some trajectories become trapped, many trajectories are scattered back to $R_{2}$ before they ever enter zone 1.

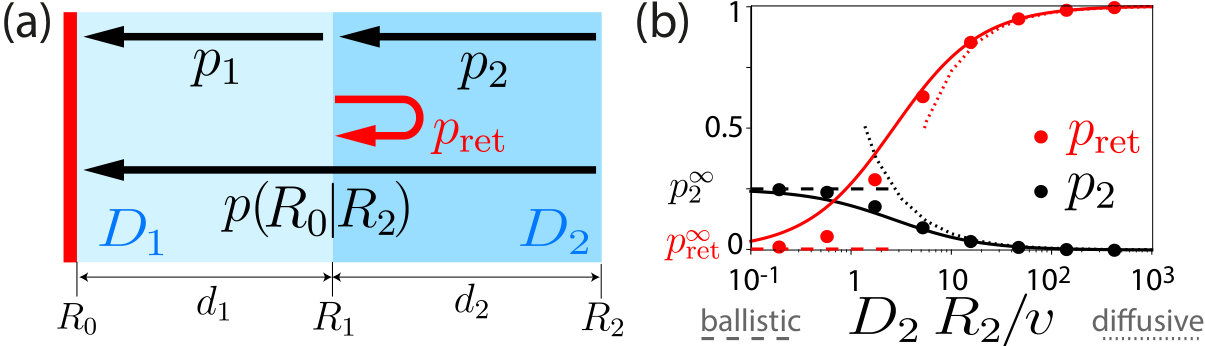

The case in Fig. 2(a) corresponds to chemokinetic avoidance Fraenkel and Gunn (1961); imagine, zone 1 represents unfavorable conditions that agents seek to avoid. Remarkably, while most agents benefit, a small number will suffer an adverse effect, spending more time in the unfavorable zone 1.

Instantaneous chemokinesis $\mathrm{(I)}$ versus two-state chemokinesis $\mathrm{(S)}$.

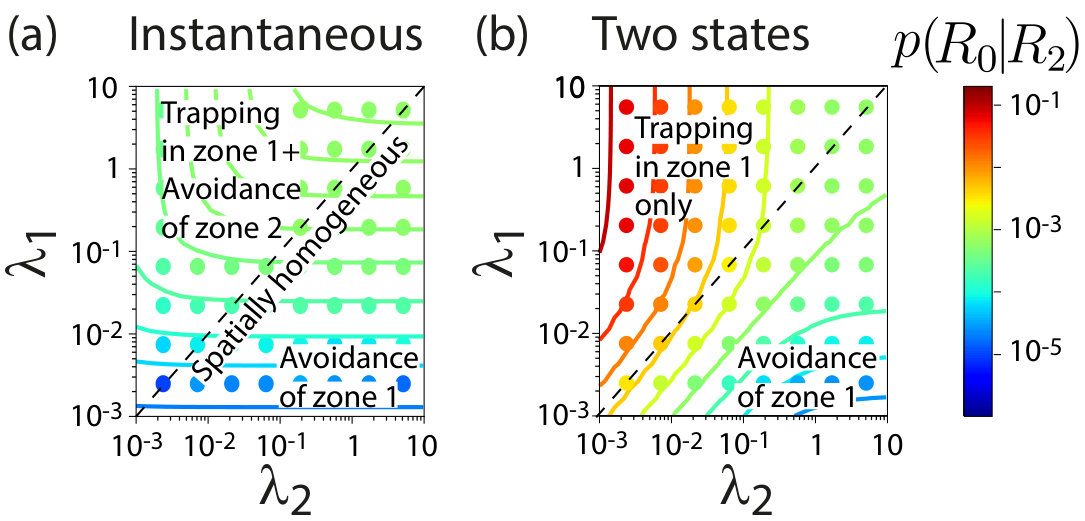

To characterize the role of scattering for target search, we introduce the return probability $p_{\mathrm{ret}}$ to re-enter zone 1 after entering zone 2 at $R{=}R_{1}$ (with random outwards pointing initial direction), and analogous zone-crossing probabilities $p_{1}{=}p(R_{0}|R_{1})$ and $p_{2}{=}p(R_{1}|R_{2})$, see Fig. 3(a). The probability $p(R_{0}|R_{2})$ for ABP with instantaneous chemokinesis starting at $R_{2}$ to hit the target of radius $R_{0}$ can be expressed in terms of these zone-crossing probabilities as a geometric series

[TABLE]

Here, the $k$-th summand denotes the probability of successful trajectories that cross $R_{1}$ exactly $2k+1$-times. The only assumption made in deriving Eq. (4) is a stereotypic distribution of direction angles at zone boundaries. Eq. (4) corroborates that inward scattering at $R_{1}$ implies effective trapping of trajectories in zone 1, allowing for multiple attempts to hit the target.

Generally, $p_{i}$ is a monotonically decreasing function of $D_{i}$, see Fig. 3(b), with maximal value $p_{i}^{\infty}$ obtained for ballistic motion

[TABLE]

Note that $p_{\mathrm{ret}}$ and $p_{2}$ both depend on $D_{2}$, and thus cannot be optimized independently, see Fig. 3(b): increasing $D_{2}$ increases scattering of outgoing trajectories (thus increasing $p_{\mathrm{ret}}$), yet also increases scattering of incoming trajectories (thus decreasing $p_{2}$).

An ABP with two internal states can decouple scattering of incoming and outgoing trajectories. Analogous to Fig. 1(d)-label (S), we assume that ABP initially move ballistically with $D_{\mathrm{rot}}{=}0$ (state 0). Upon first entering zone 1, ABP permanently switch to state 1 and subsequently obey Eq. (3), see Fig. 2(c). Fig. 2(c*′) demonstrates a dramatic increase of $p(R|R_{2})$. Concomitantly, $\mathcal{T}(\mathbf{x})$ is not homogeneous anymore, see Fig. 2(c′′*).

Analytical theory.

We derive approximate analytical expressions for the return probability $p_{\mathrm{ret}}$ using matched asymptotics ($p_{1}$ and $p_{2}$ are analogous). Results compare favorably to simulations, see Fig. 2.

An ABP entering zone 2 from zone 1 at time $t{=}0$ initially continues moving in approximately radial direction, before its direction of motion decorrelates on a time-scale $\tau_{p}{=}(2D_{2})^{-1}$. For times $t\gg\tau_{p}$, the ABP exhibits isotropic random motion. We treat these two dynamic phases separately, and introduce a cross-over time $t_{0}$ with $\tau_{p}\ll t_{0}\ll D_{2}(d_{2}/v_{0})^{2}$.

For the first phase, we are interested in the penetration depth $\langle x(t)\rangle$, i.e., the conditional expectation value of radial position $R_{1}+x$ of ABPs that have not yet been absorbed at $R_{1}$ at time $t$. Let $Q(t)$ be the corresponding survival probability. In the limit $l_{2}\ll R_{1}$, we can approximate the absorbing spherical shell at $R_{1}$ by a plane $H$. Using symmetry of renewal processes under reflection at $H$, we compute $\lim_{t\rightarrow\infty}\langle x(t)\rangle Q(t)=\alpha l_{2}$ with $\alpha=4/3$, see SM. Intuitively, while fewer and fewer ABPs survive, their mean distance from $H$ diverges as $\langle x(t)\rangle\sim\alpha l_{2}(t/\tau_{p})^{1/2}$.

We now address the second dynamic phase $t\geq t_{0}$, and calculate $p_{\mathrm{ret}}$. Those ABPs that have not been absorbed at $R_{1}$ before $t_{0}$ will likely be found at a distance $x\gg l_{2}$ from $R_{1}$, and we may approximate these as diffusive particles. The probability that a diffusive particle reaches $R_{2}$ if released at radial position $R$ between two absorbing spherical shells of radii $R_{1}$ and $R_{2}$ reads $p(R)=(R_{2}/R)(R-R_{1})/(R_{2}-R_{1})$ Berg and Purcell (1977). Choosing $R=R_{1}+\langle x(t_{0})\rangle\approx R_{1}+\alpha l_{2}/Q(t_{0})$ yields an asymptotic result for $q=1-p_{\mathrm{ret}}$ as $q\approx Q(t_{0})p[R(t_{0})]$, valid for $\lambda_{2}\ll(\tau_{p}/t_{0})^{1/2}$. Here, we introduced the ratios $\lambda_{i}=l_{i}/d_{i}$ between the persistence length $l_{i}=v/(2D_{i})$ inside zone $i$ and zone width $d_{i}=R_{i}-R_{i-1}$, $i=1,2$.

We can extend this asymptotic expression to the entire range $0<\lambda_{2}<\infty$ by interpolating with the limit value $q^{\infty}=\lim_{\lambda_{2}\rightarrow\infty}1-p_{\mathrm{ret}}=1$ for ballistic motion, using the simple ansatz of a saturation curve $q\approx\gamma\lambda_{2}q^{\infty}/[q^{\infty}+\gamma\lambda_{2}]$ with $\gamma={\partial q/\partial\lambda_{2}}_{|\lambda_{2}=0}$. We find

[TABLE]

Analogously, $p_{i}\approx\alpha\lambda_{i}\,p_{i}^{\infty}R_{i-1}/(R_{i}p_{i}^{\infty}+\alpha\lambda_{i}R_{i-1})$ with $\lambda_{i}=v/(2D_{i}d_{i})$, $i=1,2$.

Continuum limit.

By induction, we can generalize the minimal model of Eq. (3) with $n=2$ zones to the case of $n>2$ zones concentric with the origin bounded by $R_{i-1}<R\leq R_{i}$, $i=1\ldots,n$. From Eqs. (4,6), we obtain a recursion relation for $p(R_{0}|R_{i})$, see SM for details. In the continuum limit $n\rightarrow\infty$, we obtain a differential equation for $p(R_{0}|R)$, describing the penetration probability for the case of instantaneous chemokinesis, where $D_{\mathrm{rot}}=D_{\mathrm{rot}}(R)$ may be an arbitrary function of $R$

[TABLE]

By definition, $p(R_{0}|R_{0})=1$. We conclude that for instantaneous chemokinesis, the probability to find a target is always smaller compared to ballistic motion. For two-state chemokinesis with threshold distance at $R_{1}$, the penetration probability equals $p^{\infty}(R|R_{2})$ for $R_{1}\leq R<R_{2}$, and differs from $p(R|R_{2})$ by a factor $p^{\infty}(R_{1}|R_{2})/p(R_{1}|R_{2})>1$ for $R<R_{1}$, see Fig. 2(c*′*).

Discussion.

Using a minimal model of a chemokinetic agent that regulates its rotational diffusion coefficient $D_{\mathrm{rot}}$ as function of distance from a target, we explain how search agents can harness spatially inhomogeneous directional fluctuations to find targets more efficiently if they possess internal states.

This chemokinesis strategy exploits a dynamic scattering effect that scatters agents away from regions where directional fluctuations are high. Agents that have just missed the target and move on an outgoing trajectory can thus become scattered inward again and realize an additional search attempt. Yet, agents with instantaneous chemokinesis face a trade-off between this beneficial inward scattering of outgoing trajectories, and unwanted outward scattering of incoming trajectories. Agents can avoid this trade-off if they suppress chemokinesis when approaching the target for the first time. In our minimal model, this strategy is realized by agents with two internal states,

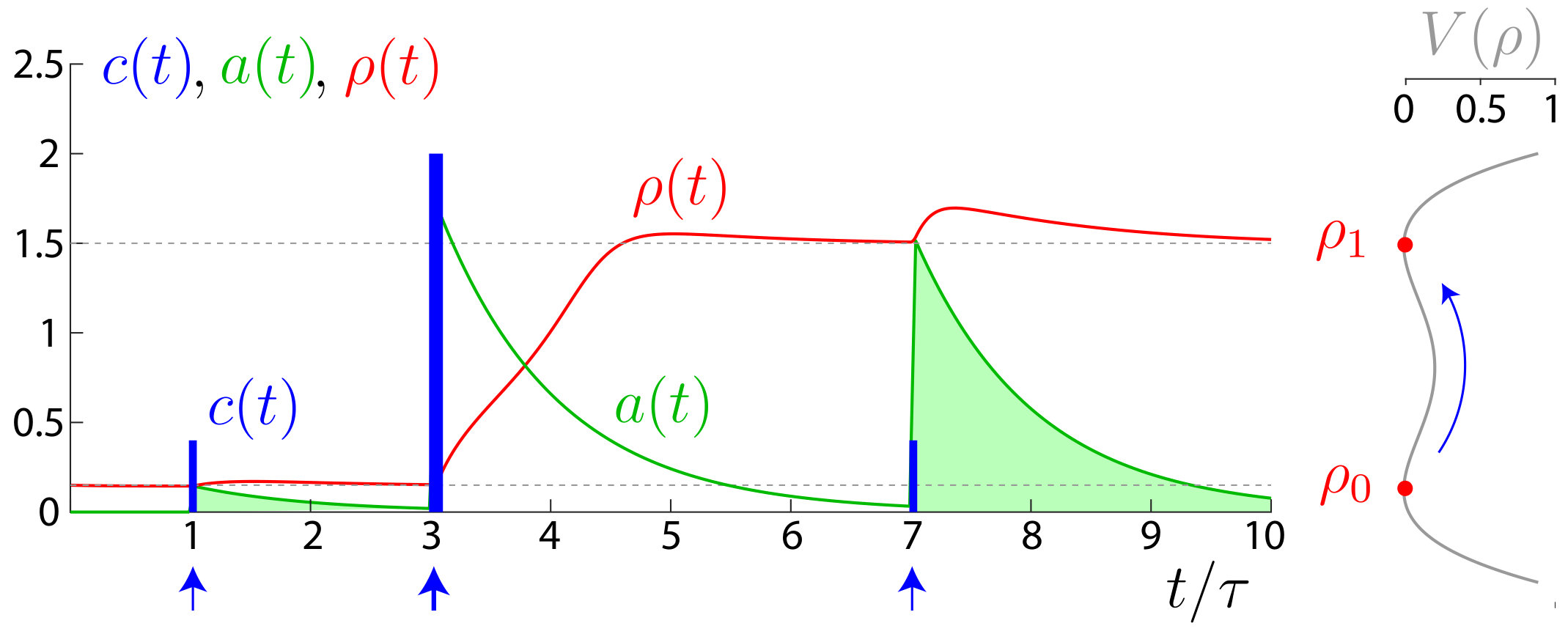

which could be implemented by a bistable switch, see SM;

alternatively, sensorial delay, memory, or hysteresis could serve a similar purpose.

Scattering is a genuinely dynamic effect. Consequently, the probability to find a target in spatially inhomogeneous systems cannot be predicted from mass-action laws on the basis of ensemble-averaged mean residence times (which in fact are spatially homogeneous for instantaneous chemokinesis). This highlights a fundamental difference between the dynamical and the steady-state behavior of spatially inhomogeneous active systems Vuijk et al. (2018); Ghosh et al. (2013).

The dynamic scattering effect described here explains the increased target encounter rates previously observed for spatially-heterogeneous search of particles switching between ballistic and diffusive runs Schwarz et al. (2016a, b), as well as search in spatially inhomogeneous activity fields Merlitz et al. (2017); Vuijk et al. (2018) (using the mapping between klinokinesis and orthokinesis, see introduction).

Our work connects to a recent interest in composite search strategies Plank and James (2008); Loverdo et al. (2009); Bénichou et al. (2011); Bartumeus et al. (2014); Nolting et al. (2015). While most authors considered agents that stochastically switch between different levels of directional fluctuations, switching is triggered by proximity to a target in our case, representing resource-sensitive composite search Benhamou (1992); Nolting et al. (2015).

In addition to chemokinesis studied here, chemotaxis can become useful in the ultimate vicinity of the target, where the signal-to-noise ratio of gradient-sensing exceeds one, thus setting an effective target size.

Our theoretical work suggests that single-molecule sensitivity of chemotactic cells Strünker et al. (2015) may in fact be disadvantageous during the initial approach to a target surrounded by a static, radial concentration field. In contrast, single-molecule sensitivity would be advantageous after cells have passed a ‘noise zone’, where the concentration of signaling molecules equals the cell’s sensitivity threshold. As experimental test, chemotactic responses of cells with single-molecule sensitivity could be compared before and after exposure to high concentrations.

Appendix A Supplemental Material

Justus A. Kromer, Noelia de la Cruz, Benjamin M. Friedrich: ** Chemokinetic scattering, trapping, and avoidance of active Brownian particles **

A.1 Numerical methods

For numeric integration of Eqs. (1) and (2), we used an explicit Euler-Maruyama method with integration time step $\Delta t=0.5\cdot 10^{-4}\,R_{2}/v$. As control, we additionally simulated ABP trajectories in three-dimensional space, using an Euler-Heun scheme with matrix exponentials for propagation of the Frenet-Serret frame. Time step was $dt=0.25\cdot 10^{-3}\,R_{2}/v$; analogous simulations using a smaller time step of $dt=0.25\cdot 10^{-4}\,R_{2}/v$ gave consistent results. ABP were initially positioned at $R_{2}$ with initial direction angle $\psi$ distributed according to $p(\psi)=\sin(2\psi)$ for $0\leq\psi<\pi/2$ and $p(\psi)=0$ else (unless stated otherwise). Simulations were stopped after a maximum search time of $250\,R_{2}/v$ for Fig. 1(e) and Fig. 2, $500\,R_{2}/v$ for Fig. 3(b), $2.4\cdot 10^{3}\,R_{2}/v$ for Fig. S6(a), and $1.5\cdot 10^{5}\,D_{0}^{-1}$ for Fig. S6(b). We simulated $n=10^{6}$ ABP per data point for Fig. 2, Fig. 3(b), Fig. S2, and Fig. S6(a), as well as $n=10^{4}$ ABP for Fig. 1(e), and Fig. S6(b). For Fig. S6(b) [orthokinesis], an adaptive time-step was used.

A.2 Derivation of Eqs. (1,2)

The stochastic differential equation Eqs. (1,2) can be derived using previously published ideas Friedrich and Jülicher (2009); Kromer et al. (2018). We include the derivation for completeness, generalizing the derivation in the PhD thesis of one of the authors (available at: http://nbn-resolving.de/urn:nbn:de:bsz:14-ds-1235056439247-79608).

We consider the trajectory $\mathbf{R}(t)$ of an ABP with speed $v$ and rotational diffusion coefficient $D_{\mathrm{rot}}$, together with a material frame with orthonormal vectors $\mathbf{h}_{1}$, $\mathbf{h}_{2}$, $\mathbf{h}_{3}$, where $\mathbf{h}_{3}$ shall denote the tangent $\mathbf{h}_{3}=\mathbf{t}=\dot{\mathbf{R}}/v$ of $\mathbf{R}(t)$. The stochastic equation of motion reads in Stratonovich (S) interpretation

[TABLE]

where $\xi_{i}(t)$ denote independent white noise processes with $\langle\xi_{i}(t)\xi_{j}(t^{\prime})\rangle=2D_{\mathrm{rot}}\,\delta_{ij}\,\delta(t-t^{\prime})$.

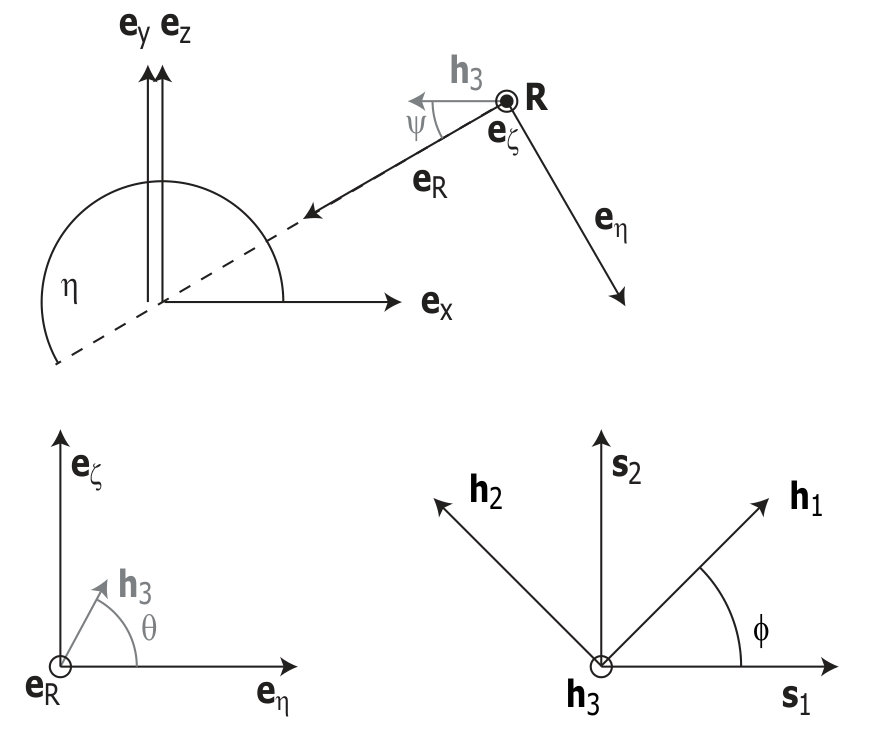

We will rewrite the equation of motion Eq. (S1) using spherical coordinates, see Fig. S1. We first introduce a system of orthonormal vectors comprising the inward radial vector $\mathbf{e}_{R}=-\mathbf{R}/R$ with $R=|\mathbf{R}|$, as well as vectors $\mathbf{e}_{\eta}$ and $\mathbf{e}_{\zeta}$ given by

[TABLE]

We note $\mathbf{e}_{\eta}=\frac{\partial}{\partial\eta}\mathbf{e}_{R}$, and $\mathbf{e}_{\zeta}=\mathbf{e}_{R}\times\mathbf{e}_{\eta}=\frac{\partial}{\partial\zeta}\mathbf{e}_{R}/\sin\eta$.

We express the position vector $\mathbf{R}$ and the material frame vectors $\mathbf{h}_{1}$, $\mathbf{h}_{2}$, $\mathbf{h}_{3}$ with respect to $\mathbf{e}_{R}$, $\mathbf{e}_{\eta}$, $\mathbf{e}_{\zeta}$, introducing Euler angles $\psi$, $\theta$, $\varphi$

[TABLE]

where

[TABLE]

Note that $\mathbf{s}_{1}$, $\mathbf{s}_{2}$, $\mathbf{h}_{3}$ form a system of orthonormal vectors; rotation by $\varphi$ around $\mathbf{h}_{3}$ maps this system onto $\mathbf{h}_{1}$, $\mathbf{h}_{2}$, $\mathbf{h}_{3}$.

The vectors $\mathbf{e}_{R}$, $\mathbf{e}_{\eta}$, $\mathbf{e}_{\zeta}$ obey the dynamic equations

[TABLE]

whereas

[TABLE]

Note that the rules of ordinary calculus apply in Stratonovich calculus.

From Eq. (S3), we find for the following scalar products

[TABLE]

as well as

[TABLE]

Using Eq. (S1), we can express these scalar products alternatively as

[TABLE]

as well as

[TABLE]

where we used short-hand

[TABLE]

Comparing Eqs. (S10,S11) and (S12,S13), we can now solve for $\dot{R}$, $\dot{\eta}$, $\dot{\zeta}$, $\dot{\psi}$, $\dot{\theta}$, $\dot{\varphi}$ and find

[TABLE]

The stochastic differential equation for $\dot{\psi}$ contains a multiplicative noise term $\Xi_{1}$, which depends on $\varphi$. We can decouple the dynamics of $\psi$ from $\varphi$ by using a simple trick: First, we rewrite the equation as an Itō stochastic differential equation

[TABLE]

This Itō differential equation contains a noise-induced drift term Lau and Lubensky (2007), $(1/2)\,2D_{\mathrm{rot}}\,d(\sin\varphi)/d\varphi\,\cos\varphi\,\cot\psi+(1/2)\,2D_{\mathrm{rot}}\,d(\cos\varphi)/d\varphi\,(-\sin\varphi)\,\cot\psi=D_{\mathrm{rot}}\cot\psi$. In Itō calculus, $\xi_{1}\,\sin\varphi+\xi_{2}\,\cos\varphi$ is equivalent to a Gaussian white noise term $\xi$ with $\langle\xi(t)\,\xi(t^{\prime})\rangle=2D_{\mathrm{rot}}\,\delta(t-t^{\prime})$ since $\varphi(t)$ and $\xi_{i}(t)$, $i=1,2$ are independent. Thus, we have an equivalent Langevin equation for the dynamics of $\psi$, which contains only non-multiplicative noise $\xi(t)$

[TABLE]

The corresponding Fokker-Planck equation reads

[TABLE]

The steady-state density distribution $P^{\ast}(R,\psi)$ for an ensemble of agents follows as

[TABLE]

provided speed $v=v(R)$ and rotational diffusion coefficient $D_{\mathrm{rot}}=D_{\mathrm{rot}}(R)$ depend on distance $R$ but not on direction $\psi$. Hence, $P^{\ast}(\mathbf{R},\psi)$ is independent of $D_{\mathrm{rot}}$ and inversely proportional to $v$, with isotropically distributed direction angles $\psi$. This known fact can be derived also from the Fokker-Planck equation of ABP in Cartesian coordinates, $\dot{P}(\mathbf{x},\mathbf{t},t)=-\partial_{\mathbf{x}}v(\mathbf{x})\mathbf{t}P+D_{\mathrm{rot}}(\mathbf{x})\triangle_{\mathbf{t}}P$, where $\triangle_{\mathbf{t}}$ denotes the spherical Laplacian.

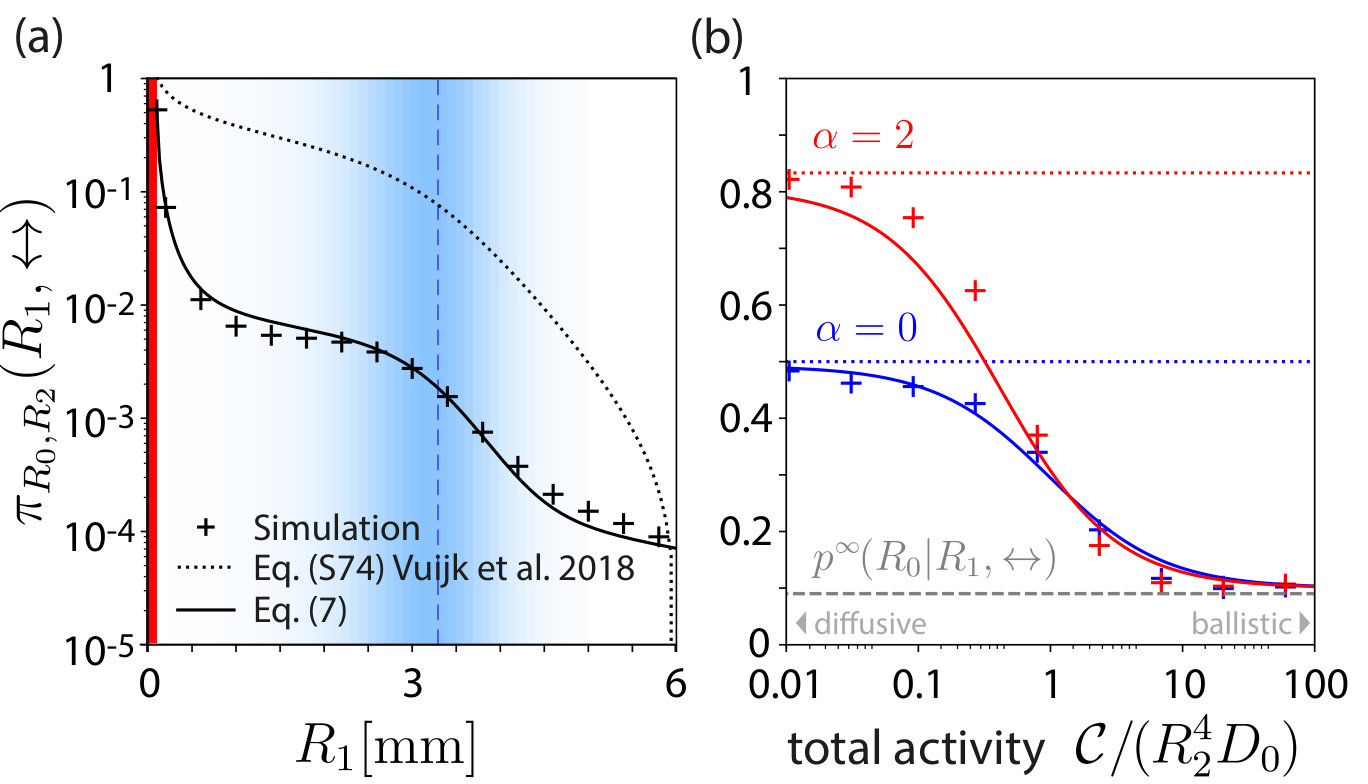

Of note, previous authors derived a one-dimensional phenomenological diffusion law with position-dependent translational degrees of freedom for ABP with position-dependent speed by averaging out directional degrees of freedom Sharma et al. (2017); Vuijk et al. (2018), using Fox’ colored noise approximation Fox (1986). In short, directional persistence with persistence time $\tau_{p}$ is approximated as colored noise with same correlation time. In the limit $\tau_{p}\rightarrow 0$, a noise-induced drift term remains Vuijk et al. (2018), which implies $P^{\ast}(\mathbf{x})\sim 1/v(\mathbf{x})$. The fact that persistent random walks will penetrate a certain distance into a zone with high directional fluctuations before the distribution of their directions becomes isotropic is implicit in these coarse-grained theories Sharma et al. (2017); Vuijk et al. (2018) in the choice of stochastic calculus used to interpret position-dependent translational diffusion coefficients Lau and Lubensky (2007).

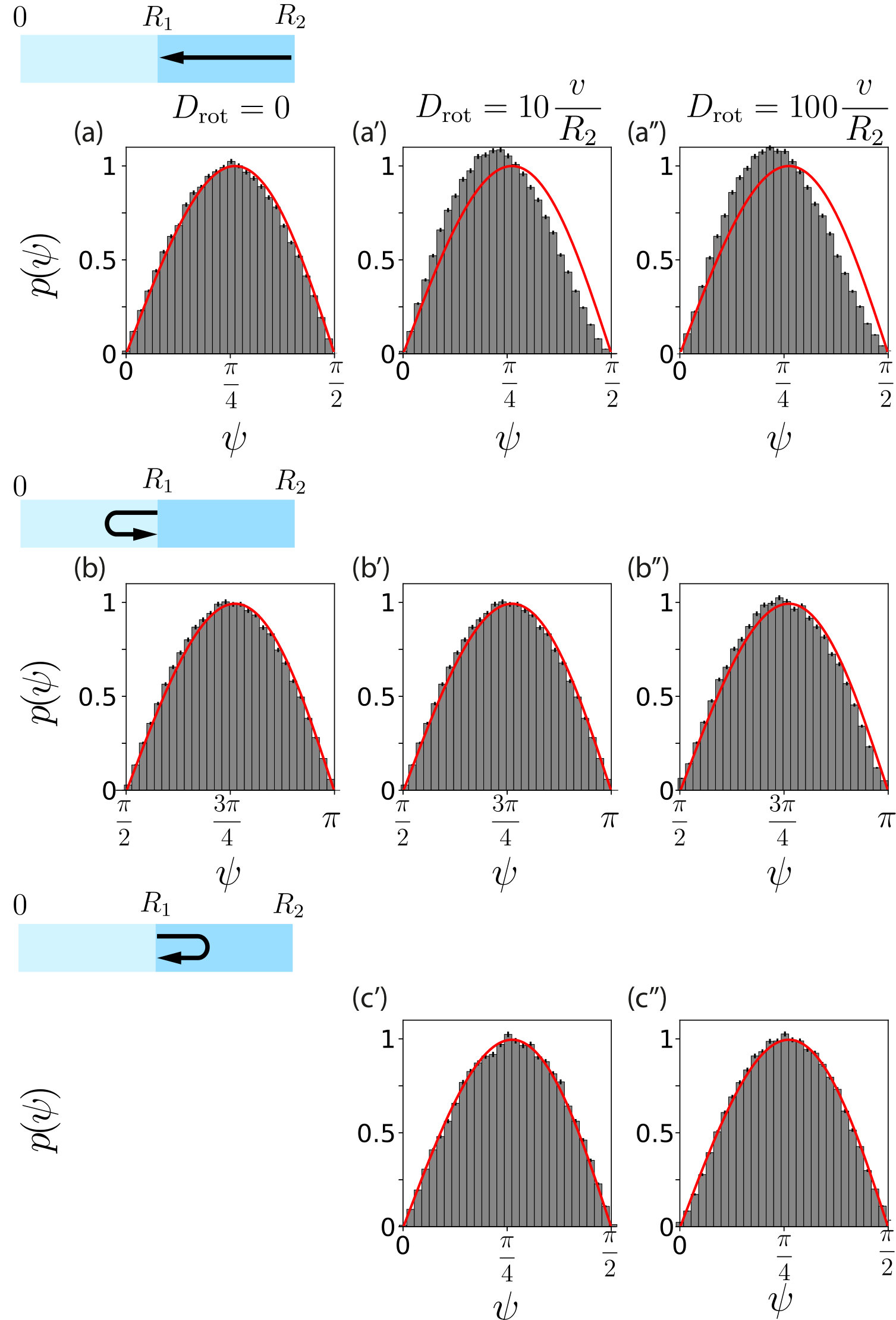

A.3 Distribution of direction angles for persistent random walks crossing a boundary

We compute the probability density $p(\psi)$ of direction angles $\psi$ at which ABPs will cross a spherical shell $S_{i}$ of radius $R_{i}$. The Langevin equation Eqs. (1,2) can be rewritten as a Fokker-Planck equation $\dot{p}(R,\psi;t)=-\nabla\cdot\mathbf{J}$ with probability current $\mathbf{J}$ that satisfies $\mathbf{J}\cdot\mathbf{e}_{R}=v\cos\psi\,p(R,\psi;t)$.

We make the simplifying assumption that tangent directions are isotropically distributed, $p(R,\psi;t)\sim\sin\psi$. Thus, the direction angles $\psi$ of trajectories $\mathbf{R}(t)$ crossing $S_{i}$ from the outside to the inside are distributed according to $p(\psi)=\sin(2\psi)$ for $0\leq\psi<\pi/2$ and $p(\psi)=0$ else, whereas the direction angles of trajectories crossing $S_{i}$ from the inside to the outside are distributed according to $p(\psi)=\sin(-2\psi)$ for $\pi/2\leq\psi\leq\pi$ and $p(\psi)=0$ else.

The assumption of isotropically distributed directions may not be valid if we restrict ourselves to specific initial conditions, e.g. trajectories that start at a distance $R_{i+1}$ and become absorbed at $R_{i}$. Fig. S2 displays simulation results for $p(\psi)$ for different initial conditions, demonstrating that $p(\psi)=\sin(2\psi)$ still holds approximately.

We can find an analytical result for the case of ballistic trajectories, showing that $p(\psi)$ converges to $\sin(2\psi)$ if the initial position is sufficiently far from $R_{i}$. We consider a spherical shell $S_{i}$ with radius $R_{i}$, and a current of ballistic trajectories starting at each position of a concentric spherical shell with radius $R_{i+1}$ with constant rate $j_{0}$ and isotropically distributed direction. The corresponding flux as function of the direction angle $\psi_{0}$ at the start position reads $j(\psi_{0})=j_{0}\sin(\psi_{0})/2$. A ballistic trajectory will hit the sphere $S_{i}$ if and only if $\sin\psi_{0}\leq\gamma$, where $\gamma=R_{i}/R_{i+1}<1$. For these trajectories, the direction angle $\psi_{i}$ at $S_{i}$ is related to $\psi_{0}$ by $\sin\psi_{i}=\sin\psi_{0}/\gamma$. We can parameterize this sub-ensemble of ballistic trajectories by either $\psi_{0}$ or $\psi_{i}$. Using $j(\psi_{i})\sim j(\psi_{0})(d\psi_{0}/d\psi_{i})$, we obtain for the distribution of angles $p(\psi_{i})$ of trajectories hitting $S_{i}$ due to $p(\psi_{i})\sim j(\psi_{i})$

[TABLE]

for $0\leq\psi_{i}<\pi/2$ and $p(\psi_{i})=0$ else. Thus, for $\gamma=1$, $p(\psi_{i})=\sin(\psi_{i})$, while in the limit $\gamma\ll 1$ (corresponding to large zones with $R_{0}/R_{1}\ll 1$ and a limit of sparse targets), we recover the result for persistent random walks derived above, $p(\psi_{i})=\sin(2\psi_{i})$ for $0\leq\psi_{i}<\pi/2$ and $p(\psi_{i})=0$ else.

A.4 Derivation of Eq. (5)

We consider a ballistic trajectory $\mathbf{r}(t)$ starting at a point $\mathbf{r}(t_{0})$ on a sphere of radius $R_{2}$, whose tangent vector encloses an angle $\psi$ with the radial direction vector $\mathbf{e}_{R}$ at the start point $\mathbf{r}(t_{0})$. This trajectory will hit a sphere of radius $R_{1}$ with $R_{1}<R_{2}$ concentric with the first sphere if and only if $0\leq\psi\leq\psi_{\mathrm{max}}$, where $\sin\psi_{\mathrm{max}}=R_{1}/R_{2}$. For a probability density $p(\psi)=\sin(2\psi)$ of initial direction angles with $0\leq\psi\leq\pi/2$, we obtain for the probability to hit the sphere of radius $R_{1}$

[TABLE]

A.5 Derivation of Eq. (6)

We provide additional details on the derivation of Eq. (6) for the return probability $p_{\mathrm{ret}}$.

We first consider the limit $\lambda_{2}\ll 1$. An ABP entering zone 2 from zone 1 at time $t=0$ will first continue moving in approximately radial direction before the tangent direction of its trajectory decorrelates. If the direction angle $\psi_{0}$ of the tangent vector $\mathbf{t}(0)$ at $t=0$ is randomly distributed according to $p(\psi_{0})=\sin(-2\psi_{0})$ for $\pi/2\leq\psi_{0}\leq\pi$ and $p(\psi_{0})=0$ else, we have $\langle\mathbf{t}(t)\cdot\mathbf{e}_{R}(0)\rangle=-(2/3)\exp(-t/\tau_{p})$ with $\tau_{p}=l_{2}/v$. For times $t\gg\tau_{p}$, the ABP will exhibit isotropic random motion. We introduce a cross-over time $t_{0}$ with $\tau_{p}\ll t_{0}\ll D_{2}(d_{2}/v_{0})^{2}$.

For the first dynamic phase defined by $t\leq t_{0}$, we introduce the non-normalized probability density $p(x,t)$ to find an ABP at radial position $R_{1}+x$ at time $t$, where we impose absorbing boundary conditions at $R=R_{1}$. The survival probability reads $Q(t)=\int_{0}^{d_{2}}dx\,p(x,t)$. We are interested in the conditional expectation value

[TABLE]

i.e., how deep the surviving ABPs have penetrated into zone 2. In the limit $l_{2}\ll R_{1}$, we may approximate the absorbing spherical shell at $R=R_{1}$ by a plane $H$ with surface normal $\mathbf{n}=\mathbf{e}_{R}(\mathbf{R}(0))$. We show that $\lim_{t\rightarrow\infty}\langle x(t)\rangle Q(t)=\alpha l_{2}$ with $\alpha=4/3$.

We first consider the problem without absorbing boundary conditions at $H$, with corresponding probability density $p_{0}(x,t)$ to find an ABP at a distance $x$ from $H$ at time $t$, and an analogous normalized penetration depth $\alpha_{0}=\lim_{t\rightarrow\infty}\int_{0}^{\infty}\!\langle x(t)\rangle_{0}/l_{2}=\lim_{t\rightarrow\infty}\int_{0}^{\infty}\!dx\,xp_{0}(x,t)/l_{2}$. Here, the expectation value $\langle\cdot\rangle_{0}$ averages over all persistent random walks, including those that have crossed $H$ at some time $t_{1}\leq t$. By integrating the correlation function $\langle\mathbf{t}(t)\cdot\mathbf{e}_{R}(0)\rangle$ for $0\leq t<\infty$, we show $\alpha_{0}=2/3$. Specifically, let $\mathbf{e}_{1}=\mathbf{t}_{0}$ with $\mathbf{t}_{0}=\mathbf{t}(0)$, $\mathbf{e}_{3}=\mathbf{t}_{0}\times\mathbf{n}/|\mathbf{t}_{0}\times\mathbf{n}|$, $\mathbf{e}_{2}=\mathbf{e}_{3}\times\mathbf{e}_{1}$. We write $\mathbf{n}=a_{1}\mathbf{e}_{1}+a_{2}\mathbf{e}_{2}$. Now,

[TABLE]

Since $\mathbf{R}(t)=v_{0}\int_{0}^{t}\!dt^{\prime}\,\mathbf{t}(t^{\prime})$, we conclude $\alpha_{0}=(2/3)\,v_{0}\tau_{p}=(2/3)\,l_{2}$.

Next, we argue $\alpha_{0}=\alpha-\alpha_{0}$. The expectation value in the definition of $\alpha_{0}$ can be decomposed into a contribution from the ABP that have never returned to $H$, equal to $\alpha$, and a contribution from those ABP that returned to $H$, which yields $-\alpha_{0}$ in the long-time limit. For a proof, consider the sub-ensemble of ABPs that have returned to $H$ at a time $t_{1}$. The direction angles $\psi_{1}$ of their tangent vectors $\mathbf{t}(t_{1})$ will be randomly distributed in a range $0\leq\psi_{1}\leq\pi/2$, with probability density given by $p(\psi_{1})=\sin(2\psi_{1})$. Thus, this sub-ensemble corresponds to the original problem, but reflected at $H$ and starting at time $t_{1}$. We now spell out this argument in detail. First, we split the probability density $p_{0}(x,\psi,t)$ as

[TABLE]

where $p(x,\psi,t)$ is the unnormalized probability density of persistent random walks for the case of absorbing boundary conditions at $H$ introduced above (corresponding to persistent random walks that have never returned to $H$ at any time before $t$), as well as a probability density $p_{1}(x,\psi,t)$ of persistent random walks that have crossed $H$ at some time $t_{1}$ with $t_{1}\leq t$. When persistent random walks cross $H$ for the first time at some time $t_{1}$, their tangent $\mathbf{t}_{1}=\mathbf{t}(t_{1})$ satisfies $\mathbf{t}_{1}\cdot\mathbf{n}>0$ with an angle $\psi_{1}$ enclosed by $\mathbf{t}_{1}$ and $\mathbf{n}$ that satisfies $p(\psi_{1})=\sin(2\psi_{1})$ for $0\leq\psi_{1}\leq\pi/2$ and $p(\psi_{1})=0$ else, see subsection ‘Distribution of direction angles’. Thus, these persistent random walks correspond to the same ensemble of persistent random walks considered in the definition of $\alpha_{0}$ after a mirror operation at $H$ and a time shift has been applied. We conclude $\alpha_{1}=\lim_{t\rightarrow\infty}\int\!dx\,d\psi\,xp_{1}(x,\psi,t)=-\alpha_{0}$. Consequently, $\alpha_{0}=\alpha+\alpha_{1}=\alpha-\alpha_{0}$, hence $\alpha=4/3$. Here, we used that ABPs will eventually return to $H$ with probability one, with a survival probability that decays for $t\gg\tau_{p}$ like the survival probability of diffusive particles, $Q(t)\sim(t/\tau_{p})^{-1/2}$, see section ‘Asymptotic scaling of survival probability’.

Interestingly, it follows that the conditional expectation value $\langle x(t)\rangle/Q(t)$ diverges as $(t/\tau_{p})^{1/2}$, i.e., while fewer and fewer ABP survive, their mean distance from $H$ increases with time such that $\langle x(t)\rangle_{s}/l_{2}$ converges to the definite value $\alpha=4/3$.

We now address the second dynamic phase defined by $t\geq t_{0}$, and calculate $p_{\mathrm{ret}}$. Those ABPs that have not been absorbed at $R_{1}$ before $t_{0}$ will likely be found at a distance $x\gg l_{2}$ from $R_{1}$, and we may approximate these as diffusive particles. The probability that a diffusive particle reaches $R_{2}$ if released at a radial position $R$ between two absorbing spherical shells of radii $R_{1}$ and $R_{2}$ reads Berg and Purcell (1977)

[TABLE]

We choose $R=R_{1}+\langle x(t_{0})\rangle\approx R_{1}+\alpha l_{2}/Q(t_{0})$ and obtain an asymptotic result for $q=1-p_{\mathrm{ret}}$ as

[TABLE]

which is valid for $\lambda_{2}\ll(\tau_{p}/t_{0})^{1/2}$. We can extend this asymptotic expression to the entire range $0<\lambda_{2}<\infty$ by interpolating with the limit value $q^{\infty}=\lim_{\lambda_{2}\rightarrow\infty}1-p_{\mathrm{ret}}=1$, using the simple ansatz of a saturation curve

[TABLE]

with $\gamma={\partial q/\partial\lambda_{2}}_{|\lambda_{2}=0}$ computed using Eq. (S26), i.e., we match the initial slope at $\lambda_{2}=0$ in Eq. (S27) and Eq. (S26). We conclude Eq. (6)

[TABLE]

An analogous derivation yields

[TABLE]

for $i=1,2$.

The return probability $p_{\mathrm{ret}}$ and the zone-crossing probabilities $p_{1}$, and $p_{2}$ allow to compute the probability $p(R_{0}|R_{2})$ by Eq. (4). For a comparison of analytic theory and numerical simulations, see also Fig. S3.

A.6 Asymptotic scaling of survival probability $Q(t)$

In the main text, we introduced the ‘normalized penetration depth’ $\alpha$ of persistent random walks with persistence length $l_{p}$ starting at time $t=0$ at a plane boundary $H$ with absorbing boundary conditions at $H$, there defined as

[TABLE]

We provide a heuristic argument why the limit $\alpha$ in Eq. (S29) exists and is finite.

We choose some $t_{0}>0$ such that $\langle x(t_{0})\rangle\gg l_{p}$. We replace the persistent random walk $\mathbf{R}(t)$ by a diffusive trajectory with translational diffusion coefficient $D=l_{P}v_{0}/3$ for $t\geq t_{0}$. Thus, both the persistent random walk and the diffusive trajectory will have identical statistical properties on length scales large compared to $l_{p}$.

For a diffusive trajectory starting at time $t_{0}$ at an initial distance $x_{0}$ from $H$, with absorbing boundary conditions at $H$, the unnormalized probability density $\widehat{p}(x,t_{0}+\tau|x_{0},t_{0})$ of surviving trajectories reads

[TABLE]

where $N(x,\mu,\sigma^{2})=(2\pi\sigma^{2})^{-1/2}\exp[-(x-\mu)^{2}/(2\sigma^{2})]$ denotes the normal distribution with mean $\mu$ and variance $\sigma^{2}$. We decorate variables by a hat to indicate quantities related to diffusive trajectories in contrast to persistent random walks.

The survival probability of diffusive trajectories is given by

[TABLE]

Note $\widehat{Q}(t_{0}+\tau)\sim\sqrt{x_{0}^{2}/(D\tau)}$ for $\tau\gg\sqrt{x_{0}^{2}/D}$. For the first moment of $\widehat{p}(x,t_{0}+\tau|x_{0},t_{0})$, we find

[TABLE]

Eq. (S32) follows directly from the analytical solution Eq. (S30) for the probability density $\widehat{p}(x,t_{0}+\tau|x_{0},t_{0})$.

Eq. (S32) can be deduced also by a direct argument: in the absence of absorbing boundary conditions at $H$, we have

[TABLE]

where $\widehat{p}_{0}(x_{0},t_{0}+\tau|x_{0},t_{0})=N(x;x_{0},2D\tau)$ is the probability density without absorbing boundary. If we now restrict the computation of the mean to those realizations that passed through $x=0$ at a time $t_{1}$ with $t_{0}<t_{1}\leq t$, we have $\langle x(t)|x(t_{1})=0,x(t_{0})=x_{0}\rangle_{0}=0$ by the Markov property of random walks. We conclude

[TABLE]

i.e., the expectation value of $x(t)$ does not change if those realization that returned to $x=0$ at some time $t_{1}$ with $0<t_{1}<t$ are not included in the integral.

As a corollary, the conditional mean value $\langle x(t_{0}+\tau)\rangle$ for diffusive trajectories starting with $x(t_{0})=x_{0}$ at $t=t_{0}$ that have not crossed $x=0$ obeys

[TABLE]

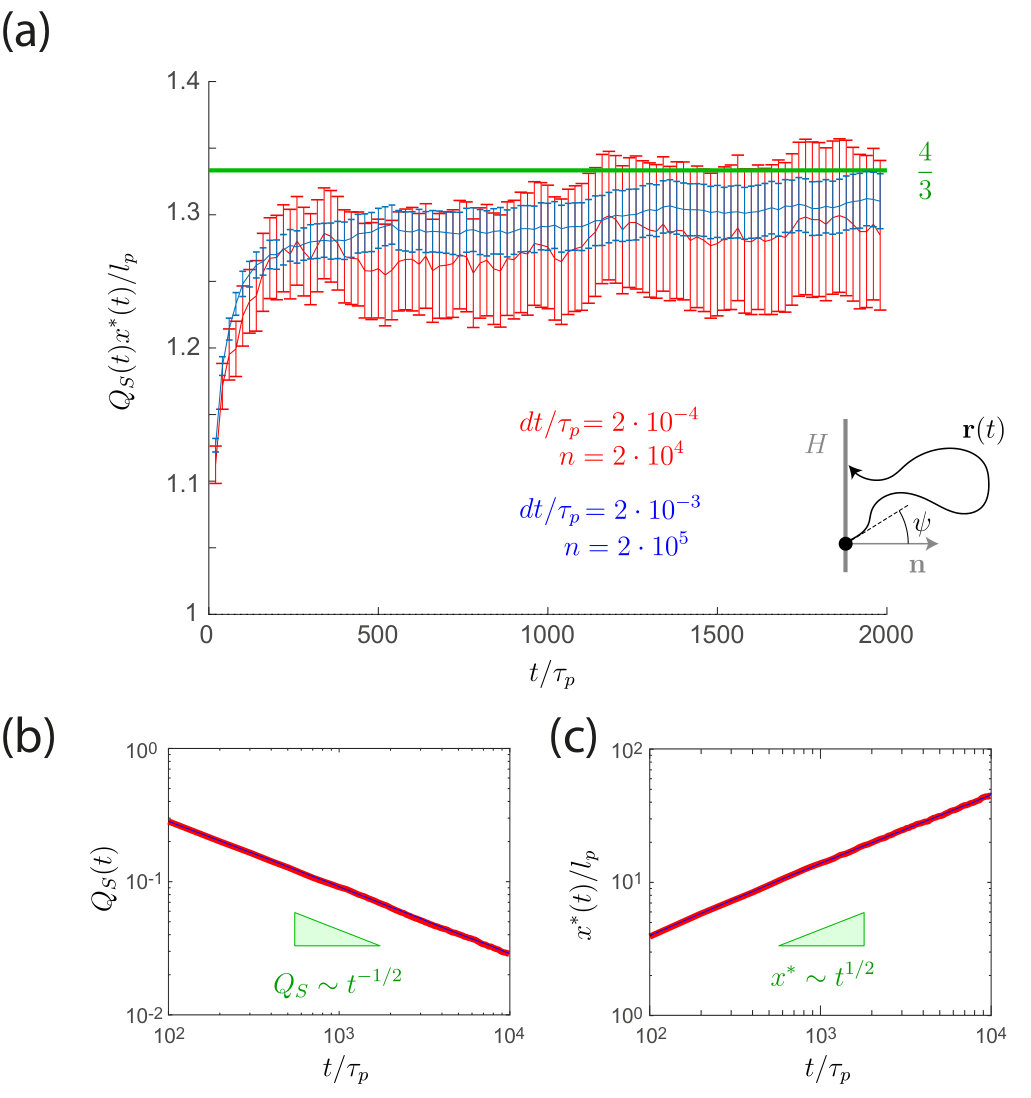

A.7 Numerical simulations for the normalized penetration depth $\alpha$

We compared the analytical approximation of the constant $\alpha$ to numerical simulations, see Fig. S4. These numerical simulations provided the estimate $\alpha\approx 1.310\pm 0.021$ (mean$\pm$s.e.m.). The standard error of the mean was determined by bootstrapping with replacement. This estimate can be considered a lower bound since a finite simulation time was used. We employed an Euler scheme using matrix exponentials for propagation of the Frenet-Serret frame; CPU time $250$ hours on a standard PC. Analogous simulations using a smaller time step gave consistent results.

A.8 Derivation of Eq. (7)

We provide additional details for the derivation of Eq. (7). This ordinary differential equation represents a backward equation for the penetration probability $p(R_{0}|R^{\prime})$ that an adaptive ABP starting at distance $R^{\prime}$ will reach distance $R_{0}$ before returning to $R^{\prime}$, where the ABP performs instantaneous chemokinesis with rotational diffusion coefficient $D_{\mathrm{rot}}=D_{\mathrm{rot}}(R)$, where $D_{\mathrm{rot}}(R)$ is some arbitrary function of radial distance $R$. In the definition of $p(R_{0}|R^{\prime})$, we assume a random inward pointing initial direction angle $\psi$, distributed according $p(\psi)=\sin(2\psi)$ for $0\leq\psi\leq\pi/2$ and $p(\psi)=0$ else.

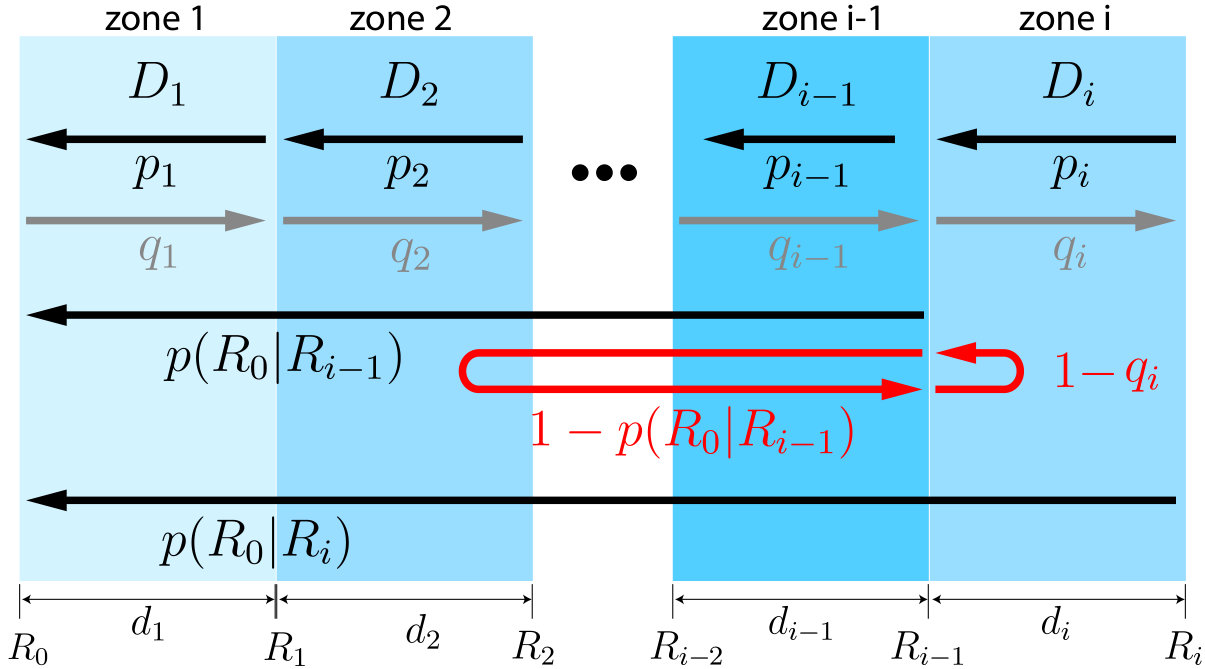

We first consider a case of $n$ zones bounded by spheres concentric with the origin, $R_{i-1}\leq R<R_{i}$, $i=1,\ldots,n$, where we assume that $D_{\mathrm{rot}}$ takes the constant value $D_{i}$ in zone $i$, see Fig. S5. We introduce short-hand $l_{i}=v/(2D_{i})$ for the corresponding persistence length, and $\lambda_{i}=l_{i}/d_{i}$ for the ratio of $l_{i}$ and the width $d_{i}=R_{i}-R_{i-1}$ of zone $i$.

Let us consider zone $i$. We impose absorbing boundary conditions at $R=R_{i-1}$ and $R=R_{i}$ and define the splitting probabilities

[TABLE]

that an ABP starting at distance $R=R_{i}$ from the origin will reach either the boundary at $R=R_{i-1}$ or the other boundary at $R=R_{i}$ first, respectively. Here, the arrow ‘$\leftarrow$’ shall indicate a random inward pointing initial direction angles, distributed according to $p(\psi)=\sin(2\psi)$ for $0\leq\psi\leq\pi/2$ and $p(\psi)=0$ else.

We define analogous splitting probabilities for the opposite direction, i.e., the splitting probabilities

[TABLE]

that an ABP starting at distance $R=R_{i-1}$ from the origin will reach either an absorbing boundary at $R=R_{i}$ or $R=R_{i-1}$ first, respectively. Here, the arrow ‘$\rightarrow$’ indicates a random outward pointing initial direction angles [distributed according to $p(\psi)=\sin(-2\psi)$ for $\pi/2\leq\psi\leq\pi$ and $p(\psi)=0$ else]. Note $p_{\mathrm{ret}}=1-q_{2}$.

We quote the previous results for $p_{i}$ and $q_{i}$, $i=1,\ldots,n$ (derived above for $i=2$)

[TABLE]

Now, we consider zones $1,2,\ldots,i$ together, and impose absorbing boundary conditions only at $R_{0}$ and $R_{i}$. We introduce the splitting probability

[TABLE]

that an ABP starting at $R_{i}$ will reach $R_{0}$ instead of returning to $R_{i}$, where we assume a random inward pointing initial direction angle (distributed according $p(\psi)=\sin(2\psi)$ for $0\leq\psi\leq\pi/2$). Analogously, we introduce the splitting probability for the opposite direction

[TABLE]

that an ABP starting at $R_{0}$ will reach $R_{i}$ instead of returning to $R_{0}$, where we assume random outward pointing initial direction angle [distributed according $p(\psi)=\sin(-2\psi)$ for $\pi/2\leq\psi\leq\pi$ and $p(\psi)=0$ else].

We will derive recursion relations for $p(R_{0}|R_{i})$ and $q(R_{i}|R_{0})$.

Backward equation.

Eq. (4) generalizes in a straight-forward manner to

[TABLE]

By symmetry, we have a similar equation for $q(R_{i}|R_{0})$

[TABLE]

In the limit $d_{i}\ll R_{i}$ with $\lambda_{i}\gg 1$, we can expand Eq. (S42) in powers of $d_{i}$, using Eq. (S38)

[TABLE]

The continuum limit $d\rightarrow 0$ gives the nonlinear differential equation

[TABLE]

with position-dependent persistence length $l_{p}(R)=v/[2D_{\mathrm{rot}}(R)]$.

Similarly, we find for $q(R_{i}|R_{0})$

[TABLE]

The continuum limit gives the differential equation

[TABLE]

We have initial conditions $p(R_{0}|R_{0})=1$ and $q(R_{0}|R_{0})=1$. From Eq. (S46), we obtain the analytical solution

[TABLE]

Similarly, from Eq. (S49), we obtain the analytical solution

[TABLE]

Here, we used the general relation

[TABLE]

A proof of this relation is obtained as follows: let

[TABLE]

From the differential equations for $p(R_{0}|R)$ and $q(R|R_{0})$, Eq. (S46) and Eq. (S49), we obtain an equation for $d\theta/dR$, where the terms dependent on $l_{p}$ cancel

[TABLE]

Since $\theta(R_{0})=1$, this equation yields $\theta(R)=p^{\infty}(R_{0}|R)$. Eq. (S52) can be interpreted also as a corollary of time-reversal symmetry of Eqs. (1,2) in the spirit of Bénichou et al. (2005): if we start with a homogeneous distribution of initial conditions on the union of spheres at $R_{0}$ and $R$ (with random outward pointing initial direction at $R_{0}$ and random inward pointing initial direction at $R$), then the stochastic dynamics of ABP will map this distribution onto a homogeneous distribution of end-points, only with direction of tangents reversed, to very good approximation. Yet, for each trajectory, the time-reversed trajectory is equally probable; hence $4\pi R_{0}^{2}\,q(R|R_{0})=4\pi R^{2}\,p(R_{0}|R)$.

Forward equation.

In a similar fashion, we can derive a forward equation for $p(R|R_{n})$. Eq. (4) generalizes to

[TABLE]

By symmetry, we have a similar equation for $q(R_{n}|R_{i-1})$

[TABLE]

In the limit $d_{i}\ll R_{i}$ with $\lambda_{i}\gg 1$, we can again expand Eq. (S54) in powers of $d_{i}$, using Eq. (S38)

[TABLE]

The continuum limit $d\rightarrow 0$ gives the differential equation

[TABLE]

with position-dependent persistence length $l_{p}(R)=v/[2D_{\mathrm{rot}}(R)]$ as above. Similarly, we find for $q(R_{n}|R_{i-1})$

[TABLE]

The continuum limit gives the differential equation

[TABLE]

Using the symmetry relation between $p$ and $q$, Eq. (S52), we can derive an alternative forward equation for $p(R|R_{n})$ that depends only on $p(R|R_{n})$

[TABLE]

The initial conditions are $p(R_{n}|R_{n})=1$ and $q(R_{n}|R_{n})=1$.

Forward and backward equation are equivalent.

Forward and backward equation are mathematically equivalent. This can be shown by inserting the formal solution, Eq. (S50) and Eq. (A.8), and using the symmetry relation, Eq. (S52).

For constant $D_{\mathrm{rot}}(R)=D_{1}$, we recover the previous result for $p_{1}$. In the limit of ballistic motion ($l_{p}\rightarrow\infty$), we recover $p\rightarrow p^{\infty}$, $q\rightarrow q^{\infty}$.

Our results include the case of zones bounded by parallel planes, corresponding to the limit $R_{0}\rightarrow\infty$. We thus obtain equations for the case of a rotational diffusion coefficient that depends only on one spatial coordinate, $D_{\mathrm{rot}}=D_{\mathrm{rot}}(x)$ with $x=R-R_{0}$. In this case, $p(R_{0}|R)=q(R|R_{0})$ and the equations for $p$ and $q$ are symmetric, reflecting the mirror-symmetry of the problem’s geometry.

Two-state chemokinesis ${\mathrm{(S)}}$.

From the results for instantaneous chemokinesis, we can immediately infer splitting probabilities for a two-state agent. We consider a two-state agent that initially moves ballistically, starting at $R=R_{2}$ with random inward pointing initial direction angle [distributed according to $p(\psi)=\sin(2\psi)$ for $0\leq\psi\leq\pi/2$ and $p(\psi)=0$ else]. Upon first reaching $R=R_{1}$, this agent shall permanently switch to instantaneous chemokinesis with position-dependent rotational diffusion coefficient $D_{\mathrm{rot}}(R)$ as above. The probability $p_{\mathrm{(S)}}(R_{0}|R_{2})$ for the two-state agent to reach $R_{0}$ before returning to $R_{2}$ reads

[TABLE]

The proof relies on the approximate product rule

[TABLE]

Here, we used the fact that the distribution of orientation angles $\psi$ of agents arriving at $R_{1}$ will follow the stereotypic distribution $p(\psi)=\sin(2\psi)$, $0\leq\psi\leq\pi/2$, to very good approximation. Thus,

[TABLE]

and the assertion follows.

Arbitrary initial position.

The results above generalize to the case where the adaptive ABP is released at an intermediate position between the absorbing boundaries. Obviously, the end distance can always be chosen as one of the absorbing boundaries; hence, for $i\leq j$

[TABLE]

Analogously to Eq. (4), we have a geometric series representation

[TABLE]

Similarly,

[TABLE]

Thus, it suffices to know $p(R_{0}|R_{1})$ and $q(R_{2}|R_{1})$.

Isotropic initial directions.

To facilitate comparison with previous work, we also introduce the probability $\pi_{R_{0},R_{2}}(R_{0}|R_{1},\leftrightarrow)$ to reach $R_{0}$ for an ABP starting at $R_{1}$ with isotropically distributed initial direction (i.e., $p(\psi)=(1/2)\,\sin\psi$ for $0\leq\psi\leq\pi$, indicated by ‘$\leftrightarrow$’) for absorbing boundary conditions at $R_{0}$ and $R_{2}$ (as considered e.g. in Vuijk et al. (2018)). We first consider the case of ballistic motion. Analogous to Eq. (5), we note the success probability for the case of ballistic motion for the different distribution of random initial directions

[TABLE]

Note $p^{\infty}_{R_{0},R_{2}}(R_{0}|R_{1},\leftrightarrow)=p^{\infty}_{R_{0},R_{2}}(R_{0}|R_{1},\leftarrow)/4$ for $R_{1}{\gg}R_{0}$, and $p^{\infty}_{R_{0},R_{2}}(R_{0}|R_{1},\leftrightarrow){=}p^{\infty}_{R_{0},R_{2}}(R_{0}|R_{1},\leftarrow)/2$ for $R_{1}{\searrow}R_{0}$.

Comparison to Fox’ colored noise approximation.

The probability $\pi_{R_{0},R_{2}}(R_{0}|R_{1},\leftrightarrow)$ to reach $R_{0}$ for an ABP starting at $R_{1}$ with isotropically distributed initial direction (indicated by ‘$\leftrightarrow$’) for absorbing boundary conditions at $R_{0}$ and $R_{2}$ (as considered e.g. in Vuijk et al. (2018)) can be approximated as a weighted sum of the respective probabilities for ABP with inward and outward pointing initial directions, respectively

[TABLE]

Here, the interpolation coefficient $\beta$ is chosen to assure the correct limit behavior for ballistic motion, $\beta_{R_{0},R_{2}}(R_{1})=p^{\infty}_{R_{0},R_{2}}(R_{0}|R_{1},\leftrightarrow)/p^{\infty}_{R_{0},R_{2}}(R_{0}|R_{1},\leftarrow)$ with $1/4\leq\beta\leq 1/2$.

For sake of comparison, we note that the result derived in Vuijk et al. (2018) using Fox’ colored-noise approximation can be rewritten in our notation as [see Eq. (6) in loc. cit.]

[TABLE]

Note that for Eq. (S74), we have mapped the case of klinokinesis with $D_{\mathrm{rot}}=D_{\mathrm{rot}}(R)$, $v=v_{0}$ considered in the main text to the case of orthokinesis with $D_{\mathrm{rot}}=1/(2\tau_{a})$, $v=v(R)$ considered in Vuijk et al. (2018) using $v=v_{0}/[2\tau_{a}\,D_{\mathrm{rot}}(R)]$. This early result is valid for small persistence lengths, yet does not provide the correct limit behavior for $R_{1}\searrow R_{0}$ and $R_{1}\nearrow R_{2}$. This relates to the fact that the effective Fokker-Planck equation derived in Vuijk et al. (2018) is only valid in the limit of small persistence length $l_{p}\ll R_{1}-R_{0}$, $l_{p}\ll R_{2}-R_{1}$. Note that the authors of Vuijk et al. (2018) had additionally included translational diffusion with translational diffusion coefficient $D_{t}$, which we set to zero in Eq. (S74) for sake of simplicity.

Fig. S6(a) compares simulation results for $\pi_{R_{0},R_{2}}(R_{0}|R_{1},\leftrightarrow)$ with the analytical result Eq. (S74) from Vuijk et al. (2018), and the new result Eq. (7) and its corollary Eq. (S73), using the position-dependent profile $D_{\mathrm{rot}}(R)$ of the rotational diffusion coefficient from Fig. 1. This profile includes regions with low $D_{\mathrm{rot}}$, and hence large persistence length. Eq. (S74) is thus not applicable and its predictions deviate from the simulations. We can directly assess the dependence of the accuracy of the approximation Eq. (S74) as function of persistence length: we consider a position-dependent speed $v(R)$ obeying a power-law with exponent $\alpha$ as in Vuijk et al. (2018) [see Eq. (5) in loc. cit.]

[TABLE]

Fig. S6(b) shows simulation results for $\pi_{R_{0},R_{2}}(R_{0}|R_{1},\leftrightarrow)$ for fixed $R_{1}$ as function of total activity $\mathcal{C}$ (mean speed times search volume). Eq. (S74) accurately predicts the limit of this probability for low values of the activity $\mathcal{C}$, corresponding to the limit of small persistence length. Eq. (7) extends this previous result to the entire range of activities, spanning the range from small to large persistence lengths.

A.9 Possible implementation of two-state chemokinesis with biochemical bistable switch

Chemokinesis with two internal states requires an internal bistable switch. The actuation of such a bistable switch could be realized by a positive feedback of chemosensation on itself. Specifically, in biological cells, post-translational modifications of chemoattractant receptors (e.g. phosphorylation, methylation) could enhance their sensitivity by positive feedback once the cell has encountered a sufficiently strong stimulus.

We illustrate this general idea with a minimal model, where a cell responds to an extracellular concentration signal $c(t)$ with a time-dependent response $a(t)$ by a simple low-pass filter, where the sensitivity $\rho=\rho(t)$ is itself a dynamic variable, representing a gain factor that relates input and response

[TABLE]

Here, $V(\rho)$ represents a bistable effective potential with two minima for the dynamic sensitivity $\rho$, $\rho_{0}<\rho_{1}$. If the system is initially in state [math] with $\rho(t=0)=\rho_{0}$, it will respond weakly to variations in the input signal $c(t)$. A sufficiently strong stimulus, however, can drive the system permanently to state $1$ with $\rho(t)=\rho_{1}$, see Fig. S7.

This minimal model could be generalized to concentration signals $c(t)=c(\mathbf{R}(t))$ traced by a chemokinetic agent along its trajectory $\mathbf{R}(t)$ from a spatial concentration field $c(\mathbf{x})$. The response variable $a(t)$ could regulate the rotational diffusion coefficient of the agent as $D_{\mathrm{rot}}=D_{\mathrm{rot}}(a)$.

A.10 Parameters for Figure 1

The concentration field $c(\mathbf{x})$ and the spatial profile of the signal-to-noise ratio $\mathrm{SNR}$ shown in introductory Fig. 1(a,b) are taken from Kromer et al. (2018). The effective rotational diffusion coefficient $D_{\mathrm{rot}}$ shown in Fig. 1(c) is computed according to Eq. (7) from loc. cit.. For sake of completeness, we include here the details of the computation of concentration field $c(\mathbf{x})$, signal-to-noise ratio $\mathrm{SNR}$, and rotational diffusion coefficient $D_{\mathrm{rot}}$.

To compute the chemoattractant concentration field $c(\mathbf{x})$ for the example case of sperm chemotaxis, we used typical parameters for the sea urchin Arbacia punctulata, following Kromer et al. (2018). We assume continuous release from a point source for a time $t_{c}$; hence

[TABLE]

Here, $D_{c}\approx 239\,\mu\mathrm{m}^{2}/s$ is the diffusion coefficient of the chemoattractant resact in sea water Kashikar et al. (2012), and $J=n/t_{c}$ is the release rate of resact (with units of molecules per second), where $n\approx 1.65\cdot 10^{10}$ is the content of resact molecules of a single egg Kashikar et al. (2012), and $t_{c}=1\,\mathrm{h}$ a typical release time.

The signal-to-noise ratio $\mathrm{SNR}$ of gradient-sensing is computed according to Eq. (5) of Kromer et al. (2018)

[TABLE]

In fact, this equation is generic and applies up to a prefactor also to cells performing chemotaxis by spatial comparison Alvarez et al. (2014). Here, $r_{0}$ and $T$ denote a characteristic length-scale and time-scale of gradient sensing, respectively, and $\lambda$ the binding constant of chemoattractant molecules to receptors on the surface of the cell. For the specific case of sperm chemotaxis along helical paths, we chose $r_{0}=7.5\,\mu\mathrm{m}$ equal to the radius of helical swimming paths, and $T=0.34\,\mathrm{s}$ equal to the period of helical swimming Jikeli et al. (2015). We use the estimate $\lambda=7\,\mathrm{pM}^{-1}\,\mathrm{s}^{-1}$ for the binding constant of resact molecules to guanylate cyclase receptors on the surface of the sperm cell Pichlo et al. (2014).

We quote Eq. (7) from Kromer et al. (2018) for the effective rotational diffusion coefficient resulting from chemotaxis in the presence of sensing noise

[TABLE]

This equation was derived by coarse-graining the stochastic equations of motion in a model of sperm chemotaxis along helical paths Friedrich and Jülicher (2009). Yet, this equation is general and applies to any chemotaxis scenario, where a chemotactic agent gradually aligns its net swimming direction to the estimated direction of an external concentration gradient $\nabla c$. Here, it is assumed that the chemotactic agent performs sensory adaption with sensitivity threshold $c_{b}$, i.e., the amplitude of chemotactic steering responses scales as $\rho\,c/(c_{b}+c)$. Here, $\rho$ denotes a gain factor that characterizes the amplitude of chemotactic steering responses, and $\varepsilon$ is a dimensionless geometric factor specific to the case of helical chemotaxis. We compute the geometric factor $\varepsilon$ according to Kromer et al. (2018) as $\varepsilon=2\pi\kappa_{0}\tau_{0}/(\kappa_{0}^{2}+\tau_{0}^{2})$, using measured values of mean path curvature and mean path torsion of helical sperm swimming paths, $\kappa_{0}=0.065\,\mu\mathrm{m}^{-1}$ and $\tau_{0}=0.067\,\mu\mathrm{m}^{-1}$, respectively Jikeli et al. (2015). We use $v=150\,\mu\mathrm{m}\,\mathrm{s}^{-1}$ for the net swimming speed along the centerline of helical swimming paths, which corresponds to a speed of $v_{0}\approx 200\,\mu\mathrm{m}\,\mathrm{s}^{-1}$ along the helical path itself, according to $v=v_{0}\,\tau_{0}/[\kappa_{0}^{2}+\tau_{0}^{2}]^{1/2}$, consistent with previous measurements Jikeli et al. (2015). The gain factor $\rho$ is chosen as $\rho=1$. This value reproduced typical bending rates of helical swimming paths as observed in experiments Jikeli et al. (2015). The adaptation threshold is set as $c_{b}=10\,\mathrm{pM}$. At this concentration $c_{b}$, about $20$ chemoattractant molecules would diffuse to a sperm cell during one helical turn. Note that sea urchin sperm cells respond to single chemoattractant molecules Pichlo et al. (2014); the change in intracellular calcium concentration caused by the binding of chemoattractant molecules as function of stimulus strength becomes sublinear already for chemoattractant concentrations on the order of $c_{b}$ Kashikar et al. (2012).
