Vortex Lattice in a Rotating Holographic Superfluid

TL;DR

This paper uses holographic duality to study vortex lattices in a rotating superfluid, revealing quantized vortices, critical angular velocities for vortex formation, and a linear relation between vortex density and angular velocity.

Contribution

It introduces a holographic model to analyze vortex lattice formation in superfluids under rotation, confirming theoretical predictions and Feynman relation.

Findings

Vortices are quantized with vorticity one.

Vortex number increases with angular velocity, showing step transitions.

Vortex density is linearly proportional to angular velocity.

Abstract

By utilizing the AdS/CFT correspondence, we explore the dynamics of strongly coupled superfluid vortices in a disk with constant angular velocity. Each vortex in the vortex lattice is quantized with vorticity one from the direct inspection of their phases. As the angular velocity of the disk is greater than a critical value, the first vortex will be excited as expected from theoretical predictions. The subsequent two and more vortices are also generated by increasingly rotating the disk, resulting in the remarkable step transitions for the angular velocity to excite each individual vortex. When the vortex number is large enough, the density of vortices is found to be linearly proportional to the angular velocity, which matches the Feynman relation very well.

Figures

Equations

$$S=\int d^{4}x\sqrt{-g}\Big{[}-\frac{1}{4}F^{2}-|D\Psi|^{2}-m^{2}|\Psi|^{2}\Big{]},$$

$$d{s}^2=\frac{{\ell }^2}{z^2}\left(-f(z)d{t}^2-2dtdz+d{r}^2+r^{2}d{\theta }^2\right).$$

$$(-D^2+m^2)\Psi =0,{\partial }_{\mu }{F}^{\mu \nu }=J^{\nu },$$

$$A_{\nu }(t,z,r,\theta )$$

$$\Psi (t,z,r,\theta )$$

$$a_{\theta }=\Omega r^2,$$

$$S_{ren.}$$

$$N=\frac{M\Omega }{\pi }\pi R^2=nA,$$

$$N\sim 0.8534\Omega R^2.$$

$${\Omega }_{c1}=\frac{1}{M{R}^2}\ln \left(\frac{R}{a}\right),$$

Full text

Introduction.— Quantized vortex has a profound effect on the behavior of Type-II superconductors and superfluids. The quantized circulation is a macroscopic quantum mechanical effect, which is a direct consequence of a single-valued wave function, where the phase must change by $2\pi n$ ($n\in Z$ is the vorticity) around a vortex core. Theoretical studies in equilibrium states predicted that the vortex lines would form a stable triangle lattice minimizing the free energy in both superconductor Abrikosov and superfluid Tkachenko . In experiments, vortex lines has been observed in both helium II in rotating containers Packard ; Yarmchuk ; Bewley as well as Bose-Einstein condensation (BEC) in cold atoms Madison ; Shaeer . The vortex lattice formation and vortex phase diagram under a constant rotation of a container can be simulated by solving the powerful Gross-Pitaevskii (GP) equation numerically Pethick ; Fetter ; Kasamatsu1 ; Kasamatsu2 . However, GP equation is only valid for a weakly coupled system at zero temperature, studies on the vortex formation in a strongly coupled superfluid at finite temperature is still lacking.

The AdS/CFT (Anti-de Sitter/Conformal Field Theory) correspondence Maldacena ; Gubser ; Witten provides a complete description “valid at all scales” of a strongly interacting quantum many-body system in terms of a classical gravitational system at finite temperature Liu . The holographic study of superfluid (or superconductor) was originally introduced in Gubser2008 ; Hartnoll ; Herzog , where the $U(1)$ gauge symmetry is spontaneously broken in a AdS planar black hole background. Later, the one vortex solution of this holographic model was obtained in both superfluid and superconductor in Montull ; Keranen ; Dias ; Wu . Triangle lattice solution of vortex lattice were found from perturbative calculations near critical point in Maeda . Holographic superconductor/superfluid model also gives insights to the dynamics of a continuous phase transition even in far from equilibrium dynamics Murata ; Bhaseen ; Li ; Bai ; Tianyu , the nonlinear response to a strong external field Zeng:2016api ; Zeng:2016gqj , as well as the critical behavior of a non-equilibrium phase transition Zeng:2018ero .

In this letter, we investigate the formation of the vortex lattices in a strongly coupled holographic superfluid in a constantly rotating disk with angular velocity $\Omega$ when the temperature is away from zero. The quantized vortices were found by direct inspection of the phases of scalar field. We also get the step transitions of the critical angular velocities $\Omega_{c}$’s which will excite each individual vortex as the vortex number is relatively small. As the vortex number is large enough, the density of the vortices is found to be linearly proportional to the angular velocity, which is consistent with Feynman relation Feynman .

Holographic Model.— A simple action for holographic superfluid can consist of a complex scalar field $\Psi$ with mass $m$, minimally coupled to a $U(1)$ gauge field $A_{\mu}$ Gubser2008 ; Hartnoll ; Herzog ,

[TABLE]

where $F_{\mu\nu}=\partial_{\mu}A_{\nu}-\partial_{\nu}A_{\mu}$, $D_{\mu}=\partial_{\mu}-iqA_{\mu}$ with $q$ the charge. The theory can be defined in a $AdS_{4}$ black hole background with Eddington-Finkelstein coordinates,

[TABLE]

in which $\ell$ is the AdS radius, $z$ is the AdS radial coordinate of the bulk and $f(z)=1-(z/z_{h})^{3}$. Thus, $z=0$ is the AdS boundary while $z=z_{h}$ is the horizon; $r$ and $\theta$ are respectively the radial and angular coordinates of the dual $2+1$ dimensional boundary, which is a disk in our model. The Hawking temperature is $T=3/(4\pi z_{h})$. For simplicity, the probe limit is adopted in the paper by assuming that the matter fields do not affect the gravitational fields. The black hole back ground Eq. (2) is static rather than rotating, then the superfluid is rotating relative to the disk, or equivalently we can treat the superfluid as a static observer then the disk is rotating with the fact that superfluid is of zero viscosity. Without loss of generality we rescale $\ell=z_{h}=1$. Therefore, the equations of motions (EoMs) can be written as

[TABLE]

where $J^{\mu}=i(\Psi^{*}D^{\mu}\Psi-\Psi D^{\mu}\Psi^{*})$ is the bulk current. Proper boundary conditions should be imposed in order to solve the EoMs (3). For simplicity, the axial gauge $A_{z}=0$ is adopted as in Herzog . We impose the regular boundary conditions of the all physical solutions at the horizon of the black hole. Explicitly, we set $A_{t}=0$ at the horizon as in Natsuume:2017jmu . Other fields at the horizon can be determined from the previous time steps in the time evolution schemes, rather than imposed by hand. Near the boundary $z=0$, the general solutions take the asymptotic form as,

[TABLE]

From the AdS/CFT dictionary, the coefficients $a_{r,\theta}$ can be related to the superfluid velocity along $r,\theta$ directions while $b_{r,\theta}$ as the conjugate currents Montull . Coefficients $a_{t}$ and $b_{t}$ are respectively interpreted as chemical potential and charge density in the boundary field theory; $\Psi_{1}$ is the source term while $\Psi_{2}$ is the vacuum expectation value $\langle O\rangle$ of the dual scalar operator. In the superfluid phase we always impose $\Psi_{1}\equiv 0$ and $a_{t}=\mu>\mu_{c}$ in the $z=0$ boundary. In this letter we choose $m^{2}=-2$, thus the critical chemical potential is $\mu_{c}\sim 4.06$. In order to study the formation of superfluid vortex lattice in a rotating disk, we impose the angular boundary condition in the $z=0$ boundary as Domenech

[TABLE]

where $\Omega$ is the constant angular velocity of the disk. While in the rotating frame of reference, the field $a_{\theta}$ represents the relative velocity between the superfluid and the reference of the rotating disk. Therefore, $a_{\theta}$ is also the velocity of the superfluid seen from the rotating disk. Then the most convenient way to introduce rotation in the holographic superfluid is to assume a static disk on the black hole boundary while the superfluid is rotating relative to the disk. With the fact that the superfluid is incompressible, the existence of the inertial force can not introduce a superfluid velocity along the radial direction of the disk, then the physics of a rotating superfluid in a static disk is equal to the physics of a static superfluid in a rotating disk. One should note that the definition of $\Omega$ above has mass dimension $+2$. Therefore, the physical angular velocity should be scaled by the chemical potential which is the energy scales of this system. By doing this, one can get the correct physical angular velocity with mass dimension $+1$, and avoid the superluminal problems. We also impose $a_{r}=0$ at the boundary since we assume no superfluid flows in the radial direction of the disk. In our model, the radius of the boundary disk is set as $r=R$. The Neumann boundary conditions are adopted both at $r=R$ and $r=0$, i.e., $\partial_{r}h_{i}=0$ where $h_{i}$ represents all the fields except $a_{\theta}$. Please note that this Neumann boundary condition is imposed in the whole range of $z$. .. The periodic boundary conditions are used along $\theta$ direction, thus, we used the Fourier decomposition in the $\theta$ direction for all the fields. Chebyshev spectral methods are used in the $(z,r)$ direction. Time evolution is simulated by the fourth order Runge-Kutta method. The initial configuration at $t=0$ is chosen to be a homogenous superfluid state without any rotation at a fixed temperature below $T_{c}$.

Free energy $F$ of the system can be computed from the renormalized on-shell action $S_{\rm ren.}$, i.e., $F=TS_{\rm ren.}$. The renormalized on-shell action consists of two parts, viz., $S_{\rm ren.}=S_{\rm o.s.}+S_{\rm c.t.}$, in which $S_{\rm o.s.}$ is the bare on-shell action by subtracting the equations of motions from the action (1) and $S_{\rm c.t.}$ is the counter term to remove the divergence near $z=0$ boundary. Explicitly, $S_{\rm c.t.}=-\int dtdrd\theta\sqrt{-\gamma}\Psi^{*}\Psi|_{z=0}$ which is computed near $z=0$ boundary, and $\gamma$ is the determinant of the reduced metric on the boundary surface. Therefore, the final form of the renormalized on-shell action is, (In the numerical computation we set $q=1$.)

[TABLE]

Quantized vortex lattice— According to Landau’s two-fluids model of superfluid Landau , the normal components behave like ordinary liquids while the superfluid components move without dissipation. These two components can have different velocities: $v_{n}$ for the normal parts and $v_{s}$ for the superfluid parts. If the container (a two-dimensional disk in our case) rotates at a constant angular velocity $\Omega$, the normal component rotates accordingly similar to a rigid body. This implies the linear velocity $v_{n}=\Omega\times r$ and the curl $\nabla\times v_{n}=2\Omega$, in which $r$ is the position vector with its origin sitting at the vortex core. In contrast, the superfluid part remains stationary, i.e., $v_{s}=0$, at small $\Omega$, which is called the Landau state. However, a stationary liquid in a rotating container implies a higher free energy. Thus, as $\Omega$ increases to a critical value $\Omega_{c1}$, Landau state becomes unstable and prefers entering a state with one vortex. Keep increasing $\Omega$ to the second critical velocity $\Omega_{c2}$, two quantized vortices will appear and locate symmetrically in the disk. Consequently, higher angular velocities will excite the third, fourth, and subsequent more vortices, which will arrange themselves in the disk according to the minimum of the free energy.

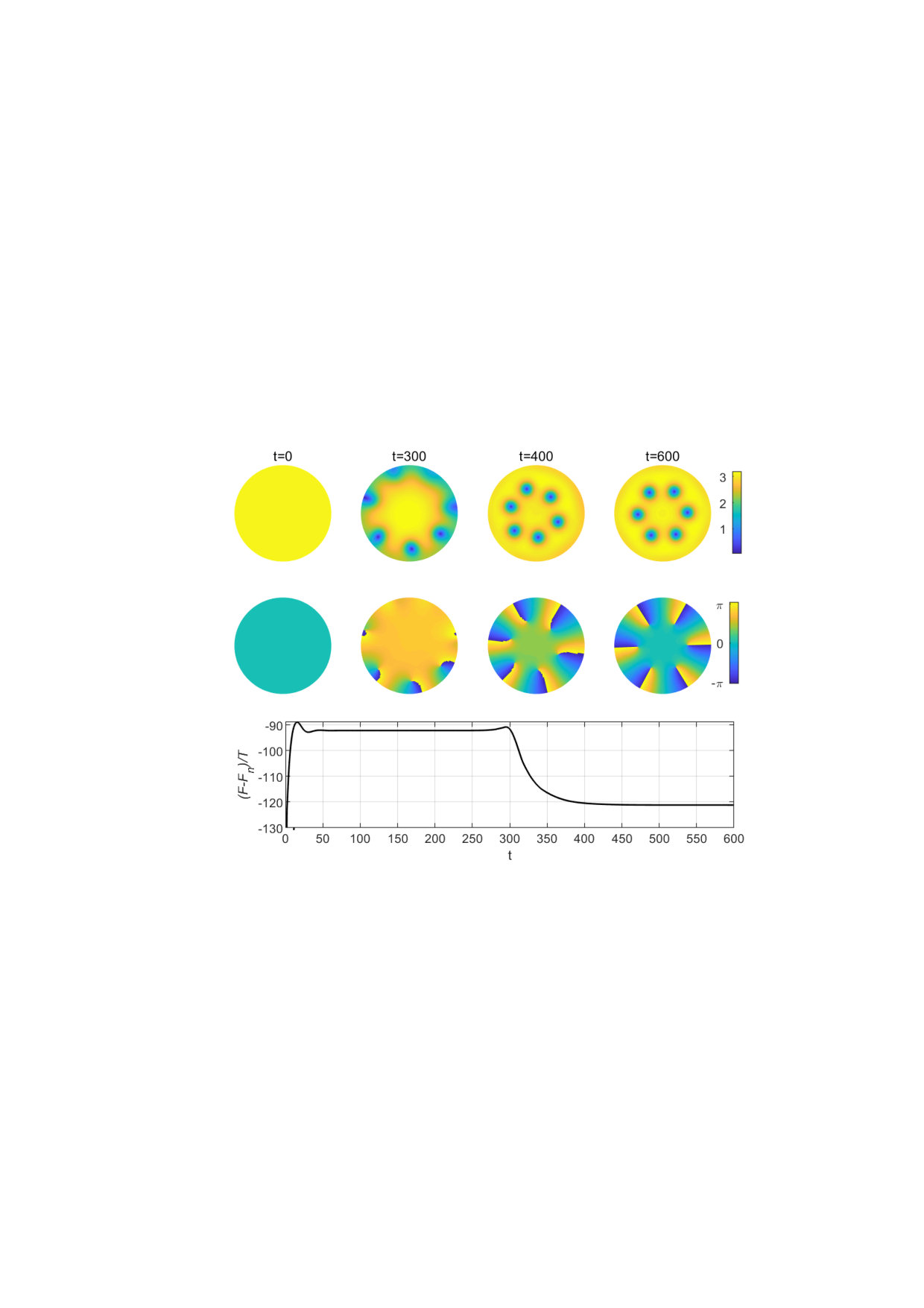

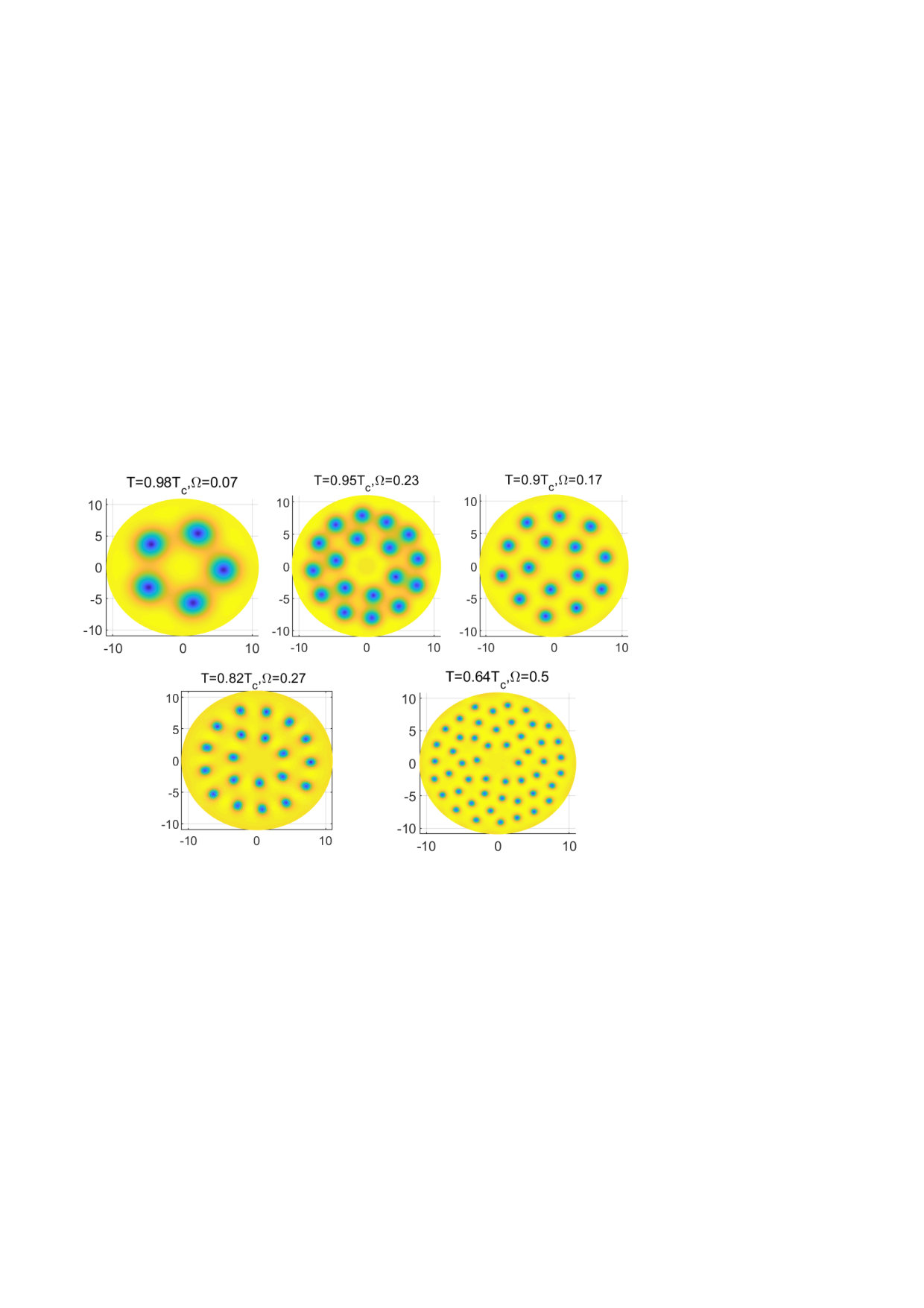

The top row of Fig.1 shows the development of vortex lattices (with $6$ vortices) during time from $t=0$ to final equilibrium state $t=600$ for $R=5$ and $\Omega=0.42$, at the temperature $T=0.82T_{c}$. At time $t\sim 300$ the vortices begin to form from the edge of the disk. This phenomenon is consistent with the theoretical studies and experiments in literatures Ruutu . At later time vortices will rotate and enter into the inner side of the disk. The middle row of Fig.1 plots the corresponding phases of the superfluid in top row. In the final stable state, the locations of the vortices can be directly seen from the singularities or branch points of the phases. Circling around the vortex core, the phases vary from $-\pi$ (blue) to $+\pi$ (yellow) with discrepancy $2\pi$, which demonstrates that each vortex is quantized with vorticity $n=1$. The bottom row of Fig.1 shows the time evolution of the corresponding free energy $(F-F_{n})/T$, in which $F_{n}$ is the free energy in the normal state, i.e., $\Psi=0$. One should note that the free energy formula is well defined in the equilibrium state, but may not be properly defined in the dynamical case. However, from Fig.1 we see that at least in later time $t>400$ the system is in equilibrium state with a relatively lower free energy, and in the regime $50<t<250$ the system is in a meta stable state with higher free energy. Interestingly, we found a similar profile of time-dependent free energy in Peeters , where a superconductor under inhomogeneous magnetic field was studied from condensed matter physics.

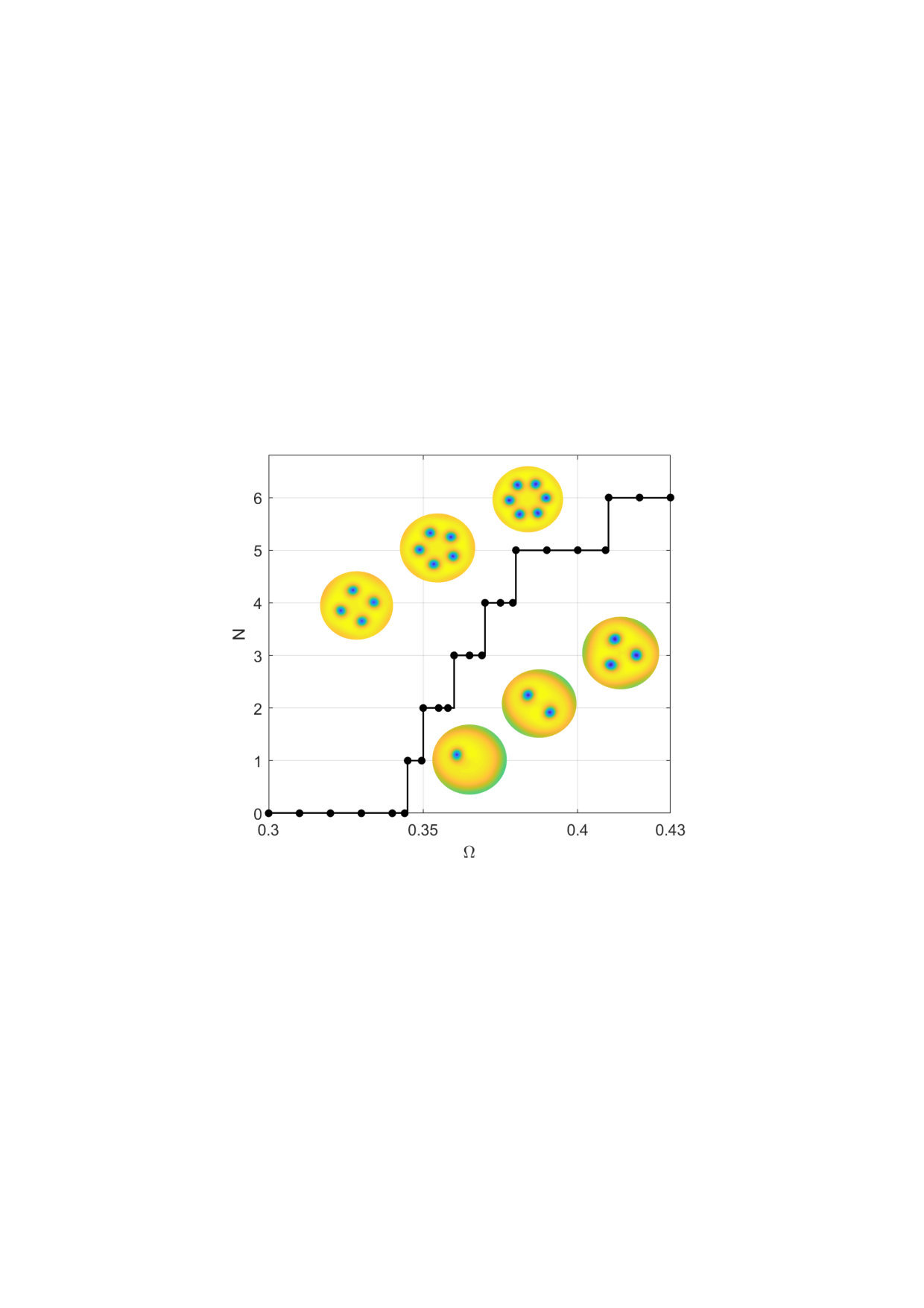

Critical angular velocities— In Fig.2, we show the typical step wise relation between the number of vortices $N$ and angular velocity $\Omega$, from $N=1$ to $N=6$ for the case of $R=5$. The corresponding critical angular velocities $\Omega_{c1},\Omega_{c2}\dots$ can be read from the jump of $N$. By increasing the angular velocity from zero to $\Omega_{c1}\sim 0.345$, the first vortex will be excited by the rotation of the disk Landau . The next two, three and more vortices can also be generated at some larger critical velocities. One possible reason for the unequal spacings is that the appearance of vortex will in some sense break the superfluidity of the superfluid. The normal components of the superfluid will scatter at the vortices, leading to the frictions between the normal and superfluid components inside the disk Landau . This friction will also cost some energies which may result in the unequal spacings of the critical angular velocities. Studies in condensed matter Hess ; Ruutu ; Packard also showed the unequal spacings of the critical angular velocity as vortex number is small.

Feynman relations— For large vortex numbers, the rotations of the superfluid can be regarded as the rotation of a rigid body Landau . Therefore, from the path integral of the velocity along the disk circumference (enclosing the whole large number of vortices) and the single-valued phase of the scalar field, one can readily get the Feynman relation Feynman as,

[TABLE]

where $n\equiv\frac{M\Omega}{\pi}$ is the vortex number density, $M$ is the atom mass of the superfluid and $A\equiv\pi R^{2}$ is the area of the disk.

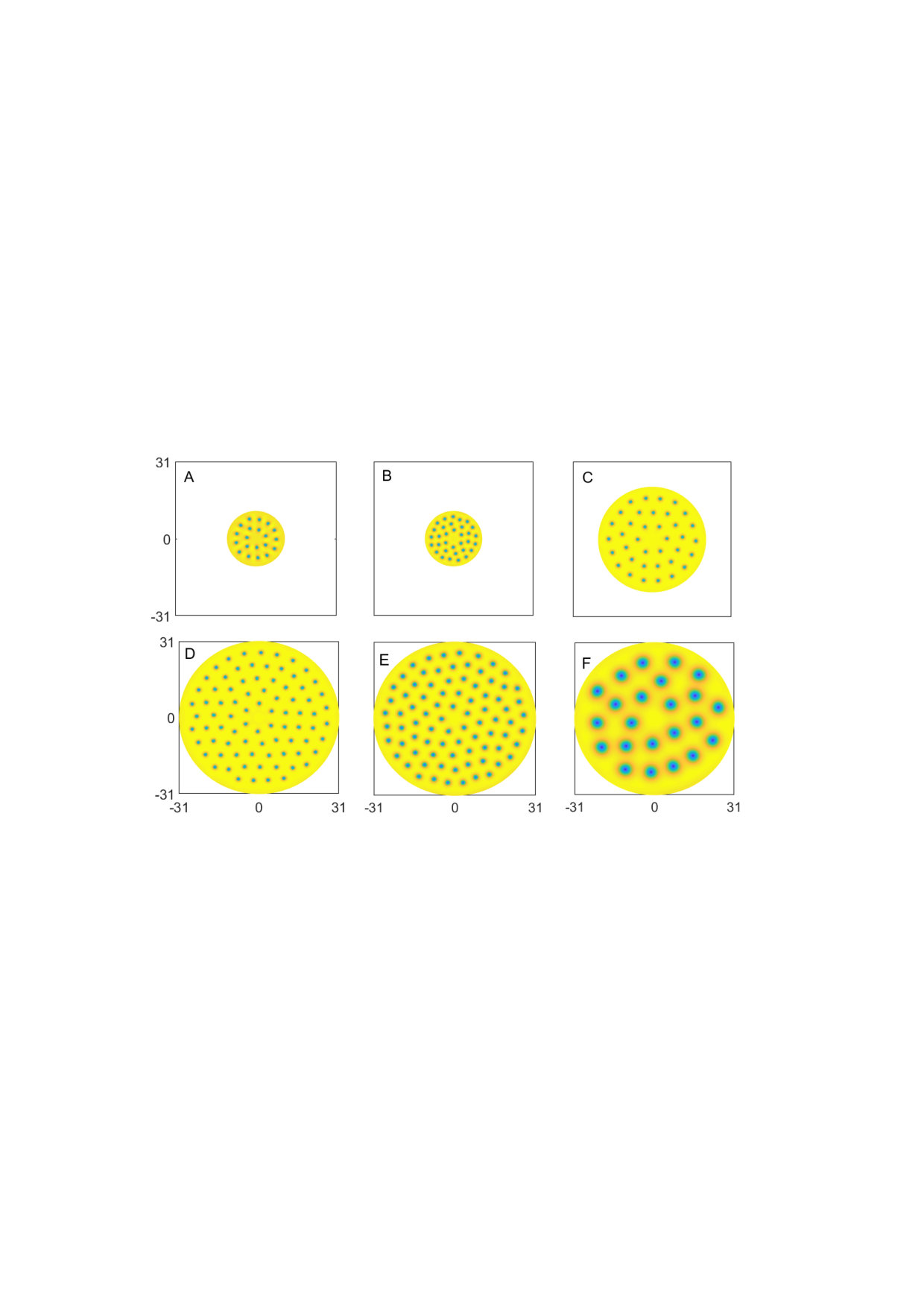

In Fig.3 we show the configurations of vortex lattices with large vortex numbers for various $R,\Omega$ and temperatures. From the Feynman relation Eq.(8), we may estimate the values of $M$ from the six subfigures in Fig.3. We obtain $M(A)\sim 0.6122,M(B)\sim 0.8021$, $M(C)\sim 0.8390$, $M(D)\sim 0.8533$, $M(E)\sim 0.8637$ and $M(F)\sim 0.7978$, respectively. The values of $M$ in subplots $B$, $C$, $D$ and $E$ with more vortices are close since the Eq.(8) is valid for large number of vortices. In contrast, in subplot $A$ the vortex number $N=20$ seems not large enough to satisfy the Feynman relation Eq.(8). For this reason, we plot a large number of vortices with respect to $\Omega$ under various temperatures in the left panel of Fig.4 by fixing $R=11$. One can readily see that as vortex number is relatively large, the relation between $N$ and $\Omega$ under various temperatures are almost in the same line, which indicates that temperature does not alter the Feynman relation. For large vortex number, the linear relation between $N$ and $\Omega$ is fitted as $N\sim 103.2634\Omega$. Thus, comparing this fitting line with Eq.(8), we can readily get that $M\sim 0.8534$. Therefore, the relation Eq.(8) becomes

[TABLE]

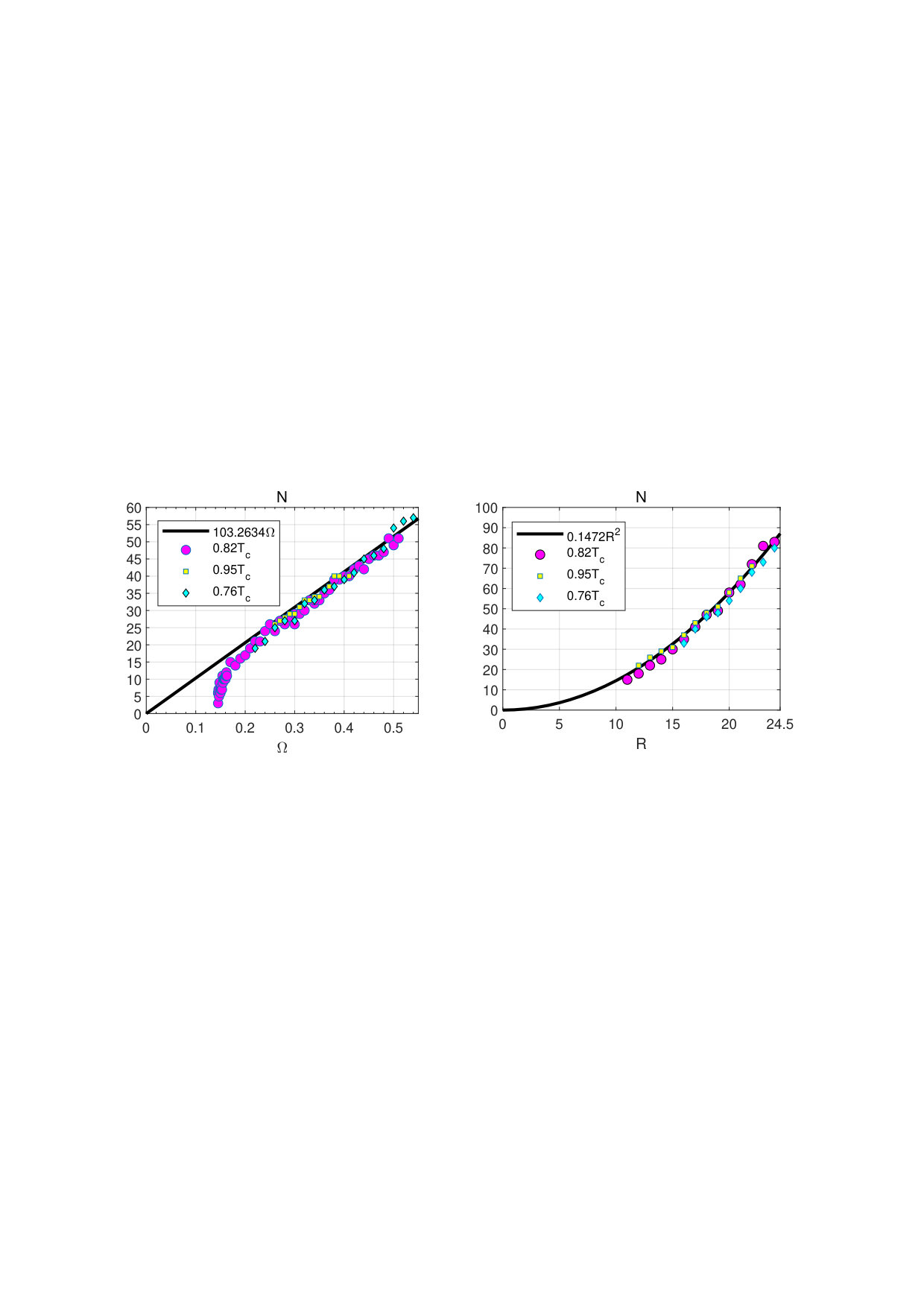

In the right panel of Fig.4, we show the relation between large number of vortices to the radius $R$ under various temperatures by fixing the angular velocity $\Omega=0.17$. We can also see that different temperatures do not change this relation. The direct fitting of the curve in the right panel of Fig.4 is $N\sim 0.1472R^{2}$. By comparison, replacing $\Omega=0.17$ into Eq.(9) we get $N\sim 0.1451R^{2}$, which perfectly matches the fitting (within $1.43\%$ differences) from the right panel of Fig.4. Therefore, this in turn numerically confirms the Feynman relation Eq.(8)!

Single vortex solution in static.— We have investigated the dynamical evolution of the vortex lattices in the preceding sections. For completeness, in this section we will study the static single vortex solution in order to compare the first critical angular velocity $\Omega_{c1}$ to that obtained from dynamics. Analytically, $\Omega_{c1}$ can be obtained as Landau ,

[TABLE]

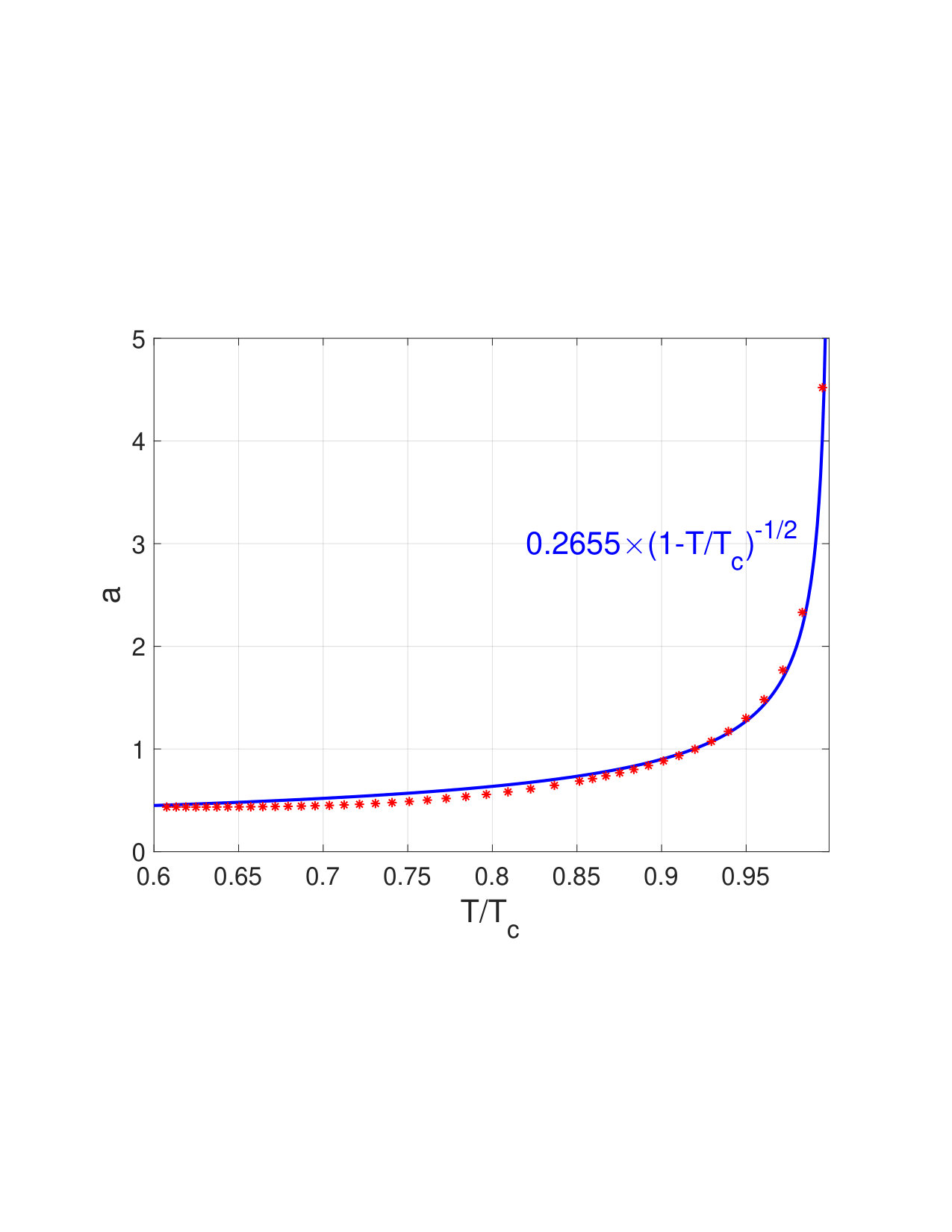

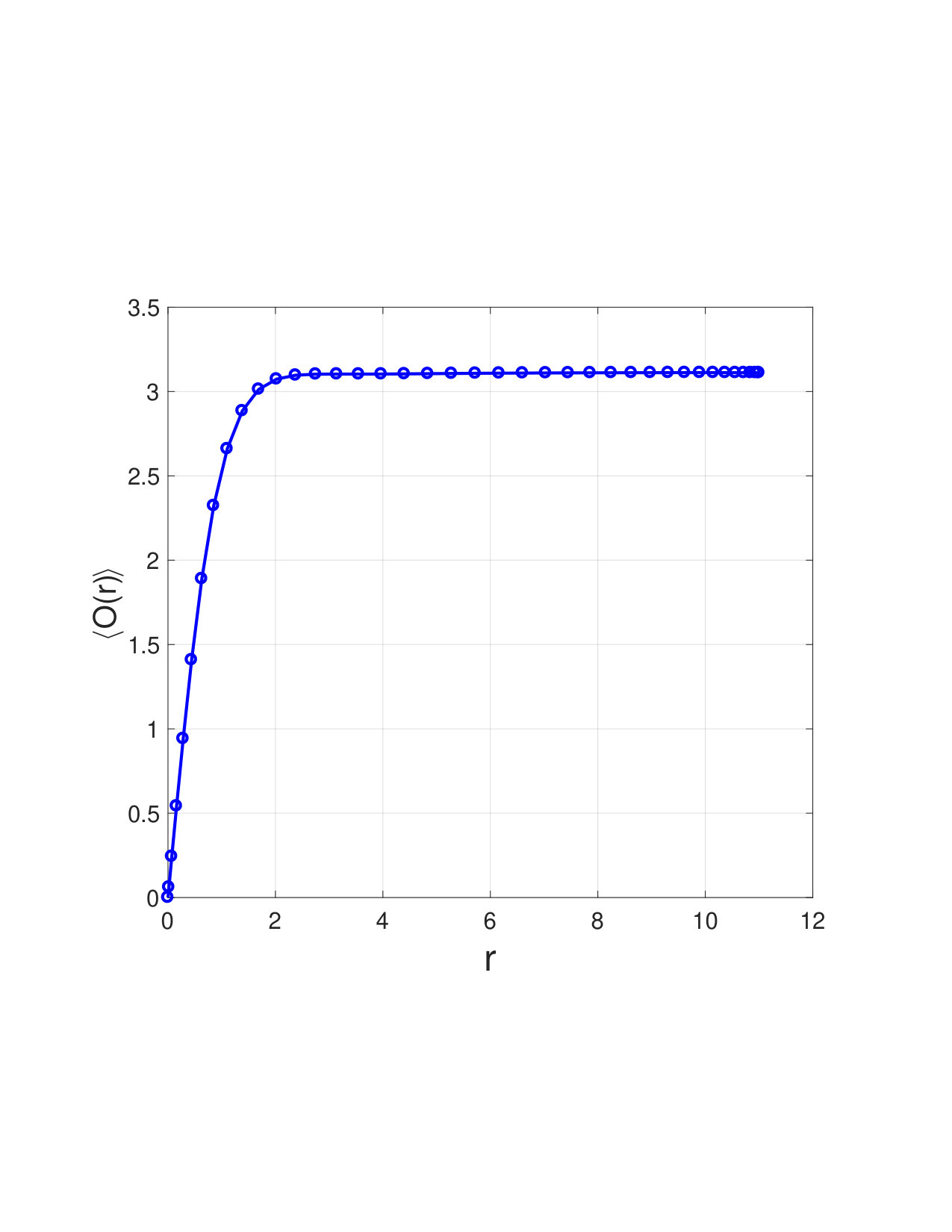

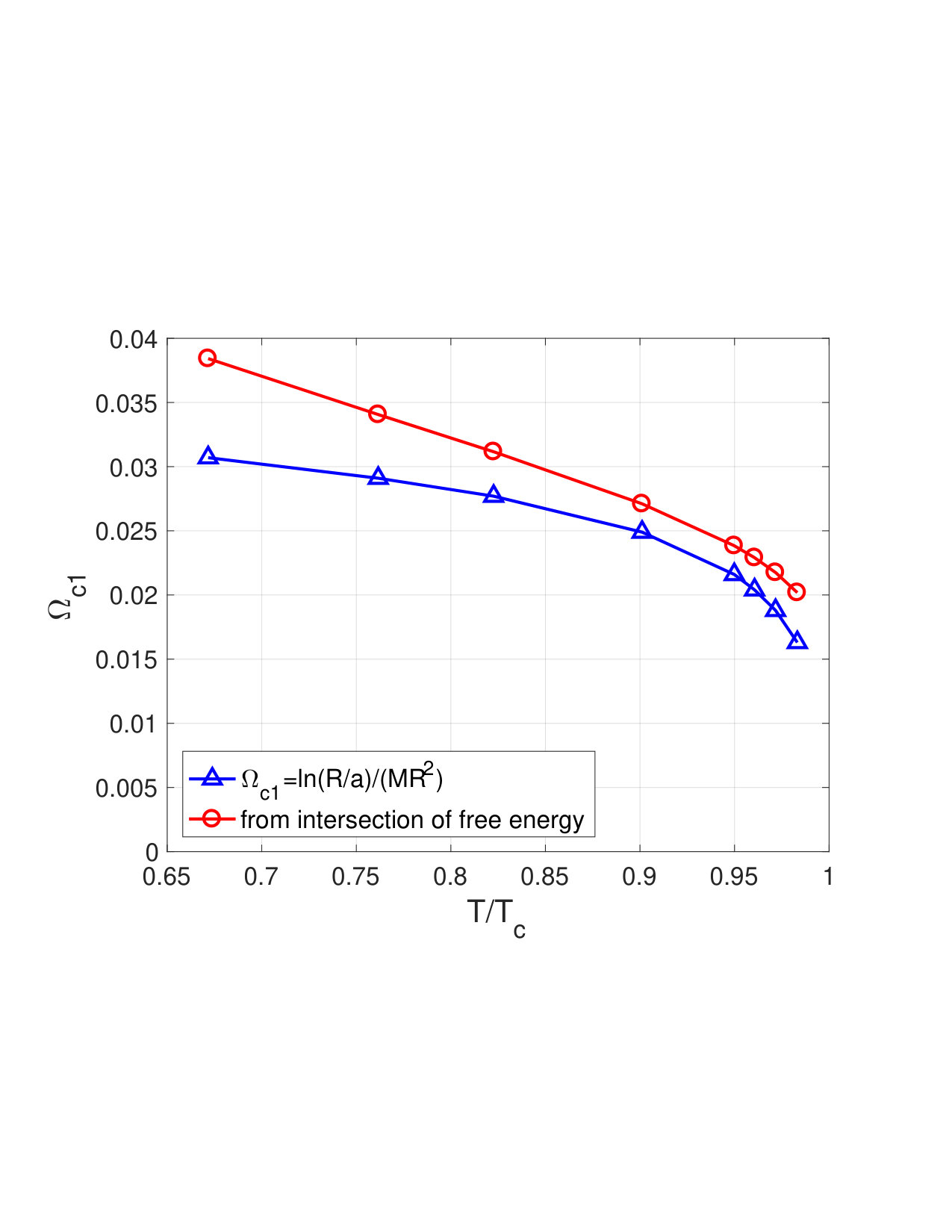

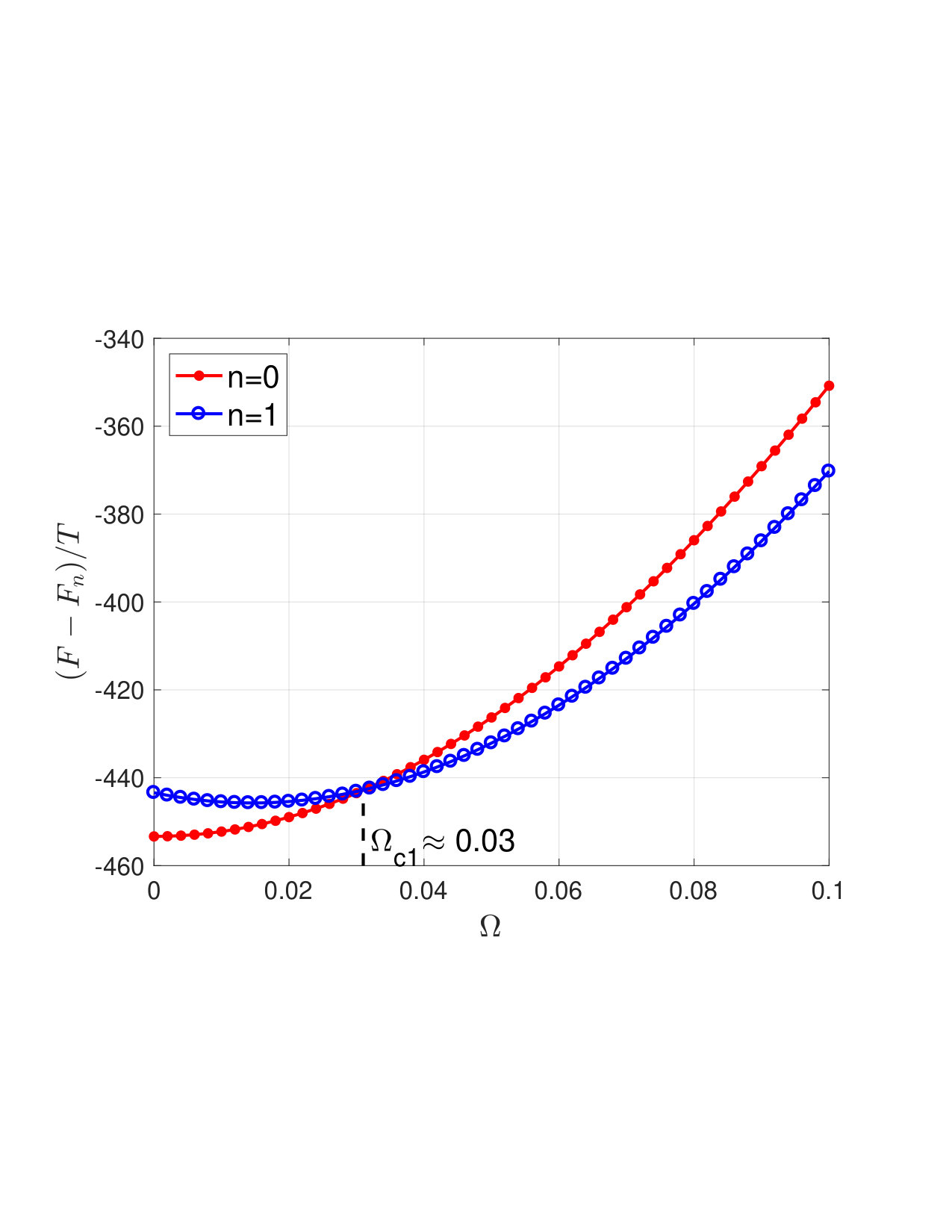

where $a$ denotes the vortex core size. At the temperature $T=0.82T_{c}$ and $R=11$, we find that $a\sim 0.6257$ by fitting the single vortex order parameter as $\langle O(r)\rangle=\langle O(R)\rangle\tanh\left(r/(\sqrt{2}a)\right)$ Annett , which is shown in the top left panel of Fig.5. Substituting $M\sim 0.8534$ from the above fitting Eq.(9) in to Eq.(10), we get $\Omega_{c1}\sim 0.0278$. By contrast, in the top right panel of Fig.5 we show the free energies of static $n=0$ and $n=1$ vortex solutions. The intersecting point $\Omega_{c1}\sim 0.03$ is the first critical angular velocity, which is comparable to $\Omega_{c1}\sim 0.0278$ (within $7.34\%$ differences) obtained from analytical derivation Eq.(10). In the bottom panels of Fig.5 we also show the temperature dependence of the vortex size $a$ and the first critical angular velocity $\Omega_{c1}$. The time dependence of $a$ can also be vividly seen in the subfigures (D, E, F) in Fig.3, in which as temperature grows the size of the each individual vortex grows as well. The fitted curve of this relation is $a(T)\sim 0.2655\times(1-T/T_{c})^{-1/2}$ as shown in the bottom left panel of Fig.5. In the bottom right panel of Fig.5 we show the relation between $\Omega_{c1}$ and temperatures. The red curve and circles are from the intersections of the $n=0$ and $n=1$ free energies of single static vortex solutions as we already did above. The blue curve and triangles are from the formula Eq.(10) by substituting each $a(T)$ into this formula. We see that the critical angular velocities obtained from these two different approaches are consistent with each other in the sense that as temperature grows they will decrease, and their values are close to each other.

Summary.— The vortex lattices were found in a holographic superfluid in different temperatures for the first time. We also confirm that the Feynman’s linear relation is always satisfied in different temperatures. This was the advantage of holography than GP equation, which could not deal with finite temperature problem. The critical angular velocity from the analysis of the free energy also matched very well with theoretical predictions Eq.(10). We expect that this holographic study may shed light on understanding the properties of a rotating strongly coupled superfluid.

Acknowledgements.— We thank Christopher P. Herzog for valuable comments. This work is supported by the National Natural Science Foundation of China (under Grant No. 11675140, 11705005, 11875095, 11565017 and 11675015). Y.T. is also supported by the “Strategic Priority Research Program of the Chinese Academy of Sciences” with Grant No.XDB23030000.

H.B.Z. and H.Q.Z. share the equal contributions to this work as the corresponding authors.
