Shallow Ultraviolet Transits of WD 1145+017

TL;DR

This study presents multi-wavelength observations of WD 1145+017, revealing that UV transits are shallower than optical ones due to the alignment of transiting objects with circumstellar gas, supporting a model of gas and debris interaction.

Contribution

The paper introduces a quantitative model explaining the shallower UV transits and the alignment of transiting objects, circumstellar gas, and the white dwarf in WD 1145+017.

Findings

UV transit depths are shallower than optical.

Transiting objects, gas, and star are aligned along our line of sight.

UV flux is less blocked during transits due to circumstellar gas absorption.

Abstract

WD 1145+017 is a unique white dwarf system that has a heavily polluted atmosphere, an infrared excess from a dust disk, numerous broad absorption lines from circumstellar gas, and changing transit features, likely from fragments of an actively disintegrating asteroid. Here, we present results from a large photometric and spectroscopic campaign with Hubble, Keck , VLT, Spitzer, and many other smaller telescopes from 2015 to 2018. Somewhat surprisingly, but consistent with previous observations in the u' band, the UV transit depths are always shallower than those in the optical. We develop a model that can quantitatively explain the observed "bluing" and the main findings are: I. the transiting objects, circumstellar gas, and white dwarf are all aligned along our line of sight; II. the transiting object is blocking a larger fraction of the circumstellar gas than of the white dwarf itself. Because most circumstellar lines are concentrated in the UV, the UV flux appears to be less blocked compared to the optical during a transit, leading to a shallower UV transit. This scenario is further supported by the strong anti-correlation between optical transit depth and circumstellar line strength. We have yet to detect any wavelength-dependent transits caused by the transiting material around WD 1145+017.

Figures

Tables

Table 1. Table 1: Basic Parameters of WD 1145+017

Parameter		Ref
Coord (J2000)	11:48:33.6 +01:28:59.4
Spectral Type	DBZA
V	17.0 mag
TWD	15020 $\pm$ 520 K	(1)
log g	8.07 $\pm$ 0.05	(1)
MWD	0.63 $\pm$ 0.05 M⊙	(1)
Distance	141.7 $\pm$ 2.5 pc	(2)

Table 2. Table 2: Observing Log of Photometric Observations

Tel./Inst.	$\lambda$ ($\mu$m)	Date (UT)
COS	0.13	Mar 28, 23:15 - Mar 29, 06:19, 2016
Meyer	0.48	Mar 28, 21:00 - Mar 29, 04:37, 2016
COS	0.13	Feb 17, 11:29 - Feb 18, 07:09, 2017
MuSCAT	0.48	Feb 18, 13:18 - Feb 18, 20:35, 2017
COS	0.13	Jun 6, 07:02 - Jun 7, 04:07, 2017
DCT	0.55	Jun 6, 03:35 - Jun 6, 05:32, 2017
IRAC	4.5	Apr 25, 10:15- Apr 25, 20:05, 2018
NASACam	0.55	Apr 25, 3:51 - Apr 25, 9:19, 2018
NASACam	0.55	Apr 26, 4:58 - Apr 26, 8:21, 2018
COS	0.13	Apr 30, 22:57 - May 1, 18:42, 2018
Perkins	0.65	Apr 29, 03:55 - May 1, 08:10, 2018

Table 3. Table 3: Optical Spectroscopic Observations of WD 1145+017

Instrument	Wavelength	Resolution	Date (UT)	Exposure Times
Keck/HIRESb	3200–5750 Å	40,000	2015 Apr 11	2400s$\times$3
Keck/ESI	4700–9000 Å	14,000	2015 Apr 25	1180s $\times$ 2
Keck/HIRESr	4700–9000 Å	40,000	2016 Feb 3	1800s$\times$9
Keck/HIRESb	3200–5750 Å	40,000	2016 Mar 3	1259s, 2400s$\times$5, 2000s, 1440s, 2400s$\times$2
Keck/ESI	3900–9300 Å	14,000	2016 Mar 28	1300s, 900s$\times$2, 600s$\times$25
VLT/X-SHOOTER	3100–10,000 Å	6200/7400aaThe first number is for the UVB arm while the second number is for the VIS arm.	2016 Mar 29	280s/314saaThe first number is for the UVB arm while the second number is for the VIS arm. $\times$ 29
Keck/HIRESb	3100–5950 Å	40,000	2016 Apr 1	1200s$\times$9
Keck/ESI	3900–9300 Å	14,000	2016 Nov 18	600s$\times$6
Keck/ESI	3900–9300 Å	14,000	2016 Nov 19	600s$\times$11
Keck/HIRESr	4715–9000 Å	40,000	2016 Nov 26	1800s $\times$2
Keck/HIRESr	4780–9200 Å	40,000	2016 Dec 22	1500s
Keck/ESI	3900–9300 Å	14,000	2017 Mar 6	600s$\times$3, 480s$\times$3
Keck/ESI	3900–9300 Å	14,000	2017 Mar 7	600s$\times$6
Keck/ESI	3900–9300 Å	14,000	2017 Apr 17	500s$\times$8
Keck/HIRESb	3100–5950 Å	40,000	2018 Jan 1	900s$\times$5
Keck/HIRESb	3100–5950 Å	40,000	2018 Apr 24	1200s$\times$5, 1000s, 1350s$\times$ 2
Keck/HIRESb	3100–5950 Å	40,000	2018 May 18	1200$\times$5

Table 4. Table 4: Spitzer and Optical Transit Measurements

Epoch	Dip	d4.5μm/dopt
2016	A1	0.256 $\pm$ 0.032
2017	B2	0.309 $\pm$ 0.075
2017	B3	0.239 $\pm$ 0.026
2018	A	0.137 $\pm$ 0.044
Average		0.235 $\pm$ 0.024

Table 5. Table 5: UV and Optical Transit Measurements

Date	${\overline{d}}_{\mathrm{uv}}$/${\overline{d}}_{\mathrm{opt}}$aaThe average optical-to-UV transit depth ratio for a given epoch.	Phase	${\overline{D}}_{\mathrm{opt}}$bb${\overline{D}}_{\mathrm{opt}}$ is the average optical transit depth for the given phase range, as defined in Equ. (3).	$\overline{\alpha }$cc$\overline{\alpha }$ and $\overline{\beta }$ are defined in section 5.	$\overline{\beta }$cc$\overline{\alpha }$ and $\overline{\beta }$ are defined in section 5.
2016 Mar 28-29	0.531 $\pm$ 0.020	0.29-0.39	0.295 $\pm$ 0.038	0.705 $\pm$ 0.038	0.373 $\pm$ 0.103
		0.20-0.40	0.209 $\pm$ 0.026	0.791 $\pm$ 0.026	0.556 $\pm$ 0.071
2017 Feb 18-19	0.625 $\pm$ 0.018	0.30-0.40	0.150 $\pm$ 0.015	0.850 $\pm$ 0.015	0.715 $\pm$ 0.038
		0.40-0.60	0.188 $\pm$ 0.016	0.812 $\pm$ 0.016	0.642 $\pm$ 0.045
2017 Jun 6-7	0.924 $\pm$ 0.068	0.15-0.25	0.021 $\pm$ 0.006	0.979 $\pm$ 0.006	0.975 $\pm$ 0.009
		0.10-0.30	0.011 $\pm$ 0.003	0.989 $\pm$ 0.003	0.987 $\pm$ 0.004
2018 Apr 30-May 1	0.746 $\pm$ 0.036	0.80-0.90	0.102 $\pm$ 0.009	0.898 $\pm$ 0.009	0.835 $\pm$ 0.020
		0.20-0.40	0.107 $\pm$ 0.030	0.893 $\pm$ 0.030	0.828 $\pm$ 0.051

Table 6. Table 6: WD 1145+017 Flux Comparison

	2016 Mar 29	2016 Apr 01	2016 Feb 3
	COS	HIRESb	HIRESr
	(1300–1420 Å)	(3200–3800 Å)	(6100–6700 Å)
$F_{\mathrm{WD}}$	100 $\pm$ 5%	100 $\pm$ 2%	100 $\pm$ 2%
${\overline{F}}_{\mathrm{abs}}$	42.7 $\pm$ 5.5%	4.2 $\pm$ 2.7%	1.3 $\pm$ 2.8%
${\overline{F}}_{\mathrm{phot}}$	19.0 $\pm$ 5.4%	1.5 $\pm$ 2.8%	0.7 $\pm$ 2.8%
${\overline{F}}_{\mathrm{cs}}$	23.8 $\pm$ 2.3%	2.7 $\pm$ 2.7%	0.6 $\pm$ 2.8%

Equations

$$f(p)=f_0\left[1-f_{\mathrm{dip}}(p)\right]\equiv f_0\left(1-\sum _i\frac{2f_{\mathrm{i}}}{e^{\frac{p-p_i}{{\varphi }_{i1}}}+e^{-\frac{p-pi}{{\varphi }_{i2}}}}\right).$$

$$f_{\lambda }(p)=f_{\lambda ,0}\left[1-d_{\lambda }{f}_{\mathrm{dip}}(p)\right]$$

$$\overline{D}=\frac{1}{p_2-p_1}\times {\int }_{{\mathrm{p}}_1}^{p_2}{f}_0\times f_{\mathrm{dip}}(p)dp,$$

$${\overline{F}}_{\mathrm{abs}}=1-\frac{\sum _i{F}_{\mathrm{abs},\mathrm{i}}\times d{\lambda }_{\mathrm{i}}}{F_{\mathrm{WD}}\times \Delta \lambda },$$

$$F_{\mathrm{out}}=F_{\mathrm{WD}}-{\overline{F}}_{\mathrm{phot}}-{\overline{F}}_{\mathrm{cs}},$$

$$F_{\mathrm{in}}=\alpha \times (F_{\mathrm{WD}}-{\overline{F}}_{\mathrm{phot}})-\beta \times {\overline{F}}_{\mathrm{cs}}$$

$$\overline{D}$$

$${\overline{D}}_{\mathrm{opt}}\approx 1-\bar{\alpha }.$$

$${\overline{D}}_{\mathrm{uv}}=1-\frac{\bar{\alpha }\times (F_{\mathrm{WD},\mathrm{uv}}-{\overline{F}}_{\mathrm{phot},\mathrm{uv}})-\bar{\beta }\times {\overline{F}}_{\mathrm{cs},\mathrm{uv}}}{F_{\mathrm{WD},\mathrm{uv}}-{\overline{F}}_{\mathrm{phot},\mathrm{uv}}-{\overline{F}}_{\mathrm{cs},\mathrm{uv}}}$$

$$\bar{\beta }=\frac{{\overline{F}}_{\mathrm{abs},\mathrm{in}}-{\overline{F}}_{\mathrm{phot},\mathrm{in}}}{{\overline{F}}_{\mathrm{abs},\mathrm{out}}-{\overline{F}}_{\mathrm{phot},\mathrm{out}}}.$$

Full text

circumstellar matter – minor planets, asteroids: general – stars: individual: WD 1145+017 – white dwarfs

††journal: ApJ††software: Matplotlib (Hunter, 2007)

1 Introduction

There is evidence that planetary systems can be common and active around white dwarfs (e.g. Jura & Young, 2014; Veras, 2016). To-date, WD 1145+017 is the only white dwarf that shows transit features of planetary material, likely from an actively disintegrating asteroid (Vanderburg et al., 2015). The original K2 light curves reveal at least six stable periods, all between 4.5-5.0 hours, near the white dwarf tidal radius. Follow-up photometric observations show that the system is actively evolving and the light curve changes on a daily basis (Gänsicke et al., 2016; Rappaport et al., 2016, 2017; Gary et al., 2017). Likely, the transits are caused by dusty fragments111In this paper, we use the term “dusty fragments” to refer to the material that is directly causing the transits. Likely, all these dusty fragments come from one or several asteroid parent bodies in orbit around WD 1145+017. But the asteroid itself is too small to be directly detectable via transits. coming off the disintegrating asteroid (Veras et al., 2017) and each piece is actively producing dust for a few weeks to many months.

The basic parameters of WD 1145+017 are listed in Table 1. Its photosphere is also heavily “polluted” with elements heavier than helium; such pollution has been observed in 25-50% of all white dwarfs (Zuckerman et al., 2003, 2010; Koester et al., 2014). At least 11 heavy elements have been detected in its atmosphere and the overall composition resembles that of the bulk Earth (Xu et al., 2016). In addition, WD 1145+017 displays strong infrared excess from a dust disk, which has been observed around 40 other white dwarfs (Farihi, 2016). The standard model is that these disks are a result of tidal disruption of extrasolar asteroids and atmospheric pollution comes from accretion of the circumstellar material (Jura, 2003).

Another unique feature of WD 1145+017 is its ubiquitous broad circumstellar absorption lines, which have not been detected around any other white dwarfs (Xu et al., 2016)222Variable circumstellar emission features have been detected around some dusty white dwarfs (e.g. Gänsicke et al., 2006; Manser et al., 2016; Dennihy et al., 2018).. They are broad (line widths $\sim$ 300 km s*-1*), asymmetric, and arise mostly from transitions with lower energy levels $<$3 eV above ground. The circumstellar lines display short-term variability – a reduction of absorption flux coinciding with the transit feature (Redfield et al., 2017; Izquierdo et al., 2018; Karjalainen et al., 2019), as well as long-term variability – they have evolved from being strongly red-shifted to blue-shifted in a couple of years (Cauley et al., 2018). The long-term variability can be explained by precession of an eccentric ring, either under general relativity or by an external perturber.

The transiting fragments include dust particles and observations at different wavelengths could constrain their size and composition – the main motivation for multi-wavelength photometric observations. Previous studies show that the transit depths are the same from V to J band (Alonso et al., 2016; Zhou et al., 2016; Croll et al., 2017). Observations at Ks band and 4.5 $\mu$m have revealed shallower transits than those in the optical (Xu et al., 2018a). However, after correcting for the excess emission from the dust disk, the transit depths become the same at all the observed wavelengths. Under the assumption of optically thin transiting material, the authors conclude that there is a dearth of dust particles smaller than 1.5 $\mu$m due to their short sublimation time (Xu et al., 2018a).

The first detection of a color difference in WD 1145+017’s transits is featured by a shallower u’-band transit (u’ - r’ = -0.05 mag) using multi-band fast photometry from ULTRACAM (Hallakoun et al., 2017). The authors have demonstrated that limb darkening cannot reproduce the observed difference in the transit depth and that dust extinction is unlikely to be the mechanism either. Finally, they proposed that the most likely cause is the reduced circumstellar gas absorption during transits because of the high concentration of circumstellar lines in the u’ band. Due to the active nature of this system, simultaneous photometric and spectroscopic observations are required to test this hypothesis.

In this paper, we report results from a large spectroscopic and photometric campaign of WD 1145+017 with the Hubble Space Telescope (HST), the Keck Telescope, the Very Large Telescope (VLT), Spitzer Space Telescope, and several smaller telescopes. The main goal is to understand the interplay between the transiting fragments, dust disk, and circumstellar gas. This paper is organized as follows. Observations and data reduction of the main dataset are presented in Section 2. The light curves are analyzed in Section 3, which features shallow 4.5 $\mu$m and UV transits. All the spectroscopic analysis is presented in Section 4, where we found an anti-correlation between the optical transit depth and the strength of the circumstellar absorption lines. In Section 5, we present a model that could quantitatively explain the shallow UV transits from the change of circumstellar lines. Conclusions are presented in Section 6.

2 Observations and Data Reduction

2.1 UV photometry and spectroscopy

We were awarded observing time with the Cosmic Origins Spectrograph (COS) onboard HST to observe WD 1145+017 (program ID #14467, #14646, #15155) a few times between 2016 and 2018. The observing log is listed in Table 2. The G130M grating was used with a central wavelength of 1291 Å and a wavelength coverage of 1125 to 1440 Å. To minimize the effect of fixed pattern noise, we adopted different FP-POS steps for each exposure (COS Instrument Handbook). As a result, the wavelength coverage was slightly different in each exposure. A representative COS spectrum, full of absorption features, is shown in Fig. 1.

To extract the light curve from the time-tagged COS observations, we used a Python library created under the Archival Legacy Program (ID: # 13902, PI: J. Ely, “The Light curve Legacy of COS and STIS”, see also Sandhaus et al. 2016). This library begins with the event-list datasets produced as part of a routine CalCOS reduction, and performs additional filtering, calibration, and extraction in order to transform a spectral dataset into the time domain sequence. This extraction can be done with any time sampling and wavelength ranges. Here, we selected the wavelength range that was shared by all the FP-POS exposures at each epoch and a time sampling of 30 sec. The light curve was normalized by dividing by a constant, which is the average flux of the out-of-transit light curve, as shown in Fig. 2.

In the 97 minute orbit of HST, WD 1145+017 is visible for about 50 minutes. The orbital period of the fragment is $\approx$ 270 minutes, about a factor of 3 times the HST orbital period. In 2016, five consecutive HST orbits were executed, covering three separate parts of the orbital phase. In 2017, we improved our observing strategy by setting up two groups of observations with 3 orbits each, separated by 10 orbits in between. This set-up allows us to have an almost complete phase coverage. In 2018, we used a similar set-up as those in 2017. Unfortunately due to a gyro failure, only 3 orbits worth of data were obtained.

2.2 Spitzer Photometry

WD 1145+017 was observed with Spitzer/IRAC at 4.5 $\mu$m under program #13065. Following our previous set-up on the same target (Xu et al., 2018a), the science observation had 1140 exposures with 30 sec frame time in stare mode. The total on-target time was 9.5 hr, covering a little over two full 4.5-hr cycles. Data reduction was performed following procedures outlined in Xu et al. (2018a), and the light curve is shown in Fig. 3. There is one transit (Dip A) marginally detected with Spitzer around phase 0.3.

2.3 Optical Photometry

We have arranged optical photometric monitoring around the same time of HST and Spitzer observations. We present the highest quality optical light curves here; the logs are listed in Table 2. We briefly describe each observation.

2016 Meyer observation: The 0.6m Paul and Jane Meyer Observatory Telescope in the Whole Earth Telescope (WET) network (Provencal et al., 2012) was used for observing WD 1145+017 during the 2016 HST window. The exposure time is 60 sec and weather conditions were moderate with some passing clouds. This epoch of observation has been reported in Xu et al. (2018a), together with simultaneous VLT/Ks band and Spitzer 4.5 $\mu$m observations.

2017 MuSCAT observation: MuSCAT is mounted at the 188-cm telescope at the Okayama Astrophysical Observatory in Japan (Narita et al., 2015). We observed the target in g, r, and zs bands simultaneously with 60 sec exposure time in each filter. No color difference was detected and the g-band light curve is presented, which has the highest quality.

2017 DCT observation: We observed WD 1145+017 from the 4.3-m Discovery Channel Telescope (DCT) using the Large Monolithic Imager (LMI, Massey et al. 2013). A series of 30 s exposures in V-band were taken using 2x2 pixel binning under thin cirrus. The data reductions were similar to those described in Dalba & Muirhead (2016); Dalba et al. (2017). Aperture photometry was performed on the target as well as suitable reference stars to generate light curves. This procedure was repeated for a range of photometric apertures. The aperture and the set of reference stars that maximized the photometric precision away from the dimming events were used to generate the final light curve.

2018 NASACam Observation: On both Apr 25 and 26, the V-band filter was used with an exposure time of 60 sec. These data were reduced and analyzed following the DCT observations. As shown in Fig. 3, the optical light curve was rather noisy due to the proximity ($<$30 deg) of the nearly fully illuminated ($>$75%) Moon. Nevertheless, Dip A is well detected in the optical light curve and there is also a weaker Dip B around phase 0.8. Our long-term monitoring of WD 1145+017 over this period (Gary et al. in prep) shows that Dip B is changing quickly, while Dip A is relatively stable. We will focus on Dip A for the following analysis.

2018 Perkins Observation: The PRISM instrument (Janes et al., 2004) mounted on the 1.8-m Perkins telescope at Lowell Observatory was used to observe WD 1145+017. The exposure times were 45 s. On April 29, the sky was clear but it was windy. The wind continued on April 30 and patchy cirrus was present. On both nights, the seeing was consistently greater than 2$\farcs$0. These observations were reduced and analyzed in the same fashion as the DCT observations.

In addition, WD 1145+017 has been monitored on a regular basis by amateur astronomers using the 14-inch telescope at the Hereford Arizona Observatory (HAO) and a 32-inch telescope at Arizona (some of the observations have been reported in Rappaport et al. 2016; Alonso et al. 2016; Rappaport et al. 2017; Gary et al. 2017; see details in those references). We also utilized light curves obtained from the University of Arizona’s 61 inch telescope, a 14-inch telescope at Cyprus, a 32-inch IAC80 telescope on the Canary Islands, as well as a 20-inch telescope in Chile. We use optical photometric observations that were taken closest in time with our spectroscopic monitoring described in the next section.

2.4 Optical Spectroscopy

WD 1145+017 has been observed intensively with different optical spectrographs from 2015-2018. A summary of the observing log is listed in Table 3.

Keck/HIRES: High Resolution Echelle Spectrometer (HIRES; Vogt et al. 1994) on the Keck I telescope has a blue collimator and a red collimator. HIRESb was used more frequently for observing WD 1145+017 because it covers shorter wavelengths, where most circumstellar lines are located, approximately the green region (X-SHOOTER UVB arm) shown in the lower panel of Fig. 1. For HIRES observations, the C5 decker was used with a slit width of 1$\farcs$148, returning a spectral resolution of 40,000. The exposure times vary to ensure a signal-to-noise ratio of at least 10 in a single exposure. Data reduction was performed with the MAKEE package. We also continuum normalized the spectra with IRAF following procedures described in an early study of WD 1145+017 (Xu et al., 2016). Thanks to the high spectral resolution of HIRES, we can resolve the profiles of individual absorption lines and separate the photospheric component from the circumstellar component.

Keck/ESI: WD 1145+017 has also been observed with the Echellette Spectrograph and Imager (ESI; Sheinis et al. 2002) on the Keck II telescope. A slit width of 0$\farcs$3 was used, which returns a spectral resolution of 14,000. Similar to the HIRES analysis, data reduction was performed using both MAKEE and IRAF. The main advantage of ESI is its wider wavelength coverage and shorter integration times due to its lower spectral resolution. The ESI dataset is well suited to probe short-term (tens of minutes) variations of the circumstellar lines.

VLT/X-SHOOTER: WD 1145+017 has been observed with X-SHOOTER (Vernet et al., 2011) on the VLT at the same time as the 2016 HST observation. The weather conditions were decent with some thin clouds. X-SHOOTER has three arms, i.e. UVB, VIS, and NIR, which provide simultaneous wavelength coverage from the atmospheric cutoff in the blue to K band. WD 1145+017 is too faint to be detected in the NIR arm and here we focus on the UVB and VIS arms. A series of short exposures was taken to monitor the variations of the circumstellar lines. The data were reduced using the XSHOOTER pipeline 2.7.0b by the ESO quality control group. The final combined spectrum is presented in Fig. 1.

3 Transit Analysis

To model the light curve, we follow previous studies of fitting asymmetric transit (e.g. Rappaport et al., 2014) by adopting a series of asymmetric hyperbolic secant (AHS) functions with the following form:

[TABLE]

where $i$ represents the number of AHS component, $p_{i}$ is the phase of the deepest point in a transit, $\phi_{i1}$ and $\phi_{i2}$ represent the phase duration of the ingress and egress, respectively.

Assuming the light curves have the same shape but different depth at different wavelengths, we can fit the light curve at another wavelength as:

[TABLE]

There are only two free parameters, $f_{\mathrm{\lambda,0}}$, which characterizes the continuum level, and $d_{\mathrm{\lambda}}$, which represents the transit depth ratios. $f_{\mathrm{dip}}(p)$ can be taken from the best fit parameters from Equ. (1).

3.1 4.5$\mu$m and Optical Transits

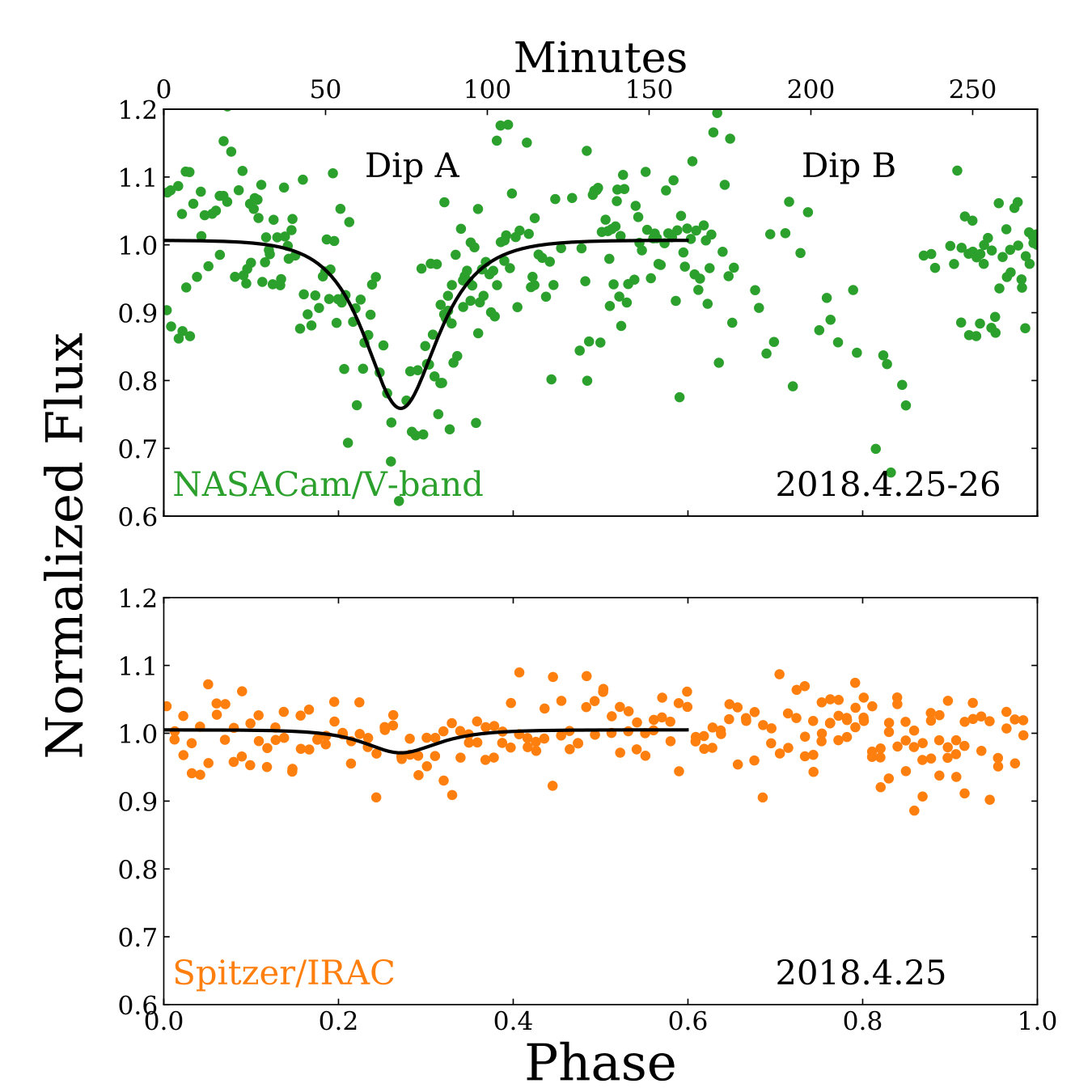

We fitted Dip A with one AHS function and the best fit models are shown as black lines in Fig. 3. We calculated the transit depth ratios between 4.5 $\mu$m and optical, as listed in Table 4. We also list the ratios calculated for 2017 and 2018 epochs (Xu et al., 2018a) and take the average value d4.5μm/dopt of 0.235 $\pm$ 0.024. After correcting for the contribution from the dust disk at 4.5 $\mu$m, the transit depth ratio between 4.5 $\mu$m and optical is 0.995 $\pm$ 0.119, consistent with unity.

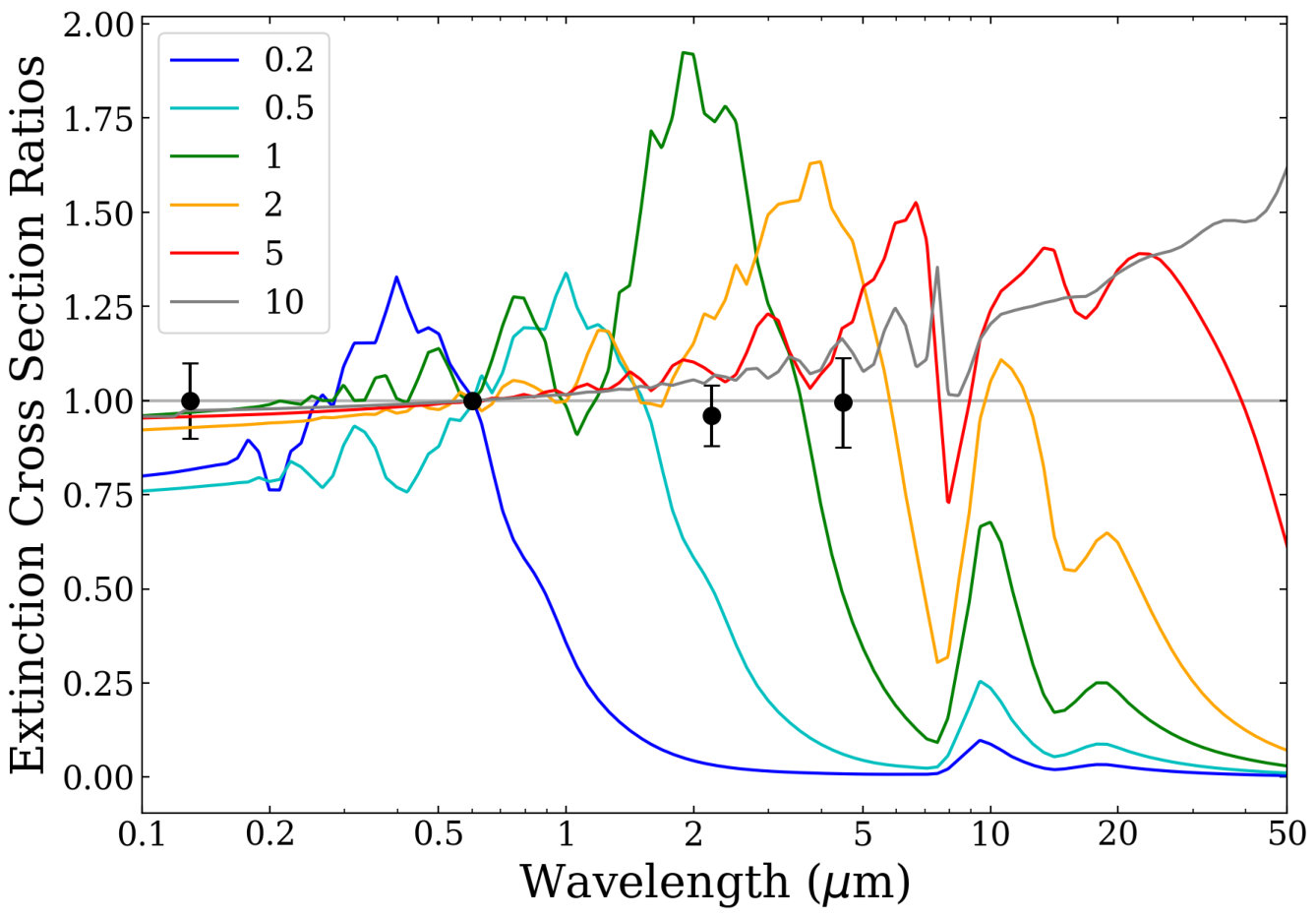

In Fig. 4, we compared the new measurements with Mie scattering cross sections of astronomical silicates calculated by Draine & Lee (1984) and Laor & Draine (1993). The astronomical silicates is not a real mineral, and its real and imaginary refractive index are calculated from a combination of lab measurements and actual astronomical observation of circumstellar and interstellar silicate dust (Draine & Lee, 1984). Our transit observations cover 0.12 $\mu$m333The 0.12 $\mu$m COS light curve is analyzed in Section 5. to 4.5 $\mu$m and yet no wavelength dependence caused by the transiting material has been detected. The result is consistent with our previous finding that either the transiting material has very few small grains or it is optically thick (Xu et al., 2018a).

In addition, the out-of-transit flux at 4.5 $\mu$m in 2018 is 52.7 $\pm$ 4.7 $\mu$Jy, which is consistent with 55.0 $\pm$ 3.2 $\mu$Jy reported in 2016 and 2017 (Xu et al., 2018a). The infrared fluxes of WD 1145+017 are surprisingly stable given the transit behavior has changed dramatically during the past few years. A recent study by Swan et al. (2019) has found that WD 1145+017 is variable in the WISE W1 band (3.4 $\mu$m). The cause is unclear due to the sparse sampling of WISE and the variability could either come from the transits or the disk material. Infrared variability of white dwarf dust disks has been reported up to 30% at the IRAC bands (Xu & Jura, 2014; Xu et al., 2018b; Farihi et al., 2018) and the proposed scenario is tidal disruption and dust production/destruction. It is evident that dust is constantly produced and destroyed around WD 1145+017 yet its infrared fluxes remained unchanged. In addition, the canonical geometrically thin optically thick disk aligned with the transiting material can not reproduce the strong infrared excess (Xu et al., 2016). Either the dust disk is misaligned with the transiting object or the disk has a significant scale height. Numerical simulations have shown that white dwarf dust disks can have a vertical structure when there is a constant input of material (Kenyon & Bromley, 2017a, b). However, it is still a puzzle given the stable 4.5 $\mu$m flux.

3.2 UV and Optical Transits

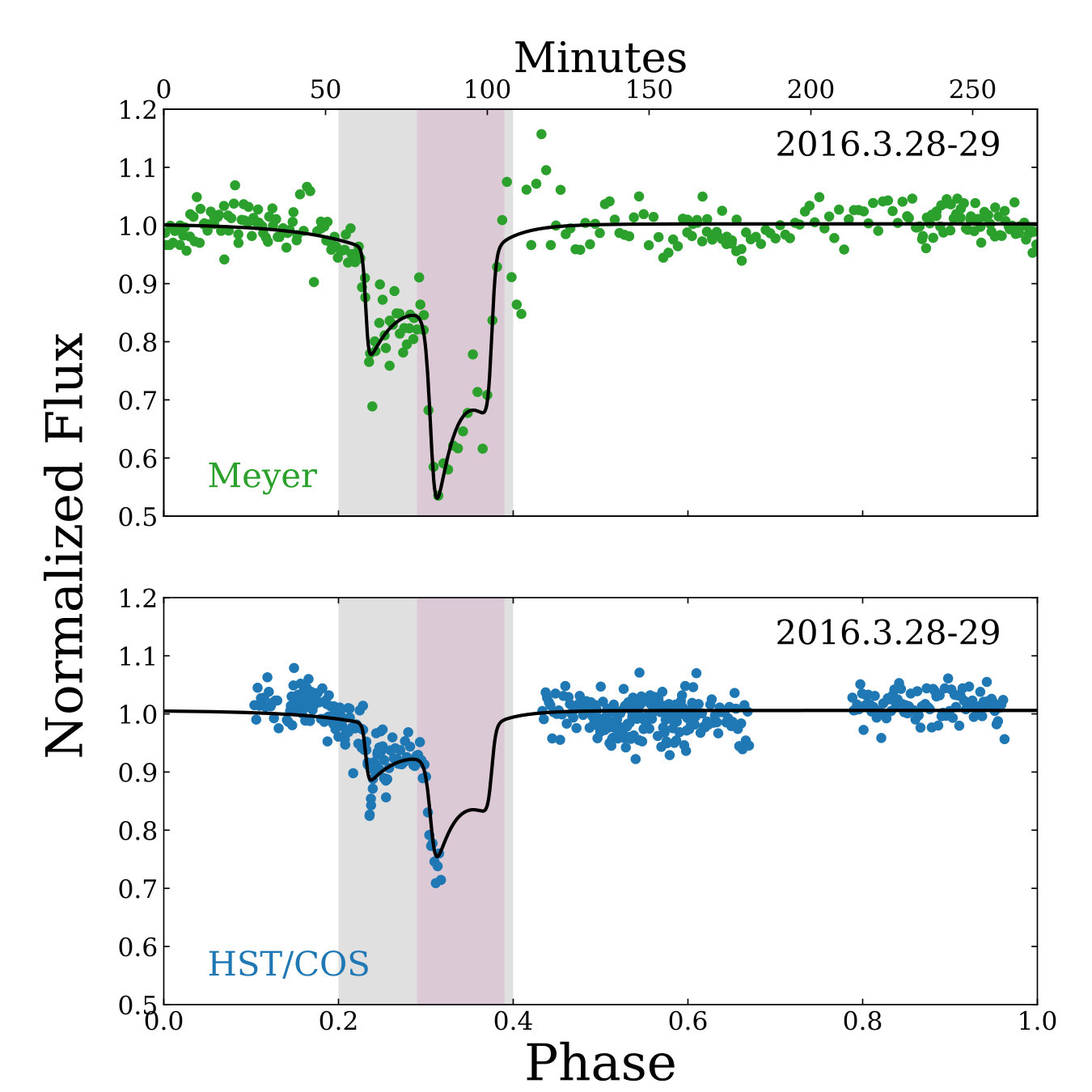

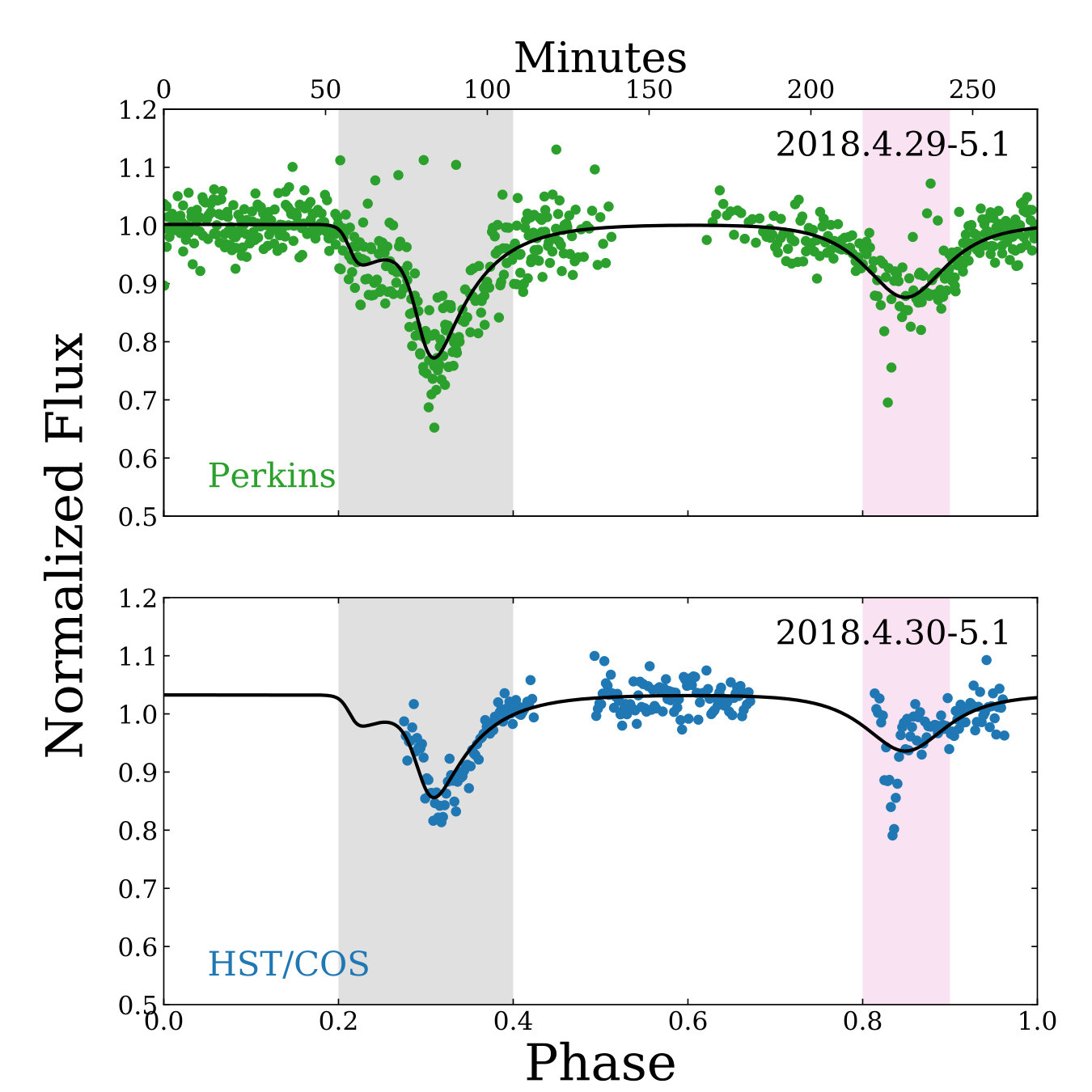

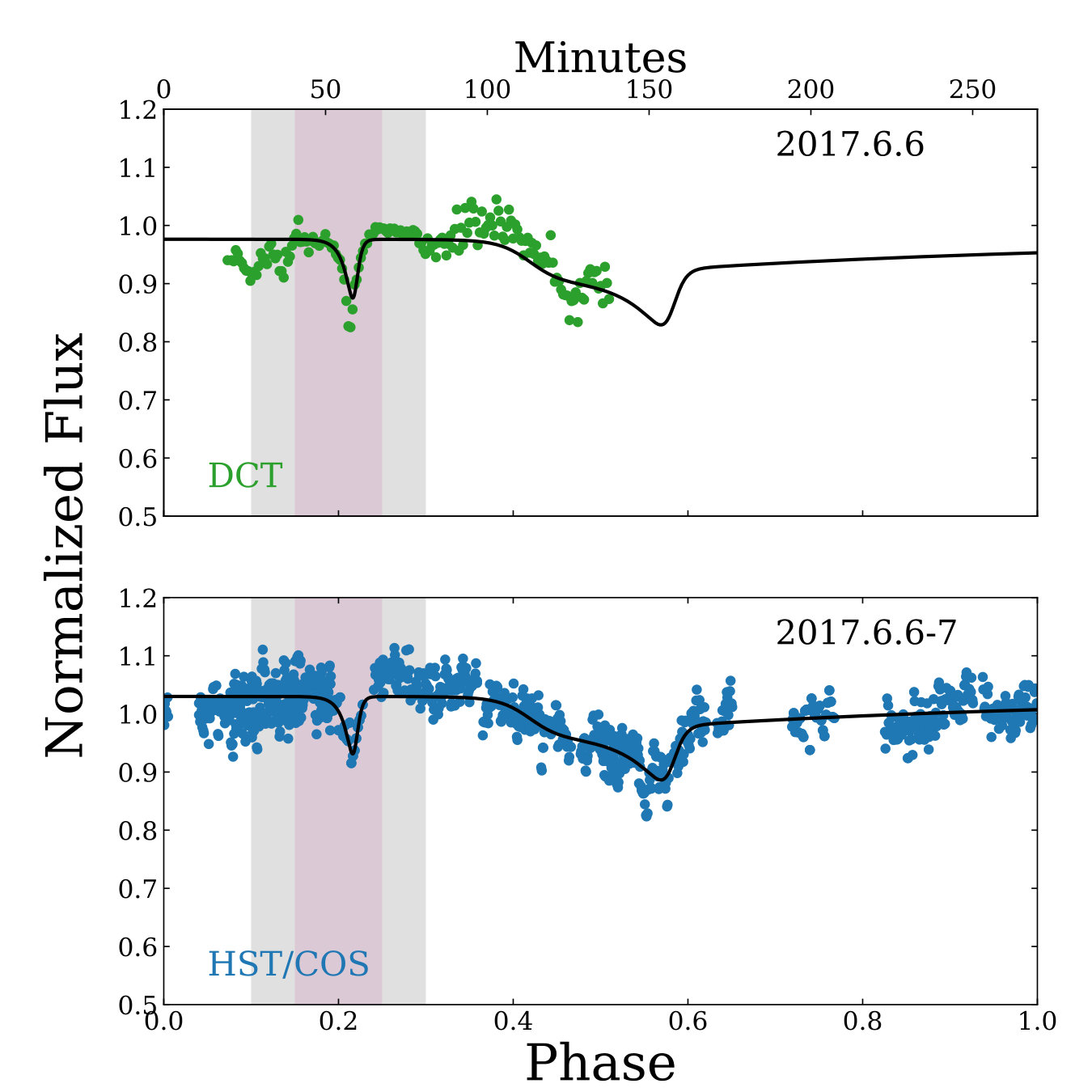

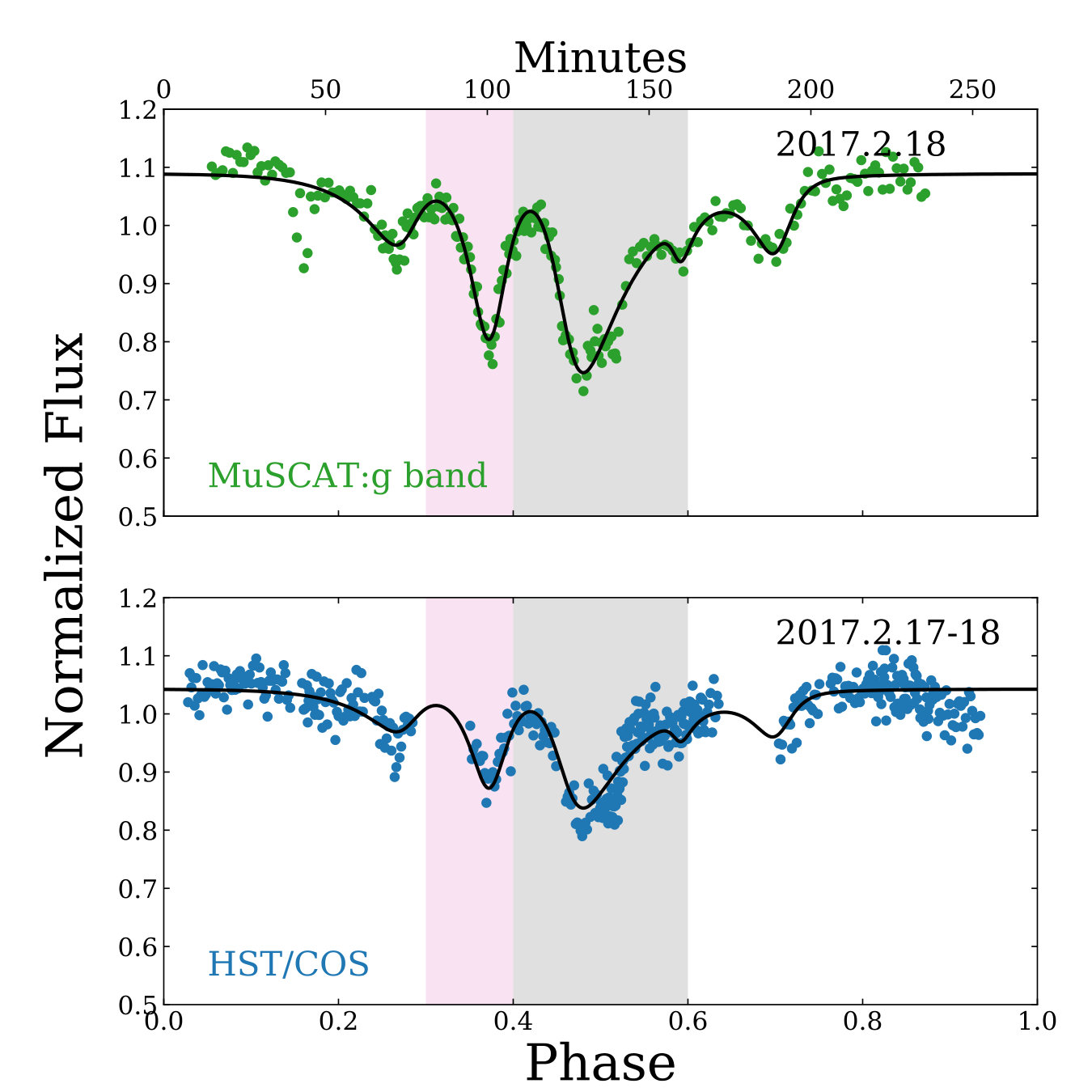

For the 2016, February 2017, and 2018 observations, we started by fitting the optical light curves with AHS functions because they have good phase coverage. For the June 2017 observations, we started with the UV light curve because the optical light curve only covers a small phase range. The best fit models are shown in Fig. 2 and the UV-to-optical transit depth ratios are listed in Table 5. Here, we are reporting the average ratio for a given epoch and this number could differ for each dip. The UV transit depths are always shallower than those of the optical, which is rather surprising given the constant transit depth from optical to 4.5 $\mu$m presented in Sectio 3.1. In addition, the UV-to-optical transit ratios also appear to be changing at different epochs.

To quantify the strength of a transit, we introduce $\overline{D}$,

[TABLE]

where p1 and p2 represent the phase interval of interest and $f_{\mathrm{0}}$ and fdip(p) are taken from the Equ (1). It is similar to the mean transit depth used in Hallakoun et al. (2017).

For each epoch, we selected two phase ranges and calculated the corresponding transit depths, as listed in Table 5. The transit depths are different for different dips.

4 Spectroscopic Analysis

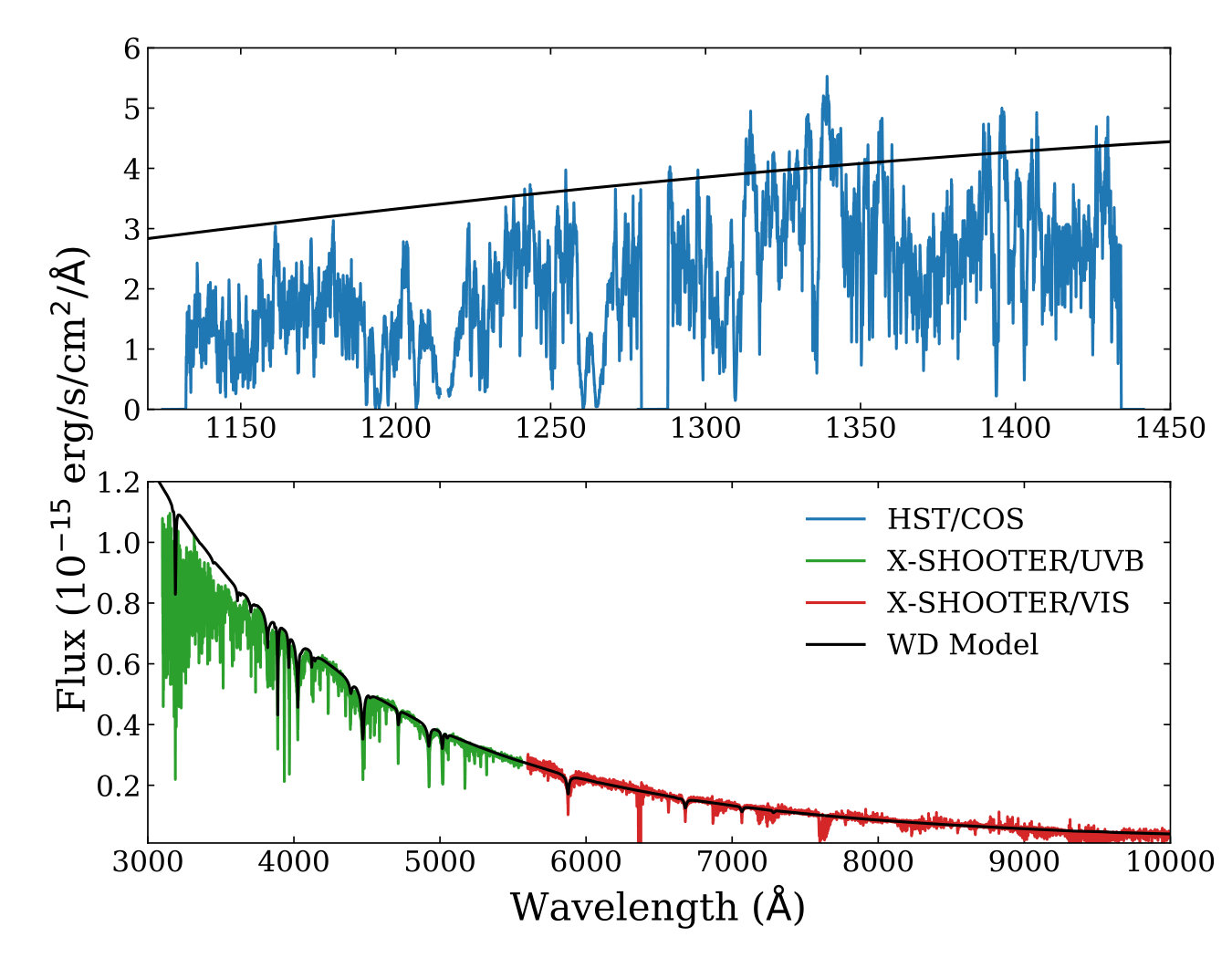

With this extensive spectroscopic dataset, we updated the white dwarf models to consistently fit the optical and UV spectra of WD 1145+017. We have also developed new models for the circumstellar lines. Details will be presented in Fortin-Archambault et al. (in prep) and Steele et al (in prep). In the following analysis, we present some preliminary results of the calculation to help us understand different components of the absorption features.

4.1 Long-term Variability

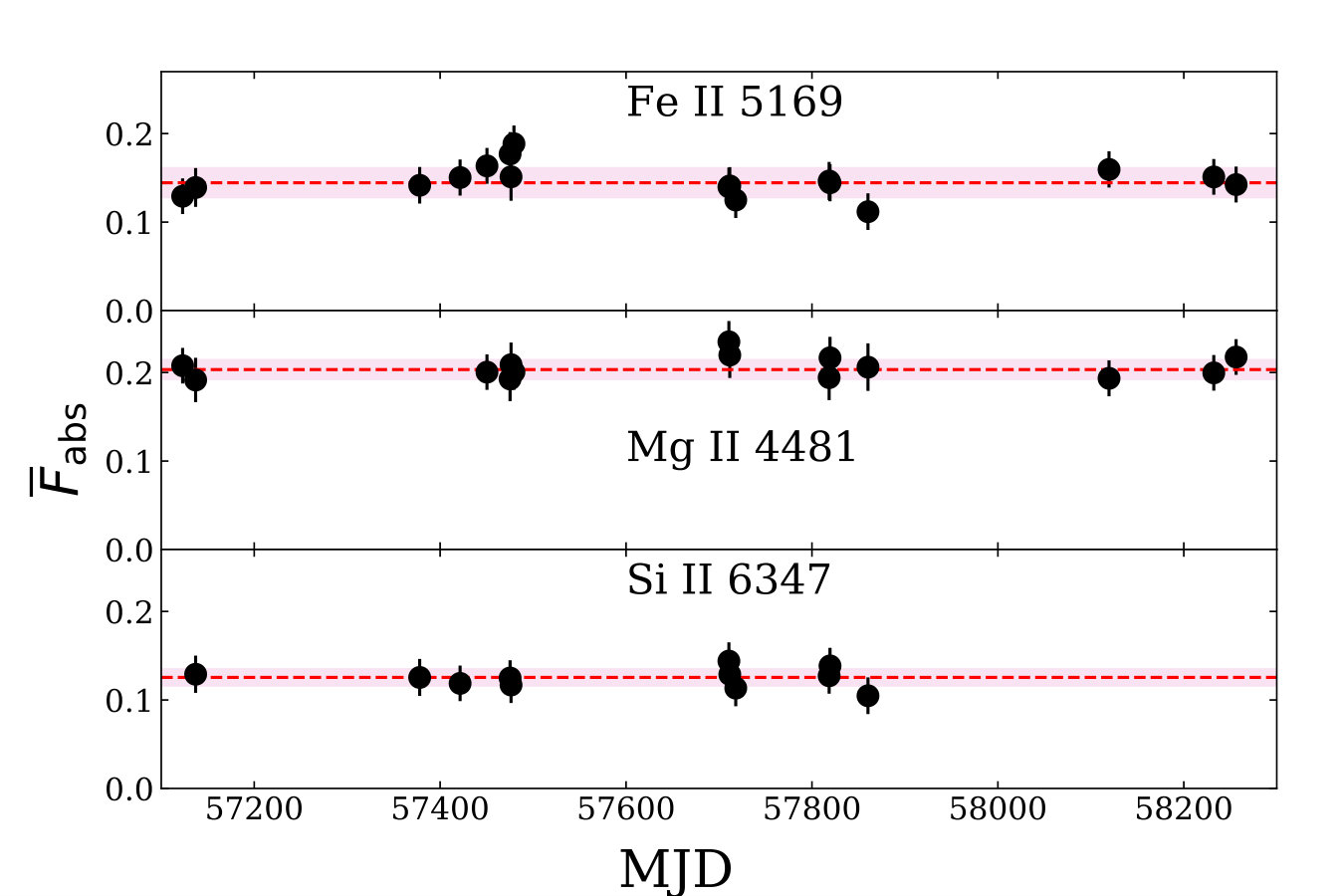

To assess the long-term variability of the absorption features, we selected three representative regions, i.e. Mg II doublet around 4481 Å, Si II 6347 Å, and Fe II 5169 Å, whose transitions come from a lower energy level of 8.86 eV, 8.12 eV, and 2.89 eV, respectively. Both Mg II 4481 Å and Si II 6347 Å primarily have a photospheric contribution due to the high lower energy level of the transition, while Fe II 5169 Å has both photospheric and circumstellar contributions (Xu et al., 2016). The spectra covering those regions are shown in Fig. 5. From 2015 to 2018, the shapes of the circumstellar lines have changed significantly, from being both blue-shifted and red-shifted (April 2015), to mostly red-shifted (March 2016), to mostly blue-shifted (March 2017), and back to being both blue-shifted and red-shifted (May 2018). Likely, our observation has covered a whole precession period of $\sim$ 3 years.

In stellar spectroscopy, equivalent width is often used to characterize the strength of an absorption line. However, it is not suitable here because of the irregular line shape. We quantify the average strength of an absorption line over the wavelength range $\Delta\lambda$ as

[TABLE]

where $\sum\limits_{i}d\lambda_{\mathrm{i}}=\Delta\lambda$, which is the total absorbing wavelength/velocity range. FWD is the white dwarf continuum flux without any absorption from heavy elements, which is approximately 1 for a normalized spectrum. Fabs,i is the flux of an absorption feature at each wavelength $\lambda_{\mathrm{i}}$ and $d\lambda_{\mathrm{i}}$ is the wavelength interval.

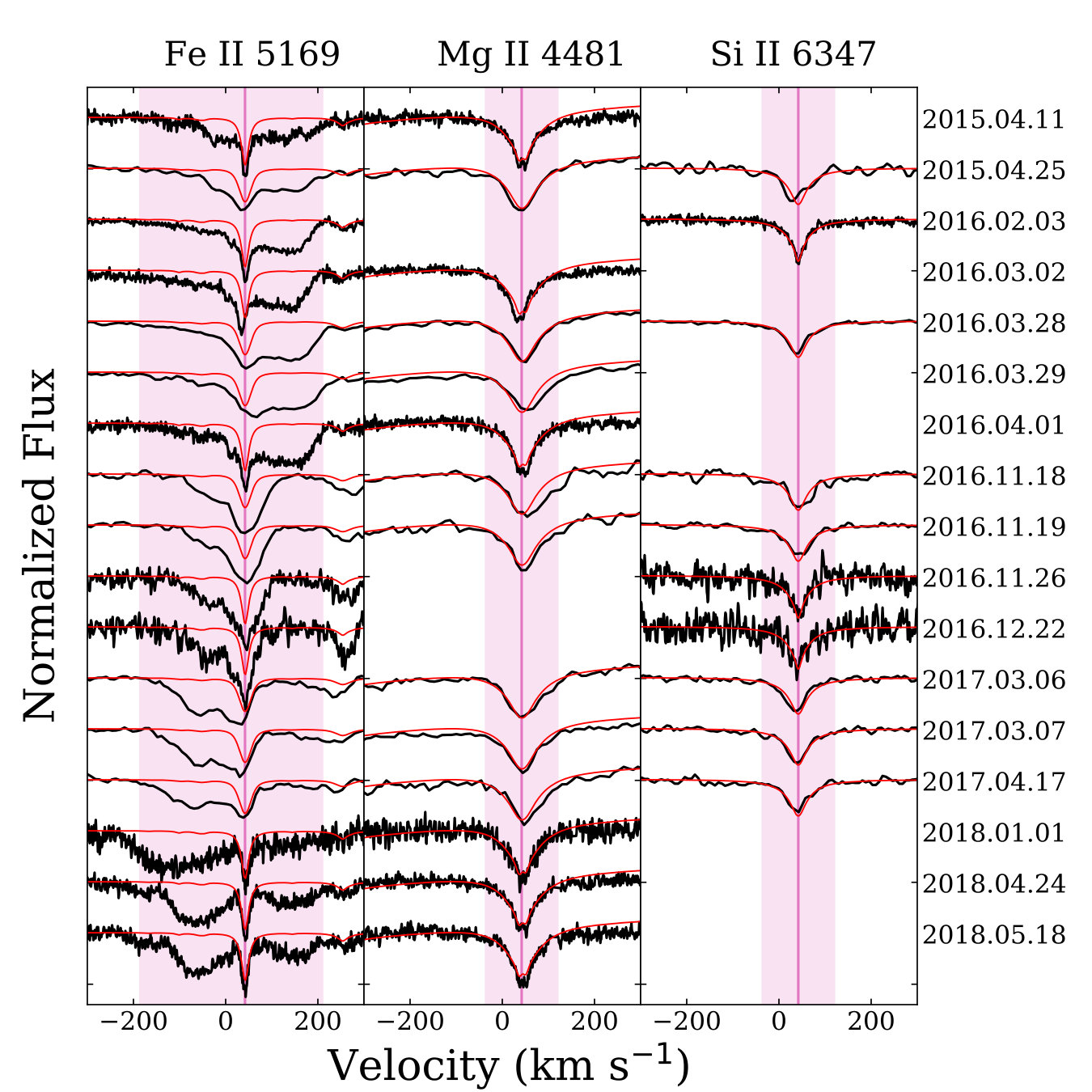

The pink shaded area in Fig. 5 marks the velocity range for calculation. For Mg II and Si II, $\overline{F}_{\mathrm{abs}}$ = $\overline{F}_{\mathrm{phot}}$, which is the average flux of photospheric absorption because there is little contribution from circumstellar absorption. For Fe II, $\overline{F}_{\mathrm{abs}}$ = $\overline{F}_{\mathrm{phot}}$ + $\overline{F}_{\mathrm{cs}}$, because both photospheric and circumstellar material contribute to the absorption feature. $\overline{F}_{\mathrm{cs}}$ represents the average flux of circumstellar absorption over a given wavelength range. The average absorption line strength as a function of observing date is shown in Fig. 6. Even though the shapes of the circumstellar lines have changed significantly, the average line strength remains the same from 2015 to 2018, both for circumstellar and photospheric components. Therefore, there are no changes in the compositions of the white dwarf photosphere or the circumstellar material.

4.2 Line Strength Comparison

The number density of absorption lines is higher in the UV/blue compared to the optical (see Fig. 1 for an example). We selected three regions to assess the overall contribution from photospheric and circumstellar absorption, A. 1330–1420 Å (COS segment A), B. 3200–3900 Å (similar to ULTRACAM u’ band reported in Hallakoun et al. 2017), C. 6200–6900 Å (similar to ULTRACAM r’ band). We can compare the flux of WD 1145+017 in those wavelength ranges with a metal-free white dwarf with the same system parameters (FWD, which is defined as 100%) and a polluted white dwarf with only photospheric absorption (for $\overline{F}_{\mathrm{phot}}$, models are from Fortin-Archambault et al. in prep). The results are listed in Table 6.

In the UV, the photospheric and circumstellar lines are ubiquitous, and absorb 43% of the white dwarf flux. In comparison, in the optical, the absorbed flux is relatively small compared to the white dwarf flux and the effect becomes even smaller at longer wavelengths. As a result, circumstellar lines will have a much larger effect on the overall UV flux than the broad-band optical flux, as has been first discussed in Hallakoun et al. (2017).

We caution that this kind of calculation is very sensitive to the choice of the continuum flux, particularly for the UV observations where there is essentially no measured continuum. We estimated the uncertainty, using the relatively clean part of the spectrum, to be about 5% for COS observations and 2% for HIRES observations. That is the dominant source of error in Table 6.

4.3 Short-term Variability

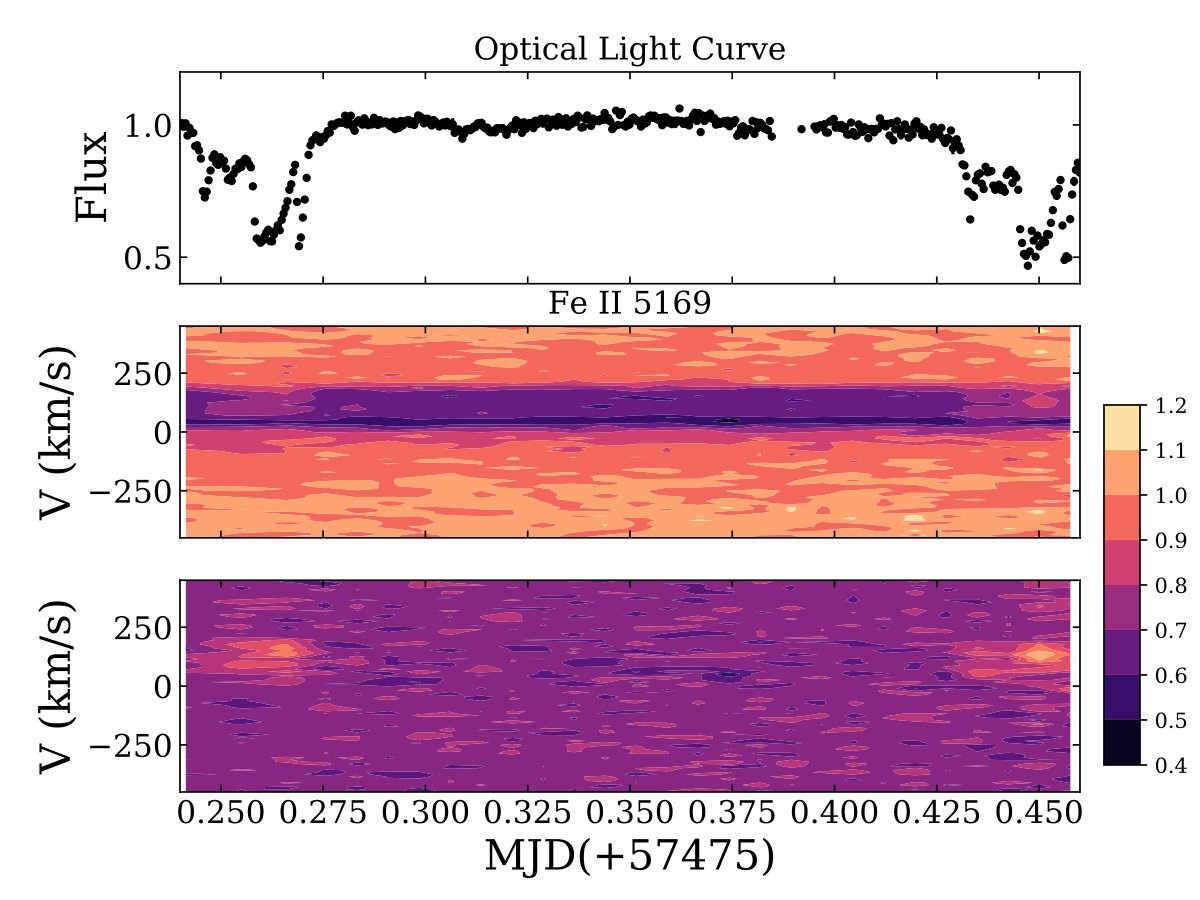

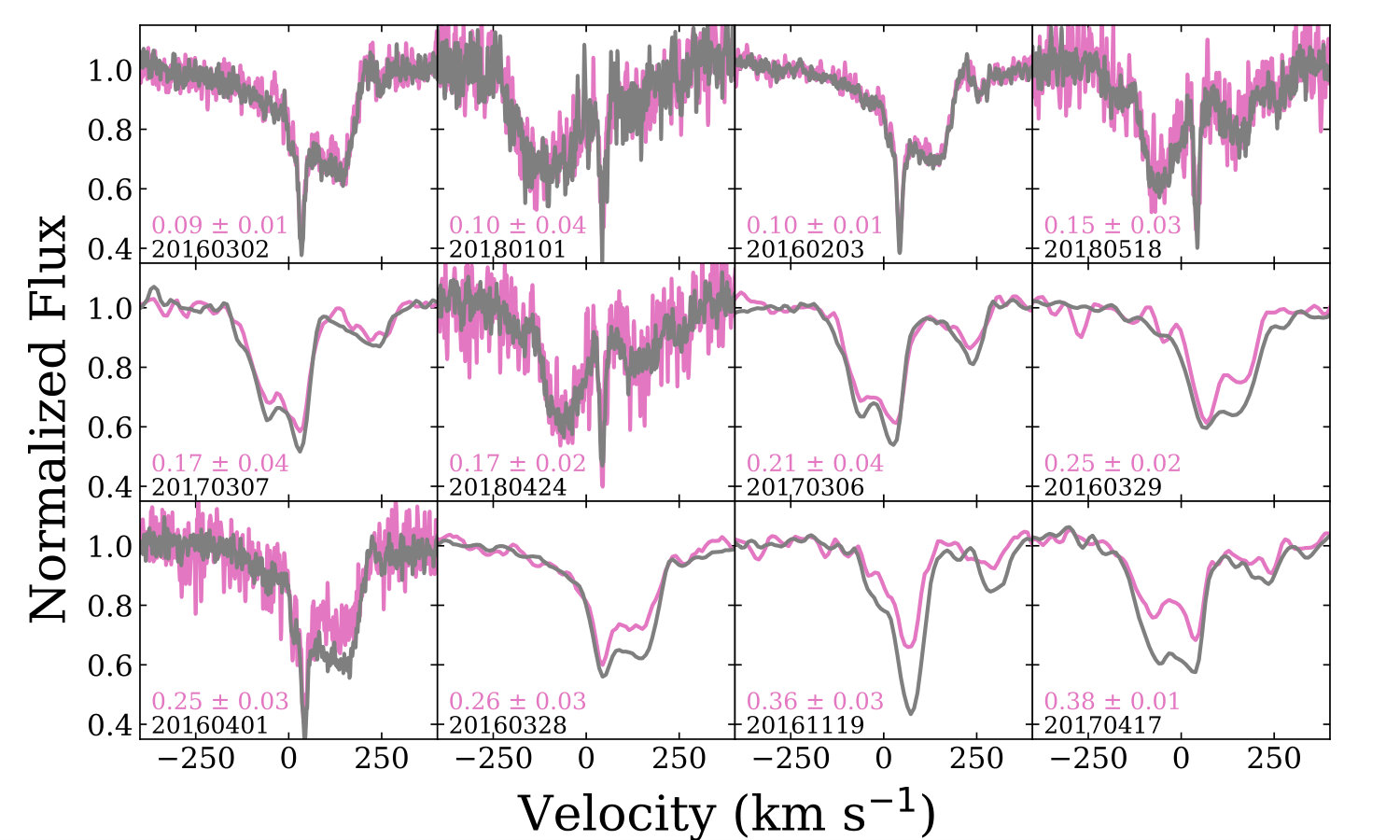

There are several epochs where we have continuous spectroscopic observations that cover a deep transit, suitable for assessing short-term variability of the absorption lines. An example is shown in Fig. 7. During the transit, the absorption feature becomes weaker. Thanks to the continuous optical monitoring of WD 1145+017, we were able to design our spectroscopic observations such that they cover both in-transit and out-of-transit spectra, as shown in Fig. 8. We found that circumstellar lines become shallower during a transit but there is little change in photospheric line strength. This effect is most prominent when there is a deep transit. Previous spectroscopic studies were around the time when the circumstellar line was mostly red-shifted and only a reduction of line strength in the red-shifted component has been reported (Redfield et al., 2017; Izquierdo et al., 2018; Karjalainen et al., 2019) and, this study reports the same characteristics apply to the blue-shifted component.

As discussed in section 4.1, the average strength of the absorption lines (both photospheric and circumstellar) has remained the same for the past few years. Now we can use every single exposure to assess any possible correlation between the transit depth and the absorption line strength. We focus again on Fe II 5169 Å and Si II 6347 Å. For every spectrum, we calculated the absorption line strength $\overline{F}_{\mathrm{abs}}$ using Equ. (4) as well as the average optical transit depth $\overline{D}_{\mathrm{opt}}$ from the optical light curve during the time interval when the spectrum was taken using Equ. (3)444Typically, the spectroscopic and photospheric observations were taken within one night.. The result is shown in Fig. 9. There is a strong anti-correlation between the line strength of Fe II 5169 Å and the optical transit depth, while the absorption line strengths do not vary much for Si II 6347 Å. We performed the same analysis around other absorption features and found a similar pattern: no short-term variability around absorption lines with only a photospheric component and an anti-correlation between line strength and transit depths among lines with both photospheric and circumstellar contributions.

5 Interpretation

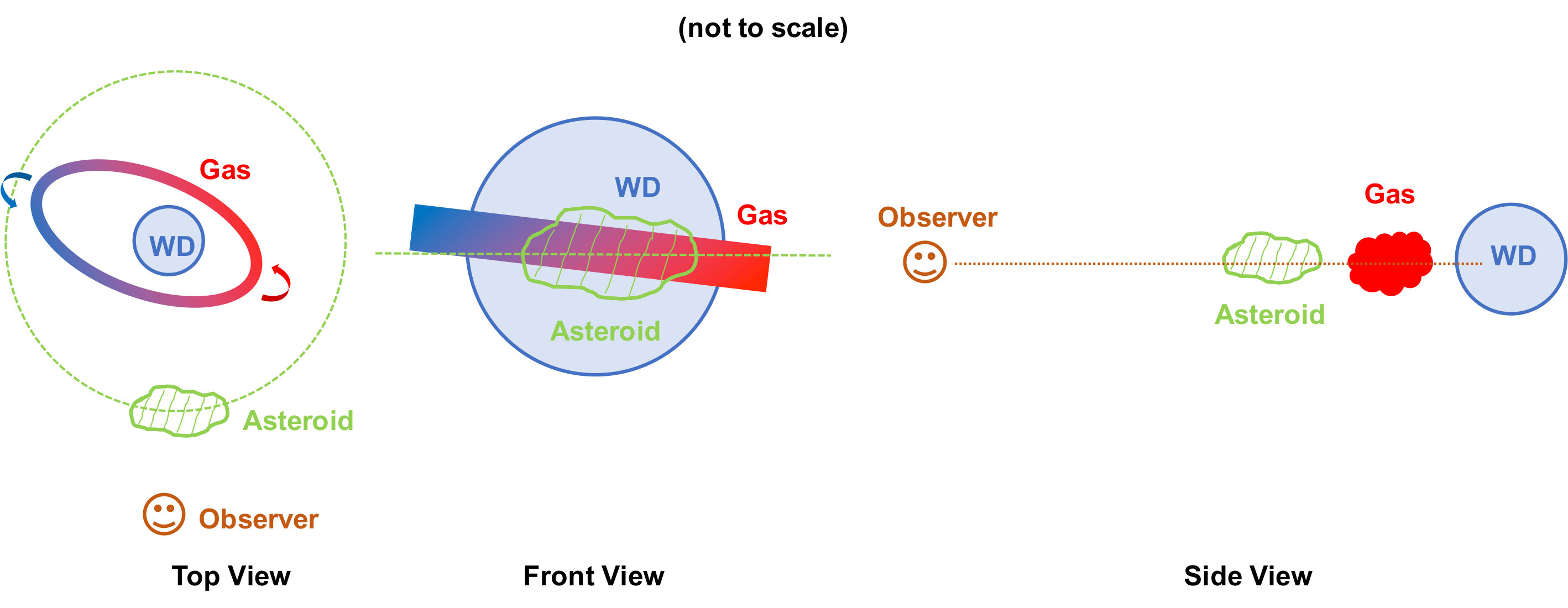

Now we explore a toy model that can explain the interplay between circumstellar line strength and transit depth. With an orbital period of 4.5 hr, the dusty fragment has a semi-major axis of 90RWD. The circumstellar lines can be modeled by a series of eccentric gas rings and the large line width suggests that most of the gas is located close to the white dwarf (e.g. 20-30RWD in Cauley et al. 2018), within the orbit of the transiting fragment. In addition, our model assumes the fragment and the circumstellar gas to be co-planar. A cartoon illustration of our proposed geometry is shown in Fig. 10.

The transiting fragments are $\sim$ 1000 K and they emit negligible amount of flux at the UV and optical. The out of transit flux $F_{\mathrm{out}}$ can be calculated as:

[TABLE]

where the definitions of $F_{\mathrm{WD}}$, $\overline{F}_{\mathrm{phot}}$, and $\overline{F}_{\mathrm{cs}}$ are the same as in Section 4. Depending on the temperature, circumstellar gas could have some emission as well. $\overline{F}_{\mathrm{cs}}$ represents the combined flux for the circumstellar gas. From the observed spectra, we know the net result is absorption.

During a transit, the dusty fragment can block different fractions of the white dwarf and the circumstellar gas. We introduce two new parameters $\alpha$ and $\beta$: $\alpha$ characterizes the fraction of white dwarf flux visible during a transit while $\beta$ characterizes the fraction of circumstellar absorption visible during a transit. The flux during a transit can be calculated as:

[TABLE]

If the circumstellar material covers uniformly the whole white dwarf, $\alpha$ would be equal to $\beta$ during a transit.

We can calculate the average transit depth as:

[TABLE]

where $\bar{\alpha}$ $\equiv$ $\int^{p_{\mathrm{2}}}_{p_{\mathrm{1}}}\alpha(p)dp$/ ($p_{\mathrm{2}}-p_{\mathrm{1}})$ and $\bar{\beta}$ $\equiv$ $\int^{p_{\mathrm{2}}}_{p_{\mathrm{1}}}\beta(p)dp$/ ($p_{\mathrm{2}}-p_{\mathrm{1}})$. For a given phase interval ($p_{\mathrm{2}}-p_{\mathrm{1}}$), $\bar{\alpha}$ represent the average fraction of detectable light from the white dwarf and $\bar{\beta}$ represents the fraction of visible circumstellar gas. They are geometrical parameters and independent of wavelength. The average transit depth $\overline{D}$ depends on $\bar{\alpha}$, $\bar{\beta}$, $F_{\mathrm{WD}}$, $F_{\mathrm{phot}}$, and $F_{\mathrm{cs}}$.

In the optical, Fphot $\ll$ Fwd and Fcs $\ll$ Fwd (see Table 6). We can simplify Equ. (7) as:

[TABLE]

The average optical transit depth $\overline{D}_{\mathrm{opt}}$ has been measured in Table 5, and we can calculate the corresponding $\bar{\alpha}$.

In the UV, Fphot and Fcs are comparable to Fwd so we need to use Equ. (7):

[TABLE]

Table 5 can be used to calculate $\overline{D}_{\mathrm{uv}}$ and $\bar{\alpha}$. $F_{\mathrm{WD,uv}}$, $F_{\mathrm{phot,uv}}$, and $F_{\mathrm{cs,uv}}$ have been reported in Table 6 in the column labeled COS. Now we can solve for $\bar{\beta}$ using Equ. (9) and the results are also listed in Table 5. We see that $\bar{\alpha}$ and $\bar{\beta}$ are often unequal; this can be explained as the dusty fragment blocking different fractions of the circumstellar gas and the white dwarf light. In addition, both $\bar{\alpha}$ and $\bar{\beta}$ varied for different dips, suggesting that the coverages of dusty fragment over circumstellar gas and white dwarf are different.

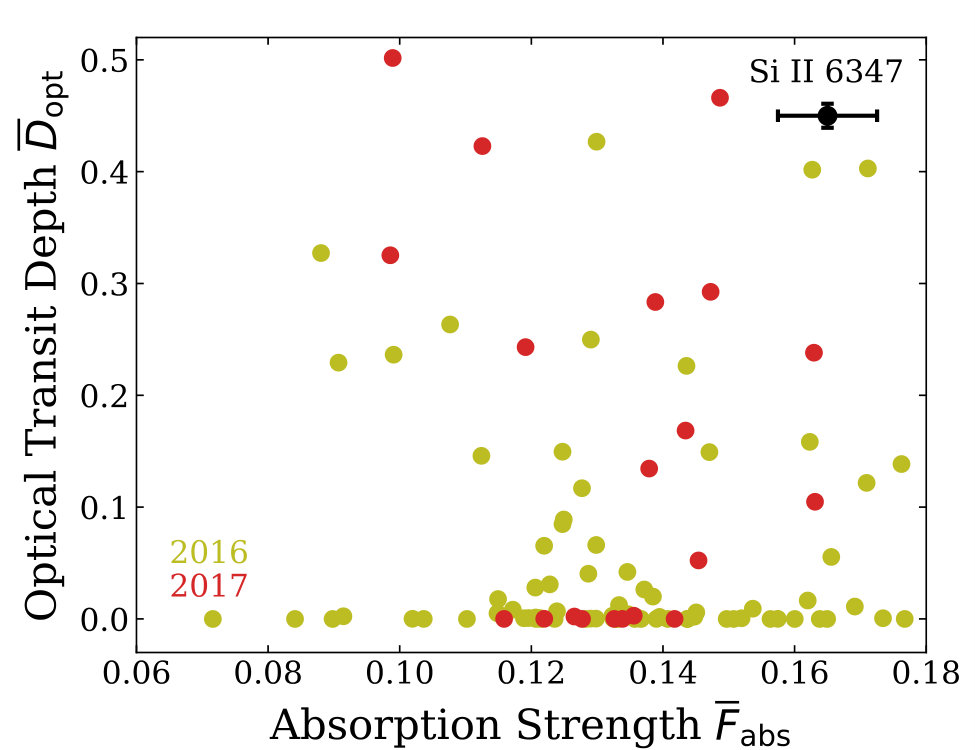

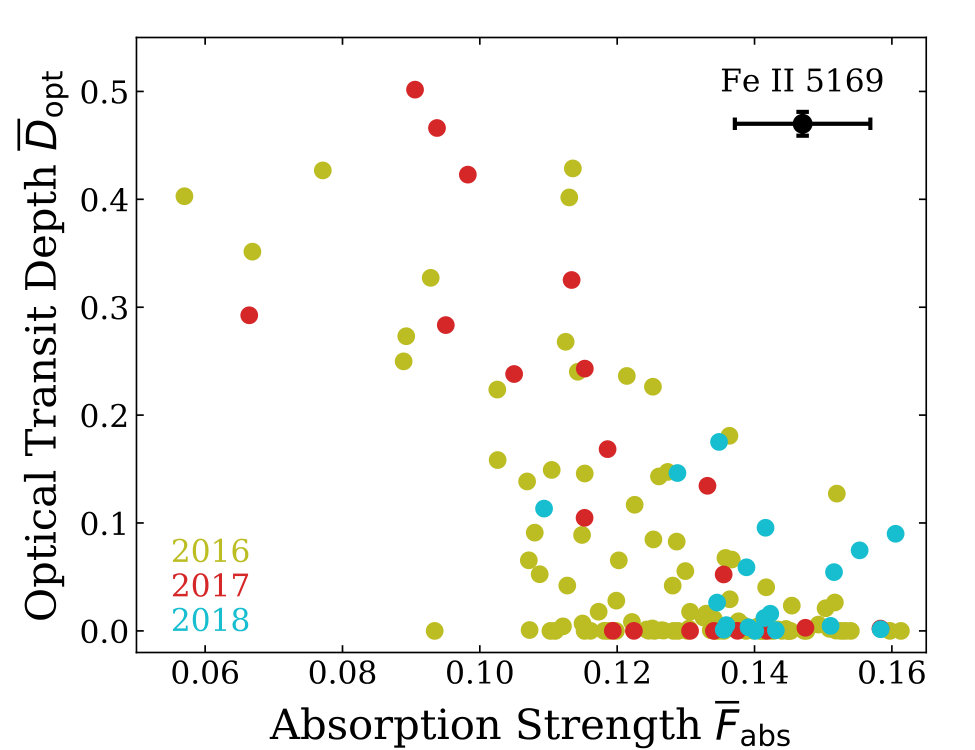

In Fig. 9, we explored an anti-correlation between the optical transit depth, $\overline{D}_{\mathrm{opt}}$, and absorption strength, $\overline{F}_{\mathrm{abs}}$. Spectroscopically, $\bar{\beta}$ can be calculated as:

[TABLE]

We have shown in section 4.1 and 4.3 that the photospheric line strength is constant ($\overline{F}_{\mathrm{phot,in}}$=$\overline{F}_{\mathrm{phot,out}}$). Around Fe II 5169, $\overline{F}_{\mathrm{abs,out}}$ = 0.144$\pm$0.018 (from Fig. 6) and ($\overline{F}_{\mathrm{cs}}$/$\overline{F}_{\mathrm{phot}}$) $\approx$ 2 (from fitting the line profile, Fortin-Archambault et al. in prep). $\overline{F}_{\mathrm{abs,in}}$ has been measured for individual epoch in Fig. 9. As a result, $\bar{\beta}$ can also be directly calculated for an individual spectrum. $\bar{\alpha}$ is related to the optical transit depth through Equ (8). We can now re-arrange the measurements in Fig. 9 to represent $\bar{\alpha}$ and $\bar{\beta}$ in Fig. 11.

There are two ways to determine $\bar{\beta}$, from spectroscopic measurements (Equ. 10) and photometric measurements (Equ. 9). We have shown that both sets of measurements yield a similar result in Fig. 11: $\bar{\alpha}$ and $\bar{\beta}$ are correlated. Such a correlation has been hinted in Hallakoun et al. 2017. They showed in their Fig. 7 that “bluing” is most prominent in the deepest transit and is less visible for shallower transits.

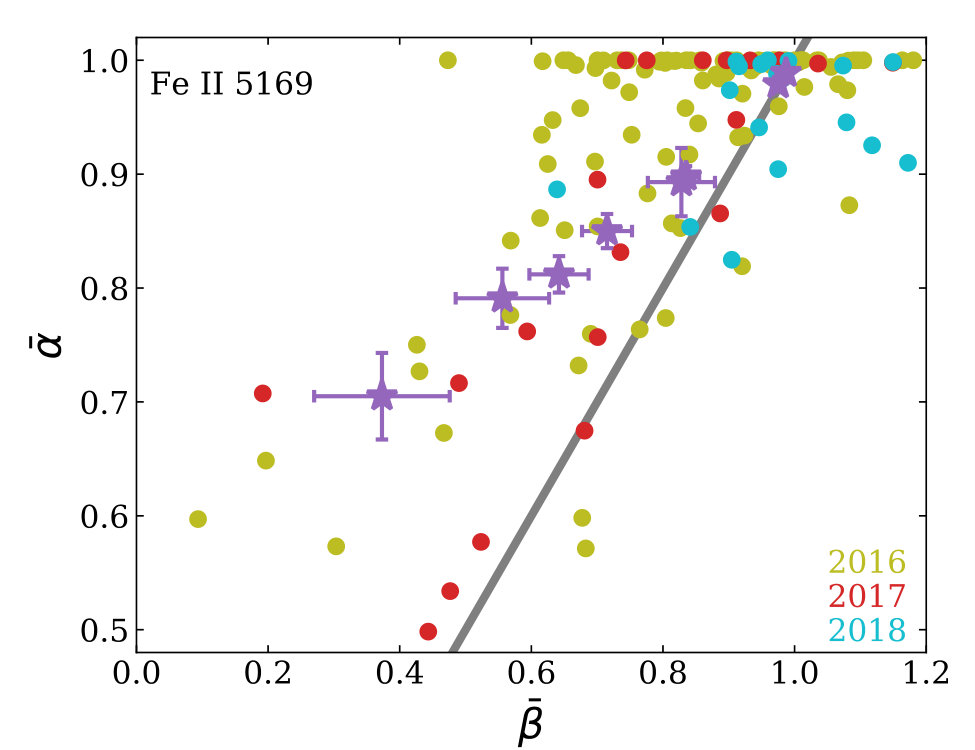

As shown in Fig. 11, $\bar{\beta}$ is always smaller than $\bar{\alpha}$, indicating that the transiting object blocks a larger fraction of the circumstellar gas than the white dwarf flux. This is expected as long as the circumstellar gas does not uniformally cover the whole white dwarf surface. Because the circumstellar lines are highly concentrated in the UV, we detect much less UV circumstellar absorption during a transit. As a result, the observed flux appears to be higher in the UV compared to the optical and therefore the UV-to-optical transit depth ratios are less than unity. This is somewhat in analog to a spot occultation during a transiting planet. Because a starspot is fainter than the surrounding area, the light curve gets a bit brighter when a planet transits across the starspot compared to other parts of the stellar surface.

This model can quantitatively explain the shallower UV transits observed around WD 1145+017. After correcting for the change of circumstellar lines, the UV-to-optical transit depth ratios are consistent with unity from 2016 to 2018.

Note that an important conclusion of the model is that the disintegrating object, circumstellar gas, and the white dwarf are aligned along our line of sight – the system is edge-on. This is expected because likely, the circumstellar gas is produced by the sublimation or collision of the fragments from the disintegrating objects (Xu et al., 2018a). There could be some gas around the same region of the dusty fragments and this analysis still holds if the circumstellar gas extends beyond the orbit of the dusty fragment. Shallower UV transits are expected as long as the transiting fragment is blocking a larger fraction of the circumstellar gas compared to the white dwarf surface.

6 Conclusion

In this paper, we report multi-epoch photometric and spectroscopic observations of WD 1145+017, a white dwarf with an actively disintegrating asteroid. The main conclusions are summarized as follows:

$\bullet$ There is a strong anti-correlation between circumstellar line strength and transit depth. Regardless of being blue-shifted or red-shifted, the circumstellar lines become significantly weaker during a deep transit. This can be explained when the transiting fragment is blocking a larger fraction of the circumstellar gas than the white dwarf flux during a transit.

$\bullet$ The shallow UV transit is a result of short-term variability of the circumstellar lines. The UV transit depth is always shallower than that in the optical. We presented a model that can quantitatively explain this phenomena due to the deduction of circumstellar line strength during a transit and their high concentration in the UV.

$\bullet$ The orbital planes of the gas disk and the dusty fragment are likely to be aligned. An important conclusion of our model is the alignment between the transiting fragment and circumstellar gas – the system is edge-on. This is consistent with the picture that the gas is likely to come from the fragment and is eventually accreted onto the white dwarf.

$\bullet$ We have yet to detect any differences in the transit depths directly caused by the transiting material itself. We have not detected any wavelength dependence caused by the transiting material at wavelengths from 0.1 $\mu$m to 4.5 $\mu$m. The transiting material must be either optically thick at all of these wavelengths or mostly consist of large particles.

One main puzzle left for WD 1145+017 is the location and evolution of the dust disk, which could be constrained by future observations. Infrared spectroscopy could put limits on the temperature, size, and composition of the dust disk while infrared monitoring can probe the evolution of the disk.
