Active particles powered by Quincke rotation in a bulk fluid

TL;DR

This paper demonstrates that dielectric particles can spontaneously translate in a plane perpendicular to an electric field through Quincke rotation, using geometrical asymmetry, without the need for surfaces, combining simulations and theoretical models.

Contribution

It introduces a novel mechanism for active particle translation driven by Quincke rotation relying solely on geometrical asymmetry, expanding active matter control methods.

Findings

Particles can spontaneously translate in bulk fluid due to Quincke rotation.

Geometrical asymmetry enables translation without surface interactions.

Theoretical and simulation results confirm the mechanism.

Abstract

Dielectric particles suspended in a weakly conducting fluid are known to spontaneously start rotating under the action of a sufficiently strong uniform DC electric field due to the Quincke rotation instability. This rotation can be converted into translation when the particles are placed near a surface providing useful model systems for active matter. Using a combination of numerical simulations and theoretical models, we demonstrate that it is possible to convert this spontaneous Quincke rotation into spontaneous translation in a plane perpendicular to the electric field in the absence of surfaces by relying on geometrical asymmetry instead.

Figures

Tables

Table 1. Table 1: Physico-chemical properties of various dielectric liquids, the Maxwell-Wagner relaxation time and critical electric field of a solid spherical or cylinder particle made of PMMA under Quincke rotation in these liquids.

Liquid	Permittivity	Conductivity	Viscosity	Density	MW time	Critical Field
	${\epsilon }^{+}$	${\sigma }^{+}$ ($\mathrm{nS}{m}^{-1}$)	$\mu$ ($\mathrm{mPa}s$)	${\rho }^{+}$ ($\mathrm{kg}{m}^{-3}$)	${\tau }_{\mathrm{MW},sp|cl}$ ($\mathrm{ms}$)	$E_{C,sp|cl}$ ($V{\mu m}^{-1}$)
Dodecane	2.17 ${\epsilon }_0$	50	1.64	770	$0.6|0.9$	$0.703|0.430$
Dielec S	2.4 ${\epsilon }_0$	4.3	12.9	840	$7.6|10.3$	$0.550|0.337$
Dielec S + Ugilec	3.69 ${\epsilon }_0$	33	13.6	1180	$1.3|1.7$	$1.261|0.773$
Hexadecane	2.2 ${\epsilon }_0$	140	3	770	$0.22|0.30$	$1.580|0.968$

Equations

$${\partial }_{t}q+[[\sigma E_n]]+{\nabla }_s\cdot (q\mathbf{v})=0\text{mbox}for\mathbf{x}\in S,$$

$${\mathbf{F}}_{E,H}$$

$${\mathbf{T}}_{E,H}$$

$${\mathbf{f}}_E$$

$${\mathbf{f}}_H$$

$$\left(\begin{array}{c}{\mathbf{F}}_H\\ {\mathbf{T}}_H\end{array}\right)=-\text{mathsfbi}R\cdot \left(\begin{array}{c}\mathbf{U}\\ \mathbf{\Omega }\end{array}\right).$$

$${\mathbf{T}}_E$$

$${\mathbf{T}}_H$$

$$U_1=-{\Omega }_1({\mathcal{R}}_{14}/{\mathcal{R}}_{11}).$$

$$E^{\ast 2}{P}_2/({\overline{\epsilon }}_{cl}-{\overline{\sigma }}_{cl})-(1+G){\Omega }_1=0,$$

$$P_2=({\overline{\epsilon }}_{cl}-{\overline{\sigma }}_{cl}){\Omega }_1/(1+{\Omega }_1^2).$$

$${\Omega }_1=\sqrt{E^{\ast 2}/(1+G)-1}.$$

$$\phi ({\mathbf{x}}_0)=-{\mathbf{x}}_0\cdot {\mathbf{E}}_0+{\oint }_S[[E_n(\mathbf{x})]]\mathcal{G}({\mathbf{x}}_0;\mathbf{x})\mathrm{d}S(\mathbf{x}),$$

$$\begin{array}{rl}& {\oint }_S\{[[E_n(\mathbf{x})]]-[[E_n({\mathbf{x}}_0)]]\}\{\mathbf{n}({\mathbf{x}}_0)\cdot {\nabla }_0\mathcal{G}({\mathbf{x}}_0;\mathbf{x})\}\mathrm{d}S(\mathbf{x})\\ & +[[E_n({\mathbf{x}}_0)]]\left[\frac{Q}{Q-1}-L({\mathbf{x}}_0)\right]=E_{n0}+\frac{q({\mathbf{x}}_0)}{Q-1},\end{array}$$

$$E_n^{+}=\frac{q-Q[[E_n]]}{1-Q},E_n^{-}=\frac{q-[[E_n]]}{1-Q}.$$

$$Ma=\frac{\mu }{{\epsilon }^{+}{\tau }_{\mathrm{MW}}{E}_0^2}.$$

$$E_C=\sqrt{\frac{2\mu }{{\epsilon }^{+}{\tau }_{\mathrm{MW}}(\overline{\epsilon }-\overline{\sigma })}}.$$

$$\mathbf{U}+\mathbf{\Omega }\times ({\mathbf{x}}_0-{\mathbf{x}}_c)=-\frac{1}{8\pi \mu }{\oint }_S{\mathbf{f}}_h(\mathbf{x})\cdot \text{mathsfbi}G({\mathbf{x}}_0;\mathbf{x})\mathrm{d}S(\mathbf{x}),$$

$$\frac{d\mathbf{P}}{dt}=\mathbf{\Omega }\times [\mathbf{P}-a^3{\overline{\epsilon }}_{sp}{\mathbf{E}}_0]-\frac{1}{{\tau }_{\mathrm{MW},sp}}[\mathbf{P}-a^3{\overline{\sigma }}_{sp}{\mathbf{E}}_0],$$

$$4\pi {\epsilon }^{+}\mathbf{P}\times {\mathbf{E}}_0-8\mu a^3\mathbf{\Omega }=0.$$

$$\Omega =\frac{1}{{\tau }_{\mathrm{MW},sp}}\sqrt{\frac{E_0^2}{E_{C,sp}}-1},\text{mbox}where$$

$$E_{C,sp}=\sqrt{\frac{2\mu }{{\epsilon }^{+}{\tau }_{\mathrm{MW},sp}({\overline{\epsilon }}_{sp}-{\overline{\sigma }}_{sp})}}.$$

$$2\pi {\epsilon }^{+}\mathbf{P}\times {\mathbf{E}}_0-4\mu a^2\mathbf{\Omega }=0.$$

$$\Omega =\frac{1}{{\tau }_{\mathrm{MW},cl}}\sqrt{\frac{E_0^2}{E_{C,cl}}-1},\text{mbox}where$$

$$E_{C,cl}=\sqrt{\frac{2\mu }{{\epsilon }^{+}{\tau }_{\mathrm{MW},cl}({\overline{\epsilon }}_{cl}-{\overline{\sigma }}_{cl})}}.$$

$$\left[\begin{array}{c}{F}_{h,1}\\ F_{h,2}\\ F_{h,3}\\ T_{h,1}\\ T_{h,2}\\ T_{h,3}\end{array}\right]=-\left[\begin{array}{cccccc}{\mathcal{R}}_{11}& 0& {\mathcal{R}}_{13}& {\mathcal{R}}_{14}& 0& {\mathcal{R}}_{16}\\ 0& {\mathcal{R}}_{22}& 0& 0& {\mathcal{R}}_{25}& 0\\ {\mathcal{R}}_{13}& 0& {\mathcal{R}}_{33}& {\mathcal{R}}_{34}& 0& {\mathcal{R}}_{36}\\ {\mathcal{R}}_{14}& 0& {\mathcal{R}}_{34}& {\mathcal{R}}_{44}& 0& {\mathcal{R}}_{46}\\ 0& {\mathcal{R}}_{25}& 0& 0& {\mathcal{R}}_{55}& 0\\ {\mathcal{R}}_{16}& 0& {\mathcal{R}}_{36}& {\mathcal{R}}_{46}& 0& {\mathcal{R}}_{66}\end{array}\right]\left[\begin{array}{c}{U}_1\\ U_2\\ U_3\\ {\Omega }_1\\ {\Omega }_2\\ {\Omega }_3\end{array}\right].$$

$${\mathcal{R}}_{11}$$

$${\mathcal{R}}_{13}$$

$${\mathcal{R}}_{14}$$

$${\mathcal{R}}_{16}$$

$${\mathcal{R}}_{22}$$

$${\mathcal{R}}_{25}$$

$${\mathcal{R}}_{33}$$

$${\mathcal{R}}_{34}$$

$${\mathcal{R}}_{36}$$

$${\mathcal{R}}_{44}$$

$$+$$

Full text

How are groups of living organisms such as flocks of birds, schools of fish and bacterial colonies able to self-organize and display collective motion (Vicsek and Zafeiris, 2012)? This question has fascinated scientists for decades and has given rise to the new field of ‘active matter’ (Marchetti et al., 2013; Saintillan, 2018). One of the key features of active matter is that it is composed of self-propelled units that move by consuming energy from their surrounding with a direction of self-propulsion typically set by their own anisotropy, either in shape or functionalisation, rather than by an external field.

The origin of macroscopic ordered motion in active systems is due to microscopic interactions occurring at an individual level. Ideally, one would like to develop a coarse-grained description of active systems from these microscopic interactions but these are difficult to measure or quantify, forcing scientists to develop phenomenological models (Vicsek et al., 1995; Toner and Tu, 1998). ‘Non-living’ active systems offer a simplified and more controlled setting compared to ‘living’ active systems and there have been multiple attempts to design self-propelled synthetic particles in the laboratory (Bechinger et al., 2016). Examples include bimetallic Janus particles powered by catalytic reactions (Paxton et al., 2004; Howse et al., 2007), electric (Bricard et al., 2013, 2015) and magnetic field driven colloids (Kaiser et al., 2017), light activated colloidal surfers (Palacci et al., 2013), water droplets driven by Marangoni stress (Izri et al., 2014), and self-propelled squirming droplets (Thutupalli et al., 2011).

In recent active matter experiments, it has been possible to measure and quantify these microscopic interactions (Bricard et al., 2013, 2015). These experiments consisted of spherical colloids able to roll along surfaces by exploiting the so-called Quincke rotation, discovered more than a century ago (Quincke, 1896). The Quincke phenomenon involves the application of a uniform electric field that gives rise to the spontaneous rotation of dielectric solid particles or deformable drops suspended in a slightly conducting fluid medium (Salipante and Vlahovska, 2010; Das and Saintillan, 2013, 2017a). Quincke rotation is best explained using the much celebrated Melcher–Taylor leaky dielectric model (Melcher and Taylor, 1969) that proposes the formation of a surface charge on the particle-liquid interface. Rotation occurs due to the symmetry breaking of the charge distribution that gives rise to a net torque leading to steady rotation of the particle.

There are two conditions for Quincke rotation to occur. First, the charge relaxation time of the particle, $\tau^{-}$, must exceed that of the surrounding fluid, $\tau^{+}$, where $\tau^{\pm}=\epsilon^{\pm}/\sigma^{\pm}$ with $\epsilon^{\pm}$ and $\sigma^{\pm}$ being the permittivity and conductivity, respectively (superscript $-$ representing particle and $+$ representing fluid). This implies that the particle must be less conducting than the surrounding fluid, giving rise to a dipole moment, $\bm{P}$, which is anti-parallel to the applied electric field, $\bm{E}_{0}$. This configuration is unstable and the electric torque, $\bm{T}_{E}\propto\bm{P}\times\bm{E}_{0}$, tends to rotate the particle away from its original orientation. The second condition requires that the magnitude of the electric field exceeds a certain critical value, $E_{C}$, for sustained rotation of the particle, $E_{0}>E_{C}$, such that the electric torque balances the viscous torque.

In an infinite fluid medium, a symmetric particle such as a sphere under Quincke rotation will steadily rotate without translating as no net external force acts on it. This spontaneous rotation can be converted into spontaneous translation when the particle is placed near a wall. Such ‘Quincke rollers’ were demonstrated experimentally to perform collective motion due to electrohydrodynamic interactions with each other and with the nearby surface (Bricard et al., 2013, 2015).

In this Letter, we show that it is possible to convert spontaneous Quincke rotation into spontaneous translation in the absence of surfaces. Specifically, asymmetrically-shaped dielectric particles placed in the bulk of a slightly conducting fluid will spontaneously acquire both rotation and translation under the action of a sufficiently strong uniform DC electric field in a plane perpendicular to the field. We demonstrate this phenomenon by focusing on the electrohydrodynamics of a helix – an archetypal chiral particle – first computationally, using the boundary element method, and then by developing an analytical theory in quantitative agreement with the simulations.

Consider an uncharged neutrally buoyant solid particle of volume, $V^{-}$, surface, $S$, and outward unit normal vector, $\bm{n}$, suspended in an infinite fluid medium of volume, $V^{+}$ (see Fig. 1). The dynamic viscosity of the fluid is denoted by $\mu$. The particle gets polarised due to the application of a uniform DC electric field, $\bm{E}_{0}=E_{0}\hat{\bm{z}}$. We define two dimensionless numbers $R=\sigma^{+}/\sigma^{-}$ and $Q=\varepsilon^{-}/\varepsilon^{+}$ such that $RQ=\tau^{-}/\tau^{+}>1$ is the necessary condition for Quincke rotation to take place. In the Melcher–Taylor leaky dielectric model, all charges are concentrated on the particle surface, so that the electric potential in each domain satisfies Laplace’s equation $\nabla^{2}\varphi^{\pm}=0$ (Melcher and Taylor, 1969). All the physical quantities are implicitly assumed to be a function of time. On the particle surface, the electric potential and the tangential component of the local electric field are continuous $\llbracket\varphi(\bm{x})\rrbracket=0$ and $\llbracket\bm{E}_{t}(\bm{x})\rrbracket=\bm{0}$ for $\bm{x}\in S$, where $\bm{E}^{\pm}_{t}=({\mathsfbi{I}}-\bm{nn})\bm{\cdot}\bm{E}^{\pm}$, $\bm{E}^{\pm}=-\bm{\nabla}\varphi^{\pm}$ and $\llbracket f(\bm{x})\rrbracket\equiv f^{+}(\bm{x})-f^{-}(\bm{x})$ denotes the jump for any field variable $f(\bm{x})$ defined on both sides of the particle surface. The normal component of the electric field $E_{n}^{\pm}=\bm{n}\bm{\cdot}\bm{E}^{\pm}$ undergoes a jump due to the mismatch in electrical properties between the two media (Landau et al., 1984), resulting in a surface charge distribution given by Gauss’s law, $q(\bm{x})=\llbracket\varepsilon{E}_{n}(\bm{x})\rrbracket$ for $\bm{x}\in S$. The surface charge distribution evolves due to two distinct mechanisms, namely Ohmic currents from the bulk, $\llbracket\sigma{E}_{n}\rrbracket$, and advection by the particle surface velocity, $\bm{v}(\bm{x})$. Accordingly, the conservation equation for the surface charge is,

[TABLE]

where $\bm{\nabla}_{s}\equiv({\mathsfbi{I}}-\bm{nn})\bm{\cdot}\bm{\nabla}$ is the surface gradient operator. The fluid velocity field, $\bm{v}(\bm{x})$, and dynamic pressure, $p(\bm{x})$, satisfy the Stokes equations in the suspending fluid, $-\mu\nabla^{2}\bm{v}+\bm{\nabla}p=\bm{0}$ and $\bm{\nabla}\bm{\cdot}\bm{v}=0$. No-slip at the solid-fluid interface leads to kinematic boundary conditions for the fluid velocity, $\bm{v}(\bm{x})=\bm{U}+\bm{\Omega}\bm{\times}(\bm{x}-\bm{x}_{c})$ for $\bm{x}\in S$, where $\bm{U}$, $\bm{\Omega}$ and $\bm{x}_{c}$ are the translational velocity, rotational velocity and centroid of the particle. In the absence of inertia, the dynamic balance of electric and hydrodynamic forces and torques on the solid particle requires $\bm{F}_{E}+\bm{F}_{H}=\bm{0}$ and $\bm{T}_{E}+\bm{T}_{H}=\bm{0}$, respectively. The forces and torques are found by integrating the surface tractions, $\bm{f}$,

[TABLE]

The electric and hydrodynamic tractions are expressed in terms of the Maxwell stress tensor, ${\mathsfbi{T}}_{E}$, and hydrodynamic stress tensor, ${\mathsfbi{T}}_{H}$, respectively as,

[TABLE]

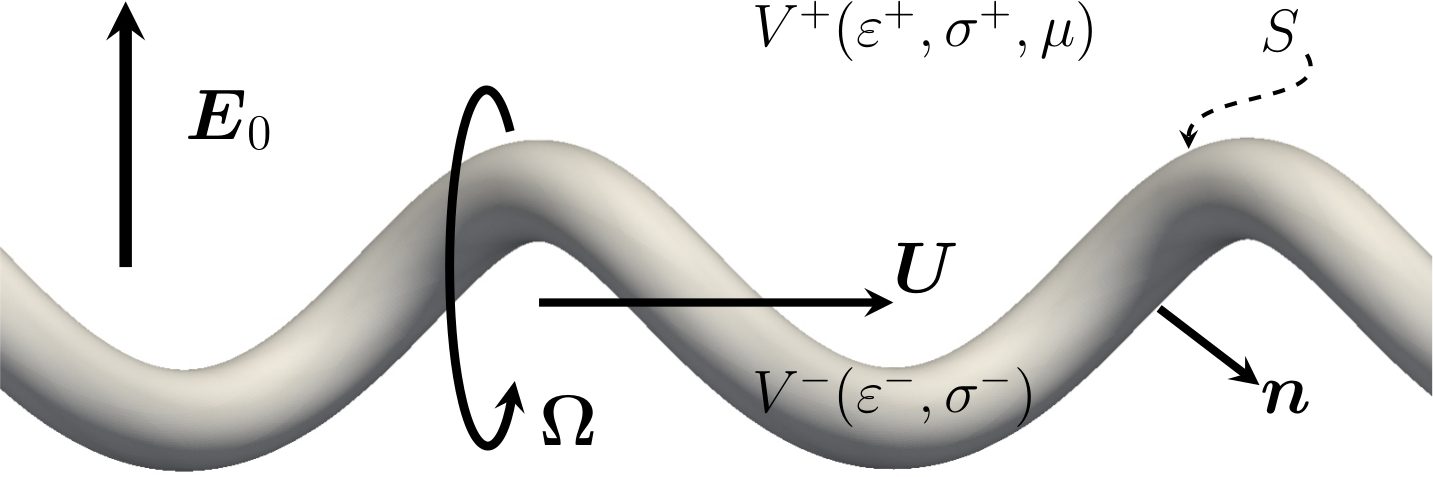

To demonstrate that it is possible to convert Quincke rotation into spontaneous translation without the need for any surfaces, we consider a dielectric filament of helical shape in an infinite fluid. Helices are prototypical chiral particles used to create synthetic swimmers (Zhang et al., 2009; Ghosh and Fischer, 2009) and their propulsive abilities at low Reynolds number flows have been well characterised in the context of bacterial locomotion (Lauga, 2016). The centerline of the helix is specified as $r(\xi)=\xi\bm{\hat{x}}+R_{h}\cos{(2\pi\chi\xi/\lambda)}\bm{\hat{y}}+R_{h}\sin{(2\pi\chi\xi/\lambda)}\bm{\hat{z}}$ using parameter $\xi\in[-L_{\lambda},L_{\lambda}]$, where $L_{\lambda}=N\lambda$ is the axial length, $\lambda$ is the helical pitch, $N$ is the number of turns and $R_{h}$ is the helical radius. The arc and contour length of the helix are $s=\xi/\cos\alpha$ and $L=L_{\lambda}/\cos\alpha$, respectively, where $\alpha=\arctan(2\pi R_{h}/\lambda)$ is the pitch angle. The cross-section of the helical filament is denoted as $a$. Here, $\chi=\pm 1$ determines the chirality of the helix and we focus on right-handed helices, $\chi=1$, without any loss of generality.

We use the boundary element method to solve the electrohydrodynamics of a cylindrical and helical particle (Pozrikidis, 2002, 2011; Das and Saintillan, 2017b) (see Supplemental Material (SM, ) for details). We show in Fig. 2a-c snapshots of a cylinder and a helix having identical aspect ratio (i.e. the cylinder can be obtained by simply uncoiling the helix) moving under the action of an external uniform DC electric field. We specify the dimensionless electric field strength, $E^{*}=E_{0}/E_{C,cl}$, where the critical electric field for Quincke rotation of a cylinder is $E_{C,cl}=\left({{2\mu}/{\varepsilon^{+}\tau_{\mathrm{MW},cl}(\overline{\varepsilon}_{cl}-\overline{\sigma}_{cl})}}\right)^{1/2}$ with $\overline{\varepsilon}_{cl}=(\varepsilon^{-}-\varepsilon^{+})/((\varepsilon^{-}+\varepsilon^{+})$ and $\overline{\sigma}_{cl}=(\sigma^{-}-\sigma^{+})/(\sigma^{-}+\sigma^{+})$ (Jones, 2005). Time is non-dimensionalized with the characteristic Maxwell–Wagner timescale for polarization of a cylindrical particle upon the application of an electric field, $\tau_{\mathrm{MW},cl}=(\varepsilon^{-}+\varepsilon^{+})/(\sigma^{-}+\sigma^{+})$. The axes of both rigid particles are initially tilted at an angle of $0.1\pi$ with respect to the $x$ axis in the $x-z$ plane. Since the applied electric field, $\bm{E}_{0}^{*}=E_{0}^{*}\bm{\hat{z}}$, is higher than the critical field for both particles, they spontaneously start rotating. The directions of rotation for both particles are always perpendicular to the electric field, i.e. $\bm{\Omega}\bm{\cdot}\bm{E}_{0}=0$ (SM, ), and thus both align their axes in a direction perpendicular to the electric field in the steady state. As predicted by theory, the cylinder undergoes pure rotation with no translation. In contrast, the asymmetric shape of the helix allows it to undergo both rotation and translation. Furthermore, we plot the net displacement of the cylinder (cl) and helix (hl) in three dimensions in time, see Fig. 3. Note that the helix swims out of the $x-z$ plane due to its initially tilted configuration.

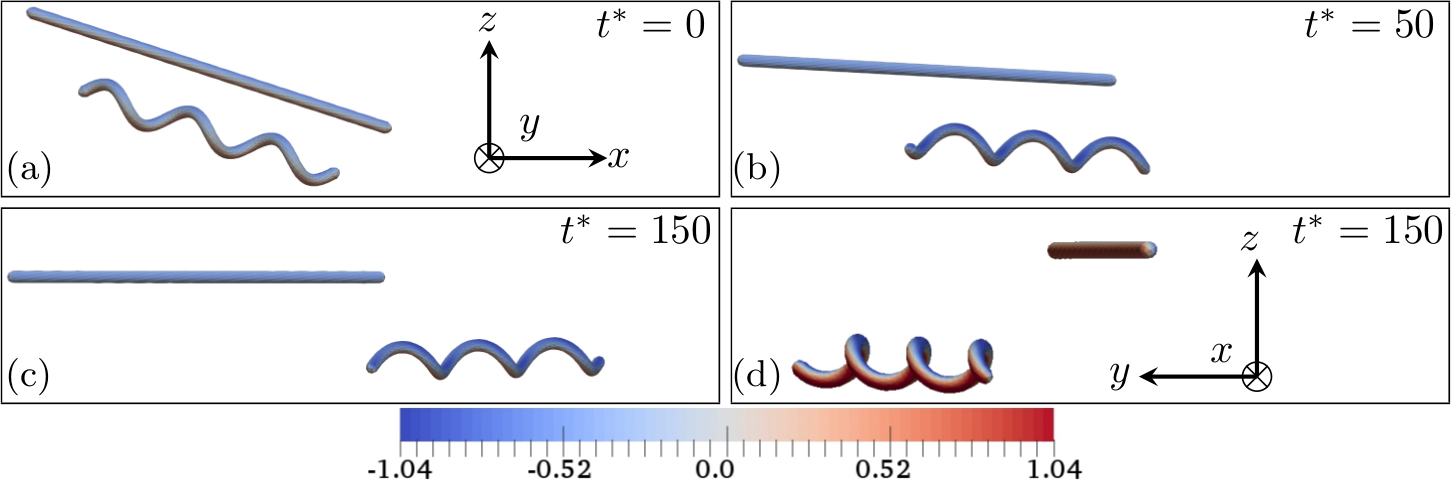

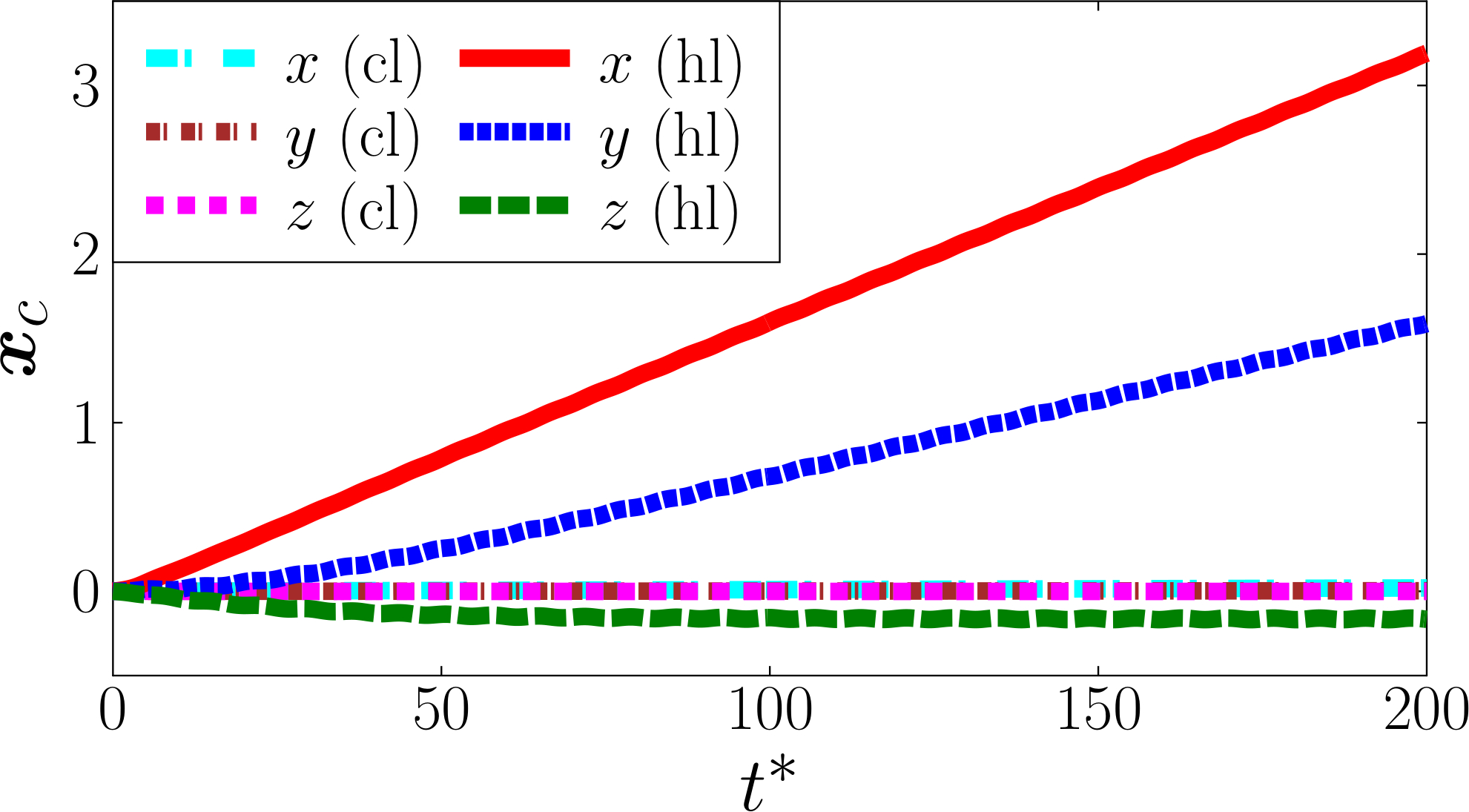

In contrast to Quincke rollers, the helical particle in Fig. 2 undergoes spontaneous translation in the absence of surfaces, and thus represents a new type of active self-propelling particle in bulk fluids. In order to further probe its ability to swim, we investigate in Fig. 4 how its steady swimming speed, $U$, depends on various geometrical parameters (numerical data are shown in symbols while the lines represent the theory developed below). First we show in Fig. 4a how the magnitude of the critical electric field depends on the pitch angle, $\alpha$, for various cross-sectional radii, $a/\lambda$, with fixed number of turns. The critical field required to generate rotation of the helix is seen to systematically increase above its value for a cylinder as the amplitude of the helix grows and as the filament becomes more slender.

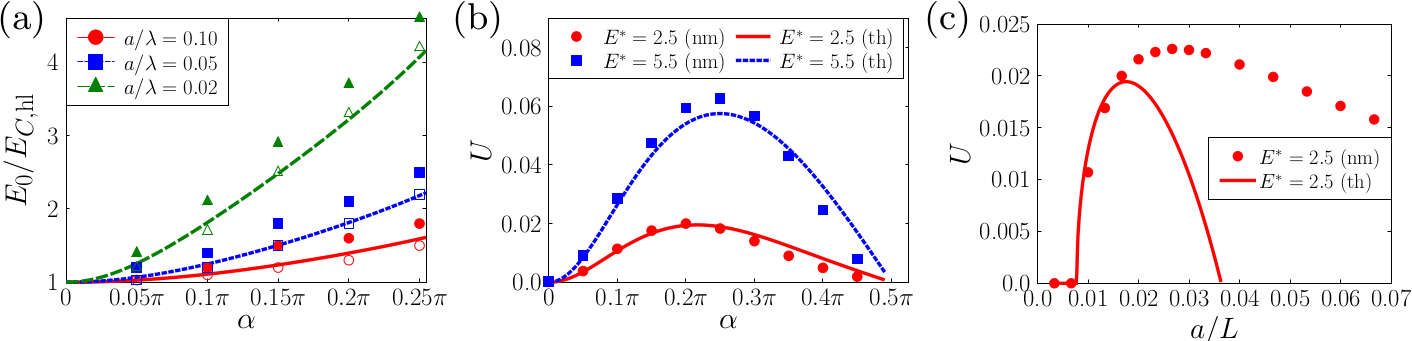

Next we plot in Fig. 4b, the value of the steady swimming speed, $U$, as a function of the helix pitch angle, $\alpha$, for two different electric field strengths while keeping the cross-sectional radius fixed. The swimming speed is zero for a straight rod ($\alpha=0$) and a torus ($\alpha=\pi/2$) and thus is maximal when the pitch angle takes an intermediate value, $\alpha\approx 0.2\pi$ (simulations) and $0.215\pi$ (theory) for $E^{*}=2.5$ and, $\alpha\approx 0.25\pi$ (simulations and theory) for $E^{*}=5.5$. Finally the effect of the aspect ratio of the helix, $a/L$, on the swimming speed, $U$, is shown in Fig. 4c keeping other geometrical quantities fixed. The swimming speed undergoes a supercritical pitchfork bifurcation so that swimming does not occur for $a/L$ below a critical value (i.e. for particles that are too slender).

The computational results obtained above can be rationalised using theoretical arguments. The hydrodynamic forces and torques acting on a helix are linearly related to its translation and angular velocities through the $6\times 6$ resistance matrix $\mathsfbi{R}$ as,

[TABLE]

The hydrodynamics of a helix can be described using the framework of resistive-force theory, which is valid for slender filaments moving in viscous fluids in the absence of inertia (Lauga and Powers, 2009). Assuming that the helix axis remains aligned with the $x$ direction, the components of the resistance matrix relevant for the analysis below are $\mathcal{R}_{44}=LR_{h}^{2}(\zeta_{\perp}\cos^{2}\alpha+\zeta_{\parallel}\sin^{2}\alpha)$, $\mathcal{R}_{11}=L(\zeta_{\parallel}\cos^{2}\alpha+\zeta_{\perp}\sin^{2}\alpha)$, $\mathcal{R}_{14}=\chi LR_{h}^{2}\sin\alpha\cos\alpha(\zeta_{\parallel}-\zeta_{\perp})$ and $\mathcal{R}_{13}=\mathcal{R}_{34}=0$. All other elements of the resistance matrix are provided in the Supplemental Material (SM, ). Here, $\zeta_{\parallel}$ and $\zeta_{\perp}$ are the drag coefficients for local motion of the helix along the directions parallel and perpendicular to its tangent (Lighthill, 1976; SM, ). For the electric problem, we assume that the helix is identical to a cylinder of the same contour length, a reasonable approximation if the helix has a small pitch angle (i.e. small amplitude). The resulting electric and viscous torque acting on the helix are then given by,

[TABLE]

where $\bm{P}$ is the effective dipole moment of the helix. Since there is no electric force acting on the particle, we have $\bm{F}_{E}=-\bm{F}_{H}=\bm{0}$, leading to a relation between translational and angular velocity,

[TABLE]

Balancing electric and viscous torques on the helix, $\bm{T}_{E}+\bm{T}_{H}=\bm{0}$, leads to a relation between $P_{2}$ and $\Omega_{1}$,

[TABLE]

where $G=(\mathcal{R}_{44}-\mathcal{R}_{14}^{2}/\mathcal{R}_{11})/(4\pi\mu a^{2}L)$ is a helical shape factor that only depends on geometry. The relaxation equation of the effective dipole moment of the helix derived from the charge conservation equation, Eq. (1), provides another relation between $P_{2}$ and $\Omega_{1}$ (SM, ),

[TABLE]

Eliminating $P_{2}$ from Eqs. (10) and (11), we obtain two solutions for the angular velocity of a helix under Quincke rotation: (i) the trivial solution, $\Omega_{1}=0$, and (ii) the steady-state rotation solution,

[TABLE]

The critical electric field for Quincke rotation of a helix is then given as $E_{C,hl}=E_{C,cl}\sqrt{1+G}$ while the predicted swimming speed is given by Eq. (9).

The predictions from this theoretical approach are compared with the computational results in Fig. 4. The theory is able to reproduce all features of the computational study, including the supercritical pitchfork bifurcation (at a fixed field strength) showing non-existence of swimming states for filaments that are too slender. This is because while the electric torque on the particle scales as $a^{2}$, the viscous torque scales as $a^{2}+R_{h}^{2}$, see Eqs. (7) and (8). The breakdown of the theory for large values of $a/L$ is expected since the hydrodynamics based on resistive-force theory is accurate only in the asymptotic limit of slender filaments, $a/L\rightarrow 0$.

In summary, we have shown in this Letter that the classical Quincke rotational instability of dielectric particles under DC electric fields can lead to spontaneous self-propulsion in a bulk fluid when combined with geometrical asymmetry. The phenomenon occurs in the absence of any nearby surfaces, in stark contrast to Quincke rollers which require the presence of walls to break symmetries and swim. While a single particle rotates and translates in a plane perpendicular to the electric field, suspensions of such particles are expected to display out-of-plane swimming resulting from three-dimensional electrohydrodynamic interactions. As a practical example, we consider a helical particle made of Polymethyl methacrylate (PMMA) suspended in various classical dielectric fluids and predict swimming speeds of tens of microns per second (see Supplemental Material (SM, )). The physical mechanism of this new form of self-propulsion was demonstrated using numerical computations for the full system in the case of a helical filament and confirmed analytically by a theoretical approach in the slender-helix limit. Though we have focused on the special case of helical particles, self-propulsion is expected to occur for any kind of asymmetric particles whose resistance matrix, $\mathsfbi{R}$, contains a nonzero off-diagonal term enabling coupling of an imposed rotation to translation. Suspensions of randomly-shaped particles under Quincke rotation interacting electrohydrodynamically are thus expected to perform collective motion by exploring the full three-dimensional space, thereby, opening doors to a potentially new type of active matter.

We thank David Saintillan for helpful discussions. This project has received funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme (grant agreement 682754 to EL).

Appendix A Supplemental Material

A.1 Numerical Method

The electrohydrodynamics of a dielectric particle, governed by Laplace and Stokes equations, is best solved using the boundary element method (Pozrikidis, 2002, 2011). The electric potential is represented in terms of the single-layer density $\llbracket{E}_{n}(\bm{x})\rrbracket$ as,

[TABLE]

where $\bm{x}_{0}\in V^{\pm},S$, $\bm{x}\in S$ and the Green’s function or fundamental solution of Laplace’s equation in an unbounded domain is given by $\mathcal{G}(\bm{x}_{0};\bm{x})=1/{4\pi r}$, $\bm{r}=\bm{x}_{0}-\bm{x}$ and $r=|\bm{r}|$. For a given surface charge distribution $q(\bm{x})$ at any time, we first compute the jump in normal electric field across the interface $\llbracket{E}_{n}\rrbracket$ using an integral equation derived from manipulating Eq. (13),

[TABLE]

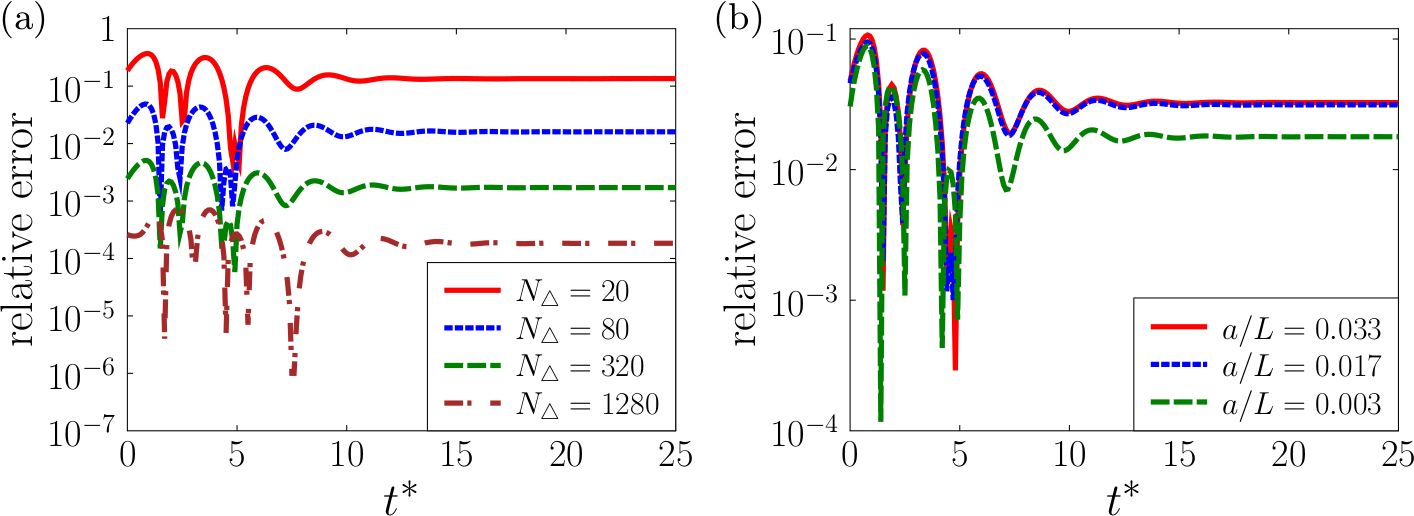

where $\bm{x}_{0}\in S$ and $L$ is a purely geometric quantity (Das and Saintillan, 2017b). Having computed $\llbracket{E}_{n}\rrbracket$, we can use integral Eq. (13) to compute the electric potential. The tangential component of the electric field, $\bm{E}_{t}$, is computed numerically by taking tangential derivatives of the electric potential. The normal components of the electric field are easily obtained using Gauss’s law,

[TABLE]

Finally, we determine the jump in the normal component of Ohmic currents $\llbracket\sigma E_{n}\rrbracket$ and the external electric traction $\bm{f}_{E}$ using Eq. (4) in the main text. The net electric force and torque acting on the particle is found by integrating electric traction using Eqs. (2) and (3) in the main text. The next step involves computing the hydrodynamic force and torque by using the dimensionless form of force and torque balance equations, i.e. $\bm{F}_{H}=-\bm{F}_{E}/Ma$ and $\bm{T}_{H}=-\bm{T}_{E}/Ma$. Here, we have introduced the third dimensionless Mason number, $Ma$, ($R=\sigma^{+}/\sigma^{-}$ and $Q=\varepsilon^{-}/\varepsilon^{+}$ being the other two) that denotes the ratio of viscous to electric stresses,

[TABLE]

In this work, we have chosen to specify the dimensionless electric field strength $E^{*}=E_{0}/E_{C}$ instead of the Mason number, $Ma$, where the critical electric field for Quincke rotation of a particle is,

[TABLE]

These two dimensionless numbers are related as $Ma=(\overline{\varepsilon}-\overline{\sigma})/(2E^{*2})$. The only term remaining to be computed in the charge conservation equation is the surface velocity $\bm{v}(\bm{x}\in S)$. This is obtained by solving the hydrodynamic problem for the particle subject to a force and a torque. Assuming creeping flow, we use the Stokes boundary integral equation to represent the particle surface velocity as,

[TABLE]

where $\bm{x}_{0}\in S$ and $\mathsfbi{G}(\bm{x}_{0};\bm{x})$ denotes the free-space Green’s functions for the Stokeslet $\mathsfbi{G}(\bm{x}_{0};\bm{x})=\mathsfbi{I}/r+\bm{r}\bm{r}/r^{3}$. The Stokes boundary integral equation (18) and the equations relating the net force and torque to the surface tractions, Eqs. (2) and (3) in the main text, are solved together to find the unknown particle velocities $\bm{U}$ and $\bm{\Omega}$. Having computed the surface velocity, the final step involves numerically integrating the charge conservation equation (without the charge convection part since the nodes are advected with the interfacial velocity) in time using a second order Runge-Kutta scheme until a steady state is reached.

Appendix B Validations: Quincke rotation of a sphere and a cylinder

Using spherical harmonics for a sphere (sp) under Quincke rotation, we can obtain the dipole moment, $\bm{P}$, relaxation equation from the charge conservation equation (Eq. (1) in the main article),

[TABLE]

where $a$ is the radius of the sphere, $\tau_{\mathrm{MW},sp}=(\varepsilon^{-}+2\varepsilon^{+})/(\sigma^{-}+2\sigma^{+})$ is the characteristic timescale for polarization of the spherical particle upon application of the field. The other two dimensionless numbers, $\overline{\varepsilon}_{sp}=(\varepsilon^{-}-\varepsilon^{+})/(\varepsilon^{-}+2\varepsilon^{+})$ and $\overline{\sigma}_{sp}=(\sigma^{-}-\sigma^{+})/(\sigma^{-}+2\sigma^{+})$ are called the Clausius–Mossotti factors. It can be easily shown that quadrupoles and higher multipoles are absent if the electric field is uniform and these multipoles do not interact with each other (Das and Saintillan, 2013). As there is no net force on the particle, $\bm{F}_{E}=-\bm{F}_{H}=\bm{0}$, we only need the torque balance equation to determine the angular velocity of the spherical particle,

[TABLE]

The dipole moment scales as $a^{3}E_{0}$ and the angular velocity scales as $\tau_{\mathrm{MW},sp}^{-1}$. If the applied field strength $E_{0}$ exceeds the critical electric value $E_{C,sp}$, the steady-state angular velocity of a sphere under Quincke rotation is,

[TABLE]

We can perform the same analysis for an infinitely long cylinder (cl) of cross-sectional radius $a$ using polar harmonics. The dipole moment relaxation equation (19) retains the same form, except for two changes, namely, (i) $a^{3}$ is replaced with $a^{2}$, and (ii) the Clausius–Mossotti factors and the Maxwell–Wagner relaxation times change to $\overline{\varepsilon}_{cl}=(\varepsilon^{-}-\varepsilon^{+})/((\varepsilon^{-}+\varepsilon^{+})$, $\overline{\sigma}_{cl}=(\sigma^{-}-\sigma^{+})/(\sigma^{-}+\sigma^{+})$ and $\tau_{\mathrm{MW},cl}=(\varepsilon^{-}+\varepsilon^{+})/(\sigma^{-}+\sigma^{+})$, respectively. These changes are a direct consequence of the form of the electric potential in polar harmonics, $\phi^{+}=\bm{P}\bm{\cdot}\bm{x}/x^{2}$, as compared to that in spherical harmonics, $\phi^{+}=\bm{P}\bm{\cdot}\bm{x}/x^{3}$. The torque balance equation per unit length for a cylinder is given as,

[TABLE]

The steady-state angular velocity of an infinitely long cylinder under Quincke rotation is,

[TABLE]

The 2 coupled ODEs Eqs. (19) and (20), relevant for a sphere or Eqs. (19) (with appropriate changes) and (23), relevant for a cylinder can be marched in time with a specified initial condition and serve as a comparison for the numerical results. For a given dipole moment $\bm{P}(t=0)=\bm{P}_{0}$, we can find the surface charge distribution using Gauss’s Law $q(\bm{x},t=0)=q_{0}$ and solve the relevant integral equations described in § I. Simultaneously, we can also solve the ODEs to find the angular velocity at any given time. In Fig. 5(a), we plot the relative error in the angular velocity of a sphere under Quincke rotation obtained by numerical simulations for various grid sizes. We find that the numerical results converge to the theoretical one as the grid size is decreased. In Fig. 5(b), we plot the relative error in the angular velocity of a cylinder having various aspect ratios while the total number of elements is kept fixed, $N_{\triangle}=444$. We find that the agreement between theory and numerics is the best for the cylinder with the lowest aspect ratio. This is expected as the theory is valid for an infinite long cylinder, $a/L\rightarrow 0$.

Appendix C Resistance Matrix

For the sake of completeness, we provide all the elements of the resistance matrix $\mathsfbi{R}$ relevant for resistive-force theory of a slender helix in viscous flow (Fu et al., 2015),

[TABLE]

where,

[TABLE]

The drag coefficients along the directions parallel and perpendicular to the tangent of the centerline representing the slender particle are,

[TABLE]

Appendix D Dimensional values of the swimming speed

In this section, we discuss the order of magnitude of the dimensional values of (a) the critical electric field for various solid-liquid systems, and (b) the swimming speed achievable by a helical particle under Quincke rotation. Using data from past literature, a dielectric helical particle can be made using Poly-methyl-methacrylate (PMMA) and a dielectric liquid (Pannacci et al., 2007, 2009; Bricard et al., 2013, 2015), see Table 1. The permittivity, conductivity, and density of PMMA are $\varepsilon^{-}=2.3\varepsilon_{0}$ and $\sigma^{-}=10^{-14}$ $\mathrm{S}\text{\,}{\mathrm{m}}^{-1}$, and $\rho^{-}=1.18\times 10^{3}$ $\mathrm{kg}\text{\,}{\mathrm{mm}}^{-3}$, respectively, where $\varepsilon_{0}=8.8542\times 10^{-12}$ $\mathrm{F}\text{\,}{\mathrm{m}}^{-1}$ is the permittivity of vacuum. When performing experiments, the density of the particle and suspending liquid must be matched by adding suitable agents to the liquid.

Let us consider a helical particle made of PMMA material suspended in a hexadecane solution and subject to an electric field of strength $E=2.5E_{C,cl}=$ $2.42\text{\,}\mathrm{V}\text{\,}{\mathrm{\SIUnitSymbolMicro m}}^{-1}$. These magnitudes of electric field strength have been employed in recent experiments involving Quincke rotation (Lu et al., 2018). The helical parameters are chosen as, contour length $L=$ $3\text{\,}\mathrm{\SIUnitSymbolMicro m}$, $N=3$ turns, pitch angle $\alpha=0.2\pi$, and radius of cross-section $a=$ $0.08\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and $0.16\text{\,}\mathrm{\SIUnitSymbolMicro m}$. Using all the relevant data, the numerical simulations predict a swimming speed of $U=$ $75\text{\,}\mathrm{\SIUnitSymbolMicro m}\text{\,}{\mathrm{s}}^{-1}$ and $61\text{\,}\mathrm{\SIUnitSymbolMicro m}\text{\,}{\mathrm{s}}^{-1}$. It is noteworthy that for a given helical shape and fixed critical electric field strength, the dimensional swimming speed value is inversely proportional to the Maxwell-Wagner relaxation time. The diffusivity of these micron-sized particle has not been taken into account in this work. It is typically of the order of $D^{-1}=0.31$ $\mathrm{s}$ corresponding to a persistence length, $l_{p}\sim$ $25\text{\,}\mathrm{\SIUnitSymbolMicro m}$ (Bricard et al., 2013).
