Constraining CP-violating electron-gluonic operators

TL;DR

This paper analyzes constraints on CP-violating electron-gluonic operators from EDM experiments, deriving bounds on their effective scales and discussing the theoretical uncertainties involved.

Contribution

It provides the first comprehensive analysis of constraints on two specific CP-odd electron-gluonic operators using current and future EDM data, including QCD running effects.

Findings

ACME ThO experiment sets an 8 TeV scale bound for one operator.

The contribution to EDM mainly comes from CP-odd electron-nucleon interactions.

The current bound on the second operator is weaker with larger uncertainties.

Abstract

We present an analysis of constraints on two types of CP-odd electron-gluonic operators $(\bar{e}i\gamma^5 e)G_{\mu\nu}^a G^{a\mu\nu}$ and $(\bar{e}e)G_{\mu\nu}^a \tilde{G}^{a\mu\nu}$ from current and future electric dipole moment (EDM) experiments. The recent result from the ACME experiment using ThO molecules is used to derive an impressive lower bound on the effective scale for $(\bar{e}i\gamma^5 e)G_{\mu\nu}^a G^{a\mu\nu}$ at 8 TeV, assuming a QCD one-loop factor and no helicity suppression from new physics. One interesting aspect is that $(\bar{e}i\gamma^5 e)G_{\mu\nu}^a G^{a\mu\nu}$ contributes to the observable EDM in ThO experiment mainly through CP-odd electron-nucleon interaction rather than direct electron EDM which arises from three-loop running and matching. For $(\bar{e}e)G_{\mu\nu}^a \tilde{G}^{a\mu\nu}$ the current bound is much weaker and suffers from large uncertainties. We also discuss the QCD running and matching for the CP-odd electron-gluonic operators and give an estimate of the relevant nucleon matrix elements and uncertainties that are needed in the calculation.

Figures

Tables

Table 1. Table 1: The values of C N S ​ P subscript superscript 𝐶 𝑆 𝑃 𝑁 C^{SP}_{N} , C p P ​ S subscript superscript 𝐶 𝑃 𝑆 𝑝 C^{PS}_{p} , and C n P ​ S subscript superscript 𝐶 𝑃 𝑆 𝑛 C^{PS}_{n} at hadronic scale μ = 1 ​ GeV 𝜇 1 GeV \mu=1~{}\textrm{GeV} with and without taking into account the QCD running and matching effects, with N = p , n 𝑁 𝑝 𝑛 N=p,n . Here we take C g = 1 subscript 𝐶 𝑔 1 C_{g}=1 for the SP case and C ~ g = 1 subscript ~ 𝐶 𝑔 1 \tilde{C}_{g}=1 for the PS case.

	$C_N^{\text{SP}}$	$C_p^{\text{PS}}$	$C_n^{\text{PS}}$
Tree-level	$3.86\times {10}^{-6}$	$1.70\times {10}^{-5}$	$-1.31\times {10}^{-6}$
One-loop running + matching	$4.02\times {10}^{-6}$	$1.63\times {10}^{-5}$	$-2.00\times {10}^{-6}$

Table 2. Table 2: Contributions to observable EDMs in benchmark scenarios described in the text. Note: contribution to direct electron EDM is not included. The results in the column marked with (R) are computed with QCD running and matching effects which are not taken into account in the remaining columns. For C ~ g = 1 subscript ~ 𝐶 𝑔 1 \tilde{C}_{g}=1 scenario, the indicated uncertainties are conservative estimates based on the estimation of uncertainties of nucleon matrix elements given in Appendix  A .

Observable$\left(e\cdot \text{cm}\right)$	$C_g=1$	${\tilde{C}}_g=1$	${\tilde{C}}_g=1$ (R)
$d_{\text{ThO}}^{\text{eff}}$	$-5.2\times {10}^{-26}$	-	-
$d_{\text{HfF}}^{\text{eff}}$	$-3.2\times {10}^{-26}$	-	-
$d_{{}_{}{}^{205}\text{Tl}}$	$-2.8\times {10}^{-23}$	$\left(3.1\pm 0.3\right)\times {10}^{-28}$	$\left(2.9\pm 0.3\right)\times {10}^{-28}$
$d_{{}_{}{}^{199}\text{Hg}}$	$-2.0\times {10}^{-27}$	$\left(2.1\pm 8.4\right)\times {10}^{-29}$	$\left(-2.2\pm 8.4\right)\times {10}^{-29}$
$d_{{}_{}{}^{129}\text{Xe}}$	$-2.5\times {10}^{-28}$	$\left(4.9\pm 1.9\right)\times {10}^{-29}$	$\left(3.8\pm 1.9\right)\times {10}^{-29}$
$d_{{}_{}{}^{211}\text{Rn}}$	$2.8\times {10}^{-29}$	$\left(0.7\pm 1.1\right)\times {10}^{-28}$	$\left(1.2\pm 1.1\right)\times {10}^{-28}$
$d_{{}_{}{}^{225}\text{Ra}}$	$1.2\times {10}^{-26}$	$\left(-2.1\pm 0.7\right)\times {10}^{-27}$	$\left(-1.6\pm 0.7\right)\times {10}^{-27}$

Table 3. Table 3: Estimate of the ratio of the contribution from CP-odd electron-nucleon interaction to the contribution of direct electron EDM in benchmark scenarios described in the text. The numbers should all be viewed as rough estimates. For entries marked with an asterisk, the ratio might be significantly overestimated, considering the large uncertainties shown in Table  2 .

$\left|d_{\text{eN}}/d_{\text{eEDM}}\right|$	$C_g=1$	${\tilde{C}}_g=1$
ThO	$1.5\times {10}^3$	$0$
${\text{HfF}}^{+}$	$8.8\times {10}^2$	$0$
${}_{}{}^{205}\text{Tl}$	$1.3\times {10}^3$	$1.4\times {10}^{-2}$
${}_{}{}^{199}\text{Hg}$	$7.2\times {10}^3$	$7.6\times {10}^1$∗
${}_{}{}^{129}\text{Xe}$	$7.1\times {10}^3$	$1.1\times {10}^3$∗
${}_{}{}^{211}\text{Rn}$	$7.3\times {10}^3$	$3.0\times {10}^2$∗
${}_{}{}^{225}\text{Ra}$	$7.5\times {10}^3$	$1.1\times {10}^3$∗

Table 4. Table 4: Current and future experimental upper limits on various observable EDMs. The confidence level refers to current limits.

Observable$\left(e\cdot \text{cm}\right)$	Current Limit	Confidence Level	Future Limit	Ref.
$\left|d_{\text{ThO}}^{\text{eff}}\right|$	$1.1\times {10}^{-29}$	$90\%$	${10}^{-31}$	Andreev:2018ayy ; Vutha:2009ux
$\left|d_{\text{HfF}}^{\text{eff}}\right|$	$1.3\times {10}^{-28}$	$90\%$	${10}^{-30}$	Cairncross:2017fip
$\left|d_{{}_{}{}^{205}\text{Tl}}\right|$	$9.5\times {10}^{-25}$	$90\%$	-	Regan:2002ta
$\left|d_{{}_{}{}^{199}\text{Hg}}\right|$	$7.4\times {10}^{-30}$	$95\%$	-	Graner:2016ses
$\left|d_{{}_{}{}^{129}\text{Xe}}\right|$	$5.5\times {10}^{-27}$	$90\%$	$3\times {10}^{-29}$	Chupp:2014gka ; Engel:2013lsa
$\left|d_{{}_{}{}^{211}\text{Rn}}\right|$	-	-	$2\times {10}^{-28}$	Engel:2013lsa
$\left|d_{{}_{}{}^{225}\text{Ra}}\right|$	$1.4\times {10}^{-23}$	$95\%$	${10}^{-28}$	Bishof:2016uqx

Table 5. Table 5: Lower bound on the effective scale Λ Λ \Lambda in the definition Eq. ( 4 ) and Eq. ( 5 ). See text for detailed explanation.

Observable	$\Lambda \left(\text{TeV}\right)$	$\tilde{\Lambda }\left(\text{TeV}\right)$	${\Lambda }^{\ast }\left(\text{TeV}\right)$	${\tilde{\Lambda }}^{\ast }\left(\text{TeV}\right)$
$\left|d_{\text{ThO}}^{\text{eff}}\right|$	8.3	-	27	-
$\left|d_{\text{HfF}}^{\text{eff}}\right|$	4.0	-	13	-
$\left|d_{{}_{}{}^{205}\text{Tl}}\right|$	2.3	0.13	-	-
$\left|d_{{}_{}{}^{199}\text{Hg}}\right|$	4.1	-	-	-
$\left|d_{{}_{}{}^{129}\text{Xe}}\right|$	0.46	(0.29)	1.7	(1.1)
$\left|d_{{}_{}{}^{211}\text{Rn}}\right|$	-	-	1.9	-
$\left|d_{{}_{}{}^{225}\text{Ra}}\right|$	0.17	(0.1)	3.3	(2.0)

Table 6. Table 6: Nucleon matrix elements of scalar quark operators m q ​ q ¯ ​ q subscript 𝑚 𝑞 ¯ 𝑞 𝑞 m_{q}\bar{q}q .

Quark $q$	$u$	$d$	$s$	sum
${⟨m_q\overline{q}q⟩}_p$ (MeV)	$15.5\pm 2.7$	$29.4\pm 5.5$	$40.2\pm 12.2$	$85.1\pm 14.6$
${⟨m_q\overline{q}q⟩}_n$ (MeV)	$13.5\pm 2.7$	$33.4\pm 5.5$	$40.2\pm 12.2$	$87.1\pm 14.6$

Table 7. Table 7: Nucleon matrix elements of pseudoscalar quark operators m q ​ q ¯ ​ i ​ γ 5 ​ q subscript 𝑚 𝑞 ¯ 𝑞 𝑖 superscript 𝛾 5 𝑞 m_{q}\bar{q}i\gamma^{5}q .

Quark $q$	$u$	$d$	$s$	sum
${⟨m_q\overline{q}\text{i}{\gamma }^{5}q⟩}_p$ (MeV)	$383\pm 39$	$-808\pm 27$	$-487\pm 31$	$-912\pm 31$
${⟨m_q\overline{q}\text{i}{\gamma }^{5}q⟩}_n$ (MeV)	$-374\pm 39$	$816\pm 27$	$-54\pm 31$	$388\pm 31$

Equations

$$|d_e|<1.1\times 10^{-29}e\cdot \text{cm}(90\%\text{C.L.})$$

$$d_{\text{exp}}=d_e+k{C}_S,k\approx 1.6\times 10^{-15}{\text{mbox}GeV}^{2}e\cdot \text{cm}$$

$${\mathcal{L}}_{eg}^{CPV}=C_g{\mathcal{O}}_g^{GI}+{\tilde{C}}_g{\tilde{\mathcal{O}}}_g^{GI}$$

$${\mathcal{O}}_g^{GI}$$

$${\tilde{\mathcal{O}}}_g^{GI}$$

$${\mathcal{L}}_{eg}^{CPV}\supset C_g{\mathcal{O}}_g+{\tilde{C}}_g{\tilde{\mathcal{O}}}_g$$

$${\mathcal{O}}_g$$

$${\tilde{\mathcal{O}}}_g$$

$$\delta {\mathcal{L}}_1=-Y_e\bar{e}i{\gamma }^{5}eS-Y_Q\frac{m_Q}{\Lambda }\bar{Q}QS$$

$$\delta {\mathcal{L}}_2=-\bar{e}({\lambda }_{eQ}{P}_L+{\lambda }_{Qe}{P}_R)QX+\text{h.c.}$$

$$\delta {\mathcal{L}}_3=\frac{g_s}{16{\pi }^2\Lambda }\bar{e}{\sigma }^{\mu \nu }(g_L{P}_L+g_R{P}_R)e_8^a{G}_{\mu \nu }^a$$

$${\mathcal{L}}_{eg}^{CPV}\supset C_g{\mathcal{O}}_g+C_q{\mathcal{O}}_q+{\tilde{C}}_g{\tilde{\mathcal{O}}}_g+{\tilde{C}}_q{\tilde{\mathcal{O}}}_q$$

$${\mathcal{O}}_q$$

$${\tilde{\mathcal{O}}}_q$$

$$\frac{d}{d\ln {\mu }^2}{C}_q$$

$$\frac{d}{d\ln {\mu }^2}{C}_g$$

$$\frac{d}{d\ln {\mu }^2}{\tilde{C}}_q$$

$$\frac{d}{d\ln {\mu }^2}{\tilde{C}}_g$$

$$C_g$$

$${\tilde{C}}_g$$

$$|d_e|\sim \frac{{\alpha }_s{m}_t}{4\pi }\times \frac{{\alpha }_{em}}{4\pi }\times \frac{e{y}_t}{16{\pi }^2}\times \frac{v^2}{2{\Lambda }^4}\times \frac{{\alpha }_s}{4\pi }\approx \frac{3.6\times 10^{-29}}{(\Lambda /\text{TeV}{)}^4}e\cdot \text{cm}$$

$$\Lambda \gtrsim 1.3\text{mbox}TeV$$

$$|\text{Im}{\kappa }_e|\sim \frac{v}{\sqrt{2}{\Lambda }^4}\times \frac{{\alpha }_s}{4\pi }\times \frac{{\alpha }_s}{4\pi }\times \frac{m_t^3}{16{\pi }^2}\times \frac{v}{\sqrt{2}{m}_e}$$

$$|d_e|\sim 5.1\times |\text{Im}{\kappa }_e|\times 10^{-27}e\cdot \text{cm}\approx \frac{8.7\times 10^{-31}}{(\Lambda /\text{TeV}{)}^4}e\cdot \text{cm}$$

$${\mathcal{L}}_{eN}\supset -\frac{G_F}{\sqrt{2}}{\sum }_{N=n,p}\left(C_N^{\text{SP}}\bar{N}N\bar{e}\text{i}{\gamma }^{5}e+C_N^{\text{PS}}\bar{N}\text{i}{\gamma }^{5}N\bar{e}e\right)$$

$$C_N^{\text{SP}}$$

$$C_N^{\text{PS}}$$

$${⟨\frac{{\alpha }_s}{4\pi }GG⟩}_p={⟨\frac{{\alpha }_s}{4\pi }GG⟩}_n=-183\text{MeV}$$

$${⟨\frac{{\alpha }_s}{8\pi }G\tilde{G}⟩}_p=-403\text{MeV},{⟨\frac{{\alpha }_s}{8\pi }G\tilde{G}⟩}_n=31\text{MeV}$$

$${⟨m_u\bar{u}u⟩}_p=15.5\text{MeV},{⟨m_u\bar{u}u⟩}_n=13.5\text{MeV},$$

$${⟨m_u\bar{u}i{\gamma }^{5}u⟩}_p=383\text{MeV},{⟨m_u\bar{u}i{\gamma }^{5}u⟩}_n=-374\text{MeV},$$

$${⟨m_d\bar{d}d⟩}_p=29.4\text{MeV},{⟨m_d\bar{d}d⟩}_n=33.4\text{MeV},$$

$${⟨m_d\bar{d}i{\gamma }^{5}d⟩}_p=-808\text{MeV},{⟨m_d\bar{d}i{\gamma }^{5}d⟩}_n=816\text{MeV},$$

$${⟨m_s\bar{s}s⟩}_p=40.2\text{MeV},{⟨m_s\bar{s}s⟩}_n=40.2\text{MeV},$$

$${⟨m_s\bar{s}i{\gamma }^{5}s⟩}_p=-487\text{MeV},{⟨m_s\bar{s}i{\gamma }^{5}s⟩}_n=-54\text{MeV}$$

$$d_{\text{ThO}}^{\text{eff}}$$

$$d_{\text{HfF}}^{\text{eff}}$$

Full text

††preprint: NCTS-PH/1903

1 Introduction

Tests of fundamental discrete symmetries have proven to be crucial for the establishment of the Standard Model (SM) of particle physics. The discovery of parity violation Lee:1956qn ; Wu:1957my in weak interactions entails the introduction of a chiral gauge theory, in which the generation of elementary fermion masses is tied to the electroweak symmetry breaking mechanism in a nontrivial manner Weinberg:1967tq . The time-reversal symmetry, or equivalently CP invariance (assuming an exact CPT symmetry), turns out to be even more mysterious. Currently all experimentally observed CP violation can be well accommodated by a single Cabibbo–Kobayashi–Maskawa (CKM) phase, while the effective CP-violating $\theta$ angle in the strong interaction is constrained to be vanishingly small for unknown reasons Tanabashi:2018oca . The CP-violation from the CKM phase is however too small to explain the observed matter-antimatter asymmetry of the universe. Given that these various clues do not point to a clear picture undoubtedly, it is reasonable to be open-minded about the search for new sources of CP-violation at all frontiers and the interpretation of the results thereof.

Recently the ACME Collaboration has set a new constraint on the electron electric dipole moment (EDM) using ThO molecules Andreev:2018ayy :

[TABLE]

leading to stringent bounds on new sources of CP-violation. For example, this result can be translated into a stringent bound on the imaginary part of the electron Yukawa coupling Altmannshofer:2015qra ; Egana-Ugrinovic:2018fpy (assuming no accidental cancellation): $|\text{Im}\kappa_{e}|<2\times 10^{-3}$ where $\kappa_{e}$ denotes the ratio of the complex electron Yukawa to its SM value. This is remarkable since at high energy colliders the current direct search for Higgs decaying to electrons can only constrain the real part of the electron Yukawa to be less than a few hundred times its SM value Altmannshofer:2015qra ; Egana-Ugrinovic:2018fpy . More generally, if beyond the SM (BSM) CP violation occurs at some high scale $\Lambda$, its effect can be parametrized by CP-violating higher-dimensional operators in the SM effective field theory (SMEFT), which in turn can be bounded by electron EDM measurements. Due to selection rules, at dimension-six level only a few operators contribute to the renormalization of the electron dipole operators at one-loop Panico:2018hal . To maximally exploit the stringent constraint in Eq. (1) two-loop contribution from dimension-six operators and one-loop contribution from dimension-eight operators may also be considered, which are expected to deliver comparable constraints on the EFT scale $\Lambda$ Panico:2018hal .

In this work we aim to constrain CP-violating interactions between electron and gluon, which can be parametrized in SMEFT using dimension-eight operators. There are a number of reasons why we are interested in these lepton-gluonic operators. Phenomenologically they can lead to clean signatures at hadron colliders or in lepton-flavor-violation measurements Potter:2012yv ; Hayreter:2013vna ; Cai:2018cog (if lepton-flavor is not conserved). More interestingly, as we will show, one of the CP-violating electron-gluonic operators is bounded by electron EDM measurements using ThO molecules mainly due to its contribution to CP-odd electron-nucleon interactions rather than direct contribution to electron EDM. In fact, what the ACME experiment really constrains is the following combination of direct electron EDM and contribution from CP-odd electron nucleon coupling Cesarotti:2018huy ; Chupp:2014gka ; Dzuba:2011

[TABLE]

Here $C_{S}$ is the coefficient of the CP-odd electron-nucleon operator $(\bar{e}i\gamma^{5}e)(\bar{N}N)$. In the SMEFT, up to dimension-six, $C_{S}$ receives contribution from certain CP-odd four-fermion operators which involve two electrons and two quarks, due to quark contents in the nucleons. Such four-fermion operators may arise in extended Higgs sector or leptoquark models Barr:1991yx ; Barr:1992cm ; Fuyuto:2017xup ; Fuyuto:2018scm ; Dekens:2018bci . Since there also exist gluon contents in the nucleons it is natural to ask whether constraints can be put on CP-odd electron-gluonic operators. In the literature such operators have been considered in the following contexts. First, if there exist CP-odd $(\bar{e}i\gamma^{5}e)\bar{Q}Q$ operators where $Q$ denotes a heavy quark ($c,b,t$) in the SM, then when we integrate out the heavy quark in the EFT, CP-odd electron-gluonic operators could be generated via matching Shifman:1978zn . Second, in supersymmetric models the CP-odd electron-gluonic operator $(\bar{e}i\gamma^{5}e)G_{\mu\nu}^{a}G^{a\mu\nu}$ can be generated through quark and squark loops Pilaftsis:2002fe ; Ellis:2008zy ; Yanase:2018qqq , which however suffers from helicity suppression. In this work, however, our interest will be constraining in a model-independent manner, CP-odd electron-gluonic operators that are of independent new physics origin (i.e. not generated by matching from CP-odd $eeQQ(Q=c,b,t)$ operators) and are potentially not suppressed by electron Yukawa.

Moreover, we will also investigate whether meaningful bounds can be put on the $(\bar{e}e)G_{\mu\nu}^{a}\tilde{G}^{a\mu\nu}$ type operator using current and future EDM measurements. At electron-nucleon interaction level, this operator is reduced to $\left(\bar{e}e\right)\left(\bar{N}\textrm{i}\gamma^{5}N\right)$ so that it is proportional to the averaged nucleon spin $\langle s_{z}\rangle$. However, for ThO molecules used in ACME experiments, in both Th- and O-nuclei, the protons and neutrons are all paired which leads to $\langle s_{z}\rangle=0$ for both kinds of nuclei 111The ACME experiment chose the isotope ${}^{232}\textrm{Th}^{16}\textrm{O}$ which have the largest natural abundance ($\sim 1$), and thus the pollution from other isotopes are ignored.. That means through only a tree level analysis, the ACME experiments cannot be used to constrain the $(\bar{e}e)G_{\mu\nu}^{a}\tilde{G}^{a\mu\nu}$ type operator. We must turn to higher-order analysis and other materials (for example, some heavy atoms), as shown in the text.

The paper is organized as follows. In Section 2 the relevant electron-gluonic operators are listed in the SMEFT context, and their UV realizations are discussed. Due to renormalization group running electron-gluonic operators could mix into four-fermion operators, which is treated in Section 3, including possible threshold matching effects. In Section 4 we discuss observable EDM effects from CP-odd electron-gluonic operators, including both direct contribution to electron EDM and contribution to CP-odd electron-nucleon interactions. The latter turns out to be the dominant effect. Then in Section 5 based on the formulas obtained we present the bounds on the coefficient of CP-odd electron-gluonic operators using current measurements and also make projections for future experiments. Section 6 gives the discussion and conclusion.

2 CPV electron-gluonic operators and UV realizations

In the SMEFT, at the dimension-eight level, CP-odd electron-gluonic interactions can be introduced through the Lagrangian

[TABLE]

Here $C_{g}$ and $\tilde{C}_{g}$ are dimensionless real numbers, and the $SU(3)_{c}\times SU(2)_{L}\times U(1)_{Y}$-invariant operators $\mathcal{O}_{g}^{GI}$ and $\tilde{\mathcal{O}}_{g}^{GI}$ are defined by

[TABLE]

Here, $\Lambda$ is the energy scale at which new physics is integrated out. $L_{L}=\begin{pmatrix}\nu_{eL}\\ e_{L}\end{pmatrix}$ is the left-handed lepton (electron) doublet while $e_{R}$ is the right-handed lepton (electron) singlet. $\phi$ is the SM Higgs doublet with the vacuum expectation value (vev) $\langle\phi\rangle=\frac{1}{\sqrt{2}}\begin{pmatrix}0\\ v\end{pmatrix}$ and $v=246~{}{\mbox{GeV}}$. $G_{\mu\nu}^{a}=\partial_{\mu}G_{\nu}^{a}-\partial_{\nu}G_{\mu}^{a}+g_{s}f^{abc}G_{\mu}^{b}G_{\nu}^{c}$ denotes the gluon field strength tensor, with $G_{\mu}^{a}$ being the gluon field, $f^{abc}$ the $SU(3)$ structure constant, and $g_{s}$ the strong coupling constant with $\alpha_{s}=\frac{g_{s}^{2}}{4\pi}$. $\tilde{G}^{a\mu\nu}\equiv\frac{1}{2}\epsilon^{\mu\nu\rho\sigma}G^{a}_{\rho\sigma}$ is the dual gluon field strength, with the convention $\epsilon^{0123}=+1$. After electroweak symmetry breaking (EWSB), the $U(1)_{em}$-invariant CP-odd electron-gluonic interactions can be written as

[TABLE]

Here $\mathcal{O}_{g}$ and $\tilde{\mathcal{O}}_{g}$ are defined as

[TABLE]

Note through this definition the same set of Wilson coefficients $C_{g}$ and $\tilde{C}_{g}$ appear in Eq. (3) and Eq. (6). The introduction of the one-loop factor $\frac{\alpha_{s}}{4\pi}$ in the definition of the $\mathcal{O}_{g}^{GI},\tilde{\mathcal{O}}_{g}^{GI},\mathcal{O}_{g},\tilde{\mathcal{O}}_{g}$ has the advantage of simplifying the one-loop running behavior of the operator coefficients. Moreover, if we imagine these operators are generated at one-loop level with no helicity suppression, then we would naturally expect $C_{g},\tilde{C}_{g}\sim\mathcal{O}(1)$ (although we will not confine ourselves to this possibility).

We note that the electron-gluonic interactions in Eq. (6) can be generated in several perturbative UV realizations. Three examples will be enumerated here, in which we only intend to sketch the part of the model relevant for the electron gluon interactions, with no attempt to provide a genuine viable UV completion. In the first example (the upper panel of Fig. 1), a new color-singlet scalar $S$ is introduced, which has Yukawa couplings to both the SM electron and a new quark $Q$ charged under the QCD color group, in a CP-violating manner, for instance

[TABLE]

where for simplicity let us assume $\Lambda$ is the mass of $S$ and $m_{Q}$ is the mass of $Q$. Then we can estimate that for $m_{Q}\gtrsim\Lambda$, $\mathcal{O}_{g}$ is generated with coefficient $C_{g}\sim-\frac{\sqrt{2}\Lambda}{3v}Y_{e}Y_{Q}$. In the second example (the lower left panel of Fig. 1), a scalar leptoquark $X$ is introduced, which couples to the electron and a new quark $Q$ as follows

[TABLE]

Here $P_{L/R}=\frac{1\mp\gamma^{5}}{2}$, and $\lambda_{eQ}=|\lambda_{eQ}|e^{i\theta_{eQ}},\lambda_{Qe}=|\lambda_{Qe}|e^{i\theta_{Qe}}$ are complex coefficients. In this case $\mathcal{O}_{g}$ is generated with coefficient $C_{g}\sim-\frac{\sqrt{2}\Lambda^{2}}{12vm_{Q}}|\lambda_{Qe}\lambda_{eQ}|\sin\Delta\theta$, in which $\Lambda,m_{Q}$ denote the masses of $X$ and $Q$ respectively and $\Delta\theta\equiv\theta_{eQ}-\theta_{Qe}$. In the third example, we consider a color octet electron Sahin:2010dd ; Akay:2010sw ; Mandal:2012rx ; Mandal:2016csb , denoted $e_{8}$, which interacts with the electron and gluon in the following CP-violating manner

[TABLE]

Here $\Lambda$ is the mass of $e_{8}$, and $g_{L}=|g_{L}|e^{i\theta_{L}},g_{R}=|g_{R}|e^{i\theta_{R}}$ are complex couplings. When $e_{8}$ is integrated out, $\mathcal{O}_{g}$ is generated with coefficient $C_{g}\sim\frac{\sqrt{2}|g_{L}g_{R}|\sin\delta\theta\Lambda}{8\pi^{2}v}$, in which $\delta\theta\equiv\theta_{L}-\theta_{R}$. We note that in the second and the third example, the chirality flip does not occur on the electron line, therefore it is natural that for these cases $C_{g}$ is not suppressed by the electron Yukawa. Moreover, $\tilde{O}_{g}$ can also be generated (in the first example this would require more general complex couplings). We emphasize that although we may have in mind certain perturbative UV realizations, we would like to adopt a model-independent approach and thus be open-minded about the origins of new CP-odd electron-gluonic operators. In fact, for the perturbative examples shown above, generically they lead to large direct contribution to electron EDM at one-loop order unless we construct the models in some contrived or fine-tuned manner.

3 Operator running and mixing

$\mathcal{O}_{g}$ and $\tilde{\mathcal{O}}_{g}$ are expected to be generated by new physics at some high scale (e.g. a few TeV). However, EDM measurements are performed at a much lower scale ($\lesssim 1~{}{\mbox{GeV}}$). In the effective field theory, operators generally run and mix due to renormalization effects. Moreover, when going below the threshold of some heavy particle, there could be matching corrections when the heavy particle is integrated out. In this section we give an estimate of the size of such effects, which lays the foundation for further analysis.

Let us start with the following CP-odd effective Lagrangian

[TABLE]

in which the operators $\mathcal{O}_{q}$ and $\tilde{\mathcal{O}}_{q}$ are defined by

[TABLE]

We include $\mathcal{O}_{q}$ and $\tilde{\mathcal{O}}_{q}$ since they appear in the running and matching at (QCD) one-loop level. $m_{q}$ is the running mass of the quark $q$. The Wilson coefficients $C_{g},C_{q},\tilde{C}_{g},\tilde{C}_{q}$ are functions of the renormalization scale $\mu$, with the leading order running behavior computed in the $\overline{\text{MS}}$ scheme to be

[TABLE]

In the calculation, to preserve the anomaly equation of the singlet axial current and nonrenormalization of the pseudoscalar quark operators we have introduced appropriate finite renormalization as is done in ref. Hill:2014yxa (see also  Larin:1993tq ). The results we obtained for the running of $C_{q}$ and $\tilde{C}_{q}$ agree with ref. Bhattacharya:2015rsa . 222However, our running of $C_{q}$ is a factor of $4\pi$ smaller than that given by the Appendix of ref. Crivellin:2017rmk in the context of $\mu\rightarrow e$ conversion. Moreover, when compared with ref. Hill:2014yxa , our running of $C_{q}$ agrees while the running of $\tilde{C}_{q}$ obtained here is twice as large as that obtained by ref. Hill:2014yxa . Besides running, the Wilson coefficients $C_{g},\tilde{C}_{g}$ also receive matching corrections when the heavy quarks $q=c,b,t$ are integrated out

[TABLE]

In this work, we take $2m_{q}$ to be the matching threshold.

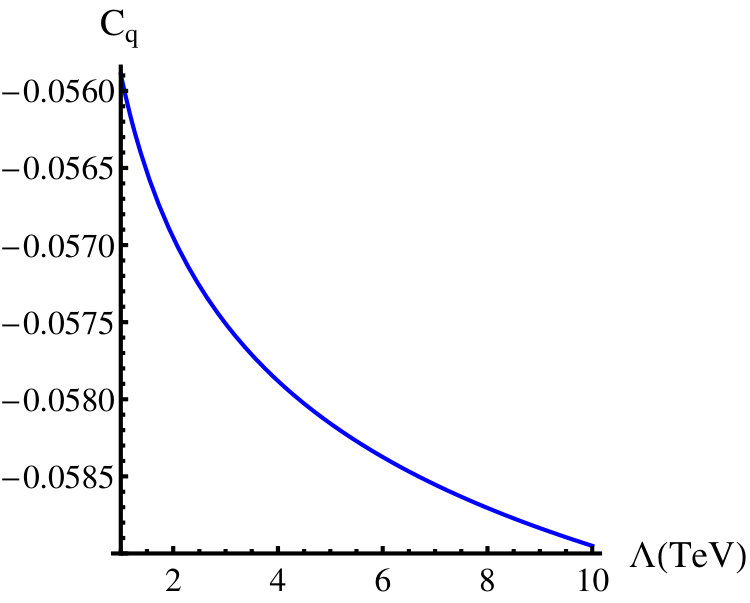

In Fig. 2 we plot the induced Wilson coefficients $C_{q}$ (left) and $\tilde{C}_{q}$ (right) at $1~{}{\mbox{GeV}}$ scale assuming $C_{g}=1,C_{q}=0$ (or $\tilde{C}_{g}=1,\tilde{C}_{q}=0$) at scale $\Lambda$. In the calculation the running of $\alpha_{s}$ is taken into account up to three-loop in QCD. For each flavor of light quark $q=u,d,s$, the magnitude of the induced $C_{q}$ or $\tilde{C}_{q}$ is around 0.06, with a mild dependence on $\Lambda$ for $\Lambda$ in a few TeV range.

4 Observable EDM effects

Generally speaking, EDM measurements at molecular or atomic level are sensitive to multiple sources of CP-violating effects333We refer the reader to ref. Khriplovich:1997ga ; Pospelov:2005pr ; Roberts:2010zz ; Engel:2013lsa ; Jungmann:2013sga ; Yamanaka:2014mda ; Chupp:2017rkp ; Safronova:2017xyt for reviews.. For example, the ACME experiment which uses ThO molecules is sensitive to both the electron EDM and CP-odd electron-nucleon interactions. In this section we discuss how CP-violating electron-gluonic operators may contribute to observable EDM effects.

4.1 Direct electron EDM

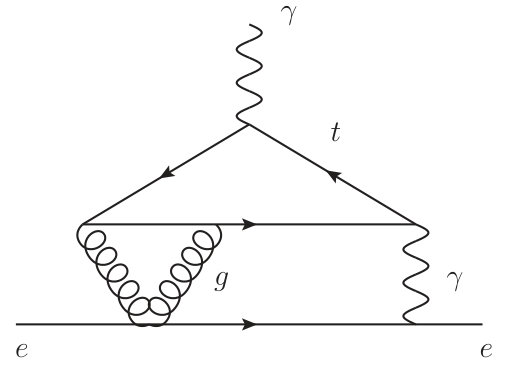

Furry’s theorem prevents CP-odd electron-gluonic operators $\mathcal{O}_{g},\tilde{\mathcal{O}}_{g}$ from contributing to the electron EDM at one-loop or two-loop order. Nevertheless, at three-loop and four-loop order, we are able to draw diagrams, such as those shown in Fig. 3. The existence of such contributions can be easily understood. For example, as shown in previous section, through renormalization group running $\mathcal{O}_{q}$ can be induced from $\mathcal{O}_{g}$. According to the analysis of operator mixing patterns presented in ref. Panico:2018hal (see also Cesarotti:2018huy ), $\mathcal{O}_{q}$ can generate the electron EDM operator at two-loop level. This effectively leads to the three-loop diagram as shown in the left panel of Fig. 3, which does not suffer from helicity suppression. On the other hand, $\mathcal{O}_{g}$ leads to an imaginary part of the effective electron Yukawa coupling at two-loop level, which in turn generates the electron EDM through a two-loop Barr-Zee diagram, leading to the four-loop diagram shown in the right panel of Fig. 3.

If $\mathcal{O}_{g}$ is generated at scale $\Lambda$ with an $\mathcal{O}(1)$ coefficient, then its contribution to the electron EDM $d_{e}$ at three loop level can be estimated as

[TABLE]

In the estimation expression above, the first three factors are loop factors, while the last two factors come from vev insertion and operator definition. If this is the only contribution to EDM measurements using ThO molecules then we are able to derive a bound on $\Lambda$ from current constraint Eq. (1) as

[TABLE]

For $\mathcal{O}_{g}$ this turns out to be much weaker than the bound obtained from CP-odd electron-nucleon interaction discussed below. Nevertheless, if $\tilde{\mathcal{O}}_{g}$ is generated at scale $\Lambda$ with an $\mathcal{O}(1)$ coefficient, then we can also estimate the bound on $\Lambda$ as in the case of $\mathcal{O}_{g}$ to be $\sim 1.3~{}{\mbox{TeV}}$. This is comparable with or even more stringent than the bound from CP-odd electron-nucleon interaction discussed later. We note that when an observable EDM receives contributions from both the direct electron EDM and CP-odd electron-nucleon interactions, in principle we should consider these contributions simultaneously for setting a reliable bound on the effective scale $\Lambda$, since there can be enhancement or cancellation effects. Nevertheless, because the solution to three-loop running and matching equations is not yet available, in this paper we adopt a simplistic approach by presenting separately the bounds obtained from considering only the direct electron EDM contribution or only the CP-odd electron-nucleon interaction contribution. Therefore the bounds on effective scales that we obtained by considering only one contribution should be interpreted as valid when the other contribution is negligible, or be interpreted as an indication of the size of the corresponding contribution. According to the formulas presented in the following subsections, for $\mathcal{O}_{g}$, neglecting the direct electron EDM contribution is generally a safe approximation. However, for $\tilde{\mathcal{O}}_{g}$, the direct electron EDM contribution is not expected to be negligible, therefore although we give bounds by considering two contributions separately, these bounds should be interpreted with care.

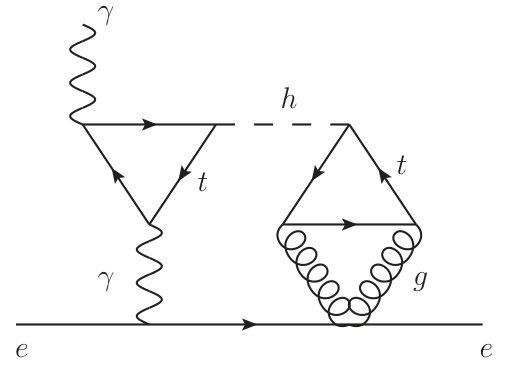

The four-loop contribution to electron EDM (as shown in the right panel of Fig. 3) can also be estimated. $\mathcal{O}_{g}$ generated at $\Lambda$ with an $\mathcal{O}(1)$ coefficient leads to an effective imaginary part of the electron Yukawa

[TABLE]

Here $\kappa_{e}$ denotes the electron Yukawa coupling relative to its SM value, thus we include a factor of $\frac{v}{\sqrt{2}m_{e}}$ on the right hand side. $d_{e}$ receives a contribution from $|\text{Im}\kappa_{e}|$ via a two-loop Barr-Zee diagram, and we estimate the contribution as Altmannshofer:2015qra

[TABLE]

which is smaller by a factor of $40$ compared to the three-loop contribution estimated in Eq. (21).

Let us note that due to the gluon condensate $\langle 0|\frac{\alpha_{s}}{4\pi}G_{\mu\nu}^{a}G^{a\mu\nu}|0\rangle\sim\Lambda_{QCD}^{4}$ (and quark condensate $\langle 0|\bar{q}q|0\rangle$ if running is taken into account) the operator $\mathcal{O}_{g}^{GI}$ will also lead to corretion to $\text{Im}\kappa_{e}$ when we consider the condensate in Eq. (4) (the complex phase generated in the electron mass term can be removed in the diagonalization of lepton mass matrix). However the correction is suppressed by $\frac{\Lambda_{QCD}^{4}}{\Lambda^{4}}$ and thus too small to produce observable effects as long as $\Lambda\gtrsim 100~{}{\mbox{GeV}}$.

4.2 CP-odd electron-Nucleon interaction

The EDM measurements based on atoms and molecules may also be sensitive to CP-odd electron-nucleon interactions. At hadron level, we parametrize the relevant operators as Yamanaka:2014mda

[TABLE]

In this work the tensor type electron-nucleon interaction induced from electron-gluonic operators is suppressed by an electroweak loop factor and estimated to be negligible. When we perform a matching from quark level Eq. (12) to hadron level Eq. (25) the coefficients $C^{\textrm{SP}}_{N}$ and $C^{\textrm{PS}}_{N}$ are obtained as follows

[TABLE]

Here $\langle\mathcal{O}\rangle_{N}\equiv\langle N|\mathcal{O}|N\rangle$ denotes the nucleon matrix element of the operator $\mathcal{O}$ with respect to nucleon $N$. $GG$ and $G\tilde{G}$ are shorthand notations for $G^{a}_{\mu\nu}G^{a\mu\nu}$ and $G^{a}_{\mu\nu}\tilde{G}^{a\mu\nu}$, respectively. Note that the matching is expected to be performed at the hadron scale $\sim 1~{}{\mbox{GeV}}$, and we integrate out heavy quarks $c,b,t$. Following the method in ref. Hill:2014yxa ; Cheng:2012qr , we compute the relevant nucleon matrix elements as

[TABLE]

[TABLE]

and the quark scalar and pseudoscalar matrix elements

[TABLE]

Details about the computation are given in Appendix A. Here we note that the matrix elements of $\frac{\alpha_{s}}{8\pi}G\tilde{G}$ exhibit significant isospin violation Gross:1979ur . Moreover, although the uncertainties of most of the matrix elements listed above can be neglected in our analysis, the $1\sigma$ uncertainties associated with the matrix elements of $\frac{\alpha_{s}}{8\pi}G\tilde{G}$ are estimated to be at least $36~{}{\mbox{MeV}}$ for both the proton and the neutron, with a weak correlation. Especially for neutron this uncertainty is so large that we conclude $\left\langle\frac{\alpha_{s}}{8\pi}G\tilde{G}\right\rangle_{n}$ is in fact compatible with zero. This large uncertainty significantly weakens the bound on $\tilde{\mathcal{O}}_{g}$ operator.

4.3 Observable EDM

In this work we consider seven types of materials, including both paramagnetic and diagmatic ones, to probe direct electron EDM and also various CP-violating electron-nucleon interactions in a complementary manner. The seven types of materials are: ThO molecule, HfF+ ion, and atoms ${}^{205}\textrm{Tl}$,${}^{199}\textrm{Hg}$,${}^{129}\textrm{Xe}$,${}^{211}\textrm{Rn}$,${}^{225}\textrm{Ra}$. Their observable EDMs are related to the electron EDM and CP-odd electron-nucleon interaction coefficients as follows. For polar molecules Chupp:2014gka ; Cairncross:2017fip ; Skripnikov:2016tho ; Skripnikov:2017hff :

[TABLE]

And for heavy atoms Yamanaka:2014mda 444In recent years, some new results for the diamagnetic atoms appeared, see Yanase:2018qqq ; Fleig:2018bsf ; Sahoo:2018ile ; Yamanaka:2017mef ; Fleig:2018etq ; Yoshinaga:2014eaa . The new results are compatible with old ones in order of magnitude, but some detailed behavior change much. As an example, the new estimations on the coefficients of $C^{\textrm{PS}}_{p}$ for ${}^{199}\textrm{Hg}$ and ${}^{129}\textrm{Xe}$ become ignorable. Such differences do not modify on our main conclusions.:

[TABLE]

Note for ThO and HfF+, since the experimental limit is usually given as a bound on the electron EDM, we normalize the equation such that the coefficient in front of $d_{e}$ is unity. For simplicity, we neglect isospin violating effects in SP type electron-nucelon interactions, i.e., taking $C_{N}^{\text{SP}}=C_{n}^{\text{SP}}=C_{p}^{\text{SP}}$.

5 Current constraints and future prospects

5.1 Running and matching Effects

Before deriving constraints on operator coefficients from various experiments, it is instructive to obtain an estimate of the correction due to QCD running and matching effects by examining hadron-level quantities which are closer to experimental observables than quark-level quantities shown in Fig. 2. In this process the nucleon matrix elements derived in Appendix A play a crucial role. In Fig. 4 we present the relative corrections due to QCD running and matching effects. Assuming only $C_{g}$ or $\tilde{C}_{g}$ is generated at a high scale $\Lambda$, we may compute the coefficients $C_{N}^{\text{SP}}$ or $C_{p}^{\text{PS}},C_{n}^{\text{PS}}$ at low scale $\mu\sim 1~{}{\mbox{GeV}}$ by taking into account or neglecting the QCD running and matching effects discussed in Section 3. The resulting differences are denoted $\delta C_{N}^{\text{SP}},\delta C_{p}^{\text{PS}},\delta C_{n}^{\text{PS}}$ respectively, and in Fig. 4 the relative corrections are obtained by dividing the corresponding coefficients without considering running and matching effects.

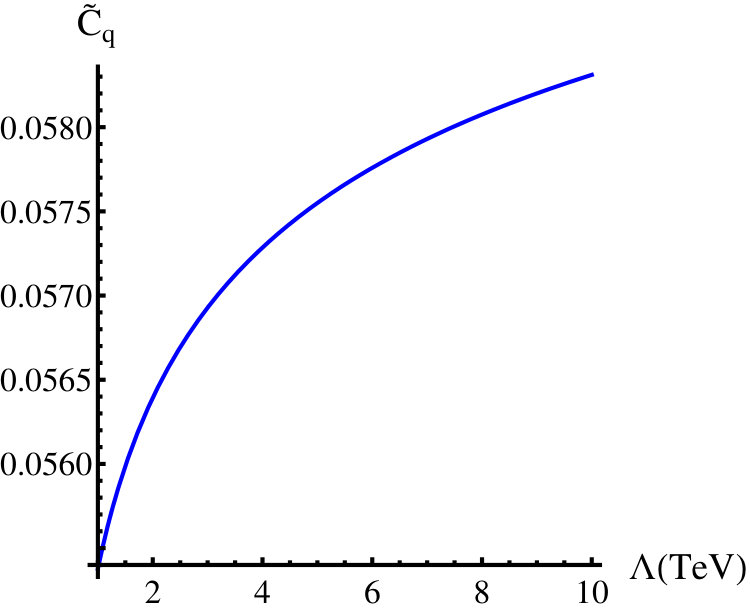

The important message coming from Fig. 4 is that all the CP-odd electron-proton interactions are quite insensitive to the running and matching effects of the corresponding electron-gluonic operator (the correction is about $4\%$), while for CP-odd electron-neutron interactions, the SP type coefficient is insensitive but the PS type coefficient is sensitive. This can be traced to the fact that the central value of the neutron matrix element $\langle\frac{\alpha_{s}}{8\pi}G\tilde{G}\rangle_{n}\approx 31~{}\textrm{MeV}$ is much smaller than that of proton $\langle\frac{\alpha_{s}}{8\pi}G\tilde{G}\rangle_{p}\approx 403~{}\textrm{MeV}$, see Eq. (29). Here we note that since relative large uncertainty is associated with the neutron matrix element, the right panel of Fig. 4 also suffers from large uncertainty. Nevertheless, we may expect the QCD running and matching effects to be significant when we want to constrain $\tilde{C}_{g}$ using materials whose sensitivities are dominated by neutron rather than proton. This turns out to be the case for ${}^{199}\textrm{Hg}$ and ${}^{211}\textrm{Rn}$. Unfortunately even after taking into account the running and matching effects, the uncertainties due to nucleon matrix elements are still too large to allow us to obtain meaningful bounds on $\tilde{C}_{g}$ from these two materials.

5.2 Contributions in benchmark scenarios

In this section we fix $\Lambda=1~{}{\mbox{TeV}}$, and consider two benchmark scenarios: $C_{g}=1$ or $\tilde{C}_{g}=1$ at scale $\Lambda$. We set coefficients of other CP-violating operators at $\Lambda$ to zero. We then consider the contribution to various observable EDMs in these two scenarios. For simplicity, the contribution to direct electron EDM is not included. This is a good approximation for constraining $C_{g}$ but we should keep in mind for constraining $\tilde{C}_{g}$ this effect is important for certain paramagnetic materials.

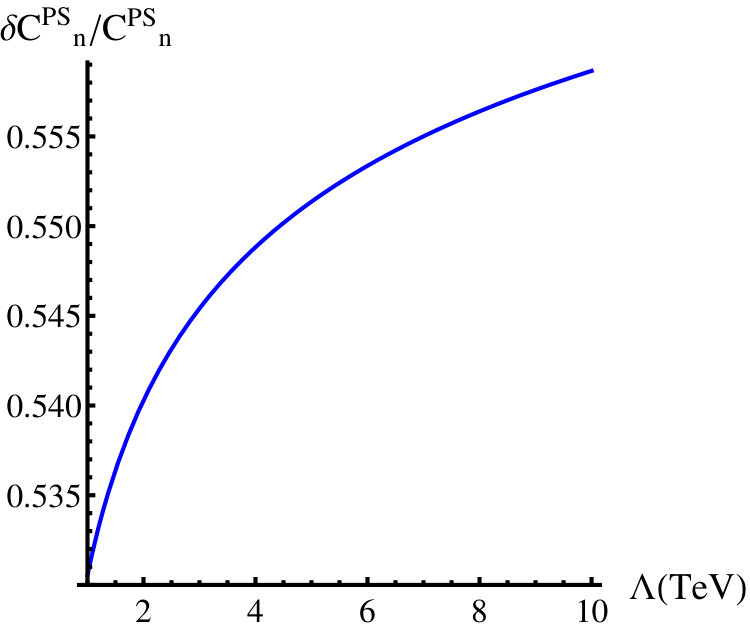

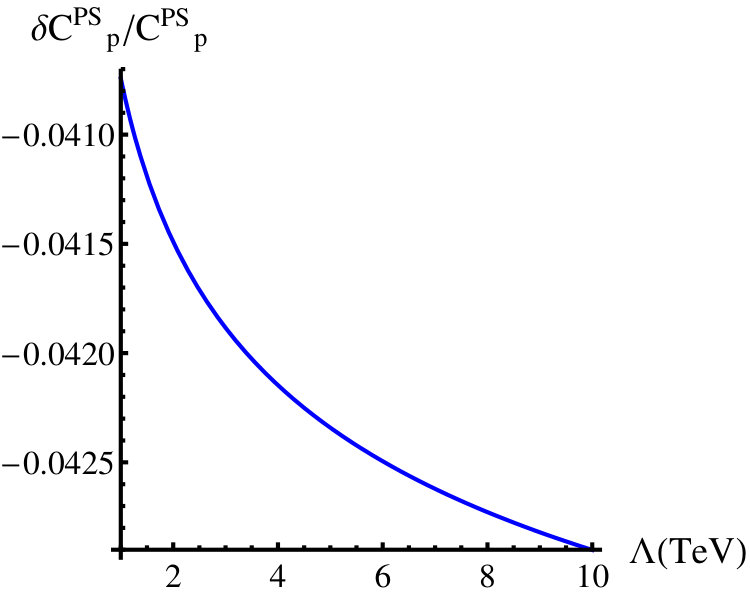

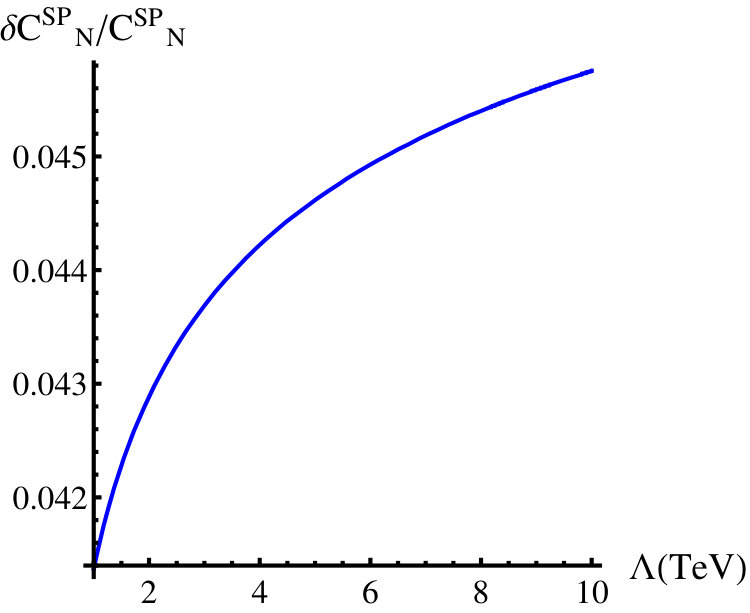

In Table 1 we present the contribution to $C_{N}^{\text{SP}},C_{p}^{\text{PS}},C_{n}^{\text{PS}}$ (at low scale $\mu\sim 1~{}{\mbox{GeV}}$) in the two benchmark scenarios, without or with running and matching effects. Combined with the observable EDM formulae given in the previous section this facilitates a quick estimation of typical contribution to observable EDMs from new CP-violation sources around TeV scale. In Table 2 we present the estimated contribution to various observable EDMs in the two benchmark scenarios.

For the observable EDM measurement from any given material, it is also instructive to compare the contribution from CP-odd electron-nucleon interaction $d_{\text{eN}}$ and the contribution from the direct electron EDM $d_{\text{eEDM}}$. For the two benchmark scenarios, we present the ratio $|d_{\text{eN}}/d_{\text{eEDM}}|$ in Table 3, which can be calculated from the results in Table 2 and the direct electron EDM estimate in Eq. (21) (the various enhancement or suppression factors for electron EDM should be taken into account if relevant). The results shown in Table 3 should be viewed as rough order-of-magnitude estiamtes, but it still delivers useful information. Let us note that in forming the ratio, the factor $\frac{C_{g}}{\Lambda^{4}}$ or $\frac{\tilde{C}_{g}}{\Lambda^{4}}$ will cancel (when the running effect is not significant), therefore the value of the factor $\frac{C_{g}}{\Lambda^{4}}$ or $\frac{\tilde{C}_{g}}{\Lambda^{4}}$ is not important for estimating the ratio. Then from Table 3 we may conclude that for $C_{g}\neq 0$ scenario, the contribution from CP-odd electron-nucleon interaction always dominate, and it is safe to neglect the direct electron EDM contribution. However, for $\tilde{C}_{g}\neq 0$ scenario, it is hard to identify any one material in which the contribution from CP-odd electron-nucleon interaction will certainly dominate, considering the large uncertainties shown in Table 2.

5.3 Constraints from current and expected experiments

In Table 4 we present current and future (expected) experimental upper limits on various observable EDMs. A comparison between Table 2 and Table 4 gives a feeling about the constraining power on $C_{g}$ and $\tilde{C}_{g}$ for fixed $\Lambda$, or equivalently, on $\Lambda$ for fixed $C_{g}$ and $\tilde{C}_{g}$, bearing in mind that the new physics contribution roughly scale as $\Lambda^{-4}$. In Table 5 the current and future experimental upper limits on various observable EDMs are translated into lower bounds on the effective scale $\Lambda$ in the definition Eq. (4) and Eq. (5). Specifically, the $\Lambda$ column refers to the current lower bound assuming $C_{g}=1$, the $\tilde{\Lambda}$ column refers to the current lower bound assuming $\tilde{C}_{g}=1$, the $\Lambda^{*}$ column refers to the expected future lower bound assuming $C_{g}=1$, and the $\tilde{\Lambda}^{*}$ column refers to the expected future lower bound assuming $\tilde{C}_{g}=1$. We consider one parameter at a time and thus set coefficients of other new physics operators at the effective scale to zero. Note the bound is obtained by neglecting the contribution to direct electron EDM via three-loop running or matching. The confidence levels are the same as those shown in Table 4 for current limits while for future projection since the sensitivities are all rough estimates we do not distinguish between $90\%$ and $95\%$ at the moment. Entries marked with a dash mean no meaningful bound can be obtained due to large uncertainties or lack of data or information of future experiments. We have neglected nucleon matrix element uncertainties in obtaining these bounds, which could lead to large uncertainties in the bounds on $\tilde{\Lambda}$ and $\tilde{\Lambda}^{*}$ for ${}^{129}\textrm{Xe}$ and ${}^{225}\textrm{Ra}$. We put the corresponding results in parentheses to indicate their being afflicted by large nucleon matrix element uncertainties.

According to Table 5, currently the most stringent bound on the effective scale of $(\bar{e}i\gamma^{5}e)G_{\mu\nu}^{a}G^{a\mu\nu}$ comes from the ThO experiment, which gives a lower bound of about $8~{}{\mbox{TeV}}$. In the future this bound could be improved to $27~{}{\mbox{TeV}}$. These bounds are impressive in that the electron-gluonic operator is dimension-eight in the context of SMEFT. For $(\bar{e}e)G_{\mu\nu}^{a}\tilde{G}^{a\mu\nu}$, currently a relatively reliable bound comes from ${}^{205}\textrm{Tl}$, which set the effective scale to be larger than about $0.13~{}{\mbox{TeV}}$. Bounds from other materials suffer from large nucleon matrix element uncertainties. As discussed in Section 4 considering the contribution to direct electron EDM generated by three-loop running and matching could set a lower bound on the effective scale for $(\bar{e}e)G_{\mu\nu}^{a}\tilde{G}^{a\mu\nu}$ as $\sim 1.3~{}{\mbox{TeV}}$ from current ThO experiment. This could be further improved to $\sim 4~{}{\mbox{TeV}}$ in the future. However, bounds obtained in this way are currently only order-of-magnitude estimates, which suffer from a large uncertainty unless the solution to the associated running and matching equations is obtained.

6 Discussion and conclusions

In this paper we have examined current and future bounds on the CP-odd electron-gluonic operators $(\bar{e}i\gamma^{5}e)G_{\mu\nu}^{a}G^{a\mu\nu}$ and $(\bar{e}e)G_{\mu\nu}^{a}\tilde{G}^{a\mu\nu}$, or in the gauge invariant form shown in Eq. (4) and Eq. (5). They could arise from integrating out CP-violating new physics at a high scale $\Lambda$, say, a few TeV. In the SMEFT framework they are represented as dimension-eight operators and thus their effects are suppressed by $\Lambda^{-4}$. Nevertheless we found the current ThO experiment can already put an impressive lower bound on the effective scale of the operator $(\bar{e}i\gamma^{5}e)G_{\mu\nu}^{a}G^{a\mu\nu}$ at around $8~{}{\mbox{TeV}}$. This is obtained by assuming the parametrization in Eq. (4) and thus implicitly we are assuming the new physics contribution does not suffer from helicity suppression (otherwise the bound would be significantly weakened). We have also shown explicitly that QCD running effects can bring only a mild correction to the bound on the coefficient of $(\bar{e}\textrm{i}\gamma^{5}e)G_{\mu\nu}G^{\mu\nu}$ operator which was extracted from ACME II ThO measurement, thus we can obtain a similar bound through only a tree level analysis. Future ThO measurements are expected to push the bound to $27~{}{\mbox{TeV}}$. One interesting aspect about the operator $(\bar{e}i\gamma^{5}e)G_{\mu\nu}^{a}G^{a\mu\nu}$ is that it contributes to observable EDM mainly through CP-odd electron nucleon interaction rather than direct electron EDM (which only arises from three-loop level). For the operator $(\bar{e}e)G_{\mu\nu}^{a}\tilde{G}^{a\mu\nu}$, if we consider only the contribution from CP-odd electron-nucleon interactions, there is no constraint from merely ACME experiment, because the averaged spin for both kind of nucleons vanish in Th- and O-nuclei. Even after considering other materials, we still found the current bound on the effective scale is weak ($\sim 0.13~{}{\mbox{TeV}}$ from ${}^{205}\textrm{Tl}$). Its contribution to direct electron EDM via three-loop running and matching might give a more stringent bound ($\sim 1.3~{}{\mbox{TeV}}$), but this only serves as an order-of-magnitude estimate.

Drell-Yan process at hadron colliders could also probe lepton-gluonic operators, as studied in ref. Potter:2012yv ; Hayreter:2013vna ; Cai:2018cog . A detailed collider study for the CP-odd electron-gluonic operators is beyond the scope of the present work. Nevertheless, from the results of ref. Cai:2018cog for lepton-flavor-violating lepton-gluonic operators we could estimate current LHC sensitivity to the effective scale is at best around $1~{}{\mbox{TeV}}$. For the operator $(\bar{e}i\gamma^{5}e)G_{\mu\nu}^{a}G^{a\mu\nu}$, the collider sensitivity is certainly not comparable with ThO experiments. However for the operator $(\bar{e}e)G_{\mu\nu}^{a}\tilde{G}^{a\mu\nu}$, the collider sensitivity might be comparable and a detailed simulation (and also detailed study of the uncertainties in predicting the observable EDMs) is needed to determine whether collider experiments could deliver a more stringent constraint. It should be noted that in any case, the collider probe is not sensitive to the CP-nature of the interaction, unlike EDM observables. We therefore expect future EDM experiments, hopefully involving new materials and techniques, could play an indispensable role in discovering or constraining new sources of CP-violation.

Acknowledgements.

We thank Yi-Lei Tang for helpful discussions about the $m_{t}$ dependence of the three-loop contribution to direct electron EDM. We also thank Jordy de Veris and Nodoka Yamanaka for helpful discussions about the nucleon matrix elements and the EDM at atomic level. This work was supported in part by the MoST of Taiwan under the grants no.:105-2112-M-007-028-MY3 and 107-2112-M-007-029-MY3.

Appendix A Nucleon Matrix Elements

In this appendix we outline the derivation of relevant nucleon matrix elements which are important for relating the quark-level Lagrangian to the hadron-level Lagrangian. We first consider the matrix element $\left\langle\frac{\alpha_{s}}{4\pi}GG\right\rangle_{N}$, which appears in the following sum rule after performing the heavy quark expansion Ji:1994av ; Cheng:2012qr ; Hill:2014yxa

[TABLE]

We note that $\pi N$ and strange $\sigma$ terms (for both $N=p,n$) have been obtained by lattice calculation as Yang:2015uis 555There are also some results from other lattice groups or chiral perturbation calculation, as summarized in Yamanaka:2018uud . The results vary in the region $\sigma_{\pi N}\sim(30-60)~{}\textrm{MeV}$, and thus the result we quoted in this paper is close to the averaged value. Its variance modify the final gluon matrix elements at percent level, which means our final results are not sensitive to this variance.

[TABLE]

On the other hand, another combination of quark matrix elements are obtained in ref. Crivellin:2013ipa with the aid of $SU(2)$ chiral perturbation theory

[TABLE]

If we define $\Sigma_{N}\equiv\sum_{q=u,d,s}\left\langle m_{q}\bar{q}q\right\rangle_{N}$, then from the above results for $\sigma_{\pi N},\sigma_{s},\sigma_{-,p},\sigma_{-,n}$ we can obtain

[TABLE]

These results allow us to obtain $\left\langle\frac{\alpha_{s}}{4\pi}GG\right\rangle_{N}$ from Eq. (38)

[TABLE]

The difference between proton and neutron is very small and thus neglected when this nucleon matrix element is involved in the calculation.

Let us then turn to the estimation of $\left\langle\frac{\alpha_{s}}{8\pi}G\tilde{G}\right\rangle_{N}$. We introduce the axial-vector currents

[TABLE]

The associated form factors at zero momentum transfer are then defined by

[TABLE]

in which $u^{N}$ denotes the nucleon spinor. From the divergence of the above equation we obtain

[TABLE]

In the following we will drop the factor $\left(\bar{u}^{N}\textrm{i}\gamma^{5}u^{N}\right)$. To facilitate the comparison with experiments, we introduce $\Delta q^{N},N=p,n$, defined as

[TABLE]

where $s^{\mu}$ represents the nucleon spin 4-vector. It is proven in ref. Dienes:2013xya that $\Delta q^{N}$ satisfies

[TABLE]

This allows us to obtain relations between $F_{a}^{N}$ and $\Delta q^{N}$

[TABLE]

From the review on axions in ref. Patrignani:2016xqp we take the following experimental values

[TABLE]

Then we are able to obtain

[TABLE]

To obtain the gluon matrix element, it is traditional to adopt the large $N_{c}$ chiral limit, implying the constraint (with uncertainty at $\mathcal{O}(N_{c}^{-1})$ understood) Cheng:2012qr ; Hill:2014yxa ; Dienes:2013xya

[TABLE]

Then we are able to obtain

[TABLE]

Numerically we have

[TABLE]

with a correlation $R=-0.15$. Recent lattice data reduced the mass ratio uncertainty to $m_{u}/m_{d}=(0.46\pm 0.05)$ Tanabashi:2018oca ; Aoki:2016frl , thus the uncertainties from $m_{u}/m_{d}$, $F_{8}^{N}$, and $\Delta s^{N}$ are of the same order $\sim\mathcal{O}(10~{}\textrm{MeV})$. The dominant part of uncertainties still comes from $m_{u}/m_{d}$ which leads to $|\delta\tilde{G}_{n,p}|\sim 27~{}\textrm{MeV}$. However, it should be kept in mind that the uncertainties of nucleon matrix elements given here are intended as conservative estimates since several sources of uncertainties are not taken into account. Quark matrix elements and their uncertainty estimates can also be obtained from the relations presented above. We display the corresponding results in Table 6 and Table 7. Note that due to correlations, in these tables the uncertainty of the sum of matrix elements can be smaller than the uncertainty of the matrix element of an individual quark flavor.
