Analysis and test of the central-blue-spot infall hallmark

TL;DR

This paper investigates the central-blue-spot infall hallmark in star-forming regions, deriving analytical models, accounting for observational resolution effects, and applying the method to real data to confirm its reliability as an infall indicator.

Contribution

It provides an analytical framework for the central-blue-spot infall hallmark, including effects of finite resolution, and validates it with observational data from multiple star-forming regions.

Findings

Good fits to observed moment maps were achieved.

Estimated central masses range from 0.1 to 120 solar masses.

The hallmark is confirmed as a robust infall indicator.

Abstract

The infall of material onto a protostar, in the case of optically thick line emission, produces an asymmetry in the blue- and red-wing line emission. For an angularly resolved emission, this translates in a blue central spot in the first-order moment (intensity weighted velocity) map. An analytical expression for the first-order moment intensity as a function of the projected distance was derived, for the cases of infinite and finite infall radius. The effect of a finite angular resolution, which requires the numerical convolution with the beam, was also studied. This method was applied to existing data of several star-forming regions, namely G31.41+0.31 HMC, B335, and LDN 1287, obtaining good fits to the first-order moment intensity maps, and deriving values of the central masses onto which the infall is taking place (G31.41+0.31 HMC: 70-120 $M_\odot$; B335: 0.1 $M_\odot$; Guitar Core of LDN 1287: 4.8 $M_\odot$). The central-blue-spot infall hallmark appears to be a robust and reliable indicator of infall.

Figures

Equations

$$V/V_0$$

$$T/T_0$$

$$r\equiv R/R_0=(p^2+z^2{)}^{1/2}.$$

$$v_z$$

$$t$$

$$p$$

$$t$$

$$z_m$$

$$p_m$$

$$t(p_m)=(3/2{)}^{1/2}{v}_z=1.225v_z.$$

$$t(p)\simeq p^{-1/2}(p\ll v_z^{-2}).$$

$$v_z$$

$$t$$

$$t_{\min }^{\mathrm{blue}}$$

$$v_{\min }^{\mathrm{blue}}$$

$$t_{\max }^{\mathrm{blue}}$$

$$v_{\max }^{\mathrm{blue}}$$

$$t_{\min }^{\mathrm{red}}$$

$$v_{\min }^{\mathrm{red}}$$

$$t_{\max }^{\mathrm{red}}$$

$$v_{\max }^{\mathrm{red}}$$

$${\mu }_1(p)=\frac{{\mu }_1^{\prime }(p)}{{\mu }_0(p)},$$

$${\mu }_0(p)$$

$${\mu }_1^{\prime }(p)$$

$$|v_z|=t(1-p^2{t}^4{)}^{1/2},$$

$${\mu }_0$$

$${\mu }_1^{\prime }$$

$${\mu }_0(p)$$

$${\mu }_1^{\prime }(p)$$

$${\mu }_1(p)$$

$$H_0$$

$$H_1$$

$$H_1/H_0$$

$${\mu }_1(p;b)=b^{-1/2}{\mu }_1(p/b;1).$$

$${\mu }_0(0;b)$$

$${\mu }_0(p;b)$$

$${\mu }_1^{\prime }(0;b)$$

$${\mu }_1^{\prime }(p;b)$$

$${\mu }_1(0;b)$$

Full text

*Methods. * An analytical expression for the first-order moment intensity as a function of the projected distance was derived, for the cases of infinite and finite infall radius. The effect of a finite angular resolution, which requires the numerical convolution with the beam, was also studied.

*Results. * This method was applied to existing data of several star-forming regions, namely G31.41+0.31 HMC, B335, and LDN 1287, obtaining good fits to the first-order moment intensity maps, and deriving values of the central masses onto which the infall is taking place (G31.41+0.31 HMC: 70–120 $M_{\sun}$; B335: 0.1 $M_{\sun}$; Guitar Core of LDN 1287: 4.8 $M_{\sun}$). The central-blue-spot infall hallmark appears to be a robust and reliable indicator of infall.

1 Introduction

The early phases of star formation are characterized by infall motions of ambient material onto a central protostellar object. However, obtaining unequivocal observational evidence for these motions constitutes a long-standing problem. Rotation, infall and outflow motions can be present simultaneously in the early phases of star formation, and may produce similar observational features in the line profiles, making difficult an unambiguous interpretation of the observations.

The most common method used so far to search for evidence of infall is based on the so-called “blue asymmetry”. This signature consists in the appearance of two peaks in the spectral line profiles, with the blueshifted peak stronger than the redshifted peak (e.g. Zhou et al., 1994; Klaassen & Wilson, 2007; Wu et al., 2007). However, the effect of protostellar infall on molecular line profiles cannot be easily isolated from those of other dynamical processes, resulting in ambiguities (e.g. Purcell et al., 2006; Szymczak et al., 2007). Inverse P-Cygni profiles, which consist in the detection of absorption at redshifted velocities against a bright background continuum source, have been observed in molecular lines against a bright background HII region (e.g. Keto, Ho & Haschick, 1987; Zhang, Ho & Ohashi, 1998) or against the bright dust continuum emission of the hot protostellar core itself (e.g. Di Francesco et al., 2001; Girart et al., 2009), and have been interpreted as infall motions of the surrounding envelope. Nevertheless, it uniquely indicates that foreground matter is moving towards a hotter source, no matter how or if it is indeed gravitationally bound. See Mayen-Gijon et al. (2014) and Mayen-Gijon (2015) for a thorough review of infall signatures.

Anglada et al. (1991) introduce a more complete signature, the “3D spectral imaging infall signature”, which is based on the spatial distribution of the line emission intensity in the images as a function of the line-of-sight (LOS) velocity (i.e. the channel maps). This signature, appropriate for angularly resolved sources, results as an extension of the formalism initially developed by Anglada et al. (1987) for the study of an angularly unresolved infalling core. These signatures are focused on relatively high velocities, in order to avoid confusion with emission from the ambient cloud at low velocities. With the assumption of gravitational infall motions dominating the kinematics over turbulent and thermal motions, and spherical symmetry with an infall velocity increasing inwards, it can be shown that the points of the infalling core with the same LOS velocity form closed surfaces. The equal-LOS-velocity surfaces are a nested set of surfaces with the same shape, decreasing in size with increasing absolute value of the LOS velocity, and converging to the position of the core center (see Fig. 1).

Because the equal-LOS-velocity surfaces are closed surfaces, a given LOS, in general, intersects the same surface twice. However, if the opacity is high enough, only a narrow layer at the front side of the equal-LOS-velocity surface is observable. Hence, the intensity map at a given LOS velocity is an image of the excitation temperature distribution in the side of the equal-LOS-velocity surface facing the observer (thick lines in Fig. 1), while the emission from the rear side remains hidden (thin lines in Fig.  1). Thus, the shapes of the blueshifted and redshifted emitting regions111Throughout the paper, the LOS velocity considered is relative to the systemic velocity of the source. are different. Since the temperature increases inwards, the integrated blueshifted emission comes from a region closer, on average, to the central protostar (and, therefore, hotter) than the corresponding redshifted emission, resulting in asymmetric line profiles, with the blueshifted wing stronger than the redshifted wing (Anglada et al., 1987). The difference is still more remarkable for a pair of blueshifted–redshifted channel maps. Assuming that the maps are centered on the position of the protostar, for the redshifted channel the intensity is slightly lower at the center of the map than at the edges, because towards the center the side of the equal-LOS-velocity surface facing the observer is slightly farther away from the center of the core and thus, colder than the rest of the surface. For the blueshifted channel, the intensity increases sharply towards the center of the image since this emission comes from a region very close to the center of the core and, therefore, very hot (see Figs. 2, 3 and 4). In addition, since the size of the equal-LOS-velocity surfaces decreases with increasing absolute value of the LOS velocity, the emission becomes more compact for increasing absolute value of the LOS velocity (see Figs.  2 and 4).

This behavior of the intensity maps for redshifted and blueshifted LOS velocities produces a characteristic signature in the intensity-weighted mean velocity (first-order moment) map, which was pointed out by Mayen-Gijon et al. (2014), i.e. that the central region of the first-order map appears blueshifted because of the higher weight of the strong blueshifted emission. Additionally, the integrated intensity, (zeroth-order moment) peaks towards the central position. At larger distances from the center, the integrated intensity decreases, the blue and redshifted intensities become similar, and the intensity-weighted mean velocity approaches the systemic velocity of the cloud. Therefore, the first-order moment of an infalling envelope is characterized by a compact spot of blueshifted emission towards the position of the zeroth-order moment peak. This infall hallmark is designated as the “central blue spot” (Mayen-Gijon et al., 2014; Mayen-Gijon, 2015). One of the advantages of the central-blue-spot infall hallmark is that its detection does not require a beforehand knowledge of the systemic velocity of the cloud. An accurate knowledge of the systemic velocity is critical in searching for infall through the analysis of asymmetries in the line profiles.

Mayen-Gijon et al. (2014) and Mayen-Gijon (2015) identify both the 3D spectral imaging infall signature and the central-blue-spot hallmark in high-angular resolution maps of the emission of several NH3 transitions towards G31.41+0.31 HMC, and compare the observed emission with the predictions of a spherically symmetric model with full transport of radiation calculation (Osorio et al., 2009).

If there is rotation, the LOS velocity has contributions from both the infalling velocity and the rotation velocity. Mayen-Gijon et al. (2014) and Mayen-Gijon (2015), in the analysis of the NH3 data of G31.41+0.31 HMC, discuss qualitatively how rotation affects the channel maps of an infalling core. These authors find that the radial intensity profile of the image for a given LOS-velocity channel is stretched towards the side where rotation has the same sign than the channel velocity, and it is shrunk on the opposite side. Nevertheless, as in the non-rotating case, the images in blue-shifted channels present a centrally peaked intensity distribution, while in the red-shifted channels they present a flatter intensity distribution. Thus, the rotation signature makes the spatial intensity profiles asymmetric with respect to the central position but it does not mask the 3D spectral imaging infall signature of Anglada et al. (1991).

Regarding the first-order moment map, Mayen-Gijon (2015) explores how the central-blue-spot hallmark of an infalling core is modified by the presence of rotation. He finds that rotation makes the central-blue-spot even bluer and moves it off the center towards the half of the core where rotation tends to shift velocities to the blue. Additionally, a dimmer red spot appears symmetrically located on the opposite side of the rotation axis.

In the present paper we studied quantitatively the central-blue-spot infall hallmark, restricted to the spherically symmetric case without rotation, taking as a basis the work of Anglada et al. (1987, 1991). Using the same assumptions than in these papers, we derived analytical expressions for the intensity profiles (§2), the line profiles (§3), and the first-order moment of the intensity profile (§4) as functions of the angular distance from the center. This was done for the case of an infinite infall radius, without considering the effect of a finite angular resolution. The details of the derivation for arbitrary values of the power-law indices are given in Appendix A. The effect of a finite spectral resolution is addressed in §4.2 and Appendix C, while the effect of a finite angular resolution is studied in §4.3 and Appendix D. The case of a finite infall radius is presented in §5, where an analytical expression for the first-order moment is obtained. The details of the derivation for arbitrary values of the power-law indices are given in Appendix B. The transformation between reduced units and practical units is described in §6. The results are applied to several cases (G31.41+0.31 HMC, B335, LDN 1287) in §7, with the analysis of pre-existing data that show the central-blue-spot infall hallmark. Finally, the conclusions are given in §8.

2 Intensity profile

Based on Anglada et al. (1987, 1991), we are assuming an infalling molecular gas core, with infall velocity and temperature given by power laws of the radius (Eq. 1 of Anglada et al., 1987),

[TABLE]

where $R_{0}$ is a reference radius. The power-law indices of the infall velocity and temperature are taken with a value $\alpha=\beta=1/2$, i.e. free-fall velocity, and optically thin dust heating from a central protostar, which are characteristic of the main accretion phase in the Larson collapse model (Larson, 1972) or in the Shu (1977) inside-out collapse model. In the Appendices A and B the case of arbitrary values of the power-law indices is developed.

Let the coordinate $z$ be along the line of sight, positive outwards from the observer, and $p$ the impact parameter, i.e. the distance to the center projected on the plane of the sky (see Fig. 1). All coordinates are lengths in units of $R_{0}$, so that the distance to the center in units of $R_{0}$ is

[TABLE]

Let us define the reduced line-of-sight (LOS) velocity and temperature

[TABLE]

Equations 9, 10 of Anglada et al. (1991) can be expressed in reduced variables as

[TABLE]

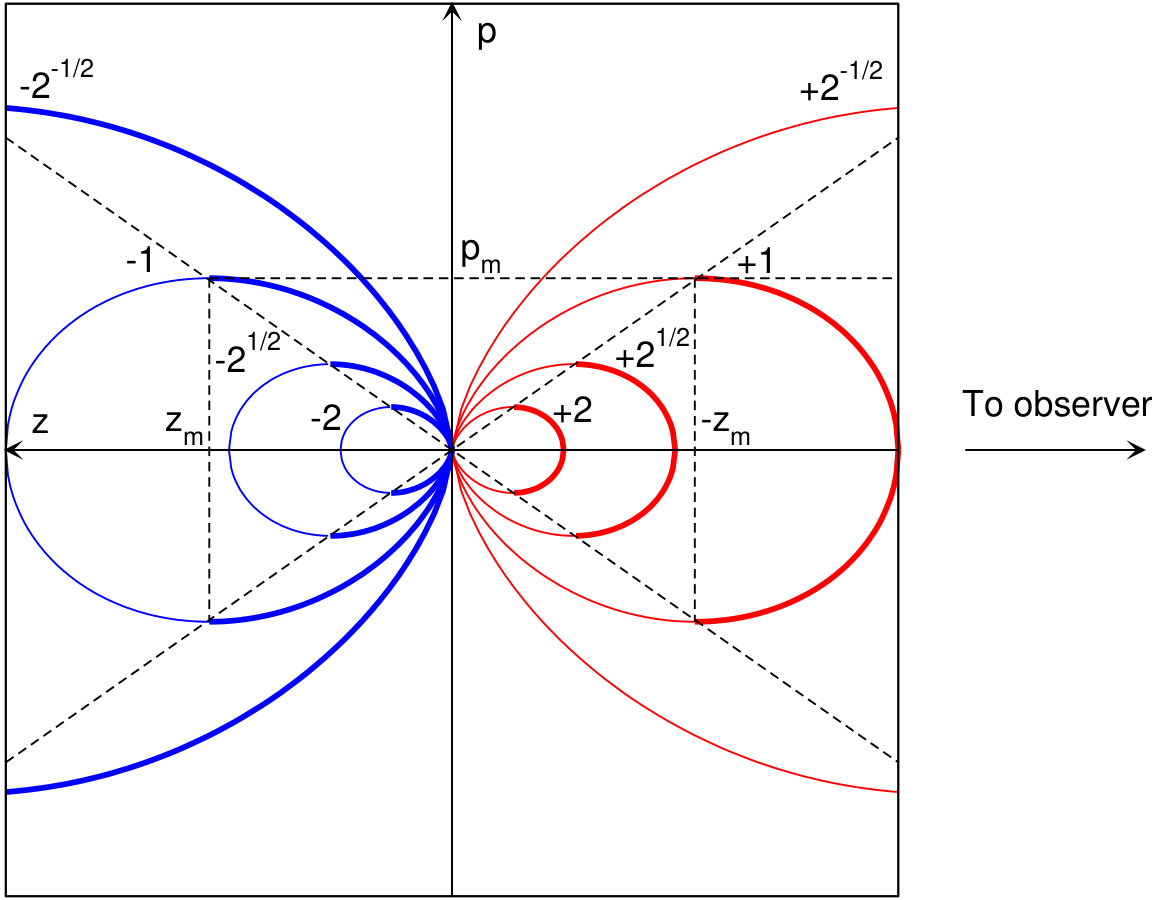

For a given $|v_{z}|$ Eq. 2 gives the parametric equation (with $z$ as parameter) of the intensity profile, $t(p)$. We are assuming that the intensity observed at a given LOS velocity comes from the part of the equal-LOS-velocity surface facing the observer. Thus, the blue-wing intensity profile ($v_{z}<0$) is obtained for $0<z<z_{m}$, while the red-wing intensity profile ($v_{z}>0$) is obtained for $-z^{\ast}<z<-z_{m}$, where $z_{m}$ is the value of $z$ for which $p$ is maximum for a given $v_{z}$, $p=p_{m}$ (see Fig. 1), and $z^{\ast}$ is the maximum value of $z$ for a given equal-LOS-velocity surface. The value of $z^{\ast}$ is obtained from Eq. 2 for $p=0$, $z^{\ast}=|v_{z}|^{-2}$. The value of $z_{m}$ can be obtained from the derivative of $p(z)$ given in Eq. 2, and the values obtained for $z_{m}$ and $p_{m}$ are

[TABLE]

The ratio $z_{m}/p_{m}$ is independent of $v_{z}$, $z_{m}/p_{m}=\sqrt{2}$, meaning that the points $(z_{m},p_{m})$ are aligned along a straight line passing through the center, with a slope of $1/\sqrt{2}$ (see Fig. 1).

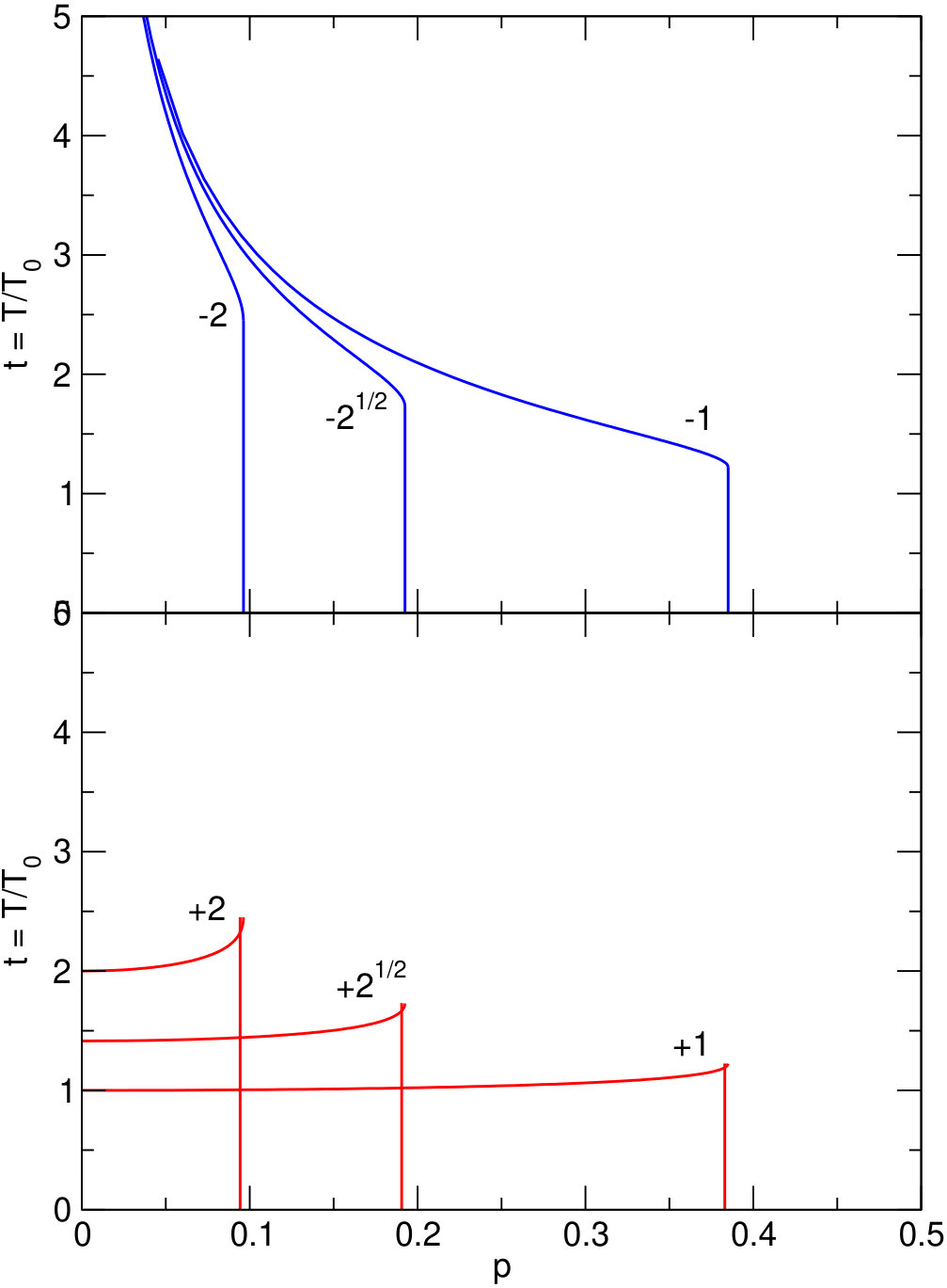

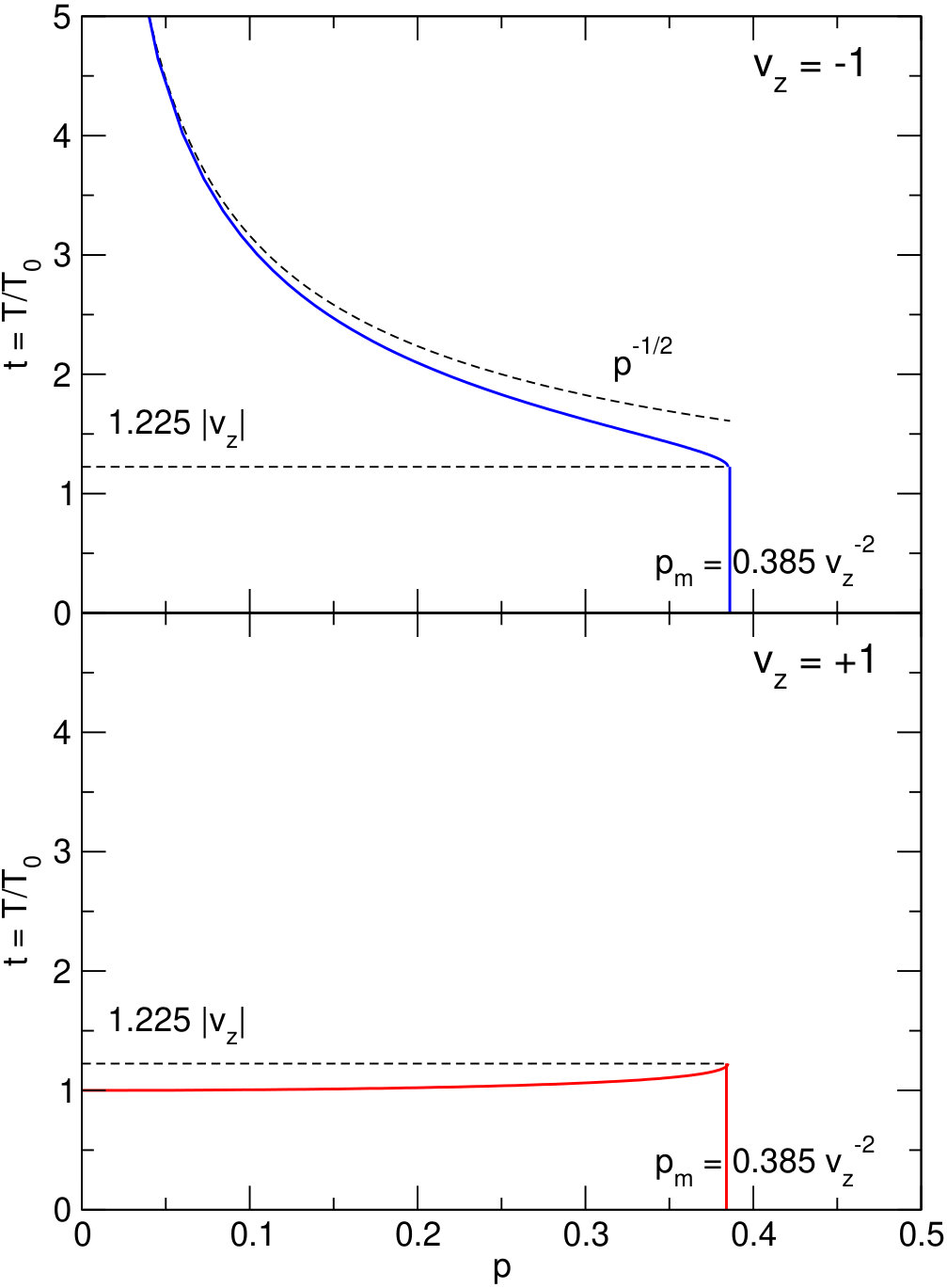

For any LOS-velocity the emission is confined inside a projected distance $p<p_{m}$. For blueshifted LOS-velocities ($v_{z}<0$) the intensity increases sharply for small projected distances $p$, while for redshifted LOS-velocity ($v_{z}>0$) the intensity is almost flat up to $p_{m}$ (see Figs. 3 and 4). This can be seen in Fig. 2, where we show the intensity maps, for LOS pairs of positive and negative LOS velocities.

For the maximum projected distance $p_{m}$ the red-wing intensity is maximum, and equal to the minimum blue-wing intensity (see Fig. 3),

[TABLE]

The blue wing intensity for small projected distances is very high, and for the adimensional temperature and LOS velocity $t\gg v_{z}$ we obtain the asymptotic behavior (see Fig. 3)

[TABLE]

3 Line profile

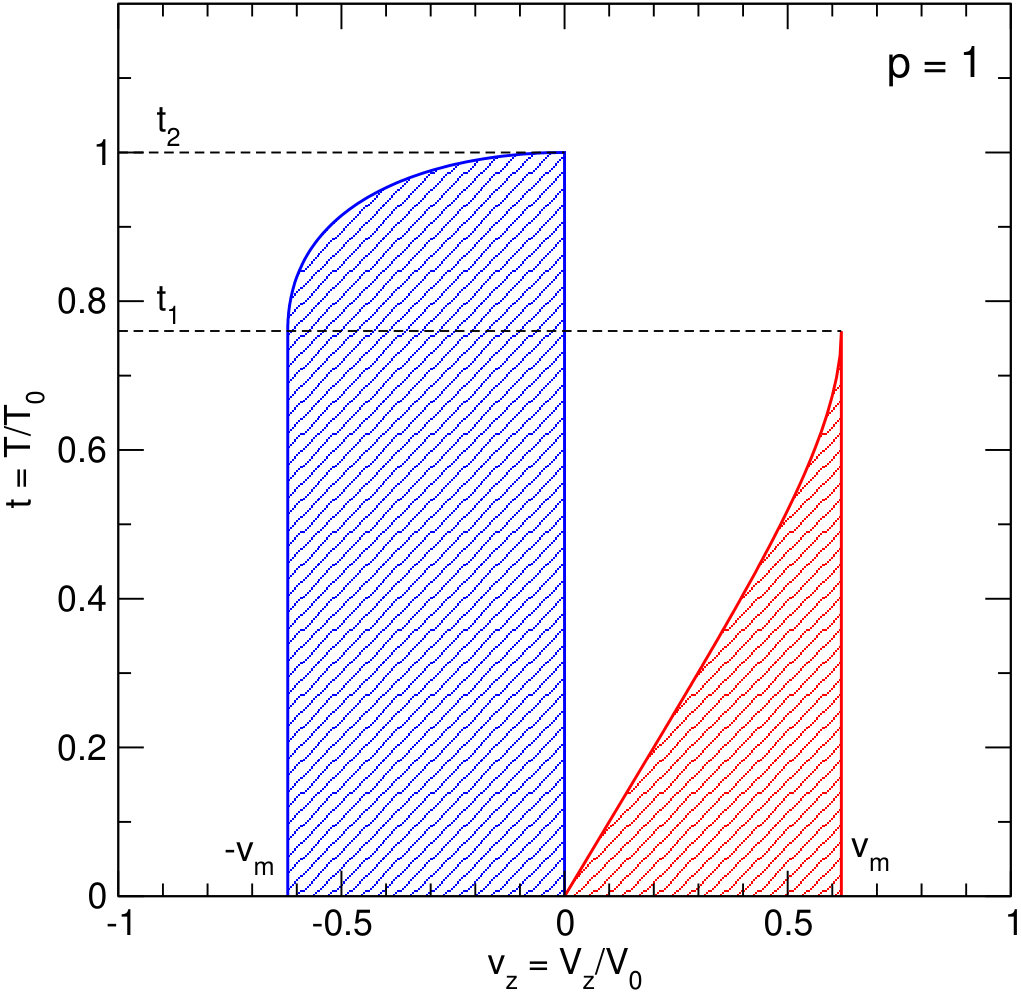

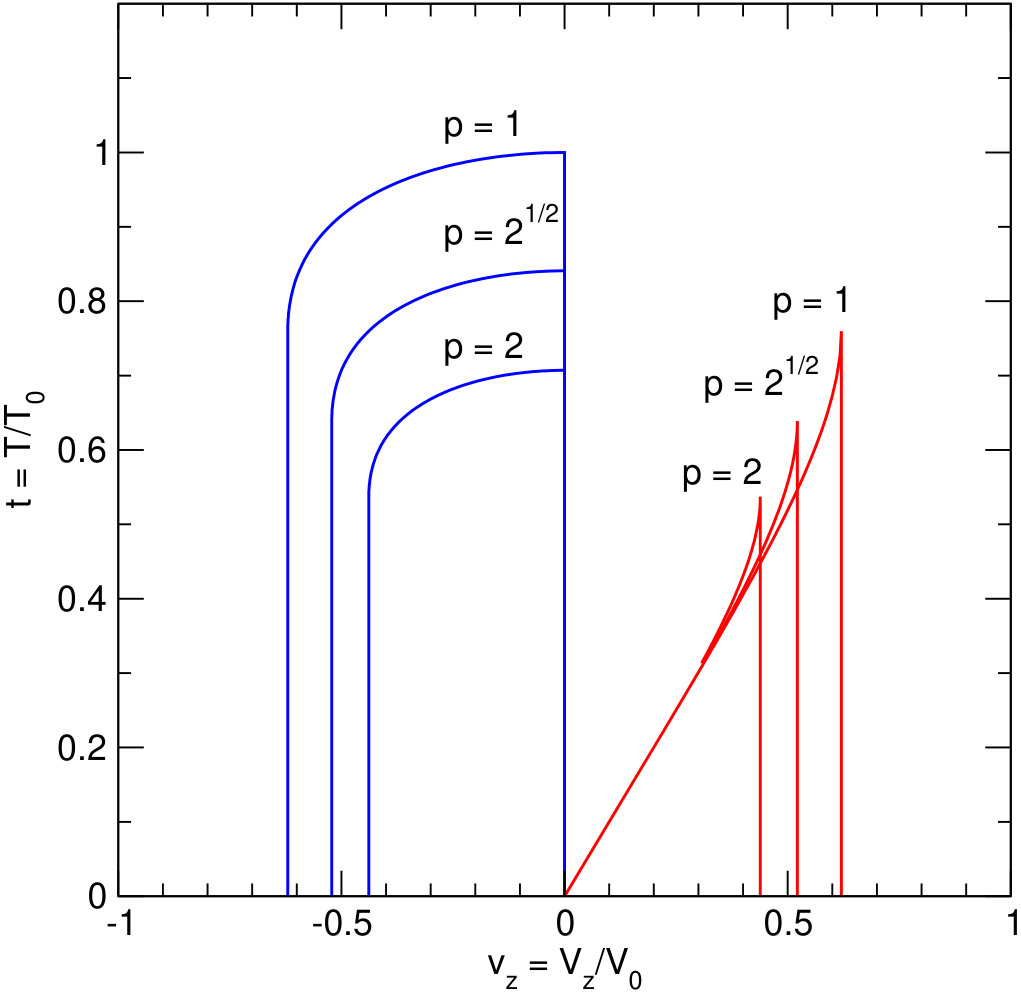

In order to calculate the first-order moment intensity, we need to obtain the line intensity for any value of $p$. Thus, we want to derive the intensity and LOS velocity for a given projected distance $p$. From Eq. 2 we can obtain easily the LOS velocity and temperature as functions of $p$ and $z$,

[TABLE]

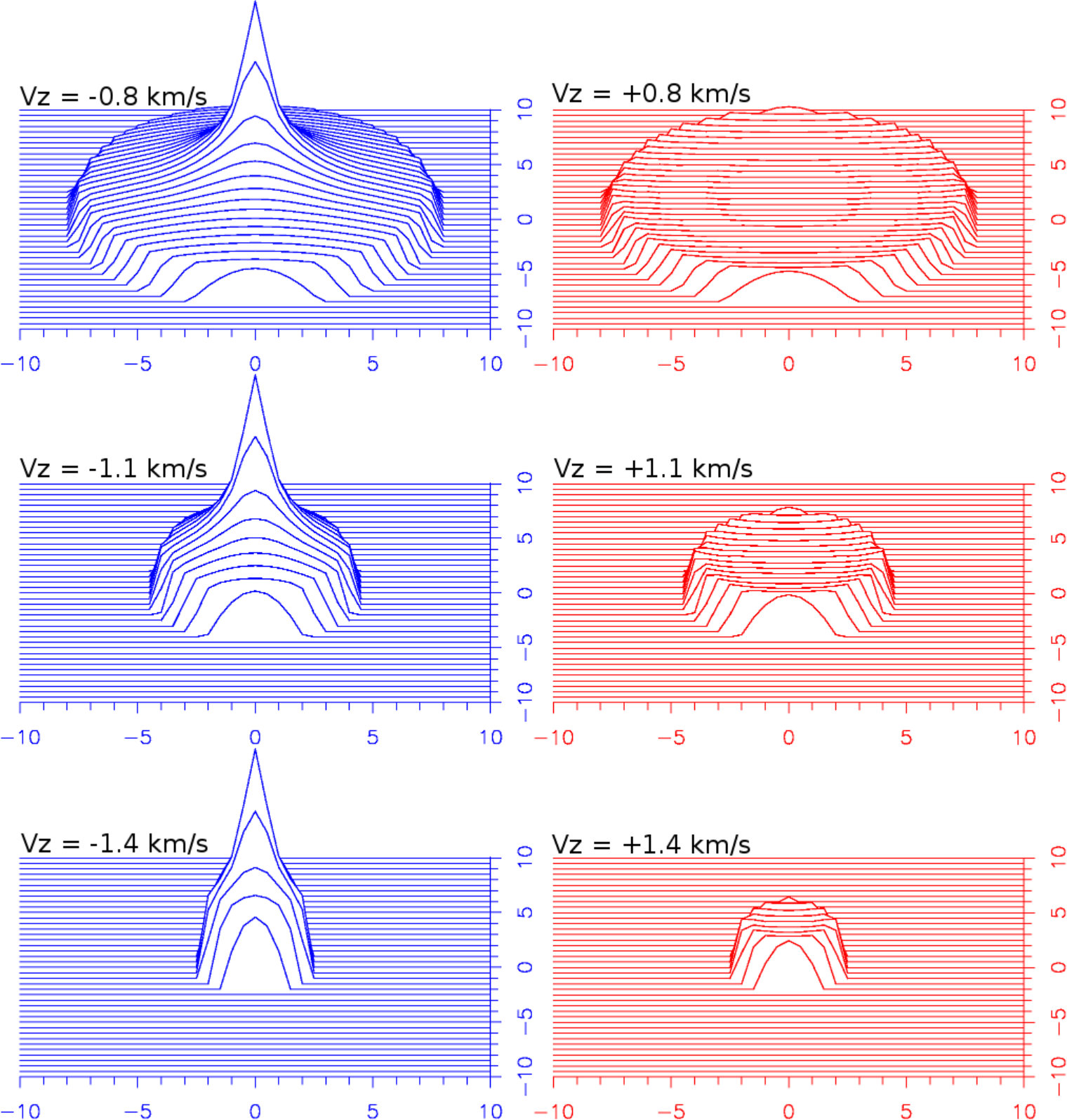

These equations can be interpreted as the parametric equation (with $z$ as parameter) of the line profile $t(v_{z})$ for a given projected distance $p$ (see Figs. 5 and 6).

The line of sight with a given $p$ intersects equal-LOS-velocity surfaces of decreasing size, down to that corresponding to $p_{m}=p$. For this equal-LOS-velocity surface, the blueshifted velocity is minimum (maximum absolute value) and the redshifted velocity is maximum (see Fig. 1). This occurs at the points with coordinate $z=\pm\sqrt{2}p$.

3.1 Blue wing

The observable intensity at blueshifted velocities ($v_{z}<0$) is obtained for $0<z<\sqrt{2}p$. For a given value of $p$, the minimum blueshifted intensity $t^{\mathrm{blue}}_{\mathrm{min}}$ and minimum velocity $v^{\mathrm{blue}}_{\mathrm{min}}$ (maximum absolute value) are obtained at the point $(p,z=+\sqrt{2}p)$,

[TABLE]

while the maximum blueshifted intensity $t^{\mathrm{blue}}_{\mathrm{max}}$ and maximum velocity $v^{\mathrm{blue}}_{\mathrm{max}}=0$ are obtained at the point $(p,z=0)$

[TABLE]

3.2 Red wing

The observable intensity at redshifted velocities ($v_{z}>0$) is obtained for $-\infty<z<-\sqrt{2}p$. For a given value of $p$, the minimum redshifted intensity $t^{\mathrm{red}}_{\mathrm{min}}=0$ and minimum velocity $v^{\mathrm{red}}_{\mathrm{min}}=0$ are obtained at the point $(p,z=+\infty)$,

[TABLE]

while the maximum redshifted intensity $t^{\mathrm{red}}_{\mathrm{max}}$ and maximum velocity $v^{\mathrm{red}}_{\mathrm{max}}$ are obtained at the point $(p,z=-\sqrt{2}p)$,

[TABLE]

4 First-order moment for an infinite infall radius

4.1 Dependence on the projected distance

We are interested in calculating the first-order normalized moment of the line profile as a function of the projected distance,

[TABLE]

where $\mu_{0}$ and $\mu_{1}$ are the zeroth-order and unnormalized first-order moments,

[TABLE]

The moment $\mu_{0}$ has units of intensity times velocity, while $\mu_{1}$ has units of velocity.

From Eq. 3 we can obtain $v_{z}$ as an explicit function of $t$,

[TABLE]

where the blue-wing profile is obtained for $3^{-1/4}\,p^{-1/2}<t<p^{-1/2}$, and the red-wing profile for $0<t<3^{-1/4}\,p^{-1/2}$. Since we know the inverse function $v_{z}(t)$, we can evaluate the integrals by integration by parts,

[TABLE]

The details of the calculation of these integrals are given in Appendix A. As described in the appendix, the final results obtained can be summarized as follows. The moments $\mu_{0}$, $\mu^{\prime}_{1}$, and $\mu_{1}$ are power laws of the projected distance $p$, and given by

[TABLE]

with $H_{0}$ and $H_{1}$ given by

[TABLE]

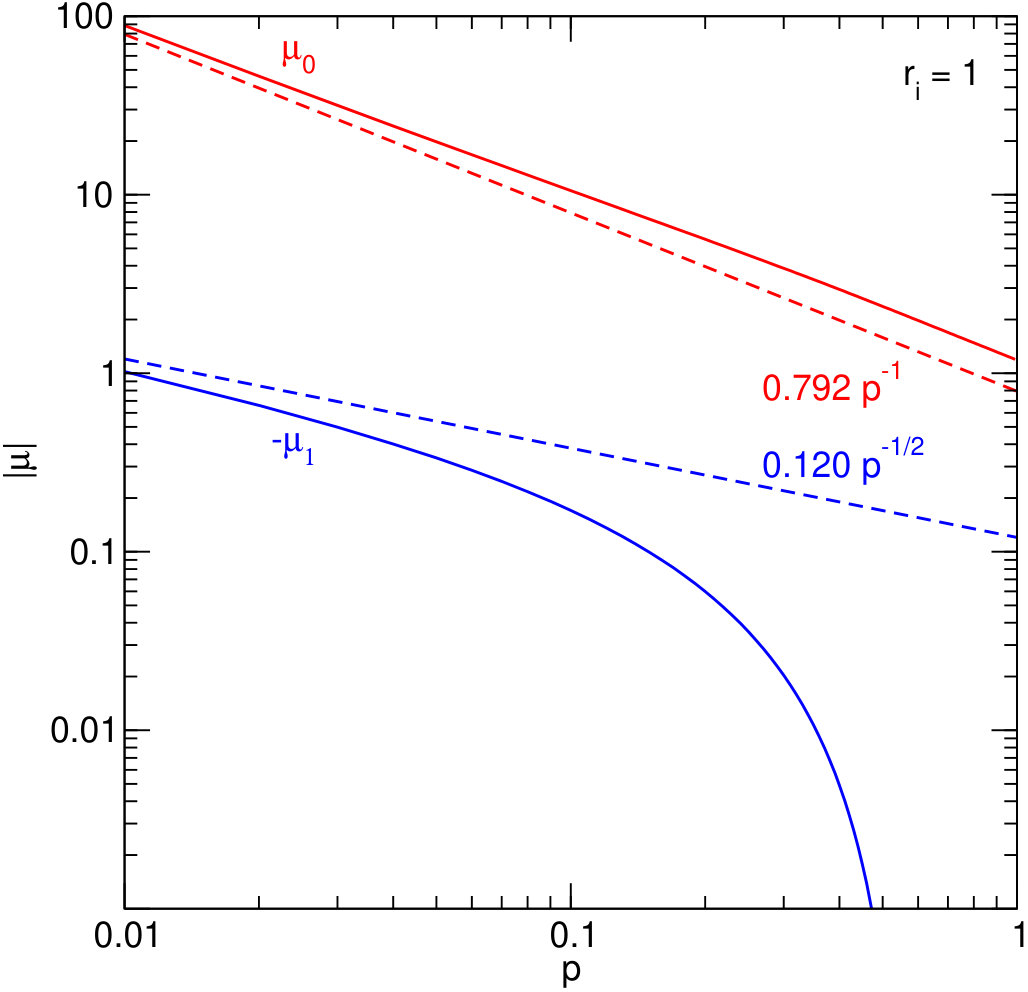

A plot of the zeroth- and first-order moments can be seen in Fig. 7.

4.2 Effect of a finite spectral resolution

Let us assume that we are observing the lines with an spectrometer with a finite spectral resolution. The response of the spectrometer can be represented by the convolution of the “real” line profile with the instrumental response, which has a width equal to the spectral resolution. In general, we can assume that instrumental response is symmetric with respect to velocity. As shown in Appendix C, in this case the first-order moment of the line is not modified by the spectrometer.

4.3 Effect of a finite angular resolution

Let us assume that we are observing with a telescope with a circularly symmetric Gaussian beam with half-power beamwidth (HPBW) $\theta_{b}$. In the following we will use the beamwidth in units of $R_{0}$, i.e. $b\equiv D\,\theta_{b}/R_{0}$, where $D$ is the distance to the source.

The observed intensity as a function of projected distance will be the 2-D convolution of $t(p)$, given by Eq. 2, with the beam. Since the moments $\mu_{0}$ and $\mu^{\prime}_{1}$ (but not $\mu_{1}$) depend linearly on the line profile $t(p)$ (Eq. 4.1), the convolution (a linear operator) can be performed onto $\mu_{0}$ and $\mu^{\prime}_{1}$, and after that, obtain the normalized first-order moment $\mu_{1}(p;b)=\mu_{0}/\mu^{\prime}_{1}$.

The 2-D convolution of the power-law functions $\mu_{0}$ and $\mu^{\prime}_{1}$ with a Gaussian beam has to be done numerically. However, it has to be done only once, because the result can be scaled for any value of $b$. For instance, if the numerical calculation has been done for $b=1$ and $\mu_{1}(p;1)$ is obtained, then for any value of $b$ we have

[TABLE]

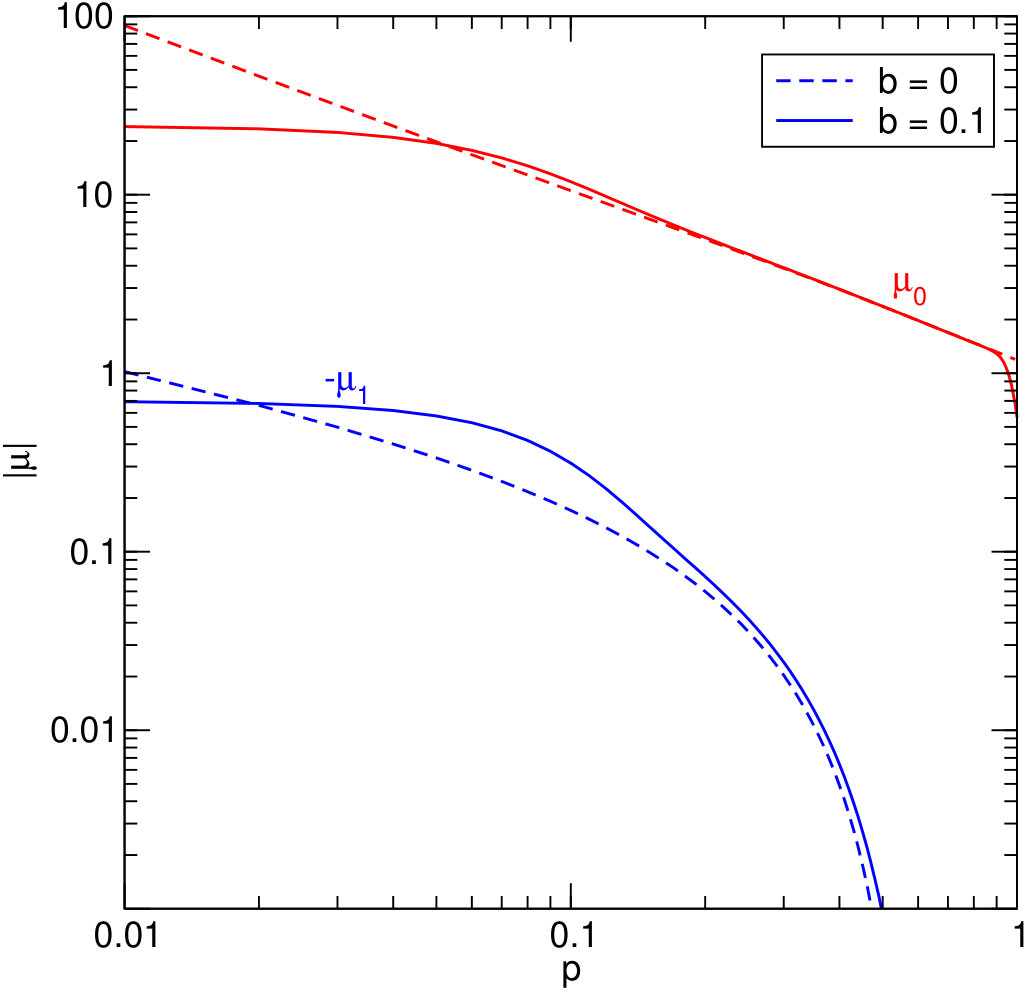

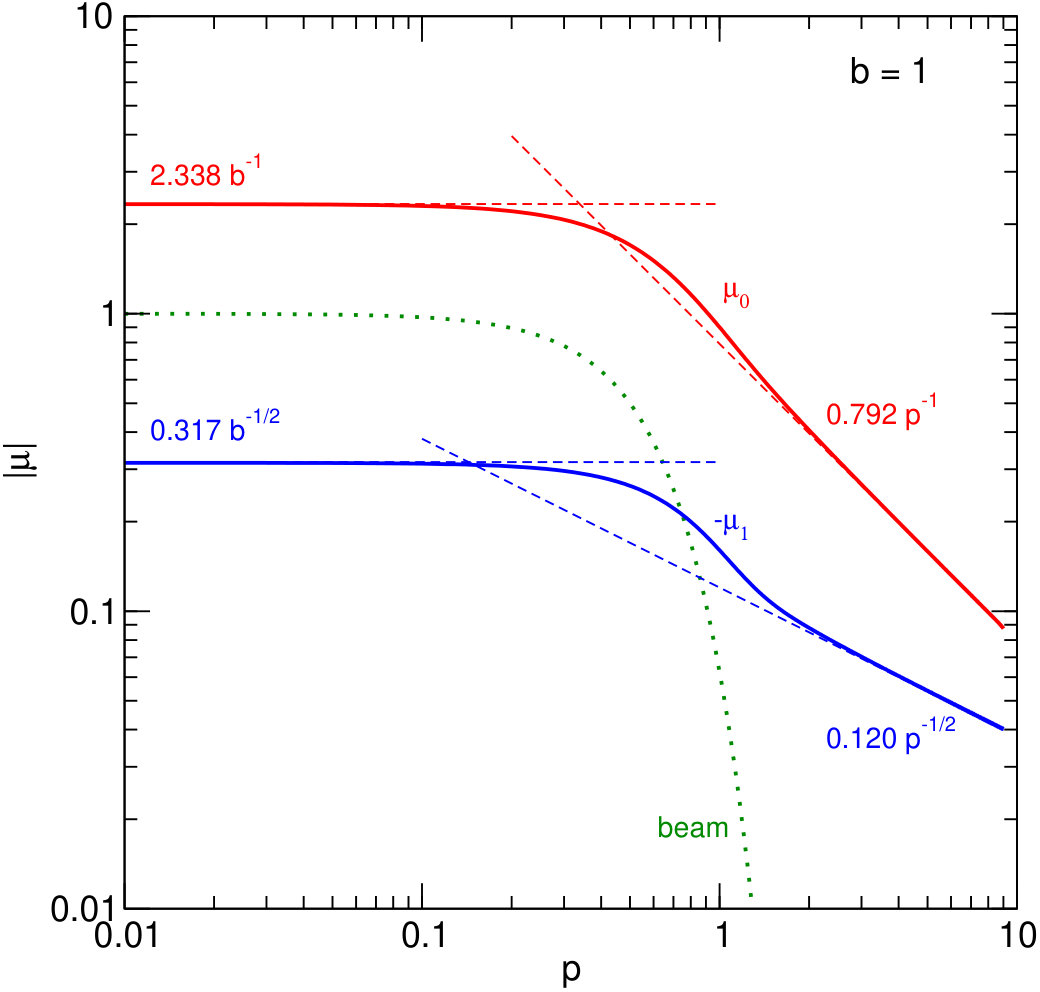

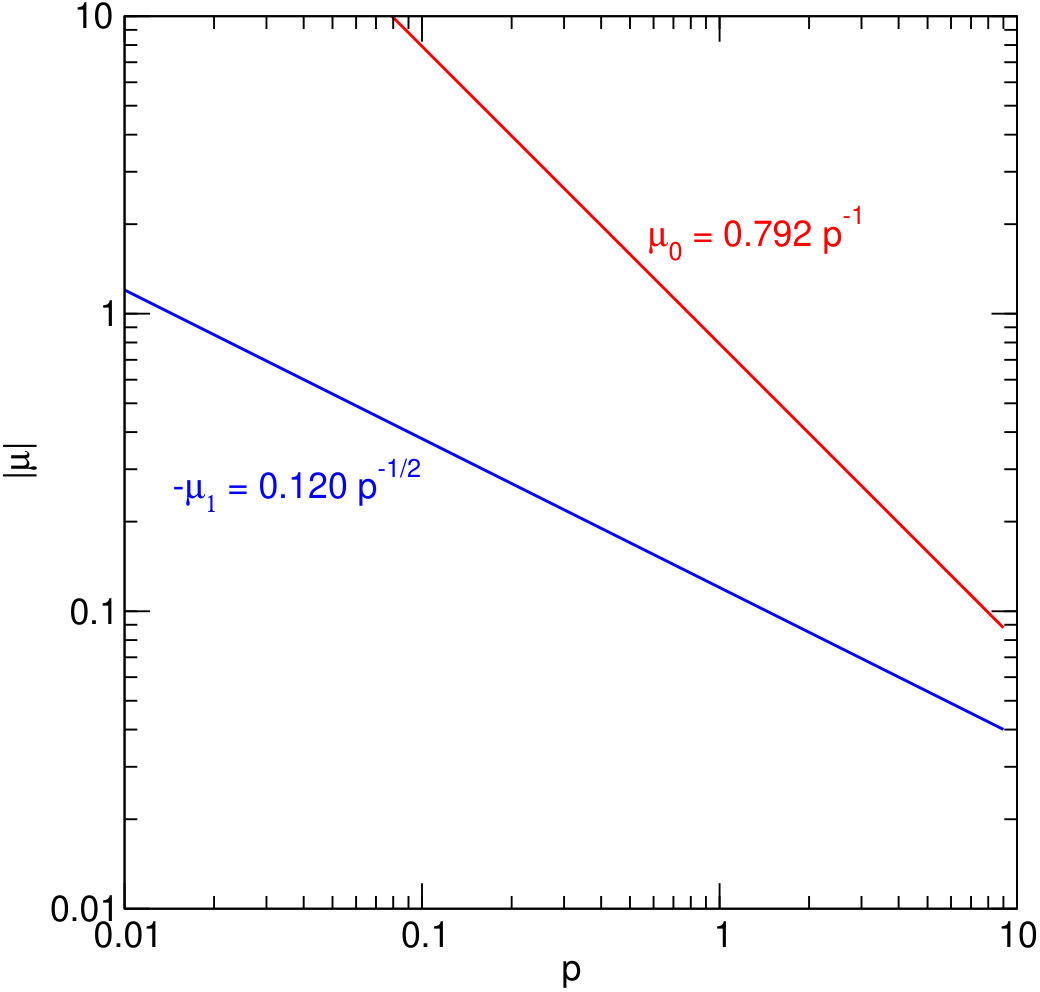

The function $-\mu_{1}(p;1)$ is shown as a blue solid line in the log-log plot of Fig. 8.

However, since both $\mu_{0}$ and $\mu^{\prime}_{1}$ are power laws of $p$, as shown in Appendix D, the value at the origin, $p=0$, and the asymptotic expression for large projected distances, $p\gg b$, can be obtained analytically. By application of Eqs. 169, 171 to $\mu_{0}$ we obtain (see Fig. 8)

[TABLE]

with a characteristic size (the intersection of the two asymptotes) $p_{0}=0.339\,b$. For $\mu^{\prime}_{1}$ we obtain

[TABLE]

with a characteristic size $p_{1}=0.254\,b$. Finally, for the first-order moment, $\mu_{1}=\mu^{\prime}_{1}/\mu_{0}$, we derive

[TABLE]

5 First-order moment for a finite infall radius

Up to now we have assumed that the infall velocity pattern in $r^{-1/2}$ extends up to an infinite radius. A more realistic approach is to assume a finite radius. For instance, in the inside-out collapse model (Shu, 1977), the collapse propagates outwards from the center at the speed of sound. The radius of the expansion wave is usually called the infall radius $R_{i}$, and let us call $r_{i}$ the infall radius in units of $R_{0}$, i.e. $r_{i}\equiv R_{i}/R_{0}$. The envelope with a radius greater than the infall radius is approximately static, while the material inside the infall radius is in free fall. Thus, let us assume that the infall occurs only for radii $r<r_{i}$. The static material will only contribute to the ambient-gas line-emission, centered on $v_{z}=0$, and will not be taken into account.

5.1 Line profile (finite infall radius)

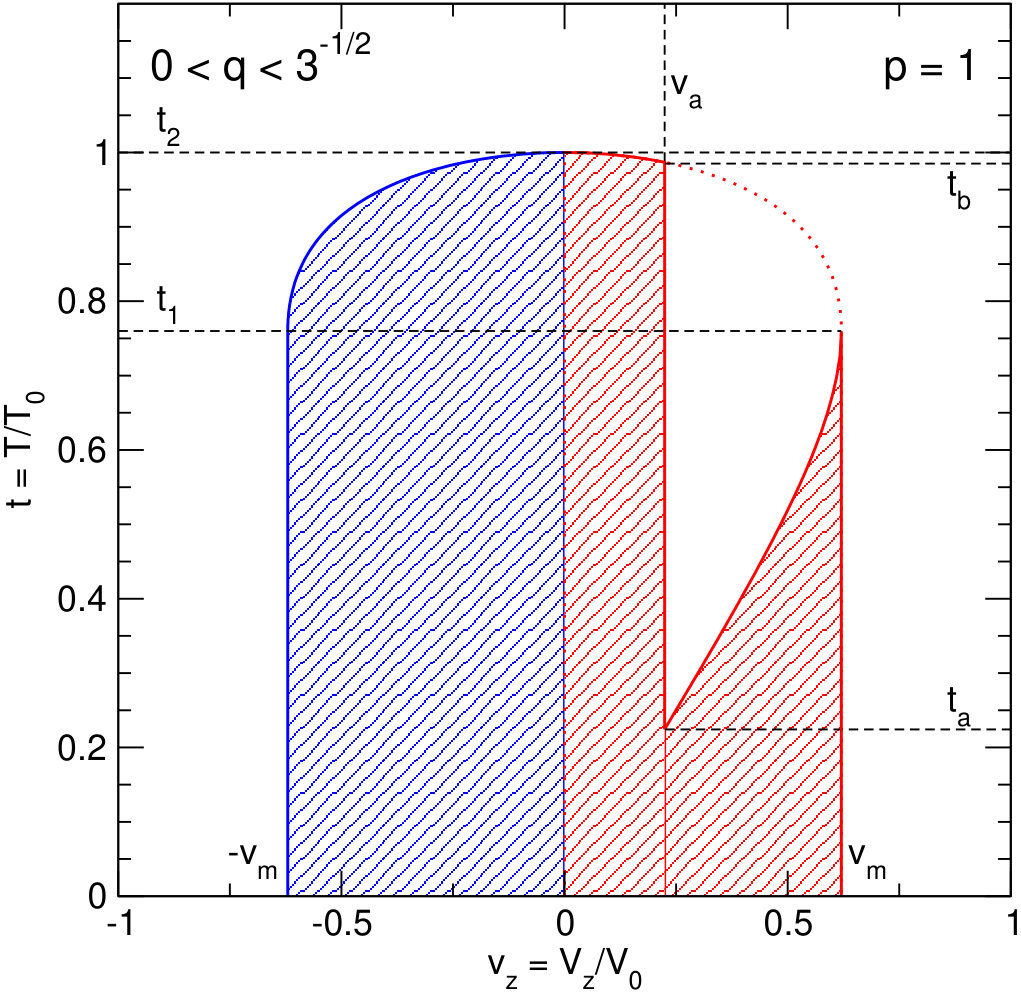

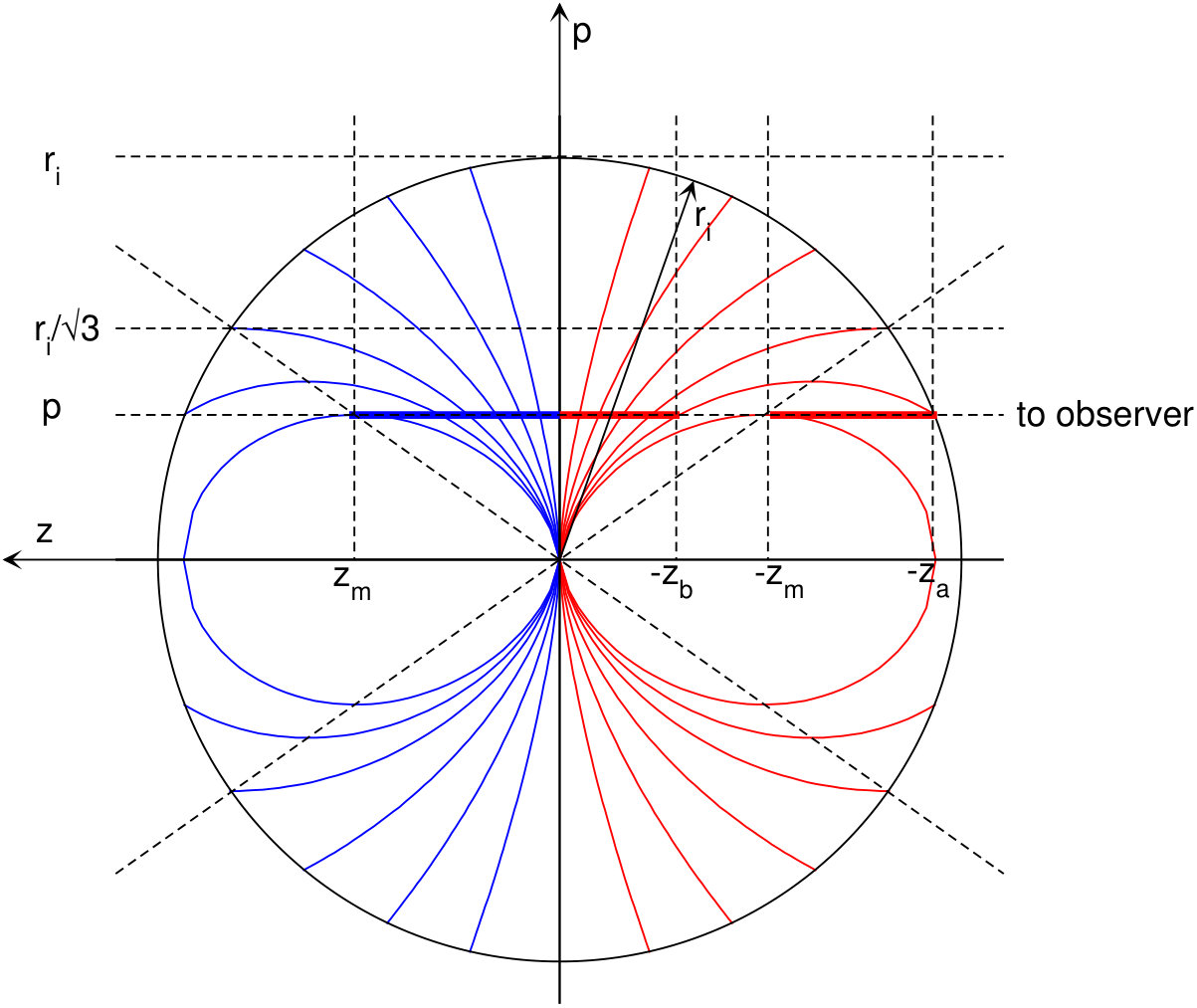

The effect of having a finite infall radius is that the equal-LOS-velocity surfaces are truncated at a radius $r=r_{i}$. Thus, for the red-wing emission, a part of the equal-LOS-velocity surface near the center of the core will no longer be hidden from the observer by the part facing the observer. A critical value of $p$ is that for which the sphere of radius $r_{i}$ intersects the equal-LOS-velocity surfaces at the points $(p=p_{m},z=z_{m})$, that is, $r_{i}^{2}=p_{m}^{2}+z_{m}^{2}=3p_{m}^{2}$, or $p_{m}=r_{i}/\sqrt{3}$. As illustrated in Fig. 9, for a given projected distance $p<r_{i}/\sqrt{3}$, the blue-wing emission, like the infinite infall radius case, comes from material along the line of sight at radii $p<r<(p^{2}+z_{m}^{2})^{1/2}=\sqrt{3}p$. However, the red-wing emission, unlike the infinite infall radius case, comes from two regions: material along the line of sight at radii $\sqrt{3}p<r<r_{i}$, in the part of the equal-LOS-velocity surface facing the observer, and material closer to the center, located at $-z_{b}<z<0$, which is no longer hidden by the part of the equal-LOS-velocity surface facing the observer because this part of the equal-LOS-velocity surface would be outside the infalling sphere of radius $r_{i}$. The material in the part of the equal-LOS-velocity surface facing the observer has LOS velocities $v_{a}<v_{z}<v_{m}$, where $v_{a}$ is the velocity of the material where the line of sight intersects the sphere of radius $r_{i}$. The material closer to the center has LOS velocities $0<v_{r}<v_{a}$ (see Fig. 10).

Let us use the reduced coordinate $q\equiv p/r_{i}$. The corresponding critical value of $q$ is $q=1/\!\sqrt{3}$ (see Fig. 9). For values $q<1/\!\sqrt{3}$, only the red-wing emission is affected. For $q\geq 1/\!\sqrt{3}$ the line becomes symmetric because none of the red wing emission at any LOS velocity is hidden by the part of the equal-LOS-velocity surface facing the observer, and the moment $\mu_{1}$ becomes zero (see Figs. 9 and 10). For $q\geq 1$ all the wing emission disappears ($\mu_{0}=\mu_{1}=0$).

5.2 First-order moment (finite infall radius)

The details of the derivation of an analytical expression for the moments, for a finite infall radius are given in Appendix B. The moments $\mu_{0}$, $\mu^{\prime}_{1}$, and $\mu_{1}$ obtained are no longer power laws of the projected distance $p$, although the dependence on $r_{i}$ can be separated from the explicit dependence on $p$ using the parameter $q=p/r_{i}$. In this way, the resulting expressions are similar to those obtained for the case of an infinite infall radius,

[TABLE]

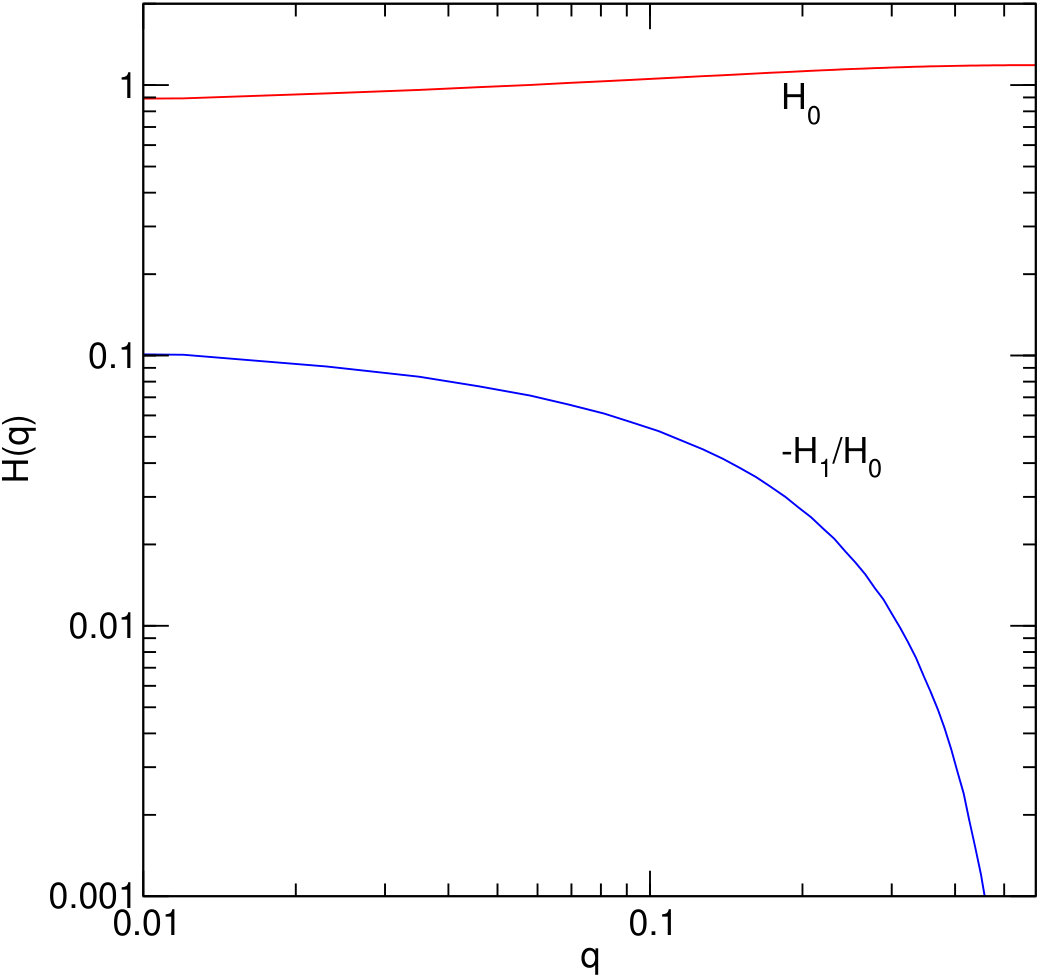

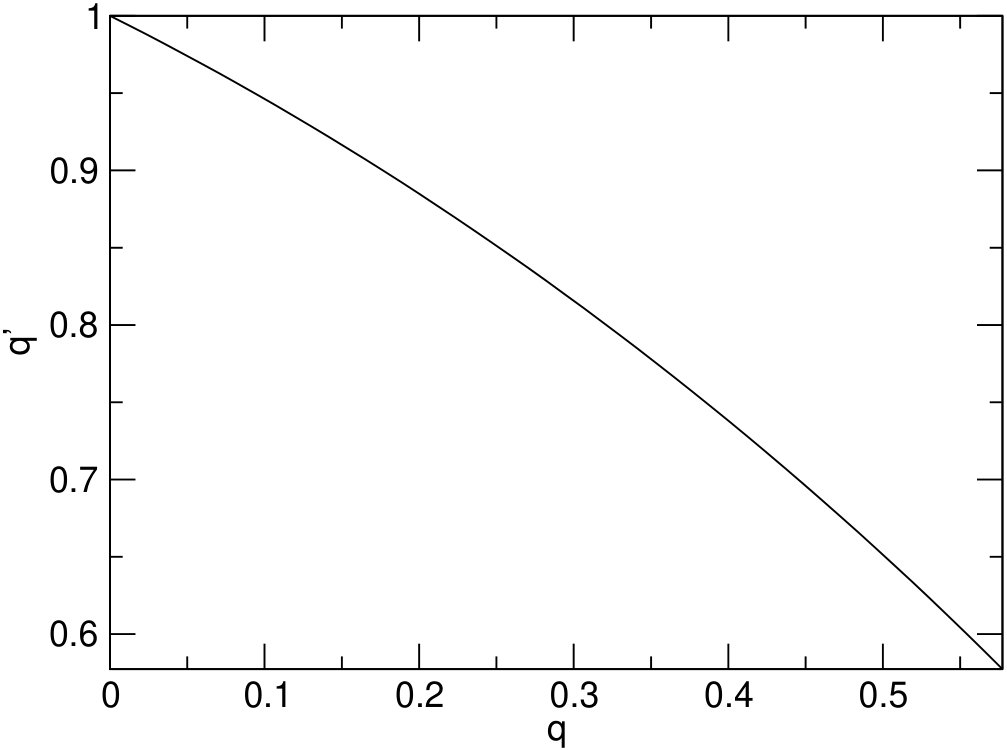

with $H_{0}$ and $H_{1}$ given by (see Fig. 27)

[TABLE]

where $q^{\prime}$ is an auxiliary parameter depending on $q$ only (see Fig. 26),

[TABLE]

and

[TABLE]

An example of the moments obtained can be seen in Fig. 11.

The limiting values of the moments for $r_{i}\to\infty$, corresponding to $q=0$, $q^{\prime}=1$, coincide with the results derived for an infinite infall radius (Eqs. 4.1 and 4.1),

[TABLE]

while the limiting values for $p=r_{i}/\sqrt{3}$, corresponding to $q=q^{\prime}=1/\sqrt{3}$, are

[TABLE]

5.3 Finite angular resolution (finite infall radius)

In this case, $\mu_{0}$ and $\mu^{\prime}_{1}$ are no longer power laws of $p$, but have a characteristic scale size given by $r_{i}$. Thus, unlike the infinite infall radius case, the beam convolution has to be performed for every value of $r_{i}$, and the result will depend on both $r_{i}$ and $b$. For $r_{i}$ very large, the results for an infinite infall radius of the last section are reproduced.

6 Practical units

In the previous analysis all lengths, $z$, $p$, $r_{i}$, $b$, are measured in units of the reference radius $R_{0}$; velocities in units of $V_{0}$, the infall velocity at the reference radius $R_{0}$; and temperatures in units of $T_{0}$, the temperature at the reference radius $R_{0}$. The projected distance $p$ in practical units, i.e. $\theta$ in arcsec, can be obtained from $p$ in units of $R_{0}$ through222$1\mathrm{\leavevmode\nobreak\ kau}=1000\mathrm{\leavevmode\nobreak\ au}=0.0048$ pc, is a convenient unit when dealing with typical circumstellar sizes. It is the physical size corresponding to an angular size of $1^{\prime\prime}$ at a distance of 1 kpc.

[TABLE]

where $D$ is the distance to the source. The value of $R_{0}$ is arbitrary, but the values of $R_{0}$ and $V_{0}$ are related to the central mass of the protostar onto which the accretion is taking place, $M_{\ast}$,

[TABLE]

or, in practical units,

[TABLE]

6.1 Infinite infall radius

The first-order moment at the origin (Eq. 4.3) in practical units becomes,

[TABLE]

while, for $\theta\gg\theta_{b}$,

[TABLE]

Taking into account Eq. 38, we have for $\theta=0$

[TABLE]

and for $\theta\gg\theta_{b}$,

[TABLE]

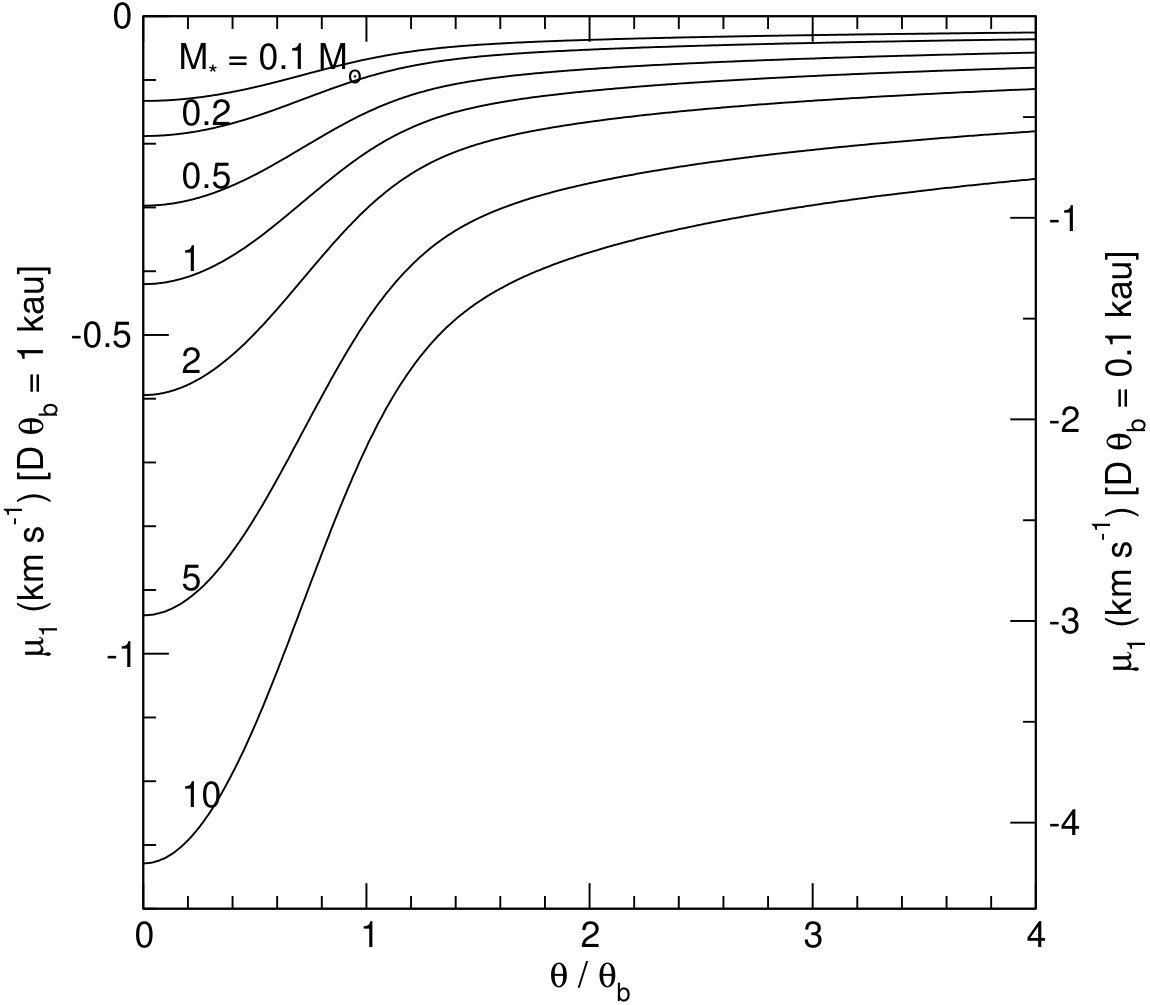

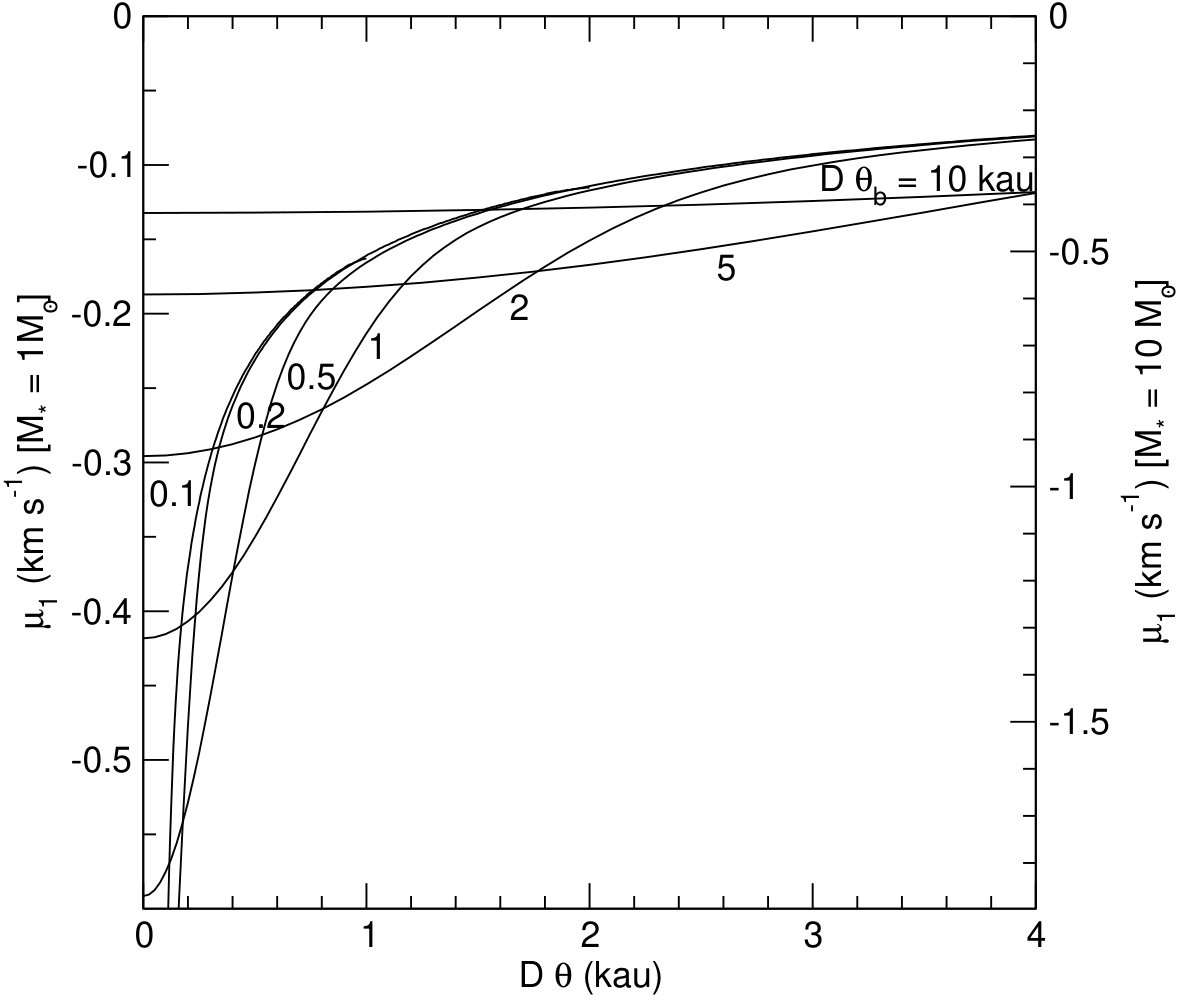

Examples of $\mu_{1}(\theta;\theta_{b})$ for some values of $\theta_{b}$ and $M_{\ast}$ are shown in Figs. 13 and 14. A value of the central mass can be derived directly from the value of the first-order moment at the origin,

[TABLE]

It may seem surprising that the value of the first-order moment at the origin (Eq. 42) does not depend on the temperature $T_{0}$. This is because $\mu_{1}$ is the normalized moment $\mu^{\prime}_{1}/\mu_{0}$, and the dependence on $T_{0}$ of both $\mu^{\prime}_{1}$ and $\mu_{0}$ cancels. However, $\mu_{1}$ does depend on the temperature gradient, i.e. the power-law index of temperature law ($\beta$ in Eq. A.5). For instance, for $\beta=0$ (no temperature gradient), $\mu_{1}$ is zero.

6.2 Finite infall radius

In this case the 2-D convolution has to be computed for any value of the infall radius. A possible strategy for computing the first-order moment is the following

Choose a value for $R_{0}$, for instance $R_{0}=1$ kau, so that the infall radius in reduced coordinates is $r_{i}=[R_{i}/\mathrm{kau}]$. 2. 2.

For a given value of $r_{i}$, and a range of values of $p$, construct the functions $\mu_{0}=H_{0}(q)\,p^{-1}$ and $\mu^{\prime}_{1}=H_{1}(q)\,p^{-3/2}$ (Eq. 26) in reduced coordinates ($p$ and $r_{i}$ in units of $R_{0}$). 3. 3.

Transform the $p$ coordinate to practical units, $[\theta/\mathrm{arcsec}]=p\,[D/\mathrm{kpc}]^{-1}$ (Eq. 37). Compute the beam 2D-convolution (Eq. 163) of $\mu_{0}$ and $\mu^{\prime}_{1}$, and obtain $\mu_{1}(\theta;\theta_{b},R_{i})=\mu^{\prime}_{1}/\mu_{0}$. See in Fig. 12 an example of the resulting $\mu_{0}$ and $\mu_{1}$ after beam convolution. 4. 4.

The resulting first-order moment is in units of $V_{0}$. To have it in km s*-1*, scale $\mu_{1}$ by a factor $1.331\,[M_{\ast}/M_{\sun}]^{1/2}$, where $M_{\ast}$ is the central mass (Eq. 39).

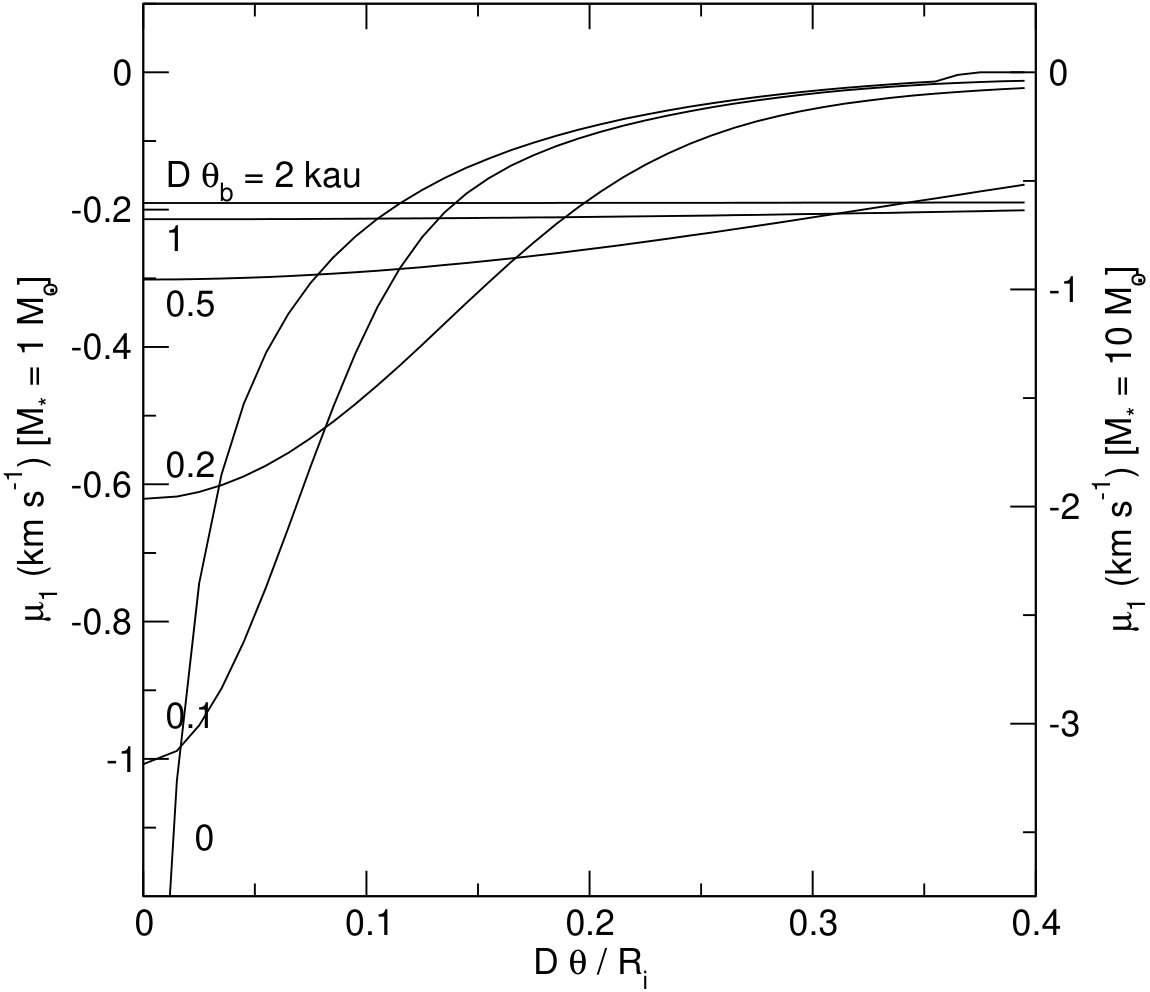

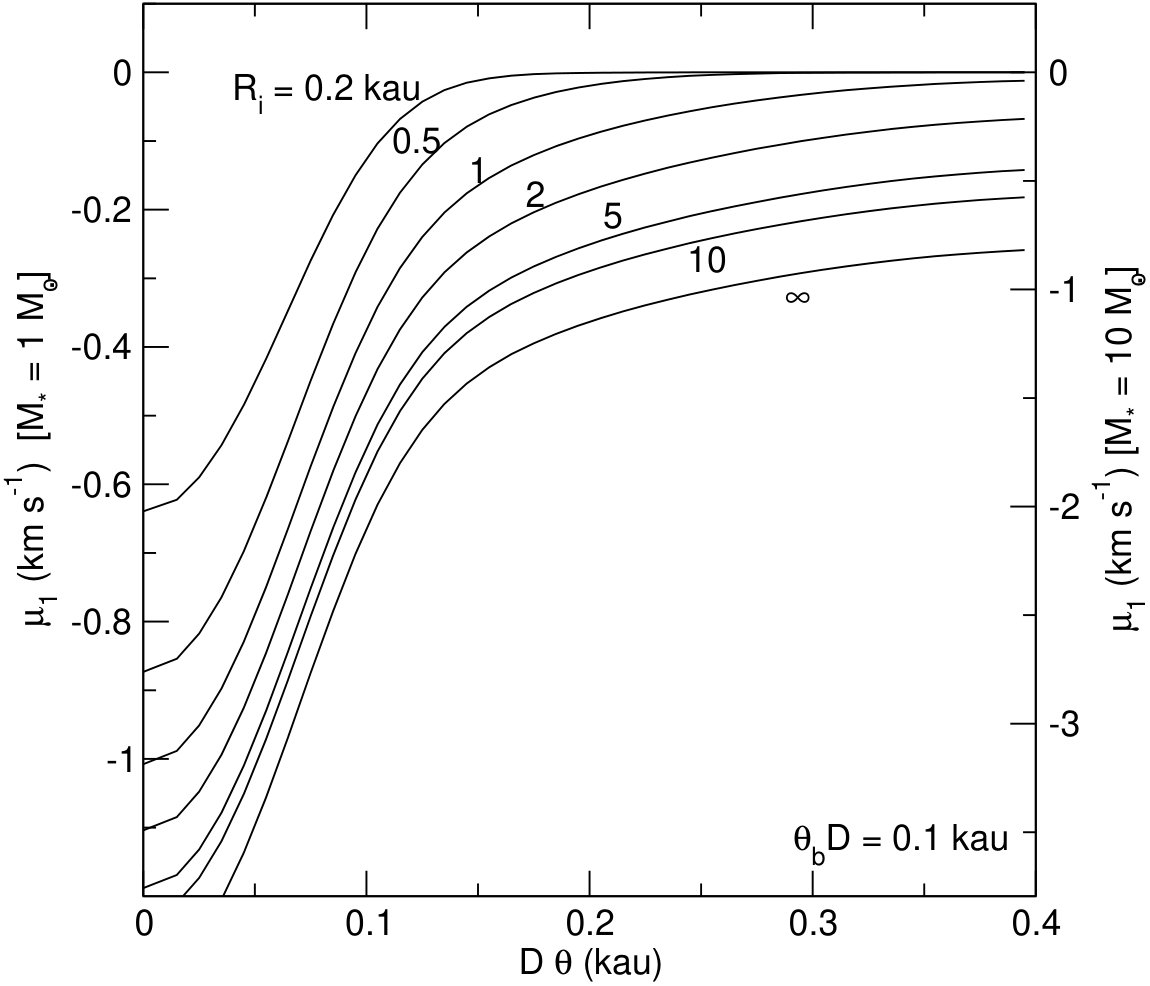

Examples of $\mu_{1}(\theta;\theta_{b},R_{i})$ for some values of $\theta_{b}$, $R_{i}$, and $M_{\ast}$ are shown in Figs. 15 and Fig. 16.

Let us see now what can be derived from the value of the first-order moment at the origin. The value of $\mu_{1}$ for $\theta=0$ (Eq. 148) in practical units becomes

[TABLE]

where $s=R_{i}/(D\theta_{b})$, and $J_{0}$ and $J_{1}$ are given by Eq. B.6. Taking into account Eq. 38, we have

[TABLE]

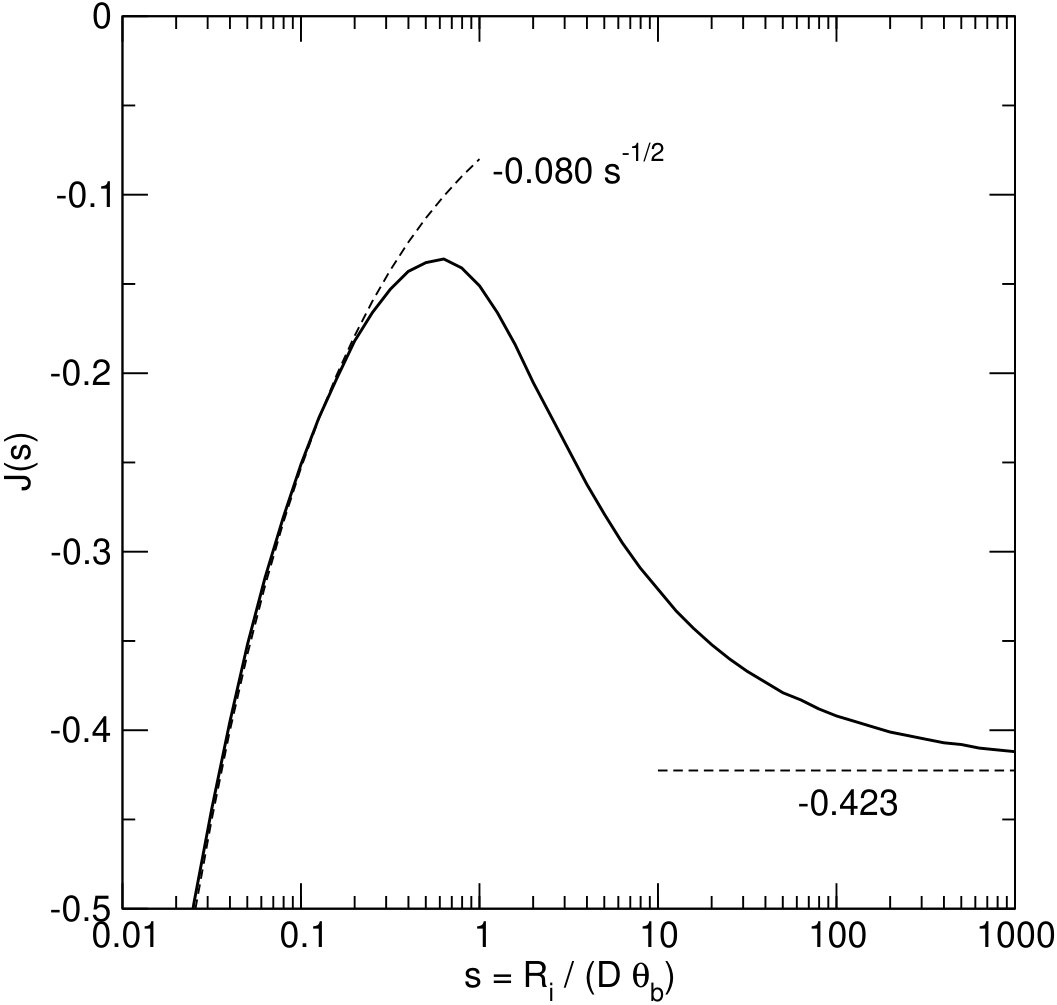

where $J(s)=1.331\,J_{1}(s)/J_{0}(s)$. The function $J(s)$, calculated numerically, is shown in Fig. 17. The asymptotic expression for large infall radii, $R_{i}\gg D\theta_{b}$,

[TABLE]

coincides, as expected, with the expression derived for an infinite infall radius, Eq. 42. In the case of a poor angular resolution compared with the infall radius ($\theta_{b}\gg R_{i}/D$), we obtain

[TABLE]

The value at the origin of the first-order moment in the case of a finite infall radius, $\mu_{1}(0;\theta_{b},R_{i})$, in contrast with the infinite infall radius case. does not provide a unique value of the central mass, unless the infall radius is known. There is a degeneracy between the infall radius and the central mass: different pairs of values of the infall radius and central mass produce the same value of the first-order moment at the origin. In order to disentangle this degeneracy, it is necessary to fit not only the value at the origin, but also the variation of the observed first-order moment as a function of the projected distance.

7 Application of the central-blue-spot infall hallmark to real data

7.1 G31.41+0.31 HMC

G31.41+0.31 HMC (hereafter G31) is a hot molecular core whose distance was estimated to be 7.9 kpc, but recent determinations (Reid et al. in preparation) give a value of 3.7 kpc for its distance. Infall motions in G31 have been reported by Girart et al. (2009) from inverse P-Cygni profiles, and by Mayen-Gijon et al. (2014) from VLA observations of the ammonia inversion transitions $(2,2)$, $(3,3)$, $(4,4)$, $(5,5)$, and $(6,6)$ showing a central blue-spot in the first-order moment maps.

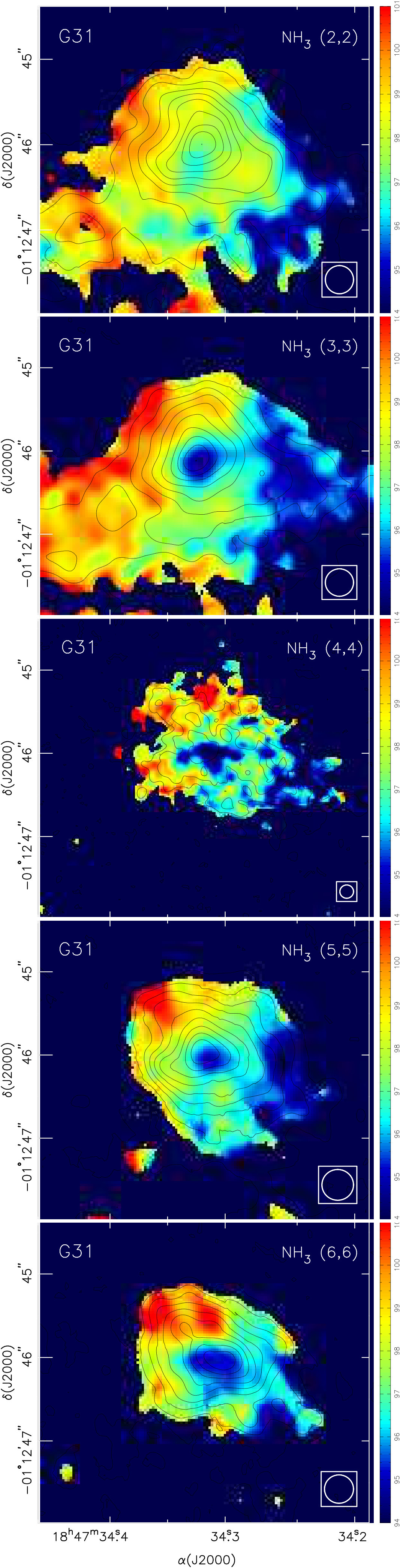

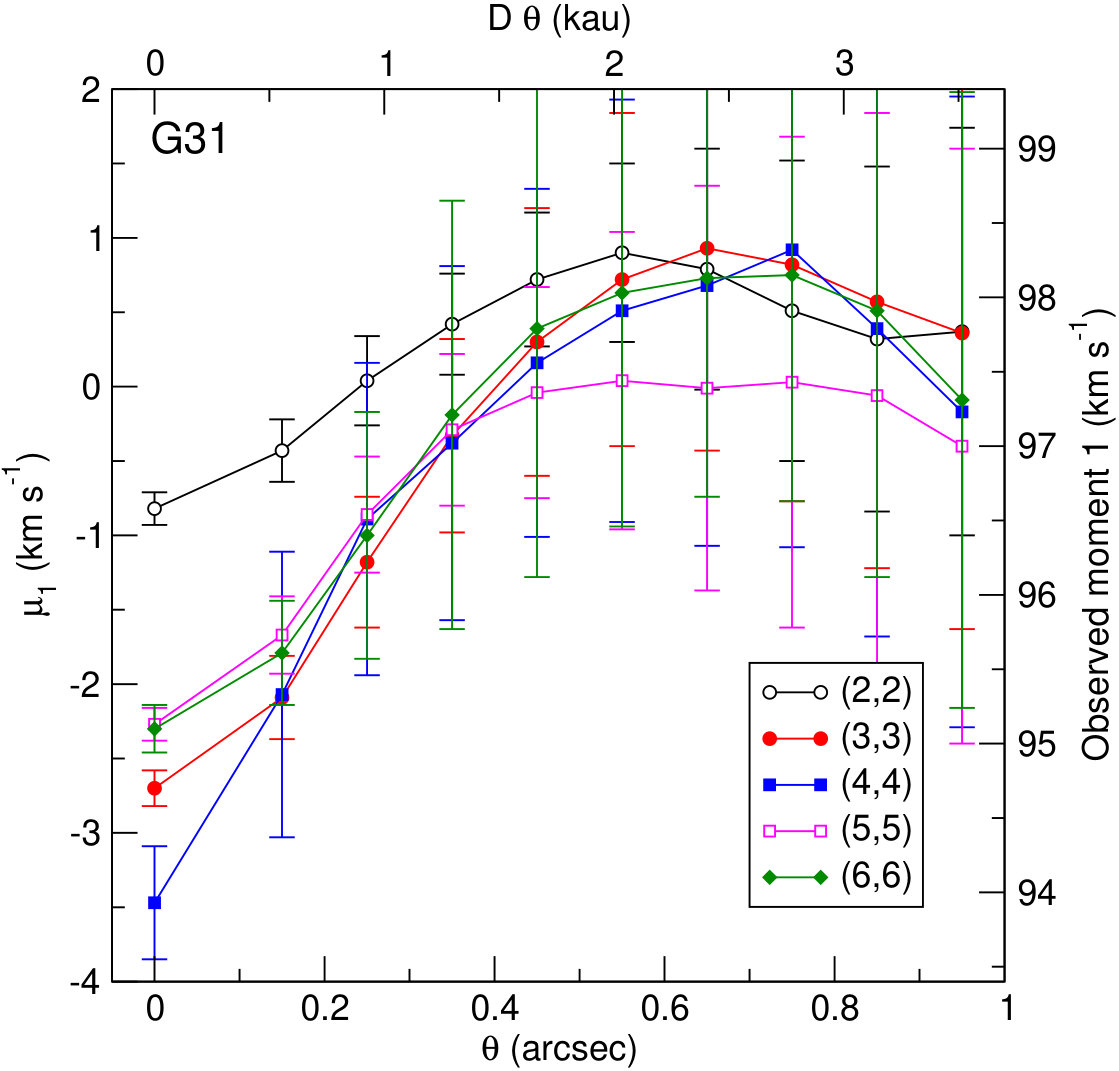

Here we are analyzing the first-order moment maps shown in Fig. 2 of Mayen-Gijon et al. (2014) (see Fig. 18). The half-power beamwidth of the observations were $0\aas@@fstack{\prime\prime}33$ for the $(2,2)$, $(3,3)$, and $(6,6)$ maps, $0\aas@@fstack{\prime\prime}16$ for the $(4,4)$ map, and $0\aas@@fstack{\prime\prime}37$ for the $(5,5)$ map. The value of the first-order moment as a function of the angular distance was obtained for the five maps by averaging the first-order moment in concentric rings of width $0\aas@@fstack{\prime\prime}1$ centered on the average position of the peak of the blue spot, $\alpha(J2000)=18^{\mathrm{h}}47^{\mathrm{m}}34\aas@@fstack{s}32$, $\delta(J2000)=-01\degr 12^{\prime}46\aas@@fstack{\prime\prime}1$. In Fig. 19 we present the first-order moment profiles obtained. We considered that the velocity far from the center was 97.4 km s*-1*, the value used by Mayen-Gijon et al. (2014), which is consistent with the values of the systemic velocity quoted for G31, ranging from 96.26 km s*-1* (Beltrán et al., 2005) to 98.8 km s*-1* (Cesaroni et al., 1998). The first-order moment of the different transitions show very similar profiles, with a value of $\sim-3$ km s*-1* for small angular distances, except for the $(2,2)$ transition, which shows a shallower dip in velocity. This could be due to a lower opacity of the $(2,2)$ line, and partial blending of the central line with the inner satellite lines, and we will no longer consider this transition. By application of Eq. 44 we see that a value of $\sim-3$ km s*-1* for the first-order moment means roughly a central mass of the order of 50 $M_{\sun}$.

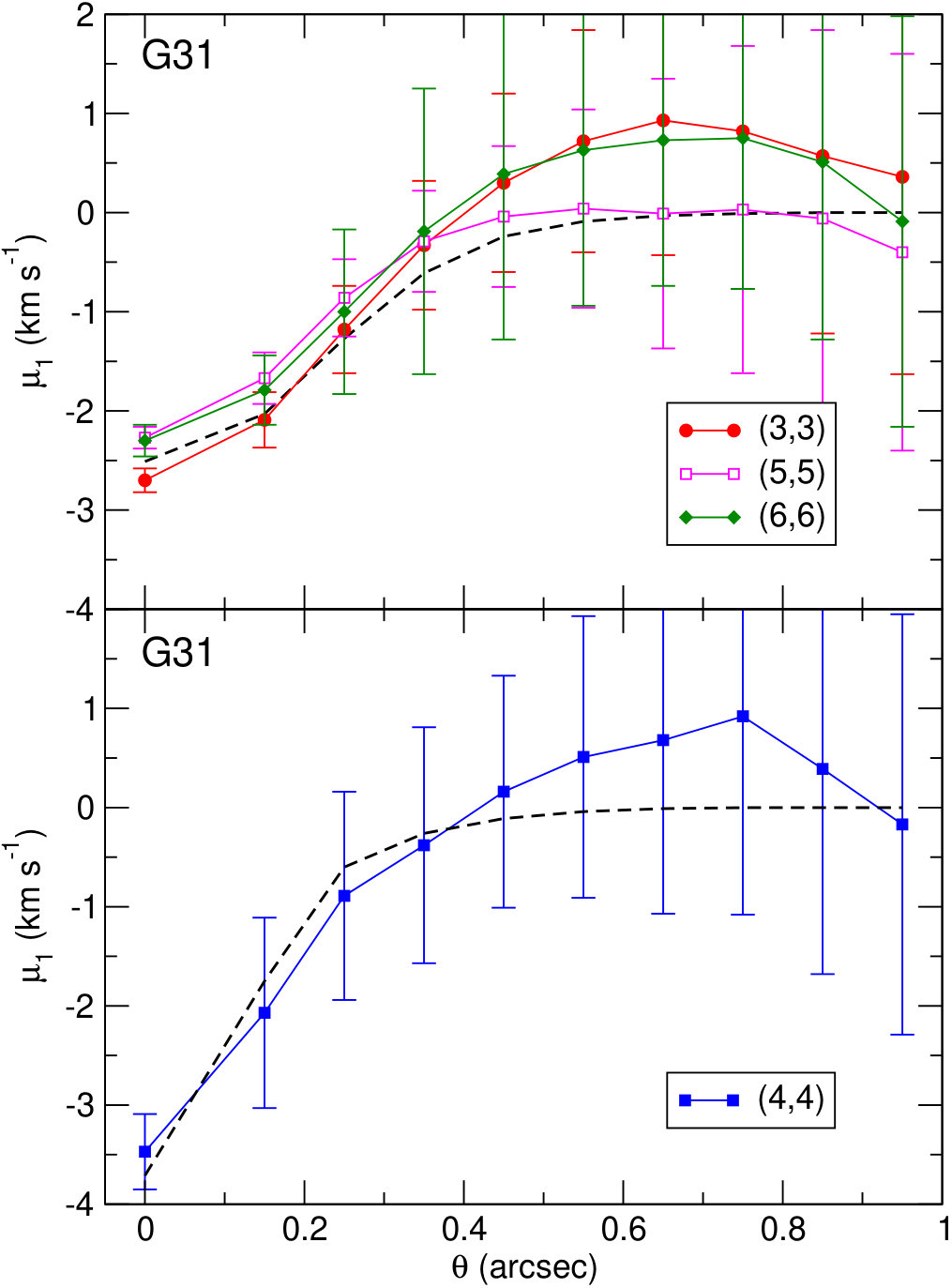

In order to obtain a more accurate value of the central mass, the hallmark model was calculated for the beam size of each transition, and fitted to the observed data for different values of the infall radius and the central mass. For an infinite infall radius the best fit was found for a central mass of 44 $M_{\sun}$, with a residual $\chi^{2}$ statistic for $\nu=39$ degrees of freedom (the total number of rings of all transitions used in the fit, minus 1), $\chi^{2}=36.6$, which gives a reduced $\chi_{r}=(\chi^{2}/\nu)^{1/2}=0.97$. For finite values of the infall radius we obtained higher values of the central mass. For $R_{i}=20$ kau (corresponding to an angular radius of $5\aas@@fstack{\prime\prime}4$ at 3.7 kpc), we obtained a better fit, with a central mass $M_{\ast}=69$ $M_{\sun}$ ($\chi^{2}=21.2$, $\chi_{r}=0.74$), while for $R_{i}=5$ kau ($1\aas@@fstack{\prime\prime}4$), a lower limit for the infall radius to be consistent with the size of the NH3 maps, the best fit was for a central mass $M_{\ast}=122$ $M_{\sun}$ ($\chi^{2}=10.7$, $\chi_{r}=0.52$) (see Fig. 20). In conclusion, the central mass obtained is always greater than $\sim 44$ $M_{\sun}$, and the best fit is obtained for values of the infall radius between 5 and 20 kau, with central masses between $\sim 70$ and $\sim 120$ $M_{\sun}$.

Osorio et al. (2009) model the central core of G31 and obtain, assuming a distance of 7.9 kpc, a central star with a mass of $\sim 25$ $M_{\sun}$, a mass accretion rate of $3\,10^{-3}$ $M_{\sun}$ yr*-1*, and a total luminosity of $2\,10^{5}$ $L_{\sun}$. The luminosity, scaled to the distance of 3.7 kpc adopted here, is $4.4\,10^{4}$ $L_{\sun}$. A single star with a mass equal to the central mass derived here would have a luminosity two orders of magnitude higher. This apparent lack of luminosity can be explained considering, as usually found in high-mass star forming regions, that there is not a single high-mass star at the center of G31, but a cluster of less massive stars. In the case of G31, recent high-angular resolution ALMA continuum observations (Beltrán et al. in preparation) reveal the presence of at least four cores at the center of G31.

If we assume that the stars of the cluster at the center of G31 have masses that follow the Salpeter initial mass function (Salpeter, 1955) there would be a few high-mass young stellar objects, probably associated with the four cores detected, which could account for most of the total luminosity observed. A higher number of low-mass young stellar objects yet undetected, with little contribution to the overall luminosity, could total a mass of 70–120 $M_{\sun}$ for the cluster.

7.2 B335

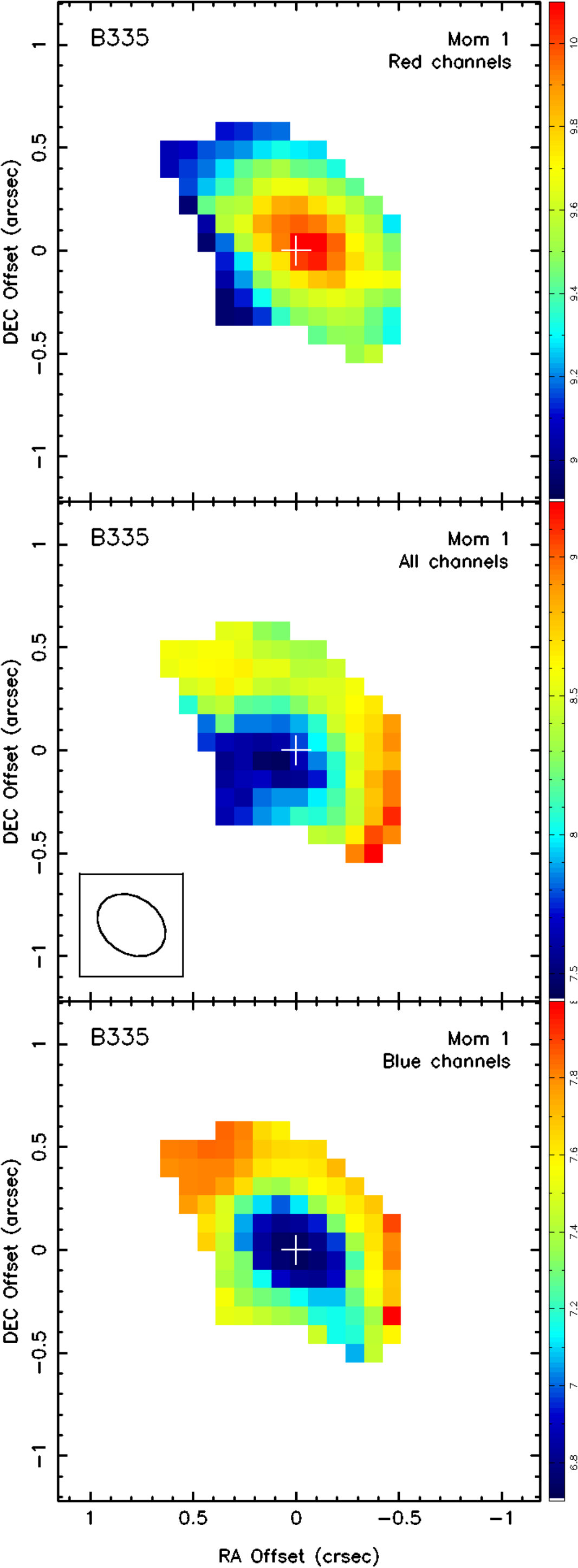

B335 is an isolated Class 0 protostar with a bolometric luminosity of $\sim 1$ $L_{\sun}$, at a distance of 105 pc (Olofsson & Olofsson, 2009). Several authors claim the detection of infall (Kurono et al., 2013; Evans et al., 2015). Here we are analyzing two observations, one of H13CO+ ($J=1$–0) at 87 GHz, with a moderate angular resolution, combining data from the 45 m Nobeyama telescope and the Nobeyama Millimetre Array (Kurono et al., 2013), and the other of 13CO ($J=2$–1) at 220 GHz, with very high angular resolution, carried out with the Atacama Large Millimeter/Submillimeter Array (ALMA) (Yen et al., 2015).

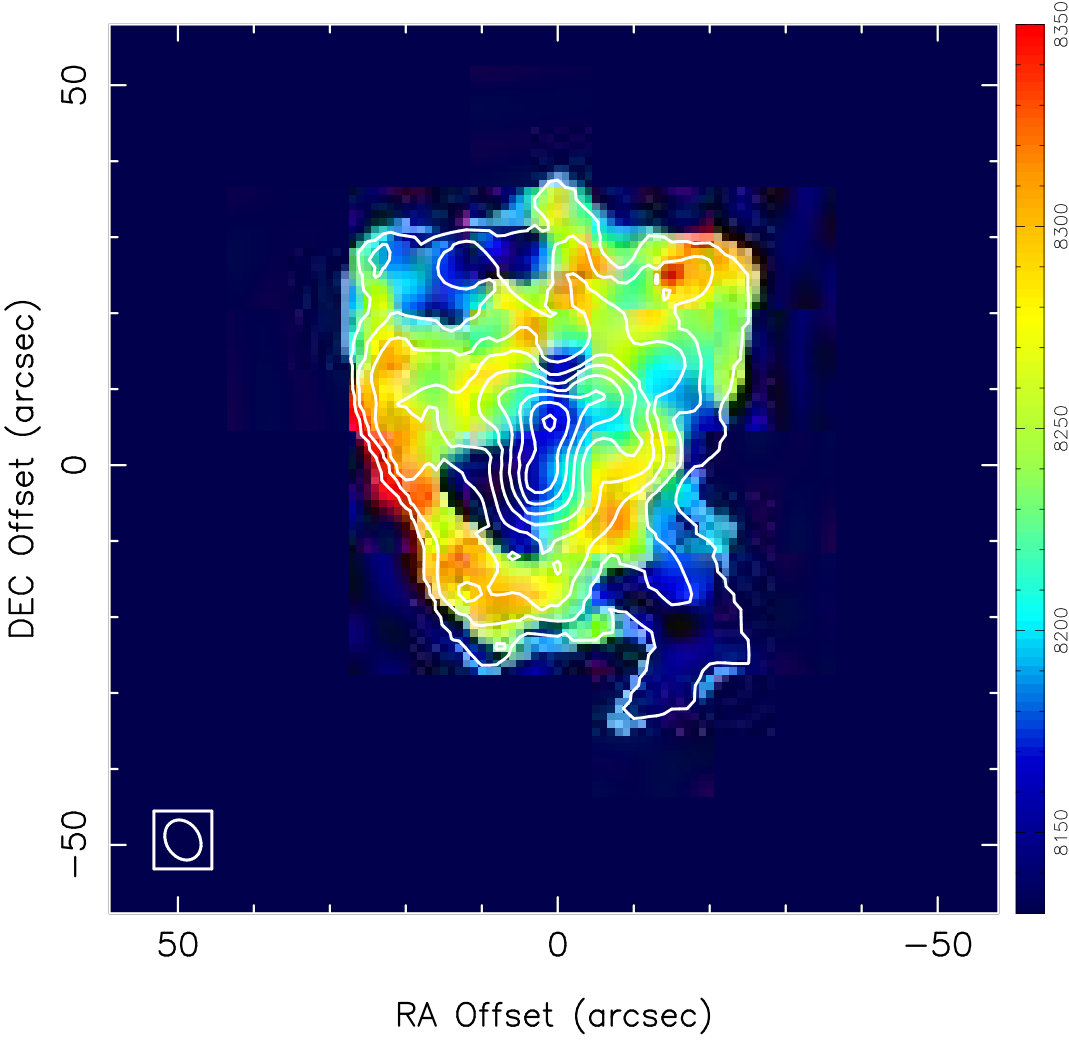

Regarding the Nobeyama data, the beam obtained for the combined data from both instruments was $\sim 5\aas@@fstack{\prime\prime}0$, and the spectral resolution was 0.108 km s*-1*. The channel maps of the H13CO+ emission were retrieved from Fig. 5 of Kurono et al. (2013), and the data cube obtained was resampled with a cell size of $1^{\prime\prime}$. The zeroth and first-order moments obtained are shown in Fig. 21. The value of the first-order moment as a function of the angular distance was obtained by averaging the first-order moment in concentric rings of width $2^{\prime\prime}$ centered on the position of the continuum compact source, $\alpha(J2000)=19^{\mathrm{h}}37^{\mathrm{m}}00\aas@@fstack{s}89$, $\delta(J2000)=+07\degr 34^{\prime}09\aas@@fstack{\prime\prime}6$ (Yen et al., 2015), the $(0,0)$ position in Figs. 21 and 22. The values obtained are shown in Fig. 23 (top panel). The error bars are the rms dispersion of velocities inside each ring, added quadratically to the uncertainty due to the finite spectral resolution, the same for all rings.

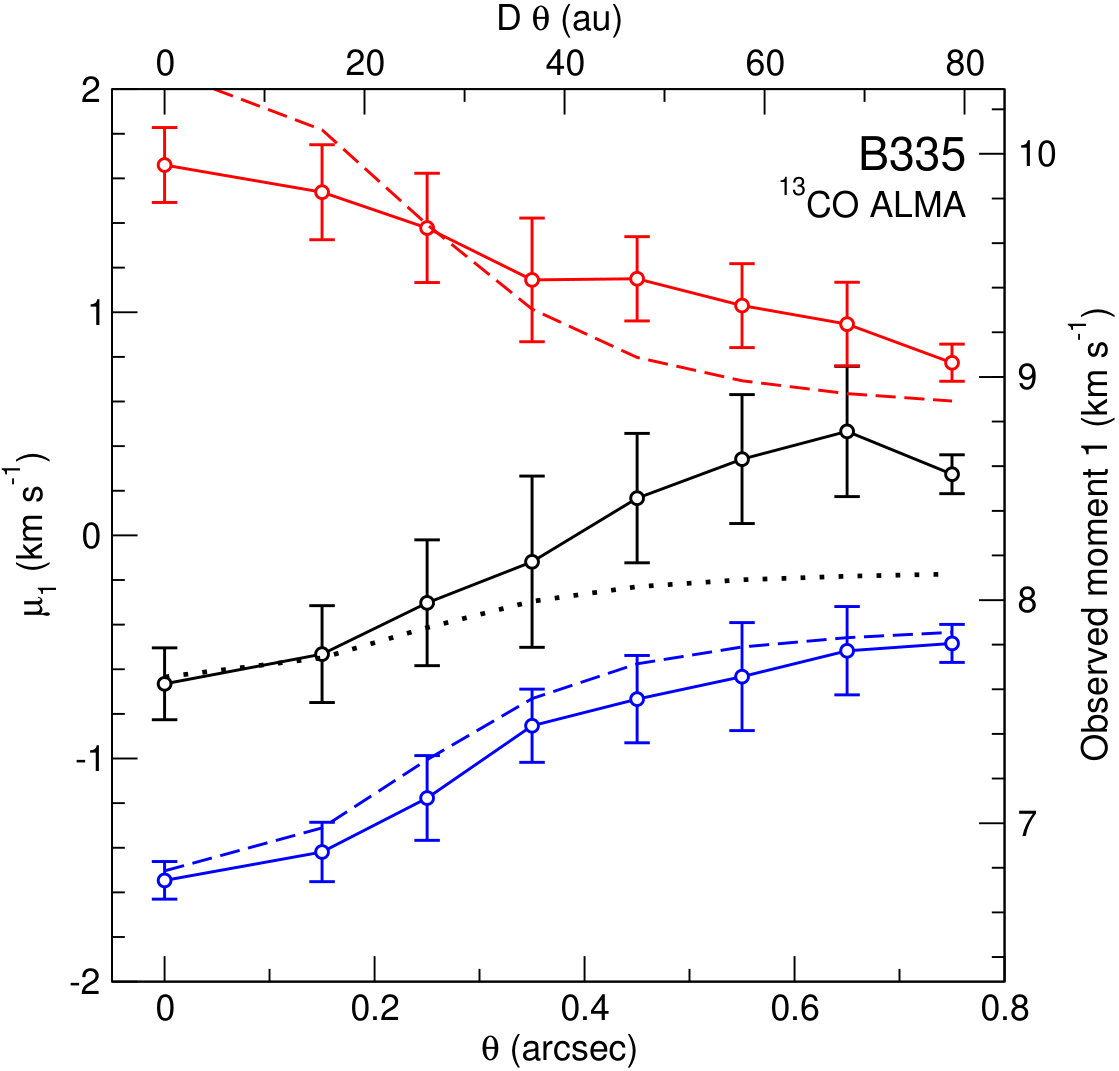

The ALMA data had an angular resolution of $\sim 0\aas@@fstack{\prime\prime}31$, and the spectral resolution was 0.166 km s*-1*. The first-order moment for all the line, $\mu_{1}$, is shown in the middle panel of Fig. 22. As can be seen, the central blue spot is not centered on the position of the continuum compact source (plus sign), but is offset and extends to the southeast. The angular resolution of the data corresponds to a linear resolution of 33 au at a distance of 105 pc. At this small scale, the kinematics can be dominated by the rotation of the protostellar disk, and infall can be no longer spherically symmetric, as assumed by the hallmark model. In order to check the validity of the model, we also computed the first order moment separately for the redshifted channels, with velocity higher than the systemic velocity, $\mu_{1}^{\mathrm{red}}$, and for the blueshifted channels (with velocity lower than $V_{\mathrm{sys}}$), $\mu_{1}^{\mathrm{blue}}$. The hallmark model predicts that $\mu_{1}^{\mathrm{red}}$ shows a central red spot and $\mu_{1}^{\mathrm{blue}}$ a central blue spot, higher in absolute value than the first-order moment of the full line. As can be seen in the top and bottom panels of Fig. 22, this is what is observed for $\mu_{1}^{\mathrm{red}}$ and $\mu_{1}^{\mathrm{blue}}$, with quite well centered red and blue spots. The values of $\mu_{1}$, $\mu_{1}^{\mathrm{red}}$, and $\mu_{1}^{\mathrm{blue}}$ as a function of the angular distance were calculated for concentric rings of $0\aas@@fstack{\prime\prime}1$ width, centered on the position of the continuum compact source. The error bars were calculated in the same way as for the Nobeyama data. The moments as a function of the angular distance $\theta$, are shown in Fig. 23 (bottom panel). As can be seen, the three moments follow the same kind of dependence on the projected distance, and we will see that they can be fitted by power laws of index $-1/2$, convolved with the beam, as predicted by the hallmark model. Thus the gas kinematics for the range of projected distances sampled by ALMA, from $0\aas@@fstack{\prime\prime}1$ to $0\aas@@fstack{\prime\prime}8$ (10 to 84 au), appears to be dominated by infall.

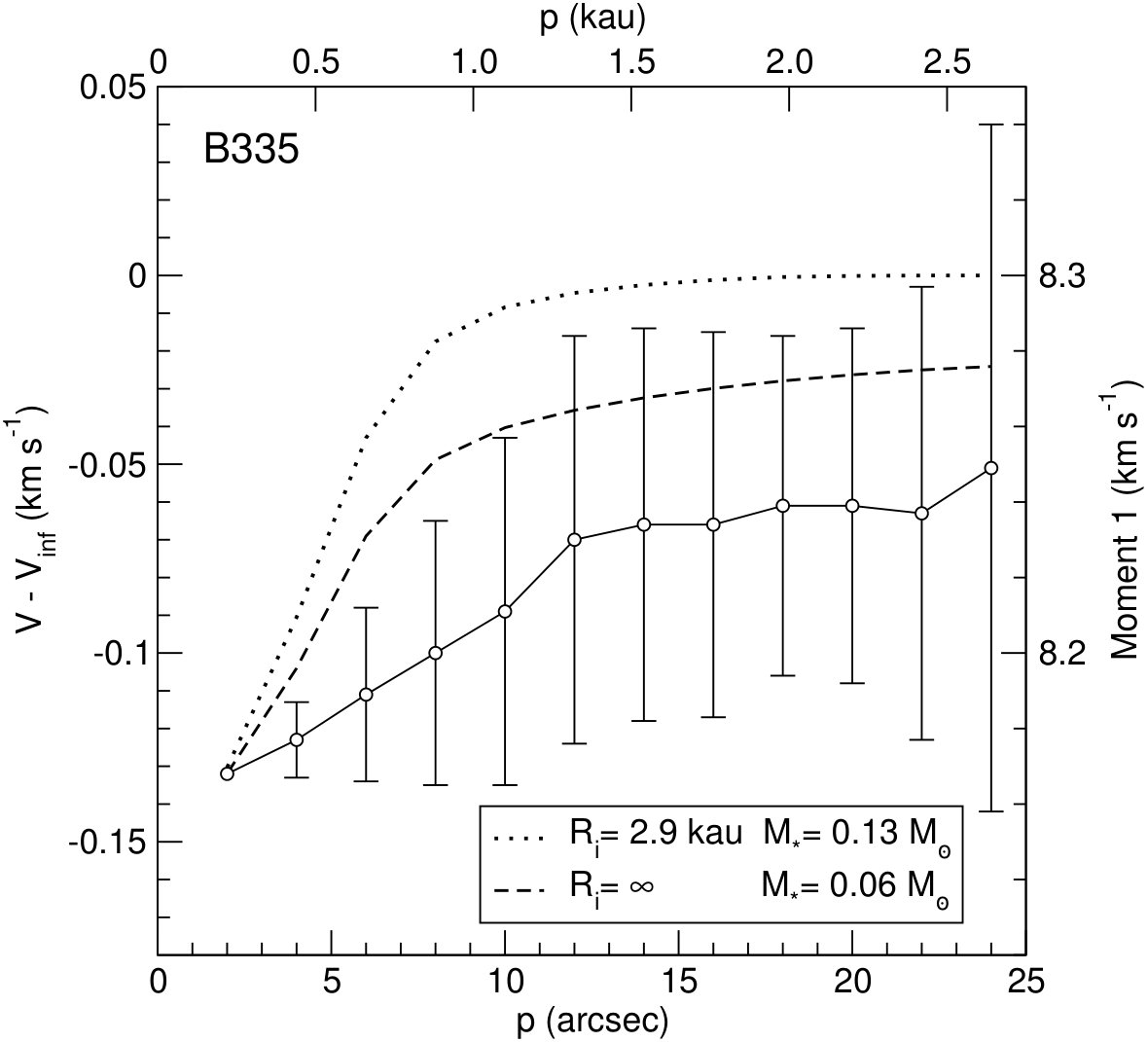

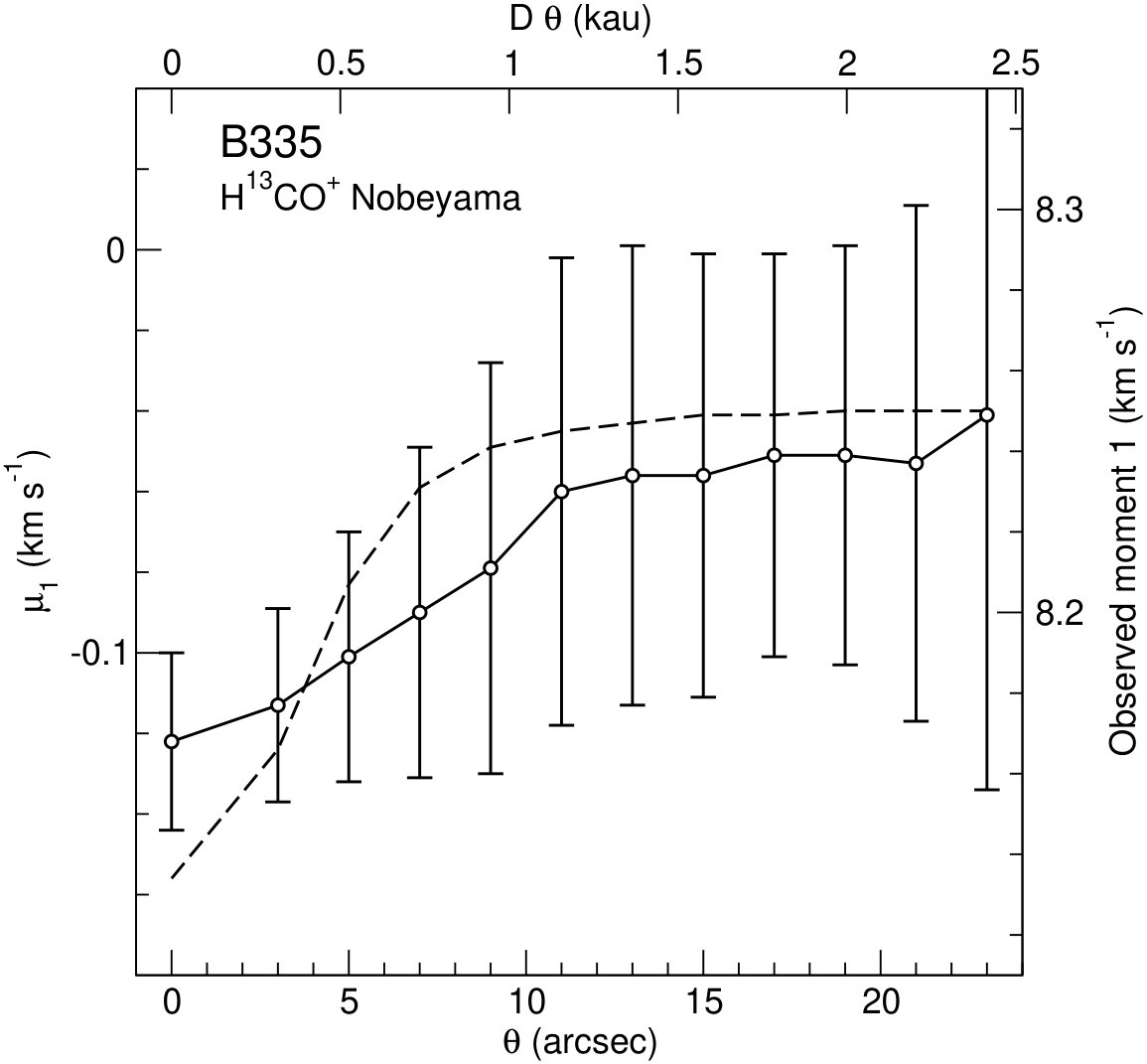

The hallmark model was calculated and fitted simultaneously to the Nobeyama first-order moment $\mu_{1}$, and to the ALMA $\mu_{1}^{\mathrm{blue}}$ and $\mu_{1}^{\mathrm{red}}$ (but not to $\mu_{1}$). Since the Nobeyama data are very sensitive to the value adopted for the systemic velocity, we fitted both the value of the systemic velocity and the central mass. We tested the infall radius reported by Kurono et al. (2013), 2900 au (corrected from their assumed distance of 150 pc), but a better fit was obtained with a larger infall radius. The best fit was obtained for an infinite infall radius, for a systemic velocity $V_{\mathrm{sys}}=8.29$ km s*-1*, and central mass $M_{\ast}=0.09$ $M_{\sun}$ (dashed lines in the top and bottom panels of Fig. 23). The goodness of the fit is given by a $\chi^{2}$ statistic for $\nu=27$ degrees of freedom, $\chi^{2}=29.9$, corresponding to a reduced $\chi_{r}=(\chi^{2}/\nu)^{1/2}=1.05$, an indication that the model fits well the data within the uncertainties. As an additional check, we computed the predicted value of the first-order moment for the ALMA data of the full line, $\mu_{1}$, (dotted line in the bottom panel of Fig. 23), which is a linear combination of $\mu_{1}^{\mathrm{blue}}$ and $\mu_{1}^{\mathrm{red}}$, i.e. $\mu_{1}=(\mu_{0}^{\mathrm{blue}}/\mu_{0})\,\mu_{1}^{\mathrm{blue}}+(\mu_{0}^{\mathrm{red}}/\mu_{0})\,\mu_{1}^{\mathrm{red}}$. As can be seen in the figure, the values predicted for $\mu_{1}$ match well those observed.

We can conclude that the kinematics of the gas in B335, for the linear scales sampled by ALMA and Nobeyama, from $\sim 10$ au to $\sim 2500$ au, i.e. more than two orders of magnitude, can be explained by a simple model of infall onto a central protostar of $\sim 0.1$ $M_{\sun}$. This can be considered as an outstanding result of the central-blue-spot infall hallmark model.

7.3 LDN 1287

LDN 1287 (hereafter L1287) is a molecular cloud located at a distance of 929 pc, associated with an energetic bipolar CO outflow (Yang et al., 1991). The source was mapped with a single dish in NH3 (Estalella et al., 1993; Sepúlveda et al., 2011). A cluster of mm sources has been detected at the center of L1287 (Juárez et al., 2018), one of the mm sources being associated with VLA 3 (Anglada et al., 1994), a jet-like cm-continuum source that appears to be driving the outflow.

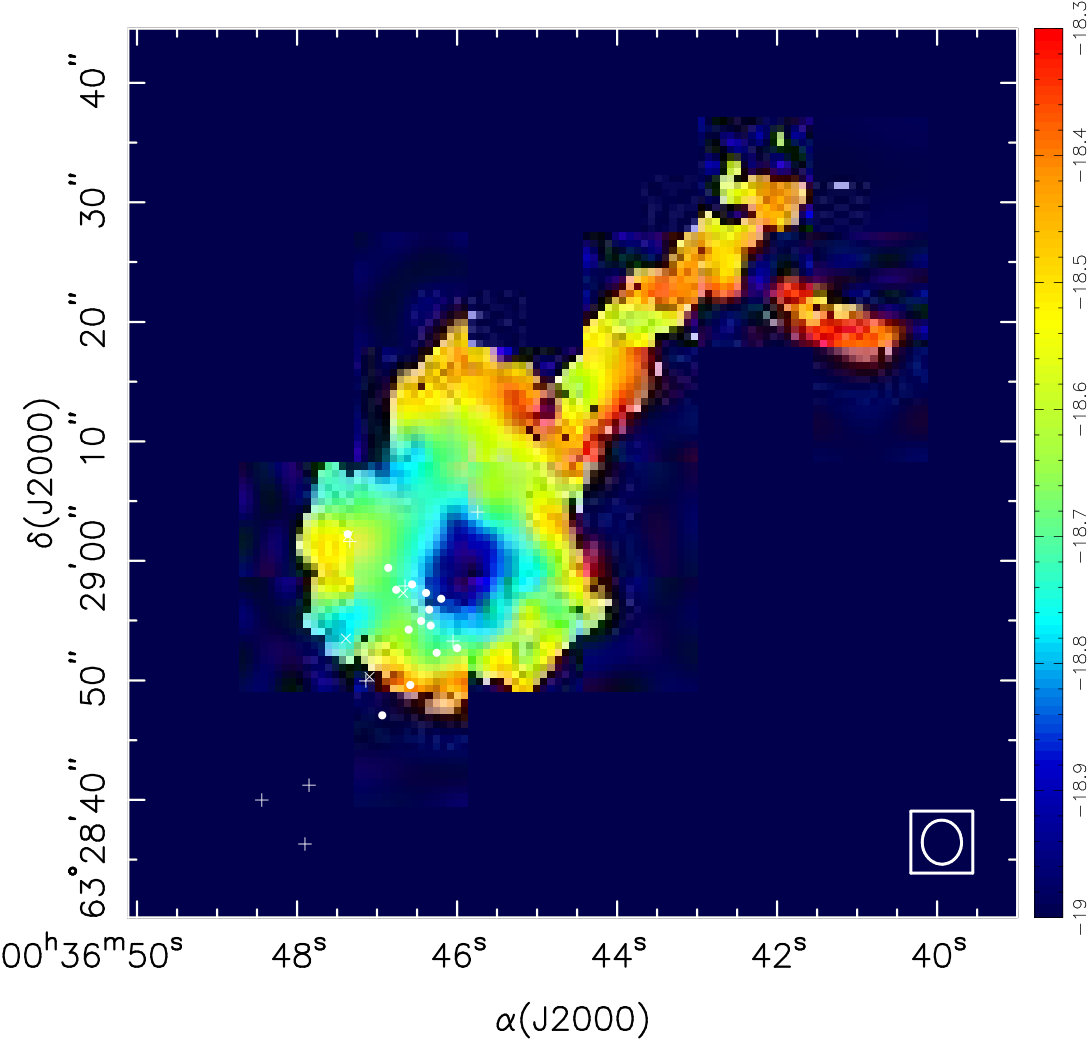

Here we are analyzing VLA observations of the NH3 $(1,1)$ and $(2,2)$ transitions, which show a complicated structure with a complex kinematics (Sepúlveda et al., 2018). The NH3 lines were analyzed by means of the Hyperfine Structure Tool (HfS) (Estalella, 2017). After careful inspection of the spectra, three different velocity components were identified, with non-overlapping velocity ranges (Guitar Core, Blue Filament, and Red Filament). The Guitar Core does not show any sign of interaction with the embedded young stellar objects (no increase in linewidth, nor in rotational temperature at the projected position of the embedded sources). Our results suggest that the Guitar core is a very young protostellar core. Given the poor velocity resolution of the observations, the only way to separate the emission of the Guitar Core from that of the filaments was to fit Gaussian components to the observed spectra. Thus, the asymmetry of the line was inferred from the shift of the central velocity of the line fitted. Nevertheless, a compact spot of $\sim 10^{\prime\prime}$ in diameter of blueshifted velocities appears at the center of the Guitar Core (see Fig. 24).

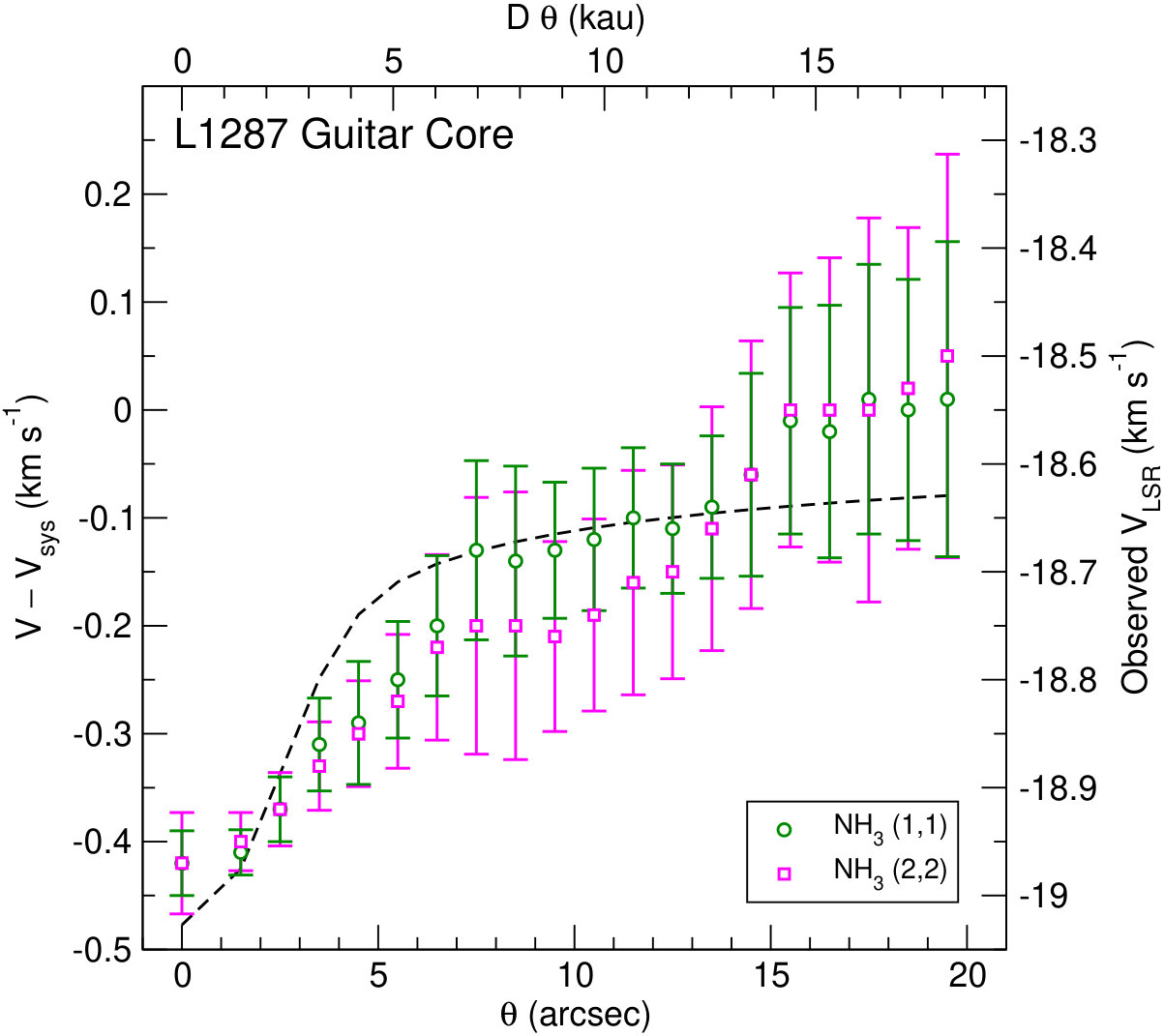

The central velocity of the Guitar Core, obtained from the HfS fits, was averaged in concentric rings $1^{\prime\prime}$ wide, centered on the emission peak, up to a radius of $20^{\prime\prime}$. The velocity profile obtained is shown if Fig. 25. The error bars are the rms dispersion of the velocities averaged in each ring, added quadratically to the error of the average value of central velocity obtained from HfS. The average velocity at large distances from the peak (the systemic velocity of the Guitar Core), $-18.54$ km s*-1*, has been subtracted from the values of the central velocity. The best fit to the $(1,1)$ and $(2,2)$ data, for a beamwidth of $3\aas@@fstack{\prime\prime}48$, was obtained for a central mass of 4.8 $M_{\sun}$ and a infinite infall radius (dashed line in Fig. 25). The goodness of the fit is indicated by the value of the $\chi^{2}$ statistic for $\nu=39$ degrees of freedom (the total number of rings used in the fit, minus 1), $\chi^{2}=42.7$, which gives a reduced $\chi_{r}=(\chi^{2}/\nu)^{1/2}=1.05$.

8 Conclusions

The central-blue-spot infall hallmark (Mayen-Gijon et al., 2014) was studied quantitatively, taking as a basis the work of Anglada et al. (1987, 1991). The assumptions were that the line emission was optically thick, the gravitational infall motions dominated the kinematics over turbulent and thermal motions, the infall velocity and temperature were power-laws of radius and increase inwards, with power-law indices of $-1/2$, and that the Sobolev approximation was valid. With these assumptions an analytical expression for the first-order moment as a function of the projected distance was derived, for the cases of infinite and finite infall radius. The effect of a finite angular resolution was also studied, but the convolution with the beam has to be calculated numerically. These results were applied to existing data of several star-forming regions (G31, B335, and L1287), obtaining good fits to the first-order moment maps, and deriving values of the central masses onto which the infall is taking place. The values obtained for the central masses are 70–120 $M_{\sun}$ for G31, 0.1 $M_{\sun}$ for B335, and 4.8 $M_{\sun}$ for the Guitar Core of L1287.

In conclusion, the central-blue-spot infall hallmark appears to be a robust and reliable indicator of infall.

Acknowledgements.

This work has been partially supported by the Spanish MINECO grants AYA2014-57369-C3 and AYA2017-84390-C2 (cofunded with FEDER funds), by MDM-2014-0369 of ICCUB (Unidad de Excelencia ‘María de Maeztu’), and through the “Center of Excellence Severo Ochoa” award for the Instituto de Astrofísica de Andalucía (SEV-2017-0709).

Appendix A Calculation of the moments for an infinite infall radius and

arbitrary power-law indices

A.1 Intensity profile (infinite infall radius)

Let us assume that the infall velocity and temperature in an infalling molecular gas core are given by power laws with arbitrary power-law indices, $-\alpha$ and $-\beta$,

[TABLE]

The development made in §2 for $\alpha=\beta=1/2$ can be generalized for any positive values of the power-law indices, $\alpha,\beta>0$. The projected distance and temperature (Eq. 2) are now

[TABLE]

The expressions for $z^{\ast}$, $z_{m}$, $p_{m}$ (Eq. 2) become

[TABLE]

and $t(p_{m})$ (Eq. 6) is now

[TABLE]

A.2 Line profile (infinite infall radius)

The equations derived in §3 can be generalized as follows. The temperature and LOS velocity (Eq. 3) become

[TABLE]

The velocity $v_{m}$ and temperatures $t_{1}$ and $t_{2}$ (Eqs. 3.1, 3.1, 3.2) are now given by

[TABLE]

A.3 Moments calculation (infinite infall radius)

From Eq. A.2 we can obtain $v_{z}$ as an explicit function of $t$,

[TABLE]

where the blue-wing profile ($v_{z}<0$) is obtained for $t_{1}<t<t_{2}$, and the red-wing profile ($v_{z}>0$) for $0<t<t_{1}$ (see Eq. A.2).

In order to calculate the first-order normalized moment $\mu_{1}(p)$ as a function of the projected distance,

[TABLE]

we need to evaluate the integrals

[TABLE]

A.4 Zeroth-order moment (infinite infall radius)

For the blue wing, the limits of integration are from $(t=t_{1},v_{z}=-v_{m})$ to $(t=t_{2},v_{z}=0)$. The resulting integral for $\mu^{\mathrm{blue}}_{0}$ is

[TABLE]

where $v_{m}$, $t_{1}$, and $t_{2}$ have already been defined in Eq. A.2. The first term is

[TABLE]

The integral of the second term has the same dependence on $p$. This can be seen with the change of variables $x=pt^{1/\beta}$, resulting in

[TABLE]

It is useful to define the function $G_{0}$,

[TABLE]

which, in general, is not analytical, but is convergent for $\alpha+\beta>0$, and the function to integrate is continuum for $x>0$. With this notation, the zeroth-order moment can be expressed as

[TABLE]

with

[TABLE]

Similarly, for the red wing the limits of integration are from $(t=0,v_{z}=0)$ to $(t=t_{1},v_{z}=v_{m})$. The resulting integral for $\mu^{\mathrm{red}}_{0}$ is

[TABLE]

Using the same notation used for the blue wing, we can obtain

[TABLE]

with

[TABLE]

where

[TABLE]

is analytical for $\alpha+\beta>0$, and its value is

[TABLE]

where $\Gamma$ is the Gamma function.

Thus, the expression for the total zeroth-order moment is

[TABLE]

with

[TABLE]

A.5 First-order moment (infinite infall radius)

For the blue wing, using the same limits of integration as for the zeroth-order moment, we have (see Fig. 5)

[TABLE]

The first term is

[TABLE]

and the integral can be evaluated using the same change of variables as for the zeroth-order moment, obtaining

[TABLE]

where we defined the function $G_{1}$ as

[TABLE]

which is analytical, and convergent for $2\alpha+\beta>0$,

[TABLE]

Thus, the unnormalized first-order moment of the blue wing can be expressed as

[TABLE]

with

[TABLE]

Similarly, for the red wing we have

[TABLE]

that can be expressed as

[TABLE]

with

[TABLE]

Note that $B_{1}$ and $R_{1}$ cancel each other partially, so that

[TABLE]

Thus, the expression for the total unnormalized first-order moment is simply

[TABLE]

with

[TABLE]

The final results, for an infinite infall radius, can be summarized as follows.

[TABLE]

where $\Gamma$ is the Gamma function, and

[TABLE]

which, in general, has to be evaluated numerically.

A.6 Particular case (infinite infall radius) for power-law indices 1/2

For the particular case of $\alpha=\beta=1/2$, the former expressions are simpler. In particular, the integral $G_{0}$ is analytical,

[TABLE]

with

[TABLE]

resulting in

[TABLE]

and

[TABLE]

For the first-order moment we have

[TABLE]

resulting in

[TABLE]

and the value of $H_{1}$ is

[TABLE]

It can be useful to give the normalized first-order moment separately for the blue and red wings,

[TABLE]

which have the same power-law dependence on the projected distance as $\mu_{1}$.

In conclusion, for the total zeroth and first-order moments we have

[TABLE]

Appendix B Calculation of the moments for a finite infall radius and

arbitrary power-law indices

The critical value of the reduced coordinate $q=p/r_{i}$, for an arbitrary value of the power-lax index $\alpha$, is $q=[\alpha/(\alpha+1)]^{1/2}$. For values $q<[\alpha/(\alpha+1)]^{1/2}$, only the red-wing emission is affected; for $q\geq[\alpha/(\alpha+1)]^{1/2}$ the line becomes symmetric ($\mu_{1}=0$); for $q\geq 1$ all the wing emission disappears ($\mu_{0}=\mu_{1}=0$).

B.1 Line profile (finite infall radius)

In order to calculate the moments of the red wing emission we need the values of $v_{a}$, $t_{a}$, and $t_{b}$ as a function of $p$ and $q$ (see Fig. 10). For this, we need the values of $z_{a}$ and $z_{b}$, the $z$ coordinate of the two intersections of the equal-LOS-velocity surface with the line-of-sight.

The distance $z_{a}$ is obtained readily from $r_{i}^{2}=p^{2}+z_{a}^{2}$, which gives

[TABLE]

and, from Eq. A.2 we have

[TABLE]

The distance $z_{b}$ requires more work. The equation of the equal-LOS-velocity surface of velocity $v_{a}$ (Eq. A.2) can be written as

[TABLE]

For a given $p$ and $v_{a}$, $z_{b}$ is a root of this equation that satisfies $0<z_{b}<z_{a}$. It is useful to use the variable $x=1+(z/p)^{2}$, so that the equation to solve depends only on $q$ and $\alpha$, and becomes

[TABLE]

For rational values of $\alpha$ this equation is a polynomial in $x$. However, in general, the root has to be found numerically. An iterative algorithm that gives the correct root for $q<[\alpha/(\alpha+1)]^{1/2}$ is the following

[TABLE]

It is useful to introduce the parameter $q^{\prime}$, which plays a role similar to that of $q$,

[TABLE]

so that the temperature $t_{b}$, corresponding to $z_{b}$, can be expressed as

[TABLE]

It can be easily shown that for $q<[\alpha/(\alpha+1)]^{1/2}$, the parameter $q^{\prime}$ is always bounded by $q<q^{\prime}<1$, and that for $q=[\alpha/(\alpha+1)]^{1/2}$, $q^{\prime}=q$ (see Fig. 26).

B.2 Zeroth-order moment (finite infall radius)

The zeroth-order moment of the blue wing, $\mu_{0}^{\mathrm{blue}}$, does not depend on $q$, and we have already seen that it can be expressed as

[TABLE]

The zeroth-order moment of the red wing, $\mu_{0}^{\mathrm{red}}$, can be calculated as

[TABLE]

Using the expressions obtained for $v_{a}$, $t_{a}$, and $t_{b}$, $\mu_{0}^{\mathrm{red}}$ can be expressed as

[TABLE]

where $R_{0}(q)$ is

[TABLE]

where $q^{\prime}$ is given by Eq. 100, and $G_{0}$ by Eq. 61.

Finally, the total zeroth-order moment can be written as

[TABLE]

with

[TABLE]

B.3 First-order moment (finite infall radius)

The first-order moment for the blue wing does not depend on $q$, and we have already seen that

[TABLE]

The first-order moment of the red wing is the opposite of ${\mu^{\prime}_{1}}^{\mathrm{blue}}$, except for a deficit of red-wing emission (see Fig. 10), so that

[TABLE]

Taking into account the expressions of $v_{a}$, $t_{a}$, and $t_{b}$, the first-order moment of the red wing can be written as

[TABLE]

where $R_{1}(q)$ is

[TABLE]

where $q^{\prime}$ is given by Eq. 100, and $G_{1}$ by Eq. 74. Thus, the total unnormalized first-order moment is

[TABLE]

with $H_{1}$ given by

[TABLE]

The normalized first order moments for the blue and red wings separately are given by

[TABLE]

where $B_{0}$, $B_{1}$, $R_{0}(q)$, and $R_{1}(q)$ have already been given. Finally, the expression obtained for the normalized first-order moment of the whole line, $\mu_{1}=\mu^{\prime}_{1}/\mu_{0}$, is

[TABLE]

B.4 Final results (finite infall radius)

Assuming infall velocity and temperature that are power laws of the radius,

[TABLE]

we have, for a finite infall radius $r_{i}$, with $q=p/r_{i}$,

[TABLE]

with $H_{0}(q)$ and $H_{1}(q)$ given by

[TABLE]

where $q^{\prime}$ is an auxiliary parameter

[TABLE]

and $x$ is the root, satisfying $0<x<q^{-2}$, of the equation

[TABLE]

to be solved numerically (see Eq. 99), and

[TABLE]

B.5 Particular case (finite infall radius) for power-law indices 1/2

For the particular case of $\alpha=\beta=1/2$, the former expressions are simpler. In particular, as already seen, the integral $G_{0}$ is analytical, and the equation in $x$ to find $q^{\prime}=x^{-1/2}$ is a 3rd degree polynomial,

[TABLE]

Since we already know a root corresponding to $z_{a}$, $x=q^{-2}$, the polynomial is divisible by $(x-q^{-2})$,

[TABLE]

and thus the root $x$ (and $q^{\prime}$) can be found analytically (see Fig. 26),

[TABLE]

Thus, the final results for this particular case are

[TABLE]

where $B_{0}$ is given by Eq. A.6, $H_{0}$ and $H_{1}$ (see Fig. 27) are given by

[TABLE]

$q^{\prime}$ is given by Eq. 132, $G_{0}$ is given by Eq. 86, and $G_{1}$ results in

[TABLE]

B.6 Finite angular resolution (finite infall radius) for power-law

indices 1/2

Although the first-order moment for a finite infall radius $r_{i}$, observed with a finite angular resolution, has to be calculated numerically, we can study its value at the origin, for $p=0$. The convolution of the moments $\mu_{0}(p;r_{i})$ and $\mu^{\prime}_{1}(p;r_{i})$ with a Gaussian beam of unit area and half-power beamwidth $b$,

[TABLE]

for $p=0$ is simply

[TABLE]

It is useful to use the variable $s\equiv r_{i}/b$, so that both moments can be expressed as

[TABLE]

where

[TABLE]

The normalized first-order moment at the origin will be

[TABLE]

The asymptotic values of $\mu_{1}(0;b,r_{i})$ for $r_{i}\to\infty$ (equivalent to $s\gg 1$) must coincide with the expression derived with infinite infall radius (Eq. 4.3). Effectively,

[TABLE]

so that

[TABLE]

as expected. Let us now evaluate the asymptotic expression for $\mu_{1}(0;b,r_{i})$ for $b\to\infty$ (equivalent to $s\ll 1$). Taking into account that $H_{0}(q)=0$ for $q>1$ and $H_{1}(q)=0$ for $q>1/\sqrt{3}$,

[TABLE]

where $C_{0}=\int_{0}^{1}H_{0}(q)\,dq$ and $C_{1}=\int_{0}^{1/\!\sqrt{3}}H_{1}(q)\,q^{-1/2}dq$ are constants to be evaluated numerically, resulting in $C_{1}/C_{0}\simeq-0.060$. Thus,

[TABLE]

Appendix C Finite spectral resolution and first-order moment of a line

Let $I(v)$ be the intensity of a line as a function of radial velocity. We are interested in calculating the first-order moment of the line profile,

[TABLE]

where

[TABLE]

We will make use of the relationship between the zeroth and first-order moments of a function $f$ and the values of its Fourier transform $\mathbf{F}[f]$ and its derivative $\mathbf{F^{\prime}}[f]$ at the origin (see Bracewell, 2000, chapter 8)

[TABLE]

Let us assume that the finite spectral resolution of the spectrometer can be represented by the convolution of the real line profile with an instrumental response function $W(v)$,

[TABLE]

and that the instrumental response is normalized to unit area, and is symmetric with respect to velocity or, more precisely, with zero first-order moment,

[TABLE]

In the Fourier domain we have

[TABLE]

The zeroth-order moment calculated from the observed profiles will be

[TABLE]

where we used that the Fourier transform of a convolution is the product of Fourier transforms (Bracewell, 2000). Thus, the zeroth-order moment is independent of the spectral resolution.

Let us consider now the unnormalized first-order moment,

[TABLE]

By using the relations with the derivative of the Fourier transform, we obtain

[TABLE]

Thus, $\mu^{\prime}_{1}$ is independent of the spectral resolution, and so is the normalized first-order moment, $\mu_{1}=\mu^{\prime}_{1}/\mu_{0}$.

In conclusion. the spectral resolution does not affect the value of the first-order moment of a line, as long as the spectrometer response can be described as a convolution with an instrumental response symmetric with respect to velocity.

Appendix D 2-D Convolution of a power-law function with a Gaussian beam

Let $F(p)$ be a 2-D power-law function of the radial distance

[TABLE]

that has to be convolved with a Gaussian beam of unit area and half-power beamwidth $b$,

[TABLE]

The 2-D convolution

[TABLE]

will have a different behavior for $p\gg b$ and $p\ll b$. On the one hand, for $p\gg b$ the convolution with the Gaussian beam will not modify noticeably the power-law function and the result will not depend on $b$,

[TABLE]

On the other hand, for $p\ll b$, $F_{b}$ will not depend much on $p$ and will be approximately constant,

[TABLE]

with $F_{0}$ given by

[TABLE]

The integral can be evaluated analytically and the result is

[TABLE]

For the cases of interest, we have

[TABLE]

The characteristic radius that separates the two regions of $F_{b}$ can be estimated as the intersection of the two asymptotic values, i.e. $F(p_{c})=F_{0}$, resulting in

[TABLE]

For the cases of interest, we have

[TABLE]
