Power Consumption and Energy-Efficiency for In-Band Full-Duplex Wireless Systems

TL;DR

This paper develops an analytical model to compare power consumption and energy efficiency between In-Band Full-Duplex and Half-Duplex WLANs, showing IBFD's higher power use but better energy efficiency.

Contribution

It introduces a new analytical model for IBFD WLAN power consumption and compares its energy efficiency with HD WLANs, validated by simulation results.

Findings

IBFD systems consume more power than HD systems.

IBFD WLANs have higher energy efficiency despite increased power use.

The analytical model closely matches simulation outcomes.

Abstract

This paper presents an analytical model of power consumption for In-Band Full-Duplex (IBFD) Wireless Local-Area Networks (WLANs). Energy-efficiency is compared for both Half-Duplex (HD) and IBFD networks. The presented analytical model closely matches the results generated by simulation. For a given traffic scenario, IBFD systems exhibit higher power consumption, however at improved energy efficiency when compared to equivalent HD WLANs.

Figures

Tables

Table 1. TABLE I: IEEE 802.11ac PHY and MAC Parameters.

Parameter	Value
Channel bandwidth	80 MHz
Spatial streams	2$\times$2 MIMO
PHY header duration	44 $\mu$s
Transmission rate	234 Mbps
Basic rate	24 Mbps
MAC header size	36 bytes
FCS size	4 bytes
ACK size	14 bytes
MPDU${}_{\text{max}}$ size	7,991 bytes
Slot duration ($\sigma$)	9 $\mu$s
SIFS duration	16 $\mu$s
DIFS duration	34 $\mu$s
CW${}_{\text{min}}$	16
CW${}_{\text{max}}$	1024

Table 2. TABLE II: Power Consumption Values.

Power Category	Value
Transmitter (${\omega }_{\text{TX}}$)	2.6883 W
Receiver (${\omega }_{\text{RX}}$)	1.5900 W
Idel State (${\omega }_{\text{d}}$)	0.9484 W
Control Circuit (${\omega }_{\text{CTRL}}$)	0.3000 W
Self-Interference Cancellation (${\omega }_{\text{SIC}}$)	0.0650 W

Equations

$$\rho \stackrel{\Delta }{=}\frac{L_{UL}}{L_{DL}}.$$

$$\text{Power}\stackrel{\Delta }{=}\frac{\text{Energy}}{\text{Time}}.$$

$${\mathcal{E}}_{\text{d}}={\omega }_{\text{d}}\sigma$$

$$Pr(\text{d})=(1-\tau {)}^n$$

$${\mathcal{E}}_{\text{S-TX}}={\omega }_{\text{TX+CTRL}}{\text{DATA}}_{\text{TX}}+{\omega }_{\text{d}}(\text{DIFS+SIFS})+{\omega }_{\text{RX+CTRL}}\text{ACK}$$

$$Pr(\text{S-TX})=\tau (1-p)$$

$${\mathcal{E}}_{\text{S-RX}}={\omega }_{\text{RX+CTRL}}{\text{DATA}}_{\text{RX}}+{\omega }_{\text{d}}(\text{DIFS+SIFS})+{\omega }_{\text{TX+CTRL}}\text{ACK}$$

$$Pr(\text{S-RX})=\tau (1-\tau {)}^{n-1}$$

$${\mathcal{E}}_{\text{S-RX}}={\omega }_{\text{RX+CTRL}}({\text{DATA}}_{\text{RX}}+\text{ACK})+{\omega }_{\text{d}}(\text{DIFS+SIFS})$$

$$Pr(\text{S-RX})=(n-2)\tau (1-\tau {)}^{n-1}$$

$${\mathcal{E}}_{\text{C-TX}}={\omega }_{\text{TX+CTRL}}{\text{DATA}}_{\text{TX}}+{\omega }_{\text{d}}(\text{DIFS+SIFS+ACK})$$

$$Pr(\text{C-TX})=\tau p$$

$${\mathcal{E}}_{\text{C-RX}}={\omega }_{\text{RX+CTRL}}{\text{DATA}}_{\text{RX}}+{\omega }_{\text{d}}(\text{DIFS+SIFS+ACK})$$

$$Pr(\text{C-RX})=(1-\tau )[1-(1-\tau {)}^{n-1}-(n-1)\tau (1-\tau {)}^{n-2}]$$

$$\mathbb{E}[\text{energy}]=\sum _{i=1}^6(\text{energy in state i})\cdot Pr(\text{state i}).$$

$$\begin{array}{rl}\text{Power}& =\frac{\mathbb{E}[\text{energy}]}{\mathbb{E}[\text{time duration}]}\\ & \\ & =\frac{{\sum }_{i=1}^6(\text{energy in state i})\cdot Pr(\text{state i})}{(1-P_{tr})\sigma +P_{tr}{P}_s{T}_s+P_{tr}(1-P_s)T_c}\end{array}$$

$${\mathcal{E}}_{\text{d}}^{{}^{\text{AP}}}={\omega }_{\text{d}}\sigma$$

$${\mathcal{E}}_{\text{S-TXRX}}^{{}^{\text{AP}}}={\omega }_{\text{TX+CTRL}}({\text{DATA}}_{\text{TX}}+\text{ACK})+{\omega }_{\text{RX+SIC}}({\text{DATA}}_{\text{RX}}+\text{ACK})+{\omega }_{\text{d}}(\text{DIFS+SIFS})$$

$${\mathcal{E}}_{\text{C-TXRX}}^{{}^{\text{AP}}}={\omega }_{\text{TX+CTRL}}{\text{DATA}}_{\text{TX}}+{\omega }_{\text{RX+SIC}}{\text{DATA}}_{\text{RX}}+{\omega }_{\text{d}}(\text{DIFS+SIFS+ACK})$$

$$Pr(\text{AP-d})=(1-{\tau }_{{}_{AP}})(1-{\tau }_{{}_{STA}}{)}^{n-1}$$

$$Pr(\text{AP-S-TXRX})={\tau }_{{}_{AP}}(1-{\tau }_{{}_{STA}}{)}^{n-1}+(n-1){\tau }_{{}_{STA}}(1-{\tau }_{{}_{STA}}{)}^{n-2}$$

$$Pr(\text{AP-C-TXRX})=1-Pr(\text{AP-d})-Pr(\text{AP-S-TXRX})$$

$${\mathcal{E}}_{\text{d}}^{{}^{\text{STA}}}={\omega }_{\text{d}}\sigma$$

$${\mathcal{E}}_{\text{S-TXRX}}^{{}^{\text{STA}}}={\omega }_{\text{TX+SIC}}({\text{DATA}}_{\text{TX}}+\text{ACK})+{\omega }_{\text{RX+CTRL}}({\text{DATA}}_{\text{RX}}+\text{ACK})+{\omega }_{\text{d}}(\text{DIFS+SIFS})$$

$${\mathcal{E}}_{\text{S-RX}}^{{}^{\text{STA}}}={\omega }_{\text{RX+CTRL}}({\text{DATA}}_{\text{RX}}+\text{ACK})+{\omega }_{\text{d}}(\text{DIFS+SIFS})$$

$${\mathcal{E}}_{\text{C-TXRX}}^{{}^{\text{STA}}}={\omega }_{\text{TX+SIC}}{\text{DATA}}_{\text{TX}}+{\omega }_{\text{RX+CTRL}}{\text{DATA}}_{\text{RX}}+{\omega }_{\text{d}}(\text{DIFS+SIFS+ACK})$$

$${\mathcal{E}}_{\text{C-RX}}^{{}^{\text{STA}}}={\omega }_{\text{RX+CTRL}}{\text{DATA}}_{\text{RX}}+{\omega }_{\text{d}}(\text{DIFS+SIFS+ACK})$$

$$Pr(\text{STA-d})=(1-{\tau }_{{}_{AP}})(1-{\tau }_{{}_{STA}}{)}^{n-1}$$

$$Pr(\text{STA-S-TXRX})={\tau }_{{}_{STA}}(1-p_{{}_{STA}})+(1-{\tau }_{{}_{STA}}{)}^{n-1}\frac{{\tau }_{{}_{AP}}}{(n-1)}$$

$$\displaystyle Pr(\text{STA-S-$\overline{\text{RX}}$})=(n-2)\tau_{{}_{STA}}(1-\tau_{{}_{STA}})^{n-2}(1-\tau_{{}_{AP}})+\frac{(n-2)}{(n-1)}\tau_{{}_{AP}}\Big{[}\tau_{{}_{STA}}(1-\tau_{{}_{STA}})^{n-2}+(1-\tau_{{}_{STA}})^{n-1}\Big{]}$$

$$Pr(\text{STA-C-TXRX})={\tau }_{{}_{STA}}{p}_{{}_{STA}}$$

$$Pr(\text{STA-C-RX})=1-Pr(\text{STA-d})-Pr(\text{STA-S-TXRX})-Pr(\text{STA-S-RX})-Pr(\text{STA-C-TXRX})$$

Full text

I Introduction

Increasing energy-efficiency in IEEE 802.11 Wireless Local-Area Networks (WLANs) has become a priority due to the vast deployment of WiFi networks over recent years [1]. In this paper, an analytical model is presented to quantify power consumption and energy-efficiency for In-Band Full-Duplex (IBFD) WLANs. Unlike Half-Duplex (HD) communications (i.e. Time-Division Duplexing or Frequency-Division Duplexing), IBFD techniques allow two wireless nodes to transmit and receive simultaneously on one frequency band (details can be found in [2]). While IBFD is a promising technique to improve several metrics in wireless networks, the effect on power consumption has not been sufficiently addressed. This paper presents a mathematical model for power consumption in IBFD WLANs, and the model is confirmed by simulation.

II System Model

This paper assumes an infrastructure WLAN with an Access Point (AP) and $n-1$ associated client stations (STAs) adopting basic IEEE 802.11 Distributed Coordination Function (DCF) standard with one channel. Total frame loss happens when collisions occur. No errors at the PHY layer take place. All wireless nodes can detect one another with no hidden terminals. Each node always has a frame to transmit. The AP always has a load of the maximum MAC Protocol Data Unit (MPDU${}_{\text{max}}$). All STAs have equal Symmetry Ratio (SR) values as defined in [3]. If the traffic load is designated as ($L$), then SR is the ratio of the uplink to the downlink as follows

[TABLE]

PHY and MAC parameters are set according to the latest IEEE 802.11ac release [4] as indicated in Table I.

III HD IEEE 802.11 Power Consumption Model

Power consumption is based on the classical definition of power

[TABLE]

As presented in [5], the energy consumed by a node in an HD WLAN depends on the state of the node. There are six mutually exclusive states a node can be in. The energy consumption $(\mathcal{E})$ in terms of power consumption $(\omega)$ and the probability for each state are given as follows

Idle (d) state

[TABLE]

[TABLE] 2. 2.

Successful transmission (S-TX) state

[TABLE]

[TABLE] 3. 3.

Successful reception (S-RX) state

[TABLE]

[TABLE] 4. 4.

Successful overhearing (S-$\overline{\text{RX}}$) state

[TABLE]

[TABLE] 5. 5.

Transmitting during a collision (C-TX) state

[TABLE]

[TABLE] 6. 6.

Overhearing a collision (C-$\overline{\text{RX}}$) state

[TABLE]

[TABLE]

where $\tau$ is the probability of transmission, $p$ is the conditional collision probability, and $n$ is the number of nodes (details are in [6]).

The expected value of consumed energy by a node can be expressed in terms of the energy consumption and probability of each state as

[TABLE]

Finally, the average power consumption of a node is given by rewriting (2) as

[TABLE]

where the probability that there is at least a transmission $(P_{tr})$, the probability of a successful transmission $(P_{s})$, the expected time of a successful transmission $(T_{s})$, and the expected time of a collision $(T_{c})$ are are given in [6].

IV Analysis for IBFD WLAN Power Consumption

A similar approach to the HD case is adopted here for an IBFD WLAN. Several considerations must be taken into account. First, the AP properties in an IBFD system are different from those of STAs. Second, energy consumption for Self-Interference Cancellation (SIC) to enable IBFD communications must be added. Third, IBFD mechanisms must be factored into the expressions for each state.

IV-A The AP in an infrastructure IBFD WLAN

For the AP, there are 3 states as follows

Idle (AP-d) state 2. 2.

Successful transmission/reception (AP-S-TXRX) state 3. 3.

Transmitting/receiving a collision (AP-C-TXRX) state

IV-B An STA in an infrastructure IBFD-WLAN

For each STA, there are 5 states as follows

Idle (STA-d) state 2. 2.

Successful transmission/reception (STA-S-TXRX) state 3. 3.

Successful overhearing (STA-S-$\overline{\text{RX}}$) state 4. 4.

Transmitting/receiving a collision (STA-C-TXRX) state 5. 5.

Overhearing a collision (STA-C-$\overline{\text{RX}}$) state

The consumed energy and the probability of each state for the AP and an STA in an IBFD WLAN are given below in (17) through (32). Detailed expressions for $\tau_{{}_{AP}}$, $\tau_{{}_{STA}}$, $P_{tr}$, $P_{s}$, $T_{s}$, and $T_{c}$ in an IBFD WLAN can be found in [7].

V Results and Evaluation

Both analytical and simulation results are reported in this paper. First, power consumption and energy-efficiency are analyzed when the traffic is fully symmetrical (i.e. $\rho=1$) for both HD and IBFD systems. Then, the effect of symmetry on both power consumption and energy efficiency is presented through the two extreme cases of low symmetry ($\rho=0.1$) and high symmetry ($\rho=0.9$). The calculated power consumption values for $\omega_{\text{\tiny TX}}$, $\omega_{\text{\tiny RX}}$, and $\omega_{\text{d}}$ in TABLE II are based on [8]. Values of $\omega_{\text{\tiny SIC}}$ and $\omega_{\text{\tiny CTRL}}$ are stated in [9]. While $\omega_{\text{\tiny SIC}}$ accounts for both active and passive cancellation circuits, the majority of SIC is treated passively with minimal power consumption.

V-A Fully Symmetrical Traffic

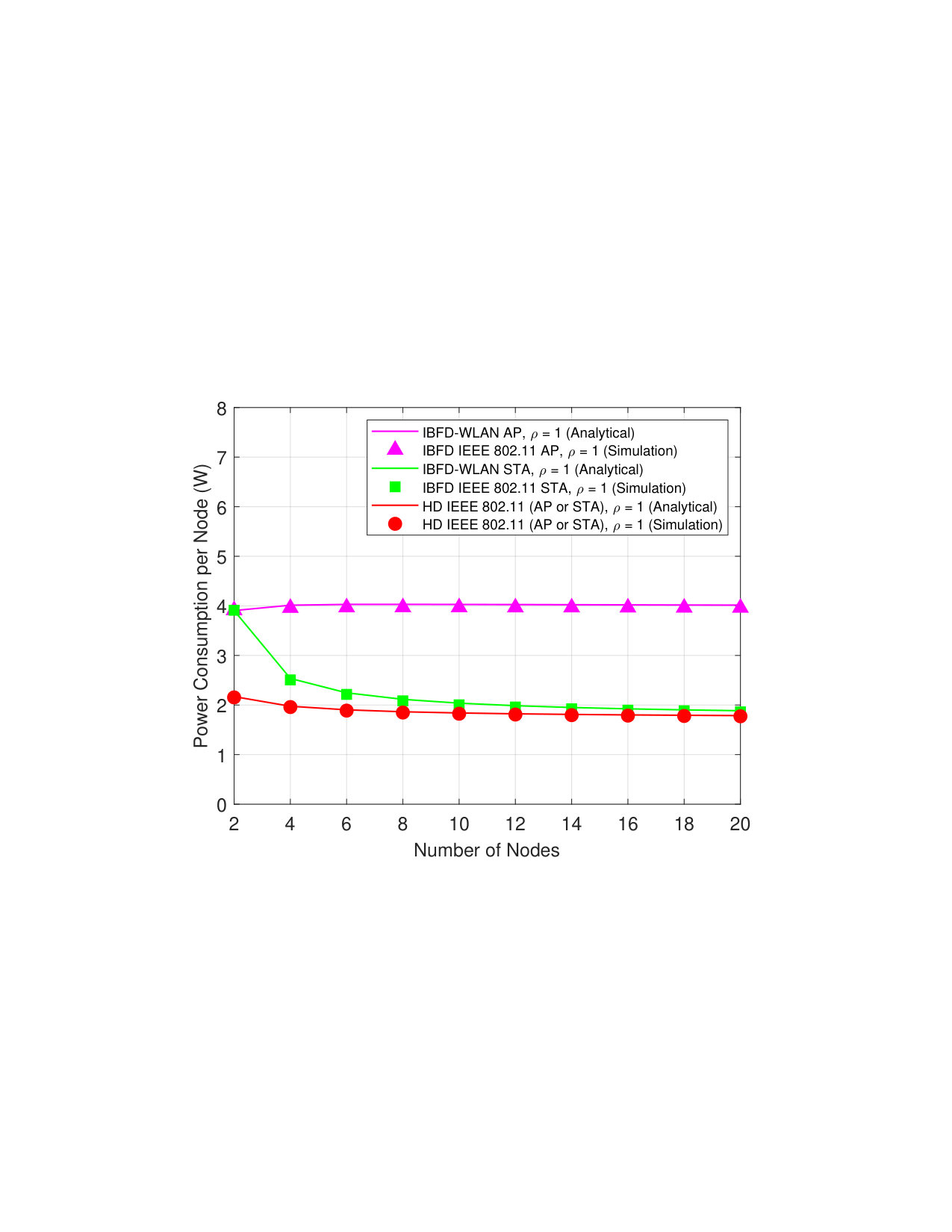

Fig. 1 shows how the number of nodes affects the power consumption per node in both HD and IBFD networks. Both analytical and simulation results are reported when the traffic is assumed to be fully symmetrical. This is the best case scenario where the link is fully utilized in both uplink and downlink directions. In the HD case, the AP and every STA have identical power consumption since HD IEEE 802.11 yields the same power profile for every node. The power consumption per node in an HD WLAN stabilizes at a constant value as the number of nodes increases since the dominant power consumption mode happens in states S-TX and C-TX, and the associated probabilities for both transmitting states reach a steady value quickly as the number of nodes increases. In the case of IBFD WLAN, the results are reported for both the AP and an STA since they have different properties here. Power consumption is higher in IBFD WLANs since there is simultaneous transmission and reception at both the AP and an STA when the channel is non-idle. The AP in an IBFD WLAN has high power consumption since it is always transmitting (states AP-S-TXRX and AP-C-TXRX) regardless of how many STAs are in the network. This does not constitute an efficiency concern since APs are typically powered by AC electricity in residential WLANs. As the number of nodes increases, power consumption per STA gradually decreases to reach a constant value since the probability values of transmitting states (i.e. STA-S-TXRX and STA-C-TXRX) quickly stabilize as the number of nodes becomes high. When $n=2$ with fully symmetrical traffic loads, the AP and the STA have the same power consumption in the IBFD case since they have the same probabilistic properties with no collision and no overhearing from either nodes as indicated in [10].

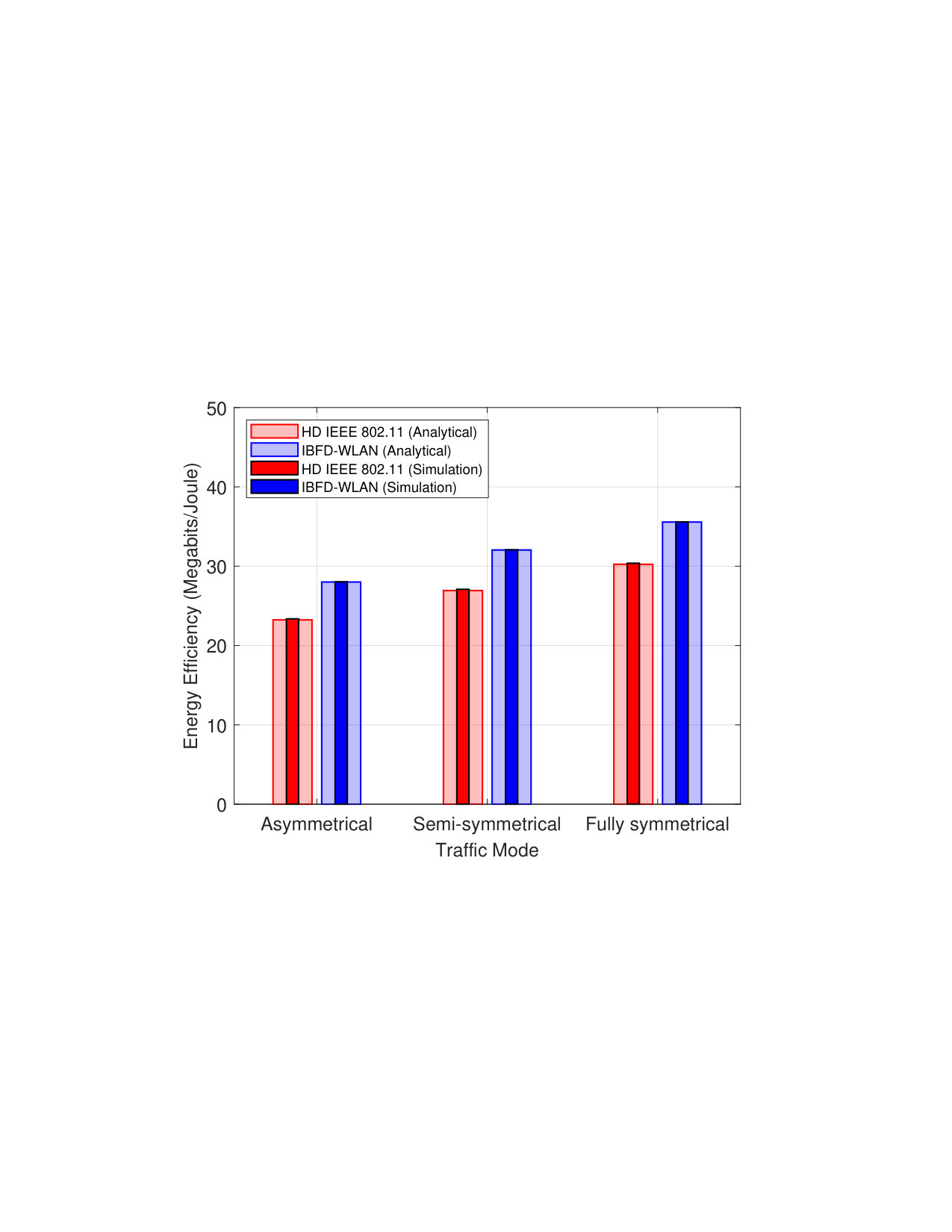

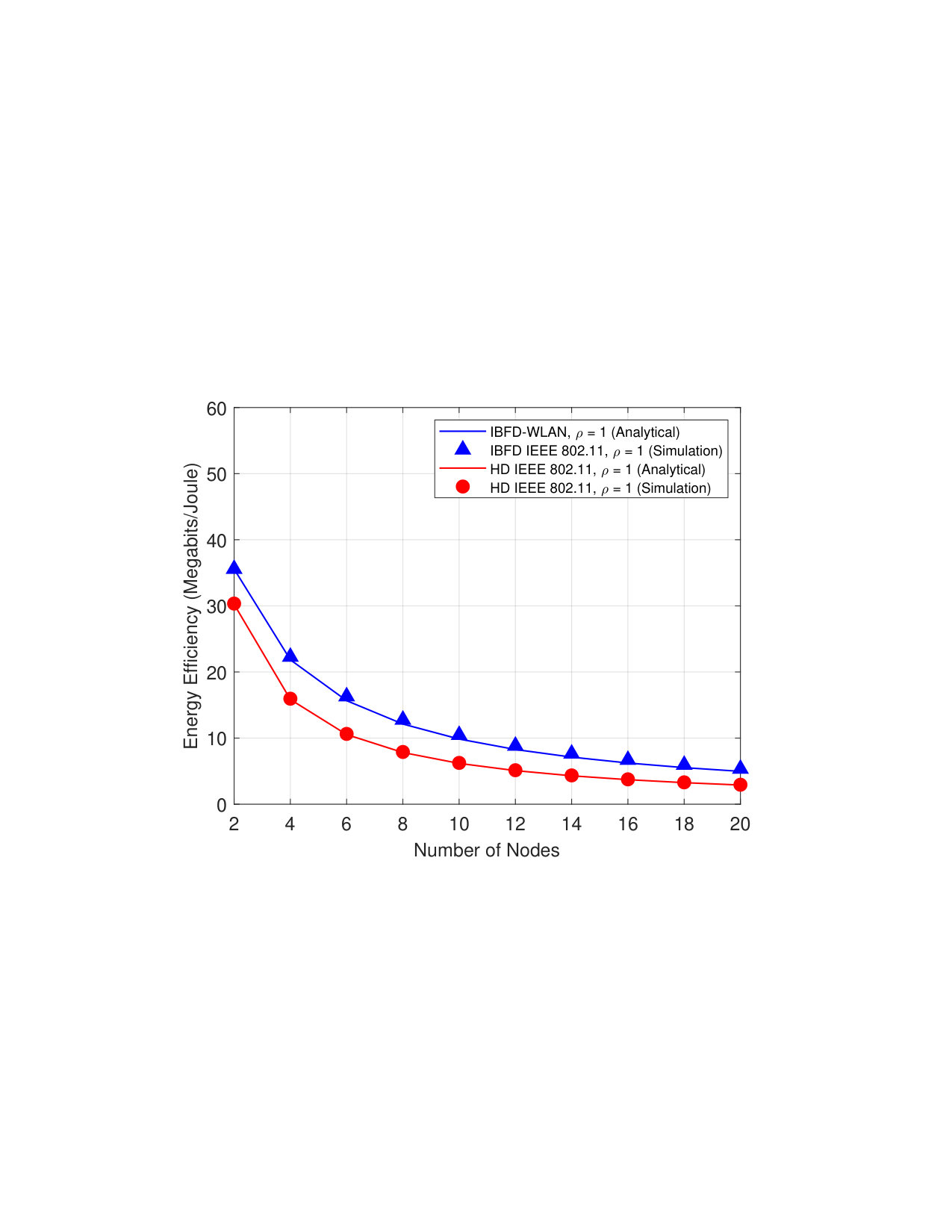

Fig. 2 shows analytical and simulation results of energy-efficiency in terms of Megabits/Joule resulting from dividing throughput by consumed power as in [9]. The results are reported for both HD and IBFD cases. IBFD WLANs always have higher energy-efficiency since more data is transmitted. A key reason here is that only one node uses the link for data in HD networks while two transmitting nodes utilize the link for data in an IBFD WLAN.

V-B High Symmetry vs. Low Symmetry

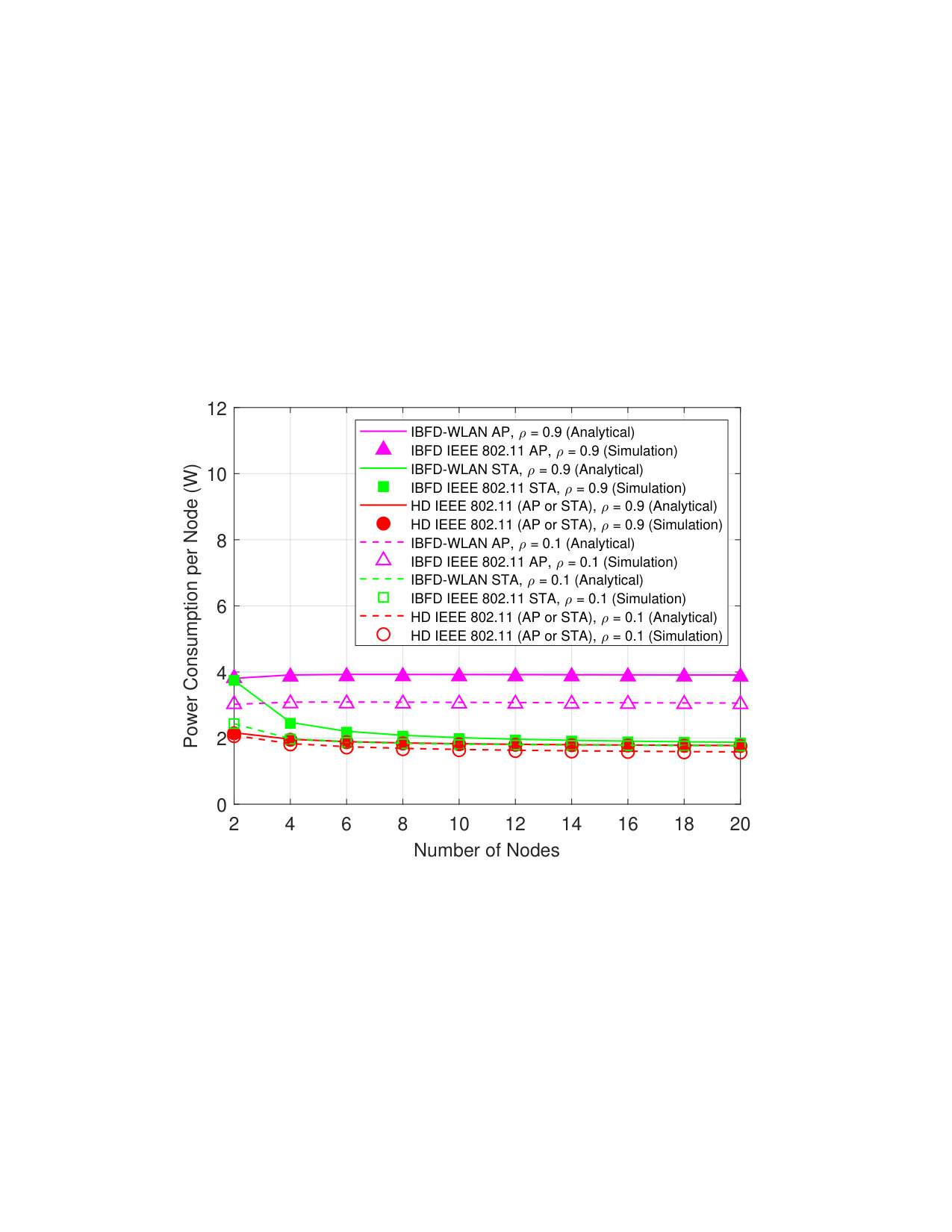

Fig. 3 shows the results of power consumption per node in both HD and IBFD WLANs. High symmetry ($\rho=0.9$) and low symmetry ($\rho=0.1$) are considered. Similar patterns to the ones in Fig. 1 can be seen here. Power consumption is reduced when symmetry is low since lower power consumption is needed to transmit (and receive) smaller uplink traffic loads. For HD WLAN, the power consumption is slightly affected by the change of symmetry mode but remains lower than the corresponding IBFD case. In the special case when an IBFD WLAN has two nodes, the network becomes more efficient due to the elimination of collisions [10]. In this case, the STA has higher power consumption than the corresponding HD case since it is simultaneously transmitting and receiving with IBFD. Power consumption increases as symmetry increases because more power is needed to transmit a larger uplink payload. The power consumption of the AP in the IBFD case with $n=2$ increases when the uplink load increases due to the increase in power consumption at the AP’s receiver.

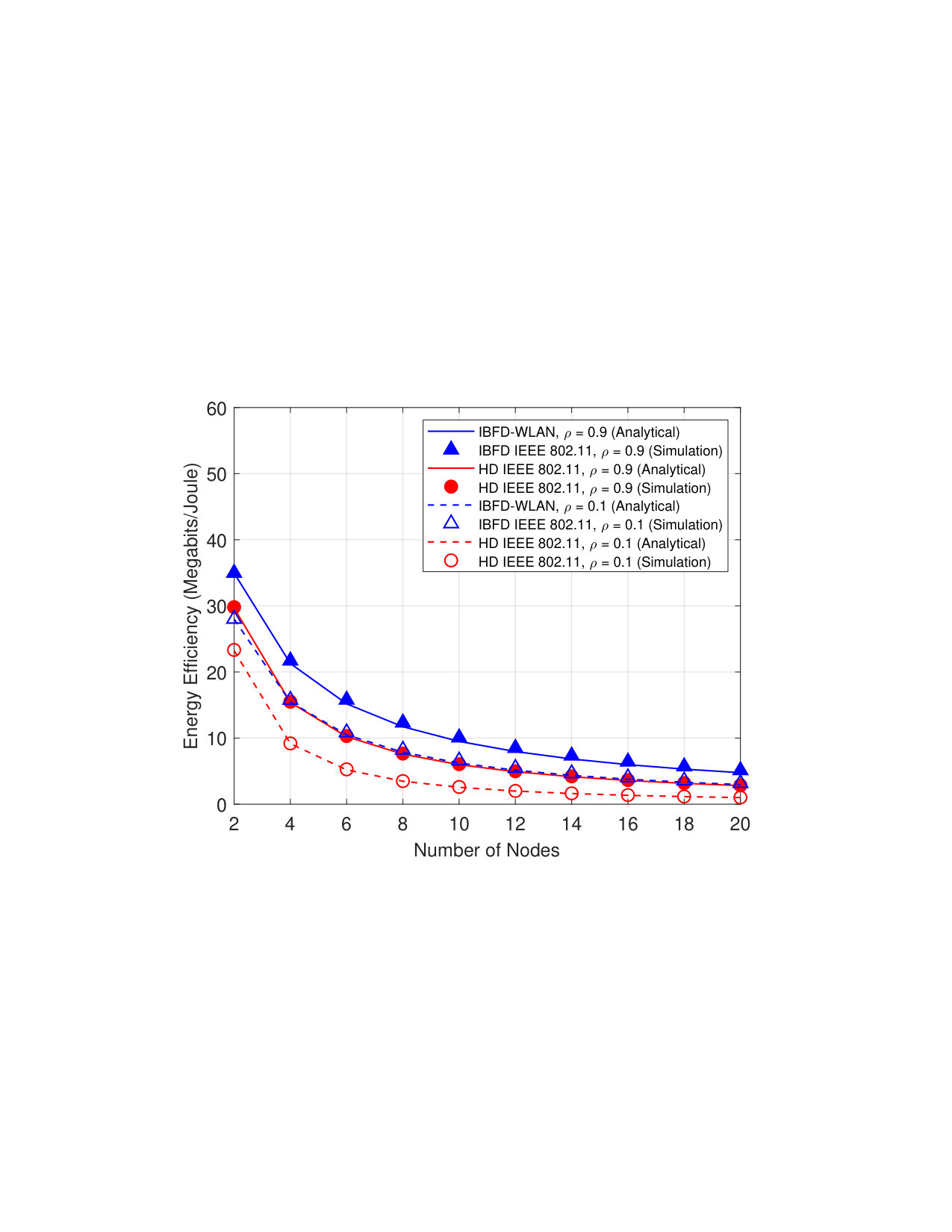

Fig. 4 shows the energy-efficiency for the cases of high and low symmetry scenarios in both HD and IBFD WLANs. The key result in this figure is that energy-efficiency of low symmetry IBFD WLAN is almost equal to the energy-efficiency of high symmetry HD WLAN. The low symmetry scenario is naturally inefficient due to the lower utilization of the uplink. Hence, it takes an extremely inefficient assumption (i.e. low symmetry) to reduce the high efficiency of an IBFD WLAN to the upper limit of energy-efficiency in the HD case. This result is intuitive since an IBFD WLAN with low symmetry has effectively only one fully utilized communications direction (i.e. downlink), which is equivalent to the fully utilized communications direction (i.e. either the uplink or downlink) in the HD WLAN with high symmetry. When $n=2$, the increase of energy-efficiency as the symmetry increases is due to the higher data amount transmitted over the link. Even though more power is needed when there is a larger data load, both HD and IBFD networks show increase in efficiency when the traffic is highly symmetrical. The increase of efficiency in an IBFD WLAN as symmetry increases shows that the increase of transmitted data is high enough to overcome the increase in consumed power.

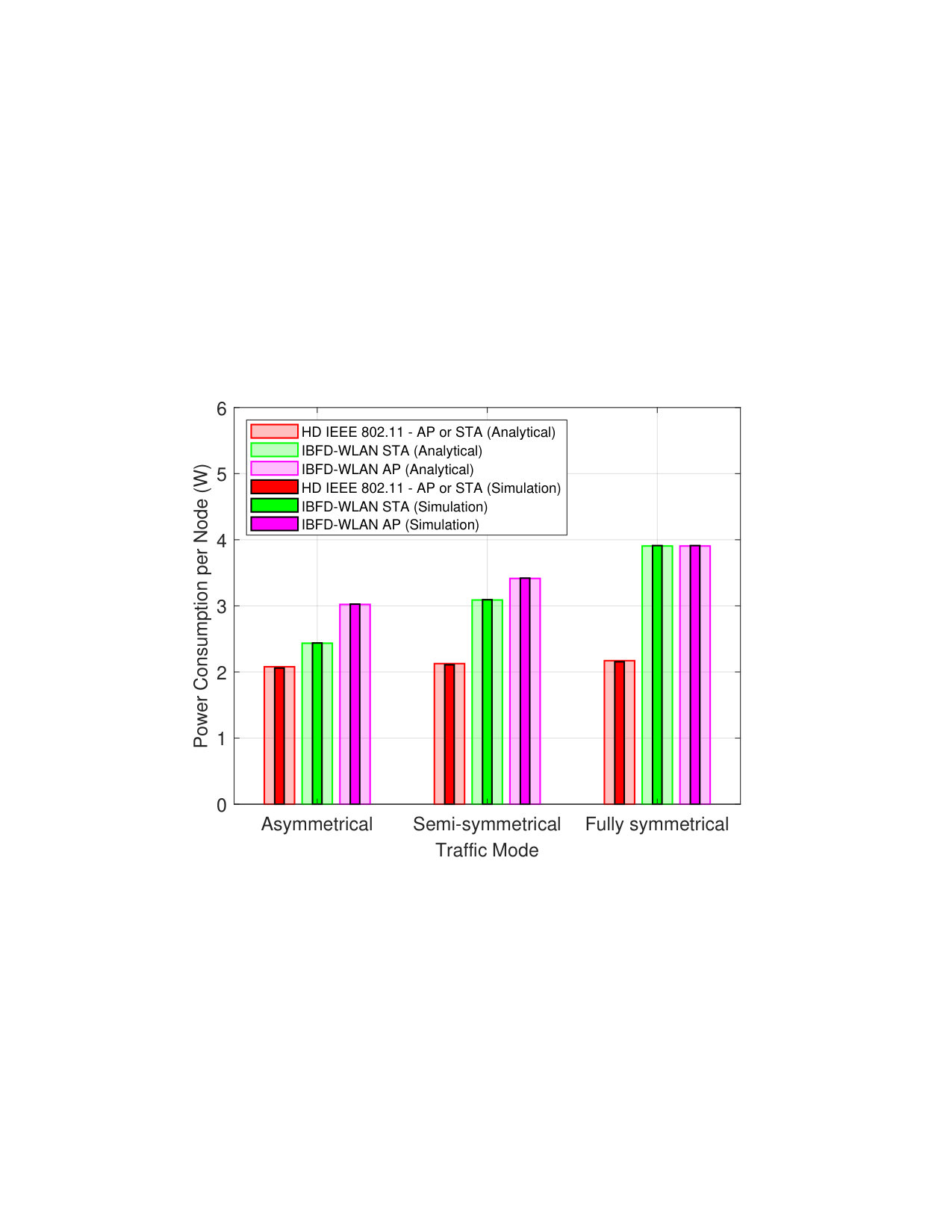

VI Conclusion

An analytical model for power consumption and energy-efficiency in IBFD WLANs is presented and confirmed by simulation. Even though power consumption is higher in IBFD WLANs compared to HD WLANs, IBFD networks still have higher energy-efficiency. The presented model is necessary to study future IBFD solutions for IEEE 802.11 networks.
