Beam-beam Blowup in the presence of x-y coupling sources at FCC-ee

TL;DR

This paper investigates how x-y coupling sources affect beam-beam effects, including beamstrahlung and dynamic changes at the Interaction point, in the high-energy FCC-ee collider design.

Contribution

It provides a detailed analysis of beam-beam effects in FCC-ee considering x-y coupling, which is crucial for optimizing collider performance at high energies.

Findings

X-y coupling influences beam-beam interactions significantly.

Beamstrahlung limits beam lifetime at high energies.

Dynamic effects alter beta functions and emittances at the IP.

Abstract

FCC-ee, the lepton version of the Future Circular Collider (FCC), is a 100 Km future machine under study to be built at CERN. It acquires two experiments with a highest beam energy of 182.5 GeV. FCC-ee aims to operate at four different energies, with different luminosities to fulfil physics requirements. Beam-beam effects at such a high energy/luminosity machine are very challenging and require a deep understanding, especially in the presence of x-y coupling sources. Beam-beam effects include the beamstrahlung process, which limits the beam lifetime at high energies, as well as dynamic effects at the Interaction point (IP) which include changes in the beta functions and emittances. In this report, we will define the beam-beam effects and their behaviours in the FCC-ee highest energy lattice after introducing x-y coupling in the ring.

Figures

Tables

Table 1. Table 1: Values of dynamic β 𝛽 \beta functions and emittances for one given random generator

Twiss functions	Design values	Dynamic values
${\beta }_x$ (m)	1	0.49
${\beta }_y$ (mm)	2	1.12
${ϵ}_x$ (nm)	1.34	2.14
${ϵ}_y$ (pm)	2.7	3.83

Table 2. Table 2: Dispersion and coupling values at IP1 and IP2 for seeds 13 and 25

Seed	${\eta }_y$ at IP1 / IP2 ($\mu$m)	R2 at IP1 / IP2 (mm)
13	-15 / 17	0.15 / -0.03
25	5.3 / -22.1	0.5 / 1

Equations

$$\begin{array}{r}\left(\begin{array}{cc}\cos \mu & \beta \sin \mu \\ -\frac{1}{\beta }\sin \mu & \cos \mu \end{array}\right)=\left(\begin{array}{cc}1& 1\\ -\frac{1}{2f}& 0\end{array}\right)\left(\begin{array}{cc}\cos {\mu }_0& {\beta }_0\sin {\mu }_0\\ -\frac{1}{{\beta }_0}\sin {\mu }_0& \cos {\mu }_0\end{array}\right)\left(\begin{array}{cc}1& 1\\ -\frac{1}{2f}& 0\end{array}\right)\end{array}$$

$$\beta =\frac{{\beta }_{x,y}}{\sqrt{1-(2\pi {\xi }_{x,y}{)}^2+4\pi {\xi }_{x,y}cot({\mu }_0{}_{x,y})}}$$

$${\xi }_{x,y}=\frac{{\beta }_0{}_{x,y}}{4\pi f_{x,y}}$$

$$KL=\frac{4\pi f_{x,y}}{{\beta }_{0_{x,y}}}$$

Full text

1 Introduction

Beam-beam effects including beamstrahlung have been studied for FCC-ee. Dynamic effects including dynamic $\beta$ functions and dynamic emittances were simulated in the presence of vertical misalignments of the sextupoles. Tracking was performed in SAD [1] with a beam-beam element present at both IPs of the FCC-ee highest energy lattices (175 and 182.5 GeV). The beam-beam is represented by a weak-strong beam beam simulation (BBWS) [2] which is implemented in SAD. Beam blowup was observed by tracking in the presence of beam-beam and without beam beam. We will report on the different simulations and discuss the results.

2 Dynamic $\beta$ functions and emittances

Dynamic effects are the change of the Twiss parameters ($\beta$ functions and emittances) at the IP due beam beam quadrupolar focusing. These dynamic effects are enhanced by running at half integer or integer resonance tunes and thus affecting the luminosity.

2.1 Analytical estimations

Dynamic beta functions can be easily calculated by the half turn matrix as given in Eq.1, where $\beta$, $\beta_{0}$, $\mu$, $\mu_{0}$ are the dynamic $\beta$, the design $\beta$, the shifted betatron tune after beam beam and the design betatron tunes respectively and $\frac{1}{f}$ being the beam beam strength. Solving Eq. 1, we can obtain the dynamic beta function given in Eq.2 where $\xi_{x,y}$ is the so-called beam beam parameter and expressed in terms of $\beta$ function and beam-beam force as given in Eq.3

[TABLE]

[TABLE]

[TABLE]

Analytical estimations of dynamic emittance require longer calculations. One way to calculate the dynamic horizontal emittance is given in [3]. The calculation of the dynamic vertical emittance is not straight forward since it requires the knowledge of the errors and corrections of the lattice.

2.2 Simulations of dynamic effects

The dynamic $\beta$ functions and emittance were also simulated by an insertion of a thin quadrupole at both IPs representing the linear beam-beam. The thin quadrupole gives a kick as given in Eq.4.

[TABLE]

The beam beam parameters in this case are given to be (0.095,0.157) in the horizontal and vertical plane respectively. It is important to mention that the vertical emittance in the lattice is generated by vertically misaligned sextupoles to achieve an xy coupling of 0.2%. Furthermore, the values of the betatron tunes for the given lattice are ($\nu_{x}$,$\nu_{y}$)=(0.553, 0.59). The new values of $\beta$ functions and emittance, after the insertion of the thin quadrupole, are then extracted. The results of the simulations for the dynamic $\beta$ perfectly match with the analytical estimations and the results of the dynamic effects are summarized in the Table.1. It is important here to highlight that the values of the dynamic emittance depend essentially on the way the xy coupling is introduced in the lattice.

3 Tracking and blowup

3.1 Tracking with beam beam

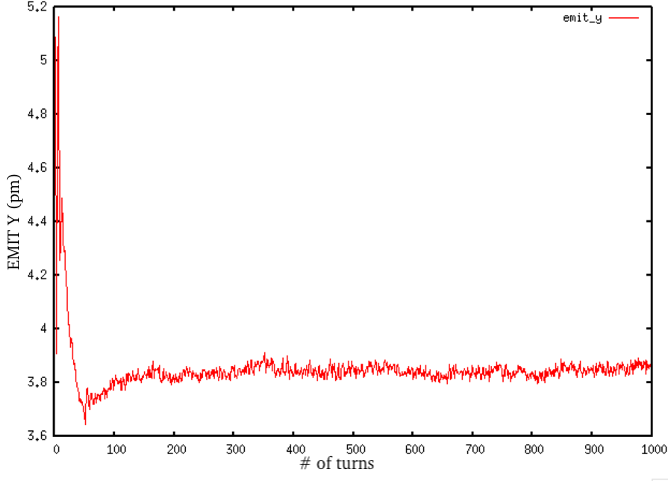

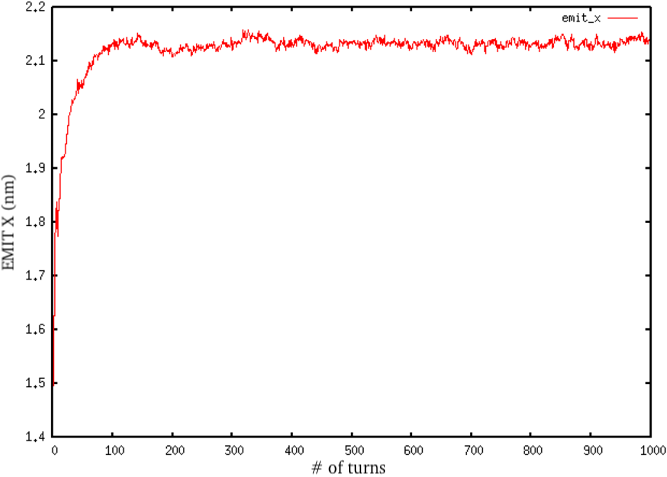

Tracking was also considered to study the beam beam dynamic effects. This was performed by inserting two beam beam elements at both IPs of the lattice. Tracking of 104 macroparticles beam initially generated at the IP was performed over 500 turns (50 turns= 1 longitudinal damping period). Every turn, the $\beta$ functions and the emittances of the tracked beam were calculated at the IP. In the following section, the vertical emittance is introduced by vertically misaligning the sextupoles to achieve an xy coupling of 0.2%. For the time being, only one seed is used for the random misalignments of the sextupoles. Tracking in the presence of the beam beam elements showed a blowup in the vertical (from 2.7 pm to 3.83 pm) and horizontal (from 1.34 nm to 2.14 nm) emittances as shown in Figs.(1,2) Such a blowup in the vertical emittance was not observed in the simulations without misalignments[4]. To verify the source of the blowup, a tracking was performed without a beam beam element.

3.2 Tracking without beam beam

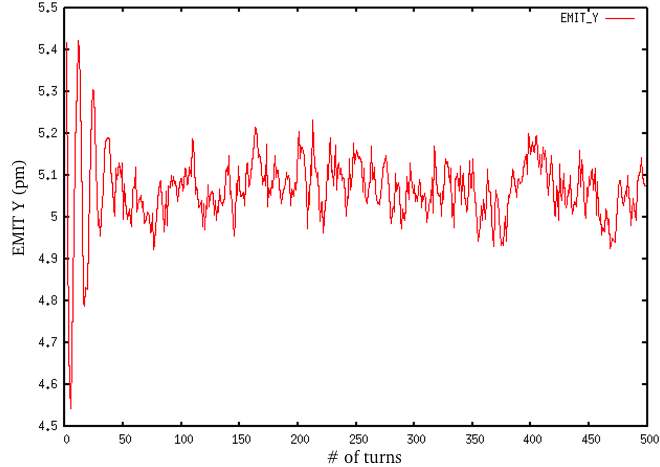

Beam beam elements are removed and a simple tracking was performed in the presence of vertical misaligned sextupoles to achieve 2.7 pm vertical emittance. The same seed used for the sextupole misalignments for tracking with the beam beam was also used for this tracking. Unexpected emittance blowup of the vertical emittance was observed (from 2.7 pm to 5 pm). This blowup is shown in Fig. 3. A possible reason for such a blowup could be related to the dispersions and xy coupling induced by the sextupole misalignments in the ring.

4 More samples tracking

For a better understanding, different seed generators for sextupole misalignments have been produced and tracking was performed with and without the beam beam element. Results showed the clear dependence of the blowup on the seed number.

4.1 With beam beam

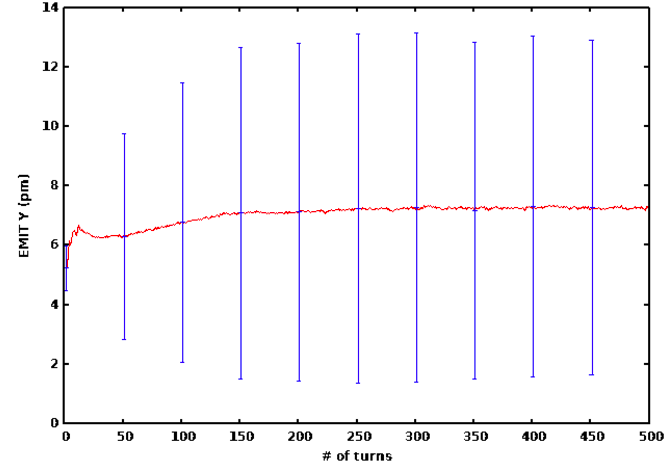

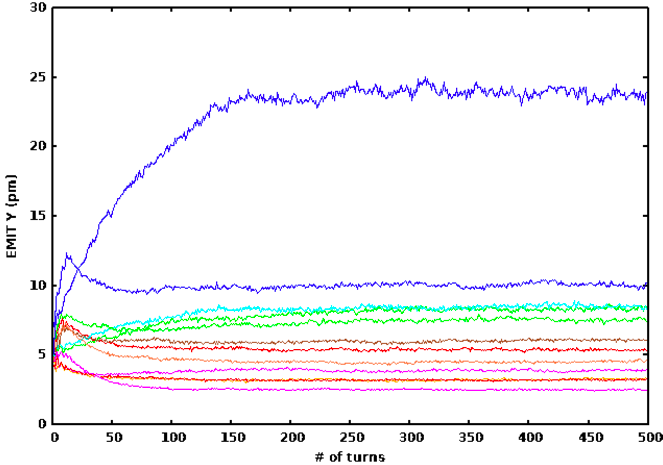

Twelve different samples were simulated and tracking of the beam was performed in the presence of the beam beam element, over 500 full turns. The vertical emittance was then averaged over the different samples and the result is shown in Fig. 4 along with error bars. The error bars are big, this is explained by the variation of the amount of the vertical emittance blowup for different random generator seeds shown in Fig. 5.

4.2 Without beam beam

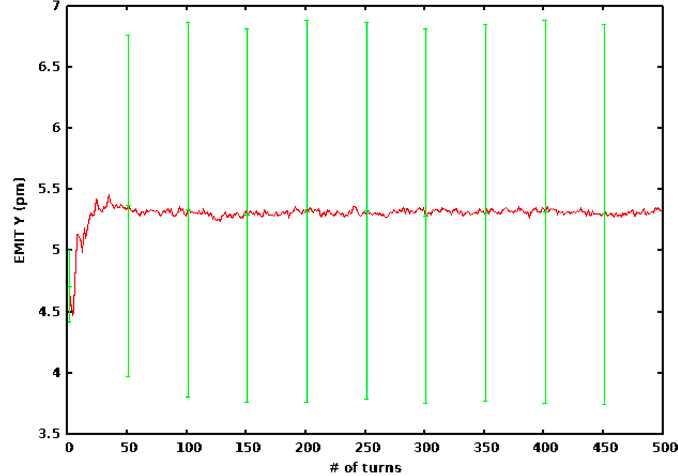

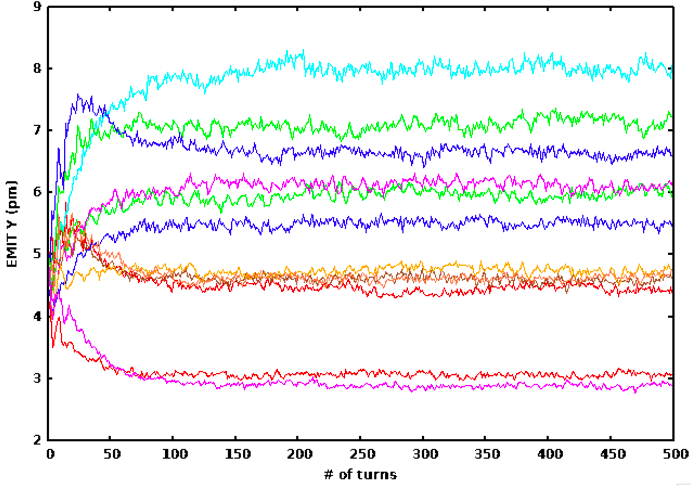

The same procedure was done in the absence of the beam beam element, the result of the average emittance is shown in Fig. 6. The individual seeds are shown in Fig. 7.

4.3 Compare Optics

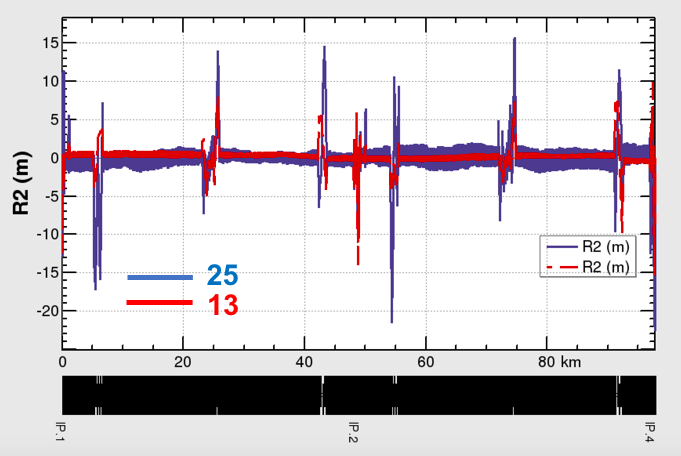

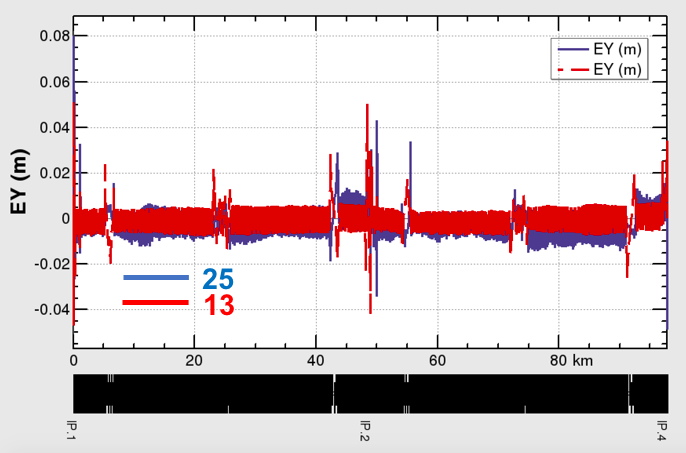

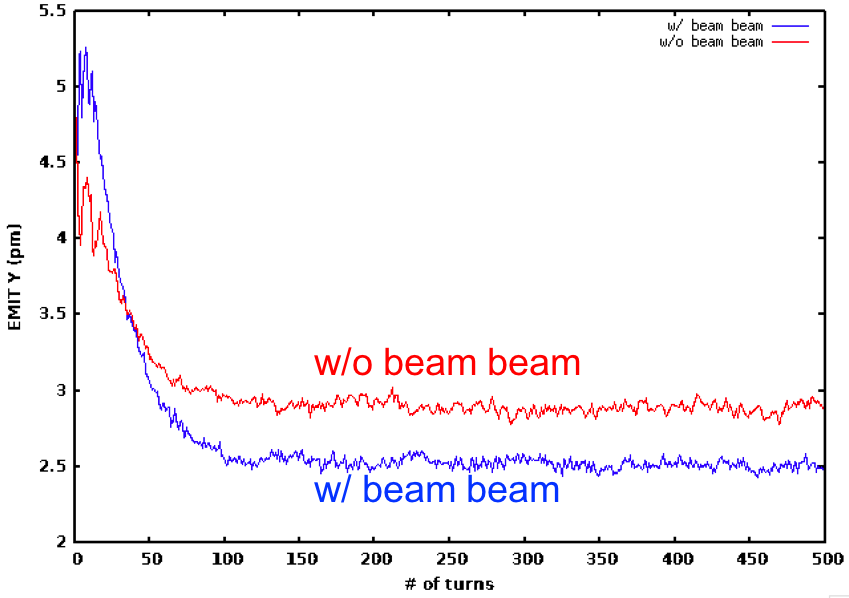

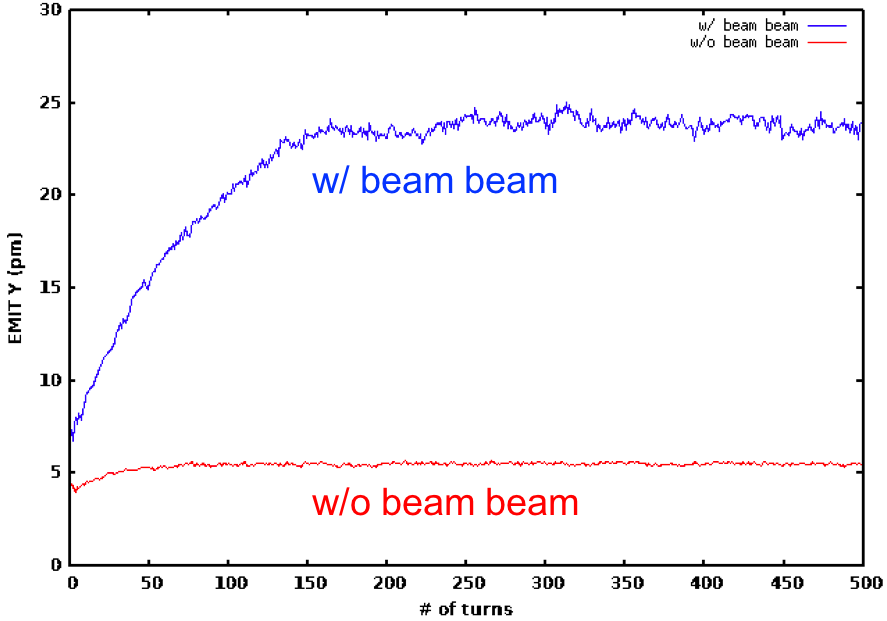

Among the twelve different seeds simulated we choose the best and the worst seed and we compare their optics. The best seed is number 13 which didn’t result in a vertical emittance blowup in both cases, with and without beam beam (Fig. 8), however the largest blowup was induced by seed number 25 (Fig. 9). We compare the vertical dispersion functions and R2 coupling parameters in the lattice for the two seeds since the vertical emittance depends strongly on these parameters. We notice that the dispersion functions are globally similar for both seeds (Fig. 10), however the coupling parameter R2 is larger for seed 25 than for seed 13 (Fig. 11). The vertical dispersions and R2 coupling values are also checked at the IP, and results are reported in Table. 2. As predicted, R2 values at IPs are higher for seed 25 than for seed 13 which is obviously resulting in a vertical emittance blowup.

Other simulations have been carried on, where the vertical emittance blowup was found to be dependent on the symmetry of the skew quads and the values of the betatron and synchrotron tunes [5].

5 CONCLUSION

Beam blowup was observed by tracking with and without beam beam in the presence of xy coupling sources in the ring represented by vertical misalignments of sextupoles. This blowup was observed to be dependent of the random generator used for the sextupole misalignments. High R2 coupling parameter values seemed to be responsible for such a blowup. Further simulations are undergoing considering corrected lattice, however this blowup will set further conditions on the low emittance tuning and the choice of the tunes.

6 ACKNOWLEDGEMENTS

The authors thank M. Benedikt, A. Blondel, M. Boscolo, E. Levichev, K. Ohmi, D. Shatilov, D. Zhou and the entire FCC-ee Collaboration Team for encouraging the research, useful discussions, and suggestions.
