Variational generalized rotating-wave approximation in the two-qubit quantum Rabi model

TL;DR

This paper introduces a variational generalized rotating-wave approximation for the two-qubit quantum Rabi model, significantly improving accuracy over traditional methods and enabling analysis of complex quantum behaviors in the ultrastrong coupling regime.

Contribution

The paper develops a variational extension of the GRWA that enhances precision in modeling the two-qubit quantum Rabi system, especially in the ultrastrong coupling regime.

Findings

Improved accuracy in energy spectrum calculations

Reproduction of mean photon number asymptotic behavior

Analysis of quasi-periodical dynamics in the ground state

Abstract

We present an analytical method for the two-qubit quantum Rabi model. While still operating in the frame of the generalized rotating-wave approximation (GRWA), our method further embraces the idea of introducing variational parameters. The optimal value of the variational parameter is determined by minimizing the energy function of the ground state. Comparing with numerical exact results, we show that our method evidently improves the accuracy of the conventional GRWA in calculating fundamental physical quantities, such as energy spectra, mean photon number, and dynamics. Interestingly, the accuracy of our method allows us to reproduce the asymptotic behavior of mean photon number in large frequency ratio for the ground state and investigate the quasi-periodical structure of the time evolution, which are incapable of being predicted by the GRWA. The applicable parameter ranges cover the ultrastrong coupling regime, which will be helpful to recent experiments.

Figures

Equations

$$\hat{H}=\omega {\hat{a}}^{†}\hat{a}+\Omega {\hat{J}}_x+g{\hat{J}}_z\left({\hat{a}}^{†}+\hat{a}\right),$$

$$\begin{array}{rl}\hat{\tilde{H}}=& \hat{U}\hat{H}{\hat{U}}^{†}\\ =& \omega {\hat{a}}^{†}\hat{a}+\left({\lambda }^2\omega -2g\lambda \right){\hat{J}}_z^2+\left(g-\lambda \omega \right){\hat{J}}_z\left({\hat{a}}^{†}+\hat{a}\right)\\ & +\Omega {\hat{J}}_x\cosh \left[\lambda ({\hat{a}}^{†}-\hat{a})\right]+\mathrm{i}\Omega J_y\sinh \left[\lambda ({\hat{a}}^{†}-\hat{a})\right],\end{array}$$

$$\begin{array}{rl}& \sinh \left[\lambda \left({\hat{a}}^{†}-\hat{a}\right)\right]\\ =& \sum _{k=0}^{\infty }\left[{\left({\hat{a}}^{†}\right)}^{2k+1}{F}_{2k+1}\left({\hat{a}}^{†}\hat{a}\right)+F_{2k+1}\left({\hat{a}}^{†}\hat{a}\right){\hat{a}}^{2k+1}\right],\end{array}$$

$$\begin{split}&\mathrm{cosh}\left[\lambda\left(\hat{a}^{\dagger}-\hat{a}\right)\right]\\ =&F_{0}\!\left(\hat{a}^{\dagger}\hat{a}\right)\!+\!\sum_{k=1}^{\infty}\bigg{[}\!\left(\hat{a}^{\dagger}\right)^{2k}F_{2k}\left(\hat{a}^{\dagger}\hat{a}\right)\!+\!F_{2k}\left(\hat{a}^{\dagger}\hat{a}\right)\hat{a}^{2k}\bigg{]},\end{split}$$

$$\begin{array}{r}{F}_m\left(n\right)=e^{-{\lambda }^2/2}{\lambda }^m\frac{n!}{\left(n+m\right)!}{L}_n^m\left({\lambda }^2\right),\end{array}$$

$${\hat{\tilde{H}}}_0=\omega {\hat{a}}^{†}\hat{a}+\Omega {\hat{J}}_x{F}_0\left({\hat{a}}^{†}\hat{a}\right)+\left({\lambda }^2\omega -2g\lambda \right){\hat{J}}_z^2.$$

$$\hat{\tilde{H}}_{\mathrm{0}}\left(n,\lambda\right)=\left(\begin{array}[]{ccc}\xi_{n}^{-}&0&\epsilon_{\lambda}\\ 0&\xi_{n}^{0}&0\\ \epsilon_{\lambda}&0&\xi_{n}^{+}\end{array}\right),$$

$${\hat{\tilde{H}}}_1={\hat{\tilde{H}}}_0+{\hat{\tilde{H}}}_{\mathrm{GRW}}+{\hat{\tilde{H}}}_{\mathrm{GCRW}},$$

$$\begin{array}{rl}{\hat{\tilde{H}}}_{\mathrm{GRW}}=& \frac{1}{2}\left(g-\lambda \omega \right)\left({\hat{J}}_{+}\hat{a}+{\hat{J}}_{-}{\hat{a}}^{†}\right)\\ & +\frac{1}{2}\Omega \left[{\hat{J}}_{+}{F}_1\left({\hat{a}}^{†}\hat{a}\right)\hat{a}+{\hat{J}}_{-}{\hat{a}}^{†}{F}_1\left({\hat{a}}^{†}\hat{a}\right)\right],\end{array}$$

$$\begin{array}{rl}{\hat{\tilde{H}}}_{\mathrm{GCRW}}=& \frac{1}{2}\left(g-\lambda \omega \right)\left({\hat{J}}_{-}\hat{a}+{\hat{J}}_{+}{\hat{a}}^{†}\right)\\ & -\frac{1}{2}\Omega \left[{\hat{J}}_{-}{F}_1\left({\hat{a}}^{†}\hat{a}\right)\hat{a}+{\hat{J}}_{+}{\hat{a}}^{†}{F}_1\left({\hat{a}}^{†}\hat{a}\right)\right],\end{array}$$

$$\begin{gathered} {\hat{\tilde{H}}}_{\mathrm{GRWA}}=\omega {\hat{a}}^{†}\hat{a}+\Omega {\hat{J}}_x{F}_0\left({\hat{a}}^{†}\hat{a}\right)+\frac{1}{4}\left({\lambda }^2\omega -2g\lambda \right)\left({\hat{J}}_{+}{\hat{J}}_{-}+{\hat{J}}_{-}{\hat{J}}_{+}\right) \\ +\frac{1}{2}\left[{\hat{J}}_{+}\left(g-\lambda \omega +\Omega F_1\left({\hat{a}}^{†}\hat{a}\right)\right)\hat{a}+h.c.\right]. \end{gathered}$$

$$\hat{\tilde{H}}^{\prime}_{n}(\lambda)=\left(\begin{array}[]{ccc}\omega\left(n-1\right)+f_{n-1}^{0}+\epsilon_{\lambda}&\sqrt{\frac{n}{2}}\left(f_{n-1}^{1}+\lambda^{\prime}\right)&0\\ \sqrt{\frac{n}{2}}\left(f_{n-1}^{1}+\lambda^{\prime}\right)&\omega n+2\epsilon_{\lambda}&\sqrt{\frac{n+1}{2}}\left(f_{n}^{1}+\lambda^{\prime}\right)\\ 0&\sqrt{\frac{n+1}{2}}\left(f_{n}^{1}+\lambda^{\prime}\right)&\omega\left(n+1\right)-f_{n+1}^{0}+\epsilon_{\lambda}\end{array}\right),$$

$${\hat{\tilde{H}}}_n^{\prime }(\lambda ){\overrightarrow{\tilde{\psi }}}_n^j=E_n^j{\overrightarrow{\tilde{\psi }}}_n^j.$$

$$\left|\tilde{\phi}_{n}^{j}\right\rangle=\left(\overrightarrow{\tilde{\psi}}_{n}^{j}\right)^{T}\left(\begin{array}[]{c}\left|1_{x},n-1\right\rangle\\ \left|0_{x},n\right\rangle\\ \left|-1_{x},n+1\right\rangle\end{array}\right),$$

$$\begin{array}{rl}|{\tilde{\varphi }}_n^j⟩=& c_{1,n}^j|1_x⟩\otimes |n-1⟩+c_{0,n}^j|0_x⟩\otimes |n⟩\\ & +c_{-1,n}^j|-1_x⟩\otimes |n+1⟩,\end{array}$$

$$\begin{split}\hat{\tilde{H}}_{0}^{\prime}(\lambda)=&\left(\begin{array}[]{cc}\varepsilon_{0}^{0}&R_{0,1}\\ R_{0,1}&\varepsilon_{1}^{-}\end{array}\right),\end{split}$$

$$E_0^{\pm }=\frac{1}{2}\left[{\epsilon }_0^0+{\epsilon }_1^{-1}\pm \sqrt{{\left({\epsilon }_0^0-{\epsilon }_1^{-1}\right)}^2+4{\left(R_{0,1}\right)}^2}\right],$$

$$\begin{split}\left|\tilde{\psi}_{0}^{\pm}\right\rangle=&\left(\begin{array}[]{c}\pm\sqrt{\frac{1}{2}\left(1\pm\frac{\varepsilon_{0}^{0}-\varepsilon_{1}^{-}}{\sqrt{\left(\varepsilon_{0}^{0}-\varepsilon_{1}^{-}\right)^{2}+4\left(R_{0}^{1}\right)^{2}}}\right)}\\ \sqrt{\frac{1}{2}\left(1\mp\frac{\varepsilon_{0}^{0}-\varepsilon_{1}^{-}}{\sqrt{\left(\varepsilon_{0}^{0}-\varepsilon_{1}^{-}\right)^{2}+4\left(R_{0}^{1}\right)^{2}}}\right)}\end{array}\right).\end{split}$$

$$E_g=\frac{1}{2}\left({\lambda }^2\omega -2g\lambda \right)-\Omega e^{-\frac{{\lambda }^2}{2}}.$$

$$|{\varphi }_G(\lambda )⟩=U(\lambda )|-1_x⟩\otimes |0⟩,$$

$$E_G(\lambda )=⟨{\varphi }_G(\lambda )|\hat{H}|{\varphi }_G(\lambda )⟩=\frac{1}{2}\left({\lambda }^2\omega -2g\lambda \right)-\Omega e^{-\frac{{\lambda }^2}{2}},$$

$$g-\lambda \omega -\lambda \Omega e^{-{\lambda }^2/2}=0.$$

$$\lambda =\frac{g}{\omega +\Omega e^{-{\lambda }_0^2/2}},$$

$$\lambda =\frac{g}{\omega +\Omega },$$

$$g-\lambda \omega -\Omega e^{-{\lambda }^2/2}\frac{\lambda }{n+1}{L}_n^1\left({\lambda }^2\right).$$

$$g-\lambda \omega -\lambda \Omega e^{-{\lambda }^2/2},$$

$$⟨a^{†}a⟩=\frac{1}{2}\left(1+\frac{{\chi }_0}{\sqrt{{\chi }_0^2+8}}\right)\frac{g^2}{{\omega }^2},$$

$$⟨{\hat{a}}^{†}\hat{a}⟩=\frac{{\lambda }^2}{2},$$

$$J_z\left(t\right)=⟨\tilde{\phi }\left(t\right)|{\hat{\tilde{J}}}_z|\tilde{\phi }\left(t\right)⟩,$$

$$P_{-1}(t)=⟨-1_z|\left(\mathrm{T}{\mathrm{r}}_{\mathrm{ph}}|\tilde{\phi }(t)⟩⟨\tilde{\phi }(t)|\right)|-1_z⟩,$$

Full text

I Introduction

The quantum Rabi model Rabi (1936, 1937) describes a two-level system linearly interacting with a single mode bosonic field. It plays a fundamental role in many areas of physics, such as quantum optics Walther et al. (2006), quantum information Raimond et al. (2001), condensed matter physics Holstein (1959). The history of the quantum Rabi model can be traced back to more than 80 years ago, when the original version of semi-classical Rabi model was introduced. Recently, the model has attracted much attention due to the fact that the so-called ultrastrong coupling Bourassa et al. (2009); Niemczyk et al. (2010); Peropadre et al. (2010); Ridolfo et al. (2012); Todorov and Sirtori (2014); Baust et al. (2016); Forn-Díaz et al. (2016), and even deep strong coupling Casanova et al. (2010); De Liberato (2014); Forn-D$\acute{\mathrm{\i}}$az et al. (2017); Yoshihara et al. (2017); Chen et al. (2017) regime have been experimentally achieved. When the qubit-oscillator coupling strength is strong enough, the counter-rotating terms in the model can no longer be ignored. For example, the experimental observation of the Bloch-Siegert shift Forn-Díaz et al. (2010) emphasizes the importance of the counter-rotating term. To this end, a series of fascinating phenomena have been explored in the model without rotating-wave approximation (RWA) Jaynes and Cummings (1963); Shore and Knight (1993), e. g., generation of photons Werlang et al. (2008), entanglement from zero excitation initial state Ng and Burnett (2008), bifurcation in the phase space Phoenix (1991), a fine structure in the optical Stern Gerlach effect Lembessis (2008). In particular, it has recently been noted that in the frequency ratio limit, the model undergoes a superradiant phase transition Hwang et al. (2015); Liu et al. (2017). These experimental and theoretical progresses fascinate one to further explore the quantum Rabi model and the related issues.

The theoretical starting point to study the quantum Rabi model is to solve the eigenvalues of the model Hamiltonian. Despite the simple form of the model, it was only until the year 2011 D. Braak has obtained its integrability Braak (2011). Comparing to the great achievement of the exact solution in mathematical aspect, extracting the physical information of the model by this solution is still a non-trivial task. Thus, people have been still trying to develop a variety of analytical approximations such as adiabatic approximation Ashhab and Nori (2010); Agarwal et al. (2012); Irish et al. (2005), RWA Jaynes and Cummings (1963); Shore and Knight (1993); Irish et al. (2005), generalized rotating-wave approximation (GRWA) Irish (2007), extended coherent-state method Mao et al. (2015), continued fraction Swain (1973), perturbation method Yu et al. (2012). These methods are widely and fruitfully used in calculating the single-qubit quantum Rabi model. In parallel, some efforts have been devoted to its multi-qubit counterpart. In fact, the multi-qubit version of the quantum Rabi model is of great value in both theoretical studies and practical applications. The $N$-qubit version of quantum Rabi model is well known as the Dicke model, in which a famous superradiant phase transition occurs Dicke (1954). In application sense, one needs multi-qubit setups to do quantum computing. For example, implementing quantum gate operations requires at least two qubits Zhou et al. (2006); Huang and Zhu (2008). There are also many interesting issues involving in multi-qubit scenario, i.e., genuine multipartite entanglement Ollivier and Zurek (2001); Zurek (2003); Roscilde et al. (2004); Horodecki et al. (2009); Jungnitsch et al. (2011); Giampaolo and Hiesmayr (2013), quantum simulation of dynamical maps Schindler et al. (2013), and holonomic quantum computation Wang et al. (2016). Therefore, in this work, to explore the multi-qubit effects, we focus on the two-qubit quantum Rabi model, which has been relatively less studied.

An adiabatic approximation has been proposed for the two-qubit quantum Rabi model Agarwal et al. (2012). It plays well when the qubit frequency is much smaller than the oscillator frequency, and has been improved by the GRWA when the two frequencies are comparable Zhang and Chen (2015). However, recently, another frequency ratio regime, i. e., the qubit frequency is larger than the oscillator frequency, attracts much interest because the quantum phase transition occurs in this frequency ratio limit Hwang et al. (2015); Liu et al. (2017). In such a case, we find that the GRWA still has a space to be improved. For example, the physical observable in ultrastrong coupling regime predicted by the GRWA is not accurate enough, and the dynamic process calculated by the GRWA misses the quasi-periodical structures. The variational method in Ref. Lee and Law (2013) performs well in improving the GRWA. However, it is only limited to the ground state. Therefore, in this work, we try to improve the GRWA in the variational scheme and consider both ground state and low excited states. The main idea is to introduce a variational parameter which is optimized by minimizing the energy function for the ground state. To show the advantage of our method, all of calculated results by the GRWA are compared with the exact diagonalization results as a benchmark.

The paper is organized as follows. In Section II, the two-qubit quantum Rabi model is introduced. We then show the detail of our analytical method to obtain the eigenvalues and eigenstates of the two-qubit quantum Rabi model. In Section III, we calculate several physical quantities and compare them obtained by GRWA with those obtained by exact diagonalization. Section IV gives a brief summary.

II Model and analytical solution

The Hamiltonian of the two-qubit quantum Rabi model reads as

[TABLE]

where $\hat{a}^{\dagger}\left(\hat{a}\right)$ is the creation (annihilation) operator of the harmonic oscillator with frequency $\omega$, $\Omega$ is the atomic transition frequency and $g$ denotes the coupling strength between qubits and oscillator. The angular momentum operators can be assembled by the Pauli matrix of two identical qubits as $\hat{J}_{x}=\frac{1}{2}\left(\hat{\sigma}_{x}^{1}+\hat{\sigma}_{x}^{2}\right)$, $\hat{J}_{y}=\frac{1}{2}\left(\hat{\sigma}_{y}^{1}+\hat{\sigma}_{y}^{2}\right)$, $\hat{J}_{z}=\frac{1}{2}\left(\hat{\sigma}_{z}^{1}+\hat{\sigma}_{z}^{2}\right)$ and 1,2 represent each of two qubits. Note that the total spin operator $\hat{J}^{2}$ commutates with the Hamiltonian in Eq. (1), and the spin singlet state($J=0$) is decoupled from the bosonic mode. Thus we only consider the spin triplet states($J=1$) in this work. In the following calculations, we take $\omega=1$ as an energy scale. Despite the fact of still working in the frame of the GRWA, the key idea of our method is to choose an optimal variational parameter,　which minimizes the energy function of the ground state. In the following we will exhibit our variational scenario step by step. During such procedure, the adiabatic approximation and the GRWA will be explicitly recovered as leading-order approximations.

To start, we make a unitary transformation onto the Hamiltonian, i.e., $\hat{\tilde{H}}=\hat{U}\hat{H}\hat{U}^{\dagger}$. Similar to the GRWA Irish (2007); Zhang and Chen (2015) , we choose $\hat{U}=e^{\lambda\hat{J}_{z}\left(\hat{a}^{\dagger}-\hat{a}\right)}$ . The difference is that $\lambda$ is undetermined here rather than that is fixed to be $g/\omega$ in the GRWA. More explicitly, there is

[TABLE]

where the hyperbolic sine and cosine terms can be further expanded as

[TABLE]

and

[TABLE]

respectively. The function $F_{m}$ is defined as

[TABLE]

where $m$ and $n$ are integers, $L_{n}^{m}\left(x\right)=\sum_{i=0}^{n}\left(-x\right)^{i}\frac{\left(n+m\right)!}{\left(m+i\right)!\left(n-i\right)!i!}$ is the associated Laguerre polynomial. Although Hamiltonian in Eq. (2) is still hard to solve, one can further employ some approximations.

A zero-order approximation of Eq. (2) is made in the so-called adiabatic approximation, where spin and oscillator are decoupled. That is,

[TABLE]

Taking the direct product basis $\left|j_{x}\right\rangle\otimes\left|n\right\rangle$, where $\left|j_{x}\right\rangle$ is the eigenstate of $\hat{J}_{x}$ and $\left|n\right\rangle$ is the Fock state of the oscillator, the Hamiltonian can be written in each isolate $n$-dependent subspace in terms of a $3\times 3$ matrix as

[TABLE]

where $\xi_{n}^{\pm}=\epsilon_{n}+\epsilon_{\lambda}\pm f_{n}^{0}$, $\xi_{n}^{0}=\epsilon_{n}+2\epsilon_{\lambda}$, $\epsilon_{n}=\omega n$, $\epsilon_{\lambda}=\left(\lambda^{2}\omega-2g\lambda\right)/2$, $f_{n}^{0}=\Omega F_{0}(n)$. The Hamiltonian block in Eq. (7) can be analytically solved (see Appendix A).

If $\lambda=g/\omega$ is assumed, the solution of Eq. (7) will retrieve the result in Ref. Agarwal et al. (2012). We note that our general adiabatic approximation can perform better than Ref. Agarwal et al. (2012), since $\lambda$ can be further optimized by minimizing the ground-state energy (see Appendix A). Before discussing how to choose an optimal value of $\lambda$, we will then consider higher-order terms in Hamiltonian for a more accurate approximation.

In the spirit of the GRWA, we consider the Hamiltonian up to single-excitation terms, so that we write

[TABLE]

where

[TABLE]

is the generalized rotating-wave term, which conserves the total excitation, and

[TABLE]

is the generalized counter-rotating-wave term, which is the counterpart of $\hat{\tilde{H}}_{\mathrm{GRW}}$. Here $\hat{J}_{\pm}=\frac{1}{2}(\hat{J}_{z}\mp i\hat{J}_{y})$ and $\hat{a}$ ($\hat{a}^{\dagger}$) are single-excitation operators for spin and oscillator, respectively.

To let $\hat{\tilde{H}}_{\mathrm{1}}$ be solvable, $\hat{J}_{-}^{2}$ and $\hat{J}_{+}^{2}$ terms in $\hat{\tilde{H}}_{\mathrm{0}}$ should be neglected, since they correspond to the remote off-diagonal entries in the spin representation $\left|j_{x}\right\rangle$. We also eliminate the generalized counter-rotating term $\hat{\tilde{H}}_{\mathrm{GCRW}}$, such that the total excitation of the Hamiltonian is conserved. Then, we obtain a solvable one named GRWA Hamiltonian:

[TABLE]

If one chooses $\lambda=g/\omega$, the Hamiltonian in Eq. (11) recovers the GRWA in Ref. Zhang and Chen (2015).

The Hamiltonian $\hat{\tilde{H}}_{\mathrm{GRWA}}$ is a block-diagonal matrix in the bases subspace {$\left|1_{x}\right\rangle\otimes\left|n-1\right\rangle$, $\left|0_{x}\right\rangle\otimes\left|n\right\rangle$, $\left|-1_{x}\right\rangle\otimes\left|n+1\right\rangle$}. The $n$-th block takes the form of

[TABLE]

where $\epsilon_{\lambda}=\left(\lambda^{2}\omega-2g\lambda\right)/2$, $\lambda^{\prime}=g-\lambda\omega$, $f_{n}^{1}=\Omega F_{1}(n)$. The eigenvalues $E_{n}^{j}\left(j=\{1,2,3\}\right)$ and the corresponding eigenvectors $\overrightarrow{\tilde{\psi}}_{n}^{j}$ can be obtained as

[TABLE]

Thus the wavefunctions can be expressed as

[TABLE]

and take the form

[TABLE]

where the coefficients $\{c_{m_{s},n}^{j}\}$ are given in Appendix B in detail.

There is a special case for $n=0$. In the bases $\{\left|0_{x}\right\rangle\otimes\left|0\right\rangle,\left|-1_{x}\right\rangle\otimes\left|1\right\rangle\}$, we have

[TABLE]

where $\varepsilon_{0}^{0}=2\epsilon_{\lambda}$, $R_{0,1}=\sqrt{\frac{1}{2}}\left(f_{0}^{1}+\lambda^{\prime}\right)$, $\varepsilon_{1}^{-}=\omega-f_{1}^{0}+\epsilon_{\lambda}$. Consequently the eigenvalues are

[TABLE]

and the corresponding normalized eigenstates are

[TABLE]

For the ground state $\left|\tilde{\phi}_{g}\right\rangle=\left|-1_{x}\right\rangle\otimes\left|0\right\rangle$, the ground-state energy is

[TABLE]

Up to here, the only one task lefted to be completed is determining the parameter $\lambda$. The unitary transformation we employed presents the form of a set of approximate wave functions. Particularly, we extract the one for the ground state as

[TABLE]

where $U(\lambda)$ is defined as previous one $U(\lambda)=e^{\lambda\hat{J}_{z}(\hat{a}^{\dagger}-\hat{a})}$. The $|\phi_{G}(\lambda)\rangle$ can be considered as a trial ground state wave function with undetermined parameter $\lambda$. Thus, the ground state energy function can be readily obtained:

[TABLE]

where $\hat{H}$ is the whole model Hamiltonian. The parameter $\lambda$ can be determined by minimizing the ground state wave function in Eq. (21), namely $\partial E_{G}/\partial\lambda=0$ which yields

[TABLE]

The approximate solution is then obtained:

[TABLE]

where $\lambda_{0}=g/\left(\omega+\Omega\right)$. In the small $g$ limit, we can further simplify the solution to

[TABLE]

which is the same as $\lambda_{0}$. Note that a more accurate $\lambda$ value can be acquired by numerically solving Eq. (22). In this work, we focus on the analytical study for an intuitive understanding. Substituting the value of $\lambda$ in Eq. (24) to Eq.(14-19), our method completes.

Although $\lambda$ is obtained in a variational manner for the ground state, we find that our method also improves the conventional GRWA for the excited states. The reason is addressed as follows. Note that the coefficient of the general counter rotating term is

[TABLE]

When coupling strength $\lambda$ is small enough, using $L_{n}^{1}\left(x\right)\to 1$ if $x\ll 1$, Eq. (25) can be simplified as

[TABLE]

which vanishes when Eq. (22) is adopted. It ensures that the approximate Hamiltonian (11) is exact up to single-excitation level since the general counter rotating term vanishes.

III The advantage of the variational method

Our variational method improves the GRWA in both quantitative and qualitative ways. We take energy spectra, the mean photon number and the dynamic process as examples to compare the variational method with the GRWA. The numerically exactly diagonalized results are also involved in the comparison as a benchmark.

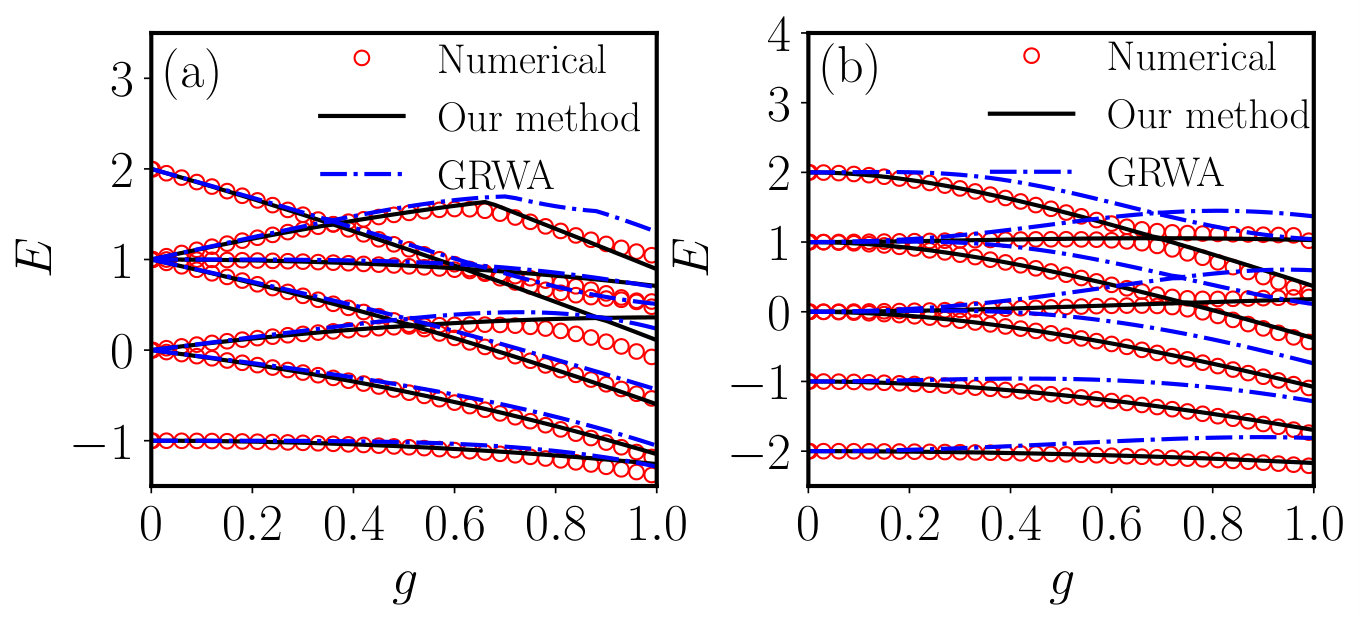

From the comparison of the energy spectra between different methods, the quantitative advantage of the variational method over the GRWA is clearly revealed. Figure 1 displays the energy spectra with two sets of parameters, i. e., $\Omega=1.0$ and $\Omega=2.0$ (we set $\omega=1$ as an energy unit). From both panels, we can see that energy spectra calculated by both our method and the GRWA are undistinguishable and agree with the numerical ones well when the coupling strength $g$ is small. However, as $g$ rises, the difference between the two methods becomes noticeable. It is because the difference between the corresponding variational parameters $\lambda=g/\omega$ and $\lambda=g/(\omega+\Omega)$ increases as $g$ becomes larger. Although the GRWA gains the mean feature of the cross structure of the energy spectra, it evidently deviates from the numerical solution for large $g$. However, our variational method keeps pace with the exact one. We also find that when $\Omega$ becomes large, the GRWA gets worse [see Figs. 1 (a) and (b)]. It can be readily understood by that the deviation from optimal parameter $\lambda=g/(\omega+\Omega)$ to the GRWA one $\lambda=g/\omega$ exaggerates when $\Omega$ gets larger.

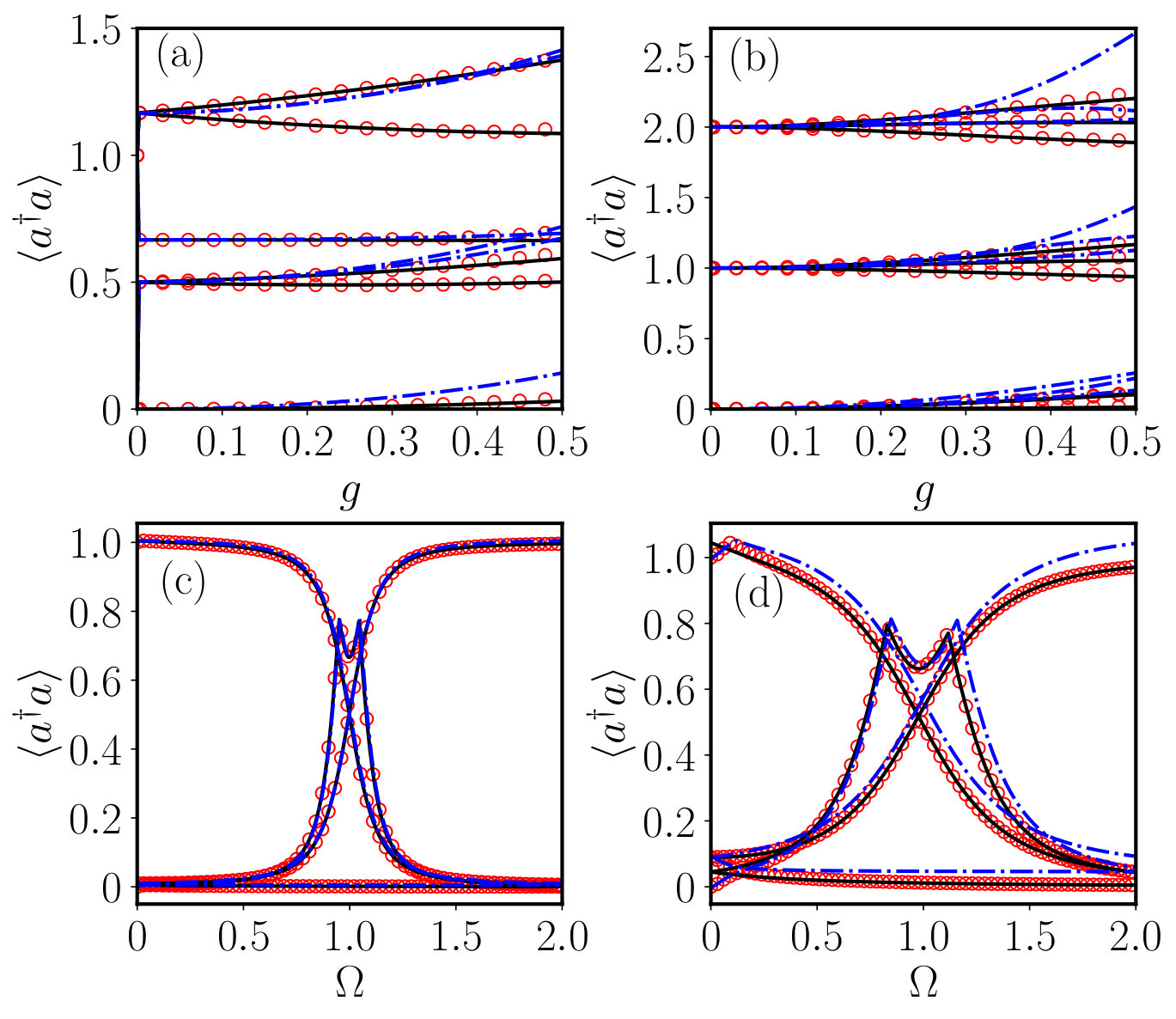

Besides the energy spectra, the mean photon number is another fundamental observable in the light-matter interacting systems. The results indicate the accuracy of our method in calculating the mean photon number in the ground state as well as low excited states. Figures 2 (a) and (b) show the mean photon number $\langle\hat{a}^{\dagger}\hat{a}\rangle$ as a function of the coupling strength $g$. Similar to the energy spectra, we see that our method evidently improves the accuracy of the GRWA, and agrees well with the numerical exact one. We also show $\langle\hat{a}^{\dagger}\hat{a}\rangle$ as a function of $\Omega$. The importance of our method becomes more evident as $\Omega$ increases, because the obtained value by the GRWA will have more derivation from the exact one as $\Omega$ enlarges, as can be clearly seen in Figs. 2 (c) and (d).

In the two-qubit model, recall that the mean photon number of the ground state obtained by GRWA Zhang and Chen (2015) is

[TABLE]

where $\chi_{0}=\frac{\sqrt{2}g^{2}}{\Omega\omega}e^{\frac{g^{2}}{2\omega^{2}}}$. In our method, the mean photon number of the ground state (see details in Appendix C) is

[TABLE]

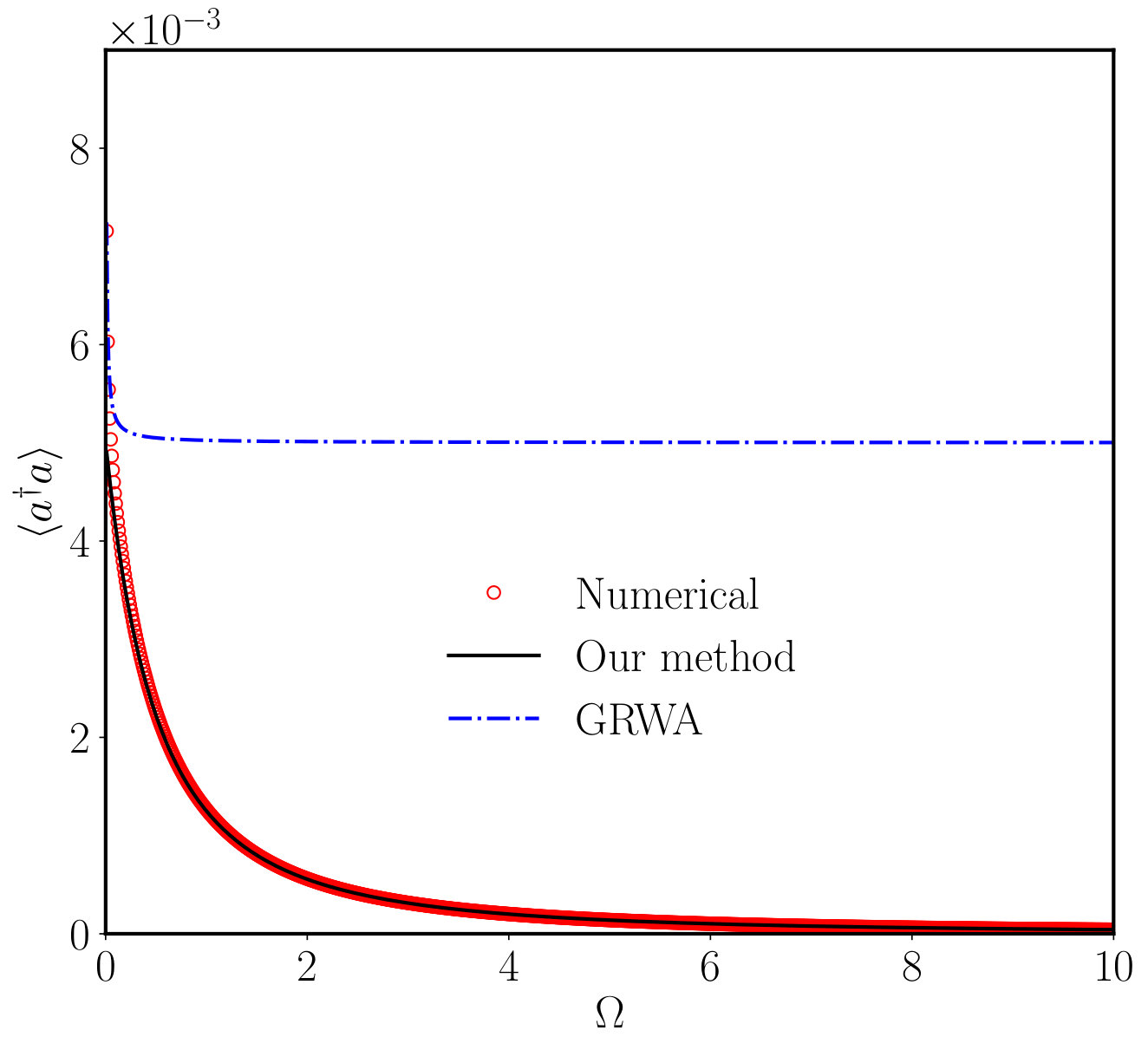

where $\lambda={g}/{\left(\omega+\Omega\right)}$. As is shown in Fig. 3, we find that the mean photon number obtained by GRWA is always larger than $g^{2}/(2\omega^{2})$ while our result is always smaller than $g^{2}/(2\omega^{2})$.

Recently, a novel quantum phase transition in large frequency ratio ($\eta=\Omega/\omega\to\infty$) has been extensively discussed Wang et al. (2018); Hwang et al. (2015); Liu et al. (2017). Note that the large $\eta$ limit is equivalent to the large $\Omega$ limit here since $\omega=1$ has been taken. In such a condition, the ground state can be categorized into two phases through a phase transition point: one is the normal phase for small coupling strength $g$, where the mean photon number is zero; the other is the superradiant phase for sufficiently large $g$, where the mean photon number is finite. The analytical formulas of Eqs. (27) and (28) allow us to explore the asymptotic behavior in the large $\Omega$ limit. In this limit, if $g$ is small, the value of $\left\langle\hat{a}^{\dagger}\hat{a}\right\rangle$ obtained by our method approaches to zero, while the mean photon number obtained by the GRWA method approaches to $g^{2}/\left(2\omega^{2}\right)$, as is exhibited in Fig. 3. The validity of mean photon number in large frequency ratio shows the variational method captures the more essential physics, that is missed by the GRWA.

Apart from the static properties, the dynamical evolution is another significant issue in Rabi physics. In this work, we study the time evolution of the polarization $\left\langle\hat{J}_{z}\right\rangle$ and the population of the qubits remaining in the initial state $\left|-1_{z}\right\rangle$ as two examples. The two physical quantities can be defined as

[TABLE]

and

[TABLE]

respectively. Based on our variational method, the dynamic process can be analytically expressed. The initial state in the original Hamiltonian is chosen as $\left|\varphi\left(0\right)\right\rangle=e^{\alpha\left(\hat{a}^{\dagger}-\hat{a}\right)}\left|-1_{z},0\right\rangle$. Our analytical calculation is performed in the transformed frame. Thus, the initial state can be obtained using the unitary transformation $\hat{U}$ as $\left|\tilde{\varphi}(0)\right\rangle=\hat{U}\left|\varphi(0)\right\rangle$. The wavefunction evolves as $\left|\tilde{\varphi}\left(t\right)\right\rangle=e^{-{\rm i}\hat{\tilde{H}}_{\mathrm{GRWA}}t}\left|\tilde{\varphi}\left(0\right)\right\rangle$. The detailed formulas of the dynamic process is exhibited in Appendix D.

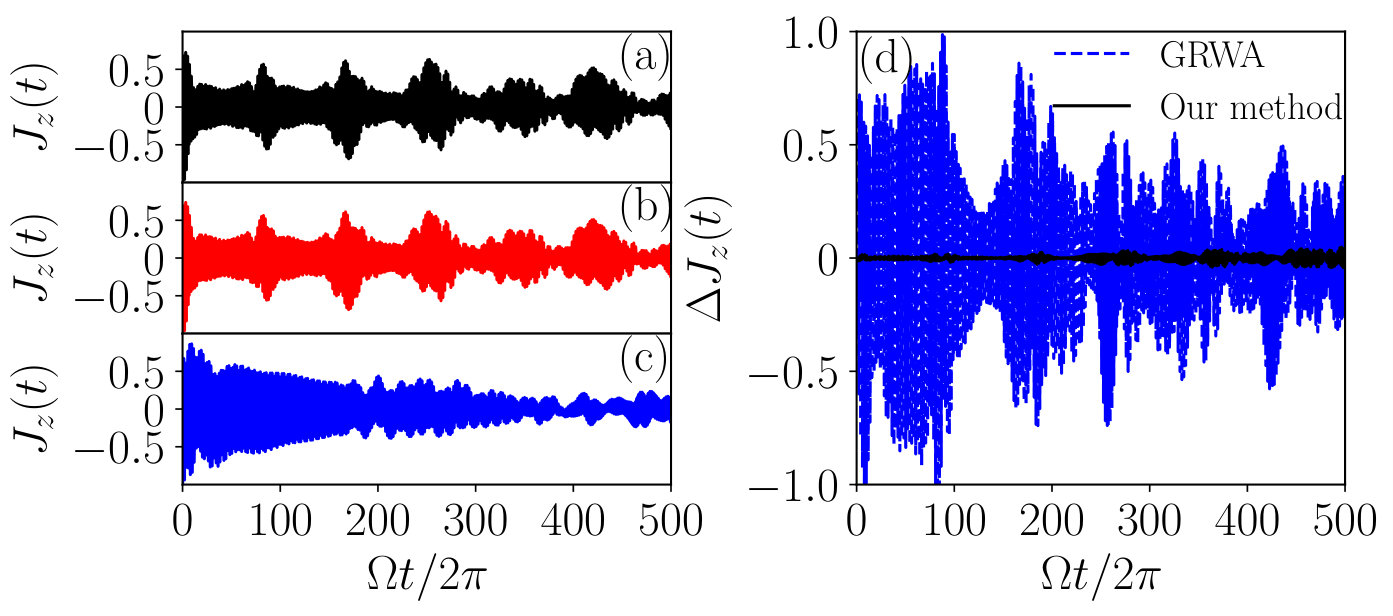

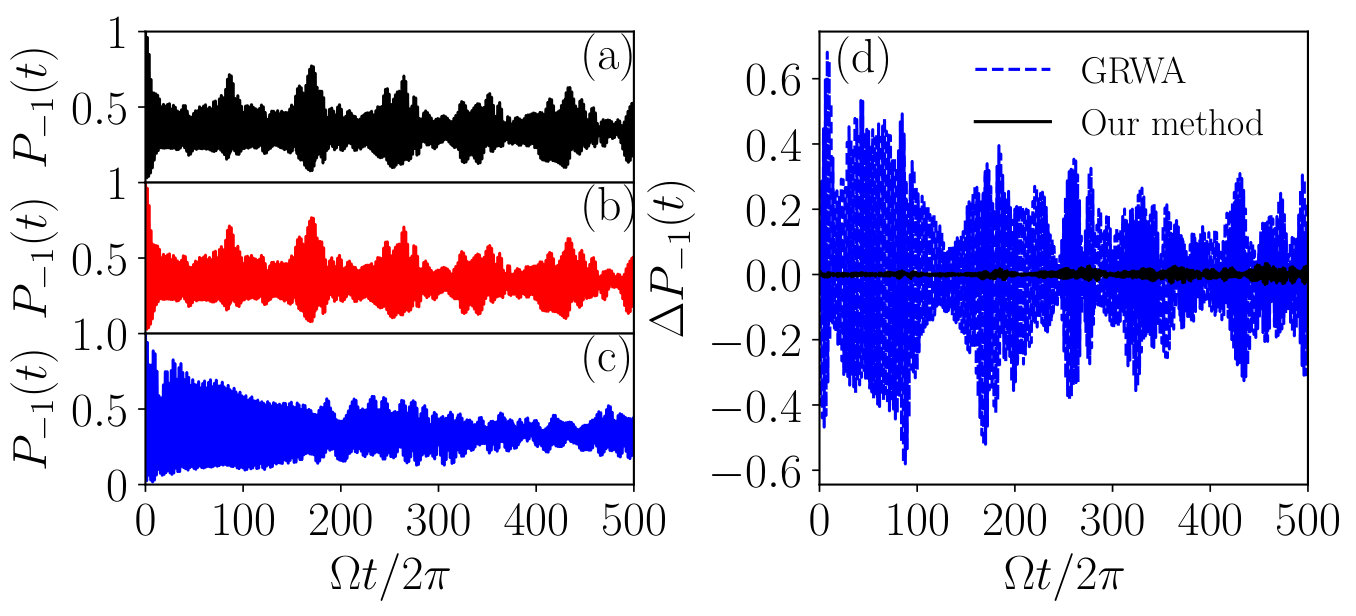

Figures 4 and  5 show $J_{z}(t)$ and $P_{-1}(t)$ respectively. In order to illustrate the improvement of our variational method over the GRWA, the numerical exact result is incorporated as a benchmark. In order to study the characteristics of the dynamics process, we give the results with evolution time up to $\Omega t/(2\pi)=500$. Figures 4(a, b) and  5(a, b) show that both $J_{z}(t)$ and $P_{-1}(t)$ obtained by the numerical exact method exhibit obvious quasi-periodical structure. Comparing to the numerical exact method, the results obtained by our method seize the characteristic panorama, which is missed by the GRWA, as be shown in Figs. 4(c) and  5(c). Figures 4(d) and  5(d) display the deviations of the analytical results (our method and the GRWA) to the numerical exact one. From Figs. 4(d) and 5(d), we can find that the dynamics processes calculated by our method agrees with the numerical exact ones with high accuracy. In contrast, the GRWA results evidently deviate. This indicates that our method has obvious improvement over the GRWA.

Based on the results of time evolution, it is obvious that our variational method has an important qualitative correction on the GRWA. Furthermore, considering the fact that dynamical process relates with the energy spectra of the system, the results shown in Figs. 4 and 5 indicate that our method can obtain the energy spectra close to the exact one with high accuracy.

IV discussion and conclusions

We have developed an analytical approximation for the two-qubit quantum Rabi model. Although still employing the GRWA frame, we further extend it by introducing the variational method. The advantage of our method is clearly revealed in both quantitative and qualitative aspects. We have explored the energy spectra, the mean photon number and the dynamical processes. The outcome obtained by our method shows good agreement with the exact numerical calculation and evidently improves the accuracy of the GRWA. Furthermore, the importance of the variational method is showed by the correct prediction of the zero mean photon in normal phase and the quasi-periodical structure of time evolution. We also expect our method will be helpful to understand the physics in two-qubit systems, which are quite fundamental to perform the quantum state manipulation, such as quantum state preparation and quantum computing Romero et al. (2012); Wang et al. (2016a).

Finally, we would like to discuss the applicable parameter ranges of our approximate method. The main idea of the GRWA can be roughly regarded as to employ the displaced oscillator as the nonperturbed term and consider the atomic term $\Omega\hat{J}_{x}$ as a perturbation. However, we realize that problems readily come when atom energy scale enlarges and can no longer be taken as a perturbation. Luckily, for a large value of $\Omega$ accompanying with a small coupling strength $g$, the displaced oscillator can still be dominant if the the displacement is renormalized via a variational way, and thus our variational method works in such a case. Summarizing, we can efficiently improve the GRWA for arbitrary $\Omega$ with a perturbative $g$. Beyond the above mentioned parameter regimes, in principle our method fails. For example, for an intermediate coupling strength $g$ and a large $\Omega$, the ground-state energy obtained by the variational method has a clear deviation from the numerical result.

V acknowledgement

This work is supported by Ministry of Science and Technology of China (Grant No. 2016YFA0301300), National Science Foundation of China (Grant Nos. 11604009, 11474211, 11674139, 11834005) and China Postdoctoral Science Foundation (Grant Nos. 2015M580965 and 2016T90028). We also acknowledge the computational support in Beijing Computational Science Research Center (CSRC).

Appendix A Adiabatic approximation results

The matrix shown in Eq. (7) in the maintext can be easily diagonalized, the results are shown in the following.

The eigenvalues are

[TABLE]

[TABLE]

and the corresponding eigenstates are

[TABLE]

[TABLE]

If we want to determine the optimal value of $\lambda$, we should solve $\frac{\partial{\tilde{\epsilon}_{0}^{-}}}{\partial{\lambda}}=0$. An analytical expression can not be readily obtained as a consequence of cumbersome form.

Appendix B Energy spectrum of the model calculated by our method

For the energy spectra, we can easily obtain three lowest energies. For the Hamiltonian matrix in the $n$-th manifold subspace, we can diagonalize it through the method used by Zhang et al. Zhang and Chen (2015) For simplicity, we write the Hamiltonian matrix in Eq. (12) as

[TABLE]

where $\nu_{-}=\omega\left(n-1\right)+f_{n-1}^{0}+\epsilon_{\lambda}$, $\nu_{0}=\omega n+f_{n}^{0}+2\epsilon_{\lambda}$, $\nu_{+}=\omega\left(n+1\right)+f_{n+1}^{0}+\epsilon_{\lambda}$, $z=\sqrt{\frac{n}{2}}\left(f_{n-1}^{1}+\lambda^{\prime}\right)$, $y=\sqrt{\frac{n+1}{2}}\left(f_{n}^{1}+\lambda^{\prime}\right)$.

The determinant is

[TABLE]

and it gives the cubic equation $E^{3}+bE^{2}+cE+d=0$, where

[TABLE]

Then we can easily obtain three eigenvalues for each $n>0$ as

[TABLE]

where $\theta=\frac{1}{3}arc\mathrm{cos}\left[\frac{2b\left(b^{2}-3c\right)-3a\left(bc-9d\right)}{2\sqrt{\left(b^{2}-3c\right)^{3}}}\right]$ when $\left(bc-9d\right)^{2}-4\left(b^{2}-3c\right)\left(c^{2}-3bd\right)<0$.

The eigenstates are

[TABLE]

where the coefficients are

[TABLE]

with the normalized parameter $\eta^{2}=y^{2}\left(E_{n}^{j}-\nu_{-}\right)^{2}+\left(E_{n}^{j}-\nu_{+}\right)^{2}\left(E_{n}^{j}-\nu_{-}\right)^{2}+z^{2}\left(E_{n}^{j}-\nu_{+}\right)^{2}$.

Appendix C Mean photon number calculated by our method

For the photon number $\left\langle\hat{a}^{\dagger}\hat{a}\right\rangle$, we can obtain it’s expression in the transformed representation as

[TABLE]

Then we can calculate the mean photon number by $\left\langle\hat{\tilde{O}}\right\rangle=\left\langle\tilde{\phi}\right|\hat{\tilde{O}}\left|\tilde{\phi}\right\rangle$. Since the energy spectra and corresponding wavefunctions are calculated in different subspaces, the mean photon number is also calculated in different subspaces.

For the ground state,

[TABLE]

For the 2-nd and 3-th excited states

[TABLE]

For the $n$-th manifold states

[TABLE]

Appendix D Dynamics calculated by our method

The initial state in the original representation is set as

[TABLE]

The initial state in the transformed representation can be obtained as

[TABLE]

In the basis of $\left|j_{x}\right\rangle$, the eigenvector of $\hat{J}_{z}$ corresponding to eigenvalue $j_{z}=-1$ is

[TABLE]

So, the initial state in the basis of $\left|j_{x},n\right\rangle$ takes the form

[TABLE]

where $\chi_{0}=\frac{1}{2}\zeta_{0}^{\alpha-\lambda}$, $\chi_{-1,n}=\frac{1}{2}\zeta_{n+1}^{\alpha-\lambda}$, $\chi_{0,n}=-\frac{1}{\sqrt{2}}\zeta_{n}^{\alpha-\lambda}$, $\chi_{1,n}=\frac{1}{2}\zeta_{n-1}^{\alpha-\lambda}$, $\zeta_{n}^{\alpha}={e}^{-\left|\alpha\right|^{2}/2}\frac{\alpha^{n}}{\sqrt{n!}}$.

For simplicity, we define $\left|\tilde{\phi}_{0}^{1}\right\rangle=\left|\tilde{\psi}_{0}^{-}\right\rangle$, $\left|\tilde{\phi}_{0}^{2}\right\rangle=\left|\tilde{\psi}_{0}^{+}\right\rangle$. According to Eq. (18), these wavefunctions take the form

[TABLE]

The time evolution of the wave function in the transformed Hamiltonian is

[TABLE]

where D_{0}=\left\langle\tilde{\phi}_{g}\Big{|}\tilde{\varphi}\left(0\right)\right\rangle, D_{n}^{j}=\left\langle\tilde{\phi}_{n}^{j}\Big{|}\tilde{\varphi}\left(0\right)\right\rangle and take the form

[TABLE]

Take an expansion in the basis space $\{\left|j_{x},n\right\rangle\}$, the time evolution of the wave function can be written as

[TABLE]

where $\beta_{0}={e}^{-{\rm i}E_{g}t}D_{0}$, $\beta_{0,0}=\sum_{j=1}^{2}\left(e^{-{\rm i}E_{0}^{j}t}D_{0}^{j}c_{0,0}^{j}\right)$ and $\beta_{-1,0}=\sum_{j=1}^{2}\left({e}^{-{i}E_{0}^{j}t}D_{0}^{j}c_{-1,0}^{j}\right)$.

$J_{z}$ in the transformed Hamiltonian can be obtained as $\hat{\tilde{J}}_{z}=\hat{U}\hat{J}_{z}\hat{U}^{\dagger}=\hat{J}_{z}$. Time evolution of $\left\langle\hat{{J}}_{z}\right\rangle$ can be calculated as

[TABLE]

The population for the qubits remaining in the initial state $\left|-1_{z}\right\rangle$ is

[TABLE]
