Ultra Light Boson Dark Matter and Event Horizon Telescope Observations of M87*

TL;DR

This paper discusses how Event Horizon Telescope observations of M87* challenge the existence of ultra light boson dark matter with a specific mass range, providing new constraints on dark matter models.

Contribution

It combines EHT data with other constraints to disfavor ultra light boson dark matter of a certain mass, offering novel observational limits.

Findings

EHT data constrains M87*'s mass and spin.

Results disfavor ultra light bosons of mass ~10^{-21} eV.

Future observations could further test these constraints.

Abstract

The initial data from the Event Horizon Telescope (EHT) on M87$^*$, the supermassive black hole at the center of the M87 galaxy, provide direct observational information on its mass, spin, and accretion disk properties. A combination of the EHT data and other constraints provide evidence that M87$^*$ has a mass $\sim 6.5 \times 10^9\,M_\odot$ and dimensionless spin parameter $|a^*|\gtrsim 0.5$. These determinations disfavor ultra light bosons of mass $\mu_b\sim 10^{-21}$ eV, within the range considered for fuzzy dark matter, invoked to explain dark matter distribution on $\sim$ kpc scales. Future observations of M87$^*$ could be expected to strengthen our conclusions.

Figures

Equations

$$\frac{{\omega }_b}{m}<{\Omega }_H,$$

$${\Omega }_H=\frac{1}{2r_g}\frac{a^{\ast }}{1+\sqrt{1-a^{\ast 2}}},$$

$${\Gamma }_b{\tau }_{\mathrm{BH}}\ge \ln N_m,$$

$$N_m\simeq \frac{G_N{M}_{\mathrm{BH}}^2\Delta a^{\ast }}{m},$$

$${\Gamma }_S$$

$${\Gamma }_V$$

$${\mu }_b>{\Omega }_H,$$

$${\mu }_S$$

$${\mu }_V$$

$$2.9\times 10^{-21}\mathrm{eV}$$

$$8.5\times 10^{-22}\mathrm{eV}$$

Full text

I Introduction

Black holes (BHs) are at the same time simple and mysterious. They are characterized by only a few parameters - mass, spin, and charge - and are considered purely gravitational objects. Yet their essential character is quite enigmatic: they represent a one-way exit (up to quantum effects Hawking (1975)) from the causally connected Universe, and their internal properties are masked by an event horizon that is the point of no return. The most direct evidence for their existence has until very recently been provided by the observation of gravitational waves from binary mergers ascribed to black holes Abbott et al. (2016). This situation changed upon the release of a first ever image of the M87∗ supermassive black hole (SMBH) at the center of the Messier 87 (M87) galaxy, by the Event Horizon Telescope (EHT) Akiyama et al. (2019a). In some sense, this is the most direct evidence for BHs, as it manifests their defining characteristic: a region of space from which no matter and light can escape.

The EHT imaging of M87∗ through a worldwide network of radio telescopes is a historic scientific accomplishment. Future observations of this and other SMBHs will usher in a new age of radio astronomy where direct data on their event horizons and associated accretion dynamics become available and will get increasingly more precise. There are numerous astronomical questions that could be addressed with such observations and we can expect new and interesting questions to arise as well. However, it is also interesting to inquire whether the impressive new EHT data on M87∗ could also be used to shed light on fundamental questions of particle physics and cosmology.

In this letter, we use the results of the EHT collaboration on the parameters of M87∗ in the context of particle physics, and in particular ultra light bosons. These states could potentially provide motivated candidates for dark matter (DM), one of the most important open fundamental questions of physics. Dark matter constitutes the dominant form of matter in the Universe, making up $\sim 25\%$ of its energy density Tanabashi et al. (2018), with at best feeble couplings to the visible world. It is generally assumed that DM has non-gravitational interactions that led to its production in the early Universe. These interactions could then result in its detection in a variety of laboratory experiments. Nonetheless, DM has only been observed through its gravitational effects in astrophysics and cosmology. Therefore, purely gravitational probes of DM provide the most model-independent approach to constraining its properties.

It turns out that BHs, themselves purely gravitational, can provide a unique probe of ultra light DM states through the mechanism of superradiance Penrose (1969); Zel’Dovich (1971); Misner (1972); Press and Teukolsky (1972, 1973); Starobinsky (1973); Zouros and Eardley (1979); Detweiler (1980); Brito et al. (2015); Gates et al. (2018). That is, roughly speaking, a spinning BH will lose its angular momentum very efficiently if a boson with a particular mass exists in the spectrum of physical states. This is only a condition on the mass of the boson and does not depend on whether the boson has any non-gravitational interactions. In fact, the boson does not even need to have any ambient number density, since quantum fluctuations suffice to populate a boson cloud around the BH by depleting its spin.

The superradiance mechanism can then provide an interesting probe of DM states that would be otherwise practically inaccessible to experiments. These states include ultra light axions Arvanitaki et al. (2010, 2015, 2017) and vector bosons Baryakhtar et al. (2017) that can appear in various high energy frameworks, such as string theory. For extremely small masses $\mu_{b}\sim 10^{-(21-22)}~{}\text{eV}$ such states can also address certain observational features of the DM distribution on scales of $\sim$ kpc; this class of bosons is often referred to as fuzzy DM Hu et al. (2000); Marsh (2016); Hui et al. (2017) (for a fuzzy DM model based on infrared dynamics, see Ref. Davoudiasl and Murphy (2017)). We will show that the results of the EHT collaboration on the spin of the M87∗ SMBH Akiyama et al. (2019b) can probe and constrain this interesting regime of ultralight DM masses.

II Superradiance Overview

Black hole superradiance leads to the growth of the boson population once its energy $\omega_{b}$ satisfies the condition (see, for example, Refs. Arvanitaki et al. (2010, 2015))

[TABLE]

where $m$ is the magnetic quantum number of the boson, associated with its angular momentum. Here, $\Omega_{H}$ is the angular velocity of the BH event horizon related to the dimensionless spin parameter $a^{*}\equiv J_{\rm BH}/(G_{N}M_{\rm BH}^{2})\in[0,1)$ by

[TABLE]

where $r_{g}\equiv G_{N}M_{\rm BH}$, $G_{N}$ is Newton’s constant, and $M_{\rm BH}$ is the BH mass. In the above expression $J_{BH}$ is the BH angular momentum.

In addition to the condition in eq. 1, there is another condition that must be met for superradiance to deplete the spin of a BH,

[TABLE]

where $\tau_{\rm BH}$ is the characteristic timescale of the BH, $N_{m}$ is the final occupation number of the cloud after the BH spins down by $\Delta a^{*}$,

[TABLE]

and $\Gamma_{b}$ is the growth rate of the field for $b\in\{S,V\}$ (scalar or vector). The leading contribution for $\Gamma_{b}$ is different for scalars and vectors and, up to a factor of $\sim 2$, we have

[TABLE]

For an observation of a BH mass and spin, an upper and lower limit on $\mu_{b}$ can be placed (that is, demanding that superradiance has not depleted the spin of the BH by $\Delta a^{*}$) by,

[TABLE]

or

[TABLE]

where we used the fact that for the dominant mode one has $m=1$ for both scalars and vectors. That is, if the constraint in eq. 7 applies to a larger mass than the constraint in eq. 8 or 9, the mass range of ultra light bosons in between is ruled out.

III EHT Observations of M87∗

The EHT has provided the first direct measurement of the environment immediately around M87∗, leading to a mass estimate of $(6.5\pm 0.7)\times 10^{9}\,M_{\odot}$ Akiyama et al. (2019b). This is fairly consistent with previous estimates that are in the $[3.5,7.2]\times 10^{9}\,M_{\odot}$ range Gebhardt et al. (2011); Walsh et al. (2013); Oldham and Auger (2016).

The shortest timescale that could be relevant for a SMBH is the Salpeter time $\tau_{\rm Salpeter}\sim 4.5\times 10^{7}$ years Shankar et al. (2009) which is the case for when material is accreting on to the object at the Eddington limit. In Ref. Baryakhtar et al. (2017) they conservatively take $\tau_{\rm BH}\sim\tau_{\rm Salpeter}/10$ to account for the possibility of super-Eddington accretion. Observations of M87∗, however, show that $\dot{M}/\dot{M}_{\rm Edd}\sim 2.0\times 10^{-5}$ Akiyama et al. (2019b) consistent with previous measurements Kuo et al. (2014) which suggests that the relevant timescale is much longer. We conservatively take $\tau_{\rm BH}=10^{9}$ years as our fiducial value since the accretion time is much longer. In addition, in the last billion years there was likely only one merger event which involved a much smaller galaxy and was unlikely to significantly affect the spin of M87∗ Longobardi et al. (2015). We also note that the dependence of the ultra light boson limits on $\tau_{\rm BH}$ is at most $\tau_{\rm BH}^{-1/7}$.

The final parameter that remains to be observationally constrained, and perhaps the most important in this context, is the spin. The EHT checked if various spin configurations are consistent with the data. They found that $a^{*}=0$ is inconsistent with the data, while spins $|a^{*}|\geq 0.5$ up to $|a^{*}|=0.94$ (as high as their analysis goes) are consistent with the data, although there was no analysis made of any spins $0<|a^{*}|<0.5$ Akiyama et al. (2019b). This leads to an approximate estimate of $|a^{*}|>0.5$ which relies strongly on the observed jet power to rule out the smaller spins. The EHT collaboration takes a very conservative estimate of the jet power Akiyama et al. (2019b). A separate detailed analysis was performed which finds $a^{*}=0.9\pm 0.1$ Tamburini et al. (2019) which we take as our fiducial value and uncertainty.

IV Results

Using eqs. 7, 8, and 9, it is possible to constrain light bosons across a range of masses. We assume that the largest value of $\Delta a^{*}$ is $1-a^{*}$ where $a^{*}$ is the spin today. We report the $1\,\sigma$ results accounting for the uncertainties in the mass and spin as described in the previous section, as well as a factor of two in the uncertainty in the theoretical calculation of $\Gamma_{b}$. Then we find that M87∗ rules out light bosons in the following ranges,

[TABLE]

as shown in fig. 1 which also includes the constraint from the lighter Ark 120 with $M_{\rm BH}=0.15\times 10^{9}\,M_{\odot}$ and $a^{*}=0.64$ Baryakhtar et al. (2017); Reynolds (2014); Walton et al. (2013); Peterson et al. (2004). For larger boson masses, there is fairly continuous coverage from $\mathcal{O}($few$)\times 10^{-20}$ eV to $\mathcal{O}($few$)\times 10^{-17}$ eV from SMBH observations with just a small gap at $\mathcal{O}($few$)\times 10^{-19}$ eV. Then there is large gap up to $\mathcal{O}($few$)\times 10^{-14}$ eV at which point stellar mass BHs provide constraints up to $\sim 10^{-11}$ eV.

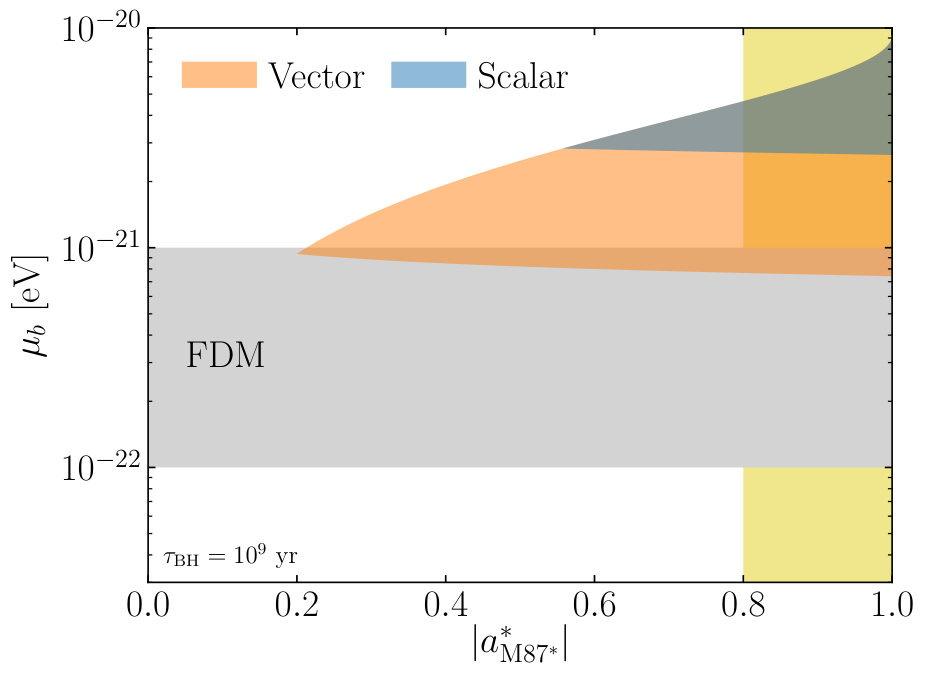

We also explored the effect of the spin measurement of M87∗ on the constraint, as shown in fig. 2. A constraint on vector bosons exists for any $|a^{*}|>0.2$ which overlaps with the fuzzy DM range. A constraint on scalar bosons only exists for $|a^{*}|>0.55$, none of which probes the fuzzy DM range.

V Outlook

With additional analyses and observations, the spin of M87∗ will become more precisely determined. If the spin is on the larger end, the constraints on ultra light bosons will become stronger and for $|a^{*}|>0.55$ scalar bosons can also be constrained.

The largest SMBHs are more than an order of magnitude more massive than M87∗, but are significantly farther away making them difficult targets for the EHT or other probes that could provide good spin measurements Shemmer et al. (2004). Still, this means that it is, in principle, possible to probe the entire fuzzy DM parameter spin using this technique, depending on the spins of the largest SMBHs.

Lyman-$\alpha$ forest measurements and observations of the heating of the core of star clusters provide separate constraints on fuzzy DM that disfavor most of the parameter space, leaving a possible opening around $\gtrsim 10^{-21}$ eV Viel et al. (2013); Iršič et al. (2017); Marsh and Niemeyer (2018). We note that this region is now constrained by M87∗.

VI Conclusions

The Event Horizon Telescope has provided the first direct image of a BH. We have shown that the information gained from this observation can be used to place constraints on particle physics, specifically ultra light bosons via the mechanism of superradiance. Superradiance leads to a large extraction of energy from a rotating BH and any determination of a BHs spin could place a constraint on the presence of ultra light bosons. The measurement of M87∗ provides constraints on both vector and scalar bosons, and in the vector case constrains some of the fuzzy dark matter parameter space. Future observations of M87∗’s spin can pin down the exact constraint and, in principle, future spin measurements of SMBHs could possibly cover the entire fuzzy dark matter parameter space.
