Topological semimetal phases manifested in transition metal dichalcogenides intercalated with 3d metals

TL;DR

This study identifies stable topological semimetal phases in 3d metal-intercalated transition metal dichalcogenides through ab initio calculations, revealing Weyl semimetals with unique electronic properties suitable for condensed matter research.

Contribution

It introduces a new class of topological semimetals in 3d metal-intercalated TMDs, characterized by twelve Weyl nodes and distinct magnetic and nonmagnetic phases, expanding the material platform for topological physics.

Findings

Identified Weyl semimetals with twelve Weyl nodes in 3dI-TMDCs.

VNb3S6 is half-metallic with two bands crossing at the Fermi level.

MnNb3S6 exhibits a quasi-nodal-line degeneracy with minimal gap.

Abstract

In the search for stable topological semimetals with clean band profiles, we have screened all the 3$d$ metal-intercalated transition-metal dichalcogenides (3dI-TMDCs) by performing hybrid-functional-based ab initio calculations. Two classes of topological materials featuring twelve Weyl nodes in the $k_z=0$ plane (without spin-orbit interactions) are identified: (a) time-reversal-breaking Weyl semimetals VT$_3$X$_6$ (ferromagnetic) and (b) spinless Weyl semimetals MnT$_3$X$_6$ (nonmagnetic), where T=Nb, Ta; X=S, Se. VNb$_3$S$_6$, prototypical of class (a), is half-metallic with only two bands crossing at the Fermi level to form Weyl nodes. MnNb$_3$S$_6$ in the nonmagnetic phase is essentially a spinless version of VNb$_3$S$_6$ featuring an equally clean and simple band profile. Although the space group symmetry (P6$_3$22) implies that the degeneracy between the two bands is lifted for $k$ away from the Weyl nodes, the gap remains extremely small ($\ll$ 0.1 meV) along a loop connecting the Weyl nodes. This quasi-nodal-line degeneracy is explained in terms of the quasi-mirror symmetry of the lattice, induced by the in-plane twofold rotation axes, and the specific orbital nature of the bands. 3dI-TMDCs are chemically and thermally stable stoichiometric compounds containing no toxic elements and are a viable platform for the study of topological condensed-matter physics.

Figures

Tables

Table 1. Table 1: Experimental magnetic properties of MNb 3 S 6 (M: 3 d 𝑑 d intercalants from Ti to Ni) compiled in the review by Friend and Yoffe. FriendYoffe Here NM, FM, and AFM denote nonmagnetic, ferromagnetic and antiferromagnetic, T C subscript 𝑇 𝐶 T_{C} is the transition temperature, and N d subscript 𝑁 𝑑 N_{d} and valence are the number of 3 d 𝑑 d electrons and the charge state of M, respectively.

	Ti	V	Cr	Mn	Fe	Co	Ni
magnetic order (easy axis)	NM	FM (ab)	FM (ab)	FM (ab)	AFM (c)	AFM (-)	AFM (-)
$T_c$ (K)	-	55	115	40	45	25	90
$N_d$ (valence)	1 (+3)	2 (+3)	3 (+3)	5 (+2)	6 (+2)	7 (+2)	8 (+2)

Full text

Introduction: The topological view of condensed matter, shaped gradually in the latter half of the 20th century, came to the forefront of condensed-matter research with the discovery of topological insulators.HK ; QZ The field has since been evolving rapidly with target materials expanding from insulators to semimetals.SM ; RevWeyl1 ; RevWeyl2 ; RevWeylDirac ; RevTSM ; RevNLSM1 ; RevNLSM2 Topological semimetals can be broadly classified into Dirac semimetals (DSMs), Weyl semimetals (WSMs), and nodal-line semimetals (NLSMs).

DSMs are characterized by having two energy bands, each spin-degenerate, crossing linearly near the Fermi level $E_{F}$ at isolated points in the Brillouin zone (BZ). The crossing point (Dirac point) is therefore fourfold degenerate, which is possible only if the system respects both time-reversal and spatial-inversion symmetries. If one or both of these symmetries is broken, a Dirac point splits into two doubly degenerate points, turning the material into a WSM. The degeneracy points (Weyl points or WPs) have chirality $C=\pm 1$ depending on whether the node is a sink or source of Berry curvature. The total chirality of the BZ must vanish; therefore, WPs come in pairs with opposite signs of $C$. The degeneracy is lifted only when WPs of opposite chiralities approach each other and annihilate in pairs. Therefore, WPs are robust against weak perturbations. In contrast to DSMs and WSMs having degeneracies at discrete $k$ points, NLSMs have degeneracy along a one-dimensional path in the BZ. Such a line degeneracy arises, for example, if the crystal has a mirror plane on which the bands have different mirror eigenvalues.

A salient feature of topological materials is the emergence of surface states associated with their bulk topology.RevWeylDirac DSMs and WSMs have topologically protected surface states called Fermi arcs, which give rise to quantum oscillations in magnetotransport or quantum interference in tunnel conductance. NLSMs tend to have rather flat surface bands in the shape of drumheads inside or outside the nodal loop projected onto the surface BZ. High-temperature superconductivity and special collective modes involving drumhead surface states have been predicted.Heikkila ; SpecCollMode

The material realization of topological semimetals has been spearheaded by ab initio calculations. Density functional theory calculations have successfully identified inversion-breaking WSMs, such as transition metal monopnictidesTaAs_1 ; TaAs_2 and trigonal Te and Se HirayamaTe , and time-reversal-breaking WSMs such as Co2TiX (X=Si, Ge, Sn)C2X_1 and Co2ZrSn.ZrCoSn As regards DSMs, Na3BiNa3Bi and Cd3As2 Cd3As2 were discovered by calculations. The NLSMs identified include Ca2As (and related compounds),Ca2As fcc alkaline earth metals,HirayamaCa and Y2C.Y2C1 ; Y2C2 (Extensive lists of predicted materials are given in recent reviews.RevWeylDirac ; RevTSM ; RevNLSM2 ) Such materials, however, are often unstable under ambient conditions or may require the tuning of $E_{F}$ to the band-crossing points by pressure or alloying. In time-reversal-breaking materials, magnetic domain formation can be a hindrance. Also, materials with only two bands crossing at $E_{F}$ are preferable since the presence of intervening non-topological bands would mask topological effects. Further effort is needed to discover topological materials with more desirable electronic structures.

In this Rapid Communication, we revisit 3$d$ metal-intercalated transition metal dichalcogenides (3dI-TMDCs), studied intensively from the 1970’s to the 1980’s, and show that V/Mn intercalation compounds are topological semimetals with fascinating features. 3dI-TMDCs are interesting in that (i) they form stoichiometric compounds that are chemically and thermally stable, (ii) their structures are well understood, (iii) most of them show a nonmagnetic-magnetic transition at temperatures below $\sim$100 K, which allows the realization of both time-reversal-symmetric and -asymmetric states, (iv) the carrier density and magnetism can be tuned readily by alloying or the selection of intercalants, and (v) a narrow intercalant (3$d$) band, in which $E_{F}$ is located, overlaps a hybridization-induced energy gap within the 4$d$ manifold of the host. The last point (v) is particularly relevant, indicating the possibility that the 3$d$ and 4$d$ bands cross near $E_{F}$ with no other band intervening in the same energy range.

We have searched for topological band crossings near $E_{F}$ in all the 3dI-TMDCs using hybrid-functional-based ab initio calculations. The search revealed that VT3X6 in the ferromagnetic phase ($T<T_{C}$, Curie temperature) and MnT3X6 in the nonmagnetic phase ($T>T_{C}$) (T$=$Nb, Ta; X=S, Se) are WSMs with a quasinodal line on the $k_{z}=0$ plane [without a spin-orbit interaction (SOI)], although they lack inversion or mirror symmetry. We attribute these quasinodal lines to a quasimirror symmetry, induced by in-plane twofold rotation axes and the orbital characters of the crossing bands. We focus our discussion on VNb3S6 and MnNb3S6. [The band structures of all the screened materials are shown in the Supplemental Material (SM). SupplM ]

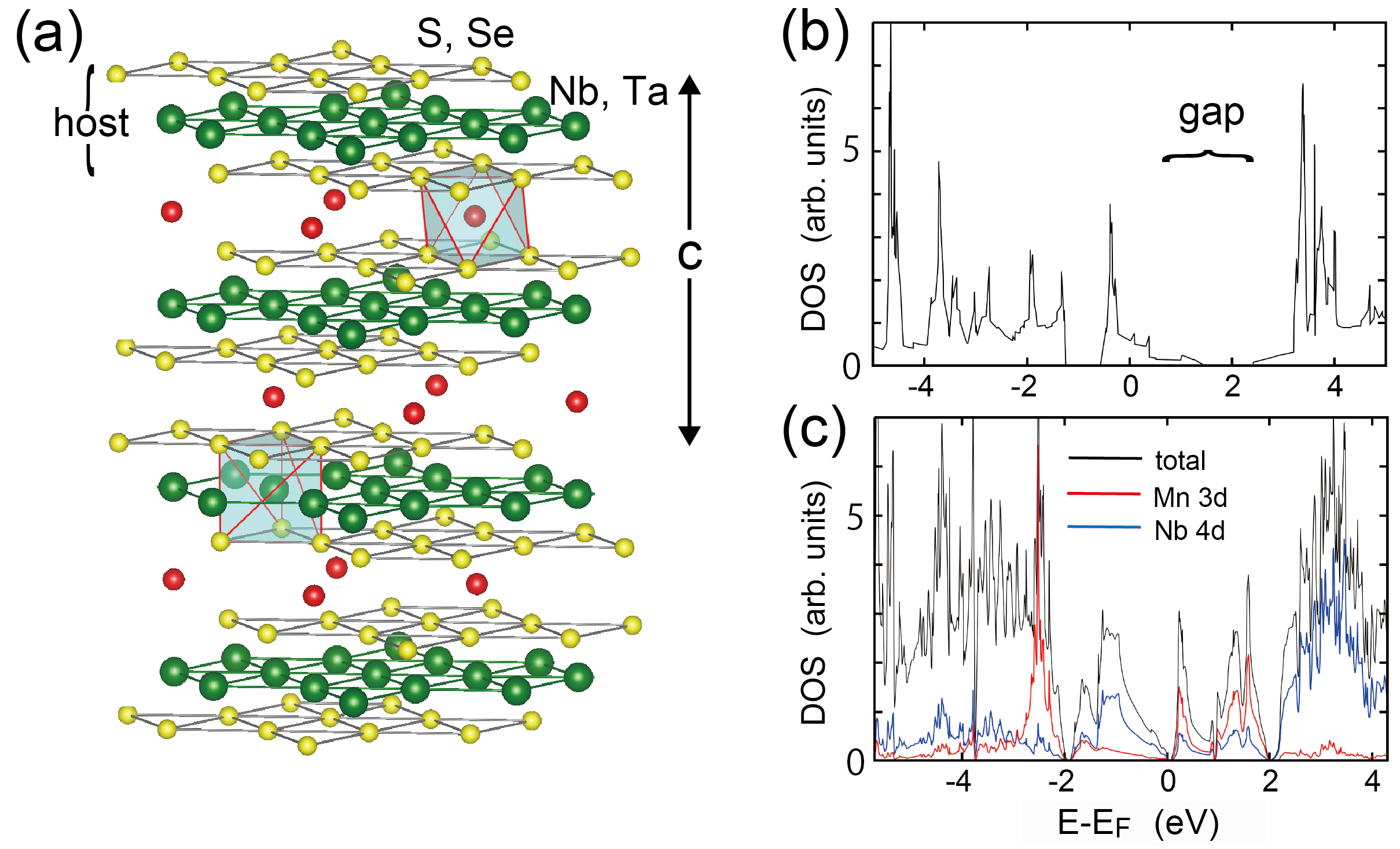

TMDCs and their 3$d$ intercalation compounds: Layer-structured TMDCs, TX2 (T=transition metal, X=chalcogen), are hexagonal crystals consisting of X-T-X sandwiches [‘host’ in Fig. 1(a)] stacked in the $c$ direction. While the intrasandwich bonding is covalent and strong, the intersandwich bonding is weak. Kolobov This anisotropy allows the electronic structures of TMDCs to be described by the monolayer model. Figure 1(b) shows the density of states of a NbS2 monolayer. Near $E_{F}$, the dispersive 4$d$ bands of Nb overlap each other, but the lowest band with the $d_{z^{2}}$ character hybridizes with the higher-lying 4$d$ bands to create a gap. Because this split-off 4$d_{z^{2}}$ band is half-filled, the system is a metal. Among the many TMDCs, four (NbS2, NbSe2, TaS2, TaSe2) can be intercalated with 3$d$ transition metals (Ti, V, Cr, Mn, Fe, Co, Ni) to form stoichiometric compounds MT3X6.FriendYoffe

All the MT3X6 compounds crystallize in the same structure without inversion or mirror symmetry (space group P6322, No. 182) shown in Fig. 1(a). Of the symmetry elements of P6322, essential for our later discussion are the two classes of twofold rotations around the in-layer axes, $C_{2}^{\prime\prime}$ (axes parallel to $<$100$>$) and $C_{2}^{\prime}$ (axes parallel to $<$120$>$).Dres Within a sandwich, the Nb/Ta ions take trigonal prismatic coordination with the chalcogens. The adjacent sandwiches are stacked so that the Nb/Ta ions sit on top of each other, whereas the chalcogen layers separated by an intercalant layer are rotated by 60*∘* with respect to each other, causing the intercalants to take octahedral coordination with the chalcogens. The unit cell comprises two TX2 sandwiches and two intercalant layers; the in-layer unit cell is $\sqrt{3}\times\sqrt{3}$ relative to the host unit cell. As the band structures of the hosts are similar, the electronic structures and properties of 3dI-TMDCs are determined mainly by the intercalant species. These properties, particularly the magnetic properties, attracted considerable attention from the 1970’s to the 1980’s.FriendYoffe Table I summarizes the key experimental results for the NbS2-derived compounds.

Figure 1(c) shows the density of states of MnNb3S6 in the nonmagnetic phase ($T>T_{c}$). Whereas the host 4$d$ bands are largely unaffected by intercalation, the Mn 3$d$ orbitals form rather narrow bands near $E_{F}$, spanning the energy gap of the host. Two of the Mn electrons transfer to the host 4$d_{z^{2}}$ band and stabilize the system. This rigid band picture generally holds true for all members of the 3dI-TMDC family. The number of 3$d$ electrons increases from Ti to Ni (Table I), giving rise to material-specific magnetic order. The compounds undergo a nonmagnetic-magnetic transition at temperatures between 25 and 115 K. Similar magnetic trends have also been observed in 3dI-TMDCs derived from other hosts.SupplM

Calculation method: We calculated the electronic structures of all the 3dI-TMDCs with known structures using the hybrid-functional (HSE06) method HSE ; HSE06 ; Mars ; PBE in the projector augmented wave (PAW) framework, as implemented in the Vienna ab initio simulation package (VASP).Kr ; Kr2 ; Bl ; Kr3 [See SM for calculational details and a comparison between the hybrid-functional and generalized gradient approximation (GGA)+$U$ results.SupplM ] The experimental crystal structuresParkinFriend ; FriendBielYoffe ; TiCr ; VMn ; FeNi ; Co were assumed.

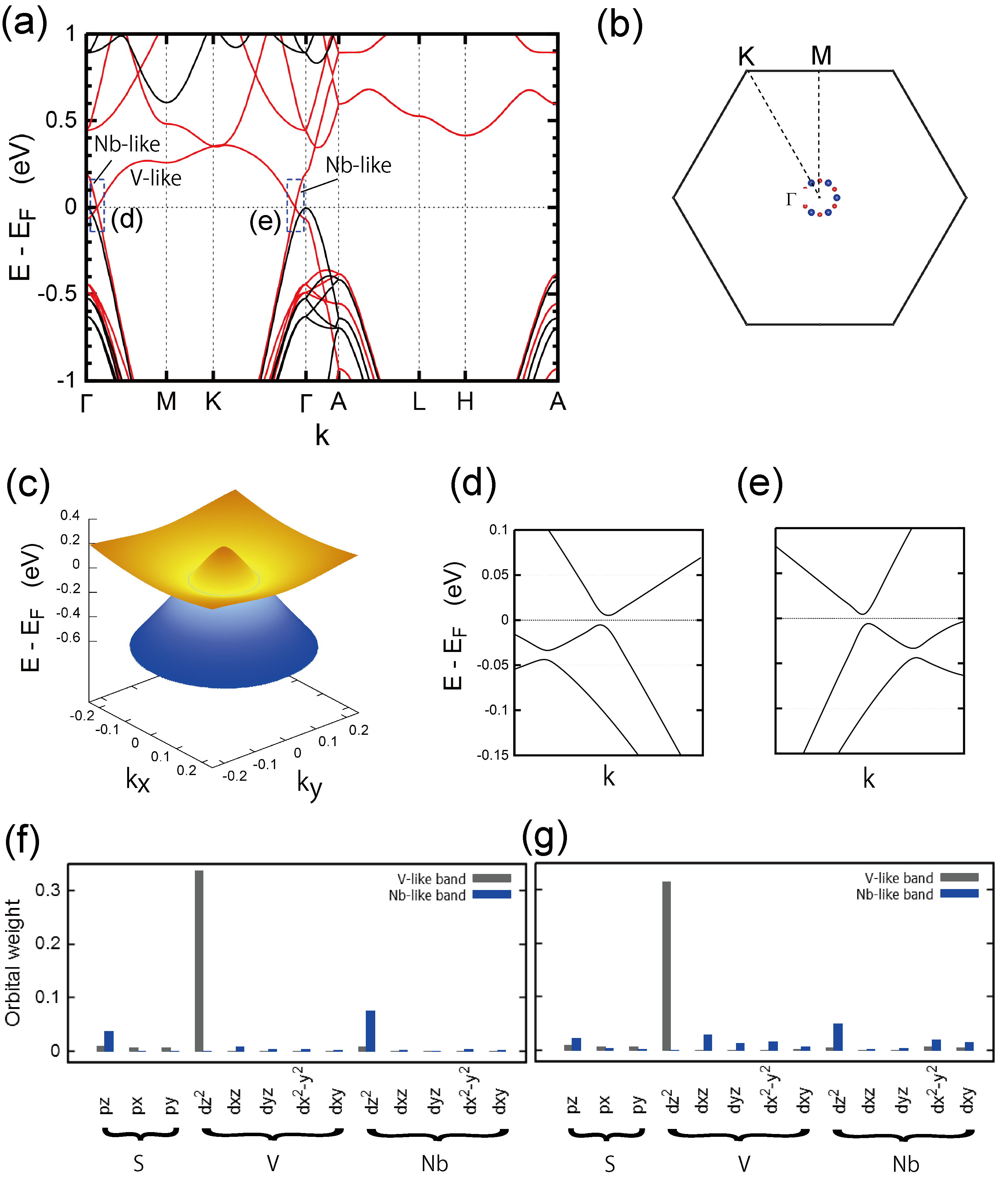

Results and discussion: Figure 2(a) shows the band structure of VNb3S6 in the ferromagnetic phase without SOI. (Since spin and spatial freedoms are completely decoupled in the absence of SOI, the rotational and screw symmetries are preserved irrespective of the direction of the magnetization.) Electrons transferred from the intercalated V fill up a minority-spin 4$d$ band of the host (black curve with a peak slightly below $E_{F}$ at $\Gamma$) and bring $E_{F}$ to the points (WPs) where two majority-spin bands (red curves) cross. Among the two crossing bands, the steep band with a peak at $\Gamma$ mainly has the character of Nb 4$d_{z^{2}}$, whereas the narrower band with a minimum at $\Gamma$ consists predominantly of V 3$d_{z^{2}}$; we call them “Nb-like band” and “V-like band”, respectively. Note the extremely simple and clean half-metallic band structure with only two minority-spin bands at $E_{F}$. There are 12 WPs arranged circularly on the $k_{z}=0$ plane [Fig. 2(b)], six with $C=+1$ on $\Gamma$-M and six with $C=-1$ on $\Gamma$-K. The crossing on $\Gamma$-M ($\Gamma$-K) arises because the little group on the line comprises an in-plane twofold rotation $C_{2}^{\prime}$ ($C_{2}^{\prime\prime}$),Dres whose eigenvalues are different ($+1$ vs $-1$) for the two bands. [The eigenvalues are indicated in Fig. 3(a).] The two types of WPs differ in energy by only 0.6 meV with $E_{F}$ located between them. The band degeneracy is lifted off the symmetry lines, but the gap remains remarkably small ($\ll$ 0.1 meV) along a circular loop passing through the WPs [Fig. 2(c)].

The orbital weights of the two bands at $\Gamma$ and at a WP on $\Gamma$-M are shown in Figs. 2(f) and (g), respectively. The plots reconfirm that on either $k$ point, the V-like band consists overwhelmingly of V $d_{z^{2}}$, whereas the Nb-like band is made of Nb $d_{z^{2}}$ and S $p_{z}$ orbitals. If one ignores S and considers a hypothetical crystal made of V and Nb, it has a horizontal mirror plane passing through a V site [Fig. 1(a)]. This situation is reminiscent of mirror-protected NLSMs whose line degeneracy results from the crossing of bands with different mirror eigenvalues on the mirror plane. Crude as this reasoning may seem, we indeed found that the wave function of the V-like (Nb-like) band at small $k$ is nearly symmetric (antisymmetric) with respect to the V plane. This quasimirror symmetry explains the quasinodal-line degeneracy observed in VNb3S6 (and similar 3dI-TMDCs). In SM, it is shown that the quasimirror symmetry stems from the in-plane twofold rotation axes combined with the orbital nature of the bands.SupplM

When SOI is taken into account, the band structure depends on the direction of the magnetization $\mathbf{m}$. Figure 2(d) shows the result in box (A) in Fig. 2(a) obtained for $\mathbf{m}\parallel\Gamma$-M0 [see Fig. 2(b)]. Since the system is still $C_{2}$-symmetric around this line, the WPs on $\Gamma$-M0 [the crossing between the red solid curves in (d)] and $\Gamma$-M1 (the crossing between the blue dashed-dotted curves) remain, but the WPs on the other $\Gamma$-M lines have disappeared. As regards the WPs on $\Gamma$-K, they are all removed by SOI owing to the loss of $C_{2}$ symmetry therearound. Therefore, VNb3S6 in this configuration is a minimal WSM hosting only two WPs with $C=+1$ and $-1$. A similar situation arises when $\mathbf{m}$ is aligned with $\Gamma$-K, as can be seen in Fig. 2(d) for $\mathbf{m}\parallel\Gamma$-K0. Only two WPs remain: one on $\Gamma$-K0 ($C=1$) and the other on $\Gamma$-K1 ($C=-1$). When $\mathbf{m}$ is rotated in the basal plane, the WPs are found to persist and rotate around $\Gamma$ following the rotation of $\mathbf{m}$. If, on the other hand, $\mathbf{m}$ is tilted out of the basal plane, the two WPs are annihilated, transforming the system into a ferromagnetic topological insulator with a small gap of 1 meV. (For more results including anomalous Hall conductivity, see SM.SupplM )

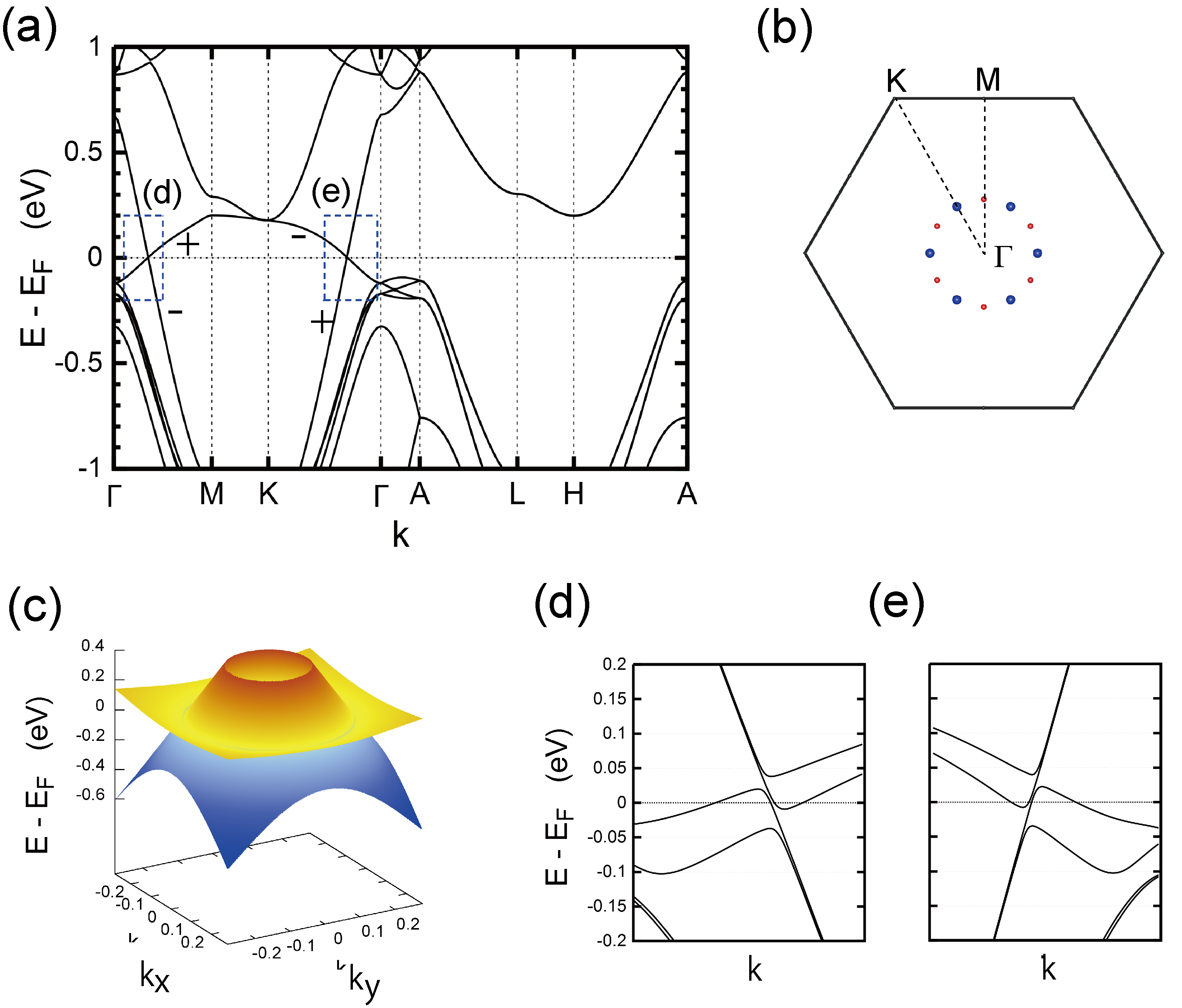

MnNb3S6 in the nonmagnetic phase is essentially a spinless version of VNb3S6 [Fig. 3(a)]. Time-reversal symmetry together with the neglect of SOI cause each of the two bands to be spin-degenerate, and there are spinless WPs at the crossing points. The WPs on $\Gamma$-M and $\Gamma$-K are only 1 meV apart, and $E_{F}$ is located between them. The bands are rather isotropic in the $k_{z}$=0 plane and nearly degenerate along a loop, making MnNb3S6 a quasinodal-line semimetal similar to VNb3S6 [Fig. 3(c)]. With the inclusion of SOI, the spin degeneracy is lifted and the WPs disappear, but there is no global band gap [Figs. 3(d) and 3(e)].

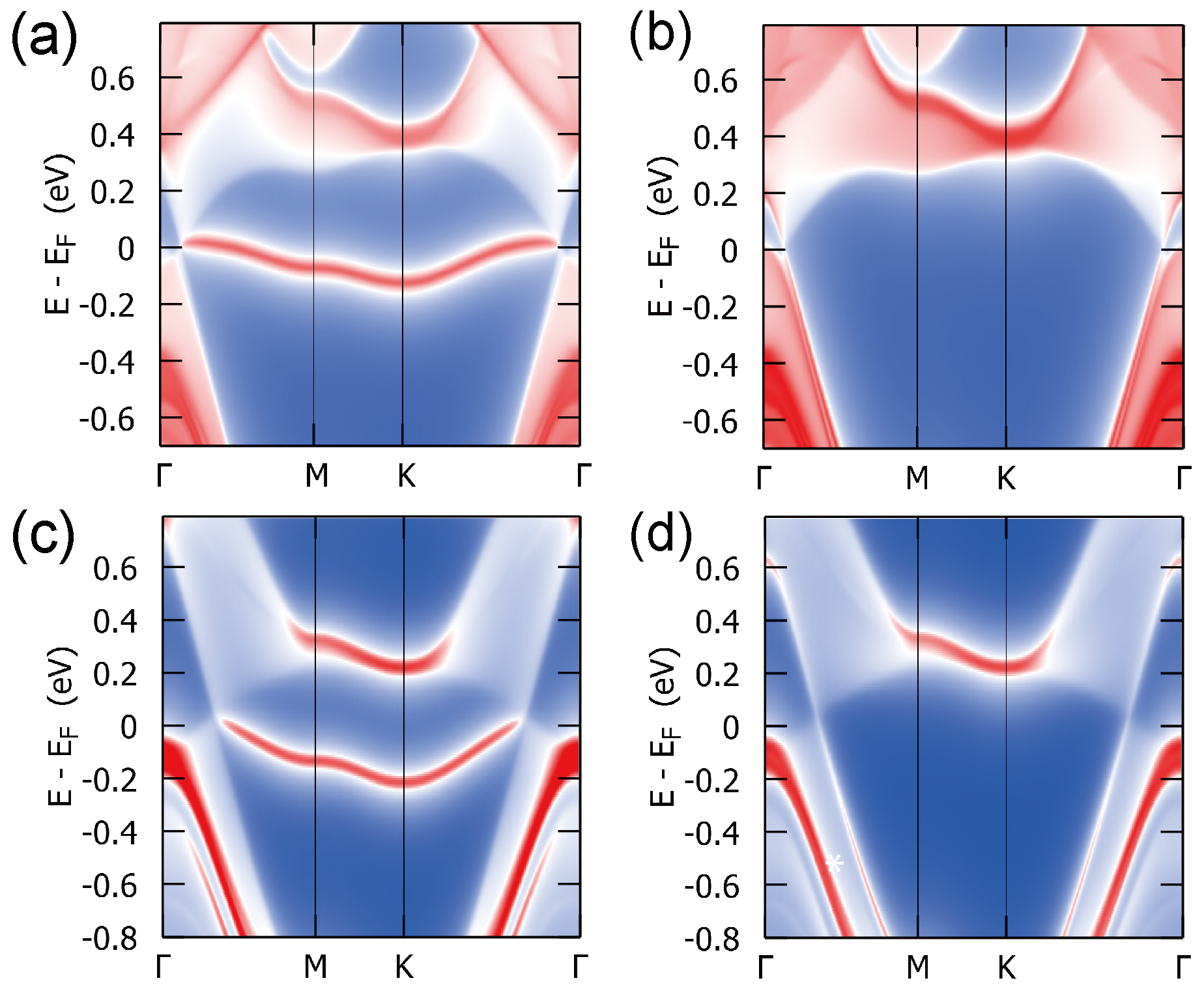

Figures 4(a) and 4(b) show the V-terminated and S-terminated (001) surface spectral functions, respectively, for VNb3S6 in the absence of SOI. Only the minority spin channel is plotted. In performing this calculation, we constructed tight-binding Hamiltonians $H$ from the hybrid-functional results using the WANNIER90 code,Mar ; Mostofi and from $H$ obtained the Green’s functions for semi-infinite spaceGreen using the WannierTools package.WTools 　On the V-terminated surface [Fig. 4(a)], there is a flat surface state around $E_{F}$ that connects the projections of the bulk WPs onto the surface BZ. It has the shape of a drumhead, characteristic of NLSMs, rather than a Fermi arc usually seen in WSMs. This is consistent with the quasi-NLSM character of the bulk. For the S-terminated surface [Fig. 4(b)], there is no clearly discernible surface state connecting the bulk WPs. Similar results were obtained for MnNb3S6 [Figs. 4(c) and 4(d)]: A topological surface band is seen only in the Mn-terminated surface.

Concluding Remarks: We have screened all the 3dI-TMDCs from the topological perspective and identified (a) time-reversal-breaking WSMs VT3X6 ($T<T_{C}$) and (b) spinless WSMs MnT3X6 ($T>T_{C}$), where T=Nb, Ta and X=S, Se. VNb3S6, representative of class (a), is half-metallic, where only two bands are present at $E_{F}$ and cross each other. When SOI is taken into account, VNb3S6 is a minimal WSM with two WPs or a ferromagnetic topological insulator, depending on whether the magnetization is in the basal plane or perpendicular to it. This finding, combined with the soft magnetism reported in the literature,FriendYoffe suggests the interesting possibility of tuning the topological signature of the material with a small external magnetic field. MnNb3S6 in the nonmagnetic phase, belonging to class (b), is essentially a spinless version of VNb3S6, a WSM with an equally clean and simple band profile. The WPs in these materials are located at or within a few meV of $E_{F}$, implying that there is no need for Fermi level tuning.

Magnetic 3dI-TMDCs, except Fe compounds, are soft magnetic materialsFriendYoffe with the magnetization direction and domain size readily controllable by the application of a weak magnetic field. This makes ferromagnetic 3dI-TMDCs enticing, because magnetic domains tend to suppress topological properties.

On a final note, clean topological band structures similar to those of VNb3S6 and MnNb3S6 are also found in compounds derived from other hosts,SupplM making 3dI-TMDCs an attractive platform for the study of topological condensed-matter physics.
