Testing $\Lambda$CDM With Dwarf Galaxy Morphology

TL;DR

This study compares observed dwarf galaxy shapes with CDM simulation predictions, finding discrepancies that suggest the need for alternative dark matter models if oblate morphologies are confirmed.

Contribution

It introduces a method to infer 3D shapes of dwarf galaxies and highlights potential conflicts with CDM simulations based on observed morphologies.

Findings

Oblate shapes observed in high mass-to-light ratio dwarf galaxies.

Prolate shapes in low mass-to-light ratio dwarf galaxies.

Discrepancy between observed shapes and CDM simulation predictions.

Abstract

The leading tensions to the collisionless cold dark matter (CDM) paradigm are the "small-scale controversies", discrepancies between observations at the dwarf-galactic scale and their simulational counterparts. In this work we consider methods to infer 3D morphological information on Local Group dwarf spheroidals, and test the fitness of CDM+hydrodynamics simulations to the observed galaxy shapes. We find that the subpopulation of dwarf galaxies with mass-to-light ratio $\gtrsim 100 M_\odot/L_\odot$ reflects an oblate morphology. This is discrepant with the dwarf galaxies with mass-to-light ratio $\lesssim 100 M_\odot/L_\odot$, which reflect prolate morphologies, and more importantly with simulations of CDM-sourced galaxies which are explicitly prolate. Although more simulations and data are called for, if evidence of oblate pressure-supported stellar distributions persists, we argue that an underlying oblate non-CDM dark matter halo may be required, and present this as motivation for future studies.

Figures

Tables

Table 1. Table 1: The observed Local Group dwarf spheroidal galaxies used in this study, compiled from Refs.  McConnachie ( 2012 ) [M12], Munoz et al. ( 2018b ) [M18b] and associated sources ( Simon et al. ( 2011 ) [S11], Kirby et al. ( 2013a ) [K13a], Willman et al. ( 2011 ) [W11], Kirby et al. ( 2013b ) [K13b], Simon & Geha ( 2007 ) [S07], Koposov et al. ( 2011 ) [K11], Walker et al. ( 2009a ) [W09a], Walker et al. ( 2009b ) [W09b], Koch et al. ( 2007 ) [K07], Ibata et al. ( 1994 ) [I94], McConnachie et al. ( 2005 ) [M05], Kalirai et al. ( 2010 ) [K10], Fraternali et al. ( 2009 ) [F09]) . The most relevant structural and kinematic parameters are listed here: the ellipticity ϵ italic-ϵ \epsilon , central surface brightness Σ ∗ subscript Σ \Sigma_{*} , the stellar velocity dispersion σ ∗ subscript 𝜎 \sigma_{*} , the mass-to-light ratio M / L V 𝑀 subscript 𝐿 𝑉 M/L_{V} , and affiliation – whether it is a satellite of the Milky Way [MW], Andromeda [A], or an isolated dwarf [I]. We note that reported parameters for MW satellites in both catalogs are in excellent agreement, and we will take the Plummer structural parameters reported in Ref.  Munoz et al. ( 2018b ) for consistency.

Name	Group	$ϵ$	${\sigma }_{\ast }$	${\Sigma }_{\ast }$	$M/L_V$	Ref.
			$\left[{\text{km s}}^{-1}\right]$	$\left[{\text{mag arcsec}}^{-1}\right]$	$\left[M_{\odot }/L_{\odot }\right]$
Segue I	MW	$0.33\pm 0.10$	$3.9\pm 0.8$	${28.06}_{-0.98}^{+1.01}$	1530	M18b, S11
Segue II	MW	$0.22\pm 0.07$	$3.4\pm 2.5$	$28.48\pm 1.06$	$500$	M18b, K13a
Willman 1	MW	$0.47\pm 0.06$	${4.3}_{-1.3}^{+2.3}$	$25.87\pm 0.94$	520	M18b, K13b, W11
ComBer	MW	$0.37\pm 0.05$	$4.6\pm 0.8$	$26.98\pm 0.37$	500	M18b, K13b, S07
Bootes I	MW	$0.30\pm 0.03$	${2.4}_{-0.5}^{+0.9}$	$28.38\pm 0.30$	60	M18b, K11
Draco	MW	$0.29\pm 0.01$	$9.1\pm 1.2$	$25.12\pm 0.07$	80	M18b, K13b
Ursa Minor	MW	$0.55\pm 0.01$	$9.5\pm 1.2$	$25.77\pm 0.08$	70	M18b, K13b
Sculptor	MW	$0.33\pm 0.01$	$9.2\pm 1.4$	$23.29\pm 0.15$	12	M18b, K13b, W09a
Sextans I	MW	$0.30\pm 0.01$	$7.9\pm 1.3$	$27.22\pm 0.08$	98	M18b, K13b, W09a
Carina	MW	$0.36\pm 0.01$	$6.6\pm 1.2$	$25.35\pm 0.07$	34	M18b, W09a
Hercules	MW	$0.69\pm 0.03$	$3.7\pm 0.9$	$26.82\pm 0.39$	90	M18b, K13b
Fornax	MW	$0.29\pm 0.01$	$11.7\pm 0.9$	$23.59\pm 0.16$	5.7	M18b, K13b, W09a
Leo IV	MW	$0.17\pm 0.09$	$3.3\pm 1.7$	${27.80}_{0.50}^{+0.53}$	145	M18b, K13b, S07
CV II	MW	$0.40\pm 0.13$	$4.6\pm 1.0$	${26.50}_{0.63}^{+0.68}$	230	M18b, K13b, S07
Leo V	MW	$0.43\pm 0.22$	${3.7}_{-1.4}^{+2.3}$	${23.29}_{0.79}^{+0.90}$	215	M18b, W18b
CV I	MW	$0.44\pm 0.03$	$7.6\pm 0.4$	$26.78\pm 0.13$	160	M18b, K13b, S07
Leo II	MW	$0.07\pm 0.01$	$6.6\pm 0.7$	$24.24\pm 0.07$	13	M18b, K13b, K07
Leo I	MW	$0.30\pm 0.01$	$9.2\pm 1.4$	$22.61\pm 0.30$	4.4	M18b, K13b
Sag dSph	MW	$0.64\pm 0.02$	$11.4\pm 0.7$	$25.2\pm 0.3$	9	M12, I94
And I	A	$0.22\pm 0.04$	$10.6\pm 1.1$	$24.7\pm 0.2$	11	M12, M05, K10
And III	A	$0.52\pm 0.02$	$4.7\pm 1.8$	$24.8\pm 0.2$	7	M12, M05, K10
And X	A	$0.44\pm 0.06$	$3.9\pm 1.2$	$26.3\pm 1.1$	24	M12, K10
And XIV	A	$0.31\pm 0.09$	$5.4\pm 1.3$	$27.2\pm 0.6$	31	M12, K10
And II	A	$0.20\pm 0.08$	$7.3\pm 0.8$	$24.5\pm 0.2$	4.9	M12, M05, K10
And VII	A	$0.13\pm 0.04$	$9.7\pm 1.6$	$23.2\pm 0.2$	4.2	M12, M05, K10
Cetus	I	$0.33\pm 0.06$	$17.0\pm 2.0$	$25.0\pm 0.2$	46	M12, M05
Tucana	I	$0.48\pm 0.03$	${15.8}_{-3.1}^{+4.1}$	$25.0\pm 0.1$	73	M12, F09

Equations

$${\rho }_{\ast }={\rho }_0(1+\frac{x^2}{a^2}+\frac{y^2}{b^2}+\frac{z^2}{c^2}{)}^{-5/2}$$

$${\hat{z}}^{\prime }\equiv \sin \theta \cos \varphi \hat{x}+\sin \theta \sin \varphi \hat{y}+\cos \theta \hat{z}$$

$$\left[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\\ z^{\prime }\end{array}\right]=\left[\begin{array}{ccc}\cos \omega & -\sin \omega & 0\\ \sin \omega & \cos \omega & 0\\ 0& 0& 1\end{array}\right]\left[\begin{array}{ccc}\sin \varphi & -\cos \varphi & 0\\ \cos \theta \cos \varphi & \cos \theta \sin \varphi & -\sin \theta \\ \sin \theta \cos \varphi & \sin \theta \sin \varphi & \cos \theta \end{array}\right]\left[\begin{array}{c}x\\ y\\ z\end{array}\right]$$

$$S_{\ast }(x{,}^{\prime }{y}^{\prime })$$

$$\times {\left(1+\frac{x^{\prime 2}}{\left(\frac{1}{2}(\alpha +\beta )-\frac{1}{2}\sqrt{4{\gamma }^2+(\alpha -\beta {)}^2}\right)}+\frac{y^{\prime 2}}{\left(\frac{1}{2}(\alpha +\beta )+\frac{1}{2}\sqrt{4{\gamma }^2+(\alpha -\beta {)}^2}\right)}\right)}^{-2}$$

$$\{\begin{array}{l}\alpha =a^2{\cos }^2\theta {\cos }^2\varphi +b^2{\cos }^2\theta {\sin }^2\varphi +c^2{\sin }^2\theta \\ \beta =a^2{\sin }^2\varphi +b^2{\cos }^2\varphi \\ \gamma =(a^2-b^2)\cos \theta \sin \varphi \cos \varphi \end{array}$$

$$\{\begin{array}{ll}ϵ& =1-\sqrt{1-\frac{2\sqrt{4{\gamma }^2+(\alpha -\beta {)}^2}}{\alpha +\beta +\sqrt{4{\gamma }^2+(\alpha -\beta {)}^2}}}\\ {\Sigma }_{\ast }& =\frac{4}{3}{\rho }_0\frac{abc}{\sqrt{\alpha \beta -{\gamma }^2}}\end{array}$$

$$\{\begin{array}{ll}{ϵ}^{obl}& =1-\sqrt{{\cos }^2\theta +\frac{c^2}{a^2}{\sin }^2\theta }\\ {\Sigma }_{\ast }^{obl}& =\frac{4}{3}{\rho }_{0}c/\left(1-{ϵ}^{obl}\right)\\ & \\ {ϵ}^{pro}& =1-\frac{1}{\sqrt{\frac{a^2}{b^2}({\sin }^2\varphi +{\cos }^2\theta {\cos }^2\varphi )+({\sin }^2\theta {\cos }^2\varphi )}}\\ {\Sigma }_{\ast }^{pro}& =\frac{4}{3}{\rho }_{0}a\left(1-{ϵ}^{pro}\right)\end{array}$$

$${\sigma }_{\ast }^2={\sin }^2\theta {\cos }^2\varphi {\sigma }_a^2+{\sin }^2\theta {\sin }^2\varphi {\sigma }_b^2+{\cos }^2\theta {\sigma }_c^2$$

$$\varphi =2\pi u\theta ={\cos }^{-1}(2v-1)$$

$$P\left(\frac{b}{a},\frac{c}{a}\mid {ϵ}_{obs}\right)=\frac{P({ϵ}_{obs}|\frac{b}{a},\frac{c}{a})P(\frac{b}{a},\frac{c}{a})}{P({ϵ}_{obs})}$$

$$P\left(\frac{b}{a},\frac{c}{a}\right)=\frac{1}{N}P({ϵ}_{proj}\in [{ϵ}_{obs,min},{ϵ}_{obs,max}|)=\frac{1}{4\pi N}\int d\Omega \Theta ({ϵ}_{proj}-{ϵ}_{obs,min})\Theta ({ϵ}_{obs,max}-{ϵ}_{proj})$$

$$r_{ϵ{\Sigma }_{\ast }}=\frac{{\sum }_i({ϵ}_i-\overline{ϵ})({\Sigma }_{\ast ,i}-{\bar{\Sigma }}_{\ast })}{\sqrt{{\sum }_i({ϵ}_i-\overline{ϵ}{)}^2{\sum }_i({\Sigma }_{\ast ,i}-{\bar{\Sigma }}_{\ast }{)}^2}}{r}_{ϵ{\sigma }_{\ast }}=\frac{{\sum }_i({ϵ}_i-\overline{ϵ})({\sigma }_{\ast ,i}-{\bar{\sigma }}_{\ast })}{\sqrt{{\sum }_i({ϵ}_i-\overline{ϵ}{)}^2{\sum }_i({\sigma }_{\ast ,i}-{\bar{\sigma }}_{\ast }{)}^2}}$$

$$\delta r_{ϵ{\Sigma }_{\ast }({\sigma }_{\ast })}^2={\left(\frac{\partial r_{ϵ{\Sigma }_{\ast }({\sigma }_{\ast })}}{\partial ϵ}\right)}^2\delta {ϵ}^2+{\left(\frac{\partial r_{ϵ{\Sigma }_{\ast }({\sigma }_{\ast })}}{\partial {\Sigma }_{\ast }({\sigma }_{\ast })}\right)}^2\delta {\Sigma }_{\ast }^2({\sigma }_{\ast }^2)+{\left(\frac{\partial r_{ϵ{\Sigma }_{\ast }({\sigma }_{\ast })}}{\partial ϵ}\frac{\partial r_{ϵ{\Sigma }_{\ast }({\sigma }_{\ast })}}{\partial {\Sigma }_{\ast }({\sigma }_{\ast })}\right)}^2{\sigma }_{ϵ{\Sigma }_{\ast }({\sigma }_{\ast })}$$

$$r_{ϵ{\Sigma }_{\ast }}^{dim}=0.509\pm 0.309r_{ϵ{\sigma }_{\ast }}^{dim}=0.618\pm 0.323$$

$$r_{ϵ{\Sigma }_{\ast }}^{bright}=-0.353\pm 0.059r_{ϵ{\sigma }_{\ast }}^{bright}=-0.183\pm 0.098$$

$$r_{ϵ{\Sigma }_{\ast }}^{all}=-0.287\pm 0.058r_{ϵ{\sigma }_{\ast }}^{all}=-0.105\pm 0.097$$

$$r_{ϵ{\Sigma }_{\ast }}^{FIRE}=-0.322\pm 0.213r_{ϵ{\sigma }_{\ast }}^{FIRE}=-0.252\pm 0.214$$

$$p(r)=\frac{(1-r^2{)}^{\frac{N-4}{2}}}{B(\frac{1}{2},\frac{N-2}{2})}$$

$${\partial }_i({\rho }_{\ast }{\sigma }_{ij}^2)=-{\rho }_{\ast }{\partial }_j\Phi$$

$${\nabla }^2\Phi =4\pi G{\rho }_{DM}$$

Full text

††journal: Astrophys. J.

\published

September 1, 2020

1 Introduction

The minimal cold dark matter (CDM) paradigm, which takes dark matter (DM) to be cold and collisionless, has been quite successful, particularly at high redshift and large scales (Ade et al. (2016)). However, its particle nature is still very much unknown, and a wide variety of direct and indirect detection experiments are actively searching for evidence of any nongravitational coupling to the visible sector (Ackermann et al. (2017); Xiao & Collaboration (2017); Angle et al. (2008); Amole et al. (2017); Aalseth et al. (2013); Essig et al. (2012)). As it stands, the parameter space remains open for many models of interacting dark matter (Arkani-Hamed et al. (2009); Sigurdson et al. (2004); Preskill et al. (1983); Jungman et al. (1996); Buckley & Fox (2010); Feng et al. (2009); Kaplan et al. (2009)). Correspondingly, many new ways of testing for the properties of dark matter have yet to be explored.

At small astrophysical scales in particular, dwarf galaxies have significant promise as an arena for investigating DM interactions. They are strongly DM-dominated systems offering both a uniquely clean testing ground of the halo gravitational potential and a probe of the smallest scales of the matter power spectrum. Despite having low luminosities, many candidates have been observed due to their relative proximity. In fact, the current leading potential challenges to CDM come from discrepancies between simulations and observations at the galactic and dwarf-galactic scale. Specifically, the “core-cusp” (Bullock & Boylan-Kolchin (2017); Spergel & Steinhardt (2000); Walker & Penarrubia (2011)), “missing satellite” (Klypin et al. (1999); Weinberg et al. (2014)), and “too big to fail” (Boylan-Kolchin et al. (2011); Papastergis et al. (2015)) problems have prompted speculation that observed dwarf galaxies are less numerous, less massive, and less centrally dense than their CDM simulation counterparts.

Ultimately the goal is to see how well the CDM paradigm fits with the observed data as we understand it. While it is unclear that new physics is necessary to resolve such discrepancies (Brooks & Zolotov (2014); Read et al. (2017); Arraki et al. (2014); Genina et al. (2018)), these tensions have motivated a lively collection of self-interacting dark matter models (Buckley & Fox (2010); Fan et al. (2013); Cyr-Racine et al. (2016); Bode et al. (2001); Boehm et al. (2002); Moore et al. (1999)), that propose as a solution non-minimal dark sectors which couple to the visible sector only via gravity. These models would therefore be inaccessible to direct and indirect detection but would induce modifications to structure formation at small scales.

Detailed efforts have been invested in characterizing the stellar populations and kinematic parameters of the classical dwarf galaxies, in the service of understanding the surrounding halo structure (Łokas (2009); Walker et al. (2009); Er (2013); Amorisco & Evans (2012); Martin et al. (2008); Walker et al. (2011); Pawlowski et al. (2015); Marasco et al. (2018); Walker et al. (2009a); Hayashi et al. (2016)). But although there has been a good deal of attention directed towards probing different mass profiles, relatively little exploration has been dedicated to studying dwarf galaxy shapes. In part this omission is due to the reality that we observe only 2-D projections, and full morphological information is elusive without precise 3-D spatial and kinematic data for individual stars.

In this paper, we consider the morphologies of dwarf spheroidals (dsphs) in and around the Local Group (LG). In particular, we investigate their ellipticities and associated 3-D shapes, and whether they might be prolate or oblate. We then test the ability of CDM-sourced dwarf galaxies, as represented by hydro-intensive simulations, to fit the observed morphologies. Dsphs were chosen in particular since they are the most common and are typically found to have very little gas, such that when in equilibrium their stellar distributions are determined entirely by the underlying gravitational potential. Simulations of CDM have unilaterally produced halos that are prolate (where the two shorter axes are closer to each other than to the longer axis) (Navarro et al. (1996); McConnachie (2012)), and as dsphs have been found to be relatively isotropic in stellar velocity dispersion and not rotationally supported (Walker et al. (2009a); Er (2013); Burkert (2015); Mateo (1998)), we expect the stellar distributions of dsphs sourced from CDM haloes should be likewise prolate. In this paper we consider methods to infer the 3-D baryonic distributions of observed dwarf spheroidals in the local group, catalogued in Refs. McConnachie (2012); Munoz et al. (2018a), to test this hypothesis. In particular, we compare these results to the shapes of galaxies from a suite of 14 CDM-sourced dwarf galaxies with star formation from the Feedback In Realistic Environments (FIRE) project (Fitts et al. (2017); Hopkins et al. (2017)).

We find that there is currently a discrepancy between the morphologies of LG dwarf galaxies with mass-to-light ratio $>100M_{\odot}/L_{\odot}$ and those of the FIRE dwarf galaxies, and this subpopulation of LG dwarf galaxies is consistent with a more oblate morphology not reflected in simulations. We present this as a template and motivation for more statistically robust future studies. A mismatch between the CDM picture and the physical observations can point to a deficiency in our understanding of either the observed or simulational data, or it might challenge the CDM paradigm and motivate models that produce galaxies with a different morphology.

In section 2 we describe our geometric assumptions on dsphs stellar profiles, and our methods for inferring their 3-D distributions. We propose using correlations between ellipticity and surface brightness, as well as ellipticity and line-of-sight velocity dispersion, as a measure for the oblateness or prolateness of observed dwarf galaxies. Similar relations have been considered in the context of larger galaxies in Refs. Vincent & Ryden (2005); Bosch & van de Ven (2009), though the comparative richness of internal structure in that regime makes this relationship more subtle. In section 3 we present the observational and simulational data used in our analysis. In sections 4 and 5 we summarize results from projecting simulations and deprojecting observations respectively. We find that the population of observed LG dwarf galaxies with mass-to-light ratio $>100M_{\odot}/L_{\odot}$ (“dim” dwarfs) are correlated in observed ellipticity and central surface brightness (stellar velocity dispersion), consistent with oblateness, and those with mass to light ratio $<100M_{\odot}/L_{\odot}$ (“bright” dwarfs) exhibit anti-correlation consistent with prolate morphologies. Projecting simulated isolated galaxies over a distribution of observing angles gives anti-correlation consistent with the bright dsphs and significantly discrepant with the dim subpopulation, indicating that the latter may be a morphologically distinct subgroup. In section 6 we test the robustness of our results by subsampling both the observed and simulated data, varying the choice of mass-to-light threshold, and relaxing assumptions on observation angle distributions. We show that this discrepancy holds under these tests. In section 7 we investigate implications for DM and baryon distribution axis ratios, and consider the specific case of dissipative dark matter. Section 8 explores avenues of future work and presents our conclusions.

2 Geometric Remarks

For the present, observational data of dwarf galaxies is constrained to on-sky-projected positional and line-of-sight velocity information for its individual stars. Unfortunately the remaining line-of-sight spatial and on-sky proper motion data remain out of reach at the typical distances of dwarf satellites, which is of order 30 kpc in the closest cases. The recent Gaia DR2 (Gaia Collaboration et al. (2016)) provides extremely precise astrometric measurements of parallax and proper motion up to uncertainties of 0.04 mas and 0.06 mas/yr respectively for the brightest stars. At dwarf-galactic distances however, this translates to line of sight distance resolved up to $\sim 20$ kpc and on-sky velocities up to $\sim 15$ km/s in the maximally optimistic cases. As these dwarfs are typically of half-light radius $\sim 0.1$ kpc with line-of-sight stellar velocity dispersion $\sim 5$ km/s, the current best measurements are far from able to resolve the full spatial and kinematics directly. Thus we will focus on what one can hope to infer from the correlation between currently accessible observables and geometry.

As is done in Refs. Walker & Penarrubia (2011); Walker et al. (2009); Amorisco & Evans (2012) , we will model the stellar distribution with a Plummer profile (Plummer (1911)), and assume that mass follows light. Similar results may be obtained for King or Exponential profiles (King (1962)). We include a triaxiality ($a\geq b\geq c$) with ellipsoidal isophotes

[TABLE]

We fix the observer to be at some angle

[TABLE]

The observer then defines a right-handed coordinate system $(x^{\prime},y^{\prime},z^{\prime})$ where $x^{\prime}$ and $y^{\prime}$ parametrize the plane of projection with a remaining rotational degree of freedom

[TABLE]

To obtain the surface brightness profile $S_{*}(x,y)$, we can then rewrite the density profile in the new coordinates and integrate along the line of sight. We choose $\omega$ such that $x^{\prime}$ and $y^{\prime}$ align with the semi-major and semi-minor axis of the projected ellipse. the surface brightness is then given by

[TABLE]

where $\alpha,\beta,\gamma$ are parameters dependent on the principal axes and observer angles, expressed as

[TABLE]

Thus we can write down projected observables (ellipticity $\epsilon$ and central surface brightness $\Sigma_{*}=S_{*}(0,0)$) explicity in terms of observer angle and intrinsic parameters (principal axis ratios $\frac{b}{a},\frac{c}{a}$ and central density $\rho_{0}$)

[TABLE]

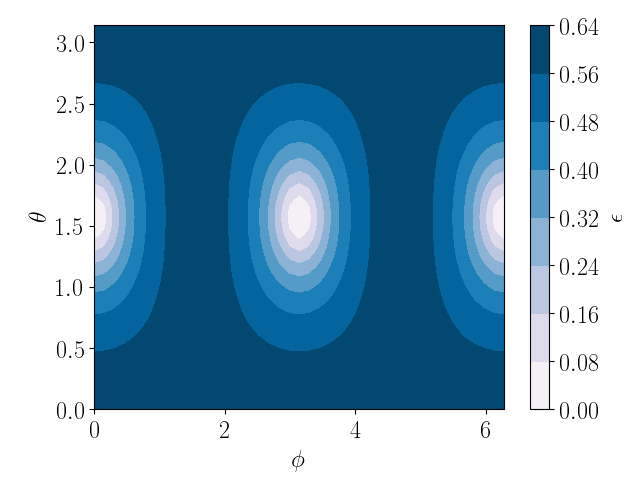

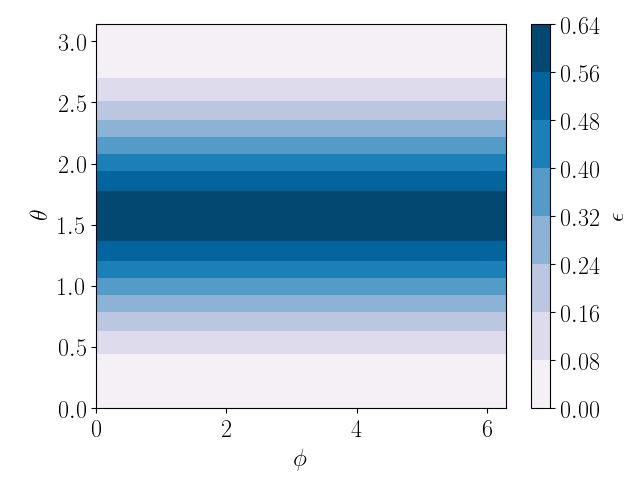

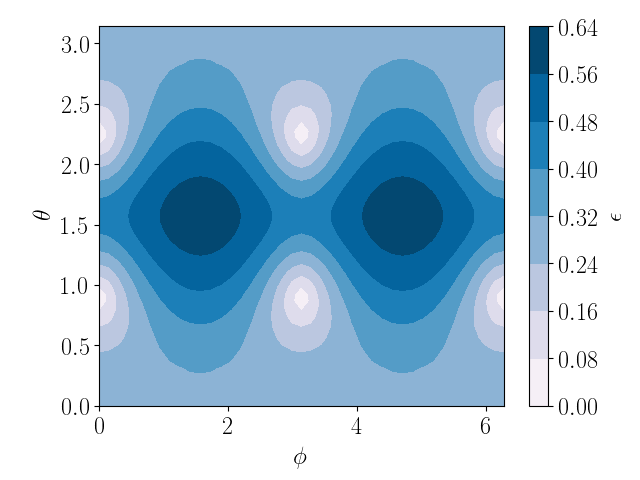

Figure 1 shows contour maps of projected ellipticity in $(\phi,\theta)$ space for an oblate ($b/a=1,c/a=0.4$), prolate ($b/a=c/a=0.4$), and triaxial ($b/a=0.7,c/a=0.4$), object respectively, for reference.

In fact, in the special cases of oblate $(a=b>c)$ and prolate$(a>b=c)$ bodies, these relations reduce to the more simplified forms

[TABLE]

In particular, we observe that the central surface brightness of a prolate galaxy is anti-correlated with its projected ellipticity, while the opposite is true of oblate galaxies. This is understood intuitively as observing a lower-ellipticity projection of a prolate galaxy implies that the observer is “looking through” the long axis, while observing the same for an oblate galaxy implies that the short axis lies on the line-of-sight. This is illustrated in Fig. 2, and looking for correlations and anti-correlations between central surface brightness and ellipticity in LG dwarf satellites will allow us to distinguish between oblate and prolate morphologies.

In addition to the central surface brightness we will also consider the line-of-sight stellar velocity dispersion $\sigma_{*}$ and its correlation with projected ellipticity. For this work we will assume that the velocity dispersion tensor $\sigma^{2}_{ij}$ is diagonal along the principal axes of the galaxy and has negligible spatial dependence within the half-light radius, and we will also assume that the velocity dispersion along a larger principal axis is systematically larger. The latter assumption is also reflected in the dwarf galaxy simulations we consider (see Section 3), whose full kinematic and spatial data is accessible. Previous studies bounding stellar velocity dispersion anisotropies in classical dwarf galaxies (Walker et al. (2009a, 2007); Łokas (2009); Lokas (2001)) have assumed that the velocity dispersions are the same in all radial directions. As we are explicitly looking for violations of this assumption, these bounds do not apply here.

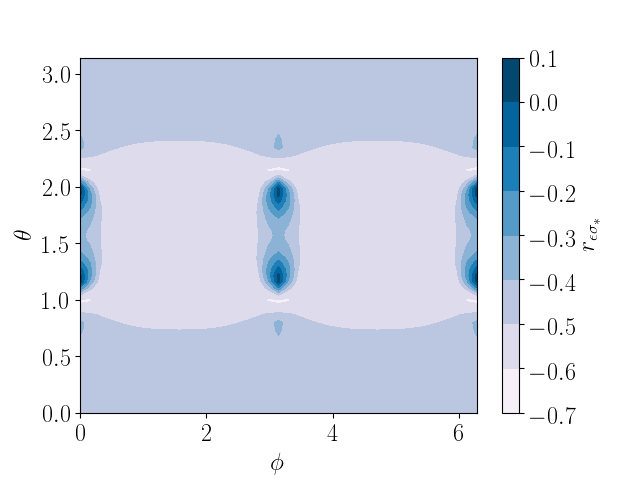

Thus, given the observing angle $(\phi,\theta)$, the line-of-sight stellar velocity dispersion is given simply by

[TABLE]

Where $\sigma_{a,b,c}$ are the stellar velocity dispersions along each of the principal axes. In this way, we expect a similar type of (anti-) correlation between observed ellipticity and measured stellar velocity dispersion for oblate (prolate) dwarf galaxies: a prolate dwarf projected to have small ellipticity has its semi-major axis along the line-of-sight and will measure a correspondingly large stellar velocity dispersion; the opposite is true for an oblate dwarf.

Naturally, the true relationship between morphology and these correlations is less clean-cut. Firstly, these galaxies do not have perfect axial symmetry – they are not absolutely prolate or oblate – and these correlations will degrade with significant triaxiality. Secondly, instead of many projections of a single galaxy, we are observing one projection each of many different galaxies – each with an intrinsically different shape and luminosity. And thirdly, we have access only to finitely many galaxies at this scale.

The third point is unfortunately a limitation of nature. To address the first and second point, however, we use simulated galaxy data as a measure for the expected amount of triaxiality and intrinsic dispersion between galaxies in size and brightness. The guiding principle is this: current CDM simulations both with and without baryons, indicate that dwarf spheroidals are prolate, so it is informative to test this prediction against observable data. Any deviation from this expectation – whether by a subpopulation of oblate or general mix of prolate and oblate shapes – warrants a closer monitoring, to check if any discrepancy persists as the simulation and observation data evolve.

Using the relation between intrinsic ($\frac{b}{a},\frac{c}{a}$) and projected ($\epsilon$) geometry, we can begin to make morphology comparisons between simulated galaxies and observed ones, if a distribution of observing angles is assumed. This can be done in one of two ways: projecting down the simulated galaxies to the plane of observation or deprojecting up the observed galaxies into a distribution of probable axis ratios $(b/a,c/a)$.

In the absence of more informative priors, we will assume a distribution of observing angles uniformly sampled in $(\phi,\cos\theta)$ space:

[TABLE]

for variables $u,v$ uniformly distributed on $[0,1]$. In practice, since many of these dwarfs are satellites of Andromeda or the Milky Way, they experience tidal locking and the angle of observation is in fact not uniformly random. We investigate the effects of relaxing this assumption in section 6.

3 Overview of Observational and Simulational Data

In this section we give a brief description of both the observational and simulational data used in this paper. Further details can be found in Refs. McConnachie (2012); Fitts et al. (2017); Hopkins et al. (2017); Munoz et al. (2018b, a).

We are using the observational data compiled by McConnachie (McConnachie (2012)) as well as updated parameters from the MegaCam survey in Ref. Munoz et al. (2018a) as a measure of dwarf galaxy properties. Of these catalogs, we take only the dwarfs that have been classified as spheroidal galaxies and for which a stellar velocity dispersion has been resolved. We also remove galaxies with strong evidence of irregular structure and tidal stripping (Munoz et al. (2018a); Koch et al. (2009); Fellhauer et al. (2007); Okamoto et al. (2008)) as we are considering dwarfs which can be well-modeled with ellipsoidals. This amounts to 18 satellites of the Milky Way, 6 satellites of Andromeda, and 2 isolated dwarfs in the Local Group. Ref. Munoz et al. (2018b) reports structural parameters for fits to exponential, Plummer, King, and Sersic models, though only Milky Way satellites are considered. In contrast, Ref. McConnachie (2012) provides structural parameters for Milky Way, Andromeda, and field dwarfs for an inconsistent set of profiles. We will use the Plummer structural parameters when possible in this work, though the primary parameter of interest is the ellipticity $\epsilon$, and reported parameters demonstrate that it are not particularly sensitive to choice of profile. These dwarfs span from 30 - 900 kpc in heliocentric distance, from $10^{3}-10^{7}M_{\odot}$ in stellar masses, from $10^{6}-10^{8}M_{\odot}$ in dynamical masses, and reflect a variety of formation histories. While the two catalogs are in excellent agreement with each other, for galaxies that appear in both sets (the Milky Way satellites) we take parameters from the more recent analysis. Table 1 lists the galaxies, parameters, and associated references used in this study.

We note that several new ultra-faint candidates have been discovered from the Dark Energy Survey (Drlica-Wagner et al. (2015); Koposov et al. (2015); Flaugher et al. (2015); Diehl et al. (2014); Bechtol et al. (2015)); however, most have not yet been classified as dwarf spheroidals, and only a limited amount have had spectral observations that successfully resolved a stellar velocity dispersion (see e.g. Refs. Koposov et al. (2015); Simon et al. (2015); Walker et al. (2016) for observational results). Furthermore, these ultra-faint dwarfs have stellar masses as low as $\sim 100M_{\odot}$, and may not be well represented by the simulations at hand. Therefore we will limit our analysis to the well-observed and comparatively massive dwarfs listed in Refs. McConnachie (2012); Munoz et al. (2018b) and note that it may be easily extended to new dsphs when higher resolution data and simulations become available.

To inform properties of dwarf galaxies explicitly sourced by CDM, we use the Feedback in Realistic Environments (FIRE) suite of cosmological simulations (Fitts et al. (2017)). This set of hydro-intensive simulations contains 15 isolated dark matter halos, 14 of which exhibit star formation. The halo masses are set to be of order $10^{10}M_{\odot}$ at $z=0$, and the stellar masses correspond roughly to the range of observed classical dwarf galaxies, $10^{5}-10^{7}M_{\odot}$. The baryonic particle mass is set at $500M_{\odot}$ and the dark matter particle mass is set at $2500M_{\odot}$. Fig. 3 shows the relationship between stellar mass $M_{*}$, dynamical mass $M_{dyn}$, and 3-D half-light radius $r_{1/2}$ for both the simulated and observed dwarf galaxies, as well as the explicit distribution of mass-to-light ratios $M_{dyn}/L_{*}$ for both, all assuming that stellar mass follows light. As shown, FIRE galaxies appear in good agreement with moderately massive dwarf satellites, but we observe real galaxies at far lower masses, where the simulations are resolution-limited. For the same reason, all but one of these simulated galaxies are relatively baryon-rich, that is their mass-to-light ratios are $<100M_{\odot}/L_{\odot}$, although they are also $>10M_{\odot}/L_{\odot}$. As resolution for hydrodynamic intensive simulations improves, the expectations for properties of low-mass CDM dwarfs will be better characterized, and direct comparisons to analogous observed galaxies will be made possible.

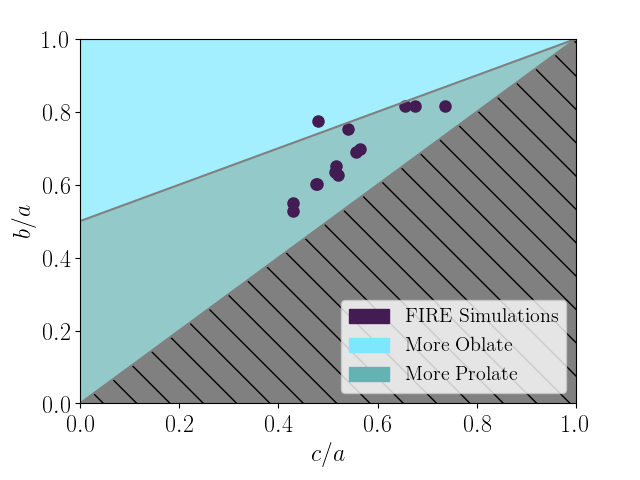

Fig. 4 shows the distribution of stellar axis ratios of these simulated dwarfs, evaluated at half-light radius (left), and investigates the correlation between a galaxy’s principal axis length and the magnitude of stellar velocity dispersion measured along that axis (right). The principal axes are computed from the galaxies’ moments of inertia and the axis ratios are defined with respect to these. We find that the FIRE galaxies are indeed prolate in stellar distribution, and that the velocity dispersion measured along the semi-major axis is correspondingly larger than that measured along the semi-minor axis, and these set our expectations for dwarf spheroidal morphology under the CDM hypothesis.

4 Up-Projection of Observation Data

Here we summarize results from deprojecting observed LG galaxies into a distribution of axis ratios $(b/a,c/a)$ using the formalism from the previous section. We assume a uniform distribution of projection angles and separate the LG dwarfs fiducially into bright ($M/L<100M_{\odot}/L_{\odot}$) and dim ($M/L>100M_{\odot}/L_{\odot}$) samples. The division into subpopulations is motivated in section 5. For each observed dwarf we use only the observed ellipticity $\epsilon_{obs}$. The Bayesian likelihood of an underlying axis ratio $(b/a,c/a)$ given $\epsilon_{obs}$ is

[TABLE]

To penalize against unphysical and extreme axis ratios, we adjust the prior $P(\frac{b}{a},\frac{c}{a})$ to be proportional to the probability that this set of axis ratios projects into an ellipticity within the range of ellipticities that have been observed.

[TABLE]

where $\epsilon_{proj}$ is a function of $b/a,c/a,\theta,\phi$ given in the previous section, $\Theta$ denotes the Heaviside function, and $N$ is a constant for normalization. Here, we are sampling uniformly in $d\Omega=d\phi\;d\cos\theta$, but this can be easily adapted when the orientations of these galaxies relative to us are better known.

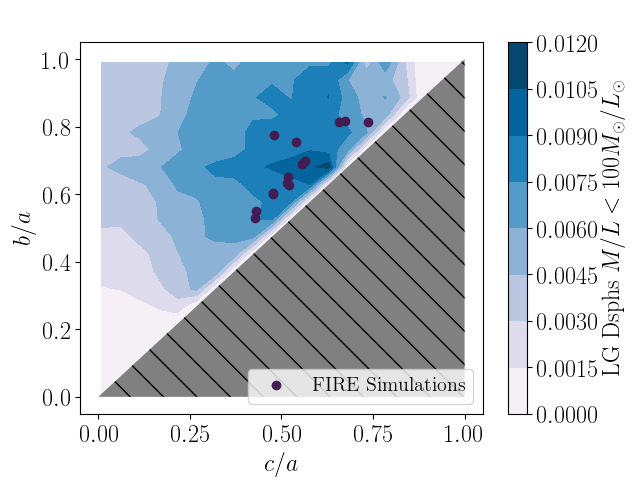

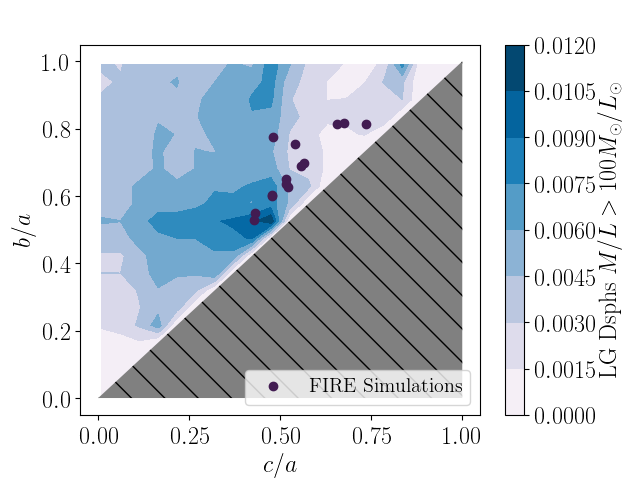

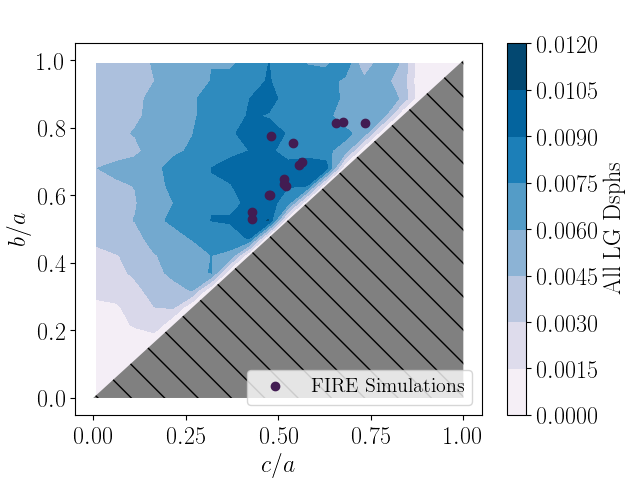

Fig. 5 then gives the distribution of deprojected axis ratios of bright, dim, and the full-set of LG dwarfs as compared to the axis ratios of FIRE dwarf simulations. As shown, while the dim LG dwarfs appear to prefer slightly more elliptical axis ratios as compared to the bright sample, there is no significant inconsistency with the axis ratios from the FIRE galaxies. This shows that ellipticity alone shows no significant tension between LG and simulated dwarf galaxies. In the next sections we will study the fitness of CDM with observations when other observables are considered in tandem.

5 Down-Projection of Simulation Data

In this section we summarize results of comparing CDM+Hydro simulation galaxies with observed dwarf spheroidals in the local group by projecting down the 3D simulated galaxies via a distribution of projection angles.

In this work we focus on two specific points of comparison: the correlation of ellipticity $\epsilon$ with central surface brightness $\Sigma_{*}$, and that of ellipticity $\epsilon$ with stellar velocity dispersion $\sigma_{*}$. These correlations are quantified by correlation coefficients, defined as

[TABLE]

where overlines denote arithmetic average. The error from observations is propagated to an uncertainty in the correlation coefficient

[TABLE]

where $\sigma_{\epsilon\Sigma_{*}(\sigma_{*})}$ denotes the sample covariance. As explained in Section 2, statistically significiant correlations or anti-correlations between ellipticity and central surface brightness (stellar velocity dispersion) should serve as useful proxies for the galaxy’s morphology; a strong positive value in both $r_{\epsilon\Sigma_{*}}$ and $r_{\epsilon\sigma_{*}}$ is indicative of a collection of oblate galaxies, negative values are indicative of prolate bodies, and fully triaxial or mixed populations should show no correlation at all.

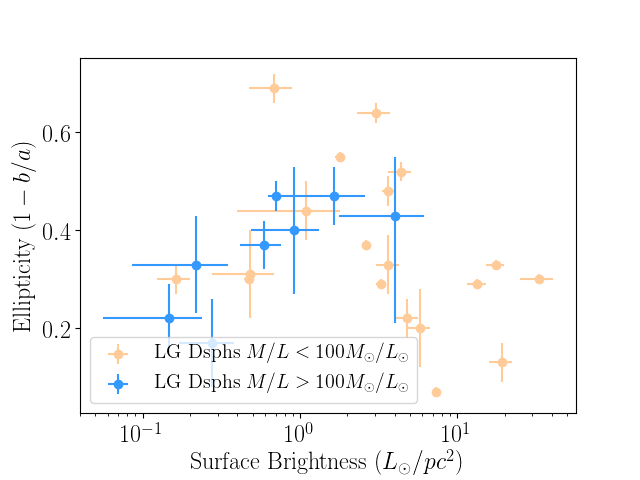

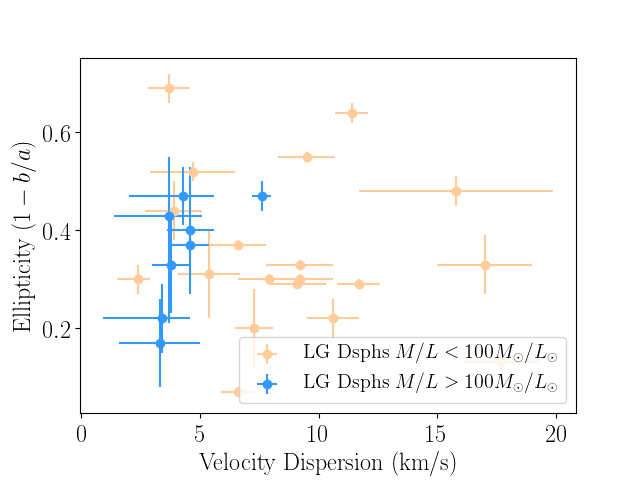

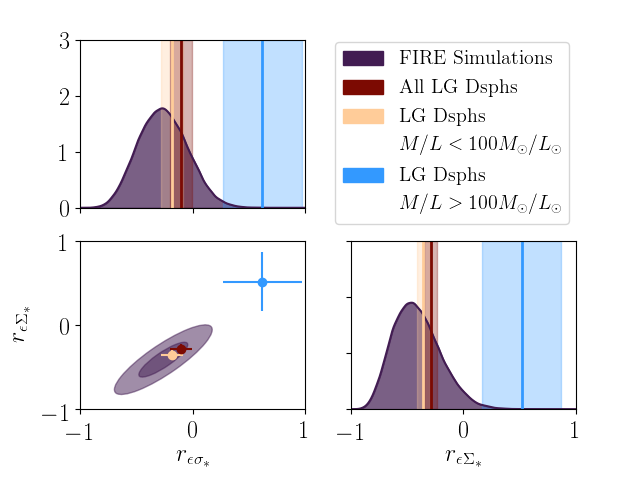

Fig 6 shows the correlation of ellipticity and central surface brightness (left) and stellar velocity dispersion (right) of LG observed galaxies. We note that for both observables there appears to be a separation between the correlation trends of brighter and dimmer galaxies – that is, brighter galaxies appear to be negatively correlated in both, and the opposite is seen in dimmer galaxies. We split these two populations roughly into those with $M/L<100M_{\odot}/L_{\odot}$ (“bright”) and those with $M/L>100M_{\odot}/L_{\odot}$ (“dim”). Specifically,

[TABLE]

On the simulation side, we project each of 14 FIRE dwarf galaxies along a random orientation and compute the $\epsilon-\Sigma_{*}$ and $\epsilon-\sigma_{*}$ correlation coefficients of the entire suite of galaxies. This process is repeated with uniformly random projection angles $10^{5}$ times, and distributions of $r_{\epsilon\Sigma_{*}}$ and $r_{\epsilon\sigma_{*}}$ are constructed. These two correlation coefficients then serve as a test for morphological consistency between simulated and observed galaxies. We obtain for the FIRE galaxies, assuming a uniform distribution of observation angles,

[TABLE]

which is marginally consistent with 0 in $\epsilon-\Sigma_{*}$ but with negative expectation in both, reflecting the overall prolate nature of simulated $\Lambda$CDM galaxies.

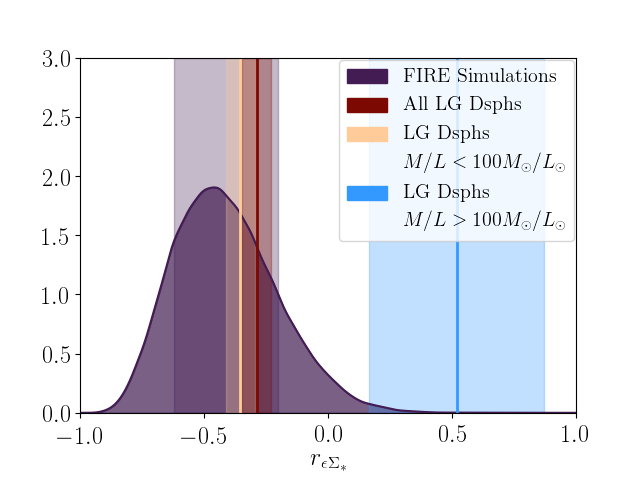

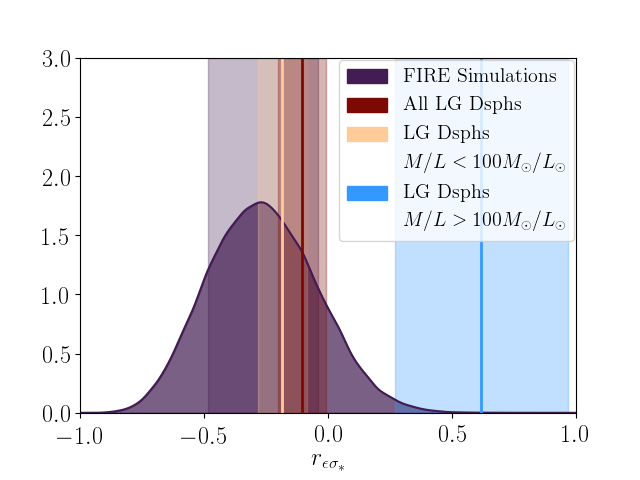

Fig 7 shows the distributions of $r_{\epsilon\Sigma_{*}}$ and $r_{\epsilon\sigma_{*}}$ of randomly projected FIRE galaxies. The measured correlations of bright, dim, and the full set of LG dwarfs are also shown. Fig 8 shows where these correlations lie in $r_{\epsilon\Sigma_{*}}-r_{\epsilon\sigma_{*}}$ space. We reiterate that the FIRE Simulations consist of isolated and thus predominantly bright dwarfs, and are thus most directly counterparts of the bright LG dwarfs, but it is interesting still that there appears to be distinct morphological separation between the bright and dim subpopulations. Indeed as shown, while there is good agreement between the FIRE simulations and the bright galaxies, the dim galaxies lie $\gtrsim 3\sigma$ away from the simulated galaxy expectation in both $r_{\epsilon\Sigma_{*}}$ and $r_{\epsilon\sigma_{*}}$, and furthermore lie $\gtrsim 4\sigma$ away from simulated galaxies in $r_{\epsilon\Sigma_{*}}-r_{\epsilon\sigma_{*}}$ space. It is interesting to note that the disparity is much larger in ellipticity-central surface brightness correlation than in ellipticity-stellar velocity dispersion correlation, which is consistent with the observed and simulational understanding of dwarf spheroidals being isothermal to first order (Burkert (2015); Mateo (1998)). In this case, with the absence of rotational support, velocity-dispersion anisotropies may be attributed to anisotropies of the gravitational potential.

6 Statistical Tests

Thus far, we have presented evidence that the dim population of observed dsphs exhibit correlation between ellipticity and central surface brightness (stellar velocity dispersion) consistent with an oblate morphology, and both the bright population and FIRE simulations exhibit anti-correlation consistent with a prolate one. This is our main result. However, due to the limited size of both available simulational and observational dwarf galaxies, it is important to evaluate the rigor of this statement with care. In particular, since the number of dim galaxies with $M/L>100M_{\odot}/L_{\odot}$ is small (eight in total), on the outset it is unclear that the positive correlation between ellipticity and central surface brightness (stellar velocity dispersion) is not an accident.

The measurement uncertainties of the observables and resolution limitations of the simulations will be improved upon by future efforts, but in this section we address three additional sources of uncertainty: the statistical uncertainty that the finite sample of simulations and observations are good estimators for the underlying distributions, the placement of the bright/dim population divisor, and the unknown true distribution of projection angles.

6.1 Subsampling

We investigate first whether the positive correlation seen in the dim dsphs can be obtained by chance via random sampling of the bright subpopulation or the full set of LG galaxies.

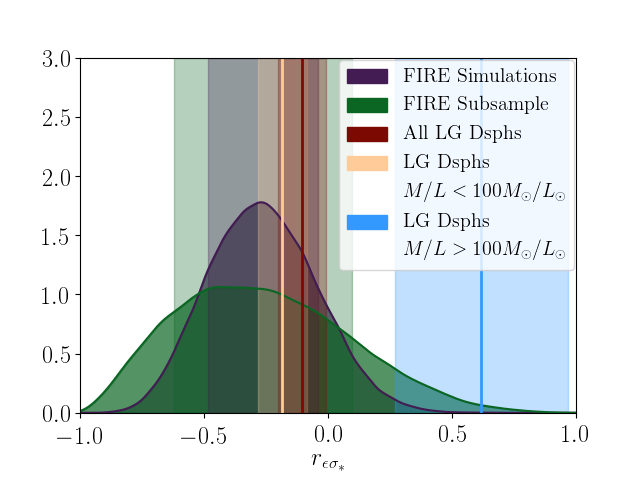

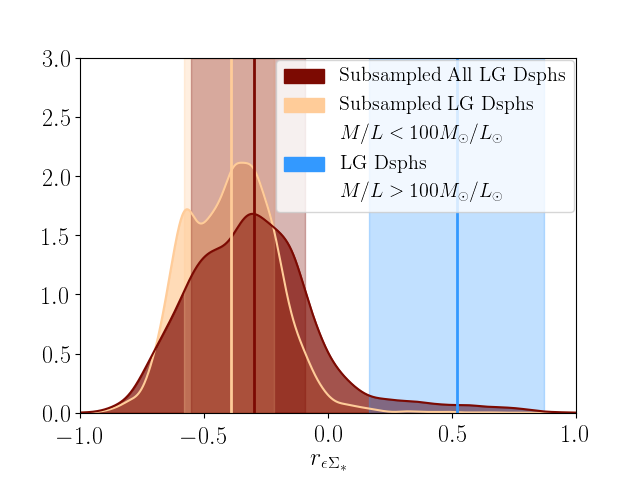

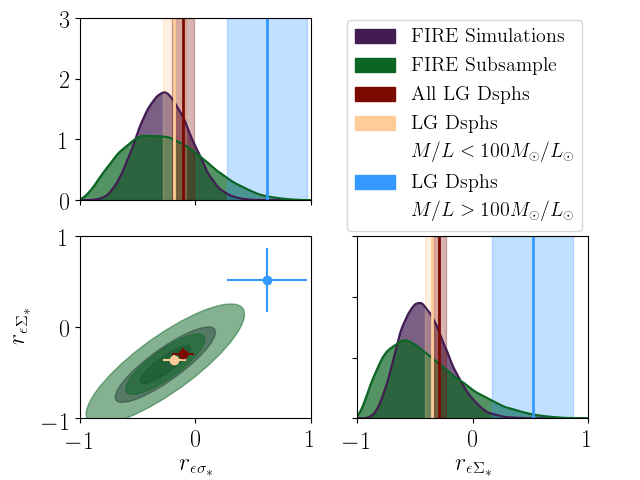

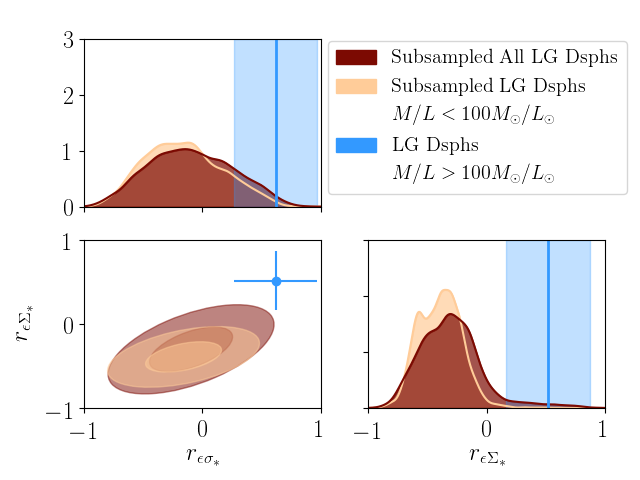

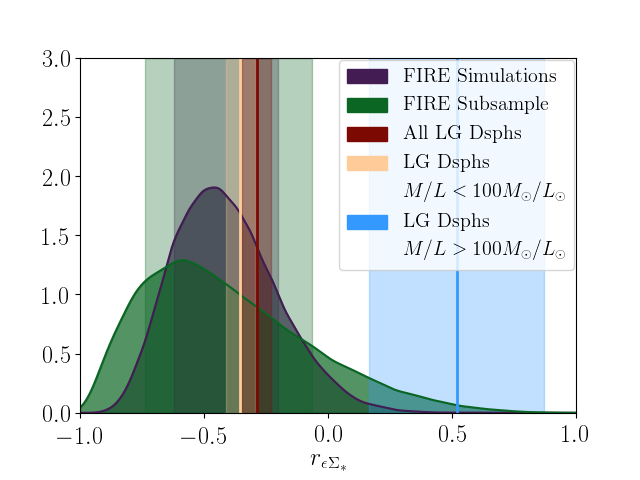

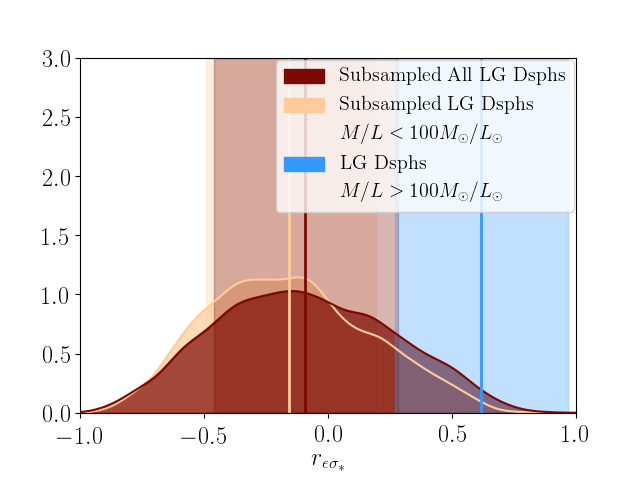

Fig. 9 shows the distributions of correlation coefficients $r_{\epsilon\sigma_{*}}$ and $r_{\epsilon\Sigma_{*}}$ upon repeated subsampling of eight random galaxies within the full LG population (red) and the subpopulation of bright galaxies (orange). Fig  10 shows the corresponding 2D-distributions. We show that a random subsampling of currently observed LG dsphs cannot recover the correlation between ellipticity and central surface brightness (stellar velocity dispersion) that is seen in the dim subpopulation at the $\sim 2\sigma$ level.

We study also the broadening of the correlation coefficient distribution for FIRE galaxies via subsampling eight random galaxies and randomly projecting each one. As shown in Figs. 11 and  12, the distributions widen significantly upon taking a subsample of roughly half the full size, as expected. However, the dim LG galaxies still retain a $>3\sigma$ tension.

Thus it appears that neither the discrepancy between dim LG dsphs and the simulation dwarfs nor the discrepancy between dim LG dsphs and their brighter counterparts may be satisfactorily explained by subsampling – it is extremely unlikely that a random choice of eight galaxies from either the data or simulations could have produced the very positive correlations exhibited by the eight dim galaxies. It is more likely that this subpopulation is genuinely morphologically distinct.

6.2 Choice of Bright-Dim Threshold

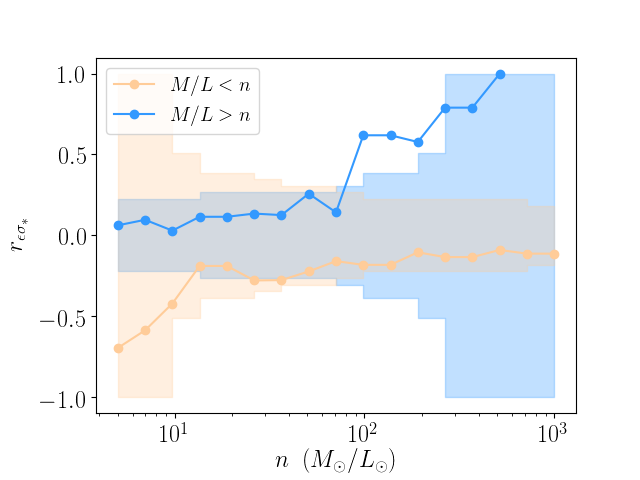

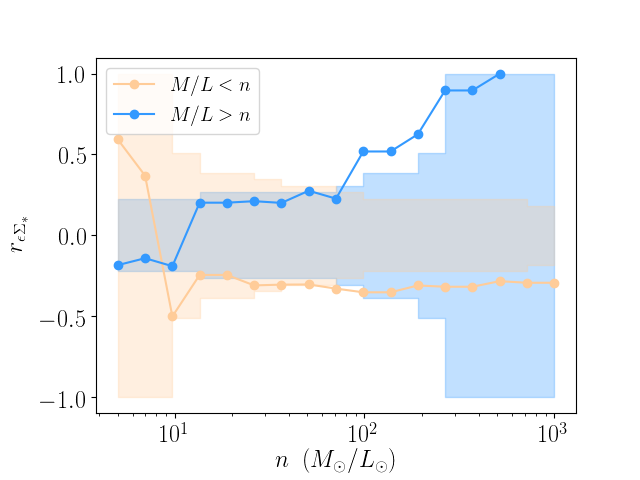

In Fig. 13 we investigate the sensitivity of our results to the placement of this bright-dim division point. We find that a cut at $O(100)M_{\odot}/L_{\odot}$ is necessary to observe a difference in correlation of ellipticity-stellar velocity dispersion, but correlation between ellipticity-central surface brightness and the separation between bright and dim populations is not very sensitive to the precise choice of division point. We also observe that the correlation at the high mass-to-light, or dim, end of the sample is quite stable for both sets of observables.

The position of the bright-dim threshold also controls the number of galaxies in each population, and for a sparser population a stronger correlation or anti-correlation must be observed for the result to be significant. The expected distribution of correlation coefficients measured from taking $N$ samples from a underlying distribution that is intrinsically uncorrelated is given by

[TABLE]

where $B(x,y)$ is the Beta function. In Fig 13 we show also the region in correlation space for both bright and dim populations that is consistent with an underlying $r=0$ at $1\sigma$ for each choice of bright-dim threshold. As shown, the separation between dim and bright subpopulations of LG dwarfs, and between both populations and the expected range is consistent with no correlations, is most enhanced for a cut at $70-200M_{\odot}/L\odot$. However, this separation is still marginal and future measurements of additional galaxies are necessary to confirm the proposed separation between bright and dim dwarf galaxies.

6.3 Distribution angles

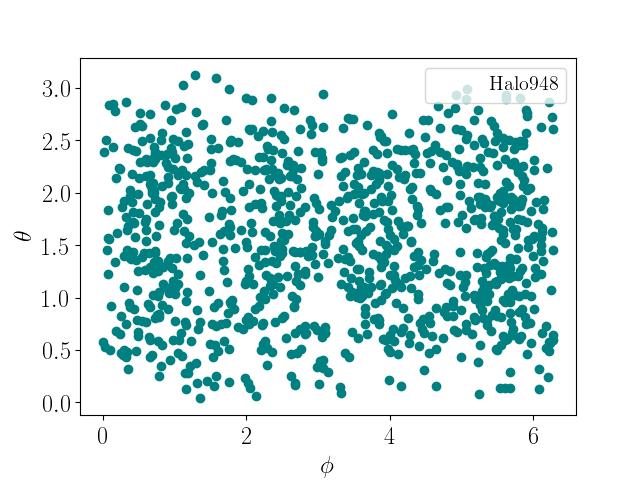

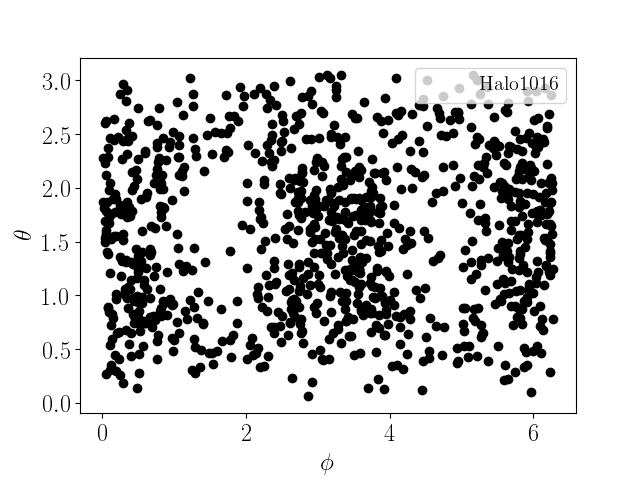

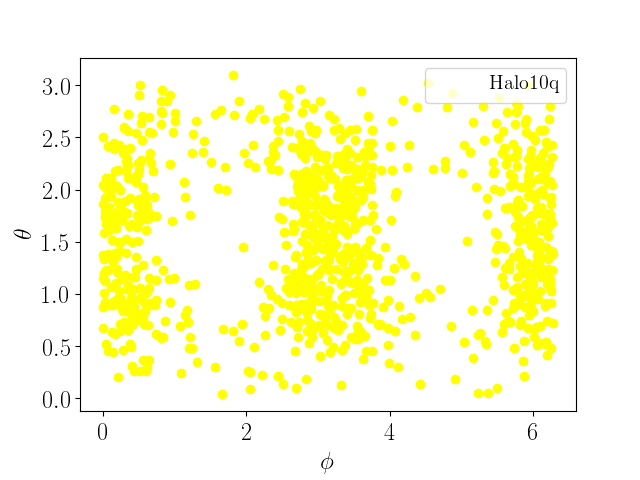

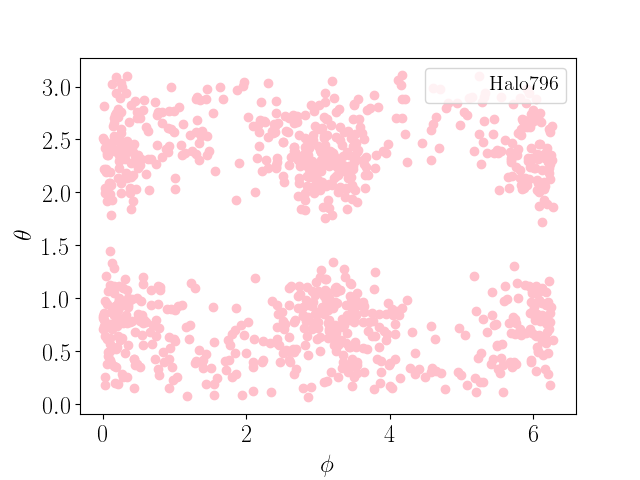

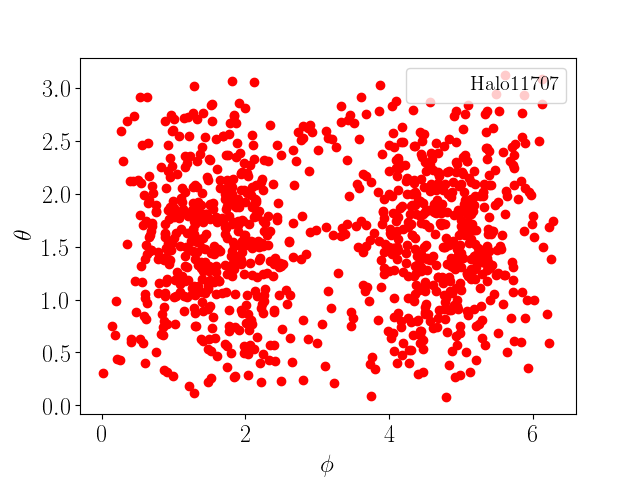

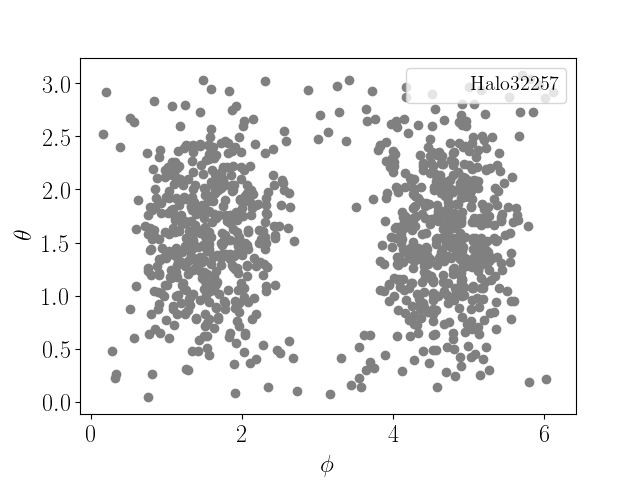

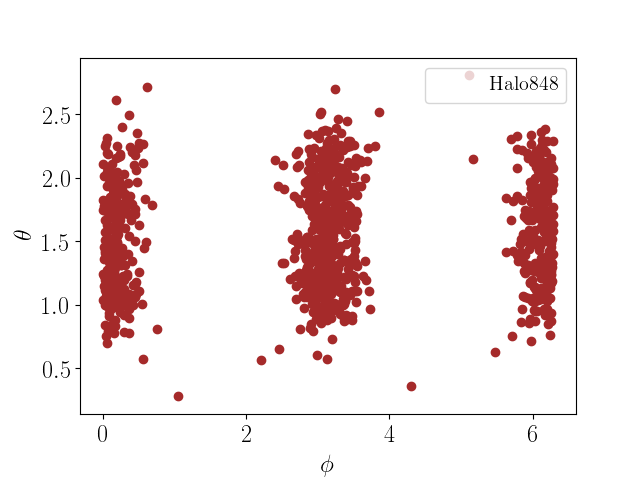

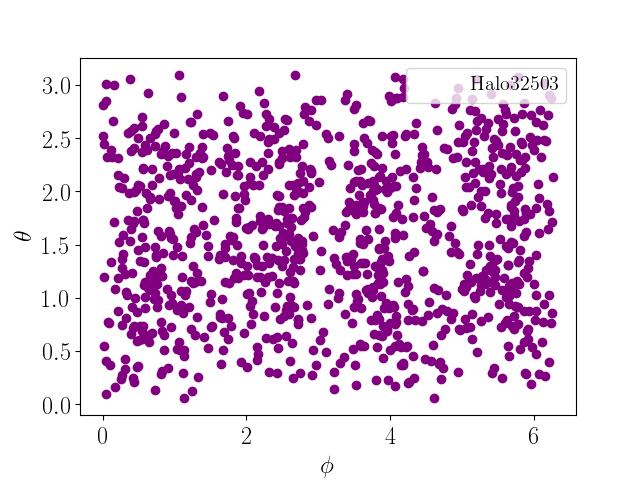

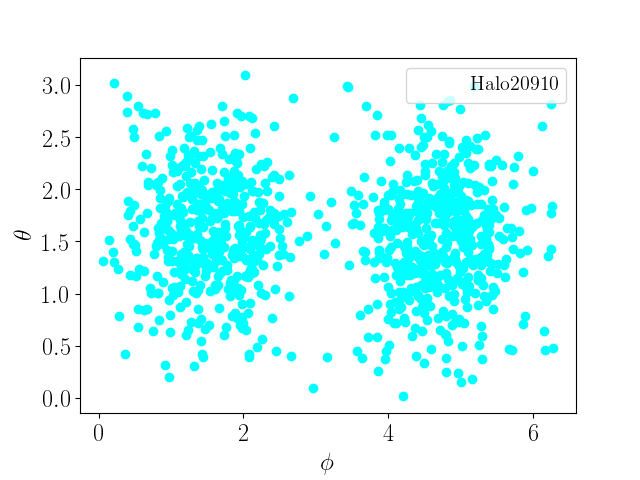

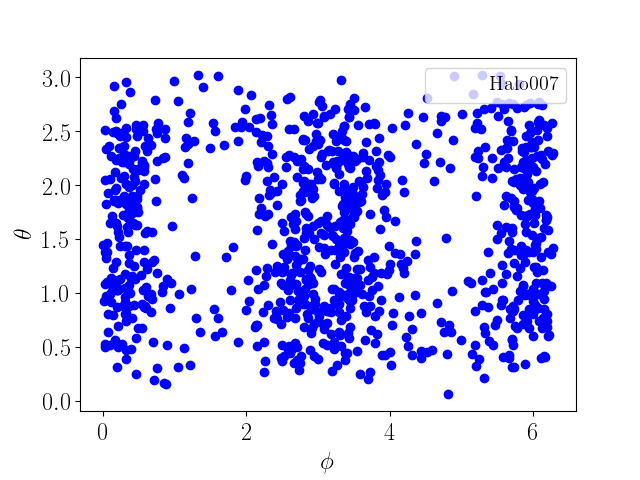

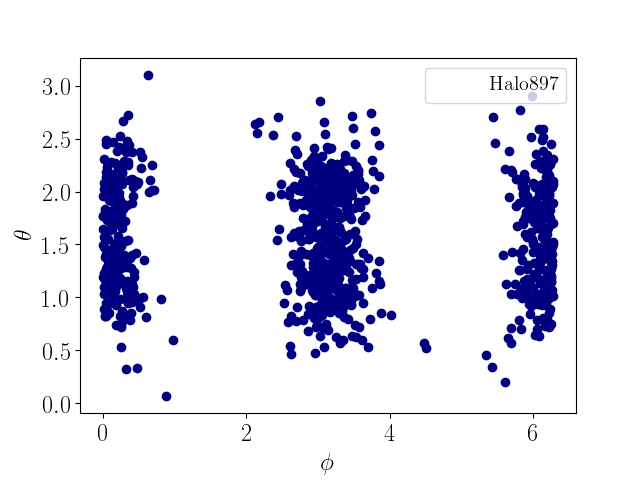

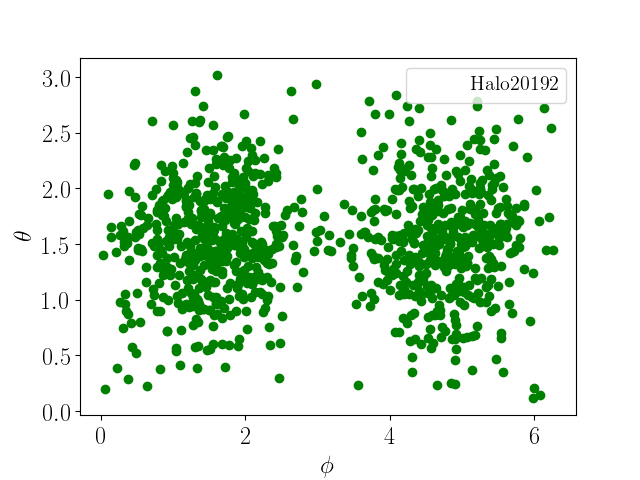

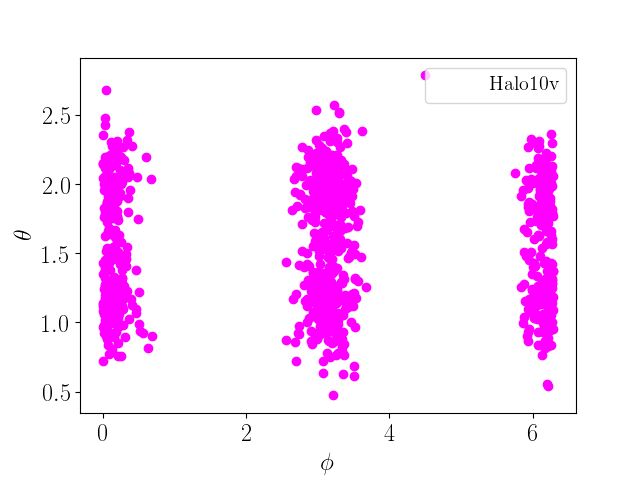

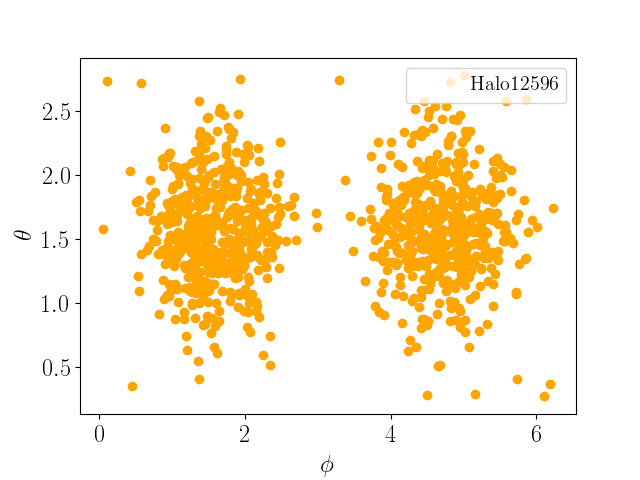

In this section we investigate the effect of relaxing the assumption of uniform observation angle distributions. In practice the distribution of observation angles is non-uniform, as satellite galaxies experience tidal locking with their host and tidal disruption with each other. Fig.14 shows the induced correlation coefficients upon viewing all FIRE galaxies at each angle $(\phi,\theta)$, to check if a single preferred viewing angle may induce the positive correlation seen in the dim LG dsphs sample. As shown, the maximum amount of correlation in $r_{\epsilon\Sigma_{*}}$ obtainable in this manner is $\sim 0.3$ and the maximum obtainable in $r_{\epsilon\sigma_{*}}$ is $\sim 0.1$, far below what is needed to explain the $\gtrsim 0.7$ correlation in the dim dsphs.

Relaxing further the assumption that all dwarf galaxies must draw from the same distribution of observing angles, we take random projections of all FIRE galaxies as before and record the projection angles of each if the resulting correlation coefficients $r_{\epsilon\Sigma_{*}}$ and $r_{\epsilon\sigma_{*}}$ are both $\geq 0.5$. As shown in Fig 8, this is a rare event that occurs roughly once every $O(10^{5})$ projections. Fig.15 shows the distribution of angles in $(\phi,\theta)$ space for each galaxy that allowed the collection to have a significant positive correlation. The more structure seen in each of these angle distributions, the more finely-tuned each galaxy’s viewing angle must be to account for the correlation seen in the dim LG dsphs, and as shown for several galaxies the allowed region of projection angles is quite restrictive. Thus, as shown, it is unlikely that discrepancy between dim LG and bright FIRE galaxies can be explained by a non-uniformity of observing angles.

7 Implications for Stellar and Dark Matter Morphology

We have previously explained for measurements of many projections of a single galaxy, the measured (anti)-correlation between ellipticity and central surface brightness is determined by its morphology. Here we show that the same is true for measurements of a single projection of a collection of distinct galaxies: we artificially introduce oblate morphologies by shifting the axis ratios of FIRE galaxies by a constant amount, and study the resulting shift in $r_{\epsilon\Sigma_{*}}$ expectation. While these do not represent realistic galaxy simulations, they provide one approximation to demonstrate that an oblate collection can produce the expected correlation shift, as simulations have not produced oblate halos to study. We show that these artificially oblate galaxies agree better with the dim LG dwarf population, and argue that these oblate stellar distributions may be sourced by oblate DM halos.

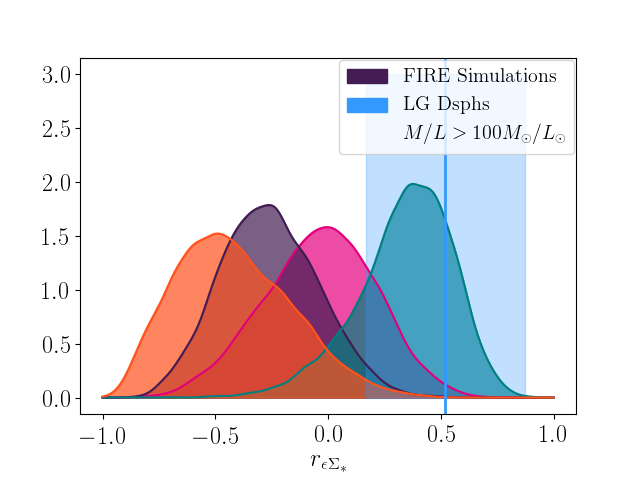

Fig. 16b shows the resulting ellipticity-central surface brightness correlation distributions of $10^{5}$ random projections (left) for shifted axis ratios (right), with all other parameters held fixed. As shown, a distribution of more oblate axis ratios (pink) will induce a more positive correlation between ellipticity and central surface brightness compared to the original morphologies (purple). In addition to shifting into the oblate region (by increasing $b/a$), by shifting the axis ratios to be more elliptical (blue) – i.e. with smaller $c/a$– we obtain the strong positive correlation observed in the dim dwarf sample. In contrast, increasing the ellipticities while keeping the galaxies prolate (decreasing both $b/a$ and $c/a$, orange) will push the correlation-coefficient further into the negative regime.

As the population of dwarf spheroidals have been found to be generally isothermal and not significantly rotationally supported (Burkert (2015); Mateo (1998)), if the stellar population is in hydrostatic equilibrium then their morphology is set entirely by the gravitational potential. In this case, the stellar distribution is set via the Jean’s perscription

[TABLE]

For the dim subpopulation where $\rho_{DM}\gg\rho_{*}$, it is valid to assume the potential is set entirely by the dark matter density by the Poisson equation

[TABLE]

In fact, however, since these galaxies are the ones with the fewest baryons, it is likely that these objects have experienced tidal disruptions and it is not at all clear that they have reached a hydrostatic equilibrium. Nevertheless, since these dim dwarf galaxies are some of the most dark matter dominated gravitational systems currently observable to us, it is interesting to consider what this ellipticity correlation discrepancy may imply for the shapes of these dark matter haloes.

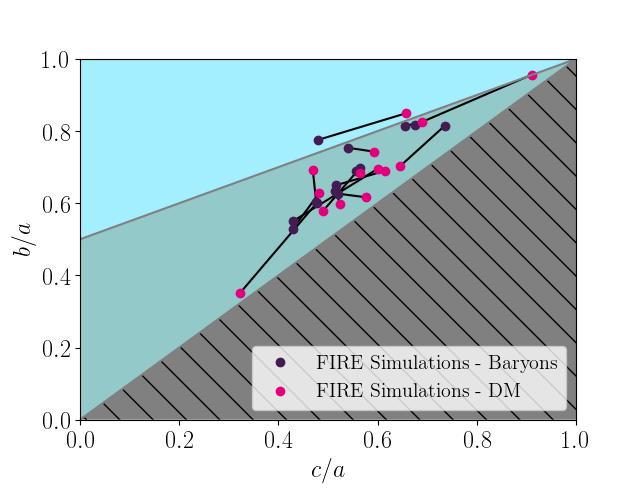

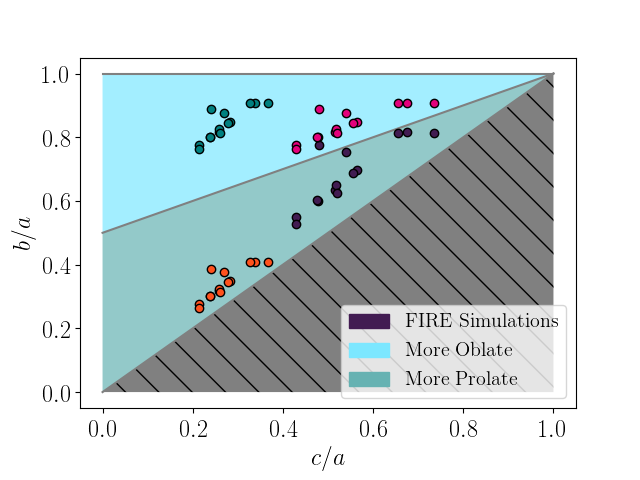

Fig 17 shows the axis ratios of the DM and stellar distributions of FIRE simulation dwarf galaxies. As shown, there does not appear to be a deterministic relationship between the dark matter and baryonic distributions, suggesting that many of these simulations may not have reached equilibrium, but nonetheless both are prolate with axis ratios lying in a similar region of parameter space. This indicates that the stellar population remains a reliable tracer for the underlying morphology of the dark matter halo, and simulations have yet to provide evidence for CDM halos that source oblate spheroidal galaxies.

In contrast, alternative models of dark matter may source oblate halos instead of prolate ones, and would likely predict oblate stellar distributions particularly in the low-stellar-mass regime. One such model is the Double-Disk Dark Matter (DDDM) model proposed in Ref. Fan et al. (2013). DDDM is a type of partially-interacting DM (PIDM) with a dominant cold component and a small strongly self-interacting component. The interacting component contains dark proton-like and electron-like particles which are allowed to exhibit dissipative dynamics and collapse to an angular-momentum supported thin dark disk, much like the baryonic disks of spiral galaxies. Embedded in a CDM halo of small asphericity, the resulting dark matter halo will become oblate instead of prolate.

Recent constraints using Gaia data (Schutz et al. (2017)) show that a dark disk coplanar with the Milky Way disk can account for at most $\sim 1\%$ of the MW halo mass. However, this result assumes an equilibrium distribution of stars, and it is not clear that this is true. In any case, this type of dark matter, if present, is expected to be found generically in all halos, and the presence of dark disks in dwarf galaxies is much less constrained. In these systems DDDM may induce an oblate DM halo, and the resulting oblate gravitational potential would cause larger ellipticity in the orbits of stars, ultimately sourcing an oblateness in the stellar component. In the case that these high mass-to-light dwarfs are indeed found to be oblate, this could provide motivation for a dark disk or similar DM models that generate oblateness in the stellar distribution without rotational support.

8 Conclusions

In this article we considered the correlations of observed ellipticity with stellar velocity dispersion as well as with central surface brightness of dwarf galaxies in and around the local group in order to infer their 3D morphologies and determine whether they are more likely to be oblate or prolate. We find that dim LG dwarf galaxies (with $M/L>100M_{\odot}/L_{\odot}$) exhibit correlations of $r^{dim}_{\epsilon\Sigma_{*}}=0.778\pm 0.209$ and $r^{dim}_{\epsilon\sigma_{*}}=0.832\pm 0.323$, while bright LG dwarf galaxies (with $M/L<100M_{\odot}/L_{\odot}$) exhibit anti-correlation, with $r^{bright}_{\epsilon\Sigma_{*}}=-0.516\pm 0.066$ and $r^{bright}_{\epsilon\sigma_{*}}=-0.153\pm 0.117$. This is consistent with oblate and prolate morphologies respectively. Assuming a uniform distribution of projection angles, we find that a set of 14 simulated galaxies from the FIRE project exhibit likewise an anti-correlation $r^{FIRE}_{\epsilon\Sigma_{*}}=-0.332\pm 0.213$ and $r^{FIRE}_{\epsilon\sigma_{*}}=-0.252\pm 0.214$ consistent with generally prolate axis ratios. We find the discrepancy between simulated and dim LG dwarf galaxies (and between bright and dim LG dwarf galaxies themselves) cannot be explained by either subsampling the simulated or observed galaxies or relaxing the assumption of uniform projection angles, and the result holds for a bright-dim cut between $70-200M_{\odot}$. We propose that this discrepancy could be explained by the dim LG dsphs exhibiting more oblate morphologies not currently captured by simulations, and a possible avenue of generating this oblateness is non-minimal interacting dark matter. As an example, we find that a $5\%$ fraction of radiative dark matter could induce a measureable change in ellipticity. Our results do not preclude non-morphology-related avenues which would result in a peak-like feature in both $\epsilon\Sigma_{*}$ and $\epsilon\sigma_{*}$ in LG dwarf galaxies, or a CDM-compatible mechanism to generate pressure-supported oblateness in dim dwarf galaxies. A test of CDM consistency will lie in whether a corresponding feature can be found in a collection of simulated dim galaxies.

Given the current estimators the LG dwarf galaxies with $M/L>100M_{\odot}/L_{\odot}$ appear to exhibit scaling expected for oblate bodies, and are morphologically distinct from both the brighter LG dwarf population and CDM hydrodynamic simulations which exhibit prolate-like behavior. Clearly, additional optical and spectral observations of particularly faint dwarf galaxies will improve the quality of dim LG dwarfs as an estimator for the underlying structure distribution. The next generation of sky surveys are poised to discover and characterize a collection of even dimmer dwarf galaxies, and it will be interesting see if the discrepancy we observe holds up against additional data.

With the data accessible to us, we have identified a discrepancy between current observations and the isolated dwarf galaxies from the FIRE simulation, but we are fundamentally interested in the correspondence between the Local Group dwarf galaxies and the $\Lambda$CDM-sourced expectation, and caveats remain on the comparability of the observed and simulated systems. In particular hydro-intensive simulations do not currently have the resolution to simulate host-satellite systems and the simulated galaxies we have used are isolated dwarfs, while observations are dominantly of satellites. Tidal disruptions, shocking, and ram pressure are expected to effect morphologies in ways that are not currently reflected in simulations. In particular, it should be noted that this set of FIRE simulations do not provide a good representation of dim CDM galaxies, predominantly consisting of galaxies with $M/L<100M_{\odot}/L_{\odot}$. Further, these satellites are expected to be seeded by a range of halo masses (Brooks & Zolotov (2014)) while current FIRE simulations are all sourced by $\sim 10^{10}M_{\odot}$ halos. However, it is unclear that any of these tidal effects or an increased dark matter content will increase oblateness in galaxies, as larger CDM-only simulations predict prolate halos at all scales (McConnachie (2012)). On the observation side, it is increasingly unclear that the model of a single isothermal stellar population is a valid description of dwarf galaxies (Amorisco & Evans (2012); Marasco et al. (2018); Battaglia et al. (2006)), and the galaxies observable to us are ultimately finite and preferentially luminous.

It is useful to keep in mind that disagreements between these two samples currently could point to an inability of either the simulation or observation sample to represent its underlying distribution (due to insufficient sampling, imprecise measurements, etc.), as well as indications of baryonic or dark matter physics that has yet to be modeled. The discrepancy we point out in this work could be due to any of these, and future studies on this will be informative as the quality of these datasets increase. With consistent improvements in our ability to model hydrodynamics and to observe and identify ever fainter astrophysical objects, the systems that we simulate and observe are converging.
