Hook-length formula and applications to alternating permutations

TL;DR

This paper explores applications of a recently proved hook-length formula, providing an alternative proof via continued fractions and extending the results to k-alternating permutations, linking them to weighted Dyck paths.

Contribution

It offers a new proof of the hook-length formula's application to alternating permutations and generalizes the approach to k-alternating permutations.

Findings

Established a non-trivial relation between alternating permutations and weighted Dyck paths.

Provided an alternative proof using continued fractions.

Extended the results to k-alternating permutations.

Abstract

In this paper, we take interest in finding applications for a hook-length formula recently proved in (Morales Pak Panova 2016). This formula can be applied to give a non trivial relation between alternating permutations and weighted Dyck paths. First, we give an alternative proof for this result using continued fractions, and then we apply a similar reasoning to the more general case of $k$-alternating permutations.

Figures

Equations

$$\tan (z)=\sum _{n\ge 0}\frac{E_{2n+1}}{(2n+1)!}{z}^{2n+1},\sec (z)=\sum _{n\ge 0}\frac{E_{2n}}{(2n)!}{z}^{2n}.$$

$$E_n(q):=\sum _{\sigma \in {\text{RevAlt}}_n}{q}^{\mathrm{maj}({\sigma }^{-1})},E_n^{\ast }(q):=\sum _{\sigma \in {\text{Alt}}_n}{q}^{\mathrm{maj}({\sigma }^{-1})},$$

$$E_n^{\ast }(q)=q^{\left(\genfrac{}{}{0ex}{}{n}{2}\right)}{E}_n(1/q).$$

$$\displaystyle\begin{array}[]{rclcrcl}\sin_{q}(z)&:=&\sum_{n\geq 0}(-1)^{n}\frac{u^{2n+1}}{(q;q)_{2n+1}},&&\cos_{q}(z)&:=&\sum_{n\geq 0}(-1)^{n}\frac{u^{2n}}{(q;q)_{2n}},\\ \sin^{*}_{q}(z)&:=&\sum_{n\geq 0}(-1)^{n}q^{\binom{2n+1}{2}}\frac{u^{2n+1}}{(q;q)_{2n+1}},&&\cos^{*}_{q}(z)&:=&\sum_{n\geq 0}(-1)^{n}q^{\binom{2n}{2}}\frac{u^{2n}}{(q;q)_{2n}},\\ \end{array}$$

$$\displaystyle\begin{array}[]{rcccc}\sum_{n\geq 0}\frac{u^{n}}{(q;q)_{n}}E_{n}(q)&=&\frac{\sin_{q}(z)}{\cos_{q}(z)}+\frac{1}{\cos_{q}(z)}&:=&\tan_{q}(z)+\sec_{q}(z),\\ \sum_{n\geq 0}\frac{u^{n}}{(q;q)_{n}}E^{*}_{n}(q)&=&\frac{\sin^{*}_{q}(z)}{\cos^{*}_{q}(z)}+\frac{1}{\cos^{*}_{q}(z)}&:=&\tan^{*}_{q}(z)+\sec^{*}_{q}(z).\\ \end{array}$$

$$\displaystyle\begin{array}[]{rclcrcl}\cos^{*}_{q}(x)&=&\cos_{1/q}(-x/q),&&\sin^{*}_{q}(x)&=&\sin_{1/q}(-x/q).\end{array}$$

$$\frac{a_0}{b_0}-\frac{a_1}{b_1}-\frac{a_2}{b_2}-\cdots =\frac{a_0}{b_0-\frac{a_1}{b_1-\frac{a_2}{b_2-\ddots }}}.$$

$$\displaystyle\begin{array}[]{rcl}\sum_{n\geq 0}\sum_{(h_{0},h_{1},\ldots,h_{2n})\in\mathcal{D}_{n}}\prod_{i=0}^{2n}\omega(h_{i})z^{2n}&=&\frac{\omega(0)}{1}\mathbin{\raisebox{0.0pt}{$\displaystyle-$}}\frac{\omega(0)\omega(1)z^{2}}{1}\mathbin{\raisebox{0.0pt}{$\displaystyle-$}}\frac{\omega(1)\omega(2)z^{2}}{1}\mathbin{\raisebox{0.0pt}{$\displaystyle-$}}\cdots\\ &=&\frac{1}{\omega(0)^{-1}}\mathbin{\raisebox{0.0pt}{$\displaystyle-$}}\frac{z^{2}}{\omega(1)^{-1}}\mathbin{\raisebox{0.0pt}{$\displaystyle-$}}\frac{z^{2}}{\omega(2)^{-1}}\mathbin{\raisebox{0.0pt}{$\displaystyle-$}}\cdots.\\ \end{array}$$

$$\frac{f_1}{f_0}=\frac{1}{1}+\frac{k_{1}z}{1}+\frac{k_{2}z}{1}+\cdots .$$

$${}_0{F}_1(a;z)=\sum _{n\ge 0}\frac{1}{n!(a{)}_n}{z}^n.$$

$$\frac{{}_0{F}_1(a+1;z)}{{}_0{F}_1(a;z)}=\frac{1}{a}+\frac{z}{a+1}+\frac{z}{a+2}+\cdots .$$

$${}_0{F}_1(a-1;z)-{}_0{F}_1(a;z)=\frac{z}{a(a-1)}{}_0{F}_1(a+1;z),$$

$$\displaystyle\begin{array}[]{rcl}\cos(z)&=&\!\>{}_{0}F_{1}(\frac{1}{2};-\frac{z^{2}}{4}),\\ \sin(z)&=&z\!\>_{0}F_{1}(\frac{3}{2};-\frac{z^{2}}{4}),\end{array}$$

$$\tan (z)=\frac{z{}_0{F}_1(\frac{3}{2};-\frac{z^2}{4})}{{}_0{F}_1(\frac{1}{2};-\frac{z^2}{4})}=\frac{z}{1}-\frac{z^2}{3}-\frac{z^2}{5}-\cdots ,$$

$${}_0{\Phi }_1(;a;q;z)=\sum _{n\ge 0}\frac{z^n{q}^{n(n-1)}}{(a;q{)}_n(q;q{)}_n}.$$

$$\frac{{}_0{\Phi }_1(;q^{a+1};q;qz)}{{}_0{\Phi }_1(;q^a;q;z)}=\frac{1}{1}+\frac{\frac{1}{(1-q^a)(1-q^{a+1})}z}{1}+\frac{\frac{q}{(1-q^{a+1})(1-q^{a+2})}z}{1}+\cdots .$$

$$\displaystyle\begin{array}[]{ll}f_{i-1}-f_{i}=\!\>_{0}\Phi_{1}(;q^{a+i-1};q;zq^{i-1})-\!\>_{0}\Phi_{1}(;q^{a+i};q;zq^{i})\\ =\sum_{n\geq 0}\left(\frac{q^{n(n-1)+n(i-1)}}{(q^{a+i-1};q)_{n}(q;q)_{n}}-\frac{q^{n(n-1)+ni}}{(q^{a+i};q)_{n}(q;q)_{n}}\right)z^{n}\\ =\sum_{n\geq 0}\left(\frac{q^{n(n-1)+n(i-1)}(1-q^{a+i-1+n})}{(1-q^{a+i-1})(1-q^{a+i})}-\frac{q^{n(n-1)+ni}}{(1-q^{a+i})}\right)\frac{z^{n}}{(q^{a+i+1};q)_{n-1}(q;q)_{n}}\\ =\sum_{n\geq 1}\frac{q^{n(n-1)+n(i-1)}(1-q^{a+i-1+n})-q^{n(n-1)+ni}(1-q^{a+i-1})}{(1-q^{a+i-1})(1-q^{a+i})(1-q^{n})}\frac{z^{n}}{(q^{a+i+1};q)_{n-1}(q;q)_{n-1}}\\ =\frac{z}{(1-q^{a+i-1})(1-q^{a+i})}\sum_{n\geq 1}(q^{n(n-1)+n(i-1)})\frac{z^{n-1}}{(q^{a+i+1};q)_{n-1}(q;q)_{n-1}}\\ =\frac{zq^{i-1}}{(1-q^{a+i-1})(1-q^{a+i})}\sum_{n\geq 1}\frac{q^{(n-1)(i+1)}q^{(n-1)(n-2)}z^{n-1}}{(q^{a+i+1};q)_{n-1}(q;q)_{n-1}}\\ =\frac{zq^{i-1}}{(1-q^{a+i-1})(1-q^{a+i})}f_{i+1}.\\ \end{array}$$

$$|\mathrm{SYT}(\lambda )|=\frac{n!}{{\prod }_{u\in [\lambda ]}h(u)}.$$

$$\text{ytableausetup}smalltableaux,centertableaux\text{ydiagram}2,2\ast [\ast (gray)]0,1\to \text{ydiagram}2,2\ast [\ast (gray)]1+1,0$$

$$|\mathrm{SYT}(\lambda /\mu )|=|\lambda /\mu |!\sum _{D\in \mathcal{E}(\lambda /\mu )}\prod _{u\in [\lambda ]\setminus D}\frac{1}{h(u)}.$$

$$\sum _{T\in SYT(\lambda /\mu )}{q}^{tmaj(T)}=(q;q{)}_n\sum _{D\in \mathcal{E}(\lambda /\mu )}\prod _{(i,j)\in [\lambda ]\setminus D}\frac{q^{{\lambda }_j^{\prime }-i}}{1-q^{h(i,j)}}.$$

$$\sum _{d\in {\mathcal{D}}_n}\prod _{i=0}^{2n}\frac{q^{h_i}}{1-q^{2h_i+1}}=\frac{E_{2n+1}(q)}{(q;q{)}_{2n+1}}.$$

$$\sum _{(h_0,h_1,\dots ,h_{2n})\in {\mathcal{D}}_n}\frac{(2n+1)!}{{\prod }_{i=0}^{2n}\left(2h_i+1\right)}=E_{2n+1}.$$

$$7!\cdot \left(\frac{1}{3^3}+\frac{1}{3^3\cdot 5}+\frac{1}{3^3\cdot 5}+\frac{1}{3^3\cdot 5^2}+\frac{1}{3^2\cdot 5^2\cdot 7}\right)=272=E_7.$$

$$u(q;z)=\frac{\frac{1}{1-q}}{1}-\frac{\frac{q}{(1-q)(1-q^3)}{z}^2}{1}-\frac{\frac{q^3}{(1-q^3)(1-q^5)}{z}^2}{1}-\cdots .$$

$$\frac{1}{1-q}\frac{{}_0{\Phi }_1(;q^3;q^2;-z^2{q}^3)}{{}_0{\Phi }_1(;q;q^2;-z^{2}q)}=u(q;z).$$

$$\frac{z{}_0{\Phi }_1(;q^3;q^2;-z^2{q}^3)}{1-q}={\sin }_q^{\ast }(z),$$

$${}_0{\Phi }_1(;q;q^2:-z^{2}q)={\cos }_q^{\ast }(z).$$

$$u(q;z)=\frac{{\tan }_q^{\ast }(z)}{z}=\frac{{\tan }_q(z)}{z}.$$

$${\tan }_q(z)=\frac{z}{1-q}-\frac{z^2}{\frac{1-q^3}{q}}-\frac{z^2}{\frac{1-q^5}{q^2}}-\cdots ,$$

Full text

1 Introduction

The hook-length formula for the number of standard Young tableaux of a Young diagram is a staple result in enumerative combinatorics, and as such has been widely studied. This formula has been discovered by Frame, Robinson and Thrall [2] in 1954, but only recently has a similar formula been proven in the more general case of skew tableaux by Naruse [5] in 2014. Two years later, Morales, Pak and Panova [4] proved a $\displaystyle q$-generalization of Naruse formula. They also applied their formula to a certain family of skew shapes, resulting in a non trivial relation between alternating permutations and weighted Dyck paths. The main goal of this paper is to explore different implications of this relation, while giving an alternative proof not involving the hook-length formula. Even though most continued fractions for generating functions are for natural series, as seen in Flajolet’s theory [1], our proof instead relies on a continued fraction of the exponential series for Euler numbers.

In the next section, we introduce the main definitions and results that will be used in the following sections. We review the definitions of alternating permutations and Euler numbers. We then present Dyck paths and hypergeometric functions, then discuss their role in Flajolet’s theory on continued fractions. Finally, we discuss about the hook-length formula and its applications. In the third section, we give a proof of Theorem 2.8 without using the hook-length formula, then we prove a similar formula for alternating permutations of even length. In the last section, we discuss a generalization to $\displaystyle k$-alternating permutations.

2 Definitions and preliminary results

2.1 Alternating permutations and Euler numbers

In this article we focus our interest on alternating permutations, which are permutations that are defined from a condition involving their descent set.

• Definition

Let $\displaystyle\sigma\in\mathfrak{S}_{n}$, and $\displaystyle i\in\{1,\ldots,n-1\}$. We say that $\displaystyle i$ is a descent of $\displaystyle\sigma$ if $\displaystyle\sigma_{i}>\sigma_{i+1}$. The descent set of $\displaystyle\sigma$ is written $\displaystyle D(\sigma)$, and is the set if all descents of $\displaystyle\sigma$.

• Definition

Let $\displaystyle\sigma\in\mathfrak{S}_{n}$. We say that $\displaystyle\sigma$ is alternating if $\displaystyle D(\sigma)=\{1,3,\ldots,2\left\lfloor{n}/{2}\right\rfloor-1\}$, i.e. $\displaystyle\sigma_{1}~{}>~{}\sigma_{2}~{}<~{}\sigma_{3}~{}>~{}\cdots$. We denote by $\displaystyle\textit{Alt}_{n}$ the set of alternating permutations of $\displaystyle\mathfrak{S}_{n}$. Similarly, $\displaystyle\sigma$ is reverse alternating if $\displaystyle D(\sigma)=\{2,4,\ldots,2\left\lceil{n}/{2}\right\rceil-2\}$, i.e. $\displaystyle\sigma_{1}~{}<~{}\sigma_{2}~{}>~{}\sigma_{3}~{}<~{}\cdots$. We denote by $\displaystyle\textit{RevAlt}_{n}$ the set of reverse alternating permutations of $\displaystyle\mathfrak{S}_{n}$.

Alternating permutations in $\displaystyle\mathfrak{S}_{n}$ are enumerated by the Euler number $\displaystyle E_{n}$. In his survey [6], Stanley gives some enumerative properties of alternating permutations. In particular,

[TABLE]

Hence, we may also refer to $\displaystyle\{E_{2n+1}\}$ as the tangent numbers, and $\displaystyle\{E_{2n}\}$ as the secant numbers. Stanley also defines a natural $\displaystyle q$-analogue for the Euler numbers as follows

[TABLE]

where $\displaystyle\operatorname{maj}(\sigma):=\sum_{i\in D(\sigma)}i$ is the major index of $\displaystyle\sigma$. We notice that $\displaystyle E_{n}(1)=E_{n}^{*}(1)=E_{n}$, and more generally we have the relation

[TABLE]

These refinements extend to $\displaystyle q$-analogues for the trigonometric functions $\displaystyle\tan$ and $\displaystyle\sec$. For $\displaystyle a\in\mathbb{N}$, let $\displaystyle(a)_{n}=\prod_{i=0}^{n-1}(a+i)$ be the Pochhammer symbol, and $\displaystyle(a;q)_{n}=\prod_{i=0}^{n-1}(1-aq^{i})$ be its $\displaystyle q$-analogue. If

[TABLE]

then, from Theorem 2.1 in [6], we have

[TABLE]

Also note the following identities, linking both variants of $\displaystyle\cos$ and $\displaystyle\sin$:

[TABLE]

• Remark

With (2), it follows that $\displaystyle\tan_{q}^{*}=\tan_{q}$. This can also be proven using a simple bijection between $\displaystyle\textit{RevAlt}_{n}$ and $\displaystyle\textit{Alt}_{n}$ preserving $\displaystyle\operatorname{maj}(\sigma^{-1})$ when $\displaystyle n$ is odd: take $\displaystyle\sigma\in\textit{Alt}_{n}$, define $\displaystyle\sigma^{\prime}$ as $\displaystyle\sigma^{\prime}(i)=n-\sigma(n-i)$. Then $\displaystyle\sigma^{\prime}\in\textit{RevAlt}_{n}$, and $\displaystyle\operatorname{maj}(\sigma^{-1})=\operatorname{maj}(\sigma^{\prime-1})$.

2.2 Dyck paths

Later in this article, we show the relation between alternating permutations and weighted Dyck paths. But beforehand it is important to understand how the generating function of Dyck paths can be written as a continued fraction.

• Definition

A Dyck Path of length $\displaystyle 2n$ is a path in the upper-right quarter plane whose steps are in $\displaystyle\{(1,1),(1,-1)\}$, begins at $\displaystyle(0,0)$ and ends at $\displaystyle(2n,0)$. Let $\displaystyle\mathcal{D}_{n}$ be the set of such paths.

For convenience, we represent Dyck paths as the succession of heights it reaches rather than the steps it takes: let $\displaystyle(h_{0},h_{1},\ldots,h_{2n})\in\mathcal{D}_{n}$, so that $\displaystyle h_{0}=h_{2n}=0$, and for all $\displaystyle i$, $\displaystyle h_{i}\geq 0$ and $\displaystyle|h_{i}-h_{i+1}|=1$. Thus, $\displaystyle h_{i}$ is the height the path reaches after $\displaystyle i$ steps. In the rest of this paper, we use the space-saving notation for continued fractions:

[TABLE]

The following lemma is a corollary of Flajolet’s results on continued fractions in [1].

Lemma 2.1**.**

Let $\displaystyle\mathbb{K}$ be a commutative field, and let $\displaystyle\omega:\mathbb{N}\rightarrow\mathbb{K}\setminus\{0\}$ be a weight function over the heights of a Dyck path. Then the formal series of weighted Dyck paths is a Stieltjes continued fraction:

[TABLE]

• Remark

The second equality is obtained by multiplying by $\displaystyle\omega(0)^{-1}$ on both sides of the first fraction, then by $\displaystyle\omega(1)^{-1}$ on the second, and so on.

• Remark

We mostly apply this lemma with $\displaystyle\mathbb{K}=\mathbb{R}$ or $\displaystyle\mathbb{K}=\mathbb{R}(X)$.

2.3 Hypergeometric functions

It is useful to see continued fractions as quotient of hypergeometric functions, since they satisfy the conditions of the following lemma.

Lemma 2.2**.**

For $\displaystyle i\geq 0$, let $\displaystyle f_{i}(z)=\sum_{n\geq 0}a_{i,n}z^{n}$ be a family of formal series. If for all $\displaystyle i$, there exists $\displaystyle k_{i}$ such that $\displaystyle f_{i-1}~{}-~{}f_{i}~{}=~{}k_{i}~{}z~{}f_{i+1}$, then

[TABLE]

Consider the hypergeometric function $\!\>{}_{0}F_{1}$, defined as

[TABLE]

Using Lemma 2.2, these functions naturally lead to some interesting continued fractions.

Lemma 2.3**.**

For all $\displaystyle a\in\mathbb{C}\setminus(\mathbb{Z}_{\leq 0})$,

[TABLE]

Proof.

It results from the identity

[TABLE]

to which we apply Lemma 2.2 with $\displaystyle f_{i}=\!\>_{0}F_{1}(i;z)$ and $\displaystyle k_{i}=\frac{1}{i(i-1)}$. ∎

Since we have

[TABLE]

we can write $\displaystyle\tan$ as a continued fraction

[TABLE]

which is also known as Lambert’s continued fraction.

The basic hypergeometric functions $\!\>{}_{0}\Phi_{1}$ are $\displaystyle q$-analogues of hypergeometric functions, and are defined as

[TABLE]

Lemma 2.4**.**

For all $\displaystyle a\in\mathbb{C}\setminus(\mathbb{Z}^{-}\cup\{0\})$,

[TABLE]

Proof.

For all $\displaystyle i\geq 0$, let $\displaystyle f_{i}=\ _{0}\Phi_{1}(;q^{a+i};q;zq^{i})$. We have

[TABLE]

The result follows from Lemma 2.2. ∎

2.4 Hook formula for skew shapes

In this section, we present a Hook formula for skew shapes due to Morales, Pak and Panova in [4], and show how it links alternating permutations with Dyck paths. Let us first give some useful definitions. Let $\displaystyle\lambda=(\lambda_{1},\ldots,\lambda_{r})$ be an integer partition of length $\displaystyle r$. The size of the partition is denoted by $\displaystyle|\lambda|$, and $\displaystyle\lambda^{\prime}$ denotes the conjugate partition of $\displaystyle\lambda$. The Young diagram associated with $\displaystyle\lambda$, denoted by $\displaystyle[\lambda]$, is a diagram made of squares, where the $\displaystyle i$-th row is composed of $\displaystyle\lambda_{i}$ squares. We use the french notation to represent them. The hook length $\displaystyle h(i,j)$ of a square $\displaystyle(i,j)$ is the number of squares directly to the right and above the square in $\displaystyle[\lambda]$, including itself. A standard Young tableau of shape $\displaystyle\lambda$ is an array $\displaystyle T$ of integers $\displaystyle 1,\ldots,n$ of shape $\displaystyle\lambda$ strictly increasing in columns and strictly decreasing in rows. We note $\displaystyle\operatorname{SYT}(\lambda)$ the set of such tableaux. A descent of a standard Young tableau $\displaystyle T$ is an index $\displaystyle i$ such that $\displaystyle i+1$ appears in a row above $\displaystyle i$. The major index $\displaystyle\operatorname{tmaj}(T)$ is the sum over all the descents of $\displaystyle T$. Introduced by Frame, Robinson, and Thrall in [2], the hook length formula gives the number of standard Young tableaux of a given shape, and is stated as follows.

Theorem 2.5** (Hook length formula [2]).**

Let $\displaystyle\lambda$ be a partition of $\displaystyle n$. We have

[TABLE]

This can be extended to skew shapes. Let $\displaystyle\lambda$ and $\displaystyle\mu$ be two integer partitions. We write that $\displaystyle\mu\subset\lambda$ if, for all $\displaystyle i$, $\displaystyle\mu_{i}\leq\lambda_{i}$. In this case, we can define the skew shape $\displaystyle\lambda/\mu$ as the shape obtained by removing $\displaystyle\mu$ from $\displaystyle\lambda$. Remark that the definition of standard Young tableaux can be easily extended to skew shapes. An excited diagram of $\displaystyle\lambda/\mu$ is a subset of $\displaystyle[\lambda]$ of size $\displaystyle|\mu|$ obtained from $\displaystyle[\mu]$ by a sequence of excited moves:

[TABLE]

The move $\displaystyle(i,j)\rightarrow(i+1,j+1)$ is allowed only if cells $\displaystyle(i,j+1)$,$\displaystyle(i+1,j)$ and $\displaystyle(i+1,j+1)$ are unoccupied. The resulting set of excited diagrams of $\displaystyle\lambda/\mu$ is denoted $\displaystyle\mathcal{E}(\lambda/\mu)$. Naruse in [5] obtained the following formula, generalizing the previous one.

Theorem 2.6** (Naruse hook length formula [5]).**

Let $\displaystyle\lambda,\mu$ be partitions, such that $\displaystyle\mu\subset\lambda$. We have

[TABLE]

Remark that if $\displaystyle\mu=\emptyset$, we obtain the original hook length formula. Morales, Pak, and Panova in [4] proved a $\displaystyle q$-analogue of this formula.

Theorem 2.7** (Morales, Pak, Panova, [4]).**

Let $\displaystyle\lambda,\mu$ be partitions, such that $\displaystyle\mu\subset\lambda$, and $\displaystyle n=|\lambda/\mu|$. We have

[TABLE]

As means of example, they applied their result to the following skew shape: let $\displaystyle\delta_{m}=(m,m-1,\ldots,1)$ be an integer partition of the shape of a staircase of height $\displaystyle m$. Consider the border strip $\displaystyle\delta_{m+2}/\delta_{m}$. We can easily see that $\displaystyle\operatorname{SYT}(\delta_{m+2}/\delta_{m})$ is in bijection with alternating permutations of length $\displaystyle 2m+1$, as shown in Figure 1. Moreover, $\displaystyle\mathcal{E}(\delta_{m+2}/\delta_{m})$ is in bijection with Dyck paths of length $\displaystyle 2m$. Moreover, in this case we have $\displaystyle\sum_{\sigma\in\textit{Alt}_{2m+1}}q^{\operatorname{maj}(\sigma^{-1})}~{}=~{}\sum_{T\in SYT(\delta_{m+2}/\delta_{m})}q^{tmaj(T)}$. Hence, applying Theorem 2.7, we obtain the following identity

Theorem 2.8** (Morales, Pak, Panova, [4]).**

[TABLE]

Our goal in the next section is to give an alternative proof of this identity.

3 Dyck paths and Euler numbers

3.1 Tangent numbers

Before proving Theorem 2.8, we shall look at the corollary formula obtained with $\displaystyle q\rightarrow 1$:

[TABLE]

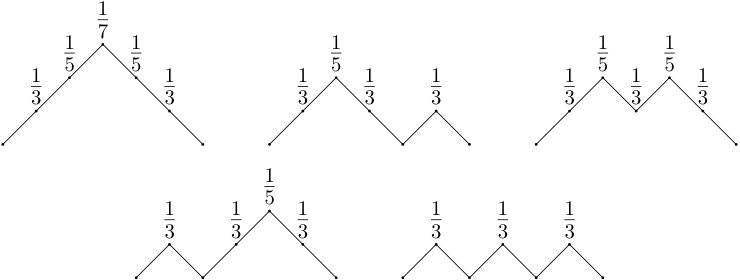

The left hand side of this equation can be seen as the sum over all weighted Dyck paths of length $\displaystyle 2n$. For instance, if $\displaystyle n=3$, we have all the weighted paths as shown in Figure 2, and summing them up we get

[TABLE]

Even though the weight of each path is a rational number, they non-trivially add up to an integer. This remark oriented our research towards a more direct approach to prove this formula.

Proof of Theorem 2.8.

Let $\displaystyle u(q;z)=\sum_{n\geq 0}\sum_{d\in\mathcal{D}_{n}}\prod_{i=0}^{2n}\frac{q^{h_{i}}}{1-q^{2h_{i}+1}}z^{2n}$. Using Lemma 2.1 with $\displaystyle\omega(x)~{}=~{}\frac{q^{x}}{1-q^{2x+1}}$, we have

[TABLE]

Using Lemma 2.4, with $\displaystyle z=\frac{-z^{2}q^{a}}{4}$, $\displaystyle a=\frac{1}{2}$, and $\displaystyle q=q^{2}$, we have

[TABLE]

Remark that

[TABLE]

and

[TABLE]

Hence,

[TABLE]

∎

• Remark

The proof uses a continued fraction for $\displaystyle tan_{q}$, that is

[TABLE]

which gives back Lambert’s continued fraction (3) for $\displaystyle\tan$ by taking $\displaystyle z=(1-q)z$ and $\displaystyle q\rightarrow 1$.

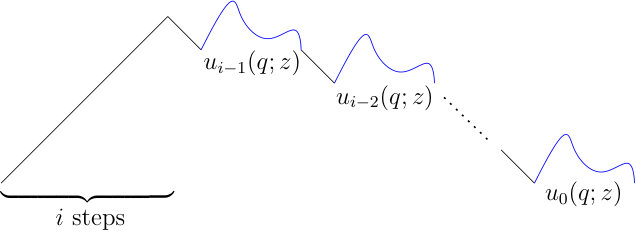

Similarly, as we define $\displaystyle u_{h}(q;z)$ to be the generating function for $\displaystyle h$-shifted Dyck paths, we can prove that, for $\displaystyle h\geq 0$,

[TABLE]

3.2 Secant numbers

We can prove a similar formula for $\displaystyle q$-Secant Numbers. Let us consider the skew shape $\displaystyle\delta^{*}_{n+2}/\delta_{n}$, where $\displaystyle\delta^{*}_{n}$ is the shape $\displaystyle\delta_{n}$ without its topmost square. This way, the hooks of the first column decrease by one. $\displaystyle\operatorname{SYT}(\delta^{*}_{n+2}/\delta_{n})$ is in bijection with $\displaystyle\textit{Alt}_{2n}$, and $\displaystyle\mathcal{E}(\delta^{*}_{n+2}/\delta_{n})$ is in bijection with Dyck paths of length $\displaystyle 2n$ for which we remove the first step. The weight for the vertices of those paths is still $\displaystyle\frac{q^{h}}{1-q^{2h+1}}$ at height $\displaystyle h$, except for the first ascent of the path, for which it becomes $\displaystyle\frac{q^{h}}{1-q^{2h}}$, and we ignore the first step. We do the same for the conjugate skew shape. With Theorem 2.7, it translates into the following equalities

Theorem 3.1**.**

[TABLE]

where $\displaystyle\delta_{i,j}$ is the Kronecker delta.

Proof.

Both equalities are equivalent due to (2), so we only need to prove the first one. Let $\displaystyle v(q;z)~{}=~{}\sum_{n\geq 1}\sum_{d\in\mathcal{D}_{n}}\prod_{i=1}^{2n}\frac{q^{h_{i}}}{1-q^{2h_{i}+1-\delta_{h_{i},i}}}z^{2n}$ be the weighted generating function for Dyck paths without their first step. We decompose those paths as follows: the path begins with an ascent up to height $\displaystyle i$, in which each vertex has weight $\displaystyle\frac{q^{h}}{1-q^{2h}}$ at height $\displaystyle h$. It is followed $\displaystyle i$ times by a down step and a shifted weighted Dyck path, counted by $\displaystyle u_{j}(q;z)$. This decompositon is illustrated in Figure (3). Hence we have

[TABLE]

With (4), we have

[TABLE]

Moreover, we have

[TABLE]

To conclude, we need to use the Cauchy binomial theorem. For all $\displaystyle n\in\mathbb{N}$, $\displaystyle k\leq n$, let $\displaystyle\binom{n}{k}_{q}~{}=~{}\frac{(q;q)_{n}}{(q;q)_{k}(q;q)_{n-k}}$ be the $\displaystyle q$-binomial coefficients.

Theorem 3.2** (Cauchy binomial Theorem).**

[TABLE]

We can then simplify the previous expression, since we have

[TABLE]

It follows that

[TABLE]

∎

4 Alternating $\displaystyle k$-permutations

In this section we try to generalise our analysis to alternating $\displaystyle k$-permutations.

• Definition

Let $\displaystyle\sigma\in\mathfrak{S}_{n}$. We say that $\displaystyle\sigma$ is an alternating $\displaystyle k$-permutation if

[TABLE]

We call $\displaystyle\mathcal{A}_{k}(n)$ the set of alternating $\displaystyle k$-permutations of $\displaystyle\mathfrak{S}_{n}$.

When $\displaystyle k=2$, we recover ordinary alternating permutations, since $\displaystyle\mathcal{A}_{2}(n)=\textit{RevAlt}_{n}$. Similarly to alternating permutations, we can put in bijection elements of $\displaystyle\mathcal{A}_{k}(n)$ with standard Young tableaux of a certain skew shape, like in Figure 4. Let $\displaystyle\sigma\in\mathcal{A}_{k}(nk+r)$ with $\displaystyle 0<r\leq k$, we call $\displaystyle T(\sigma)$ the associated standard Young tableau of $\displaystyle\sigma$, so that

[TABLE]

Just like for alternating permutations, we can define the following generating function

[TABLE]

and use Morales, Pak and Panova’s hook formula, which gives us

[TABLE]

where $\displaystyle\mathcal{D}_{nk+r,k}$ is the set of $\displaystyle k$-Dyck paths of length $\displaystyle nk+r$, which is a path in the upper-right quarter plane whose steps are in $\displaystyle\{(1,k-1),(1,-1)\}$, begins at $\displaystyle(0,0)$ and ends at $\displaystyle(nk+r,k-r)$. Instead, we look at Kurşungöz and Yee’s work in [3] studying $\displaystyle f_{nk+r}(q)$. They found that, for $\displaystyle k\geq 2$ and $\displaystyle 0<r\leq k$,

[TABLE]

We give another proof of this result using a set of differential equations satisfied by this generating function. Take $\displaystyle\sigma\in\mathcal{A}_{n}$ and remove its maximum element to obtain $\displaystyle\sigma^{\prime}$. Then we have $\displaystyle maj(\sigma^{-1})=maj(\sigma^{\prime-1})$. Hence we have

[TABLE]

We can then verify that (5) is a solution to this set of equations. If we take $\displaystyle k=2$, we find back the derivatives of $\displaystyle F_{1}=\tan$ and $\displaystyle F_{2}=\sec-1$, that is

[TABLE]

5 Acknowledgements

We thank Matthieu Josuat-Vergès for his invaluable help and support. This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.
