Confinement enhances the diversity of microbial flow fields

TL;DR

This study reveals that confinement influences microbial flow fields in complex ways, with swimmer-specific details like spinning and propulsion shape affecting flow topology, challenging the assumption of universal flow behavior under confinement.

Contribution

The paper combines experiments and modeling to show that microswimmer flow fields under confinement are more diverse and dependent on swimmer details than previously thought.

Findings

Flow fields are not universally dominated by the 2D source dipole under confinement.

Microswimmer spinning and propulsion details significantly affect flow topology.

Active hydrodynamics under confinement is richer and more complex than in bulk.

Abstract

Despite their importance in many biological, ecological and physical processes, microorganismal fluid flows under tight confinement have not been investigated experimentally. Strong screening of Stokelets in this geometry suggests that the flow fields of different microorganisms should be universally dominated by the 2D source dipole from the swimmer's finite-size body. Confinement therefore is poised to collapse differences across microorganisms, that are instead well-established in bulk. Here we combine experiments and theoretical modelling to show that, in general, this is not correct. Our results demonstrate that potentially minute details like microswimmers' spinning and the physical arrangement of the propulsion appendages have in fact a leading role in setting qualitative topological properties of the hydrodynamic flow fields of micro-swimmers under confinement. This is well captured by an effective 2D model, even under relatively weak confinement. These results imply that active confined hydrodynamics is much richer than in bulk, and depends in a subtle manner on size, shape and propulsion mechanisms of the active components.

Figures

Tables

Table 1. Table S1: Swimmers characteristics.

Organism	Swimming speed $\left(\mu m.s^{-1}\right)$	Major axis length $\left(\mu m\right)$	Minor axis length $\left(\mu m\right)$
CR	$H=14\mu m\Rightarrow V=41.3\pm 13.0$
	$H=21.5\mu m\Rightarrow V=48.5\pm 15.0$
	$H=29\mu m\Rightarrow V=45.4\pm 17.5$	$10.1\pm 1.7$	$8.0\pm 1.7$
	$H=43\mu m\Rightarrow V=50\pm 18.0$
	$H=60\mu m\Rightarrow V=44.6\pm 18.3$
OM	$H=21.5\mu m\Rightarrow V=73.6\pm 15.6$	$22.9\pm 3.4$	$16.6\pm 1.8$
	$H=29\mu m\Rightarrow V=87.5\pm 23.9$

Table 2. Table S2: Statistics of the fitting procedure.

Organism and $H$	Avg. reads/bin ()	Total no. of fits	No. of occurences of selected fit	Rel. error of fit selected ($\times {10}^{-3}$)
CR $14\mu m$	$8.4\times {10}^3$	$1800$	$202$	$7.5$
CR $21.5\mu m$	$7.2\times {10}^3$	$1800$	$125$	$8.9$
CR $29\mu m$	$2.0\times {10}^4$	$1800$	$44$	$8.4$
CR $43\mu m$	$1.8\times {10}^4$	$1800$	$397$	$18.6$
CR $60\mu m$	$4.7\times {10}^4$	$1800$	$321$	$29.6$
OM $21.5\mu m$	$923$	$600$	$235$	$45.9$
OM $29\mu m$	$370$	$600$	$424$	$72.2$

Table 3. Table S3: Relative errors of the fits: median values.

Organism and thickness	2D thin film	Liron&Mochon Stokeslets model	Bulk Stokeslets model
CR $14\mu m$	$11\%$
CR $21.5\mu m$	$9.5\%$	$73\%$ (Fig. S6)
CR $29\mu m$	$10\%$
CR $43\mu m$	$15\%$

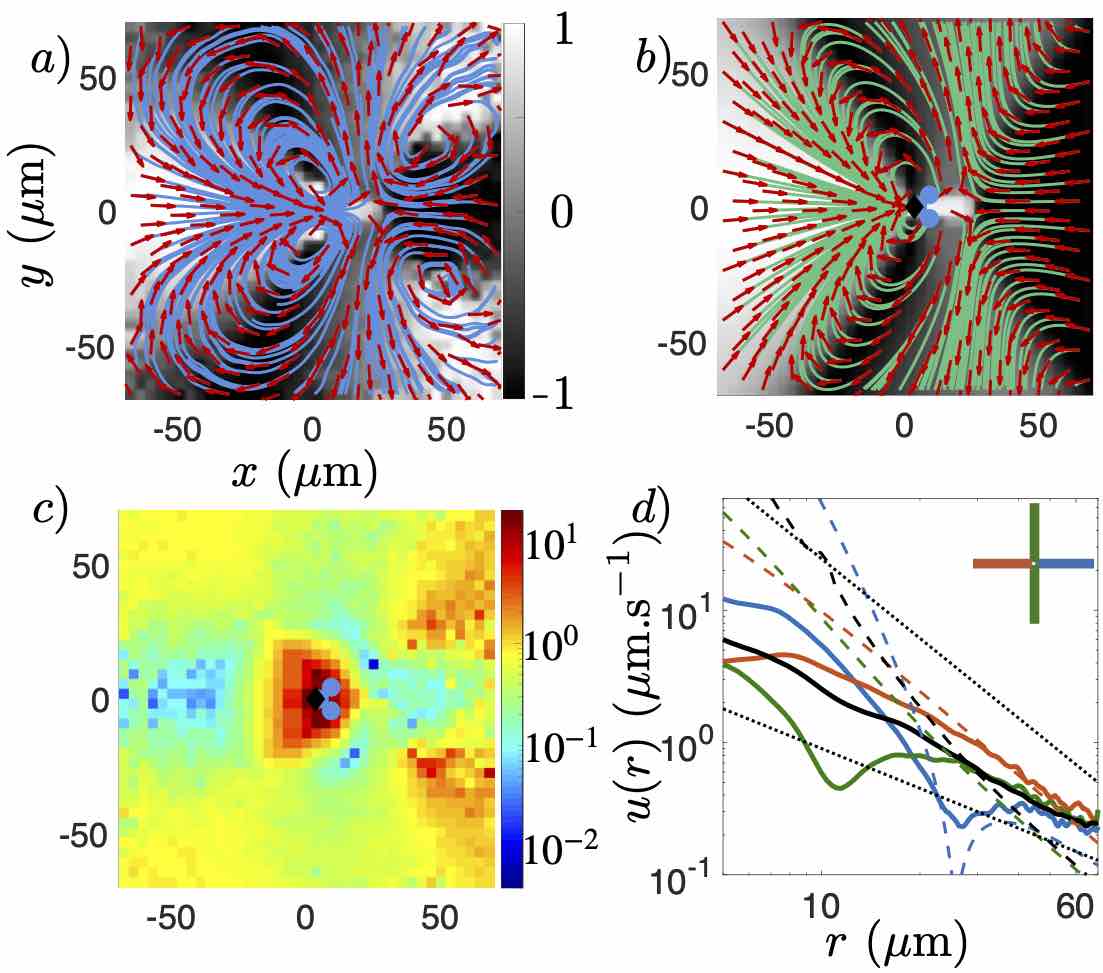

CR $60\mu m$	$20\%$		$52\%$ (Fig. S3)
OM $21.5\mu m$	$18\%$	$53\%$ (Fig. S6)
OM $29\mu m$	$30\%$

Equations

$${\mathbf{u}}_{LM,\parallel }(\mathbf{r},z)=f(z,h,H)(1/r^2-2\mathbf{rr}/r^4)\cdot {\mathbf{F}}_{\parallel },$$

$$u_{\mathrm{d},x}(x,y)$$

$$u_{\mathrm{d},y}(x,y)$$

$${\mathbf{u}}_{\mathbf{f}}(\mathbf{r},\mathbf{F})$$

$${\mathbf{G}}_{\mathbf{f}}$$

$$f_1(w)$$

$$=K_0(w)-w^{-2}+w^{-1}{K}_1(w),$$

$$f_2(w)$$

$$=2w^{-2}-2w^{-1}{K}_1(w)-K_0(w),$$

Full text

The way fluid is displaced around micro-swimmers is crucial to many biological, ecological and physical processes Lauga and Powers (2009). For instance, the uptake of nutrients and capture of small preys by micro-organisms depends directly on their flow fields Tam and Hosoi (2011); Michelin and Lauga (2011); Dölger et al. (2017); Humphries (2009); Jashnsaz et al. (2017); Mathijssen et al. (2018); planktonic predators and preys detect each other mostly via fluid-mediated mechano-sensing Kiørboe and Visser (1999); Jakobsen et al. (2006); Bruno et al. (2012); Kiørboe (2013); Andersen et al. (2015); and some species of protists can even relay information on potential nearby danger via hydrodynamic trigger waves Mathijssen et al. (2019). The emergence of large-scale collective motion in microswimmers’ suspensions is also set by the far-field symmetry of the fluid flows from individual active entities Bricard et al. (2013); Stenhammar et al. (2017). Microscopic fluid disturbances naturally fall into the inertialess regime (low Reynolds number), and are governed by the Stokes equations. In this regime, flows can be decomposed and expanded in terms of singularity solutions, or multipoles Sangtae and Karrila (2005). In unbounded fluids, the almost neutrally buoyant swimming microorganisms are generally modelled either as basic force dipoles (stresslets), or with spatially extended dipole variants like the 3-forces model introduced for the microalga Chlamydomonas reinhardti (CR) Drescher et al. (2010) (see Fig. 1a). The resultant flow fields decay as $\sim r^{-2}$ Drescher et al. (2010, 2011), and the sign of the effective force dipole divides micro-swimmers into two large classes: pushers (e.g. bacteria, pushing fluid with their rear-mounted flagella) and pullers (e.g. CR, pulling the fluid with front-mounted cilia). This division appears to be very important in setting macroscopic properties of active fluids, from flow instabilities to bulk rheology Lauga and Powers (2009); Rafaï et al. (2010); López et al. (2015). Biological and artificial active particles, however, are often confined within boundaries, either as a consequence of their natural habitat Foissner (1998); Or et al. (2007); Kantsler et al. (2013); Elgeti et al. (2015), or for technological purposes Denissenko et al. (2012), or simply to facilitate experiments Guasto et al. (2010); Pepper et al. (2010). In this context, theory has predicted that the bulk flow picture should be critically modified by the boundaries Brotto et al. (2013); Delfau et al. (2016). Here we provide a systematic experimental test of these confinement-induced changes in microbial flows.

Important differences are expected in the multipolar expansions of flows from microorganisms between the bulk and confined cases. A point-force confined between two parallel no-slip walls creates, in the far field, a fluid disturbance akin to a 2D source dipole with a velocity decay $\sim r^{-2}$ Liron and Mochon (1976). As noted in Brotto et al. (2013); Delfau et al. (2016), a force-dipole between two plates should then produce a far-field flow decaying as $\sim r^{-3}$, much faster than in bulk. At the same time, whether driven by flows, sedimenting, or self-propelled, a finite-sized particle moving at a velocity different from the background fluid must induce a source-dipole perturbation along the direction of motion to fulfil mass conservation. In a quasi-2D Hele-Shaw configuration, when the swimmer’s size $d$ is comparable to the confinement length $H$, this singularity decays as $\sim r^{-2}$ Diamant (2009); Beatus et al. (2012); Janssen et al. (2012); Desreumaux et al. (2013); Brotto et al. (2013), and should therefore dominate the multipolar expansion regardless of the arrangement of propulsive and drag forces. Consequently, confinement should substitute the bulk division between pushers and pullers with a single class of micro-swimmers whose far-field hydrodynamic interactions are universally mediated by 2D source-dipoles, although numerical studies suggest that very near-field details might also be important Delfau et al. (2016). These predictions stand in stark contrast with a fundamental lack of systematic experimental investigations to test and substantiate the theoretical picture (but see Krüger et al. (2016); Thutupalli et al. (2018) for collective effects in confined active droplets).

In this letter, we combine systematic experiments with modelling to show that, within the experimentally accessible range, confinement does not lead to a universal collapse of microbial flows. Instead, we observe strong qualitative differences resulting from details in the geometry and propulsion of different microbial species. Intuitively, these can be understood to arise from the dependence of wall-induced screening of forces on the forces’ position across the sample cell, with the net result to multiply the variety of microbial flow fields with respect to the bulk case. Despite their sensitivity to the spatial structure of the micro-swimmer and the level of confinement, the experimental flow fields can be modelled accurately within a 2D thin-film approximation even under relatively weak confinement.

To clarify the effect of confinement, we begin with a simple example. Liron and Mochon Liron and Mochon (1976) showed that a point-force $\mathbf{F}_{\parallel}=(F_{x},F_{y},0)$ located at $(x=0,y=0,z=h)$ within a Hele-Shaw cell of thickness $H$ in the $z$-direction, generates a far-field flow given by

[TABLE]

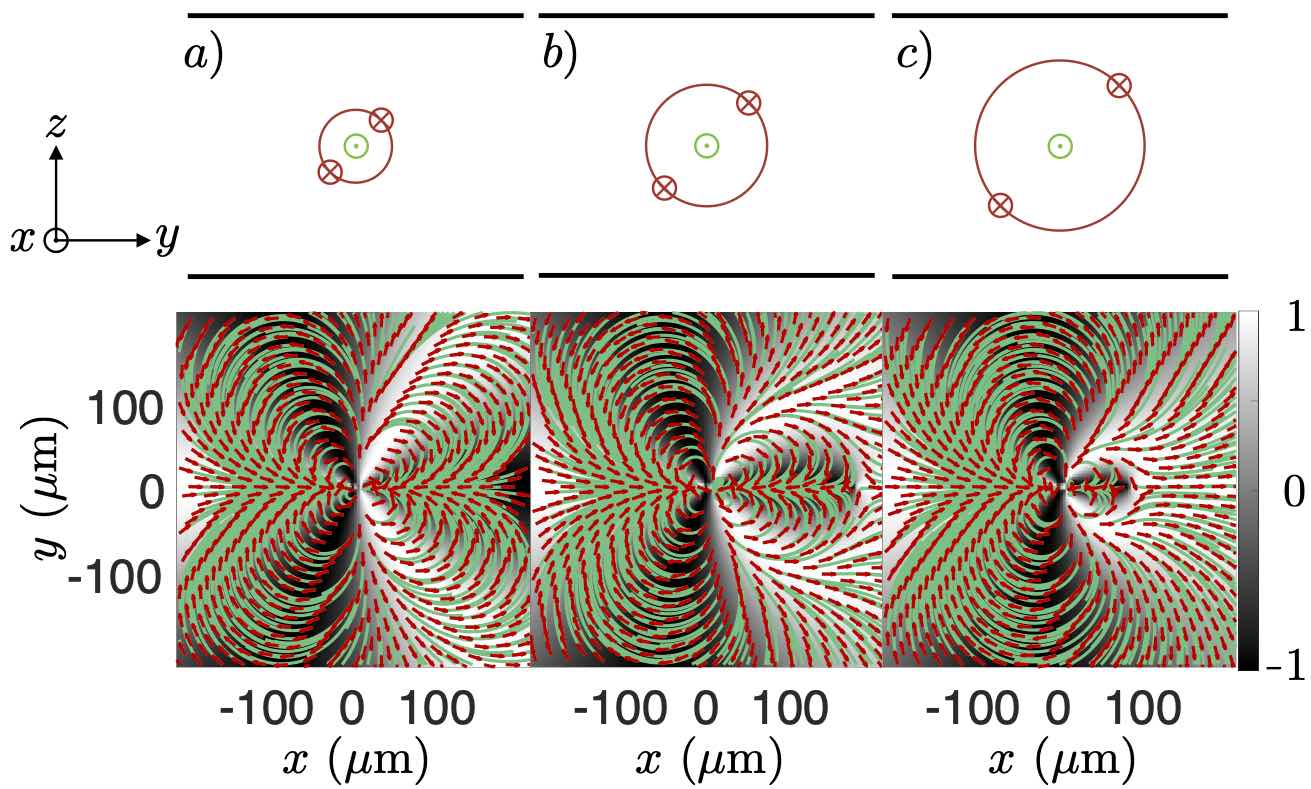

where $\mathbf{r}=(x,y)$ and $f(z,h,H)=-3H/(2\pi\mu)[z/H-(z/H)^{2}][h/H-(h/H)^{2}]$. This field is equivalent to a 2D source dipole whose strength $f(z,h,H)$ depends quadratically on the vertical position $h$ of the Stokeslet, with a maximum in the mid-plane ($h=H/2$). Ignoring temporarily finite-size effects for real microswimmers, this $h$-dependence immediately implies that the flow-field created by a force-free swimmer should be qualitatively very sensitive to the spatial arrangement of forces along the $z$-direction, because the relative effect of these forces on the fluid can be very different. To illustrate this point, let us consider the 3-Stokeslets model for CR Drescher et al. (2010), where a single force on the fluid representing the cell body motion ($\mathbf{F}_{\parallel}$; Fig. 1a-c green arrow), is balanced by a pair of forces representing the two front flagella ($-\mathbf{F}_{\parallel}/2$; Fig. 1a-c red arrows). When the forces are parallel to the $xy$-plane, the far-field has indeed a force-dipole symmetry, with a $\sim r^{-3}$ decay as predicted in Brotto et al. (2013) (Fig. 1a,d). However, when the forces lay on a plane perpendicular to the $xy$-plane, the far-field has a source dipole symmetry with a slower $\sim r^{-2}$ decay (Fig. 1b,e). The size of the force-dipole-like recirculation region close to the front of the swimmer (Fig. 1e) depends strongly on both on-axis distance between thrust and drag forces, and the separation between the putative flagellar forces. For a swimmer that spins as it swims, as for CR, the topology of the flow-field will then oscillate periodically as a function of the rotation of the flagellar plane (see Movie S1 sup ), and not just as a function of the phase in the beating cycle Guasto et al. (2010); Klindt and Friedrich (2015). In this case, the rotation-averaged flow always retains a source dipole far-field symmetry (Fig. 1c,f), while the extent of the near-field recirculation depends on the separation between the pair of thrust forces (Fig. S1 sup ). Overall, these arguments suggest that the effective 2D representation of the far-flow field of a confined force-free micro-swimmer should be guessed with care, as the induced flow has a strong qualitative dependence on the spatial arrangement of the swimmer’s propulsion and drag forces. This sensitivity is in sharp contrast with the equivalent case in bulk. It can be understood intuitively as a result of the $h$-dependence of the function $f(z,h,H)$, which implies that a Stokeslet in the mid-plane produces a $z$-averaged far-flow field stronger than one outside it. This consequence of confinement appears to have been largely overlooked, but it could be put to good use to build artificial active systems with in situ tuneable hydrodynamic interactions, for instance by modulating the arrangement or orientation of active particles across the Hele-Shaw cell through the application of external fields. Such systems should display a rich set of collective dynamic phenomena.

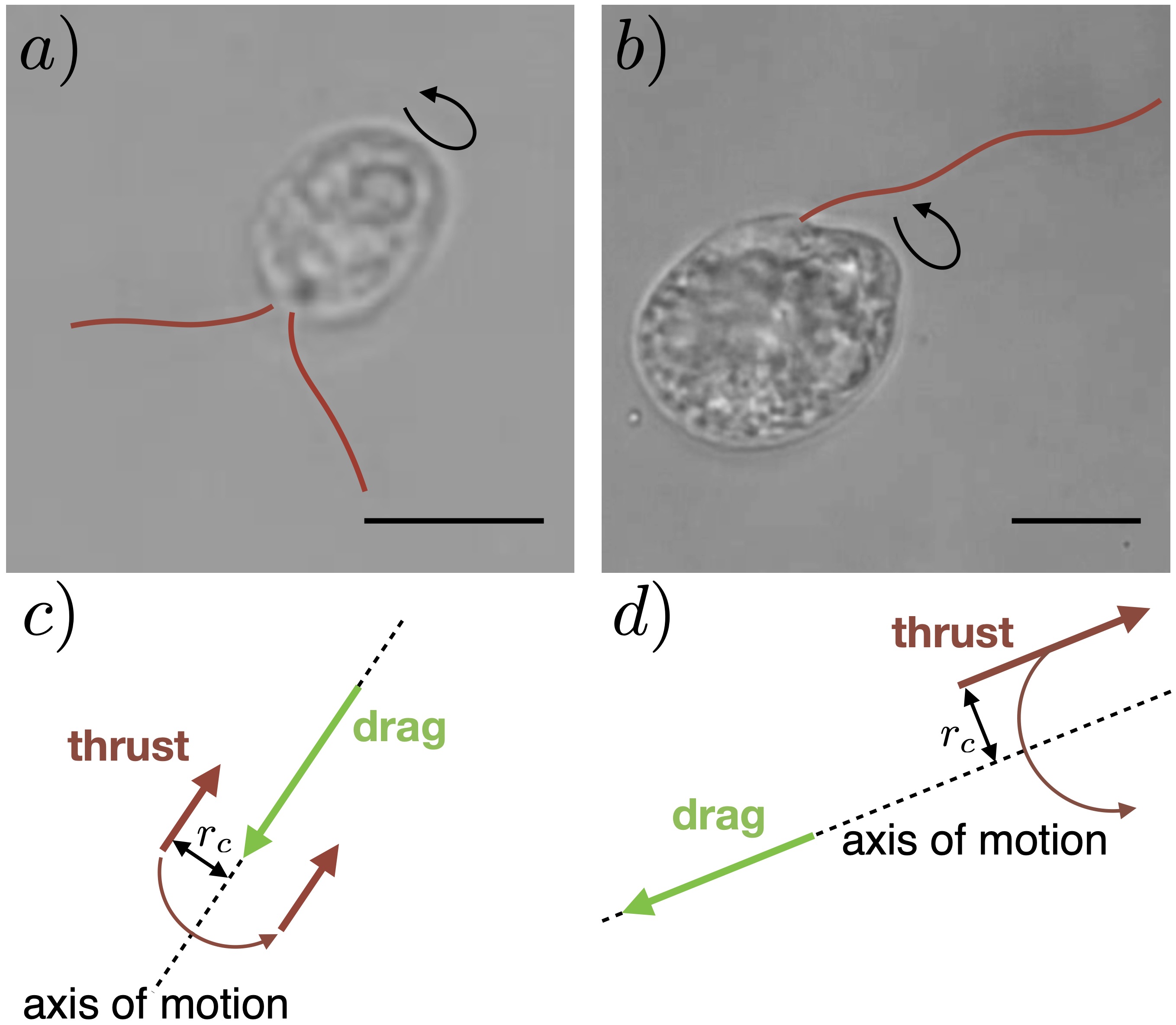

With this in mind we now turn to the experiments, measuring flow-fields under controlled confinement for both a puller-like and a pusher-like swimmer, respectively CR and the dinoflagellate Oxyrrhis marina (OM). These organisms have similarly shaped prolate cell bodies (Fig. S2a,b sup ), with diameters $d_{\rm CR}\lesssim 10\,\mu$m and $d_{\rm OM}\lesssim 20\,\mu$m respectively. The former propels with a characteristic breaststroke beating of its pair of front-mounted flagella $\sim 12\,\mu$m-long; the latter employs a $\sim 30\,\mu$m-long back-mounted flagellum which propagates bending waves (Movies S2,3; Fig. S2a,b sup ). Both species spin as they swim. The microorganisms were grown following Mathijssen et al. (2018), and then loaded in microfluidic chambers of uniform thickness $H$ ($14\,\mu\text{m}\leq H\leq 60\,\mu$m) previously passivated with a $0.5\%\,$w/v Pluronic F-127 solution. Tracking of $1\,\mu$m polystyrene tracer particles (Polysciences, USA) in the reference frame centred on the microorganism and oriented along its swimming direction, was done through a $20\times$ NA 0.40 objective (Nikon, Japan) at $50\,$fps. This allowed us to reconstruct the induced flow field averaged over the spinning and beating cycles, and across the $10\,\mu$m focal volume centred in the middle of the chamber Drescher et al. (2010); sup . Figure 2a-e shows the flow fields for CR at five decreasing chamber thicknesses (experimental/numerical flow fields in blue/green throughout). Under weak confinement ($H=60,43\,\mu$m; Fig. 2a,b) the flows present a characteristic puller-like symmetry, with a stagnation point $\sim 25\,\mu$m in front of the cell. Although both features are typical of bulk flows Drescher et al. (2010), the bulk solution yields in fact a poor quantitative agreement, even for $H=60\,\mu$m (Fig. S3 sup ). As the channel thickness decreases further ($H=29,21.5,14\,\mu$m; Fig. 2c,d,e) the flow-field develops clearly the structure of a source dipole. The velocity decays as $\sim r^{-2}$, confirming that this is a two-dimensional source dipole (Fig. S4 sup ). At the same time, close to the cell the flow presents some differences from a pure 2D source dipole, with a slight front-back asymmetry and side vortices (Fig. 2c-e).

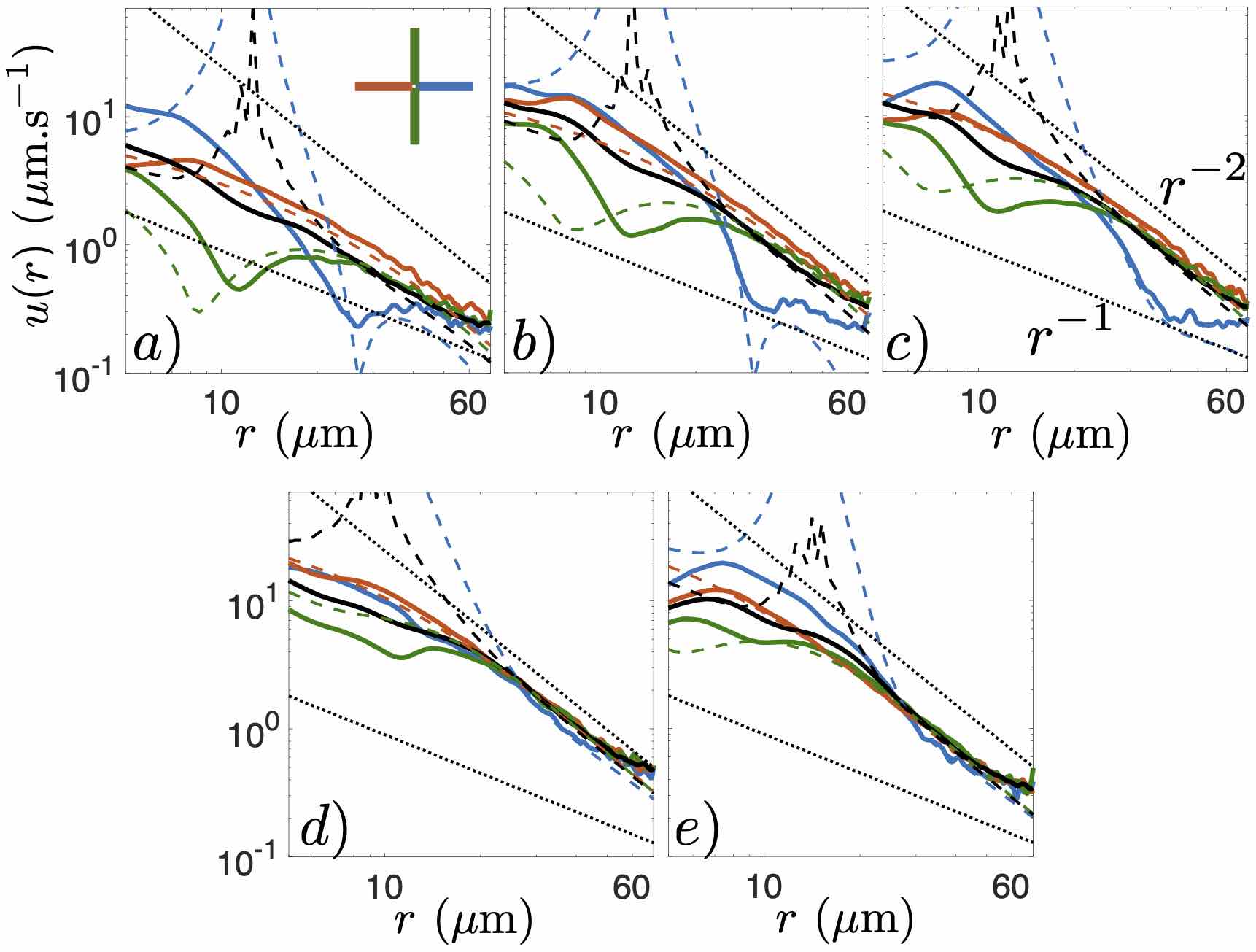

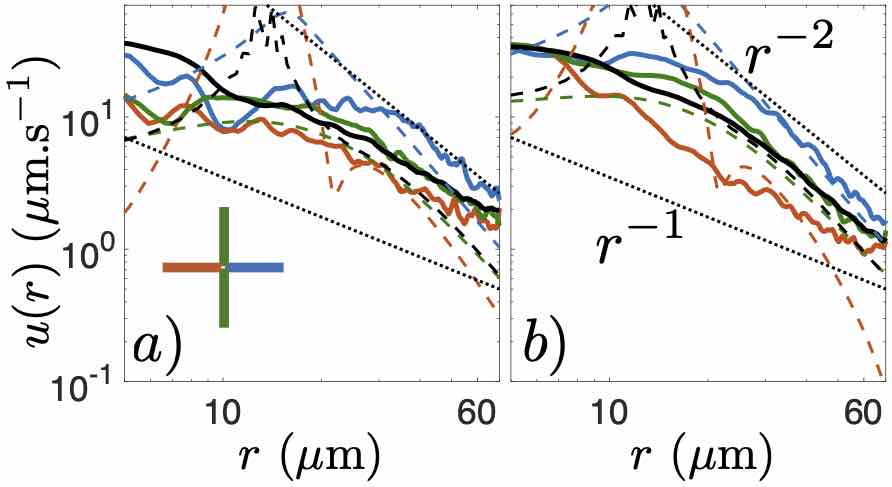

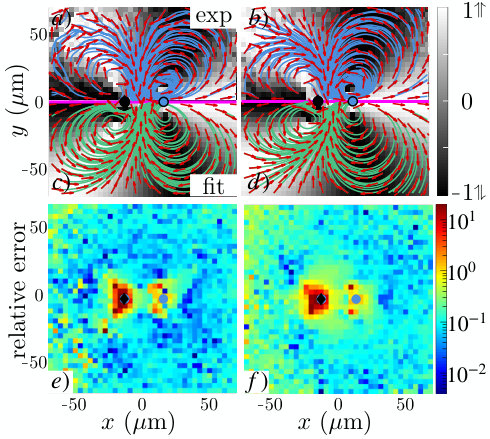

Figure 3a,b, however, shows that the flows generated by OM in strong confinement ($H=21.5,29\,\mu$m) are qualitatively different from those observed for CR. Within our experimentally accessible range, corresponding to a $\sim 30\times$ velocity decay for both species (Figs. S4,5 sup ), OM flows display a front-back asymmetric force dipole field instead of CR’s source dipole. This striking difference in flow structure confirms that confinement does not reduce all microbial flows to a unique type, but rather makes them very sensitive to precise details of a swimmer’s geometry beyond its finite size body.

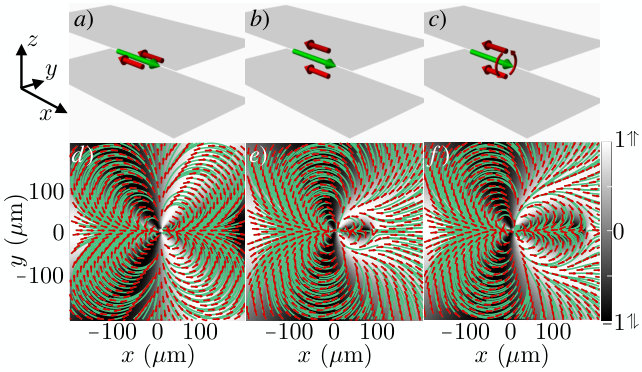

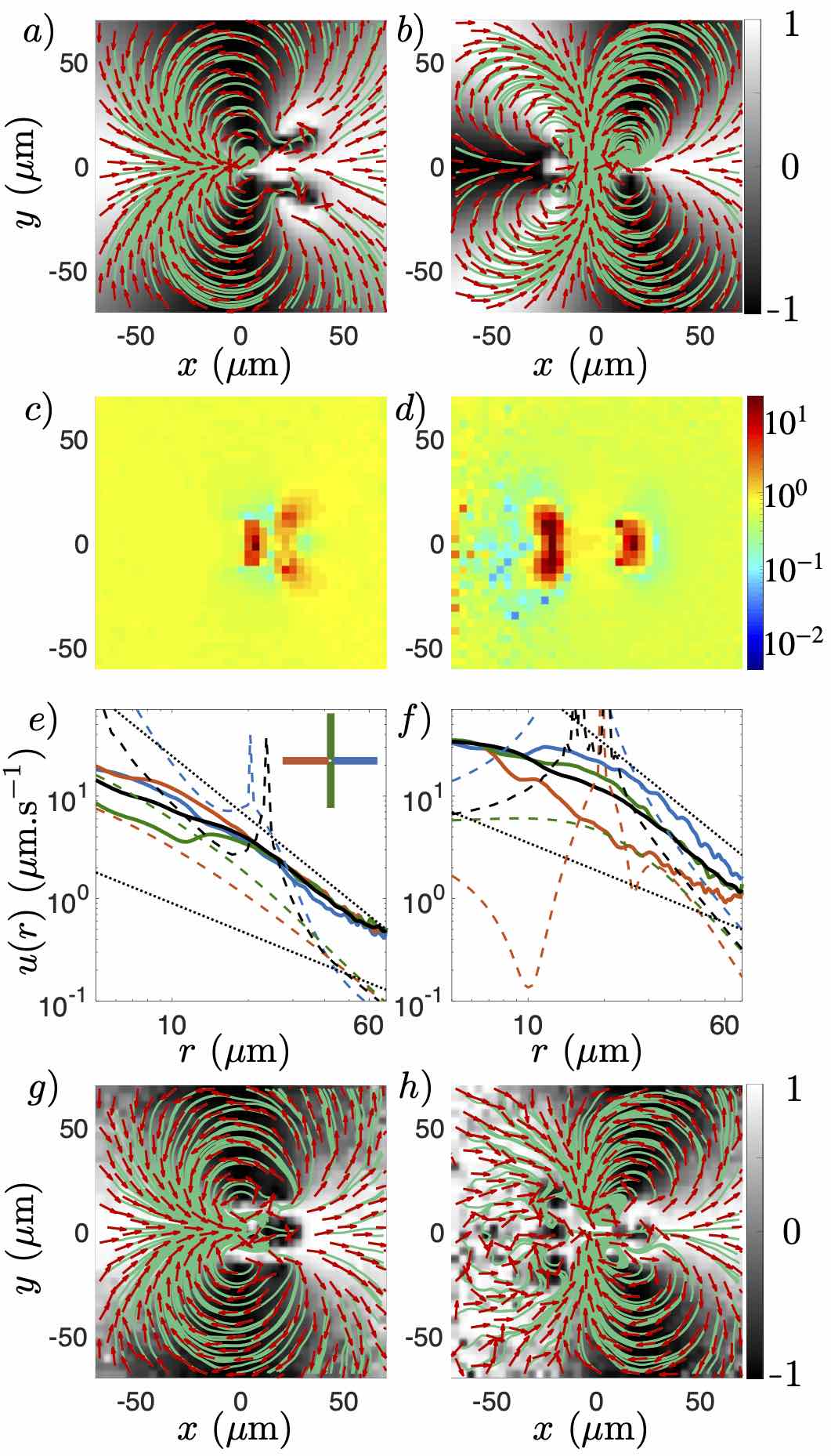

To rationalise the measured flows, it is instructive to start first with a simple superposition of the far-field point force solutions from Liron and Mochon Liron and Mochon (1976). Fitting the average flows of a spinning 3-forces model for CR (Fig. 1c) and off-centre 2-forces one for OM (Fig. S2 sup ) to the experimental flow-fields in $H=21.5\,\mu$m, reveals clearly that both models lack an extra 2D source dipole (Fig. S6 sup ). This would naturally arise from the cells’ finite-size bodies Brotto et al. (2013), and suggests to turn to a conceptually simpler 2D approach, in the spirit of the general treatment of Hele-Shaw flows Pushkin and Bees (2016). The microorganisms, centred in the field of view and swimming along the positive $x$-direction, are modelled by a set of point forces representing drag (strength $F_{\rm S}$, position $(x_{0},0)$) and thrust (CR: two point forces of strength $-F_{\rm S}/2$ at $(x_{1},\pm y_{1})$; OM: one point force of strength $-F_{\rm S}$ at $(x_{1},0)$). Each force is along the $x$ axis, and generates a flow given by the Green’s function for the effective 2D Stokes equations Pushkin and Bees (2016); sup . For no-slip boundaries, the functional shape of this flow depends on a single lengthscale $\lambda=H/\sqrt{12}$, fixed here by the measured sample thicknesses. The forces are then supplemented by a 2D source dipole $\mathbf{u}_{d}=-I_{\rm d}(\mathbf{e}_{x}/r^{2}-2\mathbf{r}x/r^{4})/2\pi$ at position $(x_{\rm d},0)$. It represents both the effect of finite-size body, and the unequal screening of drag and thrust forces by the walls which is connected to the organism’s shape and spinning (see Fig. 1c,f). The best fits to the experimental data are shown in Fig. 2f-j and Fig. 3c-d. They were obtained through a systematic sweep in the space of initial parameter values sup searching optimal fits to an annular region between $25\,\mu$m and $60\,\mu$m around the swimmer (Fig. 2o, dashed lines). Within this region, for each one of the $3.7\,\mu\text{m}\times 3.7\,\mu$m spatial bins, we collected at least $7\times 10^{3}$ independent measurements for CR (370 for OM) for each $H$ value (Table S2 sup ). The fits agree very well with the experiments, with typical relative errors of $15\%$ (Fig. 2k-o, Fig. 3e,f; Table S3 sup ). The model captures also subtle details of the experimental flows. For CR these include: the deformation of the streamlines in front of the organism; the approximate location of the side-vortices under strong confinement; the location of the stagnation point under weak confinement. For OM the model reproduces well the front-back asymmetry of the experimental force-dipole-like field.

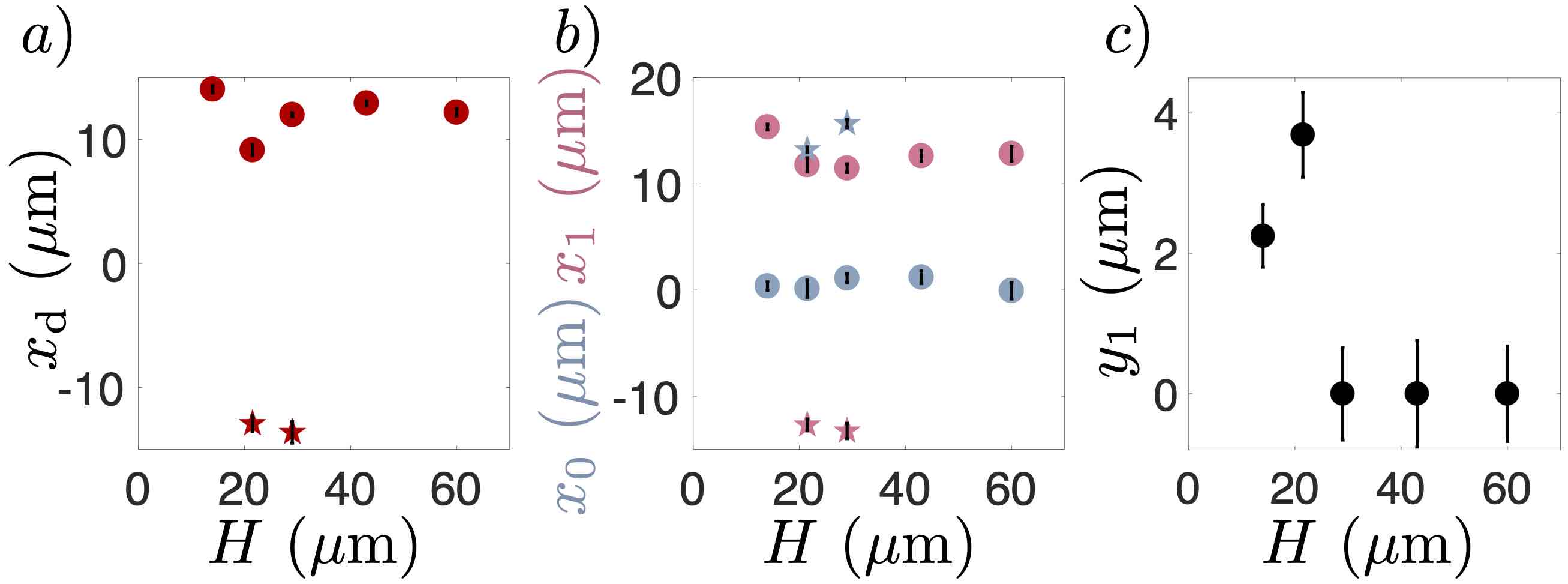

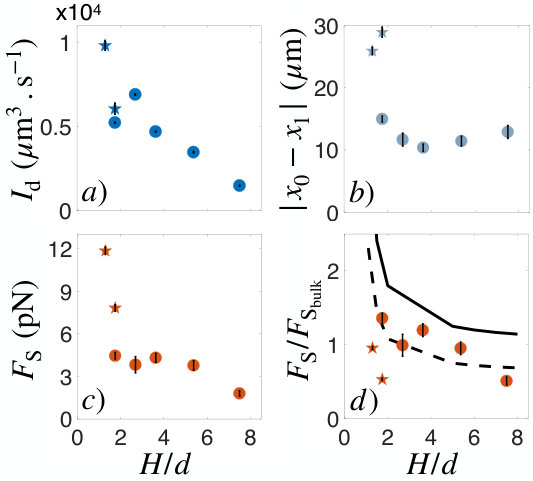

Figure 4 shows the dependence of the main fitting parameters on the reduced sample thickness $H/d_{(\text{CR,OM})}$. The others (CR:$(x_{d},x_{0},y_{1})$; OM:$(x_{d},x_{0})$), which encode the spatial structure of the organisms, are consistent across $H$ values (see Fig. S7 in sup ). The error bars represent fit uncertainties to the average experimental flow fields. As expected for weakening confinement, the dipole strength $I_{\rm d}$ decreases steadily as $H/d$ increases (Fig. 4a), along what appears to be a single curve for both microorganisms. The 2D Stokeslet strength $F_{\rm S}$, responsible for the thrust, is larger for OM than for CR ($\sim 10\,$pN vs. $4.2\pm 0.3\,$pN respectively, Fig. 4c), mirroring differences in size and speed which lead to higher drag for OM than for CR. Values for CR are in line with previous estimates Klindt and Friedrich (2015) and largely independent of confinement, although decrease noticeably for $H=60\,\mu$m. The fitted propulsive forces $F_{\rm S}$ can be normalised by the bulk drag for prolate ellipsoids mimicking the swimmers’ bodies, and translating along the major axis at the measured $H$-dependent swimming speed. This provides an estimate of the increase in cell-body drag within the Hele-Shaw cells which can be compared with the values predicted for a sphere of radius equal to the cells’ semi-minor axis (Fig. 4d, solid line)Ganatos et al. (1980); sup . The latter appears to systematically overestimate the experimental drag estimate by $\sim 40\%$ (Fig. 4d, dashed line), suggesting that, despite the excellent agreement between the flow fields, $F_{\rm S}$ might underestimate the full propulsive force of the confined microorganisms. This possibly results from momentum transfer to the surrounding walls in the immediate vicinity of the microorganism. Finally, Fig. 4b shows that the fits return an on-axis separation between drag and thrust forces which is both of the correct magnitude and largely independent of the sample thickness $H$. The large separation for OM is ultimately at the origin of the large asymmetric force-dipole-like flow observed for this organism (Fig. 3a,b). By artificially reducing this parameter, the flow acquires a source-dipole structure (Fig. S8 sup ).

In this letter we presented what is to the best of our knowledge the first systematic experimental study of the effect of confinement on micro-swimmers’ hydrodynamics. In line with previous studies Brotto et al. (2013); Delfau et al. (2016), the finite size body and common spinning motion of microorganisms are expected, and observed, to produce a far field 2D source dipole. However, experiments with OM highlight that the spatial structure of a microorganism can easily push this far field to distances where flows are, for practical purposes, negligible. In the present case, this leads to strong differences in the topology of OM and CR flows, as a result of the on-axis separation between OM’s propulsion and drag forces. We expect that these qualitative differences will influence both the biology (e.g. feeding currents) and the physics (e.g. collective behaviour) of microorganisms in confinement. Despite qualitative differences, the flows of both micro-swimmers can be accurately described by considering just a 2D source dipole and a force-free combination of Stokeslets Pushkin and Bees (2016). The latter should reflect the specific arrangement of swimming appendages for each microorganism. We hope that our work will inspire future investigations on the great diversity of fluid flows in confined active matter.

I Confinement enhances the diversity of microbial flow fields

II Description of the experiments

The measurement of the flow-fields was performed as previously done in [1] (Drescher et al PRL 2010) by using Particle Tracking Velocimetry (PTV) to reconstruct the motion of $1\,\mu$m-polystyrene particles (Polysciences, cat. no. 19819-1) in the frame of reference centred on the microorganism and with the $x$-axis oriented along the instantaneous swimming direction. This registers all the tracer displacements as if they were measured in the laboratory frame with the swimmer passing by the origin with its velocity oriented along the positive $x$-axis. The mixed cells/colloids suspension was loaded in microfluidic Hele-Shaw channels of well-controlled thickness which were then sealed with vaseline to prevent flows from evaporation. Before loading the suspension, we left a $0.5\%$ w/v Pluronic F-127 solution inside the chamber for at least 30 minutes in order to passivate the surfaces of the microfluidic chips and limit the sticking of the particles. To limit the amount of data acquired, we restrained ourself to the measurement of flow-fields averaged over the strokes and spinning of the organisms, which was done by recording at $50$ fps. In addition, in order to optimise the statistics per frame while keeping the cells concentration low enough we recorded at 20x magnification (under Phase Contrast illumination) with a 1 Megapixels camera (model: Pike F-100B, AVT). This gives a square field of view of width $370{\rm\mu m}$ in which we had on average $\sim 2-3$ cells. This setting implies also that the depth of focus is relatively large ($\lesssim 10{\rm\mu m}$), leading to measured flow-fields vertically averaged over this length. Finally we always focused in the middle of the chambers to ensure a symmetric situation with respect to the two confining walls.

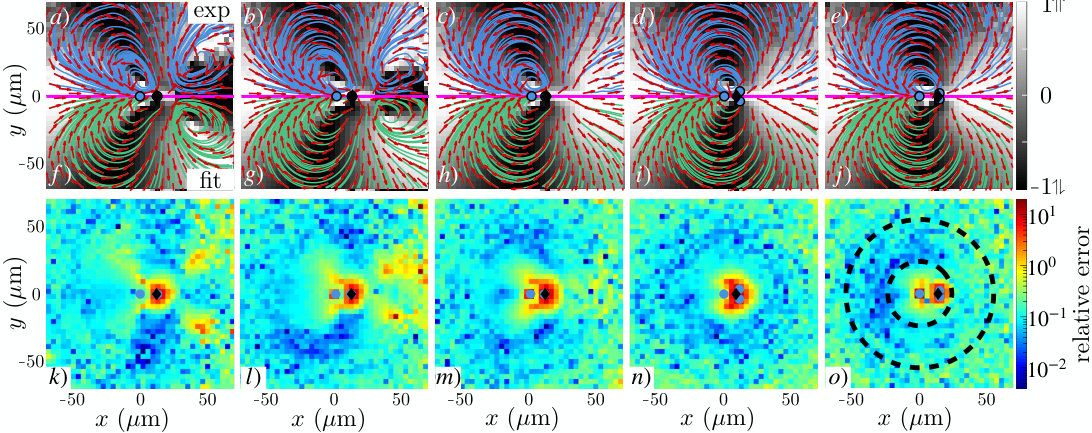

We have measured the flow-fields of CR (CC-125) and OM (CCAP-1133/5) in chamber thickness $H=14,21.5,29,43,60\,\mu$m and $H=21.5,29\,\mu$m respectively (Figs.2,3 main text). The average speed and size of the swimmers are collated in Table S1, together with error bars representing the standard deviation of the respective distributions across the population (and not the errors of the mean). For each $H$ value, we recorded at least 1000 individuals for CR and at least 175 individuals for OM.

III Effective 2D model

We modelled the flow produced by the micro-organisms as a multipolar expansion by considering a pure 2D source dipole that represents the effect of swimmers’ finite size and a set of 2D Stokeslets that represents propulsion. The source dipole is located at $(x_{\rm d},0)$ and is oriented along the direction of motion $x$:

[TABLE]

The 2D Stokeslet is given by Pushkin and Bees (2016):

[TABLE]

where $\mathbf{F}$ is the point force, $\eta$ is the dynamic viscosity of the fluid and $K_{0,1}$ is the modified Bessel function of the second kind of zero-th (resp. first) order. In this formula the point-force is located at the origin. For no-slip surfaces, the length $\lambda$ is related to the thickness of the sample cell $H$ by $\lambda=H/\sqrt{12}$ (notice that there is a typo in Pushkin and Bees (2016), which states instead that $\lambda=H$).

To model CR we consider three of those Stokeslets, one at $(x_{0},0)$ oriented along the direction of motion which models the drag on the cell body (strength $F_{\rm S}$), and two others located at $(x_{1},y_{1})$ and $(x_{1},-y_{1})$, oriented in the opposite direction, which represent the thrust from the flagella. Each of those thrust forces has a strength $F_{\rm S}/2$.

To model OM we consider only two of those Stokeslets, one at $(x_{0},0)$ oriented along the direction of motion which models the drag on the cell body (strength $F_{\rm S}$), and an other located at $(x_{1},0)$, oriented in the opposite direction, which represents the thrust from the flagellum (strength $F_{\rm S}$).

IV Procedure for the fitting of the flow-fields

We used the model described in the previous section to fit our experimental flow-fields. Consequently we have 6 free-fitting parameters for CR $(I_{\rm d},x_{\rm d},F_{\rm S},x_{0},x_{1},y_{1})$ and 5 for OM $(I_{\rm d},x_{\rm d},F_{\rm S},x_{0},x_{1})$. Because of this large number, the fitting procedure is very sensitive to the initial guess values imposed on these parameters. There are many local minima in this high-dimensional space. Then, in order to select the best possible fit amongst these local minima, we have systematically performed a sweep on the initial guess values. The final choice of the best fitting parameters was then based on the relative error of the fit, the probability of its occurence and the physical soundness of the parameters value (see Table S2). We used a non-linear least-square approach using the Matlab function fminsearch and minimizing the relative error defined as $\epsilon(\{x_{i},y_{j}\})=\sum_{i,j}(\mathbf{u}_{\rm exp}(x_{i},y_{j})-\mathbf{u}_{\rm fit}(x_{i},y_{j}))^{2}/\sum_{i,j}\mathbf{u}_{\rm exp}^{2}(x_{i},y_{j})$. Error bars on the fitting parameters have been estimated by computing the variance-covariance matrix obtained with a direct least-square fitting of the 2D flows using the Matalb function lsqcurve and setting the initial guess values of the parameters as the one given by the best fit from the first approach. Finally the fitting has been performed within a ring defined by the two radii $r_{\rm in}=25{\rm\mu m}$ and $r_{\rm out}=60{\rm\mu m}$ from the center of the organisms. The value of $r_{\rm out}$ corresponds to the limit where the signal-to-noise ratio becomes too low, while $r_{\rm in}$ has been chosen to limit the influence of the very details of the near-field flows.
