Unveiling the basins of convergence in the pseudo-Newtonian planar circular restricted four-body problem

TL;DR

This paper investigates how the transition parameter affects the convergence basins and stability of libration points in the pseudo-Newtonian four-body problem with equal masses, revealing complex dynamical behaviors.

Contribution

It introduces a multivariate Newton-Raphson scheme to analyze basins of attraction and systematically studies the influence of the transition parameter on convergence topology.

Findings

Transition parameter significantly alters libration point stability.

Basins of attraction exhibit complex, evolving structures.

Number of iterations correlates with basin topology.

Abstract

The dynamics of the pseudo-Newtonian restricted four-body problem has been studied in the present paper, where the primaries have equal masses. The parametric variation of the existence as well as the position of the libration points are determined, when the value of the transition parameter $\epsilon \in [0, 1]$. The stability of these libration points has also been discussed. Our study reveals that the Jacobi constant as well as transition parameter $\epsilon$ have substantial effect on the regions of possible motion, where the fourth body is free to move. The multivariate version of Newton-Raphson iterative scheme is introduced for determining the basins of attraction in the configuration $(x,y)$ plane. A systematic numerical investigation is executed to reveal the influence of the transition parameter on the topology of the basins of convergence. In parallel, the required number of iterations is also noted to show its correlations to the corresponding basins of convergence. It is unveiled that the evolution of the attracting regions in the pseudo-Newtonian restricted four-body problem is a highly complicated yet worth studying problem.

Figures

Equations

$$\Omega$$

$$r_i=\sqrt{(x-x_i{)}^2+(y-y_i{)}^2},(i=1,2,3),$$

$$\ddot{x}-2\dot{y}$$

$$\ddot{y}+2\dot{x}$$

$${\Omega }_x$$

$${\Omega }_y$$

$${\Omega }_{xx}$$

$${\Omega }_{yy}$$

$${\Omega }_{xy}$$

$$J(x,y,\dot{x},\dot{y})=2\Omega (x,y)-({\dot{x}}^2+{\dot{y}}^2)=C,$$

$$\dot{x}$$

$${\Omega }_x$$

$$x=x_0+\xi ,y=y_0+\eta .$$

$$\ddot{\xi }-2\dot{\eta }$$

$$\ddot{\eta }+2\dot{\xi }$$

$$a_1{\Delta }^2+a_2\Delta +a_3=0,$$

$$a_1$$

$$a_2$$

$$a_3$$

$$a_2>0,a_3>0,a_2^2-4a_1{a}_3>0,$$

$${\mathbf{X}}_{n+1}={\mathbf{X}}_n-J^{-1}f({\mathbf{X}}_n)$$

$$x_{n+1}$$

$$y_{n+1}$$

Full text

††journal: New Astronomy

1 Introduction

Over the past decades, the few-body problem and more precisely the planar circular restricted four-body problem remains one of the most fascinated as well as important problems in celestial mechanics and dynamical astronomy. This problem has various applications in the research field, such as planetary physics, space sciences, astrodynamics, or even in stellar and galactic dynamics.

In order to obtain a more realistic description of the dynamics of the test particle, various perturbing terms have been included to the effective potential in the classical restricted four-body problem. The classical Newtonian three and four-body problems with perturbations are studied by many scientists. The existence of equilibrium points in the restricted problem of three bodies (e.g., [22]), their stability (e.g., [1]), the existence of periodic orbits around the equilibrium points (e.g., [2]), the stability of the libration points in linear and non-linear sense with heterogeneous primaries (e.g., [31], [29]), the restricted three-body problem by taking smaller primary as an ellipsoid (e.g., [21]), and the basins of convergence associated with the libration points in the photogravitational restricted problem of three bodies (e.g., [39]) are some characteristic examples. The effect of the oblateness of the primaries (e.g., [28]), the radiation due to the primaries (e.g., [10]) and the effect of small perturbations in the Coriolis and centrifugal forces (e.g., [9, 11]), the copenhagen problem with repulsive Manev potential (e.g., [36]) are the most important perturbations that have been considered.

In the same vein, the restricted four-body problem has also investigated by many scientists including various perturbations (e.g., [4, 5, 6, 7], [26], [27], [30], [32, 33, 34, 35], [39, 40], [13]), with variable mass (e.g., [24], [25], [3]).

A series of research papers (e.g., [23]; [12]; [14]) are available on the $1^{st}$ order post-Newtonian equations of motion for the restricted problem of three bodies which are deduced by using the Einstein–Infeld–Hoffmann theory (e.g., [19], [18]). [17] studied the dynamics of the planar circular restricted problem of three-bodies in the context of a pseudo-Newtonian approximation by using the Fodor–Hoenselaers–Perjé procedure, while [20] examined the influence of the separation between the primaries. It is concluded that the post-Newtonian dynamics substantially differ from the corresponding classical Newtonian dynamics provided the distance between the primaries is sufficiently small.

The most intrinsic attributes of a dynamical system are revealed by the attracting domains, which make the study of basins of convergence associated with the libration points extremely important. The multivariate version of the Newton-Raphson iterative scheme is, without any doubt, an important method to find the basins of convergence. We scan sets of initial conditions in order to unveil to which attractor these initial condition converge. In the past few years, a series of research papers emerged on the study of Newton-Raphson basins of convergence in various dynamical system, such as the restricted three-body problem including oblateness and radiation pressure (e.g., [38], [43]), the restricted four-body problem (e.g., [40]; [33]; [8]), the electromagnetic Copenhagen problem (e.g., [41]), pseudo-Newtonian three-body problem (e.g., [42]), the ring problem of $N+1$ bodies (e.g., [15]), and the restricted 2+2 body problem (e.g., [16]).

Very recently, [42] discussed the basins of convergence associated with the libration points in the pseudo-Newtonian planar restricted three-body problem using the multivariate version of the Newton-Raphson iterative scheme. Furthermore, it was revealed that the transition parameter strongly influences the topology of the basins of convergence. It is observed that the total number of the libration points in the pseudo-Newtonian restricted problem of three bodies, with equal masses, strongly depends on the value of the transition parameter $\epsilon$.

In the present work, we model a system composed by three pseudo-Newtonian primaries pinpointed at the vertices of an equilateral triangle while performing circular orbits around their common center of mass. The fourth body, of infinitesimal mass, is moving in the same plane of motion of the primaries and it is assumed that it does not influence the motion of the primaries. The dynamics of the fourth body is studied by introducing the new parameter $\epsilon$, which allows us to unveil the transition from the Newtonian to the pseudo-Newtonian system.

It is the first time when the pseudo-Newtonian planar circular restricted four-body problem is investigated numerically in a systematic manner to reveal the influence of the transition parameter $\epsilon$ on the existence and the stability of the libration points as well as on the topology of the basins of convergence corresponding to these points and on the regions of possible motion. On this basis, the presented outcomes are novel and this is precisely the contribution of our work.

The paper is organized as follows: In Section 2, we present the description of the mathematical model and the equations of motion of the fourth body moving under the gravitational effect of three equal primaries. The parametric evolution of the position of the libration points and their linear stability are investigated in Section 3. Section 4 deals with the zero velocity curves of the proposed model. In Section 5, we present a systematic numerical exploration by unveiling the Newton-Raphson basins of attraction in the restricted four-body problem and how they are affected by the transition parameter. This paper ends with Section 6, where the discussion and conclusion of the problem are presented.

2 Description of the mathematical model

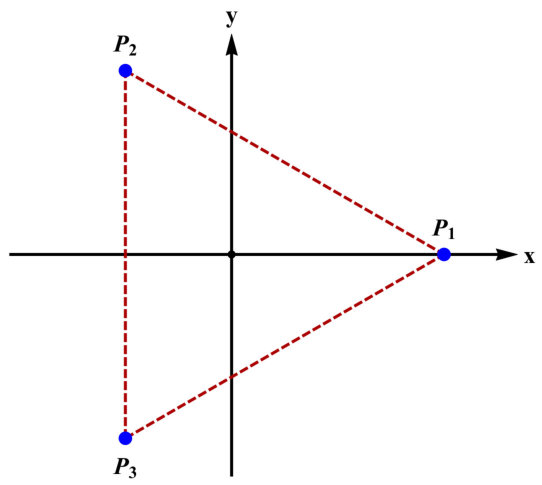

We adopt a rotating rectangular system by taking the origin as the center of mass of the primaries, which rotates with a uniform angular velocity, so that the centers of the three primaries remain fixed on the $(x,y)$ plane. Without loss of the generality, we assign the primary of mass $m_{1}$ on the positive $x-$axis at $P_{1}(x_{1},y_{1})$. The remaining two primaries, with masses $m_{2}$ and $m_{3}$, respectively, are situated at $P_{2}(x_{2},y_{2})$ and $P_{3}(x_{3},y_{3})$, where $x_{1}=\sqrt{3}\mu$, $x_{2}=-\frac{\sqrt{3}(1-2\mu)}{2}=x_{3}$, $y_{1}=0$, and $y_{2}=-y_{3}=\frac{1}{2}$ while $\mu$ denotes the mass parameter (see Fig.1). We scale the units by taking the sum of the masses and the distance between the primaries both equal to unity. Therefore, $m_{1}=1-2\mu$ and $m_{2}=m_{3}=\mu$ with $m_{1}+m_{2}+m_{3}=1$. Also, the scale of the time is chosen so that the gravitational constant is unity.

Regarding the value of the mass parameter, there are three limiting cases (see [39]). In the present study, we shall discuss the case when $\mu=\frac{1}{3}$ i.e., the symmetric case of three primaries with equal masses $m=\frac{1}{3}$.

The time-independent effective potential function of the planar circular restricted problem of four bodies in the context of a pseudo-Newtonian approximation, with only the first correction terms, is111The speed of light $c$ is explicitly introduced in the pseudo-Newtonian potential in order to reveal its contributions. However, we set $c=1$ in the numerical simulations.

[TABLE]

where the $(x,y)$ are the coordinates of the infinitesimal mass $m_{4}$ on the configuration plane with

[TABLE]

the distances of the infinitesimal mass $m_{4}$ from the three primary bodies $m_{i},i=1,2,3$ respectively.

The scaled equations of motion depicting the dynamics of the infinitesimal mass in the synodical coordinates $(x,y)$ are

[TABLE]

where

[TABLE]

Similarly, the second order partial derivatives, read as:

[TABLE]

For the equations (2), there exists exactly one integral of motion known as Jacobi integral which is constituted by the following Hamiltonian:

[TABLE]

where the velocities are represented by $\dot{x}$ and $\dot{y}$, while the Jacobi constant is represented by $C$. This Jacobian constant is conserved and defines a 3-dimensional invariant manifold in the total 4-dimensional phase-space. Thus, the test particle with a given value of its orbital energy is confined to move inside the regions in which $2\Omega(x,y)\geq C$, while the rest of the region on the configuration $(x,y)$ plane is energetically prohibited for the test particle. In the canonical co-ordinates, the value of Hamiltonian corresponds to Jacobian integral is known as the total orbital energy $E$, which is related to Jacobian constant by $C=-2E$.

3 Parametric evolution of the libration points and their stability

The exact positions of the libration points are solutions of the system

[TABLE]

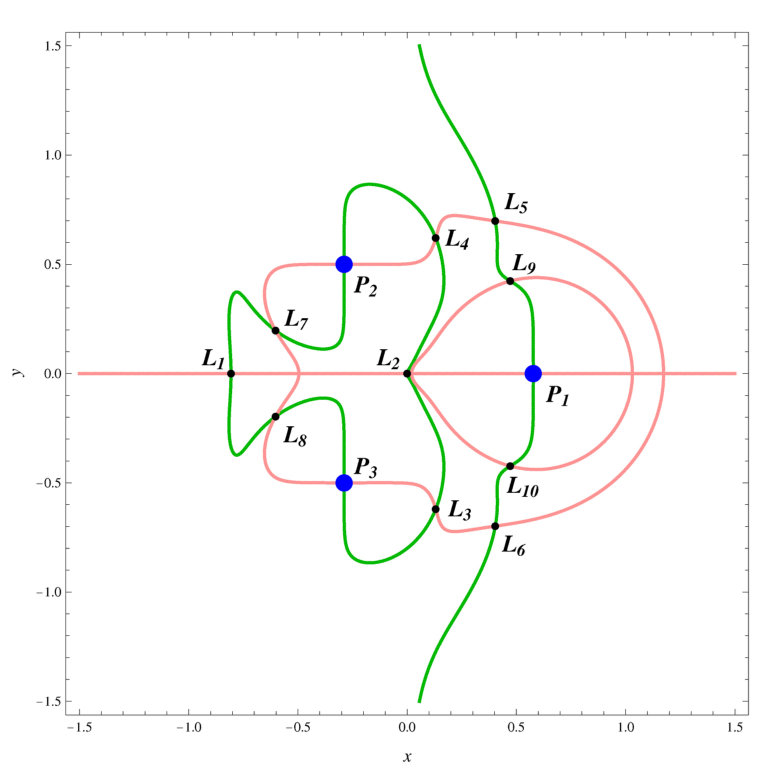

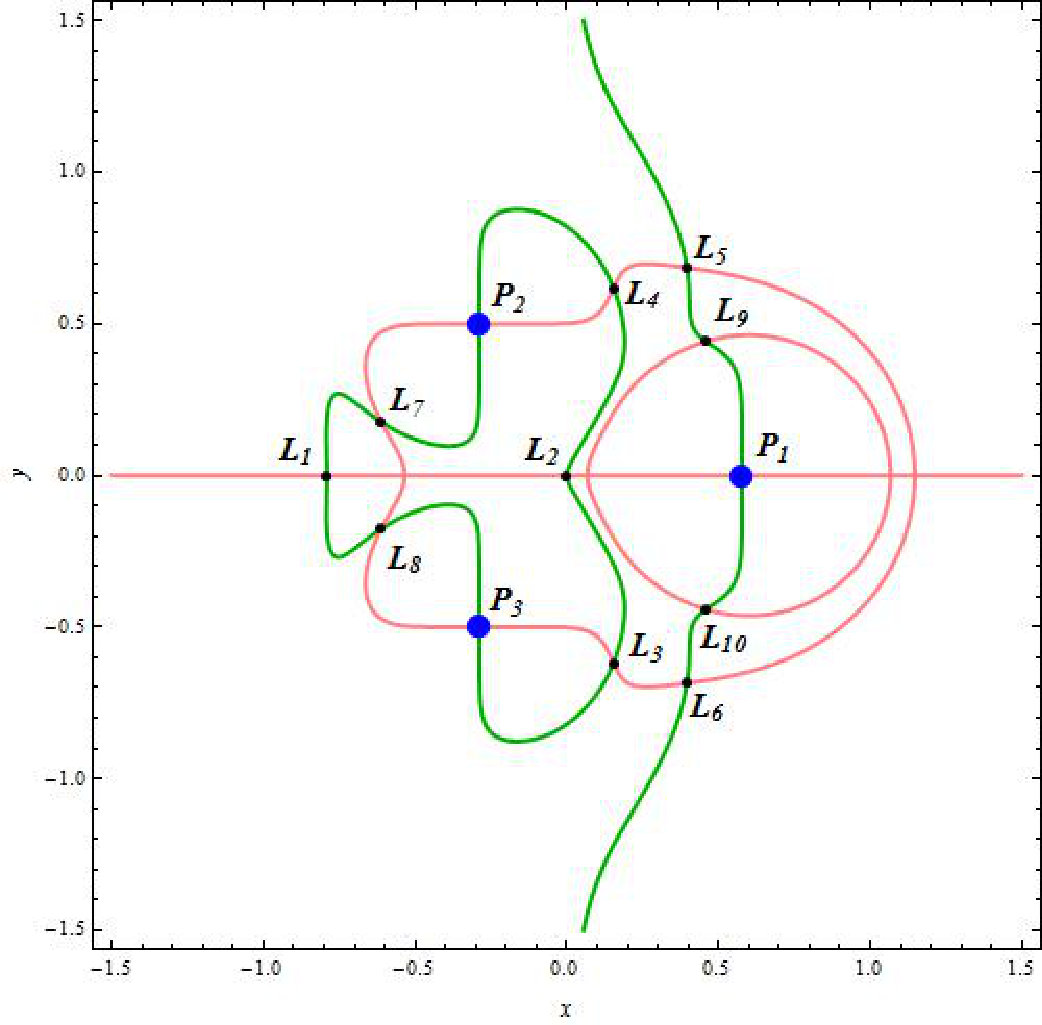

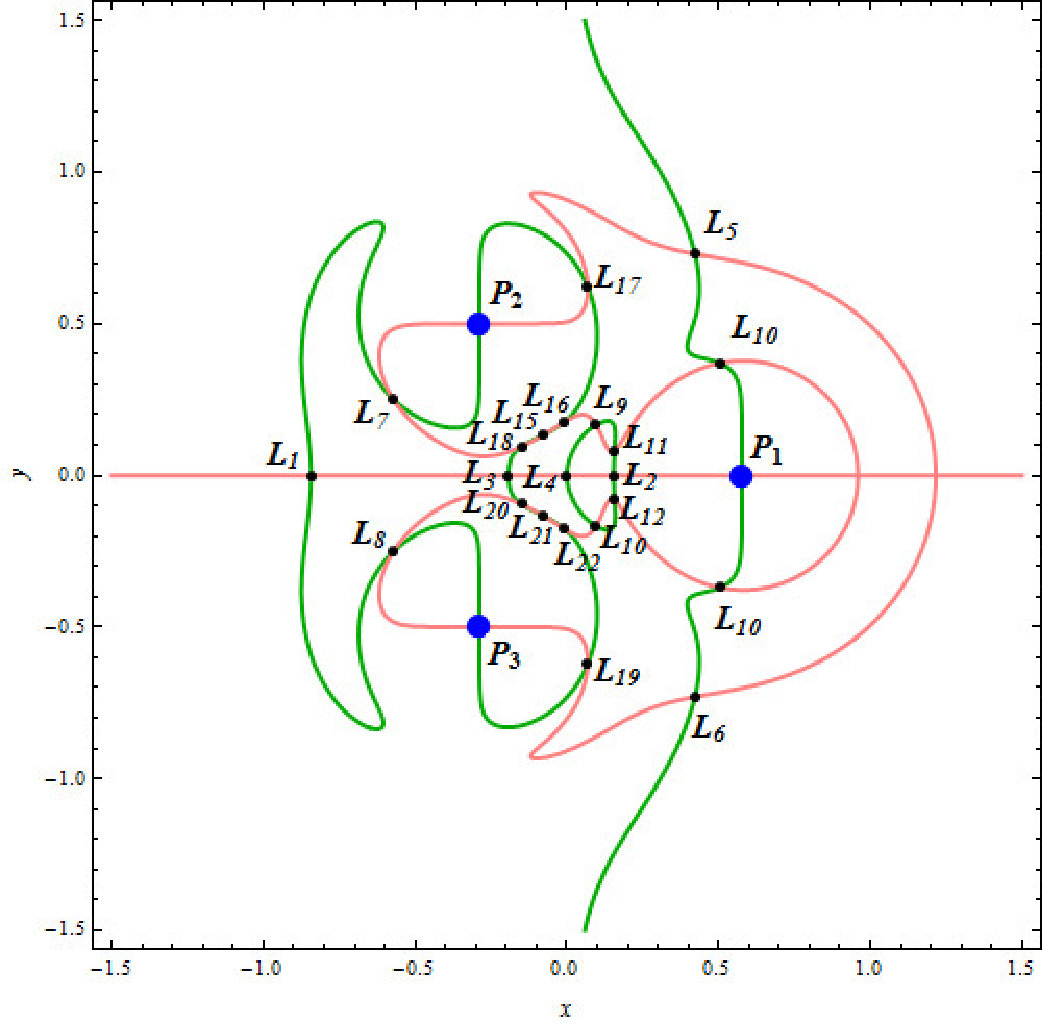

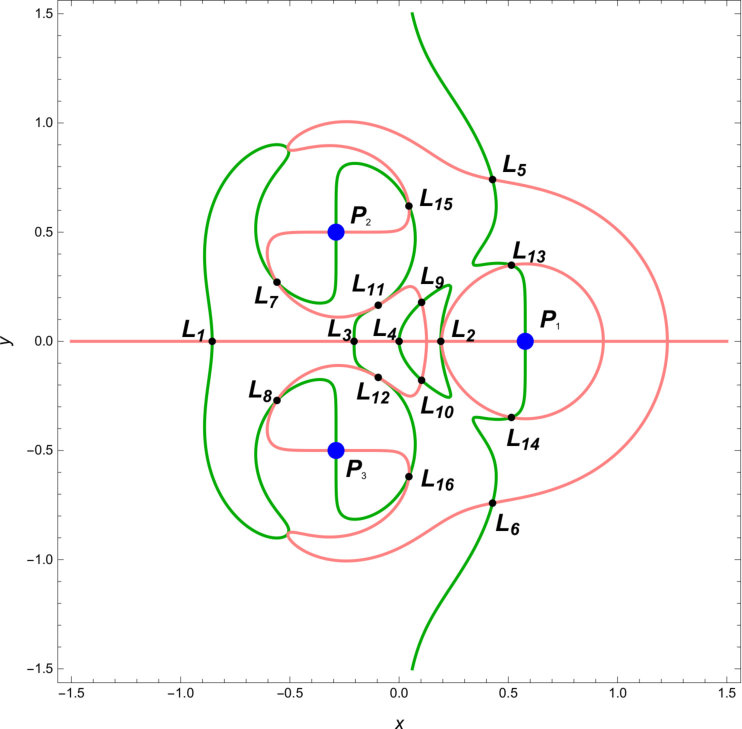

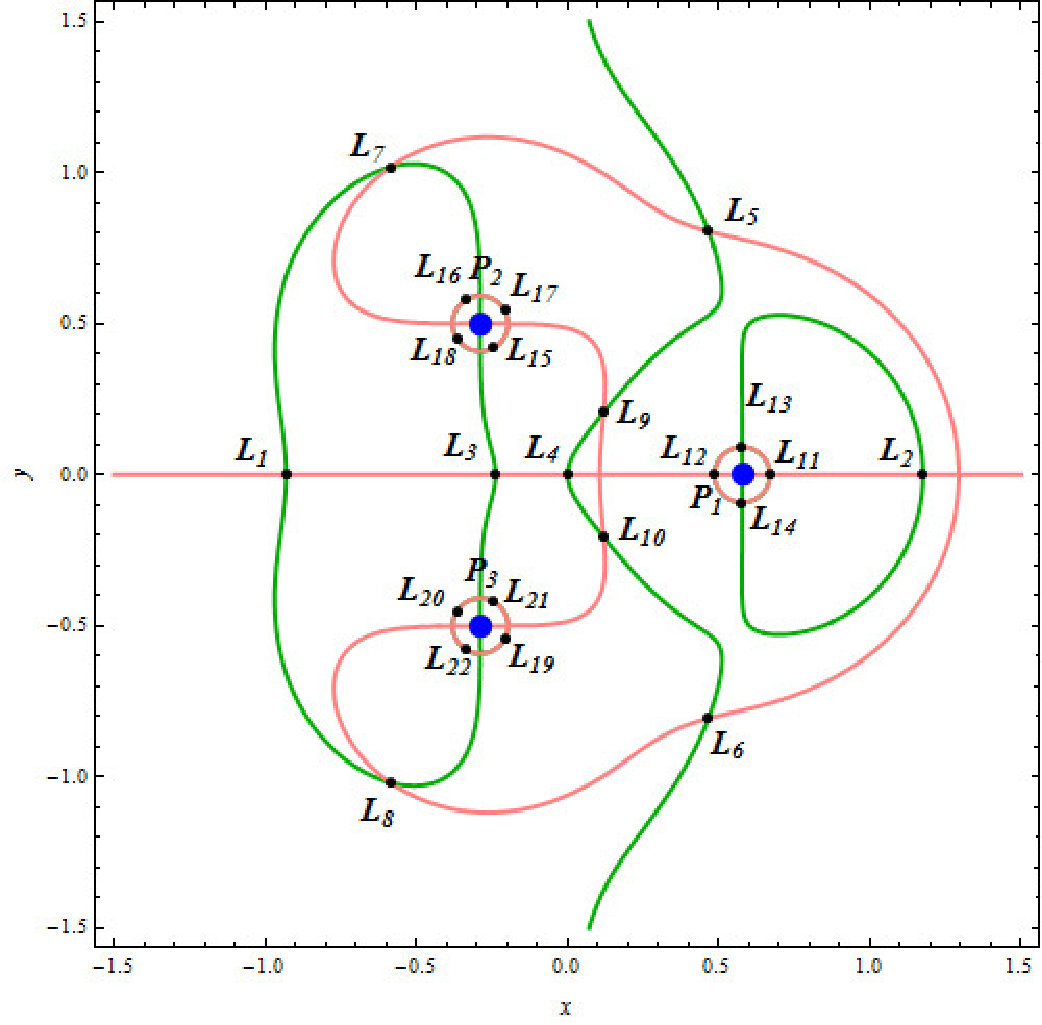

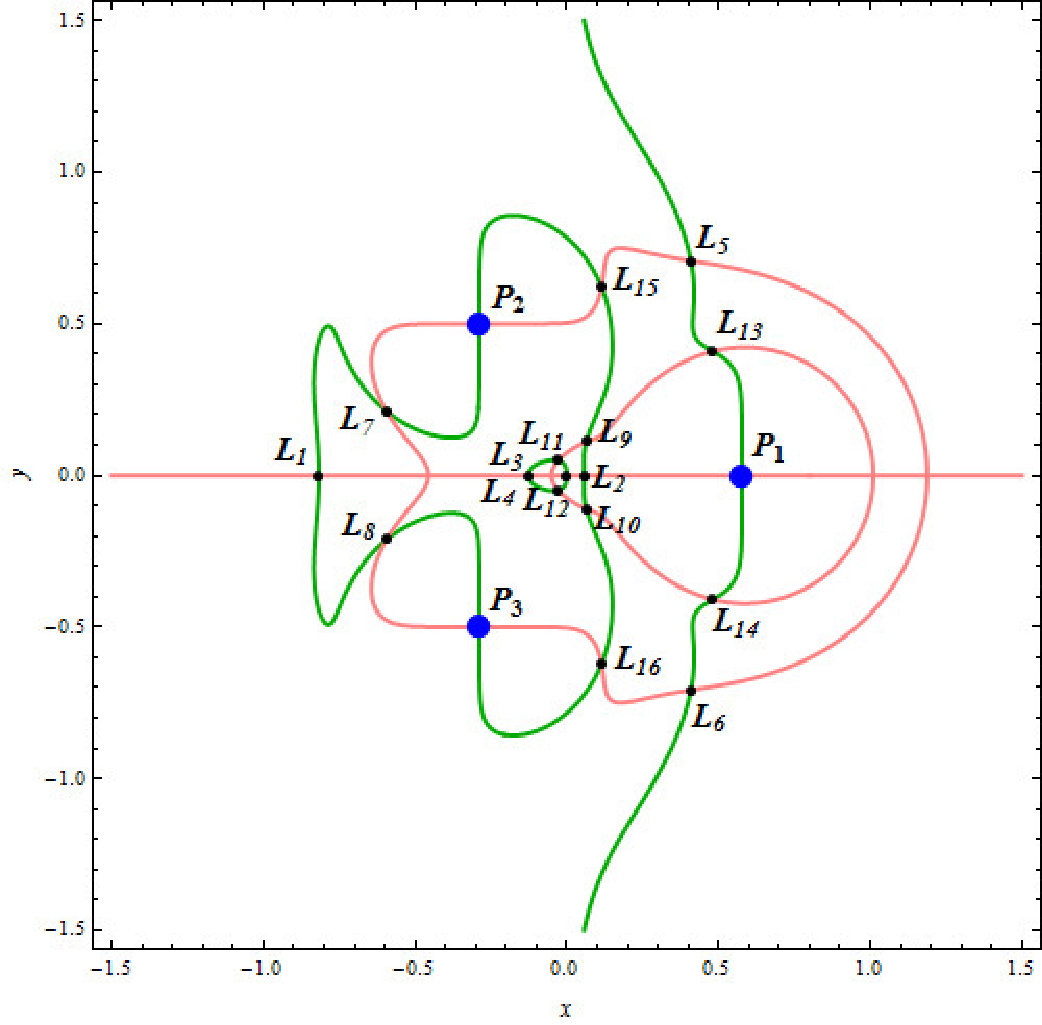

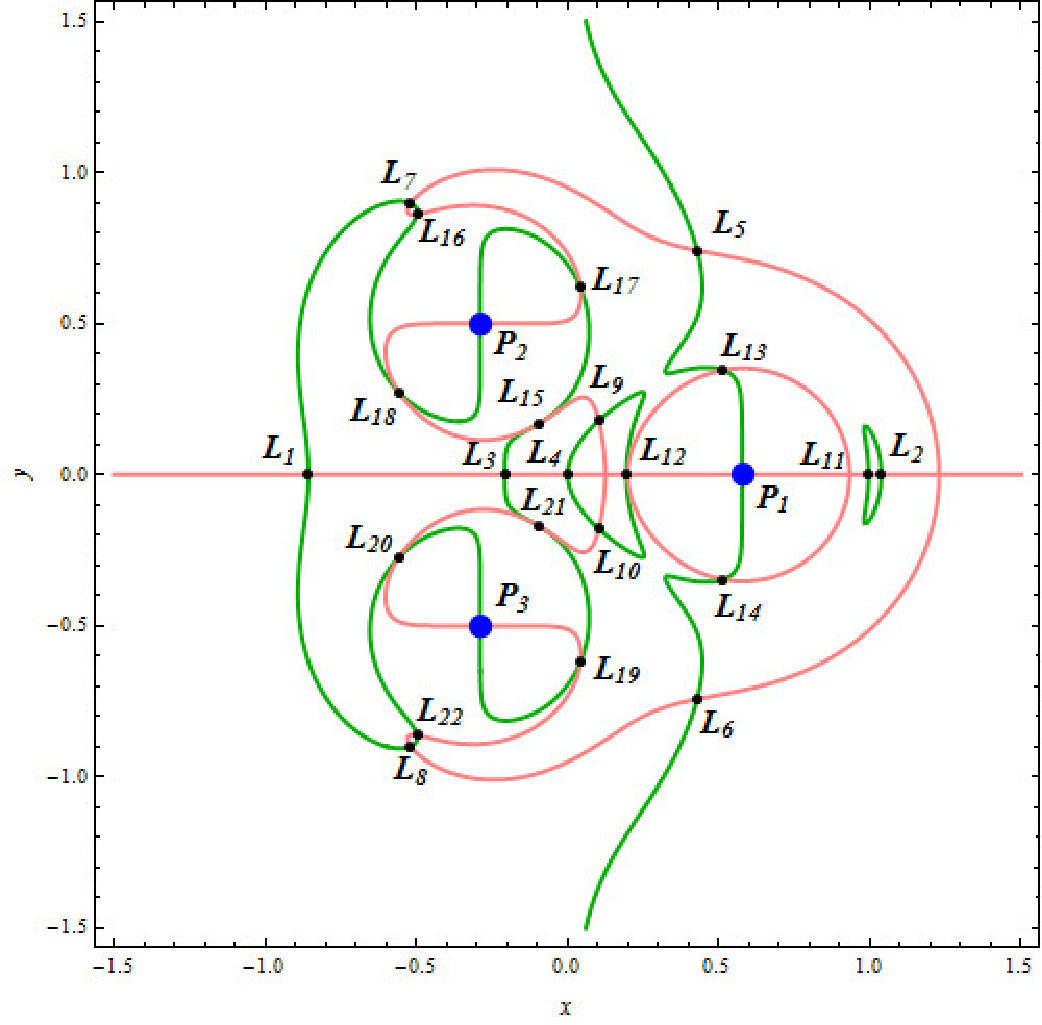

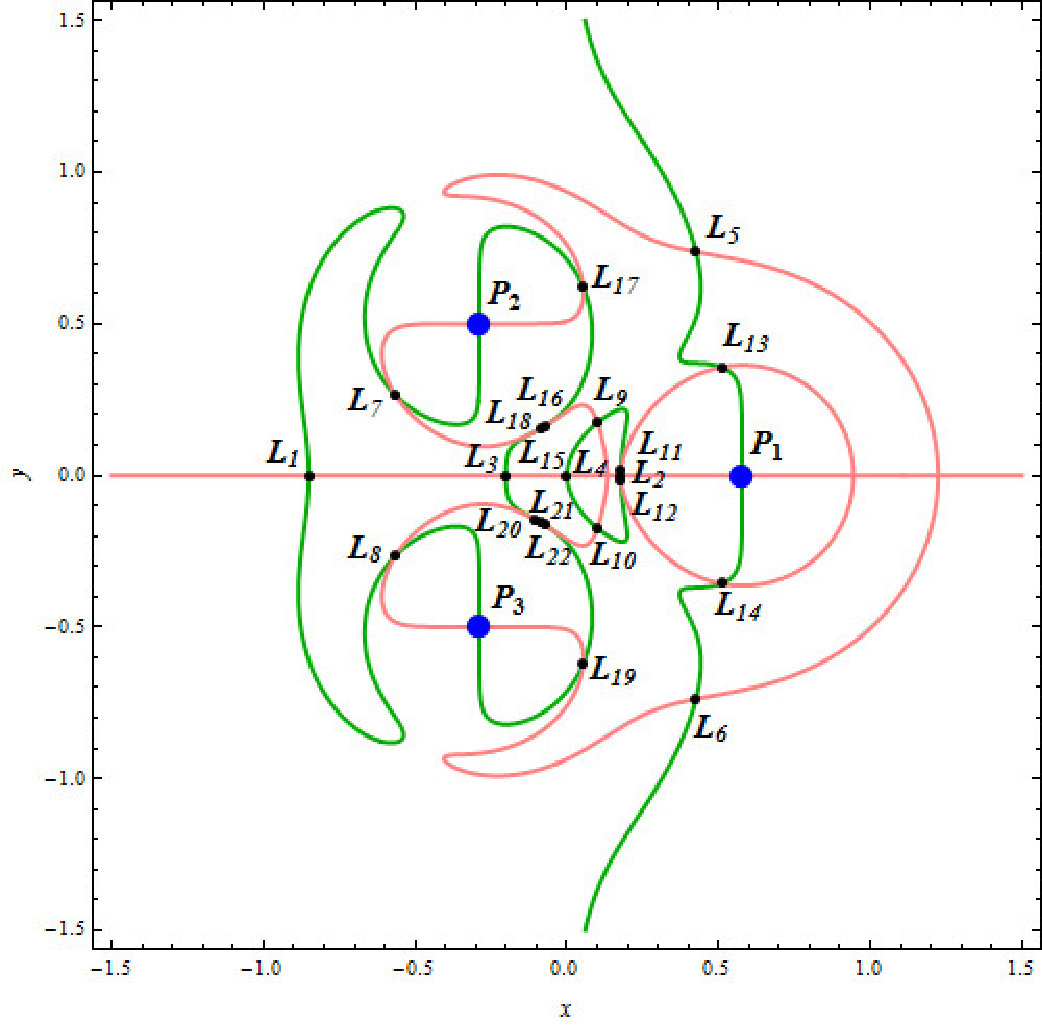

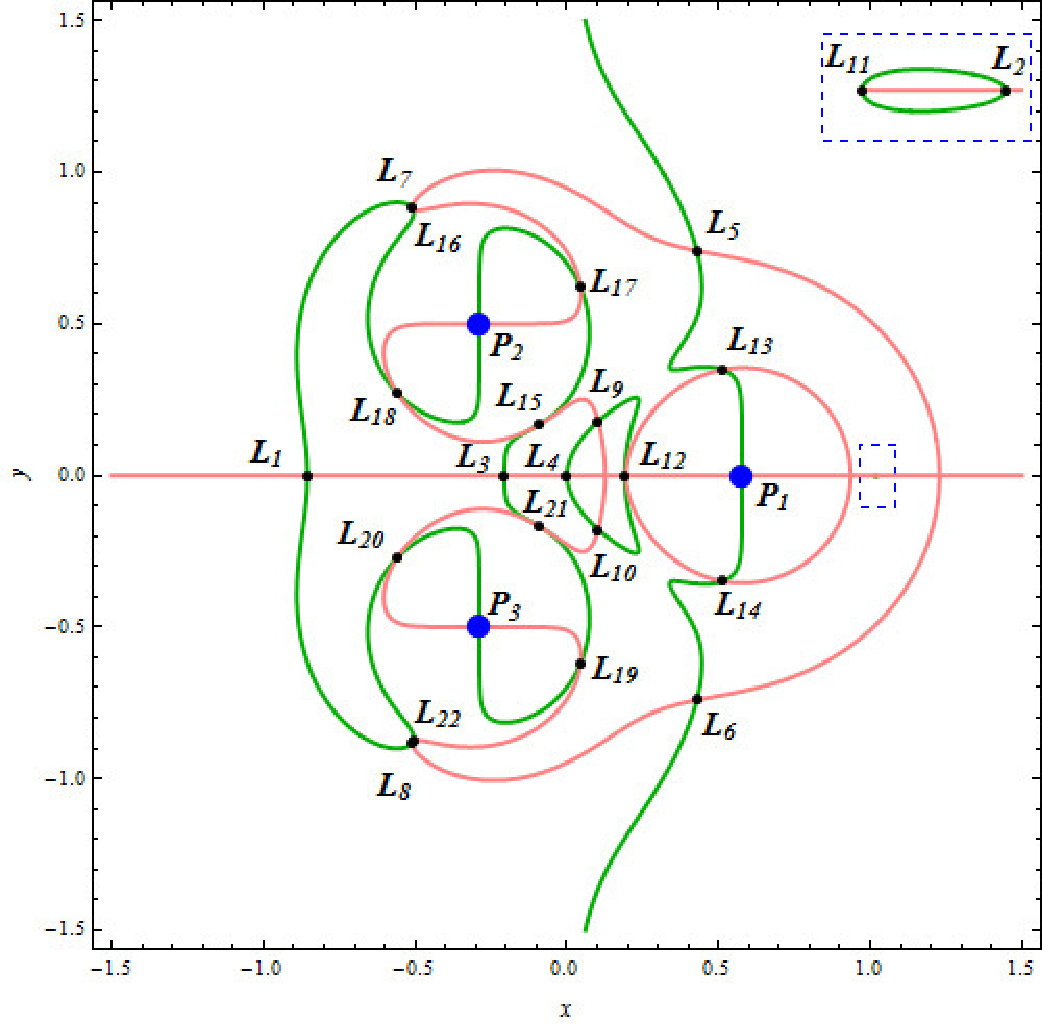

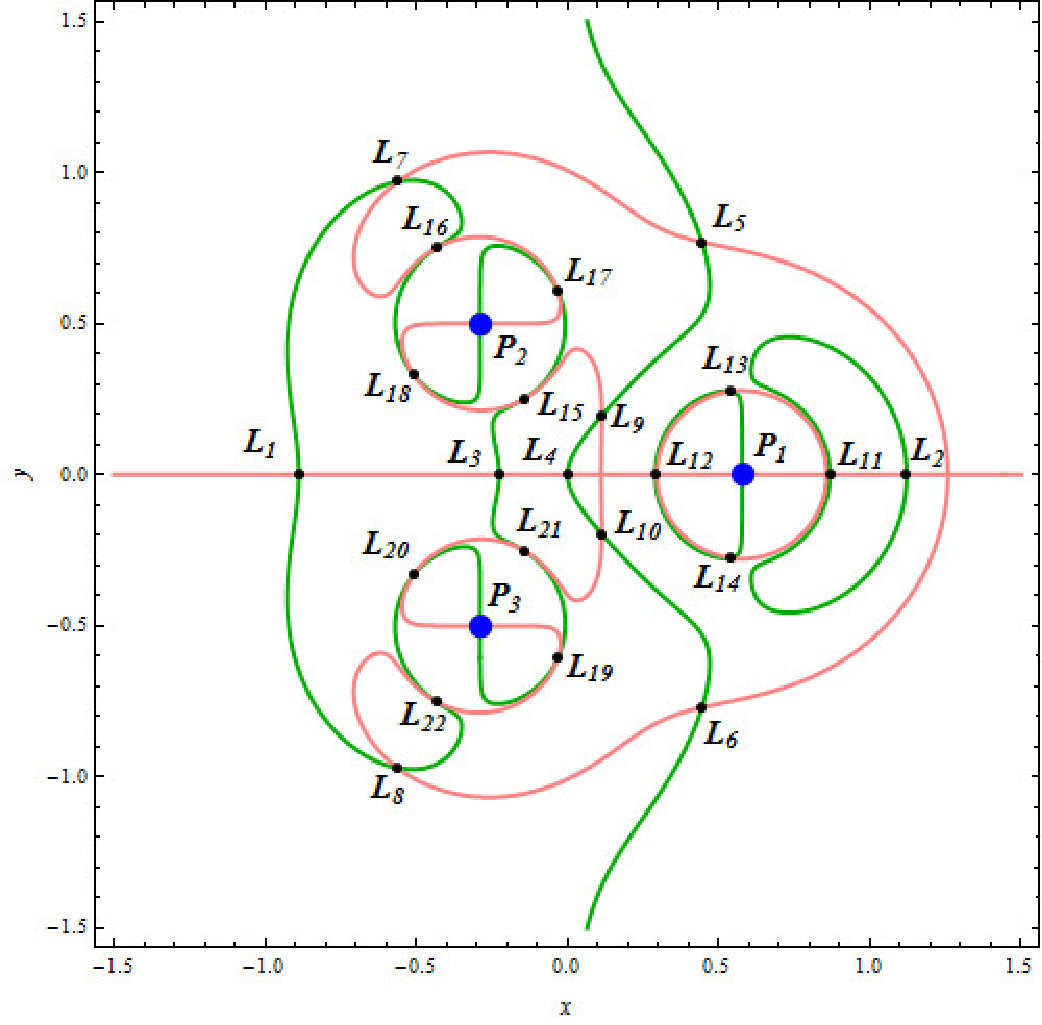

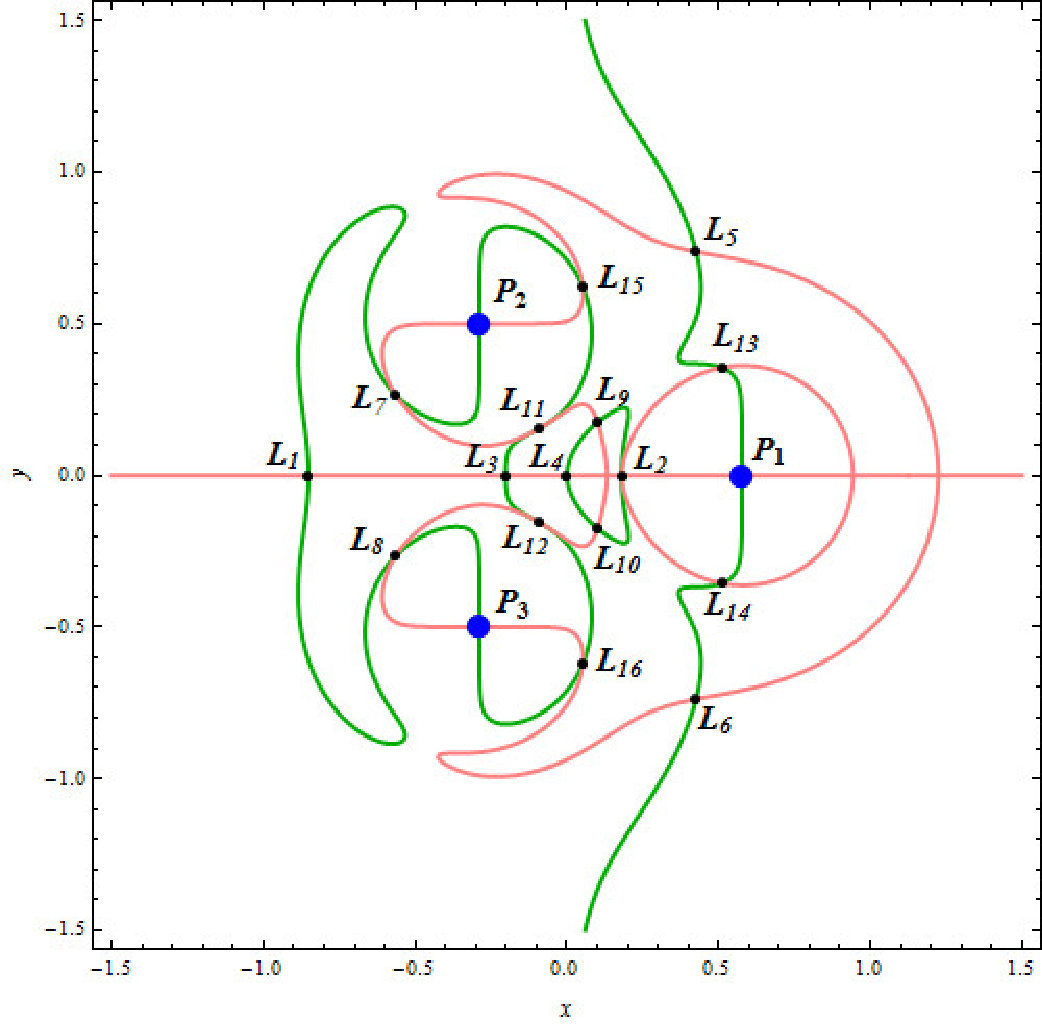

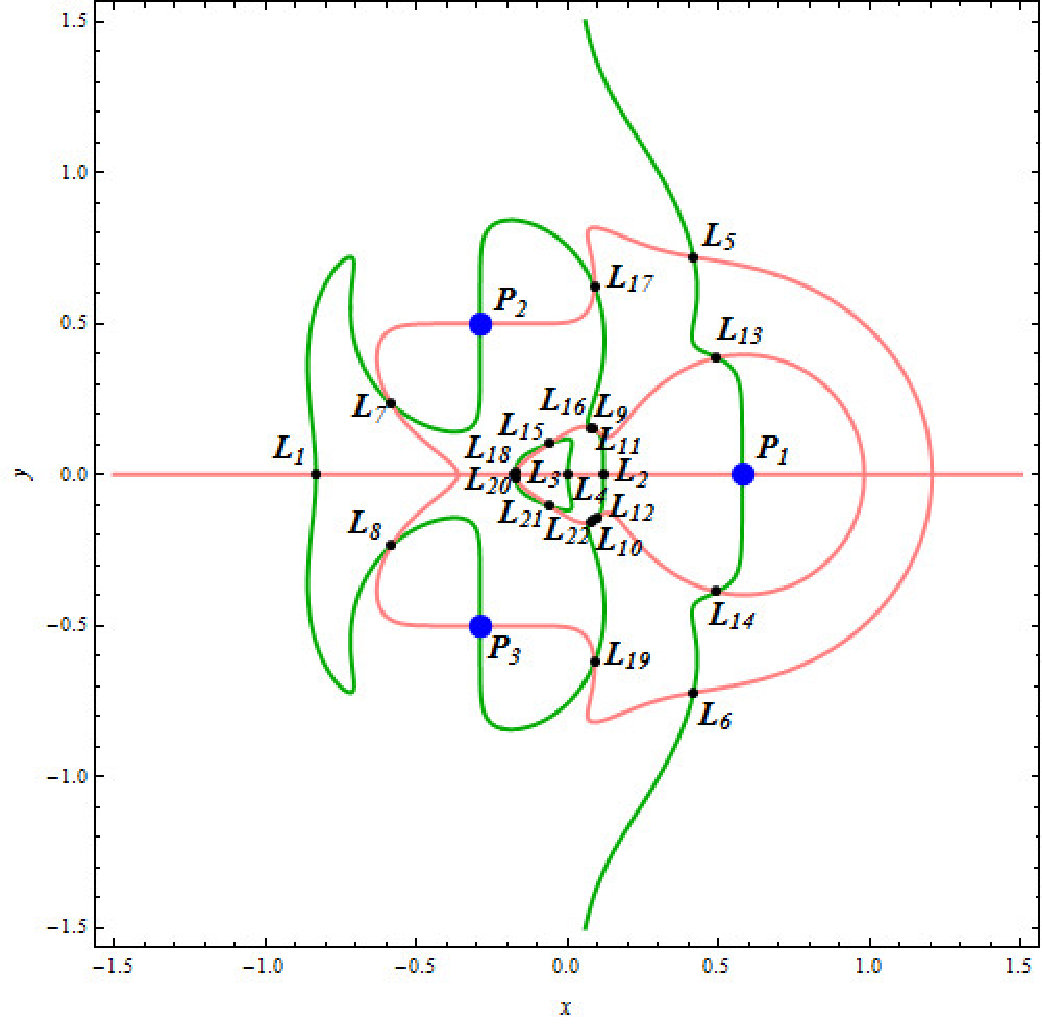

The intersections of Eqs. $\Omega_{x}=\Omega_{y}=0$ define the positions of the libration points. For various values of the transition parameter $\epsilon$ these libration points are presented in Figs. 2, 4, 4.

It is observed that the total number of the libration points in the pseudo-Newtonian circular restricted four-body problem, with three equal masses, is not constant but it strongly depends on the value of the transition parameter $\epsilon$. More precisely

---

When $\epsilon=0$, the problem corresponds to the case of the Copenhagen restricted four-body problem, so there exist ten libration points in which six are non-collinear libration points, while four are collinear.

---

When $\epsilon\in(0,0.67752839]$ there exist twenty-two libration points

---

When $\epsilon\in(0.0.67752839,0.704528]$ there exist sixteen libration points.

---

When $\epsilon\in(0.704528,0.812528]$ there exist twenty-two libration points.

---

When $\epsilon\in(0.812528,0.929528]$ there exist sixteen libration points.

---

When $\epsilon\in(0.929528,1]$ there exist ten libration points.

The values $\epsilon=0.67752839$, $\epsilon=0.704528$, $\epsilon=0.812528$, and $\epsilon=0.929528$ are the critical values of the transition parameter, since these values define the starting or end the points of the various intervals which contain the different number of the libration points. In Fig. 2, we can observe how the intersections of the equations $\Omega_{x}=0$ and $\Omega_{y}=0$ define the positions of the libration points when the transition parameter $\epsilon$ varies only in those intervals for which 22 libration points exist. The exact positions of the libration points are marked by $L_{i},i=1,2,...,22$. In Figs. 4 and 4, we present the number and the exact positions of 16 and 10 libration points, respectively. The exact positions of the libration points are marked by $L_{i},i=1,2,...,16$ and $i=1,2,...,10$ as the value of the transition parameter $\epsilon$ varies in the interval for which 16 and 10 libration points exist, respectively. It is interesting to note that all the libration points lie to the left of the primary $P_{1}$, when the transition parameter $\epsilon>0.67752839$.

It is clear that the number of the libration points and their existence in the pseudo-Newtonian four-body problem depend on the value of the transition parameter $\epsilon$. Therefore, we believe that it is necessary to describe the exact evolution of the locations of the libration points when $\epsilon\in(0,1]$. In Fig.(5), we have presented the parametric evolution of all the libration points, on the configuration $(x,y)$ plane. It is observed that for $\epsilon>0$, twelve libration points, in three sets of four, come forth from the centers of the primaries $P_{i},i=1,2,3$. At this point, it is worth mentioning that in the Newtonian four-body problem when $\epsilon=0$, there exist four collinear libration points and six non-collinear libration points in total, while in the pseudo-Newtonian four-body problem when $\epsilon\in(0,0.67752839],$ there exist six collinear libration points namely $L_{1,2,3,4,11,12}$ and twenty-two libration points in total.

When the value of the transition parameter $\epsilon\in(0,0.67752839]$, the libration points $L_{11,12,13,14}$ , $L_{15,16,17,18}$ and $L_{19,20,21,22}$ move away from the centers of the primaries $P_{1},P_{2},$ and $P_{3}$, respectively, while on the other hand the libration points $L_{2,7,8}$ move towards the centers of the primaries $P_{1},P_{2},$ and $P_{3}$, respectively. In particular, $L_{1,3,5,6,9}$ and $L_{10}$, move towards the central libration point $L_{4}$.

When the value of transition parameter $\epsilon\in(0.704528,0.812528]$, there exist twenty-two libration points in which four are collinear, while twelve libration points exist on the circumference of a circle (see fig.5a in black color) centered at $L_{4}$.

As the value of transition parameter $\epsilon\in(0.812528,0.929528]$, there exist sixteen libration points in which four are collinear (see fig. 5a in persian cyan color). For $\epsilon=0.929528$, the libration points $L_{2,3,11,12,15,16}$ collide with the libration point $L_{4}$ and decimated completely and the phenomenon of the introduction of new set of libration points originated for $\epsilon\in(0.929528,1]$. Imminently as $\epsilon>0.929528$, ten libration points exist in which two are collinear. However, the centers of the primaries $P_{i},i=1,2,3$ remain unchanged by the change in the transition parameter $\epsilon$.

Moreover, to study the stability of the libration point in the linear sense, the origin of the reference plane is shifted at the exact location of the libration point $(x_{0},y_{0})$ by applying the transformation

[TABLE]

Now, expand the system of Eqs. (2) and neglecting the terms of $O(\xi)>1$, and $O(\eta)>1$. The variational equations with variations $\xi$ and $\eta$ read

[TABLE]

where the superscript ”0”, denotes the corresponding values are calculated at the libration point $(x_{0},y_{0})$.

The characteristic equation which is quadratic in $\Delta=\lambda^{2}$ corresponding to the linear system (3) reads

[TABLE]

where

[TABLE]

The libration points are said to be stable if the characteristic equation has only purely imaginary roots. This happens if the conditions

[TABLE]

are satisfied simultaneously.

This leads to the fact that the characteristic equation (13) has two real negative roots $\Delta_{1,2}$, which consequently ensures four purely imaginary roots for $\lambda$.

Therefore, through the nature of the four roots of the characteristic equation (13), we can examine the linear stability of the libration points for the known positions of them. Our numerical study reveals that when $\epsilon\in(0,1]$ then the libration points are mostly either stable or unstable. In fig. 5b, we have presented the evolution of the stability of all the libration points, when $\epsilon\in(0,1]$. It is observed that the central libration point $L_{4}$ is always stable, while the libration points $L_{2,3,9,10}$ are stable when the sixteen libration points exist. $L_{11,12,15,16,21,22}$ are stable when twenty-two libration points exist for $\epsilon\in(0.05,0.67)$ and none of the libration point is stable except $L_{4}$ when ten libration points exist.

4 Regions of possible motion

The regions of motion on the configuration $(x,y)$ plane can be determined by using the surface $2\Omega(x,y)=C$ where the fourth body can move freely for a given value of the Jacobi constant $C$. The projection of this surface on the $(x,y)$ plane describes the zero velocity curves (ZVCs) of the restricted problem of four bodies. The ZVCs in the classical restricted four-body problem have been studied by many scientists for various values of the Jacobi constant $C$. In our case, the Jacobi constants calculated at the libration points $L_{i}$, $i=1,2,...,22$ for $22$ or $16$ or $10$ are critical values.

In Fig. 6, we have depicted the Hill’s regions by projecting the $4-$dimensional phase-space onto the configuration $(x,y)$ plane which is divided into three regions: the interior, the exterior and the forbidden regions. The ZVCs are the boundaries of these Hill’s regions, where the kinetic energy is zero. The interior as well as the exterior regions represent those regions where the infinitesimal mass is free to move, while the energetically forbidden regions correspond to the regions where the motion of the infinitesimal mass is not allowed. These regions strongly depend upon the value of the Jacobi constant as well as on the transition parameter.

4.1 Case I: Twenty-two libration points

In the pseudo-Newtonian four-body problem, when the primaries have equal masses, we have $C_{L_{1}}=2.90093$, $C_{L_{4}}=3.2909$, $C_{1}=C_{L_{2}}=C_{L_{7}}=C_{L_{8}}=3.2965$, $C_{2}=C_{L_{3}}=C_{L_{9}}=C_{L_{10}}=3.33187$, $C_{3}=C_{L_{13}}=C_{L_{14}}=C_{L_{17}}=C_{L_{18}}=C_{L_{19}}=C_{L_{20}}=3.67255$, and $C_{4}=C_{L_{12}}=C_{L_{15}}=C_{L_{21}}=3.71213$. In Fig. (7), we present the evolution of the geometry of the Hill’s regions, for various values of the Jacobi constant. Here, the white regions show the forbidden regions, while on the other hand the colored regions indicate the regions of possible motion of the test particle. It is clear that as the value of the Jacobi constant $C$ decreases, various thresholds appear and allow the test particle to move in several possible regions of motion. For $C=C_{4}$, in panel-(f), the test particle is prohibited to move inside the white region except the three tadpole shaped regions containing the libration points $L_{11,16,22}$ in the interior region. In panel-(e) for $C=C_{3}$, the interior region contains three branches of permissible region around each of the primaries. However, the test particle is not allowed to move from one primary to the other as well as from the interior to the exterior region and vice-versa. For $C=C_{1}$, three limiting situations occur at the libration points $L_{2,7,8}$, which provide the passage for the test particle to move from the interior region to the exterior region for $C<C_{1}$. Further, it is observed that three circular white regions, around the center of each of the primaries, still exist so that the test particle can not move from one primary to other and vice-versa. Our analysis suggests that the possible regions of motion substantially increase, with the decrease of the Jacobi constant.

4.2 Case II: Existence of sixteen and ten libration points

In the case when sixteen libration points exist, we have $C_{L_{1}}=C_{L_{5}}=C_{L_{6}}=2.83414$, $C_{1}=C_{L_{7}}=C_{L_{8}}=C_{L_{11}}=C_{L_{12}}=C_{L_{13}}=C_{L_{14}}=3.01689$, $C_{2}=C_{L_{4}}=3.06573$, $C_{3}=C_{L_{3}}=C_{L_{9}}=C_{L_{10}}=3.07859$, and $C_{4}=C_{L_{2}}=C_{L_{15}}=C_{L_{16}}=3.08972$. From Fig. 8, it can be observed that the forbidden region shown in white color increases with the increase of the Jacobian constant. From panel-(a), it is clear that the test particle is free to move everywhere except the three circular shaped islands around the primaries. For $C=C_{1}$, the forbidden region increases and six white coloured islands appear in panel-(b). The possible regions of motion split into the interior and the exterior regions for $C=C_{2}$ (panel-c). However, the test particle cannot move from the interior to the exterior region. Moreover, the interior region of possible motion constitutes three branches containing the libration points $L_{2,15,16}$ (panel-d). For the Jacobian constant $C=C_{4}$, the interior possible region of motion disappears completely and the test particle is allowed to move only in the exterior cyan color region (Fig. 8e).

Figure 9 describes the ZVCs for $\epsilon=0.93$, when ten libration points exist.

In Fig. 10, we depict the ZVCs for a fixed value of the Jacobian constant $C$ and for various values of the transition parameter $\epsilon$. It is observed when the transition parameter $\epsilon=0$, i.e., the classical restricted four-body problem, the infinitesimal mass is free to move from one primary to the other and vice-versa. On the other hand, there exist circular islands of white regions around each of the primary in the presence of transition parameter $\epsilon>0$, therefore the infinitesimal mass is prohibited to move from one primary body to the other and vice-versa. When $\epsilon=0.4$ the regions of possible motion, shown in cyan color, constitute three inner circle annuli containing the primaries in the interior region. However, the infinitesimal mass cannot move from the inner region to the outer region of possible motion. When $\epsilon=0.5$, the possible regions of motion occur in six tadpole shaped regions containing the libration points $L_{11,12,15,16,21,22}$, respectively in the interior area, while for $\epsilon=0.6$ these tadpole shaped regions disappear completely and the infinitesimal mass cannot move inside the interior region. Moreover, our analysis suggests that as the transition parameter increases, the regions of possible motion decrease and the infinitesimal mass is confined to move in the outer region only.

5 Newton-Raphson Basins of attractions

The location of the positions of the libration points, in any dynamical system, is a crucial issue. Unfortunately, for restricted problem of $N>3-$bodies, there are no analytical formulae to obtain the exact locations of the libration point. Therefore, to overcome this problem we can use one of the multivariate iterative scheme of numerical methods to solve the system of non-linear equations. Moreover, the well known multivariate iterative scheme is the Newton-Raphson method. The iterative scheme is applicable to system of multivariate functions $f(\textbf{X})=0$ where as the associated iterative scheme is represented by

[TABLE]

where $J^{-1}$ corresponds to the inverse Jacobian matrix of $f(\mathbf{X}_{n})$. In the present model, the system of differential equations is described by the Eqs. (10). For the $(x,y)$ plane the iterative formulae for each co-ordinate are given by

[TABLE]

where the values of $x$ and $y$ coordinates at the $n$-th step of the Newton-Raphson iterative scheme are represented by $x_{n}$ and $y_{n}$. In addition, the subscripts of $\Omega(x,y)$ correspond to the respective partial derivatives of the effective potential function.

The Newton-Raphson iterative scheme works under the prescribed numerical algorithm and the code is activated with an initial condition $(x_{0},y_{0})$ on the configuration plane, while the iterative scheme terminates when the attractor of the described system is reached, with predefined accuracy. The method converges only if the particular initial condition leads to one of the attractor of the system. It is necessary to note that not every initial condition on the configuration $(x,y)$ plane converge to one of the attractors of the system. If the fixed initial condition converges to one of the libration point which acts as attractor, we claim that the iterative scheme converges for that fixed initial condition. The set of initial conditions which converge to same libration points compose the domain of the basins of convergence. Finally, the Newton-Raphson basins of attraction, also called as basins of convergence, are composed of the initial conditions which lead to an attractor of the system.

One can notice that the iterative formulae of Eqs. (5) consist the first and the second order partial derivatives of the effective potential function $\Omega(x,y)$, which reflect some of the most intrinsic qualitative properties of the dynamical system. This makes the study of the Newton-Raphson basins of attraction very crucial. The domain of the basins of convergence is obtained by a double scan of the configuration $(x,y)$ plane by defining $(x_{0},y_{0})$ nodes as initial conditions used for the multivariate iterative scheme. Further, for the iterative scheme, the allowed maximum number of iterations are five hundred whereas the multivariate iterative scheme terminates when the coveted accuracy is reached.

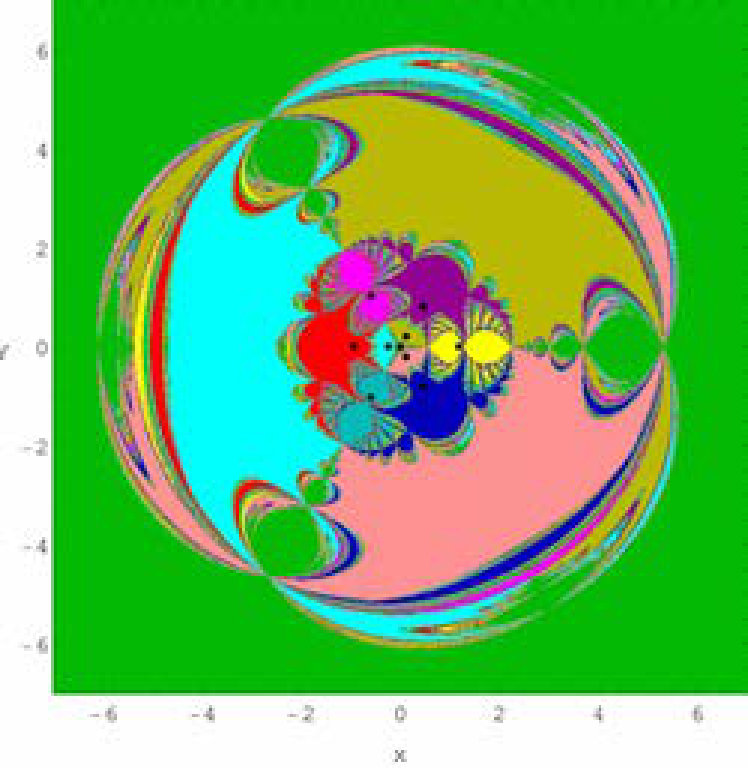

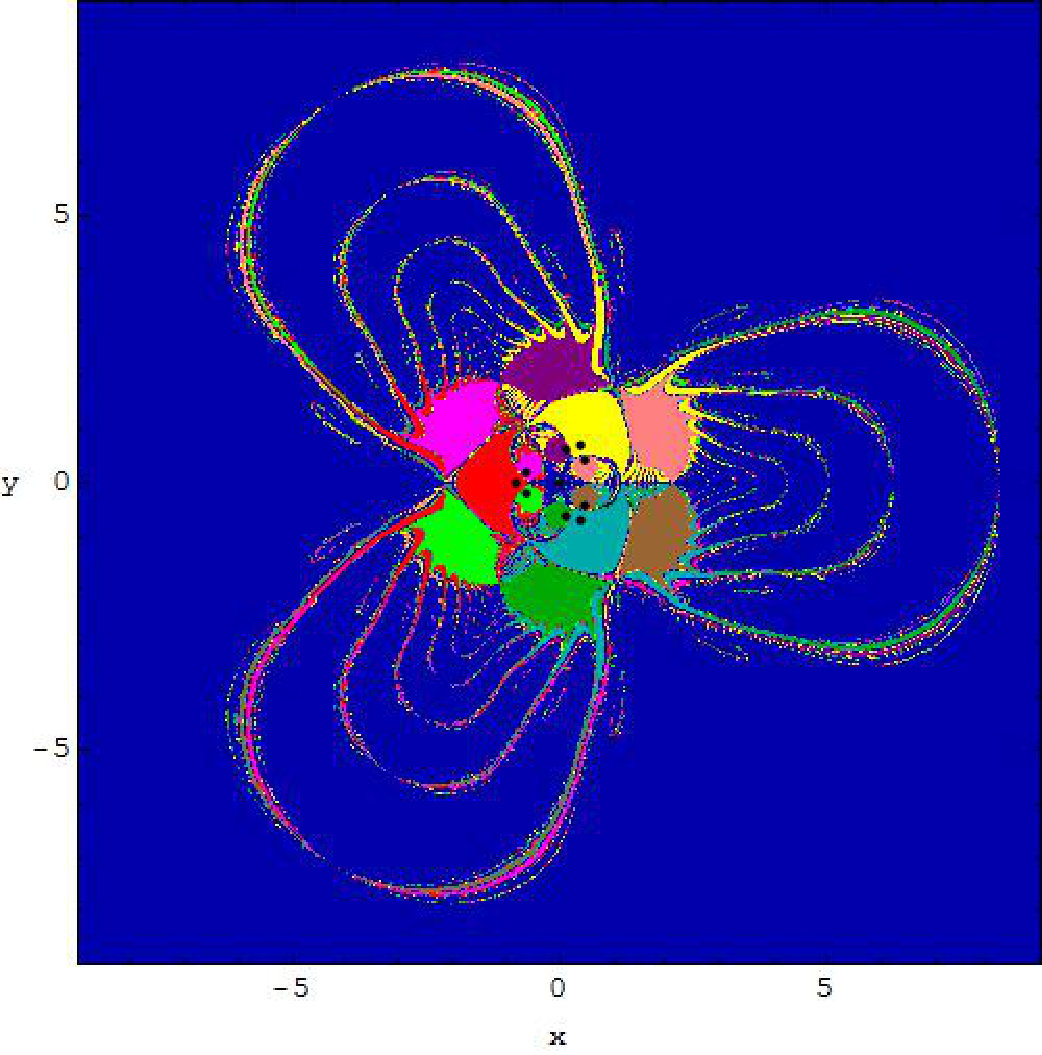

The Newton-Raphson basins of convergence when $\epsilon=0$ corresponds to the classical restricted four-body problem are presented using different color codes to denote the different basins of attraction corresponding to each libration point. The positions of ten liberation points are pinpoint by black dots (see Fig. 11). It is clear that in the restricted four-body problem when primaries have equal masses, the problem admits four collinear libration points on the $x-$axis and six non-collinear libration points on the $(x,y)$ plane (off the $x-$axis). The classical restricted four-body problem admits a symmetry and all the ten libration points lie on the $(x,y)$-plane symmetrical to the axes of symmetry $y=0$, and $y=\pm\sqrt{3}$.

5.1 Case 1: Twenty-two libration points

We begin with the first case where twenty-two libration points exist, i.e., when $0<\epsilon\leq 0.67752839$ and $0.704528<\epsilon\leq 0.812528$ . In Fig. 12, we present the evolution of the Newton-Raphson basins of attraction for six different values of the transition parameter. To separate the different initial conditions on the configuration $(x,y)$ plane, the color-coded diagrams are used, where each pixel is assigned a color, according to the attractor of the initial conditions. It is observed that most of the configuration $(x,y)$ plane is covered by well formed Newton-Raphson basins of attraction, while all basins boundaries are highly chaotic. From Fig. 12, it is observed that in all the panels, the extent of the basins of convergence associated with the libration point $L_{4}$ is infinite. Furthermore, in Fig.12a, we observe that the shape of the basins of convergence, associated with the libration points $L_{2}$, $L_{7}$, and $L_{8}$ look like exotic bugs with many legs and many antennas. It is also observed that the shape of the basins of convergence, associated with the libration points $L_{1}$, $L_{5}$, and $L_{6}$ are identical in all the panels. Moreover, due to the symmetry, the shape of the basins of convergence associated with the non-collinear libration points are identical and exist in pairs. It is interesting to note that the geometry of the basins of convergence and their topology, when the transition parameter $\epsilon\in(0,0.67752839)$ are completely different in comparison of the geometry of the basins of convergence when the transition parameter $\epsilon\in(0.704528,0.812528)$. However, in both the cases there exist twenty-two libration points.

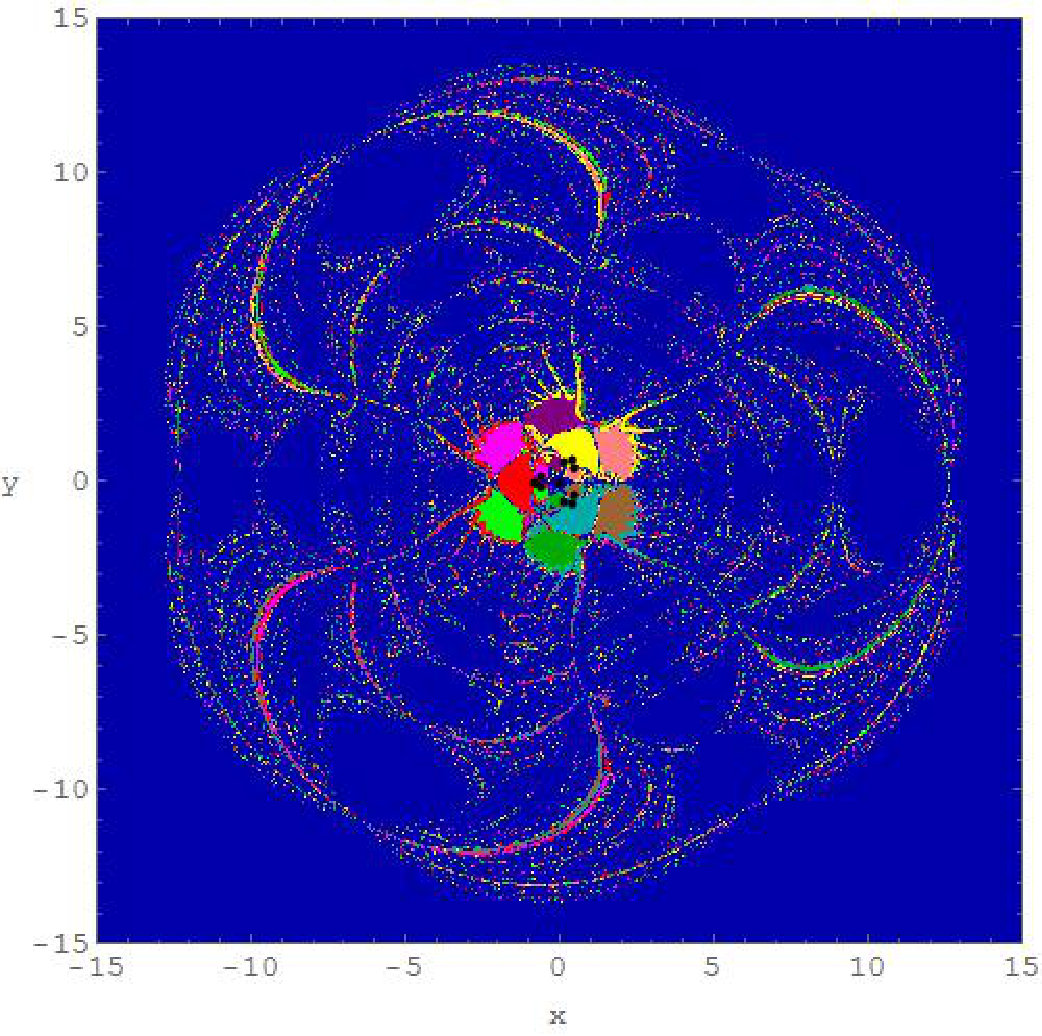

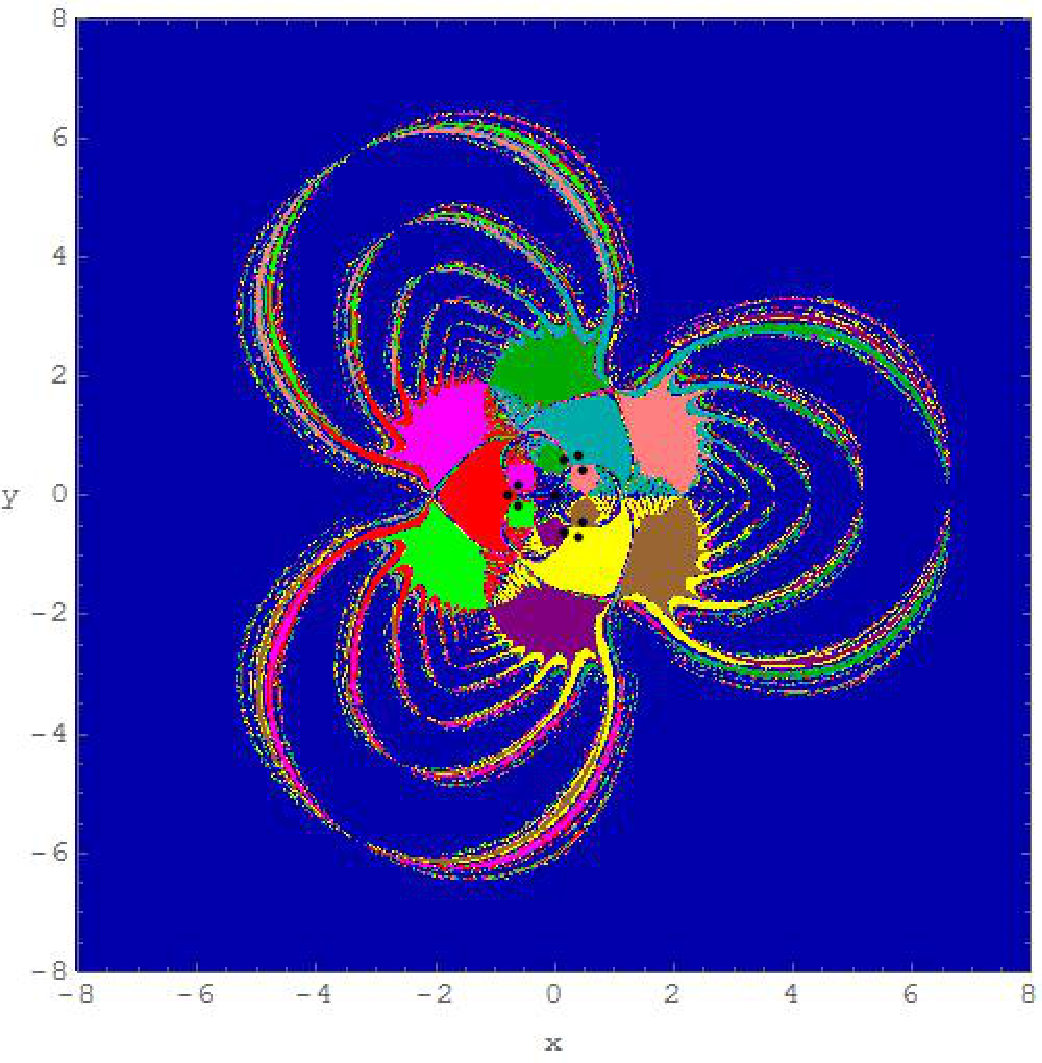

The geometry of the Newton-Raphson basins of convergence of the configuration $(x,y)$ plane changes substantially as the value of transition parameter $\epsilon$ increases. Following are the significant changes that take place, when the transition parameter $\epsilon\in(0,0.67752839)$:

–

The extent of the basins of attraction, associated with the libration points $L_{1},L_{5}$, and $L_{6}$, remains almost unchanged.

–

The extent of the basins of attraction, associated with the libration points $L_{2},L_{7}$, and $L_{8}$, decreases. The exotic bugs-like regions, corresponding to these libration points, are distorted and disappear completely with the increase in transition parameter.

–

The basins of attraction, associated with the libration points $L_{3},L_{9}$, and $L_{10}$, decrease.

Following are the most significant changes when the transition parameter $\epsilon\in(0.704528,0.812528)$:

–

The extent of the basins of attraction associated with the libration points $L_{1},L_{5}$, $L_{6}$, $L_{7},L_{8}$, $L_{13},L_{14}$, $L_{17}$, and $L_{19}$ remains almost unchanged.

–

The extent of the basins of attraction associated with the libration points $L_{3},L_{9}$, and $L_{10}$ decreases.

–

The extent of the basins of attraction associated with the libration points $L_{2},L_{15},$ and $L_{21}$ increases.

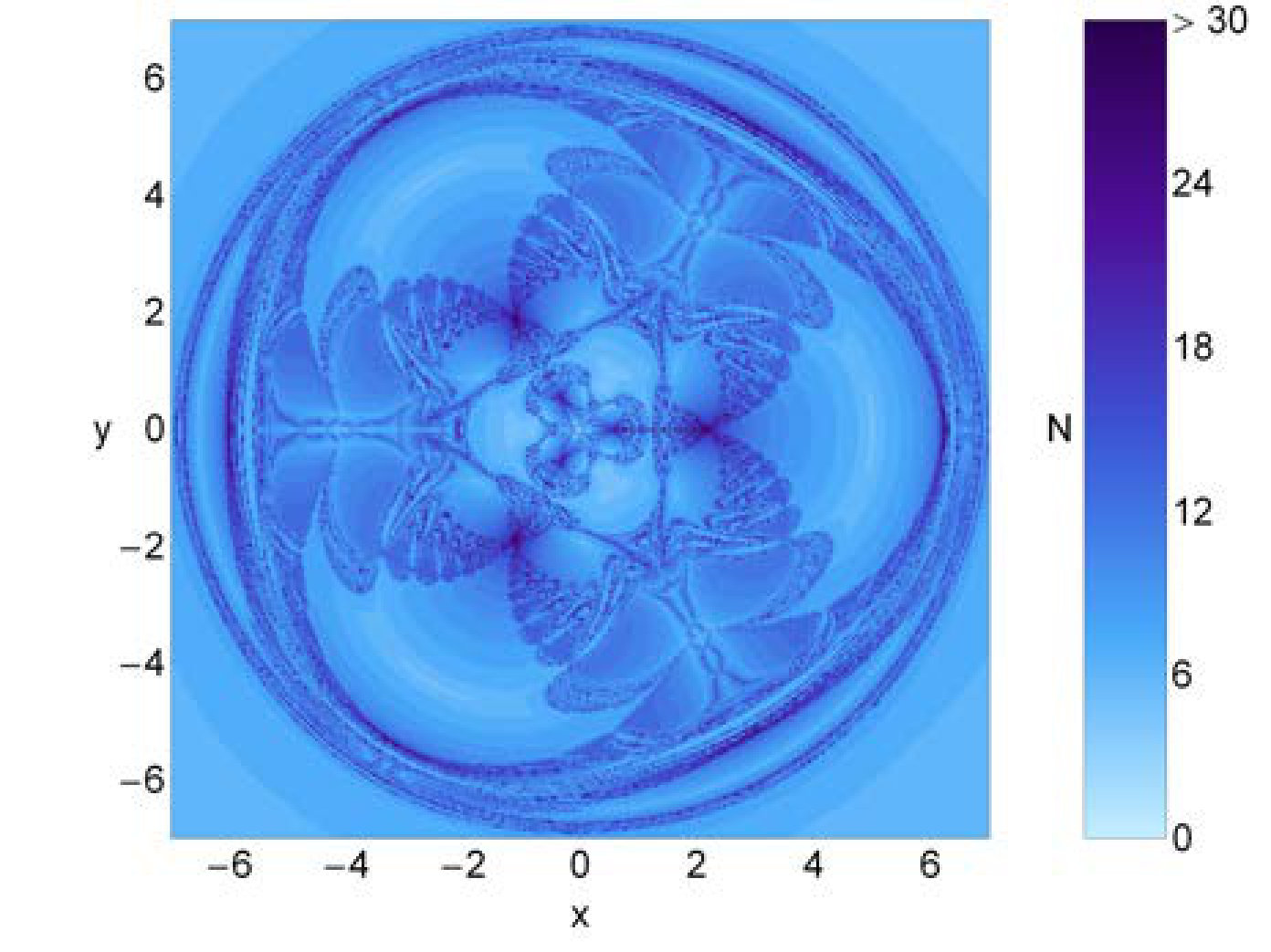

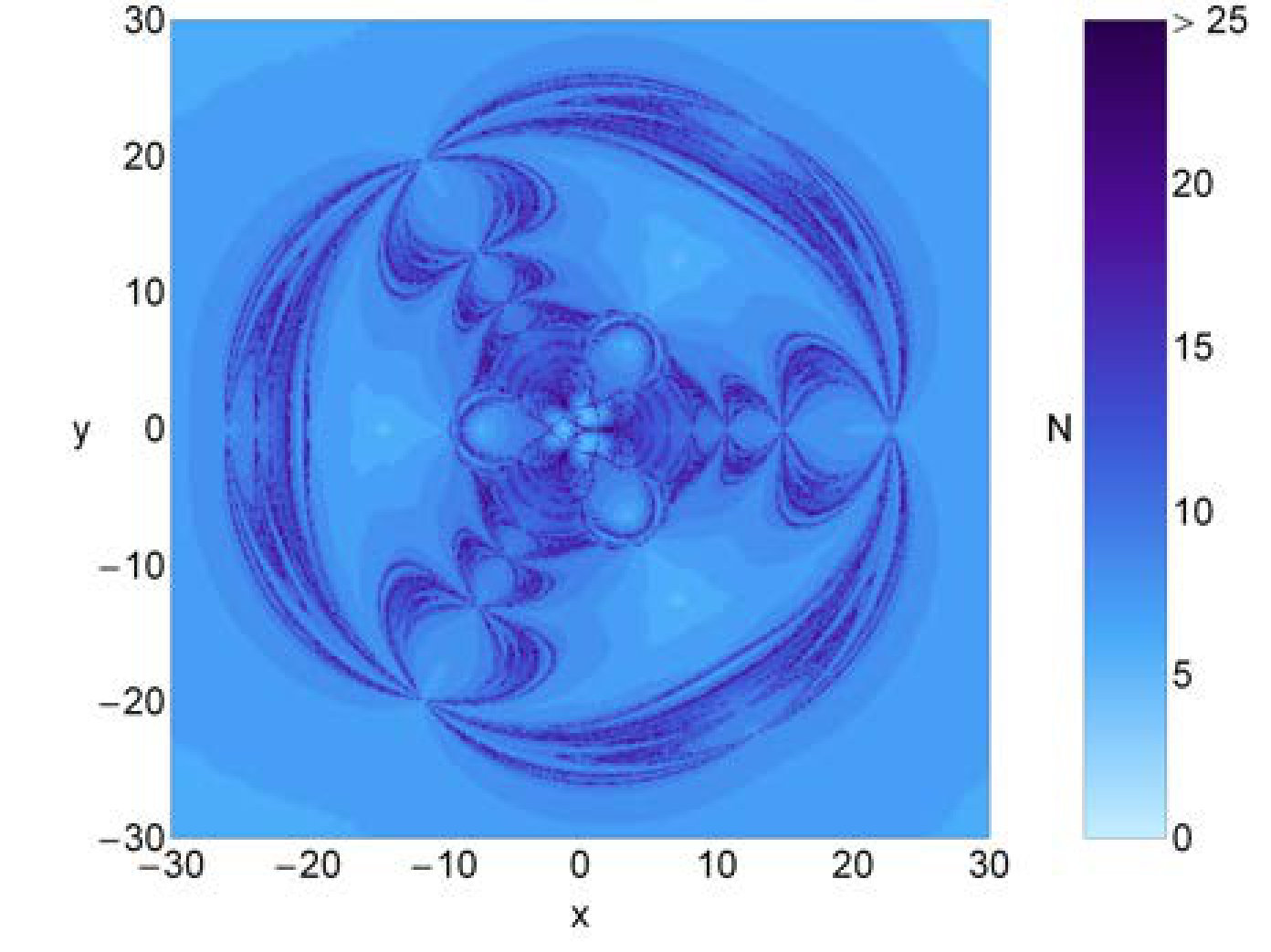

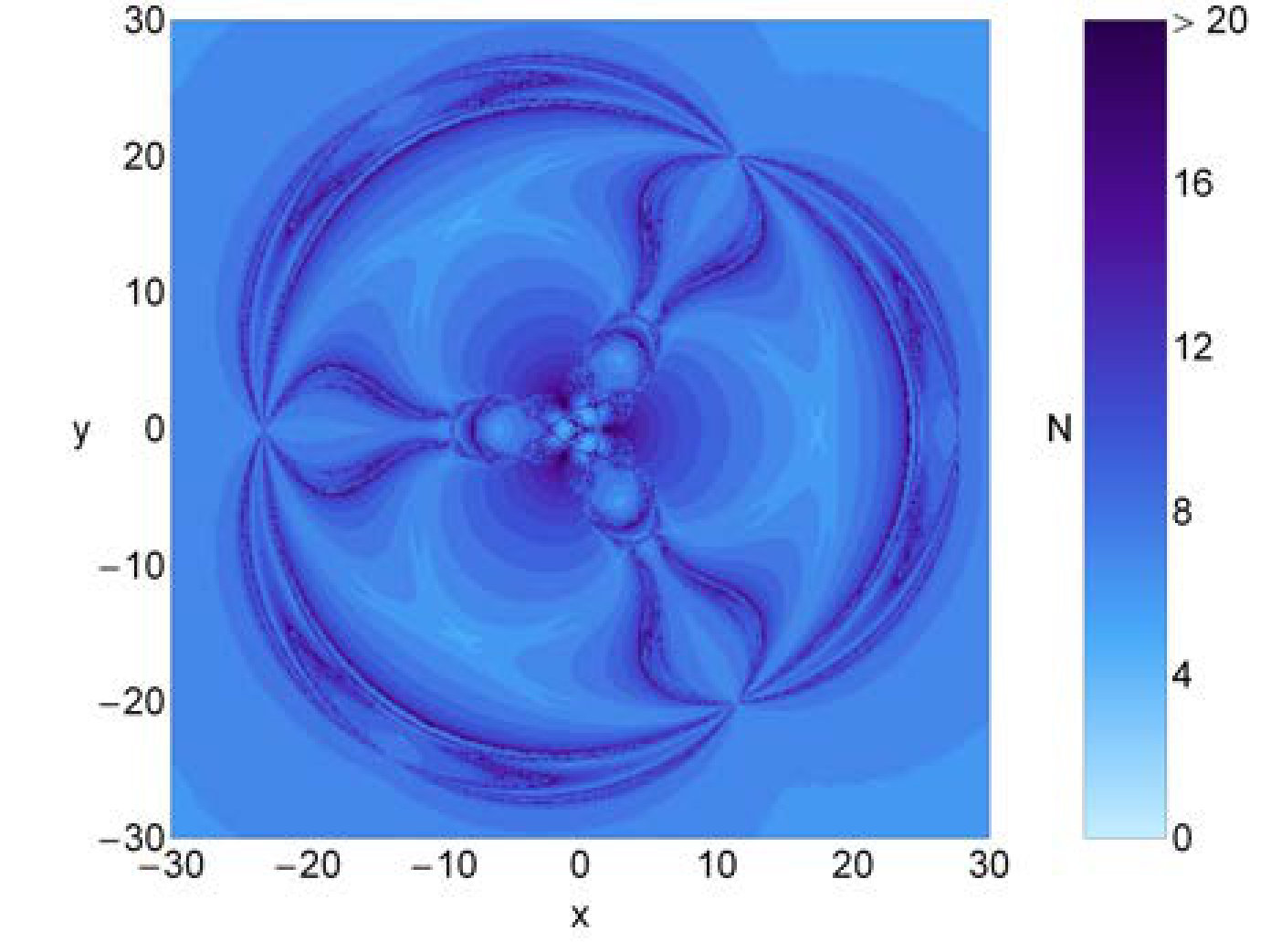

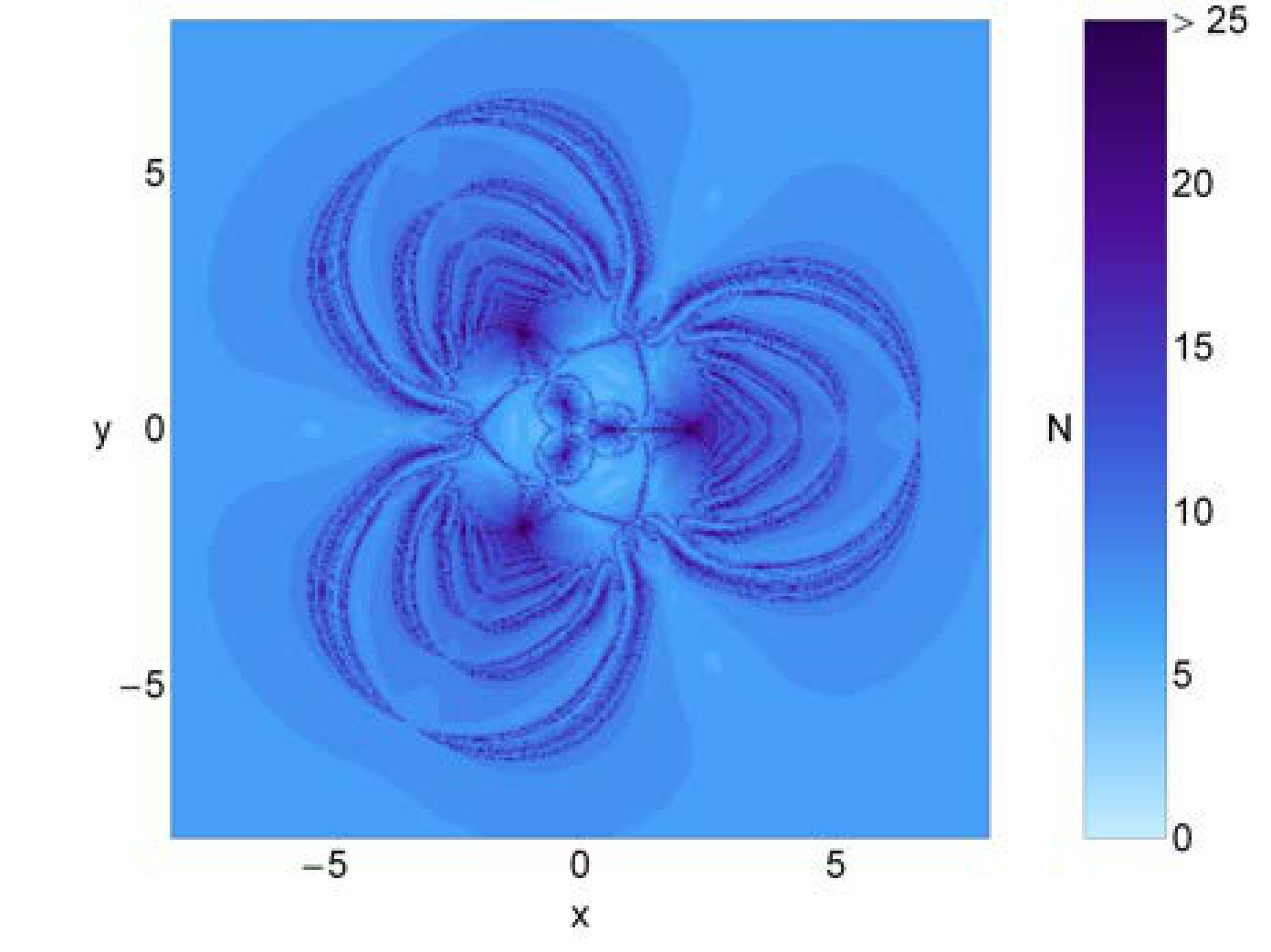

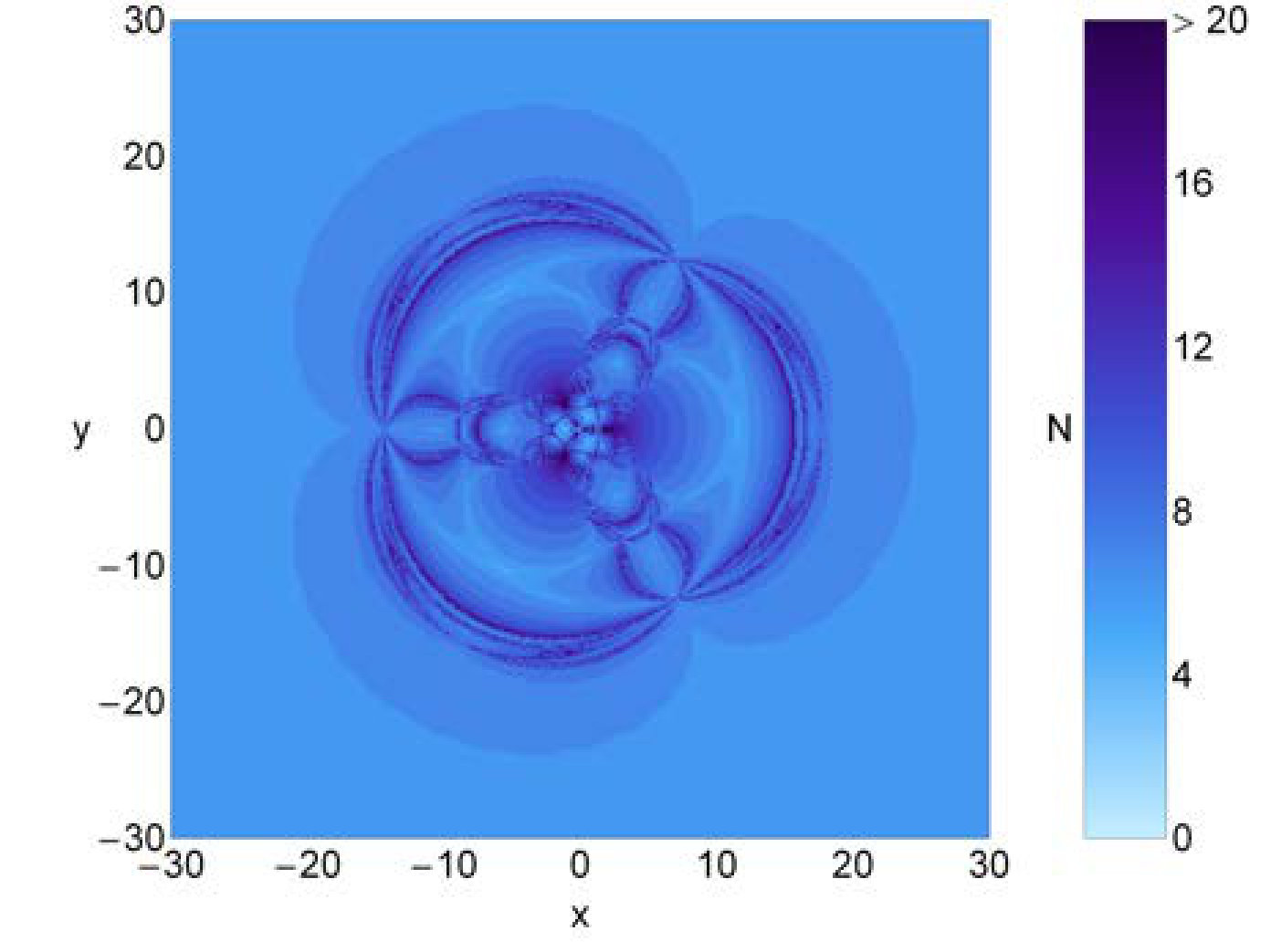

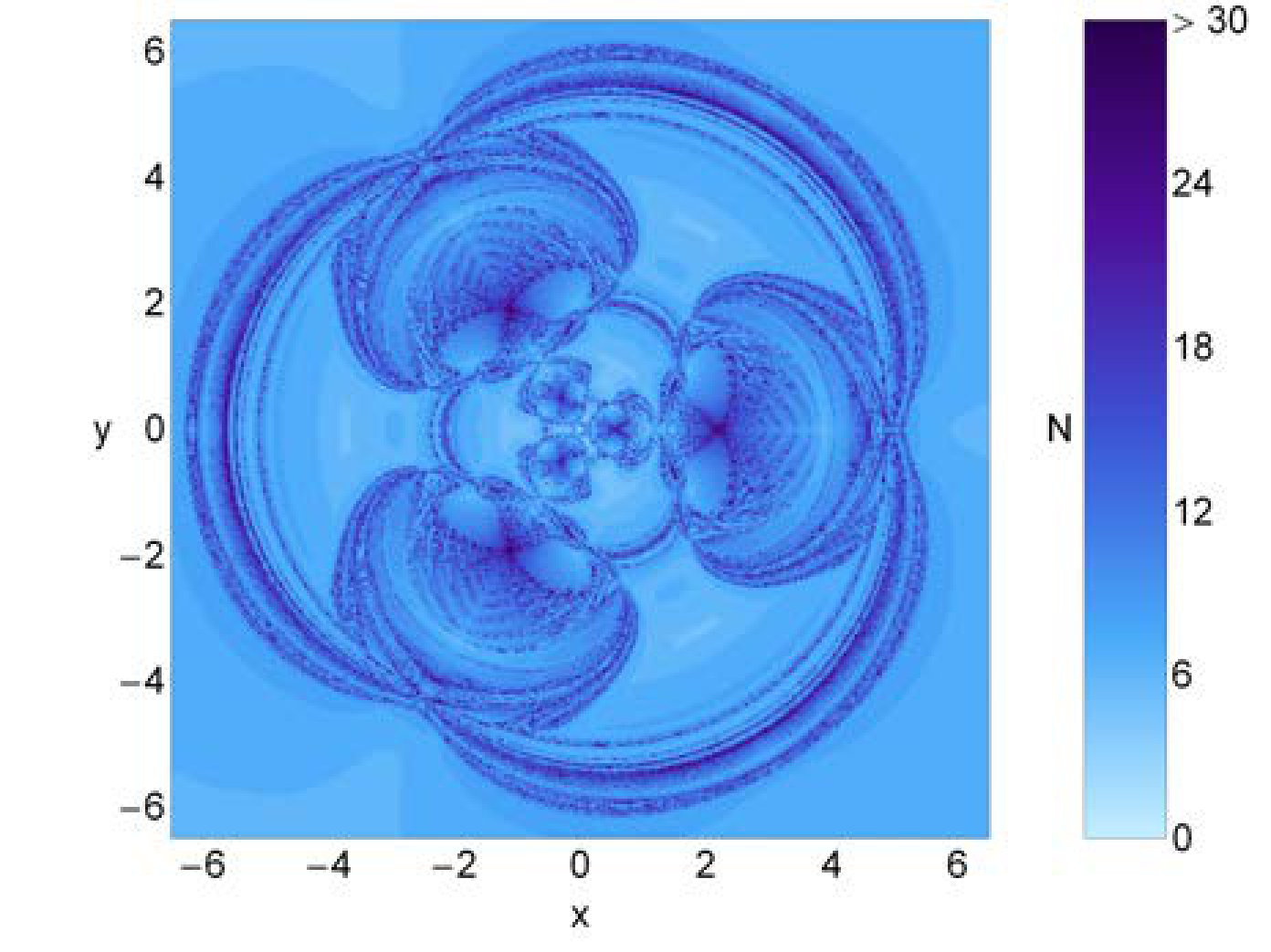

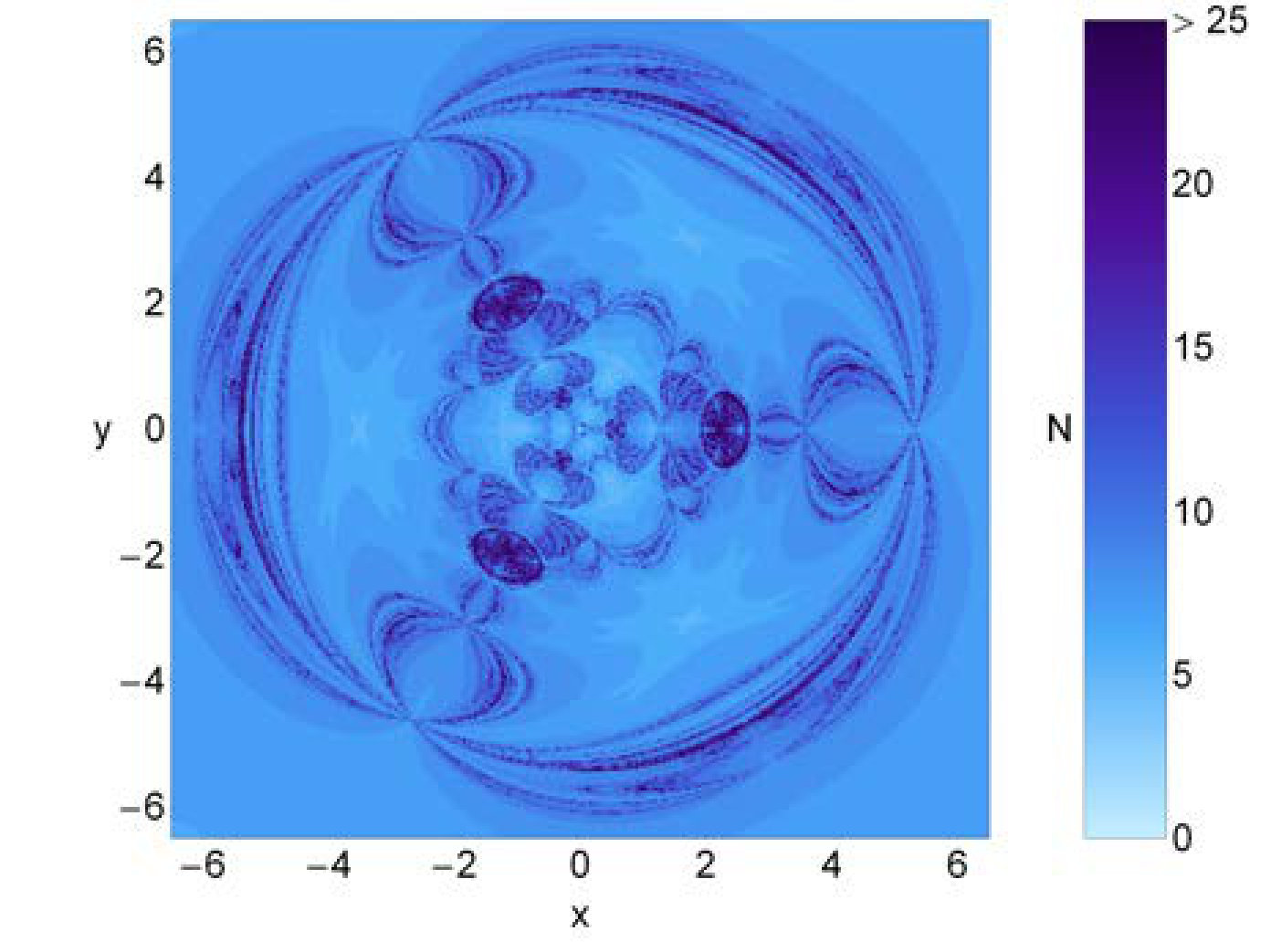

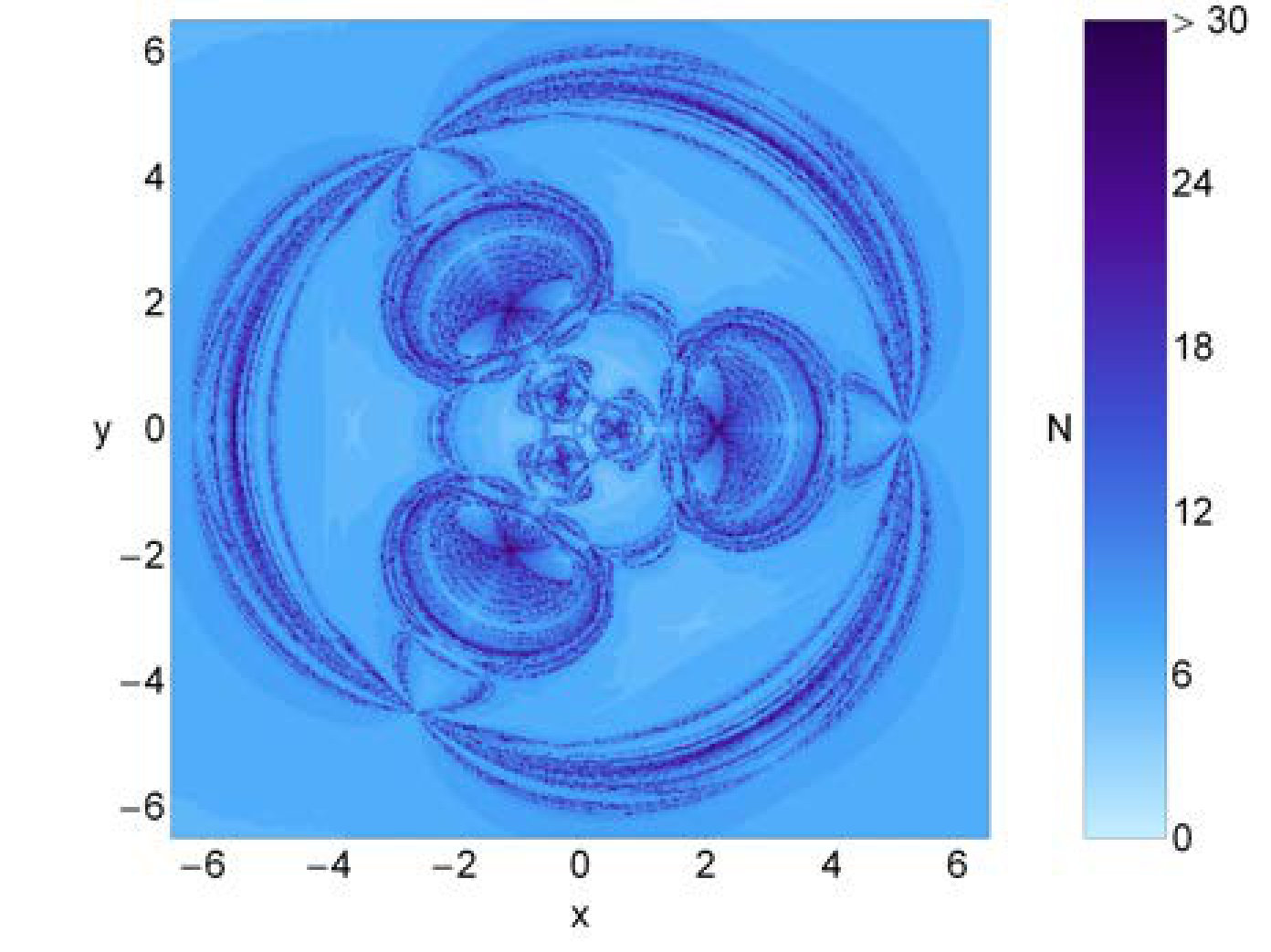

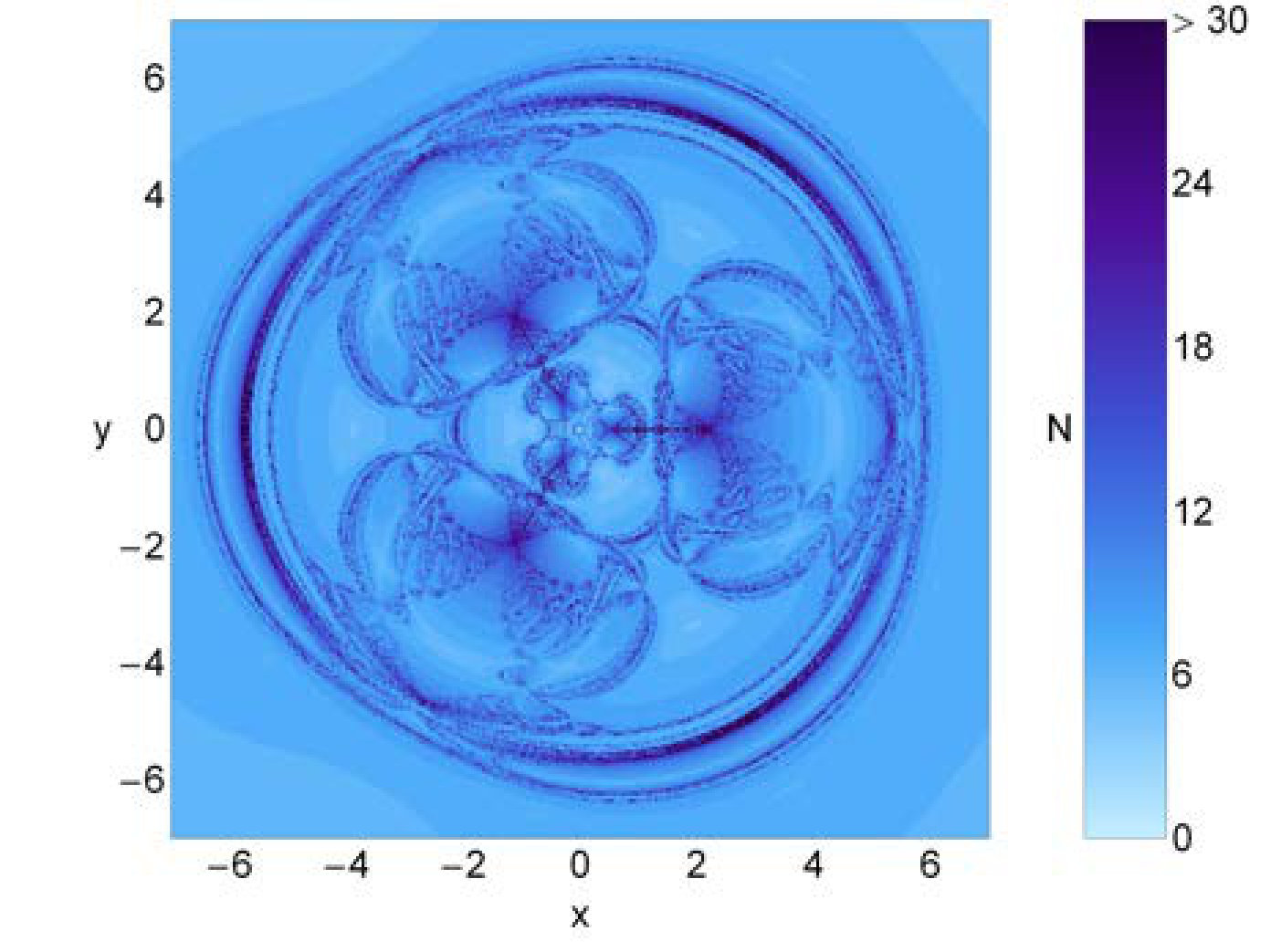

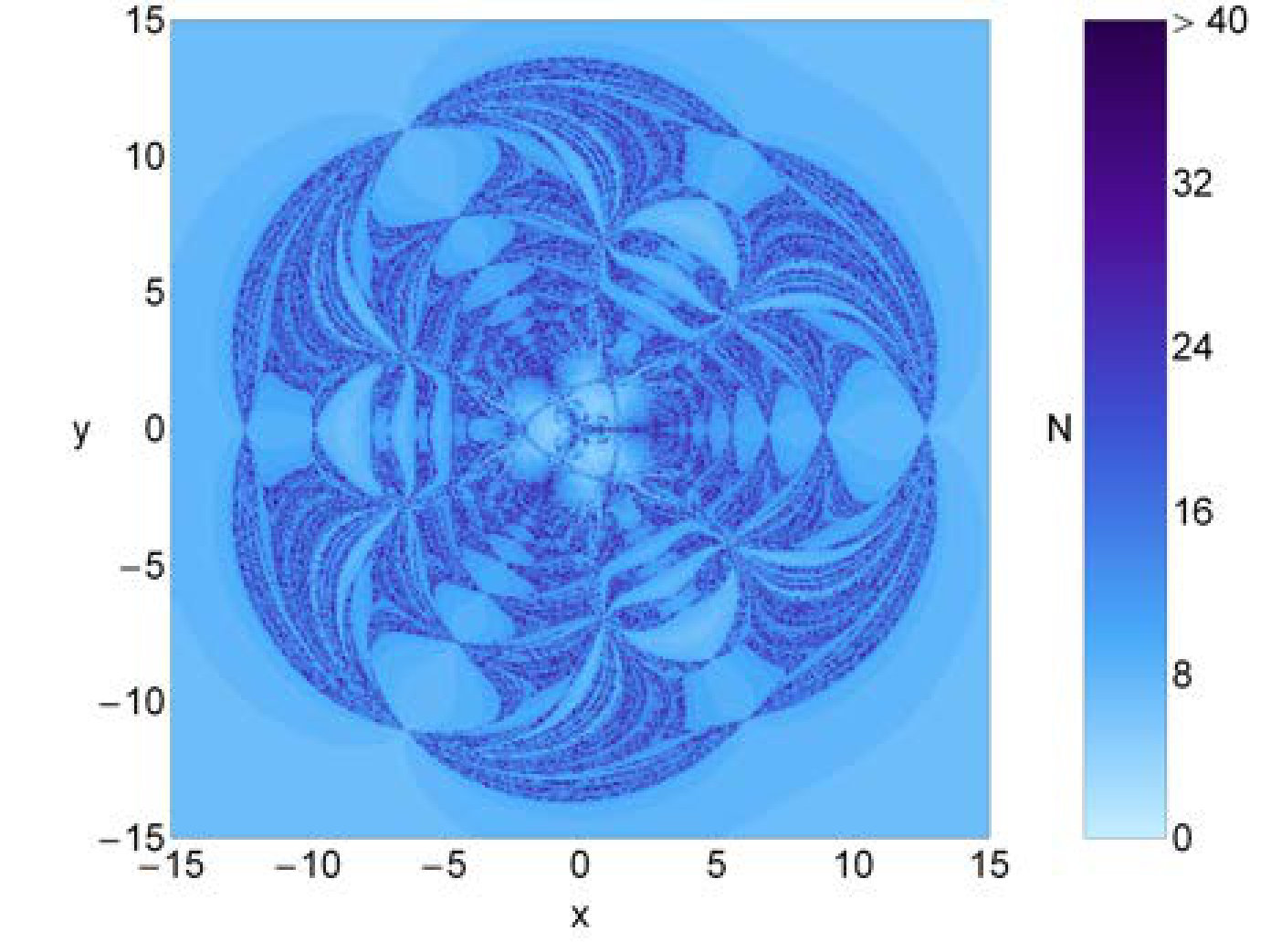

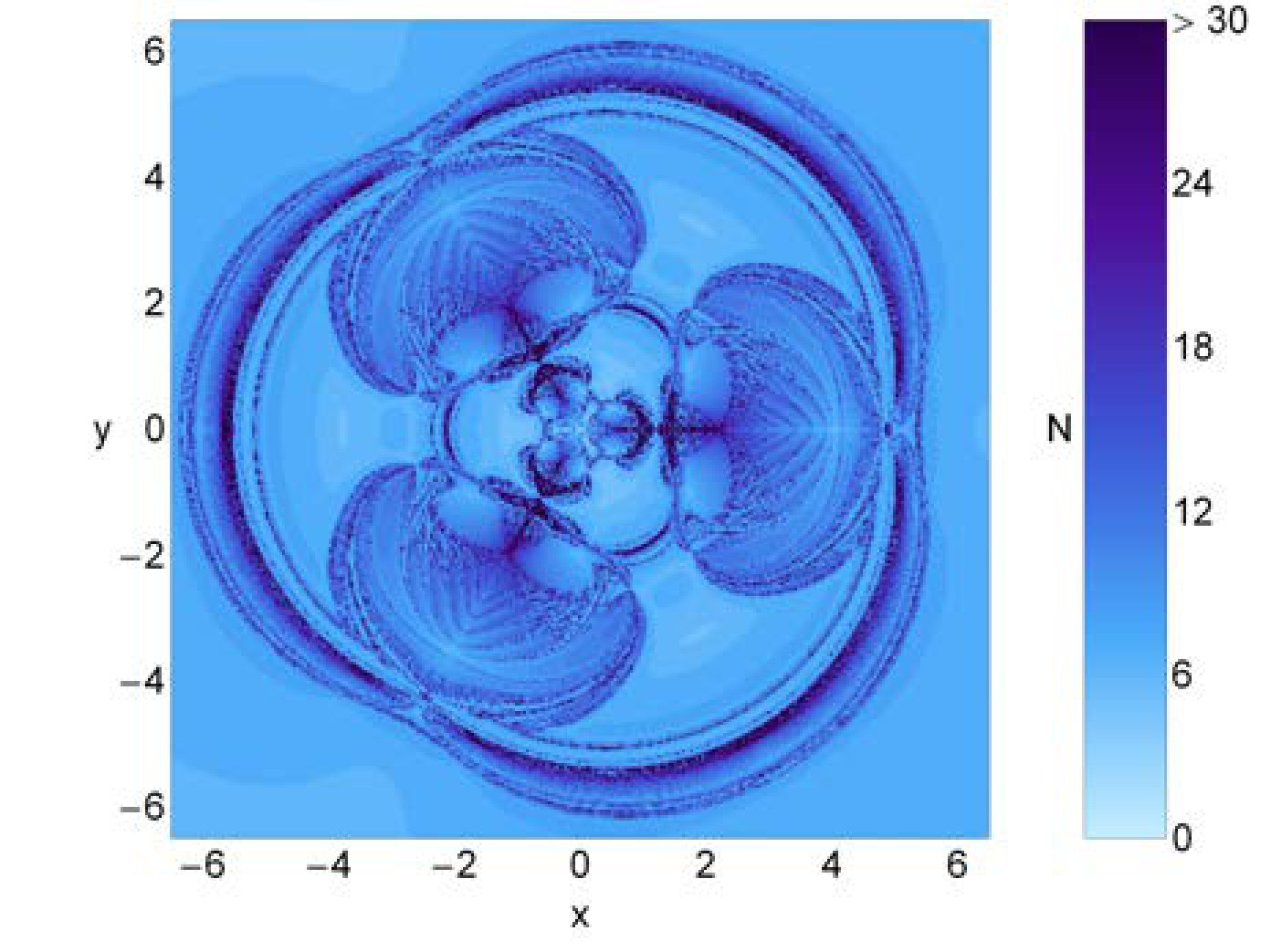

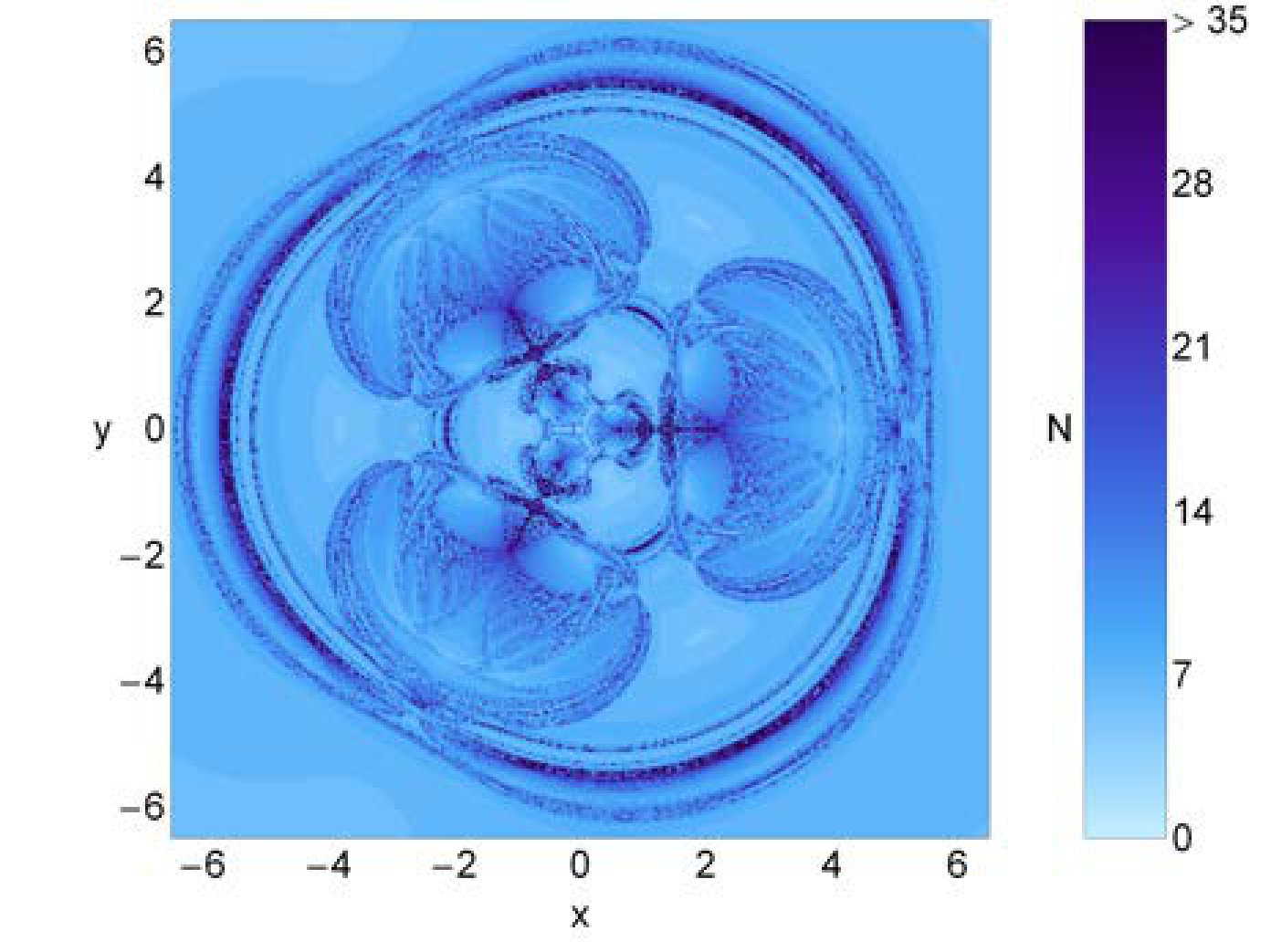

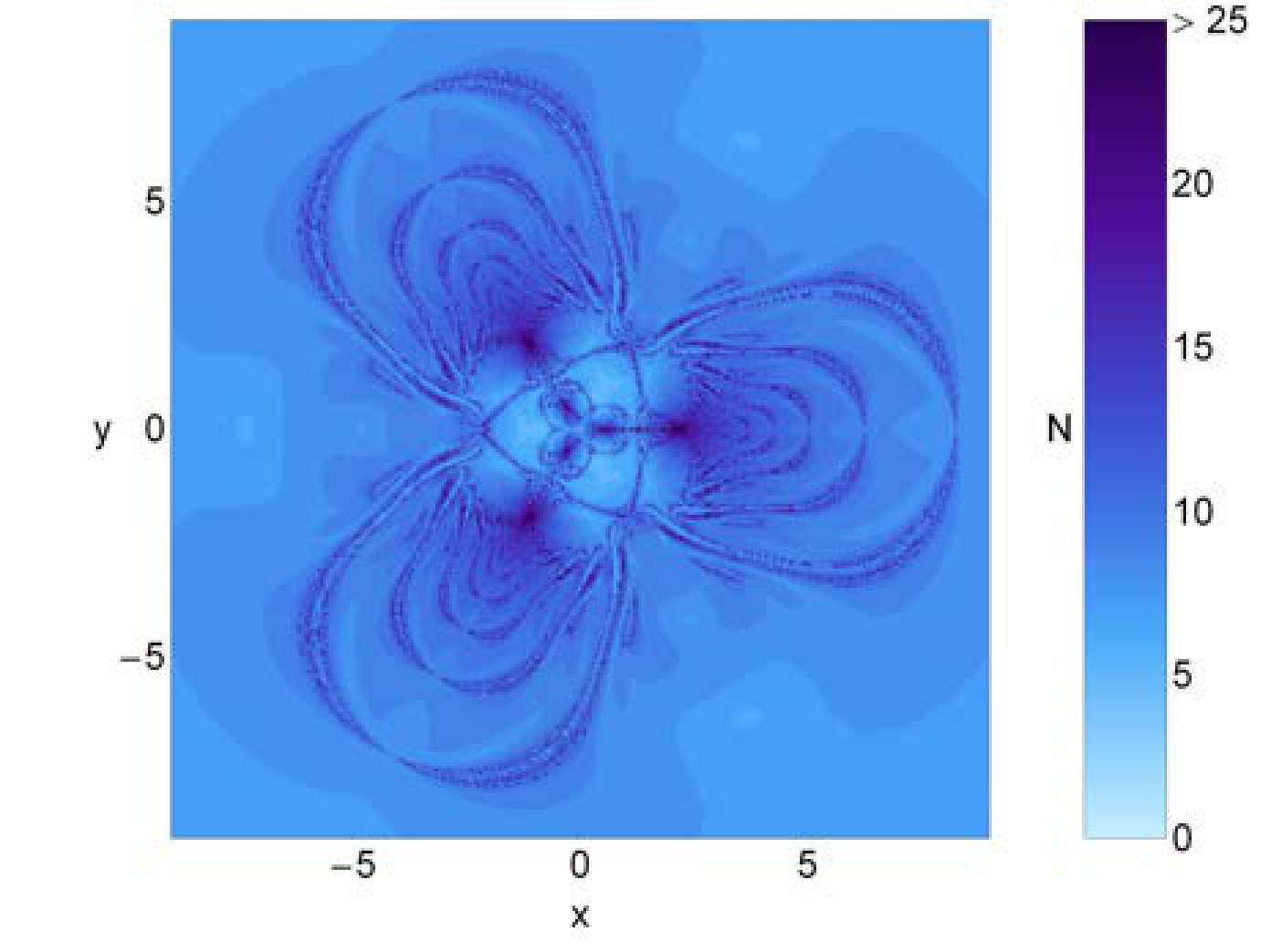

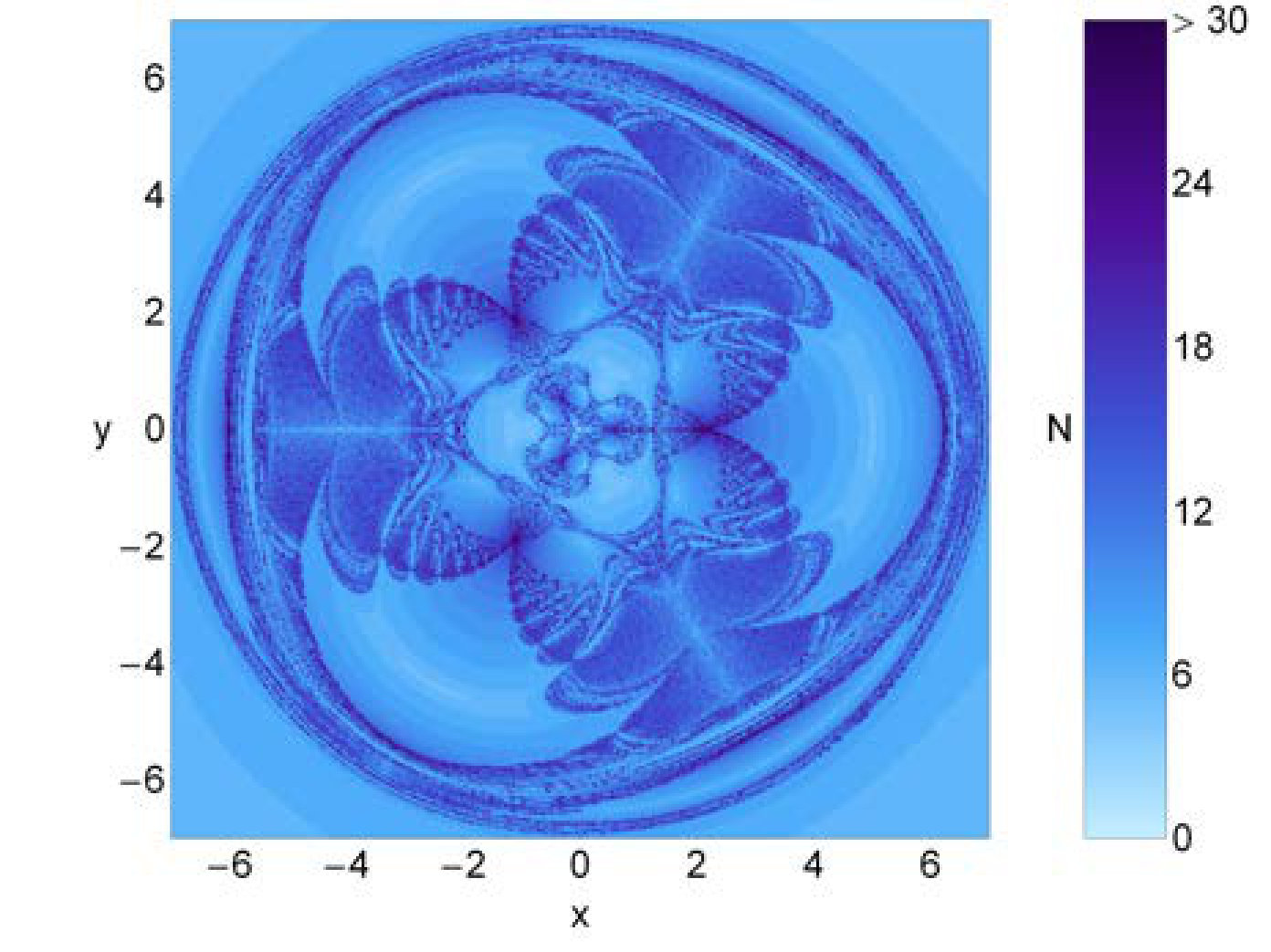

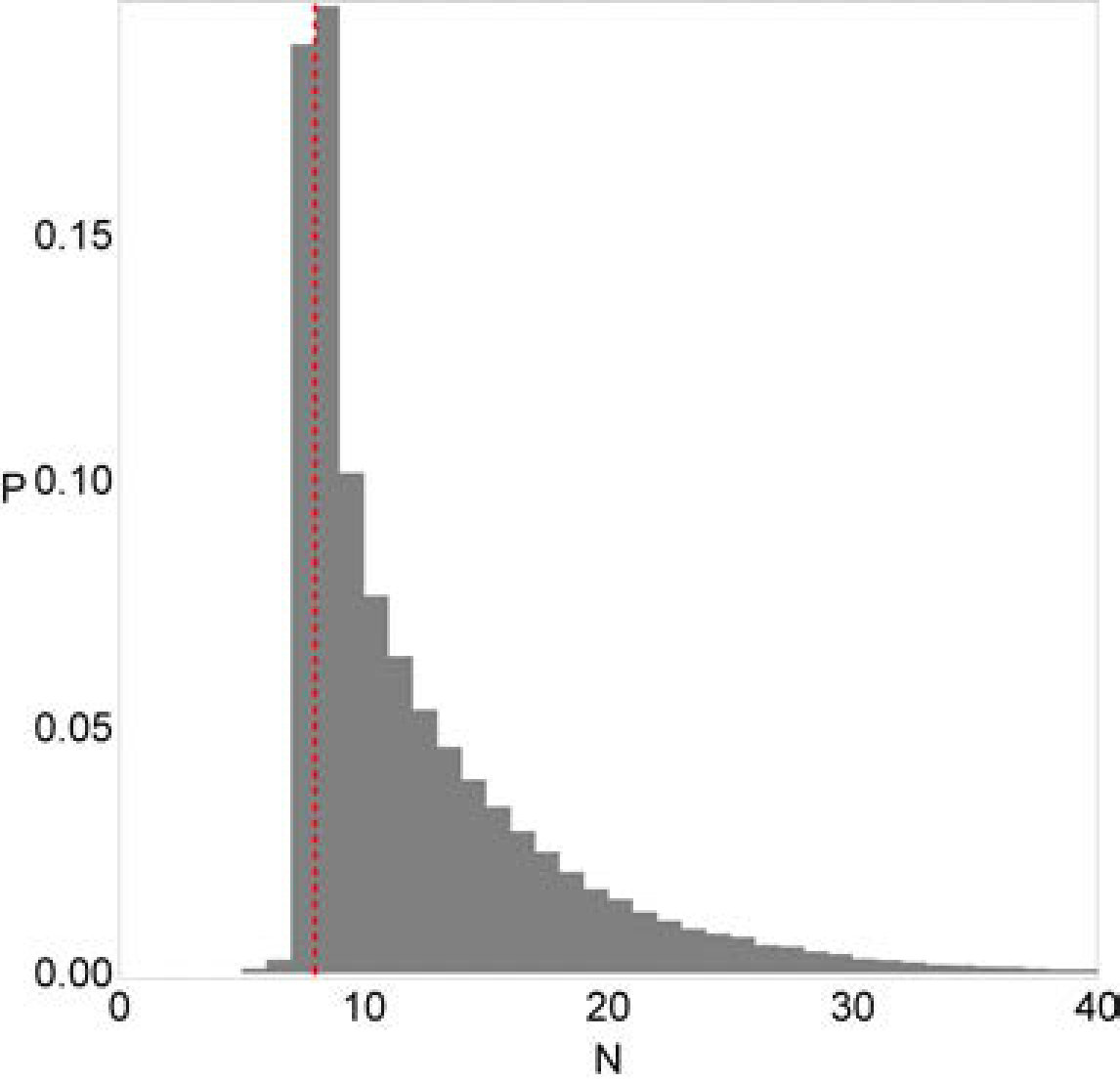

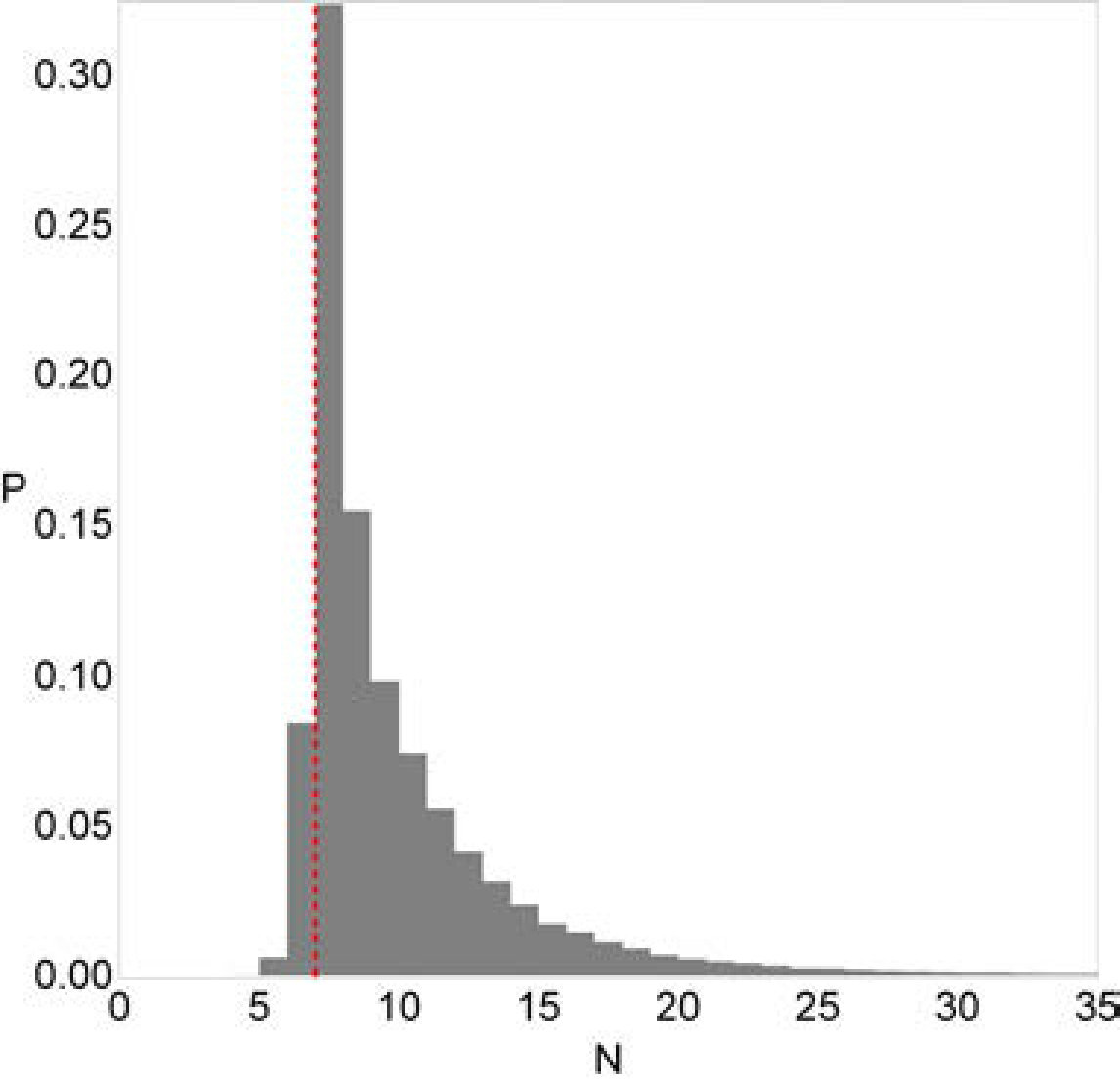

In Fig. 13 (a-f), the distribution of the corresponding number $N$ of the iterations are shown, using tons of blue. Our analysis reveals that the initial conditions inside the attracting regions converge relatively fast $(N<10)$. On the other hand, the initial conditions in the neighbourhood of the basins boundaries are the slowest converging points $(N>30)$. The corresponding probability distributions of iterations are presented in Fig. (14). If $N_{t}$ is the total number of initial conditions in every color-coded diagram and $N_{0}$ represents the initial condition $(x_{0},y_{0})$ converges to one of the attractors after $N$ iterations, then the probability $P$ is defined by $P=\frac{N_{0}}{N_{t}}$. It is also observed that the most probable number $N^{*}$ of iterations is equal to 7 (the red vertical dashed line in Fig.14). The value remains unfazed throughout this region for values of the transition parameter.

5.2 Case II: Sixteen libration points

The case when $\epsilon\in(0.67752839,0.704528]$ and $\epsilon\in(0.812528,0.929528]$, there are sixteen libration points: four lie on $x-$axis and remaining twelve libration points on the $(x,y)$-plane. In Fig. 15(a-d), we present the Newton-Raphson basins of convergence for different values of the transition parameter $\epsilon$. Moreover, the size of the color-coded diagrams (i.e., the minimum and the maximum values of the coordinates $x$ and $y$) is taken differently in different panels in order to have a complete view regarding the topology of the basins of attraction acquired by the different attracting domains. For $\epsilon=0.694528$, panel (a) of Fig.15 reveals that the geometry of the Newton-Raphson basins of convergence is well formed and finite, corresponding to all the libration points except $L_{4}$. We further observed that the extent of all the attracting domains changes with the change in the transition parameter. Therefore, we may claim as the value of the transition parameter varies in described intervals, the topology of the Newton-Raphson basins of convergence changes significantly. It is also noticed that the geometry of the Newton-Raphson basins of convergence also admits three axes of symmetry $y=0,y=\sqrt{3}$ and $y=-\sqrt{3}$ for all the values of transition parameter.

Following are the most crucial changes observed:

–

The extent of the basins of attraction associated with the collinear libration point $L_{4}$ is infinite.

–

The extent of the attracting domains associated with the libration points $L_{2},L_{11},$ and $L_{12}$ increases.

–

The extent of the basins of attraction associated with the libration points $L_{3},L_{9}$, and $L_{10}$ decreases.

The basins of convergence in all the panels may be divided into exterior and interior regions. The interior regions are the regions enclosed by the basins of convergence corresponding to the libration points $L_{1}$(red), $L_{5}$(yellow), and $L_{6}$(persian cyan), while the exterior region is the remaining area of the basins of convergence including boundary of the ball shaped finite region. We further observed as the transition parameter increases, the outer region constitutes three branches of basins of convergence and for $\epsilon=0.927125$ these branches (the major parts are shown by cyan, blue, and orange colours) separate from the interior region, and the boundary between them are just the chaotic mixture of the initial conditions.

5.3 Case III: Ten libration points

The last case corresponds to $0.929528<\epsilon\leq 1$, when there exist only ten libration points. In Fig. (16), we have presented the Newton-Raphson basins of convergence for three values of the transition parameter. In panel (a), we have observed a very interesting and unexpected phenomenon. It is observed that most of the configuration plane is occupied by the initial conditions corresponding to collinear libration point $L_{2}$ which has infinite extent. On the other hand, the basins of convergence corresponding to all other libration points are finite. There exists a chaotic sea of initial conditions in the vicinity of the boundaries of the finite region of basins of convergence. From panels (d, g) of Fig. (16), we may observe as the value of transition parameter increases, the chaotic sea composed of the initial conditions shrinks and turn into a shape which looks like 3-leaves of a flower. For further increase in transition parameter, these leaves shrink further and become almost circular in shape. In Fig. 16 (b, e, h), the distribution of the corresponding number $N$ of the iterations are illustrated. The analysis unveils that the initial conditions inside the attracting regions converge relatively fast $(N<8)$ whereas the initial conditions inside the chaotic sea needs more iterations to converge one of the attractors. . The corresponding probability distributions of iterations are presented in Fig. 16(c, f, i).

6 Discussion and conclusions

The aim of this study was to unveil the effect of transition parameter $\epsilon$ on the position as well as on the linear stability of the libration points. We determined the regions of possible motion and computed numerically the basins of convergence, associated with the libration points in the pseudo-Newtonian planar circular restricted four-body problem, when the primaries have equal masses. The multivariate version of the Newton-Raphson iterative scheme was used to reveal the topology of the basins of convergence on various two-dimensional planes. We successfully completed the task by monitoring how the Newton-Raphson basins of convergence changes with respect to the transition parameter.

Following are the most important conclusions of our analysis:

The existence as well as the number of the libration points strongly depend upon the value of the transition parameter. There exist either 22 or 16 or 10 libration points for different intervals of the transition parameter. 2. 2.

The linear stability analysis reveals that most of the libration points of the dynamical system are always linearly unstable. The libration point $L_{4}$ is always linearly stable, while the libration points $L_{11},$ $L_{12},L_{15},$ $L_{16},L_{21}$, and $L_{22}$ are linearly stable for those values of transition parameter for which twenty-two libration points exist. Moreover, $L_{2,3,9,10}$ are linearly stable for those values of transition parameter for which sixteen libration points exist while on the other hand none of the libration point is stable except the libration point $L_{2}$ for the interval of transition parameter for which ten libration points exist. 3. 3.

The regions of possible motion decrease with the increase in the value of the transition parameter as well as Jacobian constant. 4. 4.

The Newton-Raphson basins of convergence revealed that the configuration $(x,y)$ plane is composed of a complicated mixture of attracting domains with highly fractal basins boundaries. It is almost impossible to predict in advance the final state of an initial condition in the neighborhood of the basins boundaries, where the degree of fractality is high. 5. 5.

In all the examined cases, the basins of attraction, corresponding to central collinear libration points i.e. ($L_{4}$ for those values of $\epsilon$ for which $22$ or $16$ and $L_{2}$ for those values of $\epsilon$ for which $10$ libration points exist), extend to infinity while on the other hand, the domain of the basins of convergence associated to the remaining libration points are always finite. 6. 6.

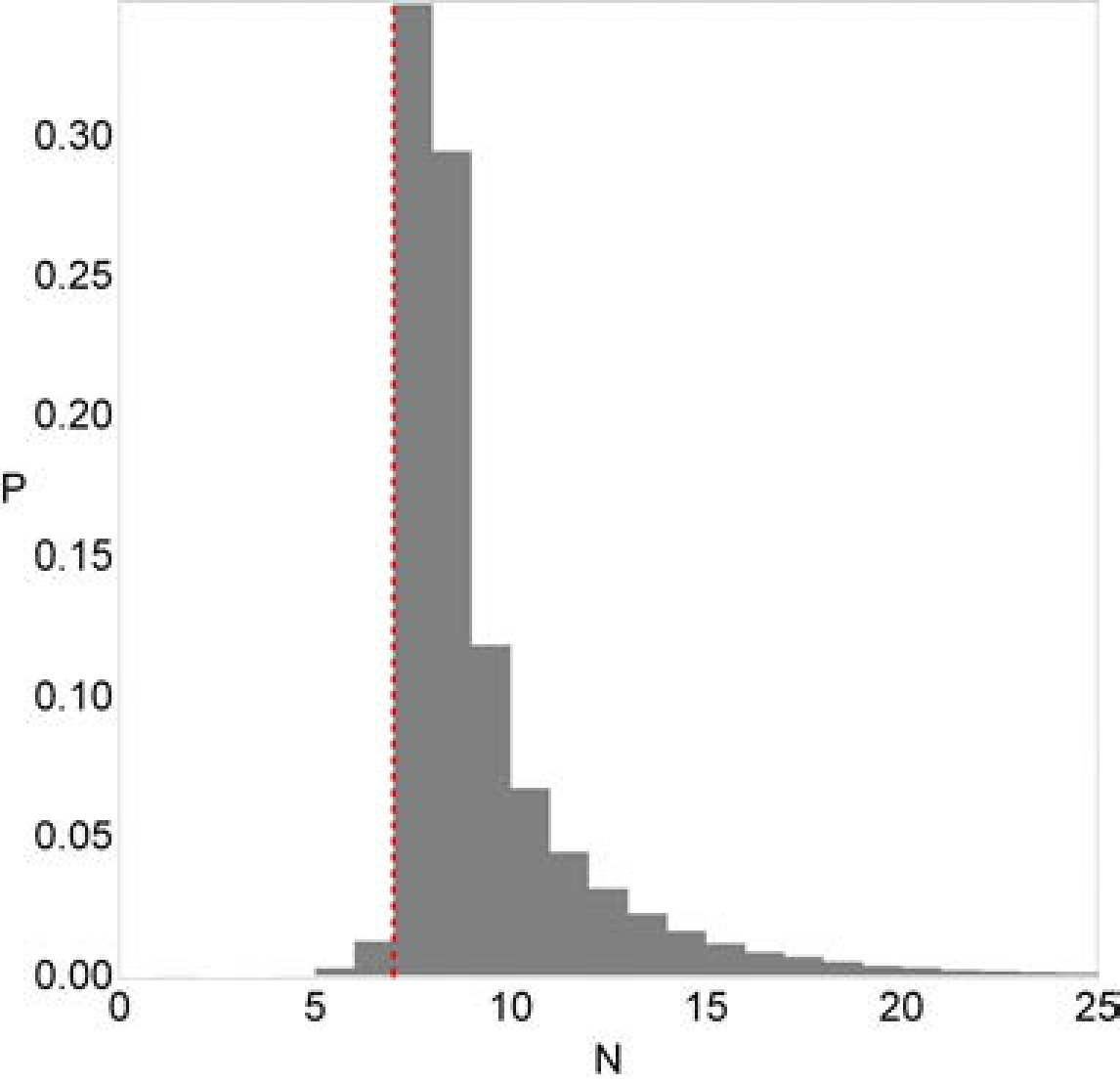

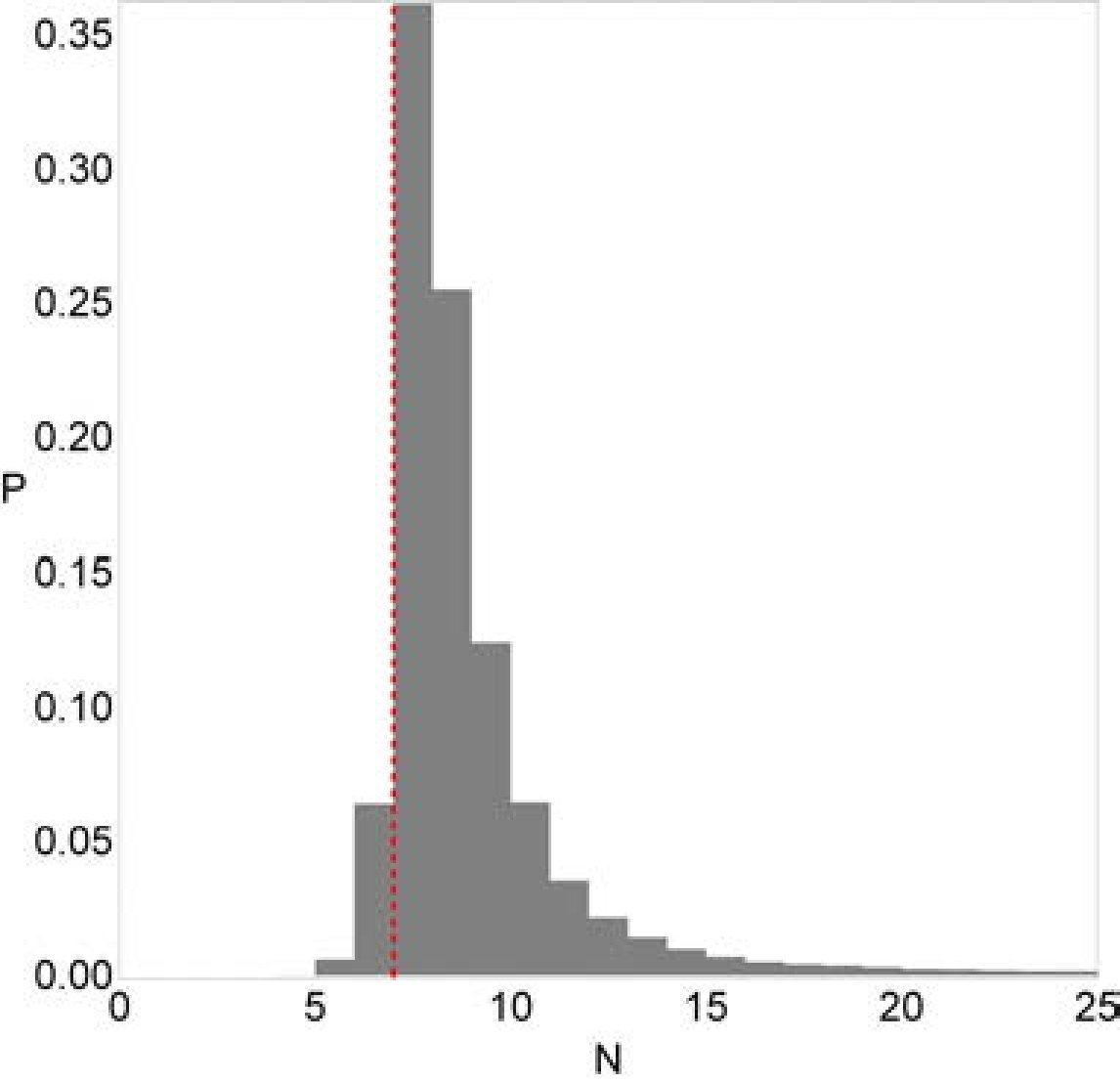

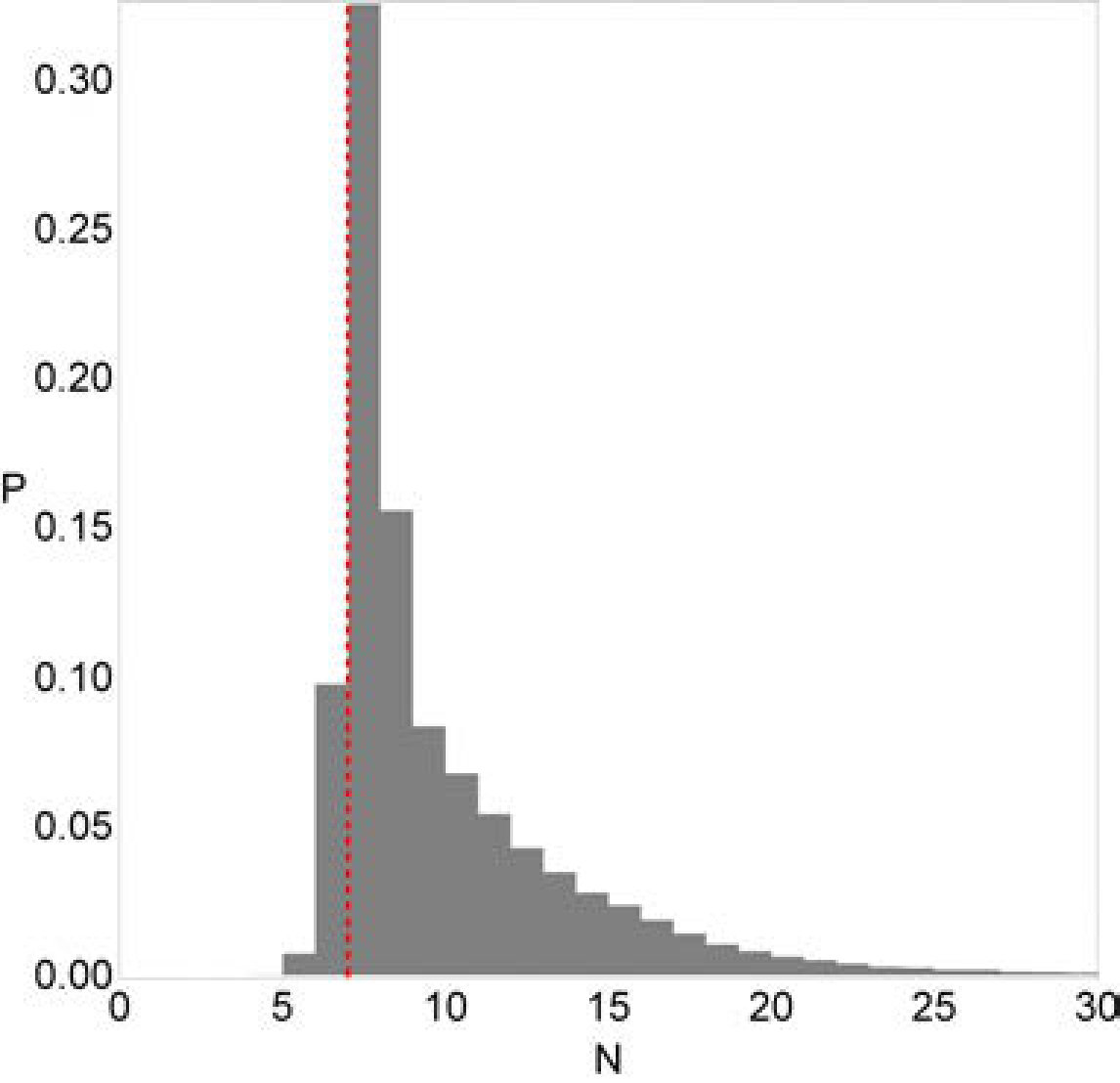

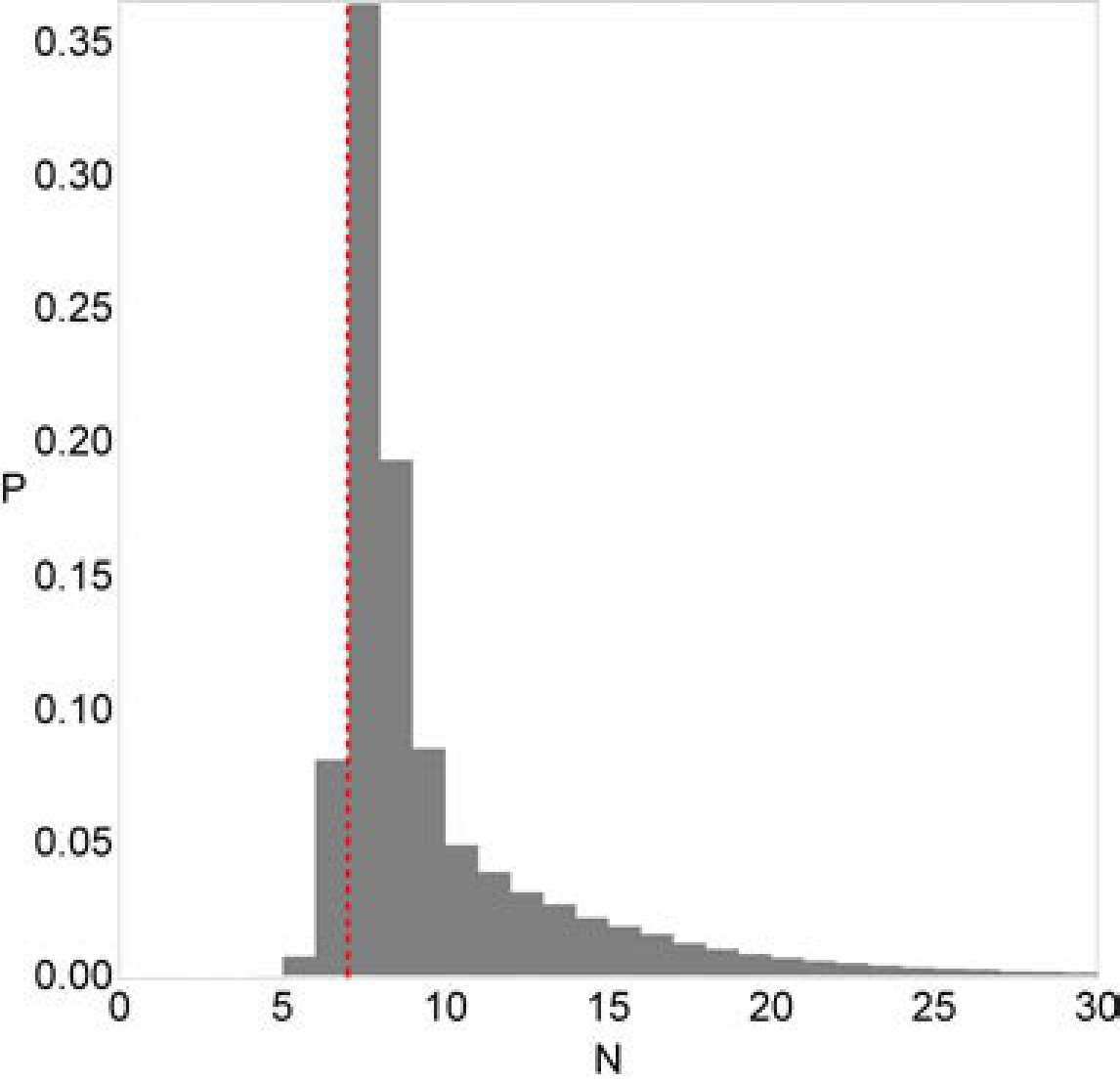

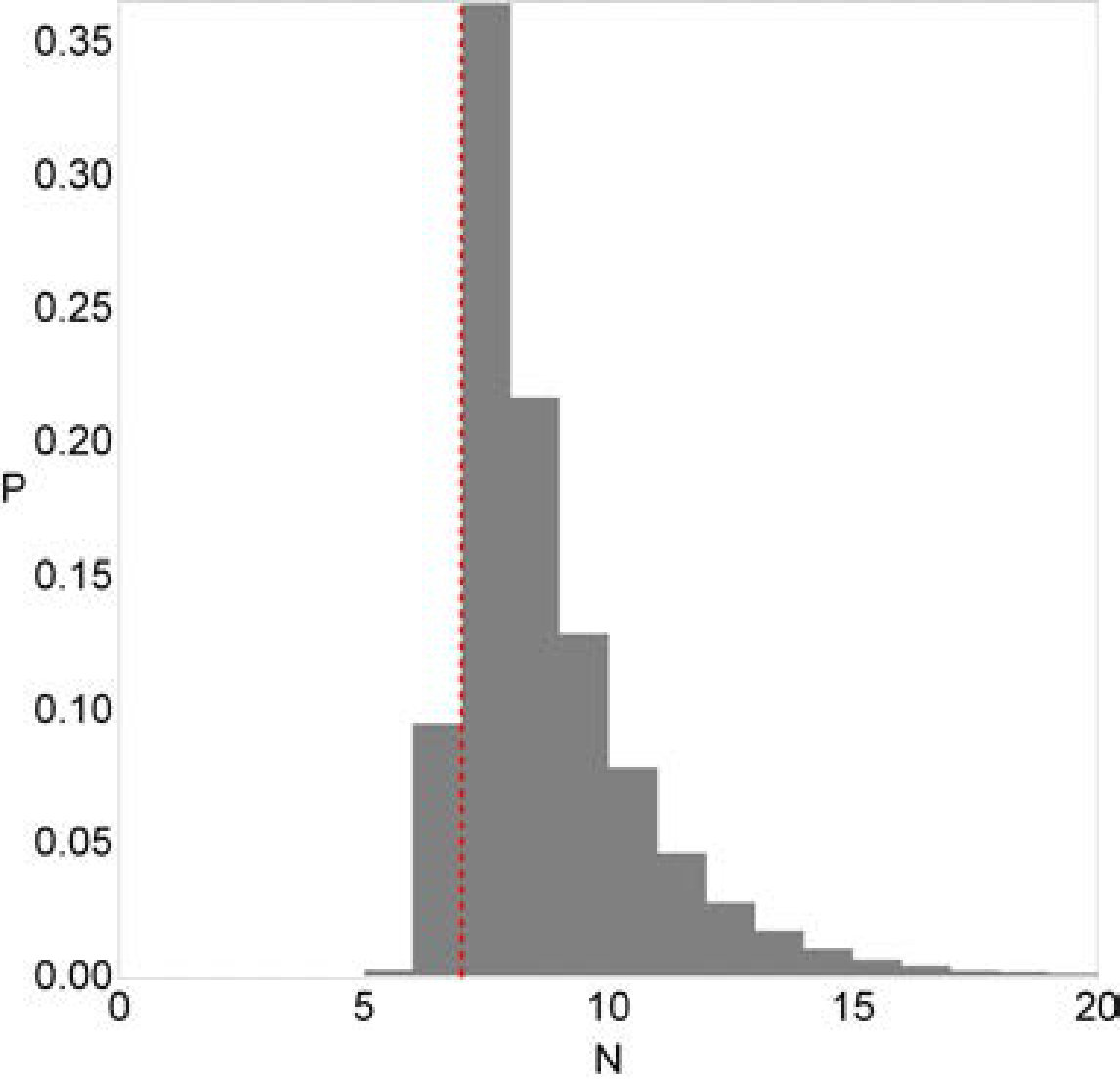

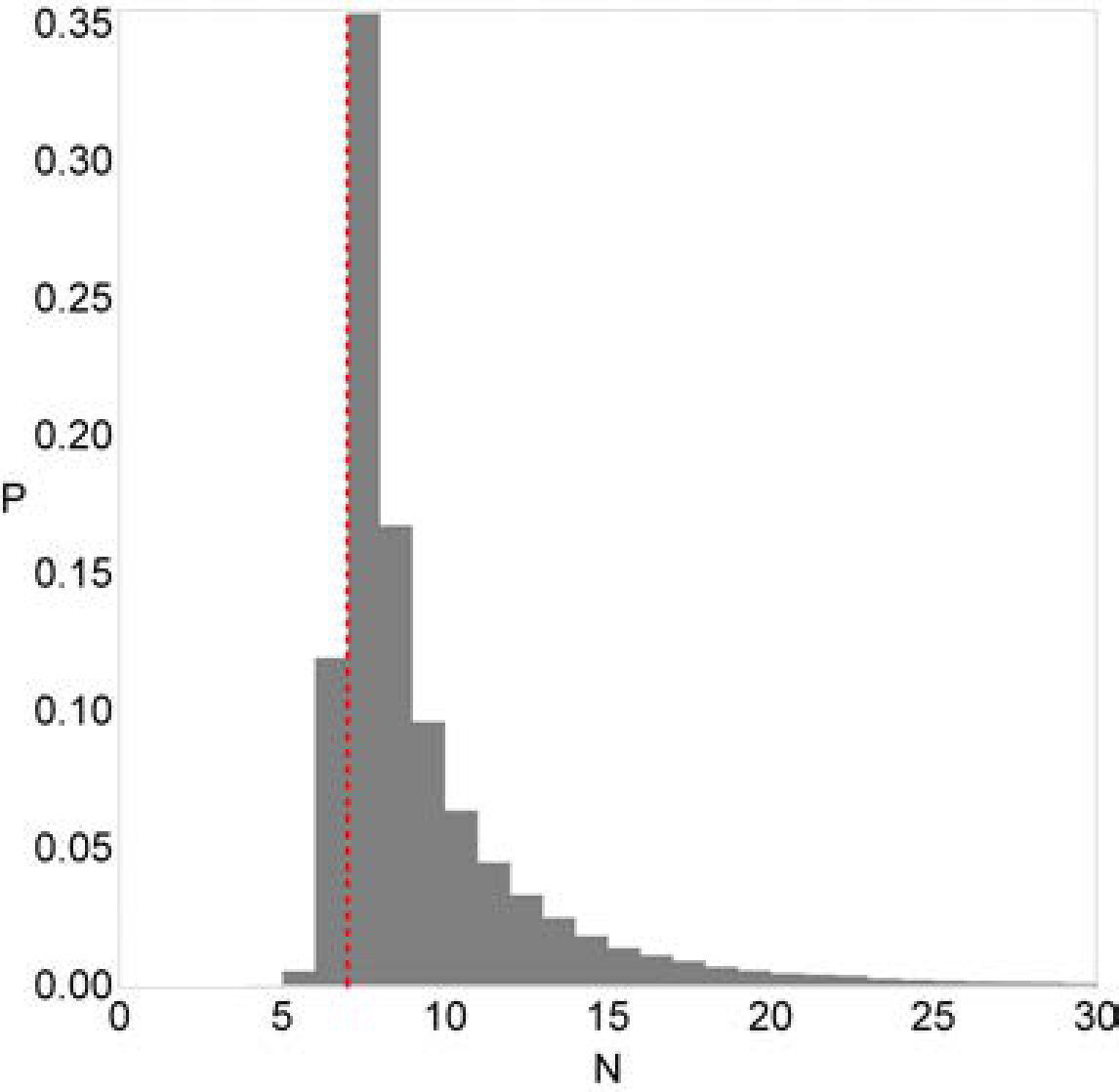

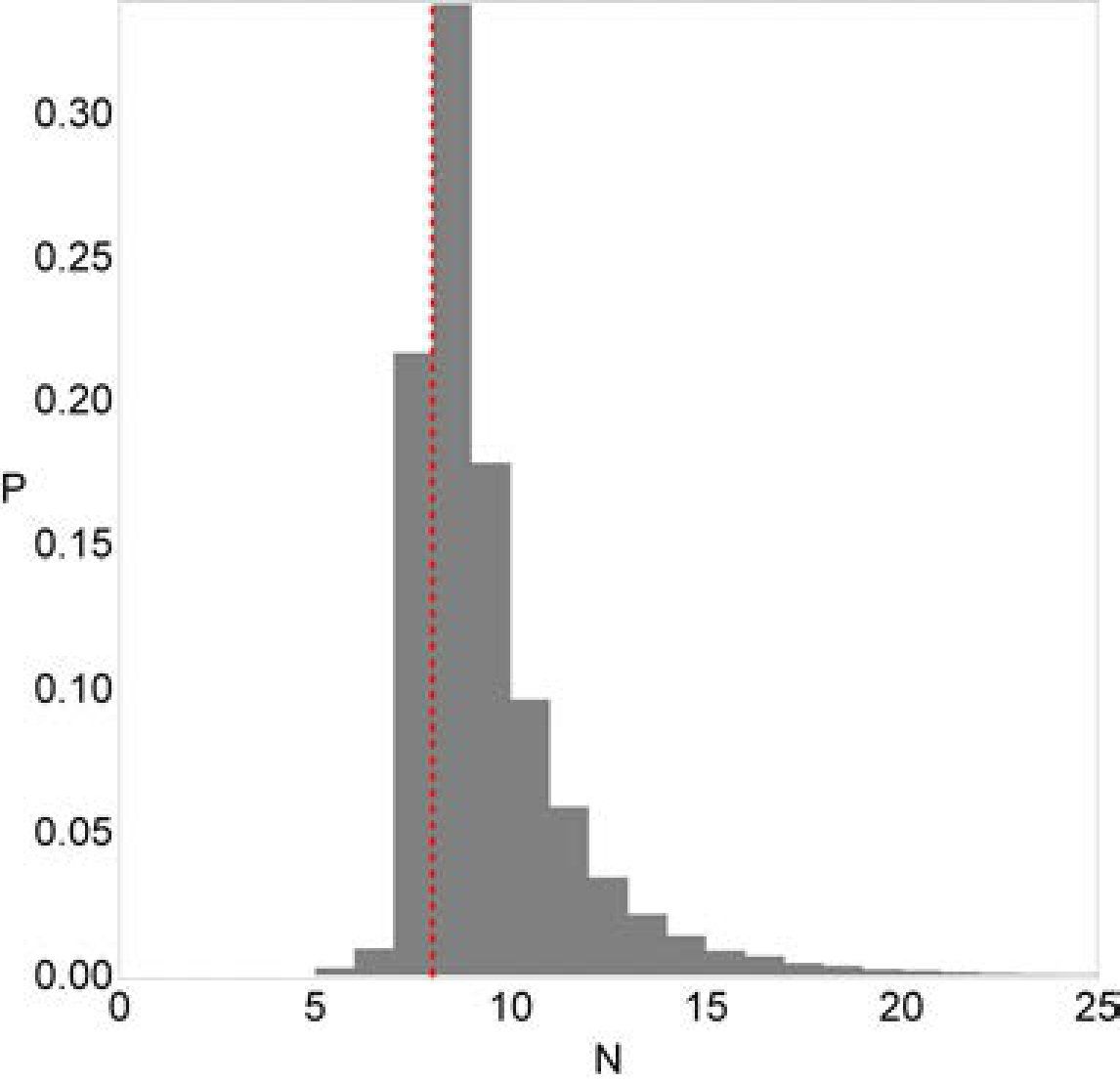

The most probable number of iterations $N^{*}$ in the configuration $(x,y)$ plane was found 7, mainly for those values of the transition parameter for which 22 or 16 libration points exist, while the number of iterations vary between 9 to 7 for those values of transition parameter for which 10 libration points exist.

It should be noted that all the calculations and graphics have been created using the latest version 11 of Mathematica® ([37]). Our Mathematica code requires approximately 2hrs of CPU time on an Intel® Core(TM) i5 2.67 GHz PC, for the numerical calculations of the sets of initial conditions on the $(x,y)$ plane. This required time may increase or decrease, depending of course on the number of iterations required for predefined accuracy. In future, we can use other types of iterative schemes to compare the similarities as well as the differences on the corresponding basins of convergence. We believe that it would certainly reveal some very useful and unexpected results corresponding to the attracting domains of the libration points in the restricted four-body problem.
