Assignment of excited-state bond lengths using branching-ratio measurements: The B$^2\Sigma^+$ state of BaH molecules

K. Moore, I. C. Lane, R. L. McNally, T. Zelevinsky

PDF

TL;DR

This study combines experimental measurements and ab initio calculations to analyze vibrational branching ratios in BaH molecules, revealing the sensitivity of these ratios to bond length differences and refining spectroscopic parameters relevant for laser cooling applications.

Contribution

It provides a detailed analysis of excited-state bond lengths using branching ratios, highlighting the importance of precise bond length measurements for molecular laser cooling.

Findings

01

Branching ratios are highly sensitive to bond length differences (0.5\%)

02

Experimental data supports specific spectroscopic values for the B$^2\Sigma^+$ state

03

Calculated lifetime of H$^2\Delta$ state is 9.5 microseconds

Abstract

Vibrational branching ratios in the B $^{2} Σ^{+}$ -- X $^{2} Σ^{+}$ and A $^{2} Π$ -- X $^{2} Σ^{+}$ optical-cycling transitions of BaH molecules are investigated using measurements and {\it ab initio} calculations. The experimental values are determined using fluorescence and absorption detection. The observed branching ratios have a very sensitive dependence on the difference in the equilibrium bond length between the excited and ground state, $Δ r_{e}$ : a 1 pm (.5\%) displacement can have a 25\% effect on the branching ratios but only a 1\% effect on the lifetime. The measurements are combined with theoretical calculations to reveal a preference for a particular set of published spectroscopic values for the B $^{2} Σ^{+}$ state ( $Δ r_{e}^{B - X}$ = +5.733 pm), while a larger bond-length difference ( $Δ r_{e}^{B - X} = 6.3 - 6.7$ pm) would match the branching-ratio data even better. By…

Figures6

Click any figure to enlarge with its caption.

Tables8

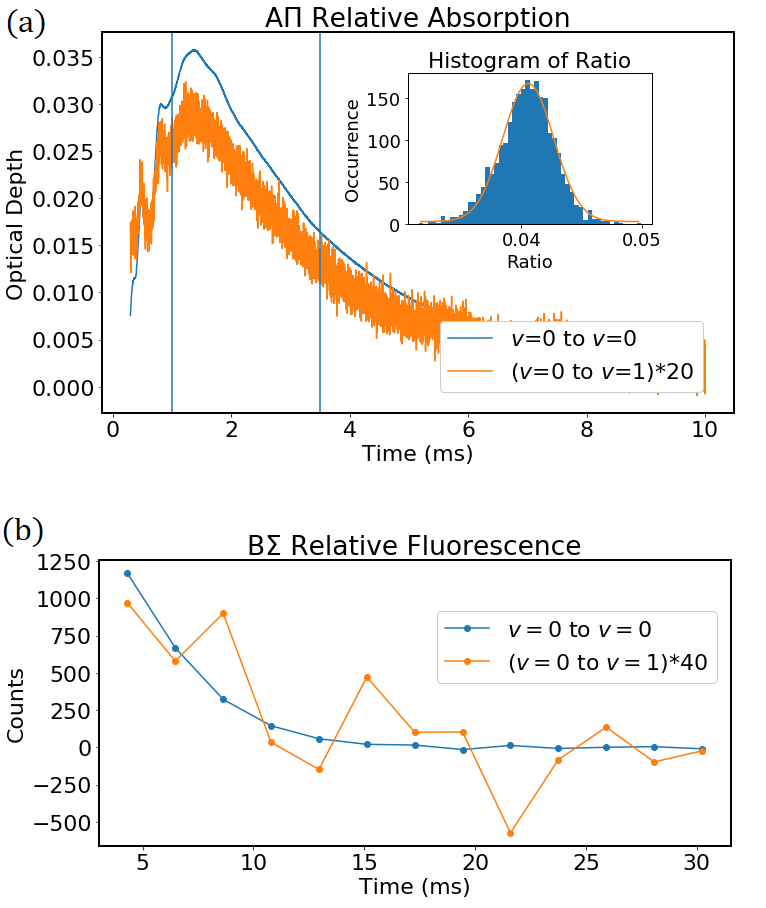

Table 1. Table 1: Comparison between the present experimental measurements of the vibronic transition ratios (VTRs) and the corrected theoretical results. The ground state is the Morse/long-range (MLR) potential based on ACV n 𝑛 n Z/CBS MLR calculations Moore2016 and the excited states are based on ACV Q 𝑄 Q Z potentials. The difference in equilibrium bond lengths between the excited and ground states, Δ r e Δ subscript 𝑟 𝑒 \Delta r_{e} , is set at the value proposed by Bernard et al Bernard1989 for the theoretical values, and the last column corresponds to the longer excited-state bond length proposed here for B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} .

Electronic	VTR^a	Experimental	Theoretical^b	Proposed^c
transitions		value
A ${}^{2}Π_{3 / 2}$ $\leftarrow$ X ${}^{2}Σ^{+}$	$q_{10} / q_{00}$	0.037(2)	0.037	0.037
B ${}^{2}Σ^{+}$ $\leftarrow$ X ${}^{2}Σ^{+}$	$q_{10} / q_{00}$	0.072(6)	0.059	0.076
B ${}^{2}Σ^{+}$ $\leftarrow$ X ${}^{2}Σ^{+}$	$q_{01} / q_{11}$	0.115(5)	0.072	0.118
B ${}^{2}Σ^{+}$ $\to$ X ${}^{2}Σ^{+}$	$q_{01} / q_{00}$	0.092(20)	0.045	0.065
^a $J^{''} = J^{'} = 1 / 2$ for the absorption lines.
^b Bernard et al Bernard1989 $r_{e}$ value used
^c With the proposed +1.5 pm shift in the B ${}^{2}Σ^{+}$ bond length

Table 2. Table 2: Spectroscopic T e subscript 𝑇 𝑒 T_{e} and r e subscript 𝑟 𝑒 r_{e} values for the lowest electronic states of BaH. These have been determined from tabulated rotational constants B e subscript 𝐵 𝑒 B_{e} or, if unavailable, by extrapolating B v subscript 𝐵 𝑣 B_{v} values as outlined in the text. Theoretical values from Moore18 Moore2018 are also included. Values selected as reference in Moore18 Moore2018 are in bold. Values in italics correspond to minor isotope data. T e subscript 𝑇 𝑒 T_{e} values are relative to the corresponding T e ( X 2 Σ + ) subscript 𝑇 𝑒 superscript X 2 superscript Σ T_{e}(\text{X}^{2}\Sigma^{+}) = 0 cm -1 , with the zero-point energy listed in parentheses for the X state where available.

State	Isotope	$B_{e}$ / cm^-1	$r_{e}$ / Å	$T_{e}$ / cm^-1	Year	Reference
X ${}^{2}Σ^{+}$	${}^{138}{Ba}^{1} H$	3.359^a(3)	2.239^d	(573.35)	2018	Moore and Lane Moore2018 , theoretical
	${}^{138}{Ba}^{1} H$	3.38243550	2.23188651	(580.5627)	2013	Ram and Bernath Ram2013
	${}^{138}{Ba}^{1} H$	3.3824544^a(1)	2.23188^c	(580.56260)	1993	Walker et al Walker1993
	${}^{138}{Ba}^{1} H$	3.382547^a(1)	2.23185^c	(569.64)	1989	Bernard et al Bernard1989
	${}^{138}{Ba}^{1} H$	3.382477	2.2318987	(580.597)	1988	Magg, Birk and Jones Magg1988
	${}^{138}{Ba}^{1} H$	3.382263	2.23194^c	(580.5673)	1985	Appelblad et al Appelblad1985
	${}^{138}{Ba}^{1} H$	3.38285	2.23175	(580.53)	1978	Huber and Herzberg Huber1979
	${}^{138}{Ba}^{1} H$	3.38285	2.23175^c	(580.53)	1966	Kopp, Kronekvist and Guntsch Kopp1966-2
	${}^{138}{Ba}^{2} H$	1.7072	2.2303^d	(413.05)	1966	Kopp and Wirhed Kopp1966-1
	${}^{138}{Ba}^{1} H$	3.3825^a(1)	2.2319^c	–	1935	Koontz and Watson Koontz1935
H ${}^{2}Δ$	${}^{138}{Ba}^{1} H$	3.125^a(3)	2.295^d	9698.98	2018	Moore and Lane Moore2018 , theoretical
	${}^{138}{Ba}^{1} H$	3.2174225	2.288404	9242.8	1992	Allouche et al Allouche1992 citing Bernard et al Bernard1989
	${}^{138}{Ba}^{1} H$	3.217423^a(1)	2.28840^c	9243.13	1989	Bernard et al Bernard1989
H ${}^{2}Δ_{5 / 2}$	${}^{138}{Ba}^{1} H$	3.14998^a(1)	2.31277^c	8888.644^a(1)	1987	Fabre et al Fabre1987
	${}^{138}{Ba}^{1} H$	2.97	–	10609	1978	Huber and Herzberg Huber1979
A ${}^{2}Π$	${}^{138}{Ba}^{1} H$	3.280^a(3)	2.279^d	10076.45	2018	Moore and Lane Moore2018
	${}^{138}{Ba}^{1} H$	3.3004^b	2.25945^c	9698.64	1966	Kopp, Kronekvist and Guntsch Kopp1966-2
	${}^{138}{Ba}^{1} H$	3.25965	2.273533	9727.2	1992	Allouche et al Allouche1992 citing Bernard et al Bernard1989
	${}^{138}{Ba}^{1} H$	3.25965^a(1)	2.27353^c	9728.67	1989	Bernard et al Bernard1989
	${}^{138}{Ba}^{1} H$	3.300^b	2.249	9698.64^b	1978	Huber and Herzberg Huber1979
B ${}^{2}Σ^{+}$	${}^{138}{Ba}^{1} H$	3.270^a(3)	2.291	11112.61	2018	Moore and Lane Moore2018
	${}^{138}{Ba}^{1} H$	3.268795	2.27035^c	11092.5926	1985	Appelblad et al Appelblad1985
	${}^{138}{Ba}^{1} H$	3.21525	2.321905	10992.3	1992	Allouche et al Allouche1992 citing Bernard et al Bernard1989
	${}^{138}{Ba}^{1} H$	3.215253^a(1)	2.28918^c	10993.31	1989	Bernard et al Bernard1989
	${}^{138}{Ba}^{1} H$	3.164 (3.266)^f	2.308	11092.44	1978	Huber and Herzberg Huber1979 citing Veseth Veseth1973
	${}^{138}{Ba}^{2} H$	1.609 (1.636)^f	2.298	11089.62	1978	Huber and Herzberg Huber1979 citing Veseth Veseth1973
	${}^{138}{Ba}^{2} H$	1.6355	2.2787^d	11089.60	1966	Kopp and Wirhed Kopp1966-1
	${}^{138}{Ba}^{1} H$	3.2682^a(2)	2.2706^c	–	1935	Koontz and Watson Koontz1935
	${}^{138}{Ba}^{1} H$	3.232^e	–	–	1933	Watson Watson1933
E ${}^{2}Π$	${}^{138}{Ba}^{1} H$	3.522^a	2.190	14871.07	2018	Moore and Lane Moore2018
	${}^{138}{Ba}^{1} H$	3.520609	2.187651	14830.1578	2013	Ram and Bernath Ram2013
	${}^{138}{Ba}^{1} H$	3.48510^e	2.19877^e	14859.889^e	1987	Fabre et al Fabre1987
	${}^{138}{Ba}^{1} H$	3.523	2.187	14830	1978	Huber and Herzberg Huber1979
^a Extrapolated from vibrational level values. The number in parentheses is the highest ( $v + \frac{1}{2}$ ) term in the power series.
^b Determined from the average value of $Ω$ states.
^c $r_{e}$ determined from corresponding $B_{e}$ .
^d $r_{e}$ determined from a spline interpolation of the potential-energy curve.
^e Only $v = 0$ is measured, so the reported values refer to that vibrational level.
^f Following deperturbation analysis (uncorrected value in brackets).

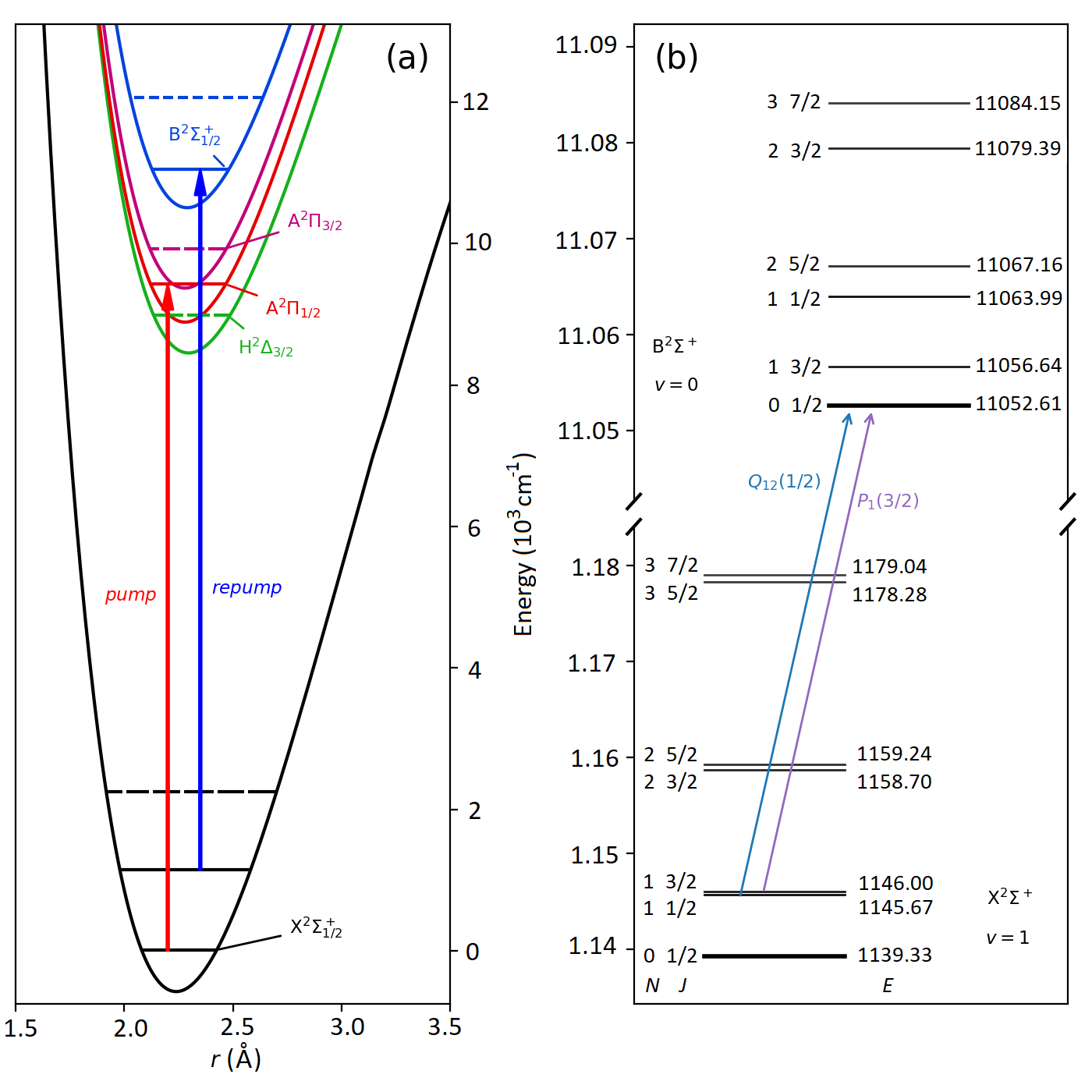

Table 3. Table 3: Decay pathways from the B Σ 1 / 2 + 2 , v = 0 , N = 0 formulae-sequence superscript superscript subscript Σ 1 2 2 𝑣 0 𝑁 0 {}^{2}\Sigma_{1/2}^{+},v=0,N=0 excited state of BaH. 𝒜 𝒜 \mathcal{A} is the Einstein A 𝐴 A coefficient A v ′ v ′′ subscript 𝐴 superscript 𝑣 ′ superscript 𝑣 ′′ A_{v^{\prime}v^{\prime\prime}} for each transition and ℛ ℛ \mathcal{R} atio is the value of ℛ v ′ v ′′ subscript ℛ superscript 𝑣 ′ superscript 𝑣 ′′ \mathcal{R}_{v^{\prime}v^{\prime\prime}} from Eq. ( 3 ). Schemes included are (i) T 0 subscript 𝑇 0 T_{0} shifted but Δ r e Δ subscript 𝑟 𝑒 \Delta r_{e} uncorrected from ab initio potentials used in Moore18 Moore2018 and (ii, iii) d 𝑑 d -complex potentials shifted to match experimental values of the Δ r e Δ subscript 𝑟 𝑒 \Delta r_{e} value compared to the X Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} state. Scheme ii uses the data of Appelblad et al Appelblad1985 for the B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} state while scheme iii uses the data of Bernard et al Bernard1989 . The calculated emission VTR is based on Eq. ( 7 ) and the calculated lifetime refers to the lowest rovibrational level. The recommended values, based on the present measurements of the branching ratio, are shown in bold.

Final rovibronic	(i) $T_{0}$ corrected only		(ii) Appelblad et al		(iii) Bernard et al
state	$𝒜$ / s^-1	$ℛ$ atio	$𝒜$ / s^-1	$ℛ$ atio	$𝒜$ / s^-1	$ℛ$ atio
X ${}^{2}Σ_{1 / 2}^{+}, v = 0, N = 1$	7.85 $\times$ 10⁶	97.255%	8.05 $\times$ 10⁶	98.553%	7.76 $\times$ 10⁶	96.648%
X ${}^{2}Σ_{1 / 2}^{+}, v = 1, N = 1$	2.14 $\times$ 10⁵	2.656%	1.11 $\times$ 10⁵	1.363%	2.62 $\times$ 10⁵	3.256%
X ${}^{2}Σ_{1 / 2}^{+}, v = 2, N = 1$	1.51 $\times$ 10³	0.009%	3.51 $\times$ 10²	0.004%	1.25 $\times$ 10³	0.016%
H ${}^{2}Δ_{3 / 2}, v = 0, J = \frac{3}{2}$	2.39 $\times$ 10³	0.030%	2.40 $\times$ 10³	0.029%	2.40 $\times$ 10³	0.030%
A ${}^{2}Π_{1 / 2}, v = 0, J = \frac{1}{2}$	1.55 $\times$ 10³	0.019%	1.58 $\times$ 10³	0.019%	1.53 $\times$ 10³	0.019%
A ${}^{2}Π_{1 / 2}, v = 0, J = \frac{3}{2}$	1.33 $\times$ 10³	0.016%	1.34 $\times$ 10³	0.016%	1.34 $\times$ 10³	0.017%
A ${}^{2}Π_{3 / 2}, v = 0, J = \frac{3}{2}$	1.18 $\times$ 10³	0.015%	1.20 $\times$ 10³	0.015%	1.17 $\times$ 10³	0.015%
Calculated VTR	0.038		0.019		0.047
Calculated lifetime	$τ =$ 123.9 ns		$τ =$ 122.5 ns		$τ =$ 124.3 ns

Table 4. Table 4: Vibronic state parameters as determined from the DUO analysis of the ab initio results, following energy shifts to the ab initio MRCI+Q potentials calculated with the ACV Q 𝑄 Q Z basis set on Ba. The simulation includes the lowest five electronic states (X Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} , H Δ 2 superscript Δ 2 {}^{2}\Delta , A Π 2 superscript Π 2 {}^{2}\Pi , B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} and E Π 2 superscript Π 2 {}^{2}\Pi ) and all the relevant spin-orbit and ladder matrix elements. These shifted potentials match spectroscopic T 0 subscript 𝑇 0 T_{0} values for each state. A v subscript 𝐴 𝑣 A_{v} is the spin-orbit splitting, γ v subscript 𝛾 𝑣 \gamma_{v} is the spin-rotation constant and all values are in cm -1 . The X Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} zero-point energy of 580.5673 cm -1 from Appelblad et al Appelblad1985 is used for the B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} state. The spectroscopic values from Appelblad et al are shown in bold.

^aUsing X ${}^{2}Σ^{+}$ zero-point energy from Appelblad et al Appelblad1985 .
State	$v$	$T_{v}$	$A_{v}$	$B_{v}$	10 ${}^{4}D_{v}$	$γ_{v}$
X ${}^{2}Σ^{+}$	0	0.00	–	3.3271	1.1359	0.2226
	1	1125.72	–	3.2622	1.1147	0.2175
	2	2227.62	–	3.1976	1.1302	0.2124
	3	3299.75	–	3.1332	1.1107	0.2073
A ${}^{2}Π$	0	9664.34	483.63	3.2393	1.2188	–
	1	10742.01	483.77	3.1654	1.2888	–
	2	11789.43	481.49	3.0641	-0.2486	–
	3	12809.63	488.40	3.0050	0.9440	–
B ${}^{2}Σ^{+}$	0	11052.60	–	3.2307	1.1324	-4.9039
		11052.61^a		3.2334	1.1570	-4.7539
	1	12109.76	–	3.1644	1.1261	-4.7924
		12110.64		3.1627	1.1541	-4.6343
	2	13135.59	–	3.0956	1.1401	-4.6923
		13137.94		3.0919	1.1522	-4.5178
	3	14132.49	–	3.0264	1.1650	-4.5856
		14134.65		3.0211	1.1582	-4.3897

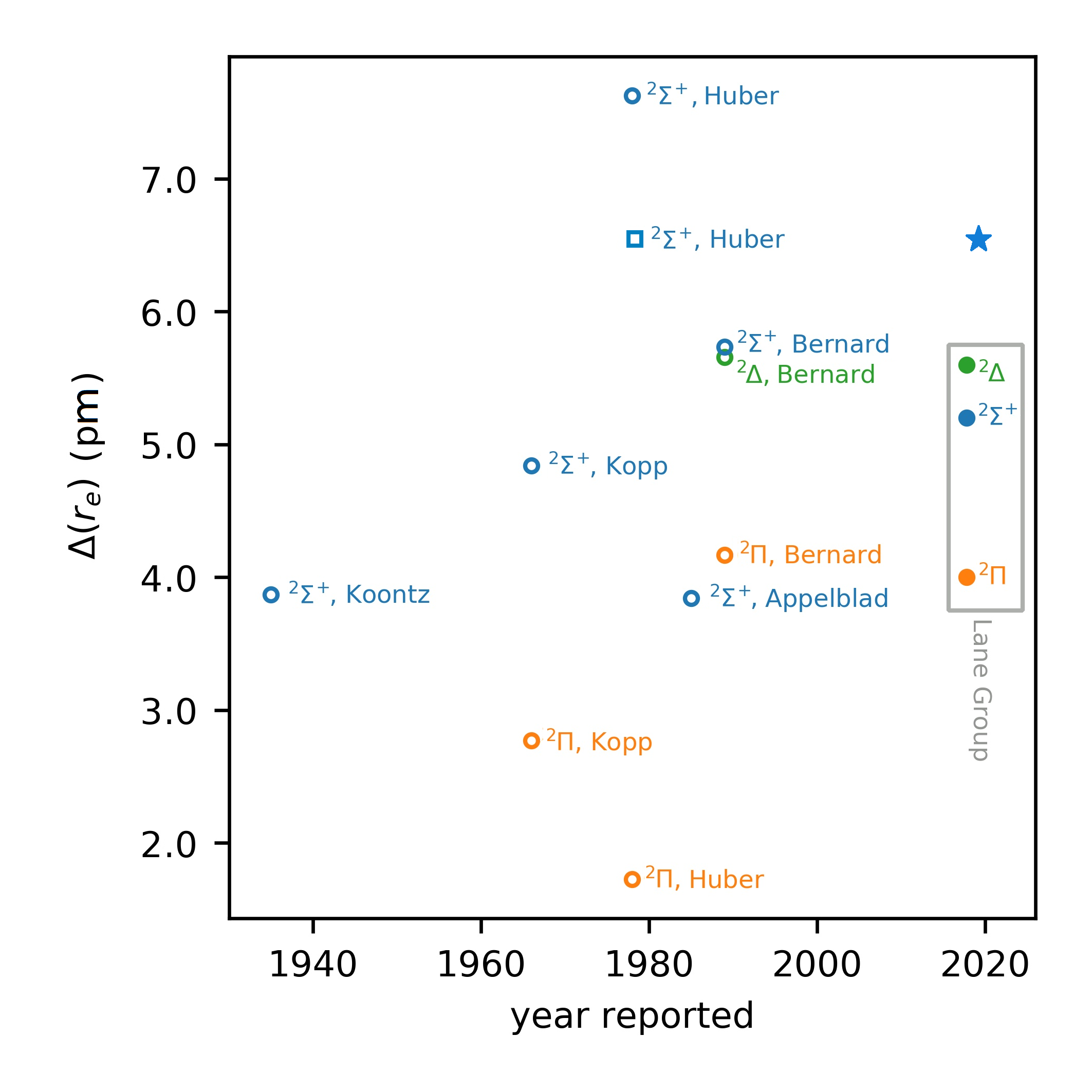

Table 5. Table 5: Δ r e Δ subscript 𝑟 𝑒 \Delta r_{e} , the difference between the equilibrium bond lengths in the excited and ground states, from a variety of spectroscopic studies. Theoretical work of Moore18 Moore2018 determined this value by spline interpolation of MRCI+Q ab initio points using the ACV Q 𝑄 Q Z basis set.

State	$Δ (r_{e})$ / pm	Year	Reference
H ${}^{2}Δ$	+5.6	2018	Moore and Lane Moore2018
	+5.655	1989	Bernard et al Bernard1989
A ${}^{2}Π$	+4.0	2018	Moore and Lane Moore2018
	+4.168	1989	Bernard et al Bernard1989
	+1.725	1978	Huber and Herzberg Huber1979
	+2.77	1966	Kopp, Kronekvist and Guntsch Kopp1966-2
B ${}^{2}Σ^{+}$	+5.2	2018	Moore and Lane Moore2018
	+9.003	1992	Allouche et al Allouche1992
	+5.733	1989	Bernard et al Bernard1989
	+3.841	1985	Appelblad et al Appelblad1985
	+7.63	1978	Huber and Herzberg Huber1979
	+6.63	1973	Veseth^a Veseth1973
	+4.84	1966	Kopp and Wirhed Kopp1966-1
	+3.87	1935	Koontz and Watson Koontz1935
^a BaD, following deperturbation analysis.

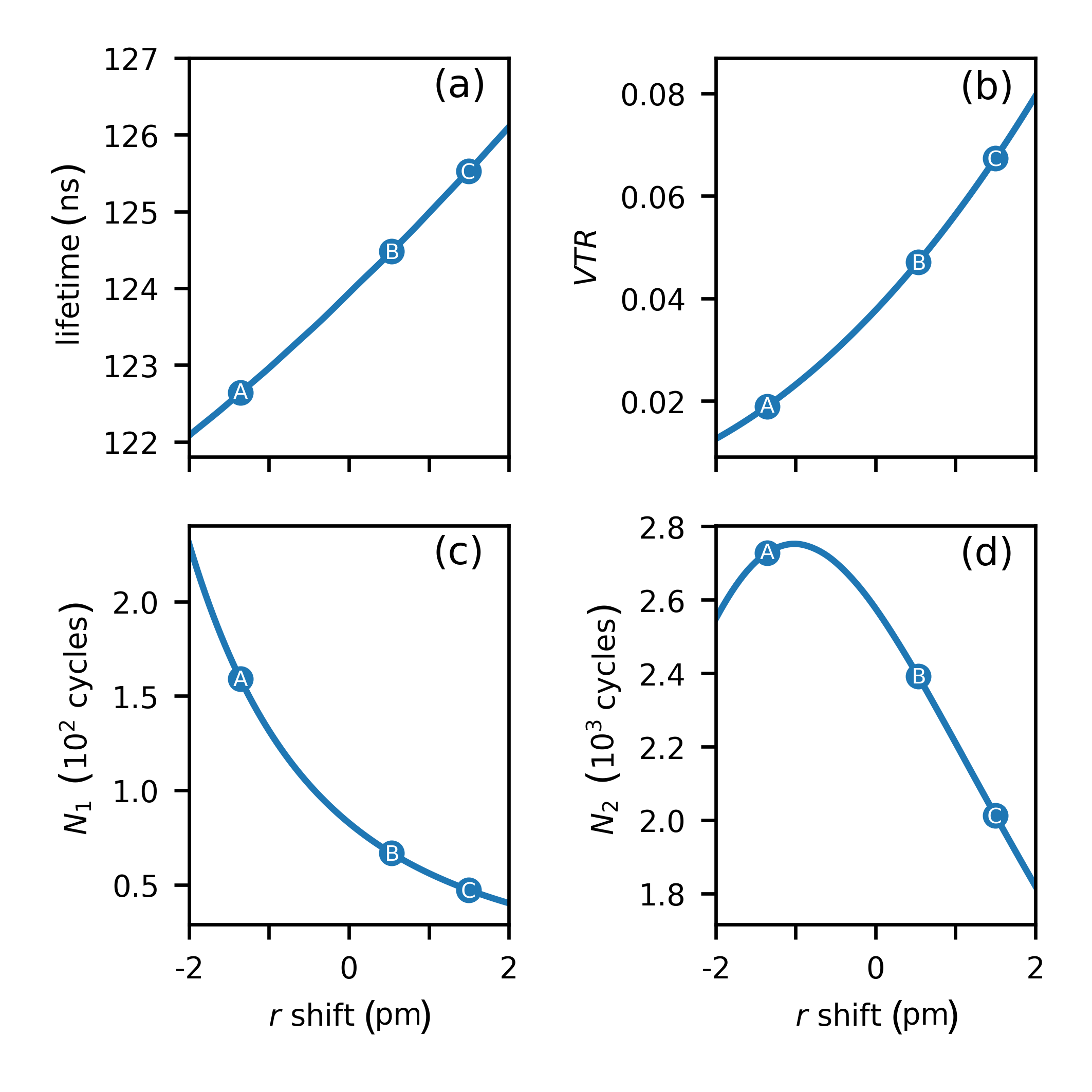

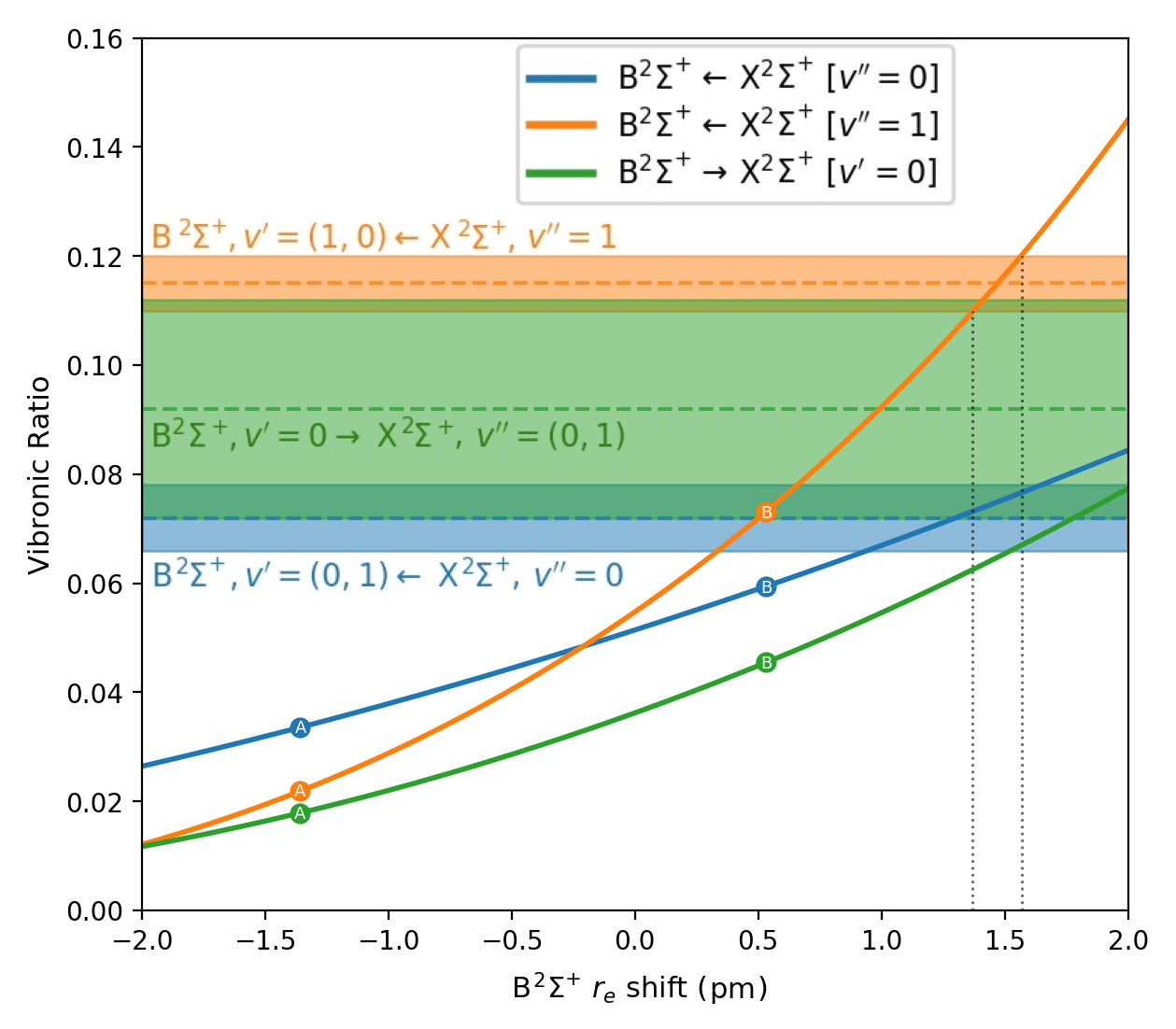

Table 6. Table 6: Effect of adjusting the ab initio B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} and X Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} potentials on laser cooling. The FC factors are calculated using the program DUO Yurchenko2016 . The top row corresponds to the excited B Σ 1 / 2 + 2 superscript subscript superscript Σ 1 2 2 {}^{2}\Sigma^{+}_{1/2} state represented by the ACV Q 𝑄 Q Z potentials from Moore18, where the bond-length difference Δ r e Δ subscript 𝑟 𝑒 \Delta r_{e} is set at the experimental values derived from Bernard et al Bernard1989 . The ground state used is the ACV n 𝑛 n Z/CBS MLR potential of Ref. Moore2016 . The bottom row adds a further extension to the excited-state bond length so that it differs by + 1.5(1) pm from the ab initio result.

	B ${}^{2}Σ_{1 / 2}^{+}$ $-$ X ${}^{2}Σ_{1 / 2}^{+}$ FC factors
Adjustment	(00)	(01)	(02) $\times 10^{3}$	(03) $\times 10^{6}$
Bernard $Δ r_{e}^{B - X}$	0.937	0.062	0.65	1.4
+ 1.5(1) pm	0.922(4)	0.077(4)	1.09(9)	2.5(2)

Table 7. Table 7: Radiative decay pathways from the lowest rovibronic states of B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} and A Π 1 / 2 2 superscript subscript Π 1 2 2 {}^{2}\Pi_{1/2} for both v ′ superscript 𝑣 ′ v^{\prime} = 0 and 1. The A Π 1 / 2 2 superscript subscript Π 1 2 2 {}^{2}\Pi_{1/2} v ′ superscript 𝑣 ′ v^{\prime} = 0 level is involved in the principal laser cooling while B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} v ′ superscript 𝑣 ′ v^{\prime} = 0 aids in repumping. The alternative repumping scheme involving A Π 1 / 2 2 superscript subscript Π 1 2 2 {}^{2}\Pi_{1/2} v ′ superscript 𝑣 ′ v^{\prime} = 1 is compromised by a large decay to v ′′ = 2 superscript 𝑣 ′′ 2 v^{\prime\prime}=2 . 𝒜 𝒜 \mathcal{A} is the Einstein A 𝐴 A coefficient for each transition and ℛ ℛ \mathcal{R} atio is the value of ℛ v ′ v ′′ subscript ℛ superscript 𝑣 ′ superscript 𝑣 ′′ \mathcal{R}_{v^{\prime}v^{\prime\prime}} . The excited states are represented by the ACV Q 𝑄 Q Z potentials from Moore18, and Δ r e Δ subscript 𝑟 𝑒 \Delta r_{e} is set at the experimental value derived from Bernard et al Bernard1989 (H Δ 2 superscript Δ 2 {}^{2}\Delta state), the raw ab initio value (A Π 2 superscript Π 2 {}^{2}\Pi state), and the BaD value reported by Veseth Veseth1973 (B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} state). The ground state is the ACV n 𝑛 n Z/CBS MLR potential of Ref. Moore2016 . The decay from B Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} v ′ superscript 𝑣 ′ v^{\prime} = 0 to X Σ + 2 superscript superscript Σ 2 {}^{2}\Sigma^{+} v ′′ superscript 𝑣 ′′ v^{\prime\prime} = 0 and 1 is further decomposed into the Q 12 subscript 𝑄 12 Q_{12} and P 1 subscript 𝑃 1 P_{1} sub-branches. The radiative lifetime of each excited level is indicated.

	Decay pathways
	Final state	$v^{''}$	$𝒜$ / s^-1	$ℛ$ atio / %
A ${}^{2}Π_{1 / 2}$	X ${}^{2}Σ_{1 / 2}^{+}$ ( $N = 1$ )	0	$7.23 \times 10^{6}$	98.772
$v^{'} =$ 0	X ${}^{2}Σ_{1 / 2}^{+}$	1	$8.94 \times 10^{4}$	1.221
	X ${}^{2}Σ_{1 / 2}^{+}$	2	$1.50 \times 10^{2}$	0.002
	H ${}^{2}Δ_{3 / 2}$ ( $J = \frac{3}{2}$ )	0	$3.24 \times 10^{2}$	0.004
	Lifetime (ns)			136.5
B ${}^{2}Σ_{1 / 2}^{+}$	X ${}^{2}Σ_{1 / 2}^{+}$ ( $N = 1$ )	0	$7.61 \times 10^{6}$	95.312
$v^{'} =$ 0	$Q_{12}$		$4.13 \times 10^{6}$	51.704
	$P_{1}$		$3.48 \times 10^{6}$	43.609
	X ${}^{2}Σ_{1 / 2}^{+}$	1	$3.64 \times 10^{5}$	4.564
	$Q_{12}$		$2.88 \times 10^{5}$	3.611
	$P_{1}$		$7.62 \times 10^{4}$	0.953
	X ${}^{2}Σ_{1 / 2}^{+}$	2	$3.44 \times 10^{3}$	0.043
	A ${}^{2}Π_{1 / 2}$ ( $J = \frac{1}{2}$ )	0	$1.48 \times 10^{3}$	0.019
	A ${}^{2}Π_{1 / 2}$ ( $J = \frac{3}{2}$ )	0	$1.37 \times 10^{3}$	0.017
	A ${}^{2}Π_{3 / 2}$	0	$1.14 \times 10^{3}$	0.014
	H ${}^{2}Δ_{3 / 2}$	0	$2.39 \times 10^{3}$	0.030
	Lifetime (ns)			125.1
A ${}^{2}Π_{1 / 2}$	X ${}^{2}Σ_{1 / 2}^{+}$ ( $N = 1$ )	0	$6.91 \times 10^{5}$	9.400
$v^{'} =$ 1	X ${}^{2}Σ_{1 / 2}^{+}$	1	$6.47 \times 10^{6}$	87.952
	X ${}^{2}Σ_{1 / 2}^{+}$	2	$1.93 \times 10^{5}$	2.633
	X ${}^{2}Σ_{1 / 2}^{+}$	3	$5.60 \times 10^{2}$	0.008
	A ${}^{2}Π_{1 / 2}$ (both $J$ )	0	$1.45 \times 10^{2}$	0.002
	H ${}^{2}Δ_{3 / 2}$ ( $J = \frac{3}{2}$ )	1	$3.62 \times 10^{2}$	0.005
	Lifetime (ns)			135.9
B ${}^{2}Σ_{1 / 2}^{+}$	X ${}^{2}Σ_{1 / 2}^{+}$ ( $N = 1$ )	0	$8.81 \times 10^{5}$	11.595
$v^{'} =$ 1	X ${}^{2}Σ_{1 / 2}^{+}$	1	$6.16 \times 10^{6}$	81.081
	X ${}^{2}Σ_{1 / 2}^{+}$	2	$5.39 \times 10^{5}$	7.100
	X ${}^{2}Σ_{1 / 2}^{+}$	3	$1.00 \times 10^{4}$	0.132
	B ${}^{2}Σ_{1 / 2}^{+}$	0	$9.41 \times 10^{1}$	0.001
	A ${}^{2}Π_{1 / 2}$ (both $J$ )	0	$5.88 \times 10^{2}$	0.008
	A ${}^{2}Π_{1 / 2}$	1	$2.63 \times 10^{3}$	0.035
	A ${}^{2}Π_{3 / 2}$ ( $J = \frac{3}{2}$ )	0	$4.07 \times 10^{2}$	0.005
	A ${}^{2}Π_{3 / 2}$	1	$1.01 \times 10^{3}$	0.013
	H ${}^{2}Δ_{3 / 2}$	1	$2.24 \times 10^{3}$	0.029
	Lifetime (ns)			131.7

Table 8. Table 8: Revised calculated properties of the proposed laser cooling transitions in BaH molecules. The differences in equilibrium bond lengths, Δ r e Δ subscript 𝑟 𝑒 \Delta r_{e} , are the recommended values, set at the experimental values derived from Bernard et al Bernard1989 for the H Δ 3 / 2 2 superscript subscript Δ 3 2 2 {}^{2}\Delta_{3/2} state, the ab initio value for A Π 1 / 2 2 superscript subscript Π 1 2 2 {}^{2}\Pi_{1/2} , and both Bernard et al and Veseth (italics) Veseth1973 for B Σ 1 / 2 + 2 superscript subscript superscript Σ 1 2 2 {}^{2}\Sigma^{+}_{1/2} , the latter closely matching the longer excited-state bond length proposed in this paper. Here N i subscript 𝑁 𝑖 N_{i} is the number of cycles supported by i 𝑖 i lasers before the population falls to 10%, T D subscript 𝑇 𝐷 T_{D} and v D subscript 𝑣 𝐷 v_{D} are the Doppler temperature and velocities, v c subscript 𝑣 𝑐 v_{c} is the capture velocity, and the maximum deceleration is a max = ℏ k A / ( 2 M ) = v r A / 2 subscript 𝑎 max Planck-constant-over-2-pi 𝑘 𝐴 2 𝑀 subscript 𝑣 𝑟 𝐴 2 a_{\mathrm{max}}=\hbar kA/(2M)=v_{r}A/2 .

Molecular	State
data	B ${}^{2}Σ_{1 / 2}^{+}$	A ${}^{2}Π_{1 / 2}$	H ${}^{2}Δ_{3 / 2}$
$λ$ /nm	905.3	1060.8	1110
$Δ r_{e}$ /pm	+5.7 (+6.7)	+4.0	+5.6
$τ$ /ns^a	124.3 (125.1)	136.5	9532
$N_{1}$	70 (47)	186	-
$N_{2}$ ( $\times 10^{3}$ )	2.3 (1.9)	35.3	-
$N_{3}$ ( $\times 10^{3}$ )	3.2 (2.9)	111	-
$T_{D}$ / $μ$ K	30.7 (30.4)	27.9	0.4
$v_{c}$ /cm s^-1	116 (115)	124	1.8
$v_{D}$ /cm s^-1	4.3 (4.2)	4.1	0.5
$a_{\max}$ /ms^-2	12.7(6) $\times 10^{3}$	$9.9 \times 10^{3}$	-
^a For the lowest rovibronic level.

Equations32

σ_{v^{'} J^{'} v^{''} J^{''}} (\tilde{ν})

σ_{v^{'} J^{'} v^{''} J^{''}} (\tilde{ν})

= \frac{2 π ^{2} ν ~ _{v^{'} J^{'} v^{''} J^{''}}^{q}}{3 ε _{0} h ( 2 J ^{''} + 1 ) ^{Q}} g (c \tilde{ν}) S_{v^{'} J^{'}, v^{''} J^{''}},

= \frac{2 π ^{2} ν ~ _{v^{'} J^{'} v^{''} J^{''}}^{q}}{3 ε _{0} h ( 2 J ^{''} + 1 ) ^{Q}} g (c \tilde{ν}) S_{v^{'} J^{'}, v^{''} J^{''}},

S_{v^{'} J^{'}, v^{''} J^{''}}^{q}

S_{v^{'} J^{'}, v^{''} J^{''}}^{q}

∣ M ∣^{2} = ∣ \matrixelement Λ^{'} v^{'} μ Λ^{''} v^{''} ∣^{2} \approx q_{v^{'} v^{''}}^{q} \absolutevalue R_{e}^{2} .

∣ M ∣^{2} = ∣ \matrixelement Λ^{'} v^{'} μ Λ^{''} v^{''} ∣^{2} \approx q_{v^{'} v^{''}}^{q} \absolutevalue R_{e}^{2} .

\frac{Δ I}{I} = 1 - e^{- N σ_{v^{'} v^{''}} (ω) l} \equiv 1 - e^{- \mbox A (v^{'}, v^{''})},

\frac{Δ I}{I} = 1 - e^{- N σ_{v^{'} v^{''}} (ω) l} \equiv 1 - e^{- \mbox A (v^{'}, v^{''})},

VTR = \frac{\mbox A ( v _{1} , v ^{''} ) ν ~ _{v_{2} v^{''}}}{A ~ \mbox A ( v _{2} = v ^{''} , v ^{''} ) ν ~ _{v_{1} v^{''}}} \approx \frac{q _{q v_{1} v^{''}}}{A ~ q _{v_{2} v^{''}}} .

VTR = \frac{\mbox A ( v _{1} , v ^{''} ) ν ~ _{v_{2} v^{''}}}{A ~ \mbox A ( v _{2} = v ^{''} , v ^{''} ) ν ~ _{v_{1} v^{''}}} \approx \frac{q _{q v_{1} v^{''}}}{A ~ q _{v_{2} v^{''}}} .

R_{v^{'} v^{''}} = \frac{q _{q v^{'} v^{''}} ν ~ _{v^{'} v^{''}}^{3}}{k = 0 \sum \infty q _{v^{'}, k} ν ~ _{v^{'}, k}^{3}},

R_{v^{'} v^{''}} = \frac{q _{q v^{'} v^{''}} ν ~ _{v^{'} v^{''}}^{3}}{k = 0 \sum \infty q _{v^{'}, k} ν ~ _{v^{'}, k}^{3}},

VTR = \frac{I _{0 v_{1}} ν ~ _{0 v_{2}}^{3}}{I _{0 v_{2}} ν ~ _{0 v_{1}}^{3}} \approx \frac{q _{0 v_{1}}}{q _{0 v_{2}}},

VTR = \frac{I _{0 v_{1}} ν ~ _{0 v_{2}}^{3}}{I _{0 v_{2}} ν ~ _{0 v_{1}}^{3}} \approx \frac{q _{0 v_{1}}}{q _{0 v_{2}}},

B^{2} Σ^{+} (v = 0, N = 0, J = 1/2) \leftarrow X^{2} Σ^{+} (0, 1, 1/2)

B^{2} Σ^{+} (v = 0, N = 0, J = 1/2) \leftarrow X^{2} Σ^{+} (0, 1, 1/2)

B^{2} Σ^{+} (v = 0, N = 0, J = 1/2) \leftarrow X^{2} Σ^{+} (0, 1, 3/2)

B^{2} Σ^{+} (v = 0, N = 0, J = 1/2) \leftarrow X^{2} Σ^{+} (0, 1, 3/2)

A_{v^{'} v^{''}} = \frac{16 π ^{3}}{3 ϵ _{0} h} (2 J^{''} + 1) \tilde{ν}_{v^{'} v^{''}}^{3} n \sum a l l [(- 1)^{Ω^{''}} (J^{''} Ω^{''} 1 n J^{'} Ω^{'}) \matrixelement v^{'} μ_{n} (r) v^{''}]^{2}

A_{v^{'} v^{''}} = \frac{16 π ^{3}}{3 ϵ _{0} h} (2 J^{''} + 1) \tilde{ν}_{v^{'} v^{''}}^{3} n \sum a l l [(- 1)^{Ω^{''}} (J^{''} Ω^{''} 1 n J^{'} Ω^{'}) \matrixelement v^{'} μ_{n} (r) v^{''}]^{2}

B_{e} = \frac{3}{2} B_{0} - \frac{1}{2} B_{1} .

B_{e} = \frac{3}{2} B_{0} - \frac{1}{2} B_{1} .

VTR = \frac{q _{01}}{q _{00}} = J^{''} \sum (\frac{S _{0 J^{'}, 1 J^{''}}^{q}}{S _{0 J^{'}, 0 J^{''}}^{q}})

VTR = \frac{q _{01}}{q _{00}} = J^{''} \sum (\frac{S _{0 J^{'}, 1 J^{''}}^{q}}{S _{0 J^{'}, 0 J^{''}}^{q}})

r_{e} = (\frac{h}{8 π ^{2} μ c B _{e}})^{1/2},

r_{e} = (\frac{h}{8 π ^{2} μ c B _{e}})^{1/2},

B_{v} = B_{e} - α_{e} (v + \frac{1}{2}) + δ_{e} (v + \frac{1}{2})^{2} .

B_{v} = B_{e} - α_{e} (v + \frac{1}{2}) + δ_{e} (v + \frac{1}{2})^{2} .

γ = n^{2} Π \sum \infty \frac{⟨ B L ^{+} ⟩ ⟨ H ^ _{SO} ⟩}{Δ E ( n ^{2} Π - ^{2} Σ ^{+} )},

γ = n^{2} Π \sum \infty \frac{⟨ B L ^{+} ⟩ ⟨ H ^ _{SO} ⟩}{Δ E ( n ^{2} Π - ^{2} Σ ^{+} )},

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

Assignment of excited-state bond lengths using branching-ratio measurements:

The B ${}^{2}\Sigma^{+}$ state of BaH molecules

K. Moore

School of Chemistry and Chemical Engineering, Queen’s University Belfast, Stranmillis Road, Belfast BT9 5AG, Northern Ireland, UK

R. L. McNally

Department of Physics, Columbia University, 538 West 120th Street, New York, NY 10027-5255, USA

T. Zelevinsky

[email protected]

Department of Physics, Columbia University, 538 West 120th Street, New York, NY 10027-5255, USA

I. C. Lane

[email protected]

School of Chemistry and Chemical Engineering, Queen’s University Belfast, Stranmillis Road, Belfast BT9 5AG, Northern Ireland, UK

Abstract

Vibrational branching ratios in the B ${}^{2}\Sigma^{+}$ – X ${}^{2}\Sigma^{+}$ and A ${}^{2}\Pi$ – X ${}^{2}\Sigma^{+}$ optical-cycling transitions of BaH molecules are investigated using measurements and ab initio calculations. The experimental values are determined using fluorescence and absorption detection. The observed branching ratios have a very sensitive dependence on the difference in the equilibrium bond length between the excited and ground state, $\Delta r_{e}$ : a 1 pm (.5%) displacement can have a 25% effect on the branching ratios but only a 1% effect on the lifetime. The measurements are combined with theoretical calculations to reveal a preference for a particular set of published spectroscopic values for the B ${}^{2}\Sigma^{+}$ state ( $\Delta r_{e}^{B-X}$ = +5.733 pm), while a larger bond-length difference ( $\Delta r_{e}^{B-X}=6.3-6.7$ pm) would match the branching-ratio data even better. By contrast, the observed branching ratio for the A ${}^{2}\Pi_{3/2}$ – X ${}^{2}\Sigma^{+}$ transition is in excellent agreement with both the ab initio result and the spectroscopically measured bond lengths. This shows that care must be taken when estimating branching ratios for molecular laser cooling candidates, as small errors in bond-length measurements can have outsize effects on the suitability for laser cooling. Additionally, our calculations agree more closely with experimental values of the B ${}^{2}\Sigma^{+}$ state lifetime and spin-rotation constant, and revise the predicted lifetime of the H ${}^{2}\Delta$ state to 9.5 $\mu$ s.

I Introduction

Spectroscopy is one of the most precise measurement tools in physical chemistry. A typical parameter determined using such techniques is $r_{e}$ , the equilibrium bond length that is often reported with an uncertainty of 1 fm or $<10^{-5}$ , less than the width of an atomic nucleus. By contrast, a bond length calculated using quantum chemistry methods within 1 pm of the experimental value is regarded as very good, especially for excited states, and one within 0.1 pm is regarded as state of the art except for very small molecules. Even BeH, with only five electrons, presents challenges for theory Dattani2015 . Ab initio quantum chemistry, however, directly calculates values such as $r_{e}$ that spectroscopic studies only infer via the determination of $B_{e}$ , the equilibrium rotational constant. Furthermore, $B_{e}$ itself cannot be directly measured: instead, it is calculated from the measured rotational constants $B_{v}$ for at least two vibrational levels $v$ . Spectroscopic methods are very reliable when a single isolated potential-energy curve is under analysis but become less robust when several potential curves are closely spaced in energy and interact strongly. In such cases a model must be applied to the coupled potentials, and its details influence the derived values of constants such as $B_{e}$ .

In this paper, a combination of branching-ratio measurements and calculations is used to distinguish between spectroscopic determinations of $r_{e}$ that were originally reported to five decimal places but disagree at the second decimal place. Furthermore, we report a bond length that is consistent with our branching-ratio measurements. The sensitivity of our method relies on monitoring the branching ratios of highly diagonal ( $\Delta v=0$ ) transitions, where a small change in the decay to additional quantum states results in a large increase in the relative populations of those states. We find that the branching ratios sensitively depend on the difference between the excited- and ground-state equilibrium bond lengths. An example of a molecule with this property is barium monohydride, BaH, a radical of interest for direct laser cooling Lane2015 ; Tarallo2016 ; Iwata2017 . For BaH, a 1-pm (0.5%) relative bond-length displacement can have a 25% effect on the branching ratios but only a 1% effect on the natural lifetimes. Conversely, this sensitivity implies that care must be taken when theoretically evaluating the laser cooling prospects of new molecular candidates, since branching ratios $-$ key parameters for laser cooling $-$ are strongly affected by small errors in the relative bond length of the electronic states used in the cooling scheme.

II Spectroscopy background

The optical and near-infrared spectra of BaH Watson1933 ; Watson1935 ; Koontz1935 ; Kopp1966-1 ; Kopp1966-2 ; Huber1979 ; Appelblad1985 ; Fabre1987 ; Bernard1987 ; Magg1988 ; Bernard1989 ; Barrow1991 ; Walker1993 ; Berg1997 ; Ram2013 are dominated by the three 5 $d$ -complex states that correlate to the $5d$ state of the Ba atom: B ${}^{2}\Sigma^{+}$ , A ${}^{2}\Pi$ , and H ${}^{2}\Delta$ . Since all three reach below the ground-state dissociation threshold, the only decay mechanisms are radiative. In addition, these three low-lying excited states possess spectroscopic parameters that closely resemble the X ${}^{2}\Sigma^{+}$ ground state. The resulting diagonal Franck-Condon (FC) factors ensure absorption-emission cycles numbering in the thousands, as required for efficient laser cooling with as few optical fields as possible. A buffer gas beam Hutzler2012 of BaH molecules in the X ${}^{2}\Sigma^{+}_{1/2}$ $v^{\prime\prime}$ = 0, $N^{\prime\prime}$ = 1 state was recently demonstrated Iwata2017 and used in precise measurements of the ( $0-0$ ) and ( $0-1$ ) branching ratios, where ( $v^{\prime}-v^{\prime\prime}$ ) denotes an electronic transition between the lower $v^{\prime\prime}$ vibrational level of X ${}^{2}\Sigma^{+}$ and the $v^{\prime}$ level in the excited state B ${}^{2}\Sigma^{+}$ . In addition, the quantum state purity of the buffer gas beam was exploited in measurements of the magnetic $g$ factors and hyperfine structure of the lowest rovibronic levels of the A ${}^{2}\Pi_{1/2}$ and B ${}^{2}\Sigma^{+}_{1/2}$ states Iwata2017 in preparation for laser cooling experiments.

One of the potential laser cooling transitions, B ${}^{2}\Sigma^{+}$ – X ${}^{2}\Sigma^{+}$ , is the focus of our paper. The ( $0-0$ ) and ( $1-1$ ) vibronic bands of BaH were first reported in 1933 Watson1933 , and soon extended Koontz1935 to include the much weaker off-diagonal bands ( $1-0$ ) and ( $2-1$ ). The equivalent study on BaD was published 30 years later Kopp1966-2 . High-quality Fourier-transform data of BaH Appelblad1985 provided a hundred-fold improvement in the accuracy of the reported spectroscopic constants and extended the analysis to the B ${}^{2}\Sigma^{+}$ $v^{\prime}=$ 0-3 vibronic levels, while the B ${}^{2}\Sigma^{+}$ $v^{\prime}$ = 0, $J$ = 11/2 level lifetime Berg1997 was measured to be 124(2) ns, where $J$ is the total angular momentum.

A more comprehensive analysis Bernard1989 attempted a simultaneous fit of spectroscopic data involving all the 5 $d$ -complex states, where 1478 BaH spectral lines and 2101 BaD lines were used. This is currently the only experimental measurement of the spin-orbit splitting in the H ${}^{2}\Delta$ state, $A$ = 217.298 cm*-1* for $v^{\prime}$ = 0. There is, however, a disagreement between the measured value of the spin-orbit separation in the A ${}^{2}\Pi$ state, $A$ = 341.2 cm*-1* for $v=0$ , with an earlier value Kopp1966-2 of 483 cm*-1*. In addition, the spin-rotation constants for both the $v=0$ and $1$ levels in the B ${}^{2}\Sigma^{+}_{1/2}$ state are an order of magnitude smaller and of opposite sign to those from previous work Watson1933 ; Koontz1935 ; Appelblad1985 . Finally, due to the challenges of working with higher vibrational levels, the spectroscopic constants are limited Bernard1987 ; Bernard1989 to the $v=0$ and $1$ levels for all three $5d$ states.

Detailed information on higher-lying vibrational levels is missing for all the states, as diagonal transitions mean that only a small part of the potential curves can be explored spectroscopically. In the absence of such experimental data, quantum chemistry can be used to explore these dark regions of the potentials Allouche1992 ; Moore2016 ; Moore2018 . Ab initio techniques have also been applied to understand the laser cooling process Wells2011 ; Lane2015 ; Gao2014 . The latest theoretical study on BaH (Ref. Moore2018 , here referred to as Moore18) includes spin-orbit coupling as well as other relativistic effects and a thorough analysis of multiple decay pathways. The computed spectroscopic constants for all three $5d$ -complex excited states were in good agreement with experiments. However, in an effort to improve the reliability of the excited-state decay properties, the calculated potentials were shifted to within 0.1 pm of the experimental values for $r_{e}$ . For the B ${}^{2}\Sigma^{+}$ state the chosen experimental data came from Appelblad et al Appelblad1985 . This study was broadly consistent with earlier spectroscopic measurements Watson1933 ; Koontz1935 but had a greater reported precision. Moreover, it broadened the published potential-energy and rotational constant ( $T_{v}$ and $B_{v}$ ) data to cover the vibrational levels $v$ = 0 - 3, and it quoted $B_{e}$ (in cm*-1*) to an accuracy of six decimal places. Oddly, applying this correction reduced the agreement with the measured lifetime Berg1997 of the B ${}^{2}\Sigma^{+}$ state, although the difference was $<1.5\%$ . Also disappointingly, the agreement with the B ${}^{2}\Sigma^{+}_{1/2}-$ X ${}^{2}\Sigma^{+}_{1/2}$ branching-ratio measurement Tarallo2016 became significantly worse.

To shed light on these discrepancies, here we report an accurate measurement of the branching ratios on a cryogenic beam of BaH. We combine the measurement with the most detailed ab initio work to date to confirm the correct bond length in the excited B ${}^{2}\Sigma^{+}$ state. Adopting a slightly different approach to Moore18 is shown to improve both the spectroscopic constants and the calculated lifetime of the B ${}^{2}\Sigma^{+}$ state. Adjusting the upper-state $r_{e}$ to match the work of Bernard et al Bernard1989 does significantly improve the agreement, although the theoretical value still remains outside the error bars of the experimental result. Based on our measurements and quantum chemistry calculations, we suggest a value of $r_{e}$ that is based on very sensitive branching-ratio measurements rather than on spectroscopy alone.

III Franck-Condon Factor ratio measurements

To perform measurements of the branching ratios for the relevant electronic transitions in BaH, we utilize two complementary techniques, both using our cryogenic BaH molecular beam Iwata2017 . The schematic of the experiment is shown in Fig. 1. The BaH beam is generated via ablation of a BaH2 rock inside a helium-filled copper cell cooled to 6 K. A pair of cell windows allow optical access for a resonant laser beam, which can be used to monitor absorption by measuring the transmitted power on a photodiode (PD). The molecules rapidly thermalize with the helium and are swept out of the cell to form a beam. The cold molecules then travel 40 cm downstream where they enter a detection region equipped with two types of photodetector: a near-infrared-enhanced photomultiplier tube (PMT) and a deep-depletion charge-coupled device (CCD) camera. Each of the two detectors includes dichroic bandpass (BP) filters as shown in Fig. 1 and is used for fluorescence detection.

Both absorption and emission measurements were made on the beam. The absorption technique is based on a differential measurement of the absorption cross section from one ground vibrational state $v^{\prime\prime}$ to two different excited vibrational levels $v^{\prime}$ Kozyryev2015 . We write the integrated absorption cross-section for a rovibronic transition Hilborn1982 ; Hansson2005 as

[TABLE]

where $A_{v^{\prime}J^{\prime},v^{\prime\prime}J^{\prime\prime}}^{\vphantom{q}}$ is the Einstein $A$ coefficient describing the absorption to the $v^{\prime}J^{\prime}$ excited rovibrational state from the $v^{\prime\prime}J^{\prime\prime}$ ground level, $\tilde{\nu}_{v^{\prime}J^{\prime}v^{\prime\prime}J^{\prime\prime}}^{\vphantom{q}}$ is the transition wave number, $\varepsilon_{0}$ is the vacuum permittivity, and $g(c\tilde{\nu})$ is the line-shape function. The transition line strength is

[TABLE]

where $\epsilon$ is the parity label, $|M|^{2}$ is the square of the vibronic transition moment, and $S_{J^{\prime},J^{\prime\prime}}^{\vphantom{q}}$ is the Honl-London factor for the transition Watson2008 . As all the transitions studied originate on a level where $J=1/2$ , and the principal results are the ratios between transitions with identical $\Delta J=J^{\prime}-J^{\prime\prime}$ values, we drop the explicit references to $J$ . The $|M|^{2}$ is approximately the product of $q_{v^{\prime}v^{\prime\prime}}^{\vphantom{q}}$ , the transition’s FC factor, and $|R_{e}|^{2}$ , the square of the electronic transition dipole moment (all the transitions studied here preserve the electronic spin),

[TABLE]

In the results we quote the FC factors $q_{v^{\prime}v^{\prime\prime}}^{\vphantom{q}}$ , although we technically measure the vibronic moments.

We relate the cross section $\sigma_{v^{\prime}v^{\prime\prime}}^{\vphantom{q}}(\omega)$ to an experimentally measurable optical absorption to give the absorbance $\mbox{\large{A}}(v^{\prime},v^{\prime\prime})$ :

[TABLE]

where $N$ is the molecular density, $\omega$ is the angular frequency of light, and $l$ is the path length. By taking the ratio of absorption between two transitions that differ only in the excited-state vibrational number ( $v^{\prime}=0$ or 1), we can cancel the dependence on every parameter except $q_{v^{\prime}v^{\prime\prime}}$ and $\tilde{\nu}$ , where the latter is known to a high accuracy. We can then relate the experimentally measured absorption ratio to the ratio of the FC factors for the transition pairs, or the absorption vibronic transition ratio:

[TABLE]

This definition ensures that the quoted VTR is always $<1$ for a diagonal system such as the electronic transitions in BaH. Measurements of the VTR using this technique are consequently invariant to fluctuations of the molecular density and rely only on quantities we can accurately determine.

The measurement of the emission VTR relies on a direct observation of a decay probability ratio. The ratio $\mathcal{R}_{v^{\prime}v^{\prime\prime}}$ of the measured emission to the total overall decay rate (branching ratio) can be expressed in terms of the transition FC factor Barry2013 :

[TABLE]

where the summation is over all available radiative decay channels. By observing simultaneous fluorescence from a single excited rovibrational state $v^{\prime}=0$ , $J^{\prime}=1/2$ to two different vibrational ground states, $v^{\prime\prime}=0$ and 1, we directly compare the relative decays $\mathcal{R}_{0v^{\prime\prime}}$ and determine the $q_{v^{\prime}v^{\prime\prime}}$ ratio for the two transitions:

[TABLE]

where $I_{0v_{i}}$ in the intensity of the observed decay to the $i$ th ground vibrational state. These complementary techniques allow us to measure a variety of $q_{v^{\prime}v^{\prime\prime}}$ ratios using a series of differential measurements. The experimental results, and the comparison to theoretical work presented below, are provided in Table 1. All the ground-state rovibrational levels involved are of ( $-$ ) parity ( $N^{\prime\prime}=1$ ).

III.1 Relative absorption measurements

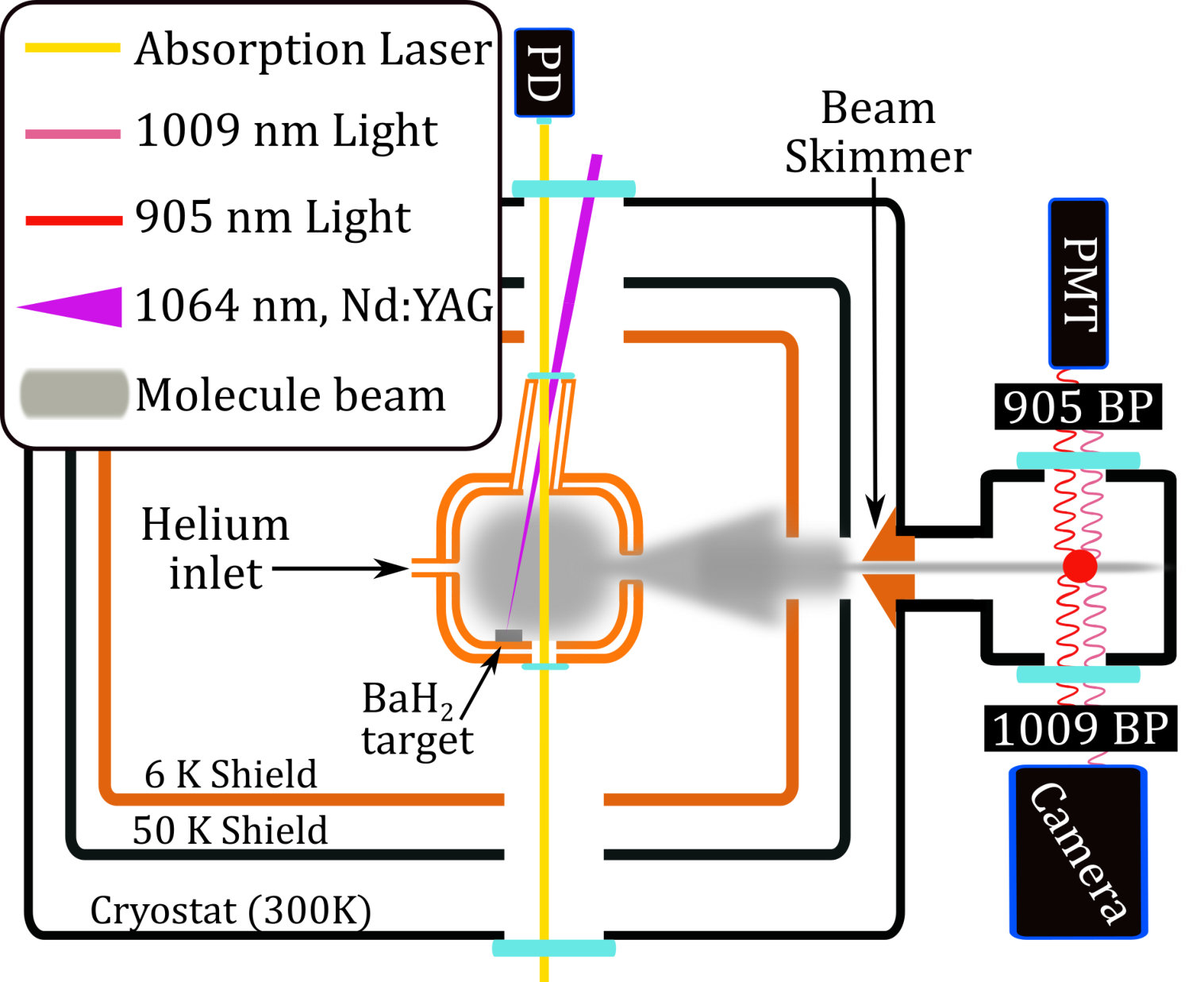

For absorption measurements we utilize the high molecular density inside the cryogenic cell (Fig. 1). We alternate the probe beam between two coaligned lasers, each tuned to the resonant frequency of the energy levels of interest. This allows for real-time cancellation of any variability in the molecular yield, as the lasers intersect the same region of the cell. The laser intensities are well below saturation, rendering the measurement insensitive to optical pumping. This was confirmed by varying the absorption laser power over an order of magnitude, still below saturation, and observing no detectable difference in the resulting VTR.

We performed three measurements, obtaining $q_{10}/q_{00}$ for the B ${}^{2}\Sigma^{+}$ $\leftarrow$ X ${}^{2}\Sigma^{+}$ and A ${}^{2}\Pi_{3/2}$ $\leftarrow$ X ${}^{2}\Sigma^{+}$ electronic transitions, and $q_{01}/q_{11}$ for B ${}^{2}\Sigma^{+}$ $\leftarrow$ X ${}^{2}\Sigma^{+}$ . To measure $q_{01}/q_{11}$ , an additional laser was coaligned with the absorption lasers and tuned to the A ${}^{2}\Pi_{3/2}v=1$ $\leftarrow$ X ${}^{2}\Sigma^{+}$ $v=0$ transition. This is required to increase the population in the X ${}^{2}\Sigma^{+}$ $v^{\prime\prime}=1$ state, as the $v^{\prime\prime}=1$ population is negligibly small for BaH thermalized to 6 K Tarallo2016 . Only the $Q_{12}$ rotational lines shown in Fig. 2 were measured for each transition. Figure 3(a) shows the absorption signals and their ratio. For very short times below 1 ms, we observe varying ratios. However, after the early dynamics dissipate, the ratios remain constant between 1 and 10 ms. As shown, we select the 1-3.5 ms time window, since at longer times the ratio becomes dominated by noise. The experimental values for the FC factor ratios thus obtained with the use of Eq. (2) are presented in Table 1 (top three entries).

III.2 Direct fluorescence detection

To perform a direct measurement of the emission VTR in the decay of the B ${}^{2}\Sigma^{+}$ $v^{\prime}=0$ state, near-infrared fluorescence is recorded from the molecular beam. The measurement is carried out via simultaneous collection of spontaneous emission light as the molecules decay from B ${}^{2}\Sigma^{+}$ $v^{\prime}=0$ to X ${}^{2}\Sigma^{+}$ $v^{\prime\prime}=0$ at 905.3 nm and to X ${}^{2}\Sigma^{+}$ $v^{\prime\prime}=1$ at 1009.4 nm. The emission VTR is then related to the FC factor ratio as in Eq. (4).

In the detection region, the molecules are excited to the B ${}^{2}\Sigma^{+}$ $v^{\prime}=0$ , $J=1/2$ (+) level using two external-cavity diode lasers (linewidth $\sim 1$ MHz) on resonance with the

[TABLE]

and

[TABLE]

transitions, forming a quasi-closed system. Prior to the VTR measurement, calibration of the relative efficiency of each collection system is performed by placing a 905-nm BP filter in front of each detector (Fig. 1) and collecting the fluorescence on both. A 1009-nm BP filter was then placed at the CCD camera and simultaneous measurements of fluorescence to the X ${}^{2}\Sigma^{+}$ $v^{\prime\prime}=0$ and $1$ states were taken with the PMT and CCD camera, respectively. The ratio of the signals seen on the two detectors and the known efficiency of each filter and detector allow a measurement of the VTR that is independent of the molecule number.

The transmission of the bandpass filters was experimentally determined using a collimated laser and a power meter. The effect of off-angle transmission through each filter was not found to be a significant factor, mainly due to the relatively large bandwidths of the filters. The CCD had a particularly high sensitivity in the near-infrared (70% at 1009 nm and 96% at 905 nm). Factory calibration was used to estimate the efficiency, since the fluorescence measurement can tolerate a substantial error in the calibration due to its relatively large statistical uncertainty.

Both $Q_{12}$ and $P_{1}$ rotational lines (Fig. 2) were measured for each transition as they cannot be distinguished by the filters. The measured value of the $q_{01}/q_{00}$ VTR from data in Fig. 3(b) is 0.092(20). The quoted statistical uncertainty is dominated by shot noise due to the relatively poor ( $\sim$ 1%) quantum efficiency of the PMT at 905 nm.

IV Theoretical branching ratios

Our theoretical quantum chemistry work concentrates on estimating three observables that present rigorous tests for different aspects of the ab initio calculations:

B ${}^{2}\Sigma^{+}$ state spin-rotation constants: the spin-orbit and ladder matrix elements; 2. 2.

B ${}^{2}\Sigma^{+}$ state lifetimes: transition dipole moments; 3. 3.

B ${}^{2}\Sigma^{+}$ $\rightarrow$ X ${}^{2}\Sigma^{+}$ branching ratios: bond lengths and potential-energy functions.

The present experimental study provides the required test for the final property, while previously published works Appelblad1985 ; Berg1997 provide the benchmarks for the first two.

IV.1 Potential energy curves

For initial simulations of the branching ratios, the potentials calculated by Moore18 Moore2018 were used. These ab initio calculations of the potential-energy curves were performed at a post Hartree-Fock level using a parallel version of the MOLPRO Werner2010 ; Werner2012 (version 2010.1) suite of quantum chemistry codes. The aug-cc-pCV $Q$ Z (ACV $Q$ Z) basis set Li2013 was used on the barium atom to describe the 5 $s$ 5 $p$ 6 $s$ electrons, and the equivalent aug-cc-pV $Q$ Z basis set was used for hydrogen Dunning1989 . An effective core potential Lim2006 was used to describe the lowest 46 core electrons of the barium atom. The active space at long-range corresponded to the occupied valence orbitals plus the excited 6 $p$ 5 $d$ and the lowest Rydberg 7 $s$ orbital on barium. Once the Hartree-Fock wave function had been found, the electron correlation was determined using both the state-averaged complete active space self-consistent field Siegbahn1980 and the multireference configuration interaction (MRCI) Knowles1988 methods for static and dynamic correlation, respectively. Higher levels of correlation were approximated using the Davidson correction Davidson1974 . The MRCI wave functions were then used to calculate transition dipole moments (TDMs) and spin-orbit coupling matrix elements using the MOLPRO code Berning2000 . Further details on the potentials involved in the present paper, namely the ground X ${}^{2}\Sigma^{+}_{1/2}$ and excited H ${}^{2}\Delta_{{3/2}}$ , A ${}^{2}\Pi_{{1/2},{3/2}}$ and B ${}^{2}\Sigma^{+}_{1/2}$ states shown in Fig. 2(a), can be found in Moore18 Moore2018 . As in Moore18, the traditional Hund’s case (a) electronic label is used for those potentials calculated without consideration of spin-orbit coupling such as B ${}^{2}\Sigma^{+}$ , while the form A ${}^{2}\Pi_{1/2}$ is used for the final states where $\Omega$ , the projection of the total electronic angular momentum on the internuclear axis, is a good quantum number.

To calculate the rovibrational energy levels in each state, the radial Schrödinger equation for each ab initio potential is solved using the program DUO Yurchenko2016 . To include the most significant interactions between the states of interest, the treatment includes the electronic states X ${}^{2}\Sigma^{+}$ , H ${}^{2}\Delta$ , A ${}^{2}\Pi$ , B ${}^{2}\Sigma^{+}$ and E ${}^{2}\Pi$ and the relevant spin-orbit matrix elements Berning2000 . The relevant rovibrational levels are shown in Fig. 2(b) for the B ${}^{2}\Sigma_{1/2}^{+}$ $v=0$ $\leftarrow$ X ${}^{2}\Sigma_{1/2}^{+}$ $v=1$ repump transition. While MOLPRO represents all calculations in the $C_{2v}$ point group symmetry, DUO handles $C_{\infty v}$ symmetry states, so appropriate transformations Patrascu2014 are required to prepare MOLPRO output data for input into DUOas described in Moore18. The spectroscopic values of $T_{e}$ (the energy of the potential minimum) and $r_{e}$ for each electronic state of interest are presented in Table 2.

IV.2 Determining the branching ratios

The program DUO Yurchenko2016 was also used to determine the decay pathways and branching ratios from the ab initio potentials and assorted calculated matrix elements Patrascu2014 . The lifetime of each rovibronic state is calculated using the MRCI TDMs Berning2000 . The TDMs involved in both the A ${}^{2}\Pi$ $\rightarrow$ X ${}^{2}\Sigma^{+}$ and B ${}^{2}\Sigma^{+}$ $\rightarrow$ X ${}^{2}\Sigma^{+}$ transitions are of similar magnitude and hence the lifetimes of these two states are likely to be comparable. Also strong is the TDM connecting the A ${}^{2}\Pi$ and H ${}^{2}\Delta$ states, but B ${}^{2}\Sigma^{+}$ $\rightarrow$ A ${}^{2}\Pi$ is considerably weaker than the other three. These minor TDMs are important because they are responsible for the main radiative loss pathways for the A ${}^{2}\Pi_{1/2}$ – X ${}^{2}\Sigma^{+}_{1/2}$ and B ${}^{2}\Sigma^{+}_{1/2}$ – X ${}^{2}\Sigma^{+}_{1/2}$ cooling cycles Moore2018 . The presence of spin-orbit mixing introduces a new and significant decay pathway B ${}^{2}\Sigma^{+}_{1/2}\rightarrow$ H ${}^{2}\Delta_{3/2}$ that competes with the Laporte-allowed decay channels of the B ${}^{2}\Sigma^{+}_{1/2}$ state, as detailed in Table 3.

Besides the TDM, the quantities that affect the lifetimes are the FC factors, and the difference in equilibrium bond length $\Delta r_{e}=r_{e}^{{}^{\prime}}-r_{e}^{{}^{\prime\prime}}$ between the upper and lower states is especially important for determining these. The decay rate associated with an electronic transition can be expressed in terms of the Einstein $A$ coefficient, defined within the DUO code Yurchenko2016 as

[TABLE]

where $\matrixelement{v^{\prime}}{\mu_{n}(r)}{v^{\prime\prime}}$ is the vibrationally averaged transition dipole moment, the matrix represents a 3 $j$ symbol, and the summation is over all components of the transition dipole. Due to the vibrational averaging, any error in the calculated values of $T_{e}$ and $r_{e}$ reduces the accuracy of the calculated decay rates and the excited-state lifetimes. To minimize these errors, the potentials were shifted to match experimental measurements of these quantities (see Appendix) whenever possible.

$T_{e}$ corrections

The first correction applied to the excited states is to match the transition energies to experimental data. In Moore18, the correction to $T_{0}$ was made by replacing the calculated transition frequencies for each decay channel with the spectroscopic values from the literature after analyzing the raw ab initio data in DUO. This corrects the ${\tilde{\nu}_{v^{\prime}v^{\prime\prime}}}^{3}$ term in Eq. (5) for the Einstein $A$ coefficient.

In this paper, we iteratively adjusted the energy of the potential minimum in DUO until the calculated $T_{0}$ separation was within 0.01 cm*-1* of the spectroscopic values. To ensure the correct energetic displacement between the X ${}^{2}\Sigma^{+}$ and B ${}^{2}\Sigma^{+}$ states, the experimental work of Appelblad et al Appelblad1985 was initially used as a reference for the separation between the $T_{0}$ energies in each state. Similarly, spectroscopic data from Kopp et al Kopp1966-2 were used for the A ${}^{2}\Pi$ state, and those from Ram and Bernath Ram2013 were used for the E ${}^{2}\Pi$ state. For H ${}^{2}\Delta$ , the experimental data from Bernard et al Bernard1989 for the spin-orbit splitting were used in combination with the spectroscopic H ${}^{2}\Delta_{5/2}$ $\nu^{\prime}$ = 0, $J$ = 5/2 energy determined in Ref. Fabre1987 .

The ab initio $T_{e}$ for the B ${}^{2}\Sigma^{+}_{1/2}$ state calculated by Moore18 is in remarkable agreement with the majority of spectroscopic studies and just 120 cm*-1* higher than the relative outlier by Bernard et al. The situation is different for the A ${}^{2}\Pi_{1/2}$ state, first as there are larger discrepancies between the spectroscopic values, and second since the theoretical value is too high, by as much as 380 cm*-1*. As a consequence, the calculated energy difference $\Delta E=$ $E$ (A ${}^{2}\Pi_{1/2}-$ B ${}^{2}\Sigma^{+}_{1/2}$ ) is in error by 20-25%. The final energy shifts applied are -459.46 cm*-1*(H ${}^{2}\Delta$ ), -385.06 cm*-1*(A ${}^{2}\Pi$ ) and -99.32 cm*-1*(B ${}^{2}\Sigma^{+}$ ). The resulting calculated spectroscopic constants are shown in Table 4. In particular, the energy shift to the A ${}^{2}\Pi$ state significantly improves the calculated spin-rotation constant in the B ${}^{2}\Sigma^{+}$ state, as outlined in the Appendix.

The accuracy of the ab initio results for the B ${}^{2}\Sigma^{+}$ state is particularly striking. The calculated value for the lowest vibrational energy separation ( $\Delta G_{10}$ ) in the B ${}^{2}\Sigma^{+}$ state (1057.16 cm*-1*) agrees within 0.09% of the observed value (1058.04 cm*-1*). This is a surprisingly good match to experiment for the relatively small quadruple-zeta basis set, while the performance for the other electronic states is more in line with expectations. This change in methodology has the effect of slightly, but occasionally significantly, modifying the calculated decay rates (Table 3) compared to those reported in Moore18. These rates can be expressed as raw Einstein $A$ coefficients for each decay channel or as the ratio of that channel to the total overall decay rate, $\mathcal{R}_{v^{\prime}v^{\prime\prime}}$ in Eq. (3), a useful parameter when assessing the viability of laser cooling. No modification for a primary decay channel exceeds 0.07%. However, for the B ${}^{2}\Sigma^{+}_{1/2}$ state there is a significant reduction in the decay to H ${}^{2}\Delta$ (from 0.054 to 0.030%) and to $v=$ 2 of the ground state (from 0.014 to 0.009%). These revisions affect the fine details of the cooling efficiency (compare the “ $T_{0}$ corrected only” column in Table 3 with Table 6 from Moore18) but do not alter the overall findings from Moore18.

$r_{e}$ corrections

Most of the branching-ratio measurements here involve the B – X transition and so corrections to these two potentials are important. The consensus ground-state bond length has been determined to 0.01-pm accuracy as 2.2319 Å, while the last four experiments yield 2.23188 Å within 0.005 pm. This value is used to determine $\Delta r_{e}$ for each experiment that presented $r_{e}$ values for the $5d$ -complex excited states. These differences are tabulated in Table 5 and plotted in Figure 4. The theoretical values from Moore18 are also included for reference.

As discussed earlier, there are two recent spectroscopic studies of the B ${}^{2}\Sigma^{+}$ state. In the first, the $r_{e}$ is reported by Appelblad et al Appelblad1985 following their spectroscopic analysis and is consistent with the earlier $r_{e}$ measurements Watson1933 ; Koontz1935 at the 0.1-pm level. The second study by Bernard et al Bernard1989 reports only the rotational constants for the first two vibrational levels. Therefore, the higher-order fitting terms (see Appendix) are neglected, and the extrapolation becomes

[TABLE]

Equation (6) was used in Moore18 to determine the measured $r_{e}$ values of the excited states where the spectroscopic data was limited. However, Veseth Veseth1973 has argued that a simple extrapolation of the observed constants is inadequate in the case of a strongly interacting system like the A ${}^{2}\Pi$ and B ${}^{2}\Sigma^{+}$ states in BaH, and produced revised rotational constants based on a more sophisticated model. Using the data from Koontz and Watson Koontz1935 , for example, this analysis suggests $B_{e}=3.164$ cm*-1* as quoted in Huber and Herzberg Huber1979 , smaller (thus indicating a longer bond length re) than the originally published value. This suggests that a linear fit of the Bernard data using Eq. (6) may underestimate the B ${}^{2}\Sigma^{+}_{1/2}$ bond length.

The $r_{e}$ of Appelblad et al Appelblad1985 is nearly 1.9 pm shorter than the value determined using the experimental data of Bernard et al Bernard1989 with Eq. (6). However, the earliest work on the B ${}^{2}\Sigma^{+}_{1/2}$ spin-rotation constant Watson1933 ; Koontz1935 reports a relatively large and negative value (i.e. the level with the higher value of $J$ lies at a lower energy) $\gamma_{0}=-4.84$ cm*-1* (the subscript refers to the $v=0$ level) while Bernard et al Bernard1989 suggests a much smaller and positive value of $\gamma_{0}$ = 0.46149 cm*-1*, reversing the ordering of the levels. The contemporaneous value from Appelblad et al is more precise than the older data Watson1933 ; Koontz1935 but is clearly in agreement, $\gamma_{0}=-4.7538$ cm*-1*. It is also in agreement with the present ab initio results. Therefore, based solely on spectroscopy, the most reliable experimental data comes from Appelblad et al Appelblad1985 and consequently was the basis for the experimental corrections used in Moore18.

As B ${}^{2}\Sigma^{+}_{1/2}$ levels can decay to the lower A ${}^{2}\Pi$ and H ${}^{2}\Delta$ states, each with two spin-orbit components (no decay can take place to H ${}^{2}\Delta_{5/2}$ ), it is also prudent to consider shifting the internuclear separation of these potential minima to the spectroscopic values to ensure that the calculated rates are as accurate as possible. For both components of the H ${}^{2}\Delta$ state, the only recent experimental value is from Bernard et al Bernard1989 . This spectroscopic $\Delta(r_{e})$ is 0.055 pm different for the theoretical value, so in all simulations the H ${}^{2}\Delta_{3/2}$ potential is shifted by 0.05 pm. The equivalent shift for the A ${}^{2}\Pi_{1/2}$ state was the same as that used in the spin-rotation calculation, namely the raw ab initio value, as discussed below. All the tabulated theoretical values are obtained using these transformations.

The effect of adjusting $r_{e}$ for the B ${}^{2}\Sigma^{+}_{1/2}$ potential on its lifetime is shown in Fig. 5(a). There is a smooth but significant sensitivity to change in the B ${}^{2}\Sigma^{+}$ state $r_{e}$ (with respect to the ab initio result) even over a range of just $\pm$ 2 pm ( $\pm$ 0.85 % of the actual bond length). A much stronger relative effect can be seen in the emission VTR Zak2017 of Fig. 5(b),

[TABLE]

where $q_{0i}$ is the FC factor for the transition from B ${}^{2}\Sigma^{+}$ $v^{\prime}=0,J^{\prime}$ = 1/2 to the X ${}^{2}\Sigma^{+}$ $v^{\prime\prime}=i$ vibrational level ( $i=$ 0, 1), and $S_{0J^{\prime},iJ^{\prime\prime}}^{\vphantom{q}}$ is the line strength factor as in Eq. (1) that is summed over the decays to both $J^{\prime\prime}$ = 1/2 and 3/2 of ( $-$ ) parity. The experimental bond-length shift $\Delta r_{e}^{B-X}$ from Appelblad et al Appelblad1985 corresponds to the dot marked A in all panels of Fig. 5. In Moore18, in an effort to minimize the effect of errors in $\Delta r_{e}^{B-X}$ , the calculated B ${}^{2}\Sigma^{+}$ state is shifted to this spectroscopic value prior to determination of the decay channels. However, the agreement with the measured emission VTR of 0.092(20) is much worse than for the uncorrected potentials (Table 3).

To resolve this problem, the first step was to verify whether the chosen spectroscopic data is consistent with other experimental studies and ab initio calculations. Comparison with the ab initio potentials from Moore18 (Table 5) reveals a better agreement between the theoretical results and the spectroscopic $\Delta r_{e}$ values reported by Bernard et al Bernard1989 for all three 5 $d$ -complex states, assuming that Eq.(6) is an acceptable extrapolation of the recorded Bv constants. Therefore, an additional analysis was performed by shifting all the potentials to be consistent with the measurements in Bernard et al. The experimental $T_{e}$ is $\sim 100$ cm*-1* different from Appelblad et al used in Moore18. This small energy difference has a negligible effect on the decay rates, and this adjustment to the energy was not applied. Far more important was the $\Delta r_{e}$ for B ${}^{2}\Sigma^{+}_{1/2}$ . By using the Bernard et al value of $\Delta r_{e}^{B-X}$ = +5.733 pm (dots marked B in Fig. 5) the agreement with the experimental branching ratio has significantly improved. The theoretical A ${}^{2}\Pi_{1/2}$ potential was a close enough match to the Bernard et al value of +4.168 pm not to warrant any shift to the ab initio value (Table 3). The present simulation is a superior match to experiments: in particular, the calculated lifetime of the B ${}^{2}\Sigma^{+}_{1/2}$ state is now 124.3 ns, in excellent agreement with the lifetime of the $J$ = 11/2 level measured in Ref. Berg1997 and an improvement on the uncorrected potentials. The shift in $r_{e}$ significantly increases the decay to X ${}^{2}\Sigma^{+}_{1/2}$ $v=2$ , to an extent that it becomes comparable to radiative decay to A ${}^{2}\Pi_{1/2}$ $v=0$ , $J=3/2$ but is still below the decay to H ${}^{2}\Delta_{3/2}$ .

IV.3 Refining the potentials

In addition to $\Delta r_{e}$ , the shape of the potential-energy function $V(r)$ affects the accuracy of the vibronic transition moments through changes to the vibrational wave functions. The presently calculated aug-cc-pCV $Q$ Z $V(r)$ for B ${}^{2}\Sigma^{+}_{1/2}$ is of a very high quality for a quadruple-zeta potential. Describing the barium atomic orbitals using the aug-cc-pCV $n$ Z basis sets ( $n$ = $Q$ , 5) taken to the complete basis set (CBS) limit Moore2016 produces a high-quality ground state potential X ${}^{2}\Sigma^{+}$ . The calculated $r_{e}$ , for example, lies within 0.03 pm of the experimental value of Ram and Bernath Ram2013 . Furthermore, by fitting this potential to spectroscopic data using DPotFit LeRoy2017a , including the correct dispersion behavior of the potential at extended bond lengths Derevianko2010 , a very accurate potential can be generated from the short range to the atomic asymptote. The ab initio points were first fitted to a 13-parameter MLR potential LeRoy2006 ; LeRoy2009 using betaFIT (version 2.1) LeRoy2017b and then combined with X ${}^{2}\Sigma^{+}$ infrared experiments Walker1993 and B ${}^{2}\Sigma^{+}$ $\rightarrow$ X ${}^{2}\Sigma^{+}$ emission data Watson1933 ; Koontz1935 ; Kopp1966-1 for processing with DPotFit. No measurements from Bernard et al Bernard1989 were used in this fitting process. As the data set contains both BaH and BaD spectroscopic information, the isotopic Born-Oppenheimer breakdown corrections LeRoy2002 could also be determined. The final rovibrational levels for the lowest three vibrational quantum states can be reproduced with an accuracy better than 0.005 cm*-1*. Replacing the present ACV $Q$ Z ground state with the MLR potential from Ref. Moore2016 should improve the accuracy of the calculated transitions.

The absorption data consists of VTR measurements to the B ${}^{2}\Sigma^{+}$ $v=0$ and $1$ levels from $v=0$ or $1$ in the ground X ${}^{2}\Sigma^{+}$ state. Specifically, the $N^{\prime}=0$ $J^{\prime}=\frac{1}{2}$ (+) $\leftarrow$ $N^{\prime\prime}=1$ $J^{\prime\prime}=\frac{1}{2}$ ( $-$ ) absorption lines ( $Q_{12}$ ) were measured for each vibrational band, $q_{v^{\prime}v^{\prime\prime}}$ determined for each transition and the ratios $q_{10}$ / $q_{00}$ and $q_{01}$ / $q_{11}$ found (Table 1). These experimental FC factors can be compared directly with the theoretical $S_{v^{\prime}v^{\prime\prime}}$ ( $Q_{12}$ lines only so the reference to $J$ can be dropped) line strength factors. The theoretical branching ratios can be plotted as a function of the deviation in $\Delta r_{e}^{B-X}$ from the ab initio value (+5.2 pm) as in Fig. 5 and then compared with measured VTRs as shown in Fig. 6. The plot clearly demonstrates the highly sensitive dependence of $q_{01}$ / $q_{11}$ in particular on the bond length and that the two experimental $\Delta r_{e}^{B-X}$ values Appelblad1985 ; Bernard1989 (dots marked A and B in Fig. 6) predict ratios that are lower than observed. We find that any discrepancies between the calculated and experimental branching ratios can be resolved by shifting the potential minimum of the B ${}^{2}\Sigma^{+}$ state to a longer bond length. To match experiment within error bars, a bond-length difference $\Delta r_{e}^{B-X}$ = 6.5 - 7.0 pm is necessary, requiring a B ${}^{2}\Sigma^{+}_{1/2}$ state bond length 0.8 - 1.3 pm greater than derived from Bernard et al but still somewhat shorter (see Fig. 4) than the values reported in Huber and Herzberg Huber1979 ( $\Delta r_{e}^{B-X}$ = 7.6 pm) and Allouche et al Allouche1992 (9.0 pm). This is, however, consistent with the value for BaD derived by Veseth Veseth1973 (by conducting a detailed re-analysis of the data from Kopp and Wirhed Kopp1966-1 ) that is also quoted in Huber and Herzberg Huber1979 .

The $q_{10}/q_{00}$ branching ratio was also measured for the A ${}^{2}\Pi_{3/2}$ $\leftarrow$ X ${}^{2}\Sigma^{+}$ transition via absorption. When computing this VTR, the A ${}^{2}\Pi_{3/2}$ ab initio ACV $Q$ Z potential without $r_{e}$ adjustment (as it is almost identical to Bernard et al) is used to simulate the measurement. The calculated $q_{10}/q_{00}$ ratio is in excellent agreement with the experimental result (Table 1). Unlike for the B ${}^{2}\Sigma^{+}$ state, however, this result is not a good match to the re-analysis on A ${}^{2}\Pi_{3/2}$ by Veseth (r ${}_{e}=$ 2.259 Å Veseth1973 for BaD, or 1.0 pm longer than the Huber and Herzberg Huber1979 value for BaH indicated in Fig. 4).

Using the superior ground-state potential does not improve the agreement between the calculated and measured emission VTR $q_{01}/q_{00}$ (last line in Table 1), lowering the theoretical B ${}^{2}\Sigma^{+}$ $-$ X ${}^{2}\Sigma^{+}$ value to 0.045 compared with 0.047 with the ground ACV $Q$ Z potential (Table 3). Any remaining discrepancies between the calculated and experimental branching ratios can be resolved by shifting the potential minimum of the B ${}^{2}\Sigma^{+}$ state to a longer bond length as with the absorption data. The arithmetic mean for the bond increase determined from the absorption and emission data is +1.5(1) pm. The improved agreement with the VTR measurements is presented in Table 1.

The poorer agreement observed in the B – X emission calculations is removed when only the ratios of $Q_{12}$ lines are compared (as in the absorption simulations). Adopting the adjustment to the Veseth Veseth1973 (BaD) $\Delta r_{e}^{B-X}$ , the ratio of emission linestrengths $S_{01}$ / $S_{00}$ is 0.069 for the $Q_{12}$ lines while this falls to 0.022 for the $P_{1}$ lines. The former value is in very good agreement with experiment and with the calculated FC factors (Table 6), perhaps indicating that the calculated $P_{1}$ line for the $v^{\prime}=0$ – $v^{\prime\prime}=1$ transition is too weak.

V Laser cooling implications for BaH

The superior modeling of the branching-ratio data using the extended B ${}^{2}\Sigma^{+}$ bond length indicates that to ensure an improvement in the simulation of the cooling process by correcting for experimental data the optimal experimental correction would rely on the BaD value reported by Veseth Veseth1973 over those of Appelblad et al and Bernard et al. Adopting this value, the decay rates were computed for the lowest rovibrational levels in all three 5 $d$ -complex states. The updated branching ratios confirm the conclusion of Moore18 that the A ${}^{2}\Pi$ $\leftarrow$ X ${}^{2}\Sigma^{+}$ transition is advantageous for Doppler cooling despite the longer wavelength of the transition, as shown in Table 7. Crucially, the A ${}^{2}\Pi$ – X ${}^{2}\Sigma^{+}$ cooling has a single loss channel involving another electronic state (H ${}^{2}\Delta$ ) while the B ${}^{2}\Sigma^{+}$ – X ${}^{2}\Sigma^{+}$ transition has four decay routes, all significantly stronger (Table 7). One notable feature of the present results is the relative strength of decay to X ${}^{2}\Sigma^{+}$ $v^{\prime\prime}=2$ .

The molecular parameters relevant to Doppler cooling are collected in Table 8. The lifetime of H ${}^{2}\Delta_{3/2}$ is determined by spin-orbit mixing with the A ${}^{2}\Pi$ state and the strength of the A ${}^{2}\Pi$ – X ${}^{2}\Sigma^{+}$ TDM. The former is significantly reduced over the original calculation in Moore18, so the lifetime of the H ${}^{2}\Delta_{3/2}$ state has almost doubled to 9.5 $\mu$ s. The other lifetimes are nearly unchanged, while the associated slight increase in B ${}^{2}\Sigma^{+}_{1/2}$ lifetime (125.1 ns, still in excellent agreement with experiment) and reduction in the maximum number of the B ${}^{2}\Sigma^{+}$ – X ${}^{2}\Sigma^{+}$ cooling cycles ( $N_{n}$ ) are documented in both Fig. 5 (dots C) and Table 8. The number of cycles $N_{n}$ that $n$ light fields can support to laser cool a fraction $\mathcal{F}$ of the molecules depends on the branching ratios $\mathcal{R}_{v^{\prime}v^{\prime\prime}}$ Lane2015 ; Moore2018 . Setting $\mathcal{F}$ to 0.1 (90% loss in molecular-beam intensity), the number of cycles supported by each transition can be determined for one-, two-, and three-color cooling (the third transition involves either excitation out of the H ${}^{2}\Delta_{3/2}$ state Moore2018 or from X ${}^{2}\Sigma^{+}$ $v^{\prime\prime}=$ 2 depending on which loss channel is greater). The change in $\Delta r_{e}$ has had a particularly large effect on the number of one-color cooling cycles that can be supported on the A –X and B – X (Fig. 5(c)) cooling transitions. In both cases, this number has been profoundly lowered. However, using a second laser to repump $v^{\prime\prime}=$ 1 creates a nearly closed cycle (Fig. 5(d)), in particular for the A ${}^{2}\Pi$ $\leftarrow$ X ${}^{2}\Sigma^{+}$ transition (over 99.99% of the population recycled).

Shifting the bond length in A ${}^{2}\Pi_{1/2}$ from the experimental value of Kopp et al. Kopp1966-2 to Bernard et al. Bernard1989 does have a somewhat detrimental effect on the efficiency of the A ${}^{2}\Pi$ – X ${}^{2}\Sigma^{+}$ cooling cycle. It is still very effective, but the number of cycles possible with two cooling lasers $N_{2}=3.5\times 10^{4}$ is rather smaller than reported in Moore18 Moore2018 . Naturally, the increased B ${}^{2}\Sigma^{+}$ state $r_{e}$ also reduces the value of $N_{2}$ ( $2.3\times 10^{3}$ ) from the previous calculation, but the relative reduction is somewhat smaller. This is partly because the increased B ${}^{2}\Sigma^{+}$ bond length ( $\Delta r_{e}^{B-X}$ = 6.7 pm) does indeed raise the decay to X ${}^{2}\Sigma^{+}$ $v^{\prime\prime}=$ 2 but this is ameliorated by the reduced decay to H ${}^{2}\Delta_{3/2}$ (the largest decay channel) which the present revised calculations predict. However, using a third laser to repump the B ${}^{2}\Sigma^{+}_{1/2}$ $v=2$ level will only yield a marginal improvement ( $N_{3}=3.2\times 10^{3}$ ) while it more than triples the corresponding number of A ${}^{2}\Pi$ – X ${}^{2}\Sigma^{+}$ cycles.

Repumping both $v=0$ and $1$ levels in the X ${}^{2}\Sigma^{+}$ state via the lowest vibronic level of the A ${}^{2}\Pi_{1/2}$ state is the preferred option to keep radiative losses to a minimum. Practically, to take advantage of maximum radiation pressure forces, implementations of laser cooling often avoid transitions that share the same excited level. Unfortunately, pumping the $v^{\prime}=1$ level in the A ${}^{2}\Pi_{1/2}$ (or B ${}^{2}\Sigma^{+}_{1/2}$ ) state will significantly increase the decay rate to $v^{\prime\prime}=2$ and will even open decay to $v^{\prime\prime}=3$ Moore2018 . Consequently, a combination of transitions involving A ${}^{2}\Pi$ – X ${}^{2}\Sigma^{+}$ (0 – 0) and B ${}^{2}\Sigma^{+}$ – X ${}^{2}\Sigma^{+}$ (0 – 1) is the best compromise cooling scheme by virtue of having the lowest additional losses (approximately 0.0014% losses per cycle), although the increased excited-state loss from B ${}^{2}\Sigma^{+}_{1/2}$ means that the two-color efficiency is reduced to $N_{2}=2.86\times 10^{4}$ cycles.

One additional loss channel to consider is possible vibrational decay via infrared emission within the X ${}^{2}\Sigma^{+}$ ground state, particularly from the $v=1$ , $N=1$ level as it participates in the two-color cooling cycle. The relatively large vibrational spacing in hydrides results in a significant Einstein $A$ coefficient over rival ultracold diatomics such as ionic fluorides or alkali metal dimers. The upper $J^{\prime}=3/2$ ( $-$ ) level can decay via three radiative transitions while there are two pathways for the lower $J^{\prime}=1/2$ . In both cases, the decay to $v^{\prime\prime}=0,N^{\prime\prime}=2$ , $J^{\prime\prime}>$ $J^{\prime}$ leads to the largest loss rate. The total decay rates for $J^{\prime}=3/2$ and $J^{\prime}=1/2$ are 79.2 and 79.3 s*-1*, respectively, resulting in practically identical radiative lifetimes of 12.6 ms. This vibrational loss can be mitigated by operating the repumping lasers well above saturation and thus ensuring that the molecules spend minimal time in the X ${}^{2}\Sigma^{+}$ $v=1$ state. This radiative pathway could also allow us to populate the absolute ground rovibronic state $v=0$ , $J=1/2$ ( $+$ ) after cooling by pumping into $v=1$ , loading the molecules into a conservative trap, and waiting a short time for them to decay. This is a unique feature of diatomic hydrides (as compared to other laser cooling candidates) due to their larger vibrational spacing.

VI Conclusions

The branching ratios of diagonal molecular transitions are extremely sensitive to the relative bond lengths between the excited and ground states. In this paper, the vibrational branching ratios for the B ${}^{2}\Sigma^{+}$ $\leftarrow$ X ${}^{2}\Sigma^{+}$ transition in BaH molecules were measured via optical fluorescence and absorption, and calculated using ab initio quantum chemistry methods. By shifting the excited-state potential by just 0.5 pm ( $0.25\%$ of the bond length), an improved agreement with former experiments is achieved, e.g., with spectroscopic $r_{e}$ values for the excited states from Bernard et al Bernard1989 . Furthermore, our measured branching ratio indicates that the ab initio excited-state B ${}^{2}\Sigma^{+}$ potential should be shifted by +1.5(1)pm relative to the ground state, in agreement with the BaD result quoted by Veseth Veseth1973 . This bond-length correction is found to have implications for the closure of the B ${}^{2}\Sigma^{+}$ state with respect to laser cooling, confirming the A ${}^{2}\Pi_{1/2}$ excited state as a superior choice. The sensitivity of branching ratios to small changes in $\Delta r_{e}$ , and the substantial inconsistency in the estimates of this parameter present in the literature, show that care must be taken when identifying potential laser cooling candidates.

Acknowledgements.

VII Acknowledgments

The authors would like to thank N. Dattani, I. Kozyryev, and D. J. Owens for useful discussions and S. Vazquez-Carson for experimental assistance. TZ would like to thank ONR Grant No. N00014-17-1-2246 and AFOSR Grant No. FA9550-17-1-0441-DURIP. KM and ICL thank the Leverhulme Trust (Research Grant No. RPG-2014-212) for financial support including the funding of a studentship for KM. RLM gratefully acknowledges support by the NSF Integrative Graduate Education and Research Traineeship Grant No. DGE-1069240.

VIII Appendix

VIII.1 Spin-rotation coupling constants

The spectroscopic values of $T_{e}$ and $r_{e}$ for each electronic state of interest are presented in Table 2. Typically, spectroscopic studies quote $T_{00}$ , the energy difference between the $v=0$ levels of the upper and lower electronic states, or an extracted value of $T_{e}$ . By fitting the reported vibronic energies, $T_{e}$ can be determined and there is a broad consistency between these measurements over the multiple studies.

In general, the agreement between spectroscopic values is less satisfactory for $r_{e}$ than for $T_{e}$ . Where $r_{e}$ is not directly quoted in a reference, it may be calculated from $B_{e}$ , the equilibrium rotational constant, using

[TABLE]

where $\mu$ is the reduced mass in kg, $c$ is the speed of light in cm s*-1*, $h$ is Planck’s constant in J $\cdot$ s, and $B_{e}$ is the rotational constant in cm*-1*. In cases where only $B_{v}$ values are quoted in the reference, $B_{e}$ is extrapolated as

[TABLE]

For many spectroscopic studies of BaH the strongly diagonal nature of the transitions often means that only the lowest two vibrational levels are resolved. Consequently, the square term is neglected and equation (6) must be used to determine the measured $B_{e}$ values. Thus the accuracy of the final value of $r_{e}$ determined via this expression is naturally limited.

While the computed rovibrational spacings are in excellent agreement with experiment Moore2018 , properties that are particularly sensitive to either $r_{e}$ or $T_{e}$ may need to be corrected. An example is the spin-rotation structure calculated for each ${}^{2}\Sigma^{+}_{1/2}$ state. The spin-rotation constant $\gamma$ is typically decomposed into first- and second-order terms. The first-order spin-rotational coupling is due to the magnetic fields created by the rotation of the electric charge distribution of the molecule (it depends mainly on the component of the spin-orbit operator that includes nuclear momenta), but this contribution is frequently small. Therefore, the spin-rotation constant is predominantly a second-order correction Brown2003 to the energy levels of a ${}^{2}\Sigma^{+}$ state found by summing over ${}^{2}\Pi$ states,

[TABLE]

where $\matrixelement{{}^{2}\Sigma^{+},0,-\tfrac{1}{2}}{BL^{+}}{n^{2}\Pi,-1,+\tfrac{1}{2}}\equiv\langle BL^{+}\rangle$ are ladder matrix elements, $\matrixelement{n^{2}\Pi,-1,+\tfrac{1}{2}}{\hat{H}_{\mathrm{SO}}}{{}^{2}\Sigma^{+},0,-\tfrac{1}{2}}\equiv\langle\hat{H}_{\mathrm{SO}}\rangle$ are spin-orbit matrix elements, and $\Delta E(n^{2}\Pi-^{2}\Sigma^{+})$ is the energy separation between each ${}^{2}\Pi$ state in the summation and the ${}^{2}\Sigma^{+}$ state. Both required matrix elements are computed using the spin-orbit package within MOLPRO. However, the energy separation between states is crucial, especially when relatively small. For the B ${}^{2}\Sigma^{+}_{1/2}$ state, the largest contributions are from A ${}^{2}\Pi_{1/2}$ and E ${}^{2}\Pi_{1/2}$ , the former 1540 cm*-1* lower in energy and the latter more than twice this value above the B ${}^{2}\Sigma^{+}_{1/2}$ minimum. As the matrix elements have similar magnitudes (Table 5 in Moore18), the A ${}^{2}\Pi_{1/2}$ state has the largest influence on the observed spin-rotation splitting. Consequently, for a reliable calculation of these constants it is important to ensure that the energy separation between the theoretical curves matches the experimental value.

Using ab initio potentials without adjustment, the spin-rotation constant computed by DUO is $\gamma_{0}=-5.6295$ cm*-1*. The A ${}^{2}\Pi$ potential was then lowered by 385 cm*-1* to match the measured $T_{0}$ value from Ref. Kopp1966-2 and the spin-rotation constant was recalculated (Table 4). This adjusted value $\gamma_{0}=-4.9039$ cm*-1* is in much better agreement with the value from Appelblad et al but appears to contradict the small, positive value found by Bernard et al.

Bibliography50

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1(1) N. S. Dattani. Beryllium monohydride (Be H): Where we are now, after 86 years of spectroscopy. J. Mol. Spectrosc. , 311:76–83, 2015.
2(2) I. C. Lane. Production of ultracold hydrogen and deuterium via Doppler-cooled Feshbach molecules. Phys. Rev. A , 92:022511, 2015.
3(3) M. G. Tarallo, G. Z. Iwata, and T. Zelevinsky. Ba H molecular spectroscopy with relevance to laser cooling. Phys. Rev. A , 93:032509, 2016.
4(4) G. Z. Iwata, R. L. Mc Nally, and T. Zelevinsky. High-resolution optical spectroscopy with a buffer-gas-cooled beam of Ba H molecules. Phys. Rev. A , 96:022509, 2017.
5(5) W. W. Watson. Barium hydride band spectra in the near infrared. Phys. Rev. , 43:9–11, 1933.
6(6) W. W. Watson. Band spectrum of barium hydride at 10000 Å. Phys. Rev. , 47:213–214, 1935.
7(7) P. G. Koontz and W. W. Watson. Barium hydride spectra in the infrared. Phys. Rev. , 48:937–940, 1935.
8(8) I. Kopp and R. Wirhed. On the B-X band of Ba D. Ark. Fys. , 32:307–320, 1966.

TL;DR

Contribution

Findings

Abstract

Peer Reviews

Videos

Assignment of excited-state bond lengths using branching-ratio measurements:

Abstract

I Introduction

II Spectroscopy background

III Franck-Condon Factor ratio measurements

III.1 Relative absorption measurements

III.2 Direct fluorescence detection

IV Theoretical branching ratios

IV.1 Potential energy curves

IV.2 Determining the branching ratios

TeT_{e}Te​ corrections

rer_{e}re​ corrections

IV.3 Refining the potentials

V Laser cooling implications for BaH

VI Conclusions

Acknowledgements.

VII Acknowledgments

VIII Appendix

VIII.1 Spin-rotation coupling constants

$T_{e}$ corrections

$r_{e}$ corrections
