Spin-to-charge conversion in magnetic Weyl semimetals

TL;DR

This paper theoretically investigates spin-to-charge conversion in magnetic Weyl semimetal and normal metal bilayers, revealing unique anisotropic effects and dependencies on spin orientation and Fermi level, advancing understanding of topological spintronics.

Contribution

It introduces the first detailed theoretical analysis of spin-to-charge conversion in magnetic Weyl semimetal/normal metal heterostructures, highlighting their unique anisotropic behavior.

Findings

Charge current vanishes along the magnetization direction regardless of spin injection.

Conversion efficiency depends on spin orientation and Fermi level position.

Unique band structure of magnetic WSMs causes anisotropic spin-to-charge conversion.

Abstract

Weyl semimetals (WSMs) are a newly discovered class of quantum materials which can host a number of exotic bulk transport properties, such as the chiral magnetic effect, negative magneto-resistance, and the anomalous Hall effect. In this work, we investigate theoretically the spin-to-charge conversion in a bilayer consisting of a magnetic WSM and a normal metal (NM), where a charge current can be induced in the WSM by an spin current injection at the interface. We show that the induced charge current exhibits a peculiar anisotropy: it vanishes along the magnetization orientation of the magnetic WSM, regardless of the direction of the injected spin. This anisotropy originates from the unique band structure of magnetic WSMs and distinguishes the spin-to-charge conversion effect in WSM/NM structures from that observed in other systems, such as heterostructures involving heavy metals or topological insulators. The induced charge current depends strongly on injected spin orientation, as well as on the position of the Fermi level relative to the Weyl nodes and the separation between them. These dependencies provide additional means to control and manipulate spin-charge conversion in these topological materials.

Figures

Equations

$${\mathcal{H}}_W=\left[m_1\left(k_0^2-k_x^2\right)+m_0\left(k_y^2+k_z^2\right)\right]{\sigma }_x+v\left(k_y{\sigma }_y+k_z{\sigma }_z\right),$$

$$E_{\mathbf{k},s}=s\sqrt{{\left[m_1\left(k_0^2-k_x^2\right)+m_0\left(k_y^2+k_z^2\right)\right]}^2+v^2\left(k_y^2+k_z^2\right)},$$

$${\phi }_N(\mathbf{k},\mathbf{r})$$

$$+\sin \frac{\theta }{2}{e}^{i\varphi /2}\left(\genfrac{}{}{0ex}{}{0}{1}\right)\left(e^{-i{k}_{z}z}+R_{\downarrow }{e}^{i{k}_{z}z}\right)]e^{i{\mathbf{k}}_{\parallel }\cdot \mathbf{r}},$$

$${\phi }_W\left(\mathbf{k},\mathbf{r}\right)=\left(T_{+}{\chi }_{+}{e}^{i{k}_{z,+}z}+T_{-}{\chi }_{-}{e}^{i{k}_{z,-}z}\right)e^{i{\mathbf{k}}_{\parallel }\cdot \mathbf{r}}$$

$$k_{z,\pm }^2$$

$${\phi }_N(0^{+})={\phi }_W\left(0^{-}\right)$$

$${\hat{v}}_{N,z}{\phi }_N(0^{+})={\hat{v}}_{W,z}{\phi }_W(0^{-})$$

$${\hat{f}}_N=f_{0,N}\left(\mathbf{k}\right)\hat{I}+{\hat{g}}_N\left(\mathbf{k}\right)$$

$${\hat{g}}_N\left(\mathbf{k}\right)=-e\tau v_z{\hat{\mathcal{E}}}_z\frac{\partial f_0}{\partial E_{\mathbf{k}}}$$

$${\hat{g}}_W^{<}\left(\mathbf{k},z\right)={\hat{T}}^{†}\left(\mathbf{k},z\right){\hat{g}}_N^{<}\left(\mathbf{k}\right)\hat{T}\left(\mathbf{k},z\right)$$

$${\mathbf{J}}_{e,\parallel }^W(z)=-\frac{e}{2}\int \frac{d^3\mathbf{k}}{{\left(2\pi \right)}^3}T{r}_{\sigma }\left({\hat{g}}_W{\hat{\mathbf{v}}}_{W,\parallel }+h.c.\right),$$

$$\mathbf{m}\cdot {\mathbf{J}}_{e,\parallel }^W=0,$$

$${\mathcal{H}}_W=\left[m_1\left(k_0^2-k_x^2\right)+m_0\left(k_y^2+k_z^2\right)\right]{\sigma }_x+v\left(k_y{\sigma }_y+k_z{\sigma }_z\right),$$

$${\mathcal{H}}_N=\frac{{\hslash }^2{k}^2}{2m_e}-{\mu }_0,$$

$${\phi }_{N,i}(\mathbf{r})=\left[\cos \frac{\theta }{2}{e}^{-i\varphi /2}\left(\genfrac{}{}{0ex}{}{1}{0}\right)+\sin \frac{\theta }{2}{e}^{i\varphi /2}\left(\genfrac{}{}{0ex}{}{0}{1}\right)\right]e^{-i{k}_{z}z}{e}^{i{\mathbf{k}}_{\parallel }\cdot \mathbf{r}},$$

$${\phi }_{N,r}(\mathbf{r})=\left[R_{\uparrow }\left(\genfrac{}{}{0ex}{}{1}{0}\right)+R_{\downarrow }\left(\genfrac{}{}{0ex}{}{0}{1}\right)\right]e^{i{k}_{z}z}{e}^{i{\mathbf{k}}_{\parallel }\cdot \mathbf{r}},$$

$${\phi }_N(\mathbf{r})={\phi }_{N,i}(\mathbf{r})+{\phi }_{N,r}(\mathbf{r}).$$

$${\phi }_W\left(\mathbf{r}\right)=\left(T_{+}{\chi }_{+}{e}^{i{k}_{z,+}z}+T_{-}{\chi }_{-}{e}^{i{k}_{z,-}z}\right)e^{i{\mathbf{k}}_{\parallel }\cdot \mathbf{r}},$$

$$k_{z,\pm }^2=-\frac{1}{m_0^2}\left[m_0{m}_1\left(k_0^2-k_x^2\right)+m_0^2{k}_y^2+\frac{v^2}{2}\mp \sqrt{m_0{m}_1\left(k_x^2-k_0^2\right)v^2+m_0^2{E}^2+\frac{v^4}{4}}\right]$$

$${\phi }_N(0^{+})={\phi }_W\left(0^{-}\right)\text{ and }{\hat{v}}_{N,z}{\phi }_N(0^{+})={\hat{v}}_{W,z}{\phi }_W(0^{-}),$$

$$R_{\uparrow }=a_{+}{T}_{+}+a_{-}{T}_{-}-\cos \frac{\theta }{2}{e}^{-i\varphi /2}$$

$$R_{\downarrow }=b_{+}{T}_{+}+b_{-}{T}_{-}-\sin \frac{\theta }{2}{e}^{i\varphi /2},$$

$$T_{+}=\frac{2\left(B_{-}\cos \frac{\theta }{2}{e}^{-i\varphi /2}-A_{-}\sin \frac{\theta }{2}{e}^{i\varphi /2}\right)}{A_{+}{B}_{-}-A_{-}{B}_{+}}$$

$$T_{-}=\frac{2\left(A_{+}\sin \frac{\theta }{2}{e}^{i\varphi /2}-B_{+}\cos \frac{\theta }{2}{e}^{-i\varphi /2}\right)}{A_{+}{B}_{-}-A_{-}{B}_{+}}$$

$$A_s=\left(1-\frac{m_{e}va}{{\hslash }^2{k}_{N,z}}\right)a_s-\frac{2m_0{a}^2{m}_e{k}_{z,s}}{{\hslash }^2{k}_{N,z}}{b}_s$$

$$B_s=\left(1+\frac{m_{e}va}{{\hslash }^2{k}_{N,z}}\right)b_s-\frac{2m_0{a}^2{m}_e{k}_{z,s}}{{\hslash }^2{k}_{N,z}}{a}_s$$

$$\varphi_{W}\left(z\right)=\frac{2}{A_{+}B_{-}-A_{-}B_{+}}\left(\begin{array}[]{cc}a_{+}B_{-}e^{ik_{z,+}z}-a_{-}B_{+}e^{ik_{z,-}z}&a_{-}A_{+}e^{ik_{z,-}z}-a_{+}A_{-}e^{ik_{z,+}z}\\ b_{+}B_{-}e^{ik_{z,+}z}-b_{-}B_{+}e^{ik_{z,-}z}&b_{-}A_{+}e^{ik_{z,-}z}-b_{+}A_{-}e^{ik_{z,+}z}\end{array}\right)\binom{\cos\frac{\theta}{2}e^{-i\phi/2}}{\sin\frac{\theta}{2}e^{i\phi/2}}\,.$$

$$\hat{T}_{NW}=\frac{2}{A_{+}B_{-}-A_{-}B_{+}}\sum\limits_{s=\pm}se^{ik_{z,s}z}\binom{a_{s}}{b_{s}}\otimes\left(\begin{array}[]{cc}B_{-s}&-A_{-s}\end{array}\right)\,,$$

Full text

Central to spintronics are the inter-conversion between charge and spin currents, and the manipulation and detection of the spin orientation of current-carrying itinerant electrons. Inter-conversion can utilize the spin Hall effect (SHE) Dyakonov and Perel (1971); Hirsch (1999); Zhang (2000); Vignale (2010); Sinova et al. (2015) and the inverse spin Hall effect (ISHE) – the Onsager reciprocal of the SHE that originates in bulk spin-orbit interactions; the SHE and ISHE are well-established phenomena which convert a charge current to a spin current (SHE), and a spin current to a charge current propagating perpendicularly to both the spin and flow directions of the injected spin current (ISHE). The ISHE has been playing an important role in detecting spin current generation in various heterostructures via transport measurements Hoffmann (2013); Sinova et al. (2015).

Recently, several experimental and theoretical studies Sánchez et al. (2013); Shen et al. (2014); Shiomi et al. (2014); Lesne et al. (2016); Rojas-Sánchez et al. (2016); Zhang and Fert (2016); Yue et al. (2018); Han et al. (2018) have investigated the inverse Edelstein effect (IEE) in an interfacial two-dimensional electron gas (2DEG) with Rashba spin-splitting, or in a 2DEG at the surface of a three-dimensional (3D) topological insulator. In the IEE a spin accumulation in the 2DEG induces a charge current flowing perpendicularly to the nonequilibrium spin orientation. Compared to the ISHE that typically occurs in bulk systems, the spin-to-charge conversion based on the IEE is arguably more efficient by taking advantage of the remarkable spin-momentum locking arising from strong interfacial spin-orbit coupling as well as of broken inversion symmetry at the interface involving a heavy metal or topological insulator layer.

Weyl semimetals (WSMs), a newly discovered class of quantum materials, is another rapidly evolving research field Burkov (2016); Yan and Felser (2017); Hasan et al. (2017); Armitage et al. (2018). This novel semimetal possesses distinct electronic properties, such as the chiral anomaly Adler (1969); Bell and Jackiw (1969); Nielsen and Ninomiya (1983) and Fermi arc surface states Wan et al. (2011), that are protected by the nontrivial topology of the band structure. WSMs studied to date have broken inversion symmetry (but are time-reversal invariant) with at least four, and often many more, Weyl nodes. The relatively large number of Weyl nodes makes it difficult to clearly elucidate and control effects related to the location of the Weyl nodes, and the lack of a magnetic order parameter prevents direct coupling to magnetic fields. Recently, there has been increasing interest in the pursuit of magnetic Weyl semimetals, which can have only two Weyl nodes present near the Fermi surface — an ideal system to investigate transport properties — and also allow for direct coupling with external magnetic field to control and manipulate electronic and transport properties. Most efforts have been dedicated to seeking potential candidates of magnetic Weyl semimetals Wang et al. (2016); Kübler, J. and Felser, C. (2016); Shi et al. (2018); Wang et al. and examining their bulk transport properties. In contrast, little attention has been paid to the coupled spin and charge degrees of freedom in heterostructures composed of magnetic WSMs and other materials, which is of fundamental interest and may be important for future applications of WSMs in spintronics.

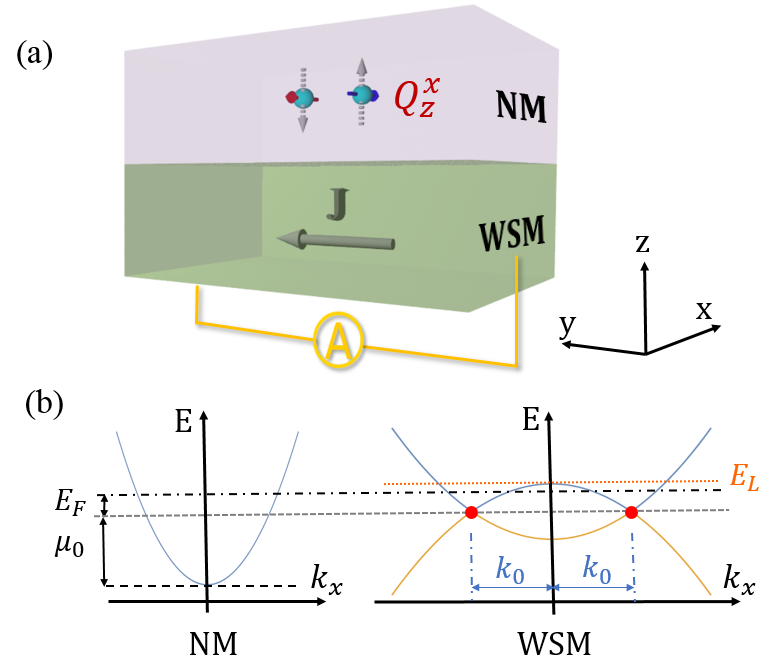

In this work, we investigate theoretically the spin-to-charge conversion in a bilayer consisting of a magnetic WSM with two Weyl nodes and a nonmagnetic metal (NM). We use a scattering formalism to connect electronic states in the NM and the magnetic WSM. Having obtained the scattering states, we use semi-classical transport theory Morimoto et al. (2016) to demonstrate that a charge current can be induced in the magnetic WSM by injecting a spin current from the interface of the bilayer [see Fig. 1(a)]. Furthermore, we show that the unique properties of magnetic WSMs allow for a control of the spin-to-charge conversion that has no analog in conventional NM and magnetic bilayer systems.

Let us commence with the following minimal model Hamiltonian Lu and Shen (2017); Armitage et al. (2018) for the magnetic WSM layer filling the $z<0$ half space:

[TABLE]

where $\sigma_{i}$ ($i=x,y$ and $z$) are Pauli spin matrices, and $m_{0}$, $m_{1}$ and $v$ are generic materials parameters. Note that the two Weyl nodes are located at $\mathbf{k=}\left(\pm k_{0},0,0\right)$ and that the first term on the right-hand-side of Eq. (1) breaks time-reversal symmetry. The Weyl Hamiltonian has the eigenvalues

[TABLE]

where $s=\pm 1$ with $E_{\mathbf{k},+}$ and $E_{\mathbf{k},-}$ corresponding to the upper and lower energy bands that touch at the pair of Weyl nodes. The $z\geq 0$ region is occupied by a NM described by the Hamiltonian $\mathcal{H}_{N}=\frac{\bm{\hat{p}}^{2}}{2m_{e}}-\mu_{0}$, where $m_{e}$ is the effective mass and $\mu_{0}$ denotes the deviation of the conduction band bottom of the NM layer from the energy of the two Weyl nodes, as sketched in Fig. 1(b). Note that we will only consider $\mu_{0}>0$ so that there are available scattering states in the NM when the two Weyl nodes are in the close vicinity of the Fermi energy, which are the circumstances under which most of the interesting transport phenomena in WSMs emerge Yang et al. (2011); Burkov (2014, 2015); Zhang et al. (2016).

In the NM, by choosing the $z$-axis as the spin quantization axis, the full scattering wave function for a free electron with a given energy $E$ and a spin pointing in an arbitrary direction $\bm{n}\mathbf{=}\left(\sin\theta\cos\phi,\sin\theta\sin\phi,\cos\theta\right)$ can be written as a linear combination of spin-up and spin-down components, i.e.,

[TABLE]

where $k_{z}\equiv\sqrt{\frac{2m_{e}E}{\hbar^{2}}-\mathbf{k}_{\parallel}^{2}}$ with $\sigma=\uparrow\left(\downarrow\right)$ and $\mathbf{k}_{\parallel}\left[\equiv\left(k_{x},k_{y}\right)\right]$ the in-plane component of the wavevector, $R_{\sigma}$ are the reflection amplitudes, and we have assumed translational invariance in the $x$-$y$ plane.

The wave function for an electron transmitted into the magnetic WSM can be expressed as

[TABLE]

where $T_{\pm}$ are the transmission amplitudes, $\chi_{+}$ and $\chi_{-}$ are two spinors given by $\chi_{\pm}=\frac{1}{\sqrt{N_{\pm}}}\binom{a_{\pm}}{b_{\pm}}$ with $a_{\pm}=m_{1}\left(k_{x}^{2}-k_{0}^{2}\right)+m_{0}\left(k_{y}^{2}+k_{z,\pm}^{2}\right)-ivk_{y}$, $b_{\pm}=E-vk_{z,\pm}$ and $N_{\pm}$ the normalization coefficients satisfying $\left|a_{\pm}\right|^{2}+\left|b_{\pm}\right|^{2}=N_{\pm}^{2}$. The $z$-components of the wavevectors are given by

[TABLE]

with the signs of $k_{z,\pm}$ so selected that the transmitted waves either propagate freely or decay in the WSM ($z<0$).

The reflection and transmission amplitudes $R_{\uparrow\left(\downarrow\right)}$ and $T_{\pm}$ can be determined by proper boundary conditions. Here, we assume that both the scattering wave function and the $z$-component of the current density are continuous at the interface $z=0$:

[TABLE]

where the velocity operators are given by $\bm{\hat{v}}_{N}=\frac{\partial\mathcal{H}_{N}}{\hbar\partial\mathbf{k}}$ and $\bm{\hat{v}}_{W}=\frac{\partial\mathcal{H}_{W}}{\hbar\partial\mathbf{k}}$ for the NM and WSM, respectively, and we have eliminated a common phase factor of $e^{i\mathbf{k}_{\parallel}\cdot\mathbf{r}}$. We shall present the full expressions of the scattering amplitudes in the Supplemental Materials as they are a bit lengthy and are not very instructive.

Thus far, we have solved the problem of a single electron scattering at the interface of the magnetic-WSM/NM bilayer. In order to calculate the current density induced in the magnetic WSM layer due to the spin current injection from the NM layer, we need to find the electron distributions in each layer. At the NM side of the interface (i.e., $z=0^{+}$), the distribution function can be described by a $2\times 2$ matrix in spin space Stiles and Zangwill (2002); Zhang et al. (2004, 2015); Zhang and Vignale (2016), i.e.,

[TABLE]

where $f_{0,N}\left(\mathbf{k}\right)\hat{I}$ is the equilibrium part of the distribution function with $f_{0,N}$ the Fermi-Dirac function and $\hat{I}$ the $2\times 2$ identity matrix, and the nonequilibrium component of the distribution function $\hat{g}_{N}\left(\mathbf{k}\right)$ that gives rise to the spin current can be described by

[TABLE]

where ${\hat{\mathcal{E}}}_{z}=E_{z}\bm{\sigma\cdot s}_{inj}$ (with $\bm{\sigma}$ denoting the Pauli spin matrices) is a spin-dependent electric field pointing in opposite directions for electrons with opposite spin directions which drives a spin current 111The spin current can be realized experimentally in a few different ways, for example through the SHE Hoffmann (2013) or through spin pumping Tserkovnyak et al. (2005); the manner through which the spin current is generated is not important for our purposes so we write the spin current in terms of an effective spin-dependent electric field., $\bm{s}_{inj}$ is a unit vector denoting the direction of the spin component of the spin current. At temperatures well below the Fermi temperature of the NM, it is a good approximation to assume $\frac{\partial f_{0,N}}{\partial E_{\mathbf{k}}}\simeq-\delta\left(E_{\mathbf{k}}-\mu_{0}-E_{F}\right)$ where $E_{F}$ is the Fermi energy relative to the energy of the two Weyl nodes as shown schematically in Fig. 1(b). Formally, the spin current density is given by $Q_{z}^{\alpha}=\frac{\hbar}{4}Tr_{\sigma}\int\frac{d^{3}\mathbf{k}}{\left(2\pi\right)^{3}}\sigma^{\alpha}v_{z}\hat{f}_{N}$. Explicitly, $Q_{z}^{b}=J_{s,z}^{N}s_{inj}^{b}$ where the magnitude of the spin current density for a given spin direction can be characterized by $J_{s,z}^{N}\equiv\frac{\hbar}{2e}\sigma_{D}E_{z}$ with $\sigma_{D}=\frac{\tau e^{2}k_{F}^{3}}{3\pi^{2}m_{e}}$ the Drude conductivity.

The nonequilibrium distribution function for the transmitted electrons in the magnetic WSM is determined by the transmission amplitudes and the nonequilibrium electron distribution $\hat{g}_{N}\left(\mathbf{k}\right)$ at $z=0^{+}$ Camley and Barnaś (1989); Stiles and Zangwill (2002) via

[TABLE]

where $\hat{T}\left(\mathbf{k},z\right)$ is a $2\times 2$ transmission matrix satisfying $\varphi_{W}(\mathbf{k},z)=\hat{T}(\mathbf{k},z)\varphi_{N,i}(\mathbf{k},0^{+})$ (the formula for $\hat{T}\left(\mathbf{k},z\right)$ is not very informative and thus we will present it together with the derivation of the scattering amplitudes in the Supplemental Materials), the superscript “$<$” denotes electrons moving in the negative $z-$direction (i.e., $v_{z}<0$). Note that, to the leading order, electrons in the WSM moving towards the interface are assumed to entirely come from the equilibrium distribution, i.e., $\hat{f}_{W}^{<}\simeq\hat{f}_{0,W}^{<}$ and $\hat{g}_{W}^{<}\simeq 0$.

Having obtained the nonequilibrium distribution $\hat{g}_{W}\left(\mathbf{k},z\right)$, the in-plane charge current density induced in the magnetic WSM layer can be computed via

[TABLE]

where $\mathit{h.c.}$ denotes Hermitian conjugate, $\hat{g}_{W}=\hat{g}_{W}^{>}+\hat{g}_{W}^{<}$ and the trace operation is carried out in the spin space. Note that in deriving Eq. (10) we have taken into account the fact that the equilibrium distribution of electrons in the WSM, i.e., $\hat{f}_{0,W}$, does not contribute to the current.

Before seeking the numerical solutions of the induced charge current in the magnetic WSM layer, a remarkable property of the spin-to-charge conversion can be illuminated by a simple symmetry analysis of Eq. (10): regardless of the orientation of the injected spins, no current will be induced in the direction parallel to the line connecting the pair of Weyl nodes in momentum space, i.e., $J_{e,x}^{W}=0$. This is simply because the $x$-component of the electron velocity operator (i.e., $\hat{v}_{W,x}=\frac{\partial\mathcal{H}_{W}}{\partial k_{x}}$) is an odd function of $k_{x}$ whereas the nonequilibrium distribution function $\hat{g}_{W}$ is an even function of $k_{x}$. Therefore, the corresponding $x$-component of the current density must vanish everywhere in the magnetic WSM layer as it is the integral of the product of these two over $\mathbf{k}$-space. Such an anisotropic spin-to-charge conversion stems from the inherent property of magnetic WSMs – the anisotropy in the band structure in the first Brillouin zone between the directions perpendicular and parallel to the separation between the two Weyl nodes in $\mathbf{k}$-space. The numerical solution of $J_{e,x}^{W}$ indeed confirms that it vanishes everywhere in the magnetic WSM layer, regardless of the direction of the injected spin $\bm{s}_{inj}$, the position of the Fermi level $E_{F}$ as well as the separation between the Weyl nodes [see the inset of Fig. 2(a)].

In contrast to the robust suppression of $J_{e,x}^{W}$, the behavior of the current induced in the $y$-direction (perpendicular to the separation between the two Weyl nodes and perpendicular to the WSM$\mid$NM interface) is much richer. Figure 2(a) shows the spatial variation of the $J_{e,y}^{W}(z)$ for the injected spin along $x$, $y$ and $z$ directions, respectively. We find that while the magnitude of $J_{e,y}^{W}$ depends on the orientation of the spin injection, it generally decays rapidly over one Fermi wavelength $\lambda_{F}\left(=\frac{2\pi}{k_{F}}\right)$ away from the WSM$\mid$NM interface, indicating a dominant contribution of the evanescent surface states to the spin-to-charge conversion in the magnetic WSM.

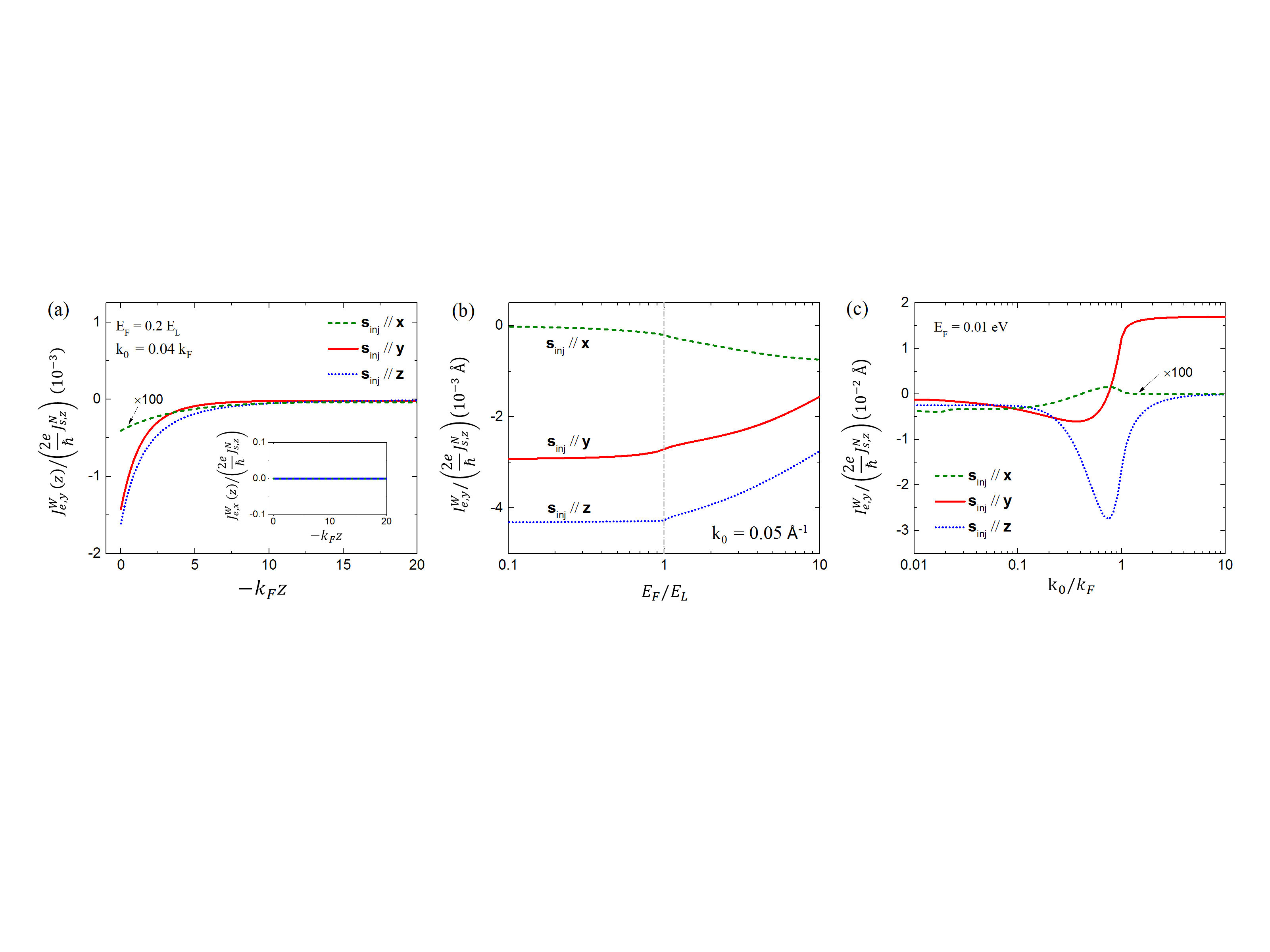

In Fig. 2(b), we show the total induced current $I_{e,y}^{W}\left(\equiv\int_{-\infty}^{0}\mathit{d}zJ_{e,y}^{W}\right)$ as a function of the Fermi level $E_{F}$. We note the existence of a Lifshitz transition energy level $E_{L}$ at which two separate Fermi surfaces, enclosing the two Weyl nodes, merge into a single Fermi surface [as shown schematically in Fig. 1(b)]. We find that the total current $I_{e,y}^{W}$ is insensitive to the variation of the Fermi level as long as $E_{F}$ is below $E_{L}$, and the onset of noticeable changes of $I_{e,y}^{W}$ occur at $E_{L}$ due to a significant change of density of states at the Fermi level when it crosses the Lifshitz energy. In Fig. 2(c), we show the dependence of the total induced current $I_{e,y}^{W}$ on the separation between the two Weyl nodes $2k_{0}$. Extraordinary variations of $I_{e,y}^{W}$ take place when $k_{0}$ approaches the Fermi wavevector $k_{F}$, as the projected Fermi contour of the NM in the $x$-$y$ plane switches between one that encloses the two Weyl nodes and one that does not, which drastically alters the scattering phase space. Lastly, we provide an order-of-magnitude estimation of the effect in EuCd2As2 – a magnetic Weyl predicted recently Wang et al. that contains a single pair of Weyl nodes. By choosing the following parameters for EuCd2As2 Wang et al. : $m_{0}=1.6$ eV$\cdot\mathring{A}^{2}$, $m_{1}=54.5$ eV$\cdot\mathring{A}^{2}$, $v=2.7$ eV$\cdot\mathring{A}$, $k_{0}=0.008$ $\mathring{A}^{-1}$, and $E_{F}=0.01$ eV, we obtain a spin-to-charge conversion efficiency of $\vartheta\simeq 0.2\%$ for spin injected along the $y$-direction where $\vartheta\equiv J_{e,y}^{W}(0^{-})/(\frac{2e}{\hbar}J_{s,z}^{N})$, which is about an order of magnitude smaller than the spin Hall angle in Pt Hoffmann (2013); Sinova et al. (2015).

As a final point, it is interesting to compare the spin-to-charge conversion in magnetic WSMs with that in other systems (such as heavy metals, Rashba 2DEG, topological insulator surfaces etc.) due to the ISHE or IEE. When a spin current is injected in heavy metals (such as Pt or Ta) from a NM, a charge current will be generated in the direction perpendicular to both the spin direction and and the flow direction of the injected spin current due to the ISHE; formally, the process can be described by $J_{e,i}=\epsilon_{ijk}\vartheta_{0}Q_{j}^{k}$ where $\epsilon_{ijk}$ is the antisymmetric Levi-Civita tensor ($i,j,k=x$,$y$, or $z$), $Q_{j}^{k}$ represents the injected spin current flowing along the $j$ direction with spin pointing in the $k$ direction, and $\vartheta_{0}$ is a dimensionless material parameter known as the spin Hall angle which measures the efficiency of the spin-charge conversion. A transverse charge current can also be generated, based on the inverse Edelstein effect, by injecting a spin current perpendicularly to the surface of a topological insulator or to an interface with strong Rashba spin-orbit coupling and using the spin-charge locking in these systems that fixes the spins of the carriers perpendicularly to their momenta. Note that the IEE has the same symmetry as the ISHE and hence can be described by the same formula that we used for the ISHE – the only difference is that it is a conversion of a 3D spin current to a 2D charge current and hence $\vartheta_{0}$ in the linear response relation has the dimension of length. For both IEE and ISHE, a charge current may in principle be induced in any arbitrary direction with properly chosen spin injection direction, i.e., $\vartheta_{0}$ is isotropic Zhang et al. (2014).

The spin-to-charge conversion in magnetic WSMs, however, is rather anisotropic emanating from the anisotropy in their unique band structures – the appearance of a pair of Weyl nodes in $\mathbf{k}$-space; as we have shown above, no charge current can be induced in the direction along the line connecting the two Weyl nodes (i.e., $\mathbf{\hat{k}}_{0}$), regardless of the orientation of the injected spins. Note that for a magnetic WSM with a single pair of Weyl nodes, the magnetization is in the same direction as $\hat{\mathbf{k}}_{0}$ Wang et al. . In general, there will be an odd number of pairs in a magnetic Weyl semimetal, in which case the total current density, being the sum of contributions from different pairs (if the pairs of Weyl nodes are well separated in the reciprocal space), vanishes along the magnetization direction, i.e.,

[TABLE]

where $\mathbf{m}$ is a unit vector denoting the magnetization direction of the magnetic WSM.

A charge current, however, can be induced in the direction perpendicular to the magnetization direction, and the induced current is rather sensitive to the direction of the injected spin $\mathbf{s}_{inj}$, which is experimentally controllable. In addition, we have shown that the spin-to-charge conversion in magnetic WSM relies on the separation between two Weyl nodes and the position of the Fermi surface relative to them, which provides additional means to manipulate and control the effect. These remarkable features make the spin-to-charge conversion in magnetic WSMs distinctly different from that previously studied in heterostructures involving heavy metals or topological insulators, and are potentially very useful in spintronic applications.

Work by S. Z., A. B. and O.H. was supported by Center for Advancement of Topological Semimetals, an Energy Frontier Research Center funded by the U.S. Department of Energy Office of Science, Office of Basic Energy Sciences, through the Ames Laboratory under its Contract No. DE-AC02-07CH11358; work by I. M. was supported by the U.S. DOE, Office of Science, Basic Energy Science Division of Materials Sciences and Engineering.

Appendix A Appendix: Derivation of the transmission matrix in spin space

Let us first consider the scattering problem for free electrons in a bilayer consisting of a normal metal (NM) layer and a magnetic Weyl semimetal (WSM) layer, and with the electrons incident on the interface from the NM. For the Weyl fermions in the magnetic WSM layer, we use the following low-energy effective Hamiltonian [same as Eq. (1) in the main text]

[TABLE]

where $\sigma_{i}$ ($i=x,y,z$) are the Pauli spin matrices, and for the NM layer we adopt the following simple free electron model Hamiltonian

[TABLE]

where $\mu_{0}$ is a constant shift of the chemical potential.

By choosing the $z$-axis as the spin quantization axis, the wave function of an electron in the NM layer incident on the interface and with its spin pointing in an arbitrary direction $\bm{n}\mathbf{=}\left(\sin\theta\cos\phi,\sin\theta\sin\phi,\cos\theta\right)$ can be written as

[TABLE]

and the corresponding reflected wave can be expressed as

[TABLE]

where $k_{z}\equiv\sqrt{\frac{2m_{e}E}{\hbar^{2}}-\bm{k}_{\parallel}^{2}}$ with $\bm{k}_{\parallel}\left[\equiv\left(k_{x},k_{y}\right)\right]$ the in-plane component of the wavevector, $R_{\uparrow(\downarrow)}$ are the reflection amplitudes, and we have assumed translational invariance in the $x$-$y$ plane. It follows that the full scattering wave function in the NM is a superposition of the incident and the reflected waves, i.e.,

[TABLE]

The wave function for a transmitted electron in the magnetic WSM can be expressed as

[TABLE]

where $T_{\pm}$ are the transmission amplitudes, $\chi_{+}$ and $\chi_{-}$ are two spinors given by $\chi_{\pm}=\frac{1}{\sqrt{N_{\pm}}}\binom{a_{\pm}}{b_{\pm}}$ with $a_{\pm}=m_{1}\left(k_{x}^{2}-k_{0}^{2}\right)+m_{0}\left(k_{y}^{2}+k_{z,\pm}^{2}\right)-ivk_{y}$, $b_{\pm}=E-vk_{z,\pm}$ and $N_{\pm}$ the normalization coefficients satisfying $\left|a_{\pm}\right|^{2}+\left|b_{\pm}\right|^{2}=N_{\pm}^{2}$. The $z$-components of the wavevectors are given by

[TABLE]

with the signs of $k_{z,\pm}$ so selected that the transmitted waves either propagate freely or decay in the WSM ($z<0$).

The reflection and transmission amplitudes $R_{\uparrow\left(\downarrow\right)}$ and $T_{\pm}$ can be determined by specifying the boundary conditions. Here, we assume that both the scattering wave function and the $z$-component of the current density are continuous at the interface $z=0$:

[TABLE]

where the velocity operators are given by $\bm{\hat{v}}_{N}=\frac{\partial\mathcal{H}_{N}}{\hbar\partial\bm{k}}$ and $\bm{\hat{v}}_{W}=\frac{\partial\mathcal{H}_{W}}{\hbar\partial\bm{k}}$ for the NM and WSM, respectively, where we have eliminated the common factor $e^{i\bm{k}_{\parallel}\cdot\mathbf{r}}$ on both sides of each equation.

By placing Eqs. (S3) - (S6) in Eq. (S8), one can derive the following scattering amplitudes

[TABLE]

where

[TABLE]

with

[TABLE]

and $s$ denoting $+$ or $-$. We note that $R_{\uparrow\left(\downarrow\right)}$ and $T_{\pm}$ contain only quadratic terms of $k_{x}^{2}$ and $k_{y}^{2}$ – a property that is useful in determining the presence of the in-plane charge current in a given direction.

Next, we determine the transmission matrix by rewriting the transmitted state in the form of $\varphi_{W}\left(z\right)=\hat{T}_{NW}\varphi_{N,i}\left(0^{+}\right)$. Inserting the expressions of $T_{\pm}$ [Eqs. (S10a) and (S10b)] in Eq. (S6), one can rewrite $\varphi_{W}\left(z\right)$ as

[TABLE]

It follows that the transmission matrix can be expressed as

[TABLE]

where $\otimes$ denotes a direct product.
