Development of models for nearby young stellar moving groups: creation, revision, and finalisation of the models

TL;DR

This paper develops and refines models for nearby young stellar moving groups using Bayesian methods, improving membership assessments and identifying true members, which impacts understanding of stellar populations and planetary systems.

Contribution

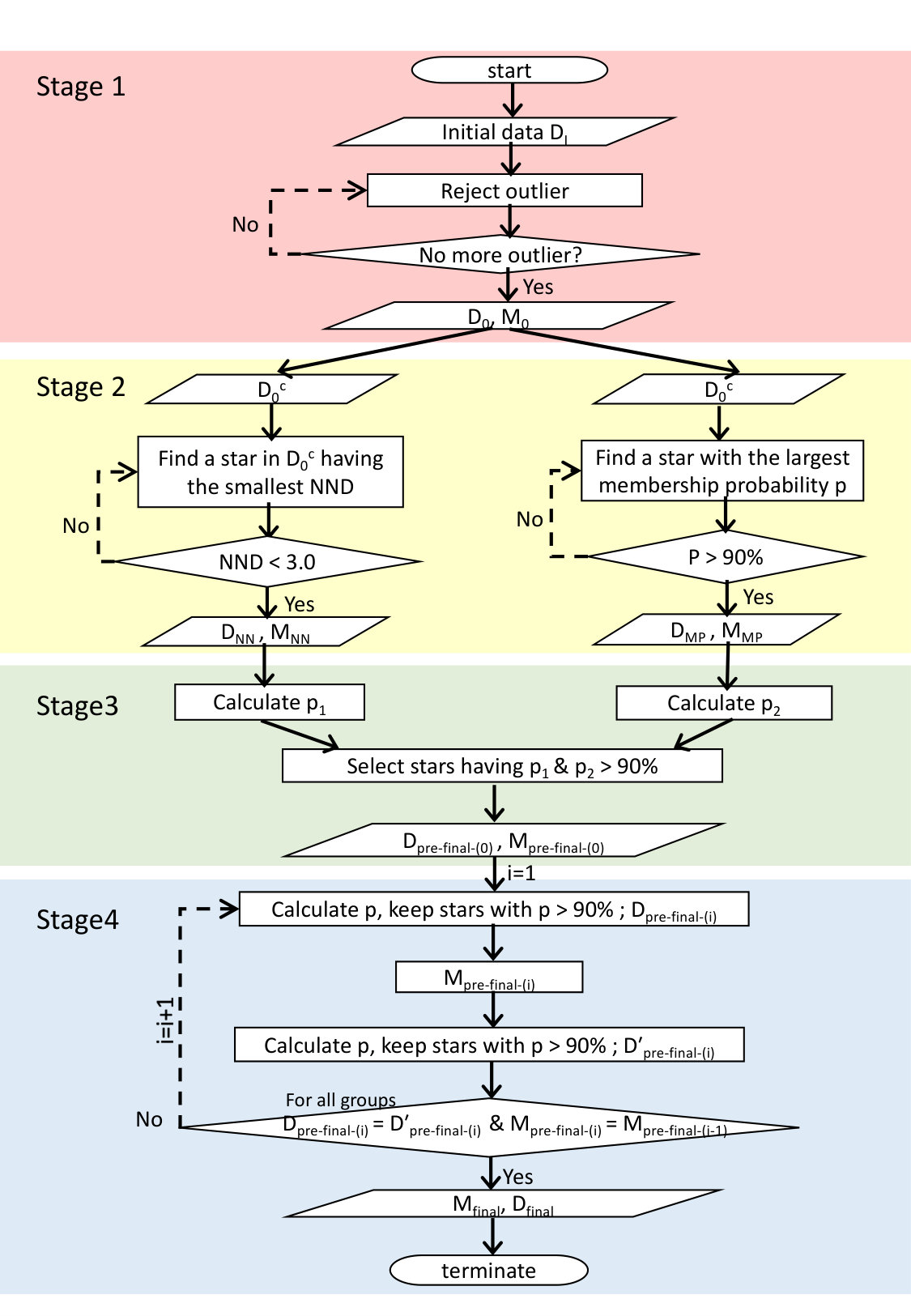

It presents a comprehensive process for creating, revising, and finalizing models of NYMGs, enhancing membership accuracy and revealing new insights into stellar and planetary characteristics.

Findings

Finalized models for all major NYMGs with improved membership accuracy.

Identification of consistent bona fide members across different model revisions.

Revised memberships of planet-hosting stars affecting planetary mass estimates.

Abstract

Lee & Song (2018, Paper 1) developed a tool for calculating Bayesian membership probability for nearby young stellar moving groups (BAMG: Bayesian Analysis of Moving Groups). The study presented the importance of careful construction of models in moving group membership assessment, using $\beta$ Pictoris moving group as a test case. In this study, we build models for all major nearby young stellar moving groups (NYMGs hereafter) through 4 stages. A set of prototype models is created using members listed in the discovery paper of each group. For each group, suggested members after the discovery of the group are used for revising these prototype models. As these additional members being incorporated, group properties of a NYMG changes, thus membership probabilities change as well. A subset of stars show consistently large membership probabilities regardless of the details of a chosen method for ingesting additional members. Utilising these members, the NYMG models are finalised. The finalised models are applied for evaluating memberships of all claimed candidate members, resulting in a list of bona fide members. The mass function of bona fide members for the entire set of NYMG members indicates that more late-M type members should be identified. In addition, some objects showing a large difference in membership probability between BAMG and BANYAN $\Sigma$ (Gagne et al. 2018b) are presented and discussed. Memberships of some planet host stars are changed, and it can have a significant influence on the estimated planetary masses.

Figures

Tables

Table 1. Table 1 : A sample of the claimed NYMG members. The entire table including membership probabilities [based on M 0 subscript 𝑀 0 M_{\rm 0} , M NN subscript 𝑀 NN M_{\rm NN} , M MP subscript 𝑀 MP M_{\rm MP} , M final subscript 𝑀 final M_{\rm final}  and from BANYAN Σ Σ \Sigma (v1.2)] is available online.

Name	SpT	$\alpha$	$\delta$	${\mu }_{\alpha }$	${\mu }_{\delta }$	$\pi$	$RV$	$B$	$V$	$G$	$G_{\mathrm{BP}}$	$G_{\mathrm{RP}}$	$K$	$W_1$	$NUV$	log$L_X/L_{\mathrm{bol}}$	EW(Li)	f($M_0$)a	f($M_{\mathrm{NN}}$)a	f($M_{\mathrm{MP}}$)a	f($M_{\mathrm{final}}$)a
		hh:mm:ss	dd:mm:ss	mas yr-1	mas yr-1	mas	km s-1	mag	mag	mag	mag	mag	mag	mag	mag		Å
2MASS J00011217+1535355	L4:	00:01:12.16	+15:35:35.5	143.49	-174.72	31.63	-	-	-	-	-	-	-	-	-	-	-	0	0	0	0
2MASS J00040288-6410358	L1	00:04:02.88	-64:10:35.8	64.0	-47.0	-	-	-	-	-	-	-	14.01	13.41	-	-	-	0	0	0	0
2MASS J00041589-8747254	M5.7	00:04:15.84	-87:47:25.4	72.88	-38.1	19.84	-	-	-	16.54	19.13	15.09	11.87	11.65	-	-	-	0	0	0	0
HD 105	G0V	00:05:52.54	-41:45:11.1	97.75	-76.42	25.74	2.2	8.1	7.51	7.38	7.7	6.94	6.12	6.07	-	-4.4	140.0	0	4	4	4
HD203	F2	00:06:50.09	-23:06:27.2	96.78	-47.12	25.02	9.7	6.55	6.17	6.08	6.3	5.77	5.24	5.13	-	-5.3	87.0	0	2	2	2
2MASS J00065794-6436542	M9:	00:06:57.93	-64:36:54.2	86.92	-61.66	23.26	-	-	-	18.21	21.26	16.52	12.17	11.74	-	-	-	0	0	0	0
2MASS J00111532-3756553	M5.7	00:11:15.33	-37:56:55.3	100.75	-89.72	21.63	-	-	-	15.91	18.45	14.47	11.21	11.02	-	-	-	0	0	0	0
2MASS J00125703-7952073	M2.9	00:12:57.05	-79:52:07.3	80.94	-45.12	21.42	9.4	15.06	13.56	12.41	13.81	11.26	8.75	8.66	19.86	-2.4	16.0	0	4	4	4
HD 987	G6V	00:13:53.01	-74:41:17.9	82.81	-49.08	21.81	9.2	9.48	8.73	8.62	9.04	8.09	6.96	6.9	14.55	-3.4	198.0	0	4	4	4
HIP1134	F5	00:14:10.25	-07:11:56.8	104.54	-67.91	21.78	0.6	7.82	7.32	7.19	7.47	6.8	6.07	6.08	-	-4.3	120.0	0	4,6	4,6	0
…
…
…

Table 2. Table 2: NYMGs considered in this study.

Name	Discovery	Age	References for age	Da	References for additional members
(abbreviation)		(Myr)		(pc)
The TW Hydrae association (TWA)	Kastner et al. (1997)b	8-10	Torres et al. (2008); Bell et al. (2015)	50	Webb et al. (1999); Sterzik et al. (1999); Zuckerman et al. (2001a); Gizis (2002); Reid et al. (2003); Song et al. (2003); Zuckerman & Song (2004b); Scholz et al. (2005); Mamajek (2005); Looper et al. (2007); Kirkpatrick et al. (2008); Kastner et al. (2008); Looper et al. (2010a, b); Shkolnik et al. (2011); Rodriguez et al. (2011); Schneider et al. (2012b); Malo et al. (2013); Riedel et al. (2014); Gagné et al. (2014a, 2015a, 2015b, 2015c); Murphy et al. (2015); Elliott et al. (2016); Gagné et al. (2018b, c)
The $\beta$ Pictoris moving group (BPMG)	Zuckerman et al. (2001b)	12-24	Zuckerman et al. (2001b); Bell et al. (2015)	35	Zuckerman & Song (2004b); Moòr et al. (2006); Torres et al. (2008); Kirkpatrick et al. (2008); Lépine & Simon (2009); Teixeira et al. (2009); Schlieder et al. (2010); Rice et al. (2010); Kiss et al. (2011); Schlieder et al. (2012a, b); Shkolnik et al. (2012); Moòr et al. (2013); Liu et al. (2013); Malo et al. (2013, 2014a, 2014b); Riedel et al. (2014); Gagné et al. (2014a); Rodriguez et al. (2014); Gagné et al. (2015a, b); Best et al. (2015); Binks et al. (2015); Elliott et al. (2016); Shkolnik et al. (2017); Gagné et al. (2018c)
The 32 Ori group (ThOr)	Mamajek (2007)c	20	Bell et al. (2017)	90	Bell et al. (2017); Gagné et al. (2018b, c)
The Tucana/Horologium association (TucHor)	Zuckerman & Webb (2000); Torres et al. (2000)	30-45	Zuckerman & Song (2004b); Bell et al. (2015)	50	Zuckerman & Webb (2000); Zuckerman et al. (2001d); Zuckerman & Song (2004b); Moòr et al. (2006); Torres et al. (2008); Kiss et al. (2011); Zuckerman et al. (2011); Zuckerman & Song (2012); Shkolnik et al. (2012); Rodriguez et al. (2013); Malo et al. (2013); Delmore et al. (2013); Gagné et al. (2014a); Malo et al. (2014a, b); Kraus et al. (2014); Gagné et al. (2015a, b); Artigau et al. (2015); Binks et al. (2015); Elliott et al. (2016); Gagné et al. (2018b)
The Carina association (Carina)	Torres et al. (2008)	30-45	Torres et al. (2008); Bell et al. (2015)	90	Shkolnik et al. (2012); Malo et al. (2013); Moòr et al. (2013); Malo et al. (2014a); Gagné et al. (2014a, 2015a, 2015b); Binks et al. (2015); Elliott et al. (2016); Silverberg et al. (2016); Gagné et al. (2018b, c)
The Columba association (Columba)	Torres et al. (2008)	30-42	Torres et al. (2008); Bell et al. (2015)	80	Zuckerman et al. (2011); Zuckerman & Song (2012); Shkolnik et al. (2012); Malo et al. (2013); Moòr et al. (2013); Rodriguez et al. (2013); Gagné et al. (2014a); Malo et al. (2014a, b); Gagné et al. (2015a, b); Binks et al. (2015); Elliott et al. (2016); Gagné et al. (2018b, c)
The Argus association (Argus)	Torres et al. (2003a)	40	Torres et al. (2008); Bell et al. (2015)	97	Riedel et al. (2011); Zuckerman et al. (2011); Zuckerman & Song (2012); Malo et al. (2013); de Silva et al. (2013); Moòr et al. (2013); Gagné et al. (2014a); Malo et al. (2014a, b); Riedel et al. (2014); Gagné et al. (2014b, 2015a, 2015b); Best et al. (2015)
The AB Doradus moving group (ABDor)	Zuckerman et al. (2004a)	50-150	Zuckerman et al. (2004a); Bell et al. (2015)	39	López-Santiago et al. (2006); Torres et al. (2008); Schlieder et al. (2010); Zuckerman et al. (2011); Wahhaj et al. (2011); Schlieder et al. (2012a, b); Shkolnik et al. (2012); Faherty et al. (2013); Malo et al. (2013); Moòr et al. (2013); Rodriguez et al. (2013); Gagné et al. (2014a); Malo et al. (2014a, b); Riedel et al. (2014); Gagné et al. (2015a, b); Best et al. (2015); Binks et al. (2015); Elliott et al. (2016); Desrochers et al. (2018); Gagné et al. (2018b, c)
Volans-Carina (VCA)	Oh et al. (2017); Gagné et al. (2018d)d	90	Gagné et al. (2018d)	85	–

Table 3. Table 3: The prototype ( M 0 subscript 𝑀 0 M_{\rm 0} ), revised ( M NN subscript 𝑀 NN M_{\rm NN}  and M MP subscript 𝑀 MP M_{\rm MP} ), and finalised ( M final subscript 𝑀 final M_{\rm final} ) model parameters for NYMGs. X , Y , Z , U , V 𝑋 𝑌 𝑍 𝑈 𝑉 X,Y,Z,U,V , and W 𝑊 W are centre positions of the models. σ 𝜎 \sigma values are the standard deviation of the models, and angles represent Euler angles. The members used in building the models can be found in Table  1 , and N 𝑁 N indicates the number of these members.

Name	$X$	$Y$	$Z$	${\sigma }_X$	${\sigma }_Y$	${\sigma }_Z$	${\varphi }_{\mathrm{xyz}}$	${\theta }_{\mathrm{xyz}}$	${\psi }_{\mathrm{xyz}}$	$U$	$V$	$W$	${\sigma }_U$	${\sigma }_V$	${\sigma }_W$	${\varphi }_{\mathrm{uvw}}$	${\theta }_{\mathrm{uvw}}$	${\psi }_{\mathrm{uvw}}$	$N$
	pc			pc			$\circ$			km s-1			km s-1			$\circ$
$M_0$
TWA	13.7	-47.2	22.8	14.7	7.5	3.3	-128	-18	-7	-12.1	-18.8	-6.1	1.9	0.9	0.7	-115	-5	-46	15
BPMG	16.7	-9.7	-10.7	21.4	12.7	7.1	175	-3	-17	-10.3	-16.2	-9.5	2.4	1.4	1.0	-165	-2	12	21
ThOr	-95.1	-27.4	-26.3	11.8	4.1	1.6	177	0	55	-10.1	-19.3	-8.6	2.9	0.9	0.3	160	-18	126	13
TucHor	17.3	-24.0	-38.2	19.1	10.5	3.3	124	-36	20	-9.1	-20.6	-2.7	4.4	2.6	1.7	-172	44	-47	30
Carina	13.1	-97.7	-17.9	36.2	10.1	9.0	97	4	43	-11.0	-22.3	-4.5	1.8	0.9	0.6	-155	30	-3	21
Columba	-42.6	-59.7	-54.3	34.1	28.2	21.1	98	-5	-23	-13.8	-21.8	-5.0	2.3	1.4	1.2	141	-22	-5	35
Argus	14.5	-102.8	-14.4	32.2	26.1	15.4	97	-3	16	-23.0	-14.9	-5.6	2.5	1.3	0.9	93	-28	-77	20
ABDor	-7.3	5.1	-11.4	23.7	17.2	11.9	-153	-23	-144	-7.1	-27.4	-14.1	2.0	1.3	1.2	113	72	-4	34
VCA	20.4	-82.6	-15.2	4.8	4.3	3.3	-91	37	78	-16.0	-28.4	-0.9	1.5	1.1	0.9	121	1	-40	18
$M_{\mathrm{NN}}$
TWA	20.7	-55.1	23.3	24.9	10.4	6.3	-130	-6	4	-11.7	-18.6	-6.2	3.0	1.7	1.1	-131	-14	-4	40
BPMG	10.9	-2.6	-19.9	41.6	20.5	16.4	-177	-9	161	-10.3	-16.8	-8.5	2.7	2.3	1.5	141	26	-46	145
ThOr	-98.7	-28.0	-25.7	10.8	7.0	3.4	166	-12	36	-11.6	-19.8	-8.8	2.8	1.5	1.3	167	-4	55	34
TucHor	4.5	-24.3	-35.2	20.2	17.6	9.3	-172	4	16	-10.0	-21.0	-2.0	2.4	1.9	1.4	72	-80	-17	226
Carina	8.0	-87.9	-24.0	39.1	19.9	14.1	-91	-6	-131	-10.9	-22.1	-3.9	1.7	1.1	1.0	-120	50	15	67
Columba	-26.9	-37.9	-36.7	42.2	31.5	22.9	91	-22	158	-13.2	-21.4	-5.1	3.0	2.3	1.6	-156	-10	20	143
Argus	6.2	-67.5	-13.2	62.7	28.7	21.3	95	-5	-7	-23.2	-14.9	-4.2	8.1	4.5	3.4	171	7	-39	85
ABDor	-7.5	-9.7	-19.4	38.9	28.2	21.5	108	-19	3	-7.0	-27.3	-13.6	2.4	2.0	1.7	-173	70	84	152
VCA	20.4	-82.6	-15.2	4.8	4.3	3.3	-91	37	78	-16.0	-28.4	-0.9	1.5	1.1	0.9	121	1	-40	18
$M_{\mathrm{MP}}$
TWA	14.7	-48.5	23.9	13.1	6.5	3.6	-134	-15	-6	-12.2	-18.7	-6.0	2.6	1.2	0.9	-125	-14	-27	31
BPMG	13.3	-0.2	-19.1	37.2	18.2	9.6	-173	-5	-31	-10.3	-16.2	-8.9	2.6	1.8	1.5	166	2	-48	120
ThOr	-98.8	-27.1	-26.0	11.0	7.1	2.3	166	-12	42	-11.2	-19.7	-9.1	2.7	1.4	0.6	164	-16	-1	31
TucHor	8.2	-22.8	-36.1	16.2	11.4	5.5	-177	-9	13	-9.7	-21.0	-1.5	2.4	1.7	1.3	-151	60	59	186
Carina	14.4	-101.6	-18.4	30.7	10.1	9.5	96	4	37	-10.7	-22.4	-4.2	1.4	1.2	0.9	-149	47	58	46
Columba	-36.8	-40.1	-43.2	36.4	25.2	20.9	-91	27	-9	-13.0	-21.6	-5.1	2.5	1.5	1.3	143	-23	113	106
Argus	10.8	-93.8	-13.1	55.7	22.1	13.0	95	-5	13	-22.5	-14.2	-5.4	2.7	2.4	1.3	-159	5	8	52
ABDor	-7.6	-4.8	-19.4	31.9	26.6	19.4	120	-15	8	-7.2	-27.5	-13.7	4.6	2.5	1.6	176	21	-78	142
VCA	20.4	-82.7	-15.1	4.7	4.2	3.3	-91	36	78	-15.7	-29.5	-1.1	4.9	1.2	1.0	-100	7	3	19
$M_{\mathrm{final}}$
TWA	14.7	-48.5	23.9	13.1	6.5	3.6	-134	-15	-6	-12.2	-18.7	-6.0	2.6	1.2	0.9	-125	-14	-27	30
BPMG	16.7	-0.5	-17.8	34.9	18.5	11.5	-170	-8	-38	-10.0	-16.2	-8.9	2.6	1.9	1.4	176	11	-57	113
ThOr	-98.8	-27.1	-26.0	11.0	7.1	2.3	166	-12	42	-11.2	-19.7	-9.1	2.7	1.4	0.6	164	-16	-1	31
TucHor	9.1	-22.1	-35.6	15.7	9.1	2.8	-173	-8	-1	-9.6	-21.0	-1.0	1.7	1.1	0.6	-125	49	13	160
Carina	12.3	-114.7	-18.3	21.6	11.5	9.2	108	8	-18	-10.6	-22.5	-4.0	1.5	1.2	0.9	-99	57	20	37
Columba	-33.3	-48.8	-45.7	29.2	24.1	19.1	-151	12	53	-12.9	-21.5	-5.0	2.1	1.2	1.1	149	-31	106	87
Argus	5.7	-78.7	-14.2	60.5	25.9	15.9	-89	1	-1	-23.4	-14.0	-4.9	4.9	2.6	1.7	151	12	22	46
ABDor	-8.1	-8.3	-19.1	37.6	28.4	20.7	107	-17	4	-7.3	-27.4	-13.6	4.6	2.6	1.9	176	25	-91	129
VCA	20.9	-83.2	-15.7	4.1	3.0	1.9	-71	8	-72	-16.0	-29.6	-1.1	5.4	0.9	0.6	-103	7	15	19

Table 4. Table 4 : Selected BPMG members in 4 membership classes. The entire table is available online. 1) Bona fide members are members having a membership probability of > > 90 per cent, full astrometric parameters, and confirmed youth. 2) Highly likely members are members having full astrometric parameters and confirmed youth, but with slightly low membership probability (80 − - 90 per cent). 3) probable members are members having membership probability of > > 90 per cent and confirmed youth, but missing R ​ V 𝑅 𝑉 RV  or π 𝜋 \pi . 4) Possible members are members having a membership probability of > > 90 per cent and full astrometric parameters, but their youth is not confirmed.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
BPMG	HD203	F2	00:06:50.09	-23:06:27.1	100.0
BPMG	2MASS J00172353-6645124	M2.5V	00:17:23.54	-66:45:12.3	100.0
BPMG	2MASS J00194303+1951117	M4.7	00:19:43.04	+19:51:11.7	98.5
…
…
…
highly likely members
BPMG	2MASS J04435686+3723033	M3	04:43:56.87	+37:23:03.4	86.2
BPMG	2MASS J06131330-2742054	M3.5	06:13:13.32	-27:42:05.5	89.7
probable members
BPMG	2MASS J01294256-0823580	M7	01:29:42.57	-08:23:58.2	99.9
BPMG	J0152+0833	M3	01:52:57.36	+08:33:25.9	100.0
BPMG	J0216+3043	M4	02:16:02.49	+30:43:57.4	100.0
…
…
…
possible members
BPMG	2MASS J01365516-0647379	M4V+>L0	01:36:55.18	-06:47:38.0	100.0
BPMG	2MASS J01373545-0645375	G9	01:37:35.47	-06:45:37.5	100.0
…
…
…

Table 5. Table 5: Stars showing significantly different membership probabilities from our scheme (BAMG) and BANYAN Σ Σ \Sigma . Only a subset of members is presented. † For other members not listed in this table, see Table  1 .

Name	SpT	$p_{\max }$(group)
		BAMG (this study)	BANYAN $\Sigma$
TWA 6	M0Ve	100 (TWA)	100 (Field)
TWA 2	M2Ve	100 (TWA)	96 (Field)
TWA 3B	M4Ve	100 (TWA)	89 (Field)
TWA 16	M1Ve	94 (Field)	96 (TWA)
HD 2885	A2V	99 (TucHor)	87 (Field)
HD 12894	F2V	100 (TucHor)	100 (Field)
2MASS J06085283-2753583	M9+L0	100 (Columba)	100 (Field)
HIP 63742	K1	98 (ABDor)	71 (Field)

Table 6. Table 6: Binary members showing inconsistency between the members in terms of membership probability. Binary systems showing inconsistent membership status with either BAMG or BANYAN Σ Σ \Sigma are presented. Horizontal lines separate different systems.

Name	SpT	$p$ (group)
		BAMG (this study)	BANYAN $\Sigma$
HD 2884	B9V	100 (TucHor)	59 (TucHor)
HD 2885	A2V	100 (TucHor)	87 (Field)
HIP 12635	K3.5	100 (ABDor)	97 (ABDor)
HIP 12638	G5	100 (Field)	100 (Field)
ome Aur A	A1	35, 34 (BPMG, ABDor)	99 (Columba)
ome Aur B	F9	97 (ABDor)	77 (Columba)
HD 64982	G0V	61, 24 (Columba, ABDor)	55, 27 (Field, ABDor)
HD 64982B	K	98 (Field)	97 (Field)
HD 83096	F2V	62 (Carina)	100 (Carina)
HIP 46720B	G9V	52 (Argus)	92 (Field)
$\eta$ Tel	A0	96 (BPMG)	77 (BPMG)
HR 7329B	M7/8V	96 (BPMG)	97 (BPMG)

Table 7. Table 7: Planet host moving group members showing significantly different membership probabilities from our scheme (BAMG) and BANYAN Σ Σ \Sigma .

Name	SpT	$p$ (group)		Planet name
		BAMG (this study)	BANYAN $\Sigma$
TYC 9486-927-1	M1Ve	100 (BPMG)	100 (Field)	2M J2126-81 b
2MASS J22501512+2325342A	M3	99 (ABDor)	55 (ABDor), 45 (Field)	2MASS J2250+2325 b
AB Pic	K1Ve	100 (Columba)	99 (Carina)	AB Pic b
CD-52 381	K2Ve	99 (Columba)	46 (Columba), 54 (Field)	GSC 08047-00232 b
HIP 1134	F5	54 (BPMG), 41 (ABDor)	100 (Field)	HD 984 b
HIP 114189	A5	87 (BPMG), 12 (ABDor)	49 (Columba), 51 (Field)	HR 8799 b, HR 8799 c, HR 8799 d, HR 8799 e
HD 222439	B9	86 (BPMG)	92 (Field), 8 (Columba)	$\kappa$ And b

Table 8. Table 8 : Selected TWA members in 2 membership classes. The description of classes are same as Table  4 . The entire table is available online.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
TWA	SCR J1012-3124AB	M4.0	10:12:09.13	-31:24:45.2	100.0
TWA	TWA6	M0Ve	10:18:28.70	-31:50:02.8	100.0
TWA	TWA7	M2Ve	10:42:30.10	-33:40:16.2	99.9
…
…
…
probable members
TWA	2MASS J10284580-2830374	M5	10:28:45.80	-28:30:37.5	100.0
TWA	2MASS J10585054-2346206	M3.8	10:58:50.54	-23:46:20.6	100.0
TWA	2MASS J11020983-3430355	M8.5	11:02:09.84	-34:30:35.6	100.0
…
…
…

Table 9. Table 9 : Selected ThOr members in 2 membership classes. The description of classes are same as Table  4 . The entire table is available online.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
ThOr	2MASS J05132631+1057439	M3	05:13:26.31	+10:57:44.0	100.0
ThOr	2MASS J05192941+1038081	M3	05:19:29.42	+10:38:08.2	100.0
ThOr	2MASS J05194398+0535021	M3	05:19:43.99	+05:35:02.1	100.0
…
…
…
probable members
ThOr	J0520+0511	K0	05:20:17.95	+05:11:52.1	100.0
ThOr	J0527+0626	M6	05:27:28.05	+06:26:43.8	100.0
…
…
…

Table 10. Table 10 : Selected TucHor members in 4 membership classes. The description of classes are same as Table  4 . The entire table is available online.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
TucHor	HD 105	G0V	00:05:52.54	-41:45:11.0	100.0
TucHor	2MASS J00125703-7952073	M2.9	00:12:57.05	-79:52:07.3	100.0
TucHor	HD 987	G6V	00:13:53.01	-74:41:17.9	100.0
…
…
…
highly likely members
TucHor	J0015-2946	M4	00:15:36.71	-29:46:00.5	85.6
probable members
TucHor	2MASS J00041589-8747254	M5.7	00:04:15.84	-87:47:25.4	98.6
TucHor	2MASS J00065794-6436542	M9:	00:06:57.93	-64:36:54.2	100.0
TucHor	2MASS J00182834-6703130	M9.6	00:18:28.33	-67:03:13.0	100.0
…
…
…
possible members
TucHor	HD 10269	F5V	01:39:07.62	-56:25:45.8	100.0

Table 11. Table 11 : Selected Carina members in 2 membership classes. The description of classes are same as Table  4 . The entire table is available online.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
Carina	CD-57 1709	K0V	07:21:23.71	-57:20:37.0	99.2
Carina	CD-42 3328	K1IV	07:33:21.17	-42:55:42.3	92.2
Carina	CD-63 336	G2	07:42:38.90	-63:36:14.0	100.0
…
…
…
probable members
Carina	J0715-6555	M5	07:15:17.05	-65:55:48.7	93.1
Carina	2MASS J08035086-7344331	M3.7	08:03:50.85	-73:44:33.1	99.8
Carina	2MASS J08063045-6809212	M3.8	08:06:30.46	-68:09:21.2	100.0
…
…
…

Table 12. Table 12 : Selected Columba members in 4 membership classes. The description of classes are same as Table  4 . The entire table is available online.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
Columba	HD8077	F6V	01:19:05.61	-53:51:01.9	90.8
Columba	CD-52 381	K2Ve	01:52:14.63	-52:19:33.2	98.9
Columba	2MASS J01540267-4040440	K7V	01:54:02.69	-40:40:44.2	93.9
…
…
…
highly likely members
Columba	2MASS J02303239-4342232	K5Ve	02:30:32.42	-43:42:23.4	82.1
Columba	WASP 050206.19+311102.2	K2	05:02:06.19	+31:11:02.4	80.0
Columba	2MASS J05432676-3025129	M0.5V	05:43:26.76	-30:25:13.0	88.4
probable members
Columba	WISE J032144.76-330949.5	M5.8	03:21:44.79	-33:09:48.9	98.4
Columba	WISE J032443.06-273323.1	M5.5	03:24:43.05	-27:33:23.0	92.7
Columba	J0326-3850	M3	03:26:37.04	-38:50:15.9	99.7
…
…
…
possible members
Columba	HD 30447	F3V	04:46:49.53	-26:18:08.9	100.0
Columba	HD 35841	F3V	05:26:36.59	-22:29:23.7	100.0
Columba	2MASS J05361998-1920396	L2gamma	05:36:20.02	-19:20:40.1	99.4

Table 13. Table 13 : Selected Argus members in 4 membership classes. The description of classes are same as Table  4 . The entire table is available online.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
Argus	FT Psc	M3.5+M4.5	00:50:33.25	+24:49:00.2	94.7
Argus	2MASS J05090356-4209199	M3.5V	05:09:03.56	-42:09:19.8	97.3
Argus	CD-29 2360	K3Ve	05:34:59.23	-29:54:04.0	94.8
…
…
…
highly likely members
Argus	TYC 8561-0970	K0V	07:53:55.48	-57:10:07.3	84.6
Argus	PMM 2456	K3e	08:35:43.69	-53:21:20.3	89.2
Argus	CD-74 673	K3Ve	12:20:34.40	-75:39:28.8	87.7
probable members
Argus	2MASS J07140101-1945332	M4.5V	07:14:01.01	-19:45:33.2	92.1
Argus	PMM 5314	A	08:28:34.53	-52:37:03.5	100.0
possible members
Argus	2MASS J00452143+1634446	L2beta	00:45:21.42	+16:34:44.7	99.7
Argus	AP Col	M5	06:04:52.15	-34:33:35.8	100.0
Argus	PMM 2888	F5	08:43:52.30	-53:13:59.8	98.6
…
…
…

Table 14. Table 14 : Selected ABDor members in 4 membership classes. The description of classes are same as Table  4 . The entire table is available online.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
ABDor	PW And	K0Ve	00:18:20.89	+30:57:22.1	100.0
ABDor	2MASS J00192626+4614078	M8	00:19:26.27	+46:14:07.8	100.0
ABDor	J0025-0957	M3.0V	00:25:50.98	-09:57:39.9	94.0
…
…
…
highly likely members
ABDor	J0139+2611	M4	01:39:58.71	+26:11:03.1	81.4
ABDor	G 133-40	M0	01:47:29.55	+34:13:09.2	80.7
ABDor	2MASS J02105538-4603588	K4.2	02:10:55.39	-46:03:58.7	86.3
ABDor	CD-35 2749	K1Ve	06:11:55.72	-35:29:12.9	89.9
ABDor	HD 199058	G5V	20:54:21.09	+09:02:23.8	89.4
probable members
ABDor	J0014+4758	M6	00:14:18.23	+47:58:07.6	99.9
ABDor	J0021+4304	M5	00:21:46.97	+43:04:21.4	99.9
ABDor	J0024-2522	M3	00:24:32.02	-25:22:53.0	100.0
…
…
…
possible members
ABDor	HIP4967	M	01:03:40.14	+40:51:29.2	100.0
ABDor	GJ 2022A	M4.0	01:24:27.64	-33:55:09.4	100.0
ABDor	G 269-153 C (E)	M5.0	01:24:30.42	-33:54:59.5	100.0
…
…
…

Table 15. Table 15 : Selected VCA members in 2 membership classes. The description of classes are same as Table  4 . The entire table is available online.

Group	Name	SpT	$\alpha$	$\delta$	pa
			hh:mm:ss	dd:mm:ss	per cent
bona fide members
VCA	HD 80563	F3V	09:17:34.14	-63:23:14.5	100.0
VCA	HD 83946	F5V	09:38:54.10	-64:59:26.7	100.0
VCA	HD 309681	G0	09:25:01.63	-64:37:31.2	100.0
…
…
…
probable members
VCA	c Car (HR3571)	B8II	08:55:02.85	-60:38:40.7	100.0
VCA	2MASS J08383351-6716368	M5	08:38:33.51	-67:16:36.8	100.0
VCA	2MASS J08485563-6113261	M5	08:48:55.63	-61:13:26.1	100.0
…
…
…

Equations

$${\widehat{NND}}_{\mathrm{xyz}}=\frac{NN{D}_{\mathrm{xyz}}-Q_{3,\mathrm{xyz}}}{IQ{R}_{\mathrm{xyz}}}$$

Full text

††pubyear: 2019††pagerange: Development of models for nearby young stellar moving groups: creation, revision, and finalisation of the models–B.9

1 Introduction

Nearby young stellar moving groups (NYMG hereafter) have attracted much attention since their discovery over the past two decades [e.g., Kastner et al. (1997); Webb et al. (1999); Song et al. (2003); Zuckerman & Song (2004b); Torres et al. (2008); Rodriguez et al. (2011); Zuckerman et al. (2011); Shkolnik et al. (2012); Malo et al. (2013); Gagné et al. (2018b)], because NYMGs have potential applications in various stellar fields. NYMGs are loose stellar associations whose members formed together, and they are typically located within 100 pc and younger than 200 Myr. Due to both their youth and proximity to Earth they have been prime targets for infrared imaging of self-luminous exoplanets (Marois et al., 2008). They are also benchmarks for studying low-mass stars and brown dwarfs (Gizis, 2002) because their ages are relatively well constrained and their proximity and youth make identification of their coolest members possible. This results in an improved mass function in the low mass regime (Kraus et al., 2014). Additionally, NYMGs can allow us to understand star formation and evolution in a relatively low-density environment.

Because of their importance, the census of NYMGs has been a hot topic [e.g., Zuckerman & Song (2004b); Torres et al. (2008); Shkolnik et al. (2011); Malo et al. (2013); Elliott et al. (2016); Shkolnik et al. (2017); Gagné et al. (2018a)]. NYMG members must have formed together relatively recently in the same area, sharing similar motion. Therefore, probable members can be identified using signs of youth and their kinematic information in a 4 parameter space [i.e., R.A. ($\alpha$) and Dec. ($\delta$) and proper motions ($\mu_{\alpha}$ and $\mu_{\delta}$)]. However, Galactic position and Galactic velocity in the 6 parameter space ($XYZ$ and $UVW$) should provide the most comprehensive and accurate kinematic assessment. For this full position and velocity information, 6 parameters [i.e., $\alpha$, $\delta$, $\mu_{\alpha}$, $\mu_{\delta}$, radial velocity ($RV$), and parallax ($\pi$)] are required. In many cases, however, only a subset of those parameters are available (e.g., lacking $\pi$ or $RV$), especially for low mass stars. In such cases, instead of a unique value in the 6D space, a range of $XYZ$ and $UVW$ values can be calculated assuming an acceptable range of the missing parameters. A Bayesian approach effectively deals with such cases through the marginalisation process (Gregory, 2005). Due to this advantage and the fact that Bayesian posterior is based on current information, the Bayesian approach has grown in popularity for identifying NYMG members. Malo et al. (2013) and Gagné et al. (2014a, 2018b) developed NYMG membership probability calculation tools based on the Bayesian framework. Under the presumed assumptions – models of NYMGs and field stars –, these tools can provide a reliable membership probability for a given star, and the result is straightforward to interpret.

NYMGs were distinctive and easily separable from each other in XYZUVW when they were initially discovered (the late 1990s to the early 2000s). Later on, more and more NYMG members were identified, and new NYMGs were discovered as well [e.g., Zuckerman et al. (2001b, 2004a); Mamajek (2007); Torres et al. (2008); Rodriguez et al. (2011); Zuckerman et al. (2011); Shkolnik et al. (2012); Malo et al. (2013); Gagné et al. (2018d)]. The newly discovered members are identified from properties similar to previously identified members, and these additional members modify the group properties (i.e., mean position and velocity) in turn. Therefore, as many NYMG members are added, the distinctions among NYMGs have gotten less prominent causing overlapping distributions in XYZUVW, which raises confusions in NYMG memberships. Membership for a new candidate member is determined based on the average group property of the relevant NYMG. The group properties of a NYMG (e.g., mean positions and extensions in XYZ and UVW) are presented as model parameters, and these models can be constructed based on the previously identified members of the NYMG. Since false members can bias the model parameters, NYMG models should be carefully established using only the most reliable members. Thanks to the recently released Gaia DR2 (Gaia Collaboration et al., 2018), more NYMG members have $\pi$ and $RV$ values, which allow more accurate membership assessment, enhancing the reliability of NYMG models.

In this study, we build up models of NYMGs through 4 stages beginning with members listed in the discovery paper of each NYMG. We describe the NYMG model establishment process in Section 2. In Section 3, the models and bona fide members are presented in a case of the $\beta$ Pictoris moving group. Models for the other NYMGs and their bona fide members are presented in Appendix. Discussion and conclusion appear in Section 4 and 5.

2 Method

In any NYMG membership calculation scheme, a set of model parameters such as average positions of members in XYZ and UVW for a NYMG need to be defined so that a candidate member’s data can be examined against such parameters to assess its membership probability. In a Bayesian scheme like ours and BANYAN variations, for a given NYMG, average position ($X_{0}$, $Y_{0}$, $Z_{0}$) and extension ($\sigma_{X}$, $\sigma_{Y}$, $\sigma_{Z}$) of members in the 3D positional space (XYZ) are estimated fitting a 3D Gaussian ellipsoid. To fully describe the best fit Gaussian ellipsoid in XYZ, in addition to six parameters ($X_{0}$, $Y_{0}$, $Z_{0}$, $\sigma_{X}$, $\sigma_{Y}$, $\sigma_{Z}$), we also need to specify its rotational orientation (i.e., Euler angles of the ellipsoid: $\phi_{\rm xyz}$, $\theta_{\rm xyz}$, $\psi_{\rm xyz}$). Therefore, 9 parameters are necessary to describe an XYZ model for a given NYMG. Similarly, another set of 9 parameters ($U_{0}$, $V_{0}$, $W_{0}$, $\sigma_{U}$, $\sigma_{V}$, $\sigma_{W}$, $\phi_{\rm uvw}$, $\theta_{\rm uvw}$, $\psi_{\rm uvw}$) is needed to describe NYMG’s characteristics in the 3D velocity space UVW. These 18 parameters can fully describe a NYMG in the 6D XYZUVW space, and we call them NYMG model parameters. If a 6D ellipsoidal fitting to the distribution of members in XYZUVW is attempted, one needs to consider possible correlations among $XYZ$ and $UVW$. However, in our approach, we treated $XYZ$ and $UVW$ as two independent sets of 3D parameters each of which can be fitted independently with a 3D ellipsoid. Therefore, we ignore cross-terms between $XYZ$ and $UVW$. These NYMG model parameters are obtained utilising a Gaussian mixture model from the scikit-learn package of python (Pedregosa et al., 2011).

To build a model of a NYMG, a set of members is required; model parameters necessarily depend on the set of members. Currently, claimed NYMG members overlap with those from other groups in XYZ and UVW, and this causes a significant overlap of models, hence an ambiguity in membership assessment. On the other hand, at the time of discovery of a NYMG, the group was distinct from others. More members have been claimed and model parameters were modified. If false positive members are included in the input data set, the model would be distorted. Once the model is distorted, the following identification of new members can be biased, which can lead to a misunderstanding of the properties of the NYMGs as well.

To prevent this potential issue, it is necessary to re-examine memberships of previously claimed members and establish NYMG models. The prototype models are created with the initial members that are listed in the discovery paper of the NYMG. However, the prototype models might be inadequate to calculate reliable membership probabilities, because the prototype model is based on only a subset of true members and hence does not represent the whole distribution of members. Therefore, the prototype models should be revised by incorporating appropriate supplementary members. In this study, the model establishment is performed through 4 stages. Initially, prototype models for all NYMGs are created utilising their initial members (Stage 1). One may accept that most of the initial members of a NYMG would be bona fide members of the group. However, some of the initial members might turn out to be false positives or outliers because updated data (e.g., measurement of $\pi$ or $RV$) can demonstrate that they are less associated with the group. Therefore, in Stage 1, these outliers are detected and eliminated, and a prototype model is created utilising the cleaned list of initial members. In Stage 2, the prototype model is revised by incorporating members identified after the discovery of the NYMG. From the set of these additional members, only appropriate members are taken instead of adopting all of the additional members. Then, in Stage 3 and 4, the revised model is finalised. Fig. 1 illustrates the process of building up NYMG models. Throughout this paper, $D$ indicates a kinematic data set of stars, and subscripts describe classes of the data (e.g., $D_{I}$, $D_{0}$, and $D_{\rm final}$ indicate initial, good initial, and finalised members, respectively). $M$ represents a NYMG model (i.e., a set of 18 parameters), and subscripts indicate which set of stars are used to build the model (e.g., $M_{0}$ is generated using $D_{0}$). Each stage is performed iteratively. Details of each stage are described in Section 2.2$-$2.5.

2.1 Input data

In this study, NYMGs having a mean distance of $\leq$100 pc and age of $\leq$200 Myr are considered (listed in Table 2). For detailed information about these groups, see Appendix A.

Table 1 lists approximately 2000 members of the NYMGs collected from references listed in Table 2. Members listed in the discovery paper of a NYMG are referred to as initial members, while members identified afterwards are referred to as additional members. To present a star’s position and motion in the 3D Galactic spaces (XYZ and UVW), 6 astrometric parameters ($\alpha$, $\delta$, $\mu_{\alpha}$, $\mu_{\delta}$, $\pi$, and $RV$) are required. We used Gaia DR2 (Gaia Collaboration et al., 2018) as our primary source for obtaining astrometric parameters. For about 5 per cent of the collected NYMG members ($\sim$100 stars), $\alpha$, $\delta$, $\mu_{\alpha}$, $\mu_{\delta}$ are taken from other than Gaia DR2. These stars are mostly late M or L type stars. The 2MASS All-Sky Point Source Catalog [2MASS; Cutri et al. (2003)], the Tycho-2 catalogue [TYC2; Høg et al. (2000)], the fourth US naval observatory CCD astrograph catalogue [UCAC4; Zacharias et al. (2013)], and the Hipparcos catalogue [HIP; Perryman et al. (1997)] are used alternative sources of $\alpha$, $\delta$ or $\mu_{\alpha}$, $\mu_{\delta}$ for these stars. Regarding $\pi$, most data are collected from Gaia DR2, and data for 50 stars are available from the literature. For about 100 stars (mostly late M or L type stars), no $\pi$ is available to collect. For $RV$, Gaia DR2 has measurements for 360 stars. For stars missing $RV$ in Gaia DR2, we considered RAVE 5 [The Radial Velocity Experiment: Fifth Data Release; Kunder et al. (2017)], then Torres et al. (2006) and our internal database. After searching literature, 800 stars are missing $RV$.

We collected various age relevant data for all the claimed members from the literature and major catalogues, then evaluated their ages following the common age-dating methods (positions on colour-magnitude diagrams, NUV excess, log$L_{\rm X}/L_{\rm bol}$, and Lithium $\lambda$6708$\AA$). When none of these methods is available (e.g., late M- or L-type members lacking $\pi$), we accept the youth evaluation of the original reference.

Stars with confirmed youth and full astrometric parameters are used as input data ($D$) in the model development process.

2.2 Stage 1: creation of prototype models

This process begins with a set of initial members of a NYMG ($D_{I}$), which is a subset of the full input data $D$. As illustrated in Fig. 1 and described at the beginning of Section 2, outliers are eliminated via iteration.

In this set of initial members, we start by eliminating outliers (e.g., false members). Bayesian membership probability (Malo et al., 2013; Gagné et al., 2014a; Lee & Song, 2018) is a straightforward indicator of memberships. However, our Bayesian membership probability calculation requires models of all considered NYMGs, which have not been created yet at the beginning.

An alternative outlier rejection method is to use nearest neighbour distance ($NND$ hereafter). A star having the largest $NND$ (i.e., separated from other stars) can be assessed as an outlier. For a star, $NND$ is calculated in XYZ and UVW ($NND_{\rm xyz}$ and $NND_{\rm uvw}$). To identify which star is the most isolated one (i.e., outlier), the $NND_{\rm xyz}$ and $NND_{\rm uvw}$ are averaged so that each star has one single $NND$ value. Because $XYZ$ and $UVW$ have different scales, $NND_{\rm xyz}$ and $NND_{\rm uvw}$ should be normalised first. We use interquartile range ($IQR_{\rm xyz}$) and 3rd quartile (Q3,xyz) values to rescale $NND_{\rm xyz}$.

[TABLE]

In UVW, $NND_{\rm uvw}$ can be normalised as the same way as $NND_{\rm xyz}$. The averaged $NND$ value ($\widehat{NND}$) for a star can be obtained by the arithmetic mean of $\widehat{NND}_{\rm xyz}$ and $\widehat{NND}_{\rm uvw}$.

We accept the outlier definition by Tukey (1979) [samples with data of $>$ $Q_{3}$ + 3$\times IQR$ or $<$ $Q_{1}$ - 3$\times IQR$ are defined as outliers (far out)]. In Stage 1, outliers from the initial members ($D_{I}$) are eliminated via iteration until no outlier is detected. The mean $NND$ value ($\widehat{NND}$) of stars would be used for evaluating outliers (i.e., stars having $\widehat{NND}\geq$3.0 are defined as outliers). However, in Stage 1, we use both $\widehat{NND}_{\rm xyz}$ and $\widehat{NND}_{\rm uvw}$ values in evaluation of outliers because the number of the initial members is small and one eccentric member in XYZ and UVW can significantly distort the distribution of members. In Stage 1, $\widehat{NND}$ is used for sorting members to evaluate the most isolated member. Then, if the star has the rescaled $NND$ value larger than 3.0 in XYZ or UVW, the star is eliminated.

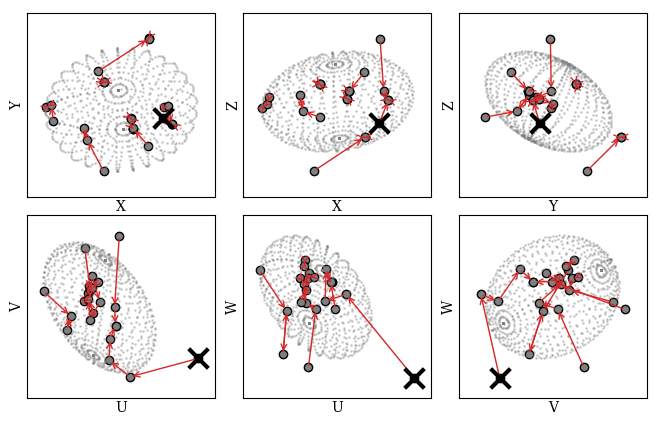

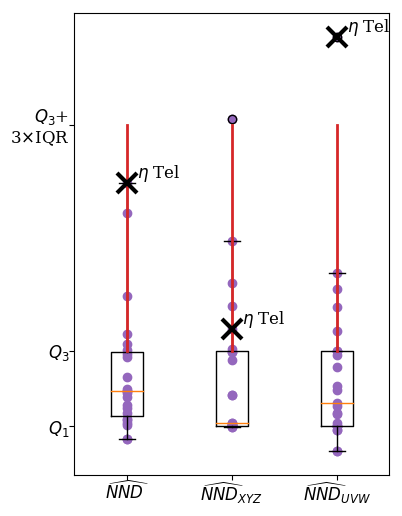

Fig. 2 illustrates the first iteration of detecting an outlier for BPMG. In the figure, the outlier is marked with a large cross. The $\widehat{NND}$, $\widehat{NND}_{\rm xyz}$, and $\widehat{NND}_{\rm uvw}$ values are displayed in the left panel of the figure. In the figure, the tip of the red line indicates the boundary of outlier determination (i.e., 3.0). In this first turn, $\eta$ Tel is evaluated as the most isolated member because the star has the largest $\widehat{NND}$ value as can be seen in the figure. Even though $\widehat{NND}$ of $\eta$ Tel is not larger than 3.0, the star is evaluated as an outlier due to $\widehat{NND}_{\rm uvw}$ being larger than 3.0. The remaining members in this turn are displayed as large grey dots in the right panel of Fig. 2. The outlier ($\eta$ Tel) in this turn is marked with a big cross. Each star is connected to its nearest neighbour with a red arrow. A temporary ellipsoidal model excluding the outlier is illustrated with small grey dots. Next iteration begins with the data set excluding this outlier. The remaining members after the termination of Stage 1 are referred to as good initial members ($D_{0}$). They are fitted with a 3D Gaussian mixture model in XYZ and UVW to obtain the prototype model ($M_{\rm 0}$). The model parameters of $M_{\rm 0}$ are shown in Table 3, and prototype models $M_{\rm 0}$ are illustrated in the top panel of Fig. 3.

2.3 Stage 2: revision of the prototype models

As explained in Section 2, prototype models are based on a small group of initially discovered members hence they need to be updated by incorporating additionally suggested members. In the set of input data ($D$), the set of members used to build the prototype models in Stage 1 is $D_{0}$, and the complement of the set $D_{0}$ are referred to as $D_{0}^{c}$. This set $D_{0}^{c}$ consists of stars identified after the discovery of the group (additional members). When model parameters are changed, some marginally rejected outliers from Stage 1 may become acceptable members. Therefore, we included all rejected stars from $D_{I}$ in $D_{0}^{c}$ as well. In $D_{0}^{c}$, appropriate members are selected and incorporated into $D_{0}$ to revise the set of members (referred to as $D_{\rm rev}$). This revision processes (i.e., member addition) is performed iteratively. The iteration is terminated when there are no more members to consider in $D_{0}^{c}$. After the termination of the process, the revised model ($M_{\rm rev}$) is constructed using $D_{\rm rev}$.

When evaluating stars in $D_{0}^{c}$, in addition to the $NND$ approach as in the creation of prototype models, Bayesian membership probability can be used as well because models of NYMGs were created already in Stage 1 (the prototype models $M_{\rm 0}$). Therefore, we also utilise membership probability to evaluate appropriate members as an independent method in Stage 2. These two methods [utilising nearest neighbour distance (NN, hereafter) and membership probability (MP, hereafter)] are used independently in Stage 2. This process is briefly illustrated in Fig. 1.

2.3.1 Method 1: utilising nearest neighbour distance (NN)

At the beginning, the set of members for revision ($D_{\rm rev}$) is identical to $D_{0}$, while the complement of the set $D_{\rm rev}$ (i.e., $D_{\rm rev}^{c}$) is identical to $D_{0}^{c}$ ($D_{\rm rev}=D_{0}$ and $D_{\rm rev}^{c}=D_{0}^{c}$). In each iteration, an appropriate member $s_{i}$ in $D_{\rm rev}^{c}$ is evaluated and determined if it should be added to $D_{\rm rev}$. The following describes the sequence of an iteration for evaluating $s_{i}$.

For $s_{1}$, the nearest neighbour in $D_{\rm rev}$ is found and distances to the neighbour ($NND_{\rm xyz,1}$ and $NND_{\rm uvw,1}$) are calculated. This is performed for all stars in $D_{\rm rev}^{c}$ ($s_{2},s_{3},...,s_{n}$). 2. 2.

These $NND$ values are re-scaled in each XYZ and UVW, and averaged ($\widehat{NND}_{1}$, $\widehat{NND}_{2}$, … $\widehat{NND}_{n}$). 3. 3.

The star having the smallest $\widehat{NND}$ is evaluated as the best appropriate member in this iteration. 4. 4.

If the star is not an outlier ($\widehat{NND}<$3), the star is moved from $D_{\rm rev}^{c}$ to $D_{\rm rev}$. Otherwise, the iteration is terminated.

Once the iteration is terminated, the data set $D_{\rm rev}$ is referred to as $D_{\rm NN}$, and the model revision is performed using stars in $D_{\rm NN}$. Table 3 and the second row in Fig. 3 present these revised models ($M_{\rm NN}$).

2.3.2 Method 2: applying the Bayesian membership probability (MP)

Same as Method 1 in Section 2.3.1, at the beginning, the set of members for revision ($D_{\rm rev}$) is identical to $D_{0}$, while the complement of the set $D_{\rm rev}$ is identical to $D_{0}^{c}$ ($D_{\rm rev}=D_{0}$ and $D_{\rm rev}^{c}=D_{0}^{c}$). In each iteration, an appropriate member $s_{i}$ in $D_{\rm rev}^{c}$ is evaluated and determined if it should be added to $D_{\rm rev}$. The following describes the sequence of an iteration for evaluating $s_{i}$.

NYMG models are constructed ($M_{\rm rev}$) utilising members in $D_{\rm rev}$. 2. 2.

Bayesian membership probabilities for stars in $D_{\rm rev}$ and for those in $D_{\rm rev}^{c}$ are calculated. 3. 3.

In $D_{\rm rev}^{c}$, the star $s_{i}$ having the largest membership probability is evaluated as the best appropriate member in this iteration. 4. 4.

If the star $s_{i}$ has membership probability below the threshold ($p_{\rm cut}$=90 per cent), the iteration is terminated. Otherwise, the star $s_{i}$ is moved from $D_{\rm rev}^{c}$ to $D_{\rm rev}$. If there are members having membership probability smaller than $p_{\rm cut}$ in $D_{\rm rev}$, they are eliminated from $D_{\rm rev}$.

Once the iteration is terminated, the data set $D_{\rm rev}$ is referred to as $D_{\rm MP}$, and the model revision is performed ($M_{\rm MP}$) using stars in $D_{\rm MP}$.

Our determination of $p_{\rm cut}$ relies on the information in Stage 1. More than 90 per cent of members in $D_{0}$ have Bayesian membership probabilities larger than 90 per cent excepting for TucHor. For TucHor, the recovery rate is 0.8 with $p_{\rm cut}$ = 90 per cent, which means that about 80 per cent of TucHor stars have Bayesian membership probabilities larger than 90 per cent. Therefore, we set the threshold to 90 per cent ($p_{\rm cut}\equiv$ 90 per cent). The revised models ($M_{\rm MP}$) are presented in Table 3 and the third row in Fig. 3.

2.4 Stage 3: pre-finalisation of the models

This stage is for preparation of the next stage. The two model revision methods in Stage 2 result in two different models for a given NYMG. These two methods (hence their MG models) complement each other, and stars showing high membership probabilities regardless of which model is used can be regarded as acceptable members. In this stage, stars with $p>$90 per cent in both calculations based on $M_{\rm NN}$ and $M_{\rm MP}$ are selected. For each NYMG, a set of these stars ($D_{\rm pre-final-(0)}$) is created. Then, a model $M_{\rm pre-final-(0)}$ is constructed using $D_{\rm pre-final-(0)}$.

2.5 Stage 4: finalisation of the models

With $M_{\rm pre-final-(0)}$, now we can calculate membership probabilities of all candidate NYMG members and make a selection of acceptable members again with a certain threshold in membership probability (e.g., $>$90 per cent). Then the final selected members can be used to modify the NYMG model once again. This newly calculated NYMG model ($M_{\rm pre-final-(i+1)}$) can be different from the model in the previous stage ($M_{\rm pre-final-(i)}$) because some members could be rejected or new members were included through this recalculation. Therefore, to make a self-consistent set of membership list and NYMG model, one needs to iterate through the process of (1) recalculation of membership based on $M_{\rm pre-final-(i)}$, (2) modify $D_{\rm pre-final-(i+1)}$, and (3) calculate $M_{\rm pre-final-(i+1)}$ until the iteration does not make any change in the membership list. At the end of the iteration, we can create final membership list ($D_{\rm final}$) and model parameters ($M_{\rm final}$).

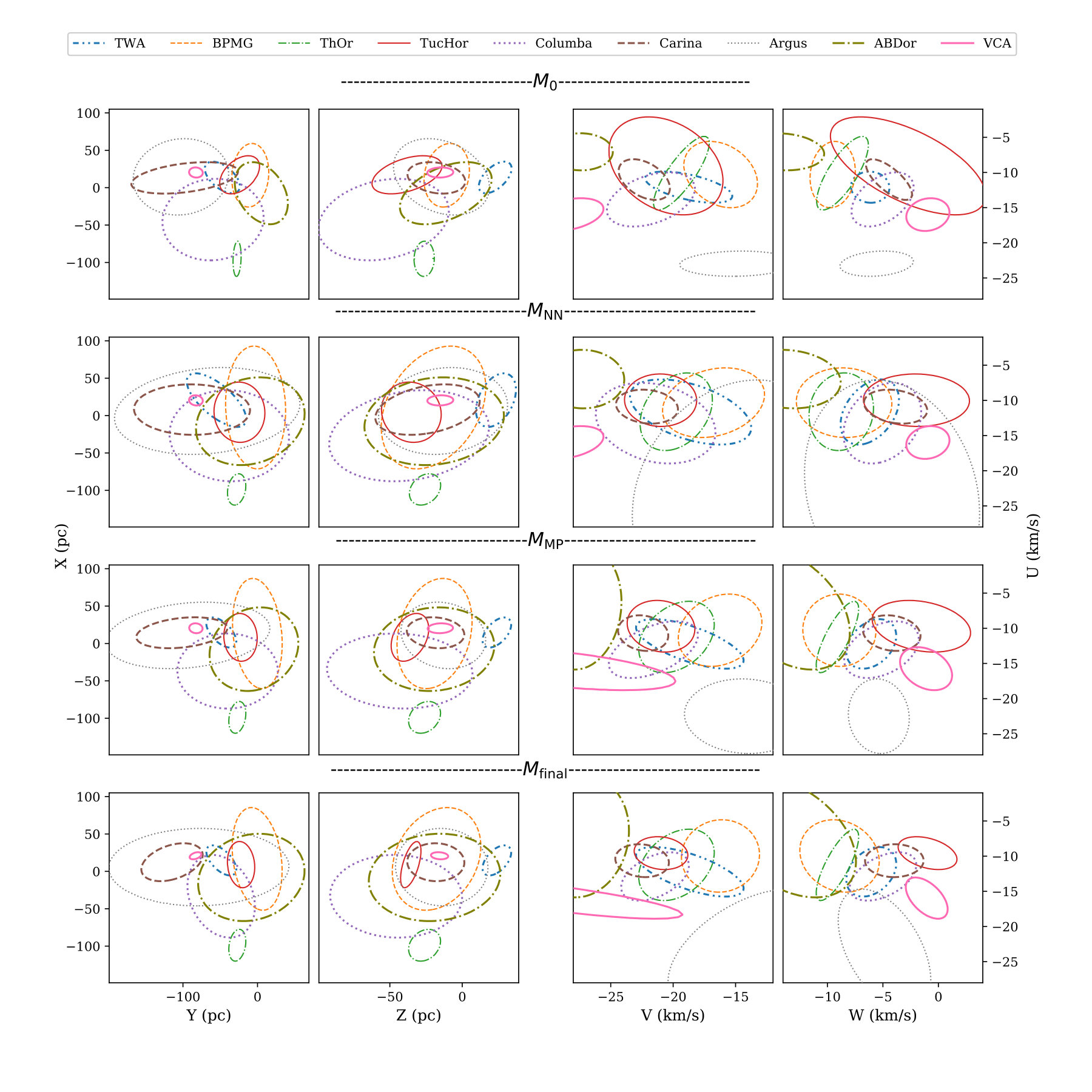

The finalised models are presented in Table 3 and the bottom panel in Fig. 3. Membership probability for the entire data set is calculated. For a set of stars having membership probability of larger than 90 per cent with confirmed youth and full 6 astrometric parameters are referred to as bona fide members. Stars having full 6 astrometric parameters with confirmed youth, but with slightly low membership probabilities (80$-$90 per cent) are referred to as highly likely members. In the same set, stars with confirmed youth but lacking $RV$ or $\pi$ are referred to as probable members, while stars with full 6 astrometric parameters but without age information are referred to as possible members.

3 Results: a case of the $\beta$ Pictoris Moving Group

In this section, using BPMG as an example, we compare $M_{\rm NN}$, $M_{\rm MP}$, $M_{\rm final}$ and present the list of bona fide members of BPMG. The results for other NYMGs are presented in Appendix B.

3.1 Model development from Stage 1 to 4

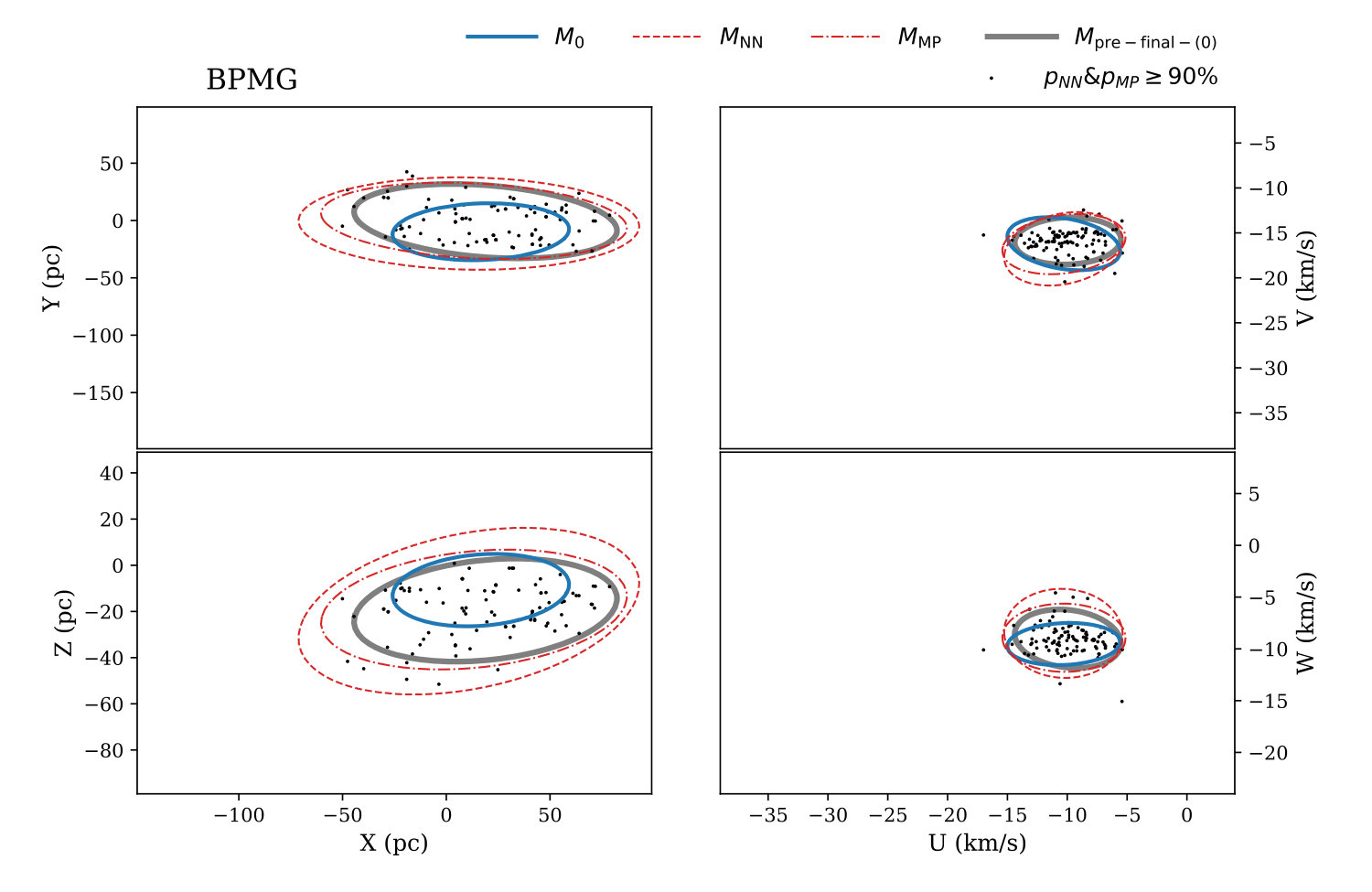

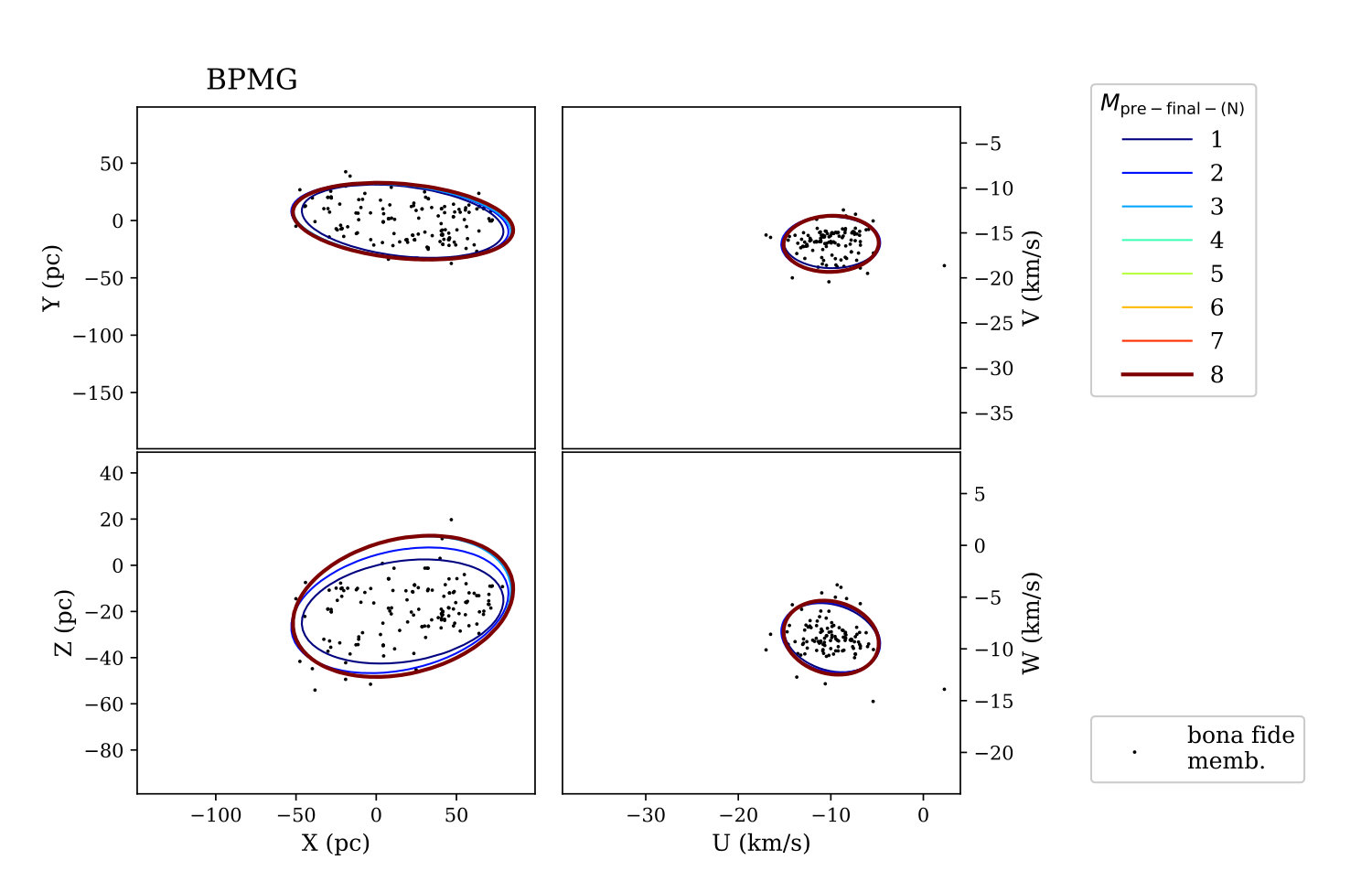

Fig. 4 illustrates the prototype model ($M_{\rm 0}$), the revised models ($M_{\rm NN}$ and $M_{\rm MP}$), and the pre-final model ($M_{\rm pre-final-(0)}$) for BPMG. Fig. 5 illustrates how a model is finalised in Stage 4. Model parameters in Stage 1, 2, and 4 are summarized in Table 3. As can be seen in Fig. 6, the revised models $M_{\rm NN}$ and $M_{\rm MP}$ are different from each other, which can result in different membership probability for BPMG members. These stars are displayed in the same figure. As can be expected, stars match well with $M_{\rm NN}$ have a larger membership probability with $M_{\rm NN}$ (green cross in the figure), while stars agree better with $M_{\rm MP}$ have a larger membership probability with $M_{\rm MP}$ (green circle in the figure). Membership probabilities of these stars are illustrated in Fig. 7.

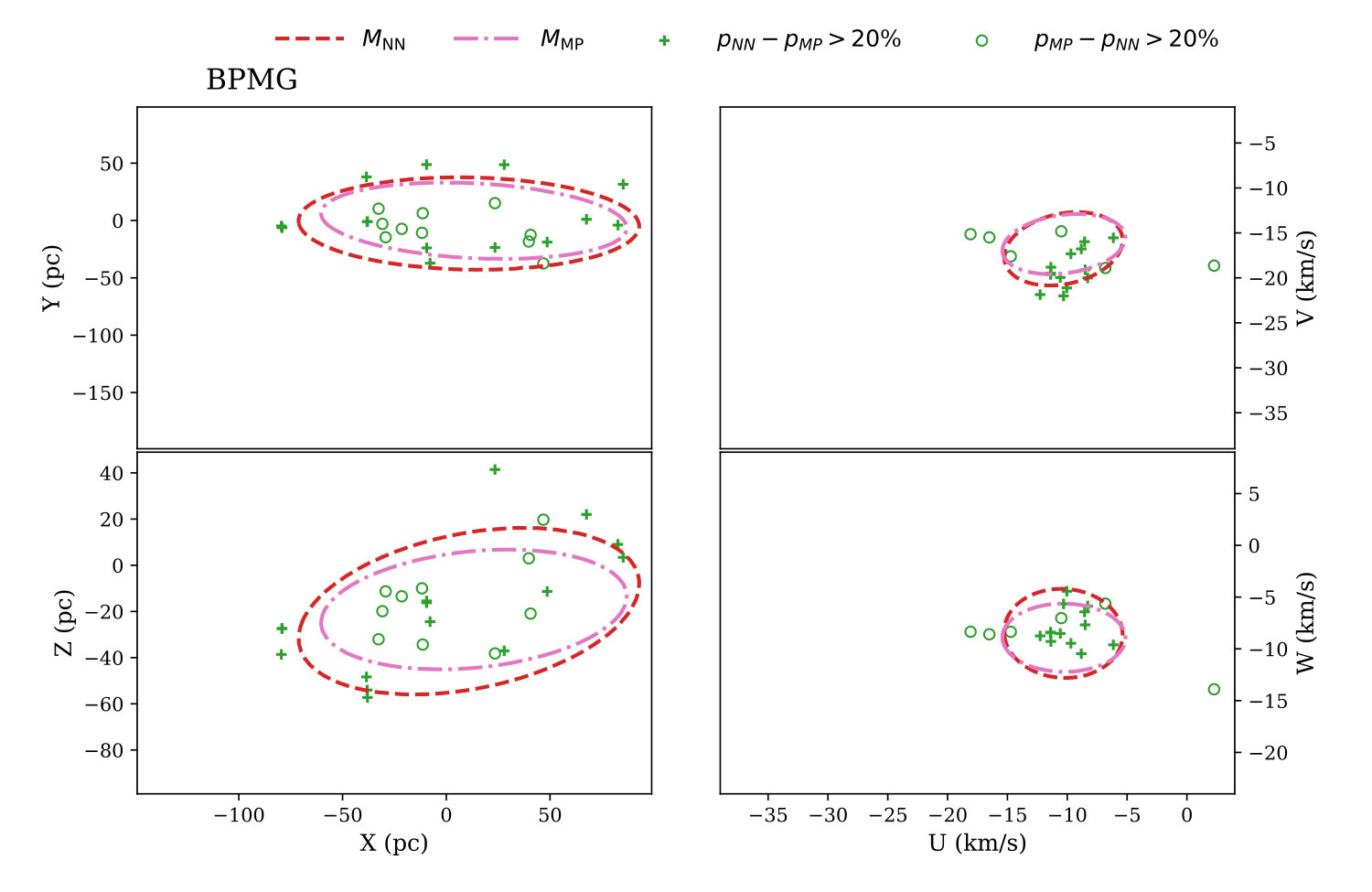

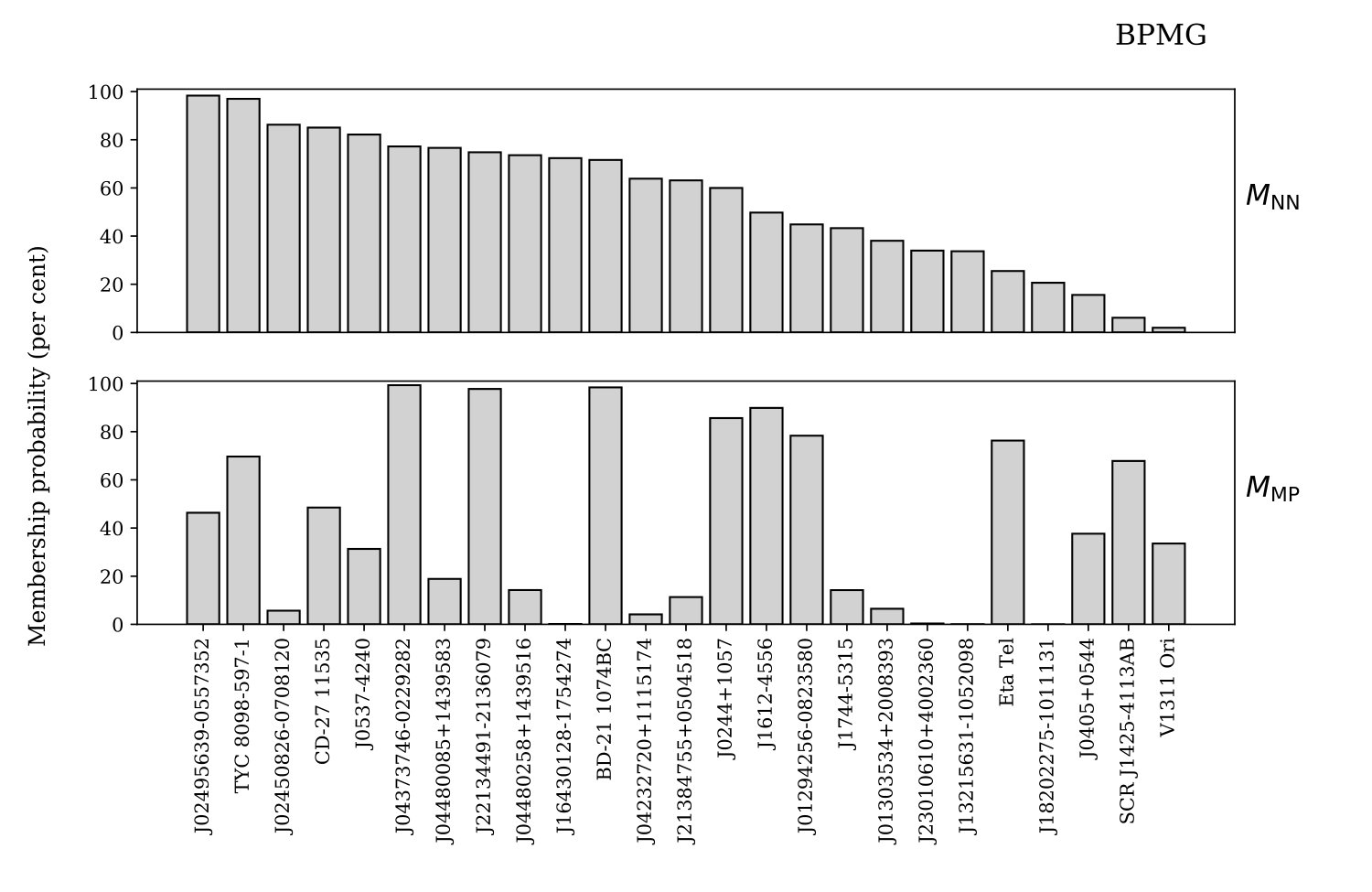

3.2 Membership assessment

In the entire data set, 298 stars have been previously claimed as BPMG members. According to the categories that described in Section 2.5, there are 113 bona fide, 2 highly likely, 30 probable, 7 possible members. These four sets of members are listed in Table 4.

On the other hand, 40 stars appear to be not associated with any NYMGs ($p_{\rm field}>$ 80 per cent). Thirty-three stars likely belong to other NYMGs ($p_{\rm othergroup}>$ 80 per cent), and 11 of these 33 stars have already been suggested as members of other NYMGs. Twenty-two stars claimed as BPMG members in the literature are claimed as members of other NYMGs for the first time in this study.

4 Discussion

4.1 Impact of the chosen initial set of members to the finalised models

One could assume that some biases may be introduced by using the small number of samples in the NYMG discovery paper, and it could make biased results to the finalised models (i.e., stars in the discovery paper may represent a small region of the entire distribution of $XYZ/UVW$ occupied by the entire set of true members). To resolve this possible issue, we checked distributions of all initial members for each NYMG and confirmed that their distributions are not biased (i.e., for each NYMG, distributions of initial members in XYZ and UVW coincide to those of all claimed members) except for Carina. For all other NYMGs excepting for Carina, a slight change in the distribution of initial members would not cause any change in the final NYMG models. As a test, we build up ABDor models in two different ways: (1) omission of some initial members (50 per cent) and (2) initial models with central positions shifted up to 40 per cent [relative to the 2$\sigma$ length of the major axes (XYZ and UVW) of the model]. The results show that these differences did not cause any change in the finalised NYMG models.

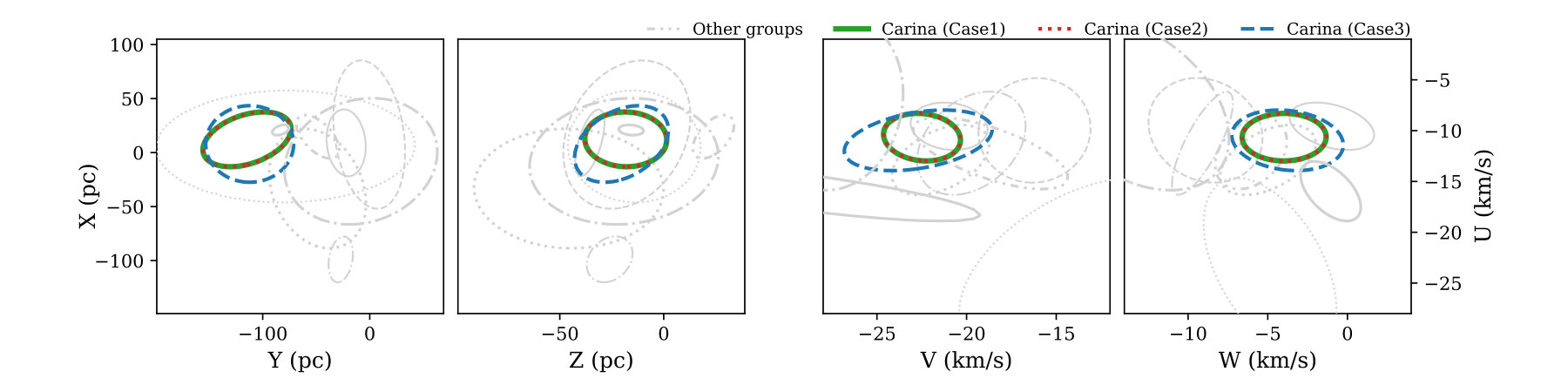

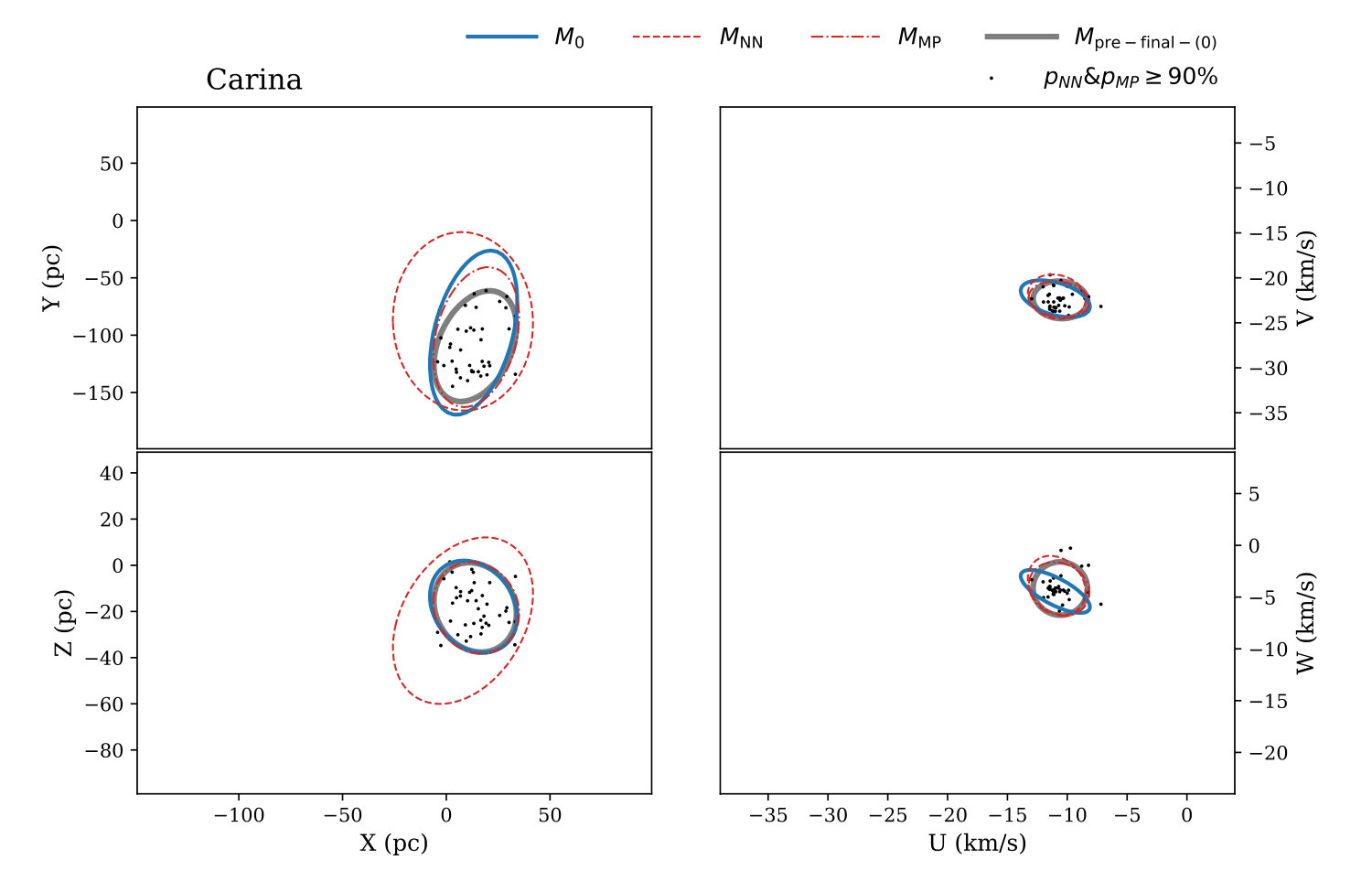

A single exception, Carina, has initial members distributed in the half of the entire $X$ distribution of all claimed members. While all claimed members are distributed in -80$<X$ (pc) $<$+50, the initial members are distributed in -5$<X$ (pc) $<$+50. We compared results from three cases: (1) using the entire initial members, (2) using a subset of manually picked initial members that are close to the centre positions in XYZ and UVW for the entire set of claimed members, and (3) selecting starting members from the opposite half occupied by initial members. Our iterative procedure of ingesting additional members converged and produced very similar results among these three cases (Figure 8). Case (1) and (2) result in the identical model, and Case (3) produced a finalised model with centre positions of $XYZ$ and $UVW$ agree within 85 per cent. Up to four members only appear in one of three case results, and it caused a slight change in the extension and orientation of XYZ/UVW ellipsoids. One might concern that Case (3) results in a significantly different finalised model compared to the original result. However, this case is the extreme one presuming all the original initial members are false and starting with the exclusive set of different initial members. Therefore, we can conclude that our method would not cause any important bias.

4.2 Mass distribution

We created a new list of bona fide members for BPMG in Section 3.2 (for other groups, in Appendix B). Binaries were noted using a binary catalogue by El-Badry & Rix (2018). Utilising these bona fide members, we examined the distribution of spectral types of each NYMG, the distribution of spectral types and the mass function for the entire population of NYMGs. Stellar masses were interpolated using spectral types and theoretical isochrones (Siess et al., 2000) in the spectral range of B to M6.

Spectral type distribution

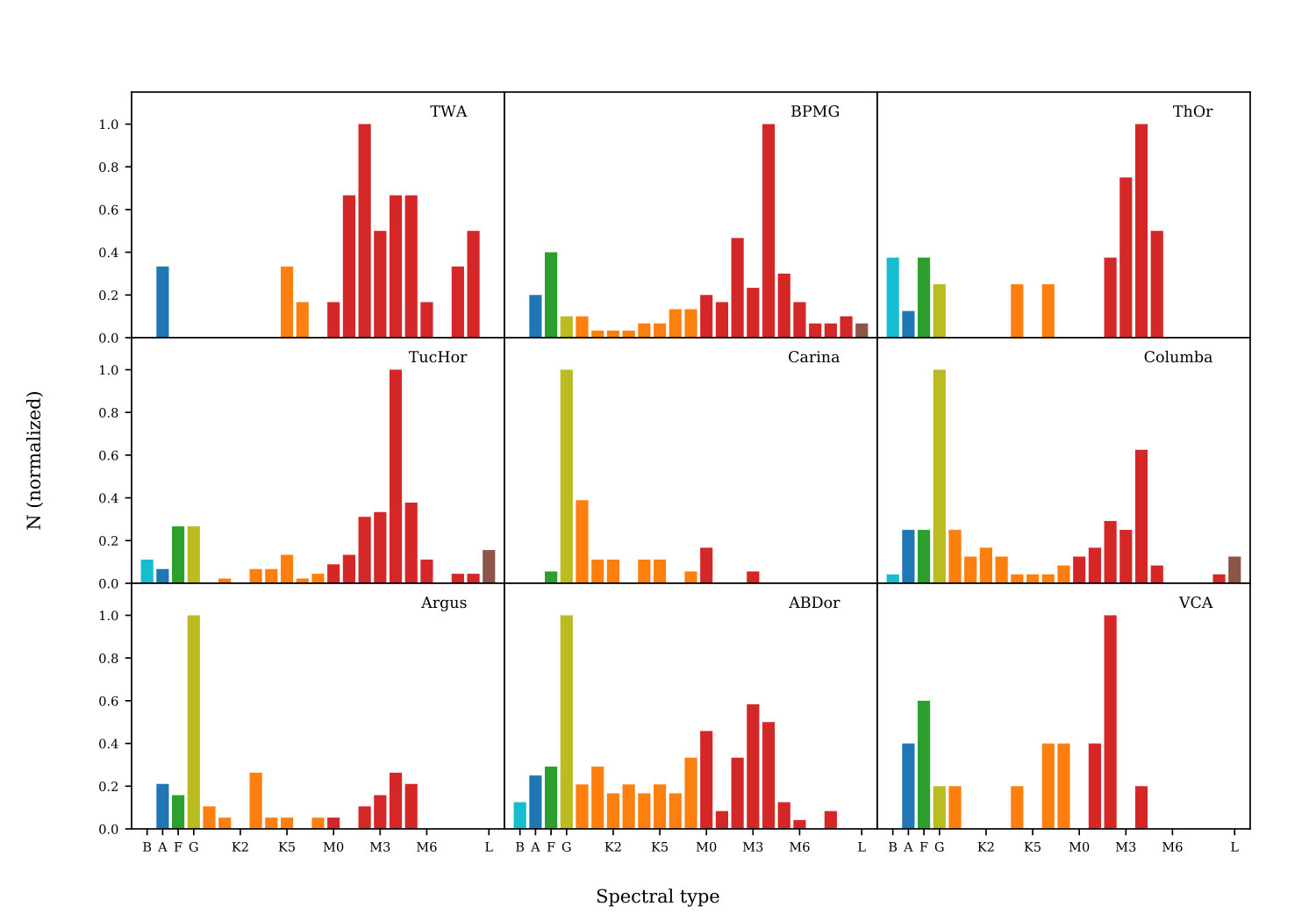

Fig. 9 presents spectral type distributions of each NYMG. Since the majority of NYMG members have masses smaller than 1$M_{\odot}$, we displayed K- and M-types in more details in sub-spectral classes. Colours in Fig. 9 indicate spectral types: cyan, blue, green, yellow, orange, red, and brown correspond to B to L types.

Each group shows a different spectral type distribution. TWA mainly consists of M type members, and only five members are earlier than M-type (2 A-type and 3 K-type members). While BPMG, ThOr, and TucHor members show different distributions of spectral types, they have a common peak at M4 in the histogram. ThOr seems to have a relatively large fraction of B-, A-, and F-type members compared to other NYMGs. Additionally, this group seems to be deficient of K-type members. Four other groups (Carina, Columba, Argus, and ABDor) have a peak at G-type in the histogram. Carina has relatively many G-type members but lack of late-type members. Distributions of Columba and ABDor look similar. They have a larger fraction of K- and M-type members than that of Carina. However, these two groups also appear to lack low-mass members compared to TWA, BPMG, ThOr, and TucHor. VCA has a peak at M2 in the histogram, which indicates a lack of later type members as well.

Mass function

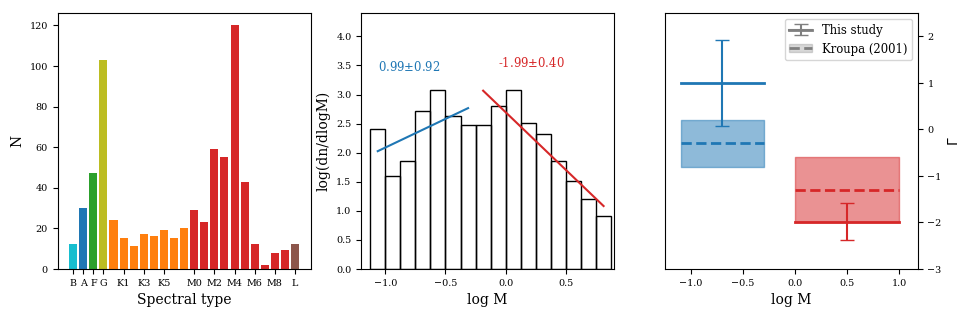

The middle panel in Fig. 10 displays the mass function for the entire population of the bona fide NYMG members. Exponents of power-law [$\xi(\mbox{log}m)\propto m^{\Gamma}$] fits are obtained. The mass regime is split into (1) $>$0.5 $M_{\odot}$ and (2) 0.08 $-$ 0.5 $M_{\odot}$. The lowest mass regime ($<$0.08 $M_{\odot}$) is not displayed due to the significant uncertainty of the deduced mass. The right panel in Fig. 10 compares the $\Gamma$ values from this study and those from Kroupa (2001). In both mass regimes, the $\Gamma$ values of NYMGs and those from Kroupa (2001) match within the uncertainty range. However, if we accept the exact $\Gamma$ value in Kroupa (2001), hundreds of more late-M type NYMG members are expected to be identified. The deficiency of low mass members is a selection effect due to limitations in member detection methods in the lowest mass regime prior to Gaia DR2. We expect that Gaia DR2 should enable identification of almost all stellar members of NYMGs within 100 pc of Earth (Lee & Song in prep.).

4.3 Kinematic evolution of NYMGs

We consider the kinematic evolution of NYMGs. For obtaining a rough idea, we made several assumptions: (1) NYMGs are dissolved over time, (2) the kinematic dispersion rate is constant over time, (3) there is no dynamic perturbation among members, (4) 3$\times\tilde{\sigma}_{\rm xyz}$ (3 times the volume averaged size, $\sqrt[3]{\sigma_{x}\sigma_{y}\sigma_{z}}$) is a representative size of NYMGs (in a Gaussian distribution, $\sim$90 per cent of stars are enclosed in this 3$\sigma$ volume), and (5) NYMGs with a similar total mass (i.e., having a similar number of members) evolve similarly.

The expansion rate is calculated by the difference of 3$\tilde{\sigma}_{xyz}$ values over the age difference of the two groups. We split NYMGs into two classes: less populated (N=30$-$40; TWA, ThOr, and Carina) and populated (N$>$85; BPMG, TucHor, Columba, and ABDor). Argus (N=45) and VCA (N=19) are excluded in this discussion. When $\sim$30 Myr old groups are compared to younger groups (Columba vs BPMG, Carina vs TWA, and Carina vs ThOr), the expansion rate is approximately 1$-$2 km s*-1*. When TucHor and ABDor are compared, the expansion rate is approximately 1 km s*-1*. However, when ABDor is compared against BPMG, the expansion rate appears to be smaller (0.3$-$0.9 km s*-1*). Although we cannot confirm the exact value, we can suggest that the approximate expansion rate of NYMGs would be $\sim$1 km s*-1*. Virial velocities for NYMGs utilising 3$\tilde{\sigma}_{xyz}$ and total mass of bona fide members are smaller than 0.15 km s*-1*, which indicate that NYMGs are in the supervirial state. It is well known that young stellar clusters are often in the supervirial state (Gieles et al., 2010; Kuhn et al., 2019). As noted by Goodwin & Bastian (2006), the supervirial state can be related to the gas expulsion from the parent molecular cloud.

4.4 Comparison to BANYAN $\Sigma$

For assessment of NYMG memberships, several schemes [e.g., BANYAN I, II, $\Sigma$ (Malo et al., 2013; Gagné et al., 2014a, 2018b), LACEwING (Riedel et al., 2017)] have been developed and used. BANYAN series and our scheme have a similar calculation method. However, mainly due to the difference in models, membership probabilities are different from these methods. One of the largest difference appears in the Carina model along the y-axis. For this group, the centre positions in Y from this study and BANYAN $\Sigma$ are -115 pc and -50 pc, respectively. In this study, the Carina model is developed beginning with the entire initial members and finalised through a self-consistent iterative process. On the other hand, the Carina model in BANYAN $\Sigma$ is created using seven nearest members. As we demonstrated in Section 4.1., if the BANYAN Carina model was developed via an iterative process, this model and our finalised Carina model would be similar. In addition, when we search for low-mass Carina members from Gaia DR2 (Lee & Song in prep.), a significant number of distant Carina members ($>$100 pc and over-luminous on a colour-magnitude diagram) are identified, which is indicative of the nature of Carina group being large and distant.

In this section, we compare membership probability calculation from BANYAN $\Sigma$ (Gagné et al., 2018b) and our scheme (BAMG, paper 1 and this paper) focusing on objects of particular interest (Table 5,  6, and  7). Membership probabilities from BAMG and BANYAN $\Sigma$ for the entire data $D$ are included in Table 1 (online version).

4.4.1 Some well-known members

Table 5 lists some stars showing a different membership status based on BAMG and BANYAN $\Sigma$.

TWA 2, 3, and 6 were discovered as members of TWA (Webb et al., 1999), and TWA 2 and 3 are the first discovery members of a co-moving group of 5 nearby T Tauri stars (Kastner et al., 1997). While TWA 3A has a large membership probability (nearly 100 per cent) from both BAMG and BANYAN $\Sigma$, TWA 3B has a large field star probability from BANYAN $\Sigma$ as well as TWA 2 and 6.

TWA 16 has a large TWA membership probability with BANYAN $\Sigma$ (96 per cent) while it is likely to be a field star from BAMG (94 per cent). Schneider et al. (2012a) listed this star as a bona fide member while Ducourant et al. (2014) claimed this star as a possible member.

HD 2885 and HD 12894 are initial TucHor members (Zuckerman & Webb, 2000; Torres et al., 2000). BANYAN $\Sigma$ assesses these members as field stars ($>$85 per cent). While these two stars are off in UVW [HD 2885 has small $U$ (-15 km s*-1*) and $V$ (-26 km s*-1*) values and HD 12894 has a large $V$ (-18 km s*-1*) value], they are located nearly at the centre of the spatial TucHor model (XYZ) of our scheme.

2MASS J06085283-2753583 was suggested as a BPMG member from Rice et al. (2010), then suggested as a peripheral Columba member from Gagné et al. (2014a). Gagné et al. (2014a) mentioned that 2MASS J06085283-2753583 shows signs of youth from various studies [signs of low-gravity (Allers & Liu, 2013) and strength of Li feature (Kirkpatrick et al., 2008)]. This object is evaluated as a Columba member from BAMG (100 per cent) while it can be a field star from BANYAN $\Sigma$ (100 per cent).

One initial ABDor member HIP 63742 is assessed as an ABDor member from BAMG (98 per cent) while a field star from BANYAN $\Sigma$ calculation (71 per cent).

4.4.2 Wide binaries

For stars in binary systems, if a binary belongs to a NYMG, then both members should belong to the same NYMG. In this section, we present binary members having inconsistent membership probabilities in a system with either BAMG or BANYAN $\Sigma$ (Table 6).

HD 2884 and HD 2885 are initial TucHor members. Both HD 2884 and HD 2885 are binaries (WDS J00315-6257AB and WDS J00315-6257CD, respectively). BAMG consistently assesses both stars as members of TucHor while BANYAN $\Sigma$ assesses HD 2884 and HD 2885 as a marginal TucHor member and a field star, respectively.

HIP 12635 and HIP 12638 are initial ABDor members (Zuckerman et al., 2004a). In both BAMG and BANYAN $\Sigma$ calculation, HIP 12635 is assessed as an ABDor member while HIP 12638 is assessed as a field star. Proper motions of these two stars agree within 10 per cent difference. Radial velocities of two stars are -3.3 km s*-1* and -4.7 km s*-1*, respectively. The main reason causing the different membership status from both methods is the distance. Distances to HIP 12635 and HIP 12638 are 50 pc and 71 pc, respectively.

Ome Aur A and ome Aur B are claimed as Columba members by Zuckerman et al. (2011) and Elliott et al. (2016). BANYAN $\Sigma$ assessed both as Columba members, with a marginal membership for ome Aur B (77 per cent). On the other hand, with BAMG, ome Aur B is assessed as an ABDor member while ome Aur A is assessed as an ambiguous member of ABDor or BPMG.

HD 64982 and HD 64982B are claimed as ABDor members by Torres et al. (2008) and Elliott et al. (2016). While BAMG and BANYAN $\Sigma$ assessed HD 64982 as a marginal Columba member and a field star, respectively, both calculations provide similar low ABDor membership probabilities ($\sim$25 per cent). In both methods, HD 64982B is assessed as a field star. The main factor of the inconsistent membership status with a given method might be lacking RV for HD 64982B.

HD 83096 and HIP 46720B (HD 83096B) are initial Carina members (Torres et al., 2008). With BAMG, HD 83096 and HIP 46720B are assessed as a marginal Carina member and a marginal Argus member, respectively. With BANYAN $\Sigma$, while HD 83096 is assessed as a Carina member, HIP 46720B is evaluated as a field star.

$\eta$ Tel and HR 7329B are initial BPMG members (Zuckerman et al., 2001b). With BAMG, both stars are assessed as BPMG members. With BANYAN $\Sigma$, HR 7329B has a large BPMG membership probability, while $\eta$ Tel has a marginal membership probability.

4.4.3 planet host stars

NYMGs are important for studying exoplanets. They are prime targets for exoplanet imaging. Age of host stars can be constrained by the group age, which can constrain the mass of planets. The online exoplanet archive (exoplanet.eu) presents 98 planetary systems detected by the imaging method. Twenty-two systems are cross-matched with the entire set of claimed NYMG members.

Table 7 presents a subset of these systems (7 systems) showing a significantly large membership probability difference from our scheme and BANYAN $\Sigma$.

Three stars have large field star probabilities from BANYAN $\Sigma$. Two of them (TYC 9486-927-1 and HD 222439) have large BPMG membership probabilities ($>$80 per cent) from BAMG. The remaining star (HIP 1134) has a marginal membership probability belonging to either BPMG or ABDor. Revised membership status can change the age of the host star. Therefore, the mass of the planets can be changed. For these three stars, the changed membership status can significantly affect the characteristics of planets because of the large age difference (field population vs BPMG).

On the other hand, 2MASS J22501512+2325342, AB Pic, and CD-52 381 would receive relatively smaller impacts caused by a different membership status based on the two methods. For example, 2MASS J22501512+2325342 is assessed as a Columba member with BAMG, while BANYAN $\Sigma$ assesses this star as a marginal Columba member. Even though AB Pic is assessed as a Columba member with BAMG but as a Carina member with BANYAN $\Sigma$, these two NYMGs have a similar age, which will not change the derived planetary mass.

The remaining star HIP114189 (HR 8799) is a popular multiple planet host star (at least four planets). This star is known as a Columba member (Marois et al., 2010), and BANYAN $\Sigma$ returns a marginal Columba membership probability (49 per cent). Our calculation suggests this star as a BPMG member (87 per cent). If that is true, the masses of the exoplanets (b, c, d, e) are reduced to the factor of 2 [based on Figure 3 in Marois et al. (2010)].

5 Conclusion and summary

Since the discoveries of NYMGs, many members of different quality were suggested as additional members. These members can be utilised to build up NYMG models and identify new members. Unscreened acceptance of all these suggested members can lead to distorted NYMG models, and hence bias in identification of new members. Therefore, a careful investigation and selection of members and model constructions are required.

In this study, NYMG models were established through 4 stages. Initially, the prototype models were created utilising the initial members. Outliers were rejected based on the nearest neighbour distance. In Stage 2, the prototype models were revised by incorporating appropriate additional members evaluated by two methods (nearest neighbour distance and membership probability). In Stage 3 and 4, the models were finalised utilising members having large membership probabilities regardless of the model revision method. We tested different sets of samples in Stage 1 to resolve a possible bias due to initial list dependency. The results show that this effect is not significant.

For the entire set of NYMG members (N=1913), about 35 per cent of members are confirmed as bona fide members while $\sim$13 per cent of them are evaluated as field stars ($p_{\rm field}>$80 per cent). As the main results of this study, we present lists of bona fide members and model parameters of NYMGs. Distributions of spectral types and the mass functions of the entire NYMG members show a deficiency of M-type members. This is a selection effect in the lowest mass regime prior to Gaia DR2. We expect that Gaia DR2 should enable the identification of almost all stellar members of the NYMGs within 100 pc of Earth (Lee et al. in prep.).

While we obtain consistent NYMG models via our iterative procedure, there are differences among NYMG models and calculation schemes among NYMG calculation methods (e.g., BANYAN series), which can significantly affect membership assessments. The different membership assessment can have significant impacts on the relevant studies. For example, seven planet-host stars have different membership status from our scheme and BANYAN $\Sigma$, which can change the age and the mass of the planets. In the case of HR 8799, by changing membership from Columba ($\sim$30Myr) to BPMG ($\sim$15Myr), the masses of planets can be reduced by the factor of 2. In the future, we need to resolve this issue by developing a unified analysis of young nearby stars and NYMGs.

Acknowledgements

We acknowledge the important and critical review by Ben Zuckerman that improved the manuscript significantly. We also thank the anonymous referee for valuable comments and suggestions that helped to significantly increate the quality of this work.

6 SUPPORTING INFORMATION

Additional Supporting Information may be found in the online version of this article.

Appendix A: Additional NYMGs included in this study

Appendix B: Results for the other 8 NYMGs: kinematic NYMG models and lists of members

Appendix A Additional NYMGs included in this study

In this study, we considered NYMGs whose mean distances and ages are less than 100 pc and 200 Myr, respectively. Moving groups not included have ages that are less decisive due to the lack of data and the reddening effect. In addition, membership identification of these groups is also far from being complete. Nine NYMGs listed in Table 2 are considered in this study.

The TW Hydrae association (TWA)

Kastner et al. (1997) discovered 5 co-moving X-ray bright stars around TW Hydrae. Webb et al. (1999) identified $\sim$10 more co-moving members and identified this group of stars as the TW Hydrae association (TWA), which is the firstly identified NYMG. Classical papers about NYMGs (Zuckerman & Song, 2004b; Torres et al., 2008) characterised the TWA with the age of 8 Myr and the mean distance of 50 pc. Due to its young age and proximity, members of TWA have been intensively identified ($\sim$100 members from studies listed in Table 2).

The $\beta$ Pictoris moving group (BPMG)

Discovered with the $\sim$20 co-moving members by Zuckerman et al. (2001b), the BPMG is the secondly identified NYMG. The age was suggested as 12 to 24 Myr (Zuckerman et al., 2001b; Bell et al., 2015). Due to the young age and the closest mean distance (35 pc), members of BPMG have been intensively searched. Approximately 290 members have been claimed from studies listed in Table 2.

The 32 Ori group (ThOr)

Mamajek (2007) identified a dozen of young co-moving stars around 32 Ori. The relatively recently discovered group, ThOr, has the mean distance and the age of 90 pc and $\sim$20 Myr, respectively (Bell et al., 2017). Fifty-five members have been identified from studies listed in Table 2.

The Tucana/Horologium association (TucHor)

Zuckerman & Webb (2000) discovered the Tucana association consists of $\sim$20 co-moving star systems. At the similar time, Torres et al. (2000) discovered the Horologium association consists of $\sim$15 young co-moving stars. Zuckerman (2001c) proposed that these two groups constitute a single widespread stellar group, and called the Tucana/Horologium association. The estimated age and the mean distance of the group are 30$-$45 Myr (Zuckerman et al., 2001d; Bell et al., 2015) and 50 pc, respectively. Approximately 400 members have been identified by studies listed in Table 2.

The Carina association (Carina)

Torres et al. (2008) discovered the Carina association having $\sim$20 co-moving members. The age and mean distance of this group is 30$-$45 Myr (Torres et al., 2008; Bell et al., 2015) and $\sim$90 pc, respectively. About 190 additional members have been identified by studies listed in Table 2.

The Columba association (Columba)

Torres et al. (2008) discovered the Columba association consists of $\sim$40 co-moving members. Despite the age and mean distance of this group is similar to those of the Carina [30$-$42 Myr (Torres et al., 2008; Bell et al., 2015) and $\sim$80 pc], this group occupies a slightly different position in XYZ and UVW. The number of additionally identified members is $\sim$270 from studies listed in Table 2.

The Argus association (Argus)

Torres et al. (2003b) suggested a sparse Argus association, which might be physically connected to IC 2391 open cluster. Torres et al. (2008) suggested that Argus consists of spatially compact IC 2391 members and sparse field members. Recently, Mamajek (2015) and Gagné et al. (2018a) declined the existence of Argus based on the arguments on Bell et al. (2015). Bell et al. (2015) could not find a distinctive isochron age for Argus, and concluded that the Argus might be highly contaminated or not be a single coeval moving group. However, this can be caused by the contamination of the input data (i.e., including many non-members). Riedel et al. (2017) also have doubts about the existence of the Argus because they could not recover a large portion of the Argus members using their NYMG member identification tool LACEwING. Zuckerman (2019) states that Argus is a true association based on the analysis of kinematics and age of the Argus members. Argus occupies distinct positions relative to the other NYMGs in UVW, and the members also show ambiguous signs of youth. Therefore, we include Argus in this study.

Argus has the mean distance of $\sim$100 pc, and the age is slightly older than TucHor and Columba [$\sim$40 Myr, Torres et al. (2008)]. Among members listed in the discovery paper (Torres et al., 2008), we considered only their “field” members ($\sim$20 members) since most IC2391 members are located at 120$-$160 pc, which is beyond our distance limit. Approximately 150 members have been identified from studies listed in Table 2.

AB Doradus moving group (ABDor)

Zuckerman et al. (2004a) discovered a slightly old NYMG [50$-$150 Myr; Zuckerman & Song (2004b); Bell et al. (2015)], having large $UVW$ values relative to the other NYMGs. More than 400 members have been identified from studies listed in Table 2.

Volans-Carina group (VCA)

Oh et al. (2017) discovered a group of comoving 19 stars with Gaia DR1. The mean distance and the age of the group are 85 pc and 90 Myr, respectively (Gagné et al., 2018d). Gagné et al. (2018d) suggested $\sim$45 additional members with Gaia DR2.

Appendix B Results for the other 8 NYMGs: kinematic NYMG models and lists of members

As was done for BPMG, models are created and finalised through Stage 1 to 4. For each NYMG, we compared $M_{\rm 0}$, $M_{\rm NN}$, $M_{\rm MP}$, and $M\rm_{pre-final-(0)}$ in a relevant figure (e.g., Fig. B1). Table 3 summarises the model parameters, and members and membership probability with the final model are listed in a relevant table (e.g., Table B1). Table 1 lists membership probability of the entire claimed members.

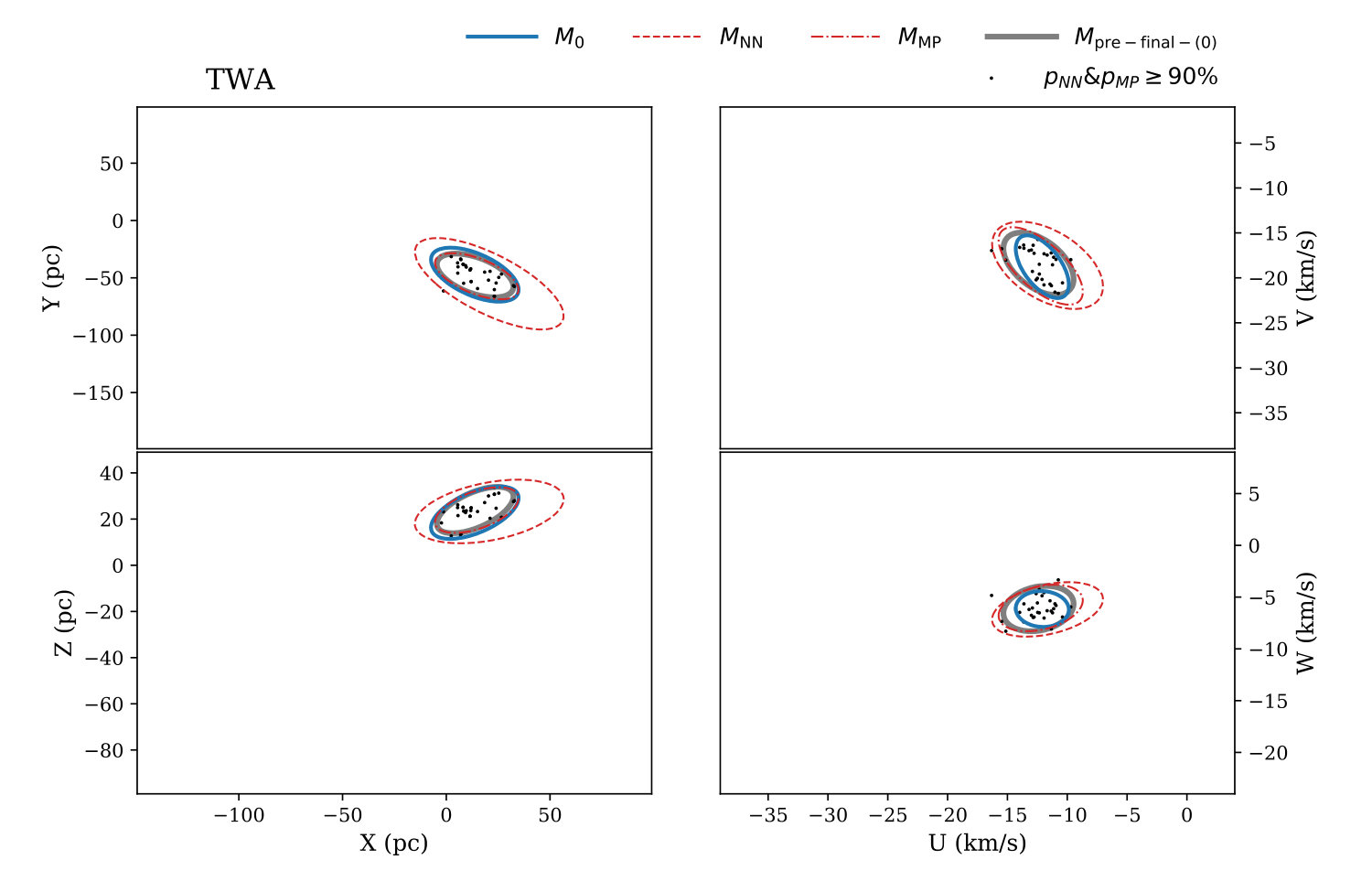

B.1 TWA

In the entire data set, 97 stars have been previously claimed as TWA members. According to the membership classes that described in Section 2.5., there are 30 bona fide and 15 probable members. These 2 sets of members are listed in Table 8.

On the other hand, 33 claimed members appear to be not associated with any NYMGs ($p_{\rm field}>$ 80 per cent). Four stars likely belong to other NYMGs ($p_{\rm othergroup}>$ 80 per cent), and 3 of these 4 stars have already suggested as members of other NYMGs. One star claimed as a TWA member in the literature is claimed as a member of other NYMGs for the first time in this study.

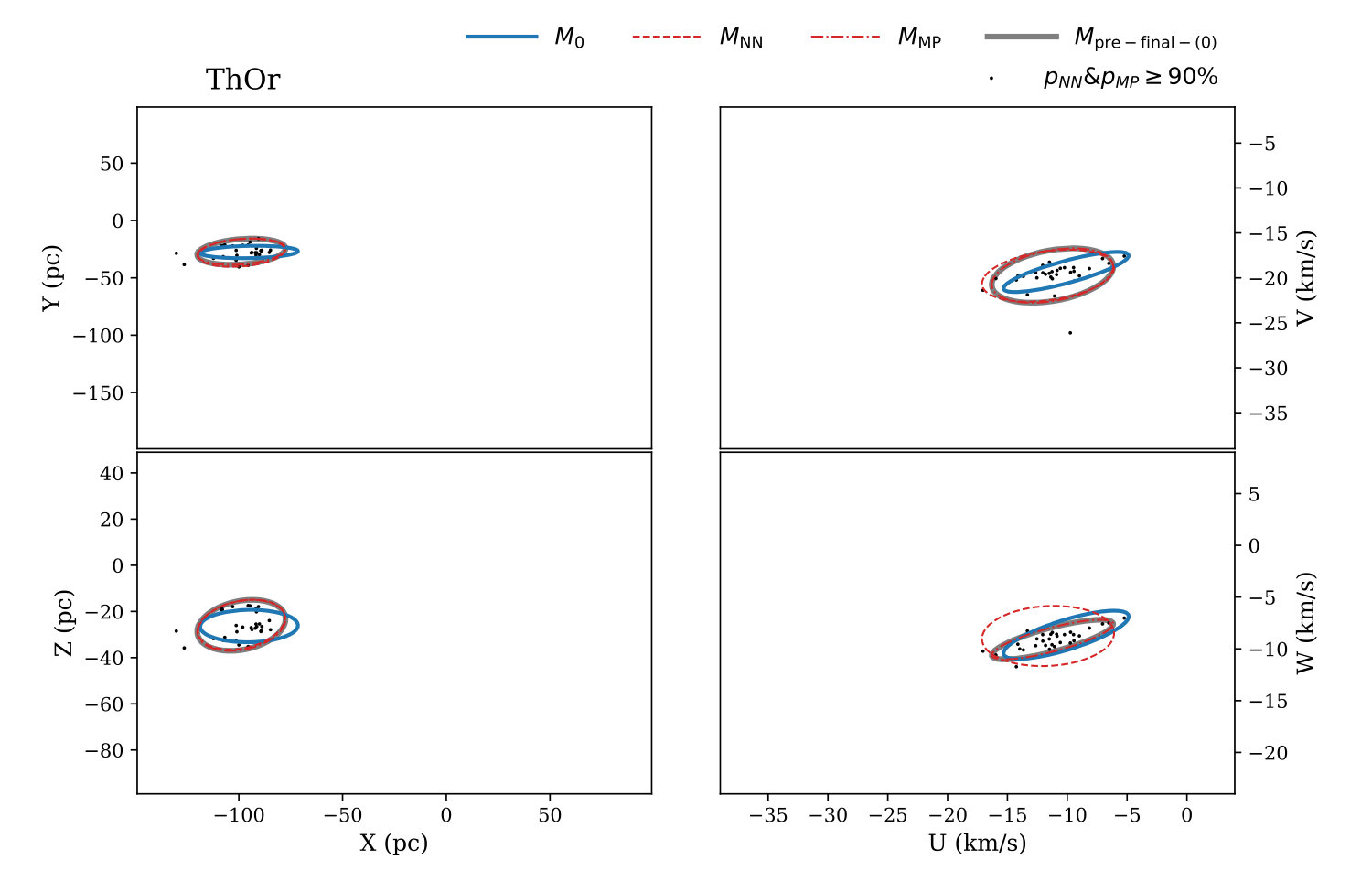

B.2 ThOr

In the entire data set, 55 stars have been claimed as ThOr members. There are 31 bona fide and 5 probable members. These 2 sets of members are listed in Table 9.

On the other hand, 2 stars appear to be not associated with any NYMGs ($p_{\rm field}>$ 80 per cent). Six stars claimed as ThOr members in the literature are claimed as members of other NYMGs for the first time in this study.

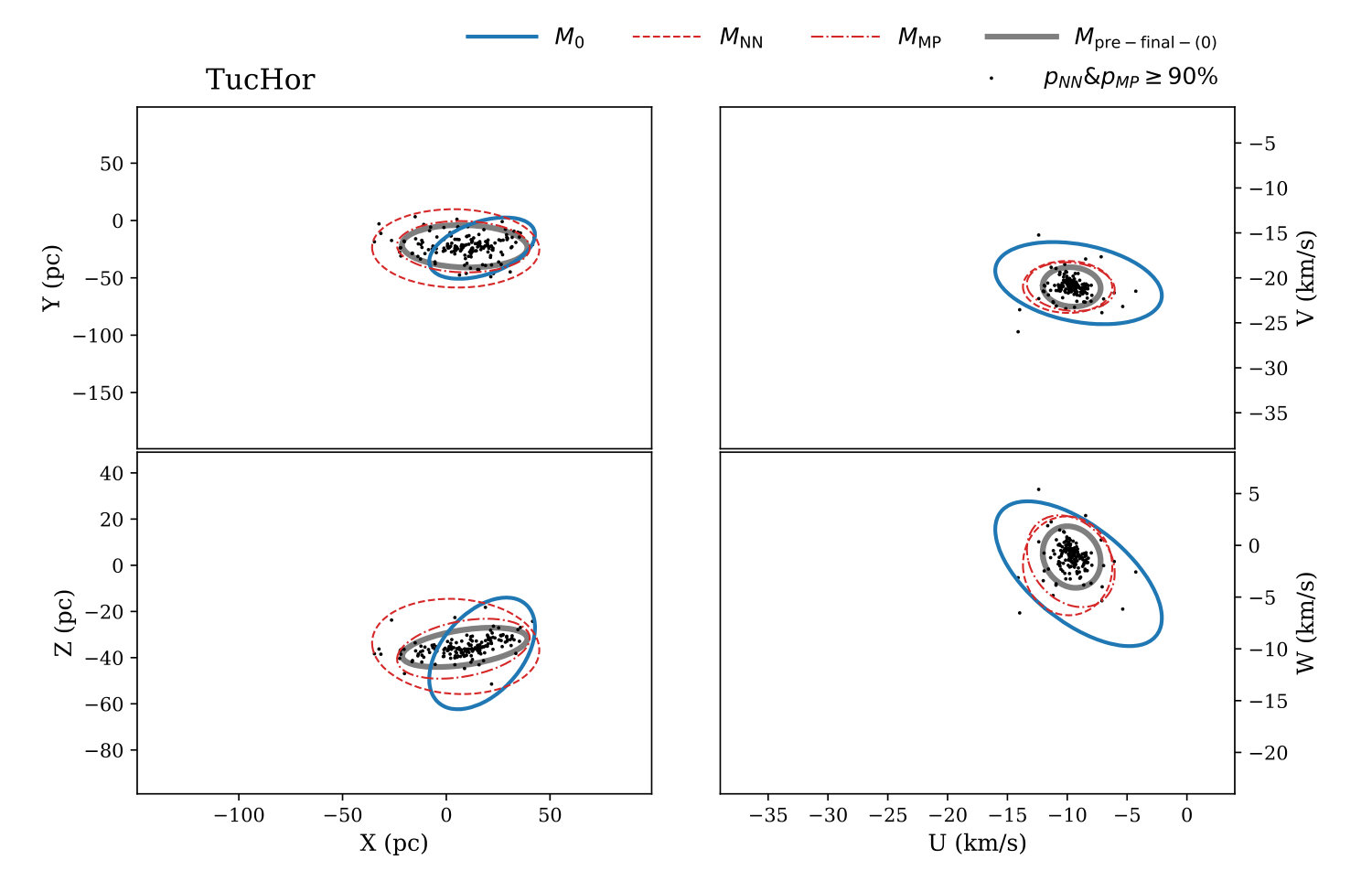

B.3 TucHor

In the entire data set, 408 stars have been claimed as TucHor members. There are 160 bona fide, 1 highly likely, 68 probable, and 1 possible members. These 4 sets of members are listed in Table 10.

On the other hand, 29 stars appear to be not associated with any NYMGs ($p_{\rm field}>$ 80 per cent). Eighty-six stars likely belong to other NYMGs ($p_{\rm othergroup}>$ 80 per cent), and 38 of these 86 stars have already suggested as members of other NYMGs. Forty-five stars claimed as TucHor members in the literature are claimed as members of other NYMGs for the first time in this study.

B.4 Carina

In the entire data set, 191 stars have been claimed as Carina members. There are 37 bona fide and 31 probable members. These 2 sets of members are listed in Table 11.

On the other hand, 17 stars appear to be not associated with any NYMGs ($p_{\rm field}>$ 80 per cent). Sixty stars likely belong to other NYMGs ($p_{\rm othergroup}>$ 80 per cent), and 12 of these 60 stars have already suggested as members of other NYMGs. Forty-eight stars claimed as Carina members in the literature are claimed as members of other NYMGs for the first time in this study.

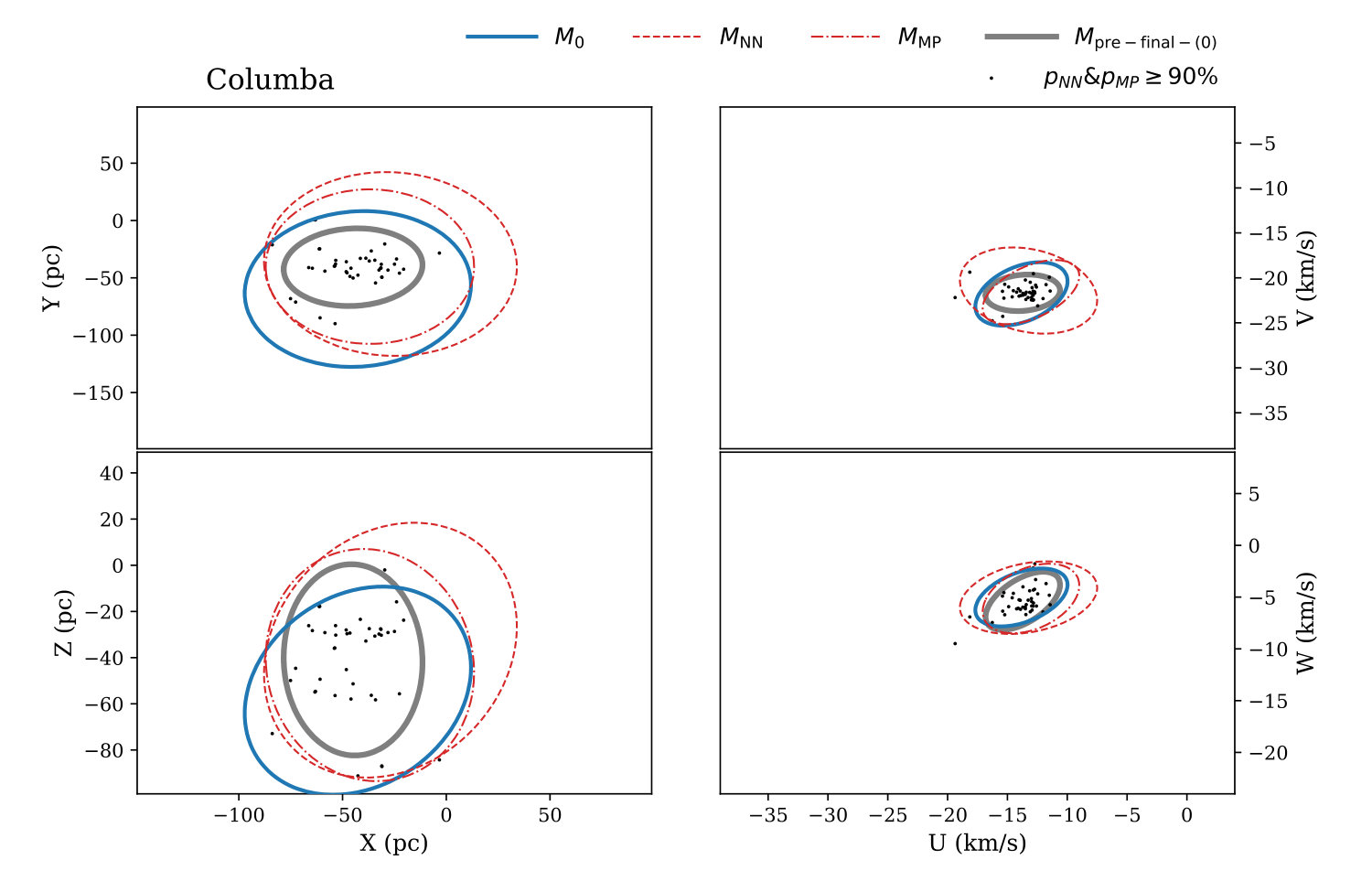

B.5 Columba

In the entire data set, 270 stars have been claimed as Columba members. There are 87 bona fide, 3 highly likely, 64 probable, and 3 possible members. These 4 sets of members are listed in Table 12.

On the other hand, 22 stars appear to be not associated with any NYMGs ($p_{\rm field}>$ 80 per cent). Forty-one stars likely belong to other NYMGs ($p_{\rm othergroup}>$ 80 per cent), and 19 of these 41 stars have already suggested as members of other NYMGs. Twenty-two stars claimed as Columba members in the literature are claimed as members of other NYMGs for the first time in this study.

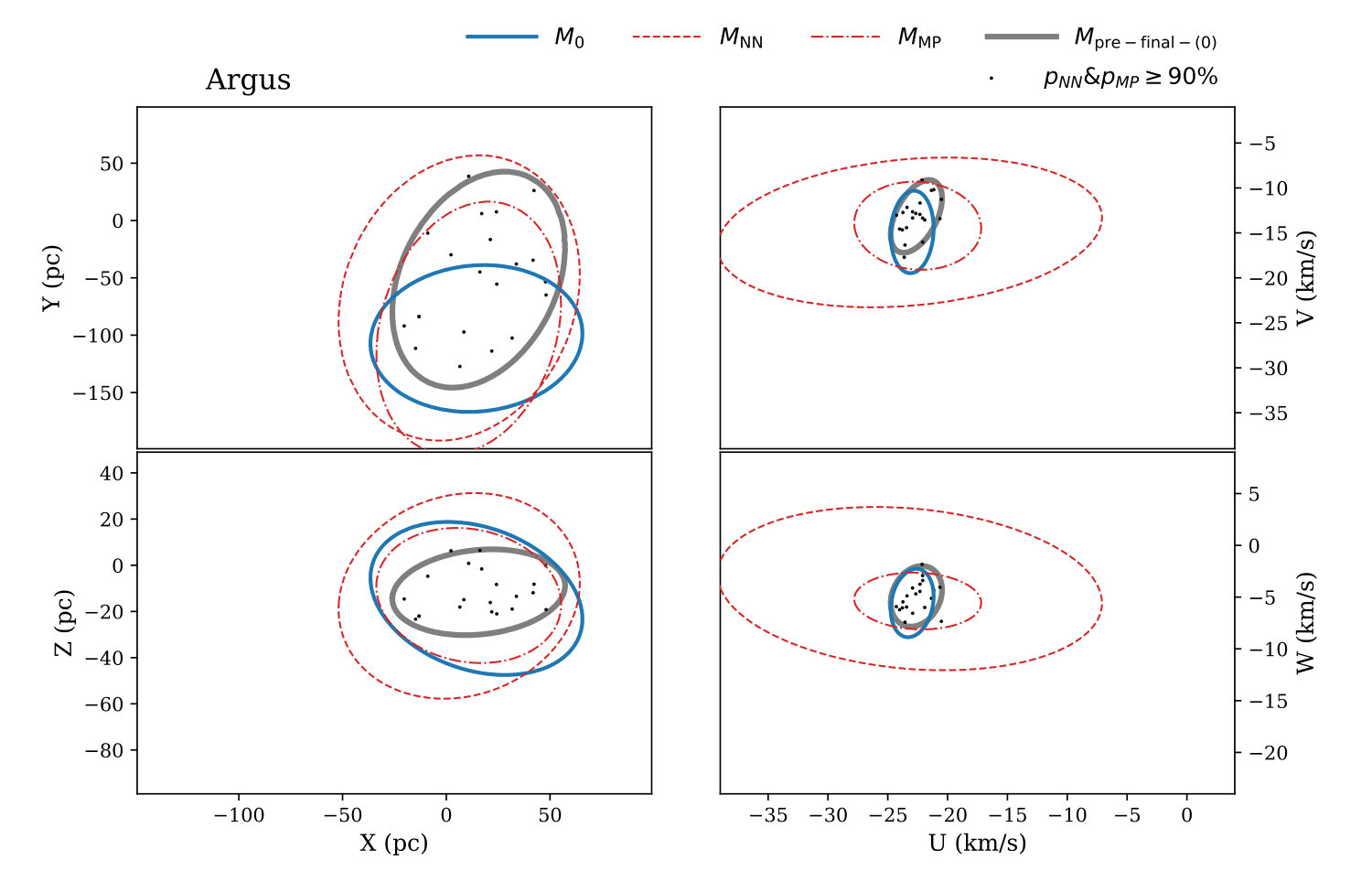

B.6 Argus

In the entire data set, 167 stars have been claimed as Argus members. There are 46 bona fide, 3 highly likely, 2 probable, and 5 possible members. These 4 sets of members are listed in Table 13.

On the other hand, 60 stars appear to be not associated with any NYMGs ($p_{\rm field}>$ 80 per cent). Five stars likely belong to other NYMGs ($p_{\rm othergroup}>$ 80 per cent), and one of these 5 stars has already suggested as members of other NYMGs. Four stars claimed as Argus members in the literature are claimed as members of other NYMGs for the first time in this study.

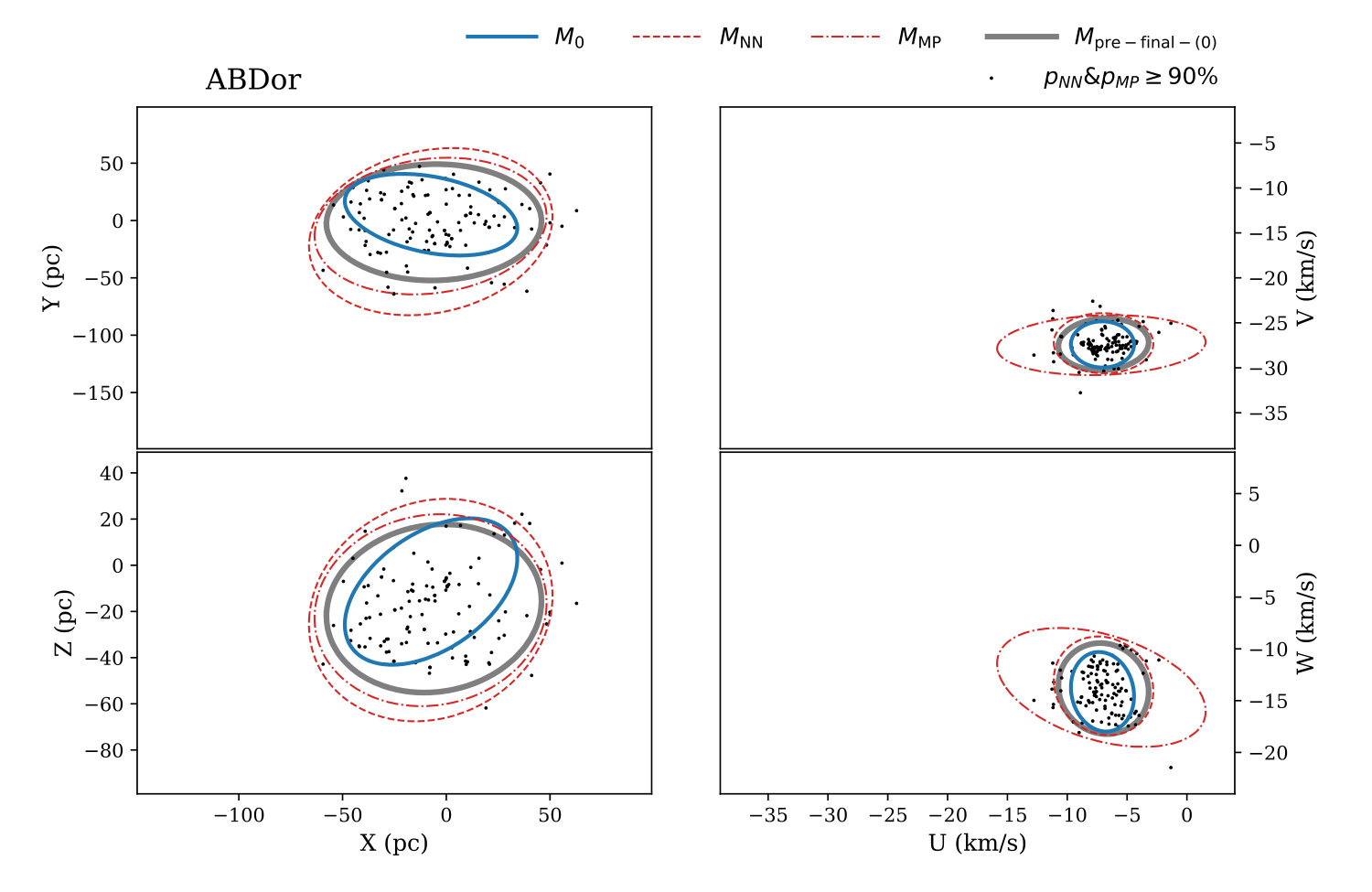

B.7 ABDor

In the entire data set, 465 stars have been claimed as ABDor members. There are 129 bona fide, 5 highly likely, 126 probable, and 20 possible members. These 4 sets of members are listed in Table 14.

On the other hand, 75 stars appear to be not associated with any NYMGs ($p_{\rm field}>$ 80 per cent). Eighteen stars likely belong to other NYMGs ($p_{\rm othergroup}>$ 80 per cent), and two of these 18 stars have already suggested as members of other NYMGs. Sixteen stars claimed as ABDor members in the literature are claimed as members of other NYMGs for the first time in this study.

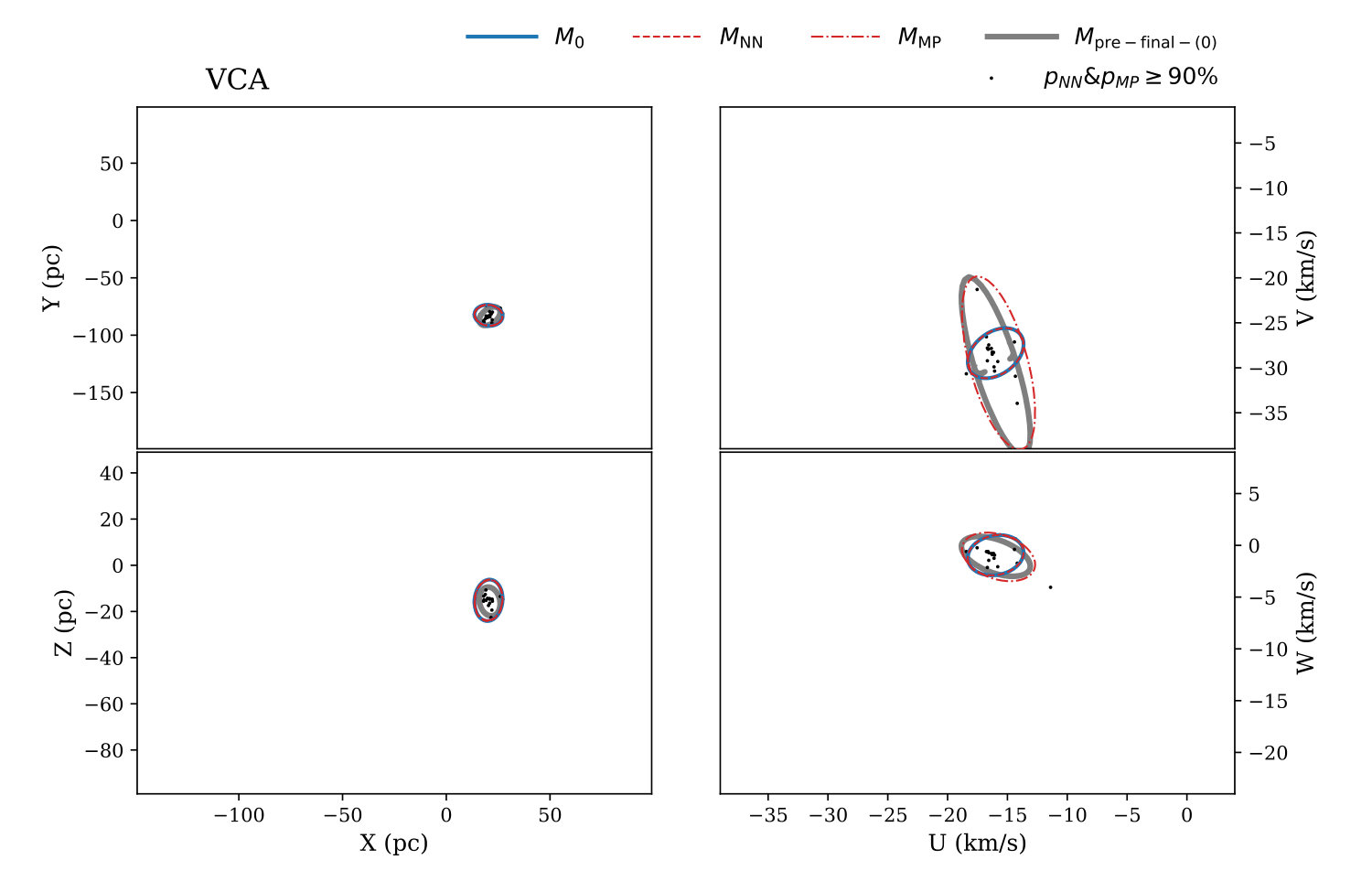

B.8 VCA

In the entire data set, 65 stars have been claimed as VCA members. There are 19 bona fide and 42 probable members. These 2 sets of members are listed in Table 15.

B.9 Overall tendency

For major NYMGs considered in our study including BPMG, among 1913 claimed members in the literature, $\sim$35 per cent of claimed members are retained as bona fide members. About 13 per cent of members shown to be belonging to different groups and $\sim$14 per cent are estimated to be field star interlopers.
