Rank $n$ swapping algebra for Grassmannian

TL;DR

This paper establishes a connection between the Poisson algebra of the Grassmannian and the rank n swapping algebra, providing a new algebraic framework for understanding Grassmannian structures.

Contribution

It introduces an injective Poisson homomorphism from the Grassmannian's Poisson algebra to the rank n swapping algebra, linking geometric and algebraic structures.

Findings

Constructed an injective Poisson homomorphism.

Linked Grassmannian Poisson algebra with swapping algebra.

Enhanced understanding of algebraic structures on Grassmannians.

Abstract

The rank $n$ swapping algebra is the Poisson algebra defined on the ordered pairs of points on a circle using the linking numbers, where a subspace of $(\mathbb{K}^n \times \mathbb{K}^{n*})^r/\operatorname{GL}(n,\mathbb{K})$ is its geometric mode. In this paper, we find an injective Poisson homomorphism from the Poisson algebra on Grassmannian $G_{n,r}$ arising from boundary measurement map to the rank $n$ swapping fraction algebra.

Figures

Equations

$$\mathcal{Z}(\mathcal{P}):=\mathbb{K}[\{xy{\}}_{x,y\in \mathcal{P}}]/\{xx{\}}_{x\in \mathcal{P}}$$

$$\mathcal{J}(rx,sy):=\frac{1}{2}\cdot △(\sigma (r)-\sigma (x))\cdot △(\sigma (r)-\sigma (y))\cdot △(\sigma (y)-\sigma (x))$$

$$-\frac{1}{2}\cdot △(\sigma (r)-\sigma (x))\cdot △(\sigma (r)-\sigma (s))\cdot △(\sigma (s)-\sigma (x)).$$

$$\{rx,sy{\}}_{\alpha ,\beta }=\mathcal{J}(rx,sy)\cdot \left(\alpha \cdot ry\cdot sx+\beta \cdot rx\cdot sy\right).$$

$$\{\cdot ,\cdot {\}}_{\alpha ,\beta }=\alpha \{\cdot ,\cdot {\}}_{1,0}+\beta \{\cdot ,\cdot {\}}_{0,1}.$$

$${\left\{A,\frac{1}{B}\right\}}_{\alpha ,\beta }=-\frac{\{A,B{\}}_{\alpha ,\beta }}{B^2}.$$

$$\frac{xz}{xt}\cdot \frac{yt}{yz}.$$

$${\left\{ab,\frac{xz}{xt}\cdot \frac{yt}{yz}\right\}}_{0,1}=0.$$

$$\{\mu ,\nu {\}}_{0,1}=0.$$

$$\frac{\big{\{}ab,\frac{xz}{xt}\cdot\frac{yt}{yz}\big{\}}_{0,1}}{ab\cdot\frac{xz}{xt}\cdot\frac{yt}{yz}}=\frac{\big{\{}ab,xz\big{\}}_{0,1}}{ab\cdot xz}-\frac{\big{\{}ab,xt\big{\}}_{0,1}}{ab\cdot xt}+\frac{\big{\{}ab,yt\big{\}}_{0,1}}{ab\cdot yt}-\frac{\big{\{}ab,yz\big{\}}_{0,1}}{ab\cdot yz}.$$

$$\mathcal{J}(ab,cd)+\mathcal{J}(ab,de)+\mathcal{J}(ab,ec)=0,$$

$$\mathcal{J}(ab,xz)-\mathcal{J}(ab,xt)+\mathcal{J}(ab,yt)-\mathcal{J}(ab,yz)$$

$$=\mathcal{J}(ab,tz)+\mathcal{J}(ab,zt)$$

$$=0.$$

$$\{\mu ,\nu {\}}_{\alpha ,\beta }=\alpha \cdot \{\mu ,\nu {\}}_{1,0}+\beta \cdot \{\mu ,\nu {\}}_{0,1}=\alpha \cdot \{\mu ,\nu {\}}_{1,0}.$$

$$\Delta\left((x_{1},\cdots,x_{d}),(y_{1},\cdots,y_{d})\right):=\det\left(\begin{array}[]{cccc}x_{1}y_{1}&\cdots&x_{1}y_{d}\\ \cdots&\cdots&\cdots\\ x_{d}y_{1}&\cdots&x_{d}y_{d}\end{array}\right).$$

$$\displaystyle\left\{D\in\mathcal{Z}(\mathcal{P})\;\bigg{|}\begin{array}[]{c}\;D=\Delta\left((x_{1},\cdots,x_{n+1}),(y_{1},\cdots,y_{n+1})\right),\\ \forall x_{1},\cdots,x_{n+1},y_{1},\cdots,y_{n+1}\in\mathcal{P}\end{array}\right\}.$$

$${\Delta }^R(ab)=\sum _{d=1}^l\mathcal{J}(ab,x_{d}u)\cdot x_{d}b\cdot \Delta ((x_1,\cdots ,x_{d-1},a,x_{d+1},\cdots ,x_m),(y_1,\cdots ,y_m))$$

$$+\sum _{d=1}^k\mathcal{J}(ab,u{y}_d)\cdot a{y}_d\cdot \Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_{d-1},b,y_{d+1},\cdots ,y_m)),$$

$${\Delta }^L(ab)=\sum _{d=k+1}^m\mathcal{J}(ab,x_{d}v)\cdot x_{d}b\cdot \Delta ((x_1,\cdots ,x_{d-1},a,x_{d+1},\cdots ,x_m),(y_1,\cdots ,y_m))$$

$$+\sum _{d=l+1}^m\mathcal{J}(ab,v{y}_d)\cdot a{y}_d\cdot \Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_{d-1},b,y_{d+1},\cdots ,y_m)),$$

$$\{ab,\Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_m))\}={\Delta }^R(ab)={\Delta }^L(ab).$$

$$\{ab,\Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_m)){\}}_{0,1}=K\cdot ab\cdot \Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_m)),$$

$$\Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_m))=\sum _{\sigma \in S_m}{ϵ}_{\sigma }\prod _i{x}_i{y}_{\sigma (i)}$$

$$\{ab,\Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_m)){\}}_{0,1}$$

$$\displaystyle=ab\cdot\sum_{\sigma\in S_{m}}\epsilon_{\sigma}\big{(}\sum_{i=1}^{m}\mathcal{J}(ab,x_{i}y_{\sigma(i)})\big{)}\prod_{i}x_{i}y_{\sigma(i)}$$

$$=ab\cdot \sum _{\sigma \in S_m}{ϵ}_{\sigma }K(\sigma )\prod _i{x}_i{y}_{\sigma (i)},$$

$$K((kl)\cdot \sigma )-K(\sigma )$$

$$=\mathcal{J}(ab,x_k{y}_{\sigma (l)})+\mathcal{J}(ab,x_l{y}_{\sigma (k)})-\mathcal{J}(ab,x_k{y}_{\sigma (k)})-\mathcal{J}(ab,x_l{y}_{\sigma (l)})$$

$$=\mathcal{J}(ab,y_{\sigma (k)}{y}_{\sigma (l)})+\mathcal{J}(ab,y_{\sigma (l)}{y}_{\sigma (k)})$$

$$=0.$$

$$\{ab,\Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_m)){\}}_{0,1}=K\cdot ab\cdot \Delta ((x_1,\cdots ,x_m),(y_1,\cdots ,y_m)).$$

$$E(x_1,\cdots ,x_{n-1}|t,y):=\frac{\Delta \left(\left(x_1,\cdots ,x_{n-1},t\right),\left(v_1,\cdots ,v_n\right)\right)}{\Delta \left(\left(x_1,\cdots ,x_{n-1},y\right),\left(v_1,\cdots ,v_n\right)\right)}$$

$$\text{Gr}(n,r)={\mathrm{GL}}_n\backslash {\mathrm{Mat}}^{\ast }(n,r)$$

$$\text{Gr}(n,r{)}^{\mathbf{I}}:=\{A\in \text{Gr}(n,r)|\mathbf{I}\text{is lexicographically minimal such that }{\Delta }_{\mathbf{I}}(A)\ne 0\}.$$

Full text

The author was partially supported by the China Postdoctoral Science Foundation 2018T110084 and the Luxembourg National Research Fund(FNR) AFR bilateral grant COALAS 11802479-2. The author also acknowledge support from U.S. National Science Foundation grants DMS-1107452, 1107263, 1107367 “RNMS:GEometric structures And Representation varieties” (the GEAR Network).

1. Introduction

We provide a geometric interpretation of bi-Poisson structure on the Grassmannian using a circle.

In [L18], Labourie introduced the swapping algebra on ordered pairs of points on a circle using the linking numbers. It was used to characterize the Goldman Poisson structure [G84] on the character variety and the second Adler–Gel’fand–Dickey Poisson structure via Drinfel’d–Sokolov reduction [DS81] on the space $Opers_{n}$ of $\operatorname{SL}(n,\mathbb{R})$-opers with trivial holonomy for any $n>1$. The ordered pairs of points on a circle should be understood as a pairing between a vector and a covector in a vector space $\mathbb{K}^{n}$ where $\mathbb{K}$ is a field of characteristic zero. When the dimension $n$ is fixed, by [W39][CP76], all these pairings generate the polynomial ring of a subspace of $(\mathbb{K}^{n}\times\mathbb{K}^{n*})^{r}/\operatorname{GL}(n,\mathbb{K})$. The relations among these pairings are generated by $(n+1)\times(n+1)$ determinant relations. In [Su17], we show that these polynomial relations define a Poisson ideal with respect to the swapping bracket and define the quotient ring $\mathcal{Z}_{n}(\mathcal{P})$ equipped with the swapping bracket, called rank $n$ swapping algebra. Actually, the swapping bracket depends on two parameters. We call it $(\alpha,\beta)$-swapping bracket, denoted by $\{\cdot,\cdot\}_{\alpha,\beta}$.

On the other hand, in [GSV09], Gekhtman et al. found a two dimensional family of Poisson brackets on the open Schubert cell of the Grassmannian induced from the boundary measurement map [Po06], denoted by $\{\cdot,\cdot\}_{B_{\alpha,\beta}}$. The parameters $(\alpha,\beta)$ are used to describe the $R$-matrix in [GSV09, Section 4]. Moreover, they show that these Poisson brackets are compatible with the natural cluster algebra structure [FZ02][GSV03], and the Grassmannian equipped with such Poisson bracket is a Poisson homogeneous space with respect to the natural action of $\operatorname{GL}_{n}$ equipped with an $R$-matrix Poisson–Lie structure [Se83]. In [GSSV12], Gekhtman et al. show that every cluster algebra compatible Poisson structure on the open Schubert cell of the Grassmannian can be obtained as above.

Let $G_{n,r}^{\textbf{I}}$ be the open Schubert cell of the Grassmannian with respect to a $n$-element subset I of $\{1,\cdots,r\}$ that is lexicographically minimal among all sets for which the Plücker coordinate is nonzero. Let $\mathcal{Q}_{n}(\mathcal{P})$ be the fraction field of $\mathcal{Z}_{n}(\mathcal{P})$ where $\#\mathcal{P}=r$. By sending the ratios of Plücker coordinates to the corresponding ratios of $(n\times n)$-determinants in $\mathcal{Q}_{n}(\mathcal{P})$

Theorem 1.1** (Main theorem).**

There exists an injective Poisson algebra homomorphism from the coordinate ring of $G_{n,r}^{\textbf{I}}$ to $\mathcal{Q}_{n}(\mathcal{P})$ with respect to the Poisson bracket $\{\cdot,\cdot\}_{B_{\alpha,\beta}}$ and the $(\beta-\alpha,\alpha+\beta)$-swapping bracket.

In section 2, we recall the swapping algebra and the rank $n$ swapping algebra. In section 3, we recall the Poisson structure on the Grassmannian induced from boundary measurement map and then prove the main theorem.

2. Rank $n$ swapping algebra

In this section, we recall the swapping algebra [L18] and the rank $n$ swapping algebra [Su17]. We prove some basic facts using the linking numbers on a circle. Lemma 2.10 ([Su17, Lemma 3.5, Remark 3.6]) is the key technical formula for the computation.

2.1. Swapping algebra

Let $\mathcal{P}$ be a cyclic finite subset of $S^{1}$. We represent an ordered pair $(r,x)$ of $\mathcal{P}$ by the expression $rx$. Then we consider the associative commutative ring

[TABLE]

over a field $\mathbb{K}$ of characteristic zero, where $\{xy\}_{x,y\in\mathcal{P}}$ are the set of variables. If $\#\mathcal{P}$ has $k$ points on $S^{1}$, then $\mathcal{Z}(\mathcal{P})$ is isomorphic to $\mathbb{K}[x_{1},\cdots,x_{k^{2}-k}]$. Thus $\mathcal{Z}(\mathcal{P})$ is an integral domain. Then we equip $\mathcal{Z}(\mathcal{P})$ with a swapping bracket depending on the linking numbers, defined as follows.

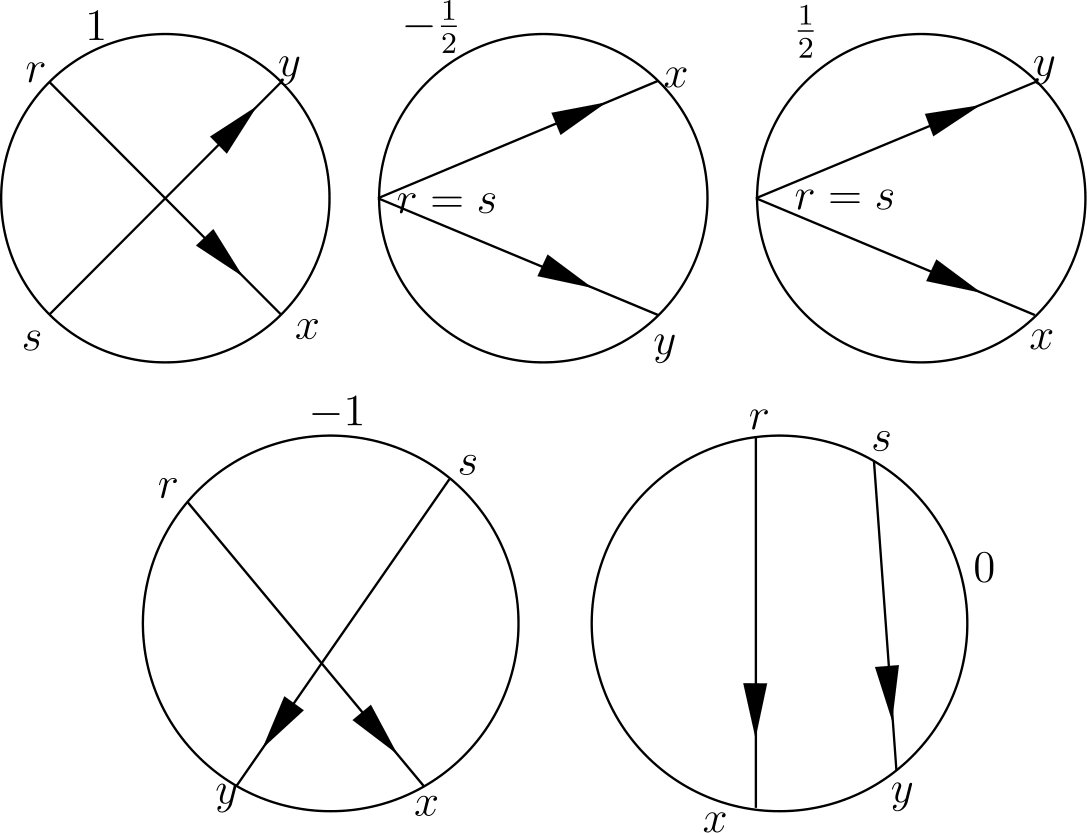

Definition 2.1** (Linking number).**

Let $(r,x,s,y)$ be a quadruple of points in $\mathcal{P}\subset S^{1}$. Let $o$ be any point different from $r,x,s,y\in S^{1}$. Let $\sigma$ be a homeomorphism from $S^{1}\backslash o$ to $\mathbb{R}$ with respect to the anticlockwise orientation of $S^{1}$. Let $\triangle(a)=-1;0;1$ whenever $a<0$; $a=0$; $a>0$ respectively.

The linking number between $rx$ and $sy$ is

[TABLE]

In fact, the value of $\mathcal{J}(rx,sy)$ belongs to $\{0,\pm 1,\pm\frac{1}{2}\}$, and does not depend on the choice of the point $o$ and depends only on the relative positions of $r,x,s,y$. In Figure 1, we describe five possible values of $\mathcal{J}(rx,sy)$.

Definition 2.2** ($(\alpha,\beta)$-swapping bracket).**

Let $\alpha,\beta\in\mathbb{K}$, the $(\alpha,\beta)$-swapping bracket over $\mathcal{Z}(\mathcal{P})$ is defined by extending the following formula on arbitrary generators $rx$, $sy$ to $\mathcal{Z}(\mathcal{P})$ using Leibniz’s rule

[TABLE]

We denote the $(1,0)$-swapping bracket by $\{\cdot,\cdot\}$, called the swapping bracket.

It is easy to see that

[TABLE]

By direct computations, Labourie proved the following theorem.

Theorem 2.3**.**

[L18*]**

The $(\alpha,\beta)$-swapping bracket is Poisson.*

Let $\mathcal{Q}(\mathcal{P})$ be fraction field of $\mathcal{Z}(\mathcal{P})$. The $(\alpha,\beta)$-swapping bracket can be extended to $\mathcal{Q}(\mathcal{P})$, since by Leibniz’s rule, for any $A,B\in\mathcal{Z}(\mathcal{P})$

[TABLE]

Definition 2.4** (Cross fraction).**

Let $x,y,z,t$ belong to $\mathcal{P}$ so that $x\neq t$ and $y\neq z$. The cross fraction of $(x,y,z,t)$ is an element of $\mathcal{Q}(\mathcal{P})$:

[TABLE]

Let $\mathcal{B}(\mathcal{P})$ be the subring of $\mathcal{Q}(\mathcal{P})$ generated by all the cross fractions.

Definition 2.5**.**

The $(\alpha,\beta)$-swapping fraction (multifraction resp.) algebra of $\mathcal{P}$* is $\mathcal{Q}(\mathcal{P})$ ($\mathcal{B}(\mathcal{P})$ resp.) equipped with the $(\alpha,\beta)$-swapping bracket, denoted by $(\mathcal{Q}(\mathcal{P}),\{\cdot,\cdot\}_{\alpha,\beta})$ ($(\mathcal{B}(\mathcal{P}),\{\cdot,\cdot\}_{\alpha,\beta})$ resp.).*

We will prove that $\mathcal{B}(\mathcal{P})$ is closed under $\{\cdot,\cdot\}_{\alpha,\beta}$ as follows.

Lemma 2.6**.**

For any $ab,\frac{xz}{xt}\cdot\frac{yt}{yz}\in\mathcal{Q}(\mathcal{P})$, we have

[TABLE]

As a consequence, for any $\mu,\nu\in\mathcal{B}(\mathcal{P})$, we obtain

[TABLE]

Proof.

By Leibniz’s rule, we have

[TABLE]

By the cocycle identity of the linking number [L18] Definition 2.1.1(8):

[TABLE]

the right hand side of Equation (2) equals

[TABLE]

∎

As a consequence, we obtain

Proposition 2.7**.**

The ring $\mathcal{B}(\mathcal{P})$ is closed under $\{\cdot,\cdot\}_{\alpha,\beta}$.

Proof.

For any $\mu,\nu\in\mathcal{B}(\mathcal{P})$, by Lemma 2.6, we have

[TABLE]

By [Su17] Proposition 2.9, we obtain $\alpha\cdot\{\mu,\nu\}_{1,0}$ belongs to $\mathcal{B}(\mathcal{P})$. Hence we conclude that $\mathcal{B}(\mathcal{P})$ is closed under $\{\cdot,\cdot\}_{\alpha,\beta}$. ∎

2.2. Rank $n$ swapping algebra

Notation 2.8**.**

For any $d>1$ and any $x_{1},\cdots,x_{d},y_{1},\cdots,y_{d}\in\mathcal{P}$, fix the notation

[TABLE]

We call $(x_{1},\cdots,x_{d})$ ($(y_{1},\cdots,y_{d})$ resp) the left (right resp.) side $n$-tuple of the determinant $\Delta\left((x_{1},\cdots,x_{d}),(y_{1},\cdots,y_{d})\right)$.

Definition 2.9** (Rank $n$ swapping ring $\mathcal{Z}_{n}(\mathcal{P})$).**

For $n\geq 2$, let $R_{n}(\mathcal{P})$ be the ideal of $\mathcal{Z}(\mathcal{P})$ generated by

[TABLE]

The rank n swapping ring $\mathcal{Z}_{n}(\mathcal{P})$ is the quotient ring $\mathcal{Z}(\mathcal{P})/R_{n}(\mathcal{P})$.

Lemma 2.10**.**

[Su17*, Lemma 3.5, Remark 3.6]**

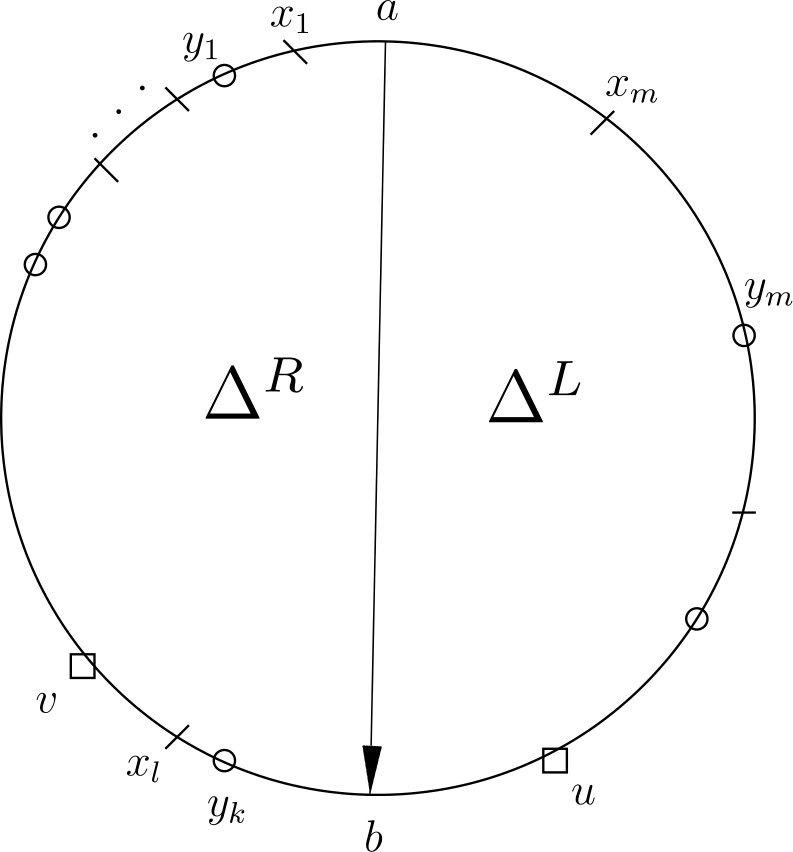

For any integer $m\geq 2$, suppose $x_{1},\cdots,x_{m}$ $(y_{1},\cdots,y_{m}\;resp.)$ in $\mathcal{P}$ are mutually distinct and anticlockwise ordered. Assume that $a,b$ belong to $\mathcal{P}$ and $x_{1},\cdots,x_{l},y_{1},\cdots$, $y_{k}$ are on the right side of the oriented edge $\overrightarrow{ab}$ (include coinciding with $a$ or $b$) as illustrated in Figure 2. Let $u$ ($v$ resp.) be strictly on the left (right resp.) side of $\overrightarrow{ab}$. Let*

[TABLE]

[TABLE]

then we have

[TABLE]

Lemma 2.11**.**

With the same notations as in the lemma above, we have

[TABLE]

for some constant $K$.

Proof.

Since

[TABLE]

where $\epsilon_{\sigma}$ is the sign of $\sigma$ in the permutation group $S_{m}$,

[TABLE]

where $K(\sigma)=\sum_{i=1}^{m}\mathcal{J}(ab,x_{i}y_{\sigma(i)})$. For any transposition $(kl)$ in the permutation group $S_{m}$, we get

[TABLE]

For any $\sigma^{\prime},\sigma\in S_{m}$, $\sigma^{\prime}$ is related to $\sigma$ by a sequence of transpositions. Thus $K(\sigma)=K(\sigma^{\prime})$. Then we denote $K(\sigma)$ by $K$. Finally, we conclude that

[TABLE]

∎

The following proposition is a consequence of Lemma 2.10 and Lemma 2.11.

Proposition 2.12**.**

$R_{n}(\mathcal{P})$* is a Poisson ideal of $\mathcal{Z}(\mathcal{P})$ with respect to the $(\alpha,\beta)$-swapping bracket.*

Definition 2.13** ($(\alpha,\beta)$-rank $n$ swapping algebra of $\mathcal{P}$).**

The $(\alpha,\beta)$-rank $n$ swapping algebra of $\mathcal{P}$ is the ring $\mathcal{Z}_{n}(\mathcal{P})=\mathcal{Z}(\mathcal{P})/R_{n}(\mathcal{P})$ equipped with the $(\alpha,\beta)$-swapping bracket, denoted by $(\mathcal{Z}_{n}(\mathcal{P}),\{\cdot,\cdot\}_{\alpha,\beta})$.

We define $(\mathcal{Z}_{n}(\mathcal{P}),\{\cdot,\cdot\})$ to be the rank $n$ swapping algebra of $\mathcal{P}$.

By Theorem 4.7 in [Su17], $\mathcal{Z}_{n}(\mathcal{P})$ is an integral domain. Thus the fraction field of $\mathcal{Z}_{n}(\mathcal{P})$ is well-defined, denoted by $\mathcal{Q}_{n}(\mathcal{P})$. The cross fractions are well-defined in $\mathcal{Q}_{n}(\mathcal{P})$. Let $\mathcal{B}_{n}(\mathcal{P})$ be the subring of $\mathcal{Q}_{n}(\mathcal{P})$ generated by all the cross fractions.

Definition 2.14**.**

The $(\alpha,\beta)$-rank $n$ swapping fraction (multifraction resp.) algebra of $\mathcal{P}$ is $\mathcal{Q}_{n}(\mathcal{P})$ ($\mathcal{B}_{n}(\mathcal{P})$ resp.) equipped with the $(\alpha,\beta)$-swapping bracket, denoted by $(\mathcal{Q}_{n}(\mathcal{P}),\{\cdot,\cdot\}_{\alpha,\beta})$ ($(\mathcal{B}_{n}(\mathcal{P}),\{\cdot,\cdot\}_{\alpha,\beta})$ resp.).

2.3. $(n\times n)$-determinant ratio

Let us recall the $(n\times n)$-determinant ratio in [Su15, Section 4].

Definition 2.15** ($(n\times n)$-determinant ratio).**

Let $x_{1},\cdots,x_{n-1},y\in\mathcal{P}$ be mutually distinct. The $(n\times n)$-determinant ratio of $x_{1},\cdots,x_{n-1},t,y$:

[TABLE]

for any mutually distinct $v_{1},\cdots,v_{n}\in\mathcal{P}$. By [Su15, Corollary 4.5], the $(n\times n)$-determinant ratio does not depend on the mutually distinct $v_{1},\cdots,v_{n}\in\mathcal{P}$ that we choose.

Let $\mathcal{DR}_{n}(\mathcal{P})$ be the subfield of $\mathcal{Q}_{n}(\mathcal{P})$ generated by all the $(n\times n)$-determinant ratios.

Remark 2.16**.**

As a consequence, the swapping bracket between any element in $\mathcal{Q}_{n}(\mathcal{P})$ and $E(x_{1},\cdots,x_{n-1}|t,y)$ does not depend on the choice of right side $n$-tuple $(v_{1},\cdots,v_{n})$ of $E(x_{1},\cdots,x_{n-1}|t,y)$. We can calculate the swapping bracket between two $(n\times n)$-determinant ratios with the right side $n$-tuples in any preferred positions by enlarging $\mathcal{P}$.

3. Rank $n$ swapping algebra on the Grassmannian

3.1. Poisson structure on the Grassmannian

Definition 3.1** (Grassmannian).**

Let $n$ and $r$ be two integers such that $0<n\leq r$. Let $\mathbb{K}$ be a field of characteristic zero (e.g. $\mathbb{R}$ or $\mathbb{C}$). The Grassmannian $\textbf{Gr}(n,r)$ is the manifold of $n$-dimensional vector subspaces in $\mathbb{K}^{r}$.

Let $\operatorname{Mat}^{*}(n,r)$ be the set of $(n\times r)$-matrices over $\mathbb{K}$ with rank $n$. Then

[TABLE]

where $\operatorname{GL}_{n}$ acts on $\operatorname{Mat}^{*}(n,r)$ by left multiplication.

Definition 3.2** (Coordinates on $\textbf{Gr}(n,r)$).**

Let $\mathbf{I}$ be a $n$-element subset of $\{1,\cdots,r\}$. The Plücker coordinate $\Delta_{\mathbf{I}}$ of $\operatorname{Mat}^{*}(n,r)$ is the minor of the matrix formed by the columns of the matrix indexed by $\mathbf{I}$ with respect to lexicographical order.

The Schubert cell

[TABLE]

The Grassmannian $\textbf{Gr}(n,r)$ is a disjoint union $\bigcup_{\mathbf{I}}\textbf{Gr}(n,r)^{\mathbf{I}}$.

Observe that for any $g\in\operatorname{GL}_{n}$,

[TABLE]

The subset $\mathbf{I}(i\rightarrow j)$ is obtained from $\mathbf{I}$ by replacing $i\in\mathbf{I}$ by $j\notin\mathbf{I}$. Then

[TABLE]

form a coordinate system on the Schubert cell $\textbf{Gr}(n,r)^{\mathbf{I}}$.

Definition 3.3** (Directed planar graph for $\textbf{Gr}(n,r)$).**

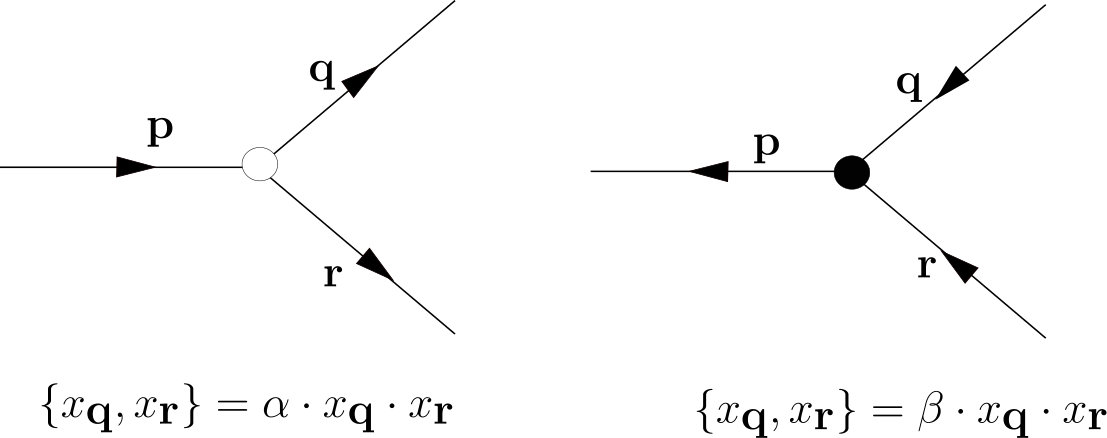

A directed planar graph for $\textbf{Gr}(n,r)$ is a directed planar graph $(V,E)$ on a disk with $r$ vertices $v_{1},\cdots,v_{r}$ ordered anticlockwise on the boundary, where there are $n$ ($r-n$ resp.) vertices on the boundary such that each one of these vertices has exactly one outgoing (incoming resp.) edge, each inner vertex has one incoming edge and two outgoing edges (called white vertex) or two incoming edges and one outgoing edge (called black vertex) as in Figure 3.

To a vertex $v$ and the edge $e$ connecting to $v$, let p be $(v,e)$, we assign a variable $x_{\textbf{p}}\in\mathbb{R}\backslash\{0\}$. Let $d$ be the cardinality of these pairs. We define a Poisson structure on $(\mathbb{R}\backslash\{0\})^{d}$ as follows. For a white (black resp.) vertex, labelling from incoming (outgoing resp.) edge clockwise $x_{\textbf{p}},x_{\textbf{q}},x_{\textbf{r}}$, as in Figure 3, the Poisson bracket is $\{x_{\textbf{q}},x_{\textbf{r}}\}_{N}=\alpha\cdot x_{\textbf{q}}\cdot x_{\textbf{r}}$ ($\{x_{\textbf{q}},x_{\textbf{r}}\}_{N}=\beta\cdot x_{\textbf{q}}\cdot x_{\textbf{r}}$ resp.), otherwise zero.

Definition 3.4** (Perfect planar network).**

Given a directed planar graph $(V,E)$ for $\textbf{Gr}(n,r)$, let $w$ be a map

[TABLE]

such that the entry for the edge $e$ is $w_{e}=x_{\textbf{a}}x_{\textbf{b}}$ where $\textbf{a}=(v,e)$ and $\textbf{b}=(u,e)$. We define the perfect planar network to be $N=(V,E,\{w_{e}\}_{e\in E})$. Each perfect planar network defines the space of edge weights $E_{N}:=w((\mathbb{R}\backslash\{0\})^{d})$.

Definition 3.5** (Boundary measurement map).**

Let $N=(V,E,\{w_{e}\}_{e\in E})$ be the perfect planar network where the $n$-element subset $\mathbf{I}$ corresponds to the vertices on the boundary which have exactly one outgoing edge. The boundary measurement map $b$ is a rational map from $E_{N}$ to the cell $\textbf{Gr}(n,r)^{\mathbf{I}}$ given as follows. Choose a unique representative in $\operatorname{Mat}^{*}(n,r)$ so that the sub $n\times n$ matrix formed by the columns from $\mathbf{I}$ is the identity matrix $I_{n\times n}$, the other $(i,j)$-entry of the $(n\times r)$-matrix is defined to be the sum of the products of the weights of all paths starting at $v_{i}$ and ending at $v_{j}$.

The map $b\circ w$ induces the $\{\cdot,\cdot\}_{B_{\alpha,\beta}}$ Poisson bracket on $\textbf{Gr}(n,r)^{\mathbf{I}}$ from the Poisson bracket $\{\cdot,\cdot\}_{N}$ on $(\mathbb{R}\backslash\{0\})^{d}$.

We identify the set $\{1,2,\cdots,r\}$ used to enumerate the columns with the anticlockwise ordered set $\mathcal{P}=\{a_{1},a_{2},\cdots,a_{r}\}$ on a circle.

Definition 3.6**.**

[GSV09, Theorem 3.3, $\{\cdot,\cdot\}_{B_{\alpha,\beta}}$]** Let $\mathcal{P}=\{a_{1},a_{2},\cdots a_{r}\}$ be ordered anticlockwise on a circle. The symbol $\prec$ is used to denote the anticlockwise ordering on a circle. Let parallel number be

[TABLE]

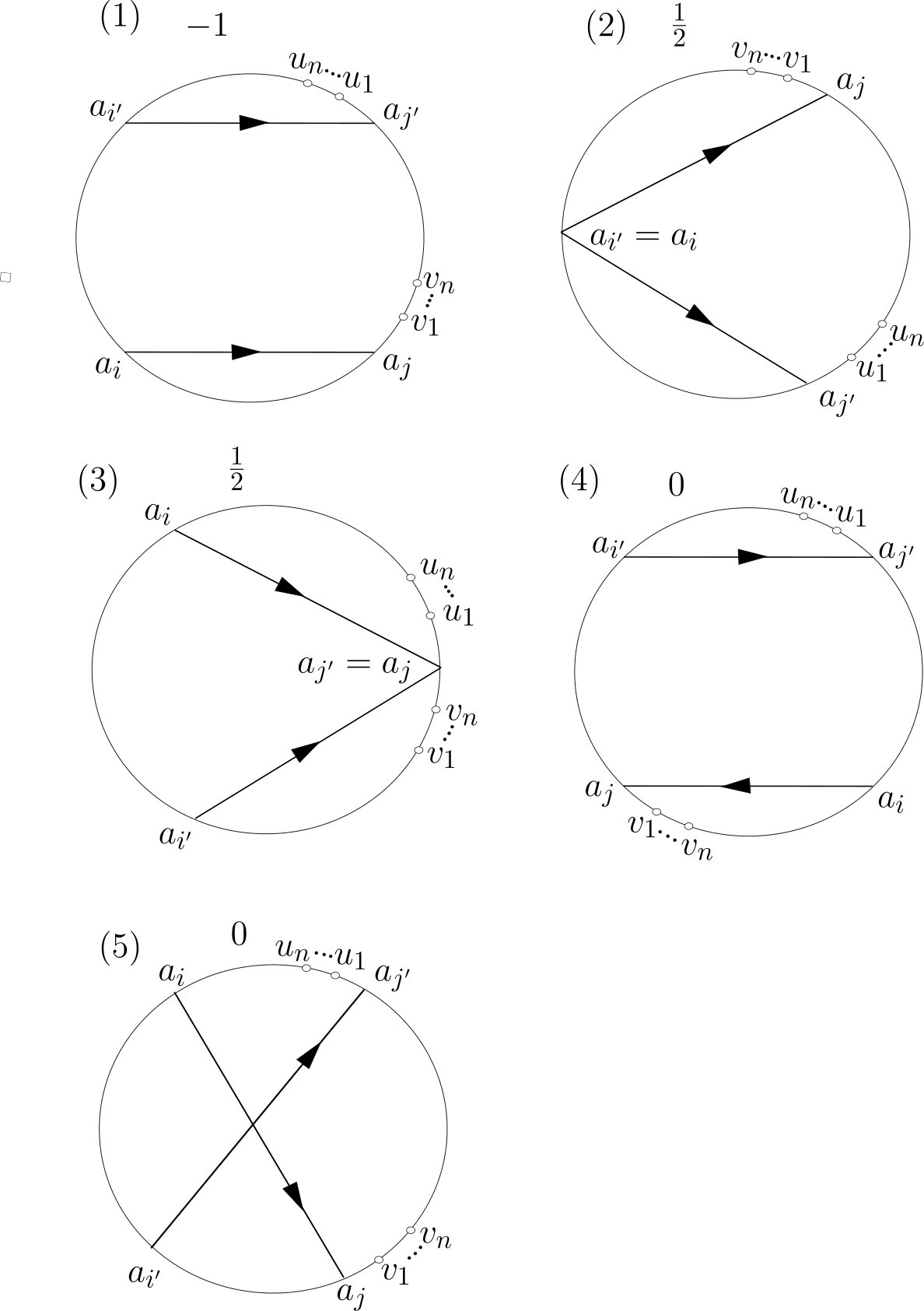

As in Figure 4, the parallel number depends only on the corresponding position of the four points. For any $n$-element subset $\mathbf{I}$, the $\{\cdot,\cdot\}_{B_{\alpha,\beta}}$ Poisson bracket of $\textbf{Gr}(n,r)^{\mathbf{I}}$ is given by

[TABLE]

Remark 3.7**.**

When $\textbf{I}=\{1,2,\cdots,n\}$, the above Poisson bracket can be also found in [BGY06]. The parameters $(\alpha,\beta)$ are used to describe the $R$-matrix in [GSV09, Section 4]. The definition of $s_{\times}$ from [GSV09] coincides with the linking number $\mathcal{J}$.

3.2. Main theorem

Theorem 3.8** (Main theorem).**

Let $\mathcal{P}=\{a_{1}\prec\cdots\prec a_{r}\prec a_{1}\}$ be ordered anticlockwise on a circle. The $(\beta-\alpha,\alpha+\beta)$-rank $n$ swapping multifraction algebra is denoted by $(\mathcal{Q}_{n}(\mathcal{P}),\{\cdot,\cdot\}_{\beta-\alpha,\alpha+\beta})$. Let $\mathbf{I}$ be a $n$-element subset $\mathbf{I}=\{k_{1},\cdots,k_{n}\}$ of $\{1,\cdots,r\}$ with $k_{1}<\cdots<k_{n}$. If $i\in\mathbf{I}$, let $\widehat{a_{i}}$ be $a_{k_{1}},\cdots,a_{k_{n}}$ with $a_{i}$ removed. There is an injective algebra homomorphism

[TABLE]

defined by extending the following formula on arbitrary generator $m_{ij}$ to the polynomial ring

[TABLE]

Then the algebra homomorphism $\theta_{\alpha,\beta}$ is Poisson with respect to $\{\cdot,\cdot\}_{B_{\alpha,\beta}}$ and $\{\cdot,\cdot\}_{\beta-\alpha,\alpha+\beta}$.

We prove the main theorem by several steps. Firstly, we send the ratios of $(n\times n)$-determinants in $\mathbb{K}^{n}$ to the $(n\times n)$-determinant ratios for $\mathcal{Z}_{n}(\mathcal{P})$. The injectivity follows the same argument in [Su15, Proposition 5.3] using [Su17, Theorem 4.6].

Notation 3.9**.**

Let us denote $\frac{\{A,B\}_{\alpha,\beta}}{A\cdot B}$ by $[A,B]_{\alpha,\beta}$.

Moreover, we denote $[A,B]_{1,0}$ by $[A,B]$.

Let $u^{k}:=u_{1},\cdots,u_{k}$.

Lemma 3.10**.**

[TABLE]

Proof.

Let $(u_{1},\cdots,u_{n})$ be the right side $n$-tuple of the two $(n\times n)$-determinant ratios. By Leibniz’s rule, we obtain

[TABLE]

By Lemma 2.11, we have

[TABLE]

where $K$ is some constant. By Equation (5), using the same argument as in Lemma 2.11, $K$ is the summation of $4\cdot n^{2}$ linking numbers. We observe that all the terms associated to $\widehat{a_{i^{\prime}}}$ or $\widehat{a_{i}}$ are cancelled except the following four terms:

[TABLE]

∎

By Equation (1), to prove Theorem 3.8, it is enough to prove

[TABLE]

The main technique that we use to prove the theorem is the following lemma.

Lemma 3.11**.**

[Su15*, Lemma 5.6]**

For $n\geq 2$, let $M=\left(c_{s}d_{t}\right)_{s,t=1}^{n}$ be a $(n\times n)$-matrix with $c_{s},d_{t}\in\mathcal{P}$, let $M_{st}$ be the determinant of the matrix obtained from $M$ by deleting the $s$-th row and the $t$-th column. Let $B\in\mathcal{Q}_{n}(\mathcal{P})$, we have*

[TABLE]

in $\mathcal{Q}_{n}(\mathcal{P})$.

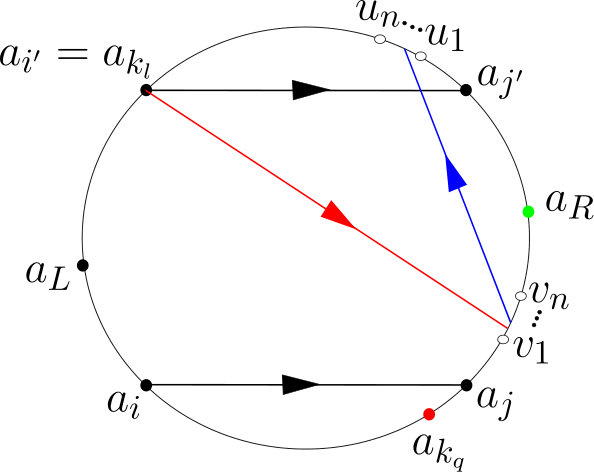

Proof of Theorem 3.8.

We prove the case (1) in Figure 4.

Suppose that $(v_{1},\cdots,v_{n})$ ($(u_{1},\cdots,u_{n})$ resp.) is the right side $n$-tuple for the term on the left (right resp.) hand side in each $[\cdot,\cdot]$ bracket below. By Remark 2.16, we arrange the points $(v_{1},\cdots,v_{n})$ ($(u_{1},\cdots,u_{n})$ resp.) in between two successive points of $\mathcal{P}$ where one of them is $a_{j}$ ($a_{j^{\prime}}$ resp.) as in Figure 4. For all the cases, such arrangements simplify the computation a lot, and allows us to compute in a similar way.

We compute $D=\left[\Delta\left(\left(\widehat{a_{i}},a_{j}\right),\left(v^{n}\right)\right),\Delta\left(\left(\widehat{a_{i^{\prime}}},a_{j^{\prime}}\right),\left(u^{n}\right)\right)\right]$. By Lemma 3.11, for $\det M=\Delta\left(\left(\widehat{a_{i}},a_{j}\right),\left(v^{n}\right)\right)$ and $B=\Delta\left(\left(\widehat{a_{i^{\prime}}},a_{j^{\prime}}\right),\left(u^{n}\right)\right)$, we have

[TABLE]

where $c_{s}\in\{\widehat{a_{i}},a_{j}\}$. We fix $c_{s}$ and compute the sum

[TABLE]

over $t$, where the summation is called the sum over $t$ for $c_{s}$ for short:

1. (1)

When $c_{s}=a_{i^{\prime}}$, recall $\mathbf{I}=\{k_{1},\cdots,k_{n}\}$ with $k_{1}<\cdots<k_{n}$ and suppose $i^{\prime}=k_{l}$. By Lemma 2.10 Equation (LABEL:equation:R), we use $\Delta^{R}(a_{i^{\prime}}v_{t})$ with respect to the right side of $\overrightarrow{a_{i^{\prime}}v_{t}}$ as in Figure 5, then

[TABLE]

where $a_{k_{q}}$ is on the right side of $\overrightarrow{a_{i^{\prime}}v_{t}}$ and $a_{k_{q+1}}$ is on the left side of $\overrightarrow{a_{i^{\prime}}v_{t}}$. Let $\widehat{a_{i^{\prime}},a_{i}}$ be $a_{k_{1}},\cdots,a_{k_{n}}$ with $a_{i^{\prime}},a_{i}$ removed. The sum over $t$ for $a_{i^{\prime}}$ equals

[TABLE]

If $k_{d}\neq i$, then $a_{k_{d}}\in\{\widehat{a_{i^{\prime}},a_{i}}\}$. Thus $\Delta\left(\left(\widehat{a_{i^{\prime}},a_{i}},a_{k_{d}},a_{j}\right),\left(u^{n}\right)\right)=0$. Hence the right hand side of Equation (LABEL:equation:lt) equals

[TABLE] 2. (2)

When $c_{s}=a_{j}$, we get

[TABLE]

Thus the sum over $t$ for $a_{j}$ equals [math]. 3. (3)

When $c_{s}=a_{m}\in\{a_{k_{1}},\cdots a_{k_{n}}\}\backslash\{a_{i},a_{i^{\prime}}\}$, let $A_{L}$ ($A_{R}$ resp.) be the subset of $\{a_{k_{1}},\cdots a_{k_{n}}\}\backslash\{a_{i},a_{i^{\prime}}\}$ which is on the left (right resp.) side of $\overrightarrow{v_{s}u_{t}}$ as in Figure 5. When we compute $\left\{a_{m}v_{t},\Delta\left(\left(\widehat{a_{i^{\prime}}},a_{j^{\prime}}\right),\left(u^{n}\right)\right)\right\}$ by Lemma 2.10 Equation (LABEL:equation:R), each term corresponds to $a_{m}$ swapping with one of the element $a_{p}$ in $\{\widehat{a_{i^{\prime}}},a_{j^{\prime}}\}$. If $a_{m}\neq a_{p}$, then $a_{m}\in\{\widehat{a_{i^{\prime}}},a_{j^{\prime}}\}\backslash\{a_{p}\}$. Thus $\Delta\left(\left(\widehat{a_{i^{\prime}},a_{p}},a_{m},a_{j^{\prime}}\right),\left(u^{n}\right)\right)=0$. Hence we obtain

[TABLE]

Thus the sum over $t$ for $a_{m}$ equals $\frac{1}{2}$ if $a_{m}\in A_{L}$, equals $-\frac{1}{2}$ if $a_{m}\in A_{R}$.

Suppose $\#A_{L}=n_{1}$ and $\#A_{R}=n_{2}$. Combining the above results, we obtain

[TABLE]

By similar computations, we get

[TABLE]

[TABLE]

and

[TABLE]

Thus

[TABLE]

In this case, since $s_{||}\left(a_{i}a_{j},a_{i^{\prime}}a_{j^{\prime}}\right)=-1$, we obtain

[TABLE]

The proof for the other cases are similar with respect to the arrangements in Figure 4. All the terms are cancelled out except the term in Equation (7) is replaced by

[TABLE]

Note that for the case (3) in Figure 4, the contribution is the same as above, but coming from the fact

[TABLE]

Hence we obtain for all the cases

[TABLE]

Combing with Lemma 3.10 and Equation (4), we conclude that $\theta_{\alpha,\beta}$ is Poisson with respect to $\{\cdot,\cdot\}_{B_{\alpha,\beta}}$ and $\{\cdot,\cdot\}_{\beta-\alpha,\alpha+\beta}$. ∎

Acknowledgements

I thank Yau Mathematical Sciences Center at Tsinghua University and Luxembourg University for their hospitality.
