Current-driven nucleation and propagation of antiferromagnetic skyrmionium

TL;DR

This paper theoretically investigates how antiferromagnetic skyrmioniums can be nucleated and propelled by spin currents, providing analytical and numerical insights into their creation and movement.

Contribution

It introduces a new method for nucleating antiferromagnetic skyrmioniums using local spin current injection and derives an analytical expression for their velocity.

Findings

Antiferromagnetic skyrmioniums can be generated via local spin current injection.

Uniform spin currents can induce skyrmionium propagation.

The derived velocity expression matches numerical simulations.

Abstract

We present a theoretical study on nucleation and propagation of antiferromagnetic skyrmionium induced by spin current injection. A skyrmionium, also known as 2{\pi} skyrmion, is a vortex-like magnetic structure characterized by a topological charge, the so-called skyrmion number, being zero. We find that an antiferromagnetic skyrmionium can be generated via a local injection of spin current with toroidal distribution. A spatially uniform spin current is then demonstrated to induce a propagation of the skyrmionium. We derive an expression for the skyrmionium velocity based on a collective-coordinate model, which agrees well with our numerical results. Our findings suggest a novel way of nucleating an antiferromagnetic skyrmionium, as well as an analytical estimation of the current-driven skyrmionium velocity.

Figures

Equations

$$u$$

$$\frac{\partial {\vec{m}}_{\zeta }}{\partial t}=-{\vec{m}}_{\zeta }\times \gamma {\vec{H}}_{\zeta }+\alpha {\vec{m}}_{\zeta }\times \frac{\partial {\vec{m}}_{\zeta }}{\partial t}-{\vec{m}}_{\zeta }\times \left({\vec{m}}_{\zeta }\times \vec{p}\right),$$

$$|\vec{p}|=\frac{\gamma \hslash }{2e{\mu }_0{M}_{\mathrm{S}}}\frac{{\theta }_{\mathrm{SHE}}}{t_{\mathrm{AFM}}}|{\vec{j}}_{\mathrm{c}}|,$$

$$\vec{n}(\vec{x},t)$$

$$\vec{m}(\vec{x},t)$$

$$\vec{n}\times \left[c^2\square \vec{n}+2\gamma H_E\left(\vec{n}\times \vec{p}+{\vec{\omega }}_{\mathrm{k},\mathrm{d}}-\alpha \frac{\partial \vec{n}}{\partial t}\right)\right]=0,$$

$$\vec{m}=-\frac{1}{2\gamma H_E}\vec{n}\times \frac{\partial \vec{n}}{\partial t},$$

$$u$$

$$Q\equiv \frac{1}{4\pi }\int d^{2}x\hat{n}\cdot \left(\frac{\partial \hat{n}}{\partial x_1}\times \frac{\partial \hat{n}}{\partial x_2}\right)=0,$$

$$\vec{p}=|\vec{p}|(-\sin \phi {\vec{e}}_1+\cos \phi {\vec{e}}_2),$$

$$M_{\mu }\frac{d^2{X}_{\mu }}{d{t}^2}+2\alpha M_{\mu }\gamma H_E\frac{d{X}_{\mu }}{dt}=F_{\mu },$$

$$M_{\mu }$$

$$F_{\mu }$$

$$I_{\mu j}=\int d^{2}x{\left(\vec{n}\times \frac{\partial \vec{n}}{\partial x_{\mu }}\right)}_j,$$

$$\frac{d{X}_1(t)}{dt}=v_1\left(1-e^{-2\alpha \gamma H_{E}t}\right),$$

$$v_1\equiv {\frac{d{X}_1}{dt}|}_{t\to \infty }=\frac{|I_{12}|}{\alpha M_1}|\vec{p}|.$$

$$X_{\mu }=\frac{\int d^{2}x{x}_{\mu }\left(1-n_3\right)f(n_3)}{\int d^{2}x\left(1-n_3\right)f(n_3)},$$

Full text

I Introduction

Ever since the predictionBogdanov ; Rossler and experimental discoveriesMuhlbauer ; Yu ; Heinze ; Seki ; Raicevic of magnetic skyrmions in magnetic materials with broken inversion symmetry, they have been generating increasing attention in the field of spintronics. Skyrmions exhibit rich physics stemming from their characteristic, topologically nontrivial structures, and are deemed a promising player for future technological applicationsFert ; Nagaosa ; Finocchio ; Fert2017 . Central to these applications is efficient manipulation of skyrmions in nanostructures; several approaches with the use of electric currentJonietz ; Yu2012 , spin wavesIwasaki-magnon ; Schutte , temperature gradientKong ; MochizukiT , electric field gradientYHLiu , and magnetic field gradientKomineas ; SLZhang have been demonstrated to control the dynamics of magnetic skyrmions. From a topological perspective, a skyrmion is characterized by a topological charge $Q=\pm 1$Rajaraman , known as skyrmion number. A direct consequence of the nonzero $Q$ is that a moving magnetic skyrmion experiences a Magnus forceJiang ; Litzius , hampering a precise control of its motion. There is thus a growing need to explore materials and magnetic structures where this undesirable effect can be overcome.

A skyrmionium (or 2$\pi$ skyrmion)Bogdanov1999 ; Finazzi ; Komineas ; Zhang ; Shen ; Gobel2019 refers to a magnetic texture that can be viewed as two nested skyrmions with opposite $Q$. A skyrmionium thus carries $Q=0$ and is free from the Magnus force when driven into motion. While both skyrmion and skyrmionium have been experimentally observed and investigated in ferromagnets, their antiferromagnetic counterparts have only been theoretically predicted recentlyBogdanov2002 ; Barker ; Hristo ; Zhang-sk ; Jin ; Gobel ; Collins ; Fujita ; Bhukta . The latter are also unaffected by the Magnus force, because it operates on the two different magnetic sublattices in the opposite sense, canceling out the effects of each other. Antiferromagnetic materials have been widely projected as a viable replacement of ferromagnets deployed in some of the existing technologies due to their advantageous featuresMacDonald ; Jungwirth ; Baltz ; they are robust against external magnetic fields, produce no or negligibly small demagnetizing field, and display ultrafast dynamics. Antiferromagnetic skyrmion/skyrmionium will therefore play pivotal roles in the next generation of spintronics applications. Compared to the antiferromagnetic skyrmion, however, relatively little study has been devoted to the antiferromagnetic skyrmionium thus farFujita ; Bhukta .

In this work, we propose a novel way of nucleating an antiferromagnetic skyrmionium, and investigate a current-driven propagation of skyrmionium. Micromagnetic simulation reveals that a local spin current injection with toroidal distribution can generate a skyrmionium. We then derive the skyrmionium velocity driven by uniform spin current injection, based on a collective-coordinate model. The numerically-observed skyrmionium motion agrees well with the analytical result, confirming the absence of Magnus force.

II Model

We consider a two-dimensional antiferromaget (AFM) composed of two equivalent magnetic sublattices ($A$ and $B$) with constant saturation magnetization $M_{\rm S}$. The spatial variation of the magnetic moments within each sublattice is assumed to be sufficiently slow compared to the atomistic length scale, so that the AFM can be appropriately modeled by performing a coarse graining for each sublatticeLifshitz . The classical vector field ${\vec{m}}_{A}({\vec{x}},t)$ $(|{\vec{m}}_{A}({\vec{x}},t)|=1)$ represents the magnetization direction in the sublattice $A$, with a similar definition for ${\vec{m}}_{B}({\vec{x}},t)$.

In the continuous limit, we model the AFM by the following magnetic energy density $u$Bogdanov2002 ;

[TABLE]

where $J_{0}(>0)$ is the homogeneous exchange coupling energy, $A_{1}$ and $A_{2}$ are the isotropic exchange stiffnesses, $K(>0)$ is the uniaxial anisotropy constant along the $x_{3}$ axis, $D(>0)$ characterizes the Dzyaloshinskii-Moriya interaction (DMI), and ${\vec{e}}_{\mu}$ is the unit vector along the $x_{\mu}$ axis.

The dynamics of ${\vec{m}}_{\zeta}$ ($\zeta=A,B$) are described by the coupled Landau-Lifshitz-Gilbert equations;

[TABLE]

where $\gamma$ and $\alpha$ are the the gyromagnetic ratio and the Gilbert damping constant, respectively, (which are assumed for simplicity to be sublattice independent) and ${\vec{H}}_{\zeta}=-(\mu_{0}M_{\rm S})^{-1}\delta u/\delta{\vec{m}}_{\zeta}$ is the effective magnetic field for the sublattice $\zeta$. The last term in Eq. (2) is the Slonczewski-Berger spin-transfer torqueSlonczewski due to spin current injection into the AFM, with ${\vec{p}}$ representing the magnitude and polarization of the spin current. Here, we have assumed that the injected spin is transferred equiprobably to each of the sublattices.

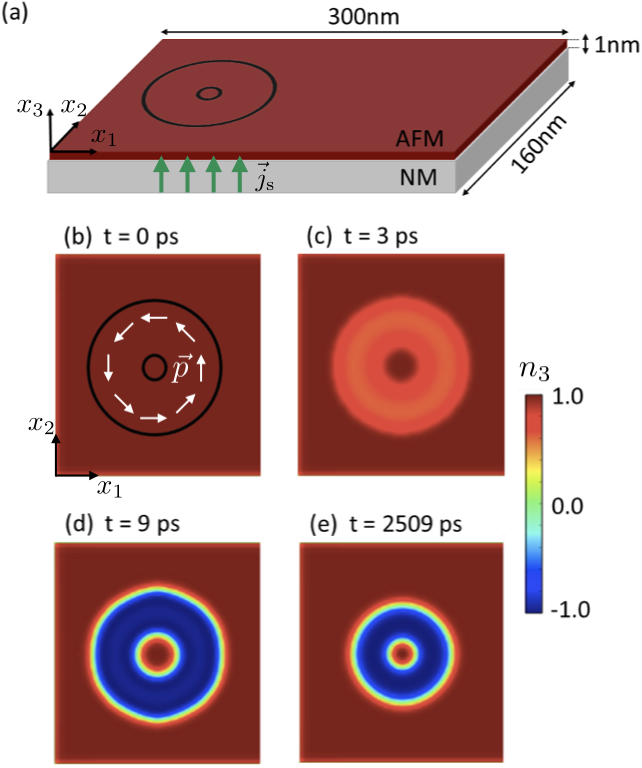

In the present work, we consider the spin current injection realized via spin Hall effect in a nonmagnetic metal (NM)/AFM bilayer [Fig. 1. (a)]; the spin current ${\vec{j}}_{\rm s}$ induced in NM due to spin Hall effect diffuses into the adjacent AFM and exerts the spin-transfer torque on the magnetizationsLiu2011 . (the spin-transfer torque of this mechanism is also called spin orbit torque or spin Hall torque.) The directions of the electric current density ${\vec{j}}_{\rm c}$ in NM, the spin current flow ${\vec{j}}_{\rm s}$, and the polarization of the spin current ${\vec{p}}$ satisfy the relationship ${\vec{j}}_{\rm c}\propto{\vec{j}}_{\rm s}\times{\vec{p}}$. The spatial distribution of ${\vec{p}}({\vec{x}},t)$ is thus determined by that of ${\vec{j}}_{\rm c}({\vec{x}},t)$, as ${\vec{j}}_{\rm s}$ is along the $x_{3}$ axis (the film-normal direction). In the following sections, we will consider a spatially-nonuniform as well as uniform ${\vec{p}}$. The magnitude of ${\vec{p}}$ carried by the injected spin current is given by

[TABLE]

where $\theta_{\rm SHE}$ is the spin Hall angle of NM, and $t_{\rm AFM}$ is the thickness of the AFM thin film (along the $x_{3}$ axis).

We now introduce the Néel order parameter ${\vec{n}}({\vec{x}},t)$ and the ferromagnetic canting vector ${\vec{m}}({\vec{x}},t)$ by

[TABLE]

and the relations ${\vec{n}}^{2}+{\vec{m}}^{2}=1$ and ${\vec{n}}\cdot{\vec{m}}=0$ are a direct consequence of the above definitions. Because the AFM exchange coupling is usually dominant over the other energies, one can safely assume $|{\vec{m}}({\vec{x}},t)|\ll 1$ and $|{\vec{n}}({\vec{x}},t)|\simeq 1$. By rewriting Eq. (2) in terms of $({\vec{n}},{\vec{m}})$ and using $J_{0}\gg D,K,|{\vec{p}}|$, one obtains, up to the first order of ${\vec{m}}$, the closed equation of motion for ${\vec{n}}$Helen2010

[TABLE]

while ${\vec{m}}$ is given by a function of ${\vec{n}}$ as

[TABLE]

where $H_{E}=J_{0}/\mu_{0}M_{\rm S}$, $c^{2}=2\gamma^{2}H_{E}(2A_{1}+A_{2})/\mu_{0}M_{\rm S}$, $\Box={\vec{\nabla}}^{2}-(1/c^{2})\partial^{2}/\partial t^{2}$, and ${\vec{\omega}}_{\rm k,d}$ is a quantity originating from the magnetic anisotropy and DMIFootnote . Equation (7) shows that, within our present approximation, ${\vec{m}}$ vanishes when $\partial{\vec{n}}/\partial t=0$.

In equilibrium, therefore, the magnetic energy density in Eq. (1) is rewritten in terms only of ${\vec{n}}$ as

[TABLE]

This form of magnetic energy density is common to that of ferromagnets with exchange coupling, DMI and uniaxial anisotropy. Equation (8) thus indicates that, when the material parameters are appropriately chosen, a variety of magnetic textures that have been observed in the ferromagnets can also be formed by ${\vec{n}}$ in the AFM. Antiferromagnetic skyrmionium is a vortex-like structure characterized by the skyrmion number $Q$ being zero;

[TABLE]

where ${\hat{n}}={\vec{n}}/|{\vec{n}}|$.

In the following, Eq. (2) is numerically solved in terms of $({\vec{m}}_{A},{\vec{m}}_{B})$ to demonstrate nucleation and propagation of skyrmionium. We also present an analytical investigation into skyrmionium propagation based on Eq. (6). For micromagnetic simulation, we consider an AFM rectangular thin film of dimensions $300\times 160\times 1$ nm3 [Fig. 1 (a)], and divide it into $2\times 2\times 1$ nm3 unit cells. Both the two sublattice magnetizations ${\vec{m}}_{A}$ and ${\vec{m}}_{B}$ are defined at each unit cell in the spirit of the coarse graining. As the model parameters, we employ $J_{0}=10^{8}$ J/m3, $A_{1}=2.5\times 10^{-12}$ J/m, $A_{2}=10^{-11}$ J/m, $D=4.2\times 10^{-3}$ J/m2, $K=4\times 10^{5}$ J/m3, $\alpha=0.2$, $M_{\rm S}=5.8\times 10^{5}$ A/m, $\gamma=2.211\times 10^{5}$ s*-1*(A/m)-1, and $\theta_{\rm SHE}=0.15$.

III Nucleation of Skyrmionium

In Ref. Fujita, , a nucleation of antiferromagnetic skyrmioniums utilizing femtosecond optical vortex beams, via the heating effect, had been proposed. We here study a skyrmionium nucleation induced by local application of an ultrafast current pulse, via the spin-transfer mechanism. The configuration of our system for the nucleation is similar to that of Ref. Gobel2019, , except that they studied ferromagnetic skyrmioniums.

In the micromagnetic simulation, we start from the initial state with ${\vec{n}}$ homogeneous pointing in the $+x_{3}$ direction (except at the sample edges where the DMI causes the tilting of ${\vec{n}}$ from the $x_{3}$ axis). The spin current ${\vec{j}}_{\rm s}$ is locally injected within the toroidal region [indicated by two black circles in Fig. 1. (a) and (b)] for 9 ps to excite the magnetization dynamics, followed by a 2.5 ns of relaxation without applying any external torque; the center of the toroid is located at $x_{1}^{0}=75$ nm and $x_{2}^{0}=80$ nm, and the inner and outer radii of the toroid are 10 nm and 50 nm, respectively. The spatial profile of ${\vec{p}}$ within the toroid is given by

[TABLE]

as indicated by white arrows in Fig. 1 (b), with $\varphi=\tan^{-1}\left[(x_{2}-x_{2}^{0})/(x_{1}-x_{1}^{0})\right]$, while ${\vec{p}}=0$ outside the toroid. Such a spin current injection corresponds to applying an electric current pulse in Corbino geometry, i.e., a radially symmetric ${\vec{j}}_{\rm c}=j_{\rm c}(\cos\varphi{\vec{e}}_{1}+\sin\varphi{\vec{e}}_{2})$ within the toroid region in NM. Recently, it had been demonstrated that such an ultrashort electric pulse can be optically excited by utilizing a photosensitive switchGobel2019 ; YYang . For the skyrmionium nucleation, we chose $j_{\rm c}=1.18\times 10^{13}$ A/m2.

In Fig. 1 (b)-(e), the snapshots of the $n_{3}$ profile around the center of the toroid at selected times are displayed. At $t=3$ ps [Fig. 1 (c)], it is seen that the “seed” of a skyrmionium has been generated, where the in-plane components of ${\vec{n}}$ has been developed in the toroidal region. The spin current injection is then completely turned off at 9 ps [Fig. 1 (d)], when ${\vec{n}}$ inside the toroidal region has flipped to the $-x_{3}$ direction. After 2.5 ns of relaxation without current, the system reaches the state with a skyrmionium stabilized [Fig. 1 (e)]. As expected from the form of our DMI in Eq. (8), the obtained skyrmionium has a Néel type structureNagaosa .

IV Propagation of skyrmionium

Now that we have successfully nucleated an skyrmionium, let us consider the propagation of it induced by a spatially uniform spin current injection (the inset of Fig. 2). In Ref. Bhukta, , the skyrmionium velocity had been numerically estimated, finding its linear dependence on the current density. Here, we address the skyrmionium propagation by an analytical as well as numerical approach. Our analytical results are not only consistent with the earlier work, but also reveal the dependence of the skyrmionium velocity on the material and injected spin current.

First, we present a collective-coordinate model, where the rigid-motion approximation for the skyrmionium is employed, i.e., during its propagation the skyrmionium doesn’t change its shape with respect to the coordinate frame co-moving with the skyrmionium. The magnetization dynamics is thus fully described by the temporal evolution of the skyrmionium core position $(X_{1},X_{2})$; ${\vec{n}}({\vec{x}},t)={\vec{n}}\left({\vec{x}}-{\vec{v}}t\right)$, where ${\vec{v}}\equiv(dX_{1}/dt,dX_{2}/dt)$ is the skyrmionium velocity. With this assumption, Eq. (6) is reduced to a set of equations of motion for $(X_{1},X_{2})$ as

[TABLE]

where $\mu=1,2$. Here, the “masses” $M_{\mu}$ of the skyrmionium and the “forces” $F_{\mu}$ acting on it are defined by

[TABLE]

where

[TABLE]

with $j=1,2,3$. Notice that in Eq. (11) the dynamics of $X_{1}$ and $X_{2}$ are decoupled from each other, i.e., there appears no Magnus force or “skyrmionium Hall effect.”

To compute Eqs. (12) and (14), we rely on the numerical profile of ${\vec{n}}$, since the analytical expression for a skyrmionium solution is unavailable. With the equilibrium skyrmionium structure obtained in the previous section [Fig. 1 (e)], we find $M_{1}\simeq M_{2}\simeq 69.1$ and $I_{12}\simeq-I_{21}\simeq-4.4\times 10^{-7}$ m; we discarded in the spatial integral the region within 20 nm from the sample edges, not to take into account the magnetization tilting in this region, which has nothing to do with the skyrmionium motion. For a Néel type skyrmionium, the other components of $I_{\mu j}$ are vanishingly small in generalGobel2019 . A spin current with the polarization ${\vec{p}}$ along the $+x_{1}$ ($-x_{2}$) axis, therefore, drives a skyrmionium propagation in the $+x_{2}$ ($+x_{1}$) direction. [corresponding to ${\vec{j}}_{\rm c}$ flowing in the $+x_{2}$ ($+x_{1}$) direction.]

Let us examine the skyrmioniun dynamics in the presence of spin current polarized in the $-x_{2}$ direction, i.e., ${\vec{p}}\parallel-{\vec{e}}_{2}$. In this case, $F_{2}=0$ and thus $dX_{2}/dt=0$, while a general solution $dX_{1}/dt$ for Eq. (11) is given by

[TABLE]

where the initial velocity being zero ($dX_{1}/dt|_{t=0}=0$) has been assumed, and $v_{1}$ is the terminal velocity defined by

[TABLE]

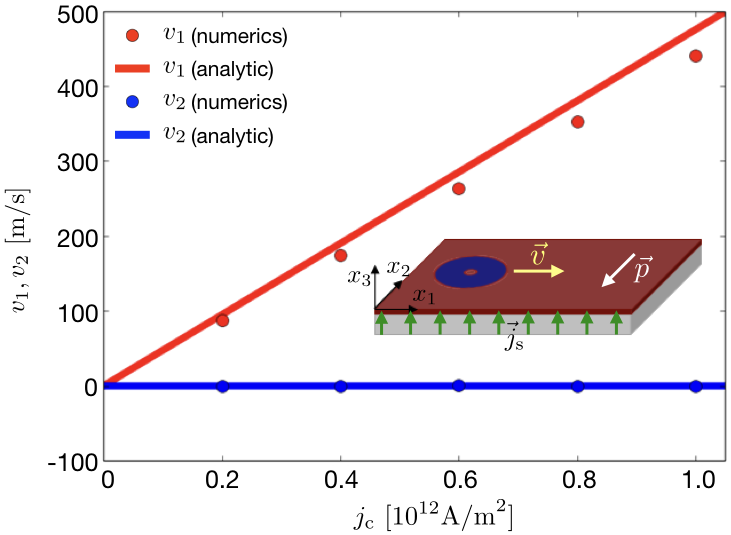

In Fig. 2, the skyrmionium velocities, $v_{1}$ [Eq. (16)] and $v_{2}(=0)$ in the $x_{1}$ and $x_{2}$ directions, respectively, are plotted by solid lines as functions of $j_{\rm c}$, where the same model parameters as before are used.

Now let us check the validity of the collective-coordinate model by comparing its predictions by micromagnetic calculations. Starting from the relaxed skyrmionium [Fig. 1. (e)], we simulate the skyrmionium propagation in the rectangular thin film with several different magnitude of ${\vec{p}}\parallel-{\vec{e}}_{2}$. Numerically, the skyrmionium position $(X_{1},X_{2})$ is measured byKomineas ; Yamane2016

[TABLE]

where $f(n_{3})=1$ when $|n_{3}({\vec{x}},t)|<0.99$ but otherwise zero. The weighing function $f(n_{3})$ is to ensure that only the magnetizations around the skyrmionium perimeter contributes to the averaging, otherwise leading to undesirable sample-size dependences of the evaluated quantities. The numerical skyrmionium velocities are estimated from the displacement of $(X_{1},X_{2})$ during 280 ps (from $t=20$ ps to $t=300$ ps) under the spin current injection; we discarded the first 20 ps not to take into account the transient magnetization dynamics right after the application of spin-transfer torque.

In Fig. 2, the numerically estimated skyrmionium velocities are plotted by circles as functions of $j_{\rm c}$. The micromagnetic simulation agrees semi-quantitatively with the collective coordinate model; the skyrmionium velocity exhibits a linear dependence on the current density, and the relation between the directions of ${\vec{p}}$ and the skyrmionium propagation is consistent. The quantitative discrepancy between the two approaches in $v_{1}$, which is less than 8 percent, may be attributed to the distortion of the skyrmionium shape. At larger current density, the relative shift of the inner and outer skyrmions as well as the overall deformation becomes more appreciable, reducing the accuracy of the rigid-motion approximation. We leave more systematic and complete investigations into the deformation effects to future work.

V Conclusions

In conclusion, we have theoretically studied current-driven nucleation and propagation of antiferromagnetic skyrmionium. Micromagnetic simulations have been performed to demonstrate that a local spin current injection with a toroidal distribution can nucleate a skyrmionium, and a spatially-uniform spin current can drive the skyrmionium into motion. An analytical expression for the skyrmionium velocity derived based on a collective-coordinate model is consistent with the numerical result. Our findings offer a novel way of nucleating an antiferromagnetic skyrmionium, as well as an estimation of the current-driven skyrmionium velocity for a given material.
