Measurement of branching fraction and final-state asymmetry for the $\bar{B}^{0}\to K^{0}_{S}K^{\mp}\pi^{\pm}$ decay

TL;DR

This paper reports a precise measurement of the decay rate and asymmetry for the $ar{B}^{0} o K^{0}_{S}K^{ p}\pi^{ p}$ decay, revealing potential intermediate structures, based on extensive data from the Belle experiment.

Contribution

First measurement of the branching fraction and final-state asymmetry for this decay mode using Belle data, with insights into decay dynamics and possible intermediate resonances.

Findings

Branching fraction of (3.60±0.33±0.15)×10⁻⁶.

Final-state asymmetry of -8.5±8.9±0.2%.

Hints of peaking structures in differential distributions.

Abstract

We report a measurement of the branching fraction and final-state asymmetry for the $\bar{B}^{0}\to K^{0}_{S}K^{\mp}\pi^{\pm}$ decays. The analysis is based on a data sample of 711 $\rm{fb}^{-1}$ collected at the $\Upsilon(4S)$ resonance with the Belle detector at the KEKB asymmetric-energy $e^{+}e^{-}$ collider. We obtain a branching fraction of $(3.60\pm0.33\pm0.15)\times10^{-6}$ and a final-state asymmetry of $(-8.5\pm8.9\pm0.2)\%$, where the first uncertainties are statistical and the second are systematic. Hints of peaking structures are seen in the differential branching fractions measured as functions of Dalitz variables.

Figures

Tables

Table 1. Table 1: Signal yields, efficiency, and differential branching fraction in each M K − ​ π + subscript 𝑀 superscript 𝐾 superscript 𝜋 M_{K^{-}\pi^{+}} , M K − ​ K S 0 subscript 𝑀 superscript 𝐾 subscript superscript 𝐾 0 𝑆 M_{K^{-}K^{0}_{S}} , and M π + ​ K S 0 subscript 𝑀 superscript 𝜋 subscript superscript 𝐾 0 𝑆 M_{\pi^{+}K^{0}_{S}} bin.

($c^2$/GeV)	eff.	Yield	$dℬ/dM\left({10}^{-7}\right)$	$K_S^0{K}^{-}{\pi }^{+}$	$K_S^0{K}^{+}{\pi }^{-}$	$K_S^0{K}^{-}{\pi }^{+}$	$K_S^0{K}^{+}{\pi }^{-}$
				yield	yield	$dℬ/dM\left({10}^{-7}\right)$	$dℬ/dM\left({10}^{-7}\right)$
$M_{K^{-}{\pi }^{+}}$
0$\sim$1.1	0.301	$69.2\pm 18.0\pm 3.0$	$4.1\pm 1.1\pm 0.2$	$40.3\pm 12.7\pm 1.7$	$28.9\pm 12.8\pm 1.2$	$2.4\pm 0.7\pm 0.1$	$1.7\pm 0.8\pm 0.1$
1.1$\sim$1.5	0.306	$71.3\pm 17.8\pm 3.1$	$11.4\pm 2.8\pm 0.5$	$31.4\pm 12.3\pm 1.4$	$39.9\pm 12.9\pm 1.7$	$5.0\pm 2.0\pm 0.2$	$6.4\pm 2.1\pm 0.3$
1.5$\sim$2.5	0.289	$47.5\pm 20.5\pm 2.0$	$3.2\pm 1.4\pm 0.1$	$9.4\pm 14.3\pm 0.4$	$38.1\pm 14.7\pm 1.6$	$0.6\pm 1.0\pm 0.0$	$2.6\pm 1.0\pm 0.1$
2.5$\sim$3.5	0.262	$149.7\pm 21.7\pm 6.4$	$11.2\pm 1.6\pm 0.5$	$56.5\pm 14.6\pm 2.4$	$93.2\pm 16.1\pm 4.0$	$4.2\pm 1.1\pm 0.2$	$7.0\pm 1.2\pm 0.3$
$>$3.5	0.237	$152.7\pm 22.0\pm 6.6$	$7.4\pm 1.1\pm 0.3$	$79.9\pm 15.5\pm 3.4$	$72.8\pm 15.5\pm 3.1$	$3.9\pm 0.8\pm 0.2$	$3.5\pm 0.8\pm 0.2$
$M_{{\pi }^{+}{K}_S^0}$
0$\sim$1.1	0.275	$27.1\pm 12.7\pm 1.2$	$1.8\pm 0.8\pm 0.1$	$13.3\pm 9.2\pm 0.6$	$13.8\pm 8.7\pm 0.6$	$0.9\pm 0.6\pm 0.0$	$0.9\pm 0.6\pm 0.0$
1.1$\sim$1.5	0.269	$19.4\pm 12.4\pm 0.8$	$3.5\pm 2.2\pm 0.2$	$3.0\pm 8.8\pm 0.1$	$16.5\pm 8.7\pm 0.7$	$0.5\pm 1.6\pm 0.0$	$3.0\pm 1.6\pm 0.1$
1.5$\sim$2.5	0.252	$84.8\pm 20.0\pm 3.6$	$6.6\pm 1.5\pm 0.3$	$48.3\pm 14.2\pm 2.1$	$36.5\pm 14.1\pm 1.6$	$3.8\pm 1.1\pm 0.2$	$2.8\pm 1.1\pm 0.1$
2.5$\sim$3.5	0.264	$65.7\pm 17.6\pm 2.8$	$4.9\pm 1.3\pm 0.2$	$32.2\pm 11.7\pm 1.4$	$33.4\pm 13.2\pm 1.4$	$2.4\pm 0.9\pm 0.1$	$2.5\pm 1.0\pm 0.1$
$>$3.5	0.283	$293.4\pm 31.5\pm 12.6$	$11.9\pm 1.3\pm 0.5$	$120.7\pm 21.7\pm 5.2$	$172.7\pm 22.8\pm 7.4$	$4.9\pm 0.9\pm 0.2$	$7.0\pm 0.9\pm 0.3$
$M_{K^{-}{K}_S^0}$
0$\sim$1.1	0.245	$32.9\pm 8.5\pm 1.4$	$2.4\pm 0.6\pm 0.1$	$19.1\pm 5.8\pm 0.8$	$13.7\pm 6.2\pm 0.6$	$1.4\pm 0.4\pm 0.1$	$1.0\pm 0.5\pm 0.0$
1.1$\sim$1.5	0.258	$154.6\pm 19.6\pm 6.6$	$29.3\pm 3.7\pm 1.3$	$66.1\pm 13.0\pm 2.8$	$88.5\pm 14.7\pm 3.8$	$12.5\pm 2.5\pm 0.5$	$16.8\pm 2.8\pm 0.7$
1.5$\sim$2.5	0.235	$96.9\pm 21.3\pm 4.2$	$8.1\pm 1.8\pm 0.3$	$43.0\pm 15.3\pm 1.8$	$53.9\pm 14.8\pm 2.3$	$3.6\pm 1.3\pm 0.2$	$4.5\pm 1.2\pm 0.2$
2.5$\sim$3.5	0.267	$83.4\pm 18.1\pm 3.6$	$6.1\pm 1.3\pm 0.3$	$32.1\pm 12.3\pm 1.4$	$51.3\pm 13.2\pm 2.2$	$2.4\pm 0.9\pm 0.1$	$3.8\pm 1.0\pm 0.2$
$>$3.5	0.292	$122.6\pm 27.8\pm 5.3$	$4.8\pm 1.1\pm 0.2$	$57.2\pm 19.5\pm 2.5$	$65.5\pm 19.9\pm 2.8$	$2.3\pm 0.8\pm 0.1$	$2.6\pm 0.8\pm 0.1$

Table 2. Table 2: Summary of systematic uncertainties on the branching fraction.

Source	in %
$N_{B\overline{B}}$	1.4
Tracking	0.7
$K^{\pm }$ identification	0.8
${\pi }^{\pm }$ identification	0.8
$ℬ\left(K_S^0\to {\pi }^{+}{\pi }^{-}\right)$	0.1
$K_S^0\to {\pi }^{+}{\pi }^{-}$ identification	1.6
Continuum suppression with NN	2.1
Reconstruction efficiency (MC statistics)	0.1
Signal PDF	2.7
Background PDF	0.4
Fit bias	0.4
Total	4.3

Table 3. Table 3: Summary of systematic uncertainties on 𝒜 𝒜 \mathcal{A} .

Source	in %
Detector bias	0.6
Signal PDF	2.7
Background PDF	0.9
Total	2.9

Equations

$$\mathcal{A}=\frac{N(K_S^0{K}^{-}{\pi }^{+})-N(K_S^0{K}^{+}{\pi }^{-})}{N(K_S^0{K}^{-}{\pi }^{+})+N(K_S^0{K}^{+}{\pi }^{-})},$$

$$\mathcal{L}=\frac{e^{-{\sum }_j{N}_j}}{N!}\prod _{i=1}^N\left(\sum _j{N}_j{P}_j^i\right),$$

$$P_j^i=\frac{1}{2}(1-q^i\cdot {\mathcal{A}}_j)\times P_j(M_{\mathrm{bc}}^i,\Delta E^i,C_{\mathrm{NN}}^{{}^{\prime }i}),$$

$$\mathcal{B}=\frac{N_{\mathrm{sig}}}{ϵ\times \eta \times N_{B\bar{B}}},$$

Full text

††preprint:

Belle Preprint 2019-06

KEK Preprint 2019-4

The Belle Collaboration

Three-body charmless hadronic $B$ decays are sensitive to $CP$ violation localized in their Dalitz plane cp_dalitz ; cp_dalitz_1 . Charmless $B$ decays are suppressed in the standard model (SM), and decays with an even number of kaons, such as $\bar{B}^{0}\to K^{0}_{S}K^{\mp}\pi^{\pm}$ charge_conjugate , have a smaller decay rate compared to those with an odd number of kaons. These proceed via $b\to u$ trees and $W$-exchange, and via a $b\to d$ penguin process with a virtual loop; the latter provides an opportunity to search for physics beyond the SM since new heavy particles may cause deviations from SM predictions.

Previous measurements by the BABAR babar_Btokpik0 ; babar_kstk0 and LHCb LHCb_Btokpik0_latest ; LHCb_kstk ; LHCb_kstks experiments found hints of structures in the low $K^{-}\pi^{+}$ and $K^{-}K^{0}_{S}$ mass regions that have highly asymmetric helicity angular distributions. However, the yields are not sufficient to draw firm conclusions with a full Dalitz analysis. Similar studies on $B^{+}\to K^{+}K^{-}\pi^{+}$ were performed by Belle kkpi_1 , BABAR kkpi_2 , and LHCb kkpi_3 ; kkpi_4 , in which strong evidence of localized $CP$ violation was found in the low $M_{K^{+}K^{-}}$ region.

By using the full data set of Belle, we expect to measure the branching fraction and final-state asymmetry of $\bar{B}^{0}\to K^{0}_{S}K^{\mp}\pi^{\pm}$ decays more precisely. Using the charges of final-state particles, the latter is defined as

[TABLE]

where $N$ denotes the measured signal yield of the corresponding $B$ final states, and $N(K^{0}_{S}K^{-}\pi^{+})=N(B^{0}\to K^{0}_{S}K^{-}\pi^{+})+N(\bar{B}^{0}\to K^{0}_{S}K^{-}\pi^{+})$. Here $\mathcal{A}$ is distinct from the direct $CP$ asymmetry ($\mathcal{A}_{CP}$); rather it is an asymmetry between the decay final states of $K^{0}K^{-}\pi^{+}$ and $\bar{K}^{0}K^{+}\pi^{-}$ where $K^{0}(\bar{K}^{0})$ leads to a $K^{0}_{S}$. We measure this quantity since it can be more precisely determined than $\mathcal{A}_{CP}$ for this decay mode. This is the first measurement of such an asymmetry for the three-body $\bar{B}^{0}\to K^{0}_{S}K^{\mp}\pi^{\pm}$ decay. In addition, we use the ${}_{s}\mathcal{P}lot$ splot method to obtain background-subtracted yields for the Dalitz variables $M_{K^{-}\pi^{+}}$, $M_{\pi^{+}K^{0}_{S}}$, and $M_{K^{-}K^{0}_{S}}$, and hence determine their differential branching fractions. The total branching fraction is extracted by integrating the differential branching fraction.

Our measurement is based on a data sample of 711 $\rm{fb^{-1}}$, corresponding to $772\times 10^{6}$ $B\bar{B}$ pairs, collected with the Belle detector Belle operating at the KEKB asymmetric-energy $e^{+}e^{-}$ collider KEKB . The Belle detector is a large-solid-angle magnetic spectrometer that consists of a silicon vertex detector (SVD), a 50-layer central drift chamber (CDC), an array of aerogel threshold Cherenkov counters (ACC), a barrel-like arrangement of time-of-flight scintillation counters (TOF) and an electromagnetic calorimeter comprised of CsI(Tl) crystals, all located inside a superconducting solenoid that provides a 1.5 T magnetic field. An iron flux-return yoke located outside the solenoid is instrumented to detect $K_{L}^{0}$ mesons and muons. The detector is described in detail elsewhere Belle .

This analysis uses two data sets with different inner-detector configurations. The first data set of 140 $\rm{fb}^{-1}$ was collected with a beam pipe of radius 2.0 cm and with 3 layers of SVD, while the second data set of 571 $\rm{fb}^{-1}$ was recorded with a beam pipe of radius 1.5 cm and 4 layers of SVD svd2 . Large samples of Monte Carlo (MC) events for signal and backgrounds are generated with EvtGen ref:EvtGen and subsequently simulated with GEANT3 geant with the configurations of the Belle detector. These samples are used to obtain the expected distributions of various physical quantities for signal and backgrounds, to optimize the selection criteria as well as to determine the signal detection efficiency.

The selection criteria for the final-state charged particles in the $\bar{B}^{0}\to K^{0}_{S}K^{\mp}\pi^{\pm}$ reconstruction are based on information obtained from the tracking systems (SVD and CDC) and the charged-hadron identification (PID) systems, namely the CDC, ACC, and TOF. The charged kaons and pions are required to have an impact parameter within $\pm 0.2$ cm of the interaction point (IP) in the transverse plane, and within $\pm 5.0$ cm along the $e^{+}$ beam direction. The likelihood values of each track for kaon and pion hypotheses ($L_{K}$ and $L_{\pi}$) are determined from the information provided by the PID system. A track is identified as a kaon if $L_{K}/(L_{K}+L_{\pi})>0.6$ otherwise it is treated as a pion. The efficiency for identifying a pion (kaon) is about 88% (86%), which depends on the momenta of the track, while the probability for a pion or a kaon to be misidentified is less than 10%. The efficiency and misidentification probabilities are averaged over the momentum of the final-state particles. The $K^{0}_{S}$ candidates are reconstructed via the $K^{0}_{S}\to\pi^{+}\pi^{-}$ decay, and the identification is enhanced by selecting on the output of a neural network (NN) NN , which combines seven kinematic variables of the $K^{0}_{S}$ nisKs . The invariant mass of the $K^{0}_{S}$ candidates is required to be within $\pm 10$ MeV/$c^{2}$ of the world average, which corresponds to about three times the resolution. The $K^{0}_{S}\to\pi^{+}\pi^{-}$ vertex fit is required to converge with a goodness-of-fit value $(\chi^{2})$ less than 20.

$B$ mesons are identified with two kinematic variables calculated in the center-of-mass (CM) frame: the beam-energy-constrained-mass $M_{\mathrm{bc}}\equiv\sqrt{E^{2}_{\mathrm{beam}}/c^{4}-|\vec{p}_{B}/c|^{2}}$, and the energy difference $\Delta E\equiv E_{B}-E_{\mathrm{beam}}$, where $E_{\mathrm{beam}}$ is the beam energy, and $\vec{p}_{B}$ ($E_{B}$) is the momentum (energy) of the reconstructed $B$ meson. The $B$ candidates are required to have $M_{\rm bc}>$ 5.255 GeV/$c^{2}$ and $|\Delta E|<$ 0.15 GeV, and the signal region is defined as 5.272 GeV/$c^{2}$ $<M_{\rm bc}<$ 5.288 GeV/$c^{2}$ and $|\Delta E|<$ 0.05 GeV. We require a successful vertex fit for $\bar{B}^{0}\to K^{0}_{S}K^{\mp}\pi^{\pm}$ candidates, where the $K^{0}_{S}$ trajectory is included in the fit, with $\chi^{2}<$ 100. We find that 9% of events have more than one $B$ candidate. In such cases, we choose the candidate with the smallest $\chi^{2}$ value. According to simulation, our best entry selection method chooses the correct candidate in 99% of cases.

The dominant background arises from the continuum $e^{+}e^{-}\to q\bar{q}~{}(q=u,d,s,c)$ process. To suppress this, we construct a Fisher discriminant Fisher from 17 modified Fox-Wolfram moments  KSFW . To further improve the distinguishing power, we combine the output of the Fisher discriminant with four more variables in a NN. These are: the cosine of the angle between the reconstructed $B$ flight direction and the beam direction in the CM frame, the offset along the $z$ axis between the vertex of the reconstructed $B$ and the vertex formed by the remaining tracks, the cosine of the angle between the thrust axis thrust of the reconstructed $B$ and that of the rest of the event in the CM frame, and a $B$ meson flavor tagging quality variable. The NN is trained with signal and continuum MC samples. The NN output ($C_{\mathrm{NN}}$) ranges from $-1$ to 1, and it is required to be greater than 0.7. This removes 93% of the continuum background while 82% of the signal is retained. We transform $C_{\mathrm{NN}}$ to $C^{{}^{\prime}}_{\mathrm{NN}}\equiv\mathrm{log}(\frac{C_{\mathrm{NN}}-C^{\mathrm{min}}_{\mathrm{NN}}}{C^{\mathrm{max}}_{\mathrm{NN}}-C_{\mathrm{NN}}})$, where $C^{\mathrm{min}}_{\mathrm{NN}}$ is 0.7 and $C^{\mathrm{max}}_{\mathrm{NN}}$ is the maximum value of $C_{\mathrm{NN}}$.

Background events from $B$ decays mediated via the $b\to c$ transition (generic $B$ decays) may have peaking structures in the signal region. They are mainly due to the decays with two-body final states of $D$ mesons and $J/\psi$, e.g., $D^{0}\to K^{-}\pi^{+}$, $D^{-}\to K^{-}K^{0}_{S}$, $D^{-}_{s}\to K^{-}K^{0}_{S}$, $J/\psi\to e^{+}e^{-}$, and $J/\psi\to\mu^{+}\mu^{-}$. These decays can be identified by peaks at the nominal $D$ and $J/\psi$ masses in the distributions of the invariant masses of two of the final-state particles ($M_{K^{-}\pi^{+}}$, $M_{\pi^{+}K^{0}_{S}}$, $M_{K^{-}K^{0}_{S}}$, where we allow for a change in the mass hypothesis of a charged kaon or pion). We exclude events within $\pm 4\sigma$ of the nominal mass of the peaking structures to suppress the contributions from $D$ mesons and $J/\psi$.

The rare $B$ background coming from $b\to u,d,s$ transitions is studied with a large MC sample in which the branching fractions are much larger than the measured or expected value. Two modes are found to have peaks near the $\Delta E$ signal region: $B^{0}\to K^{-}K^{+}K^{0}_{S}$ and $B^{0}\to\pi^{-}\pi^{+}K^{0}_{S}$, including their intermediate resonant modes. The remaining rare $B$ events have a relatively flat $\Delta E$ distribution.

The signal yield and $\mathcal{A}$ are extracted from a three-dimensional extended unbinned maximum likelihood fit, with the likelihood defined as

[TABLE]

where,

[TABLE]

$N$ is the total number of candidate events, $N_{j}$ is the number of events in category $j$, $i$ denotes the event index, $q^{i}$ is the charge of the $K^{\pm}$ in the $i$-th event, $\mathcal{A}_{j}$ is the value of final-state asymmetry of the $j$-th category, $P_{j}$ represents the value of the corresponding three-dimensional probability density function (PDF), and $M_{\rm bc}^{i}$, $\Delta E^{i}$, and $C^{{}^{\prime}i}_{\mathrm{NN}}$ are the $M_{\rm bc}$, $\Delta E$, and $C^{{}^{\prime}}_{\mathrm{NN}}$ values of the $i$-th event, respectively.

With all the selection criteria applied, the signal MC sample contains 98% of the correctly-reconstructed signal $B$ events (‘true’ signal) and 2% self-crossfeed (scf) events. In the fit, the ratio of scf to true signal events is fixed. The signal yield ($N_{\mathrm{sig}}$) is the combined yield of the true signal PDF and the scf PDF. In addition to the signal, five more categories are included in the fit: continuum background, generic $B\bar{B}$ background, $B^{0}\to K^{-}K^{+}K^{0}_{S}$, $B^{0}\to\pi^{-}\pi^{+}K^{0}_{S}$, and the remaining rare $B$ background. The true signal PDF is described by the product of a sum of two Gaussian functions in $M_{\rm bc}$, a sum of three Gaussian functions in $\Delta E$, and an asymmetric Gaussian function in $C^{{}^{\prime}}_{\mathrm{NN}}$. These signal PDF shapes are calibrated including possible data-MC differences obtained from a study of a control mode: $B^{0}\to D^{-}\pi^{+}$ with $D^{-}\to K^{0}_{S}\pi^{-}$. The continuum background PDF is described by the product of an ARGUS function argus in $M_{\mathrm{bc}}$, a second-order polynomial in $\Delta E$, and a combination of a Gaussian and an asymmetric Gaussian function in $C^{{}^{\prime}}_{\mathrm{NN}}$. The shape parameters of the continuum background PDF are free in the data fit, except for the ARGUS endpoint which is fixed to 5.2892 GeV/$c^{2}$. For the other contributions (scf, generic $B$, $B^{0}\to K^{-}K^{+}K^{0}_{S}$, $B^{0}\to\pi^{-}\pi^{+}K^{0}_{S}$, and rare $B$), their PDFs are described by a smoothed histogram in $\Delta E$ and $M_{\mathrm{bc}}$, and an asymmetric Gaussian function in $C^{{}^{\prime}}_{\mathrm{NN}}$ whose shape is based on MC. The yield of each category is floated. Except for the signal, $\mathcal{A}$ is fixed to zero for the other background categories.

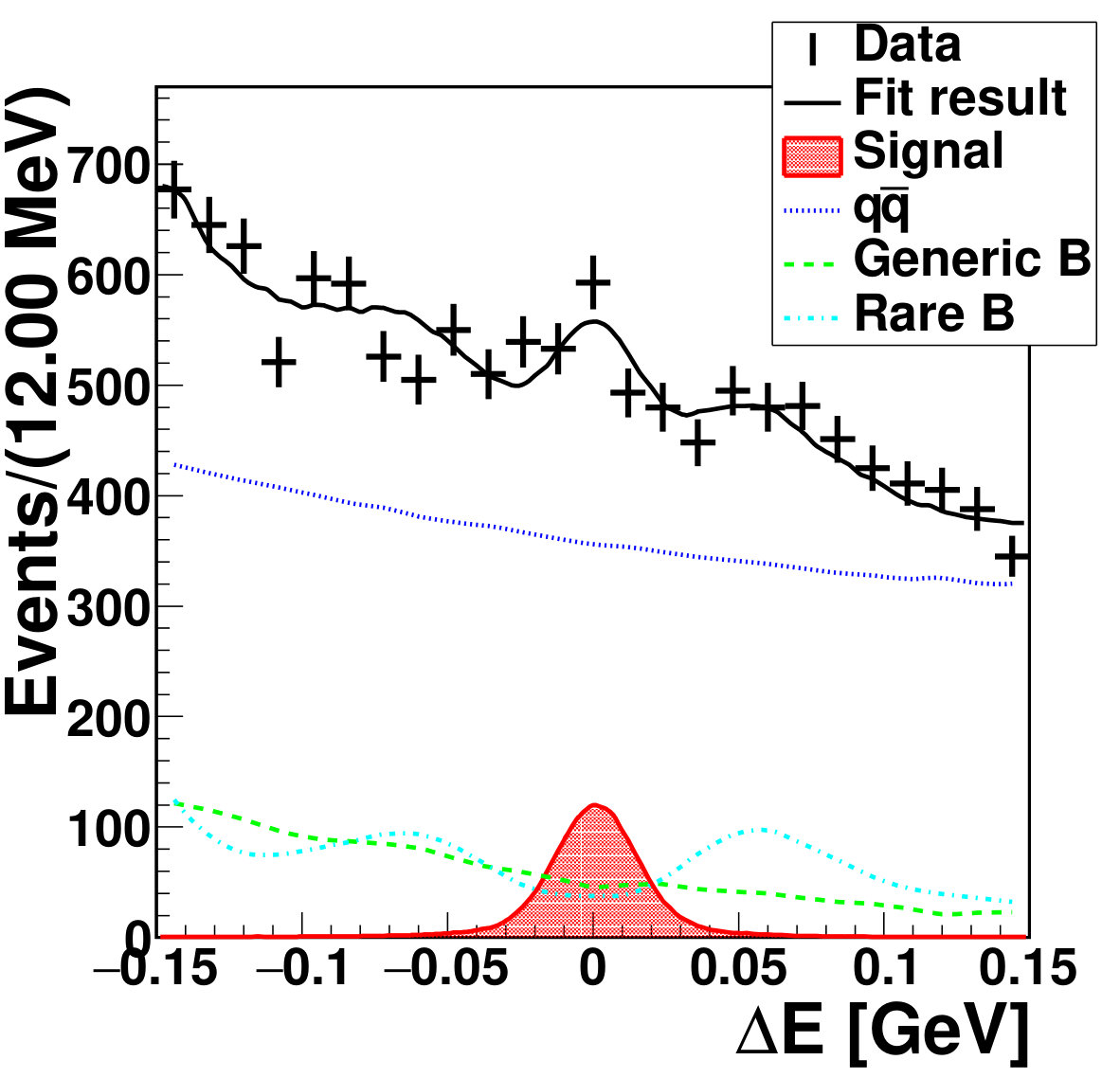

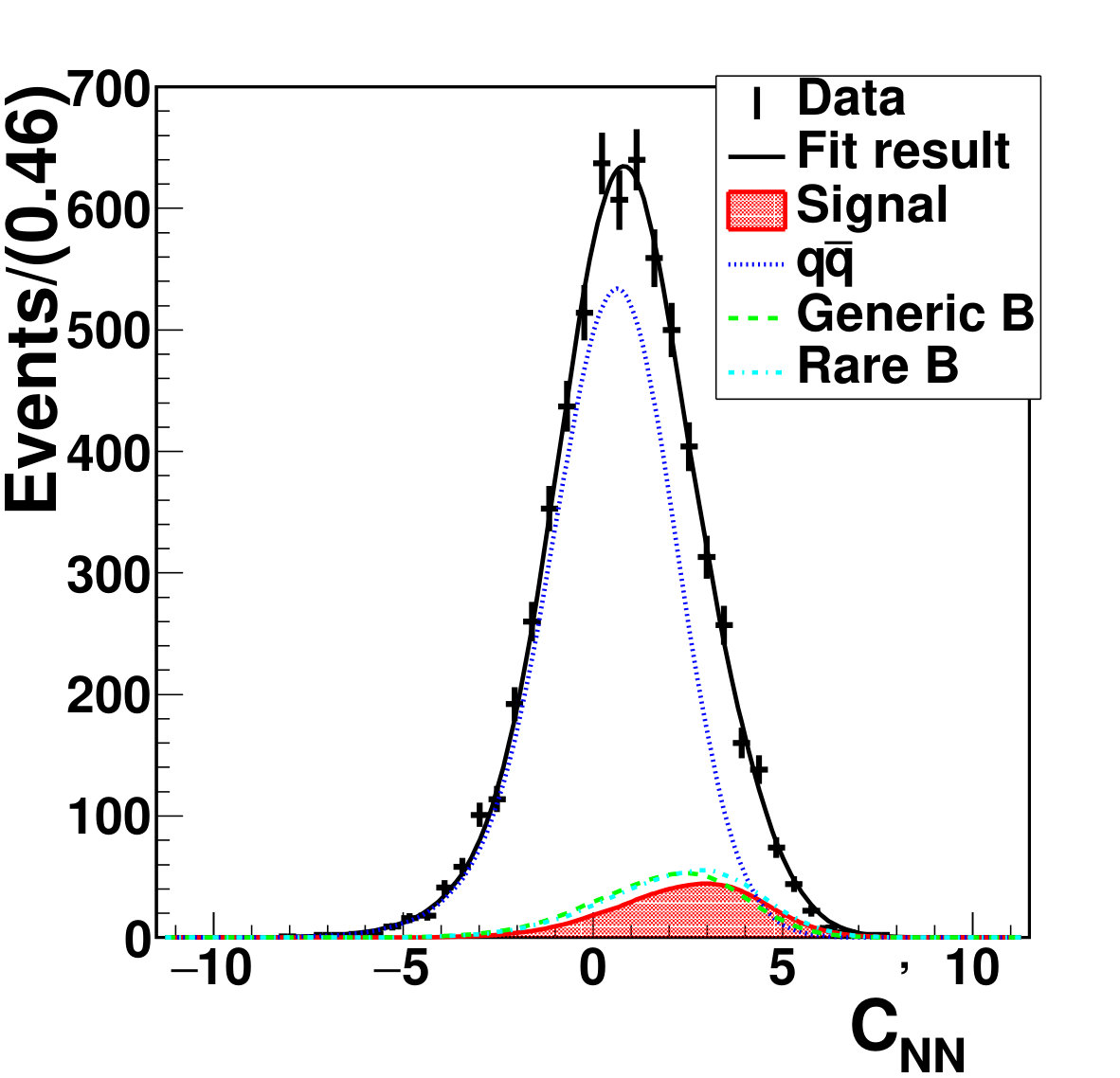

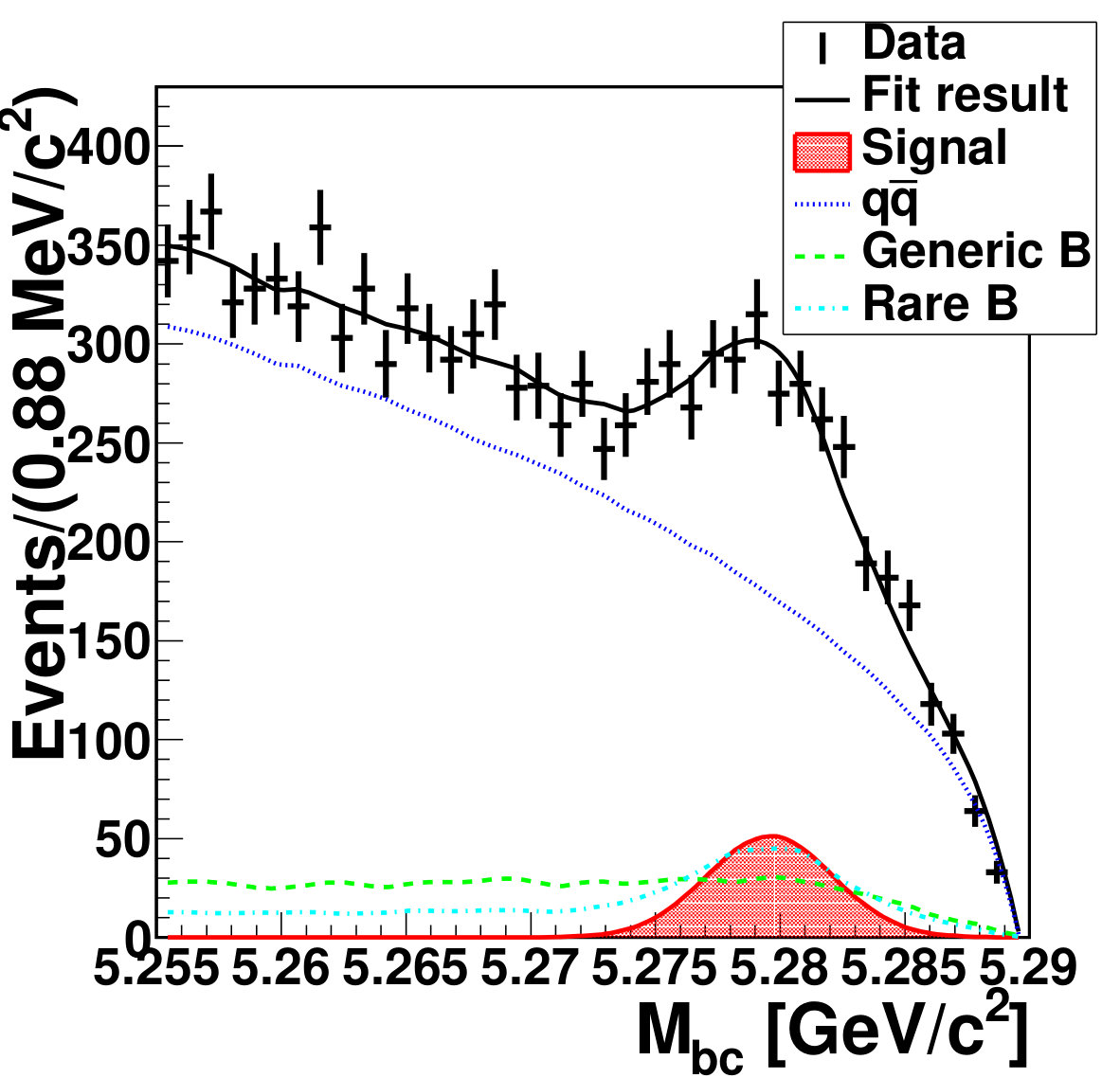

The signal-enhanced projections of the fit are shown in Fig. 1. We obtain a signal yield of $490^{+46}_{-45}$ with a statistical significance of 13 standard deviations, and an $\mathcal{A}$ of $(-8.5\pm 8.9)\%$. The significance is defined as $\sqrt{-2\rm{ln}(\mathcal{L}_{0}/\mathcal{L}_{max})}$, where $\mathcal{L}_{0}$ and $\mathcal{L}_{\rm{max}}$ are the likelihood values obtained by the fit with and without the signal yield fixed to zero, respectively.

The branching fraction is calculated using

[TABLE]

where $N_{\rm{sig}}$, $N_{B\bar{B}}$, $\epsilon$, and $\eta$ are the fitted signal yield, the number of $B\bar{B}$ pairs ($=772\times 10^{6}$), the reconstruction efficiency of the signal, and the efficiency calibration factor, respectively. We assume that charged and neutral $B\bar{B}$ pairs are produced equally at the $\Upsilon(4S)$. The reconstruction efficiency for the signal ($\epsilon$) is $(26.7\pm 0.03)\%$ which is determined by MC only and with all the selection criteria applied. The last quantity contains calibrations due to various systematic effects $\eta=\eta_{K}\times\eta_{\pi}\times\eta_{\textrm{NN}}\times\eta_{\textrm{fit}}$, where $\eta_{K}(=0.9948\pm 0.0083$) and $\eta_{\pi}(=0.9512\pm 0.0079$) are the corrections due to $K^{\pm}$ and $\pi^{\pm}$ identification with requirements on $L_{K}$ and $L_{\pi}$, and are obtained by a control sample study of $D^{*+}\to D^{0}\pi^{+}$ with $D^{0}\to K^{-}\pi^{+}$, $\eta_{\textrm{NN}}(=0.9897\pm 0.0208)$ is due to the requirement on $C_{\mathrm{NN}}$ and is obtained from $B^{0}\to D^{-}\pi^{+}$ data with a $D^{-}\to K^{0}_{S}\pi^{-}$ control sample study, and $\eta_{\textrm{fit}}(=1.022\pm 0.004)$ is due to fit bias and is obtained from an ensemble test on the fitter.

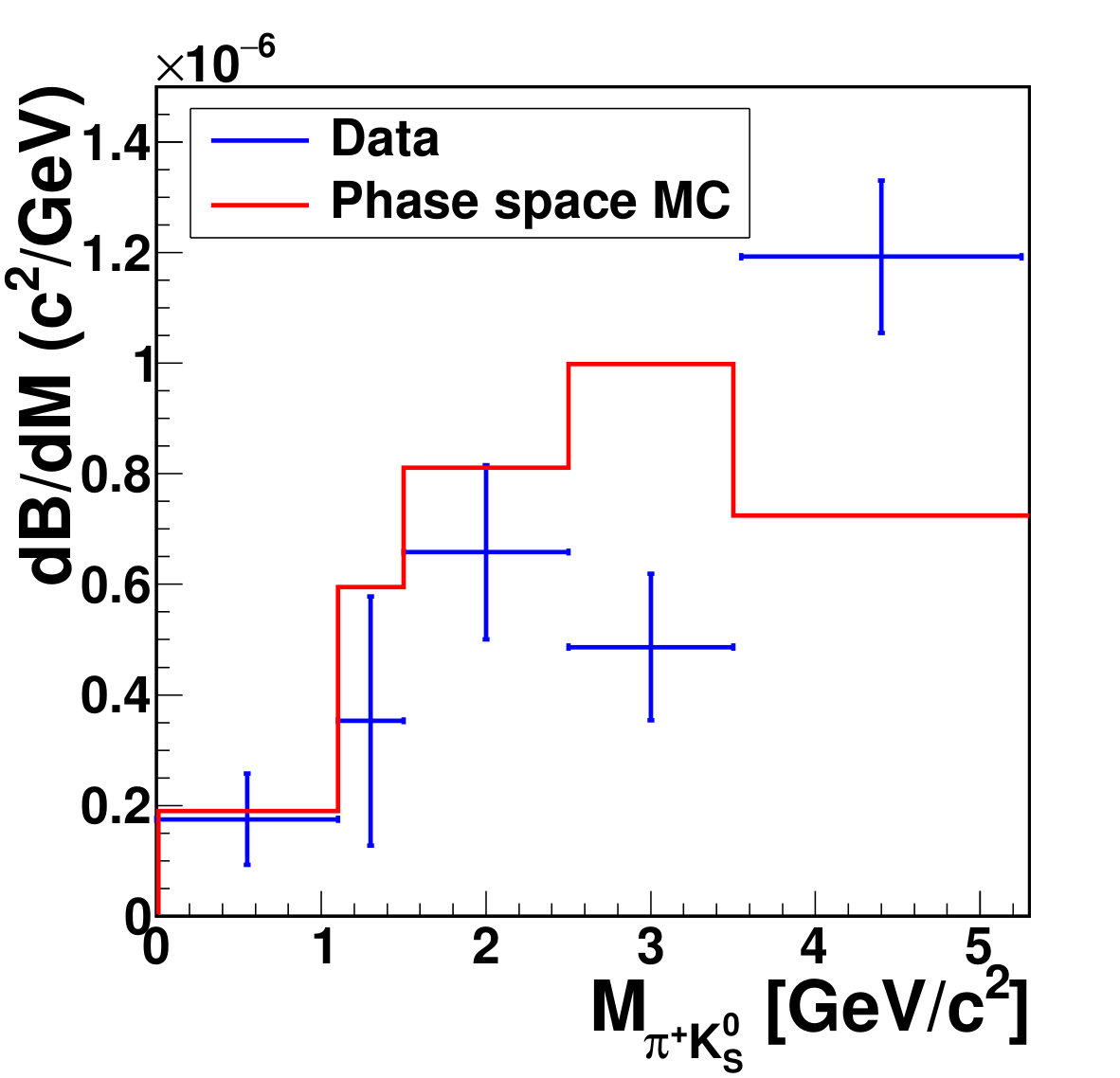

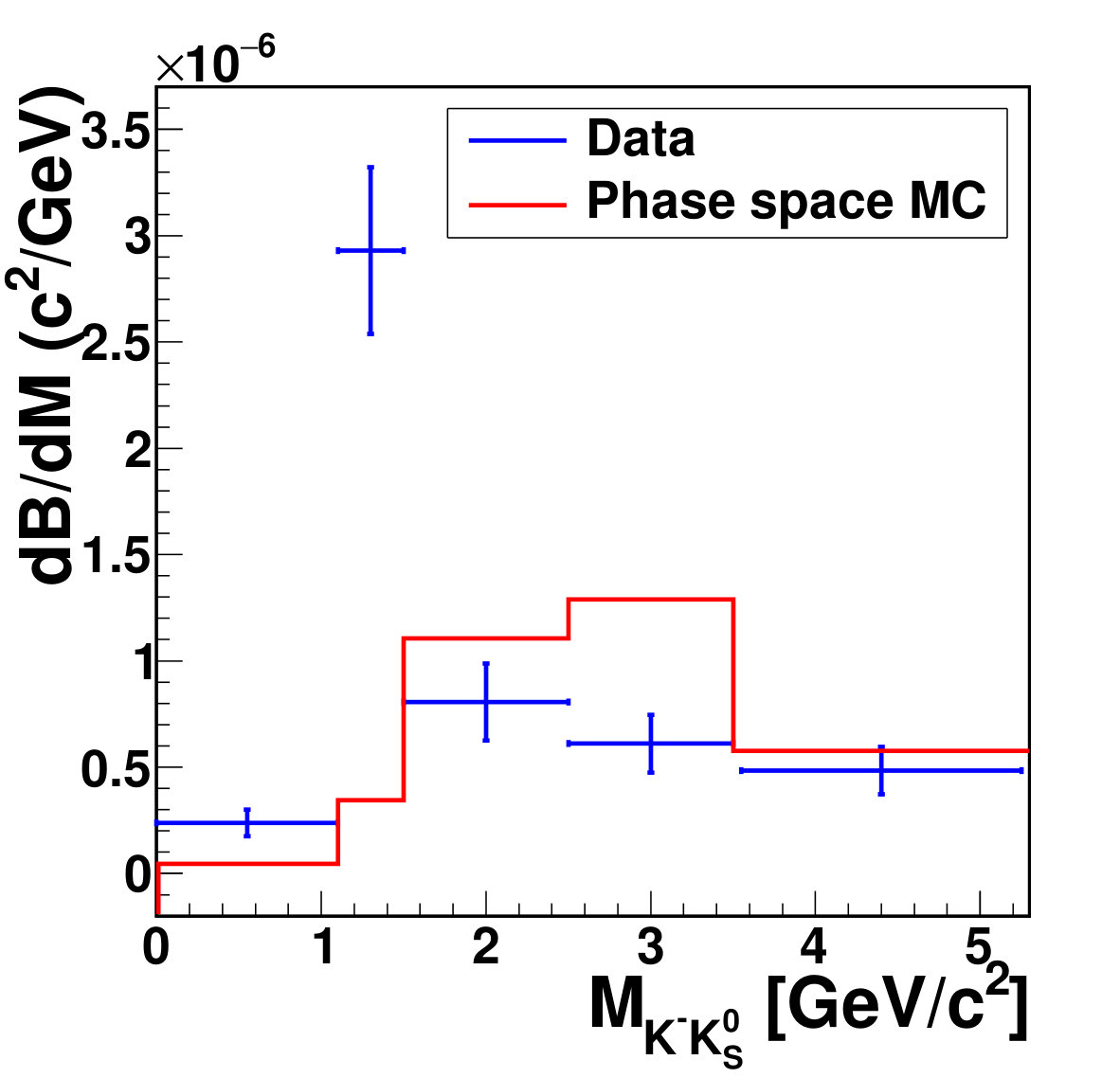

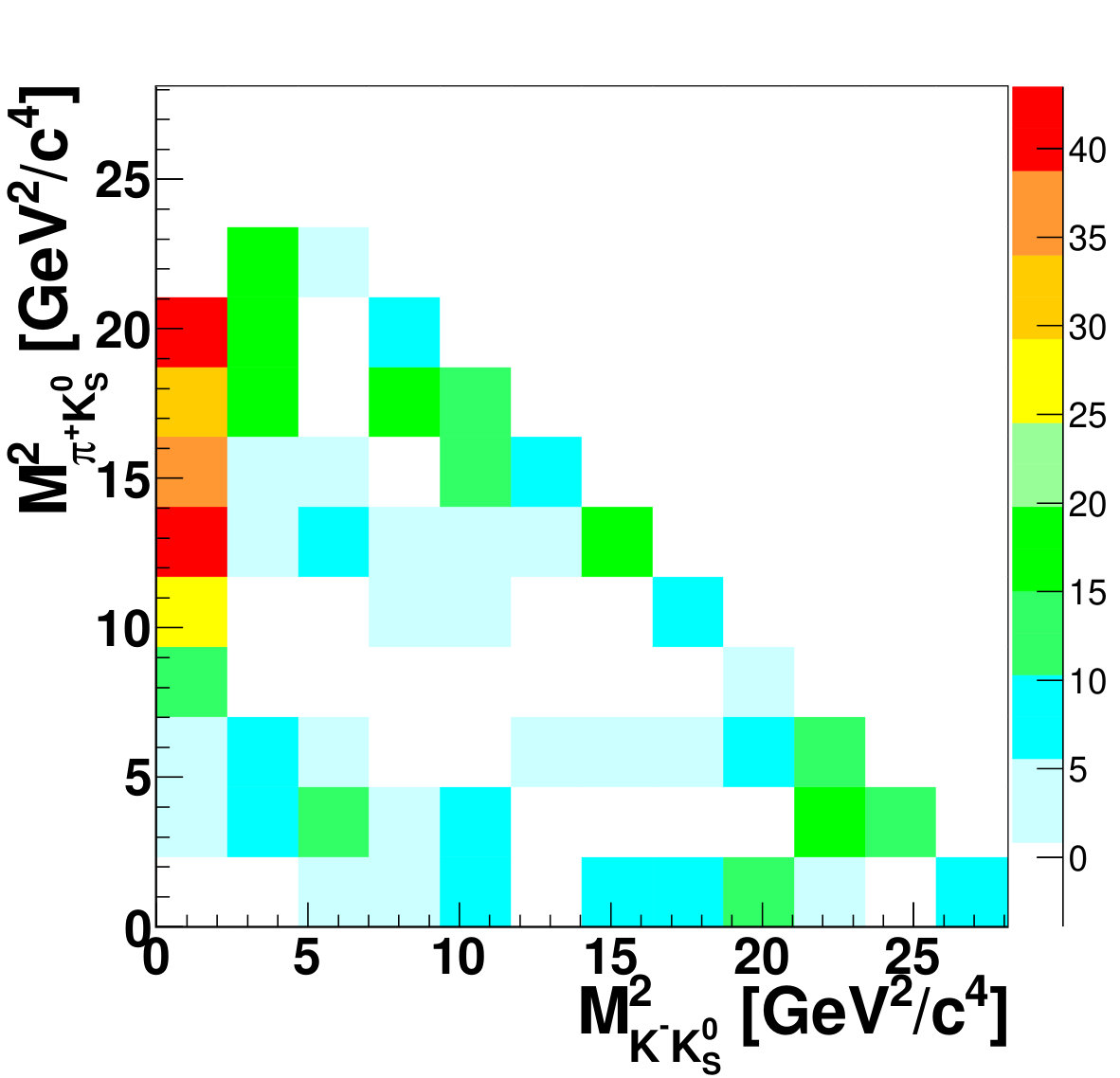

Figure 2 shows the background-subtracted Dalitz plot obtained with the ${}_{s}\mathcal{P}lot$ method. Structures around the regions $M^{2}_{K^{-}K^{0}_{S}}<$ 2 GeV2/$c^{4}$ and 7 GeV2/$c^{4}$ $<M^{2}_{\pi^{+}K^{0}_{S}}<$ 23 GeV2/$c^{4}$ are visible. We also obtain background-subtracted distributions after separating into five bins, and then calculate the differential branching fractions as functions of the three Dalitz variables with the yield and reconstruction efficiency within each bin. We use a similar binning scheme as the one in the $B^{+}\to K^{+}K^{-}\pi^{+}$ measurement at Belle kkpi_1 . Figure 3 shows the differential branching fractions as functions of the three Dalitz variables including comparison to the MC with a three-body phase space decay model. Large deviations from phase space expectations are found in the second bin (around 1.2 GeV/$c^{2}$) of the $M_{K^{-}K^{0}_{S}}$ spectrum and at the fourth and fifth bin (around 3.0 GeV/$c^{2}$ - 4.2 GeV/$c^{2}$) in the $M_{\pi^{+}K^{0}_{S}}$ spectrum. In addition, no obvious structure is observed in the low-mass regions of both $M_{K^{-}\pi^{+}}$ and $M_{\pi^{+}K^{0}_{S}}$, which is consistent with previous two-body decay measurements of $B^{0}\to K^{*\pm}K^{\mp}$ LHCb_kstk and $B^{0}\to\bar{K}^{0}K^{*}(892)^{0}$ babar_kstk0 ; LHCb_kstks .

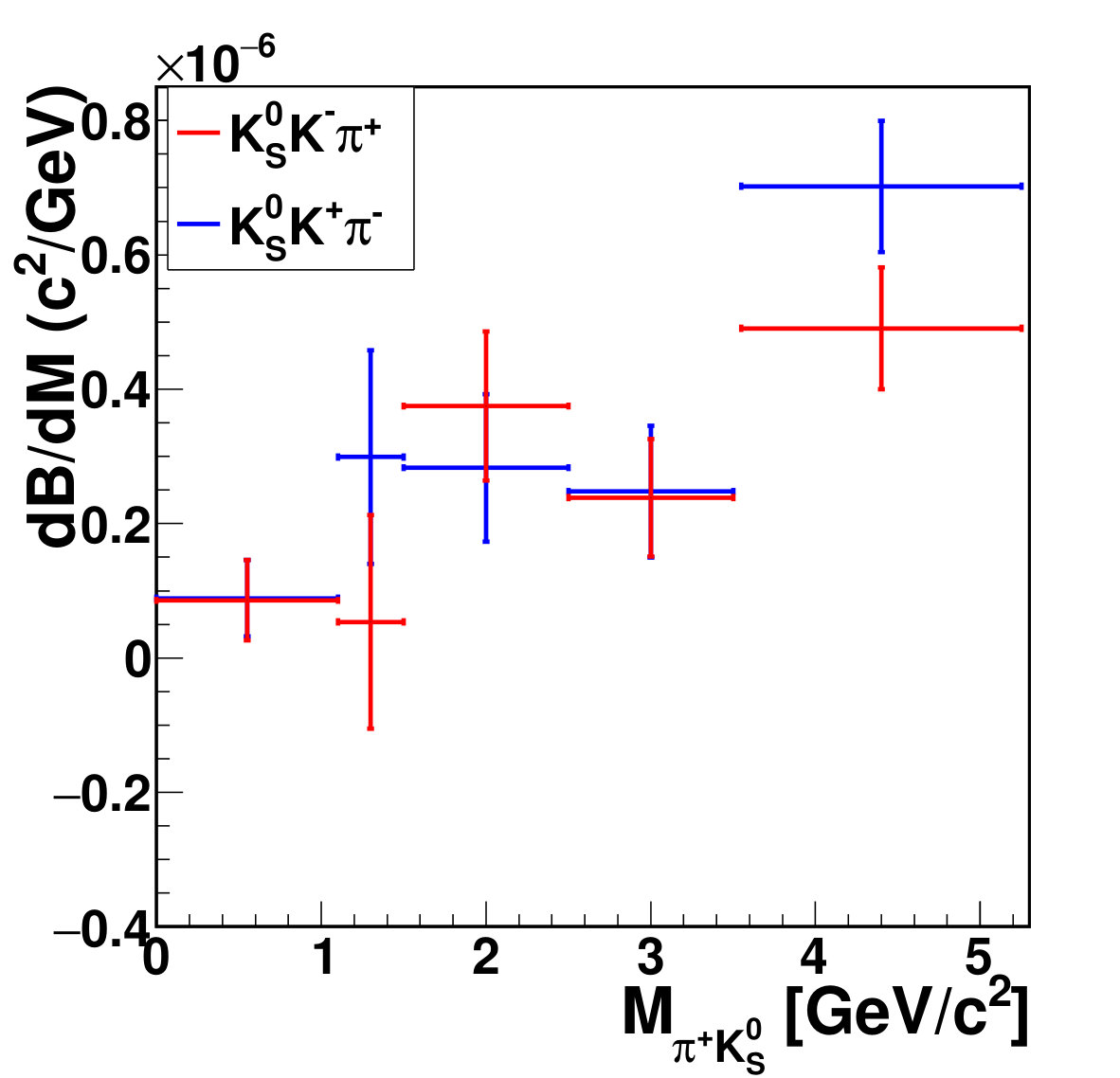

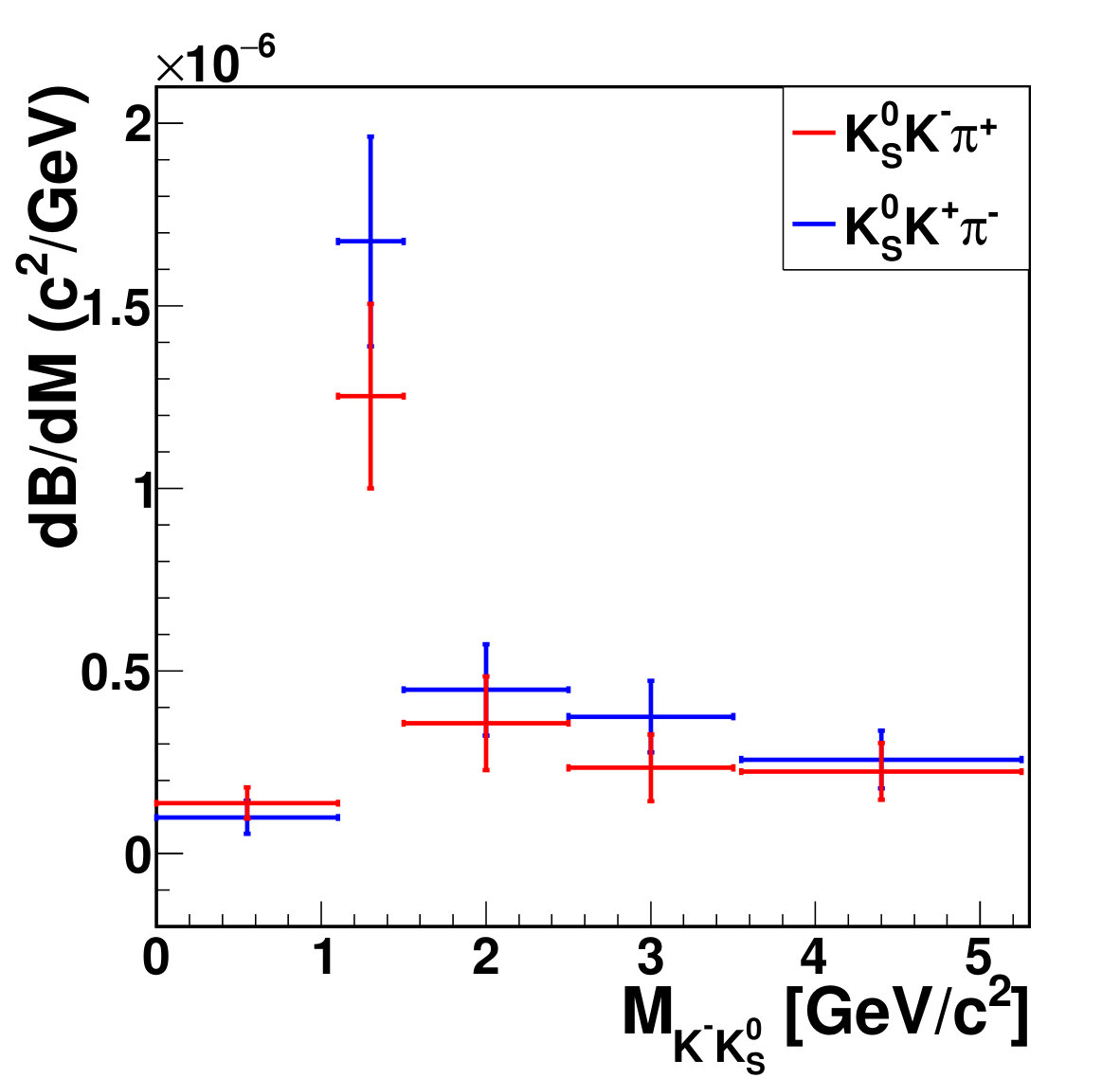

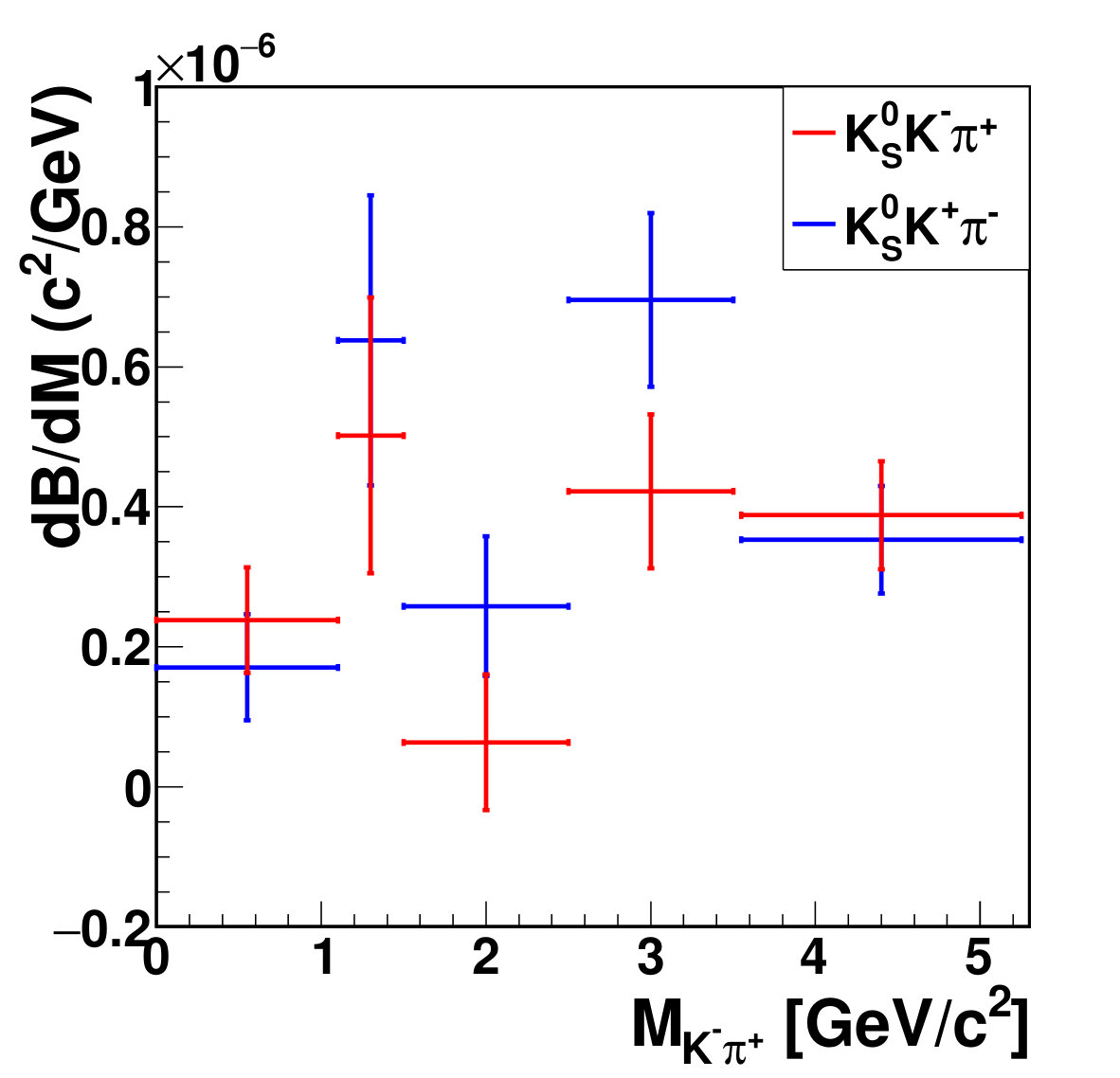

To investigate the localized final-state asymmetry, differential branching fractions separately for the $K^{0}_{S}K^{-}\pi^{+}$ and $K^{0}_{S}K^{+}\pi^{-}$ final states are shown in Fig. 4. Within each bin of the Dalitz variables, the results are consistent with no asymmetry. The details of differential branching fraction calculation in each bin are summarized in Table 1.

Sources of various systematic uncertainties in the branching fraction calculation are shown in Table 2. The uncertainty due to the total number of $B\bar{B}$ pairs is 1.4%. The uncertainty due to the charged-track reconstruction efficiency is estimated to be 0.35% per track by using partially reconstructed $D^{*+}\to D^{0}\pi^{+}$ with $D^{0}\to\pi^{+}\pi^{-}K^{0}_{S}$ events. The uncertainties due to $K^{\pm}$ and $\pi^{\pm}$ identification are obtained by the control sample study of $D^{*+}\to D^{0}\pi^{+}$ with $D^{0}\to K^{-}\pi^{+}$. The uncertainty due to the $K^{0}_{S}\to\pi^{+}\pi^{-}$ branching fraction is based on the world average value $(69.2\pm 0.05)\%$ PDG . The uncertainty due to $K^{0}_{S}$ identification is estimated to be 1.6% based on a $D^{*+}\to D^{0}\pi^{+}$, $D^{0}\to K^{0}_{S}\pi^{0}$ control sample Ks_sys . The uncertainty due to continuum suppression with the requirement on $C_{\mathrm{NN}}$ is obtained from a $B^{0}\to D^{-}\pi^{+}$ with a $D^{-}\to K^{0}_{S}\pi^{-}$ decay control sample. The uncertainty of the reconstruction efficiency is due to limited MC statistics. The uncertainty due to the fixed signal and background PDF shapes is estimated by the deviation of fitted signal yield when varying the parameters of the PDFs in different cases. For all the smoothed histograms, we vary the binning conditions of those histograms. For the other PDFs with fixed parameterization, the fixed parameters are randomized by using a Gaussian random number to repeat data fits with various parameter sets, and the uncertainty of the yield distribution is quoted. The uncertainty due to fit bias is obtained from an ensemble test on the fitter.

Sources of various systematic uncertainties on $\mathcal{A}$ are listed in Table 3. The uncertainty due to $K^{\pm}$ and $\pi^{\pm}$ detection bias are obtained by control sample studies of $D^{+}\to\phi\pi^{+}$ and $D^{+}_{s}\to\phi\pi^{+}$ phipi , and $D^{+}\to K^{0}_{S}\pi^{+}$ kspi , respectively. The uncertainties due to the fixed signal and background PDF shapes are treated in the same way as those in the uncertainty on the branching fraction. The systematic uncertainties due to PDF’s are also estimated from the deviation of the fitted value of $\mathcal{A}$ with varying the conditions of those PDFs in different cases.

In conclusion, we have performed a measurement of the branching fraction and asymmetry $\mathcal{A}$ of the $\bar{B}^{0}\to K^{0}_{S}K^{\mp}\pi^{\pm}$ decay based on a data sample of 711 fb*-1* collected by Belle. We obtain a branching fraction of $(3.60\pm 0.33\pm 0.15)\times 10^{-6}$ and an $\mathcal{A}$ of $(-8.5\pm 8.9\pm 0.2)\%$, where their first uncertainty is statistical and the second is systematic. The measured $\mathcal{A}$ value is consistent with no asymmetry. Hints of peaking structures are seen in the regions $M^{2}_{K^{-}K^{0}_{S}}<$ 2 GeV2/$c^{4}$ and 7 GeV2/$c^{4}$ $<M^{2}_{\pi^{+}K^{0}_{S}}<$ 23 GeV2/$c^{4}$ in the Dalitz plot. A cross-check was performed by calculating the differential branching fraction after projecting onto each Dalitz variable, and hints of peaking structures are found near 1.2 GeV/$c^{2}$ in $M_{K^{-}K^{0}_{S}}$ and around 4.2 GeV/$c^{2}$ in $M_{\pi^{+}K^{0}_{S}}$ when compared to the phase space MC. No obvious $K^{*}$ structure is seen either in low $M_{K^{-}\pi^{+}}$ and $M_{\pi^{+}K^{0}_{S}}$ spectra, which are also consistent with the BABAR and LHCb results babar_kstk0 ; LHCb_kstk ; LHCb_kstks . No localized final-state asymmetry is observed. In the near future, experiments with large data sets such as Belle II and LHCb can provide a more detailed analysis exploiting the full Dalitz plot to search for intermediate resonances and localized final-state asymmetry.
