Kondo screening in a charge-insulating spinon metal

M. Gomilšek

Jožef Stefan Institute, Jamova c. 39, SI-1000 Ljubljana, Slovenia

Centre for Materials Physics, Durham University, South Road, Durham, DH1 3LE, UK

  

R. Žitko

Jožef Stefan Institute, Jamova c. 39, SI-1000 Ljubljana, Slovenia

Faculty of Mathematics and Physics, University of Ljubljana, Jadranska c. 19, SI-1000 Ljubljana, Slovenia

  

M. Klanjšek

Jožef Stefan Institute, Jamova c. 39, SI-1000 Ljubljana, Slovenia

  

M. Pregelj

Jožef Stefan Institute, Jamova c. 39, SI-1000 Ljubljana, Slovenia

  

C. Baines

Laboratory for Muon Spin Spectroscopy, Paul Scherrer Institute, CH-5232 Villigen PSI, Switzerland

  

Y. Li

Experimental Physics VI, Center for Electronic Correlations and Magnetism, University of Augsburg, 86159 Augsburg, Germany

  

Q. M. Zhang

National Laboratory for Condensed Matter Physics and Institute of Physics, Chinese Academy of Sciences, Beijing 100190, China

School of Physical Science and Technology, Lanzhou University, Lanzhou 730000, China

  

A. Zorko

andrej.zorko@ijs.si

Jožef Stefan Institute, Jamova c. 39, SI-1000 Ljubljana, Slovenia

††preprint: APS/123-QED

The Kondo effect, an eminent manifestation of many-body physics in condensed matter, is traditionally explained as exchange scattering of conduction electrons on a spinful impurity in a metal kondo1964resistance ; hewson1997kondo . The resulting screening of the impurity’s local moment by the electron Fermi sea is characterized by a Kondo temperature $T_{K}$, below which the system enters a non-perturbative strongly-coupled regime. In recent years, this effect has found its realizations beyond the bulk-metal paradigm in many other itinerant-electron systems, such as quantum dots in semiconductor heterostructures goldhaber1998kondo ; cronenwett1998tunable and in nanomaterials nygaard2000kondo ; park2002coulomb ; yu2004kondo , quantum point contacts cronenwett2002low ; iqbal2013odd , and graphene chen2011tunable . Here we report on the first experimental observation of the Kondo screening by chargeless quasiparticles. This occurs in a charge-insulating quantum spin liquid, where spinon excitations forming a Fermi surface take the role of conduction electrons. The observed impurity behaviour therefore bears a strong resemblance to the conventional case in a metal. The discovered spinon-based Kondo effect provides a prominent platform for characterising and possibly manipulating enigmatic host spin liquids.

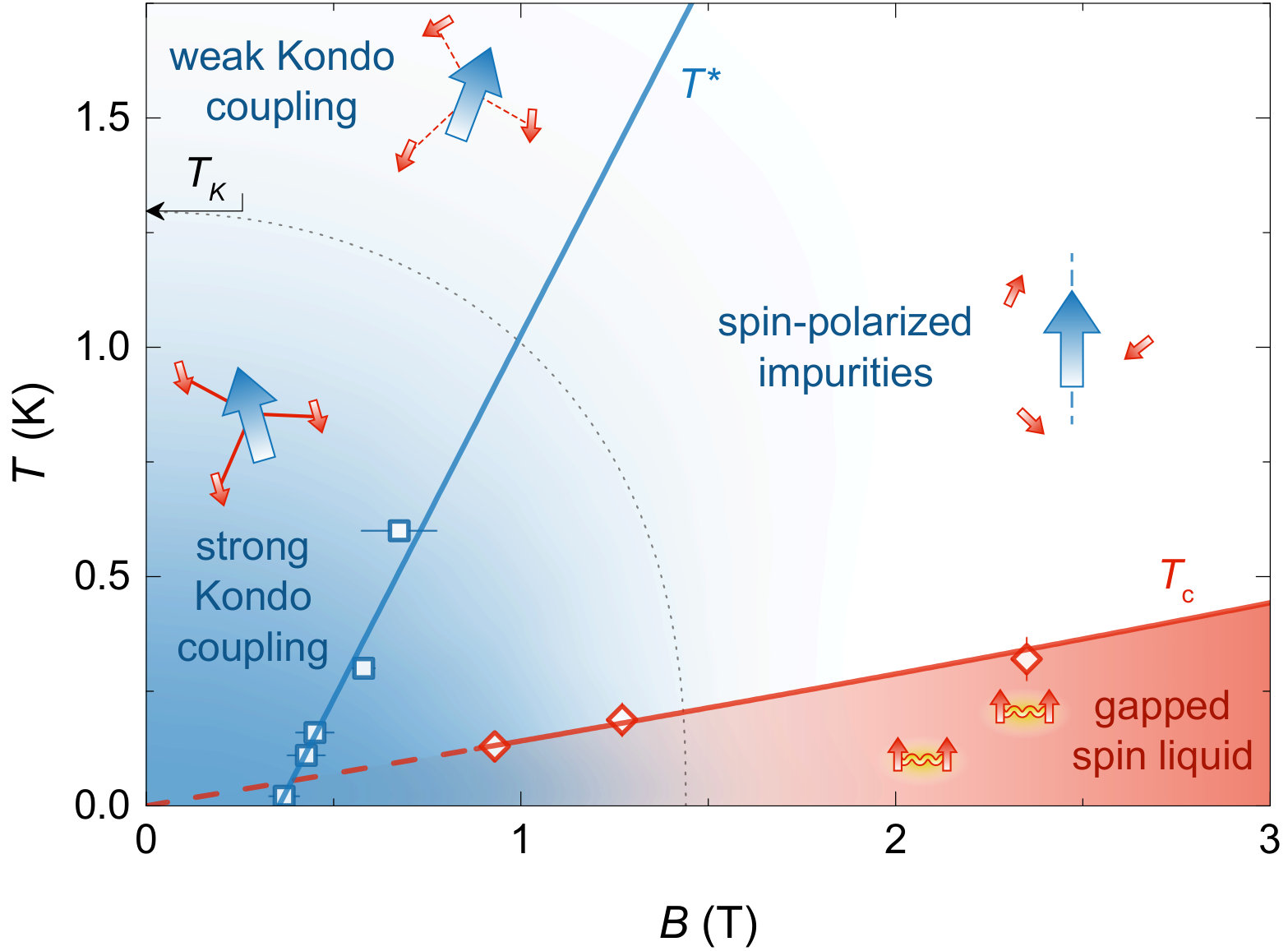

The Kondo screening of a magnetic impurity embedded in a quantum spin liquid (Fig. 1), a highly-quantum-entangled yet magnetically disordered state where charge degrees of freedom are frozen, has been the subject of theoretical investigations for more than two decades khaliullin1995magnetic ; sushkov2000spin ; kolezhuk2006theory ; florens2006kondo ; ribeiro2011magnetic ; dhochak2010magnetic ; vojta2016kondo . In this case, the itinerant electrons of the standard Kondo picture are effectively replaced by emergent fractional magnetic excitations, inherent to any spin liquid. Due to a large variety of essentially different low-energy excitations, spin liquids should be particularly versatile hosts of Kondo physics. In the case of spinon excitations with a Fermi surface — a spinon metal — a Kondo-like effect similar to the one in an ordinary metal is expected kolezhuk2006theory ; ribeiro2011magnetic . However, emergent gauge fields mediating spinon–spinon interactions could cause deviations from the generic Fermi-liquid Kondo behaviour. As the spin-liquid Kondo effect has not yet been conclusively confirmed by experiment, these theoretical predictions remain to be verified.

Zn-brochantite, ZnCu3(OH)6SO4, is a particularly well-suited compound for investigating the Kondo effect in a spin liquid. This quantum kagome antiferromagnet li2014gapless is one of only a few examples where a spin-liquid state remains stable down to the lowest experimentally accessible temperatures norman2016herbertsmithite , three orders of magnitude below the dominant exchange interactions gomilsek2016instabilities . As revealed in our recent muon spin rotation and relaxation ($\mu$SR) study gomilsek2016muSR , the corresponding spinon excitations are gapless and form a spinon Fermi surface. This investigation has further disclosed that impurities, originating from intrinsic 6–9% Cu–Zn intersite disorder li2014gapless , are strongly magnetically coupled to the spin liquid and that their magnetic behaviour is characterized by a low-temperature magnetization plateau with a strongly reduced magnetic moment. This could be a sign of Kondo physics.

In-depth $\mu$SR experiments on Zn-brochantite that are reported here indeed confirm the first realization of the Kondo effect in a charge insulator (Fig. 1). The impurity magnetization extracted from the muon Knight shift clearly demonstrates the crossover from the weak-Kondo-coupling regime at high temperatures to the strong-Kondo-coupling regime at low temperatures. Furthermore, magnetic-field-induced changes at the Fermi level characteristic of the Kondo effect are detected through muon spin relaxation. These experimental findings are supported by numerical renormalization group (NRG) calculations, which furthermore show that the Kondo screening might be affected by spinon–spinon interactions mediated by emergent gauge fields.

First, we prove that impurities in Zn-brochantite are not free. To show this, we use muons, which represent ideal local probes of impurity magnetism. They are dominantly coupled to impurity spins at low temperatures, as demonstrated by a linear scaling of the muon-detected local susceptibility with impurity susceptibility gomilsek2016muSR , yielding a magnetic coupling of $a=31\;\text{mT}/\mu_{B}$ between the muon spin and the surrounding impurities (see Methods). The muon Knight shift $K$ (see Methods), which is proportional to the local impurity magnetization $M$ normalized by the applied magnetic field $B$, $K=aM/B$ yaouanc2011muon increases monotonically with decreasing temperature (Fig. 2a). In the applied field of 0.3 T it reaches a plateau value of 0.18% at the lowest temperatures . This yields an average magnetic moment of $M=KB/a=0.017\mu_{B}$ per magnetic Cu2+ ion. As the spin-1/2 impurity concentration in Zn-brochantite is estimated at 6–9% li2014gapless , the average magnetic moment per impurity is in the range of 0.19–0.28 $\mu_{B}$. This is significantly short of the full value of 1.0–1.2 $\mu_{B}$ expected for the Cu2+ ions, the value that would be observed for low-temperature saturation of free impurity spins in an applied magnetic field. Furthermore, the low-temperature Knight-shift saturation plateau gets reduced by only a factor of $\sim$1.4 in a more than three-times larger field of 0.93 T (Fig. 2a), not by the factor $0.93/0.3=3.1$ that would apply to free impurities.

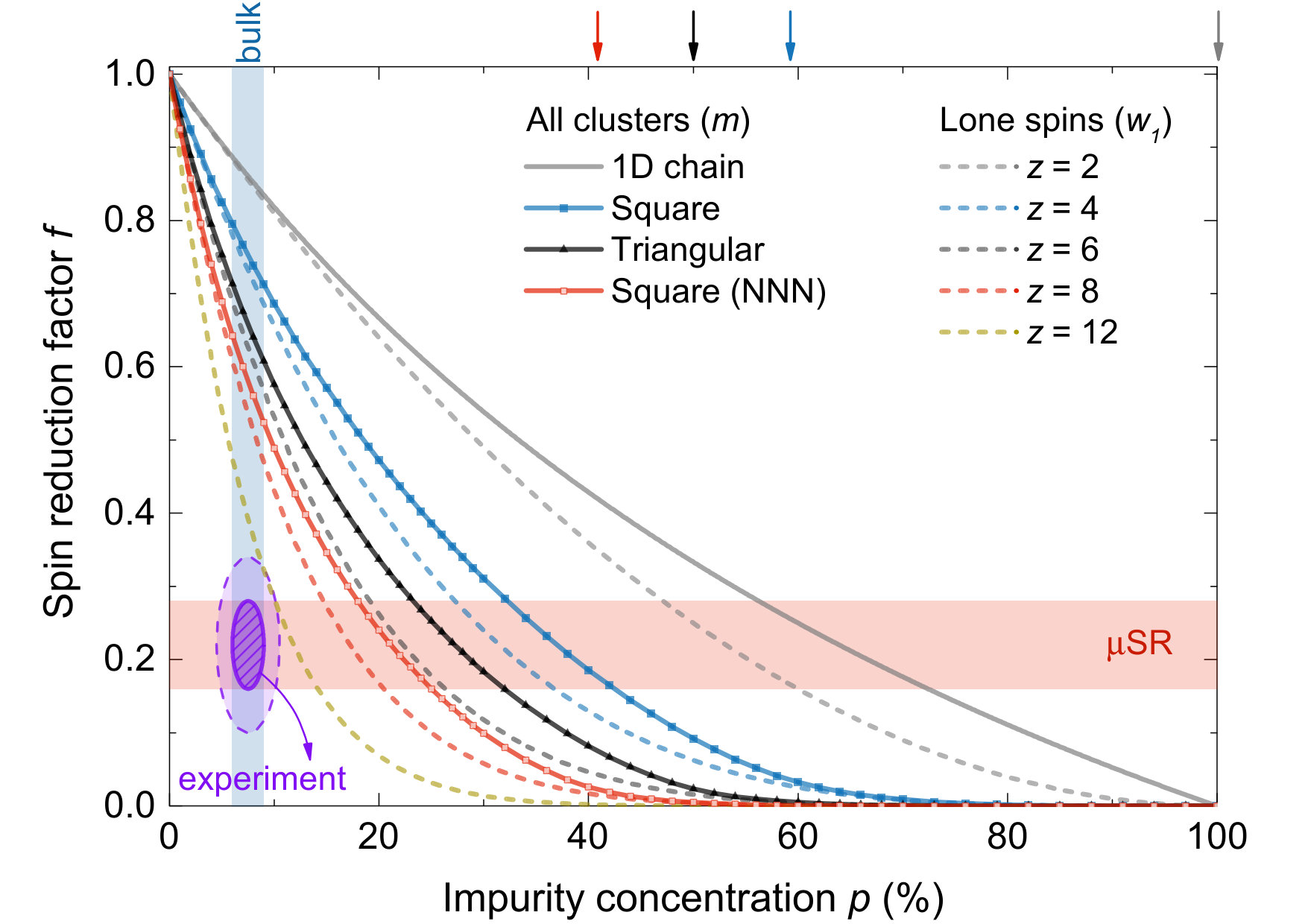

As an alternative to free impurities, one should consider an interpretation based on impurity–impurity coupling. A reduction of the average impurity magnetic moment could naturally result from the formation of spin singlets in even-sized clusters of, e.g., antiferromagnetically coupled impurities. However, to reproduce the experimental reduction of the average impurity moment, a large majority of impurities would have to be clustered, which is not compatible with their moderate concentration of 6–9% (see Supplementary Fig. 1) assuming couplings only between nearest-neighbour randomly-positioned impurities (see Supplementary Information). If longer-range couplings between impurities are present — either due to random far-neighbour exchange couplings, long-range dipolar couplings, or effective RKKY couplings mediated by the spinon Fermi sea — a random-singlet phase should form kimchi2017valence due to random distribution of impurities across the material. If this were the case, a random-coupling spin-glass type of behaviour would be expected at the lowest temperatures kimchi2017valence , which, however, contradicts the experimental results in several significant ways. Specifically, in Zn-brochantite the temperature dependence of the magnetization (Fig. 2a), the specific heat li2014gapless and the muon-spin-relaxation rate gomilsek2016instabilities are all smooth and do not feature any kink-like maxima characteristic of spin glasses mydosh2015spin .

As the reduction of the impurity magnetization cannot be explained in an impurity-only picture, we next turn to the scenario of impurities coupled to the spin-liquid state. Namely, we consider the Kondo effect, where the impurity spin gets screened by spinful itinerant quasiparticles hewson1997kondo . In this case, the crossover between the high-temperature weak-coupling regime and the low-temperature strong-coupling regime is predicted to yield a smooth rise of impurity magnetization. Furthermore, a magnetization plateau corresponding to reduced impurity magnetic moment is expected at low temperatures zitko2011magnetization . This is precisely what is observed in Zn-brochantite (Fig. 2a). In order to quantitatively compare our experiment with the predicted Kondo impurity magnetization, we have performed NRG calculations within the framework of a non-interacting Fermi liquid (see Methods), as this method has proven indispensable in describing the Kondo effect in a fully general setting hewson1997kondo ; wilson1975renormalization . Taking into account the impurity $g$ factor $g=2.3$ (see below) and the magnetic coupling $a$, we achieve a good agreement between the experimental data and NRG predictions for both fields at all temperatures (Fig. 2a). In this calculation, there were only two free fitting parameters: the impurity concentration and the Kondo temperature. The former turns out to be $p=11(2)\%$, which is consistent with the 6–9% concentration estimate from various bulk measurements li2014gapless . For the Kondo temperature, on the other hand, we get $T_{K}=1.3(1)$ K, which is almost the same as the impurity Curie-Weiss temperature $|\theta|=1.2$ K determined from bulk susceptibility above $\sim$1 K li2014gapless . This is in agreement with Kondo theory, which predicts a Curie-Weiss-like dependence of the impurity magnetization with $|\theta|\simeq T_{K}$ above $T_{K}$ hewson1997kondo .

A definitive proof of the spinon-based Kondo screening in Zn-brochantite is the observation of Kondo-resonance splitting (Fig. 3), a hallmark of the Kondo effect that is well known from the standard description of the strongly-coupled Kondo regime hewson1997kondo ; costi2000kondo . The Kondo resonance is a characteristic enhancement of the local density of states (DOS) around the Fermi level associated with the coupling between the impurity spin and the itinerant host quasiparticles. Its width at zero temperature is given by the Kondo temperature and increases with increasing temperature costi2000kondo due to thermal excitations. Kondo-resonance splitting occurs above a finite critical magnetic field $B^{*}(T)$, when the field perturbs the resonance to such a degree that the splitting of its spin-up and spin-down components becomes larger than the zero-field resonance width. Consequently, the DOS at the Fermi level gets decreased above $B^{*}$. The muon spin relaxation rate $\lambda$ should also decrease above the same field. This is because $\lambda$ probes local-magnetic-field fluctuations yaouanc2011muon and thus couples to magnetic excitations at the Fermi level in a spinon metal, in close resemblance to nuclear magnetic resonance (NMR) spin-lattice relaxation rate in a standard metal, which is proportional to the squared DOS at the Fermi level abragam1961principles . Indeed, we have already reported an anomalous reduction of the muon spin relaxation rate $\lambda$ above $B^{*}\sim 0.4$ T gomilsek2016muSR . However, as those data were limited to a single temperature of 110 mK, only a conjecture of a possible field-induced instability of the spin liquid could be made at that time.

Our new, more comprehensive field-dependent muon spin relaxation-rate data collected at various temperatures below $T_{K}$ (Fig. 3) demonstrate instead that the anomaly at $B^{*}$ is a manifestation of the Kondo resonance splitting. We find that the anomaly field $B^{*}$ scales linearly with temperature, $B^{*}=B^{*}_{0}+\frac{k_{B}T}{g\mu_{B}}$, where $k_{B}$ and $\mu_{B}$ are the Boltzman constant and the Bohr magneton, respectively, and $B^{*}_{0}=0.36(6)$ T is the extrapolated zero-temperature anomaly field. The extracted $g$ factor $g=2.3(3)$ is the same as the value $g\sim 2.2$ found in the low-temperature Schottky impurity contribution to specific heat li2014gapless and is typical for the Cu2+ moments in an oxygen crystal-field environment. Importantly, this $g$ factor is an order of magnitude larger than the effective $g$ factor that corresponds to an NMR-observed intrinsic field-induced instability of the spinon-metal state in Zn-brochantite below a field-dependent critical temperature $T_{c}$ (Fig. 1) due to spinon pairing gomilsek2017field . Therefore, the muon-detected anomaly at $B^{*}$ is not related to the latter instability. On the other hand, in the Kondo picture, Kondo resonance splitting should occur at zero temperature at the field of the order of magnitude given by $\frac{k_{B}T_{K}}{g\mu_{B}}=0.8$ T costi2000kondo ; kretinin2011spin , which agrees reasonably well with experiment. The fact that $B^{*}_{0}$ is finite is a distinctive feature of the Kondo effect. Furthermore, $B^{*}$ is predicted to increase linearly with temperature due to an increasing width of the Kondo resonance costi2000kondo , again in agreement with experiment (Fig. 3f). Finally, we note that the power-law dependence $\lambda\propto B^{-\eta}$ changes at $B^{*}$ from being rather weak ($\eta=0.23(3)$) at $B<B^{*}$ to being much stronger ($\eta=2.4(3)$) at $B>B^{*}$ (Fig. 3a-e). The high-field power is close to 2, the value characteristic of a single-exponential time decay of the local-field autocorrelation function yaouanc2011muon that is consistent with effectively quasi-free impurities above the Kondo resonance splitting field. The low-field power $\eta=0.23(3)$, on the other hand, is close to 0, the value expected for a spinful impurity in a metal in the low-field strong-Kondo-coupling regime hewson1997kondo .

The power-law muon relaxation $\lambda\propto B^{-0.2}$ (Fig. 3a-e) at low fields instead of the expected field independence and the apparently systematically faster decrease of the impurity magnetization with increasing magnetic field than the simplest non-interacting Kondo theory predicts for the strong-Kondo-coupling regime (Fig. 2b) are signs of a modified Kondo response in Zn-brochantite that can be due to spinon–spinon interactions. From the theoretical point of view, it was predicted by Ribeiro and Lee ribeiro2011magnetic that in a spin-1/2 U(1) spinon metal the local susceptibility at the impurity site is insensitive to gauge degrees of freedom, which mediate the spinon–spinon interactions. However, this conjecture is based on retaining only the leading order in a large-$N$ expansion, which, in the case of the $U(1)$ spinon metal, corresponds to a random-phase approximation. Therefore higher-order corrections could lead to deviations brought about by spin-liquid gauge fields ribeiro2011magnetic .

We find that the experimentally implied disagreements with the generic Kondo impurity response are indeed most likely to originate from emergent gauge fields. These deviations could, a priori, be due to various perturbations to the conventional Kondo model of a rotationally-symmetric spin-1/2 magnetic impurity coupled to a bath of spinful non-interacting fermions with a constant density of states. The perturbations of interest are those that break the full Kondo universality. We have tested several of them by more elaborate NRG calculations of the impurity magnetization, as detailed in Methods. We find that neither a finite spinon bandwidth, a finite $g$ factor of the spinons, a non-constant spinon DOS, an anisotropy of the Kondo coupling, nor a partial gap opening in the spinon DOS in an applied magnetic field can account for the experimental results (Supplementary Fig. 2). Moreover, even a finite impurity concentration leading to a dilute Kondo lattice with coupling between the impurity spins cannot be responsible for the observed response (Supplementary Fig. 3). The only plausible explanation of the possibly systematic discrepancy between the muon Knight shift at low temperatures and the Kondo theory that we can envisage is therefore based on non-negligible spinon–spinon interactions mediated through emergent spin-liquid gauge fields. As regards this experimental observation, the gauge fields phenomenologically manifest in an effective renormalization of the relevant $g$ factors (Supplementary Fig. 4), whatever their microscopic effect may be. The importance of gauge-field fluctuations in Zn-brochantite is also directly reflected in the intrinsic spinon-pairing instability of the spinon-metal state, as well as in a power-law dependence of the NMR relaxation rate $1/T_{1}\propto T^{0.8}$ in the spinon-metal regime gomilsek2017field , instead of the Korringa relation $1/T_{1}\propto T$ that holds for non-interacting fermions abragam1961principles . It is expected that gauge-field fluctuations should introduce corrections to dynamical spin correlation functions with a power-law dependence itou2010instability ; metlitski2015cooper . However, more rigorous predictions are needed to accurately assess the importance of gauge fields in the spinon-based Kondo effect, even though such calculations for interacting itinerant particles currently represent a huge theoretical challenge.

As the predicted Kondo response greatly depends on the exact nature of the host spin liquid kolezhuk2006theory , Kondo-coupled impurities could, firstly, be utilized to study spinon excitations and the corresponding gauge fields in this enigmatic state of matter. This is a promising alternative to direct experimental studies in local observables, which are very challenging han2012fractionalized ; paddison2016continuous ; klanjsek2017high ; jansa2018observation , because spin liquids lack symmetry-breaking order and their spinon excitations carry no charge, making them notoriously difficult to detect. A further advantage is that the impurity response to the external field is usually much larger than the intrinsic spin-liquid response, which is dominated by singlets. Secondly, certain spin liquids feature topologically-protected quasiparticles, e.g., non-Abelian anyons kitaev2003fault ; jansa2018observation , which, in principle, makes them promising candidates for robust quantum computing kitaev2003fault . However, finding a way of manipulating these states in a solid-state device is a key outstanding issue. The required level of control could potentially be achieved by exploiting the Kondo coupling, by manipulating impurities to achieve the desired change in the spin liquid. One concrete theoretical proposal in this spirit is based on the Kitaev honeycomb spin-liquid, where the weak- and strong-Kondo-coupling limits are predicted to correspond to different topologies of the spin-liquid ground state dhochak2010magnetic .

I Acknowledgements

The authors acknowledge fruitful discussions with T. Lancaster and D. Manevski. This work is partially based on experiments performed at the Swiss Muon Source S$\mu$S, Paul Scherrer Institute, Villigen, Switzerland. The financial support of the Slovenian Research Agency under programs No. P1-0125 and No. P1-0044 and project No. J1-7259 is acknowledged. M.G. is grateful to EPSRC (UK) for financial support (grant No. EP/N024028/1). Q.M.Z was supported by the Ministry of Science and Technology of China (2016YFA0300504 & 2017YFA0302904) and the NSF of China (11774419 & 11474357).

II Author contributions

A.Z. conceived, designed and supervised the project. M.G. and A.Z. performed the $\mu$SR measurements, with technical assistance of C.B., and analysed the data. R.Ž. carried out the NRG calculations. M.G. developed the percolation-theory-based model for impurity-cluster spin. Y.L. and Q.M.Z. synthesized and characterized the sample. All authors discussed the results. A.Z. wrote the paper with feedback from all authors.

III Competing interests

The authors declare no competing interests.

IV Additional information

Supplementary information is available for this paper.

Correspondence and requests for materials should be addressed to A.Z.

V Methods

V.1 $\mu$SR measurements

The $\mu$SR investigation was conducted on the LTF instrument at the Paul Scherrer Institute (PSI), Switzerland, on a $\sim$100% deuterated powder sample from the same batch as the one used in our previous investigations gomilsek2017field ; gomilsek2016instabilities ; gomilsek2016muSR . The sample was glued onto a silver sample holder with diluted GE Varnish to ensure good thermal conductivity. The measurements were performed between 21 mK and 10 K in various transverse (TF) and longitudinal (LF) applied fields $B\leqslant 1$ T with respect to the initial muon-spin polarization.

In the TF setup the initial muon polarization was tilted by $\sim$45∘ away from the beam/field direction. Its component perpendicular to the field was detected by a set of detectors. The muon asymmetry $A(t)$, which is proportional to the muon polarization yaouanc2011muon , was measured and modelled by

[TABLE]

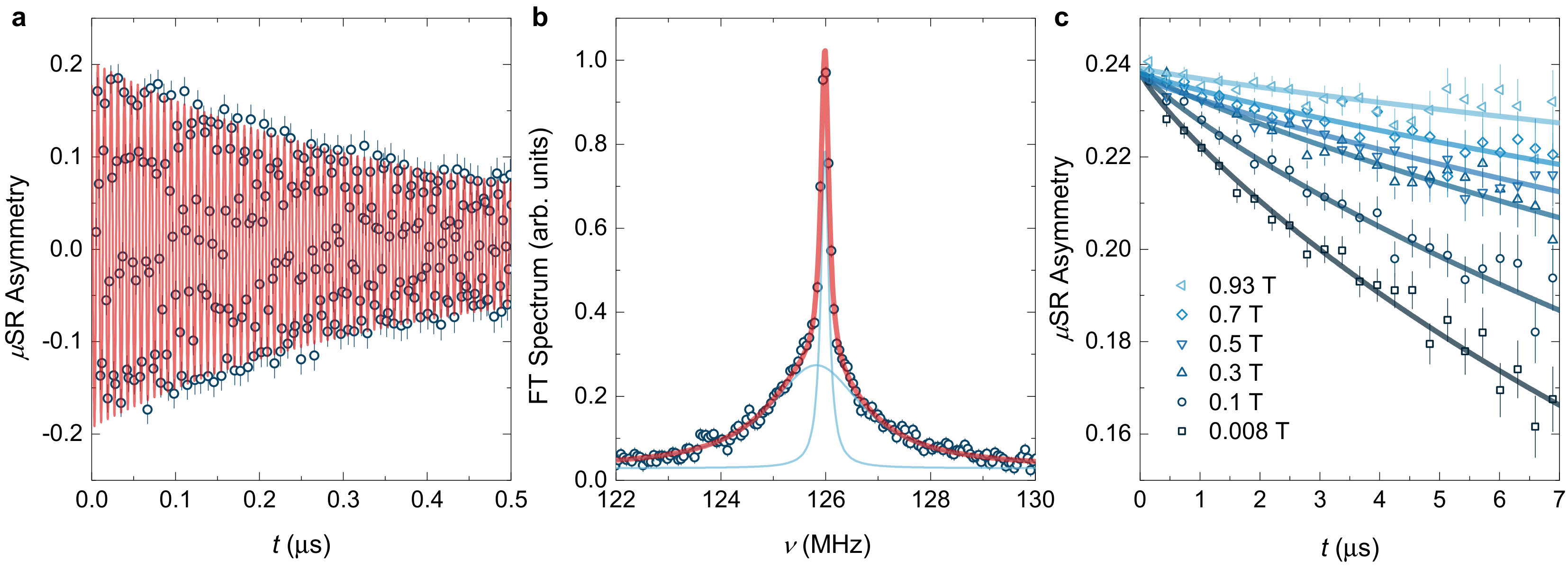

where the total initial muon asymmetry was $A_{1}+A_{2}=0.199(12)$ and the ratio of the two components was $A_{2}/A_{1}=22\%$. A typical TF muon asymmetry curve is shown in the Supplementary Fig. 5 together with the corresponding Fourier transform. The fitting parameters are given in the Supplementary Methods. The signal $A_{1}$ was attributed to the muons stopping in the sample and the signal $A_{2}$ to the muons stopping in the diamagnetic silver sample holder. Since the background was diamagnetic, it decayed in time much more slowly than the intrinsic signal ($\lambda_{2}\ll\lambda_{1}$) and its temperature-independent oscillation frequency $\nu_{2}$ could be used as the reference Larmor frequency. The Knight shift was calculated as

[TABLE]

Combining the new $\mu$SR measurements with those previously published in Ref. gomilsek2016muSR, we could better constrain the a priori unknown backgrounds in both experiments by comparing and simultaneously fitting old and new measurements at the same values of $T$ and $B$. After a careful self-consistent fit of all measured data, we found that the best estimates of low-field Knight-shift values were reduced by $\sim$15% in relative terms when compared to the data published in Ref. gomilsek2016muSR, . Consequently, the magnetic coupling between the muon spin and the impurities, $a=31\;\text{mT}/\mu_{B}$, is reduced by the same amount compared to the previously published value. The new values should be taken as the definitive ones.

In the LF setup, which was used to measure the longitudinal muon relaxation rate $\lambda$, the initial muon-spin polarization was along the beam/field direction and the muon asymmetry was measured along the same direction. The asymmetry was modelled with a stretched-exponential model

[TABLE]

where the total initial asymmetry was $A_{1}+A_{2}=0.239(4)$, with the same ratio $A_{2}/A_{1}=22\%$ as in the TF experiment. The same stretching exponent $\beta=0.86(5)$ was found as in our previous LF studies gomilsek2016instabilities ; gomilsek2016muSR . A typical set of LF muon asymmetry curves at a selected temperature is shown in the Supplementary Fig. 5c.

V.2 NRG calculations

The numerical renormalization group (NRG) method wilson1975renormalization ; zitko2009energy (39) was utilized to compute the impurity magnetization as a function of magnetic field and temperature. We used the discretisation parameter $\Lambda=2$, averaged over two discretisation grids, and kept a high number of states to ensure full convergence. The Wilson’s thermodynamic definition wilson1975renormalization of the Kondo temperature where $T_{K}\chi_{\mathrm{imp}}(T_{K})=0.07$ was applied. Here $\chi_{\mathrm{imp}}$ is the impurity contribution to the total-system’s magnetic susceptibility. The reference calculations were performed for a spin-1/2 magnetic impurity with an isotropic Kondo exchange coupling to a bath of non-interacting spin-1/2 fermions with a constant density of states in a wide-band limit.

The Hamiltonian of the reference model is

[TABLE]

where the operators $c_{k\sigma}$ describe itinerant particles with momentum $k$, spin $\sigma$, and energy $\epsilon_{k}$, $J$ is the Kondo exchange coupling, $\mathbf{S}$ is the quantum-mechanical spin-$1/2$ operator of the impurity, $\mathbf{s}(\mathbf{r}=0)$ is the spin density of the itinerant particles at the position of the impurity, $g$ is the impurity $g$-factor, $\mu_{B}$ the Bohr magneton, and $B$ the magnetic field. $T_{K}$ is given approximately by $T_{K}=D\sqrt{\rho J}\exp(-1/\rho J)$. Here $D$ is the half-bandwidth of the itinerant-particles band and $\rho=1/(2D)$ is the corresponding density of states.

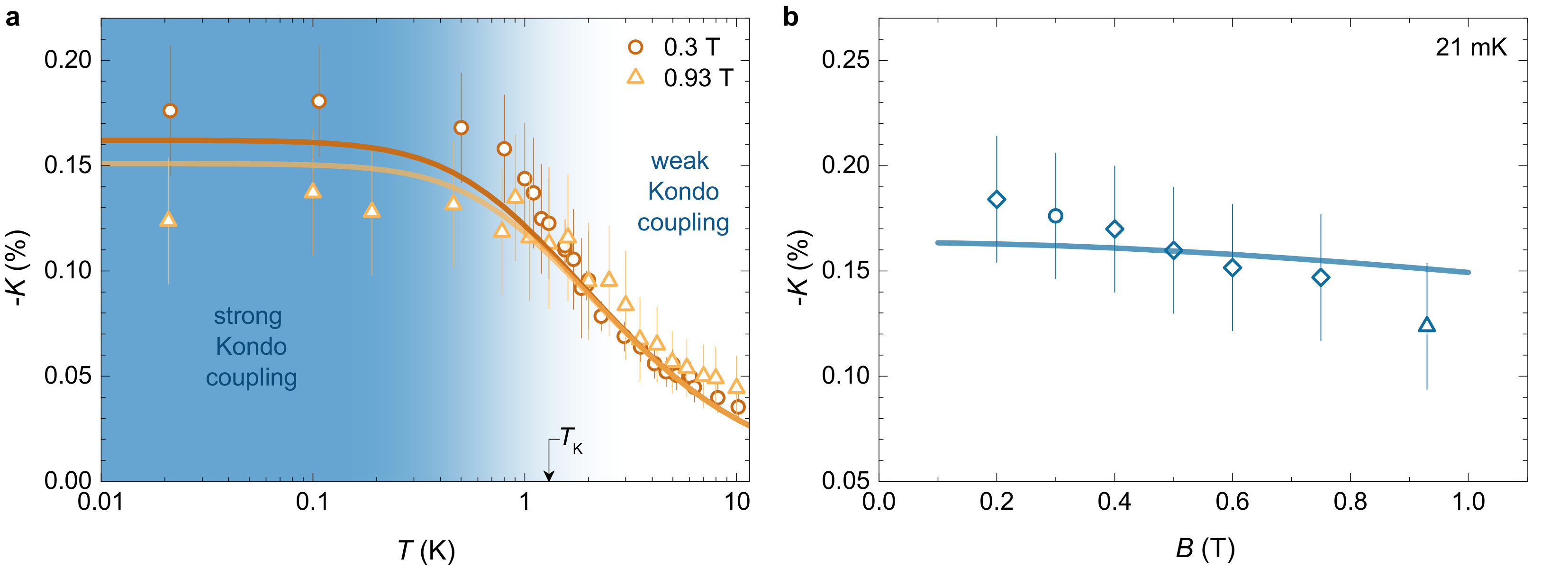

The reference model describes the intermediate and high temperature ranges very well (Fig. 2a). At low temperatures we find a deviation, which is still within the experimental uncertainty (and hence perhaps not even statistically significant), but quite systematic. The slope of the calculated $M(B)/B$ curve is appreciably smaller than the slope of the measured $K(B)$ data points at 21 mK (Fig. 2b). Therefore, additional sets of calculations were performed for various perturbations.

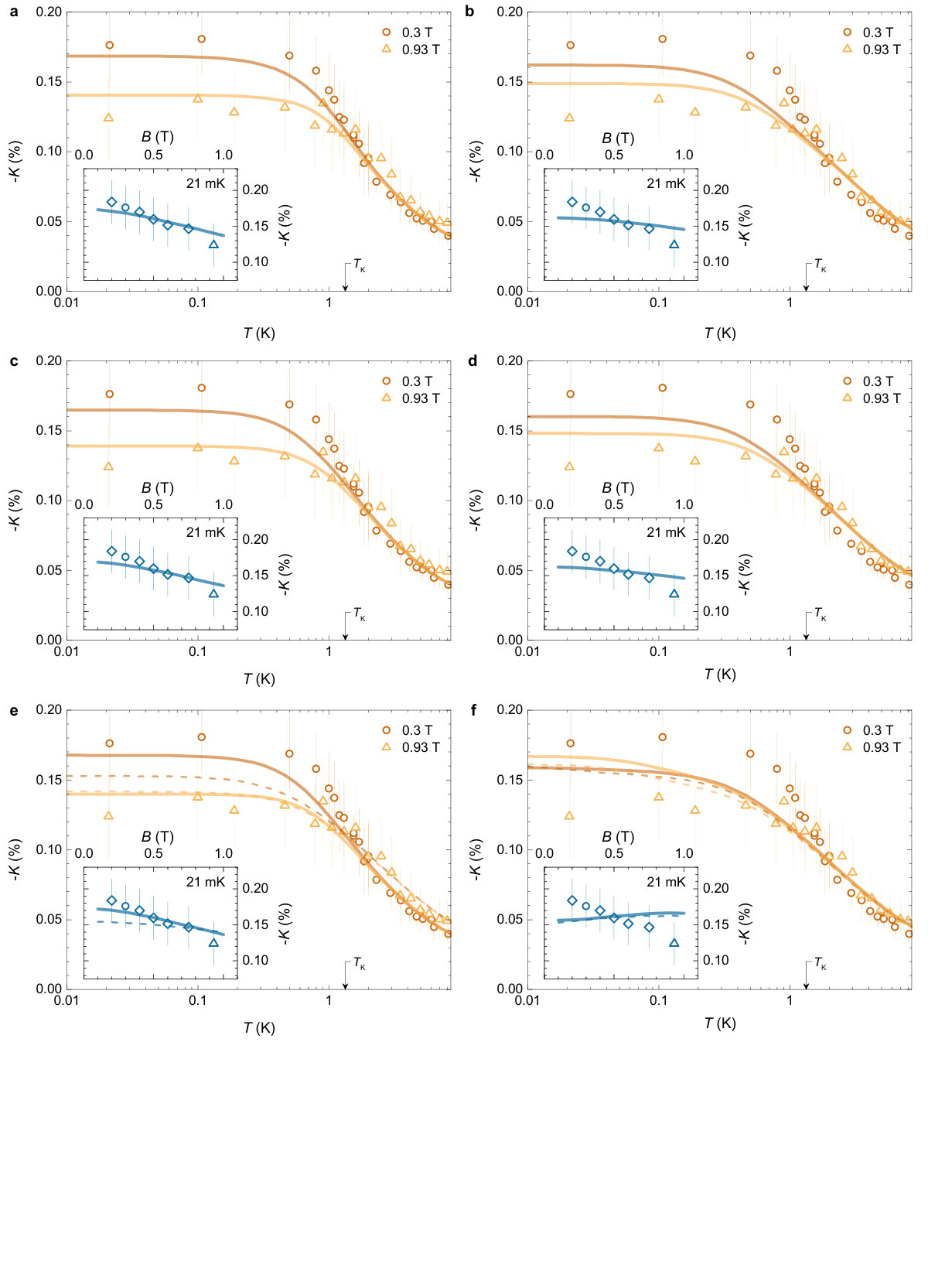

Finite spinon bandwidth: We first relaxed the assumption of the wide-band limit $T_{K}\ll D$, where $D$ is the half-bandwidth of the conduction band. We considered the Kondo impurity model with a flat band with $\rho J=0.7$ and $T_{K}/D\approx 0.5$, while the reference model had $\rho J=0.15$ and $T_{K}/D=4.2\times 10^{-4}$. For this rather extreme case, the agreement with experiment is slightly improved at low temperatures, but is worse at high temperatures (Supplementary Fig. 2a).

Finite spinon $g$ factor: In the wide-band limit, the Zeeman term of the itinerant particles can be neglected, since the impurity magnetic susceptibility $\chi_{i}\propto 1/T_{K}$ is much larger than the Pauli susceptibility of the band, $\chi_{b}\propto 1/D$. The case of a finite Zeeman term in the conduction band, which was included in the calculation as described in Ref. hock2013numerical, 40, with the spinon $g$ factor equal to the impurity $g$ factor was therefore considered for a still rather narrow band so that $T_{K}/D\approx 0.2$ (by taking $\rho J=0.5$). The Hamiltonian thus had an additional term $H^{\prime}=g_{b}\mu_{B}B\sum_{k}(1/2)(c^{\dagger}_{k\uparrow}c_{k\uparrow}-c^{\dagger}_{k\downarrow}c_{k\downarrow})$. For this model, the slope of $M/B$ vs. $B$ at low temperatures is actually reduced compared to the reference model (Supplementary Fig. 2b).

Non-constant spinon DOS: Since in a narrow-band situation the details of DOS in the continuum, $\rho(\epsilon)$, may play a larger role, we investigated some possible modifications for $\rho(0)J=0.5$, e.g. a large slope of DOS $\rho$ across the Fermi level. This was found to have little effect on the results. In Supplementary Fig. 2c we show the case of a triangular-shaped DOS with $\rho(\epsilon)=\rho(0)(D-\epsilon)/D$ for a narrow-band calculation with $T_{K}/D\approx 0.2$. Furthermore, potential scattering on the impurity site, a perturbation of the form $H^{\prime}=Vn(\mathbf{r}=0)$ where $V$ is the local potential and $n(\mathbf{r})$ the density of itinerant quasiparticles at the position of the impurity, was also found to play little role (Supplementary Fig. 2d). Only strong singularities in $\rho$ close to the Fermi level could potentially lead to significant effects.

Kondo-coupling anisotropy: The Kondo exchange coupling term of the Hamiltonian can be separated into the transverse and longitudinal parts, $H_{K}=J_{\perp}(S_{x}s_{x}+S_{y}s_{y})+J_{\|}S_{z}s_{z}$. We studied both the limit of a dominant Ising Kondo exchange coupling ($\rho J_{\|}=1.5$ and $\rho J_{\perp}=0.075$, so that $J_{\|}/J_{\perp}=20$) and a dominant transverse coupling ($\rho J_{\|}=0.05$ and $\rho J_{\perp}=0.5$, so that $J_{\|}/J_{\perp}=0.1$), yielding a comparable Kondo temperature $T_{K}/D\approx 0.04$. Even for these unphysically large anisotropy ratios only small changes of $M/B$ curves were found (Supplementary Fig. 2e). This can be explained by the fact that the renormalization group flow toward the strong-coupling fixed point for the anisotropic Kondo model tends to restore the isotropy at low energy scales hewson1997kondo .

Partial gap opening in the spinon DOS: At low temperatures and sizeable fields the quantum spin liquid in Zn-brochantite becomes partially gapped through a field-induced spinon-pairing instability gomilsek2017field . The fraction of residual ungapped spinons is $f=0.3$ at $B=1$ T and decreases with increasing field. The behaviour for $B<1$ T is not known, therefore a linear extrapolation to low fields with $f=1$ at $B=0$ was made. As the simplest approximation to incorporate the partial gap opening in the calculations we assumed a modification of the conduction-band DOS proportional to the gapped fraction $1-f$ of spinons. For this gapped fraction we considered the case of a hard gap of width $\Delta$, and the case of a BCS-like redistribution of the spectral weight with $\Delta_{\mathrm{BCS}}=\Delta$. The partial gapping of spinons leads to reduced Kondo screening at very low temperatures due to a decreased spinon DOS at the Fermi level, hence the impurity magnetization is enhanced at low temperatures (Supplementary Fig. 2f). This effect increases in strength as the magnetic field is increased, thus inverting the slope of the $K(B)$ curve at low temperatures, which clearly contradicts the experiment. We note that extreme versions of the DOS reduction were assumed with a full suppression in the energy range $|\epsilon|<\Delta$. The actual gap is very likely to be softer.

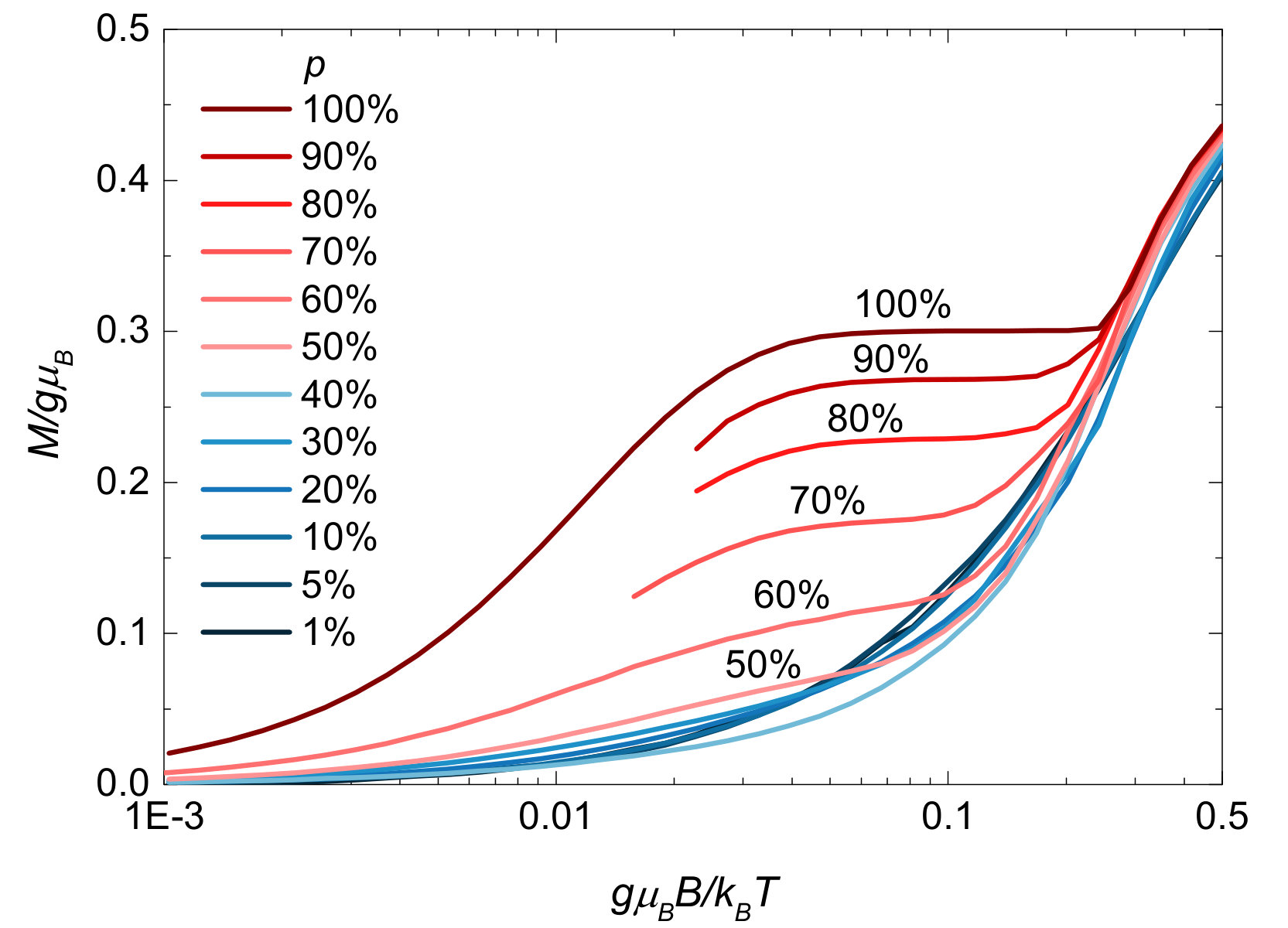

Finite impurity concentration: The impurity concentration of 6–9% in Zn-brochantite li2014gapless is sufficiently large to prompt the question of possible impurity–impurity-coupling corrections to the dilute-limit results. The relevant model to describe this situation is the Kondo lattice model (KLM) with a random distribution of spins. The corresponding Hamiltonian consists of a tight-binding lattice of non-interacting itinerant fermions with density $n$ ($n=1$ is a half-filled band) and additional local moments ($S=1/2$ spins) coupled by the Kondo exchange coupling on a random subset of sites with concentration $p$. We calculated $M(B,T)$ using the real-space dynamical mean-field theory (RDMFT) with the NRG as the impurity solver. This is a conceptually simple (but numerically expensive) way to extend the single-impurity NRG results to the case of a finite impurity concentration. The calculations were performed on a $17\times 17$ lattice with electron occupancy $n=0.5$ (quarter-filled band), for $\rho J=0.4$. For low impurity concentrations the curves are all very similar – the curves for $p=1\%$ and $p=10\%$ actually overlap within the numerical errors (Supplementary Fig. 3). At $p=20\%$, some deviations are observable in the high-field range, while the low-field results are still little affected. We thus conclude that the 6–9% impurity concentration in Zn-brochantite can be safely considered as corresponding to the “dilute limit” where the magnetization can be computed using the single-impurity model. This is also in line with heavy-fermion systems where the magnetic susceptibility and other quantities scale with the concentration of magnetic ions over a surprisingly large concentration range lin1987 (41). A magnetization plateau that is found in the dense-impurity limit at intermediate fields (Supplementary Fig. 3) is consistent with theory kusminskiy2008 (42, 43) and corresponds to a transition from a paramagnetic state to a ferromagnetic half-metal state, indicating the existence of a well-defined partial gap.

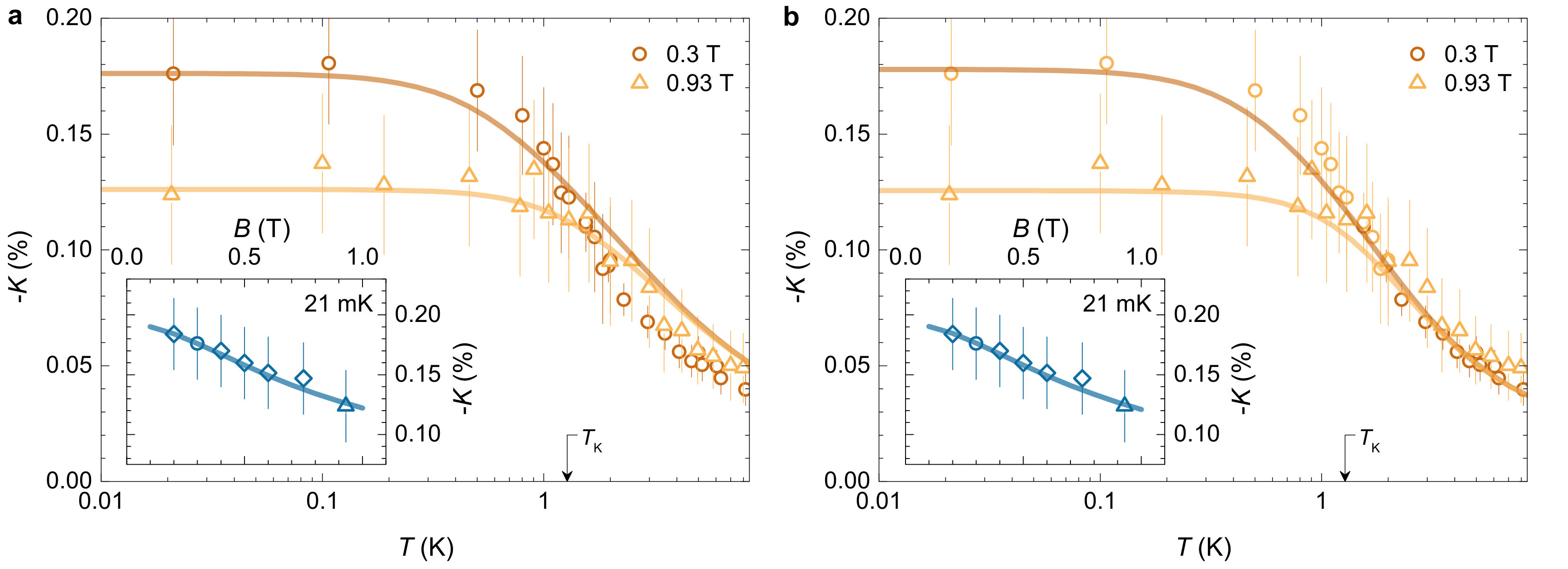

Renormalization of $g$ factors: Finally, we mention two cases that lead to theoretical predictions in better agreement with experiment, but do so for parameter values that either differ from the experimentally established ones or are clearly unphysical. An example of the former case is the assumption of the impurity $g$ factor much in excess of $g=2.3$. In Supplementary Fig. 4a we show the calculation with $g=6.5$, which are in near-perfect agreement with experiment at all temperatures and fields. An example of the latter case is the assumption of a large negative value for the $g$ factor of the itinerant fermions. In Supplementary Fig. 4b we show the calculations for $g_{b}=-3$, which fit the low temperature results almost perfectly, but, however, deviate from experiment at high temperatures.
