Coherent J/$\psi$ photoproduction at forward rapidity in   ultra-peripheral Pb-Pb collisions at $\sqrt{s_{\rm{NN}}}=5.02$ TeV

ALICE Collaboration

arXiv:1904.06272·nucl-ex·November 11, 2019

Coherent J/$\psi$ photoproduction at forward rapidity in ultra-peripheral Pb-Pb collisions at $\sqrt{s_{\rm{NN}}}=5.02$ TeV

ALICE Collaboration

PDF

TL;DR

This paper reports the first rapidity-differential measurement of coherent J/ψ photoproduction in ultra-peripheral Pb-Pb collisions at 5.02 TeV, providing insights into gluon shadowing effects in heavy-ion collisions.

Contribution

It presents the first detailed rapidity-dependent measurement of coherent J/ψ production in ultra-peripheral heavy-ion collisions at this energy, comparing results with theoretical models.

Findings

01

Gluon shadowing influences photoproduction cross sections.

02

Measured cross sections vary across rapidity bins.

03

The ψ' to J/ψ ratio is consistent with proton photoproduction.

Abstract

The ALICE collaboration performed the first rapidity-differential measurement of coherent J/ $ψ$ photoproduction in ultra-peripheral Pb-Pb collisions at a center-of-mass energy $s_{NN}$ = 5.02 TeV. The J/ $ψ$ is detected via its dimuon decay in the forward rapidity region ( $- 4.0 < y < - 2.5$ ) for events where the hadronic activity is required to be minimal. The analysis is based on an event sample corresponding to an integrated luminosity of about 750 $μ$ b $^{- 1}$ . The cross section for coherent J/ $ψ$ production is presented in six rapidity bins. The results are compared with theoretical models for coherent J/ $ψ$ photoproduction. These comparisons indicate that gluon shadowing effects play a role in the photoproduction process. The ratio of $ψ^{'}$ to J/ $ψ$ coherent photoproduction cross sections was measured and found to be consistent with that measured for…

Figures17

Click any figure to enlarge with its caption.

Tables2

Table 1. Table 1: J / ψ J 𝜓 {\mathrm{J}}/\psi yields, efficiencies, f I subscript 𝑓 I f_{\rm I} and f D subscript 𝑓 D f_{\rm D} fractions and coherent J / ψ J 𝜓 {\mathrm{J}}/\psi cross sections.

rapidity range	$N_{J / ψ}$	$ϵ$	$f_{D}$	$f_{I}$	$d σ_{J / ψ}^{coh} / d y$ (mb)
$(- 4.00, - 2.50)$	$21747 \pm 190$	$0.120$	$0.055$	$0.055 \pm 0.001$	$2.549 \pm 0.022 {(stat .)}_{- 0.237}^{+ 0.209} (syst .)$
$(- 4.00, - 3.75)$	$974 \pm 36$	$0.051$	$0.055$	$0.064 \pm 0.008$	$1.615 \pm 0.060 {(stat .)}_{- 0.147}^{+ 0.135} (syst .)$
$(- 3.75, - 3.50)$	$3217 \pm 70$	$0.140$	$0.055$	$0.058 \pm 0.004$	$1.938 \pm 0.042 {(stat .)}_{- 0.190}^{+ 0.166} (syst .)$
$(- 3.50, - 3.25)$	$5769 \pm 98$	$0.204$	$0.055$	$0.060 \pm 0.003$	$2.377 \pm 0.040 {(stat .)}_{- 0.229}^{+ 0.212} (syst .)$
$(- 3.25, - 3.00)$	$6387 \pm 105$	$0.191$	$0.055$	$0.052 \pm 0.002$	$2.831 \pm 0.047 {(stat .)}_{- 0.280}^{+ 0.253} (syst .)$
$(- 3.00, - 2.75)$	$4229 \pm 85$	$0.119$	$0.055$	$0.049 \pm 0.003$	$3.018 \pm 0.061 {(stat .)}_{- 0.294}^{+ 0.259} (syst .)$
$(- 2.75, - 2.50)$	$1190 \pm 47$	$0.029$	$0.054$	$0.049 \pm 0.006$	$3.531 \pm 0.139 {(stat .)}_{- 0.362}^{+ 0.294} (syst .)$

Table 2. Table 2: Summary of systematic uncertainties. The ranges of values correspond to different rapidity bins.

Source	Value
Lumi. normalization	$\pm 5.0 %$
Branching ratio	$\pm 0.6 %$
SPD, V0 and AD veto	from $- 3.6$ % to $- 6.0$ %
MC rapidity shape	from $\pm 0.1$ % to $\pm 0.8$ %
Tracking	$\pm 3.0 %$
Trigger	from $\pm 5.2 %$ to $\pm 6.2 %$
Matching	$\pm 1.0 %$
Signal extraction	$\pm 2.0 %$
$f_{D}$ fraction	$\pm 0.7 %$
$γ γ$ yield	$\pm 1.2 %$
$p_{T}$ shape for coherent $J / ψ$	$\pm 0.1 %$
$b_{pd}$ parameter	$\pm 0.1 %$
Total	from ${}_{- 9.2}^{+ 8.3}%$ to ${}_{- 10.3}^{+ 8.9}%$

Equations14

\frac{d N}{d p _{T}} \sim p_{T} (1 + \frac{b _{pd}}{n _{pd}} p_{T}^{2})^{- n_{pd}} .

\frac{d N}{d p _{T}} \sim p_{T} (1 + \frac{b _{pd}}{n _{pd}} p_{T}^{2})^{- n_{pd}} .

R_{N} = \frac{N ( ψ ^{'} )}{N ( J / ψ )} = 0.0250 \pm 0.0030 (stat.),

R_{N} = \frac{N ( ψ ^{'} )}{N ( J / ψ )} = 0.0250 \pm 0.0030 (stat.),

R_{N} = \frac{σ ( ψ ^{'} ) B R ( ψ ^{'} \to μμ ) ϵ ( ψ ^{'} )}{σ ( J / ψ ) B R ( J / ψ \to μμ ) ϵ ( J / ψ ) + σ ( ψ ^{'} ) B R ( ψ ^{'} \to J / ψ ) ϵ ( ψ ^{'} \to J / ψ ) B R ( J / ψ \to μμ )}

R_{N} = \frac{σ ( ψ ^{'} ) B R ( ψ ^{'} \to μμ ) ϵ ( ψ ^{'} )}{σ ( J / ψ ) B R ( J / ψ \to μμ ) ϵ ( J / ψ ) + σ ( ψ ^{'} ) B R ( ψ ^{'} \to J / ψ ) ϵ ( ψ ^{'} \to J / ψ ) B R ( J / ψ \to μμ )}

R = \frac{R _{N} B R ( J / ψ \to μμ ) ϵ ( J / ψ )}{B R ( ψ ^{'} \to μμ ) ϵ ( ψ ^{'} ) - R _{N} B R ( ψ ^{'} \to J / ψ ) ϵ ( ψ ^{'} \to J / ψ ) B R ( J / ψ \to μμ )}

R = \frac{R _{N} B R ( J / ψ \to μμ ) ϵ ( J / ψ )}{B R ( ψ ^{'} \to μμ ) ϵ ( ψ ^{'} ) - R _{N} B R ( ψ ^{'} \to J / ψ ) ϵ ( ψ ^{'} \to J / ψ ) B R ( J / ψ \to μμ )}

R = 0.150 \pm 0.018 (stat.) \pm 0.021 (syst.) \pm 0.007 (BR),

R = 0.150 \pm 0.018 (stat.) \pm 0.021 (syst.) \pm 0.007 (BR),

f_{D} = \frac{N ( \mbox f ee d - d o w n J / ψ )}{N ( \mbox primary J / ψ )} = R \frac{ϵ ( ψ ^{'} \to J / ψ )}{ϵ ( J / ψ )} B R (ψ^{'} \to J / ψ)

f_{D} = \frac{N ( \mbox f ee d - d o w n J / ψ )}{N ( \mbox primary J / ψ )} = R \frac{ϵ ( ψ ^{'} \to J / ψ )}{ϵ ( J / ψ )} B R (ψ^{'} \to J / ψ)

\frac{d σ _{J / ψ}^{coh}}{d y} = \frac{N ( J / ψ )}{( 1 + f _{I} + f _{D} ) ϵ ( J / ψ ) BR ( J / ψ \to μμ ) ϵ _{veto} L _{int} Δy}

\frac{d σ _{J / ψ}^{coh}}{d y} = \frac{N ( J / ψ )}{( 1 + f _{I} + f _{D} ) ϵ ( J / ψ ) BR ( J / ψ \to μμ ) ϵ _{veto} L _{int} Δy}

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

\PHyear2019 \PHnumber069 \PHdate08 April

\ShortTitleCoherent ${\mathrm{J}}/\psi$ photoproduction at forward rapidity in Pb-Pb UPC

\CollaborationALICE Collaboration††thanks: See Appendix A for the list of collaboration members \ShortAuthorALICE Collaboration

The ALICE collaboration performed the first rapidity-differential measurement of coherent ${\mathrm{J}}/\psi$ photoproduction in ultra-peripheral Pb–Pb collisions at a center-of-mass energy $\sqrt{s_{\mathrm{NN}}}~{}=~{}5.02$ TeV. The ${\mathrm{J}}/\psi$ is detected via its dimuon decay in the forward rapidity region ( $-4.0<y<-2.5$ ) for events where the hadronic activity is required to be minimal. The analysis is based on an event sample corresponding to an integrated luminosity of about 750 $\mu$ b*-1*. The cross section for coherent ${\mathrm{J}}/\psi$ production is presented in six rapidity bins. The results are compared with theoretical models for coherent ${\mathrm{J}}/\psi$ photoproduction. These comparisons indicate that gluon shadowing effects play a role in the photoproduction process. The ratio of $\psi^{\prime}$ to ${\mathrm{J}}/\psi$ coherent photoproduction cross sections was measured and found to be consistent with that measured for photoproduction off protons.

1 Introduction

Ultra-peripheral collisions (UPC) between two Pb nuclei, in which the impact parameter is larger than the sum of their radii, provide a useful way to study photonuclear reactions [1, 2, 3, 4]. Photoproduction of vector mesons in these collisions has an easily identifiable experimental signature: the decay products of the vector meson, in the case of this analysis a $\mu^{+}\mu^{-}$ pair, are the only signals in an otherwise empty detector. This process is akin to exclusive vector meson production in electron–proton collisions, already studied extensively at HERA [5]. The exchange photon, which carries a momentum transfer squared $Q^{2}$ , is typified by very small values of $Q^{2}$ , and may be described as quasi-real. The intensity of the photon flux scales as the square of nuclear charge resulting in large cross sections for the photoproduction of vector mesons in Pb–Pb collisions at the CERN Large Hadron Collider (LHC), where the measurement presented in this Letter was performed.

Photoproduction of vector mesons on nuclei can be either coherent, where the photon couples coherently to the nucleus as a whole, or incoherent, where the photon couples to a single nucleon [2]. Coherent production is characterized by low vector meson transverse momentum ( $\langle p_{\rm T}\rangle\simeq 60$ MeV/ $c$ ) and by the target nucleus not breaking up. Incoherent production, corresponding to quasi-elastic scattering off a single nucleon, is characterized by a somewhat higher average transverse momentum ( $\langle p_{\rm T}\rangle\simeq 500$ MeV/ $c$ ). The target nucleus normally breaks up in the incoherent production, but, except for single nucleons or nuclear fragments in the very forward region, no other particles are produced. The incoherent production can be accompanied by the excitation and dissociation of the target nucleon resulting in even higher transverse momenta of the produced vector mesons, extending well above 1 GeV/ $c$ [6].

Coherent photoproduction of the ${\mathrm{J}}/\psi$ meson, a charm-anticharm bound state, is of particular interest since, for a leading order QCD calculation [7], its cross section is expected to scale as the square of the gluon parton density function (PDF) in the target hadron. The mass of the charm quark provides an energy scale large enough to allow for perturbative QCD calculations. For this process, a variable corresponding to Bjorken- $x$ can be defined using the mass of the vector meson ( $m_{{\mathrm{J}}/\psi}$ ) and its rapidity ( $y$ ) as $x=(m_{{\mathrm{J}}/\psi}/\sqrt{s_{\rm NN}})\exp(\pm y)$ . Though next-to-leading order effects and scale uncertainties complicate extraction of gluon PDFs from ${\mathrm{J}}/\psi$ photoproduction data [8], the related uncertainties are expected to largely cancel in the ratio of coherent photoproduction cross sections off nuclei and off protons [9]. Thus, coherent ${\mathrm{J}}/\psi$ photoproduction off lead nuclei ( $\gamma+{\rm Pb}\to{\mathrm{J}}/\psi+{\rm Pb}$ ) provides a powerful tool to study poorly known gluon shadowing effects at low Bjorken- $x$ values ranging from $x\sim 10^{-5}$ to $x\sim 10^{-2}$ at LHC energies [10, 11].

The ALICE collaboration has pioneered the study of charmonium photoproduction in ultra-peripheral Pb–Pb collisions at the LHC at a center-of-mass energy per nucleon pair $\sqrt{s_{\mathrm{NN}}}~{}=~{}2.76$ TeV [12, 13, 14]. Coherent ${\mathrm{J}}/\psi$ photoproduction was studied both at forward rapidity ( $-3.6<y<-2.6$ ) with the ALICE muon spectrometer and at mid-rapidity ( $|y|<0.9$ ) with the central barrel. The CMS collaboration studied coherent ${\mathrm{J}}/\psi$ photoproduction accompanied by neutron emission in the semi-forward rapidity range $1.8<|y|<2.3$ [15]. The ALICE and CMS results on ${\mathrm{J}}/\psi$ photoproduction were compared with predictions from models available at that time, and suggested that moderate shadowing in the nucleus was necessary to describe the measurements. In particular, the nuclear gluon shadowing factor $R_{g}$ , i.e. the ratio of the nuclear gluon density distribution to the proton gluon distribution, was extracted from the ALICE measurements [10], and found to be, at the scale of the charm quark mass, $R_{g}(x\sim 10^{-3})=0.61^{+0.05}_{-0.04}$ and $R_{g}(x\sim 10^{-2})=0.74^{+0.11}_{-0.12}$ . The ALICE collaboration also measured the coherent cross section for $\psi^{\prime}$ photoproduction at mid-rapidity, and the results supported, within the experimental uncertainties, the moderate-shadowing scenario [14].

In this Letter, we present the first measurement of the coherent ${\mathrm{J}}/\psi$ photoproduction in ultra-peripheral Pb–Pb collisions at a center-of-mass energy per nucleon pair $\sqrt{s_{\mathrm{NN}}}~{}=~{}5.02$ TeV. The measurement was performed with the ALICE muon spectrometer covering the rapidity range $-4.0<y<-2.5$ . The results presented here are based on data taken in 2015 and in 2018, during Run 2 of the LHC. The recorded data sample is some 200 times larger than the data used in the $\sqrt{s_{\mathrm{NN}}}~{}=~{}2.76$ TeV Pb–Pb analysis [12]. The new result is based on the absolute luminosity normalization in contrast to previous measurement based on the normalization relative to the continuum $\gamma\gamma\to\mu^{+}\mu^{-}$ cross section predicted by STARlight [16]. These two improvements imply a considerable reduction in the statistical and systematic uncertainties and the possibility to study the rapidity dependence in the forward region.

2 Detector description

The ALICE detector and its performance are described in [17, 18]. Muons from ${\mathrm{J}}/\psi$ decays are measured in the single-arm muon spectrometer, while other activity is vetoed using the Silicon Pixel Detector (SPD), the V0 and ALICE Diffractive (AD) detectors. The muon spectrometer covers the pseudorapidity interval $-4.0<\eta<-2.5$ . It consists of a ten interaction length absorber followed by five tracking stations, the third of which is placed inside a dipole magnet with a 3 T $\cdot$ m integrated magnetic field, a 7.2 interaction length iron wall, and a trigger system located downstream of the iron wall. Each tracking station is made of two planes of cathode pad chambers, while the trigger system consists of four planes of resistive plate chambers arranged in two stations. Muon tracks are reconstructed using the tracking algorithm described in [19]. The central region $|\eta|<$ 1.4 is covered by the SPD consisting of two cylindrical layers of silicon pixel sensors. The V0 detector is composed of the V0A and V0C sub-detectors, consisting of 32 cells each and covering the pseudorapidity interval $2.8<\eta<5.1$ and $-3.7<\eta<-1.7$ , respectively. The newly installed AD detector is composed of the ADC and ADA sub-detectors located at $-19.5$ and $+16.9$ m from the interaction point covering the pseudorapidity ranges $-7.0<\eta<-4.9$ and $4.7<\eta<6.3$ , respectively [20]. The V0 and AD detectors are scintillator tile arrays with a time resolution better than 1 ns, allowing one to distinguish between beam-beam and beam-gas interactions.

3 Data analysis

The analysis presented in this publication is based on a sample of events collected during the 2015 and 2018 Pb–Pb data taking periods at $\sqrt{s_{\mathrm{NN}}}~{}=~{}5.02$ TeV, characterized by similar beam conditions and interaction rates. The muon spectrometer performance was stable during the whole Run 2 thus allowing for the merging of the two data sets. The trigger required two oppositely charged tracks in the muon spectrometer, and vetoes on V0A, ADA and ADC beam-beam interactions. The single muon trigger threshold was set to a transverse momentum $p_{\rm T}=1$ GeV/ $c$ [21]. The integrated luminosities of 216 $\mu$ b*-1* in 2015 and 538 $\mu$ b*-1* in 2018, with relative systematic uncertainty of 5%, were estimated from the counts of a reference trigger, based on multiplicity selection in the V0 detector. The reference trigger cross section was derived from Glauber-model-based estimates of the inelastic Pb–Pb cross section [22].

Events with only two tracks with opposite electric charge (unlike-sign) in the muon spectrometer were selected offline. The pseudorapidity of each track was required to be within the range $-4.0<\eta<-2.5$ . The tracks had to fulfill the requirements, described in [12], on the radial coordinate of the track at the end of the absorber and on the extrapolation to the nominal vertex. Track segments in the tracking chambers had to be matched with corresponding segments in the trigger chambers.

Additional offline vetoes on the V0A, ADA and ADC detector signals were applied to ensure the exclusive production of the muon pair. Exclusivity in the muon spectrometer region was assured by requiring a maximum of 2 fired cells in V0C. Online and offline veto requirements may result in significant inefficiencies (denoted as veto inefficiencies) in the exclusive ${\mathrm{J}}/\psi$ cross section measurements due to additional V0 and AD detector activity induced by independent hadronic or electromagnetic pile–up processes accompanying the coherent ${\mathrm{J}}/\psi$ photoproduction. The probability of hadronic pile–up did not exceed $0.2\%$ , however there was a significant pile–up contribution from the electromagnetic electron pair production process $\gamma\gamma\to e^{+}e^{-}$ . The veto inefficiency induced by these pile–up effects in the V0A, V0C, ADA and ADC detectors, was estimated using the events selected with an unbiased trigger based only on the timing of bunches crossing the interaction region. The veto rejection probability, defined as the probability to detect activity in these sub-detectors, was found to scale linearly with the expected number of collisions per bunch crossing reaching 10% in V0A. The veto inefficiency correction factors were determined by weighting the corresponding veto rejection probabilities over periods with different pile–up conditions, taking the luminosity of each period as a weight. The veto inefficiency of the V0A online and offline selection was found to be $p_{\rm\rm{V0A}}=(4.6\pm 0.2)\%$ , where the uncertainty is related to the limited statistics in the unbiased trigger sample. The veto inefficiencies in ADA ( $p_{\rm\rm{ADA}}$ ) and ADC ( $p_{\rm\rm{ADC}}$ ) were found to be about $0.2\%$ , because these detectors are far away from the interaction point and are thus much less affected by soft $\mathrm{e}^{+}\mathrm{e}^{-}$ pairs. The veto inefficiency in V0C, associated with the requirement of maximum 2 fired cells, was found to be negligible. The average veto efficiency correction factor $\epsilon_{\rm veto}=95.0\%$ , and this is applied to raw ${\mathrm{J}}/\psi$ yields to account for hadronic and electromagnetic pile–up processes, was calculated as a product of individual veto inefficiencies $\epsilon_{\rm veto}=(1-p_{\rm\rm{V0A}})(1-p_{\rm\rm{ADA}})(1-p_{\rm\rm{ADC}})$ .

The acceptance and efficiency of ${\mathrm{J}}/\psi$ and $\psi^{\prime}$ reconstruction were evaluated using a large sample of coherent and incoherent ${\mathrm{J}}/\psi$ and $\psi^{\prime}$ events generated by STARlight 2.2.0 [23] with decay muons tracked in a model of the apparatus implemented in GEANT 3.21 [24]. The model includes a realistic description of the detector performance during data taking as well as its variation with time. The acceptance and efficiency of feed-down $\psi^{\prime}\to{\mathrm{J}}/\psi+\pi\pi$ decays were also evaluated using the STARlight generator under the assumption that feed-down ${\mathrm{J}}/\psi$ mesons inherit the transverse polarization of their $\psi^{\prime}$ parents, as indicated by previous measurements [25]. The same samples were also used for modelling the signal shape and different background contributions.

A sample enriched in coherent candidates was obtained by selecting dimuons with transverse momentum $p_{\rm T}<0.25$ GeV/ $c$ . The invariant mass distributions for selected unlike-sign muon pairs are shown in Fig. 1, left, in the full dimuon rapidity range $-4.0<y<-2.5$ and in Fig. 2 in six rapidity subranges. The invariant mass distributions are fitted with a function modeling the background and two Crystal Ball functions [26] for the ${\mathrm{J}}/\psi$ and the $\psi^{\prime}$ peaks. The shape of the background at large invariant masses is well described by an exponential distribution, as expected if it is dominated by the process $\gamma\gamma\to\mu^{+}\mu^{-}$ . However, at masses below the ${\mathrm{J}}/\psi$ , the distribution is strongly influenced by the muon trigger condition. In order to model this, the whole background distribution is fitted using a template made from reconstructed STARlight events corresponding to the $\gamma\gamma\to\mu^{+}\mu^{-}$ process. The results of the fit are parametrized using a fourth-order polynomial, which turns smoothly into an exponential tail as from 4 GeV/ $c^{2}$ . The coefficients of the polynomial are then kept fixed in the fit to the experimental data, while the slope of the exponential term and the normalization are left free. The fitted slope is found to agree within 2.5 standard deviations with the value obtained from the generated sample.

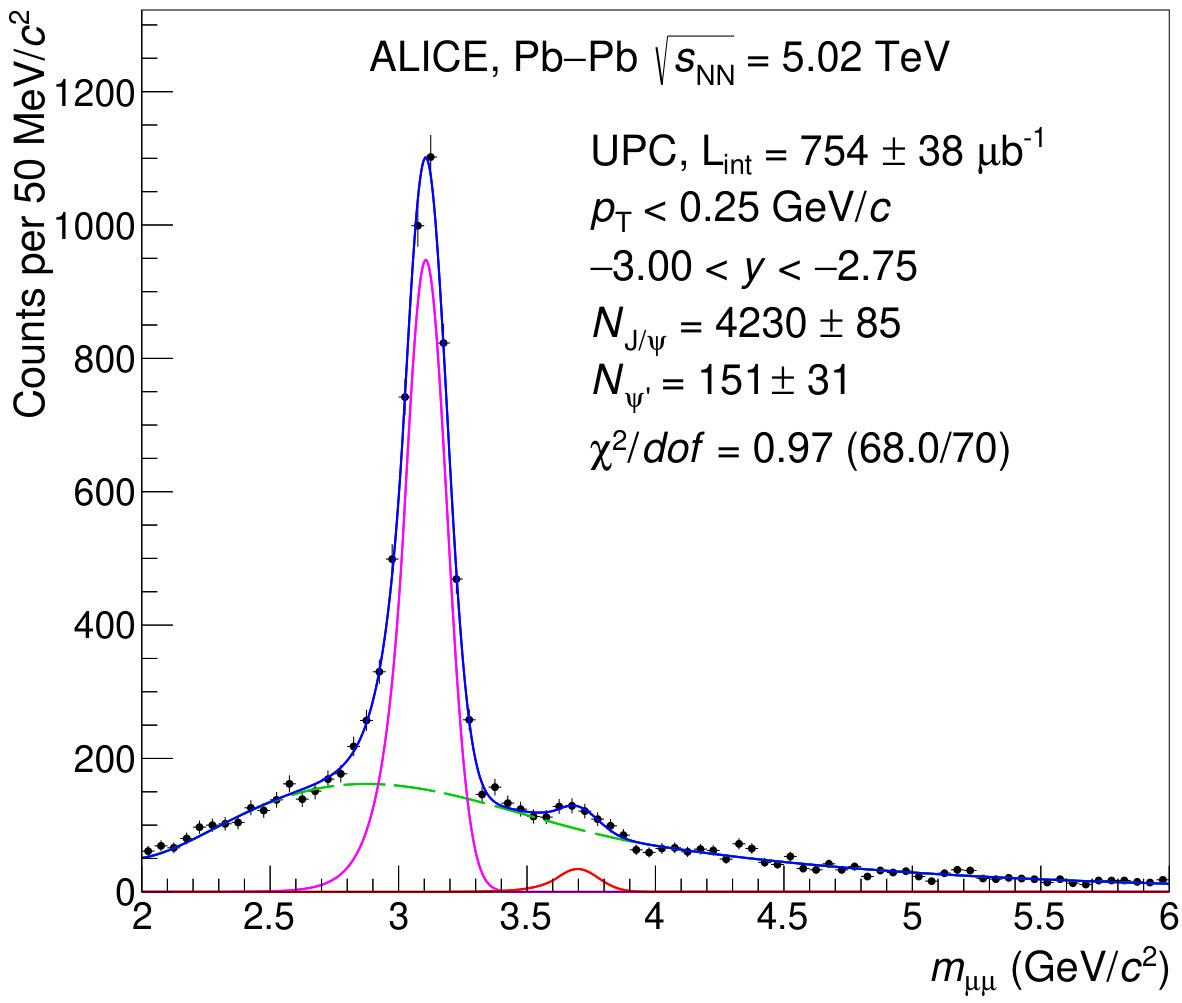

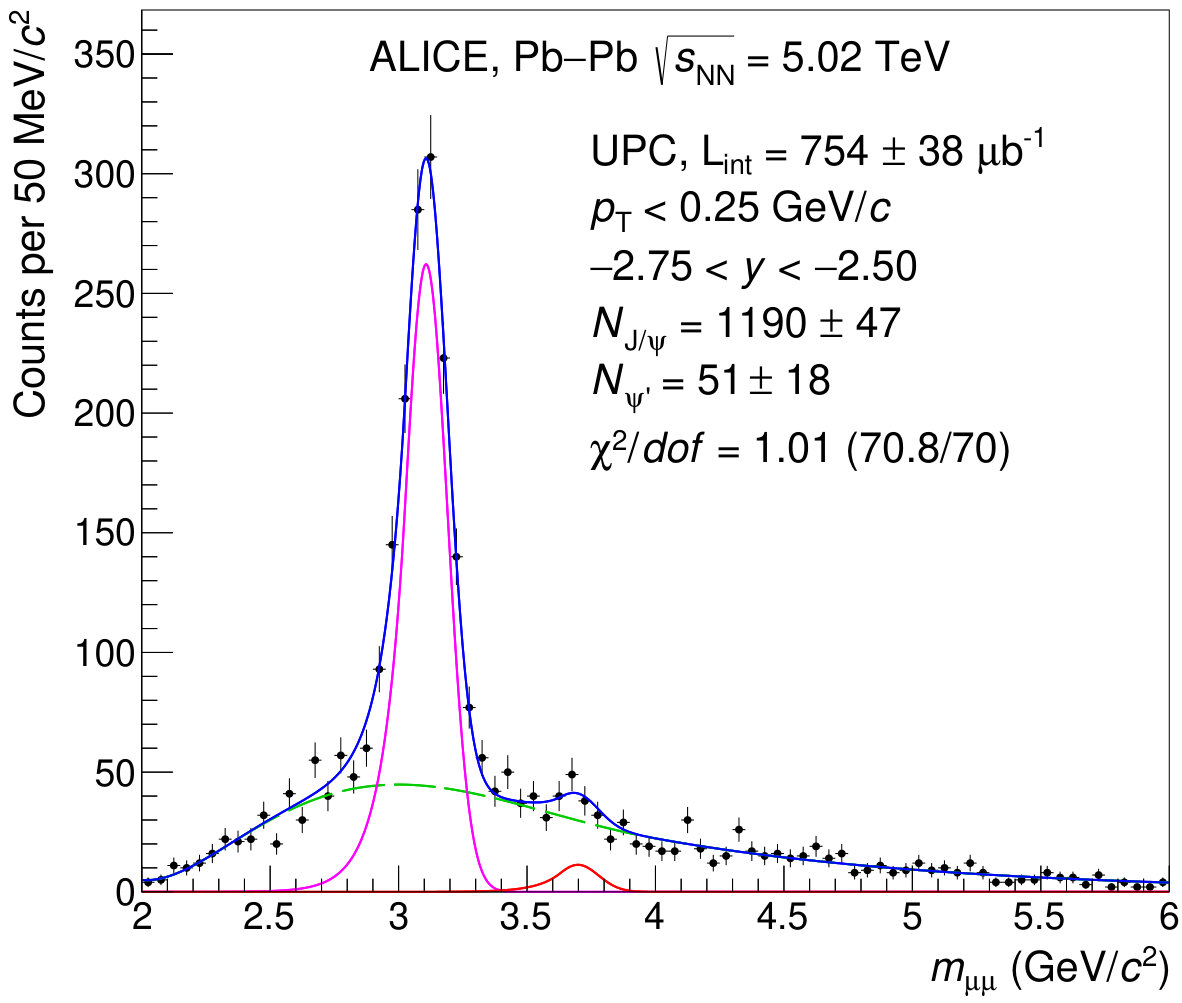

The raw inclusive ${\mathrm{J}}/\psi$ and $\psi^{\prime}$ yields, $N({\mathrm{J}}/\psi)$ and $N(\psi^{\prime})$ , were obtained by fitting the dimuon invariant mass spectrum in the range $2.2<m_{\mu\mu}<6$ GeV/ $c^{2}$ . The slope parameters in the Crystal Ball functions were fixed from fits to the respective Monte Carlo sets. The width parameter $\sigma_{{\mathrm{J}}/\psi}$ was left free for the ${\mathrm{J}}/\psi$ , and was fixed to $\sigma_{\psi^{\prime}}=\sigma_{{\mathrm{J}}/\psi}\cdot(\sigma_{\psi^{\prime}}^{\rm MC}/\sigma_{{\mathrm{J}}/\psi}^{\rm MC})$ for the $\psi^{\prime}$ , where the ratio $\sigma_{\psi^{\prime}}^{\rm MC}/\sigma_{{\mathrm{J}}/\psi}^{\rm MC}\sim 1.09$ of the $\psi^{\prime}$ to the ${\mathrm{J}}/\psi$ widths was obtained from the fits to corresponding Monte Carlo sets. The mass parameter of the Crystal Ball function was left unconstrained for the ${\mathrm{J}}/\psi$ . Due to the small $\psi^{\prime}$ statistics, the $\psi^{\prime}$ mass was fixed so that the difference with respect to the ${\mathrm{J}}/\psi$ mass is the same as quoted by the PDG [27]. The ${\mathrm{J}}/\psi$ mass $m_{{\mathrm{J}}/\psi}=3.0993\pm 0.0009$ GeV/ $c^{2}$ , obtained from the fit in the full rapidity range $-4.0<y<-2.5$ , is in agreement with the PDG value within 3 standard deviations.

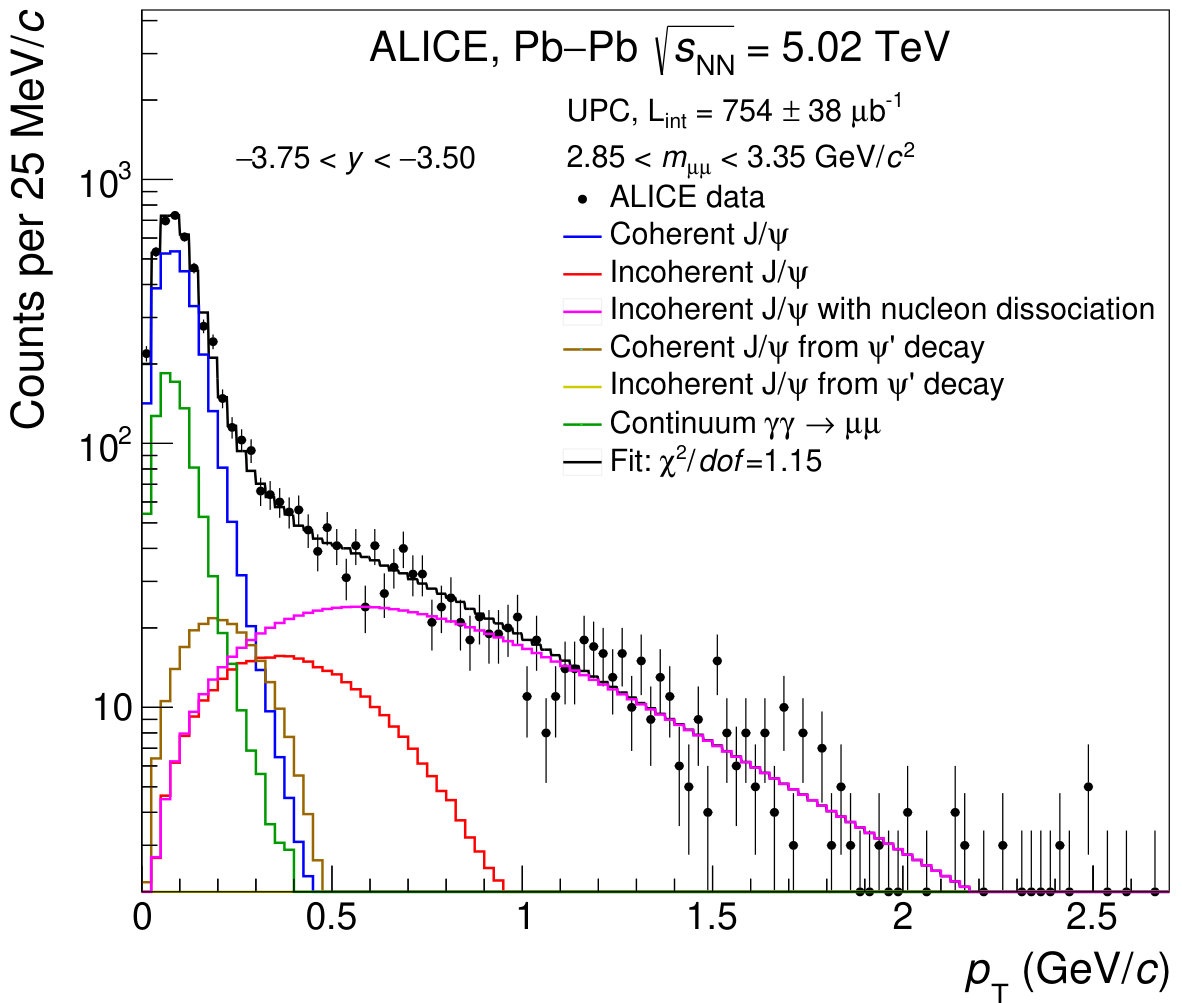

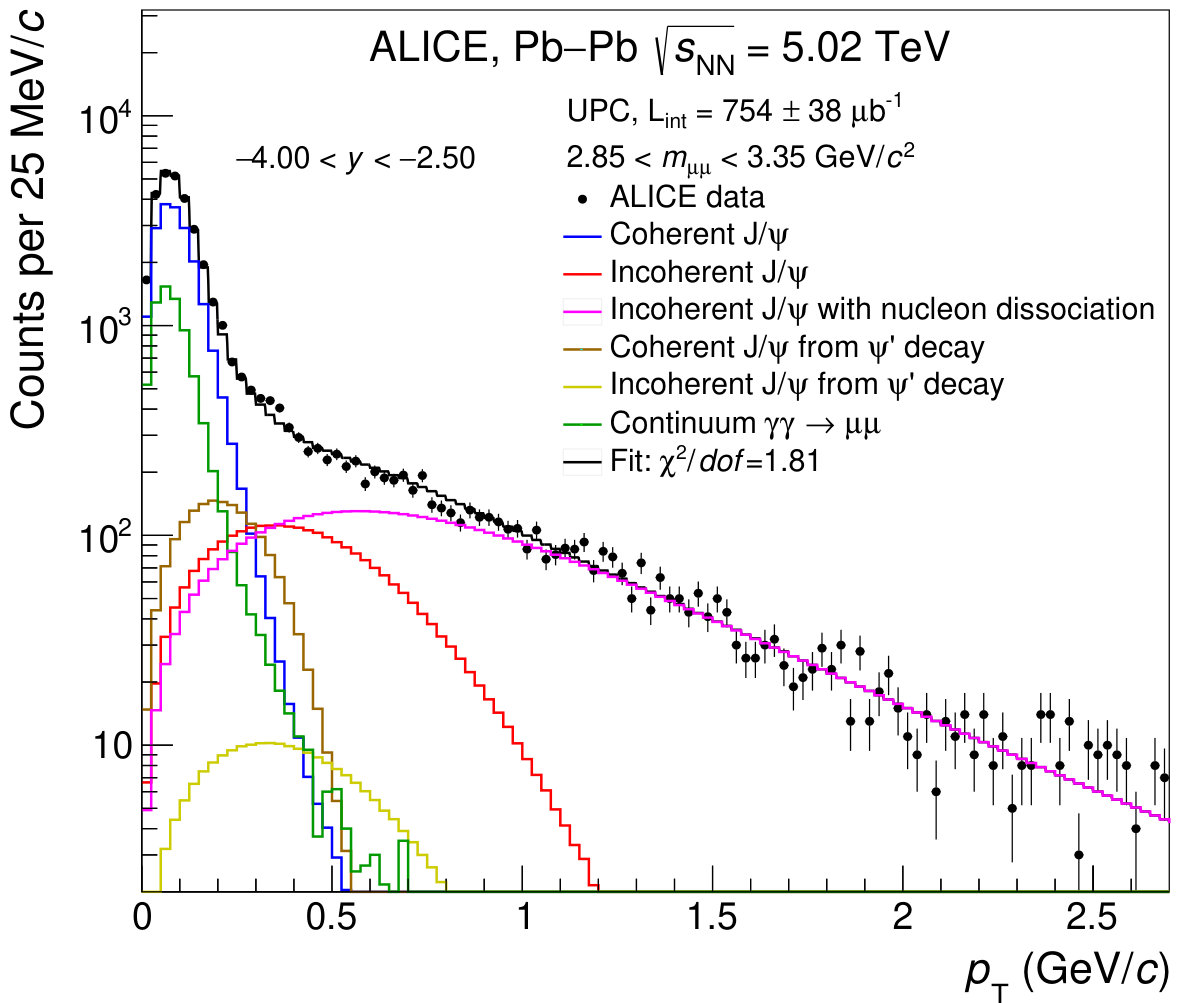

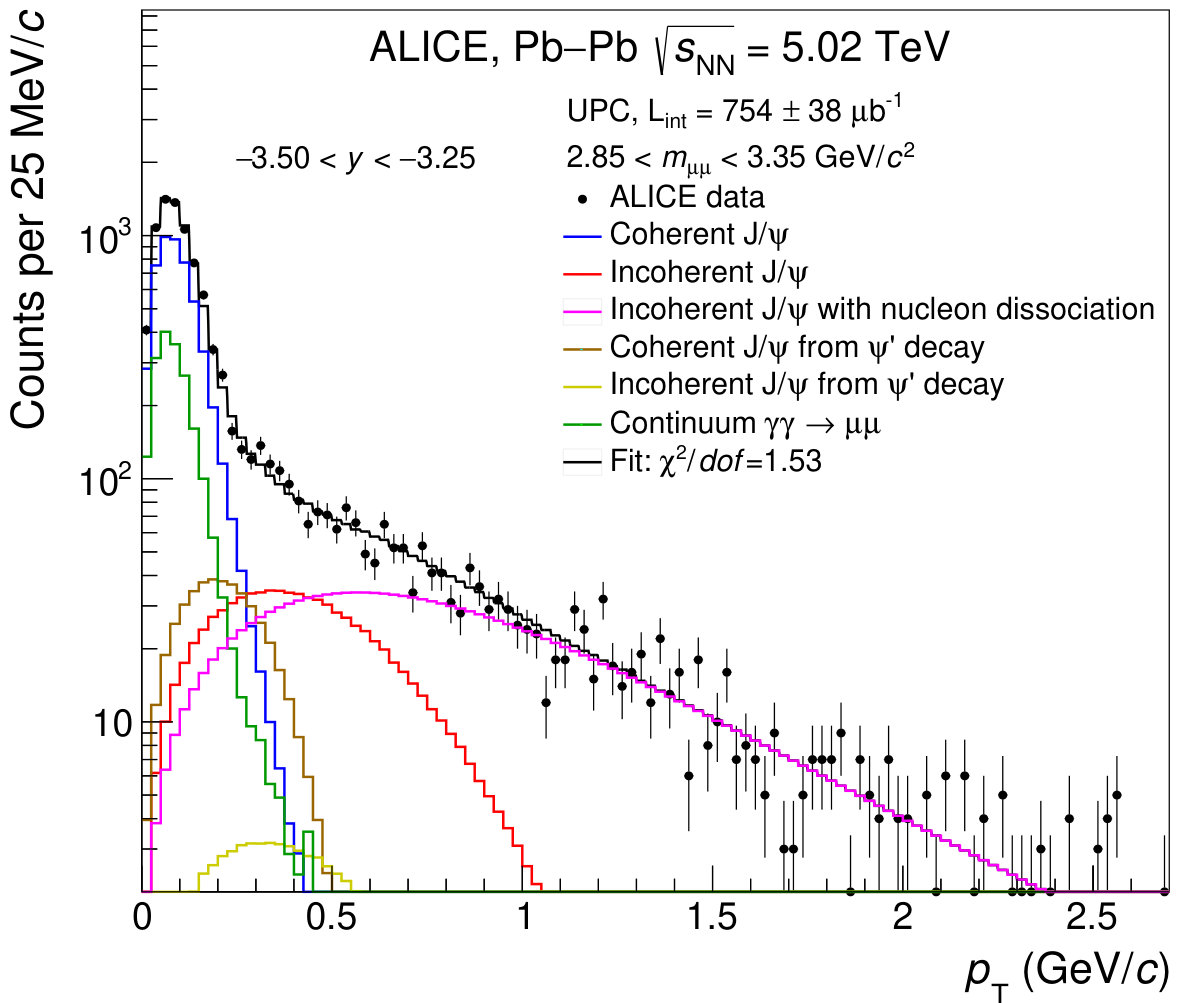

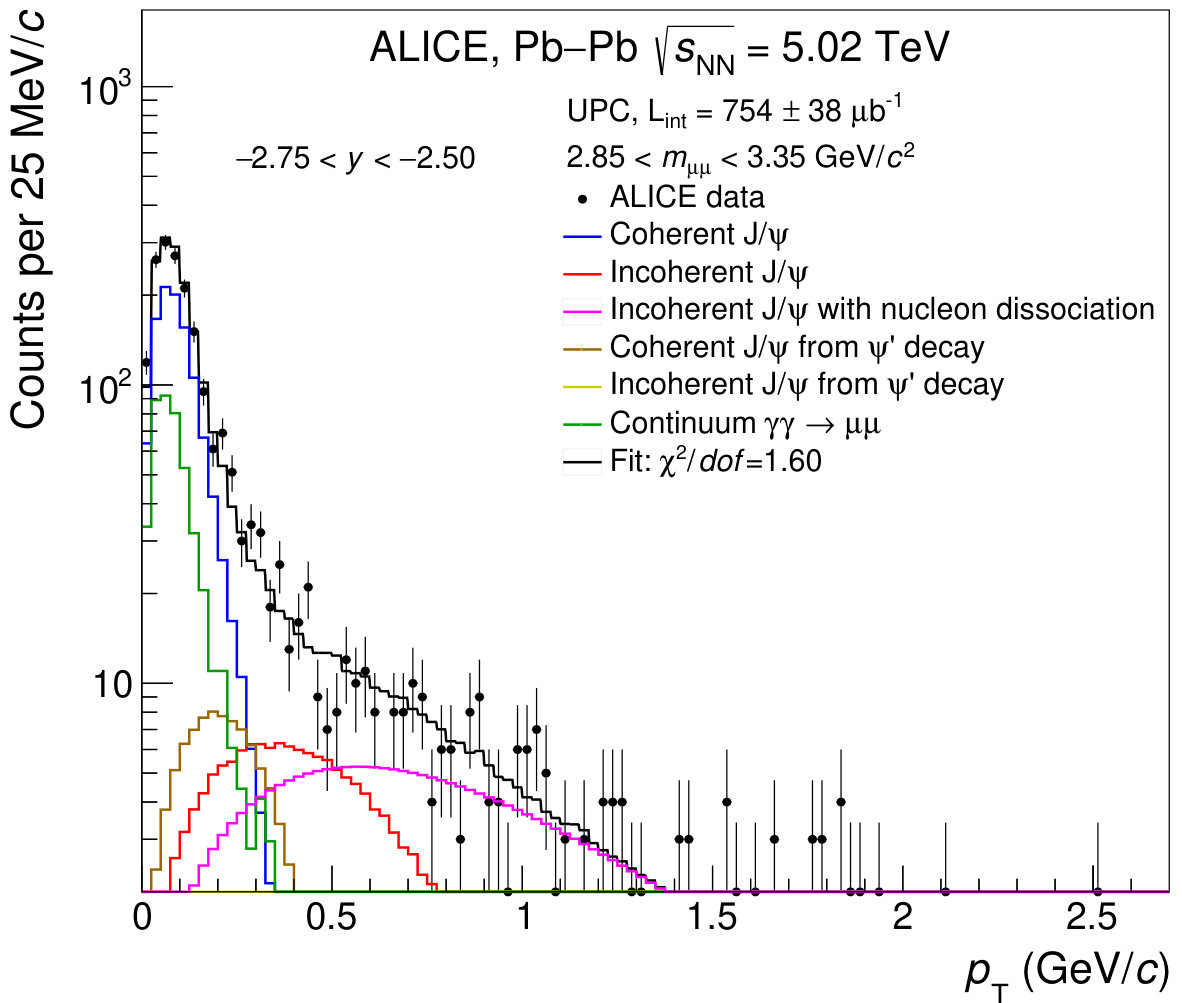

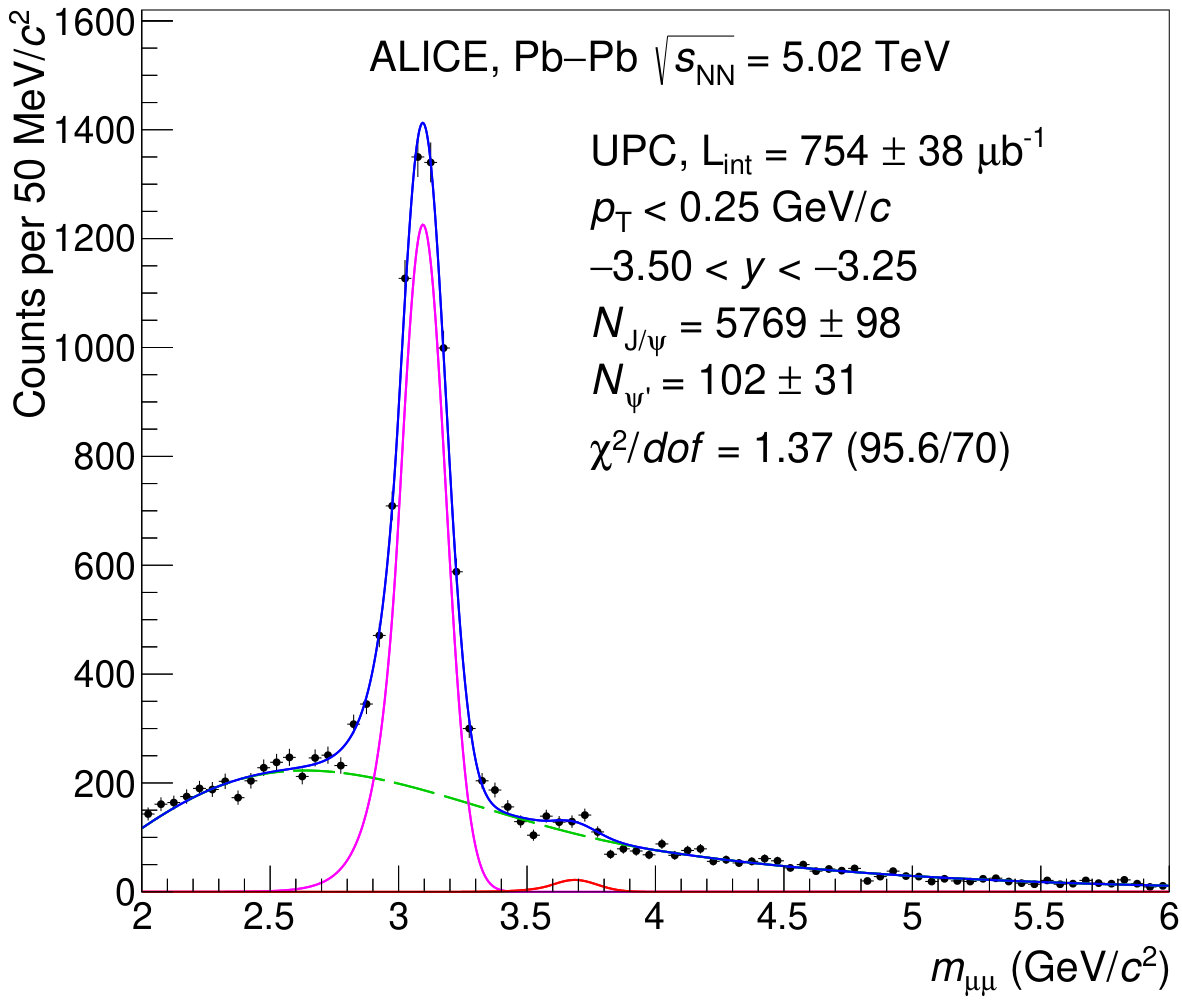

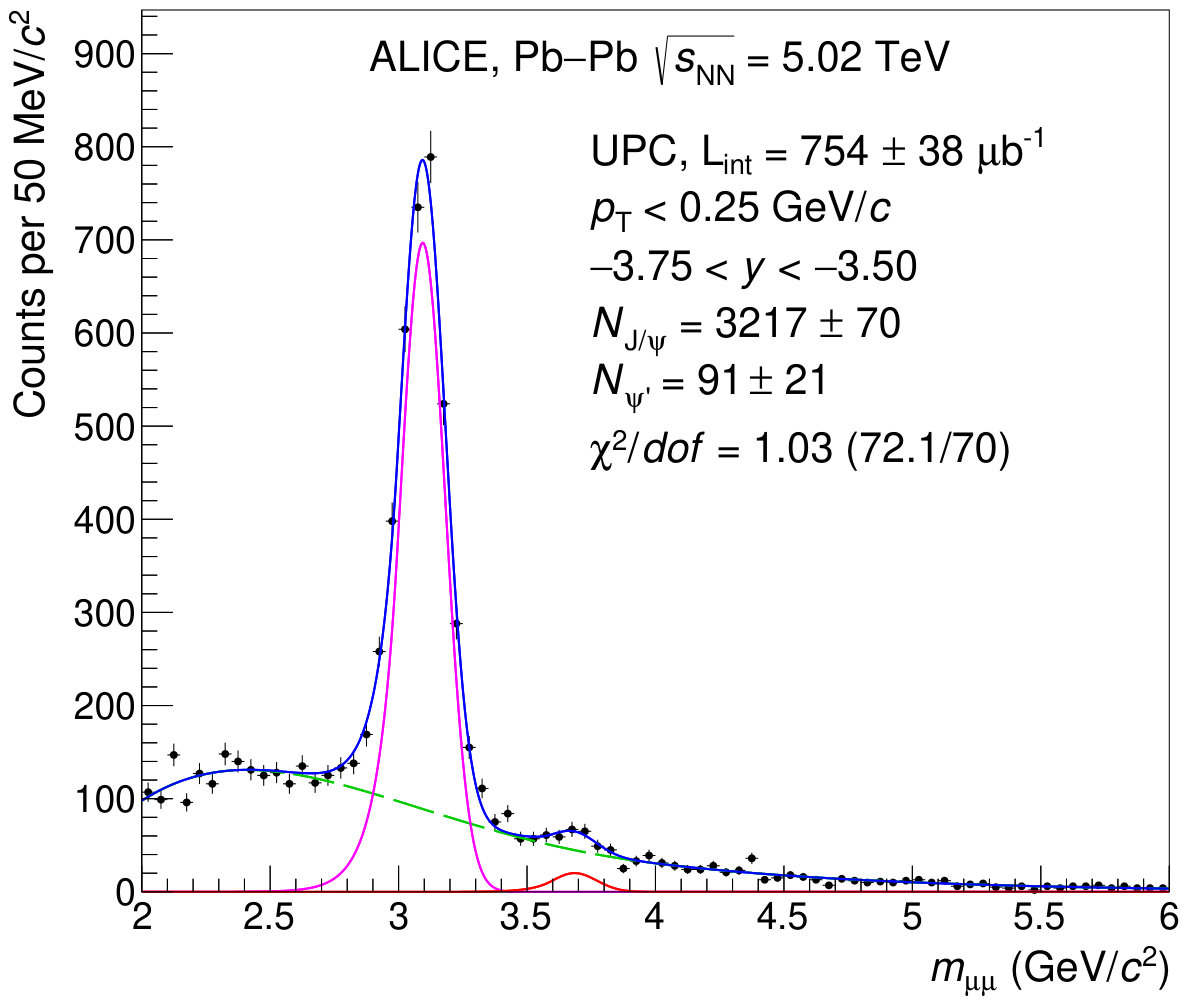

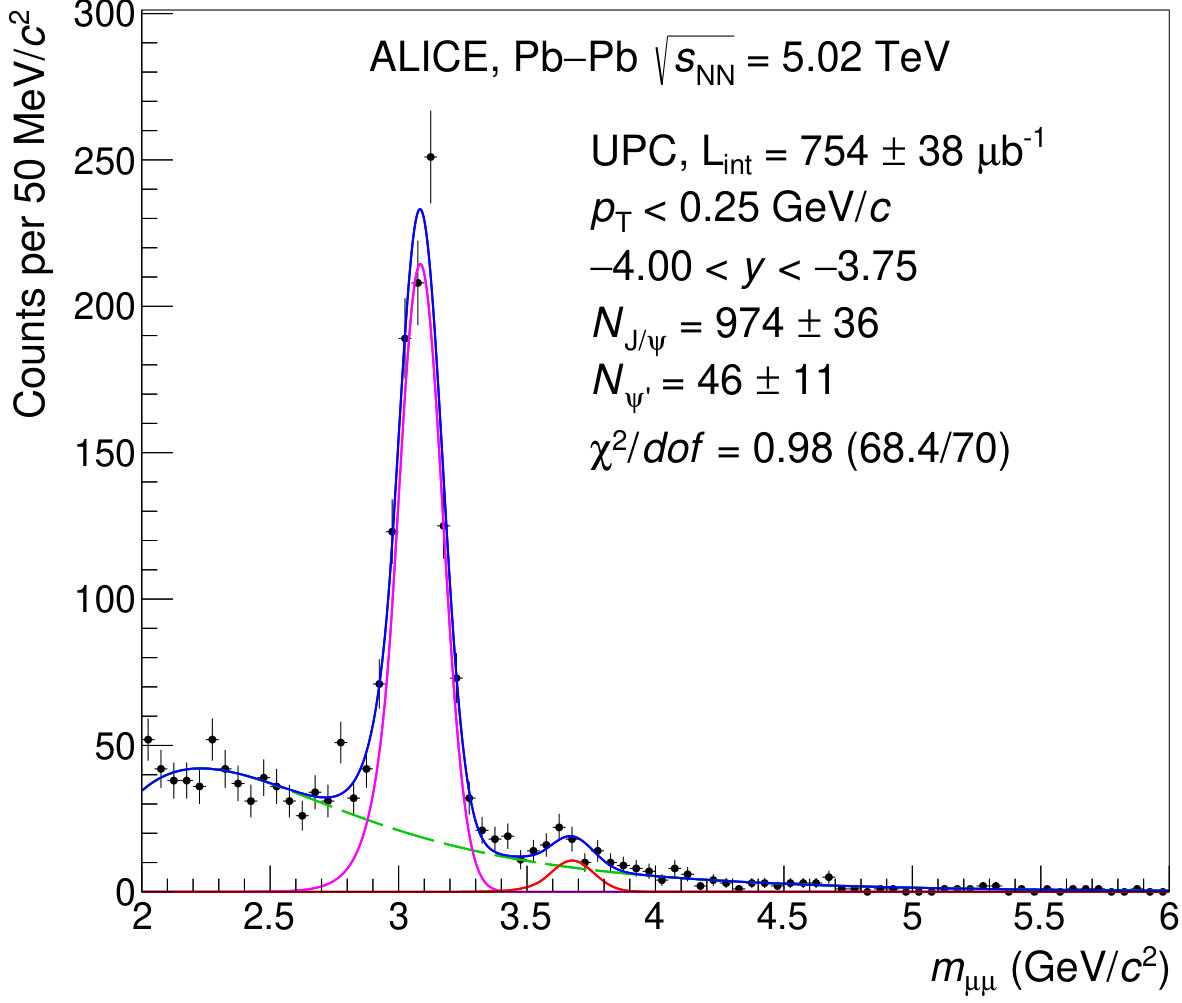

The raw inclusive ${\mathrm{J}}/\psi$ yields obtained from invariant mass fits contain contributions from the coherent and incoherent ${\mathrm{J}}/\psi$ photoproduction, which can be separated in the analysis of transverse momentum spectra. The $p_{\rm T}$ distributions for dimuons in the range $2.85<m_{\mu\mu}<3.35$ GeV/ $c^{2}$ are shown in Fig. 1, right, in the full dimuon rapidity range $-4.0<y<-2.5$ and in Fig. 3 in six rapidity subranges. These distributions were fitted with Monte Carlo templates produced using STARlight, corresponding to different production mechanisms: coherent ${\mathrm{J}}/\psi$ , incoherent ${\mathrm{J}}/\psi$ , feed-down ${\mathrm{J}}/\psi$ from coherent $\psi^{\prime}$ decays, feed-down ${\mathrm{J}}/\psi$ from incoherent $\psi^{\prime}$ decays and continuum dimuons from the $\gamma\gamma\to\mu^{+}\mu^{-}$ process. In order to describe the high- $p_{\rm T}$ tail, the incoherent ${\mathrm{J}}/\psi$ photoproduction accompanied by nucleon dissociation was also taken into account in the fits with the template based on the H1 parametrization of the dissociative ${\mathrm{J}}/\psi$ photoproduction [28] (denoted as dissociative ${\mathrm{J}}/\psi$ in the following):

[TABLE]

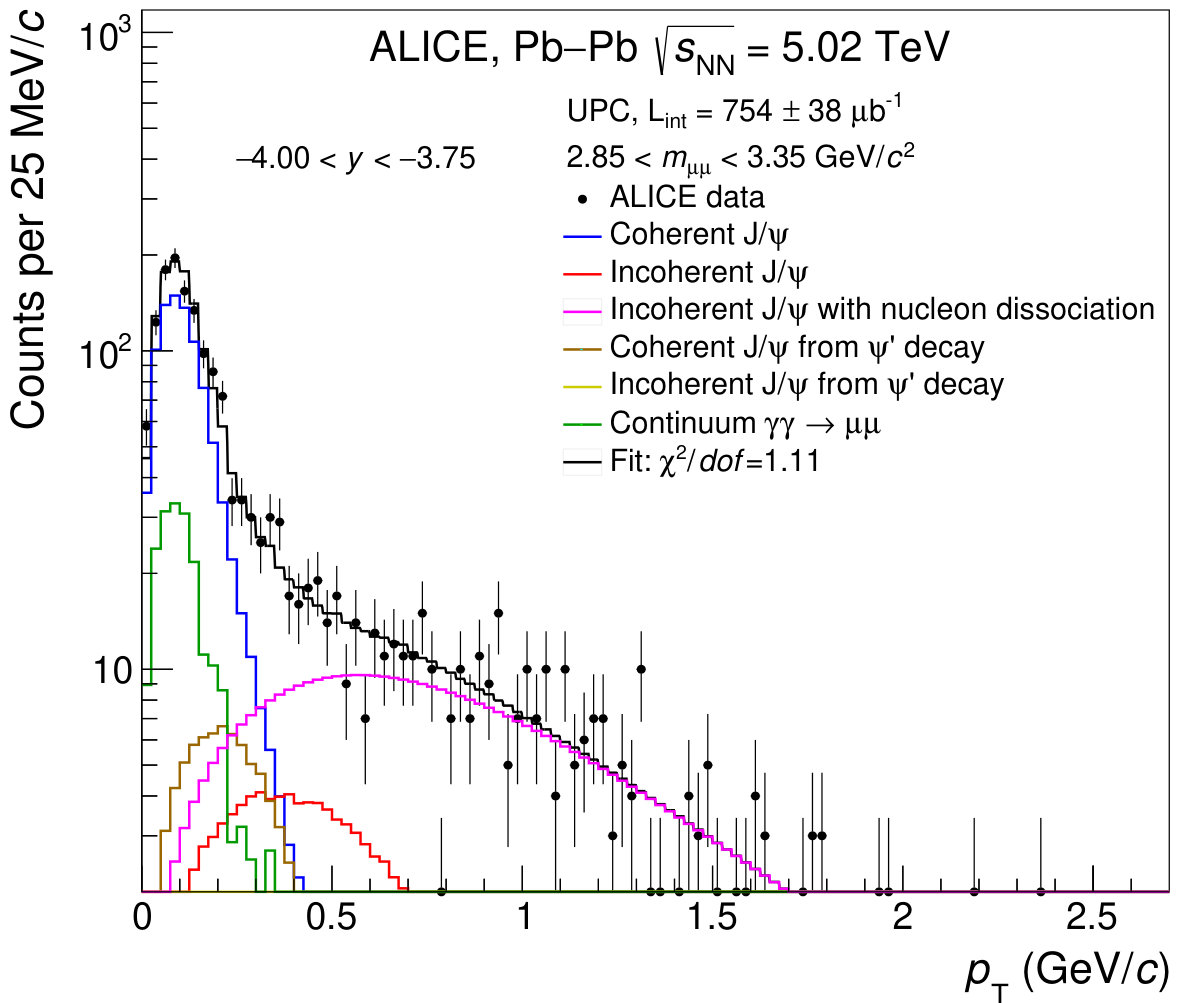

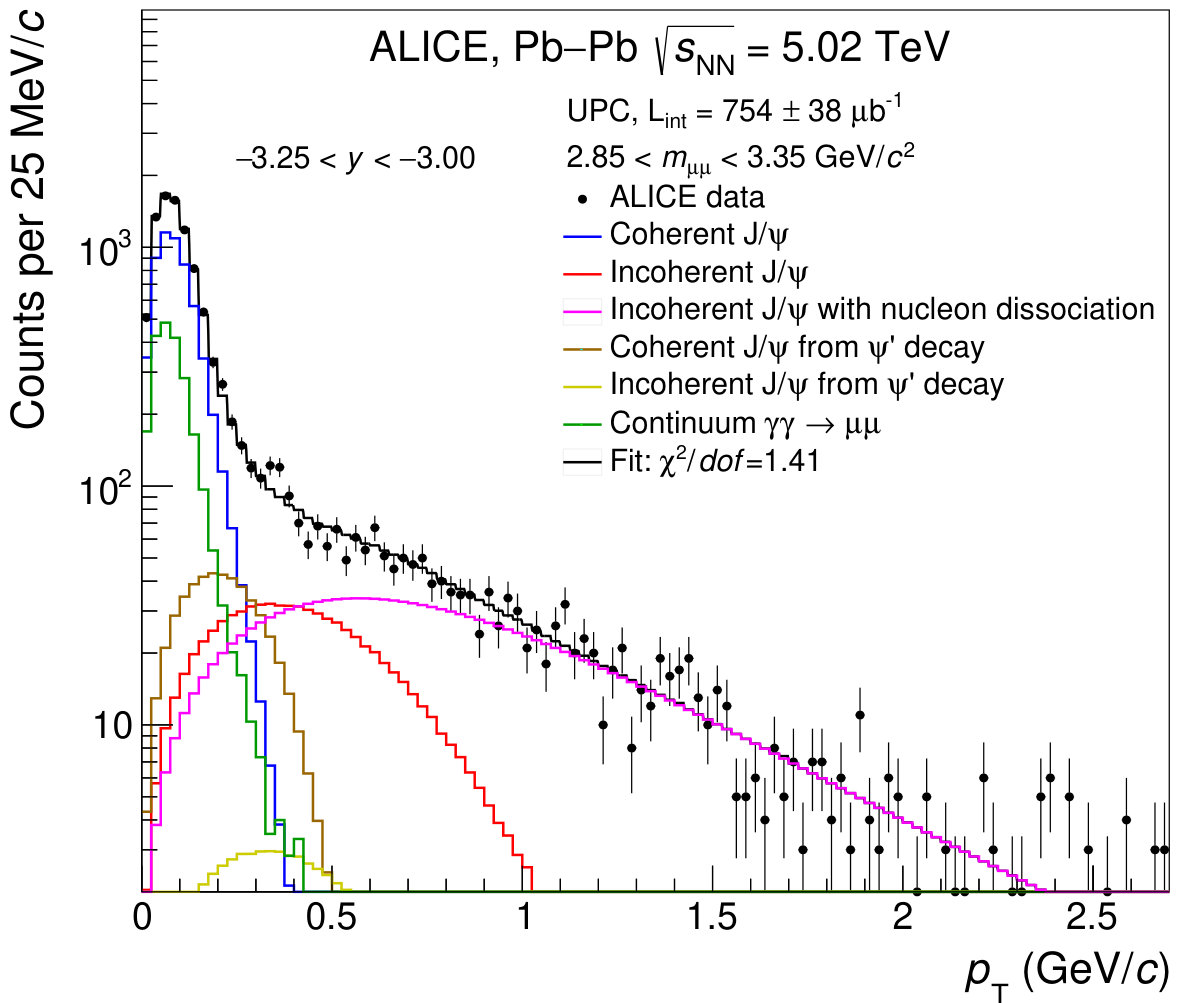

The H1 collaboration provided two sets of measurements corresponding to different photon–proton center-of-mass energy ranges: $25{\rm\ Ge\kern-1.00006ptV}<W_{\gamma{\rm p}}<80{\rm\ Ge\kern-1.00006ptV}$ (low-energy data set) and $40{\rm\ Ge\kern-1.00006ptV}<W_{\gamma{\rm p}}<110{\rm\ Ge\kern-1.00006ptV}$ (high-energy data set). The fit parameters $b_{\rm pd}=1.79\pm 0.12$ (GeV $/c)^{-2}$ and $n_{\rm pd}=3.58\pm 0.15$ from the high-energy data set were used by default, while the corresponding uncertainties and the low-energy values $b_{\rm pd}=1.6\pm 0.2$ (GeV $/c)^{-2}$ and $n_{\rm pd}=3.58({\rm fixed})$ were used for systematic checks.

The templates were fitted to the data leaving the normalization free for coherent ${\mathrm{J}}/\psi$ , incoherent ${\mathrm{J}}/\psi$ and dissociative ${\mathrm{J}}/\psi$ production. The normalization of the $\gamma\gamma\to\mu^{+}\mu^{-}$ spectrum was fixed to the one obtained from the invariant mass fits. The normalization of the coherent and incoherent feed-down ${\mathrm{J}}/\psi$ templates was constrained to the normalization of primary coherent and incoherent ${\mathrm{J}}/\psi$ templates, according to the feed-down fractions extracted from the measurement of raw inclusive ${\mathrm{J}}/\psi$ and $\psi^{\prime}$ yields, as described below. The extracted incoherent ${\mathrm{J}}/\psi$ fraction $f_{\rm I}=\frac{N({\rm incoh\ }{\mathrm{J}}/\psi)}{N({\rm coh\ }{\mathrm{J}}/\psi)}$ for $p_{\rm T}<0.25$ GeV/ $c$ ranges from $(4.9\pm 0.6)$ % to $(6.4\pm 0.8)$ % depending on the rapidity interval and is consistent with being constant within the uncertainties of the fits. The contribution of incoherent ${\mathrm{J}}/\psi$ with nucleon dissociation was also taken into account in this fraction.

4 Results and discussion

4.1 Ratio of coherent $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ cross sections

The obtained dimuon invariant mass spectra can be used to extract the ratio of coherent $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ cross sections $R=\frac{\sigma(\psi^{\prime})}{\sigma({\mathrm{J}}/\psi)}$ and the fraction of feed-down ${\mathrm{J}}/\psi$ from $\psi^{\prime}$ decays in the raw ${\mathrm{J}}/\psi$ yields. The fits to the invariant mass distributions for dimuons with pair $p_{\rm T}<0.25$ GeV/ $c$ in the full rapidity range $-4.0<y<-2.5$ result in the following ratio of the measured raw inclusive $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ yields:

[TABLE]

The raw $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ yields in this ratio contain contributions both from coherent and incoherent $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ photoproduction. However, according to the dimuon $p_{\rm T}$ fits, the fraction $f_{\rm I}$ of incoherent ${\mathrm{J}}/\psi$ in the raw ${\mathrm{J}}/\psi$ yields does not exceed 6% and, according to STARlight [23] and calculations within the color dipole approach [29], the fraction of incoherent $\psi^{\prime}$ in the raw $\psi^{\prime}$ yields is expected to be similar. The $R_{N}$ ratio can therefore be considered as a good estimate of the ratio of coherent ${\mathrm{J}}/\psi$ and $\psi^{\prime}$ yields, since the incoherent fractions of $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ yields largely cancel in the ratio. Besides, the raw ${\mathrm{J}}/\psi$ yields contain significant feed-down contribution coming from $\psi^{\prime}\to{\mathrm{J}}/\psi+{\rm anything}$ decays. Taking into account this feed-down contribution, one can express the $R_{N}$ ratio in terms of primary coherent $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ photoproduction cross sections $\sigma(\psi^{\prime})$ and $\sigma({\mathrm{J}}/\psi)$ integrated over all transverse momenta in the rapidity range $-4.0<y<-2.5$ :

[TABLE]

where $\epsilon({\mathrm{J}}/\psi)=12.0\%$ , $\epsilon(\psi^{\prime})=15.8\%$ and $\epsilon(\psi^{\prime}\to{\mathrm{J}}/\psi)=7.2\%$ are the efficiency corrections for primary coherent ${\mathrm{J}}/\psi$ , $\psi^{\prime}$ and feed-down ${\mathrm{J}}/\psi$ from coherent $\psi^{\prime}$ decays estimated with STARlight, while $BR({\mathrm{J}}/\psi\to\mu\mu)=(5.961\pm 0.033)\%$ , $BR(\psi^{\prime}\to\mu\mu)=(0.80\pm 0.06)\%$ , $BR(\psi^{\prime}\to{\mathrm{J}}/\psi+{\rm anything})=(61.4\pm 0.6)\%$ are the corresponding branching ratios [27]. Equation (3) can be used to express the ratio of primary coherent $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ photoproduction cross sections, $R$ , in terms of the measured yield ratio $R_{N}$ :

[TABLE]

Substituting the measured $R_{N}$ value from Eq. (2) and the corresponding efficiency values and branching ratios, one gets:

[TABLE]

where the uncertainties on branching ratios $BR({\mathrm{J}}/\psi\to\mu\mu)$ and $BR(\psi^{\prime}\to\mu\mu)$ were added in quadrature, while the main sources of systematic uncertainties are the variation of the fit range, of the signal and background shapes, and of the dimuon transverse momentum cut.

The measured ratio of the $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ cross sections is compatible with the exclusive photoproduction cross section ratio $R=0.166\pm 0.007({\rm stat.})\pm 0.008({\rm syst.})\pm 0.007({\rm BR})$ measured by the H1 collaboration in ep collisions [30] and with the ratio $R\approx 0.19$ measured by the LHCb collaboration in pp collisions [31]. The measured ratio also agrees with predictions based on the Leading Twist Approximation [32] for Pb–Pb UPC ranging from 0.13 to 0.18 depending on the model parameters. The $\psi^{\prime}$ -to- ${\mathrm{J}}/\psi$ coherent cross section ratio is expected to have a mild dependence on the collision energy and vector meson rapidity [32] (at most a few percent). Therefore the measured ratio can be directly compared to the unexpectedly large $\psi^{\prime}$ -to- ${\mathrm{J}}/\psi$ coherent cross section ratio $0.34^{+0.08}_{-0.07}$ , measured by ALICE in the $\psi^{\prime}\to l^{+}l^{-}$ and $\psi^{\prime}\to l^{+}l^{-}\pi^{+}\pi^{-}$ channels at central rapidity in Pb–Pb UPC at $\sqrt{s_{\mathrm{NN}}}~{}=~{}2.76$ TeV [14]. The ratio at central rapidity is more than a factor two larger but still stays compatible within 2.5 standard deviations with the forward rapidity measurement, owing mainly to the large uncertainties of the central rapidity measurement that will be improved by the analysis of the much larger UPC data sample collected with the ALICE central barrel in Run 2.

The measured cross section ratio $R$ was used to extract the fraction of feed-down ${\mathrm{J}}/\psi$ from $\psi^{\prime}$ relative to the primary ${\mathrm{J}}/\psi$ yield:

[TABLE]

The fraction $f_{\rm D}=8.5\%\pm 1.5\%$ was obtained for the full rapidity range without any $p_{\rm T}$ cut, where statistical, systematic and branching ratio uncertainties were added in quadrature. The fraction reduces to $f_{\rm D}=5.5\%\pm 1.0\%$ for $p_{\rm T}<0.25$ GeV/ $c$ because feed-down ${\mathrm{J}}/\psi$ are characterized by wider transverse momentum distributions compared to primary ${\mathrm{J}}/\psi$ .

4.2 Coherent ${\mathrm{J}}/\psi$ cross section

The coherent ${\mathrm{J}}/\psi$ differential cross section is given by:

[TABLE]

The raw ${\mathrm{J}}/\psi$ yield values, efficiencies, $f_{\rm I}$ and $f_{\rm D}$ fractions and coherent ${\mathrm{J}}/\psi$ cross sections with relevant statistical and systematic uncertainties are summarized in Table 1. The associated systematic uncertainties are briefly described in the following.

The first source of systematic uncertainty is related to the separation of peripheral and ultra-peripheral collisions. Coherent-like ${\mathrm{J}}/\psi$ photoproduction, observed in peripheral collisions of heavy ions [33], may contribute a few per cent to the raw ${\mathrm{J}}/\psi$ yields in case hadronic activity is not detected by the V0 and AD detectors. In order to reduce a possible contamination from ${\mathrm{J}}/\psi$ produced in peripheral hadronic events, the analysis was repeated with an additional requirement that there be no tracklets detected at mid-rapidity in the SPD (where a tracklet is a segment formed by at least one hit in each of the two detector layers), resulting in 12.6% to 15.0% lower ${\mathrm{J}}/\psi$ yields depending on the rapidity range. The veto inefficiency associated with this additional SPD requirement was estimated with unbiased triggers similar to what was done for the V0 and AD veto inefficiencies. The average fraction of events with at least one SPD tracklet was found to be $p_{\rm SPD}=9.4\pm 0.2\%$ . The yields corrected for the additional SPD veto inefficiency of 9.4% result in cross sections 3.6% to 6.0% lower than the ones obtained without the SPD veto. This cross section difference is taken into account in the systematic uncertainty.

The systematic uncertainties on the efficiencies obtained by variation of the generated rapidity shapes range from 0.1% to 0.8%, depending on the rapidity interval. The tracking efficiency uncertainty of 3% was estimated by comparing the single-muon tracking efficiency values obtained in MC and data, with a procedure that exploits the redundancy of the tracking-chamber information [34]. The systematic uncertainty on the dimuon trigger efficiency has two origins: the intrinsic efficiencies of the muon trigger chambers and the response of the trigger algorithm. The first one was determined by varying the trigger chamber efficiencies in the MC by an amount equal to the statistical uncertainty on their measurement with a data-driven method and amounts to 1.5%. The second one was estimated by comparing the trigger response function between data and MC, resulting in efficiency differences ranging from 5% to 6% depending on the rapidity interval. Finally, there is a 1% contribution related to the precision required to match track segments reconstructed in the tracking and trigger chambers.

Several tests were performed to estimate the uncertainty on the raw ${\mathrm{J}}/\psi$ signal extraction. These include the uncertainty on the ${\mathrm{J}}/\psi$ signal shape estimated by fitting the Crystal Ball slope parameters instead of fixing them from Monte-Carlo templates and by replacing the single-sided Crystal Ball with a double-sided Crystal Ball function. The variation of the continuum background shape due to the uncertainty on the trigger response function, variation of the invariant mass intervals by $\pm 0.1$ GeV/ $c^{2}$ and of the dimuon $p_{\rm T}$ selection by $\pm 0.05$ GeV/ $c$ were also considered. The systematic uncertainty on the raw ${\mathrm{J}}/\psi$ yield, estimated as root mean square of the results obtained from all tests, is about 2% with a slight rapidity dependence.

Several sources of systematic uncertainties are associated with different contributions to the $p_{\rm T}$ spectrum: the fraction of feed-down ${\mathrm{J}}/\psi$ , the shape and contribution of the $\gamma\gamma\to\mu^{+}\mu^{-}$ template, the shape for the coherent ${\mathrm{J}}/\psi$ and the shape for the incoherent ${\mathrm{J}}/\psi$ with nucleon dissociation. These contributions are shortly detailed in the following. First, the fraction $f_{\rm D}$ of feed-down ${\mathrm{J}}/\psi$ with $p_{\rm T}$ below 0.25 GeV/ $c$ was varied in the range from 4.4 to 6.4% corresponding to the total systematic uncertainty of the measured $\psi^{\prime}$ -to- ${\mathrm{J}}/\psi$ cross section ratio. Second, the shape of the $\gamma\gamma\to\mu^{+}\mu^{-}$ $p_{\rm T}$ template from STARlight does not include possible contributions from incoherent emission of photons, characterized by much wider transverse momentum distributions extending well above 1 GeV/ $c$ . In order to account for these contributions, the shape of the $\gamma\gamma\to\mu^{+}\mu^{-}$ $p_{\rm T}$ template was changed from STARlight to that obtained from the side-bands surrounding the ${\mathrm{J}}/\psi$ peak in the invariant mass spectra, resulting in 1% systematic uncertainty on the measured coherent cross section. Third, a 0.2% systematic uncertainty was determined via the variation of the $\gamma\gamma$ contribution according to the statistical uncertainty in the background term calculated from the invariant mass fits. A modification of the transverse momentum spectra for the coherent ${\mathrm{J}}/\psi$ according to the model [35], results in a 0.1% systematic uncertainty. Finally, the template shape for the incoherent ${\mathrm{J}}/\psi$ with nucleon dissociation was varied by exchanging the H1 high-energy run parameters for those determined from the low-energy run resulting in a 0.1% systematic uncertainty on the coherent cross section.

The systematic uncertainties are summarized in Table 2. The total systematic uncertainty is the quadratic sum of all the sources listed in the table. Luminosity normalization, veto efficiency and branching ratio uncertainties are fully correlated. The uncertainty on the signal extraction is considered as uncorrelated as a function of rapidity. Finally, all other sources of uncertainty are considered as partially correlated across different rapidity intervals.

4.3 Discussion

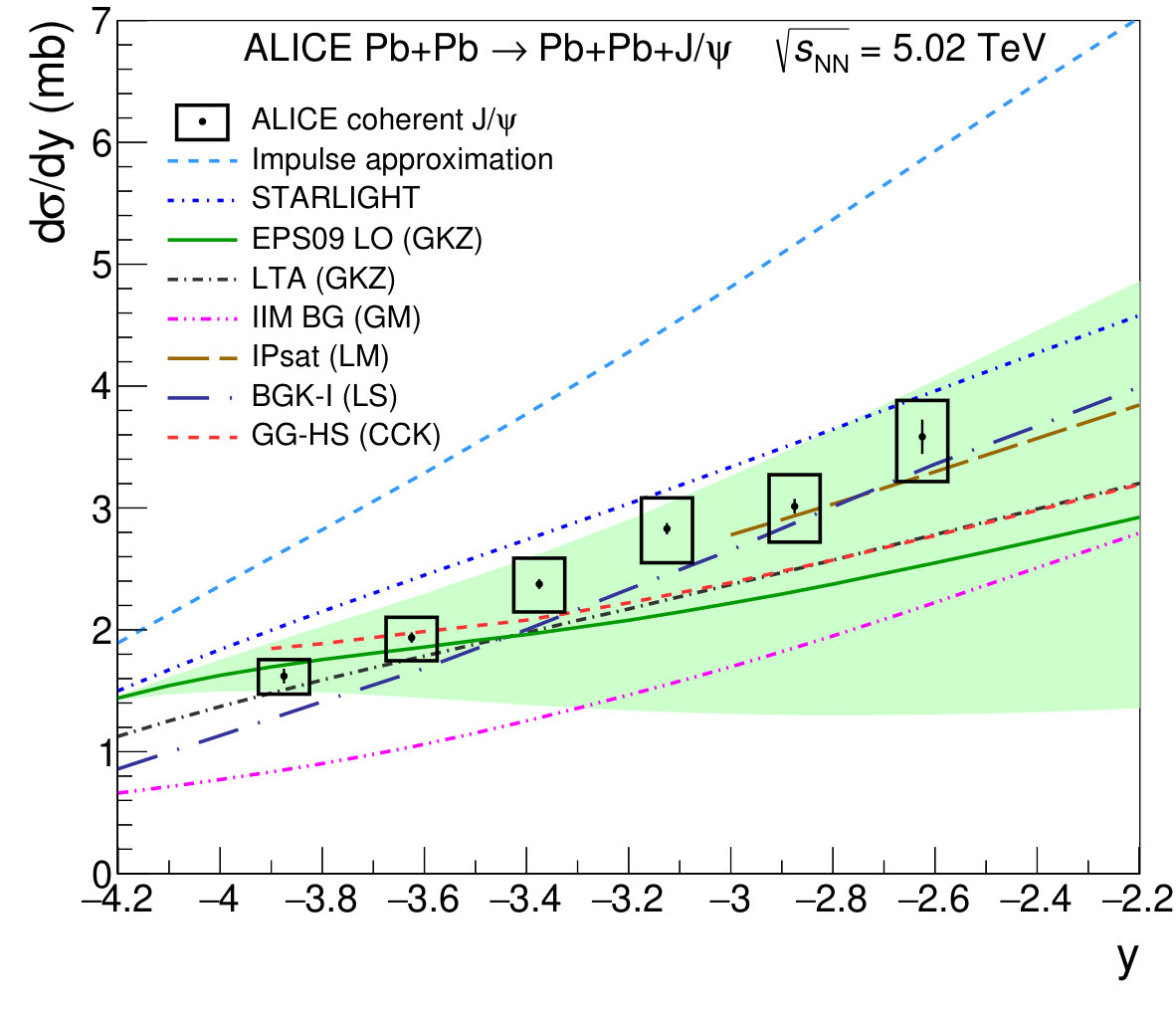

The measured differential cross section of coherent ${\mathrm{J}}/\psi$ photoproduction in the rapidity range $-4.0<y<-2.5$ is shown in Fig. 4 and compared with various models. The covered rapidity range corresponds to a Bjorken- $x$ of gluons either in the range $1.1\cdot 10^{-5}<x<5.1\cdot 10^{-5}$ or $0.7\cdot 10^{-2}<x<3.3\cdot 10^{-2}$ depending on which nucleus emitted the photon. According to models [32], the fraction of high Bjorken- $x$ gluons ( $x\sim 10^{-2}$ ) is dominant at forward rapidities and ranges from ${\sim}60\%$ at $y=-2.5$ to ${\sim}95\%$ at $y=-4$ .

The Impulse Approximation, taken from STARlight [16], is based on the data from the exclusive ${\mathrm{J}}/\psi$ photoproduction off protons and neglects all nuclear effects except for coherence. The square root of the ratio of experimental points and the Impulse Approximation cross section is about 0.8, reflecting the magnitude of the nuclear gluon shadowing factor at typical Bjorken- $x$ values around $10^{-2}$ , under the assumption that the contribution from low Bjorken- $x\sim 10^{-5}$ can be neglected [10].

STARlight is based on the Vector Meson Dominance model and a parametrization of the existing data on ${\mathrm{J}}/\psi$ photoproduction off protons [23]. A Glauber-like formalism is used to calculate the ${\mathrm{J}}/\psi$ photoproduction cross section in Pb–Pb UPC accounting for multiple interactions within the nucleus but not accounting for gluon shadowing corrections. The STARlight model overpredicts the data, indicating the importance of gluon shadowing effects, but the discrepancy is much lower than for the Impulse Approximation.

Guzey, Kryshen and Zhalov [32] provide two calculations (GKZ), one based on the EPS09 LO parametrization of the available nuclear shadowing data [42] and the other on the Leading Twist Approximation (LTA) of nuclear shadowing based on the combination of the Gribov-Glauber theory and the diffractive PDFs from HERA [43]. Both the LTA model and the EPS09 curve, corresponding to the EPS09 LO central set, underpredict the data but remain compatible with it at the most forward rapidities. The data tends to follow the upper limit of uncertainties of the EPS09 calculation corresponding to the upper bound of uncertainties on the gluon shadowing factor in the EPS09 LO framework.

Several theoretical groups provided predictions within the color dipole approach coupled to the Color Glass Condensate (CGC) formalism with different assumptions on the dipole-proton scattering amplitude. Predictions by Gonçalves, Machado et al. (GM) based on IIM and b-CGC models for the scattering amplitude underpredict the data [36, 37]. Predictions by Lappi and Mäntysaari (LM) based on the IPsat model [38, 39] give reasonable agreement though the range of predictions does not span all the experimental points. Recent predictions by Luszczak and Schafer (LS BGK-I) within the color-dipole formulation of the Glauber-Gribov theory [44] are in agreement with data at semi-forward rapidities, $|y|<3$ , but slightly underpredict the data at more forward rapidities.

Cepila, Contreras and Krelina (CCK) provided two predictions based on the extension of the energy-dependent hot-spot model [40] to the nuclear case: using the standard Glauber-Gribov formalism (GG-HS) and using geometric scaling (GS-HS) to obtain the nuclear saturation scale [41]. The GG-HS model agrees with data at most forward rapidities but underpredicts it at semi-forward rapidities. The GS-HS model (not shown) strongly underpredicts the data.

5 Conclusions

The first rapidity-differential measurement on the coherent photoproduction of ${\mathrm{J}}/\psi$ in the rapidity interval $-4<y<-2.5$ in ultra-peripheral Pb–Pb collisions at $\sqrt{s_{\mathrm{NN}}}~{}=~{}5.02$ TeV has been presented and compared with model calculations. The Impulse Approximation and STARlight models overpredict the data, indicating the importance of gluon shadowing effects. The model based on the central set of the EPS09 gluon shadowing parametrization, the Leading Twist Approximation, and the hot-spot model coupled to the Glauber-Gribov formalism underpredict the data but remain compatible with it at most forward rapidities. The majority of color dipole models underpredict the data.

The nuclear gluon shadowing factor of about 0.8 at Bjorken- $x$ values around $10^{-2}$ and a hard scale around the charm quark mass was estimated from the comparison of the measured coherent ${\mathrm{J}}/\psi$ cross section with the Impulse Approximation under the assumption that the contribution from low Bjorken $x\sim 10^{-5}$ can be neglected. Future studies on coherent heavy vector meson photoproduction accompanied by neutron emission may help to decouple low- $x$ and high- $x$ contributions and provide valuable constraints on poorly known gluon shadowing effects at Bjorken $x\sim 10^{-5}$ [45].

The ratio of the $\psi^{\prime}$ and ${\mathrm{J}}/\psi$ cross sections is in reasonable agreement both with the ratio of photoproduction cross sections off protons measured by the H1 and LHCb collaborations and with LTA predictions for Pb–Pb UPC.

Acknowledgements

The ALICE Collaboration would like to thank all its engineers and technicians for their invaluable contributions to the construction of the experiment and the CERN accelerator teams for the outstanding performance of the LHC complex. The ALICE Collaboration gratefully acknowledges the resources and support provided by all Grid centres and the Worldwide LHC Computing Grid (WLCG) collaboration. The ALICE Collaboration acknowledges the following funding agencies for their support in building and running the ALICE detector: A. I. Alikhanyan National Science Laboratory (Yerevan Physics Institute) Foundation (ANSL), State Committee of Science and World Federation of Scientists (WFS), Armenia; Austrian Academy of Sciences, Austrian Science Fund (FWF): [M 2467-N36] and Nationalstiftung für Forschung, Technologie und Entwicklung, Austria; Ministry of Communications and High Technologies, National Nuclear Research Center, Azerbaijan; Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), Universidade Federal do Rio Grande do Sul (UFRGS), Financiadora de Estudos e Projetos (Finep) and Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP), Brazil; Ministry of Science & Technology of China (MSTC), National Natural Science Foundation of China (NSFC) and Ministry of Education of China (MOEC) , China; Croatian Science Foundation and Ministry of Science and Education, Croatia; Centro de Aplicaciones Tecnológicas y Desarrollo Nuclear (CEADEN), Cubaenergía, Cuba; Ministry of Education, Youth and Sports of the Czech Republic, Czech Republic; The Danish Council for Independent Research — Natural Sciences, the Carlsberg Foundation and Danish National Research Foundation (DNRF), Denmark; Helsinki Institute of Physics (HIP), Finland; Commissariat à l’Energie Atomique (CEA), Institut National de Physique Nucléaire et de Physique des Particules (IN2P3) and Centre National de la Recherche Scientifique (CNRS) and Rlégion des Pays de la Loire, France; Bundesministerium für Bildung, Wissenschaft, Forschung und Technologie (BMBF) and GSI Helmholtzzentrum für Schwerionenforschung GmbH, Germany; General Secretariat for Research and Technology, Ministry of Education, Research and Religions, Greece; National Research, Development and Innovation Office, Hungary; Department of Atomic Energy Government of India (DAE), Department of Science and Technology, Government of India (DST), University Grants Commission, Government of India (UGC) and Council of Scientific and Industrial Research (CSIR), India; Indonesian Institute of Science, Indonesia; Centro Fermi - Museo Storico della Fisica e Centro Studi e Ricerche Enrico Fermi and Istituto Nazionale di Fisica Nucleare (INFN), Italy; Institute for Innovative Science and Technology , Nagasaki Institute of Applied Science (IIST), Japan Society for the Promotion of Science (JSPS) KAKENHI and Japanese Ministry of Education, Culture, Sports, Science and Technology (MEXT), Japan; Consejo Nacional de Ciencia (CONACYT) y Tecnología, through Fondo de Cooperación Internacional en Ciencia y Tecnología (FONCICYT) and Dirección General de Asuntos del Personal Academico (DGAPA), Mexico; Nederlandse Organisatie voor Wetenschappelijk Onderzoek (NWO), Netherlands; The Research Council of Norway, Norway; Commission on Science and Technology for Sustainable Development in the South (COMSATS), Pakistan; Pontificia Universidad Católica del Perú, Peru; Ministry of Science and Higher Education and National Science Centre, Poland; Korea Institute of Science and Technology Information and National Research Foundation of Korea (NRF), Republic of Korea; Ministry of Education and Scientific Research, Institute of Atomic Physics and Ministry of Research and Innovation and Institute of Atomic Physics, Romania; Joint Institute for Nuclear Research (JINR), Ministry of Education and Science of the Russian Federation, National Research Centre Kurchatov Institute, Russian Science Foundation and Russian Foundation for Basic Research, Russia; Ministry of Education, Science, Research and Sport of the Slovak Republic, Slovakia; National Research Foundation of South Africa, South Africa; Swedish Research Council (VR) and Knut & Alice Wallenberg Foundation (KAW), Sweden; European Organization for Nuclear Research, Switzerland; National Science and Technology Development Agency (NSDTA), Suranaree University of Technology (SUT) and Office of the Higher Education Commission under NRU project of Thailand, Thailand; Turkish Atomic Energy Agency (TAEK), Turkey; National Academy of Sciences of Ukraine, Ukraine; Science and Technology Facilities Council (STFC), United Kingdom; National Science Foundation of the United States of America (NSF) and United States Department of Energy, Office of Nuclear Physics (DOE NP), United States of America.
