Quasilinear approach of the cumulative whistler instability in fast solar winds: Constraints of electron temperature anisotropy

TL;DR

This paper develops an advanced quasilinear model to describe how whistler wave instabilities constrain electron temperature anisotropy in fast solar winds, aligning theoretical limits with observations.

Contribution

It introduces a comprehensive quasilinear approach to the cumulative whistler instability, accounting for electron drifts and anisotropies, improving upon simplified models.

Findings

Derived marginal stability conditions match observed quasi-stable states.

Instability saturation involves relaxation of temperature anisotropy and electron drifts.

Provides insights into electron behavior in fast solar wind conditions.

Abstract

Context. Solar outflows are a considerable source of free energy which accumulates in multiple forms like beaming (or drifting) components and/or temperature anisotropies. However, kinetic anisotropies of plasma particles do not grow indefinitely and particle-particle collisions are not efficient enough to explain the observed limits of these anisotropies. Instead, the self-generated wave instabilities can efficiently act to constrain kinetic anisotropies, but the existing approaches are simplified and do not provide satisfactory explanations. Thus, small deviations from isotropy shown by the electron temperature ($T$) in fast solar winds are not explained yet. Aims. This paper provides an advanced quasilinear description of the whistler instability driven by the anisotropic electrons in conditions typical for the fast solar winds. The enhanced whistler-like fluctuations may constrain the upper limits of temperature anisotropy $A \equiv T_\perp /T_\parallel > 1$, where $\perp, \parallel$ are defined with respect to the magnetic field direction. Methods. Studied are the self-generated whistler instabilities, cumulatively driven by the temperature anisotropy and the relative (counter)drift of the electron populations, e.g., core and halo electrons. Recent studies have shown that quasi-stable states are not bounded by the linear instability thresholds but an extended quasilinear approach is necessary to describe them in this case. Results. Marginal conditions of stability are obtained from a quasilinear theory of the cumulative whistler instability, and approach the quasi-stable states of electron populations reported by the observations.The instability saturation is determined by the relaxation of both the temperature anisotropy and the relative drift of electron populations.

Figures

Tables

Table 1. Table 1: Parameters for the halo and core electron populations

${\beta }_{\parallel h}\left(0\right)=0.4$, $W\left(k\right)=5\times {10}^{-6}$, $v_A=2\times {10}^{-4}c$
	Halo electrons ($h$)	Core electrons ($c$)
$n_a/n_0$	$\delta =$ 0.05	0.95
$T_{\parallel a}\left(0\right)/T_{\parallel c}\left(0\right)$	10.0	1.0
$m_p/m_a$	1836	1836
$T_{⟂a}\left(0\right)/T_{\parallel a}\left(0\right)$	4.0	1.0, 4.0
$u_a\left(0\right)$	$u_h=$ 0.25, 0.5	$u_c\left(0\right)=-\delta u_h\left(0\right)/\left(1-\delta \right)$

Table 2. Table 2: Fitting parameters in Eq.( 9 ) for u h = 0.0 subscript 𝑢 ℎ 0.0 u_{h}=0.0

	${\gamma }_m={10}^{-2}\left|{\Omega }_e\right|$		${\gamma }_m={10}^{-3}\left|{\Omega }_e\right|$
	Halo ($h$)	Core ($c$)	Halo ($h$)	Core ($c$)
$a$	0.29	0.4	0.08	0.11
$b$	0.45	0.45	0.54	0.54
$c$	0.0004	0.0007	$-{10}^{-5}$	$-{10}^{-5}$
$d$	1.0	1.0	1.0	1.0

Table 3. Table 3: Fitting parameters in Eq.( 9 ) for u h = 0.25 subscript 𝑢 ℎ 0.25 u_{h}=0.25

	${\gamma }_m={10}^{-2}\left|{\Omega }_e\right|$		${\gamma }_m={10}^{-3}\left|{\Omega }_e\right|$		${\gamma }_m={10}^{-4}\left|{\Omega }_e\right|$
	Halo ($h$)	Core ($c$)	Halo ($h$)	Core ($c$)	Halo ($h$)	Core ($c$)
$a$	0.28	0.39	0.12	0.17	0.06	0.09
$b$	0.53	0.53	0.48	0.48	0.54	0.55
$c$	$-{10}^{-5}$	$-{10}^{-5}$	${10}^{-4}$	${10}^{-4}$	${10}^{-4}$	$-{10}^{-4}$
$d$	1.0	1.0	1.0	1.0	1.0	1.0

Table 4. Table 4: Fitting parameters in Eq.( 9 ) for u h = 0.5 subscript 𝑢 ℎ 0.5 u_{h}=0.5

	${\gamma }_m={10}^{-2}\left|{\Omega }_e\right|$		${\gamma }_m={10}^{-3}\left|{\Omega }_e\right|$		${\gamma }_m={10}^{-4}\left|{\Omega }_e\right|$
	Halo ($h$)	Core ($c$)	Halo ($h$)	Core ($c$)	Halo ($h$)	Core ($c$)
$a$	0.41	0.53	0.16	0.21	0.09	0.12
$b$	0.4	0.40	0.47	0.478	0.52	0.527
$c$	0.00024	0.005	$-{10}^{-5}$	$-{10}^{-5}$	$-{10}^{-5}$	$-{10}^{-4}$
$d$	1.0	1.0	1.0	1.0	1.0	1.0

Equations

$$f_e\left(v_{\parallel },v_{\perp }\right)=\delta \text{leavevmode}{f}_h\left(v_{\parallel },v_{\perp }\right)+\left(1-\delta \right)\text{leavevmode}{f}_c\left(v_{\parallel },v_{\perp }\right).$$

$$f_a\left(v_{\parallel },v_{\perp }\right)=$$

$${\alpha }_{\perp \text{leavevmode}a}=\sqrt{\frac{2\text{leavevmode}{k}_B{T}_{\perp \text{leavevmode}a}}{m_e}}\text{leavevmode}\text{leavevmode}\text{and}\text{leavevmode}\text{leavevmode}{\alpha }_{\parallel \text{leavevmode}a}=\sqrt{\frac{2\text{leavevmode}{k}_B{T}_{\parallel \text{leavevmode}a}}{m_e}}.$$

$${\tilde{k}}^2=$$

$$+\delta \text{leavevmode}\left[{\Lambda }_h+\frac{({\Lambda }_h+1)\text{leavevmode}(\tilde{\omega }-\tilde{k}\text{leavevmode}{u}_h)-{\Lambda }_h}{\tilde{k}\sqrt{{\beta }_h}}{Z}_b\left(\frac{\tilde{\omega }-1-\tilde{k}\text{leavevmode}{u}_h}{\tilde{k}\sqrt{{\beta }_h}}\right)\right]$$

$$+\frac{\tilde{\omega }}{\tilde{k}\text{leavevmode}\sqrt{\mu \text{leavevmode}{\beta }_p}}{Z}_p\left(\frac{\mu \text{leavevmode}\tilde{\omega }+1}{\tilde{k}\sqrt{\mu \text{leavevmode}{\beta }_p}}\right),$$

$$Z_a\left({\xi }_a^{\pm }\right)=\frac{1}{\sqrt{\pi }}{\int }_{-\infty }^{\infty }\frac{\exp \left(-x^2\right)}{x-{\xi }_a^{\pm }}dt,\Im \left({\xi }_a^{\pm }\right)>0,$$

$$\frac{\partial f_a}{\partial t}$$

$$\times \text{leavevmode}\frac{v_{\perp }^2\text{leavevmode}\delta B^2(k,\omega )}{\omega -k{v}_{\parallel }-{\Omega }_a}\left[\left(\omega -k{v}_{\parallel }\right)\frac{\partial }{v_{\perp }\text{leavevmode}\partial v_{\perp }}+k\frac{\partial }{\partial v_{\parallel }}\right]f_a$$

$$\frac{\partial \text{leavevmode}\delta B^2(k)}{\partial t}=2{\gamma }_k\delta B^2(k),$$

$$\frac{d{T}_{\perp a}}{dt}$$

$$\frac{d{T}_{\parallel \text{leavevmode}a}}{dt}$$

$$\frac{d{U}_a}{dt}$$

$$A_{h,\text{leavevmode}c}=1+\frac{a}{{\tilde{\beta }}_{h,\text{leavevmode}c}^{\text{leavevmode}b}}\left(1+\frac{c}{{\tilde{\beta }}_{h,\text{leavevmode}c}^{\text{leavevmode}d}}\right).$$

Full text

*Aims. *This paper provides an advanced quasilinear description of the whistler instability driven by the anisotropic electrons in conditions typical for the fast solar winds. The enhanced whistler-like fluctuations may constrain the upper limits of temperature anisotropy $A\equiv T_{\perp}/T_{\parallel}>1$, where $\perp,\parallel$ are defined with respect to the magnetic field direction.

*Methods. *Studied are the self-generated whistler instabilities, cumulatively driven by the temperature anisotropy and the relative (counter)drift of the electron populations, e.g., core and halo electrons. Recent studies have shown that quasi-stable states are not bounded by the linear instability thresholds but an extended quasilinear approach is necessary to describe them in this case.

*Results. *Marginal conditions of stability are obtained from a quasilinear theory of the cumulative whistler instability, and approach the quasi-stable states of electron populations reported by the observations. The instability saturation is determined by the relaxation of both the temperature anisotropy and the relative drift of electron populations.

1 Introduction

The solar wind expansion is governed by the mechanisms which trigger the coronal plasma particles escape, as well as the ones self-regulating the more violent outflows, like coronal mass ejections or the fast winds. One of the still intriguing questions contrasting the main features of the fast and slow winds is the electron temperature anisotropy. Deviations from isotropy shown by the electron temperature in the fast wind ($V_{SW}>500$ km s*-1*) are much lower than those measured in the slow winds (Štverák et al., 2008), suggesting the existence of an additional constraining factor. In the slow winds ($V_{SW}<500$ km/s) the relative drift between thermal (core) and suprathermal (halo) electrons is negligibly small and it was relatively straightforward to show that large deviations from isotropy are mainly constrained by the self-generated temperature-anisotropy instabilities (Štverák et al., 2008; Lazar et al., 2017a; Shaaban et al., 2019a). In this case whistler modes are destabilized by a temperature anisotropy $A\equiv T_{\perp}/T_{\parallel}>1$, where $\perp$ and $\parallel$ denote directions with respect to the local magnetic field. The situation is however different in the fast winds, where the core-halo drift increases mainly due to an enhancement of the electron strahl or heat-flux population. These (counter-)drifting components can be at the origin of the so-called heat-flux instabilities (Gary, 1985; Saeed et al., 2017; Shaaban et al., 2018a, b; Tong et al., 2019), which usually are made responsible for the strahl isotropization and loss of intensity with solar wind expansion and increasing distance from the Sun (Maksimovic et al., 2005; Vocks et al., 2005; Pagel et al., 2007). If the self-generated instabilities play a role in the limitation of temperature anisotropy in this case, the electron strahl and heat-flux instabilities must have a contribution as well.

Heat-flux instabilities can manifest either as a whistler unstable mode, when the relative drift is small, or as a firehose instability driven by more energetic beams with a relative drift exceeding thermal velocity of beaming electrons (Gary, 1985; Shaaban et al., 2018a, b). Solar wind conditions are in general propitious to whistler heat-flux (WHF) instability (Viñas et al., 2010; Bale et al., 2013; Shaaban et al., 2018a; Tong et al., 2019), and recent studies have unveiled various regimes triggered by the interplay with temperature anisotropy of electrons (Shaaban et al., 2018b). Thus, the unstable whistlers are inhibited by increasing the relative drift (or beaming) velocity, but are stimulated by a temperature anisotropy $A\equiv T_{\perp}/T_{\parallel}>1$ (with $\perp$ and $\parallel$ denoting directions with respect to the local magnetic field lines) (Shaaban et al., 2018b). In this paper we investigate the whistler anisotropy-driven instability for contrasting conditions in the slow and fast solar winds. As already mentioned, in the slow winds the relative drifts between electron populations are small and predictions made for non-drifting components are found satisfactory (Štverák et al., 2008; Lazar et al., 2017a; Shaaban et al., 2019a). On the other hand, in fast winds two sources of free energy may co-exist and interplay, and in this case the instability is cumulatively driven by temperature anisotropy under the influence of the relative core-halo drift. In turn, the enhanced fluctuations are expected to act and constrain the temperature anisotropy and eventually explain boundaries reported by the observations in the fast winds.

However, if the instability results from the interplay of two sources of free energy threshold conditions provided by a linear approach may have a reduced relevance. Such a critical feature is suggested by recent quasilinear (QL) studies of the WHF instability driven by the relative drift of the core and halo electrons (Shaaban et al., 2019b), which show the instability saturation emerging from a concurrent effect of the induced anisotropies, i.e., $A_{c}>1$ for the core and $A<1$ for the beam (or halo), through heating and cooling processes, and an additional minor relaxation of drift velocities. It becomes then clear that linear theory cannot describe such an energy transfer between electron populations and cannot characterize the quasi-stable states reached after relaxation (Shaaban et al., 2018a, 2019b). Here we present the results of an extended QL analysis of the cumulative whistler instability, providing valuable insights about the instability saturation via a complex relaxation of the relative drift between core and halo electrons and their temperature anisotropy.

The present manuscript is structured as follows: The electron velocity distribution function (eVDF) is introduced in section 2 inspired by the observations in the slow and fast solar winds, which show two counter-drifting anisotropic core and halo electron populations. In section 3 we present in brief the QL approach used to describe a cumulative whistler anisotropy-driven instability in the solar wind conditions. Relevant numerical solutions are discussed in Section 4, showing the influence of initial conditions (e.g., temperature anisotropy and (counter-)drifting velocities), on the subsequent evolutions of both the core and halo parameters (e.g., plasma betas, drift velocities and the associated electromagnetic fluctuations). Finally, the new results from our QL analysis are compared with the observational upper limits of electron temperature anisotropies, for both the core and halo populations and both the slow and fast wind conditions. The results of this work are summarized in Section 5.

2 Solar wind electrons

In the solar wind the electron velocity distribution functions (eVDF) are well reproduced by a core-halo model (Maksimovic et al., 2005; Štverák et al., 2008; Pierrard et al., 2016; Lazar et al., 2017b; Tong et al., 2019)

[TABLE]

where $\delta=n_{h}/n_{0}$, $1-\delta=n_{c}/n_{0}$ are the halo and core relative densities, respectively, and $n_{0}\equiv n_{e}$ is the total number density of electrons. A relative core-halo drift becomes more apparent during the fast winds ($V_{SW}>500$ km s*-1*), such that, with respect to their center of mass the core can be described by a drifting bi-Maxwellian, while the halo by another counter-drifting bi-Maxwellian or bi-kappa distribution (Maksimovic et al., 2005; Štverák et al., 2008). In order to keep the analysis transparent (away from suprathermal effects) here we assume both the core (subscript $a=c$) and halo ($a=h$) populations well described by drifting bi-Maxwellians (Saeed et al., 2017; Tong et al., 2018; Shaaban et al., 2018b)

[TABLE]

with a drifting velocity $U_{a}$ (along the background magnetic field) in the frame of mass-center, e.g., fixed to protons ($a=p$), which are assumed non-drifiting Maxwellian ($U_{p}=0$), and $\alpha_{\parallel,\perp,a}(t)$ related to the components of (kinetic) temperature (which may vary in time, $t$)

[TABLE]

The net current is preserved zero by restricting to $n_{c}\leavevmode\nobreak\ U_{c}+\leavevmode\nobreak\ n_{h}\leavevmode\nobreak\ U_{h}=\leavevmode\nobreak\ 0$ in a quasi-neutral electron-proton plasma with $n_{e}\approx n_{p}$. In the slow wind conditions ($V_{SW}<500$ km s*-1*) the relative drifts are small and can be neglected, i.e., $U_{a}=0$ .

In the present analysis plasma parameterization is based on observational data provided in the last decades by various missions, e.g., Ulysses, Helios 1, Cluster II and Wind (Maksimovic et al., 2005; Štverák et al., 2008; Pulupa et al., 2014; Pierrard et al., 2016; Tong et al., 2018). In the slow wind conditions ($V_{SW}<500$ km s*-1*), $U_{a}\simeq 0$ and the observed quasi-stable states and their temperature anisotropy $A=T_{\perp}/T_{\parallel}>1$ are well constrained by the self-generated non-drifting whistler instability (Štverák et al., 2008; Lazar et al., 2018a). On the other hand, for the fast wind conditions ($V_{SW}>500$ km s*-1*) the limits of temperature anisotropy $A=T_{\perp}/T_{\parallel}>1$, for both the core and halo populations, are constrained to lower limits, much below the existing predictions for non-drifting models (Štverák et al., 2008).

In-situ measurements also reveal a cooler electron core ($T_{c}<T_{h}$), but more dense than halo population, with an average number density $n_{c}=0.95\leavevmode\nobreak\ n_{0}$ (Maksimovic et al., 2005; Štverák et al., 2008; Pierrard et al., 2016). Both populations may display comparable temperature anisotropies, i.e., $A_{c}\sim A_{h}$, which trigger different instabilities such as the whistler instability ignited by $T_{\perp}>T_{\parallel}$ or firehose instabilities driven by $T_{\parallel}>T_{\perp}$ (Pierrard et al., 2016; Lazar et al., 2018a). Recent reports using Wind data suggest that the core drift velocity is comparable to, or larger than the Alfvén speed $|U_{c}^{w}|/v_{A}\leqslant 6$ (implying $|u_{c}^{w}|=\mu^{-1/2}|U_{c}^{w}|/v_{A}\leqslant\leavevmode\nobreak\ 0.13$ at electron scales, where $\mu=\leavevmode\nobreak\ m_{p}/m_{e}$ is the proton–electron mass ratio) (Pulupa et al., 2014; Tong et al., 2018). As mentioned in the Introduction, the core-halo relative drift velocity can be source of beaming instabilities, such as, whistler heat-flux and firehose-like instabilities (Gary, 1985; Saeed et al., 2017; Shaaban et al., 2018a, b; Tong et al., 2019). Values adopted here for the relative drift velocities are sufficiently small, e.g., $u_{c}=0.013\ll u_{c}^{w}$, in order to guarantee a whistler unstable regime (with a major stimulating effect of the heat-flux, see Shaaban et al. (2018b)) and compare our results with the observations showing the limits of temperature anisotropy $A=T_{\perp}/T_{\parallel}>1$ reported in Štverák et al. (2008). To be consistent with our model in Eq. (2) we select only the events associated with thermalized halo components, i.e., described by a $\kappa$-distribution with large enough $\kappa>6$. Plasma parameters (dimensionless) adopted as initial conditions in our present analysis are tabulated in Table 1, unless otherwise specified.

3 Quasilinear Theory

In a collisionless and homogeneous electron-proton plasma the linear (instantaneous) dispersion relation describing whistler modes read (Shaaban et al., 2018b)

[TABLE]

where $\tilde{k}=kc/\omega_{p,e}$ is the normalized wave-number $k$, $c$ is the speed of light, $\omega_{p,e}=\sqrt{4\pi n_{0}e^{2}/m_{e}}$ is the plasma frequency of electrons, $\tilde{\omega}=\omega/|\Omega_{e}|$ is the normalized wave frequency, $\Omega_{e}$ is the non-relativistic gyro-frequency of electrons, $\Lambda_{a}=\leavevmode\nobreak\ A_{a}-1$, $\beta_{\parallel,\perp,a}=\leavevmode\nobreak\ 8\pi n_{0}k_{B}T_{\parallel\perp,a}/B_{0}^{2}$ are the plasma beta parameters for protons (subscript ”$a=p$”), electron core (subscript ”$a=c$”), and electron halo (subscript ”$a=h$”) populations, $u_{a}=\mu^{-1/2}\leavevmode\nobreak\ U_{a}/v_{A}$ are normalized drifting velocities, $v_{A}=\sqrt{B_{0}^{2}/4\pi n_{p}m_{p}}$ is the Alfvén speed, and

[TABLE]

is the plasma dispersion function (Fried & Conte, 1961).

Beyond the linear theory, we solve quasilinear (QL) equations for both particles and electromagnetic waves. For transverse modes propagating parallel to the magnetic field, the particle kinetic equation for electrons in the diffusion approximation is given by (Seough & Yoon, 2012; Shaaban et al., 2019b)

[TABLE]

where $\delta B^{2}(k)$ is the energy density of the fluctuations described by the wave kinetic equation

[TABLE]

and $\gamma_{k}$ is the instability growth rate calculated from Eq. (3). Dynamical kinetic equations for the velocity moments of the distribution function, such as temperature components $T_{\perp,\parallel\leavevmode\nobreak\ a}$ of core ($a=c$) and halo ($a=h$) and their drift velocities $U_{a}$, are given by

[TABLE]

Detailed derivations of Eqs.(8) can be found in Seough & Yoon (2012); Yoon et al. (2012); Sarfraz et al. (2016); Lazar et al. (2018b); Shaaban et al. (2019a, b).

4 Cumulative whistler instability

In this section we examine the whistler instability (WI) cumulatively driven by anisotropic temperature ($A_{a}>1$) and (counter-)drifting motion of the core and halo electrons. For electrons with anisotropic temperature $A_{e}>1$ and no drifting components, both theory and simulations predict the excitation of parallel whistlers that rapidly consumes most of the free energy before the electron mirror instability can grow with a considerable growth rate (Gary & Karimabadi, 2006; Ahmadi et al., 2016). In turn, the electron anisotropy is bounded by whistler instability that scatters electrons and imposes a $\beta_{\parallel}$-dependent upper bound on the instability thresholds (Gary & Karimabadi, 2006), which shapes the anisotropy limits reported by the observations in the slow wind (Štverák et al., 2008; Adrian et al., 2016). Motivated by these premises, and by the assumption of small drifts, which inhibit mirror modes but may stimulate whistlers (Shaaban et al., 2018b), in the present study we analyze only the whistler modes propagating parallel to the magnetic field. Remember that a whistler heat-flux instability (WHFI) can be excited only for a modest drift velocity, lower than thermal speed, i.e. $u_{h}<v_{res}$ (Gary, 1985; Shaaban et al., 2018a). Both WI and WHFI have the same dispersive characteristics, being triggered by the resonant halo electrons and exhibiting maximum growth rates for parallel propagation (Gary & Karimabadi, 2006; Shaaban et al., 2018b). Linear properties of these two distinct regimes have recently been contrasted and discussed in detail in Shaaban et al. (2018b), showing that all dispersive features are markedly altered by the interplay of electron anisotropies, namely their temperature anisotropy and drifting velocities. In this section we present the results from an extended QL analysis able to characterize the long-run time evolution of the enhanced fluctuations, including their saturation and back reaction on both the core and halo populations.

4.1 Quasilinear results

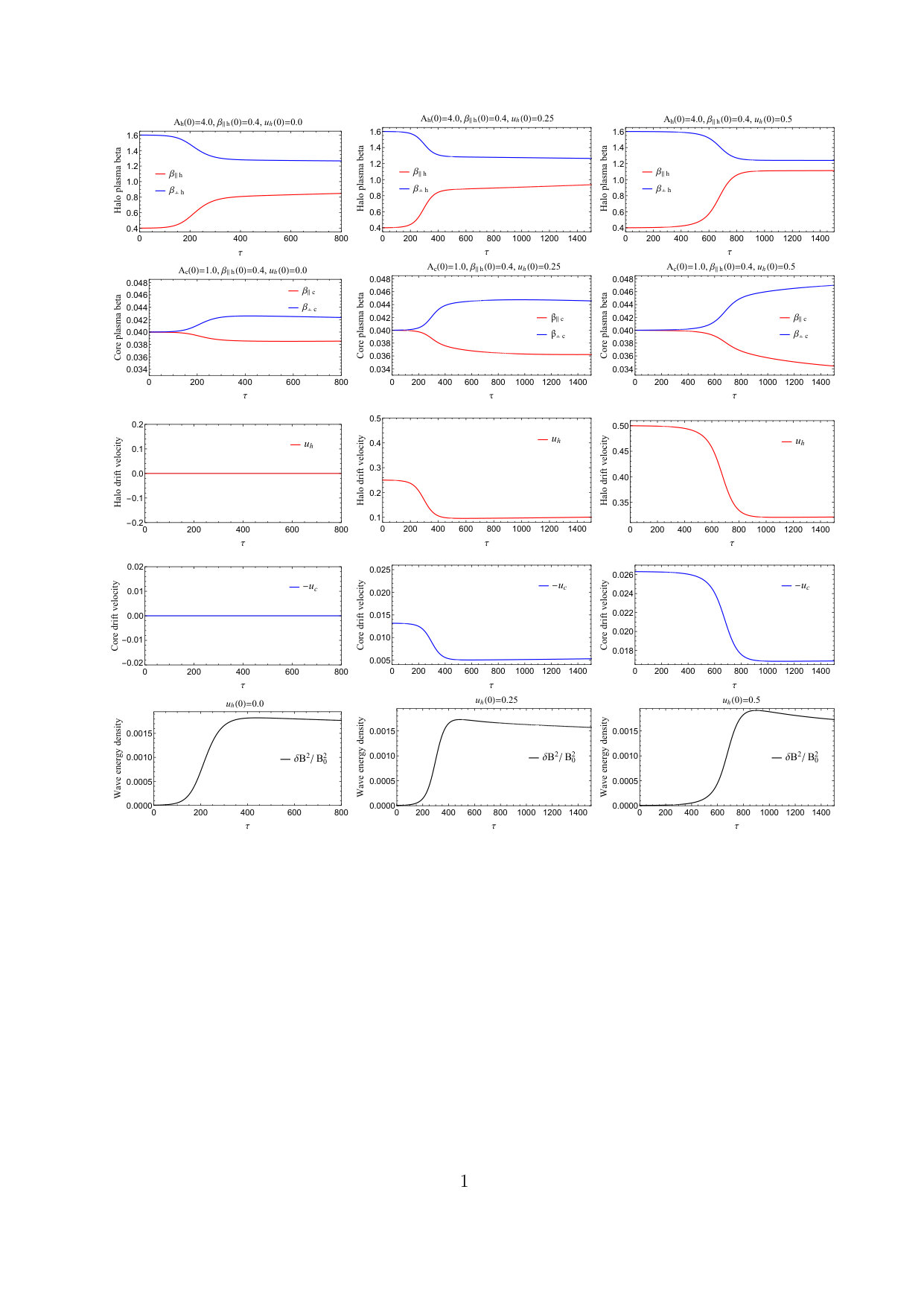

We resolve the set of QL equations (7) and (8) for the initial parameters ($\tau=0$) in Table 1. To do so, we use a discrete grid in the positive normalized wave-number $\tilde{k}-$space, i.e.  $0.1\leavevmode\nobreak\ <\leavevmode\nobreak\ \tilde{k}<\leavevmode\nobreak\ 1.6$, with $N_{k}=400$ points separated by $d\tilde{k}=0.04$. The initial wave spectrum is assumed to be constant over the initially unstable $\tilde{k}-$space (Yoon, 1992), and here we have adopted an arbitrary value of $5\times 10^{-6}$. The linear (instantaneous) dispersion relation (3) for WI can be solved using the plasma parameters and the magnetic wave energy at time step $\tau=t\leavevmode\nobreak\ |\Omega_{e}|$. The results at this moment in time are the unstable solutions of the WI, i.e., growth rate and wave-frequency as functions of $\tilde{k}$. By using these solutions we then compute the integrals defined in the QL equations and evaluate the time derivative of each plasma parameters for both the core and halo populations. Then we allow the whole system to evolve to the next step $\tau+d\tau$ by using the second order leapfrog-like method. Numerical integration is performed between $0\leqslant\tau\leqslant 1500$ with time step of $d\tau=0.1$. It is well known that such plasma systems conserve momentum and energy (that corresponds to the sum of the plasma particles energies, i.e., temperatures and drifts velocities, and the plasma waves energy). Excess of plasma particle free energies drives instabilities enhancing the electromagnetic fluctuations, i.e., the wave energy. In turn, the enhanced fluctuations scatter particles to the quasi-stable state, reducing the anisotropy of particle distributions through wave-particle interaction (Moya et al., 2011; Yoon et al., 2012; Shaaban et al., 2019b; López et al., 2019). Figure 1 displays temporal profiles for the plasma beta parameters ($\beta_{\perp,\parallel}\equiv 8\pi n_{0}k_{B}T_{\perp,\parallel}/B_{0}^{2}$), parallel (red) and perpendicular (blue) components for the halo (subscript $h$) and core (subscript $c$) populations, and their drift velocities $u_{h,c}$, as well as the corresponding increase of the wave magnetic power $\delta B^{2}/B_{0}^{2}$ (bottom). Here we consider the core initially isotropic ($A_{c}(0)=1$), and halo with $A_{h}(0)=4.0$ and initial drifts defining three cases: $u_{h}(0)=\leavevmode\nobreak\ 0.0$ (left), 0.25 (middle), and 0.5 (right). The effects of whistler fluctuations on the core and halo populations can be explained by the resonant heating and cooling mechanisms, combined with an adiabatic scattering and diffusion of particles in velocity space. Initially anisotropic, the halo electrons are subject to perpendicular cooling (blue) and parallel heating (red), while the isotropic core electrons experience perpendicular heating (blue) and parallel cooling (red). After relaxation, both components end up with small (and similar) temperature anisotropies. Moreover, drift velocities reduce in time to lower but finite values. It is worth to outline the advantage of using a QL analysis that can unveil the energy transfer between electron populations during the instability excitation, e.g., the initially isotropic core gains free energy, i.e., temperature anisotropy in perpendicular direction $\beta_{\perp\leavevmode\nobreak\ c}>\beta_{\parallel\leavevmode\nobreak\ c}$. If the halo drift velocity is initially higher, i.e. $u_{h}(0)=0.5$ (right panels), all temporal variations change, namely, the halo becomes less anisotropic, the initially isotropic core ($A_{c}(0)=1.0$) becomes more anisotropic ($A_{c}>1.0$), and the level of saturated fluctuations increases. By comparison to the first case without drifts ($u_{b}=0.0$), all these processes (and mechanisms involved) are delayed in time by a factor of $\sim 1.5$ for $u_{b}=0.25$, and $\sim 3$ for $u_{b}=0.5$. This delay is consistent with predictions from linear theory that shows an inhibition of whistlers, with maximum (peaking) growth rates decreasing for finite drifts, by a factor of $\sim 1.5$ for $u_{b}=0.25$, and $\sim 3$ for $u_{b}=0.5$, see, for instance, figure 3 in Shaaban et al. (2018b).

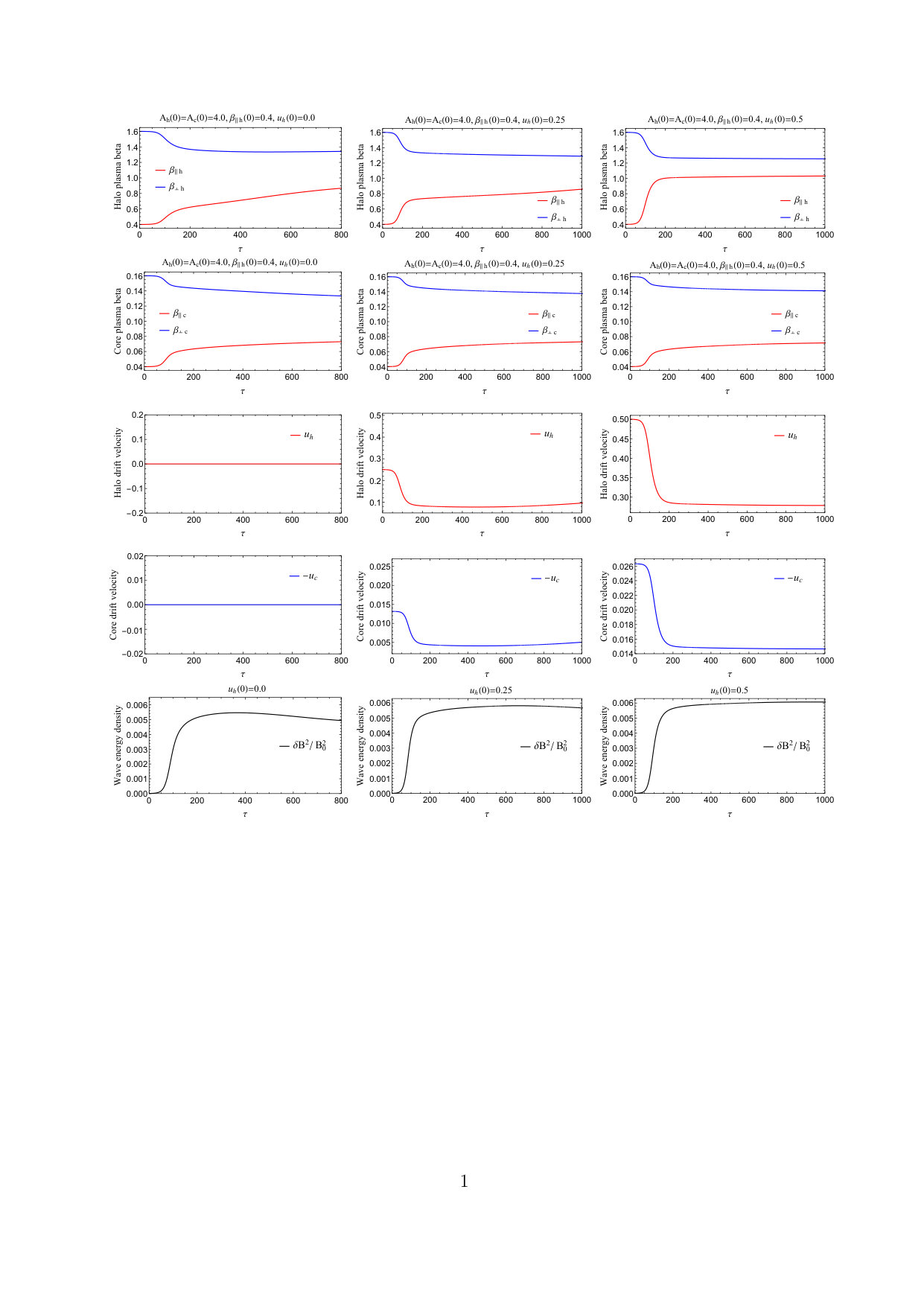

Figures 2 presents temporal profiles for the same plasma parameters, but for different initial conditions assuming that both halo and core electrons possess similar initial anisotropies $A_{h}(0)\simeq A_{c}(0)=4.0$. The rest of the initial plasma parameters are the same as in Figure 1. In this second case, both the core and halo electrons reduce their temperature anisotropies and drift velocities, leading to higher wave powers at the saturation. An initially anisotropic core ($A_{c}(0)=4.0$) determines a faster relaxation. These results are in perfect agreement with recent studies which strongly suggest that electron kinetic instabilities are markedly stimulated by the interplay of the core and halo temperature anisotropies (Lazar et al., 2018a; Shaaban et al., 2019a). A higher initial drift $u_{h}(0)$=0.5 has visible consequences on temperature anisotropy of the halo electrons which decreases to lower values, but only slightly affects the time evolution of the core anisotropy. Predictions from linear theory show a similar influence of the drift velocity on the WI driven by the temperature anisotropy: Increasing the halo drift velocity $u_{h}$ stimulates the instability driven by the core anisotropy ($A_{c}>1$), but inhibits the fluctuations triggered by the halo anisotropy ($A_{h}>1$) (Shaaban et al., 2018b). For cases with $u_{h}\neq 0$, the relaxation of the drift velocity contributes to isotropization of the halo electrons and to an increase of the core anisotropy that feeds the instability and enhances the wave energy. This complex scenario may be explained by a transfer of energy and momentum between core and halo electrons, and the enhanced fluctuations.

4.2 Constraints on the observed temperature anisotropies

In order to emphasize the importance of the present study, in this section we perform a comparative analysis of the new anisotropy thresholds predicted by our QL approach for the cumulative whistler instability and temperature anisotropy of quasi-stable states, as reported by the observations of solar wind electrons. The observational data set is selected from roughly 120 000 events detected in the ecliptic by three spacecrafts, Helios I,

• Cluster II*, and Ulysses at different heliocentric distances from the Sun, i.e. $0.3-3.95$ AU. Figure 3 and  4 display the observational data for the electron populations from slow (with $V_{SW}<500$ km s*-1*) and fast winds (with $V_{SW}>500$ km s*-1*), respectively. Distinction is also made between halo (left panels) and core (right panels) electron populations. As already mentioned, these observational data are selected from the events associated with thermalized halo components (described by a $\kappa$-distribution with large enough $\kappa>6$), for which the effects of the suprathermal populations on the QL saturation of WI and the relaxation of the anisotropic distribution are only minor (Lazar et al., 2018b). Occurrence rates showing the number of events in bins of temperature anisotropies $T_{\perp\leavevmode\nobreak\ a}/T_{\parallel\leavevmode\nobreak\ a}$ versus parallel plasma beta $\tilde{\beta}_{\parallel\leavevmode\nobreak\ a}\equiv n_{a}\leavevmode\nobreak\ \beta_{\parallel\leavevmode\nobreak\ a}/n_{e}$ (subscript ”$a=h$” for halo and ”$a=c$” for core) are color-coded using a blue-green-yellow color scheme. Unlike the results obtained by Adrian et al. (2016), using a bulk model of the solar wind electrons, our calculations are based on a realistic dual model, which captures not only the effects of temperature anisotropy but also the influence of the core–halo relative drift characteristic to fast winds.

The observational data are contrasted with the anisotropy thresholds of WI as resulted from the interplay of the halo and core electron populations for non-drifting velocities $u_{h}=\leavevmode\nobreak\ 0$ in Figure 3 and finite drifts $u_{h}\neq 0$ in Figure 4. These thresholds are derived for different maximum growth rates $\gamma_{m}/|\Omega_{e}|=\leavevmode\nobreak\ 10^{-2},10^{-3},10^{-4}$, and are described with a general fitting law (Lazar et al., 2014)

[TABLE]

Fitting parameters $a$, $b$, $c$ and $d$ are tabulated in Tables 2–4.

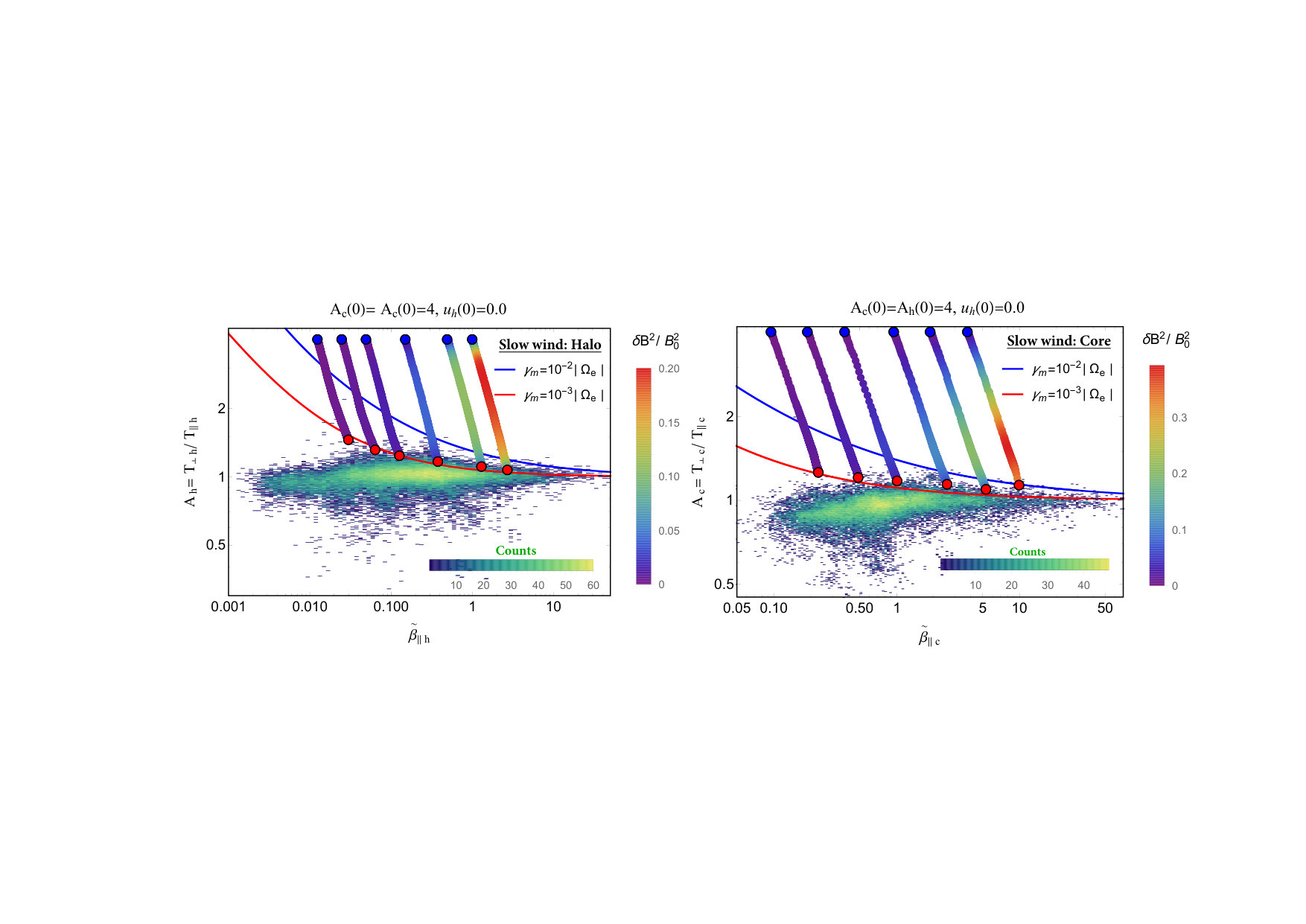

Figure 3 enables a comparison of observational data, halo (left) and core (right) electron populations from slow winds ($V_{SW}<500$ km s*-1* and $u_{a}=\leavevmode\nobreak\ 0$), with the WI thresholds and the QL dynamical paths obtained for different initial plasma betas, i.e., $\tilde{\beta}_{\parallel\leavevmode\nobreak\ h}(0)=\leavevmode\nobreak\ 0.0125,\leavevmode\nobreak\ 0.02,\leavevmode\nobreak\ 0.05,\leavevmode\nobreak\ 0.15,\leavevmode\nobreak\ 0.5,\leavevmode\nobreak\ 1$, and $\tilde{\beta}_{\parallel\leavevmode\nobreak\ c}(0)=\leavevmode\nobreak\ 0.095,\leavevmode\nobreak\ 0.19,\leavevmode\nobreak\ 0.38,\leavevmode\nobreak\ 0.95,\leavevmode\nobreak\ 1.9,\leavevmode\nobreak\ 3.8$, in a $(A_{a},\tilde{\beta}_{\parallel\leavevmode\nobreak\ a})$ diagram. The initial positions, i.e. $A_{a}(0)-\tilde{\beta}_{\parallel\leavevmode\nobreak\ a}(0)$, are marked with blue-filled circles, while after saturation the final positions, i.e. $A_{a}(\tau_{m})-\tilde{\beta}_{\parallel\leavevmode\nobreak\ a}(\tau_{m})$, are indicated by red-filled circles. The levels of the wave energy density $\delta B^{2}/B_{0}^{2}$ are coded with rainbow color scheme. We observe that the initial anisotropies are reduced in time toward the quasi-stable regimes and end up exactly to the WI threshold with a maximum growth rate $\gamma_{m}=10^{-3}|\Omega_{e}|$ (red line) predicted by the linear theory. To be consistent with our dual model in Eq. (2) the electron data is more selective and more restrictive than data set used in Štverák et al. (2008), but the new WI thresholds derived from a dual model show a clear trend to approach and shape the anisotropy limits for both the halo (left panel) and core (right panel) components. Moreover, final quasi-stable states resulted from dynamical paths of the halo (left) and core (right) anisotropies, can explain the observed more quasi-stable states of lower anisotropies.

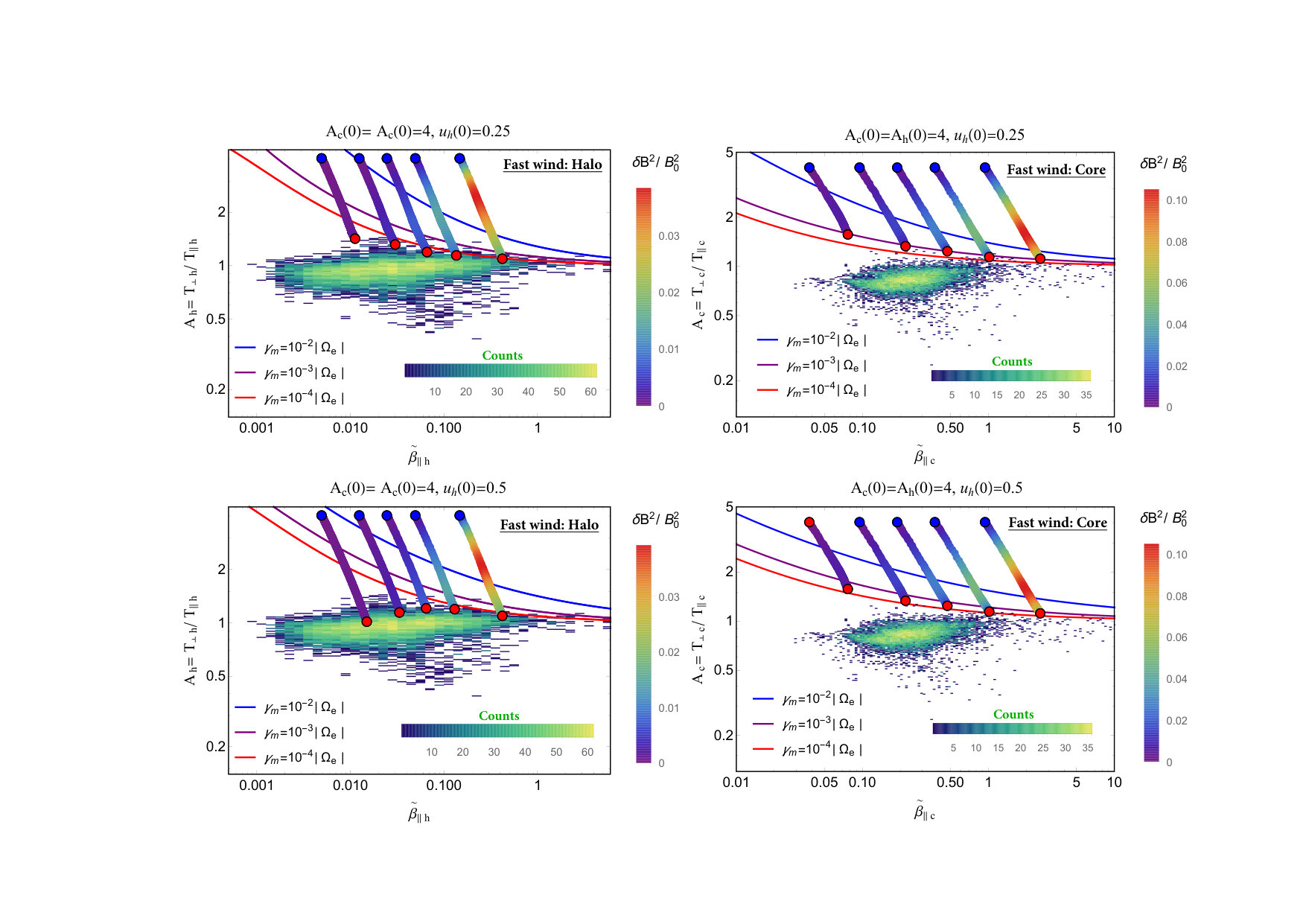

Figure 4 describes the effects of finite drift velocities $u_{h}(0)=\leavevmode\nobreak\ 0.25$ (top) and $u_{h}(0)=0.5$ (bottom) on WI thresholds and the dynamical paths of temperature anisotropies, and contrast them with temperature anisotropies reported by the observations for the halo (left) and core (right) electrons. We use the same $(A,\tilde{\beta}_{\parallel})$ diagrams assuming for the initial anisotropies $A_{h}(0)=A_{c}(0)=4$. Dynamical paths are derived for different initial plasma betas, e.g., $\tilde{\beta}_{\parallel\leavevmode\nobreak\ h}(0)=\leavevmode\nobreak\ 0.005,\leavevmode\nobreak\ 0.015,\leavevmode\nobreak\ 0.025,\leavevmode\nobreak\ 0.05,\leavevmode\nobreak\ 0.15$. For the halo electrons the WI thresholds show the same clear trend to approach and shape the observed limits of temperature anisotropy. However, linear thresholds increase with increasing the halo drift velocity, i.e., from $u_{h}=0.25$ to 0.5 [confirming the inhibiting effect of the halo drift velocity on the WI growth rates reported in Shaaban et al. (2018b)], that seems to reduce their relevance with respect to the observations for low $\tilde{\beta}_{h,\parallel}<0.1$. As already discussed above, more relevant in this case are dynamical paths from QL theory, which allow to recover the quasi-stable states of lower anisotropies reported by the observations. These differences (including those determined by a variation of $u_{h}$) decrease with increasing $\beta_{\parallel\leavevmode\nobreak\ h}$. One possible explanation of this behavior can be given by the electrons with higher thermal velocities ($\beta_{\parallel}\propto v_{\parallel}^{2}$), which reduce the effectiveness of the halo drift velocity.

The core electrons and the corresponding thresholds and dynamical paths are shown in Figure 4, right panels, using a $(A_{c},\tilde{\beta}_{\parallel\leavevmode\nobreak\ c})$ diagram and the following initial plasma parameters $A_{c}(0)=A_{h}(0)=4.0$, $u_{h}(0)=0.25$ (top), $u_{h}(0)=0.5$ (bottom), and $\tilde{\beta}_{\parallel\leavevmode\nobreak\ c}(0)=\leavevmode\nobreak\ 0.038,\leavevmode\nobreak\ 0.095,\leavevmode\nobreak\ 0.19,\leavevmode\nobreak\ 0.38,\leavevmode\nobreak\ 0.95$. The WI thresholds and dynamical paths show the same tendency to shape the limits of temperature anisotropy from observations, but a more satisfactory agreement is obtained only for a sufficiently high $\tilde{\beta}_{c,\parallel}>0.5$, where the level of unstable fluctuations is also markedly enhanced. The agreement between theory and observations is only qualitatively achieved in this case, suggesting that larger deviations from isotropy (which are not captured by our data of low time resolution) are actually constrained by the enhanced fluctuations resulting from a cumulative whistler instability. In the fast wind the core electrons may be more collisional retaining a higher thermalization from collisions, a feature that is missing in our collisionless plasma approach, but which may explain the near isotropic states from the observations (Štverák et al., 2008; Yoon, 2016). Instead, the halo electrons are more dilute and hotter, and therefore less affected by collisions but more susceptible to instabilities, which explain the good quantitative agreement obtained in left panels. In order to gain a reliable understanding on the interplay of electron core–halo relative drift and temperature anisotropy by isolating their effects on whistlers, in the present study we have analyzed only the events with a reduced influence of suprathermal electrons assuming both the core and halo Maxwellian distributed. Linear theory predicts a stimulation of kinetic instabilities in the presence of suprathermals, leading to higher growth rates and lower thresholds (Viñas et al., 2015; Lazar et al., 2017a; Shaaban et al., 2018a). However, our present results strongly suggest that future studies need to include these populations in extended QL and nonlinear approaches to provide a realistic picture of their implications.

5 Conclusions

In the present manuscript we have characterized the long-run time evolution of whistler instability cumulatively driven by temperature anisotropy ($A_{e}=T_{e,\perp}/T_{e,\parallel}>1$) and counter-drifting electron populations, commonly encountered in the fast solar wind. The interplay of these two sources of free energy anisotropic temperature can markedly alter the QL evolution and saturation of the enhanced fluctuations, and implicitly the relaxation of the initial eVD. Studied here are the effects on the macroscopic plasma parameters such as plasma betas, temperature anisotropies, and drift velocities of both core and halo electrons.

The relaxation of plasma parameters depends on the initial conditions, for which we considered two distinct cases. First we assumed an initially isotropic core $A_{c}(0)=T_{c,\perp}/T_{c,\parallel}=1$, motivated by the fact that the core electron population is a central component, much cooler and denser than the halo, and often showing lower deviations from isotropy. In the second case, both the core and halo were assumed having similar temperature anisotropies $A_{c}(0)\simeq A_{h}(0)>1$. An initially isotropic core gains some energy from the RH-polarized electromagnetic fluctuations, and reaches a small temperature anisotropy in direction perpendicular to the magnetic field. The (counter-)drifting core-halo velocities $u_{c,h}\neq 0$ are another important factor that in general stimulates the relaxation of initial distributions, and implicitly the energy transfer through parallel heating and perpendicular cooling mechanisms. More exactly, it determines a faster relaxation, and increases the level reached by the fluctuating magnetic energy densities. However, the effects on temperature anisotropies are opposite, leading to a more anisotropic core and a less anisotropic halo in the final states. For instance, in Figure 2, when both the core and halo populations are initially anisotropic, i.e., $A_{c}(0)\simeq A_{h}(0)>1$, and $u_{h}=0.5$, halo anisotropy after relaxation is distinctly much lower than that of the core. In all cases relaxation of the core and halo drifts is very modest, drifting velocities decreasing to values slightly lower than initial conditions.

Section 4.2 presents a comparative analysis of these new results predicted by a QL approach for both core and halo anisotropies, and the upper limits of the observed electron anisotropies in slow and fast solar winds. For non-drifting core and halo electron populations, i.e. $u_{c,h}=0$, final quasi-stable states from dynamical paths of the temperature anisotropies align to the anisotropy limits of the core and halo anisotropies reported by the observations in the slow winds ($V_{SW}<500$ km s*-1*), and to anisotropy thresholds from linear theory (Štverák et al., 2008). In the absence of relative drifts the instability thresholds predicted by linear theory coincide with the quasistable states resulted from a QL approach. In the fast winds, i.e. $V_{SW}>500$ km s*-1*, the relative drifts increase and cannot be neglected, i.e., $u_{a}\neq 0$. Thresholds of WI increase moving away from the observed limits of temperature anisotropies with increasing the drift velocity, e.g., for  $u_{h}=0.5$, and linear theory may show an agreement with the observations only for large $\tilde{\beta}_{\parallel\leavevmode\nobreak\ h}>0.1$ and very low growth rates $\gamma_{m}=10^{-4}|\Omega_{e}|$. The intensity of fluctuations so produced would be too low to account for a constraining effect on particles. However, for the halo population, which is more susceptible to kinetic instabilities, dynamical paths from our new QL approach reach more quasi-stable states of lower anisotropies, as reported by the observations in the fast winds. It seems also that this effect of whistler fluctuations on the temperature anisotropy of halo populations increases with increasing the drift velocity. The resolution of the invoked observations is below the one that may allow us to capture the unstable states, but as mentioned in the paper, these observations reveal the quasi-stable states expected to be found below the instability thresholds.

We conclude stating that anisotropy thresholds provided by linear theory for kinetic instabilities cumulatively driven by distinct sources of free energy may have a reduced relevance with respect to the observations, and therefore cannot explain the limits of the observed temperature anisotropy of electrons in the fast winds. Instead, we have shown that dynamical paths computed from an extended QL approach may provide a plausible explanation for the quasistable states after the relaxation, and, implicitly, for the observations. Present analysis may be even more extended to include the contribution of collisions (Štverák et al., 2008; Yoon, 2016), which may explain lower anisotropies of the core populations in the fast wind. Numerical simulations need to confirm the QL evolution and explain the nonlinear saturation of the instability (e.g., Moya et al. (2012); Seough et al. (2014); Moya et al. (2014); Lazar et al. (2018b), but this will be the object of our future investigations.
